KODAK EASYSHARE

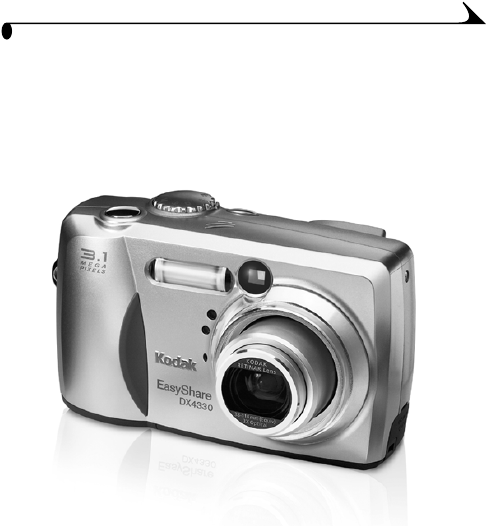

DX4330 Zoom Digital Camera
User’s Guide
Visit Kodak on the World Wide Web at www.kodak.com
Eastman Kodak Company
343 State Street
Rochester, New York 14650
© Eastman Kodak Company, 2002
Kodak and EasyShare are trademarks of Eastman Kodak Company.
P/N 6B8132
i
Product Overview
Front View
1 Shutter button 7 Light sensor
2 Mode dial 8 Lens
3 Flash button 9 DC In
4 Flash unit 10 Lens cap strap post
5 Viewfinder window 11 Microphone
6 Self Timer light 12 Wrist strap post
DX4330
EasyShare
M E G A
S
X
PIEL
4
8
1 2 3 5
12 7
6
11
10
9
ii
Product Overview
Back View
1 Viewfinder 8 Review button
2 Ready light 9 LCD
3 Flash button 10 Menu button
4 Mode dial 11 4-way control
5 Shutter button 12 OK button
6 Zoom (Wide Angle and Telephoto) 13 Delete button
7 Share button
EasyShare
MENU
DELETE
REVIEW
Share
1
13
11
4
9 8
6
532
7
10
12
iii
Product Overview
Side View
1 Video Out
2 Door to:
mSlot for optional MMC/SD card
mUSB port (for computer connection)
1
2
iv
Product Overview
Top, Bottom View
1 Speaker 5 Battery door
2 Flash button 6 Tripod socket
3 Mode dial 7 Dock connector door
4 Shutter button
AUTO
OFF
421 3
765
v
Table of Contents
1 Getting Started ...................................................................1
Install Software First................................................................1
Need This Guide in Larger Print?............................................1
What Can I Do With My Camera?...........................................2
What Can I Do With My Digital Pictures and Videos?.....2
Package Contents..................................................................... 3
Attaching the Wrist Strap .................................................... 4
Attaching the Lens Cap Strap............................................. 4
Adding Optional Lenses .......................................................... 4
Loading the Battery................................................................. 5
Mode Dial Settings................................................................... 6
Turning On the Camera.............................................................7
Setting the Date and Time .................................................... 8
Checking Camera Status Bar ............................................... 9
Inserting an MMC/SD Card...................................................10
Choosing Internal Memory or MMC/SD Card.................... 11
2 Taking Pictures .................................................................13
Taking Pictures in Auto Mode ..............................................13
Taking Pictures in Sport Mode ............................................ 14
Taking Pictures in Night Mode .............................................15
Taking Pictures in Landscape Mode...................................16
Taking Pictures in Close-up Mode ....................................... 17
Liveview—Using the LCD to Frame Your Subject ..........18
vi
Quickview—Reviewing the Picture Just Taken ................19
Using the Auto Focus Framing Marks .............................20
Using the Optical Zoom.......................................................... 21
Using the Digital Zoom........................................................... 21
Using the Flash........................................................................ 22
Still Menus................................................................................24
Putting Yourself in the Picture........................................... 25
Setting Exposure Compensation .......................................26
Setting Long Time Exposure................................................ 27
Setting Picture Quality.........................................................28
Placing the Date on Pictures ..............................................29
Setting the Orientation Sensor.........................................30
Other Features........................................................................30
3 Taking Videos .................................................................... 31
Taking a Video............................................................................ 31
Quickview—Reviewing the Video Just Taken...................32
Video Menus..............................................................................32
Putting Yourself in the Video ..............................................33
Other Features........................................................................34
vii
4 Reviewing Pictures and Videos ................................... 35
Picture and Video Icons ........................................................ 35
Navigating Through Pictures and Videos ........................36
Playing a Video.........................................................................36
Deleting Pictures and Videos...............................................37
Review Menus...........................................................................38
Magnifying Pictures ...............................................................38
Protecting Pictures and Videos From Deletion............. 39
Running a Slide Show ............................................................40
Copying Pictures and Videos............................................... 42
Displaying Video Date............................................................ 43
Viewing Picture/Video Information ..................................... 43
5 Tagging Pictures and Videos ....................................... 45
When Can I Tag My Pictures and Videos?........................ 45
Tagging Pictures for Printing..............................................46
Tagging Pictures and Videos for Emailing........................47
Tagging Pictures and Videos as Favorites .....................48
viii
6 Customizing Your Camera Settings ........................49
To Access Setup Mode/Menus...........................................49
Setup Menus............................................................................49
Changing the Print Quantity Default................................50
Turning Off Quickview .............................................................50
Turning On Liveview In Still Modes ...................................... 51
Turning Off the Shutter Sound ........................................... 51
Setting Video Out................................................................... 52
Selecting a Language ............................................................52
Formatting Internal Memory or MMC/SD Card.............53
Viewing Camera Information ................................................54
7 Installing the Software ................................................. 55
WINDOWS System Requirements .....................................55
MAC OS X System Requirements......................................56
MAC OS 8.6/9.x System Requirements .........................56
Install the Software............................................................... 57
8 Connecting to the Computer ......................................59
Connecting to the Computer...............................................59
Transferring Pictures and Videos to Your Computer . 60
Printing Pictures from Your Computer ........................... 60
Printing From an MMC/SD Card ....................................... 60
Ordering Prints Online .......................................................... 60
ix
9 Using the Optional EASYSHARE Camera Dock II . 61
Camera Dock Package Contents ........................................ 61
Installing the Camera Insert............................................... 62
Connecting the Camera Dock..............................................63
Installing the Battery Pack in the Camera.....................64
Docking the Camera...............................................................65
Charging the Battery Pack..................................................66
Transferring Pictures and Videos...................................... 67
Caution When Using a Tripod .............................................. 67
Earlier Camera Dock Model .................................................68
10 Troubleshooting .............................................................69
Troubleshooting—Camera...................................................69
Troubleshooting—Camera Dock II ...................................... 81
11 Getting Help ....................................................................85
Helpful Web Links ....................................................................85
Help in this Manual ................................................................85
Software Help..........................................................................85
Telephone Customer Support .............................................86
x
12 Appendix ...........................................................................89
Camera Specifications......................................................... 89
Original Factory Settings—Camera.................................. 91
Upgrading Your Software and Firmware..........................92
Tips, Safety, Maintenance ...................................................92
Storage Capacities ................................................................93
Locating Pictures and Videos on a Card .........................94
Card File Naming Conventions ............................................94
Using Your Batteries.............................................................95
Power-Saving Features........................................................ 96
Optional AC Adapter ............................................................ 96
Regulatory Information......................................................... 97
1
1Getting Started
Install Software First
Install the software from the KODAK EASYSHARE Software CD before
connecting the camera (or optional camera dock) to the computer. Failure to
do so may cause the software to load incorrectly.
See the Quick Start Guide or Installing the Software, page 55.
Need This Guide in Larger Print?
For a large print version of this User’s Guide:
1Go to http://www.kodak.com/go/dx4330support.
2Under Explore EasyShare, click Service and Support.
3Under Manuals/Guides, View PDF, click your language to open the User’s
Guide.
4With the User’s Guide open on a WINDOWS-based computer or
MACINTOSH OS 8.6/9.x:
mFrom the File menu, select Print.
mIn the Print window, select Fit to Page.
With the User’s Guide open on MACINTOSH OS X:
mFrom the File menu, select Page Setup.
mChange Scale to 200%.
5Print as usual.
2
Chapter 1
What Can I Do With My Camera?
Capture Still Pictures —Enjoy point-and-shoot operation with flash,
self timer, and zoom features. Use Auto, Sport, Night, Landscape, and Close-up
modes to expand your capabilities.
Capture Videos with Sound —Capture videos as QUICKTIME movies.
Review —Display, protect, and delete pictures and videos. “Tag”
pictures to print, email, and save as Favorites.
Set Up —Customize your camera functions.
What Can I Do With My Digital Pictures
and Videos?
Install the software from the KODAK EASYSHARE Software CD, then:
Transfer—Transfer pictures and videos to your computer.
Share—Print pictures, order prints online, email pictures and videos.
Organize—Use Favorites to organize, find, and retrieve your pictures on the
computer.
Edit—Add special effects to your pictures, make a custom slide show, fix
red-eye, crop, rotate, and much more.
Print—(see page 60) Print pictures directly to your home printer. Order
prints online from Ofoto, a Kodak Company. Or purchase an optional KODAK
Multimedia Card (MMC) or a Secure Digital (SD) card and:
mAutomatically print to any printer with an MMC/SD slot
mMake prints at an MMC/SD-capable KODAK Picture Maker
mTake the card to your local photo retailer for professional printing
Refer to the Quick Start Guide or KODAK EASYSHARE Software Help for details.
Some MACINTOSH operating systems may support limited KODAK EASYSHARE
Software features.
3
Chapter 1
Package Contents
Not shown: User’s Guide, Quick Start Guide, KODAK EASYSHARE Software CD.
(In some countries, the User’s Guide is provided on a CD only.)
* The custom camera dock insert lets your camera fit the optional KODAK
EASYSHARE Camera Dock II. Do not discard. A KODAK EASYSHARE Camera
Dock II may be purchased at your Kodak retail dealer or on our Web site at
http://www.kodak.com/go/accessories. (This camera and dock insert also
operate with the original KODAK EASYSHARE Camera Dock.)
** If your camera was packaged with a KODAK EASYSHARE Camera Dock II, a
KODAK EASYSHARE Ni-MH Rechargeable Battery Pack and AC power adapter
are included. For details, see page 66.
1 Custom Camera Dock insert* 4 USB cable
2 Lens cap with strap 5 CRV3 or equivalent**
3 Audio/Video cable 6 Camera
7 Wrist strap
1
7
2
6
4
3
5
4
Chapter 1
Attaching the Wrist Strap
1Thread the wrist strap as shown.
2Thread the long loop through the short
loop. Pull until secure.
Attaching the Lens Cap Strap
1Thread the lens cap string through the lens
cap strap post.
2Thread the lens cap through the loop. Pull
until secure.
Use the lens cap to protect the lens when
camera is not in use.
Adding Optional Lenses
Purchase optional lenses at your Kodak
retail dealer or on our Web site at
http://www.kodak.com/go/accessories.
Short
Long loop
loop
Lens
threads
5
Chapter 1
Loading the Battery
1Turn off the camera.
2Open the battery door.
3Orient the battery* as shown.
4Close the battery door.
Important Battery Information
The CRV3 battery is not rechargeable.
For acceptable battery life, and to make
sure your camera operates dependably, do
not use alkaline batteries. See page 95
for acceptable battery types.
NOTE: For information on the optional KODAK
Digital Camera AC Adapter, 3-Volt, see
page 96.
* If you purchased the KODAK EASYSHARE Camera Dock II, see page 64 for
details on installing the KODAK EASYSHARE Ni-MH Rechargeable Battery Pack.
CRV3
AA
6
Chapter 1
Mode Dial Settings
* To turn on the flash, see page 22.
Icon Mode Purpose
Off Turns off the camera.
Auto For general picture-taking. Automatically sets
exposure and focus. Flash fires if needed.
Sport For subjects that are in motion. Shutter speed is fast.
Flash fires if needed.
Night For night scenes or low light conditions. Captures
close and background subjects. Flash fires if
needed. In dark scenes, the shutter speed is set
between 1/30 and 1/2 second. Place camera on a
flat, steady surface or tripod to avoid camera shake.
Landscape For distant subjects. Flash does not fire unless you
turn it on.*
Close-up For subjects 2.8 to 28 in. (7 to 70 cm) from the lens
in wide angle, or 11 to 28 in. (28 to 70 cm) in
telephoto. Flash fires if needed.
Video Captures video with sound. Flash does not fire.
AUTO
OFF
Off
7
Chapter 1
Turning On the Camera
1Remove the lens cap.
If the lens cap is not removed, it comes
off automatically when you turn on the
camera.
2Turn the Mode dial from Off to any other
position.
The ready light blinks green while the
camera performs a self-check.
When the ready light glows steady green,
the camera is ready to take pictures (or
videos, if the mode dial is set to ).
In Still and Video modes, a status bar
appears on the LCD.
Adjusting the Display
EasyShare
MENU
DELETE
REVI
Share
Ready light
Mode dial
OK
To Do This
Turn Liveview on so that the LCD can
be used as a viewfinder
Press the OK button. To turn it off,
press the OK button again.
Change the Liveview setting so that it
is on whenever the camera is on
See page 51.
Turn the status bar back on after it
times out
Press .
Turn off the camera 1Turn the Mode dial to Off.
The camera completes
operations that are in process.
2Replace the lens cap.
8
Chapter 1
Setting the Date and Time
The Date & Time screen is displayed the first time you turn on the camera or if
the battery is removed for more than 10 minutes. If this is the first time the
camera has been turned on, go to Step 3.
To set the date and time after that:
1Turn on the camera, then press the Menu
button.
2Press to highlight Setup Menu, then
press the OK button.
3Press to highlight Date & Time, then
press the OK button.
The date format is YYYY/MM/DD. The time
is displayed in a 24-hour format.
4Press to adjust the date and time.
Press to move to the next setting.
5When finished, press the OK button.
6Press the Menu button to exit the menu.
The setting remains until you change it.
NOTE: Depending on your computer operating system, KODAK EASYSHARE
Software may allow your computer to automatically update the camera
clock when you connect the camera. See the KODAK EASYSHARE
Software Help for details.
EasyShare
MENU
DELETE
REVIE
Share
Menu
OK
9
Chapter 1
Checking Camera Status Bar
To check the current camera settings, turn
the Mode dial from the Off position.
For flash icons, see page 22.
For Share icons, see page 45.
Status Bar Icons (Top of LCD)
Status bar icons depict enabled features and settings:
Screen Icons (Bottom of LCD)
Screen icons depict the current mode or a battery concern:
Status
Bar
Screen
Icon
Date stamp Long time
exposure
Exposure
compensation
Self Timer Flash mode
Quality Pictures remaining Current Storage location
Auto Sport Night Landscape Close-up Review Video
Share Low battery Exhausted battery (blinking)
Good
Best
Better 015
Internal memory
Memory Card
Share
10
Chapter 1
Inserting an MMC/SD Card
Optional MMC/SD cards provide removable, reusable storage for pictures and
videos.
CAUTION:
The card can only be inserted one way; forcing it may
damage the camera or card.
Do not insert or remove a card when the green ready light
is blinking; doing so may damage your pictures, card, or
camera.
To insert an MMC/SD card:
1Turn off the camera.
2Open the card door.
3Orient the card as shown on the card door.
4Push the card into the slot to seat the
connector. (To remove the card, push it in,
then release it. When the card is partially
ejected, pull it out.)
5Close the door.
See page 93 for storage capacities. Purchase cards at
http://www.kodak.com/go/accessories.
Notched
corner
of card
11
Chapter 1
Choosing Internal Memory or MMC/SD
Card
The camera offers two options for storing pictures and videos:
Internal Memory —store pictures and videos in internal memory.
MMC/SD Card —store as many pictures and videos as you like,
depending on the size of the card. Purchase cards at
http://www.kodak.com/go/accessories. For storage capacities, see page 93.
Managing Your Storage Location Setting
1Turn on the camera.
2Press the Menu button.
3Press to highlight Image Storage , then press the OK button.
4Press to highlight an option, then
press the OK button:
Auto (default)—the camera uses the card
if one is in the camera. If not, the camera
uses internal memory.
Internal Memory—the camera always
uses internal memory, even if a card is
installed.
5Highlight Continue, then press the OK button again.
The setting remains until you change it and applies to all camera
functions.
6Press the Menu button to exit the menu.
EasyShare
MENU
DELETE
REVIEW
Menu
12
Chapter 1
Checking Your Storage Setting
In Still and Video modes, the storage location icon that appears in the status
bar indicates the camera’s storage location. To check the location, either:
mTurn the Mode dial from the Off position, or
mIn any capture mode, press .
—Memory Card
—Internal Memory
Checking a Picture or Video’s Location
In Review mode, the storage location icon that appears with a picture
indicates the location of the picture or video and the camera setting.
Press the Review button.
—Picture or video is stored on a card
—Picture or video is stored in internal
memory
Picture or
video location
Picture or
video location
13
2Taking Pictures
The camera is ready to take pictures when you turn it on—even if you are in
Review, Share, or Setup. (In Video mode, the camera captures video.) Before
you take a picture, make sure your picture storage location is set the way you
want it (see page 11).
Taking Pictures in Auto Mode
Use Auto for general picture-taking. Exposure, focus, and flash are automatic.
1Turn the Mode dial to .
The LCD displays a mode description. To
interrupt the description, press .
2Use the viewfinder or LCD to frame your
subject. (To turn the LCD Liveview on or off,
press the OK button.)
3Press the Shutter button half-way to set
the exposure and focus. (Otherwise, the
picture could be too dark, light, or blurry.)
4When the ready light glows green, continue pressing the Shutter button
completely down to take the picture.
The ready light blinks green while the picture is saved. The ready light
blinks orange while the flash is recharging (or if there is an
auto-exposure or auto-focus error).
Ready light
Default flash setting: Auto
Available flash settings: Auto, Flash Off, Fill Flash, Red-eye
Camera returns to default: When you change modes or turn off the
camera.
14
Chapter 2
Taking Pictures in Sport Mode
Use this mode when the subject is in motion.
1Turn the Mode dial to .
The LCD displays a mode description for a
few seconds. To interrupt the description,
press
2Press the Shutter button half-way to set
the exposure and focus.
3When the ready light glows green, continue
pressing the Shutter button completely
down to take the picture.
The ready light blinks green while the
picture is saved.
Ready light
Default flash setting: Auto
Available flash settings: Auto, Flash Off, Fill Flash, Red-eye
Camera returns to default: When you change modes or turn off the
camera.
15
Chapter 2
Taking Pictures in Night Mode
Use this mode for night scenes or low light conditions. The flash illuminates
close subjects. A longer exposure captures more detail of background
subjects.
1To avoid blurry pictures, place the camera
on a flat, steady surface or use a tripod.
2Turn the Mode dial to .
The LCD displays a mode description for a
few seconds. To interrupt the description,
press .
3Press the Shutter button half-way to set
the exposure and focus.
4When the ready light glows green, continue
pressing the Shutter button completely
down to take the picture.
The ready light blinks green while the
picture is saved.
Auto Mode Night Mode
Ready light
Default flash setting: Auto
Available flash settings: Auto, Flash Off, Fill Flash, Red-eye
Camera returns to default: When you change modes or turn off the
camera.
16
Chapter 2
Taking Pictures in Landscape Mode
Use this mode to capture subjects further than 57.4 ft (17.5 m), such as
landscape scenes.
1Turn the Mode dial to .
The LCD displays a mode description for a
few seconds. To interrupt the description,
press .
2Press the Shutter button half-way to set
the exposure.
3When the ready light glows green, continue
pressing the Shutter button completely
down to take the picture.
The ready light blinks green while the
picture is saved.
Ready light
Default flash setting: Off
Available flash settings: Auto, Flash Off, Fill Flash, Red-eye
Camera returns to default: When you change modes or turn off the
camera.
17
Chapter 2
Taking Pictures in Close-up Mode
Use this mode to capture subjects this close to the lens:
mWide angle: 2.8 to 28 in. (7 to 70 cm)
mTelephoto: 11 to 28 in. (28 to 70 cm)
1Turn the Mode dial to .
The LCD displays a mode description for a
few seconds. To interrupt the description,
press .
2Press the Shutter button half-way to set
the exposure and focus.
3When the ready light glows green, continue
pressing the Shutter button completely
down to take the picture.
The ready light blinks green while the
picture is saved.
Ready light
Default flash setting: Off
Available flash settings: Auto, Flash Off, Fill Flash, Red-eye
Camera returns to default: When you change modes or turn off the
camera.
18
Chapter 2
Liveview—Using the LCD to Frame Your
Subject
When you turn on Liveview, the LCD displays a live image of what the lens sees.
Use the LCD to frame your subject.
1Turn the Mode dial to any Still position.
The LCD displays a mode description for a
few seconds. To interrupt the description,
press .
2Press the OK button to turn on Liveview.
3Frame your subject in the LCD.
4Press the Shutter button half-way to set
the exposure and focus, then continue
pressing completely down to take the
picture.
5To turn off Liveview, press the OK button.
NOTE: Liveview quickly depletes battery power.
To conserve battery power, turn off
Liveview and use the Viewfinder to frame
your subject.
To change the Liveview setting so that it is on whenever the camera is on, see
page 51.
Using the Viewfinder
When using the viewfinder to capture close
subjects (3 feet or less), keep the subject
below the parallax marks. For even more
accurate framing results, turn on Liveview.
(Liveview depicts what the lens “sees.”)
OK
Mode dial
Parallax
marks
Auto
focus
zone
19
Chapter 2
Quickview—Reviewing the Picture Just
Taken
After you take a picture, the LCD displays a Quickview of that picture for
approximately 5 seconds. While the picture is displayed, you can:
mReview it: If you take no action, the picture
is saved.
mShare it: Press the Share button to tag the
picture for print, email, or as a Favorite.
(See Tagging Pictures and Videos, page 45.)
mDelete it: Press the Delete button while the
picture and are displayed.
To save battery power, you can turn off the Quickview feature. (See page 50.)
EasyShare
MENU
DELETE
REVIEW
Share
Delete Share
20
Chapter 2
Using the Auto Focus Framing Marks
For the best possible pictures, the camera attempts to focus on foreground
subjects (even if the subjects are not centered in the scene).
NOTE: Auto Focus framing marks appear only when the LCD is turned on. The
framing marks do not appear in Landscape mode.
1In any Still mode (except Landscape), press the OK button.
The LCD turns on.
2Press the Shutter button half-way to set the exposure and focus.
The Auto Focus framing marks depict the main focus area or areas. If
the camera is not focusing on the desired subject, release your finger,
recompose the scene, and repeat Step 2.
3Continue pressing the Shutter button completely down to take the
picture.
While Shutter Button is Pressed Half-way
Center focus
Center wide focus
Side focus
Center and side focus
Left and right focus
21
Chapter 2
Using the Optical Zoom
Use Optical Zoom to get up to 3X closer to your subject. When you turn on the
camera, the lens extends to the Wide Angle position.
1Use the viewfinder or LCD to frame your
subject.
2Press the Telephoto (T) button to zoom in.
Press Wide Angle (W) button to zoom out.
The lens extends or retracts. The
viewfinder or LCD displays the zoomed
image.
3Press the Shutter button half-way to set
the exposure and focus, then continue
pressing completely down to take the
picture.
NOTE: The lens retracts when the camera is
turned off.
Using the Digital Zoom
Use Digital Zoom to get an additional 3.3X magnification beyond Optical Zoom.
IMPORTANT: Even with the camera’s Advanced Digital Zoom, you
may notice a decrease in image quality when using
Digital Zoom.
1Press the OK button to turn on Liveview.
2Press the Telephoto (T) button to the Optical Zoom limit. Release the
button, then press it again.
The LCD displays the zoomed image and the magnification level.
3Press the Shutter button half-way to set the exposure and focus, then
continue pressing completely down to take the picture.
are
Telephoto
Wide angle
22
Chapter 2
Using the Flash
Use the flash when you take pictures at night, indoors, or outdoors in heavy
shadows. The flash setting can be changed in any Still mode; the default flash
setting is restored when the you exit the mode turn off the camera.
Flash Range
mWide angle: 2 to 11.2 ft (0.6 to 3.4 m)
mTelephoto: 2 to 6.6 ft (0.6 to 2.0 m)
Turning On The Flash
1Press the button repeatedly to scroll
through the flash options.
2Press the OK button
The flash icon that is displayed on the
LCD status bar (page 9) is the active
option.
Auto Flash—flash fires when
the lighting conditions require
it.
Off—flash never fires.
Fill—flash fires every time you
take a picture, regardless of the
lighting conditions.
Red-eye—flash fires once so
the subject’s eyes become
accustomed to the flash, then
fires again when the picture is
taken.
Flash
Setting
23
Chapter 2
Flash Settings In Each Mode
Other Flash Screen Information
When choosing a flash setting, the current
camera settings are displayed in the bottom
portion of the screen.
Icon Mode Default
Flash
Setting
Available
Flash Settings
Camera Returns to
the Default Flash
Setting
Auto Auto or
Red-eye
Auto, Flash Off,
Fill Flash,
Red-eye
When you change
modes or turn off the
camera
Sport Auto
Night Auto
Landscape Off
Close-up Off
Long Time
Exposure
Off
Video Off None Flash cannot be
turned on
24
Chapter 2
Still Menus
Self Timer (page 25) Picture Quality (page 28)
Image Storage(page 11) Date Stamp (page 29)
Exposure Compensation
(page 26)
Orientation Sensor
(page 30)
Long Time Exposure
(page 27)
Setup Menu (page 49)
25
Chapter 2
Putting Yourself in the Picture
The Self Timer creates a 10-second delay between the time you press the
Shutter button and the time the picture is taken.
Turn on the Self Timer:
1In any Still mode, press the Menu button.
2Highlight Self Timer , then press the OK
button.
3Highlight On, then press the OK button.
4Press the Menu button to exit the menu.
Take the picture:
1Place the camera on a flat surface or use a
tripod.
2Compose the scene. Press the Shutter
button half-way to set the exposure and
focus, then continue pressing completely
down. Move into the scene.
The red Self Timer light blinks slowly for 8
seconds (then quickly for 2 seconds)
before the picture is taken.
The Self Timer turns off after the picture
is taken or if you change modes.
DX4330
EasyShare
Self Timer
light
26
Chapter 2
Setting Exposure Compensation
Use Exposure Compensation to control how much light enters the camera. This
setting is useful for taking pictures in very large rooms, under low light,
without a flash.
Adjust the exposure by plus or minus 2 steps in 1/2-step increments.
NOTE: Exposure Compensation cannot be used with Long Time Exposure.
1In any Still mode, press the Menu button.
2Highlight Exposure Compensation , then press the OK button.
3Press to select the Exposure
Compensation setting.
mIf pictures are too light, decrease the
value.
mIf pictures are too dark, increase the
value.
4Press the OK button to accept the change.
5Press the Menu button to exit the menu.
6Use the LCD to frame your subject. Press the
Shutter button half-way to set the focus,
then continue pressing completely down
to take the picture.
This setting remains until you move the
Mode dial or turn off the camera.
27
Chapter 2
Setting Long Time Exposure
Use Long Time Exposure to control how long the shutter stays open. Settings
are: None, 0.7, 1, 1.5, 2, 3, and 4 seconds.
NOTE: Long Time Exposure cannot be used with Exposure Compensation.
1To avoid blurry pictures, place the camera on a flat, steady surface or use a
tripod.
2In any Still mode, press the Menu button.
3Highlight Long Time Exposure , then press the OK button.
4Press to select an option.
5Press the OK button to accept the change.
6Press the Menu button to exit the menu.
7Use the LCD to frame your subject. Press the
Shutter button half-way to set the focus,
then continue pressing completely down
to take the picture.
This setting remains until you move the
Mode dial or turn off the camera.
Available flash settings: Auto, Flash Off, Fill Flash, Red-eye
Default flash setting: Off
Camera returns to default: When you change modes or turn off the
camera.
28
Chapter 2
Setting Picture Quality
Use the Quality setting to select a picture resolution.
1In any Still mode, press the Menu button.
2Highlight Quality , then press the OK
button.
3Highlight an option:
Best (3.1 MP)—for printing up
to 11 x 17 in.(27.9 x 43.2 cm); pictures are
highest resolution and largest file size.
appears on the status bar.
Better (2.16 MP)—for printing up
to 8 x 10 in. (20.3 x 25.4 cm); pictures are
medium resolution with smaller file size.
appears on the status bar.
Good (778 K)—for emailing or
screen display; pictures are lowest
resolution and smallest file size.
appears on the status bar.
4Press the OK button.
5Press the Menu button to exit the menu.
This setting remains until you change it.
EasyShare
MENU
DELETE
REVIEW
Share
Menu
OK
29
Chapter 2
Placing the Date on Pictures
Use the Date Stamp setting to imprint the date on your pictures.
1Make sure the camera clock is set to the correct date (page 8).
2In any Still mode, press the Menu button.
3Highlight Date Stamp , then press the OK button.
4Highlight an option, then press the OK
button.
5Press the Menu button to exit the menu.
The current date is printed in the bottom
right corner of new pictures. This setting
remains until you change it.
30
Chapter 2
Setting the Orientation Sensor
If you rotate the camera to take a picture (for example, a portrait shot), the
Orientation Sensor rotates the picture so that it is displayed correct side up
during Quickview and Review.
The Orientation Sensor is turned on as the default. You can turn it off so that
pictures are displayed in their original orientation.
NOTE: When your subject is above or below you (such as pictures of an object
in the sky, on the ground, or when pointing down at small objects on a
table), turn off the Orientation Sensor so that pictures are not rotated
unnecessarily.
1In any Still mode, press the Menu button.
2Highlight Orientation Sensor , then press the OK button.
3Highlight On or Off, then press the OK
button.
4Press the Menu button to exit the menu.
This setting remains until you change it.
Other Features
mChoosing Internal Memory or MMC/SD Card, page 11
mTaking Videos, page 31
mTagging Pictures and Videos, page 45
31
3Taking Videos
Use the Video mode to take videos or to customize video-taking settings.
Before you take a video, make sure your picture storage location is set the way
you want it (see page 11).
NOTE: Zoom and flash are not available in Video mode.
Taking a Video
1Turn the Mode dial to Video .
A live image, the status bar, and the
approximate recording time available
appear on the LCD.
2Use the viewfinder or LCD to frame your
subject.
NOTE: To conserve battery power, press the OK
button to turn off the LCD.
3Press the Shutter button using the method that you prefer:
mPress and release—press the Shutter button completely down and
release within 2 seconds. Press the Shutter button again to stop recording.
mPress and hold—continue pressing and holding the Shutter button
completely down. Release the Shutter button to stop recording.
The ready light blinks green and the red Self Timer light glows red while
the camera is recording. Recording stops when you release the shutter
button or when the current storage location is full.
NOTE: See page 93 for video storage capacities.
32
Chapter 3
Quickview—Reviewing the Video Just
Taken
After you take a video, the LCD displays the first frame of the video for
approximately 5 seconds. While the frame is displayed, you can:
mReview it: If you take no action, the video
is saved.
mPlay it: Press the OK button. Press OK again
to pause the video. Press to adjust
the volume.
mShare it: Press the Share button to tag the
video for email or as a Favorite (see
page 45).
mDelete it: Press the Delete button while the
video and are displayed.
To save battery power, you can turn off the Quickview feature. (See page 50.)
When Quickview is turned off, the video is not displayed on the LCD after you
take it.
Video Menus
EasyShare
MENU
DELETE
REVIEW
Share
OK
Delete Share
Self Timer (page 25)
Image Storage(page 11)
Setup Menu (page 49)
33
Chapter 3
Putting Yourself in the Video
The Self Timer creates a 10-second delay between the time you press the
Shutter button and the time video recording begins.
Turn on the Self Timer:
1Turn the Mode dial to Video , then
press the Menu button.
2Highlight Self Timer , then press the OK
button.
3Highlight On, then press the OK button.
4Highlight an option, then press the OK
button:
Unlimited—records until you stop
recording or until storage is full.
Seconds—records for the specified time
or until storage is full.
5Press the OK button to return to the menu.
6Press the Menu button to exit the menu.
NOTE: If the current storage location does not have adequate space, some
video length options are not displayed. See page 93 for video storage
capacities.
34
Chapter 3
Take the video:
1Place the camera on a flat surface or use a
tripod.
2Compose the scene, then press the Shutter
button completely down. Move into the
scene.
The red Self Timer light blinks slowly for 8
seconds, quickly for 2 seconds, then stays
on while the video is recording.
3To stop recording before the specified time,
press the Shutter button.
The Self Timer turns off after you take the
video.
Other Features
mChoosing Internal Memory or MMC/SD Card, page 11
mTagging Pictures and Videos, page 45
DX4330
EasyShare
Self Timer
light
35
4Reviewing Pictures and
Videos
Press the Review button to view and work with pictures and videos that are
stored in internal memory or on a card. Remember, press the Shutter button to
take a picture anytime, even in Review.
1Press the Review button.
The LCD displays the last picture or video
taken or reviewed and the Review icon.
2Press the Review button again to return to
Capture mode.
Picture and Video Icons
EasyShare
MENU
DELETE
REVIEW
Review
Email
Favorite
Print # of copies
Protect
Picture/video number
Picture Location
Low battery
Exhausted battery
02
072
Card
Internal
36
Chapter 4
Navigating Through Pictures and Videos
1Press the Review button.
2Press to scroll backward or forward through pictures and videos.
For fast scrolling, press and hold a button.
Playing a Video
mTo play a video, press the OK button. To
pause, press the OK button during playback.
mTo adjust the volume, press during
playback.
mTo rewind a video, press during playback.
To play the video, press the OK button.
mTo go to the previous or next picture or
video, press while no video is
playing.
EasyShare
MENU
DELETE
REVIEW
Share
OK
37
Chapter 4
Deleting Pictures and Videos
1Press the Review button.
2Press to locate a picture or video, then press the Delete button.
3Highlight an option, then press the OK
button:
PICTURE or VIDEO—deletes the
displayed picture or video.
EXIT—exits the Delete screen.
ALL—deletes all pictures and videos from
your current storage location.
NOTE: Protected pictures and videos cannot be
deleted in this manner. Remove
protection before deleting (page 39).
4After deleting, press to stay in delete mode and scroll to different
pictures and videos. To exit Delete, press the Delete button.
EasyShare
MENU
DELETE
REVIEW
Share
OK
Delete
38
Chapter 4
Review Menus
Magnifying Pictures
Use the Magnify feature to zoom in to different areas of a picture.
1Press the Review button, then locate a picture.
2To magnify at 2X, press the OK button. (Or
press the Menu button, highlight Magnify,
then press the OK button.) To magnify at 4X,
press the OK button again.
The picture is magnified. The Magnify
icon and the magnification value
are displayed.
3Press to navigate to different parts of the picture.
4Press the OK button to redisplay the picture at the 1X (original) size.
5Press to locate a different picture, or press the Review button to exit
Review mode.
Magnify (page 38) Copy (page 42)
Protect (page 39) Video Date Display
(page 43)
Image Storage(page 11) Picture Info(page 43)
Slide Show (page 40) Setup Menu (page 49)
39
Chapter 4
Protecting Pictures and Videos From
Deletion
1Press the Review button, then locate the picture or video to protect.
2Press the Menu button.
3Highlight Protect , then press the OK
button.
The picture or video is protected and
cannot be deleted. The Protect icon
appears with the protected picture or
video.
CAUTION:
Formatting internal memory or
MMC/SD card deletes all
(including protected) pictures,
videos, and email addresses.
4To remove protection, press the OK button again.
5Press the Menu button to exit the menu.
Protect icon
40
Chapter 4
Running a Slide Show
Use the Slide Show to display your pictures and videos on the LCD. To run a
slide show on a television or on any external device, see page 41.
Starting the Slide Show
1Press the Review button, then press the Menu button.
2Highlight Slide Show , then press the OK button.
3Highlight Begin Show, then press the OK
button.
Each picture and video is displayed once,
in the order in which you took them.
Then the camera returns to the menu.
4To cancel the Slide Show, press the OK
button.
Changing the Slide Show Display Interval
The default interval setting displays each picture for 5 seconds. You can
increase the display interval to up to 60 seconds.
1On the Slide Show menu, highlight Interval,
then press the OK button.
2Select a display interval.
To scroll through the seconds quickly,
press and hold .
3Press the OK button.
The interval setting remains until you
change it.
41
Chapter 4
Turning On Slide Show Loop
When you turn on Loop, the slide show is continuously repeated.
1On the Slide Show menu, highlight Loop,
then press the OK button.
2Highlight On, then press the OK button.
When you start a slide show, it repeats
until you cancel it by pressing the OK
button or until battery power is
exhausted. The Loop setting remains until
you change it.
Displaying Pictures and Videos on a Television
You can display pictures and videos on a television, computer monitor, or any
device equipped with a video input. (Images may not look as good on a
television as on a computer monitor or when printed.)
NOTE: Ensure that the Video Out setting is correctly set to NTSC or PAL
(page 52).
1Connect the audio/video cable from the
camera video-out port to the television
video-in port. (Refer to your television
User’s Guide for details.)
The camera LCD turns off; the television
screen acts as the camera display.
2Review pictures and videos on the television
screen.
NOTE: If you connect or disconnect the audio/video cable while a slide show is
running, the slide show stops.
Video
out
42
Chapter 4
Copying Pictures and Videos
You can copy pictures and videos from a card to internal memory or from
internal memory to a card.
Before you copy, make sure that:
mA card is inserted in the camera.
mThe camera’s picture storage location is set to the location from which you
are copying. See Choosing Internal Memory or MMC/SD Card, page 11.
Copy pictures or videos:
1Press the Review button, then press the Menu button.
2Highlight Copy , then press the OK button.
3Highlight an option:
PICTURE or VIDEO—copies the current
picture.
EXIT—returns to the Copy screen.
ALL—copies all pictures and videos from
your selected storage location to the other
location.
4Press the OK button.
A progress bar monitors the copy process until copy is complete. (For
information on picture numbering, see page 94.)
NOTE:
mPictures and videos are copied, not moved. To remove pictures and videos
from the original location after they are copied, delete them (see page 37).
mTags that you applied for print, email, and favorites are not copied.
Protection settings are not copied. To apply protection to a picture or
video, see page 39.
43
Chapter 4
Displaying Video Date
To display the capture date and time (only during video playback on the
camera):
1Press the Review button, then press the Menu button.
2Highlight Video Date Display, then press the OK button.
3Highlight an option, then press the OK
button.
4Press the Menu button to exit the menu.
The capture date and time appear during
video playback on the camera. This
setting remains until you change it.
Viewing Picture/Video Information
1Press the Review button, then press the Menu button.
2Highlight About, then press the OK button.
Information about the picture or video is
displayed.
3To view information on the next or previous
picture or video, press . Press the
Menu button to exit the menu.
45
5Tagging Pictures and Videos
The Share button lets you “tag” your pictures and videos. When they are
transferred to your computer, you can share:
Tagged Pictures
mBy print
mBy email
mAs Favorites, for easy organization on your computer
Tagged Videos
mBy email
mAs Favorites
When Can I Tag My Pictures and Videos?
Tag pictures and videos whenever they appear on the LCD:
mJust after you take them, during Quickview (see page 19 and page 32)
mIn Review mode (see page 35)
NOTE: Tags remain until removed. If a tagged picture or video is copied, the
tag is not copied. For details on organizing, printing, or emailing, see
the Quick Start Guide or KODAK EASYSHARE Software Help.
Print (page 46)
Email (page 47)
Favorite (page 48)
Share
icons
46
Chapter 5
Tagging Pictures for Printing
1Press the Review button, then locate a
picture.
2Press the Share button. Highlight Print ,
then press the OK button.*
3Press to select the number of copies
(0-99). Zero removes the tag for that
picture.
4Press the OK button. Press the Share button
to exit the Share menu.
The Print icon appears on the status
bar. The default quantity is one. (To
change the default, see page 50.)
* To tag all pictures in the storage location, highlight Print All, press the OK
button, then indicate the number of copies as described above. Print All is not
available in Quickview.
To remove the print tagging for all pictures in the storage location, highlight
Cancel Prints, then press the OK button. Cancel Prints is not available in
Quickview.
Printing Tagged Pictures
To print digital pictures, see page 60.
EasyShare
MENU
DELETE
REVIEW
Share
Share
47
Chapter 5
Tagging Pictures and Videos for Emailing
First, use KODAK EASYSHARE Software to create an email address book on
your computer. Then, copy up to 32 email addresses to the camera’s internal
memory. See the Quick Start Guide or KODAK EASYSHARE Software Help for
details.
1Press the Review button, then locate a
picture or video.
2Press the Share button. Highlight Email
, then press the OK button.
3Press to highlight an email address,
then press the OK button. To send the
picture to more than one person, repeat
step 3 for each address.
Selected addresses are noted with a check
mark; the email icon appears on the
status bar.
4To remove a selection, highlight a checked address and press the OK
button. To remove all email selections, highlight Clear All.
5Highlight Exit, then press the OK button.
Your selections are saved.
6Press the Share button to exit the Share menu.
Emailing Tagged Pictures and Videos
When you transfer the tagged pictures and videos to your computer, the KODAK
EASYSHARE Software email screen opens and lets you immediately send the
pictures and videos to the addresses you specified.
See the Quick Start Guide or KODAK EASYSHARE Software Help for details on
address books and emailing.
EasyShare
MENU
DELETE
REVIEW
Share
Share
48
Chapter 5
Tagging Pictures and Videos as Favorites
1Press the Review button, then locate a
picture or video.
2Press the Share button. Highlight Favorite
, then press the OK button.
The Favorite icon appears on the
status bar.
3To remove the tag, press the OK button
again.
4Press the Share button to exit the Share
menu.
Using Favorites On Your Computer
When you transfer tagged pictures and videos to your computer, you can
retrieve, organize, and label them by subject, date, event, or any category you
choose.
See the Quick Start Guide or KODAK EASYSHARE Software Help for details.
EasyShare
MENU
DELETE
REVIEW
Share
Share
FPO
49
6Customizing Your Camera
Settings
Use Setup to customize camera settings according to your preferences.
To Access Setup Mode/Menus
1In any mode, press the Menu button.
2Highlight Setup , then press the OK button.
Setup Menus
Default Print Quantity
(page 50)
Video Out (page 52)
Quickview (page 50) Language (page 52)
Liveview (page 51)Format (page 53)
Shutter Sound (page 51) About (page 54)
Date & Time Set (page 8)
50
Chapter 6
Changing the Print Quantity Default
The Default Print Quantity setting determines the value that is displayed on the
Share Print screen (page 46). The default value is 1.
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Default Print Quantity , then press the OK button.
4Press to indicate the new default
quantity, then press the OK button.
5Press the Menu button to exit the menu.
This setting remains until you change it.
Turning Off Quickview
After you take a picture or video, Quickview displays it on the LCD for
approximately 5 seconds (see page 19 and page 32). To save battery power,
turn off Quickview.
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Quickview , then press the OK button.
4Highlight Off, then press the OK button.
5Press the Menu button to exit the menu.
The picture is not displayed on the LCD
after you take it. To see the picture or
video, press the Review button. This
setting remains until you change it.
51
Chapter 6
Turning On Liveview In Still Modes
The Liveview feature lets you use the LCD as a viewfinder (see page 18). Press
the OK button to turn the LCD on and off.
NOTE: Liveview quickly depletes battery power; use it sparingly. The Liveview
default setting is On in Close-up and Video modes.
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Liveview , then press the OK button.
4Highlight On, then press the OK button.
The live image is displayed whenever the
camera is on. Press the OK button to
manually turn it off and on.
5Press the Menu button to exit the menu.
This setting remains until you change it.
Turning Off the Shutter Sound
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Shutter Sound , then press the OK button.
4Highlight Off, then press the OK button.
No sounds plays when a picture is taken.
5Press the Menu button to exit the menu.
This setting remains until you change it.
52
Chapter 6
Setting Video Out
Video Out matches the camera’s video signal to the standard for your location.
Video Out must be set correctly to run a slide show on a television or other
external device (see page 41).
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Video Out , then press the OK button.
4Highlight an option:
NTSC—used in most countries except
those in Europe and China. The United
States and Japan use NTSC.
PAL—used in Europe and China.
5Press the OK button to accept the change.
6Press the Menu button to exit the menu.
This setting remains until you change it.
Selecting a Language
You can display menus and screen messages in different languages.
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Language , then press the OK button.
4Highlight an option, then press the OK
button.
5Press the Menu button to exit the menu.
Text is displayed in the selected language.
This setting remains until you change it.
53
Chapter 6
Formatting Internal Memory or MMC/SD
Card
CAUTION:
Formatting a card erases all pictures and videos, including
protected files. Formatting internal memory erases all
pictures, videos, and email addresses. (To restore
addresses, see KODAK EASYSHARE Software Help.)
Removing a card during formatting may damage the card.
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight Format , then press the OK button.
4Highlight an option:
MEMORY CARD—deletes everything on
the card; formats the card.
CANCEL—exits without making a change.
INTERNAL MEMORY—deletes everything
in internal memory.
5Press the OK button.
6Highlight Continue Format, then press the OK button.
When the formatting is complete, the Setup menu appears.
54
Chapter 6
Viewing Camera Information
1Press the Menu button.
2Highlight Setup , then press the OK button.
3Highlight About , then press the OK
button.
The camera model and the current
firmware version appear.
4Press the Menu button to exit the menu.
55
7Installing the Software
WINDOWS System Requirements
mPersonal computer for WINDOWS 98, 98SE, ME, 2000, or XP
m233 MHz processor or greater
m64 MB of available RAM (128 MB for WINDOWS XP)
m200 MB of available hard disk space
mCD-ROM drive
mAvailable USB port
mColor monitor with a minimum resolution of 800 x 600 pixels; High Color
(16-bit) or True Color (24-bit) recommended
mInternet access for online printing and emailing
56
Chapter 7
MAC OS X System Requirements
mMACINTOSH computer with a G3 or G4 processor
mMAC OS 10.1.2, minimum
m128 MB of available RAM
m200 MB of available hard disk space
mCD-ROM drive
mBuilt-in USB port
mColor monitor with a minimum resolution of 800 x 600 pixels; thousands
or millions of colors recommended
mInternet access for online printing and emailing
MAC OS 8.6/9.x System Requirements
mPOWERPC-based MACINTOSH computer
mMAC OS 8.6/9.x
m64 MB of available RAM
m200 MB of available hard disk space
mCD-ROM drive
mBuilt-in USB port
mColor monitor with a minimum resolution of 800 x 600 pixels; thousands
or millions of colors recommended
mInternet access for online printing and emailing
NOTE: OS 8.6/9.x do not support the Share button functions. OS X is
recommended for full functionality.
57
Chapter 7
Install the Software
For information on the software applications included on the KODAK
EASYSHARE Software CD, see the Quick Start Guide or the KODAK EASYSHARE
Software Help.
CAUTION:
Install the software from the
KODAK EASYSHARE Software
CD before connecting the
camera or dock to the
computer. Failure to do so may
cause the software to load
incorrectly.
1Before you begin, close all software
applications that are open on your
computer.
2Place the KODAK EASYSHARE Software CD
into the CD-ROM drive.
3Load the software:
WINDOWS-based computer—if the first
install window does not appear, choose Run
from the Start menu and type d:\setup.exe
where d is the drive letter that contains the
CD.
MAC OS 8.6/9.x—on the install window,
click Continue.
MAC OS X—double-click the CD icon on
the desktop, then click the Install icon.
58
Chapter 7
4Follow the on-screen instructions to install the software. If prompted,
restart the computer when the installation is complete.
mSelect Typical to automatically install the most commonly used
applications.
mSelect Custom to choose the applications you wish to install.
NOTE: When prompted, take a few minutes to electronically register your
camera and software. This lets you receive information regarding
software updates and registers some of the products included with the
camera. You must be connected to your Internet service provider to
register electronically. To register later, see
www.kodak.com/go/register.
For further installation help, see the Quick Start Guide.
59
8Connecting to the Computer
CAUTION:
Install the software from the KODAK EASYSHARE Software
CD before connecting the camera or dock to the computer.
Failure to do so may cause the software to load incorrectly.
Connecting to the Computer
You can transfer pictures and videos from the camera to the computer using
either the provided USB cable or the optional KODAK EASYSHARE Camera
Dock or Camera Dock II. See page 61 for connecting with a Camera Dock.
Connecting With the USB Cable
1Turn off the camera.
2Plug the labeled end of the USB cable
into the labeled USB port on your computer.
See your computer User’s Guide for details.
3Plug the other end of the USB cable into the
labeled USB port on the camera.
An optional 3V AC adapter is available for
your camera; it saves battery power when
transferring pictures (see page 96).
NOTE: You can also use a KODAK Multi-Card Reader or KODAK SD Multimedia
Card Reader-Writer to transfer your pictures. See your KODAK retail
dealer or visit http://www.kodak.com/go/accessories.
60
Chapter 8
Transferring Pictures and Videos to Your
Computer
For details on transferring pictures and videos, see the Quick Start Guide or the
KODAK EASYSHARE Software Help.
Printing Pictures from Your Computer
For details on printing pictures from your computer, see the Quick Start Guide
or the KODAK EASYSHARE Software Help.
Printing From an MMC/SD Card
mAutomatically print tagged pictures when you insert your card into a printer
with an MMC/SD slot. See your printer User’s Guide for details.
mMake prints at an MMC/SD-capable KODAK Picture Maker. (We suggest
contacting a location prior to visiting.)
mTake the card to your local photo retailer for professional printing.
Ordering Prints Online
KODAK EASYSHARE Print Service (provided by Ofoto http://www.ofoto.com), is
just one of the many great online print services offered in the KODAK
EASYSHARE Software. You can easily:
mUpload your pictures.
mEdit, enhance, and add borders.
mStore pictures, and share them with family and friends.
mOrder high quality prints, photo greeting cards, frames, and albums—and
have them delivered to your door.
61
9Using the Optional
EASYSHARE Camera Dock II
The KODAK EASYSHARE Camera Dock II makes it easy to transfer your pictures
and videos to the computer.
The Camera Dock is also a rapid battery charger for the included KODAK
EASYSHARE Ni-MH Rechargeable Battery Pack, and supplies power to the
camera. (Only the Battery Pack can be recharged in the Camera Dock.) To
keep the Battery Pack charged, store your camera in the Camera Dock.
You can purchase the KODAK EASYSHARE Camera Dock II at a dealer of
KODAK products or at http://www.kodak.com/go/accessories.
CAUTION:
Install the software from the KODAK EASYSHARE Software
CD before connecting the camera or dock to the computer.
Failure to do so may cause the software to load incorrectly.
Camera Dock Package Contents
1AC power adapter, 7V
Some AC adapters may be different from
the one pictured.
2KODAK EASYSHARE Ni-MH Rechargeable
Battery Pack
3Universal insert
4Camera Dock
5Quick Start Guide (not shown)
4
1
2
3
62
Chapter 9
Installing the Camera Insert
KODAK EASYSHARE digital cameras are packaged with a custom camera insert,
which is used to fit the camera to the Camera Dock.
1Place the front tabs on the custom insert
into the slots in the Camera Dock cavity.
2Fit the insert down into the cavity and snap
the insert into place.
If You Do Not Have the Custom Insert
If you do not have the custom insert that was included with your camera, use
the universal insert that is included with the Camera Dock II.
NOTE: The universal insert works with all KODAK EASYSHARE cameras.
However, it may not match the perfect fit that the custom camera insert
provides. Take extra care when placing the camera in the Camera Dock
so that the dock connector and pins are not damaged.
Order a custom camera insert at http://www.kodak.com/go/accessories.
63
Chapter 9
Connecting the Camera Dock
After the KODAK EASYSHARE Software is loaded (see page 55), connect the
Camera Dock to your computer and to an external power source. You need:
mThe USB cable included with your camera
mThe AC power adapter, 7V included with the Camera Dock
IMPORTANT: Make sure your camera is NOT in the Camera Dock
when you are connecting to power and the computer.
1Plug the labeled end of the USB cable
into the labeled USB port on your computer.
See your computer User’s Guide for details.
2Plug the other end of the USB cable into the
square USB connector on the back of the
Camera Dock.
3Plug the 7V AC adapter into the round
power connector on the back of the Camera
Dock and into a power outlet.
Your AC adapter may be different from
the one pictured or may have additional
plugs. Use the plug that accommodates
your type of power outlet.
Leave the Camera Dock connected to the
computer for easy transferring of pictures
and videos and for charging the Battery
Pack.
IMPORTANT: Use only the 7V AC adapter included with the Camera
Dock. Other adapters may cause damage to your
camera, Camera Dock, or computer.
DC IN 3V
64
Chapter 9
Installing the Battery Pack in the Camera
The Camera Dock will only charge the Battery Pack (not other batteries).
1Turn off the camera.
2Open the battery door.
3Install the Battery Pack as shown.
CAUTION:
The Battery Pack can only be
inserted into the camera as
shown. If the Battery Pack does
not install, reposition it and try
again. DO NOT FORCE IT; doing
so can damage your camera.
4Close the battery door.
IMPORTANT: The Battery Pack is not charged when you receive it.
See page 66 for charging instructions.
65
Chapter 9
Docking the Camera
To transfer pictures and videos from the camera to the computer, or to charge
the Battery Pack:
1Turn off the camera.
2On the camera bottom, slide the connector
cover open.
3Place the camera in the Camera Dock and
push down to seat the connector.
The Power/Transfer light glows
green when the camera is properly
seated.
The camera is now powered by the
Camera Dock instead of the camera
batteries.
NOTE: If a KODAK EASYSHARE Ni-MH Rechargeable Battery Pack is installed in
the camera, the Camera Dock immediately begins charging.
Dock connector
door
Power/
Connector
Transfer
light
66
Chapter 9
Charging the Battery Pack
The Battery Pack is not charged when you receive it.
1Turn off the camera.
2Make sure the Battery Pack is installed in the camera (see page 64).
3Place the camera in the Camera Dock (see page 65).
mCharging begins immediately.
mThe three green charging lights monitor the charging status:
mFull charging takes about 2.5 hours. After the Battery Pack is fully
charged, leave the camera in the Camera Dock to maintain the full
charge.
mCharging stops if you turn on the camera. If the camera is left in the
Camera Dock with the power on, charging resumes when the camera
enters Auto Power-off (see page 96).
NOTE: The Camera Dock only charges the provided KODAK EASYSHARE Ni-MH
Rechargeable Battery Pack. If you place the camera in the Camera Dock
with any other type of batteries, rechargeable or not, no charging takes
place. For further Troubleshooting information, see page 81.
Charging Lights on Dock II
battery partially charged
battery low
battery fully charged
67
Chapter 9
Transferring Pictures and Videos
To transfer pictures and videos from your camera to your computer:
1Place the camera in the Camera Dock. The
camera can be on or off.
If the Battery Pack is being charged,
charging pauses, then resumes after
pictures and videos are transferred.
2Press the Connect button.
The Power/Transfer light blinks green
while the pictures are transferring.
3For details on printing and emailing, see the Quick Start Guide or the
KODAK EASYSHARE Software Help.
NOTE: After transferring pictures and videos, leave the camera in the Camera
Dock. Eight minutes after the transfer is complete, the Camera Dock
resumes charging as necessary.
Caution When Using a Tripod
Do not connect a tripod to the Camera Dock. Remove the camera from the
Camera Dock and connect the tripod directly to the camera.
Connect
Power/Transfer
light
68
Chapter 9
Earlier Camera Dock Model
If you have the KODAK EASYSHARE Camera Dock, not the Camera Dock II, the
functionality is exactly the same as described in this chapter. The only
difference is that the earlier Camera Dock has one indicator light.
Indicator light status:
Steady green—camera is properly seated
in the Camera Dock.
Blinking green— pictures and videos are
transferring.
Steady red—Battery Pack is charging.
Blinking red—error condition.
IMPORTANT: When using the earlier Camera Dock, several
discharge/recharge cycles may be necessary so that the
Battery Pack holds a full charge.
Indicator
light
69
10Troubleshooting
There may be times when you have questions about using your camera or
Camera Dock. Additional technical information is available in the ReadMe file
located on the KODAK EASYSHARE Software CD. For updates to
Troubleshooting information, see http://www.kodak.com/go/dx4330support.
Troubleshooting—Camera
Camera Problems
Camera
Problem Cause Solution
Camera does not
turn on.
Battery is not properly
installed.
Remove and reinstall the
batteries (page 5).
Battery is not charged. Replace (page 5) or
recharge the batteries
(page 66).
Lens cap is on,
preventing lens from
extending.
Remove the lens cap.
Pictures remaining
number does not
decrease after
taking a picture.
The picture does not
take up enough space to
decrease the number.
The camera is operating
normally. Continue taking
pictures.
70
Chapter 10
Camera does not
turn off; lens does
not retract.
Alkaline batteries were
installed in the camera.
DO NOT USE ALKALINE
BATTERIES. Turn the Mode
dial off, remove the alkaline
batteries, and replace with
an approved battery type
(page 95).
If the Mode dial is not off
when you replace the
batteries, the camera may
not turn back on. In that
case, turn the Mode dial off,
then back on.
Shutter button does
not work.
Camera is not turned on. Turn on the camera
(page 7).
The camera is
processing a picture; the
ready light (near the
viewfinder) is blinking.
Wait until the light stops
blinking before attempting
to take another picture.
The card or internal
memory is full.
Transfer pictures to your
computer (page 59), delete
pictures from the camera
(page 37), switch storage
locations (page 11), or
insert a card with available
memory (page 10).
Stored pictures are
damaged.
The card was removed
when the ready light was
blinking.
Make sure the ready light is
not blinking before
removing the card.
Camera
Problem Cause Solution
71
Chapter 10
Part of the picture
is missing.
Something was blocking
the lens when the
picture was taken.
Keep hands, fingers, or other
objects away from the lens
when taking pictures.
Your eye or the picture
was not centered
correctly in the
viewfinder or LCD.
Leave space around subject
when centering picture in
viewfinder or LCD.
In Review mode,
you do not see a
picture (or the
expected picture)
on the LCD.
The camera may not be
accessing the correct
storage location.
Check the picture storage
location setting (page 11).
In Review mode,
pictures are
displayed as black
screens.
Lens cap is on,
preventing lens from
extending.
Remove the lens cap.
Picture orientation
is not accurate.
The camera sensed that
it was rotated or tilted
while the picture was
taken.
Set the Orientation Sensor.
Turn off the Orientation
Sensor when your subject is
above or below you (such as
in the sky or on the floor).
Camera freezes up
when a card is
inserted or
removed.
Camera detects an error
when the card was
inserted or removed.
Turn the Mode dial off, then
back on. Make sure the
camera is turned off before
inserting or removing a
card.
Camera
Problem Cause Solution
72
Chapter 10
Picture is too dark. Flash is not on or did not
function.
Turn on the flash (page 22).
The subject is too far
away for the flash to have
an effect.
Move so there is no more
than 11.2 ft (3.4 m) between
the camera and the subject;
6.6 ft (2.0 m) in Telephoto.
The subject is in front of
a bright light (backlit).
Use Fill flash (page 22) or
change your position so the
light is not behind the
subject.
Lighting condition is too
dark.
Increase Exposure
Compensation (page 26) or
Long Time Exposure
(page 27).
Picture is too light. The flash is not needed. Change to Auto flash
(page 22).
The subject was too
close when the flash was
used.
Move so there is at least 2.0
ft (0.6 m) between the
camera and the subject.
The light sensor is
covered.
Hold the camera so your
hands or other objects do
not cover the light sensor.
Lighting condition is too
bright.
Decrease exposure
compensation (page 26).
Camera
Problem Cause Solution
73
Chapter 10
Picture is not clear. The lens is dirty. Clean the lens (page 92).
Subject too close when
taking picture.
Move so there is at least 2.0
ft (0.6 m) between the
camera and the subject, or at
least 2.8 in. (7.0 cm) in
Close-up mode.
Subject or the camera
moved while the picture
was taken.
Hold the camera steady
while taking the picture.
The subject is too far
away for the flash to be
effective.
Move so there is no more
than 11.2 ft (3.4 m) between
the camera and the subject;
6.6 ft (2.0 m) in Telephoto.
Slide show does
not run on external
video device.
Video Out setting is
incorrect.
Adjust the camera Video Out
setting (NTSC or PAL,
page 52).
External device is set
incorrectly.
Refer to the external device’s
user’s guide.
Camera
Problem Cause Solution
74
Chapter 10
Camera/Computer Communications
Camera Communications
Problem Cause Solution
The computer
cannot
communicate
with the camera.
Camera power is off. Turn on the camera
(page 7).
Battery is not charged. Replace (page 5) or recharge
the batteries (page 66).
Some Advanced Power
Management utilities on
laptops can turn off ports
to save battery life.
See the Power Management
section of your laptop user’s
guide to disable this feature.
USB cable is not securely
connected.
Connect cable to camera and
computer port (page 59).
Software is not installed. Install the software
(page 55).
The Battery Monitor or
similar software runs
constantly.
Close that software before
starting the KODAK
EASYSHARE Software.
Cannot transfer
pictures to
computer. The
Add New
Hardware
Wizard cannot
locate drivers.
Software is not installed
on computer.
Disconnect USB cable (if using
Camera Dock, disconnect
cable and remove camera
from Dock). Install KODAK
EASYSHARE Software
(page 55).
75
Chapter 10
MMC/SD Cards and Internal Memory
MMC/SD Card and Internal Memory
Problem Cause Solution
The camera does
not recognize
your MMC/SD
card.
Card may not be
MMC/SD certified.
Purchase a certified MMC/SD
card (page 10).
Card may be corrupt. Reformat the card (page 53).
Caution: Formatting erases all
pictures and videos, including
protected files.
No card is inserted in
camera or card is not
fully inserted.
Insert a card into the card slot,
then push to seat the connector
(page 10).
Camera freezes up
when a card is
inserted or
removed.
Camera detects an
error when the card
was inserted or
removed.
Turn the Mode dial off, then back
on.
Make sure the camera is off when
inserting or removing a card.
Memory card full Storage is full. Transfer pictures and videos to
the computer, then delete them
from the camera.
The maximum
number of files or
folders is reached (or
other directory
concern).
Transfer pictures and videos to
the computer, then format the
card or internal memory
(page 53).
Caution: Formatting a card erases
all pictures and videos, including
protected files. (Formatting
internal memory also erases
email addresses. To restore
addresses, see KODAK
EASYSHARE Software Help.)
76
Chapter 10
Camera LCD Messages
LCD Messages
Message Cause Solution
No images to display There are no pictures in
the current storage
location.
Change your picture
storage location setting
(page 11).
Memory card requires
formatting
Card is corrupted or
formatted for another
digital camera.
Insert a new card or format
the card (page 53).
Memory card cannot
be read (Please format
card or insert another
card)
Internal memory
requires formatting
Camera internal
memory is corrupted.
Format the internal
memory (page 53).
Internal memory
cannot be read (Please
format internal
memory)
No memory card (Files
not copied)
No card in the camera.
Your pictures were not
copied.
Insert a card.
Not enough space to
copy files (Files not
copied)
There is not enough
space in the location
you are copying to
(internal memory or the
card).
Delete pictures from the
location you are copying to
(page 37), or insert a new
card.
Read only card, change
to internal memory to
capture
Card in the camera is
write-protected.
To take a picture, insert a
new card or change storage
location to internal
memory (page 11).
77
Chapter 10
Card is protected
(Reset switch on card)
Switch on card is in
write-protect position.
Reset the switch as shown
on LCD.
Card is locked (Insert
a new card)
Card is write-protected. To take a picture, insert a
new card or change storage
location to internal
memory (page 11).
Card is unusable
(Insert a new card)
Card is slow, corrupted,
or unreadable.
Insert a new card
(page 10).
Recording stopped.
Record in internal
memory (Card speed is
slow)
Card cannot be used in
the camera.
Change storage location to
internal memory
(page 11).
Memory card is full
(Cannot save Share
tagging)
There is no space
remaining.
Insert a new card
(page 10), transfer
pictures (page 59), or
delete pictures (page 37).
Internal memory is full
(Cannot save Share
tagging)
Insert a card (page 10),
transfer pictures
(page 59), or delete
pictures (page 37).
Date/Time entry screen
appears automatically
This is the first time you
turned on the camera;
or the batteries have
been removed for an
extended period of time;
or the batteries are
exhausted.
Reset the clock (page 8).
LCD Messages
Message Cause Solution
78
Chapter 10
Unrecognized File
Format
Camera cannot read the
picture format.
Transfer the unreadable
picture to the computer
(page 59), or delete the
picture (page 37).
High camera
temperature. (Camera
will be turned off.)
The internal
temperature of the
camera is too high for
the camera to operate.
The viewfinder light
glows red and the
camera turns off in five
seconds.
Leave the camera off for
several minutes, then turn
it back on.
If the message reappears,
repeat the sequence above
until the message does not
appear.
Memory Card is full There is no more space
on the card in the
camera.
Delete pictures from the
card (page 37), insert a
new card, or change
storage location to internal
memory (page 11).
Internal Memory is full There is no more space
in the camera’s internal
memory.
Delete pictures from the
internal memory (page 37)
or change storage location
to Auto and insert card
(page 11).
No Address Book in
Camera
No email addresses
appear because there is
no address book.
Create and copy address
book from your computer.
See KODAK EASYSHARE
Software Help.
Other error code An error is detected. Turn the Mode dial off,
then back on. If the error
appears again, call for
service.
LCD Messages
Message Cause Solution
79
Chapter 10
Camera Ready Light Status
Camera Ready Light
Problem Cause Solution
Ready light does not
turn on and the
camera does not
work.
Camera is not turned
on.
Turn on the camera
(page 7).
Batteries are
exhausted.
Replace (page 5) or
recharge the batteries
(page 66).
Mode dial was on
when batteries were
reloaded.
Turn Mode dial off, then
back on.
Ready light glows
steady green.
Camera is on; ready
to take a picture or
video.
The camera is operating
normally.
Ready light blinks red. Batteries are low or
exhausted.
Replace (page 5) or
recharge the batteries
(page 66).
Card is too slow for
Video mode.
Change your storage location
to internal memory (see
page 11), or use a different
card.
Share
Ready light
80
Chapter 10
Ready light glows
steady red.
Camera’s internal
memory or card is
full.
Transfer pictures to your
computer (page 59), delete
pictures from the camera
(page 37), switch storage
locations (page 11), or
insert a card with available
memory (page 10).
Camera processing
memory is full.
Wait. Resume picture taking
when the light turns green.
Your card is
read-only.
Change your storage location
to internal memory (see
page 11), or use a different
card.
Ready light blinks
green.
Picture is being
processed and saved
to the camera.
Camera is operating
normally.
Ready light blinks
yellow.
Flash is not charged. Wait. Resume picture taking
when the light stops blinking
and turns green.
Auto exposure or
auto focus are not
locked.
Release the Shutter button
and recompose the picture.
Camera Ready Light
Problem Cause Solution
81
Chapter 10
Troubleshooting—Camera Dock II
Camera Dock II Problems
Camera Dock
Problem Cause Solution
Pictures are not
transferred to the
computer
AC adapter or USB
cable is not
securely
connected.
Check the connections (page 63).
Software is not
installed.
Install the software (page 55).
Computer needs
to be restarted.
Restart the computer and try
again.
Camera was
removed from the
Camera Dock
during picture
transfer.
Replace the camera on the
Camera Dock and press the
Connect button.
Connect button
was not pressed.
Press the Connect button.
82
Chapter 10
Camera Dock II Light Status
Camera Dock Power/Transfer Light
Light Status Cause Comment
Light glows steady
green
Camera is properly seated in
the Camera Dock.
The camera and Camera
Dock are operating
normally.
Light blinks green Pictures and videos are being
transferred to the computer.
Light is off Camera is not properly
seated in Camera Dock.
Remove the camera and
re-seat it (page 65).
Camera Dock Charging Lights
Light Status Cause Comment
No lights
Charging has not
started.
The camera is not seated in the
Camera Dock (page 65).
Camera is turned on. Turn off to
begin charging.
Battery in camera is not a KODAK
EASYSHARE Ni-MH Rechargeable
Battery Pack.
One green light
Battery is low. The camera is charging.
Two green lights
Battery is partially
charged.
Power/Transfer light
Battery charging lights
83
Chapter 10
Three green
lights
Battery is fully
charged.
Charging resumes when necessary.
Camera Dock Error Light
Light Status Cause Comment
One blinking red
light
Battery Pack is installed
incorrectly.
Reinstall the Battery
Pack (page 64).
The Battery Pack or
connector pins are
damaged.
Check for damage.
The camera and Battery
Pack have been exposed to
very high or low
temperatures.
Slowly return the
camera and Battery Pack
to room temperature.
Camera Dock Charging Lights
Light Status Cause Comment
85
11 Getting Help
Helpful Web Links
Help in this Manual
See Troubleshooting, page 69 for help with problems you may have with your
camera, camera/computer connections, Camera Dock, or MMC/SD cards.
Software Help
Refer to the Quick Start Guide or KODAK EASYSHARE Software Help.
Help with WINDOWS Operating
System and working with digital
pictures
www.kodak.com/go/pcbasics
Help with your KODAK EASYSHARE
DX4330 Zoom Digital Camera
www.kodak.com/go/dx4330support
Download the latest camera
software and firmware
www.kodak.com/go/dx4330downloads
Optimize your printer for truer,
more vibrant colors
www.kodak.com/go/onetouch
Get support for cameras, software,
accessories, more
www.kodak.com/go/support
Purchase camera accessories www.kodak.com/go/accessories
Register your camera www.kodak.com/go/register
86
Chapter 11
Telephone Customer Support
If you have questions concerning the operation of the software or camera, you
may speak with a customer support representative.
Before You Call
Please have the camera or Camera Dock connected to your computer, be at
your computer, and have the following information available:
Operating system __________________________________________
Processor speed (MHz) _____________________________________
Computer model __________________________________________
Amount of memory (MB) ____________________________________
Exact error message you received_______________________________
Version of installation CD________________________
Camera serial number______________________________________
87
Chapter 11
Telephone Numbers
Australia 1800 147 701
Austria/Osterreich 0179 567 357
Belgium/Belgique 02 713 14 45
Brazil 0800 150000
Canada 1 800 465 6325
China 800 820 6027
Denmark/Danmark 3 848 71 30
Ireland/Eire 01 407 3054
Finland/Suomi 0800 1 17056
France 01 55 1740 77
Germany/Deutschland 069 5007 0035
Greece 00800 441 25605
Hong Kong 800 901 514
India 91 22 617 5823
Italy/Italia 02 696 33452
Japan 81 3 5644 5500
Korea 00798 631 0024
Netherlands/Nederland 020 346 9372
New Zealand 0800 440 786
Norway/Norge 23 16 21 33
Philippines 1 800 1 888 9600
Portugal 021 415 4125
Singapore 800 6363 036
88
Chapter 11
For the most up-to-date listings, visit:
http://www.kodak.com/US/en/digital/contacts/DAIInternationalContacts.shtml
Spain/Espana 91 749 76 53
Sweden/Sverige 08 587 704 21
Switzerland/Schweiz/Suisse 01 838 53 51
Taiwan 0080 861 008
Thailand 001 800 631 0017
UK 0870 243 0270
United States 1 800 235 6325
Outside the United States 585 726 7260
International Toll Line +44 131 458 6714
International Toll Fax +44 131 458 6962
89
Chapter 12
12 Appendix
Camera Specifications
KODAK EASYSHARE DX4330 Zoom Digital Camera
Color 24-bit, millions of colors
Communication
with computer
USB Via USB cable or camera dock
Dimensions Width
Depth
Height
4.3 in. (110.5 mm)
1.5 in. (39.0 mm)
2.6 in. (66.0 mm)
Weight 7.4 oz (210 g) with battery and card
Exposure control Multi-pattern TTL-AE with program modes
(Standard, Sport, Night, Long Time
Exposure, Exposure Compensation)
Flash Modes Auto, Fill, Red-eye, Off
Range Wide: 2.0 to 11.2 ft (0.6 to 3.4 m)
Tele: 2.0 to 6.6 ft (0.6 to 2.0 m)
Charging Time < 7 seconds with charged battery
ISO Automatic (120 to 200)
LCD Transmissive reflective with anti-glare
coating
1.8 in. (45.7 mm), color, 72,000 pixels
Preview rate: 26 fps
90
Chapter 12
Lens Type Optical quality glass, 6 groups/7 elements
(2 aspherical lenses)
Maximum
Aperture
f/2.8 - f/5.1
Focal Length 38 - 114 mm
Focus Distance Close-up Wide angle: 2.8 to 28 in. (7 to 70 cm);
Telephoto: 11 to 28 in. (28 to 70 cm)
Standard 2 ft (0.6 m) to infinity
Landscape Fixed focus
Operating Temperature 32 to 104° F (0 to 40° C)
File format Still JPEG/EXIF v2.2
Video QUICKTIME movie
Picture storage 16 MB internal; SD Card or MMC
Pixel resolution Best: 2160 x 1440 (3.1 M) pixels
Better: 1800 x 1200 (2.16 M) pixels
Good: 1080 x 720 (778 K) pixels
Video resolution 309 x 206 pixels, 15 fps
Power Battery (1) CRV3 (included)
(2) AA lithium (optional)
(2) AA NiMH rechargeable (optional)
AC adapter 3V DC (optional)
Self Timer 10 seconds
Tripod socket Yes
Video Out NTSC or PAL selectable
Viewfinder Real image optical
KODAK EASYSHARE DX4330 Zoom Digital Camera
91
Chapter 12
Original Factory Settings—Camera
White balance Automatic
Zoom (still capture) 3X optical, 3.3X digital
Feature Factory Setting
Date/Time 2002/1/1; 12:00
Date/Time Stamp Off
Exposure Compensation 0.0
Flash Auto: Auto Flash
Sport, Night, Close-up: Auto
Landscape, Video: Flash Off
Image Storage Auto
Liveview Off
Orientation Sensor On
Shutter Sounds On
Storage Location Auto
Print Quantity 1
Picture Quality Best
Quickview On
Self Timer Off
Slide Show Interval 5 seconds
Video Out NTSC
KODAK EASYSHARE DX4330 Zoom Digital Camera
92
Chapter 12
Upgrading Your Software and Firmware
Download the latest versions of the software included on the KODAK
EASYSHARE Software CD and the camera firmware (the software that runs on
the camera). See http://www.kodak.com/go/dx4330downloads.
Tips, Safety, Maintenance
mAlways follow basic safety precautions. Refer to the “Important Safety
Instructions” booklet packed with your camera.
mDo not allow any chemicals, such as suntan lotion, to come into contact
with the painted surface of the camera.
mIf the camera has been subjected to inclement weather or you suspect
water has gotten inside the camera, turn off the camera and remove the
battery and card. Allow all components to air-dry for at least 24 hours
before using the camera again.
mClean the lens and back LCD:
1 Blow gently on the lens or LCD to remove dust and dirt.
2 Moisten the lens or LCD by breathing lightly on it.
3 Wipe the lens or LCD gently with a soft, lint-free cloth or an untreated
lens-cleaning tissue.
Do not use cleaning solutions unless they are designed specifically for
camera lenses. Do not wipe the camera lens or LCD with chemically
treated eyeglass lens tissue. It may scratch the lens.
mWipe the outside of the camera with a clean, dry cloth. Never use harsh or
abrasive cleaners or organic solvents on the camera or any of its parts.
mService agreements are available in some countries. Contact a dealer of
Kodak products for more information.
mFor digital camera disposal or recycling information, please contact your
local authorities. In the US, visit the Electronics Industry Alliance Web site
at www.eiae.org or the Kodak Web site at
www.kodak.com/go/dx4330support.
93
Chapter 12
Storage Capacities
File sizes can vary. You may be able to store more or fewer pictures and videos.
Purchase cards at http://www.kodak.com/go/accessories.
Picture Storage Capacity
Video Storage Capacity
Number of pictures
Best
Quality
Better
Quality
Good
Quality
16 MB internal memory 16 22 69
16 MB MMC/SD 16 22 69
32 MB MMC/SD 32 46 138
64 MB MMC/SD 65 92 277
128 MB MMC/SD 131 185 556
192 MB MMC/SD 196 278 834
Minutes/seconds of video
16 MB internal memory 1 min. 10 sec.
16 MB MMC/SD 1 min. 10 sec.
32 MB MMC/SD 2 min. 20 sec.
64 MB MMC/SD 4 min. 40 sec.
128 MB MMC/SD 9 min. 20 sec.
192 MB MMC/SD 14 min.
94
Chapter 12
Locating Pictures and Videos on a Card
Pictures stored on MMC/SD Cards use a standard agreed upon by many camera
manufacturers. This lets you use the cards in different cameras. If you use a
card reader to retrieve your files, the following description of the card file
structure may be helpful.
MISC folder—contains the order files created when you use the Share
feature to tag files for printing, emailing, and as favorites.
SYSTEM folder—used for updating camera firmware.
DCIM folder—root level folder, contains the 100K4330 folder. Each time you
turn on the camera or insert a different card, any empty folders within the
DCIM folder are removed.
100K4330 subfolder—contains all the pictures on the card.
Card File Naming Conventions
mPictures are named 100_nnnn.JPG, and are numbered in the order in
which they are taken. The first picture is named 100_0001.JPG; the highest
number allowed is 100_9999.JPG.
mWhen a card contains a picture named 100_9999.JPG in the
\DCIM\100K4330 folder, subsequent pictures appear in a new folder
(\DCIM\101K4330), beginning with picture 101_0001.JPG.
mEven if you transfer pictures to the computer or delete pictures from the
camera, the camera continues to use consecutive numbers for all
subsequent pictures. For example, if the last picture taken was
100_0007.JPG and you delete it, the next picture you take is named
100_0008.JPG.
mWhen you insert a different card into your camera, the next picture number
is defined by incrementing the higher of the last picture taken by the
camera, or the highest existing picture number in the folder.
mIf you use the card in a camera other than the KODAK EASYSHARE DX4330
Zoom Digital Camera, and that camera manufacturer adheres to this file
structure standard, the \DCIM folder contains a folder named by that
95
Chapter 12
camera. For more information, refer to the documentation that
accompanied that camera.
Using Your Batteries
mReplacement Types—your camera can use the following battery types:
–2, 1.5 volt AA lithium batteries
–1, KODAK CRV3 Lithium Battery *
–1, KODAK EASYSHARE Ni-MH Rechargeable Battery Pack,
rechargeable in the KODAK EASYSHARE Camera Docks *
–2, 1.2 volt AA Nickel Metal Hydride (Ni-MH) batteries, rechargeable *
* Purchase batteries at http://www.kodak.com/go/accessories.
For acceptable battery life, and to make sure your camera operates
dependably, we do not recommend or support alkaline batteries.
mTo lengthen battery life, limit the following activities:
–Using Liveview (using the LCD as the viewfinder, see page 18)
–Reviewing your pictures on the LCD (see page 35)
–Excessive use of the flash
mDirt on the battery contacts can affect battery life. Wipe the contacts with a
clean, dry cloth before loading batteries in the camera.
mBattery life depends significantly on battery age, usage conditions, type, and
brand. Digital camera requirements are very demanding on batteries. Not
all batteries perform well under these challenging conditions. For a
comparison of different battery types, refer to the Battery Option sheet.
mBattery performance is reduced at temperatures below 41° F (5° C).
Carry spare batteries when using your camera in cold weather, and keep
them warm until you are ready to take pictures. Do not discard cold
batteries that do not work. When they return to room temperature, they
may be usable.
mDo not allow batteries to touch metal objects, including coins. Otherwise, a
battery may short circuit, discharge energy, become hot, or leak.
96
Chapter 12
Expected Battery Life
* Based on Kodak customer simulation battery life test. Actual battery life may
vary based on usage.
Power-Saving Features
Optional AC Adapter
To save battery power when reviewing, copying, and transferring pictures,
purchase a KODAK Digital Camera AC Adapter, 3-Volt at
http://www.kodak.com/go/accessories.
Connect the 3-Volt adapter to the camera’s
DC-in port and to a power outlet.
NOTE: The 3-Volt adapter is NOT compatible
with a KODAK EASYSHARE Camera Dock.
Battery Type Pictures per Set of
Batteries (Approximate)*
2 AA KODAK Ni-MH Rechargeable Batteries 180
KODAK Ni-MH Rechargeable Battery Pack 180
2 KODAK AA Lithium Batteries 340
KODAK CRV3 Lithium Battery 410
If No Activity For The To Turn It Back On
1 minute LCD turns off Press the OK button.
8 minutes Camera enters power-save
mode
Press any button.
3 hours Camera turns off Turn camera off, then on.
DC In
97
Chapter 12
Regulatory Information
FCC Compliance and Advisory
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference,
and 2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase
the separation between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that to which the receiver is
connected; 4) consult the dealer or an experienced radio/TV technician for
additional suggestions.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Where shielded interface cables have been provided with the product or
specified additional components or accessories elsewhere defined to be used
with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
98
Chapter 12
Canadian DOC Statement
DOC Class B Compliance—This Class B digital apparatus complies with
Canadian ICES-003.
Observation des normes-Class B—Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.
VCCI Class B ITE
English translation:
This is a Class B product based on the standard of the Voluntary Control
Council for Interference from Information Technology Equipment (VCCI). If
this is used near a radio or television receiver in a domestic environment, it
may cause radio interference. Install and use the equipment according to the
instruction manual.
99
Index
A
AA batteries, installing, 5
about
camera information, 54
picture, video, 43
AC adapter, 96
accessories, buying, 85
adjusting
exposure compensation, 26
picture quality, 28
alkaline batteries, 5
arrow buttons, ii
audio speaker, iv
auto
flash, 22
focus framing marks, 20
mode, 13
power-down, 96
B
batteries
alkaline, 5, 95
charging Battery Pack, 66
extending battery life, 95
loading AA lithium, 5
loading Battery Pack, 64
loading CRV3, 5
power level, 9
replacement types, 95
tips, 95
buttons
arrow, ii
delete, 19
flash, 22
menu, 11
OK, 7
review, 35
share, 45
shutter, 13
zoom, 21
C
cable
audio/video, 3, 41
power, camera, 96
power, Camera Dock, 61
USB, 3, 59
Camera Dock
charging Battery Pack, 66
charging lights, 66
connector door, iv
docking camera, 65
100
Index
earlier model, 68
installing insert, 62
lights status, 82
package contents, 61
power connection, 63
transferring pictures, 67
USB connection, 63
using, 61
Canadian compliance, 98
card, memory, 94
caring for your camera, 92
changing picture or video
location, 11
charging Battery Pack, 66
charging lights, Camera
Dock, 66
checking location setting, 12
cleaning camera, lens, 92
clock, setting, 8
close-up mode, 17
communication problems, 74
computer
connecting camera, 59
connecting Camera Dock, 63
system requirements, 55
connecting Camera Dock, 63
connecting to computer, 59
copy pictures
card to memory, 42
to computer, 59
copy pictures and videos to
computer, 67
CRV3 battery, installing, 5
customer support numbers, 86
customizing camera settings, 49
D
date
imprinting on pictures, 29
setting, 8
DCIM folder, card, 94
defaults
changing print quantity, 50
original settings, 91
deleting
by formatting, 53
during Quickview, 32
from internal memory, 37
from MMC/SD Card, 37
last picture, 19
last video, 32
protecting pictures,
videos, 39
digital pictures, using, 60
digital zoom, 21
display problems, 71
displaying slide show, 40
disposal, recycling, 92
101
Index
docking camera, 62, 65
downloading
pictures, 59, 60, 67
E
early Camera Dock, 68
EASYSHARE Software,
installing, 55
emailing pictures, videos, 47
error messages, 76
exposure
compensation, 26
long time, 27
external video device
setting video out, 52
viewing pictures, videos, 41
F
favorites, tagging for, 48
FCC compliance, 97
file names, card, 94
firmware
upgrading, 92
version, 54
flash, using, 22
focus framing marks, 20
folders, card, 94
formatting MMC/SD card, 53
G
guidelines, battery, 95
H
help
camera, 69
Camera Dock, 81
software, 85
telephone support, 86
web links, 85
I
icons
camera status, 9
mode dial, 6
image storage menu, 11
information
about camera, 54
about pictures, videos, 43
insert, for Camera Dock, 62
installing
AA lithium batteries, 5
Battery Pack, 64
CRV3 battery, 5
insert, Camera Dock, 62
MMC/SD card, 10
software, 57
internal memory
formatting, 53
102
Index
setting picture, video
location, 11
storage capacity, 93
K
KODAK EASYSHARE Software
getting help, 85
installing, 57
transferring pictures, 60
upgrading, 92
Kodak web sites, 85
L
landscape mode, 16
language, setting, 52
large print, this user guide, 1
LCD
displaying languages, 52
error messages, 76
picture location icon, 9
reviewing last picture, 19
reviewing last video, 32
status bar, 9
turning off quickview, 50
turning on Liveview, 51
using as viewfinder, 18
viewing pictures on, 36
lens
accessory, 4
cap, 4
cleaning, 92
light
Camera Dock, 82
Camera Dock II, 82
charging, 66, 68
error, Camera Dock II, 83
ready, camera, 79
self-timer, camera, 25, 34
Liveview
turning on, 51
using LCD as viewfinder, 18
loading
AA lithium batteries, 5
Battery Pack, 64
CRV3 battery, 5
MMC/SD card, 10
software, 57
long time exposure, 27
M
MACINTOSH
installing software on, 57
system requirements, 56
magnify picture, 38
maintenance, camera, 92
memory
storage location setting, 11
memory card
103
Index
inserting, 10
storage capacities, 93
menu button, 11
menus
image storage, setting, 11
overview, 6
MISC folder, card, 94
MMC/SD card
file name conventions, 94
formatting, 53
inserting, 10
printing from, 60
problems, 75
setting picture or video
location, 11
storage capacities, 93
mode dial, 6
modes
auto, 13
close-up, 17
landscape, 16
night, 15
off, 6
sport, 14
video, 31
monitor, requirements, 55
N
night mode, 15
NTSC, video out setting, 52
O
OK button, 7
online help, 85
online prints, ordering, 60
optical zoom, 21
orientation sensor, 30
overview, camera, ii
overview, camera menus, 6
P
package contents
camera, 3
Camera Dock, 61
PAL, video out setting, 52
parallax marks, 18
pictures
checking location, 12
copying, 42
date imprint, 29
deleting, 37
downloading, 60
emailing tagged, 47
file naming, 94
locating on card, 94
magnifying, 38
printing, 60
printing tagged, 46
104
Index
protecting, 39
quality, setting, 28
reviewing, 35
storage capacity, 93
taking, 13
transferring to
computer, 59, 67
using on computer, 60
viewing, 36
power
camera dock, 63
optional AC adapter, 96
turning camera on, 7
power-down, auto, 96
printing
changing default quantity, 50
from a card, 60
optimizing printer, 85
pictures, 60
this user guide, 1
product overview, ii
protecting pictures, videos, 39
Q
quality
print, digital zoom, 21
setting, 28
Quickview
turning off, 50
using, 19, 32
R
ReadMe file, 69
ready light
camera, 13
Camera Dock, 79
recycling, disposal, 92
red-eye, flash, 22
regulatory information, 97, 98
removable memory card, 10
replacement battery types, 95
requirements
MACINTOSH, 56
WINDOWS-based, 55
resolution, setting, 28
review button, 35
review mode, 35
reviewing pictures
as you take them, 19
deleting, 37
magnify, 38
on LCD, 36
protecting, 39
slide show, 40
reviewing videos
as you take them, 32
deleting, 37
on LCD, 36
105
Index
protecting, 39
slide show, 40
running slide show, 40
S
safety, 92
Secure Digital card, inserting, 10
self-timer
pictures, 25
videos, 33
sensor, orientation, 30
service and support
telephone numbers, 86
Web site, 85
setting
date and time, 8
flash, 22
language, 52
mode dial menus, 6
picture quality, 28
picture, video storage
location, 11
resolution, 28
self-timer, 25, 33
video out, 52
setup mode, using, 49
share button, 45
shutoff, auto, 96
shutter
problems, 70
self-timer delay, 25, 33
sounds, 51
taking pictures, 13
sleep mode, 96
slide show
continuous loop, 41
problems, 73
running, 40
software
getting help, 85
installing, 57
transferring pictures, 60
upgrading, 92
sounds, shutter, 51
speaker, iv
specifications
camera, 89
MACINTOSH, 56
WINDOWS-based, 55
sport mode, 14
status
bar, 9
camera, 9
picture storage location, 12
storage capacity, memory, 93
strap
lens cap, 4
wrist, 4
106
Index
support, technical, 85, 86
System folder, card, 94
system requirements
MACINTOSH, 56
WINDOWS, 55
T
tagging
for email, 47
for favorites, 48
for print, 46
when to tag, 45
taking pictures, 13
taking videos, 31
telephone support, 86
television, slide show, 40
time, setting, 8
timer, shutter delay, 25, 33
tips
battery guidelines, 95
maintenance, 92
ReadMe file, 69
safety, 92
transferring to
computer, 59, 60, 67
trash can, deleting, 19, 32
tripod, caution, 67
troubleshooting
camera, 69
camera communications, 74
Camera Dock, 81
camera ready light, 79
LCD messages, 76
MMC/SD card, 75
turning camera on and off, 7
U
universal dock insert, 62
upgrading software,
firmware, 92
URLs, Kodak web sites, 85
V
VCCI compliance, 98
video mode, using, 31
video out, setting, 52
videos
checking location, 12
copying, 42
date display, 43
deleting, 37
downloading, 60
emailing tagged, 47
file naming, 94
protecting, 39
reviewing, 35
storage capacities, 93
taking, 31
107
Index
transferring to
computer, 59, 67
using on computer, 60
viewing, 36
viewfinder, using LCD, 18
viewing
camera information, 54
picture, video
information, 43
viewing picture
after taking, 19, 36
from internal memory, 36
magnified, 38
on MMC/SD Card, 36
viewing video, after taking, 32
W
WINDOWS
installing software, 57
system requirements, 55
wrist strap, 4
Z
zoom, digital, optical, 21

Navigation menu
