KODAK EASYSHARE M340
Digital Camera
Extended user guide
www.kodak.com
For interactive tutorials:
www.kodak.com/go/howto
For help with your camera:
www.kodak.com/go/m340support
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2008
All screen images are simulated.
Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company.
4F8437_en
Product features
www.kodak.com/go/support i
Front view
1 Shutter button 6 Lens/Lens cover
2Mode dial 7DC-In (5V)
3Power button 8Flash
4 Flash button 9 Microphone
5 Self-timer light
8
5
9
6
3
1
4
2
7
ii www.kodak.com/go/support
Product features
Back view
1LCD 7 Strap post
2 Ready/Battery Charging light 8 Share button
3 Delete, Menu, Info, Review buttons 9 Battery, SD/SDHC Card compartment
4 Zoom (Telephoto/Wide Angle) button 10 Speaker
5 USB/AV Out 11 Tripod socket
6
OK button
4
1
6
8
7
11
9
5
3
optional
2
10
www.kodak.com/go/support iii
Table of contents 1
1 Setting up your camera .........................................................................1
Attaching the strap .......................................................................................1
Loading the KLIC-7001 battery......................................................................1
Charging the battery .....................................................................................2
Turning on the camera ..................................................................................2
Setting the language and date/time...............................................................3
Storing pictures on an optional SD or SDHC Card...........................................3
Other charging options..................................................................................4
2 Taking pictures/videos ...........................................................................5
Taking focused pictures.................................................................................5
Using the optical zoom..................................................................................6
Using the flash..............................................................................................7
Using different modes ...................................................................................8
Taking a video ............................................................................................10
Using shortcuts ........................................................................................... 11
Using the self-timer.....................................................................................12
Taking panoramic pictures...........................................................................13
Understanding the picture-taking icons........................................................14
3 Working with pictures/videos ..............................................................15
Reviewing pictures/videos ...........................................................................15
Deleting pictures/videos ..............................................................................16
Viewing pictures/videos in different ways.....................................................17
Selecting multiple pictures/videos ................................................................17
Creating a multimedia slide show................................................................18
Using the menu button in review................................................................. 20
Cropping pictures........................................................................................21
Using KODAK PERFECT TOUCH Technology.................................................21
Adding sound tags......................................................................................22
Copying pictures/videos...............................................................................23
iv www.kodak.com/go/support
Table of contents
Editing videos .............................................................................................24
Understanding the review icons...................................................................27
4 Doing more with your camera .............................................................28
Using the menu button to change settings...................................................28
Using the Setup menu.................................................................................32
5 Transferring, printing, tagging ............................................................35
Installing the software.................................................................................35
Transferring pictures/videos to your computer ..............................................36
Printing pictures..........................................................................................37
Tagging your pictures..................................................................................39
6 Troubleshooting ..................................................................................43
7 Getting help ........................................................................................47
Getting help from your camera....................................................................47
Getting help on the Web.............................................................................48
Getting help on the telephone.....................................................................49
8 Appendix .............................................................................................50
Camera specifications .................................................................................50
Care and maintenance ................................................................................52
Upgrading your software and firmware........................................................53
Storage capacities.......................................................................................53
Important safety instructions .......................................................................53
Battery replacement, battery life..................................................................54
Limited warranty .........................................................................................55

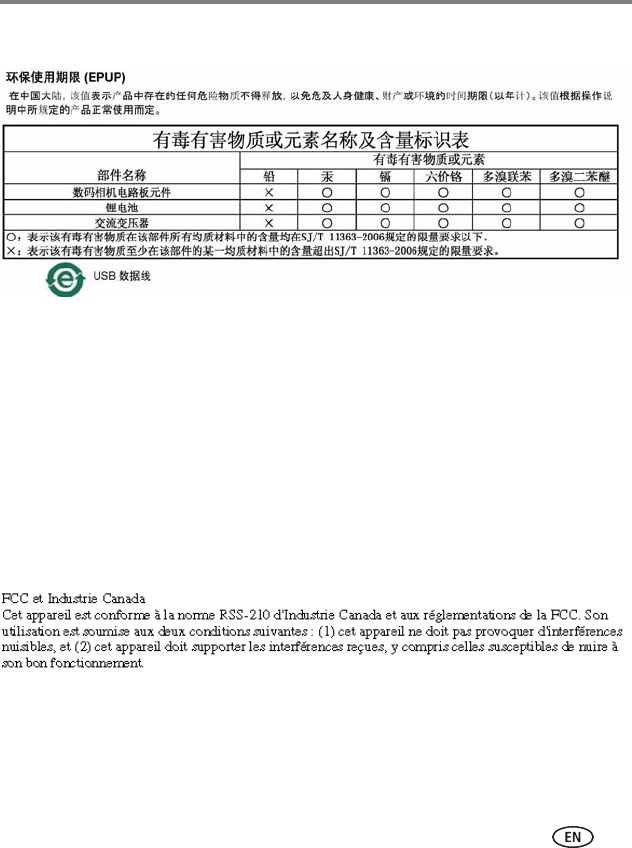

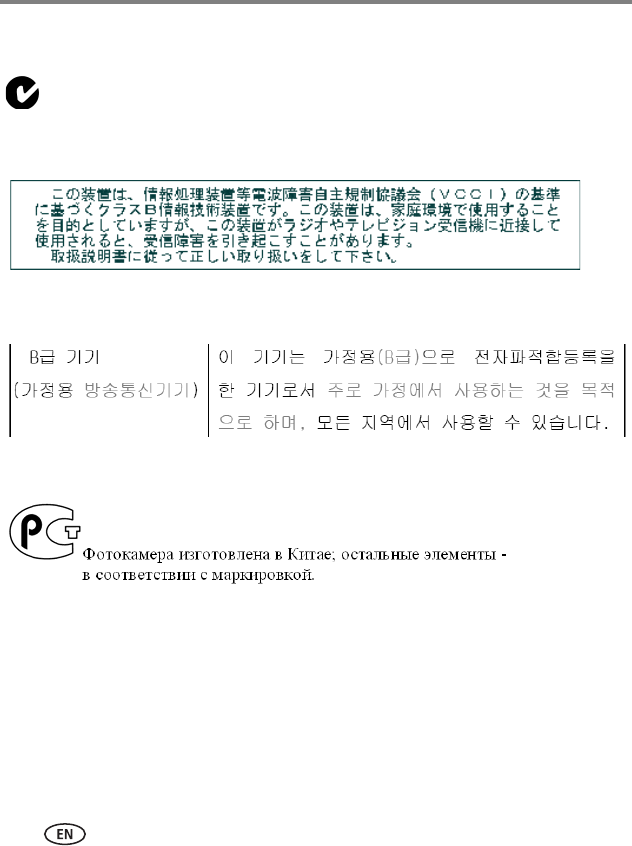

Regulatory compliance ................................................................................57
www.kodak.com/go/support 1
1Setting up your camera
IMPORTANT:
For package contents, see your product package.

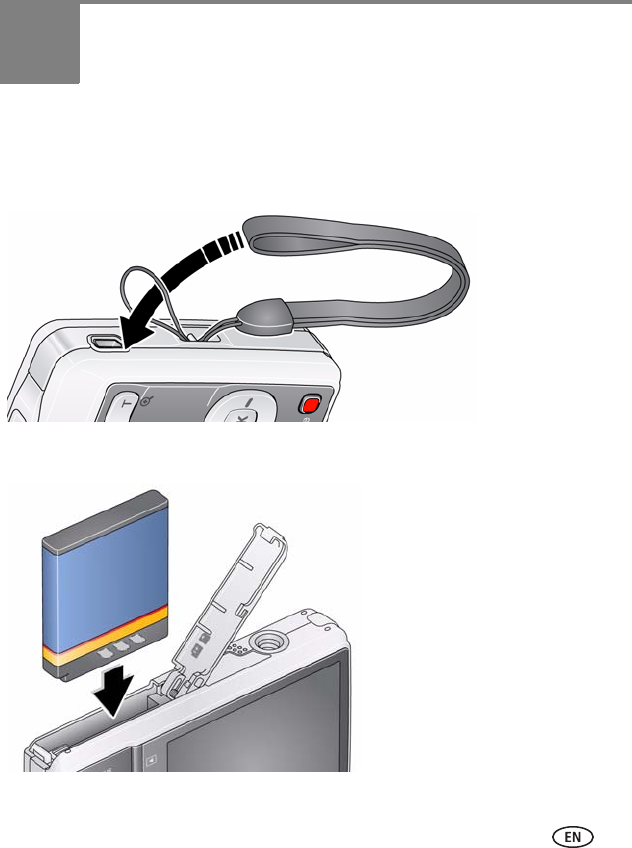

Attaching the strap
Loading the KLIC-7001 battery
For information on replacing the battery and extending battery life, see page 54.
2www.kodak.com/go/support
Setting up your camera
Charging the battery
Turning on the camera
Learn other charging options See page 4
Learn more about batteries See page 54
Battery Charging light:
• Blinking: charging
• Steady: finished charging
Turn OFF the camera.
1
Connect a KODAK USB Cable, Model U-8.
2
Press the Power button.
Setting up your camera
www.kodak.com/go/support 3
Setting the language and date/time
NOTE: To change language in the future, use the Setup Menu (see page 32).
Storing pictures on an optional SD or SDHC Card
Your camera has internal memory. You can purchase an SD or SDHC Card to
conveniently store more pictures/videos.
CAUTION:
A card can only be inserted one way; forcing it may cause
damage. Inserting or removing a card while the camera is on may
damage the pictures, the card, or the camera.
Purchase accessories www.kodak.com/go/m340accessories
to change current field.
for previous/next field.
OK to accept.
At the prompt, press OK.
to change.
OK to accept.
Language:
Date/Time:
OK (press)
optional
1Turn off the camera.
2Insert or remove the
optional card.
3Turn on the camera.
4www.kodak.com/go/support
Setting up your camera
Other charging options
First, turn OFF the camera. The charging light blinks during charging and stays steady
when the battery is fully charged.
KODAK 5V AC Adapter
(May be sold separately.)
KODAK USB Cable and a USB
computer port
Ensure that the USB cable is
connected to a powered USB
port and the computer is turned
on (not in sleep mode).
Purchase accessories www.kodak.com/go/m340accessories
Learn more about USB charging www.kodak.com/go/USBcharging
www.kodak.com/go/support 5
2Taking pictures/videos

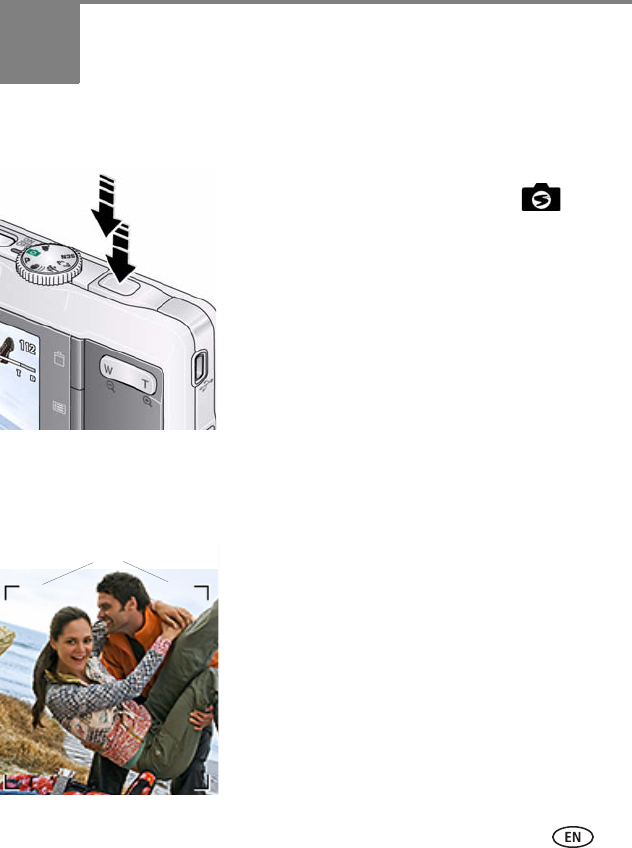

Taking focused pictures
To get clear, focused pictures:
1Turn the Mode dial to Smart Capture . Then
press the Power button to turn on the camera.
2Compose the picture.
3Press the Shutter button halfway to focus and
set exposure. When the framing marks turn green,
press the Shutter button completely down.
Using the framing marks
Framing marks indicate the camera focus area. In Smart Capture mode (and in SCN
modes designed for pictures of people), the camera attempts to focus on faces.
1Press the Shutter button halfway.
If the camera is not focusing on the desired subject,
release the Shutter button and recompose the scene.
2Press the Shutter button completely down to
take the picture.
NOTE: Framing marks do not appear in all modes. Multiple framing
marks may appear when faces are detected. When you press
the Shutter button halfway down, the framing marks attempt
to follow the main subject.
Framing marks
6www.kodak.com/go/support
Taking pictures/videos

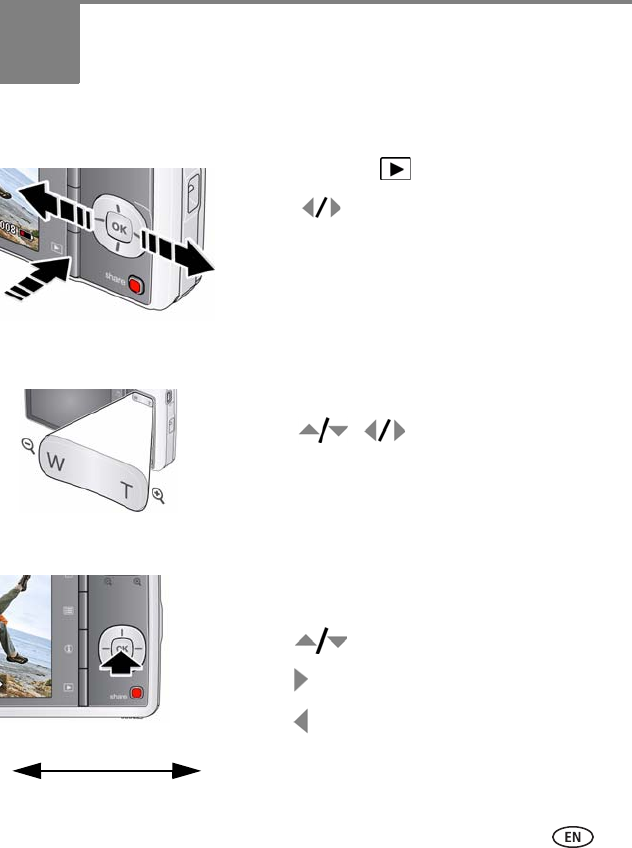

Reviewing the picture/video just taken
After you take a picture/video, the LCD briefly displays a quickview. (To exit the
quickview sooner, press the Shutter button halfway.)
To review pictures/videos anytime, see page 15.

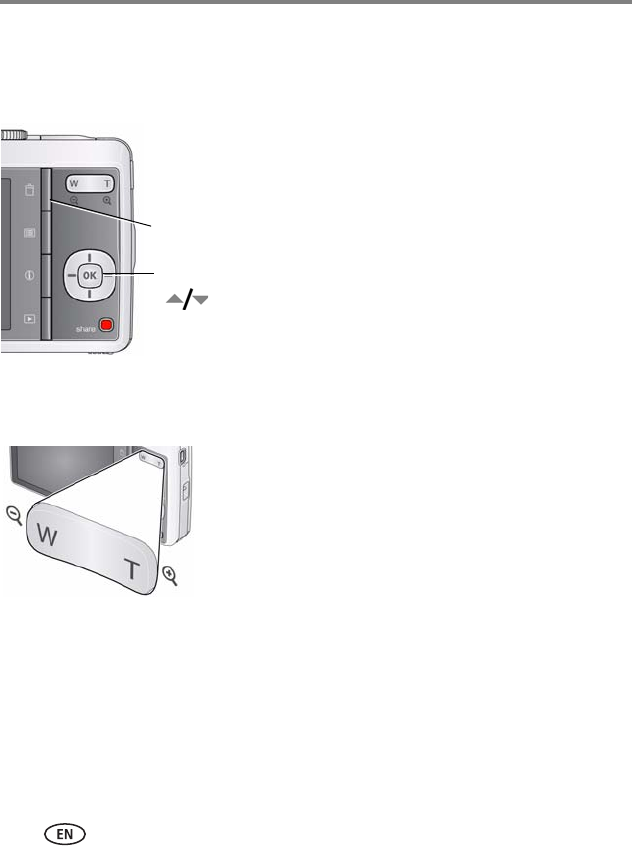

Using the optical zoom
1Use the LCD to frame your subject.
2To zoom in, press Telephoto (T).
To zoom out, press Wide Angle (W).
3Take the picture.
NOTE: For focus distances, see Specifications starting on page 50.
Using digital zoom
Use digital zoom to get up to 5X magnification beyond optical zoom. (Digital zoom is
not available in Smart Capture mode.) Press Telephoto (T) until the slider is at the end
of the optical zoom range. Release Telephoto (T), then press it again.
NOTE: You may notice decreased image quality when using digital zoom. The slider pauses and turns red
when the picture quality reaches the limit for an acceptable 4 x 6-in. (10 x 15 cm) print.
Delete the current picture
OK Play/pause a video
Adjust volume
Taking pictures/videos
www.kodak.com/go/support 7
Using the flash
Flash modes Flash fires
Auto When the lighting conditions require it.
Fill (Flash On) Every time you take a picture, regardless of the lighting
conditions. Use when the subject is in shadow or is
“backlit” (when the light is behind the subject).
NOTE: (Not available in Smart Capture mode.)
Red Eye
Your camera can correct
red-eye using 2
methods. To choose a
red eye setting, see Red
Eye Reduction, page 33.
Preflash A preflash fires, shrinking the eye pupil, before the
picture is taken.
Digital
Correction
A preflash does not fire; the camera corrects red eye.
Off Never
Press the flash button repeatedly to scroll through flash modes.
The current flash mode is shown in the LCD status area.
8www.kodak.com/go/support
Taking pictures/videos
Using different modes
Turn the Mode dial to the mode that best suits your subjects and surroundings.
Use this mode For
Smart
Capture
General picture taking—it offers excellent image quality and ease
of use.
■Faces are detected.
■The scene is analyzed for other content and for lighting.
You can choose the best picture size and aspect ratio for your
needs—just press the Menu button and choose Picture Size.
■3:2 (the best choice when making 4 x 6 prints)
■16:9 (wide screen)
■4:3 (the default setting)
Program Advanced picture taking—allows more access to manual settings
than Smart Capture.
Blur
Reduction
Reducing blur caused by camera shake or subject motion.
Sport Action pictures.

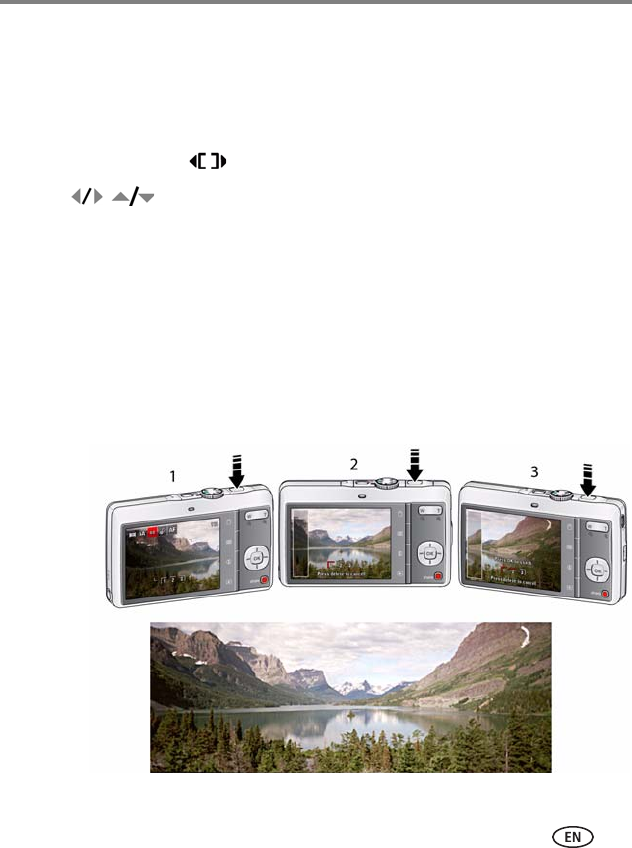

Panorama “Stitching” up to 3 pictures into a panoramic scene. (See page 13.)
Scene Point-and-shoot simplicity when taking pictures in practically any
situation. (See page 9.)
Video Capturing video with sound. (See page 10.)
Mode dial
Taking pictures/videos
www.kodak.com/go/support 9
Using Scene (SCN) modes
Choose a Scene mode—for great pictures in practically any situation.
1Turn the Mode dial to SCN.
2Press to view scene mode descriptions.
If the mode description turns off before you finish reading it, press OK.
3Press OK to choose a Scene mode.
SCN mode For
Portrait Full-frame portraits of people.
Landscape Distant scenes.
Close-up Close range. Use available light instead of flash, if possible.
Flower Close-ups of flowers or other small subjects in bright light.
Sunset Subjects at dusk.
Backlight Subjects that are in shadow or “backlit” (when light is behind the
subject).
Candle Light Subjects illuminated by candle light.
Children Action pictures of children in bright light.
Manner/
Museum
Quiet occasions, like a wedding or lecture. Flash and sound are
disabled. Place the camera on a steady surface or tripod.
Text Documents. Place the camera on a steady surface or tripod.
Beach Bright beach scenes.
Snow Bright snow scenes.
Fireworks Fireworks. Place the camera on a steady surface or tripod.
Self-
Portrait
Close-ups of yourself. Assures proper focus and minimizes red
eye.
Night Portrait Reduces red eye of people in night scenes or low-light conditions.
Night Landscape Distant scenery at night. Flash does not fire.
10 www.kodak.com/go/support
Taking pictures/videos
Taking a video
1Turn the Mode dial to Video .
2Press the Shutter button completely down,
then release it. To stop recording, press and release
the Shutter button again.
To review and work with videos, see page 15.
High ISO People indoors, in low-light scenes.
SCN mode For
view single picture.
Taking pictures/videos
www.kodak.com/go/support 11
Using shortcuts
Your camera has a clean, uncluttered interface. For quick access to the most popular
capture and review functions:
1Press the Info button.
The shortcuts appear.
2Press to access functions like Exposure Compensation, Self-timer, and Auto
focus. (You’ll see different functions in different modes.)
3Press to choose a setting.
To hide the shortcuts again, press .
Press to
show/hide
shortcuts.
Shortcuts
12 www.kodak.com/go/support
Taking pictures/videos
Using the self-timer
Use the self-timer when you want to be included in a picture, or to ensure a steady
Shutter button press. Place the camera on a tripod or flat surface.
1In any picture-taking mode, press the Info
button to show shortcuts.
2Press to highlight the self-timer icon.
Press to choose a setting:
10 seconds—A picture is taken after a 10-second
delay (so you have time to get into the scene).
2 seconds—A picture is taken after a 2-second
delay (for a steady, shutter release on a tripod).
2 shot—The first picture is taken after a 10-second
delay. A second picture is taken 8 seconds later.
3Compose the scene. Press the Shutter button
halfway, then completely down.
The camera takes the picture/pictures after the delay.
NOTE: In Panoramic modes (page 13), only the 2- and 10-second options are available.
Use the same procedure to take a 2- or 10-second self-timer video, but press the
Shutter button completely down.
Taking pictures/videos
www.kodak.com/go/support 13
Taking panoramic pictures
Use panorama to “stitch” up to 3 pictures into a panoramic scene.
NOTE: For best results, use a tripod. Only the panoramic picture is saved; individual pictures are not.
(Exposure and white balance are set with the first picture. The flash is set to Off.)
1Turn the Mode dial to .
2Press to highlight Panorama Left-Right or Panorama Right-Left
(depending on the direction you want to pan), then press OK.
3Take the first picture.
After a quickview, the LCD displays the liveview and an “overlay” from the first picture.
4Compose the second picture. Make the overlay from the first picture cover the
same portion in the new picture. (You can press the Delete button to re-take a
picture.)
5If you are taking only 2 pictures, press OK to stitch them together.
After you take 3 pictures, the pictures are automatically stitched together.
NOTE: To use the self-timer 10-second or 2-second setting, see page 12.
Take 2 or 3
pictures.
Get 1
panoramic picture.
14 www.kodak.com/go/support
Taking pictures/videos
Understanding the picture-taking icons
Battery level
Capture mode Pictures/time remaining
Date stamp
Zoom indicator
Tag name
Self timer
Flash mode
Focus mode
Exposure compensation
www.kodak.com/go/support 15
3Working with pictures/videos
Reviewing pictures/videos
1Press the Review button.
2Press for previous/next picture/video.
■To exit, press the Review button.
■To view pictures/videos as thumbnails, press the
Wide Angle (W) button. (For more, see
page 17.)
Magnifying a picture
1Press T to magnify 1X–8X.
2Press to view other parts of a
picture.
■Press OK to return to 1X.
Playing a video
Press OK to play a video. Press OK to pause/resume.
During playback:
■Press to adjust the volume.
■Press to play at 2X speed; press again for 4X.
■Press to reverse at 2X speed; press again for 4X.
4X 4X
1X2X 2X
Forward
Reverse
Playback speed
16 www.kodak.com/go/support
Working with pictures/videos
Deleting pictures/videos
1Press the Review button.
2Press for previous/next picture/video.
3Press the Delete button.
4Follow the screen prompts.
NOTE: To delete protected pictures/videos, remove protection before deleting. (See Protecting
pictures/videos from deletion, below.)
Using the undo delete feature
If you accidentally delete a picture, you may be able to use Undo Delete to retrieve it.
This feature is only available immediately after you delete a picture.
Protecting pictures/videos from deletion
1Press the Review button.
2Press for previous/next picture/video.
3Press the Menu button.
4Press to highlight Protect, then press OK.
The picture/video is protected and cannot be deleted. The Protect icon appears
with the protected picture/video.
■Press the Menu button to exit the menu.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
CAUTION:
Formatting internal memory or an SD or SDHC Card deletes all (including
protected) pictures/videos. (Formatting internal memory also deletes
email addresses and tag names. To restore them, see KODAK EASYSHARE
Software Help.)
Working with pictures/videos
www.kodak.com/go/support 17
Viewing pictures/videos in different ways
Viewing as thumbnails (multi-up)
1Press the Review button.
The camera shows the last picture that was taken.
2Press the Wide Angle (W) button to view
pictures/videos as thumbnails. (Press it again to see
more, smaller thumbnails.)
To view all pictures/videos, highlight the All tab.
To sort by favorites, date, or tagged pictures/videos,
press and highlight the appropriate tab.
3To see a single picture/video, press to highlight it. Then press the Telephoto
(T) button.
■To select multiple pictures/videos, see Selecting multiple pictures/videos.
■Press the Review button to exit Review.
Selecting multiple pictures/videos
Use the multi-select feature when you have two or more pictures/videos to print,
transfer, delete, etc. Multi-select is used most effectively in Multi-Up mode, Viewing as
thumbnails (multi-up).
1Press the Review button, then and
to find a picture/video.
2Press OK to select pictures/videos.
A check mark appears on the picture. You can now
print, transfer, delete, etc. the selected pictures. You
can press OK again to remove a check mark.
Selected
pictures
18 www.kodak.com/go/support
Working with pictures/videos
Creating a multimedia slide show
Use Multimedia Slide Show to display your pictures/videos on the LCD. You can play
all pictures/videos, or select pictures to include in the slide show. You can customize
your slide show to include music and your choice of transitions. You can even save a
slide show.
Make a slide show that you can save
1Press the Review button. Select 2-100 pictures (see page 17).
2Press the Menu button, then to highlight Multimedia Slide Show, then
press OK.
3Press to highlight Preview Show, then press OK.
Each picture/video is displayed once. To interrupt the slide show, press OK. After the
slide show plays, you may save or modify it.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Play a slide show loop
When you turn on Loop, the slide show is continuously repeated.
1On the Multimedia Slide Show menu, press to highlight Loop, then
press OK.
2Press to highlight On, then press OK.
3Press to highlight Preview Show, then press OK.
The slide show repeats until you press OK or until the battery is exhausted.
Working with pictures/videos
www.kodak.com/go/support 19

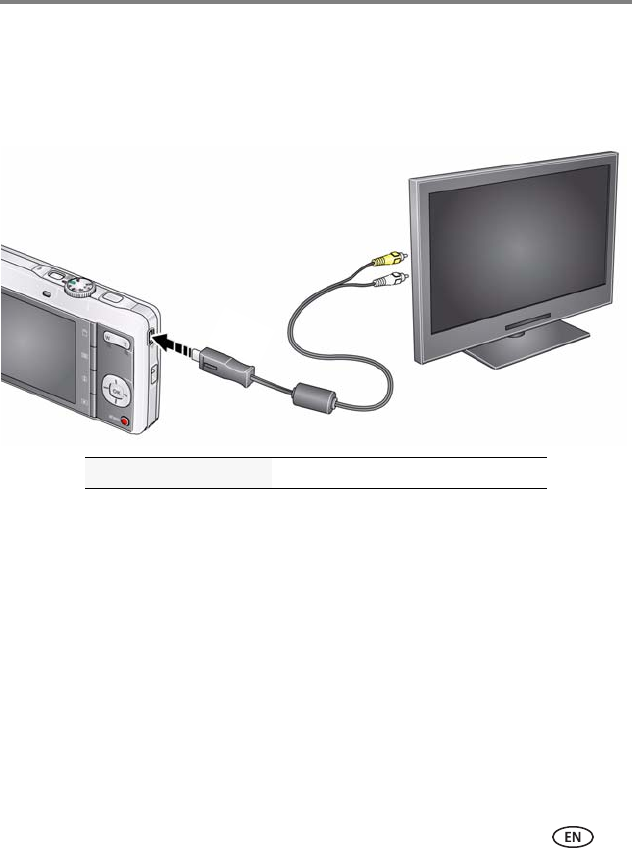

Displaying pictures/videos on a television
You can display pictures/videos on a television, computer monitor, or any device
equipped with a video input. To connect the camera directly to a television, use an
A/V cable (may be sold separately).
NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (see page 34). The slide show stops if you
connect or disconnect the cable while the slide show is running. (Image quality on a television
screen may not be as good as on a computer monitor or when printed.)
Purchase accessories www.kodak.com/go/m340accessories
20 www.kodak.com/go/support
Working with pictures/videos
Using the menu button in review
1Press the Review button, then the Menu button.
2Press to highlight a tab:
■Review
■Edit
■Setup
3Press to highlight a setting, then press OK.
4Highlight an option, then press OK.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Working with pictures/videos
www.kodak.com/go/support 21
Cropping pictures
You can crop a picture so that only the desired portion of the picture remains.
1Press the Review button, then to find a
picture to crop.
2Press the Menu button, then to highlight
the Edit tab. Highlight Crop, then press OK.
3Press Telephoto (T) to zoom in, or to move the crop box. Press OK.
4Follow the screen prompts.
The picture is cropped. (The original is saved.) Cropped pictures cannot be cropped
again on the camera.
■Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Using KODAK PERFECT TOUCH Technology
KODAK PERFECT TOUCH Technology helps ensure better, brighter pictures.
PERFECT TOUCH Technology is automatically applied to pictures taken in Smart
Capture mode. (You cannot apply PERFECT TOUCH Technology to videos, panoramic
pictures, or pictures to which PERFECT TOUCH Technology is already applied.)
1Press the Review button, then for previous/next picture.
2Press the Menu button, then to highlight the Edit tab.
Highlight PERFECT TOUCH Tech, then press OK.
The enhancement is previewed. Press to view other parts of the picture.
3Press OK. Follow the screen prompts to replace the original picture or to save the
enhanced picture as a new one.
■Press the Shutter button halfway down to return to Capture mode.
Picture Cropped picture
22 www.kodak.com/go/support
Working with pictures/videos
Adding sound tags
You can record a voice or sound tag (up to 1 minute long) for a picture.
NOTE: Only one sound tag can be added to each picture (not to videos).
Recording a sound tag
1Press the Review button, then to find a picture.
2Press the Menu button, then to highlight the Edit tab.
3Press to highlight Sound Tag. Press OK.
4Highlight Record, then press OK.
5Follow the screen prompts.
The sound tag is applied to your picture.
■Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Playing a sound tag
1Press the Review button, then to find a sound-tagged picture.
2Press OK to play the sound tag.
3Press to adjust the volume.
4Press OK to stop playback.
Working with pictures/videos
www.kodak.com/go/support 23
Copying pictures/videos
You can copy pictures/videos from a card to internal memory or from internal memory
to a card.
Copy pictures/videos:
1Press the Review button.
2Press the Menu button, then to highlight the Edit tab.
3Press to highlight Copy, then press OK. Highlight a choice, then press OK.
NOTE: Pictures/videos are copied, not moved. To remove pictures/videos from the original location after
copying, delete them (see page 16).
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
24 www.kodak.com/go/support
Working with pictures/videos
Editing videos
You can do incredible things with your videos.
Making a picture from a video
You can choose a single frame from a video, then make a picture suitable for a
4 x 6-inch (10 x 15 cm) print.
1Press the Review button, then to find a
video.
2Press the Menu button, then to highlight
the Edit tab. Highlight Make Picture, then press OK.
3Follow the screen prompts.
A picture is created. (The original video is saved.)
■Press the Shutter button halfway down to return
to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Trimming a video
You can remove an unwanted start or end from a video, saving only the desired
portion.
1Press the Review button, then to find a
video.
2Press the Menu button, then to highlight
the Edit tab. Highlight Trim, then press OK.
3Follow the screen prompts.
The video is trimmed. (You can save it as a new video
or replace the original.)
■Press the Shutter button halfway down to return
to Capture mode.
Video Picture
Video Trimmed video
Working with pictures/videos
www.kodak.com/go/support 25
Making a video action print
From a video, you can make a 4-, 9-, or 16-up picture, suitable for a 4 x 6-inch
(10 x 15 cm) print.
1Press the Review button, then to find a
video.
2Press the Menu button, then to highlight
the Edit tab. Highlight Action Print, then press OK.
3Highlight an option, then press OK.
Auto—The camera includes the first and last
frames, then 2, 7, or 14 equally spaced frames.
Manual—Choose the first and last frames; the
camera chooses 2, 7, or 14 frames.
Full Manual—Choose 4, 9, or 16 frames.
Use Bookmarks—The camera uses bookmarked
frames. See page 26.
A 4-, 9-, or 16-up picture is created.
■Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Video 4-, 9-, or
16-up picture
26 www.kodak.com/go/support
Working with pictures/videos
Using video bookmarks
You can set bookmarks at interesting places in your video, then jump from one
bookmark to another.
Setting bookmarks
1Press the Review button, then to find a
video.
2Press the Menu button, then to highlight the
Edit tab. Highlight Bookmark, then press OK.
3Press to highlight Create/Edit, then press OK.
4While the video plays, press to add
bookmarks. When finished adding up to 9
bookmarks, press .
■Press the Menu button to exit the menu.
Using bookmarks
1Press the Review button, then to find a
video.
2Press to play the video. To jump to the first
bookmark, press and hold for 4 seconds
while the video is playing.
■After you jump to a bookmark, press to
jump to other bookmarks.
■To view all bookmarked video frames, press the
Zoom wide angle (W) button. To return to
normal view, press the telephoto (T) button.
Working with pictures/videos
www.kodak.com/go/support 27
Understanding the review icons
* For more about shortcuts, see page 11.
Email tag
Favorite tag
Print tag/number of print
Protected
Picture/Video number
Upload tag
Video duration
Select picture
Battery level
Text tag name
Add text tag
View multi-up
Play video
Shortcuts*
Date stamp
28 www.kodak.com/go/support
4Doing more with your camera
IMPORTANT:
Your camera offers a built-in Help system. To get the most from your
camera, see page 47.
Using the menu button to change settings
You can change settings to get the best results from your camera.
NOTE: Some modes offer limited settings. Some settings remain until you change them; others, until you
change modes or turn off the camera.
1Press the Menu button.
2Press to highlight a tab:
■Capture/Video for the most common picture- and video-taking settings
■Setup for other camera settings
3Press to highlight a setting, then press OK.
4Highlight an option, then press OK.
Using the capture tab
Press Menu, , ,
and OK to access settings
Picture-taking Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 47.
Exposure Compensation
Make a picture lighter or
darker. (Available in Program
and Panorama modes.) To use
a shortcut, see page 11.
0.0, +/-0.3, +/-0.7, +/-1.0, +/-1.3, +/-1.7, +/-2.0
Doing more with your camera
www.kodak.com/go/support 29
Picture Size
Choose a picture resolution.
10.1 MP (4:3)
8.9 MP (3:2)
7.6 MP (16:9)
5.0 MP (4:3)
3.1 MP (4:3)
2.2 MP (3:2)
2.1 MP (16:9)
1.2 MP (4:3)
Focus Mode
Select a large or concentrated
area of focus.
Auto—For general picture-taking.
Macro—For sharpness and detail in pictures at close range.
Use available light instead of flash, if possible. The camera
automatically sets the focus distance depending on the zoom
position.
Infinity—For distant subjects; auto-focus framing marks are
unavailable.
Burst
Take up to 3 pictures in quick
succession. (Burst is not
available in Panorama mode.)
Off
On—Press the Shutter button halfway to focus and set
exposure. Press the Shutter button completely down and
hold it to take pictures.
Long Time Exposure
Choose how long the shutter
stays open.
Off
0.5, 1.0, 2.0, 4.0 seconds
Press Menu, , ,
and OK to access settings
Picture-taking Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 47.
30 www.kodak.com/go/support
Doing more with your camera
Color Mode
Choose color tones.
Unavailable in Video mode.
High Color
Natural Color
Low Color
Black & White
Sepia—For a reddish-brown, antique look.
NOTE: EASYSHARE Software also lets you change a color picture to
black-and-white or sepia.
AF Control (Still)
Choose an auto-focus setting.
Continuous AF—Because the camera is always focusing,
there is no need to press the Shutter button halfway down to
focus.
Single AF—Uses TTL-AF (through-the-lens auto focus) when
the Shutter button is pressed halfway down.
White Balance
Choose your lighting
condition. (Available only in
Program and Panorama
modes.)
Auto—Automatically corrects white balance. Ideal for general
picture taking.
Daylight—For pictures in natural lighting.
Tungsten—Corrects the orange cast of incandescent light
bulbs. Ideal for indoor pictures under tungsten or halogen
lighting without flash.
Fluorescent—Corrects the green cast of fluorescent lighting.
Ideal for indoor pictures under fluorescent lighting without
flash.
Open Shade—For pictures in shade in natural lighting.
Face Detect Capture
Choose if faces get focus
priority.
On—In P mode (and in SCN modes designed for pictures of
people), the camera attempts to focus on faces.
Off
NOTE: Not available in Smart Capture mode (because face detection
is always on).
Press Menu, , ,
and OK to access settings
Picture-taking Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 47.
Doing more with your camera
www.kodak.com/go/support 31
Video settings
Exposure Metering
Evaluate light levels at specific
areas of a scene.
Multi-Pattern—Evaluates lighting conditions throughout
the image to give an optimum picture exposure. Ideal for
general picture taking.
Center-Weight—Evaluates the lighting conditions of the
subject centered in the lens. Ideal for backlit subjects.
Center-Spot—Similar to Center-weight, except the metering
is concentrated on a smaller area of the subject centered in the
LCD.
AF Zone
Select a large or concentrated
area of focus.
Multi-Zone—Evaluates 5 zones to give an even picture
focus. Ideal for general picture taking.
Center-Zone—Evaluates the small area centered in the lens.
Ideal when you need precise focus.
ISO Speed
Control the sensitivity of the
camera sensor.
Auto—For general picture taking.
ISO 80, 100, 200, 400, 800, 1600
Sharpness
Control picture sharpness or
softness.
Sharp
Normal
Soft
Press Menu, , ,
and OK to access settings
Video-taking Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 47.
Video Size
Choose a video resolution.
640 x 480 @ 24 fps (VGA)
320 x 240 @ 24 fps (QVGA)
Press Menu, , ,
and OK to access settings
Picture-taking Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 47.
32 www.kodak.com/go/support
Doing more with your camera
Using the Setup menu
Use Setup to customize other camera settings.
AF Control
Choose an auto-focus setting.
Continuous AF—Camera is always focusing.
Single AF—Camera focuses once, when the Shutter button is
pressed.
Press Menu, to highlight
Setup, then to access settings
Setup Options
IMPORTANT:
Your camera offers a built-in
Help system. See page 47.
Share button
Choose how pictures/videos are handled
when you press the Share button.
NOTE: Some online services limit video file
sizes.
Use EASYSHARE Software to
choose a preferred online service.
Favorite and Upload—Pictures/videos are
tagged as Favorites and uploaded to your
preferred online service when you connect to your
computer or network.
Favorite—Pictures/videos are tagged as
Favorites (5-star in EASYSHARE Software, on your
computer).
Upload—Pictures/videos are uploaded to your
preferred online service when you connect to your
computer or network.
LCD Brightness
Choose LCD brightness.
High Power
Power Save
Image Storage
Choose a storage location for
pictures/videos.
Auto—The camera uses the card if one is in the
camera. If not, the camera uses internal memory.
Internal Memory—The camera always uses
internal memory, even if a card is installed.
Press Menu, , ,
and OK to access settings
Video-taking Options
IMPORTANT:
Your camera offers a built-in Help system.
See page 47.
Doing more with your camera
www.kodak.com/go/support 33
Set Tag
Create tag names and assign them to
pictures/videos. See page 39.
On—Create a tag.
Off
Date Stamp
Imprint the date on pictures.
Not available on panoramic pictures.
Choose a date option, or turn off the feature.
Red Eye Reduction
Choose how you want to reduce red eye.
Preflash—Red eye preflash fires before the
picture is taken.
Digital Correction—Red eye preflash does not
fire; the camera digitally corrects red eye.
Video Blur Reduction
Improve video stability.
On
Off
Orientation Sensor
Orient pictures/videos so that they are
displayed with the correct side up.
On—The camera rotates pictures to their correct
orientation.
Off—Pictures are not rotated.
Camera Sounds
Choose sound effects for each function.
Power On
Focus Lock
Shutter
Error
Self-timer
Sound Volume High
Medium
Low
Off
Date & Time Set date and time.
Press Menu, to highlight
Setup, then to access settings
Setup Options
IMPORTANT:
Your camera offers a built-in
Help system. See page 47.
34 www.kodak.com/go/support
Doing more with your camera
Auto Power Off
Choose inactivity time until camera turns
off.
10 minutes
5 minutes
3 minutes
1 minute
Video Out
Choose the regional setting that lets you
connect the camera to a television or other
external device.
NTSC—Used in North America and Japan; most
common format.
PAL—Used in Europe and China.
Language Choose your language.
Reset Camera
Reset settings to their default.
Format
CAUTION:
Formatting deletes all
pictures/videos, including those
that are protected. Removing a
card during formatting may
damage the card.
Memory Card—Deletes everything on the card;
formats the card.
Cancel—Exits without making a change.
Internal Memory—Deletes everything in
internal memory including email addresses, and
tag names; formats the internal memory.
About
View camera information.
Press Menu, to highlight
Setup, then to access settings
Setup Options
IMPORTANT:
Your camera offers a built-in
Help system. See page 47.
www.kodak.com/go/support 35
5Transferring, printing, tagging
CAUTION:
Before connecting any cables, install the software that was
included with your camera. Failure to do so may cause the
software to load incorrectly.
Installing the software
1Close all open software applications before starting the installation.
NOTE:
If running WINDOWS OS and installing EASYSHARE Software from the
Kodak Web site, do not close the WinZip application. If prompted, allow
EASYSHARE Software to access the Internet.
2Place the KODAK EASYSHARE Software CD into the CD-ROM drive.
3Load the software:
WINDOWS OS—if the install window does not appear, choose Run from the Start
menu and type d:\setup.exe where d is the drive letter that contains the CD.
MAC OS X—double-click the CD icon on the desktop, then click the Install icon.
4Follow the on-screen instructions to install the software.
NOTE: When prompted, register your camera and software. Registering lets you sign up for information
that keeps your system up-to-date. To register later, visit
www.kodak.com/go/register.
5If prompted, restart the computer.
For software help, click the Help button in EASYSHARE Software.
36 www.kodak.com/go/support
Transferring, printing, tagging
Transferring pictures/videos to your computer
Using the USB cable
Using other options
You can also use a KODAK Card Reader to transfer your pictures/videos.
Purchase accessories www.kodak.com/go/m340accessories
Learn more about connecting www.kodak.com/go/howto
Turn on the camera.
Then connect a KODAK USB Cable, Model U-8.
Transferring, printing, tagging
www.kodak.com/go/support 37
Printing pictures
Direct printing with a KODAK All-in-One Printer
Your camera is compatible with PICTBRIDGE Technology, so you can print directly to
PICTBRIDGE enabled printers. You need a camera with fully charged battery, a
PICTBRIDGE enabled printer, and a USB cable.
Connecting the camera to a KODAK All-in-One Printer
1Turn off the printer. Turn on the camera.
2Connect the appropriate USB cable from the camera to the printer.
The PICTBRIDGE logo is displayed, followed by the current picture and menu. (If no
pictures are found, a message is displayed.) If the menu turns off, press any button to
redisplay it.
3Highlight a printing option, then press OK.
Current Picture—Press to choose a picture. Choose the number of copies.
Tagged Pictures—Print pictures that you tagged for printing and choose a print
size.
Index Print—Print thumbnails of all pictures. (This option requires one or more
sheets of paper.) If the printer is capable, choose a print size.
All Pictures—Print all pictures in internal memory or on a card. Choose the
number of copies.
Image Storage—Access Auto or Internal Memory.
NOTE: During direct printing, pictures are not permanently transferred or saved to the printer. To transfer
pictures to your computer, see page 36.
Purchase cables, accessories www.kodak.com/go/m340accessories
38 www.kodak.com/go/support
Transferring, printing, tagging
Disconnecting the camera from a KODAK All-in-One Printer
1Turn off the camera and printer.
2Disconnect the USB cable from the camera and the printer.
Using a printer that is not PICTBRIDGE enabled
After you transfer pictures from the camera to your computer, you can print them from
EASYSHARE Software. For details, see Help in EASYSHARE Software.
Ordering prints online
KODAK Gallery (www.kodakgallery.com) is one of the many online print services
offered in EASYSHARE Software. You can easily:
■Upload your pictures.
■Edit, enhance, and add borders to your pictures.
■Store pictures, and share them with family and friends.
■Have prints, photo greeting cards, frames, and albums delivered to your door.
Printing from an optional SD or SDHC Card
■Automatically print tagged pictures when you insert your card into a printer with
an SD/SDHC Card slot. See your printer user’s guide for details.
■Make prints at an SD/SDHC Card-capable KODAK Picture Kiosk. Visit
www.kodak.com/go/picturemaker.
■Take the card to your local photo retailer for professional printing.
Transferring, printing, tagging
www.kodak.com/go/support 39
Tagging your pictures
You can tag your pictures so they are easy to:
■Print
■Email
■Organize with a favorite tag
■Organize with a tag name that you create
Tagging pictures for printing
1Press the Review button. Press to locate a picture.
2Press the Menu button.
3Press to highlight Print, then press OK.
4Press to select the number of copies.
Optional: You can apply a print quantity to other pictures. Press for
previous/next. Keep the print quantity as is, or press to change it. Repeat
this step until the desired print quantity is applied to each picture.
5Press OK.
The Print icon appears in the status area.
■Press the Shutter button halfway down to return to Capture mode.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Printing tagged pictures
When you transfer the tagged pictures to your computer, the EASYSHARE Software
print screen opens. For details on printing, see Help in EASYSHARE Software.
40 www.kodak.com/go/support
Transferring, printing, tagging
Tagging pictures/videos for emailing
First, create a new email address: highlight Add Email, press OK, then use the
on-camera keyboard.
1Press the Review button. Press to locate a picture.
2Press the Menu button.
3Press to highlight Email, then press OK.
4Press to locate an email address, then press OK.
To tag other pictures/videos with the same address, scroll through them. When the
picture you want is displayed, press OK.
To send the pictures/videos to more than one address, repeat step 3.
■To remove a selection, highlight a checked address and press OK. To remove
all email selections, highlight Clear All, then press OK.
■Press the Shutter button halfway down to return to Capture mode.
The Email icon appears in the status area.
When you transfer the tagged pictures/videos to your computer, EASYSHARE Software
prompts you to send the pictures/videos. For details, see Help in EASYSHARE
Software.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Transferring, printing, tagging
www.kodak.com/go/support 41
Assigning the favorite tag to pictures/videos
To make your favorite pictures/videos easier to locate in EASYSHARE Software, you
can assign the favorite tag.
1Press the Share button, then locate a picture/video.
2Highlight Favorite, then press OK.
The favorite icon appears with the picture. When you transfer the tagged
pictures/videos to your computer, EASYSHARE Software opens and categorizes your
favorite pictures/videos.
Assigning text tags to pictures/videos
First, create a new tag name: highlight New Tag, press OK, then use the on-camera
keyboard.
1Press the Review button, then locate a picture/video.
2Press the Menu button.
3Highlight Tag, then press OK.
4Highlight a tag name, then press OK.
To assign the tag to other pictures, press to locate a picture, then press OK.
The tag name appears with the picture.
To remove a selection, highlight a tag name and press OK. To remove all tag
selections, highlight Clear All, then press OK.
When you transfer the tagged pictures/videos to your computer, EASYSHARE Software
opens and categorizes your pictures/videos with the appropriate tag.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
42 www.kodak.com/go/support
Transferring, printing, tagging
Assigning a tag to pictures/videos you take next
Use the Set Tag feature to assign a tag name to the next pictures/videos you take.
First, create a new tag name: highlight New Tag, press OK, then use the on-camera
keyboard.
1Press the Menu button.
2Highlight the Setup tab.
3Highlight Set Tag, then press OK.
4Highlight a tag name, then press OK.
5Press the Shutter button halfway down to return to Capture mode.
The selected tag is displayed on the LCD.
When you transfer the tagged pictures/videos to your computer, EASYSHARE Software
opens and categorizes your pictures/videos with the appropriate tag.
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
www.kodak.com/go/support 43
6Troubleshooting
IMPORTANT:
Your camera offers a built-in Help system. See page 47.
Camera problems
Status Solution
Camera does not
turn on
■Make sure the battery is charged and installed correctly (see
page 1).
Camera does not turn
off
Camera buttons and
controls do not
function
In Review, a blue or
black screen is
displayed instead of
a picture
■Transfer
all
pictures to the computer (see page 35).
■Take another picture.
Pictures remaining
number does not
decrease after taking a
■Continue taking pictures. The camera is operating normally.
(The camera estimates the number of pictures remaining after each
picture is taken, based on picture size and content.)
Flash does not fire ■Check the flash setting, and change as needed (see page 7).
NOTE: The flash does not fire in all modes.
Memory card is almost
or entirely full
■Transfer the pictures to the computer (see page 35).
■Delete pictures from the card (see page 16) or insert a new card.
Battery life is short ■Make sure the correct battery type is installed (see page 54).
■Wipe the contacts with a clean, dry cloth before inserting a
battery in the camera.
■Insert a new or charged battery (see page 1).
44 www.kodak.com/go/support
Troubleshooting
Computer/connectivity problems
You cannot take a
■Turn the camera off, then on again.
■Depress the Shutter button all the way (see page 5).
■Insert a new or charged battery (see page 1).
■Memory is full. Transfer pictures to the computer (see page 35),
delete pictures (see page 16), or insert another card.
Memory card not
recognized or camera
freezes with card
■Card may be corrupted. Format the card in the camera (see
page 34).
■Use another memory card. Only SD or SDHC Cards are supported.
Cannot find the
desired picture/video
■To view pictures on a card or in internal memory, see page 15.
Status Solution
Pictures do not
transfer to computer
■See Help in EASYSHARE Software.
Slide Show does not
run on an external
video device
■Adjust the camera Video Out setting to NTSC or PAL (see
page 34).
■Make sure the external device settings are correct. (See the
device’s user’s guide).
Computer does not
communicate with
the camera
■Make sure the battery is charged and installed correctly (see
page 1).
■Turn on the camera.
■Make sure the USB cable model U-8 is connected to the camera
and the computer (see page 36).
■Make sure EASYSHARE Software is installed (see page 35).
Status Solution
Troubleshooting
www.kodak.com/go/support 45
Picture quality problems
Status Solution
Picture is not clear ■To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■Clean the lens (see page 52).
■Make sure the camera is not in Macro mode if you are more than
27.6 in. (70 cm) from your subject.
■Place the camera on a flat, steady surface or use a tripod (especially
in high-zoom settings or in low light).
■Use a larger picture size (see page 29).
■If you’re manually adjusting the ISO speed, realize that high ISO
setting may cause grainy pictures (see page 31).
Picture is too dark ■Reposition the camera for more available light.
■Use Fill flash (see page 7) or change your position so light is not
behind the subject.
■Move so that the distance between you and the subject is within the
effective flash range. (See camera specifications starting on
page 50.)
■To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
Picture is too light ■Reposition the camera to reduce the amount of available light.
■Turn the flash off (see page 7).
■Move so that the distance between you and the subject is within the
effective flash range. (See camera specifications starting on
page 50.)
■To automatically set exposure and focus, press the Shutter button
halfway. When the framing marks turn green, press the Shutter
button completely down to take the picture.
■In Program and Panorama modes, adjust the Exposure
Compensation (see page 28).
46 www.kodak.com/go/support
Troubleshooting
Direct printing (PICTBRIDGE enabled printer) problems
Status Solution
Cannot find the
desired picture
■Use the Direct printing menu to change the image storage location.
The Direct printing
menu interface turns
off
■Press any camera button to redisplay the menu.
Cannot print pictures ■Make sure there is a connection between the camera and the
printer (see page 37).
■Make sure the printer and the camera have power.
Camera or printer
display an error
message
■Follow the prompts to resolve the issue.
www.kodak.com/go/support 47
7Getting help
Getting help from your camera
You want the most from your camera. You want to understand:
■What it can do for you
■And how to take the best possible pictures and videos
Great news!
Your camera offers a built-in Help system. It describes every setting for every menu
choice. If you learn nothing else about your camera, learn how to use on-camera Help.
Because the more you know your camera, the more confident you become.
Turning on camera Help
Scroll through a Help topic
Press the Menu button, then
highlight a menu choice.
Press the Info
1
2button.
48 www.kodak.com/go/support
Getting help
Getting help on the Web
Camera
Software
Other
Email, write, or phone Kodak www.kodak.com/go/contact
Get support for your product (FAQs, troubleshooting
information, arrange for repairs, etc.)
www.kodak.com/go/m340support
Purchase camera accessories (lenses, cards, etc.) www.kodak.com/go/m340accessories
Download the latest camera firmware and software www.kodak.com/go/m340downloads
See online demonstrations of your camera www.kodak.com/go/howto
Register your camera www.kodak.com/go/register
Get information on EASYSHARE Software www.kodak.com/go/easysharesw
(or see Help in EASYSHARE Software)
Get help with the WINDOWS OS and working with
digital pictures
www.kodak.com/go/pcbasics
Get support for cameras, software, accessories, more www.kodak.com/go/support
Get information on KODAK Inkjet Products www.kodak.com/go/inkjet
Optimize your printer for truer, more vibrant colors www.kodak.com/go/onetouch
Getting help
www.kodak.com/go/support 49
Getting help on the telephone
NOTE: If you have questions concerning this product, you may speak with Kodak customer support.
Australia 1800 267 588 Netherlands 020 346 9372
Austria 0179 567 357 New Zealand 0800 880 120
Belgium 02 713 14 45 Norway 23 16 21 33
Brazil 0800 891 42 13 Philippines 1 800 1 888 9600
Canada 1 800 465 6325 Poland 00800 4411625
China 800 820 6027 Portugal 021 415 4125
Czech Republic 00 800 56325000 Russia 8 495 929 9166
Denmark 3 848 71 30 Singapore 800 6363 036
Finland 0800 1 17056 Slovakia 00 800 56325000
France 01 55 1740 77 Spain 91 749 76 53
Germany 069 5007 0035 Sweden 08 587 704 21
Greece 00800 44140775 Switzerland 044 838 53 51
Hong Kong 800 901 514 Taiwan 0800 096 868
Hungary 06 80 456 325 Thailand 001 800 631 0017
India 91 80 41374555
(toll free 000800 440 1227)
Turkey 00800 448827073
Ireland 01 407 3054 United Kingdom 0870 243 0270
Italy 02 696 33452 United States 1 800 235 6325
Japan 03 5540 9002 International Toll Line +44 131 458 6714
Korea 080 708 5600 International Toll Fax +44 131 458 6962
50 www.kodak.com/go/support
8Appendix
Camera specifications
CCD—1/2.33-type
Effective pixels—10.2 MP (3688 x 2770)
LCD—2.7 in. (6.9 cm) LCD; 230K pixels
Image storage—Optional SD/SDHC Card (The SD logo is a trademark of the
SD Card Association.) Maximum supported card size: 32 GB
Internal storage capacity—16 MB internal memory (10 MB available for image
storage. 1 MB equals one million bytes.)
Taking lens—3X optical zoom; f/3.1–f/5.7; 35 mm equivalent: 35–105 mm
Lens protection—Built-in
Digital zoom—5X continuous
Focus system—TTL-AF (through-the-lens auto focus); Auto: Multi-Zone,
Center-Zone. Working range:
60 cm (23.6 in.)–infinity @ wide, normal
60 cm(23.6 in.)–infinity @ telephoto, normal
10–70 cm (3.9–27.6 in.) @ wide, Macro mode
60–70 cm (23.6–27.6 in.) @ telephoto, Macro mode
10 m (32.8 ft)–infinity @ wide, Landscape mode
Auto focus control—Continuous and Single AF
Face detection—Up to 5 faces
Shutter speed—1/1400–4 seconds
ISO speed—Auto (in Smart Capture): 80–320; Manual: 80, 100, 200, 400, 800,
1600
Appendix
www.kodak.com/go/support 51
Exposure metering—TTL-AE; Multi-Pattern, Center-Weight, Center-Spot
Exposure compensation—+/-2.0 EV with 1/3 EV step
White Balance—Auto, Daylight, Tungsten, Fluorescent, Open Shade
Electronic Flash—Auto flash; Auto, Fill, Red Eye, Off; Guide No.6; working range @
ISO 320: 0.6–3.5 m (2–11.5 ft) @ wide; 0.6–2.0 m (2–6.6 ft) @ telephoto
Burst mode—Maximum 3 pictures @ 1.5 fps; Auto Exposure, Auto Focus, Auto
White Balance executed for first shot only
Capture modes—Smart Capture, Program, Blur Reduction, Sport, Panorama, Scene
modes, Video
Image file format—
Still: EXIF 2.21 (JPEG compression); file organization DCF
Video: QUICKTIME (CODEC Motion JPEG; audio: G.711)
Picture size—10.1 MP (4:3): 3664 x 2748 pixels
8.9 MP (3:2): 3664 x 2442 pixels
7.6 MP (16:9): 3664 x 2062 pixels
5.0 MP (4:3): 2592 x 1944 pixels
3.1 MP (4:3): 2048 x 1536 pixels
2.2 MP (3:2): 1800 x 1200 pixels
2.1 MP (16:9): 1920 x 1080 pixels
1.2 MP (4:3): 1280 x 960 pixels
Color modes—High Color, Natural Color, Low Color, Black & White, Sepia
Sharpness modes—Sharp, Normal, Soft
Video capture—80 minutes maximum
VGA (640 x 480 @ 24 fps)
QVGA (320 x 240 @ 24 fps)
Video blur reduction—Yes
Communication with computer—USB 2.0 high speed (PIMA 15740 protocol);
via KODAK USB Cable, Model U-8
52 www.kodak.com/go/support
Appendix
Video output—NTSC or PAL
Microphone—Yes
Speaker—Yes
PICTBRIDGE support—Yes
Power—KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7001 (720 or 770
mAh); 5V AC adapter; USB charging
Tripod mount—1/4 inch
Size—95.5 x 58.5 x 19.2 mm (3.8 x 2.3 x 0.8 in.) @ power off
Weight—115 g (4.1 oz) without card or battery
Operating temperature—0–40° C (32–104° F)
Care and maintenance
■If you suspect water has gotten inside the camera, remove the battery and card.
Allow all components to air-dry for at least 24 hours before using the camera.
■Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft,
lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions
unless designed specifically for camera lenses. Do not allow chemicals, such as
suntan lotion, to contact painted surfaces.
■Service agreements may be available in your country. Contact a dealer of KODAK
Products for more information.
■For digital camera disposal or recycling information, contact your local authorities.
In the US, visit the Electronics Industry Alliance Web site at www.eiae.org or
www.kodak.com/go/m340support.
Appendix
www.kodak.com/go/support 53
Upgrading your software and firmware
Download the latest versions of the software included on the KODAK EASYSHARE
Software CD and the camera firmware (the software that runs on the camera). Visit
www.kodak.com/go/m340downloads.
Storage capacities
The LCD displays the approximate number of pictures (or minutes/seconds of video)
remaining. For average SD Card capacities, visit www.kodak.com/go/SDcapacities.
Actual storage capacity varies depending on subject composition, card size, and other
factors. You may be able to store more or fewer pictures and videos.
Important safety instructions
CAUTION:
Do not disassemble this product; there are no user-serviceable parts
inside. Refer servicing to qualified service personnel. KODAK AC Adapters
and Battery Chargers are intended for indoor use only. The use of
controls, adjustments, or procedures other than those specified herein
may result in exposure to shock and/or electrical or mechanical hazards. If
the LCD breaks, do not touch the glass or liquid. Contact Kodak customer
support.
■The use of an accessory that is not recommended by Kodak may cause fire, electric
shock, or injury. For approved accessories, visit www.kodak/go/accessories.
■Use only a USB-certified computer equipped with a current-limiting motherboard.
Contact your computer manufacturer if you have questions.
■If using this product in an airplane, observe all instructions of the airline.
■When removing the battery, allow it to cool; it may be hot.
■Follow all warnings and instructions supplied by the battery manufacturer.
■Use only batteries approved for this product to avoid risk of explosion.
54 www.kodak.com/go/support
Appendix
■Keep batteries out of the reach of children.
■Do not allow batteries to touch metal objects, including coins. Otherwise, a battery
may short circuit, discharge energy, become hot, or leak.
■Do not disassemble, install backward, or expose batteries to liquid, moisture, fire,
or extreme temperature.
■Remove the battery when the product is stored for an extended period of time. In
the unlikely event that battery fluid leaks inside the product, contact Kodak
customer support.
■In the unlikely event that battery fluid leaks onto your skin, wash immediately with
water and contact your local health provider. For additional health-related
information, contact your local Kodak customer support.
■Dispose of batteries according to local and national regulations. Visit
www.kodak.com/go/kes.
■Do not charge non-rechargeable batteries.
For more information on batteries, visit www.kodak.com/go/batterytypes.
Battery replacement, battery life
■KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7001 (770 mAh):
280–320 pictures per charge.
■KODAK Li-Ion Rechargeable Digital Camera Battery KLIC-7001 (720 mAh):
300–340 pictures per charge.
Battery life per CIPA testing method. (Approx. number of pictures in Smart Capture
mode, using 128 MB SD Card.) Actual life may vary based on usage.
Extending battery life
■Use power-saving features (see Using the Setup menu, page 32).
■Dirt on the battery contacts can affect battery life. Wipe the contacts with a clean,
dry cloth before loading the battery in the camera.
Appendix
www.kodak.com/go/support 55
■Battery performance is reduced at temperatures below 41° F (5° C). When using
your camera in cold weather, carry spare batteries and keep them warm. Do not
discard cold batteries that do not work; when they return to room temperature,
they may be usable.
Limited warranty
Kodak warrants KODAK Consumer Electronic Products and Accessories (“Products”),
excluding batteries, to be free from malfunctions and defects in both materials and
workmanship for one year from the date of purchase. Retain the original dated sales
receipt. Proof of the date of purchase will be required with any request for warranty
repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were
originally purchased. You may be required to ship Products, at your expense, to the
authorized service facility for the country where the Products were purchased. Kodak
will repair or replace Products if they fail to function properly during the warranty
period, subject to any conditions and/or limitations stated herein. Warranty service
will include all labor as well as any necessary adjustments and/or replacement parts. If
Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the
purchase price paid for the Product provided the Product has been returned to Kodak
along with proof of the purchase price paid. Repair, replacement, or refund of the
purchase price are the sole remedies under the warranty. If replacement parts are
used in making repairs, those parts may be remanufactured, or may contain
remanufactured materials. If it is necessary to replace the entire Product, it may be
replaced with a remanufactured Product. Remanufactured Products, parts and
materials are warranted for the remaining warranty term of the original Product, or 90
days after the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty
does not apply when failure is due to shipping damage, accident, alteration,
modification, unauthorized service, misuse, abuse, use with incompatible accessories
56 www.kodak.com/go/support
Appendix
or attachments (such as third party ink or ink tanks), failure to follow Kodak's
operation, maintenance or repacking instructions, failure to use items supplied by
Kodak (such as adapters and cables), or claims made after the duration of this
warranty.
Kodak makes no other express or implied warranty for this product, and disclaims the
implied warranties of merchantability and fitness for a particular purpose. In the event
that the exclusion of any implied warranty is ineffective under the law, the duration of
the implied warranty will be one year from the purchase date or such longer period as
required by law. The option of repair, replacement, or refund is Kodak's only
obligation. Kodak will not be responsible for any special, consequential or incidental
damages resulting from the sale, purchase, or use of this product regardless of the
cause. Liability for any special, consequential or incidental damages (including but not
limited to loss of revenue or profit, downtime costs, loss of the use of the equipment,
cost of substitute equipment, facilities or services, or claims of your customers for such
damages resulting from the purchase use or failure of the Product), regardless of
cause or for breach of any written or implied warranty is expressly disclaimed.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of
this warranty may be different. Unless a specific Kodak warranty is communicated to
the purchaser in writing by a Kodak company, no warranty or liability exists beyond
any minimum requirements imposed by law, even though defect, damage, or loss may
be by negligence or other act.
Appendix
www.kodak.com/go/support 57
Regulatory compliance
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: 1) reorient or relocate the
receiving antenna; 2) increase the separation between the equipment and the
receiver; 3) connect the equipment to an outlet on a circuit different from that to
which the receiver is connected; 4) consult the dealer or an experienced radio/TV
technician for additional suggestions. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be
used with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
Waste Electrical and Electronic Equipment/Battery disposal
In Europe: For human/environmental protection, it is your responsibility to dispose of
this equipment and batteries at a collection facility established for this purpose
(separate from municipal waste.) For more information, contact your retailer, collection
facility, or appropriate local authorities; or visit www.kodak.com/go/recycle.
KODAK EASYSHARE M340 Digital Camera
58 www.kodak.com/go/support
Appendix
Australian C-Tick
VCCI Class B ITE
Korean Class B ITE
Russian GOST-R
N137
Eastman Kodak Company
Rochester, NY 14650
AIO-40
Appendix
www.kodak.com/go/support 59
China RoHS
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian
ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
FCC and Industry Canada
This device complies with Industry Canada RSS-210 and FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
60 www.kodak.com/go/support
Index 1
A
A/V out, 19
about this camera, 34
accessories, 36
battery, 54
buying, 48
SD/SDHC Card, 3
AF control (Still), 30
AF control (video), 32
AF zone, 31
auto, 8
enhancement, 21
focus control, 30, 32
focus framing marks, 5
power off, 34
auto focus (AF)
zone, 31
auto power off, 34
B
backlight, 9
battery
charging, 2, 4
expected life, 54
loading, 1
types, 54
battery compartment, ii
beach, 9
bookmarks, 26
button
delete, 6
review, ii
telephoto/zoom, 6
C
cable
audio/video, 19
USB, 36
camera sounds, 33
Canadian compliance, 59
care and maintenance, 52
charging the battery, 2, 4
children, 9
clock, setting, 3
color mode, 30
computer
connecting camera, 35
transfer to, 35
connector, USB / A/V, 19, 36
copy pictures
card to memory, 23
memory to card, 23
to computer via USB cable, 35
cropping pictures, 21
customer support, 49
customize camera, 32
D
date setting, 3
date stamp, 33
DC-in, i
delete button, ii
deleting
during quickview, 6
www.kodak.com/go/support 61
Index
from internal memory, 16
from SD/SDHC Card, 16
protecting pictures, videos, 16
digital zoom, 6
displaying slide show, 18
disposal, recycling, 52
downloading pictures, 35
E
EASYSHARE Software, 35
edit videos, 24
emailing pictures, videos, 40
expected battery life, 54
exposure
long time, 29, 32
metering, 31
exposure compensation, 28
exposure metering, 31
external video device
viewing pictures, videos, 19
F
face detect capture, 30
favorites tagging, 41
FCC compliance, 57
fireworks, 9
firmware, upgrading, 53
flash, i
flash button, i
flash, using, 7
flower, 9
focus framing marks, 5
focus mode, 29
format, 34
framing marks, 5
G
guidelines, battery, 54
H
help
camera help, 47
Web links, 47
high ISO, 10
I
icons, modes, 8
image stabilizer (video), 33
image storage, 32
installing
battery, 1
SD/SDHC Card, 3
software, 35
ISO speed, 31
J
joystick, ii
K
KODAK EASYSHARE Software
installing, 35
upgrading, 53
KODAK PERFECT TOUCH
Technology, 21
Kodak Web sites, 47
L
language, 34
LCD, ii
62 www.kodak.com/go/support
Index
brightness, 32
reviewing pictures, 15
reviewing videos, 15
LCD brightness, 32
lens
cleaning lens, 52
light, self-timer, i
loading
battery, 1
SD/SDHC Card, 3
software, 35
long time exposure, 29, 32
M
MAC OS, installing software, 35
magnify a picture, 15
maintenance, camera, 52
make picture from video, 24
manner/museum, 9
memory
inserting card, 3
menu button, ii
menu settings, 28
mode dial, i
modes, 8
auto, 8
backlight, 9
beach, 9
children, 9
fireworks, 9
flower, 9
high ISO, 10
manner/museum, 9
night landscape, 9
night portrait, 9
scene (SCN), 9
self-portrait, 9
snow, 9
text, 9
modes, capture
smart capture, 8
multiple selections, 17
multi-up, 17
N
night landscape, 9
night portrait, 9
O
OK button, ii
online prints, ordering, 38
optical zoom, 6
orientation sensor, 33
P
panoramic pictures, 13
PERFECT TOUCH Technology, 21
PICTBRIDGE enabled printer, 37
picture size, 28, 29
pictures
copying, 23
cropping, 21
emailing tagged, 40
PERFECT TOUCH, 21
printing, 38
printing tagged, 39
protecting, 16
review icons, 27
reviewing, 15
www.kodak.com/go/support 63
Index
tagging, 39
taking, modes, 8
transfer via USB cable, 35
pictures/video
deleting, 16
playing a video, 15
power
camera, 2
power button, i
pre-tagging, 42
printing
from a card, 38
from computer, 38
optimizing printer, 47
order online, 38
PICTBRIDGE, 37
tagged pictures, 38
protecting pictures, videos, 16
Q
quickview, using, 6
R
recycling, disposal, 52
regulatory information, 57
repair, 48
reset camera, 34
review button, ii
reviewing pictures/video
as you take them, 6
deleting, 16
LCD, 15
protecting, 16
slide show, 18
running slide show, 18
S
safety, 53
scene modes (SCN), 9
SD/SDHC Card
inserting, 3
printing from, 38
select multiple pictures/videos, 17
self-portrait, 9
self-timer, 12
self-timer light, i
service and support telephone
numbers, 49
set tag, 33
setting
AF zone, 31
auto power off, 34
auto-focus, 30, 32
camera sounds, 33
color mode, 30
date and time, 3
date stamp, 33
exposure metering, 31
image storage, 32
ISO, 31
language, 34
LCD brightness, 32
long time exposure, 29, 32
orientation sensor, 33
picture size, 28, 29
picture-taking mode, 8
self-timer, 12
sharpness, 31
64 www.kodak.com/go/support
Index
sound volume, 33
video out, 34
video size, 31
white balance, 30
setting up the camera, 1
setup menu, 32
Share button, 32
sharpness, 31
shutter
problems, 44
self-timer delay, 12
shutter button, i
slide show
continuous loop, 18
running, 18
smart capture, 8
snow, 9
software
installing, 35
upgrading, 53
sound volume, 33
sounds, 33
specifications, camera, 50
strap, 1
strap post, ii
support, technical, 49
T
tagging
creating tags, 41
favorites, 41
for email, 40
for print, 39
pre-tagging, 42
taking pictures, videos, 5
telephone support, 49
television, slide show, 19
text, 9
time, setting, 3
timer, shutter delay, 12
tips
battery guidelines, 54
care & maintenance, 52
transfer, via USB cable, 35
trash can, deleting, 6
trimming a video, 24
tripod socket, ii
troubleshooting, 43
turning camera on and off, 2
U
undelete, undo, 16
upgrading software, firmware, 53
URLs, Kodak Web sites, 47
USB
transferring pictures, 35
USB/AV Out, ii
V
VCCI compliance, 58
video
action print, 25
copying, 23
edit, 24
emailing tagged, 40
out, 34
playback, 15
protecting, 16
www.kodak.com/go/support 65
Index
review icons, 27
size, 31
transfer to computer, 35
viewing, 15
video bookmarks, 26
video out, 34
video size, 31
viewing
by multi-up, 17
picture, after taking, 6, 15
volume, 33
W
warranty, 55
white balance, 30
WINDOWS OS, installing software, 35
Z
zoom
digital, 6
optical, 6
zoom button, ii

Navigation menu
