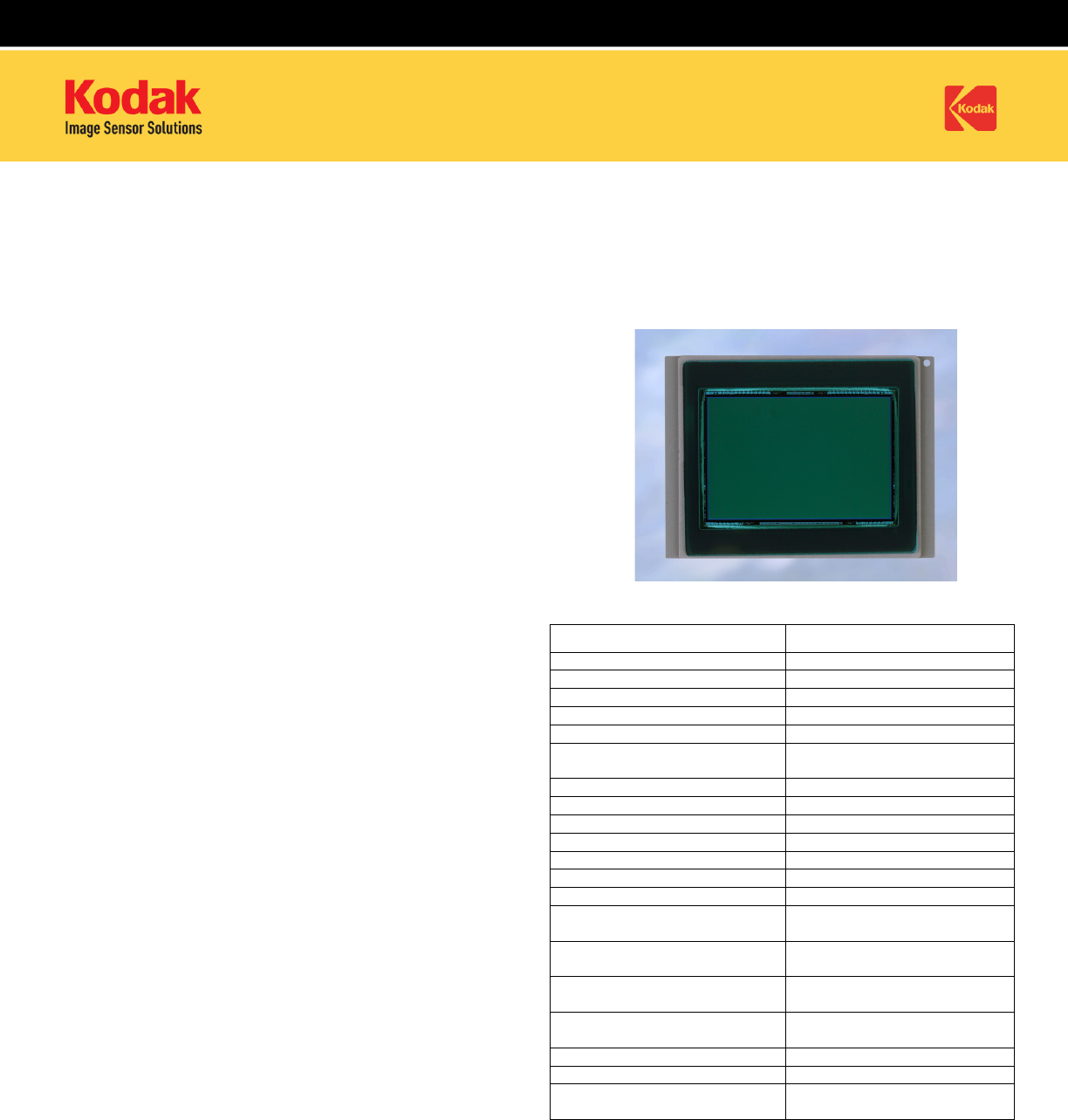

PRODUCT SUMMARY

KODAK KAF-10500 IMAGE SENSOR

3970 (H) X 2646 (V) FULL FRAME CCD COLOR IMAGE SENSOR

DESCRIPTION

The KAF-10500 is a dual output, high performance color

CCD (charge coupled device) image sensor with 3970(H)

x 2646(V) photoactive pixels designed for a wide range of

color image sensing applications including digital

imaging. Each pixel contains anti-blooming protection by

means of a lateral overflow drain thereby preventing

image corruption during high light level conditions. Each

of the 6.8μm square pixels are selectively covered with

red, green or blue pigmented filters for color separation.

Microlenses are added for improved sensitivity. The total

chip size is 28.7 mm x 20.2 mm and is housed in a 60 pin,

40.6 mm x 30.7 mm PGA ceramic package with 0.100”

pin spacing.

FEATURES

• High resolution

• Broad dynamic range

• Low noise

• Large image area

APPLICATIONS

• Digital Still Cameras

Parameter Typical Value

Architecture Full Frame CCD (Square Pixels)

Total Number of Pixels 4098 (H) x 2728 (V) = 11.2 Mp

Number of Effective Pixels 4010 (H) x 2686 (V) = 10.8 Mp

Number of Active Pixels 3970 (H) x 2646 (V) = 10.5 Mp

Pixel Size 6.8 μm (H) x 6.8 μm (V)

Active Image Size 27.0 mm (H) x 18.0 mm (V)

32.44 mm (diagonal)

Aspect Ratio 3:2

Horizontal Outputs 2

Saturation Signal 60 ke-

Output Sensitivity 25 μV/e-

Quantum Efficiency (RGB) 21%, 40%, 32%

Read Noise (f=24 MHz) 15 e-

Dark Signal (T=40 °C) 4 mV

Dark Current Doubling

Temperature 6.3 °C

Linear Dynamic Range

(f=24 MHz, T=40 °C) 71.5 dB

Charge Transfer Efficiency

(HCTE/VCTE)

0.999995

0.999999

Blooming Protection

(4 ms exposure time) 1000X saturation exposure

Maximum Data Rate 24 MHz

Package Ceramic PGA

Cover Glass IR Absorbing with AR Coating

(both sides)

Parameters above specified at T = 20°C unless otherwise noted

©Eastman Kodak Company, 2007 www.kodak.com/go/imagers Revision 5.0 MTD/PS-0962

ORDERING INFORMATION

Catalog

Number

Product Name Description Marking Code

4H0799 KAF-10500-CXA-JH-AA-Offset

Color (Bayer RGB), Special Microlenses, PGA Package, IR Absorbing Cover

Glass with AR coating (both sides), Standard grade

4H0800 KAF-10500-CXA-JH-AE-Offset

Color (Bayer RGB), Special Microlenses, PGA Package, IR Absorbing Cover

Glass with AR coating (both sides), Engineering grade

KAF-10500-CXA

(Serial Number)

4H0846 KEK-4H0846-KAF-10500-12-24 Evaluation Board (Complete Kit) N/A

Please see the User’s Manual (MTD/PS-0982) for information on the Evaluation Kit for this part.

Please see ISS Application Note “Product Naming Convention” (MTD/PS-0892) for a full description of naming convention

used for KODAK image sensors.

For all reference documentation, please visit our Web Site at www.kodak.com/go/imagers.

Address all inquiries and purchase orders to:

Image Sensor Solutions

Eastman Kodak Company

Rochester, New York 14650-2010

Phone: (585) 722-4385

Fax: (585) 477-4947

E-mail: imagers@kodak.com

Kodak reserves the right to change any information contained herein without notice. All information furnished by Kodak is

believed to be accurate.

©Eastman Kodak Company, 2007 www.kodak.com/go/imagers Revision 5.0 MTD/PS-0962
