Product features
www.kodak.com/go/support i

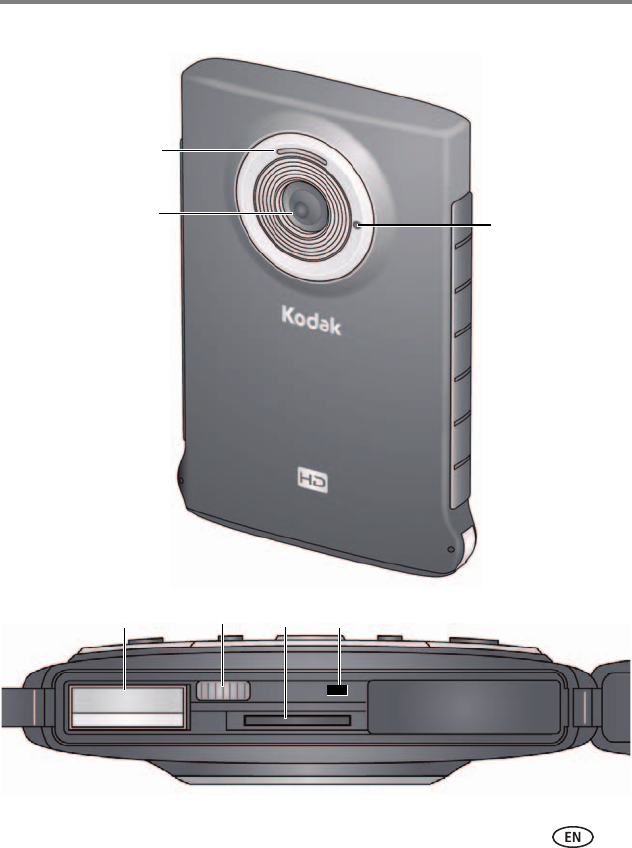

Front view, Bottom view
Speaker
Lens
USB
USB
release
Reset
button
Card
Microphone
ii www.kodak.com/go/support
Product features
Back view, Closing the door
• Scroll
• Digital Zoom + –
• Adjust volume
during video
playback.
Power
Menu OK, Record, Shutter
button
LCD
Door
latch
Door
MICRO
SD/SDHC
Card
slot
Battery (not
user-replaceable)
USB
Scroll Mode (Video/Picture)
Strap post
USB
release
Important:
To prevent breakage,
push at a 45-degree angle.
Product features
www.kodak.com/go/support iii

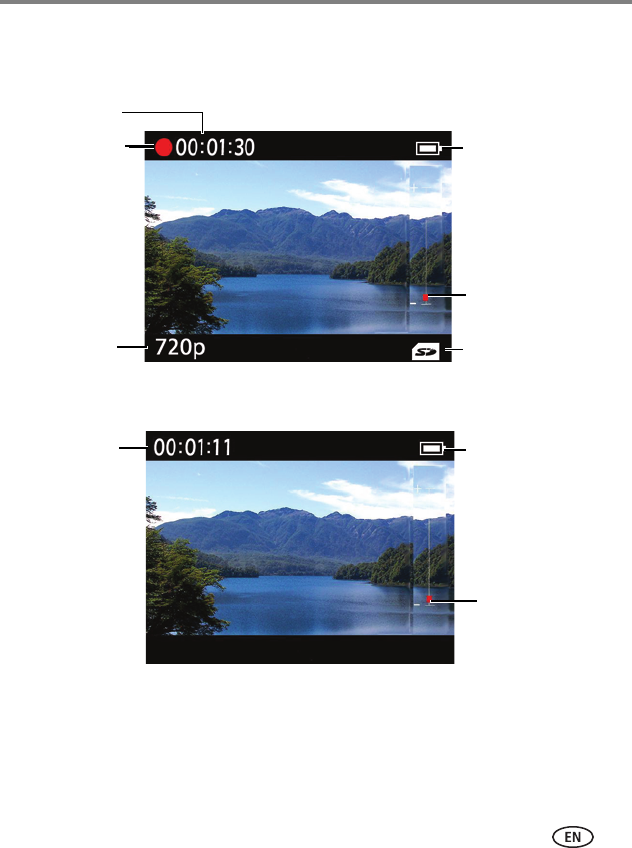

Understanding the status icons
Recording
Capture mode
Elapsed time Recording
Card inserted
Zoom level
Battery level
Elapsed time
Volume level
Battery level
Playback
iv www.kodak.com/go/support
Table of contents 1
1 Setting up your camera .........................................................................1
Charging the battery (1 – 2 hours).................................................................1
Inserting a MICROSD or MICROSDHC Card....................................................2
Connecting the strap.....................................................................................3
Turning on the camera ..................................................................................4
Setting the date/time.....................................................................................4
2 Using your camera ................................................................................5
Taking videos and pictures ............................................................................5
Reviewing, deleting pictures and videos.........................................................6
Changing settings .........................................................................................7
Transferring, editing, sharing online...............................................................8
3 Getting help ..........................................................................................9
Troubleshooting............................................................................................9
Getting help on the Web.............................................................................11
4 Appendix .............................................................................................12
Specifications..............................................................................................12
Safety .........................................................................................................13
Care and maintenance ................................................................................14
Limited warranty .........................................................................................15
Regulatory compliance ................................................................................16
www.kodak.com/go/support 1
1Setting up your camera

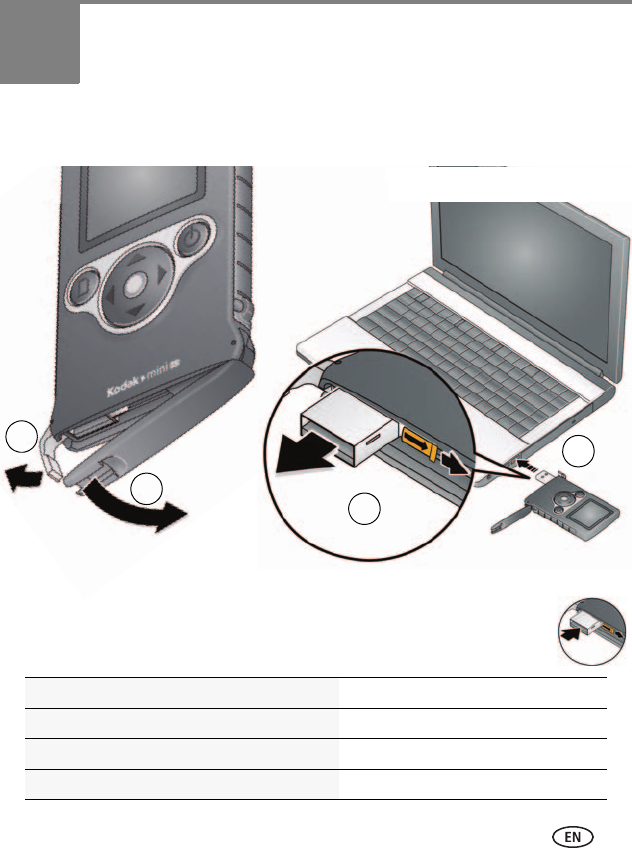

Charging the battery (1 – 2 hours)
Charge the battery when necessary. Turn off the camera, first.
Close the door properly See page ii
Check battery level See the battery icon on the LCD
Learn more about USB charging www.kodak.com/go/USBcharging
Purchase battery charging accessories www.kodak.com/go/accessories
2
1
3
4
To retract the USB, slide the USB release to
the right and push in the USB until it locks.
Slide the USB release to the right.
If necessary, gently pull out the USB until it locks.
Make sure the computer is turned on and
not in sleep, standby, or hibernate mode.
2www.kodak.com/go/support
Setting up your camera

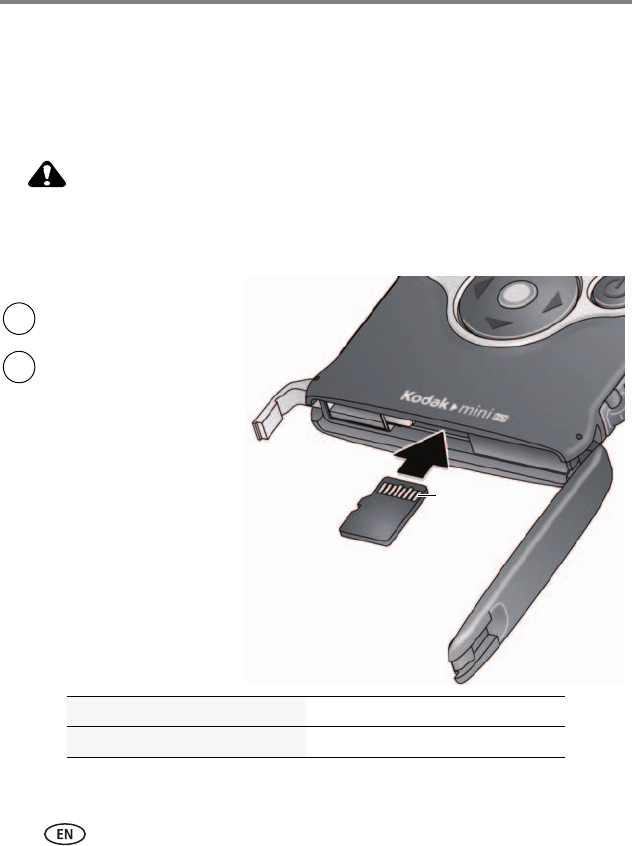

Inserting a MICROSD or MICROSDHC Card
Your camera has limited internal memory—good for a few practice videos/pictures.
Maximum supported card size is 16 GB.
NOTE:
The included MICROSD Card is already inserted.
CAUTION:
A card can only be inserted one way; forcing it may cause damage.
Inserting or removing a card while the camera is on may damage the
video/pictures, the card, or the camera.
Close the door properly See page ii
Purchase accessories www.kodak.com/go/Zm2accessories
1Turn off the camera.
2Insert the card until
it clicks and locks
into place.
To remove the card,
push and release it,
then pull it out.
NOTE: Avoid touching the
card’s metal contacts.
To clean the contacts, use a dry
cotton swab or a lint-free cloth.
Metal
contacts
face up.
Setting up your camera
www.kodak.com/go/support 3

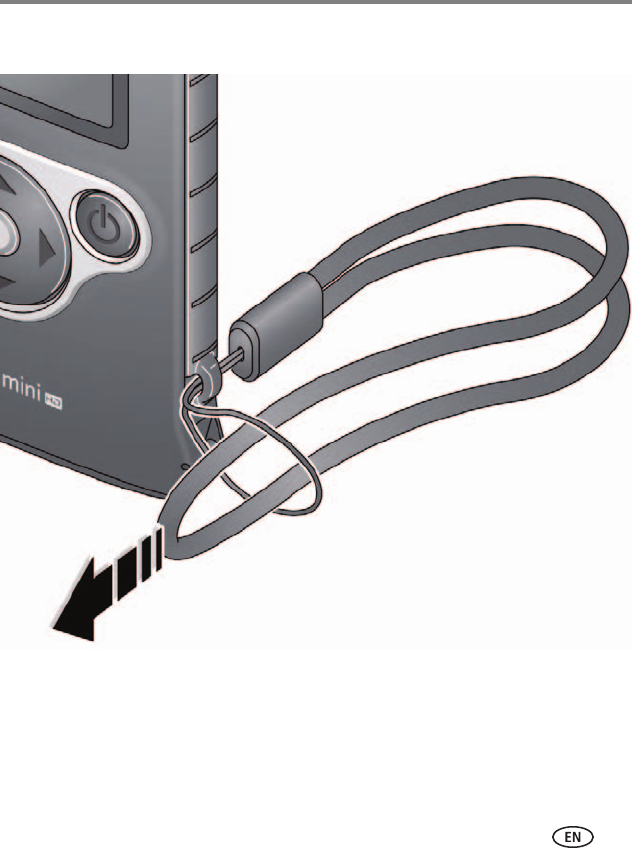

Connecting the strap
www.kodak.com/go/support 5
2Using your camera

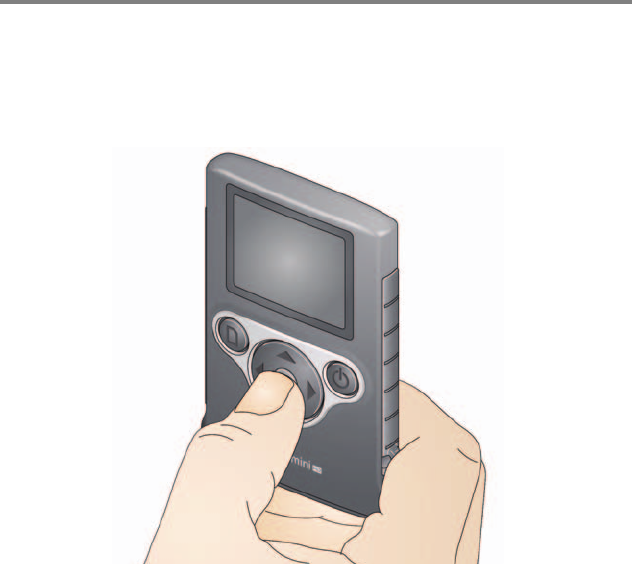

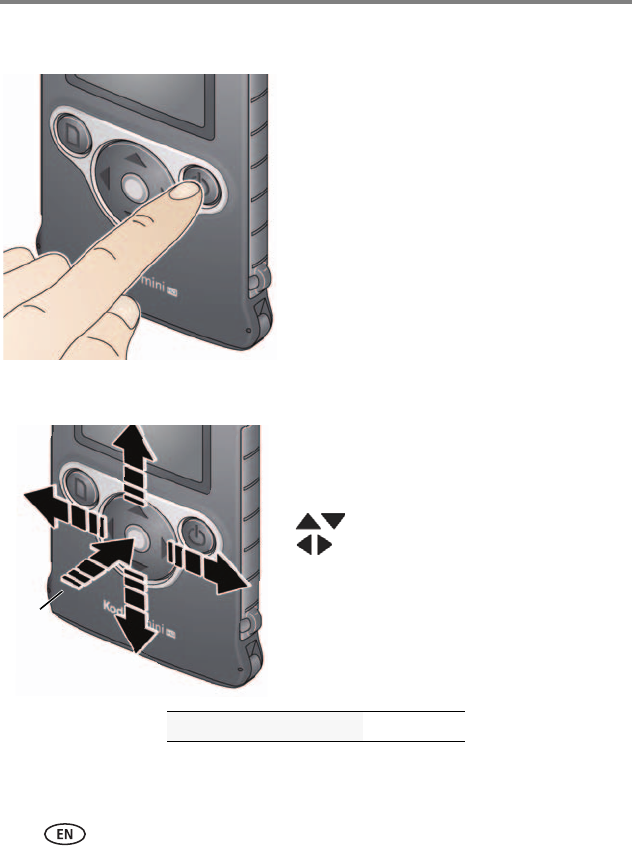

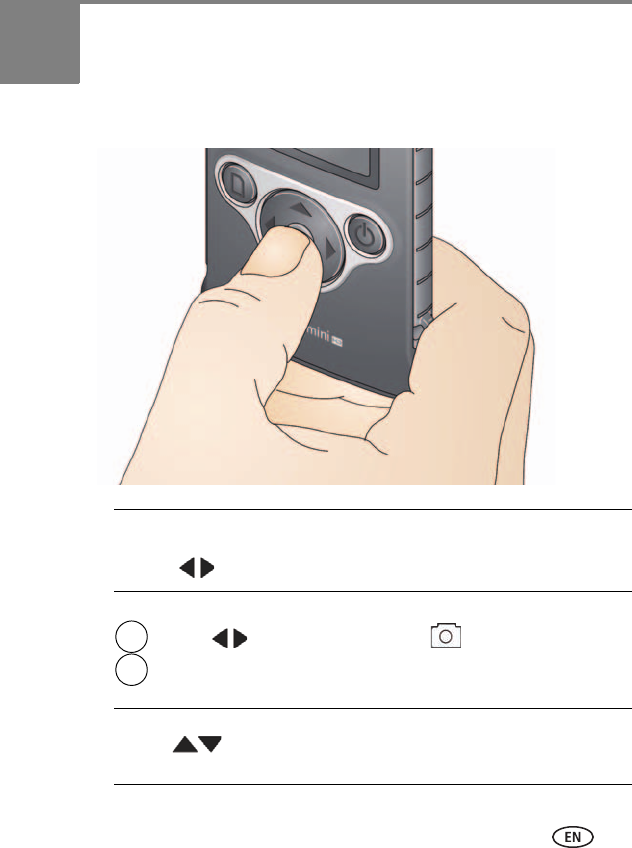

Taking videos and pictures
to choose Picture
Take
videos
Press the OK button to start/stop recording.
Take
pictures
Press
Press the OK button to take a picture.
2
1
Digitally
zoom
Press
to choose a different recording mode.)(Press
.
to zoom in and out.
6www.kodak.com/go/support
Using your camera

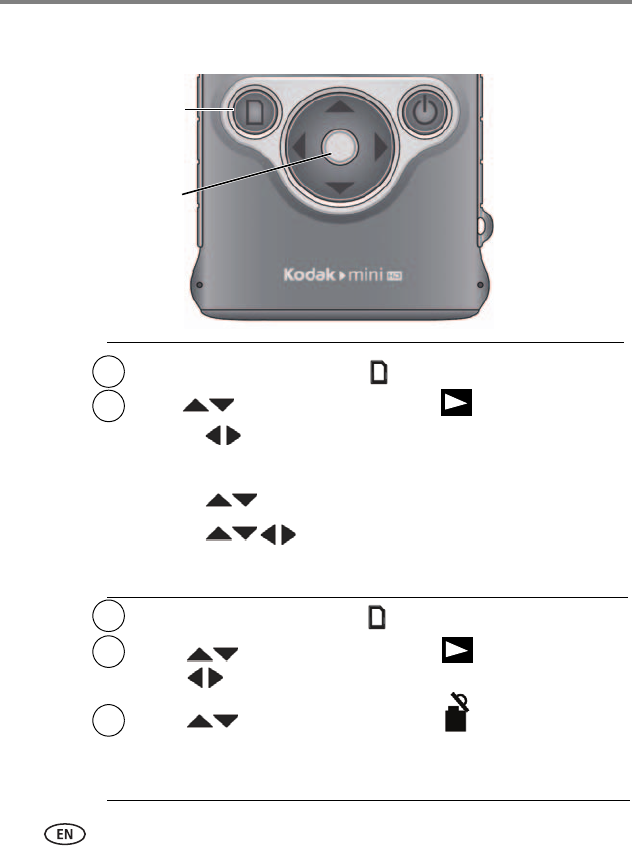

Reviewing, deleting pictures and videos
Press the Menu button
Press the Menu button
to highlight Review , then press OK.
Review
pictures,
videos
Delete
pictures,
videos
• Press to scroll through pictures/videos.
• Press OK to play a video or zoom a picture.
Press
to navigate a zoomed picture.
2
1
2
• Press
1
Press
Menu
Press Menu to return to recording mode.
Press Menu to return to recording mode.
Press to highlight Delete
3
Follow the prompts to delete the picture/video.
Press to scroll through pictures/videos.
OK
to highlight Review , then press OK.
, then press OK.
.
.
• Press to adjust volume during playback.
Using your camera
www.kodak.com/go/support 7

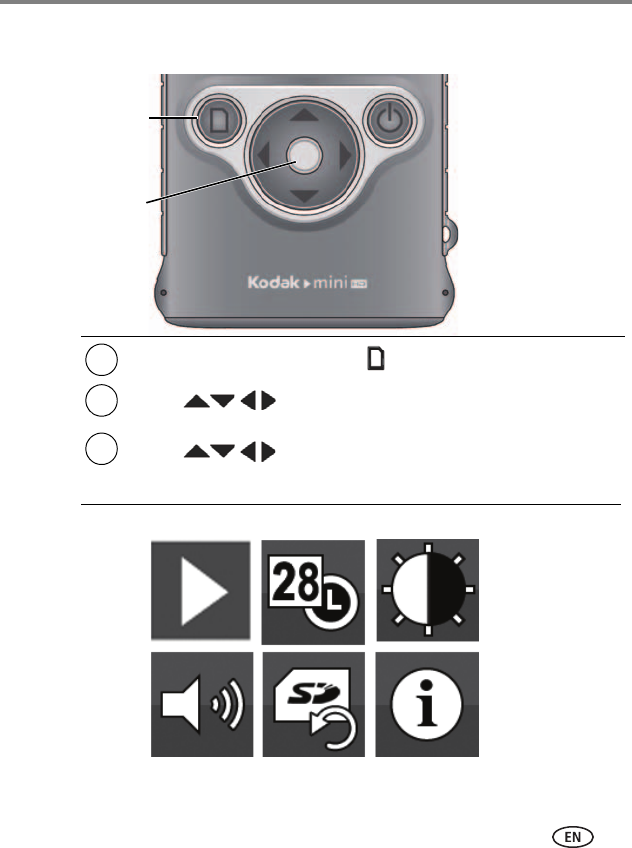

Changing settings
Change
settings
Press to change a setting, then press OK.
2
1
to highlight a setting,
Press
then press OK.
3
Press the Menu button
Press Menu to return to recording mode.
Menu
OK
.
Review Date/Time Brightness
Sound Format
Card
Information
8www.kodak.com/go/support
Using your camera

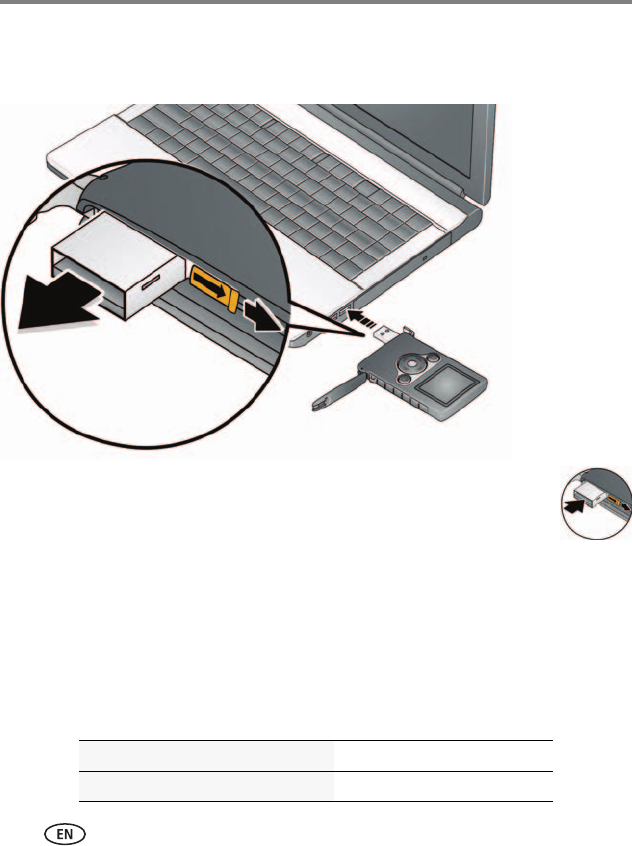

Transferring, editing, sharing online
1Turn on the camera, then connect it.
2If this is the first time you’ve connected to this WINDOWS OS-based computer,
you’re prompted to install ARCSOFT MEDIAIMPRESSION SE for KODAK Software.
You can then transfer and share videos and pictures.
MAC OS—Videos and pictures can be used with the APPLE iLIFE suite of products.
WINDOWS VISTA/XP—Follow the prompts.
WINDOWS 7—Choose Open Folder To View Files.
Launch MI.exe, then click Yes on the User Account Control window.
Close the door properly See page ii
Get ArcSoft product support www.arcsoft.com/support
Slide the USB release to the right.
Pull the USB out until it locks. To retract the USB, slide the
USB release to the right and
push the USB in until it locks.
www.kodak.com/go/support 9
3Getting help
Troubleshooting

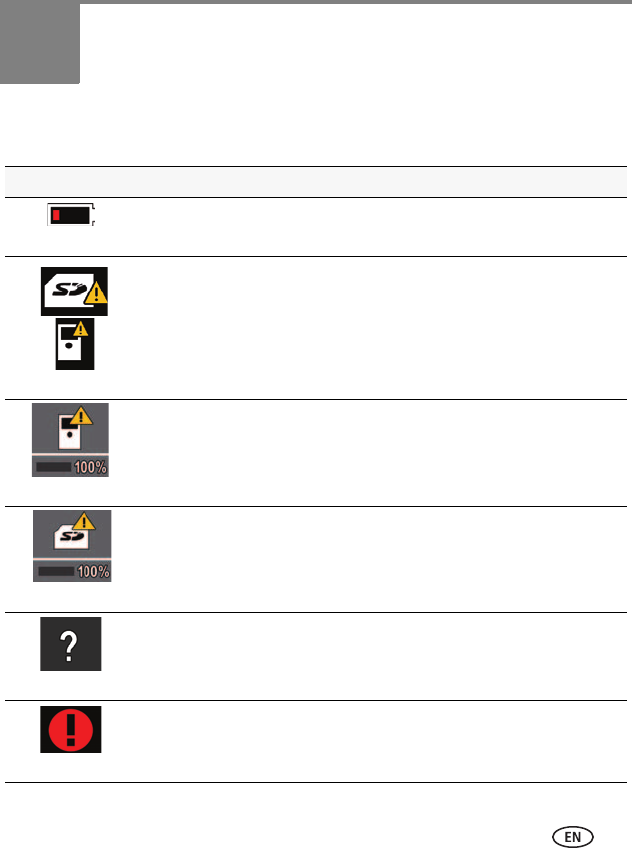

Icon Solution
■Low battery. Charge the battery.
■Corrupt or unusable file(s). Transfer videos/pictures to your computer, then
format the card or internal memory.
■Internal memory is full. Transfer videos/pictures to your computer, or use a
MICROSD/SDHC Card to take more videos/pictures.
■Card is full. Transfer videos/pictures to your computer or use another card.
■Unrecognized file. Transfer videos/pictures to your computer.
■An error has occurred. Transfer videos/pictures to your computer, then format
the card.
10 www.kodak.com/go/support
Getting help
NOTE: If problems persist, go to www.kodak.com/go/support and click Step-by-Step Solutions & Repair.
Problem Solution
Camera will not turn on. ■Ensure that the battery is charged.
■Ensure the camera is clean and dry. (If it’s wet inside, let it dry
for 24 hours.)
Videos are choppy or
jumpy when played on a
computer.
■Use ARCSOFT MEDIAIMPRESSION SE for KODAK Software for
video playback (see page 8).
■Ensure that the computer system requirements are met. Go to
www.arcsoft.com/support.
Videos are blurry. ■Ensure that the lens is clean.
■Ensure that the subject is at least 1 m (3.3 ft) from the lens.
Problems with ARCSOFT
MEDIAIMPRESSION SE for
KODAK Software.
■Go to www.arcsoft.com/support. (For other applications, go
to their support sites.)
Getting help
www.kodak.com/go/support 11
Getting help on the Web
Get support for your product (FAQs,
troubleshooting information, etc.)
www.kodak.com/go/Zm2support
See step-by-step solutions and repair information www.kodak.com/go/stepbystep
Purchase camera accessories www.kodak.com/go/Zm2accessories
Download the latest camera firmware and software www.kodak.com/go/Zm2downloads
See online demonstrations of your camera www.kodak.com/go/howto
Register your camera www.kodak.com/go/register
Chat, email, write, or phone Kodak
(Chat not available in all languages.)
www.kodak.com/go/contact
Get information on ARCSOFT Software www.arcsoft.com/support
12 www.kodak.com/go/support
4Appendix
Specifications
Image Sensor—1/4-inch CMOS
Lens—f/2.8; 35 mm equivalent: 39 mm
Zoom—3X digital
LCD—4.6 cm (1.8 in.); 61.4K pixels
Image Storage—128 MB internal memory (approximately 64 MB available for
image storage. 1 MB equals one million bytes); optional MICROSD/SDHC Card
(The SD logo is a trademark of the SD Card Association.) Maximum supported
size: 16 GB MICROSD/SDHC.
Focusing System—Fixed
Focus Range—50 cm (1.6 ft)–infinity
White Balance—Auto
Exposure—Auto
File Format—■ Video: .AVI Motion JPEG; 1280 x 720 @ 24 fps and
640 x 480 @ 30 fps
■Audio: PCM, 16 KHz
■Still: JPEG/EXIF V2.21; 922 KP (1280 x 720)
Shutter Speed—Auto
Microphone—Mono
Speaker—Yes
I/O Interface—USB 2.0 (high speed)
Tripod Mount—No
Appendix
www.kodak.com/go/support 13
Power—Internal, rechargeable Li-Ion battery; in-camera charging via USB connector
Battery life—Approximately one hour
Waterproof capability—Conforms to IEC60529 IPX8, up to 3 meters (9.8 ft)
Dust resistance—Conforms to IEC60529 IP6X
Size—9.5 x 85 x 56 mm (0.4 x 3.3 x 2.2 in.)
Weight—70 g (2.5 oz) with battery, card
Operating temperature—0–40°C (32–104°F); do not expose camera to higher
temperatures.
Safety
CAUTION:
Do not disassemble this product; there are no user-serviceable parts
inside. Refer servicing to qualified service personnel. KODAK AC
Adapters and battery chargers are intended for indoor use only. The
use of controls, adjustments, or procedures other than those specified
herein may result in exposure to shock and/or electrical or mechanical
hazards. If the LCD breaks, do not touch the glass or liquid. Contact
Kodak customer support.
■The use of an accessory that is not recommended by Kodak may cause fire, electric
shock, or injury. For approved accessories, go to
www.kodak.com/go/Zm2accessories.
■Use only a USB-certified computer equipped with a current-limiting motherboard.
Contact your computer manufacturer if you have questions.
■In the unlikely event that battery fluid leaks onto your skin, wash immediately with
water and contact your local health provider. For additional health-related
information, contact your local Kodak customer support.
14 www.kodak.com/go/support
Appendix
■Go to www.kodak.com/go/reach for information about the presence of substances
included on the candidate list according to article 59(1) of Regulation (EC) No.
1907/2006 (REACH).
■If using this product in an airplane, observe all instructions of the airline.
■For more information, go to www.kodak.com/go/batteries.
Care and maintenance
■Before inserting or removing a card, make sure your hands, the camera, and the
card are completely dry.
■If water has entered the camera, remove the card. Allow all components to air-dry
for at least 24 hours before using the camera.
■Wipe off dirt or sand from the door seals—debris could compromise the seal and
cause a leak in water.
■Do not subject the camera to temperatures lower than 0 (32°F) or higher than
40°C (104°F) for an extended time—the integrity of the seals may be
compromised. Wait until camera reaches operating temperatures before using.
■Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft,
lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions
unless designed specifically for camera lenses. Do not allow chemicals, such as
suntan lotion, to contact painted surfaces.
■Service agreements may be available in your country. Contact a dealer of KODAK
Products for more information.
■For camera disposal or recycling information, contact your local authorities. In the
US, go to the Electronics Industry Alliance Web site at www.eiae.org or Kodak at
www.kodak.com/go/support.
Appendix
www.kodak.com/go/support 15
Limited warranty
Kodak warrants its digital cameras and accessories (excluding removable batteries) to
be free from malfunctions and defects in both materials and workmanship for the
warranty period specified on your KODAK Product packaging. Retain the original
dated sales receipt. Proof of purchase date is required with any request for warranty
repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were
originally purchased. You may be required to ship Products, at your expense, to the
authorized service facility for the country where the Products were purchased. Kodak
will repair or replace Products if they fail to function properly during the warranty
period, subject to any conditions and/or limitations stated herein. Warranty service
will include all labor as well as any necessary adjustments and/or replacement parts. If
Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the
purchase price paid for the Product provided the Product has been returned to Kodak
along with proof of the purchase price paid. Repair, replacement, or refund of the
purchase price are the sole remedies under the warranty. If replacement parts are
used in making repairs, those parts may be remanufactured, or may contain
remanufactured materials. If it is necessary to replace the entire Product, it may be
replaced with a remanufactured Product. Remanufactured Products, parts and
materials are warranted for the remaining warranty term of the original Product, or 90
days after the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty
does not apply when failure is due to shipping damage, accident, alteration,
modification, unauthorized service, misuse, abuse, use with incompatible accessories
or attachments (such as third party ink or ink tanks), failure to follow Kodak's
operation, maintenance or repacking instructions, failure to use items supplied by
Kodak (such as adapters and cables), or claims made after the duration of this
warranty. Kodak makes no other express or implied warranty for this product. In the
event that the exclusion of any implied warranty is ineffective under the law, the
16 www.kodak.com/go/support
Appendix
duration of the implied warranty will be the length of the express warranty period
specified on your KODAK Product packaging. The option of repair, replacement, or
refund is Kodak's only obligation. Kodak will not be responsible for any special,
consequential or incidental damages resulting from the sale, purchase, or use of this
product regardless of the cause. Liability for any special, consequential or incidental
damages (including but not limited to loss of revenue or profit, downtime costs, loss
of the use of the equipment, cost of substitute equipment, facilities or services, or
claims of your customers for such damages resulting from the purchase, use, or failure
of the Product), regardless of cause or for breach of any written or implied warranty is
expressly disclaimed. The limitations and exclusions of liability set forth herein apply
to both Kodak and its suppliers.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
Regulatory compliance
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: 1) reorient or relocate the
receiving antenna; 2) increase the separation between the equipment and the
Appendix
www.kodak.com/go/support 17
receiver; 3) connect the equipment to an outlet on a circuit different from that to
which the receiver is connected; 4) consult the dealer or an experienced radio/TV
technician for additional suggestions. Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be
used with the installation of the product, they must be used in order to ensure
compliance with FCC regulation. The KODAK High Performance USB AC Adapter
K20-AM complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
18 www.kodak.com/go/support
Index 1
A
accessories, purchase, 11
B
battery charging, 1
button
reset, i
USB release, i
C
camera settings, 7
card, loading, 2
care and maintenance, 14
cautions, 14
changing settings, 7
charging battery, 1
clock, setting, 4
connecting the strap, 3
connecting to a computer, 8
D
date setting, 4
deleting pictures, videos, 6
digital zoom, 5
disposal, recycling, 14
E
erase pictures, videos, 6
H
help, Web links, troubleshooting, 9
I
icons, iii
installing software, 8
K
Kodak Web sites, 9
L
lens, cleaning, 14
loading, card, 2
M
maintenance, camera, 14
MICROD/SDHC card loading, 2
microphone, i
O
on/off, 4
P
pictures
deleting, 6
reviewing, 6
taking, 5
playing a video, 6
R
recycling, disposal, 14
release, USB, i
repair, 11
reset button, i
reviewing pictures, videos, 6
www.kodak.com/go/support 19
Index
S
setting date and time, 4
setting up the camera, 1
settings, camera, 7
sharing online, 8
software, installing, 8
specifications, 12
status icons, iii
strap, 3
T
taking pictures, videos, 5
time and date, setting, 4
tips, care, & maintenance, 14
transferring videos, 8
troubleshooting, 9
turning on/off camera, 4
U
URLs, Kodak Web sites, 9
USB
connection, 8
release, i
V
videos
deleting, 6
reviewing, 6
taking, 5
W
warranty, 15
Z
zoom, using, 5
