60cm Electric

Built-in Oven

(5 Functions)

INSTRUCTION MANUAL / INSTALLATION MANUAL

MODEL: KA5FUNOVENA

THIS PAGE IS INTENTIONALLY LEFT BLANK

CONTENTS

General Safety Warnings 4

Product Overview 6

Installation Instructions 7

Operating Instructions 9

Care & Maintenance 10

Troubleshooting & Technical Data 12

Warranty 13

Your safety is of the utmost importance to us.

Please make sure that you read this instruction

booklet before attempting to install or use the

appliance.

If you are unsure of any of the information contained

in this booklet, please contact the Retailer where

you purchased your unit from.

The appliance should only be installed and connected

by a suitably qualiﬁed and authorised person, strictly

in accordance with the manufacturer's instructions.

Please see the speciﬁc section of this user manual

that refers to installation.

IMPORTANT!

The power supply to the oven must be cut off before

any adjustments or maintenance work is undertaken.

WARNING

When using this product, basic precautions should

always be taken including the following:

• This oven is designed for domestic household use

and for the cooking of domestic foodstuffs.

IMPORTANT!

Your built-in oven is an electrical appliance and as

with any electrical appliance (particularly with electric

heating elements), basic precautions must be followed

in order to reduce the risk of ﬁre, burns, electrical

shocks and/or other serious injuries or even death.

• The appliance becomes hot during operation. Take

care not to touch the hot parts inside the oven.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience

and knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

• Children should be supervised to ensure that they

do not play with the appliance.

• While in operation direct contact with the oven

may cause burns!

• Ensure that small items of household equipment,

including connection leads, do not touch the hot

oven as the insulation material of this equipment is

usually not resistant to high temperatures.

• Do not leave the oven unattended when cooking.

Oils and fats may catch ﬁre due to overheating.

• Do no t put pans on the opened door of the oven.

• Do not use harsh cleaning agents or sharp metal

objects to clean the door as they can scratch

the surface, which could then result in the glass

cracking.

• Do not use the oven in the event of a technical

fault. Any faults must be ﬁxed by an appropriately

qualiﬁed and authorised service agent. Refer

to the warranty section at the rear of this user

manual.

• In the event of any incident caused by a technical

fault, disconnect the power and report the fault

to the service centre to be repaired.

• The rules and provisions contained in this

instruction manual should be strictly observed.

• Do not allow anybody who is not familiar with the

contents of this instruction manual to operate the

oven.

• The oven should not be cleaned using steam-

cleaning equipment, as damage can occur to the

inner electrical components.

• The panels adjacent to the oven must be made

of heat resistant material, or heat deﬂect ors

installed.

• Cabinets with a veneer exterior must be

assembled with glues, which can withstand

temperature of up to 100 degrees Celsius.

• Keep combustible materials such as: curtains,

drapes, furniture, pillows, clothing, linens,

bedding, paper, etc. at least 900mm from the

front sides and rear of the oven.

• Do not use this oven in areas where fuel, paint

or other ﬂammable liquids or their associated

vapours may be present.

• To reduce the risk of ﬁre, do not place or install

this oven in areas where the ventilation or

circulation ducts may become blocked.

• The oven’ s power cord must be connected

to a properly grounded and protected, 220-

240V electrical outlet. Always use ground fault

protection where required by the electrical code.

• This oven is supplied with a sample cord and

plug. An extension cord should not be used.

• When transporting or storing the unit, keep it in

a dry location, free from dust, excessive vibration

or other factors, which may damage the unit.

• Do not operate any oven with a damaged cord

or plug, after the heater malfunctions or has

been dropped or damaged in any manner. Return

the oven to an authorised service centre to be

checked.

• If the supply cord is damaged, it must be

replaced by a special cord or assembly available

from or its authorised service agent.

• Use this oven only as described in this manual.

Any other use not recommended by the

manufacturer may cause ﬁre, electric shock, or

injury to persons.

• Never add c old water to food on a hot universal

tray or baking tray or directly onto food in a hot

oven. The steam created could cause serious

burns or scalding and the sudden change in

temperature can damage the enamel.

• Do not lift the oven by the handle.

General Safety Warnings

General Safety Warnings Continued

UNPACKING

During transportation, protective packaging was

used to protect the appliance against any damage.

After unpacking, please dispose of all elements of

packaging in a way that will not cause damage to the

environment. All materials used for packaging the

appliance are environmentally friendly; they are

100% recyclable and are marked with the appropriate

symbol. During unpacking, the packaging materials

should be kept out of reach of children.

DISPOSAL OF THE APPLIANCE

Old appliances should not simply be disposed of with

normal household waste, but should be delivered

to a collection and recycling centre for electric

and electronic equipment. A symbol shown on the

product, the instruction manual or the packaging

shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and

are labelled with information concerning this.

By recycling materials or other parts from used

devices you are making a signiﬁcant contribution to

the protection of our environment.

Information on appropriate disposal centres for used

devices can be provided by your local authority.

DECLARATION OF CONFORMITY

This appliance complies with the following

European Directives and Australian Standards:

— 2006/95/CE General regulations / Low tension

— 2009/142/CE Concerning gas appliances

— 1935/2004/CE 90/128/EEC This appliance is

suitable to come in contact with food

— 2004/108/CE Electromagnetic compatibility

— AS4551, AS/NZS 5263.0, AS/NZS 5263.1.1:

Domestic gas cooking appliances

— Low voltage: 73/23

— Safety standards: EN 60335-1, EN30-1-1,

AS/NZS 3350-1,3350-2-6

The manufacturer declares that the oven is built

using certiﬁed materials and requires the appliance

to be installed in accordance with the standards

currently in force. This oven should only be used by a

trained person and for domestic purposes only.

Product Overview

Oven

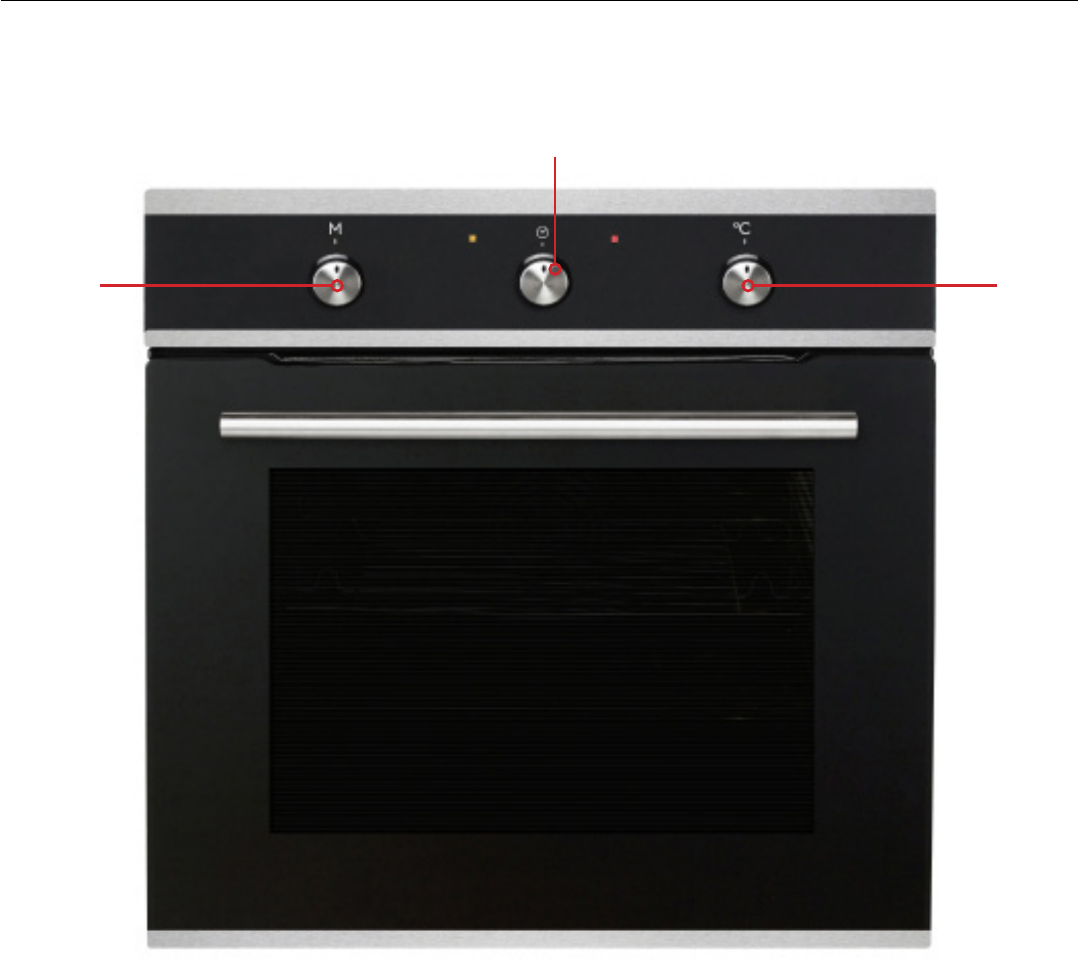

Key 1. Function selection knob

2. Minute Minder Timer

3. Temperature control knob

Also included but not visible:

1 x Roasting Tray, 1 x Grilling Rack, 1 x Grill Insert

Installation Instructions

It’s important to carefully read the following

installation instructions before beginning the

installation of your oven.

Important.

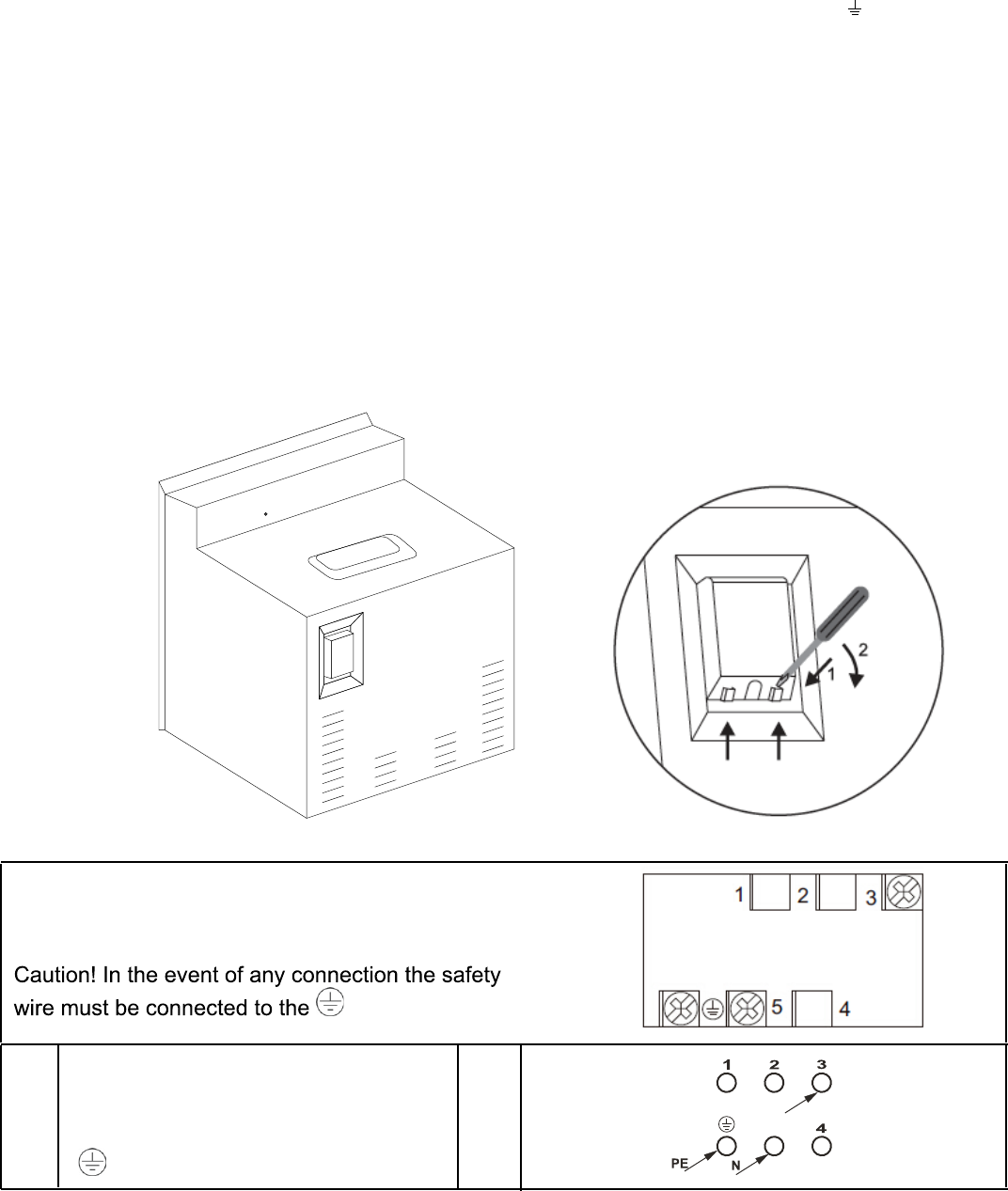

The connection of this oven must be carried out by a

suitably qualiﬁed and licensed person, in accordance

with the current versions of the following:

– AS/NZS 3000 Wiring Rules

– Electricity Safety Regulations 2010

– The installation instructions within this user manual

Note: Ensure there is a grounded socket nearby (behind

the unit). A dedicated power circuit is recommended

for the unit but not required. Additional electrical

appliances on the same circuit may exceed the current

(amperage) rating for that circuit. If after the installation

of your unit the circuit breaker trips or the fuse fails on

a repeated basis then a dedicated circuit will likely be

required.

POSITIONING

The adjacent cabinetry and wall materials must be able

to withstand a minimum temperature rise of 85°C above

the ambient temperature of the room.

• The kitchen area should be dry and equipped with

sufﬁcient ventilation. When installing the oven, easy

access to all control elements should be ensured.

• This is a built-in oven and has been designed to be

housed within an oven cabinet.

• Coating or veneer used on cabinetry must be applied

with a heat resistant adhesive (rated to 100°c). This

prevents surface deformation or detachment of

the coating. In the case of vinyl wrap kitchens, it is

strongly recommended to have heat deﬂectors on

either side of the oven cabinet.

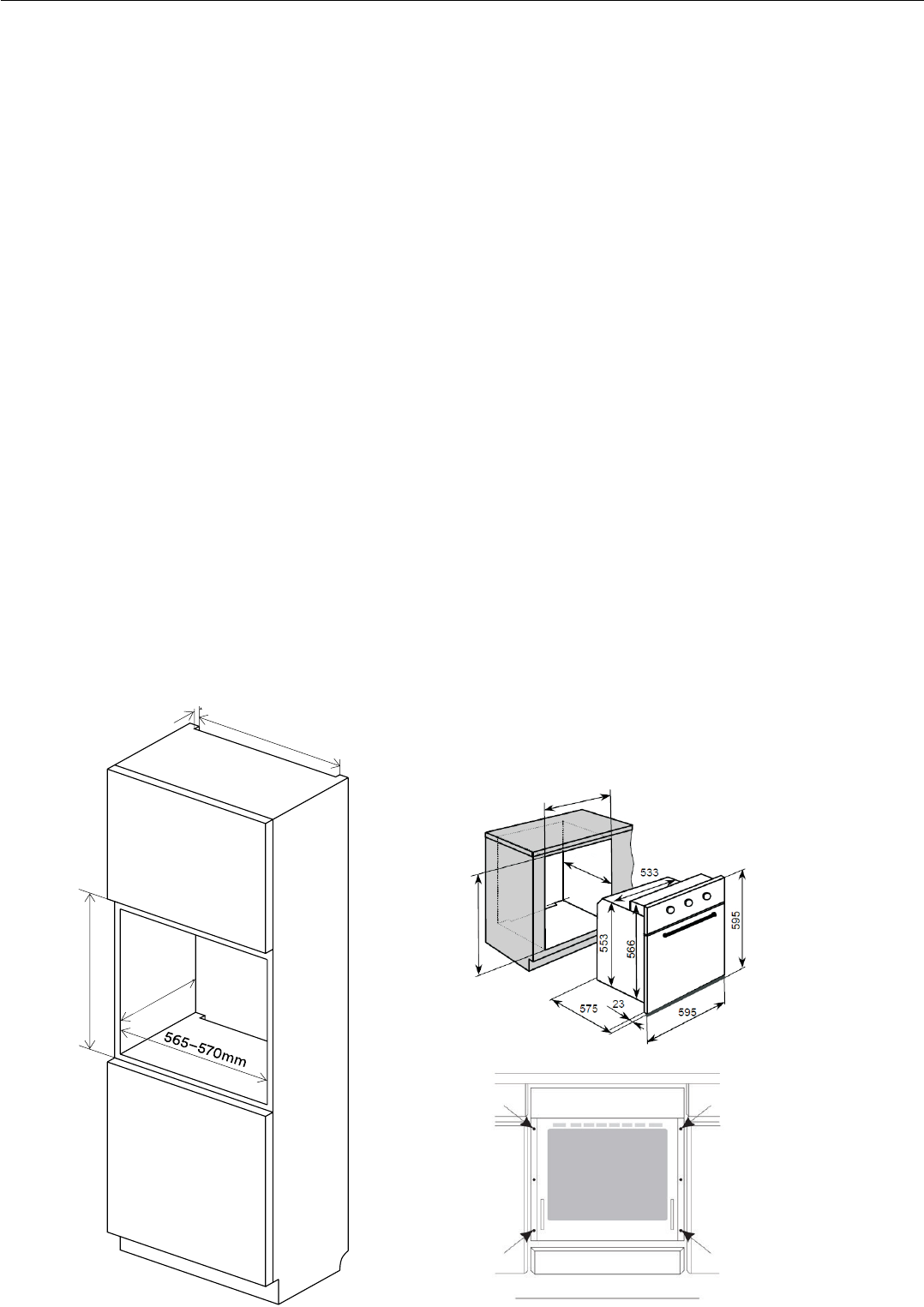

• Your oven cabinet should be made to suit the

following dimensions and can be either a tall or

underbench cabinet to suit your kitchen design.

• Make sure that the electrical circuit is disconnected or

fuse removed, then connect the oven into the mains

supply.

IMPORTANT

The installation/connection should only be completed

by a licensed electrician.

• Insert the oven completely into the oven cabinet and

use the four screws supplied to ﬁx the oven into place

(refer to the diagram below).

Note: It is a requirement for a ventilation gap to be cut

into the oven cabinet as per below diagrams.

The kitchen area sho

the oven, easy access to all control elements should be ensured.

This is a built-in oven and has been designed to be housed within an oven cabinet.

Coating or veneer used on cabinetry must be applied with a heat resistant adhesive

(rated to 100°c). This prevents surface deformation or detachment of the coating. In the

case of vinyl wrap kitchens, it is strongly recommended to have heat de

on either side of the oven cabinet.

Your oven cabinet should be made to suit the following dimensions and can be either a

tall or underbench cabinet to suit your kitchen design.

Make sure that the electrical circuit is disconnected or fuse removed, then connect the

oven into the mains supply.

he installation/connection should only be completed by a licensed electrician.

the oven into place (refer to the diagram below).

600

56 0

560

500

600mm

500mm

50mm

600mm

565–570mm

560mm

Installation Instructions

PO ITIONIN

The adjacent cabinetry and wall materials must be able to withstand a minimum temperature rise of 85°C

above the ambient temperature of the room.

•

IMPORTANT.

It is a requirement for a ventilation gap to be cut into the oven cabinet as per below diagrams.Note:

The kitchen area sho

the oven, easy access to all control elements should be ensured.

This is a built-in oven and has been designed to be housed within an oven cabinet.

Coating or veneer used on cabinetry must be applied with a heat resistant adhesive

(rated to 100°c). This prevents surface deformation or detachment of the coating. In the

case of vinyl wrap kitchens, it is strongly recommended to have heat de

on either side of the oven cabinet.

Your oven cabinet should be made to suit the following dimensions and can be either a

tall or underbench cabinet to suit your kitchen design.

Make sure that the electrical circuit is disconnected or fuse removed, then connect the

oven into the mains supply.

he installation/connection should only be completed by a licensed electrician.

the oven into place (refer to the diagram below).

600

56 0

560

500

600mm

500mm

50mm

600mm

565–570mm

560mm

Installation Instructions

PO ITIONIN

The adjacent cabinetry and wall materials must be able to withstand a minimum temperature rise of 85°C

above the ambient temperature of the room.

•

IMPORTANT.

It is a requirement for a ventilation gap to be cut into the oven cabinet as per below diagrams.Note:

Installation Instructions Continued

WARNING.

The installation must be carried out by a suitably

qualiﬁed and licensed person and in accordance with

the current standards.

• The oven is manufactured to work with three-

phase alternating current (220V-240V/50Hz). The

connection diagram is also found on the cover of the

connection box.

Remember:

• The connection wire should match the connection

type and the power rating of the oven.

• The connection cable must be secured in a strain-

relief clamp.

WARNING.

Remember to connect the safety circuit to the

connection box terminal marked with . The electricity

supply for the oven must have a safety switch which

enables the power to be cut off in the case of an

emergency.

The distance between the working contacts of the

safety switch must be at least 3mm.

Before connecting the oven to the power supply it is

important to read the information on the data plate and

the connection diagram.

CONNECTION DIAGRAM

Caution!Voltage of heating elements 220V～240V

PE terminal

For earthed one phase

connect on:L (Brown wire) connect

to 3 and N (blue wire)connect to 5,

safety wire (Yellowgreen) connectto

PE terminal

220V～240V

Installation Instructions

FITTING GUIDELINES

WARNING.

The installation must be carried out by a suitably qualied and licensed

person and in accordance with the current standards.

The oven is manufactured to work with three-phase alternating current

(220V-240V/50Hz). The connection diagram is also found on the cover of

the connection box.

The connection wire should match the connection type and the power

rating of the oven.

The connection cable must be secured in a strain-relief clamp.

Remember to connect the safety circuit to the connection box terminal

marked with . The electricity supply for the oven must have a safety

switch which enables the power to be cut o in the case of an emergency.

The distance between the working contacts of the safety switch must be

at least 3mm.

Before connecting the oven to the power supply it is important to read

the information on the data plate and the connection diagram.

•

REMEMBER:

Operating Instructions

BEFORE THE FIRST USE

• Remove all packaging and clean the interior

of the oven.

• Take out and wash the oven ﬁttings with warm

soapy water.

• Switch on any ventilation within the room

(such as a rangehood), or open any windows.

• Heat the oven to a temperature of 250°c for

approximately 30-45 minutes.

Note: There may be strong odour during the ﬁrst use,

which is the burning off of any chemical residues from

its construction. This is normal for all ovens.

WARNING.

The inside of the oven should only be washed with

warm water and a small amount of washing up liquid.

OVEN FUNCTIONS AND OPERATIONS

IMPORTANT

In order for the oven to operate, you must:

• Select the required conditions of the oven.

I.e. its temperature and a mode of heating.

• Set the knobs to the required positions, turning it to

the right (clockwise).

• Your oven will begin to operate.

OVEN FUNCTIONS

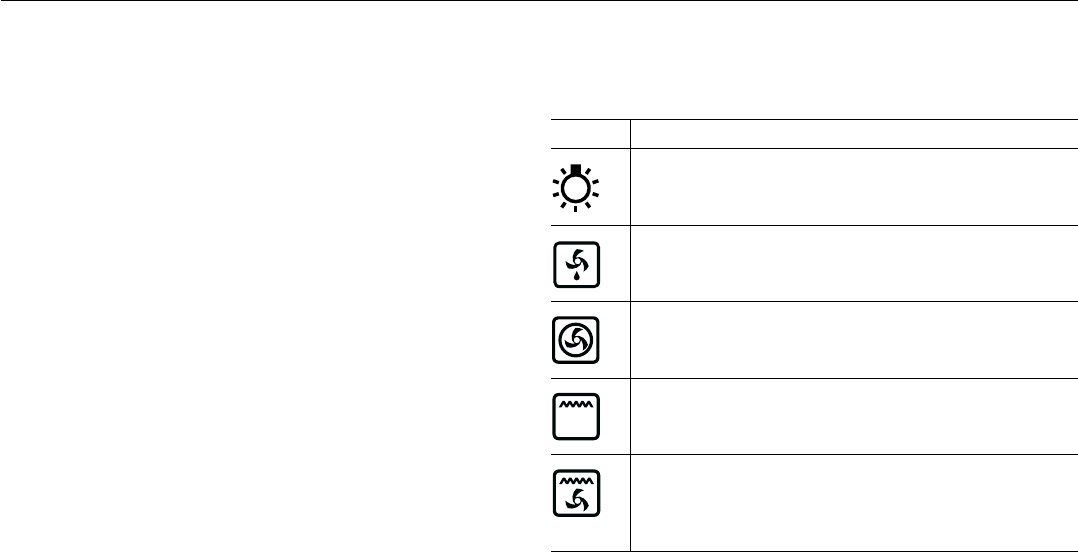

SYMBOL DESCRIPTION

Take out and wash the oven ttings with warm soapy water.

Switch on any ventilation within the room (such as a rangehood), or open any windows.

Heat the oven to a temperature of 250°c for approximately 30-45 minutes.

There may be strong odour during the rst use, which is the burning o of any chemical

residues from its construction. This is normal for all ovens.

The inside of the oven should only be washed with warm water and a small amount

of washing up liquid.

In order for the oven to operate, you must:

Select the required conditions of the oven.

I.e. its temperature and a mode of heating.

Set the knobs to the required positions, turning it to the right (clockwise).

Your oven will begin to operate.

Operating your Oven

BEFORE THE OVEN'S FIRST USE

Remove all packaging and clean the interior of the oven.

•

NOTE:

•

IMPORTANT.

OVEN FUNCTIONS AND OPERATION

IMPORTANT.

•

OVEN FUNCTIONS

Model: Functions:

Function Symbol: Function Type: Function Description:

Oven Light

By selecting this option, the lighting inside the oven is switched on.

Note: The oven will not heat on this setting.

Defrost

This function allows all frozen foods to be rapidly and delicately thawed

thanks to the internal fan.

roasts, sealing the juices in.

KO905T

Oven light: By selecting this option, the lighting

inside the oven is switched on.

Note: The oven will not heat on this setting.

Take out and wash the oven ttings with warm soapy water.

Switch on any ventilation within the room (such as a rangehood), or open any windows.

Heat the oven to a temperature of 250°c for approximately 30-45 minutes.

There may be strong odour during the rst use, which is the burning o of any chemical

residues from its construction. This is normal for all ovens.

The inside of the oven should only be washed with warm water and a small amount

of washing up liquid.

In order for the oven to operate, you must:

Select the required conditions of the oven.

I.e. its temperature and a mode of heating.

Set the knobs to the required positions, turning it to the right (clockwise).

Your oven will begin to operate.

Operating your Oven

BEFORE THE OVEN'S FIRST USE

Remove all packaging and clean the interior of the oven.

•

NOTE:

•

IMPORTANT.

OVEN FUNCTIONS AND OPERATION

IMPORTANT.

•

OVEN FUNCTIONS

Model: Functions:

Function Symbol: Function Type: Function Description:

Oven Light

By selecting this option, the lighting inside the oven is switched on.

Note: The oven will not heat on this setting.

Defrost

This function allows all frozen foods to be rapidly and delicately thawed

thanks to the internal fan.

roasts, sealing the juices in.

KO905T

Defrost: This function allows all frozen foods to be

rapidly and delicately thawed thanks to the internal

fan.

Take out and wash the oven ttings with warm soapy water.

Switch on any ventilation within the room (such as a rangehood), or open any windows.

Heat the oven to a temperature of 250°c for approximately 30-45 minutes.

There may be strong odour during the rst use, which is the burning o of any chemical

residues from its construction. This is normal for all ovens.

The inside of the oven should only be washed with warm water and a small amount

of washing up liquid.

In order for the oven to operate, you must:

Select the required conditions of the oven.

I.e. its temperature and a mode of heating.

Set the knobs to the required positions, turning it to the right (clockwise).

Your oven will begin to operate.

Operating your Oven

BEFORE THE OVEN'S FIRST USE

Remove all packaging and clean the interior of the oven.

•

NOTE:

•

IMPORTANT.

OVEN FUNCTIONS AND OPERATION

IMPORTANT.

•

OVEN FUNCTIONS

Model: Functions:

Function Symbol: Function Type: Function Description:

Oven Light

By selecting this option, the lighting inside the oven is switched on.

Note: The oven will not heat on this setting.

Defrost

This function allows all frozen foods to be rapidly and delicately thawed

thanks to the internal fan.

roasts, sealing the juices in.

KO905T

Fan forced: This function enables even distribution

of the heat inside the oven, making it possible to

cook several items of food at the same time.

Take out and wash the oven ttings with warm soapy water.

Switch on any ventilation within the room (such as a rangehood), or open any windows.

Heat the oven to a temperature of 250°c for approximately 30-45 minutes.

There may be strong odour during the rst use, which is the burning o of any chemical

residues from its construction. This is normal for all ovens.

The inside of the oven should only be washed with warm water and a small amount

of washing up liquid.

In order for the oven to operate, you must:

Select the required conditions of the oven.

I.e. its temperature and a mode of heating.

Set the knobs to the required positions, turning it to the right (clockwise).

Your oven will begin to operate.

Operating your Oven

BEFORE THE OVEN'S FIRST USE

Remove all packaging and clean the interior of the oven.

•

NOTE:

•

IMPORTANT.

OVEN FUNCTIONS AND OPERATION

IMPORTANT.

•

OVEN FUNCTIONS

Model: Functions:

Function Symbol: Function Type: Function Description:

Oven Light

By selecting this option, the lighting inside the oven is switched on.

Note: The oven will not heat on this setting.

Defrost

This function allows all frozen foods to be rapidly and delicately thawed

thanks to the internal fan.

roasts, sealing the juices in.

KO905T

Grill element: This function operates the top grill

element. Important! You should only ever use the

grill with the oven door shut.

Take out and wash the oven ttings with warm soapy water.

Switch on any ventilation within the room (such as a rangehood), or open any windows.

Heat the oven to a temperature of 250°c for approximately 30-45 minutes.

There may be strong odour during the rst use, which is the burning o of any chemical

residues from its construction. This is normal for all ovens.

The inside of the oven should only be washed with warm water and a small amount

of washing up liquid.

In order for the oven to operate, you must:

Select the required conditions of the oven.

I.e. its temperature and a mode of heating.

Set the knobs to the required positions, turning it to the right (clockwise).

Your oven will begin to operate.

Operating your Oven

BEFORE THE OVEN'S FIRST USE

Remove all packaging and clean the interior of the oven.

•

NOTE:

•

IMPORTANT.

OVEN FUNCTIONS AND OPERATION

IMPORTANT.

•

OVEN FUNCTIONS

Model: Functions:

Function Symbol: Function Type: Function Description:

Oven Light

By selecting this option, the lighting inside the oven is switched on.

Note: The oven will not heat on this setting.

Defrost

This function allows all frozen foods to be rapidly and delicately thawed

thanks to the internal fan.

roasts, sealing the juices in.

KO905T

Grill and fan assist: This function operates the grill

element with fan to distribute the heat evenly.

Excellent combination for cooking chicken and a

variety of roasts, sealing the juices in.

USE OF THE GRILL

Your oven grills through the use of infrared rays emitted

by the incandescent grill heater.

IMPORTANT

You should always use the grill function with the door

shut. When the grill is in use with the oven door open,

accessible parts can become hot and damage can be

done to the controls.

In order to use the grill:

• Set the oven function knob to one of the grill

functions.

• Heat the oven for approximately 4-5 minutes.

• Insert a tray with your dish onto the appropriate

cooking shelf.

Note: The grill function can be used up to a maximum

of 250°C, whilst the “Grill and fan assist” function can be

used at a maximum of 200°C.

Cleaning & Maintenance

By ensuring proper cleaning and maintenance of your

oven, you can ensure that it will have a long and fault

free operation.

WARNING.

Do not start cleaning the oven until it has completely

cooled.

• Typically you should only ever need to clean your

oven with warm soapy water, or light cleaning

products to assist with the removal of fat or oil

emulsions.

• Your oven should be cleaned after every use and you

can use the “Light” function to assist with visibility.

• After cleaning your oven chamber, you should wipe

it dry.

CLEANING THE GLASS

• Glass surfaces on the door and control panel should

be cleaned immediately after soiling, using a damp

cloth.

• Oven cleaners may be used to remove stubborn stains

and built-up residues.

• Avoid the use of harsh abrasive cleaners and sharp

metal scrapers as they can scratch or damage the

surface.

CLEANING THE STAINLESS STEEL

All grades of stainless steel can stain or discolour and

you must regularly ensure it’s kept clean using the

following procedures:

• Start by using clean, warm soapy water. For stubborn

stains or discolouration, you can try stainless steel

cleaners available from the supermarket.

• Be careful when cleaning the stainless steel, as there

may be sharp edges.

• DO NOT use abrasive or harsh solvent cleaners.

CLEANING THE OVEN/GRILL

• Always keep the internal of the oven clean, ensuring

that fats and oils don’t accumulate around the

elements or fan.

• Always keep the oven dish, baking trays and grill dish

inserts clean as any deposits may catch ﬁre or smoke.

• Always wrap your meats in aluminium foil or use

a covered oven-roasting dish to minimise required

cleaning.

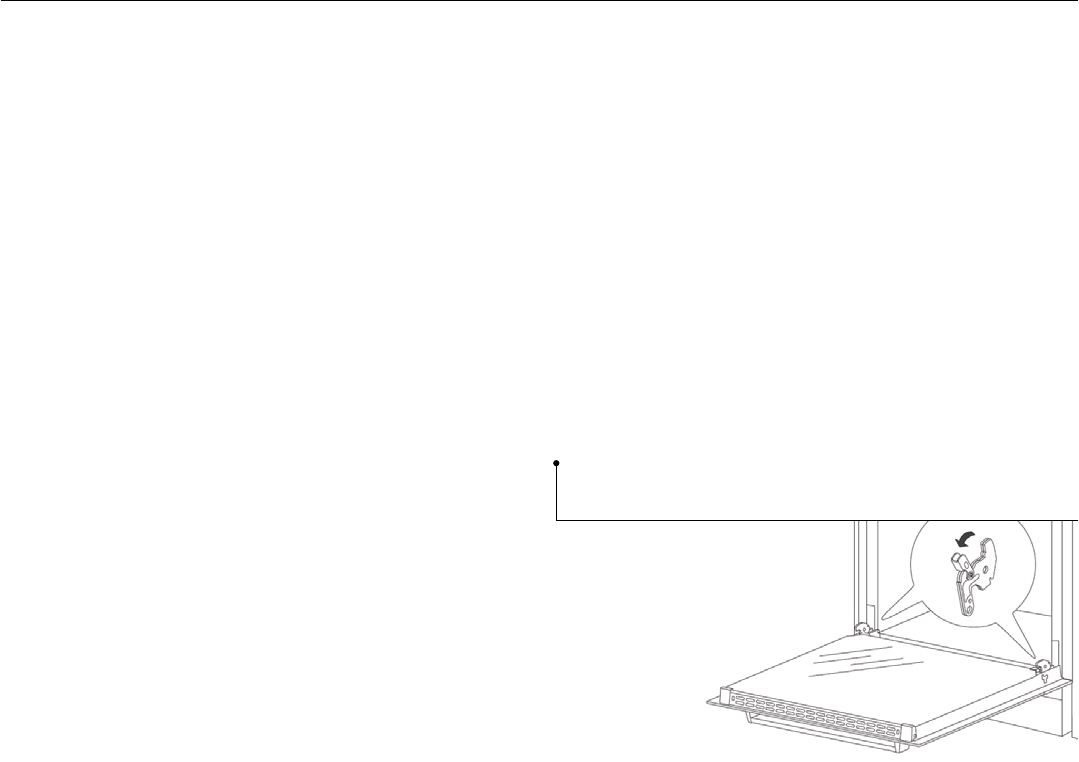

DOOR REMOVAL

In order t o obtain easier access to the oven chamber

for cleaning, it is possible to remove the door.

To do this:

• Tilt the safety catch part of the hinge upwards.

• Close the door lightly, lift and pull it out towards you.

• In order to ﬁt the door back on to the oven, do the

reverse.

When ﬁtting, ensure that the notch of the hinge is

correctly placed on the protrusion of the hinge holder.

After the door is ﬁtted to the oven, the safety catch

should be carefully lowered down again. If the safety

catch is not set it may cause damage to the hinge when

closing the door.

REPLACEMENT OF THE OVEN LIGHT GLOBE

WARNING.

In order to avoid the possibility of an electric shock,

ensure that the appliance is switched off at the isolator

switch, before removing the light globe.

• Set all control knobs to the off position and switch the

oven off at the isolator switch.

• Unscrew the Light Globe cover. Unscrew the blown

light globe.

• Replace the globe with a new oven globe with the

following parameters:

– Voltage: 230v

– Power: 25W

– E14 Oven globe

• Screw the Light Globe cover back into place.

Cleaning & Maintenance Continued

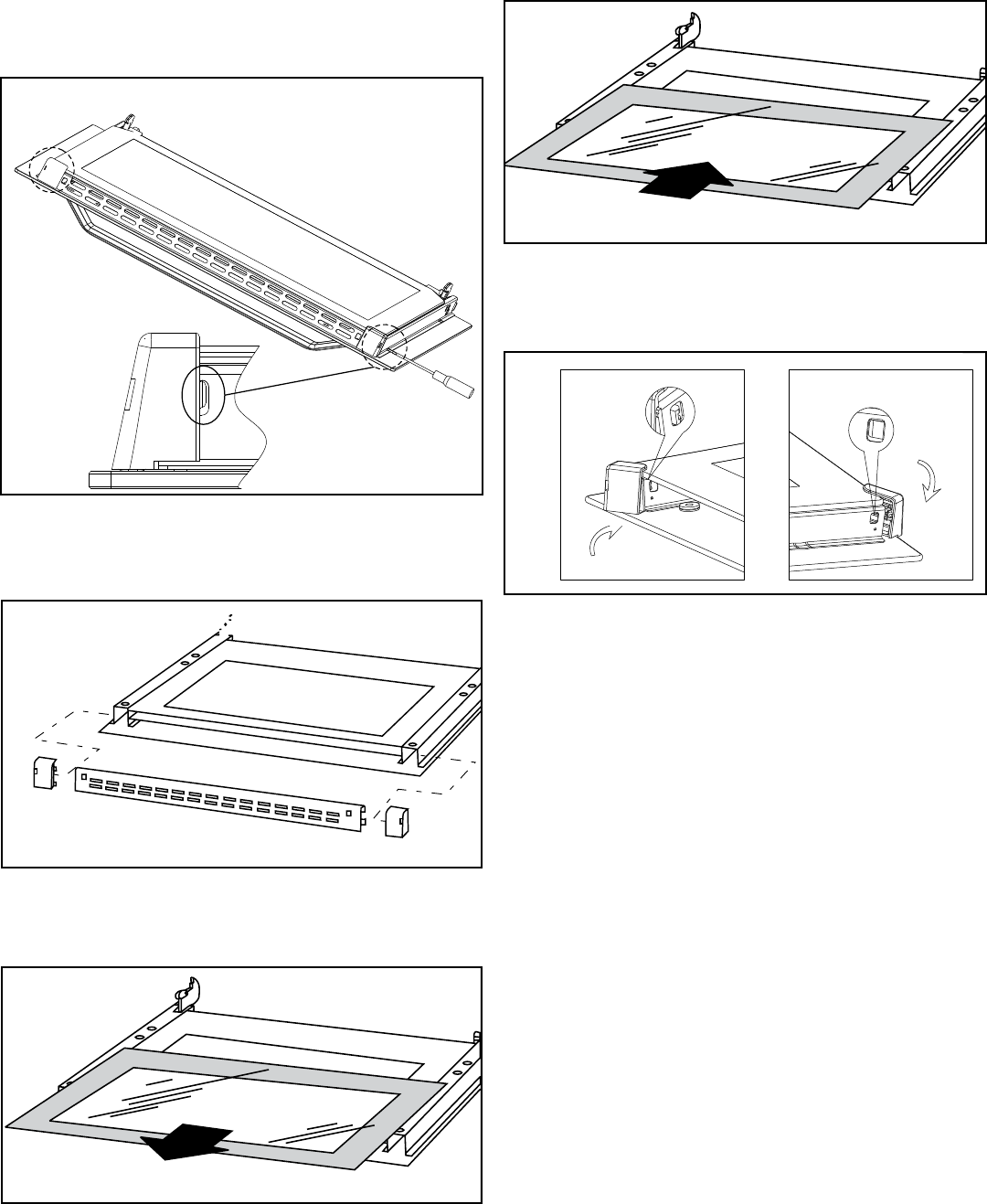

REMOVE THE INNER GLASS PANEL

A. The glass door has two plastic ﬁxed blocks. Use

a slotted screwdriver to insert into the hole of the

plastic ﬁxed block and gently pry it.

B. Remove the ﬁxed block and the top ends of the

plastic ventilation grid.

C. The inner glass is pulled out from beneath plastic

ﬁxed block.

INSTALLING THE INNER GLASS

a. After cleaning the inner glass from the top to the

plastic ﬁxed block

b. Install the upper left ﬁxed block and pay attention to

the view button

Cleaning and Maintenance

a. Glass door has two plastic fixed blocks.

Use a slotted screwdriver to insert into the hole

of the plastic fixed block and gently pry it.

Remove the inner glass panel

b. Remove the fixed block and the top ends of

the plastic ventilation grid.

Install inner glass.

a. After cleaning the inner glass from

the top to the plastic fixed block,

b. Install the upper left fixed block and

pay attention to the view button.,

Cleaning and Maintenance

a. Glass door has two plastic fixed blocks.

Use a slotted screwdriver to insert into the hole

of the plastic fixed block and gently pry it.

Remove the inner glass panel

b. Remove the fixed block and the top ends of

the plastic ventilation grid.

Install inner glass.

a. After cleaning the inner glass from

the top to the plastic fixed block,

b. Install the upper left fixed block and

pay attention to the view button.,

Cleaning and Maintenance

a. Glass door has two plastic fixed blocks.

Use a slotted screwdriver to insert into the hole

of the plastic fixed block and gently pry it.

Remove the inner glass panel

b. Remove the fixed block and the top ends of

the plastic ventilation grid.

Install inner glass.

a. After cleaning the inner glass from

the top to the plastic fixed block,

b. Install the upper left fixed block and

pay attention to the view button.,

Cleaning and Maintenance

a. Glass door has two plastic fixed blocks.

Use a slotted screwdriver to insert into the hole

of the plastic fixed block and gently pry it.

Remove the inner glass panel

b. Remove the fixed block and the top ends of

the plastic ventilation grid.

Install inner glass.

a. After cleaning the inner glass from

the top to the plastic fixed block,

b. Install the upper left fixed block and

pay attention to the view button.,

Cleaning and Maintenance

a. Glass door has two plastic fixed blocks.

Use a slotted screwdriver to insert into the hole

of the plastic fixed block and gently pry it.

Remove the inner glass panel

b. Remove the fixed block and the top ends of

the plastic ventilation grid.

Install inner glass.

a. After cleaning the inner glass from

the top to the plastic fixed block,

b. Install the upper left fixed block and

pay attention to the view button.,

Troubleshooting & Technical Data

OPERATION IN CASE OF EMERGENCY

In the event of an emergency you should:

• Switch off all oven controls (i.e. Cooking Function and Temperature)

• Switch the oven off at the isolation switch or at the fuse box.

• Call the Support Team on 1300 2 KOGAN (56426).

Some minor faults can be ﬁxed by referring to the instructions given in the Troubleshooting section below.

Alternatively call the After Sales Support on 1300 2 KOGAN (56426).

TROUBLESHOOTING

TECHNICAL DATA

ELECTRICAL DETAILS

RATED VOLTAGE: 220 - 240V, 50HZ

POWER RATING: MAXIMUM 2.0KW

OVEN DETAILS

DIMENSIONS (H,W,D): 595MM, 595MM, 575MM

GROSS CAPACITY: 65L

WEIGHT (NET/GROSS): 29.14KG / 30.44KG

RATING LABEL

Switch o all oven controls (i.e. Cooking Function and Temperature)

Switch the oven off at the isolation switch or at the fuse box.

Call the Support Team on 1300 2 KOGAN (56426).

Fault

Possible Cause Solution

The oven isn’

t turning on. Break in power supply. ►

Check the household fuse box for any blown fuses

and replace as necessary. Also ensure that a safety

switch hasn’t tripped.

The oven light isn’t working.

The light globe is loose or has

blown.

►

When completely cool and switched o, remove

the globe cover and ensure that the globe is tight.

If blown, refer to the Cleaning and Maintenance

section on how to replace a globe.

The oven is burning the top of my dish whilst

the underside is under-done.

Not enough heat from the

bottom.

►Try using the Conventional cooking functions.

►Try lowering the temperature.

►Try using a lower shelf position.

The oven is bur

ning the underside of my dish

whilst the top is under-done.

Excessive heat from the bot-

tom.

►Try using the Conventional cooking functions.

►Try lowering the temperature.

►Try using a higher shelf position.

The oven is bur

ning the outside of my dish

whilst the inside is under-done.

Temperature is set too high. ►

Lower the temperature and increase the cooking

duration.

The outside of my dish is too dry even

though it looks cooked.

Temperature is set too low. ►

Increase the temperature and decrease the cooking

duration.

Rated Voltage: 220 - 240V, 50Hz

Power rating: Maximum 2.0kW

Oven details Dimensions (H,W,D mm): 59.5mm, 59.5mm, 57.5mm

Usable capacity: 83 litres

Weight: ~32kg

Trobleshooting & Technial Data

OPERATION IN CASE OF EMERGENCY

In the event of an emergency you should:

•

Some minor fa ults can be fixed by referring to the instructions given in the Troubleshooting section below. Alternatively

call the After Sales Support on 1300 2 KOGAN (56426).

TROUBLESHOOTING

TECHNICAL DATA

Electrical details

3100W

WARRANTY TERMS & CONDITIONS

APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING

This document sets out the terms and conditions of the product

warranties for Kogan Australia Appliances. It is an important

document. Please keep it with your proof of purchase documents

in a safe place for future reference should you require service for

your Appliance.

1. In this warranty

(a) ‘ acceptable quality’ as referred to in clause 10 of this warranty

has the same meaning referred to in the ACL;

(b) ‘ ACL’ means Trade Practices Amendment (Australian

Consumer Law) Act (No.2) 2010;

you accompanied by this document;

(d) ‘ ASR’ means Kogan Australia authorised service

representative;

(e) ‘ Kogan Australia’ means Kogan Australia Pty Ltd of 139

Gladstone St, South Melbourne VIC 3205, ABN 53 152 570

351 (“Kogan Australia”) in respect of Appliances purchased in

Australia;

(f) ‘ major failure’ as referred to in clause 10 of this warranty

has the same meaning referred to in the ACL and includes

a situation when an Appliance cannot be repaired or it is

uneconomic for Kogan Australia, at its discretion, to repair an

Appliance during the Warranty Period;

(g) ‘Warranty Period’ means:

(i) where the Appliance is used for personal, domestic or

household use (i.e. normal single family use) as set out

in the instruction manual, the Appliance is warranted

against manufacturing defects in Australia for 24

months following the date of delivery of the Appliance;

(h) ‘ you’ means the purchaser of the Appliance not having

purchased the Appliance for re-sale, and ‘your’ has a

corresponding meaning.

2. This warranty only applies to Appliances purchased and used in

Australia and is in addition to (and does not exclude, restrict, or

modify in any way) any non-excludable statutory warranties in

Australia.

3. During the Warranty Period Kogan Australia or its ASR will, at no

extra charge if your Appliance is readily accessible for service,

without special equipment and subject to these terms and

conditions, repair or replace any parts which it considers to be

defective. Kogan Australia or its ASR may use remanufactured

parts to repair your Appliance. You agree that any replaced

Appliances or parts become the property of Kogan Australia. This

warranty does not apply to light globes, batteries, ﬁlters or similar

perishable parts.

4. Parts and Appliances not supplied by Kogan Australia are not

covered by this warranty.

5. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from

Kogan Australia’s ASR, in all instances, unless the Appliance

is transported by Kogan Australia or its ASR, the Appliance is

transported at the owner’s cost and risk while in transit to and

from Kogan Australia’s ASR.

6. Proof of purchase is required before you can make a claim under

this warranty.

7. You may not make a claim under this warranty unless the defect

claimed is due to faulty or defective parts or workmanship. Kogan

Australia is not liable in the following situations (which are not

exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain

or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect

power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions

supplied with the Appliance;

(b) the Appliance is modiﬁed without authority from Kogan

Australia in writing;

removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than

Kogan Australia, an authorised repairer or ASR.

8. This warranty, the contract to which it relates and the relationship

between you and Kogan Australia are governed by the law

applicable where the Appliance was purchased.

9. To the extent permitted by law, Kogan Australia excludes

all warranties and liabilities (other than as contained in this

document) including liability for any loss or damage whether

direct or indirect arising from your purchase, use or non use

of the Appliance.

10. For Appliances and services provided by Kogan Australia in

Australia, the Appliances come with a guarantee by Kogan

Australia that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure

and for compensation for any other reasonably foreseeable loss

or damage. You are also entitled to have the Appliance repaired

or replaced if the Appliance fails to be of acceptable quality and

the failure does not amount to a major failure. The beneﬁts to you

given by this warranty are in addition to your other rights and

remedies under a law in relation to the Appliances or services to

which the warranty relates.

11. At all times during the Warranty Period, Kogan Australia shall, at

its discretion, determine whether repair, replacement or refund will

apply if an Appliance has a valid warranty claim applicable to it.

12. To enquire about claiming under this warranty, please follow these

steps:

(a) carefully check the operating instructions, user manual and

the terms of this warranty;

(b) have the model and serial number of the Appliance available;

(d) telephone the numbers shown below.

13. You accept that if you make a warranty claim, Kogan Australia

and its ASR may exchange information in relation to you to enable

Kogan Australia to meet its obligations under this warranty.

IMPORTANT

Before calling for service or spare parts, please ensure that the steps

in point 12 have been followed.

Contact

Please call 1300 2 KOGAN (56426)

Warranty

The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that

cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation

for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major failure.
