Homeowners Guide
Cleansing Seat
K-26142-CR, K-27142-CR
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE
USING
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface. Provide adequate ventilation
when bathing to avoid damage to the electronic components due to
high humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive
force to the spray wands.
IMPORTANT! Risk of product damage. In areas where water may
freeze in the pipes, make arrangements to keep the pipes warm.
Any water remaining in the seat may freeze during winter storage.
Allow the unit to warm to room temperature before reinstalling or
using.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed, as it may cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
DANGER: To reduce the risk of electrocution:
Do not place or store this product where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
1354689-5-A 2 Kohler Co.
IMPORTANT SAFEGUARDS (cont.)
WARNING: To reduce the risk of burns, electrocution, fire,
or injury to persons:
Close supervision is necessary when this product is used by or
near children, the elderly, or invalids. Adjust the temperature of
the seat for the elderly, those who are incapacitated, or persons
with sensitive skin.
Use this product only for its intended use as described in this
manual. Only use attachments recommended by Kohler Co.
Never operate this product if it has a damaged cord or plug, if it
is not working properly, if it has been dropped, damaged, or
dropped into water. Return the product for examination and
repair.
Keep the cord away from heated surfaces.
Never block the air openings of the product or place it on a soft
surface, such as a bed or couch, where the air openings may be
blocked. Keep the air openings free of lint, hair, and the like.
Never use while sleeping or drowsy.
Never drop or insert any object into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
Connect this product to a properly grounded outlet only. See the
“Grounding Instructions” section.
This product conforms to applicable provisions of US 21 CFR,
Chapter 1, Subchapter J, Radiological Health.
SAVE THESE INSTRUCTIONS
Kohler Co. 3 1354689-5-A

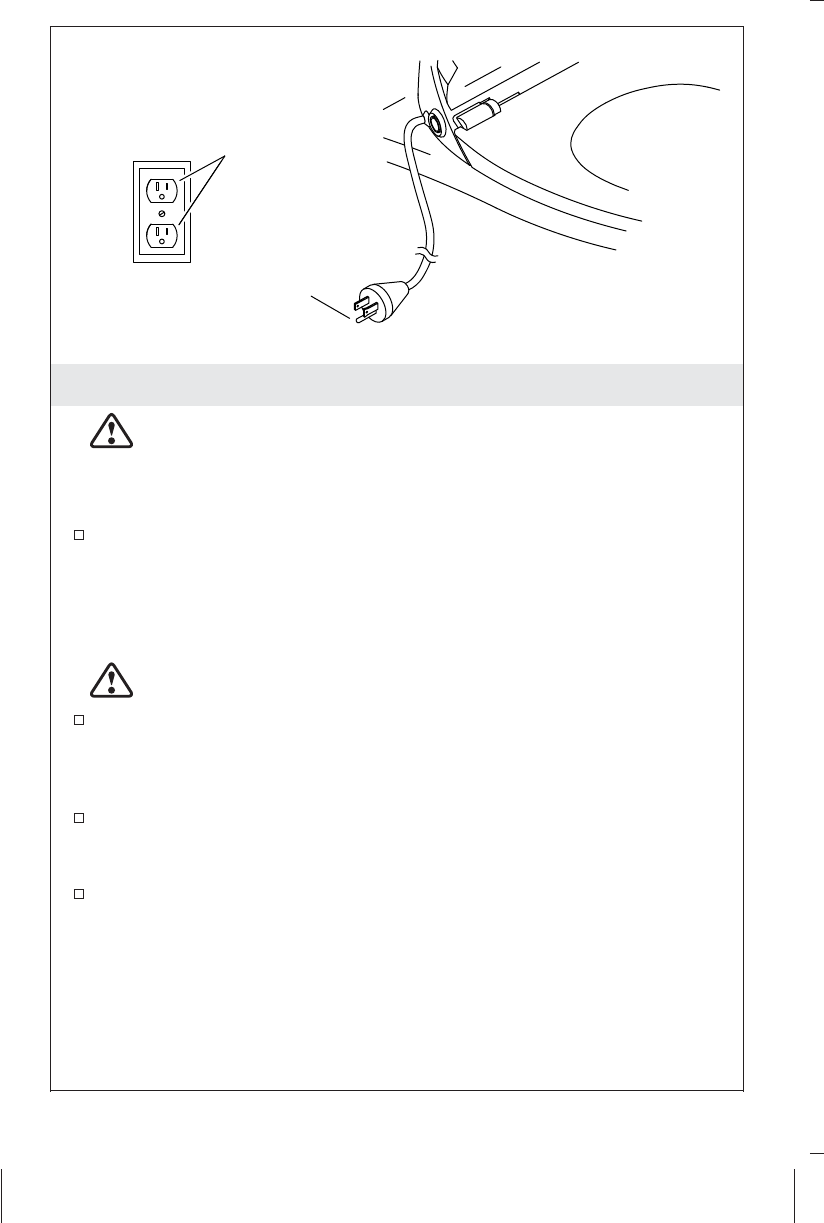

Grounding Instructions
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt whether the product is properly grounded.
Do not use an extension cord with this product.
Grounded
Outlet
Grounding
Plug
1354689-5-A 4 Kohler Co.

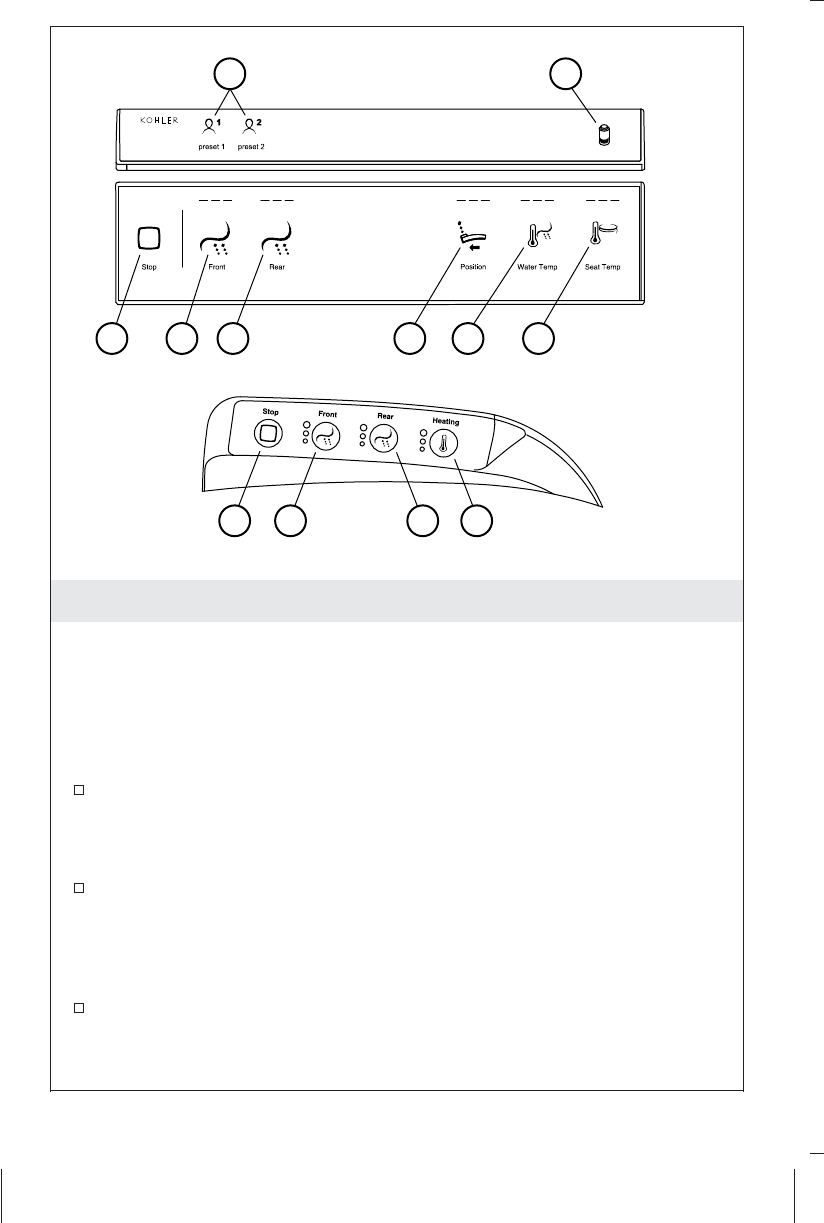

Remote Control Operation
NOTE: For features with multiple settings, press the icon to move
the setting one level higher. If the feature is set at the highest level,
pressing the icon will deactivate it or adjust it to a lower setting.
NOTE: Make sure that four AA batteries are installed correctly in
the remote control.
A - Preset 1 and Preset 2: The presets allow two users to save
their feature settings. When ″Preset 1″or ″Preset 2″are selected,
the saved preferences will activate. Refer to the ″User Presets″
sections below.
B - Battery Indicator: Shows the status of the battery charge.
When the battery is at 100%-50% charge, the icon is off. When the
battery is at 49%-20% charge, the icon flashes for 4 seconds after
the last icon is pushed. When the battery is at 19% or less charge,
the icon glows for 4 seconds after the last icon is pushed.
C - Stop: Press the ″Stop″icon to stop the front wash, rear wash,
and dryer features.
AB
CDEFGH
Panel
Remote Control
LM
JK
Kohler Co. 5 1354689-5-A
Remote Control Operation (cont.)
D - Front: Press the ″Front″ icon to activate the front wash feature
and adjust the front wash water pressure.
E - Rear: Press the ″Rear″ icon to activate the rear wash feature
and adjust the rear wash water pressure.
F - Position: Press the ″Position″ icon to adjust the wand position
when front or rear wash is active. There are three settings.
G - Water Temp: Press the ″Water Temp″ icon to adjust the water
spray temperature. There are three settings.
H - Seat Temp: Press the ″Seat Temp″ icon to activate the heated
seat. Press again to increase the temperature. There are six
settings. When there is no light the heated seat is deactivated.
J - Stop: Press the ″Stop″ icon to stop the front wash, rear wash,
and dryer features.
K - Front: Press the ″Front″ icon to activate the front wash feature
and adjust the front wash water pressure.
L - Rear: Press the ″Rear″ icon to activate the rear wash feature
and adjust the rear wash water pressure.
M - Heating: Press the ″Heating″icon to activate the heated seat.
Press again to increase the temperature. There are three settings.
Setting the User Presets
NOTE: The presets allow two users to save their feature settings.
When ″Preset 1″ or ″Preset 2″ are selected, the saved preferences
will activate.
While seated, adjust the seat features to your preferences.
Press and hold the ″Preset 1″or ″Preset 2″icon for 3 seconds to
save activated features at the current settings.
To change a setting, adjust the front wash, rear wash, or dryer
feature while the preset is in use. Press and hold the ″Preset 1″or
″Preset 2″icon for 3 seconds to store the new setting to memory.
Using the User Presets
Press the ″Preset 1″or ″Preset 2″icon while you are seated to
activate front wash, rear wash, dryer temperature and speed, and
seat temperature at your stored settings.
If the ″Preset 1″or ″Preset 2″icon is pressed while the seat is not
occupied, the seat will gradually (approximately 2 minutes)
change to the preset temperature.
1354689-5-A 6 Kohler Co.
Remote Control Operation (cont.)
To reset or delete a preset, press and hold the ″Preset 1″or
″Preset 2″and the ″Stop″icons at the same time for three
seconds.
Nightlight
To turn off the nightlight, press and hold the ″Stop″icon for three
seconds.
To disable the nightlight, press and hold the ″Front″icon for three
seconds.
Pairing a Remote Control
A new remote control must be paired with the seat before use.
Only one remote control can be paired with the seat at a time.
Bring the new remote control near the seat.
Make sure that all other remote controls have been removed from
the area of the seat.
Press and hold the ″Seat Temp″icon until the icon flashes.
Simultaneously press and hold the ″Front″and ″Rear″icons on
the seat until a beep is heard.
When the ″Seat Temp″icon on the remote control stops flashing
and the ″Preset 1″and ″Preset 2″icons are no longer illuminated,
the remote control has been successfully paired with the seat.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
IMPORTANT! Do not immerse product in water.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Use a soft, dampened sponge or cloth to wipe surfaces clean.
Remove the cleaner quickly after applying. Rinse and dry any
overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Never use an abrasive material such as a brush or scouring pad
to clean surfaces.
Kohler Co. 7 1354689-5-A
Care and Cleaning (cont.)
For detailed cleaning information and products to consider, visit
kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
1354689-5-A 8 Kohler Co.

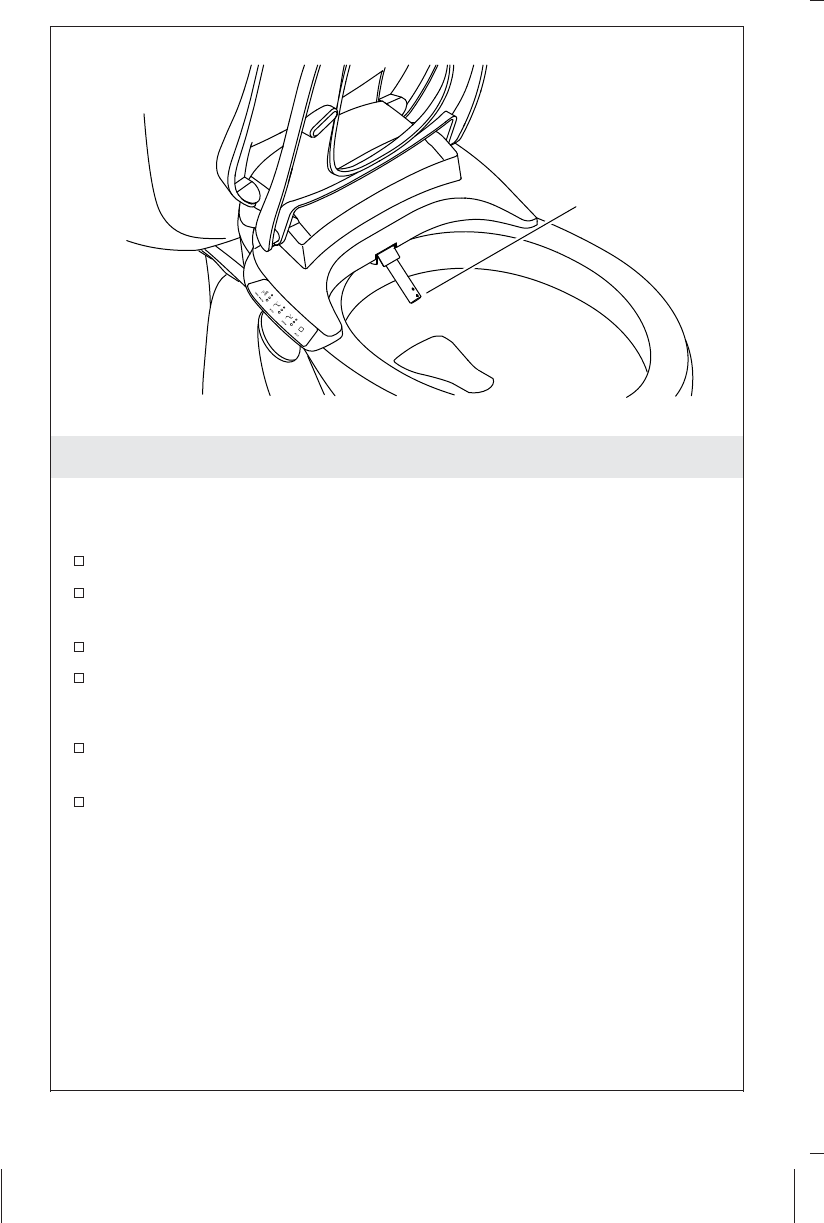

Cleaning the Wand
NOTE: The spray wand can only be extended for cleaning when
the seat is not activated or occupied.
Raise the lid and seat.
Press the ″FRONT″icon on the panel to extend the wand forward
for cleaning.
Clean the spray wand with a soft-bristled brush and hot water.
Press the ″FRONT″icon again to retract the wand.
Automatic UV Disinfection (If Equipped)
An automatic 45-minute UV disinfecting cycle activates every 24
hours.
Lifting the seat lid will end a UV cycle that is in process.
Spray
Wand
Kohler Co. 9 1354689-5-A
Cleaning the Screen
NOTE: Clean the filter screen every 6 months or when there is a
reduction in the maximum water flow from the spray wand.
Turn off the water at the supply stop.
Press the release button to disengage the seat from the mounting
bracket. Refer to the ″Removing the Seat″Section.
Slide the seat forward to allow access to the hose inlet.
Disconnect the water supply hose from the seat connection.

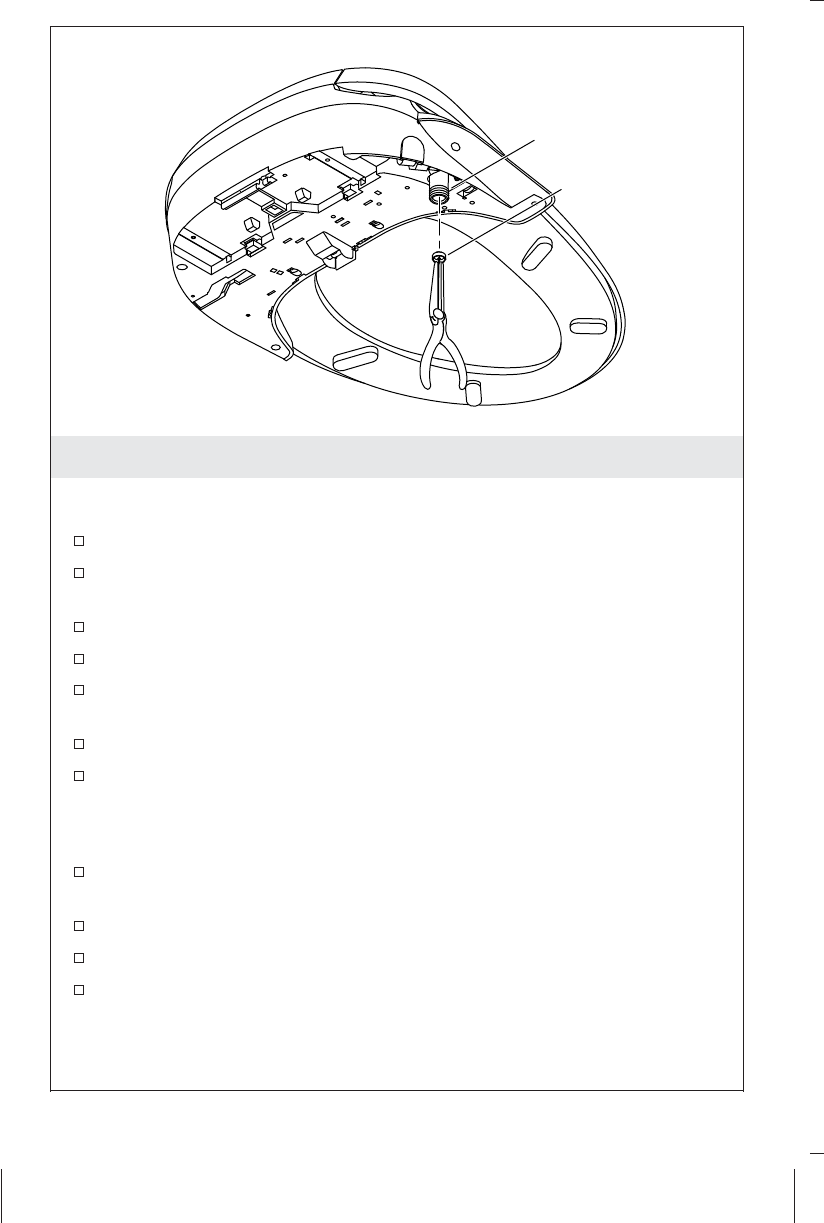

Using long-nosed pliers, carefully remove the filter screen from
the inlet.
Clean the filter screen with a soft-bristled brush.
Reinstall the filter screen.
CAUTION: Risk of product damage. Do not cross-thread the hose
connection to the inlet.
Reconnect the water supply hose to the inlet, one-quarter turn
past hand tight.
Reinstall the seat.
Turn on the water supply.
Check all connections for leaks, and make any adjustments as
needed.
Filter Screen
Inlet
1354689-5-A 10 Kohler Co.

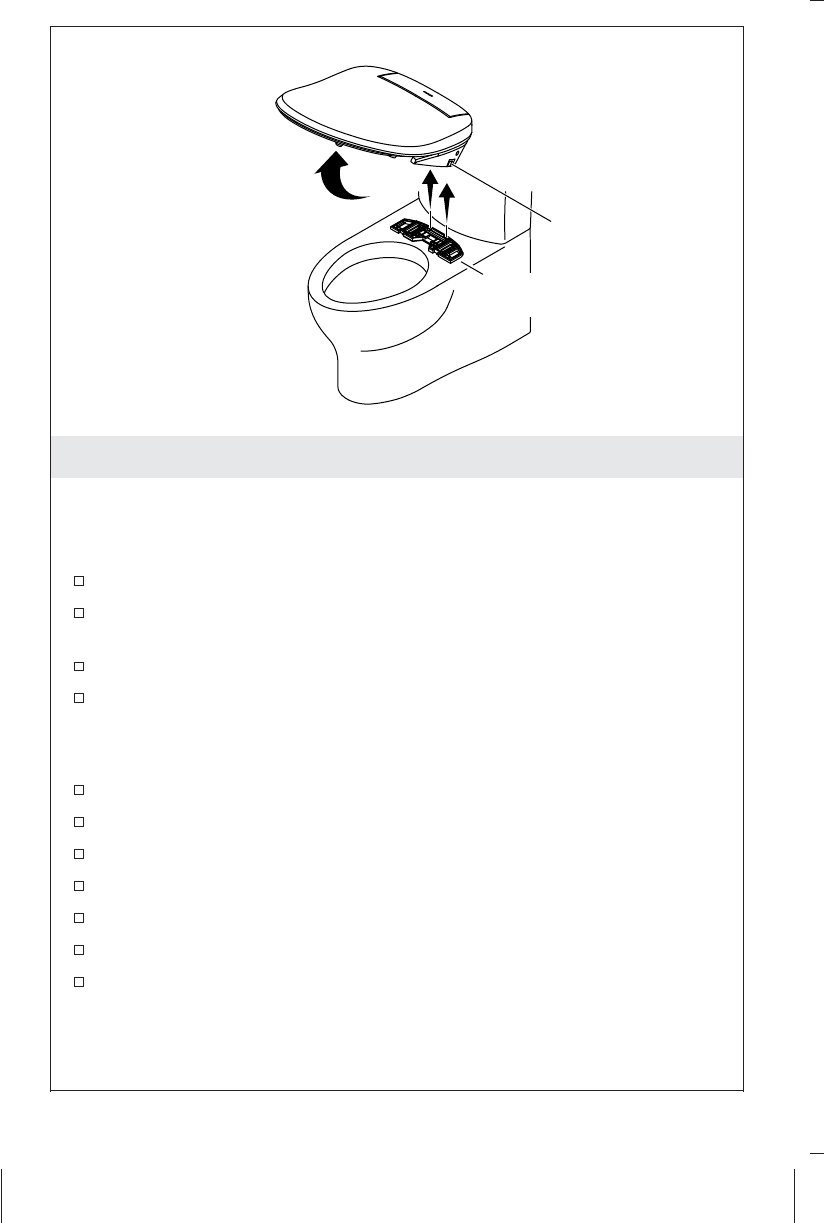

Removing the Seat
For Cleaning
IMPORTANT! When removing the seat for cleaning, take care to
avoid exerting any force on the hose connections.
Press and hold the release button.
Tilt the seat up and lift to remove. Avoid putting pressure on the
hoses.
Clean the area as needed.
To reinstall, engage the rear edge of the seat with the lip on the
mounting bracket. Then tilt the seat down to lock into place.
For Servicing
Turn off the water at the supply stop.
Flush the toilet to relieve any pressure from the supply hose.
Unplug the power cord from the electrical outlet.
Disconnect the water supply hose from the T-valve.
Press and hold the release button.
Tilt the seat up and lift to remove.
When servicing is complete, reinstall the seat and reconnect all
components.
Release
Button
Mounting
Plate
Kohler Co. 11 1354689-5-A
Servicing the Batteries
Remove the remote control from the remote dock.
Open the door to the battery compartment.
Remove the batteries.
Install the replacement batteries, oriented as shown.
Close the door to the battery compartment.
Reinstall the remote control to the remote dock.
Troubleshooting
This troubleshooting guide is for general aid only. A Kohler Co.
Authorized Service Representative (ASR) or qualified electrician should
correct any electrical problems.
For warranty service, contact the Customer Care Center using the
numbers located on the back page of this manual.
Cleansing Features
Symptoms Probable Causes Recommended Action
1. The seat
features are not
working.
A. A power failure
has occurred. A. Wait until power is
restored.
B. The power cord is
unplugged. B. Plug the power cord
into a GFCI or RCD
electrical outlet.
1354689-5-A 12 Kohler Co.
Troubleshooting (cont.)
Cleansing Features
Symptoms Probable Causes Recommended Action
C. The Ground-Fault
Circuit-Interrupter
(GFCI) or Residual
Current Device
(RCD) is tripped.
C. Reset the GFCI or
RCD.
D. The user is not
detected by the
seat sensor.
D1. Small children may
be too light to be
detected by the
sensor.
D2. Shift your position
on the seat. The
sensor is located on
the front of the seat.
2. The seat is
loose. A. The mounting
plate fasteners are
loose.
A. Tighten the fasteners.
Refer to the
Installation Guide.
3. Water stops
flowing from
the spray
wand before
cleansing is
complete.
A. Washing
automatically stops
1 minute after
pressing a spray
icon.
A. Press the ″Front″or
″Rear″icon to restart
cleansing.
B. The user shifted
position and is no
longer detected by
the seat sensor.
B. Shift your position
on the seat. The
sensor is located on
the front of the seat.
Remote Control Compliance
FCC ID: N82-KOHLER030, N82-KOHLER031
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note: This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This product
generates, uses, and can radiate radio frequency energy and, if not
Kohler Co. 13 1354689-5-A
Remote Control Compliance (cont.)
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this product does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment.
1354689-5-A 14 Kohler Co.
RF Exposure Warning
This transmitter with its antenna complies with FCC’s RF exposure limits for general
population/uncontrolled exposure.
This device must not be co-located or operated in conjunction with any other
antenna or transmitter. This device should be operated with a minimum distance of
at least 20 cm between the antenna and a person’s body.
CANADA IC: 4554A-KOHLER030, 4554A-KOHLER031
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to other
users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
installed in the United States of America, Canada and Mexico (″North
America″).
If a defect is found in normal residential use, Kohler Co. will, at its
election, repair, provide a replacement part or product, or make
appropriate adjustment where Kohler Co.’s inspection discloses any
such defect. Damage caused by accident, misuse, or abuse is not
covered by this warranty. Improper care and cleaning will void the
warranty*. Proof of purchase (original sales receipt) must be provided
to Kohler Co. with all warranty claims. Kohler Co. is not responsible
for labor charges, installation, or other incidental or consequential costs
other than those noted above. In no event shall the liability of Kohler
Co. exceed the purchase price of the intelligent toilet or electric
cleansing seat.
If the intelligent toilets or electric cleansing seats are used commercially
or are installed outside of North America, Kohler Co. warrants that the
intelligent toilet or electric cleansing seat will be free from defects in
material and workmanship for one (1) year from the date the product
is installed, with all other terms of this warranty applying except
duration.
Kohler Co. 15 1354689-5-A
Warranty
KOHLER Intelligent Toilet and C3 Cleansing Seat Three-Year Limited
Warranty
Kohler Co. warrants that its toilets with integrated cleansing
functionality (″Intelligent Toilets″) and electric cleansing seats will be
free of defects in material and workmanship during normal residential
use for three years from the date the product is installed. This
warranty applies only to intelligent toilets and electric cleansing seats
Warranty (cont.)
If you believe that you have a warranty claim, contact your Home Center,
Dealer, Plumbing Contractor or E-tailer. Please be sure to provide all
pertinent information regarding your claim, including a complete
description of the problem, the product, model number, the date the
product was purchased, from whom the product was purchased and the
installation date. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility nearest
you, write Kohler Co., Attn: Customer Care Center, Kohler, Wisconsin
53044 USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within
the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within the
USA, www.ca.kohler.com from within Canada, or
www.mx.kohler.com in Mexico.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. KOHLER CO. AND/OR
SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
Some states/provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages, so these
limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also have
other rights that vary from state/province to state/province. This warranty
is to the original consumer purchaser only, and excludes product damage
due to installation error, product abuse, or product misuse, whether
performed by a contractor, service company, or the consumer.
This is Kohler Co.’s exclusive written warranty.
* Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, waxes, alcohol, solvents or other products not recommended for
stainless steel or polypropylene plastic. This will void the warranty.
1354689-5-A 16 Kohler Co.
Guide du propriétaire
Siège de nettoyage
Mesures de sécurité importantes
LIRE TOUTES LES INSTRUCTIONS
AVANT UTILISATION
Lors de l’utilisation de produits électriques, et en particulier en
présence d’enfants, toujours observer les mesures de sécurité
fondamentales, notamment:
AVERTISSEMENT: UV RG-3 émis par cette lampe. Ceci
pourrait créer des lésions de la peau ou des yeux. Éviter
toute exposition des yeux et de la peau à une lampe non
protégée par un écran. Toujours s’assurer que la lampe est
éteinte avant d’ouvrir le couvercle de protection.
ATTENTION: Risque de blessures. Le remplacement de la
lampe UV peut seulement être effectué par un personnel
d’entretien qualifié.
IMPORTANT! Risque d’endommagement du produit. Ne pas
installer ce produit dans un emplacement exposé à un excès
d’humidité et où de la condensation pourrait se former sur la
surface du produit. Fournir une ventilation adéquate lors des bains
afin d’éviter d’endommager les composants électroniques en raison
des niveaux d’humidité.
IMPORTANT! Risque d’endommagement du produit. Des fuites
d’eau pourraient se produire si l’on pousse ou tire sur le raccord
d’eau.
IMPORTANT! Risque d’endommagement du produit. Ne pas
appliquer de force excessive sur les baguettes de vaporisation.
IMPORTANT! Risque d’endommagement du produit. Prendre les
mesures nécessaires pour maintenir les tuyaux au chaud dans les
régions où l’eau pourrait geler. Toute l’eau présente dans le siège
pourrait geler pendant l’entreposage en hiver. Laisser le dispositif se
réchauffer à la température ambiante avant de l’installer ou de
l’utiliser.
Kohler Co. Français-1 1354689-5-A
Mesures de sécurité importantes (cont.)
IMPORTANT! Risque d’endommagement du produit. Ne pas
fournir d’alimentation électrique au dispositif avant d’avoir effectué
le travail d’installation de la plomberie; ceci pourrait créer des
problèmes de fonctionnement.
REMARQUE: Les protecteurs thermiques pourraient se déclencher
pendant l’entreposage ou le transport par temps chaud, et le
dispositif ne fonctionnera pas. Laisser le dispositif se refroidir à la
température ambiante avant de l’installer ou de l’utiliser.
DANGER: Pour réduire le risque d’électrocution:
Ne pas placer et ne pas entreposer ce produit dans un endroit où
il pourrait tomber ou d’où il pourrait être tiré et tomber dans une
baignoire ou un lavabo.
Ne pas placer et ne pas laisser tomber cet appareil dans de l’eau
ou un autre liquide.
Ne pas essayer de récupérer un produit qui est tombé dans de
l’eau. Débrancher l’appareil immédiatement.
AVERTISSEMENT: Pour réduire le risque de brûlures,
d’électrocution, d’incendie ou de blessures personnelles:
Il est nécessaire de superviser de près lorsque ce produit est
utilisé par de jeunes enfants, des personnes âgées ou invalides, ou
lorsqu’il se trouve dans leur proximité. Ajuster la température du
siège pour les personnes âgées, les personnes frappées
d’incapacité, ou les personnes dont la peau est sensible.
Utiliser ce produit uniquement pour l’usage pour lequel il est
destiné, tel que décrit dans ce manuel. Ne pas utiliser de
dispositifs d’attache non recommandés par Kohler Co.
Ne jamais faire fonctionner ce produit si son cordon ou sa prise
sont endommagés, s’il ne fonctionne pas correctement, s’il est
tombé, s’il est endommagé, ou s’il est tombé dans de l’eau.
Retourner le produit pour le faire examiner et réparer.
Tenir le cordon à distance de surfaces chauffées.
Ne jamais bloquer les ouvertures d’air du produit et ne jamais le
placer sur une surface molle, comme un lit ou un divan, à un
emplacement ou les ouvertures d’air pourraient être bloquées.
S’assurer de l’absence de peluches, de cheveux ou d’autres
éléments similaires sur les ouvertures d’air.
Kohler Co. Français-2 1354689-5-A
Mesures de sécurité importantes (cont.)
Ne jamais utiliser ce dispositif lorsque l’on dort ou si l’on se sent
somnolent.
Ne jamais faire tomber ou insérer un objet quelconque dans une
ouverture ou un tuyau.
Ne pas utiliser ce dispositif à l’extérieur et ne pas le faire
fonctionner en présence de produits aérosols ou si l’on administre
de l’oxygène.
Connecter ce produit à une prise mise à la terre de manière
adéquate uniquement. Voir la section ″Instructions de mise à la
terre″.
Ce produit est conforme aux conditions applicables de l’US 21
CFR, Chapitre 1, Sous-chapitre J, Hygiène radiologique.
CONSERVER CES INSTRUCTIONS
1354689-5-A Français-3 Kohler Co.
Conformité de la télécommande
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radioexempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Conformément à la réglementation d'Industrie Canada, le présent émetteur
radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)
approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut
choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
Kohler Co. Français-41354689-5-A
USA/Canada: 1-800-4KOHLER
México: 001-800-456-4537
kohler.com
©2018 Kohler Co.
1354689-5-A
