Kone S p A 806950 Remote Control User Manual manual

Kone Industrial S.p.A Remote Control manual

Manual

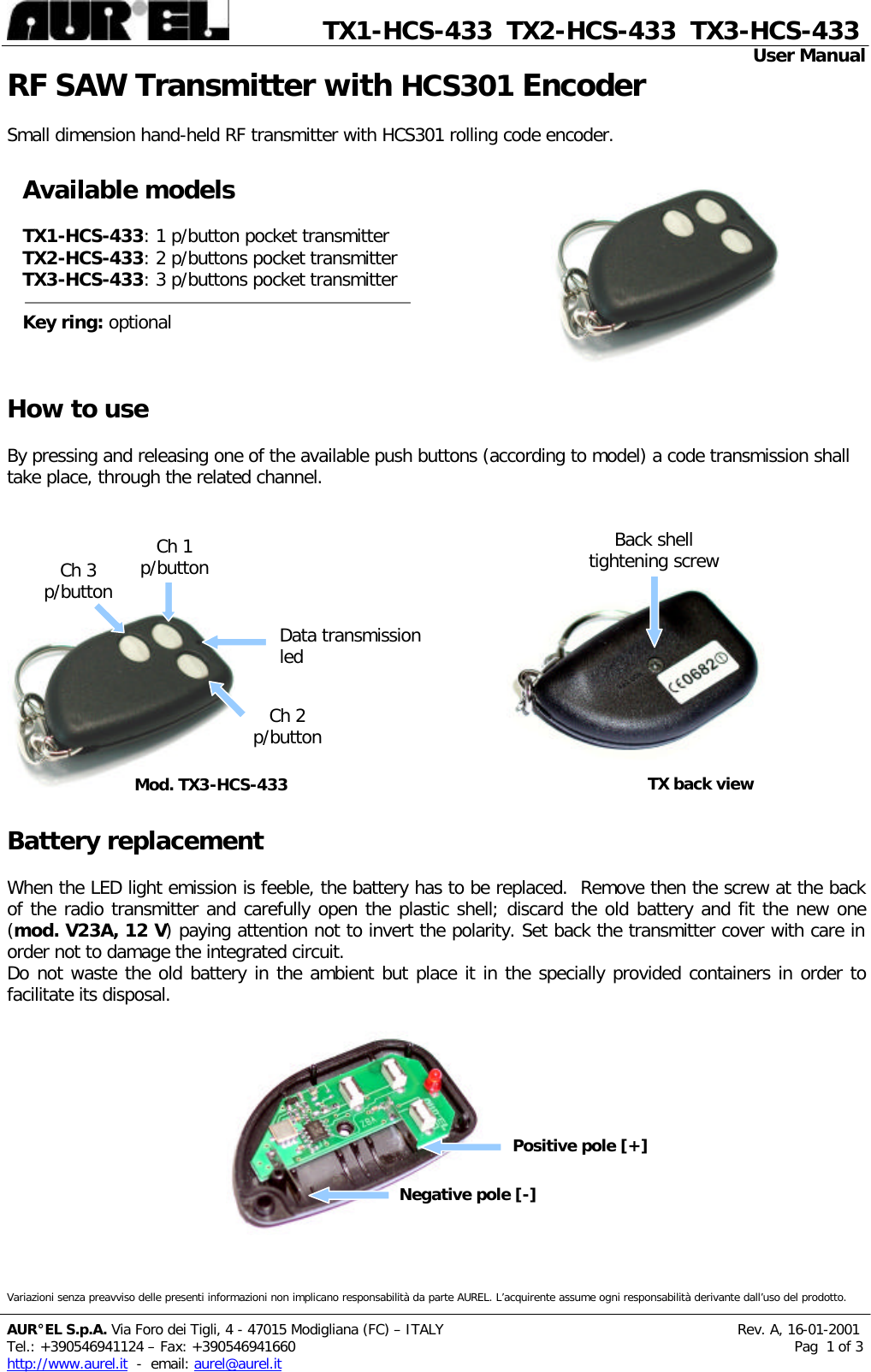

TX1-HCS-433 TX2-HCS-433 TX3-HCS-433 User Manual Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L’acquirente assume ogni responsabilità derivante dall’uso del prodotto. AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY Rev. A, 16-01-2001 Tel.: +390546941124 – Fa x: +390546941660 Pag 1 of 3 http://www.aurel.it - email: aurel@aurel.it RF SAW Transmitter with HCS301 Encoder Small dimension hand-held RF transmitter with HCS301 rolling code encoder. How to use By pressing and releasing one of the available push buttons (according to model) a code transmission shall take place, through the related channel. Battery replacement When the LED light emission is feeble, the battery has to be replaced. Remove then the screw at the back of the radio transmitter and carefully open the plastic shell; discard the old battery and fit the new one (mod. V23A, 12 V) paying attention not to invert the polarity. Set back the transmitter cover with care in order not to damage the integrated circuit. Do not waste the old battery in the ambient but place it in the specially provided containers in order to facilitate its disposal. Available models TX1-HCS-433: 1 p/button pocket transmitter TX2-HCS-433: 2 p/buttons pocket transmitter TX3-HCS-433: 3 p/buttons pocket transmitter Key ring: optional Back shell tightening screw Data transmission led Ch 3 p/button Mod. TX3-HCS-433 Ch 1 p/button Ch 2 p/button TX back view Positive pole [+] Negative pole [-]

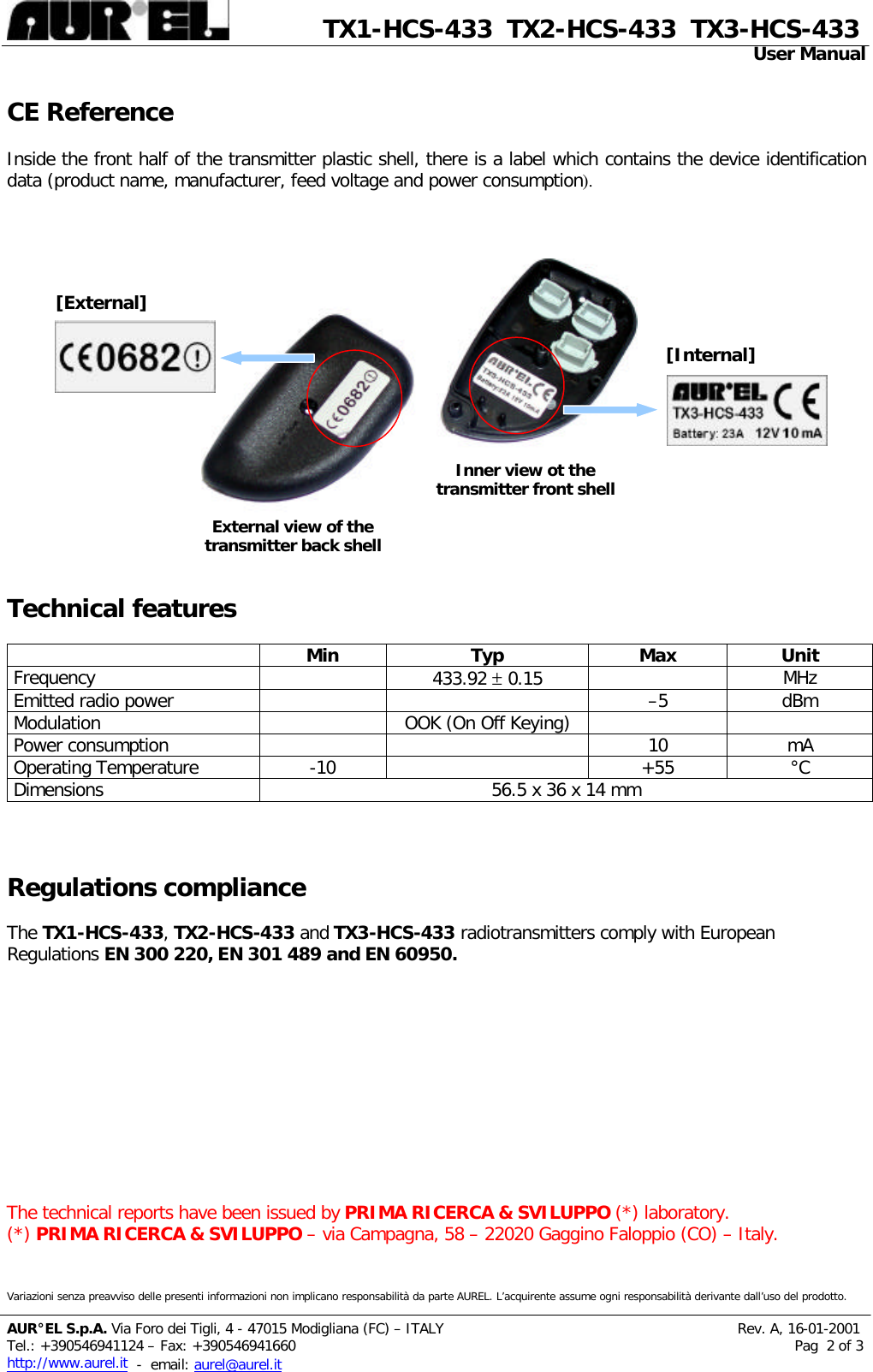

TX1-HCS-433 TX2-HCS-433 TX3-HCS-433 User Manual Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L’acquirente assume ogni responsabilità derivante dall’uso del prodotto. AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY Rev. A, 16-01-2001 Tel.: +390546941124 – Fax: +390546941660 Pag 2 of 3 http://www.aurel.it - email: aurel@aurel.it CE Reference Inside the front half of the transmitter plastic shell, there is a label which contains the device identification data (product name, manufacturer, feed voltage and power consumption). Technical features Min Typ Max Unit Frequency 433.92 ± 0.15 MHz Emitted radio power –5 dBm Modulation OOK (On Off Keying) Power consumption 10 mA Operating Temperature -10 +55 °C Dimensions 56.5 x 36 x 14 mm Regulations compliance The TX1 -HCS -433, TX2-HCS -433 and TX3-HCS-433 radiotransmitters comply with European Regulations EN 300 220, EN 301 489 and EN 60950. The technical reports have been issued by PRIMA RICERCA & SVILUPPO (*) laboratory. (*) PRIMA RICERCA & SVILUPPO – via Campagna, 58 – 22020 Gaggino Faloppio (CO) – Italy. Inner view ot the transmitter front shell External view of the transmitter back shell [External] [Internal]

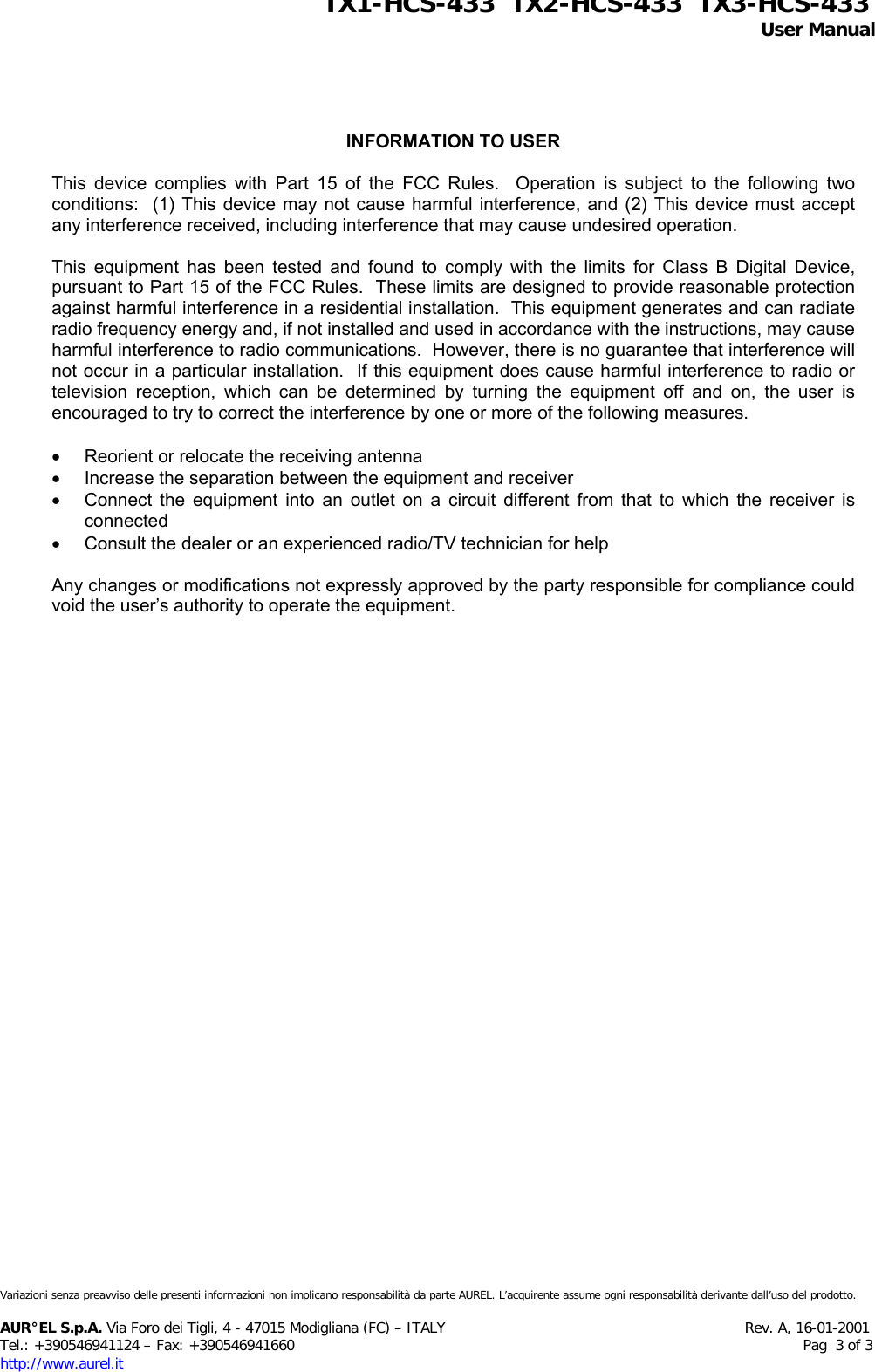

INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. TX1-HCS-433 TX2-HCS-433 TX3-HCS-433 User Manual Variazioni senza preavviso delle presenti informazioni non implicano responsabilità da parte AUREL. L’acquirente assume ogni responsabilità derivante dall’uso del prodotto. AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY Rev. A, 16-01-2001 Tel.: +390546941124 – Fax: +390546941660 Pag 3 of 3 http://www.aurel.it
