SAFETY PRECAUTIONS
Please read the following safety guidelines before using the
device.
Do not use the phone while you are driving.
Do not place magnetic storage media near your
phone. Radiation from the phone may erase the
information stored on them.
Keep your phone and its accessories away from
children.
Cell phone can interfere with the functioning of
medical devices such as hearing aids or
pacemakers. Contacts having active medical
implants should keep their cell phone at least 15
cm away from the implant.
Permanent hearing loss may occur if you use
earphones or headphones at high volume.
Use a wireless hands-free system (headphone/
headset) with a low power Bluetooth emitter.
Make sure the cell phone has a low SAR.
Keep your calls short or send a text message
(SMS) instead. This advice applies specially to
children adolescents and pregnant women.
Use cell phone when the signal quality is good.
2
TABLE OF CONTENTS
ALL RIGHTS RESERVED .................................................1
TABLE OF CONTENTS ....................................................2
1. UNDERSTANDING YOUR DEVICE ...............................3
1.1 DEVICE OVERVIEW ........................................................... 3
2. INSTALLING CARDS ..................................................4
2.1 INSTALLING CARDS & BATTERY ........................................ 4
2.2 POWERING ON/OFF THE DEVICE ...................................... 6
3. SYSTEM GUIDE .........................................................7
3.1 MAIN SCREEN OPERATING ............................................... 7
3.2 USING YOUR PHONE ........................................................ 7
ENVIRONMENTAL CONCERN .........................................8
3
1. UNDERSTAND ING YOU R D E VI CE
1.1 DEVICE OVERVIEW
Position of keys
1. Earphone Jack
2. Earpiece
3. Touch Screen
4. Back Key
5. USB Port
6. Home Key
7. Record
8. Front Camera
9. Volume Control Key
10. Power Key
11.Back Camera
12. Rear cover
13. Speaker
14. Flash
4
2. INSTALLING CARDS
2.1 INSTALLING CARDS & BATTERY
Please switch off your device before inserting or removing the
SIM card and memory card.
Installing SIM card
In order to install battery and SIM card in the device, please
follow the steps mentioned below:
Switch off your device.
Remove the battery cover and battery of the device.

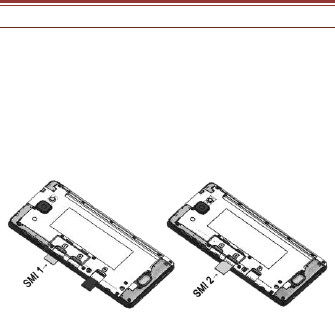

Insert the SIM cards.
Installing Memory Card
Your device supports T-Flash card, which is a multimedia
memory card used to multiply the memory of the device. The
T-flash card is small and should be pulled out and installed
carefully and prudently in order to avoid any kind of damage.
Please follow the steps mentioned below to install the
memory card in the device:
Switch off your device.
Remove the battery cover and battery of the device.

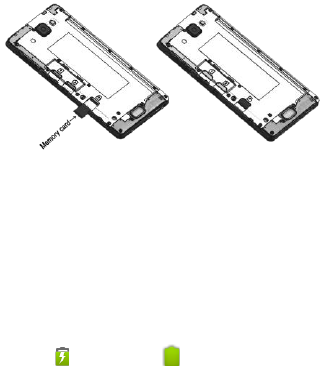

Insert the T-Flash memory card into the slot.
5
Charging the Battery
The device prompts a warning tone and message stating
insufficient battery when the battery power is low.
Please follow the instructions mentioned below to charge
your device:
Plug the connector of the charger into the jack of the
device.
Plug the charger into a standard AC wall outlet.
Charging Fully Charged
You should fully charge the battery before using the device
for the first time. It is recommended to charge the battery for
three hours before using the device for the first time.
6
2.2 POWERING ON/OFF THE DEVICE
Turning on the device
After installing the SIM card/s and charging the battery, you
are now ready to turn on your device.
Long press the Power Key to turn on the device.
The first screen that appears is known as the
Home/idle Screen.
Drag up the unlock icon to release the screen.
If the screen turns off, then short press the power
key to turn on the display.
Turning off the device
Long press the power key.
A pop-up window appears, select Power off.
7
3. SYSTEM GU IDE
3.1 MAIN SCREEN OPERATING
Notification panel
The table below lists various icons that might appear on the
Notification Panel of the device.
Network intensity of SIM card 1 or SIM
card 2
Battery level of the device
New short message
Missed call notification
Headset is plugged in
USB connected
Wi-Fi is connected
Bluetooth is activated
GPRS network is in use
3.2 USING YOUR PHONE
Enter main menu
In idle mode press the key to enter the main menu on
the desktop and press the Home key to return.
Enter sub menu
In the main menu click the icon to select the sub menu, press
the Back key to return to the previous menu, and press the
Home key to return to the Home screen.
To view recently used APP
Touch the to view the recent operation record.Drag the
horizontal to delete the record.
8
E N VIRONMENTAL CONC ER N
We strive to make products that are safe for our consumers
as well as the environment. Come join hands with us and
make world a better place to live in.
Preserve natural resources for future generations by recycling
your phone. The phone contains some metals, when recycled
properly; these can be put back into circulation, decreasing
the need for new metal mining. Recycling reduces the need
for raw materials, saves energy, helps mitigate Global
Warming and reduces pollution, reduces waste products in
landfills; therefore, preserve natural resources for the future
and saves the planet.
Follow some simple steps and contribute towards saving the
planet.
DOs
Recycle your handset and its accessories.
To protect natural resources and promote re-use of the
material, kindly separate batteries from other type of waste.
DONTs
Do not dispose of your mobile and its battery in fire.
Do not dispose your mobile with regular waste.
Do not overcharge your handset. Remove the charger when
battery is full.
Don’t trash your phone, instead recycle it.
This logo signifies that this product and/or its constituents
should not be disposed off with other household waste.
Hazards of improper handling, accidental breakage, damage
and /or improper recycling of hazardous elements
If this product is improperly handled, broken or damaged or
carelessly recycled or disposed off in the fire, can result in
environmental and data security concerns, including the
following:
9
Affect nearly every system in the human body and result in
birth defects, brain, heart, liver, kidney and skeletal system
damage. They will also significantly affect the nervous and
reproductive systems of the human body;
When burned, create cancer-producing dioxins which are
released into the air we breathe; If thrown in landfills, may
leach into groundwater affecting your local community;
In warm climates, the oxidation of mercury in the
environment can be accelerated, leading to the creation of
oxidized Hg atoms that are known to be associated with
ozone depletion; Improper recycling additionally results in
data security issues, as private electronic information remains
on the hard drive, if not properly removed before disposal.
How to Recycle
Please get your electronic devices recycled only through
authorized recyclers, approved by the Pollution Control Board.
We provide a facility of recycling of our products. For details
of our collection centers, please visit our website or call our
customer care. Help us to GO GREEN.
