Konka Telecommunications Technology KKB8502 Mobile Phone User Manual junjie zhu

Shenzhen Konka Telecommunications Technology Co., Ltd. Mobile Phone junjie zhu

User manual

Quick Start Guide B8502 Please Read Before Proceeding
Phone Components Front Panel Back Panel
Left, right panel Overhead view Bottom view
I. PHONE PACKING BOX The phone packing box should contain the follow -ing items and accessories: Phone, Battery, Power Adapter, Quick Start Guide, Wired Stereo Headset USB-Cable. II.INSTALLING SIM CARD, BATTERY AND MEMORY CARD Make sure to always turn off the power before installing or replacing the SIM card and battery. The back cover needs to be removed before putting in the SIM card, battery, or memory card. To remove the back cover 1. Make sure your device is turned off. 2. Hold the device carefully with the front panel facing down. 3. Pull lower half of back cover with your thumb or fingers. Remove it from the opening. SIM Card The SIM Card contains your phone number, service details and the phone-book/message memory. Install SIM Card

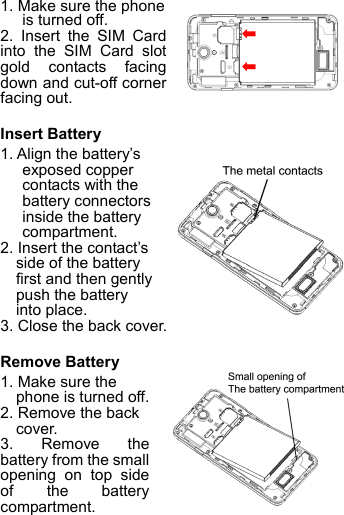

1. Make sure the phone is turned off. 2. Insert the SIM Card into the SIM Card slot gold contacts facing down and cut-off corner facing out. Insert Battery 1. Align the battery’s exposed copper contacts with the battery connectors inside the battery compartment. 2. Insert the contact’s side of the battery first and then gently push the battery into place. 3. Close the back cover. Remove Battery 1. Make sure the phone is turned off. 2. Remove the back cover. 3. Remove the battery from the small opening on top side of the battery compartment.
Install Memory Card Insert the micro SD-card into the slot with its gold contacts facing down. Camera and photo gallery application can only be initiated after the installation of the TF card. Insert the TF card into the slot with its gold contacts facing down. Charging the Battery The battery is partially charged when shipped. Before you turn on and start using your phone, it is recommended that you fully charge the battery. Some batteries perform best after several full charge/ dis-charge cycles. 1. Connect the power adapter and the USB connector of your phone with the USB cable 2. Plug in the power adapter to an electrical outlet to start charging the battery. III. INTERNET CONNECTION Your device’s networking capabilities allow you to access the Internet through WI-FI, GPRS/3G or EDGE. To turn Wi-Fi on and connect to a Wi-Fi Network network 1. In home screen > tap Menu key>settings > wireless & networks.
2. Tap the check box for Wi-Fi to turn it on. Then your phone will detect available wireless networks. 3. Tap Wi-Fi, then detected Wi-Fi networks will be listed. 4. Tap the Wi-Fi network you want to connect to. If you selected a secured network, enter the security key to connect to network. NOTICE: Next time you use your device to detect Wi-Fi networks, you will not be prompted to enter the network key of the previously accessed Wi-Fi network (unless you perform a hard reset which will erase custom settings on your device). To check Wireless network status You can check the current wireless connection status as follows: Status bar When your phone is connected to a wireless network, the Wi-Fi icon will be displayed in the status bar along with the signal strength icon. If the network notification is enabled within Wi-Fi settings, the icon will be displayed in the status bar when your phone has automatically detected an available wireless network. Wi-Fi In Select wireless networks>Wi-Fi. Then tap the network to which you are currently connected. Using web browser
Start browser to surf the internet. The browser has been optimized for making your internet usage easy and enjoyable. NOTICE: You can only access the internet with either 3G, GPRS or Wi-Fi connection. Opening the Browser Tap > Then choose browser. Opening a webpage 1. Enter an URL in the browser window. 2. As you type, automatically possible addresses will be displayed. You can tap an address to go directly to that webpage or continue typing in the address line. Compliance information of FCC Exposure to radio frequency signals The Bitel device radio is a low power radio transmitter and receiver. When the Bitel device radio is turned on, it receives and also sends out radio frequency signals. The Bitel device is designed to comply with Federal Communications Commission (FCC) guidelines respecting safety levels of radio frequency exposure for wireless devices, which in turn are consistent with the following safety standards previously set by FCC. Specific absorption rate data (SAR data) THIS WIRELESS DEVICE MODEL MEETS GOVERNMENT REQUIREMENTS FOR EXPOSURE TO RADIO WAVES WHEN USED AS DIRECTED IN THIS SECTION. Before a wireless device model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit

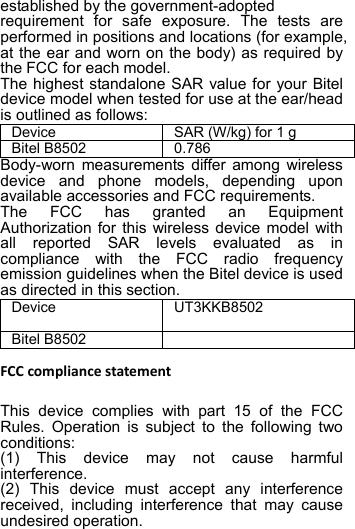

established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (for example, at the ear and worn on the body) as required by the FCC for each model. The highest standalone SAR value for your Bitel device model when tested for use at the ear/head is outlined as follows: Device SAR (W/kg) for 1 g Bitel B8502 0.786 Body-worn measurements differ among wireless device and phone models, depending upon available accessories and FCC requirements. The FCC has granted an Equipment Authorization for this wireless device model with all reported SAR levels evaluated as in compliance with the FCC radio frequency emission guidelines when the Bitel device is used as directed in this section. Device UT3KKB8502 Bitel B8502 FCC compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. SAR tests are conducted using standard operating positions accepted by the FCC with the Phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest

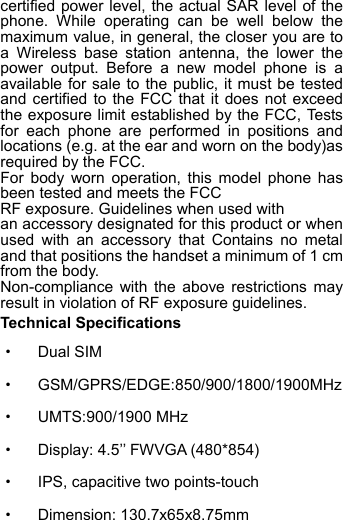

certified power level, the actual SAR level of the phone. While operating can be well below the maximum value, in general, the closer you are to a Wireless base station antenna, the lower the power output. Before a new model phone is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locations (e.g. at the ear and worn on the body)as required by the FCC. For body worn operation, this model phone has been tested and meets the FCC RF exposure. Guidelines when used with an accessory designated for this product or when used with an accessory that Contains no metal and that positions the handset a minimum of 1 cm from the body. Non-compliance with the above restrictions may result in violation of RF exposure guidelines. Technical Specifications · Dual SIM · GSM/GPRS/EDGE:850/900/1800/1900MHz · UMTS:900/1900 MHz · Display: 4.5’’ FWVGA (480*854) · IPS, capacitive two points-touch · Dimension: 130.7x65x8.75mm

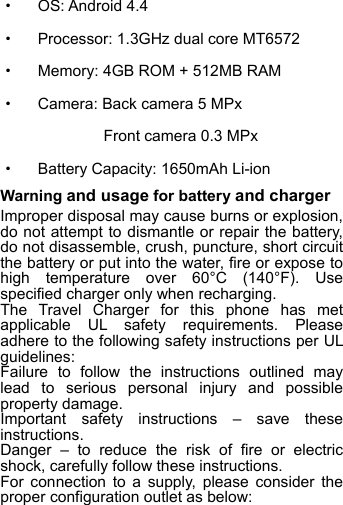

· OS: Android 4.4 · Processor: 1.3GHz dual core MT6572 · Memory: 4GB ROM + 512MB RAM · Camera: Back camera 5 MPx Front camera 0.3 MPx · Battery Capacity: 1650mAh Li-ion Warning and usage for battery and charger Improper disposal may cause burns or explosion, do not attempt to dismantle or repair the battery, do not disassemble, crush, puncture, short circuit the battery or put into the water, fire or expose to high temperature over 60°C (140°F). Use specified charger only when recharging. The Travel Charger for this phone has met applicable UL safety requirements. Please adhere to the following safety instructions per UL guidelines: Failure to follow the instructions outlined may lead to serious personal injury and possible property damage. Important safety instructions – save these instructions. Danger – to reduce the risk of fire or electric shock, carefully follow these instructions. For connection to a supply, please consider the proper configuration outlet as below:
Input voltage: 100-240V, 50/60Hz, input current: 200 mA. Output voltage: 5VDC, output current: 1000mA Ways of storage Operation Temperature 0oC ~ 55 oC Operation Humidity 20% ~ 95% Storage Temperature -10 oC ~ 70 oC Storage Humidity 10% ~ 95% Use or storage of your Bitel device or Bitel device accessories outside of the recommended temperature ranges could cause damage to your Bitel device, Bitel device accessories, or lithium-ion battery. Keep your Bitel device or Bitel device accessories away from heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.ety Product Safety Information Do not use hand-held while driving Do not use while re-fuelling For body-worn operation maintain a separation of 15 mm This device may produce a bright or flashing light

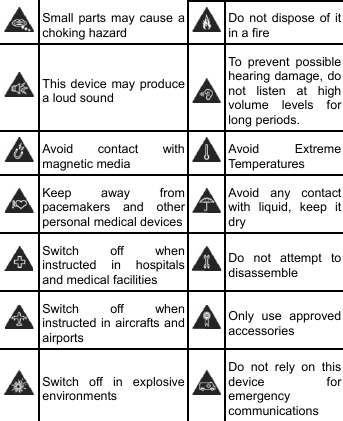

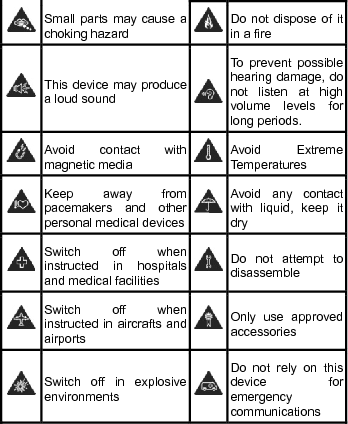

Small parts may cause a choking hazard Do not dispose of it in a fire This device may produce a loud sound To prevent possible hearing damage, do not listen at high volume levels for long periods. Avoid contact with magnetic media Avoid Extreme Temperatures Keep away from pacemakers and other personal medical devices Avoid any contact with liquid, keep it dry Switch off when instructed in hospitals and medical facilities Do not attempt to disassemble Switch off when instructed in aircrafts and airports Only use approved accessories Switch off in explosive environments Do not rely on this device for emergency communications
Fabricant Information SHENZHEN KONKA TELECOMMUNICATIONS TECHNOLOGY CO.,LTD Address: Overseas Chinese Town,NanshanDistrict,Shenzhen Te l : 0086-755-26608866 Website: www.konkamobile.com
