Korea Printing Systems RIF-BT10 Bluetooth Interface User Manual revised manual
Korea Printing Systems Co., Ltd. Bluetooth Interface revised manual
revised manual
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 1
Bluetooth user manual
(RIF-BT10)
Table of Contents
1. Hardware, & Software ------------------------------------------------------------------ 2
2. Specifications ----------------------------------------------------------------- 3
3. System Structure ----------------------------------------------------------------- 4
4. How to configure ----------------------------------------------------------------- 5
Attachment 1. Virtual serial port driver installation
Attachment 2. Virtual serial port setting
Attachment 3. Dip switch setting
Attachment 4. Bluetooth slave setting
Attachment 5. Bluetooth master setting
Attachment 6. Printer driver installation & Test page printing
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 2
Regulatory Information
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received.
Including interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
RF Exposure Information: The antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 3
1. Hardware & Software
1) Hardware
Bluetooth Main (Master & Slave) Bluetooth Connection PCB
(RIF-BT10) (RIF-BT10C)
Cable_USB_BT Cable_Serial_BT
(Shielded Cable which incorporates ferrite core) (Shielded Cable)
2) Software & manual
(1) USB virtual serial port driver (Win98, 2000, XP): VirtualCOM_R9032148
(2) System configuration program: BluetoothConfig_V2.x
(3) Window printer driver: Download from website
- SRP 350: V3.0.5E above
- SRP 270: V3.0.3E above
(4) Application programmer’s guide: Bluetooth control message V1.x
3) Ordering information
(1)USB Master (RIF-BT10U) = RIF-BT10 + Cable_USB_BT
(2)Serial Master (RIF-BT10S) = RIF-BT10 + Cable_Serial_BT + (5V Power adapter option)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 4
(3)Slave (RIF-BT10F) = RIF-BT10 + RIF-BT10C
2. Specifications
Category Specification
Model name RIF-BTM10
Connection System POS System
(Printer : SRP-350, SRP-270)
Interface Port USB(PC), RS-232C(PC), UART(Printer)
Flow control Hardware(RTS/CTS)
Transmission speed (bps) 19200,9600
Power DC 5V/150mA
(USB port or RS-232C Pin 9 or Printer power)
Bluetooth Specification V1.0B & V1.1
Service Distance Max 100 m (Class 1)
Network Support
(Master: Slave)
Multi-Connection Support = N:7(max N=infinity)
Simultaneous printing = 1 : n (max. n=7)
Printing Profile Support SPP(Serial Port Profile) &
HCRP(Hardcopy Cable Replacement Profile)
Dimensions(W x L x H) 70 x 45 x 11 mm
Rx/Tx Buffer Rx Buffer: 1024 byte
Tx Buffer: 512 byte
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 5
3. System structure
Connect Bluetooth master module to the USB port (or Serial) of PC and Bluetooth slave module to the
printers.
1) A network between PC (Master) and Printers (Slave) is n : n. The number of PC can be infinite on
network while printers can be max up to 7.
2) Master can designate the printer for use after finding all the printers installed around.
(Refer to Application programmer’s guide for developing Bluetooth application program)
3) Master can save Bluetooth address of the printers up to 7 and then no need to search for printers
4) Master can send data to max 7 printers at the same time.
5) Bluetooth compatible module like PDA also can use the printer.
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 6
4. How to configure
1) Virtual serial port driver installation (required only when you use the USB port on the PC)
- Connect Bluetooth main (master) to USB port of PC (Refer to Attachment 3. Dip switch setting)
- Found New Hardware Wizard detects new hardware by Plug and Play and select Include this
location in the search. Then select the folder which contains VirtualCOM_R9032148.
- When installation completes, Found New Hardware Wizard will detects new hardware once again.
Then repeat the above setting one more time.
- Refer to Attachment 1.Virtual serial port driver installation.
2) Virtual serial port driver setting (required only when you use the USB port on the PC)
- Check Virtual port and apply the setting as below.
- Start > Control Panel > System > Hardware > Device Manager
- Select USB Serial Port under Port (COM x: Port number varies from your PC condition) and change
the Properties.
- Port Setting: 19200, 8, none, 1, hardware
- Advanced Setting: 4096, 4096, 16, 0, 0,
Check in “Serial Enumerator” and “Serial Printer” .
(In case of Win 98, You cannot see “miscellaneous option” Just ignore)
- Make sure not to change COM Port Number (When changes, select the open port)
- Refer to Attachment 2. Virtual serial port setting
3) Bluetooth & Printer dip switch setting
- Set Maser/Slave, Baud rate and handshaking by Dip switch.
- 19200 bps, DTR/DSR (RTS/CTS) (Be sure that communication condition must be all the same for
PC, Bluetooth master, Bluetooth slave, Printer)
- Refer to Attachment 3. Dip switch setting
4) Bluetooth slave setting
- Connect Bluetooth main (master/slave) to USB (or Serial) port of PC.
- Execute BluetoothConfig_V2.x.exe from the downloaded files.
- Select the virtual port
a) USB port: Select the virtual port (COM x) of step 2).
b) Serial (RS-232C): Select the COM x connected.
- Configure Adapter setting: slave, 19200, hardware
- Disconnect the Bluetooth main (master/slave) from the PC, assemble it with the Cover_BT, and
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 7
connect it to the printer.
- Refer to Attachment 4. Bluetooth slave Setting
5) Bluetooth master setting
- Connect Bluetooth main (master/slave) to USB (or Serial) port of PC.
- Execute BluetoothConfig_V2.x.exe from the downloaded files.
- Select the port
a) USB port: Select the virtual port (COM x) of step 2).
b) Serial (RS-232C): Select the COM x connected.
- Configure Adapter setting: master, 19200, hardware
- Register Printer setting: Search the printers around and save the printer address by
button “Search”. Make sure the printers are all power on mode.
- Configure Adapter setting: Check in auto connector to printers.
- Click “ok”.
- Refer to Attachment 5. Bluetooth master Setting
6) Printer driver installation & Test page printing
- Once the setting’s complete, disconnect the Bluetooth master from the PC, reconnect it and initialize
the system. Turn the printer off and then on to initialize the Bluetooth slave.
- Wait for approximately 20 seconds for the Bluetooth master and slave are automatically
reconnected.
- Install the printer driver (Available at website)
a) SRP 350: V3.0.5E above
b) SRP 270: V3.0.3E above
- You can download the printer driver from the homepage. Make sure that you delete the older version
driver from the PC before you install the new one(Clean register)

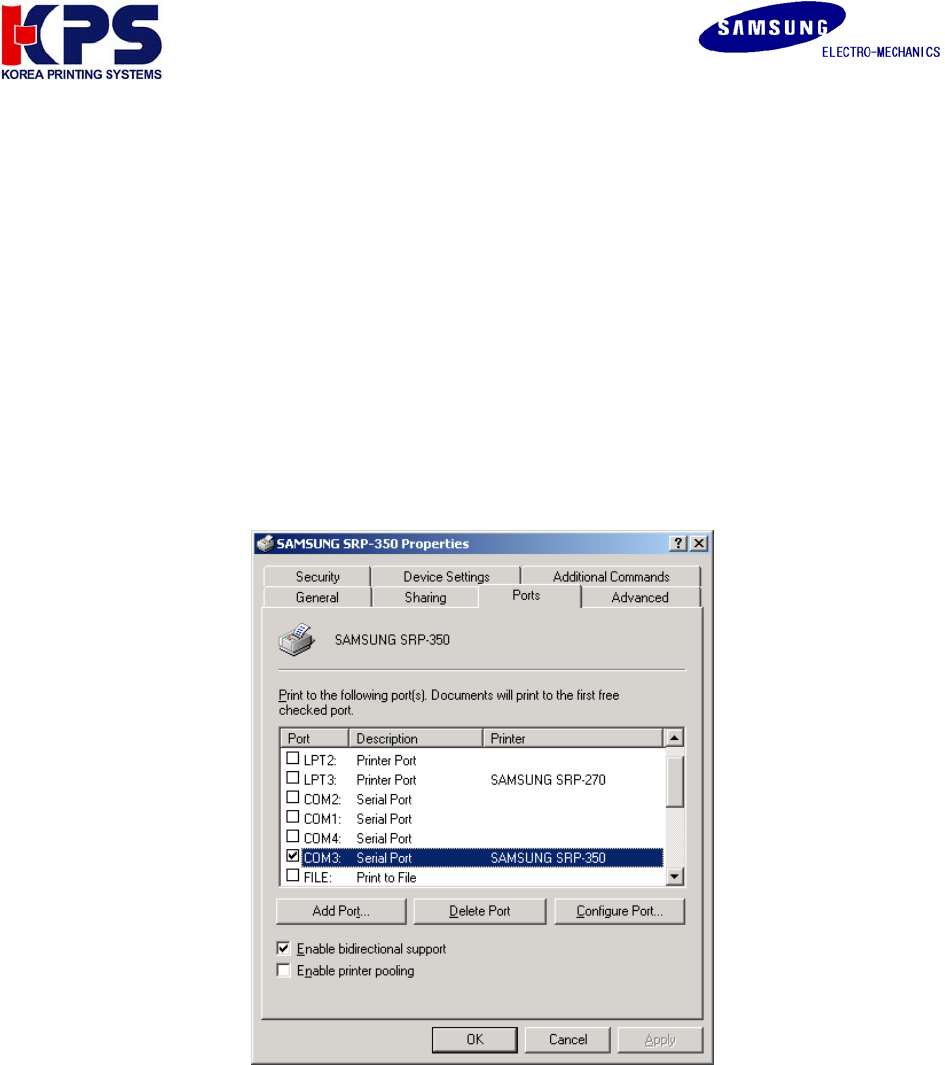

- Open the printer driver and select a port
a) USB port: Select the virtual port (COM x) of step 2).
b) Serial (RS-232C): Select the COM x connected.

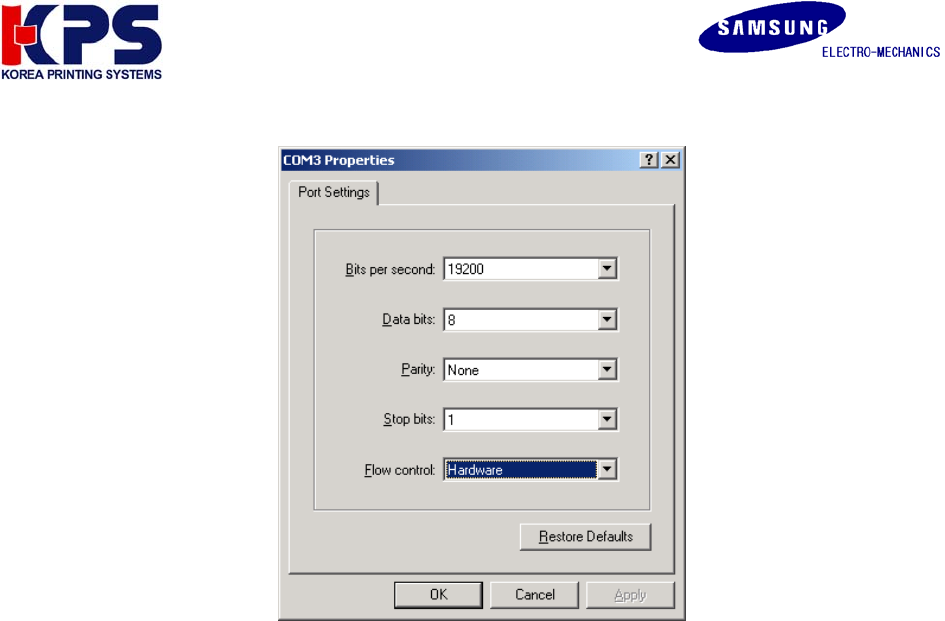

- Set the port settings as below (19200, 8, none, 1, hardware)
- Test Page Printing.
- Refer to Attachment 6. Test page printing
7) Other
- If you are a POS Application Programmer, refer to the manual below for more information.
: “Bluetooth control message V1.x
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 8
Attachment 1. “Virtual serial port driver installation”
1. Connect Bluetooth Master to USB port of PC.
2. Then Found New Hardware will show up and pop up Found New Hardware Wizard. Then select
Installation from a list specific location (Advanced).
3. Select the right location of VirtualCOM_R9032148 by “Browse” and go to “Next”.
4. Found New Hardware (USB Serial Port) will show up again when installation completes. Then install the
same file again as same as above steps.
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 9
Attachment 2. Virtual serial port setting

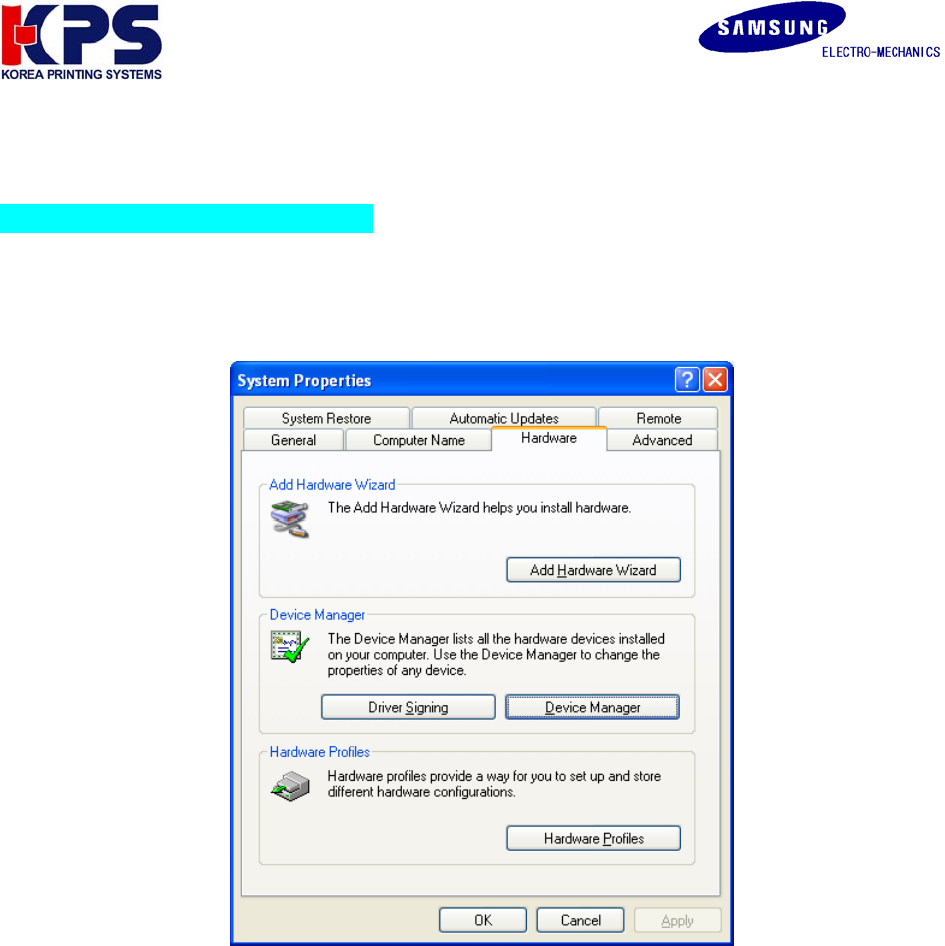

1. Open Device Manager as the below path:
: Start > Control Panel > System > Hardware > Device Manager

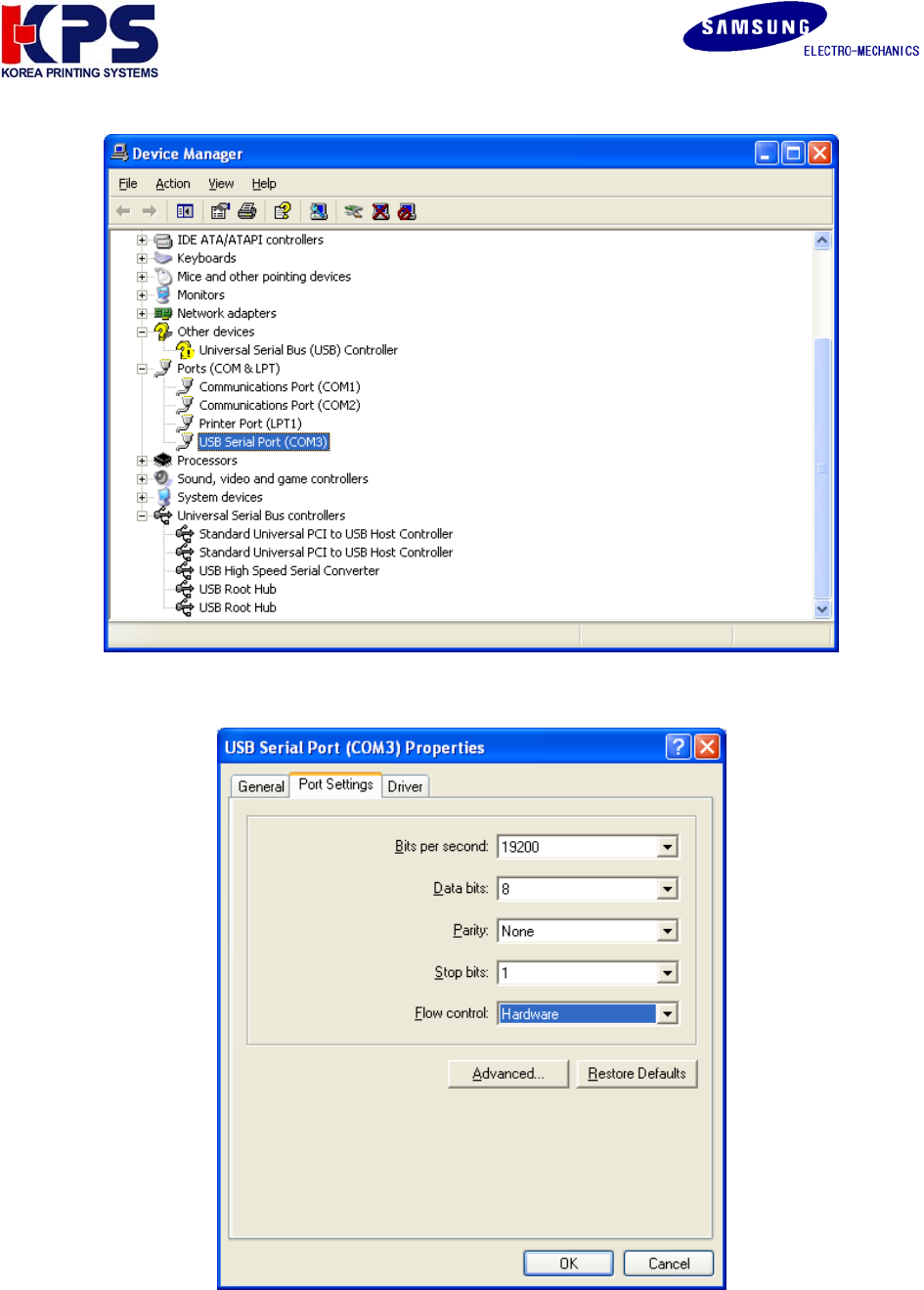

2. Select “USB Serial Port (COM x)” that is installed newly. Go to “Properties” by right button of mouse.
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 10

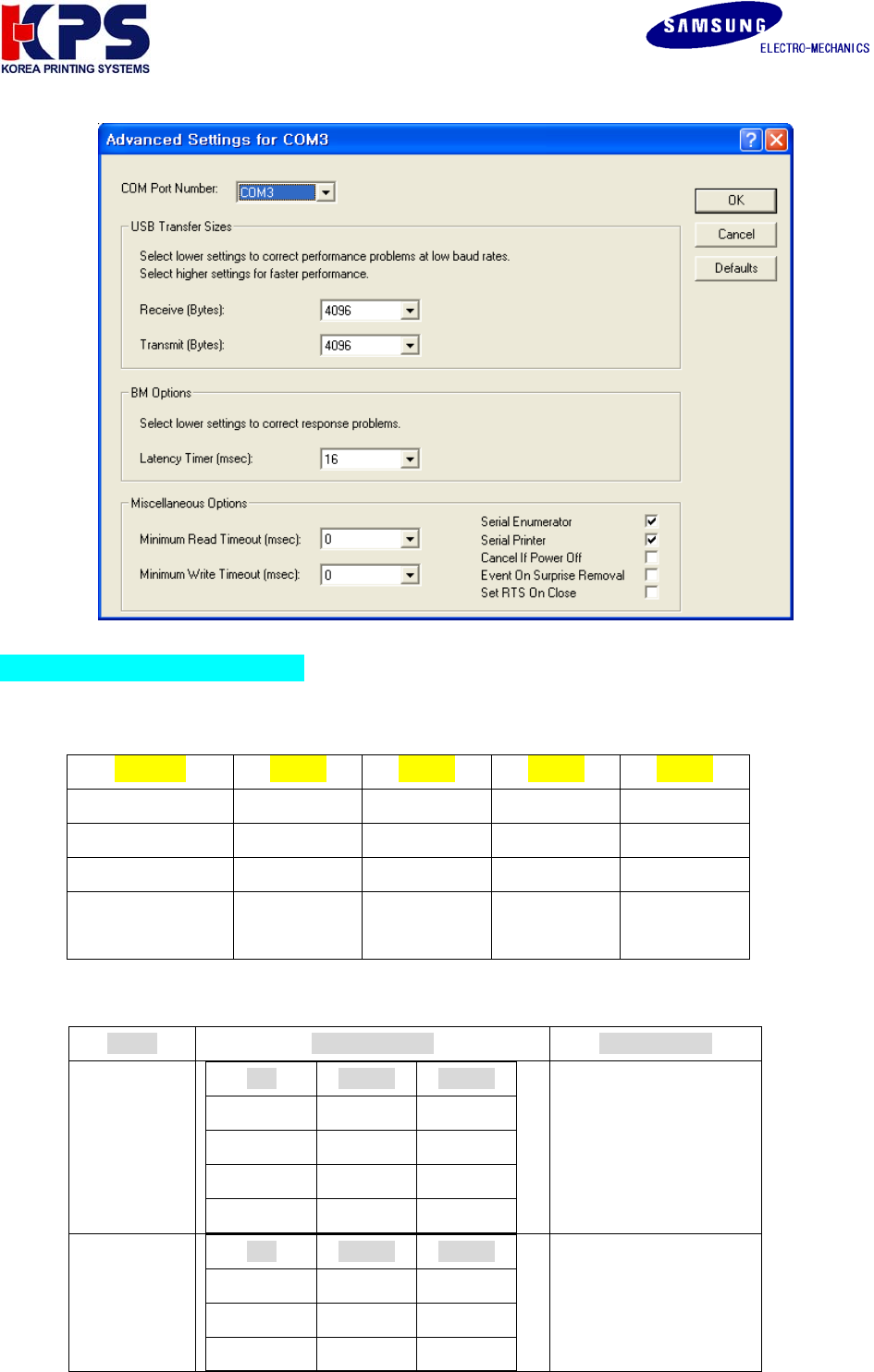

3. Select the conditions as below at “Port Settings” and click “Advanced”
4. Set as below and apply “OK”
(Note: Windows 98 dose not have “Serial Enumerator” or “Serial Printer” under “Miscellaneous Option.”)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 11
Attachment 3. “Dip switch setting”
1. Bluetooth
Function SW1-1 SW1-2 SW1-3 SW1-4
USB Master OFF OFF OFF OFF
Serial Master ON ON
OFF OFF
Slaver OFF OFF OFF OFF
Firmware
download OFF OFF OFF ON
2. Printer Baud rate (bps) and Handshaking setting (Default 19200 bps)
Model Baud rate(bps) Hand shaking
SRP-350
bps SW1-7 SW1-8
19200 Off Off
9600 On Off
4800 Off On
2400 On On
DTR/DSR
(SW1-3 off)
SRP-270
bps SW2-7 SW2-8
9600 Off Off
4800 On Off
2400 Off On
DTR/DSR
(SW2-3 off)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 12
19200 On On
SRP-370
bps SW1-1 SW1-2
115200 On On
38400 Off On
19200 On Off
9600 Off Off
DTR/DSR
(SW1-3 off)
SRP-500
bps SW2-7 SW2-8
19200 On Off
9600 Off Off
4800 Off On
2400 On On
DTR/DSR
(SW2-3 on)
Attachment 4. Bluetooth slave setting
1. Connect the Bluetooth main (Master/Slave) to the USB (or Serial) port on the PC.
2. Execute “BluetoothConfig_V2.x.exe”
3. Select the port
a) USB port: Select the virtual port (COM x) of step 2).
b) Serial (RS-232C): Select the COM x connected.
4. Select the same port as you chosen at Virtual COM and click “Configure Adapter”.
5. Set as below and apply OK. (slave, 19200, hardware)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 13
6. Disconnect the Bluetooth main (Master/Slave) from the PC, assemble it with the Cover_BT, and connect it
to the printer.
Attachment 5. Bluetooth master setting
1. Connect the Bluetooth main (Master/Slave) to the USB (or Serial) port on the PC.
2. Execute “BluetoothConfig_V2.x.exe”
3. Select the port
a) USB port: Select the virtual port (COM x) of step 2).
b) Serial (RS-232C): Select the COM x connected.
4. Select the same port as you chosen at Virtual COM and click “Configure Adapter”.

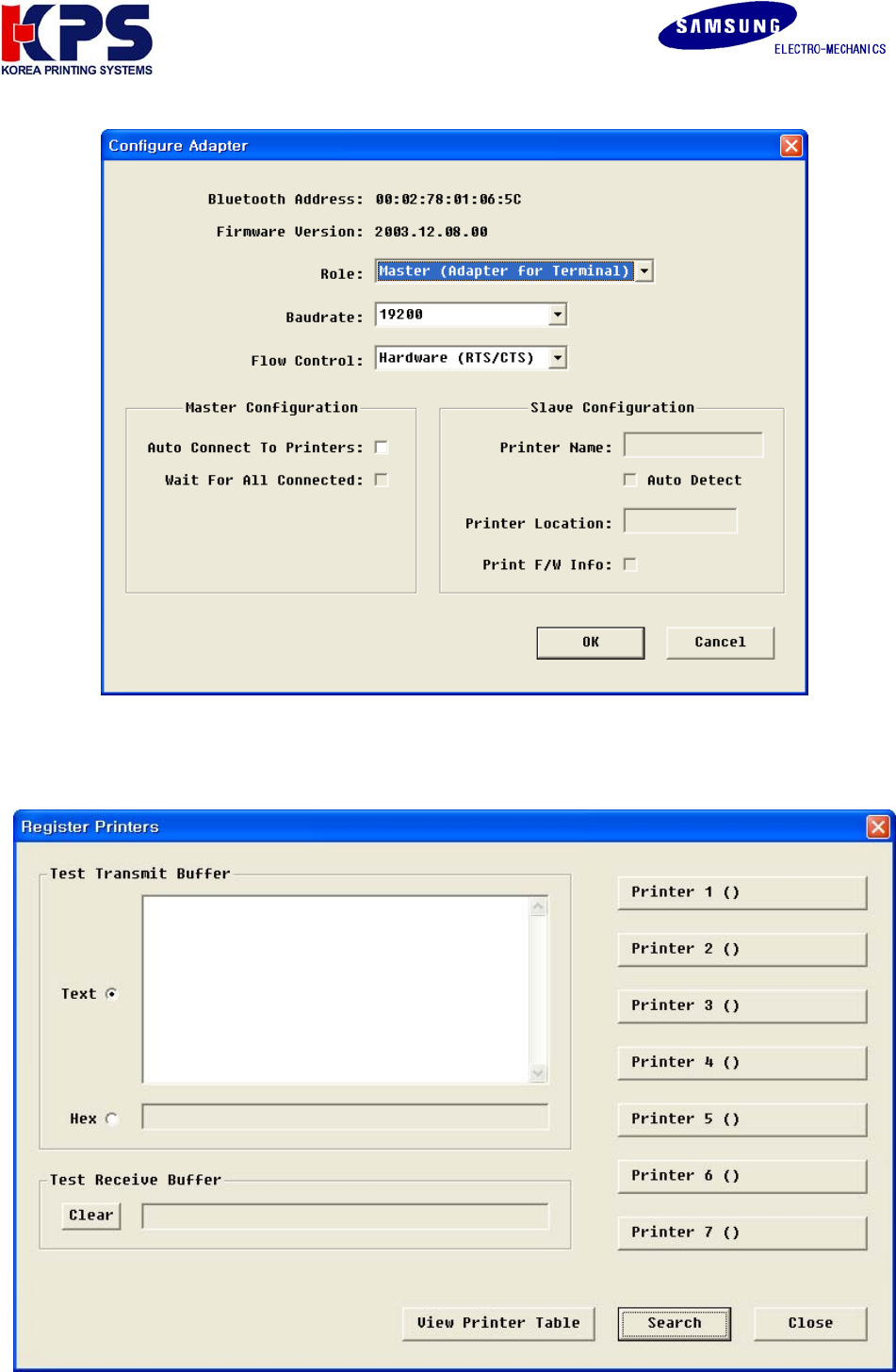

5. Set as below and apply OK. (master, 19200, hardware)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 14
6. Select “Register Printers”
7. Select “Search” (The printer should be Power ON)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 15
8. All Bluetooth Interface found will appear with address automatically. Just apply OK for saving in Bluetooth
master.
9. Click “Close” .
10. Select “Configure Adapter” and check “auto connect to printers”
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 16
11. Click “OK” and then “Quit” to exit.
12. Disconnect the Bluetooth main (Master/Slave) from the PC.
The below terms explains each item reading at Configure adapter
1) Bluetooth address
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 17
- Individual address of each Bluetooth module.
2) Firmware version
- Bluetooth firmware version.
3) Role
- Selection of Master/Slave.
4) Baud rate
- Transmission speed setting.
5) Flow control
- Handshaking condition setting.
6) Auto connect to printers
- Auto connection to the designated Bluetooth slave.
- Applicable when the designated printer (Bluetooth slave) used.
- When the multiple printers installed, simultaneous printing becomes available.
- It ignores the printer in Power off mode.
- The data transmission stands by when any of the registered printers goes on Busy mode such
as no paper, cover open, buffer full etc until it recovers.
- With no use of this option, Application program should send data only after it connected to
Bluetooth slave by Control message. This can be used when wanted to use the designated
one out of several printers
7) Wait for all connected
- It is available only when Auto connect to printers selected.
- Under the condition of several Bluetooth slave saved in Bluetooth master, it transmits the data
thoroughly until the all the registered printers complete the reception.
8) Printer name
- You can set the printer name less than 15 letters.
9) Auto detect
- It is to read the individual printer name such as SRP-350 etc.
- It is available only when the printer has the individual name.
10) Printer location
- It is to set the location identity of the printer such as Kitchen PRT 1 or Receipt PRT 1 less
than 12 letters.
11) Print F/W info
- Printer prints the firmware data of Bluetooth slave module at printer power on.
Attachment 6. Printer driver installation & Test page printing
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 18
1. Once the setting’s complete, disconnect the Bluetooth master from the PC, reconnect it and initialize the
system. Turn the printer off and then on to initialize the Bluetooth slave.
2. Wait for approximately 20 seconds for the Bluetooth master and slave are automatically reconnected.
3. Install the printer driver (Available at website)
a) SRP 350: V3.0.5E above
b) SRP 270: V3.0.3E above
4. Open the printer driver and select a port
a) USB port: Select the virtual port (COM x) of step 2).
b) Serial (RS-232C): Select the COM x connected.
5. Select the port and Click “Apply”.
6. Set the port settings as below (19200, 8, none, 1, hardware)
V1.00 WWW.SAMSUNGMINIPRINTERS.COM 19
7. Click “OK” and then “Close”.
8. Open the printer drive again and click “Test Page Print”.
9. The windows test page prints.
