Kostal K9499-001 Digital Transmission System User Manual Main title here
Kostal (Shanghai) Management Co.,Ltd Digital Transmission System Main title here
Kostal >
Manual
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 1
Electric Vehicle Remote System
Communicating with Mobile Via WiFi
Technical Presentation
Electric Vehicle Remote System
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 2
Contents
•Systematic requirements
•Solutions
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 3

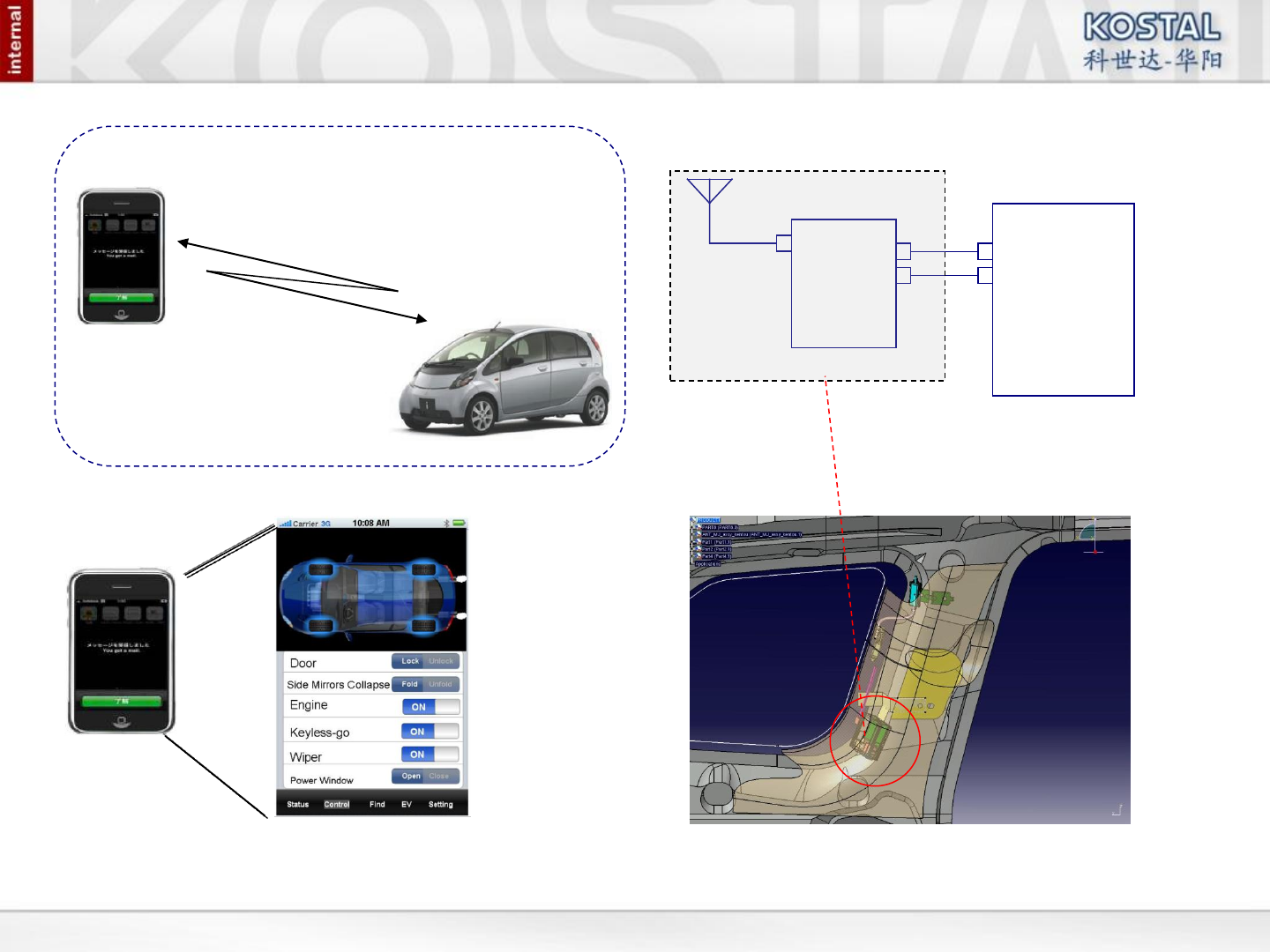

Systematic requirements
ETACS
Station
ECU
Car Station
Can-C
WiFi 200m
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 4

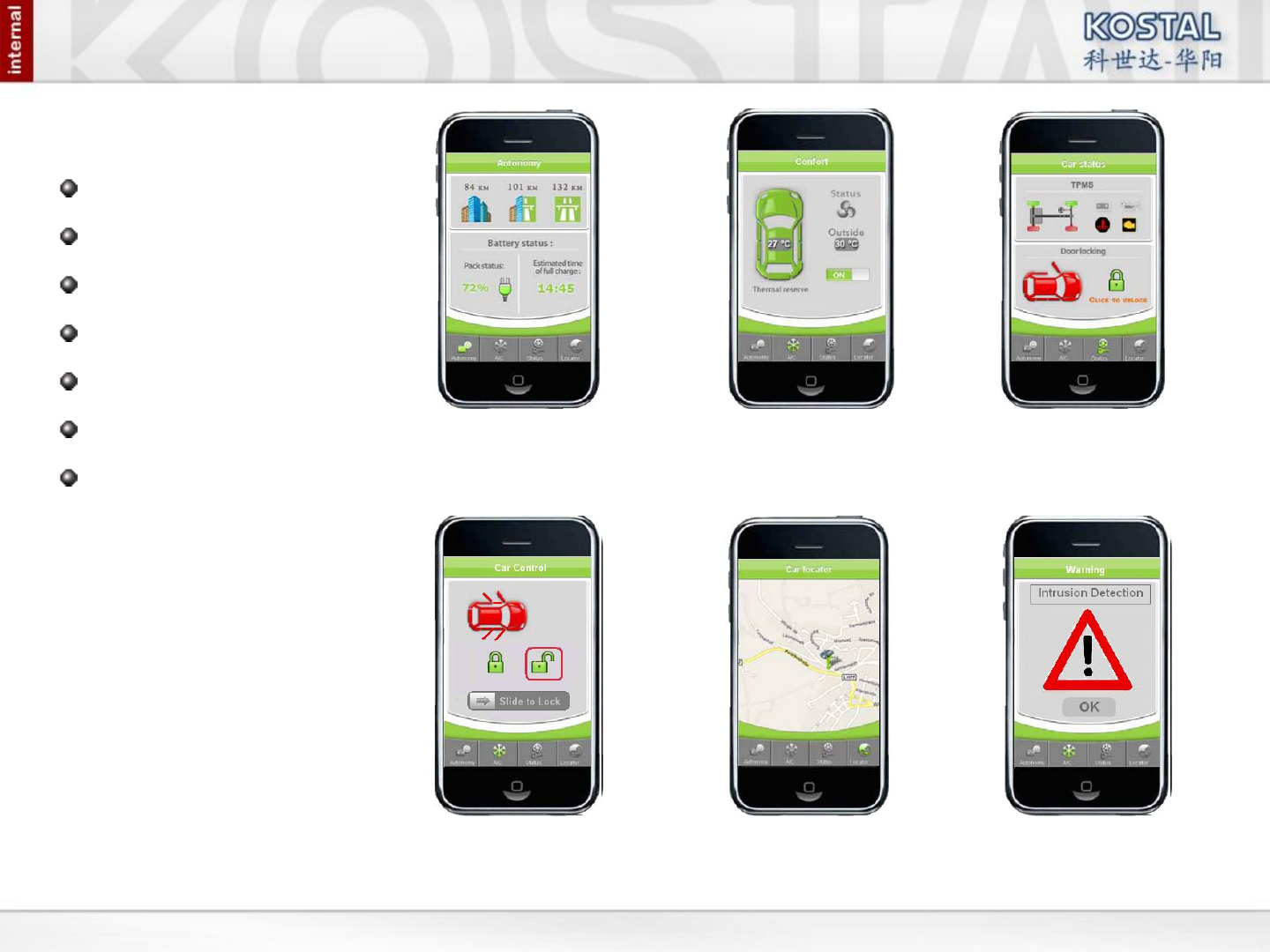

Systematic requirements
EV Remote Mobile Side：
EV Charge
A/C
Car Status
Car Control
Car Finder
Theft Alarm
Setting
EV Charge---
Timer,Auto,Manual AC Charge---
Timer,Manual Car Status---
Lamp,Door,Hazard
Car Control---
Lock/Unlock, Customized Theft Alarm---
Alarm, Sensor setting
Car Finder---
Lamp, Horn, Map
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 5

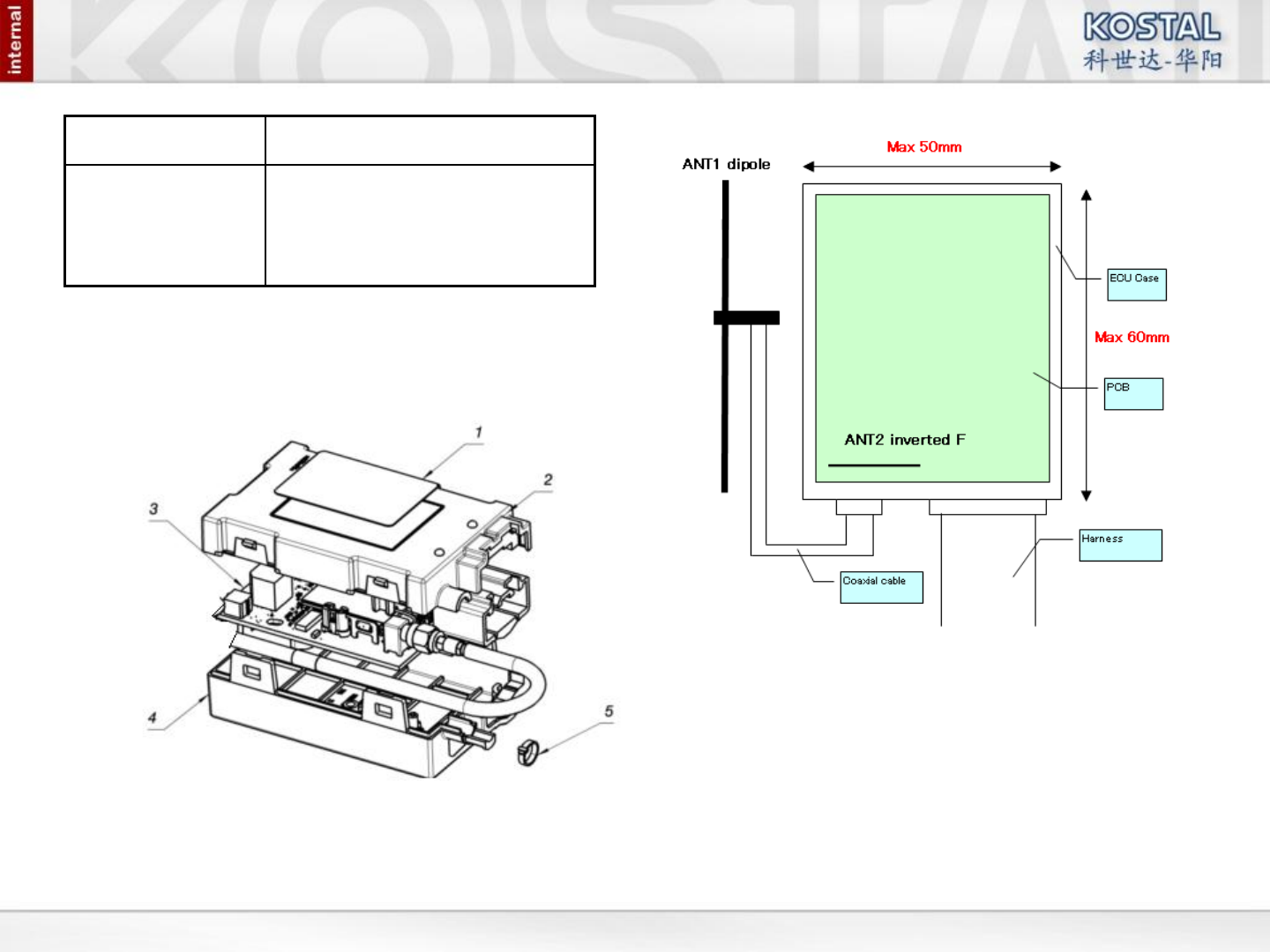

Systematic requirements
maximum size
ANT-ECU
Or
Station ECU 60mm×50mm×25mm
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 6
Contents
•Systematic requirements
•Solutions
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 7

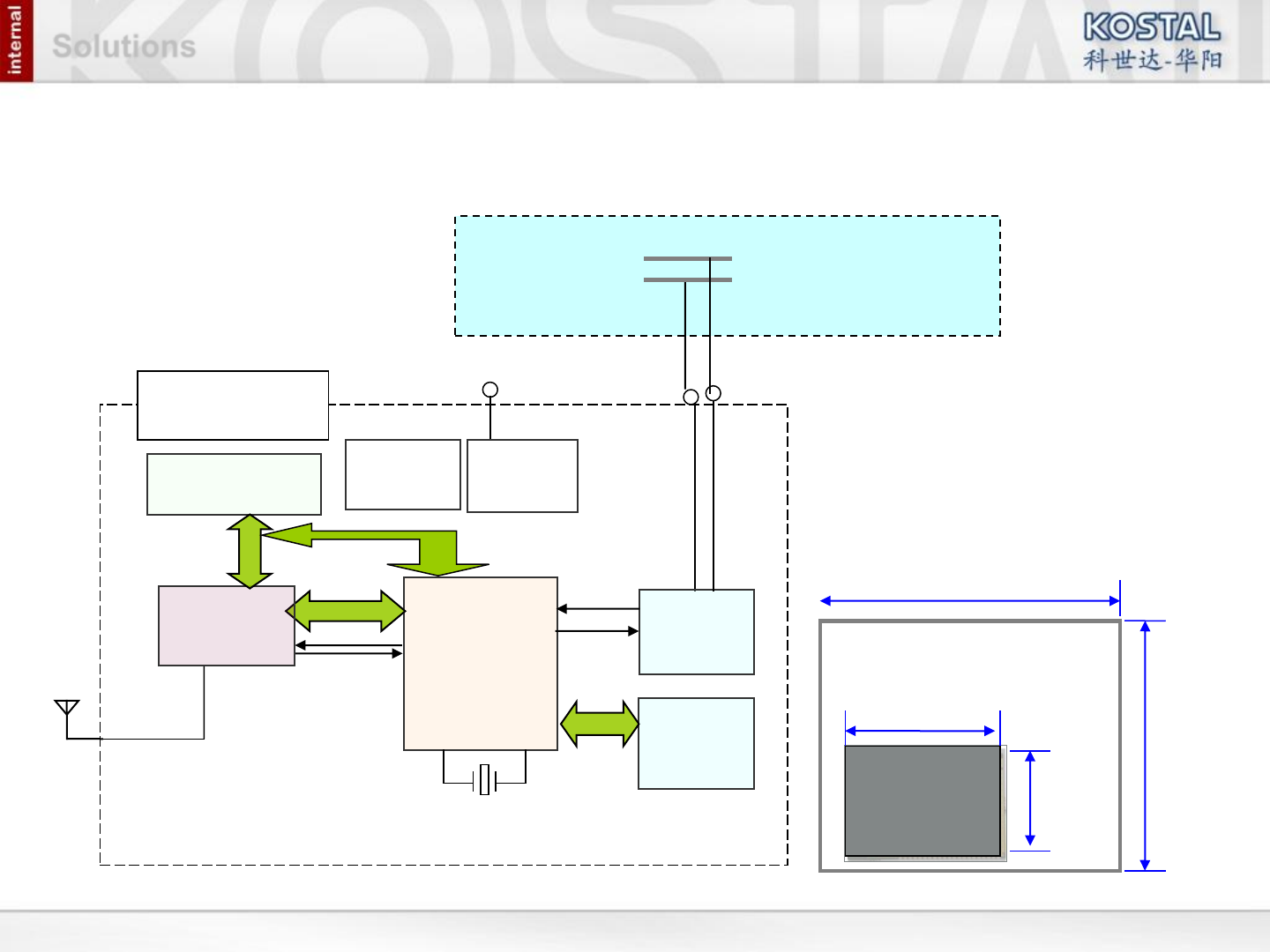

Solutions
Power
supply
12V
Can Bus
ETACS
CAN_H CAN_L
ANT-ECU Board
33
23
60
50
WiFi Module
MCU
R5F2134CWK
FP
(I13)
UART
WiFi Module
GS1011M (I11)
Control
CAN
Transceiver
TJA1042T/3 (I6)
CAN_H CAN_L
CAN_RX
CAN_TX
RF line
External Antenna
EEPROM
M95080-
WDW3TP/S(I8)
SPI
20MHz Crystal
Clock
Regulator
LT3481FC(I4)
Outer DC Power=12V
System Power
supply
SPI
Clock
UART
Clock
Regulator
LT3689IUD(I1)
External Flash
S25FL256P0XNFI001 (I9)
SPI
SPI
Clock SPI
Clock
Harness Connector
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 8
FCC and IC statement
This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Kostal would void the user’s authority to operate the product.
NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of [20] cm
between the radiator and your body. This transmitter must not be co‐located or operating in
conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d'exposition aux radiofréquences définies par Industrie
Canada pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre le dispositif et l'utilisateur ou des tiers.
© 2008, Leopold Kostal GmbH & Co. KG. Contents and presentation are protected world-wide. Any kind of using,
copying etc. is prohibited without prior permission. All rights - incl. Industrial property rights - are reserved.
KOCHI AEE 201102 Slide 9
NOTICE:
Changes or modifications made to this equipment not expressly
approved by (manufacturer name)
may void the FCC authorization to operate this equipment.
This product complies with Industry Canada. IC: RSS‐210
This product is approved in accordance to R&TTE directive
transmitter.
IC NOTICE
This device complies with Industry Canada licence‐exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
