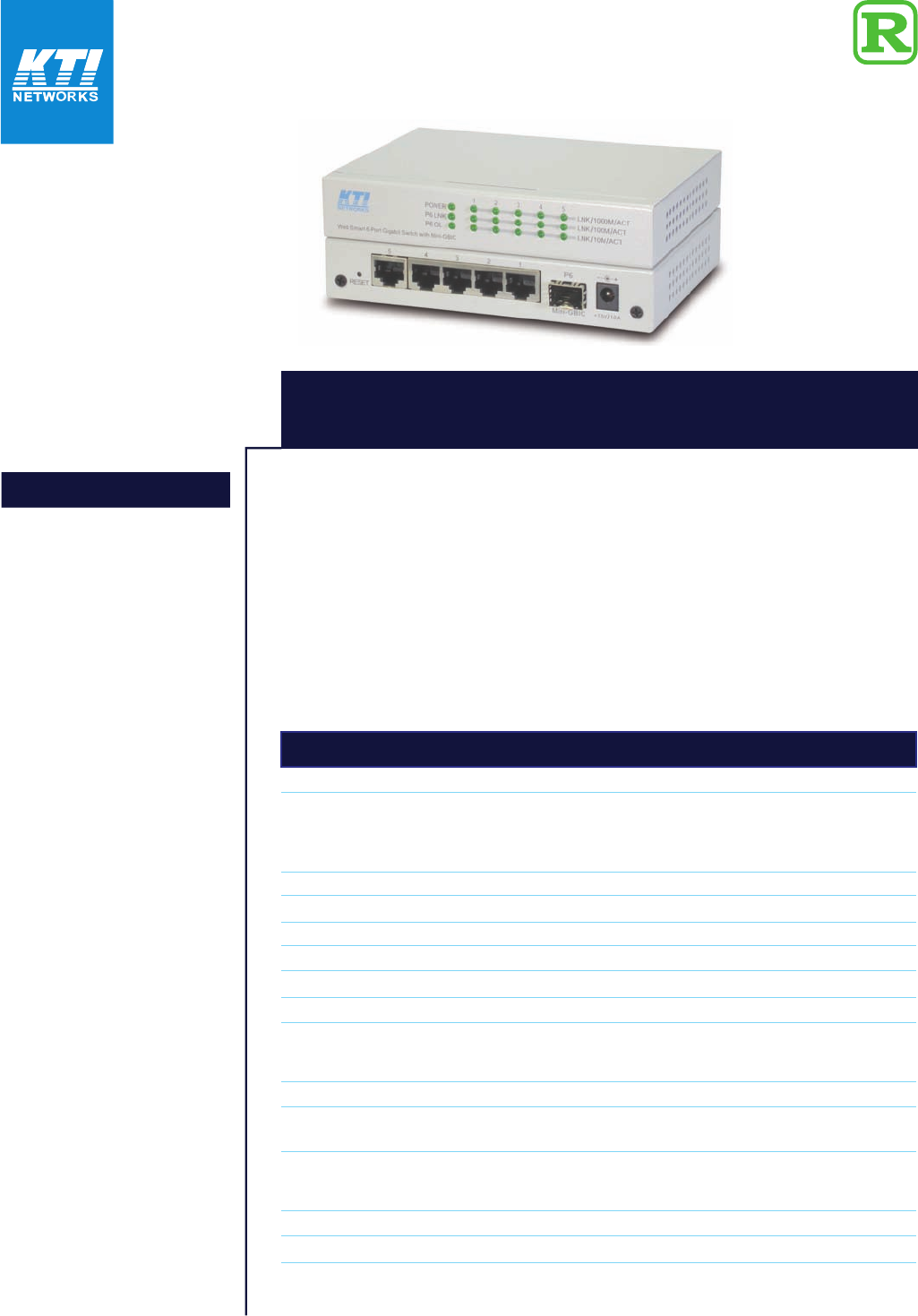

Web Smart 6-Port Gigabit Ethernet Switch

with 1 mini-GBIC Port

KGS-510F

Specifications :

Product Highlights :

- Compact design

- Web management

- SFP Fiber support

- 802.1Q Tagged VLAN support

- QoS WFQ support

- Port link aggregation function

- Port mirroring function

Key Features :

- Provides 5 10/100/1000Mbps Gigabit Ethernet ports and 1 SFP port

- Provides in-band web-based management interface

- All copper ports support auto-negotiation and auto-MDI/MDI-X detection

- Provides full wire speed forwarding

- Supports 802.3x flow control for full-duplex and backpressure for half-duplex

- Provides port status, statistic monitoring and control function

- Supports port-based and 802.1Q Tag-based VLAN

- Provides QoS function

- Provides port link aggregation (trunking) function

- Provides port mirroring function

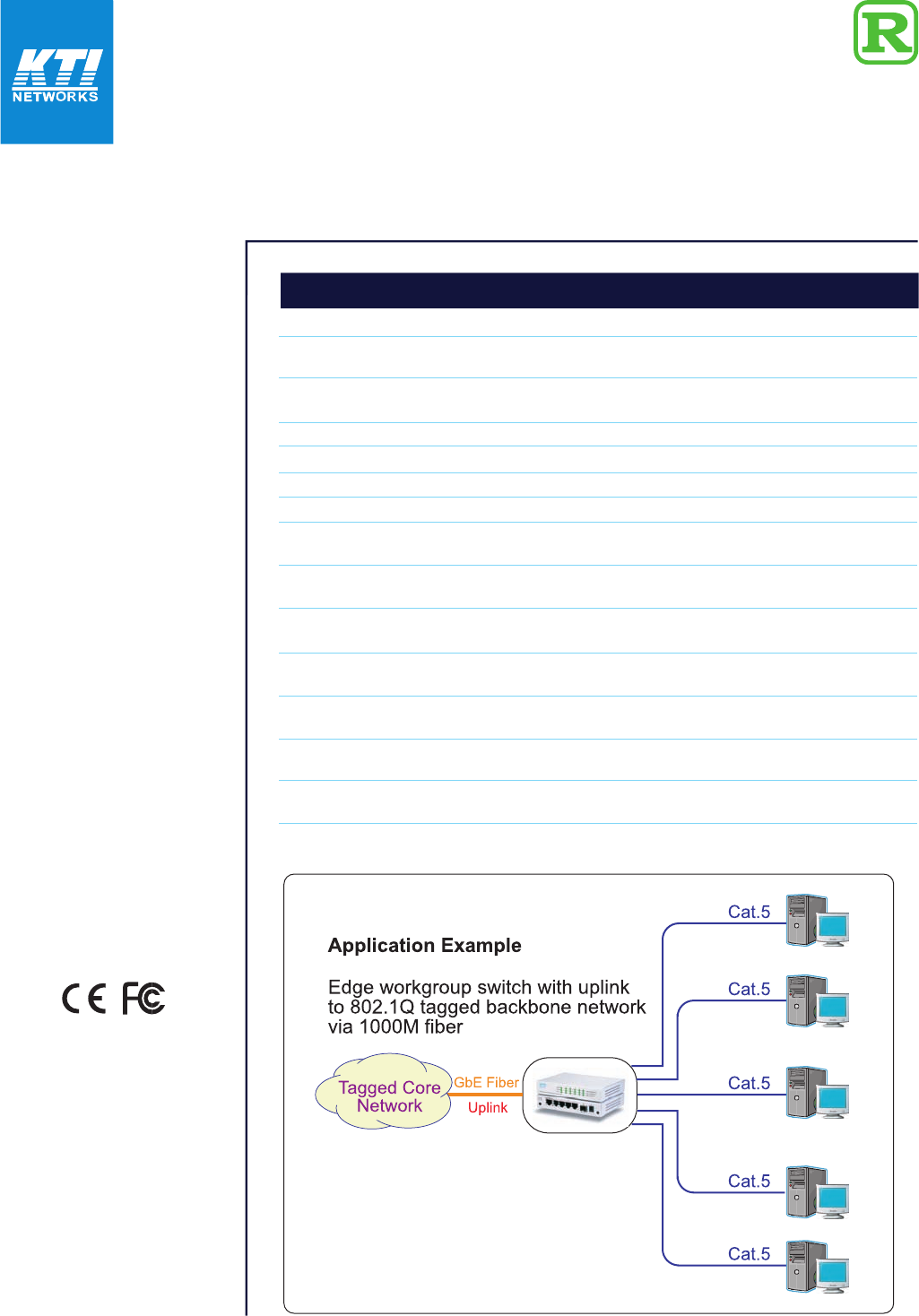

Standard IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q

Network Ports 5 10/100/1000Mbps Gigabit copper ports

Shielded RJ-45, auto-negotiation, auto-MDI/MDI-X support

1 1000Mbps Gigabit fiber SFP port

SFP supports standard SFP fiber transceiver installation

Network Cables 10/100Mbps : Cat.5 up to 100m,1000Mbps : Cat.5e or higher up to 100m

MAC Address Table 8K entries

Buffer Memory 112KB

VLAN Port based VLAN, 8021Q Tag-based VLAN

Port Link Aggregation Trunking groups : 2 max., Ports/group : 2

QoS 4 priority queues, Classification : Port-based, 802.1p, IP DSCP

LED Indication Per unit : power

Per copper port : 1000M,100M, 10M speed/link/activity status

SFP port : 1000M speed/link/activity status, Optical link status

Management Support Web browser software

Management Objects System settings, port status/statistics, port control, VLAN, QoS,

Link aggregation, port mirroring, Firmware upgrade

Environment Operating temperature : 0OC ~40OC

Storage temperature : -20OC ~85OC

Humidity : 10%~90% non-condensing

Dimension 144 x 104.5 x 26 mm (WxDxH)

DC IN Jack Rating +7.5V/1A, Consumption 3.6W max. @7.5V

Approval FCC Class A, CE mark Class A

080110

FCC Part 15'Class A

CISPR 22 Class A

Katron Technologies Inc.

15F-7, No. 79, Sec. 1, Hsin Tai Wu Rd.,

Hsi-chih, Taipei Hsien, Taiwan.

Te l :886-2-2698-3878

Fax:886-2-2698-3873

E-mail:kti@ktinet.com.tw

URL:http://www.ktinet.com.tw

KTI Networks Inc.

7400 Harwin Dr., Suite 120 Houston,

Texas 77036 U.S.A.

Te l :713-266-3891

Fax:713-914-0555

E-mail:kti@ktinet.com

URL:http://www.ktinet.com

Trademarks: All brand names are trademarks or registered

trademarks of their respective holders.

This information is subject to change without prior notice.

Fiber Optical Specifications :

Model Connector Fiber Wavelength Tx Power Rx Sensitivity Rx Max. Distance

-SX LC 62.5/125 MMF 850nm -9.5~ -4dBm -18dBm -1dBm 200m

50/125 MMF 500m

-LX LC MMF 1310nm -9.5~ -3dBm -20dBm -3dBm 550m

SMF 10km

-LX20 LC SMF 1310nm -7~ 0dBm -24dBm -3dBm 20km

-LX30 LC SMF 1310nm -4~ +3dBm -23dBm -3dBm 30km

-LX50 LC SMF 1550nm -4~ +1dBm -23dBm -3dBm 50km

-LX70 LC SMF 1550nm 0~ +5dBm -23dBm -3dBm 70km

-W3510 Bi-Di LC SMF Tx 1310nm -9~ -3dBm -21dBm -3dBm 10km

Rx 1550nm

-W5310 Bi-Di LC SMF Tx 1550nm -9~ -3dBm -21dBm -3dBm 10km

Rx 1310nm

-W3520 Bi-Di LC SMF Tx 1310nm -8~ -3dBm -23dBm -3dBm 20km

Rx 1550nm

-W5320 Bi-Di LC SMF Tx 1550nm -8~ -3dBm -23dBm -3dBm 20km

Rx 1310nm

-W3410 Bi-Di LC SMF Tx 1310nm -9~ -3dBm -20dBm -3dBm 10km

Rx 1490nm

-W4310 Bi-Di LC SMF Tx 1490nm -9~ -3dBm -20dBm -3dBm 10km

Rx 1310nm

-W3410S Bi-Di SC SMF Tx 1310nm -9~ -3dBm -20dBm -3dBm 10km

Rx 1490nm

-W4310S Bi-Di SC SMF Tx 1490nm -9~ -3dBm -20dBm -3dBm 10km

Rx 1310nm

080110
