Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

250/300/380 SX,MXC,EXC

REPAIR MANUAL

ENGINE

KTM SPORTMOTORCYCLE AG

5230 Mattighofen

Austria

www.ktm.at

REPAIR

MANUAL

ENGINE

250 - 380

SX,MXC,EXC

1SERVICE-INFORMATIONS

2GENERAL INFORMATION

3REMOVING AND REFITTING ENGINE

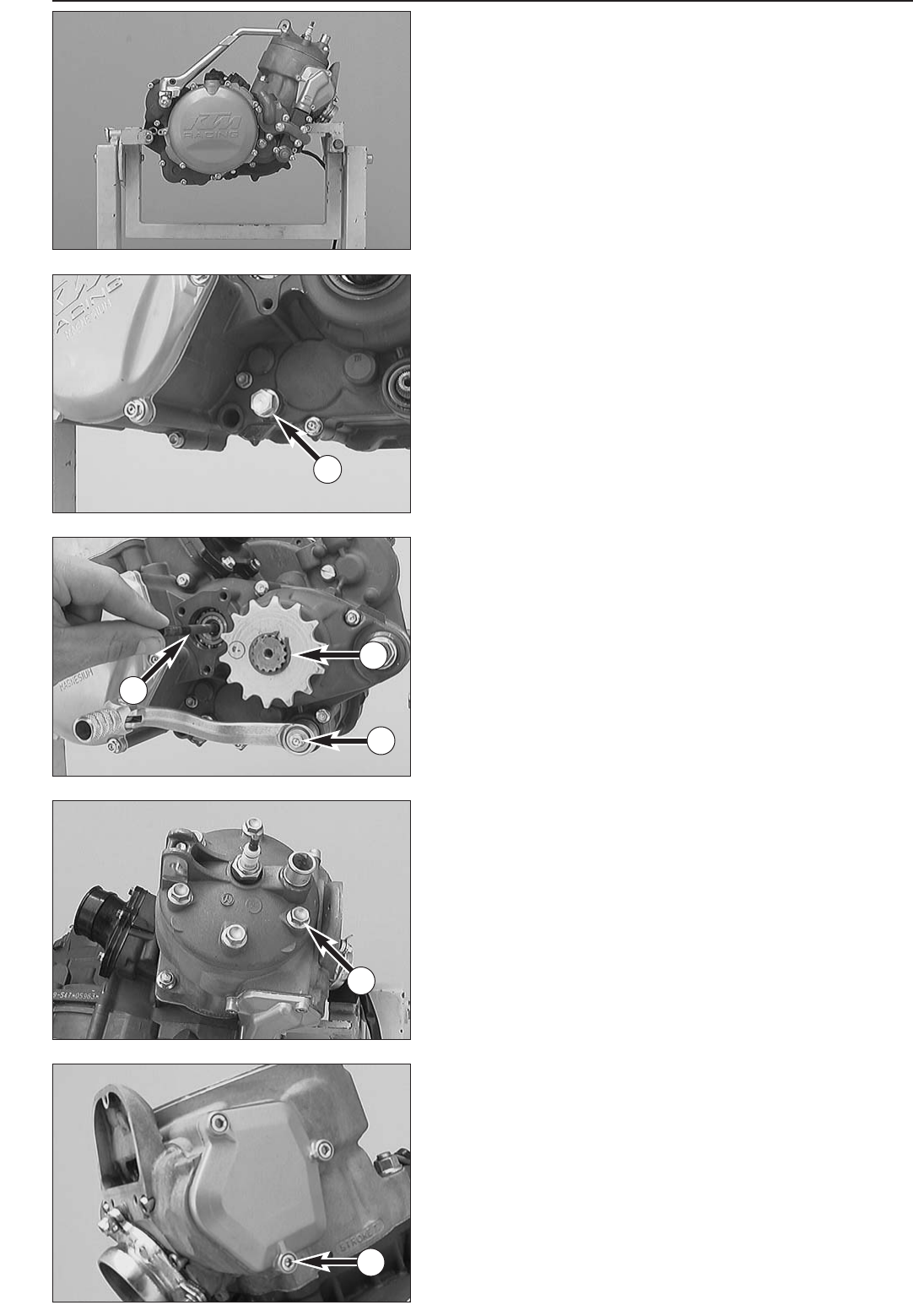

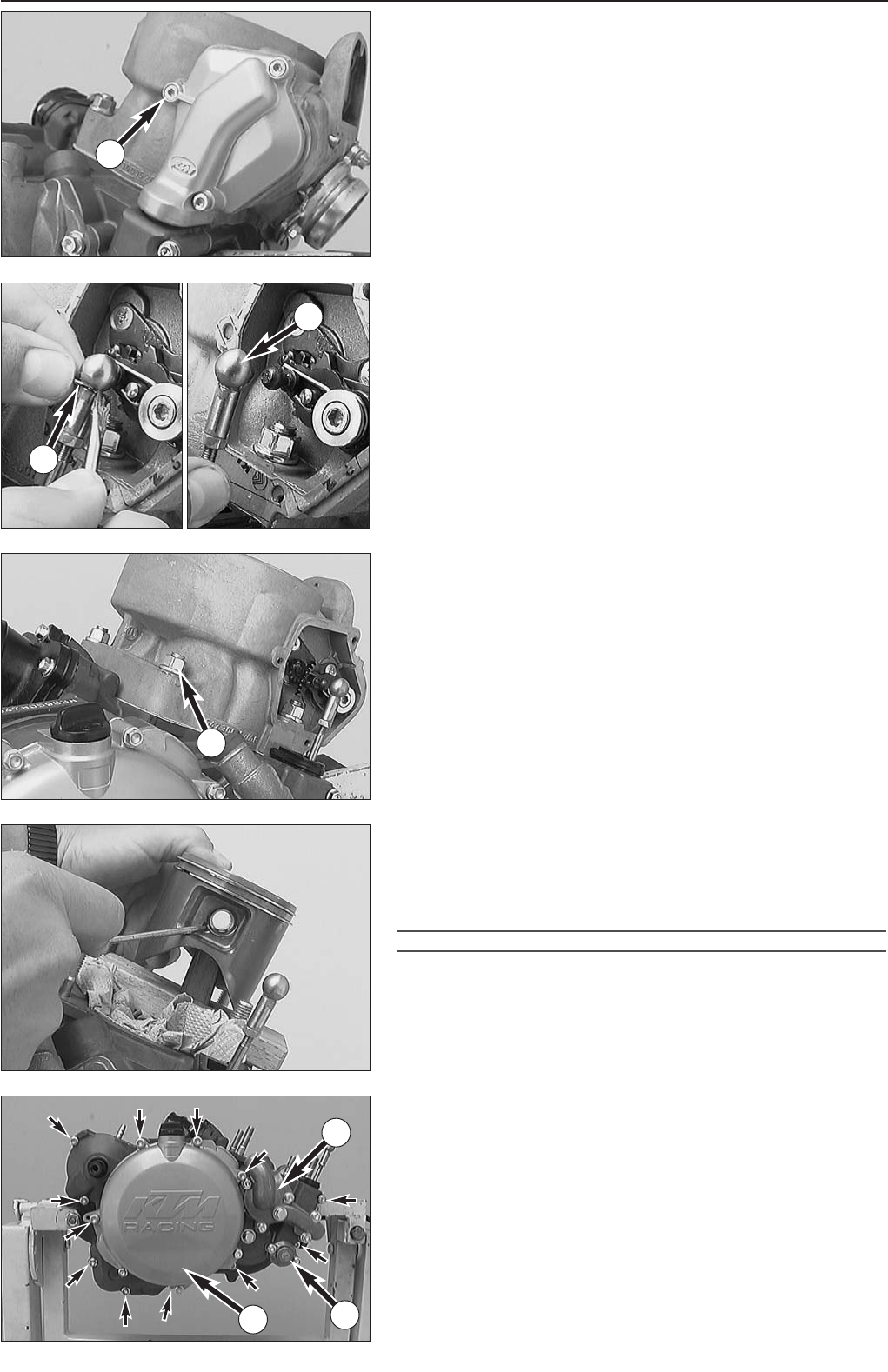

4DISASSEMBLING THE ENGINE

SERVICING ON INDIVIDUAL COMPONENTS

6ASSEMBLING THE ENGINE

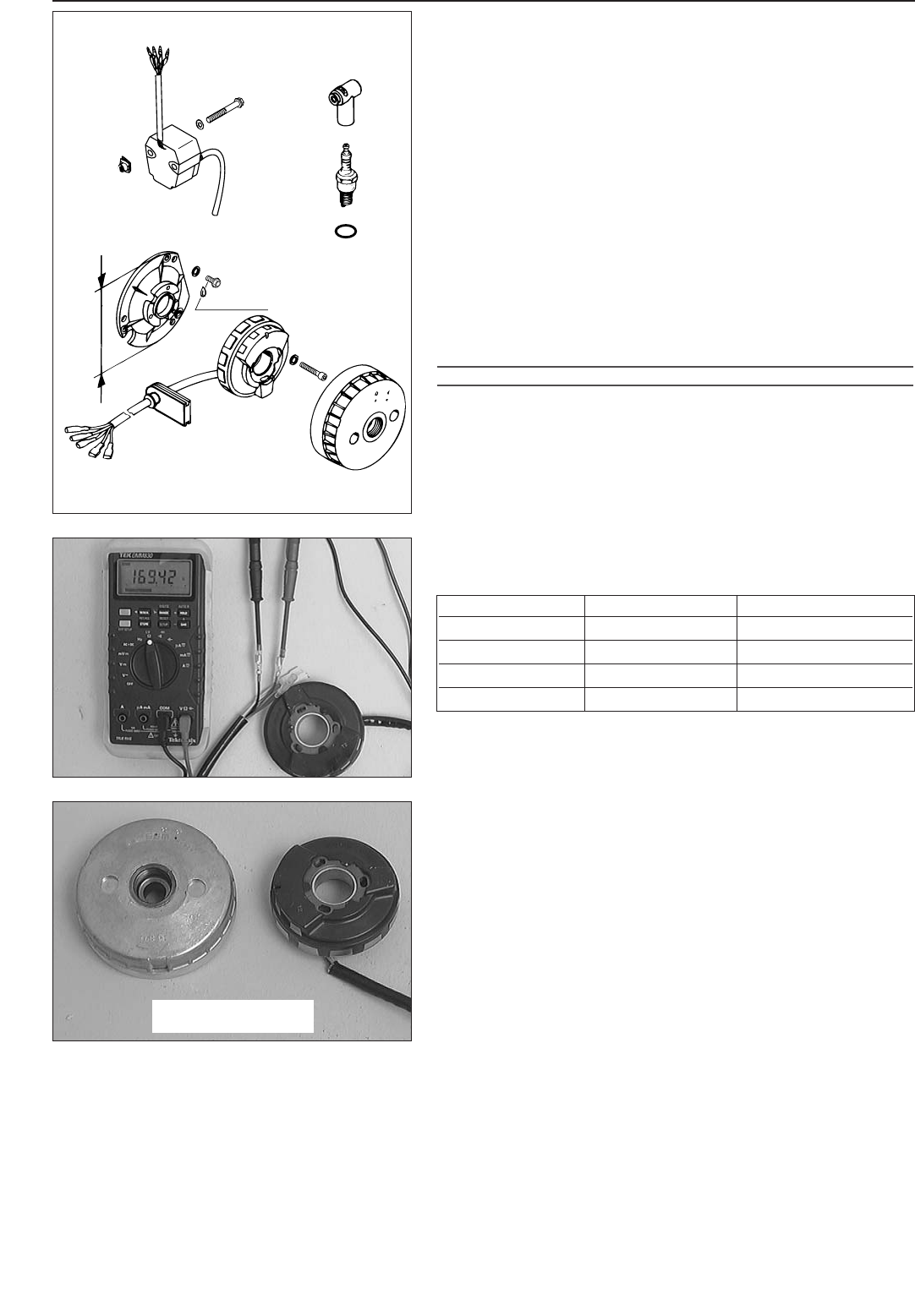

7ELECTRICAL

8TROUBLE SHOOTING

9TECHNICAL SPECIFICATIONS

10 PERIODIC MAINTENANCE SCHEDULE

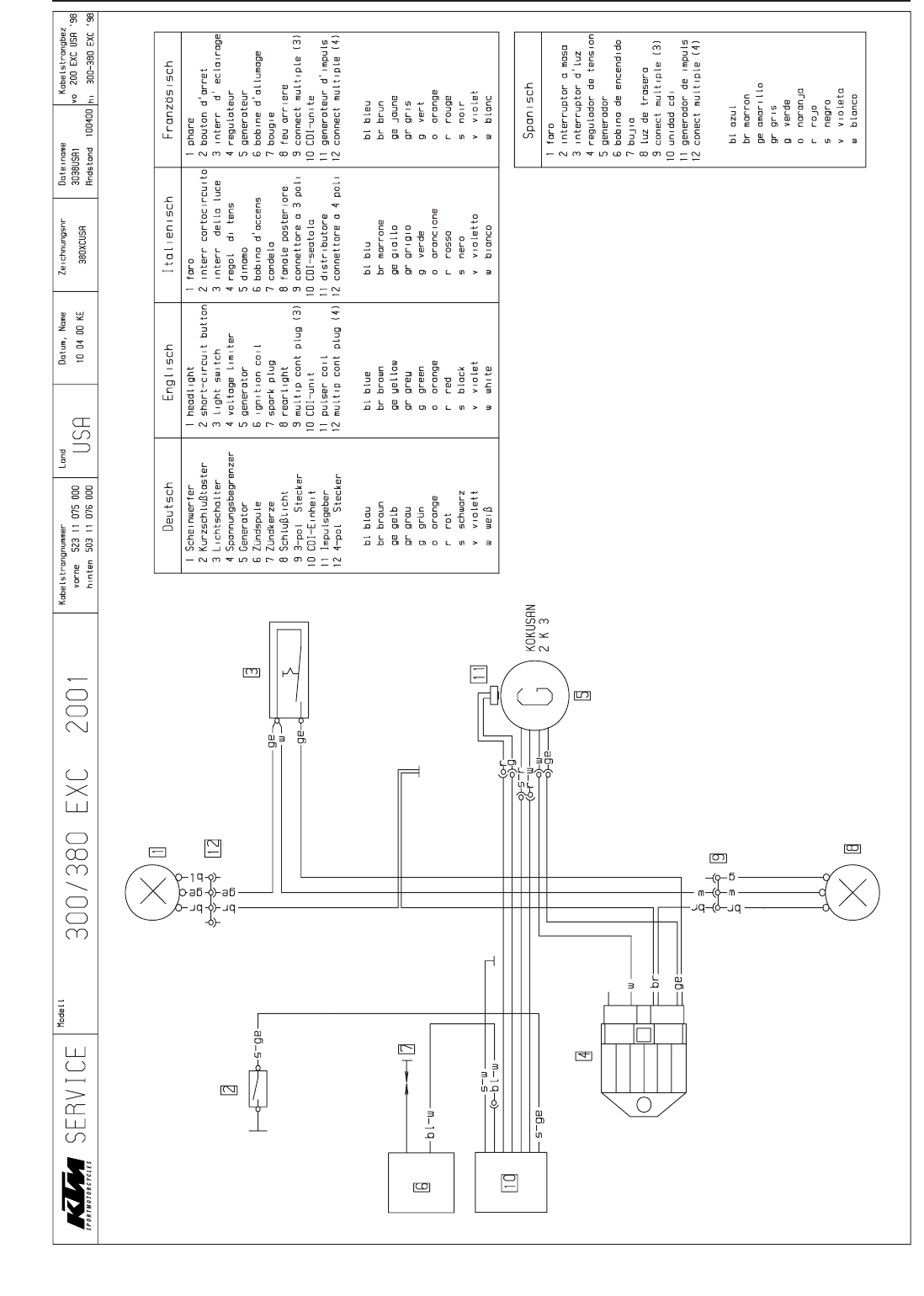

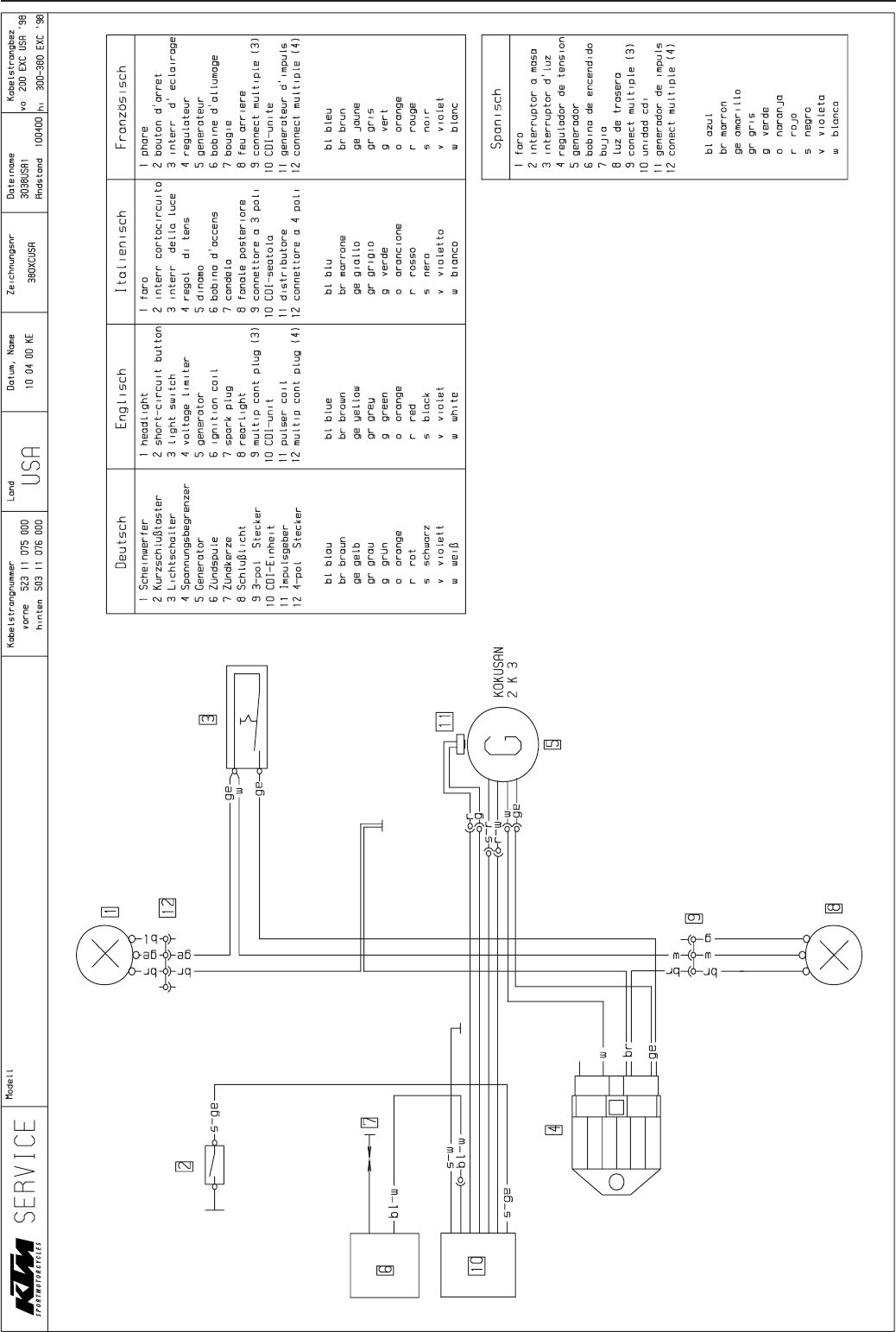

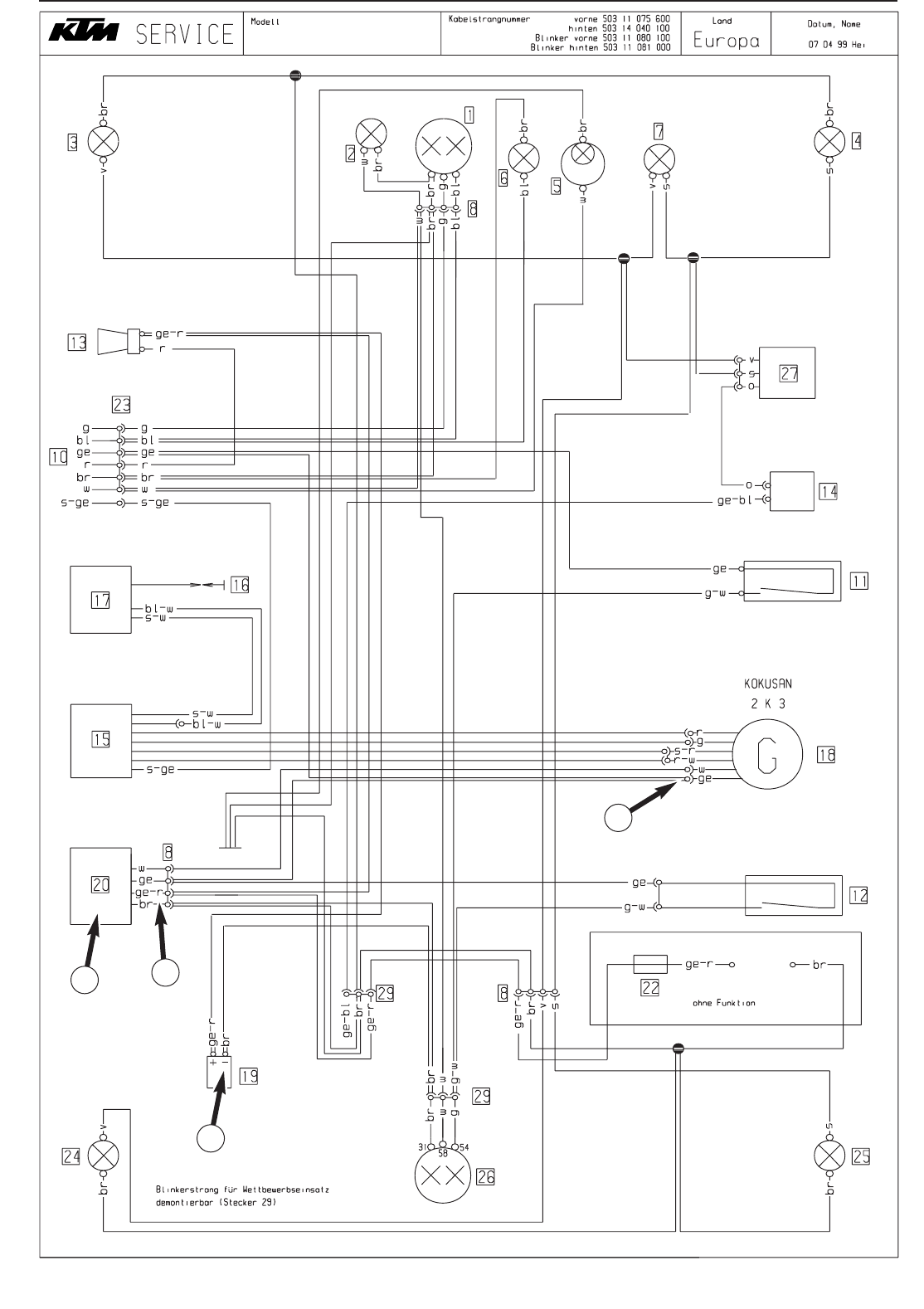

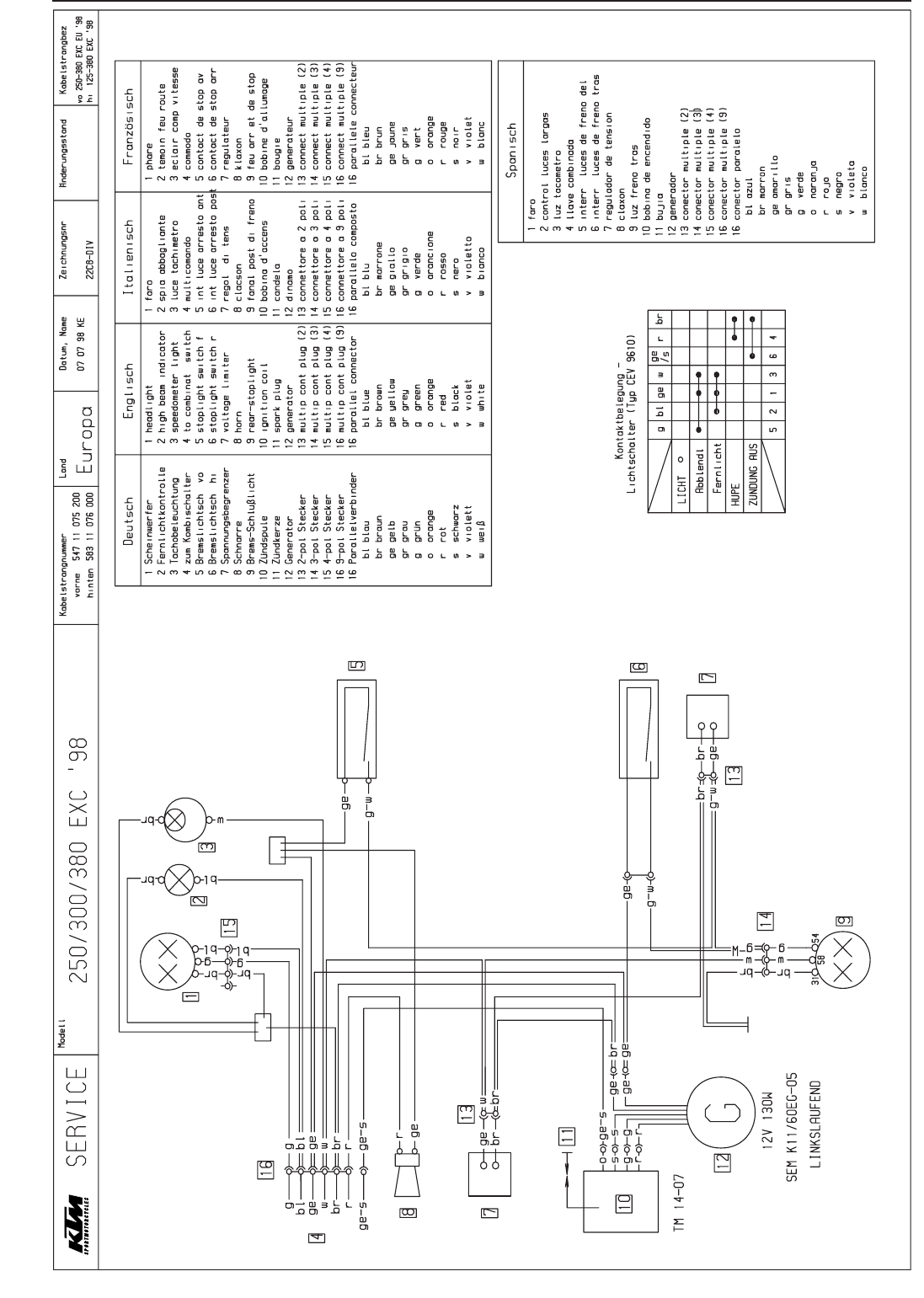

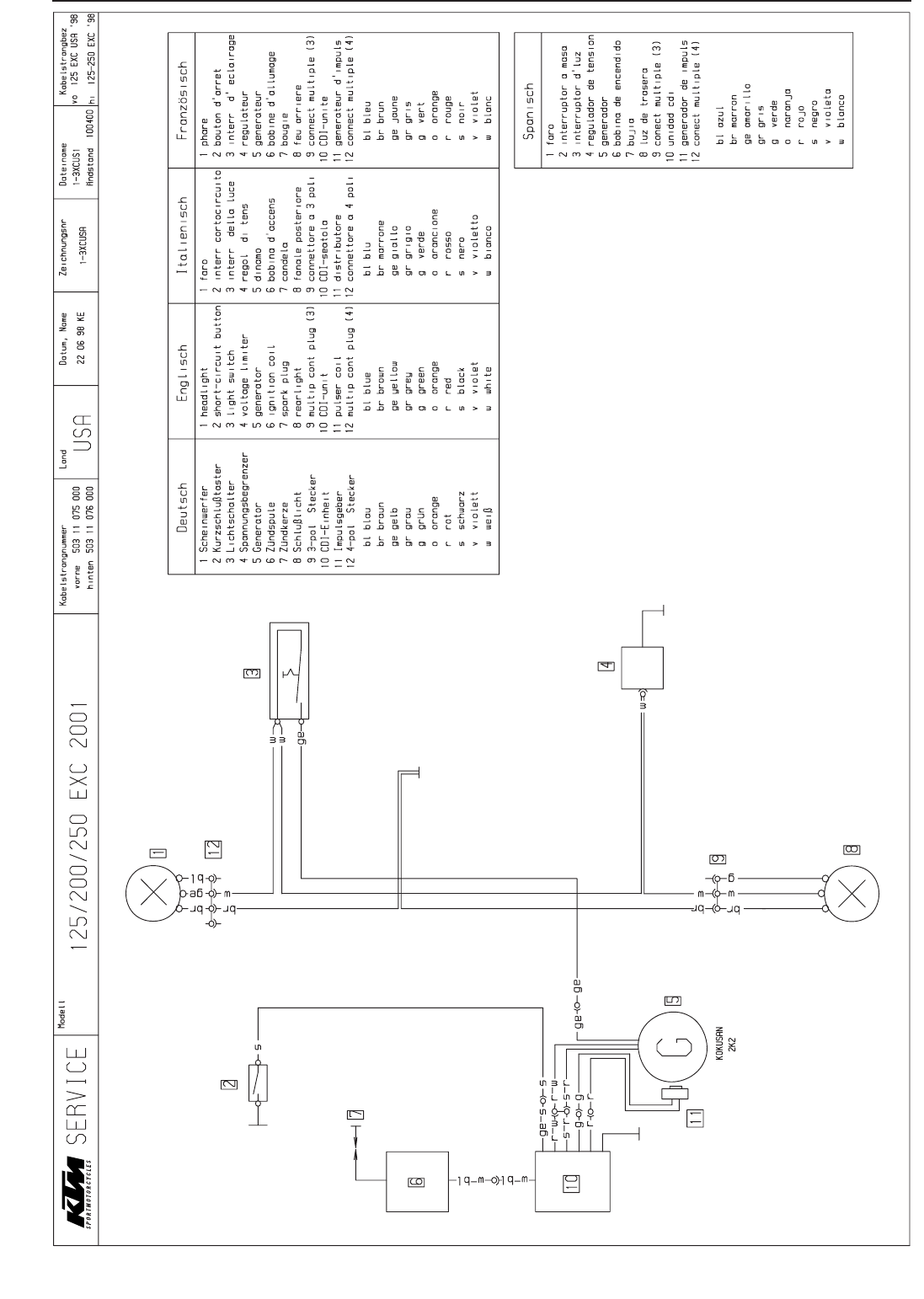

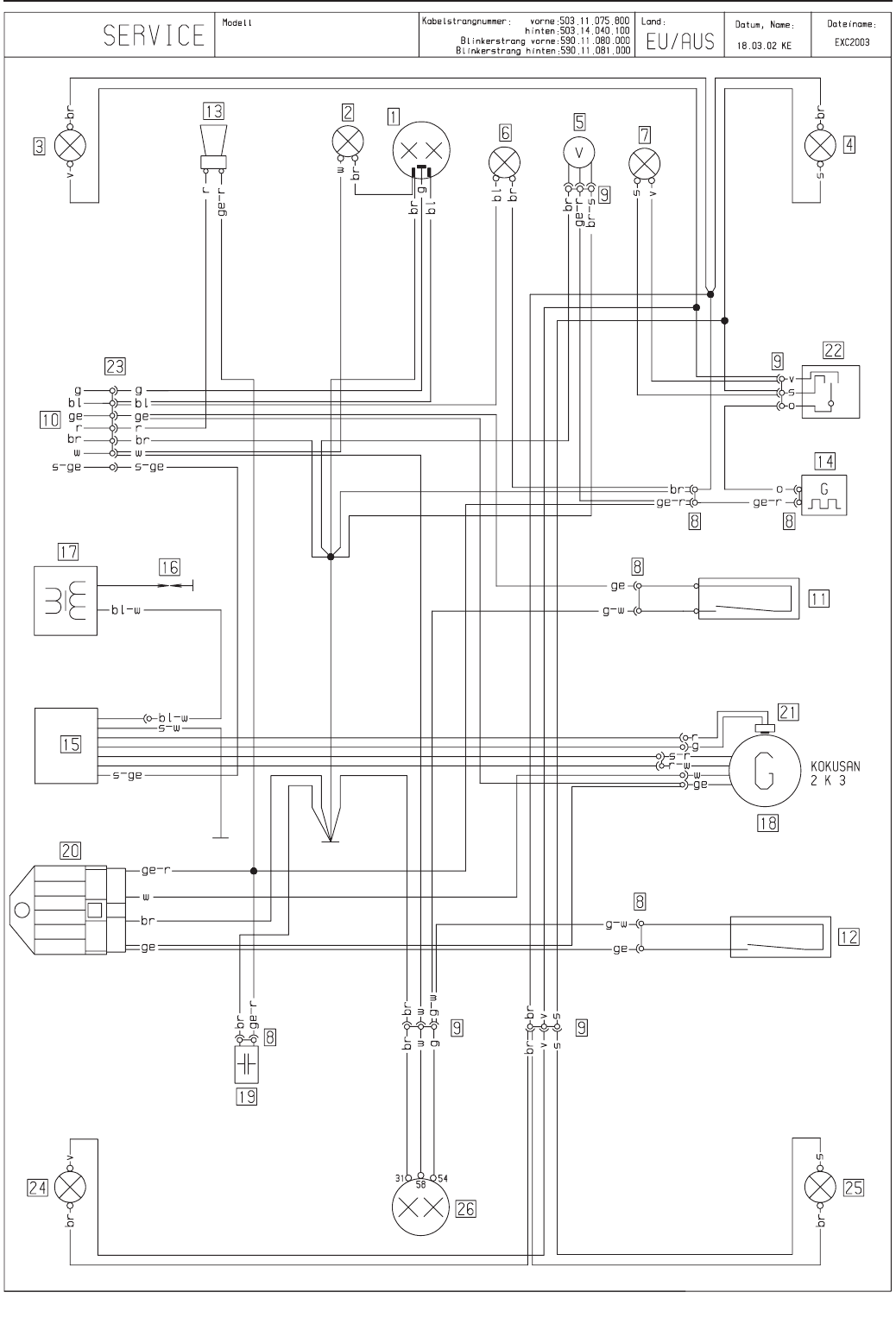

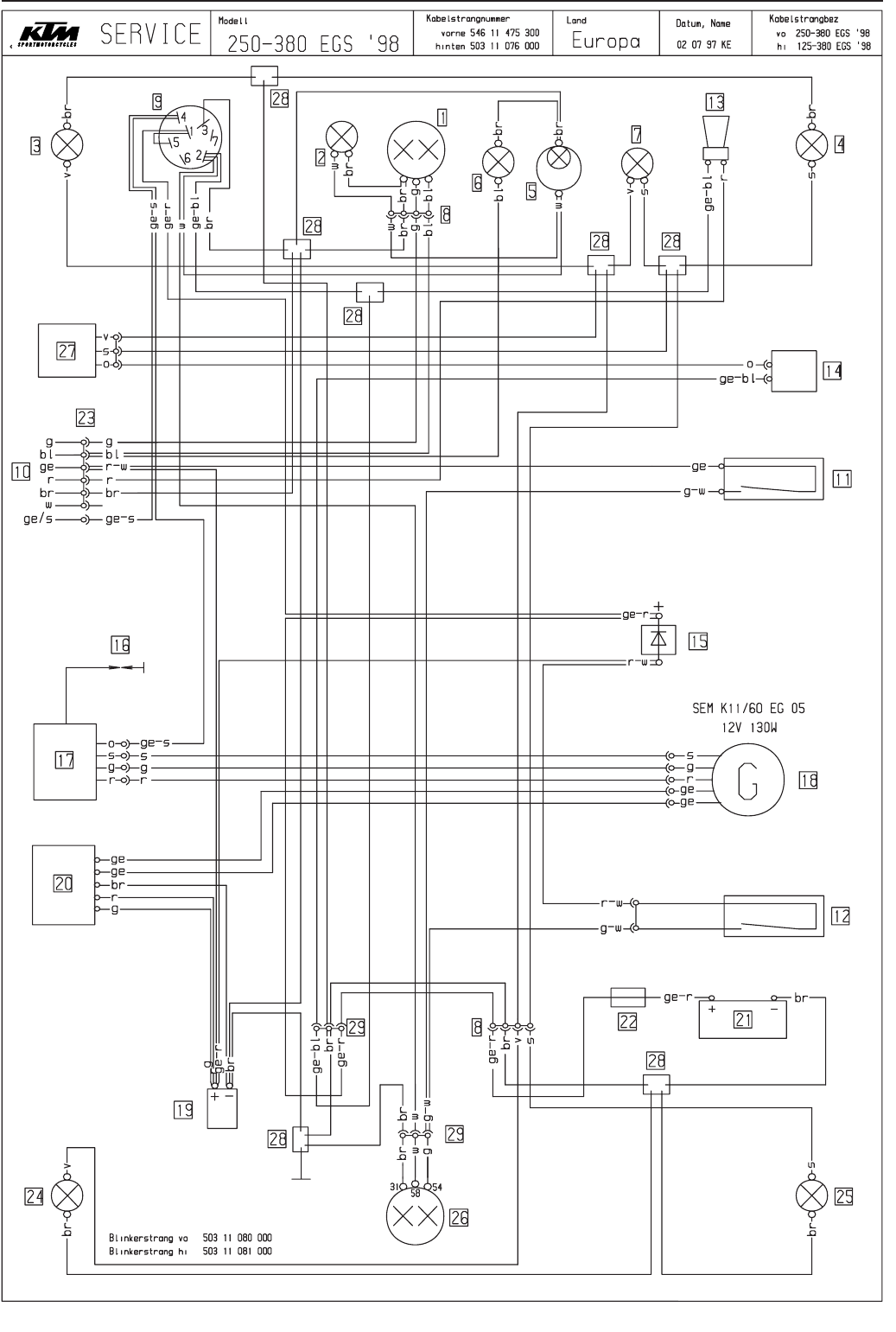

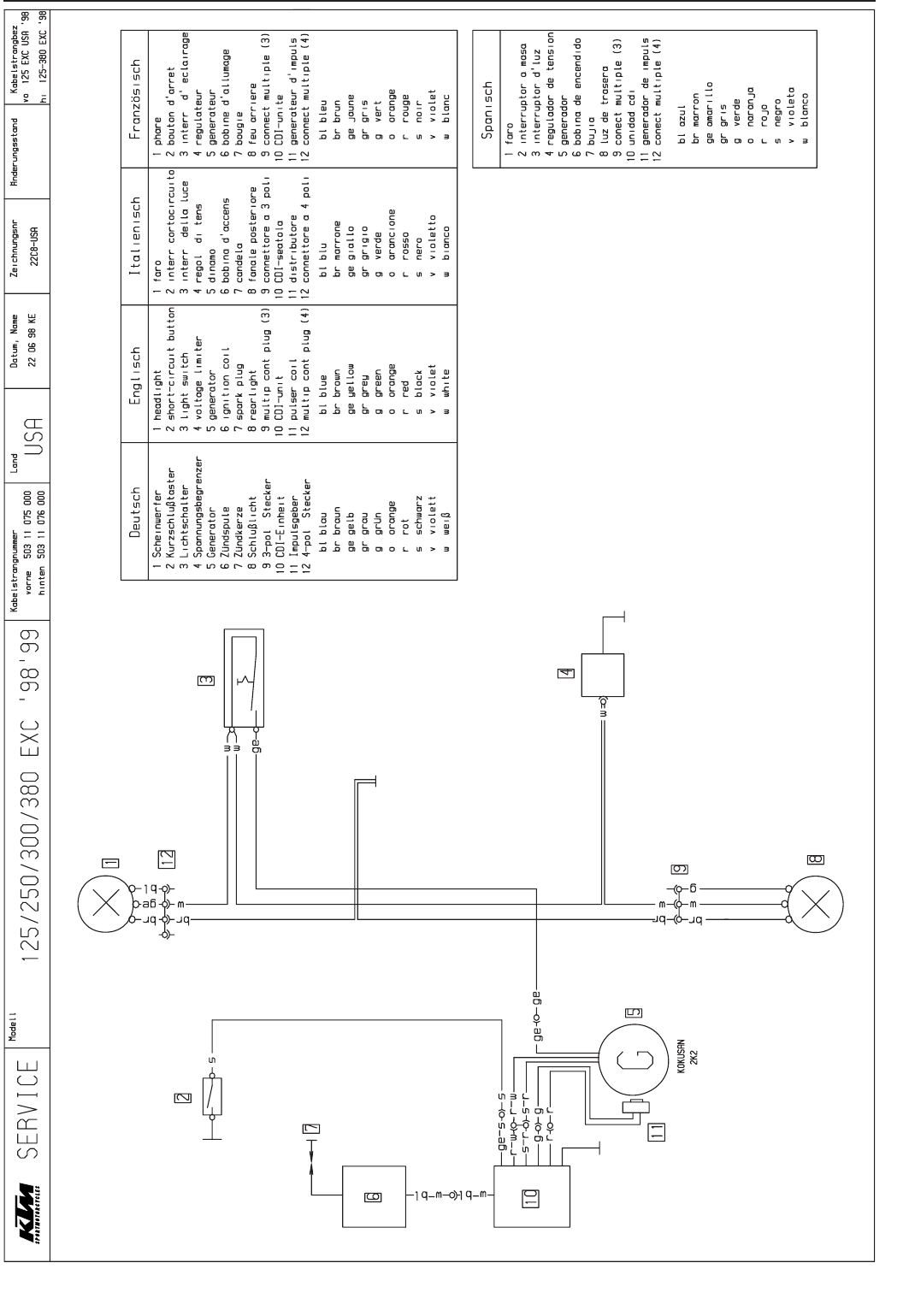

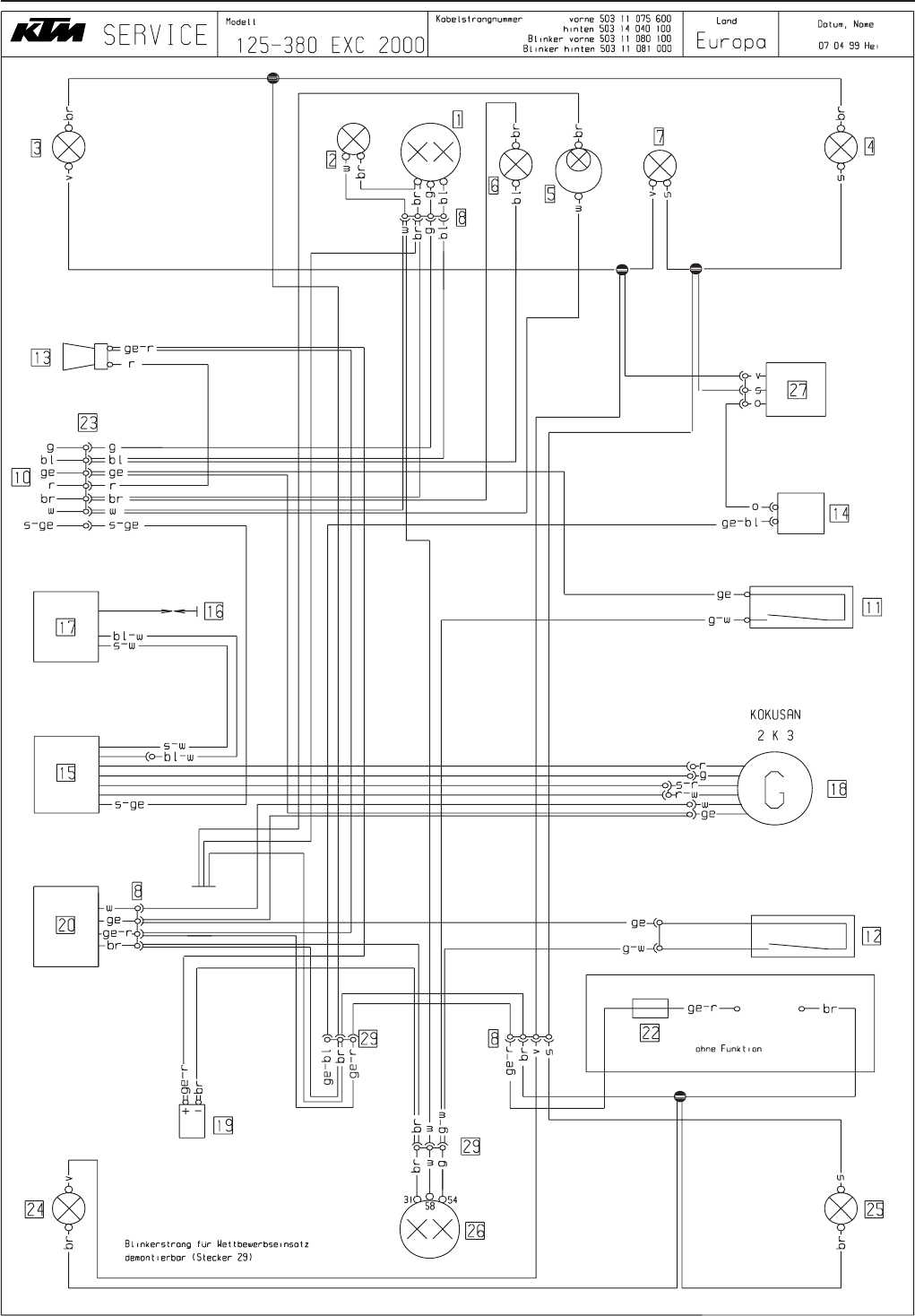

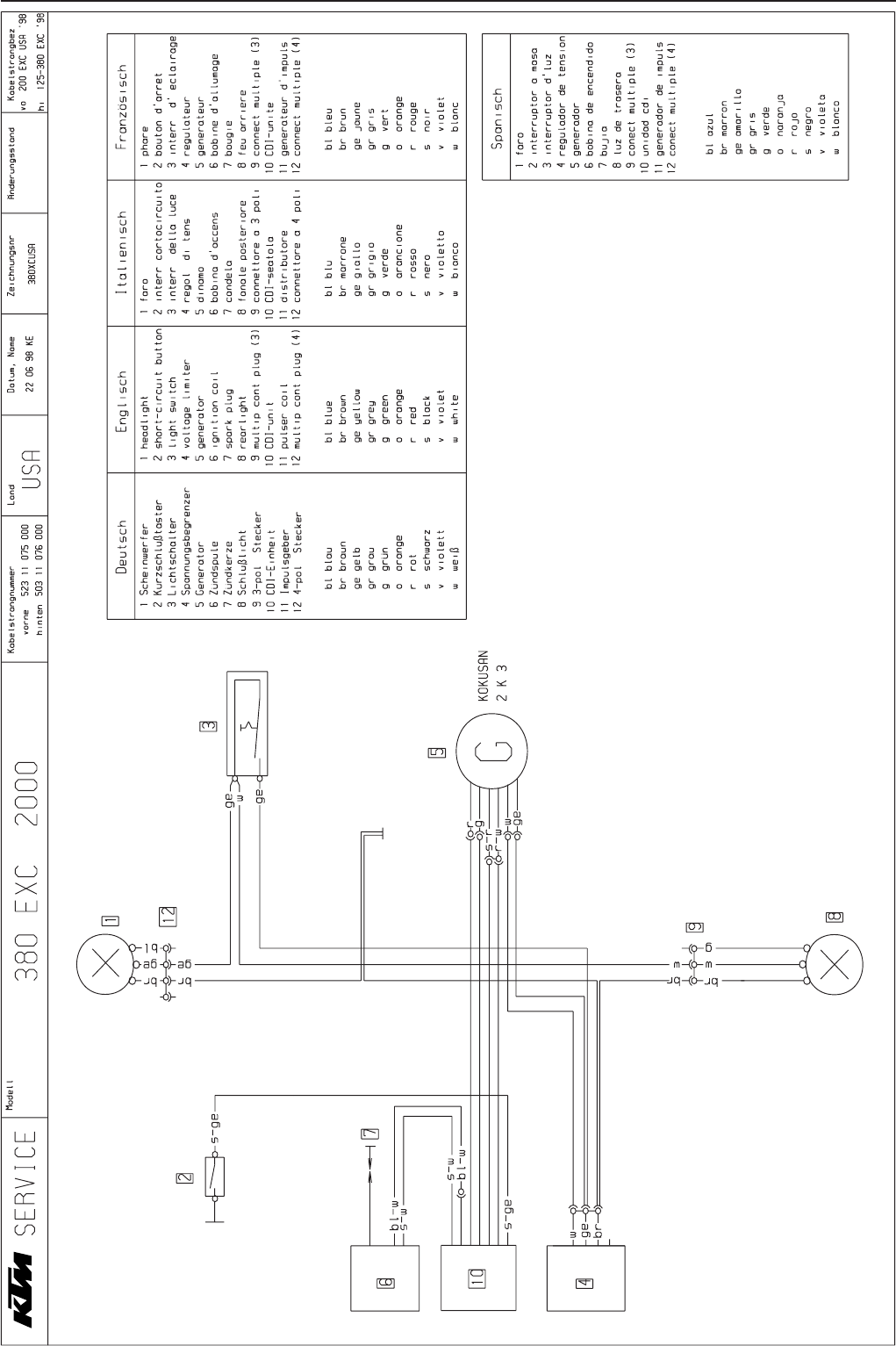

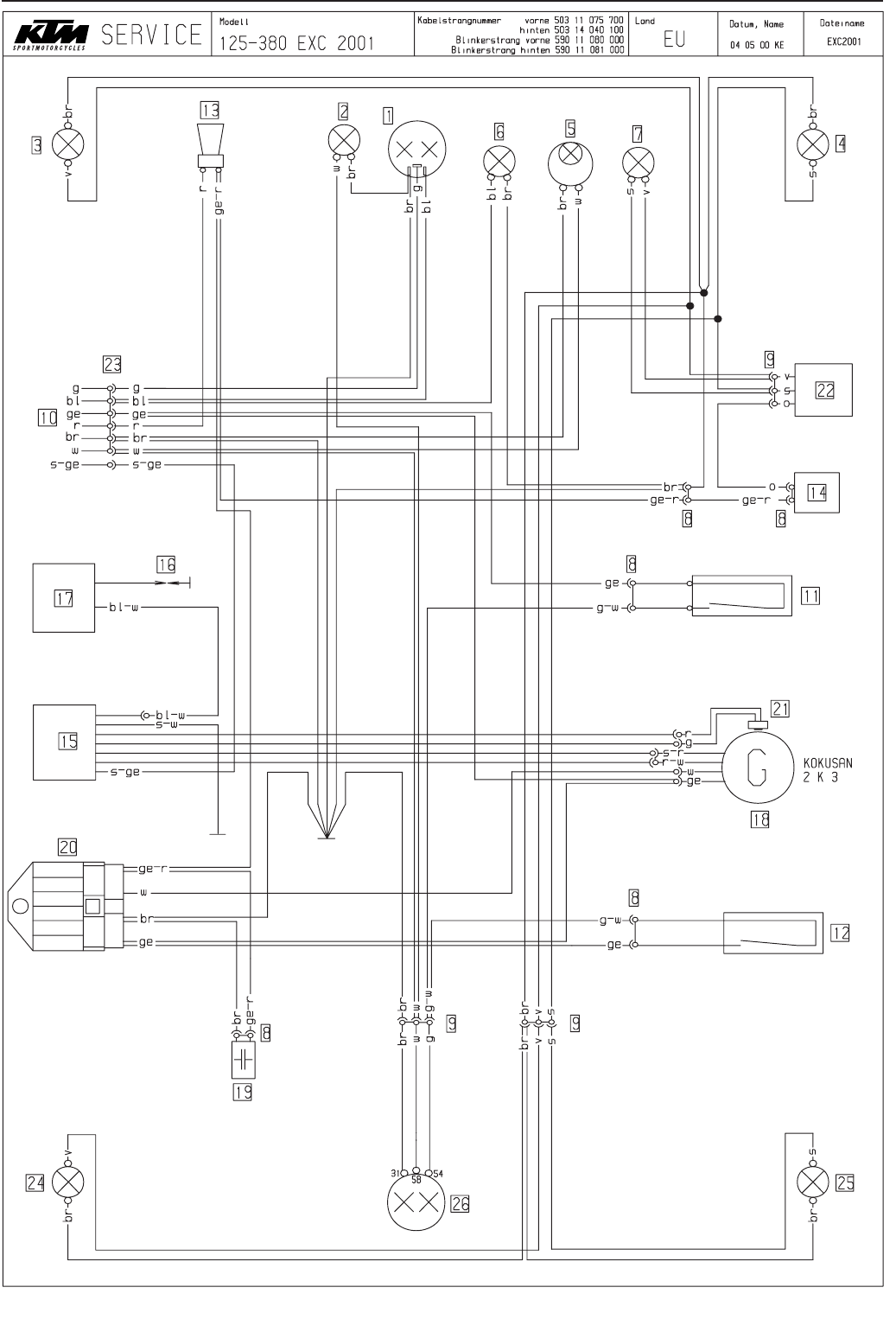

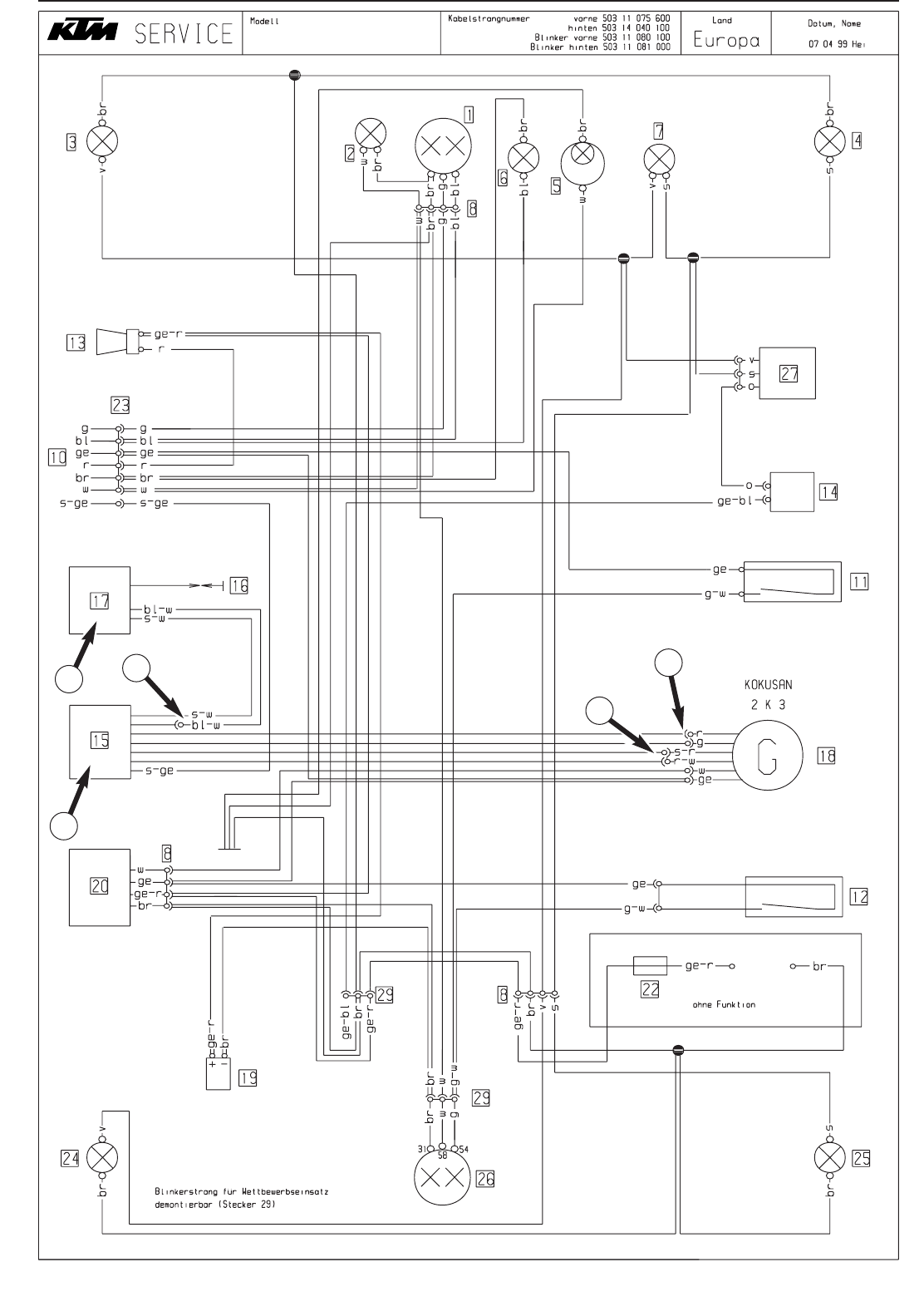

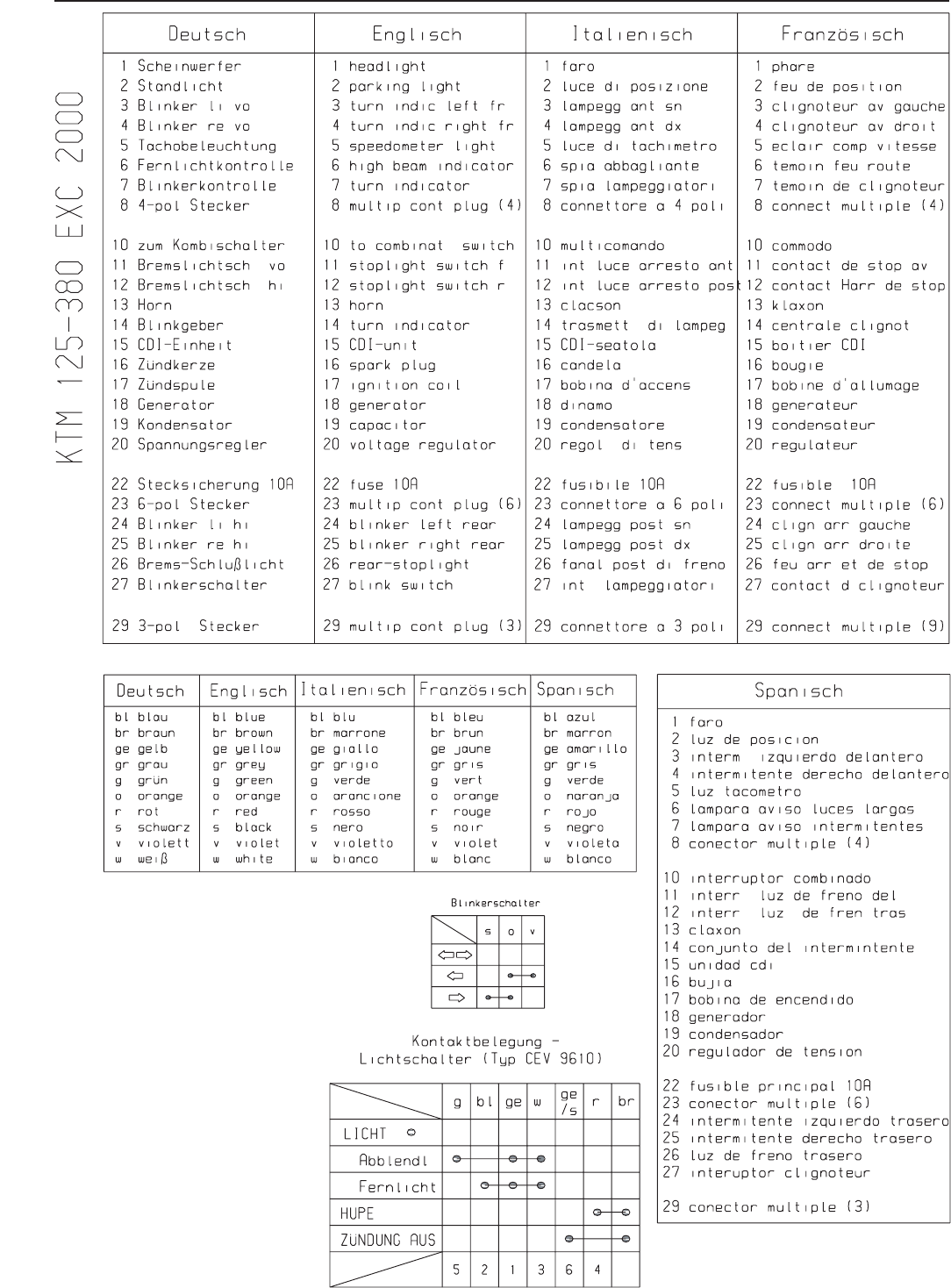

11 WIRING DIAGRAMS

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Remove page (s) Replace by page (s) Insert page (s) after page

2-1 to 2-4 2-1C to 2-6C

3-4 3-4C

4-1 to 4-9 4-1C to 4-8C

5-1 5-1C

5-4 5-4C / 5-5C

5-13 to 5-14 5-13C to 5-14C

7-1 7-1C 7-5C to 7-10C

9-1 9-1C 9-37C to 9-42C

10-1 10-1C 10-6C to 10-8C

11-1 11-1C 11-14C to 11-16C

IMPORTANT INFORMATION/UPDATING INSTRUCTIONS

To be able to continue using the existing loose-leaf repair instructions, simply print the following

pages and insert them in the existing repair instructions:

14-20, 26, 28-36, 37, 41, 42, 50, 51, 67, 72-77, 83, 121-126, 127, 134-136,

137, 151-153

KTM REPAIR MANUAL IN LOOSE-LEAF FORM

STORING THE REPAIR MANUAL IN THE BINDER

–Put the index into the binder.

–Put the front page of the repair manual (210x297 mm) into the transparent pocket provided for

this purpose on the outside of the binder.

–Put the spine label (170x45 mm) into the transparent pocket provided for this purpose on the

spine of the binder.

–Put the summary list of contents (150x297 mm) into the transparent pocket provided for this

purpose on the inside of the binder or insert this page on the beginning of the manual.

–Then insert the individual chapters of the manual between the sheets of the index according to

the page number printed in the right bottom corner of each page.

Example: page no. 3-5 3 = chapter 3 5 = page 5

All pages with a page number that begins with the digit 3, for example, must be put under the

index heading „Chapter 3“.

–Index sheets that have not been marked with a certain chapter are for your personal convenience.

The respective headings can be entered in the list of contents.

EXPLANATION - UPDATING

Edition 11/2002

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

3.205.63-E Repair Manual 250 / 300 / 380 SX, MXC, EXC

Basicversion Modelyear 1999

(Engine number with first digit “9“)

11/1998

3.205.87-E Updating of Rep.Manual 3.205.63-E

Modelyear 2000

(Engine number with first digit “0“)

2/2000

3.210.02-E Updating of Rep.Manual 3.205.63-E

Modelyear 2001/2002

(Engine number with first digit “1“)

(Engine number with first digit “2“)

3/2001

3.206.004-E Updating of Rep.Manual 3.205.63-E

Modelyear 2003

(Engine number with first digit “3“)

11/2002

Modification / Updating:

Technical Specification,

Periodic Maintenance Schedule, Wiring Diagrams

INTRODUCTION

This repair manual offers extensiv repair-instructions and is an up-to-date version that describes the

latest models of the series. However, the right to modifications in the interest of technical

improvement is reserved without updating the current issue of this manual.

A description of general working modes common in work shops has not been included. Safety rules

common in the work shop have also not been listed. We take it for granted that the repairs are made

by qualified profesionally trained mechanics.

Read through the repair manual before beginning with the repair work.



WARNING



STRICT COMPLIANCE WITH THESE INSTRUCTIONS IS

ESSENTIAL TO AVOID DANGER TO LIFE AND LIMB.

CAUTION

NON-COMPLIANCE WITH THESE INSTRUCTIONS CAN LEAD TO

DAMAGE OF MOTORCYCLE COMPONENTS OR RENDER

MOTORCYCLES UNFIT FOR TRAFFIC !

„NOTE” POINTS OUT USEFUL TIPS.

Use only ORIGINAL KTM SPARE PARTS when replacing parts.

The KTM high performance engine is only able to meet user expectations if the maintenance work is

performed regularly and professionally.

KTM Austria’s certificate of achievement for its quality system ISO 9001 is the beginning of an on

going total reengineered quality plan for a brighter tomorrow.

KTM Sportmotorcycle AG

5230 Mattighofen, Austria

All design and assembly modification rights reserved.

REPLY FAX FOR REPAIR MANUALS

We have made every effort to make our repair manuals as accurate as possible but it is always possible for

a mistake or two to creep in.

To keep improving the quality of our repair manuals, we request mechanics and shop foremen to assist us

as follows:

If you find any errors or inaccuracies in one of our repair manual – whether these are technical errors,

incorrect or unclear repair procedures, tool problems, missing technical data or torques, inaccurate or

incorrect translations or wording, etc. – please enter the error(s) in the table below and fax the completed

form to us at 0043/7742/6000/5349.

NOTE to table:

–Enter the complete item no. for the repair manual in column 1 (e.g.: 3.210.66-E).

You will find the number on the cover page or in the left margin on each right page of the manual.

–Enter the corresponding page number in the repair manual (e.g.: 5-7c) in column 2.

–Enter the current text (inaccurate or incomplete) in column 3 by quoting or describing the respective

passage of the text. If your text deviates from the text contained in the repair manual, please write your

text in German or English if possible.

–Enter the correct text in column 4.

Your corrections will be reviewed and incorporated in the next issue of our repair manual.

Item no. of repair manual Page Current text Correct text

Additional suggestions, requests or comments on our Repair Manuals (in German or English):

Name mechanic/shop foreman Company/work shop

Repair manual 250 / 300 / 380 Art Nr 3206004 -E

OPERATING RANGES OF THE CARBURETOR . . . . . . . . . . . . . . . . . . .2-2

CARBURETOR ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

CHECKING OF THE SETTING OF THE TVC SYSTEM . . . . . . . . . . . . . .2-4

BLEEDING OF THE HYDRAULIC CLUTCH . . . . . . . . . . . . . . . . . . . . .2-4

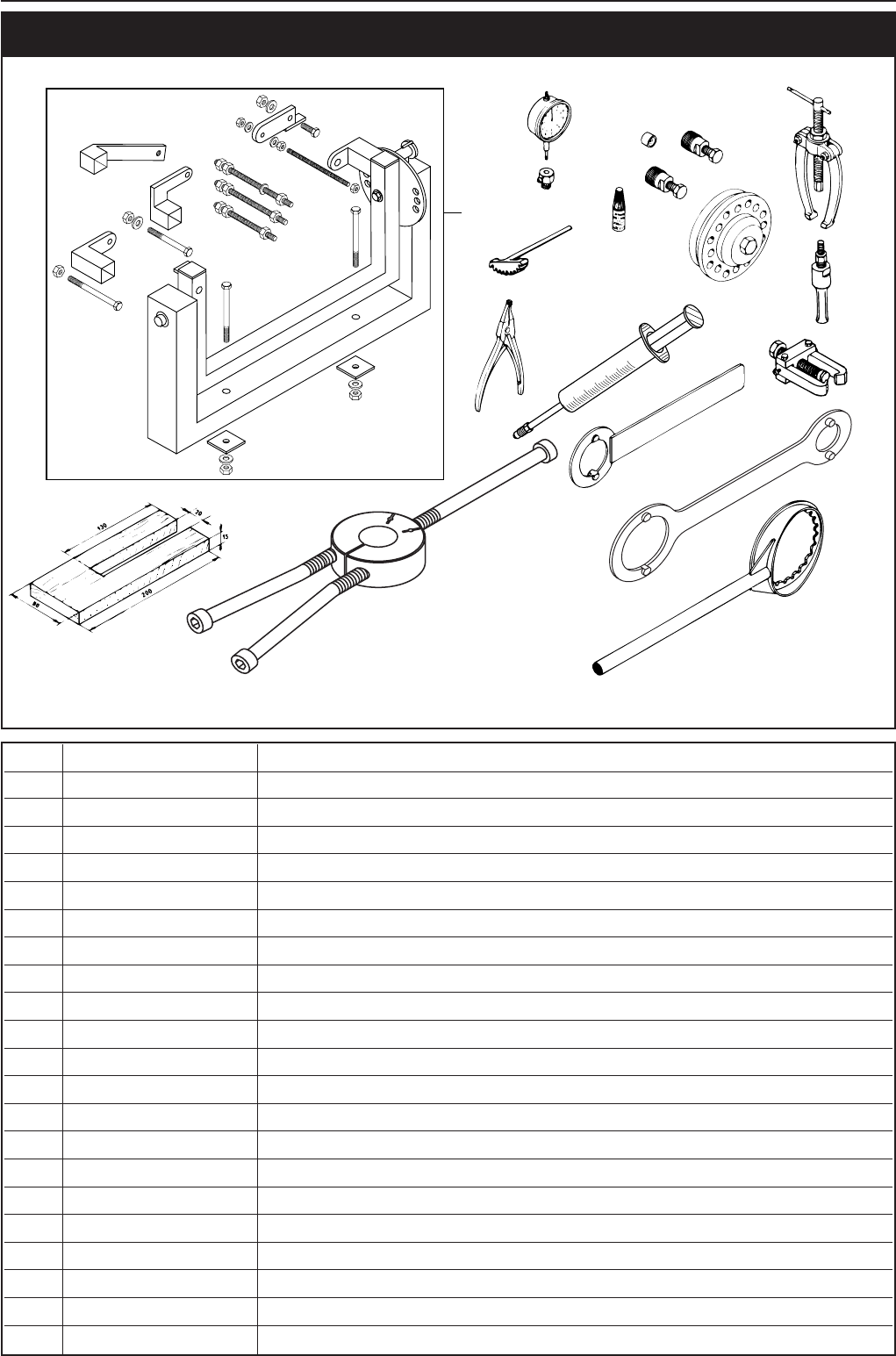

SPECIAL TOOLS - ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

INDEX

2-1C

GENERAL INFORMATION 2

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

2-2C

main jet

jet needle

air control screw

idle adjusting screw

idle jet

throttle valve

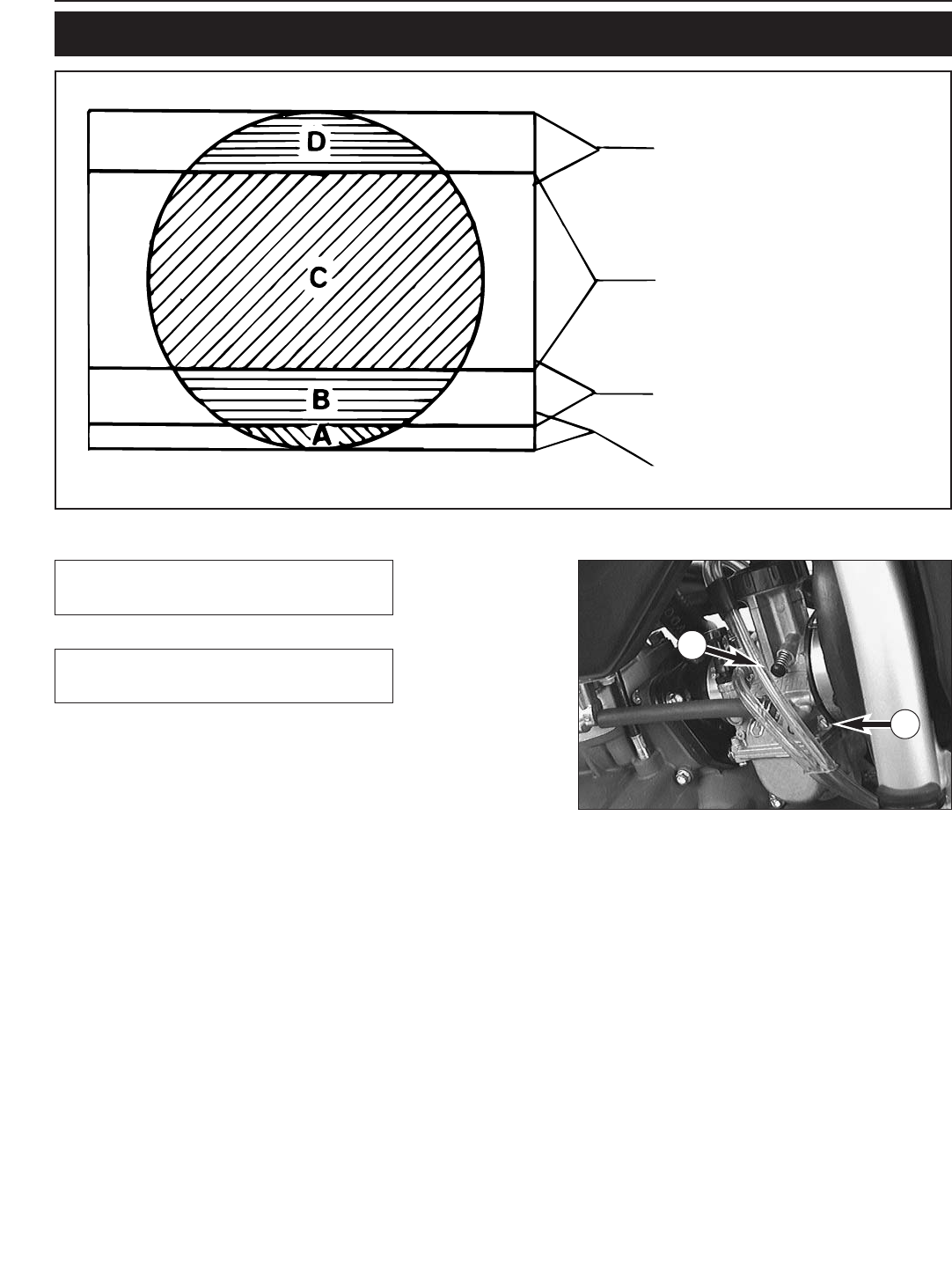

Idling range A

Operation with closed throttle valve. This range is influenced by the position of the air control screw 1and the idle adjusting screw

2. Only make adjustments when the engine is hot.

To this end, slightly increase the idling speed of the engine by means of the idle adjusting screw. Turning it clockwise produces a

higher idling speed and turning the screw counterclockwise produces a lower idling speed. Create a round and stable engine speed

using the air control screw (basic position of the air control screw = open by 1.5 turns). Then adjust to the normal idling speed by

means of the idle adjusting screw.

Opening up B

Engine behavior when the throttle opens. The idle jet and the shape of the throttle valve influences this range. If, despite good

idling-speed and part-throttle setting, the engine sputters and smokes when the throttle is fully opened and develops its full power

not smoothly but suddenly at high engine speeds, the mixture to the carburetor will be too rich, the fuel level too high or the float

needle is leaking.

Part-throttle range C

Operation with partly open throttle valve. This range is only influenced by the jet needle (shape and position). The optimum

part-throttle setting is controlled by the idling setting in the lower range and by the main jet in the upper range. If the engine runs

on a four-stroke cycle or with reduced power when it is accelerated with the throttle partly open, the jet needle must be lowered by

one notch. If then the engine pings, especially when accelerating under full power at maximum engine revs, the jet needle should

be raised.

If these faults should occur at the lower end of the part throttle range at a four-stroke running, make the idling range leaner; if the

engine pings, adjust the idling range richer.

Full throttle range D

Operation with the throttle fully open (flat out). This range is influenced by the main jet and the jet needle. If the porcelain of the

new spark plug is found to have a very bright or white coating or if the engine rings, after a short distance of riding flat out, a larger

main jet is required. If the porcelain is dark brown or black with soot the main jet must be replaced by a smaller one.

mixture too rich:

too much fuel in proportion to air

mixture too lean:

not enough fuel in proportion to air

OPERATING RANGES OF THE CARBURETOR

2-3C

Carburetor adjustment

Basic information on the original carburetor setting

The original carburetor setting was adapted for an altitude of approx. 500 meters (1600 ft.) above sea level, and the ambient

temperature of approx. 20° C (68° F), mainly for off-road use and central European premium-grade fuel (ROZ 95 MOZ). Mixing

ratio 2-stroke motor oil : super fuel 1:40 – 1:60.

Basic information on a change of the carburetor setting

Always start out from the original carburetor setting. Essential requirements are a clean air filter system, air-tight exhaust system and

an intact carburetor. Experience has shown that adjusting the main jet, the idling jet and the jet needle is sufficient and that changes

of other parts of the carburetor will not greatly affect engine performance.

RULE OF THUMB:

high altitude or high temperatures ➞choose leaner carburetor adjustment

low altitude or low temperatures ➞choose richer carburetor adjustment



WARNING



–O

NLY USE PREMIUM-GRADE GASOLINE ROZ 95 MIXED WITH HIGH-GRADE TWO-STROKE ENGINE OIL. OTHER TYPES OF GASOLINE CAN CAUSE ENGINE

FAILURE, AND USE OF SAME WILL VOID YOUR WARRANTY.

–O

NLY USE HIGH-GRADE 2-STROKE ENGINE OIL OF KNOWN BRANDS.

–N

OT ENOUGH OIL OR LOW-GRADE OIL CAN CAUSE EROSION OF THE PISTON. USING TOO MUCH OIL, THE ENGINE CAN START SMOKING AND FOUL THE

SPARK PLUG.

–I

NTHE CASE OF A LEANER ADJUSTMENT OF THE CARBURETOR PROCEED CAUTIOUSLY

. ALWAYS REDUCE THE JET SIZE IN STEPS OF ONE NUMBER TO AVOID

OVERHEATING AND PISTON SEIZURE.

NOTE: If despite a changed adjustment the engine does not run properly, look for mechanical faults and check the ignition system.

Basic information on carburetor wear

As a result of engine vibrations, throttle valve, jet needle, and needle jet are subjected to increased wear. This wear may cause

carburetor malfunction (e.g., overly rich mixture). Therefore, these parts should be replaced after 10000 kilometers (6000 miles).

Explanation - Example

Compared to the needle N 85 A, the jet needle N 85 C is two steps leaner

in the range from the closed position of the throttle to 1/4 throttle.

Otherwise, there are not differences.

CAUTION

WHEN CHANGING THE JET NEEDLE, MAKE SURE THAT YOU USE THE CORRECT NEEDLE

TYPE (N 85 ,NOZ OR N3). THE TECHNICAL DATASHEET TELLS YOU WHICH JET

NEEDLE CAN BE USED FOR WHICH MODEL.

N 85 C 0–1/4––

jet needle throttle valve open effect

N 85 A

N 85 B 0–1/4–

N 85 C 0–1/4––

N 85 D 0–1/4– – –

N 85 E 0–1/4– – – –

NOZ C

NOZ D 0–1/4–

NOZ E 0–1/4– –

NOZ F 0–1/4– – –

NOZ G 0–1/4– – – –

NOZ H 0–1/4– – – – –

NOZ I 0–1/4– – – – – –

NOZ J 0–1/4– – – – – – –

N3CG

N3CH 0–1/4–

N3CW 0–1/4– –

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

2-4C

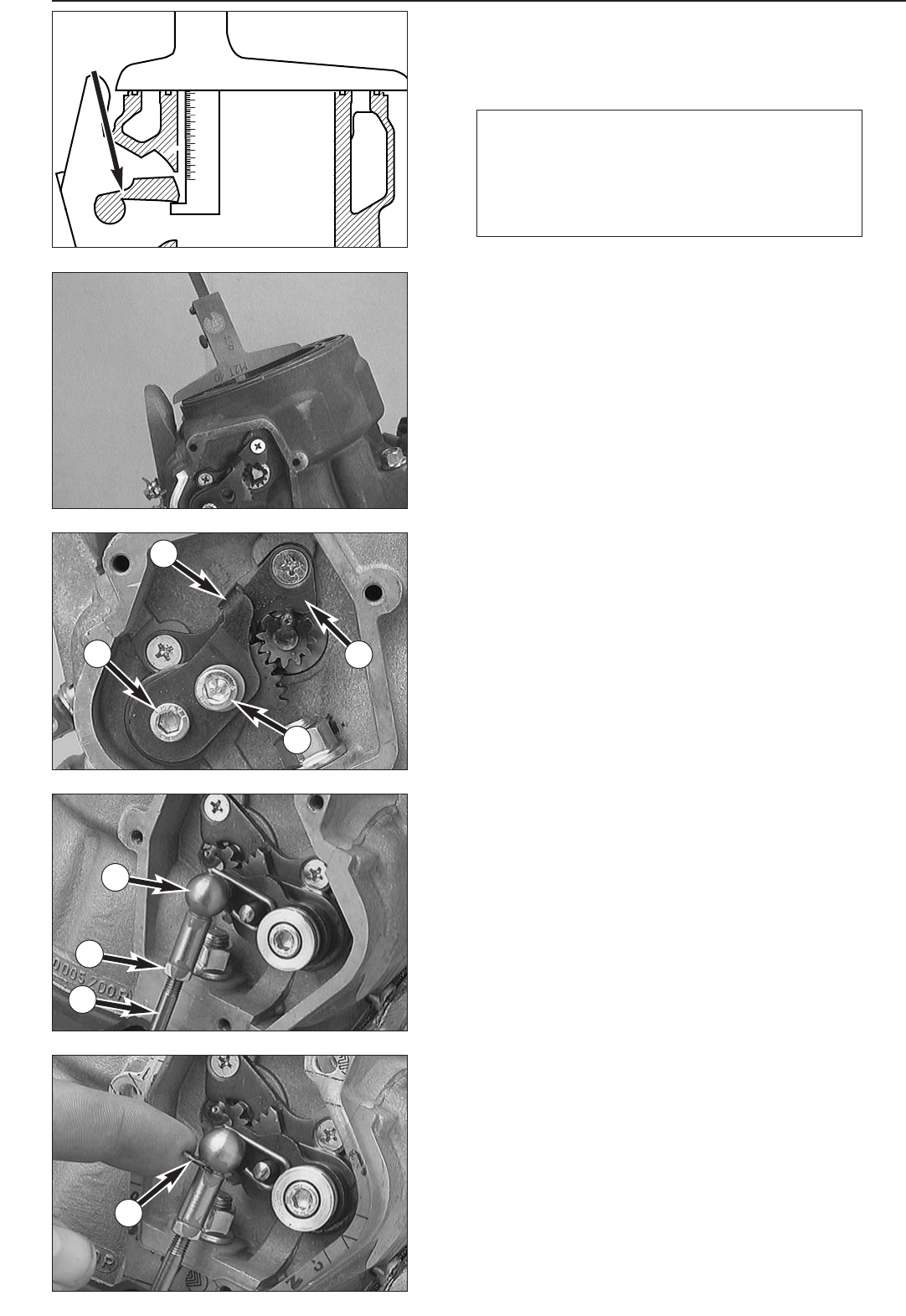

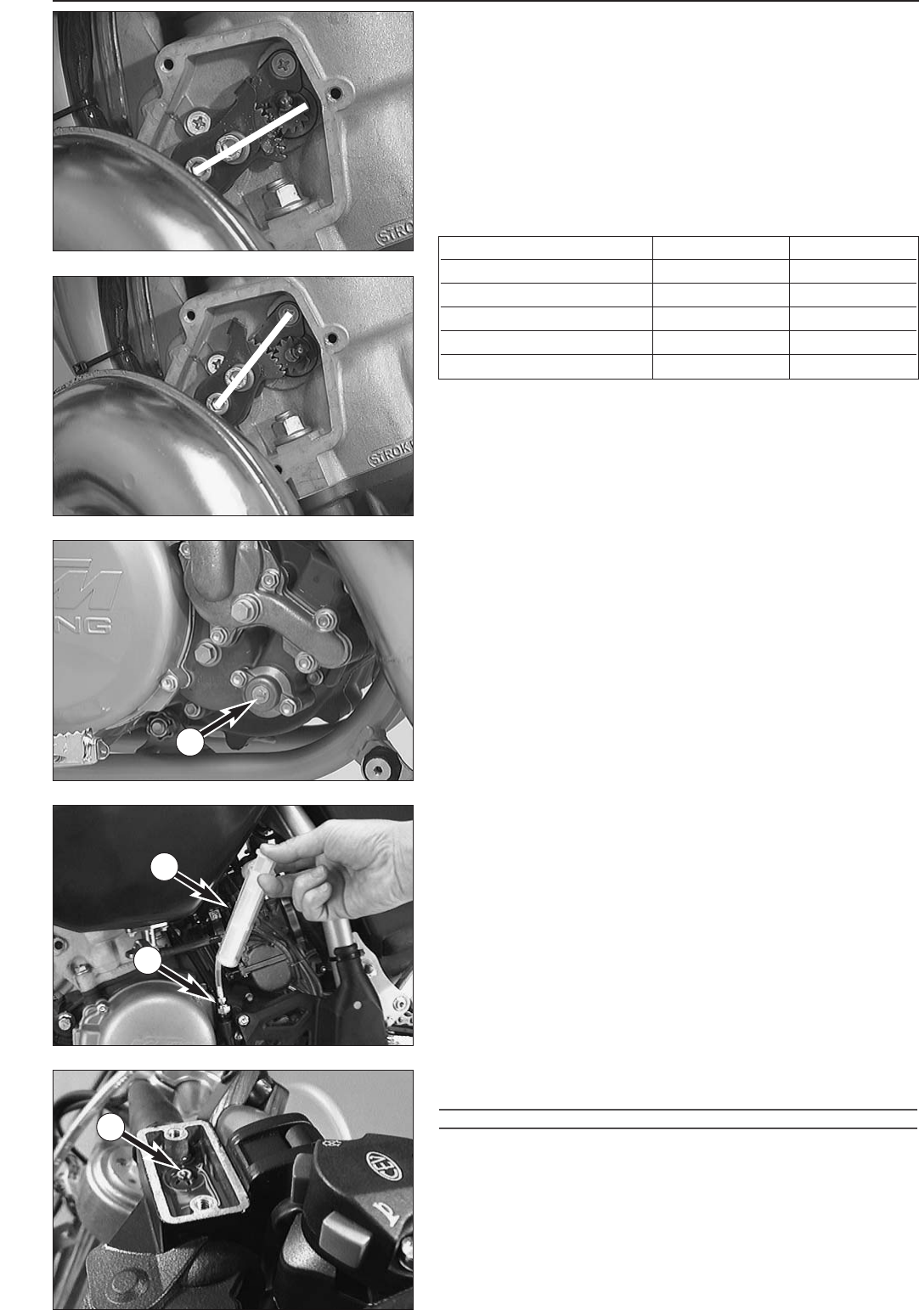

Checking the setting of the TVC system

The function of the TVC system is checked with the engine running.

This test checks the start of advance and the end of advance.

–For this, remove the left control cover.

–Connect a rev counter (either to the ignition cable or to the blue/white

cable in the electronics box, depending on the rev counter design).

–Start engine, accelerate gently and observe when the TVC system

starts to advance (tooth segment creeps upwards).

–If necessary, turn the adjusting screw 1.

NOTE: Twisting the adjusting screw in delays the commencement of

adjustment by the TVC system, twisting the adjusting screw out means

that the TVC system will perform the adjustment earlier.

Bleeding of the hydraulic clutch

–Take off cover together with rubber bellows.

–At the slave cylinder of the clutch, remove the bleeder nipple 2. It its

place, mount the bleeder syringe 3which is filled with SAE 10

hydraulic oil.

–Refill oil, until oil is discharged from the bore 4of the master cylinder

in a bubble-free state. Make sure that the oil does not overflow.

CAUTION

–HAVING COMPLETED THE BLEEDING PROCEDURE, YOU HAVE TO VERIFY THAT THE

OIL LEVEL IN THE MASTER CYLINDER IS CORRECT.

–KTM USES BIODEGRADABLE HYDRAULIC OIL FOR THE HYDRAULIC CLUTCH

CONTROL. NEVER MIX BIODEGRADABLE HYDRAULIC OILS WITH MINERAL OILS.

–ALWAYS USE BIODEGRADABLE HYDRAULIC OIL SAE 10 TO FILL UP THE MASTER

CYLINDER. NEVER REFILL WITH MINERAL HYDRAULIC OIL OR BRAKE FLUID.

start of advance end of advance

250 Model 1999 5400 U/min 7550 U/min

250 from Modell 2000 on 5000 U/min 7000 U/min

300 up to Modell 2000 5300 U/min 7750 U/min

300 from Modell 2001 on 5900 U/min 7750 U/min

380 5200 U/min 7200 U/min

2-5C

Fig. Part no. Description

1560.12.001.000 Universal engine work stand

3546.29.003.000 Clutch holder

4560.12.004.000 Gear wheel segment

5546.29.009.044 Magneto extractor M 27x1 Kokusan

66 276 807 Magneto extractor M 26x1,5 SEM

7510.12.011.000 Circlip plier

8544.12.012.000 Holding spanner for flywheel SEM

9584.29.037.040 Mounting tool inner ring NJ 207

9584.29.037.043 Mounting tool inner ring NJ 207

10 510.12.016.000 Protection cap

11 546.29.012.100 Holding spanner for flywheel Kokusan

13 501.12.013.000 Dial gauge 0-10 mm

14 501.12.030.000 Dial gauge support

16 6 899 785 Loctite 243 blue 6 ccm

17 151.12.017.000 Bearing puller

18 151.12.018.100 Internal bearing puller 18-23 mm

18 151.12.018.000 Internal bearing puller 12-16 mm

18 151.12.018.200 Internal bearing puller 5-7 mm

19 546.29.027.000 Clutch rivetting tool

25 0276 179 000 Extractor primary gear

26 503.29.050.000 Vent springe for hydraulic clutch

SPECIAL TOOLS – ENGINE 250 / 300 / 380

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

2-6C

Should you wish to make a pause over a longer space of time, please observe the following instructions:

–Clean motorcycle thoroughly (see chapter: CLEANING)

–Change engine oil (old engine oil contains aggressive contaminants).

–Check antifreeze and amount of cooling liquid.

–Let the engine warm up again, close fuel cock and wait until the engine dies off by itself. In this way the carburetor jets are prevented

from becoming resin- clogged by the old fuel.

–Remove spark plug and fill in approx. 5 ccm of engine oil into the cylinder through the opening. Actuate kick-starter 10 times in order

to distribute the oil onto the cylinder walls and mount the spark plug.

–Let fuel flow out of tank into an appropriate container.

–Correct tire pressure.

–Lubricate bearing points of the control levers, footrests, etc. as well as the chain.

–The storage place should be dry and not be subjected to too big temperature fluctuations.

–Cover the motorcycle with an air permeated tarp or blanket. Do not use non airtight materials as a possible humidity might not be

able to escape and thereby cause corrosion.

CAUTION

ITWOULD BE VERY BAD TO LET THE ENGINE RUN FOR A SHORT TIME DURING THE STORAGE PERIOD. THE ENGINE WOULD NOT GET WARMED UP ENOUGH AND

THE THUS DEVELOPED STEAM WOULD CONDENSE DURING THE COMBUSTION PROCESS AND CAUSE THE VALVES AND EXHAUST TO RUST.

USE AFTER A PERIOD OF STORAGE

–Fill up the tank with fresh fuel.

–Check the motorcycle as before each start (see driving instructions)

–Take a short, careful test ride first.

NOTE: Before you put your motorcycle away for the winter, you should check all parts for their function and wear. Should any service

jobs, repairs, or any refitting be necessary, you should have them carried out during the off-season (lower workload at mechanics'

shops). This way, you can avoid the long waiting times at your shop at the beginning of the next biking season.

STORAGE

Clean your motorcycle regularly in order to maintain the beauty of its plastic surfaces.

The best manner would be to use warm water that has been mixed with a normal brand-name washing detergent and a sponge.

The hard dirt can be removed before washing with the help of a soft water jet.

CAUTION

NEVER CLEAN YOUR MOTORCYCLE WITH A HIGH-PRESSURED CLEANER OR A HIGH-PRESSURED WATER JET. THE WATER COULD OTHERWISE RUN INTO THE

ELECTRICAL COMPONENTS, CONNECTORS, SHEATHED CABLES, BEARINGS, CARBURETOR, ETC. AND CAUSE DISTURBANCES OR LEAD TO A PREMATURE

DESTRUCTION OF THESE PARTS.

–Before cleaning with water, plug the exhaust pipe to prevent water ingress.

–You should use normal brand-name detergents to clean the motorcycle. Especially dirty parts should also be cleaned with the help

of a paint brush.

–After the motorcycle has been rinsed with a soft water jet, it should be dried by air pressure and a cloth. Then take a short drive until

the engine has reached the working temperature and also use the brakes. By warming these components, the residual water can

evaporate from inaccessable parts of the engine and the brakes.

–Slide back the protective covers on the handlebar-mounted instruments so that any water that may have seeped into this part of the

motorcycle is allowed to evaporate.

–After the motorcycle has cooled down, oil and grease all the gliding bearing parts. Treat the chain with a chain spray.

–To prevent failures in the electric system, you should treat the ignition lock, the emergency OFF switch, the short circuit button, the

light switch and the socket connectors with contact spray.

CLEANING

In the event that the motorcycle is also used in winter and on roads where one has to expect salt spraying, you will have to take

precautions against the aggressive road salt.

–clean the motorcycle thoroughly and let it dry after each ride

–treat the engine, carburetor, swing arm, and all other bare or galvanized parts (except for brake discs) with a wax-based anti-corro-

sion agent.



WARNING



EEP THE ANTI

CORROSION AGENT FROM GETTING INTO CONTACT WITH THE BRAKE DISCS

OTHERWISE THIS WILL SIGNIFICANTLY REDUCE THE BRAKING POWER

CAUTION

AFTER RIDES ON SALTED ROADS, CLEAN MOTORCYCLE THOROUGHLY WITH COLD WATER AND LET IT DRY WELL.

CONSERVATION FOR WINTER OPERATION

Repair manual 250 / 300 / 380 Art No 3206004 -E

REMOVING AND REFITTING ENGINE

REMOVING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

REFITTING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

INDEX

3-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Dismounting the engine

–Clean motorcycle thoroughly.

–Prop up motorcycle on an appropriate stand.

–Remove seat, right side paneling, and tank with spoilers.

–Dismount exhaust system.

–Drain coolant, and disconnect radiator hoses from engine.

–Dismount engine strut 1.

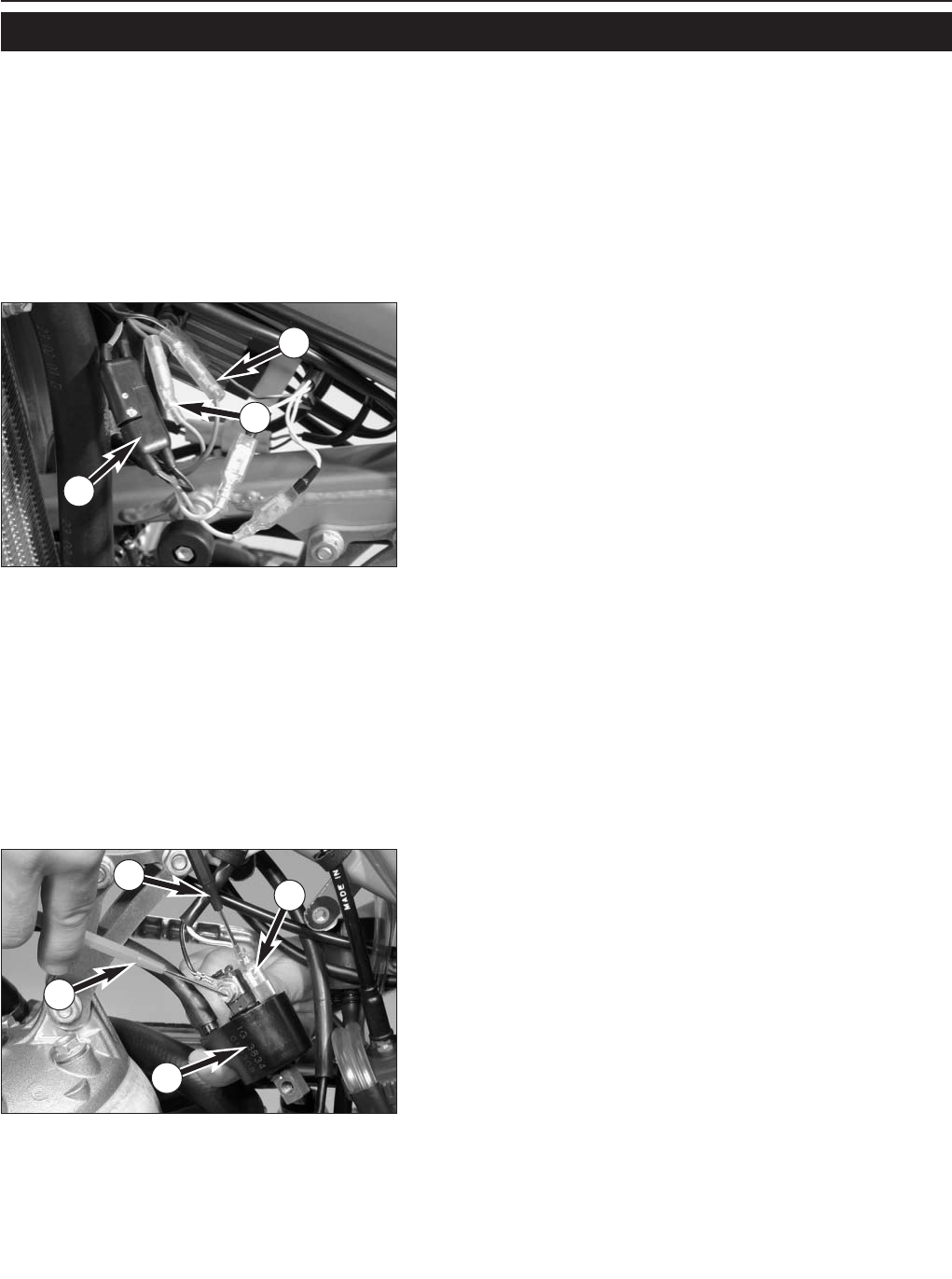

–Disconnect plug-and-socket connector of ignition system and spark-

plug connector.

–Remove sprocket cover 2and chain.

–Remove footbrake cylinder cover 3.

–Disengage and remove spring 4.

3-2C

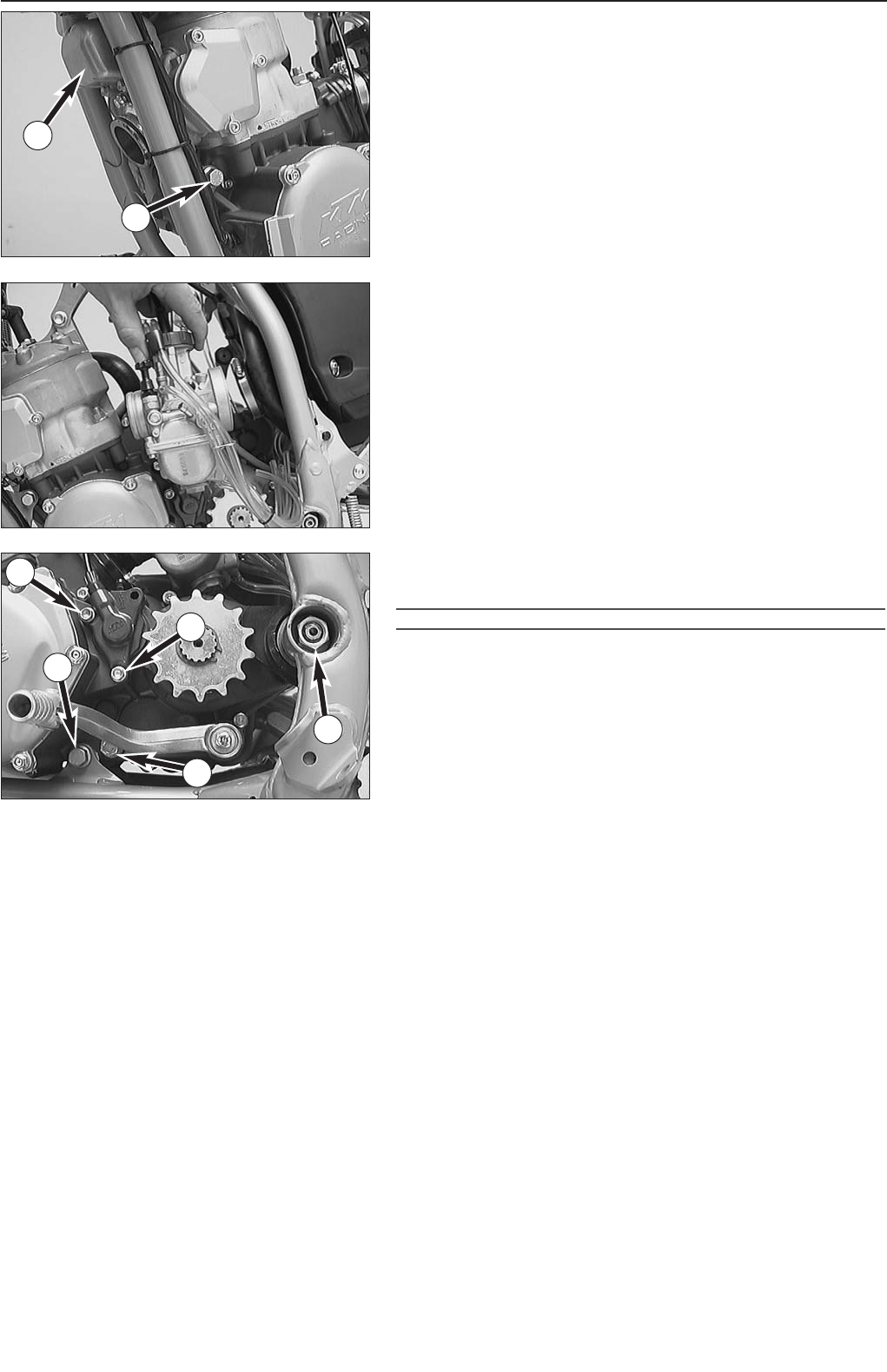

–Loosen the 3 screws, and remove intermediate flange chamber 1of

KTC system together with O-ring.

–Remove engine fastening screw 2.

–Remove cable ties and loose the cable of ignition from frame.

–Loosen both hose clamps, and pull caburetor out of carburetor

connection boot and intake flange.

–Remove transmission-oil drain plug 3together with sealing ring, and

drain the transmission oil.

–Remove the 2 screws 4, and dismount clutch slave cylinder.

CAUTION

DONOT ACTUATE THE CLUTCH LEVER WITH THE CLUTCH SLAVE CYLINDER

DISMOUNTED.

–Remove engine fastening screw 5.

–Remove hexagon nut of swingarm pivot 6.

–Remove swingarm pivot, and pull swing arm backward out of the

frame so as to make lifting the engine out of the frame easier.

–Lift engine out of frame.

NOTE: Cylinder head and cylinder can be dismounted even if the engine

remains mounted. Likewise, work on clutch, primary drive, gearshift

mechanism, and ignition system can be carried out.

3-3C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Refitting the engine

–To install the engine, reverse the steps for removing the engine.

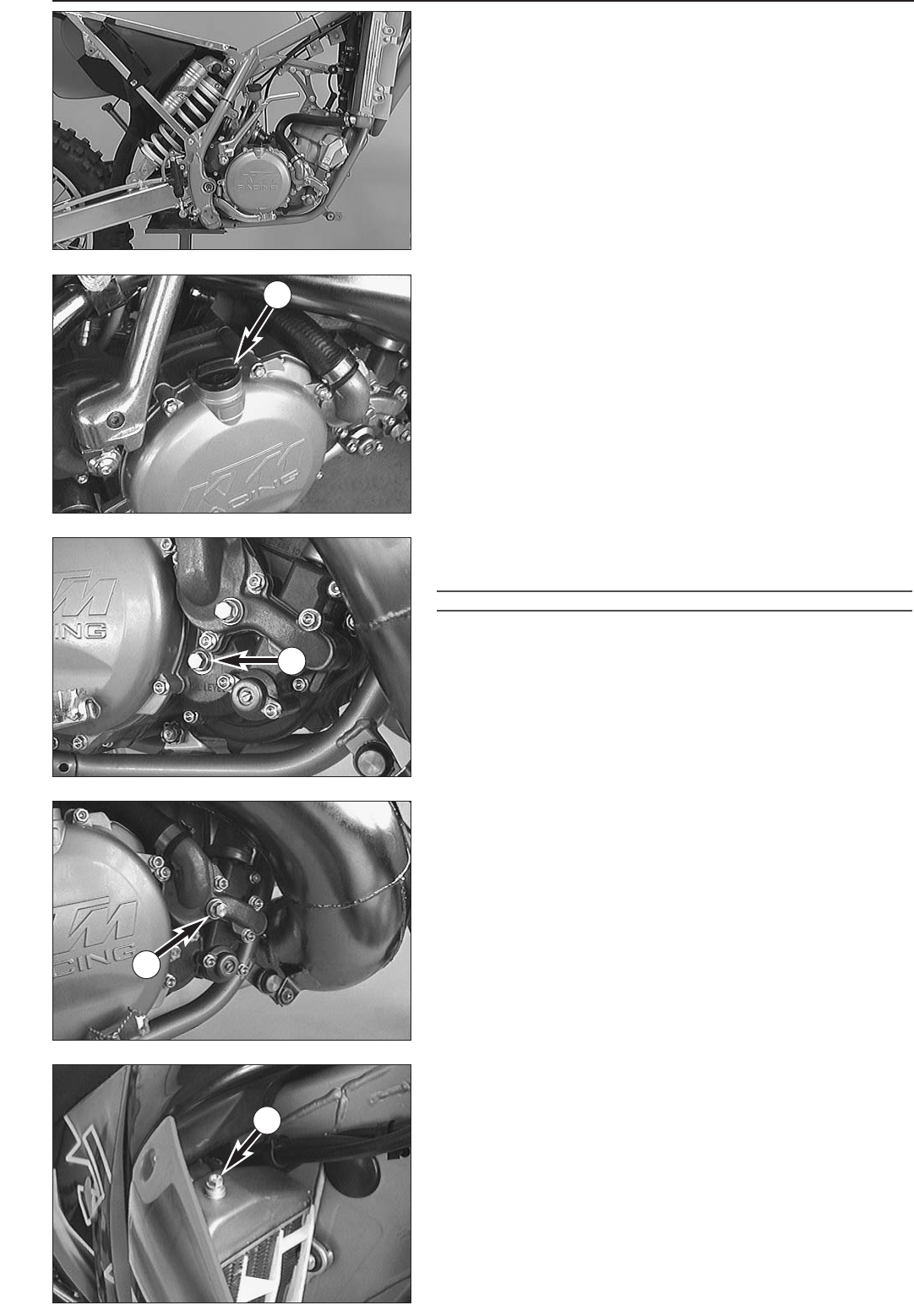

Filling in of transmission oil:

–Remove the plug 1and top up with engine oil 15W-50 (i. e.

MOTOREX TOP SPEED 4T).

–In order to check the transmission oil level the control screw 2on the

clutch cover is to be removed. Oil should just barely escape from the

inspection opening when the motorcycle is in an upright position.

CAUTION

TRANSMISSION AND CLUTCH WILL BE SUBJECT TO AXCESSIVE WEAR AND TEAR, IF YOU

USE TOO LITTLE OR LOW GRADE OIL. USE ONLY HIGH-GRADE OIL (I.E. MOTOREX

TOP SPEED 4T).

Filling in of cooling liquid:

–Make sure that the drain screw 3is fastened.

–Pour approx. 0.50 litres (0.13 US gallons) coolant into the system.

40% coolant : 60% water

–Remove the screw 4on the right radiator and tilt the motorcycle to

the right approx. 30 degree angle.

–Now add cooling liquid until it emerges free of bubbles at the right

radiator. Then immediately mount the screw so that no more air can

enter the right radiator.

–Return the motorcycle to its original position and top up the left

radiator until the coolant can be seen approx. 10 mm (0.4 in) above

the radiator fins.

3-4C

Repair manual 250 / 300 / 380 Art No 3206004 -E

DISASSEMBLING THE ENGINE

DRAINING GEAR OIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

DISMOUNTING OF SPROCKET AND SHIFT LEVER . . . . . . . . . . . . . . .4-2

DISMOUNTING OF CYLINDER HEAD, CYLINDER AND PISTON . . . . .4-2

DISMOUNTING OF CLUTCH COVER . . . . . . . . . . . . . . . . . . . . . . . .4-3

DISMOUNTING OF PRESSURE CAP AND CLUTCH DISCS . . . . . . . . . .4-4

DISMOUNTING OF THE PRIMARY DRIVE . . . . . . . . . . . . . . . . . . . . .4-4

DISMOUNTING OF KICKSTARTER . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

DISMOUNTING OF THE SHIFT LOCK . . . . . . . . . . . . . . . . . . . . . . . .4-5

DISMOUNTING OF IGNITION COVER . . . . . . . . . . . . . . . . . . . . . . .4-5

DISMOUNTING OF THE IGNITION (KOKUSAN) . . . . . . . . . . . . . . . . .4-6

DISMOUNTING OF THE IGNITION (SEM) . . . . . . . . . . . . . . . . . . . . .4-6

DISMOUNTING OF INTAKE FLANGE AND REED VALVE HOUSING . . .4-7

PARTING OF ENGINE HOUSING HALVES . . . . . . . . . . . . . . . . . . . . . .4-7

DISMOUNTING OF GEARSHIFT MECHANISM AND TRANSMISSION . .4-7

DISMOUNTING OF THE CRANKSHAFT . . . . . . . . . . . . . . . . . . . . . . .4-8

INDEX

4-1C

4-2C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

–Cleaning the engine thoroughly.

–Clamp the engine into the workstand.

–Remove the kickstarter together with the distance bushing behind.

Draining gear oil

NOTE: The transmission oil should already be drained when the engine is

dismounted. Otherwise, the transmission oil will leak out of the drive

shaft following the removal of the slave cylinder of the clutch.

–Unscrew plug 1, allowing oil to drain.

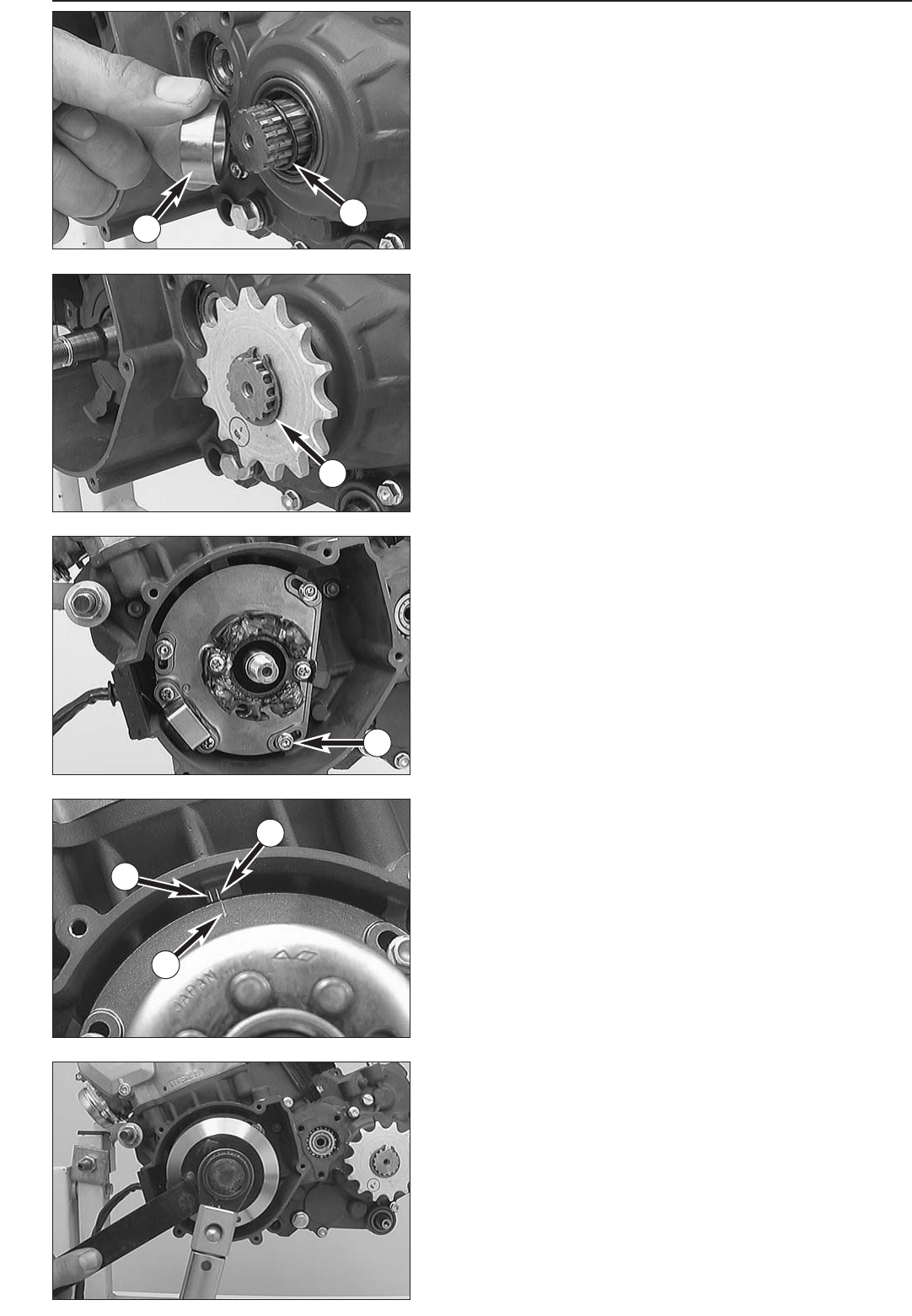

Dismounting of sprocket and shift lever

–Remove circlip 2from countershaft using circlip pliers. Slide off engine

sprocket, distance bushing and O-ring.

–Undo the screw 3and remove the shift lever.

–Pull out the clutch push rod 4from drive shaft.

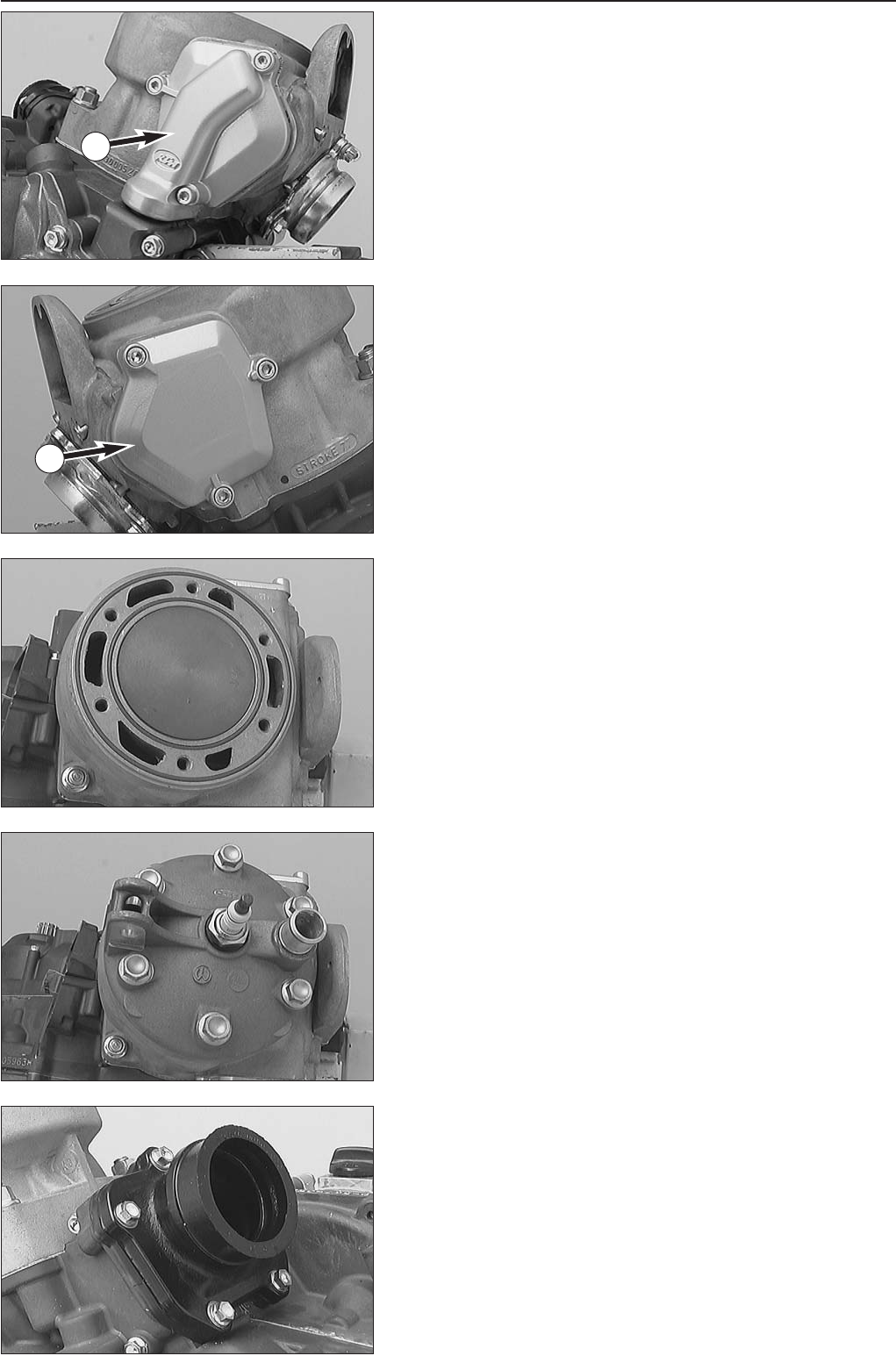

Dismounting of cylinder head, cylinder and piston

–Unscrew the 6 collar screws 5and remove cylinder head and the two

O-rings.

–Undo the screws 6and remove the left control cover together with

the gasket.

4-3C

–Undo the screws 1and remove the right control cover.

–Remove the securing clip of the ball socket 2and unhook the ball

socket 3from the adjusting lever.

–Remove gasket of the control cover.

–Remove the 4 collar nuts 4on cylinder base and remove cylinder.

–Cover the crankcase.

–Place piston on wooden jig and remove both piston pin locking pins.

–Expel piston pin from piston without exerting undue force. Use a

suitable mandrel if necessary.

–Remove piston and piston pin needle-bearing from conrod eye.

–Remove the cylinder base gaskets.

CAUTION

THE PISTON PIN MUST NEVER BE FORCED OUT WITH A PUNCH. THIS WOULD DAMAGE

THE CONROD BEARING.

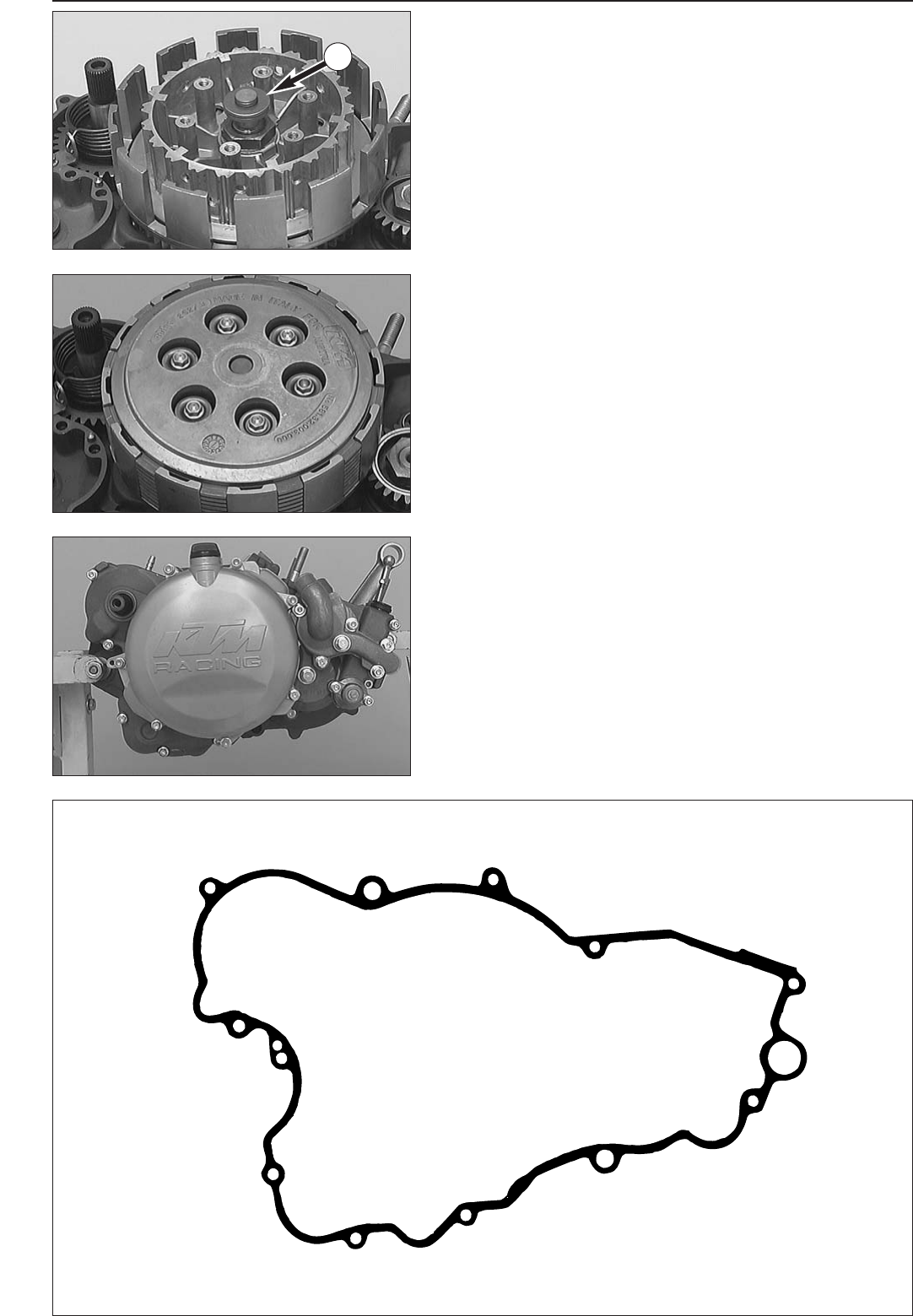

Dismounting of clutch cover

–Remove collar screws and clutch cover including gasket.

NOTE: The water pump cover 6, the outer cover 5and the cover lid 7

do not need to be removed. The water pump and the centrifugal timer

remain in the clutch cover.

4-4C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

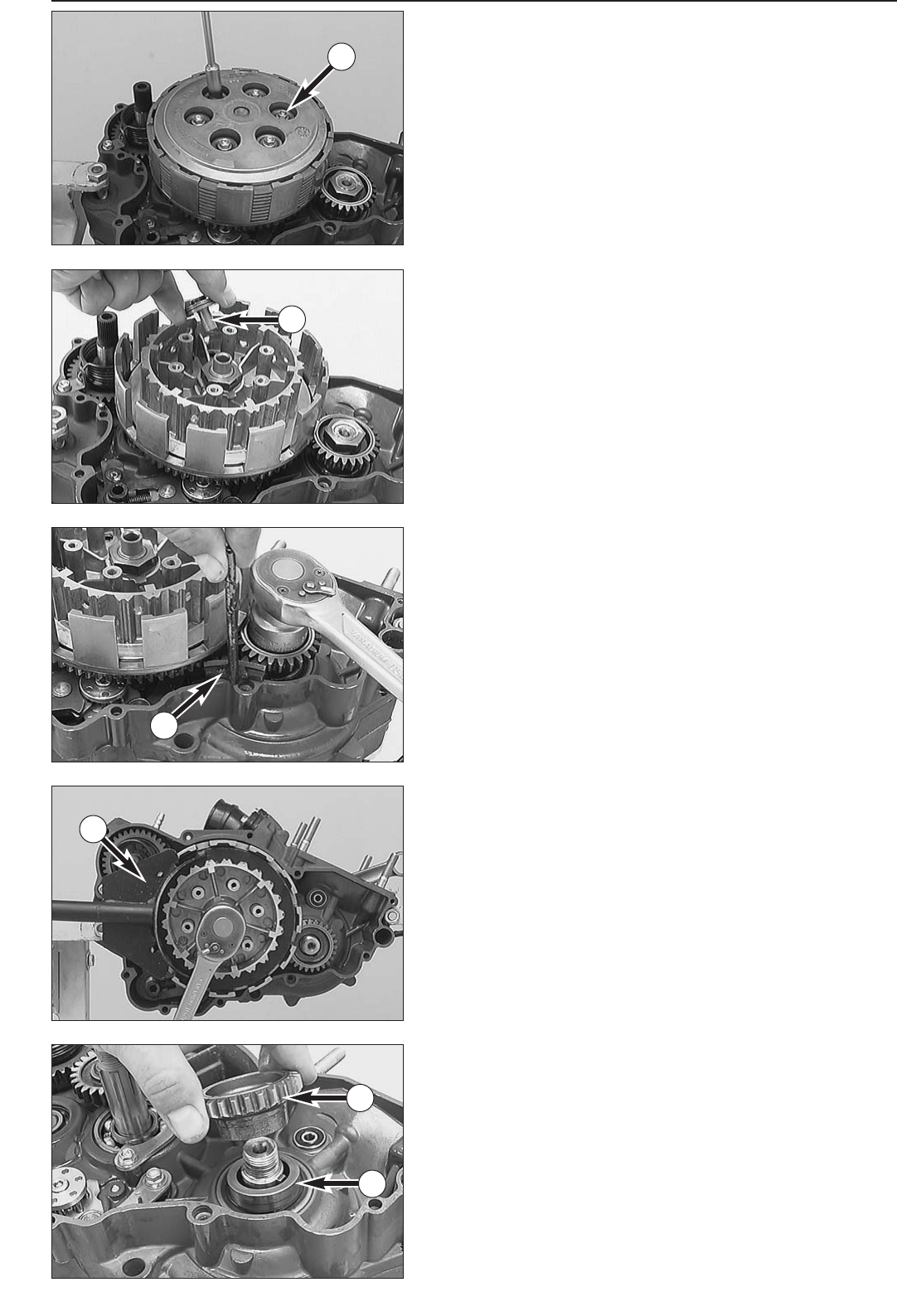

Dismounting of pressure cap and clutch discs

–Loosen collar screws 1in diagonally opposite sequence to prevent

wedging of discs as springs expand.

–Remove collar screws, springs and spring retainers.

–Take pressure cap and disc package out of outer clutch hub.

–Take thrust bearing 2off the drive shaft.

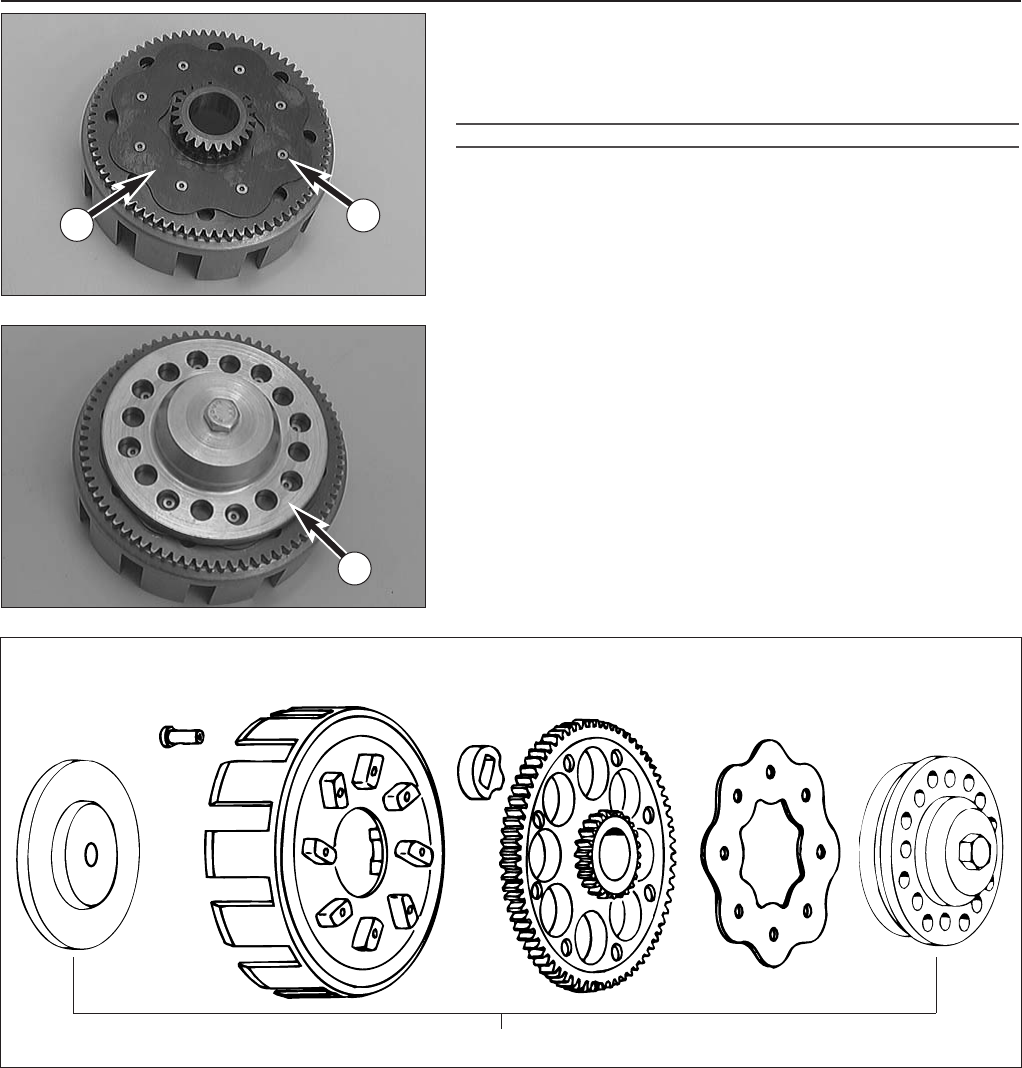

Dismounting of the primary drive

–Block the primary gear with the gear wheel segment 3(see

illustration).

–Undo the hexagon nut (LH thread) and remove it together with the

detent edged ring.

–Release the lock washer of the inner clutch hub.

–Connect clutch holder 4to inner clutch hub and loosen hexagon nut

(see illustration).

–Remove clutch holder.

–Remove inner clutch hub and outer clutch hub together with bearing

from main shaft.

–Pulling the primary gear 5and the distance bushing 6off the

crankshaft.

NOTE: The primary gear and the outer clutch hub belong together.

Always replace both together!

4-5C

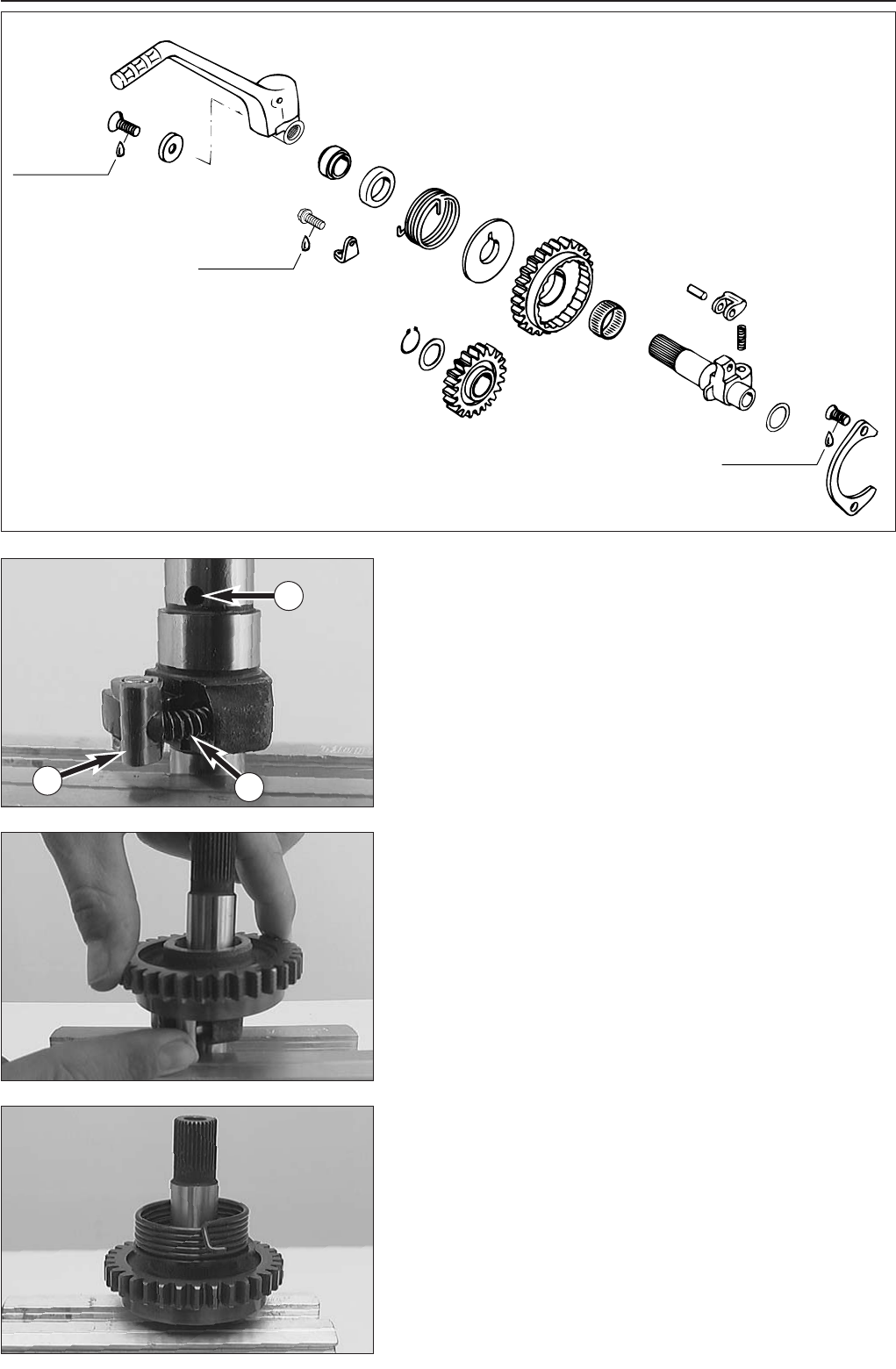

Dismounting of kickstarter

–Remove circlip 1and kickstarter intermediate gear.

–Carefully release collar screw 2kickstarter spring is tensioned, release

tension on kickstarter spring and unhook spring hanger.

CAUTION

CAREFULLY RELEASE THE KICKSTARTER SPRING! DANGER OF INJURY!

–Take the complete kickstarter shaft out of the housing.

–Take care of the stop disc, which could stay in the housing.

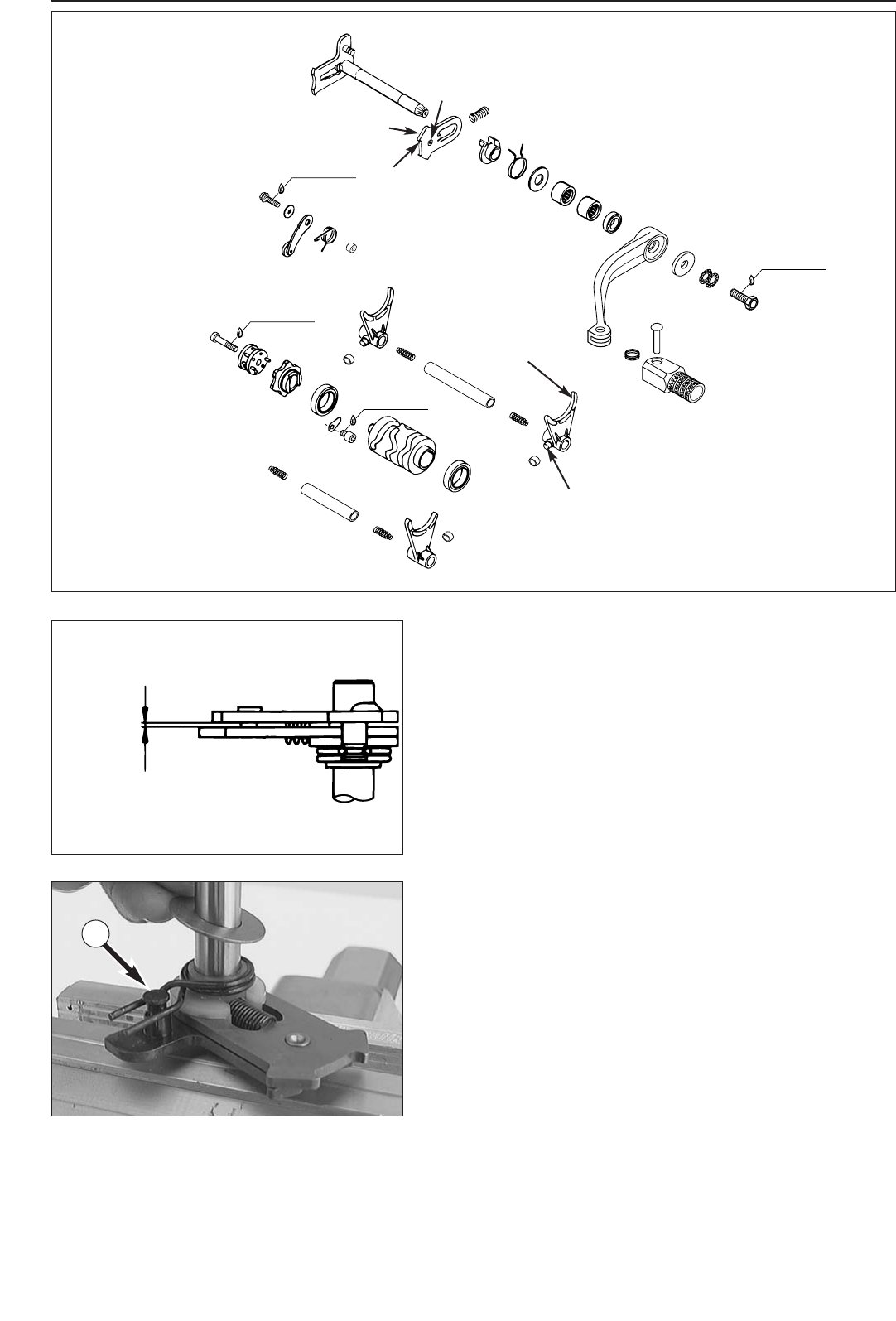

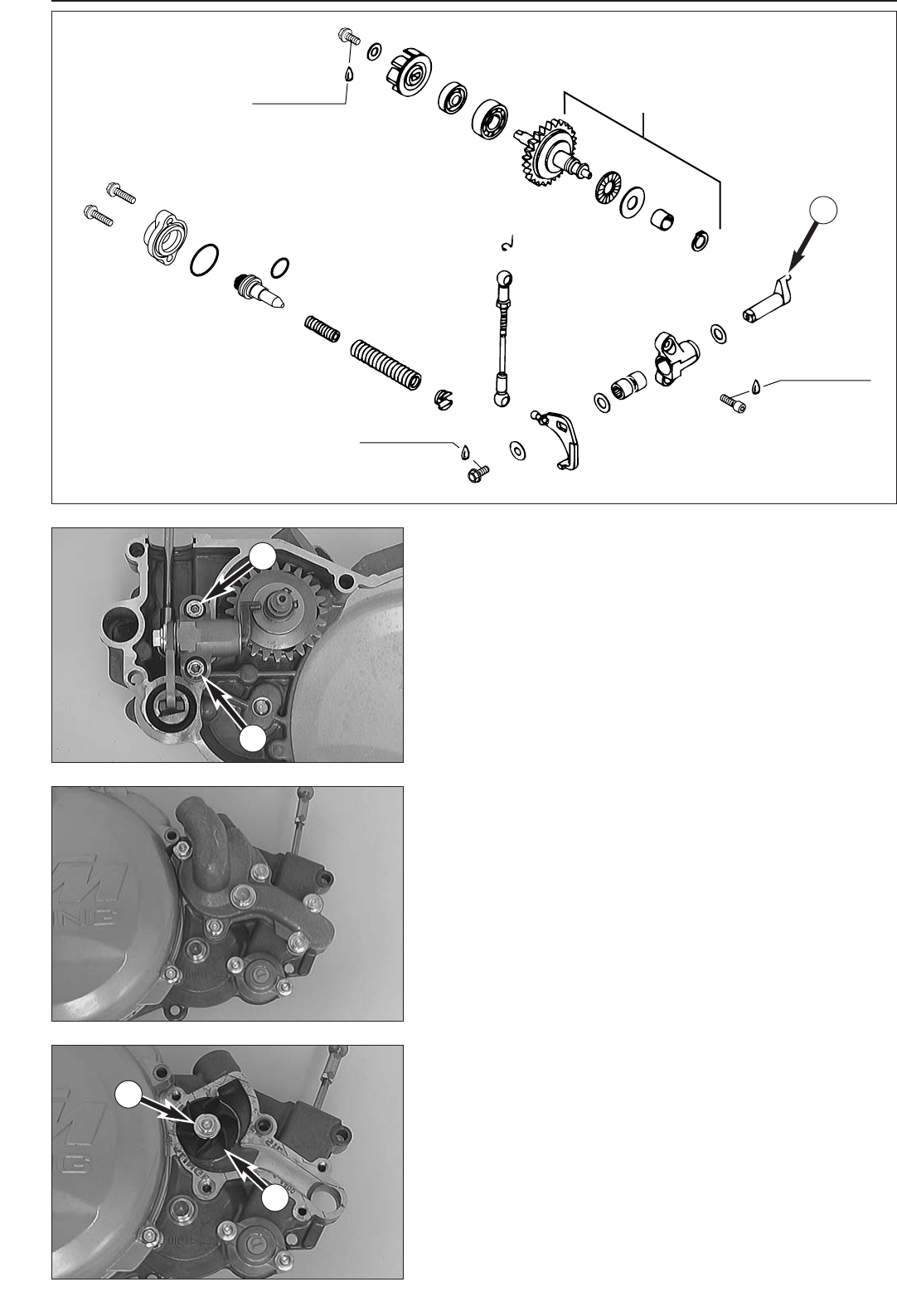

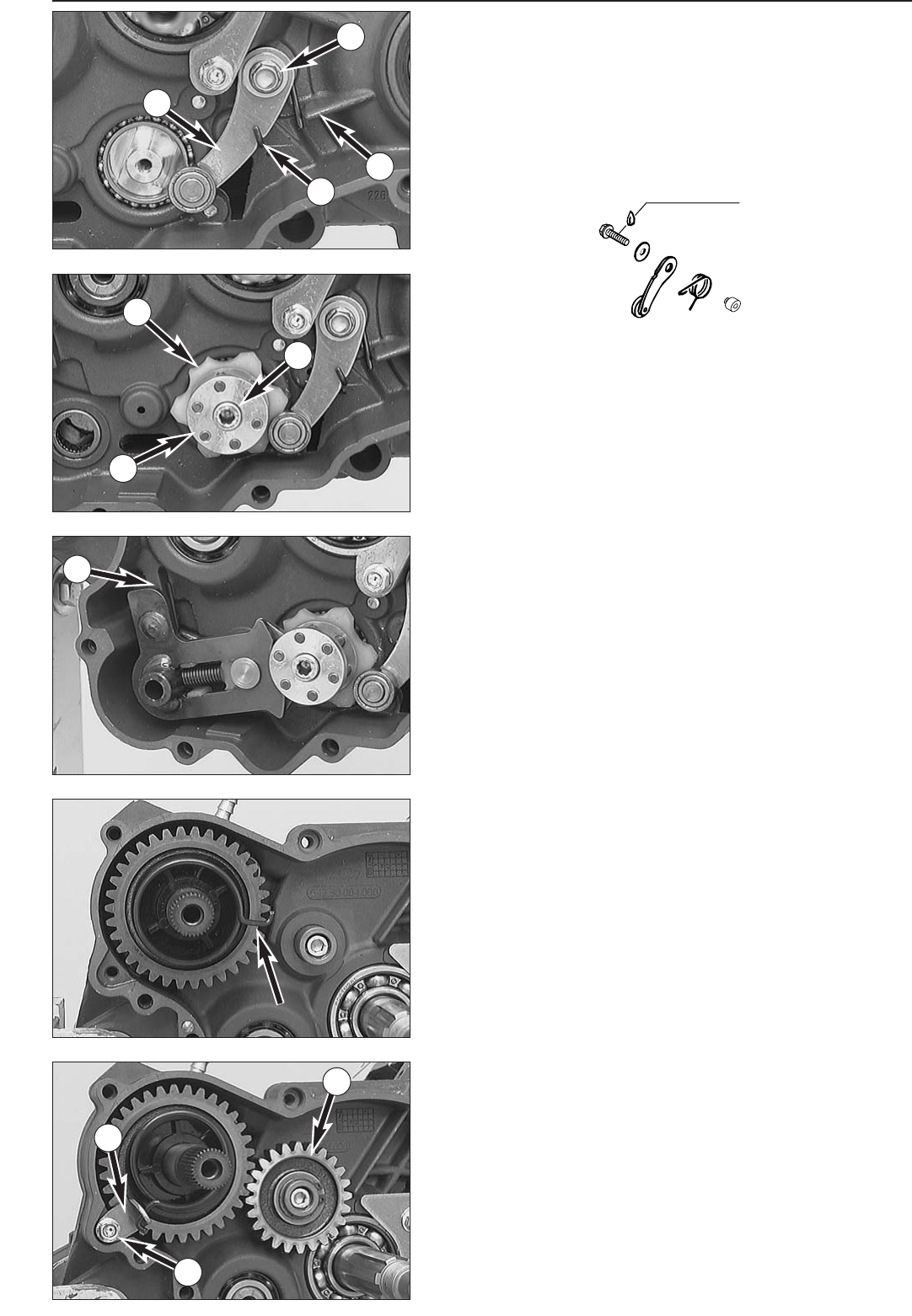

Dismounting of the shift lock

–Press the sliding plate 3back with a screw driver so it no longer

engages with the driver for the shaft roller, at the same time remove

shift shaft from the housing.

NOTE: Watch the stop disc which remains in the housing.

–Remove allan head screw 4and take driver for roller 5and locking

piece 6from the shift roller.

NOTE: From model 2002 driver for roller 5and locking piece 6 are

made of aluminium.

NOTE: Disassemble locating lever only if the engine case must be

replaced.

–Remove screw 7and locking lever with spring and bush.

Dismounting of ignition cover

–Undo the 5 screws and remove the ignition cover together with the

gasket.

4-6C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

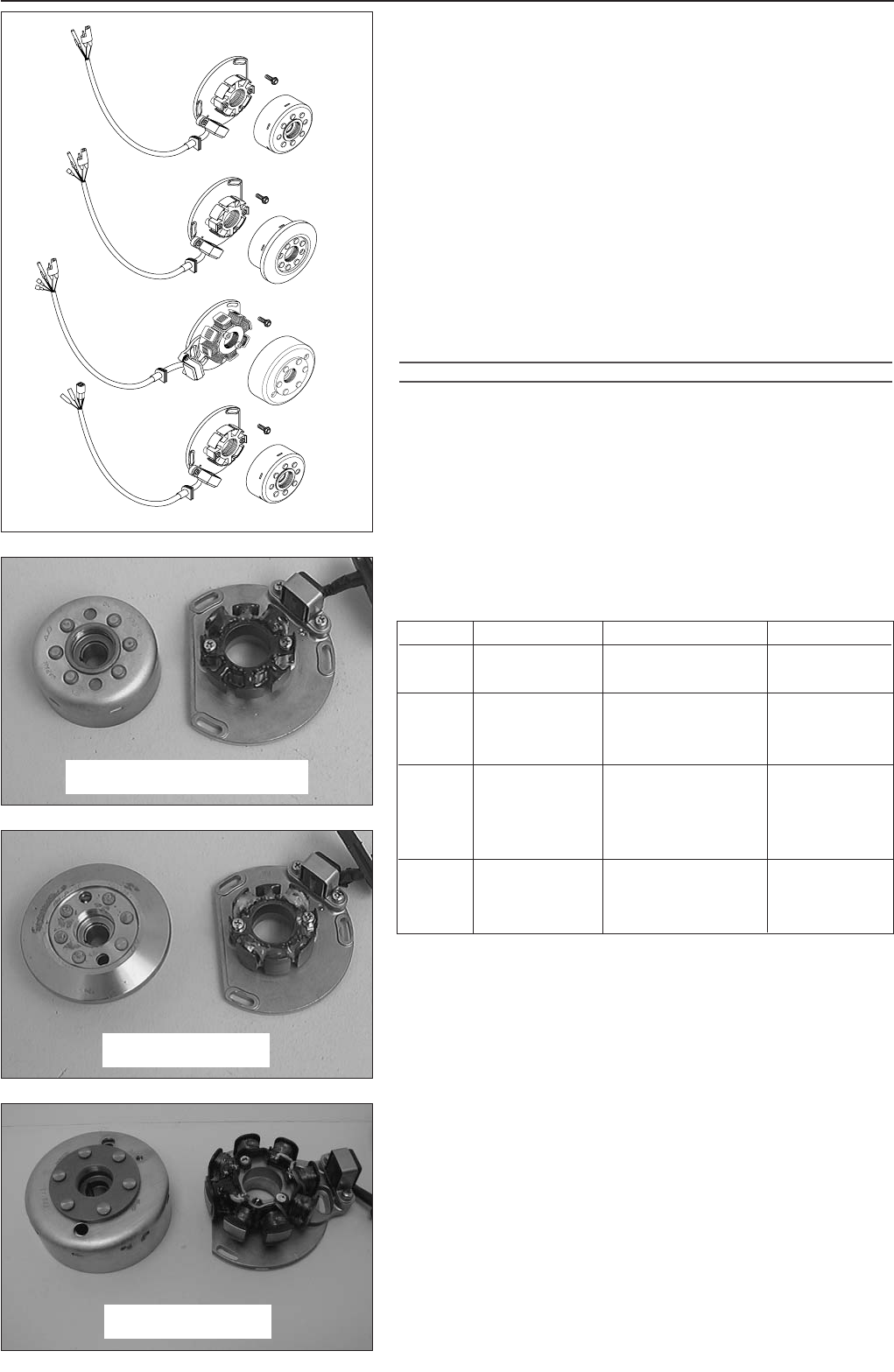

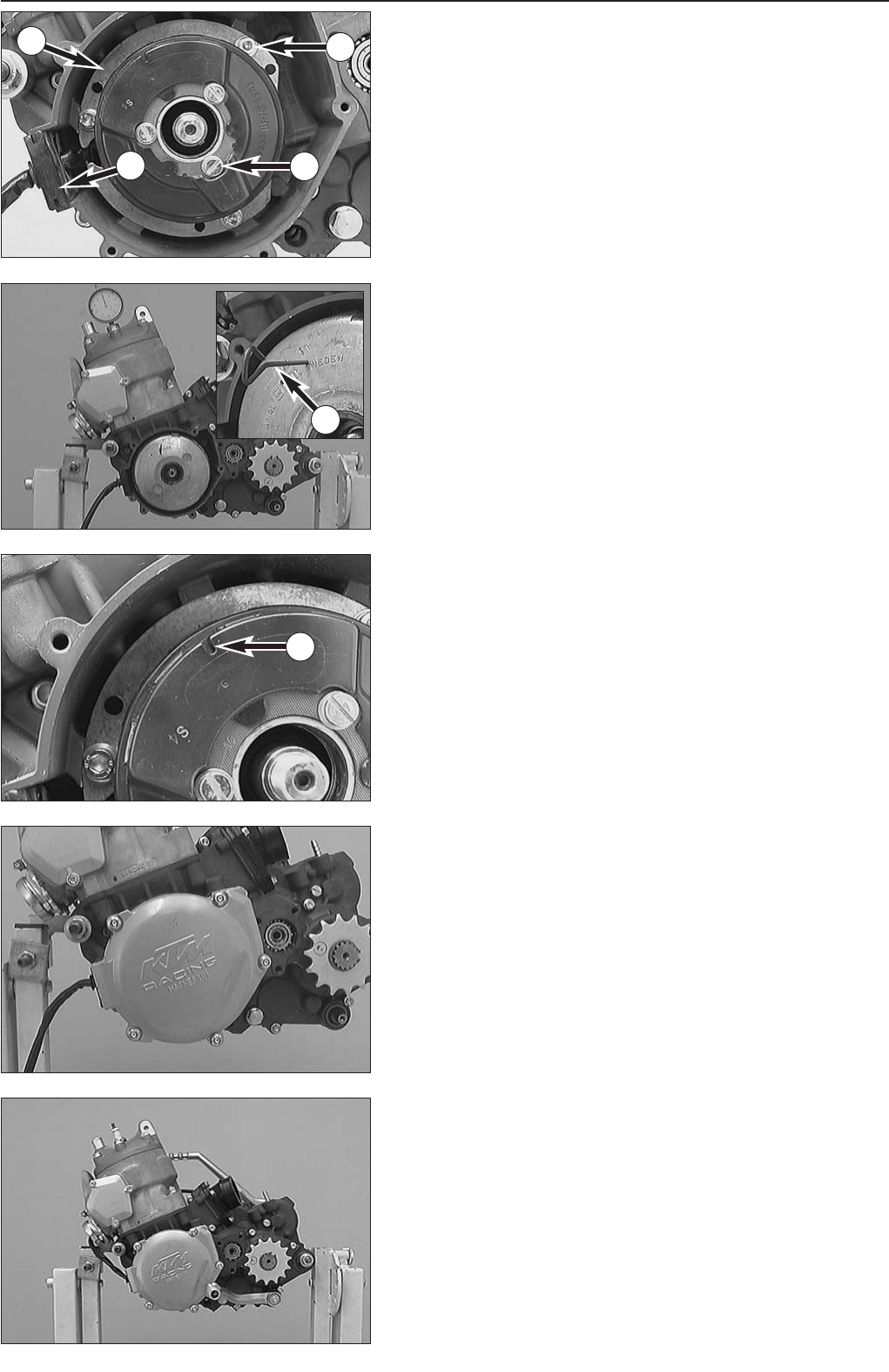

Dismounting of the ignition (Kokusan)

–Hold the flywheel with the holding spanner 1and undo the collar nut.

–Put the protection cover on the crankshaft thread, twist in the flywheel

extractor and remove the flywheel.

–Undo the 3 screws 2and remove the stator together with the base

plate.

Dismounting of the ignition (SEM)

–Hold the flywheel with the special tool and undo the collar nut.

–Place protective cap on crankshaft thread.

–Twist in the flywheel extractor and remove the flywheel.

–Loosen the 3 collar screws 3, and take base plate with stator out of

the casing.

4-7C

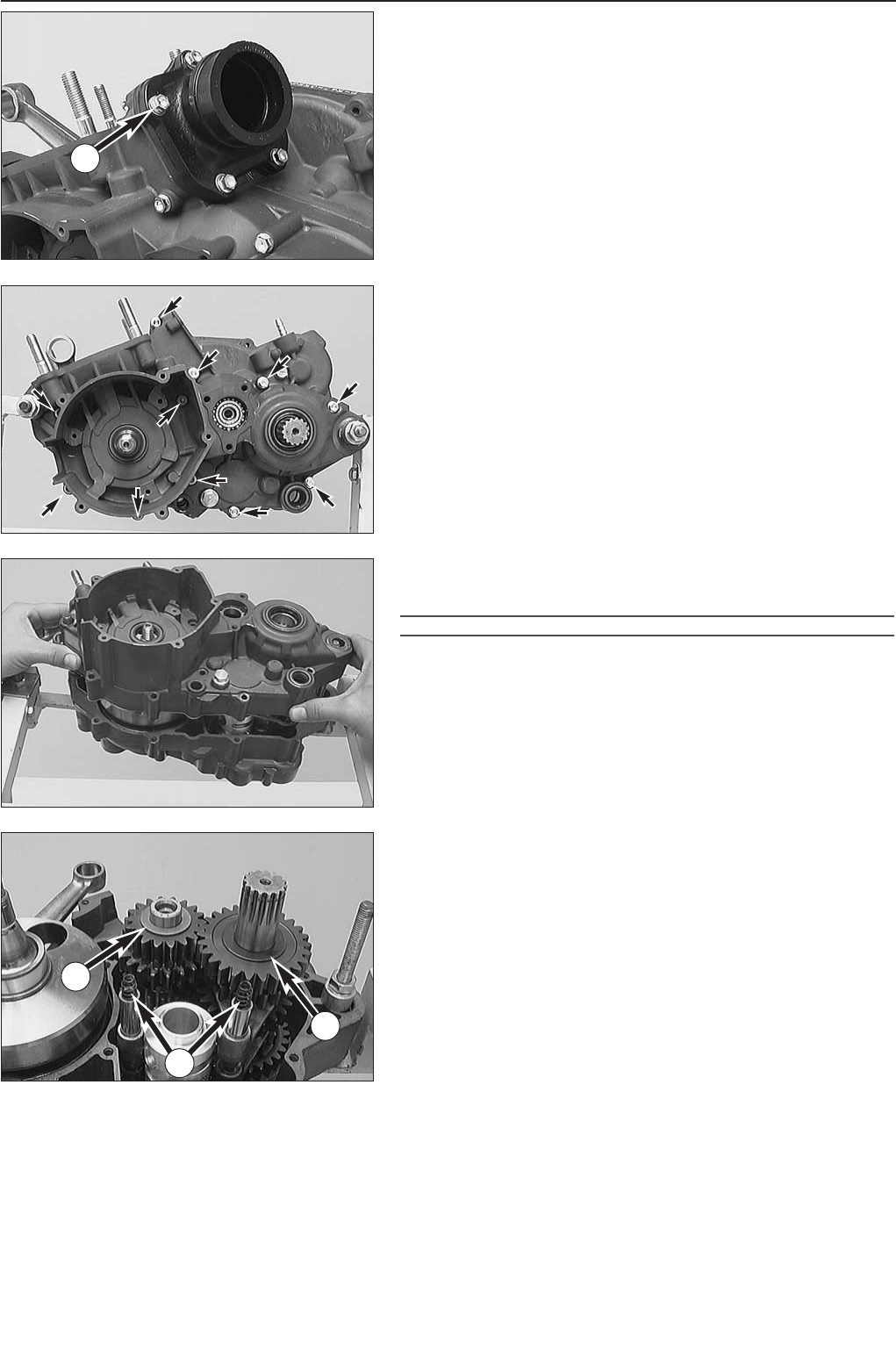

Dismounting of intake flange and reed valve housing

–Remove the 5 collar screws 1.

–Remove intake flange and reed valve housing.

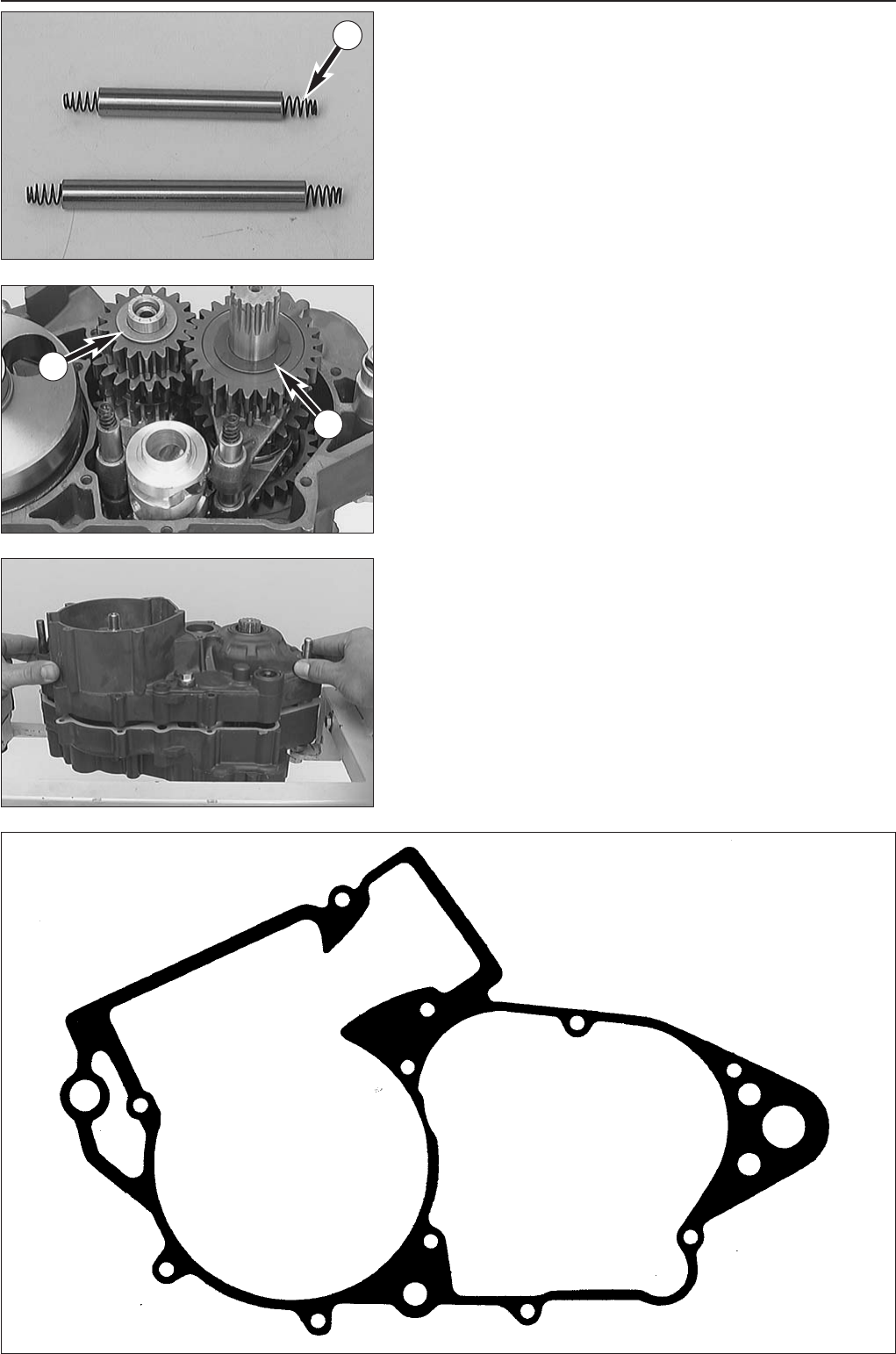

Parting of engine housing halves

–Top ignition-gear upwards and remove all 11 housing screws.

–Loosen the 2 engine fixtures on the engine work stand.

–Lift left-hand housing half with suitable tools by on the bosses

provided, or part with a few light plastic mallet blows against the

countershaft from the right-hand housing half.

CAUTION

LEVERING APART WITH A SCREW DRIVER OR SIMILAR TOOL MUST BE AVOIDED, SINCE

THE SEAL FACES ARE EASILY DAMAGED.

NOTE: Watch gear shaft stop discs 2to prevent them sticking to inside

of housing.

Dismounting of gearshift mechanism and transmission

–Take the two stop discs 2off the transmission shafts.

–Pull the 2 pressure springs 3out of the shift rails.

4-8C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

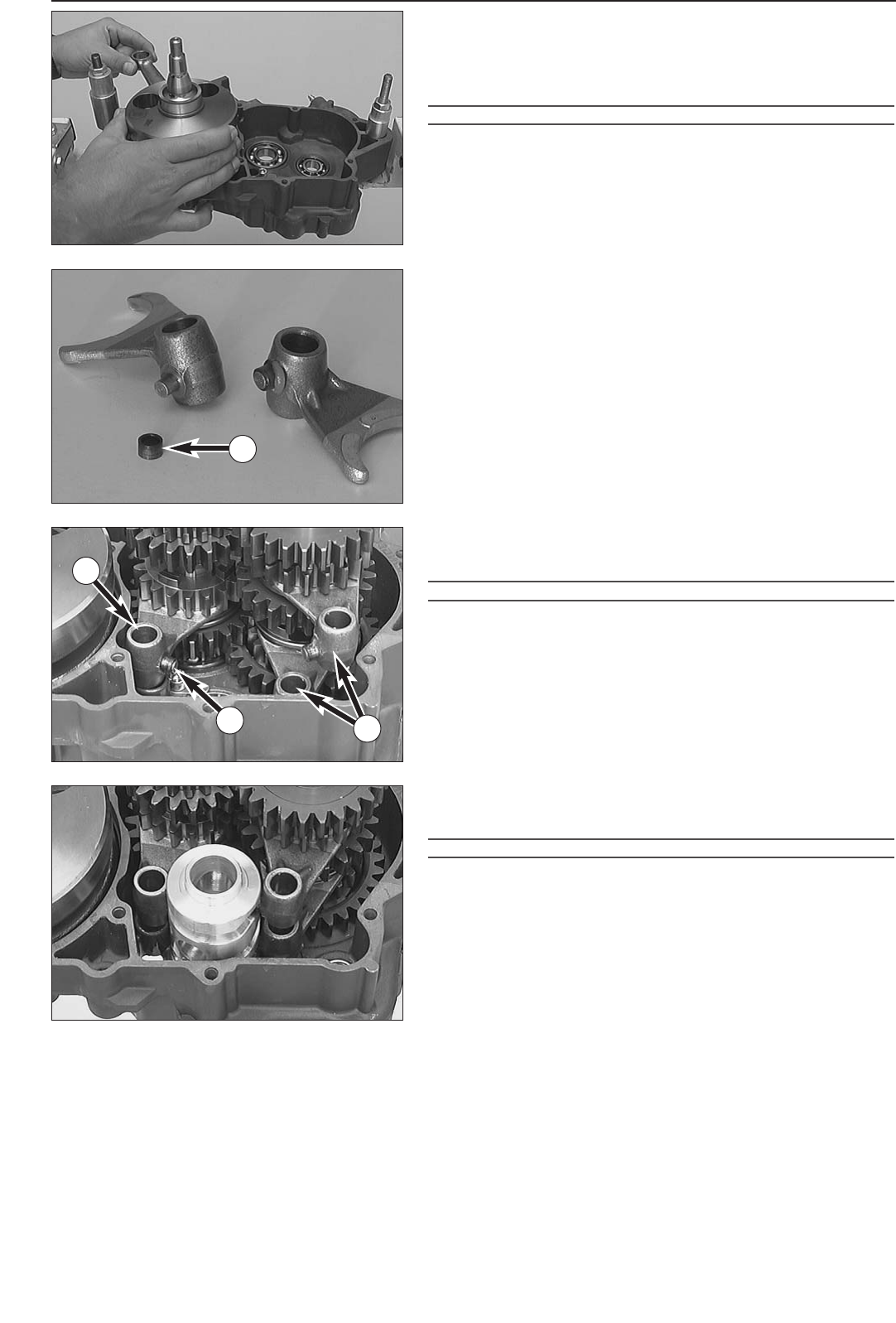

–Pull out the shift rails and swing the shift forks aside.

–Pull the shift roller out of the bearing seat.

–Remove the shift forks.

NOTE: During disassembly, watch out for the shift rollers 1on the

driving pins of the shift forks. They may remain in the shift roller.

Although the counter shaft shift forks are identical they should be refitted

in the same position as before if reused. Therefore mark accordingly upon

removal.

–Remove the 2 pressure springs 2from the engine case.

–Pull the drive shaft together with the countershaft out of the bearing

seats.

–Remove 1st-gear idler gear 3with needle cage and the two stop discs

from the engine case.

Dismounting the crankshaft

–Pull crankshaft from the bearing seat (if necessary, use a plastic

hammer and tap carefully on the crankshaft journal).

–Remove O-ring from crankshaft.

–Clean all parts and check for wear, replace if necessary.

NOTE: When an engine is completely overhauled it is recommended that

all gaskets, shaft seal rings and O-rings are renewed.

Repair manual 250 / 300 / 380 Art No 3206004 -E

SERVICING ON INDIVIDUAL COMPONENTS

WORKING ON THE RIGHT-HAND HOUSING HALF . . . . . . . . . . . . . .5-2

WORKING ON THE LEFT-HAND HOUSING HALF . . . . . . . . . . . . . . . .5-3

CRANKSHAFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

CRANKSHAFT WEBS – MEASURE OUTER DIMENSION . . . . . . . . . . . .5-4

PISTON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

PISTON RING END GAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

CHECKING CYLINDER FOR WEAR . . . . . . . . . . . . . . . . . . . . . . . . . .5-5

RECOATED CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5

NIKASIL COATING OF CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5

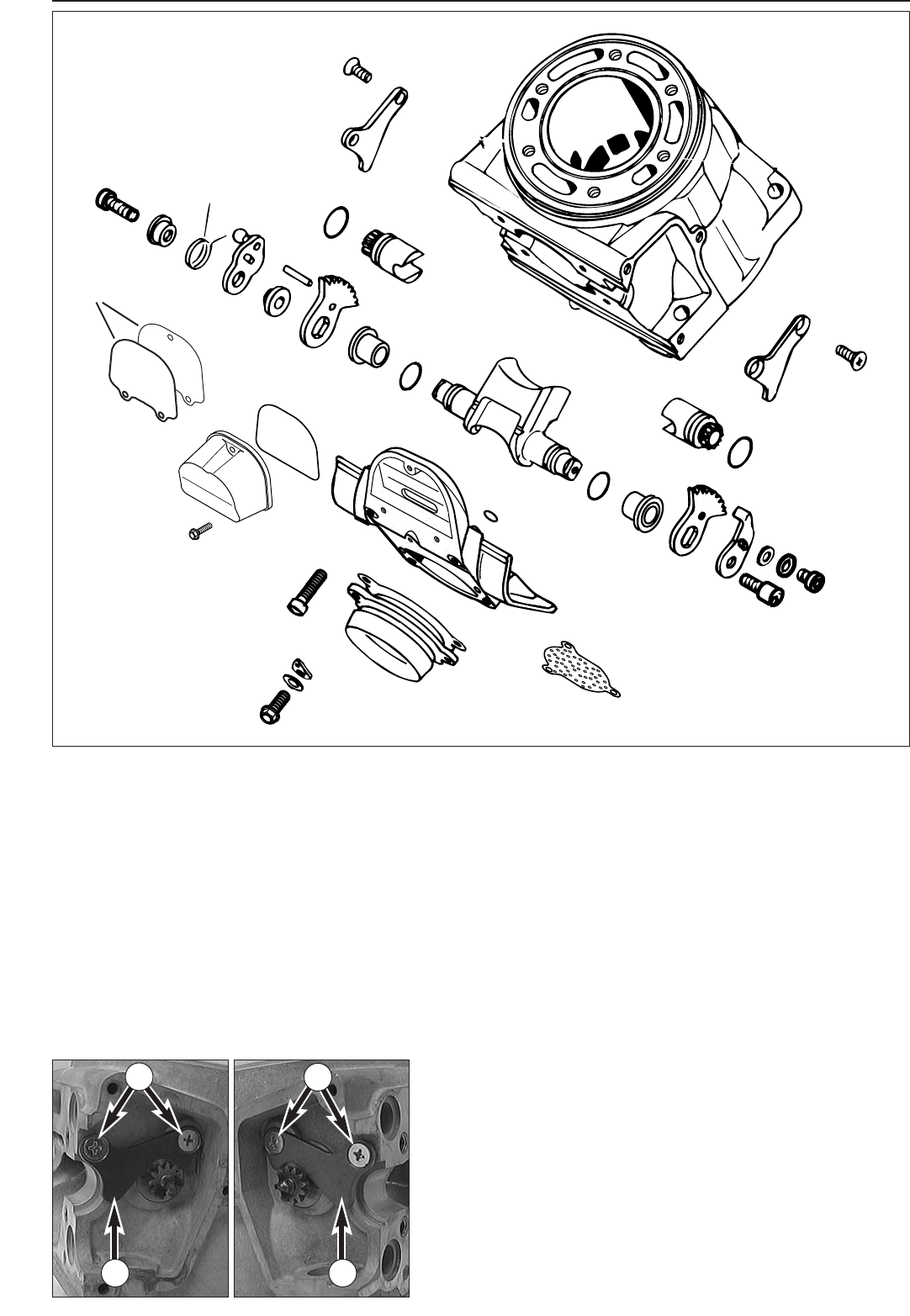

CYLINDER EXHAUST CONTROL SYSTEM . . . . . . . . . . . . . . . . . . . . .5-6

CYLINDER PREASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

EXHAUST CONTROL, CLUTCH COVER . . . . . . . . . . . . . . . . . . . . . . .5-8

PREASSEMBLY OF CLUTCH COVER . . . . . . . . . . . . . . . . . . . . . . . . .5-8

REED VALVE HOUSING, INTAKE FLANGE . . . . . . . . . . . . . . . . . . . . .5-9

CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-10

REPLACE OUTER CLUTCH HUB . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11

SHIFT MECHANISM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-12

PREASSEMBLY OF SHIFT SHAFT . . . . . . . . . . . . . . . . . . . . . . . . . . .5-12

IGNITION (KOKUSAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-13

SPARK PLUG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-13

CHECK STATOR AND PULSE GENERATOR (KOKUSAN) . . . . . . . . . . .5-13

IGNITION (SEM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-14

CHECK STATOR (SEM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-14

TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-15

ASSEMBLY MAINSHAFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-15

ASSEMBLY COUNTERSHAFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-16

KICKSTARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-17

ASSEMBLE OF KICKSTARTER SHAFT . . . . . . . . . . . . . . . . . . . . . . . .5-17

INDEX

5-1C

Engine housing

NOTE: Read through the following section before commencing work. Then determine the assembly sequence so that the engine

housing halves only need to be heated up once before replacing the bearings.

Having first removed the dowels, in order to expel the bearings or remove them with light mallet blows, the housing halves must be

placed on a suitably large plane surface, supporting the whole of the sealing surface without damaging it. A wooden panel is best

used as a base.

Bearings or shaft seal rings should not be hammered into their seats. If no suitable press is available, use a suitable mandrel and

hammer them in with great care. Cold bearings will practically drop into their seats at an engine housing temperature of approx.

150° C.

After cooling, should the bearings fail to lock in the bore, they are bound to rotate after warming. In that event the housing must

be replaced.

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

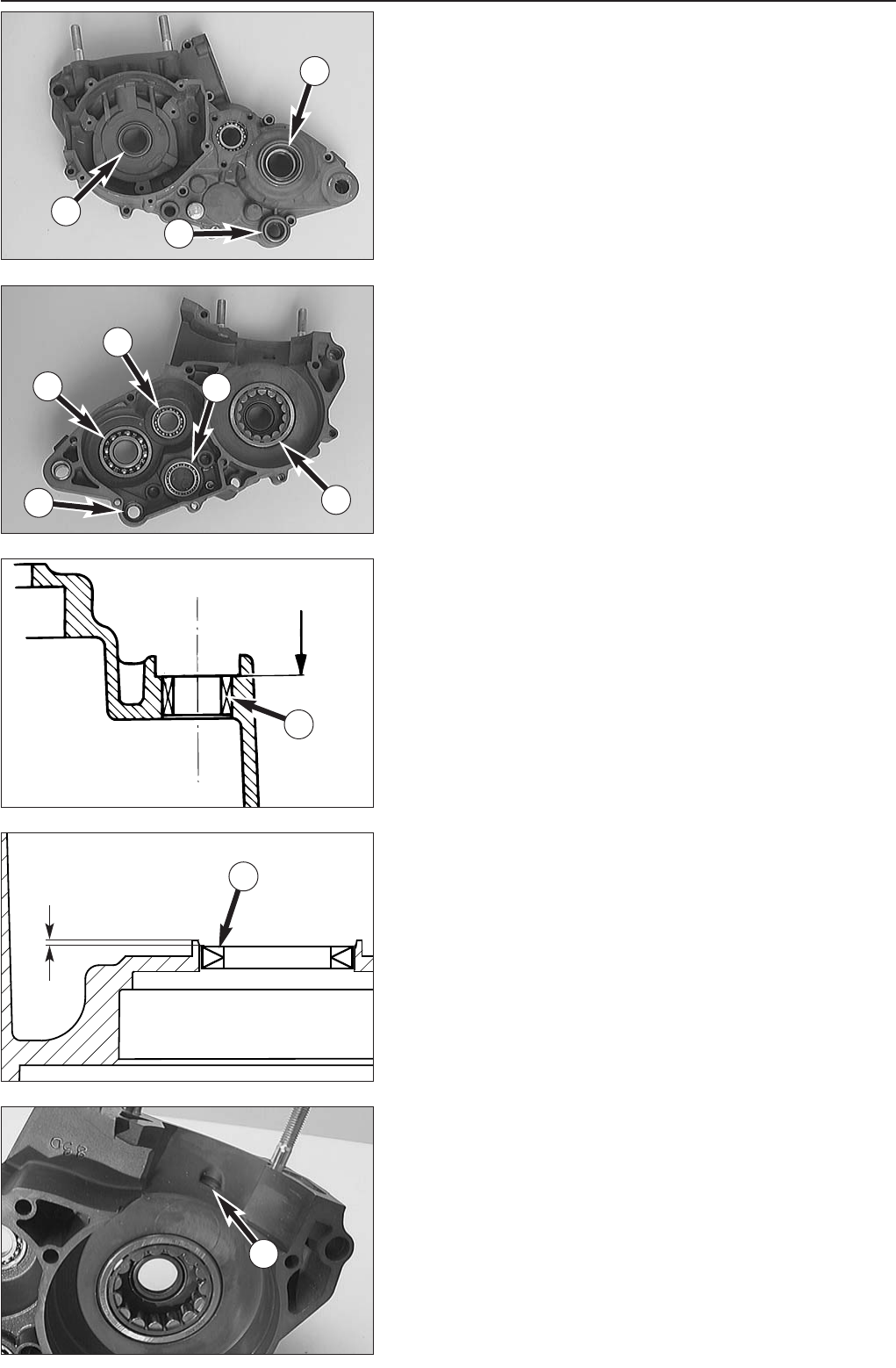

Working on the right-hand housing half

–Remove all shaft seal rings and use an oven to heat the casing half to

approx. 150°C.

Grooved ball bearing of crankshaft 1

Press old grooved ball-bearing inwards. Press in new ball bearing to the

stop. The open side of the ball cage must be towards the bottom

(outside) of the case.

Grooved ball bearing of main shaft 2

Press in new ball bearing from inside up to the stop.

CAUTION

DONOT USE FORCE WHEN PRESSING THE GROOVED BALL BEARING AGAINST THE

RETAINING BRACKET 3TO AVOID A BENDING OF THE BRACKET, WHICH WOULD RESULT

IN EXCESSIVE AXIAL PLAY OF THE MAINSHAFT.

Grooved ball bearing of countershaft 4

Press in new grooved ball bearing from downward to the stop. The open

side of the ball cage must be face inwards.

Grooved ball bearing of the shift roller 5

Remove retaining screws Aand press bearing inwards. Press in new ball

bearing from inside to the stop and secure retaining screws with Loctite

243.

Needle bushing of the shift shaft 6

Press old needle bushing inwards, press in new needle bushing flush from

the outside.

Grooved ball bearing of centrifugal timer 7

The bearings usually fall out of their seat of their own accord by knocking

the housinq half on a plane piece of wood when the housing has a

temperature of 150° C. If necessary use a 6 mm internal bearing extractor

and guide hammer (see illustration). Press in new grooved ball bearing to

the stop.

Bearing bolt kickstarter intermediate gear 8

Experience has shown that it is never necessary to replace the bearing

bolt. It is not recommended to mount a used bearing bolt in a new

housing half, as it is practically impossible to remove it without causing

damage.

Kickstarter release plate 9

When replacing the release plate, secure the flat-head screws with Loctite

243.

Crankshaft seal ring bk

Press in new shaft seal ring from the outside, with sealing lip facing

inward, until flush.

Stop screw kickstarter bl

When mounting the stop screw, it must be secured with Loctite 243. Do

not forget new copper seal ring.

Retaining bracket 3

When replacing the retaining bracket, the two collar screws are to be

secured with Loctite 243.

–Finally check clear passage of the crankshaft ball bearing lubrication

bore S.

5-2C

Working on the left-hand housing half

–Remove all shaft seal rings and use an oven to heat the casing half to

approx. 150°C.

Crankshaft roller bearing 1

Press old roller bearing inwards, press in new ball bearing to the stop with

the open side of ball cage downwards (outside). The inner ring on the

crankshaft must also be renewed (see paragraph about crankshaft).

Needle bearing of drive shaft 2

Press old grooved ball bearing inward, press new grooved ball bearing

from the inside up to the stop.

Grooved ball bearing of countershaft 3

Press old ball bearing inwards, press in new ball bearing to the stop from

inside.

Grooved ball bearing of shift roller 4

Ball bearing falls out of its seat of its own accord when housing half has

been heated to approx. 150° C.

If necessary, knock housing half on a plane piece of wood. Press in new

grooved ball bearing to the stop.

Needle bushing of shift shaft 5

Remove shaft seal ring and press old needle bushing inwards. Press in

new needle bushing from the outside to the collar D.

Crankshaft seal ring 6

Press in new crankshaft seal ring from the outside, with sealing lip facing

inwards. The seal ring is 1 mm (0.04 in) lower than the upper edge ot the

collar (see sketch).

Counter shaft seal ring 7

Press in the new shaft seal ring, until it is flush with machined surface.

Shift shaft seal ring 8

Press in the new shaft seal ring, until it is flush with machined surface.

When housing half has cooled off, check to see that the bearings are

tight.

–Finally check clear passage of the crankshaft roller bearing lubrication

bore S.

5-3C

1 mm (0.04 in.)

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

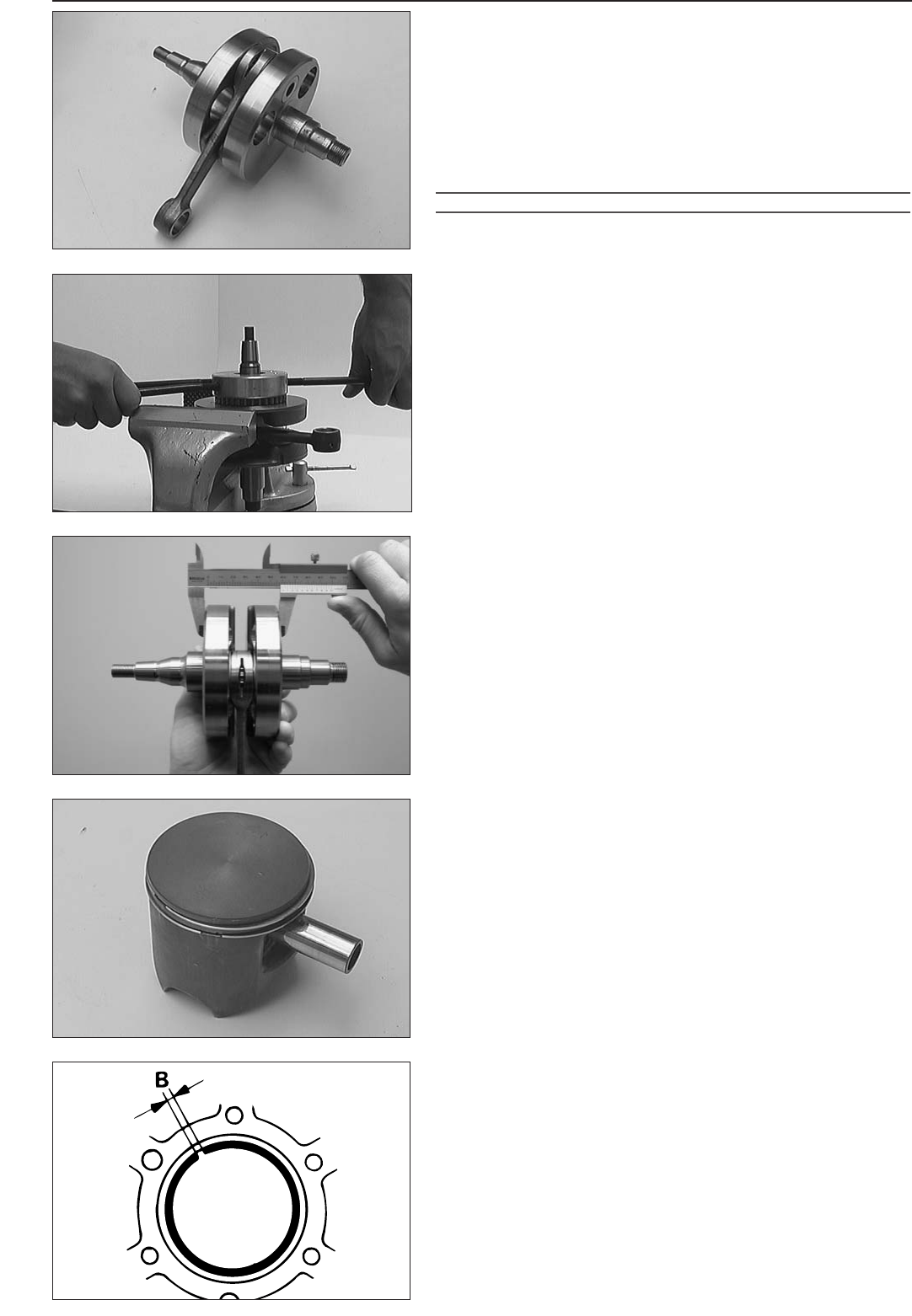

Crankshaft

–When replacing the roller bearing, the inner crankshaft ring must also

be renewed.

–Heat special tool 584.29.037.040 on a heating pad up to approx.

150°C and slip it on the inner ring immediately. Press the special tool

together tightly so as to obtain a good heat transfer and pull the inner

ring off the crankshaft.

–To mount the new inner ring, heat the special tool again to approx.

150°C, engage the inner ring and slip it on the crankshaft journal

immediately.

CAUTION

NEVER CLAMP THE CRANKSHAFT WITH A STUD OR WEB IN THE VICE, AND NEVER TRY

TO KNOCK THE BEARING INNER RING FREE. THE CRANKSHAFT WEBS MAY BE

COMPRESSED AND THE CONROD PLUG AND BEARING MAY BE DAMAGES, THEREBY

MAKING THE CRANKSHAFT UNUSABLE.

NOTE: Distance adjustment of the main bearings is not requested.

Crankshaft webs – measure outer dimension

Crankshaft webs – measure outer dimension with a sliding caliper as

illustrated.

Crankshaft webs – outer dimension = 60 mm ± 0.05 mm

Piston

If a used piston is to remain in service then the following should be

checked:

1. Piston running surface: Check for pressure marks (seizing marks) minor

friction marks can be removed with a fine abrasive stick.

2. Piston ring grooves: The piston rings must not get jammed in the

grooves. For cleaning the grooves, use an old piston ring or abrasive

paper (grain size 400).

3. The piston ring locating pins must be firmly seated in the piston and

must not be worn out.

4. Check piston rings for wear and check end gap.

Piston ring end gap

–Insert piston ring into the cylinder and adjust. Piston ring must be

approx. 10 mm (1/2 inch) from top of cylinder.

–The end gap Bcan now be checked with a feeler gauge.

Piston ring end gap: max. 0.40 mm (0.015 in)

NOTE: If the end gap is greater check piston and cylinder for wear. If

piston and cylinder wear are within the permitted tolerance limits, replace

the piston ring.

5-4C

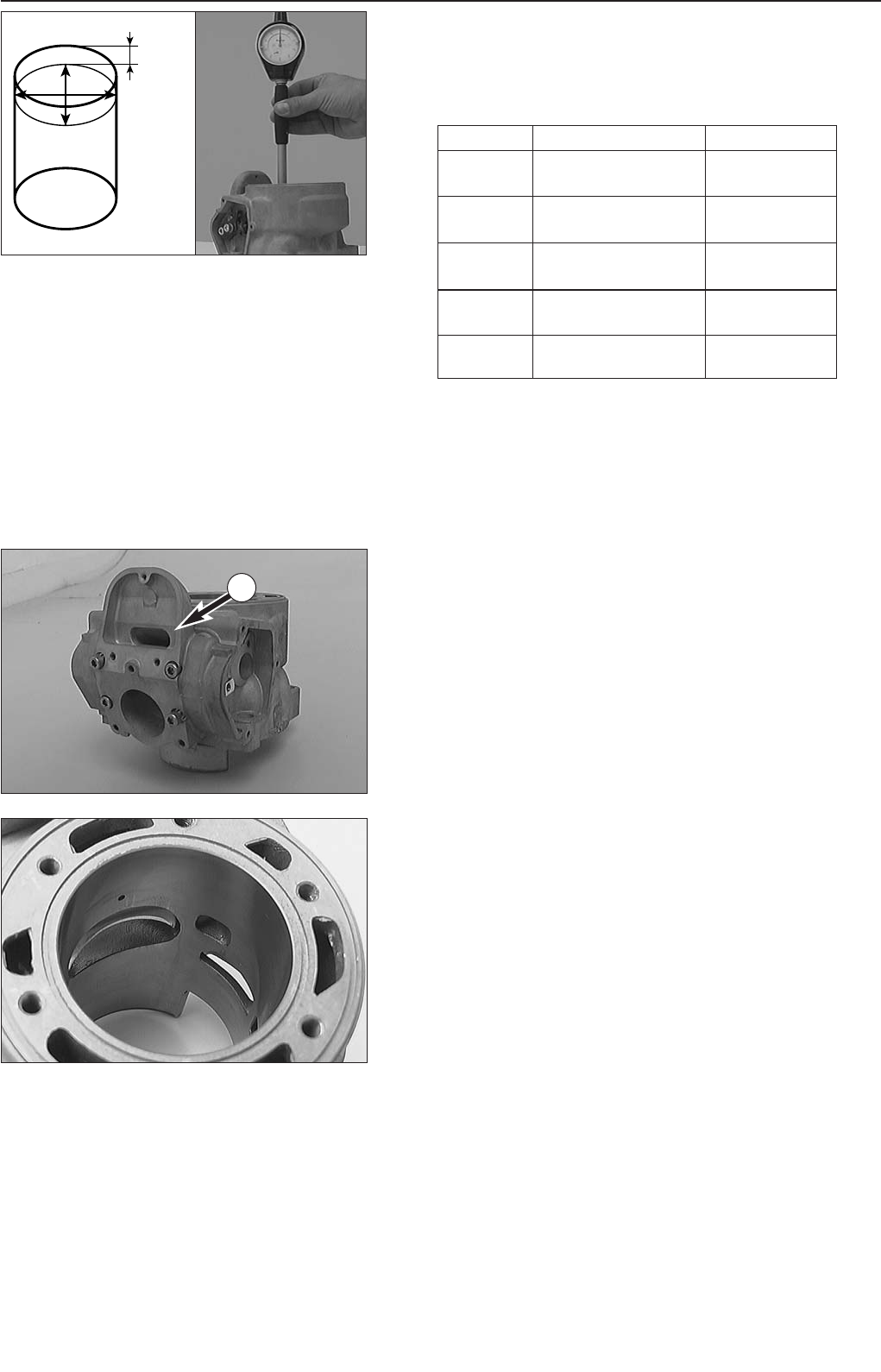

Checking cylinder for wear

Measure diameter of cylinder approx. 10 mm (0.4 in.) below top of

cylinder edge. Check diameter in several corresponding places to see if

cylinder in worn oval.

Recoated cylinder

NOTE: If the cylinder diameter is larger than e.g. 66.360 mm the cylinder

must be regenerated or replaced.

For reconditioning of the old cylinder all exhaust control components

must be removed. The intermediate flange 1remains with the cylinder.

The piston size is stamped into the bottom of the piston.

Nikasil coating of cylinder

Nikasil is the brand name for a cylinder coating process, developed by the

piston manufacturer Mahle. The name is derived from the two materials

used in this process - a nickel layer into which the particularly hard silicon

carbide is inbedded.

The main advantages of the Nikasil coating are:

●excellent heat dissipation and thus better power output

●low wear

●low weight of the cylinder.

NOTE: The worn coating can be regenerated at low cost provided that

the cylinders running surface is flawless.

5-5C

10mm

Engine Cylinder Ø Piston size

250 67,500 - 67,512 1

67,513 - 67,525 2

300 72,000 - 72,012 1

72,013 - 72,025 2

380 78,000 - 78,012 1

78,013 - 78,025 2

250 66,340 - 66,350 1

starting with the 2000 mod

66,351 - 66,360 2

300 71,940 - 71,950 1

starting with the 2000 mod

71,951 - 71,960 2

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Cylinder exhaust control system

Dismantle and clean all exhaust control components, check for signs of wear and damage.

Control rollers 1– Check clearance of bearings. Remove oil-derived deposits.

Check toothing of control rollers for signs of wear.

Gear segments 2– Check toothing of gear segments and control rollers for signs of wear.

Bearing sleeves 3– Check bearing sleeves of the control flap for play and easy operation.

Control flap 4– Clean the control flap. The control flap must not graze inside the exhaust port.

Silicon O-rings 5, 8+ 9– Check silicon O-rings of control flap and control rollers for signs of wear. Renew if necessary.

5-6C

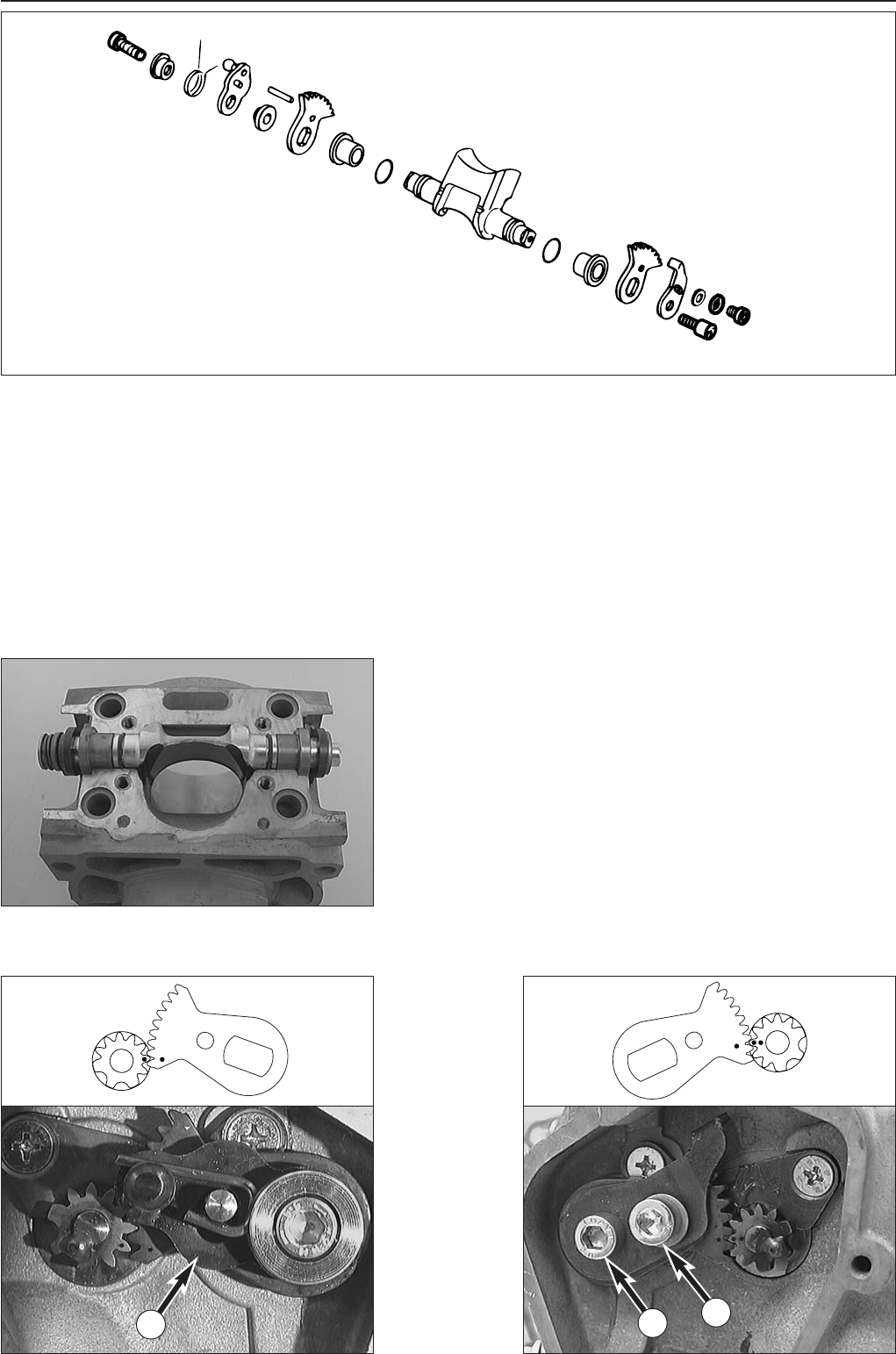

Cylinder preassembly

–Mount silicon O-rings (16x2 mm) 5on control rollers and grease.

–Place control rollers 1in cylinder and mount retaining brackets 6;

secure flat-head screws 7with Loctite 243.

6 6

only 250

–Place preassembled control flap in cylinder, engage gear segments in

control rollers in such a manner that, when the control flap is ,open

(pivoted right to the top), the markings of the gear segments and the

gear rollers coincide. Please check that the two control rollers do not

block the cross-section of the port when the control flap is open.

–Coat sealing surface thinly with silicon and mount intermediate flange

bs with 4 O-rings (11,3x2,4 mm).

–Mount exhaust flange bt and spring hangers. If you are dealing with

a throttled version, do not forget the exhaust throttle.

–Finally check smooth running of exhaust control system.

NOTE: It must be possible to push adjusting lever bl further upwards

against the spring force.

5-7C

16 17

–Mount and grease silicon O-rings (15x1,50 mm) 9on control flap and grease.

–Slightly grease the bearing sleeves 3and plug them on the control flap.

–Mount toothed segments 2(the toothed segment with the cylindrical pin has to be mounted on the right side).

–On the right-hand side, mount bearing bushing bk with collar outside, adjusting lever bl with ball head on outside, overload

spring bm with short leg on outside and spring sleeve bn to control flap.

–Coat allan head screw bo with Loctite 243 and screw up about 5 revolutions, hook the short leg of the overload spring on to the

cylinder pin (see illustration) and tighten the allan head screw.

–On the left side, mount the stop plate 8. Apply Loctite 243 to the threads of the two screws bq + br, and mount them.

–Turn control rollers 1in cylinder in such a way that ports are completely open and no edges protrude.

14 13 12 11 10 239

932816

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Exhaust control, clutch cover

–Remove screws 1and take off the bearing support.

–Take cup tappet 2, adjusting spring 3and auxiliary spring 4out of

clutch cover.

–Take off water pump cover, remove allen head screw 6and take off

water pump wheel 7.

–The centrifugal timer 8can be pulled out of the bearing.

–Clean all parts and check for signs of wear.

Check play and easy operatability of the adjusting lever in the bearing 9.

Check pin Aof adjusting lever for wear.

Check linkage ball heads bk for clearance.

Remove circlip bl and check axial bearings bm and washers for signs of

wear.

If the water pump shaft seal ring bn is replaced, it should be coated with

Loctite 243 on the outside.

Check grooved ball bearing bo for clearance.

Preassembly of clutch cover

–Grease water pump shaft seal ring bn and mount centrifugal timer 8.

–Fit adjusting spring 3, auxiliary spring 4and cup tappet 2 in the

clutch cover.

–Fit bearing support with control lever and linkage. Secure both screws

1with Loctite 243.

–Mount water pump wheel 7, coat screw 6with Loctite 243 and

mount with washer.

–Mount dowels of the water pump cover.

–Position gasket and fix water pump cover with 5 collar screws. The

two screws mounted at the dowels must each be provided with one

copper gasket.

5-8C

LOCTITE 243

310

Reed valve housing, intake flange

NOTE: Reed paddles 1gradually lose tension through operation,

resulting in power loss. Damaged or worn reed paddles must be replaced.

If the reed sealing surfaces 2of the reed valve housing are also

damaged, replace the complete reed valve housing.

CAUTION

SECURE ALL SCREWS OF THE REED VALVE HOUSING WITH LOCTITE 243.

Velocity insert 3

Check for firm mounting and for signs of damage.

Intake flange 4

Check for cracks and other signs of damage.

5-9C

LOCTITE 243

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Clutch

Thrust bearing 1check for wear

Push rod 2Check for wear. Minimum length: 199 mm (new: 199.80 mm)

Clutch springs 3

New spring length 42,5 mm / 1.7 in (new 43 mm / 1.73 in). Replace all 6 springs if applicable.

9 Lining discs 4

Minimum thickness 2.60 mm (0.102 in) / new disc 2.70 mm (0.106 in). Discs must be plane; there must be minimum spacing of

13.50 mm (0.531 in) between starting surfaces.

8 Steel discs 5

Must be plane, check for mechanical damage.

Inner clutch hub 6

Check contact surfaces of steel discs on the inner clutch hub, maximum 0.50 mm (0.02 in) indentations.

Pressure cap 7

Check contact surfaces Abetween lining disc and pressure cap for signs of mechanical damage and score marks.

Outer clutch hub 8

Check start surfaces of clutch discs on for wear. If indentations exceed 0.50 mm (0.02 in), replace outer clutch hub (see below).

Check inner ring 9and needle cage bk for wear.

5-10C

LOCTITE 242

13,5 mm

13 14

5-11C

Replace outer clutch hub

–Drill open the clutch rivets bl in area of retaining bracket bm and

remove parts.

–Check 8 absorbing elements bn for signs of mechanical damage,

replace all 8 where applicable.

CAUTION

THE ABSORBING ELEMENTS ARE WIDER THAN THE PRIMARY GEAR CROWN. TOENSURE

THAT THE OUTER CLUTCH HUB 8AND RETAINING BRACKET ARE POSITIONED DIRECTLY

ON THE PRIMARY GEAR CROWN bo, THE PARTS MUST BE HELD IN POSITION UNDER

TENSION WITH THE CLUTCH RIVETTING TOOL CWHILE RIVETING.

11 13

14 12

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

5-12C

Shift mechanism

Shift forks 1

Check shift fork blades Aand shift roller driving pin Bfor signs of wear.

Shift roller 2

Check shift grooves for wear.

Check position of shift roller in grooved ball bearings 3.

Slide plate 4

Check slide plate at meshing points Cfor wear.

Check return surface Dfor wear (renew, if strongly notched).

Check that guide pin Eis securely fixed and check for wear.

Sliding guides

Check sliding guides (excess between guide pin and shift quadrant not to

be more than 0.7 mm / 0.03 in).

Grooved ball bearings 3

Check grooved ball bearings for easy movement.

Shift mechanism

Assemble shift mechanism (see below) and check free play between slide

plate 4and shift quadrant 5. Free play should be 0.40 - 0.80 mm (0.016

- 0.032 in).

Preassembly of shift shaft

–Fix shift shaft in vice at shorter end (use covered clamps).

–Mount slide plate 4with guide pins downwards, hook guide pins into

shift quadrant 5.

–Mount pressure spring 6.

–Slide on spring guide 7, slide on return spring 8with offset end

upwards over the spring guide and lift offset end over bolt 9(see

illustration).

–Mount the stop disc bk (14x30x1 mm).

0,40 -

0,80 mm

LOCTITE 243

7810

Ignition (Kokusan)

General information

The measurements described below will only reveal severe problems. Coil

short circuits leading to weak ignition sparks or low generator output,

respectively, can only be detected with the help of an ignition test bench.

In the case of malfunction always check the cables and the plug and

socket connections of the ignition system first.

Make sure to select the correct measuring range when performing

measurements.

Spark plug

–Set the electrode distance.

Electrode distance: 0.60 mm (0.024 in)

Insulator

Check for cracks and fissures.

CAUTION

ALWAYS USE A SPARK PLUG WITH RESISTOR. OTHERWISE PROBLEMS CAN OCCUR IN

THE CDI UNIT.

Check stator and pulse generator (Kokusan)

Use an ohmmeter to perform the following measurements:

NOTE: The measuring must be performed at a temperature of 20° C.

Otherwise significant deviations must be expected.

Replace the stator if the measured values deviate significantly from the

setpoint values.

2K-1

2K-2

2K-3

2K-4

5-13C

Ignition Measure Cable colours Resistance

2K-1 Pulser coil red – green 100 Ω15%

Exciter

black/red – red/white

24 Ω15%

2K-2 Pulser coil red – green 100 Ω15%

Exciter

black/red – red/white

24 Ω15%

Charge coil ground – yellow 0,74 Ω15%

2K-3 Pulser coil red – green 100 Ω15%

Exciter

black/red – red/white

12.7 Ω15%

Charge coil ground – yellow 0.65 Ω15%

white – yellow 0.16 Ω15%

2K-4 Pulser coil red – green 100 Ω15%

Exciter

black/red – red/white

24 Ω15%

Charge coil yellow – yellow 0.65 Ω15%

Kokusan 2K-1/2K-4

Kokusan 2K-2

Kokusan 2K-3

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Ignition (SEM)

General information

The measurements described below will only reveal severe problems. Coil

short circuits leading to weak ignition sparks or low generator output,

respectively, can only be detected with the help of an ignition test bench.

In the case of malfunction always check the cables and the plug and

socket connections of the ignition system first.

Make sure to select the correct measuring range when performing

measurements.

Spark plug

–Set the electrode distance.

Electrode distance: 0.60 mm (0.024 in)

Insulator

Check for cracks and fissures.

CAUTION

ALWAYS USE A SPARK PLUG WITH RESISTOR. OTHERWISE PROBLEMS CAN OCCUR IN

THE CDI UNIT.

Check stator (SEM)

Perform the following measurements with an ohmmeter.

NOTE: The measuring must be performed at a temperature of 20° C.

Otherwise significant deviations must be expected.

Replace the stator if the measured values deviate significantly from the

setpoint values.

5-14C

+Pole – Pole Resistance

black red 1,7 kΩ

black green 165 Ω20 Ω

green red 1,7 kΩ

yellow yellow 1,0 Ω

SEM K11

110 mm

LOCTITE 243

5-15C

Transmission

Secure mainshaft or countershaft in the vice (using soft jaw-covers).

Remove gears and check the following for wear:

–Needle bearing

–Mainshaft and countershaft pivot points including idler gears

–Shift dogs and gear wheels

–Tooth faces of all gears

–Tooth profile of mainshaft and countershaft and correspondending

gears

–Easy operation of gear-change

Carefully clean components and replace damaged components.

NOTE: Always place circlips with sharp edge facing the components

secured, ensuring that they are not overexpanded (use special pliers).

Check that after any repair of the transmission, circlips should axially not

move more than 0.20 mm (0.006 in) and must not seize between stop

discs.

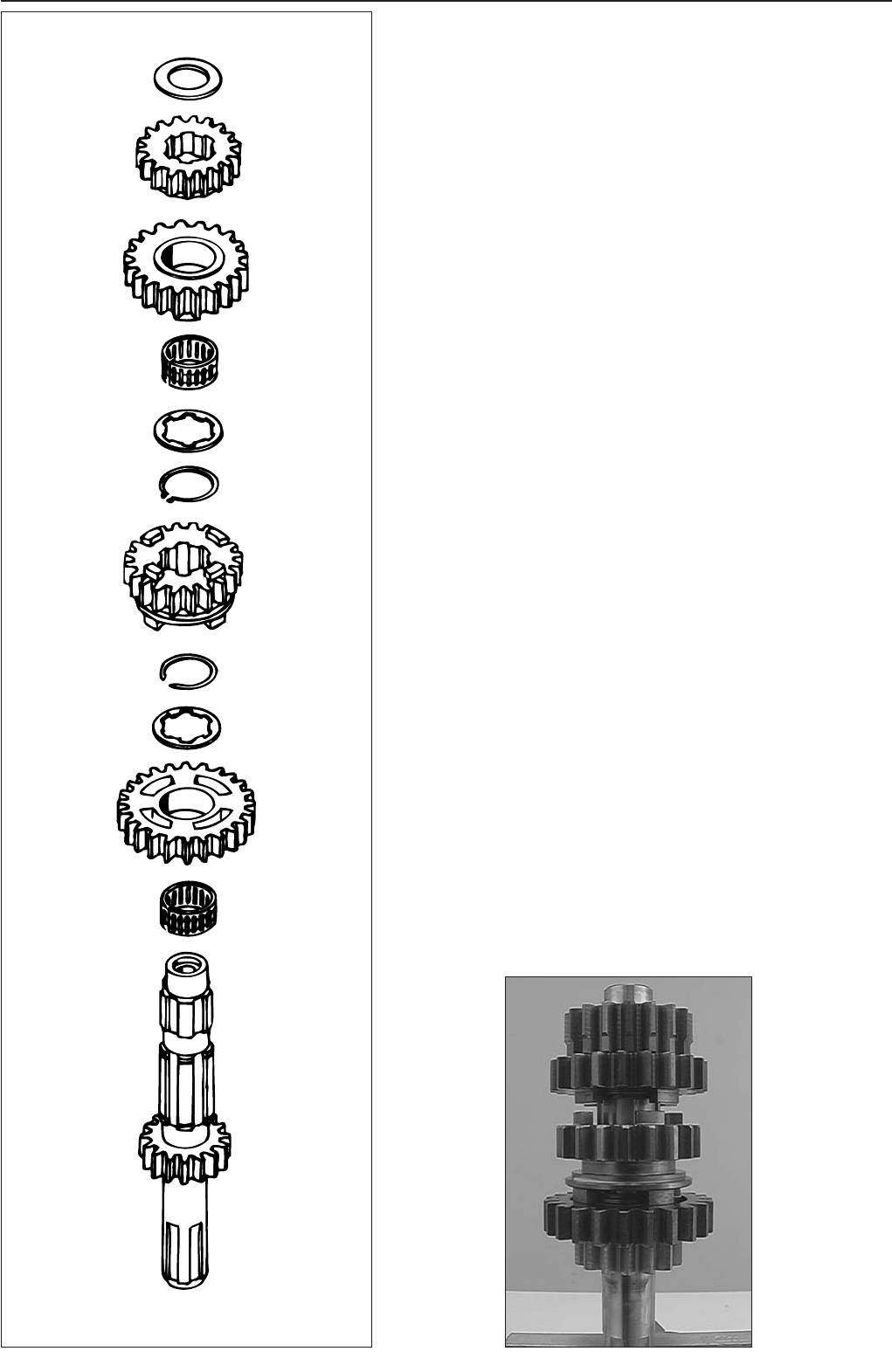

Assembly mainshaft

–Fix mainshaft in vice with toothed end upwards (use covered clamps).

–Oil all parts before assembly.

–Mount the split needle cage 1on mainshaft, push 5th idler gear 2

over it with collar downwards.

–Place internally toothed stop disc 3(22.4x25.7x32.0x1.5 mm) in

position and mount circlip 4(25x1.64 mm) with sharp edge upwards.

–Place 3rd sliding gear 5in position with shift groove downwards,

mount circlip 6(25x1.64 mm) with sharp edge downwards and

internally toothed stop disc 7(22.4x25.7x32.0x1.5 mm)

–Mount the split needle cage 8, 4th idler gear 9with shift dogs

downwards 2nd gear bk with collar downwards and stop disc bl

(20.2x33x1.5 mm).

–Finally check all gears for easy running.

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

5-16C

Transmission

Secure mainshaft or countershaft in the vice (using soft jaw-covers).

Remove gears and check the following for wear:

–Needle bearing

–Mainshaft and countershaft pivot points including idler gears

–Shift dogs and gear wheels

–Tooth faces of all gears

–Tooth profile of mainshaft and countershaft and correspondending

gears

–Easy operation of gear-change

Carefully clean components and replace damaged components.

NOTE: Always place circlips with sharp edge facing the components

secured, ensuring that they are not overexpanded (use special pliers).

Check that after any repair of the transmission, circlips should axially not

move more than 0.20 mm (0.006 in) and must not seize between stop

discs.

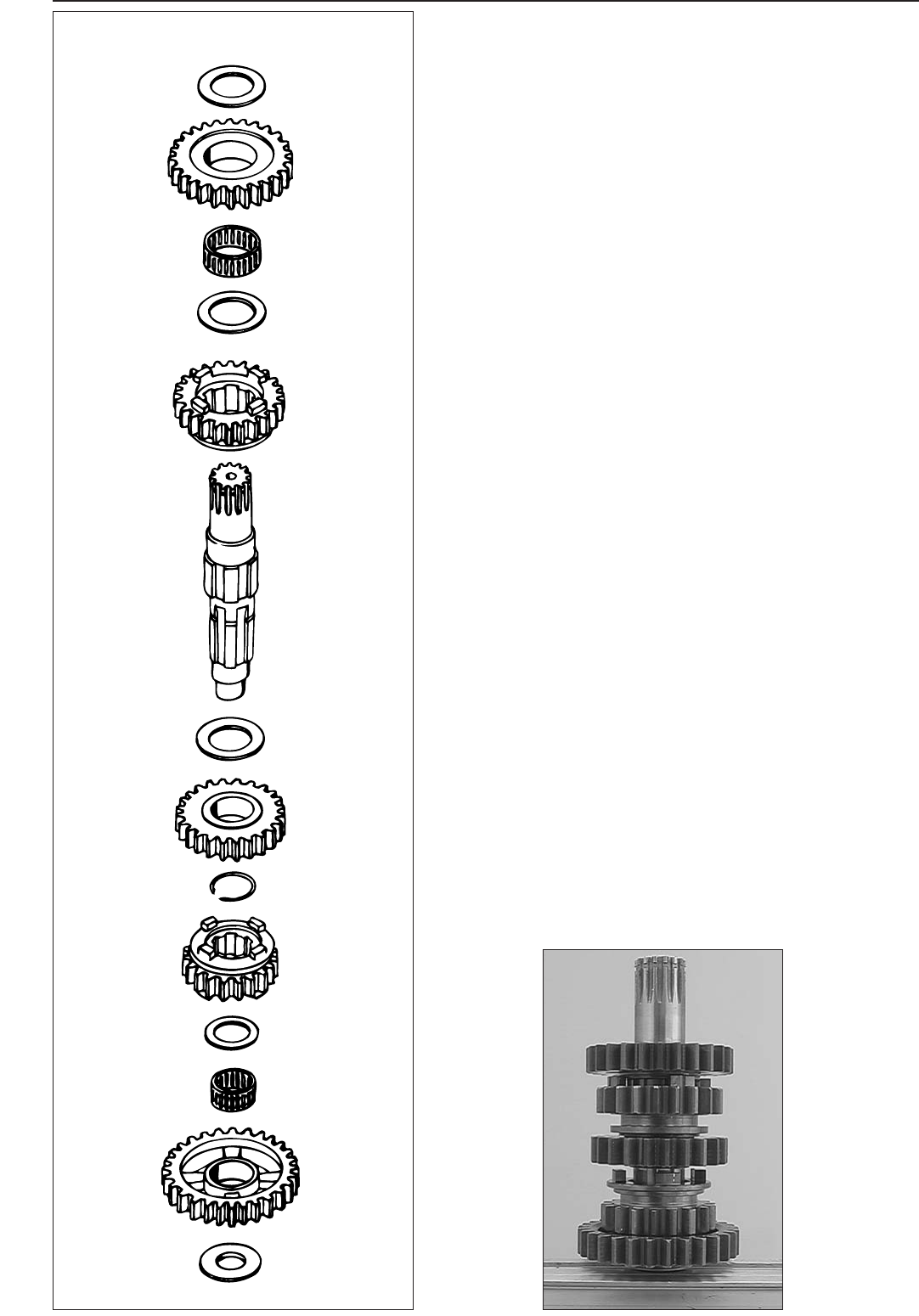

Assembly countershaft

–Fix countershaft in vice with toothed end (use covered clamps).

–Oil all parts before assembly.

–Push stop disc 1(26x40x1,5 mm) onto countershaft.

–Mount 3rd idler gear 2with shift dog recesses upwards and circlip 3

(25x2 mm) with sharp edge upwards.

–Mount 5th sliding gear 4with shift groove downwards, stop disc 5

(22,2x33x1,5 mm), needle cage 6, 1st free gear 7with shift dog

recesses downwards and stop disc 8(17,2x34x1,5 mm) with collar

upwards on the countershaft.

–Remove countershaft from vice and fix again with toothed end

upwards.

–Mount 4th sliding gear 9with shift dog upwards, stop disc bk

(28,2x40x1,5 mm), needle cage bl, 2nd idler gear bm with shift dog

recesses downwards and stop disc bn (25,7x40x1,5 mm).

–Finally check all gears for easy running.

Kickstarter

Starter gear 1

Check clearance of starter gear.

Starter intermediate gear 2

Check clearance of starter intermediate gear.

Locking pawl 3

Check for signs of wear and damage.

Kickstarter shaft 4

Check for signs of wear and damage.

For changing the locking pawl, press bearing needle 9out of the

kickstarter shaft.

Assemble of kickstarter shaft

–Fix the kickstarter shaft 4in a vice with the toothed end upwards (use

covered vice clamps).

–Mount ratchet spring 5on kickstarter shaft as shown in the

illustration.

–Place needle cage 6in position, push starter gear 1over it, pressing

locking pawl 3inwards so that starter gear passes smoothly over it.

–Hook legs of the starter spring 7into driving hub 8, push both

together on the starter shaft, hook starter spring leg into kickstarter

shaft bore A.

–Release kickstarter shaft, and fix stop disc bk with a small amount of

grease on the kickstarter shaft.

5-17C

LOCTITE 243

LOCTITE 648

Repair manual 250 / 300 / 380 Art No 3206004 -E

ASSEMBLING THE ENGINE

CRANKSHAFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2

TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2

ASSEMBLING THE ENGINE HOUSING . . . . . . . . . . . . . . . . . . . . . . . .6-3

MOUNTING SHIFT MECHANISM . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

MOUNTING KICKSTARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

MOUNT PRIMARY DRIVE AND CLUTCH . . . . . . . . . . . . . . . . . . . . . .6-5

MOUNTING CLUTCH DISCS AND PRESSURE CAP . . . . . . . . . . . . . . .6-6

MOUNTING CLUTCH COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

MOUNTING PISTON AND CYLINDER . . . . . . . . . . . . . . . . . . . . . . . .6-7

ADJUSTING DIMENSION „X“ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

ADJUSTING CONTROL FLAP (DIMENSION „Z“) . . . . . . . . . . . . . . . .6-8

MOUNTING STEERING COVERS . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

MOUNTING CYLINDER HEAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

MOUNTING REED VALVE HOUSING AND INTAKE FLANGE . . . . . . . .6-9

MOUNTING ENGINE SPROCKET . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

MOUNTING THE IGNITION (KOKUSAN) . . . . . . . . . . . . . . . . . . . . .6-10

MOUNTING THE IGNITION (SEM) . . . . . . . . . . . . . . . . . . . . . . . . .6-11

ADJUSTING IGNITION POINT (SEM) . . . . . . . . . . . . . . . . . . . . . . . .6-11

MOUNTING IGNITION COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11

MOUNTING STARTING LEVER AND SHIFT LEVER . . . . . . . . . . . . . .6-11

INDEX

6-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

–Secure the right-hand housing half in the engine work stand.

Crankshaft

–Insert crankshaft from above through grooved ball bearing and push

carefully as far as stop.

CAUTION

WHEN PUSHING IN CRANKSHAFT, MAKE SURE CONROD IS FACING CYLINDER.

Transmission

–Grease the driving pins of the shift forks and mount the shift rollers 1.

–Fix the lower stop disc on the countershaft with a small amount of

grease.

–Mount drive shaft together with countershaft, and insert them into the

bearings as far as they will go.

–Shift fork 2with driving pin Ain the middle belongs to the mainshaft.

–Mount the two other shift forks 3at the countershaft, using the

marks applied before disassembly for better orientation.

CAUTION

USED SHIFT FORKS SHOULD BE MOUNTED IN THE SAME SLIDING GEAR AS BEFORE.

WATCH AT THE MARKINGS FROM DISMANTLING.

–Attach the shift forks to the sliding gears, and insert shift roller into the

grooved ball bearing.

–Attach the shift forks to the shift roller.

CAUTION

WHEN ATTACHING THE SHIFT FORKS, MAKE SURE THAT THE SHIFT DRUMS DO NOT

SLIDE OFF THE SHIFT FORKS.

6-2C

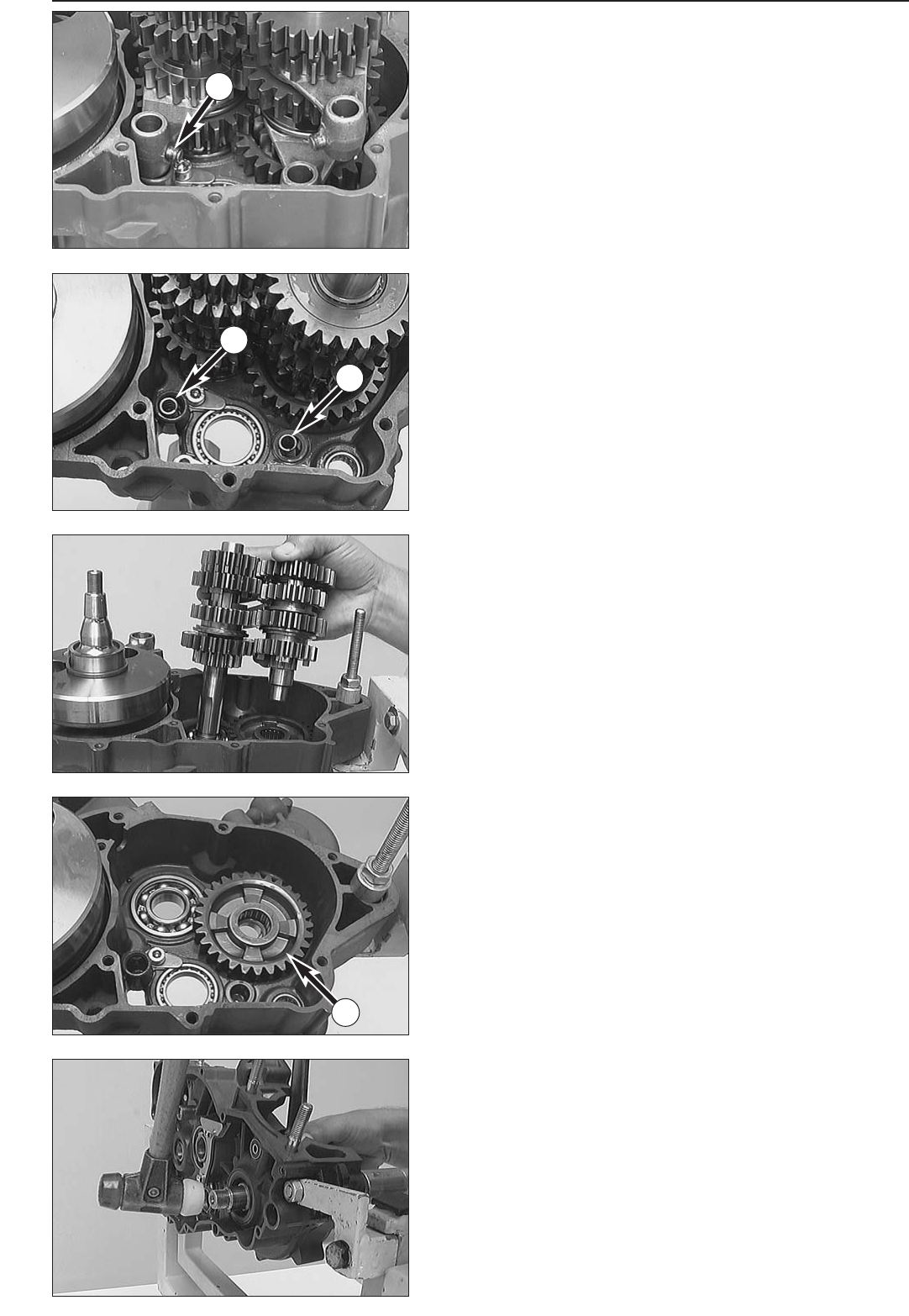

–Fix the 4 pressure springs 1with ample amounts of grease in the

gearshift rails.

–Oil gearshift rails and insert them into the gearshift forks (short

gearshift rail toward drive shaft). Insert gearshift rails into the casing

bores as far as they will go.

NOTE: It must now be possible to gently turn gear shafts.

–Slide stop disc 2(20.2x 33x1.5 mm) on the drive shaft, and stop disc

3(25.7x40 x1.5 mm) on the countershaft.

Assembling the engine housing

–Remove engine fastener from engine work stand.

–Check that both dowels are in proper place in right-hand housing and

that transmission shaft stop discs have been mounted.

–Apply light coat of grease to sealing surfaces of the housing and

position new gasket.

–Grease shaft seal rings in left-hand half and place left-hand half in

position.

–Position screws and tighten with 8 Nm (6 ft.lb).

–Gently knock crankshaft with plastic hammer and check easy running

of shafts.

–Fix engine in work stand.

6-3C

M6 x ...

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Mounting shift mechanism

–Place locating spring with bent leg upwards into engine housing.

–Insert collar sleeve into spring with collar upwards.

–Coat collar screw 1with Loctite 243.

–Insert locating lever 2with roll upwards and fix all parts with collar

screw.

–Hook locking spring 3to lever. The other end of the retaining spring

must abut the casing nose B.

–Mount roller locking device 4(plastic part) to shift roller. Ensure that

the flat parts are not in the middle. Pull locking lever from shift roller.

–Mount driver for shift roller 5.

–Coat allan head screw 6with Loctite 243 and mount.

NOTE: From model 2002 on driver for roller 5and locking piece 4 are

made of aluminium.

–Grease assembled shift shaft and push into bearings together with

stop disc until slide plate contacts driver for shaft roller.

–Now squeeze, and push shift shaft in to the stop.

–Check that legs of return spring surround both left and right side of

housing nose A.

–Mount the foot shift lever and shift through all gears. When shifting

through the gears, turn the countershaft. Then remove the foot shift

lever.

Mounting kickstarter

–Place spacing washer on the stop face an place preassembled

kickstarter shaft in bearing bore in such a way that the locking pawl is

outside the release plate.

NOTE: If the kickstarter shaft is mounted correctly, the visible end of the

starter spring must point forward (see photo).

–Hook spring hanger 7to starter spring, coat screw 9with

Loctite 243, tighten starter spring approx. 90° clock-wise and fix

spring pawl with allan head screw.

–Adjust starter spring so that the distance to the kickstarter shaft is the

same all around.

–Place starter intermediate gear 8with the high collar (see sketch)

showing towards the engine casing on to the bearing.

–Slip on stop disc (17.2x25x1 mm) and mount circlip with the sharp

edge showing upwards.

6-4C

LOCTITE 243

Mount primary drive and clutch

–Grease crankshaft seal ring.

–Put the oiled O-ring (25x1.50 mm) onto the crankshaft and mount the

distance bushing with the chamfer facing the crank web.

–Insert woodruff key into crankshaft.

–Place primary gear 1onto crankshaft with collar downwards.

–Put the inner ring onto the main shaft with the collar facing

downwards, then mount the oiled needle cage 2.

–Mount outer clutch hub and stop disc 3.

–Apply Loctite 243 to the thread of the main shaft.

–Mount inner clutch hub, new lock washer and hexagon nut to main

shaft.

–Position clutch holder 4and tighten hexagon nut with 100 Nm

(74 ft.lb.).

–Remove the clutch holder and secure the hexagon nut by bending

both brackets of the lock washer upwards.

–Apply Loctite 243 to thread of the crankshaft.

–Fit locking washer and hexagon nut (left hand thread) by hand.

–Block primary drive with gear segment 5and tighten primary gear

hexagon nut with 150 Nm (110 ft.lb.).

–Remove gear segment and check easy running of primary drive by

turning crankshaft.

6-5C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Mounting clutch discs and pressure cap

–Oil the thrust bearing 1, and slide it over the drive shaft.

–Oil lining discs before mounting.

–Beginning with one lining disc, mount alternately 9 lining discs (≠2.70

mm / 0.10 in) and 8 intermediate discs (≠1.20 mm / 0.047 in), with

a lining disc forming the final layer upwards.

–Place pressure cap into position; fit clutch springs, spring retainer and

collar screws.

–Tighten the collar screws crosswise. Do not apply more than 6 Nm (4.5

ft.lb.) to prevent damaging of the threads in the inner clutch hub.

Mounting clutch cover

–Check whether both dowels are mounted in clutch cover or engine

housing.

–Grease kickstarter shaft seal ring and position clutch cover gasket.

Secure gasket with a little grease.

–Carefully position preassembled clutch cover and press into place,

turning crankshaft so that centrifugal timer can engage in the primary

gear.

–Fit collar screws (see sketch for screw lengths) and tighten with 8 Nm

(6 ft.lb.).

–Then check easy running of all shafts.

NOTE: If the clutch cover cannot be mounted, verify whether or not the

kickstarter spring has been positioned correctly.

6-6C

M6x ...

30 30

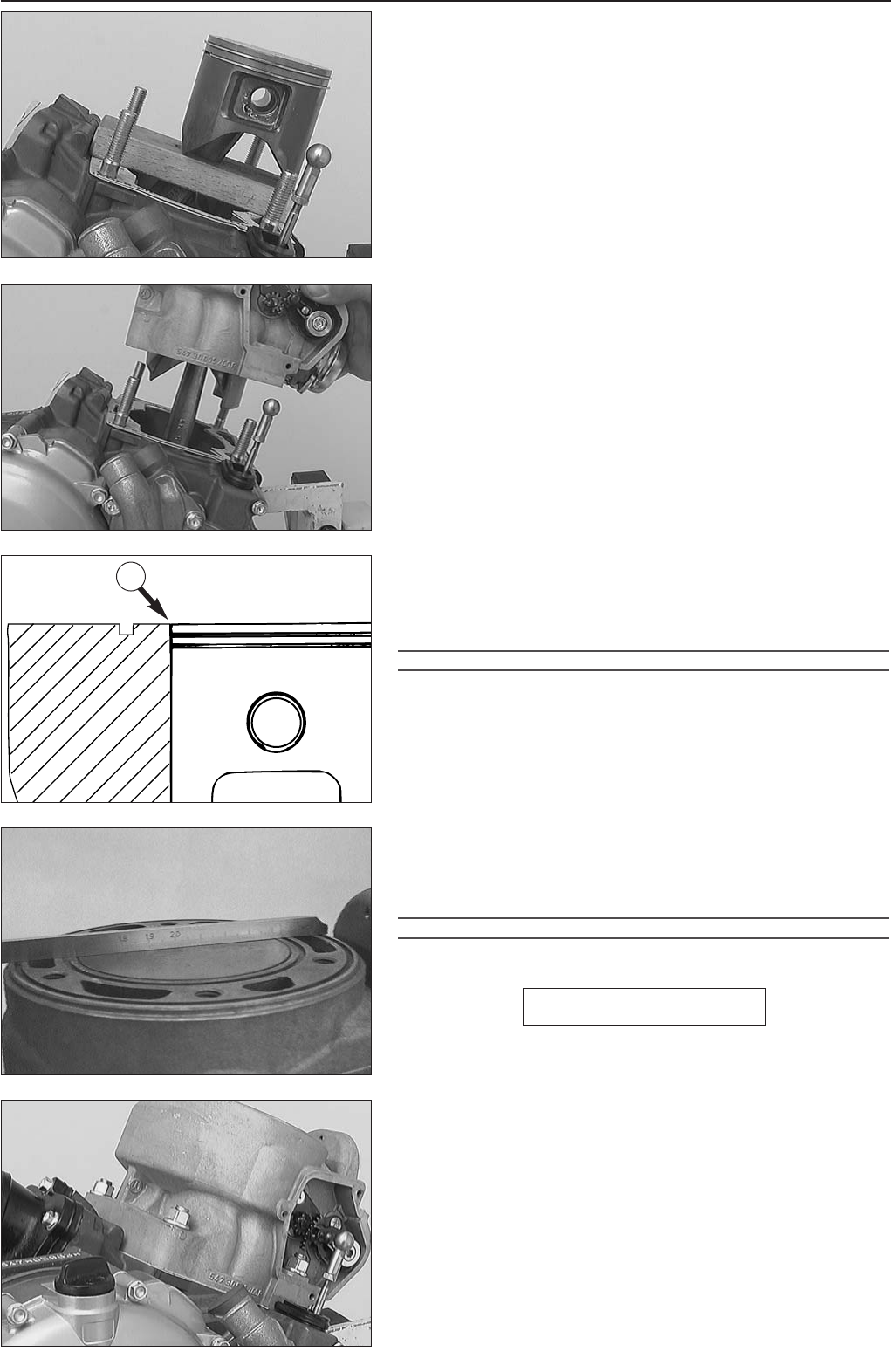

Mounting piston and cylinder

–Before assembly, oil all parts thoroughly at the sliding points.

–Insert needle bearing in conrod eye, mount piston (arrow on piston

head shows direction for exhaust duct).

–Mount piston pin and wire circlips with open side showing downwards

(see sketch).

–Mount cylinder base gaskets.

–Place piston on selfmade wooden stand and position piston ring.

–Place on preassembled cylinder, remove wooden stand and tighten

cylinder down crosswise, using two nuts.

Adjusting dimension „X“

Dimension „X“ is the dimension from upper edge of piston to upper edge

of cylinder with cylinder under low tension and piston in TDC position.

The dimension „X“ should be adjusted extremely carefully by inserting

cylinder base gaskets of suitable thicknesses.

CAUTION

IFTHE DIMENSION „X“ IS TOO LARGE, THE COMPRESSION RATIO WILL BE REDUCED

AND THE ENGINE LOOSES POWER. ONTHE OTHER HAND, IF THE DIMENSION „X“ IS

TOO SMALL, THE ENGINE WILL PING AND OVERHEAT.

–Set the piston to TDC, and apply a sliding gage or straight-edge to the

cylinder. Now, check the distance between the piston's upper edge

and the sliding gage. This distance should be from 0 mm to 0.10 mm

at the most. It can be corrected, if necessary, by adding or removing

of cylinder-base gaskets.

CAUTION

THE PISTON MUST NOT PROTRUDE BEYOND THE CYLINDER'SUPPER EDGE.

–Mount the 2 remaining collar nuts at the cylinder base, and tighten

each of the 4 collar nuts to 35 Nm (27 ft.lb.).

6-7C

Dimension „X“ = 0 mm + 0,1 mm

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Adjusting control flap (dimension “Z“)

Note: Dimension “Z“ is the distance from the lower edge of the control

flap to the upper edge of the cylinder, as measured in the centre of the

exhaust port.

–Undo the screws of the stop plate (left side of the cylinder) 1and 2

and apply Loctite 243 to the threads. Then mount both screws but do

not tighten them yet.

–Set preselected value on depth gauge and fix.

–Swifel control flap upwards and hold depth gauge into cylinder as

shown in the illustration.

–Control flap must rest against depth gauge.

–Allow bump plate 3to rest against retaining bracket 4.

–Secure bump plate fastening screws 1and 2.

–Remove depth gauge.

–Having tightened the screws 1+ 2, you have to check the dimension

"Z" again and correct it, if necessary.

–Press linkage of control flap 5down-wards as far as stop and press

ball socket 6onto ball of adjusting lever.

When pressing ball socket do not:

●pull the linkage too far up (max. 1 mm / 0.04 in).

●swivel control flap upwards.

–Adjust linkage length if necessary.

–To do so, loosen counter nut 7and turn ball socket accordingly.

–Retighten counter nut.

–Once adjustments are completed, remove ball socket once again and

fit gasket for control cover.

–Refit ball socket and fit safety device 8.

6-8C

control

flap

250 Model 1999 : 48,0 mm + 0,2 / - 0,6 mm

250 Model 2000 : 50,5 mm + 0,2 / - 0,6 mm

250 ab Model 2001 : 49,5 mm + 0,2 / - 0,6 mm

300 : 46,0 mm + 0,2 / - 0,6 mm

380 : 50,5 mm + 0,2 / - 0,6 mm

Mounting steering covers

–Mount the right-hand control cover 1, and fix it with 3 screws.

–Place gasket in position and fix left-hand steering cover 2on cylinder.

Mounting cylinder head

–Clean cylinder and cylinder head sealing surface, place O-rings in

grooves.

–Mount cylinder head with water nozzle on the exhaust side.

–Oil the collar nuts at threads and contact faces.

–Mount the collar screws with new copper gaskets and tighten them

crosswise, taking three turns to achieve the total tightening torque of

35 Nm (25 ft.lb.).

–In first stage, only tighten until slight resistance is felt.

Mounting reed valve housing and intake flange

–Place reed valve housing with velocity insert in inlet duct and fix intake

flange with the 5 collar screws.

6-9C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

6-10C

Mounting engine sprocket

–Lubricate O-ring 1with oil and slide over counter shaft.

–Slide distance bushing 2in position so that O-ring is in correct

position.

–Slide sprocket onto the countershaft with the collar facing inward, and

fix it with the circlip 3(sharp edge facing outward).

Mounting the ignition (Kokusan)

–Insert the woodruff key into the crankshaft.

–Apply Loctite 243 to 3 screws 4and fix the stator (do not yet tighten

the 3 screws all the way).

–Turn stator such that the mark Aon the stator coincides with the mark

in the casing, and tighten the 3 screws of the stator.

–At engines with ignition type 2K-4 the marking Cmust coincide with

the marking on the stator.

–At engines with all other ignitions (not SEM) the marking Bmust

coincide with the marking on the stator.

–Mount the rotor.

–Mount the detent edged ring and the nut.

–Hold the rotor with the holding spanner and tighten the nut with 60

Nm (45 ft.lb.).

Mounting the ignition (SEM)

–Insert woodruff key into crankshaft.

–Apply Loctite 243 to the threads of the 3 screws 2.

–Mount base plate 1together with stator, and tighten the 3 screws.

–Mount the cable guide 3into the cutaway portion of the casing.

–Mount the rotor.

–Mount the detent edged ring and the nut.

–Hold the rotor with the holding spanner and tighten the nut with 60

Nm (45 ft.lb.).

Adjusting ignition point (SEM)

–Make sure that the stator can be turned on the intermediate plate.

Otherwise, loosen the 3 screws 4.

–Mount flywheel.

–Screw dial gauge into spark plug thread.

–Place adjusting pin 5in flywheel bore (“91“) 2 mm (0.08 in) and turn

flywheel until pin slots into recess 6in stator.

–Turn flywheel and stator jointly to TDC.

–Turn dial gauge scale to 0 and turn flywheel with stator clockwise

accordingly to preignition.

Ignition point:

–Carefully remove flywheel to prevent further turning of stator.

–Tighten the three stator cylinder screws.

–Mount flywheel and tighten collar nut with 60 Nm (45 ft.lb).

–Check ignition point once more.

–Remove dial gauge and fit spark plug with OR.

Mounting ignition cover

–Put on a new gasket, and fix the ignition cover by means of the 5

screws.

Mounting starting lever and shift lever

–Push distance bushing onto kickstarter shaft and mount kickstarter.

–Mount shift lever.

–Operate the kickstarter a few times and check if the engine turns

freely.

–Oil the push rod, and insert it into the drive shaft.

NOTE: The transmission oil should be filled in only after the engine has

been mounted. Otherwise, a part of the transmission oil would leak out

through the drive shaft.

6-11C

Repair manual 250 / 300 / 380 Art No 3206004 -E

ELECTRICAL

CHECKING THE VOLTAGE REGULATOR-RECTIFIER (SHINDENGEN) . . .7-2

CHECKING THE VOLTAGE REGULATOR (KOKUSAN) . . . . . . . . . . . . .7-2

CHECKING THE VOLTAGE REGULATOR (TYMPANIUM) . . . . . . . . . . .7-2

CHECKING THE CAPACITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3

IGNITION COIL (SEM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3

IGNITION COIL (KOKUSAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3

CDI UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3

CHECKING THE VOLTAGE REGULATOR (MOD. 2000) . . . . . . . . . . . .7-4

CHECKING THE CAPACITOR (MOD. 2000) . . . . . . . . . . . . . . . . . . . .7-4

STATIC IGNITION VALUES 250 - 380 SX, EXC . . . . . . . . . . . . . . . . . .7-5

STATIC GENERATOR VALUES 250 - 380 EXC . . . . . . . . . . . . . . . . . . .7-7

STATIC IGNITION AND GENERATOR VALUES 250 MXC, EXC (USA) . .7-9

INDEX

7-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

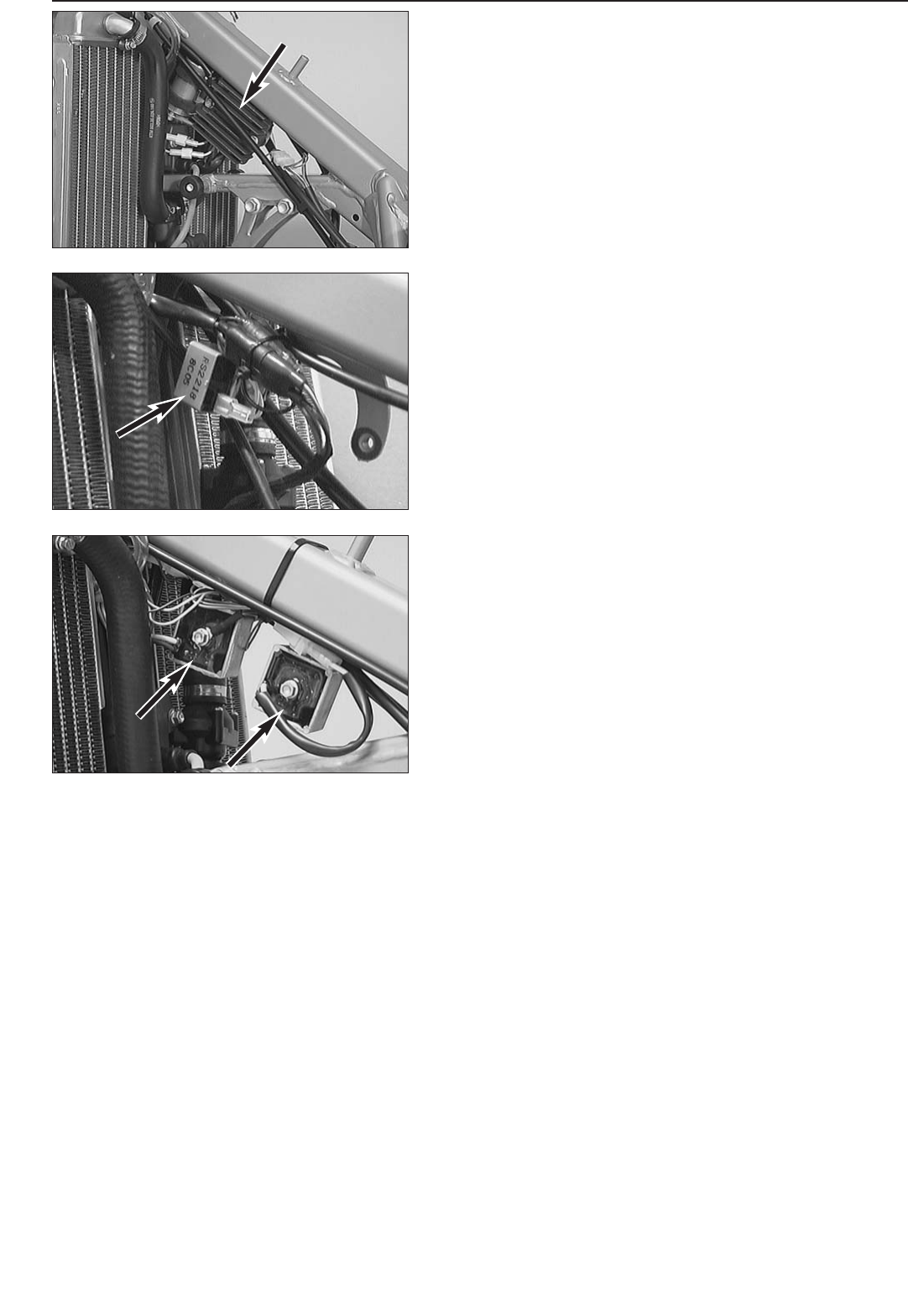

Checking the voltage regulator-rectifier (Shindengen)

–Start the engine and switch on the low beam.

–Connect a voltmeter to the two terminals of the capacitor (red/white

cable = positive, brown cable = negative).

–Accelerate the engine to a speed of 5000 r.p.m. and read off the

voltage.

Nominal value: 14.0 – 15.0 V

In the case of a significant deviation from the nominal value:

–Check the capacitor

–Check the connector between the stator and the voltage regulator-

rectifier and the connector between the voltage regulator-rectifier and

the cable tree.

–Check the stator.

–Replace the voltage regulator-rectifier.

Checking the voltage regulator (Kokusan)

A defect voltage regulator can cause different kinds of trouble:

●No voltage in the circuit

In this case, the voltage regulator must be disconnected at idle speed.

The voltage regulator is defect if the power consumers now work

properly.

If the power consumers are still not supplied with power, the switch,

the wiring harness or the ignition system must be checked for defects.

●Excessive voltage in the circuit

The bulbs burn out. In this case the voltage regulator must be

replaced.

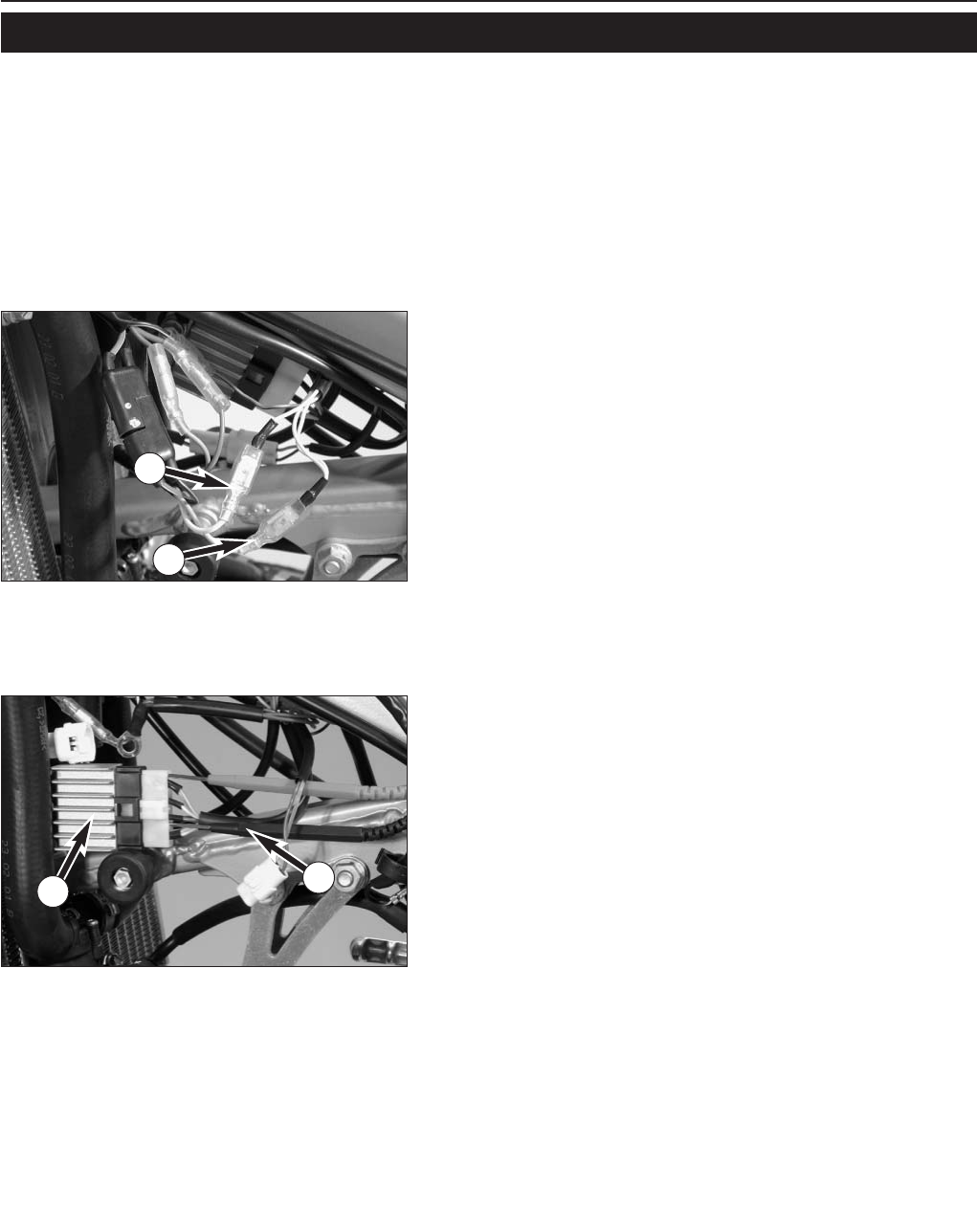

Checking the voltage regulator (Tympanium)

NOTE: The voltage regulators are connected downstream of the

switches. One of the voltage regulators regulates only the brake light

circuit, the other regulates the circuit for the head light, the tail light, the

speedometer illumination and the horn.

A defect voltage regulator can cause different kinds of trouble:

●No voltage in the circuit

In this case, the voltage regulator must be disconnected at idle speed.

The voltage regulator is defect if the power consumers now work

properly.

If the power consumers are still not supplied with power, the switch,

the wiring harness or the ignition system must be checked for defects.

●Excessive voltage in the circuit

The bulbs burn out.

Connect a voltmeter (yellow cable = positive, brown cable = negative)

to check the voltage. Start the engine and switch on the power

consumers.

At an engine speed of 3000 r.p.m, the voltage regulator must supply a

voltage of 12.0 - 14.0 V A.C. At higher engine speeds, the limit of 14.0

V should not be exceeded either.

If the reading significantly deviates from the nominal value, replace the

voltage regulator.

7-2C

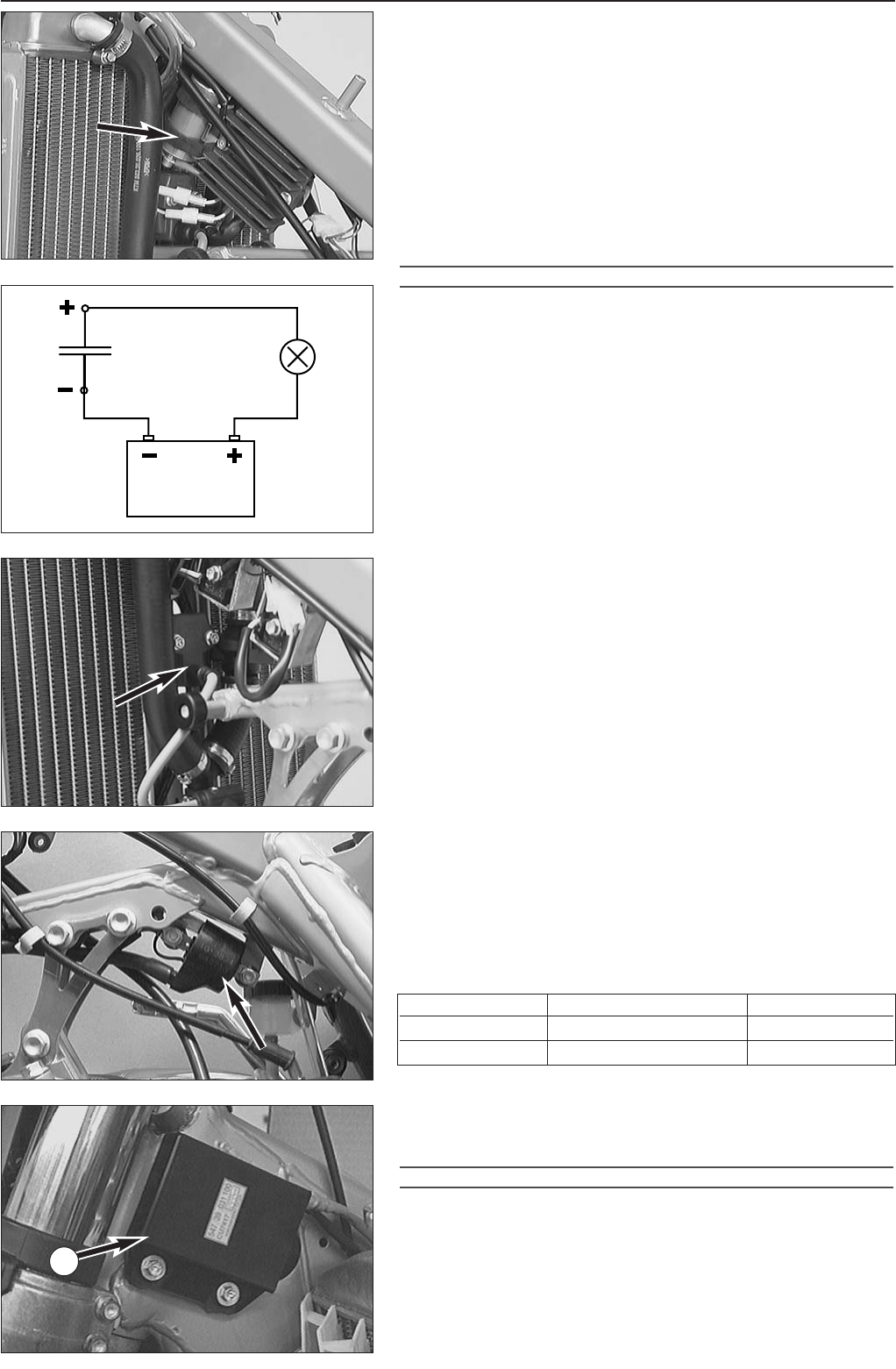

Checking the capacitor

–Discharge the capacitor by bridging the two terminals with a

screwdriver and remove.

–Connect the negative pole of a 12V battery with the negative terminal

of the capacitor. The connection between the positive pole of the

battery and the positive terminal of the capacitor (marked +) is made

with a test lamp 1.

–When the power circuit is closed, the test lamp must begin to light up.

As capacitor charging increases, the brightness of the test lamp must

decrease.

–The test lamp must go out after 0,5-2 seconds (depending on the lamp

capacity).

–If the test lamp does not go out or does not light up at all, the

capacitor is faulty.

CAUTION

DISCHARGE THE CAPACITOR BEFORE AND AFTER EACH TEST.

WHEN INSTALLING THE CAPACITOR, MAKE SURE THAT THE TERMINALS ARE CONNECTED

IN ACCORDANCE WITH THEIR MARKINGS (CONNECT RED/WHITE CABLE TO +

TERMINAL).

Ignition coil (SEM)

As this ignition coil uses electronic components, you are advised not to

use conventional measuring instruments. An accurate function test can

only be carried out on an ignition test bench.

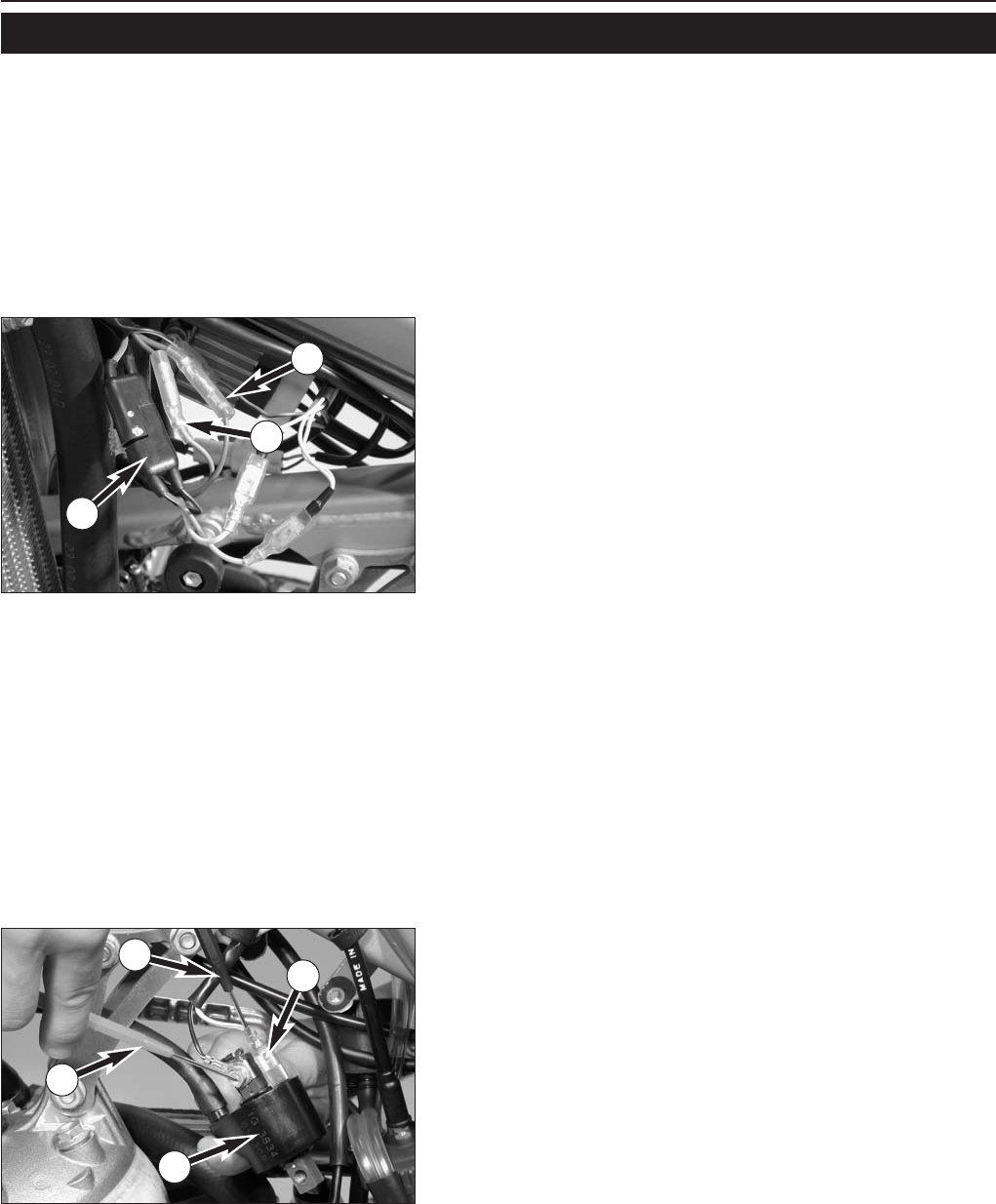

Ignition coil (Kokusan)

–Disconnect all cables and remove the spark plug connector.

–Use an ohmmeter to measure the following values.

NOTE: The indicated setpoint values correspond to a temperature

of 20° C.

Replace the ignition coil if the measured values deviate significantly from

the setpoint values.

CDI unit

Check the cables and plug and socket connections of the CDI unit 2.

The CDI unit function can only be checked on an ignition test bench.

CAUTION

NEVER USE A COMMERCIAL MEASURING DEVICE TO CHECK THE CDI UNIT.

COMMERCIAL MEASURING DEVICES CAN DESTROY HIGHLY SENSITIVE ELECTRONIC

COMPONENTS.

7-3C

Measurement Cable colours Resistance

Primary coil blue/white – ground 0,425 - 0,575 Ω

Secondary coil blue/white – ignition wire 10,8 - 16,2 kΩ

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

7-4C

Checking the voltage regulator

–Start the engine and switch on the low beam.

–Connect a voltmeter to the two terminals of the capacitor.

–Accelerate the engine to a speed of 5000 r.p.m. and read off the

voltage.

Nominal value: 14.0 - 15.0 V

In the case of a significant deviation from the nominal value:

–Check the capacitor

–Check the connector between the stator and the voltage regulator-

rectifier and between the voltage regulator and the cable tree.

–Check the stator.

–Replace the voltage regulator-rectifier.

Checking the voltage regulator

–Start the engine.

–Connect a voltmeter to the two terminals of the capacitor.

–Accelerate the engine to a speed of 5000 r.p.m. and read off the

voltage.

Nominal value: 14.0 - 15.0 V

In the case of a significant deviation from the nominal value:

–Check the capacitor

–Check the connector between the stator and the voltage regulator-

rectifier and between the voltage regulator and the cable tree.

–Check the stator.

–Replace the voltage regulator-rectifier.

Checking the capacitor

–Discharge the capacitor by bridging the two connections with a cable

bridge and dismount it.

–Connect the negative pole of a 12V battery with the negative terminal

of the capacitor. The connection between the positive pole of the

battery and the positive terminal of the capacitor is made with a test

lamp 1.

–When the power circuit is closed, the test lamp must light up briefly

and return to its dark state after 1 second at the latest.

–If the test lamp does not go out or does not light up at all, the

capacitor is faulty.

–

7-5C

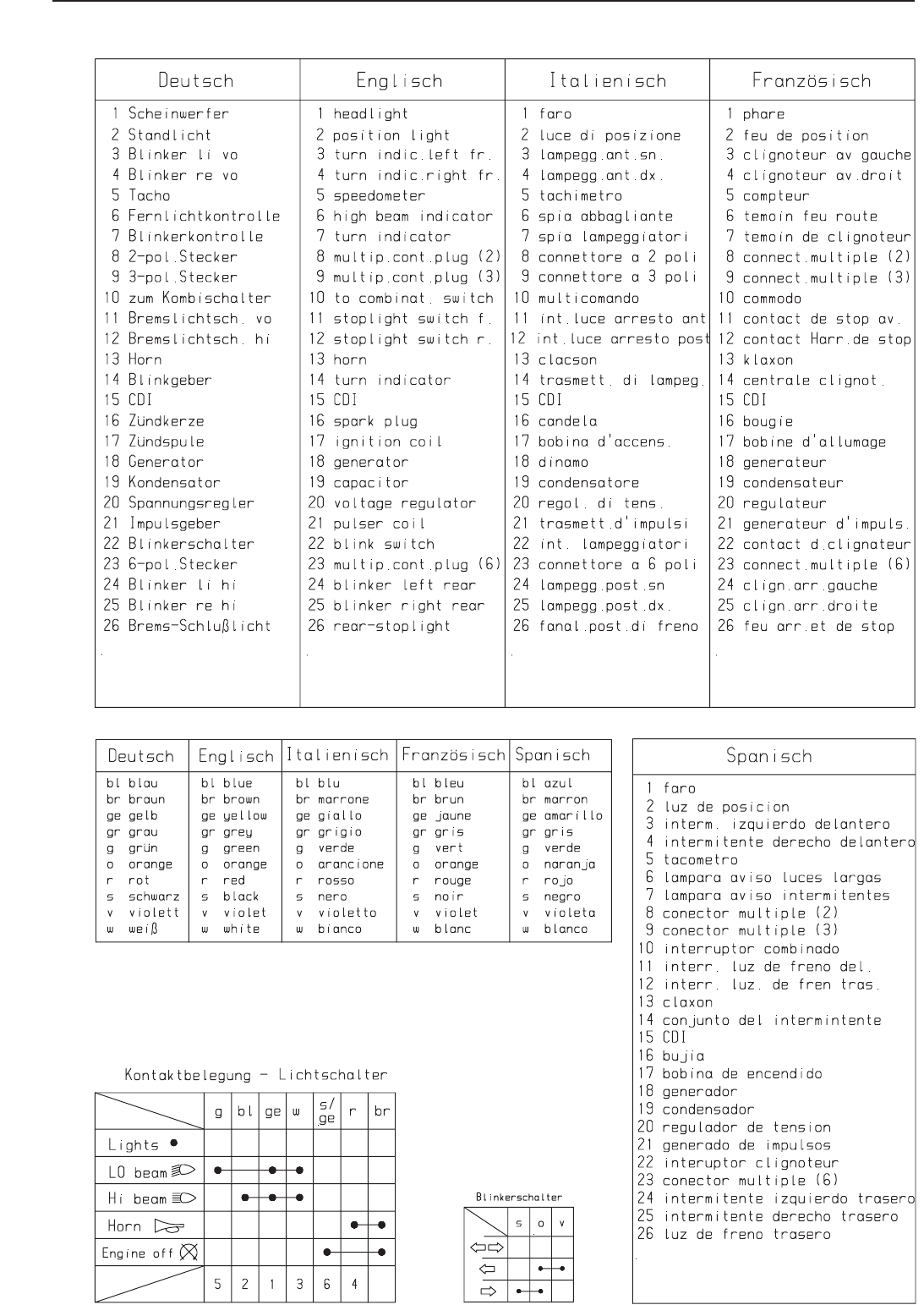

Static ignition values 250-380 SX, EXC (except 250 USA)

Check the pulse generator for an output signal – two-pin connector 1

with green and red cable colors (also see circuit diagram on opposite

page):

–Apply the red measuring lead of the peak voltage adapter to the green

cable and the black measuring lead to the red cable, disconnect both

connectors 1to disconnect the CDI unit 2

Multimeter display: 6 volts +/- 1 volt

(250 SX model 2000/2001: 5 volts +/- 1 volt)

–Same measurement with CDI unit connected

Multimeter display: 3 volts +/- 1 volt

(250 SX model 2000/2001: 9 volts +/- 1 volt)

Check the generator charging coil for ignition capacitor charge for out-

put voltage – two-pin connector 3with black/red and red/white cable

colors (also see circuit diagram on opposite page):

–Apply the red measuring lead of the peak voltage adapter to the

black/red cable and the black measuring lead to the red/white cable,

disconnect connector 3to disconnect the CDI unit 2

Multimeter display: 35 volts +/- 5 volts

–Same measurement with connectors CDI unit connected

Multimeter display: 200 volts +/- 10 volts

Check the primary voltage output 4for ignition coil control (also see cir-

cuit diagram on opposite page) for output voltage (blue/white cable

color):

–Apply the red measuring lead Rof the peak voltage adapter to the

black/white cable (ground) and the black measuring lead Sto the

blue/white cable, CDI unit 2and ignition coil 5connected

Multimeter display: 200 volts +/- 10 volts

NOTE: the ignition coil does not need to be removed to measure.

STATIC IGNITION VALUES 250-380 SX, EXC (KOKUSAN 2K-1, 2K-3, 2K-4)

Measuring conditions:

–cold engine

–seat and tank removed

–all connectors and the ground connection in a non-corroding condition, connectors tightly connected

–spark plug screwed out and spark plug connector attached to ground

–light switch turned off

–the gap between the rotor and pulse generator must be set to 0.75 mm

–kick the kick starter forcefully at least 5 times for each measurement

7-6C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

SPORTMOTORCYCLES

250-380 EXC 2000

7-7C

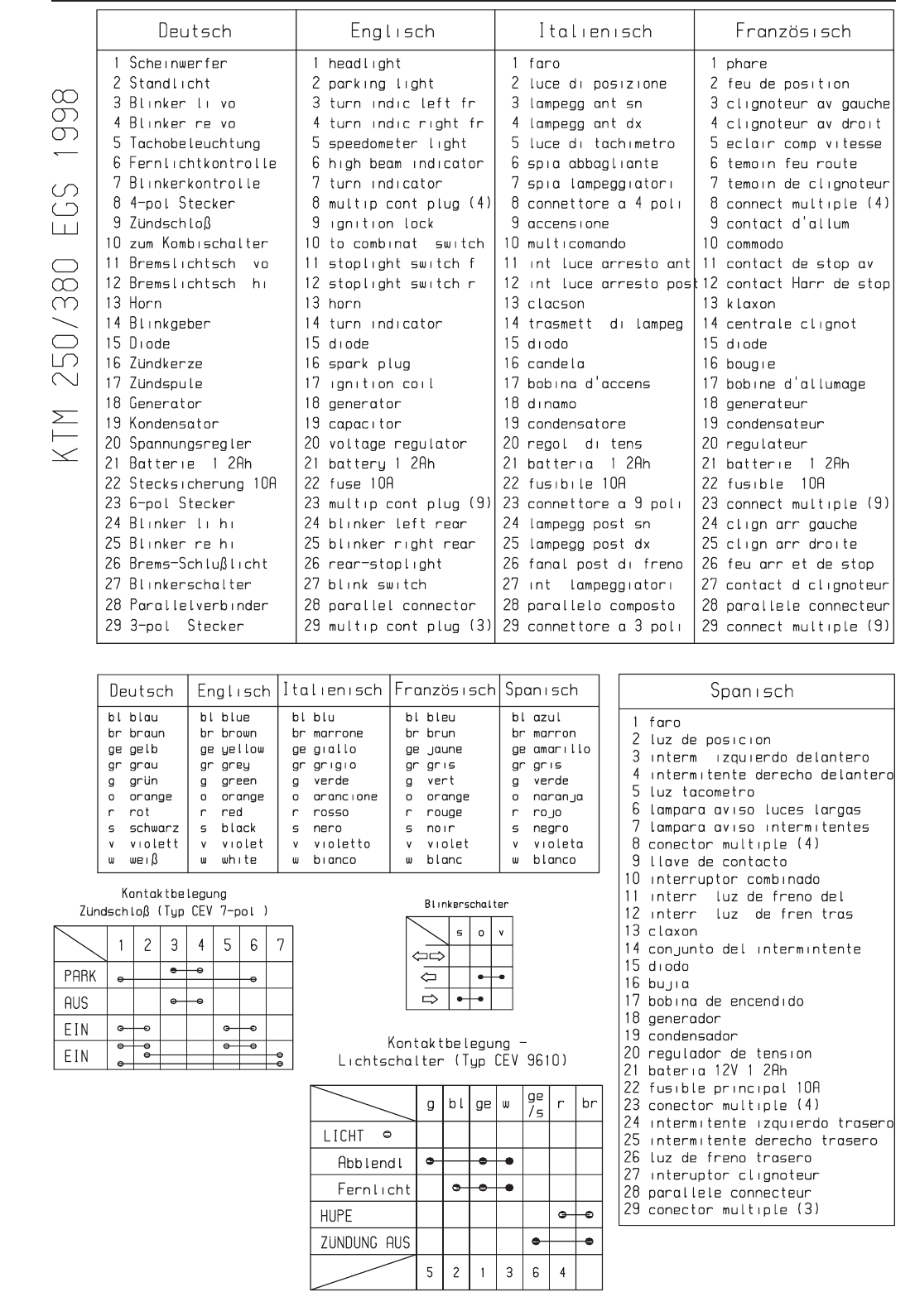

Static generator values 250-380 EXC (except 250 USA)

Check the generator output 6(also see circuit diagram on opposite

page) for voltage between the following cable colors:

–between yellow and brown (ground), connector 7disconnected

Multimeter display (250): 19 volts +/- 2 volts

(300-380): 15 volts +/- 1 volt

–between white and brown (ground), connector 8disconnected

Multimeter display (250): 24 volts +/- 2 volts

(300-380): 19 volts +/- 1 volt

–Repeat both measurements with connector 7and 8connected. The

measured values should be the same.

NOTE: the black measuring lead of the peak voltage adapter must be

applied to the ground.

Check regulator rectifier output voltage 9(also see circuit diagram on

opposite page) cable colors yellow/red, regulator rectifier bk connected,

capacitor bl disconnected:

–between yellow/red and brown (ground)

Multimeter display: 14 volts +/- 1 volt

NOTE:

–the black measuring lead Sof the peak voltage adapter must be

applied to the ground.

–300/380 USA corresponds to 300/380 EXC Europe but with less

accessories (blinkers, horn, no capacitor installed). Features no rectifi-

cation, only an over-voltage regulation.

STATIC GENERATOR VALUES 250-380 EXC (KOKUSAN 2K-3)

Measuring conditions:

–cold engine

–seat and tank removed

–all connectors and the ground connection in a non-corroding condition, connectors tightly connected

–light switch turned off

–kick the kick starter forcefully at least 5 times for each measurement

7-8C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

SPORTMOTORCYCLES

250-380 EXC 2000

7-9C

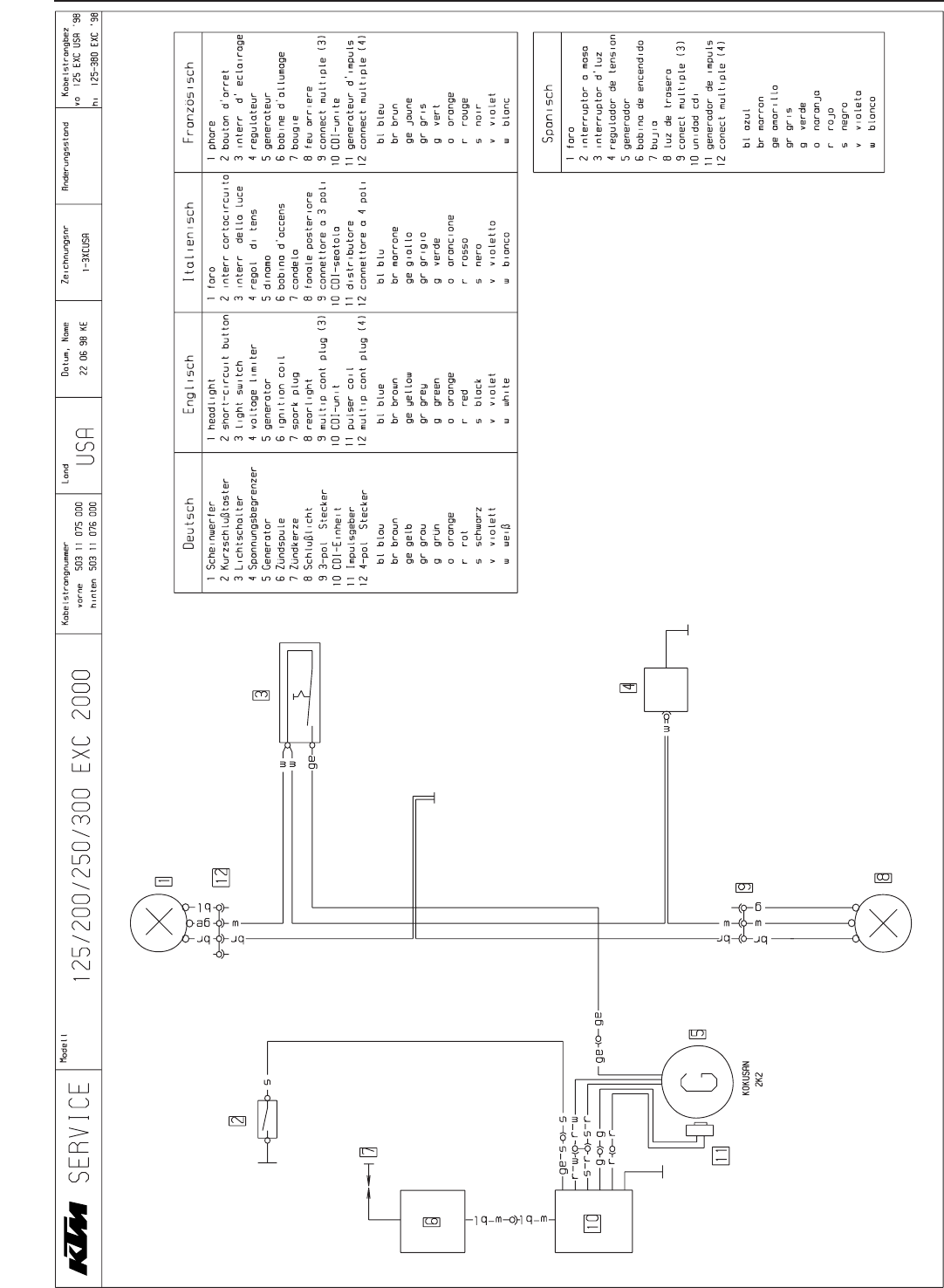

Static ignition values 250 MXC, EXC USA

Check the pulse generator for an output signal – two one-pin connectors

1with green and red cable colors (also see circuit diagram on opposite

page):

–Apply the red measuring lead of the peak voltage adapter to the green

cable and the black measuring lead to the red cable, disconnect both

connectors 1to disconnect the CDI unit 2

Multimeter display: 3.5 volts +/- 1 volt

–Same measurement with CDI unit connected

Multimeter display: 2 volts +/- 0.5 volt

Check the generator charging coil for ignition capacitor charge for out-

put voltage – two-pin connector 3with black/red and red/white cable

colors (also see circuit diagram on opposite page)

–apply the red measuring lead of the peak voltage adapter to the

black/red cable and the black measuring lead to the red/white cable,

disconnect connector 3to disconnect the CDI unit 2

Multimeter display: 45 volts +/- 5 volts

–Same measurement with connectors CDI unit connected

Multimeter display: 220 volts +/- 10 volts

Check the primary voltage output 4for ignition coil control (also see cir-

cuit diagram on opposite page) for output voltage (blue/white cable

color):

–apply the red measuring lead Rof the peak voltage adapter to the

black/white cable (ground) and the black measuring lead Sto the

blue/white cable, CDI unit 2and ignition coil 5connected

Multimeter display: 210 volts +/- 10 volts

NOTE: the ignition coil does not need to be removed to measure.

Static generator values 250 MXC, EXC USA

Check the generator output 6for the lighting system (also see circuit

diagram on opposite page) for voltage:

–between yellow and brown (ground), connector disconnected

Multimeter display: 10.5 volts +/- 1 volt

STATIC IGNITION AND GENERATOR VALUES 250 MXC, EXC USA

(KOKUSAN 2K-2)

Measuring conditions:

–cold engine

–seat and tank removed

–all connectors and the ground connection in a non-corroding condition, connectors tightly connected

–spark plug screwed out and spark plug connector attached to ground

–light switch turned off

–the gap between the rotor and pulse generator must be set to 0.75 mm

–kick the kick starter forcefully at least 5 times for each measurement

7-10C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

250 EXC 2001

Repair manual 250 / 300 / 380 Art No 3206004 -E

TROUBLE SHOOTING

TROUBLE SHOOTING 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2

INDEX

8-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

8-2C

TROUBLE SHOOTING

If you let the specified maintenance work on your motorcycle be carried out, disturbances can hardly be expected.

Should an error occur nevertheless, we advise you to use the trouble shooting chart in order to find the cause of error.

CAUSE

Operating error

Fuel supply interrupted

Electrode distance too great

Plug fouled by oil, wet or bridged

Ignition wire or spark plug connector

damaged

Kill button wire or

short-circuit switch faulty

Loose ignition cable connectors

Spark too weak

Water in the carburetor and jets

blocked

Idle adjusting screw out of

adjustment

Ignition system damaged

Wear

Charred glass fiber yarn in silencer

Air filter obstructed

Control flap does not work

Fuel supply partly interrupted or

blocked

Loss of compression through loose

spark plug

Exhaust system damaged

Engine has not enough preignition

REMEDY

Open fuel tap, switch o ignition, replenish fuel, do not use choke

Close fuel tap, loosen fuel hose at carburettor, lead into a

basin and open fuel tap,

–if fuel leaks out, clean carburettor

–if no fuel leaks out, check tank ventilation, i.e. clean fuel tap

Reduce electrode distance (0.60 mm)

Clean spark plug or renew

Dismount spark plug, connect ignition cable, hold to ground

(blank place on engine) and actuate kickstarter, a strong spark

must be produced at the spark plug

–

If no spark is produced, loosen spark plug cap from ignition

cable, hold about 5 mm from ground and actuate kickstarter

–If a spark now occurs, replace spark plug cap

–If no spark is produced, check ignition system

Disconnect yellow-black coloured cable from CDI and check

ignition spark. If the spark is O.K. repair defective part of

cable, ignition lock or ignition switch

Inspect cable connectors

Examine ignition system

Dismantle and clean carburetor

Readjust idle running or replace idle adjusting screw

Examine ignition system

Overhaul engine

Renew filling

Clean or renew airfilter

Check control flap, joint rod and centrifugal timer

Blow through fuel pipe and clean carburetor

Tighten spark plug

Check exhaust system for damage

Check and adjust ignition

TROUBLE

Engine fails to start

Engine without idle

running

Engine has not enough

power

8-3C

TROUBLE

Engine has not enough

power

Engine revs not high and

running with four stroke

cycle

High rpm misfiring

Engine spluters into the

carburetor

Engine overheating

Emission of white smoke

(steam)

Excessive oil escapes from

transmission breather tube

All switched on lamps

blown out

CAUSE

Reed paddles tensionless or dama-

ged, surface of reed valve housing

damaged

Wear

Electronical ignition timing faulty

Carburetor overflows if level adjust

too high, float needle seating is

dirty or enlarged

Loose carburetor jets

Incorrect heat range spark plug or

low quality spark plug

Incorrect or faulty spark plug connector

Loose, corroded or non conductive

ignition socket connector

Lack of fuel

Spark plug with incorrect heat value

(Ignition by incandescence)

Engine takes air out of control

Insufficient liquid in cooling system

Cooling system not or insufficiently

bleeded

Radiator fins clogged

Frothing in cooling system

Pinched or kinked water hoses

Incorrect ignition timing because of

loose stator bolts

Incorrect dimension ,,X“

Cylinder head or O-ring of cylinder

head gasket leaks

Excessive oil quantity in trans-

mission

Water pump shaft seal ring or right-

hand crankshaft seal ring defect

Silicon O-rings of control roller or of

control flap leaks

Voltage regulator faulty

REMEDY

Replace reed paddles or reed valve housing

Overhaul engine

Check ignition system

Clean carburetor, if necessary replace float needle and adjust

level

Tighten jets

Refer to technical data section

Test and/or replace spark plug connectors correct type

Check and seal with silicon

Clean fuel pipes, examine tank aeration and clean

Fit correct spark plug

Check intake flange and carburettor if firmly setted

Top up coolant and bleed cooling system check cooling system

for leaks

Bleed cooling system (see operating instructions)

Clean radiator fins with water jet

Renew coolant using branded anti-freeze/anti-corrosive

Replace with correct routed hoses

Readjust to correct ignition timing specifications, secure

screws properly with Loctite 243

Measure and adjust to correct specification

Check cylinder head, replace O-ring

Correct transmission oil level

Replace shaft seal ring and change gear oil, check coolant

Replace O-rings

Control connections of voltage regulator. Check voltage

regulator

Repair manual 250 / 300 / 380 Art No 3206004 -E

TECHNICAL SPECIFICATIONS

MODEL 1999

ENGINE 250 - 380 USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2

ENGINE 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-4

CHASSIS 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6

CARBURETOR SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-7

MODEL 2000

ENGINE 250 - 380 USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10

ENGINE 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-12

CHASSIS 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-14

CARBURETOR SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-15

MODEL 2001

ENGINE 250 - 380 USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-19

ENGINE 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-21

CHASSIS 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-23

CARBURETOR SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-24

MODEL 2002

ENGINE 250 - 380 USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-28

ENGINE 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-30

CHASSIS 250 - 380 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-32

CARBURETOR SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-33

MODEL 2003

ENGINE 250 - 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-37

CHASSIS 250 - 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-39

CARBURETOR SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-41

INDEX

9-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-2C

Engine 250 SX 250 EXC, MXC 300 EXC, MXC 380 SX 380 EXC, MXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 67.5 / 69.5 mm (2.66 / 2.74 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasolin ratio 1:50 - 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing

needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring two plain compression rings

Dimension "X"

0 mm +0.1 mm (0 in + 0.004 in)

Ignition timing 1.8 mm (0.07 in) (17 °) BTDC 2.0 mm (0.08 in) (17°) BTDC 2.2 mm (0.09 in) (17 °) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

48 mm (1.9 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5400/min 5300/min 5200/min

TVC fully open 7550/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio EXC M-XC EXC MXC

1st Gear 15:29 15:29 15:29 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 18:26 18:26 18:26 18:26 18:26

3rd Gear 19.25 19:22 19:22 19:24 19:24 19:22 19:24

4th Gear 21:23 21:20 21:20 21:23 21:23 21:20 21:23

5th Gear 23:21 23:18 23:18 23:21 23:21 23:18 23:21

Gear lubrication 0.8 l engine oil 20W-40 (Shell Advance VSX4)

Available chain sprockets

13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-1 KOKUSAN 2K-2 KOKUSAN 2K-1 KOKUSAN 2K-2

Generator output no generator 12V 40W no generator 12V 40W

Carburetor flat-slide carburetor, carburetor setting see table 3

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL SPECIFICATIONS - ENGINE 250/300/380 SX/MXC/EXC ‘99 (only for USA)

9-3C

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.05 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3–0.4 mm

Connecting rod bearing - radial clearance 0.021–0.032 mm

Transmission shafts end float 0.1 – 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/ 0.5 /0.7 mm

Cylinder-head gasket O-rings

250 SX 250 MXC, EXC

300 MXC, EXC

380 SX, MXC, EXC

TABLE 3

BASIC CARBURETOR SETTING

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Throttle valve

Air adjustment screw open

Keihin PWK 38

090598

172(168,170,175)

45(48,50)

NOZ G(NOZ H,NOZ I)

1,5

Keihin PWK 38

100598

175(170,172,178)

45(42,48)

N85 C(N85 D)

III

1,5 Umdr.

Keihin PWK 38

070598

170(168,172,175)

48(45,50)

NOZ H(NOZ G,NOZ I)

1,5 Umdr.

TIGHTENING TORQUES

GASKET THICKNESSES

Art No 3206004 -E

9-4C

Repair manual KTM 250 / 300 / 380

Engine 250 SX 250 EXC, EGS 300 EXC, EGS 380 SX 380 EXC, EGS

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 67.5 / 69.5 mm (2.66 / 2.74 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasoline ratio 1:50 - 1.60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing

needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring two plain compression rings

Dimension "X"

0 + 0.1 mm (0 + 0.004 in)

Ignition timing 1,9 mm (0.07 in) (17 °) BTDC 1.2 mm (0.05 in) (13.5 °) BTDC 1.2 mm (0.05 in) (13.5 °) BTDC 2.1 mm (0.08 in) (17 °) BTDC 1.4 mm (0.06 in) (14,5°) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

48 mm (1.9 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5400/min 5300/min 5200/min

TVC fully open 7550/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio

1st Gear 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 18:26 18:26

3rd Gear 19.25 19:22 19:24 19:22

4th Gear 21:23 21:20 21:23 21:20

5th Gear 23:21 23:18 23:21 23:18

Gear lubrication 0,8 l engine oil 20W-40 (Shell Advance VSX4)

ailable chain sprockets 13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-1 SEM K11 KOKUSAN 2K-1 SEM K11

Generator output no generator 12V 130W no generator 12V 130W

Carburetor flat-slide carburetor, carburetor setting see table 4

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL SPECIFICATIONS - ENGINE 250/300/380 SX/EXC/EGS ‘99 (all models out of USA)

9-5C

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.05 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3– 0.4 mm

Connecting rod bearing - radial clearance

0.021– 0.032 mm

Transmission shafts end float 0.1– 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/0.5 /0.7 mm

Cylinder-head gasket O-rings

250 SX 250 MXC, EXC

300 MXC, EXC

380 EGS

AUSTRALIA

380 SX, MXC, EXC

TABLE 4

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Throttle valve

Air adjustment screw open

Performance restrictor

Keihin PWK 38

090598

172(168,170,175)

45(48,50)

NOZ G(NOZ H,NOZ I)

1,5

–

Keihin PWK 38

100598

175(170,172,178)

45(42,48)

N85 C(N85 D)

III

1,5 Umdr.

–

250/300 EGS

AUSTRALIA

Keihin PWK 38

100598

175(170,172,178)

45(42,48)

N85 C(N85 D)

III

1,5 Umdr.

slide stop 31mm

Keihin PWK 38

070598

170(168,172,175)

48(45,50)

NOZ H(NOZ G,NOZ I)

1,5 Umdr.

–

Keihin PWK 38

060598

175(168,170,172)

45(48,50)

NOZ G(NOZ H,NOZ I)

1,5 Umdr.

slide stop 36mm

TOLERANCES AND FITTING CLEARANCES

BASIC CARBURETOR SETTING

TIGHTENING TORQUES

GASKET THICKNESSES

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-6C

250/380SX 250/300/380 MXC 250/300/380 EXC 250/300/380 EGS

Frame Central chrome-moly-steel frame

Fork WP Extreme Ø 50 mm

Wheel travel front/rear 280 / 320 mm (11.0 / 12.6 in)

Rear suspension WP Progressive Damping System shock absorber, aluminium swingarm

Front brake Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated

Rear brake Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated

Front tires 80/100 - 21“ 51M 80/100 - 21“ 51M 90/90 - 21“ 54R 90/90 - 21“ 54R

––80/100 - 21“ 51M –

Air pressure offroad 1.0 bar (14 psi) 1.0 bar (14 psi) 1.0 bar (14 psi) 1.0 bar (14 psi)

Air press. road driver only

––1.5 bar (21 psi) 1.5 bar (21 psi)

Rear tires 110/90 - 19“ 62M 110/100 - 18“ 64M 140/80 - 18“ 70R 140/80 - 18“ 70R

––110/100 - 18“ 64M –

Air pressure offroad 1.0 bar (14 psi) 1.0 bar (14 psi) 1.0 bar (14 psi) 1.0 bar (14 psi)

Air press. road driver only

––2.0 bar (28 psi) 2.0 bar (28 psi)

Fuel tank capacity 7.5 liter 12 liter 9.5 or 12 liter 9.5 or 12 liter

(2 US gallons) (3.2 US gallons) (2.5 or 3.2 US gallons) (2.5 or 3.2 US gallons)

Final drive ratio 14:50 14:52 14:50 / 14:52 14:50 / 15:48

Chain 5/8 x 1/4"

Available final sprockets 38, 40, 42, 45, 48, 50, 52

Steering head angle 63.5°

Wheel base 1481 ± 10 mm (58.3 ± 0.4 in)

Seat height, unloaded 925 mm (36.4 in)

Ground clearance, unloaded

385 mm (15 in)

Dead-weight without fuel

101 kg (223 lbs) 102.5 kg (226.3 lbs) 103.7 kg (229 lbs) 109 kg (240.6 Ibs)

TECHNICAL SPECIFICATIONS CHASSIS 250 / 300 / 380 SX / MXC / EXC / EGS ‘99

WP 918T768 WP 918T769

Compression adjuster 12 12

Rebound adjuster 12 12

Spring 4.2 N/mm 4.0 N/mm

Spring preload 5 mm (0.2 in) 5 mm (0.2 in)

Air chamber length 150 mm (5.9 in) 155 mm (6.1 in)

Capacity per fork leg approx. 750 ccm approx. 750 ccm

Fork oil SAE 5 SAE 5

STANDARD ADJUSTMENT - FORK

NOTE:

The damping units in the left and the right fork leg are of

different design. Make sure not to mix them up in case of

repair or service jobs.

Collar bolt front wheel spindle M 10 40 Nm (30 ft.lb)

Brake caliper front M 8 25 Nm (19 ft.lb)

+ Loctite 243

Clamping bolts upper fork bridge M 8 15 Nm (11 ft.lb)

Clamping bolts lower fork bridge M 8 20 Nm (15 ft.lb)

Clamping bolts fork stubs M 8 15 Nm (11 ft.lb)

Collar nut rear wheel spindle M 20x1,5 80 Nm (59 ft.lb)

Hexagon nut swing arm bolt M 14x1,5 100 Nm (74 ft.lb)

Shock absorber top M 12 60 Nm (44 ft.lb)

Shock absorber bottom M 12 40 Nm (30 ft.lb)

Other bolts on chassis M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

WP 1218T712 WP 1218T714

Compression adjuster 5 6

Rebound adjuster 14 12

Spring PDS3–250 PDS2–250

Spring preload 5 mm (0.20 in) 6 mm (0.23 in)

STANDARD-ADJUSTMENT - SHOCK ABSORBER

TORQUES The clamping bolts of the fork plates must be

tightened in several (3) steps. Otherwise, the bolts

might come loose.

9-7C

VERGASERREGULIERUNG

KTM 250/300 MXC/EXC EU, USA‘99 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTITUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 42 40 40 40 38

NADEL

NEEDLE

N85C N85C N85C N85D N85D N85D

POS POS 321111

HD MJ 175 172 170 168 165 165

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 45 42 42 42 40

NADEL

NEEDLE

N85B N85C N85C N85C N85D N85D

POS POS 322211

HD MJ 178 175 172 170 168 165

LSCHR AS 71 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 45 42

NADEL

NEEDLE

N85B N85B N85C N85C N85C N85D

POS POS 333221

HD MJ 180 178 175 172 170 168

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

N85B N85B N85C N85C N85C N85D

POS POS 322222

HD MJ 182 180 178 175 172 170

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

N85A N85B N85B N85C N85C N85D

POS POS 433211

HD MJ 185 182 180 178 175 172

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Super unleaded ROZ 95

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-8C

VERGASERREGULIERUNG

KTM 250 SX EUROPA, USA ‘99 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTITUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 42 40 40 40 38

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 321111

HD MJ 170 168 165 162 160 160

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 45 42 42 42 40

NADEL

NEEDLE

NOZG NOZH NOZH NOZI NOZI NOZI

POS POS 321111

HD MJ 172 170 168 165 162 160

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZH NOZI

POS POS 332222

HD MJ 175 172 170 168 165 162

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 322222

HD MJ 178 175 172 170 168 165

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZI

POS POS 433211

HD MJ 180 178 180 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Super unleaded ROZ 95

9-9C

VERGASERREGULIERUNG

KTM 380 SX/MXC/EXC EU, USA ‘99 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTITUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 48 45 45 42 42 40

NADEL

NEEDLE

HHH I I I

POS POS 321111

HD MJ 172 170 168 165 162 162

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

GHH I I I

POS POS 321111

HD MJ 175 172 170 168 165 162

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 50 48 48 48 48 45

NADEL

NEEDLE

GGHHH I

POS POS 332222

HD MJ 178 175 172 170 168 165

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 52 50 48 48 48 45

NADEL

NEEDLE

GGHN0ZH NOZI NOZI

POS POS 322222

HD MJ 180 178 175 172 170 168

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 52 50 48 48 48 45

NADEL

NEEDLE

FGGHHI

POS POS 433211

HD MJ 182 180 178 175 172 170

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Super unleaded ROZ 95

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-10C

Engine 250 SX 250 EXC, MXC 300 EXC, MXC 380 SX 380 EXC, MXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 66.4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasolin ratio 1:40 – 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing

needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring one plain compression rings two plain compression rings

Dimension "X"

0 +0.1 mm (0 + 0.004 in)

Ignition timing 2.0 mm (0.07 in) (17 °) BTDC 2.2 mm (0.09 in) (17 °) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

50,5 mm (1.99 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5000/min 5300/min 5200/min

TVC fully open 7500/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio EXC MXC EXC MXC EXC MXC

1st Gear 15:29 15:29 15:29 15:29 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 17:27 18:26 18:26 18:26 18:26 18:26

3rd Gear 19:25 19:22 19:25 19:22 19:24 19:24 19:22 19:24

4th Gear 21:23 21:20 21:23 21:20 21:23 21:23 21:20 21:23

5th Gear 23:21 23:18 23:21 23:18 23:21 23:21 23:18 23:21

Gear lubrication 0.8 l engine oil 20W-40 (Shell Advance VSX4)

Available chain sprockets

13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-4 KOKUSAN 2K-2 KOKUSAN 2K-1 KOKUSAN 2K-3

Generator output no generator 12V 40W no generator 12V 110W

Carburetor flat-slide carburetor, carburetor setting see table

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300/380 SX / MXC / EXC 2000 (only USA)

9-11C

TIGHTENING TORQUES - ENGINE

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.05 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3–0.4 mm

Connecting rod bearing - radial clearance 0.021–0.032 mm

Transmission shafts end float 0.1 – 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/ 0.5 /0.75 mm

Cylinder-head gasket O-rings

250 SX 250 MXC, EXC

BASIC CARBURETOR SETTING

Keihin PWK 38 AG PJ

110499

172 (170,175)

48 (45,50)

NOZ E (NOZ F)

III

1,5

–

Keihin PWK 38 AG

130499

180 (178,182)

45 (48)

NOZ G (NOZ H)

III

1,5

–

300 MXC, EXC

Keihin PWK 38 AG

140499

175 (172,178)

45 (48)

NOZ H (NOZ I)

III

1,5

–

380 SX, MXC, EXC

Keihin PWK 38 AG

150499

170 (168,172)

45 (48)

NOZ H (NOZ I)

III

1,5

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet jet

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-12C

Engine 250 SX 250 EXC 300 EXC 380 SX 380 EXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 66.4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasoline ratio 1:40 – 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring one plain compression ring two plain compression rings

Dimension "X"

0 + 0.1 mm (0 + 0.004 in)

Ignition timing 2.0 mm (0.07 in) (17 °) BTDC 2.2 mm (0.08 in) (17 °) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

50,5 mm (1.99 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5000/min 5300/min 5200/min

TVC fully open 7500/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio

1st Gear 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 18:26 18:26

3rd Gear 19.25 19:22 19:24 19:22

4th Gear 21:23 21:20 21:23 21:20

5th Gear 23:21 23:18 23:21 23:18

Gear lubrication 0,8 l engine oil 20W-40 (Shell Advance VSX4)

ailable chain sprockets 13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-4 KOKUSAN 2K-3 KOKUSAN 2K-1 KOKUSAN 2K-3

Generator output no generator 12V 110W no generator 12V 110W

Carburetor flat-slide carburetor, carburetor setting see table

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300/380 SX / EXC 2000 (all models out of USA)

9-13C

TIGHTENING TORQUES

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.05 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3–0.4 mm

Connecting rod bearing - radial clearance 0.021–0.032 mm

Transmission shafts end float 0.1 – 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/ 0.5 /0.75 mm

Cylinder-head gasket O-rings

250 SX 250 MXC, EXC

BASIC CARBURETOR SETTING

Keihin PWK 38 AG PJ

110499

172 (170,175)

48 (45,50)

NOZ E (NOZ F)

III

1,5

–

Keihin PWK 38 AG

130499

180 (178,182)

45 (48)

NOZ G (NOZ H)

III

1,5

–

300 MXC, EXC

Keihin PWK 38 AG

140499

175 (172,178)

45 (48)

NOZ H (NOZ I)

III

1,5

–

250/300 EXC

throttled

Keihin PWK 38 AG

050799

175

R 1475 J

III

1,5

slide stop 34mm

–

380 SX, MXC, EXC

Keihin PWK 38 AG

150499

170 (168,172)

45 (48)

NOZ H (NOZ I)

III

1,5

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Throttle valve

Air adjustment screw open

Performance restrictor

Power jet jet

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-14C

* Dead-weight without fuel

WP 1218U718 WP 1218U720

Compression adjuster 4 5

Rebound adjuster 18 20

Spring PDS3–250 PDS2-250

Spring preload 5 mm (0.2 in) 5 mm (0.2 in)

STANDARD ADJUSTMENT - SHOCK ABSORBER

WP 0518U785 WP 0518U787

Compression adjuster 14 14

Rebound adjuster 12 12

Spring 4,0 N/mm 4,0 N/mm

Spring preload 6 mm (0.24in) 6,5 mm (0.26in)

Air chamber length 140 mm (5.5in) 150 mm (5.9in)

Capacity per fork leg approx. 840 ccm approx. 830 ccm

Fork oil SAE 5 SAE 5

STANDARD ADJUSTMENT-FORK

250/380 SX 250/300/380 MXC 250/300/380 EXC

Frame Central chrome-moly-steel frame

Fork White Power – Up Side Down 43 MA

Wheel travel front/rear 295/320 mm (11,3/12,6 in)

Rear suspension WP Progressive Damping System shock absorber, aluminium swingarm

Front brake Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated

Rear brake Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated

Brake discs Wear limit max. 0,4 mm (0,016 in)

Front tires 80/100 - 21“51M – 90/90 - 21“ 54R

Front tires USA 80/100 - 21“51M 80/100 - 21“51M 80/100 - 21“51M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

–1,5 bar (21psi) 1,5 bar (21psi)

Rear tires 100/90 - 19“ 62M – 140/80 - 18“ 70R

Rear tires USA 100/90 - 19“ 62M 100/100 - 18“ 64M 100/100 - 18“ 64M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

–2,0 bar (28psi) 2,0 bar (28psi)

Fuel tank capacity

7,5 liter (2 US Gallons) 12 liter (3,2 US Gallons) 9,5/12 liter (2,5/3,2 US Gallons)

Final drive ratio 14:50t – 15:48t / 14:50t

Final drive ratio USA 14:50t 14:52t 14:52t

Chain

5/8 x 1/4 "

Available final sprockets

38t, 40t, 42t, 45t, 48t, 50t, 52t

Steering head angle 63,5°

Wheel base 1481 ± 10 mm (58,3 ± 0,4 in)

eat height, unloaded

925 mm (36,5 in)

Ground clearance, unloaded

385 mm (15,2 in)

Dead-weight *101 kg (223 lbs) – 109 kg (240,6 lbs)

Dead-weight USA * 101 kg (223 lbs) 102,5 kg (226,3 lbs) 103,7 kg (229 lbs)

TECHNICAL SPECIFICATIONS CHASSIS 250/300/380 SX, MXC, EXC 2000

Collar nut front wheel spindle M 16x1,5 40 Nm (30 ft.lb)

Brake caliper front M 8 25 Nm (19 ft.lb)

+ Loctite 243

Clamping bolts upper fork bridge M 8 20 Nm (15 ft.lb)

Clamping bolts lower fork bridge M 8 15 Nm (11 ft.lb)

Clamping bolts fork stubs M8 10 Nm (7 ft.lb)

Collar nut rear wheel spindle M 20x1.5 80 Nm (59 ft.lb)

Hexagon nut swing arm bolt M 14x1.5 100 Nm (74 ft.lb)

Collar bolt handlebar clamp M 8 20 Nm (15 ft.lb)

Allen head bolt handlebar support M 10 40 Nm (30 ft.lb)

Shock absorber top M 12 60 Nm (44 ft.lb)

Shock absorber bottom M 12 60 Nm (44 ft.lb)

Screw adjusting ring spring preload

M 6 8 Nm (6 ft.lb)

Other bolts on chassis M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

TIGHENING TORQUES - CHASSIS

9-15C

VERGASERREGULIERUNG

KTM 250 SX EUR/USA 2000 KEIHIN PWK 38AG PJ

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 48 45 45 42 42 40

NADEL

NEEDLE

NOZD NOZE NOZE NOZF NOZG NOZH

POS POS 332211

HD MJ 170 168 165 161628 160 160

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZD NOZD NOZE NOZE NOZF NOZG

POS POS 332222

HD MJ 172 170 168 165 162 160

LSCHR AS 11 1/41 1/2 1 3/4 2 2 1/4

LD IJ 50 48 48 48 48 45

NADEL

NEEDLE

NOZD NOZD NOZE NOZE NOZF NOZF

POS POS 433222

HD MJ 175 172 170 168 165 162

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 52 50 48 48 48 45

NADEL

NEEDLE

NOZC NOZD NOZE NOZE NOZE NOZF

POS POS 443332

HD MJ 178 175 172 170 168 165

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 52 50 48 48 48 45

NADEL

NEEDLE

NOZC NOZC NOZD NOZD NOZE NOZE

POS POS 443332

HD MJ 180 178 180 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

21.06.99

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-16C

VERGASERREGULIERUNG

KTM 250 MXC/EXC EUR/USA 2000 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 3/4 1 3/4 1 3/4 2 2 1/2 1 3/4

LD IJ 40 40 40 38 38 38

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 332222

HD MJ 178 175 172 170 170 168

LSCHR AS 1 1/4 1 1/2 1 3/4 1 3/4 2 2

LD IJ 42 42 40 40 40 40

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 332222

HD MJ 180 178 175 172 170 168

LSCHR AS 1 1/4 1 1/2 1 1/2 1 3/4 1 3/4 2

LD IJ 45 45 42 42 42 40

NADEL

NEEDLE

NOZG NOZG NOZG NOZH NOZI NOZI

POS POS 433222

HD MJ 182 180 178 175 172 170

LSCHR AS 1 1/4 1 1/4 1 1/4 1 1/2 1 3/4 1 3/4

LD IJ 45 45 45 42 42 42

NADEL

NEEDLE

NOZF NOZG NOZG NOZG NOZH NOZH

POS POS 443332

HD MJ 185 182 180 178 175 172

LSCHR AS 11 1/41 1/2 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

NOZE NOZF NOZG NOZG NOZH NOZH

POS POS 543332

HD MJ 188 185 182 180 178 175

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

21.06.99

9-17C

VERGASERREGULIERUNG

KTM 300 MXC/EXC EUR/USA 2000 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 42 40 40 40 38

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 321111

HD MJ 172 170 168 165 162 162

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 45 42 42 42 40

NADEL

NEEDLE

NOZG NOZH NOZH NOZI NOZI NOZI

POS POS 321111

HD MJ 175 172 170 168 165 162

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZH NOZI

POS POS 3322222

HD MJ 178 175 172 170 168 165

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 322222

HD MJ 180 178 175 172 170 168

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZI

POS POS 433211

HD MJ 182 180 178 175 172 170

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

21.06.99

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-18C

VERGASERREGULIERUNG

KTM 380 SX / MXC / EXC EUR / USA 2000

KEIHIN

PWK 38 AG

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 45 40 40 40 38

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 321111

HD MJ 172 170 168 165 162 162

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 45 42 42 42 40

NADEL

NEEDLE

NOZG NOZH NOZH NOZI NOZI NOZI

POS POS 321111

HD MJ 175 172 170 168 165 162

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZH NOZI

POS POS 3322222

HD MJ 178 175 172 170 168 165

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 322222

HD MJ 180 178 175 172 170 168

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZI

POS POS 433211

HD MJ 182 180 178 175 172 170

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

21.06.99

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-19C

Engine 250 SX 250 EXC, MXC 300 EXC, MXC 380 SX 380 EXC, MXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 66.4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasolin ratio 1:40 – 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing

needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring one plain compression rings two plain compression rings

Dimension "X"

0 +0.1 mm (0 + 0.004 in)

Ignition timing 1,9 mm (0,07 in) BTDC 2.4 mm (0.095 in) BTDC 2.43 mm (0.096 in) BTDC 2.6 mm (0.1 in) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

49,5 mm (1.95 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5000/min 5900/min 5200/min

TVC fully open 7000/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio EXC MXC EXC MXC EXC MXC

1st Gear 15:29 15:29 15:29 15:29 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 17:27 18:26 18:26 18:26 18:26 18:26

3rd Gear 19:25 19:22 19:25 19:22 19:24 19:24 19:22 19:24

4th Gear 21:23 21:20 21:23 21:20 21:23 21:23 21:20 21:23

5th Gear 23:21 23:18 23:21 23:18 23:21 23:21 23:18 23:21

Gear lubrication SX

0.8 l engine oil 20W-40 (Shell Advance VSX4)

MXC/

EXC 0,8 l gear oil 80W (Shell Gear EP 80)

Available chain sprockets

13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-4 KOKUSAN 2K-2 KOKUSAN 2K-3 KOKUSAN 2K-3

Generator output no generator 12V 40W no generator 12V 110W

Carburetor flat-slide carburetor, carburetor setting see table

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300/380 SX / MXC / EXC 2001 (only USA)

9-20C

TIGHTENING TORQUES - ENGINE

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.06 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3– 0.4 mm

Connecting rod bearing - radial clearance

0.021– 0.032 mm

Transmission shafts end float 0.1– 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/ 0.5 /0.75 mm

Cylinder-head gasket O-rings

250 SX 250 MXC, EXC

BASIC CARBURETOR SETTING

Keihin PWK 38 AG PJ

010300

172 (170,175)

48 (45,50)

NOZ E (NOZ F)

III

1,5

–

Keihin PWK 38 AG

030300

178 (175,180)

45 (48)

NOZ G (NOZ H)

6,5

1,5

–

300 MXC, EXC

Keihin PWK 38 AG

050300

175 (172,178)

45 (48)

NOZ H (NOZ I)

III

6,5

1,5

–

380 SX, MXC, EXC

Keihin PWK 38 AG

070300

170 (168,172)

45 (48)

NOZ G (NOZ I/NOZ H)

III

6,5

1,5

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet jet

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-21C

Engine 250 SX 250 EXC 300 EXC 380 SX 380 EXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 66.4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasoline ratio 1:40 – 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring one plain compression ring two plain compression rings

Dimension "X"

0 + 0.1 mm (0 + 0.004 in)

Ignition timing 1,9 mm (0,07 in) BTDC 2.4 mm (0.095 in) BTDC 2.43 mm (0.096 in) BTDC 2.6 mm (0.1 in) 17 °) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

49,5 mm (1.94 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5000/min 5900/min 5200/min

TVC fully open 7000/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio

1st Gear 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 18:26 18:26

3rd Gear 19.25 19:22 19:24 19:22

4th Gear 21:23 21:20 21:23 21:20

5th Gear 23:21 23:18 23:21 23:18

Gear lubrication

0,8 l engine oil 20W-40 (Shell Advance VSX4)

0,8 l gear oil 80W (Shell Gear EP 80)

0,8 l engine oil 20W-40 (Shell Advance VSX4)

0,8 l gear oil 80W (Shell Gear EP 80)

ailable chain sprockets 13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-4 KOKUSAN 2K-3 KOKUSAN 2K-3 KOKUSAN 2K-3

Generator output no generator 12V 110W no generator 12V 110W

Carburetor flat-slide carburetor, carburetor setting see table

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300/380 SX / EXC 2001 (all models out of USA)

9-22C

TIGHTENING TORQUES

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.06 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3–0.4 mm

Connecting rod bearing - radial clearance 0.021–0.032 mm

Transmission shafts end float 0.1 – 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/ 0.5 /0.75 mm

Cylinder-head gasket O-rings

BASIC CARBURETOR SETTING

300 EXC AUS

throttled

Keihin PWK 38 AG

060300

175 (172,178)

45 (48)

NOZ H (NOZ I)

III

6,5

1,5

slide stop 34mm

–

250 EXC AUS

throttled

Keihin PWK 38 AG

040300

178 (175,180)

45 (48)

NOZ G (NOZ H)

6,5

1,5

slide stop 34mm

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet jet

380 EXC

throttled

Keihin PWK 38 AG

080300

170 (168,172)

45 (48)

NOZ G (NOZ I/NOZ H)

III

6,5

1,5

slide stop 36mm

–

250 SX 380 SX

BASIC CARBURETOR SETTING

Keihin PWK 38 AG PJ

010300

172 (170,175)

48 (45,50)

NOZ E (NOZ F)

III

1,5

–

Keihin PWK 38 AG

070300

170 (168,172)

45 (48)

NOZ G (NOZ I/NOZ H)

III

6,5

1,5

–

250/300 EXC

throttled

Keihin PWK 38 AG

020300

175 (172,178,180)

R 1475 J

III

6,5

1,5

slide stop 34mm

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Throttle valve

Air adjustment screw open

Performance restrictor

Power jet jet

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-23C

* Dead-weight without fuel

WP 1218V730 WP 1218V731

Compression adjuster 5 5

Rebound adjuster 25 25

Spring PDS7–265 PDS2-250

Spring preload 5 mm (0.2 in) 6 mm (0.24 in)

STANDARD ADJUSTMENT - SHOCK ABSORBER

WP 0518V703 WP 0518V704

Compression adjuster 14 14

Rebound adjuster 12 12

Spring 4,0 N/mm 4,0 N/mm

Spring preload 5 mm (0.20in) 5 mm (0.20in)

Air chamber length 130 mm (5.1in) 150 mm (5.9in)

Fork oil SAE 5 SAE 5

STANDARD ADJUSTMENT-FORK

250/380 SX 250/300/380 MXC 250/300/380 EXC

Frame Central chrome-moly-steel frame

Fork White Power – Up Side Down 43 MA

Wheel travel front/rear 295/320 mm (11,3/12,6 in)

Rear suspension WP Progressive Damping System shock absorber, aluminium swingarm

Front brake Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated

Rear brake Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated

Brake discs Wear limit max. 0,4 mm (0,016 in)

Front tires 80/100 - 21“51M – 90/90 - 21“ 54R

Front tires USA 80/100 - 21“51M 80/100 - 21“51M 80/100 - 21“51M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

–1,5 bar (21psi) 1,5 bar (21psi)

Rear tires 100/90 - 19“ 62M – 140/80 - 18“ 70R

Rear tires USA 100/90 - 19“ 62M 100/100 - 18“ 64M 100/100 - 18“ 64M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

–2,0 bar (28psi) 2,0 bar (28psi)

Fuel tank capacity

7,5 liter (2 US Gallons) 11 liter (2,9 US Gallons) 8,5/11 liter (2,2/2,9 US Gallons)

Final drive ratio 14:50t – 15:48t / 14:50t

Final drive ratio USA 14:50t 14:52t 14:52t

Chain

5/8 x 1/4 "

Available final sprockets

38t, 40t, 42t, 45t, 48t, 50t, 52t

Steering head angle 63,5°

Wheel base 1481 ± 10 mm (58,3 ± 0,4 in)

eat height, unloaded

925 mm (36,5 in)

Ground clearance, unloaded

385 mm (15,2 in)

Dead-weight *101 kg (223 lbs) – 109 kg (240,6 lbs)

Dead-weight USA * 101 kg (223 lbs) 102,5 kg (226,3 lbs) 103,7 kg (229 lbs)

TECHNICAL SPECIFICATIONS CHASSIS 250/300/380 SX, MXC, EXC 2001

Collar nut front wheel spindle M 16x1,5 40 Nm (30 ft.lb)

Brake caliper front M 8 25 Nm (19 ft.lb)

Loctite 243

Clamping screws upper fork bridge

M 8 20 Nm (15 ft.lb)

Clamping bolts lower fork bridge

M 8 15 Nm (11 ft.lb)

Clamping bolts fork stubs M8 10 Nm (7 ft.lb)

Collar nut rear wheel spindle M 20x1.5 80 Nm (59 ft.lb)

Hexagon nut swing arm bolt M 14x1.5 100 Nm (74 ft.lb)

Collar bolt handlebar clamp M 8 20 Nm (15 ft.lb)

Allen head bolt handlebar support

M 10 40 Nm (30 ft.lb)

+ Loctite 243

Shock absorber top M 12 60 Nm (44 ft.lb)

Shock absorber bottom M 12 60 Nm (44 ft.lb)

Screw adjusting ring spring preload

M 6 8 Nm (6 ft.lb)

Other bolts on chassis M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

TIGHENING TORQUES - CHASSIS

9-24C

VERGASERREGULIERUNG

KTM 250 SX EUR/USA 2001 KEIHIN PWK 38AG PJ

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 48 45 45 42 42 40

NADEL

NEEDLE

NOZD NOZE NOZE NOZF NOZG NOZH

POS POS 332211

HD MJ 170 168 165 162 160 160

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZD NOZD NOZE NOZE NOZF NOZG

POS POS 332222

HD MJ 172 170 168 165 162 160

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 50 48 48 48 48 45

NADEL

NEEDLE

NOZD NOZD NOZE NOZE NOZF NOZF

POS POS 433222

HD MJ 175 172 170 168 165 162

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 52 50 48 48 48 45

NADEL

NEEDLE

NOZC NOZD NOZE NOZE NOZE NOZF

POS POS 443332

HD MJ 178 175 172 170 168 165

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 52 50 48 48 48 45

NADEL

NEEDLE

NOZC NOZC NOZD NOZD NOZE NOZE

POS POS 543332

HD MJ 180 178 175 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 7

Atomizer= 6 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 7

Zerstäuber= 6 mm

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-25C

VERGASERREGULIERUNG

KTM 250 MXC/EXC EUR/USA 2001 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 3/4 1 3/4 1 3/4 2 2 1/2 1 3/4

LD IJ 42 42 42 40 40 40

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 332221

HD MJ 178 175 172 170 170 168

LSCHR AS 1 1/4 1 1/2 1 3/4 1 3/4 2 2

LD IJ 45 45 42 42 42 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 332222

HD MJ 180 178 175 172 170 168

LSCHR AS 1 1/4 1 1/2 1 1/2 1 3/4 1 3/4 2

LD IJ 48 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZG NOZH NOZI NOZI

POS POS 433322

HD MJ 182 180 178 175 172 170

LSCHR AS 1 1/4 1 1/4 1 1/4 1 1/2 1 3/4 1 3/4

LD IJ 48 48 48 45 45 45

NADEL

NEEDLE

NOZF NOZF NOZG NOZG NOZH NOZH

POS POS 544332

HD MJ 185 182 180 178 175 172

LSCHR AS 11 1/4 1 1/2 1 1/4 1 1/2 1 3/4

LD IJ 52 50 48 48 45 45

NADEL

NEEDLE

NOZE NOZF NOZG NOZG NOZH NOZH

POS POS 554332

HD MJ 188 185 182 180 178 175

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 6 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 6 mm

9-26C

VERGASERREGULIERUNG

KTM 300 MXC/EXC EUR/USA 2001 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 42 40 40 40 38

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 332221

HD MJ 175 172 170 168 165 162

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 45 42 42 42 40

NADEL

NEEDLE

NOZG NOZH NOZH NOZI NOZI NOZI

POS POS 332222

HD MJ 178 175 172 170 168 165

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZH NOZI

POS POS 433322

HD MJ 180 178 175 172 170 168

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 544332

HD MJ 182 180 178 175 172 170

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZI

POS POS 554332

HD MJ 185 182 180 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 6 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 6 mm

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-27C

VERGASERREGULIERUNG

KTM 380 SX / MXC / EXC EUR / USA 2001

KEIHIN

PWK 38 AG

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 45 40 40 40 38

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZI

POS POS 332221

HD MJ 170 168 165 162 160 158

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 45 42 42 42 40

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 332222

HD MJ 172 170 168 165 162 160

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZG NOZH NOZI NOZI

POS POS 433322

HD MJ 175 172 170 168 165 162

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 48 45 45 45 42

NADEL

NEEDLE

NOZF NOZF NOZG NOZG NOZH NOZH

POS POS 544322

HD MJ 178 175 172 170 168 165

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 45 45 42 42

NADEL

NEEDLE

NOZE NOZF NOZG NOZG NOZH NOZH

POS POS 554332

HD MJ 180 178 175 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 6 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 6 mm

9-28C

Engine 250 SX 250 MXC/EXC 300 MXC/EXC 380 SX 380 MXC/EXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 66.4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasolin ratio 1:40 – 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing

needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring one plain compression rings two plain compression rings

Dimension "X"

0 +0.1 mm (0 + 0.004 in)

Ignition timing 1,9 mm (0,07 in) BTDC 1,94 mm (0,08 in) BTDC 2.1 mm (0,09 in) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

49,5 mm (1.95 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5000/min 5900/min 5200/min

TVC fully open 7000/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio EXC MXC EXC MXC EXC MXC

1st Gear 15:29 15:29 15:29 15:29 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 17:27 18:26 18:26 18:26 18:26 18:26

3rd Gear 19:25 19:22 19:25 19:22 19:24 19:24 19:22 19:24

4th Gear 21:23 21:20 21:23 21:20 21:23 21:23 21:20 21:23

5th Gear 23:21 23:18 23:21 23:18 23:21 23:21 23:18 23:21

Gear lubrication SX

0.8 l engine oil 20W-40 (Shell Advance VSX4)

MXC/EXC 0,8 l engine oil 10W-40 (Shell Advance Ultra 4)

Available chain sprockets

13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-1 KOKUSAN 2K-2 KOKUSAN 2K-3 KOKUSAN 2K-3

Generator output no generator 12V 40W no generator 12V 110W

Carburetor flat-slide carburetor, carburetor setting see table

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300/380 SX / MXC / EXC 2002 (only USA)

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-29C

TIGHTENING TORQUES - ENGINE

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.06 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3–0.4 mm

Connecting rod bearing - radial clearance 0.021–0.032 mm

Transmission shafts end float 0.1 – 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/ 0.5 /0.75 mm

Cylinder-head gasket O-rings

250 SX 250 MXC, EXC

BASIC CARBURETOR SETTING

Keihin PWK 38 AG

061200

170 (168,172)

48 (45,50)

NOZ E (NOZ F/D)

III

6,5

1,5

–

Keihin PWK 38 AG

030201

178 (175,180)

45 (48)

NOZ E (NOZ F)

6,5

1,5

–

300 MXC, EXC

Keihin PWK 38 AG

040201

175 (172,178)

45 (48)

NOZ H (NOZ I)

III

6,5

1,5

–

380 SX, MXC, EXC

Keihin PWK 38 AG

050201

170 (168,172)

45 (48)

NOZ G (NOZ H)

III

6,5

1,5

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet jet

9-30C

Engine 250 SX 250 EXC 300 EXC 380 SX 380 EXC

Design Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm 368 ccm

Bore / stroke 66.4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in) 78 / 77 mm (3 / 2.98 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade two stroke oil (Shell Advance Racing X)

Oil / gasoline ratio 1:40 – 1:60 when using high grade two stroke oil. When in doupt, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston cast piston

Piston ring one plain compression ring two plain compression rings

Dimension "X"

0 + 0.1 mm (0 + 0.004 in)

Ignition timing 1,9 mm (0,07 in) BTDC 1,94 mm (0.075 in) BTDC 2.1 mm (0.08 in) BTDC

Spark plug NGK BR 8 ECM

Electrode gap 0.6 mm (0.024 in)

Dimension "Z"

49,5 mm (1.94 in) 46 mm (1.7 in) 50.5 mm (1.99 in)

TVC start open 5000/min 5900/min 5200/min

TVC fully open 7000/min 7750/min 7200/min

Primary drive straight cut spur gears, primary ratio 25:72 straight cut spur gears, primary ratio 26:72

Clutch multiple disc clutch in oil bath, hydraulic operated (Shell HF-E15)

Transmission 5 speed, claw actuated

Gear ratio

1st Gear 15:29 15:29 15:29 15:29

2nd Gear 17:27 18:26 18:26 18:26

3rd Gear 19.25 19:22 19:24 19:22

4th Gear 21:23 21:20 21:23 21:20

5th Gear 23:21 23:18 23:21 23:18

Gear lubrication

0,8 l engine oil 20W-40 (Shell Advance VSX4)

0,8 l engine oil 10W-40 (Shell Advance Ultra 4)

0,8 l engine oil 20W-40 (Shell Advance VSX4)

0,8 l engine oil 10W-40 (Advance Ultra

ailable chain sprockets 13t / 14t / 15t for chain 5

/8x1

/4"

Coolant 1.3 litres, 40% anti freeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-1 KOKUSAN 2K-3 KOKUSAN 2K-3 KOKUSAN 2K-3

Generator output no generator 12V 110W no generator 12V 110W

Carburetor flat-slide carburetor, carburetor setting see table

Air-filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300/380 SX / EXC 2002 (all models out of USA)

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-31C

TIGHTENING TORQUES

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Flat head bolt release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Other bolts M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

Piston fitting clearance 0.06 mm (250) 0.06 mm (300) 0.08 mm (380)

Piston ring end gap 0.3– 0.4 mm

Connecting rod bearing - radial clearance

0.021– 0.032 mm

Transmission shafts end float 0.1– 0.2 mm

Clutch springs - length Ø 2.5 new = 43 mm, minimum length = 42 mm

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/0.5 /0.75 mm

Cylinder-head gasket O-rings

BASIC CARBURETOR SETTING

300 EXC AUS

throttled

Keihin PWK 38 AG

070201

170 (172,168)

45 (48)

NOZ G (NOZ H)

6,5

1,5

slide stop 36mm

–

250 EXC USA

Keihin PWK 38 AG

030201

178 (175,180)

45 (48)

NOZ E (NOZ F)

6,5

1,5

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet jet

300 MXC/EXC

USA

Keihin PWK 38 AG

040201

175 (178,172)

45 (48)

NOZ H (NOZ I)

III

6,5

1,5

–

250 SX 380 SX

380 SX USA

BASIC CARBURETOR SETTING

Keihin PWK 38 AG

061200

170 (168,172)

48 (45,50)

NOZ E (NOZ F/D)

III

6,5

1,5

–

Keihin PWK 38 AG

050201

170 (168,172)

45 (48)

NOZ G (NOZ H)

6,5

1,5

–

250/300 EXC

throttled

Keihin PWK 38 AG

061200

175 (172,178,180)

35 (45/48)

R 1475 J (NOZ E/H)

III

6,5

1,5

slide stop 34mm

–

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet jet

9-32C

* Dead-weight without fuel

WP 1218V736 WP 1218V737

Compression adjuster 15 LS (low speed) 15

2 HS (high speed)

Rebound adjuster 25 25

Spring PDS7–260 PDS6–260

Spring preload 4 mm (0.16 in) 5 mm (0.19 in)

STANDARD ADJUSTMENT - SHOCK ABSORBER

WP 1418W709 WP 0518W711

Compression adjuster 20 20

Rebound adjuster 16 12

Spring 4,2 N/mm 4,0 N/mm

Spring preload 5 mm (0.20in) 5 mm (0.20in)

Air chamber length 100 mm (4,0 in) 140 mm (5.9in)

Fork oil SAE 5 SAE 5

STANDARD ADJUSTMENT-FORK

250/380 SX 250/300/380 MXC 250/300/380 EXC

Frame Central chrome-moly-steel frame

Fork White Power – Up Side Down 48 MA White Power – Up Side Down 43 MA

Wheel travel front/rear 295/320 mm (11,3/12,6 in)

Rear suspension WP Progressive Damping System shock absorber, aluminium swingarm

Front brake Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated

Rear brake Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated

Brake discs Wear limit max. 0,4 mm (0,016 in)

Front tires 80/100 - 21“51M – 90/90 - 21“ 54R

Front tires USA 80/100 - 21“51M 80/100 - 21“51M 80/100 - 21“51M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

–1,5 bar (21psi) 1,5 bar (21psi)

Rear tires 100/90 - 19“ 62M – 140/80 - 18“ 70R

Rear tires USA 100/90 - 19“ 62M 100/100 - 18“ 64M 100/100 - 18“ 64M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

–2,0 bar (28psi) 2,0 bar (28psi)

Fuel tank capacity

7,5 liter (2 US Gallons) 11 liter (2,9 US Gallons) 8,5/11 liter (2,2/2,9 US Gallons)

Final drive ratio 14:50t – 15:48t / 14:50t

Final drive ratio USA 14:50t 14:52t 14:52t

Chain 5/8 x 1/4 "

Available final sprockets 38t, 40t, 42t, 45t, 48t, 50t, 52t

Steering head angle 63,5°

Wheel base 1481 ± 10 mm (58,3 ± 0,4 in)

Seat height, unloaded 925 mm (36,5 in)

Ground clearance, unloaded

385 mm (15,2 in)

Dead-weight *101 kg (223 lbs) – 109 kg (240,6 lbs)

Dead-weight USA * 101 kg (223 lbs) 102,5 kg (226,3 lbs) 103,7 kg (229 lbs)

TECHNICAL SPECIFICATIONS CHASSIS 250/300/380 SX, MXC, EXC 2002

Collar nut front wheel spindle M 16/20x1,5 40 Nm (30 ft.lb)

Brake caliper front M 8 25 Nm (19 ft.lb)

+ Loctite 243

Clamping bolts upper fork bridge M 8 20 Nm (15 ft.lb)

Clamping bolts lower fork bridge M 8 15 Nm (11 ft.lb)

Clamping bolts fork stubs M8 10 Nm (7 ft.lb)

Collar nut rear wheel spindle M 20x1.5 80 Nm (59 ft.lb)

Hexagon nut swing arm bolt M 14x1.5 100 Nm (74 ft.lb)

Collar bolt handlebar clamp M 8 20 Nm (15 ft.lb)

Allen head bolt handlebar support M 10 40 Nm (30 ft.lb)

+ Loctite 243

Shock absorber top M 12 60 Nm (44 ft.lb)

Shock absorber bottom M 12 60 Nm (44 ft.lb)

Screw adjusting ring spring preload M 6 8 Nm (6 ft.lb)

Other bolts on chassis M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

TIGHENING TORQUES - CHASSIS

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-33C

VERGASERREGULIERUNG

KTM 250 SX EUR/USA 2002 KEIHIN PWK 38AG

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 48 45 45 42 42 40

NADEL

NEEDLE

NOZE NOZE NOZF NOZG NOZH NOZI

POS POS 332211

HD MJ 170 168 165 162 160 158

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 48 48 45 45 42 42

NADEL

NEEDLE

NOZD NOZE NOZE NOZF NOZG NOZH

POS POS 332221

HD MJ 172 170 168 165 162 160

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 50 48 48 45 45 42

NADEL

NEEDLE

NOZD NOZD NOZE NOZE NOZF NOZG

POS POS 433222

HD MJ 175 172 170 168 165 162

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 50 50 48 48 45 45

NADEL

NEEDLE

NOZC NOZD NOZD NOZE NOZE NOZF

POS POS 443332

HD MJ 178 175 172 170 168 165

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 52 50 50 48 48 45

NADEL

NEEDLE

NOZC NOZC NOZD NOZD NOZE NOZE

POS POS 543332

HD MJ 180 178 175 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 5 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 5 mm

9-34C

VERGASERREGULIERUNG

KTM 250 MXC/EXC EUR/USA 2002 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 3/4 1 3/4 1 3/4 2 2 1/2 1 3/4

LD IJ 45 45 42 42 40 40

NADEL

NEEDLE

NOZE NOZF NOZG NOZH NOZI NOZI

POS POS 332221

HD MJ 178 175 172 170 168 165

LSCHR AS 1 1/4 1 1/2 1 3/4 1 3/4 2 2

LD IJ 45 45 45 42 42 40

NADEL

NEEDLE

NOZD NOZE NOZF NOZG NOZH NOZI

POS POS 332222

HD MJ 180 178 175 172 170 168

LSCHR AS 1 1/4 1 1/2 1 1/2 1 3/4 1 3/4 2

LD IJ 48 45 45 45 42 42

NADEL

NEEDLE

NOZD NOZD NOZE NOZF NOZG NOZH

POS POS 433322

HD MJ 182 180 178 175 172 170

LSCHR AS 1 1/4 1 1/4 1 1/4 1 1/2 1 3/4 1 3/4

LD IJ 48 48 45 45 45 42

NADEL

NEEDLE

NOZC NOZD NOZD NOZE NOZF NOZG

POS POS 544332

HD MJ 185 182 180 178 175 172

LSCHR AS 11 1/41 1/2 1 1/4 1 1/2 1 3/4

LD IJ 50 48 48 45 45 45

NADEL

NEEDLE

NOZC NOZC NOZD NOZD NOZE NOZF

POS POS 554332

HD MJ 188 185 182 180 178 175

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 5 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 5 mm

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

9-35C

VERGASERREGULIERUNG

KTM 300 MXC/EXC EUR/USA 2002 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 45 42 42 40 40

NADEL

NEEDLE

NOZH NOZH NOZI NOZI NOZJ NOZJ

POS POS 332221

HD MJ 175 172 170 168 165 162

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 45 45 45 42 42 40

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZJ

POS POS 332221

HD MJ 178 175 172 170 168 165

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 42 42

NADEL

NEEDLE

NOZG NOZH NOZH NOZH NOZI NOZI

POS POS 433322

HD MJ 180 178 175 172 170 168

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 48 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZH NOZI

POS POS 544332

HD MJ 182 180 178 175 172 170

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 48 45 45 45

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZH

POS POS 554332

HD MJ 185 182 180 178 175 172

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 5 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 5 mm

9-36C

VERGASERREGULIERUNG

KTM 380 SX / MXC / EXC EUR / USA 2002

KEIHIN

PWK 38 AG

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 45 42 42 40 40

NADEL

NEEDLE

NOZG NOZH NOZH NOZI NOZI NOZI

POS POS 332221

HD MJ 170 168 165 162 160 158

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 45 45 45 42 42 40

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZI NOZI

POS POS 332222

HD MJ 172 170 168 165 162 160

LSCHR AS 11 1/4 1 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 42 42

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZI

POS POS 433322

HD MJ 175 172 170 168 165 162

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 48 48 45 45 45 42

NADEL

NEEDLE

NOZF NOZF NOZG NOZG NOZH NOZH

POS POS 544322

HD MJ 178 175 172 170 168 165

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 48 45 45 45

NADEL

NEEDLE

NOZE NOZF NOZF NOZG NOGH NOZH

POS POS 554332

HD MJ 180 178 175 172 170 168

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 5 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber =5 mm

9-37C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

Engine 250 MXC/EXC 300 MXC/EXC

Desgin Liquid-cooled single-cylinder two-stroke engine with KTM Twin Valve Control exhaust system and KTM Torque Chamber

Piston displacement 249 ccm 297 ccm

Bore / stroke 66,4 / 72 mm (2.62 / 2.84 in) 72 / 73 mm (2.84 / 2.88 in)

Fuel unleaded SUPER fuel, research octane no 95, mixed with high-grade, two- stroke oil

Oil / gasolino ratio 1:40 – 1:60 when using high grade, two- stroke oil. When in dout, please contact your importer or use 1:40 mix ratio to be on the safe side

Crankshaft bearing 1 deep-groove ball bearing / 1 cylinder roller bearing

Connecting rod bearing needle bearing

Piston pin bearing needle bearing

Piston cast piston forged piston

Piston ring two plain compression rings

Dimension “X“

0 + 0,1 mm (0 + 0.004 in)

Ingition timing 1,9 mm vor OT 1,94 mm vor OT

Spark plug NGK BR 7 ES

Electrode gap 0,60 mm

Dimension “Z“

49,5 mm (0.024 in) 46 mm (1.7 in)

TVC start open 5000/min 5900/min

TVC fully open 7000/min 7750/min

Primary drive straight cut spur gears, primary ratio 25:72

Clutch multiple disc clutch in oil bath, hydraulically operated (Shell HF-E15

Transmission 5 speed, claw actuated

Gear ratio EXC MXC EXC MXC

1st gear 15:29 15:29 15:29 15:29

2nd gear 18:26 17:27 18:26 18:26

3rd gear 19:22 19:25 19:22 19:24

4th gear 21:20 21:23 21:20 21:23

5th gear 23:18 23:21 23:18 23:21

Gear lubrication 0,8 l engine oil 10W-40

ailable chain sprockets 13Z / 14Z / 15Z for chain 5

/8x1

/4"

Coolant 1.3 liters, 40% antifreeze, 60% water, at least -25 °C (-13 °F)

Ignition system KOKUSAN 2K-3

Generator output 12V 110W

Ignition system USA (MXC) KOKUSAN 2K-2

Generator output 12V 40W

Carburetor flat-slide carburetor, carburetor setting see table

Air- filter wet foam type air filter insert

(upper edge piston -

upper edge cylinder)

(height of the

control flap)

TECHNICAL DATA - ENGINE 250/300 MXC / EXC 2003

9-38C

TIGHTENING TORQUES

Flange bolts - cylinder-head M 8 35 Nm (25 ft.lb)

Nuts-cylinder base M 10 35 Nm (25 ft.lb)

Flywheel collar nut M 12x1 60 Nm (44 ft.lb)

Flat head screw release plate kickstarter M 6x16 Loctite 648 19 Nm (14 ft.lb)

Nut for primary sprocket (LH thread) M 18x1.5 Loctite 243 150 Nm (110 ft.lb)

Nut for inner clutch hub M 18x1.5 Loctite 243 100 Nm (74 ft.lb)

Crankcase and cover bolts M 6 8 Nm (6 ft.lb)

Swingarm pivot M 14 100 Nm (74 ft.lb)

Other screws M 6 10 Nm (7 ft.lb)

M 8 25 Nm (19 ft.lb)

M 10 45 Nm (33 ft.lb)

BASIC CARBURETOR SETTING

Carburetor

Carburetor setting number

Main jet

Idling jet

Starting jet

Jet needle

Needle position from top

Slide

Air adjustment screw open

Performance restrictor

Power jet nozzle

250/300 EXC

throttled

Keihin PWK 38 AG

120202

175 (182,185)

35 (48)

R 1475 J

(N3CH/N3CW)

III

6.5

1.5

slide stop 34mm

250 EXC USA

Keihin PWK 38 AG

140202

182 (185)

N3CH (N3CW)

6.5

1.5

–

300 EXC AUS

throttled

Keihin PWK 38 AG

130202

175 (172,178)

35 (45,48)

R1475J (NOZ H/NOZ

6.5

1.5

slide stop 34mm

Keihin PWK 38 AG

150202

175 (172,178)

45 (48)

NOZ H (NOZ I)

III

6.5

1.5

–

300 MXC / EXC

USA

Piston fitting clearance 0.06 mm (250 / 300)

Piston ring end gap 0.3– 0.4 mm

Connecting rod bearing - radial clearance

0.021– 0.032 mm

Transmission shafts end float 0.1– 0.2 mm

Clutch springs - length Ø 2.5 minimum length = 42 mm, new = 43 mm

Crankshaft webs – outer dimension 60 mm ±0,05 mm

Runout Crankshaft journal Crankshaft max 0,06 (neu 0,03)

TOLERANCES AND FITTING CLEARANCES

GASKET THICKNESSES

Crankcase 0.5 mm

Clutch cover 0.5 mm

Cylinder bottom gasket as required

Available cylinder bottom gaskets 0.2/0.4/0.5 /0.75 mm

Cylinder-head gasket O-rings

9-39C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

WP 5018-MCC

1218X759

Compression adjuster 17

Rebound adjuster 26

Spring 71-90/260

Spring preload 7 mm (0.27 in)

STANDARD ADJUSTMENT - SHOCK ABSORBER

WP 4860 MXMA

1418X736

Compression adjuster 20

Rebound adjuster 20

Spring 4,0 N/mm

Spring preload 5 mm (0.20in)

Air chamber length 110 mm (4,3 in)

Fork oil SAE 5

STANDARD ADJUSTMENT-FORK

250/300 MXC 250/300 EXC

Frame Central chrome-moly-steel frame

Fork White Power – Up Side Down 48 MA

Wheel travel front/rear 300/335 mm (11.8/13.2 in)

Rear suspension WP PDS 5018 (Progressive Damping System) shock absorber, aluminium swingarm

Front brake Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated

Rear brake Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated

Brake discs Wear limit max. 0,4 mm (0,016 in)

Front tires – 90/90 - 21“ 54R

Front tires USA 80/100 - 21“51M 80/100 - 21“51M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

1,5 bar (21psi) 1,5 bar (21psi)

Rear tires – 140/80 - 18“ 70R

Rear tires USA 100/100 - 18“ 64M 100/100 - 18“ 64M

Air pressure offroad 1,0 bar (14psi) 1,0 bar (14psi)

Air pressure road driver only

2,0 bar (28psi) 2,0 bar (28psi)

Fuel tank capacity

11 liter (2,9 US Gallons) 9/11 liter (2,3/2,9 US Gallons)

Final drive ratio – 15:48t / 14:50t

Final drive ratio USA 14:52t 14:52t

Chain

5/8 x 1/4 "

Available final sprockets

38t, 40t, 42t, 45t, 48t, 50t, 52t

Bulbs headlight HS1 12V 35/35W

parking light 12V 5W (base W2, 1x9,5d)

instrument light 12V 1,2W (base W2, 1x4,6d)

brake- rear light 12V 21/5W (base BaY15d)

flasher light 12V 10W (basel Ba15s)

license plate illumination 12V 1,2W (base 1x4,6d)

Steering head angle 63,5°

Wheel base 1481 ± 10 mm (58,3 ± 0,4 in)

eat height, unloaded

925 mm (36,5 in)

Ground clearance, unloaded

385 mm (15,2 in)

TECHNICAL SPECIFICATIONS CHASSIS 250/300 MXC, EXC 2003

9-40C

Collar screw, front wheel spindle M 24x1,5 40 Nm

Brake caliper, front M 8 Loctite 243 + 25 Nm

Brake disk, front M 6 10.9 Loctite 243 + 15 Nm

Brake disk, rear M 6 Loctite 243 + 15 Nm

Clamping screws, upper fork bridge M 8 20 Nm

Clamping screws, lower fork bridge M 8 15 Nm

Clamping screws, fork stubs M 8 10 Nm

Collar nut, rear wheel spindle M 20x1,5 80 Nm

Hexagon nut, swing arm bolt M 14x1,5 100 Nm

Hexagon collar screw, handlebar clamp M 8 20 Nm

Allan head screw, handlebar support M 10 Loctite 243 + 40 Nm

Shock absorber, top M 12 60 Nm

Shock absorber, bottom M 12 60 Nm

Sprocket screws M 8 Loctite 243 + 35 Nm

Ball joint for push rod M 6 Loctite 243 + 10 Nm

Engine mounting bolt M 10 45 Nm

Engine brace M 8 33 Nm

Screw adjusting ring spring preload shock abs.

M6 8 Nm

Spoke nipple M4,5 /M5 5 Nm

Other screws on chassis M 6 10 Nm

M 8 25 Nm

M 10 45 Nm

Other collar nuts on chassis M 6 15 Nm

M 8 30 Nm

M 10 50 Nm

TIGHTENING TORQUES - CHASSIS

9-41C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

VERGASERREGULIERUNG

KTM 250 MXC/EXC EUR/USA 2003 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 111,5 1,5 1,5 2

LD IJ 48 48 48 45 45 45

NADEL

NEEDLE

N3CH N3CH N3CH N3CW N3CW N3CW

POS POS 433332

HD MJ 182 182 180 178 175 172

LSCHR AS 1 1 1 1,5 1,5 1,5

LD IJ 48 48 48 48 45 45

NADEL

NEEDLE

N2CH N3CH N3CH N3CH N3CW N3CW

POS POS 443333

HD MJ 185 182 182 180 178 175

LSCHR AS 1 1 1 1 1,5 1,5

LD IJ 48 48 48 48 48 45

NADEL

NEEDLE

N3CG N3CH N3CH N3CH N3CH N3CW

POS POS 444333

HD MJ 188 185 182 182 180 178

LSCHR AS 1 1 1 111,5

LD IJ 50 48 48 48 48 48

NADEL

NEEDLE

N3CG N3CG N3CH N3CH N3CH N3CH

POS POS 544433

HD MJ 188 188 185 182 182 180

LSCHR AS 3/4 1 1 111

LD IJ 52 50 48 48 48 48

NADEL

NEEDLE

N3CG N3CG N3CG N3CH N3CH N3CH

POS POS 554443

HD MJ 190 188 188 185 182 182

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 5 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 5 mm

9-42C

VERGASERREGULIERUNG

KTM 300 MXC/EXC EUR/USA 2003 KEIHIN PWK 38

CARBURETOR SETTING

-20°C bis -7°C -6°C bis 5°C 6°C bis 15°C 16°C bis 24°C 25°C bis 38°C 37°C bis 49°C

-2°F to 20°F 19°F to 41°F 42°F to 60°F 61°F to 78°F 79°F to 98°F 99°F to 120°F

TEMPERATURMEERESHÖHE

ALTIDUDE

LSCHR AS 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4

LD IJ 45 45 42 42 40 40

NADEL

NEEDLE

NOZH NOZH NOZI NOZI NOZJ NOZJ

POS POS 332221

HD MJ 175 172 170 168 165 162

LSCHR AS 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2

LD IJ 45 45 45 42 42 40

NADEL

NEEDLE

NOZH NOZH NOZH NOZI NOZI NOZJ

POS POS 332221

HD MJ 178 175 172 170 168 165

LSCHR AS 11 1/41 1/2 1 3/4 2 2 1/4

LD IJ 48 45 45 45 42 42

NADEL

NEEDLE

NOZG NOZH NOZH NOZH NOZI NOZI

POS POS 433322

HD MJ 180 178 175 172 170 168

LSCHR AS 3/4 1 1 1/4 1 1/2 1 3/4 2

LD IJ 48 48 45 45 45 42

NADEL

NEEDLE

NOZG NOZG NOZH NOZH NOZH NOZI

POS POS 544332

HD MJ 182 180 178 175 172 170

LSCHR AS 1/2 3/4 1 1 1/4 1 1/2 1 3/4

LD IJ 50 48 48 45 45 45

NADEL

NEEDLE

NOZF NOZG NOZG NOZH NOZH NOZH

POS POS 554332

HD MJ 185 182 180 178 175 172

3000 m

10000 ft

2301 m

7501 ft

2300 m

7500 ft

1501 m

5001 ft

1500 m

5000 ft

751 m

2501 ft

750 m

2500 ft

301 m

1001 ft

300 m

1000 ft

Meeresniveau

Sea level

AS = Air screw open from fully-seated

IJ = Idling jet

POS = Clip position from top

MJ = Main jet

Slide = 6,5

Atomizer= 5 mm

NICHT FÜR STRASSENBETRIEB

Kraftstoff: Euro-Super bleifrei ROZ 95

NOT FOR HIGHWAY USE

Fuel: Euro-Super unleaded ROZ 95

LSCHR = Luftregulierschraube offen

LD = Leerlaufdüse

POS = Clip Position von oben

HD = Hauptdüse

Schieber= 6,5

Zerstäuber= 5 mm

Repair manual 250 / 300 / 380 Art No 3206004 -E

LUBRICATION AND MAINTENANCE SCHEDULE

MODEL 1999

LUBRICATION AND MAINTENANCE SCHEDULE 250 - 380 . . . . . . .10-2

MODEL 2000

LUBRICATION AND MAINTENANCE SCHEDULE 250 - 380 . . . . . . .10-3

MODEL 2001/2002

LUBRICATION AND MAINTENANCE SCHEDULE 250 - 380 . . . . . . .10-4

MODEL 2003

LUBRICATION AND MAINTENANCE SCHEDULE 250 - 300 . . . . . . .10-6

INDEX

10-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

10-2C

PERIODIC LUBRICATION AND MAINTENANCE SCHEDULE

Check transmission oil level ●

Change transmission oil ●●●

Check spark plug and electrode gap ●●●

Change spark plug ●

Functional testing of the exhaust control system ●

Check intake manifold for leaks and cracks ●●

Drain and clean carburetor float chamber ●●

Adjust idling ●●

Check breather hoses of engine case and gas tank for correct position without buckles

●

Clean and check airfilter element, box and carburetor connection boot ●●●

Check chain, sprockets, guides and chain wear ●●●

Clean and oil chain ●●

Check chain tension ●●●

Check coolant level ●●●

Check quality of antifreeze ●

Check cooling system for leaks - visual inspection ●●●

Check exhaust system for cracks and leaks ●

Replace glass fiber yarn of silencer ●

Check of the exhaust suspension system ●

Check brake fluid level front and rear ●●●

Change brake fluid ●

Check thickness of disc brake pads ●●

Check brake discs ●

Inspect condition and installation of front and rear brake hoses ●●●

Check free travel and free movability of hand brake lever and foot brake lever ●●●

Check the oil level in the master cylinder of the hydraulic clutch ●●

Change the oil of the hydraulic clutch ●

Check telescopic fork action ●●

Check telescopic fork for leaks ●

Push up the protective bellows and remove the dirt; the drain holes must be free of obstructions

●●●●

Clean the dust scrabbers of the telescopic force ●●●

Undo the bleeder screws at the fork legs ●

Change oil of telescopic fork ●

Service telescopic fork completely ●

Check steering head bearing free play ●●

Clean and regrease steering head bearing ●●

Check setting and damping of shock absorber ●●

Service shock absorber completely ●

Grease swingarm needle bearings (don’t grease the pivot bearing for the shock absorber) ●

Check for even spoke tension and rim alignment ●●●

Check wheel bearings ●●

Check tires for cuts and air pressure ●●

Check cables for damage and free movement ●●

Adjust and oil control cables ●● ●

Check electrical system ●●●

Check battery holder and connections (CH, Singapore) ●

Check adjustment of headlight ●

Apply contact spray to light switches, flasher switches and ignition lock ●●

Check all bolts, nuts, screws and clamps for proper tightness ●●●

Clean and lubricate control lever pivot points ●●●●

AT A REGULAR COMPETITION USE OF THE BIKE, THE 4000 KM (2500 MILES)

SERVICE IS TO BE DONE AFTER EVERY RACE

KTM

rider KTM

dealer

before each start

after washing

after 2000 km

(1250 miles) or 20 hours

after 4000 km

(2500 miles) or once a year

at least

once a year

1st service after 1000 km

(600 miles) or 10 hours

125-380 6.98

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

10-3C

PERIODIC LUBRICATION AND MAINTENANCE SCHEDULE

Check transmission oil level ●

Change transmission oil ●●●

Check spark plug and electrode gap ●●●

Change spark plug ●

Functional testing of the exhaust control system ●

Check intake manifold for leaks and cracks ●●

Drain and clean carburetor float chamber ●●

Adjust idling ●●

Check breather hoses of engine case and gas tank for correct position without buckles

●

Clean and check airfilter element, box and carburetor connection boot ●●●

Check chain, sprockets, guides and chain wear ●●●

Clean and oil chain ●●

Check chain tension ●●●

Check coolant level ●●●

Check quality of antifreeze ●

Check cooling system for leaks - visual inspection ●●●

Check exhaust system for cracks and leaks ●

Replace glass fiber yarn of silencer ●●

Check of the exhaust suspension system ●●

Check brake fluid level front and rear ●●●

Change brake fluid ●

Check thickness of disc brake pads ●●

Check brake disks for wear and wobbling ●

Inspect condition and installation of front and rear brake hoses ●●●

Check free travel and free movability of hand brake lever and foot brake lever ●●●

Check the oil level in the master cylinder of the hydraulic clutch ●●

Change the oil of the hydraulic clutch ●

Check telescopic fork action ●●

Check telescopic fork for leaks ●

Clean the dust scrabbers of the telescopic force ●●●

Undo the bleeder screws at the fork legs ●

Change oil of telescopic fork ●

Service telescopic fork completely ●

Check steering head bearing free play ●●

Clean and regrease steering head bearing ●●

Check setting and damping of shock absorber ●●

Service shock absorber completely ●

Grease swingarm needle bearings (dont grease the pivot bearing for the shock absorber) ●

Check for even spoke tension and rim alignment ●●●

Check wheel bearings ●●

Check tires for cuts and air pressure ●●

Check cables for damage and free movement ●●

Adjust and oil control cables ●● ●

Check electrical system ●●●

Check adjustment of headlight ●

Apply contact spray to light switches, flasher switches and emergency off switch ●●

Check all bolts, nuts, screws and clamps for proper tightness ●●●

Clean and lubricate control lever pivot points ●●●●

AT A REGULAR COMPETITION USE OF THE BIKE, THE 4000 KM (2500 MILES)

SERVICE IS TO BE DONE AFTER EVERY RACE

KTM

rider KTM

dealer

before each start

after washing

after 2000 km

(1250 miles) or 20 hours

after 4000 km

(2500 miles) or once a year

at least

once a year

1st service after 1000 km

(600 miles) or 10 hours

125-380 6.99

10-4C

PERIODIC MAINTENANCE SCHEDULE 2001/02

after

20 hours

2000 kilometer

1. service after

10 hours

1000 kilometer

after

4000 kilometer

once a year

IF MOTORCYCLE IS USED FOR COMPETITION 4000KM SERVICE SHOULD BE CARRIED OUT AFTER EVERY RACE!

ERVICE

NTERVALLS SHOULD NEVER BE EXCEED BY MORE THAN

HOURS OR

500

MAINTENANCE WORK DONE BY KTM AUTHORISED WORKSHOPS IS NOT A SUBSTITUTE OF CARE AND CHECKS DONE BY THE RIDER!

A washed motorcycle can be checked more quickly which saves money!

Check gear box oil level ●

Change gear box oil ●●

Check spark plugs, adjust distance between electrodes ●●

Renew spark plugs ●

Check the carburettor connection boot for cracks and leaks ●

Check idle speed setting ●●

Check that vent hoses are not damaged or bent ●●

Check cooling system for leaks, check quantity of anti freeze ●●

Check exhaust system for leaks and fitment ●

Check cables for damage, smooth operation, bends; adjust and lubricate ●●

Check oil level of the clutch master cylinder ●●●

Clean air filter and filter box ●

Check electric wires for damage and bends ●

Check headlamp setting ●

Check function of electric systems (low-, high beam, break light, indicator, ●●

indicator lamps, speedometer illumination, horn, emergency OFF switch or button

Check brake fluid level, lining thickness, break lining ●●

Check brake lines for damage and leaks ●●

Check/adjust smooth operation and free travel of handbrake/foot brake lever ●●

Check tightness of brake system screws ●●

Check shock absorber and fork for leaks and function ●●

Clean fork dust bellows ●

Bleed fork legs ●

Check swing arm bearings ●

Check/adjust steering head bearings ●●

Check tightness of all chassis screws (triple clamps, fork leg axle passage ●●

axle nuts and screws, swing arm bearings, shock absorber)

Check spoke tension and rim joint ●

Check tyres and air pressure ●●

Check chain, rear sprockets and chain guides for wear, fitment and tension ●●

Lubricate chain ●●

Check clearance of wheel bearings ●●

IMPORTANT RECOMMENDED MAINTENANCE WORK THAT CAN BE CARRIED OUT BY EXTRA ORDER

Check function of exhaust control ●

Complete maintenance of shock absorber ●

Complete maintenance of fork ●

Clean and grease steering head bearings and gasket elements ●

Clean and adjust carburetor ●

Replace glass fibre yarn filling of the exhaust main silencer ●

Treat electric contacts and switches with contact grease ●

Change hydraulic clutch fluid ●

Change break fluid ●

WHEELS CHASSIS BRAKES ADD-ON-PARTS

CARBURETOR

ENGINE

250/300/380 SX/MXC/EXC

at least

once a year

every 2 years

or 20000 km

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

10-5C

IMPORTANT CHECKS AND MAINTENANCE TO BE CARRIED OUT BY THE RIDER

Check gear box oil level ●

Check brake fluid level ●

Check brake pads for wear ●

Check lights for function ●

Check horn for function ●

Lubricate and adjust cables and nipples ●

Bleed fork legs regulary ●

Remove and clean fork dust bellows regulary ●

Clean and lubricate chain, check tension and adjust if necessary ●●

Clean air filter and filter box ●

Check tires for pressure and wear ●

Check cooling liquid level ●

Check fuel lines for leaks ●

Drain and clean float chamber ●

Check all control elements for smooth operation ●

Check brake performance ●●

Treat blank metal parts (with the exception of brake and exhaust systems) ●

with wax-based anti corrosion agent

Treat ignition and steering locks and light switches with contact spray ●

Check tightness of screws, nuts and hose clamps regular ●

For cross-

country use

Once a year

After every

cleaning

Before each

start

10-6C

PERIODIC MAINTENANCE SCHEDULE 2003

after

20 hours

2000 kilometers

1st service

after 10 hours

1000 kilometers

after

4000 kilometer

once a year

IF MOTORCYCLE IS USED FOR COMPETITION 4000KM SERVICE SHOULD BE CARRIED OUT AFTER EVERY RACE!

ERVICE

NTERVALS SHOULD NEVER BE EXCEEDED BY MORE THAN

HOURS OR

500

MAINTENANCE WORK DONE BY KTM AUTHORISED WORKSHOPS IS NOT A SUBSTITUTE FOR CARE AND CHECKS DONE BY THE RIDER!

A clean motorcycle can be checked more quickly which saves money!

Check gear box oil level ●

Change gear box oil ●●

Check spark plugs, adjust distance between electrodes ●●

Renew spark plugs ●

Check the carburetor connection boot for cracks and leaks ●

Check idle speed setting ●●

Check that vent hoses are not damaged or bent ●●

Check cooling system for leaks, check quantity of antifreeze ●●

Check exhaust system for leaks and fitment ●

Check cables for damage, smooth operation, bends; adjust and lubricate ●●

Check oil level of the clutch master cylinder ●●●

Clean air filter and filter box ●

Check electric wires for damage and bends ●

Check headlamp setting ●

Check function of electric systems (low beam, high beam, break light, indicator, ●●

indicator lamps, speedometer illumination, horn, emergency OFF switch or button

Check brake fluid level, lining thickness, brake lining ●●

Check brake lines for damage and leaks ●●

Check/adjust smooth operation and free travel of handbrake/foot brake lever ●●

Check tightness of brake system screws ●●

Check shock absorber and fork for leaks and function ●●

Clean dust bellows ●

Bleed fork legs ●

Check swing arm bearings ●

Check/adjust steering head bearings ●●

Check tightness of all chassis screws (triple clamps, fork leg axle passage ●●

axle nuts and screws, swing arm bearings, shock absorber)

Check spoke tension and rim joint ●

Check tires and air pressure ●●

Check chain, rear sprockets and chain guides for wear, fitment and tension ●●

Lubricate chain ●●

Check clearance of wheel bearings ●●

IMPORTANT RECOMMENDED MAINTENANCE WORK THAT CAN BE CARRIED OUT BY EXTRA ORDER

Check function of exhaust control ●

Complete maintenance of shock absorber ●

Complete maintenance of fork ●

Clean and grease steering head bearings and gasket elements ●

Clean and adjust carburetor ●

Replace glass fibre- yarn filling of the exhaust main silencer ●

Treat electric contacts and switches with contact grease ●

Change hydraulic clutch fluid ●

Change break fluid ●

WHEELS CHASSIS BRAKES ADD-ON-PARTS

CARBURETOR

ENGINE

250/300 MXC/EXC

at least

once a year

every 2 years

or 20000 km

10-7C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

IMPORTANT CHECKS AND MAINTENANCE TO BE CARRIED OUT BY THE RIDER

Check gear box oil level ●

Check brake fluid level ●

Check brake pads for wear ●

Check lights for function ●

Check horn for function ●

Lubricate and adjust cables and nipples ●

Bleed fork legs regulary ●

Remove and clean dust bellows regularly ●

Clean and lubricate chain, check tension and adjust if necessary ●●

Clean air filter and filter box ●

Check tires for pressure and wear ●

Check cooling liquid level ●

Check fuel lines for leaks ●

Empty and clean float chamber ●

Check all control elements for smooth operation ●

Check brake performance ●●

Treat blank metal parts (with the exception of brake and exhaust systems) ●

with wax-based anti corrosion agent

Treat ignition and steering locks and light switches with contact spray ●

Check tightness of screws, nuts and hose clamps regularly ●

For cross-

country use

Once a year

After every

cleaning

Before each

start

10-8C

RECOMMENDED INSPECTION OF THE 250/300 EXC AND MXC ENGINE

USED FOR ENDURO COMPETITIONS BY YOUR KTM WORKSHOP

(ADDITIONAL ORDER FOR THE KTM WORKSHOP)

Check the reed-type intake valve for wear ●●●●●●

Check the clutch shoes for wear ●●●●●●

Check the length of the clutch springs ●●●●●●

Check the cylinder and piston for wear ●●●●●●

Check the exhaust control for proper functioning and smooth running

●●●●●●

Check the eccentricity of the crankshaft journal ●●●●●●

Check the radial clearance of the conrod bearings ●●●

Check the radial clearance of the piston pin main bearing ●●●

Check the crankshaft main bearing for wear ●●●

Replace the crankshaft bearings and conrod bearings ●●●

Check the entire transmission including roller and bearings for wear

●●●

hours

120

hours

135

hours

RECOMMENDED INSPECTION OF THE 250/300 EXC AND MXC ENGINE

USED FOR HOBBY- ENDURO BY YOUR KTM WORKSHOP

(

ADDITIONAL ORDER FOR THE KTM WORKSHOP

)

Check the reed-type intake valve for wear ●●●●●●

Check the clutch shoes for wear ●●●●●●

Check the length of the clutch springs ●●●●●●

Check the cylinder and piston for wear ●●●●●●

Check the exhaust control for proper functioning and smooth running

●●●●●●

Check the eccentricity of the crankshaft journal ●●●●●●

Check the radial clearance of the conrod bearings ●●●

Check the radial clearance of the piston pin main bearing ●●●

Check the crankshaft main bearing for wear ●●●

Replace the crankshaft bearings and conrod bearings ●●●

Check the entire transmission including roller and bearings for wear

●●●

hours

120

hours

180

hours

240

hours

270

hours

NOTE: IF THE INSPECTION ESTABLISHES THAT PERMISSIBLE TOLERANCES ARE EXCEEDED, THE RESPECTIVE COMPONENTS MUST

BE REPLACED.

Repair manual 250 / 300 / 380 Art No 3206004 -E

WIRING DIAGRAMS

MODEL 1999

WIRING DIAGRAM 250 - 380 EXC . . . . . . . . . . . . . . . . . . . . . . . . .11-2

WIRING DIAGRAM 250 - 380 EGS . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

WIRING DIAGRAM 250 - 380 EXC (USA) . . . . . . . . . . . . . . . . . . . .11-5

MODEL 2000

WIRING DIAGRAM 250 - 300 EXC USA . . . . . . . . . . . . . . . . . . . . .11-6

WIRING DIAGRAM 250 - 380 EXC . . . . . . . . . . . . . . . . . . . . . . . . .11-7

WIRING DIAGRAM 380 EXC USA . . . . . . . . . . . . . . . . . . . . . . . . . .11-9

MODEL 2001/2002

WIRING DIAGRAM 250 EXC (USA) . . . . . . . . . . . . . . . . . . . . . . . .11-10

WIRING DIAGRAM 250 - 380 EXC . . . . . . . . . . . . . . . . . . . . . . . .11-11

WIRING DIAGRAM 300 - 380 EXC (USA) . . . . . . . . . . . . . . . . . . .11-13

MODEL 2003

WIRING DIAGRAM 250 - 300 EXC (EU/AUS) . . . . . . . . . . . . . . . . .11-14

WIRING DIAGRAM 250 - 300 EXC (USA) . . . . . . . . . . . . . . . . . . .11-16

INDEX

11-1C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-2C

11-3C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-4C

11-5C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-6C

SPORTMOTORCYCLES

11-7C

SPORTMOTORCYCLES

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-8C

11-9C

SPORTMOTORCYCLES

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-10C

11-11C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-12C

11-13C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

11-14C

250-300 EXC 2003

11-15C

Repair manual KTM 250 / 300 / 380 Art No 3206004 -E

KTM 250-300 EXC 2003

11-16C

250/300 EXC 2003

Ktm Exc Repair Manual RA_250/380EXC_03_E

Navigation menu

Versions of this User Manual:

Views

Navigation
