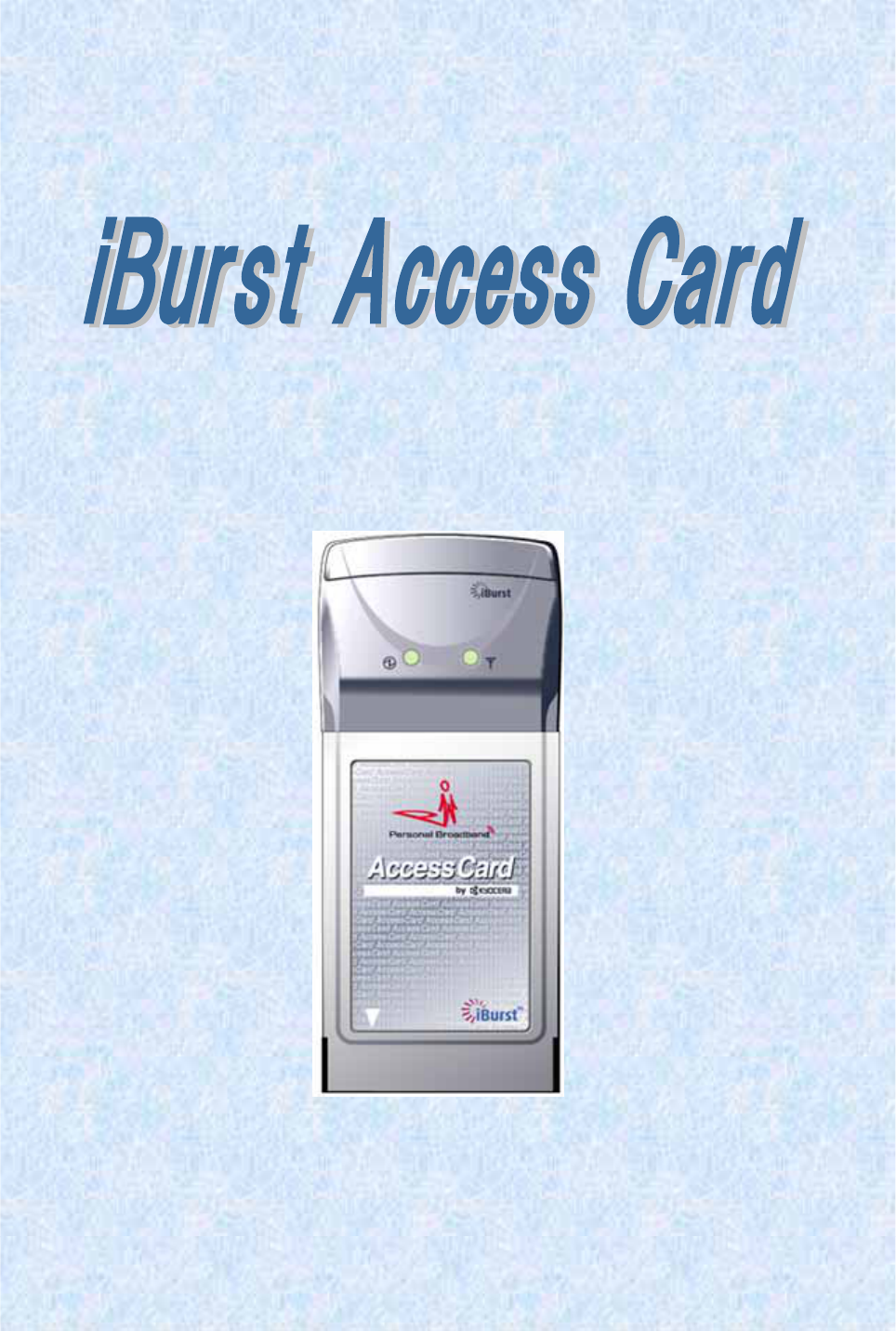

Kyocera IUC19AA User Terminal of Wireless Internet System User Manual CONTENTS
Kyocera Corporation User Terminal of Wireless Internet System CONTENTS
Kyocera >
User Manual
- 1 -
CONTENTS
User Manual
CONTENTS .....................................................................................................................1
Chapter 1 Introduction ....................................................................................................3
Overview of Hardware Elements........................................................................................................4
Connection with PC.............................................................................................................................5
How to connect.................................................................................................................................5
How to remove .................................................................................................................................5
LED Indicators.................................................................................................................................6
Chapter 2 Setup Procedure..............................................................................................7
iBurst Software Installation...............................................................................................................8
Installation for Windows XP...........................................................................................................8
Installation for Windows 2000......................................................................................................13
Installation for Windows Me.........................................................................................................17
Installation for Windows98 Se......................................................................................................35

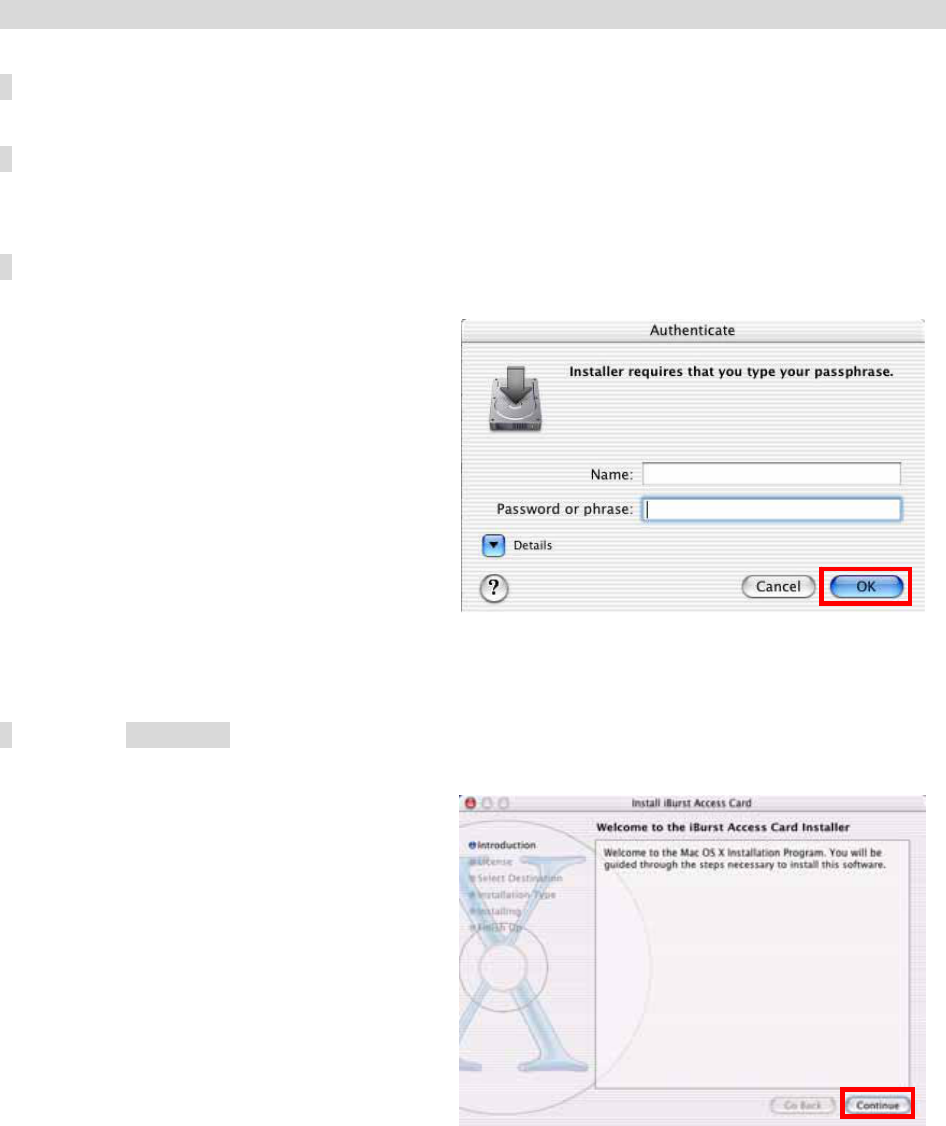

Installation for Mac OS X..............................................................................................................57

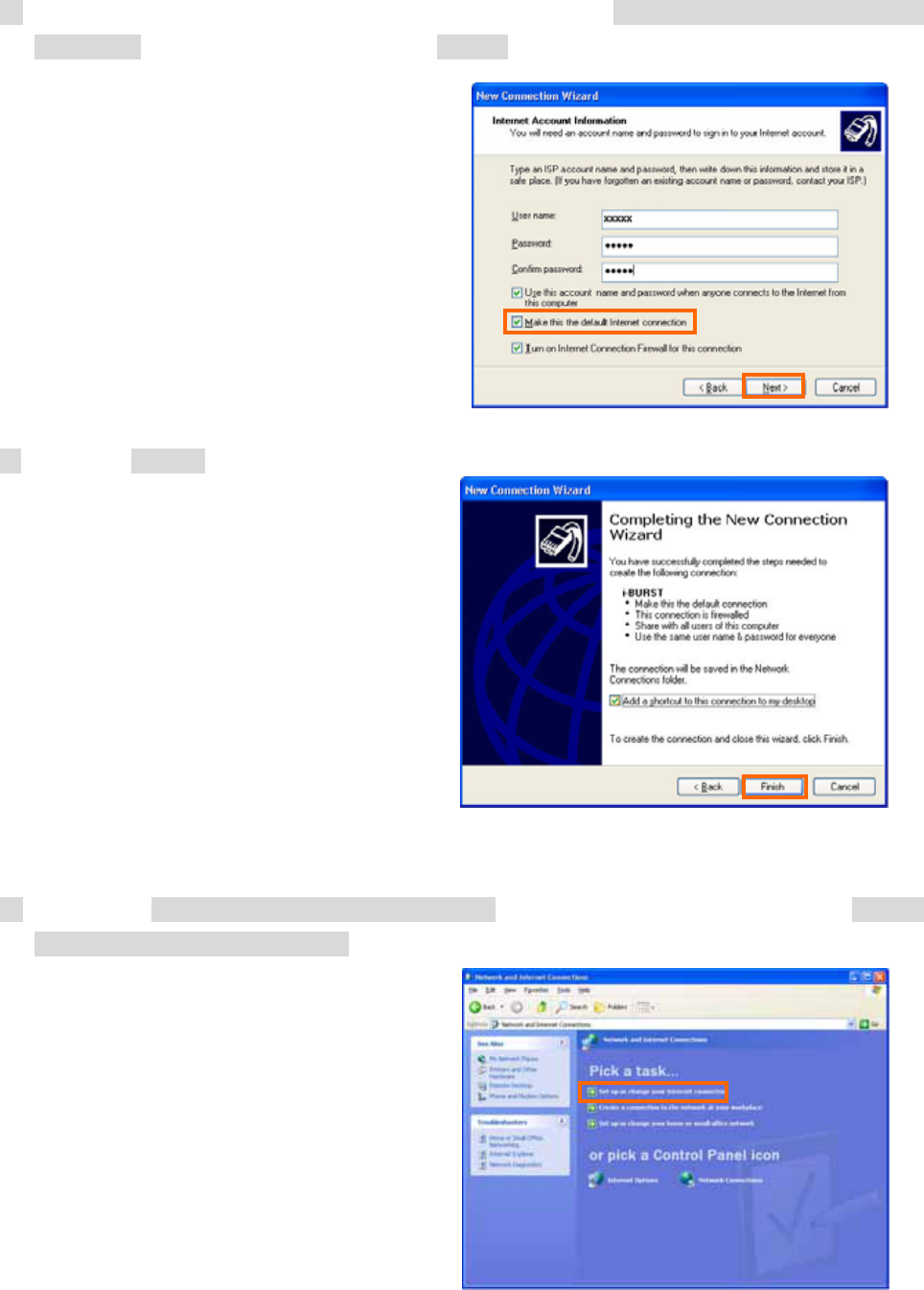

Connection Establishment................................................................................................................60
Connection Establishment for Windows XP.................................................................................60
Connection Establishment for Windows 2000/Me/98Se...............................................................65
Connection Establishment for Mac OS X.....................................................................................66
Chapter 3 Utility Software ............................................................................................70
Using Utility Software......................................................................................................................71
Using Utility Software for Windows.............................................................................................71
Using Utility Software for Mac OS X ...........................................................................................77
Chapter 4 Uninstalling iBurst Software .......................................................................84
Uninstalling iBusrt Software ...........................................................................................................85
Uninstallation for Windows XP/2000............................................................................................85
Uninstallation for Windows Me/98Se...........................................................................................87
Uninstallation for Mac OS X.........................................................................................................94
Chapter 5 Information...................................................................................................96
FCC Compliance Statement .............................................................................................................97
FCC RF Radiation Exposure Statement..........................................................................................97
- 2 -
Chapter 1 Introduction
7
- 3 -
This chapter describes that which should be confirmed
before using iBurst Access Card.

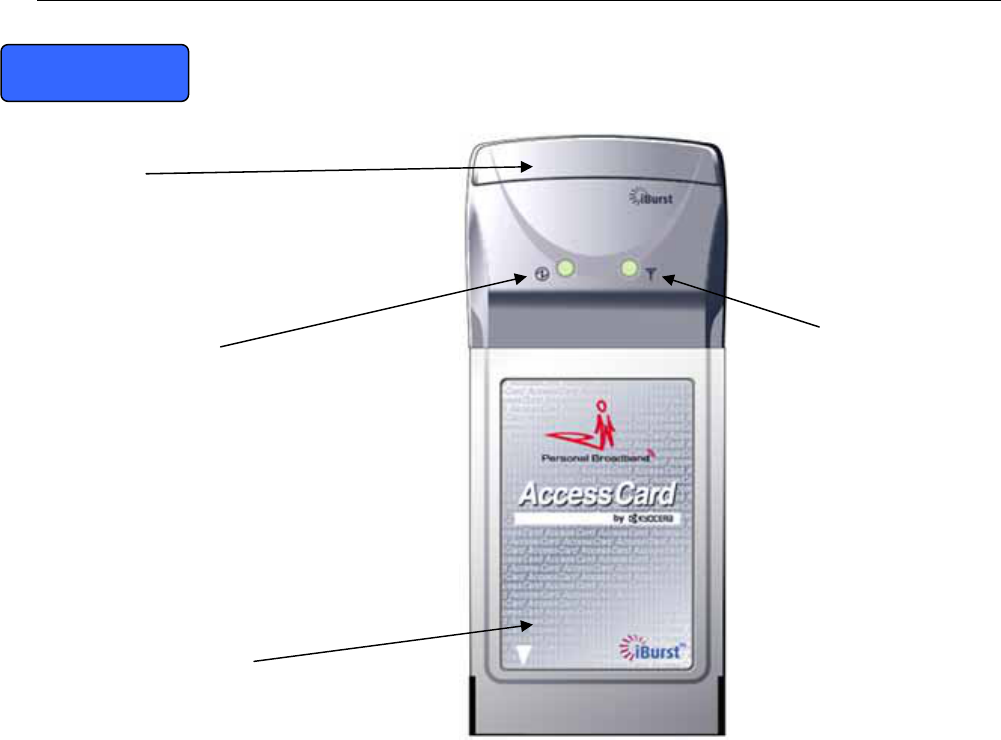

Overview of Hardware Elements
Main Unit
Antenna
・ Please adjust direction and angle according to the state
of signal strength.
・
Don’t use too much force to adjust antenna direction or
angle. It could damage the antenna.
POW/ALM LED Status LED
It indicates state of iBurst. (P.6) It indicates state of iBurst. (P.6)
PC Card Connector
- 4 -
Connection with PC
In order to use iBurst Access Card, your computer must satisfy the following requirements:
・PC Card Slot-TypeⅡcompliant with PC Card Standard 95 or later.
・PC-AT Compatible PC running WindowsXP/2000/Me/98Se or Mac OS X(MacOSX v10.1.5 or later).
How to connect
If this is the first time that iBurst Access Card is to be used on your computer, it is necessary to
install the device driver first. (Refer to “iBurst Software installation” on page 9).
The following describes the procedure how to connect iBurst Access Card with your computer.
1 Turn on the power to the computer.
2 Insert iBurst Access Card into the computer’s PC Card Slot and make sure it is fully fitted in
the slot.
3 Double click the icon of PC Card on the computer’s task tray, and you should see the device
name [iBurst Modem] in the hardware device list of the appearing PC Card dialog window.
How to remove
1 Double click the icon of PC Card on the computer’s task tray, and click the [Stop] button in the
appearing PC Card dialog window. Make sure that you select [iBurst Modem] in the PC Card
dialog window before click the [Stop] button.
2 A popup dialog window with the message [Safe To Remove Hardware] should appear. Click the
Ok button in the dialog window.
3 Remove iBurst Access Card from the computer’s PC Card Slot.
- 5 -
LED Indicators
iBurst Access Card has two LED indicators, Pow/ALM LED indicator and Status LED indicator.
The former indicates state of power to iBurst Access Card while the later indicates state of
communication or signal strength of received signal. The following table shows the relation
between the LED illumination patterns and iBurst Access Card states.
LED #1 (POW/ALARM) LED #2 (STATUS)
States Blue Red Green Amber Yellow
Power OFF All LEDs Off ‒ No LEDs illuminated
Power ON On
Communicate with High Rx signal Flashing
Communicate with Low Rx signal Flashing
No communicate with High Rx signal ON
No communicate with Low Rx signal ON
No Rx Signal ON
LED illumination patterns
On
: Continuous illumination
Flashing : Blink (0.1s on / 0.1s off)
- 6 -
Chapter 2 Setup Procedure
This chapter describes how to install iBurst software, then
guides you how to make a network connection so as to
use data communication service.
- 7 -
iBurst Software Installation
It is necessary to run iBurst software installation only when iBurst Access Card is to be used on
your personal computer the first time. Once it has be installed,there is no necessity for this
installation operation from the next connection.
Installation for Windows XP
1 Turn on the power to the computer.
2 Insert the provided Software Utility CD into your CD-ROM drive.
Don’t insert iBurst Access Card into your PC card slot when installation is running.

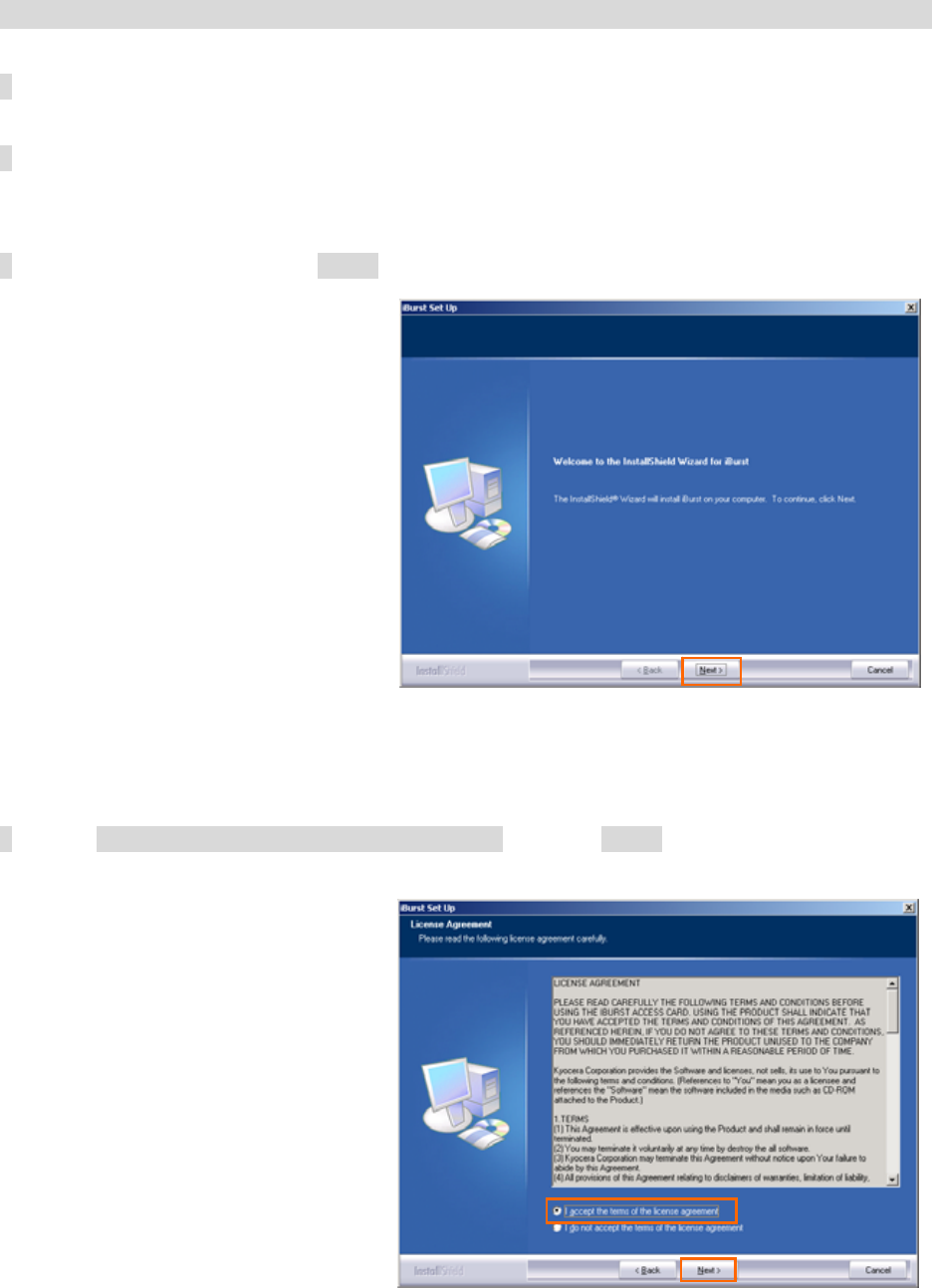

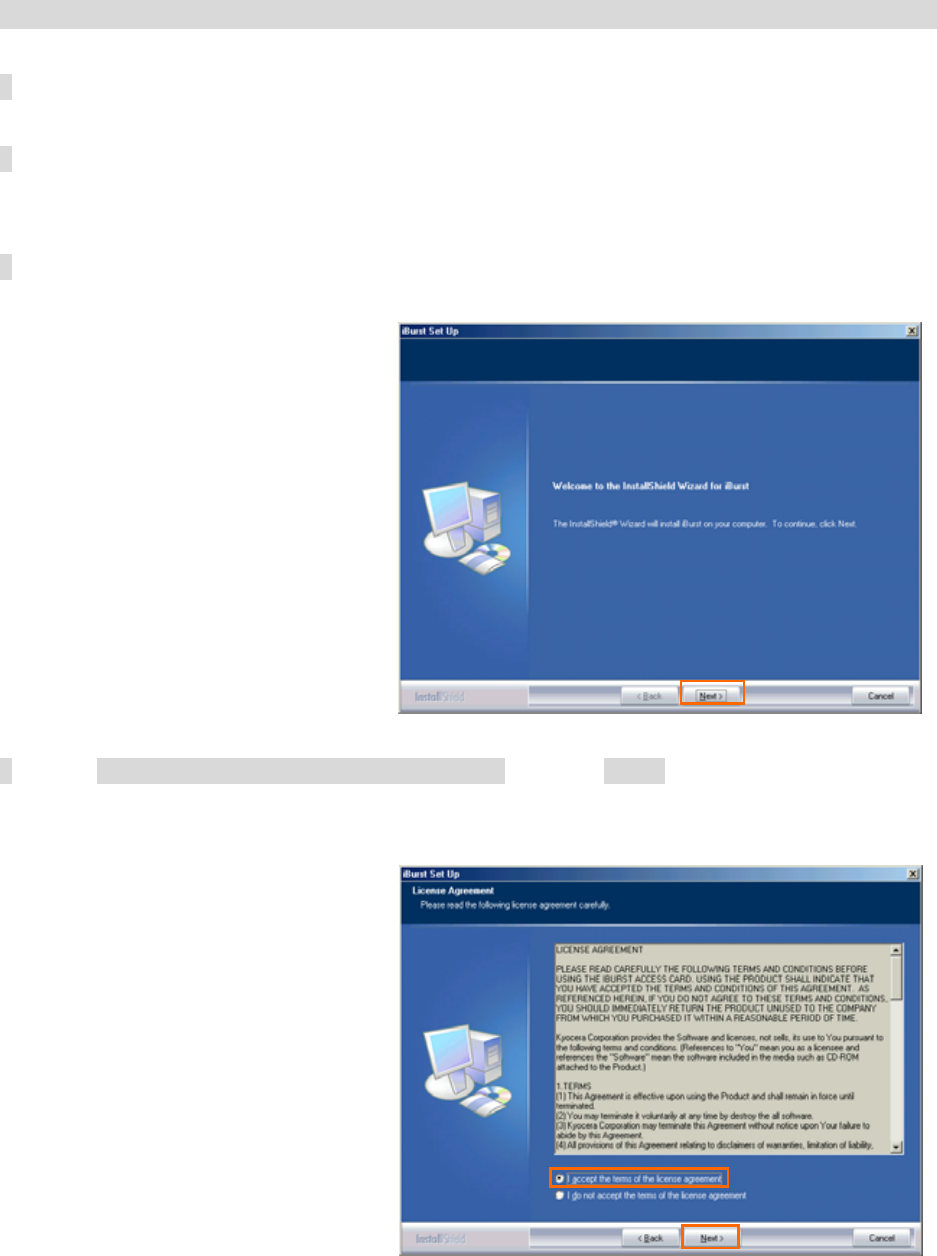

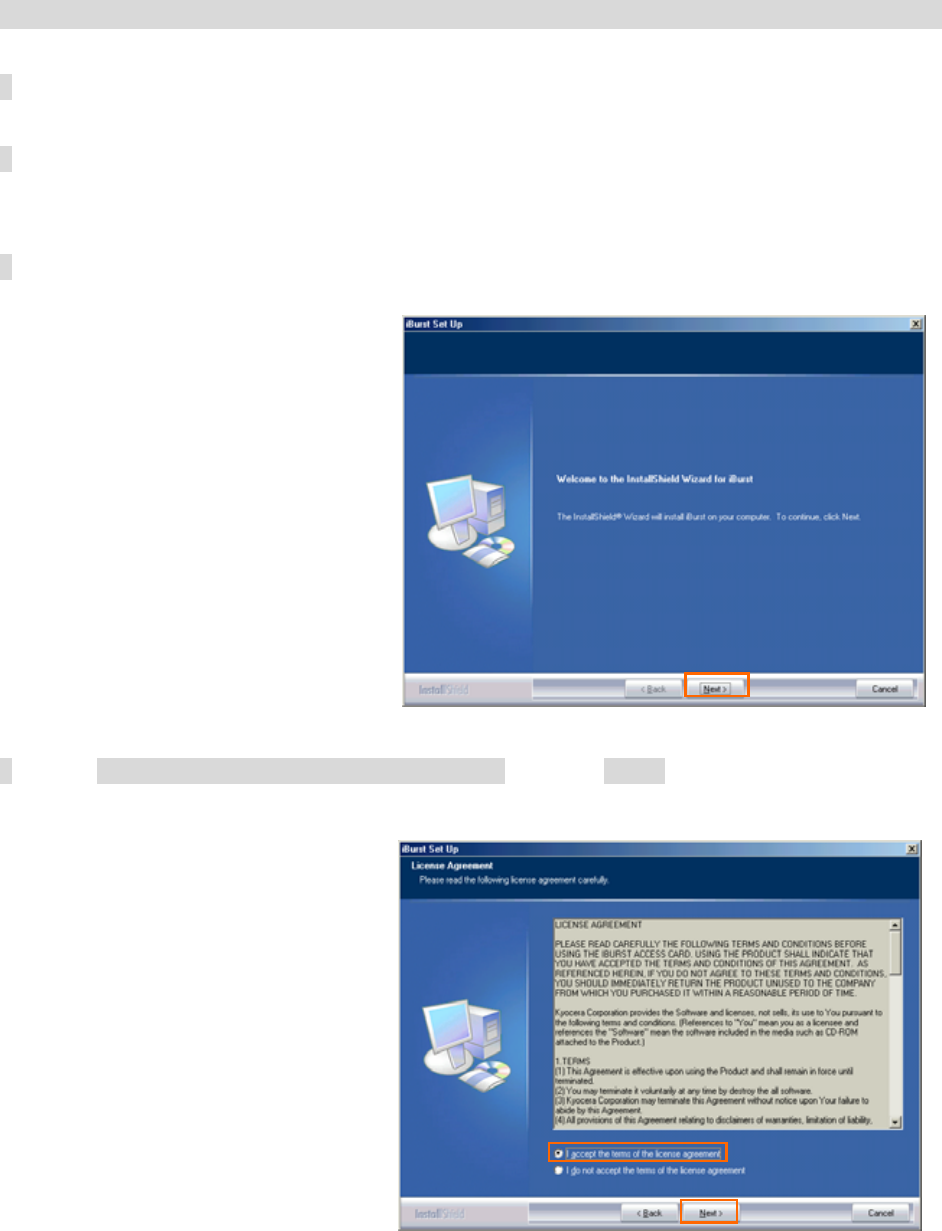

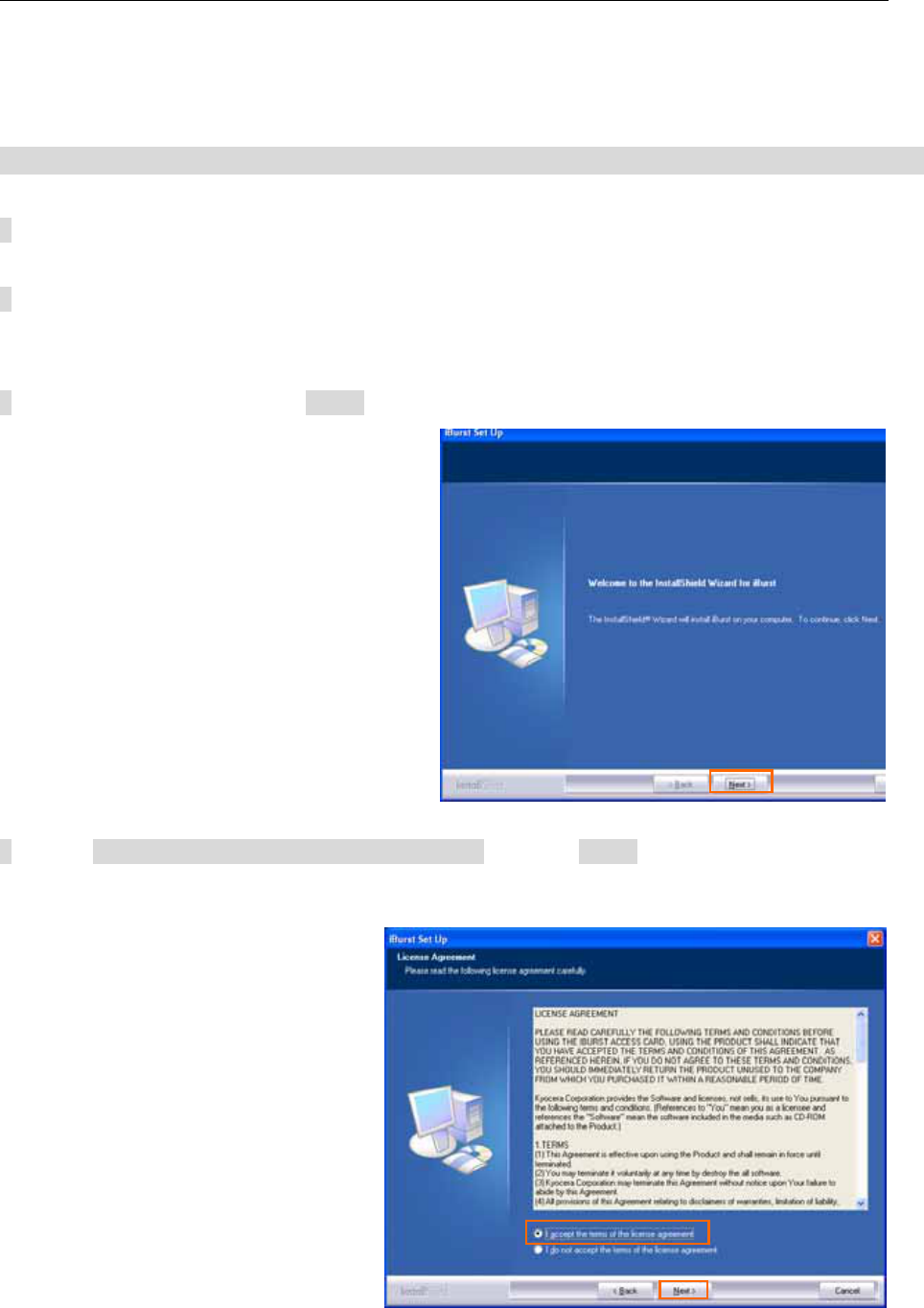

3 iBurst Setup starts, click the [Next] button.
4 Select [I accept the terms the license agreement], click the [Next] button.
- 8 -

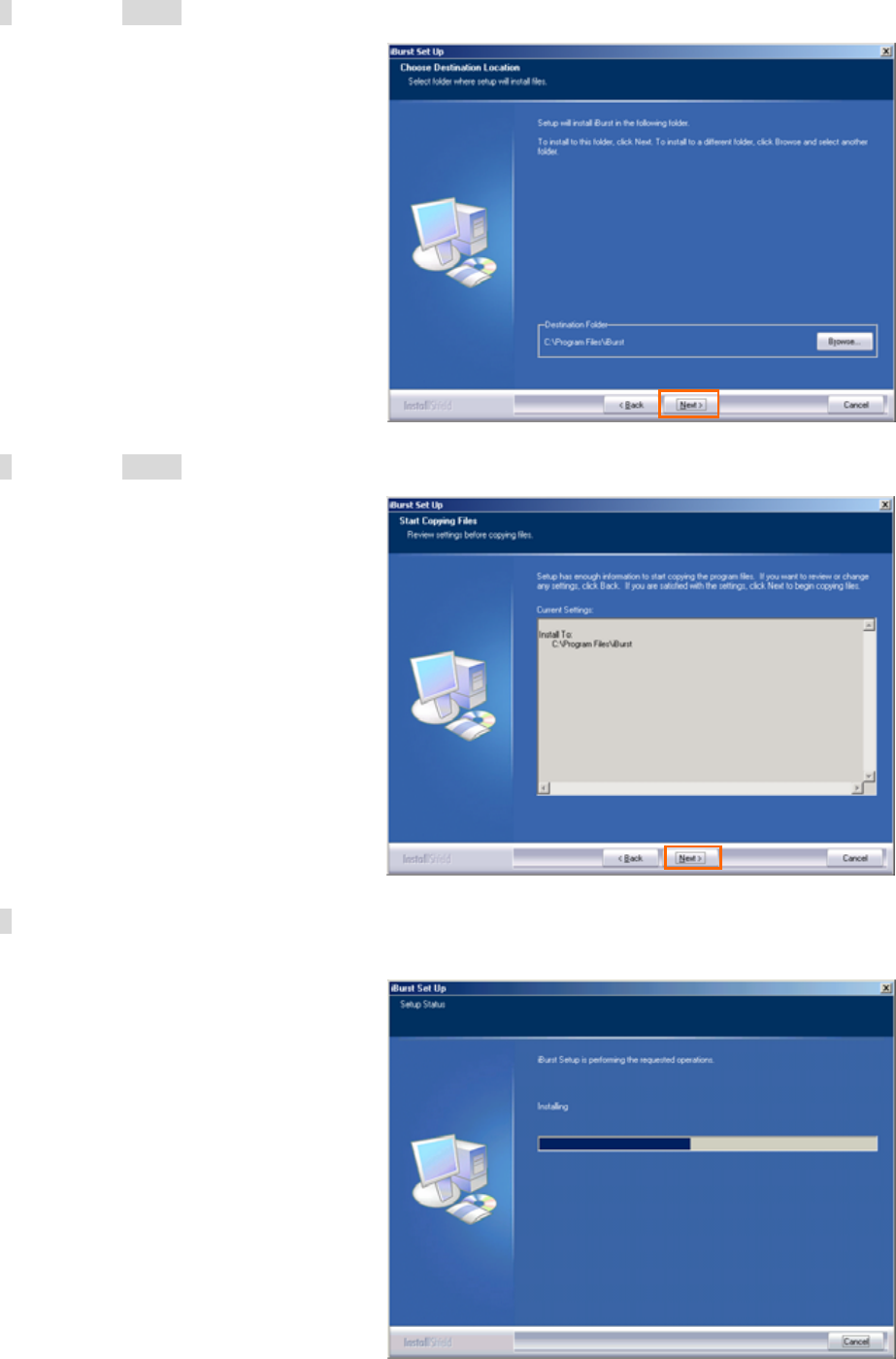

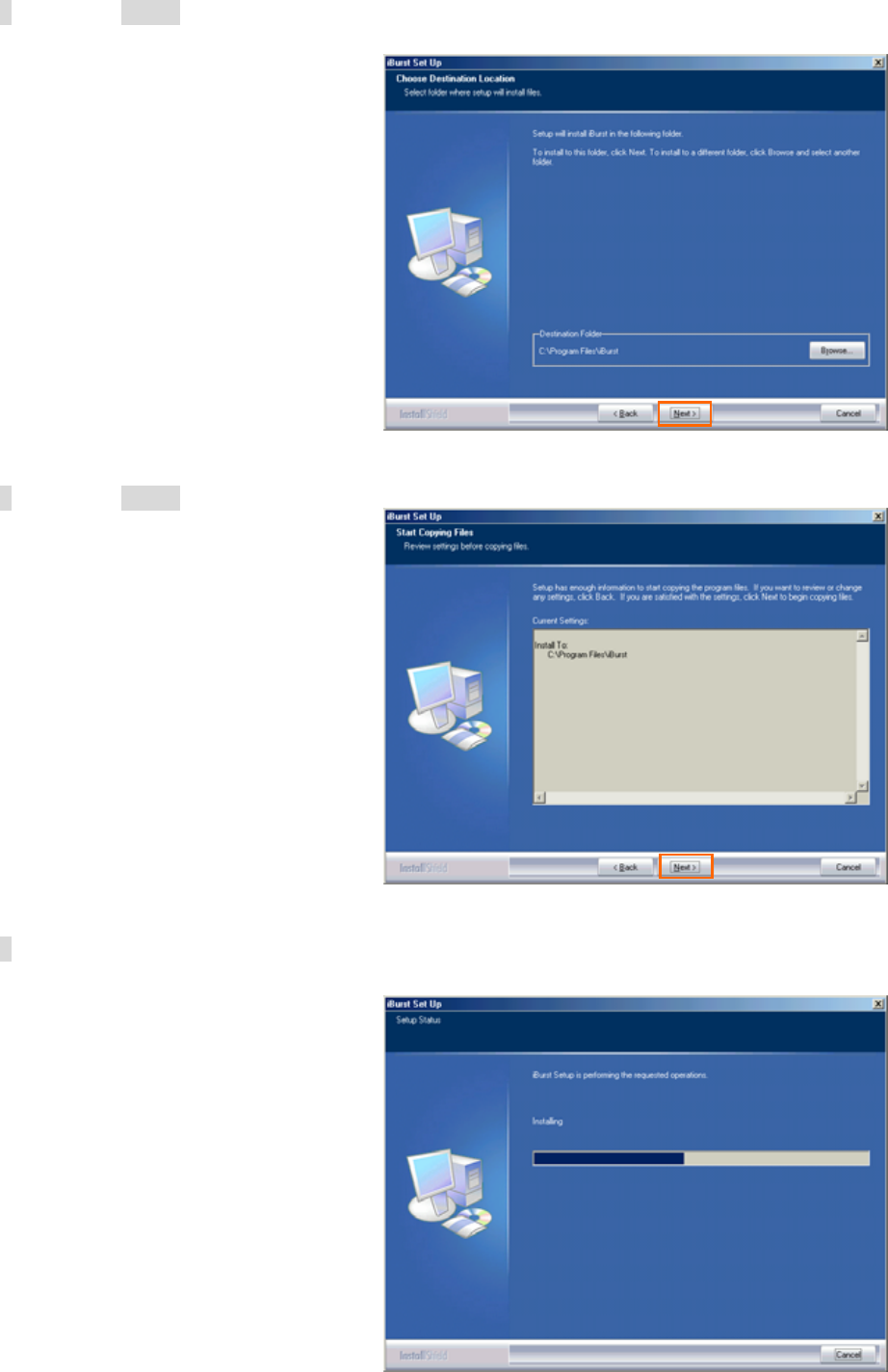

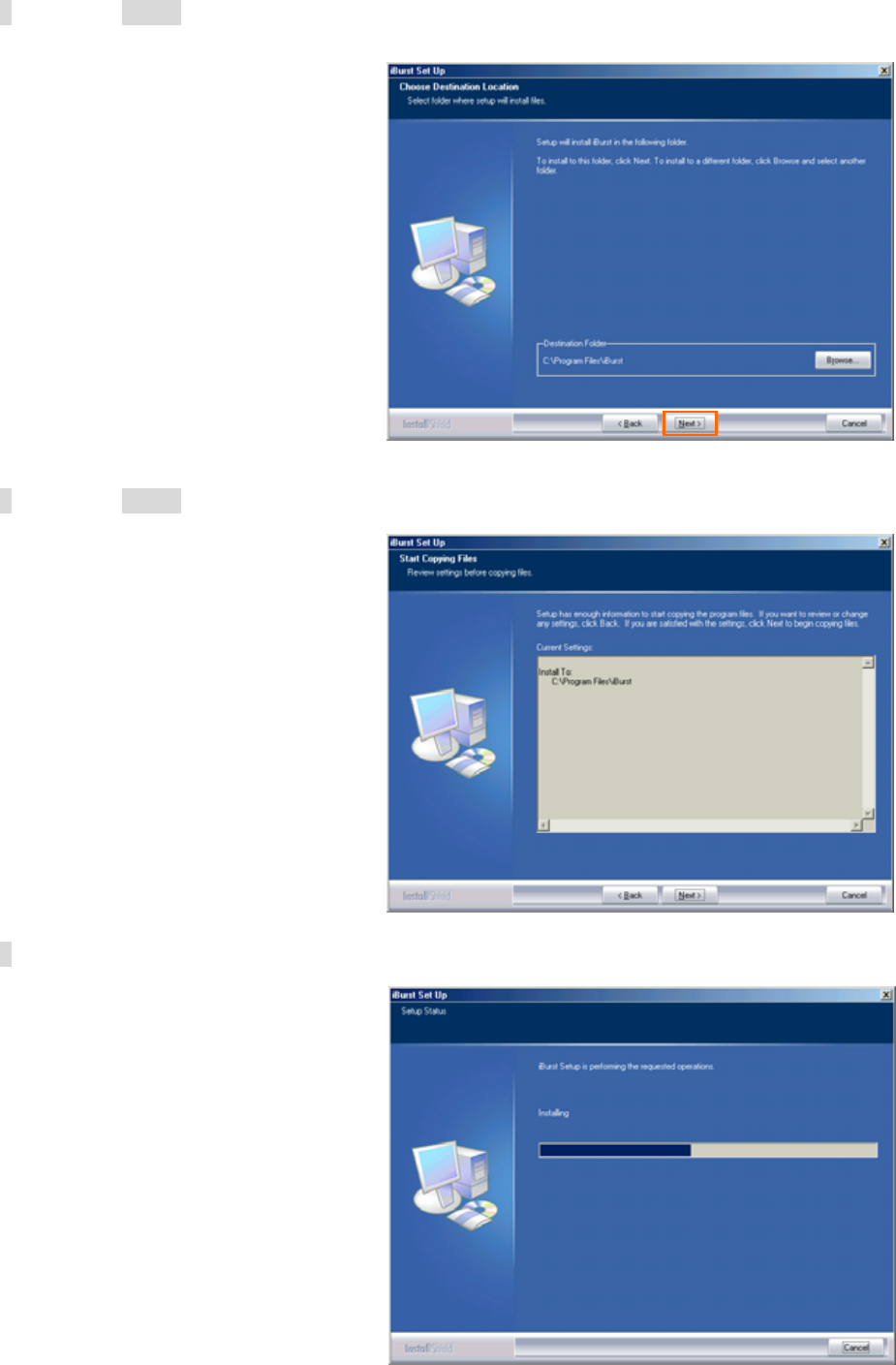

5 Click the [Next] button after appearing dialog window as shown below.
6 Click the [Next] button.
7 The following dialog window will appear, and installation of software begins.
- 9 -

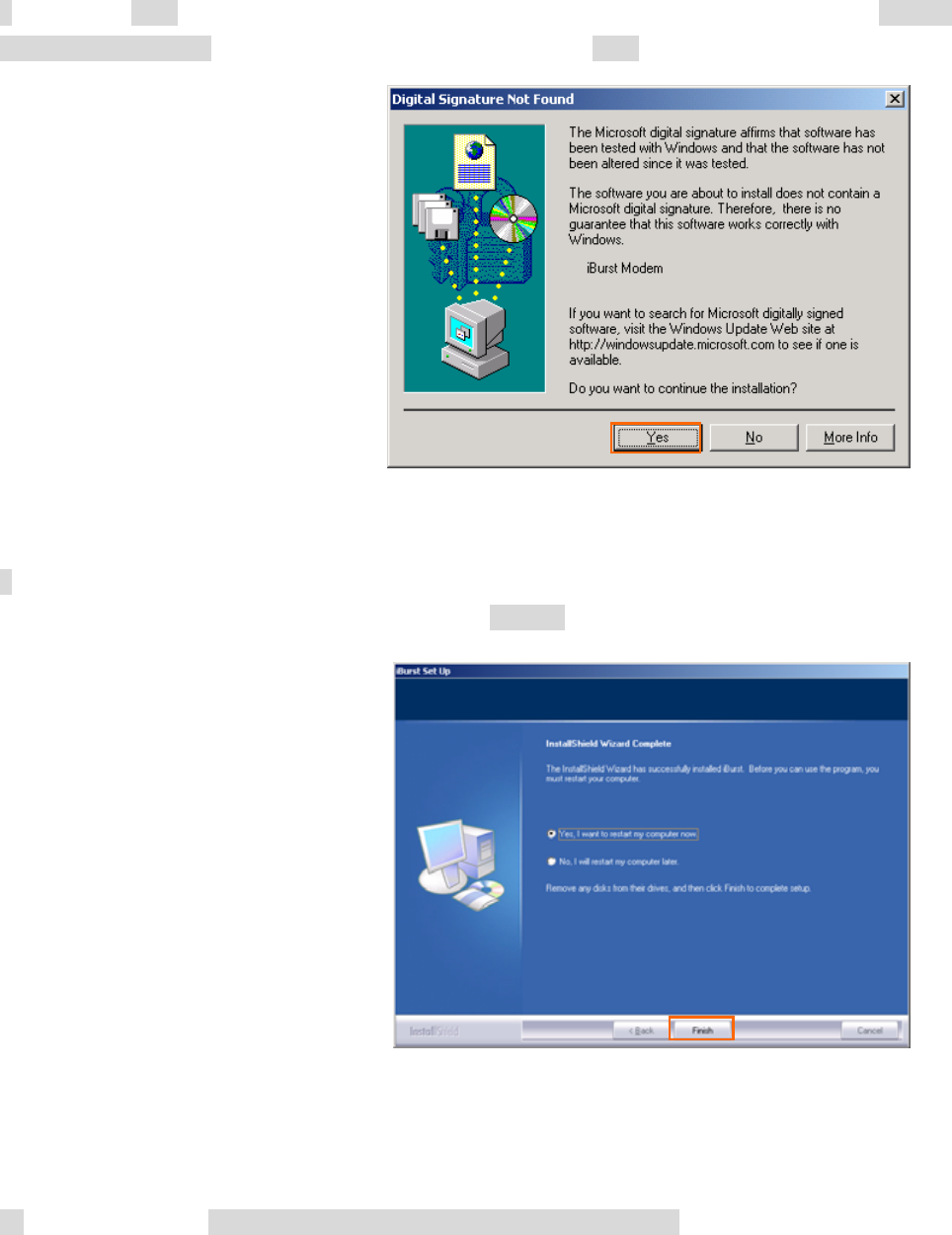

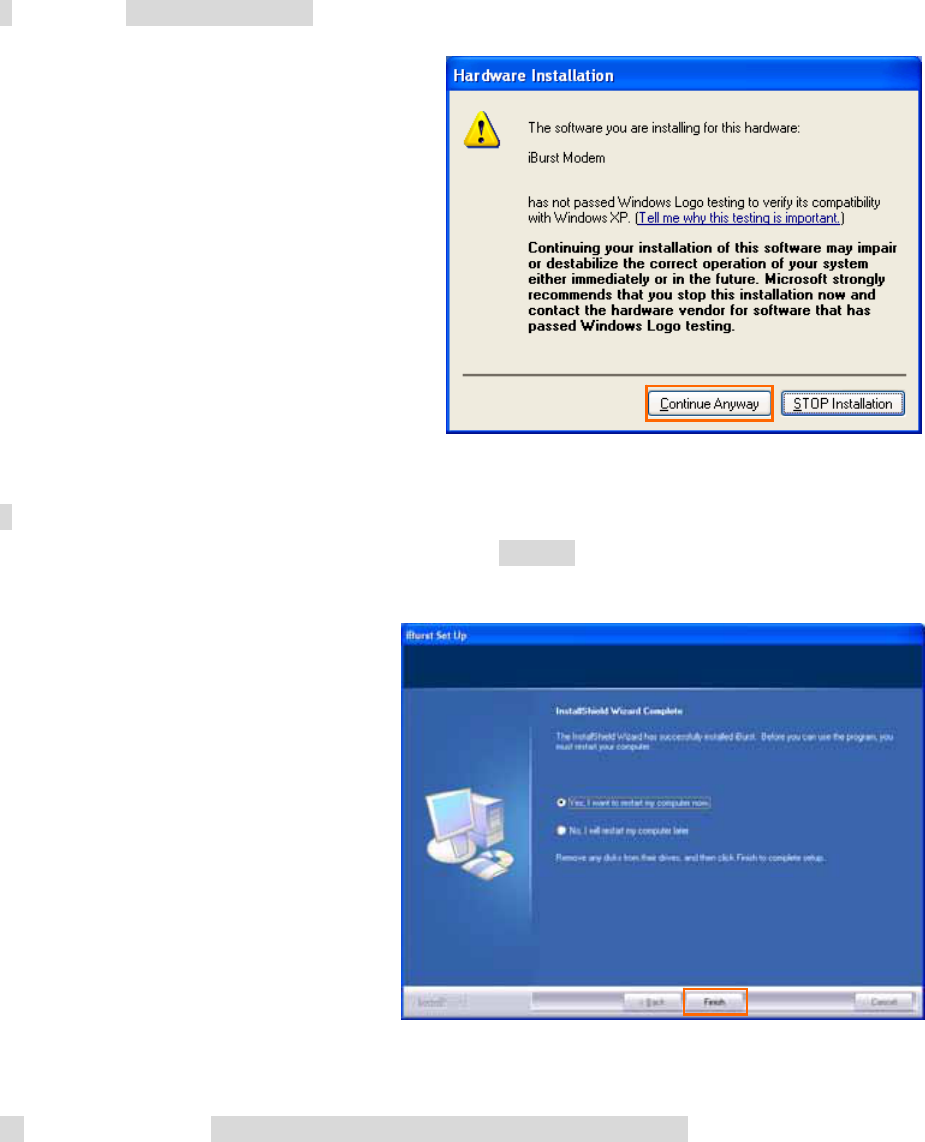

8 Click the [Continue Anyway] button in the appearing dialog window as shown below.
9 When the installing process finishes, the dialog window shown below will appear. Select “Yes,I
want to restart my computer now” and Click the [Finish] button in the dialog window.
10 After the restart, insert iBurst Access Card into your PC card slot.
- 10 -

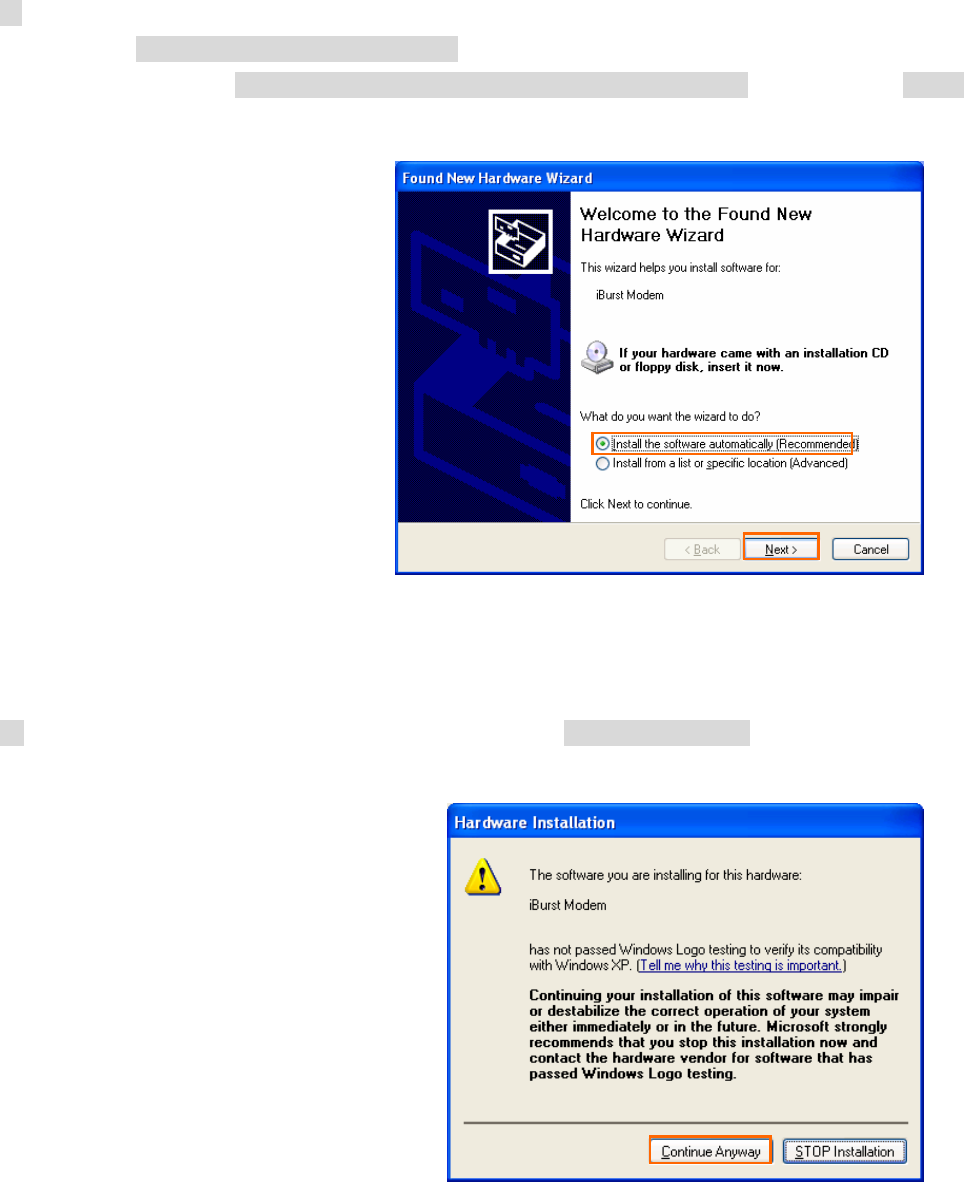

11 If the operating system is able to recognize the inserted iBurst Access Card as a new installed
hardware, [Found New Hardware Wizard] will begin and the dialog window as shown below
will appear. Select [Install the software automatically(Recommended)] and click the [Next]
button in the dialog window.
12 The dialog window shown below will appear,click the [Continue Anyway] button.
- 11 -

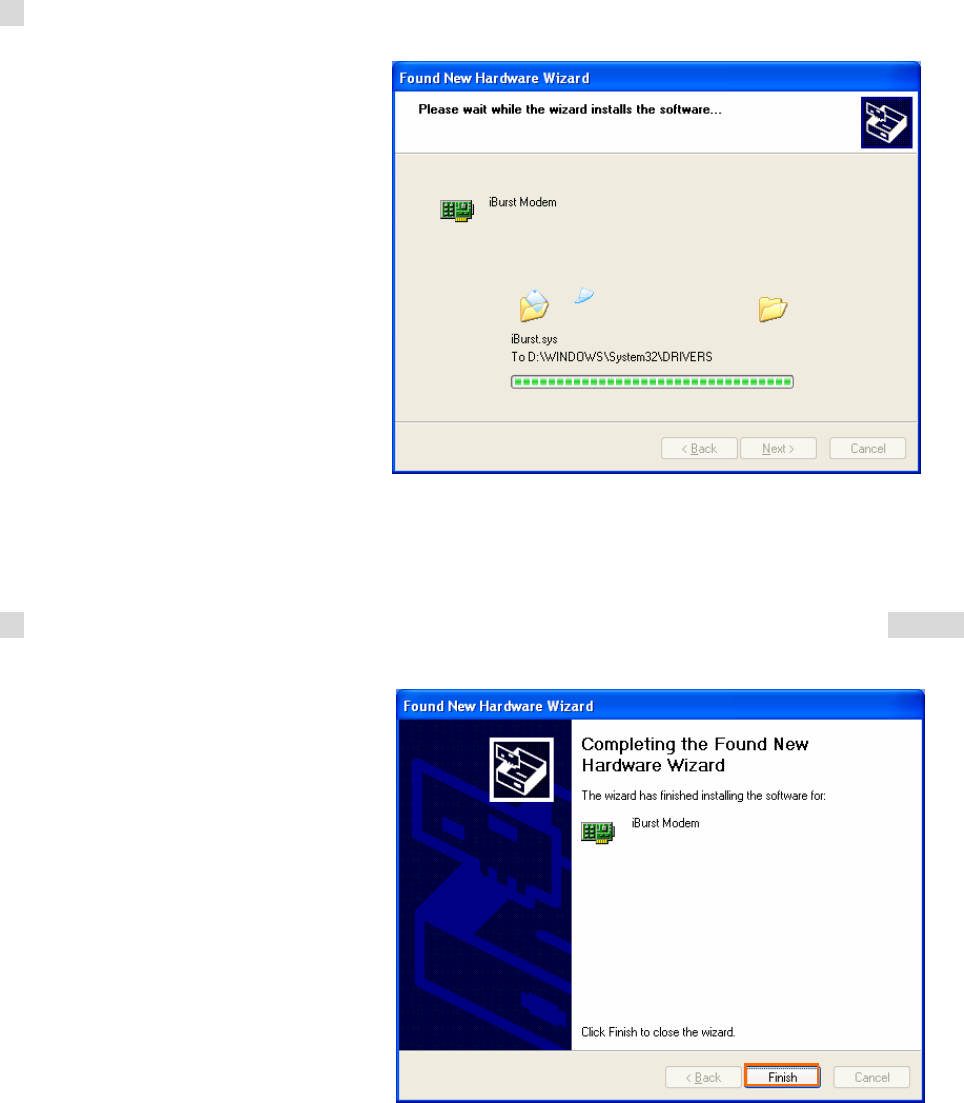

13 The driver is installed on your PC.
14 After installation of the driver,the dialog window shown below will appear,click the [Finish]
button.
- 12 -
Installation for Windows 2000
1 Turn on the power to the computer.
2 Insert the provided Software Utility CD into your CD-ROM drive.
Don’t insert iBurst Access Card into your PC card slot when installation is running.
3 iBurst Setup starts, click the [Next] button.
4 Select [I accept the terms the license agreement], click the [Next] button.
- 13 -

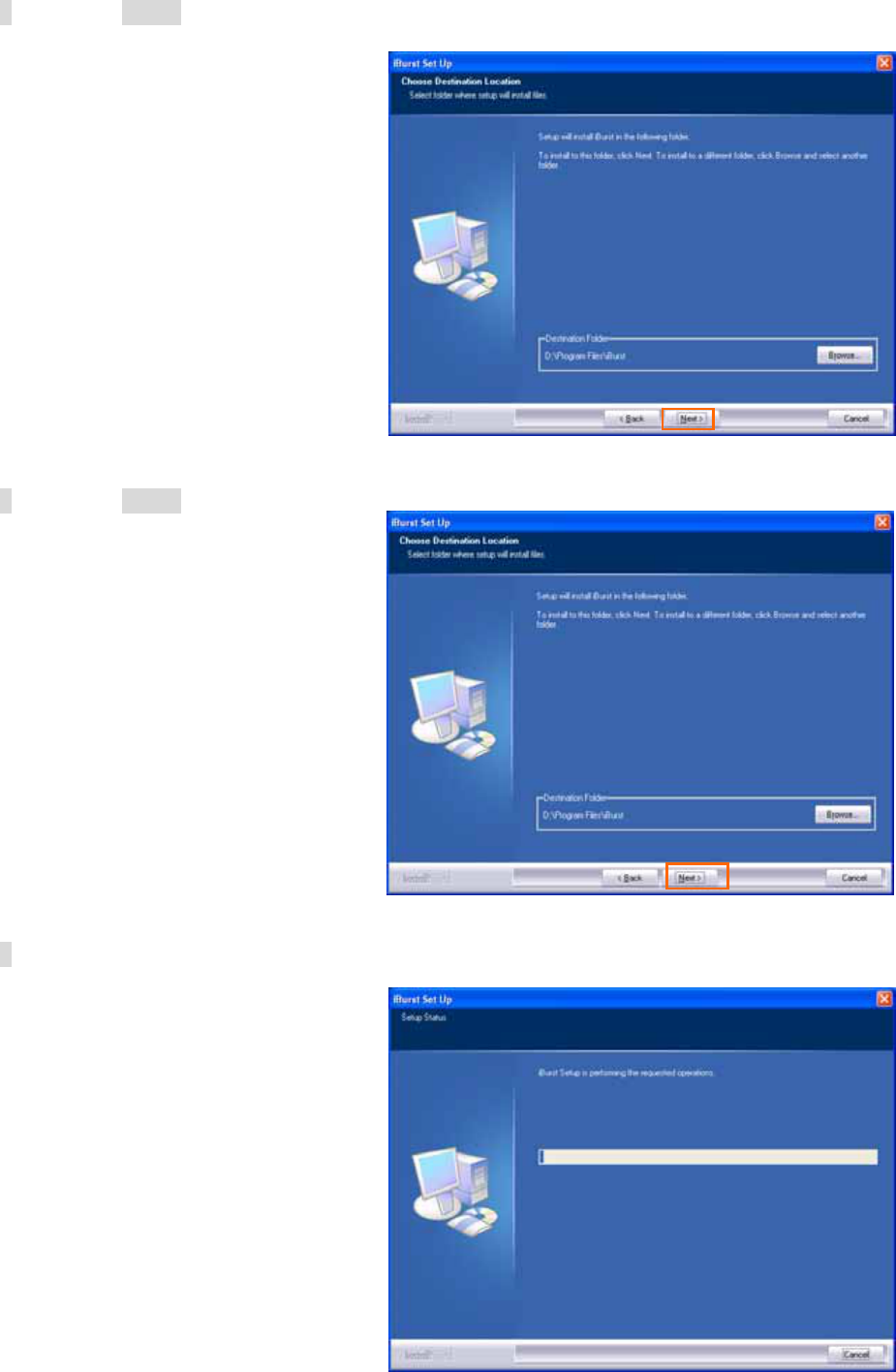

5 Click the [Next] button after appearing dialog window as shown below.
6 Click the [Next] button.
7 The following dialog window will appear, and installation of software begins.
- 14 -

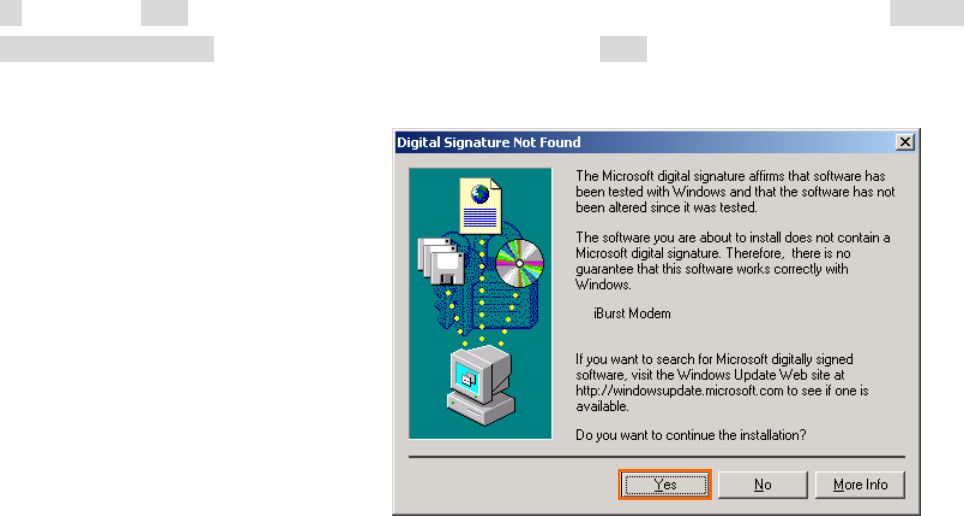

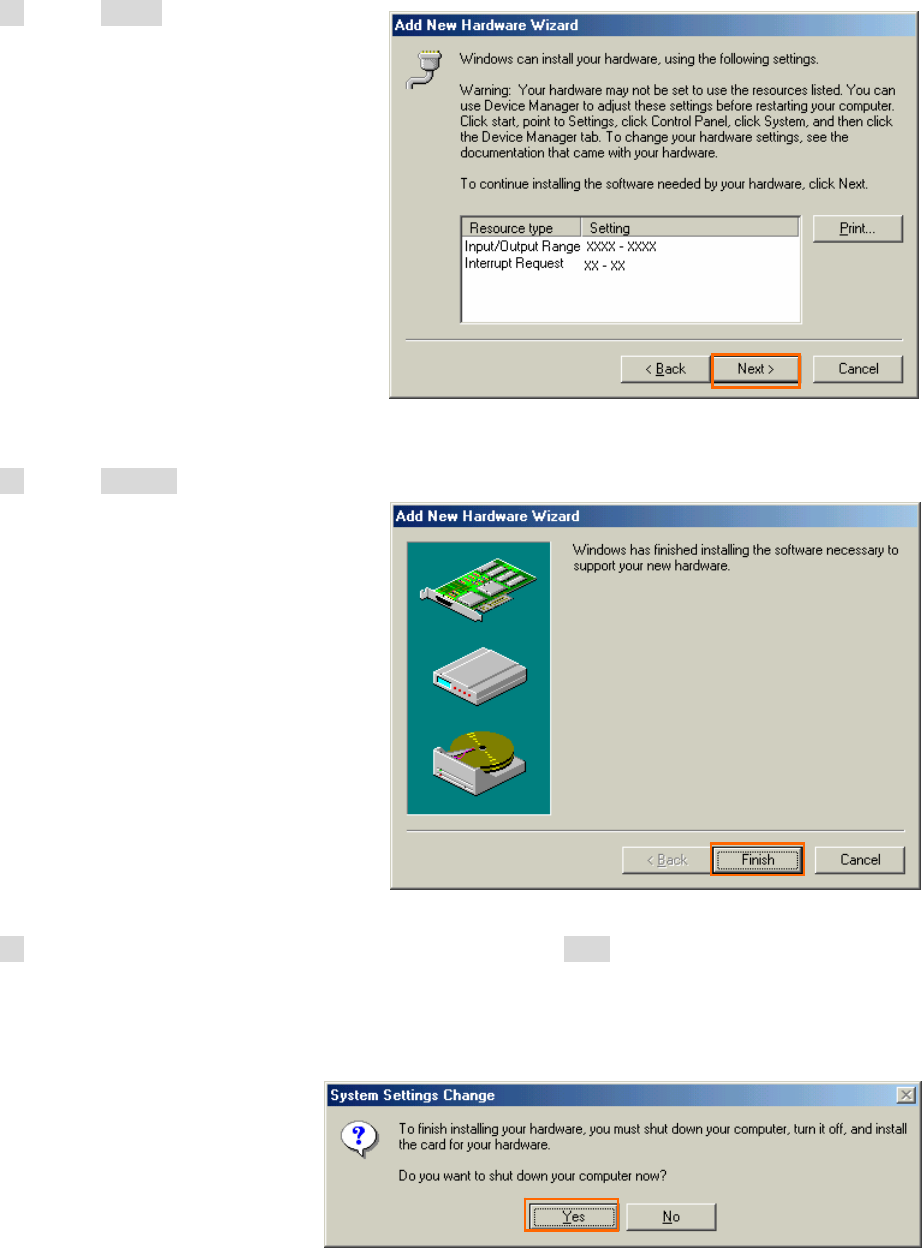

8 Click the [Yes] button in the appearing dialog window as shown below.(The window [Digital
Signature Not Found] maybe appears several times, click the [Yes] button in each window.)
9 When the installing process finishes, the dialog window shown below will appear. Select “Yes,I
want to restart my computer now” and Click the [Finish] button in the dialog window.
10 After the restart, insert iBurst Access Card into your PC card slot.
- 15 -
11 Click the [Yes] button in the appearing dialog window as shown below. (The window [Digital
Signature Not Found] maybe appears several times, click the [Yes] button in each window.)
- 16 -
Installation for Windows Me
1 Turn on the power to the computer.
2 Insert the provided Software Utility CD into your CD-ROM drive.
Don't insert iBurst Access Card into your PC card slot when installation is running.
3 iBurst Setup starts, click the [Next] button.
4 Select [I accept the terms the license agreement], click the [Next] button.
- 17 -
5 Click the [Next] button after appearing dialog window as shown below.
6 Click the [Next] button.
7 The following dialog window will appear, and installation of software begins.
- 18 -
8 After software installation is finished, insert iBurst Access Card into your PC card slot.
9 If the operating system is able to recognize the inserted iBurst Access Card as a new installed
hardware, [Add New Hardware Wizard] will begin and the dialog window as shown below will
appear. Select [Specify the location of the driver] and click the [Next] button in the dialog
window.

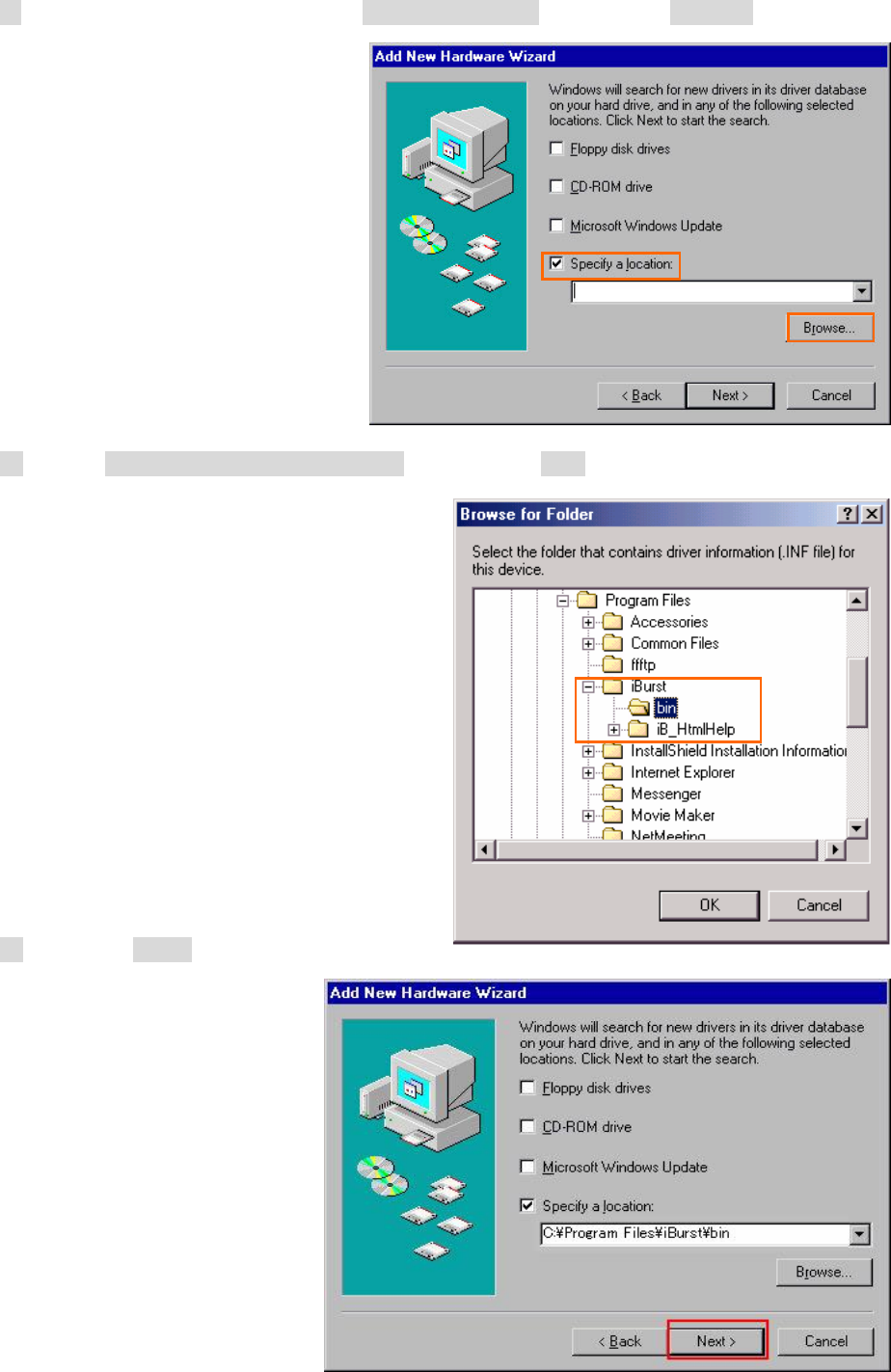

10 Select [Serach for the best driver in these location], Then, mark the check box labeled [Specify
a location] and click the [Browse] button.
- 19 -

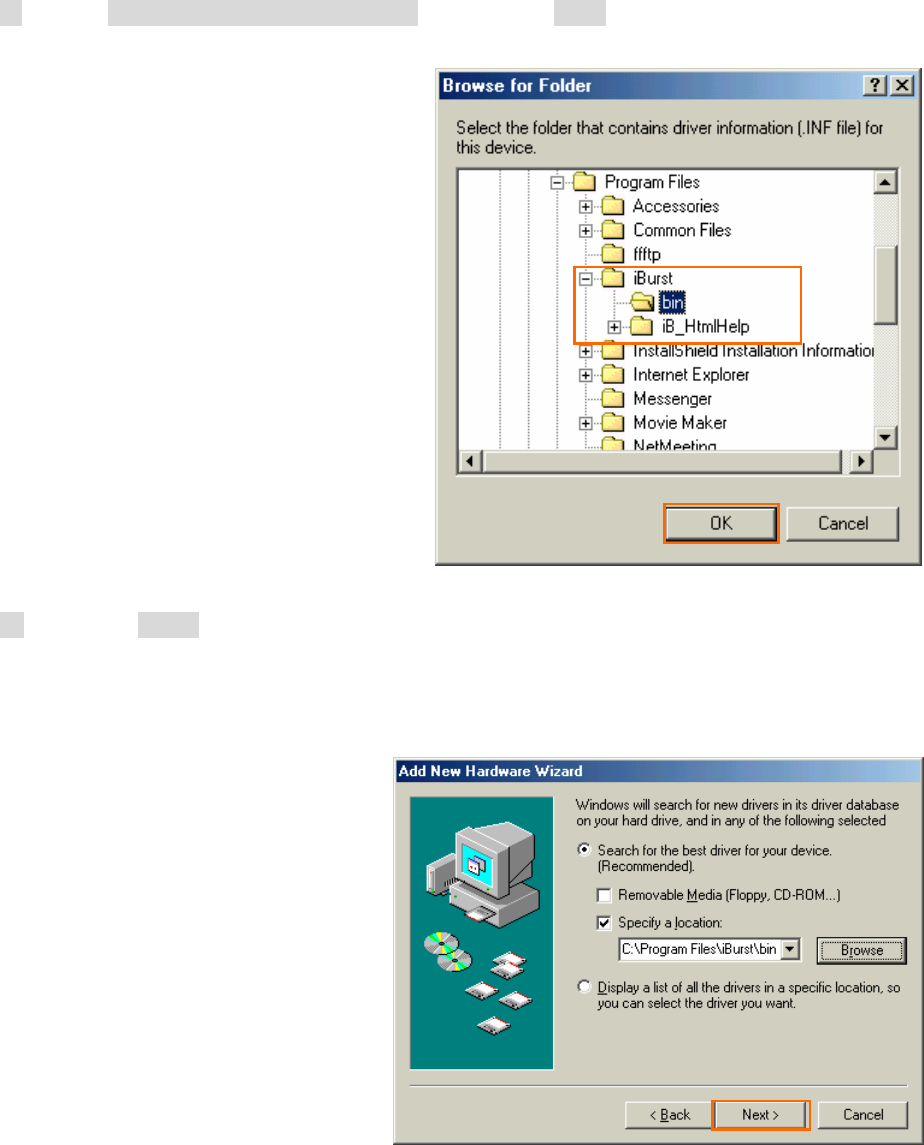

11 Select [C:¥Program Files¥iBurst¥bin], and click the [OK] button.
12 Click the [Next] button.
- 20 -

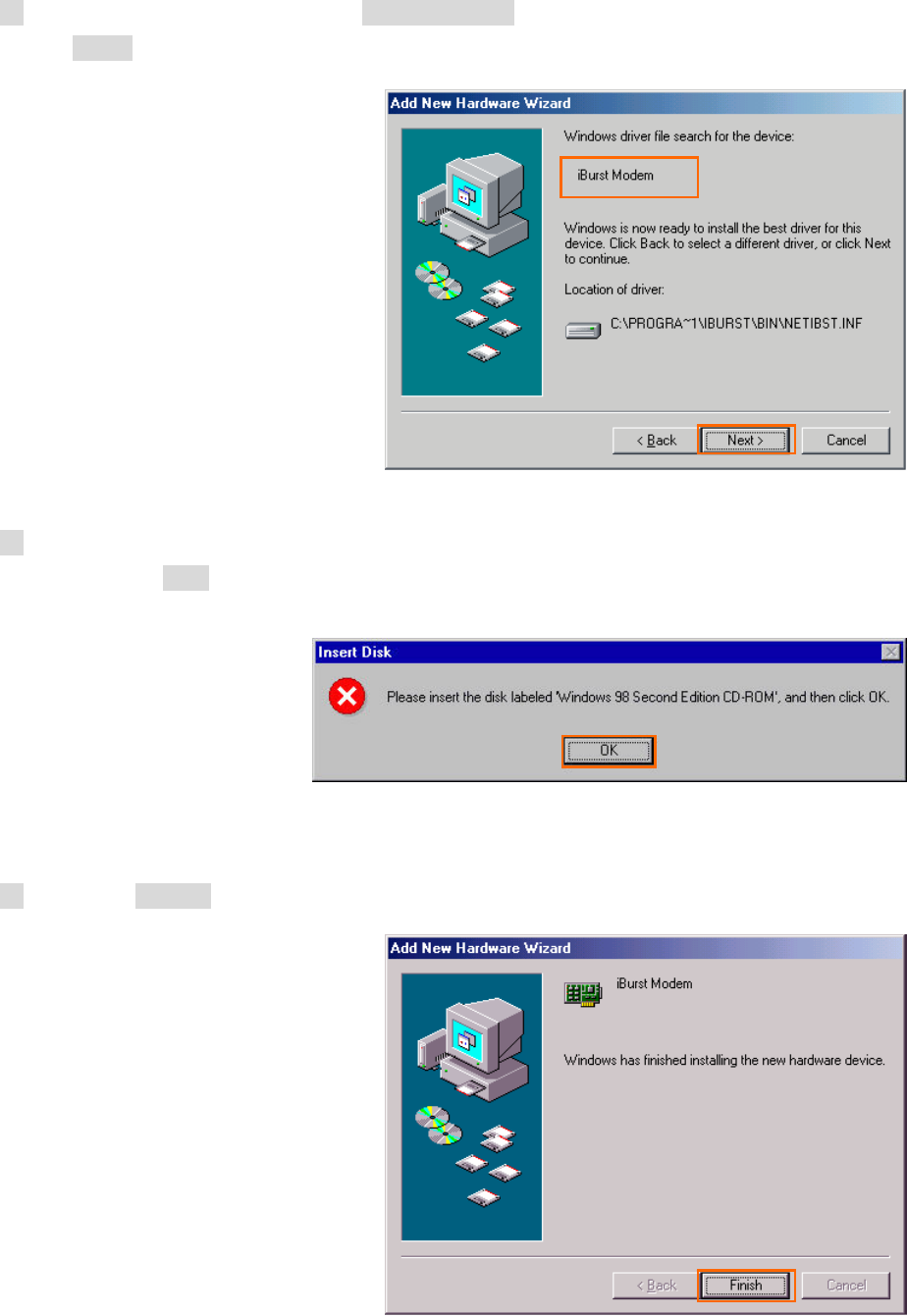

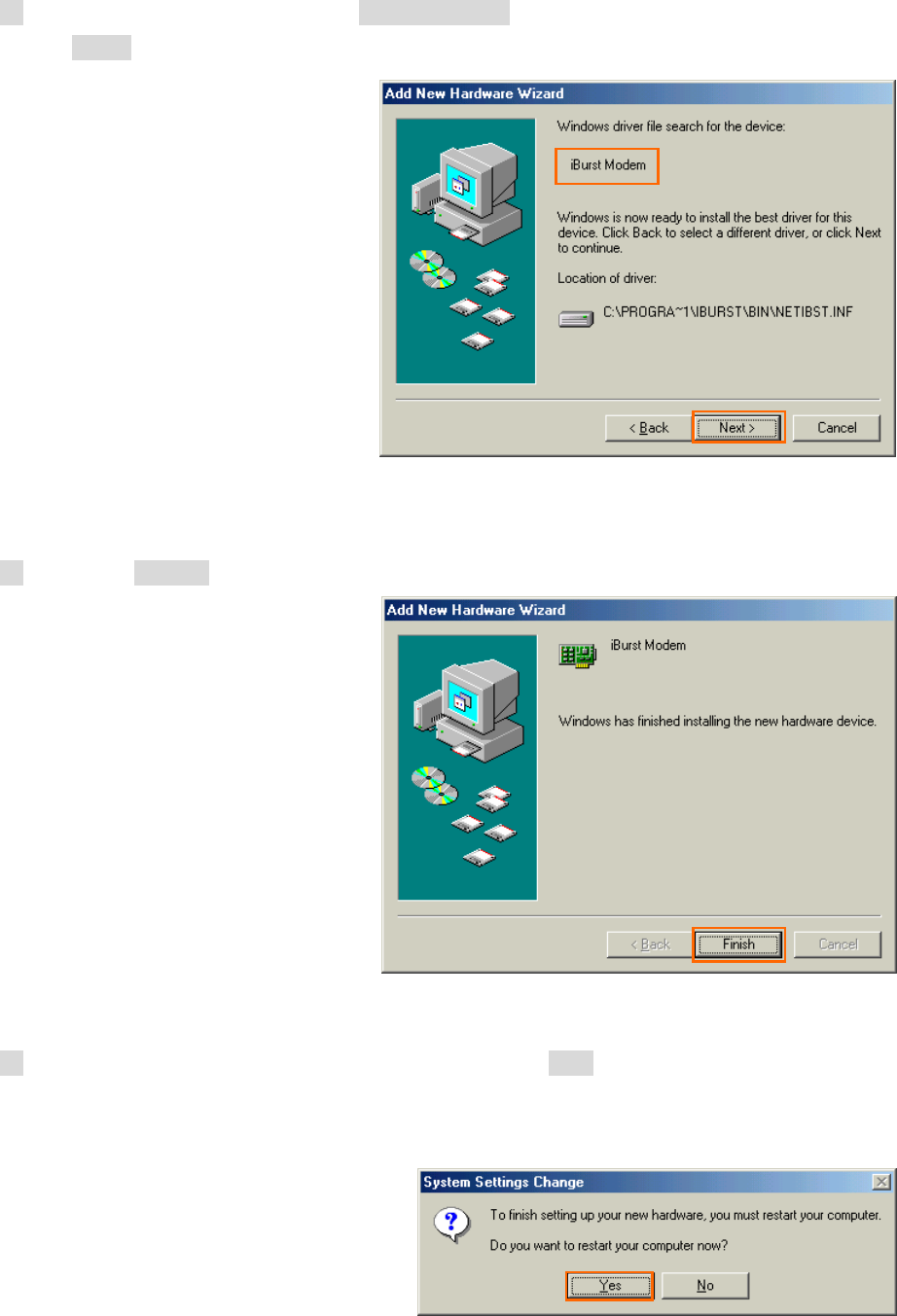

13 Make sure that the device name [iBurst Modem] is displayed in the dialog window, then click
the [Next] button.
14 Click the [Finish] button.
15 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
- 21 -

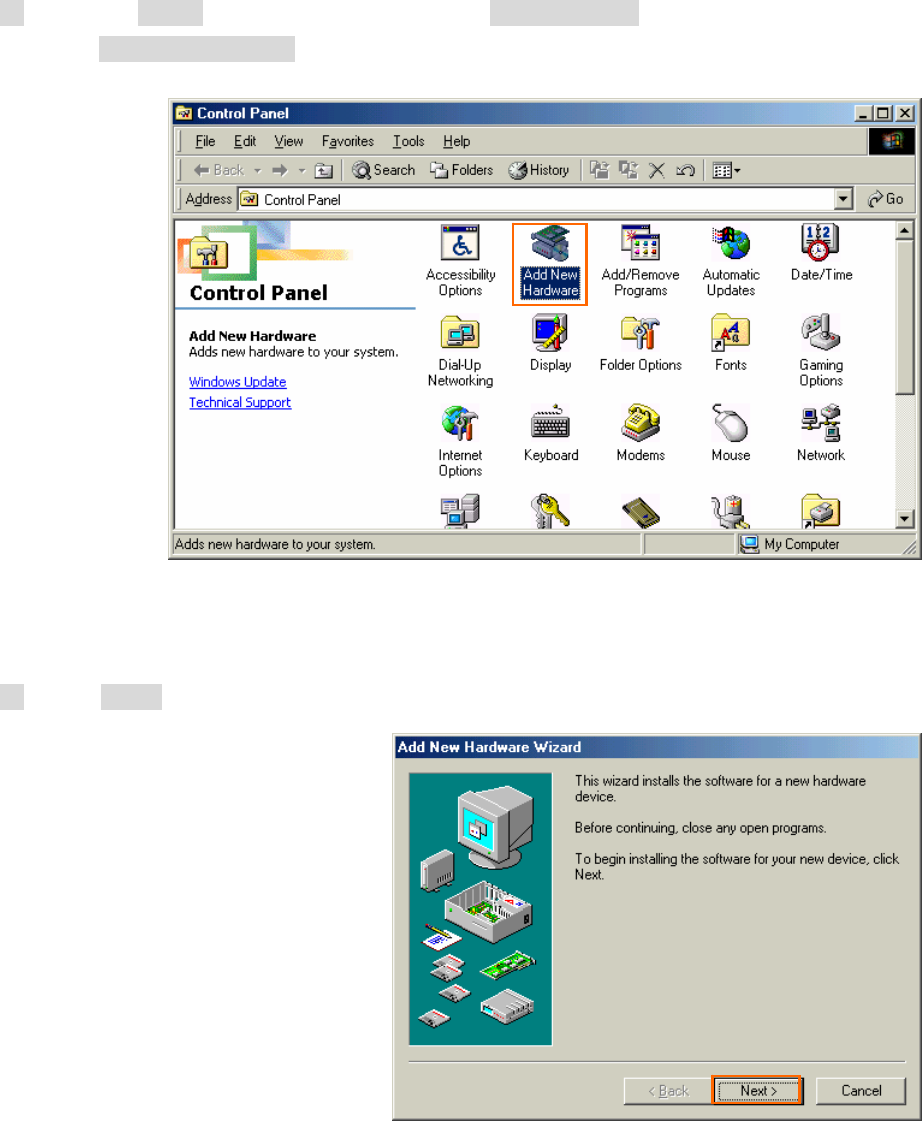

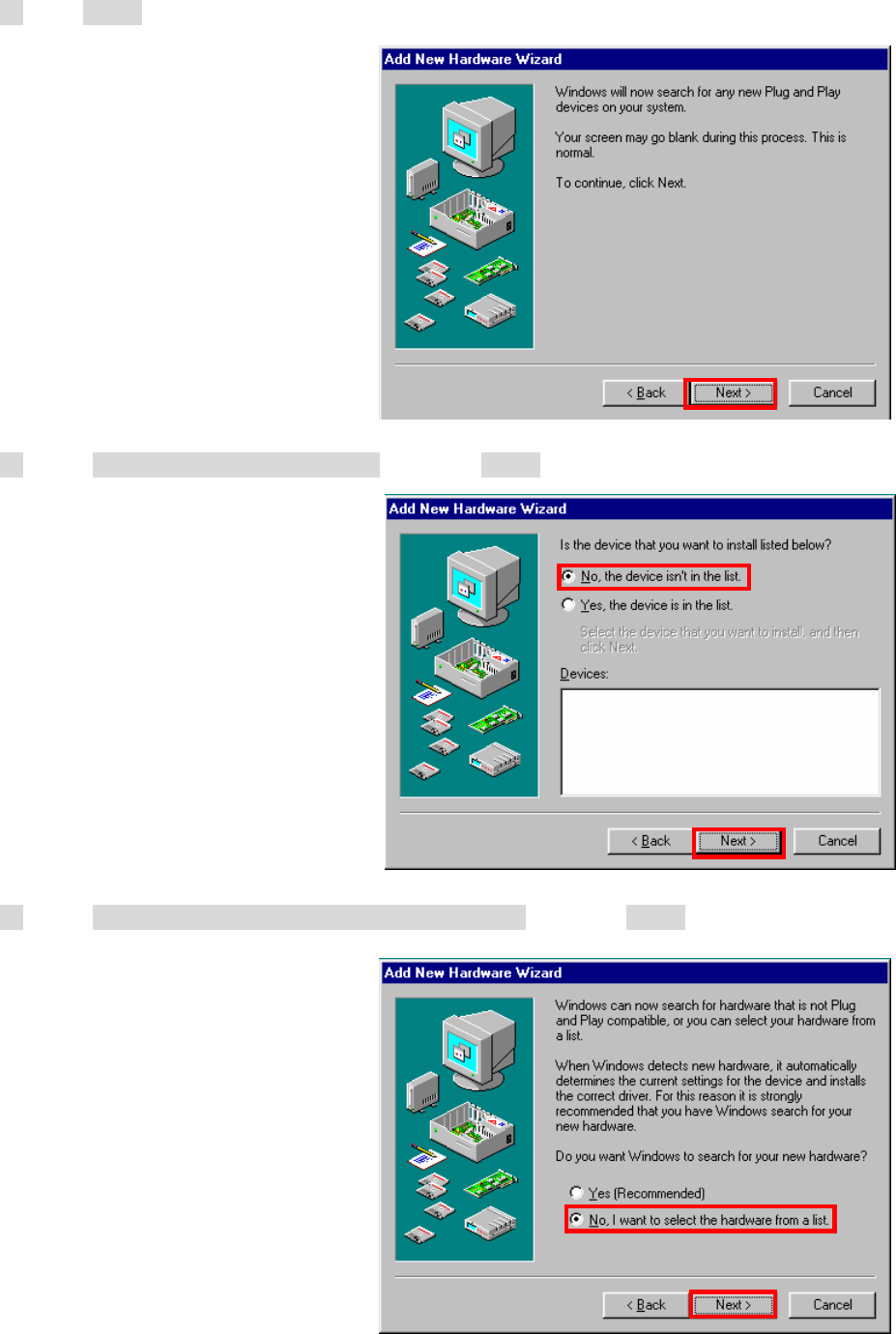

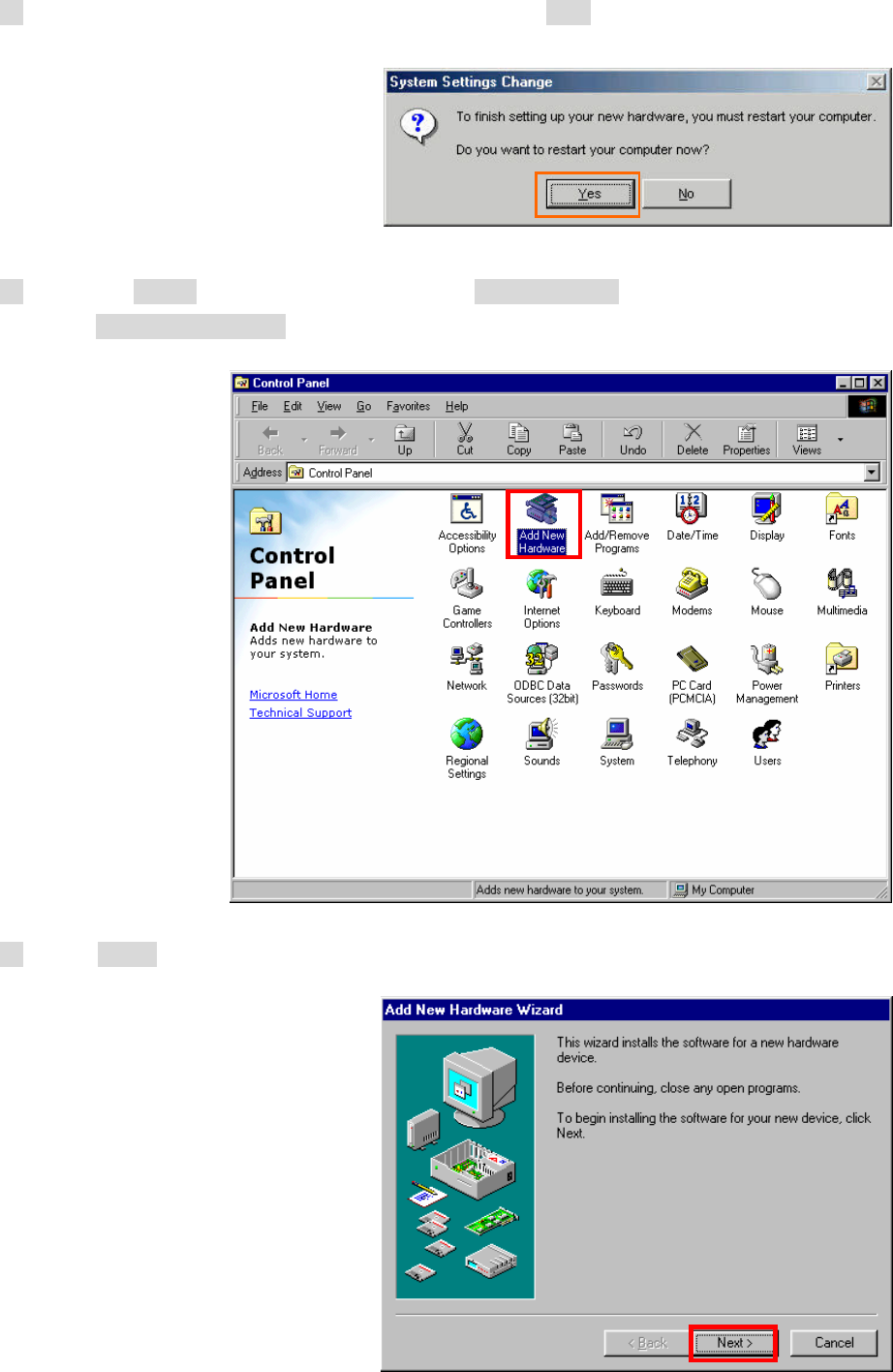

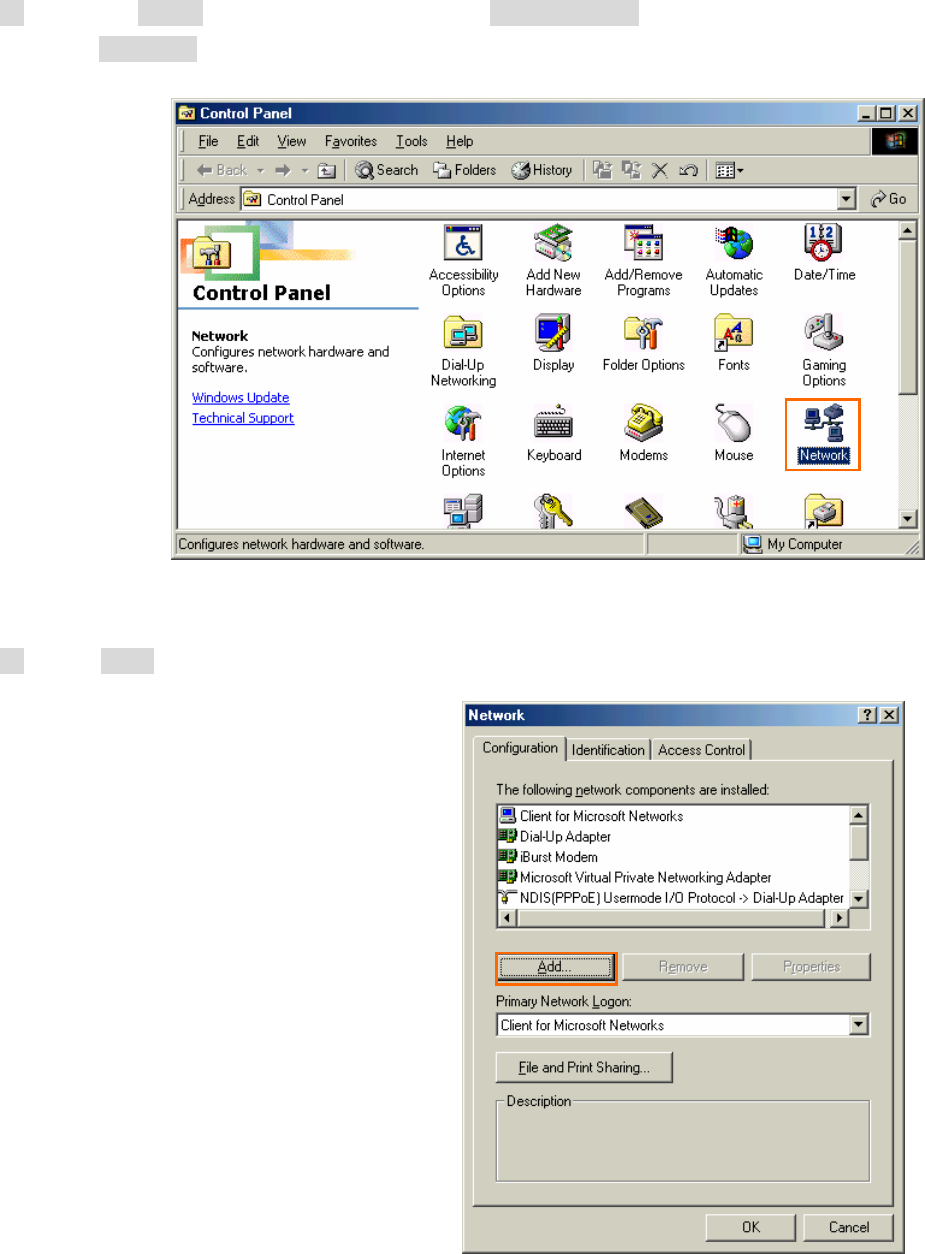

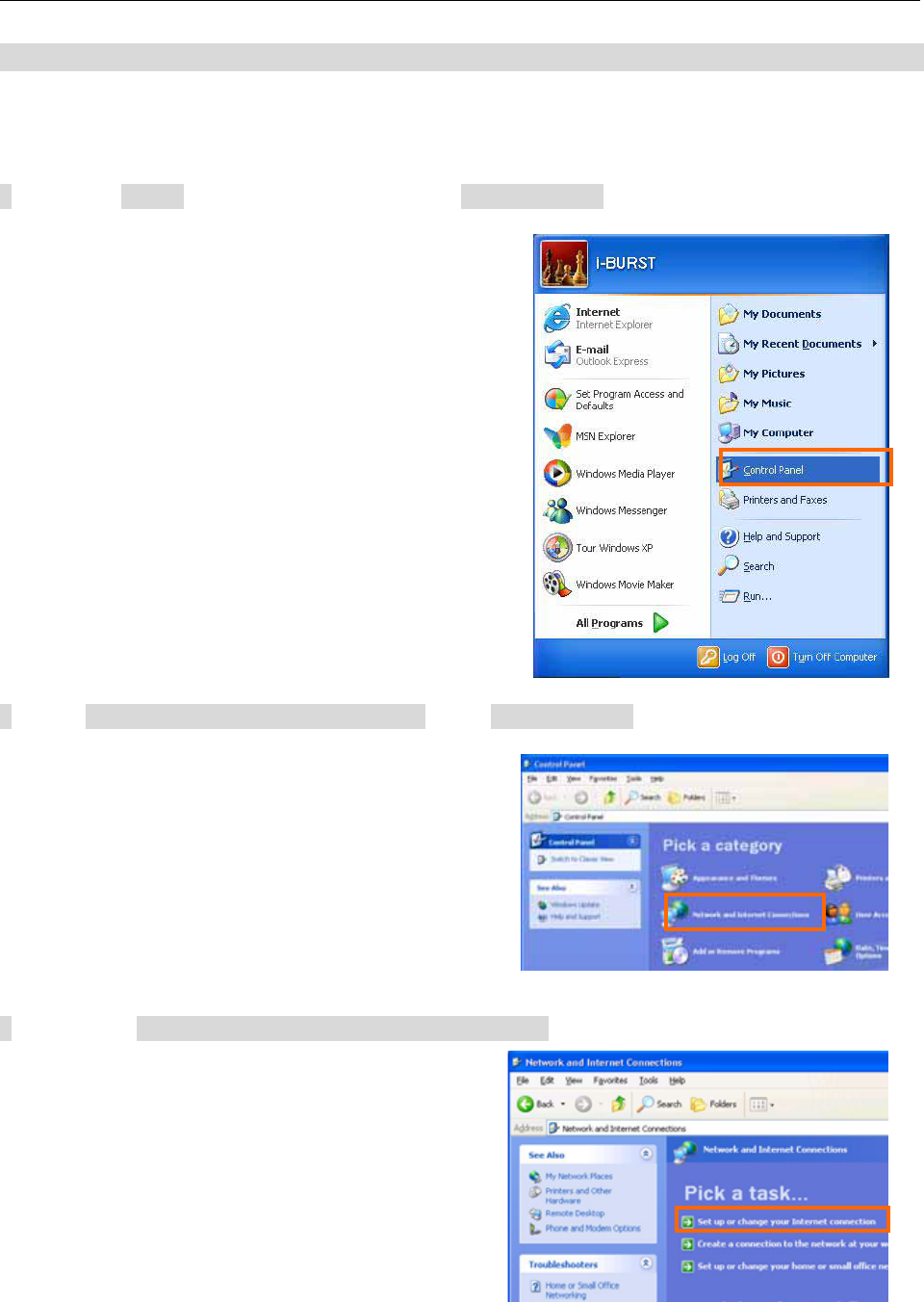

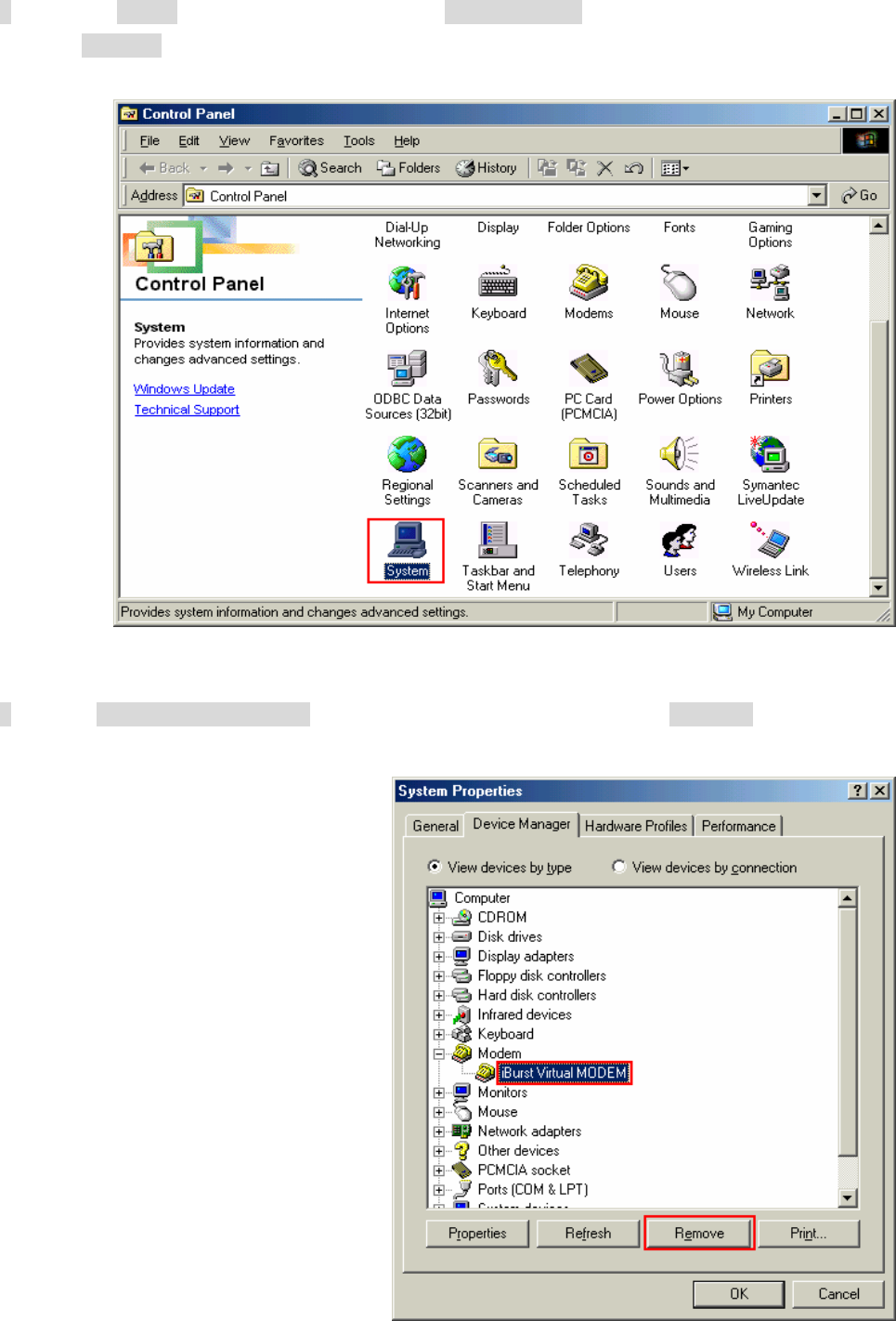

16 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Add New Haeware].
17 Click [Next].
- 22 -
18 Click [Next].

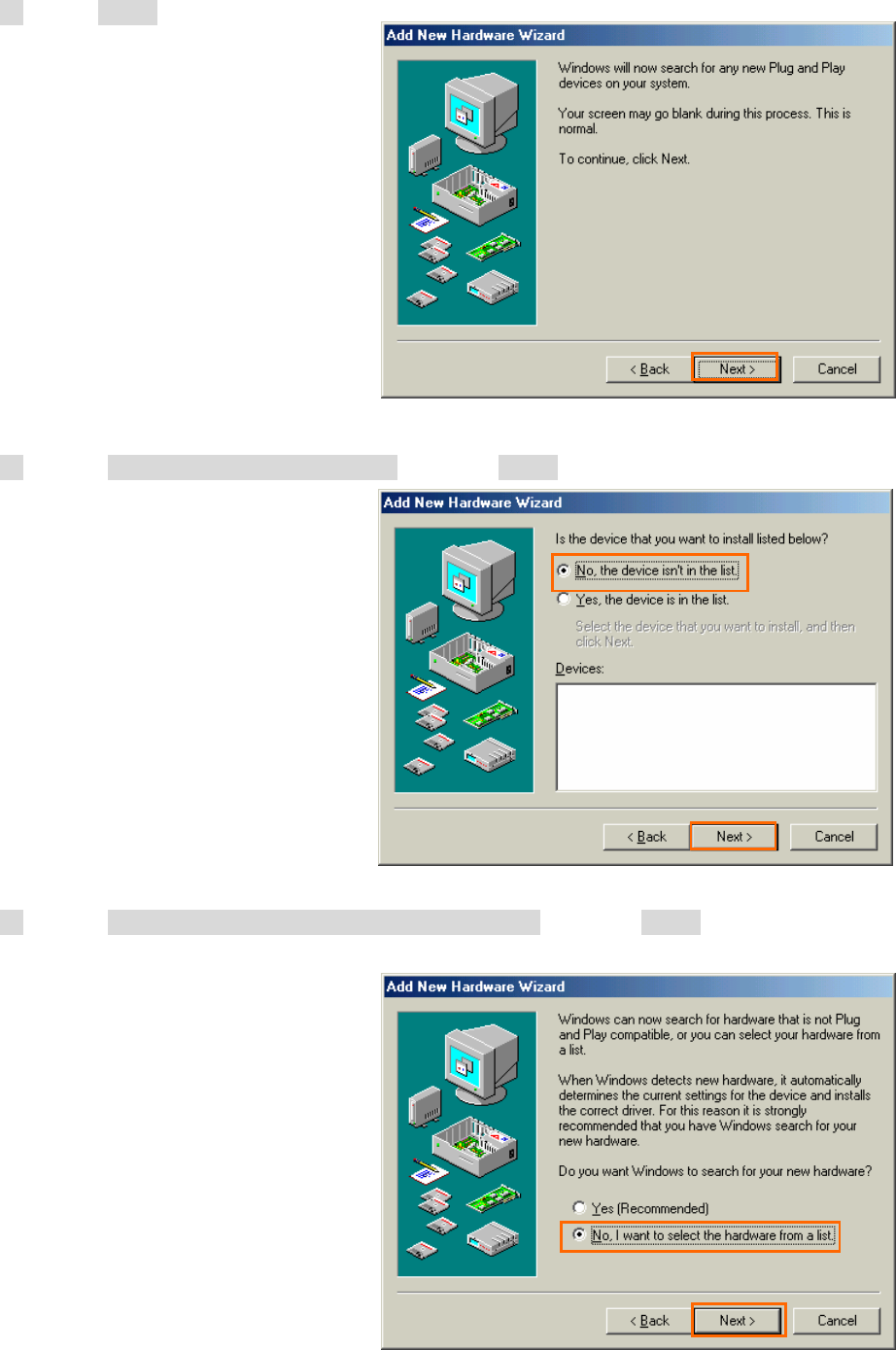

19 Check [No, the device isn’t in the list], and click [Next].
20 Check [No, I want to select the hardware from a list], and click [Next].
- 23 -

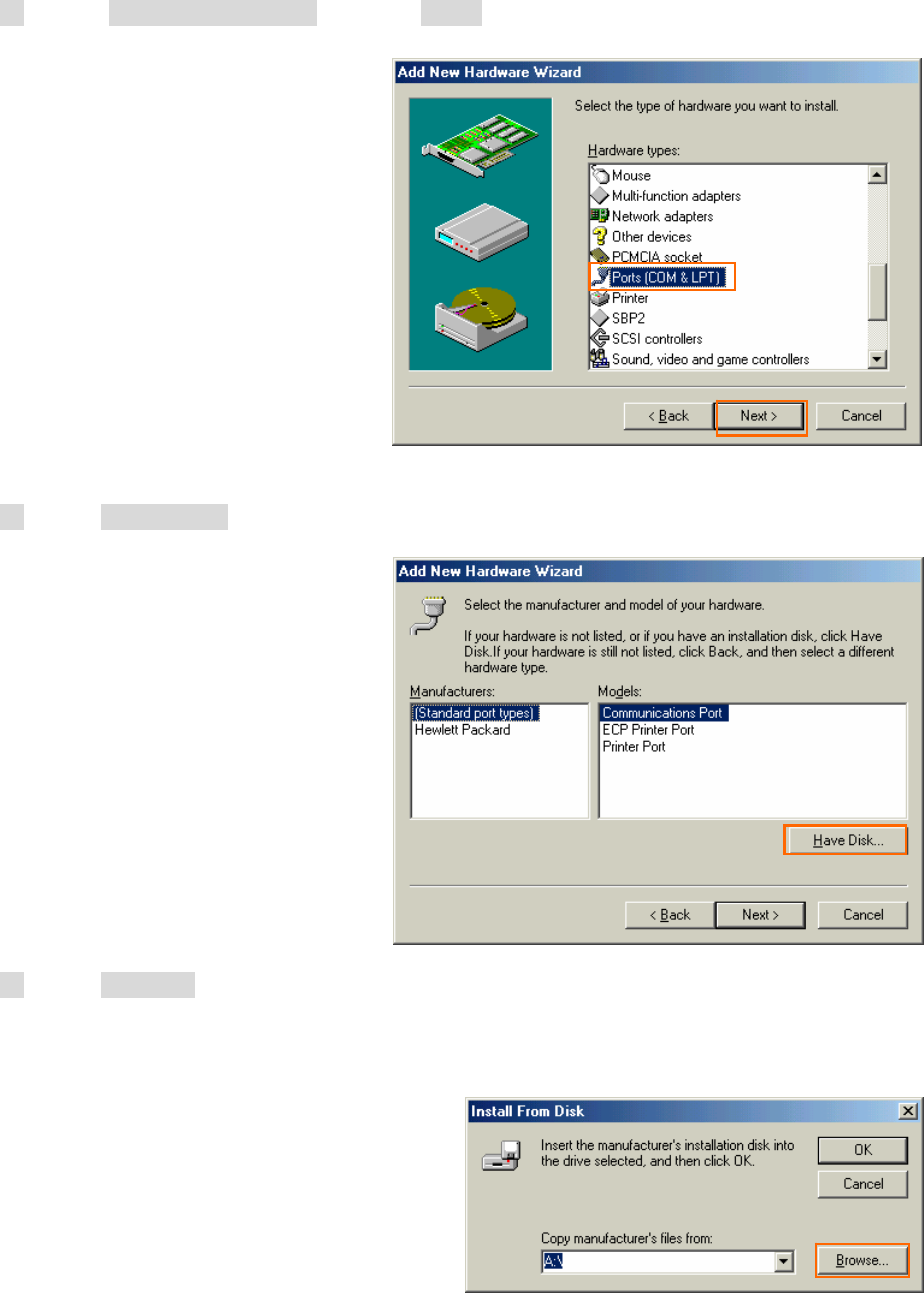

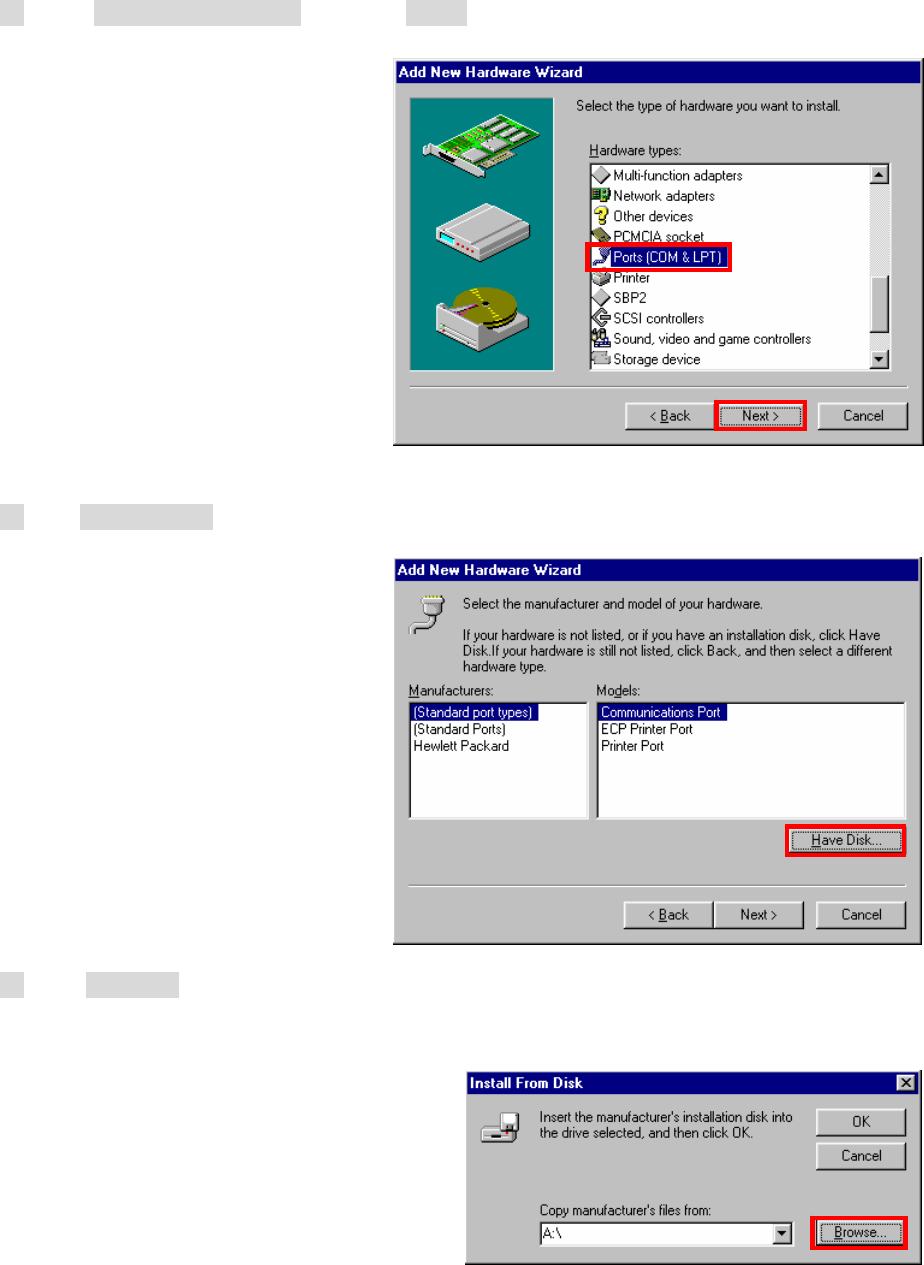

21 Select [Ports [COM & LPT]], and click [Next].
22 Click [Have Disk..] button.
23 Click [Brouse..] button.
- 24 -

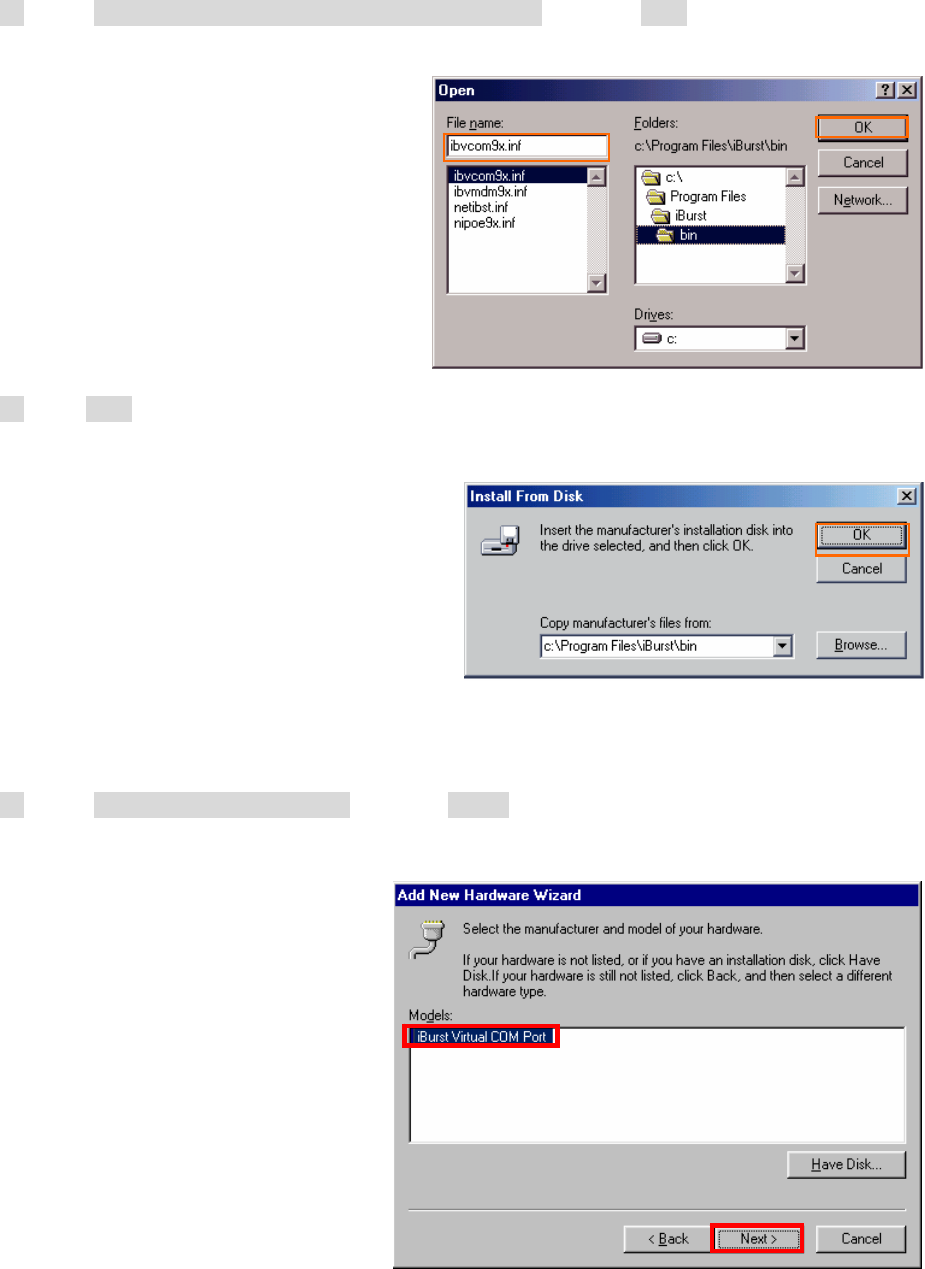

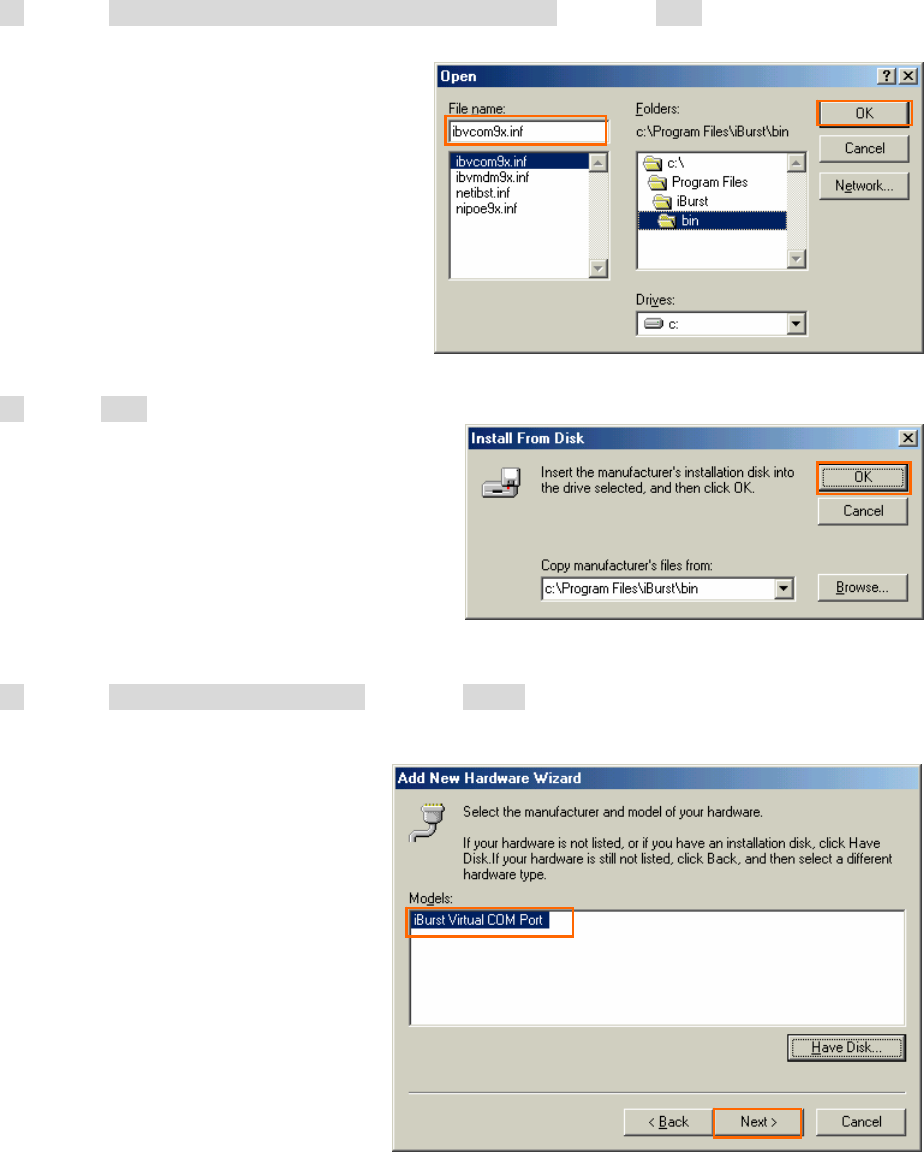

24 Select [C:¥Program Files¥iBurst¥bin¥ibvcom9x.inf],and click [OK].
25 Click [OK].
26 Select [iBurst Virtual COM Port],and click [Next].
- 25 -
27 Click [Next].
28 Click [Finish].
29 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
- 26 -

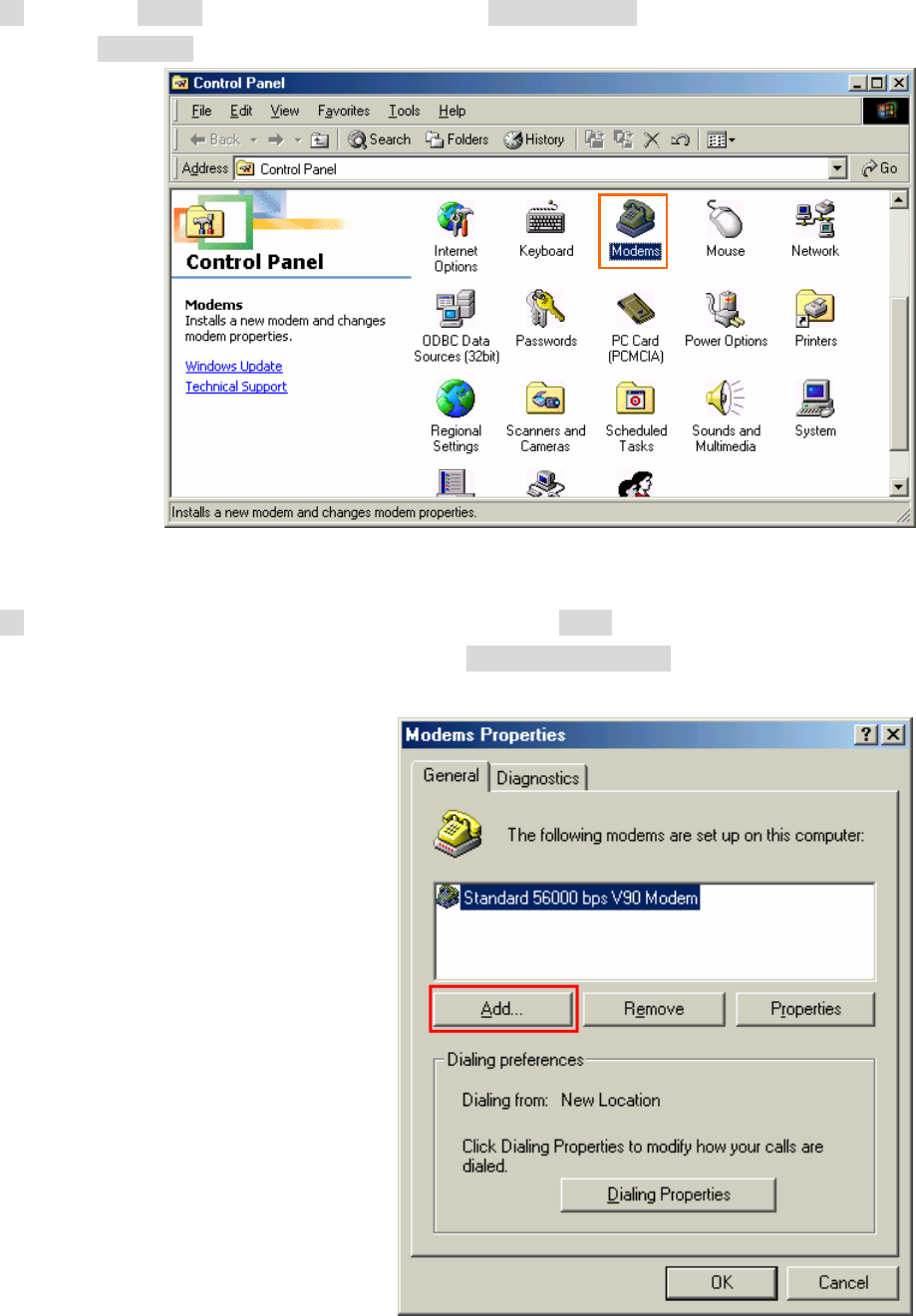

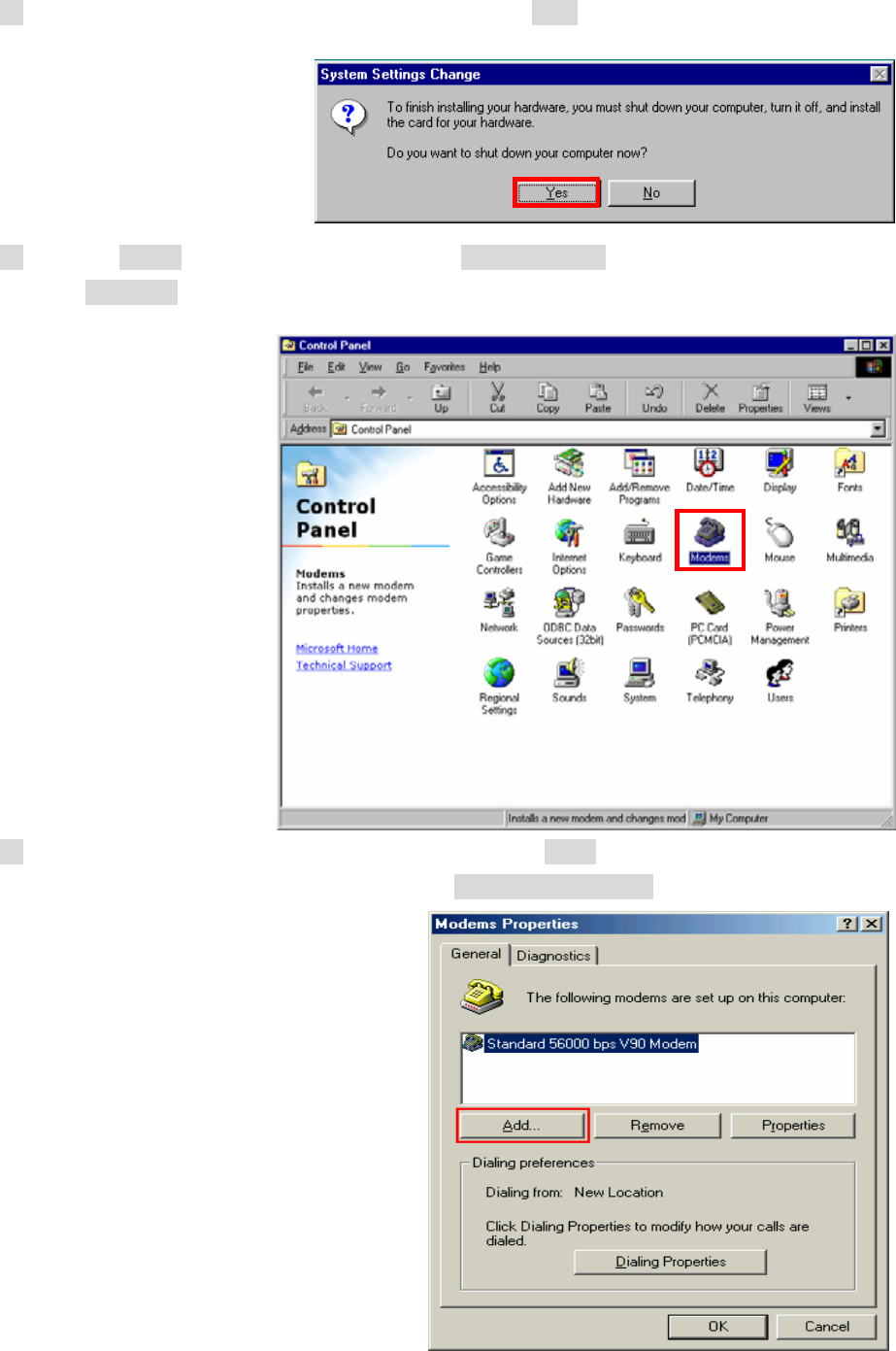

30 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Modems].
31 If the dialog window shown below appears, click the [Add] button.(If your computer has never
had a modem, skip this step and go to next step [Install New Modem].)
- 27 -

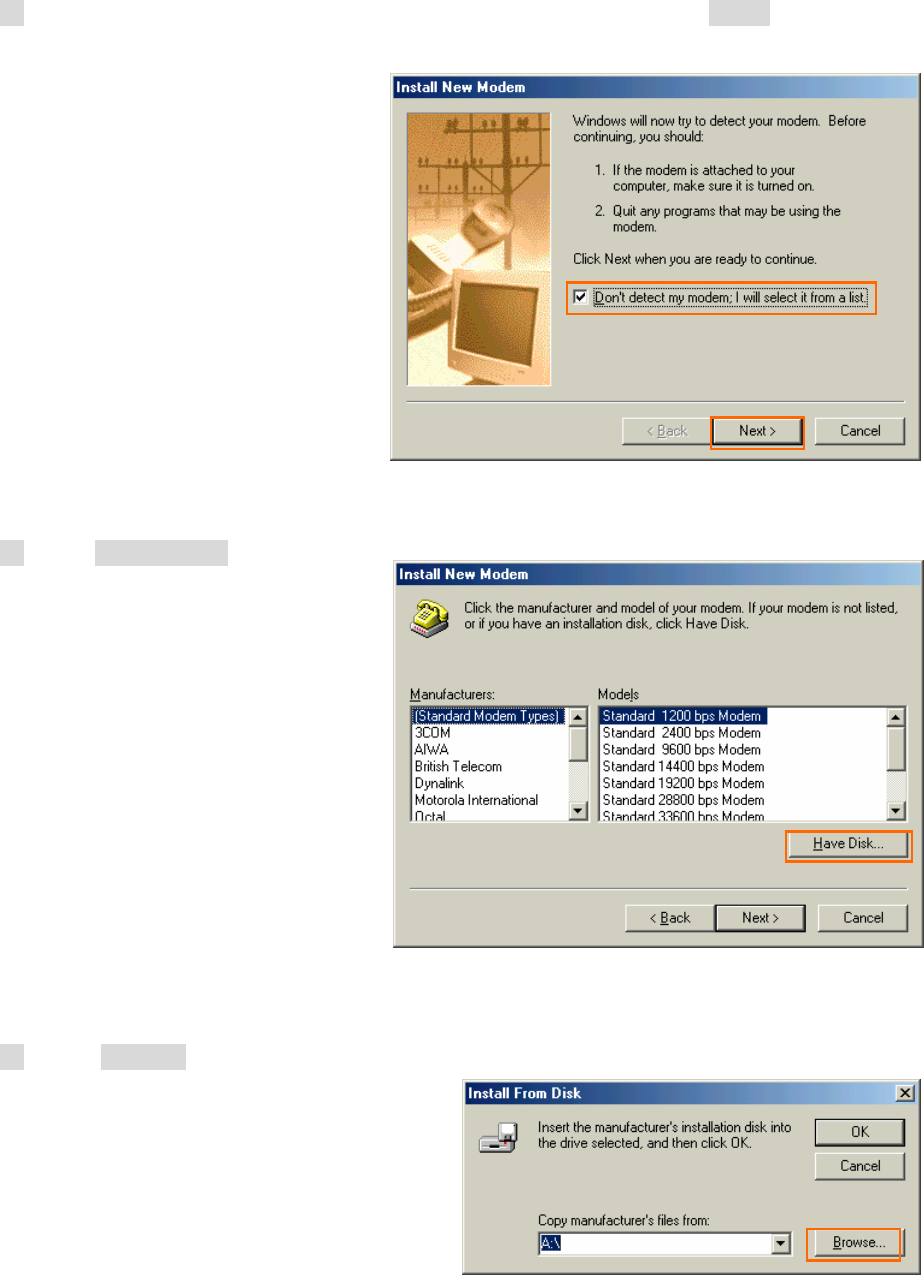

32 Check “Don’t detect my modem; I will select it from a list”, and click [Next].
33 Click [Have Disk..] button.
34 Click [Browse] button.

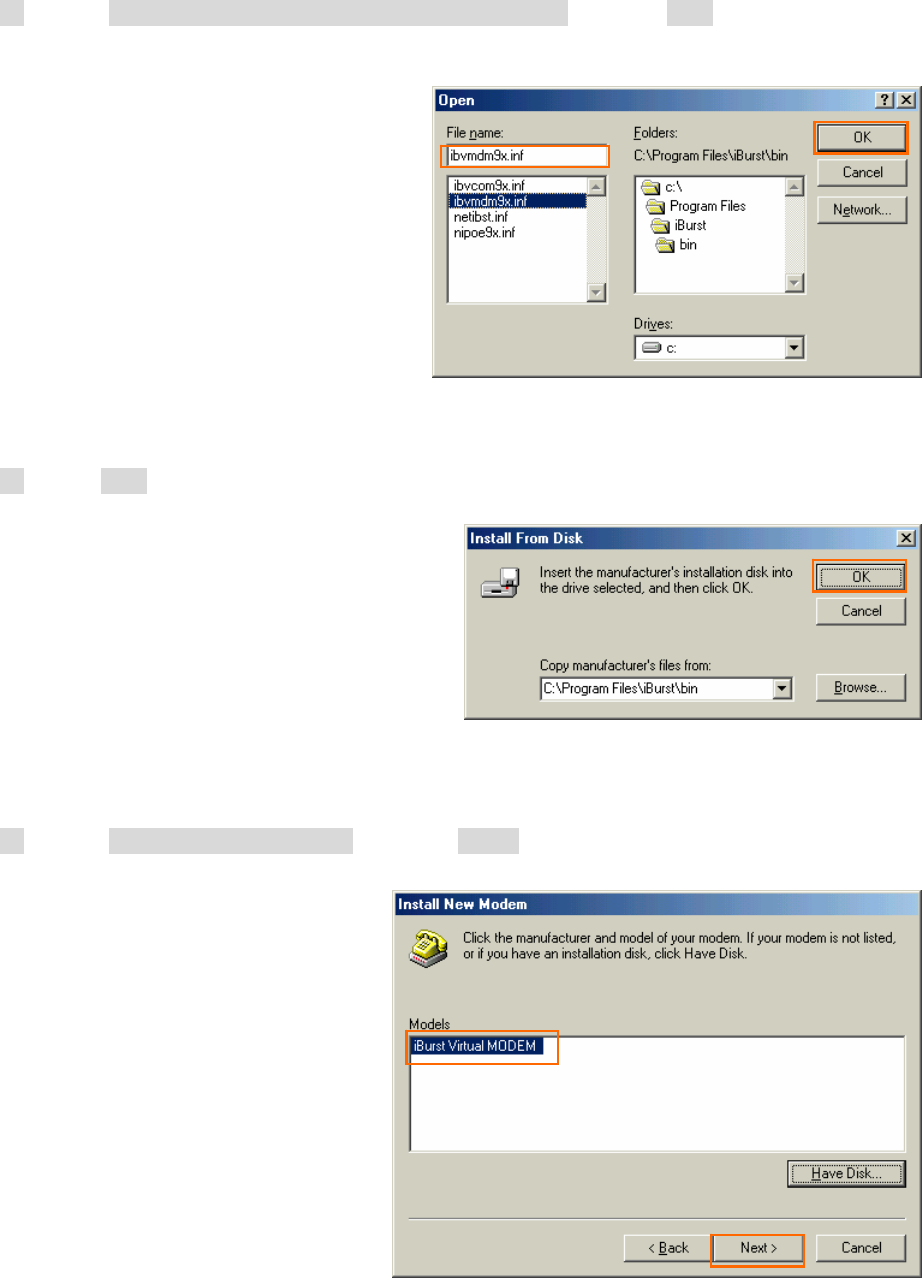

- 28 -

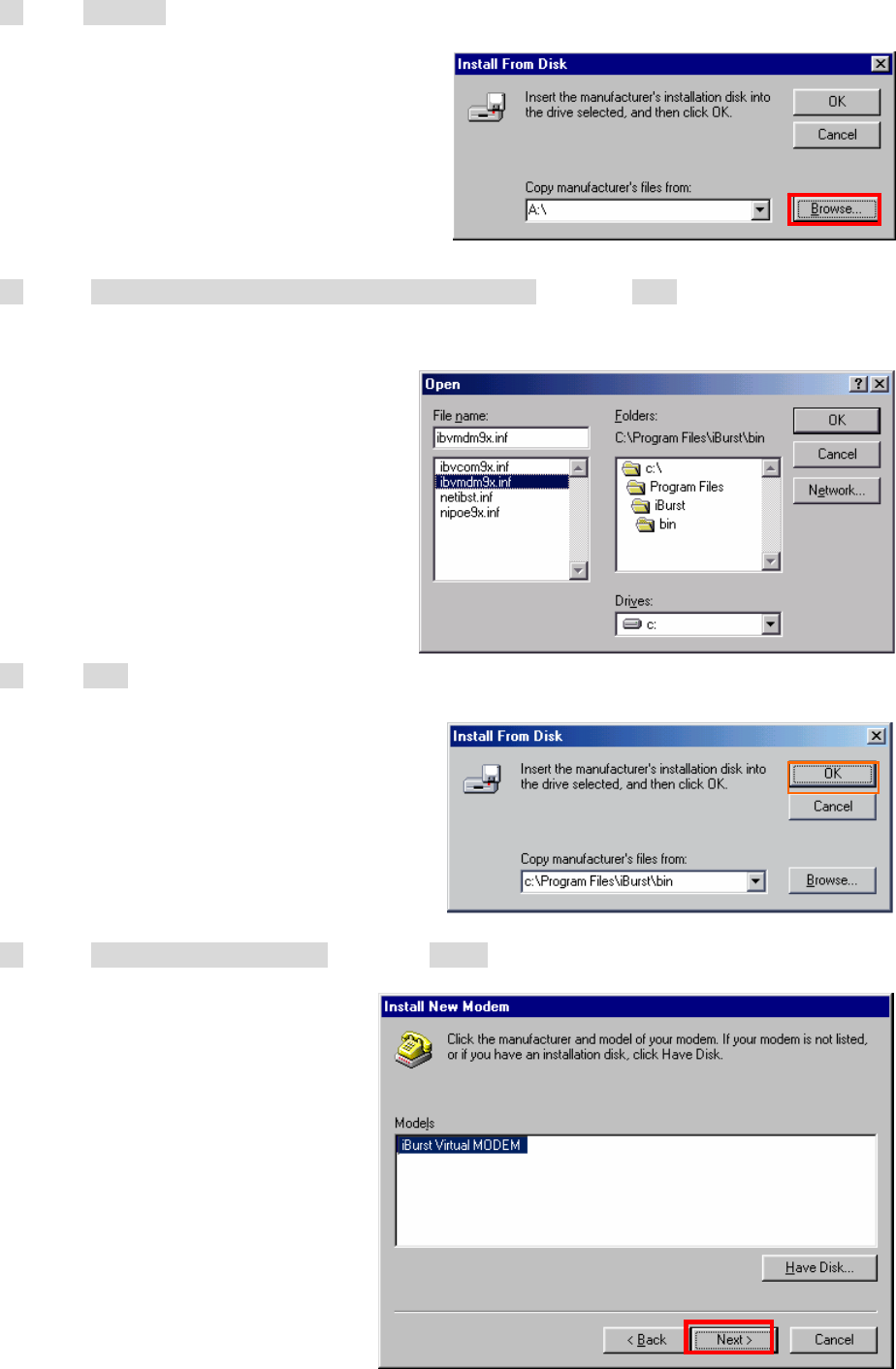

35 Select [C:¥Program Files¥iBurst¥bin¥ibvmdm9x.inf],and click [OK].
36 Click [OK].

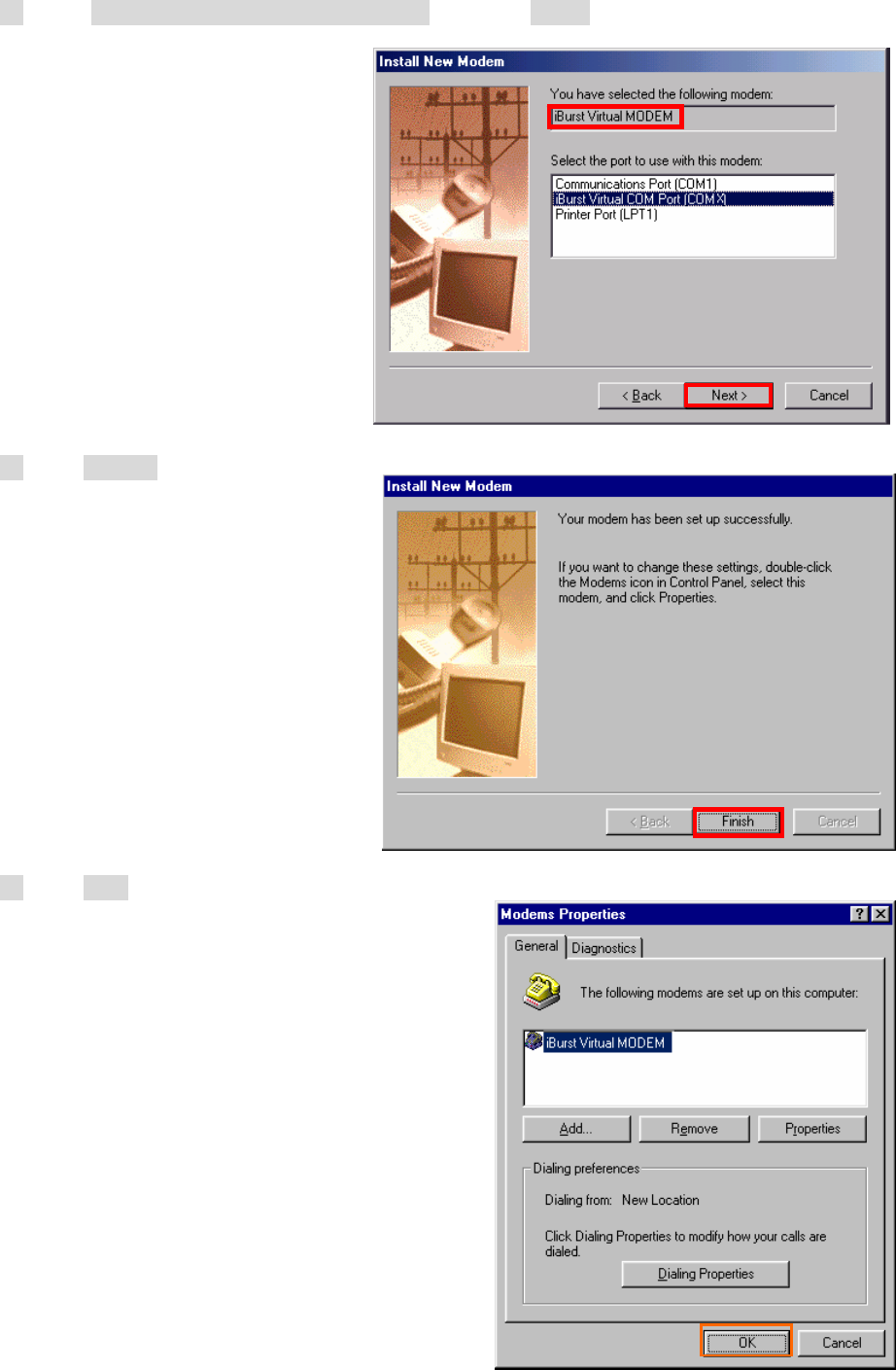

37 Select [iBurst Virtual MODEM], and click [Next].
- 29 -

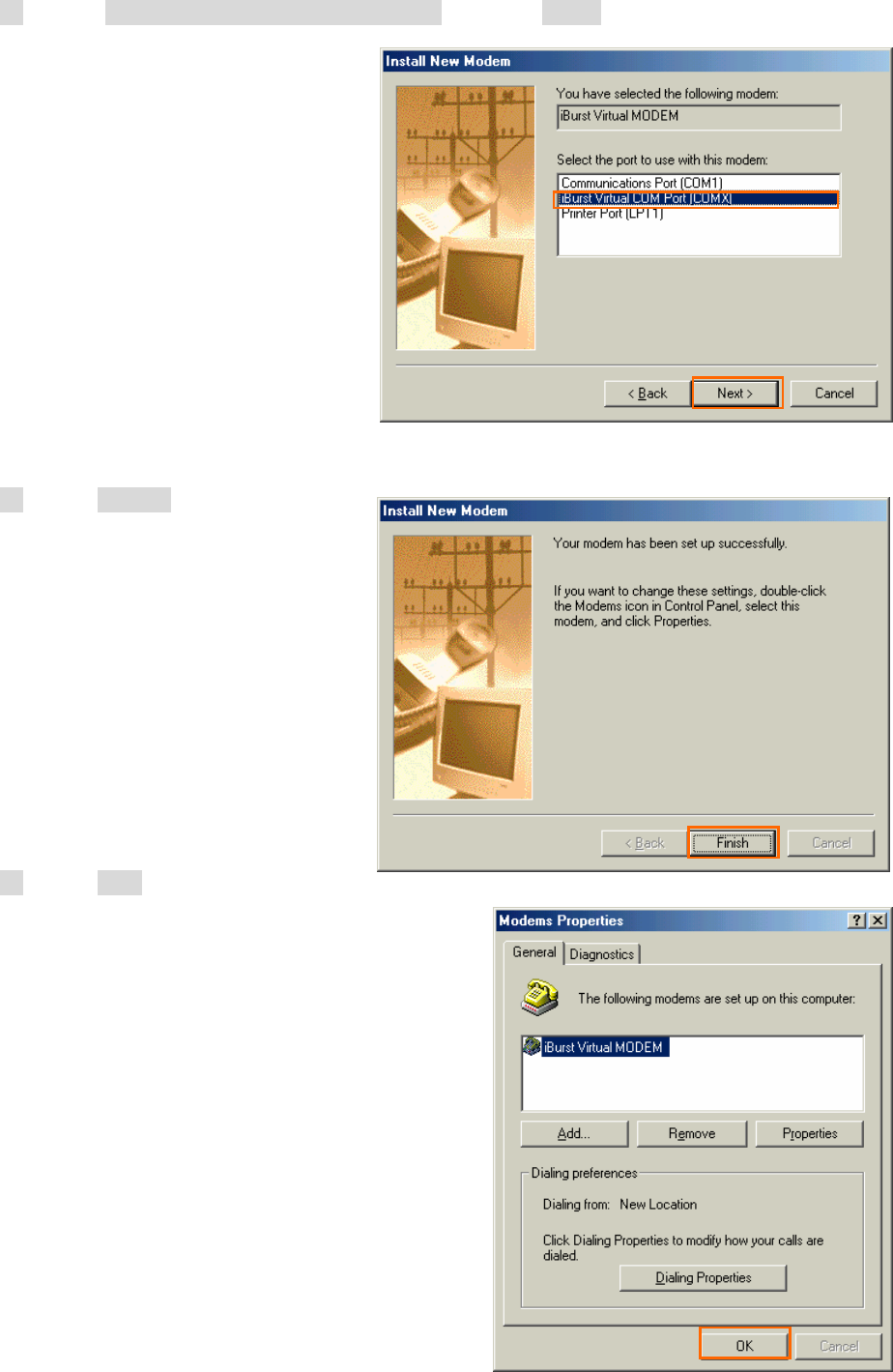

38 Select [iBurst Virtual COM Port (COM X)], and click [Next].
39 Click [Finish] button.
40 Click [OK] button.
- 30 -

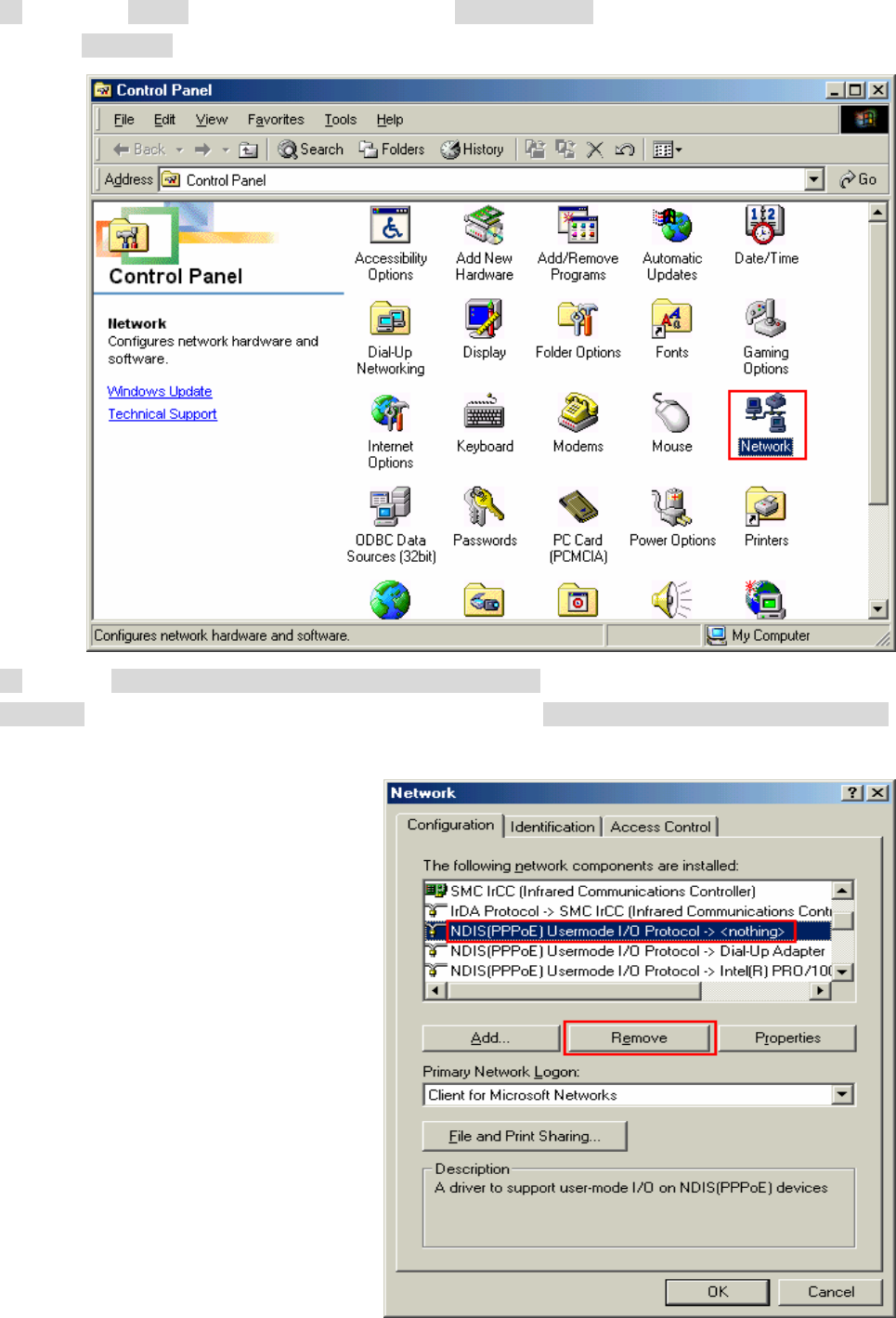

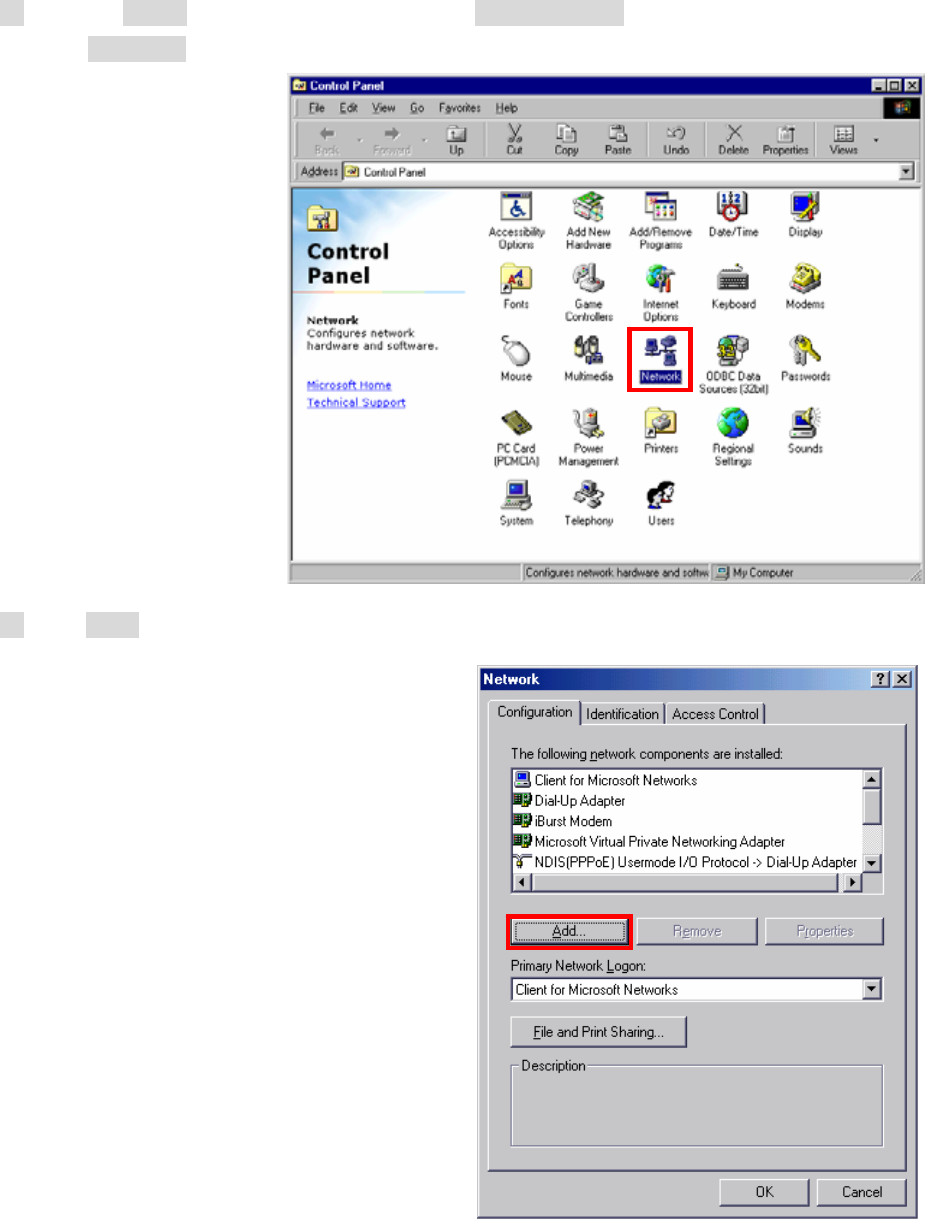

41 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Network].
42 Click [Add] on Configulation tab.

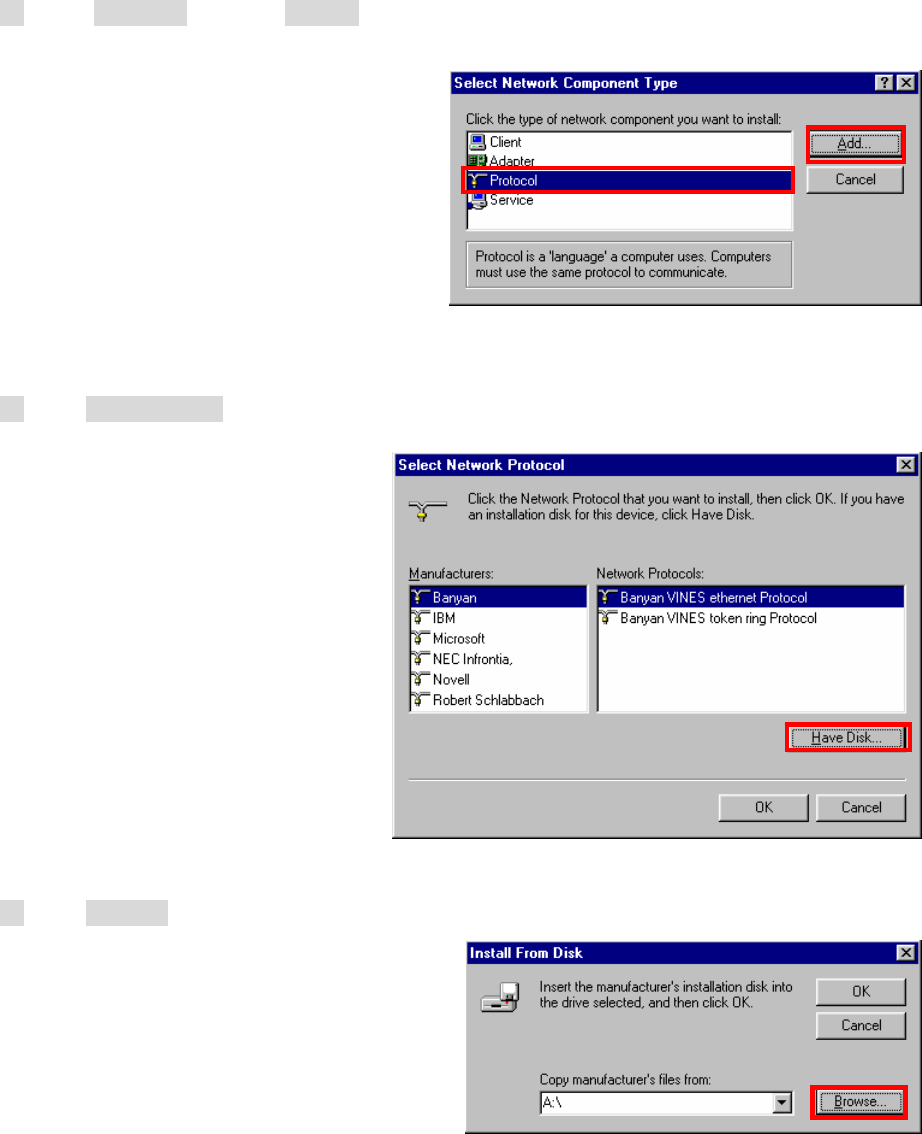

- 31 -
43 Select [Protocol] and click [Add…] button.

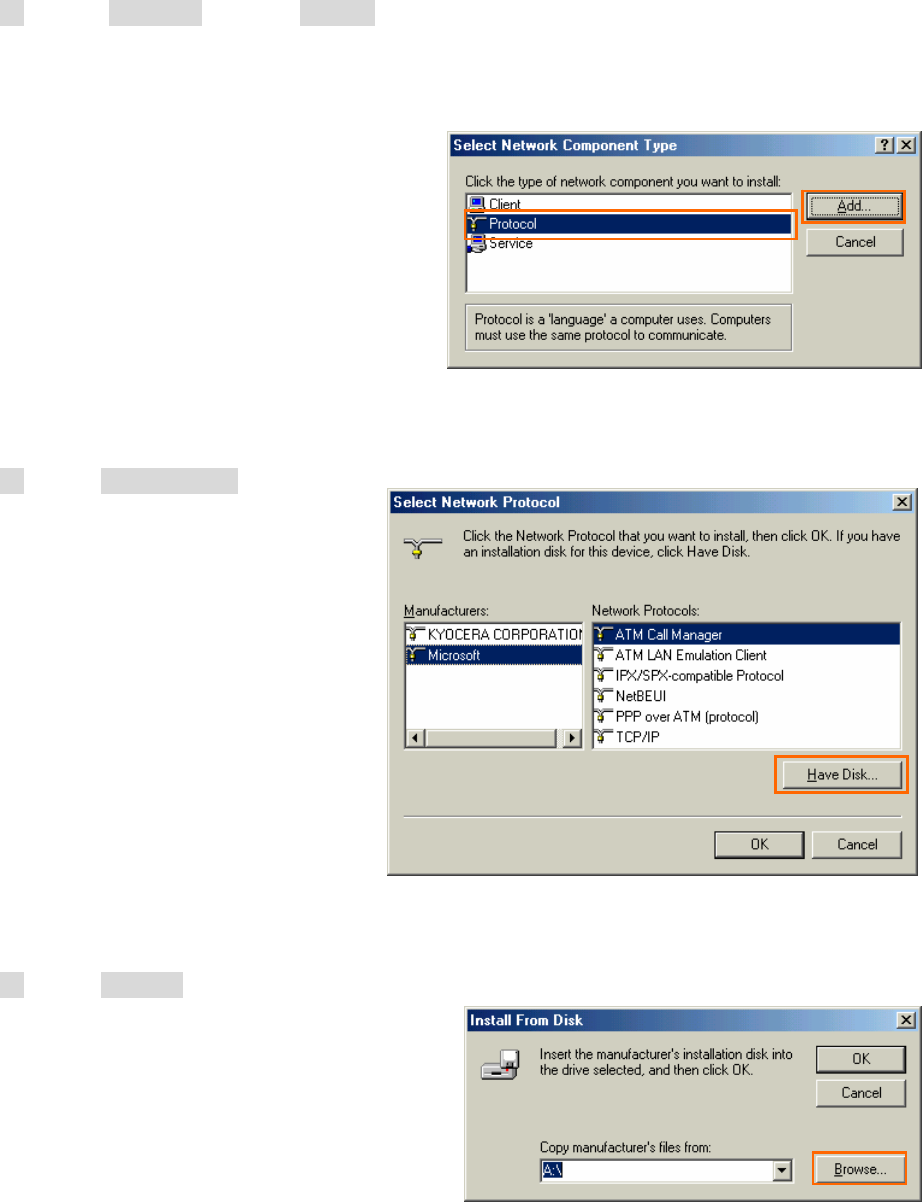

44 Click [Have Disk…] button.
45 Click [Brouse] button.
- 32 -

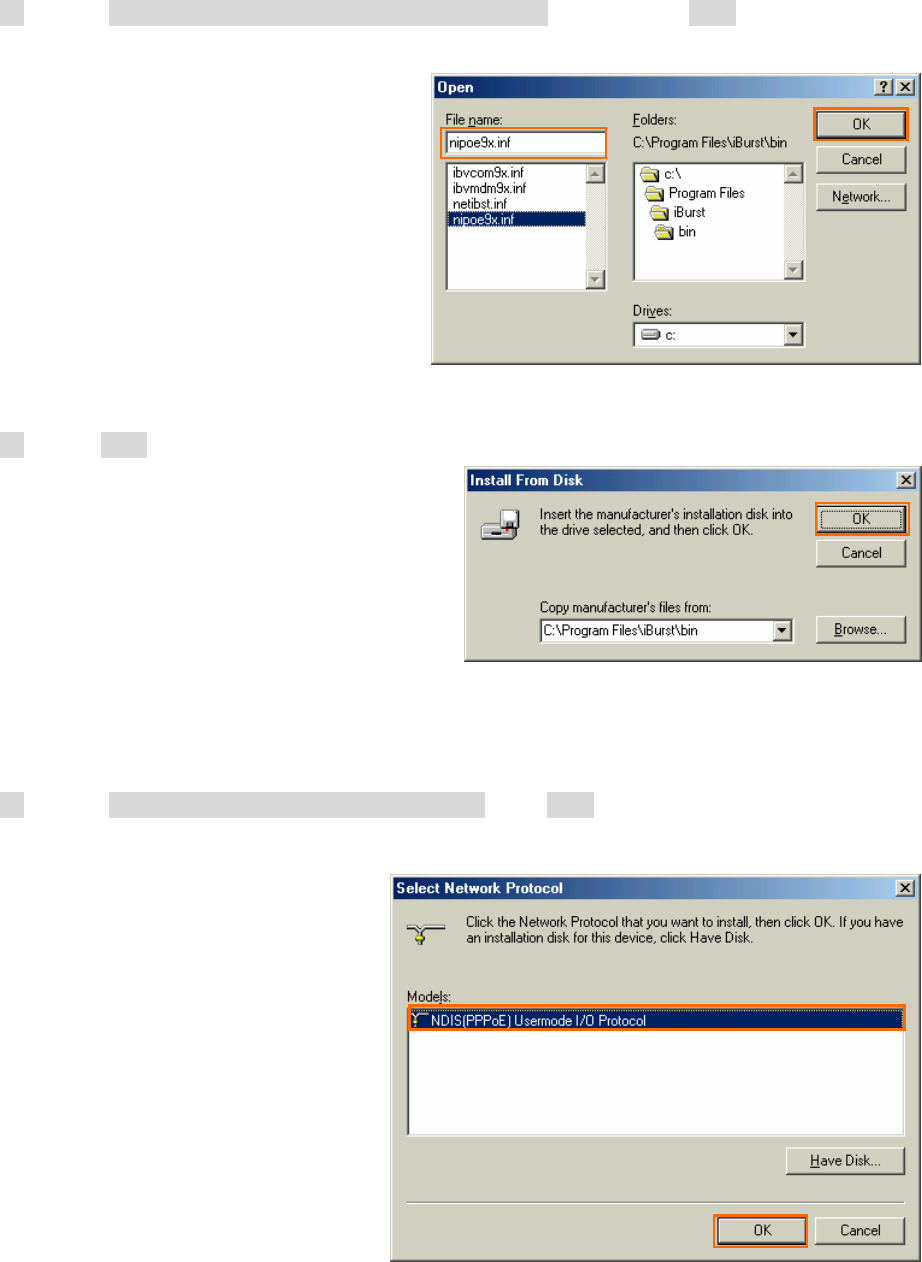

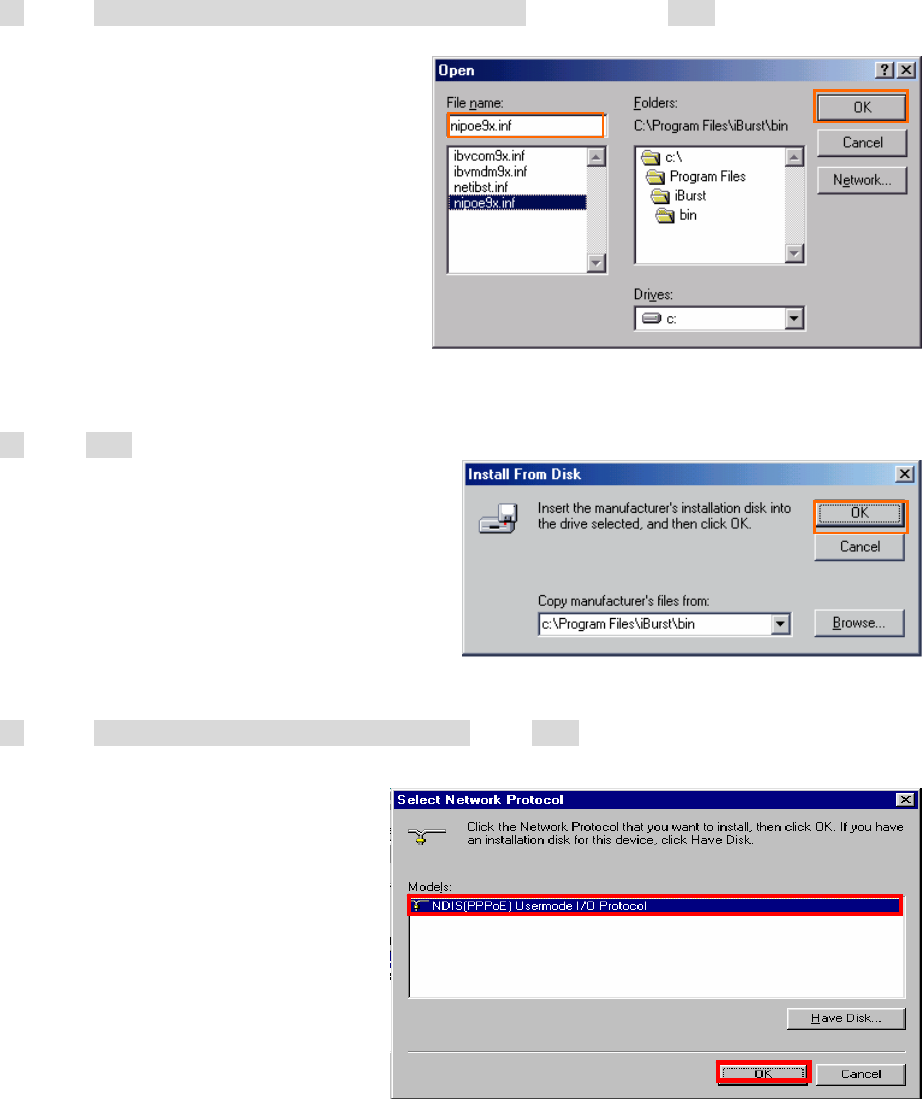

46 Select [C:¥Program Files¥ iBurst¥bin¥nipoe9x.inf], and click the [OK] button.
47 Click [OK] button.
48 Select [NDIS[PPPoE] Usermode I/O Protocol], click [OK].
- 33 -

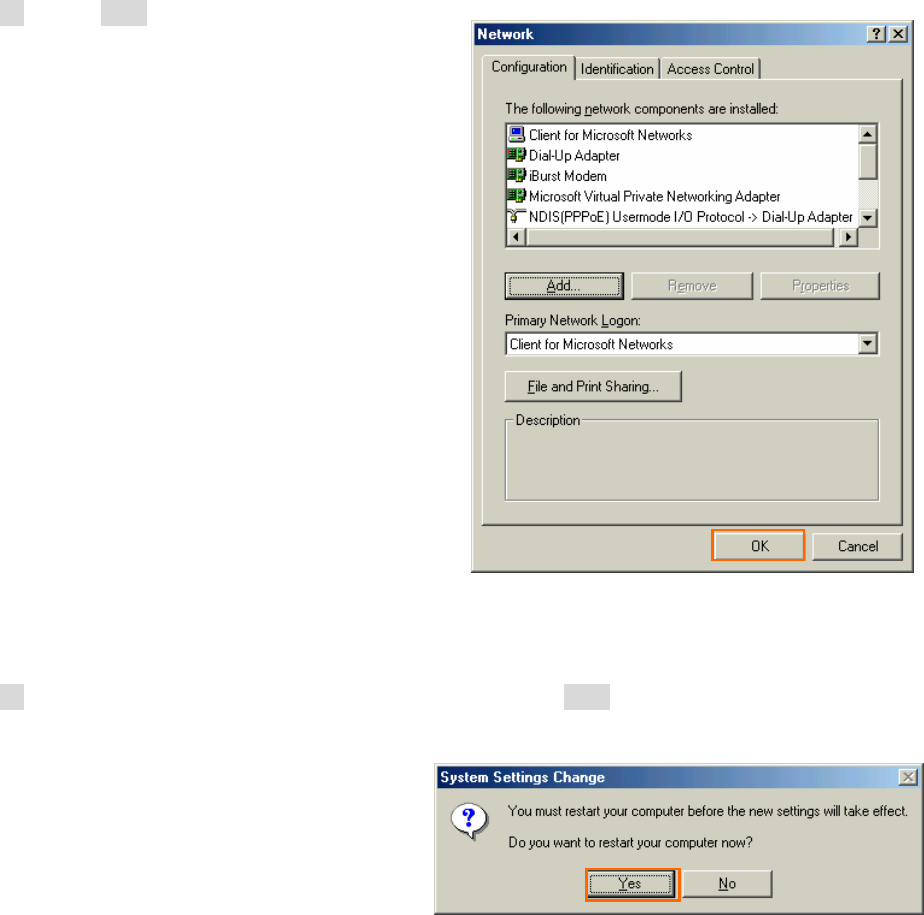

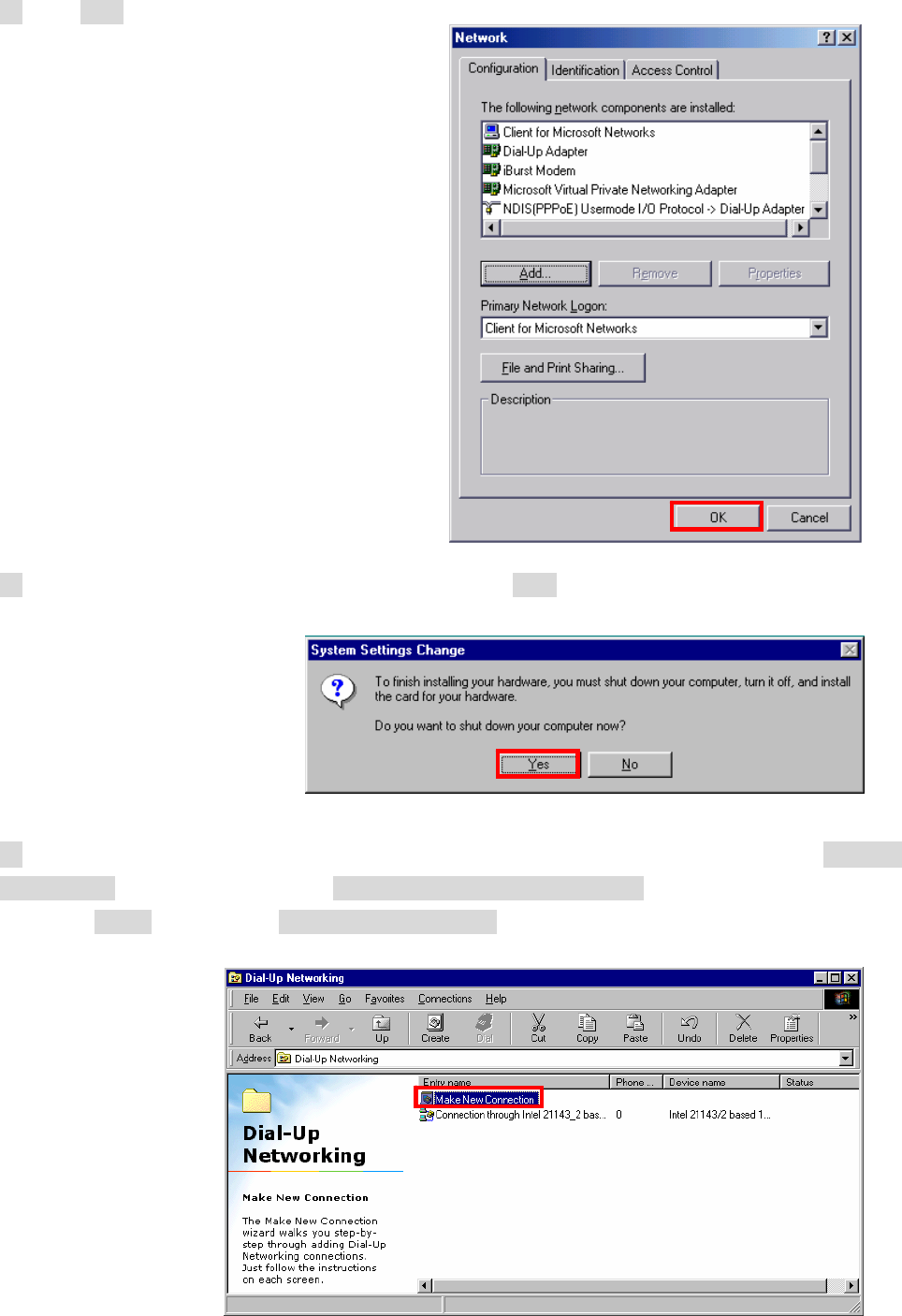

49 Click [OK] button.

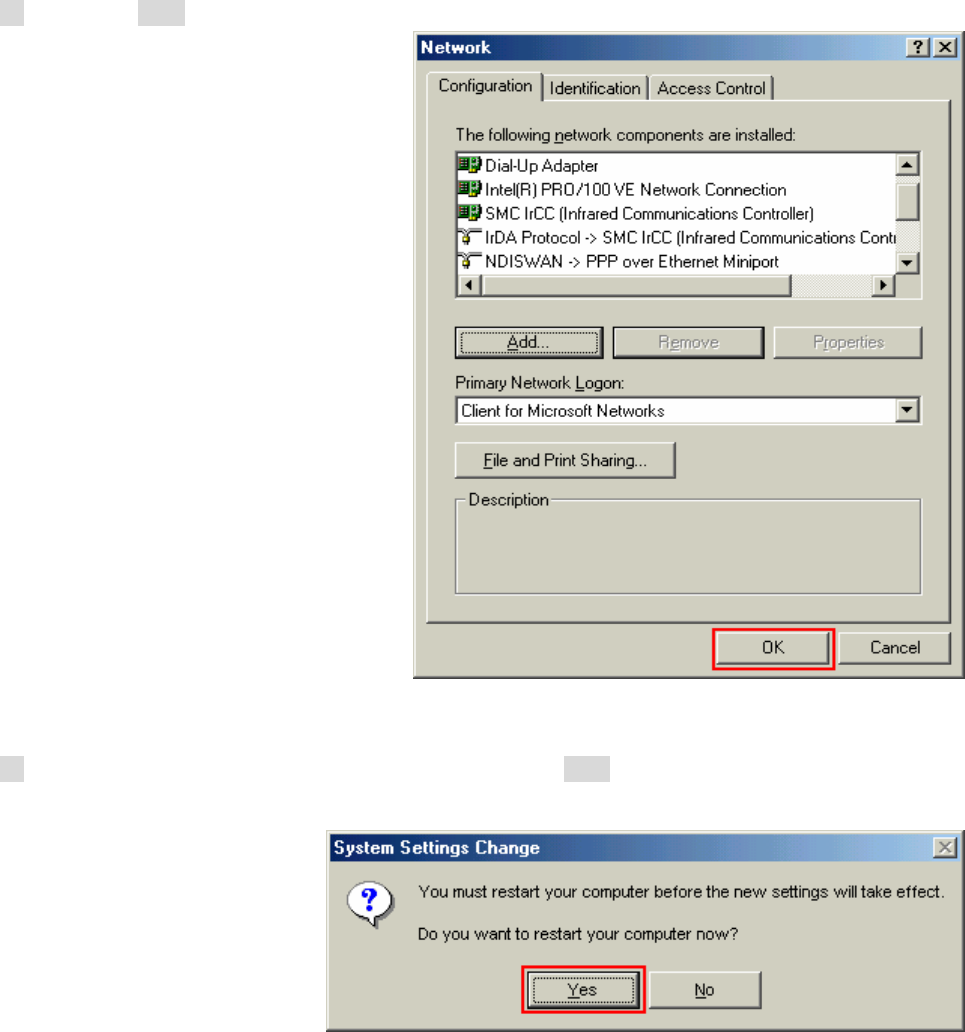

50 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
- 34 -
Installation for Windows98 Se
1 Turn on the power to the computer.
2 Insert the provided Software Utility CD into your CD-ROM drive.
Don't insert iBurst Access Card into your PC card slot when installation is running.
3 iBurst Setup starts, click the [Next] button.
4 Select [I accept the terms the license agreement], click the [Next] button.
- 35 -
5 Click the [Next] button after appearing dialog window as shown below.
6 Click the [Next] button.
7 The following dialog window will appear, and installation of software begins.
- 36 -

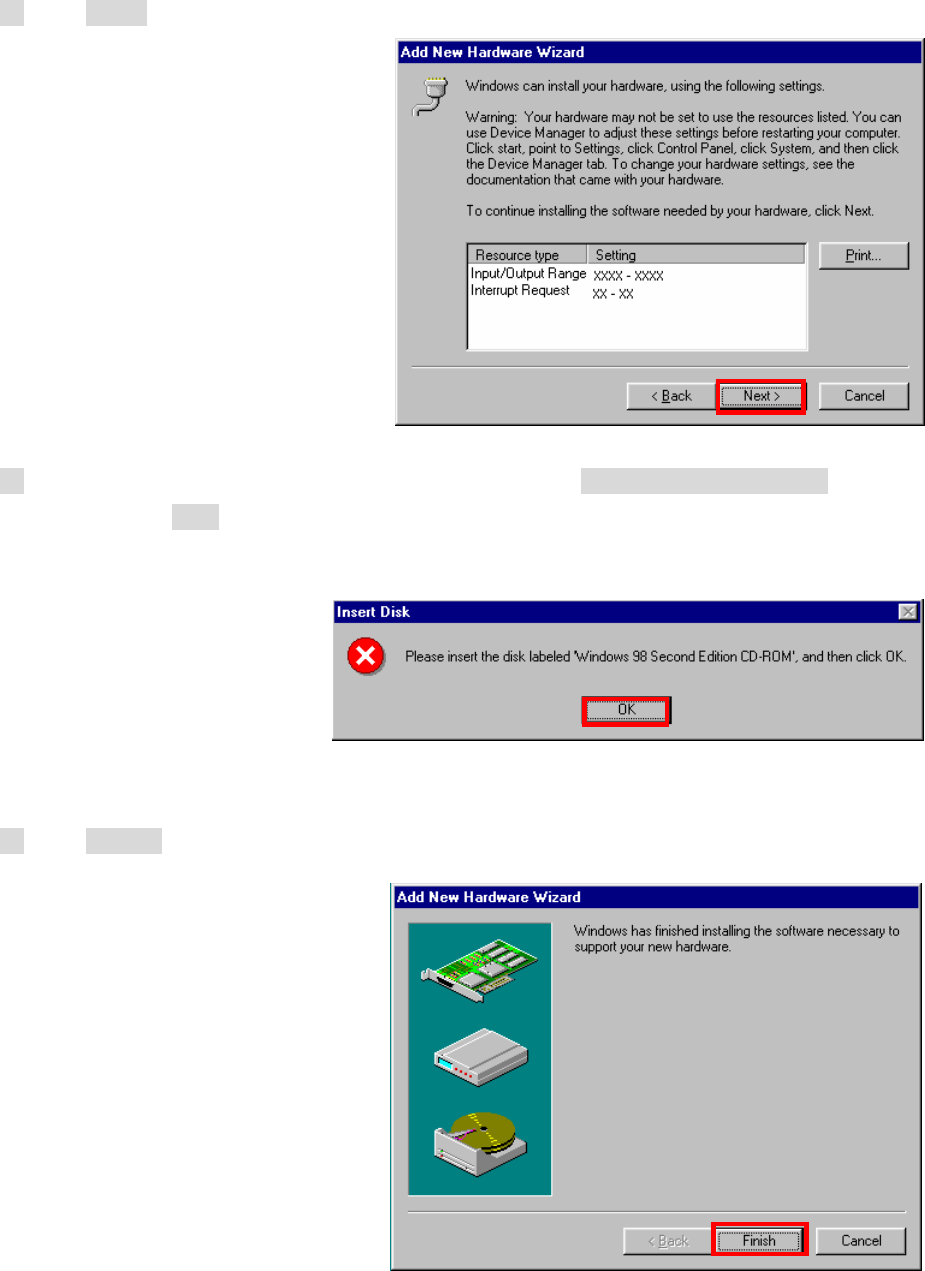

8 After software installation is finished, insert iBurst Access Card into your PC card slot.

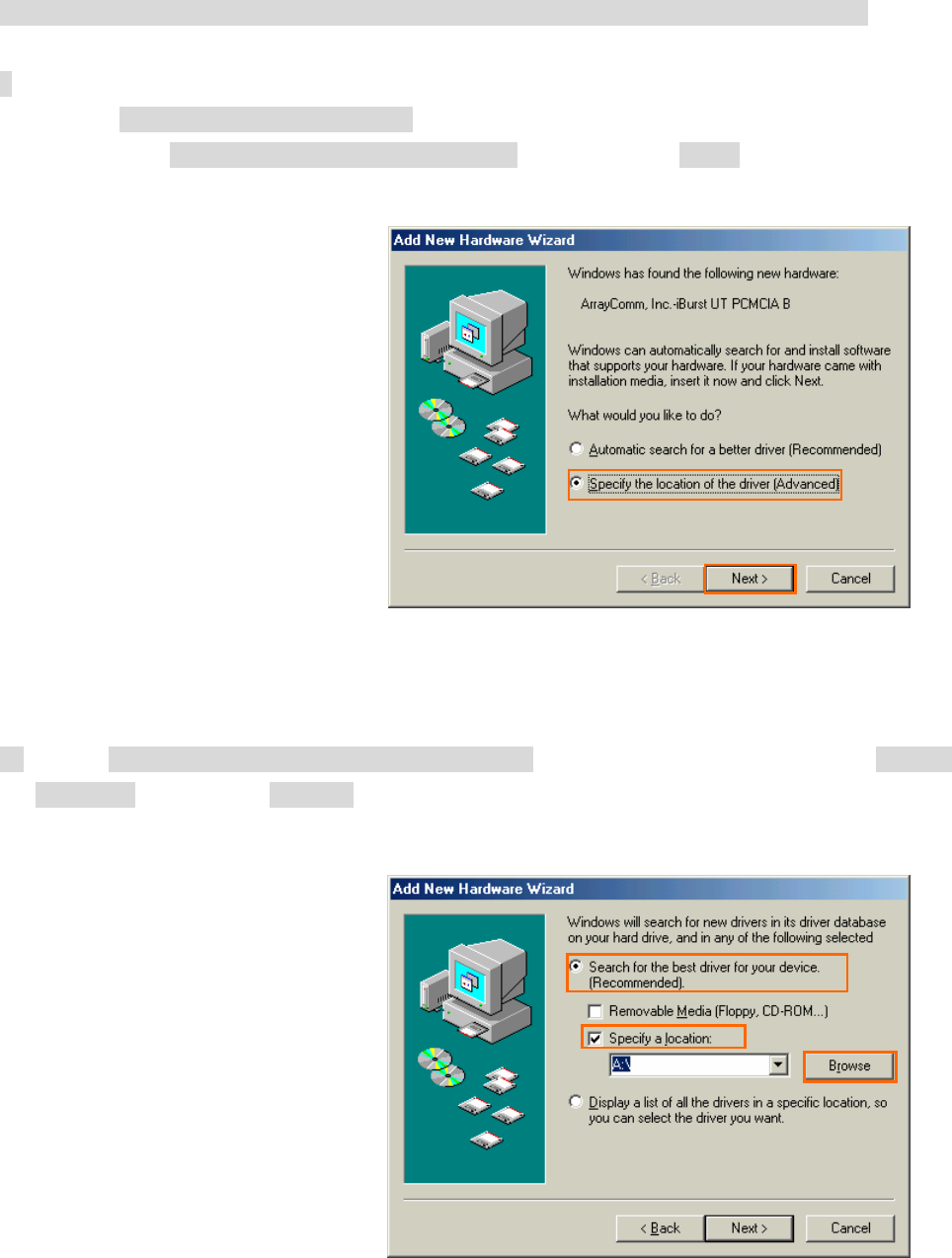

9 If the operating system is able to recognize the inserted iBurst Access Card as a new installed
hardware, [Add New Hardware Wizard] will begin and the dialog window as shown below will
appear. and click the [Next] button in the dialog window.

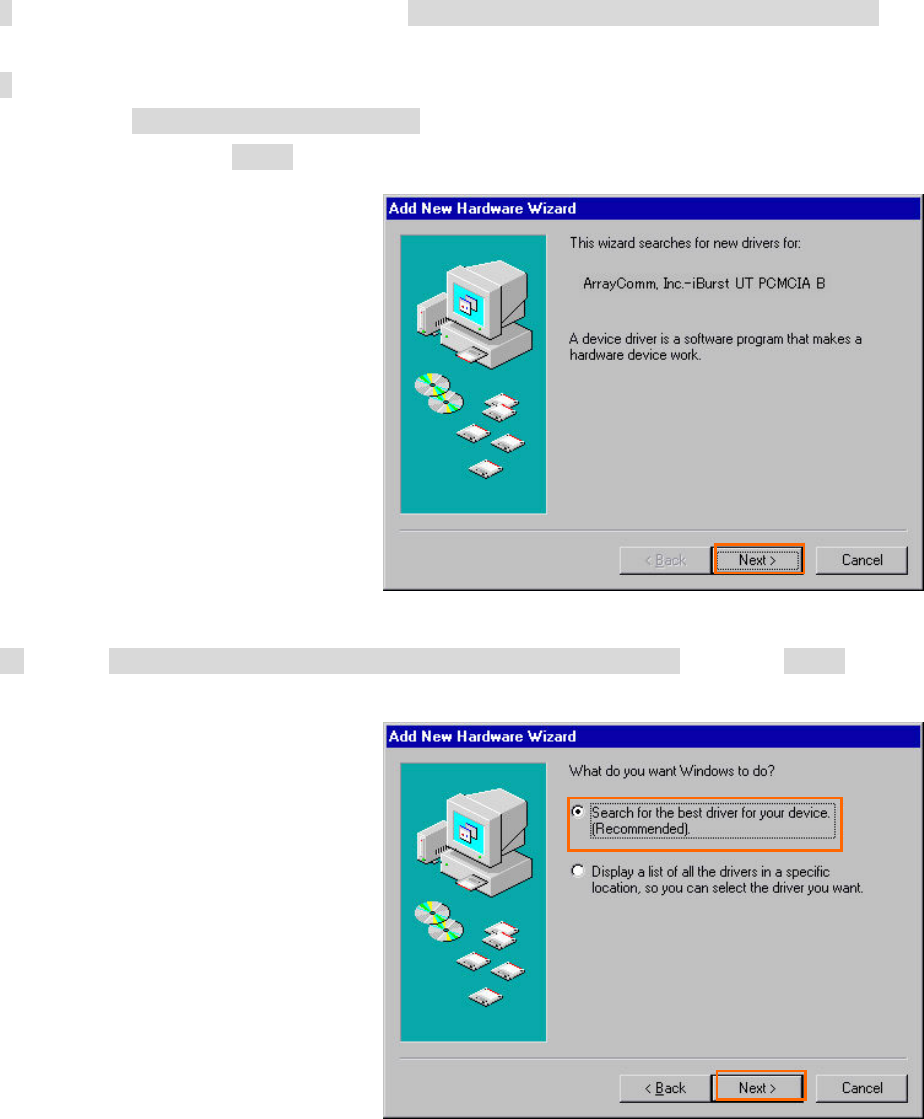

10 Select [Search for the best driver for your device.(Recommended)], and click [Next] button.
- 37 -
11 Then, mark the check box labeled [Specify a location] and click the [Browse] button.
12 Select [C:¥Program Files¥iBurst¥bin], and click the [OK] button.
13 Click the [Next] button.
- 38 -
14 Make sure that the device name [iBurst Modem] is displayed in the dialog window, then click
the [Next] button.
15 If the dialog window shown below appears,then insert [Windows98Se CD-ROM] into your PC
and click the [OK] button.
16 Click the [Finish] button.
- 39 -
17 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
18 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Add New Haeware].
19 Click [Next].
- 40 -
20 Click [Next].
21 Check [No, the device isn’t in the list], and click [Next].
22 Check [No,I want to select the handware from a list.], and click [Next].
- 41 -
23 Select [Ports [COM & LPT]], and click [Next].
24 Click [Have Disk..] button.
25 Click [Brouse..] button.
- 42 -
26 Select [C:¥Program Files¥iBurst¥bin¥ibvcom9x.inf],and click [OK].
27 Click [OK].
28 Select [iBurst Virtual COM Port],and click [Next].
- 43 -
29 Click [Next].
30 If the dialog window shown below appears,then insert [Windows98Se CD-ROM] into your PC
and click the [OK] button.
31 Click [Finish].
- 44 -
32 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
33 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Modems].
34 If the dialog window shown below appears, click the [Add] button.(If your computer has never
had a modem, skip this step and go to next step [Install New Modem].)
- 45 -
35 Check [other], and click [Next].
36 Mark the check box labeled [Don’t detect my modem,I will select it from a list] and click the
[Next] button.
37 Click [Have Disk…].
- 46 -
38 Click [Browse] button.
39 Select [C:¥Program Files¥iBurst¥bin¥ibvmdm9x.inf],and click [OK].
40 Click [OK].
41 Select [iBurst Virtual MODEM], and click [Next].
- 47 -
42 Select [iBurst Virtual COM Port (COM X)], and click [Next].
43 Click [Finish] button.
44 Click [OK] button.
- 48 -
45 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Network].
46 Click [Add] on Configulation tab.
- 49 -
47 Select [Protocol] and click [Add…] button.
48 Click [Have Disk…] button.
49 Click [Brouse] button.
- 50 -
50 Select [C:¥Program Files¥iBurst¥bin¥nipoe9x.inf], and click the [OK] button.
51 Click [OK] button.
52 Select [NDIS[PPPoE] Usermode I/O Protocol], click [OK].
- 51 -
53 Click [OK] button.
54 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
55 Click "Start"→"Programs"→"Accessories"→"Communications"→"Dial-Up Networking",[Dial-Up
Networking] window will appear. If [Welcome to Dial-Up Networking] dialog window is displayed,
then click [Next]. Double click [Make New Connection] icon if the dialog window is not displayed.
- 52 -

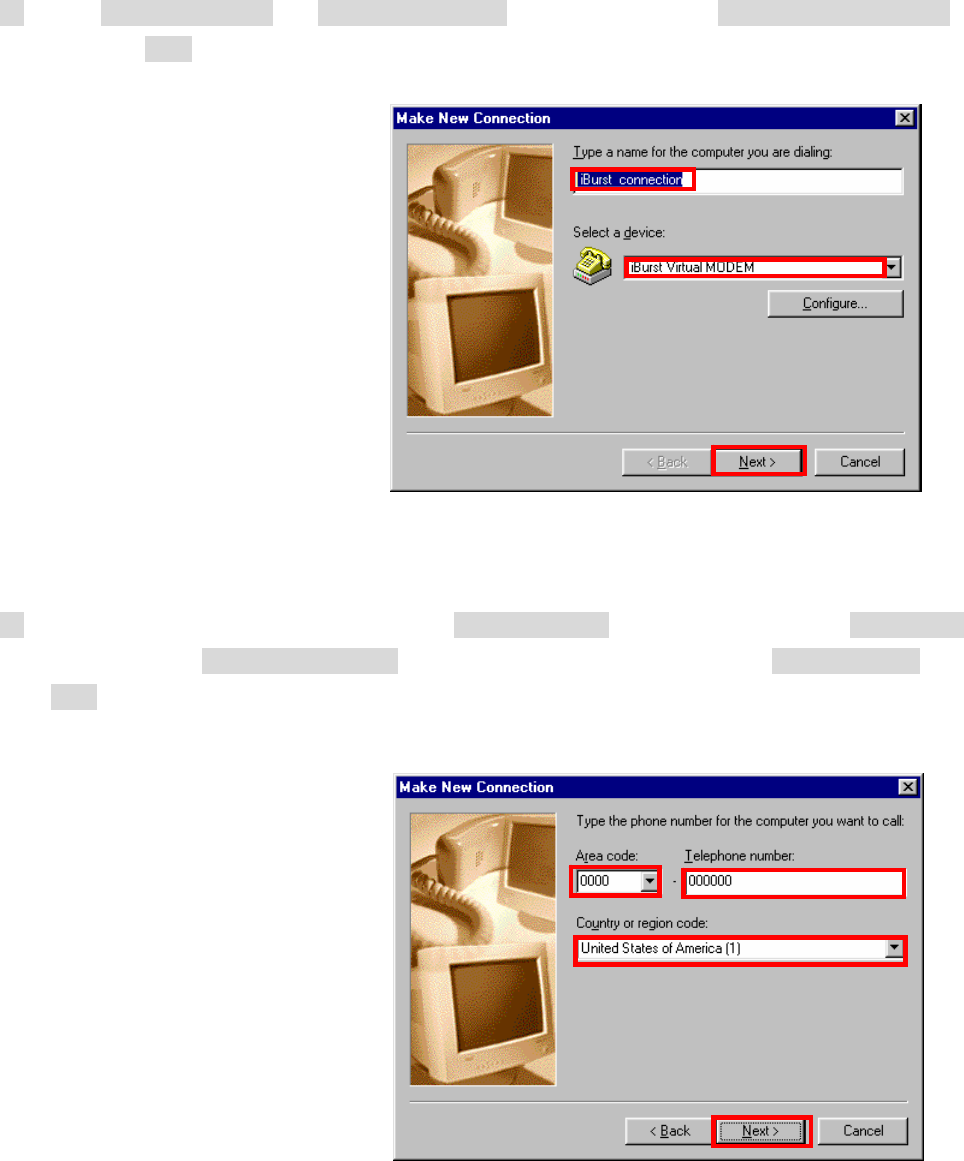

56 Enter "iBurst connection" on [Type a name for...] EditBox, and select "iBurst Virtual MODEM",
then click the [Next] button.
57 Select “United States of America” on [country/region],and enter “0000” on [area code]
editbox,”000000” on [Telephone number] editbox,then check “Tone dialing” on [phone system] and
click [OK]
- 53 -

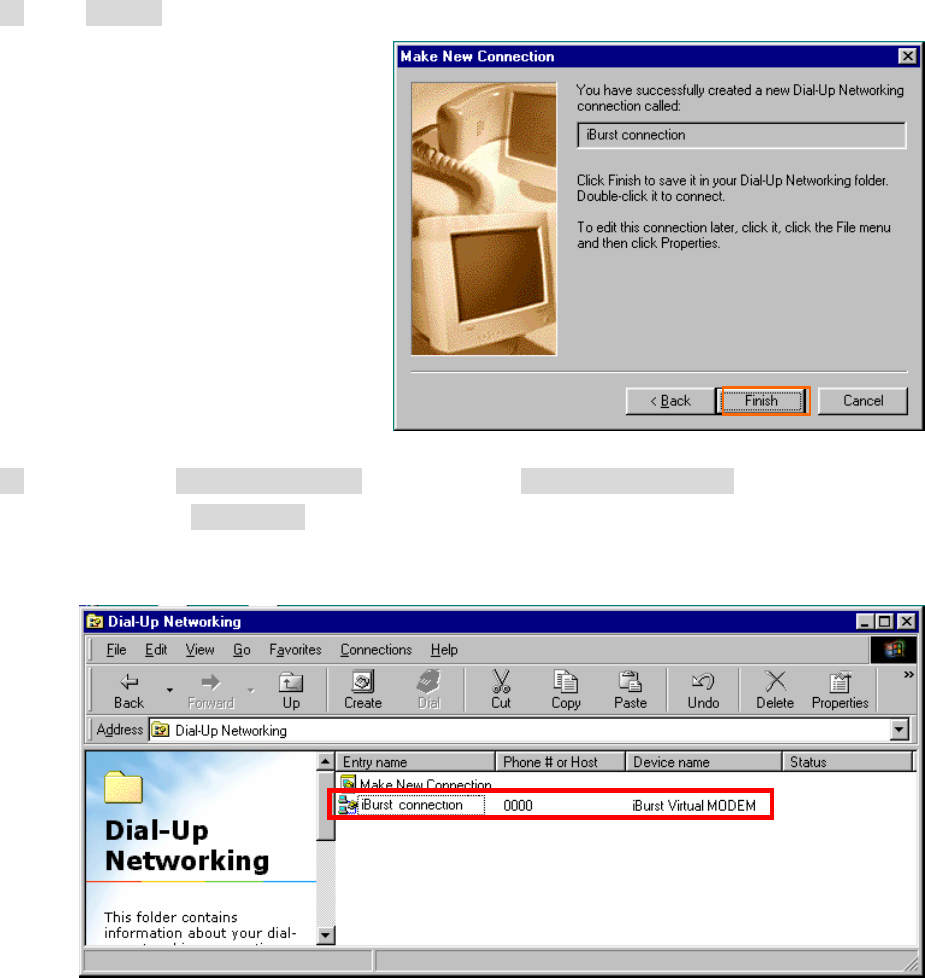

58 Click [Finish].
59 If the icon of [iBurst connection] is displayed on [Dial-Up Networking] window, right click the
icon and select [Properties].
- 54 -

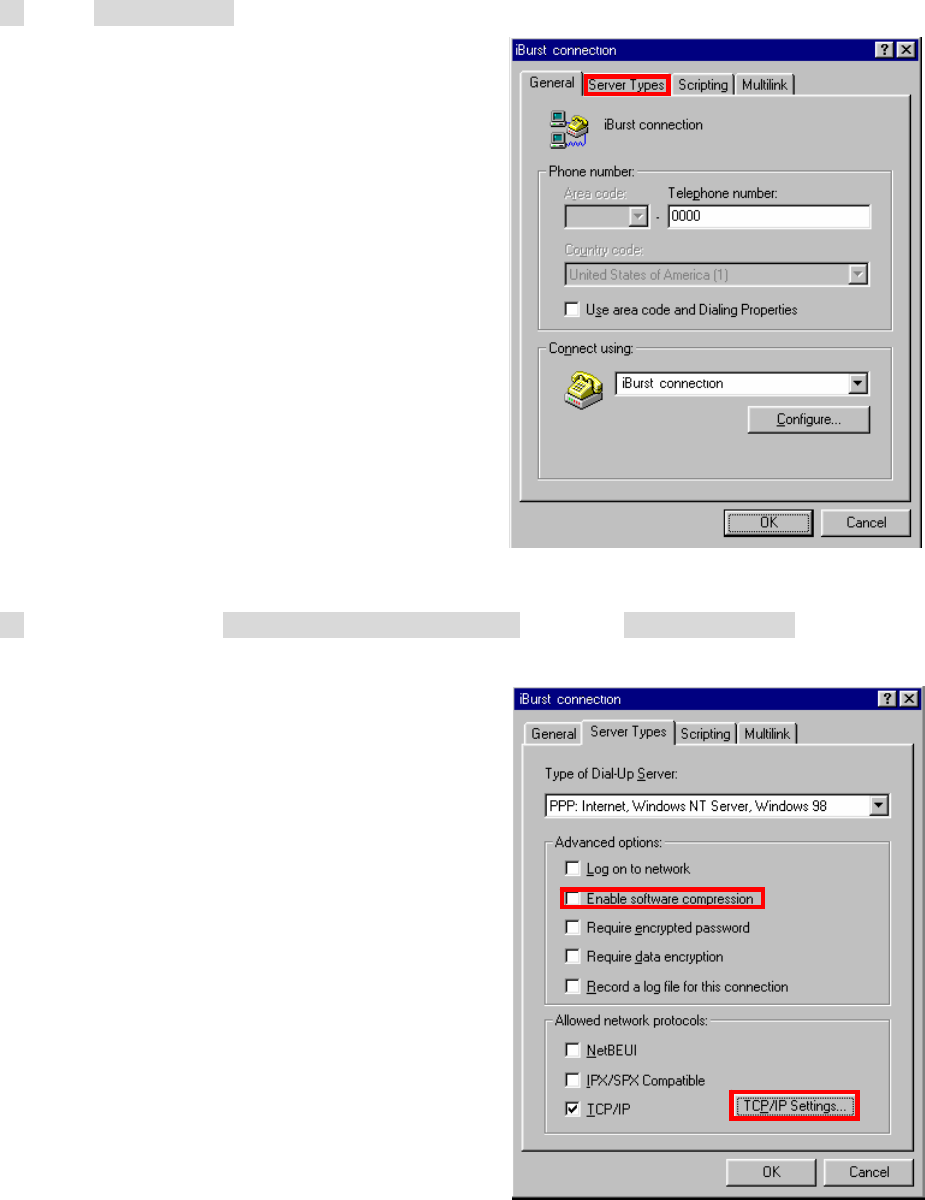

60 Select [Server Types] tab.
61 Remove a check for [Enable software compression] and Click [TCP/IP Settings].
- 55 -

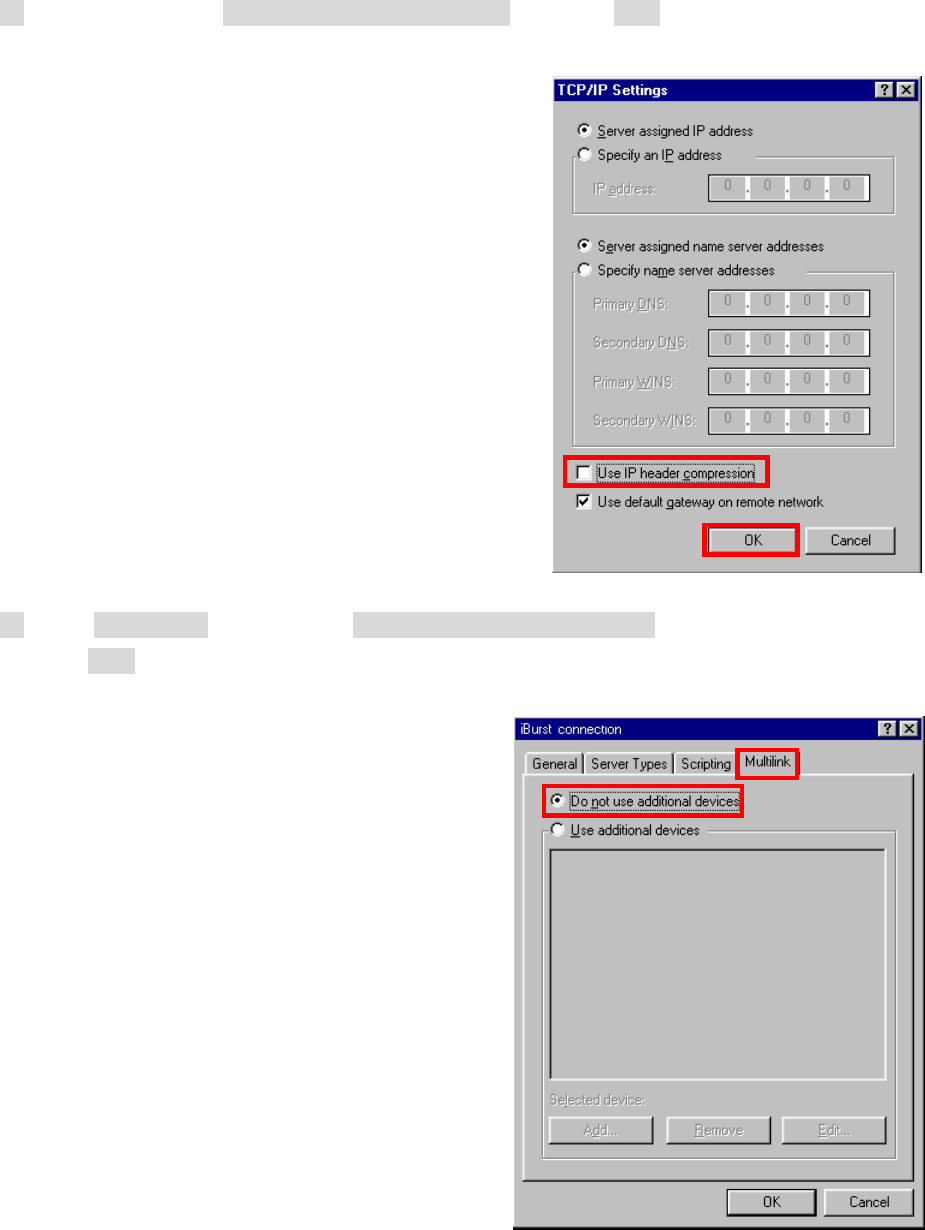

62 Remove a check for [User IP header compression] and Click [OK].
63 Select [MultiLink] tab and check [Do not use additonal deveices].
Click [OK] button.
- 56 -
Installation for Mac OS X
1 Turn on the power to the computer.
2 Insert the provided Software Utility CD into your CD-ROM drive.
Don’t insert iBurst Access Card into your PC card slot when installation is running.
3 iBurst Setup starts, Enter user name and password. Click [OK] button.
4 Click the [Continue] button.
- 57 -
5 Click the [Continue] button.
6 The following dialog window will appear,click the [Agree] button.
7 Select a destination disk, then click the [Continue] button.
- 58 -

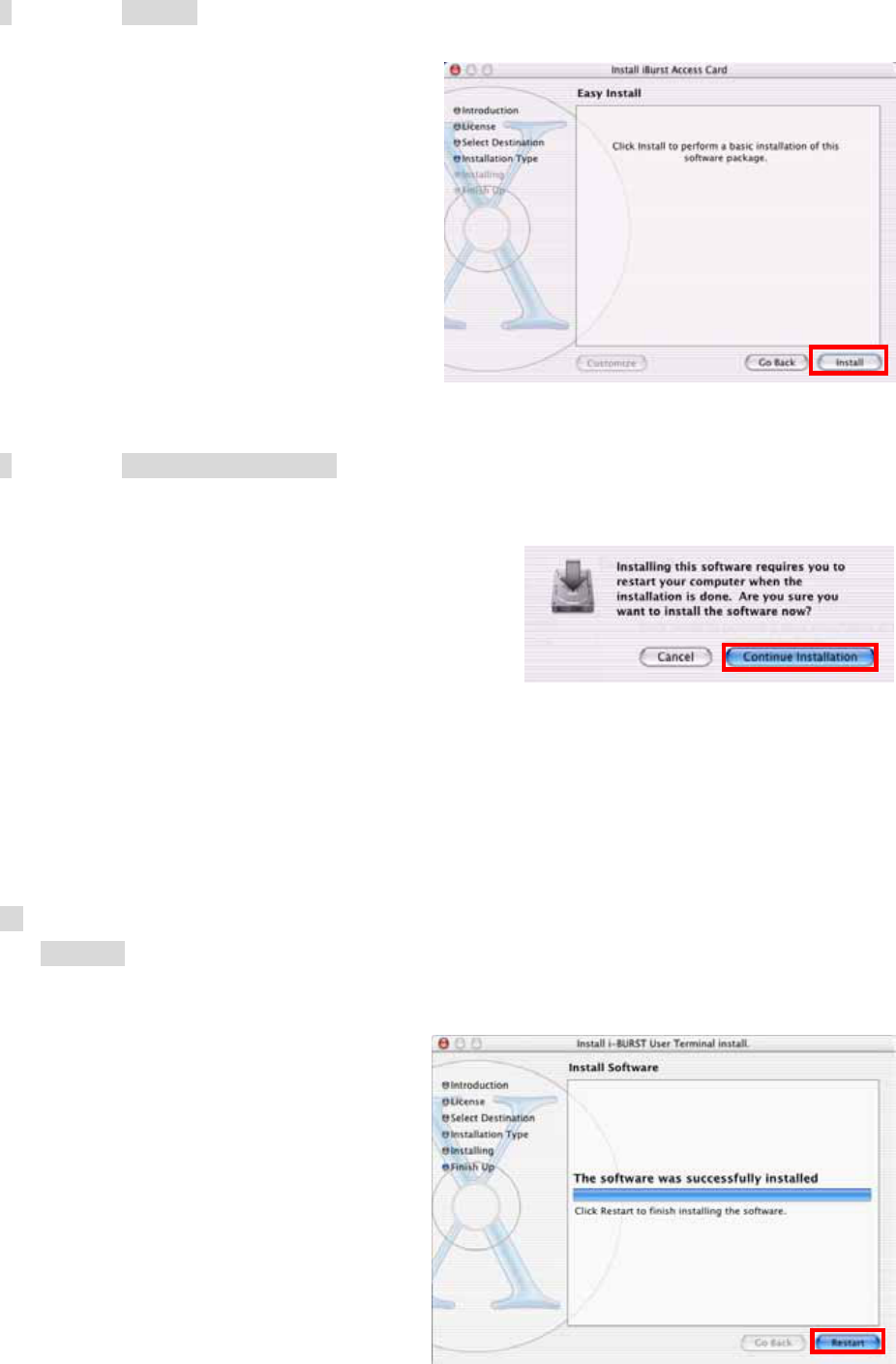

8 Click the [Install] button after appearing dialog window as shown below.
9 Click the [Continue installation] button.
10 When the installing process finishes, the dialog window shown below will appear. Click the
[Restart] button in the dialog window.
- 59 -
Connection Establishment
Connection Establishment for Windows XP
As Windows XP operating system supports PPPoE protocol, we don’t use connection application for
iBurst to configure network conection.
1 Click the [Start] button, followed by selecting [Control Panel] as shown below.
2 Click [Network and Internet Connections] in the [Control Panel] display.
3 Next, click [Set up or Change your Internet connection].
- 60 -

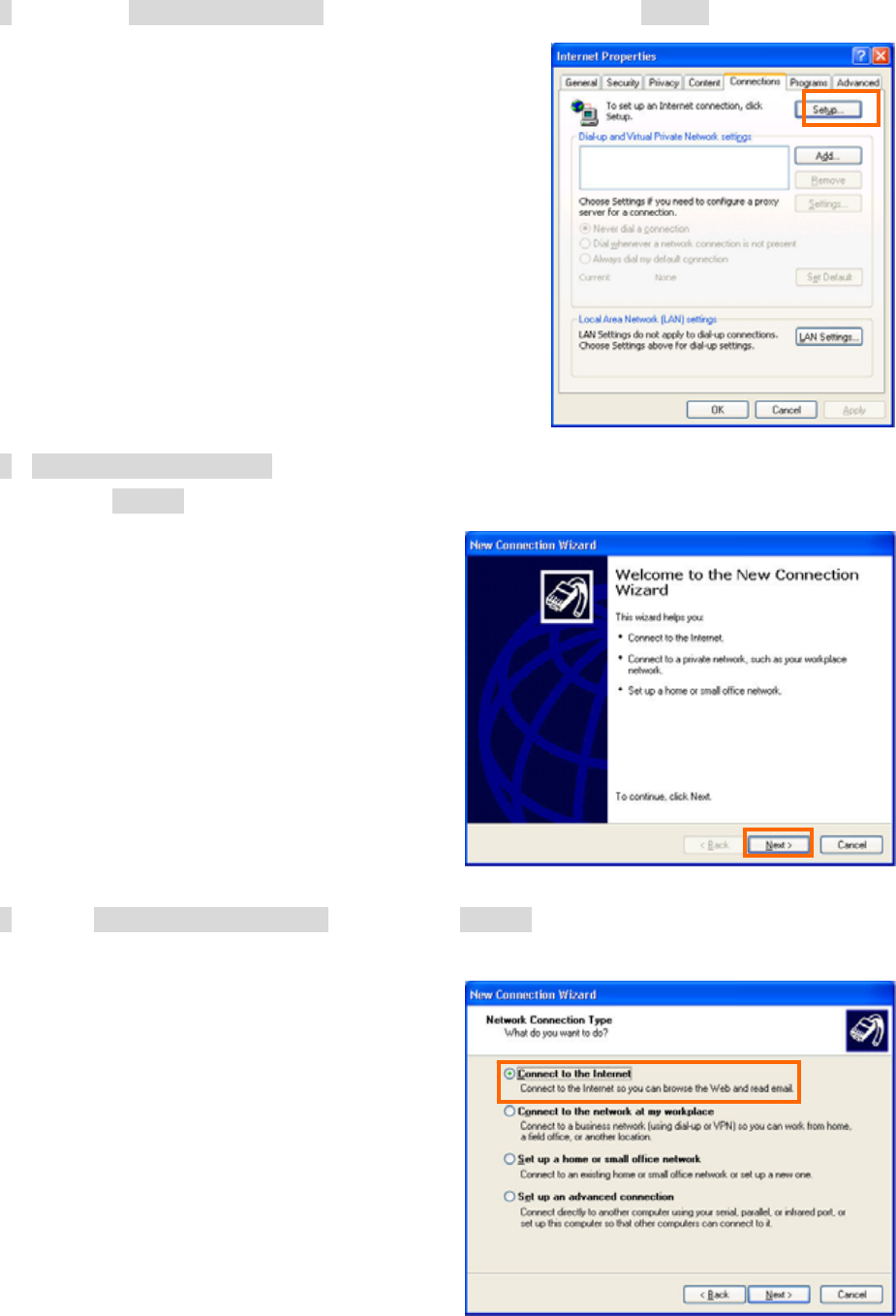

4 When the [Internet Properties] dialog window appears, click the [Setup] button.
5 [New Connection Wizard] will begin and the dialog window as shown below will appear.
Click the [Next>] button in the dialog window.
6 Select [Connect to the Internet] and click the [Next>] button.
- 61 -

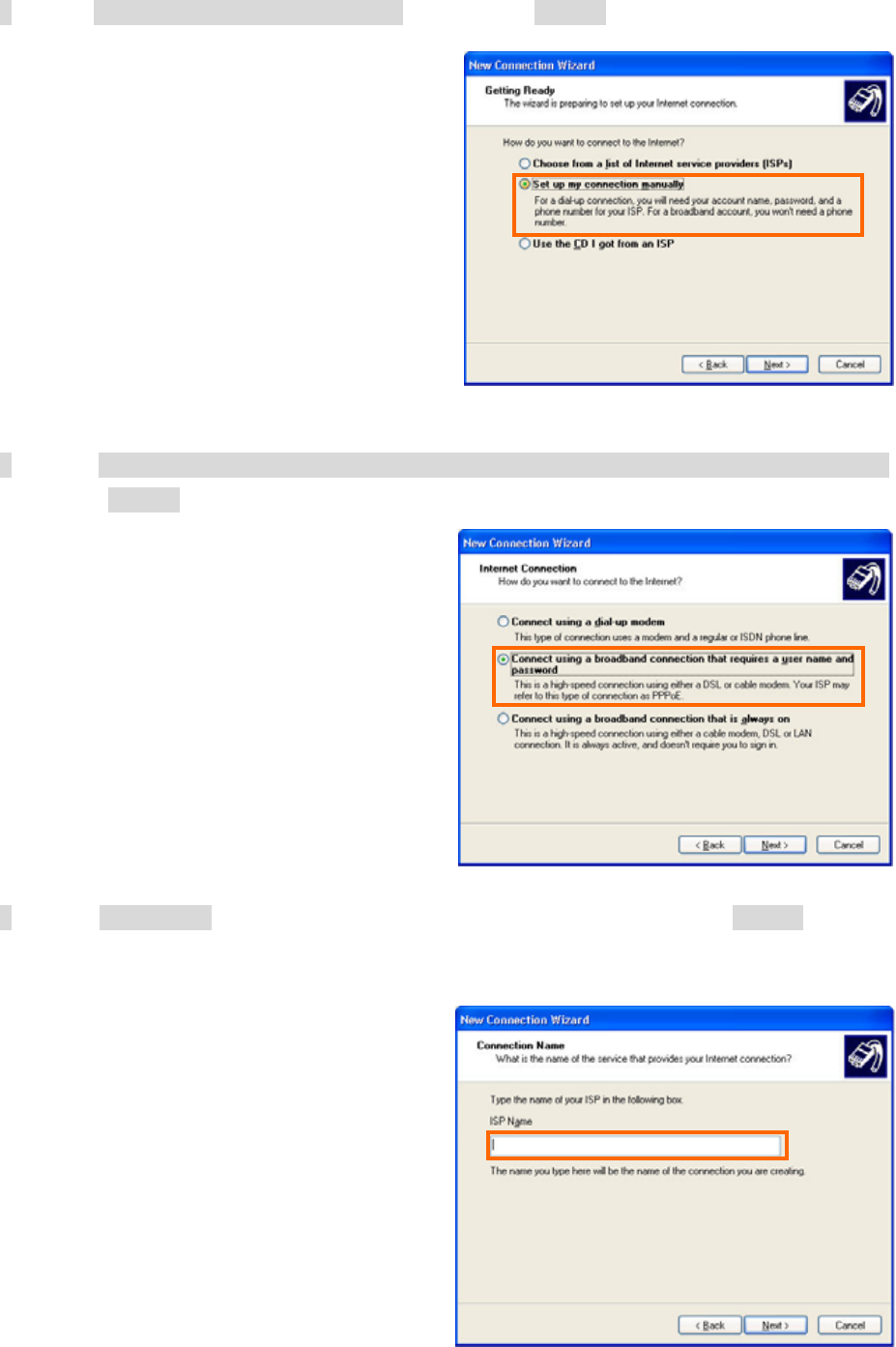

7 Select [Set up my connection manually] and click the [Next>] button.
8 Select [Connect using a broadband connection that requires a user name and password] and
click the [Next>] button.
9 Fill in [ISP Name] edit box with an ISP Name, followed by clicking the [Next>] button. Note
that any ISP name is acceptable.
- 62 -
10 Enter user name and password and make sure that the [Make this the default Internet
connection] check box is checked. Click the [Next>] button.
11 Click the [Finish] button.
12 When the [Network and Internet Connection] window pane appears again, click [Set up
change your Internet Connection].
- 63 -

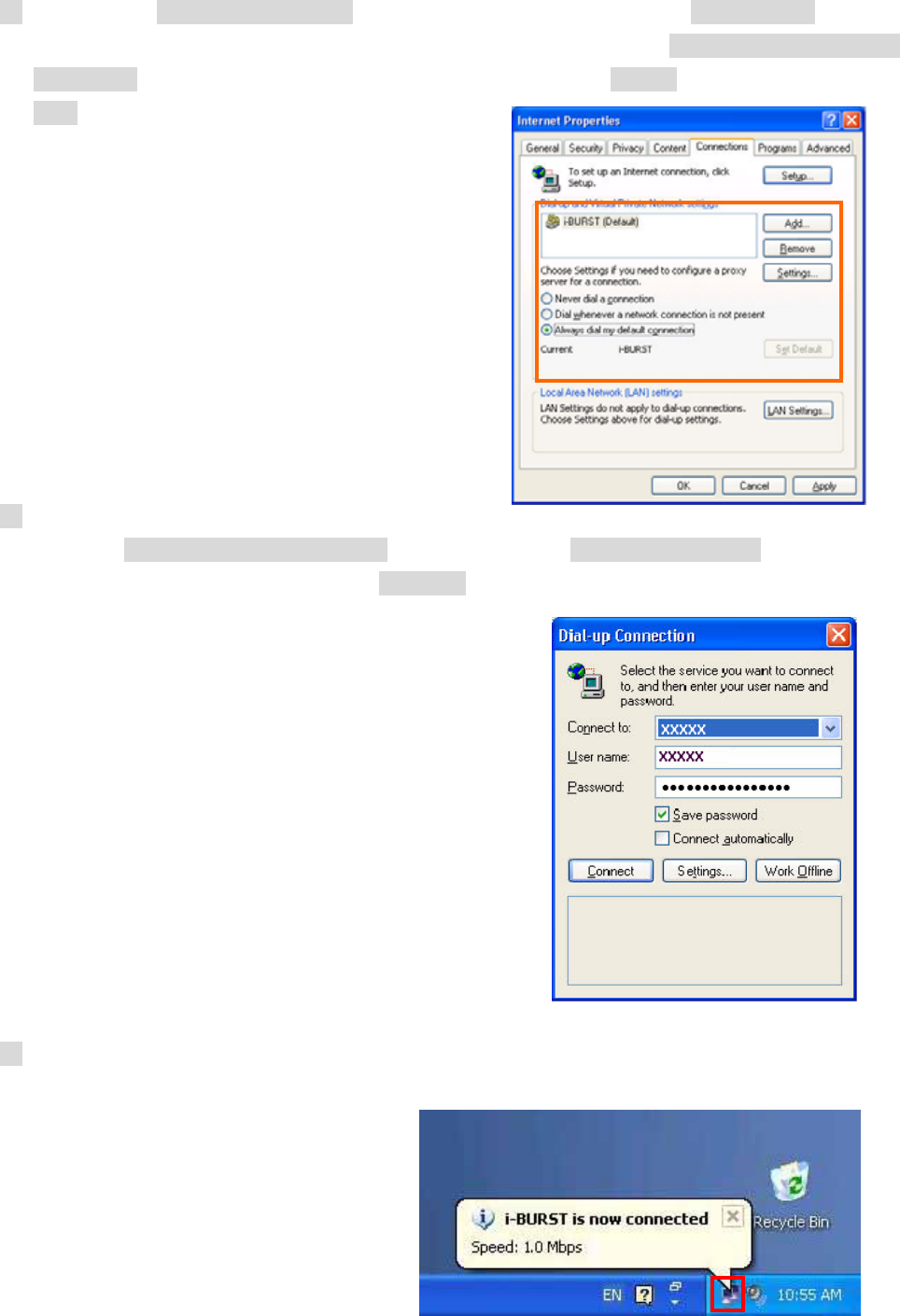

13 When the [Internet Properties] dialog window appears and the [Connections] pane is
displayed, confirm the connection name and make sure that the [Always dial my default
connection] radio button is checked, followed by clicking the [Apply] button. Then, click the
[OK] button to close the dialog window.
14 At this point, the connection configuration is complete. When you call Internet Explorer
program, [Dial-up Connection Wizard] will begin and the [Dial-up Connection] dialog window
as shown below will appear. Click the [Connect] button to connect to the network.
15 When the connection establishment process is complete, a message indicating the completion
of the connection completion will at the task tray as shown below.
- 64 -
Connection Establishment for Windows 2000/Me/98Se
For Windows 2000、Windows Me and Windows98Se,a connection application for iBurst is used.

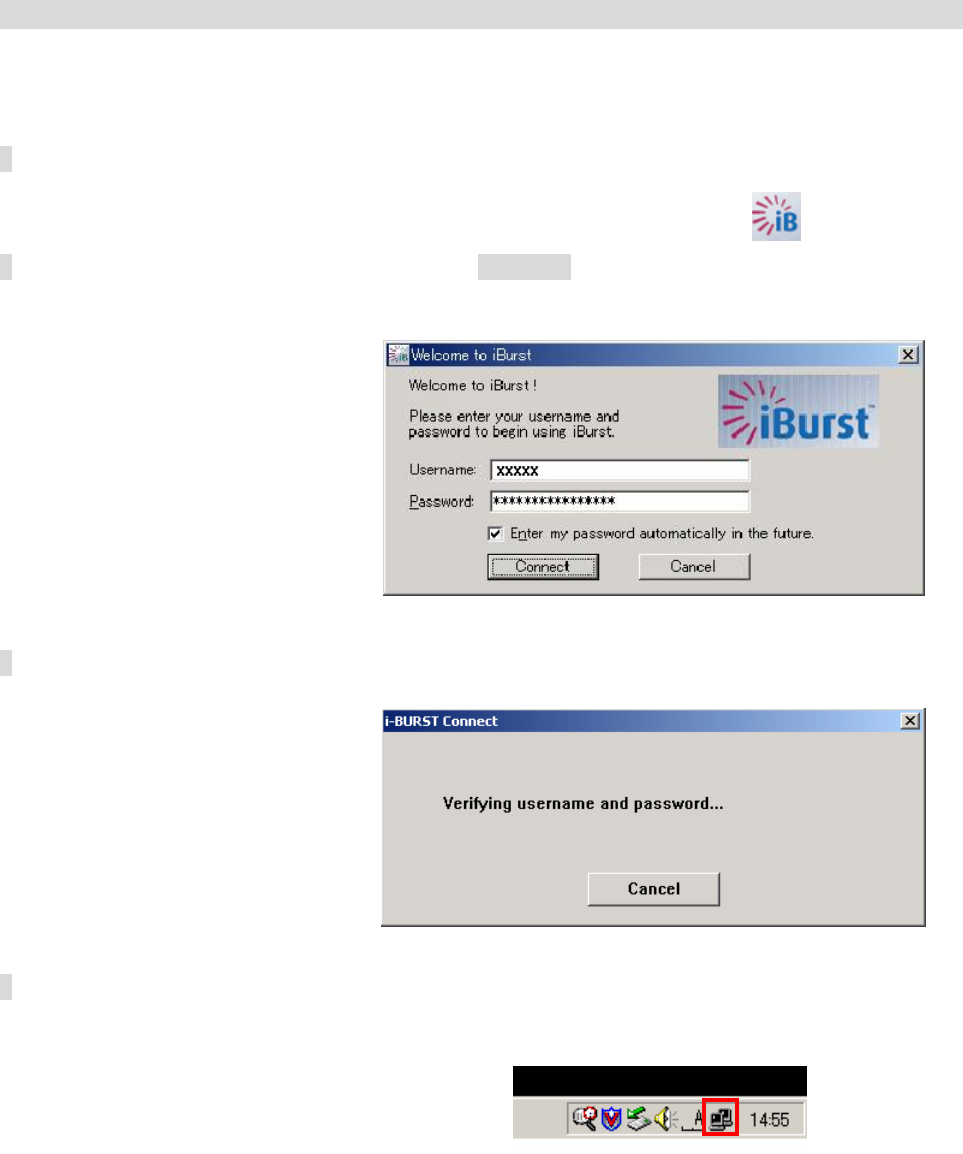

1 Double click the shortcut on the computer's desktop which was created by iBurst connection
application.
2 Enter user name and password and Click the [Connect] button.
3 While connecting to network, the following connection status window is displayed.
4 If connection is successful, connection icon will be displayed on the taskbar.
- 65 -
Connection Establishment for Mac OS X
As Mac OS X operating system supports PPPoE protocol, we don’t use connection application for
iBurst to configure network conection.

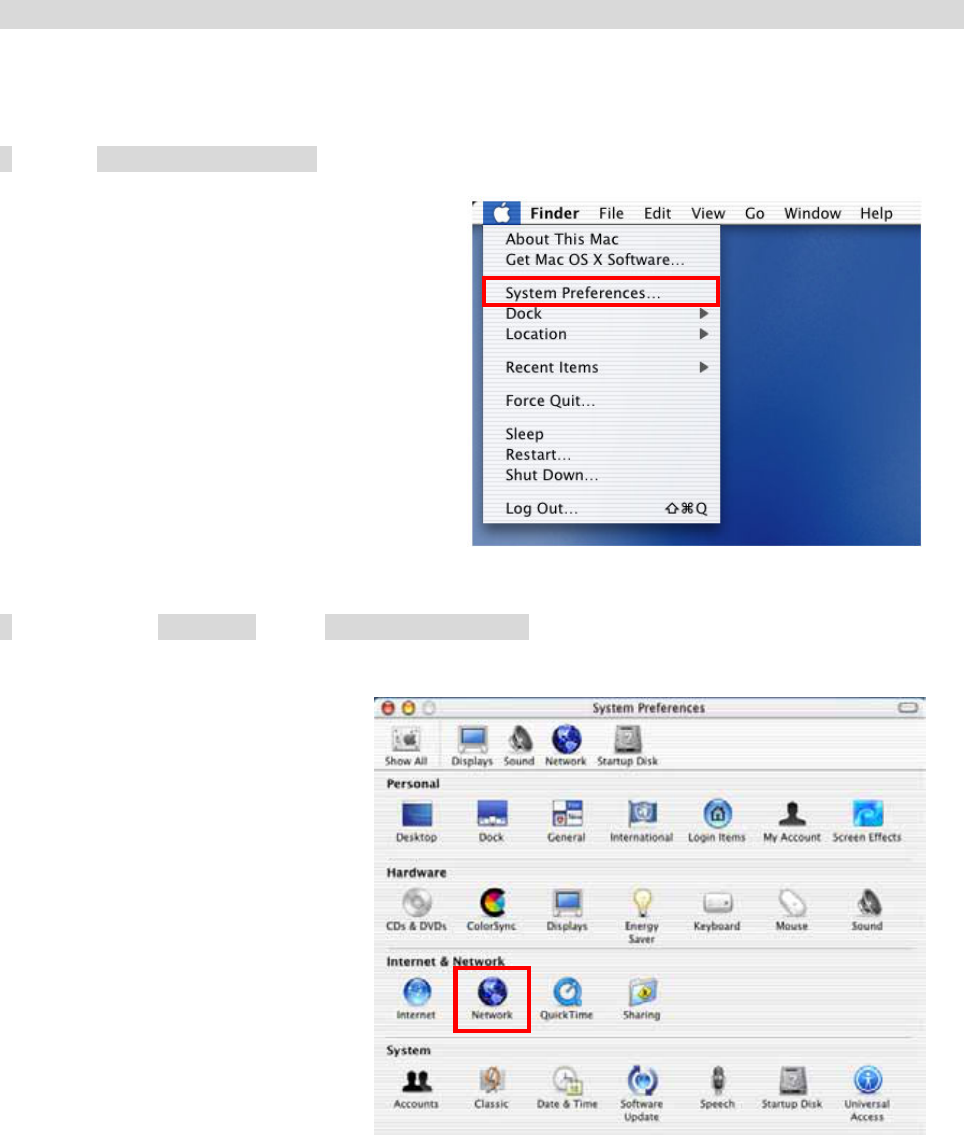

1 Select [Systen Preferences…] on the Apple menu.
2 Double click [Network] in the [System Preferences] window.
- 66 -

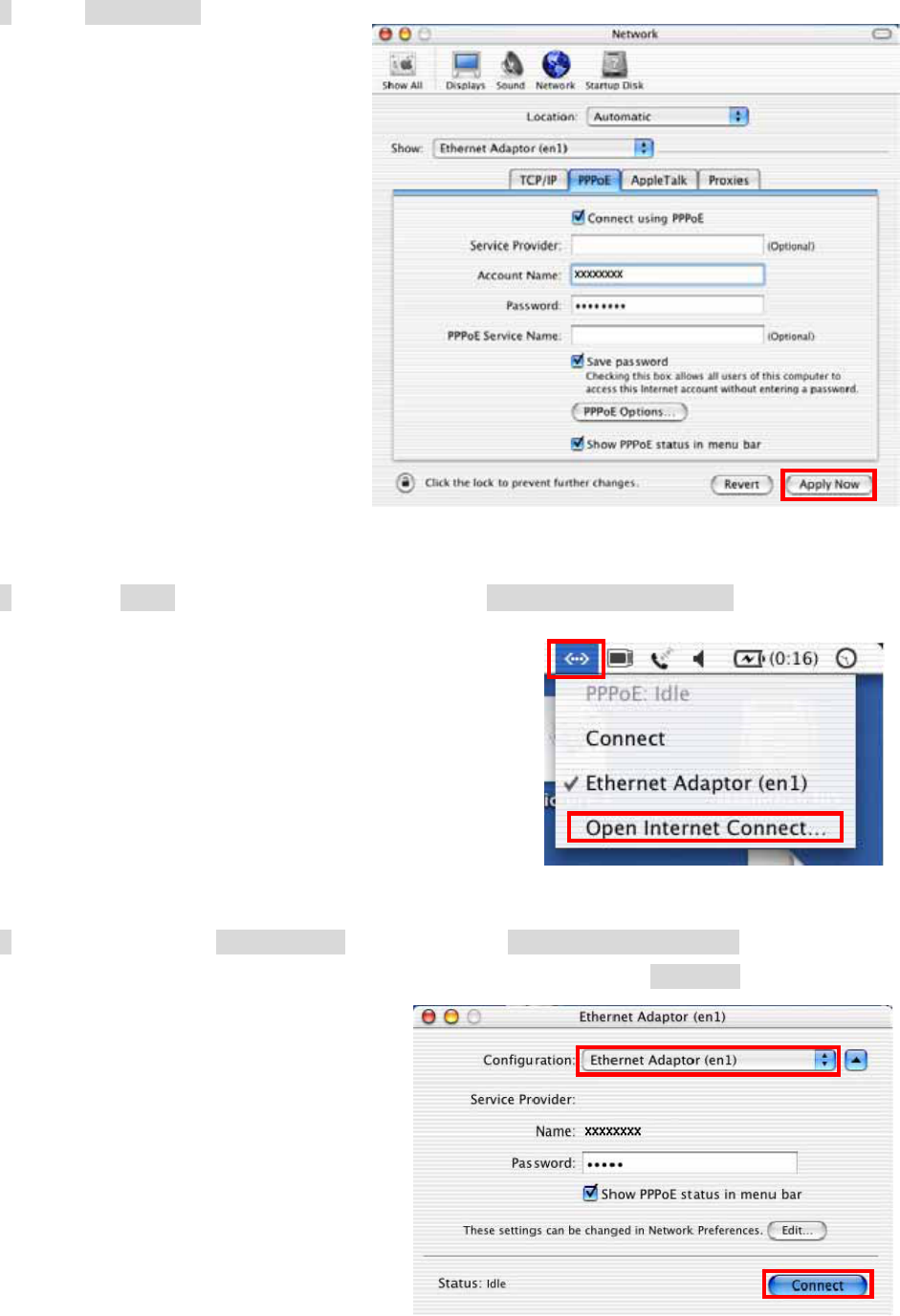

3 Click on drop down [Show] menu,and select [Ethernet Adptor (enX)] in the [Network] window.
・Click on the PPPoE tab.
・Check off Connect using PPPoE.
・Enter Acoount Name as provided by your ISP.
・Enter Password as provided by your ISP.
・Check off [Save password] If you require the computer to remember your password.
・When you require the computer to connect or disconnect automatically,Click on [PPPoE
Options…]
4 Under Session Options check the boxes when needed, then click on [OK].
- 67 -
5 Click [Apply Now] .
6 Click the <･･･> icon at top right of screen, select [Open Internet Connect…].
7 Click on drop down Configuration menu,and select [Ethernet Adaptor (enX)].
The configuration of Ethernet adaptor (enX) will be displayed, click [Connect].
- 68 -

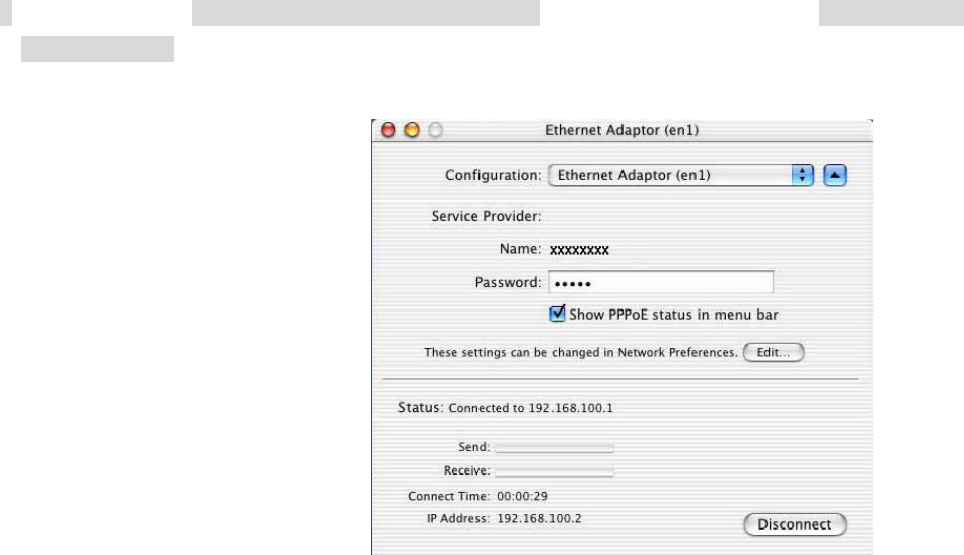

8 When the box Show PPPoE status in menu bar is checked, PPPoE Status Connected to
xxx.xxx.xxx.xxx will be displayed after having finished connection.
- 69 -
Chapter 3 Utility Software
This chapters describe the features and usage of the
utility software for iBurst Access Card.
- 70 -
Using Utility Software
Using Utility Software for Windows
How to display utility dialog window

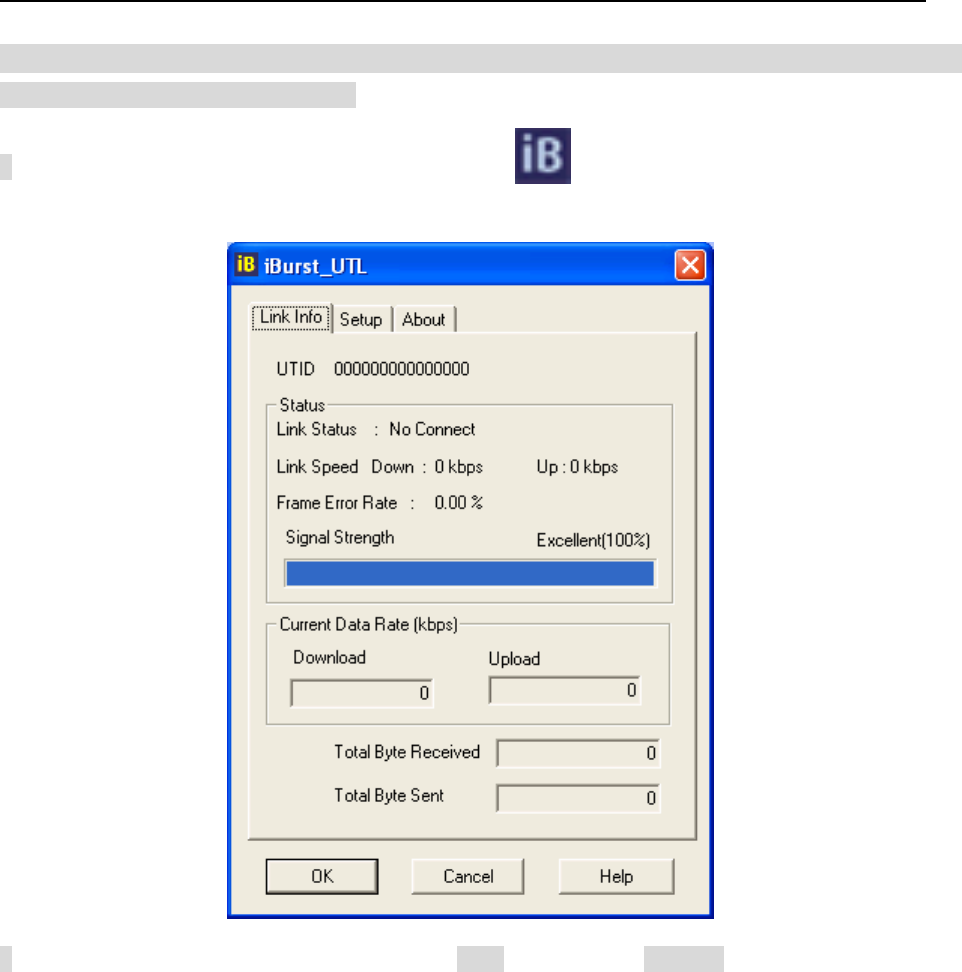

1 To open the utility dialog window, click the icon on the computer’s task tray. When the
window opens, the [Link Info] pane will be displayed as shown below.
2 To close the utility dialog window, click the [OK] button or the [Cancel] button or the X mark at
upper-left corner of the dialog window.
- 71 -
Link Info Pane

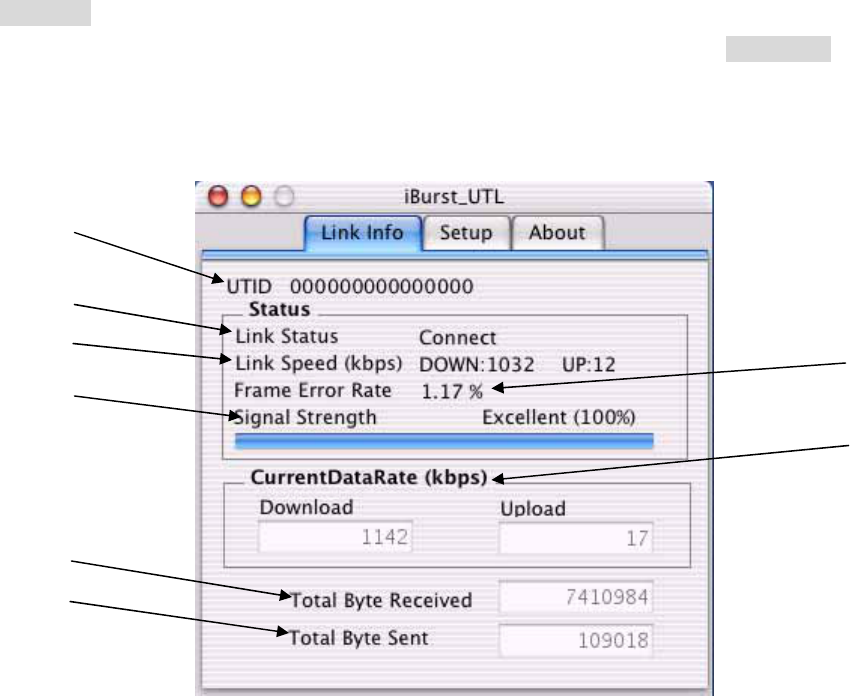

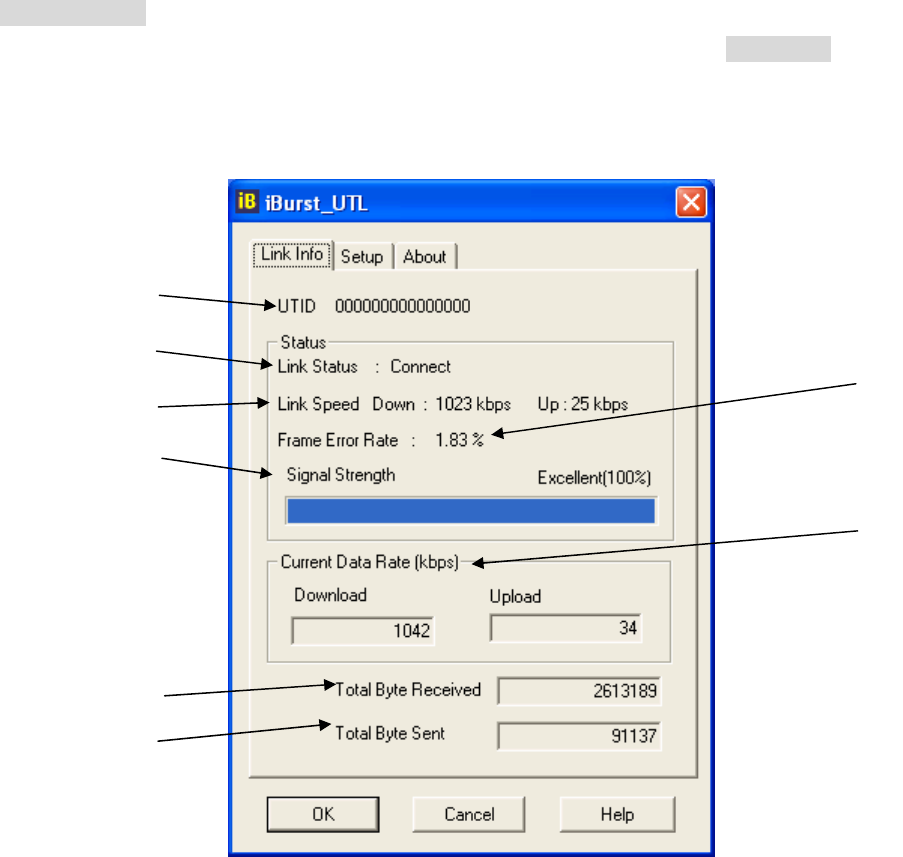

Link Info pane can be displayed in the main dialog window bv clicking the [Link Info] tab.
Generally, the elements in the Link Info pane give information about the communication link
between iBurst Access Card and the access point to the network.
(1)
(2)
(3) (4)
(5)
(6)
(8)
(7)
The following describes each item of the Link Info pane.
(1) UTID
UTID is used as the identifier of iBurst User Terminal.
(2) Link Status
Link Status indicates connection state of the communication link between iBurst Access Card
and the access point.
Connected : The link is connected.
No Connected : iBurst Access Card is inserted in the PC Card slot but the link is not
connected.
NoCard : There is no iBurst Access Card inserted in the PC Card Slot.
(3) Link Speed
Link Speed indicates speed of the link in both down and up direction.
- 72 -
(4) Frame Error Rate
Frame Error Rate indicates the FER of the received data.
(5) Signal Strength
Signal Strength indicates the signal strength of the received signal. Here, two kinds of indicators,
percentage indicator and 5-step indicator, are used to indicate the received signal strength.
The percentage indicator is the RSSI value in percent. On the other hand, the 5-step indicator
shows performance of the received signal in words as follows.
No Signal : RSSI = 0%
Poor : RSSI is in the range of 1∼24%
Fair : RSSI is in the range of 25∼49%
Good : RSSI is in the range of 50∼74%
Excellent : RSSI is in the range of 75∼100%
(6) Current Data Rate
Current Data Rate indicates the current transmission throughput and the reception throughput.
(7) Total Byte Received
Total Byte Received indicates the total number of bytes of the data which iBurst Access Card has
received from the access point since the communication link is established.
(8) Total Byte Sent
Total Byte Sent indicates the total number of bytes of the data which iBurst Access Card has
transmitted to the access point since the ommunication link is established.
- 73 -
Setup Pane

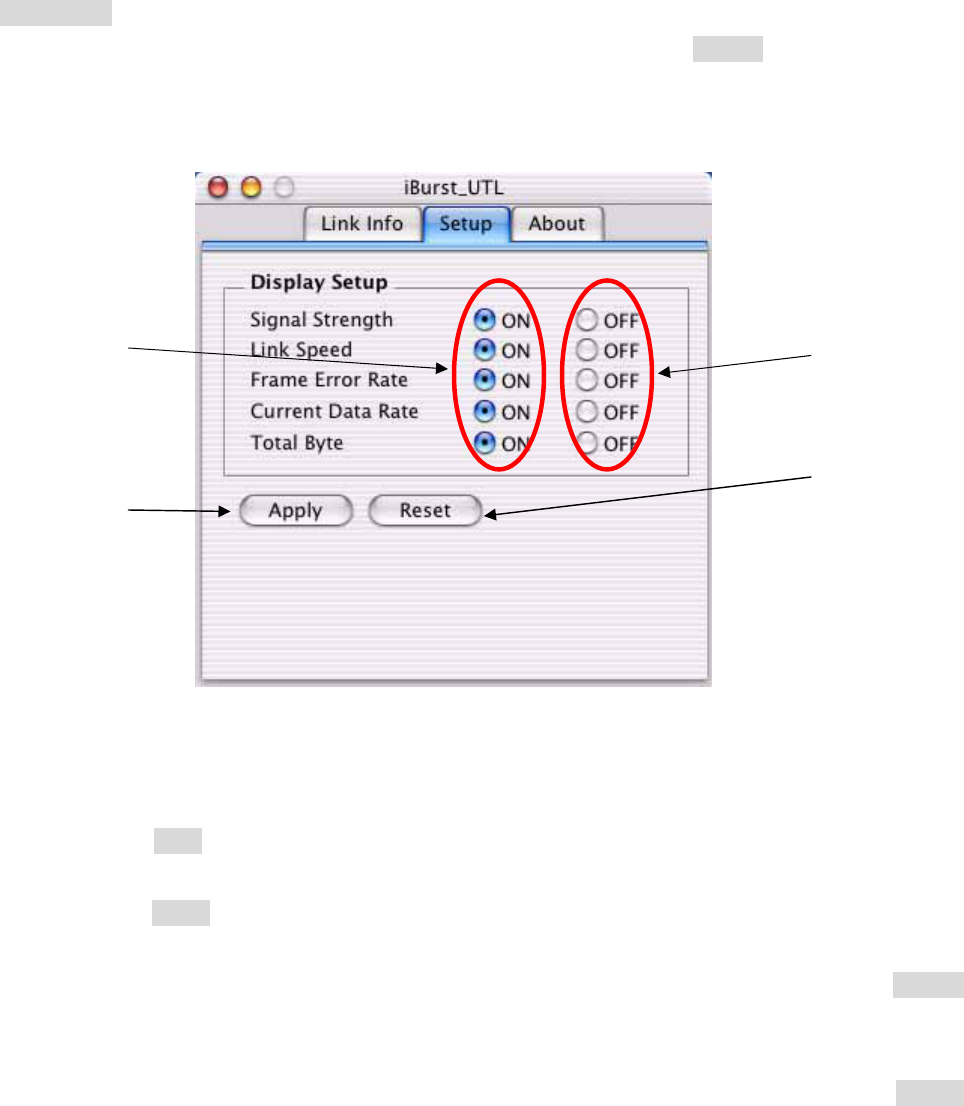

Setup pane can be displayed in the main dialog window by clicking the [Setup] tab. Setup pane is
used to configure the display items in the Link Info pane.
(6)
(5)
(4)
(3)
(2)
(1)
The following describes usage of each item of the above figure.

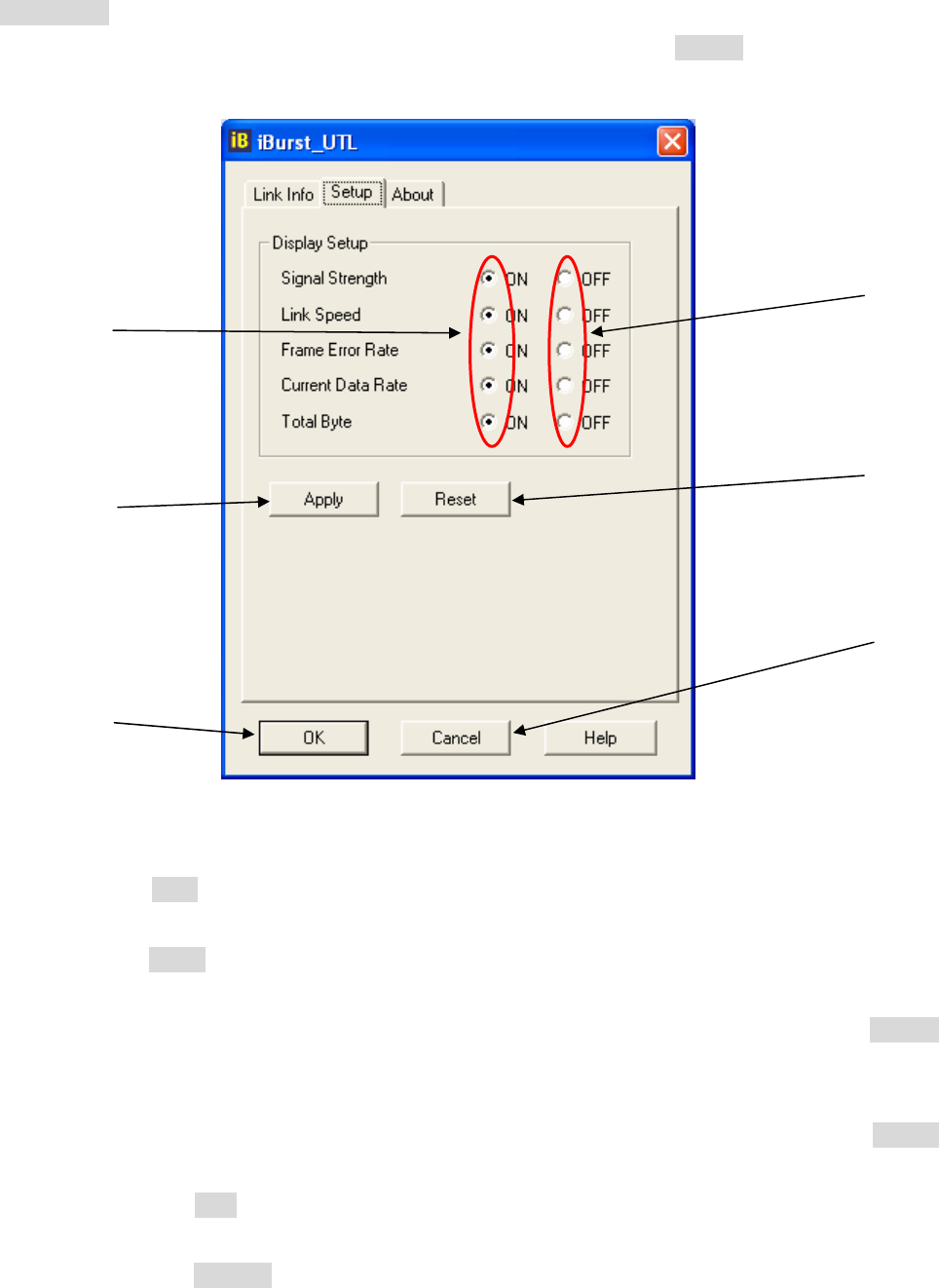

(1) Check the [ON] radio buttons at the right hand side of the items you want to display in the
Link Info pane.
(2) Check the [OFF] radio buttons at the right hand side of the items you don’t want to display in
the Link Info pane.
(3) The configuration shown in the Display Setup subpane is activated by checking the [Apply]
button.
(4) The configuration in the Setup pane can be set to default (Default is the state in which all
radio buttons on the right hand side of display items are set to “ON”.) by clicking the [Reset]
button.
(5) By clicking the [Ok] button, the current configuration will be activated and the dialog window
will be closed.
(6) By clicking the [Cancel] button, the dialog window will be closed but the current configuration
won’t be activated.
- 74 -

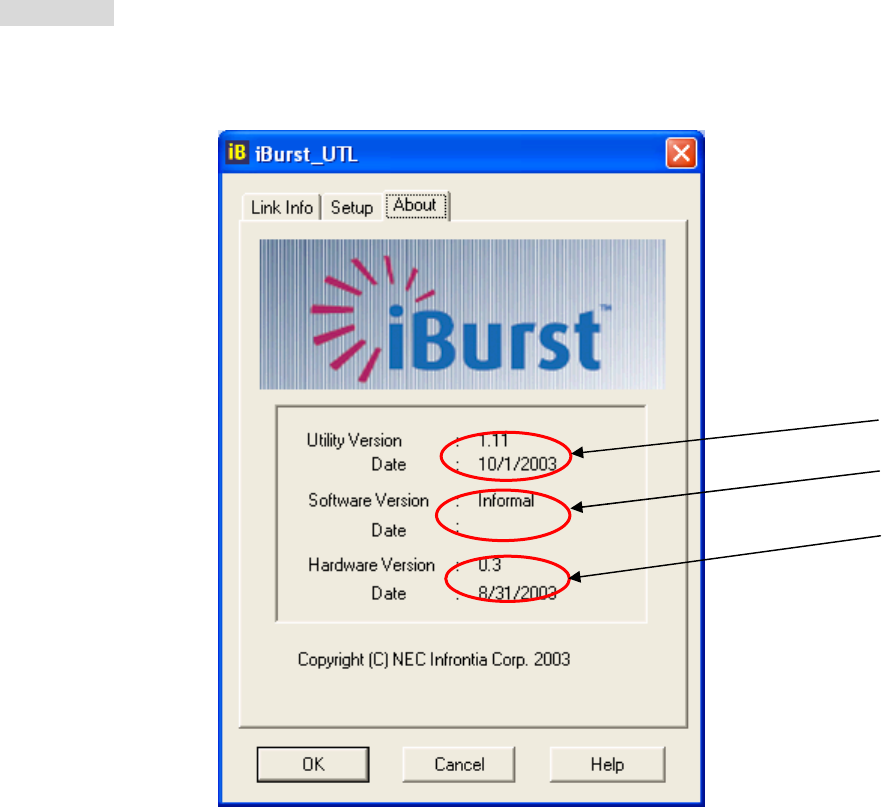

About Pane
About pane is used to display the version numbers of utility, software and hardware and show
copyright notice.
(1)
(2)
(3)
The following describes the function of each item of the About pane.

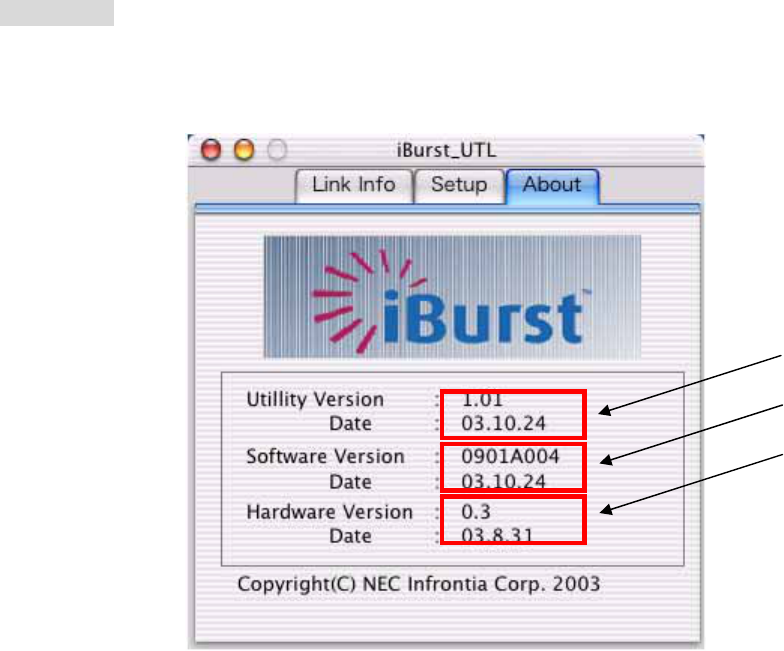

(1) This shows the version number and the release date of the Utility Software.
(2) This shows the firmware version and the build date of iBurst Access Card in use.
(3) This shows the hardware version and the buld date of iBurst Access Card in use.
- 75 -

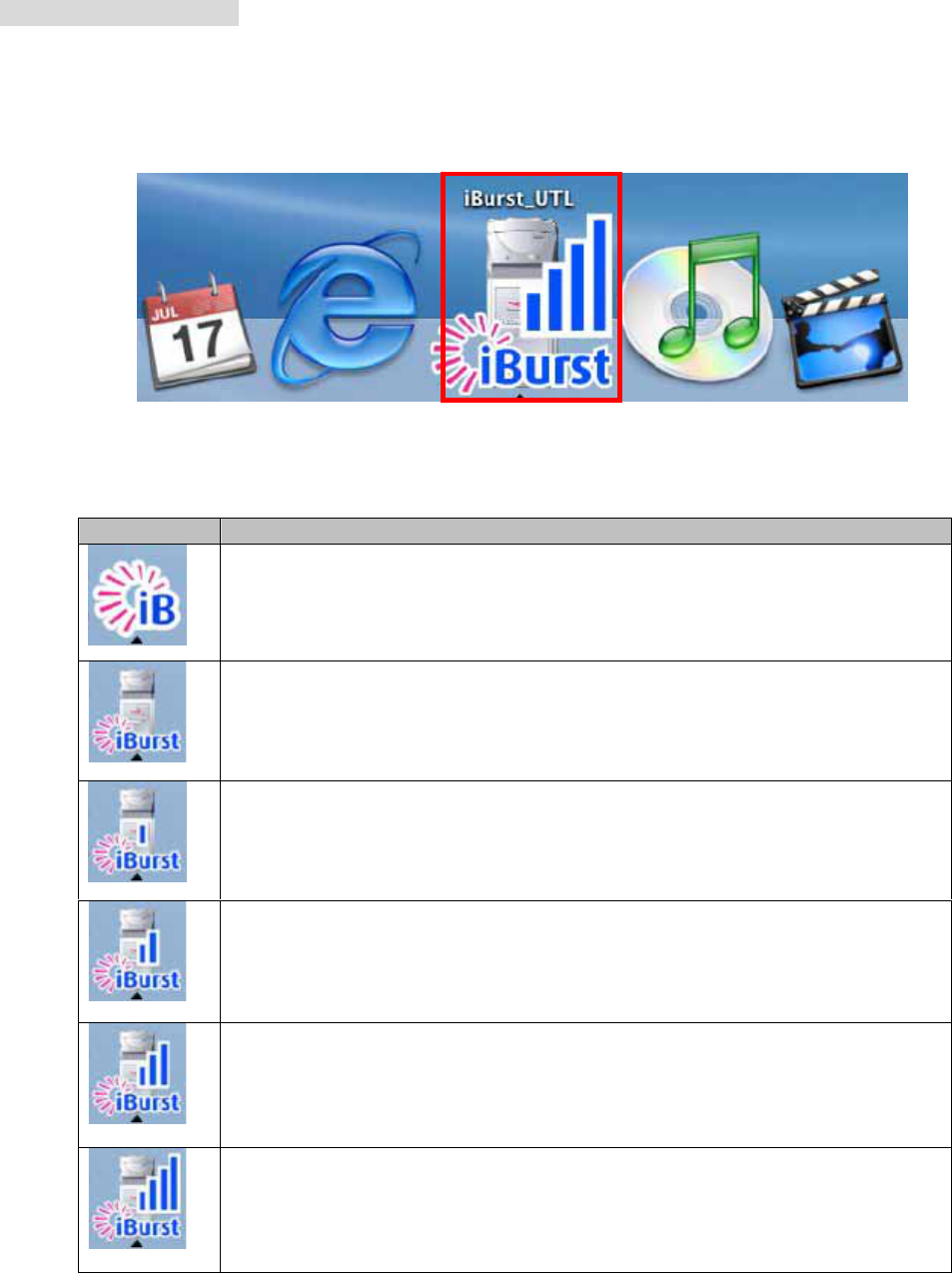

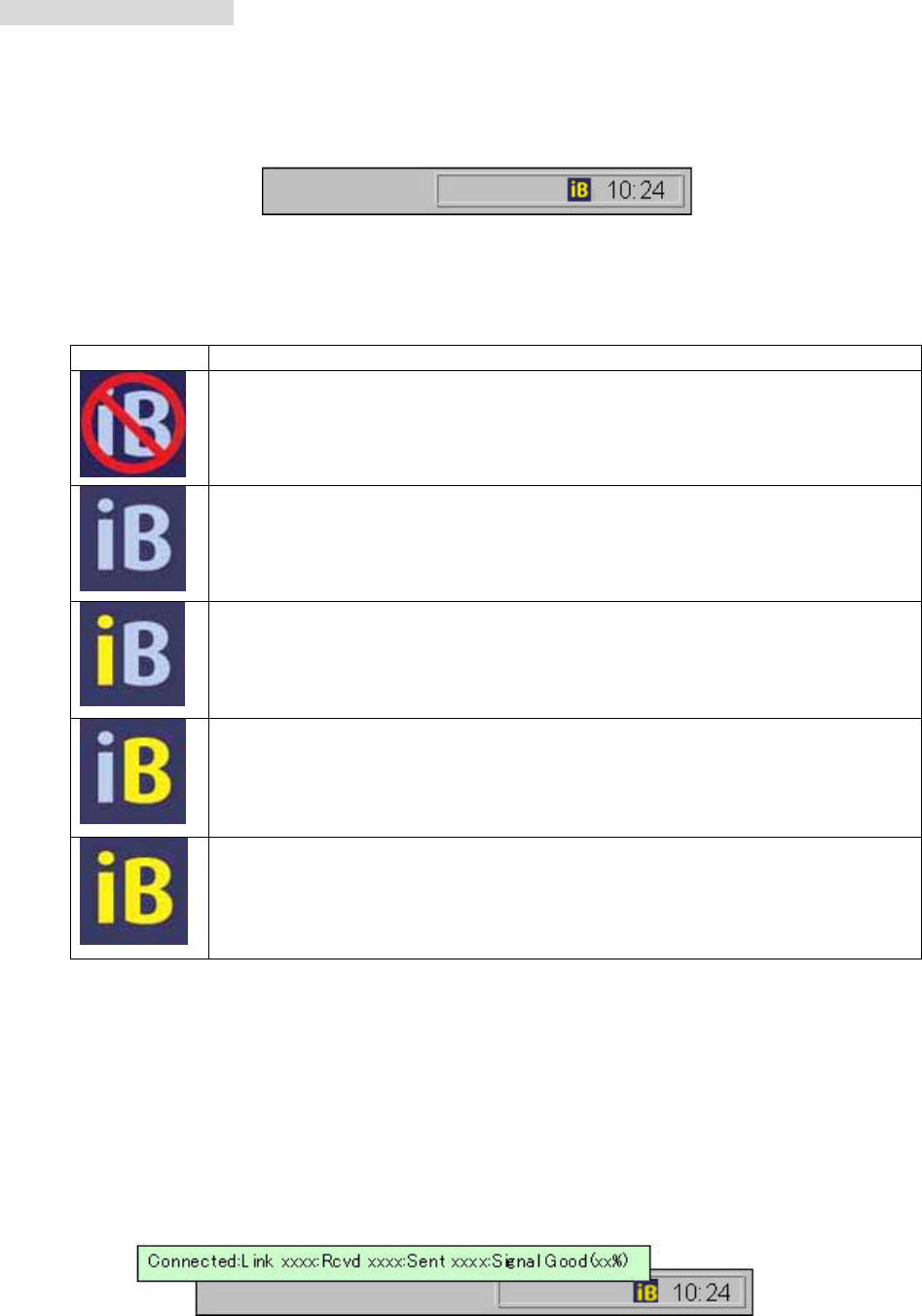

Icon Display in Tasktray
When the utility software for iBurst Access Card is active, an icon of the utility software will be
displayed in the task tray of the computer monitor according to communication activities on iBurst
Access Card.
The following shows the relation between the icons to be displayed in computer’s task tray and
activities on iBurst Access Card.
Icon Activities on iBurst Access Card
iBurst Access Card is not inserted in the PC Card slot.
There is no action of transmission or reception on iBurst Access Card.
iBurst Access Card is transmitting data.
iBurst Access Card is receiving data.
iBurst Access Card is both transmitting and receiving data.
From the task tray icon, user may also get information of Link Status, Total Byte Received, Total
Byte Sent, Signal Strength, which is displayed in the Link Status pane of the utility dialog window,
without opening the dialog window. This can be done by placing the mouse’s pointer over the
currently displayed icon of the utility software. The below figure shows an image of what happens
when the mouse pointer is placed on the task tray icon.
- 76 -
Using Utility Software for Mac OS X
How to display utility dialog window.

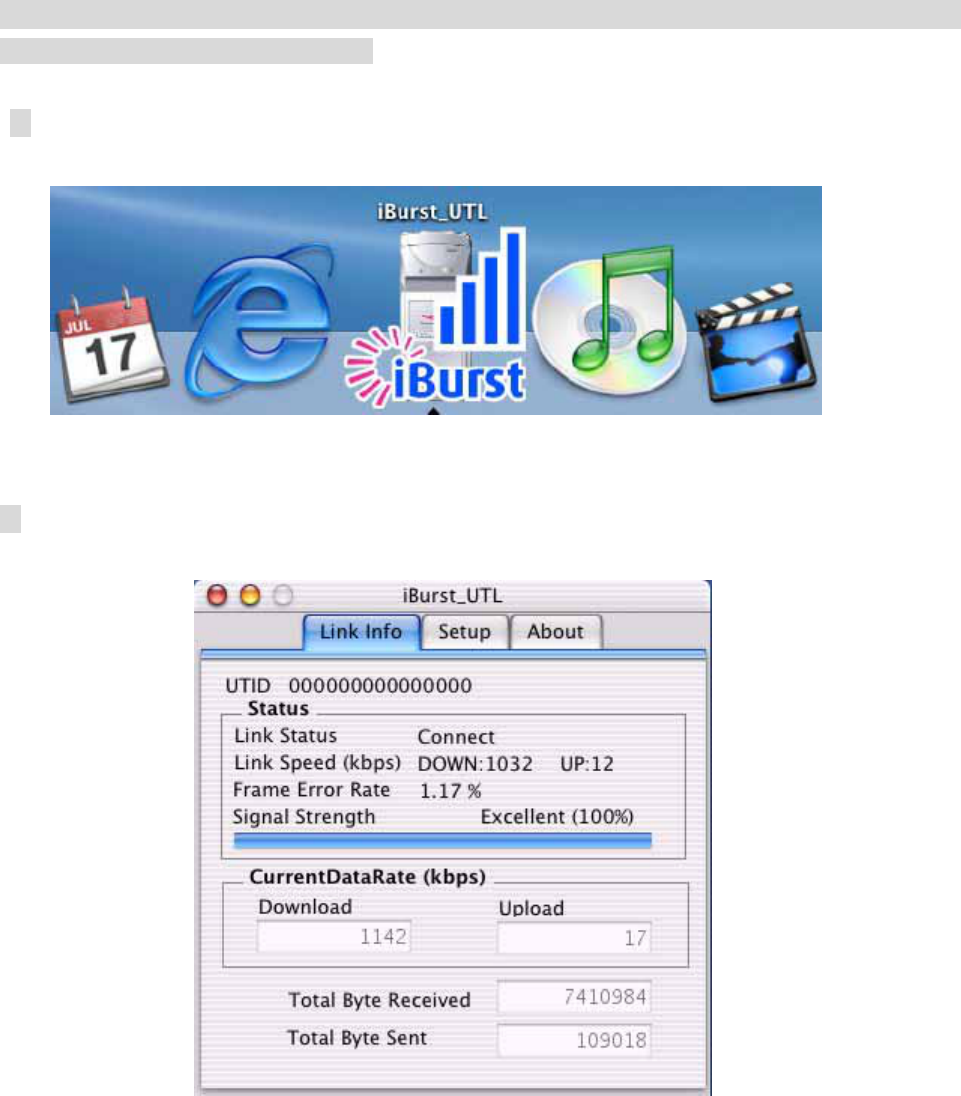

１ Double click the iBurst icon from the Dock.
２ The Link display window appears,and the status of iBurst Access Card will be displayed.
- 77 -
Link Info
Link Info pane can be displayed in the main dialog window bv clicking the [Link Info] tab.
Generally, the elements in the Link Info pane give information about the communication link between iBurst
Access Card and the access point to the network.
(8)
(7)
(6)
(2)
(3)
(5) (4)
(1)
The following describes each item of the Link Info pane.
(1) UTID
UTID is used as the identifier of iBurst Access Card.
(2) Link Status
Link Status indicates connection state of the communication link between iBurst Access Card
and the access point.
Connected : The link is connected.
No Connected : iBurst Access Card is inserted in the PC Card slot but the link is not
connected.
NoCard : There is no iBurst Access Card inserted in the PC Card Slot.
(3) Link Speed
Link Speed indicates speed of the link in both down and up direction.
(4) Frame Error Rate
Frame Error Rate indicates the FER of the received data.
- 78 -
(5) Signal Strength
Signal Strength indicates the signal strength of the received signal. Here, two kinds of indicators,
percentage indicator and 5-step indicator, are used to indicate the received signal strength.
The percentage indicator is the RSSI value in percent. On the other hand, the 5-step indicator
shows performance of the received signal in words as follows.
No Signal : RSSI = 0%
Poor : RSSI is in the range of 1∼24%
Fair : RSSI is in the range of 25∼49%
Good : RSSI is in the range of 50∼74%
Excellent : RSSI is in the range of 75∼100%
(6) Current Data Rate
Current Data Rate indicates the current transmission throughput and the reception throughput.
(7) Total Byte Received
Total Byte Received indicates the total number of bytes of the data which iBurst Access Card has
received from the access point since the communication link is established.
(8) Total Byte Sent
Total Byte Sent indicates the total number of bytes of the data which iBurst Access Card has
transmitted to the access point since the communication link is established.
- 79 -
Setup Pane
Setup pane can be displayed in the main dialog window by clicking the [Setup] tab. Setup pane is
used to configure the display items in the Link Info pane.
(3)
(1)
(2)
(4)
(1) Check the [ON] radio buttons at the right hand side of the items you want to display in the
Link Info pane.
(2) Check the [OFF] radio buttons at the right hand side of the items you don’t want to display in
the Link Info pane.
(3) The configuration shown in the Display Setup subpane is activated by checking the [Apply]
button.
(4) The configuration in the Setup pane can be set to default (Default is the state in which all
radio buttons on the right hand side of display items are set to “ON”.) by clicking the [Reset]
button.
- 80 -
About Pane
About pane is used to display the version numbers of utility, software and hardware and show
copyright notice.
(1)
(2)
(3)
The following describes the function of each item of the About pane.
(1) This shows the version number and the release date of the Utility Software.
(2) This shows the firmware version and the build date of iBurst Access Card in use.
(3) This shows the hardware version and the buld date of iBurst Access Card in use.
- 81 -

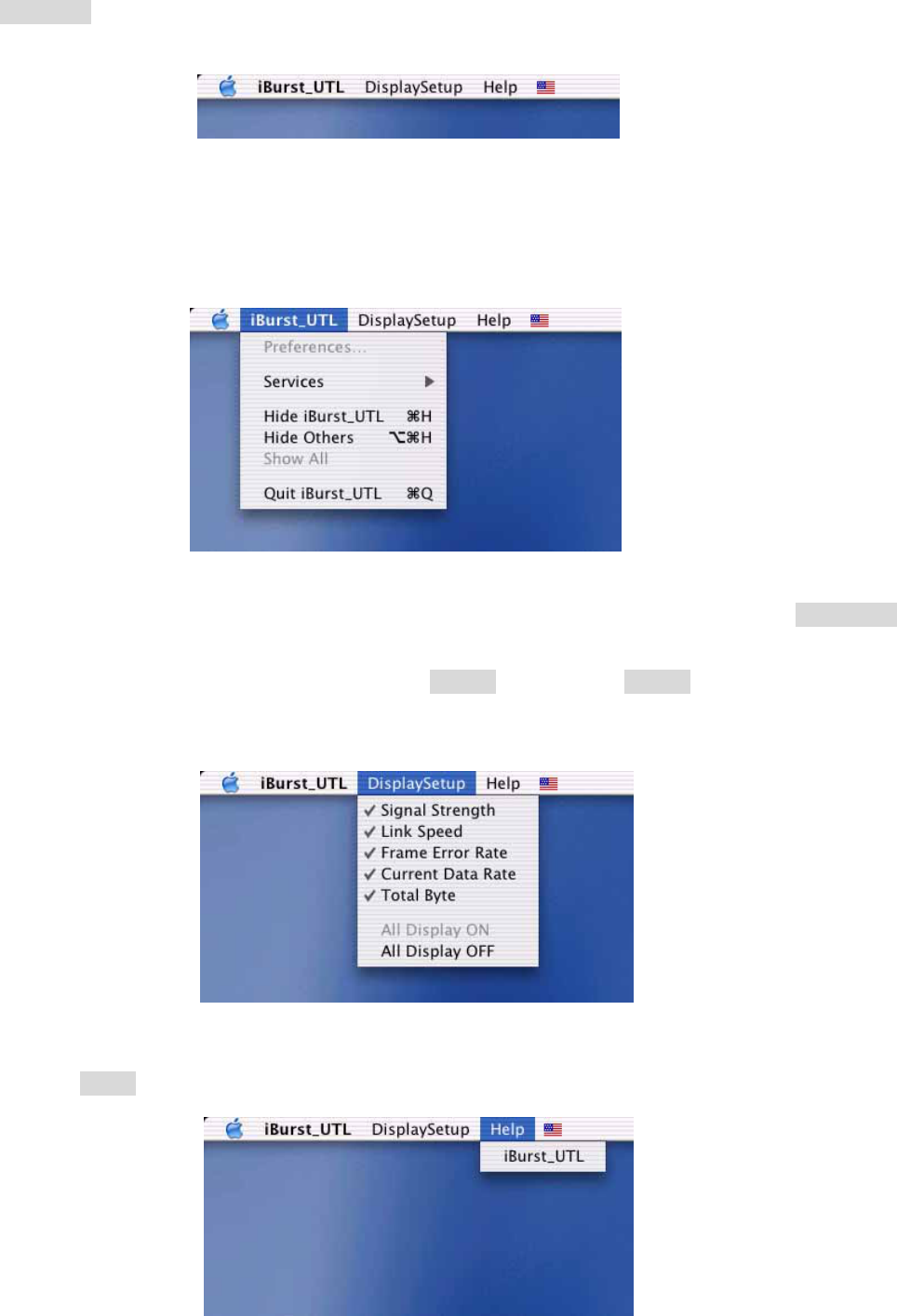

Menu Bar
It will be displayed when the iburst utility starts.
(1) iBurst_UTL menu
The menu is used to quit iBurst utility or to perform other operations.
(2) Display Setup menu
The menu is used to select displaying or undisplaying status information in the [Link Info]
window.
The function is the same as that pushing the [Apply] button in the [Setup] window.
The checked items will be displayed,and the unchecked items will not be displayed in the Link
Info window.
(2) Help menu
The [Help] window will appear when help menu is selected.
- 82 -
Icon Display in the Dock
When the utility software for iBurst Access Card is active, an icon of the utility software will be
displayed in the Dock of the computer monitor according to communication activities on iBurst
Access Card.
The following shows the relation between the icons to be displayed in the Dock and activities on
iBurst Access Card.
Icon Activities on iBurst Access Card
iBurst Access Card is not inserted in the PC Card slot.
iBurst Access Card is inserted,and Signal Strength is No Signal.
iBurst Access Card is inserted,and Signal Strength is Poor.
iBurst Access Card is inserted,and Signal Strength is Fair.
iBurst Access Card is inserted,and Signal Strength is Good.
iBurst Access Card is inserted,and Signal Strength is Excellent.
- 83 -
Chapter 4 Uninstalling iBurst Software
This chapter describes how to uninstall iBurst software.
- 84 -
Uninstalling iBusrt Software
Uninstallation for Windows XP/2000
1 Close all programs that are currently running.
2 Remove the iBurst Access Card from the computer.

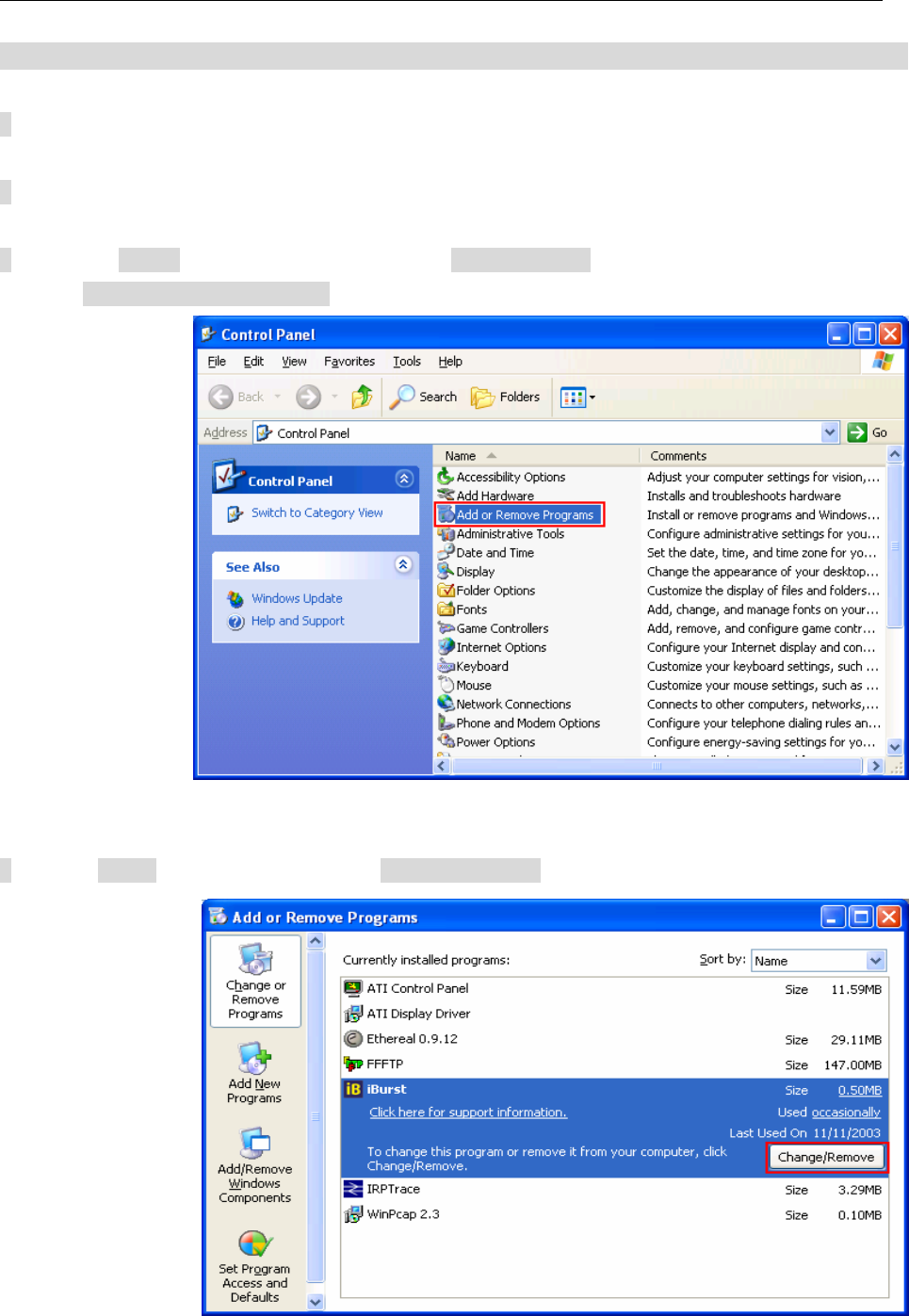

3 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Add or Remove Programs].
4 Select [iBurst] software, and click the [Change/Remove] button.
- 85 -
5 Click the [OK] button after appearing dialog window as shown below.
6 The following dialog window will appear, and uninstallation of software begins.
7 Click the [Finish] button after appearing dialog window as shown below.
- 86 -
Uninstallation for Windows Me/98Se
1 Close all programs that are currently running.
2 Remove the iBurst Access Card from the computer.

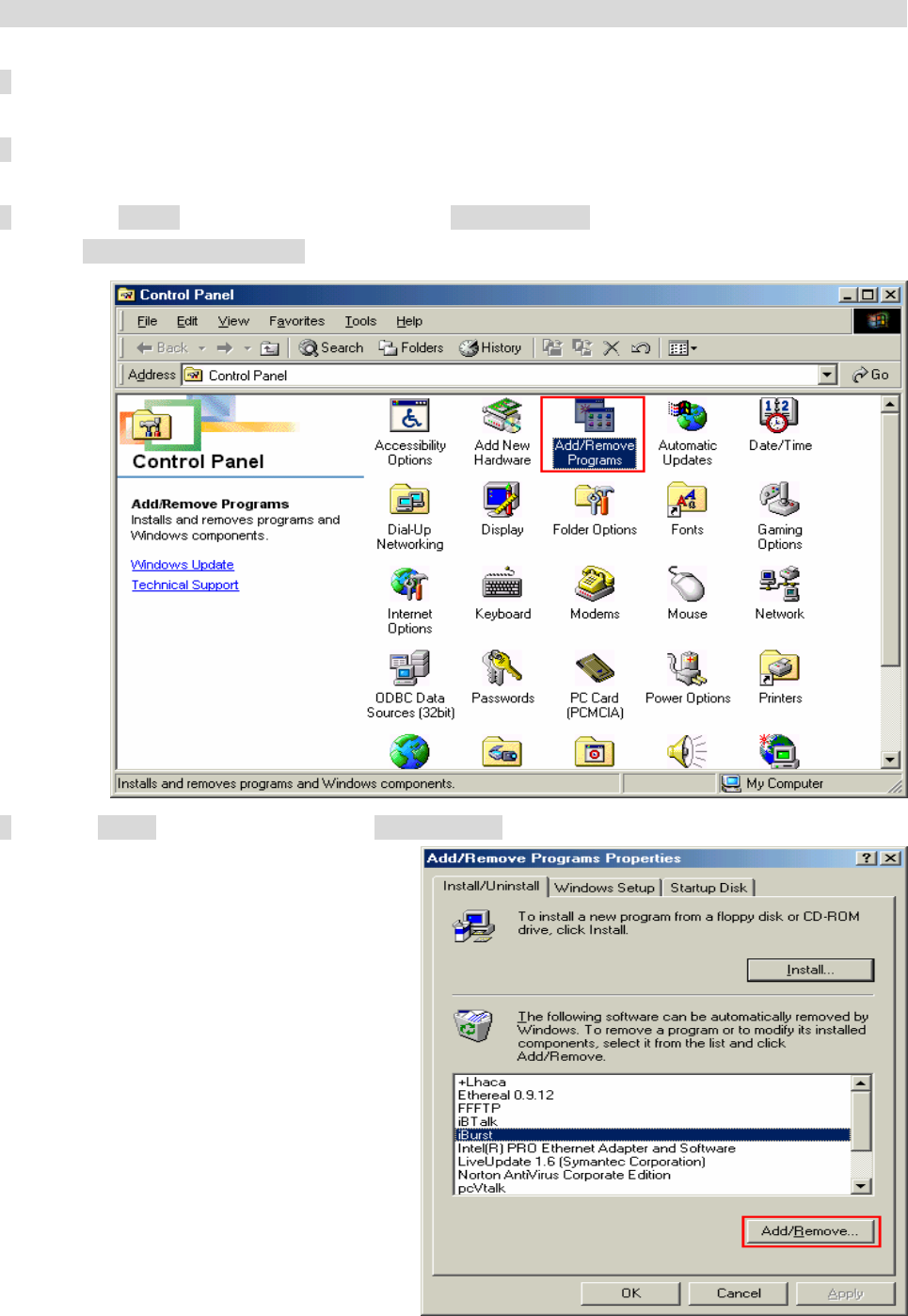

3 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Add/Remove Programs].
4 Select [iBurst] software,and click the [Add/Remove] button.
- 87 -
5 Click the [OK] button after appearing dialog window as shown below.
6 The following dialog window will appear, and uninstallation of software begins.
7 Click the [Finish] button after appearing dialog window as shown below.
- 88 -
8 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [System].

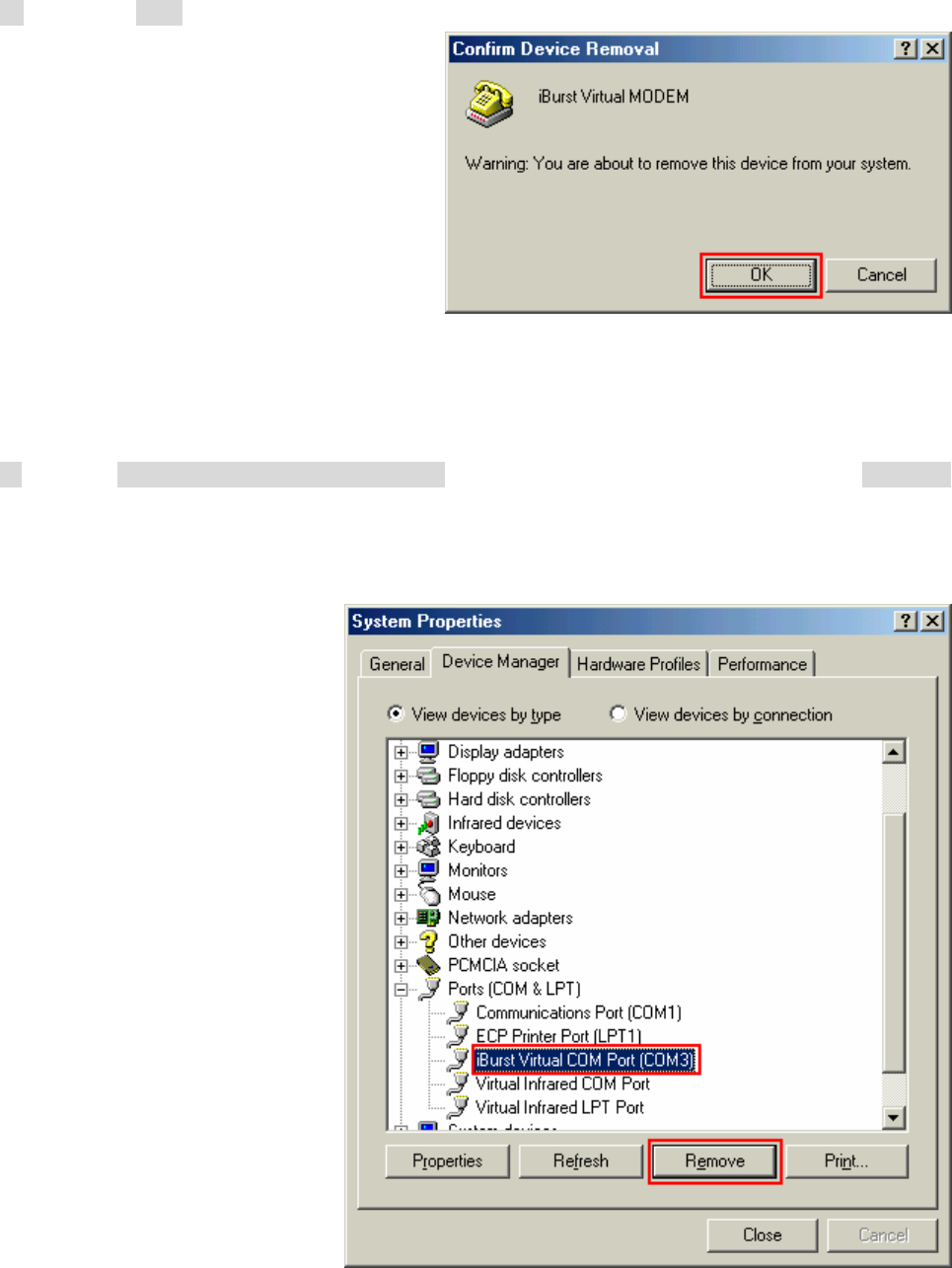

9 Select [iBurst Virtual MODEM] on Device Manager tab, then click the [Remove] button.
- 89 -

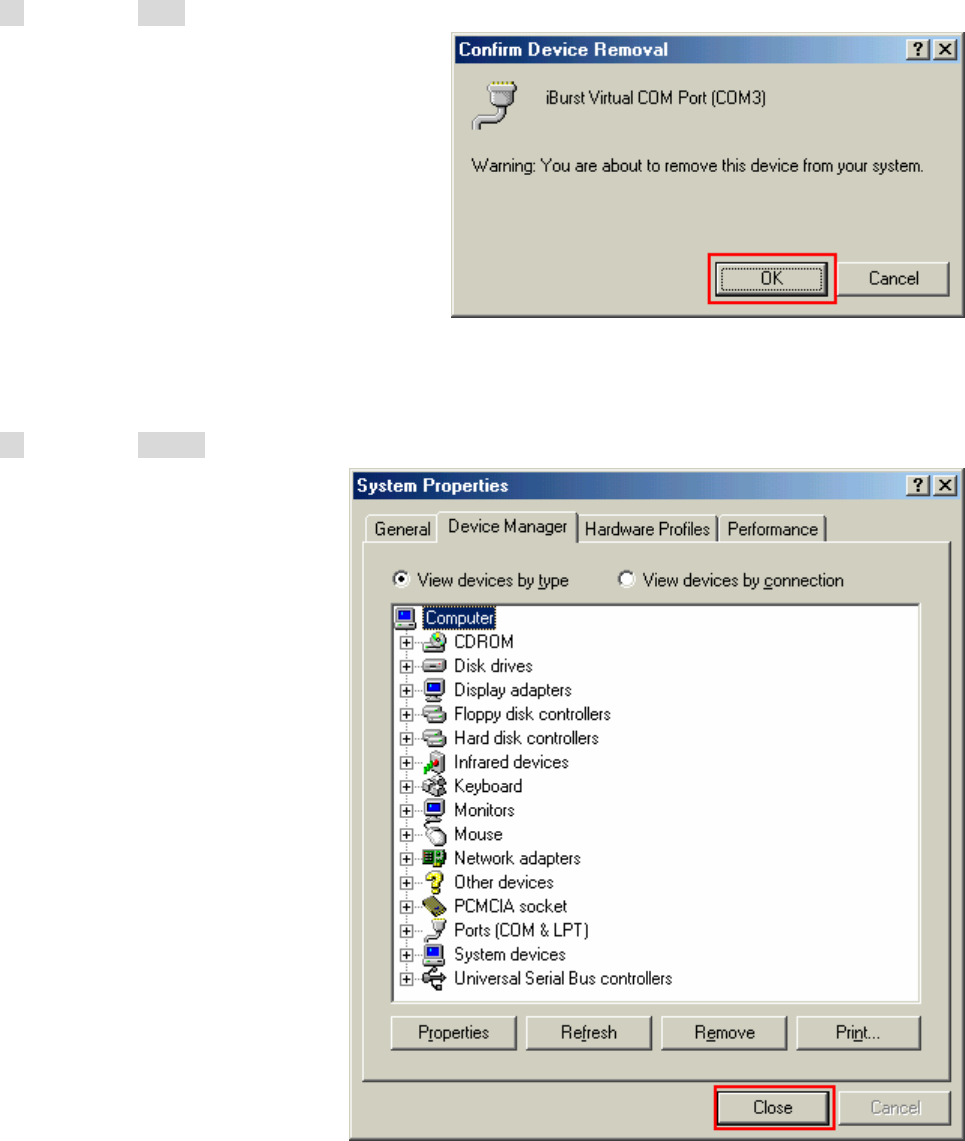

10 Click the [OK] button.
11 Select [iBurst Virtual COM Port(COMx)] on Device Manager tab, then click the [Remove]
button.
- 90 -
12 Click the [OK] button.
13 Click the [Close] button.
- 91 -
14 Click the [Start] button, followed by selecting [Control Panel] as shown below.
Click [Network].
15 Select [NDIS(PPPoE)Usermode I/O Protocol-> xxxxxx] on Configuration tab, then click the
[Remove] button.(Repeat the above steps if the other [NDIS(PPPoE)Usermode I/O Protocol]
components are installed.)
- 92 -
16 Click the [OK] button.
17 The dialog window shown below will appear,click the [Yes] button,and restart your PC.
- 93 -
Uninstallation for Mac OS X
1 Close all programs that are currently running.
2 Remove the iBurst Access Card from the computer.

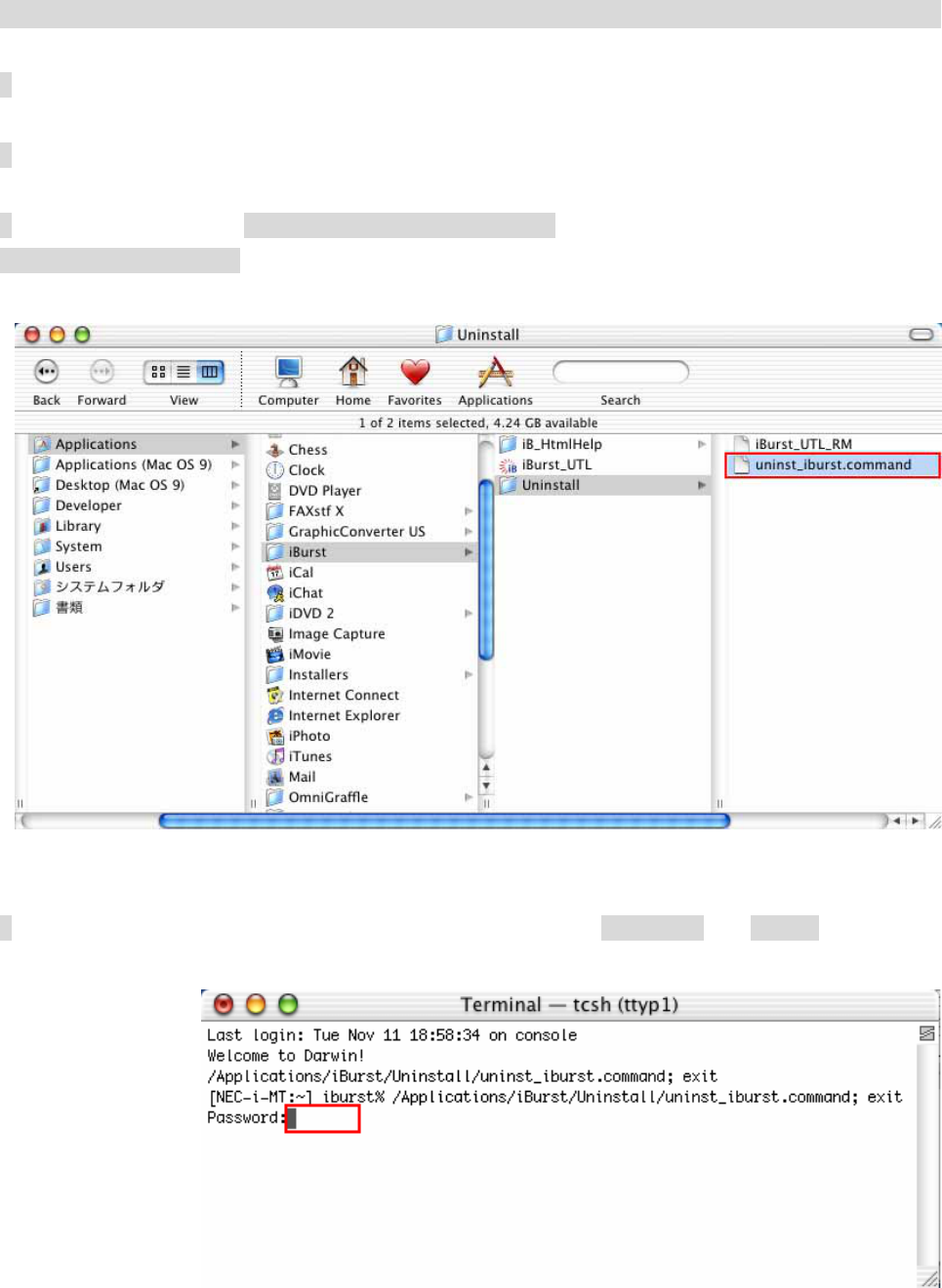

3 Open the folder [Applications¥iBurst¥Uninstall], then double click the script file
[uninst_iburst.command] .
4 The terminal window shown below will appear, enter user’s [password] and [Enter] key.
- 94 -
5 Enter [y] and [Enter] key to restart your computer.
- 95 -
Chapter 5 Information
- 96 -
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
▬
Reorient or relocate the receiving antenna.
▬
Increase the separation between the equipment and receiver.
▬
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
▬
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
FCC RF Radiation Exposure Statement
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device was tested for typical lap held operations with the device contacted
directly to the human body to the back side of the notebook computer. To maintain compliance
with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna
during transmitting.
- 97 -
