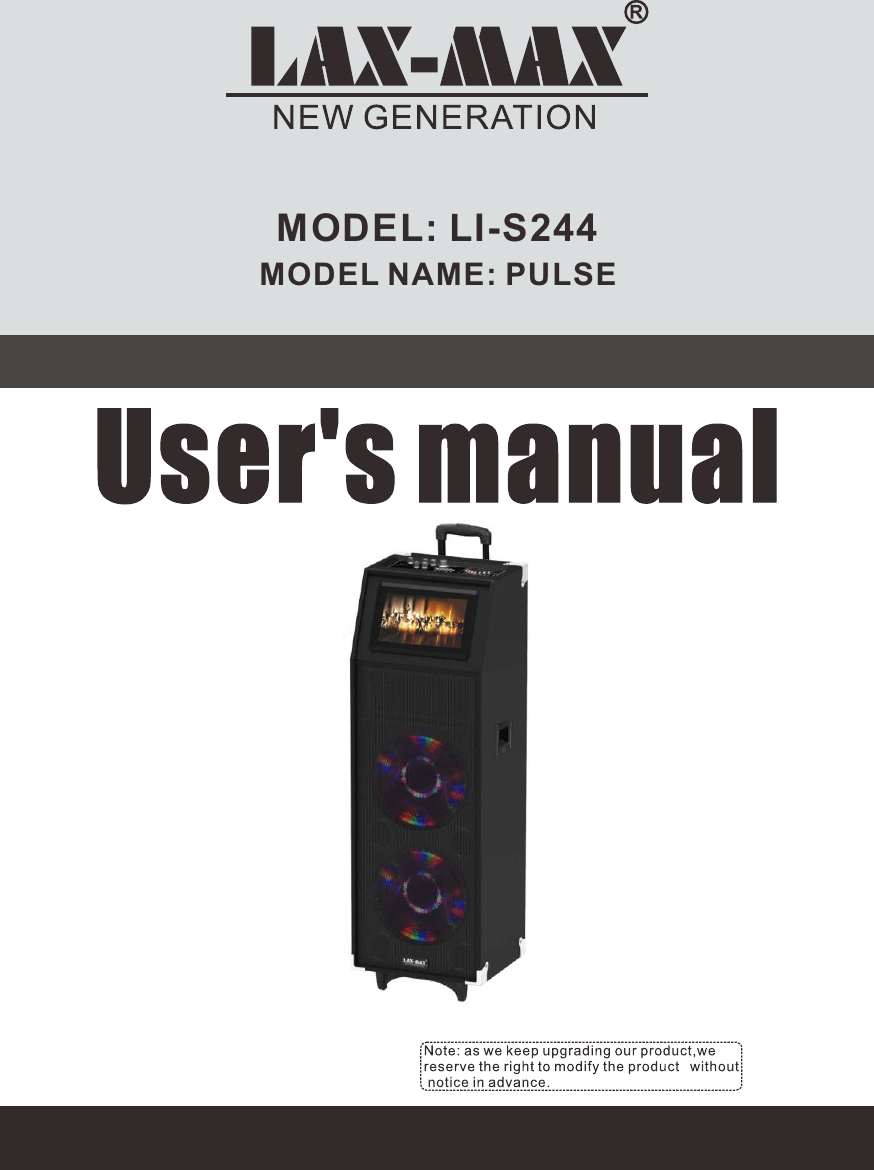

LAKSHMI LI-S244 Speaker User Manual LI S244 PULSE

LAKSHMI INTERNATIONAL INC Speaker LI S244 PULSE

Manual

MODEL: LI-S244MODEL NAME: PULSE

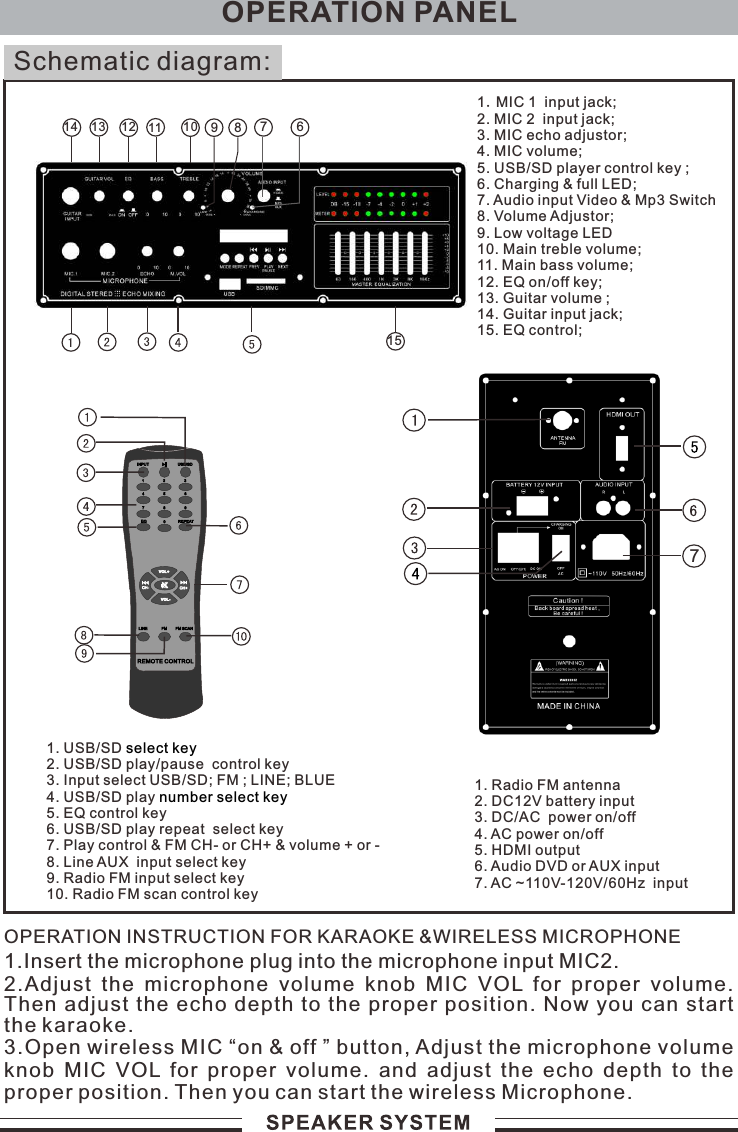

Schematic diagram: 1. USB/SD 2. 3. select keynumber select key USB/SD play/pause control keyInput select USB/SD; FM ; LINE; BLUE 4. USB/SD play 5. EQ control key6. USB/SD play repeat select key7. Play control & FM CH- or CH+ & volume + or - 8. Line AUX input select key 9. Radio FM input select key10. Radio FM scan control keyOPERATION INSTRUCTION FOR KARAOKE &WIRELESS MICROPHONE1.Insert the microphone plug into the microphone input MIC2.2.Adjust the microphone volume knob MIC VOL for proper volume. Then adjust the echo depth to the proper position. Now you can start the karaoke.3.Open wireless MIC “on & off ” button, Adjust the microphone volume knob MIC VOL for proper volume. and adjust the echo depth to the proper position. Then you can start the wireless Microphone.OPERATION PANEL1. Radio FM antenna 2. DC12V battery input3. DC/AC power on/off4. AC power on/off 5. HDMI output 6. Audio DVD or AUX input7. AC ~110V-120V/60Hz input1011121314 689 7151.2. MIC 2 input jack;3. MIC echo adjustor;4. MIC volume; 5. USB/SD player control key ; 6. Charging & full LED;7. Audio input Video & Mp3 Switch8. Volume Adjustor; 9. Low voltage LED10. Main treble volume; 11. Main bass volume;12. EQ on/off key;13. Guitar volume ; 14. Guitar input jack;15. EQ control; MIC 1 input jack;7

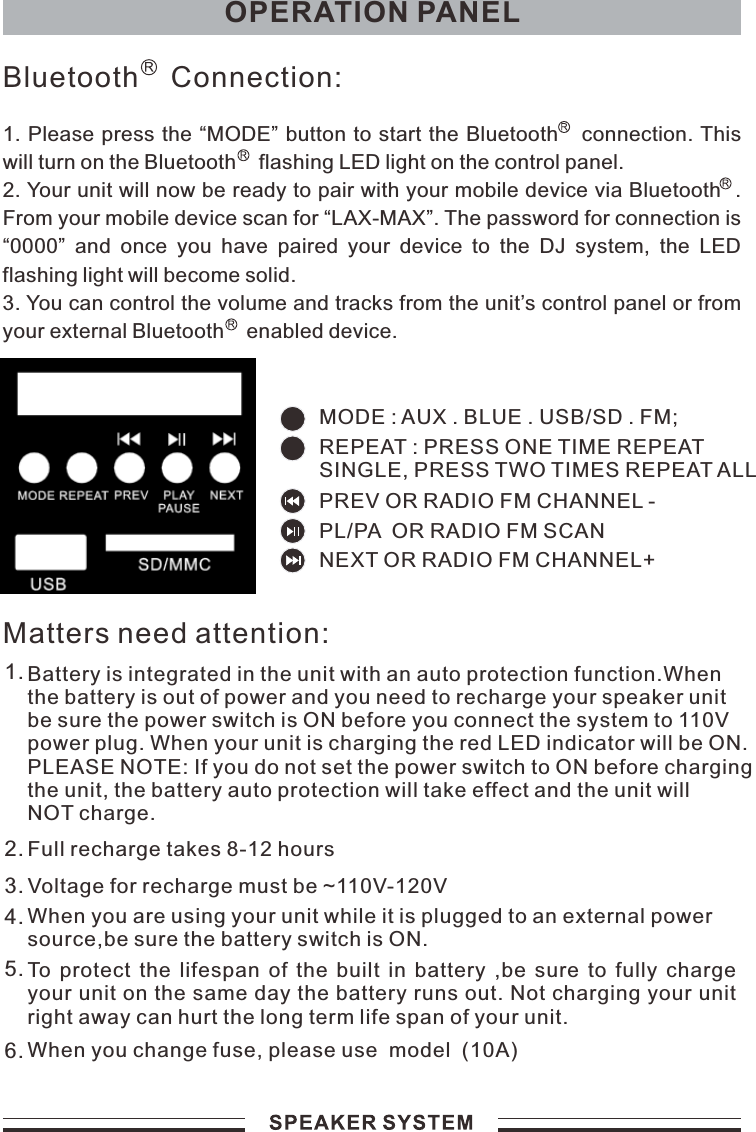

OPERATION PANEL1. Please press the “MODE” button to start the Bluetooth connection. This will turn on the Bluetooth flashing LED light on the control panel.2. Your unit will now be ready to pair with your mobile device via Bluetooth . From your mobile device scan for “LAX-MAX”. The password for connection is “0000” and once you have paired your device to the DJ system, the LED flashing light will become solid.3. You can control the volume and tracks from the unit’s control panel or from your external Bluetooth enabled device.Bluetooth Connection:Matters need attention:Battery is integrated in the unit with an auto protection function.Whenthe battery is out of power and you need to recharge your speaker unitbe sure the power switch is ON before you connect the system to 110Vpower plug. When your unit is charging the red LED indicator will be ON.PLEASE NOTE: If you do not set the power switch to ON before chargingthe unit, the battery auto protection will take effect and the unit will NOT charge.1.Full recharge takes 8-12 hoursVoltage for recharge must be ~110V-120VWhen you are using your unit while it is plugged to an external powersource,be sure the battery switch is ON.To protect the lifespan of the built in battery ,be sure to fully charge your unit on the same day the battery runs out. Not charging your unit right away can hurt the long term life span of your unit.When you change fuse, please use model (10A)2.3.4.5.6.MODE : AUX . BLUE . USB/SD . FM;PREV OR RADIO FM CHANNEL - NEXT OR RADIO FM CHANNEL+ PL/PA OR RADIO FM SCAN REPEAT : PRESS ONE TIME REPEATSINGLE, PRESS TWO TIMES REPEAT ALL

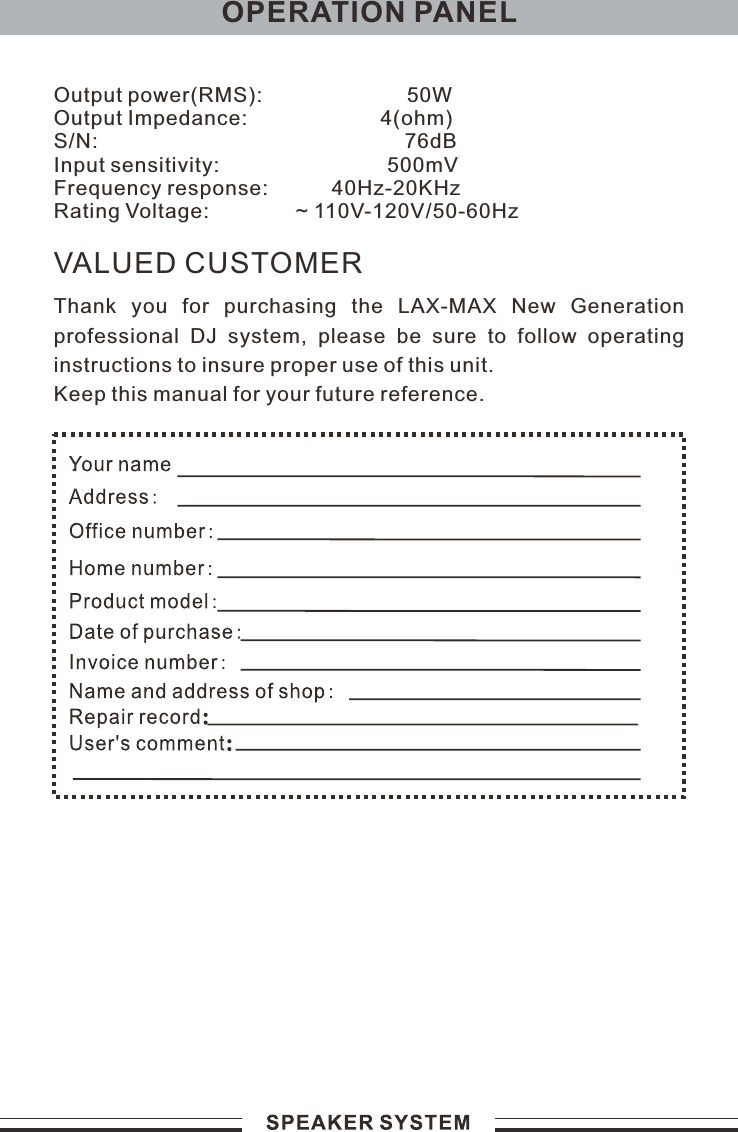

VALUED CUSTOMERThank you for purchasing the LAX-MAX New Generation professional DJ system, please be sure to follow operating instructions to insure proper use of this unit.Keep this manual for your future reference.OPERATION PANELOutput power(RMS): 50WOutput Impedance: 4(ohm)S/N: 76dBInput sensitivity: 500mVFrequency response: 40Hz-20KHzRating Voltage: ~ 110V- /50-60Hz120V

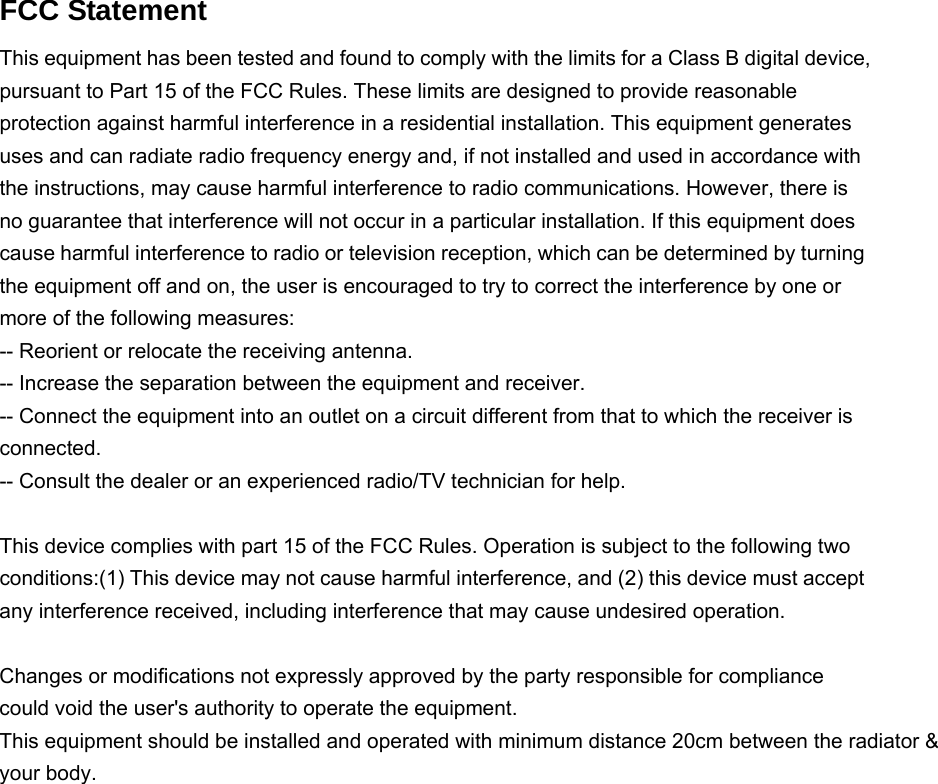

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Manual de UsuarioMODELO: LI-S244Nota: conforme vamos actualizando nuestro producto, nos reservamos el derecho de modificar el producto sin notificación por adelantado.M NAME: PULSEODELO

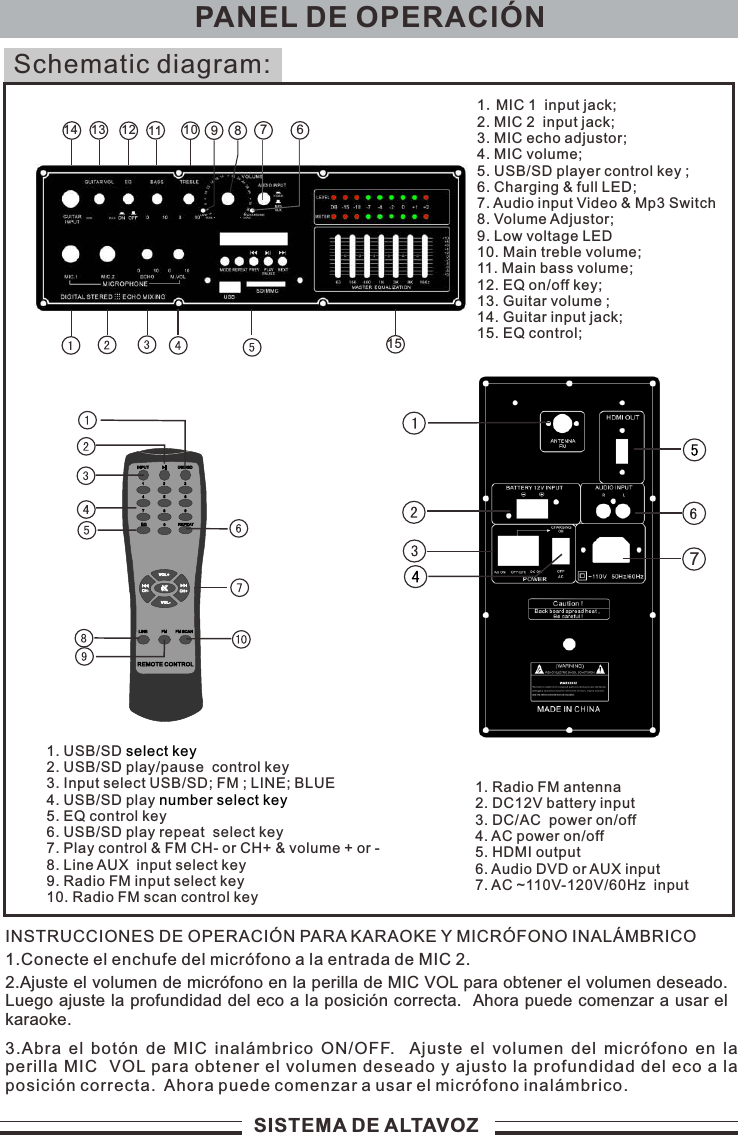

PANEL DE OPERACIÓNINSTRUCCIONES DE OPERACIÓN PARA KARAOKE Y MICRÓFONO INALÁMBRICO1.Conecte el enchufe del micrófono a la entrada de MIC 2.2.Ajuste el volumen de micrófono en la perilla de MIC VOL para obtener el volumen deseado. Luego ajuste la profundidad del eco a la posición correcta. Ahora puede comenzar a usar el karaoke.3.Abra el botón de MIC inalámbrico ON/OFF. Ajuste el volumen del micrófono en la perilla MIC VOL para obtener el volumen deseado y ajusto la profundidad del eco a la posición correcta. Ahora puede comenzar a usar el micrófono inalámbrico.SISTEMA DE ALTAVOZSchematic diagram: 1. USB/SD 2. 3. select keynumber select key USB/SD play/pause control keyInput select USB/SD; FM ; LINE; BLUE 4. USB/SD play 5. EQ control key6. USB/SD play repeat select key7. Play control & FM CH- or CH+ & volume + or - 8. Line AUX input select key 9. Radio FM input select key10. Radio FM scan control key71. Radio FM antenna 2. DC12V battery input3. DC/AC power on/off4. AC power on/off 5. HDMI output 6. Audio DVD or AUX input7. AC ~110V-120V/60Hz input1011121314 689 7151.2. MIC 2 input jack;3. MIC echo adjustor;4. MIC volume; 5. USB/SD player control key ; 6. Charging & full LED;7. Audio input Video & Mp3 Switch8. Volume Adjustor; 9. Low voltage LED10. Main treble volume; 11. Main bass volume;12. EQ on/off key;13. Guitar volume ; 14. Guitar input jack;15. EQ control; MIC 1 input jack;

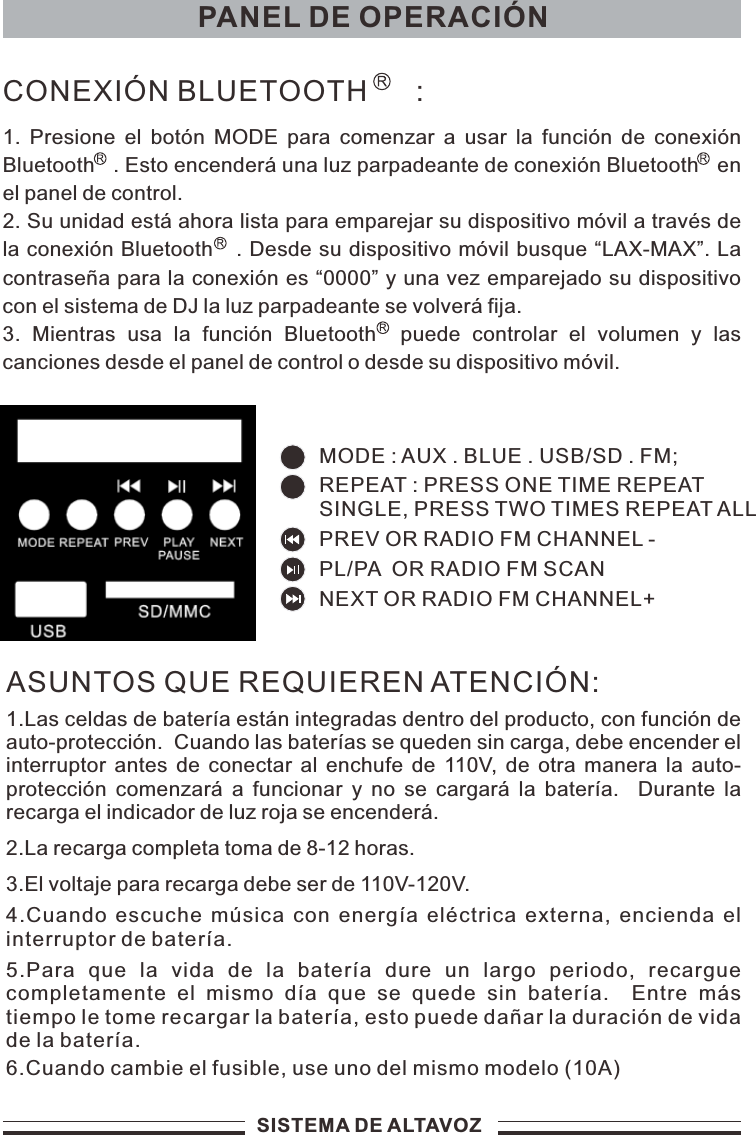

PANEL DE OPERACIÓNSISTEMA DE ALTAVOZASUNTOS QUE REQUIEREN ATENCIÓN:1.Las celdas de batería están integradas dentro del producto, con función de auto-protección. Cuando las baterías se queden sin carga, debe encender el interruptor antes de conectar al enchufe de 110V, de otra manera la auto-protección comenzará a funcionar y no se cargará la batería. Durante la recarga el indicador de luz roja se encenderá.2.La recarga completa toma de 8-12 horas.3.El voltaje para recarga debe ser de 110V-120V.4.Cuando escuche música con energía eléctrica externa, encienda el interruptor de batería.5.Para que la vida de la batería dure un largo periodo, recargue completamente el mismo día que se quede sin batería. Entre más tiempo le tome recargar la batería, esto puede dañar la duración de vida de la batería.6.Cuando cambie el fusible, use uno del mismo modelo (10A)1. Presione el botón MODE para comenzar a usar la función de conexión Bluetooth . Esto encenderá una luz parpadeante de conexión Bluetooth en el panel de control.2. Su unidad está ahora lista para emparejar su dispositivo móvil a través de la conexión Bluetooth . Desde su dispositivo móvil busque “LAX-MAX”. La contraseña para la conexión es “0000” y una vez emparejado su dispositivo con el sistema de DJ la luz parpadeante se volverá fija.3. Mientras usa la función Bluetooth puede controlar el volumen y las canciones desde el panel de control o desde su dispositivo móvil.CONEXIÓN BLUETOOTH :MODE : AUX . BLUE . USB/SD . FM;PREV OR RADIO FM CHANNEL - NEXT OR RADIO FM CHANNEL+ PL/PA OR RADIO FM SCAN REPEAT : PRESS ONE TIME REPEATSINGLE, PRESS TWO TIMES REPEAT ALL
PANEL DE OPERACIÓNSISTEMA DE ALTAVOZCLIENTE VALIOSOGracias por comprar el Sistema Profesional de DJ de LAX-MAX New Generación, asegúrese de seguir las instrucciones de operación para garantizar el uso correcto de esta unidad. Guarde este manual para futuras referencias.Nombre:Dirección:Tel. Oficina:Tel. Casa:Modelo del Producto:Fecha de compra:Número de Factura:Nombre y dirección de la tienda:Registro de Reparación:Comentarios del usuario:Salida de energía (RMS):Salida de resistencia:S/REntrada de sensibilidad:Frecuencia de respuesta:Valor de voltaje:50W4 (OHMS)76 dB500mV50Hz-18KHz~ 110V- 50Hz/60Hz120V
