LANYA ELECTRONIC BH08 Bluetooth Headset User Manual BH08U 6130 English Manual

LANYA ELECTRONIC CO., Ltd. Bluetooth Headset BH08U 6130 English Manual

user manual

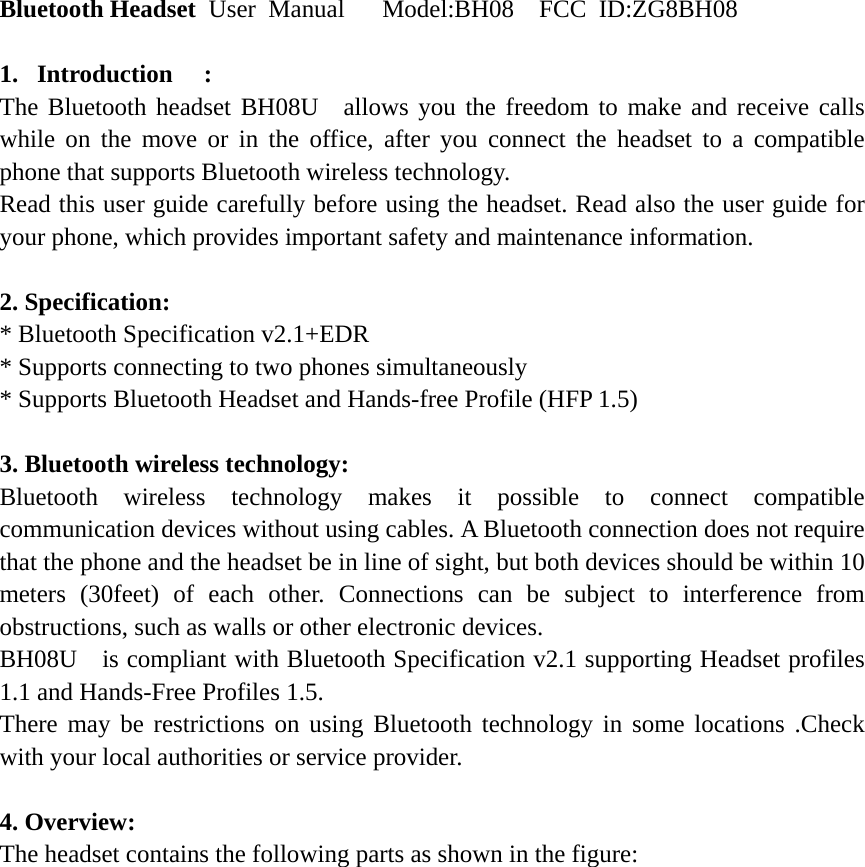

Bluetooth Headset User Manual Model:BH08 FCC ID:ZG8BH08 1. Introduction : The Bluetooth headset BH08U allows you the freedom to make and receive calls while on the move or in the office, after you connect the headset to a compatible phone that supports Bluetooth wireless technology. Read this user guide carefully before using the headset. Read also the user guide for your phone, which provides important safety and maintenance information. 2. Specification: * Bluetooth Specification v2.1+EDR * Supports connecting to two phones simultaneously * Supports Bluetooth Headset and Hands-free Profile (HFP 1.5) 3. Bluetooth wireless technology: Bluetooth wireless technology makes it possible to connect compatible communication devices without using cables. A Bluetooth connection does not require that the phone and the headset be in line of sight, but both devices should be within 10 meters (30feet) of each other. Connections can be subject to interference from obstructions, such as walls or other electronic devices. BH08U is compliant with Bluetooth Specification v2.1 supporting Headset profiles 1.1 and Hands-Free Profiles 1.5. There may be restrictions on using Bluetooth technology in some locations .Check with your local authorities or service provider. 4. Overview: The headset contains the following parts as shown in the figure:

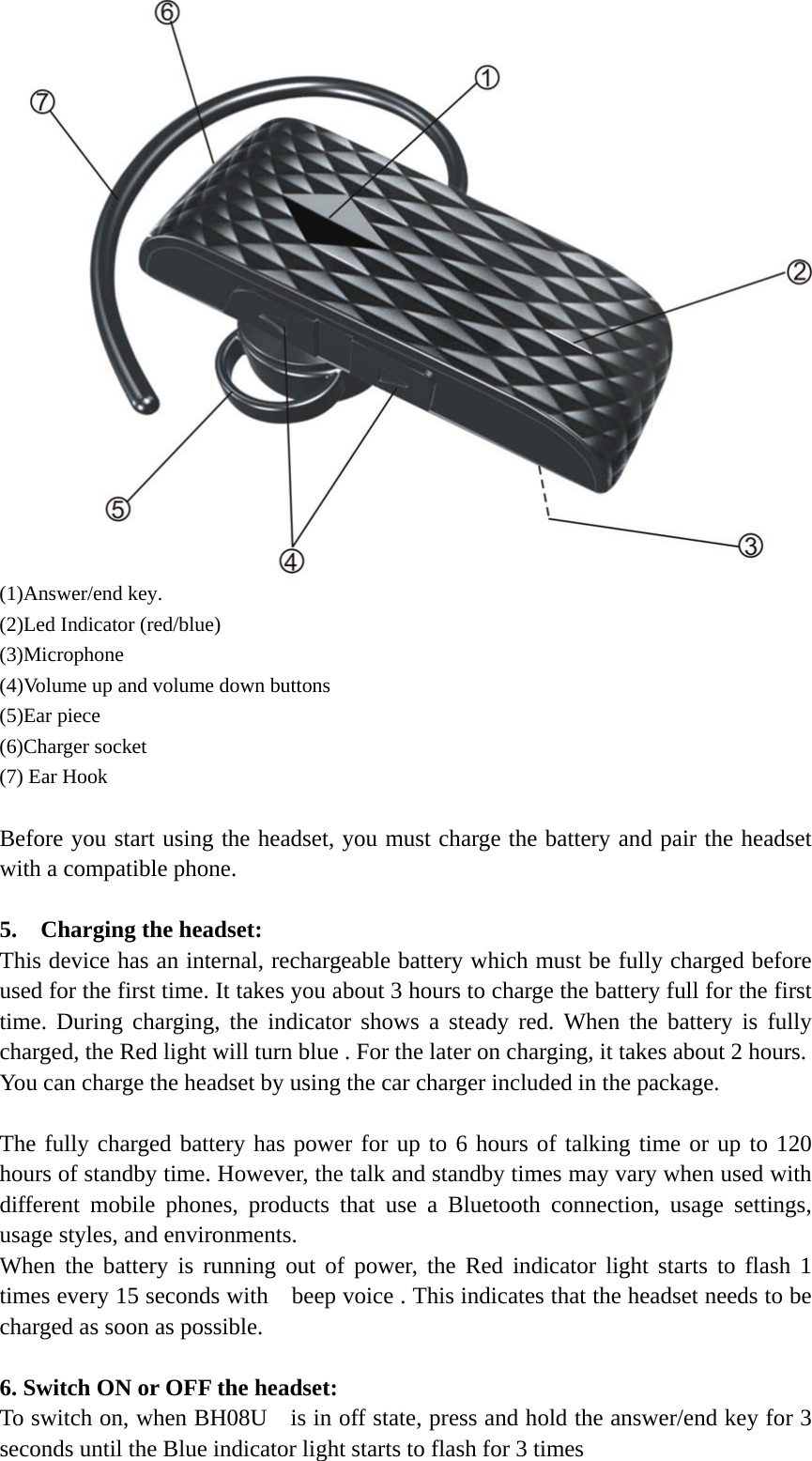

(1)Answer/end key. (2)Led Indicator (red/blue) (3)Microphone (4)Volume up and volume down buttons (5)Ear piece (6)Charger socket (7) Ear Hook Before you start using the headset, you must charge the battery and pair the headset with a compatible phone. 5. Charging the headset: This device has an internal, rechargeable battery which must be fully charged before used for the first time. It takes you about 3 hours to charge the battery full for the first time. During charging, the indicator shows a steady red. When the battery is fully charged, the Red light will turn blue . For the later on charging, it takes about 2 hours. You can charge the headset by using the car charger included in the package. The fully charged battery has power for up to 6 hours of talking time or up to 120 hours of standby time. However, the talk and standby times may vary when used with different mobile phones, products that use a Bluetooth connection, usage settings, usage styles, and environments. When the battery is running out of power, the Red indicator light starts to flash 1 times every 15 seconds with beep voice . This indicates that the headset needs to be charged as soon as possible. 6. Switch ON or OFF the headset: To switch on, when BH08U is in off state, press and hold the answer/end key for 3 seconds until the Blue indicator light starts to flash for 3 times

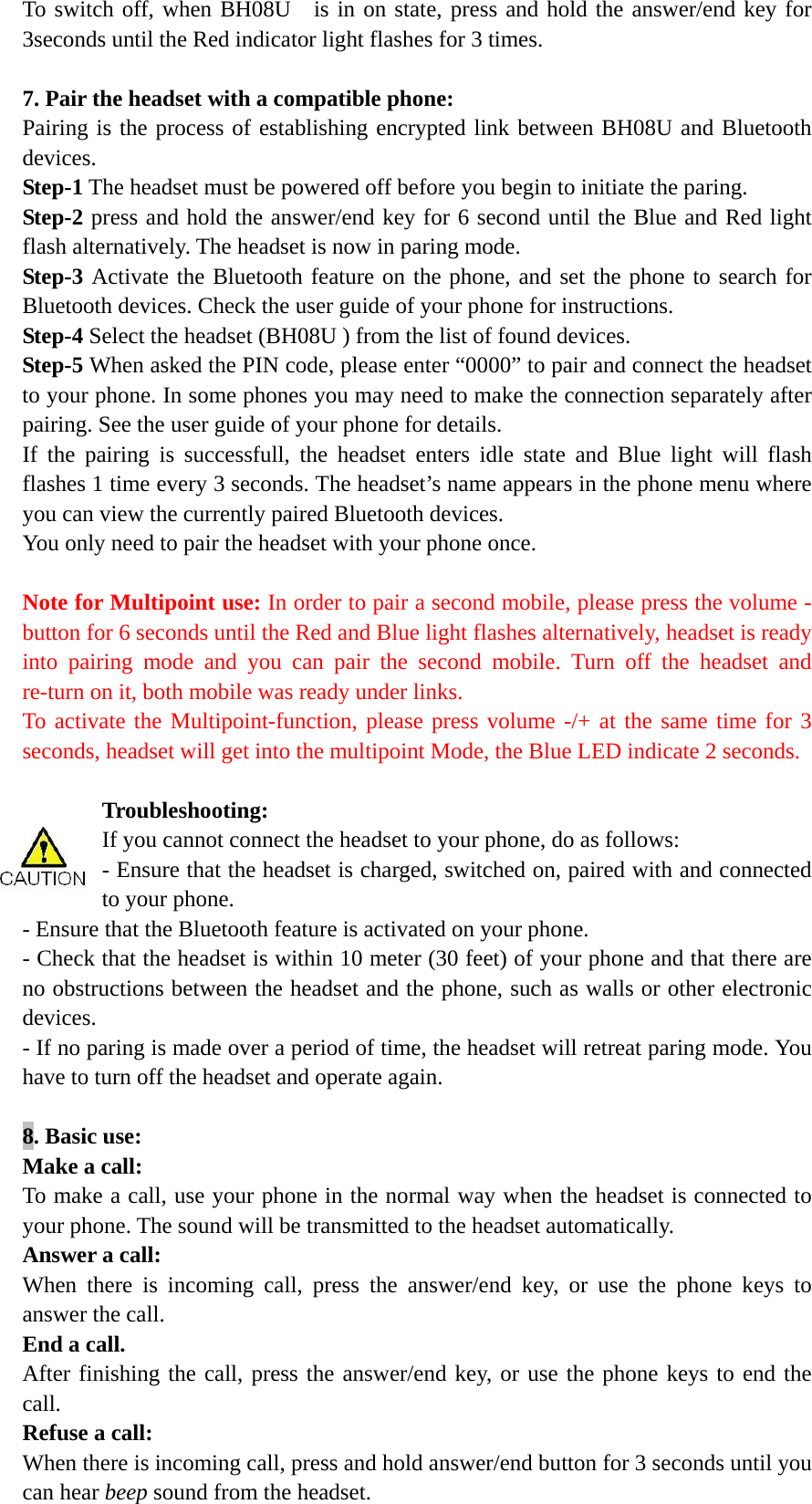

To switch off, when BH08U is in on state, press and hold the answer/end key for 3seconds until the Red indicator light flashes for 3 times. 7. Pair the headset with a compatible phone: Pairing is the process of establishing encrypted link between BH08U and Bluetooth devices. Step-1 The headset must be powered off before you begin to initiate the paring. Step-2 press and hold the answer/end key for 6 second until the Blue and Red light flash alternatively. The headset is now in paring mode. Step-3 Activate the Bluetooth feature on the phone, and set the phone to search for Bluetooth devices. Check the user guide of your phone for instructions. Step-4 Select the headset (BH08U ) from the list of found devices. Step-5 When asked the PIN code, please enter “0000” to pair and connect the headset to your phone. In some phones you may need to make the connection separately after pairing. See the user guide of your phone for details. If the pairing is successfull, the headset enters idle state and Blue light will flash flashes 1 time every 3 seconds. The headset’s name appears in the phone menu where you can view the currently paired Bluetooth devices. You only need to pair the headset with your phone once. Note for Multipoint use: In order to pair a second mobile, please press the volume - button for 6 seconds until the Red and Blue light flashes alternatively, headset is ready into pairing mode and you can pair the second mobile. Turn off the headset and re-turn on it, both mobile was ready under links. To activate the Multipoint-function, please press volume -/+ at the same time for 3 seconds, headset will get into the multipoint Mode, the Blue LED indicate 2 seconds. Troubleshooting: If you cannot connect the headset to your phone, do as follows: - Ensure that the headset is charged, switched on, paired with and connected to your phone. - Ensure that the Bluetooth feature is activated on your phone. - Check that the headset is within 10 meter (30 feet) of your phone and that there are no obstructions between the headset and the phone, such as walls or other electronic devices. - If no paring is made over a period of time, the headset will retreat paring mode. You have to turn off the headset and operate again. 8. Basic use: Make a call: To make a call, use your phone in the normal way when the headset is connected to your phone. The sound will be transmitted to the headset automatically. Answer a call: When there is incoming call, press the answer/end key, or use the phone keys to answer the call. End a call. After finishing the call, press the answer/end key, or use the phone keys to end the call. Refuse a call: When there is incoming call, press and hold answer/end button for 3 seconds until you can hear beep sound from the headset.

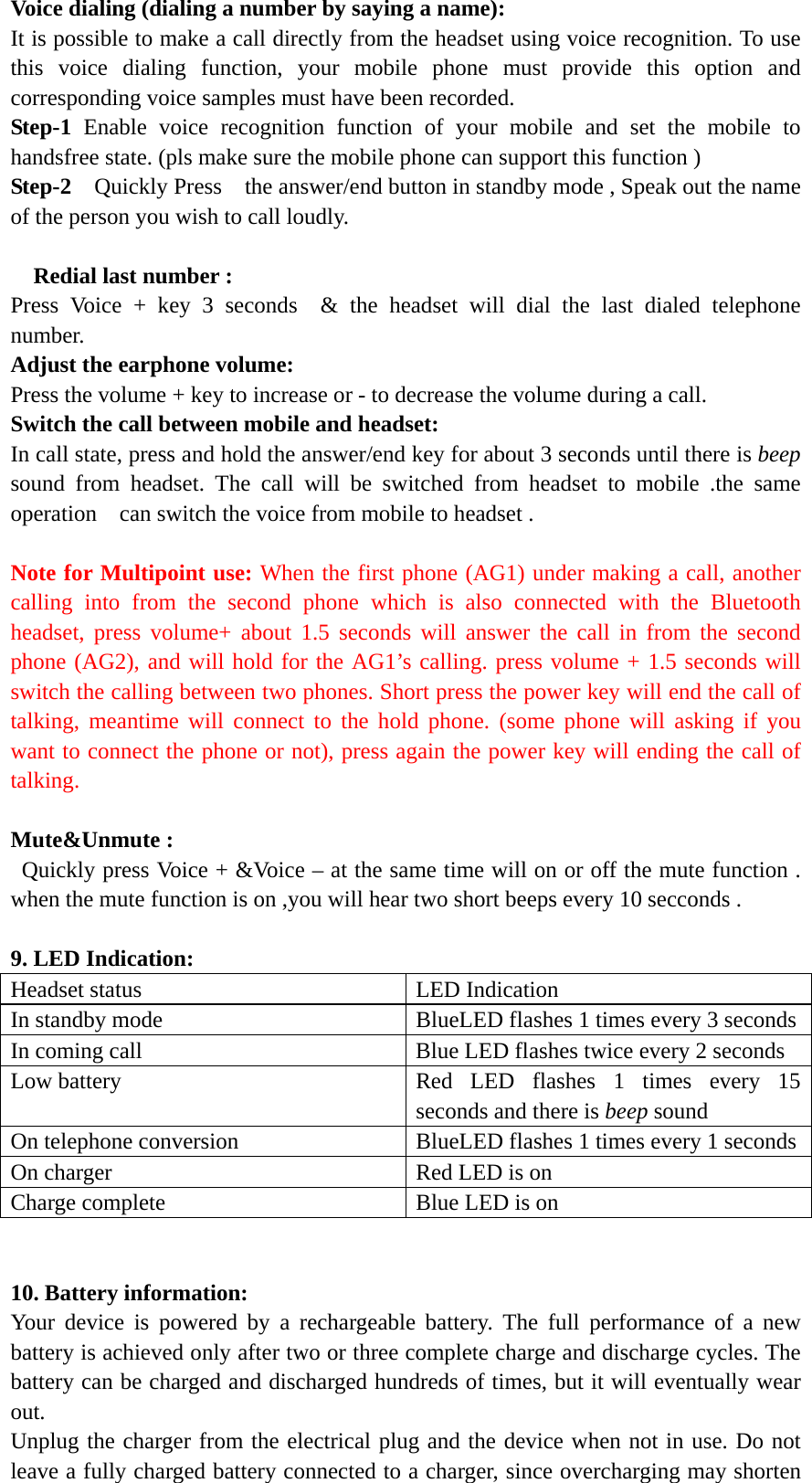

Voice dialing (dialing a number by saying a name): It is possible to make a call directly from the headset using voice recognition. To use this voice dialing function, your mobile phone must provide this option and corresponding voice samples must have been recorded. Step-1 Enable voice recognition function of your mobile and set the mobile to handsfree state. (pls make sure the mobile phone can support this function ) Step-2 Quickly Press the answer/end button in standby mode , Speak out the name of the person you wish to call loudly. Redial last number : Press Voice + key 3 seconds & the headset will dial the last dialed telephone number. Adjust the earphone volume: Press the volume + key to increase or - to decrease the volume during a call. Switch the call between mobile and headset: In call state, press and hold the answer/end key for about 3 seconds until there is beep sound from headset. The call will be switched from headset to mobile .the same operation can switch the voice from mobile to headset . Note for Multipoint use: When the first phone (AG1) under making a call, another calling into from the second phone which is also connected with the Bluetooth headset, press volume+ about 1.5 seconds will answer the call in from the second phone (AG2), and will hold for the AG1’s calling. press volume + 1.5 seconds will switch the calling between two phones. Short press the power key will end the call of talking, meantime will connect to the hold phone. (some phone will asking if you want to connect the phone or not), press again the power key will ending the call of talking. Mute&Unmute : Quickly press Voice + &Voice – at the same time will on or off the mute function . when the mute function is on ,you will hear two short beeps every 10 secconds . 9. LED Indication: Headset status LED Indication In standby mode BlueLED flashes 1 times every 3 secondsIn coming call Blue LED flashes twice every 2 seconds Low battery Red LED flashes 1 times every 15 seconds and there is beep sound On telephone conversion BlueLED flashes 1 times every 1 seconds On charger Red LED is on Charge complete Blue LED is on 10. Battery information: Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten

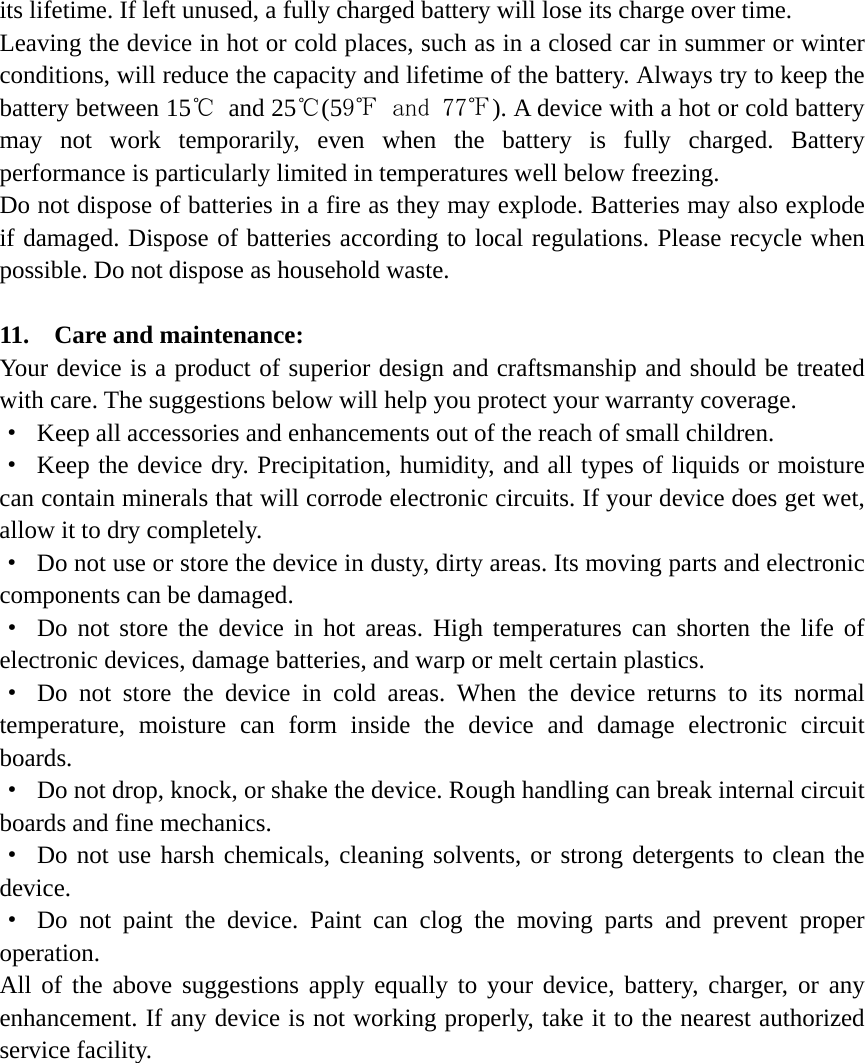

its lifetime. If left unused, a fully charged battery will lose its charge over time. Leaving the device in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15℃ and 25℃(59℉ and 77℉). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing. Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. 11. Care and maintenance: Your device is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you protect your warranty coverage. · Keep all accessories and enhancements out of the reach of small children. · Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, allow it to dry completely. · Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. · Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics. · Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards. · Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics. · Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. · Do not paint the device. Paint can clog the moving parts and prevent proper operation. All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service facility.

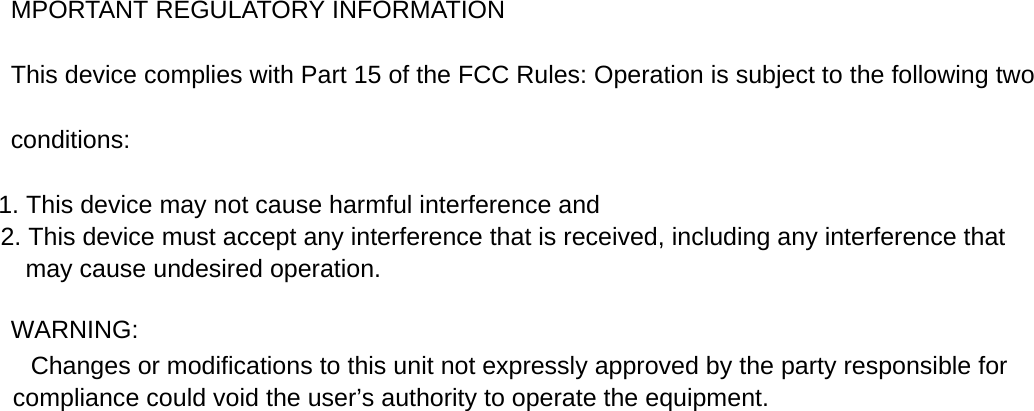

MPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
