LANYA ELECTRONIC BH701 Bluetooth Headset User Manual Manual

LANYA ELECTRONIC CO., Ltd. Bluetooth Headset Manual

Manual

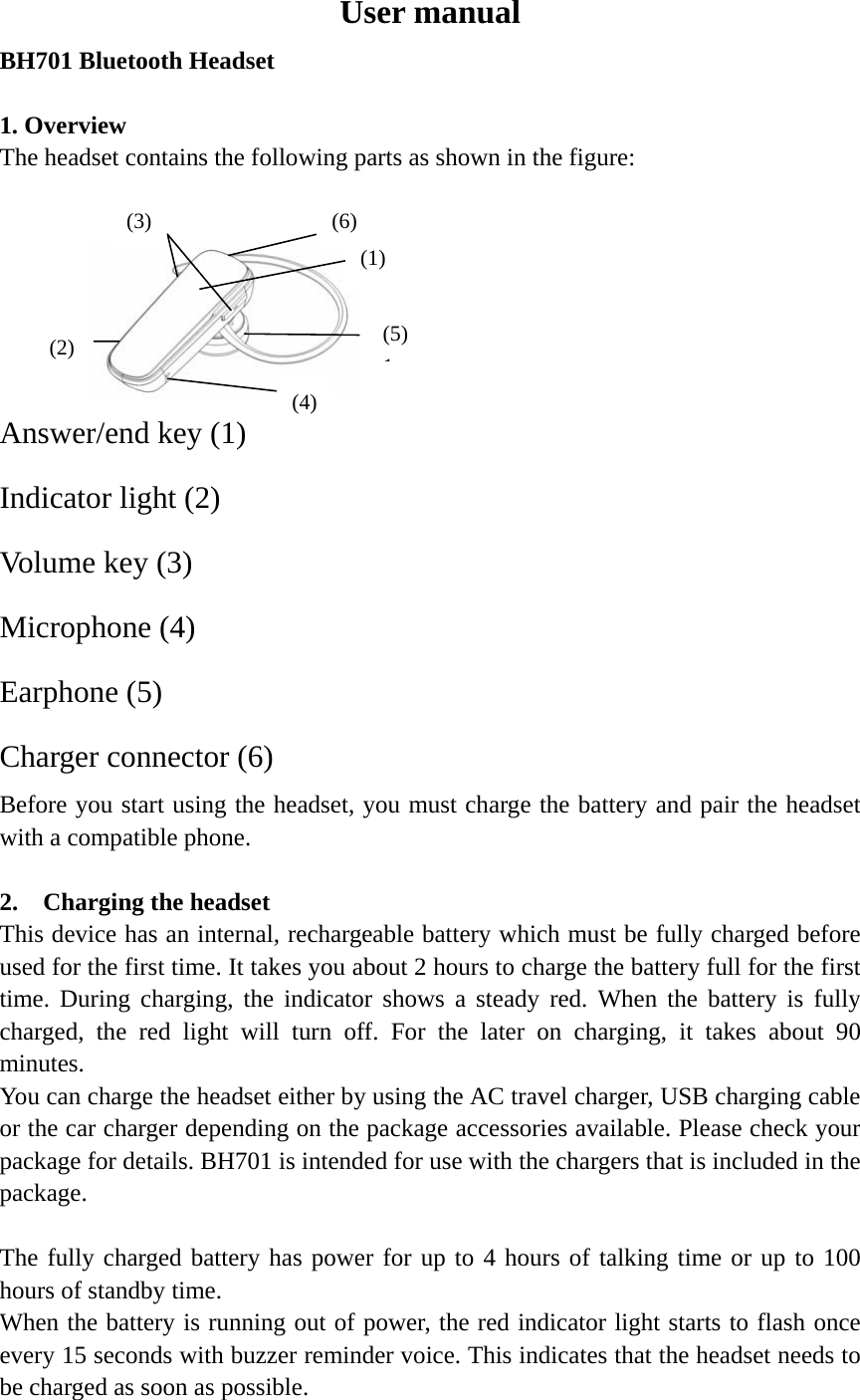

User manual BH701 Bluetooth Headset 1. Overview The headset contains the following parts as shown in the figure: Answer/end key (1) Indicator light (2) Volume key (3) Microphone (4) Earphone (5) Charger connector (6) Before you start using the headset, you must charge the battery and pair the headset with a compatible phone. 2. Charging the headset This device has an internal, rechargeable battery which must be fully charged before used for the first time. It takes you about 2 hours to charge the battery full for the first time. During charging, the indicator shows a steady red. When the battery is fully charged, the red light will turn off. For the later on charging, it takes about 90 minutes. You can charge the headset either by using the AC travel charger, USB charging cable or the car charger depending on the package accessories available. Please check your package for details. BH701 is intended for use with the chargers that is included in the package. The fully charged battery has power for up to 4 hours of talking time or up to 100 hours of standby time. When the battery is running out of power, the red indicator light starts to flash once every 15 seconds with buzzer reminder voice. This indicates that the headset needs to be charged as soon as possible. (6)(1)(5)1(4) (3) (2)

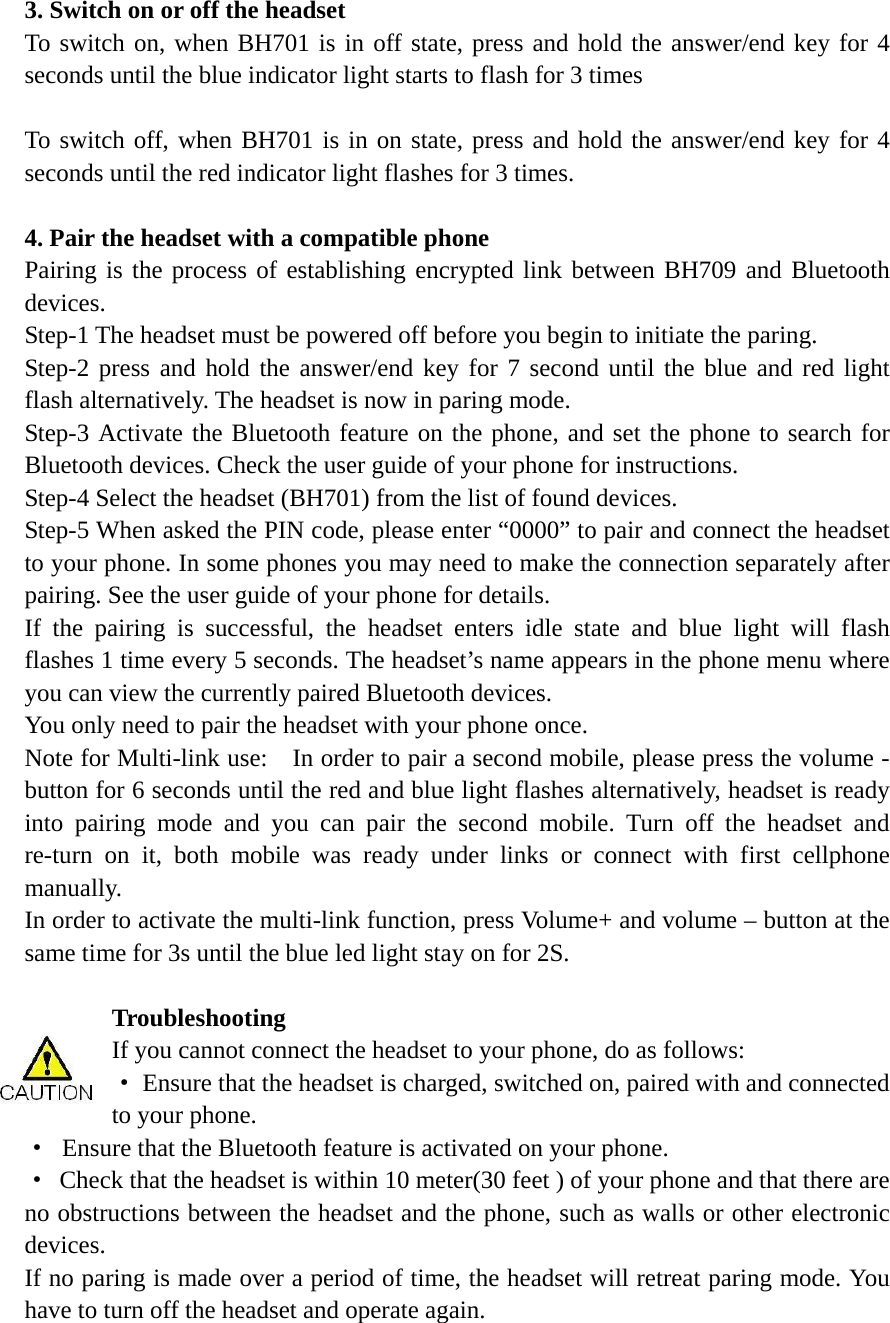

3. Switch on or off the headset To switch on, when BH701 is in off state, press and hold the answer/end key for 4 seconds until the blue indicator light starts to flash for 3 times To switch off, when BH701 is in on state, press and hold the answer/end key for 4 seconds until the red indicator light flashes for 3 times. 4. Pair the headset with a compatible phone Pairing is the process of establishing encrypted link between BH709 and Bluetooth devices. Step-1 The headset must be powered off before you begin to initiate the paring. Step-2 press and hold the answer/end key for 7 second until the blue and red light flash alternatively. The headset is now in paring mode. Step-3 Activate the Bluetooth feature on the phone, and set the phone to search for Bluetooth devices. Check the user guide of your phone for instructions. Step-4 Select the headset (BH701) from the list of found devices. Step-5 When asked the PIN code, please enter “0000” to pair and connect the headset to your phone. In some phones you may need to make the connection separately after pairing. See the user guide of your phone for details. If the pairing is successful, the headset enters idle state and blue light will flash flashes 1 time every 5 seconds. The headset’s name appears in the phone menu where you can view the currently paired Bluetooth devices. You only need to pair the headset with your phone once. Note for Multi-link use: In order to pair a second mobile, please press the volume - button for 6 seconds until the red and blue light flashes alternatively, headset is ready into pairing mode and you can pair the second mobile. Turn off the headset and re-turn on it, both mobile was ready under links or connect with first cellphone manually. In order to activate the multi-link function, press Volume+ and volume – button at the same time for 3s until the blue led light stay on for 2S. Troubleshooting If you cannot connect the headset to your phone, do as follows: · Ensure that the headset is charged, switched on, paired with and connected to your phone. · Ensure that the Bluetooth feature is activated on your phone. · Check that the headset is within 10 meter(30 feet ) of your phone and that there are no obstructions between the headset and the phone, such as walls or other electronic devices. If no paring is made over a period of time, the headset will retreat paring mode. You have to turn off the headset and operate again.

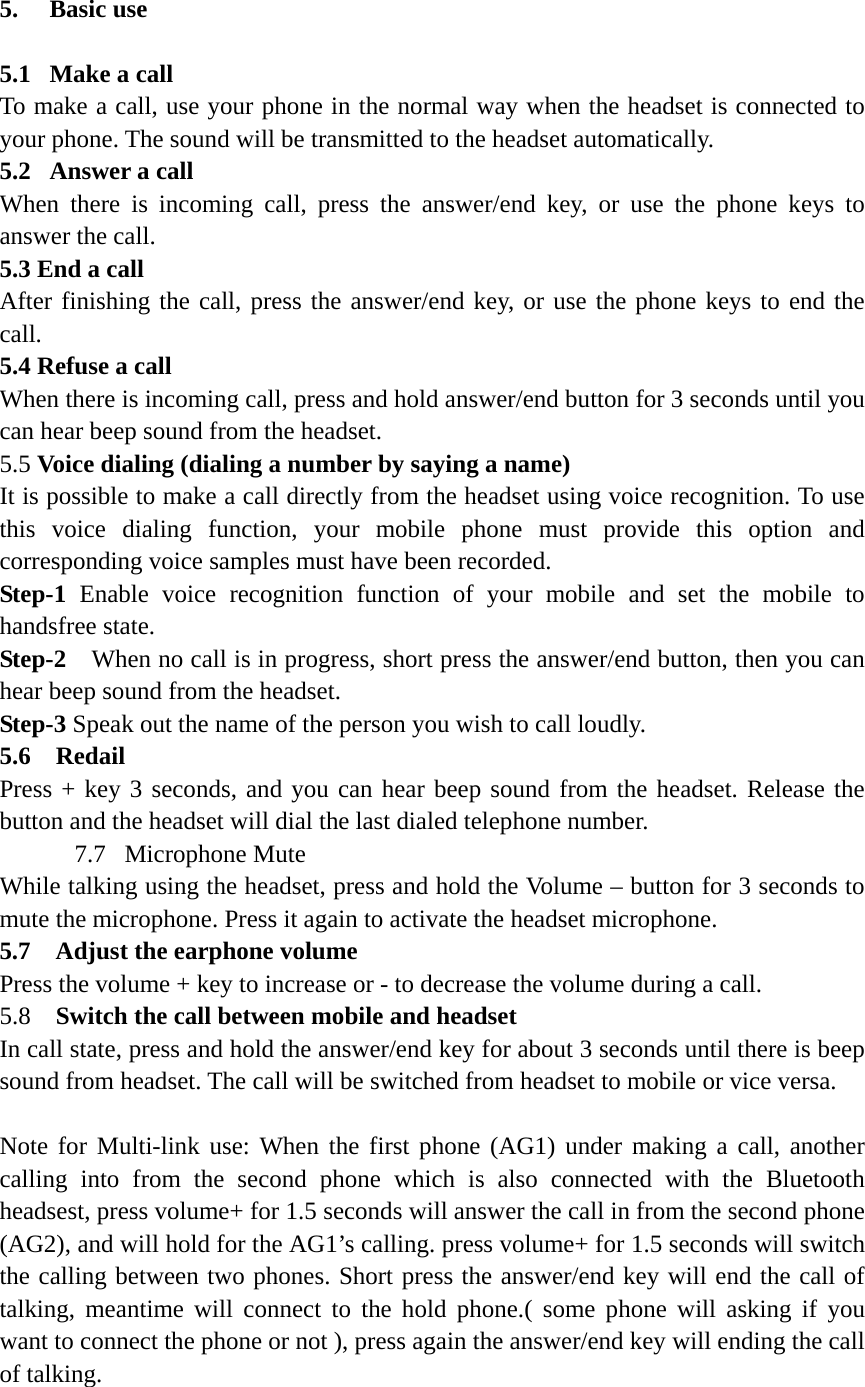

5. Basic use 5.1 Make a call To make a call, use your phone in the normal way when the headset is connected to your phone. The sound will be transmitted to the headset automatically. 5.2 Answer a call When there is incoming call, press the answer/end key, or use the phone keys to answer the call. 5.3 End a call After finishing the call, press the answer/end key, or use the phone keys to end the call. 5.4 Refuse a call When there is incoming call, press and hold answer/end button for 3 seconds until you can hear beep sound from the headset. 5.5 Voice dialing (dialing a number by saying a name) It is possible to make a call directly from the headset using voice recognition. To use this voice dialing function, your mobile phone must provide this option and corresponding voice samples must have been recorded. Step-1 Enable voice recognition function of your mobile and set the mobile to handsfree state. Step-2 When no call is in progress, short press the answer/end button, then you can hear beep sound from the headset. Step-3 Speak out the name of the person you wish to call loudly. 5.6 Redail Press + key 3 seconds, and you can hear beep sound from the headset. Release the button and the headset will dial the last dialed telephone number. 7.7 Microphone Mute While talking using the headset, press and hold the Volume – button for 3 seconds to mute the microphone. Press it again to activate the headset microphone. 5.7 Adjust the earphone volume Press the volume + key to increase or - to decrease the volume during a call. 5.8 Switch the call between mobile and headset In call state, press and hold the answer/end key for about 3 seconds until there is beep sound from headset. The call will be switched from headset to mobile or vice versa. Note for Multi-link use: When the first phone (AG1) under making a call, another calling into from the second phone which is also connected with the Bluetooth headsest, press volume+ for 1.5 seconds will answer the call in from the second phone (AG2), and will hold for the AG1’s calling. press volume+ for 1.5 seconds will switch the calling between two phones. Short press the answer/end key will end the call of talking, meantime will connect to the hold phone.( some phone will asking if you want to connect the phone or not ), press again the answer/end key will ending the call of talking.

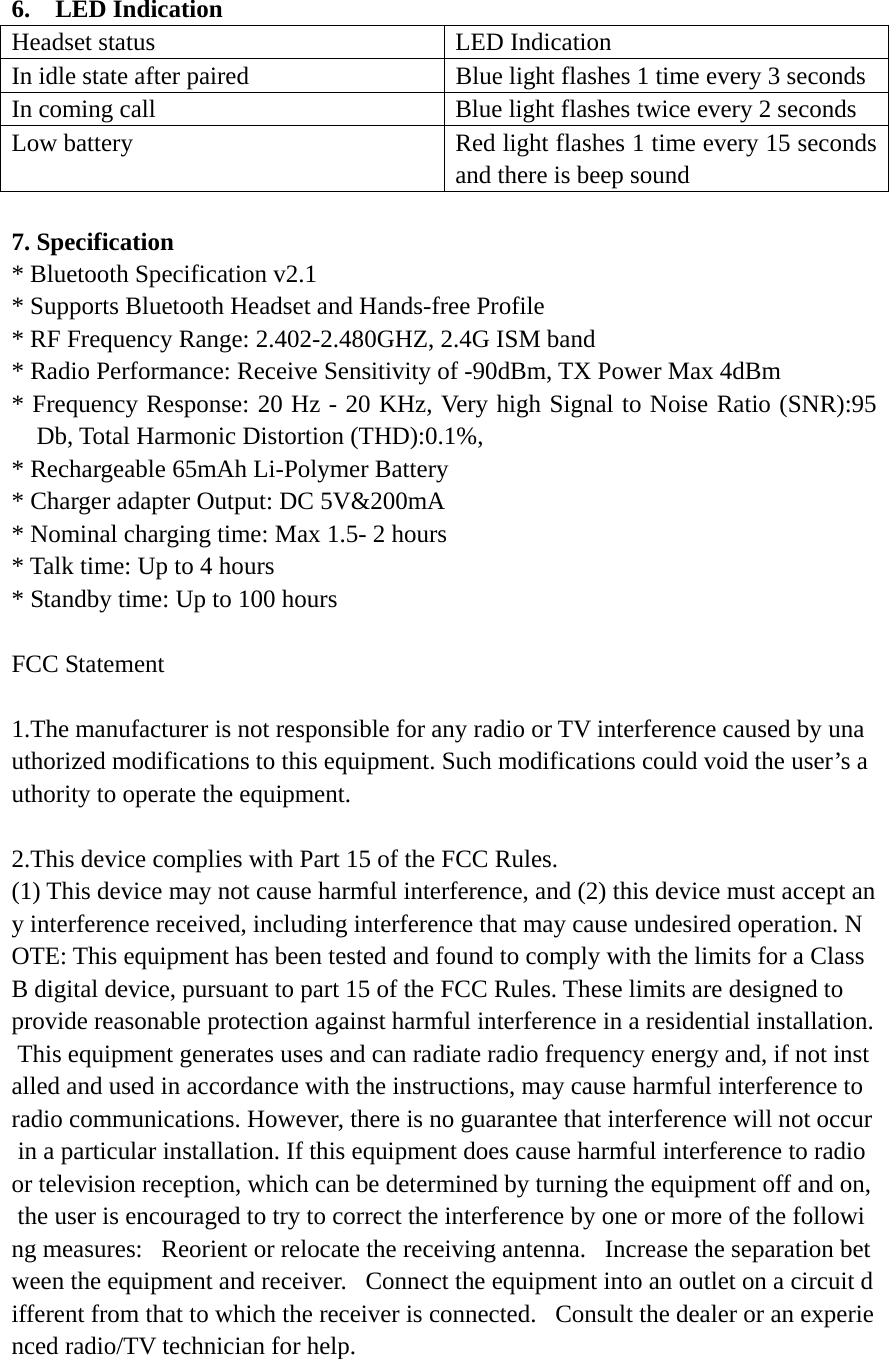

6. LED Indication Headset status LED Indication In idle state after paired Blue light flashes 1 time every 3 seconds In coming call Blue light flashes twice every 2 seconds Low battery Red light flashes 1 time every 15 seconds and there is beep sound 7. Specification * Bluetooth Specification v2.1 * Supports Bluetooth Headset and Hands-free Profile * RF Frequency Range: 2.402-2.480GHZ, 2.4G ISM band * Radio Performance: Receive Sensitivity of -90dBm, TX Power Max 4dBm * Frequency Response: 20 Hz - 20 KHz, Very high Signal to Noise Ratio (SNR):95 Db, Total Harmonic Distortion (THD):0.1%, * Rechargeable 65mAh Li-Polymer Battery * Charger adapter Output: DC 5V&200mA * Nominal charging time: Max 1.5- 2 hours * Talk time: Up to 4 hours * Standby time: Up to 100 hours FCC Statement 1.The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 2.This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
