LANYA ELECTRONIC BSK300C Bluetooth Speaker User Manual BSK25

LANYA ELECTRONIC CO., Ltd. Bluetooth Speaker BSK25

User Manual

BSK300C Bluetooth Speaker User Manual Manufacturer: LANYA ELECTRONIC Co., Ltd. Welcome to the wireless Bluetooth speakers The latest technology: This product supports the latest BLUETOOTH V4.0 version, Supports ( compatible with ) all Bluetooth-enabled cell phone , PDA, PC,etc. With LINE IN interface and has power bank function. Excellent Quality: Bluetooth version:V4.0(Backward compatible with V3.0),operating range:10m,operating band:2.4GHz. PRODUCT DESCRIPTION BSK300C Wireless Bluetooth speaker design combines fashion elements and new wireless technology, Its exquisite design fully meet the needs of lifestyle. Clear stereo sound Bluetooth speakers allows you to fully enjoy the happiness music bring you, with our own brand "Cyberblue". BSK300C this product with unique design, metal surface treatment technology , exquisite and high end. BSK300C has AUX-IN audio input,with 3.5MM audio input interface, can be an external audio input Accessory 1.line in cable 2.Charging cable 3.Line-in cable 4.Charger Button control VOL+ VOL- Multifunction key Audio input Micro-USB charging jack Power bank USB output jack Power bank on/off key

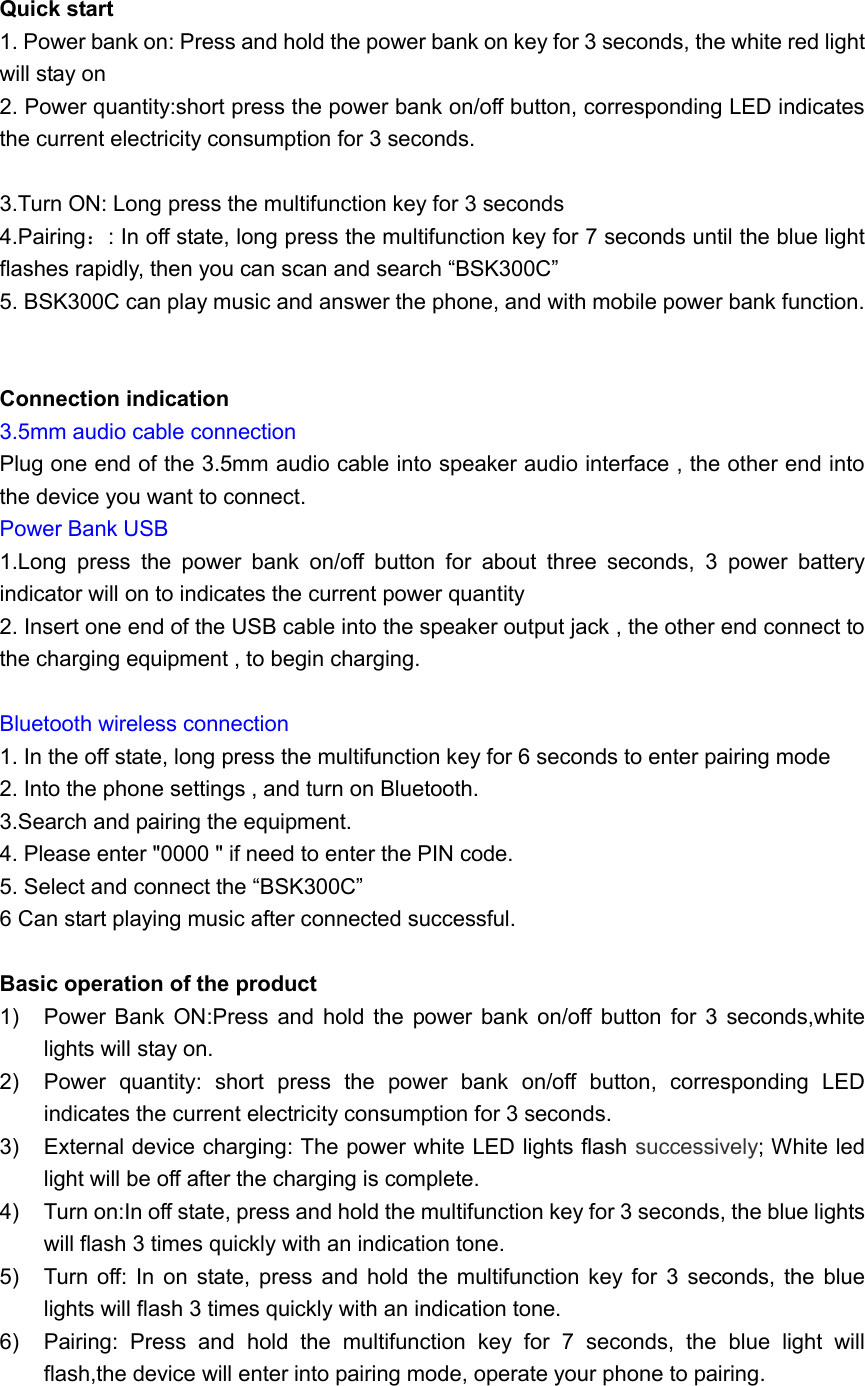

Quick start 1. Power bank on: Press and hold the power bank on key for 3 seconds, the white red light will stay on 2. Power quantity:short press the power bank on/off button, corresponding LED indicates the current electricity consumption for 3 seconds. 3.Turn ON: Long press the multifunction key for 3 seconds 4.Pairing：: In off state, long press the multifunction key for 7 seconds until the blue light flashes rapidly, then you can scan and search “BSK300C” 5. BSK300C can play music and answer the phone, and with mobile power bank function. Connection indication 3.5mm audio cable connection Plug one end of the 3.5mm audio cable into speaker audio interface , the other end into the device you want to connect. Power Bank USB 1.Long press the power bank on/off button for about three seconds, 3 power battery indicator will on to indicates the current power quantity 2. Insert one end of the USB cable into the speaker output jack , the other end connect to the charging equipment , to begin charging. Bluetooth wireless connection 1. In the off state, long press the multifunction key for 6 seconds to enter pairing mode 2. Into the phone settings , and turn on Bluetooth. 3.Search and pairing the equipment. 4. Please enter "0000 " if need to enter the PIN code. 5. Select and connect the “BSK300C” 6 Can start playing music after connected successful. Basic operation of the product 1) Power Bank ON:Press and hold the power bank on/off button for 3 seconds,white lights will stay on. 2) Power quantity: short press the power bank on/off button, corresponding LED indicates the current electricity consumption for 3 seconds. 3) External device charging: The power white LED lights flash successively; White led light will be off after the charging is complete. 4) Turn on:In off state, press and hold the multifunction key for 3 seconds, the blue lights will flash 3 times quickly with an indication tone. 5) Turn off: In on state, press and hold the multifunction key for 3 seconds, the blue lights will flash 3 times quickly with an indication tone. 6) Pairing: Press and hold the multifunction key for 7 seconds, the blue light will flash,the device will enter into pairing mode, operate your phone to pairing.

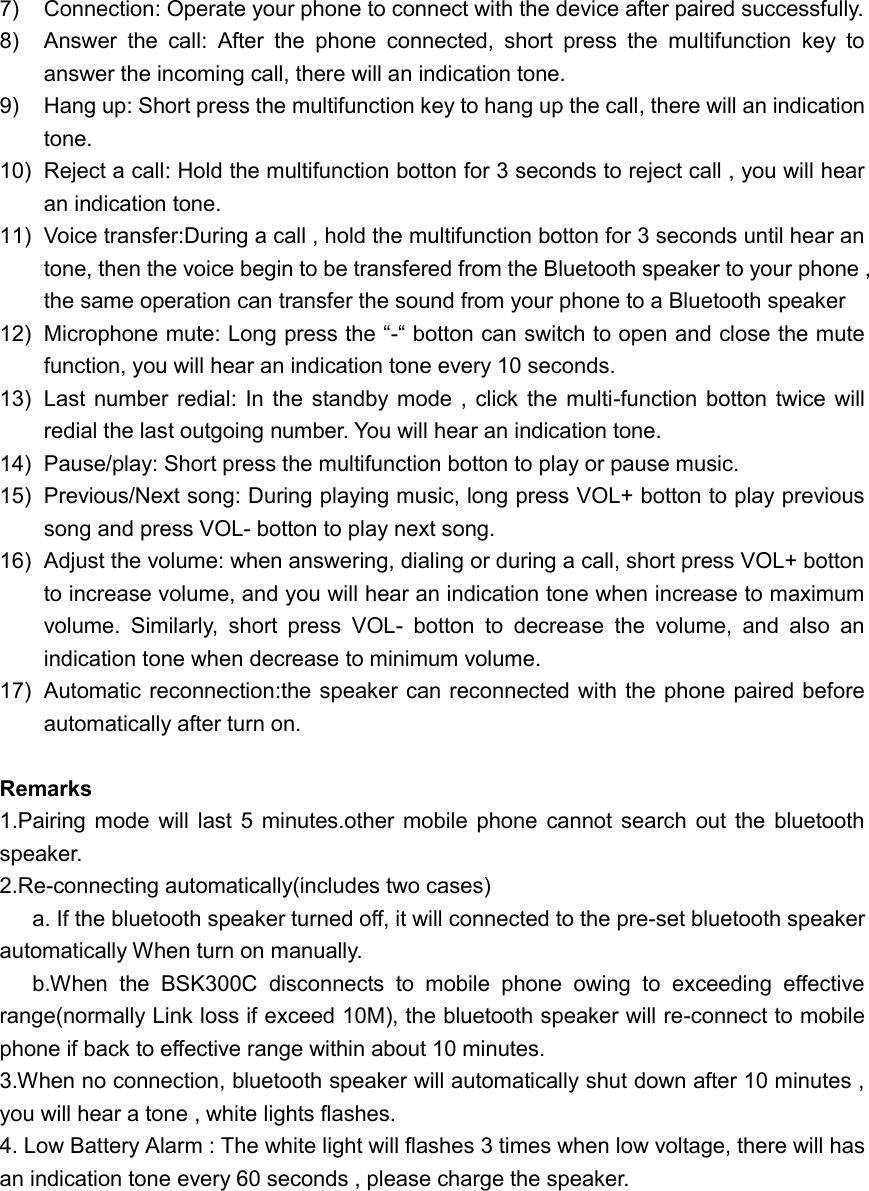

7) Connection: Operate your phone to connect with the device after paired successfully. 8) Answer the call: After the phone connected, short press the multifunction key to answer the incoming call, there will an indication tone. 9) Hang up: Short press the multifunction key to hang up the call, there will an indication tone. 10) Reject a call: Hold the multifunction botton for 3 seconds to reject call , you will hear an indication tone. 11) Voice transfer:During a call , hold the multifunction botton for 3 seconds until hear an tone, then the voice begin to be transfered from the Bluetooth speaker to your phone , the same operation can transfer the sound from your phone to a Bluetooth speaker 12) Microphone mute: Long press the “-“ botton can switch to open and close the mute function, you will hear an indication tone every 10 seconds. 13) Last number redial: In the standby mode , click the multi-function botton twice will redial the last outgoing number. You will hear an indication tone. 14) Pause/play: Short press the multifunction botton to play or pause music. 15) Previous/Next song: During playing music, long press VOL+ botton to play previous song and press VOL- botton to play next song. 16) Adjust the volume: when answering, dialing or during a call, short press VOL+ botton to increase volume, and you will hear an indication tone when increase to maximum volume. Similarly, short press VOL- botton to decrease the volume, and also an indication tone when decrease to minimum volume. 17) Automatic reconnection:the speaker can reconnected with the phone paired before automatically after turn on. Remarks 1.Pairing mode will last 5 minutes.other mobile phone cannot search out the bluetooth speaker. 2.Re-connecting automatically(includes two cases) a. If the bluetooth speaker turned off, it will connected to the pre-set bluetooth speaker automatically When turn on manually. b.When the BSK300C disconnects to mobile phone owing to exceeding effective range(normally Link loss if exceed 10M), the bluetooth speaker will re-connect to mobile phone if back to effective range within about 10 minutes. 3.When no connection, bluetooth speaker will automatically shut down after 10 minutes , you will hear a tone , white lights flashes. 4. Low Battery Alarm : The white light will flashes 3 times when low voltage, there will has an indication tone every 60 seconds , please charge the speaker.

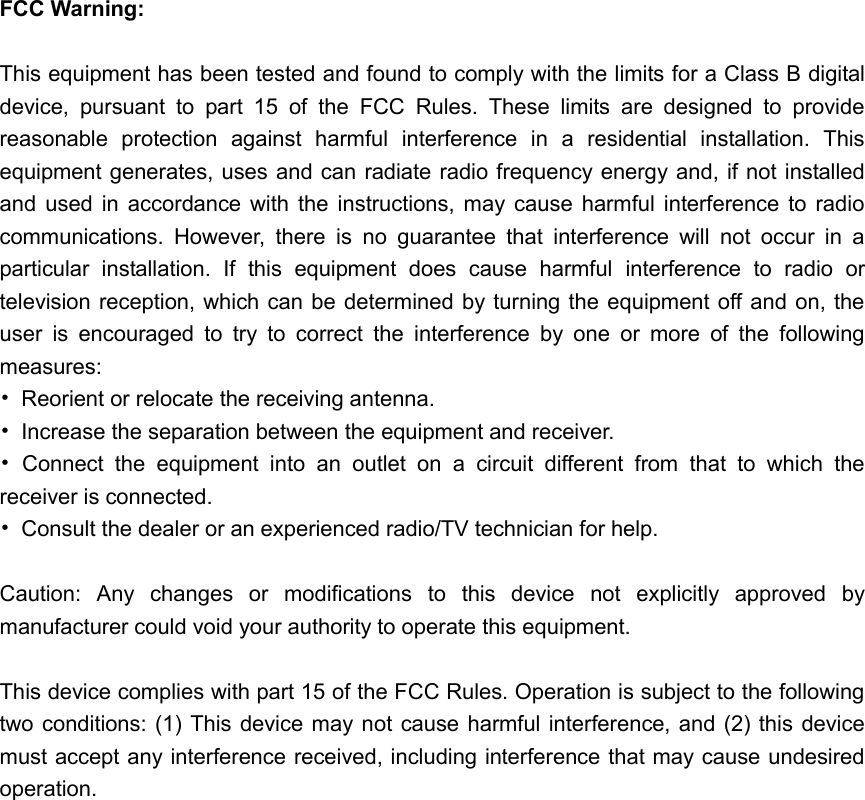

FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
