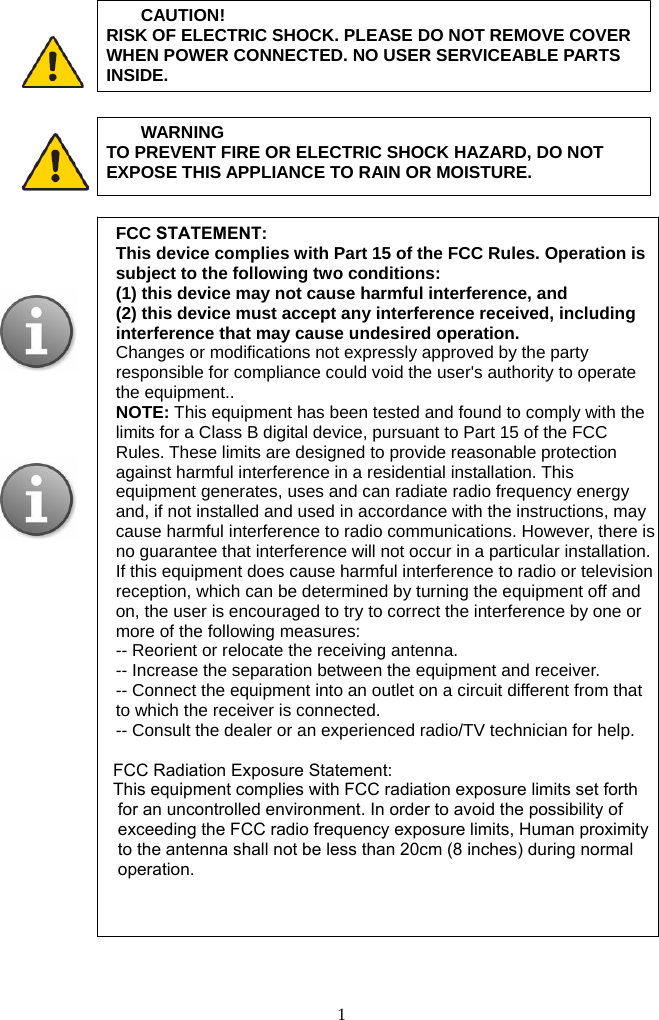

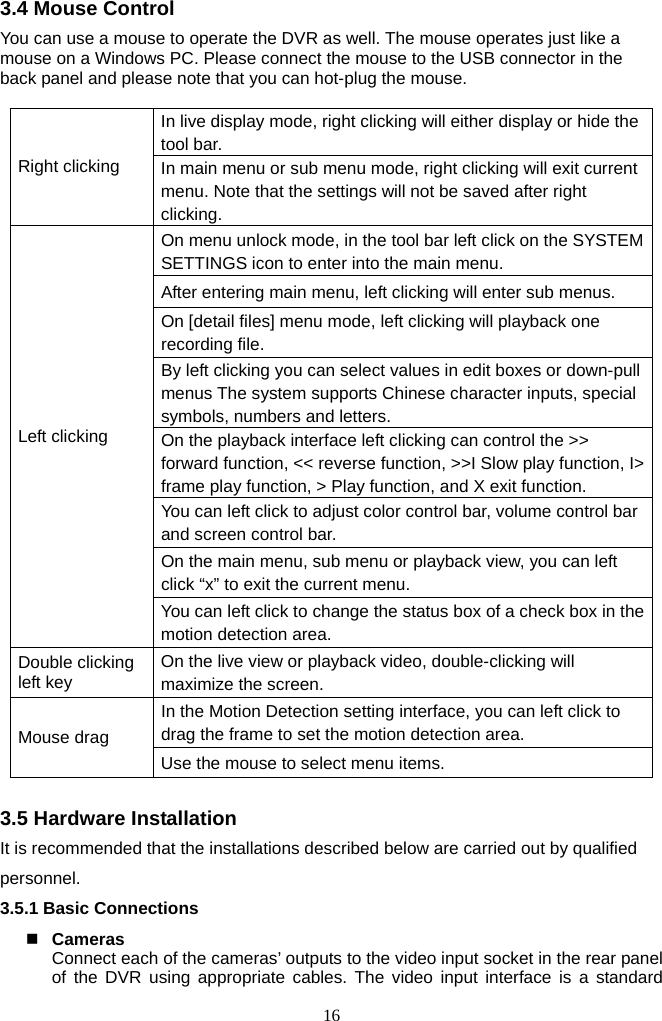

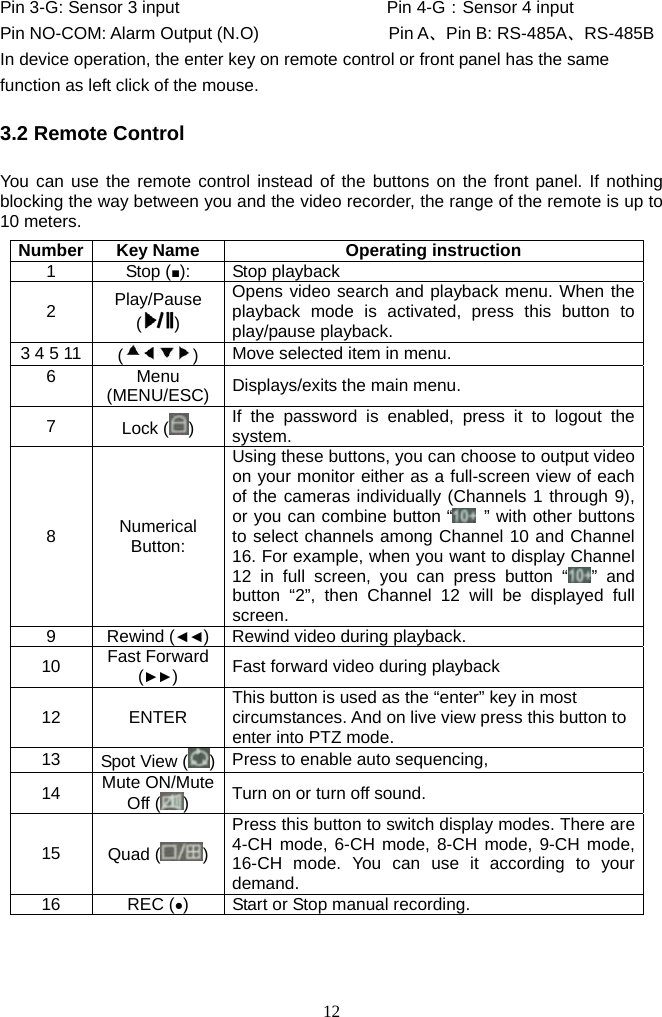

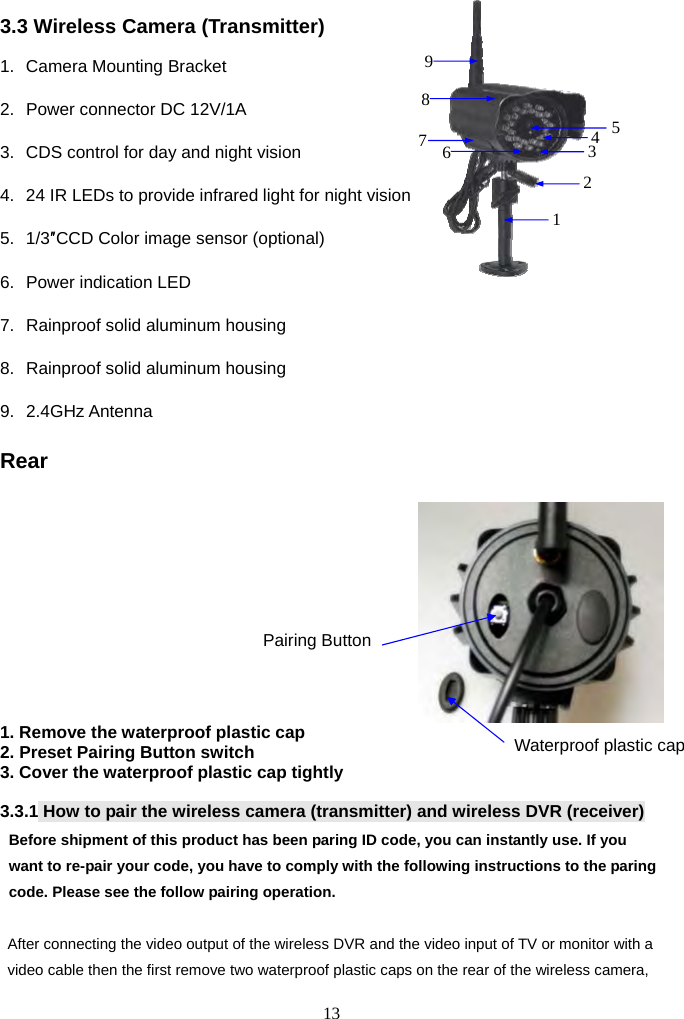

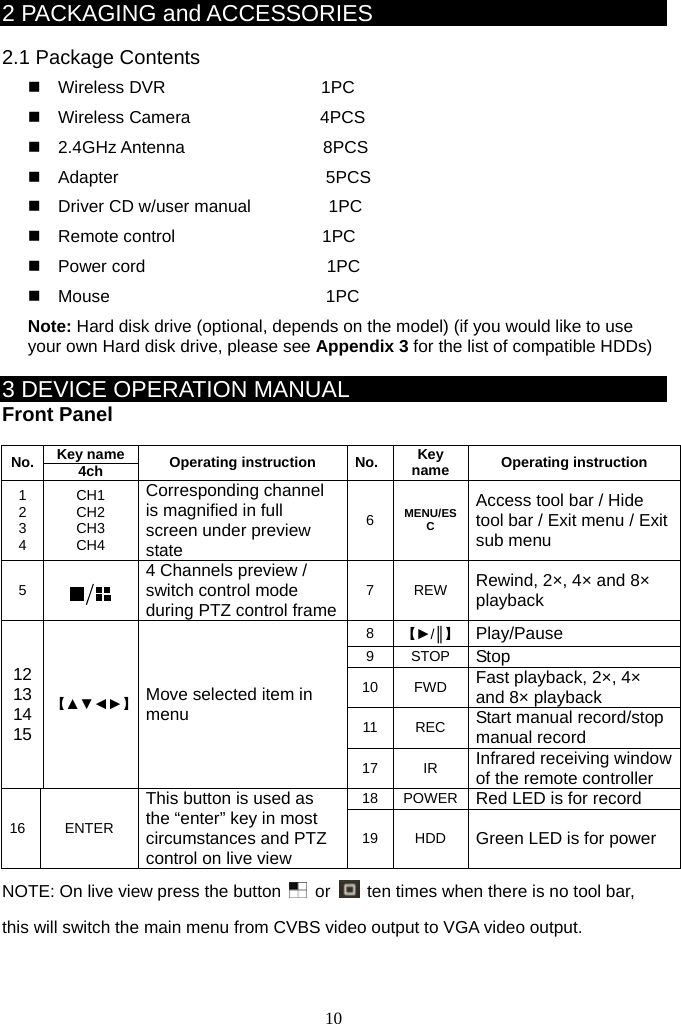

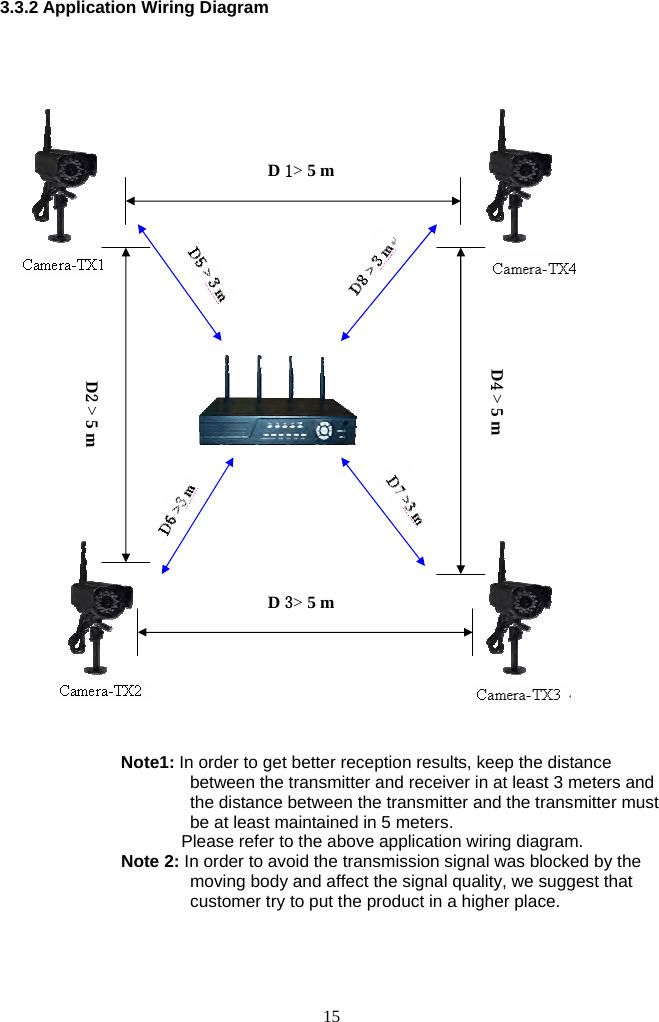

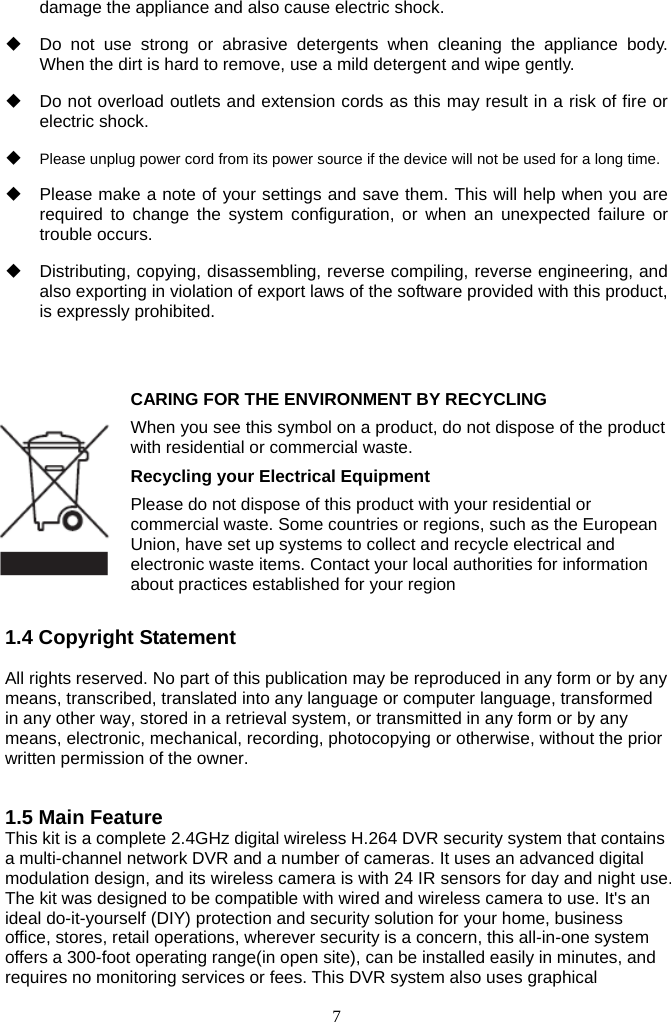

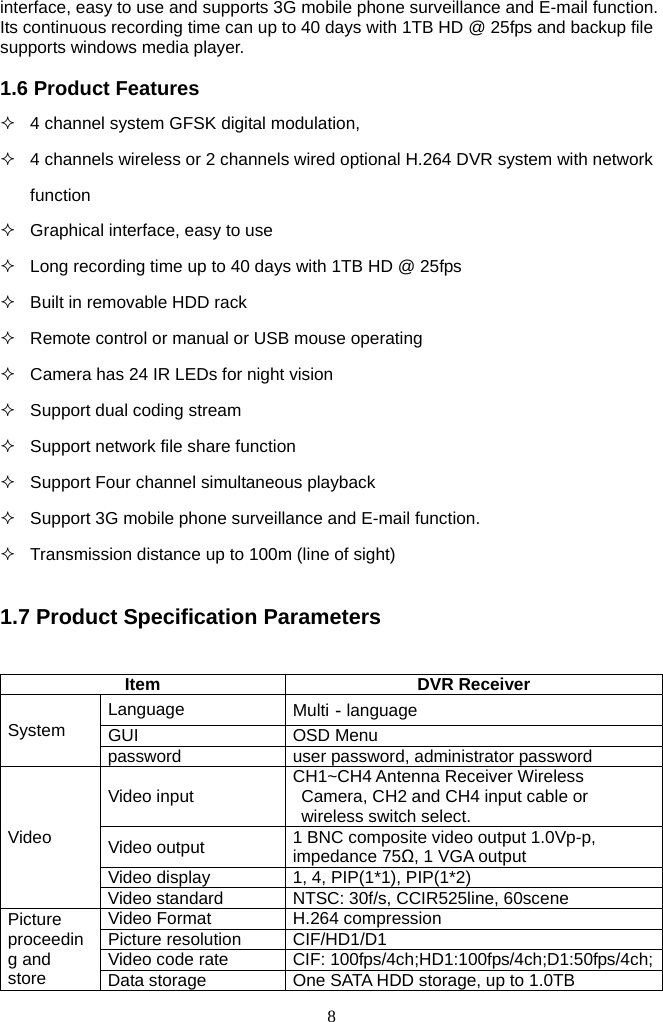

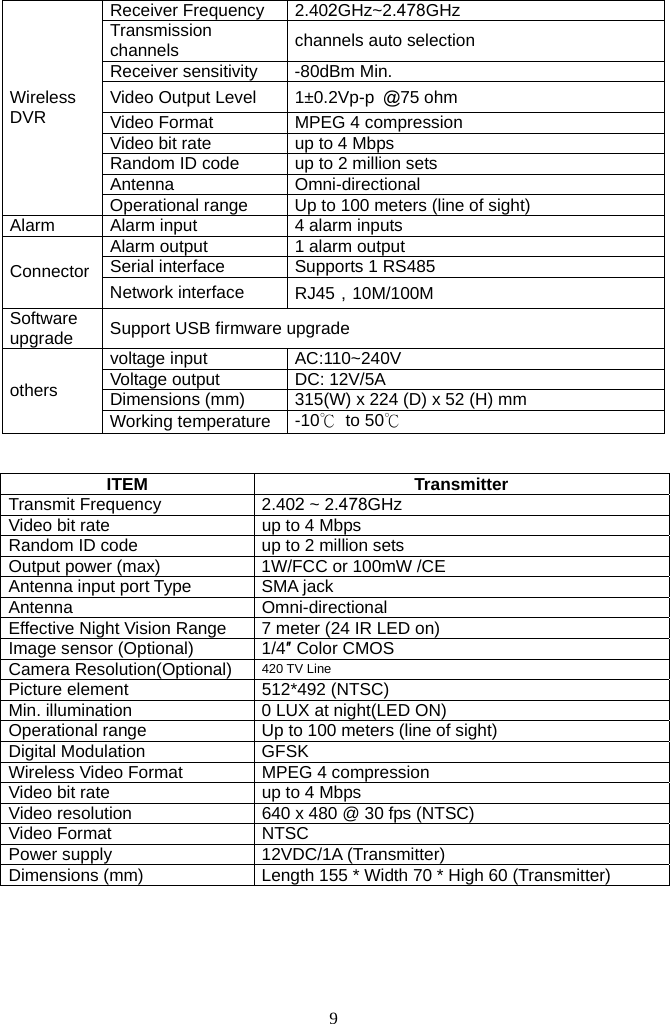

![16 3.4 Mouse Control You can use a mouse to operate the DVR as well. The mouse operates just like a mouse on a Windows PC. Please connect the mouse to the USB connector in the back panel and please note that you can hot-plug the mouse. In live display mode, right clicking will either display or hide the tool bar. Right clicking In main menu or sub menu mode, right clicking will exit current menu. Note that the settings will not be saved after right clicking. On menu unlock mode, in the tool bar left click on the SYSTEM SETTINGS icon to enter into the main menu. After entering main menu, left clicking will enter sub menus. On [detail files] menu mode, left clicking will playback one recording file. By left clicking you can select values in edit boxes or down-pull menus The system supports Chinese character inputs, special symbols, numbers and letters. On the playback interface left clicking can control the >> forward function, << reverse function, >>I Slow play function, I> frame play function, > Play function, and X exit function. You can left click to adjust color control bar, volume control bar and screen control bar. On the main menu, sub menu or playback view, you can left click “x” to exit the current menu. Left clicking You can left click to change the status box of a check box in the motion detection area. Double clicking left key On the live view or playback video, double-clicking will maximize the screen. In the Motion Detection setting interface, you can left click to drag the frame to set the motion detection area. Mouse drag Use the mouse to select menu items. 3.5 Hardware Installation It is recommended that the installations described below are carried out by qualified personnel. 3.5.1 Basic Connections Cameras Connect each of the cameras’ outputs to the video input socket in the rear panel of the DVR using appropriate cables. The video input interface is a standard](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-18.png)

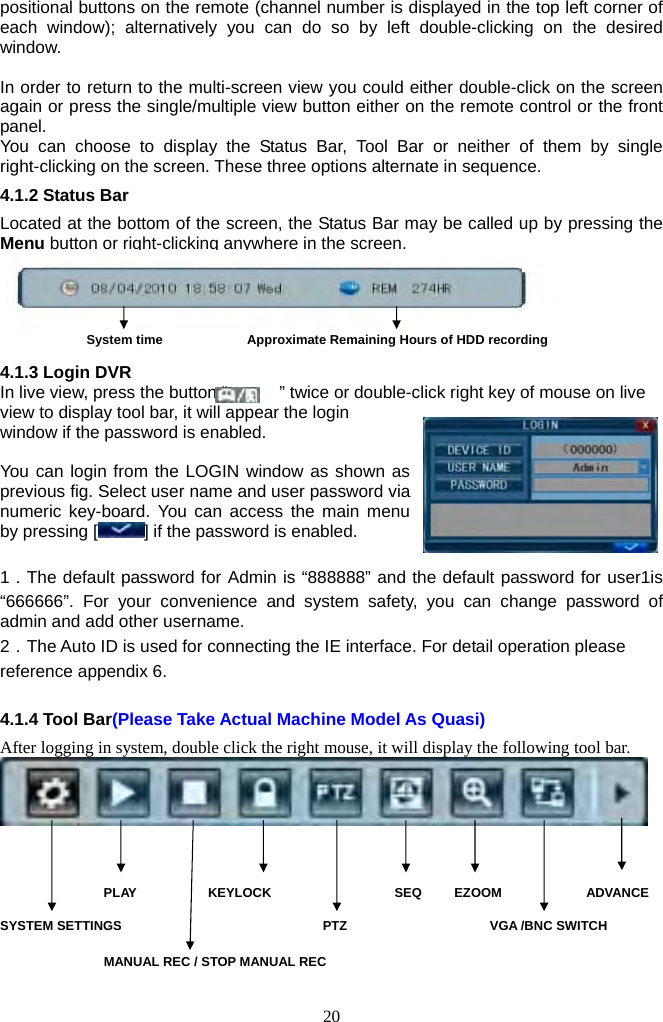

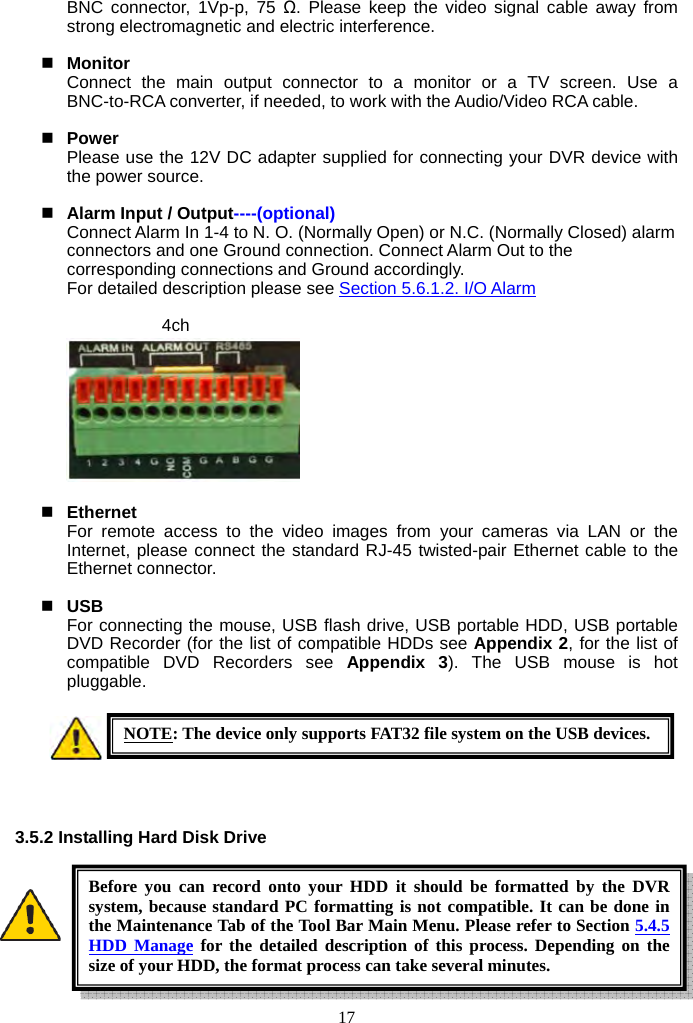

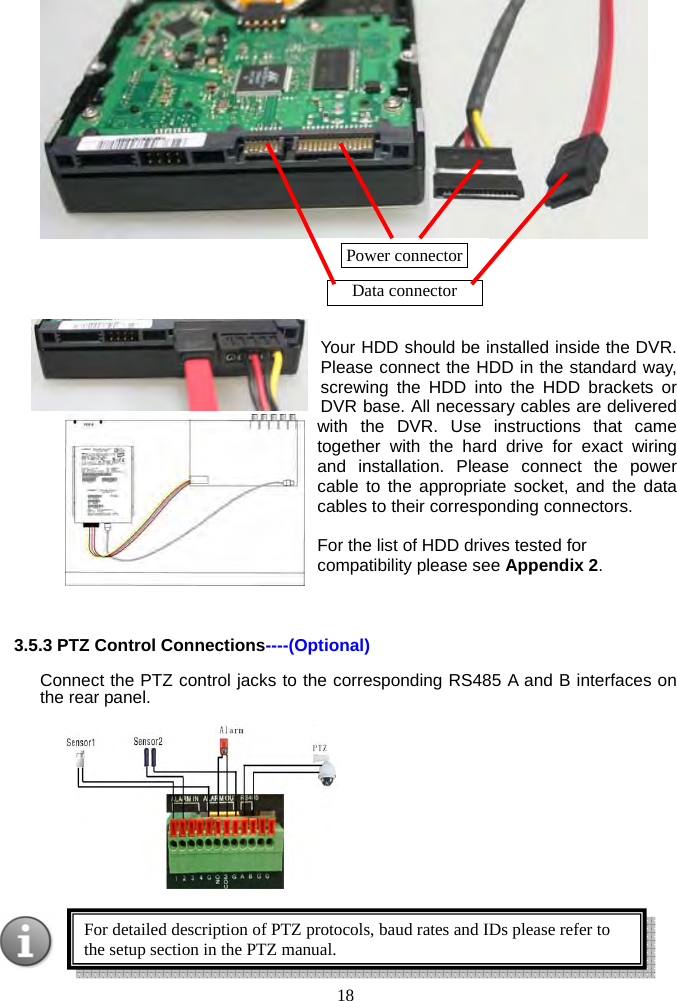

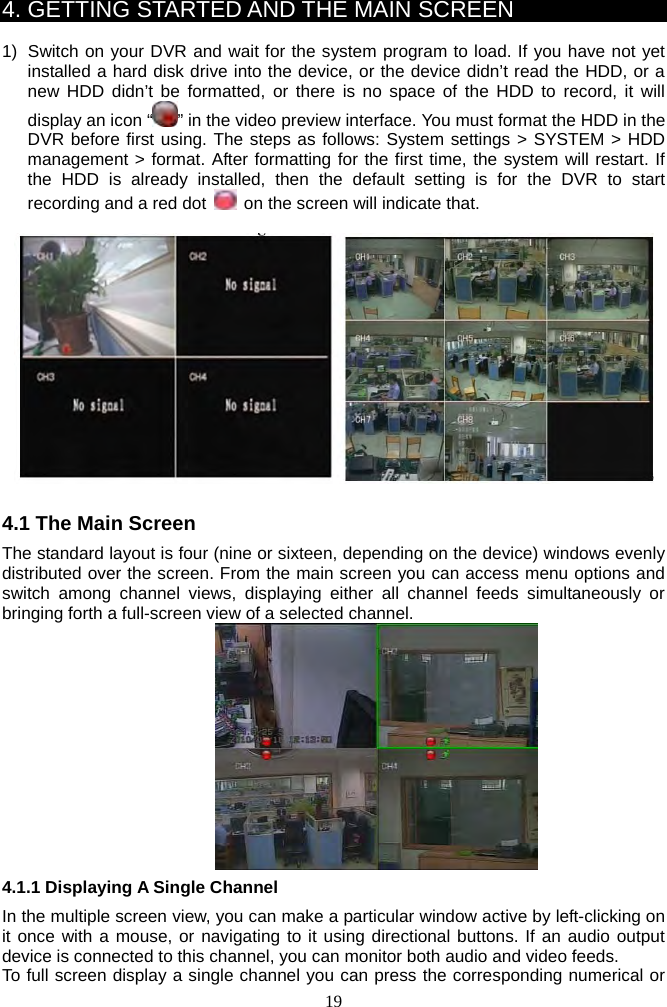

![20 positional buttons on the remote (channel number is displayed in the top left corner of each window); alternatively you can do so by left double-clicking on the desired window. In order to return to the multi-screen view you could either double-click on the screen again or press the single/multiple view button either on the remote control or the front panel. You can choose to display the Status Bar, Tool Bar or neither of them by single right-clicking on the screen. These three options alternate in sequence. 4.1.2 Status Bar Located at the bottom of the screen, the Status Bar may be called up by pressing the Menu button or right-clicking anywhere in the screen. System time Approximate Remaining Hours of HDD recording 4.1.3 Login DVR In live view, press the button “ ” twice or double-click right key of mouse on live view to display tool bar, it will appear the login window if the password is enabled. You can login from the LOGIN window as shown as previous fig. Select user name and user password via numeric key-board. You can access the main menu by pressing [ ] if the password is enabled. 1．The default password for Admin is “888888” and the default password for user1is “666666”. For your convenience and system safety, you can change password of admin and add other username. 2．The Auto ID is used for connecting the IE interface. For detail operation please reference appendix 6. 4.1.4 Tool Bar(Please Take Actual Machine Model As Quasi) After logging in system, double click the right mouse, it will display the following tool bar. PLAY KEYLOCK SEQ EZOOM ADVANCE SYSTEM SETTINGS PTZ VGA /BNC SWITCH MANUAL REC / STOP MANUAL REC](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-22.png)

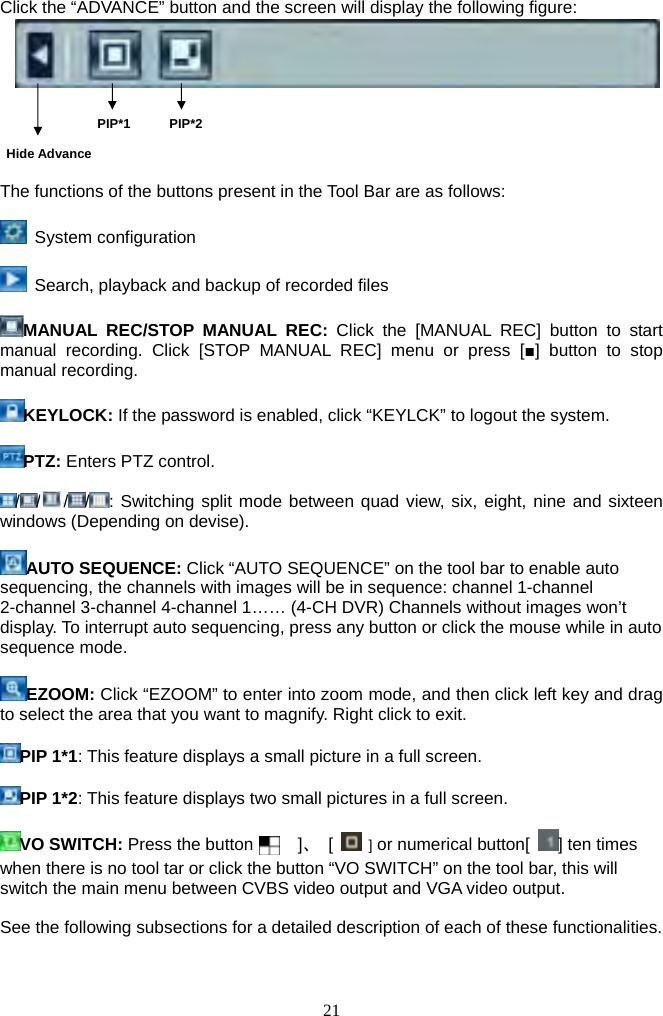

![21 Click the “ADVANCE” button and the screen will display the following figure: PIP*1 PIP*2 Hide Advance The functions of the buttons present in the Tool Bar are as follows: System configuration Search, playback and backup of recorded files MANUAL REC/STOP MANUAL REC: Click the [MANUAL REC] button to start manual recording. Click [STOP MANUAL REC] menu or press [■] button to stop manual recording. KEYLOCK: If the password is enabled, click “KEYLCK” to logout the system. PTZ: Enters PTZ control. / / / / : Switching split mode between quad view, six, eight, nine and sixteen windows (Depending on devise). AUTO SEQUENCE: Click “AUTO SEQUENCE” on the tool bar to enable auto sequencing, the channels with images will be in sequence: channel 1-channel 2-channel 3-channel 4-channel 1…… (4-CH DVR) Channels without images won’t display. To interrupt auto sequencing, press any button or click the mouse while in auto sequence mode. EZOOM: Click “EZOOM” to enter into zoom mode, and then click left key and drag to select the area that you want to magnify. Right click to exit. PIP 1*1: This feature displays a small picture in a full screen. PIP 1*2: This feature displays two small pictures in a full screen. VO SWITCH: Press the button [ ]、 [ ] or numerical button[ ] ten times when there is no tool tar or click the button “VO SWITCH” on the tool bar, this will switch the main menu between CVBS video output and VGA video output. See the following subsections for a detailed description of each of these functionalities.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-23.png)

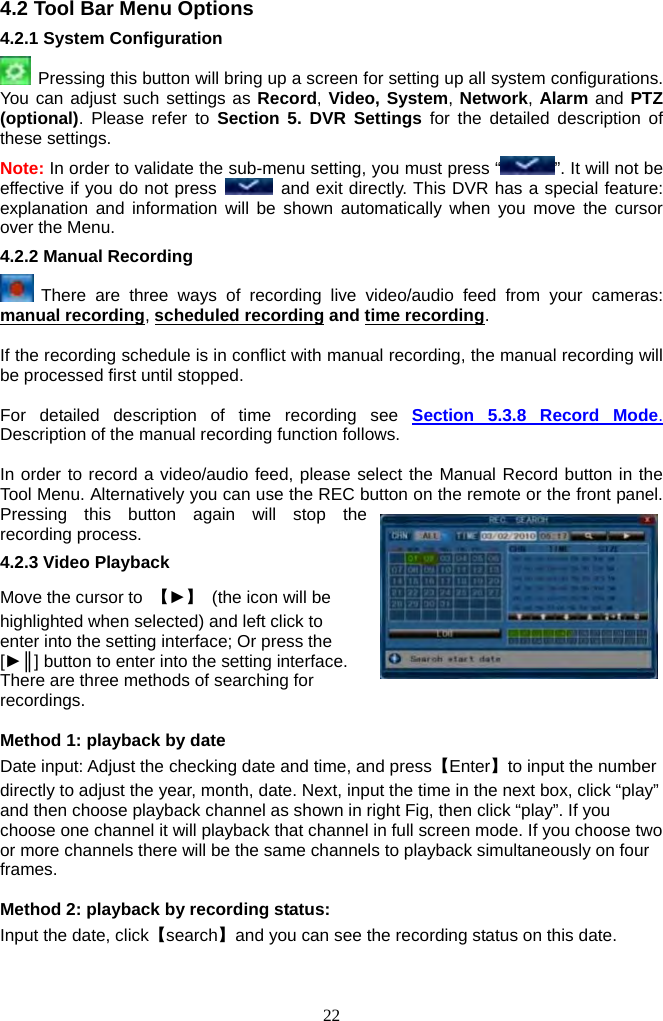

![22 4.2 Tool Bar Menu Options 4.2.1 System Configuration Pressing this button will bring up a screen for setting up all system configurations. You can adjust such settings as Record, Video, System, Network, Alarm and PTZ (optional). Please refer to Section 5. DVR Settings for the detailed description of these settings. Note: In order to validate the sub-menu setting, you must press “ ”. It will not be effective if you do not press and exit directly. This DVR has a special feature: explanation and information will be shown automatically when you move the cursor over the Menu. 4.2.2 Manual Recording There are three ways of recording live video/audio feed from your cameras: manual recording, scheduled recording and time recording. If the recording schedule is in conflict with manual recording, the manual recording will be processed first until stopped. For detailed description of time recording see Section 5.3.8 Record Mode. Description of the manual recording function follows. In order to record a video/audio feed, please select the Manual Record button in the Tool Menu. Alternatively you can use the REC button on the remote or the front panel. Pressing this button again will stop the recording process. 4.2.3 Video Playback Move the cursor to 【►】 (the icon will be highlighted when selected) and left click to enter into the setting interface; Or press the [►║] button to enter into the setting interface. There are three methods of searching for recordings. Method 1: playback by date Date input: Adjust the checking date and time, and press【Enter】to input the number directly to adjust the year, month, date. Next, input the time in the next box, click “play” and then choose playback channel as shown in right Fig, then click “play”. If you choose one channel it will playback that channel in full screen mode. If you choose two or more channels there will be the same channels to playback simultaneously on four frames. Method 2: playback by recording status: Input the date, click【search】and you can see the recording status on this date.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-24.png)

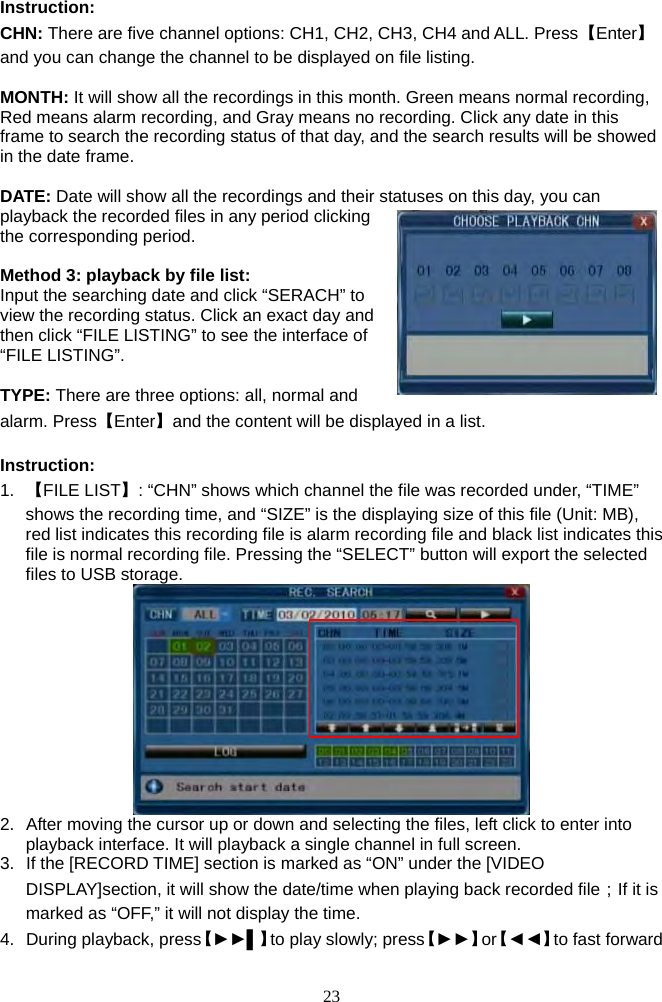

![23 Instruction: CHN: There are five channel options: CH1, CH2, CH3, CH4 and ALL. Press【Enter】and you can change the channel to be displayed on file listing. MONTH: It will show all the recordings in this month. Green means normal recording, Red means alarm recording, and Gray means no recording. Click any date in this frame to search the recording status of that day, and the search results will be showed in the date frame. DATE: Date will show all the recordings and their statuses on this day, you can playback the recorded files in any period clicking the corresponding period. Method 3: playback by file list: Input the searching date and click “SERACH” to view the recording status. Click an exact day and then click “FILE LISTING” to see the interface of “FILE LISTING”. TYPE: There are three options: all, normal and alarm. Press【Enter】and the content will be displayed in a list. Instruction: 1. 【FILE LIST】: “CHN” shows which channel the file was recorded under, “TIME” shows the recording time, and “SIZE” is the displaying size of this file (Unit: MB), red list indicates this recording file is alarm recording file and black list indicates this file is normal recording file. Pressing the “SELECT” button will export the selected files to USB storage. 2. After moving the cursor up or down and selecting the files, left click to enter into playback interface. It will playback a single channel in full screen. 3. If the [RECORD TIME] section is marked as “ON” under the [VIDEO DISPLAY]section, it will show the date/time when playing back recorded file；If it is marked as “OFF,” it will not display the time. 4. During playback, press【►►▌】to play slowly; press【►►】or【◄◄】to fast forward](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-25.png)

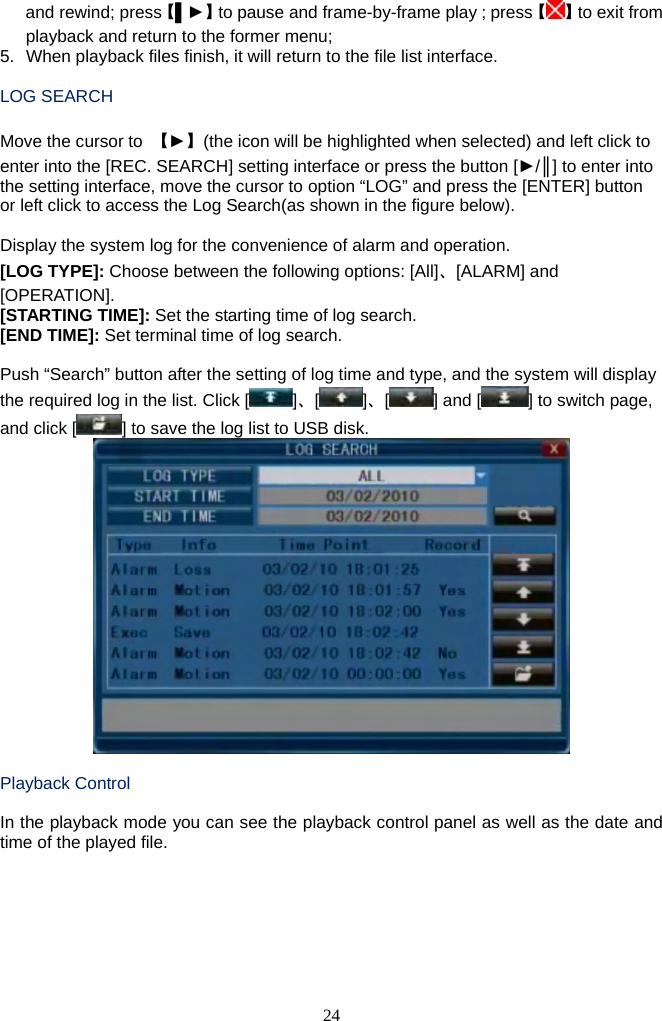

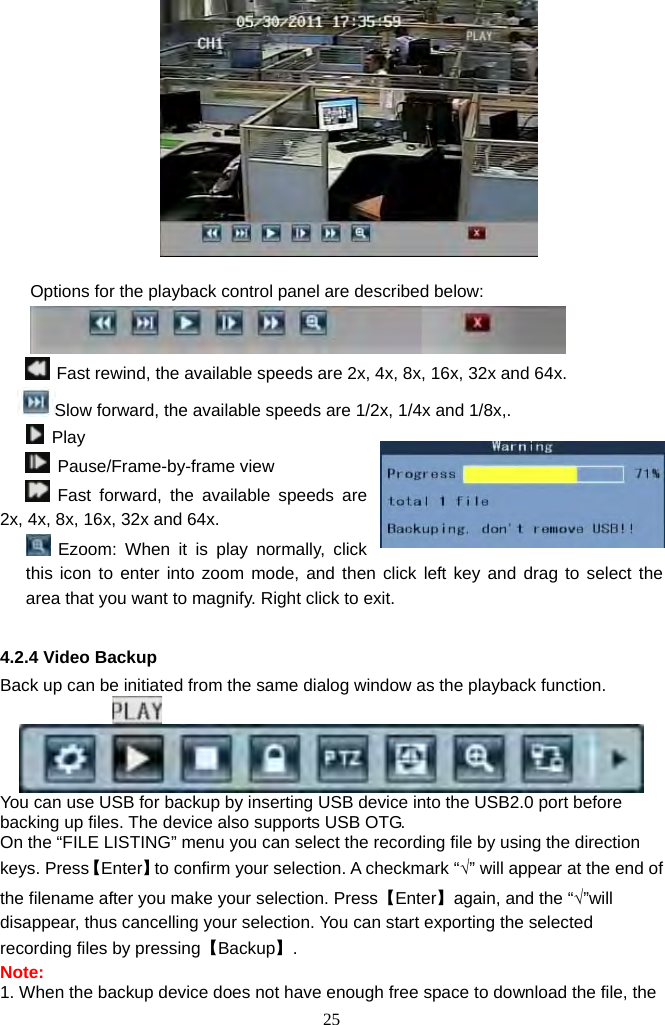

![24 and rewind; press【▌►】to pause and frame-by-frame play；press【】to exit from playback and return to the former menu; 5. When playback files finish, it will return to the file list interface. LOG SEARCH Move the cursor to 【►】(the icon will be highlighted when selected) and left click to enter into the [REC. SEARCH] setting interface or press the button [►/║] to enter into the setting interface, move the cursor to option “LOG” and press the [ENTER] button or left click to access the Log Search(as shown in the figure below). Display the system log for the convenience of alarm and operation. [LOG TYPE]: Choose between the following options: [All]、[ALARM] and [OPERATION]. [STARTING TIME]: Set the starting time of log search. [END TIME]: Set terminal time of log search. Push “Search” button after the setting of log time and type, and the system will display the required log in the list. Click [ ]、[ ]、[] and [ ] to switch page, and click [ ] to save the log list to USB disk. Playback Control In the playback mode you can see the playback control panel as well as the date and time of the played file.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-26.png)

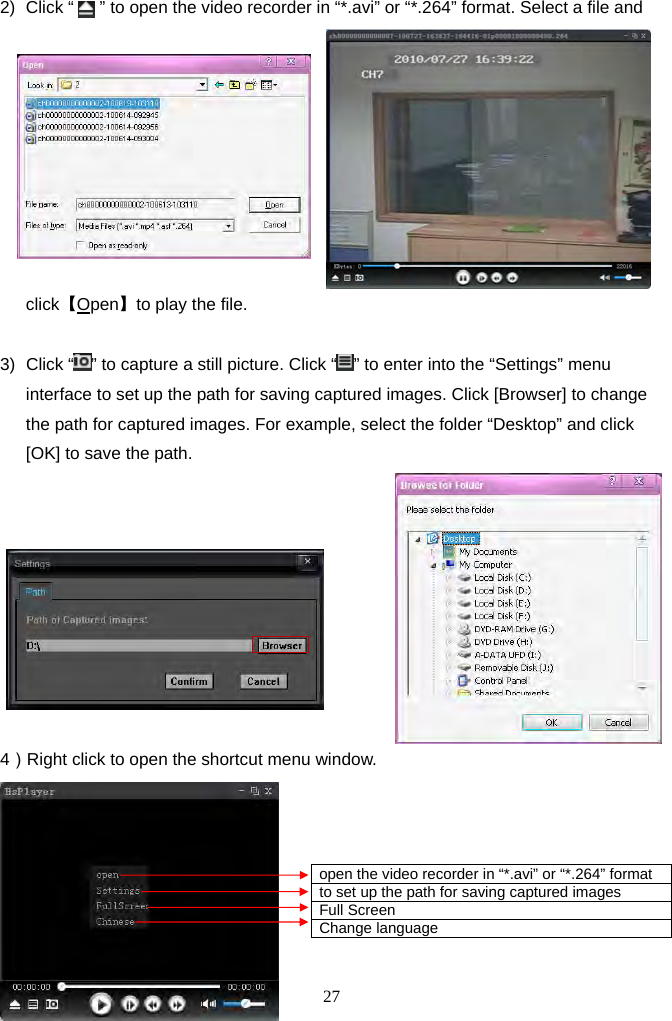

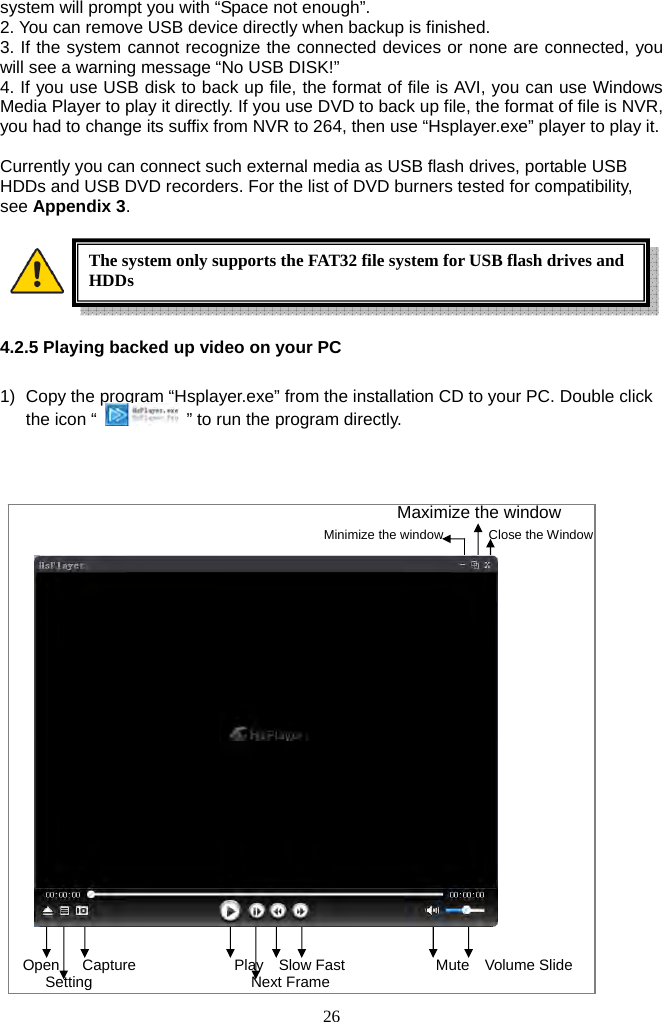

![27 2) Click “ ” to open the video recorder in “*.avi” or “*.264” format. Select a file and click【Open】to play the file. 3) Click “ ” to capture a still picture. Click “ ” to enter into the “Settings” menu interface to set up the path for saving captured images. Click [Browser] to change the path for captured images. For example, select the folder “Desktop” and click [OK] to save the path. 4）Right click to open the shortcut menu window. open the video recorder in “*.avi” or “*.264” format to set up the path for saving captured images Full Screen Change language](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-29.png)

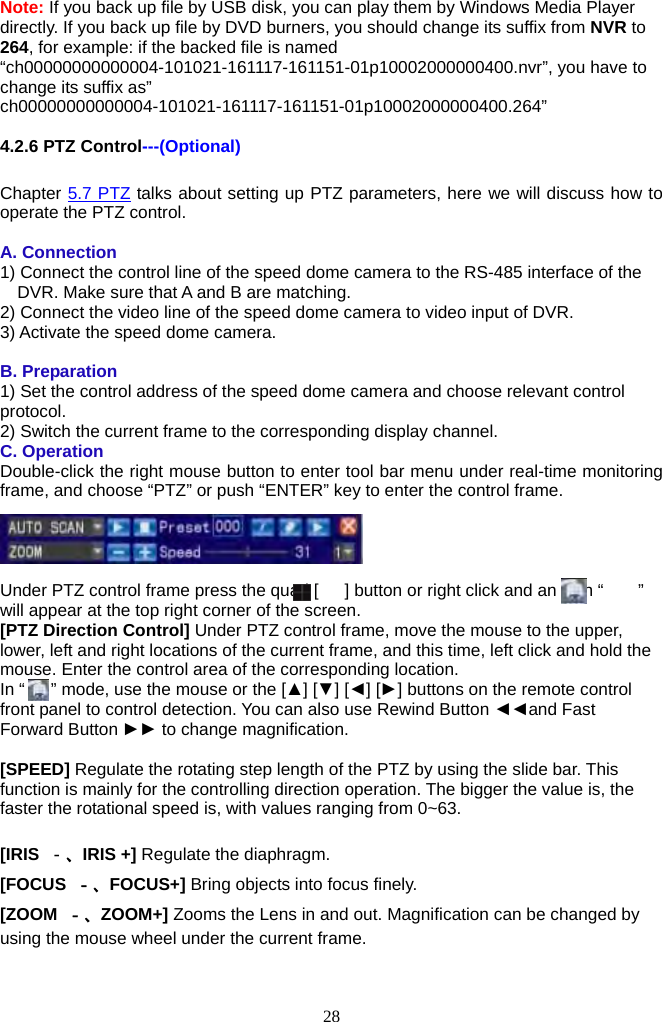

![28 Note: If you back up file by USB disk, you can play them by Windows Media Player directly. If you back up file by DVD burners, you should change its suffix from NVR to 264, for example: if the backed file is named “ch00000000000004-101021-161117-161151-01p10002000000400.nvr”, you have to change its suffix as” ch00000000000004-101021-161117-161151-01p10002000000400.264” 4.2.6 PTZ Control---(Optional) Chapter 5.7 PTZ talks about setting up PTZ parameters, here we will discuss how to operate the PTZ control. A. Connection 1) Connect the control line of the speed dome camera to the RS-485 interface of the DVR. Make sure that A and B are matching. 2) Connect the video line of the speed dome camera to video input of DVR. 3) Activate the speed dome camera. B. Preparation 1) Set the control address of the speed dome camera and choose relevant control protocol. 2) Switch the current frame to the corresponding display channel. C. Operation Double-click the right mouse button to enter tool bar menu under real-time monitoring frame, and choose “PTZ” or push “ENTER” key to enter the control frame. Under PTZ control frame press the quad [ ] button or right click and an icon “ ” will appear at the top right corner of the screen. [PTZ Direction Control] Under PTZ control frame, move the mouse to the upper, lower, left and right locations of the current frame, and this time, left click and hold the mouse. Enter the control area of the corresponding location. In “ ” mode, use the mouse or the [▲] [▼] [◄] [►] buttons on the remote control front panel to control detection. You can also use Rewind Button ◄◄and Fast Forward Button ►► to change magnification. [SPEED] Regulate the rotating step length of the PTZ by using the slide bar. This function is mainly for the controlling direction operation. The bigger the value is, the faster the rotational speed is, with values ranging from 0~63. [IRIS －、IRIS +] Regulate the diaphragm. [FOCUS －、FOCUS+] Bring objects into focus finely. [ZOOM －、ZOOM+] Zooms the Lens in and out. Magnification can be changed by using the mouse wheel under the current frame.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-30.png)

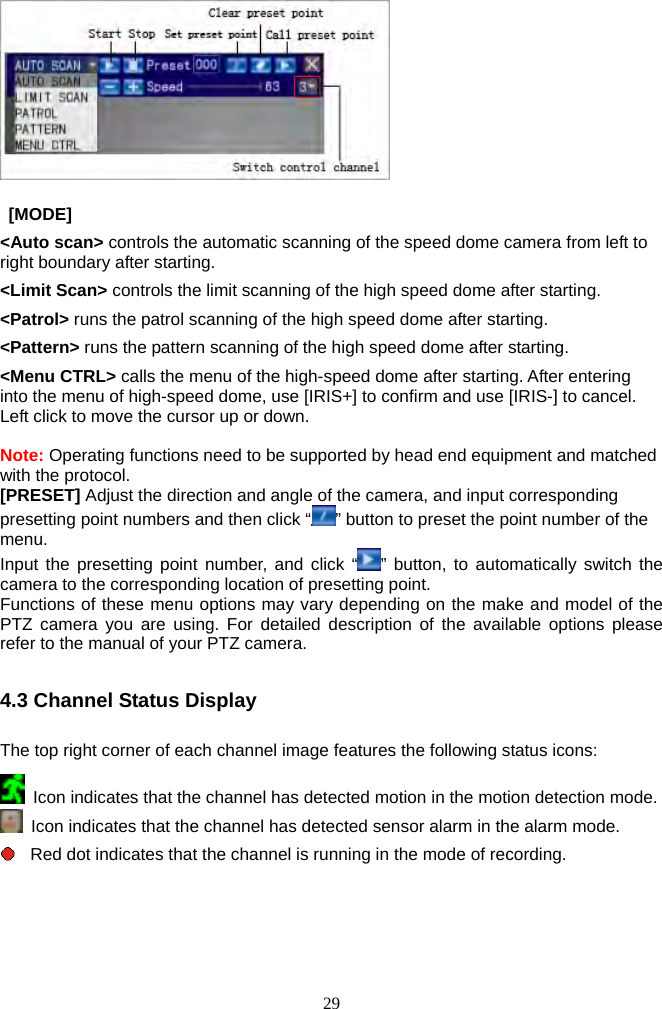

![29 [MODE] <Auto scan> controls the automatic scanning of the speed dome camera from left to right boundary after starting. <Limit Scan> controls the limit scanning of the high speed dome after starting. <Patrol> runs the patrol scanning of the high speed dome after starting. <Pattern> runs the pattern scanning of the high speed dome after starting. <Menu CTRL> calls the menu of the high-speed dome after starting. After entering into the menu of high-speed dome, use [IRIS+] to confirm and use [IRIS-] to cancel. Left click to move the cursor up or down. Note: Operating functions need to be supported by head end equipment and matched with the protocol. [PRESET] Adjust the direction and angle of the camera, and input corresponding presetting point numbers and then click “ ” button to preset the point number of the menu. Input the presetting point number, and click “ ” button, to automatically switch the camera to the corresponding location of presetting point. Functions of these menu options may vary depending on the make and model of the PTZ camera you are using. For detailed description of the available options please refer to the manual of your PTZ camera. 4.3 Channel Status Display The top right corner of each channel image features the following status icons: Icon indicates that the channel has detected motion in the motion detection mode. Icon indicates that the channel has detected sensor alarm in the alarm mode. Red dot indicates that the channel is running in the mode of recording.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-31.png)

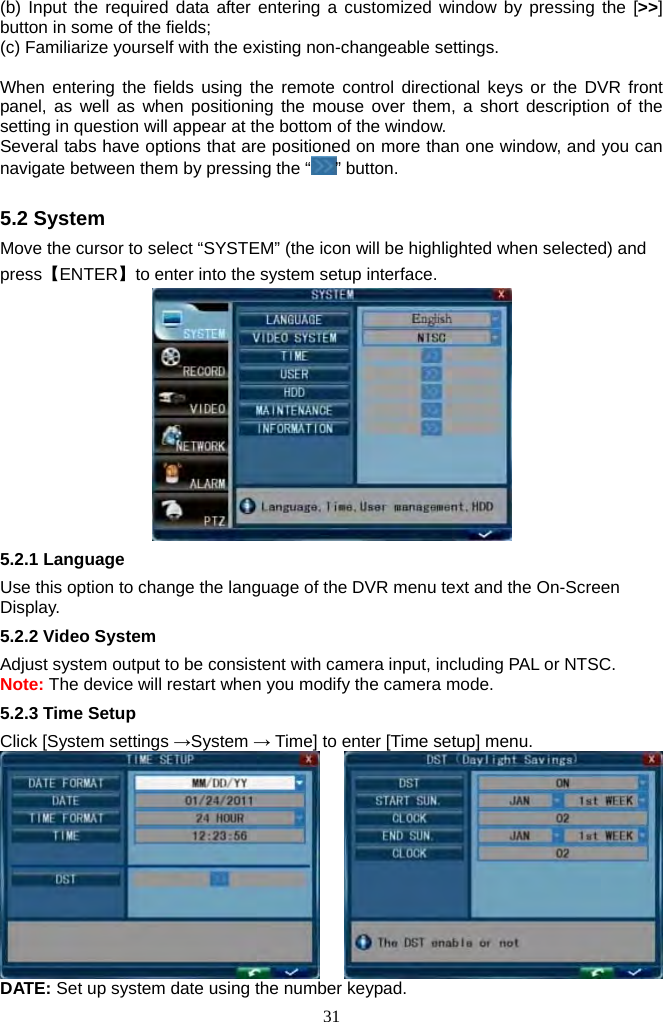

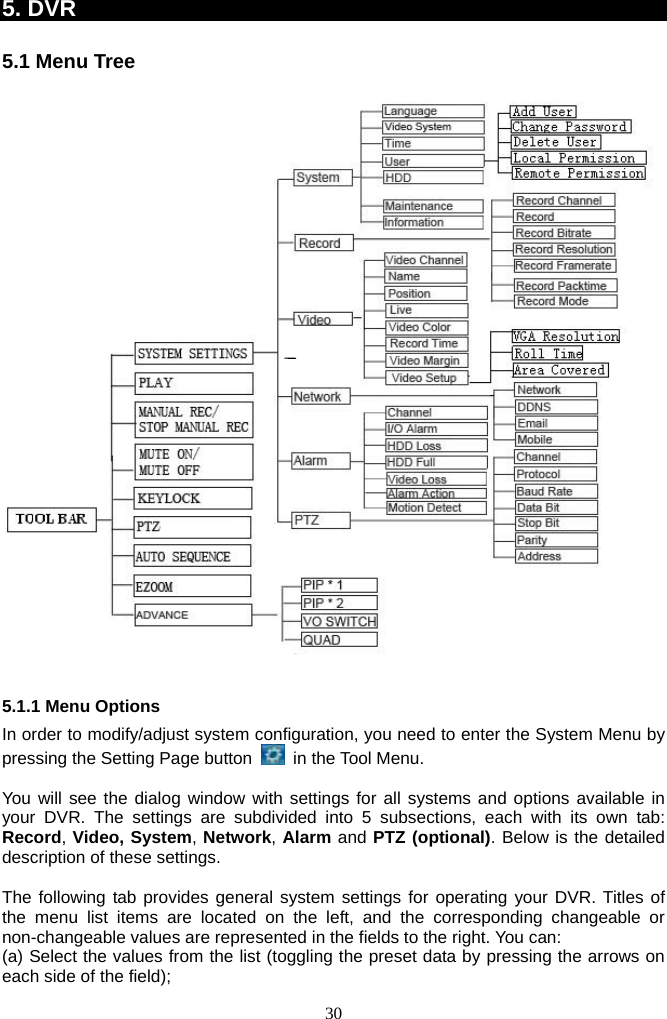

![31 (b) Input the required data after entering a customized window by pressing the [>>] button in some of the fields; (c) Familiarize yourself with the existing non-changeable settings. When entering the fields using the remote control directional keys or the DVR front panel, as well as when positioning the mouse over them, a short description of the setting in question will appear at the bottom of the window. Several tabs have options that are positioned on more than one window, and you can navigate between them by pressing the “ ” button. 5.2 System Move the cursor to select “SYSTEM” (the icon will be highlighted when selected) and press【ENTER】to enter into the system setup interface. 5.2.1 Language Use this option to change the language of the DVR menu text and the On-Screen Display. 5.2.2 Video System Adjust system output to be consistent with camera input, including PAL or NTSC. Note: The device will restart when you modify the camera mode. 5.2.3 Time Setup Click [System settings →System → Time] to enter [Time setup] menu. DATE: Set up system date using the number keypad.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-33.png)

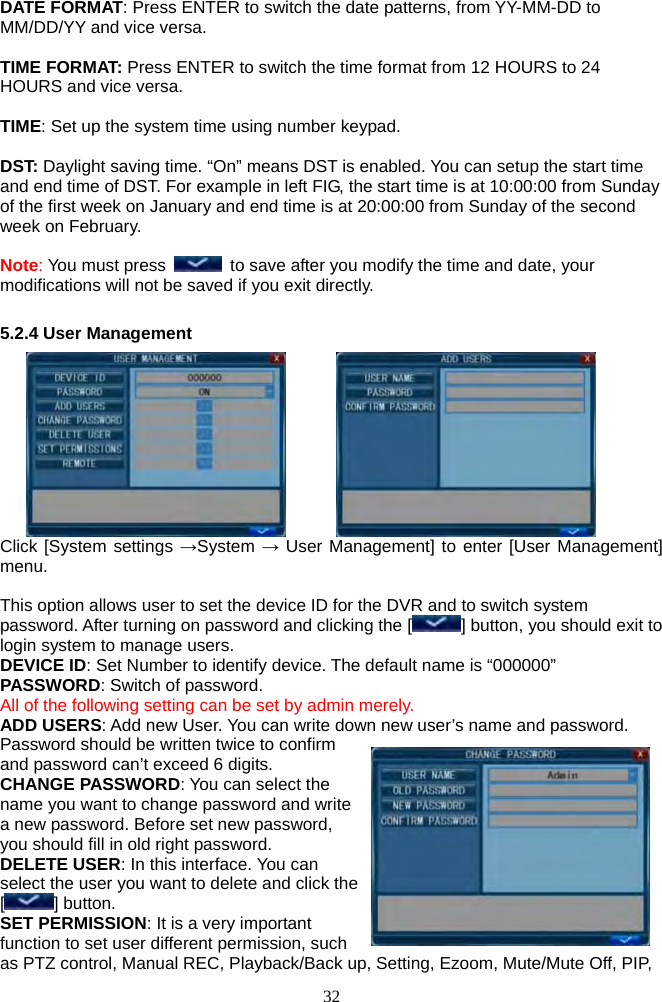

![32 DATE FORMAT: Press ENTER to switch the date patterns, from YY-MM-DD to MM/DD/YY and vice versa. TIME FORMAT: Press ENTER to switch the time format from 12 HOURS to 24 HOURS and vice versa. TIME: Set up the system time using number keypad. DST: Daylight saving time. “On” means DST is enabled. You can setup the start time and end time of DST. For example in left FIG, the start time is at 10:00:00 from Sunday of the first week on January and end time is at 20:00:00 from Sunday of the second week on February. Note: You must press to save after you modify the time and date, your modifications will not be saved if you exit directly. 5.2.4 User Management Click [System settings →System → User Management] to enter [User Management] menu. This option allows user to set the device ID for the DVR and to switch system password. After turning on password and clicking the [ ] button, you should exit to login system to manage users. DEVICE ID: Set Number to identify device. The default name is “000000” PASSWORD: Switch of password. All of the following setting can be set by admin merely. ADD USERS: Add new User. You can write down new user’s name and password. Password should be written twice to confirm and password can’t exceed 6 digits. CHANGE PASSWORD: You can select the name you want to change password and write a new password. Before set new password, you should fill in old right password. DELETE USER: In this interface. You can select the user you want to delete and click the [] button. SET PERMISSION: It is a very important function to set user different permission, such as PTZ control, Manual REC, Playback/Back up, Setting, Ezoom, Mute/Mute Off, PIP,](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-34.png)

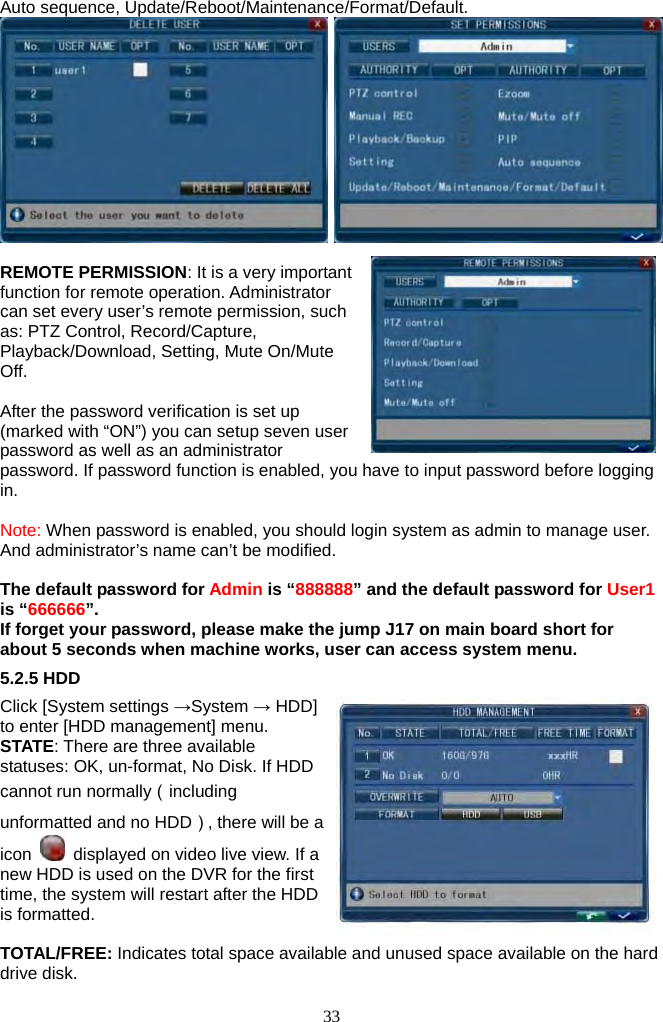

![33 Auto sequence, Update/Reboot/Maintenance/Format/Default. REMOTE PERMISSION: It is a very important function for remote operation. Administrator can set every user’s remote permission, such as: PTZ Control, Record/Capture, Playback/Download, Setting, Mute On/Mute Off. After the password verification is set up (marked with “ON”) you can setup seven user password as well as an administrator password. If password function is enabled, you have to input password before logging in. Note: When password is enabled, you should login system as admin to manage user. And administrator’s name can’t be modified. The default password for Admin is “888888” and the default password for User1 is “666666”. If forget your password, please make the jump J17 on main board short for about 5 seconds when machine works, user can access system menu. 5.2.5 HDD Click [System settings →System → HDD] to enter [HDD management] menu. STATE: There are three available statuses: OK, un-format, No Disk. If HDD cannot run normally（including unformatted and no HDD）, there will be a icon displayed on video live view. If a new HDD is used on the DVR for the first time, the system will restart after the HDD is formatted. TOTAL/FREE: Indicates total space available and unused space available on the hard drive disk.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-35.png)

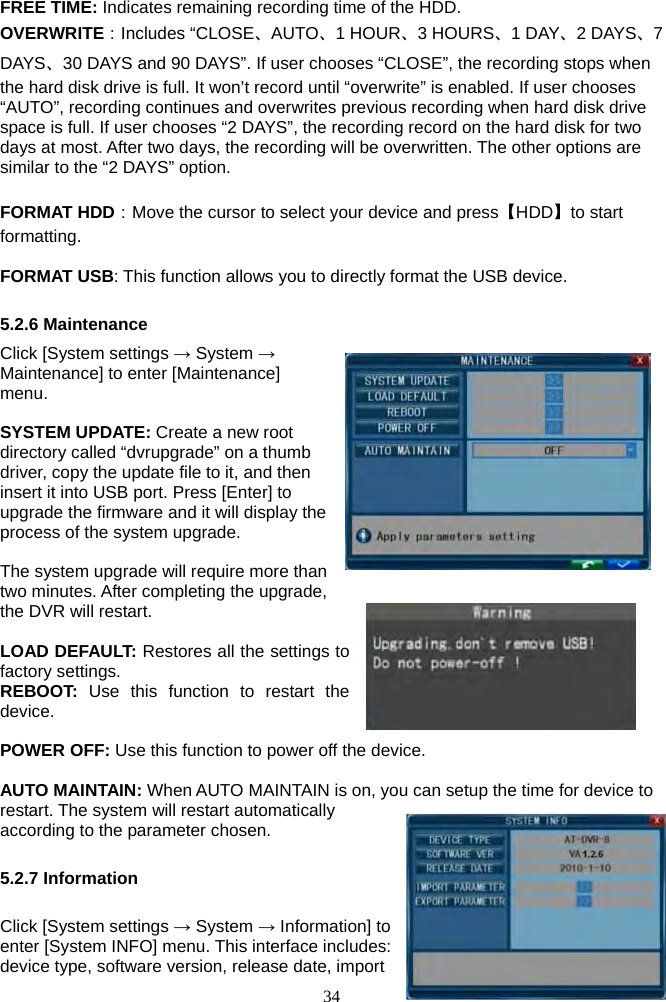

![34 FREE TIME: Indicates remaining recording time of the HDD. OVERWRITE：Includes “CLOSE、AUTO、1 HOUR、3 HOURS、1 DAY、2 DAYS、7 DAYS、30 DAYS and 90 DAYS”. If user chooses “CLOSE”, the recording stops when the hard disk drive is full. It won’t record until “overwrite” is enabled. If user chooses “AUTO”, recording continues and overwrites previous recording when hard disk drive space is full. If user chooses “2 DAYS”, the recording record on the hard disk for two days at most. After two days, the recording will be overwritten. The other options are similar to the “2 DAYS” option. FORMAT HDD：Move the cursor to select your device and press【HDD】to start formatting. FORMAT USB: This function allows you to directly format the USB device. 5.2.6 Maintenance Click [System settings → System → Maintenance] to enter [Maintenance] menu. SYSTEM UPDATE: Create a new root directory called “dvrupgrade” on a thumb driver, copy the update file to it, and then insert it into USB port. Press [Enter] to upgrade the firmware and it will display the process of the system upgrade. The system upgrade will require more than two minutes. After completing the upgrade, the DVR will restart. LOAD DEFAULT: Restores all the settings to factory settings. REBOOT: Use this function to restart the device. POWER OFF: Use this function to power off the device. AUTO MAINTAIN: When AUTO MAINTAIN is on, you can setup the time for device to restart. The system will restart automatically according to the parameter chosen. 5.2.7 Information Click [System settings → System → Information] to enter [System INFO] menu. This interface includes: device type, software version, release date, import](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-36.png)

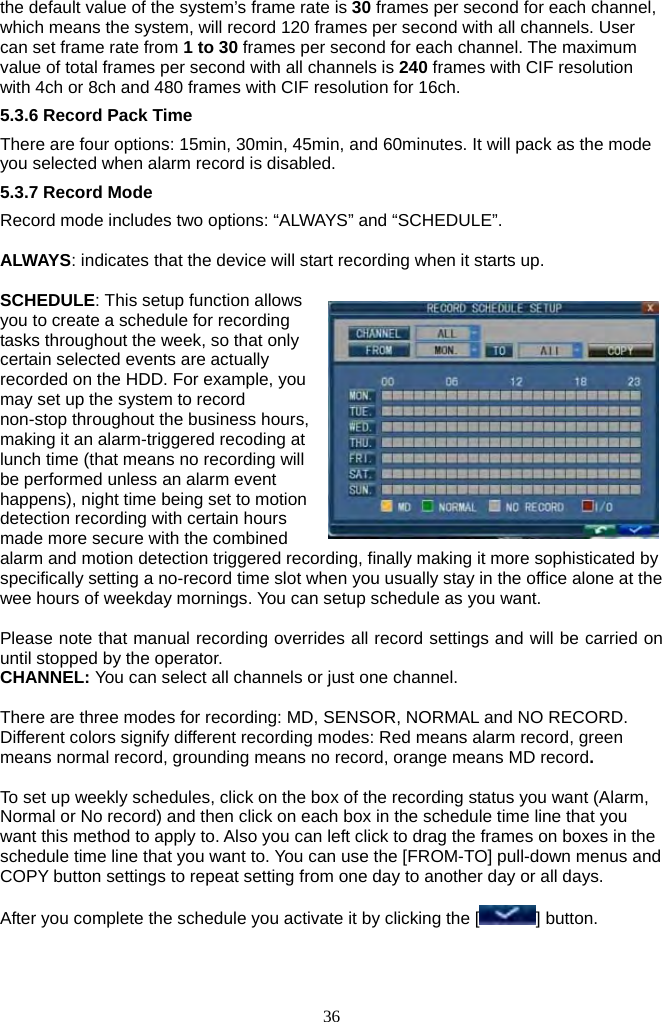

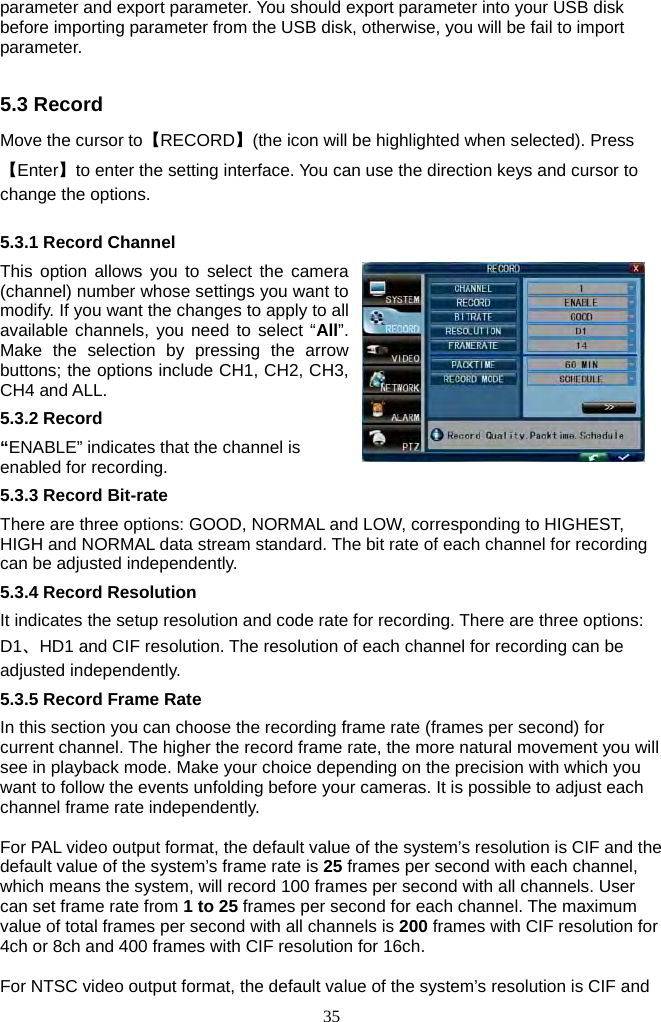

![36 the default value of the system’s frame rate is 30 frames per second for each channel, which means the system, will record 120 frames per second with all channels. User can set frame rate from 1 to 30 frames per second for each channel. The maximum value of total frames per second with all channels is 240 frames with CIF resolution with 4ch or 8ch and 480 frames with CIF resolution for 16ch. 5.3.6 Record Pack Time There are four options: 15min, 30min, 45min, and 60minutes. It will pack as the mode you selected when alarm record is disabled. 5.3.7 Record Mode Record mode includes two options: “ALWAYS” and “SCHEDULE”. ALWAYS: indicates that the device will start recording when it starts up. SCHEDULE: This setup function allows you to create a schedule for recording tasks throughout the week, so that only certain selected events are actually recorded on the HDD. For example, you may set up the system to record non-stop throughout the business hours, making it an alarm-triggered recoding at lunch time (that means no recording will be performed unless an alarm event happens), night time being set to motion detection recording with certain hours made more secure with the combined alarm and motion detection triggered recording, finally making it more sophisticated by specifically setting a no-record time slot when you usually stay in the office alone at the wee hours of weekday mornings. You can setup schedule as you want. Please note that manual recording overrides all record settings and will be carried on until stopped by the operator. CHANNEL: You can select all channels or just one channel. There are three modes for recording: MD, SENSOR, NORMAL and NO RECORD. Different colors signify different recording modes: Red means alarm record, green means normal record, grounding means no record, orange means MD record. To set up weekly schedules, click on the box of the recording status you want (Alarm, Normal or No record) and then click on each box in the schedule time line that you want this method to apply to. Also you can left click to drag the frames on boxes in the schedule time line that you want to. You can use the [FROM-TO] pull-down menus and COPY button settings to repeat setting from one day to another day or all days. After you complete the schedule you activate it by clicking the [ ] button.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-38.png)

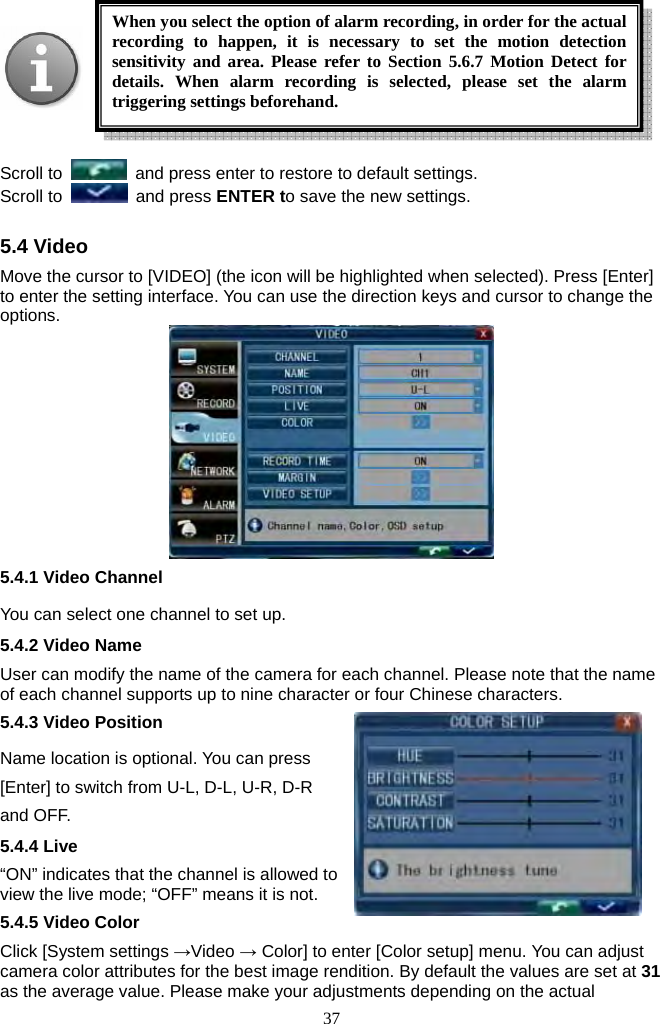

![37 Scroll to and press enter to restore to default settings. Scroll to and press ENTER to save the new settings. 5.4 Video Move the cursor to [VIDEO] (the icon will be highlighted when selected). Press [Enter] to enter the setting interface. You can use the direction keys and cursor to change the options. 5.4.1 Video Channel You can select one channel to set up. 5.4.2 Video Name User can modify the name of the camera for each channel. Please note that the name of each channel supports up to nine character or four Chinese characters. 5.4.3 Video Position Name location is optional. You can press [Enter] to switch from U-L, D-L, U-R, D-R and OFF. 5.4.4 Live “ON” indicates that the channel is allowed to view the live mode; “OFF” means it is not. 5.4.5 Video Color Click [System settings →Video → Color] to enter [Color setup] menu. You can adjust camera color attributes for the best image rendition. By default the values are set at 31 as the average value. Please make your adjustments depending on the actual When you select the option of alarm recording, in order for the actual recording to happen, it is necessary to set the motion detection sensitivity and area. Please refer to Section 5.6.7 Motion Detect for details. When alarm recording is selected, please set the alarm triggering settings beforehand.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-39.png)

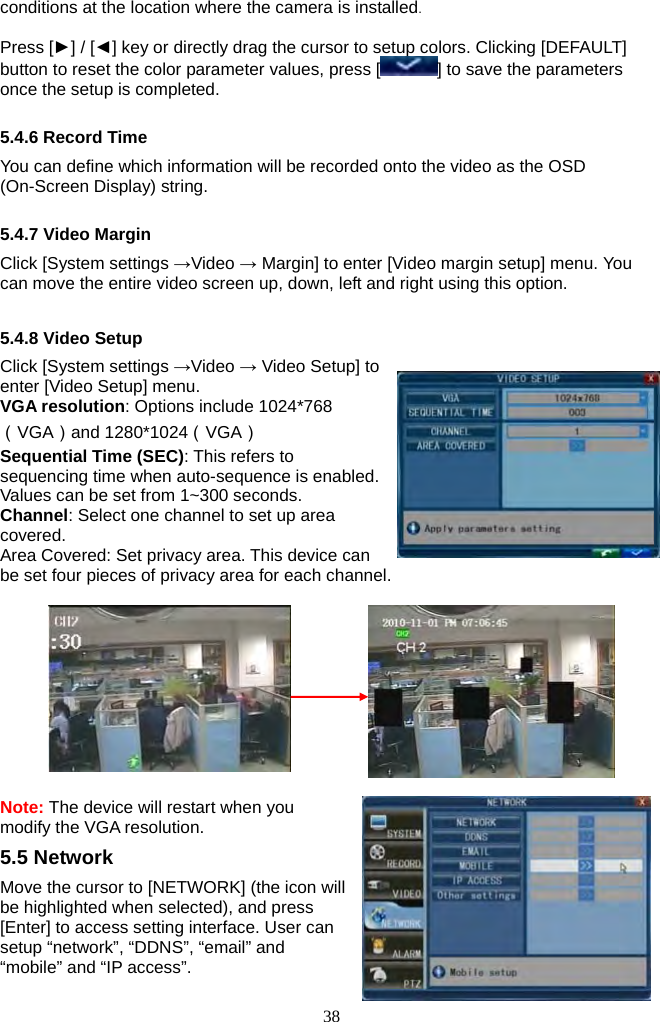

![38 conditions at the location where the camera is installed. Press [►] / [◄] key or directly drag the cursor to setup colors. Clicking [DEFAULT] button to reset the color parameter values, press [ ] to save the parameters once the setup is completed. 5.4.6 Record Time You can define which information will be recorded onto the video as the OSD (On-Screen Display) string. 5.4.7 Video Margin Click [System settings →Video → Margin] to enter [Video margin setup] menu. You can move the entire video screen up, down, left and right using this option. 5.4.8 Video Setup Click [System settings →Video → Video Setup] to enter [Video Setup] menu. VGA resolution: Options include 1024*768（VGA）and 1280*1024（VGA） Sequential Time (SEC): This refers to sequencing time when auto-sequence is enabled. Values can be set from 1~300 seconds. Channel: Select one channel to set up area covered. Area Covered: Set privacy area. This device can be set four pieces of privacy area for each channel. Note: The device will restart when you modify the VGA resolution. 5.5 Network Move the cursor to [NETWORK] (the icon will be highlighted when selected), and press [Enter] to access setting interface. User can setup “network”, “DDNS”, “email” and “mobile” and “IP access”.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-40.png)

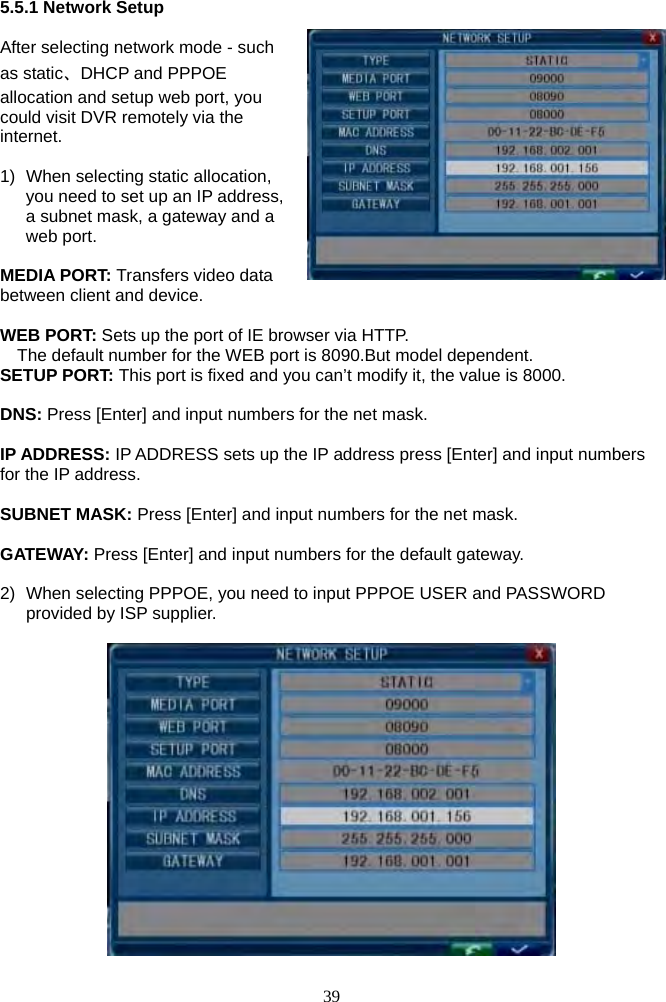

![39 5.5.1 Network Setup After selecting network mode - such as static、DHCP and PPPOE allocation and setup web port, you could visit DVR remotely via the internet. 1) When selecting static allocation, you need to set up an IP address, a subnet mask, a gateway and a web port. MEDIA PORT: Transfers video data between client and device. WEB PORT: Sets up the port of IE browser via HTTP. The default number for the WEB port is 8090.But model dependent. SETUP PORT: This port is fixed and you can’t modify it, the value is 8000. DNS: Press [Enter] and input numbers for the net mask. IP ADDRESS: IP ADDRESS sets up the IP address press [Enter] and input numbers for the IP address. SUBNET MASK: Press [Enter] and input numbers for the net mask. GATEWAY: Press [Enter] and input numbers for the default gateway. 2) When selecting PPPOE, you need to input PPPOE USER and PASSWORD provided by ISP supplier.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-41.png)

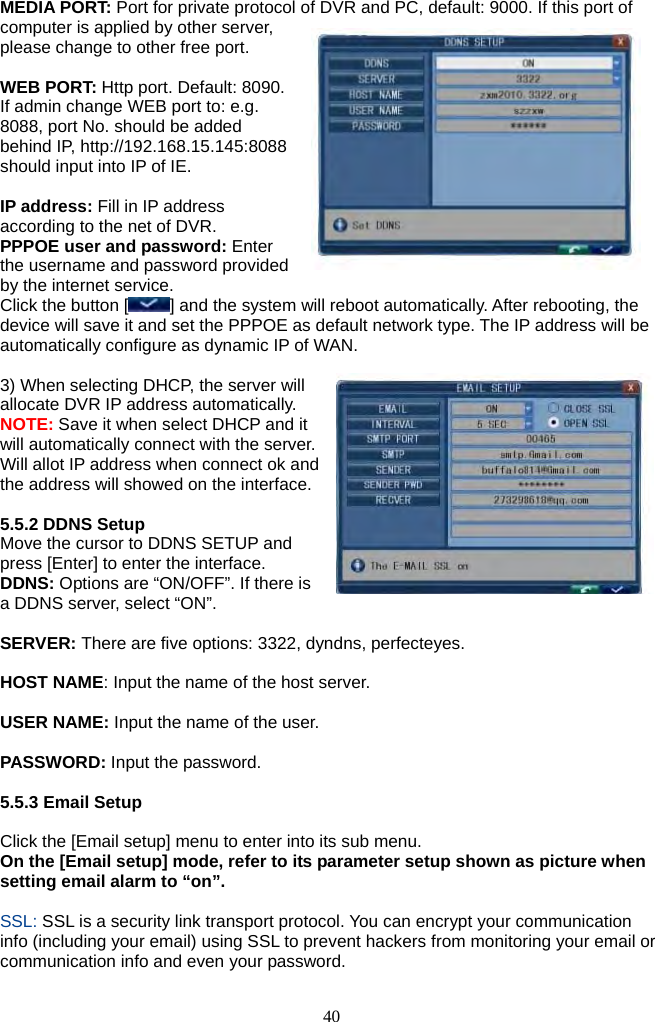

![40 MEDIA PORT: Port for private protocol of DVR and PC, default: 9000. If this port of computer is applied by other server, please change to other free port. WEB PORT: Http port. Default: 8090. If admin change WEB port to: e.g. 8088, port No. should be added behind IP, http://192.168.15.145:8088 should input into IP of IE. IP address: Fill in IP address according to the net of DVR. PPPOE user and password: Enter the username and password provided by the internet service. Click the button [ ] and the system will reboot automatically. After rebooting, the device will save it and set the PPPOE as default network type. The IP address will be automatically configure as dynamic IP of WAN. 3) When selecting DHCP, the server will allocate DVR IP address automatically. NOTE: Save it when select DHCP and it will automatically connect with the server. Will allot IP address when connect ok and the address will showed on the interface. 5.5.2 DDNS Setup Move the cursor to DDNS SETUP and press [Enter] to enter the interface. DDNS: Options are “ON/OFF”. If there is a DDNS server, select “ON”. SERVER: There are five options: 3322, dyndns, perfecteyes. HOST NAME: Input the name of the host server. USER NAME: Input the name of the user. PASSWORD: Input the password. 5.5.3 Email Setup Click the [Email setup] menu to enter into its sub menu. On the [Email setup] mode, refer to its parameter setup shown as picture when setting email alarm to “on”. SSL: SSL is a security link transport protocol. You can encrypt your communication info (including your email) using SSL to prevent hackers from monitoring your email or communication info and even your password.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-42.png)

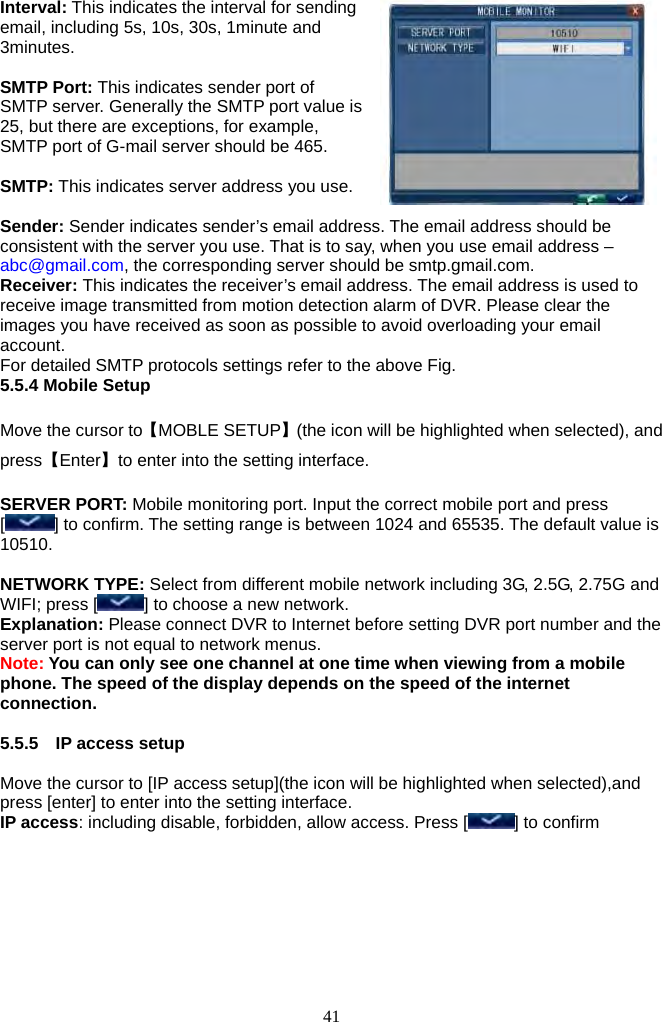

![41 Interval: This indicates the interval for sending email, including 5s, 10s, 30s, 1minute and 3minutes. SMTP Port: This indicates sender port of SMTP server. Generally the SMTP port value is 25, but there are exceptions, for example, SMTP port of G-mail server should be 465. SMTP: This indicates server address you use. Sender: Sender indicates sender’s email address. The email address should be consistent with the server you use. That is to say, when you use email address – abc@gmail.com, the corresponding server should be smtp.gmail.com. Receiver: This indicates the receiver’s email address. The email address is used to receive image transmitted from motion detection alarm of DVR. Please clear the images you have received as soon as possible to avoid overloading your email account. For detailed SMTP protocols settings refer to the above Fig. 5.5.4 Mobile Setup Move the cursor to【MOBLE SETUP】(the icon will be highlighted when selected), and press【Enter】to enter into the setting interface. SERVER PORT: Mobile monitoring port. Input the correct mobile port and press [] to confirm. The setting range is between 1024 and 65535. The default value is 10510. NETWORK TYPE: Select from different mobile network including 3G, 2.5G, 2.75G and WIFI; press [ ] to choose a new network. Explanation: Please connect DVR to Internet before setting DVR port number and the server port is not equal to network menus. Note: You can only see one channel at one time when viewing from a mobile phone. The speed of the display depends on the speed of the internet connection. 5.5.5 IP access setup Move the cursor to [IP access setup](the icon will be highlighted when selected),and press [enter] to enter into the setting interface. IP access: including disable, forbidden, allow access. Press [ ] to confirm](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-43.png)

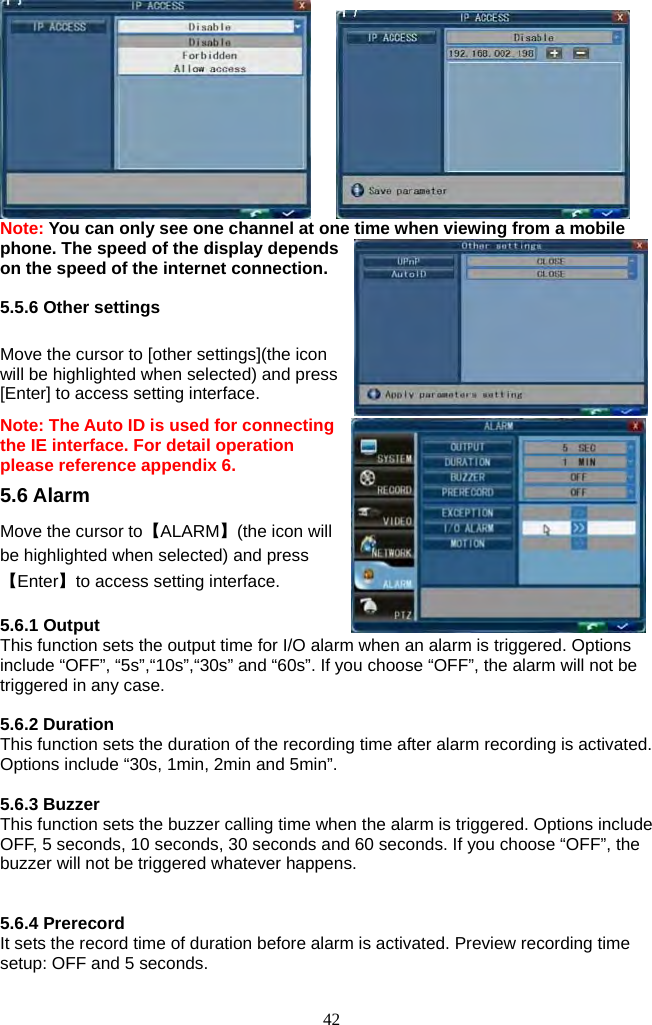

 and press [Enter] to access setting interface. Note: The Auto ID is used for connecting the IE interface. For detail operation please reference appendix 6. 5.6 Alarm Move the cursor to【ALARM】(the icon will be highlighted when selected) and press【Enter】to access setting interface. 5.6.1 Output This function sets the output time for I/O alarm when an alarm is triggered. Options include “OFF”, “5s”,“10s”,“30s” and “60s”. If you choose “OFF”, the alarm will not be triggered in any case. 5.6.2 Duration This function sets the duration of the recording time after alarm recording is activated. Options include “30s, 1min, 2min and 5min”. 5.6.3 Buzzer This function sets the buzzer calling time when the alarm is triggered. Options include OFF, 5 seconds, 10 seconds, 30 seconds and 60 seconds. If you choose “OFF”, the buzzer will not be triggered whatever happens. 5.6.4 Prerecord It sets the record time of duration before alarm is activated. Preview recording time setup: OFF and 5 seconds.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-44.png)

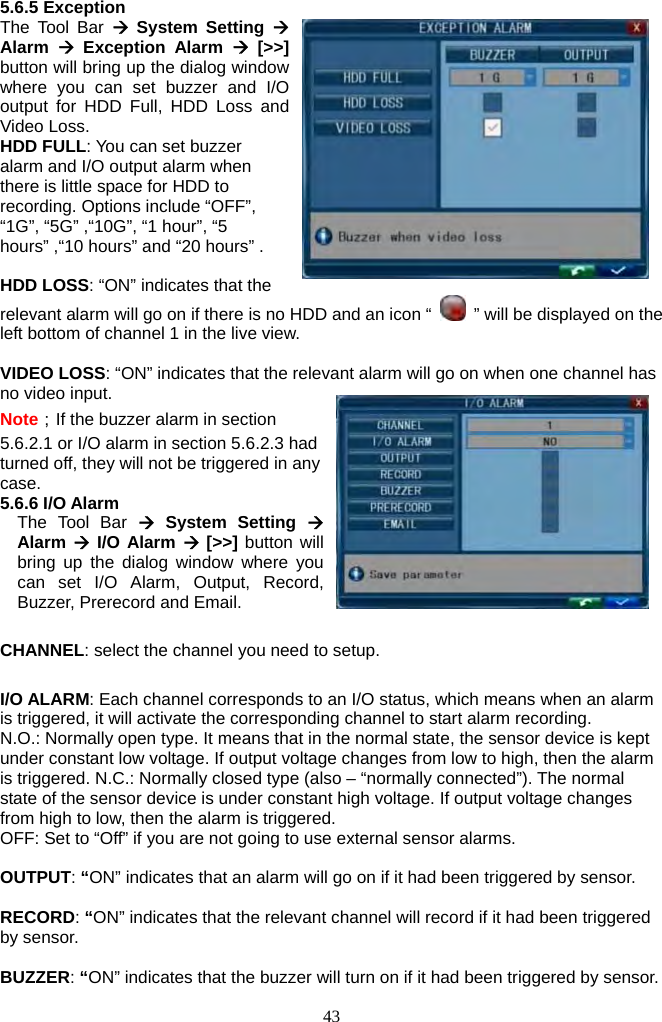

![43 5.6.5 Exception The Tool Bar Æ System Setting Æ Alarm Æ Exception Alarm Æ [>>] button will bring up the dialog window where you can set buzzer and I/O output for HDD Full, HDD Loss and Video Loss. HDD FULL: You can set buzzer alarm and I/O output alarm when there is little space for HDD to recording. Options include “OFF”, “1G”, “5G” ,“10G”, “1 hour”, “5 hours” ,“10 hours” and “20 hours” . HDD LOSS: “ON” indicates that the relevant alarm will go on if there is no HDD and an icon “ ” will be displayed on the left bottom of channel 1 in the live view. VIDEO LOSS: “ON” indicates that the relevant alarm will go on when one channel has no video input. Note；If the buzzer alarm in section 5.6.2.1 or I/O alarm in section 5.6.2.3 had turned off, they will not be triggered in any case. 5.6.6 I/O Alarm The Tool Bar Æ System Setting Æ Alarm Æ I/O Alarm Æ [>>] button will bring up the dialog window where you can set I/O Alarm, Output, Record, Buzzer, Prerecord and Email. CHANNEL: select the channel you need to setup. I/O ALARM: Each channel corresponds to an I/O status, which means when an alarm is triggered, it will activate the corresponding channel to start alarm recording. N.O.: Normally open type. It means that in the normal state, the sensor device is kept under constant low voltage. If output voltage changes from low to high, then the alarm is triggered. N.C.: Normally closed type (also – “normally connected”). The normal state of the sensor device is under constant high voltage. If output voltage changes from high to low, then the alarm is triggered. OFF: Set to “Off” if you are not going to use external sensor alarms. OUTPUT: “ON” indicates that an alarm will go on if it had been triggered by sensor. RECORD: “ON” indicates that the relevant channel will record if it had been triggered by sensor. BUZZER: “ON” indicates that the buzzer will turn on if it had been triggered by sensor.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-45.png)

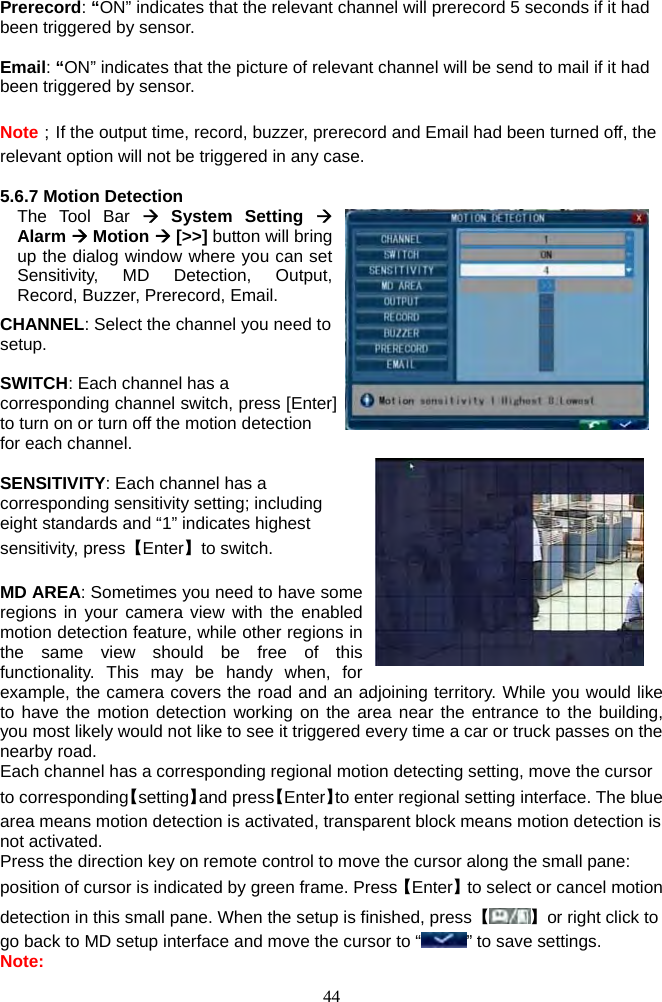

![44 Prerecord: “ON” indicates that the relevant channel will prerecord 5 seconds if it had been triggered by sensor. Email: “ON” indicates that the picture of relevant channel will be send to mail if it had been triggered by sensor. Note；If the output time, record, buzzer, prerecord and Email had been turned off, the relevant option will not be triggered in any case. 5.6.7 Motion Detection The Tool Bar Æ System Setting Æ Alarm Æ Motion Æ [>>] button will bring up the dialog window where you can set Sensitivity, MD Detection, Output, Record, Buzzer, Prerecord, Email. CHANNEL: Select the channel you need to setup. SWITCH: Each channel has a corresponding channel switch, press [Enter] to turn on or turn off the motion detection for each channel. SENSITIVITY: Each channel has a corresponding sensitivity setting; including eight standards and “1” indicates highest sensitivity, press【Enter】to switch. MD AREA: Sometimes you need to have some regions in your camera view with the enabled motion detection feature, while other regions in the same view should be free of this functionality. This may be handy when, for example, the camera covers the road and an adjoining territory. While you would like to have the motion detection working on the area near the entrance to the building, you most likely would not like to see it triggered every time a car or truck passes on the nearby road. Each channel has a corresponding regional motion detecting setting, move the cursor to corresponding【setting】and press【Enter】to enter regional setting interface. The blue area means motion detection is activated, transparent block means motion detection is not activated. Press the direction key on remote control to move the cursor along the small pane: position of cursor is indicated by green frame. Press【Enter】to select or cancel motion detection in this small pane. When the setup is finished, press【】or right click to go back to MD setup interface and move the cursor to “ ” to save settings. Note:](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-46.png)

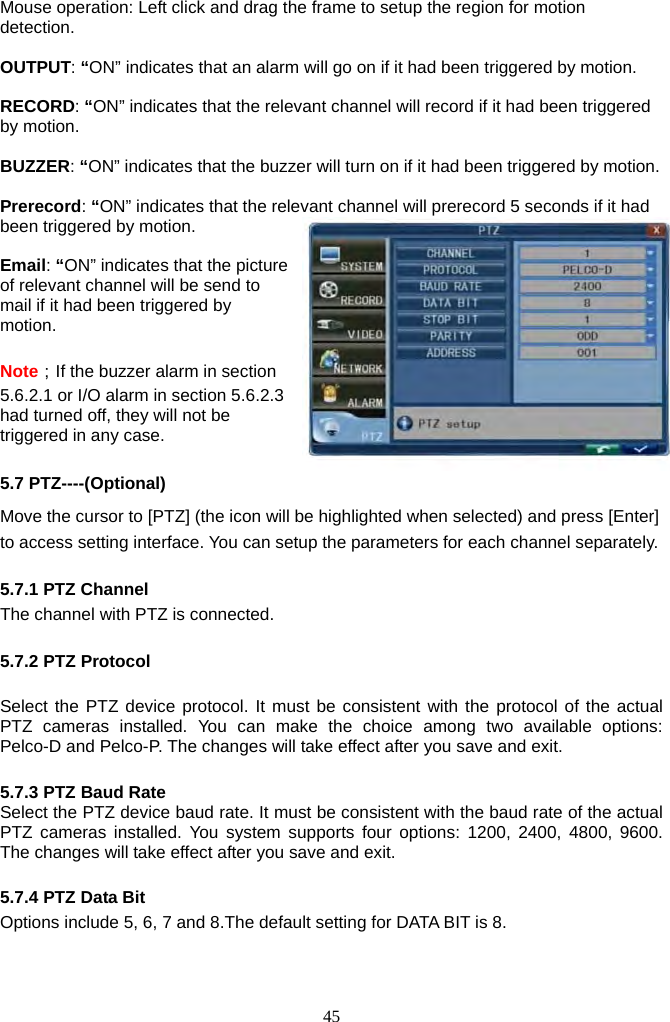

![45 Mouse operation: Left click and drag the frame to setup the region for motion detection. OUTPUT: “ON” indicates that an alarm will go on if it had been triggered by motion. RECORD: “ON” indicates that the relevant channel will record if it had been triggered by motion. BUZZER: “ON” indicates that the buzzer will turn on if it had been triggered by motion. Prerecord: “ON” indicates that the relevant channel will prerecord 5 seconds if it had been triggered by motion. Email: “ON” indicates that the picture of relevant channel will be send to mail if it had been triggered by motion. Note；If the buzzer alarm in section 5.6.2.1 or I/O alarm in section 5.6.2.3 had turned off, they will not be triggered in any case. 5.7 PTZ----(Optional) Move the cursor to [PTZ] (the icon will be highlighted when selected) and press [Enter] to access setting interface. You can setup the parameters for each channel separately. 5.7.1 PTZ Channel The channel with PTZ is connected. 5.7.2 PTZ Protocol Select the PTZ device protocol. It must be consistent with the protocol of the actual PTZ cameras installed. You can make the choice among two available options: Pelco-D and Pelco-P. The changes will take effect after you save and exit. 5.7.3 PTZ Baud Rate Select the PTZ device baud rate. It must be consistent with the baud rate of the actual PTZ cameras installed. You system supports four options: 1200, 2400, 4800, 9600. The changes will take effect after you save and exit. 5.7.4 PTZ Data Bit Options include 5, 6, 7 and 8.The default setting for DATA BIT is 8.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-47.png)

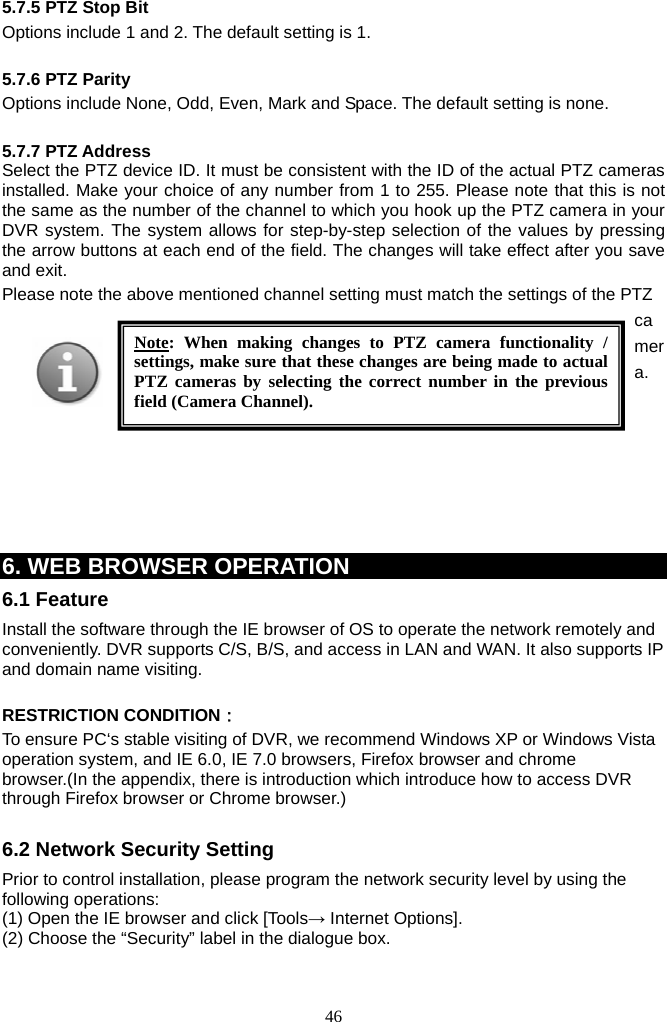

![46 5.7.5 PTZ Stop Bit Options include 1 and 2. The default setting is 1. 5.7.6 PTZ Parity Options include None, Odd, Even, Mark and Space. The default setting is none. 5.7.7 PTZ Address Select the PTZ device ID. It must be consistent with the ID of the actual PTZ cameras installed. Make your choice of any number from 1 to 255. Please note that this is not the same as the number of the channel to which you hook up the PTZ camera in your DVR system. The system allows for step-by-step selection of the values by pressing the arrow buttons at each end of the field. The changes will take effect after you save and exit. Please note the above mentioned channel setting must match the settings of the PTZ camera. 6. WEB BROWSER OPERATION 6.1 Feature Install the software through the IE browser of OS to operate the network remotely and conveniently. DVR supports C/S, B/S, and access in LAN and WAN. It also supports IP and domain name visiting. RESTRICTION CONDITION： To ensure PC‘s stable visiting of DVR, we recommend Windows XP or Windows Vista operation system, and IE 6.0, IE 7.0 browsers, Firefox browser and chrome browser.(In the appendix, there is introduction which introduce how to access DVR through Firefox browser or Chrome browser.) 6.2 Network Security Setting Prior to control installation, please program the network security level by using the following operations: (1) Open the IE browser and click [Tools→ Internet Options]. (2) Choose the “Security” label in the dialogue box. Note: When making changes to PTZ camera functionality / settings, make sure that these changes are being made to actual PTZ cameras by selecting the correct number in the previous field (Camera Channel).](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-48.png)

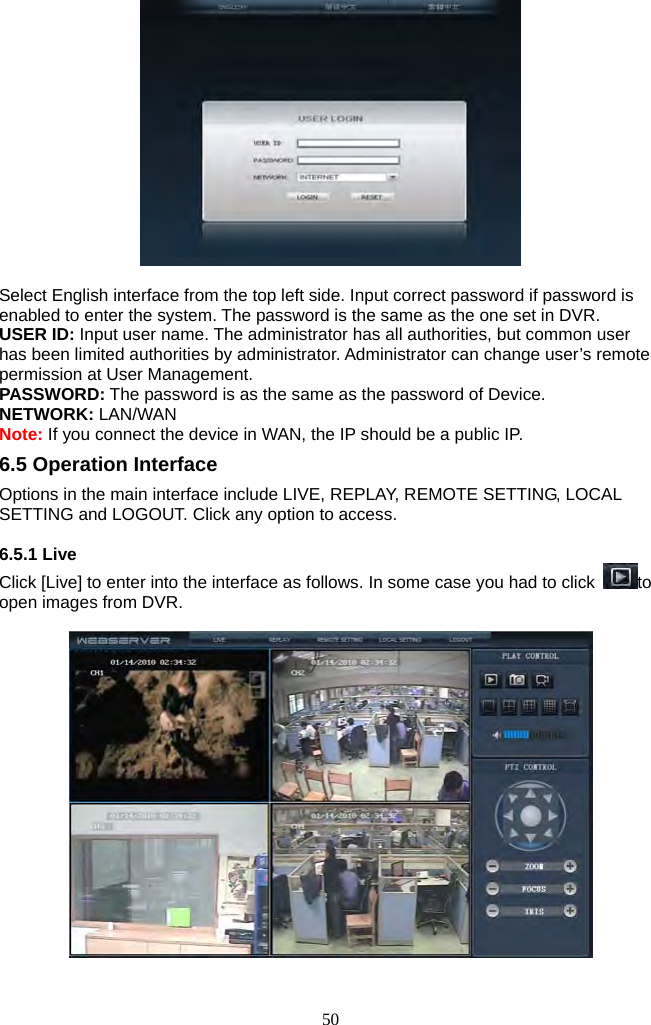

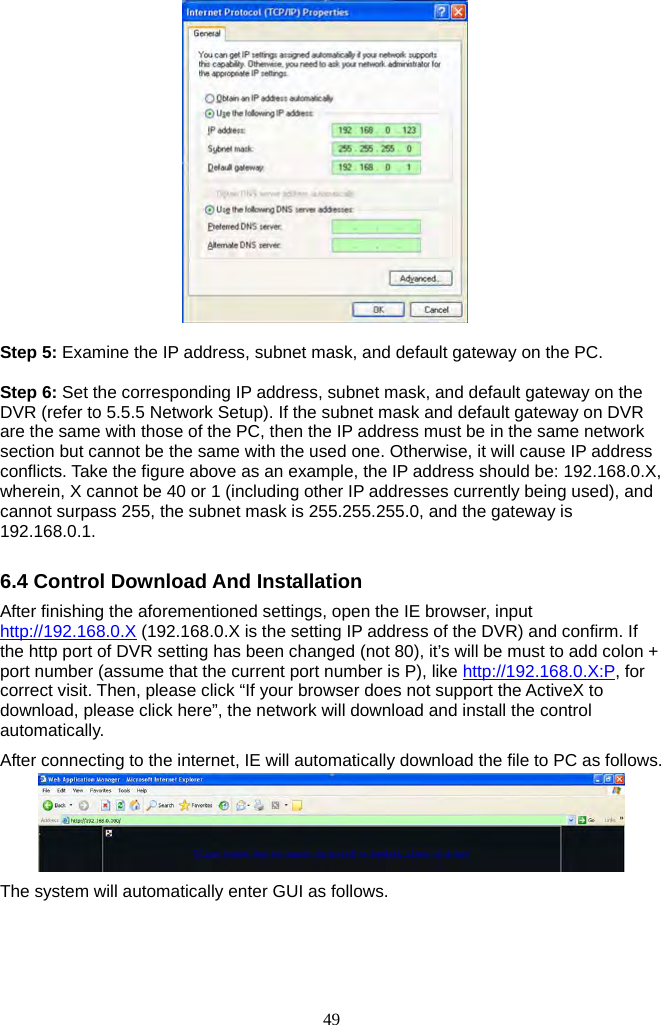

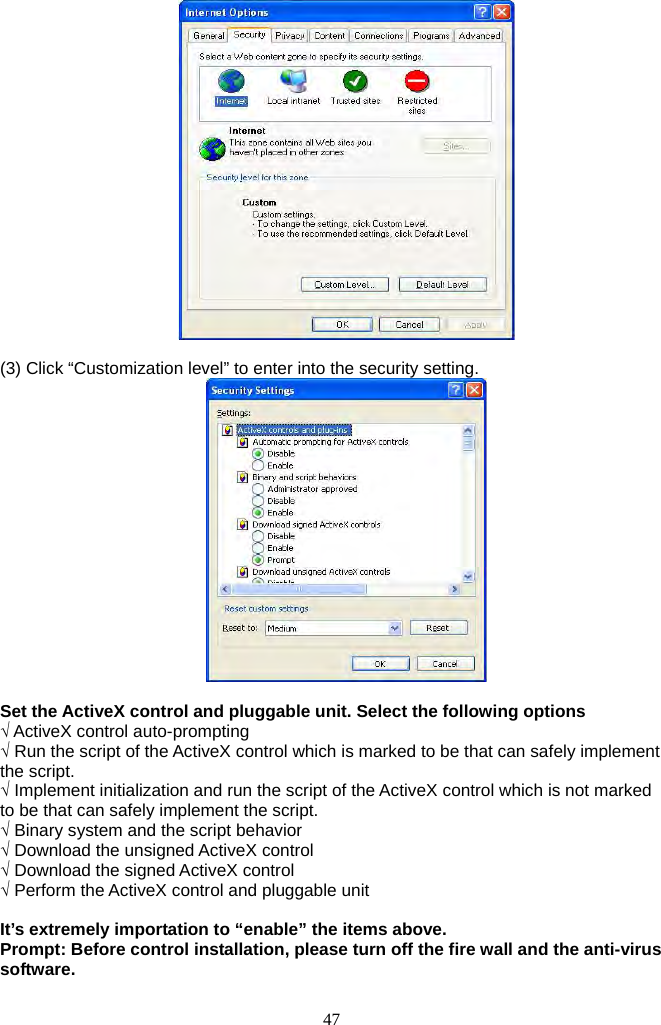

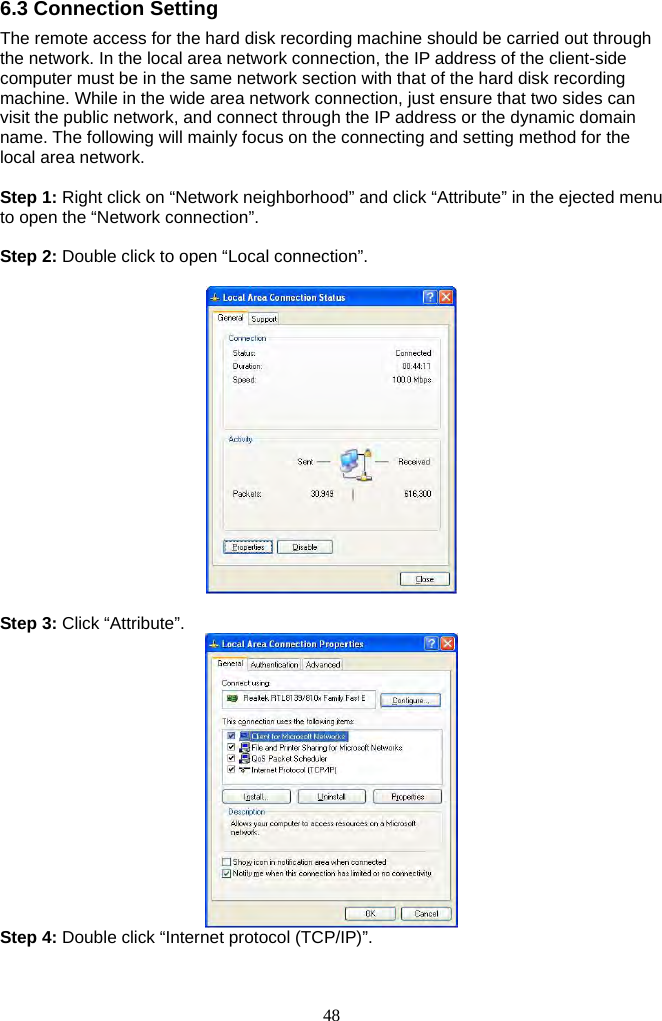

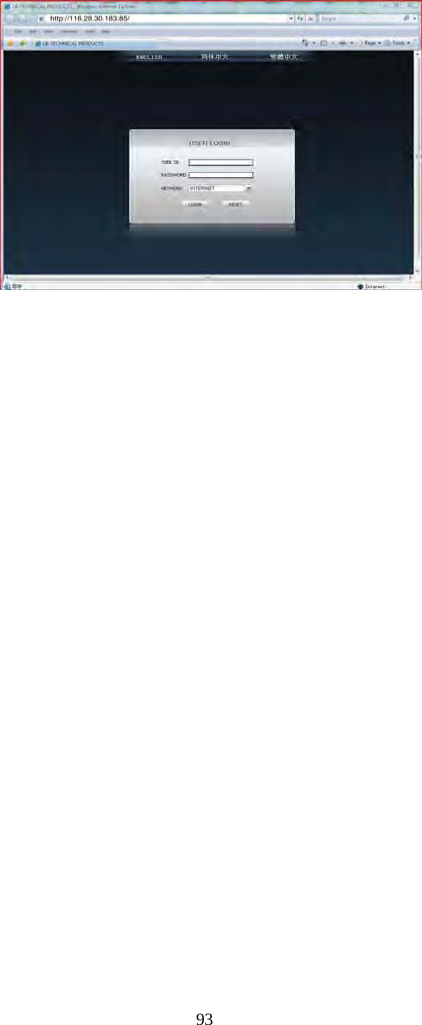

![50 Select English interface from the top left side. Input correct password if password is enabled to enter the system. The password is the same as the one set in DVR. USER ID: Input user name. The administrator has all authorities, but common user has been limited authorities by administrator. Administrator can change user’s remote permission at User Management. PASSWORD: The password is as the same as the password of Device. NETWORK: LAN/WAN Note: If you connect the device in WAN, the IP should be a public IP. 6.5 Operation Interface Options in the main interface include LIVE, REPLAY, REMOTE SETTING, LOCAL SETTING and LOGOUT. Click any option to access. 6.5.1 Live Click [Live] to enter into the interface as follows. In some case you had to click to open images from DVR.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-52.png)

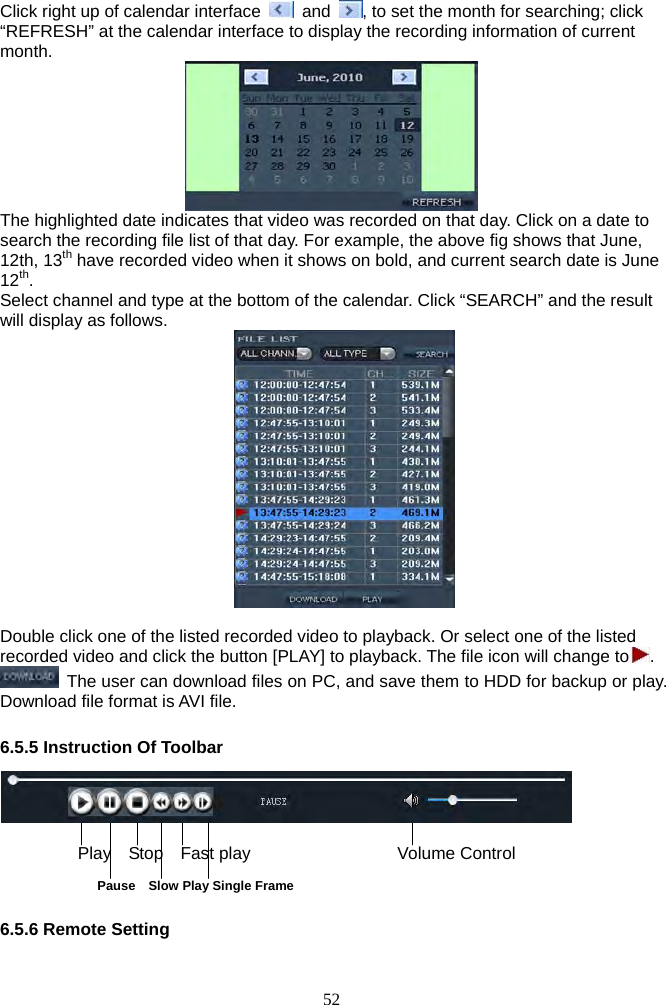

![52 Click right up of calendar interface and , to set the month for searching; click “REFRESH” at the calendar interface to display the recording information of current month. The highlighted date indicates that video was recorded on that day. Click on a date to search the recording file list of that day. For example, the above fig shows that June, 12th, 13th have recorded video when it shows on bold, and current search date is June 12th. Select channel and type at the bottom of the calendar. Click “SEARCH” and the result will display as follows. Double click one of the listed recorded video to playback. Or select one of the listed recorded video and click the button [PLAY] to playback. The file icon will change to . The user can download files on PC, and save them to HDD for backup or play. Download file format is AVI file. 6.5.5 Instruction Of Toolbar Play Stop Fast play Volume Control Pause Slow Play Single Frame 6.5.6 Remote Setting](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-54.png)

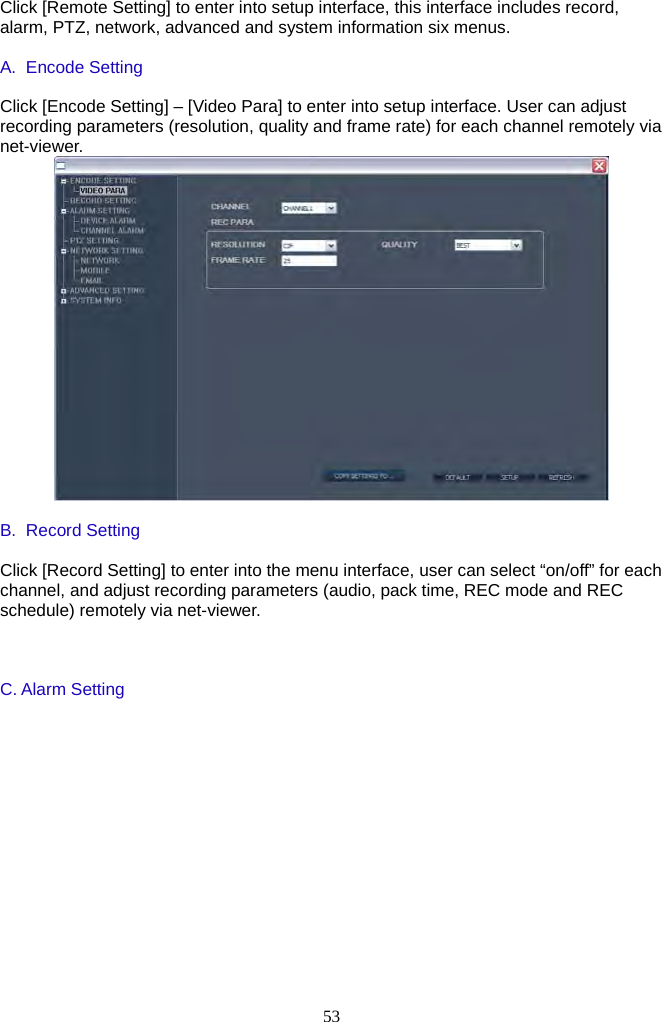

![53 Click [Remote Setting] to enter into setup interface, this interface includes record, alarm, PTZ, network, advanced and system information six menus. A. Encode Setting Click [Encode Setting] – [Video Para] to enter into setup interface. User can adjust recording parameters (resolution, quality and frame rate) for each channel remotely via net-viewer. B. Record Setting Click [Record Setting] to enter into the menu interface, user can select “on/off” for each channel, and adjust recording parameters (audio, pack time, REC mode and REC schedule) remotely via net-viewer. C. Alarm Setting](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-55.png)

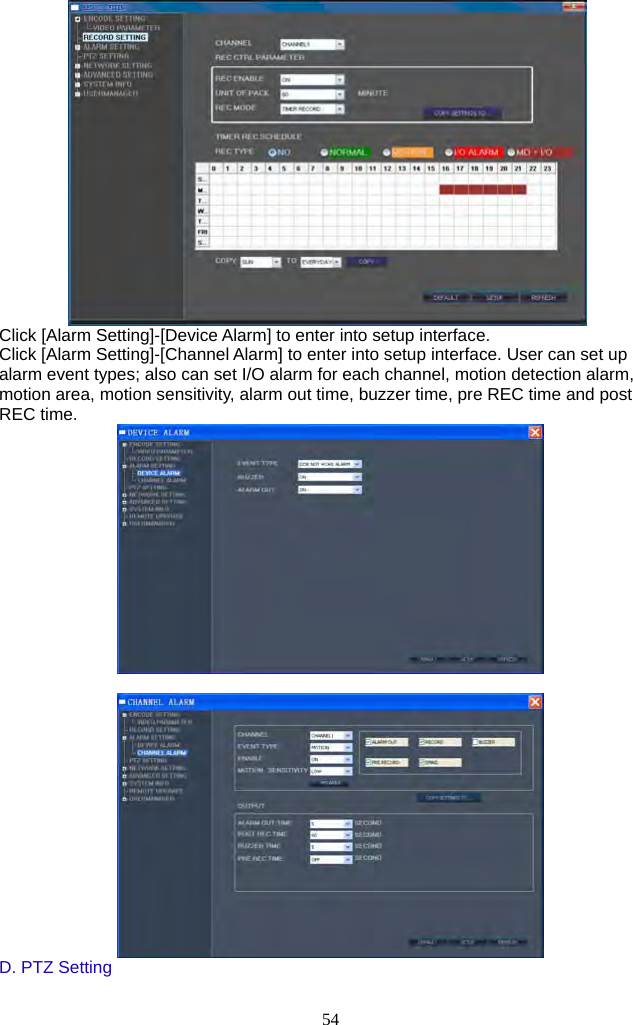

![54 Click [Alarm Setting]-[Device Alarm] to enter into setup interface. Click [Alarm Setting]-[Channel Alarm] to enter into setup interface. User can set up alarm event types; also can set I/O alarm for each channel, motion detection alarm, motion area, motion sensitivity, alarm out time, buzzer time, pre REC time and post REC time. D. PTZ Setting](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-56.png)

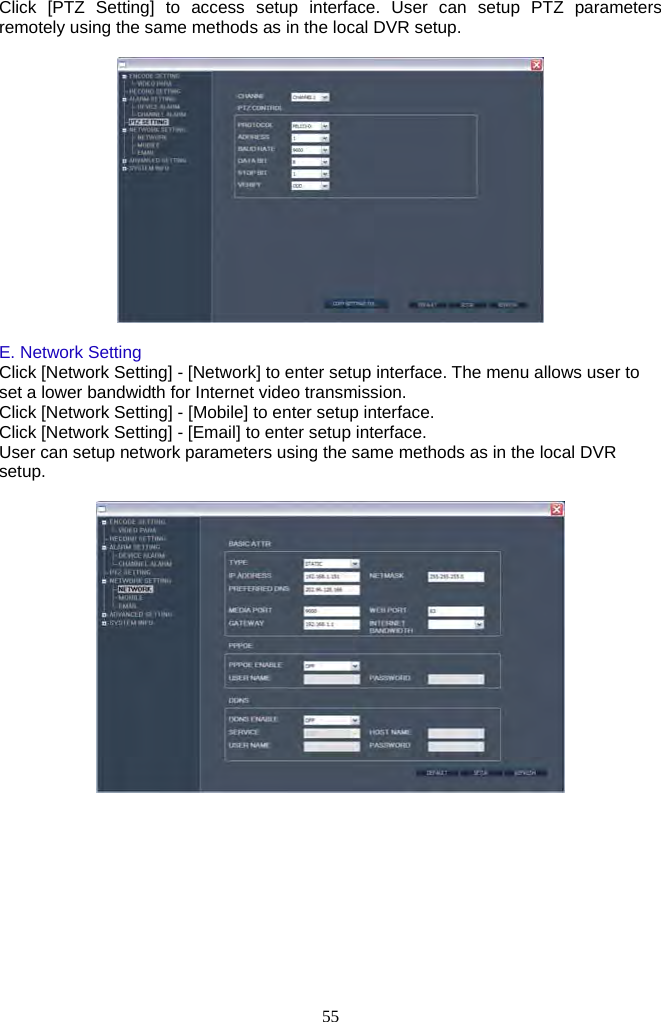

![55 Click [PTZ Setting] to access setup interface. User can setup PTZ parameters remotely using the same methods as in the local DVR setup. E. Network Setting Click [Network Setting] - [Network] to enter setup interface. The menu allows user to set a lower bandwidth for Internet video transmission. Click [Network Setting] - [Mobile] to enter setup interface. Click [Network Setting] - [Email] to enter setup interface. User can setup network parameters using the same methods as in the local DVR setup.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-57.png)

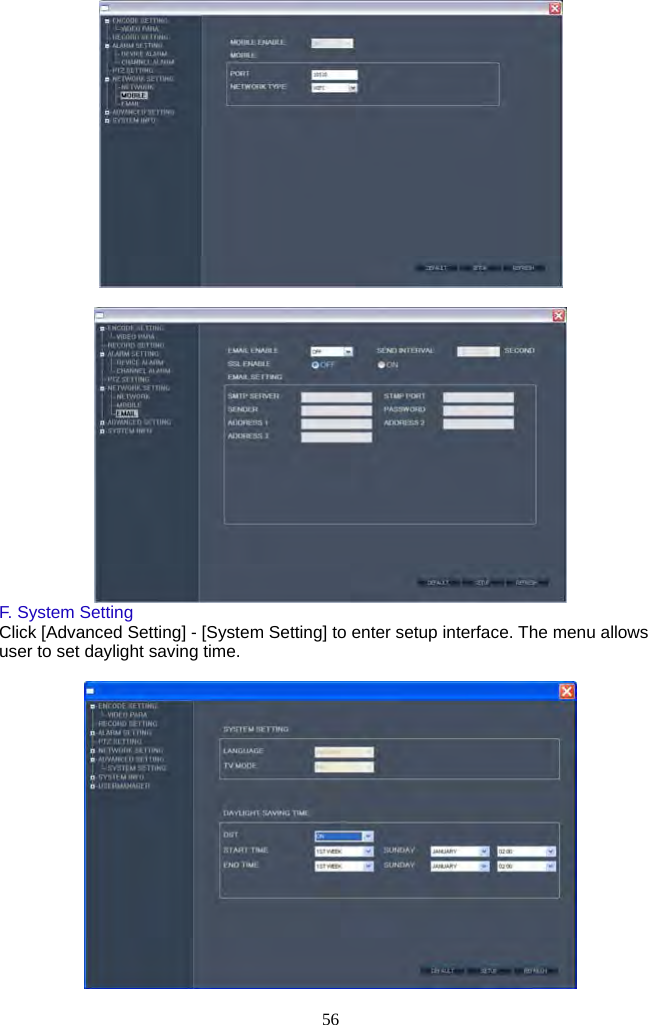

![56 F. System Setting Click [Advanced Setting] - [System Setting] to enter setup interface. The menu allows user to set daylight saving time.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-58.png)

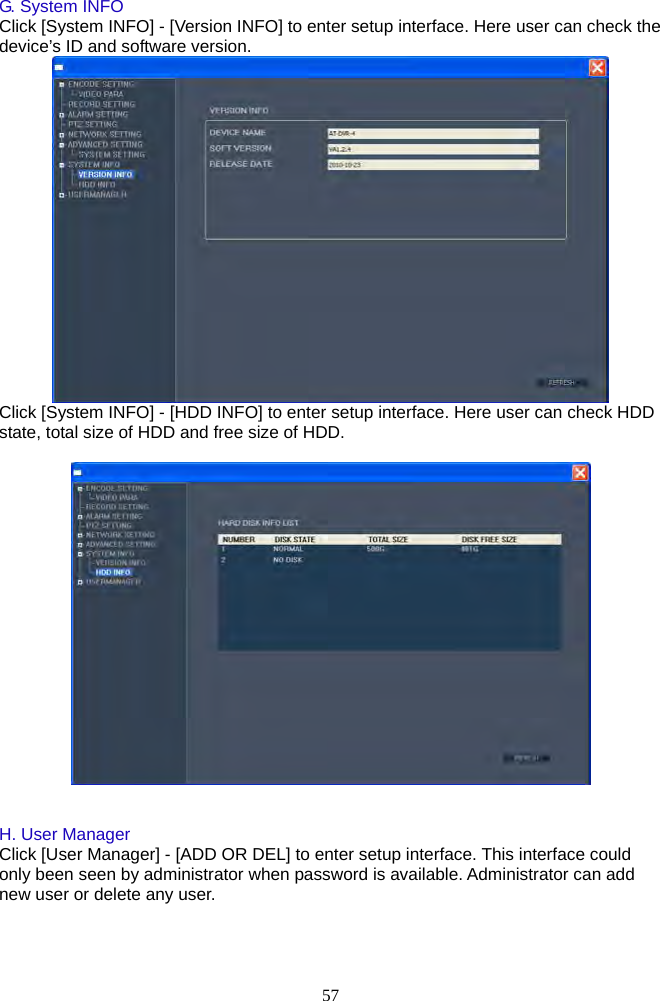

![57 G. System INFO Click [System INFO] - [Version INFO] to enter setup interface. Here user can check the device’s ID and software version. Click [System INFO] - [HDD INFO] to enter setup interface. Here user can check HDD state, total size of HDD and free size of HDD. H. User Manager Click [User Manager] - [ADD OR DEL] to enter setup interface. This interface could only been seen by administrator when password is available. Administrator can add new user or delete any user.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-59.png)

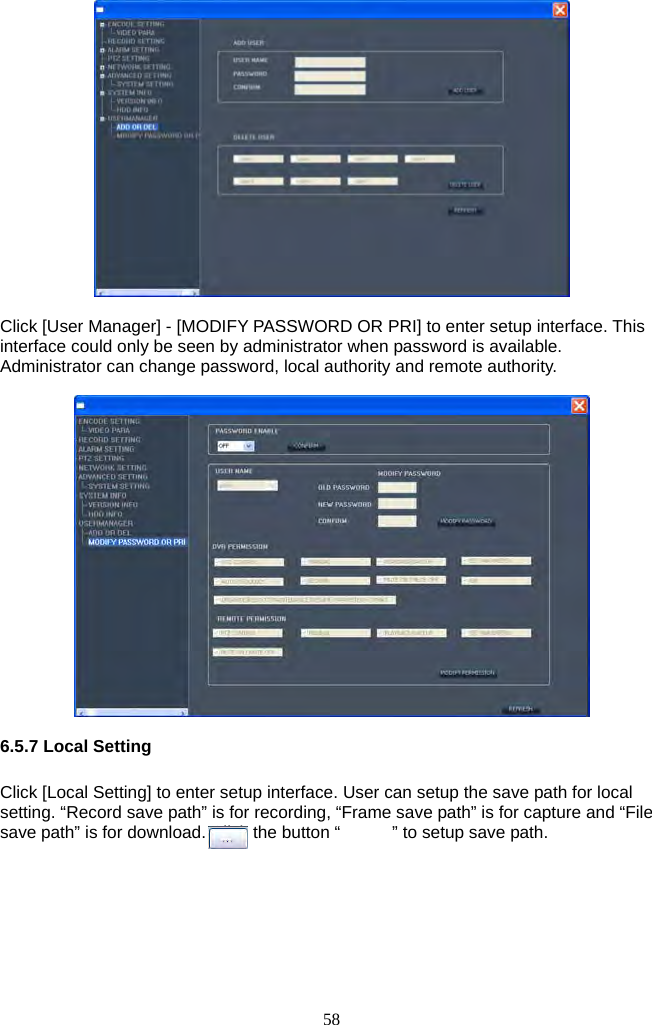

![58 Click [User Manager] - [MODIFY PASSWORD OR PRI] to enter setup interface. This interface could only be seen by administrator when password is available. Administrator can change password, local authority and remote authority. 6.5.7 Local Setting Click [Local Setting] to enter setup interface. User can setup the save path for local setting. “Record save path” is for recording, “Frame save path” is for capture and “File save path” is for download. Click the button “ ” to setup save path.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-60.png)

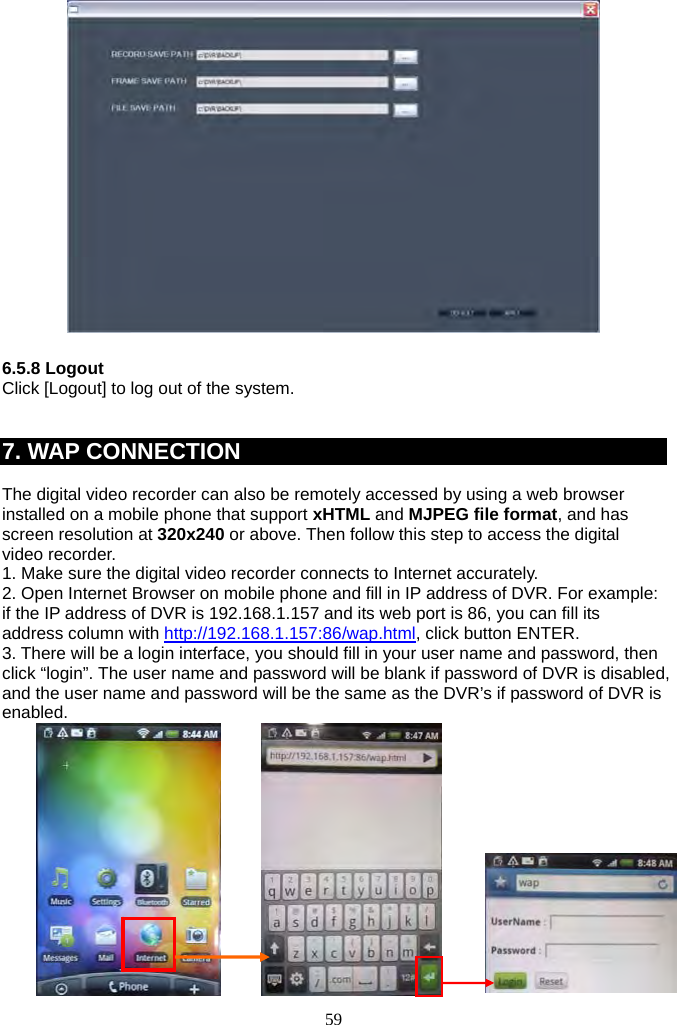

![59 6.5.8 Logout Click [Logout] to log out of the system. 7. WAP CONNECTION The digital video recorder can also be remotely accessed by using a web browser installed on a mobile phone that support xHTML and MJPEG file format, and has screen resolution at 320x240 or above. Then follow this step to access the digital video recorder. 1. Make sure the digital video recorder connects to Internet accurately. 2. Open Internet Browser on mobile phone and fill in IP address of DVR. For example: if the IP address of DVR is 192.168.1.157 and its web port is 86, you can fill its address column with http://192.168.1.157:86/wap.html, click button ENTER. 3. There will be a login interface, you should fill in your user name and password, then click “login”. The user name and password will be blank if password of DVR is disabled, and the user name and password will be the same as the DVR’s if password of DVR is enabled.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-61.png)

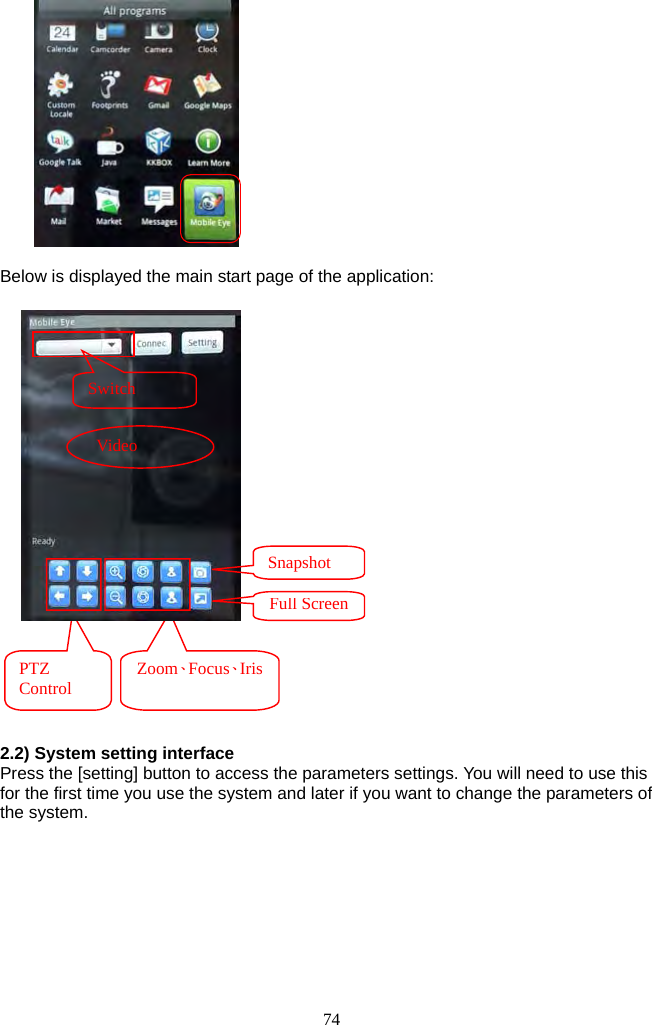

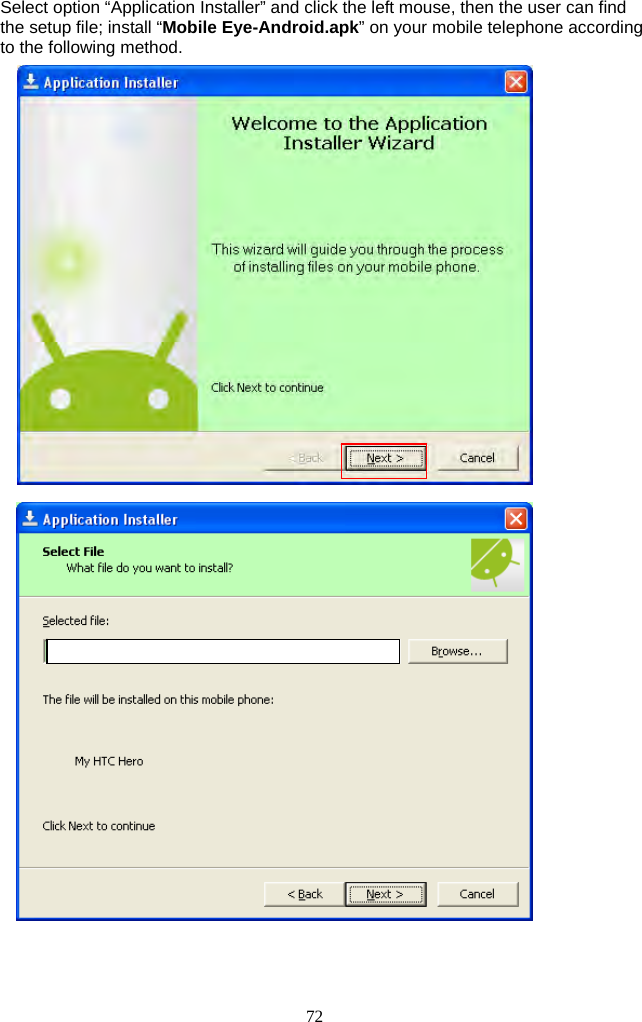

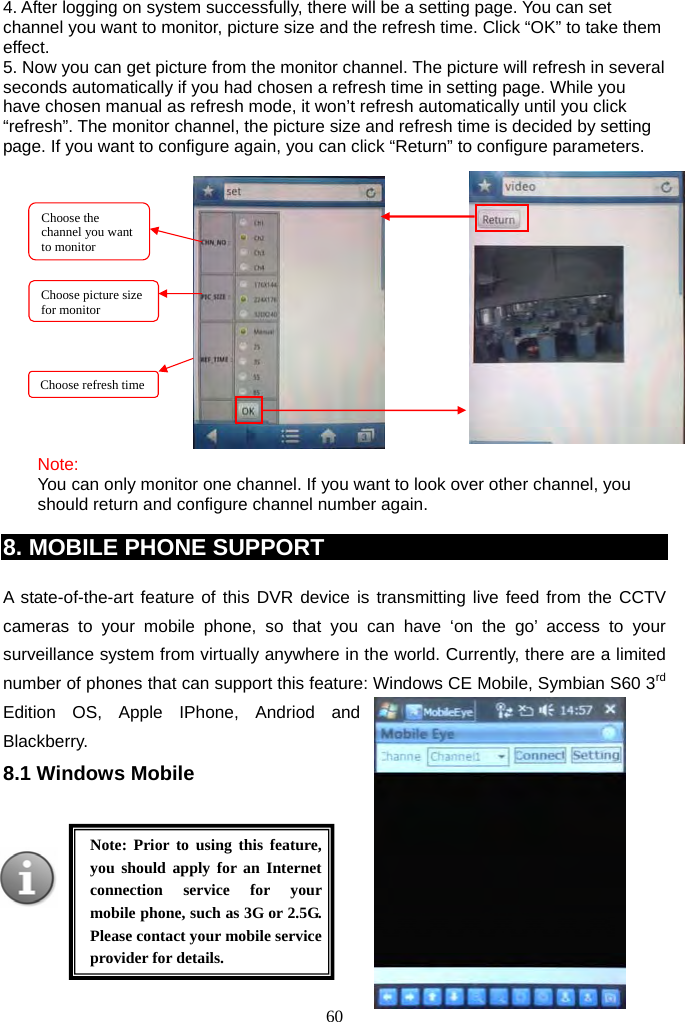

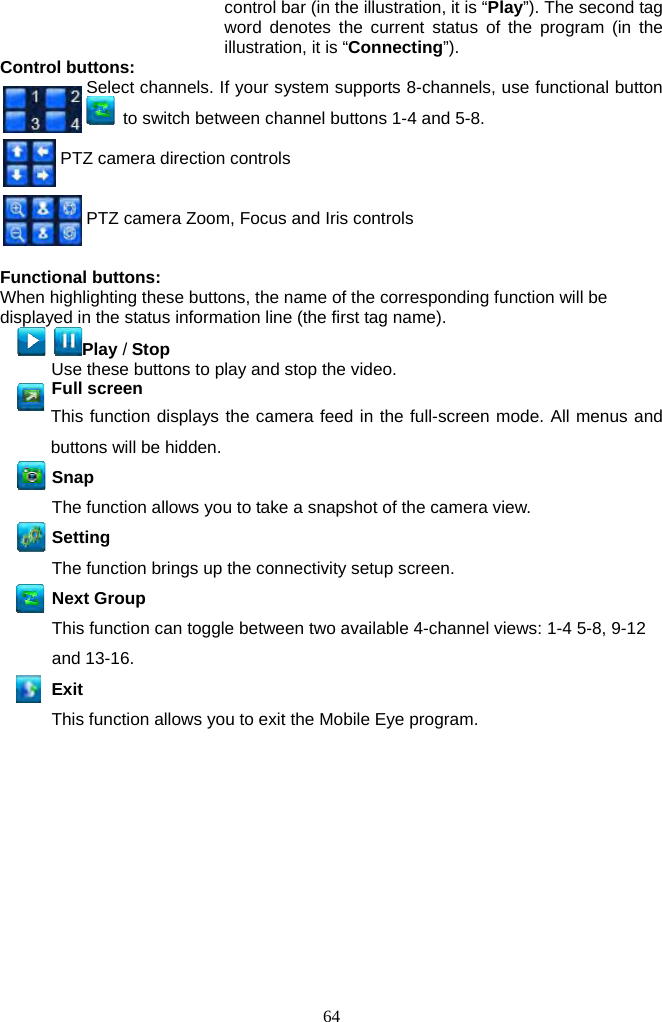

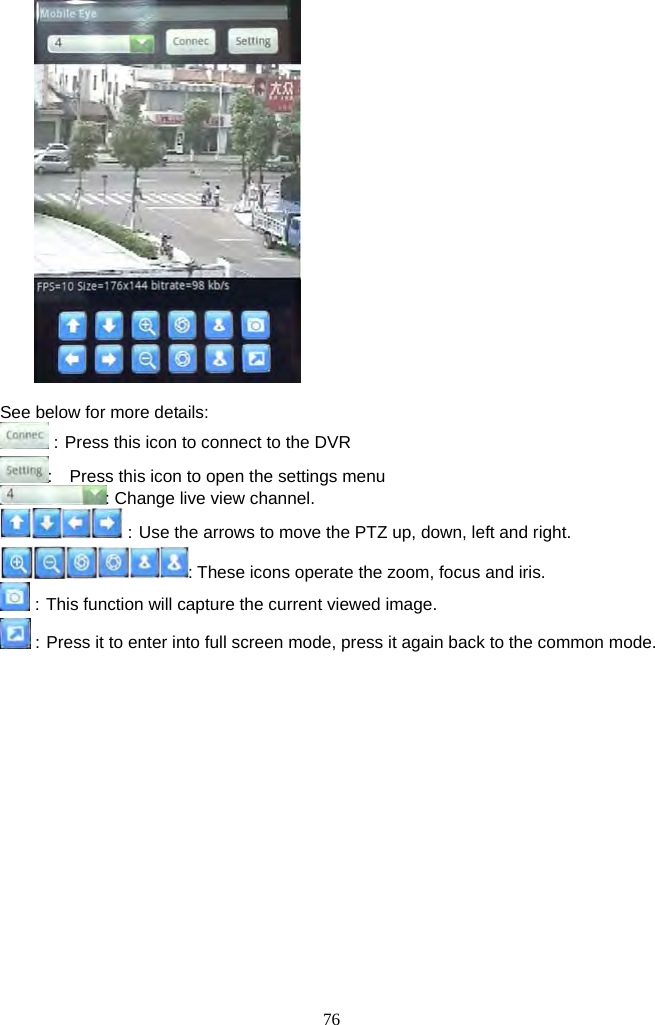

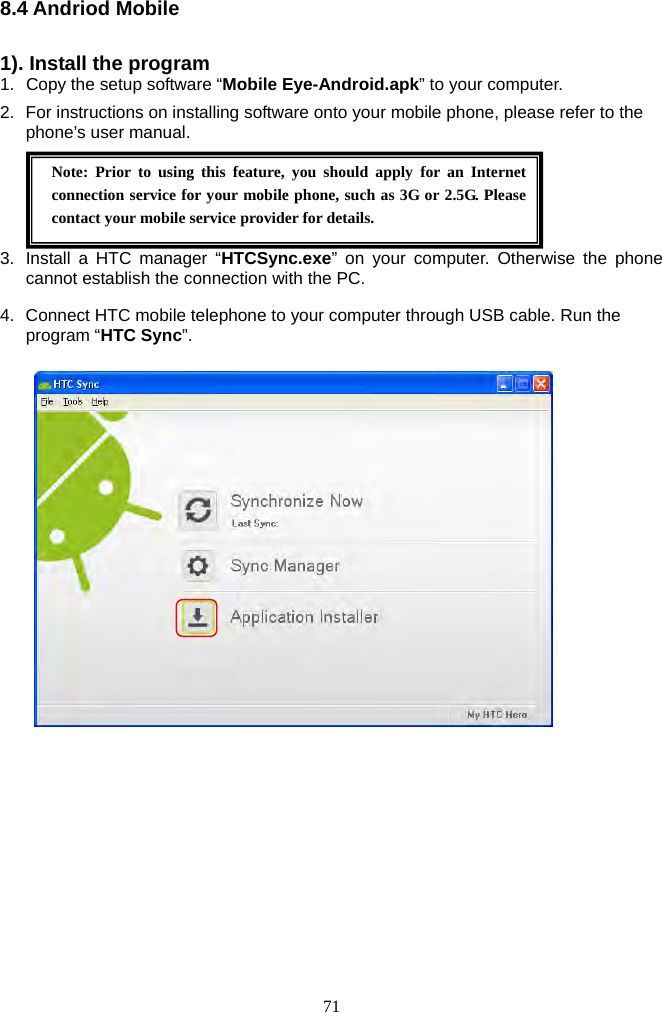

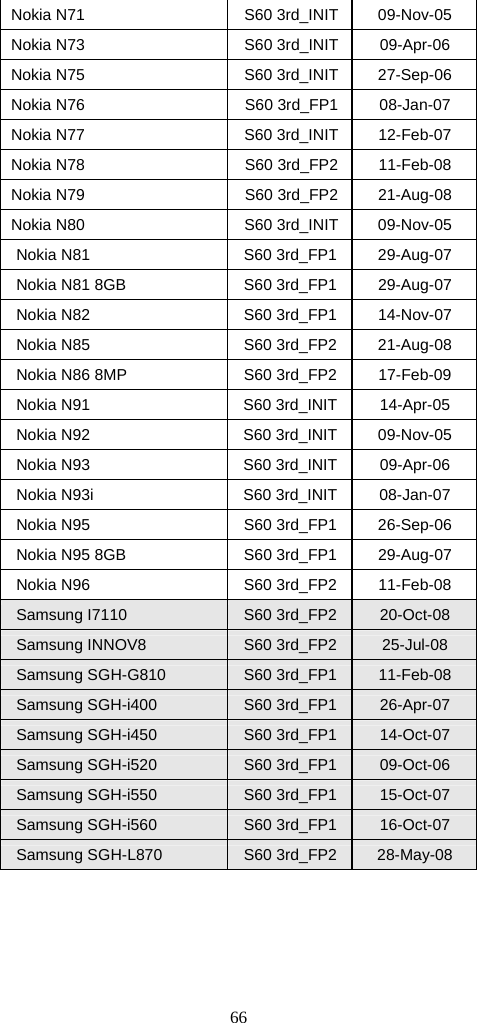

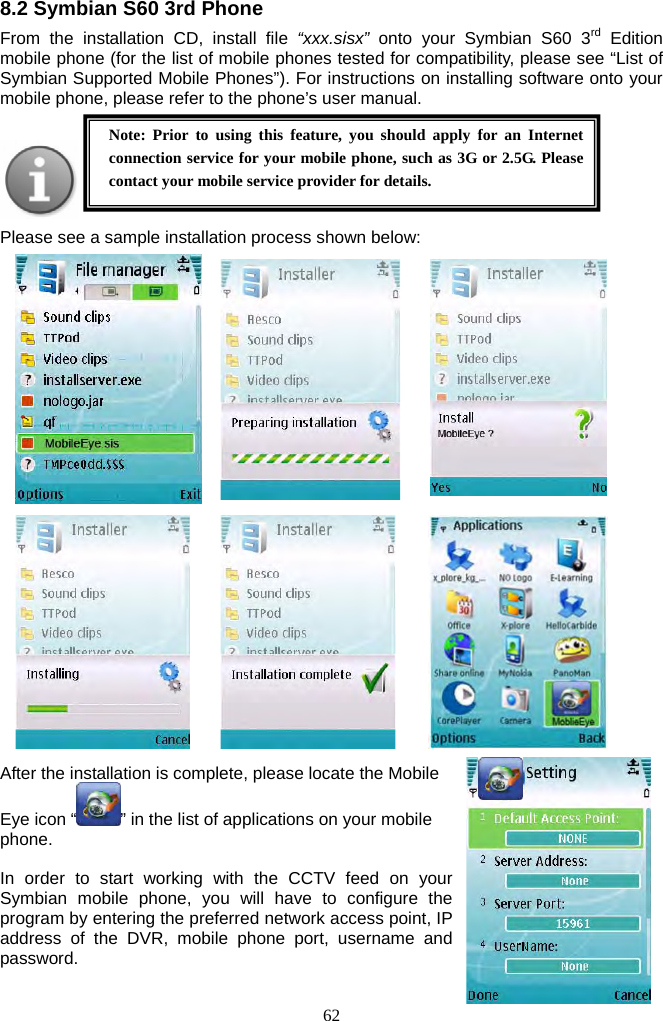

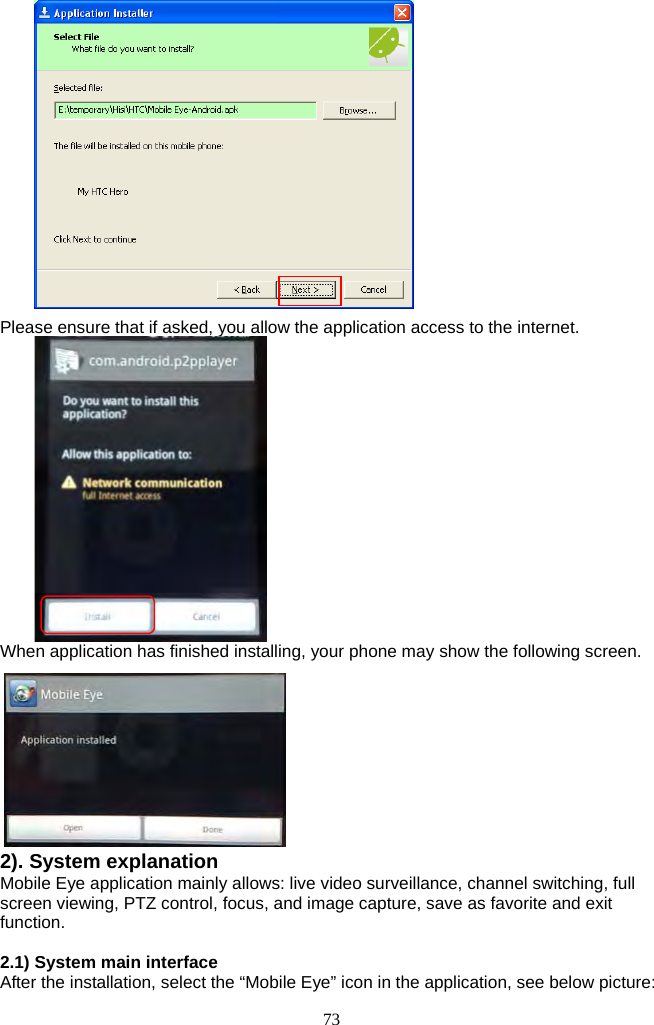

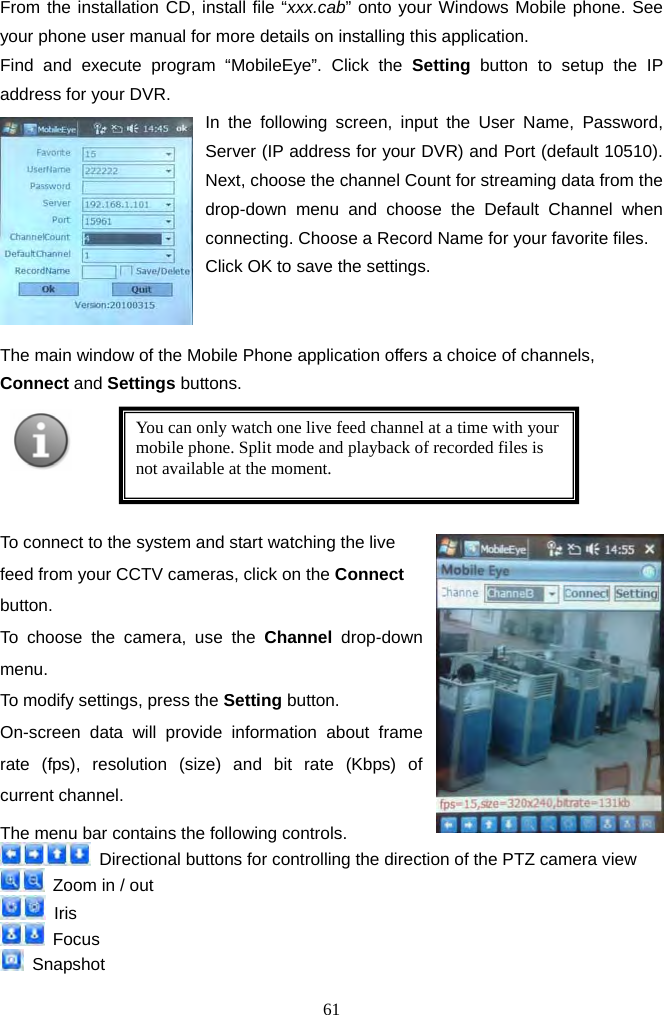

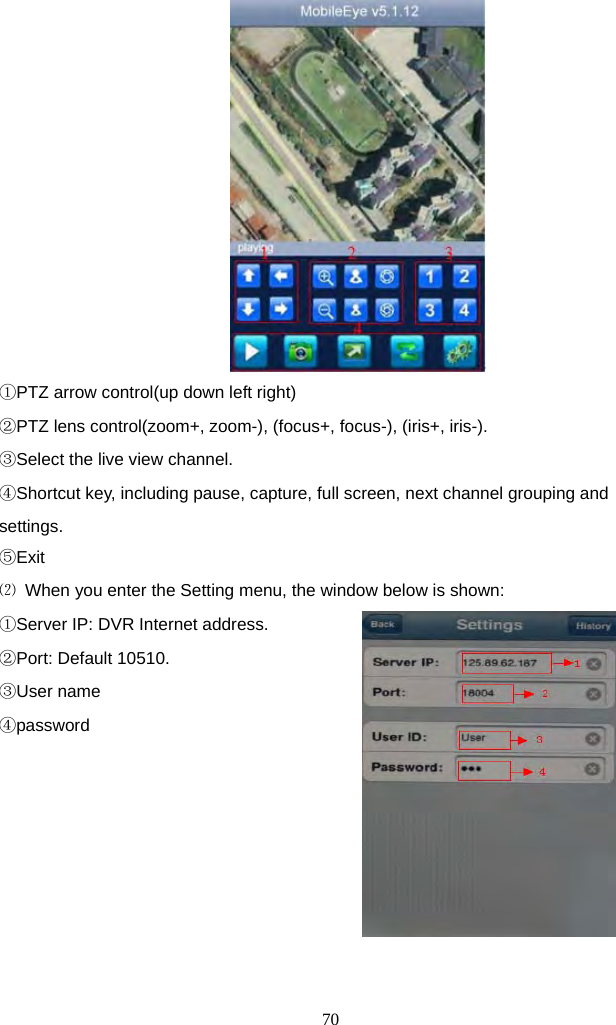

![74 Below is displayed the main start page of the application: 2.2) System setting interface Press the [setting] button to access the parameters settings. You will need to use this for the first time you use the system and later if you want to change the parameters of the system. PTZ Control Zoom、Focus、IrisSnapshot Full ScreenSwitch Video](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-76.png)

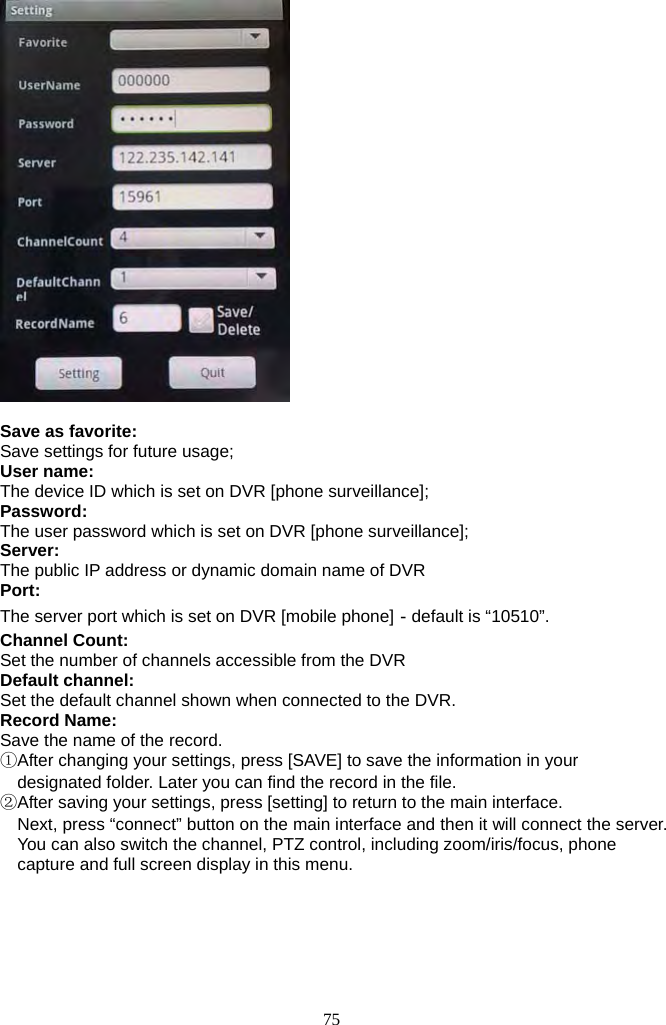

![75 Save as favorite: Save settings for future usage; User name: The device ID which is set on DVR [phone surveillance]; Password: The user password which is set on DVR [phone surveillance]; Server: The public IP address or dynamic domain name of DVR Port: The server port which is set on DVR [mobile phone]－default is “10510”. Channel Count: Set the number of channels accessible from the DVR Default channel: Set the default channel shown when connected to the DVR. Record Name: Save the name of the record. ①After changing your settings, press [SAVE] to save the information in your designated folder. Later you can find the record in the file. ②After saving your settings, press [setting] to return to the main interface. Next, press “connect” button on the main interface and then it will connect the server. You can also switch the channel, PTZ control, including zoom/iris/focus, phone capture and full screen display in this menu.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-77.png)

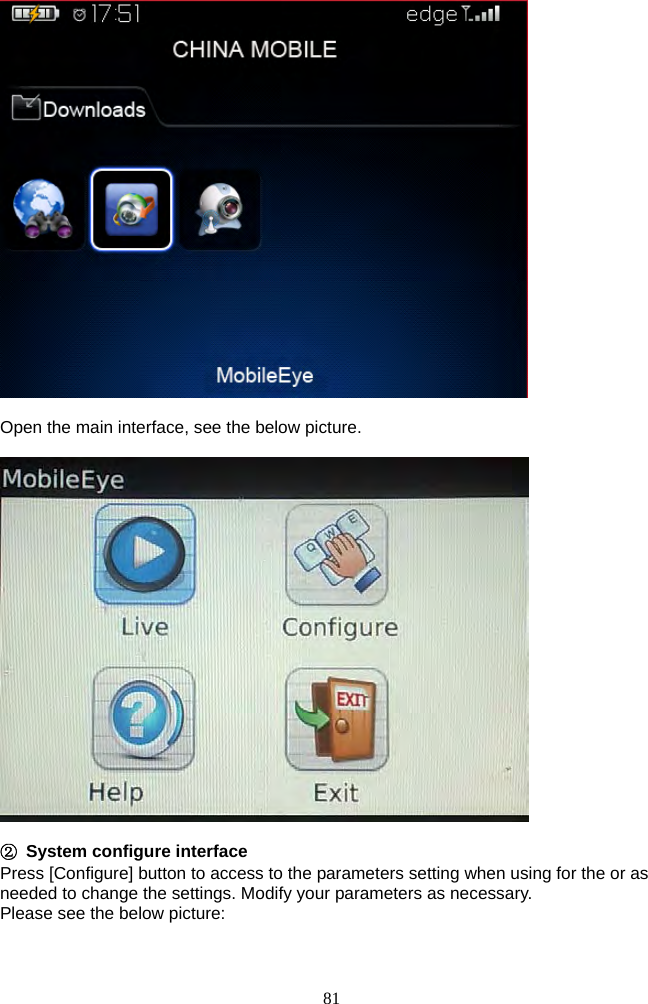

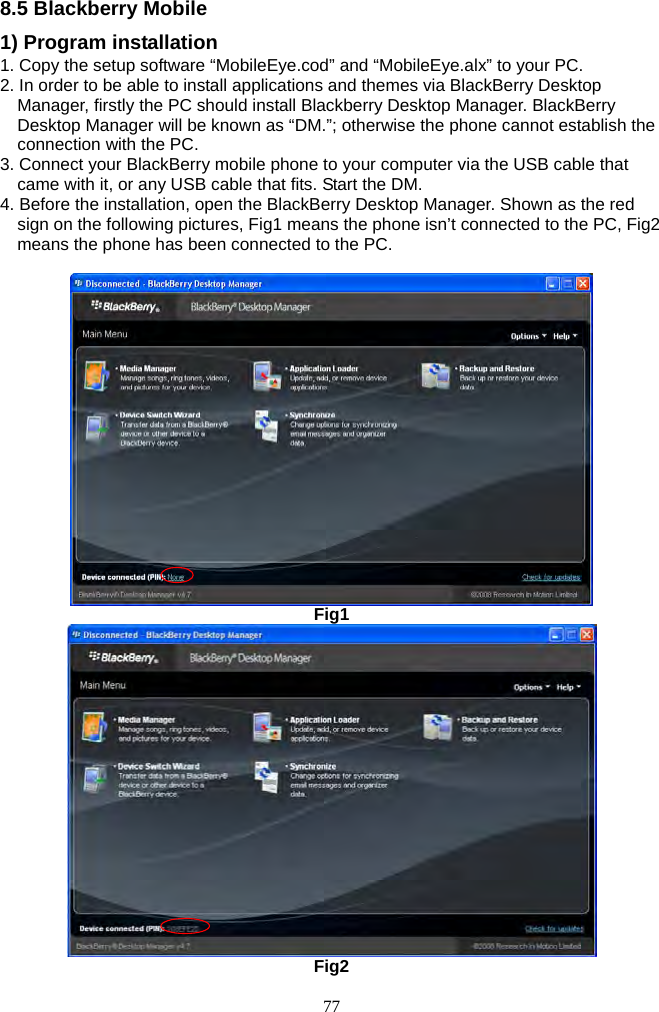

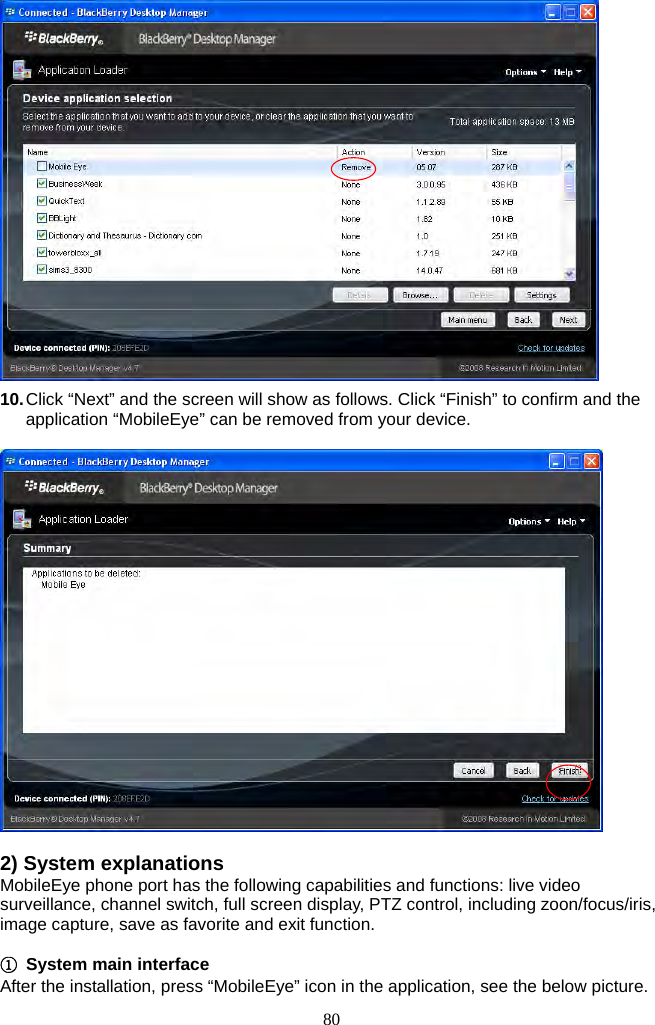

![81 Open the main interface, see the below picture. ② System configure interface Press [Configure] button to access to the parameters setting when using for the or as needed to change the settings. Modify your parameters as necessary. Please see the below picture:](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-83.png)

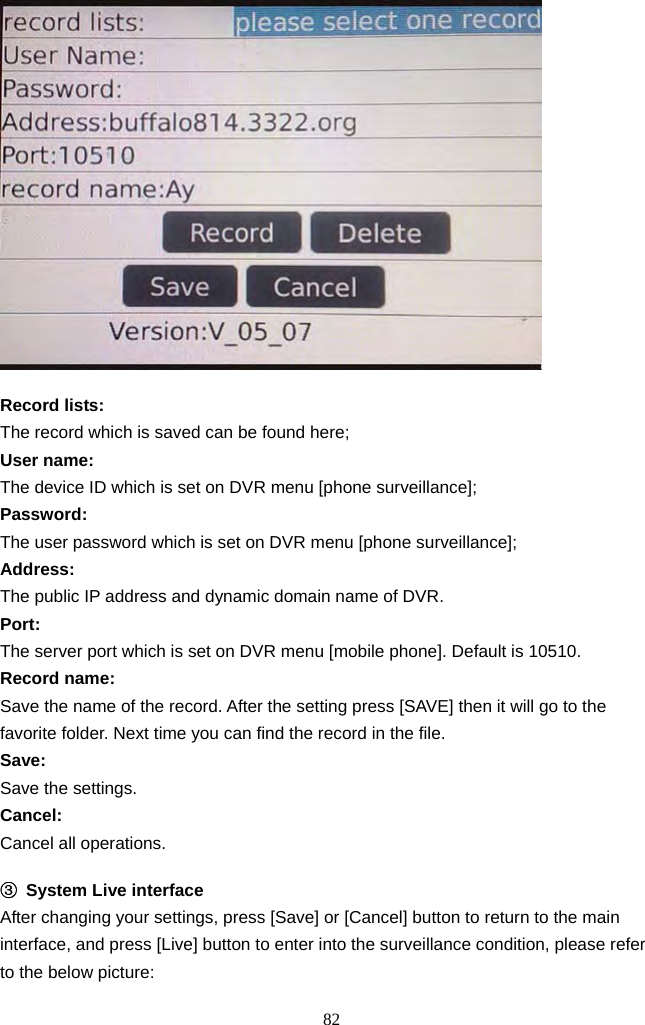

![82 Record lists: The record which is saved can be found here; User name: The device ID which is set on DVR menu [phone surveillance]; Password: The user password which is set on DVR menu [phone surveillance]; Address: The public IP address and dynamic domain name of DVR. Port: The server port which is set on DVR menu [mobile phone]. Default is 10510. Record name: Save the name of the record. After the setting press [SAVE] then it will go to the favorite folder. Next time you can find the record in the file. Save: Save the settings. Cancel: Cancel all operations. ③ System Live interface After changing your settings, press [Save] or [Cancel] button to return to the main interface, and press [Live] button to enter into the surveillance condition, please refer to the below picture:](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-84.png)

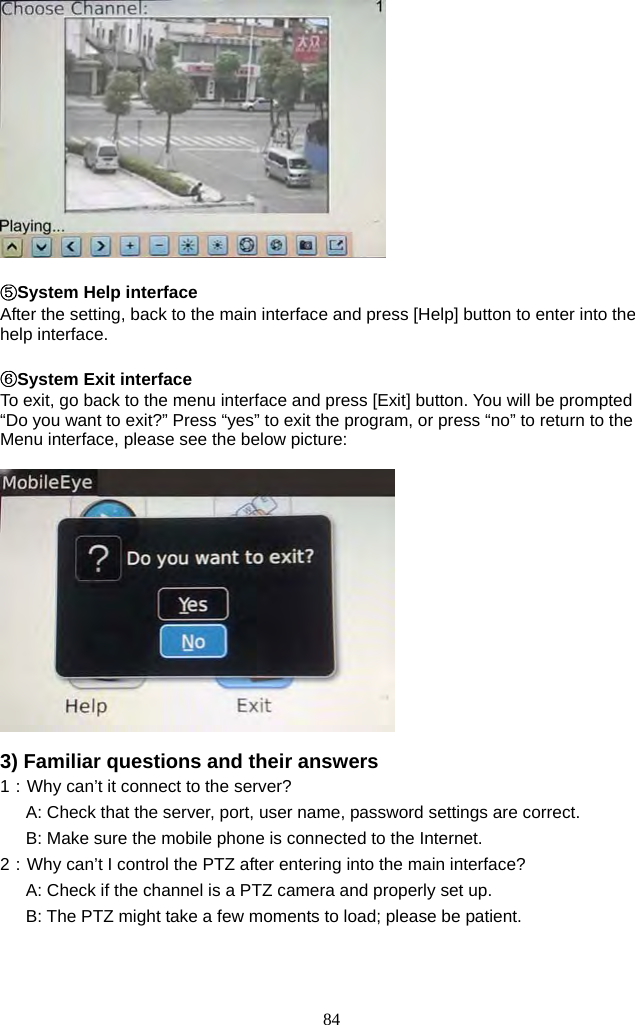

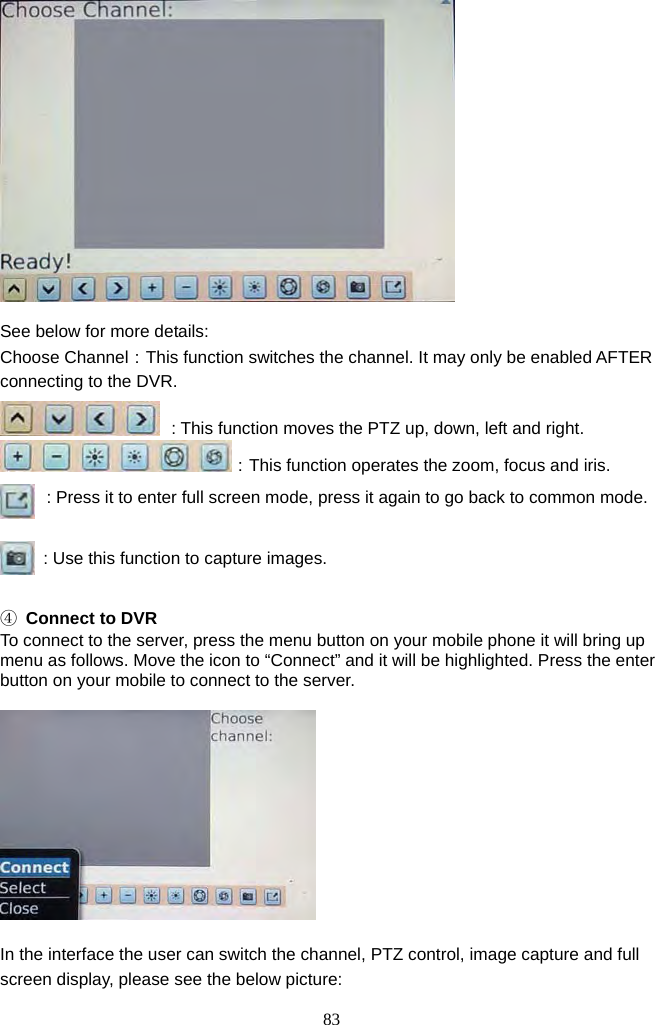

![84 ⑤System Help interface After the setting, back to the main interface and press [Help] button to enter into the help interface. ⑥System Exit interface To exit, go back to the menu interface and press [Exit] button. You will be prompted “Do you want to exit?” Press “yes” to exit the program, or press “no” to return to the Menu interface, please see the below picture: 3) Familiar questions and their answers 1：Why can’t it connect to the server? A: Check that the server, port, user name, password settings are correct. B: Make sure the mobile phone is connected to the Internet. 2：Why can’t I control the PTZ after entering into the main interface? A: Check if the channel is a PTZ camera and properly set up. B: The PTZ might take a few moments to load; please be patient.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-86.png)

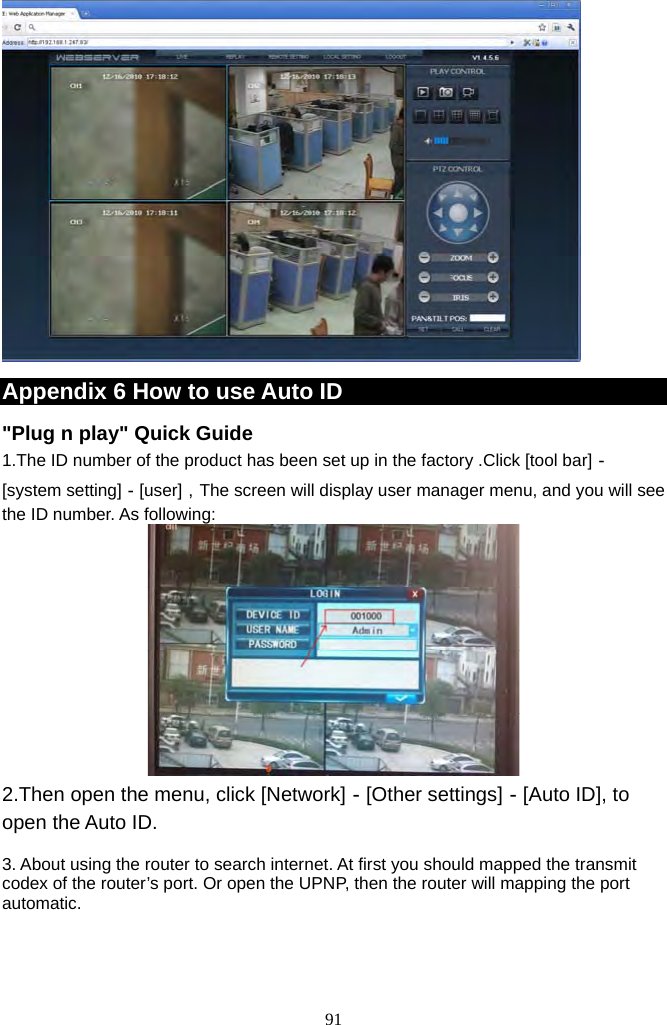

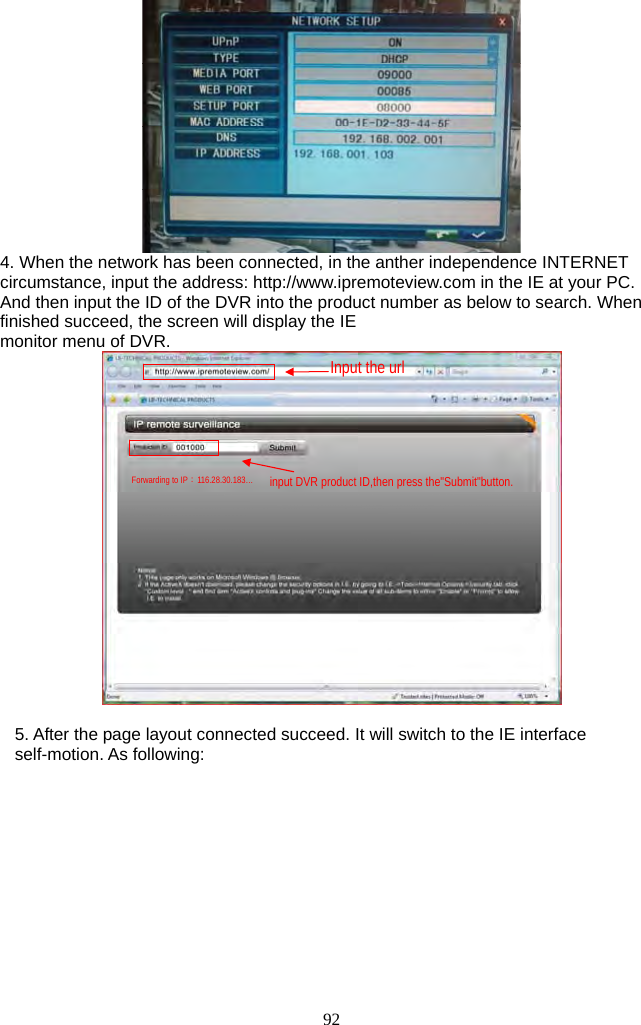

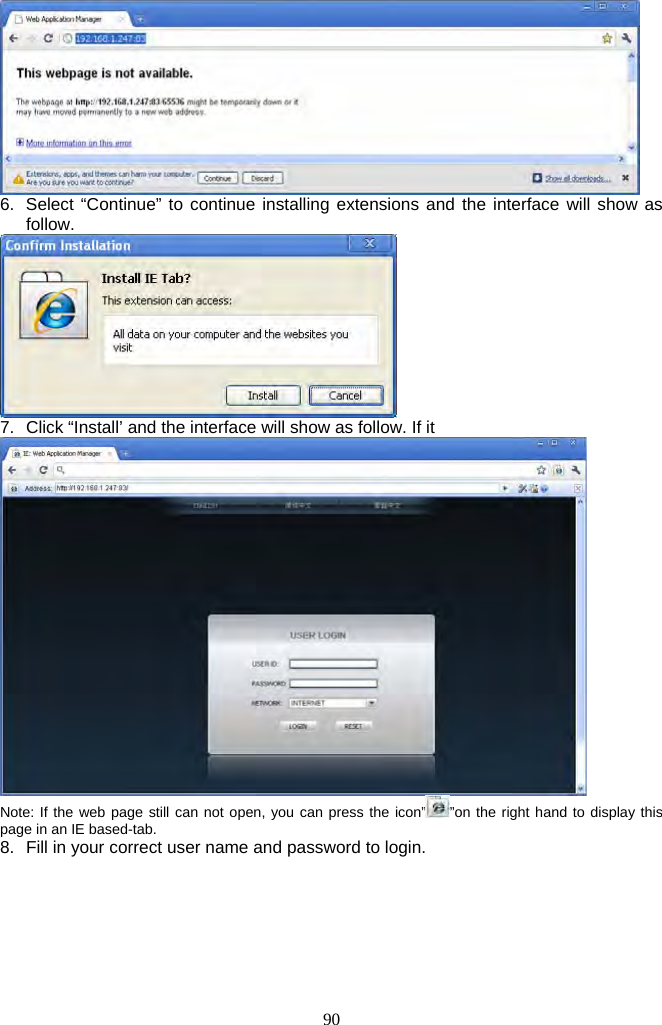

![91 Appendix 6 How to use Auto ID "Plug n play" Quick Guide 1.The ID number of the product has been set up in the factory .Click [tool bar]－ [system setting]－[user]，The screen will display user manager menu, and you will see the ID number. As following: 2.Then open the menu, click [Network]－[Other settings]－[Auto ID], to open the Auto ID. 3. About using the router to search internet. At first you should mapped the transmit codex of the router’s port. Or open the UPNP, then the router will mapping the port automatic.](https://usermanual.wiki/LB-Technology/56404DT/User-Guide-1738088-Page-93.png)
