LB Technology 96601W IP VIDEO DOOR PHONE User Manual
LB Technology Co., Ltd. IP VIDEO DOOR PHONE Users Manual
UserManual.wiki
>
LB Technology
>
96601W User Manual
Users Manual
Navigation menu
Upload a User Manual
Namespaces
Wiki Guide
HTML
PDF
Info
Views
User Manual
Discussion / Help
Navigation

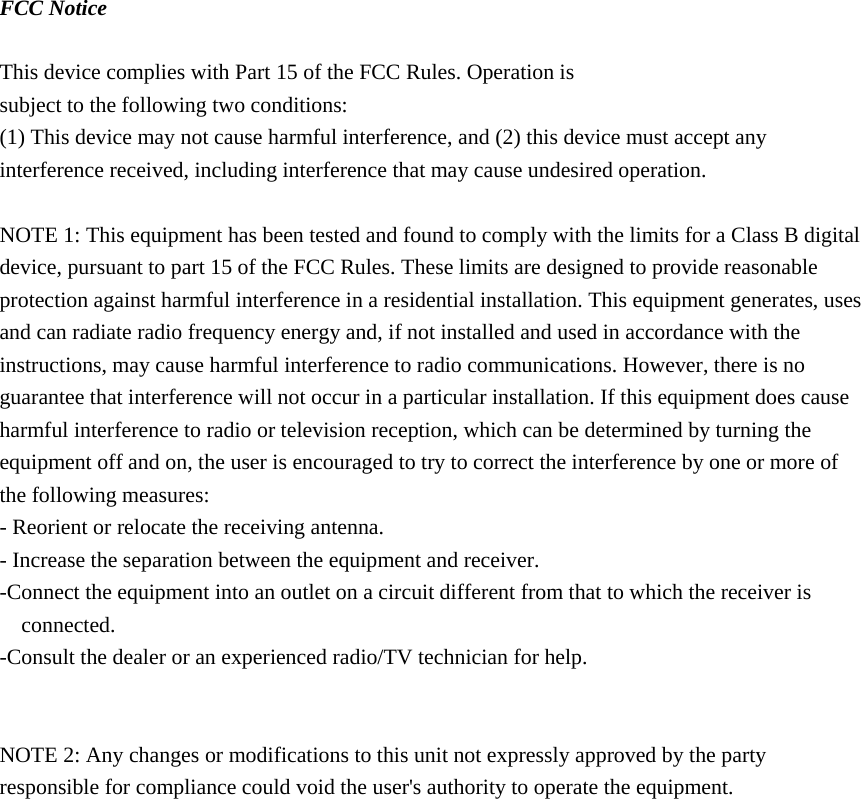

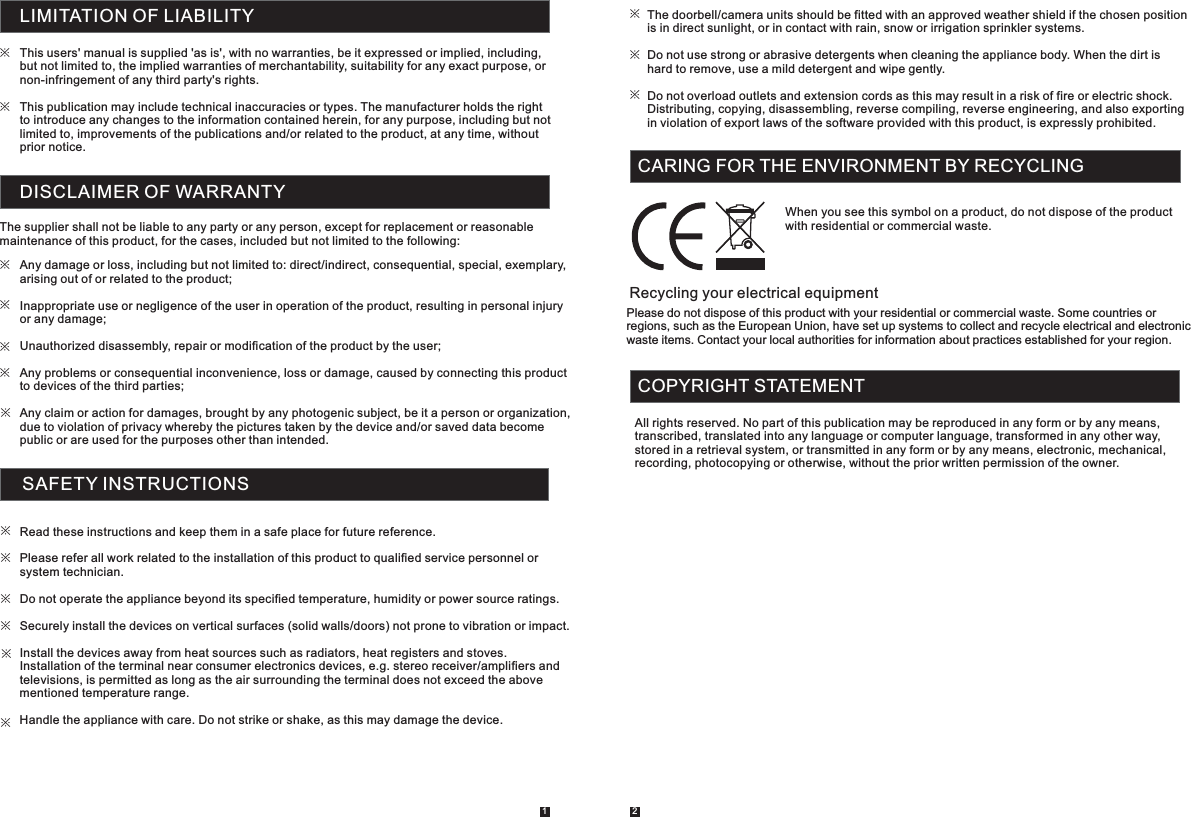

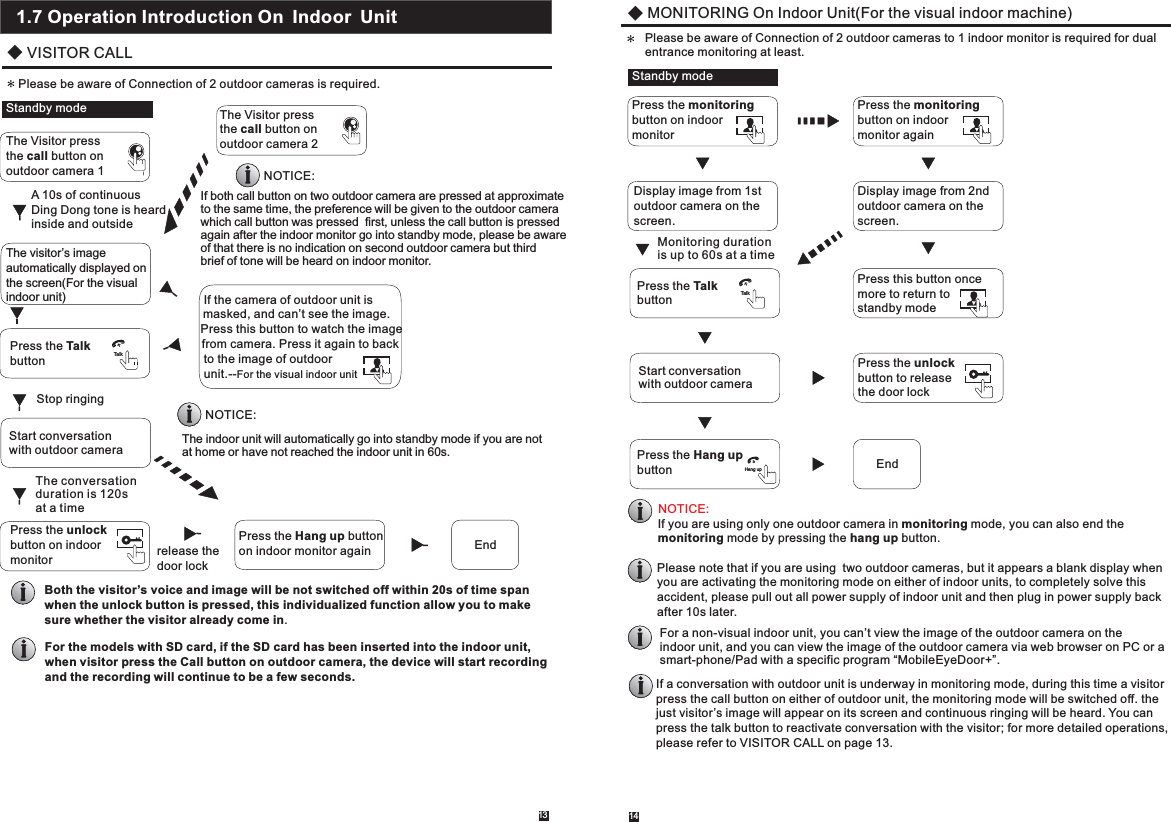

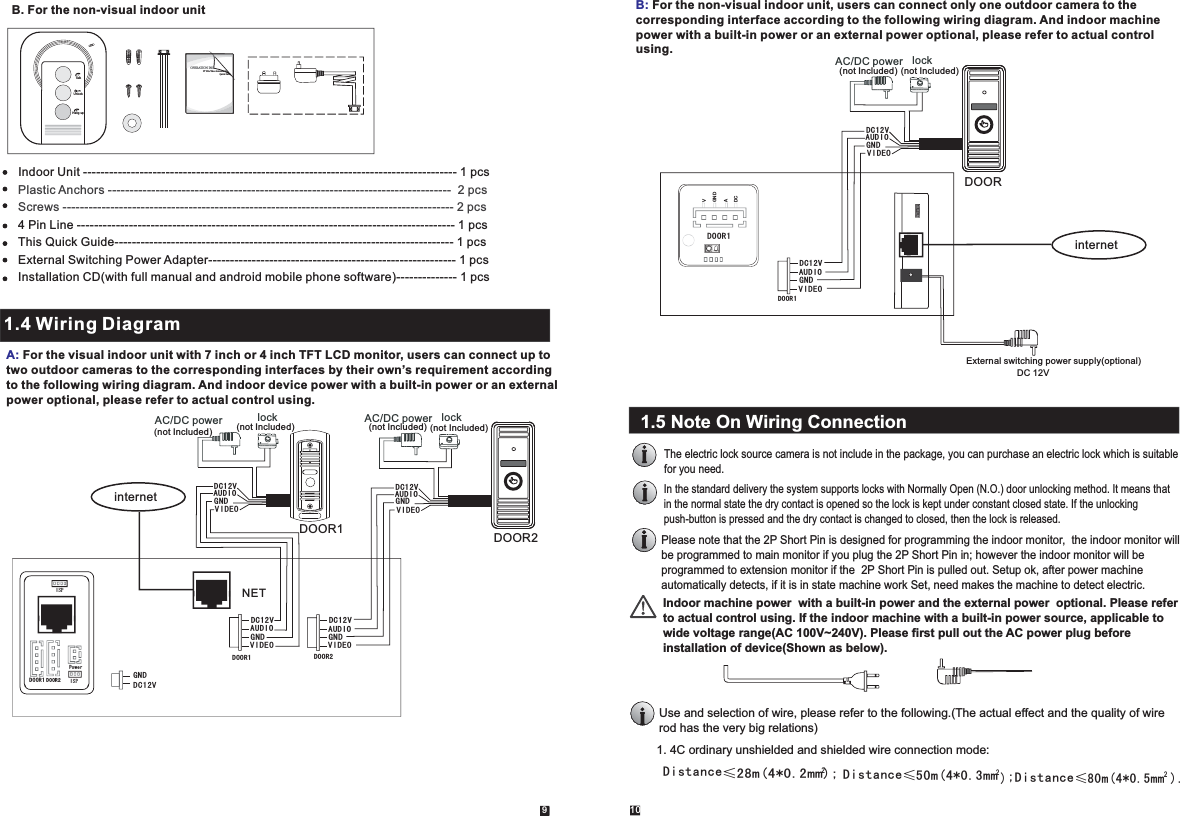

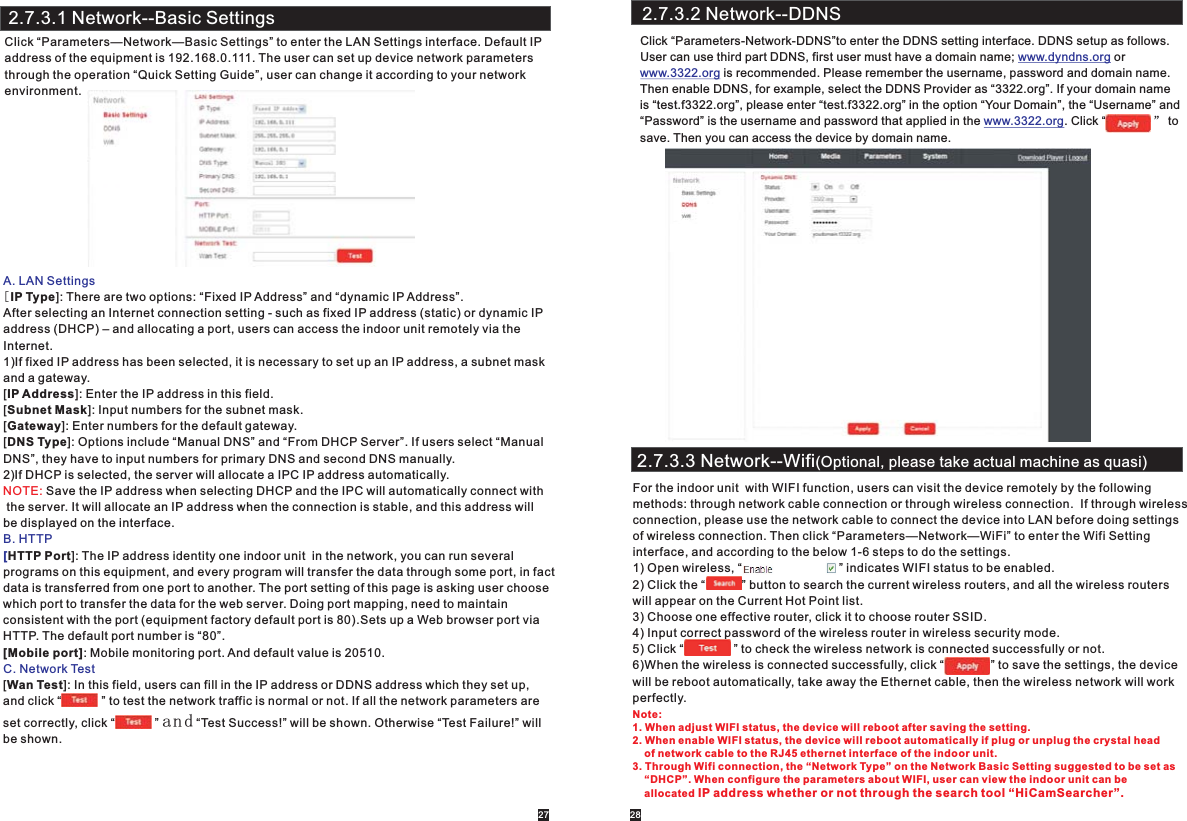

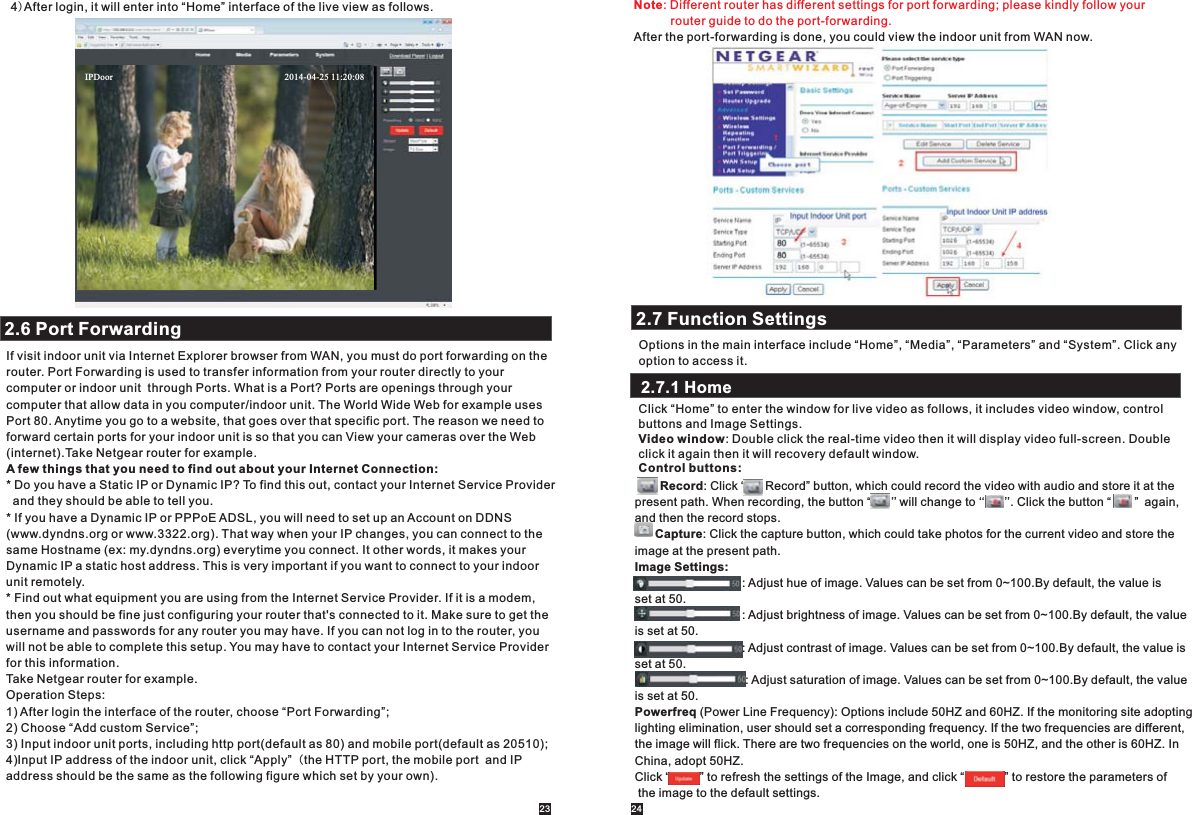

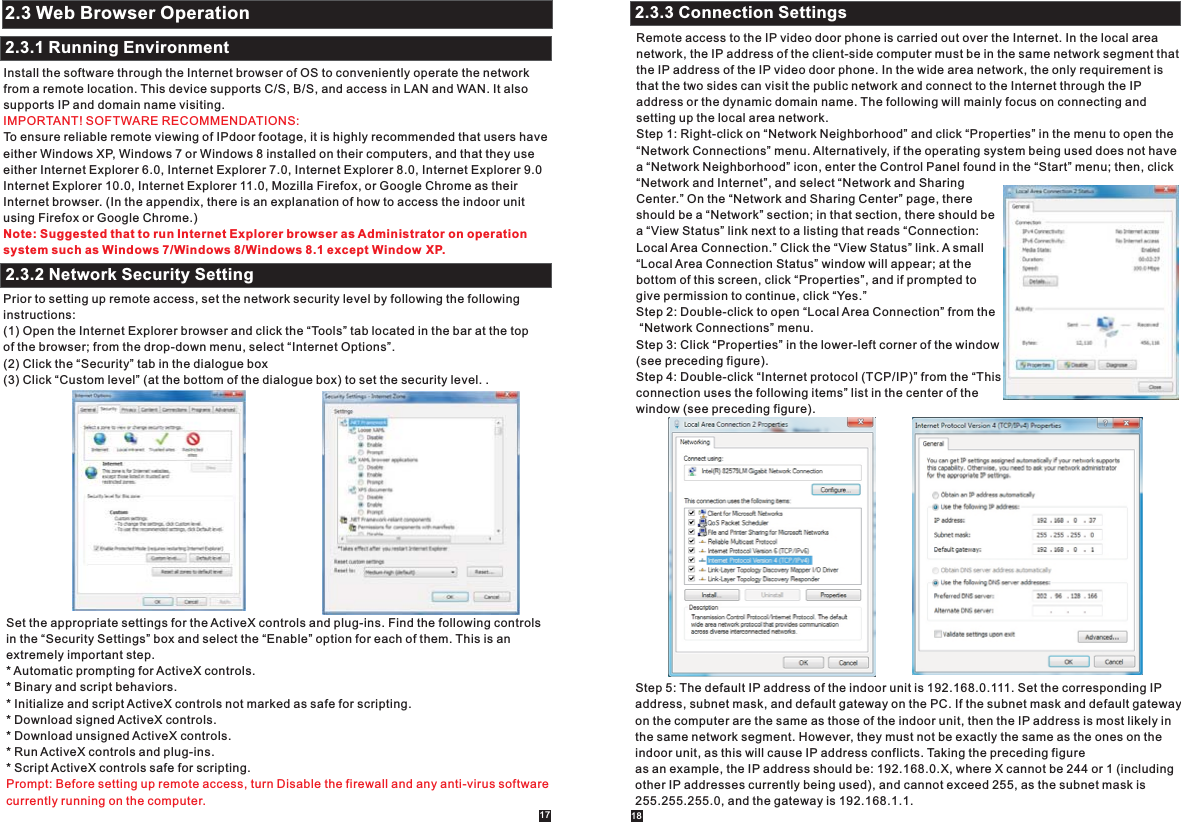

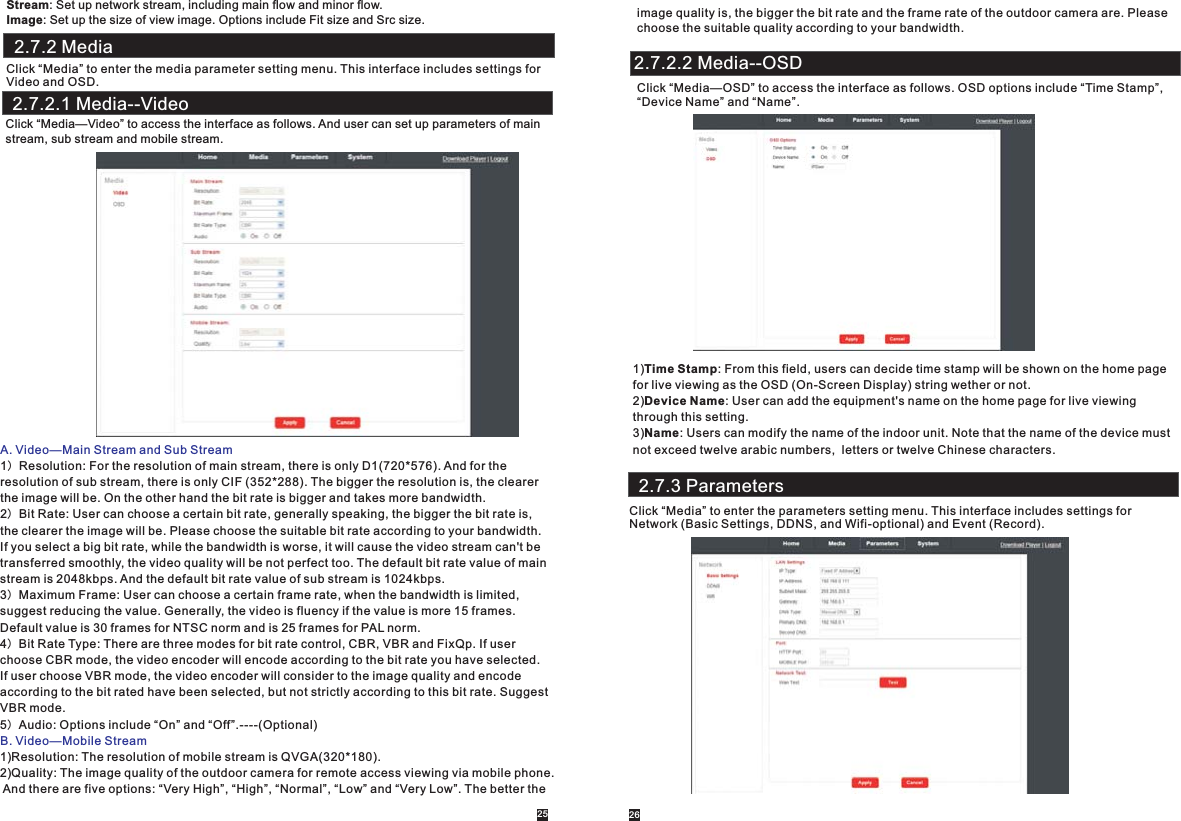

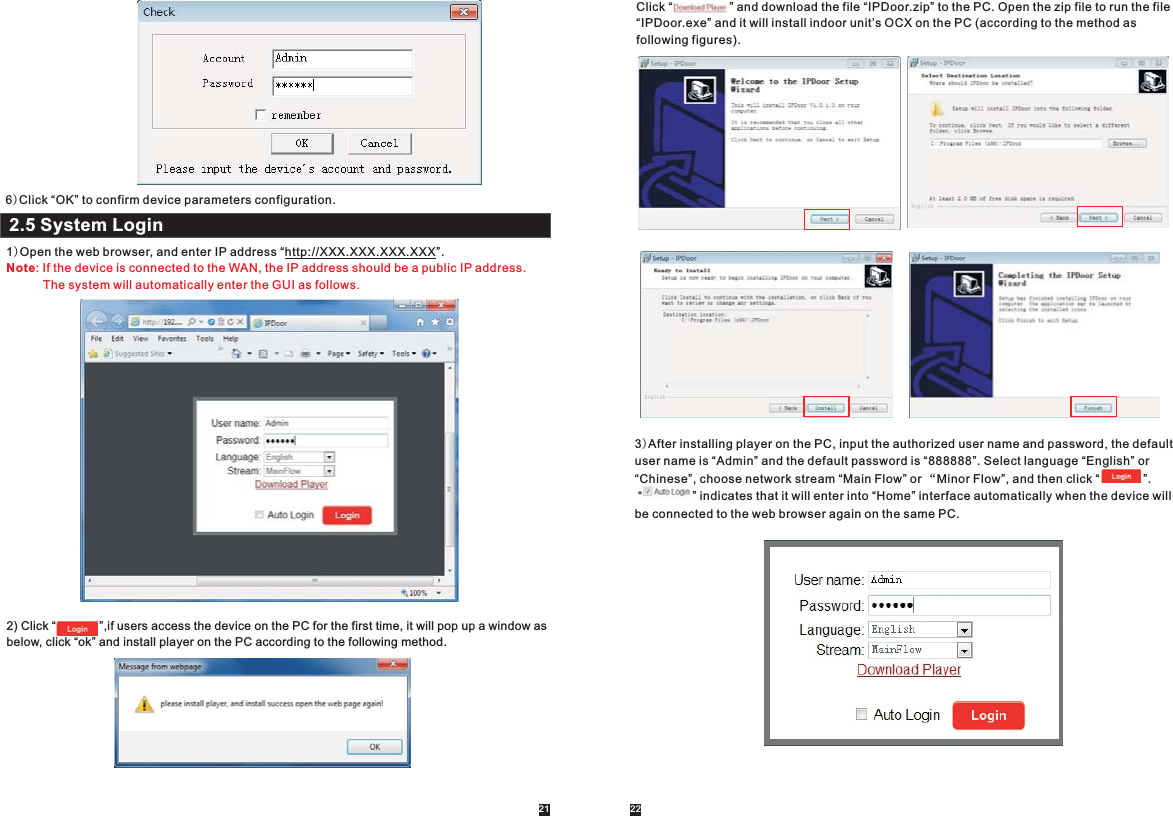

![A. LAN SettingsB. HTTP[C. Network Test[IP Type]: There are two options: “Fixed IP Address” and “dynamic IP Address”.After selecting an Internet connection setting - such as fixed IP address (static) or dynamic IP address (DHCP) – and allocating a port, users can access the indoor unit remotely via theInternet. 1)If fixed IP address has been selected, it is necessary to set up an IP address, a subnet mask and a gateway. [IP Address]: Enter the IP address in this field.[Subnet Mask]: Input numbers for the subnet mask.[Gateway]: Enter numbers for the default gateway.[DNS Type]: Options include “Manual DNS” and “From DHCP Server”. If users select “Manual DNS”, they have to input numbers for primary DNS and second DNS manually. 2)If DHCP is selected, the server will allocate a IPC IP address automatically. Save the IP address when selecting DHCP and the IPC will automatically connect with the server. It will allocate an IP address when the connection is stable, and this address willbe displayed on the interface.HTTP Port]: The IP address identity one indoor unit in the network, you can run several programs on this equipment, and every program will transfer the data through some port, in factdata is transferred from one port to another. The port setting of this page is asking user choosewhich port to transfer the data for the web server. Doing port mapping, need to maintainconsistent with the port (equipment factory default port is 80).Sets up a Web browser port via HTTP. The default port number is “80”.[Mobile port]: Mobile monitoring port. And default value is 20510.[Wan Test]: In this field, users can fill in the IP address or DDNS address which they set up, and click “ ” to test the network traffic is normal or not. If all the network parameters are set correctly, click “ ” and “Test Success!” will be shown. Otherwise “Test Failure!” will be shown. NOTE:2.7.3.1 Network--Basic SettingsClick “Parameters—Network—Basic Settings” to enter the LAN Settings interface. Default IP address of the equipment is 192.168.0.111. The user can set up device network parameters through the operation “Quick Setting Guide”, user can change it according to your network environment.2.7.3.2 Network--DDNSClick “Parameters-Network-DDNS”to enter the DDNS setting interface. DDNS setup as follows.User can use third part DDNS, first user must have a domain name; or is recommended. Please remember the username, password and domain name.Then enable DDNS, for example, select the DDNS Provider as “3322.org”. If your domain name is “test.f3322.org”, please enter “test.f3322.org” in the option “Your Domain”, the “Username” and“Password” is the username and password that applied in the . Click “ ” tosave. Then you can access the device by domain name.www.dyndns.orgwww.3322.orgwww.3322.org2.7.3.3 Network--Wifi(Optional, please take actual machine as quasi)For the indoor unit with WIFI function, users can visit the device remotely by the following methods: through network cable connection or through wireless connection. If through wireless connection, please use the network cable to connect the device into LAN before doing settings of wireless connection. Then click “Parameters—Network—WiFi” to enter the Wifi Setting interface, and according to the below 1-6 steps to do the settings.1) Open wireless, “ ” indicates WIFI status to be enabled.2) Click the “ ” button to search the current wireless routers, and all the wireless routers will appear on the Current Hot Point list.3) Choose one effective router, click it to choose router SSID.4) Input correct password of the wireless router in wireless security mode.5) Click “ ” to check the wireless network is connected successfully or not.6)When the wireless is connected successfully, click “ ” to save the settings, the devicewill be reboot automatically, take away the Ethernet cable, then the wireless network will workperfectly.27 28Note: 1. When adjust WIFI status, the device will reboot after saving the setting. 2. When enable WIFI status, the device will reboot automatically if plug or unplug the crystal head of network cable to the RJ45 ethernet interface of the indoor unit. 3. Through Wifi connection, the “Network Type” on the Network Basic Setting suggested to be set as “DHCP”. When configure the parameters about WIFI, user can view the indoor unit can be allocated IP address whether or not through the search tool “HiCamSearcher”.](https://usermanual.wiki/LB-Technology/96601W/User-Guide-2397082-Page-15.png)

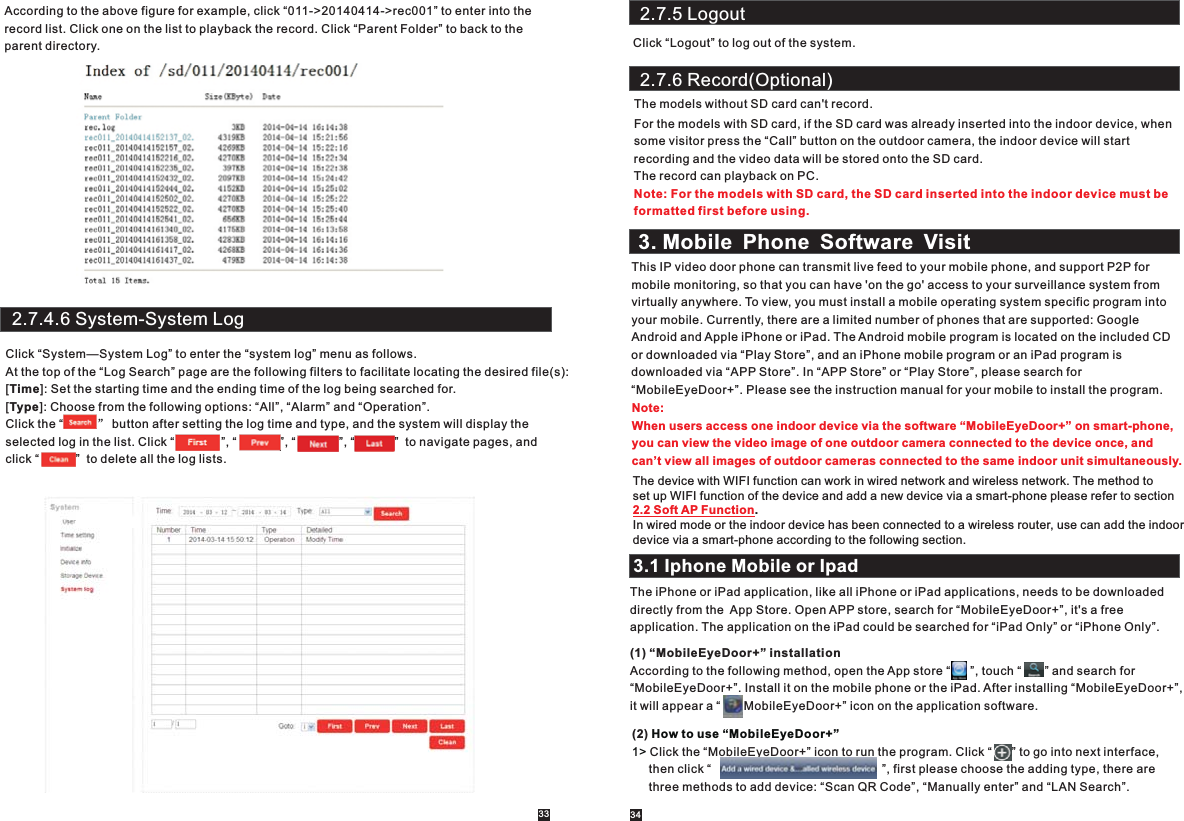

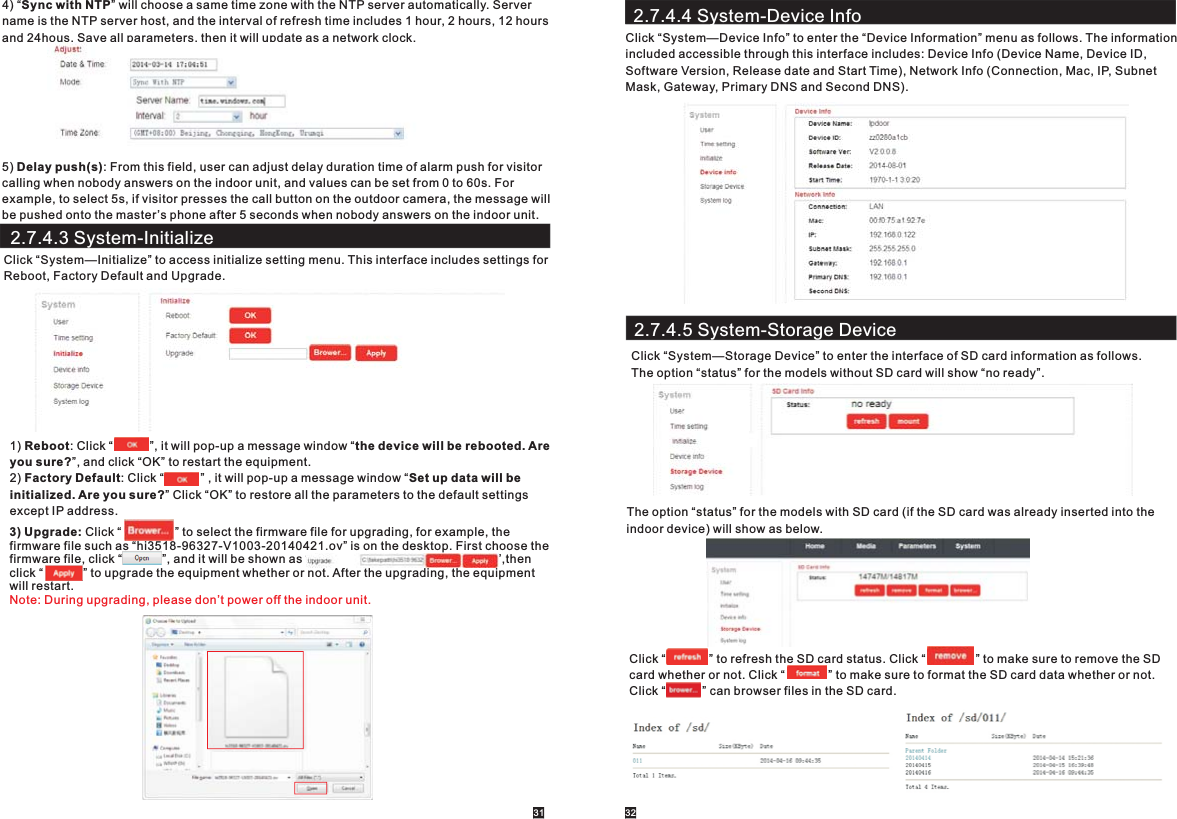

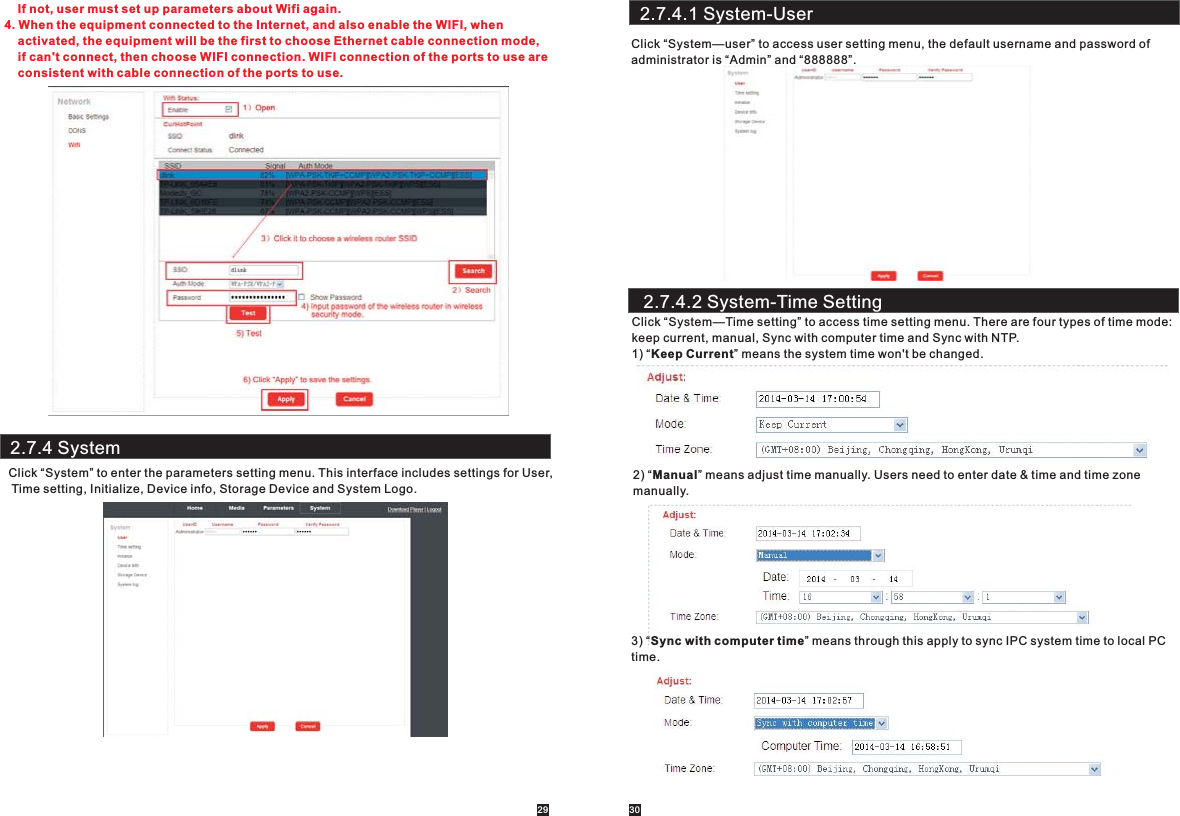

![2.7.5 LogoutClick “Logout” to log out of the system.According to the above figure for example, click “011->20140414->rec001” to enter into the record list. Click one on the list to playback the record. Click “Parent Folder” to back to the parent directory.2.7.4.6 System-System LogClick “System—System Log” to enter the “system log” menu as follows.At the top of the “Log Search” page are the following filters to facilitate locating the desired file(s):[Time]: Set the starting time and the ending time of the log being searched for.[Type]: Choose from the following options: “All”, “Alarm” and “Operation”.Click the “ ” button after setting the log time and type, and the system will display the selected log in the list. Click “ ”, “ ”, “ ”, “ ” to navigate pages, and click “ ” to delete all the log lists. 33 342.7.6 Record(Optional)The models without SD card can't record. For the models with SD card, if the SD card was already inserted into the indoor device, whensome visitor press the “Call” button on the outdoor camera, the indoor device will start recording and the video data will be stored onto the SD card.The record can playback on PC.Note: For the models with SD card, the SD card inserted into the indoor device must beformatted first before using.3. Mobile Phone Software VisitThis IP video door phone can transmit live feed to your mobile phone, and support P2P formobile monitoring, so that you can have 'on the go' access to your surveillance system from virtually anywhere. To view, you must install a mobile operating system specific program into your mobile. Currently, there are a limited number of phones that are supported: Google Android and Apple iPhone or iPad. The Android mobile program is located on the included CD or downloaded via “Play Store”, and an iPhone mobile program or an iPad program is downloaded via “APP Store”. In “APP Store” or “Play Store”, please search for “MobileEyeDoor+”. Please see the instruction manual for your mobile to install the program.Note: When users access one indoor device via the software “MobileEyeDoor+” on smart-phone, you can view the video image of one outdoor camera connected to the device once, and can’t view all images of outdoor cameras connected to the same indoor unit simultaneously. 3.1 Iphone Mobile or IpadThe iPhone or iPad application, like all iPhone or iPad applications, needs to be downloaded directly from the App Store. Open APP store, search for “MobileEyeDoor+”, it's a free application. The application on the iPad could be searched for “iPad Only” or “iPhone Only”.(1) “MobileEyeDoor+” installationAccording to the following method, open the App store “ ”, touch “ ” and search for “MobileEyeDoor+”. Install it on the mobile phone or the iPad. After installing “MobileEyeDoor+”, it will appear a “ MobileEyeDoor+” icon on the application software.(2) Click the “MobileEyeDoor+” icon to run the program. Click “ ” to go into next interface, then click “ ”, first please choose the adding type, there are three methods to add device: “Scan QR Code”, “Manually enter” and “LAN Search”. How to use “MobileEyeDoor+”1> The device with WIFI function can work in wired network and wireless network. The method to set up WIFI function of the device and add a new device via a smart-phone please refer to section.In wired mode or the indoor device has been connected to a wireless router, use can add the indoordevice via a smart-phone according to the following section. 2.2 Soft AP Function](https://usermanual.wiki/LB-Technology/96601W/User-Guide-2397082-Page-18.png)

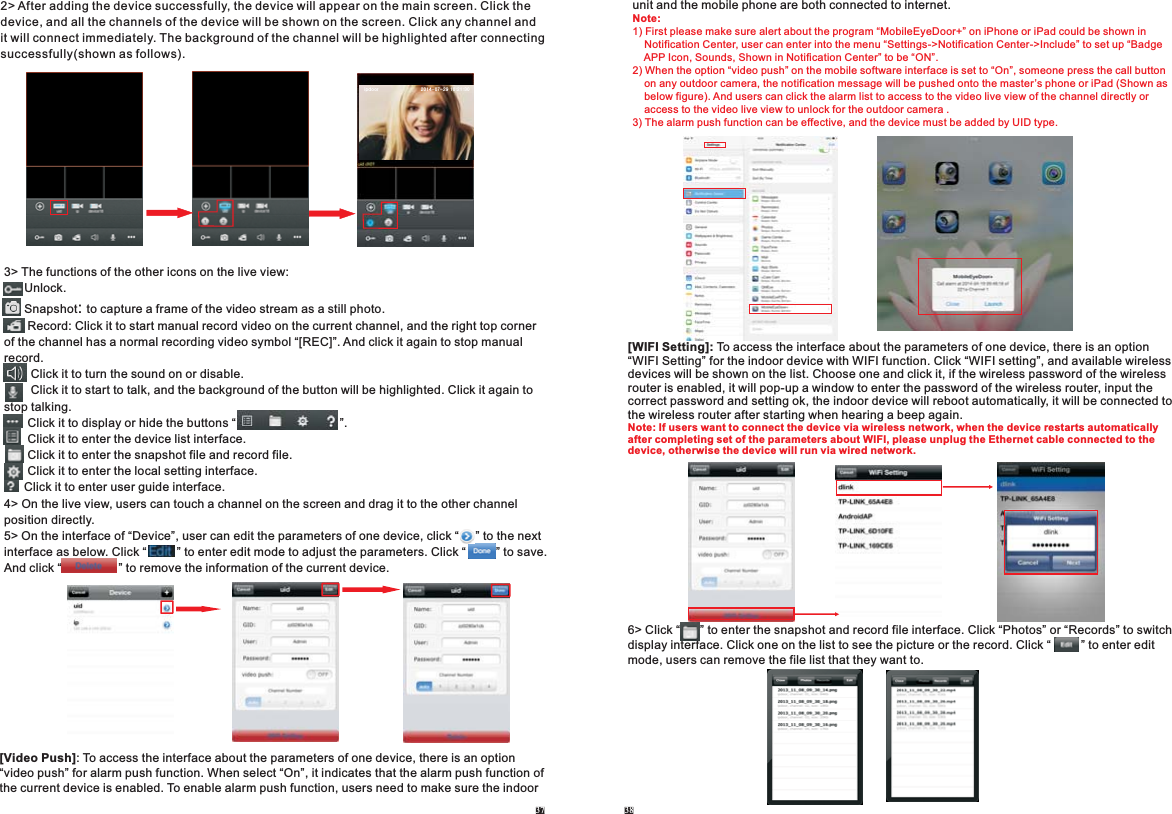

![2> After adding the device successfully, the device will appear on the main screen. Click the device, and all the channels of the device will be shown on the screen. Click any channel and it will connect immediately. The background of the channel will be highlighted after connectingsuccessfully(shown as follows).3> The functions of the other icons on the live view: Unlock. Snapshot . : to capture a frame of the video stream as a still photoRecord: Click it to start manual record video on the current channel, and the right top corner of the channel has a normal recording video symbol “[REC]”. And click it again to stop manual record. Click it to turn the sound on or disable. Click it to start to talk, and the background of the button will be highlighted. Click it again to stop talking. Click it to display or hide the buttons “ ”. Click it to enter the device list interface. Click it to enter the snapshot file and record file. Click it to enter the local setting interface. Click it to enter user guide interface.4> On the live view, users can touch a channel on the screen and drag it to the other channel position directly.5> On the interface of “Device”, user can edit the parameters of one device, click “ ” to the next interface as below. Click “ ” to enter edit mode to adjust the parameters. Click “ ” to save.And click “ ” to remove the information of the current device. [Video Push]: To access the interface about the parameters of one device, there is an option “video push” for alarm push function. When select “On”, it indicates that the alarm push function of the current device is enabled. To enable alarm push function, users need to make sure the indoor 37 38unit and the mobile phone are both connected to internet. Note: 1) First please make sure alert about the program “MobileEyeDoor+” on iPhone or iPad could be shown in Notification Center, user can enter into the menu “Settings->Notification Center->Include” to set up “Badge APP Icon, Sounds, Shown in Notification Center” to be “ON”. 2) When the option “video push” on the mobile software interface is set to “On”, someone press the call button on any outdoor camera, the notification message will be pushed onto the master’s phone or iPad (Shown as below figure). And users can click the alarm list to access to the video live view of the channel directly or access to the video live view to unlock for the outdoor camera .3) The alarm push function can be effective, and the device must be added by UID type. [WIFI Setting]: To access the interface about the parameters of one device, there is an option “WIFI Setting” for the indoor device with WIFI function. Click “WIFI setting”, and available wireless devices will be shown on the list. Choose one and click it, if the wireless password of the wirelessrouter is enabled, it will pop-up a window to enter the password of the wireless router, input the correct password and setting ok, the indoor device will reboot automatically, it will be connected to the wireless router after starting when hearing a beep again. Note: If users want to connect the device via wireless network, when the device restarts automatically after completing set of the parameters about WIFI, please unplug the Ethernet cable connected to the device, otherwise the device will run via wired network. 6> Click one on the list to see the picture or the record. Click “ ” to enter the snapshot and record file interface. Click “Photos” or “Records” to switchdisplay interface. Click “ ” to enter edit mode, users can remove the file list that they want to. ipdo or 2014-07-29 10:21:30](https://usermanual.wiki/LB-Technology/96601W/User-Guide-2397082-Page-20.png)

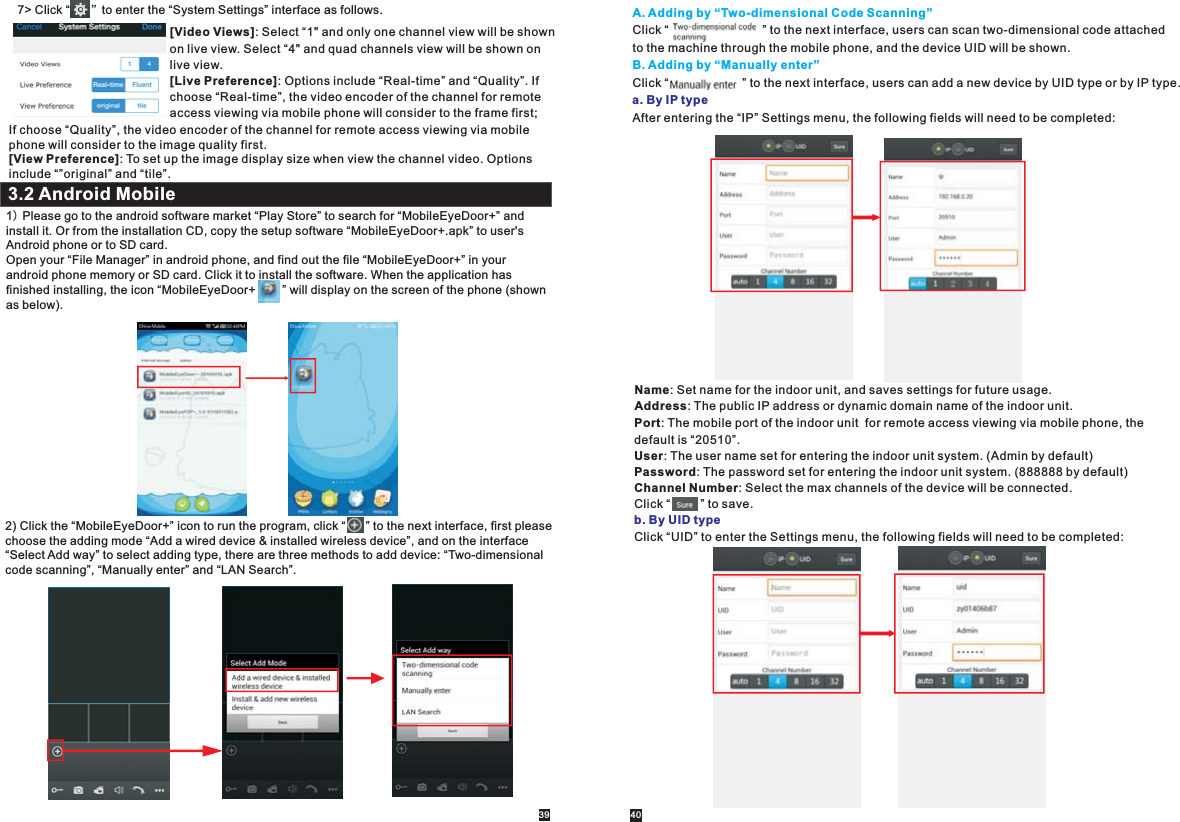

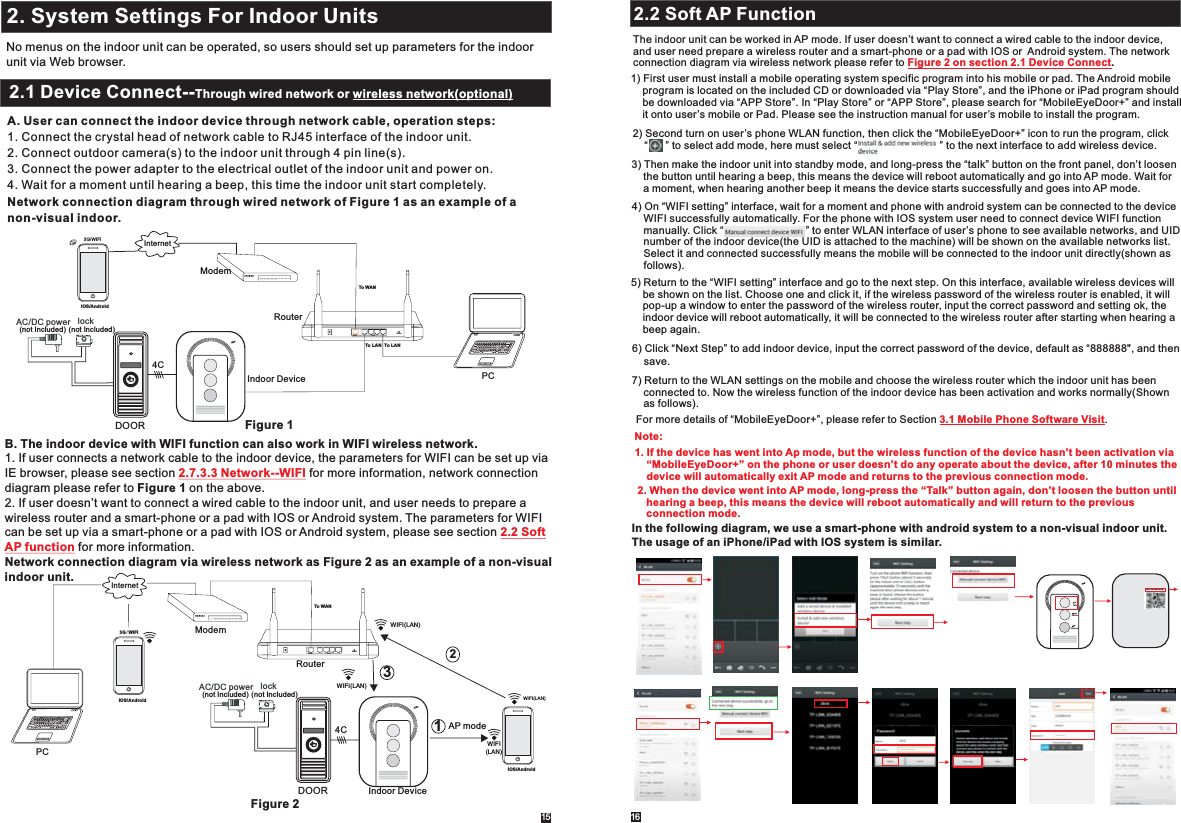

![1) Please go to the android software market “Play Store” to search for “MobileEyeDoor+” and install it. Or from the installation CD, copy the setup software “MobileEyeDoor+.apk” to user's Android phone or to SD card.Open your “File Manager” in android phone, and find out the file “MobileEyeDoor+” in your android phone memory or SD card. Click it to install the software. When the application hasfinished installing, the icon “MobileEyeDoor+ ” will display on the screen of the phone (shown as below).3.2 Android Mobile7> Click “ ”to enter the “System Settings” interface as follows.[Video Views]: Select “1" and only one channel view will be shown on live view. Select “4" and quad channels view will be shown on live view.[Live Preference]: Options include “Real-time” and “Quality”. If choose “Real-time”, the video encoder of the channel for remote access viewing via mobile phone will consider to the frame first; If choose “Quality”, the video encoder of the channel for remote access viewing via mobile phone will consider to the image quality first.[View Preference]: To set up the image display size when view the channel video. Options include “”original” and “tile”.2) Click the “MobileEyeDoor+” icon to run the program, click “ ” to the next interface, first please choose the adding mode “Add a wired device & installed wireless device”, and on the interface “Select Add way” to select adding type, there are three methods to add device: “Two-dimensional code scanning”, “Manually enter” and “LAN Search”. A. Adding by “Two-dimensional Code Scanning”B. Adding by “Manually enter”Click “ ” to the next interface, users can scan two-dimensional code attached to the machine through the mobile phone, and the device UID will be shown. Click “ ” to the next interface, users can add a new device by UID type or by IP type.After entering the “IP” Settings menu, the following fields will need to be completed:a. By IP typeName: Set name for the indoor unit, and saves settings for future usage.Address: The public IP address or dynamic domain name of the indoor unit.Port: The mobile port of the indoor unit for remote access viewing via mobile phone, the default is “20510”.User: The user name set for entering the indoor unit system. (Admin by default)Password: The password set for entering the indoor unit system. (888888 by default)Channel Number: Select the max channels of the device will be connected.Click “ ” to save.Click “UID” to enter the Settings menu, the following fields will need to be completed:b. By UID type39 40](https://usermanual.wiki/LB-Technology/96601W/User-Guide-2397082-Page-21.png)

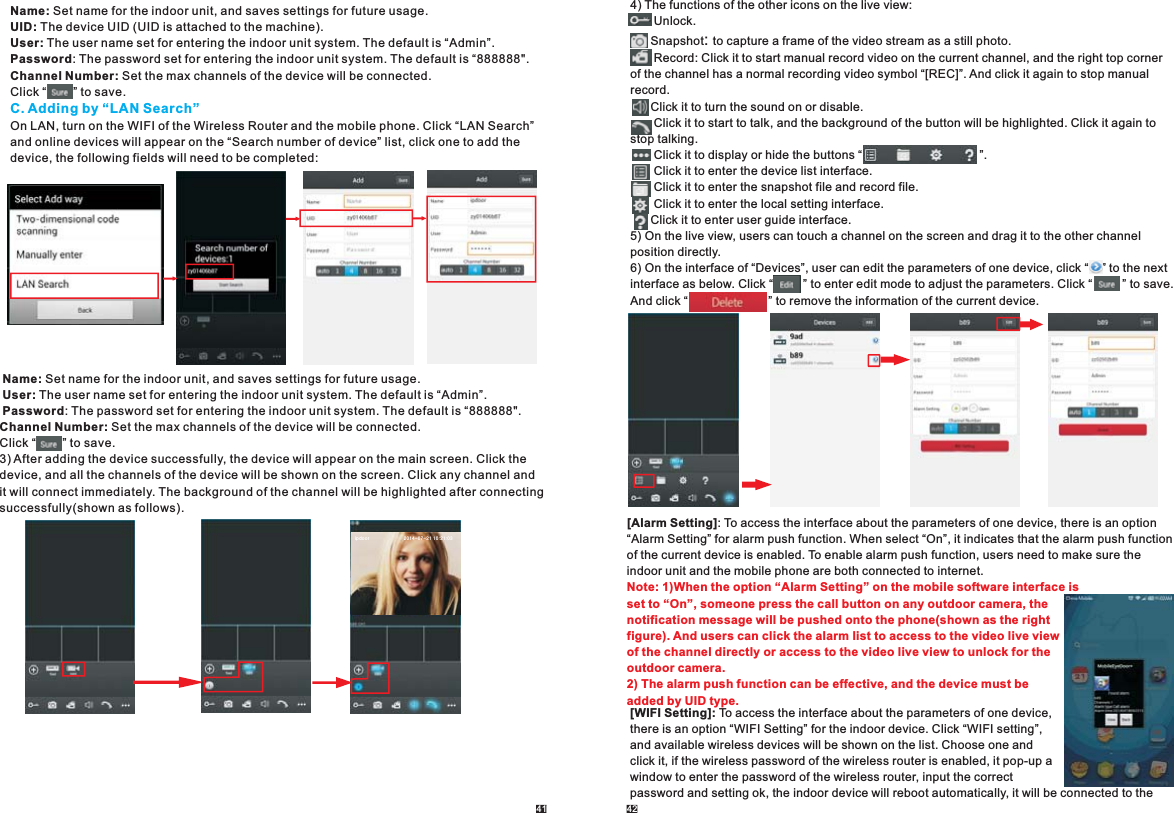

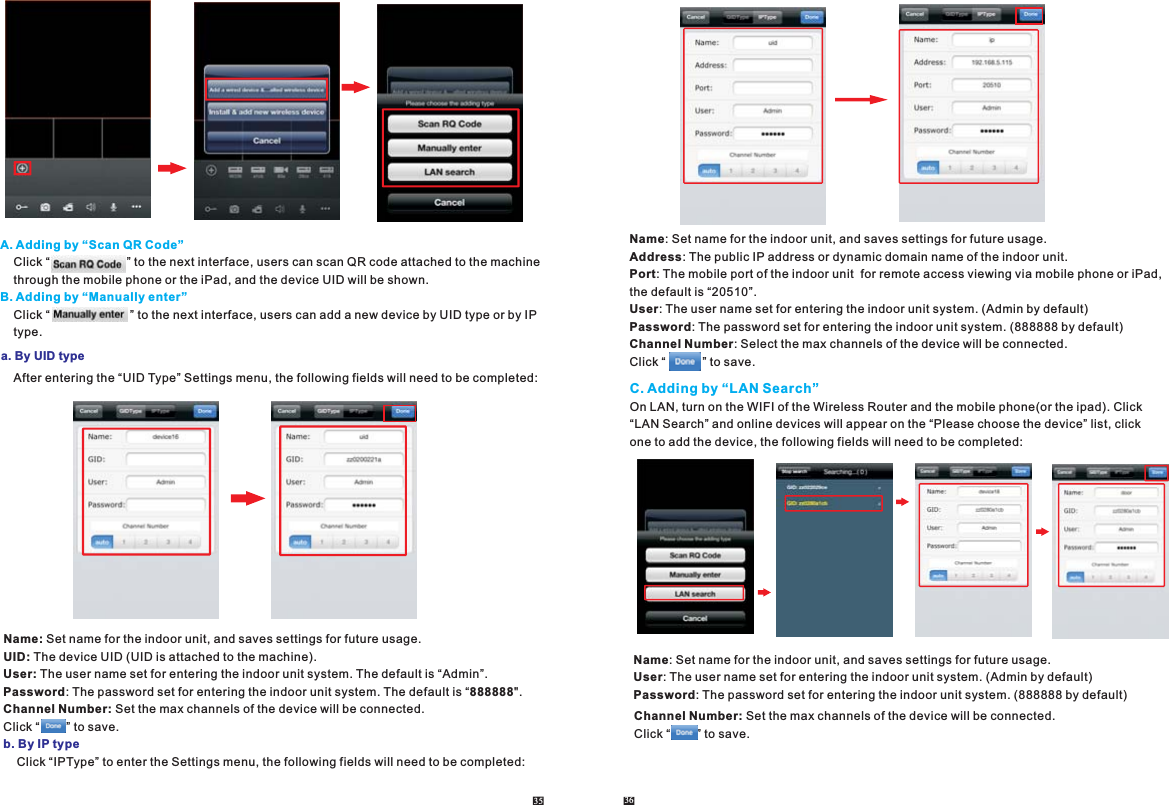

![41 42Name: Set name for the indoor unit, and saves settings for future usage.UID: The device UID (UID is attached to the machine).User: The user name set for entering the indoor unit system. The default is “Admin”. Password: The password set for entering the indoor unit system. The default is “888888".Channel Number: Set the max channels of the device will be connected.Click “ ” to save.On LAN, turn on the WIFI of the Wireless Router and the mobile phone. Click “LAN Search” and online devices will appear on the “Search number of device” list, click one to add the device, the following fields will need to be completed:C. Adding by “LAN Search”Channel Number: Set the max channels of the device will be connected.Click “ ” to save.3) After adding the device successfully, the device will appear on the main screen. Click the device, and all the channels of the device will be shown on the screen. Click any channel and it will connect immediately. The background of the channel will be highlighted after connectingsuccessfully(shown as follows).Name: Set name for the indoor unit, and saves settings for future usage.User: The user name set for entering the indoor unit system. The default is “Admin”. Password: The password set for entering the indoor unit system. The default is “888888".4) The functions of the other icons on the live view: Unlock. Snapshot . : to capture a frame of the video stream as a still photoRecord: Click it to start manual record video on the current channel, and the right top corner of the channel has a normal recording video symbol “[REC]”. And click it again to stop manual record. Click it to turn the sound on or disable. Click it to start to talk, and the background of the button will be highlighted. Click it again to stop talking. Click it to display or hide the buttons “ ”. Click it to enter the device list interface. Click it to enter the snapshot file and record file. Click it to enter the local setting interface. Click it to enter user guide interface.5) On the live view, users can touch a channel on the screen and drag it to the other channel position directly.6) On the interface of “Devices”, user can edit the parameters of one device, click “ ” to the next interface as below. Click “ ” to enter edit mode to adjust the parameters. Click “ ” to save.And click “ ” to remove the information of the current device. [Alarm Setting]: To access the interface about the parameters of one device, there is an option“Alarm Setting” for alarm push function. When select “On”, it indicates that the alarm push function of the current device is enabled. To enable alarm push function, users need to make sure the indoor unit and the mobile phone are both connected to internet. Note: 1)When the option “Alarm Setting” on the mobile software interface is set to “On”, someone press the call button on any outdoor camera, the notification message will be pushed onto the phone(shown as the right figure). And users can click the alarm list to access to the video live view of the channel directly or access to the video live view to unlock for the outdoor camera.2) The alarm push function can be effective, and the device must be added by UID type. [WIFI Setting]: To access the interface about the parameters of one device,there is an option “WIFI Setting” for the indoor device. Click “WIFI setting”,and available wireless devices will be shown on the list. Choose one and click it, if the wireless password of the wireless router is enabled, it pop-up a window to enter the password of the wireless router, input the correct password and setting ok, the indoor device will reboot automatically, it will be connected to the ipdoor 2014-07-21 10:21:03](https://usermanual.wiki/LB-Technology/96601W/User-Guide-2397082-Page-22.png)

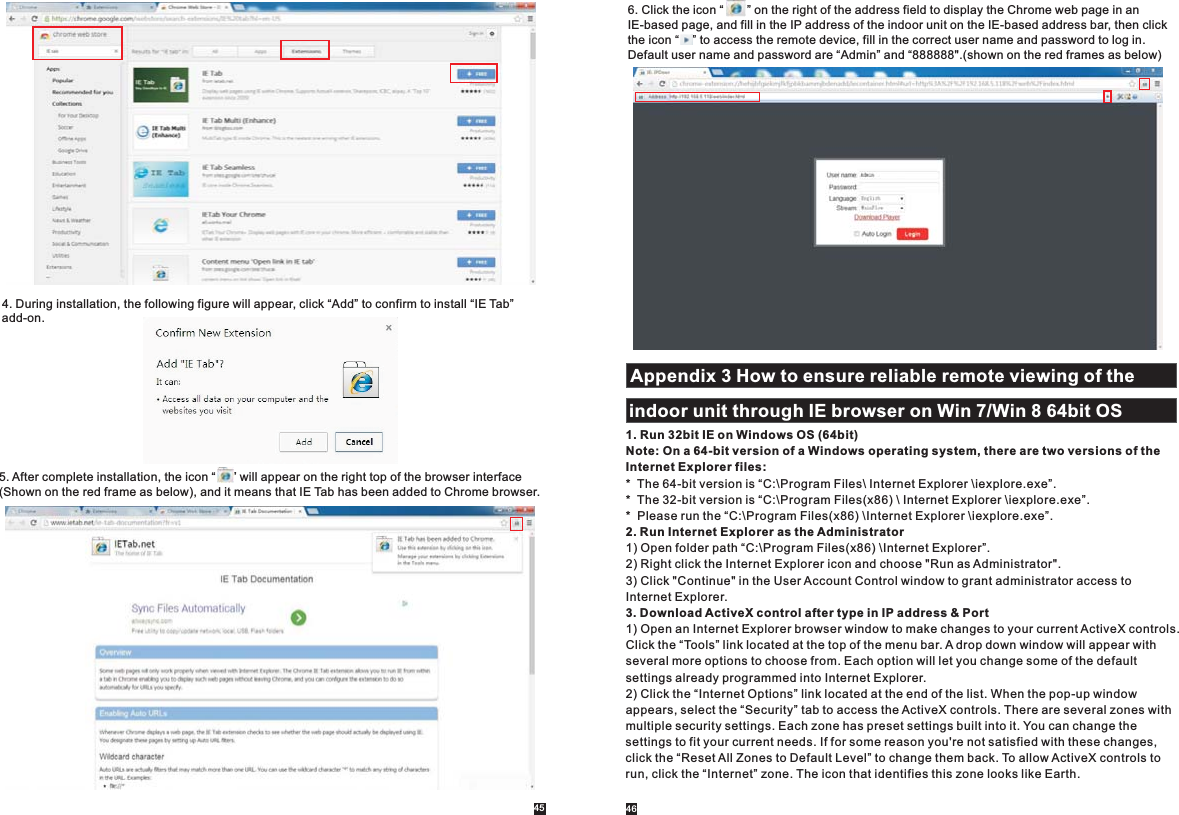

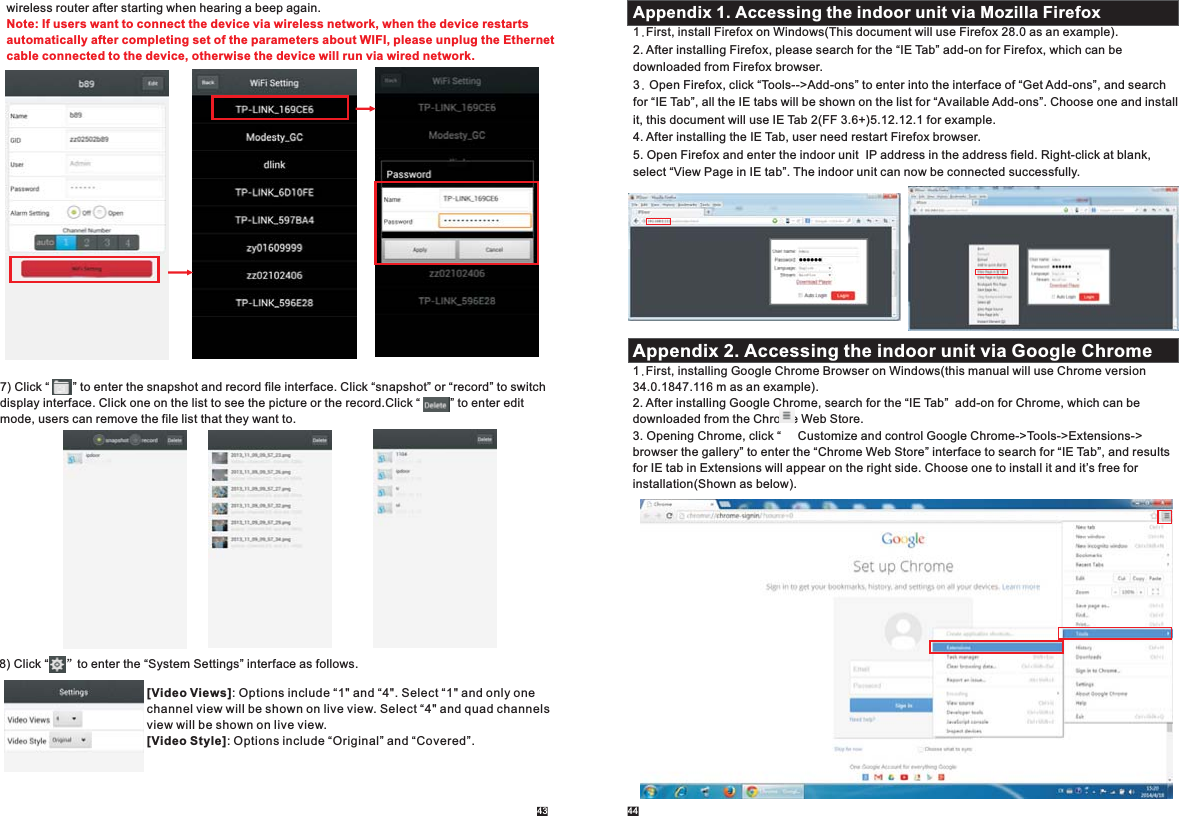

![43 447) Click “ ” to enter the snapshot and record file interface. Click “snapshot” or “record” to switchdisplay interface. Click “ ” to enter edit mode, users can remove the file list that they want to. Click one on the list to see the picture or the record.wireless router after starting when hearing a beep again. Note: If users want to connect the device via wireless network, when the device restarts automatically after completing set of the parameters about WIFI, please unplug the Ethernet cable connected to the device, otherwise the device will run via wired network. 8) Click “ ”to enter the “System Settings” interface as follows.[Video Views]: Options include “1" and “4". Select “1" and only one channel view will be shown on live view. Select “4" and quad channels view will be shown on live view.[Video Style]: Options include “Original” and “Covered”.Appendix 1. Accessing the indoor unit via Mozilla Firefox1.First, install Firefox on Windows(This document will use Firefox 28.0 as an example). 2. After installing Firefox, please search for the “IE Tab” add-on for Firefox, which can be downloaded from Firefox browser.3. Open Firefox, click “Tools-->Add-ons” to enter into the interface of “Get Add-ons”, and search for “IE Tab”, all the IE tabs will be shown on the list for “Available Add-ons”. Choose one and install it, this document will use IE Tab 2(FF 3.6+)5.12.12.1 for example.4. After installing the IE Tab, user need restart Firefox browser.5. Open Firefox and enter the indoor unit IP address in the address field. Right-click at blank,select “View Page in IE tab”. The indoor unit can now be connected successfully.Appendix 2. Accessing the indoor unit via Google Chrome1.First, installing Google Chrome Browser on Windows(this manual will use Chrome version 34.0.1847.116 m as an example).2. After installing Google Chrome, search for the “IE Tab” add-on for Chrome, which can be downloaded from the Chrome Web Store.3. Opening Chrome, click “ Customize and control Google Chrome->Tools->Extensions->browser the gallery” to enter the “Chrome Web Store” interface to search for “IE Tab”, and results for IE tab in Extensions will appear on the right side. Choose one to install it and it’s free for installation(Shown as below).](https://usermanual.wiki/LB-Technology/96601W/User-Guide-2397082-Page-23.png)
