LCN Illustrated Parts Guide LCNIllustrated

User Manual: LCN LCN Illustrated Parts Guide Product Guide

Open the PDF directly: View PDF PDF.
Page Count: 148 [warning: Documents this large are best viewed by clicking the View PDF Link!]

9
1
8
3
7
6
10
2
Closers &
Automatic
Operators
Parts manual
LCN • LCN Parts Manual • iii
Return to Contents
Contents - Click to open
5 Introduction
5 How to Use the LCN Parts Manual
5 Parts Manual Organization
5 Casting (Forging) Numbers
5 Additional Information
5 Part and Component Pricing
6 How to Order
6 Part or Component Identification
6 Ordering Examples
6 Trademarks
6 Additional Assistance
6 Please Note
7 4000 Series Surface Mounted Closers
8 4010 Series "Smoothee"
12 4010T Series "Smoothee"
14 4020 Series "Smoothee"
16 4020T Series "Smoothee"
19 4030 Series "Smoothee"
23 4030T Series "Smoothee"
25 4040XP Series "Super Smoothee"
29 4040XPT Series "Super Smoothee"
32 4050 Series
36 4110 Series "Smoothee"
40 4110T Series "Smoothee"
43 4000T Series "Pocket Closer"
45 1000 Series Surface Mounted Closers
46 1250 Series
50 1260 Series
55 1450 Series
59 1460 Series
64 1460T Series "Super Stock"
67 Concealed Series Closers
68 2010 Series
70 2030 Series
72 3030 Series
73 3130 Series
74 5010 Series
76 5030 Series "Pacer"
79 6030 Series "Pacer"
81 Fire-Life Safety Series Closers & Holders
82 SEM7800 Series
84 3130SE Series
86 4040SE Series
88 2310ME Series
90 4310ME Series "Sentronic"
92 4410ME Series "Sentronic"
94 4310HSA Series "Sentronic"
96 4410HSA Series "Sentronic"
98 SEH Series
99 High Security Closers
100 2210 Series
102 2210DPS Series
104 4210 Series
106 4210T Series
108 4510 Series
110 4510T Series
113 Automatic Operators
114 2610 Series "Auto-Equalizer"
116 4810 Series "Auto-Equalizer"
118 4820 Series "Auto-Equalizer"
120 4840 Series "Auto-Equalizer"
122 4630 Series "Auto-Equalizer"
124 4640 Series "Auto-Equalizer"
126 9130 Series "Benchmark"
128 9140 Series "Benchmark"
130 9150 Series "Benchmark"
132 2810 Series "Senior Swing"
134 2850 Series "Senior Swing"
136 2860 Series "Senior Swing"
138 9530 Series "Senior Swing"
140 9540 Series "Senior Swing"
142 9550 Series "Senior Swing"
144 9560 Series "Senior Swing"
iv • LCN • LCN Parts Manual Return to Contents
Introduction
How to Use the LCN Parts Manual
The LCN Parts Manual is designed to help technical service or maintenance personnel correctly identify parts that may be
required to return an LCN closer to service.
Parts Manual Organization
The LCN Parts Manual identies replacement parts that are available through many LCN distributors. The manual sections
are organized by product type and series. The products within each section are listed in numerical order. Major components,
such as cylinder assemblies and track assemblies, are listed within each individual closer series. A complete component
assembly oen has individual replacement parts available.
Casting (Forging) Numbers
Many LCN parts or components have casting or forging numbers stamped or raised on the surface. An example would be the
"71" or "320G" on an LCN cylinder assembly. These numbers really do not identify a particular part or component. You
should follow the "How to Order" page in the latest edition of the LCN catalog, or call LCN Customer Service for assistance.
Additional Information
In addition to the closer series, sux number, and short description, many parts and components require more information.
Items that require more information have letters listed to the right of the description. The letter(s) are dened as follows:
F – Finish: Indicate the powder coat or plated nish desired. Not all parts and components are available with a plated
nish. Refer to either the latest edition of the LCN catalog or the current LCN Price Book for a standard powder coat
nish chart and available plated nish designations.
S – Size: Refers to the spring power of the closer; the larger the number, the more power the closer may have to close a
door. Several closer series have an adjustable "Size 1" available. In many cases, a "Size 1" closer will meet low opening
force requirements. Some "Size 1" closers are not adjustable. Please refer to the latest edition of the LCN Catalog for
clarication on individual closer spring power.

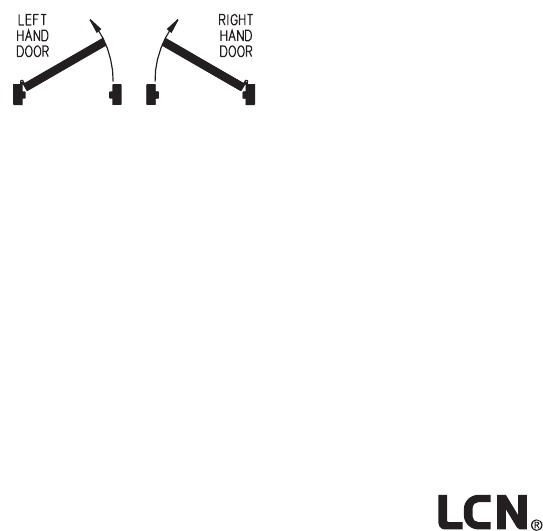

H – Hand: Please specify either RH (Right Hand) or LH (Le Hand). The hand of a door can be determined several ways.
The diagram below may be used as a reference.
V – Voltage: Some parts and components require voltage. Please specify either 24V or 120V.
Part and Component Pricing
Prices for parts and components listed with the LCN Illustrated Parts List can be found in the current LCN Price Book. The
Price Book contains basic ordering and product information.
Introduction
LCN • LCN Parts Manual • 5
Return to Contents
How to Order
1. Identify the series of closer being serviced: 4110, 4040XP, 1460, etc.
2. Refer to the page(s) illustrating the service parts available for the specic closer and select the part required by using
the closer series and the sux.
3. Check to the right of the part description. If additional information is required, please provided it.
4. Order the parts required using the closer series, sux number, nish, size, hand, and/or voltage.
Part or Component Identification
If the part you require is not shown in the LCN Illustrated Parts List, it may be obsolete. Contact your distributor, your local
Allegion consultants oce, or LCN customer service at 1-877-671-7011.
Ordering Examples
Here are a few examples of what an item may look like as it is ordered. Please refer to the "How to Order" page at the end of
each individual closer series within the LCN Catalog.
2310ME-3351 x On/Off Switch x 24V
4040SE-3038 x Track x AL x 120V
4020T-72MC x Metal Cover x RH x AL
4313ME-3971 x Cylinder x LH x AL x 24V
3130-3054 Hold Open Clip
4040XP-62PA x Parallel Arm Shoe x DKBRZ
4010-18 Plate x AL
2030-169 Bumper Assembly
4640-3462 Controller Assembly
SEM7850-828 Door Armature Only
Trademarks
List of trademarks that may appear in the LCN Parts Manual. This list includes, but is not limited to, the following:
CUSH-N-Stop®
Pacer®
Sentronic®
Smoothee®
Super Stock®
Equalizer®
Shield and Device®
Thriee®
Super Smoothee®
Additional Assistance
If any additional assistance is needed, call LCN at 1-877-671-7011. Our Customer Service or Technical Support team will do
their very best to offer door control solutions on any of the products listed within the LCN Parts Manual.
Please Note
Every effort has been made to ensure the accuracy of the LCN Parts Manual. If an error does exist, please contact LCN
Customer Service. Errors and omissions will be incorporated into the document's next edition. Illustrations are designed to
show general shape and size of a part and the relationship that part has to other parts. Actual size and shape of parts or
components may differ or vary from the actual part or component that is shipped. LCN offers this information as a reference
only. All information is subject to change without notice from LCN. If any additional information is needed, please call LCN
Customer Service or Technical Support at 1-877-671-7011. You may also visit LCN online at www.allegion.com/us.
6 • LCN • LCN Parts Manual
Introduction
Return to Contents
4000 Series Surface Mounted Closers
8 4010 Series "Smoothee"
12 4010T Series "Smoothee"
14 4020 Series "Smoothee"
16 4020T Series "Smoothee"
19 4030 Series "Smoothee"
23 4030T Series "Smoothee"
25 4040XP Series "Super Smoothee"
29 4040XPT Series "Super Smoothee"
32 4050 Series
36 4110 Series "Smoothee"
40 4110T Series "Smoothee"
43 4000T Series "Pocket Closer"
LCN • LCN Parts Manual • 7

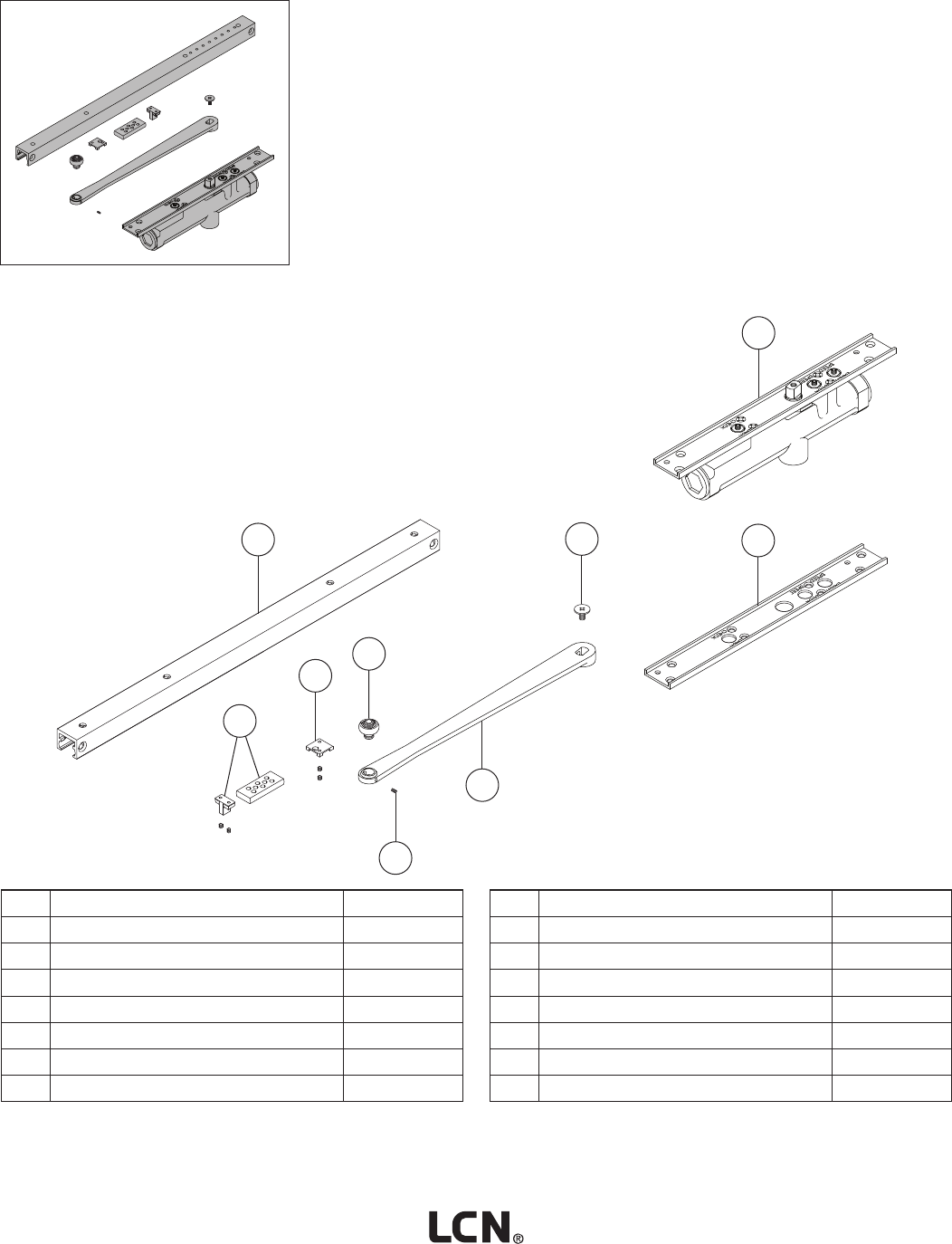

Return to Contents

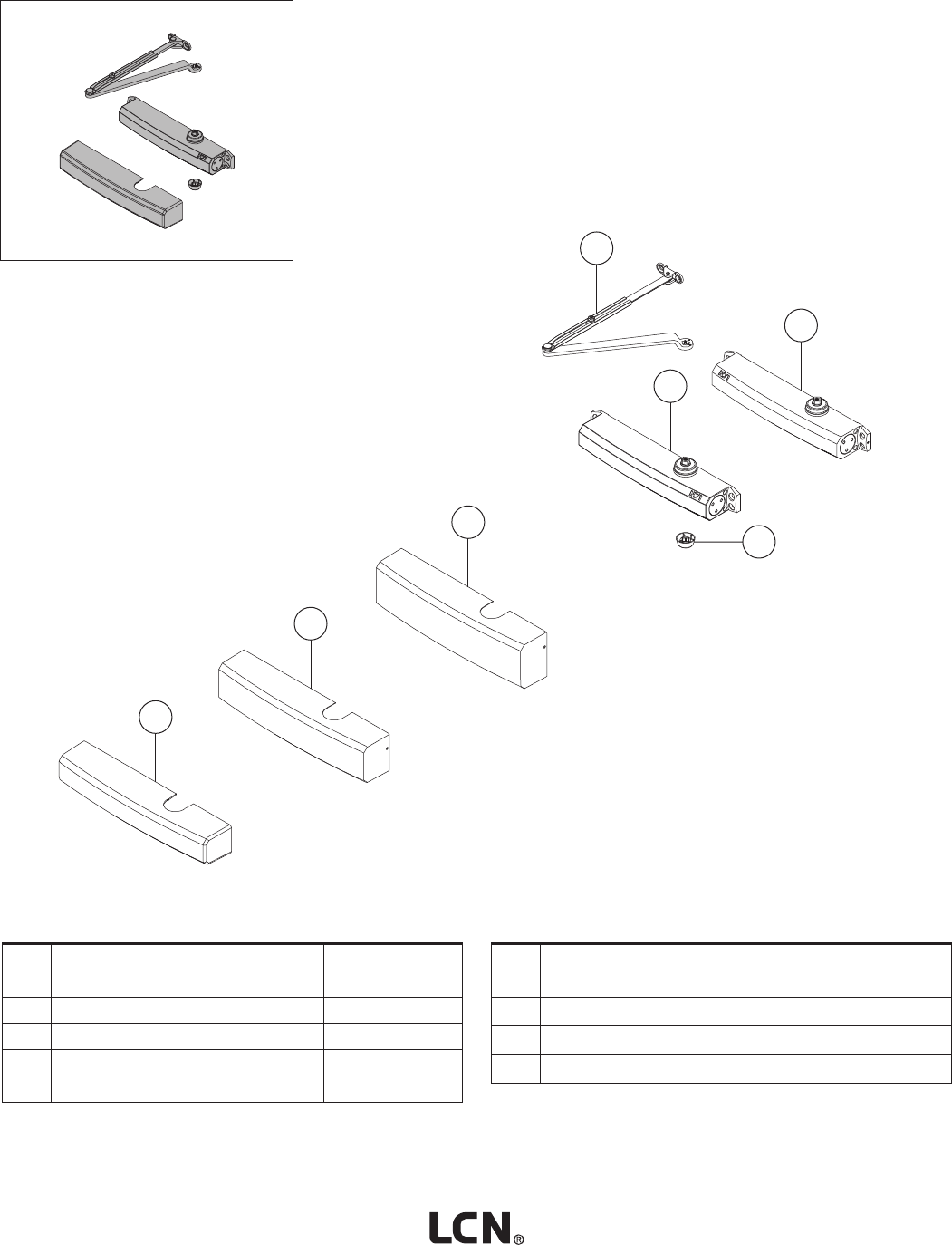

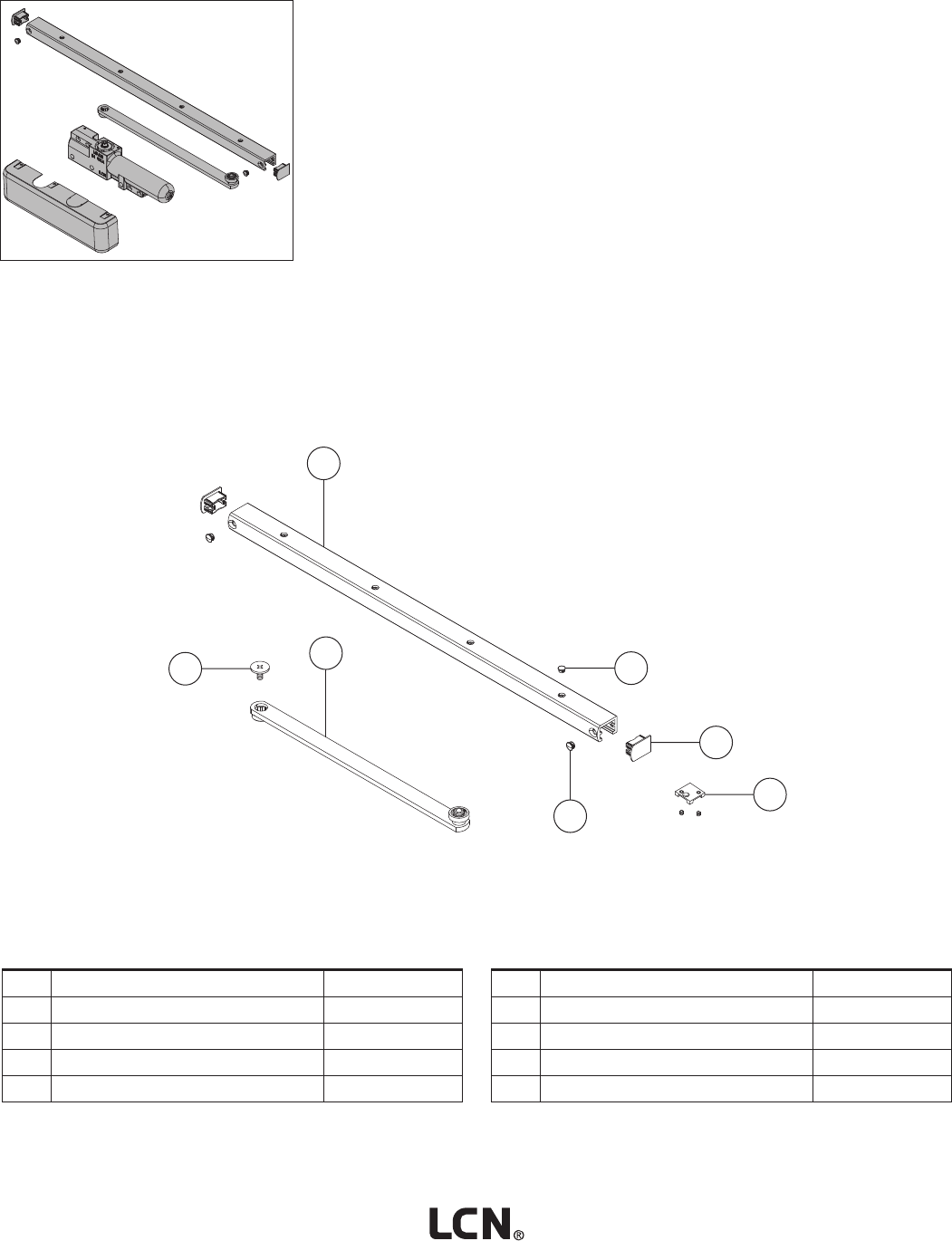

1
2
34

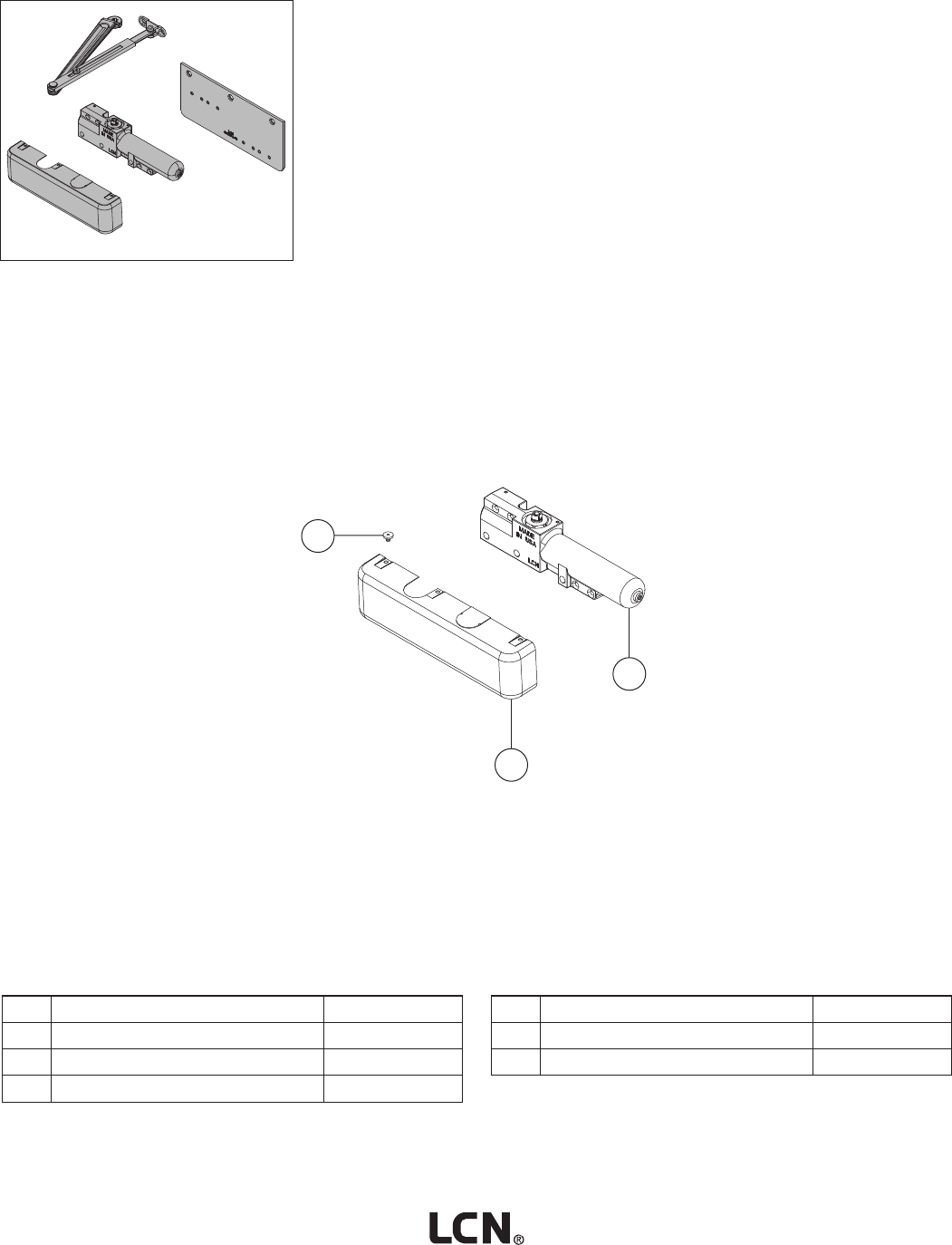

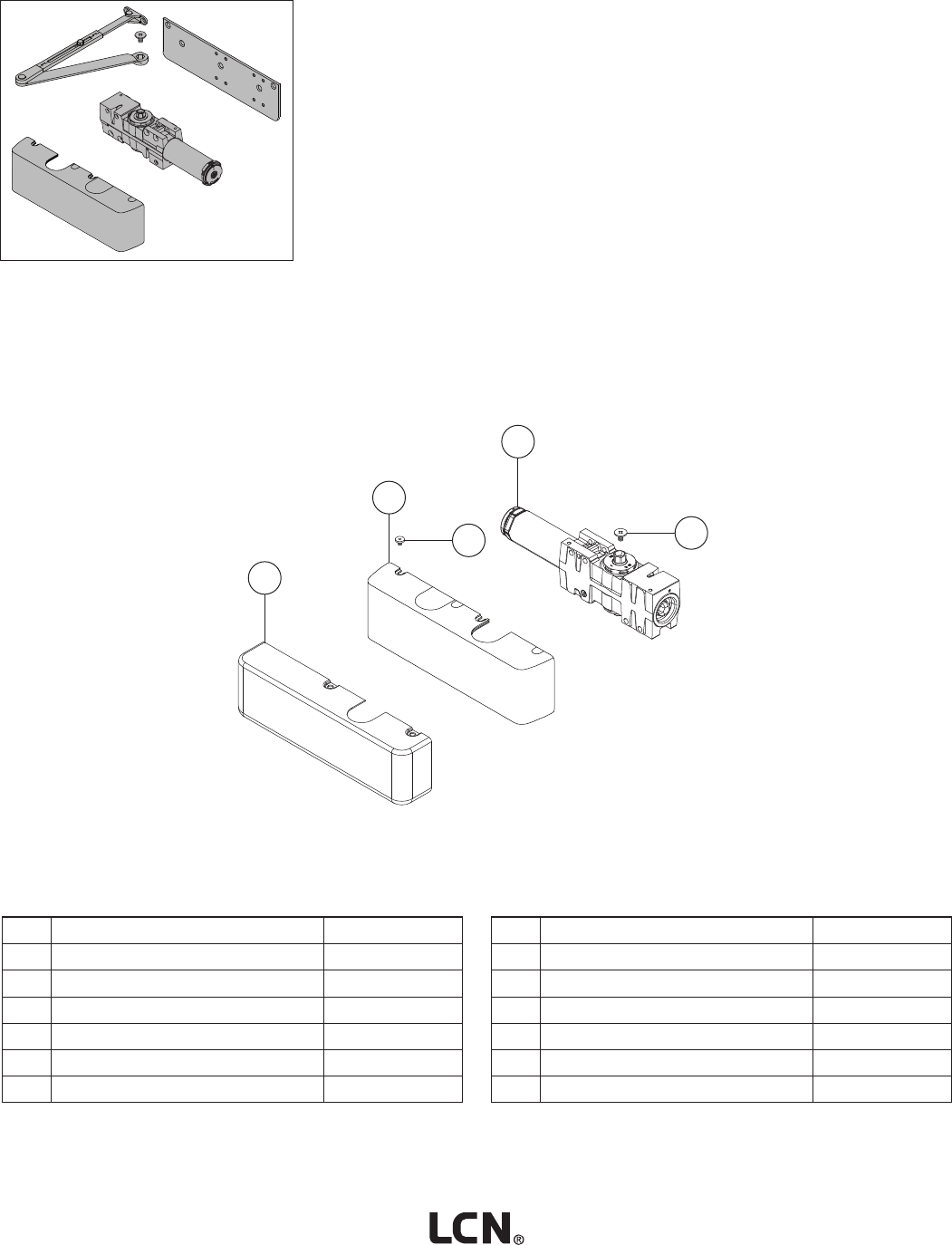

No. Description Part number
1Cylinder Assembly (F)(S)(H) 4011(6)-3071
1Cylinder Assembly w/ Delay (F)(S)(H) 4011-3071DEL
1Assembly w/ TEL (F)(S)(H) 4011(6)-3071TEL
2Standard Cover (F) 4010-72
3Metal Cover (F)(H) 4010-72MC
4Cover Screw (F) 4010-31
No. Description Part number
5Screw Pack (Not Shown)(F) 4010-SRT
6Screw Pack (Not Shown)(F) 4010-TBSRT
7Screw Pack (Not Shown)(F) 4010-WMS
8Screw Pack (Not Shown)(F) 4010-TBWMS
9Screw Pack (Not Shown)(F) 4010-TORX
10 Screw Pack (Not Shown)(F) 4010-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4010 Series "Smoothee"
Cylinder & Cover Parts
8 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers

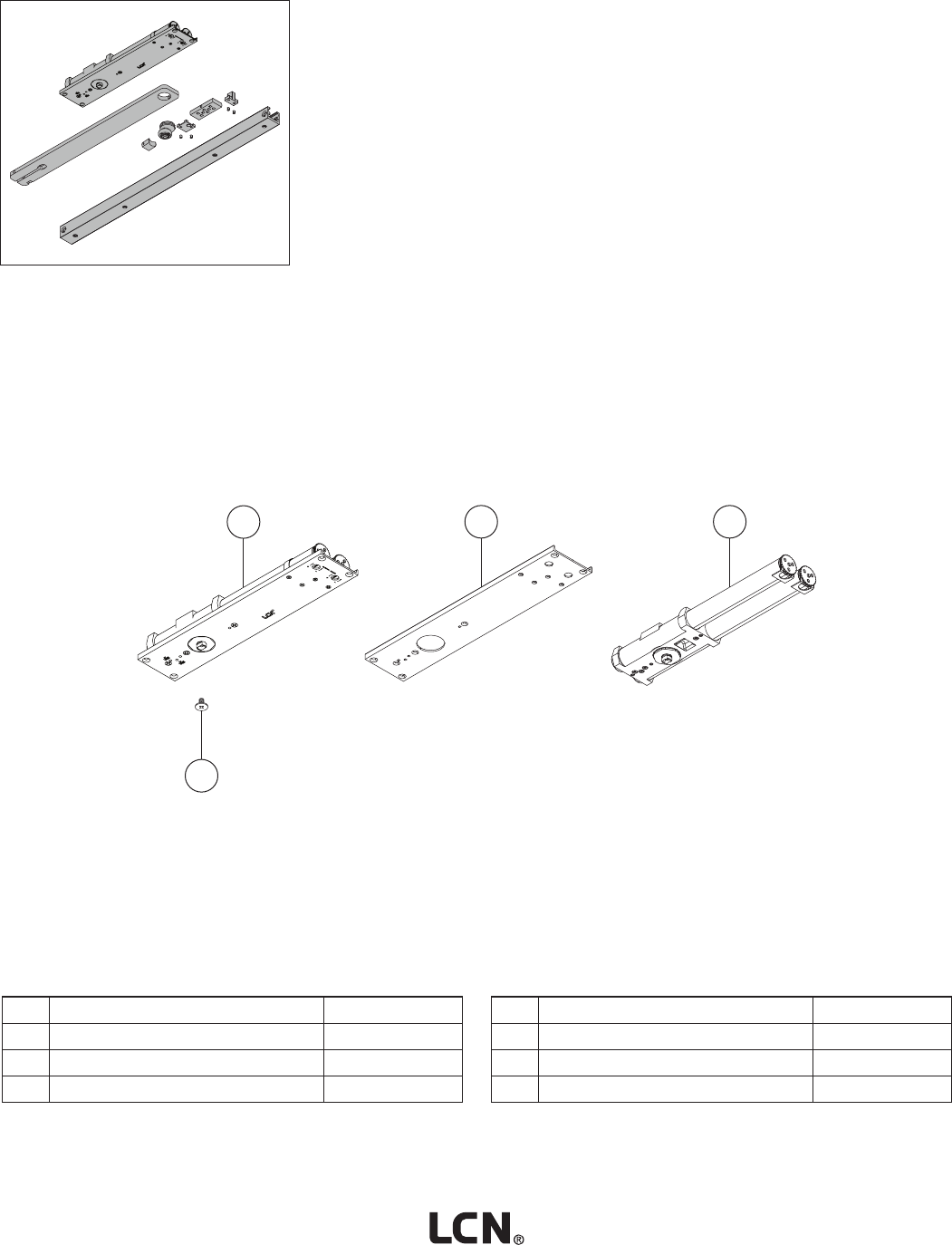

Return to Contents

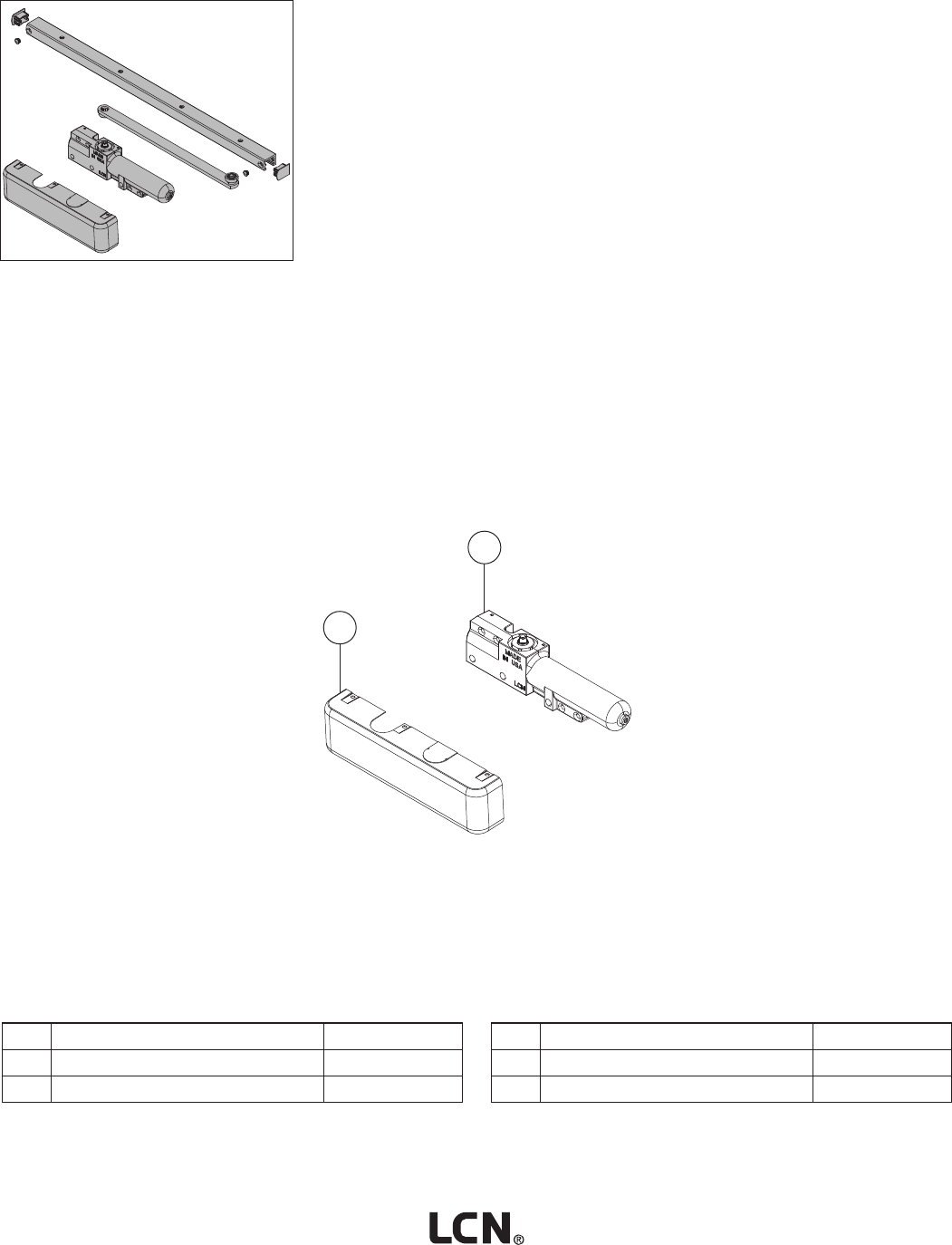

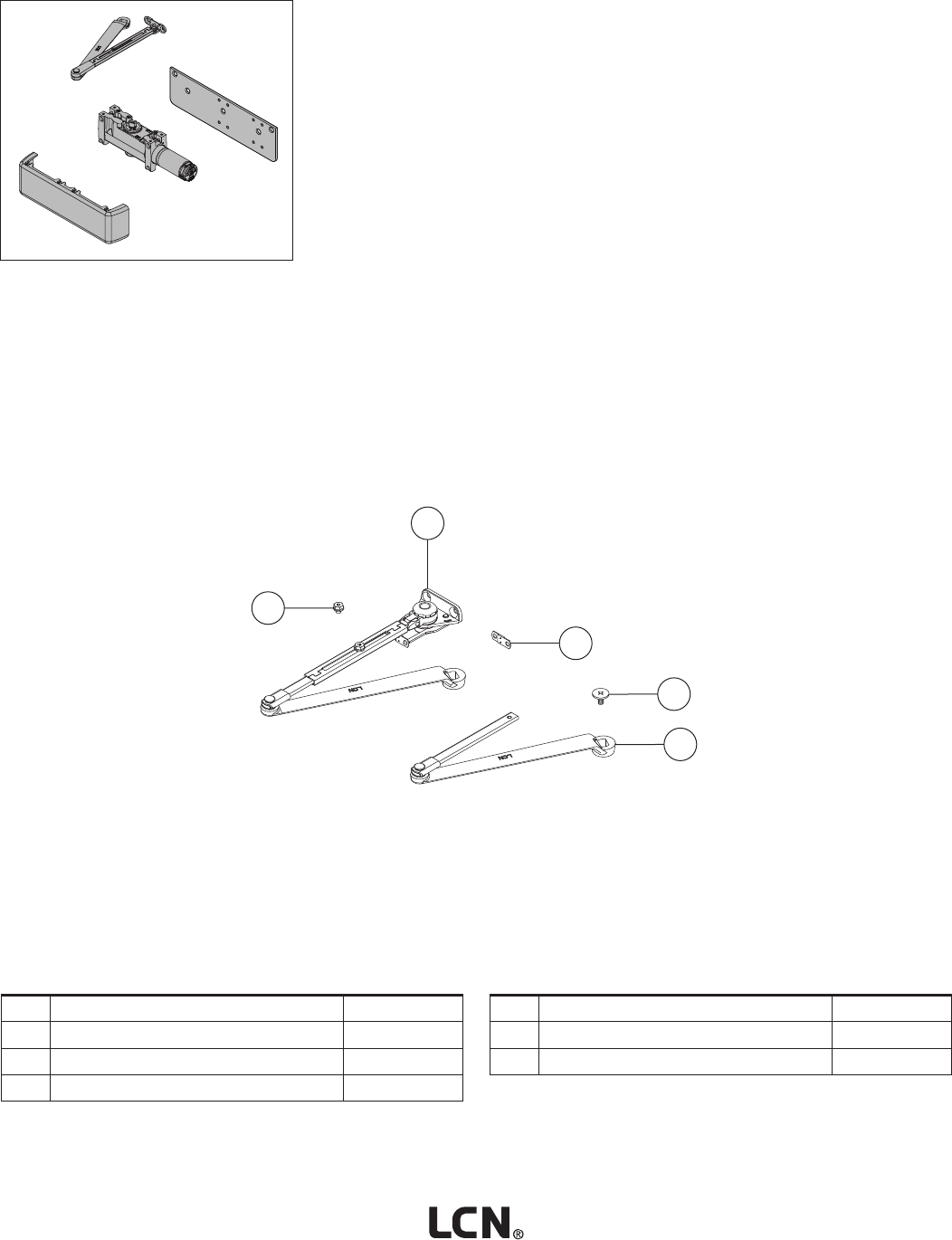

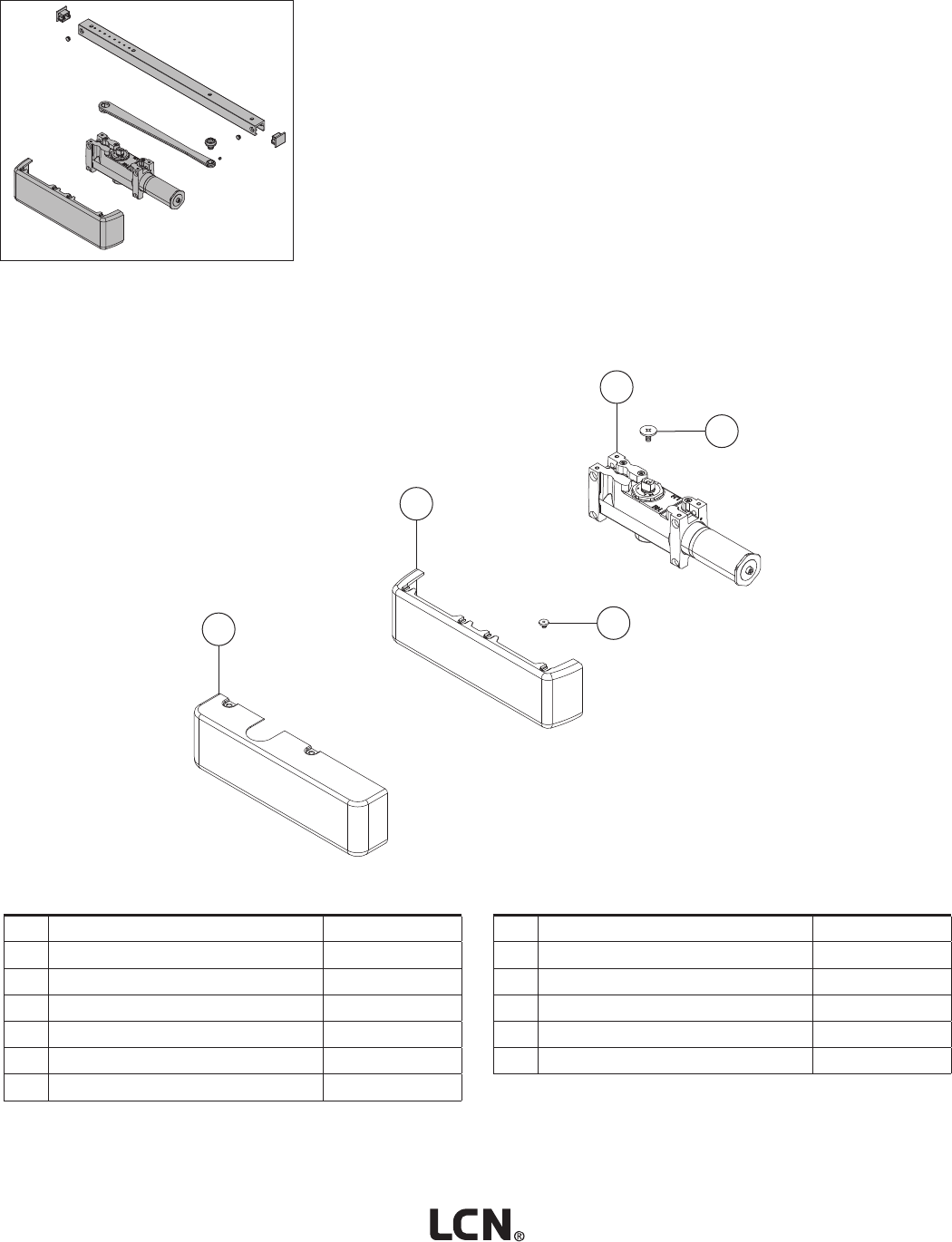

2
1
5
8
6
4
7
3

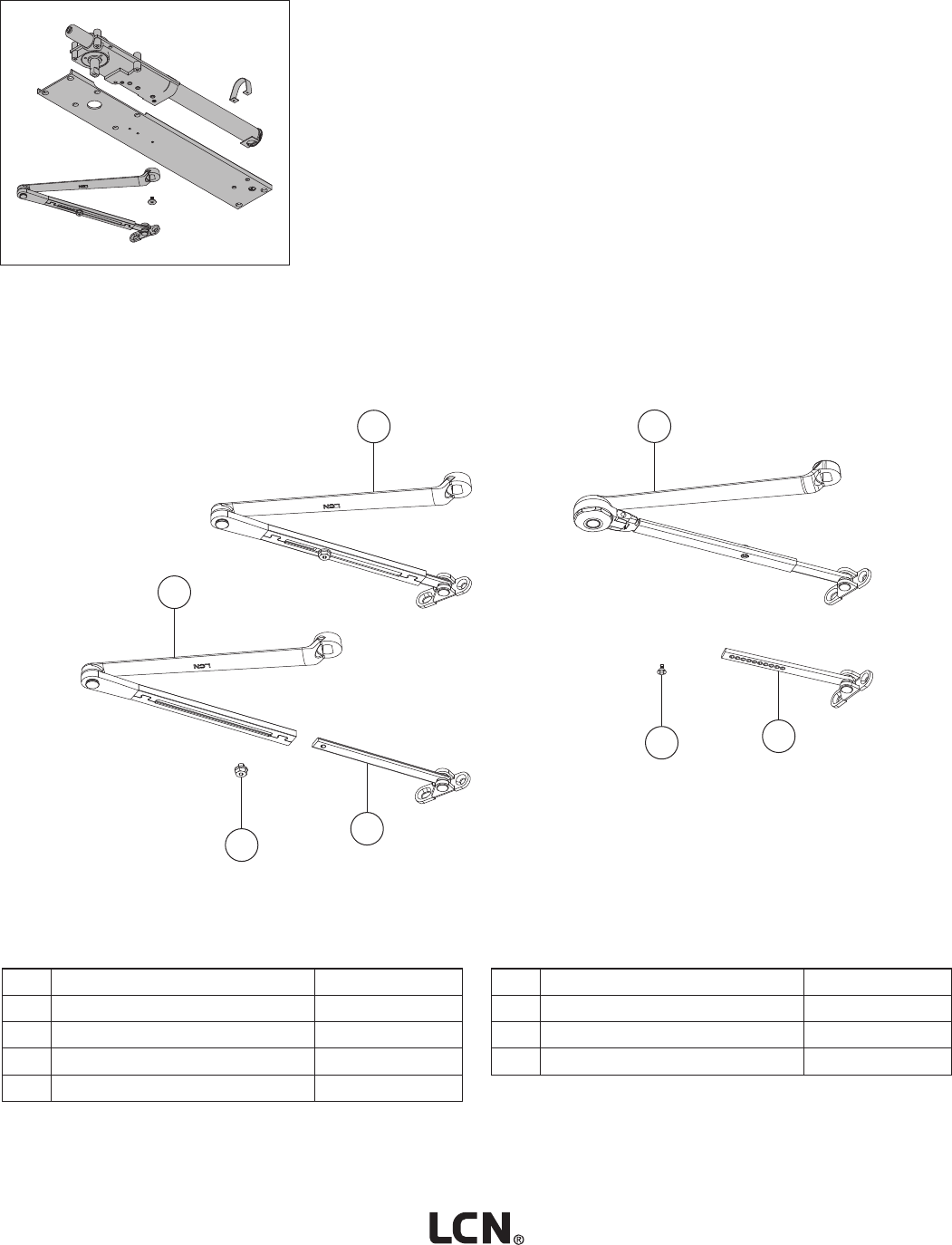

No. Description Part number
1Regular Arm (F) 4010-3077
2Hold-Open Arm (F)(H) 4010-3049
3Main Arm & Forearm (F) 4010-77
4Arm Screw (F) 4010-83
No. Description Part number
5Arm Screw (F) 4010-159
6Rod & Shoe (F) 4010-79
7H Arm Screw (F) 4010-83H
8Hold-Open Rod & Shoe (F) 4010-79H
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4010 Series "Smoothee"
Arm Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 9
Return to Contents
2
1
4
3
5
No. Description Part number
1Fusible Link (FL) Arm (F)(H) 4010-3049FL
2Arm Screw (F) 4010-83
3Fusible Link 4010-28
No. Description Part number
4Arm Screw (F) 4010-159
5FL Main Arm & Rod (F) 4010-49FL
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4010 Series "Smoothee"
Arm Assemblies & Parts Cont.
10 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents

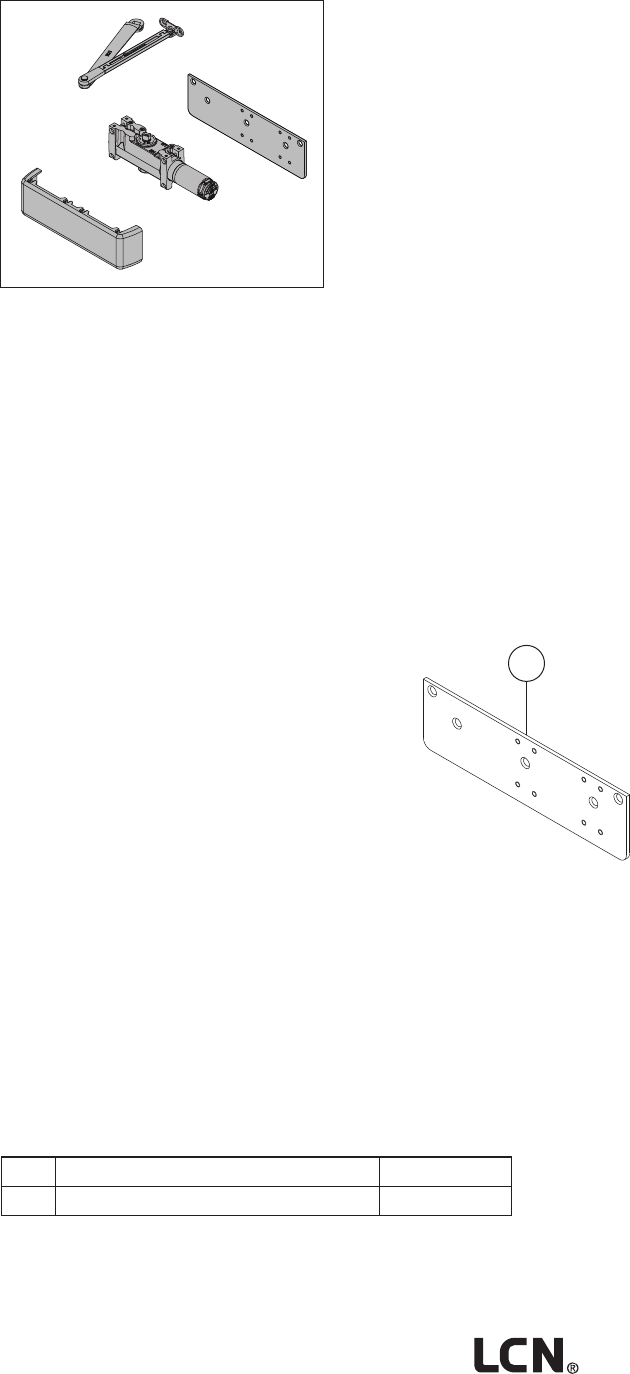

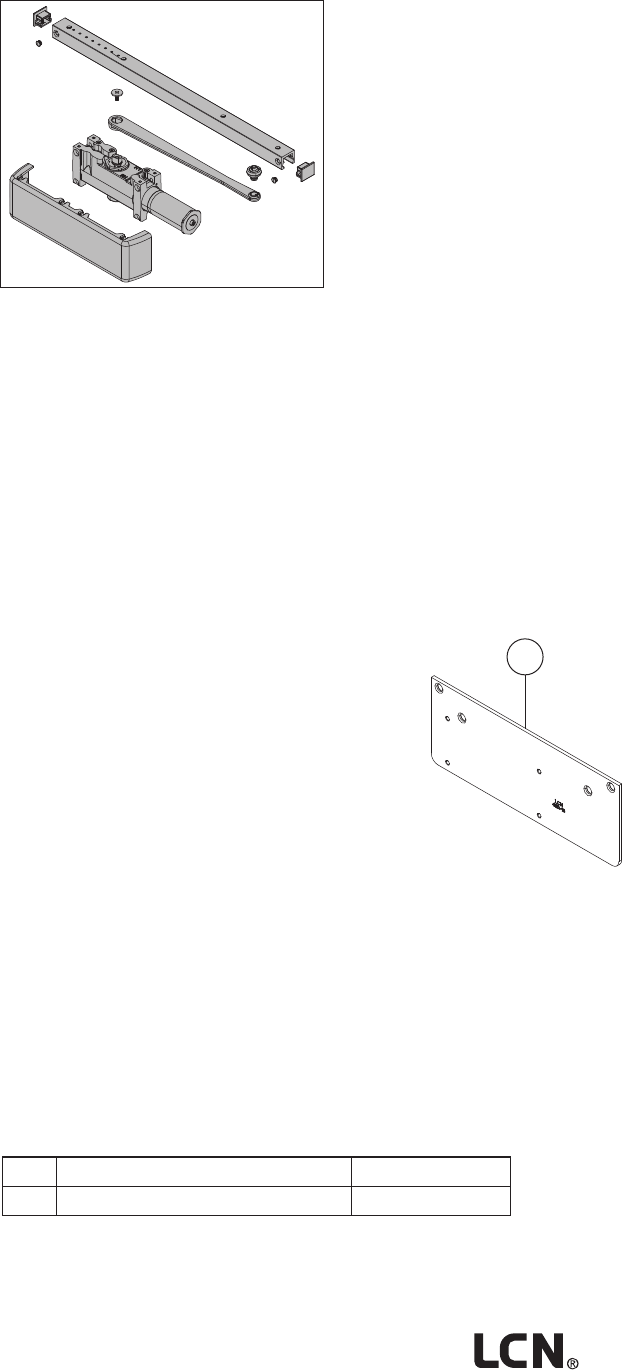

1

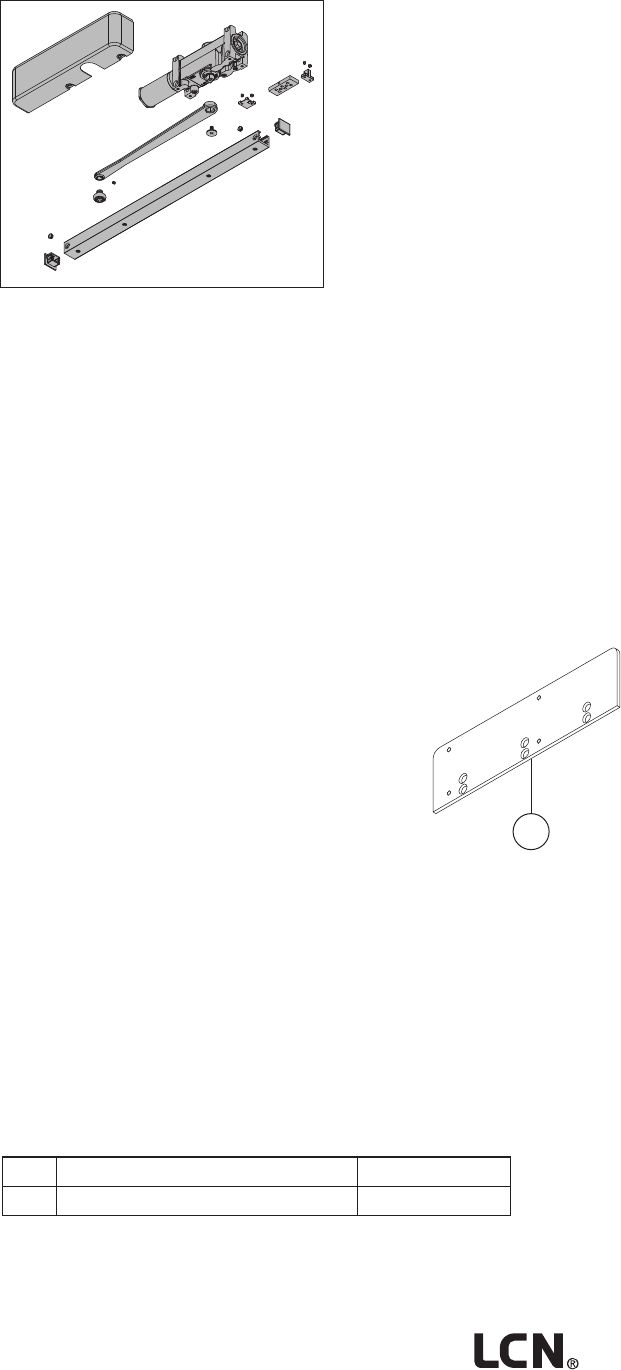

No. Description Part number
1Mounting Plate (F) 4010-18
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4010 Series "Smoothee"
Mounting Plates
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 11
Return to Contents
2
1
3
45
No. Description Part number
1Cylinder Assembly (F)(S)(H) 4011(3-4)T-3071
2Arm Screw (F) 4010T-159
3Standard Cover (F) 4010T-72
4Metal Cover (F)(H) 4010T-72MC
5Cover Screw (F) 4010T-31
6Screw Pack (incl -3034)[Not Shown](F) 4010T-SRT
No. Description Part number
7Screw Pack (incl -3034)[Not Shown](F) 4010T-TBSRT
8Screw Pack (incl -3034)[Not Shown](F) 4010T-WMS
9Screw Pack (incl -3034)[Not Shown](F) 4010T-TBWMS
10 Screw Pack (incl -3034)[Not Shown](F) 4010T-TORX
11 Screw Pack (incl -3034)[Not Shown](F) 4010T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4010T Series "Smoothee"
Cylinder & Cover Parts
12 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents

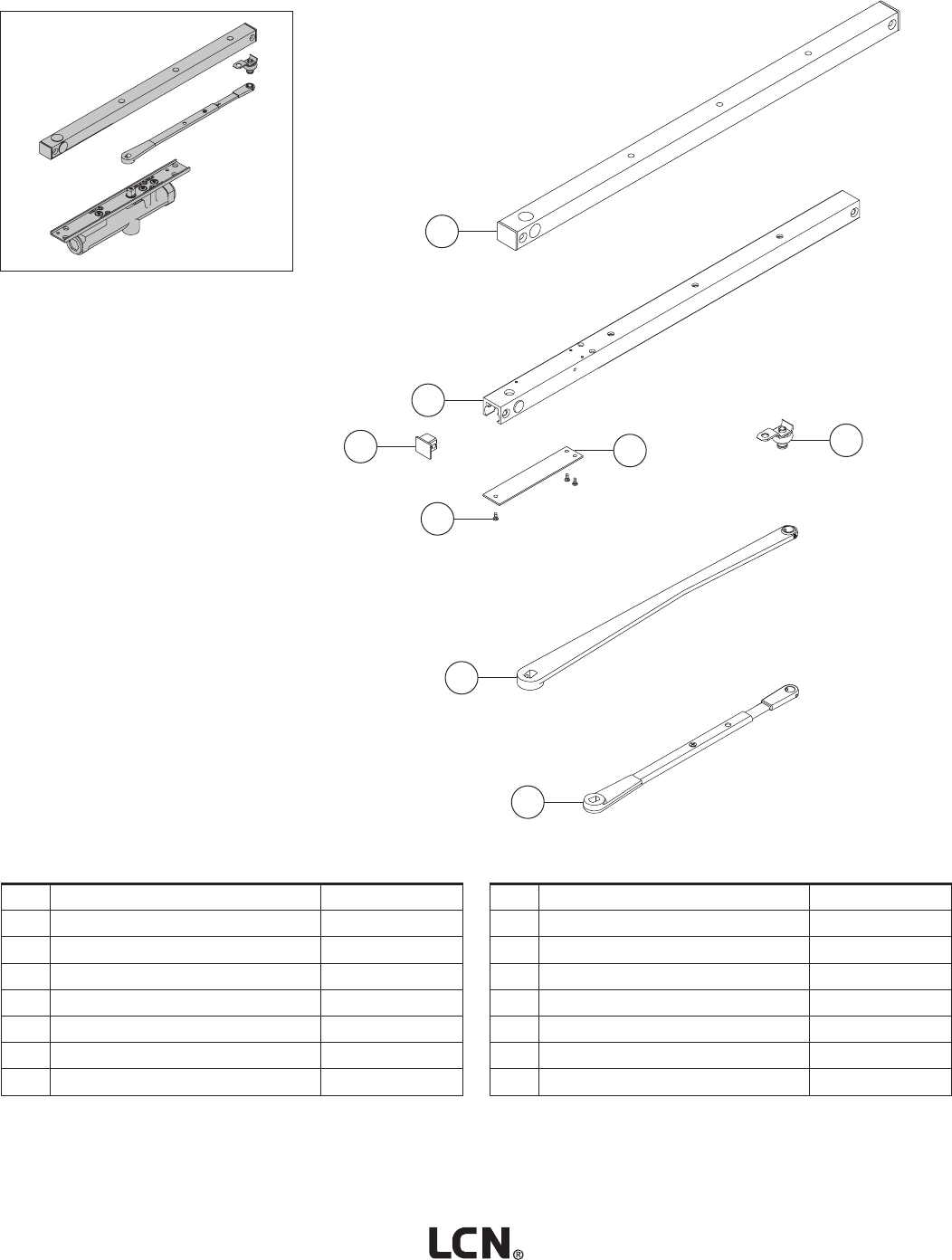

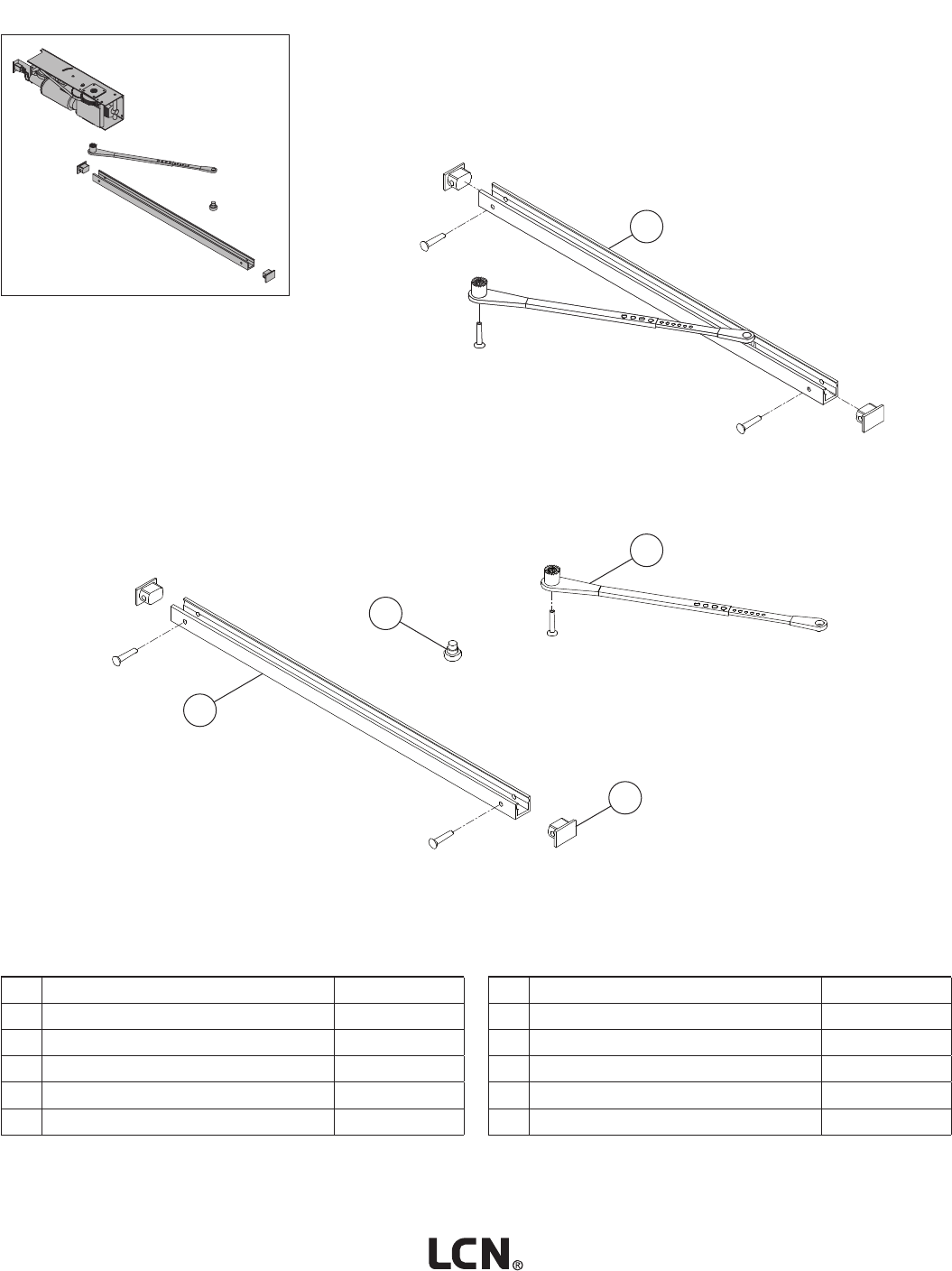

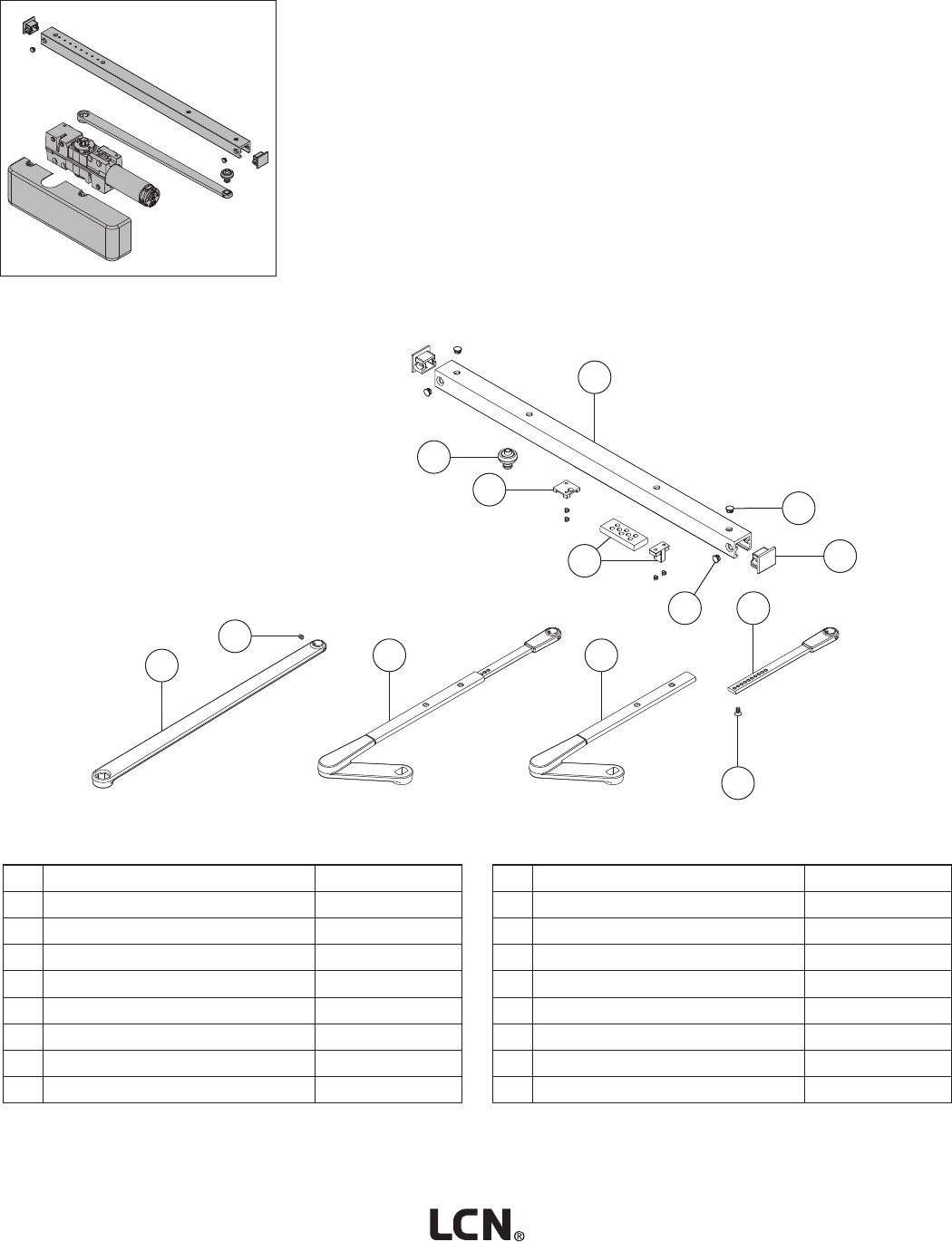

8
2
10 11
12
13
1
3
6
4
5
9
7

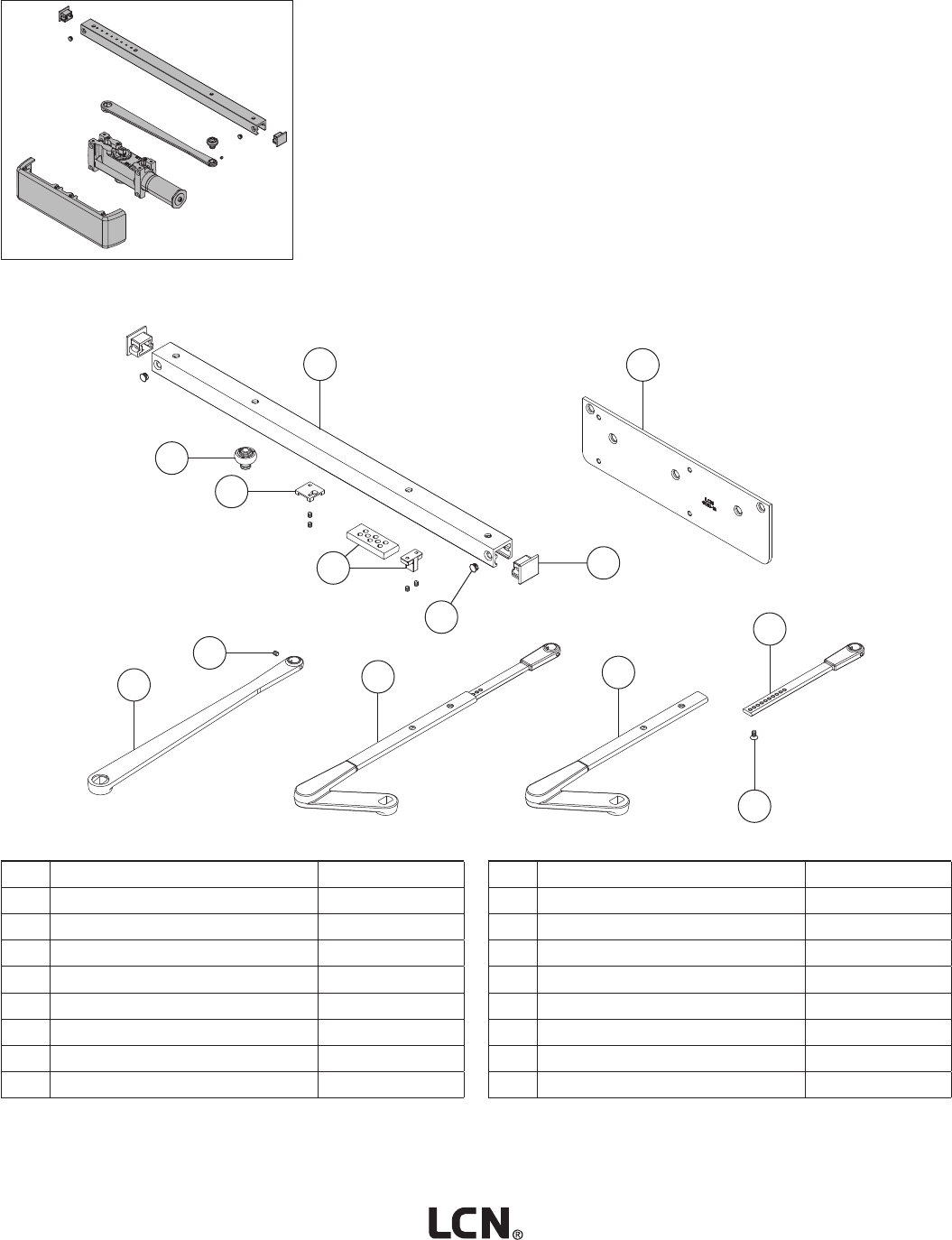

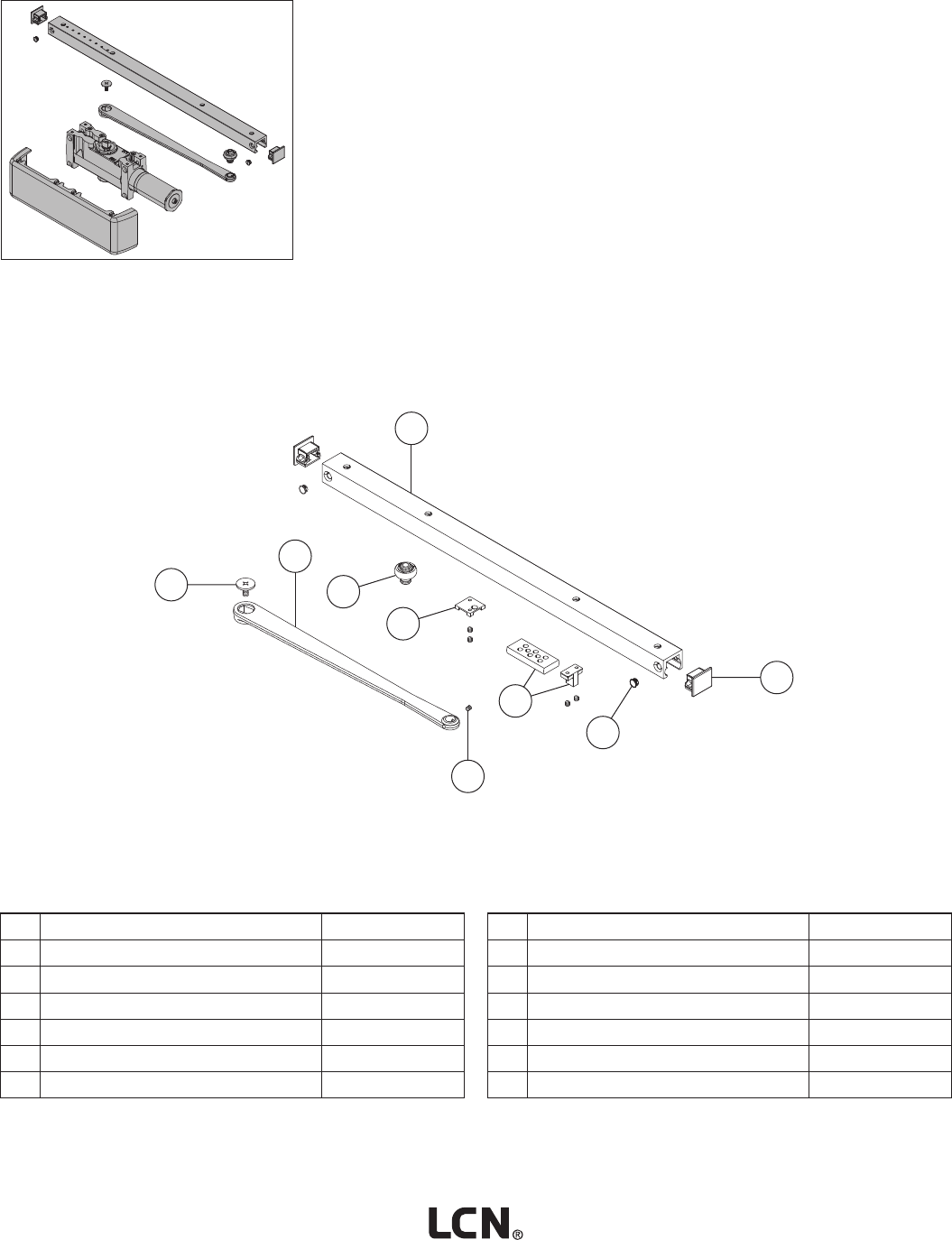

No. Description Part number
1Standard Track (F) 4010T-3038
1Track w/ Bumper (F) 4010T-3038B
1Track w/ Hold Open (F) 4010T-3038H
1Track w/ Hold Open & Bumper (F) 4010T-3038HB
2Plate (F) 4010T-18
3Track Roller 4010T-3034
4Hold-Open Clip 4010T-3054
5Track Bumper 4010T-169
No. Description Part number
6Plug (F) 4010T-141-2
7End Cap 4010T-73
8Standard Arm (F)(H) 4010T-3077T
9Roller Lock Screw 4010T-425
10 DE Arm (F)(H) 4010T-3077DE
11 Main Arm & Tube (F)(H) 4010T-78DE
12 Rod (F) 4010T-82
13 H Arm Screw (F) 4010T-83H
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4010T Series "Smoothee"
Track Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 13
Return to Contents

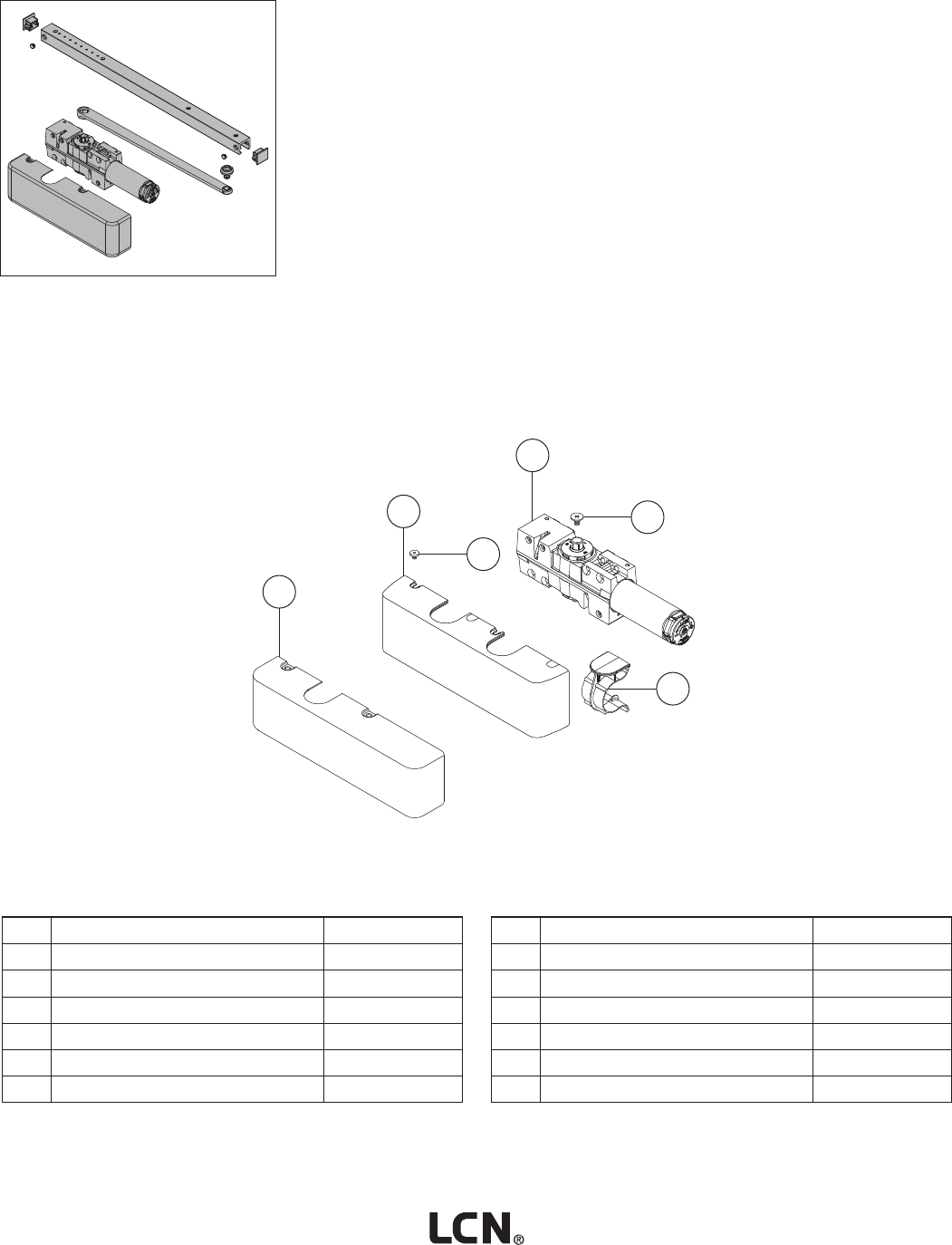

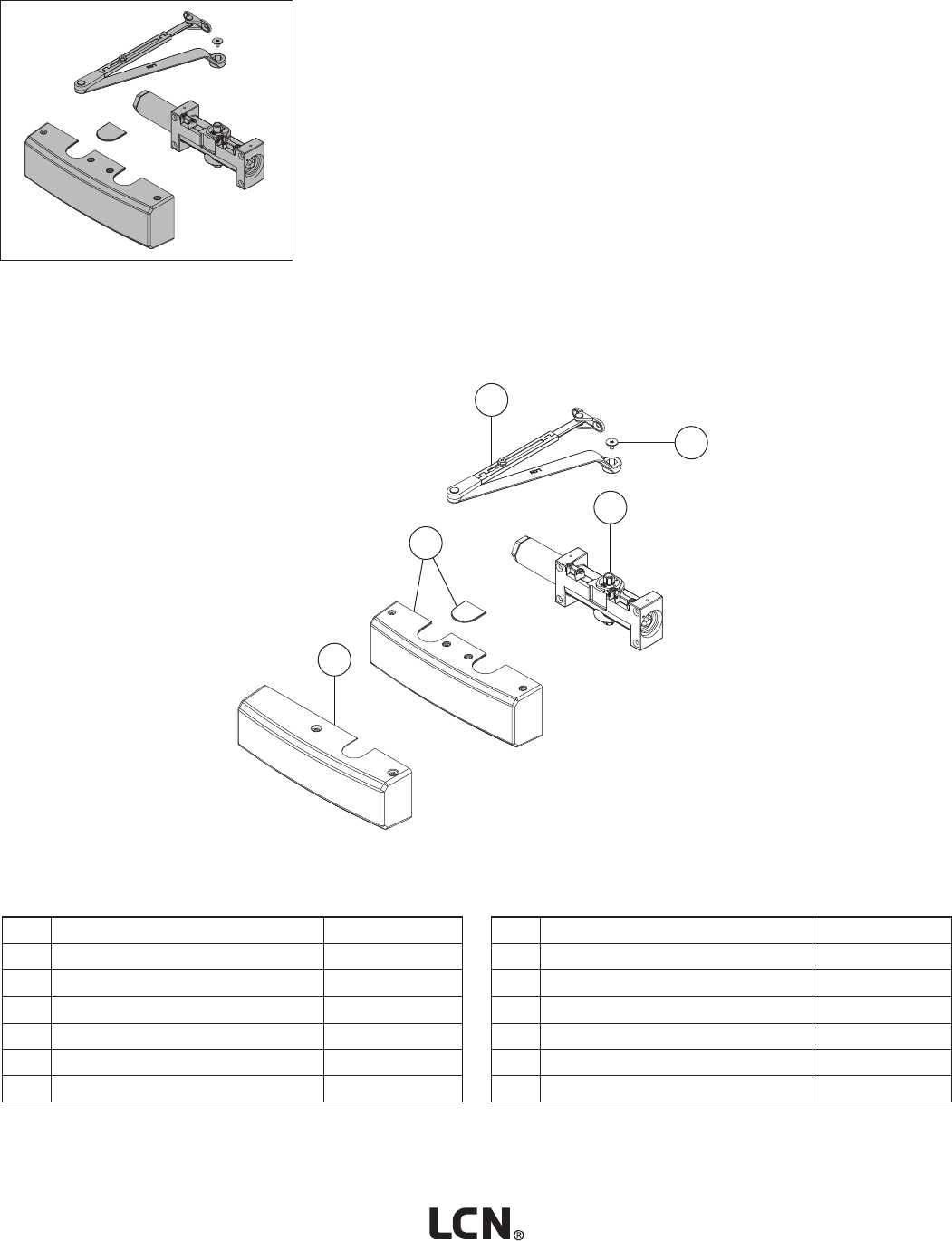

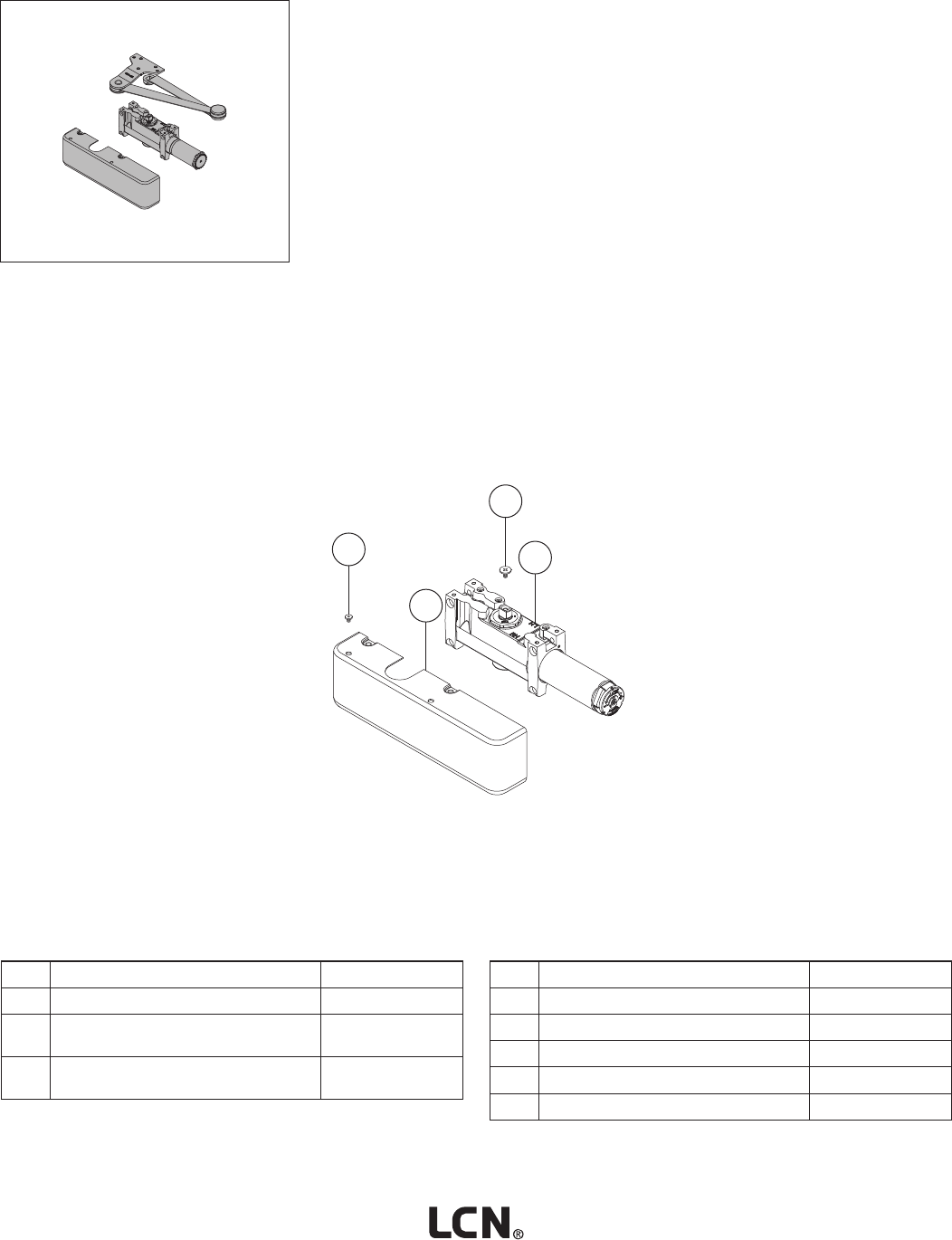

1
2 4
3
5

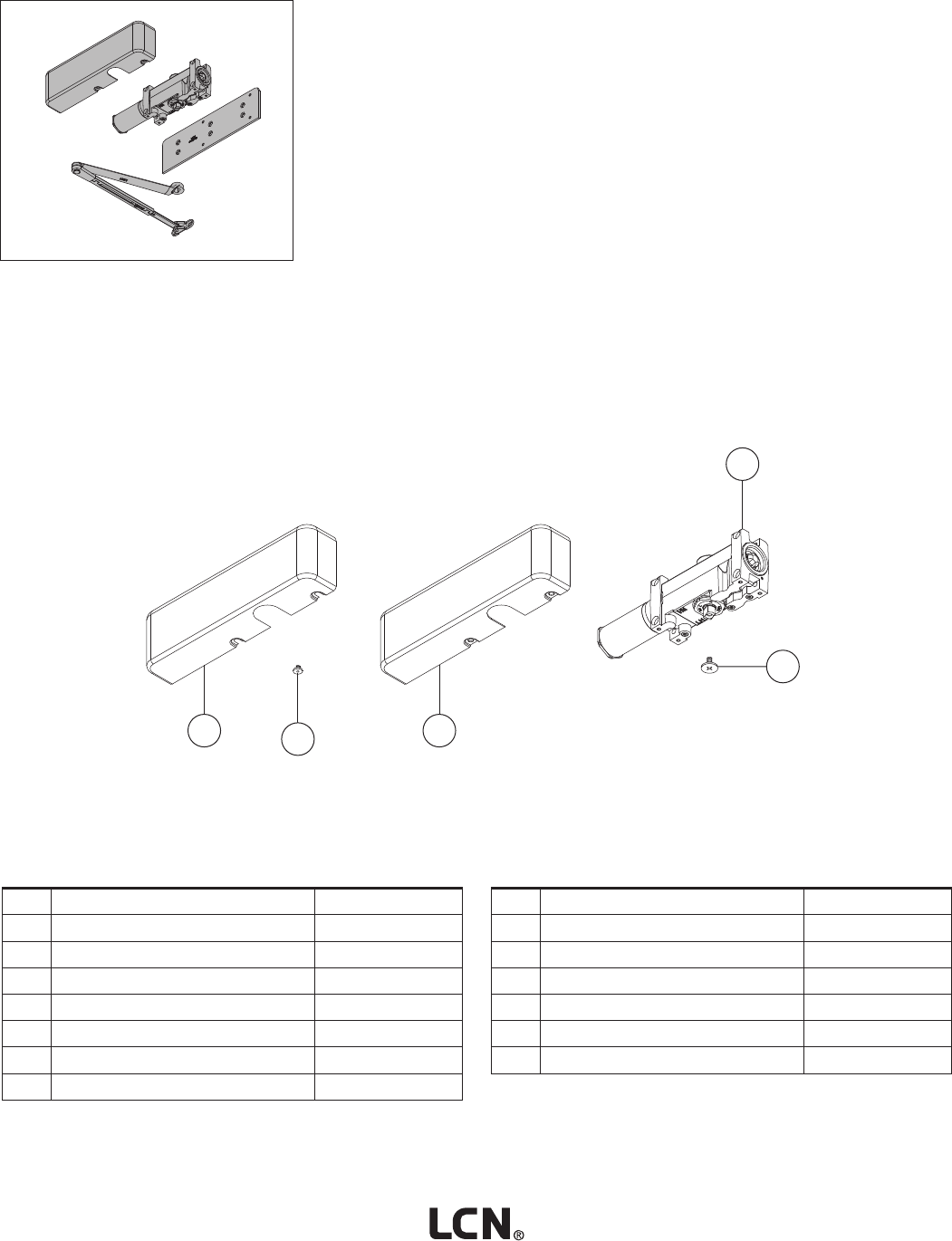

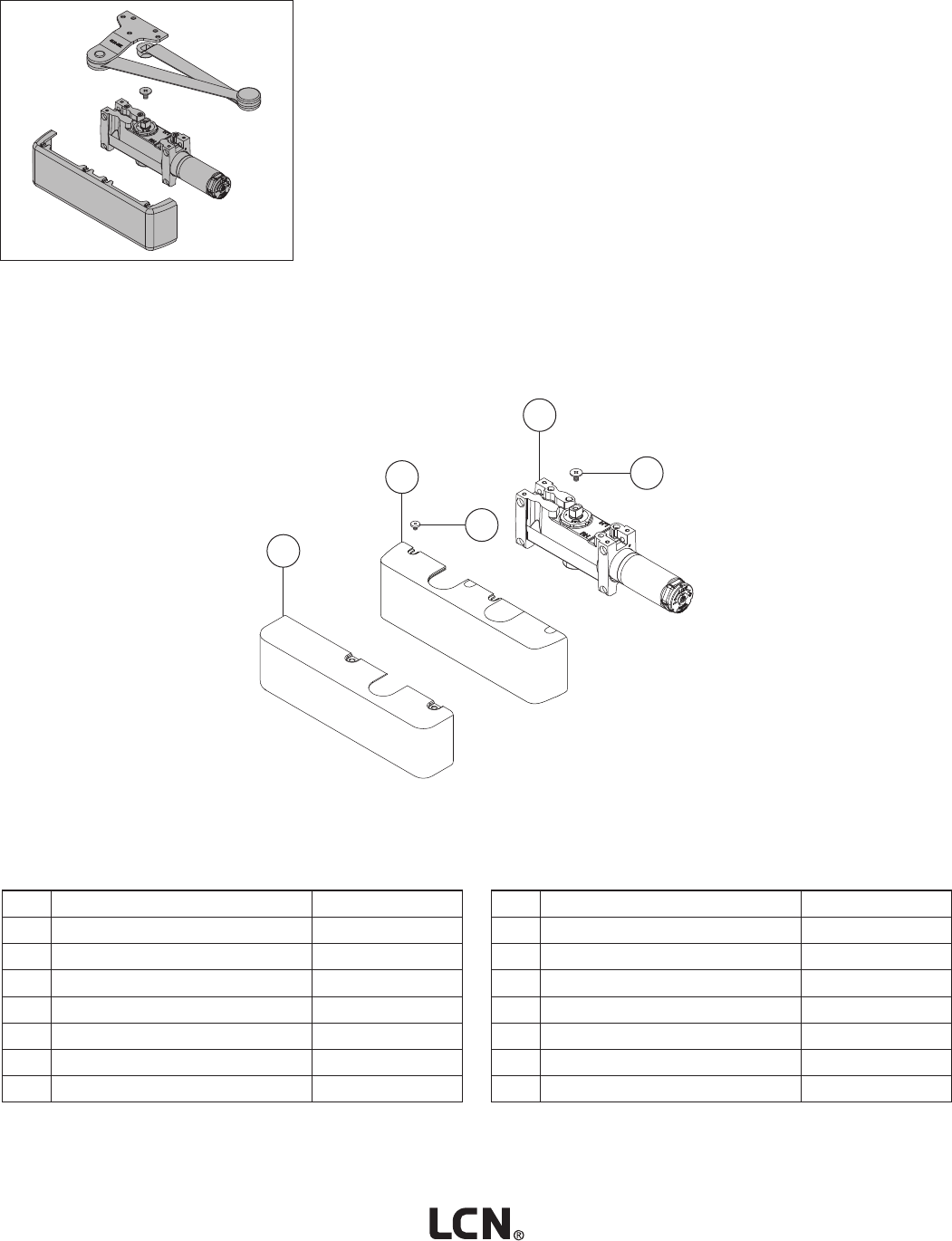

No. Description Part number
1Cylinder Assembly (F)(S)(H) 4021(6)-3071
1Cylinder Assembly w/ Delay (F)(S)(H) 4021-3071DEL
1Cylinder Assembly w/ TEL (F)(S)(H) 4021(6)-3071TEL
2Metal Cover (F)(H) 4020-72MC
3Cover Screw (F) 4020-31
4Standard Cover (F)(H) 4020-72
5Arm Screw (F) 4020-159
No. Description Part number
6Screw Pack (Not Shown)(F) 4020-SRT
7Screw Pack (Not Shown)(F) 4020-TBSRT
8Screw Pack (Not Shown)(F) 4020-WMS
9Screw Pack (Not Shown)(F) 4020-TBWMS
10 Screw Pack (Not Shown)(F) 4020-TORX
11 Screw Pack (Not Shown)(F) 4020-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4020 Series "Smoothee"
Cylinder & Cover Parts
14 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
3
6
912
5
8
7
4
21
14
13
11
10
No. Description Part number
1Plate (F) 4020-18
2Plate (F) 4020-18G
3Regular Arm (F) 4020-3077
3Long Arm (F) 4020-3077L
4Long Rod & Shoe (F) 4020-79LR
5Rod & Shoe (F) 4020-79
6Arm Screw (F) 4020-83
7Arm Screw (F) 4020-159
No. Description Part number
8Arm & Forearm (F) 4020-77
9Hold-Open Arm (F)(H) 4020-3049
10 Hold-Open Rod & Shoe (F) 4020-79H
11 H Arm Screw (F) 4020-83H
12 Fusible Link (FL) Arm (F)(H) 4020-3049FL
13 Fusible Link 4020-28
14 FL Hold-Open Main Arm (F) 4020-49FL
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4020 Series "Smoothee"
Arm Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 15
Return to Contents
1
3
24
5

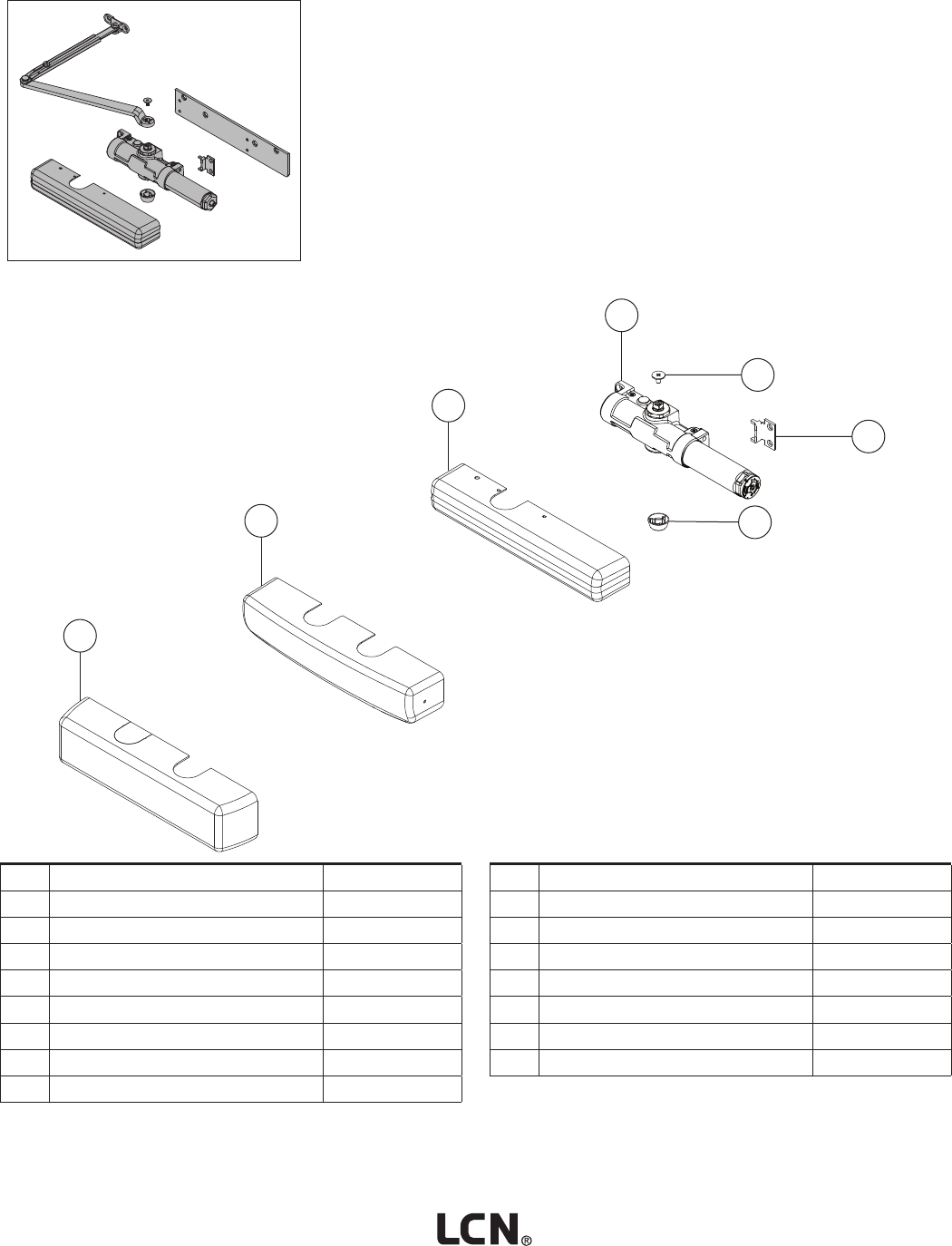

No. Description Part number
1Cylinder Assembly (F)(S)(H) 4021(3-4)T-3071
2Metal Cover (F)(H) 4020T-72MC
3Standard Cover (F)(H) 4020T-72
4Cover Screw (F) 4020T-31
5Arm Screw (F) 4020T-159
6Screw Pack (incl -3034)[Not Shown](F) 4020T-SRT
No. Description Part number
7Screw Pack (incl -3034)[Not Shown](F) 4020T-TBSRT
8Screw Pack (incl -3034)[Not Shown](F) 4020T-WMS
9Screw Pack (incl -3034)[Not Shown](F) 4020T-TBWMS
10 Screw Pack (incl -3034)[Not Shown](F) 4020T-TORX
11 Screw Pack (incl -3034)[Not Shown](F) 4020T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4020T Series "Smoothee"
Cylinder & Cover Parts
16 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
27
9

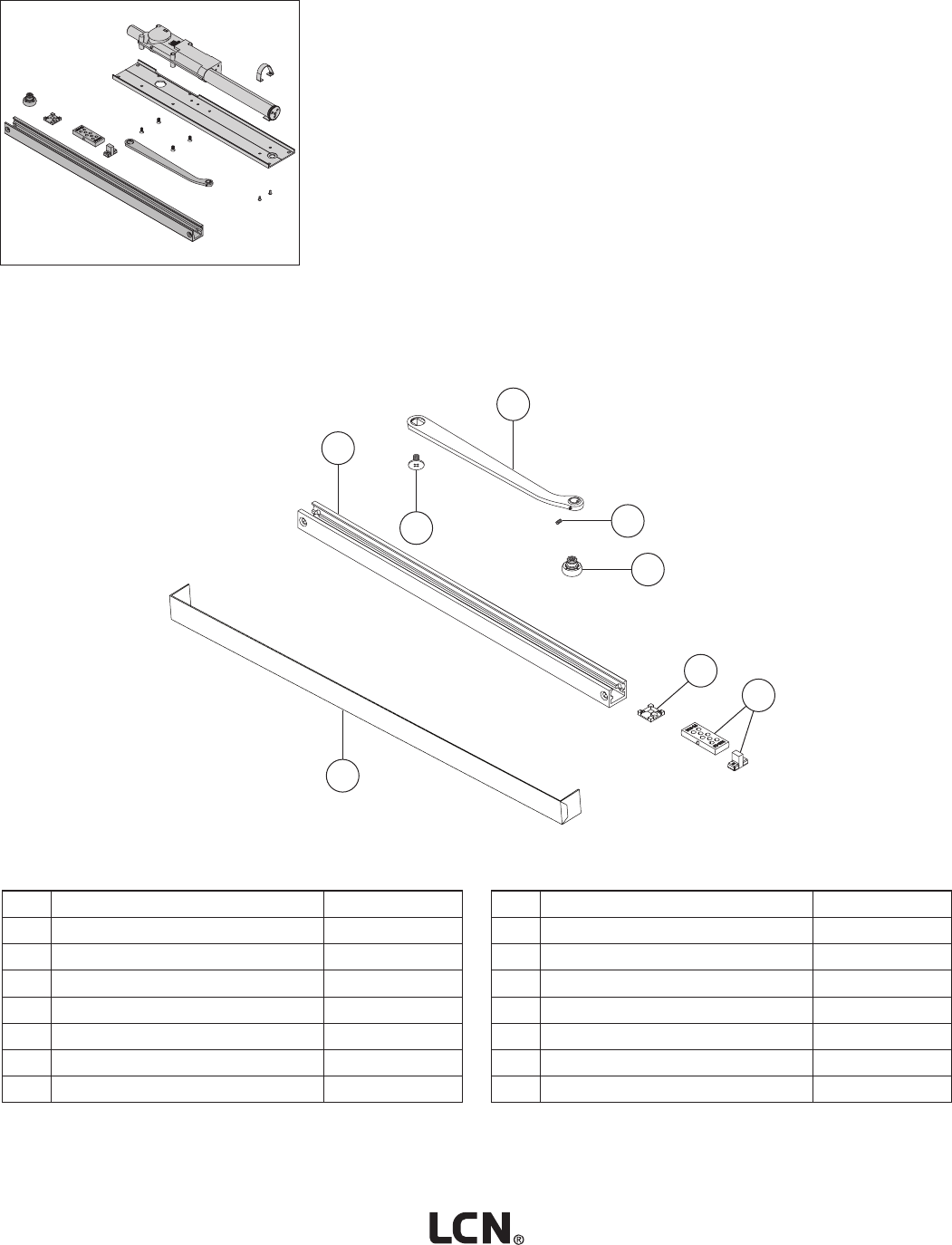

1
6
8
3
4
5

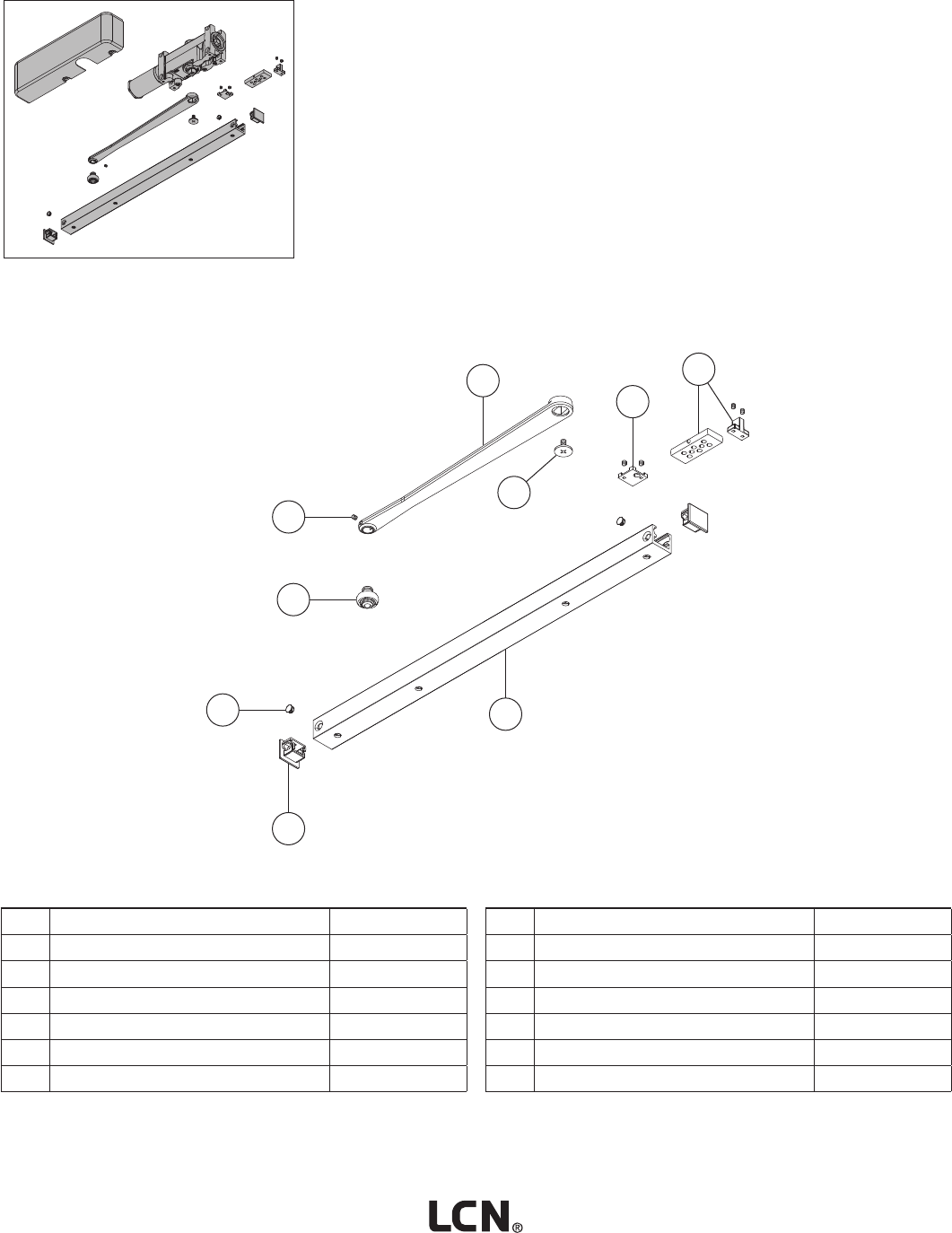

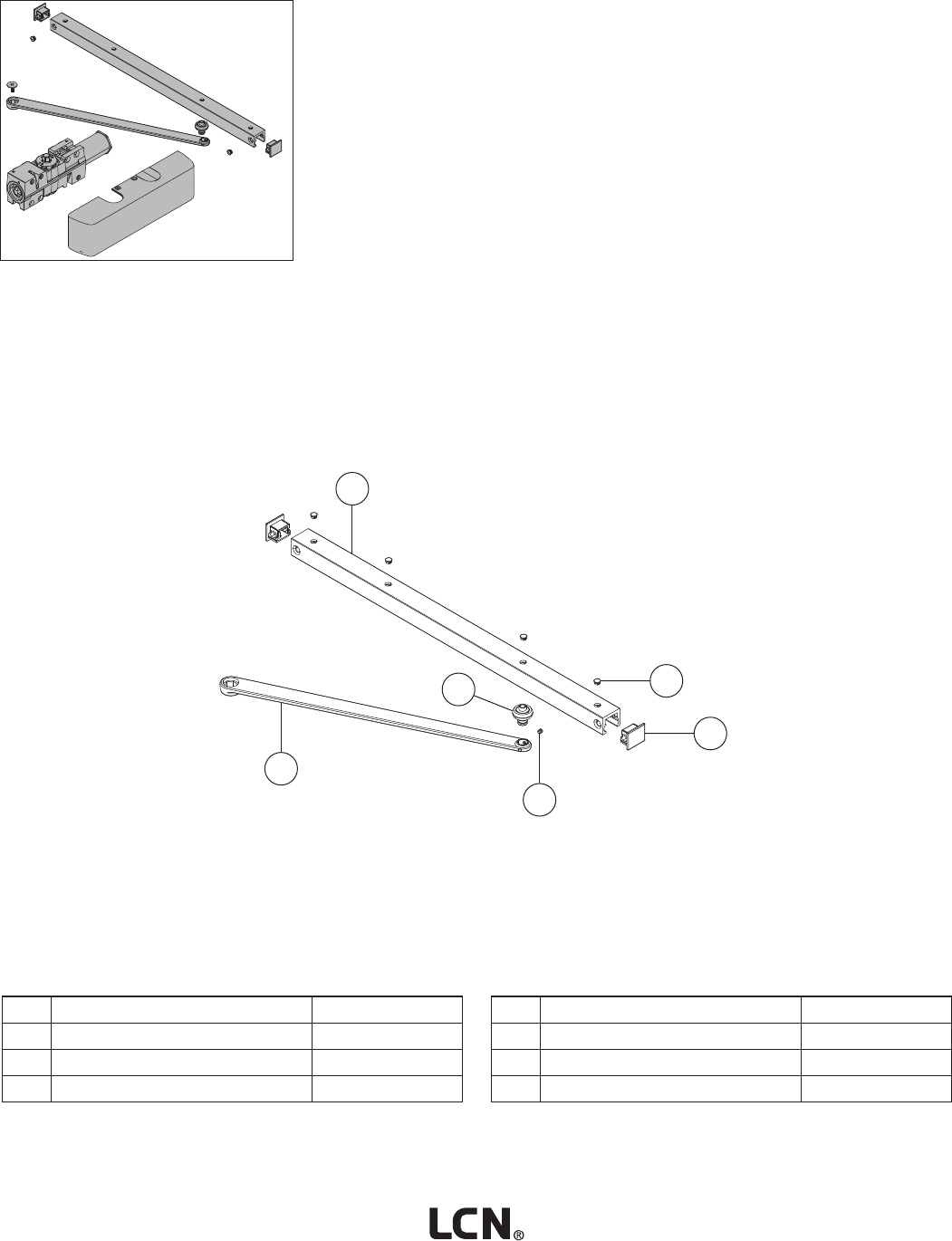

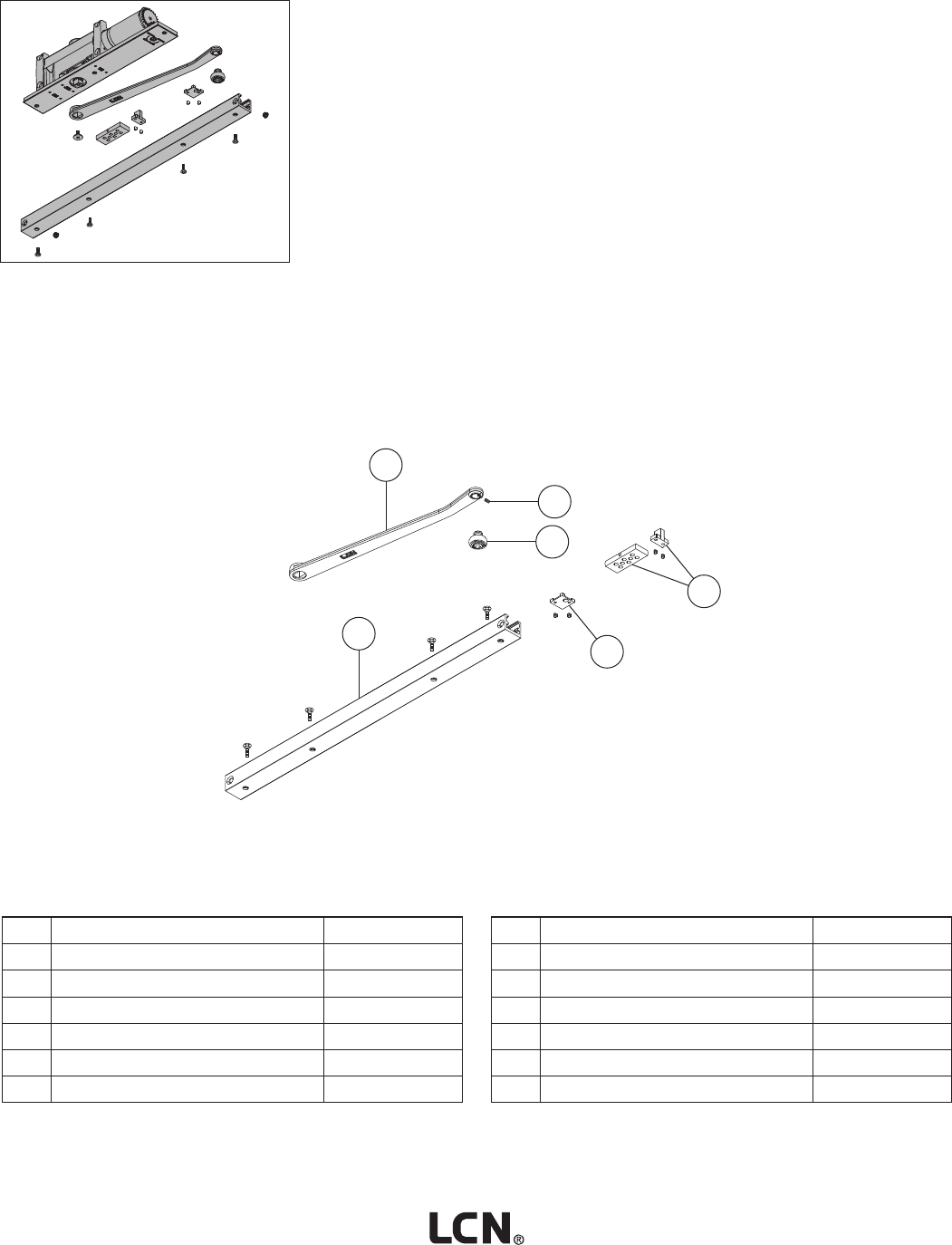

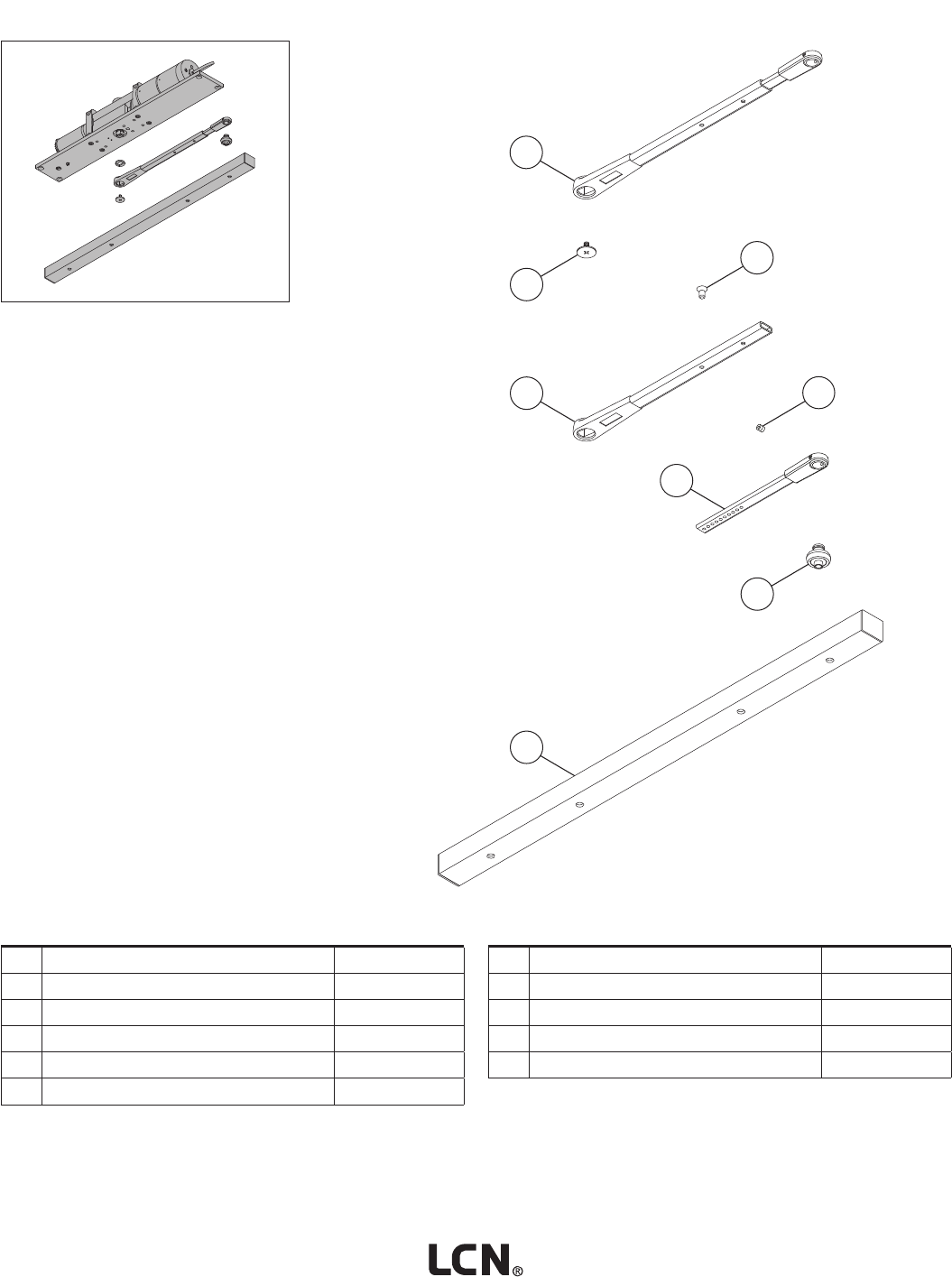

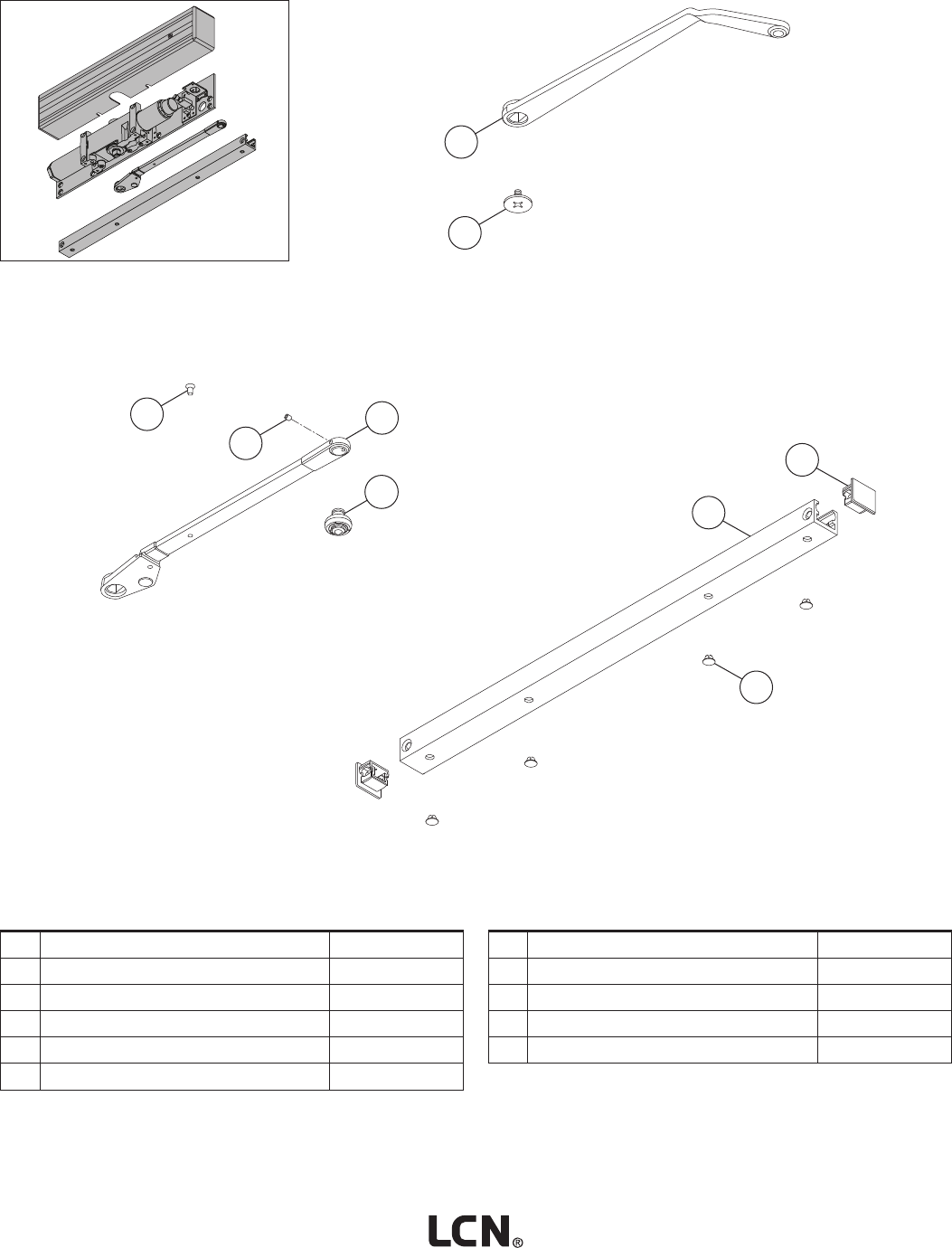

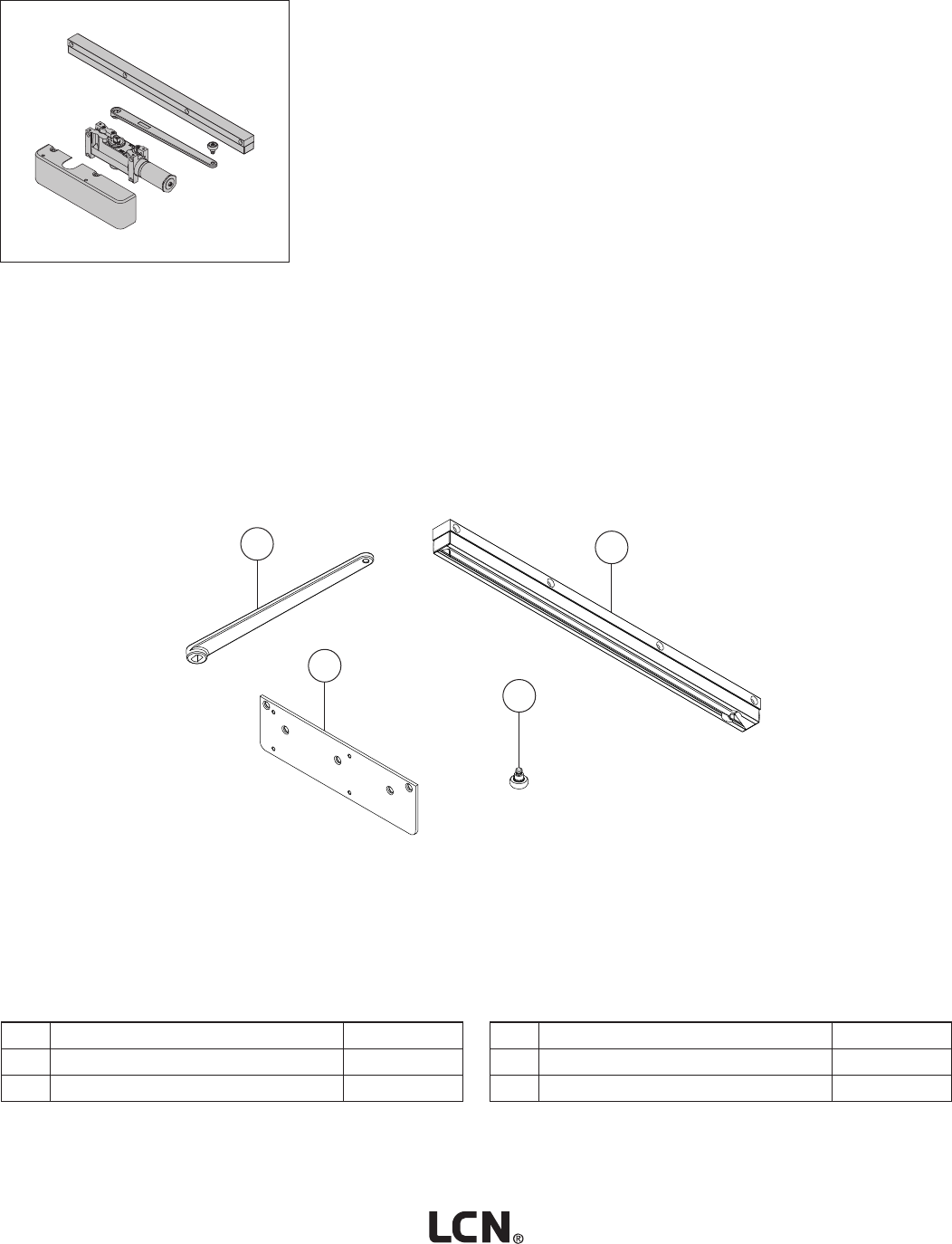

No. Description Part number
1Standard Track (F) 4020T-3038
1Standard Track w/ Bumper (F) 4020T-3038B
1Standard Track w/ Hold-Open (F) 4020T-3038H
1Standard Track w/Bump & Hold-Open (F) 4020T-3038HB
2Standard Arm (F)(H) 4020T-3077T
3Roller Locking Screw 4020T-425
No. Description Part number
4Track Roller 4020T-3034
5Track Plug (F) 4020T-141-2
6End Cap 4020T-73
7Track Bumper 4020T-169
8Arm Screw (F) 4020T-159
9Hold-Open Clip 4020T-3054
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4020T Series "Smoothee"
Arm Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 17
Return to Contents
1
No. Description Part number
1Mounting Plate (F) 4020T-18
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4020T Series "Smoothee"
Mounting Plates
18 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
1
3
2
No. Description Part number
1Standard Cylinder Assembly (F)(S) 4031-3071
2Metal Cover (F) 4030-72MC
3Cover Screw (F) 4030-31
No. Description Part number
4Screw Pack (Not Shown)(F) 4030-WMS
5Screw Pack (Not Shown)(F) 4030-TBWMS
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4030 Series "Smoothee"
Cylinder & Cover Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 19
Return to Contents
12
15
4
6
9
14
13
1
11
2
19 20
18
16
17
8
10
5
3
7

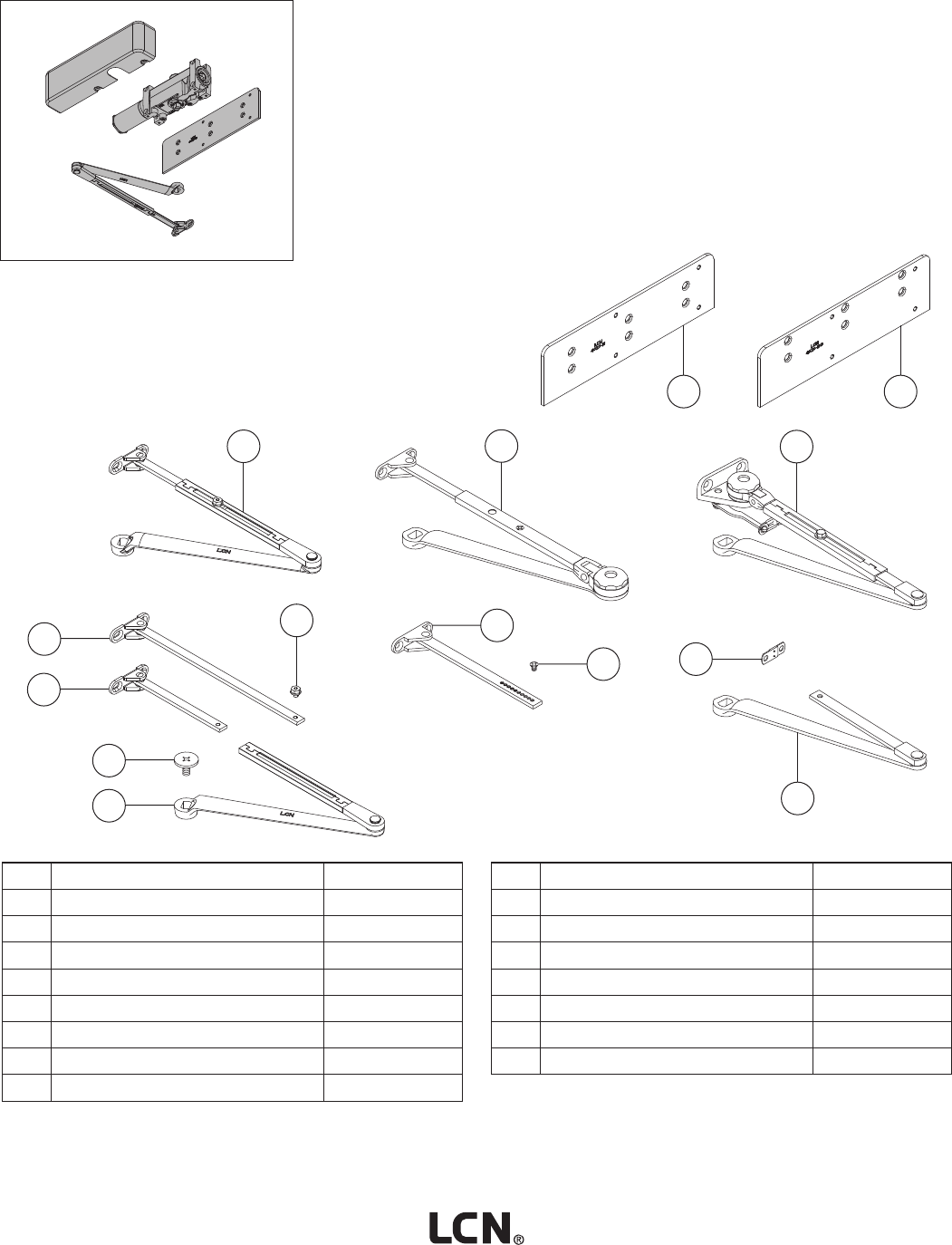

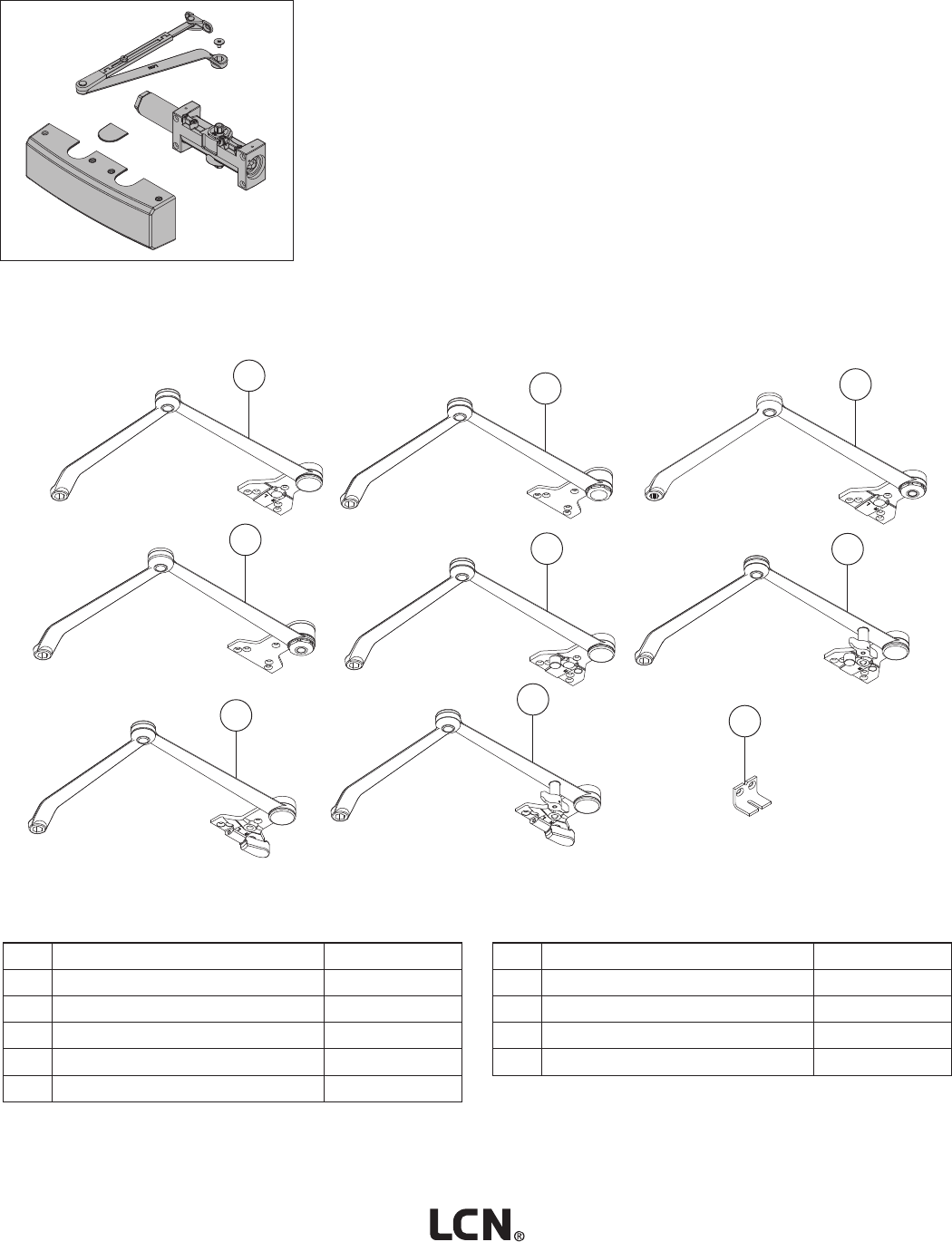

No. Description Part number
1Light Duty Arm (F) 4030-3077LD
2Light Duty Arm w/ 62A (F) 4030-3077LD/62A
3Light Duty Arm w/ PA (F) 4030-3077LD/PA
4H Arm (F) 4030-3049
5H Arm w/ 62PA (F) 4030-3049/PA
6H Long Arm (F) 4030-3049/L
7H Arm Screw (F) 4020-83H
8Head & Tube Assy (F) 4030-3048
9Regular Arm (F) 4030-3077
10 Regular Arm w/ 62PA (F) 4030-3077/PA
11 Regular Arm w/ 62A (F) 4030-3077/62A
No. Description Part number
12 Long Arm (F) 4030-3077L
13 Arm & Forearm (F) 4030-77
14 Arm Screw (F) 4030-159
15 Arm Screw (F) 4030-83
16 Rod & Shoe 4030-79
17 Long Rod & Shoe 4030-79LR
18 PA Shoe (F) 4030-62PA
19 Auxiliary Shoe (F) 4030-62A
20 Panel Adapter (F) 4030-419
21 Hold Open Shoe (Not Shown)(F) 4030-3045
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4030 Series "Smoothee"
Arm Assemblies & Parts
20 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
8
7910
5
3
1
26
4

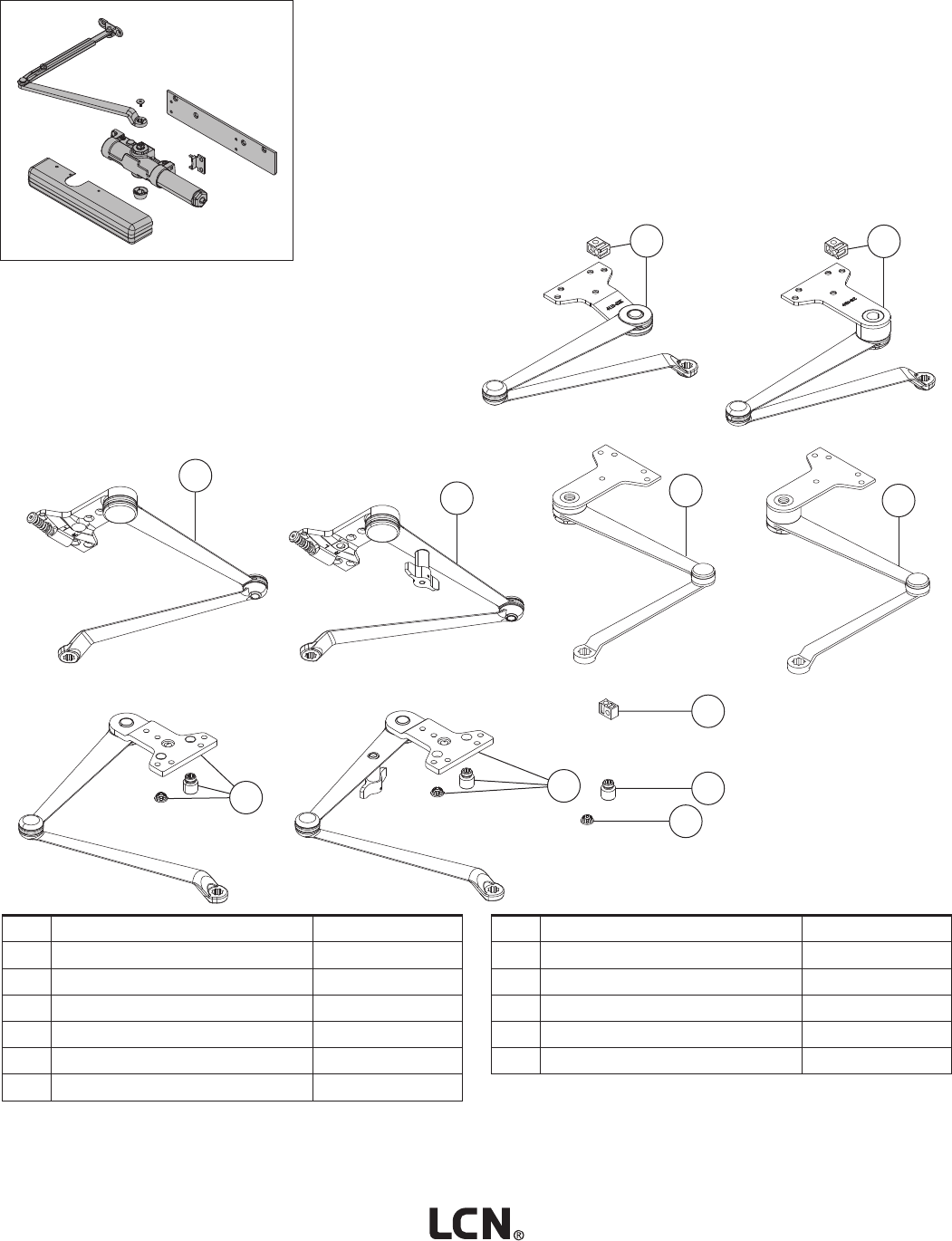

No. Description Part number
1EDA Arm (F) 4030-3077EDA
2H EDA Arm (F)(H) 4030-3049EDA
3Cush Arm (F) 4030-3077CNS
4HCush Arm (F) 4030-3049CNS
5SCush Arm (F) 4030-3077SCNS
No. Description Part number
6Spring HCush Arm (F) 4030-3049SCNS
7Cush Shoe Support (F) 4030-30
8Fih Screw Spacer 4030-201
9Blade Stop Spacer (F) 4030-61
10 Spring Cush Block (F) 4030-3080
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4030 Series "Smoothee"
Arm Assemblies & Parts Cont.
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 21
Return to Contents

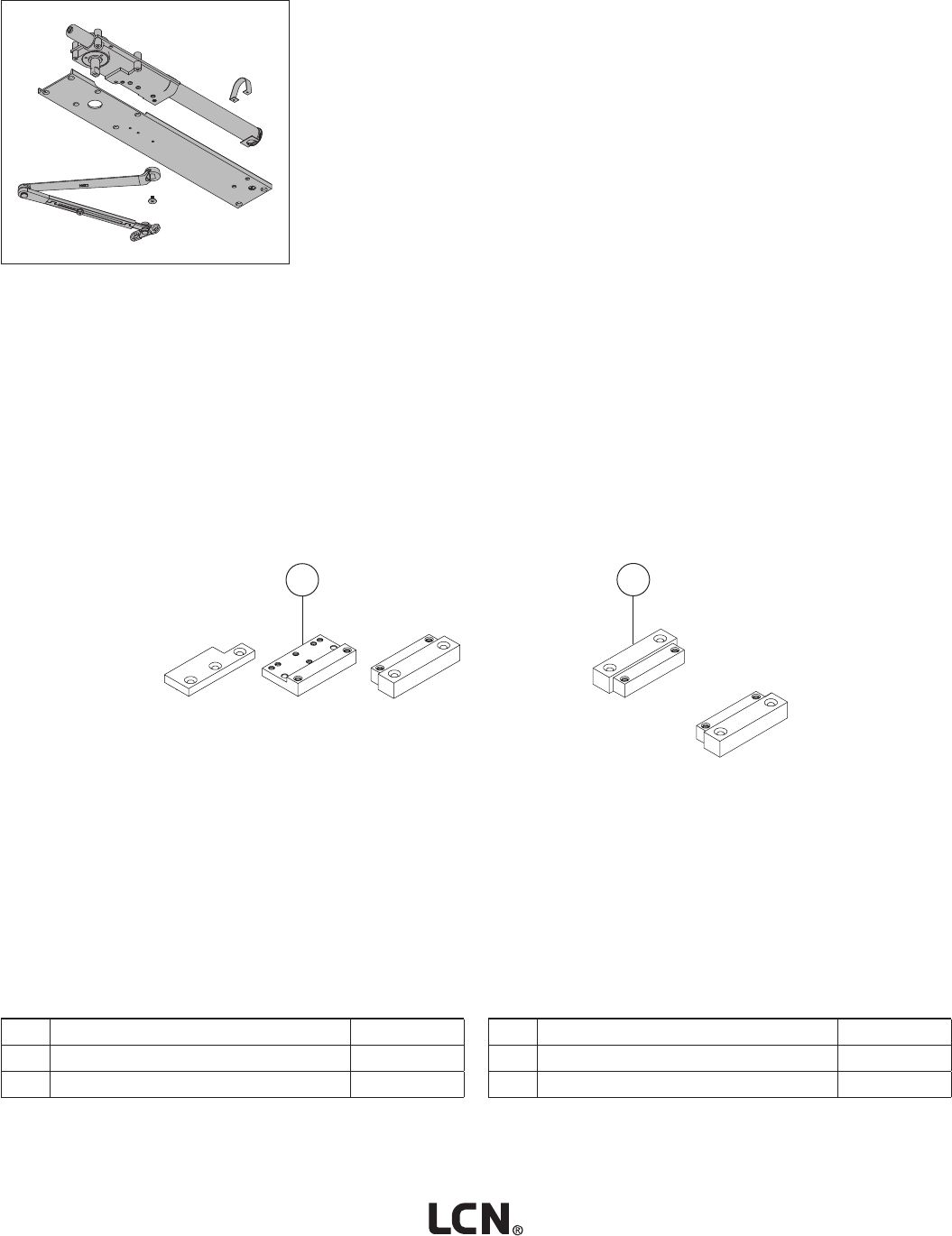

1 2
No. Description Part number
1Mounting Plate (F) 4030-18PA
No. Description Part number
2Mounting Plate (F) 4030-18TJ
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4030 Series "Smoothee"
Mounting Plates
22 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
2
1
No. Description Part number
1Cylinder Assembly (F)(S) 4031T-3071
2Metal Cover (F) 4030T-72MC
No. Description Part number
3Screw Pack (Not Shown)(F) 4030T-WMS
4Screw Pack (Not Shown)(F) 4030T-TBWMS
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4030T Series "Smoothee"
Cylinder & Cover Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 23
Return to Contents
1
2
6
3
7
4
5

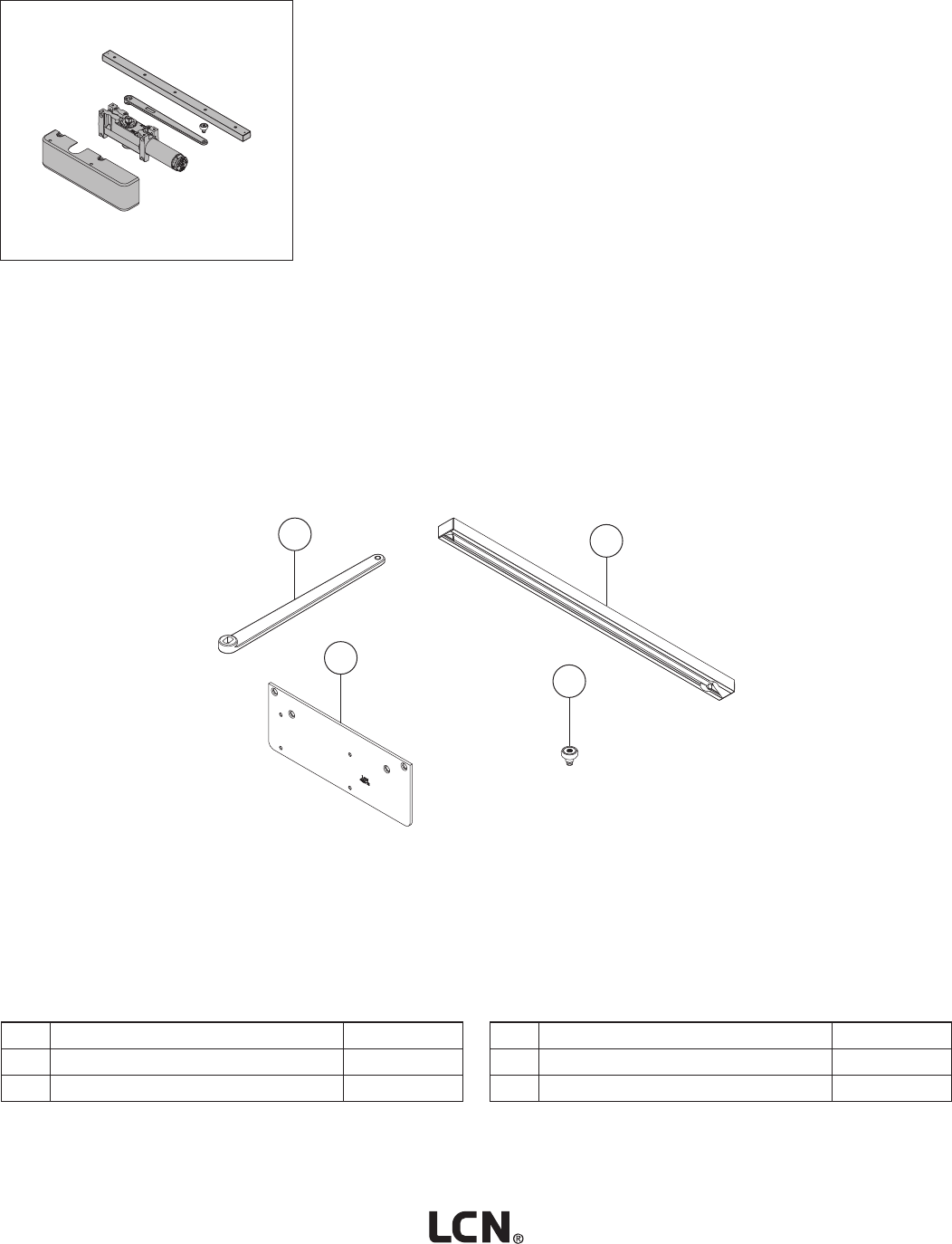

No. Description Part number
1Standard Track (F) 4030T-3038
1Standard Track w/ Hold-Open (F) 4030T-3038H
2Standard Arm (F) 4030T-3077T
3Arm Screw (F) 4030T-159
No. Description Part number
4Track Plug (F) 4030T-141-1
5Track Plug (F) 4030T-141-2
6End Cap (F) 4030T-73
7Hold-Open Clip (F) 4030T-3054
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4030T Series "Smoothee"
Arm Assemblies & Parts
24 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
4
5
2
3
1
No. Description Part number
1Cylinder Assembly (F) 4040XP-3071
1Cylinder Assembly w/ Delay (F) 4041-3071DEL
2Standard Cover (F) 4040XP-72
3Metal Cover (F)(H) 4040XP-72MC
4Arm Screw (F) 4040XP-159
5Cover Screw (F) 4040XP-31
No. Description Part number
6Screw Pack (Not Shown)(F) 4040XP-SRT
7Screw Pack (Not Shown)(F) 4040XP-TBSRT
8Screw Pack (Not Shown)(F) 4040XP-WMS
9Screw Pack (Not Shown)(F) 4040XP-TBWMS
10 Screw Pack (Not Shown)(F) 4040XP-TORX
11 Screw Pack (Not Shown)(F) 4040XP-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4040XP Series "Super Smoothee"
Cylinder & Cover Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 25
Return to Contents

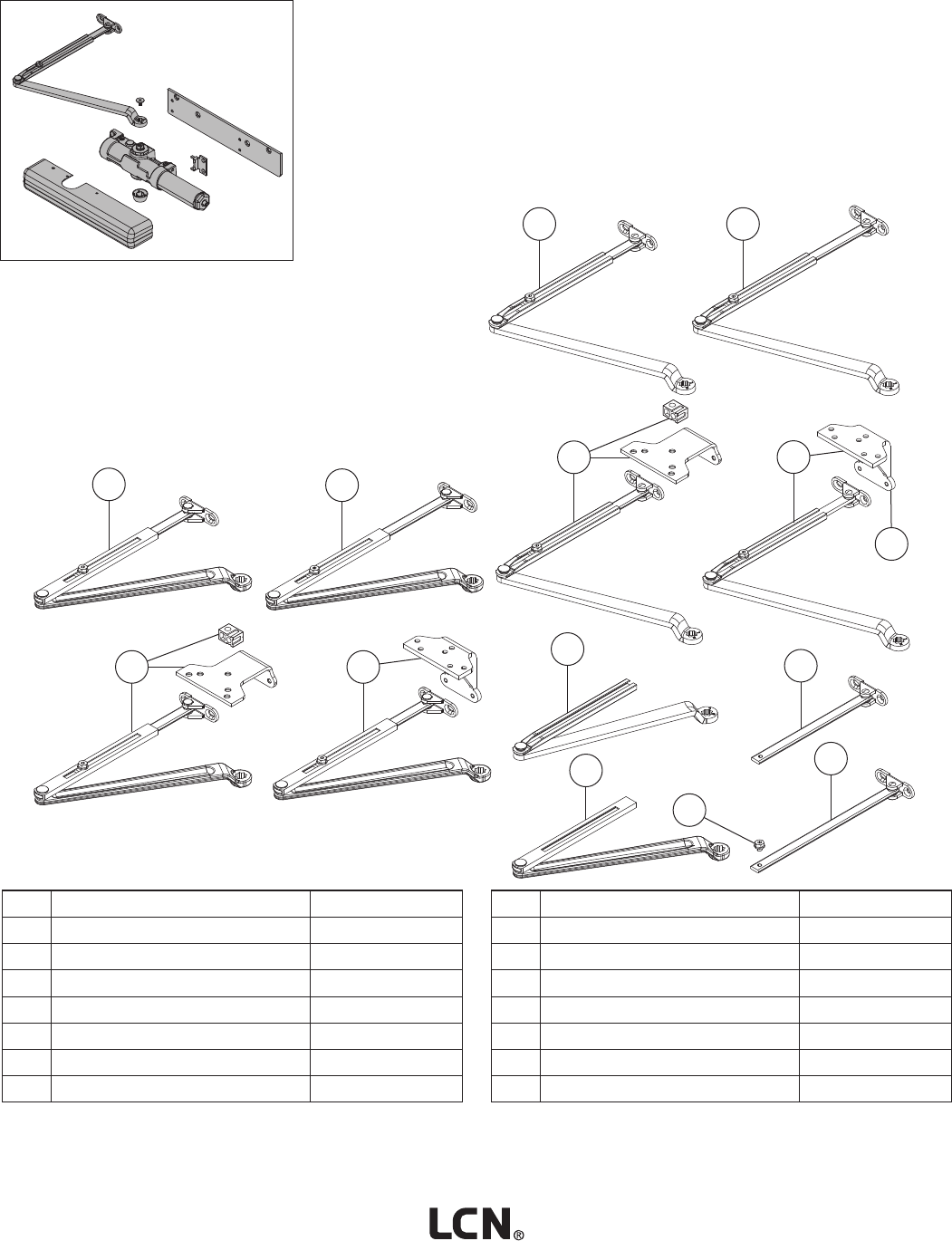

11 16
7
1
6
15
3
5
4
9
8
17
14
10
2
12
13
18 19
No. Description Part number
1Reg Arm (F) 4040XP-3077
2Reg Arm w/PA (F) 4040XP-3077/PA
3Reg Arm w/62A (F) 4040XP-3077/62A
4XL Reg Arm (F) 4040XP-3077XL
5Long Arm (F) 4040XP-3077L
6Arm & Forearm 4040XP-77
7Arm Screw (F) 4040XP-83
8XL Rod & Shoe 4040XP-79ELR
9Long Rod & Shoe 4040XP-79LR
10 Rod & Shoe 4040XP-79
No. Description Part number
11 Hold Open Arm (F) 4040XP-3049
12 H Arm w/62PA (F) 4040XP-3049/PA
13 H Arm Screw (F) 4040XP-83H
14 H Head & Tube (F) 4040XP-78H
15 Hold Open Main Arm (F) 4040XP-49
16 H Long Arm (F) 4040XP-3049L
17 Head & Long Tube (F) 4040XP-78HL
18 PA Shoe (F) 4040XP-62PA
19 Auxiliary Shoe (F) 4040XP-62A
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4040XP Series "Super Smoothee"
Arm Assemblies & Parts
26 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents

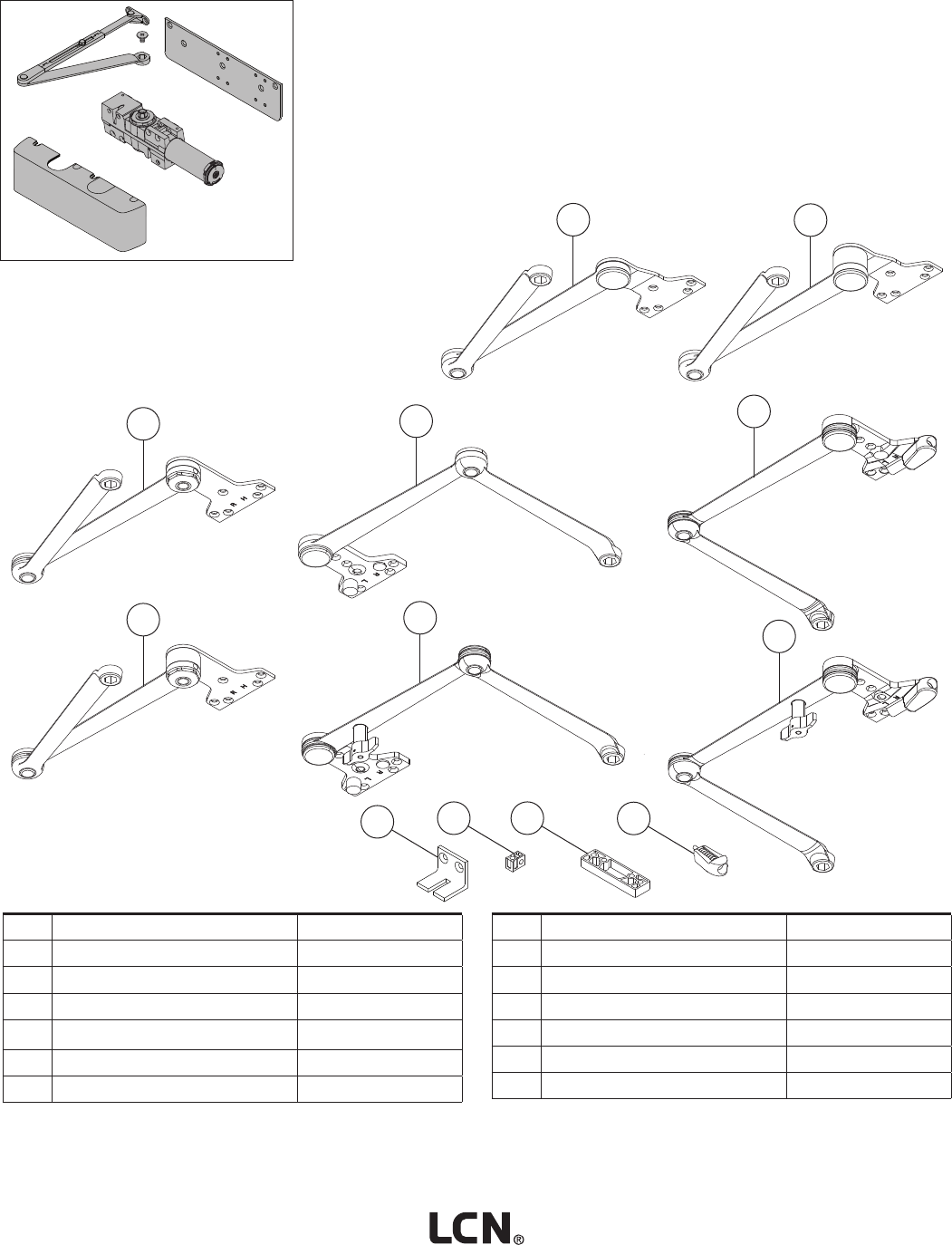

12
37
8
46
5
10
911 12

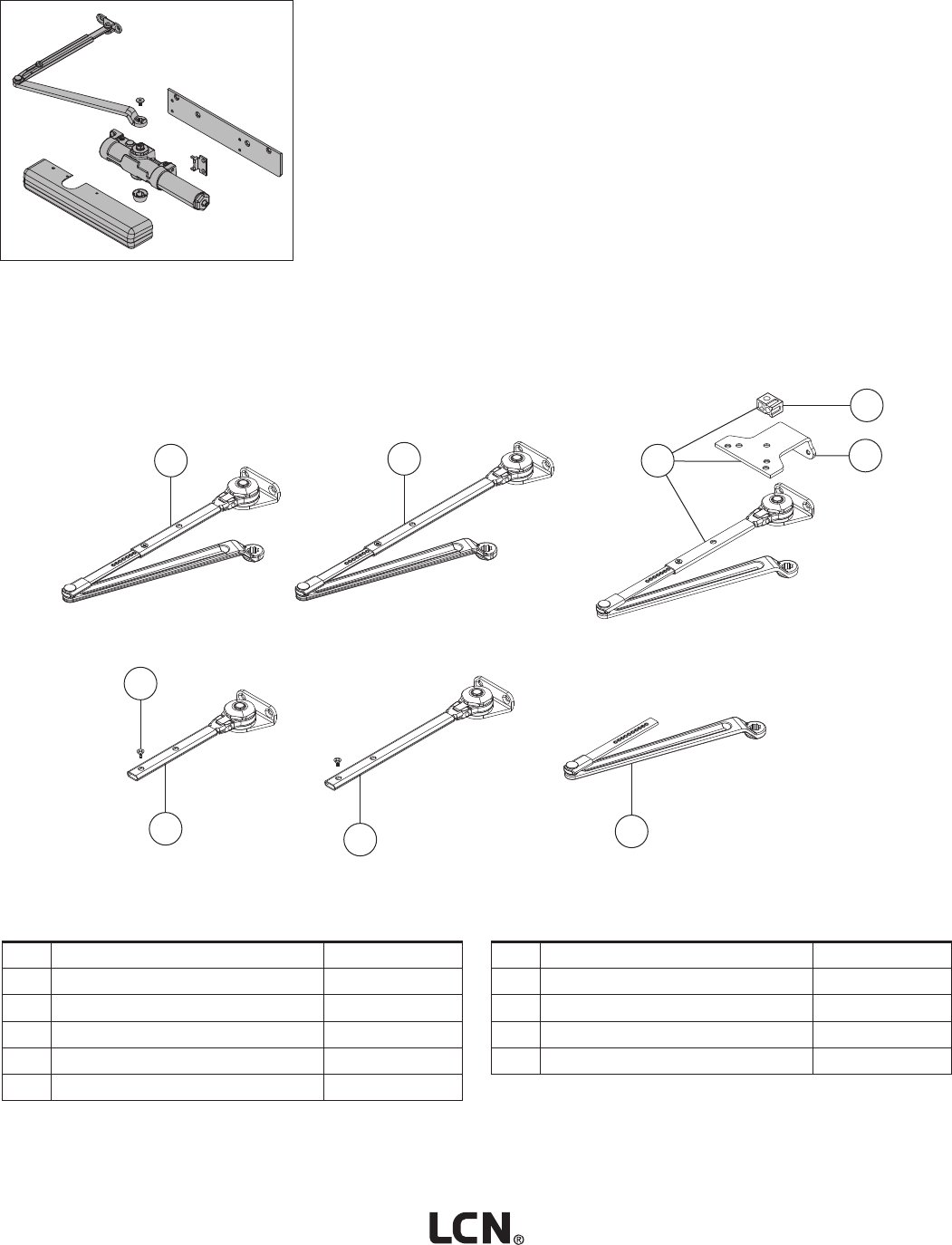

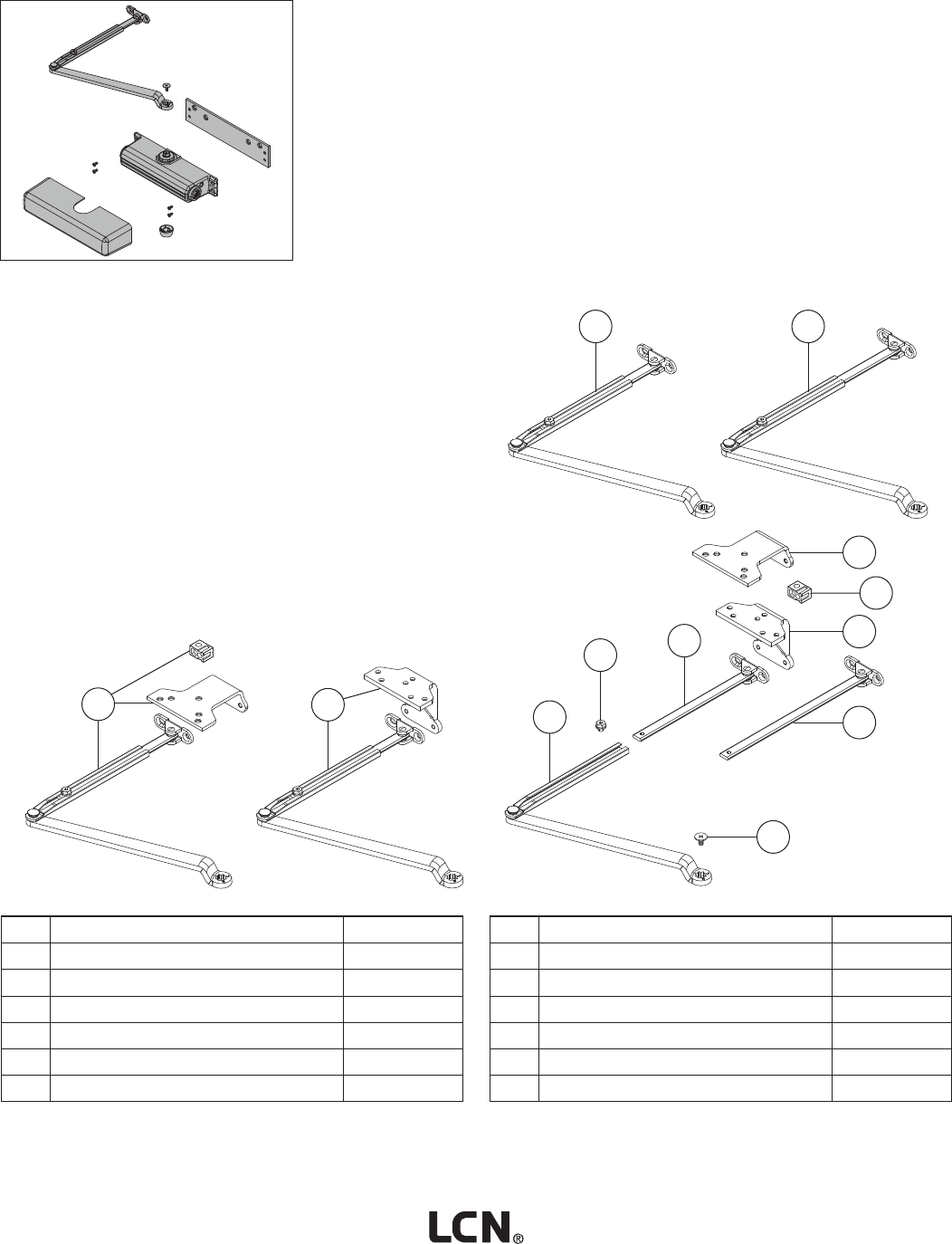

No. Description Part number
1EDA Arm (F) 4040XP-3077EDA
2EDA Arm w/62G (F) 4040XP-3077EDA/G
3H EDA Arm (F)(H) 4040XP-3049EDA
4H EDA Arm w/62G (F)(H) 4040XP-3049EDA/G
5Cush Arm (F) 4040XP-3077CNS
6H Cush Arm (F) 4040XP-3049CNS
No. Description Part number
7S Cush Arm (F) 4040XP-3077SCNS
8Spring H Cush Arm (F) 4040XP-3049SCNS
9Cush Shoe Support (F) 4040XP-30
10 Fih Screw Spacer 4040XP-201
11 Blade Stop Spacer (F) 4040-61
12 Spring Cush Block (F) 4040XP-3080
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4040XP Series "Super Smoothee"
Arm Assemblies & Parts Cont.
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 27
Return to Contents

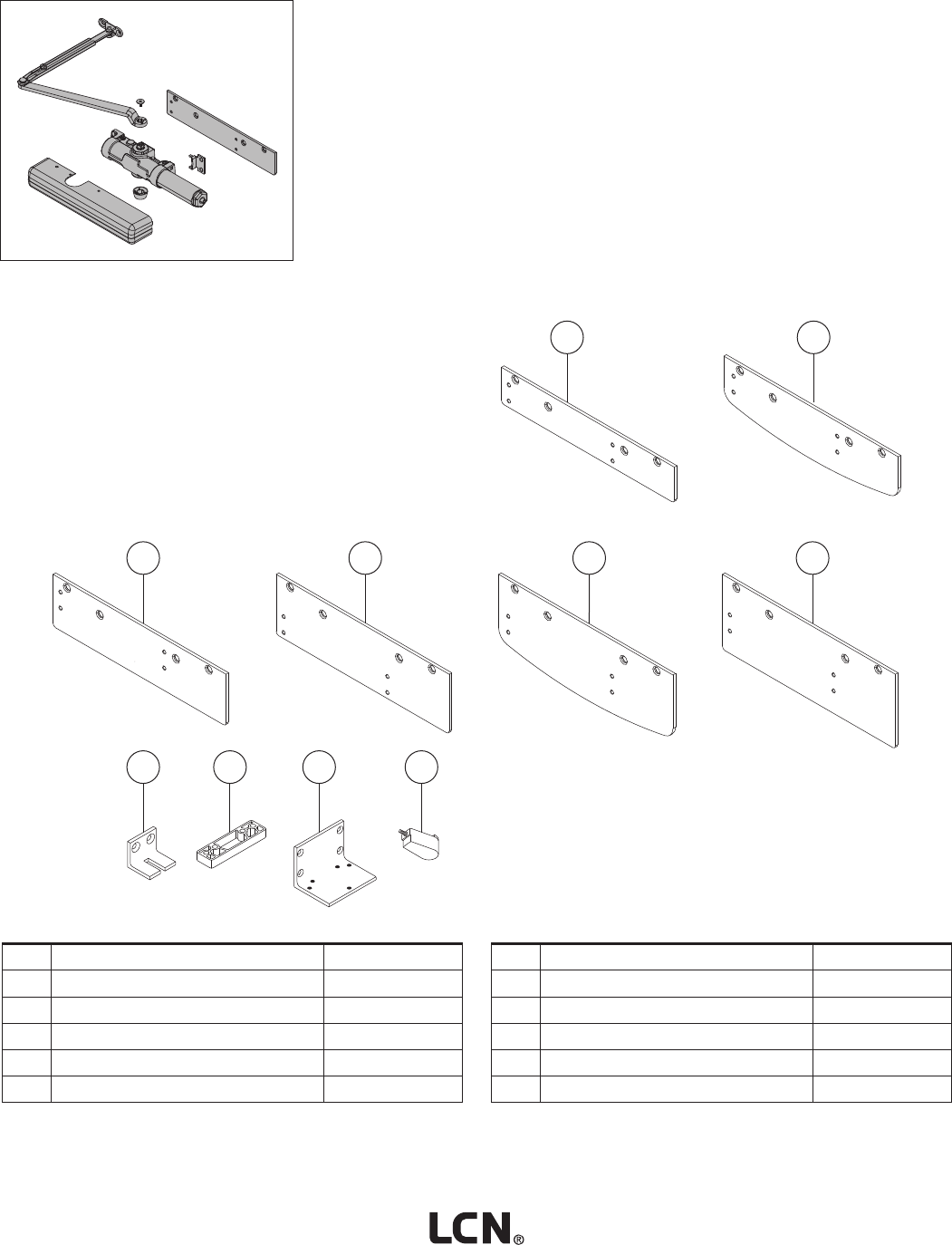

34
12

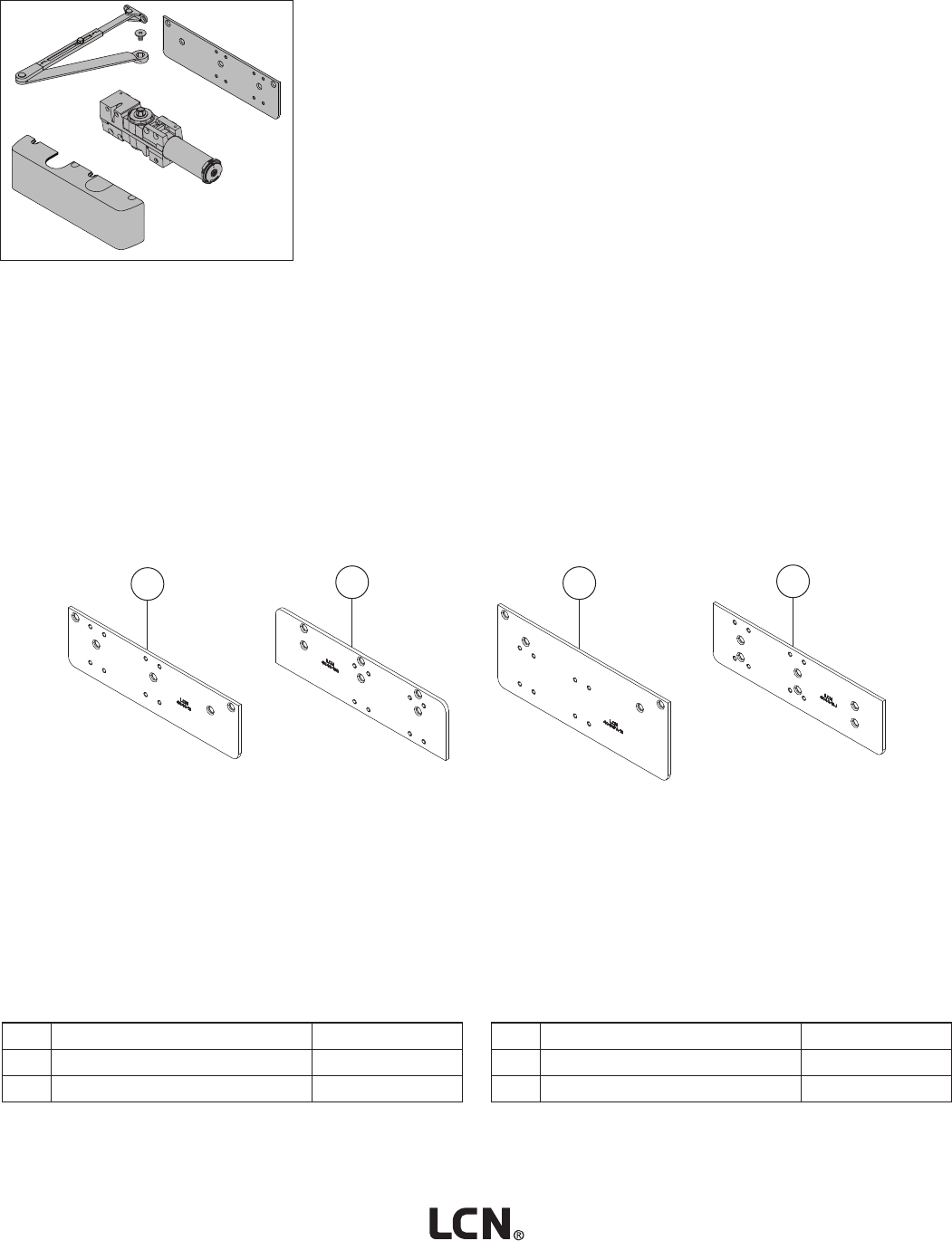

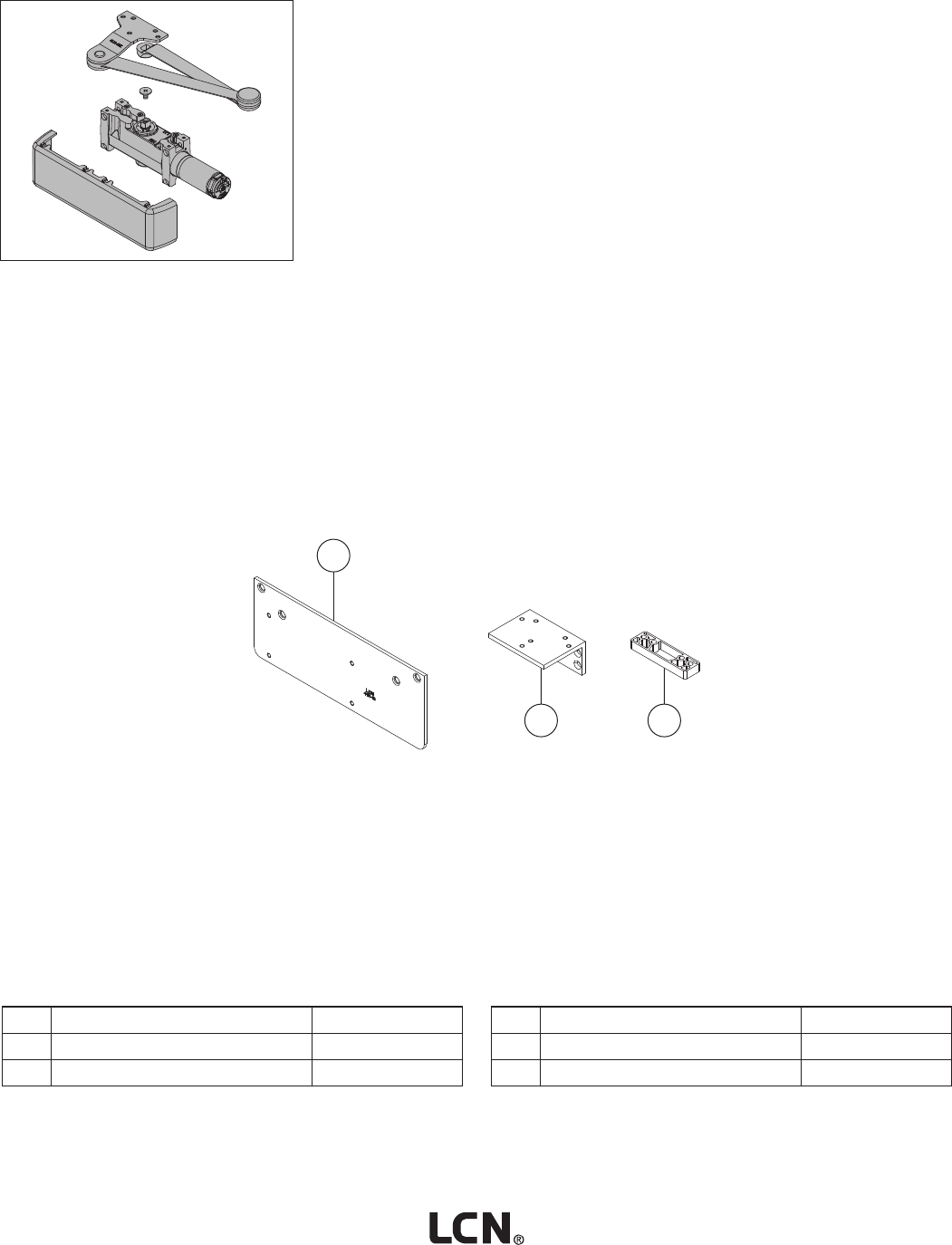

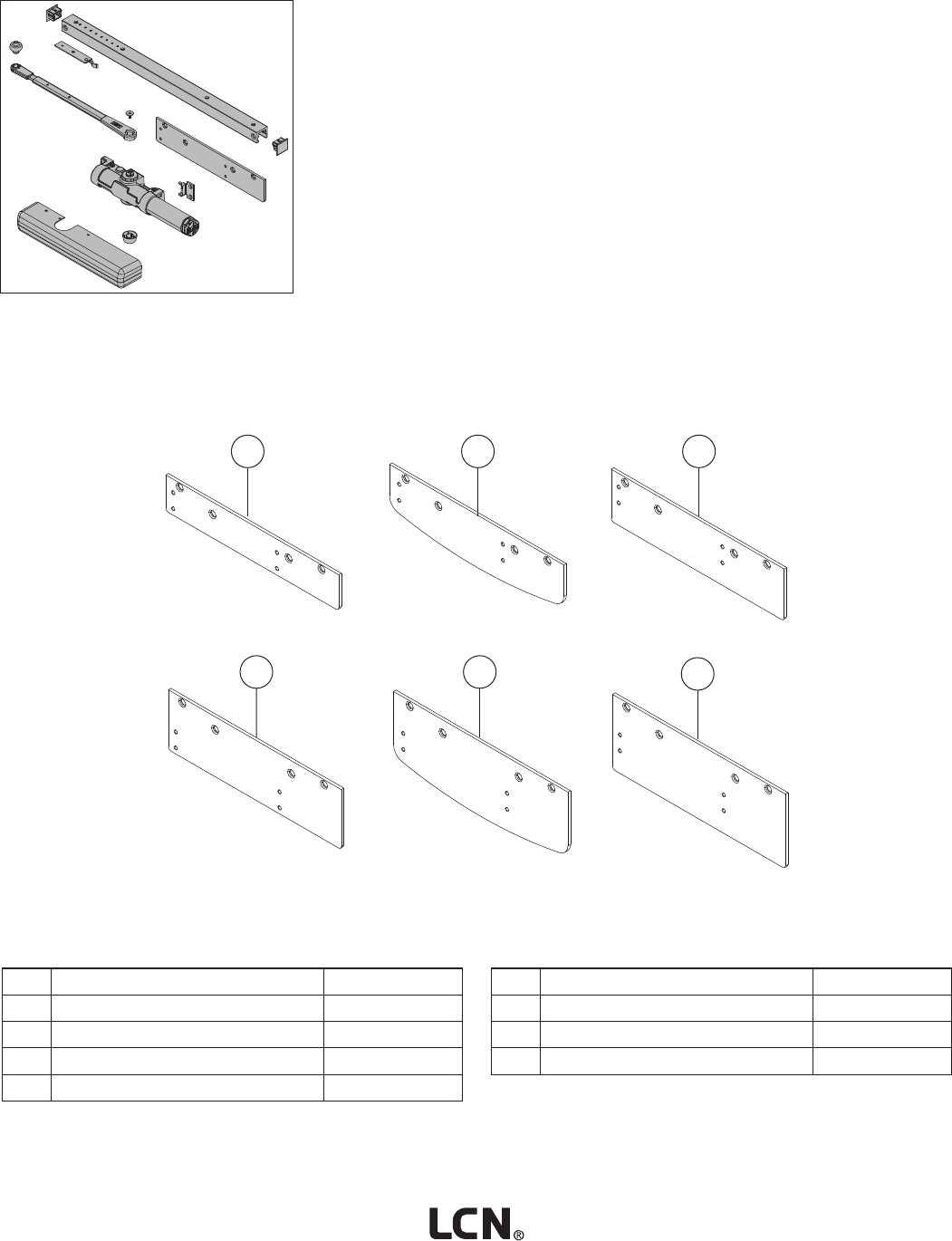

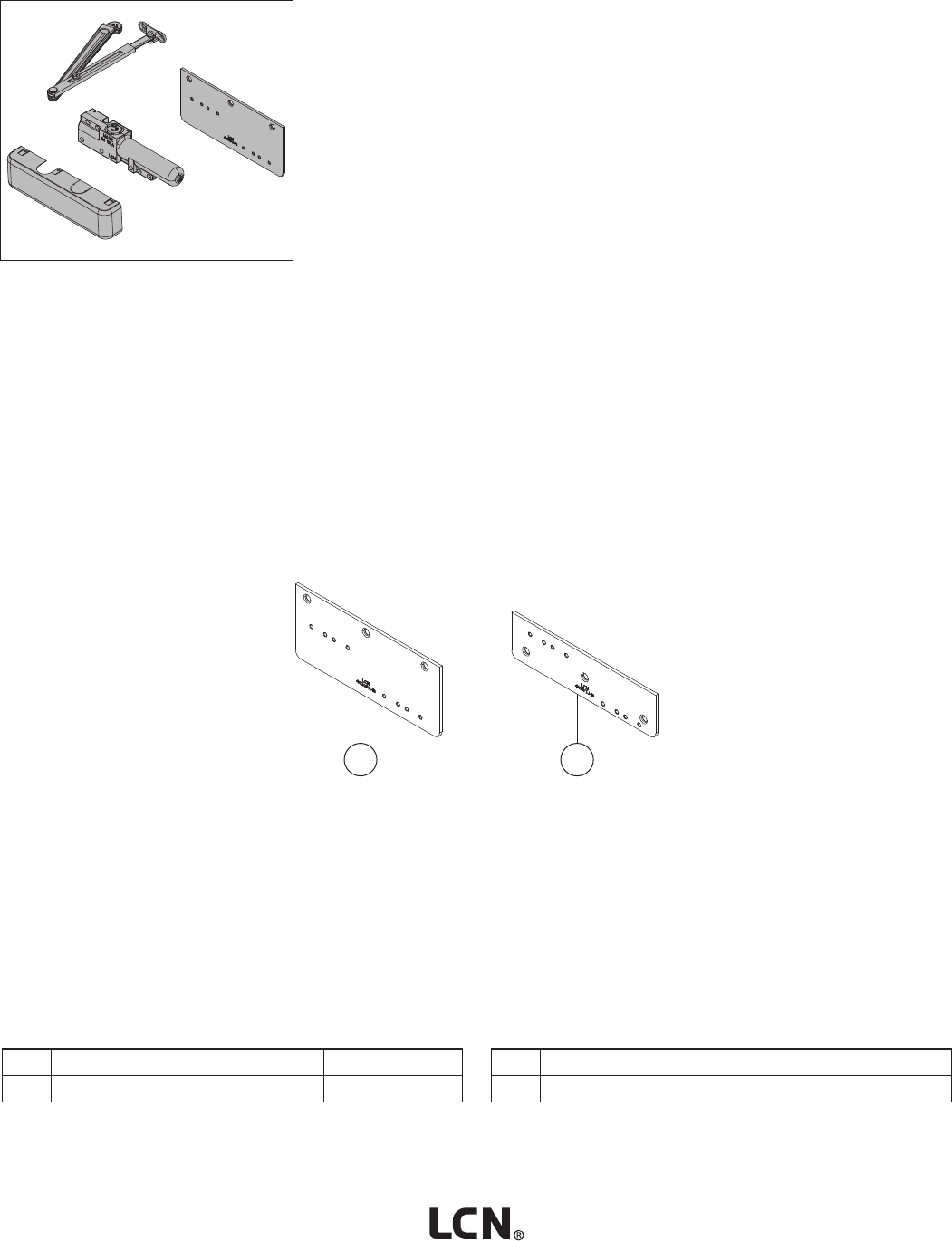

No. Description Part number
1Mounting Plate (F) 4040-18
2Mounting Plate (F) 4040-18G
No. Description Part number
3Mounting Plate (F) 4040-18PA
4Mounting Plate (F) 4040-18TJ
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.

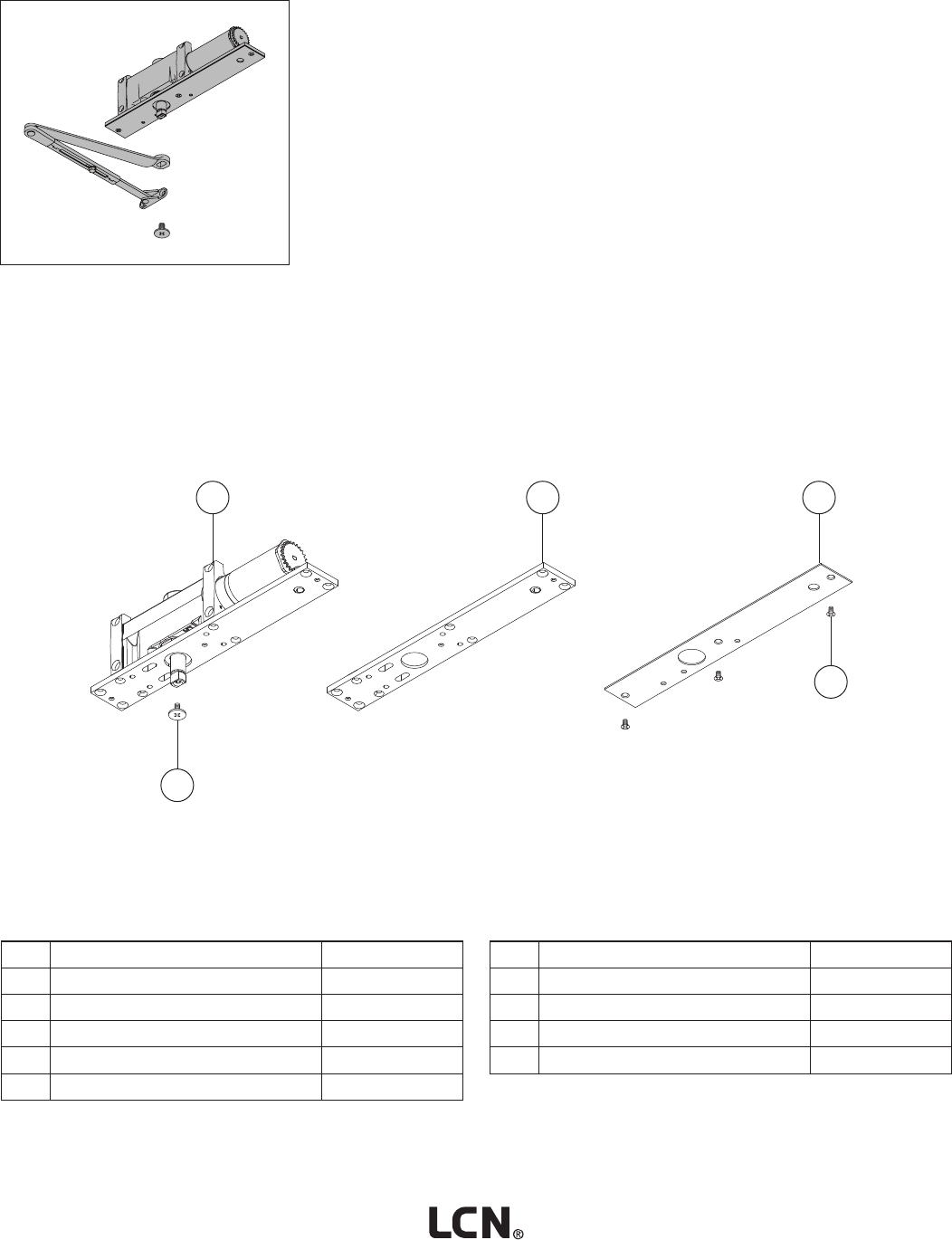

4040XP Series "Super Smoothee"
Mounting Plates & Installation Accessories
28 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents

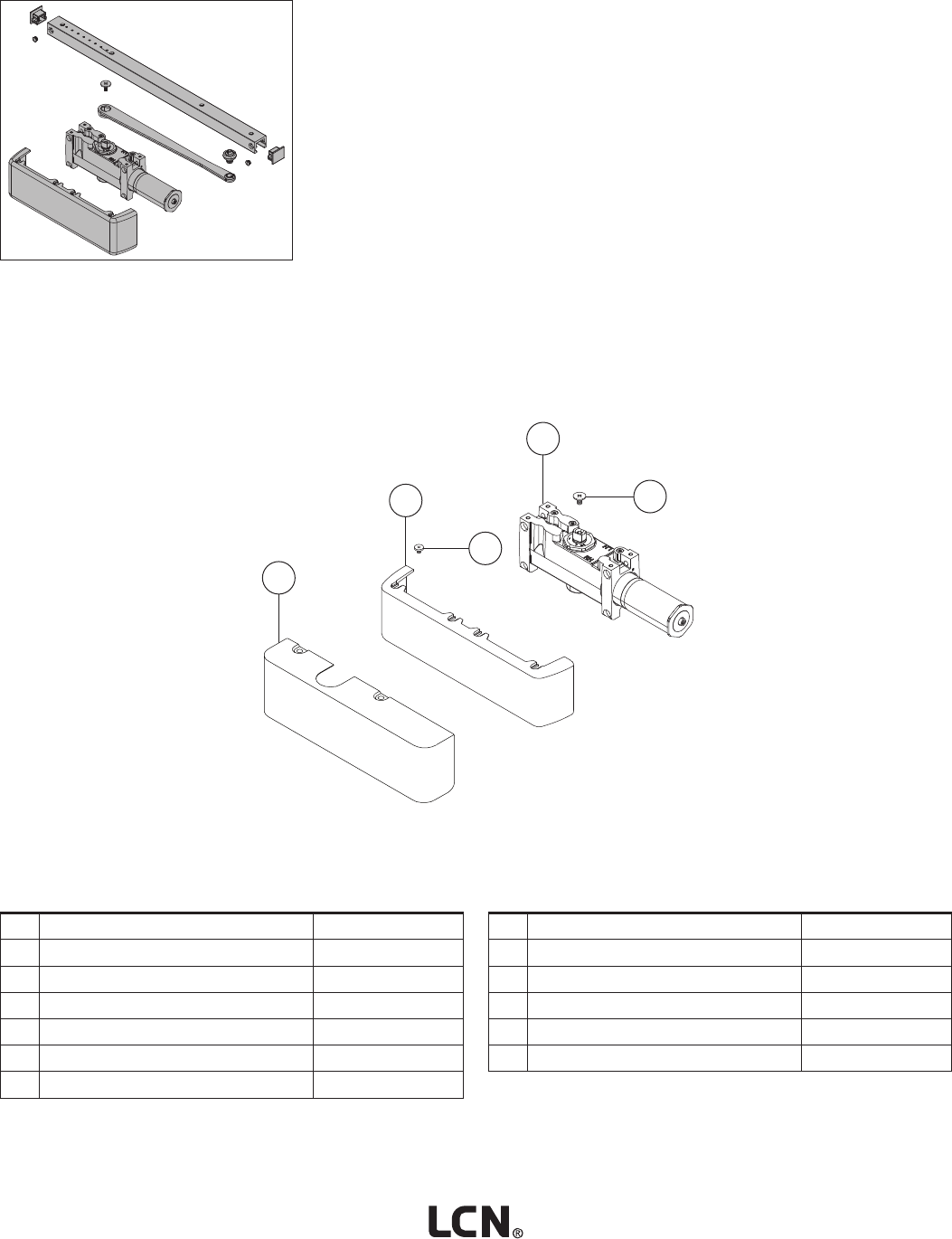

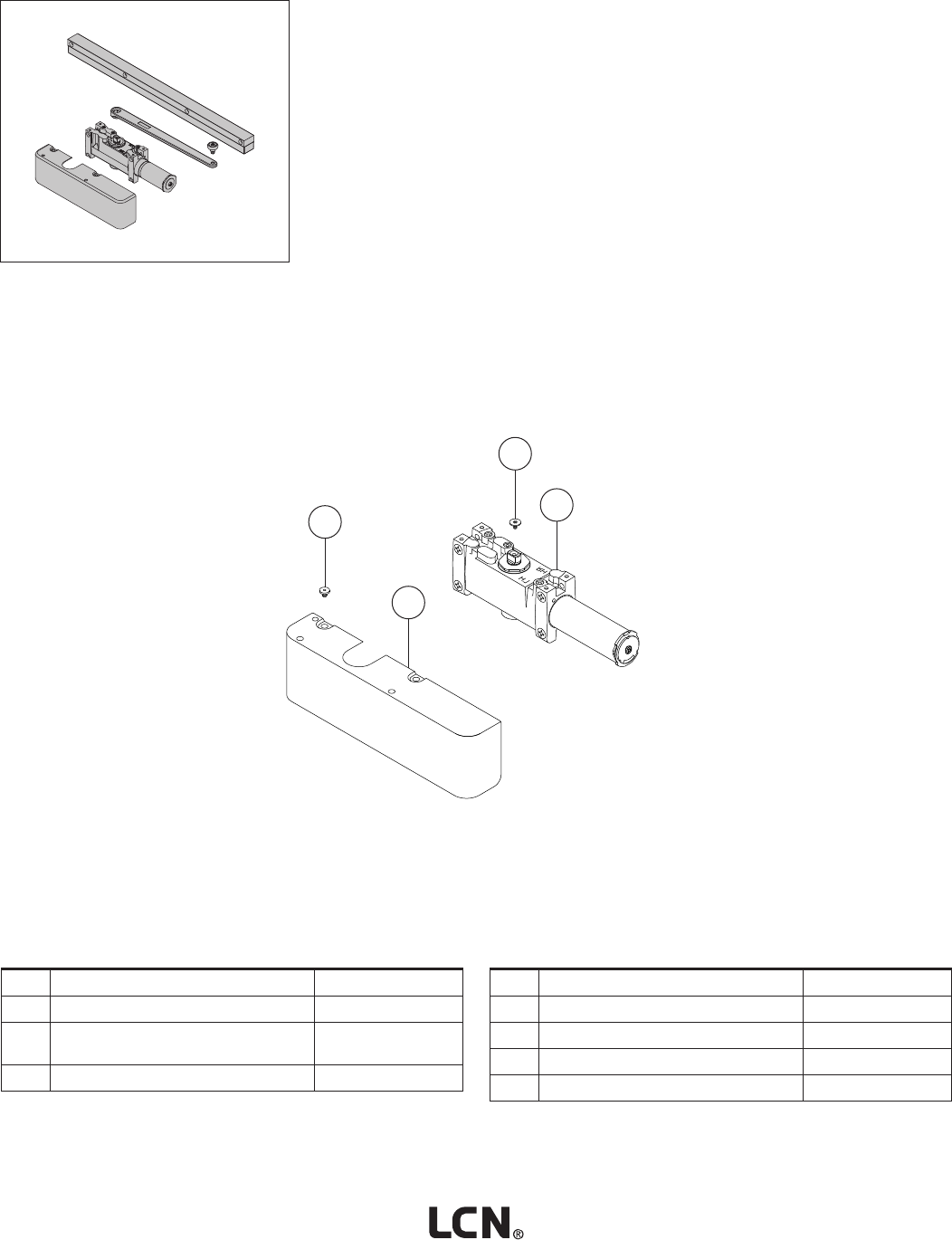

Cylinder & Cover Parts
4
5
6
2
3
1

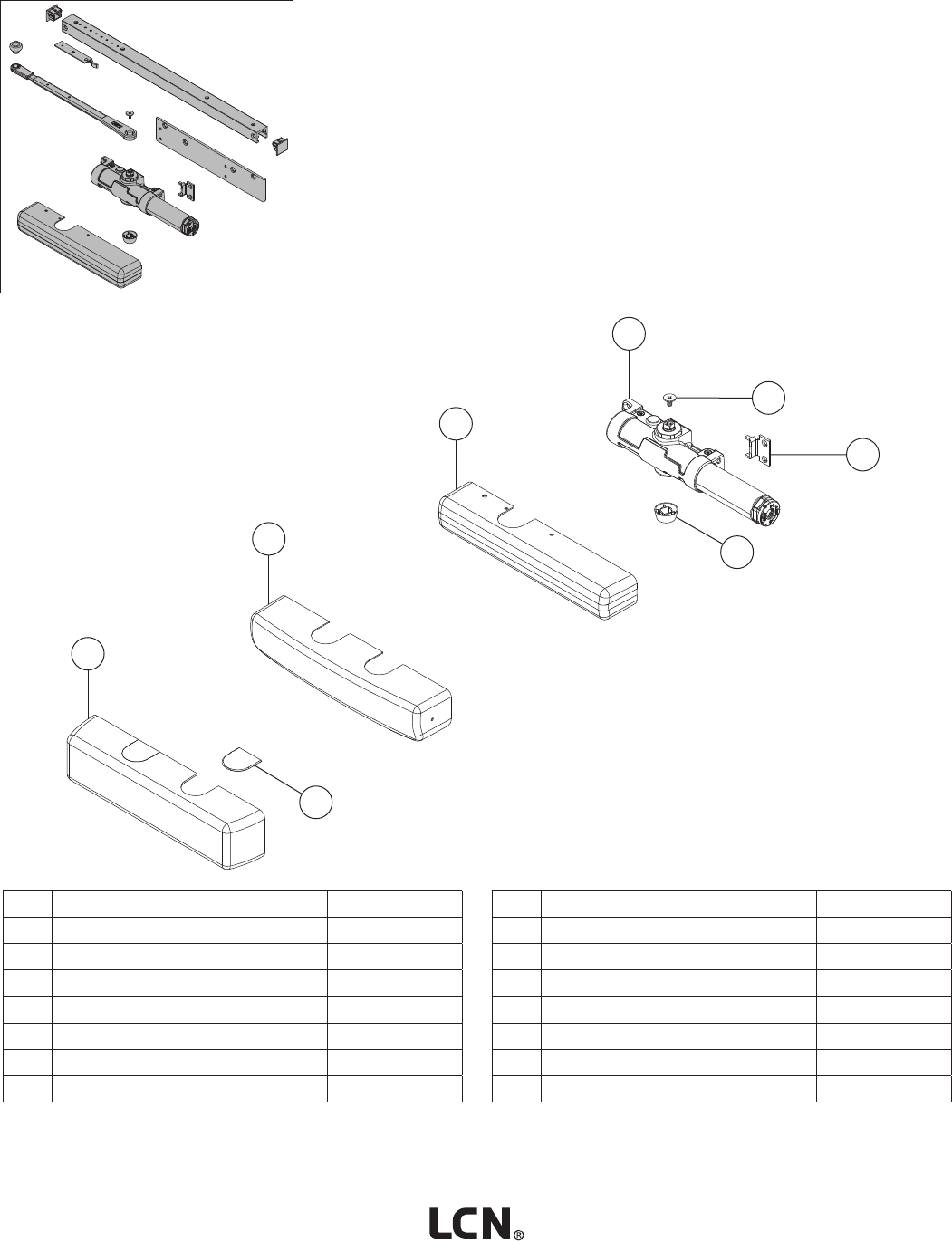

No. Description Part number
1Std Cylinder Assy (F) 4040XPT-3071
2Standard Cover (F) 4040XPT-72
3Metal Cover (F)(H) 4040XPT-72MC
4Arm Screw (F) 4040XPT-159
5Cover Screw (F) 4040XPT-31
6Snap-On Cover Clip Only (F) 4040XPT-54
No. Description Part number
7Screw Pack (Not Shown)(F) 4040XPT-SRT
8Screw Pack (Not Shown)(F) 4040XPT-TBSRT
9Screw Pack (Not Shown)(F) 4040XPT-WMS
10 Screw Pack (Not Shown)(F) 4040XPT-TBWMS
11 Screw Pack (Not Shown)(F) 4040XPT-TORX
12 Screw Pack (Not Shown)(F) 4040XPT-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4040XPT Series "Super Smoothee"
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 29
Return to Contents

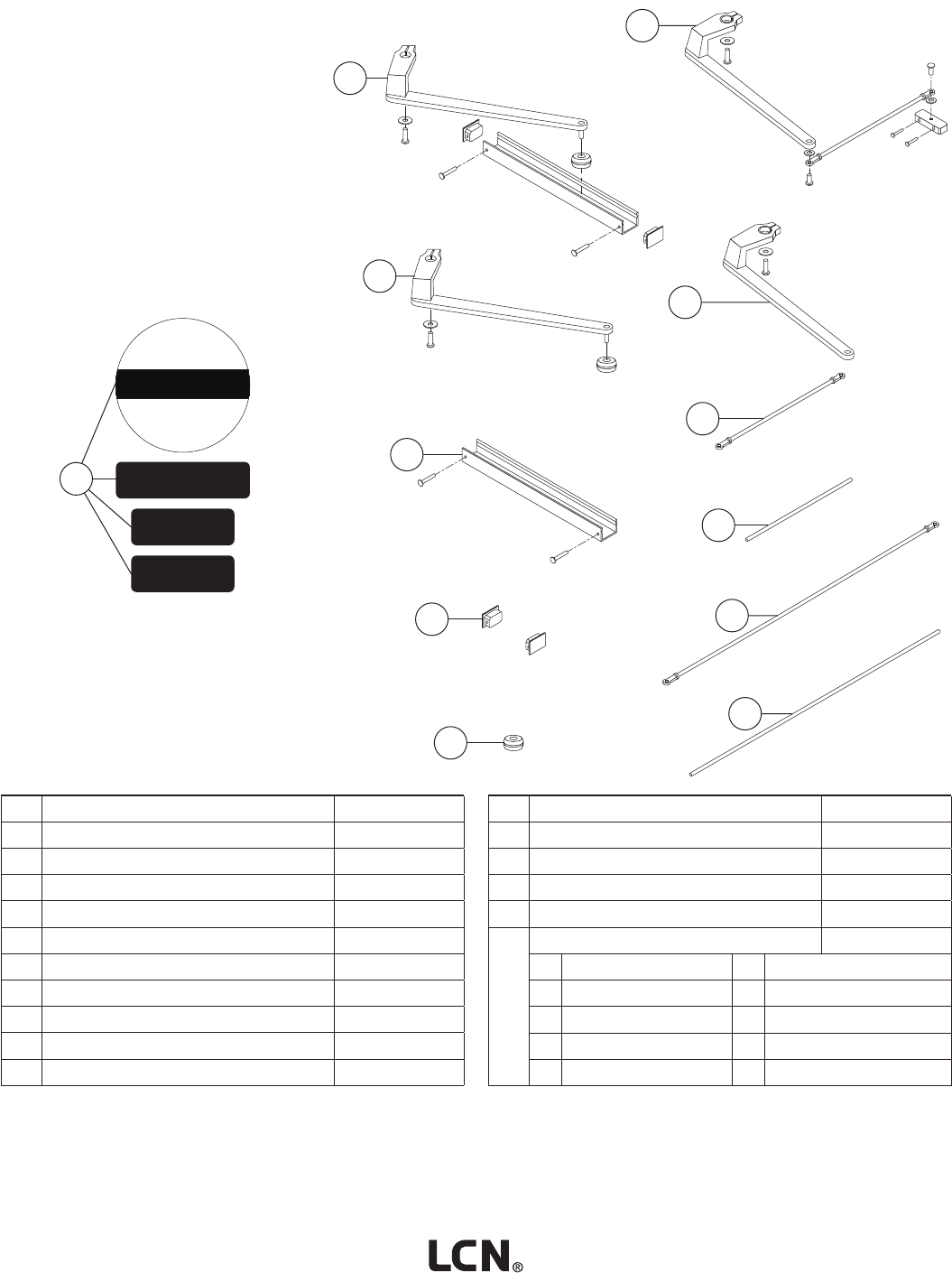

4040XPT Series "Smoothee"
Arm Assemblies & Parts
810 11
12
13
1
2
5
3
4
9
7
6
No. Description Part number
1Standard Track (F) 4040XPT-3038
1Track w/Bumper (F) 4040XPT-3038B
1Track w/Hold Open (F) 4040XPT-3038H
1Track w/Hold Open & Bumper (F) 4040XPT-3038HB
2Track Roller 4040XPT-3034
3Hold Open Clip 4040XPT-3054
4Bumper Assy 4040XPT-169
5Plug (F) 4040XPT-141-2
No. Description Part number
6Plug (F) 4040XPT-141-1
7End Cap 4040XPT-73
8Standard Arm (F)(H) 4040XPT-3077T
9Roller Lock Screw 4040XPT-425
10 DE Arm (F)(H) 4040XPT-3077DE
11 Main Arm & Tube (F)(H) 4040XPT-78DE
12 Rod (F) 4040XPT-82
13 H Arm Set Screw (F) 4040XPT-83H
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
30 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
2
1
No. Description Part number
1Mounting Plate (F) 4040XPT-18
No. Description Part number
2Mounting Plate (F) 4040XPT-18TJ
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4040XPT Series "Super Smoothee"
Mounting Plates & Installation Accessories
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 31
Return to Contents

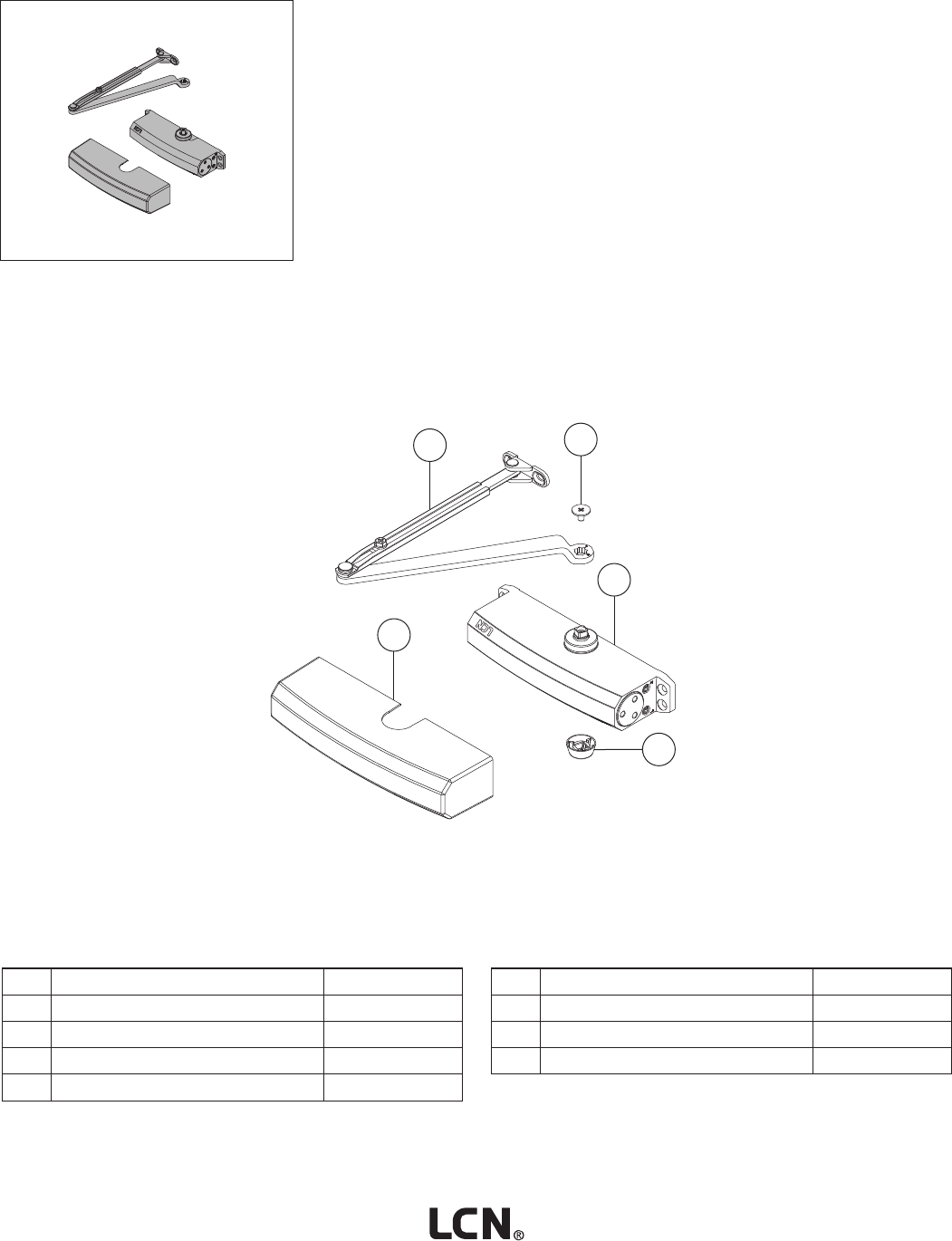

5
4
1
3
2
No. Description Part number
1Cylinder Assembly (F) 4050-3071
1Delayed Action Cylinder (F) 4050-3071DEL
2Arm Screw (F) 1250-UNIV
3Standard Plastic Cover (F) 4050-72
4Metal Cover (F)(H) 4050-72MC
5Reg Arm (F) 4050-3077
No. Description Part number
6Screw Pack (Not Shown)(F) 4050-SRT
7Screw Pack (Not Shown)(F) 4050-TBSRT
8Screw Pack (Not Shown)(F) 4050-WMS
9Screw Pack (Not Shown)(F) 4050-TBWMS
10 Screw Pack (Not Shown)(F) 4050-TORX
11 Screw Pack (Not Shown)(F) 4050-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.

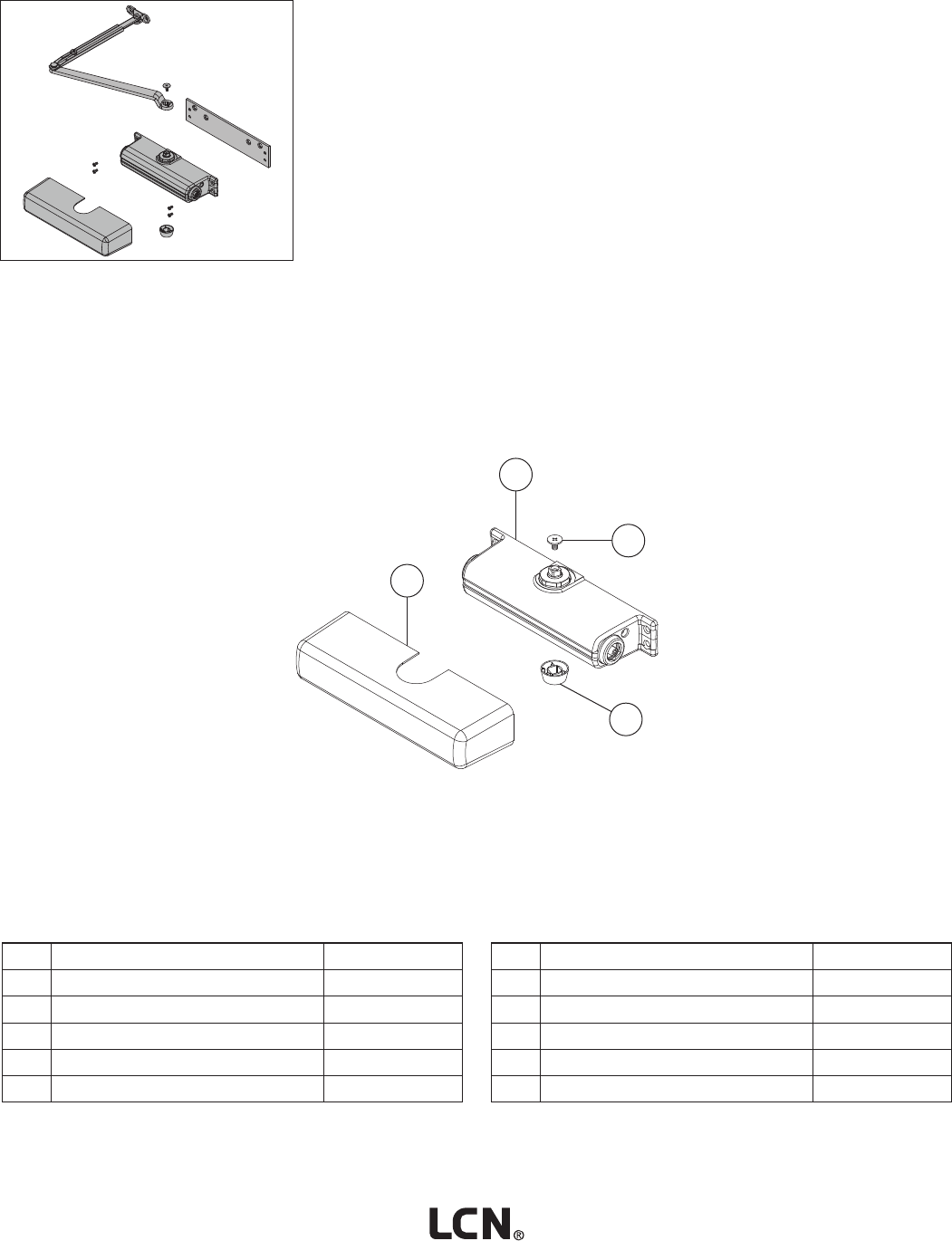

4050 Series
Cylinder & Cover Parts
32 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
56
78
4
13
2

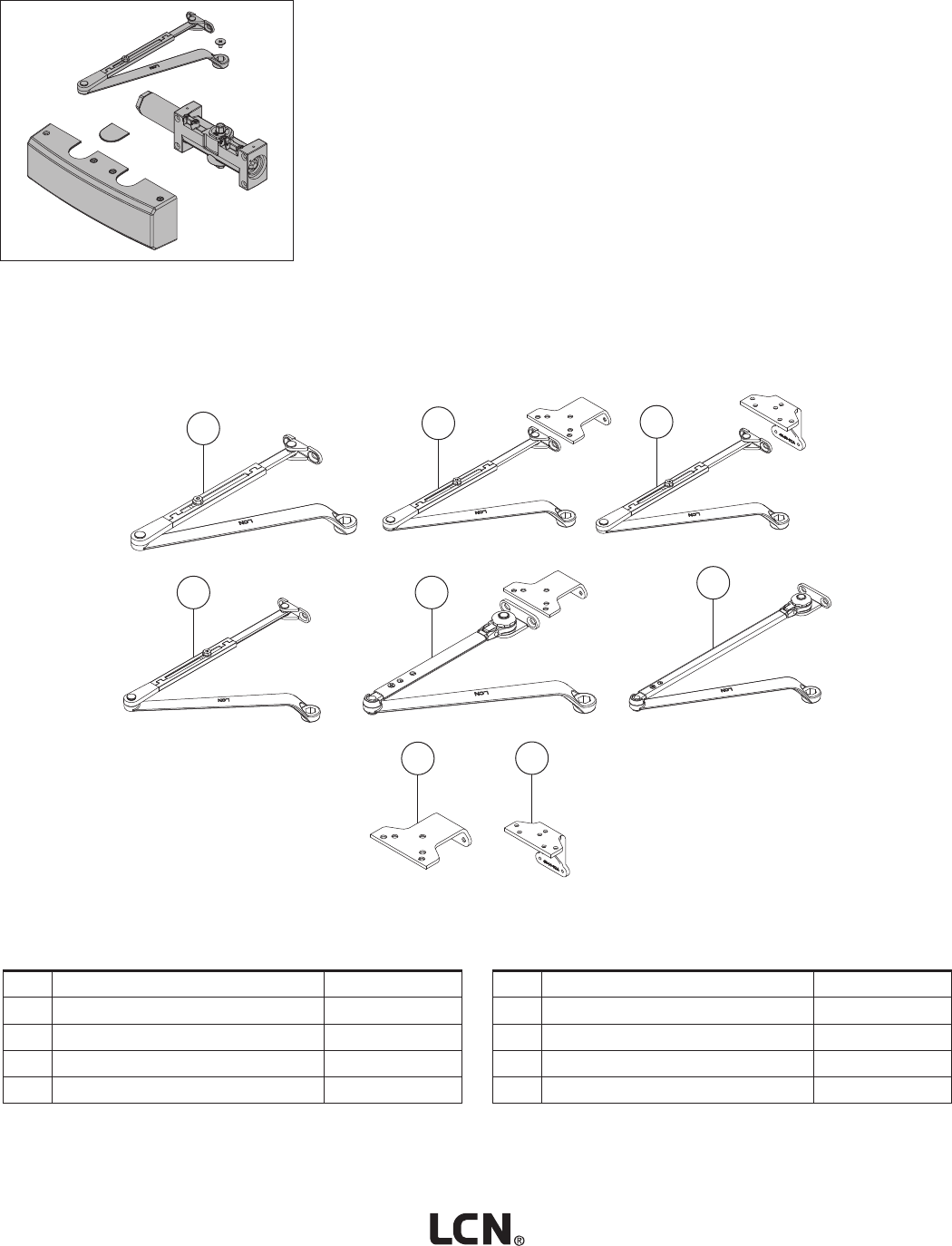

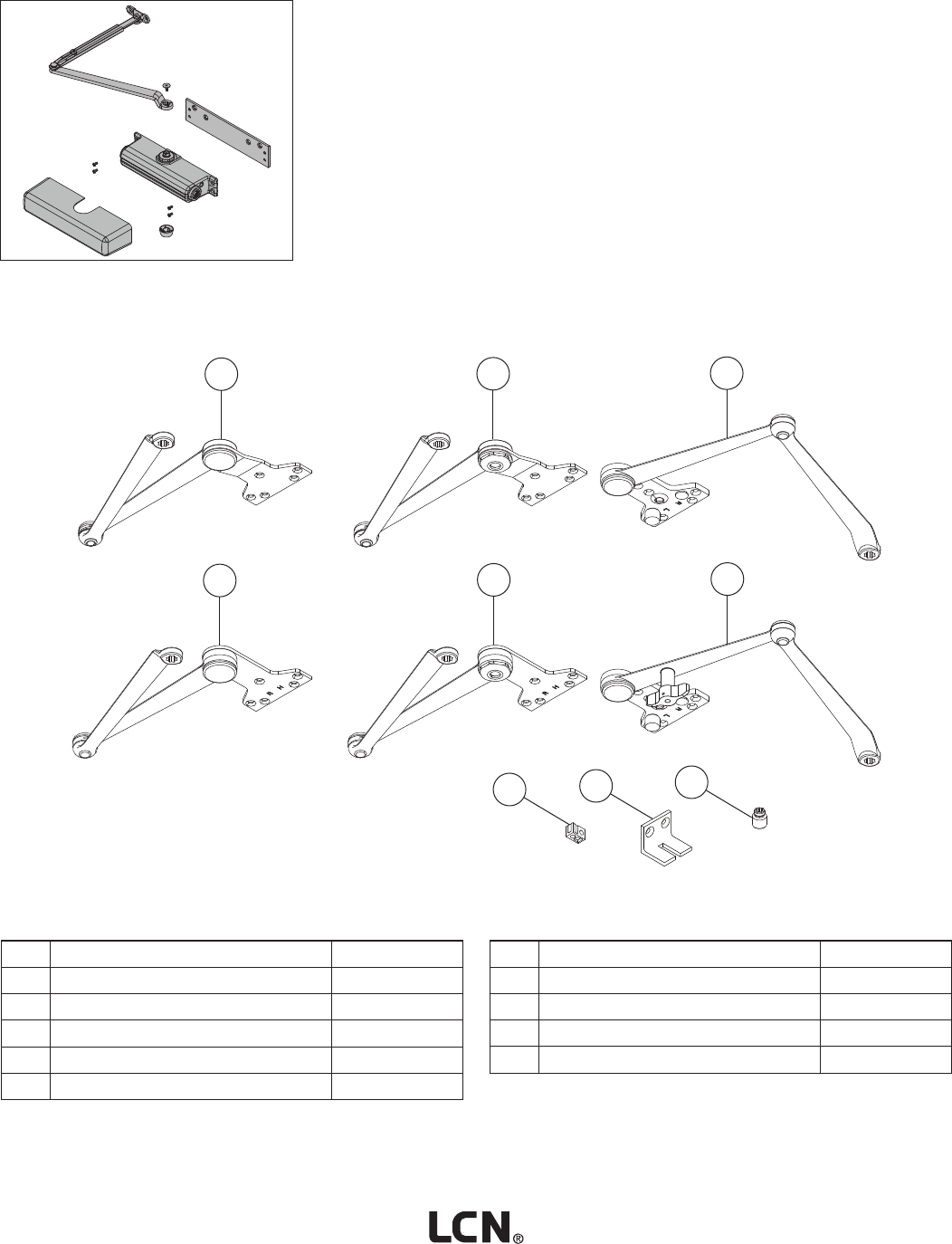

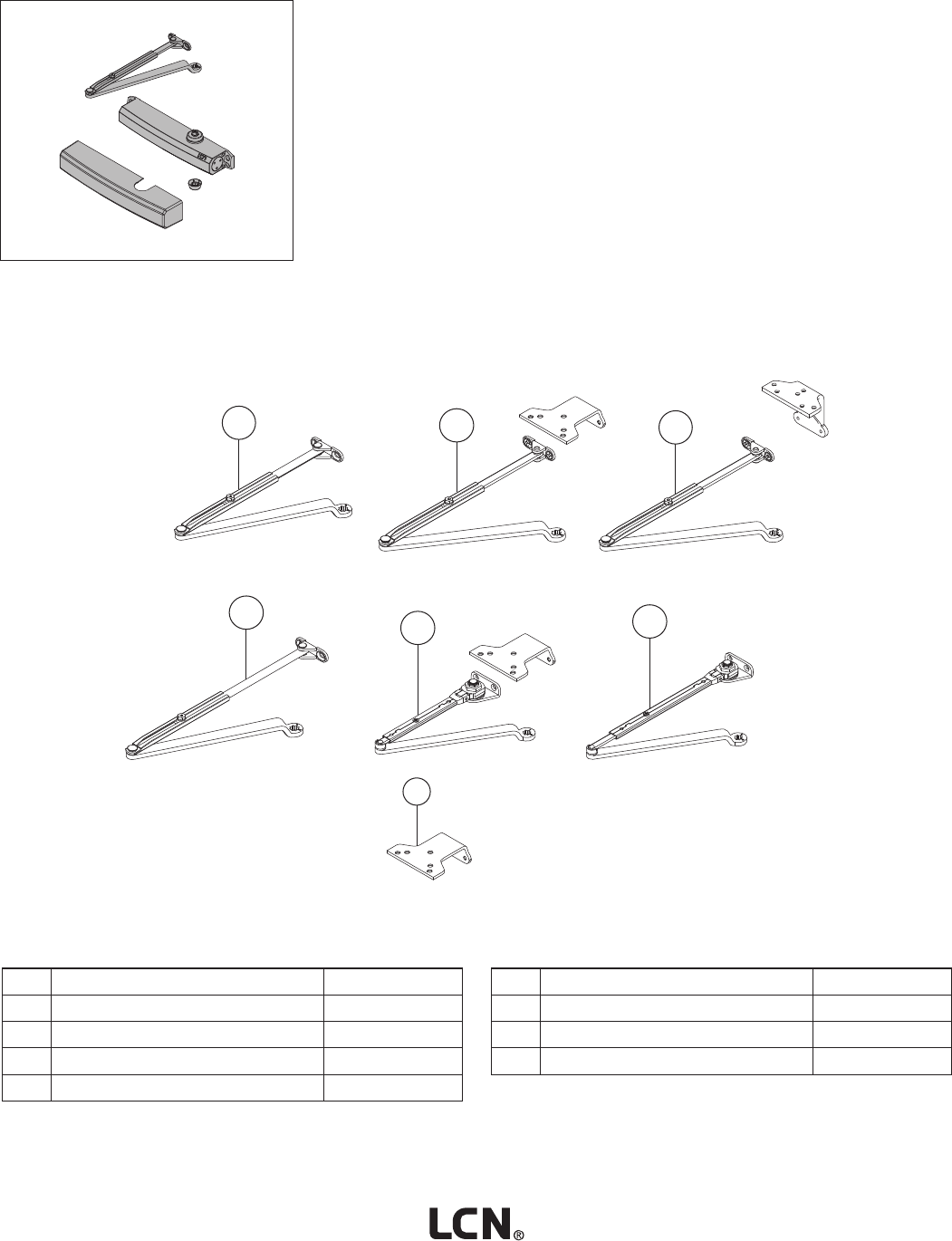

No. Description Part number
1Reg Arm (F) 4050-3077
2Reg Arm w/ 62PA (F) 4050-3077/62PA
3Reg Arm w/ 62A Shoe (F) 4050-3077/62A
4Long Arm (F) 4050-3077L
No. Description Part number
5Hold Open Arm w/ 62PA (F) 4050-3049/PA
6Hold Open Long Arm (F) 4050-3049L
7PA Shoe (F) 4050-62PA
8Auxiliary Shoe (F) 4050-62A
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.

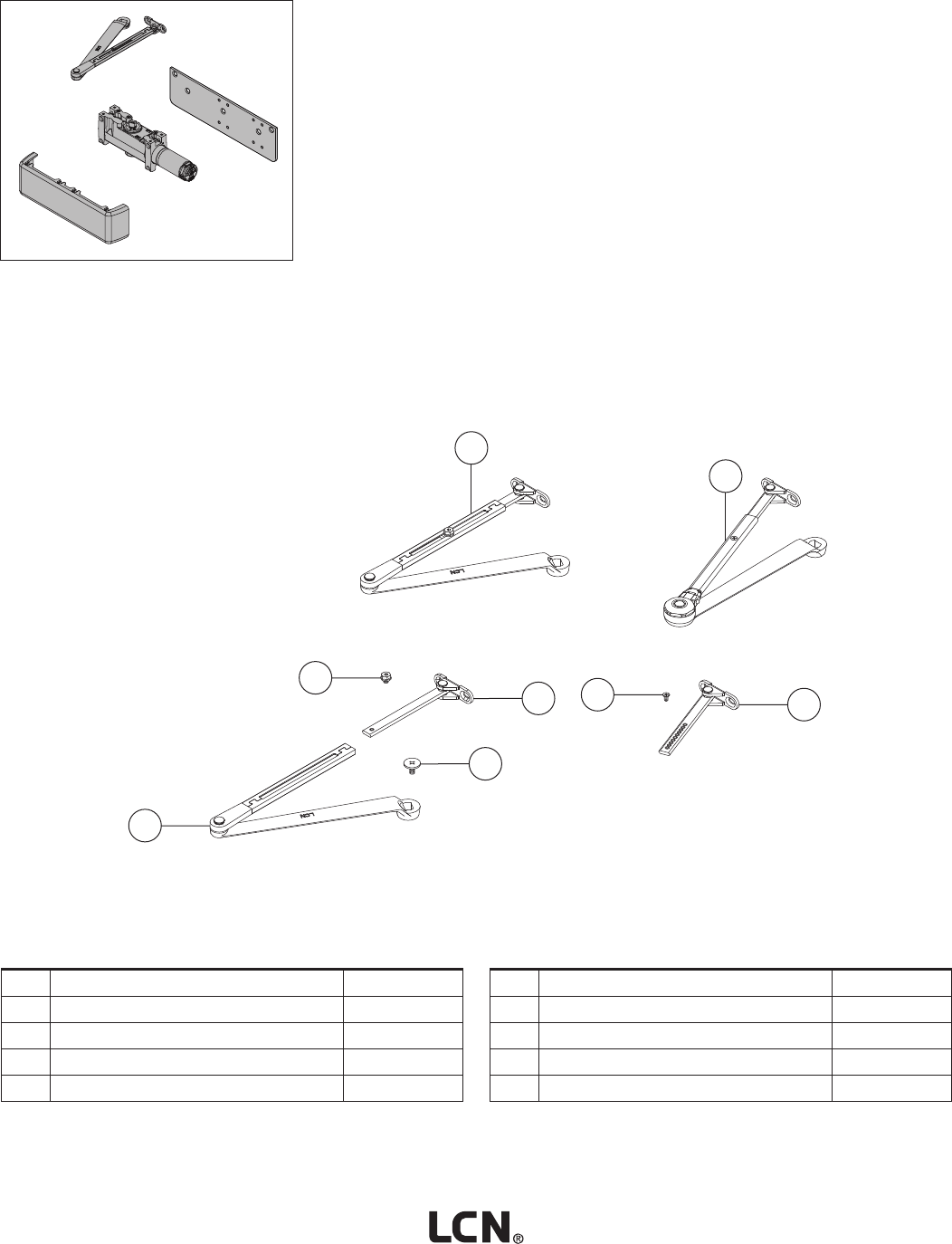

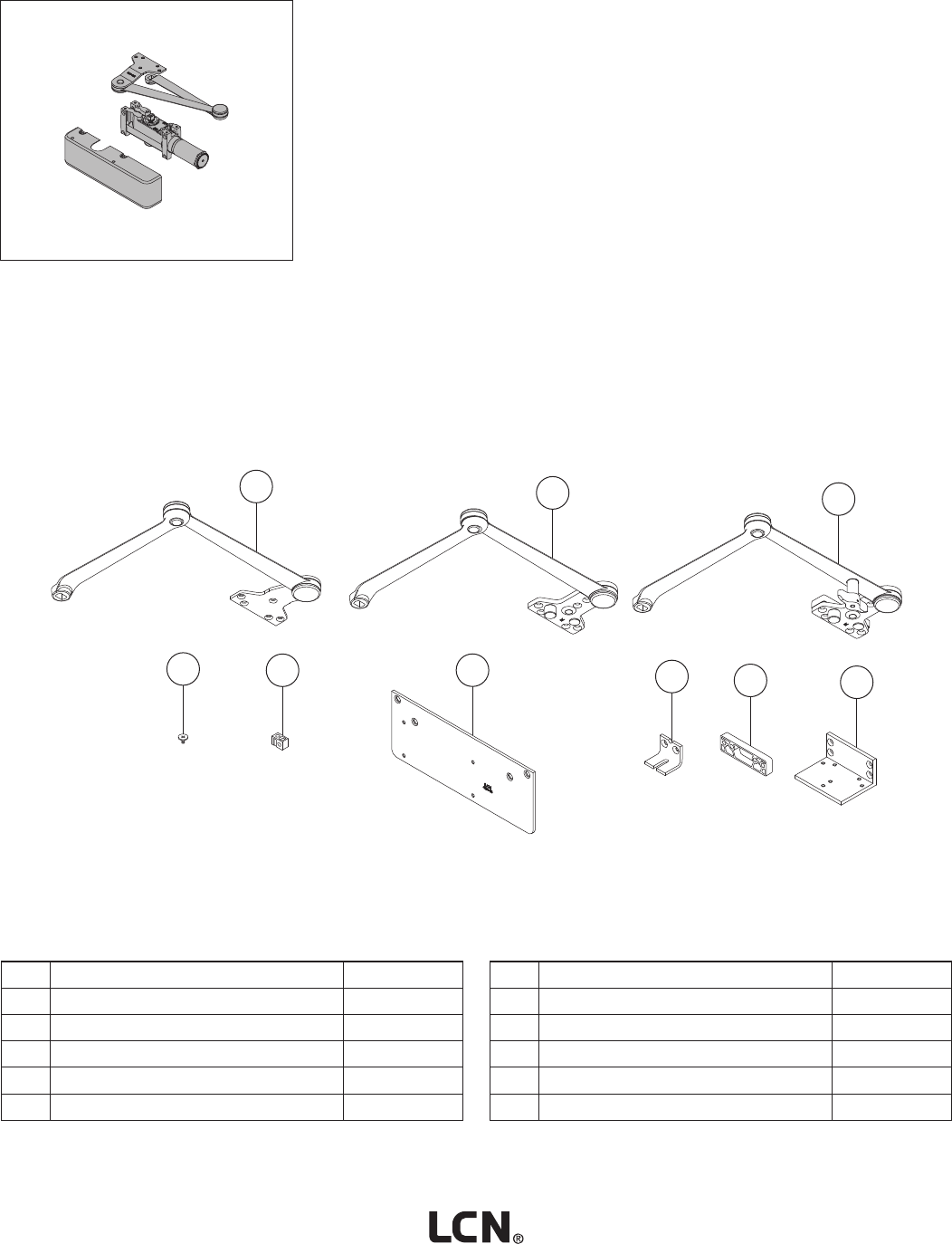

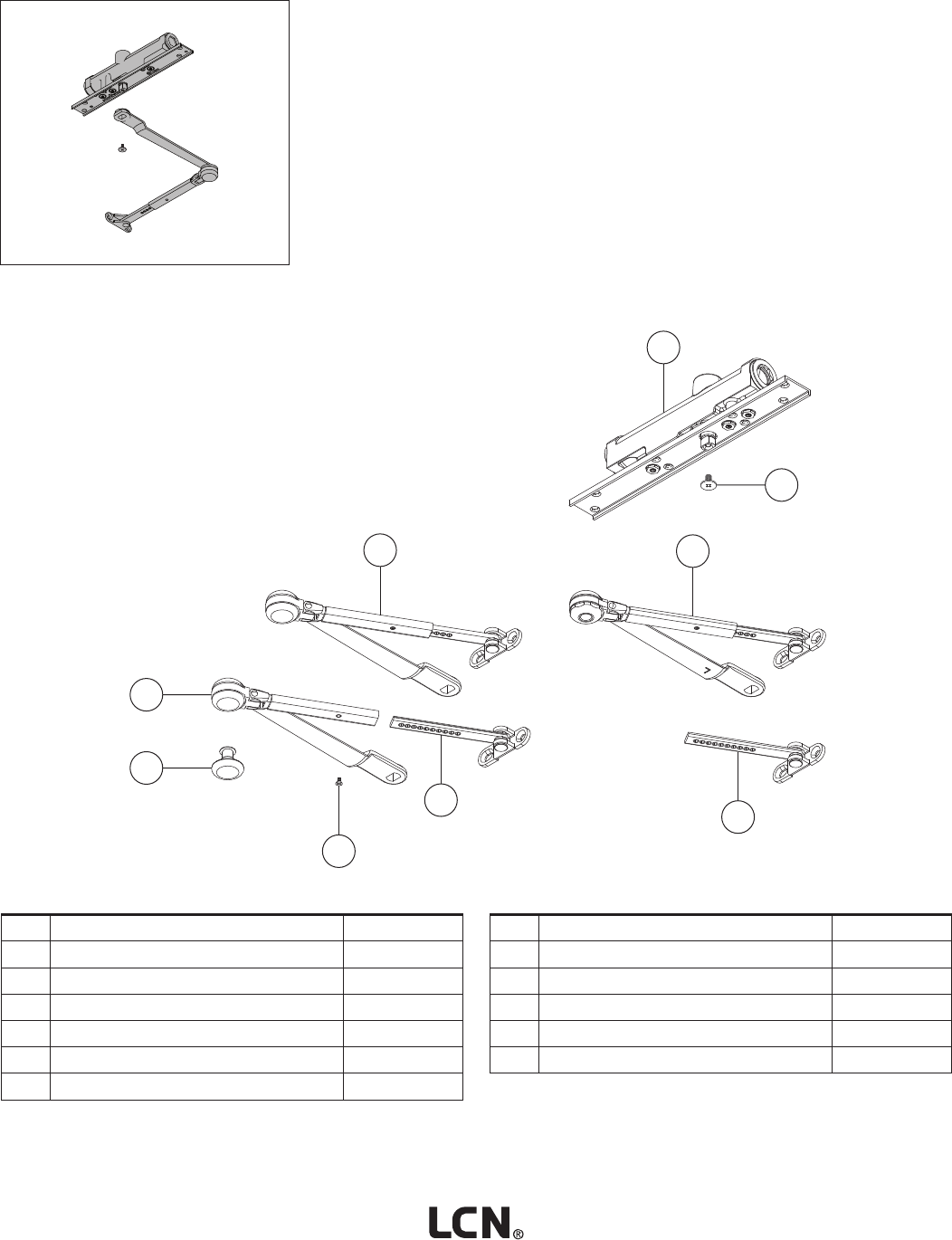

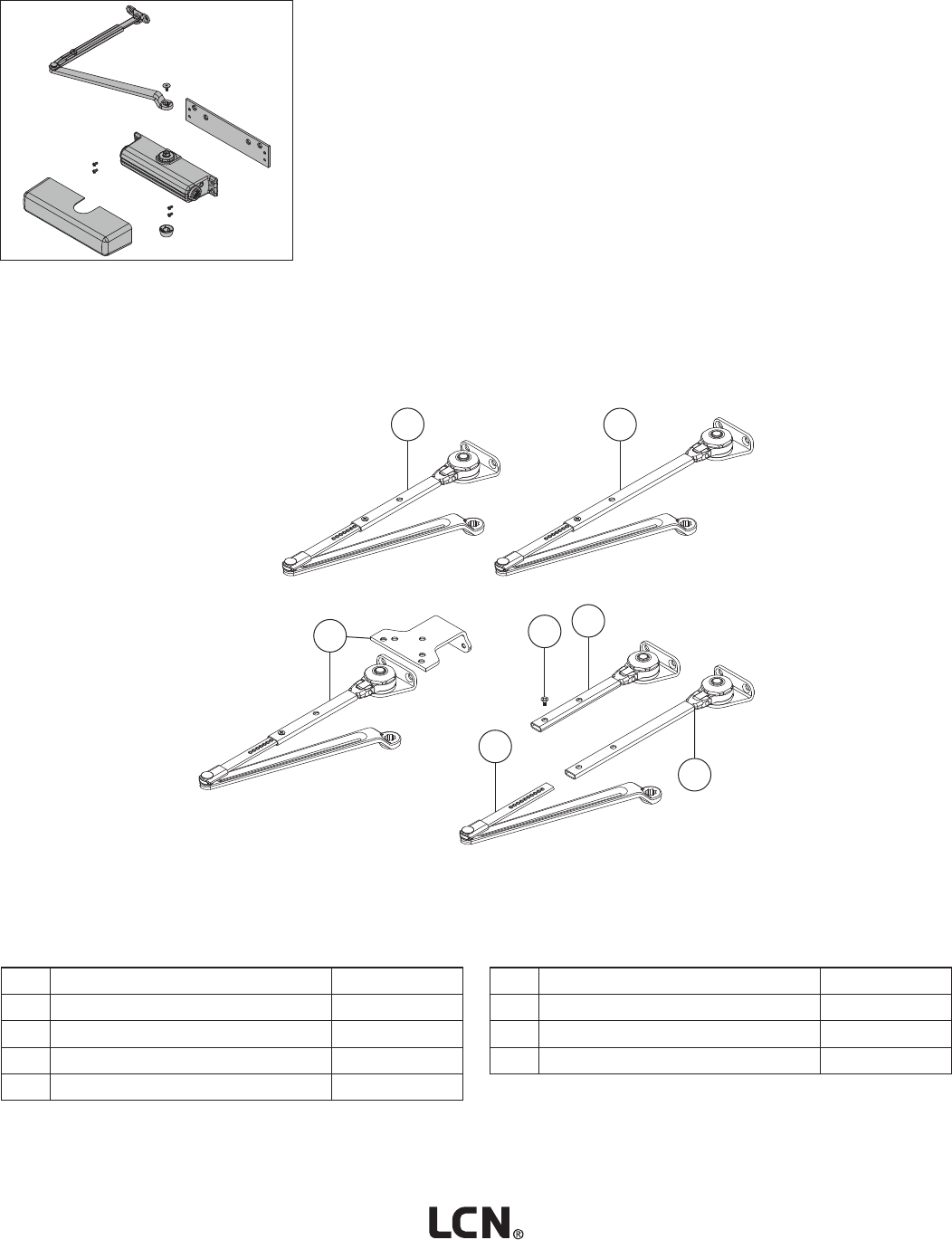

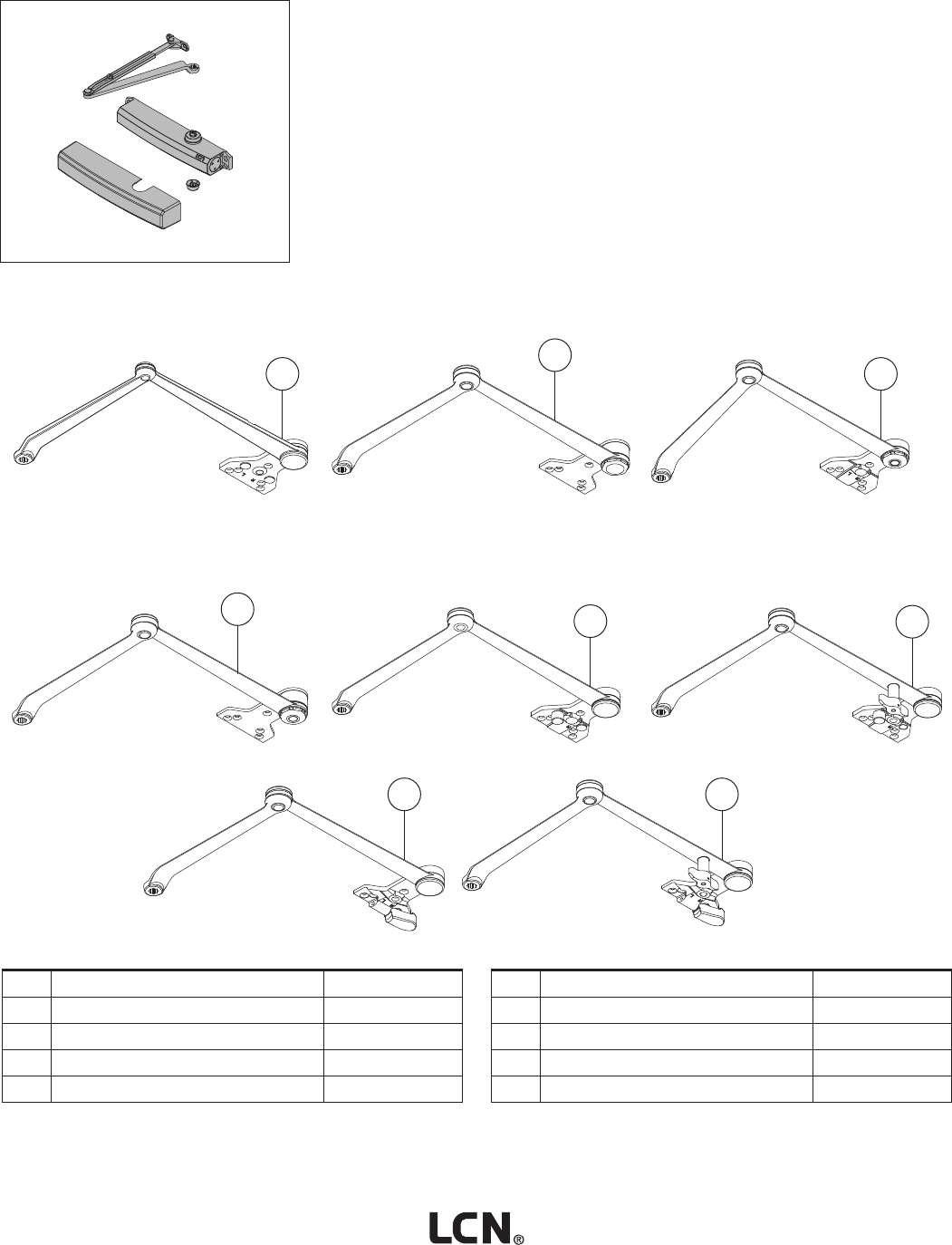

4050 Series
Arm Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 33
Return to Contents
1
45
8
6
7
23
9

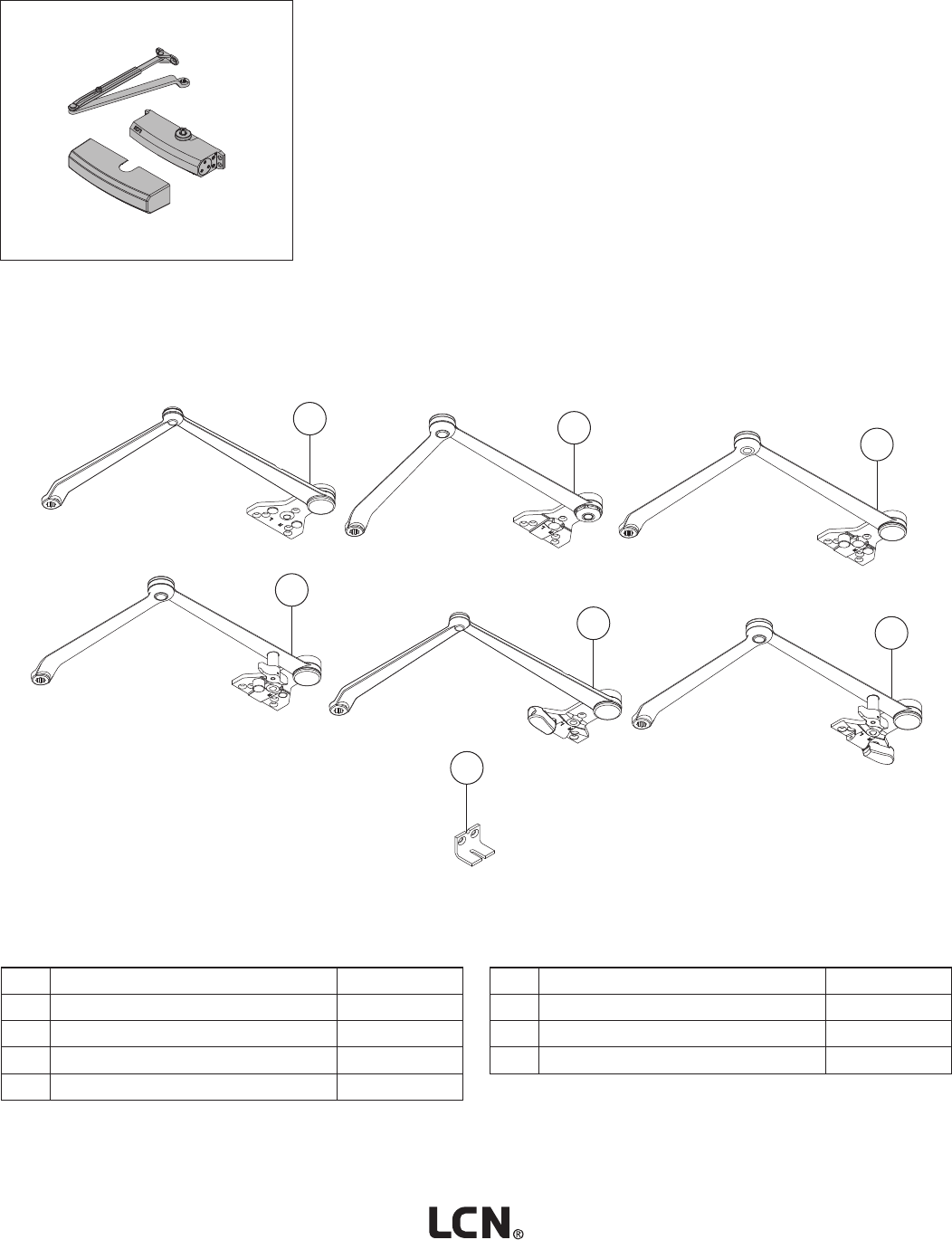

No. Description Part number
1EDA Arm (F) 4050-3077EDA
2EDA Arm w/ 62G (F) 4050-3077EDA/G
3Hold Open EDA (F)(H) 4050-3049EDA
4Hold Open EDA w/ 62G (F)(H) 4050-3049EDA/G
5CUSH Arm (F) 4050-3077CNS
No. Description Part number
6Hold Open CUSH Arm (F) 4050-3049CNS
7Spring CUSH Arm (F) 4050-3077SCNS
8Hold Open Spring CUSH Arm (F) 4050-3049SCNS
9CUSH Shoe Support (F) 4050-30
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4050 Series
Arm Assemblies & Parts
34 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
4
13
2
6
5

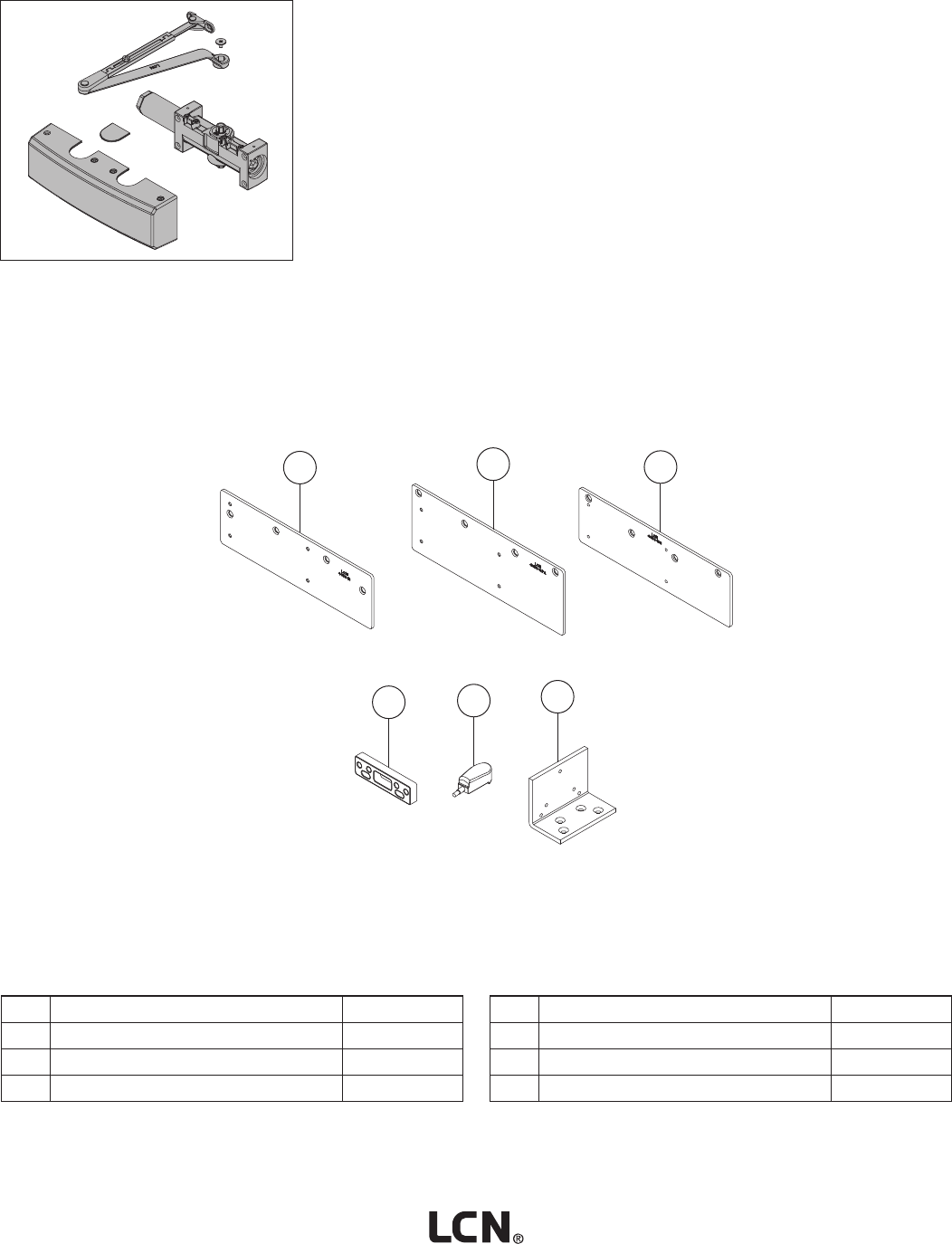

No. Description Part number
118 Mounting Plate (F) 4050-18
218PA Mounting Plate (F) 4050-18PA
318G Mounting Plate for Clearance (F) 4050-18G
No. Description Part number
4Blade Stop Spacer (F) 4050-61
5Spring CUSH Block (F) 4050-3080
6Flush Panel Adapter (F) 4050-419
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.

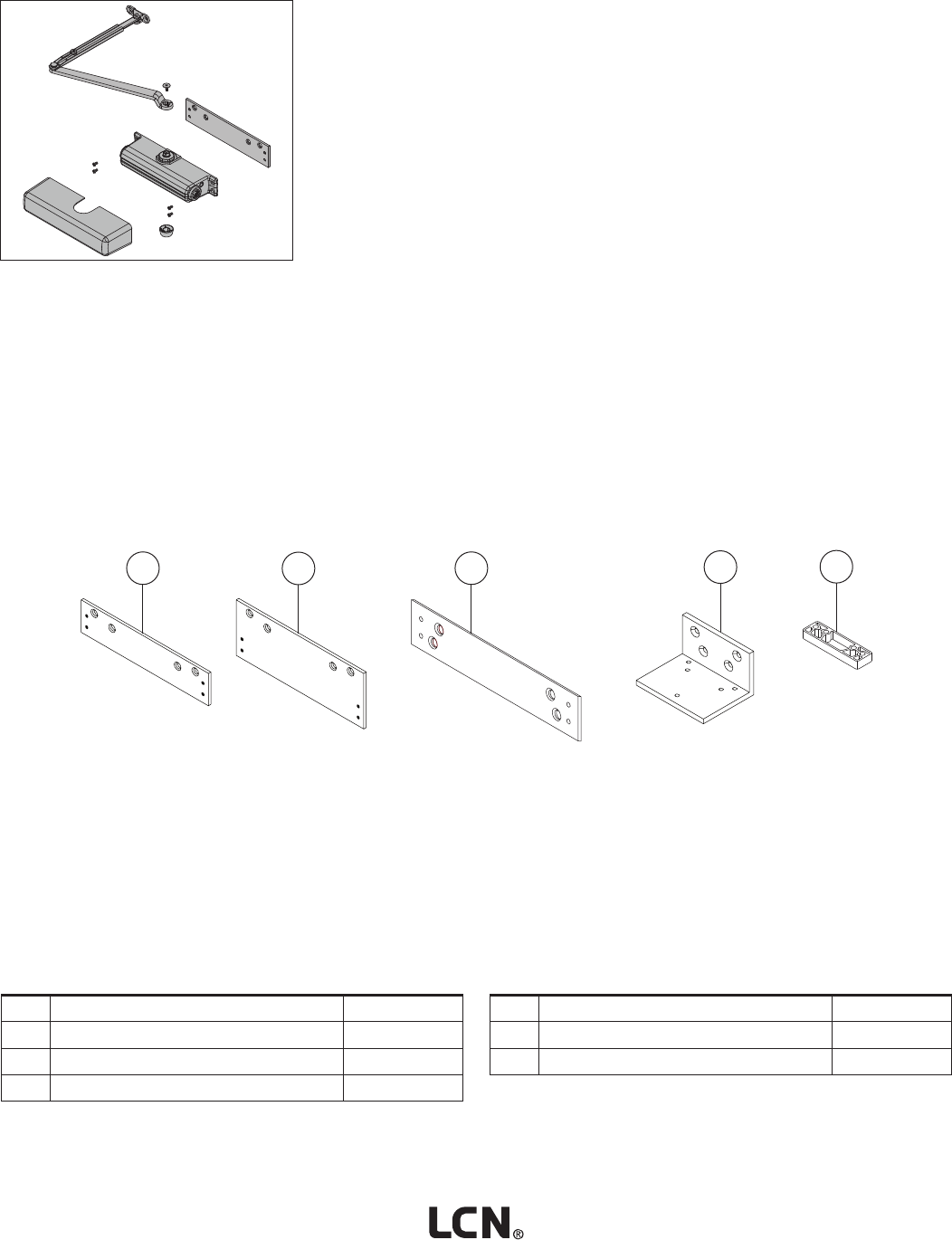

4050 Series
Mounting Plates & Miscellaneous Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 35
Return to Contents
4
5
2
3
1
No. Description Part number
1Cylinder Assembly (F)(S)(H) 4111(6)-3071
1Cylinder Assembly w/ AVB (F)(S)(H) 4111(6)-3071AVB
1Cylinder Assembly w/ Delay (F)(S)(H) 4111-3071DEL
1Cylinder Assembly w/ TEL (F)(S)(H) 4111( 6)-3071TEL
2Standard Cover (F) 4110-72
3Metal Cover (F)(H) 4110-72MC
4Arm Screw (F) 4110-159
No. Description Part number
5Cover Screw(F) 4110-31
9Screw Pack (Not Shown)(F) 4110-SRT
10 Screw Pack (Not Shown)(F) 4110-TBSRT
11 Screw Pack (Not Shown)(F) 4110-WMS
12 Screw Pack (Not Shown)(F) 4110-TBWMS
13 Screw Pack (Not Shown)(F) 4110-TORX
14 Screw Pack (Not Shown)(F) 4110-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4110 Series "Smoothee"
Cylinder & Cover Parts
36 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
12
3
7
8
46
5
10
911 12 13 14

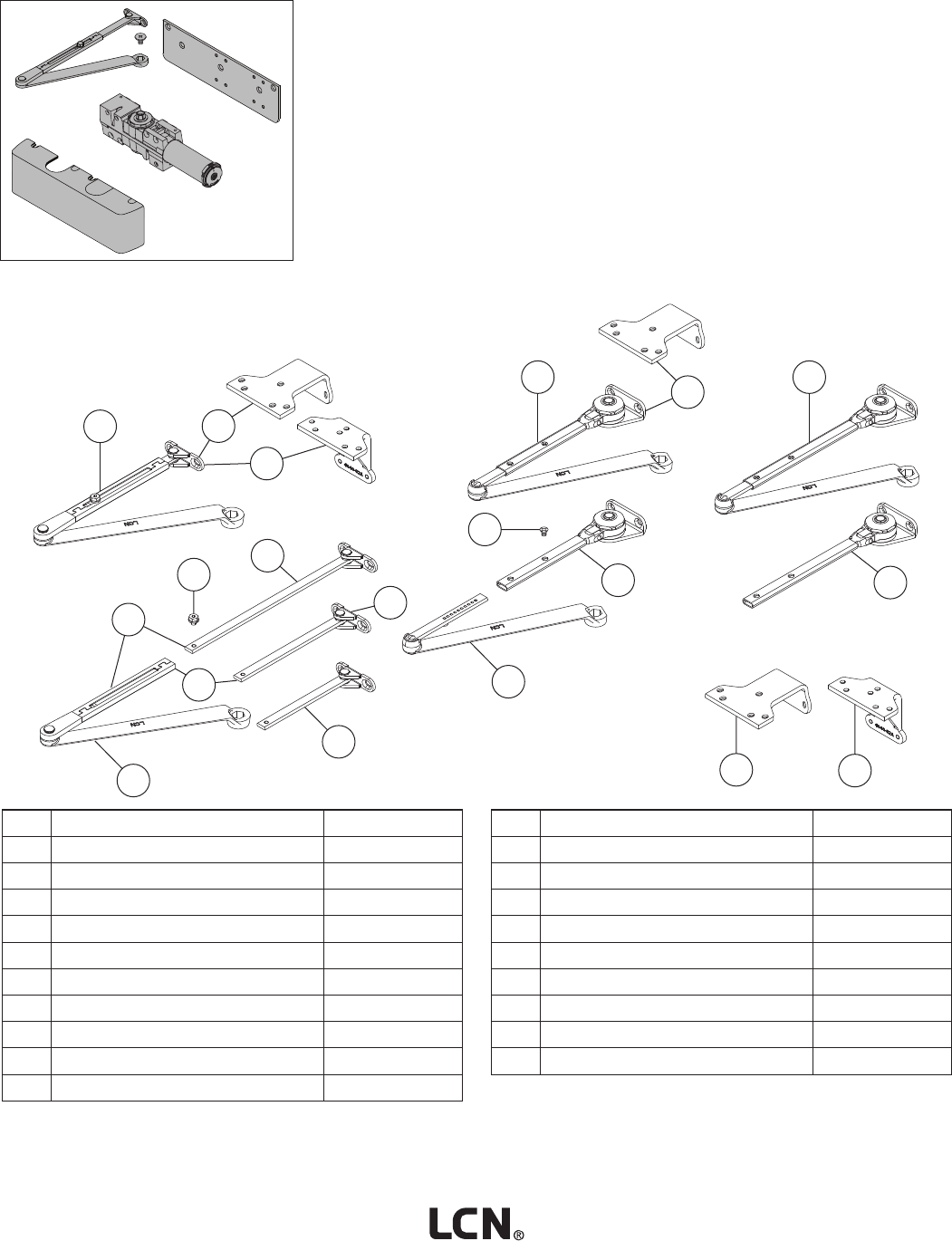

No. Description Part number
1EDA Arm (F) 4110-3077EDA
2EDA Arm w/62G (F) 4110-3077EDA/G
3H EDA Arm (F) 4110-3049EDA
4H EDA Arm w/62G (F) 4110-3049EDA/G
5Cush Arm (F) 4110-3077CNS
6H Cush Arm (F) 4110-3049CNS
7S Cush Arm (F) 4110-3077SCNS
No. Description Part number
8Spring H Cush Arm (F) 4110-3049SCNS
9Cush Shoe Support (F) 4110-30
10 Fih Hole Spacer 4110-201
11 Blade Stop Spacer (F) 4110-61
12 Spring Cush Block (incl -58 & -80) 4110-3080
13 Spring & Screw (used with -80) 4110-58
14 Block (used with -58) 4110-80
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4110 Series "Smoothee"
Arm Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 37
Return to Contents

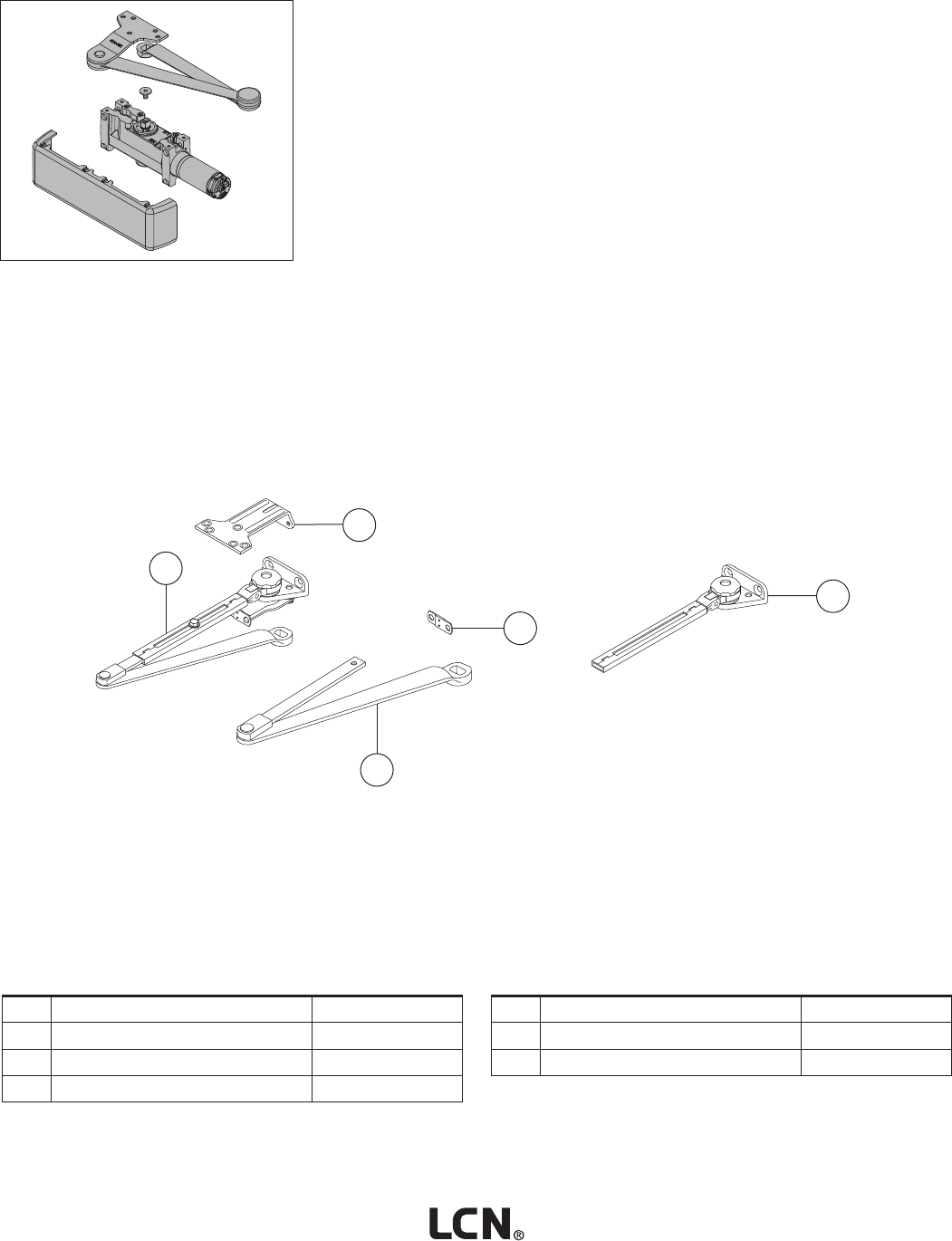

1
5
2
4
3
No. Description Part number
1Fusible Link Arm (F)(H) 4110-3049FL
2PA-FL Shoe (F) 4110-62FL
3FL Main Arm & Rod (F) 4110-49FL
No. Description Part number
4Fusible Link 4110-28
5FL Head & Tube (F) 4110-3048
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4110 Series "Smoothee"
Arm Assemblies & Parts Cont.
38 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
1
2 3
No. Description Part number
1Plate (F) 4110-18
1Plate (F) 4110-18CUSH
No. Description Part number
2Panel Adapter (F) 4110-419
3Blade Stop Spacer (F) 4110-61
(F) Specify Finish
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4110 Series "Smoothee"
Mounting Plates
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 39
Return to Contents
4
5
2
3
1
No. Description Part number
1Cylinder Assembly (F)(S)(H) 4111(3-4)T-3071
2Standard Cover (F) 4110T-72
3Metal Cover (F)(H) 4110T-72MC
4Arm Screw (F) 4110T-159
5Cover Screw (F) 4110T-31
6Screw Pack (incl -3034)[Not Shown](F) 4110T-SRT
No. Description Part number
7Screw Pack (incl -3034)[Not Shown](F) 4110T-TBSRT
8Screw Pack (incl -3034)[Not Shown](F) 4110T-WMS
9Screw Pack (incl -3034)[Not Shown](F) 4110T-TBWMS
10 Screw Pack (incl -3034)[Not Shown](F) 4110T-TORX
11 Screw Pack (incl -3034)[Not Shown](F) 4110T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.current LCN price book.
4110T Series "Smoothee"
Cylinder Assemblies & Parts
40 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
1
2
9
3
6
4
8
5
7

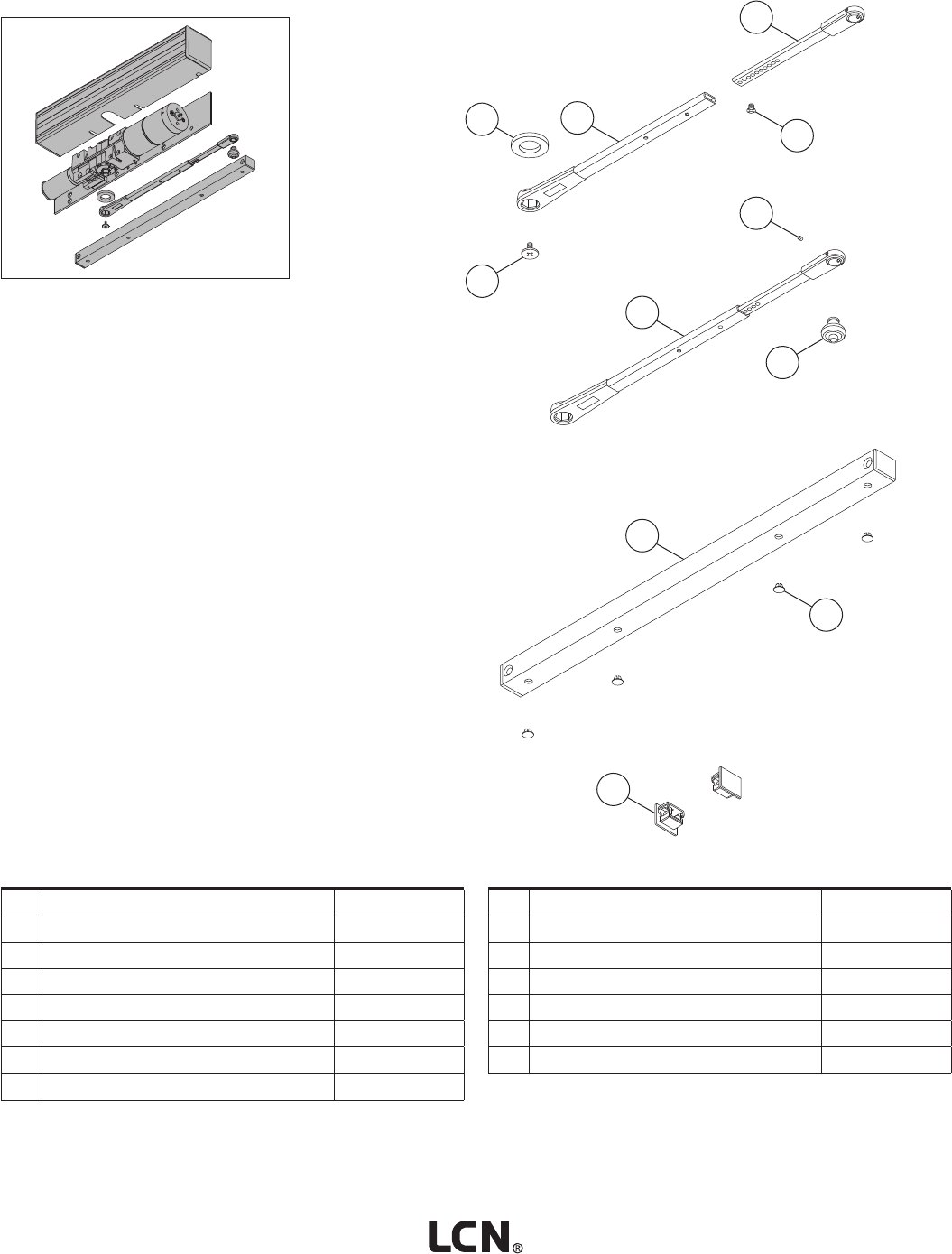

No. Description Part number
1Standard Track (F) 4110T-3038
1Standard Track w/ Bumper (F) 4110T-3038B
1Standard Track w/ Hold Open (F) 4110T-3038H
1Standard Track w/Bump & Hold Open (F) 4110T-3038HB
2Standard Arm (F)(H) 4110T-3077T
3Arm Screw (F) 4110T-159
No. Description Part number
4Track Roller 4110T-3034
5Hold-Open Clip 4110T-3054
6Roller Locking Screw 4110T-425
7Track Bumper 4110T-169
8Track Plug 4110T-141-1
9End Cap (F) 4110T-73
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4110T Series "Smoothee"
Arm Assemblies & Parts
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 41
Return to Contents
1
No. Description Part number
1Mounting Plate (F) 4110T-18
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4110T Series "Smoothee"
Mounting Plate
42 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
4
7
6
5
2
3
1
No. Description Part number
1Cylinder Assembly (F)(S) 4003(4)T-3071
2Standard Cover (F) 4000T-72
3Metal Cover (F)(H) 4000T-72MC
4Arm Screw (F) 4000T-159
5 Screw Insert (F) 4000T-164
6Arm Insert (F) 4000T-163
No. Description Part number
7Cover Screw (F) 4000T-31
8Screw Pack (incl -3034)[Not Shown](F) 4000T-WMS
9Screw Pack (incl -3034)[Not Shown](F) 4000T-TBWMS
10 Screw Pack (incl -3034)[Not Shown](F) 4000T-TORX
11 Screw Pack (incl -3034)[Not Shown](F) 4000T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4000T Series "Pocket Closer"
Installation Accessories
4000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 43
Return to Contents
1
6
5
3
2
4

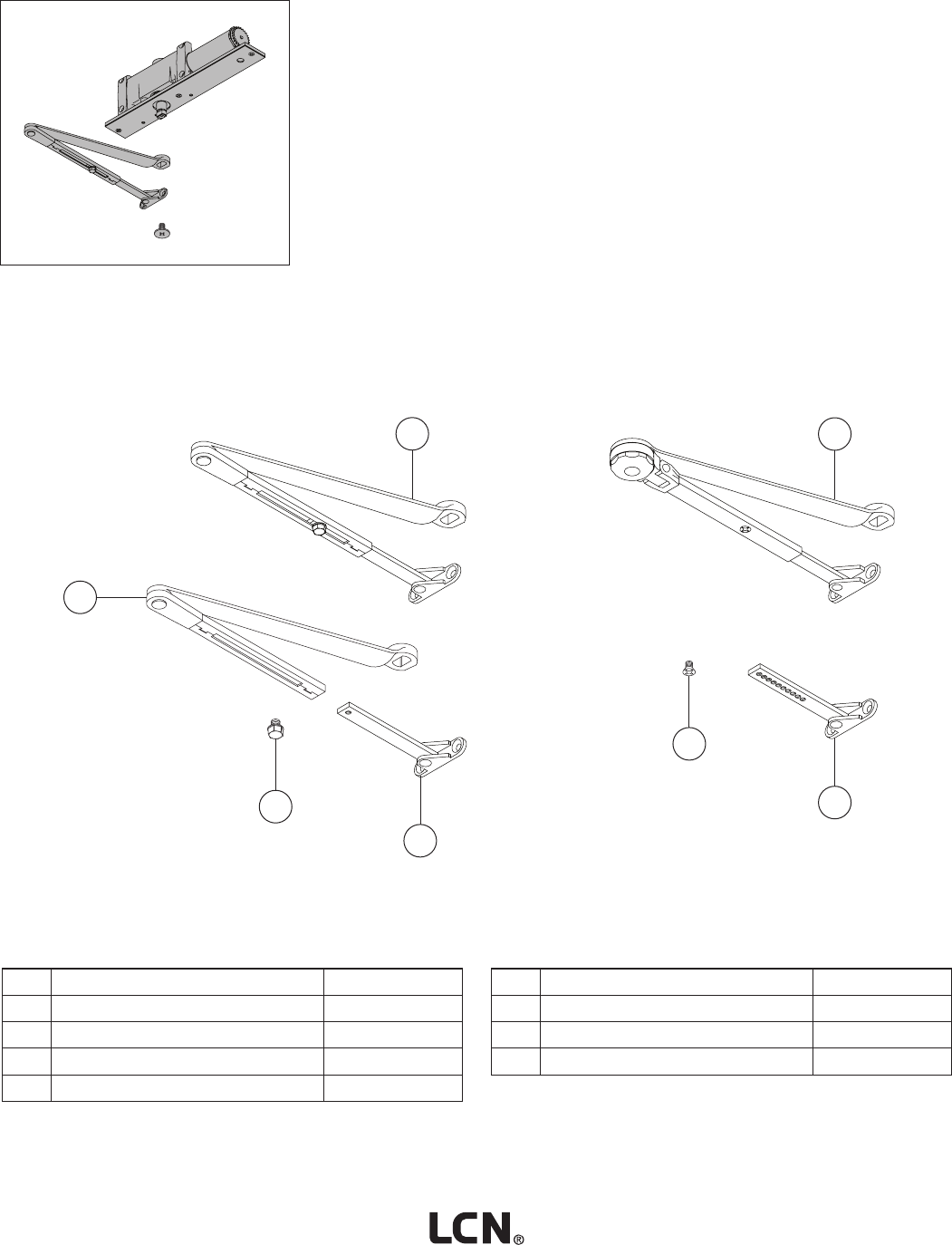

No. Description Part number
1Standard Track (F) 4000T-3038
2Standard Arm (F) 4000T-3077T
3Track Roller 4000T-3034
No. Description Part number
4Roller Locking Screw 4000T-425
5Track Plug (F) 4000T-141-2
6End Cap 4000T-73
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4000T Series "Pocket Closer"
Installation Accessories
44 • LCN • LCN Parts Manual
4000 Series Surface Mounted Closers
Return to Contents
1000 Series Surface Mounted Closers
44 1250 Series
48 1260 Series
53 1450 Series
57 1460 Series
62 1460T Series "Super Stock"
LCN • LCN Parts Manual • 45
Return to Contents
2
1
3
5
4
No. Description Part number
1Cylinder Assembly (F)(S) 1250-3071
2Arm Screw (F) 1250-UNIV
3Slim Line Cover (F) 1250-72
4Pinion Cap Cover (F) 1250-146
No. Description Part number
5Reg Arm (F) 1250-3077
6Screw Pack (Not Shown) (F) 1250-UNIV
7Screw Pack (Not Shown) (F) 1250-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.

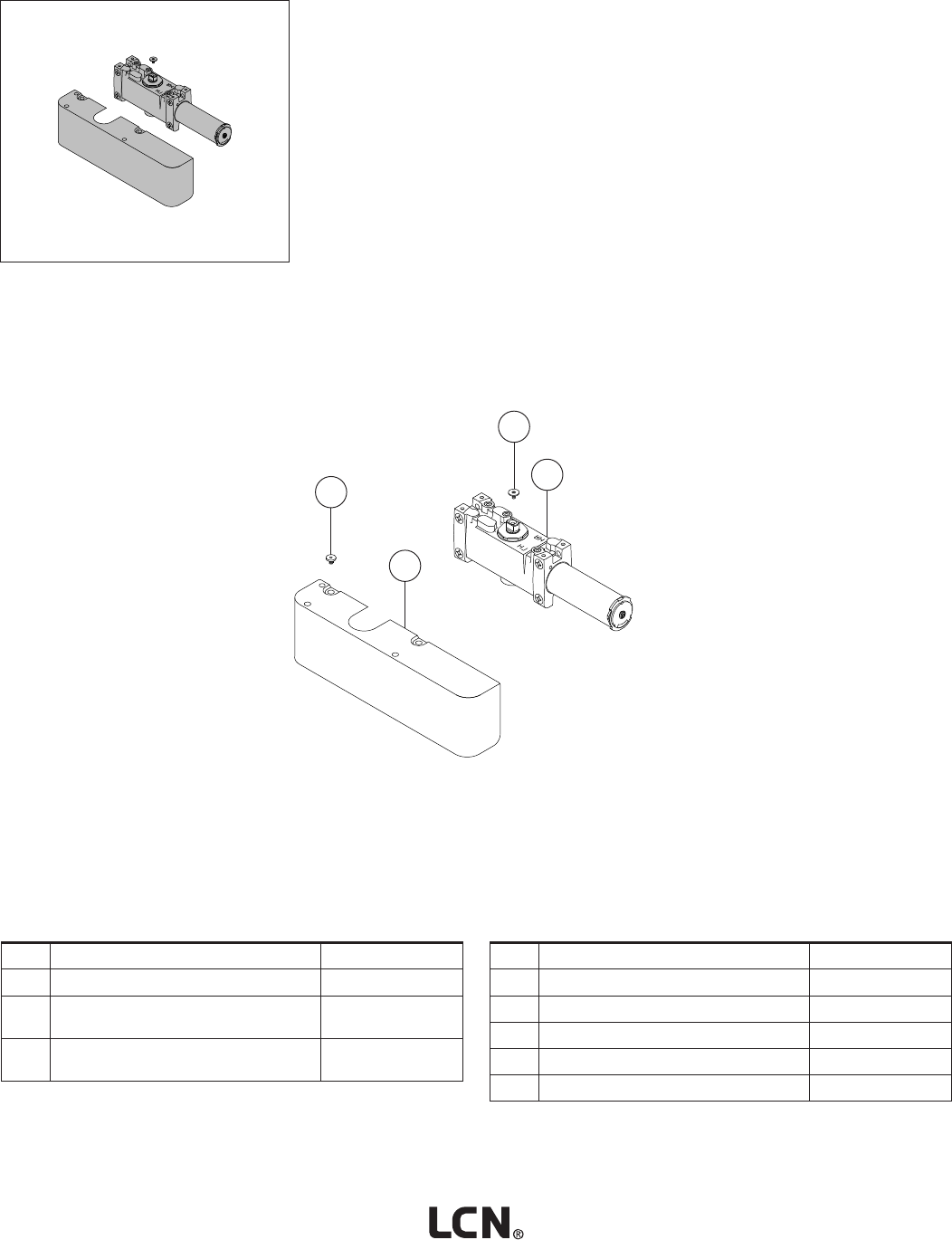

1250 Series
Cylinder & Cover Parts
46 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents

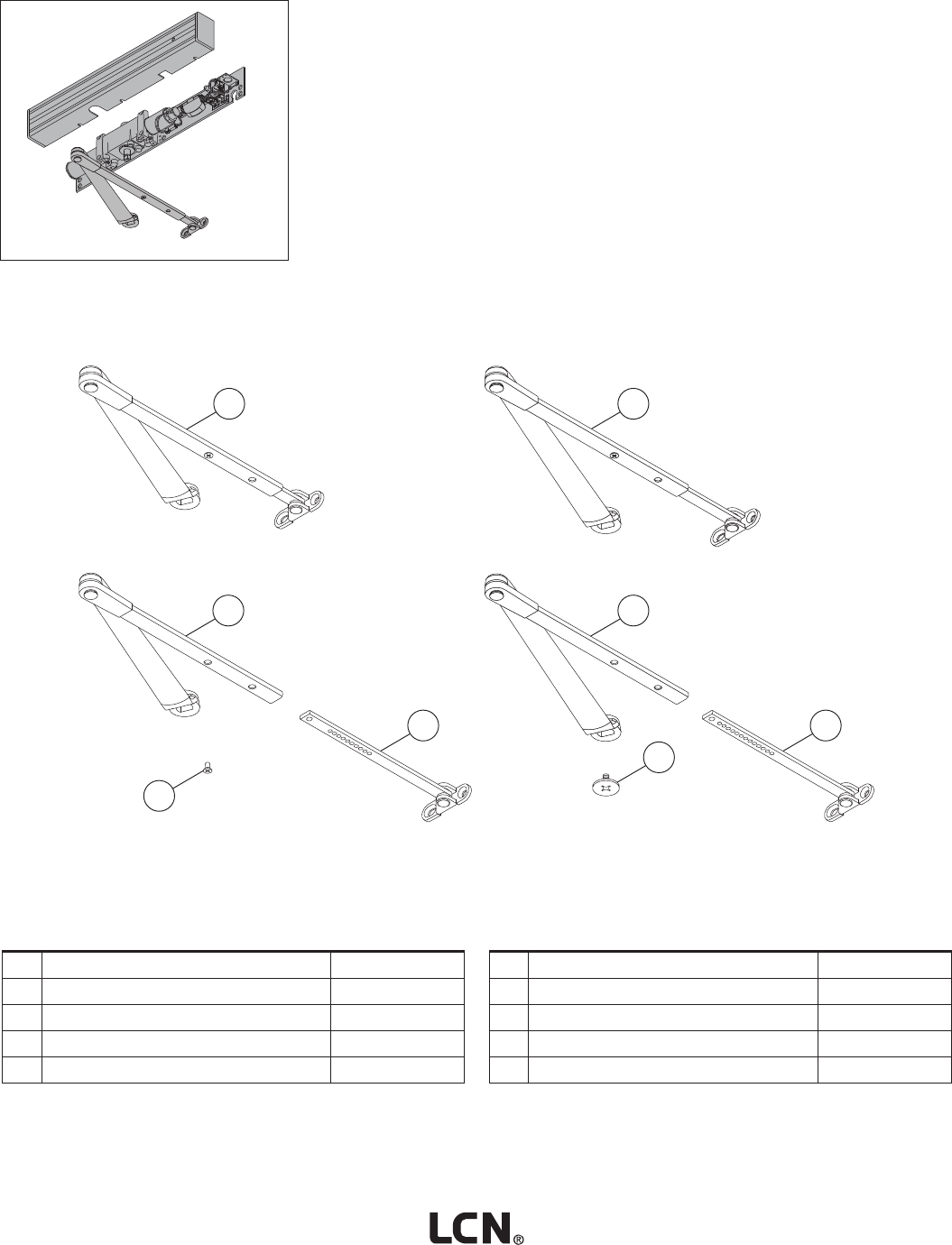

1
2
46
5
7
3
No. Description Part number
1Reg Arm (F) 1250-3077
2Reg Arm w/ 62PA (F) 1250-3077/PA
3Reg Arm w/ 62A Shoe (F) 1250-3077/62A
4Long Arm (F) 1250-3077L
No. Description Part number
5Hold Open Arm w/ 62PA (F) 1250-3049/PA
6Hold Open Long Arm (F) 1250-3049L
7PA Shoe (F) 1250-62PA
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1250 Series
Arm Assemblies & Parts
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 47
Return to Contents
12
3
4
56
7
No. Description Part number
1EDA Arm (F) 1250-3077EDA
2Hold Open EDA (F) (H) 1250-3049EDA
3CUSH Arm (F) 1250-3077CUSH
4Hold Open CUSH Arm (F) 1250-3049CUSH
No. Description Part number
5Spring CUSH Arm (F) 1250-3077SCNS
6Hold Open Spring CUSH Arm (F) 1250-3049SCNS
7CUSH Shoe Support (F) 1250-30
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1250 Series
Arm Assemblies & Parts
48 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
3
1
2
5
4
No. Description Part number
118 Mounting Plate (F) 1250-18
218PA Mounting Plate (F) 1250-18PA
3Blade Stop Spacer (F) 1250-61
No. Description Part number
4Spring CUSH Block (F) 1250-3080
5Flush Panel Adapter (F) 1250-419
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1250 Series
Mounting Plates & Miscellaneous Parts
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 49
Return to Contents
2
3
4
1
No. Description Part number

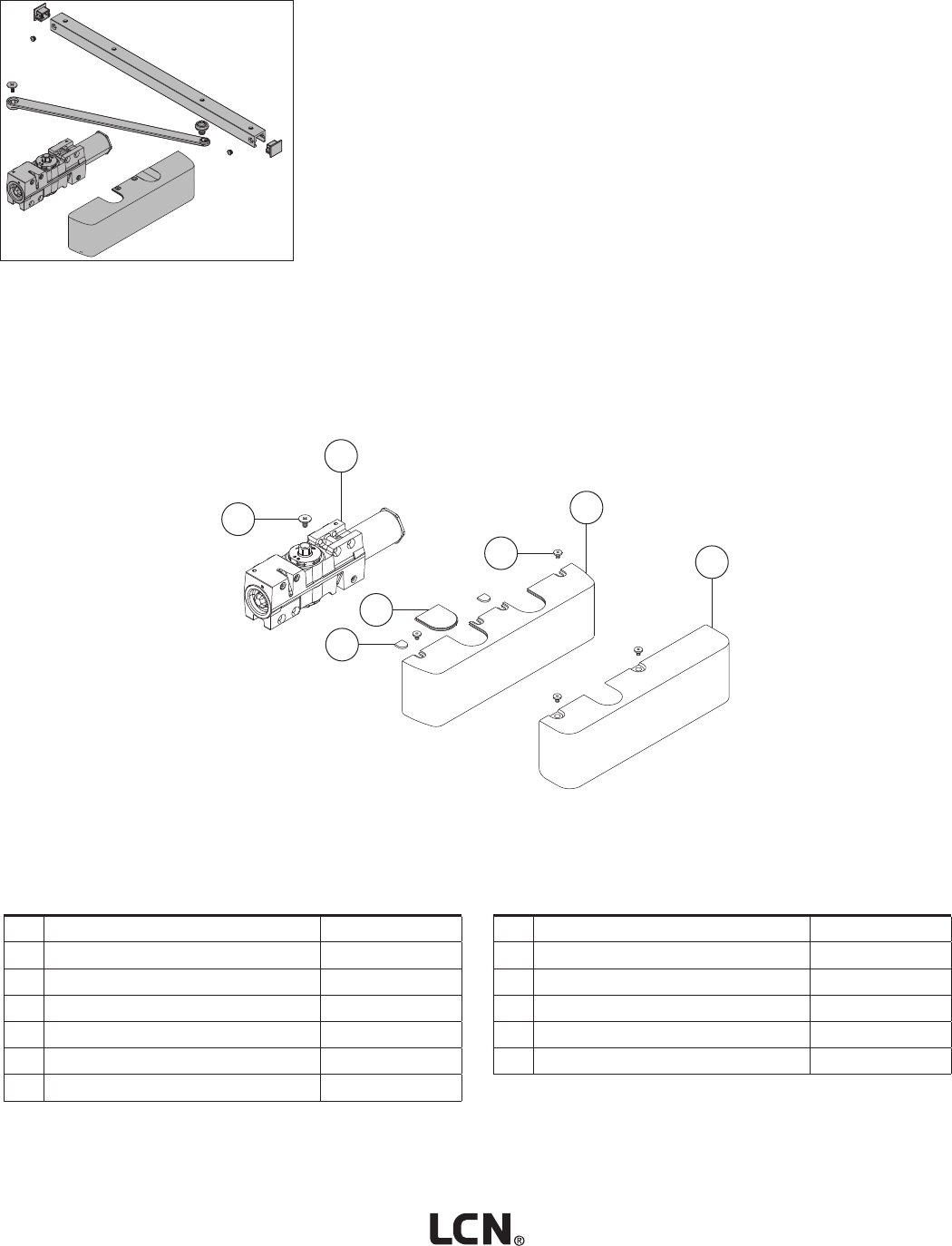

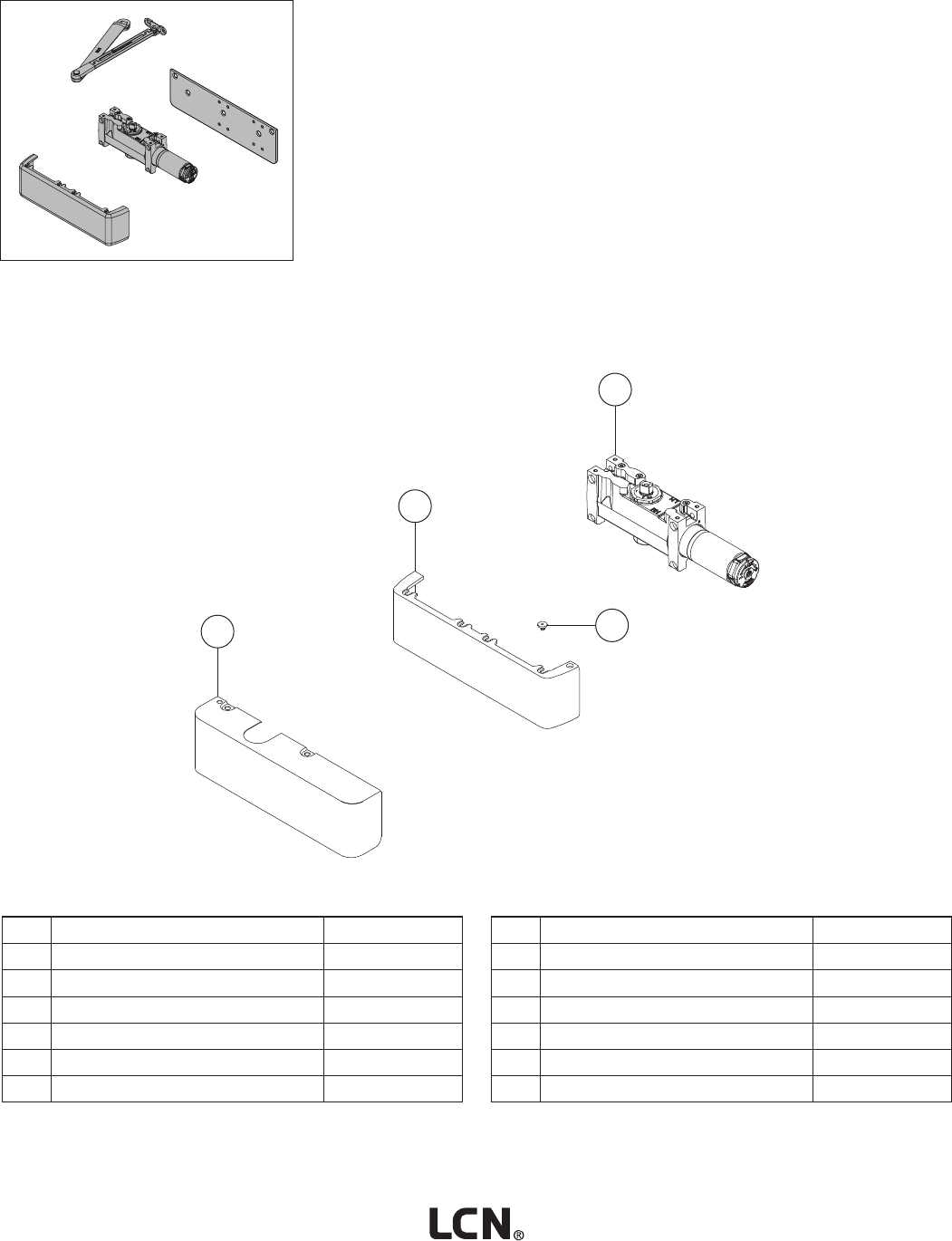

1Std Cylinder Assembly (F) 1261-3071
2Standard Cover (Optional) (F) 1260-72
3Arm Screw (F) 1260-159
4Sha Cover (F) 1260-146
5Screw Pack (Not Shown) (F) 1260-SRT
No. Description Part number
6Screw Pack (Not Shown)(F) 1260-TBSRT
7Screw Pack (Not Shown)(F) 1260-WMS
8Screw Pack (Not Shown)(F) 1260-TBWMS
9Screw Pack (Not Shown)(F) 1260-TORX
10 Screw Pack (Not Shown)(F) 1260-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1260 Series
Cylinder & Cover Parts
50 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents

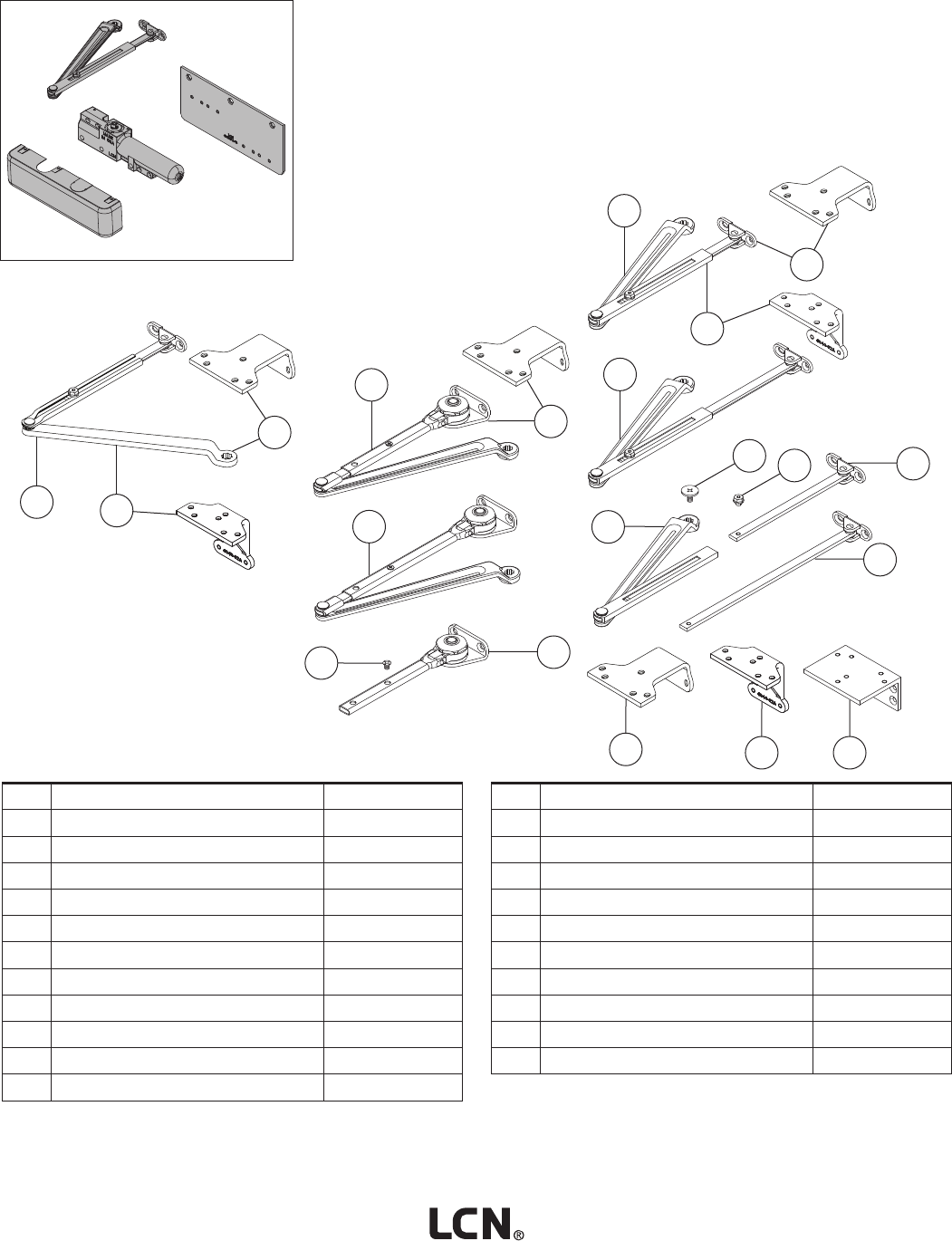

1260 Series
Regular Arm Assemblies & Parts
21
78
9
6
10
3
5
4
12
11

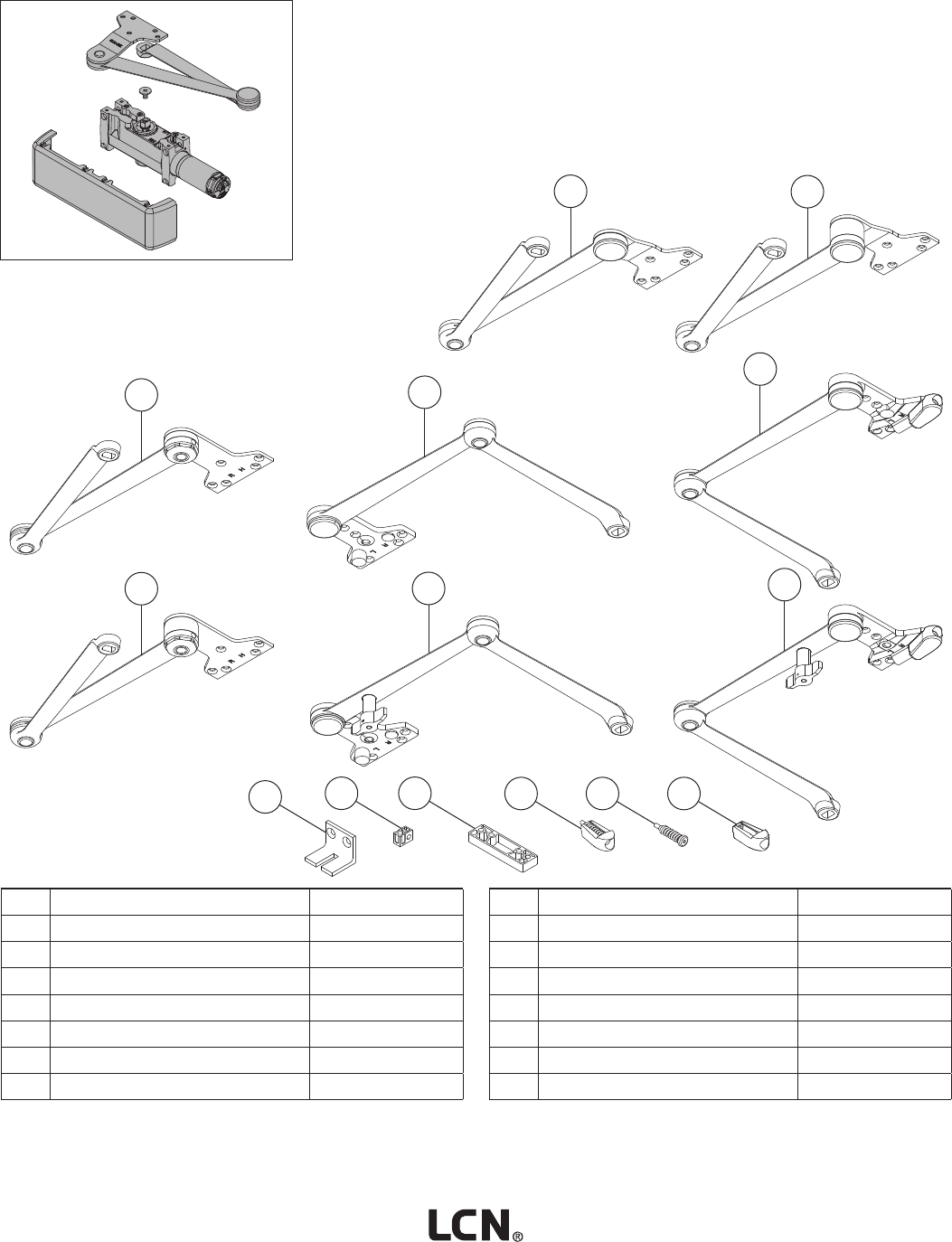

No. Description Part number
1Regular Arm (F) 1260-3077
2Long Arm (F) 1260-3077L
3PA Shoe (F) 1260-62PA
4Fih Hole Spacer 1260-201
5Auxiliary Shoe (F) 1260-62A
6Regular Arm w/ PA (F) 1260-3077/PA
No. Description Part number
7Regular Arm w/ 62A (F) 1260-3077/62A
8Main Arm & Forearm (F) 1260-77
9Arm Screw (F) 1260-83
10 Rod & Shoe (F) 1260-79
11 Long Rod & Shoe (F) 1260-79LR
12 Arm Screw (F) 1260-159
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 51
Return to Contents
12
3
6
7
4
5
No. Description Part number
1Hold Open Arm (F) 1260-3049
2Hold Open Long Arm (F) 1260-3049L
3Hold Open Arm w/ 62PA (F) 1260-3049/PA
4Hold Open Main Arm (F) 1260-49
No. Description Part number
5H arm Screw (F) 1260-83H
6Head & Tube Assembly (F) 1260-3048
7Head & Long Tube Assembly (F) 1260-3048L
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1260 Series
Hold Open Arm Assemblies & Parts
52 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
1
2
5
6
3
4
789
No. Description Part number

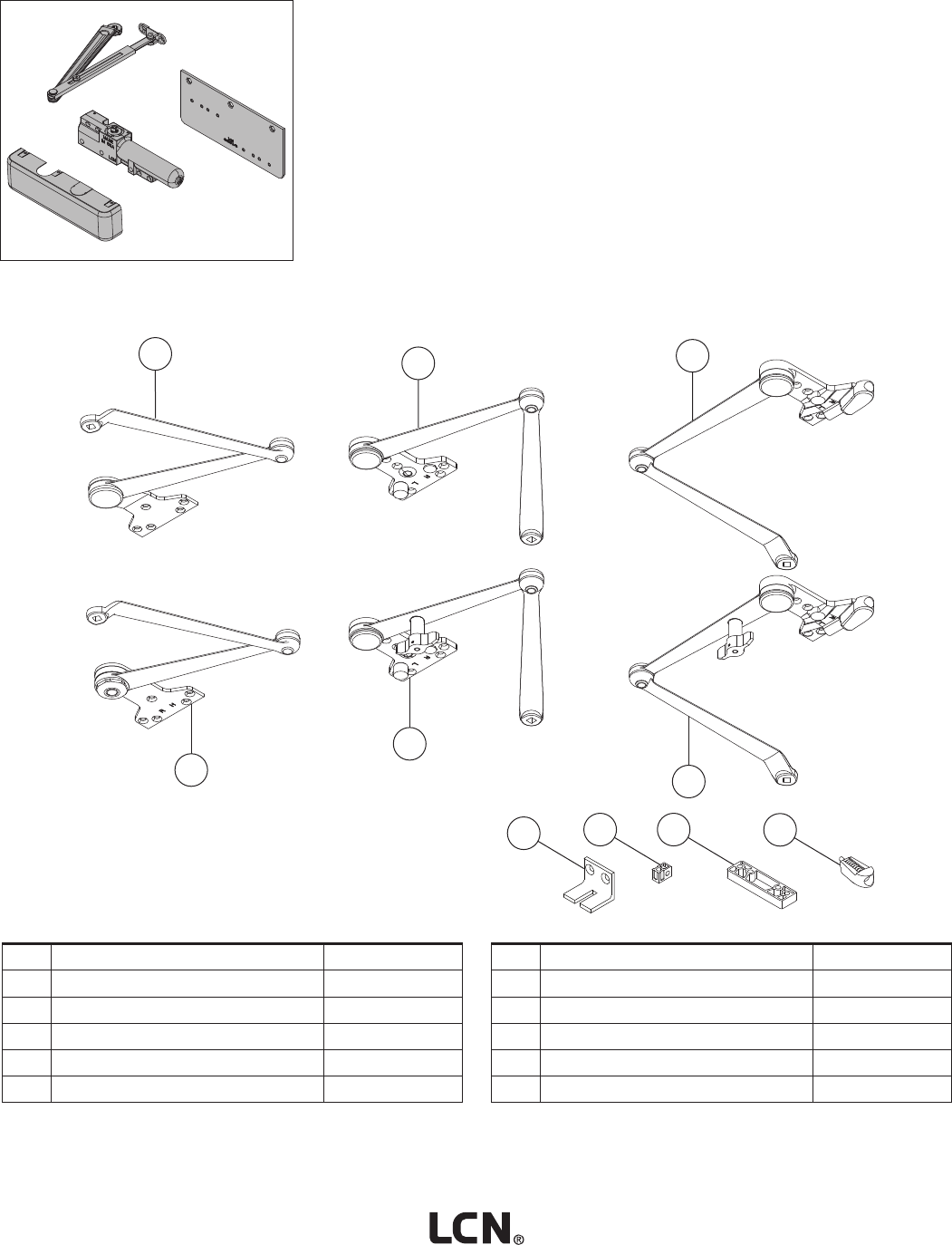

1EDA Arm (F) 1260-3077EDA
2EDA Arm w/ 62G (F) 1260-3077EDA/G
3HEDA Arm (F)(H) 1260-3049EDA
4HEDA Arm w/ 62G (F)(H) 1260-3049EDA/G
5CUSH Arm (F) 1260-3077CUSH
No. Description Part number
6HCUSH Arm (F) 1260-3049CUSH
7Fih Hole Spacer 1260-201
8CUSH Shoe Support (F) 1260-30
9Stop (F) 1260-384
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1260 Series
EDA & CUSH Arm Assemblies
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 53
Return to Contents

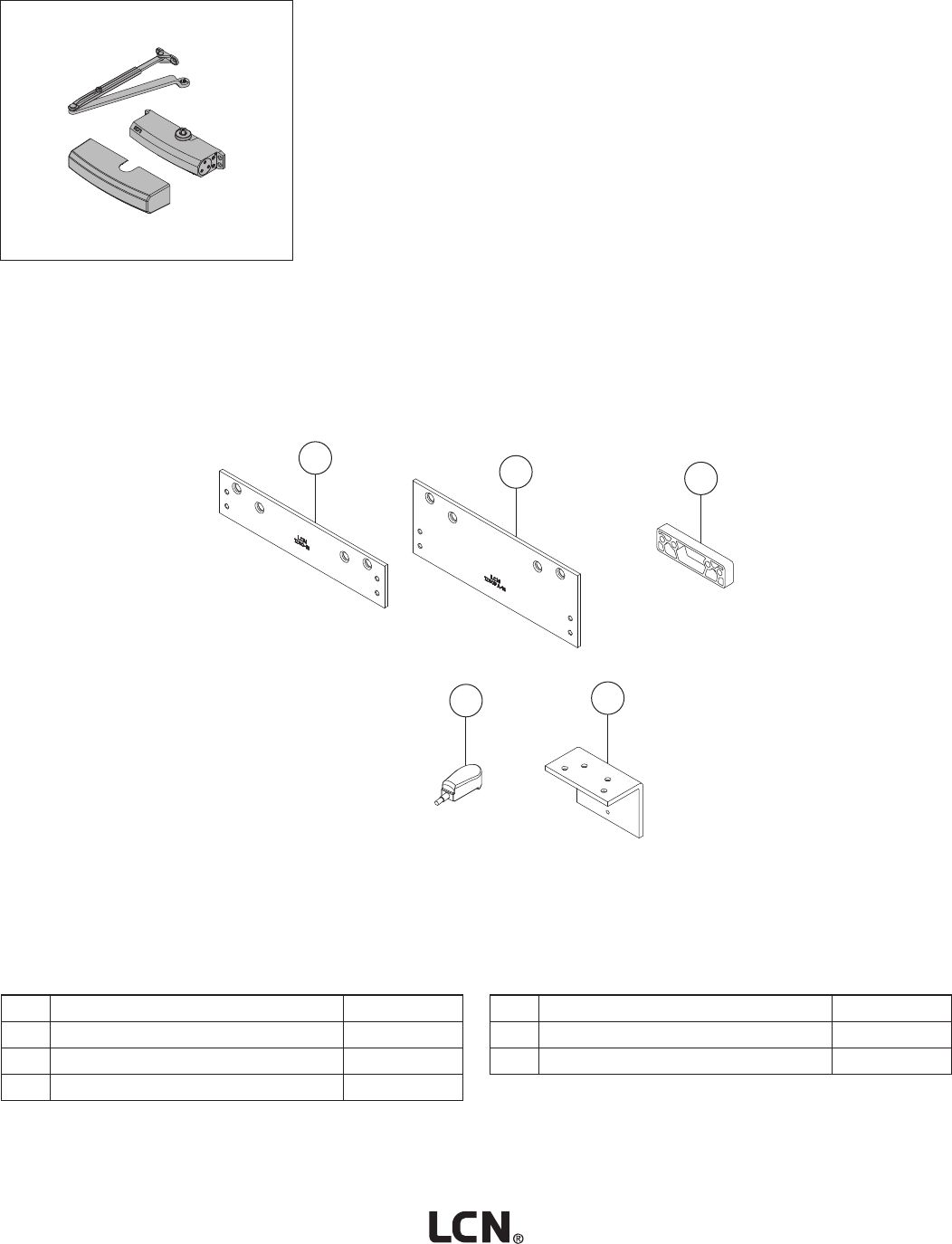

1260 Series
Mounting Plates
12345
No. Description Part number
1Mounting Plate (F) 1260-18
2Mounting Plate (F) 1260-18PA
3Mounting Plate (F) 1260-18QF
No. Description Part number
4Panel Adapter (F) 1260-419
5Blade Stop Spacer (F) 1260-61
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
54 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
No. Description Part number
1Cylinder Assembly (F) 1450-3071
2Delay Action Cylinder (F) 1450-3071DEL
3Pinion Cap (F) 1450-146
4Standard Slim Cover (F) 1450-72
5Full Plastic Cover (F) 1450-72FC
No. Description Part number
6Full Metal Cover-RH & LH (F)(H) 1450-72MC
7Reg Arm (F) 1450-3077
8Screw Pack (Not Shown)(F) 1450-UNIV
9Screw Pack (Not Shown)(F) 1450-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1450 Series
Cylinder & Cover Parts
1
7
2
3
5
4
6
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 55
Return to Contents

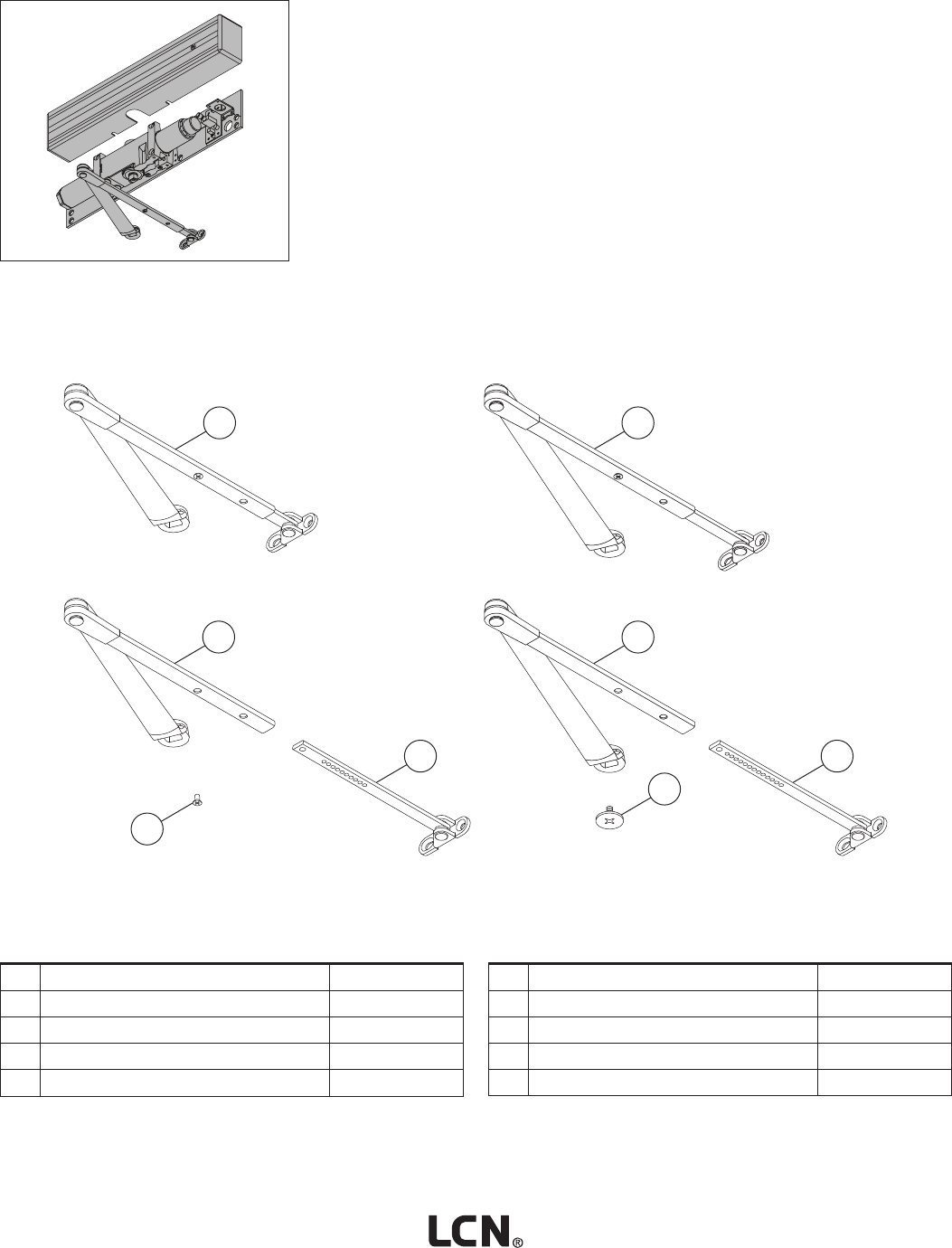

1
2
3
6
5
7
4
No. Description Part number
1Regular Arm (F) 1450-3077
2Reg Arm w/ 62PA (F) 1450-3077/PA
3Reg Arm w/ 62A Shoe (F) 1450-3077/62A
4Long Arm (F) 1450-3077L
No. Description Part number
5Hold Open Arm w/ 62PA (F) 1450-3049/PA
6Hold Open Long Arm (F) 1450-3049L
7PA Shoe (F) 1450-62PA
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1450 Series
Arm Assemblies & Parts
56 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
3
6
5
1
8
2
4
7
No. Description Part number
1EDA Arm (F) 1450-3077EDA
2EDA w/ 62G (F) 1450-3077EDA/G
3Hold Open EDA (F)(H) 1450-3049EDA
4Hold Open EDA w/ 62G (F)(H) 1450-3049EDA/G
No. Description Part number
5CUSH Arm (F) 1450-3077CNS
6Hold Open CUSH (F) 1450-3049CNS
7Spring CUSH Arm (F) 1450-3077SCNS
8Hold Open Spring CUSH Arm (F) 1450-3049SCNS
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1450 Series
Arm Assemblies & Parts
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 57
Return to Contents

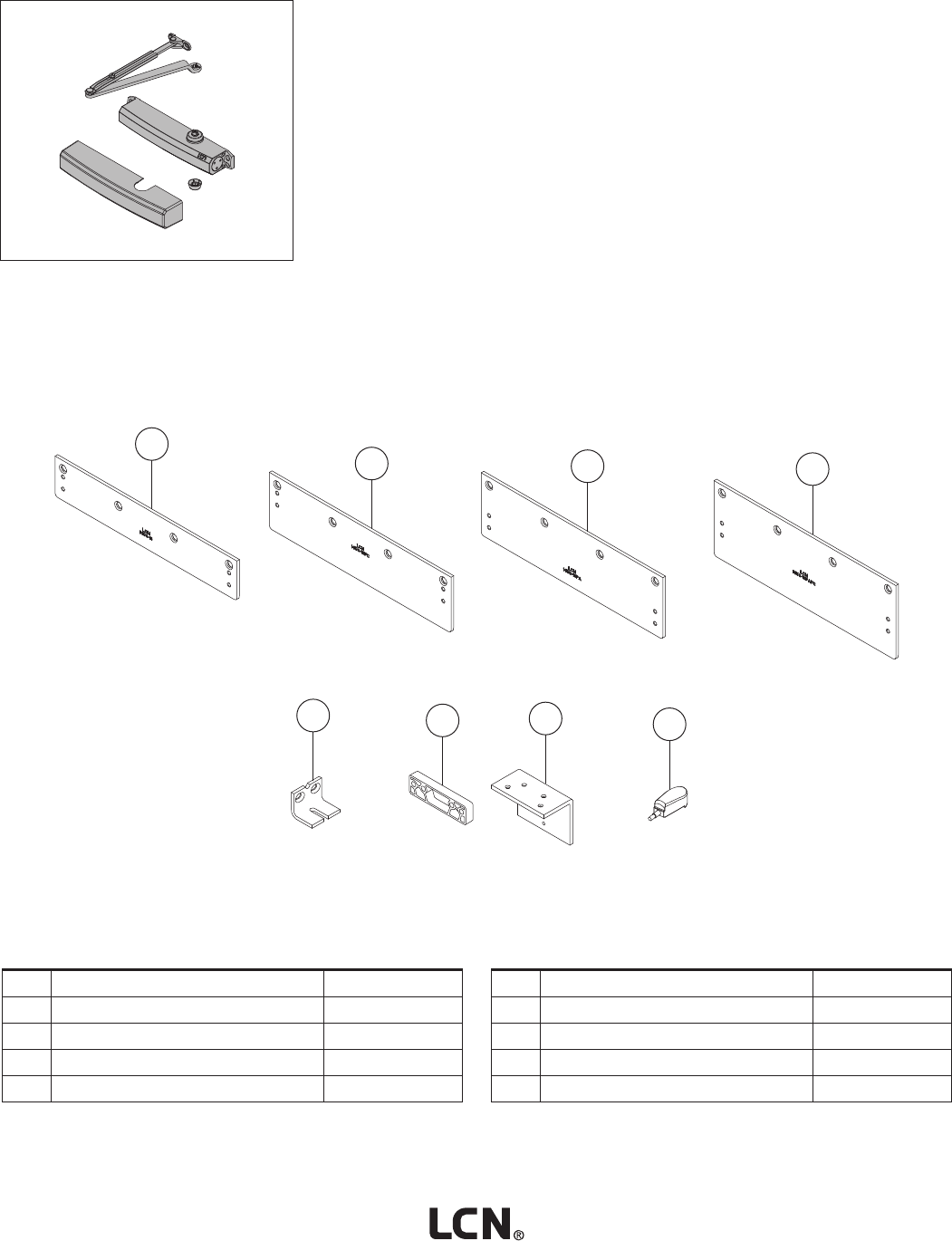

1
34
2
5678
No. Description Part number
118 Mounting Plate (F) 1450-18
218 Mounting Plate for Full Cover (F) 1450-18FC
318PA Mounting Plate (F) 1450-18PA
418PA Mounting Plate for Full Cover (F) 1450-18PAFC
No. Description Part number
5CUSH Shoe Support (F) 1450-30
6Blade Stop Spacer (F) 1450-61
7Flush Panel Adapter (F) 1450-419
8Spring CUSH Block (F) 1450-3080
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1450 Series
Mounting Plates & Miscellaneous Accessories
58 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
2
3
4
1
7
6
5
No. Description Part number
1Cylinder Assembly (F) 1461-3071
1Cylinder Assembly w/ Delay (F) 1461-3071DEL
2Standard Cover (F) 1460-72
3Designer Series Cover (F) 1460-72DS1
4Full Cover (F) 1460-72FC
5Arm Screw (F) 1460-159
6Mounting Bracket (F) 1460-30A
7Sha Cover (F) 1460-146
No. Description Part number
8Adaptor Kit (Not Shown) 1460-3373
9Screw Pack (Not Shown) (F) 1460-SRT
10 Screw Pack (Not Shown) (F) 1460-TBSRT
11 Screw Pack (Not Shown) (F) 1460-WMS
12 Screw Pack (Not Shown) (F) 1460-TBWMS
13 Screw Pack (Not Shown) (F) 1460-TORX
14 Screw Pack (Not Shown) (F) 1460-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460 Series
Cylinder & Cover Parts
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 59
Return to Contents
4
9
10
11
12
21
56
3
78
14
13
No. Description Part number
1Reg Arm (F) 1460-3077
2Long Arm (F) 1460-3077L
3Heavy Duty Arm (F) 1460-3077HD
4HD Long Arm (F) 1460-3077HD/L
5Reg Arm w/ 62PA (F) 1460-3077/PA
6Reg Arm w/62A (F) 1460-3077/62A
7HD Arm w/62PA (F) 1460-3077HD/PA
No. Description Part number
8HD Arm w/62A (F) 1460-3077HD/62A
9Arm & Forearm (F) 1460-77
10 Heavy Duty Arm& Forearm (F) 1460-77HD
11 Rod & Shoe (F) 1460-79
12 Long Rod & Shoe (F) 1460-79LR
13 Auxiliary Shoe (F) 1460-62A
14 Arm Screw (F) 1460-83
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460 Series
Regular Arm Assemblies & Parts
60 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
8
7
45
9
6
13
2
No. Description Part number
1Hold Open Arm (F) 1460-3049
2Hold Open Long Arm (F) 1460-3049L
3Hold Open Arm w/ PA (F) 1460-3049/PA
4HO Head & Tube Assembly (F) 1460-3048
5HO Head & Long Tube Assembly (F) 1460-3048L
No. Description Part number
6HO Main Arm & Rod (F) 1460-49
7Fih Screw Spacer (F) 1460-201
8Parallel Arm Shoe (F) 1460-62PA
9H Arm Screw (F) 1460-83H
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460 Series
Hold Open Arm Assemblies & Parts
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 61
Return to Contents
3
12
456
78
9
10
11
No. Description Part number
1Extra Duty Arm (F) 1460-3077EDA
2Extra Duty Arm w/ 62G (F) 1460-3077EDA/G
3Spring CUSH (SCUSH) Arm (F) 1460-3077SCNS
4Spring H CUSH (SHCUSH) Arm (F) 1460-3049SCNS
5Hold Open Extra Duty Arm (F)(H) 1460-3049EDA
6HO Extra Duty Arm w/ 62G (F)(H) 1460-3049EDA/G
No. Description Part number
7CUSH Arm (F) 1460-3077CNS
8H CUSH Arm (F) 1460-3049CNS
9Fih Hole Spacer 1460-201
10 Stop (F) 1260-384
11 Plug (F) 1260-124
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460 Series
Extra Duty and CUSH Arm Assemblies & Parts
62 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
6
9 10
2
1
34
7 8
5
No. Description Part number
1Mounting Plate (F) 1460-18
2Mounting Plate (F) 1460-18DS
3Mounting Plate (F) 1460-18FC
4Mounting Plate (F) 1460-18PA
5Mounting Plate (F) 1460-18PADS
No. Description Part number
6Mounting Plate (F) 1460-18PAFC
7CUSH Shoe Support (F) 1460-30
8Blade Stop Spacer (F) 1460-61
9Flush Panel Adaptor (F) 1460-419
10 SC Block (incl. -58 & 80G) 1460-3080
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460 Series
Mounting Plates
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 63
Return to Contents
8
1
7
6
5
2
3
4
No. Description Part number
1Cylinder Assembly (F)(S) 1460(1)T-3071
2Standard Cover (F) 1460T-72
3Designer Series Metal Cover (F) 1460T-72DS1
4Full Cover (F) 1460T-72FC
5Arm Screw (F) 1460T-159
6Mounting Bracket (F) 1460T-30A
7Sha Cover (F) 1460T-146
No. Description Part number
8Arm Insert (F) 1460T-163
9Screw Pack (incl -3034)[Not Shown](F) 1460T-SRT
10 Screw Pack (incl -3034)[Not Shown](F) 1460T-TBSRT
11 Screw Pack (incl -3034)[Not Shown](F) 1460T-WMS
12 Screw Pack (incl -3034)[Not Shown](F) 1460T-TBWMS
13 Screw Pack (incl -3034)[Not Shown](F) 1460T-TORX
14 Screw Pack (incl -3034)[Not Shown](F) 1460T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460T Series "Super Stock"
Cylinder Assemblies & Cover Parts
64 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
4
8
9
10
1
3
6
5
11
12
7
2
No. Description Part number
1Standard Arm (F) 1460T-3077T
2Standard Track (F) 1460T-3038
2Track w/ Bumper (F) 1460T-3038B
2Track w/ Hold Open (F) 1460T-3038H
2Track w/ Hold Open & Bumper (F) 1460T-3038HB
3Rod (F) 1460T-82
4Arm & Tube (F) 1460T-78
5Roller Lock Screw 1460T-425
No. Description Part number
6Arm Screw (F) 1460T-83H
7Hold-Open Clip 1460T-3054
8Track Bumper 1460T-169
9Plug (F) 1460T-141-1
10 Plug (F) 1460T-141-2
11 Track Roller 1460T-3034
12 End Cap (F) 1460T-73
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460T Series "Super Stock"
Arm Assemblies & Parts
1000 Series Surface Mounted Closers
LCN • LCN Parts Manual • 65
Return to Contents
5
2
1 3
6
4
No. Description Part number
1Mounting Plate (F) 1460T-18
2Mounting Plate (F) 1460T-18DS
3Mounting Plate (F) 1460T-18FC
4Mounting Plate (F) 1460T-18PA
No. Description Part number
5Mounting Plate (F) 1460T-18PADS
6Mounting Plate (F) 1460T-18PAFC
7Mounting Plate (Not Shown)(F) 1460T-18GFC
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
1460T Series "Super Stock"
Mounting Plates
66 • LCN • LCN Parts Manual
1000 Series Surface Mounted Closers
Return to Contents
Concealed Series Closers
66 2010 Series
68 2030 Series
70 3030 Series
71 3130 Series
72 5010 Series
74 5030 Series "Pacer"
77 6030 Series "Pacer"
LCN • LCN Parts Manual • 67
Return to Contents

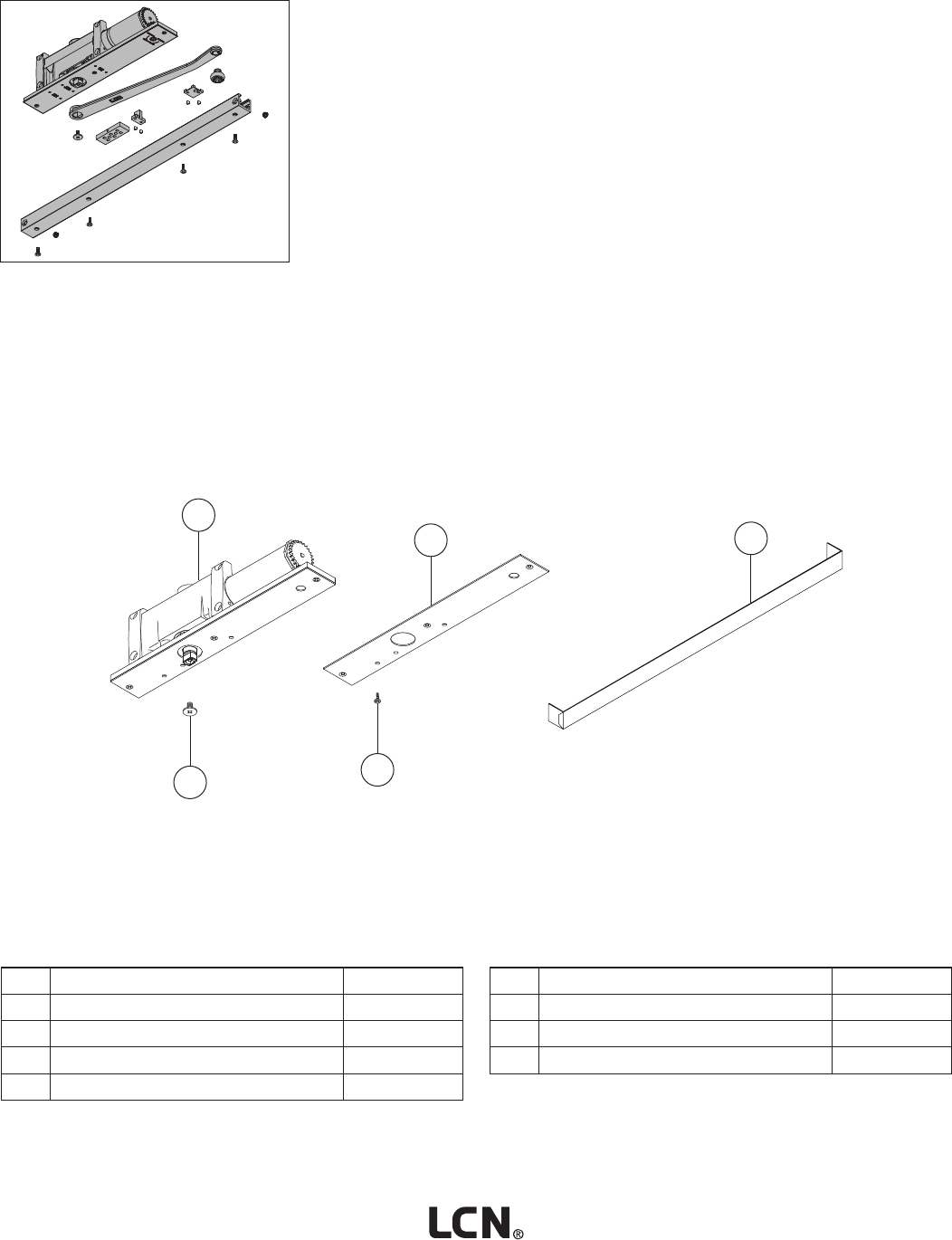

1
23
5
4
No. Description Part number
1Standard Cylinder Assembly (F)(S)(H) 2011(3-6)-3071
2Finish Plate (F)(H) 2010-11
3Fire Shield 2010-420
4Arm Screw (F) 2010-159
No. Description Part number
5Cover Screw (F) 2010-31
6Screw Pack (incl -3034)[Not Shown](F) 2010-WMS
7Screw Pack (incl -3034)[Not Shown](F) 2010-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2010 Series
Cylinder & Cover Parts
68 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents
1
2
5
6
4
3
No. Description Part number
1Standard Arm (F)(H) 2010-3077T
2Standard Track (F) 2010-3038
2Track w/ Bumper (F) 2010-3038B
2Track w/ Hold Open (F) 2010-3038H
2Track w/ Hold Open & Bumper (F) 2010-3038HB
3Roller Lock Screw 2010-425
No. Description Part number
4Track Roller 2010-3034
4Track Roller (Hold Open) 2010-3034H
5Track Bumper 2010-169
6Hold-Open Clip 2010-3054
7P-1152 Roller (Not Shown) 2010-SPL-3034
8P-1224 Track (Not Shown)(F) 2010-SPL-3038
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2010 Series
Arm Assemblies & Parts
Concealed Series Closers
LCN • LCN Parts Manual • 69
Return to Contents
3
1
245
No. Description Part number
1Standard Cylinder Assembly (F)(S)(H) 2031(2-5)-3071
2Cylinder Only (F)(S)(H) 2031(2-5)-3971
3Mounting/Finish Plate (F)(H) 2030-3002
4Wood Clip Set (F) Center Pivot 2030-416
No. Description Part number
5Wood Clip Set (F) Offset Pivot 2030-417
6Screw Pack (incl -3034)[Not Shown](F) 2030-WMS
7Screw Pack (incl -3034)[Not Shown](F) 2030-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2030 Series
Cylinder & Cover Parts
70 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents
2030 Series
Arm Assemblies & Parts
1
2
5
4
3
8
7
6
No. Description Part number
1Standard Arm (F)(H) 2030-3077T
2Standard Track (F) 2030-3038
2Track w/ Bumper (F) 2030-3038B
2Track w/ Hold Open (F) 2030-3038H
2Track w/ Hold Open & Bumper (F) 2030-3038HB
3Arm Screw (F) 2030-159
4Roller Lock Screw 2030-425
No. Description Part number
5Track Roller 2030-3034
5Track Roller (Hold Open) 2010-3034H
6Hold-Open Clip 2030-3054
7Track Bumper 2030-169
8Fire Shield 2030-420
9P-1224 Track (Not Shown)(F) 2030-SPL-3038
10 P-1152 Roller (Not Shown) 2030-SPL-3034
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
Concealed Series Closers
LCN • LCN Parts Manual • 71
Return to Contents
3030 Series
Cylinder & Cover Parts
1
6
4
8
7
5
9
2
3
No. Description Part number
1Cylinder Assembly (F)(S)(H) 3031(2-4)-3071
2Arm Screw (F) 3030-159
3Regular Arm (F) 3030-3077
4Main Arm & Forearm (F) 3030-77
5Rod & Shoe Assembly (F) 3030-79
6Arm Stud (F) 3030-421
No. Description Part number
7H Arm Screw (F) 3030-83H
8Hold Open Arm (F)(H) 3030-3049
9Hold Open Rod & Shoe Assembly (F) 3030-79H
10 Screw Pack (Not Shown)(F) 3030-WMS
11 Screw Pack (Not Shown)(F) 3030-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
72 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents
3130 Series
Cylinder & Cover Parts
3
6
7
2
1
9
8
4
5
No. Description Part number
1Standard Cylinder Assembly (F)(S)(H) 3131(2-3)-3071
2Standard Track (F) 3130-3038
2Standard Track w/ Bumper (F) 3130-3038B
2Standard Track w/ Hold Open (F) 3130-3038H
2Standard Track w/ HO & Bumper (F) 3130-3038HB
3Arm Screw (F) 3130-159
4Channel (F)(S)(H) 3130-2
No. Description Part number
5Track Bumper 3130-169
6Hold-Open Clip 3130-3054
7Track Roller 3130-3034
8Roller Locking Screw 3130-425
9Standard Arm (F) (H) 3130-3077T
10 Screw Pack (incl -3034)[Not Shown](F) 3130-WMS
11 Screw Pack (incl -3034)[Not Shown](F) 3130-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
Concealed Series Closers
LCN • LCN Parts Manual • 73
Return to Contents
5010 Series
Cylinder & Cover Parts
1 2 3
4
5
No. Description Part number
1Cylinder Assembly (F)(S)(H) 5011(2-6)-3071
1Delay Cylinder Assembly (F)(S)(H) 5011(2-5)-3071DEL
2Mounting/Finish Plate (F)(H) 5010-3002
3Finish Plate (F)(H) 5010-11
3 DA Finish Plate (F)(H) 5010-11DA
No. Description Part number
4Arm Screw (F) 5010-159
5Finish Plate Screw (F) 5010-31
6Screw Pack (Not Shown)(F) 5010-WMS
7Screw Pack (Not Shown)(F) 5010-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
74 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents

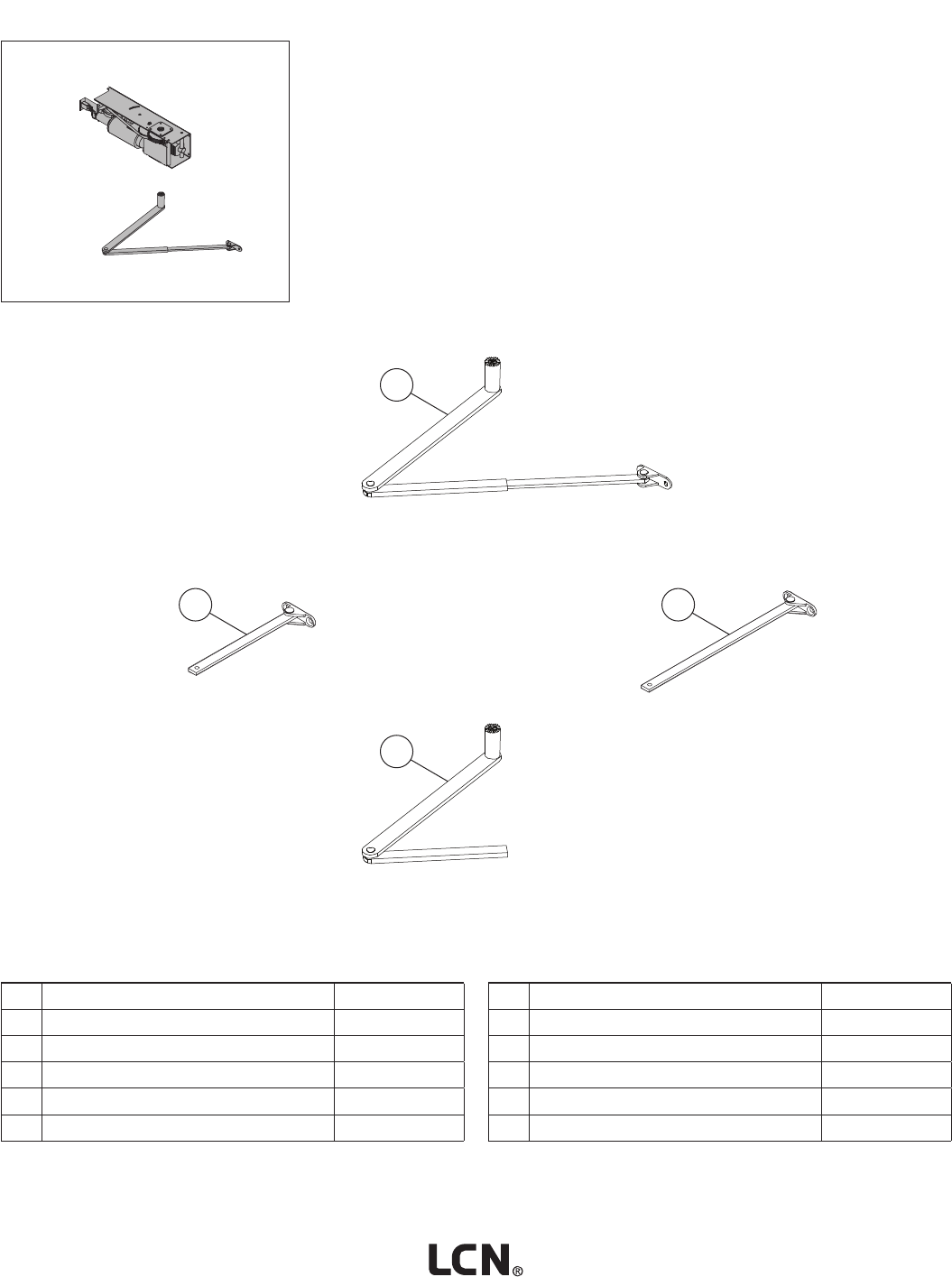

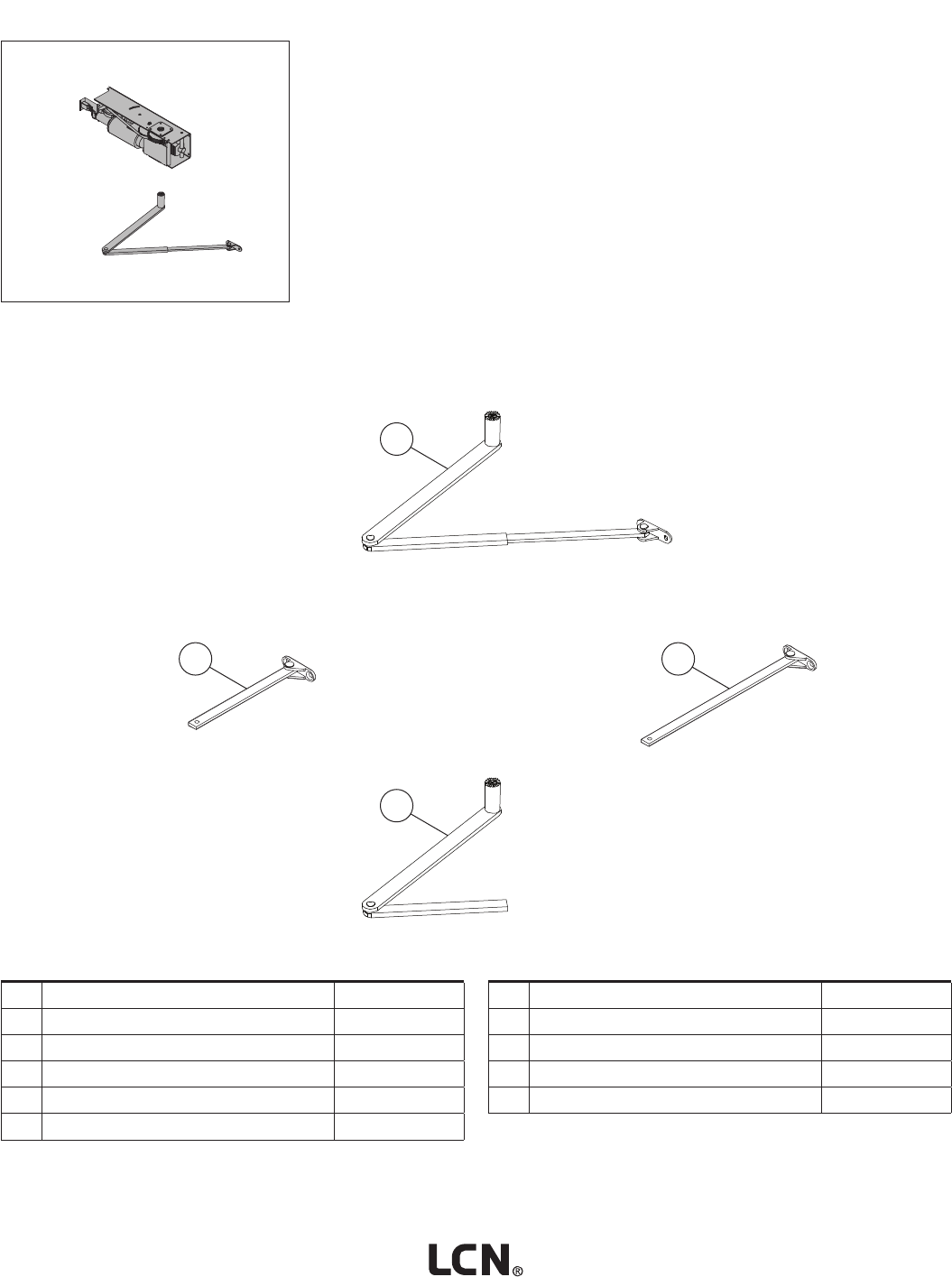

15
6
3
2
4
7
No. Description Part number
1Regular Arm (F) 5010-3077
2Main Arm & Forearm (F) 5010-77
3Arm Screw (F) 5010-83
4Rod & Shoe Assembly (F) 5010-79
No. Description Part number
5Hold Open Arm (F)(H) 5010-3049
6H Arm Screw (F) 5010-83H
7HO Rod & Shoe Assembly (F) 5010-79H
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
5010 Series
Arm Assemblies & Parts
Concealed Series Closers
LCN • LCN Parts Manual • 75
Return to Contents
134
2
No. Description Part number
1Cylinder Assembly (F)(S)(H) 5031(2-6)-3071
2Arm Screw (F) 5030-159
No. Description Part number
3Finish Plate (F)(H) 5030-3002
4Cylinder Only (F)(S)(H) 5031(2-6)-3971
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
5030 Series "Pacer"
Cylinder & Cover Parts
76 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents
1
2
5
6
3
4
7
No. Description Part number
1Regular Arm (F) 5030-3077
2Main Arm & Forearm (F) 5030-77
3Arm Screw (F) 5030-83
4Rod & Shoe Assembly (F) 5030-79
No. Description Part number
5Hold Open Arm (F)(H) 5030-3049
6H Arm Screw (F) 5030-83H
7HO Rod & Shoe Assembly (F) 5030-79H
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
5030 Series "Pacer"
Arm Assemblies & Parts
Concealed Series Closers
LCN • LCN Parts Manual • 77
Return to Contents
12
No. Description Part number
1Wood Mounting Clip Set (F) Center Pivot 5030-416
2Wood Mounting Clip Set (F) Offset Pivot 5030-417
No. Description Part number
3Screw Pack (Not Shown)(F) 5030-WMS
4Screw Pack (Not Shown)(F) 5030-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
5030 Series "Pacer"
Installation Accessories
78 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents
12
4
3
No. Description Part number
1Cylinder Assembly (F)(S) 6031(2-5)-3071
2Finish Plate (F) 6030-3002
3Cylinder Only (F)(S) 6031(2-5)-3971
No. Description Part number
4Arm Screw (F) 6030-159
5Screw Pack (incl -3034)[Not Shown](F) 6030-WMS
6Screw Pack (incl -3034)[Not Shown](F) 6030-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
6030 Series "Pacer"
Cylinder & Cover Parts
Concealed Series Closers
LCN • LCN Parts Manual • 79
Return to Contents
1
2
3
9
5
6
7
8
4
No. Description Part number
1Standard Arm (F) 6030-3077T
2Track w/Bumper (F) 6030-3038B
2Track w/Hold Open & Bumper (F) 6030-3038HB
3Roller Lock Screw (F) 6030-425
4Arm Screw (F) 6030-83
No. Description Part number
5Snubber 6030-157
6Track Roller 6030-3034
7Hold-Open Clip 6030-3054
8Track Bumper 6030-169
9Wood Clip Set (F) 6030-416
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
6030 Series "Pacer"
Arm Assemblies & Parts
80 • LCN • LCN Parts Manual
Concealed Series Closers
Return to Contents
Fire-Life Safety Series Closers & Holders
80 SEM7800 Series
82 3130SE Series
84 4040SE Series
86 2310ME Series
88 4310ME Series "Sentronic"
90 4410ME Series "Sentronic"
92 4310HSA Series "Sentronic"
94 4410HSA Series "Sentronic"
96 SEH Series
LCN • LCN Parts Manual • 81
Return to Contents

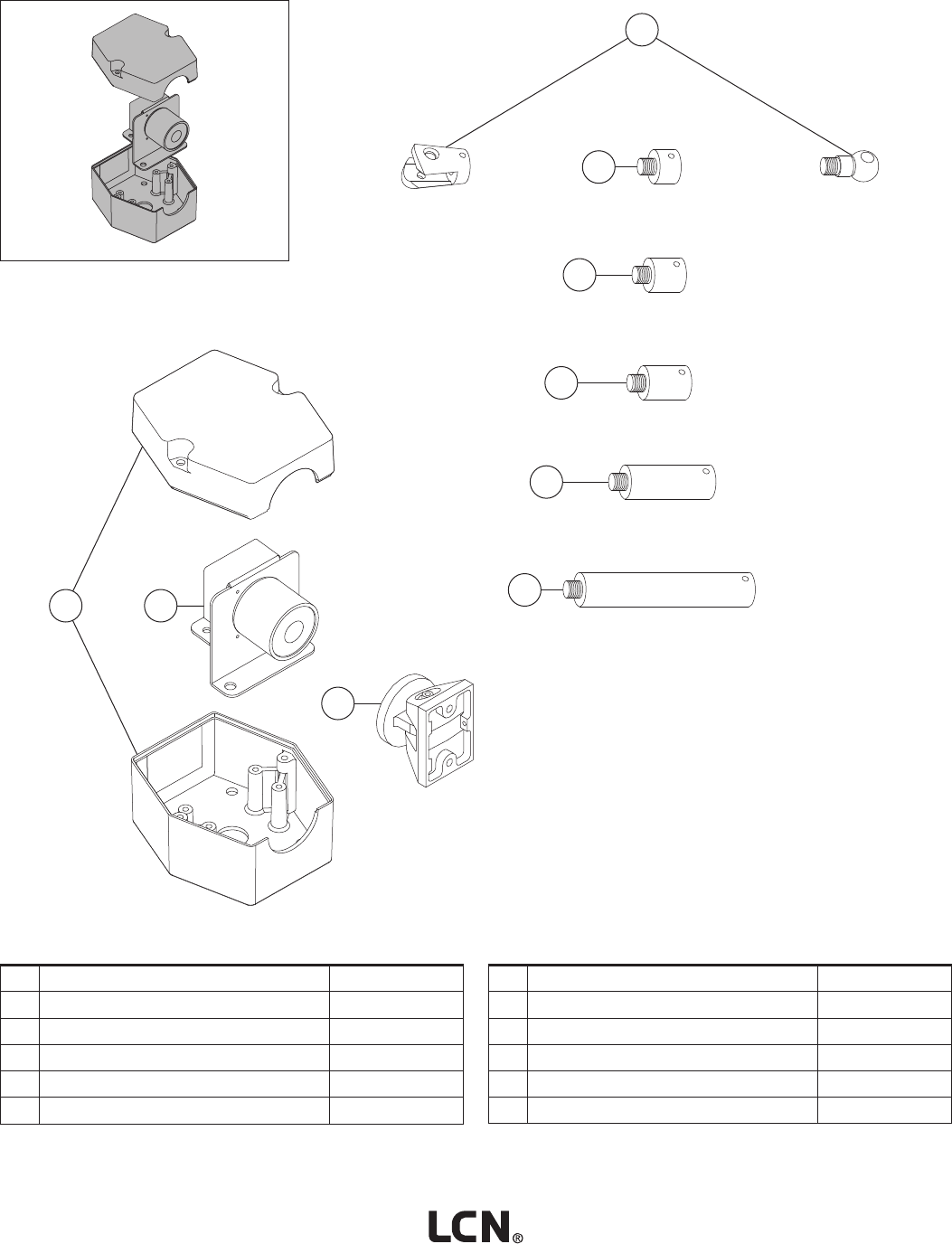

5
4
3
6
1
2
78
9
SEM7800 Series
SEM7810 & Extensions
Please specify nish (F) & voltage (V) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
No. Description Part number
1Ball Pivot / Connection Link (F) SEM7810-514
2Extension 1/2" (F) SEM7810-E050
3Extension 3/4" (F) SEM7810-E075
4Extension 1" (F) SEM7810-E100
5Extension 2" (F) SEM7810-E200
No. Description Part number
6Extension 4" (F) SEM7810-E400
7Standard Cover & Base (F) SEM7820-72
8Magnet Core Assembly SEM7820-516
9Door Armature (F) SEM7820-825
10 Fastener Kit (Not Shown) SEM7820-515
82 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
1
8
2
5
9
3
6
10
4
7

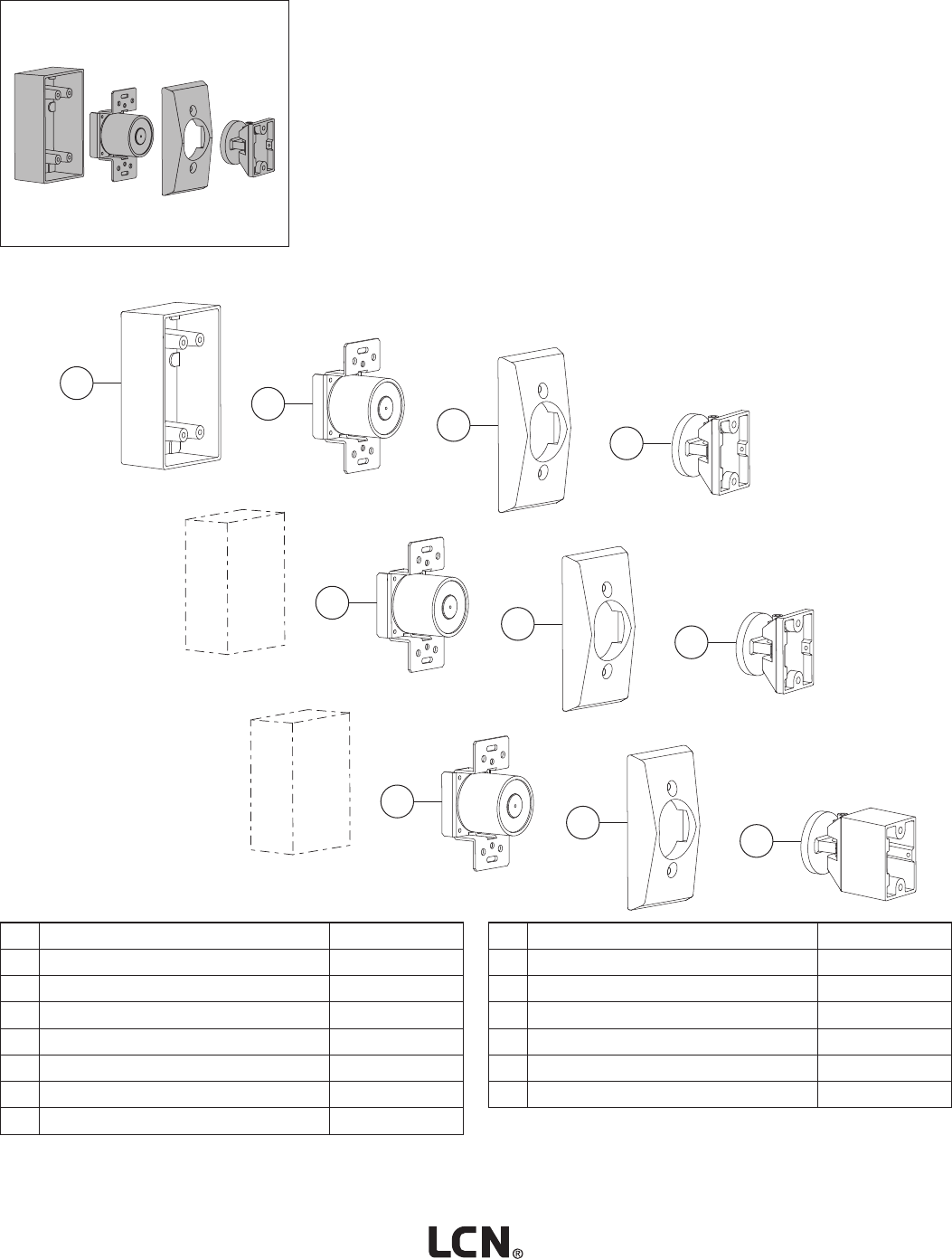

SEM7800 Series
SEM7830, SEM7850, & SEM7850
Please specify nish (F) & voltage (V) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
No. Description Part number
1Surface Mount Box (F) SEM7830-268
2Magnet Core Assembly SEM7830-516
3Standard Cover (F) SEM7830-72
4Door Armature (F) SEM7830-825
5Magnet Core Assembly SEM7840-516
6Standard Cover (F) SEM7840-72
7Door Armature (F) SEM7840-825
No. Description Part number
8Magnet Core Assembly SEM7850-516
9Standard Cover (F) SEM7850-72
10 Door Armature (F) SEM7850-828
11 Fastener Kit (Not Shown) SEM7830-515
12 Fastener Kit (Not Shown) SEM7840-515
13 Fastener Kit (Not Shown) SEM7850-515
SEM7830
SEM7840
SEM7850
Electrical Box
Supplied by
Other
Electrical Box
Supplied by
Other
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 83
Return to Contents

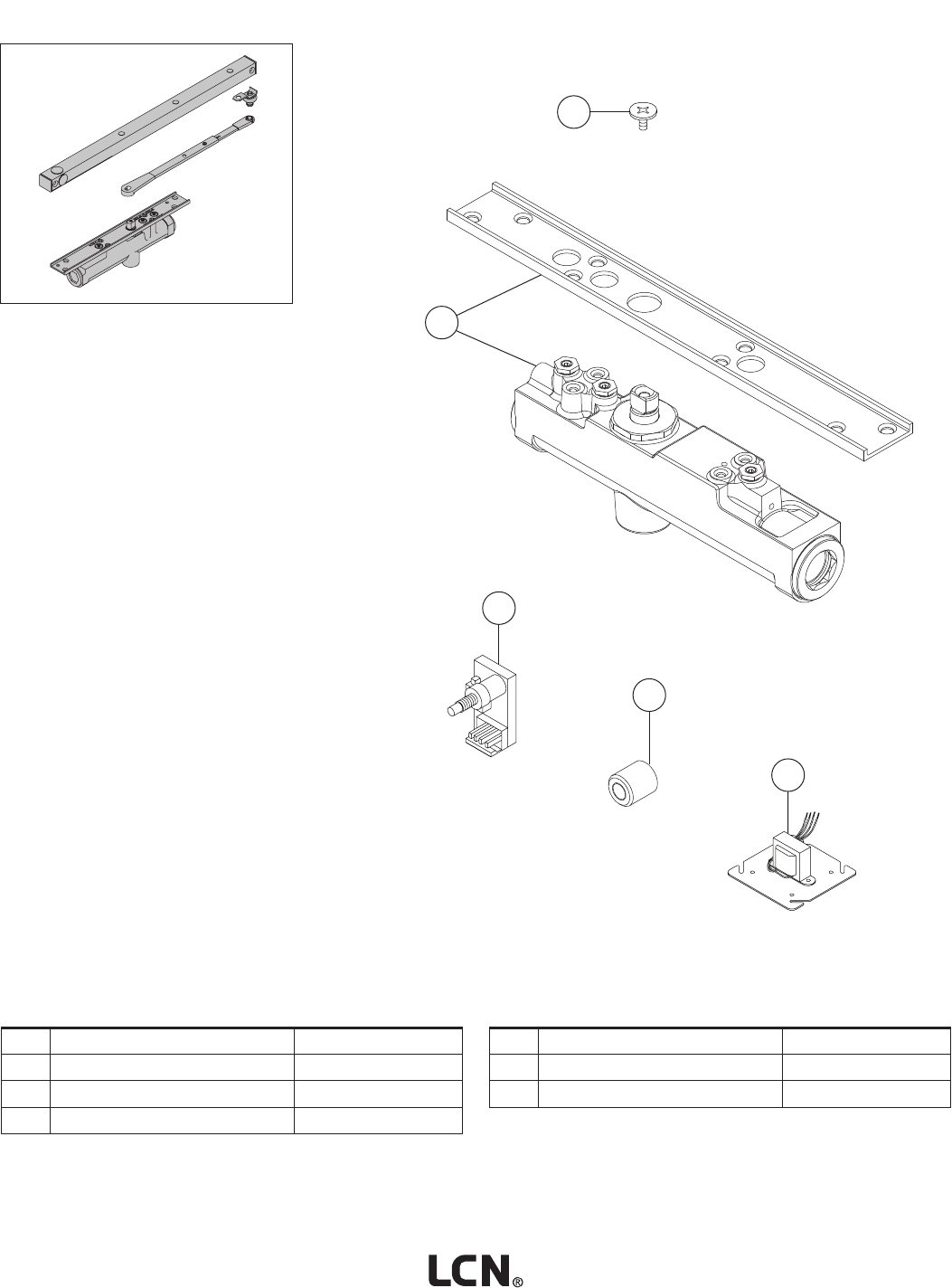

1
2
3
4
5
No. Description Part number
1Arm Screw (F) 3130SE-159
2Standard Cylinder (F)(S)(H) 3133SE-3071
3On/Off Switch Assembly 3130SE-3436
No. Description Part number
4Connector w/ Ring 3130SE-81
5Transformer (V) 3130SE-3210
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
3130SE Series
Cylinder & Cover Parts
84 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
1
3
2
4
56
7
8
No. Description Part number
1Long Track (F)(V) 3130SEL-3038SEL
2Standard Track (F)(V) 3130SE-3038
3Endcaps 3130SE-73
4Cover Plate Screw (F) 3130SE60
5Cover Plate (F) 3130SE-59A
6Roller Assembly 3130SE-3034SE
7Long Arm (F)(H) 3130SE-3077L
No. Description Part number
8Standard Arm (F)(H) 3130SE-3077T
9Roller Lock Screw (Not Shown) 3130SE-425
10 Arm & Tube (Not Shown) (F) 3130SE-78
11 Rod (Not Shown) (F) 3130SE-82
12 H Arm Screw (Not Shown) (F) 3130SE-83H
13 WMS Screw Pack (Not Shown) 3130SE-WMS
14 TORX Screw Pack (Not Shown) 3130SE-TORX
Please specify nish (F), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
3130SE Series
Arm Assemblies & Parts
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 85
Return to Contents

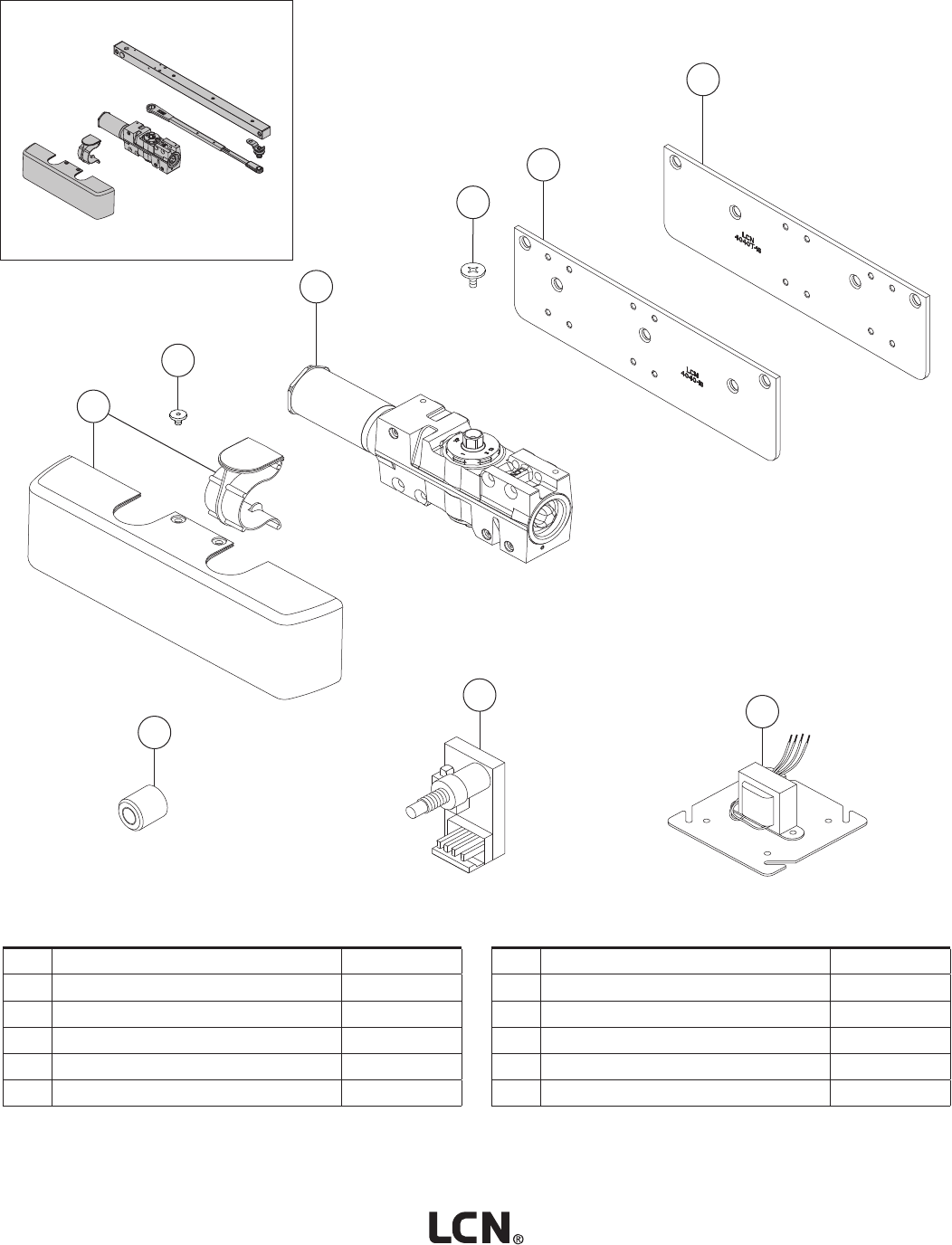

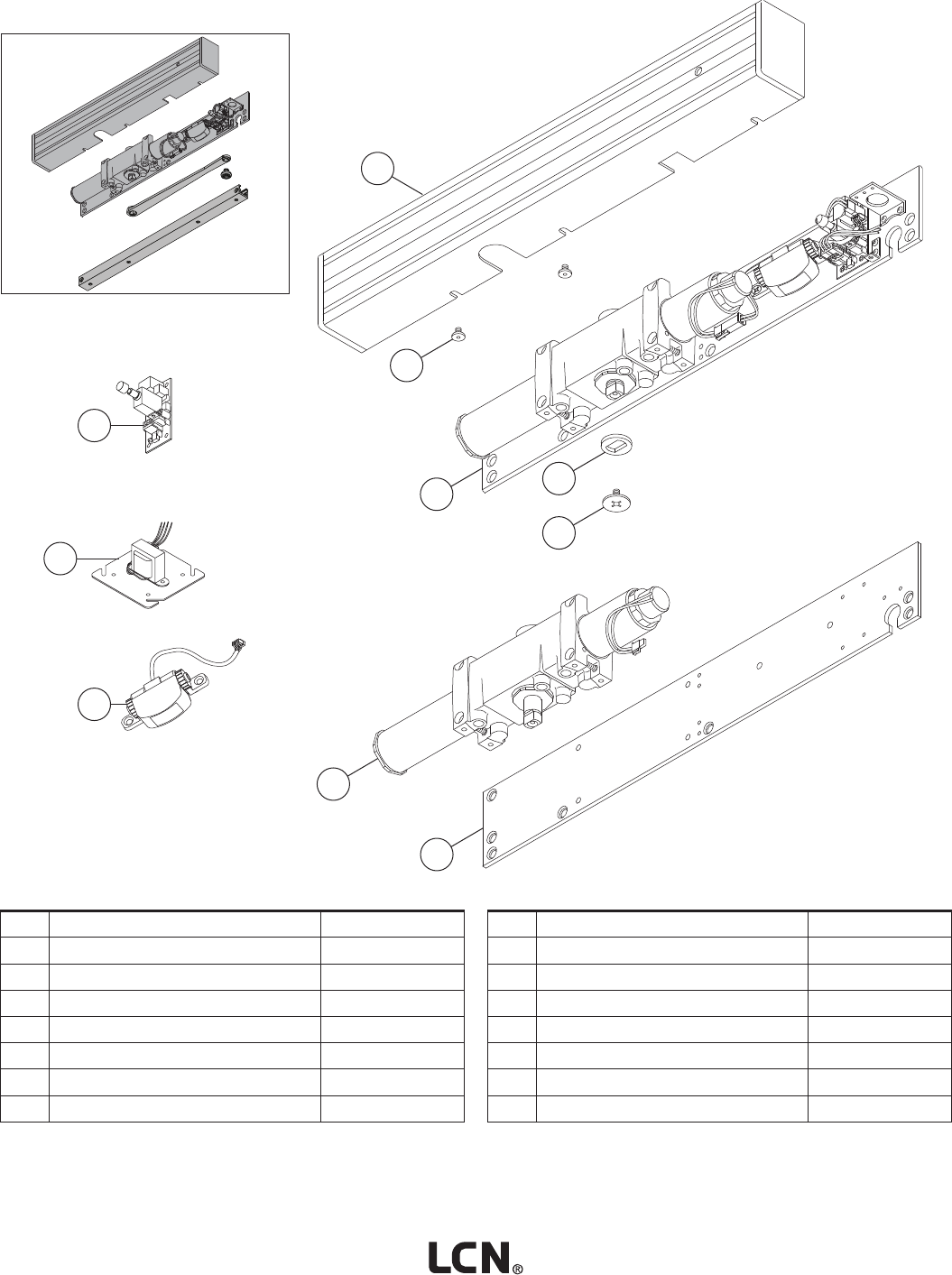

1
3
5
6
2
4
7
8
9
No. Description Part number
1Standard Cover (F) 4040SE-72
2Cover Screw (F) 4040SE-31
3Standard Cylinder Assembly (F) 4040SE-3071
4Arm Screw (F) 4040SE-159
5Plate 4040SE-18
No. Description Part number
6Plate 4040SE-18PA
7Connector w/ Ring 4040SE-81
8On/Off Switch Assembly 4040SE-3436
9SE Transformer 4040SE-3210
10 Metal Cover (Not Shown) (F) (H) 4040SE-72MC
Please specify nish (F) & hand (H)where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
4040SE Series
Cylinder & Cover Parts
86 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents

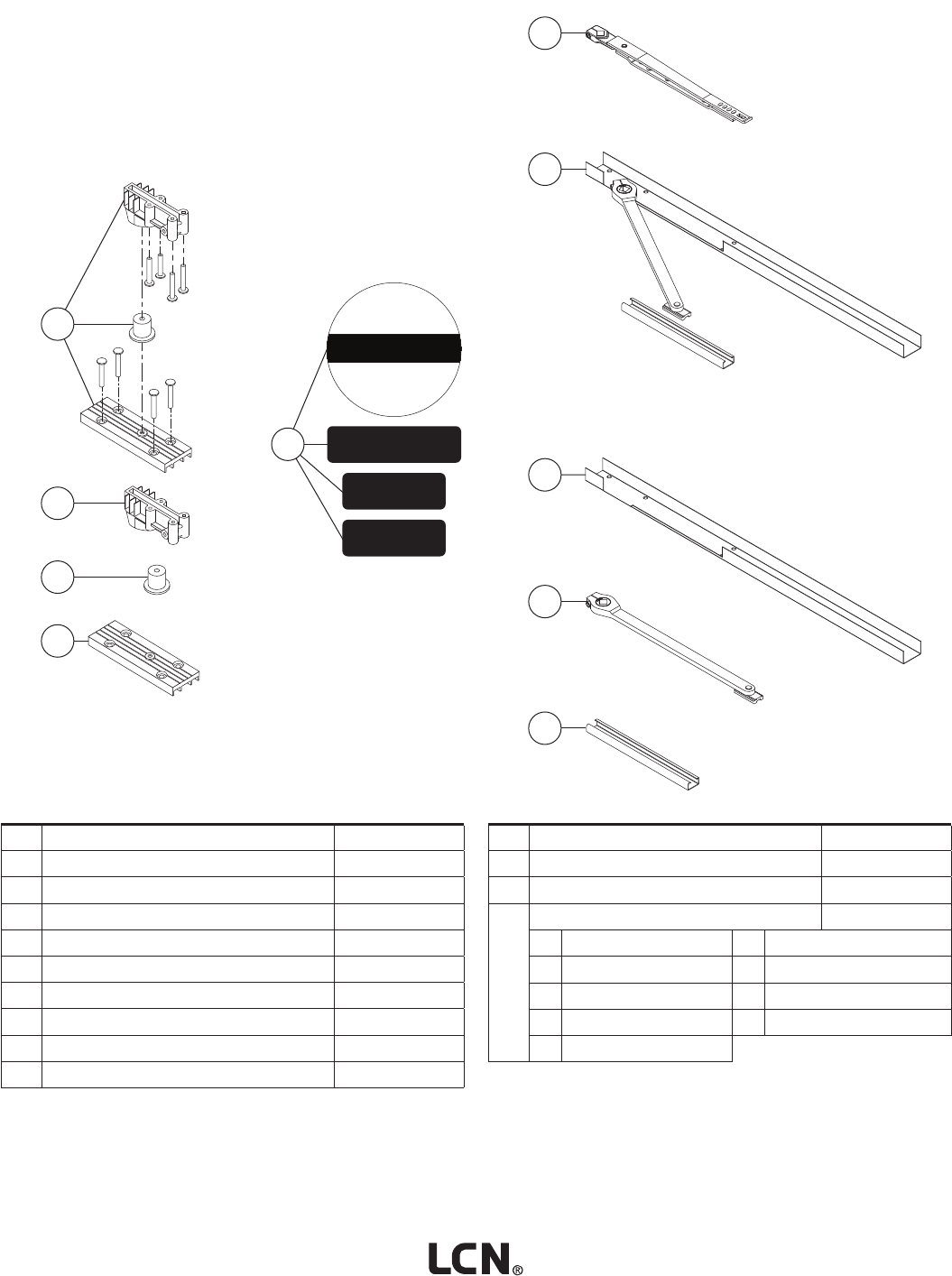

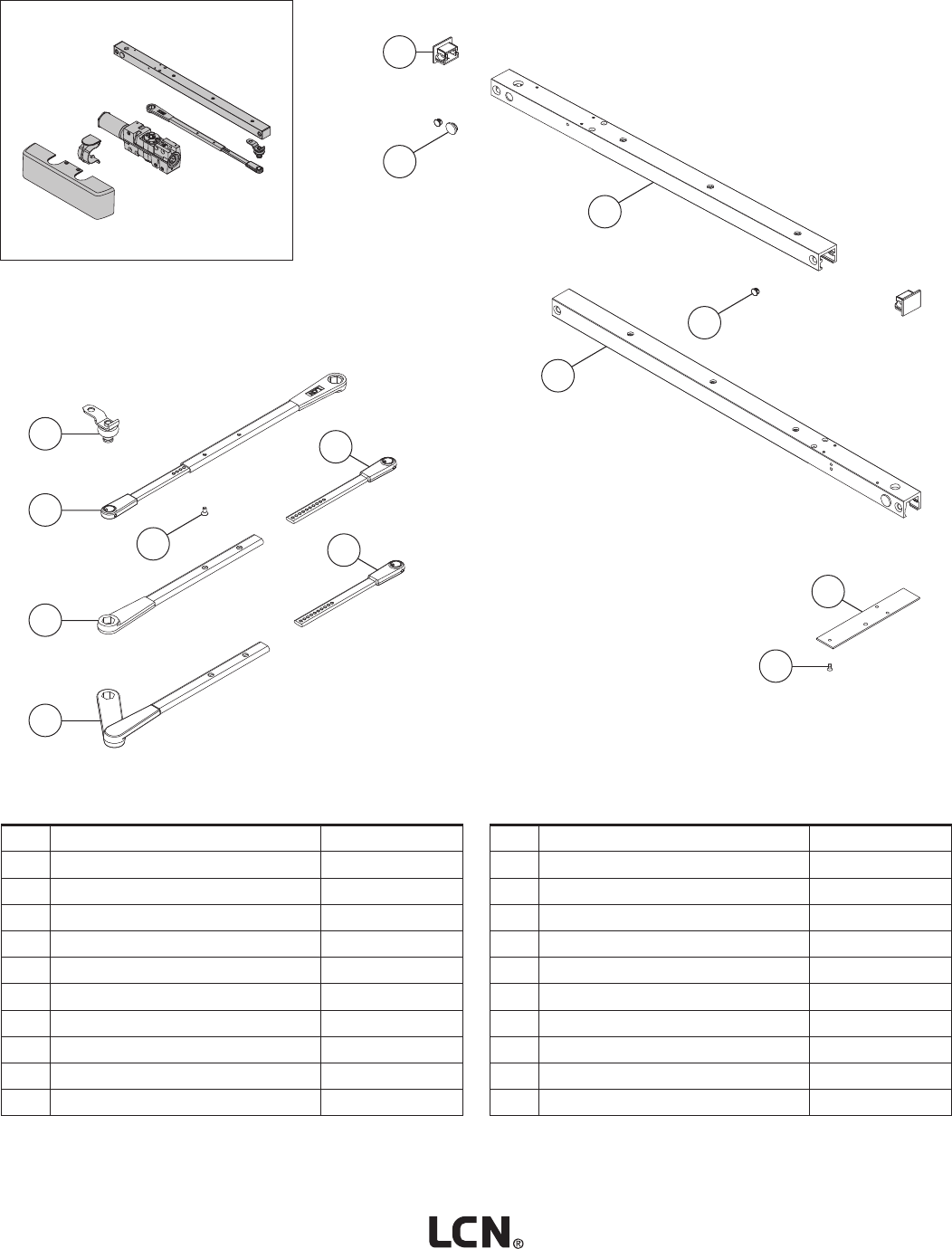

1
2
5
6
3
4
8
9
11
10
12
13
14
4
No. Description Part number
1Roller Assembly 4040SE-30304SE
2Standard Arm (F) 4040SE-3077T
3Arm Screw (F) 4040SE-83H
4Rod (F) 4040SE-82
5Arm & Tube (F) 4040SE-78
6DE Main Arm & Tube (F)(H) 4040SE-78DE
7Double Egress Arm (F)(H) 4040SE-3077DE
8Endcaps 4040SE-73
9Plug 4040SE-141
10 Standard Track (F) (V) 4040SE-3038
No. Description Part number
11 Plug 4040SE-141-1
12 Long Track (F)(V) 4040SE-3038SEL
13 Cover Plate 4040SE-59A
14 Cover Plate Screw 4040SE-60
15 Plug (Not Shown) 4040SE-141-2
16 Roller Lock Screw (Not Shown) 4040SE-425
17 WMS Screw Pack (Not Shown) 4040SE-WMS
18 TBWMS Screw Pack (Not Shown) 4040SE-TBWMS
19 TORX Screw Pack (Not Shown) 4040SE-TORX
20 TBTRX Screw Pack (Not Shown) 4040SE-TBTRX
Please specify nish (F), hand (H) & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4040SE Series
Arm Assemblies & Parts
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 87
Return to Contents

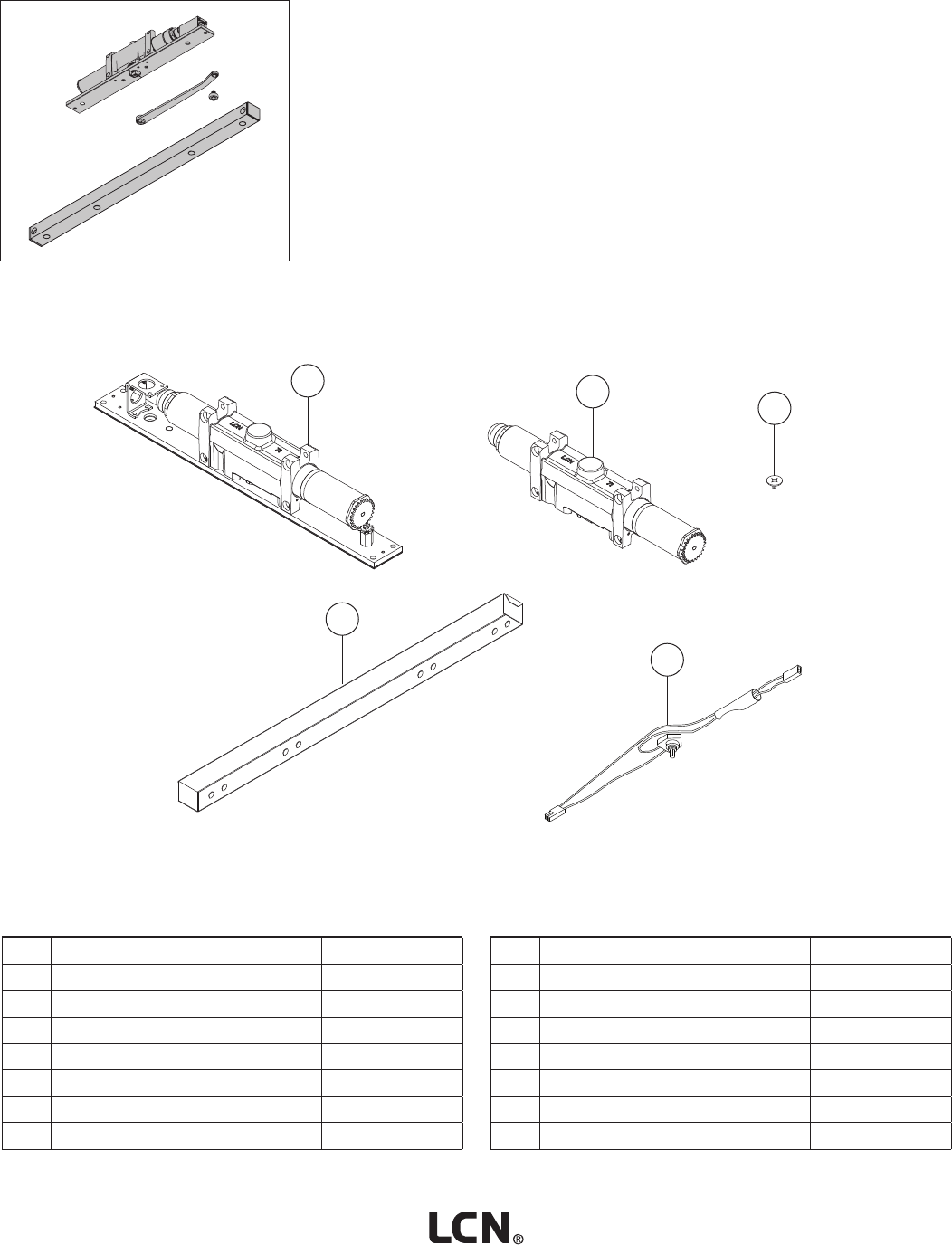

No. Description Part number
1Standard Cylinder Assembly (F)(S)(H)(V) 2314ME-3071
2B80 Cylinder Assembly (F)(S)(H)(V) 2314ME-3071B80
3B140 Cylinder Assembly (F)(S)(H)(V) 2314ME-3071B140
4Cylinder Only (S)(H)(V) 2314ME-3971
5B80 Cylinder Only (S)(H)(V) 2314ME-3971B80
6B140 Cylinder Only (S)(H)(V) 2314ME-3971B140
7Arm Screw (F) 2310ME-159
No. Description Part number
8Wiring Cover (Not Shown)(F) 2310ME-172
9Cover Screw (Not Shown)(F) 2310ME-31
10 Fire Shield (F) 2310ME-420
11 Input Jumper (Not Shown) 2310ME-3431
12 ME Switch Assembly (V) 2310ME-3351
13 WMS Screw Pack (Not Shown)(F) 2310ME-WMS
14 TORX Screw Pack (Not Shown) (F) 2310ME-TORX
Please specify nish (F), size (S), hand (H) & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.

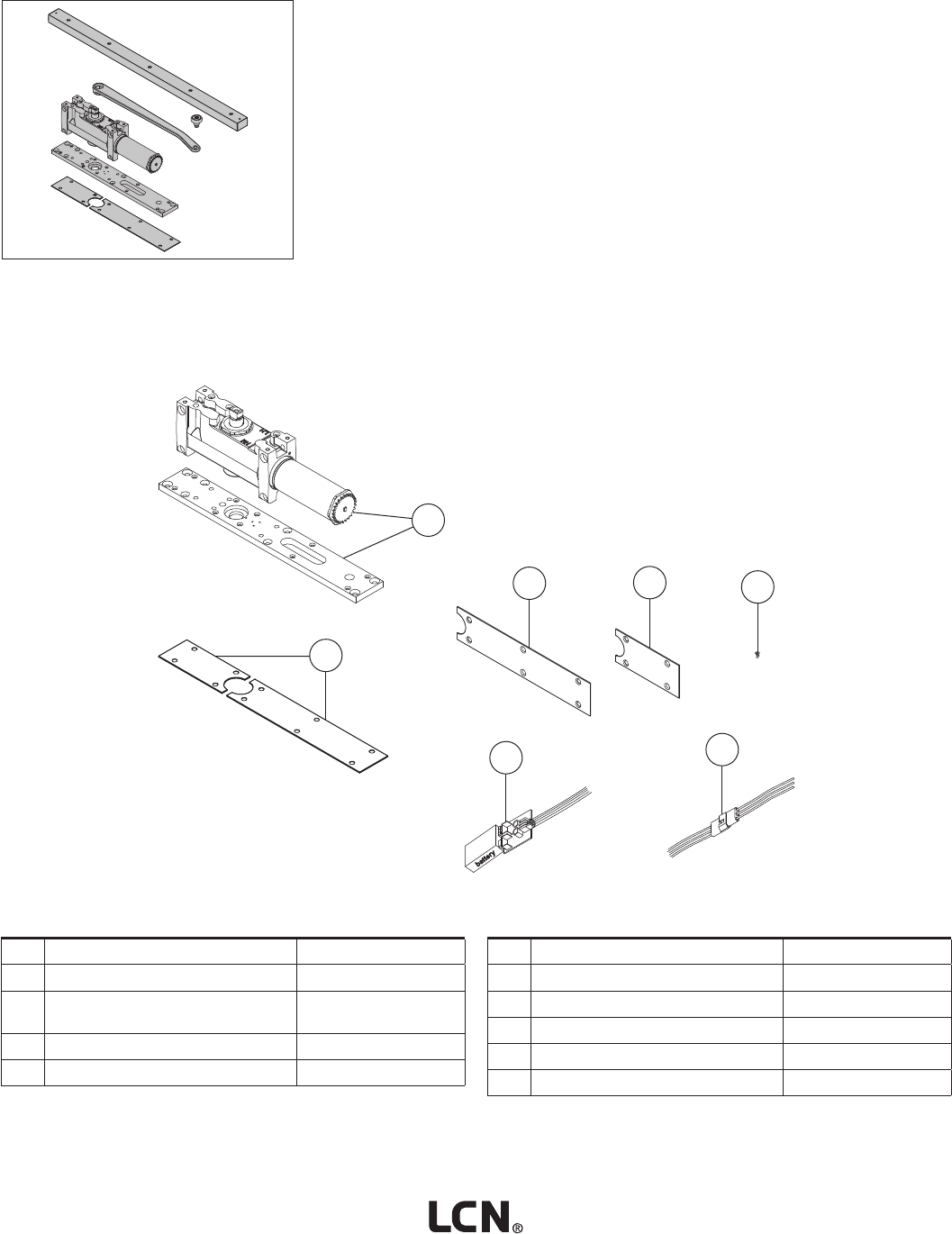

2310ME Series
Cylinder & Cover Parts
14
7
10
12
88 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents

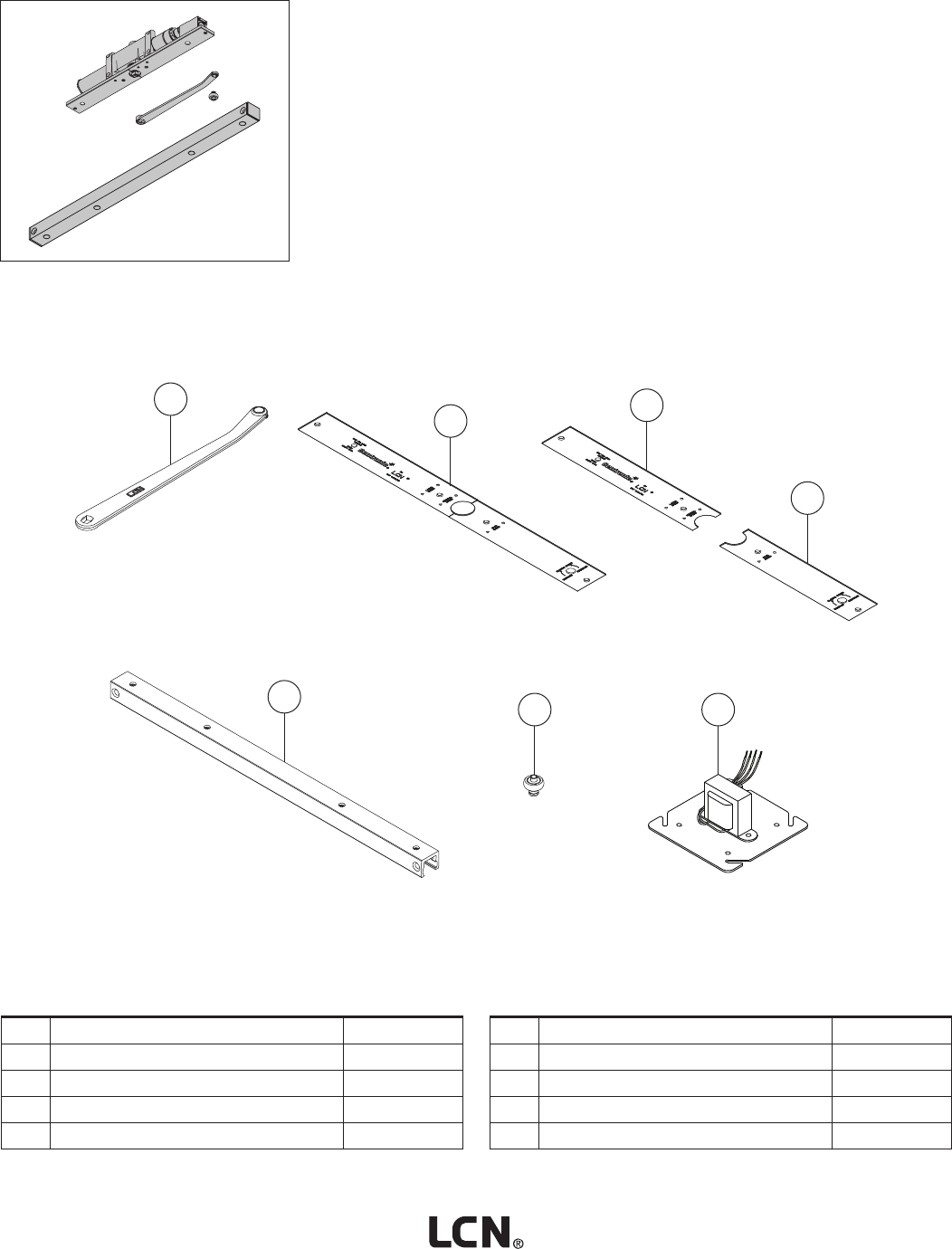

No. Description Part number
1Standard Arm (F)(H) 2310ME-3077T
2Finish Plate (11 &12) (F) 2310ME-72
3Finish Plate (F) 2310ME-11
4Short Finish Plate (F) 2310ME-12
No. Description Part number
5Roller Lock Screw (Not Shown) 2310ME-425
6Standard Track (F) 2310ME-3038
7Track Roller 2310ME-3034
8Transformer 2310ME-3210
Please specify nish (F) & hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
2310ME Series
Arm Assemblies & Parts
1
2
3
4
8
6
7
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 89
Return to Contents

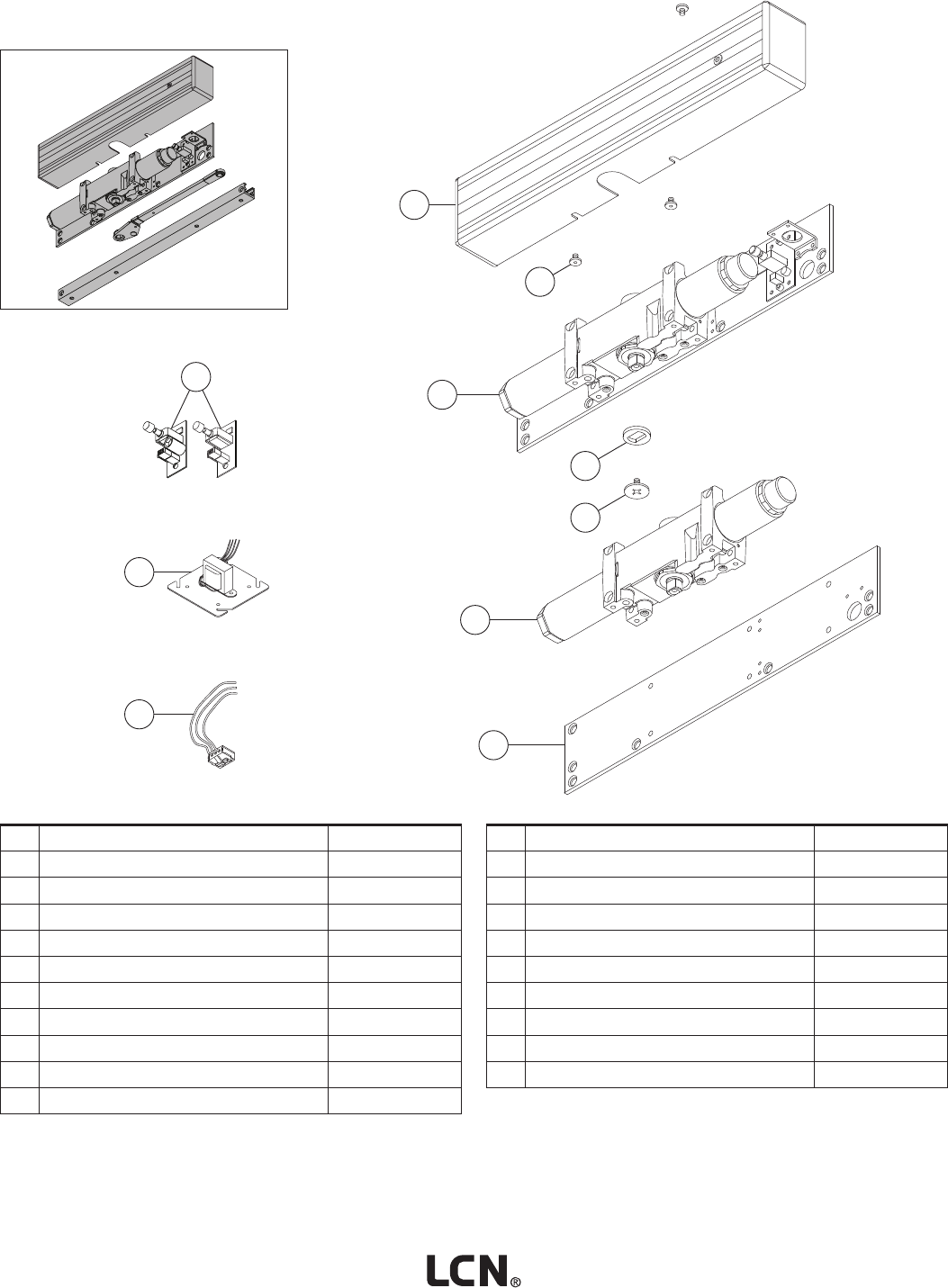

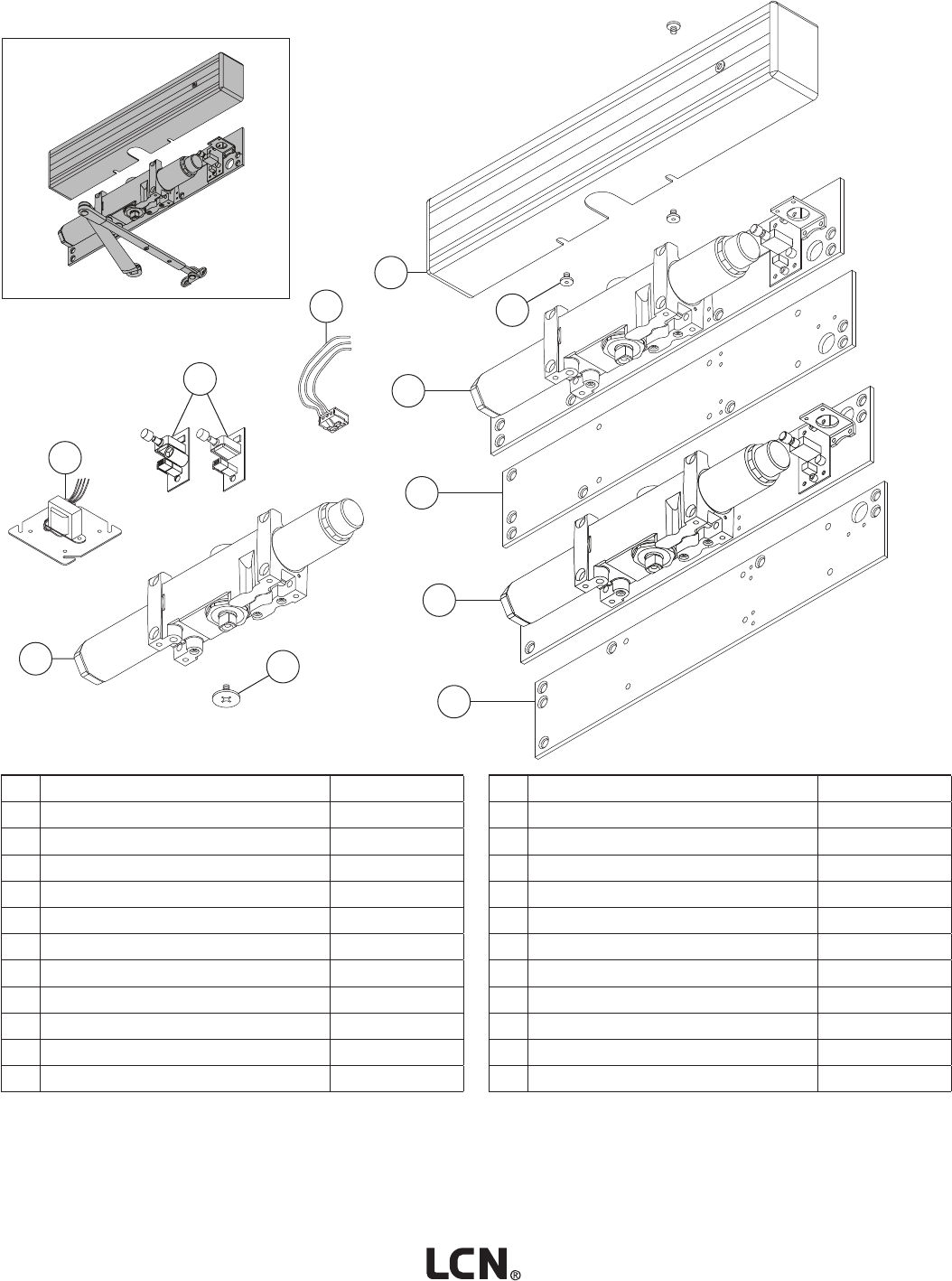

5
2
3
4
6
9
10
1
120V24V
7
8

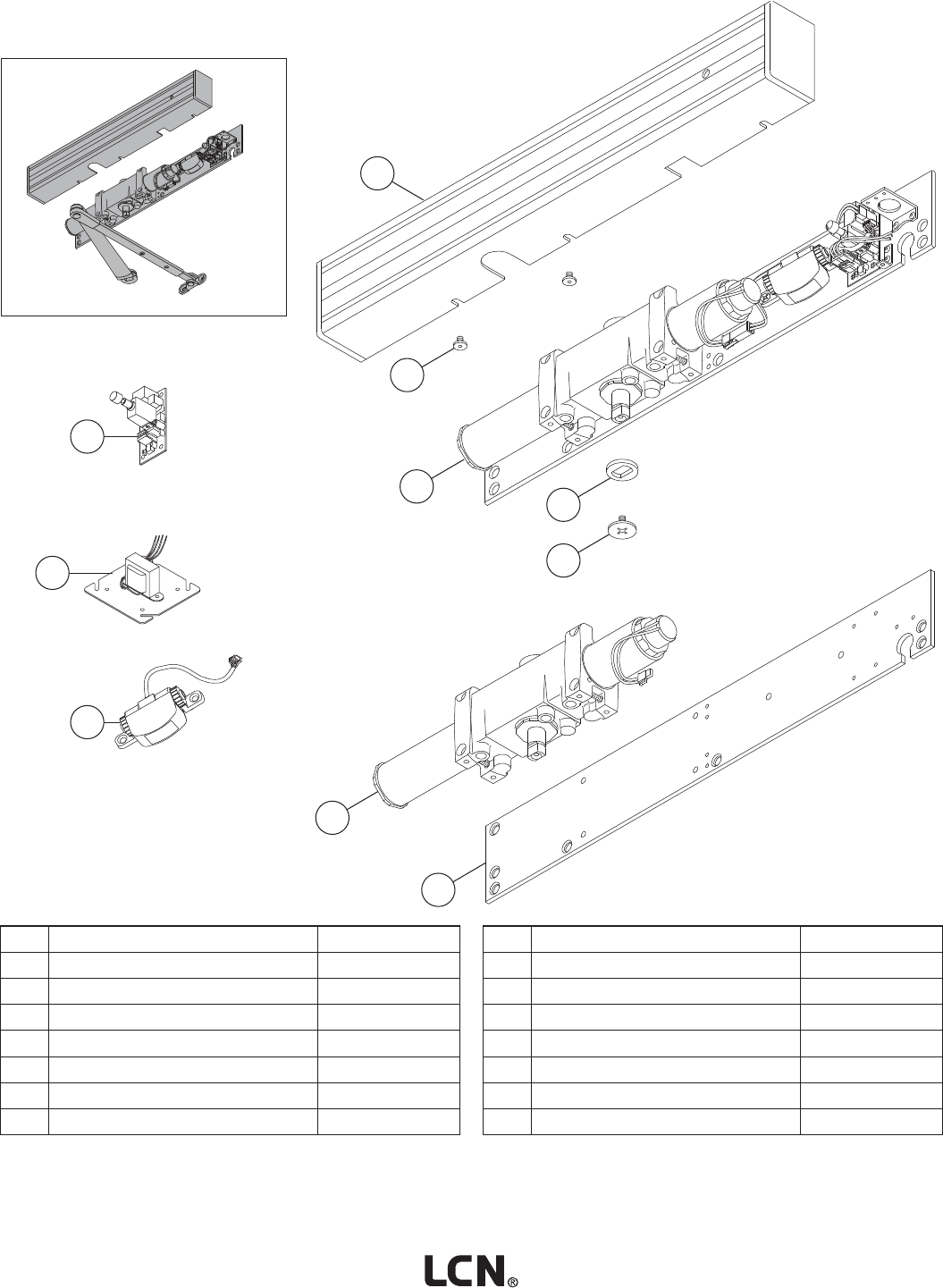

4310ME Series "Sentronic"
Cylinder & Cover Parts
* Wire length is 6" (152mm).
Includes No. 5(3).
Includes Nos. 1, 2, 3, & 10. Includes WMS Screw Pack (No. 12)
standard - please specify other.
§ Includes Solenoid (no other electronics) & WMS Screw Pack (No.
12) standard - please specify other.
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
No. Description Part number
1ME Switch Assembly (V) 4310ME-3351
2Transformer 4310ME-3210
3ME Wire Harness *4310ME-3354
4Metal Cover (F)(H)4310ME-72MC
5Cover Screw (F) 4310ME-31
6Standard Cylinder Assembly (F)(S)(H)(V)4314ME-3071
6B80 Cylinder Assembly (F)(S)(H)(V)4314ME-3071B80
6B140 Cylinder Assembly (F)(S)(H)(V)4314ME-3071B140
7Spacer 4310ME-61
8Arm Screw (F) 4310ME-159
No. Description Part number
9Cylinder Only (F)(S)(H)(V)4314ME-3971
9B80 Cylinder Only (F)(S)(H)(V)4314ME-3971B80
9B140 Cylinder Only (F)(S)(H)(V)4314ME-3971B140
10 Mounting Plate (F)(H) 4310ME-18
11 Input Harness (Not Shown) 4310ME-3431
12 WMS Screw Pack (Not Shown) 4310ME-WMS
13 TBWMS Screw Pack (Not Shown) 4310ME-TBWMS
14 TORX Screw Pack (Not Shown) 4310ME-TORX
15 TBTRX Screw Pack (Not Shown) 4310ME-TBTRX
90 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
1
2
3
4
5
6
7
8
9
4310ME Series "Sentronic"
Arms & Track
No. Description Part number
1Double Egress Arm (F)(H)*4310ME-3077DE
2Arm Screw (F) 4310ME-159
3Arm Screw (F) 4310ME-83
4Roller Lock Screw 4310ME-425
5Swing Free Arm (F)(H)4310ME-3077SF
No. Description Part number
6Track Roller 4310ME-3034
7Standard Track (F)4310ME-3038
8Endcap 4310ME-73
9Track Plugs (F) 4310ME-141-2
Please specify nish (F) & hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
* Includes Nos. 2 & 4.
Includes Nos. 2, 3, & 4.
Includes Nos. 8(2) & 9(4). Length is 22 3/4 " (578 mm).
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 91
Return to Contents
8
7
9
10 11
6
5
4
3
1
2
120V24V
4410ME Series "Sentronic"
Cylinder & Cover Parts
* Wire length is 6" (152mm).
Includes No. 5(3).
Includes Nos. 1, 2, 3, & 7. Includes WMS Screw Pack (No. 13) standard - please specify other.
§ Includes Nos. 1, 2, 3, & 9. Includes WMS Screw Pack (No. 13) standard - please specify other.
|| Includes Solenoid (no other electronics) & WMS Screw Pack (No. 12) standard - please specify other.
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
No. Description Part number
1Transformer 4310ME-3210
2ME Switch Assembly (V) 4310ME-3351
3ME Wire Harness *4310ME-3354
4Metal Cover (F)(H) 4310ME-72MC
5Cover Screw (F) 4310ME-31
6 Standard Cylinder Assembly (F)(S)(H)(V) 4314ME-3071
6B80 Cylinder Assembly (F)(S)(H)(V)4314ME-3071B80
6B140 Cylinder Assembly (F)(S)(H)(V)4414ME-3071B140
7Mounting Plate (F)(H) 4310ME-18
8Standard Cylinder Assy w/18G (F)(S)(H)(V)4414ME-3071/18G
8B80 Cylinder Assy w/18G (F)(S)(H)(V)4414ME-3071B80G
No. Description Part number
8B140 Cylinder Assy w/18G (F)(S)(H)(V)4414ME-3071B140G
918G Mounting Plate (F)(H) 4310ME-18G
10 Cylinder Only (F)(S)(H)(V)|| 4314ME-3971
10 B80 Cylinder Only (F)(S)(H)(V)|| 4414ME-3971B80
10 B140 Cylinder Only (F)(S)(H)(V)|| 4414ME-3971B140
11 Arm Screw (F) 4410ME-159
12 Input Harness (Not Shown) 4410ME-3431
13 WMS Screw Pack (Not Shown) 4410ME-WMS
14 TBWMS Screw Pack (Not Shown) 4410ME-TBWMS
15 TORX Screw Pack (Not Shown) 4410ME-TORX
16 TBTRX Screw Pack (Not Shown) 4410ME-TBTRX
92 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
1 5
2 6
4 8
3
7
4410ME Series "Sentronic"
Arms & Additional Components
* Includes Nos. 2 & 4.
Includes No. 7.
Includes No. 3.
§ Includes Nos. 6 & 8.
|| Includes No. 7.
# Includes No. 3.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
No. Description Part number
1Regular Arm (F) *4410ME-3077
2Regular Arm & Forearm (F) 4410ME-77
3Arm Screw (F) 4410ME-83H
4Rod & Shoe (F) 4410ME-79
No. Description Part number
5Long Arm (F) 4410ME-3077L
6Long Arm & Forearm (F) || 4410ME-77L
7Arm Screw (F) #4410ME-159
8ME Long Rod & Shoe (F) #4410ME-79L
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 93
Return to Contents
7
8
2
1
3
4
5
6
9
10
No. Description Part number
1Switch Assembly 4310HSA-3448
2Transformer 4310HSA-3210
3Scanner Module 4310HSA-3428
4Metal Cover (F)(H)*4310HSA-72MC
5Cover Screw (F) 4310HSA-31
6Standard Cylinder Assembly (F)(S)(H)4311HSA-3071
7Spacer 4310HSA-61
No. Description Part number
8Arm Screw (F) 4310HSA-159
9Cylinder Only (F)(S)(H)4311HSA-3971
10 Mounting Plate (F)(H) 4310HSA-18
11 WMS Screw Pack (Not Shown) 4310HSA-WMS
12 TBWMS Screw Pack (Not Shown) 4310HSA-TBWMS
13 TORX Screw Pack (Not Shown) 4310HSA-TORX
14 TBTRX Screw Pack (Not Shown) 4310HSA-TBTRX
4310HSA Series "Sentronic"
Cylinder & Cover Parts
* Includes No. 5(4).
Includes Nos. 1, 2, & 3. Includes WMS Screw Pack (No. 11) standard - please specify other.
Includes Solenoid (no other electronics) & WMS Screw Pack (No. 11) standard - please specify other..
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
94 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
1
2
3
4
5
6
7
8
No. Description Part number
1Double Egress Arm (F)(H)*4310HSA-3077DE
2Arm Screw (F) 4310HSA-159
3Roller Lock Screw 4310HSA-425
4Standard Arm (F)(H)*4310HSA-3077T
5Track Roller 4310HSA-3034
No. Description Part number
6Standard Track (F)4310HSA-3038
7Endcap 4310HSA-73
8Plug (F) 4310HSA-141-2
9HSA Solenoid Harness (Not Shown) 4310HSA-3430
10 Input Harness (Not Shown) 4310HSA-3431
4310HSA Series "Sentronic"
Arms & Additional Components
* Includes Nos. 2 & 3.
Includes Nos. 5, 7(2), & 8(4).
Please specify nish (F) & hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 95
Return to Contents
2
1
3
4
5
6
7
8
9
10
4410HSA Series "Sentronic"
Cylinder & Cover Parts
* Includes No. 5(4).
Includes Nos. 1, 2, & 3. Includes WMS Screw Pack (No. 11) standard - please specify other.
Includes Solenoid (no other electronics) & WMS Screw Pack (No. 11) standard - please specify other..
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
No. Description Part number
1Switch Assembly 4410HSA-3448
2Transformer 4410HSA-3210
3Scanner Module 4410HSA-3428
4Metal Cover (F)(H)*4410HSA-72MC
5Cover Screw (F) 4410HSA-31
6Standard Cylinder Assembly (F)(S)(H)(V)4411HSA-3071
7Spacer 4410HSA-61
No. Description Part number
8Arm Screw (F) 4410HSA-159
9Cylinder Only (F)(S)(H)4411HSA-3971
10 Mounting Plate (F)(H) 4410HSA-18
11 WMS Screw Pack (Not Shown) 4410HSA-WMS
12 TBWMS Screw Pack (Not Shown) 4410HSA-TBWMS
13 TORX Screw Pack (Not Shown) 4410HSA-TORX
14 TBTRX Screw Pack (Not Shown) 4410HSA-TBTRX
96 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
1 5
2 6
4 8
3
7
4410HSA Series "Sentronic"
Arms & Additional Components
Please specify nish (F) & hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
No. Description Part number
1Regular Arm (F) *4410ME-3077
2Regular Arm & Forearm (F) 4410ME-77
3Arm Screw (F) 4410ME-83H
4Rod & Shoe (F) 4410ME-79
No. Description Part number
5Long Arm (F) 4410ME-3077L
6Long Arm & Forearm (F) || 4410ME-77L
7Arm Screw (F) #4410ME-159
8ME Long Rod & Shoe (F) #4410ME-79L
* Includes Nos. 2 & 4.
Includes No. 7.
Includes No. 3.
§ Includes Nos. 6 & 8.
|| Includes No. 7.
# Includes No. 3.
Fire-Life Safety Series Closers & Holders
LCN • LCN Parts Manual • 97
Return to Contents

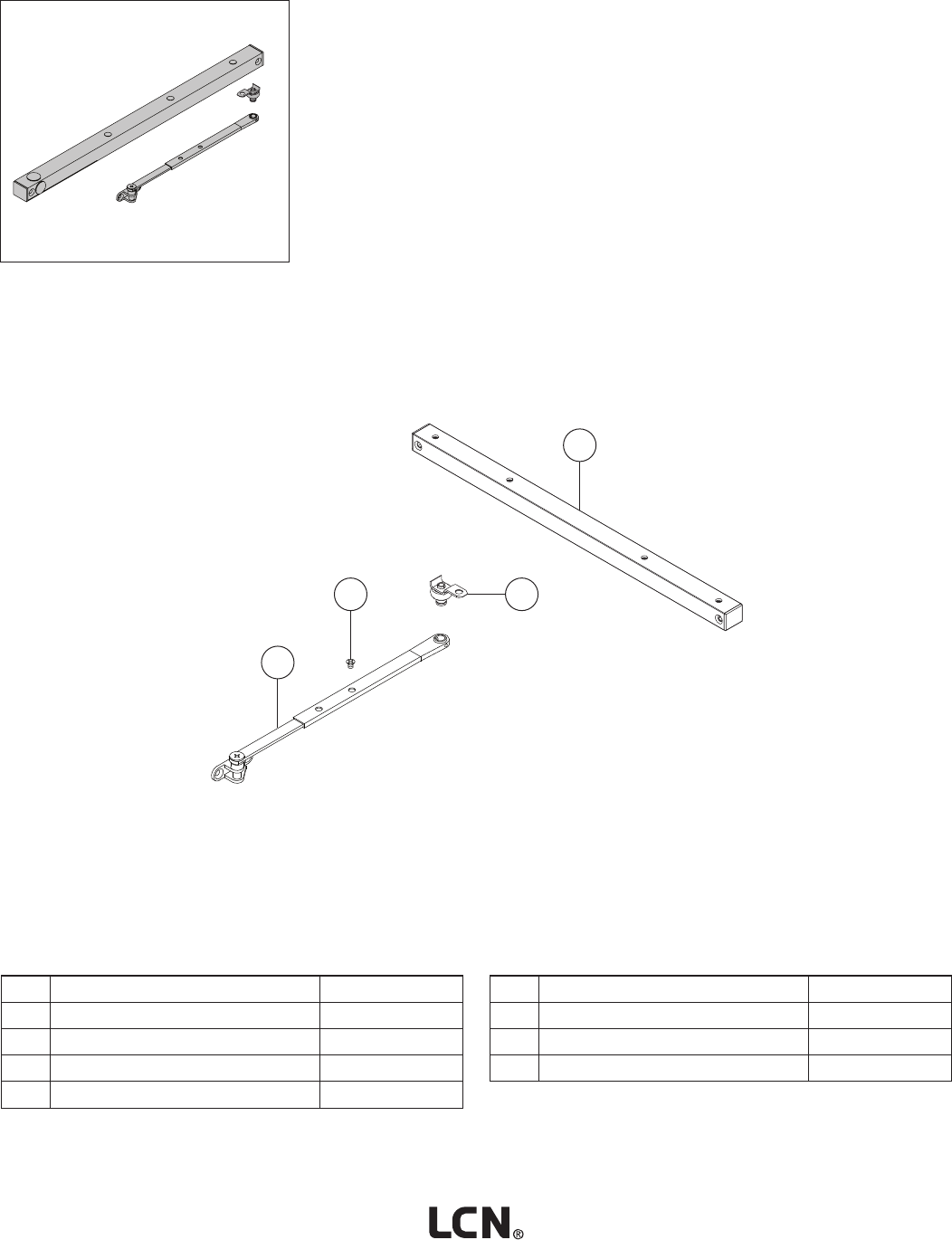

No. Description Part number
1SEH Arm (F) 4040SEH-3077SEH
2Standard SEH Track (F)(V) 4040SEH-3038
3Cover Plate (Not Shown)(F) 4040SEH-59A
4Arm & Tube (Not Shown)(F) 4040SEH-78SEH
No. Description Part number
5Rod (F) 4040SEH-82SEH
6Arm Screw (F) 4040SEH-83SEH
7Roller Assembly 4040SEH-3034
Please specify nish (F) & voltage (V) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
SEH Series
Arm & Track
2
1
67
98 • LCN • LCN Parts Manual
Fire-Life Safety Series Closers & Holders
Return to Contents
High Security Closers
98 2210 Series
100 2210DPS Series
102 4210 Series
104 4210T Series
106 4510 Series
108 4510T Series
LCN • LCN Parts Manual • 99
Return to Contents

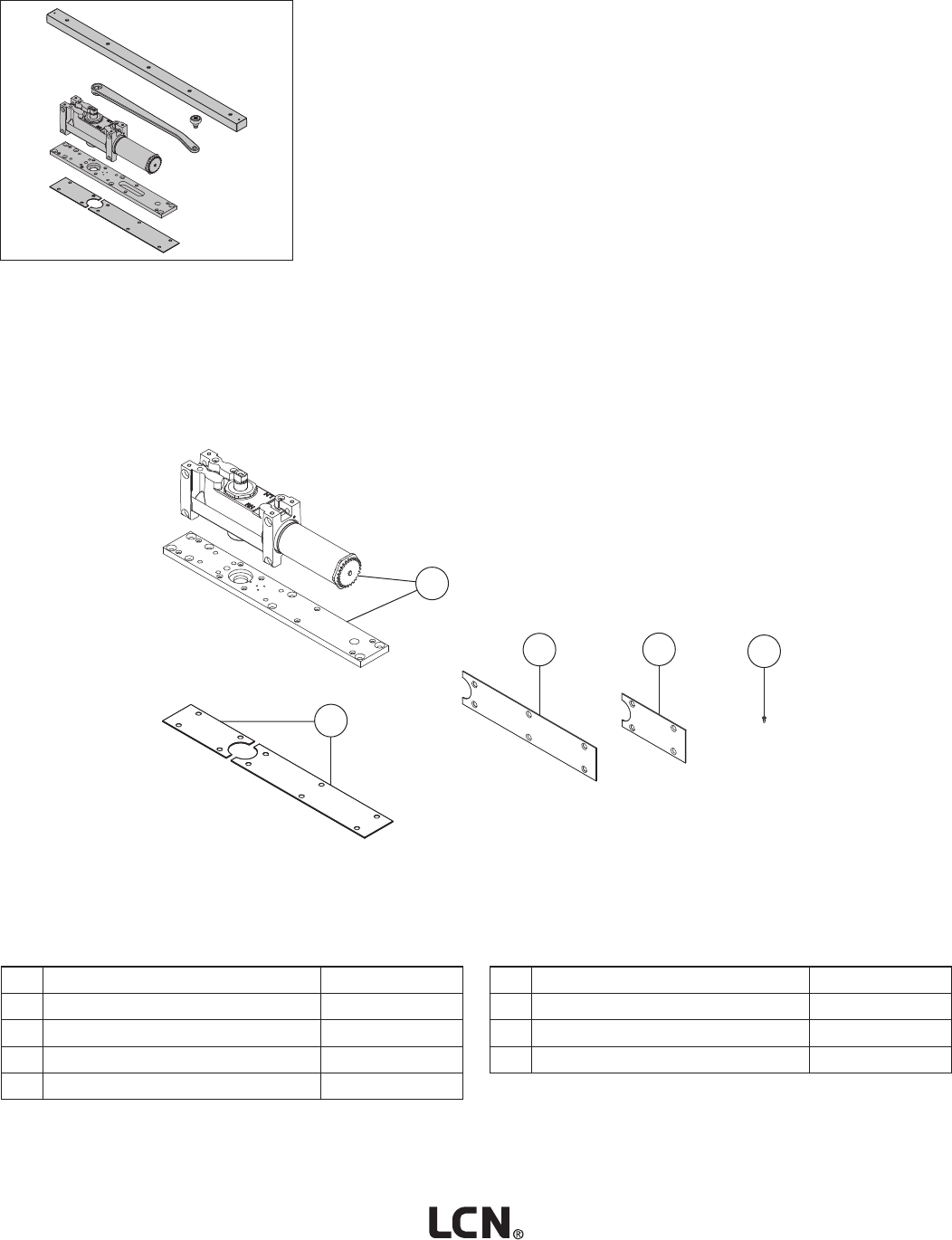

2210 Series
Cylinder & Cover Parts
4
3
56
1
No. Description Part number
1Standard Cylinder Assembly (F) 2213(4-5)-3071
2AVB Cylinder Assembly (Not Shown) (F) 2213(4-5)-3071AVB
3Finish Plate (11 & 12) (F) 2210-72
4Finish Plate (F) 2210-11
No. Description Part number
5Short Finish Plate (F) 2210-12
6Cover Screw (F) 2210-31
7Screw Pack (Not Shown) (F) 2210-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
100 • LCN • LCN Parts Manual
High Security Closers
Return to Contents

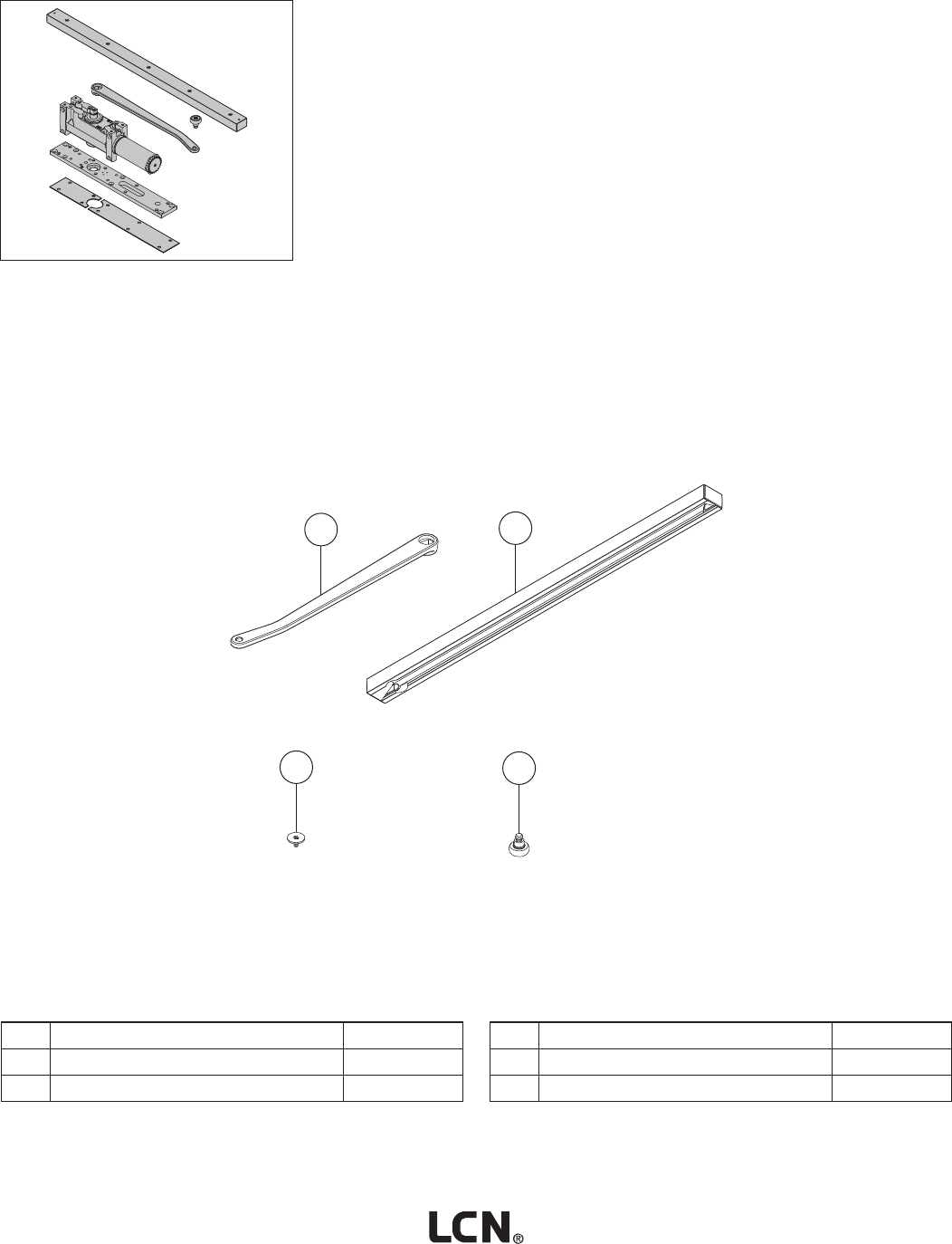

2210 Series
Arm Assemblies & Parts
12
34
No. Description Part number
1Standard Arm (F) (H) 2210-3077T
2Standard Track 2210-3038
No. Description Part number
3Arm Screw (F) 2210-159
4Track Roller 2210-3034
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
High Security Closers
LCN • LCN Parts Manual • 101
Return to Contents
2210DPS Series
Cylinder & Cover Parts
4
3
56
8
7
1
No. Description Part number
1Standard Cylinder Assembly (F)(H) 2213(4-5)DPS-3071
2AVB Cylinder Assembly (Not Shown)
(F) (H)
2213(4-5)DPS-3071AVB
3Finish Plate (11 & 12) (F) 2210DPS-72
4Finish Plate (F) 2210DPS-11
No. Description Part number
5Short Finish Plate (F) 2210DPS-12
6Cover Screw (F) 2210DPS-31
7DPS Test Kit 2210DPS-493
8Wire Harness 2210DPS-3340
9Screw Pack (Not Shown) (F) 2210DPS-TORX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
102 • LCN • LCN Parts Manual
High Security Closers
Return to Contents
2210DPS Series
Arm Assemblies & Parts
12
34
No. Description Part number
1Standard Arm (F) (H) 2210DPS-3077T
2Standard Track 2210DPS-3038
No. Description Part number
3Arm Screw (F) 2210DPS-159
4Track Roller 2210DPS-3034
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
High Security Closers
LCN • LCN Parts Manual • 103
Return to Contents
1
4
6
5
No. Description Part number
1Cylinder Assembly (F) (H) 4211(6)-3071
2Cylinder Assembly w/ AVB (Not Shown)
(F) (H)
4211(6)-3071AVB
3Cylinder Assembly w/ Delay (Not
Shown) (F) (H)
4211-3071DEL
No. Description Part number
4Arm Screw (F) 4210-159
5Metal Cover (F) (H) 4210-72MC
6Cover Screw (F) 4210-31
7Screw Pack (Not Shown) (F) 4210-TORX
8Screw Pack (Not Shown) (F) 4210-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above.
4210 Series
Cylinder & Cover Parts
104 • LCN • LCN Parts Manual
High Security Closers
Return to Contents
1
45
2
6789
3
No. Description Part number
1EDA Arm (F) 4210-3077EDA
2CUSH Arm (F) (H) 4210-3077CNS
3Hold Open CUSH Arm (F) 4210-3049CNS
4Arm Screw (F) 4210-159
5Fih Hole Spacer 4210-201
No. Description Part number
6Mounting Plate (F) 4210-18
6Mounting Plate 4210-18CUSH
7CUSH Shoe Support (F) 4210-30
8Blade Stop Spacer (F) 4210-61
9Flush Panel Adaptor (F) 4210-419
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above.
4210 Series
Arm Assemblies & Parts
High Security Closers
LCN • LCN Parts Manual • 105
Return to Contents

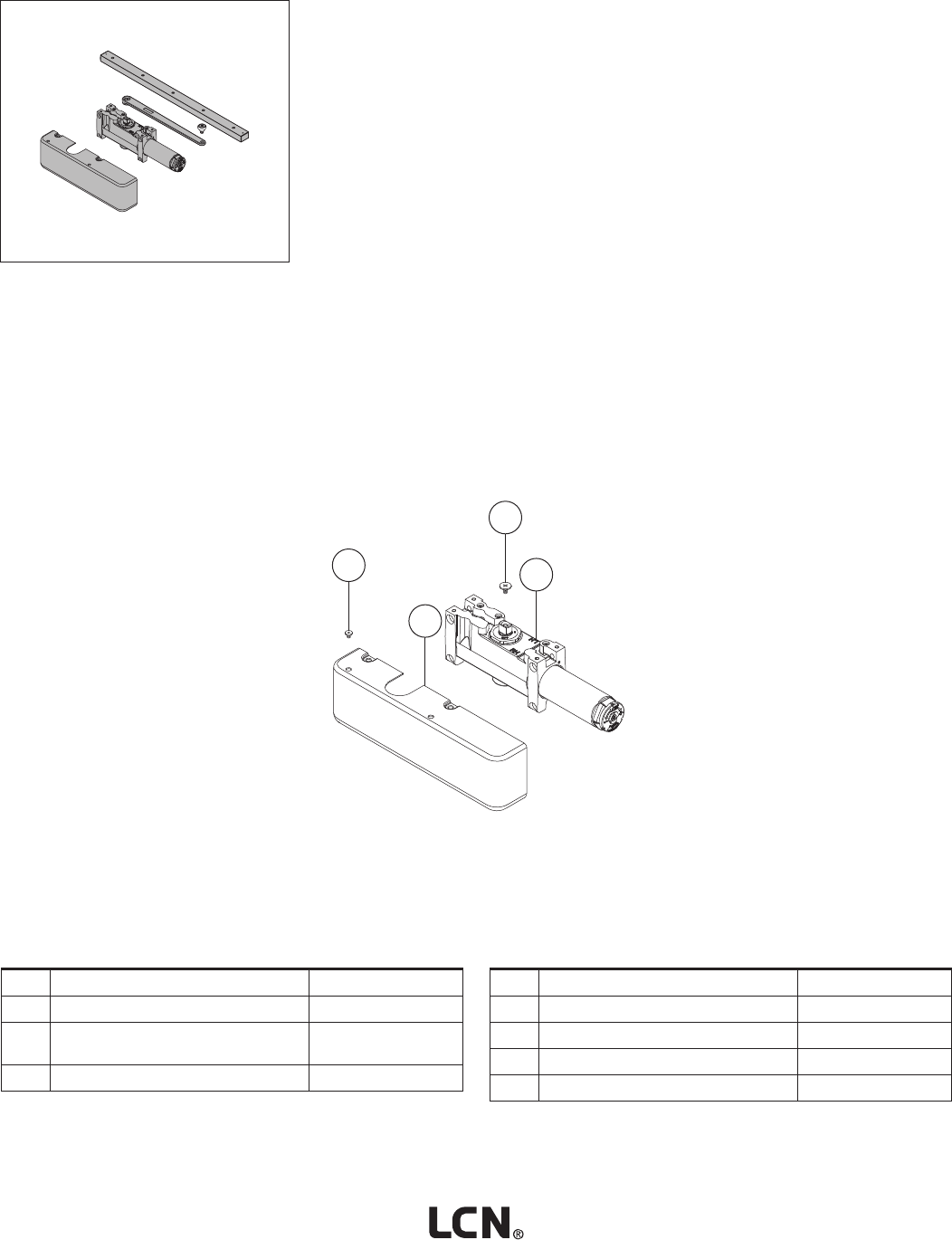

1
3
5
4
No. Description Part number
1Standard Cylinder Assembly (F) (H) 4211(3-4)T-3071
2Cylinder Assembly w/ AVB (Not
Shown) (F) (H)
4211(3-4)T-3071AVB
3Arm Screw (F) 4210T-159
No. Description Part number
4Metal Cover (F) (H) 4210T-72MC
5Cover Screw (F) 4210T-31
6Screw Pack (Not Shown) (F) 4210T-TORX
7Screw Pack (Not Shown) (F) 4210T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4210T Series
Cylinder & Cover Parts
106 • LCN • LCN Parts Manual
High Security Closers
Return to Contents
4
3
12
No. Description Part number
1Standard Arm (F) (H) 4210T-3077T
2Standard Track (F) 4210T-3038
No. Description Part number
3Mounting Plate (F) 4210T-18
4Track Roller 4210T-3034
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book
4210T Series
Arm Assemblies & Parts
High Security Closers
LCN • LCN Parts Manual • 107
Return to Contents
1
5
6
1
4
2
No. Description Part number
1Cylinder Assembly (F) (H) 4511(6)-3071
2Cylinder Assembly w/ AVB (Not Shown)
(F) (H)
4511(6)-3071AVB
3Cylinder Assembly w/ Delay (Not
Shown) (F) (H)
4511-3071DEL
No. Description Part number
4Arm Screw (F) 4510-159
5Metal Cover (F) (H) 4510-72MC
6Cover Screw (F) 4510-31
7Screw Pack (Not Shown) (F) 4510-TORX
8Screw Pack (Not Shown) (F) 4510-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4510 Series
Cylinder & Cover Parts
108 • LCN • LCN Parts Manual
High Security Closers
Return to Contents

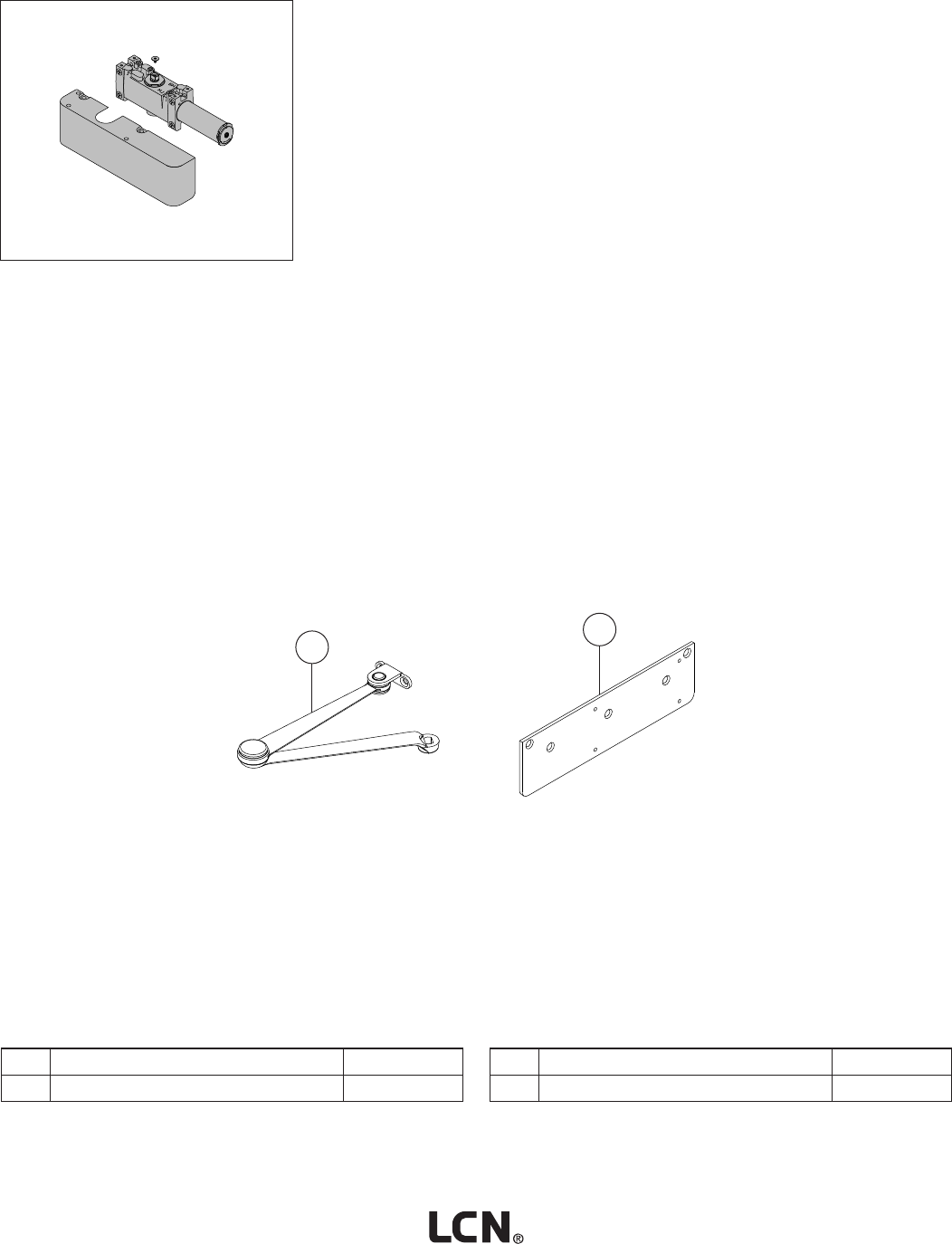

1
5
6
1
4
2
No. Description Part number
1EDA Arm (F) 4510-3077EDA
No. Description Part number
2Mounting Plate (F) 4510-18
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4510 Series
Arm Assemblies & Parts
High Security Closers
LCN • LCN Parts Manual • 109
Return to Contents
3
3
2
1
4
1
5
4
No. Description Part number
1Cylinder Assembly (F) (H) 4511T(3-4)-3071
2Cylinder Assembly w/ AVB (Not
Shown) (F) (H)
4511T(3-4)-3071AVB
3Metal Cover (F) (H) 4510T-72MC
No. Description Part number
4Cover Screw (F) 4510T-31
5Arm Screw 4510T-159
6Screw Pack (Not Shown) (F) 4510T-TORX
7Screw Pack (Not Shown) (F) 4510T-TBTRX
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4510T Series
Cylinder & Cover Parts
110 • LCN • LCN Parts Manual
High Security Closers
Return to Contents
3
3
2
1
4
1
5
4
No. Description Part number
1Standard Arm (F) (H) 4510T-3077T
2Standard Track (F) 4510T-3038
No. Description Part number
3Plate (F) 4510T-18
4Track Roller 4510T-3034
Please specify nish (F), size (S), hand (H), & voltage (V) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
4510T Series
Cylinder & Cover Parts
High Security Closers
LCN • LCN Parts Manual • 111
Return to Contents
112 • LCN • LCN Parts Manual
High Security Closers
Return to Contents
112 2610 Series "Auto-Equalizer"
114 4810 Series "Auto-Equalizer"
116 4820 Series "Auto-Equalizer"
118 4840 Series "Auto-Equalizer"
120 4630 Series "Auto-Equalizer"
122 4640 Series "Auto-Equalizer"
124 9130 Series "Benchmark"
126 9140 Series "Benchmark"
128 9150 Series "Benchmark"
130 2810 Series "Senior Swing"
132 2850 Series "Senior Swing"
134 2860 Series "Senior Swing"
136 9530 Series "Senior Swing"
138 9540 Series "Senior Swing"
140 9550 Series "Senior Swing"
142 9560 Series "Senior Swing"
Automatic Operators
LCN • LCN Parts Manual • 113
Return to Contents

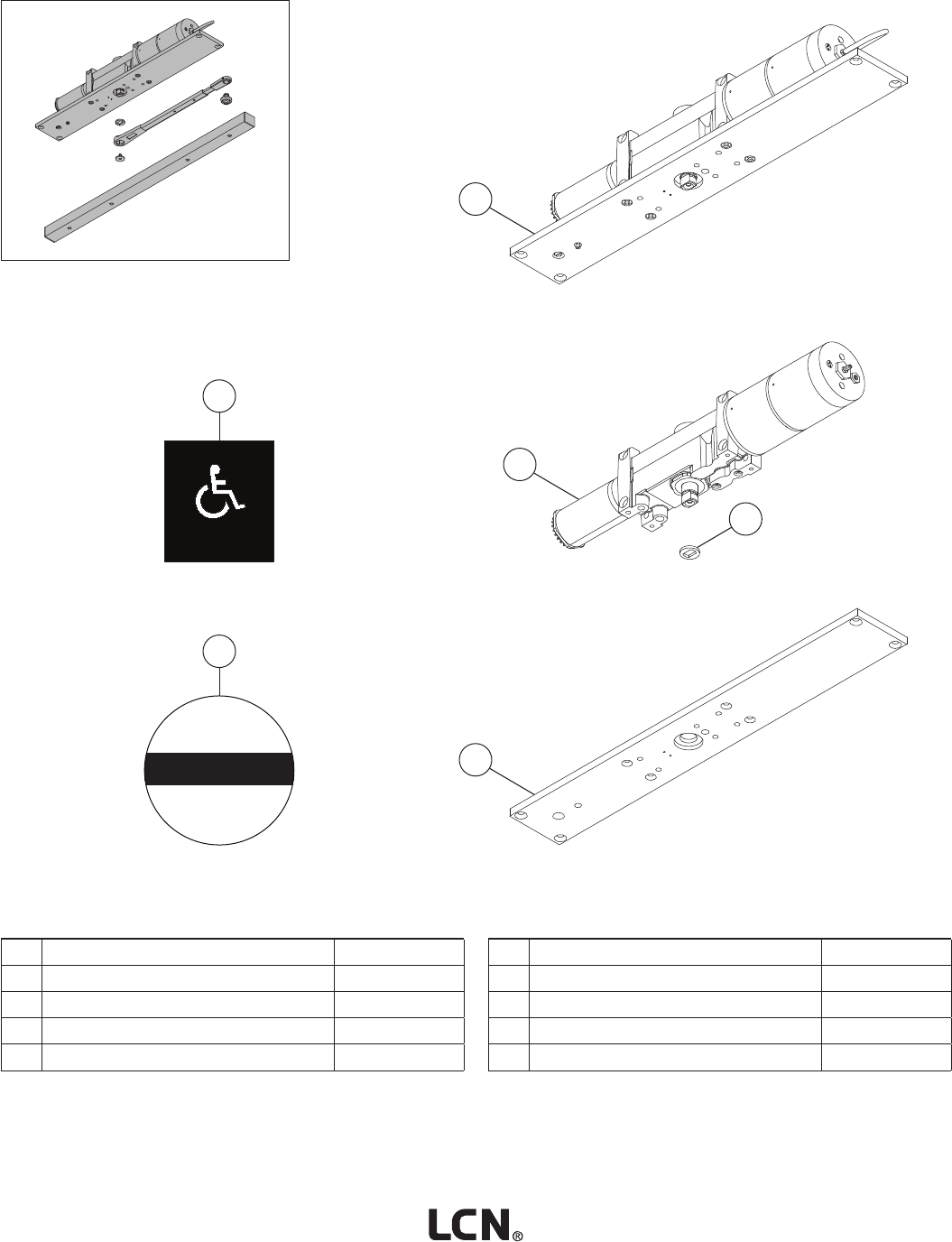

AUTOMATIC
DOOR
CAUTION
2
ACTIVATE SWITCH
OPERATE
AUTOMATIC DOOR
TO
1
3
6
4
5
No. Description Part number
1Activation Decal *2610-155-2
2Caution Decal 2610-155-1
3Standard Cylinder Assembly (F)(S)(H)2613(4)-3071
3DPS Standard Cylinder Assembly (F)(S)(H)2613(4)-3071DPS
No. Description Part number
4Cylinder Only (F)(H) 2613(4)-3971
4DPS Cylinder Only (F)(H) 2613(4)-3971DPS
5Spacer 2610-61
6Mounting/Finish Plate (F)(H) 2610-3002
* Blue/White Switch decal.
Black/Yellow Cation decal.
Includes No. 6.
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2610 Series "Auto-Equalizer"
Cylinders & Mounting Plate
114 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
1
2
4
6
8
3
5
7
No. Description Part number
1Standard Arm (F)(H)*2610-3077T
2Arm Screw (F) 2610-159
3H Arm Screw 2610-83H
4Arm & Tube (F)2610-78
5Roller Lock Screw 2610-425
No. Description Part number
6Rod (F)2610-82
7Track Roller 2610-3034
8Standard Track 2610-3038
9WMS Screw Pack (F)(Not Shown) 2610-WMS
* Includes Nos. 2, 3, 4, 5, & 6.
Includes No. 2.
Includes No. 3 & 5.
Please specify nish (F) and hand(H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
2610 Series "Auto-Equalizer"
Arm & Track
Automatic Operators
LCN • LCN Parts Manual • 115
Return to Contents

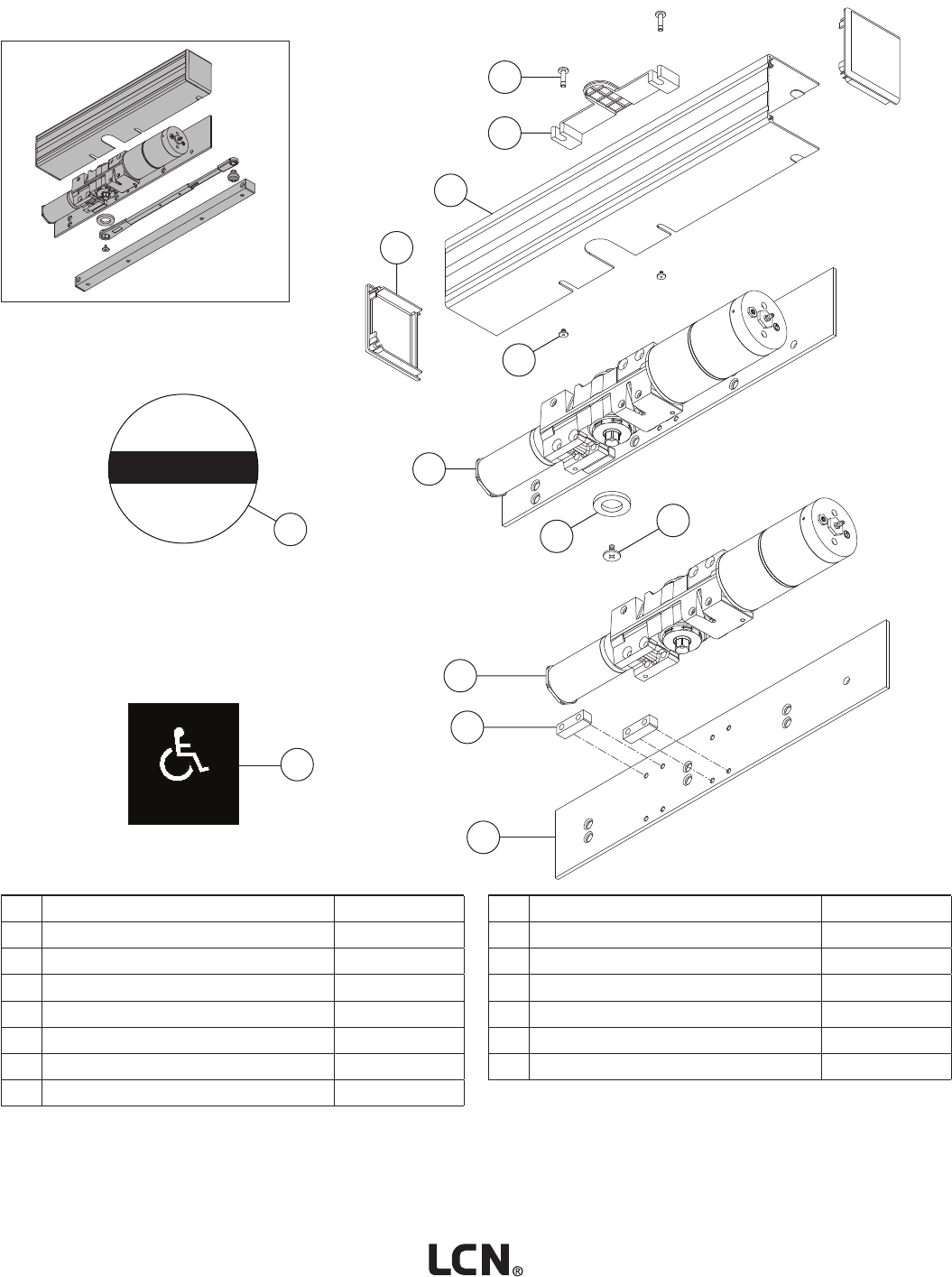

ACTIVATE SWITCH
OPERATE
AUTOMATIC DOOR
TO
AUTOMATIC
DOOR
CAUTION
3
4
5
6
7
8
9
10
11
13
12
2
1
No. Description Part number
1Caution Decal *4810-155-1
2Activation Decal 4810-155-2
3Long Cover Screw (F) 4810-31L
4Cover Insert 4810-163
5Metal Cover (F)§4810-72MC
6Cover Endcap 4810-334
7Cover Screw (F) 4810-31
No. Description Part number
8Standard Cylinder Assembly (F)|| 4811-3071
9Sha Spacer 4810-61
10 Arm Screw (F) 4810-159
11 Cylinder Only (F)#4811-3971
12 Stand Off 4810-182
13 Mounting Plate (F) 4810-18
* Black/Yellow Caution decal.
Blue/White Switch decal.
Includes No. 3(2).
§ Includes Nos. 3(2), 4, 6(2), & 7(2).
|| Includes Nos. 11, 12(2), & 13. Cylinder is adjustable, size 1-4.
# Cylinder is adjustable, size 1-4.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4810 Series "Auto-Equalizer"
Cylinder & Cover Parts
116 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
1
3
4
6
7
8
9
10
11
5
2
No. Description Part number
1Rod (F)*4810-82
2Sha Spacer 4810-61
3Arm and Tube (F)4810-78
4H Arm Screw (F) 4810-83H
5Arm Screw (F) 4810-159
6Roller Lock Screw 4810-425
7Standard Arm (F)4810-3077T
No. Description Part number
8Track Roller 4810-3034
9Standard Track (F)§4810-3038
10 Track Plug (F) 4810-141-2
11 Track Endcaps 4810-73
12 WMS Screw Pack (Not Shown) (F) 4810-WMS
13 TBWMS Screw Pack (Not Shown) (F) 4810-TBWMS
* Includes Nos. 4 & 6.
Includes No. 5.
Includes Nos. 1, 2, 3, 4, & 6.
§ Includes Nos. 10(4) & 11(2).
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4810 Series "Auto-Equalizer"
Arm & Track
Automatic Operators
LCN • LCN Parts Manual • 117
Return to Contents

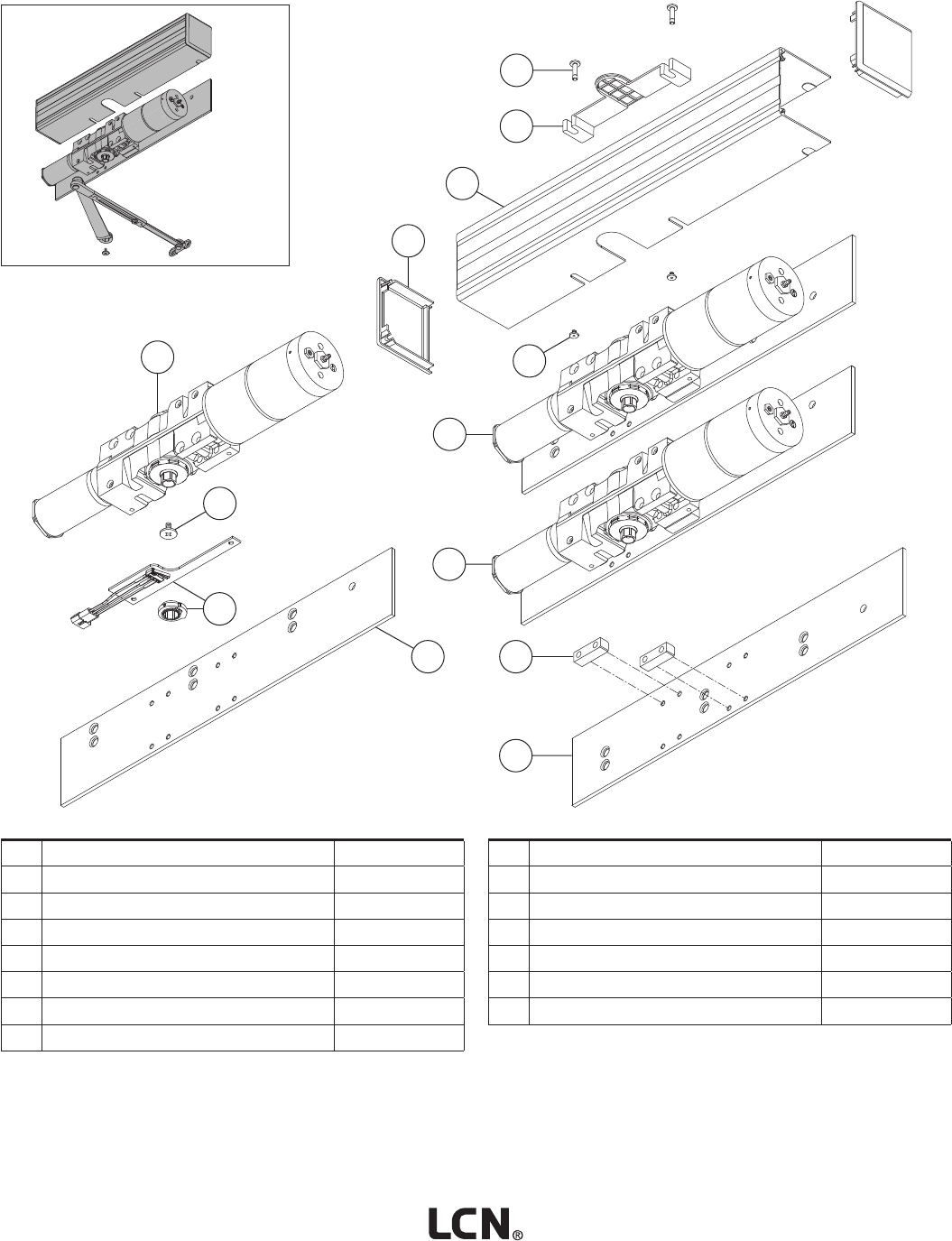

4
5
6
7
8
11
10
2
1
9
13
12
3
No. Description Part number
1Cylinder Only (F)*4822-3971
2Arm Screw (F) 4820-159
3DPS Conversion Kit 4820-3377
4Long Cover Screw (F) 4820-31L
5Cover Insert 4820-163
6Metal Cover (F)4820-72MC
7Cover Endcap 4820-334
No. Description Part number
8Cover Screw 4820-31
9Standard Cylinder Assembly (F)§4822-3071
10 Standard Cylinder Assembly w/18G (F)|| 4822-3071/18G
11 Mounting Plate 18G (F) 4820-18G
12 Stand Off 4820-182
13 Mounting Plate (F) 4820-18
* Cylinder is adjustable, size 2-5.
Includes No. 4(2).
Includes Nos. 4(2), 5, 7(2), & 8(2).
§ Includes Nos. 1, 12(2), & 13. Cylinder is adjustable, size 2-5.
|| Includes Nos. 1, 11 & 12(2). Cylinder is adjustable, size 2-5.
Please specify nish (F) and size (S) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
4820 Series "Auto-Equalizer"
Cylinder & Cover Parts
118 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
7
3
4
6
5
1
2
9
13
11
8
12
10
No. Description Part number
1Caution Decal *4820-155-1
2Regular Arm (F)4820-3077
2Long Arm (F)4820-3077L
3Rod and Shoe (F)§4820-79
4Arm Screw (F) 4820-83
5Activation Decal || 4820-155-2
No. Description Part number
6Arm and Forearm (F)#4820-77
7Long Rod and Shoe (F)** 4820-79LR
8Arm Screw (F) 4820-159
9WMS Screw Pack (Not Shown)(F) 4820-WMS
10 TBWMS Screw Pack (Not Shown)(F) 4820-TBWMS
* Black/Yellow Caution decal.
Includes Nos. 3, 4, 6, & 8.
Includes Nos. 4, 6, 7, & 8.
§ Includes No. 4. Length is 8 / (211 mm).
|| Blue/White Switch decal.
# Includes No. 8.
** Includes No. 4. Length is 12 /(314 mm).
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4820 Series "Auto-Equalizer"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 119
Return to Contents

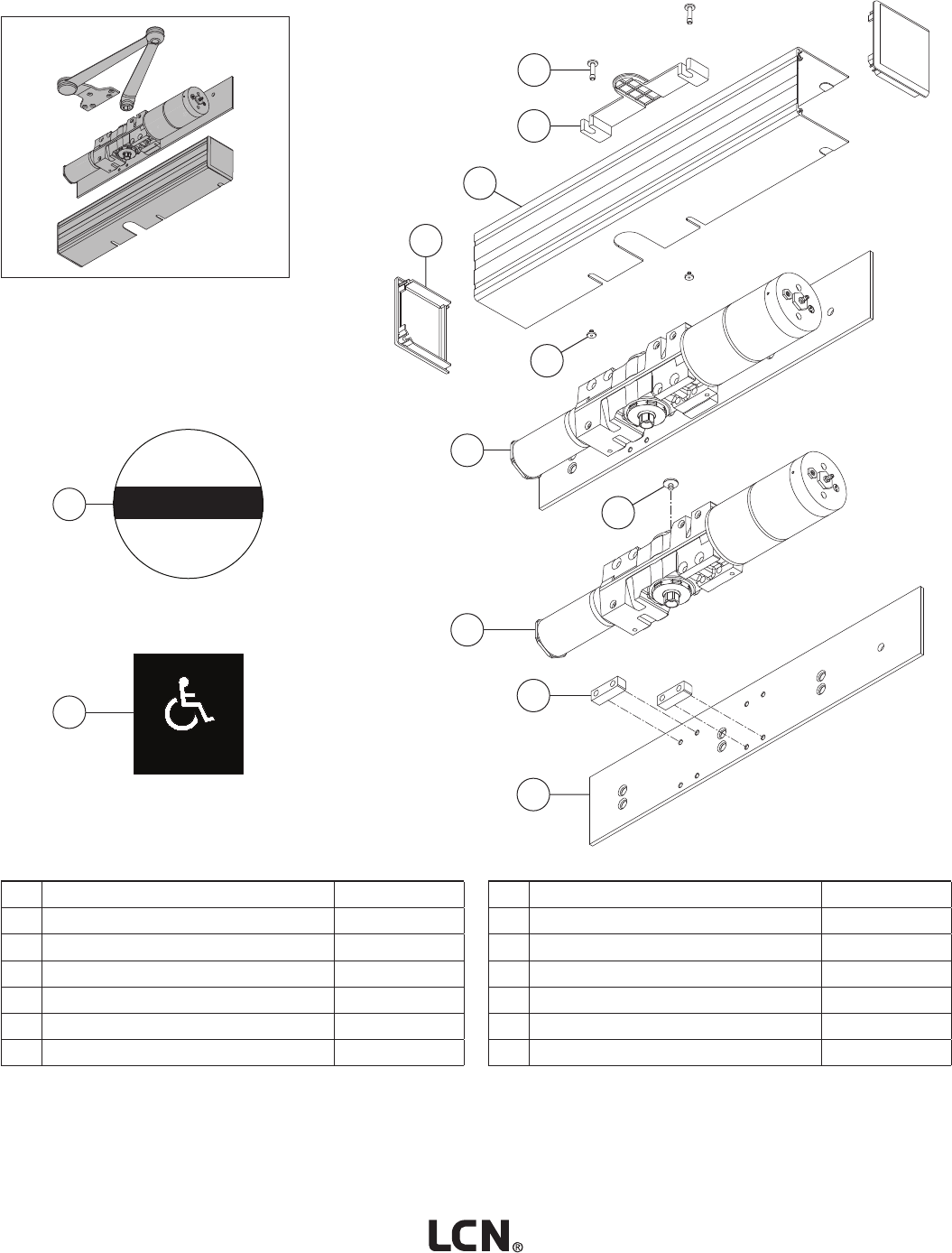

3
4
5
6
7
1
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
OPERATE
AUTOMATIC DOOR
TO
2
9
8
10
12
11
No. Description Part number
1Caution Decal *4840-155-1
2Activation Decal 4840-155-2
3Long Cover Screw (F) 4840-31L
4Cover Insert 4840-163
5Metal Cover (F)4840-72MC
6Cover Endcap 4840-334
No. Description Part number
7Cover Screw (F) 4840-31
8Standard Cylinder Assembly (F)|| 4841-3071
9Arm Screw (F) 4840-159
10 Cylinder Only (F)#4841-3971
11 Stand Off 4840-182
12 Mounting Plate (F) 4840-18
* Black/Yellow Caution decal.
Blue/White Switch decal.
Includes No. 3(2).
§ Includes Nos. 3(2), 4, 6(2), & 7(2).
|| Includes Nos. 10, 11(2), & 12. Cylinder is adjustable, size 1-5.
# Cylinder is adjustable, size 1-5.
Please specify nish (F) and size (S) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
4840 Series "Auto-Equalizer"
Cylinder & Cover Parts
120 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents

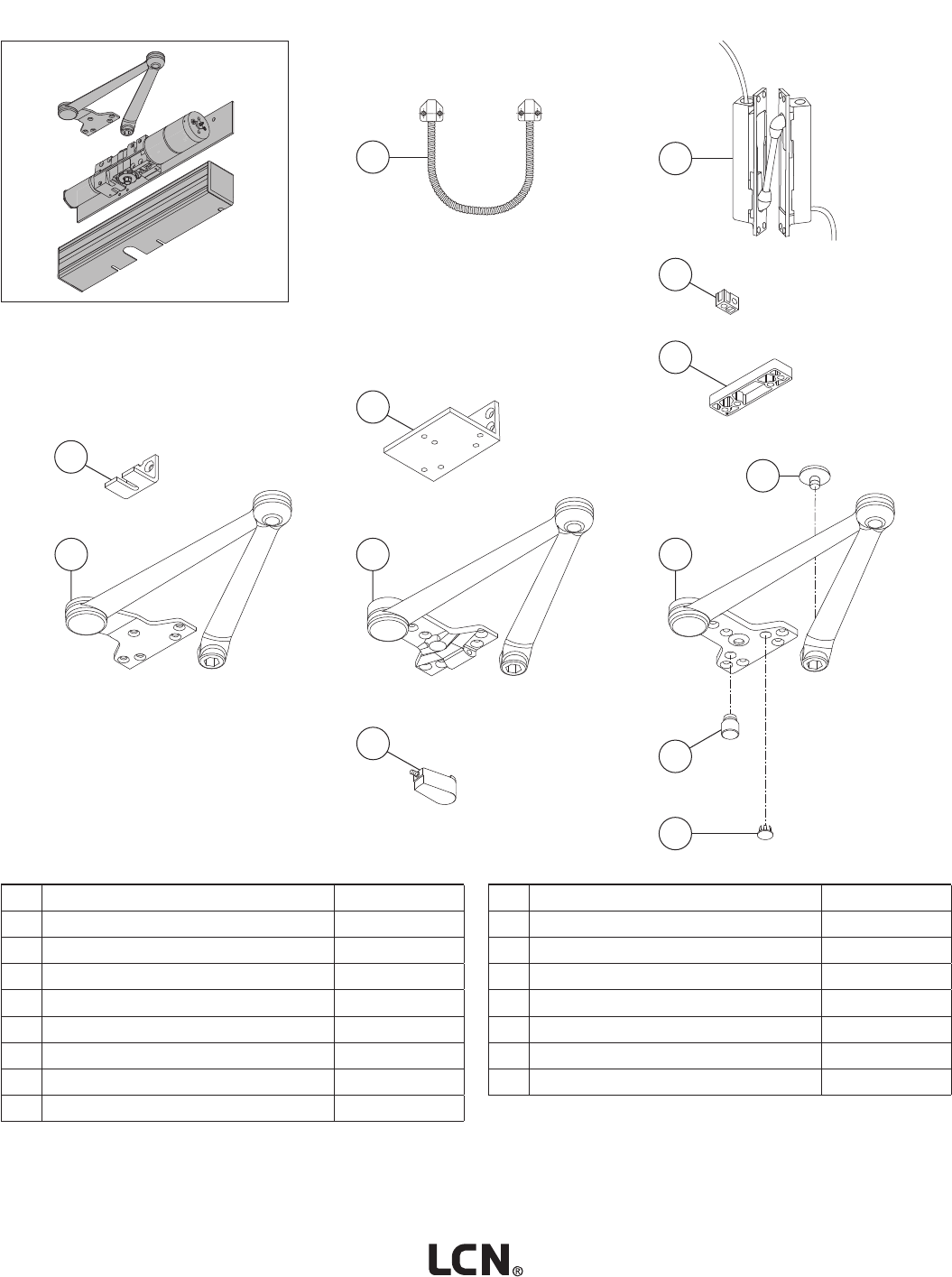

7
3
4
6
5
1
2
9
13
11
8
12
10
No. Description Part number
1Cush Shoe Support (F) 4840-30
2Extra Duty Arm (F)*4840-3077EDA
3Door Loop Kit 4840-459
4Panel Adapter (F) 4840-419
5Spring Cush-N-Stop Arm (F)4840-3077SCNS
6Spring Cush Block (F) 4840-3080
7Pneumatic Hinge 4840-460
8Fih Screw Spacer 4840-201
No. Description Part number
9Blade Stop Spacer (F) 4840-61
10 Arm Screw (F) 4840-159
11 Cush-N-Stop Arm (F)4840-3077CNS
12 Stop (F) 4840-384
13 Plug (F) 4840-124
14 WMS Screw Pack (Not Shown) (F) 4840-WMS
15 TBWMS Screw Pack (Not Shown) (F) 4840-TBWMS
* Includes Nos. 8 & 10.
Includes Nos. 6, 8, & 10.
Includes Nos. 8, 10, 12, & 13.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4840 Series "Auto-Equalizer"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 121
Return to Contents

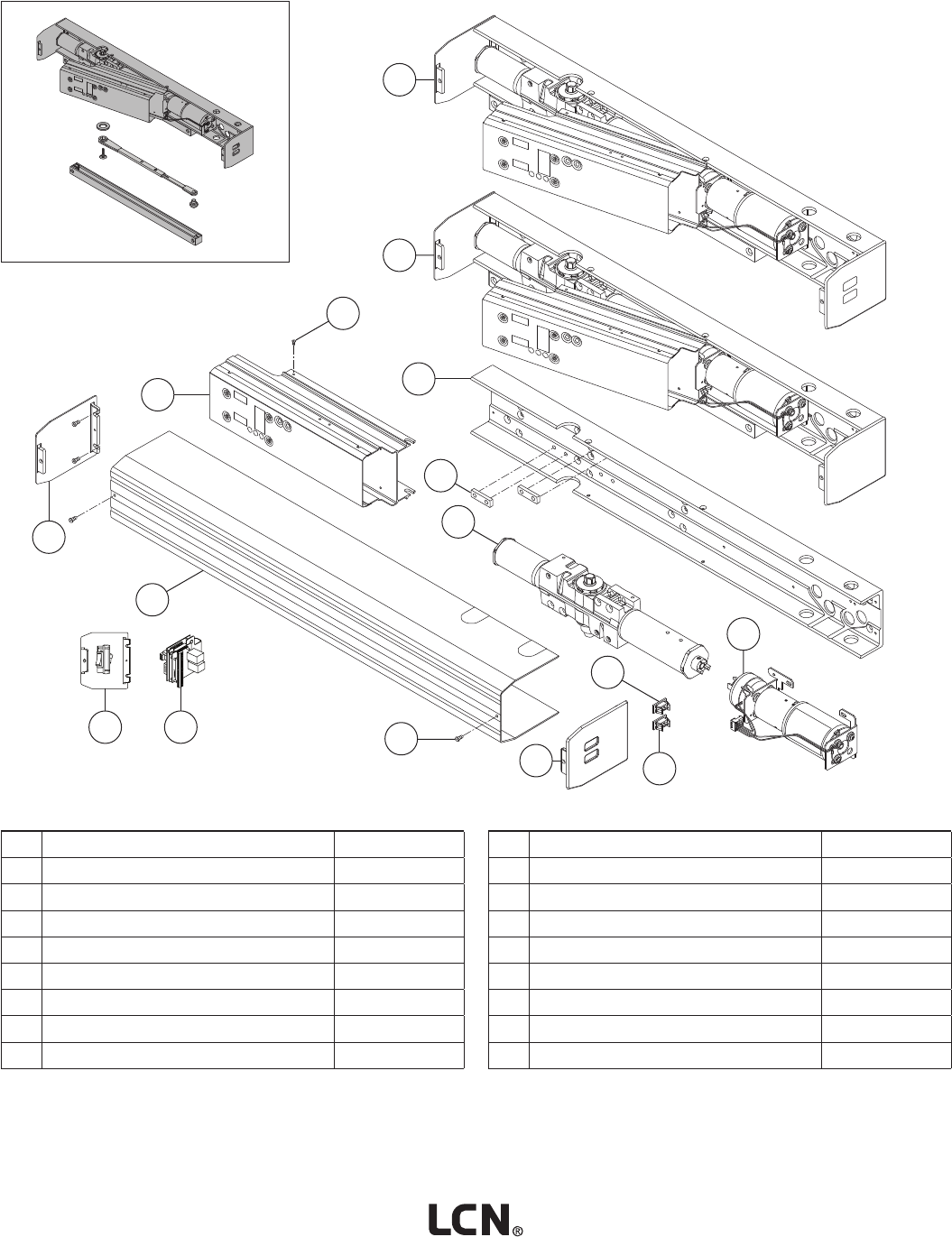

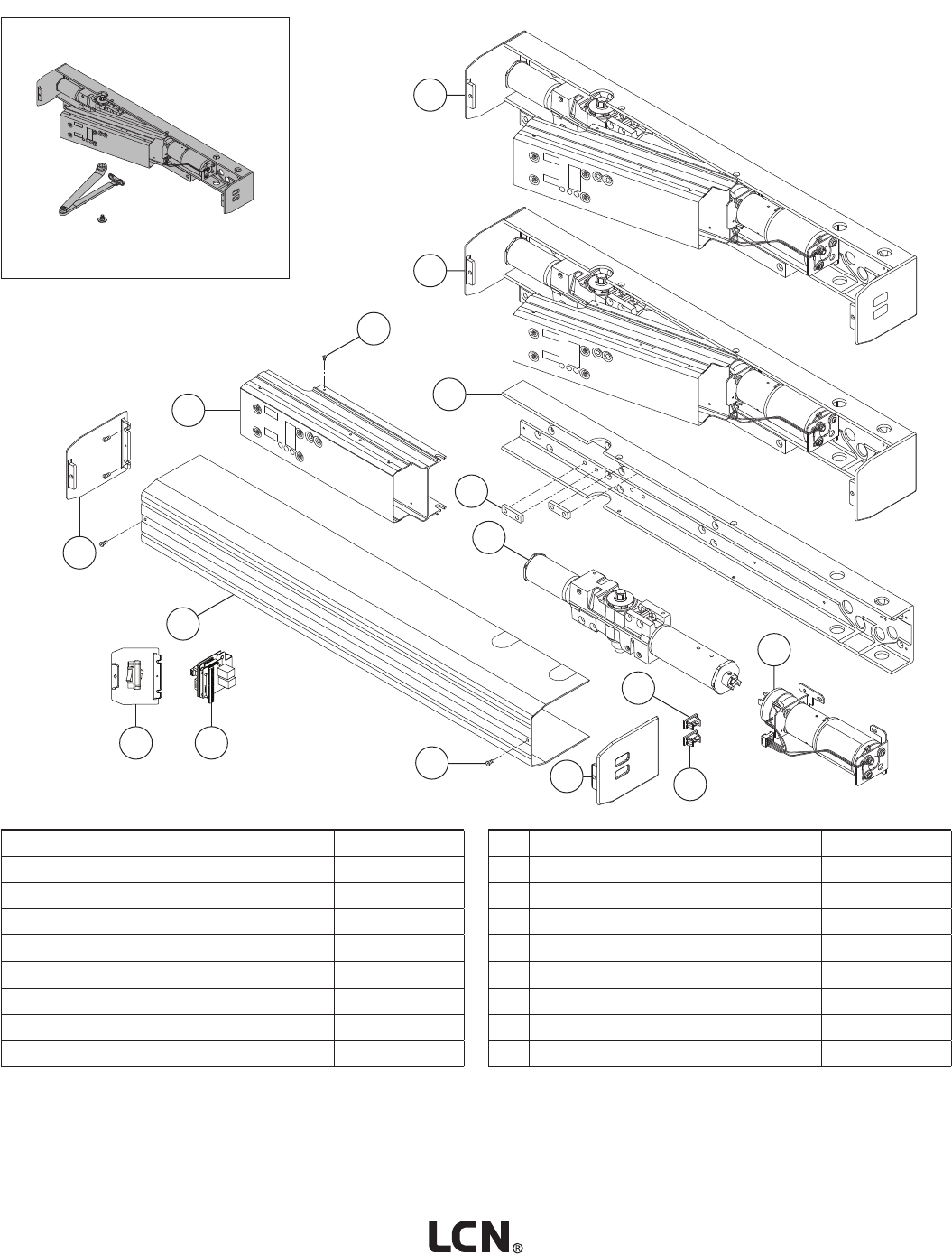

16
15 10
6
11
5
13
12
9
14
7
8
3
4
2
1
No. Description Part number
1Cylinder Assembly (F)*4632-3071
2Cylinder Assy w/ Concealed I/O Switch (F)*4632-3071CS
3Controller Screw (F) 4630-31
4Controller Assembly 4630-3462
5Blank Endcap 4630-334-2
6Metal Cover (F)§4630- 72MC
7Mounting Plate Assembly || 4630-3018
8Stand-Off 4630-182
No. Description Part number
9Cylinder Only (F)#4632-3971
10 Cover Screw (F) 4631-31
11 Switch Endcap 4630-334
12 On/Off Switch Assembly 4630-3179-1
13 Hold Open Switch Assembly 4630-3179-2
14 Motor/Clutch Assembly 4630-3454
15 Concealed Switch Endcap 4630-334CS
16 I/O Board Assembly 4630-3180
* Includes Nos. 4, 7, 9. Cylinder is adjustable, size 1-4.
Includes No. 3.
Includes two Endcap Screws.
§ Includes No. 10(2).
|| Includes Nos. 5, 8(2), 11, 12, 13, & 14 or Nos. 5, 8(2), 14, & 15.
# Cylinder is adjustable, size 1-4.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4630 Series "Auto-Equalizer"
Cylinder & Cover Parts
122 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents

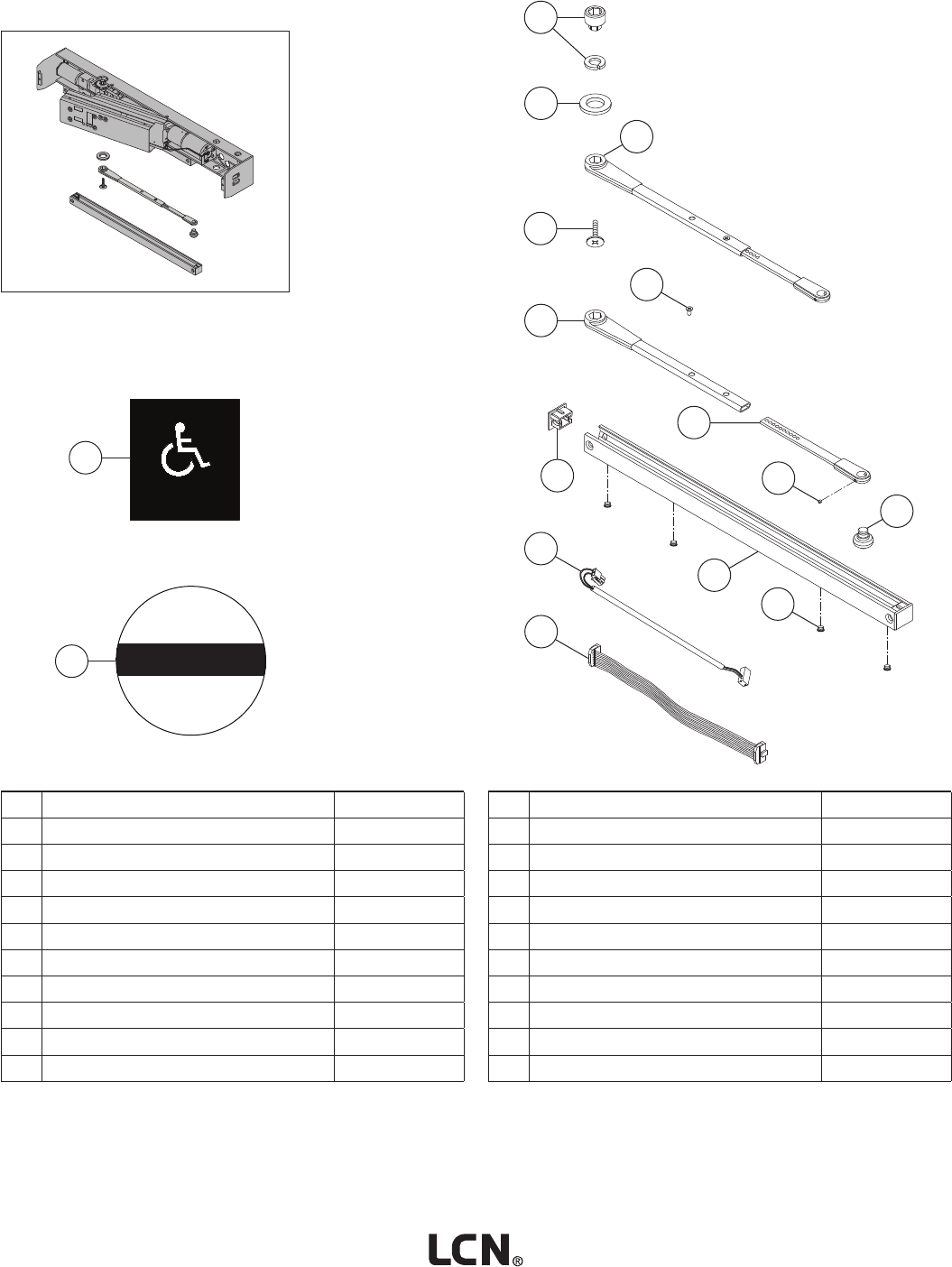

2
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
OPERATE
AUTOMATIC DOOR
TO
1
16
15
12
13
14
11
10
9
8
7
6
5
4
3
No. Description Part number
1Activation Decal * 4630-155-2
2Caution Decal 4630-155-1
3Sha Extension Kit (F) 4630-480
4Sha Spacer 4630-61
5Standard Arm (F) 4630-3077T
6Arm Screw (F) 4630-159
7H Arm Screw (F) 4630-83H
8Arm & Tube (F) || 4630-78
9Rod (F) #4630-82
10 Roller Lock Screw 4630-425
No. Description Part number
11 Track Roller 4630-3034
12 Track Endcaps 4630-73
13 Standard Track (F) ** 4630-3038
14 Track Plug (F) 4630-141-2
15 A/C Power Cable 4630-3498-2
16 Ribbon Cable Connector 4630-3498-1
17 WMS Screw Pack (Not Shown) 4630-WMS
18 TBWMS Screw Pack (Not Shown) 4630-TBWMS
19 TORX Screw Pack (Not Shown) 4630-TORX
20 TBTRX Screw Pack (Not Shown) 4630-TBTRX
* Blue/White Switch Decal.
Black/Yellow Caution Decal.
Includes Extension, Lock Washer, & No. 6.
§ Includes Nos. 4, 6, 7, 8, 9, & 10.
|| Includes No. 6.
# Includes Nos. 7 & 10.
** Includes Nos. 12(2) & 14(4).
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4630 Series "Auto-Equalizer"
Arm & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 123
Return to Contents
16
15
10
6
11
5
13
12
9
14
7
8
3
4
2
1
No. Description Part number
1Cylinder Assembly (F)*4642-3071
2Cylinder Assembly w/ Concealed I/O Switch (F)*4642-3071CS
3Controller Screw (F) 4640-31
4Controller Assembly 4640-3462
5Blank Endcap 4640-334-2
6Metal Cover (F)§4640- 72MC
7Mounting Plate Assembly || 4640-3018
8Stand-Off 4640-182
No. Description Part number
9Cylinder Only (F)#4642-3971
10 Cover Screw (F) 4640-31
11 Switch Endcap 4640-334
12 On/Off Switch Assembly 4640-3179-1
13 Hold Open Switch Assembly 4640-3179-2
14 Motor/Clutch Assembly 4640-3454
15 Concealed Switch Endcap 4640-334CS
16 I/O Board Assembly 4640-3180
* Includes Nos. 4, 7, 9. Cylinder is adjustable, size 1-4.
Includes No. 3.
Includes two Endcap Screws.
§ Includes No. 10(2).
|| Includes Nos. 5, 8(2), 11, 12, 13, & 14 or Nos. 5, 8(2), 14, & 15.
# Cylinder is adjustable, size 1-4.
Please specify nish (F) and where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
4640 Series "Auto-Equalizer"
Cylinder & Cover Parts
124 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents

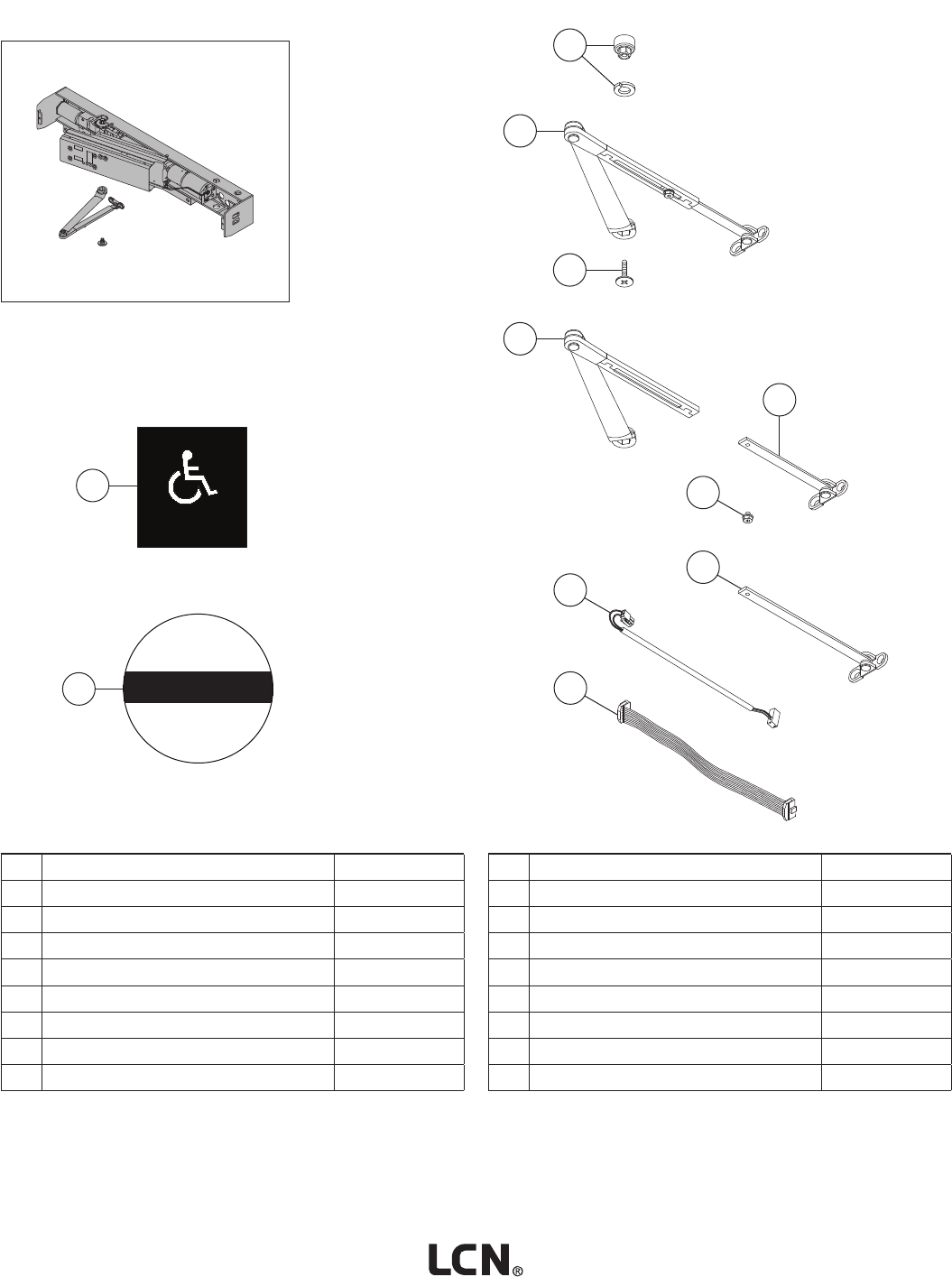

2
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
OPERATE
AUTOMATIC DOOR
TO
1
11
10
9
6
8
7
5
4
3
No. Description Part number
1Activation Decal * 4640-155-2
2Caution Decal 4640-155-1
3Sha Extension Kit (F)4640-480
4Regular Arm (F)4640-3077
4Long Arm (F)|| 4640-3077L
5Arm Screw (F) 4640-159
6Arm & Forearm (F)#4640-77
7Rod & Shoe (F)** 4640-79
No. Description Part number
8Arm Adjustment Screw (F) 4640-83
9Long Rod & Shoe (F)** 4640-79L
10 A/C Power Cable 4640-3498-2
11 Ribbon Cable Connector 4640-3498-1
12 WMS Screw Pack (Not Shown) 4640-WMS
13 TBWMS Screw Pack (Not Shown) 4640-TBWMS
14 TORX Screw Pack (Not Shown) 4640-TORX
15 TBTRX Screw Pack (Not Shown) 4640-TBTRX
* Blue/White Switch Decal.
Black/Yellow Caution Decal.
Includes Extension, Lock Washer, & No. 5.
§ Includes Nos. 5, 6, 7, & 8.
|| Includes Nos. 5, 6, 8, & 9.
# Includes No. 5.
** Includes No. 8
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
4640 Series "Auto-Equalizer"
Arm and Additional Components
Automatic Operators
LCN • LCN Parts Manual • 125
Return to Contents
1
2
3
4
7
6
8
5
No. Description Part number
1Metal Cover, 27" (F) 9130-72MC
1Full Metal Cover, 36" (F) 9130-72FC
2Motor Gearbox Assembly (Not Shown)*9130-3454
2Motor Gearbox Assembly w/ Switch 9130-3454S
3Mounting Bracket 9130-3018
4Controller 9130-3462SC
No. Description Part number
5Switch Bracket 29" 9130-3351-1
5Switch Bracket 41" 9130-3351-2
6Cover Endcap Insert 9130-163-1
7Cover Endcaps 9130-334
8Cover Inserts 9130-163
* For 36" unit. Does not include switch. For 27" unit.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
9130 Series "Benchmark"
Gearbox & Cover Parts
126 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
3
4
5
2
1
No. Description Part number
1Standard Arm w/ Track (F)*9130-3077PLCM
2Standard Arm (F) 9130-3077T
3Track Roller 9130-3034
4Track (F)9130-3038
5Track Endcaps 9130-73
No. Description Part number
6MS Screw Pack (Not Shown) 9130-MS
724v SO Kit (Not Shown) 9130-360
8Label Kit (Not Shown) 9130-3155
9A/C Power Cable - 29" (Not Shown) 9130-3498-2A
10 A/C Power Cable - 42" (Not Shown) 9130-3498-2B
* Includes Nos. 2, 3, & 4. Includes No. 5(2).
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
9130 Series "Benchmark"
Arm and Additional Components
Automatic Operators
LCN • LCN Parts Manual • 127
Return to Contents

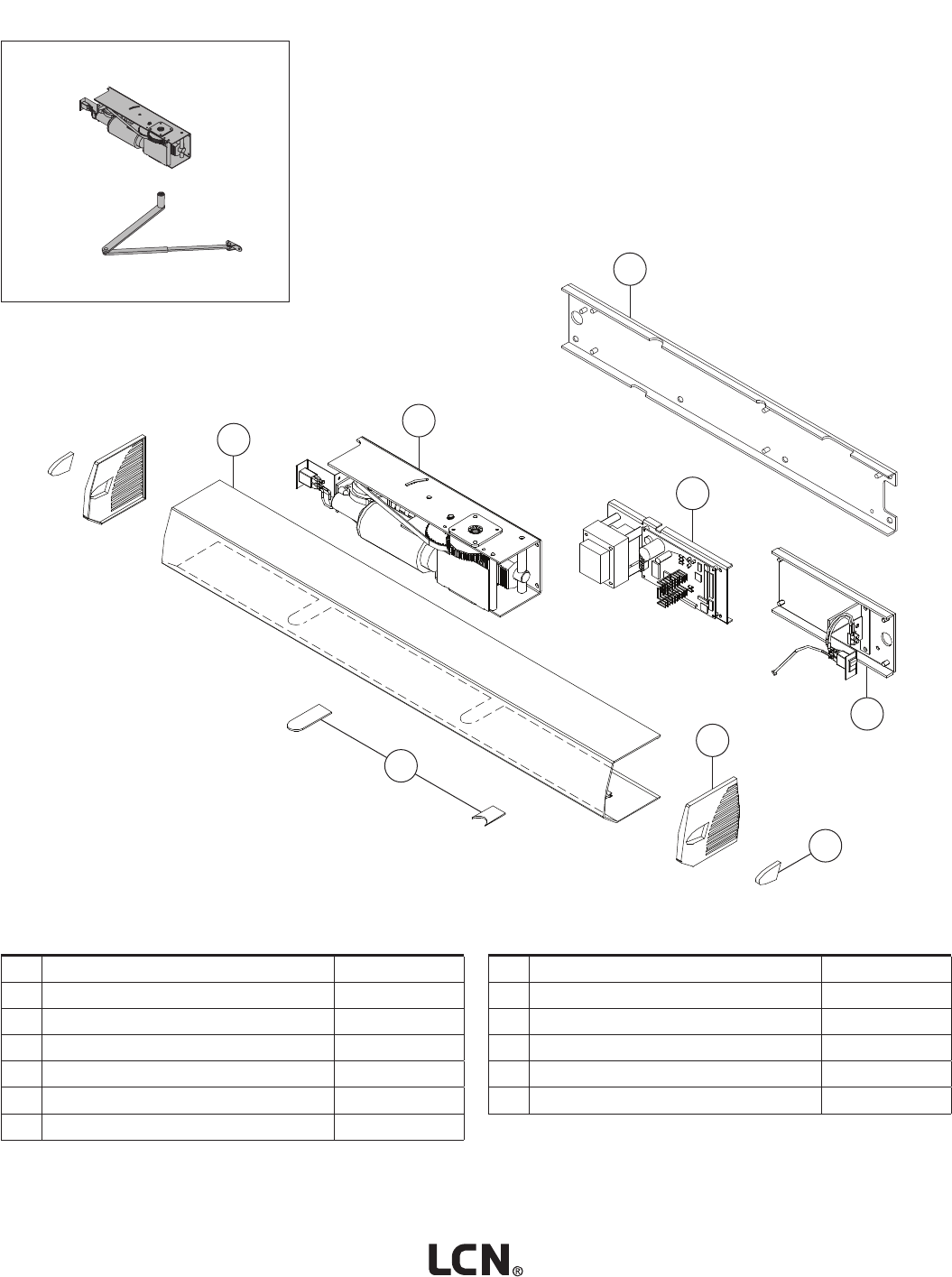

1
2
3
4
7
6
8
5
No. Description Part number
1Metal Cover - 27" (F) 9140-72MC
1Full Metal Cover - 36" (F) 9140-72FC
2Motor Gearbox Assembly (Not Shown)*9140-3454
2Motor Gearbox Assembly w/ Switch 9140-3454S
3Mounting Bracket 9140-3018
4Controller 9140-3462SC
No. Description Part number
5Switch Bracket 29" 9140-3351-1
5Switch Bracket 41" 9140-3351-2
6Cover Endcap Inserts 9140-163-1
7Cover Endcaps 9140-334
8Cover Insert 9140-163
* For 36" unit. Does not include switch. For 27" unit.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
9140 Series "Benchmark"
Gearbox & Cover Parts
128 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
1
23
4
No. Description Part number
1Regular Arm (F)*9140-3077
1Long Arm (F)9140-3077L
2Rod & Shoe (F) 9140-79
3Long Rod & Shoe (F) 9140-79LR
4Main Arm (F) 9140-77
No. Description Part number
5MS Screw Pack (Not Shown)(F) 9140-MS
624v SO Kit (Not Shown) 9140-360
7Label Kit (Not Shown) 9140-3155
8A/C Power Cable - 29" (Not Shown) 9140-3498-2A
9A/C Power Cable - 42" (Not Shown) 9140-3498-2B
* Includes No. 2 & 4. Includes No. 3 & 4.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
9140 Series "Benchmark"
Arm and Additional Components
Automatic Operators
LCN • LCN Parts Manual • 129
Return to Contents
1
2
3
4
6
5
7
No. Description Part number
1Metal Cover - 72" (F) 9150-72MC
2Motor Gearbox Assembly w/ Switch *9150-3454S
3Mounting Bracket 9150-3018
4Controller 9150-3462SC
No. Description Part number
5Cover Endcap Inserts 9150-163-1
6Cover Endcaps 9150-334
7Cover Insert 9150-163
* For 72" unit.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
9150 Series "Benchmark"
Gearbox & Cover Parts
130 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
1
23
4
No. Description Part number
1Regular Arm (F)*9150-3077
1Long Arm (F)9150-3077L
2Rod & Shoe (F) 9150-79
3Long Rod & Shoe (F) 9150-79LR
4Main Arm (F) 9150-77
No. Description Part number
5MS Screw Pack (F) (Not Shown) 9150-MS
624v SO Kit (Not Shown) 9150-360
7Label Kit (Not Shown) 9150-3155
8A/C Power Cable - 29" (Not Shown) 9150-3498-2A
* Includes No. 2 & 4. Includes No. 3 & 4.
Please specify nish (F) where indicated. See the latest edition of the LCN catalog for part descriptions and specications
on many of the items shown above. List prices for items shown above can be located in the current LCN price book.
9150 Series "Benchmark"
Arm and Additional Components
Automatic Operators
LCN • LCN Parts Manual • 131
Return to Contents

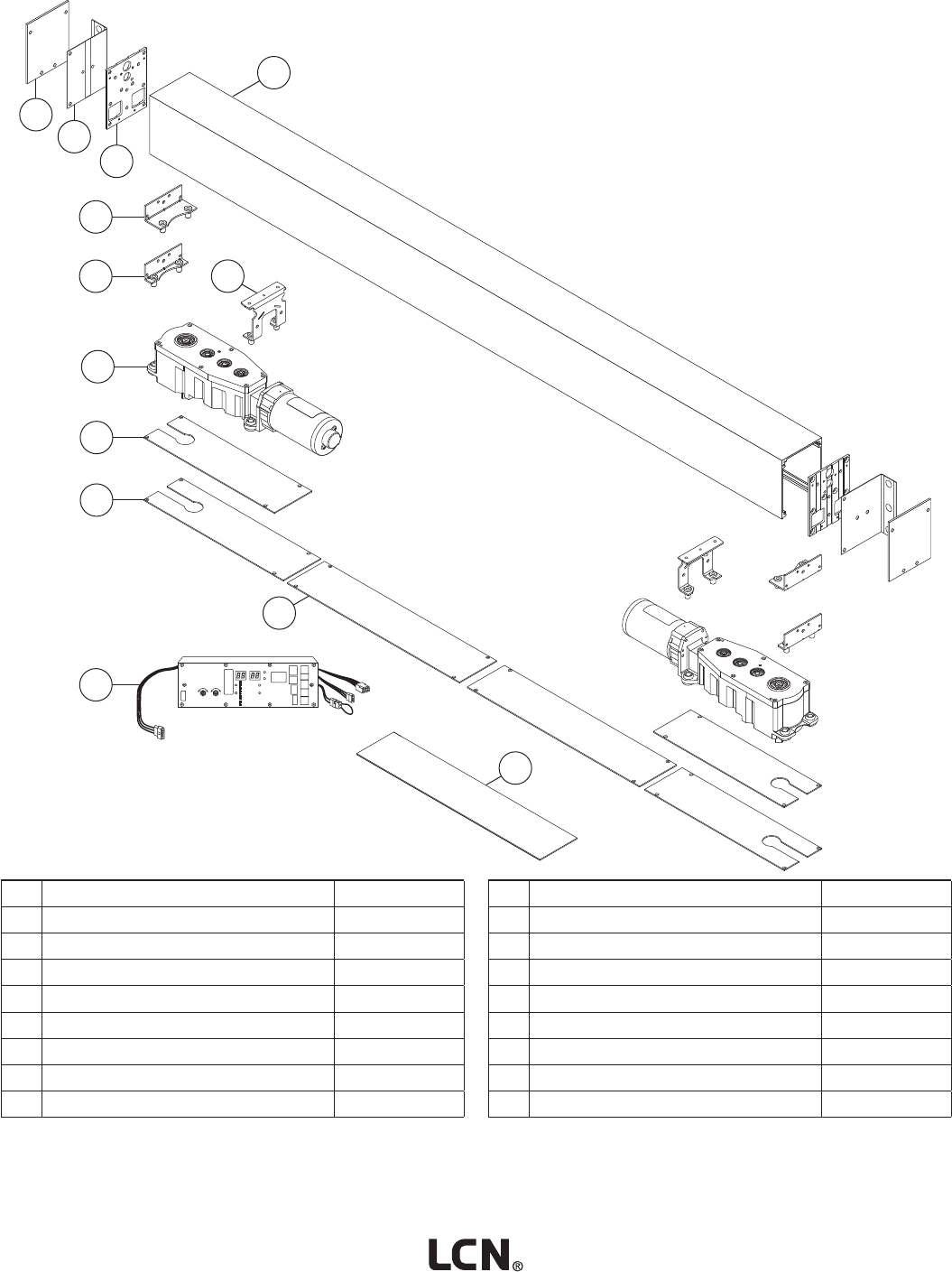

CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
TCLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELA Y
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STO P
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYM UST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
84
1
2
3
5
6
7
10
11
9
13
12
No. Description Part number
1Header Assembly (F)(S)*2810-3572HL
1Header Assembly w/ Stop Prep (F)(S)*2810-3572HL/S
1Header Only w/ Stop Prep (F)(S) 2810-572HL/S
1Header Only (F)(S) 2810-527HL
1Header Extrusion Only (F)(S) 2810-572
2Header Endcaps 2810-334
3Mounting Bracket - 3 3/4" 2810-375
4Mounting Bracket - 2 3/4" 2810-275
5Rear Mount Bracket 2810-3018
6Breakaway Door Stop 2810-384B
7Fixed Door Stop 2810-384F
No. Description Part number
8Controller 2810-3462
9Motor Gearbox (H) 2810-3454
10 Spindle Plate - 2 3/4" (F) 2810-11A
11 Spindle Plate - 3 3/4" (F) 2810-11B
12 Blank Filler Plate (F)(S) 2810-12
12 Dress Plate Extrusion Only (F)(S) 2810-511
13 Double Door Header Assembly (F)(S)*2810-3572DD
13 Double Door Header Asy w/ Stop Prep (F)(S)*2810-3572DD/S
13 Double Door Header w/ Manual Prep (F)(S)*2810-3572DD/MP
13 Double Door Header Only (F)(S) 2810-572DD
13 Double Door Header Only w/ Stop Prep (F)(S) 2810-572DD/S
* Includes Nos. 2(2), 3 or 4, 5, 10 or 11, 12, & 14(2).
Please specify nish (F), size (S) and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2810 Series "Senior Swing"
Control Box & Cover Parts
132 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents

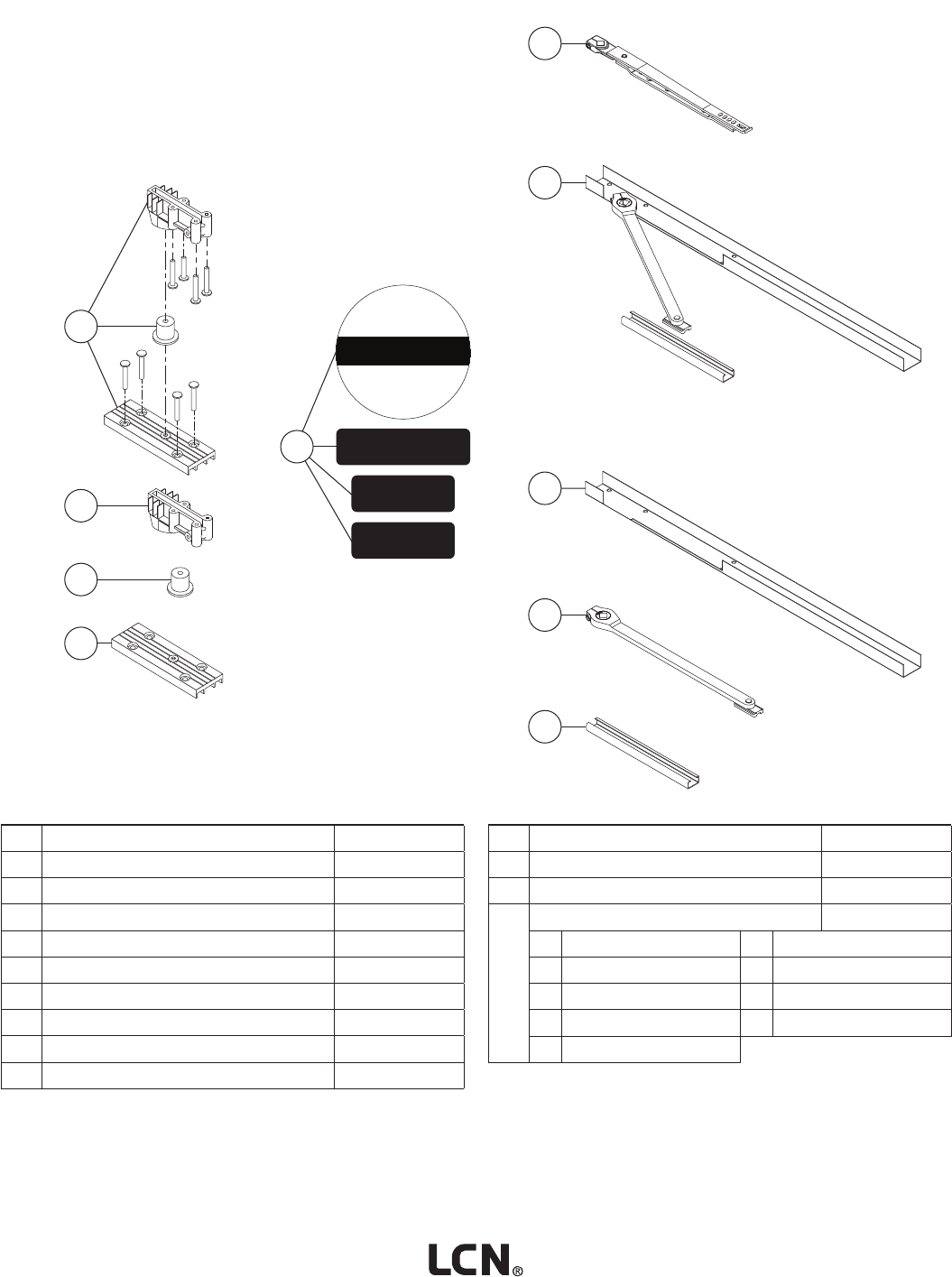

6
7
8
9
10
4
3
2
1
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
5
No. Description Part number
1Bottom PIvot Assembly *2810-3107
2Pivot Body 2810-107
3Pivot Post 2810-110
4Bottom Pivot Plate 2810-117
5Label Kit 2810-3155
6Center Pivot Arm 2810-3077CP
7Offset Arm w/ Track & Conc Channel (F)(S)(H)2810-3077OPCM
8Concealing Channel (F)(S)(H) 2810-3072
9Offset/Butt Hung Arm 2810-3077OP
No. Description Part number
10 Slide 2810-168
11 Screw Pack (Not Shown) 2810-MS
12 Cable/Parts Bag (Not Shown) 2810-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectifier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Includes Nos. 2, 3, & 4.
Also Includes LE Label Kit Instructions, HDR Jamb Template, & Surface Template.
Includes Nos. 8, 9, & 10.
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2810 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 133
Return to Contents

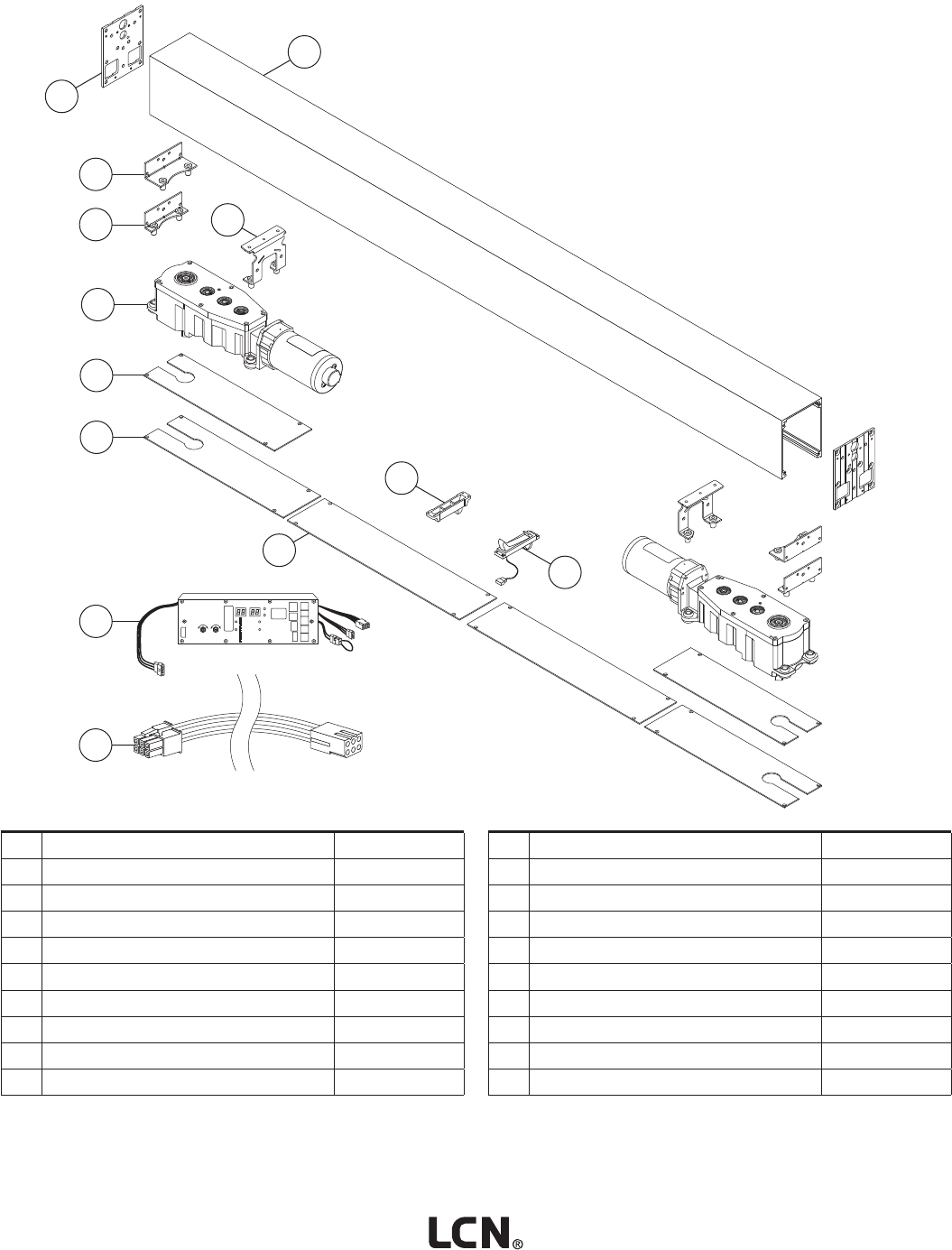

13
4
2
3
7
8
6
1
10
11
5

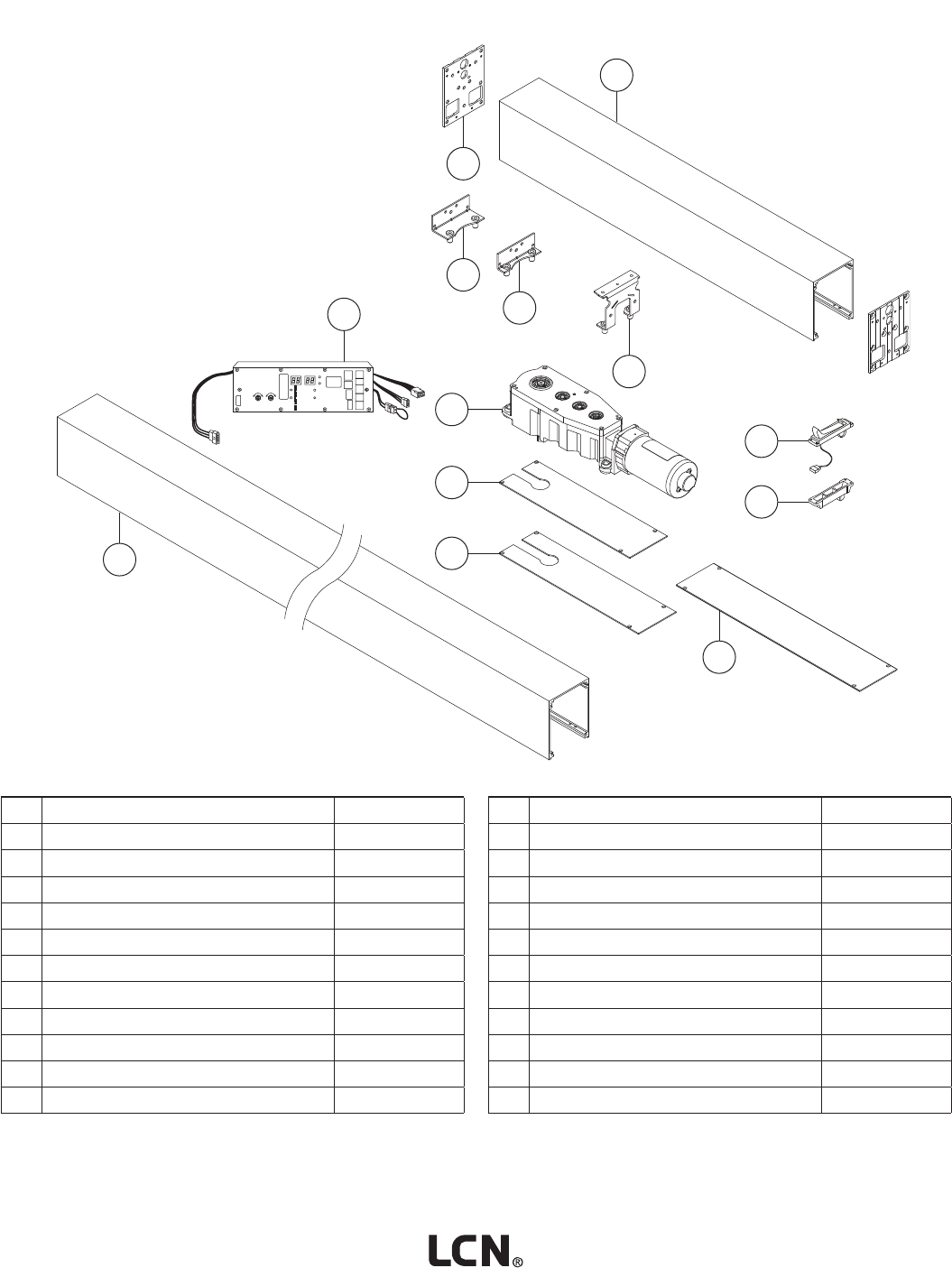

CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
TCLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELA Y
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STO P
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYM UST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
9
12
No. Description Part number
1Header Assembly (F)(S)*2850-3572HL
1Header Assembly w/ Stop Prep (F)(S)*2850-3572HL/S
1Header Only w/ Stop Prep (F)(S) 2850-572HL/S
1Header Only (F)(S) 2850-527HL
1Header Extrusion Only (F)(S) 2850-572
2Header Endcaps (F) 2850-334
3Mounting Bracket - 3 3/4" 2850-375
4Mounting Bracket - 2 3/4" 2850-275
5Rear Mount Bracket 2850-3018
No. Description Part number
6Motor Gearbox (H) 2860-3454
7Spindle Plate - 2 3/4" (F) 2860-11A
8Spindle Plate - 3 3/4" (F) 2860-11B
9Control Box 2860-3462
10 Fixed Door Stop 2860-384F
11 Breakaway Door Stop 2860-384B
12 Blank Filler Plate (F)(S) 2860-12
12 Dress Plate Extrusion Only (F)(S) 2850-511
13 Companion Cable 2850-982
* Includes Nos. 2(2), 3 or 4, 5, 10 or 11, 12, & 14(2). Includes No. 13.
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2850 Series "Senior Swing"
Control Box & Cover Parts
134 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents

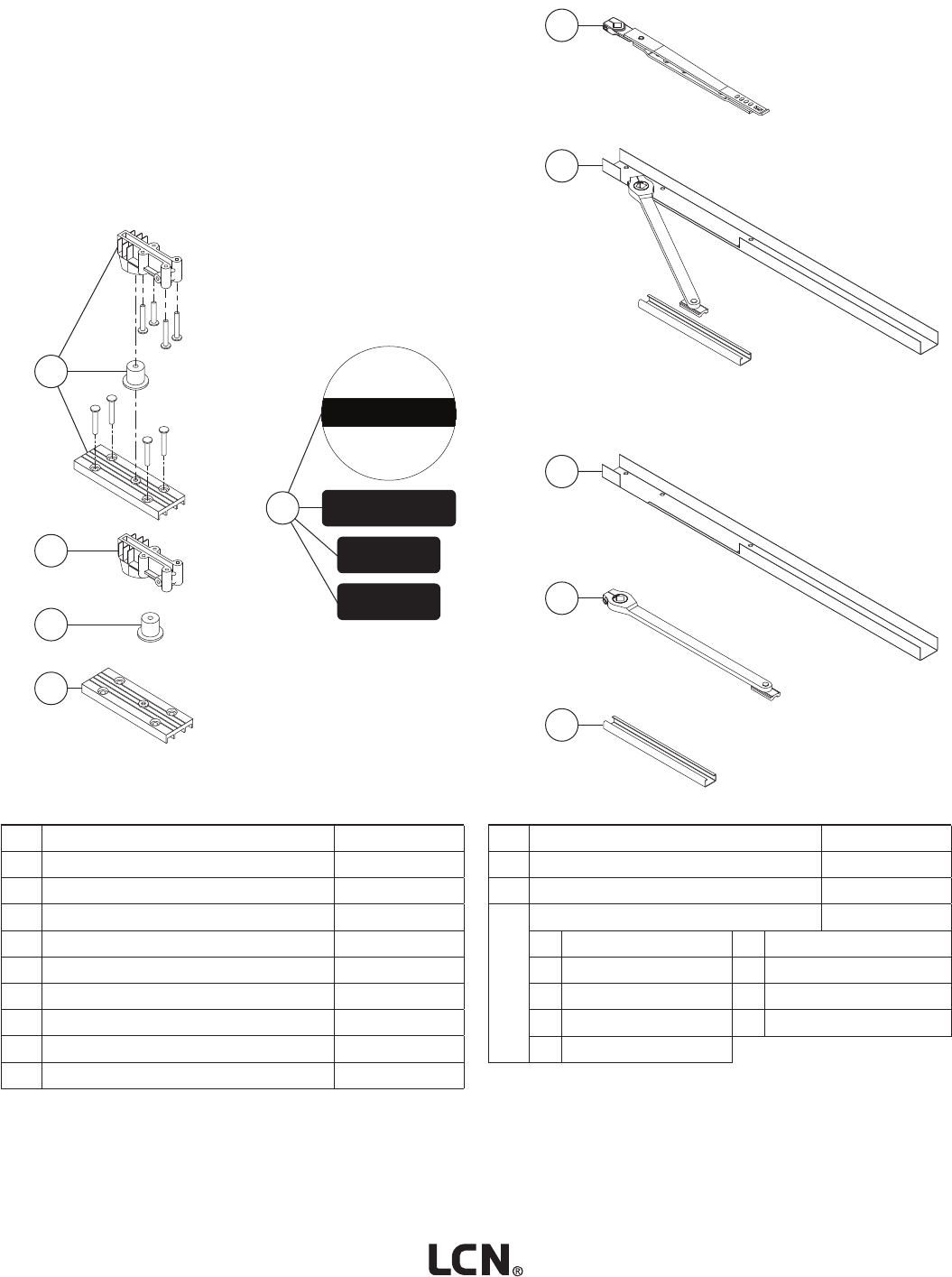

7
8
9
10
4
3
2
1
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
5
6
No. Description Part number
1Bottom PIvot Assembly 2850-3107
2Pivot Body 2850-107
3Pivot Post 2850-110
4Bottom Pivot Plate 2850-117
5Label Kit *2850-3155
6Center Pivot Arm 2850-3077CP
7Offset Arm w/ Track & Conc Channel (F)(S)(H)2850-3077OPCM
8Concealing Channel (F)(S)(H) 2850-3072
9Offset/Butt Hung Arm 2850-3077OP
No. Description Part number
10 Slide 2850-168
11 Screw Pack (Not Shown) 2850-MS
12 Cable/Parts Bag (Not Shown) 2850-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectifier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Includes Nos. 2, 3, & 4.
Also Includes LE Label Kit Instructions, HDR Jamb Template, & Surface Template.
Includes Nos. 8, 9, & 10.
Please specify nish (F), size (S), & hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions
and specications on many of the items shown above. List prices for items shown above can be located in the current LCN
price book.
2850 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 135
Return to Contents

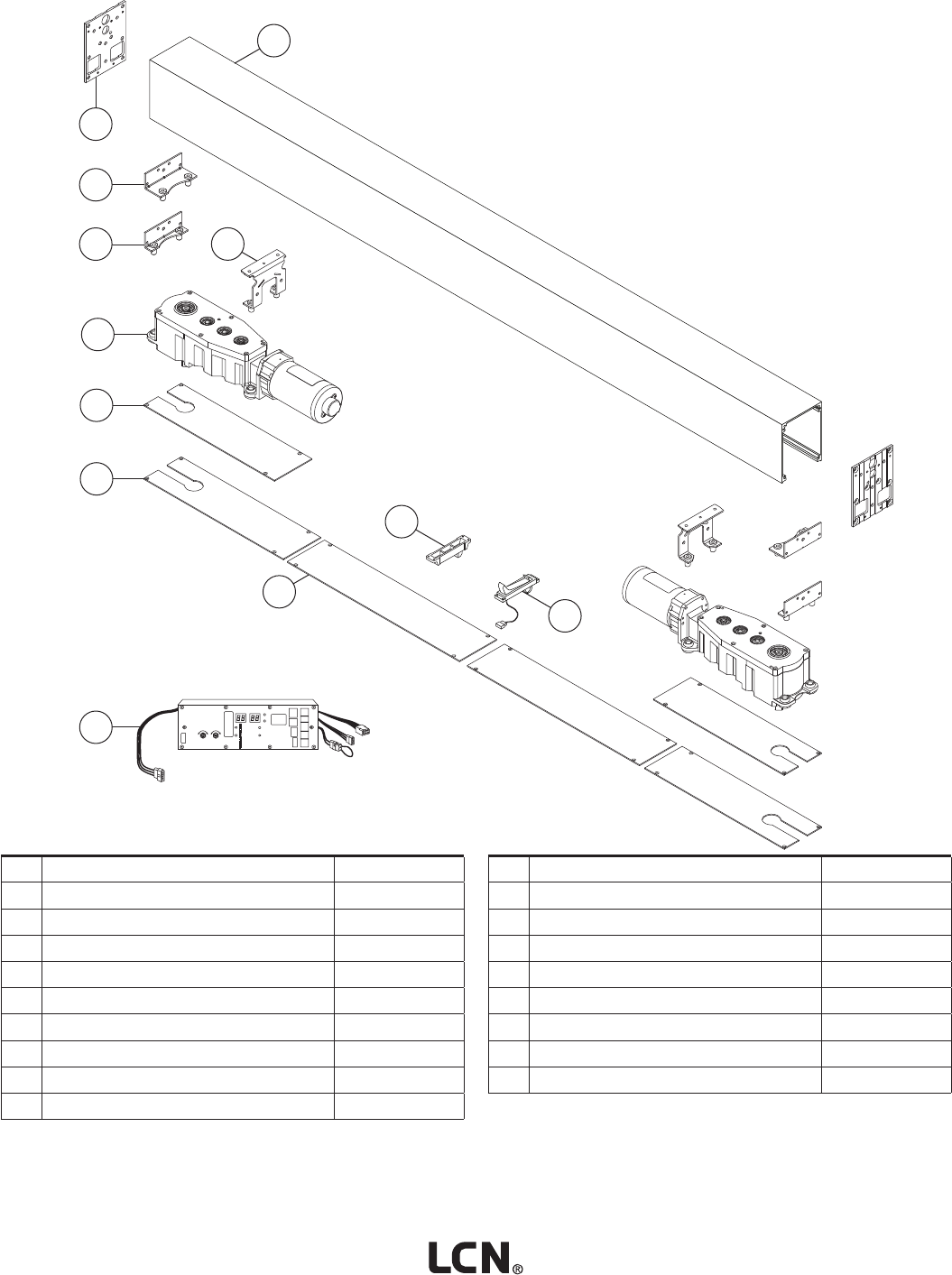

4
2
3
7
8
6
1
10
11
5
CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
TCLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELA Y
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STO P
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYM UST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
9
12
No. Description Part number
1Header Assembly (F)(S)*2860-3572HL
1Header Assembly w/ Stop Prep (F)(S)*2860-3572HL/S
1Header Only w/ Stop Prep (F)(S) 2860-572HL/S
1Header Only (F)(S) 2860-527HL
1Header Extrusion Only (F)(S) 2860-572
2Header Endcaps (F) 2860-334
3Mounting Bracket - 3 3/4" 2860-375
4Mounting Bracket - 2 3/4" 2860-275
5Rear Mount Bracket 2860-3018
No. Description Part number
6Motor Gearbox (H) 2860-3454
7Spindle Plate - 2 3/4" (F) 2860-11A
8Spindle Plate - 3 3/4" (F) 2860-11B
9Control Box 2860-3462
10 Fixed Door Stop 2860-384F
11 Breakaway Door Stop 2860-384B
12 Blank Filler Plate (S) (F) 2860-12
12 Dress Plate Extrusion Only (S)(F) 2860-511
* Includes Nos. 2(2), 3 or 4, 5, 10 or 11, 12, & 13(2).
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2860 Series "Senior Swing"
Control Box & Cover Parts
136 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
6
7
8
9
10
4
3
2
1
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
5
No. Description Part number
1Bottom PIvot Assembly *2860-3107
2Pivot Body 2860-107
3Pivot Post 2860-110
4Bottom Pivot Plate 2860-117
5Label Kit 2860-3155
6Center Pivot Arm 2860-3077CP
7Offset Arm w/ Track & Conc Channel (F)(S)(H)2860-3077OPCM
8Concealing Channel (F)(S)(H) 2860-3072
9Offset/Butt Hung Arm 2860-3077OP
No. Description Part number
10 Slide 2860-168
11 Screw Pack (Not Shown) 2860-MS
12 Cable/Parts Bag (Not Shown) 2860-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectifier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Includes Nos. 2, 3, & 4.
Also Includes LE Label Kit Instructions, HDR Jamb Template, & Surface Template.
Includes Nos. 8, 9, & 10.
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
2860 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 137
Return to Contents

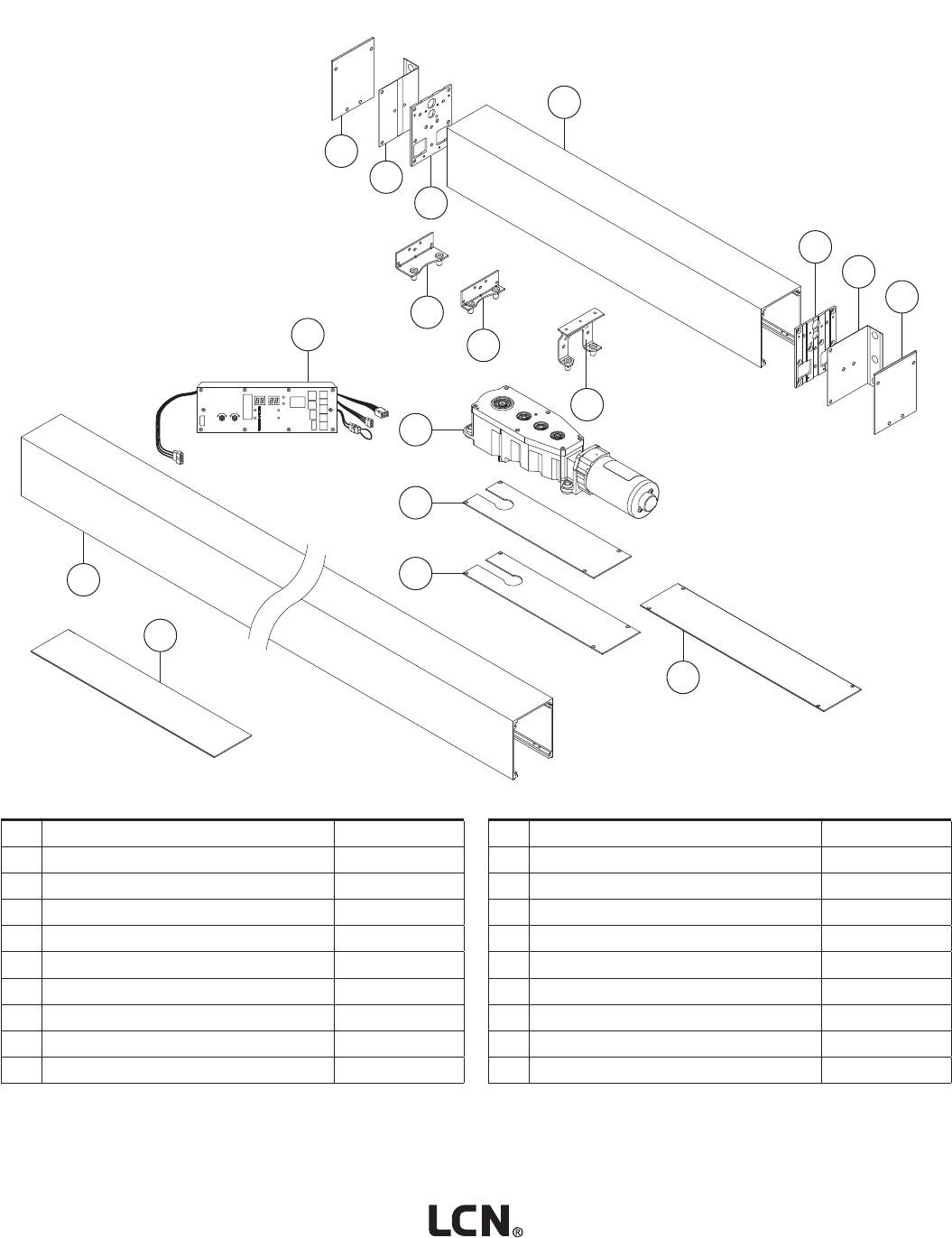

CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
TCLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELA Y
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STO P
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYM UST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
3
4
2
86
1
5
7
10
11
2
3
9
13
12
4
14
No. Description Part number
1Header Assembly (F)(S)*9530-3572HL
1Header Only (F)(S) 9530-572HL
1Header Extrusion Only (F)(S) 9530-572
2Header Endcaps (F) 9530-334
3Angled Mounting Brackets (F) 9530-334-1
4End Dress Plates (F) 9530-334-2
5Mounting Bracket - 3 3/4" 9530-375
6Mounting Bracket - 2 3/4" 9530-275
7Rear Mount Bracket 9530-3018
No. Description Part number
8Controller 9530-3462
9Motor Gearbox (H) 9530-3454
10 Spindle Plate - 2 3/4" (F) 9530-11A
11 Spindle Plate - 3 3/4" (F) 9530-11B
12 Blank Filler Plate (F)(S) 9530-12
12 Dress Plate Extrusion Only (F)(S) 9530-511
13 Double Door Header Assembly (F)(S)*9530-3572DD
13 Double Door Header Only (F)(S) 9530-572DD
14 Mounting Plate (F)(S) 9530-18
* Includes Nos. 2(2), 3(2) or 4(2), 5 or 6, 7, 10 or 11, & 12.
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
9530 Series "Senior Swing"
Control Box & Cover Parts
138 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
1
2
3
4
5
6
No. Description Part number
1Label Kit *9530-3155
2Standard Arm w/ Track (F)(H)9530-3077PLCM
3Standard Arm (F)(H) 9530-3077T
4Track (F)9530-3038
5Track Endcaps 9530-73
6Track Roller 9530-3034
7Screw Pack (Not Shown)(F) 9530-MS
No. Description Part number
8Cable/Parts Bag (Not Shown) 9530-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectifier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Also Includes LE Label Kit Instructions, HDR Jamb Template, &
Surface Template.
Includes Nos. 3, 4, & 6.
Includes No. 5(2).
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
9530 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 139
Return to Contents

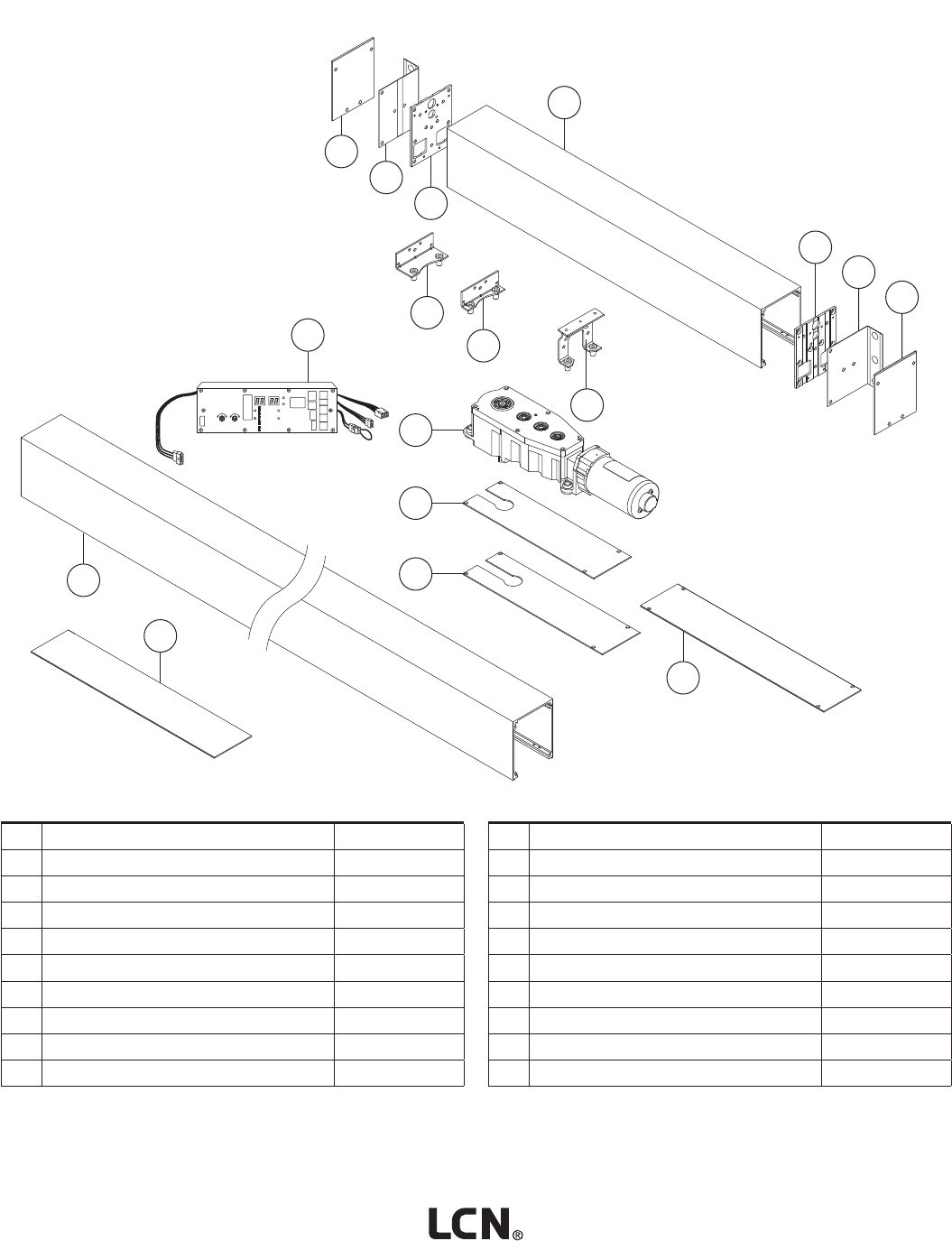

CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
TCLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELA Y
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STO P
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYM UST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
3
4
2
86
1
5
7
10
11
2
3
9
13
12
4
14
No. Description Part number
1Header Assembly (F)(S)*9540-3572HL
1Header Only (F)(S) 9540-572HL
1Header Extrusion Only (F)(S) 9540-572
2Header Endcaps (F) 9540-334
3Angled Mounting Bracket (F) 9540-334-1
4End Dress Plates (F) 9540-334-2
5Mounting Bracket - 3 3/4" 9540-375
6Mounting Bracket - 2 3/4" 9540-275
7Rear Mount Bracket 9540-3018
No. Description Part number
8Controller 9540-3462
9Motor Gearbox (H) 9540-3454
10 Spindle Plate - 2 3/4" (F) 9540-11A
11 Spindle Plate - 3 3/4" (F) 9540-11B
12 Blank Filler Plate (F)(S) 9540-12
12 Dress Plate Extrusion Only (F)(S) 9540-511
13 Double Door Header Assembly (F)(S)*9540-3572DD
13 Double Door Header Only (F)(S) 9540-572DD
14 Mounting Plate (F)(S) 9540-18
* Includes Nos. 2(2), 3(2) or 4(2), 5 or 6, 7, 10 or 11, & 12.
Please specify nish (F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
9540 Series "Senior Swing"
Control Box & Cover Parts
140 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
3
2
6
4
5
7
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
1
No. Description Part number
1Label Kit *9530-3155
2Regular Arm Assembly (F)(H)9540-3077
2Regular Long Arm Assembly (F)(H)9540-3077L
3Main Arm (F)(H) 9540-77
4Rod with Turnbuckles (F) 9540-79
5Plain Rod 9540-82
6Long Rod with Turnbuckles (F) 9540-79LR
7Plain Long Rod 9540-82LR
No. Description Part number
8Screw Pack (Not Shown) 9540-MS
9Cable/Parts Bag (Not Shown) 9540-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectifier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Also Includes LE Label Kit Instructions, HDR Jamb Template, & Surface Template.
Includes Nos. 3 & 4.
Includes Nos 3 & 6.
Please specify nish (F) and hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
9540 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 141
Return to Contents

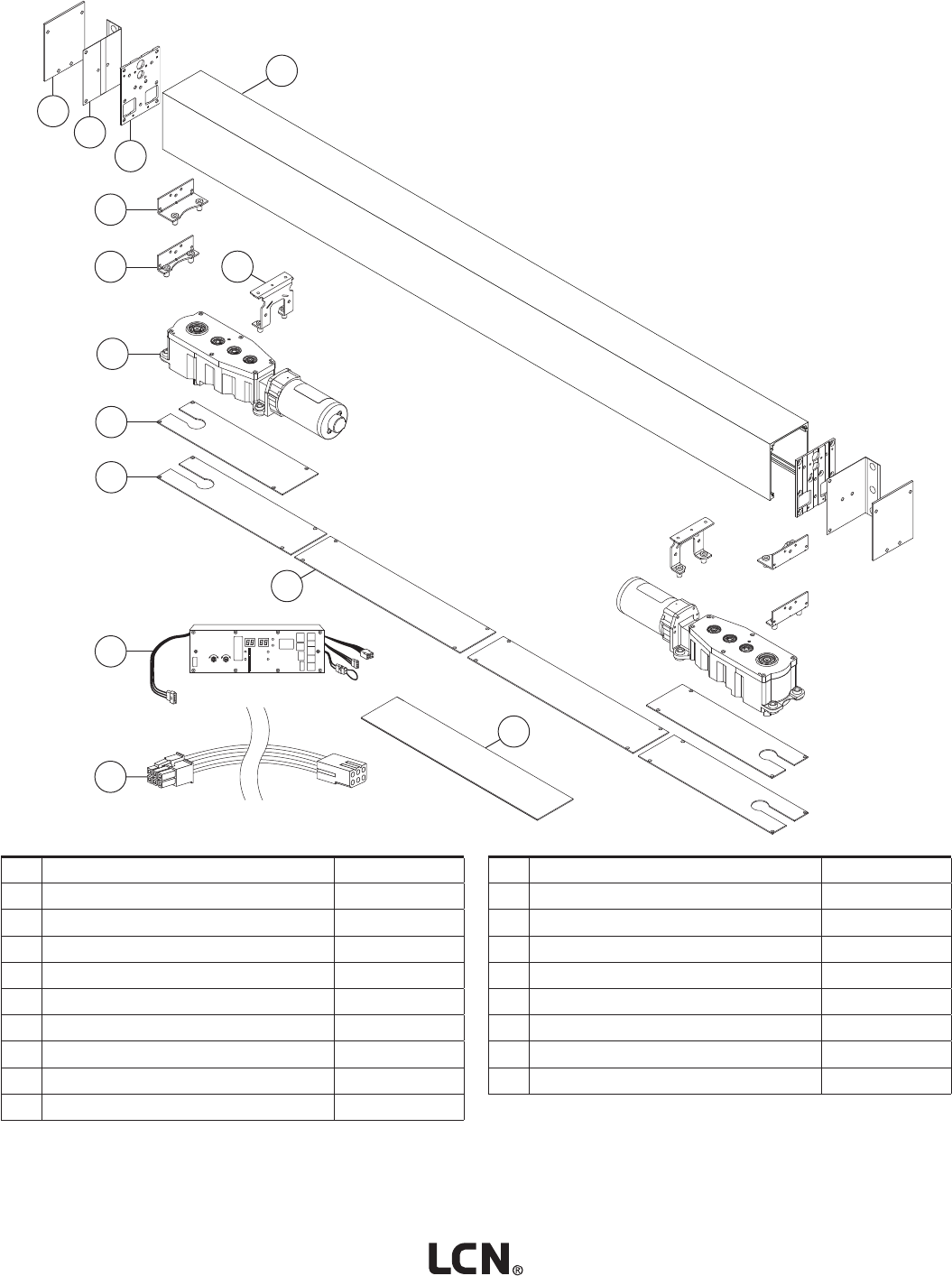

2
3
4
6
5
9
10
8
1
7
CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FI RE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
T
CLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELAY
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STOP
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYMUST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN:XXXX
No Serviceable
Parts Inside
11
13
12
14
No. Description Part number
1Header Assembly (F)(S)*9550-3572HL
1Header Only (F)(S) 9550-572HL
1Header Extrusion Only (F)(S) 9550-572
2End Dress Plates (F) 9550-334-2
3Angled Mounting Bracket (F) 9550-334-1
4Header Endcaps (F) 9550-334
5Mounting Bracket - 3 3/4" 9550-375
6Mounting Bracket - 2 3/4" 9550-275
7Rear Mount Bracket 9550-3018
No. Description Part number
8Motor Gearbox (Standard Force) 9550-3454
9Spindle Plate - 2 3/4" (F) 9550-11A
10 Spindle Plate - 3 3/4" (F) 9550-11B
11 Controller 9550-3462
12 Companion Cable 9550-982
13 Blank Filler Plate (F)(S) 9550-12
13 Dress Plate Extrusion Only (F)(S) 9550-511
14 Mounting Plate (F)(S) 9550-18
* Includes Nos. 2(2), 3(2) or 4(2), 5 or 6, 7, 10 or 11, & 12. Includes No. 12.
Please specify nish (F) and size (S) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
9550 Series "Senior Swing"
Control Box & Cover Parts
142 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
1
11
9
8
7
5
6
2
3
4
10
12
No. Description Part number
1Label Kit *9550-3155
2Standard Arm Assembly with Track (F)(H)9550-3077PLCM
3Standard Arm (F)(H) 9550-3077T
4Track (F) 9550-3038
5Track Endcaps 9550-73
6Track Roller 9550-3034
7Regular Arm Assembly (F)(H)9550-3077
7Regular Long Arm Assembly (F)(H)|| 9550-3077L
8Main Arm (F)(H) 9550-77
9Rod with Turnbuckles (F) 9550-79
No. Description Part number
10 Plain Rod 9550-82
11 Long Rod with Turnbuckles (F) 9550-79LR
12 Plain Long Rod 9550-82L
13 Screw Pack (F)(Not Shown) 9550-MS
14 Cable/Parts Bag (Not Shown) 9550-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectifier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Also Includes LE Label Kit Instructions, HDR Jamb Template, &
Surface Template.
Includes Nos. 3, 4, & 6.
Includes No. 5(2).
§ Includes Nos. 8 & 9.
|| Includes Nos. 8 & 11.
Please specify nish (F) and hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
9550 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 143
Return to Contents
2
3
4
6
5
9
10
8
1
7
CAUTION: 120VAC
2.5 A TIME-DELA Y FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONL Y WITH SAME
TYPE AND RATING OF FUSE.
COMPANION
MOTOR
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
TCLOSE
SPEED
S
L
O
W
F
A
S
T
:OPENINGSPEED
:BACKCHECK SPEED
:BACKCHECK POS.
:HOLD-OPEN DELA Y
: LATCH POSITION
:AUTO-REV. CLOSING
: ELECTRIC LOCK
:POWER BOOST
:PUSH‘N’ GO
:ALTERNATEACTION
:SAFETYSLOW/STO P
:SPECIAL
: STATUSANNOUNCEMENT
SETTING VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING ,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAYM UST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
®
XXXX SWIN G
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
11
12
13
No. Description Part number
1Header Assembly (F)(S)*9560-3572HL
1Header Only (F)(S) 9560-572HL
1Header Extrusion Only (F)(S) 9560-572
2End Dress Plates (F) 9560-334-2
3Angled Mounting Bracket (F) 9560-334-1
4Header Endcaps (F) 9560-334
5Mounting Bracket - 3 3/4" 9560-375
6Mounting Bracket - 2 3/4" 9560-275
No. Description Part number
7Rear Mount Bracket 9560-3018
8Motor Gearbox (H) 9560-3454
9Spindle Plate - 2 3/4" (F) 9560-11A
10 Spindle Plate - 3 3/4" (F) 9560-11B
11 Controller 9560-3462
12 Blank Filler Plate (F)(S) 9560-12
12 Dress Plate Extrusion Only (F)(S) 9560-511
13 Mounting Plate (F)(S) 9560-18
* Includes Nos. 2(2), 3(2) or 4(2), 5 or 6, 7, 10 or 11, & 12.
Please specify nish(F), size (S), and hand (H) where indicated. See the latest edition of the LCN catalog for part
descriptions and specications on many of the items shown above. List prices for items shown above can be located in the
current LCN price book.
9560 Series "Senior Swing"
Control Box & Cover Parts
144 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
AUTOMATIC
DOOR
CAUTION
ACTIVATE SWITCH
TO OPERATE
PUSH
TO OPERATE
PULL
TO OPERATE
1
11
9
8
7
5
6
2
3
4
10
12
No. Description Part number
1Label Kit *9560-3155
2Standard Arm Assembly with Track (F)(H)9560-3077PLCM
3Standard Arm (F)(H) 9560-3077T
4Track (F) 9560-3038
5Track Endcaps9560-73
6Track Roller 9560-3034
7Regular Arm Assembly (F)(H)§9560-3077
7Regular Long Arm Assembly (F)(H)|| 9560-3077L
8Main Arm (F)(H) 9560-77
9Rod with Turnbuckles (F) 9560-79
No. Description Part number
10 Plain Rod 9560-82
11 Long Rod with Turnbuckles (F) 9560-79LR
12 Plain Long Rod 9560-82L
13 Screw Pack (Not Shown)(F) 9560-MS
14 Cable/Parts Bag (Not Shown) 9560-518
AGround Cable Assembly FActivate Cable Assembly
BPower Cable Assembly GES Relay Cable Assembly
C24V Rectier Kit H5/16-18 x 3/4 Bolt
DAdhesive Mount Clip I
10-32 x 3/8 Hex Screw Green
E5/16 Flat Washer
* Also Includes LE Label Kit Instructions, HDR Jamb Template, &
Surface Template.
Includes Nos. 3, 4, & 6.
Includes No. 5(2).
§ Includes Nos. 8 & 9.
|| Includes Nos. 8 & 11.
Please specify nish (F) and hand (H) where indicated. See the latest edition of the LCN catalog for part descriptions and
specications on many of the items shown above. List prices for items shown above can be located in the current LCN price
book.
9560 Series "Senior Swing"
Arms & Additional Components
Automatic Operators
LCN • LCN Parts Manual • 145
Return to Contents
146 • LCN • LCN Parts Manual
Automatic Operators
Return to Contents
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading
brands like CISA®
, Interex®
, LCN®
, Schlage® and Von Duprin®
. Focusing on security
around the door and adjacent areas, Allegion produces a range of solutions for
homes, businesses, schools and other institutions. Allegion is a $2 billion
company, with products sold in almost 130 countries.
For more, visit www.allegion.com.
About Allegion
© 2016 Allegion
111167, Rev. 04/16
www.allegion.com/us

Navigation menu
