LEA Networks LEA001 Remote User Manual
LEA Networks, LLC Remote Users Manual
Users Manual
Copyright © 2015 HALTPB0R9-SMDL01
LEA-ATT-TPB915-A Installation Instructions
Product Description
LEA-ATT-TPB915-A is a “table-top panic button”. The “table-top panic button” is a
wireless connected wearable accessory that allows the user – by pressing the button
- to send a panic message to predefined contacts, through a gateway.
It can be installed flat on a furniture (such as table) or wall mounted thanks to
its bracket. It is water splash resistant.
LED indicates transmission.
It is powered by removable batteries.
The battery cover is connected to a tamper switch which detects when the
cover is opened to send a message to the gateway.

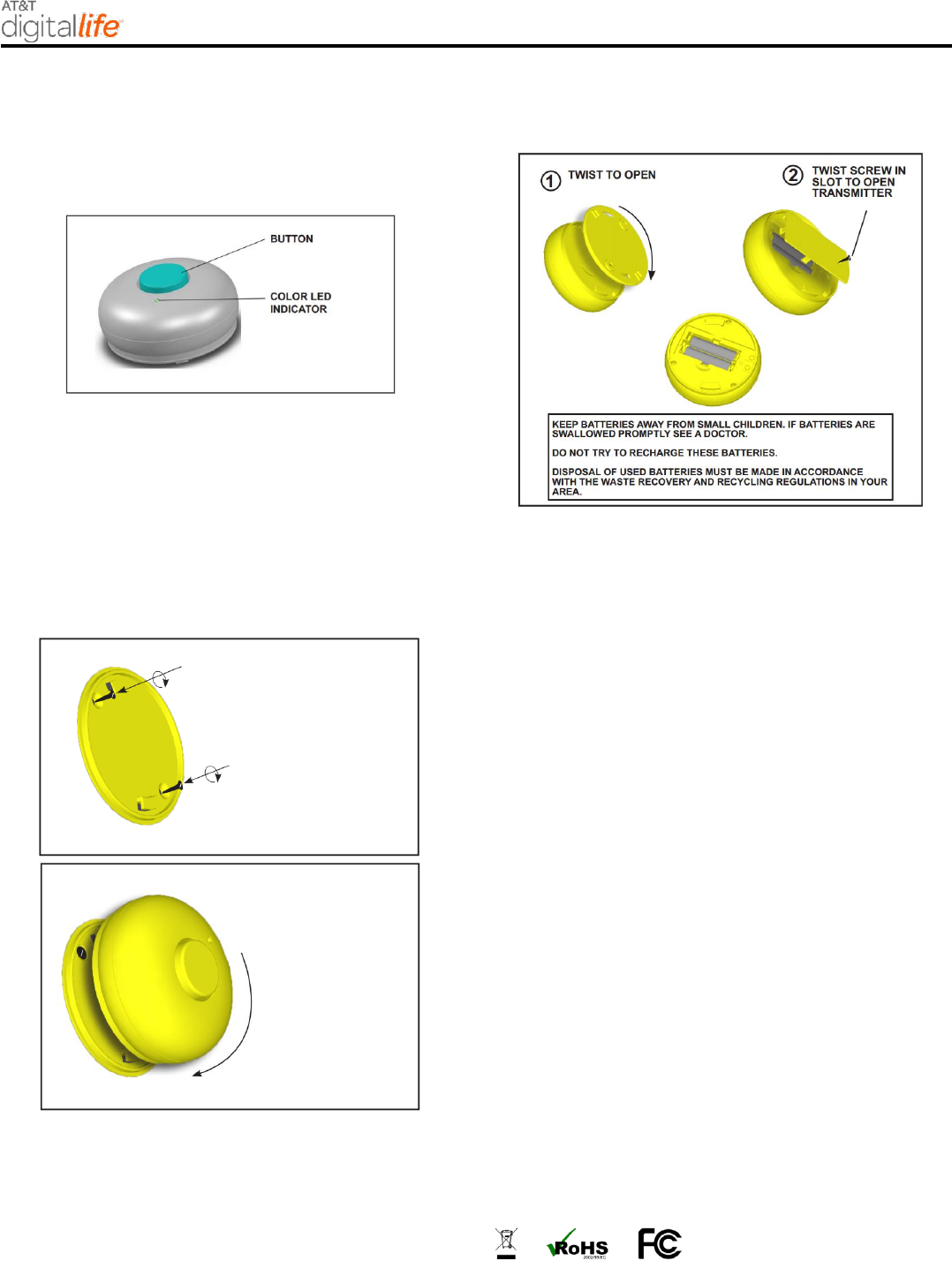

Figure 1. Panic Button Features
LED Status
Panic button – hold until LED turns from red to green (blinking)
Battery cover tamper – LED blinks shortly in red
Nominal state (idle mode) – LED is off
Panic Button
- 2sec press will trigger panic message
Learn Button
- To connect to the controller first time during installation
Tamper Button
- To detect battery cover opening
Mounting to the wall
Figure 2. Panic Button mounting to the wall
Replacing the battery
Remove the bottom plate by rotating it. Unscrew the battery cover. Remove old
batteries, and insert new ones (only use brand new batteries).
Put the cover back and screw it. Put the plate back.
Figure 3. Panic Button Battery Replacement
Packaging content
1 Table Top Panic Button
2 AAA batteries
1 wall plate with screws and anchors
Installation notice
Technical description
Size: diameter =3.37 inches and thickness =2 inches with housing material made of
plastic
Operating temperature: 0°C to +45°C
Battery : 1.5Vdc AAA type (2 pieces)
Data Protocol : proprietary FW-Protocol
Modulation Type GFSK (1 Frequency) with frequency hopping
Frequency band : 902MHz to 928MHz (central operating frequency is 915MHz)
Channel 20dB bandwidth: 135kHz
Channel receive bandwidth: 231kHz
Channel spacing: 250kHz
Maximum conducted output power (at antenna port) : 0dBm
Crystal oscillator reference frequency: 27MHz for operations and 32.768kHz for
standby mode
Recycling Information
LEA products are marked with the WEEE mark (in accordance with the Waste
Electrical and Electronic Equipment Directive). This product should not be
disposed of with regular waste or recycling. Unusable or unneeded equipment
should be taken to a local electronic waste facility. Contact your local
government for locations.
RoHS – Restriction of Hazardous Substances Directive
The RoHS directive aims to restrict certain dangerous substances commonly
used in electronic and electronic equipment. LEA PLC adapters comply with this
directive.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC ID: 2AFAY LEA001
HALTPB0R9-SMDL01
