LEA Networks LEA002 Remote User Manual
LEA Networks, LLC Remote Users Manual
Users Manual
Copyright © 2015
LEA-ATT-WPB915-A Installation Instructions
Product Description
LEA-ATT-WPB915-A is a “wearable panic button”. The “wearable panic button” is
a wireless connected wearable accessory that allows the user – by pressing the
button - to send a panic message to predefined contacts, through a gateway.
Multi-wear accessories: it can be adapted on a wristband, on a pendant
around the neck or on the belt.
Water resistant: it can be worn in the shower or bath
LED indicates transmission.
It is powered by a removable battery.
The battery cover is connected to a tamper switch which detects when the
cover is opened to send a message to the gateway

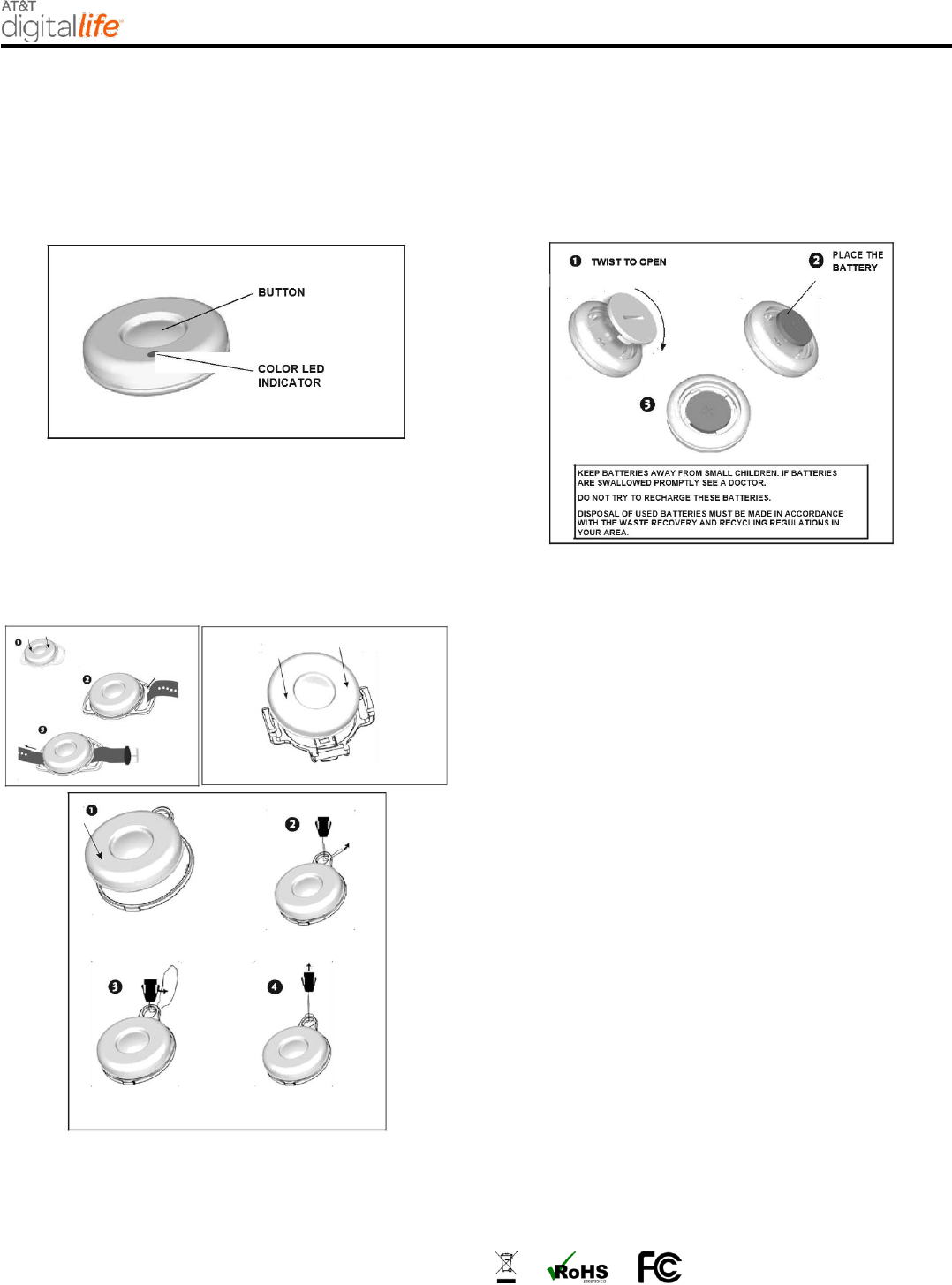

Figure 1. Panic Button Features
LED Status
Panic button – hold until LED turns from red to green (blinking)
Battery cover tamper – LED blinks shortly in red
Nominal state (idle mode) – LED is off
Panic Button
- 2sec press will trigger panic message
Accessories
Figure 2. Panic Button accessories mounting
Replacing the battery
Use an appropriate coin to rotate and open the battery cover. The arrow on the
cover must be pointing at the “O” letter before trying to extract the cover.
Remove old battery, and insert a new one (only use brand new batteries).
Control that the rubber joint is clean and well positioned inside the device before re-
inserting the cover.
With an appropriate coin, rotate and close the battery cover. The arrow on the cover
must be pointing at the “C” to ensure correct closure.
WARNING: incorrect operations may result in the loss of waterproofness.
Figure 3. Panic Button Battery Replacement
Packaging content
1 Wearable Panic Button
1 CR2032 battery
2 Wristbands with 1 watch clip
1 Lanyard with 1 necklace clip
1 Belt clip
Installation notice
Technical description
Size: diameter =1.5inch and thickness =0.4inch with housing material made of plastic
(PC)
Operating temperature: 0°C to +45°C
Battery: 3VDC Lithium CR2032
Data Protocol: proprietary FW-Protocol
Modulation Type GFSK (1 Frequency) with frequency hopping
Frequency band: 902MHz to 928MHz (central operating frequency is 915MHz)
Channel 20dB bandwidth: 135kHz
Channel receive bandwidth: 231kHz
Channel spacing: 250kHz
Maximum conducted output power (at antenna port): 0dBm
Crystal oscillator reference frequency: 27MHz for operations and 32.768kHz for
standby mode.
Recycling Information
LEA products are marked with the WEEE mark (in accordance with the Waste
Electrical and Electronic Equipment Directive). This product should not be
disposed of with regular waste or recycling. Unusable or unneeded equipment
should be taken to a local electronic waste facility. Contact your local
government for locations.
RoHS – Restriction of Hazardous Substances Directive
The RoHS directive aims to restrict certain dangerous substances commonly
used in electronic and electronic equipment. LEA PLC adapters comply with this
directive.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC ID: 2AFAY LEA002
HALWPB0R9-SMDL01
