LECIP Arcontia AB ARC2310 T2 Contactless Smart Card Terminal
User Manual
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
2
1 Index
2 Revision history ............................................................................................................................... 3
3 Introduction ..................................................................................................................................... 4
3.1 ARC2310 .................................................................................................................................. 4
3.2 Document version dependencies ............................................................................................ 4
4 ARC2310 System overview .............................................................................................................. 5
4.1 ARC2310 flash layout ............................................................................................................... 5
4.2 ARC2310 File system layout .................................................................................................... 6
4.2.1 Base file system layout .................................................................................................... 6
4.2.2 Layout for /usr/ directory ................................................................................................ 6
5 ARC2310 SSH handling .................................................................................................................... 7
6 Software tools ................................................................................................................................. 8
6.1 Development tool setup for the Arcontia ARC2310................................................................ 8
6.1.1 Tool chain requirements ................................................................................................. 8
6.1.2 Optional software ............................................................................................................ 8
6.1.3 Compiler setup ................................................................................................................ 8
6.2 Restore Image.......................................................................................................................... 8
6.3 Building the sample program ................................................................................................ 10
6.4 Power to the reader .............................................................................................................. 11
7 ARC2310 Linux Devices .................................................................................................................. 12
7.1 Kernel console port ............................................................................................................... 12
7.2 External RS232 port 1 ............................................................................................................ 12
7.3 RFID reader device ................................................................................................................ 12
8 Application development on ARC2310 ......................................................................................... 13
8.1 ARC2310 demo program ....................................................................................................... 13
8.1.1 Building the example ..................................................................................................... 13
8.1.2 Running the example ..................................................................................................... 14
9 Known Issues ................................................................................................................................. 15
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
4
3 Introduction

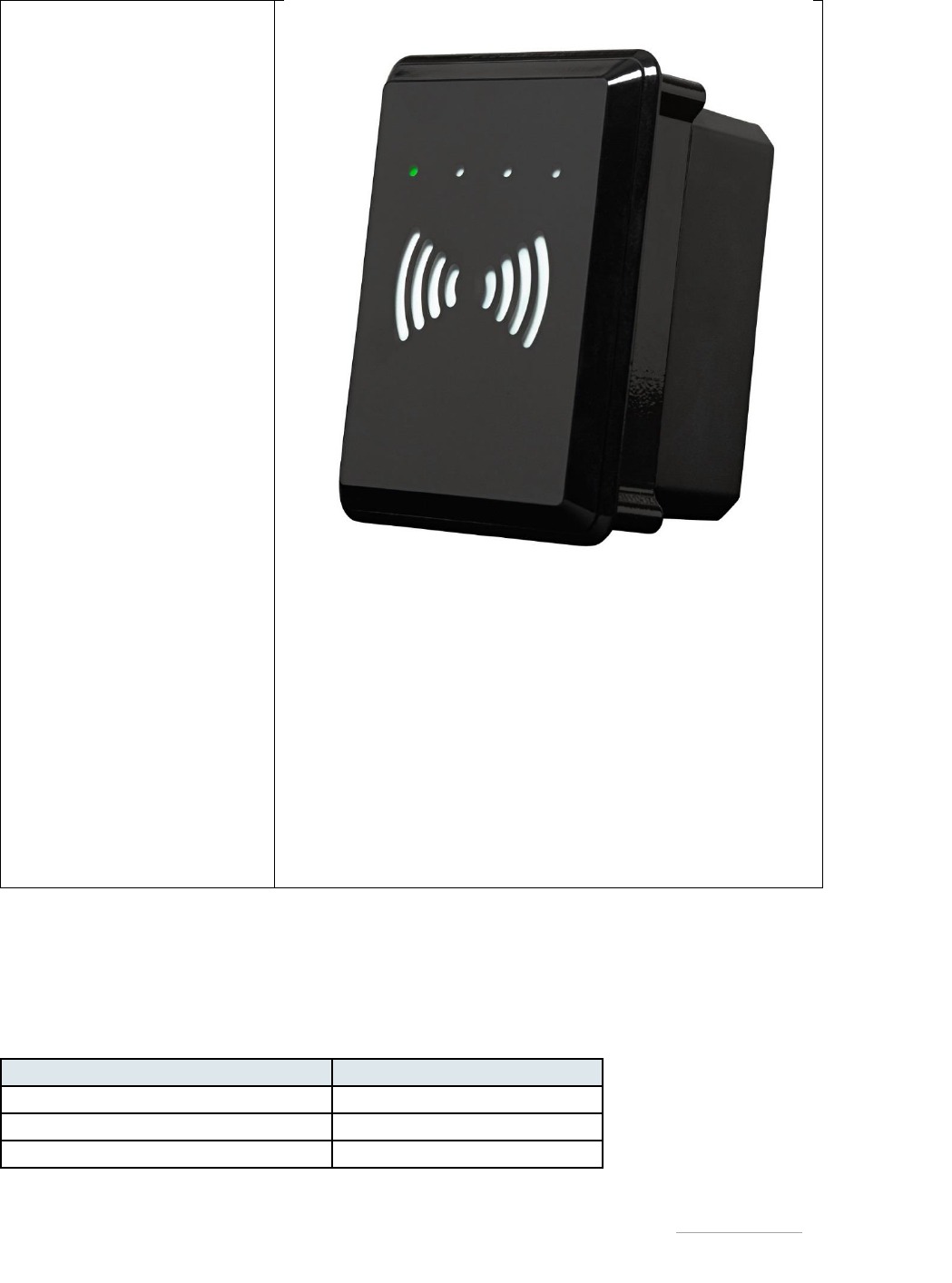

3.1 ARC2310
T2/ARC2310
3.2 Document version dependencies
This document is based on software development kit version 1.0 and the following software and
firmware versions.
Software or firmware type
Version
Linux kernel
3.10
ArcB
3.7.15
ARC1300 firmware
G
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
5
4 ARC2310 System overview
The ARC2310 is GNU/Linux based. The main operating system environment is provided by Busybox
v1.20.1 http://www.busybox.net.
4.1 ARC2310 flash layout
The flash memory is divided into several partitions for performing secure system upgrades. This table
shows the details of these partitions:
Partition name
Partition size
Partition information
DTB
2 MiB
Device Tree Blob
Uboot
8 MiB
Boot loader
Kernel
8 MiB
Kernel partition
Root
128 MiB
Root partition
User
512 MiB
User partition
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
6
4.2 ARC2310 File system layout
The file system tries to mimic common Posix based systems but there are some specific limitations
because of the nature of an embedded Linux system.
4.2.1 Base file system layout
The base root file system looks like this:
Dir
Info
/
Top node where the root image is mounted.
/bin
Operating system binaries.
/dev
Device files.
/doc
Documentation files
/etc
System configuration files. Mounted as a RAM disk, any changes will be lost at reboot.
/home
User home dir. Is not used yet.
/lib
Operating system libraries.
/media
Unused, can be used as mnt.
/mnt
Mount point directories for extra file systems.
/proc
Linux proc fs.
/root
Root user home dir.
/sbin
Operating system binaries.
/sys
Linux sysfs.
/tmp
Temporary dir. Mounted as an RAM disk. All content will be lost at reboot.
/usr
The usr dir.
/var
This is the mounting point of the NVRAM partition.
4.2.2 Layout for /usr/ directory
Dir
Info
/usr/lib
Operating system libraries, in this folder Arcontia Library files are stored,like Arcb and ArcT1
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
7
5 ARC2310 SSH handling
The Arc2310 has as default a ssh deamon running, and the device is configured for dhcp so it will
receive a dynamic ip at boot.
Tip1: When booting up the device for the first time, it could be convenient to use a serial cable to
connect to the device.
Tip2: If no serial cable is available, then on a linux system connected to the same LAN as the 2310 can
be used and issue the command: “ sudo nmap -sP 192.168.0.0/24 | awk '/192/ { print $0; }' “ before
and after connecting the device. The difference in the output should reveal the ip address of the
device.
Default credentials:
Login: root
password: arcontia
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
8
6 Software tools
6.1 Development tool setup for the Arcontia ARC2310
The Arcontia ARC2310 is a GNU/Linux based platform.
6.1.1 Tool chain requirements
Gnu/Linux based x86 PC. We recommend Ubuntu 12.04 LTS (http://www.ubuntu.com) on an x86
computer and the following examples are tested for this OS only.
6.1.2 Optional software
The following software is required to build Qt based GUI applications:
sudo apt-get install qt4-designer g++
It is also possible to use Visual Studio with the Qt add-on. For more information on Qt development
see http://qt.digia.com. The example project included in this SDK uses the tools provided in the Qt
SDK. These utilities are also required to build the user image:
sudo apt-get install mtd-utils
6.1.3 Compiler setup
The tool chain consists of GCC (Gnu Compiler Collection) version 4.4.6, QtEmbedded version 4.8.4-
arm and Arcontia Arcb3.
The archive ARC2310_SDK_ver_1.0.tar.gz is located in the “ToolChain” directory and contains all
needed software.
Extract the files on the Ubuntu computer using the following commands:
cd /
sudo tar xvf <dir>/ARC2310_SDK_ver_1.0.tar.gz
Setup the path to the tools:
PATH=$PATH:/opt/Arcontia/gcc-4.4.6-eglib-2.12-binutils-2.20.1-1/arm-unknown-linux-
gnueabi/bin
6.2 Restore Image
To restore the software on the 2310 to factory defaults the following procedure needs to be taken.
Go to the folder with the linux image.
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
9
cd /opt/Arcontia/ARC2310_v1.0/Image/
Start by extracting the archive.
bzip2 -d arc2310-image-20140821T132712Z-696254464-0a940cafa626c639.img.bz2
This will extract the file: arc2310-image-20140821T132712Z-696254464-0a940cafa626c639.img
This file should to be flashed to an sd-card. Use for example an usb-sd-card reader, and use the
following command:
dd if= arc2310-image-20140821T132712Z-696254464-0a940cafa626c639.img of=/dev/sdb
bs=1M conv=fsync
Note: The /dev/sdb part of the command assumes that the sd-card reader is assigned to this device.
This should be changed to point at the right device for your system.
Note: The name of the image is created with the date of the creation, so an example of image name
is: arc2310-image-20140820T143014Z-696254464-ce415d441358748e.img so the name referred to
in this document might be different then what is the Image directory.
After the image has been written to the sd-card, the card should be placed in the 2310. A console
cable needs to be attached to the device. And the device should be rebooted.
The program Putty can be used to connect to the device, choose ConnectionType : Serial, Speed:
115200 and Serial Line: COM1
Note: The Serial Line might be different depending on your computer. Refer to your device manager
to find out the correct port.
When the Arc2310 boots up, it will wait 3 seconds to stop the autoboot. Hit anykey to stop the
autoboot.
A U-boot console should open up. Issue the command:
setenv rootblks16 0x140000
This will tell uboot how big the image is.
Note: The value 0x140000 specifies the amount of 512 byte blocks to copy from the sd-card. The
current image is 640 Mb that equals: (640 * 1024 * 1024) / 512 = 1310720 = 0x140000H
Make u-boot start the copy process by typing:
run install_firmware
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
10
For an image of the size 640 Mb the process takes about 8 to 10 minutes.
Finally reboot the device by issuing the command:
reset
6.3 Building the sample program
Go to the example folder:
cd /opt/Arcontia/ARC2310_v1.0/Example/
Uncompress the archive.
tar xvf T2Demo.tar.gz
Change directory to the extracted.
cd T2Demo
The script file generateMakefile can be used to create the Makefile.
./generateMakefile
Type “make” to start the build process.
make
This will produce the T2Demo executable into the build directory.
cd /opt/Arcontia/ARC2310_v1.0/Example/T2Demo/build
The application can now be transferred and executed on the device. scp can for example be used to
transfer the application to the device.
scp T2Demo root@192.168.0.31:/usr/bin
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
11
Note: If the application is already running on the device, the running application must be killed before
the file can be overwritten. This can be done through ssh into the device and using the command
“killall T2Demo”
Note: The T2Demo is configured to start at boot, this is done in the file: /etc/init.d/T2App and is also
linked in /etc/rc.d/S99T2App
6.4 Power to the reader
To switch on the power to the reader chip the following commands needs to be executed on the
device.
echo 4 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio4/direction
echo 1 > /sys/class/gpio/gpio4/value
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
13
8 Application development on ARC2310
The default GUI development framework for the ARC2310 is Qt. The easiest way to get started is to
use QtCreator. It is possible to use other tools such as Eclipse if desired. However, this guide does not
include steps on installing Qt for Eclipse so please refer to the Qt documentation for setting up the
Eclipse development environment.
8.1 ARC2310 demo program
The ARC2310 device included in the development kit does not come with the “T2Demo” demo
program pre-installed. This program demonstrates general usage of the ARC2310 hardware. The
source code for the demo is included in the SDK and is located in the
“/opt/Arcontia/ARC2310_v1.0/Example” directory. The T2Demo is closely related to the T5Demo
(ARC1800). SAM structures and Cards used in this demo is compatible with the one used on the
T5Demo.
8.1.1 Building the example
Step 1. If you have not done so already, follow the instructions in Section 6.1 of this document to set
up your environment.
Step 2. Navigate to the desired working directory and extract the T2Demo source on the Ubuntu
computer using the following commands:
tar axf /opt/Arcontia/ARC2310_v1.0/Example/T2Demo.tar.bz2
cd T2Demo
Step 3. Configure the T2Demo application:
./generateMakeFile
Note that the application is now configured to run on a target ARC2310 device. If instead you wish to
build the application to run on an x86 computer, execute the following command:
qmake
Step 4. Build the T2Demo application:
make
Note: If you have compiled the code previously, and have changed the target, it may be necessary to
clean the build before running make to ensure it builds for the new target:
make clean
ARC2310/T2 SDK version 1.0
Lecip Arcont ia AB, Gruvgat an 35A, 421 30 Väst r a Frölunda, Sw ed en, Tel + 46(0)31499930 ww w .arcont ia.se
support @arcont ia.se
14
8.1.2 Running the example
The application is built to either run on a target ARC2310 device or to emulate a device on the host
machine. See Section 8.1.1 above for more details on building for these targets. Choose the
appropriate run procedure of the two below depending on your target.
Option I: Running on the host machine:
Step 1. Set the LD_LIBRARY_PATH environment variable:
export
LD_LIBRARY_PATH=/opt/Arcontia/ARC1300_v3.8/SDK/LibraryC++/ARCB_Libraries_3.7.15/Lib
/:/opt/Arcontia/ARC1300_v3.8/SDK/LibraryC++/ArcT1_Libraries_1.8/Lib/
Step 2. Run the build:
./build/T2Demo
Option II: Running on a target ARC2310:
Step 1. Copy the application to a writable directory on the unit such as “tmp”:
scp build/T2Demo root@X.X.X.X:/tmp
Note: Replace X.X.X.X with the correct IP-address.
Note: The root account has the password “arcontia” as default.
Step 2. Connect to the unit via SSH:
ssh root@X.X.X.X
Note: Replace X.X.X.X with the correct IP-address.
Note: The root account has the password “arcontia” as default.
Step 3. Run the application:
cd /tmp/
./T2Demo
