USERS MANUAL
EUT Type: 15” LCD TV/Monitor
FCC ID: BEJ15LA70B
Test Report No.: GETEC-E3-06-007
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
LCD
Color Television
OWNER’S MANUAL
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
MODELS: RM-15LA70
RM-20LA70
RM-20LA71
LG Electronics U.S.A., Inc.
2
Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-
tical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.
Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: 1-201-816-2000
http://www.lgusa.com
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
W
Warning
arning
3
Safety Instructions
WARNING :
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
apparatus.
CAUTION :
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform
any servicing other than that contained in the operating instructions unless you are qualified to do so.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is pro-
vided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obso-
lete outlet.
10. protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use the attachments / accessories specified by the manufacturer.
Safety Instructions
Safety Instructions
4
Safety Instructions
Safety Instructions continued
Safety Instructions continued
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
On Disposal
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
5
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Introduction
Controls and Connection Options . . . . . . . . . .6~7
Remote Control Key Functions . . . . . . . . . . . . . .8
Installation
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Kensington Security System . . . . . . . . . . . . . . . .9
Installation Instruction . . . . . . . . . . . . . . . . . . . . . .10

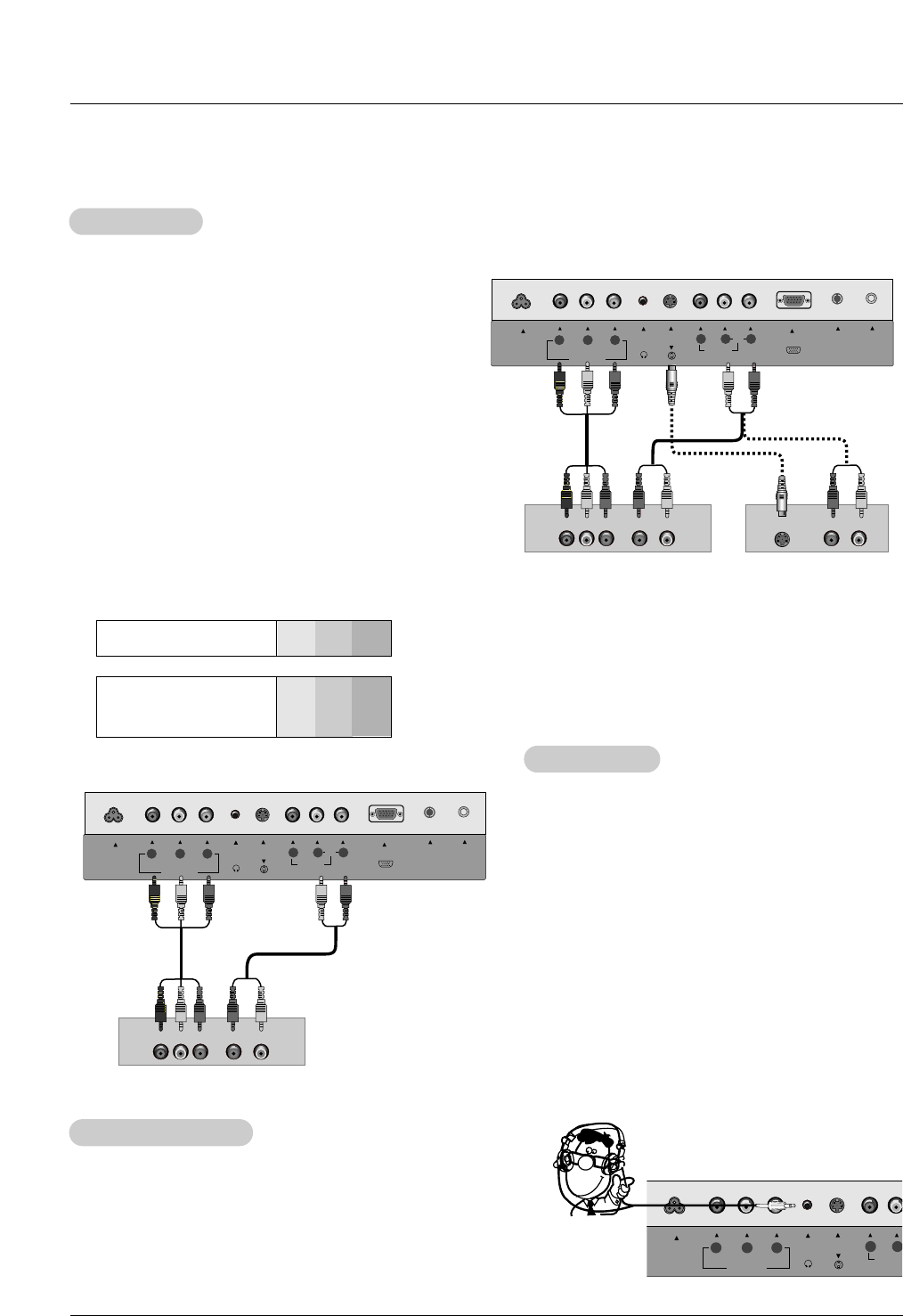

External Equipment Connections . . . . . . . . . .11~14
Antenna Connection . . . . . . . . . . . . . . . . . . . . .11
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cable TV Setup . . . . . . . . . . . . . . . . . . . . . . . .12
External A/V Source Setup . . . . . . . . . . . . . . . .12
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
DTV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Using Headphones . . . . . . . . . . . . . . . . . . . . . .13

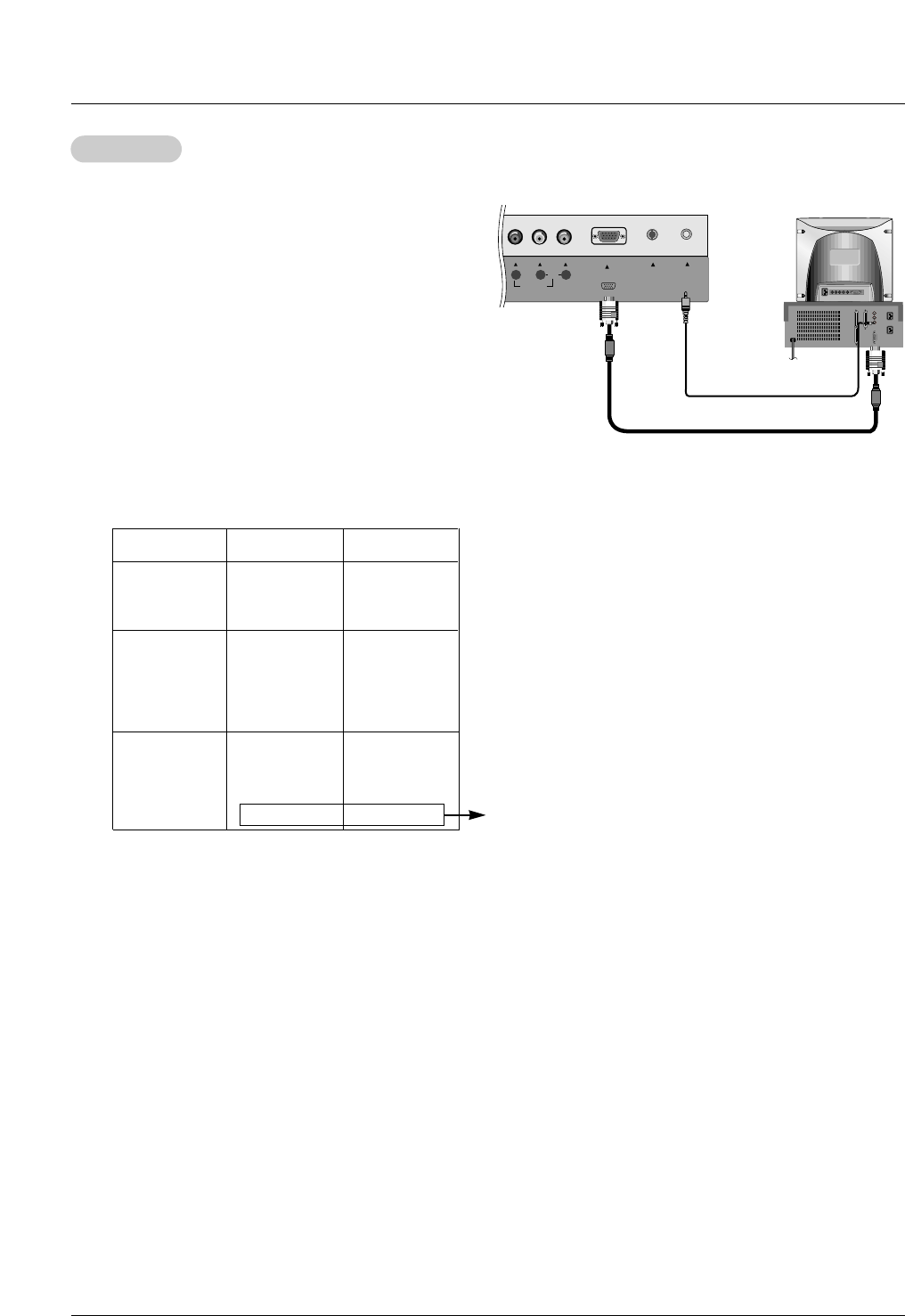

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Operation
PC Menu Options . . . . . . . . . . . . . . . . . . . . . . . . .15
TV Operation Overview . . . . . . . . . . . . . . . . . . . .16
Menu Language Selection . . . . . . . . . . . . . . . . . .16
Channel Menu Options
Memorizing the Channels with EZ Scan . . . . . .17
Add/Delete Channels with Manual Program . . .17
Favorite Channels Setup . . . . . . . . . . . . . . . . . .17
Picture Menu Options
EZ Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Manual Picture Control (User option) . . . . . . . .18
Sound Menu Options
EZ Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Equalizer Adjustments . . . . . . . . . . . . . . . . . . .19
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .19
Sound Balance . . . . . . . . . . . . . . . . . . . . . . . . .19
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .19
Time Menu Options
Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .20
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .20
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .21
Sleep Timer Setup . . . . . . . . . . . . . . . . . . . . . .21
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Special Menu Options
Closed Captions . . . . . . . . . . . . . . . . . . . . . . . .22
Caption/Text . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Lock Menu Setup . . . . . . . . . . . . . . . . . . . . . . .24
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .26
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .31~32
Contents
Contents
6
Introduction

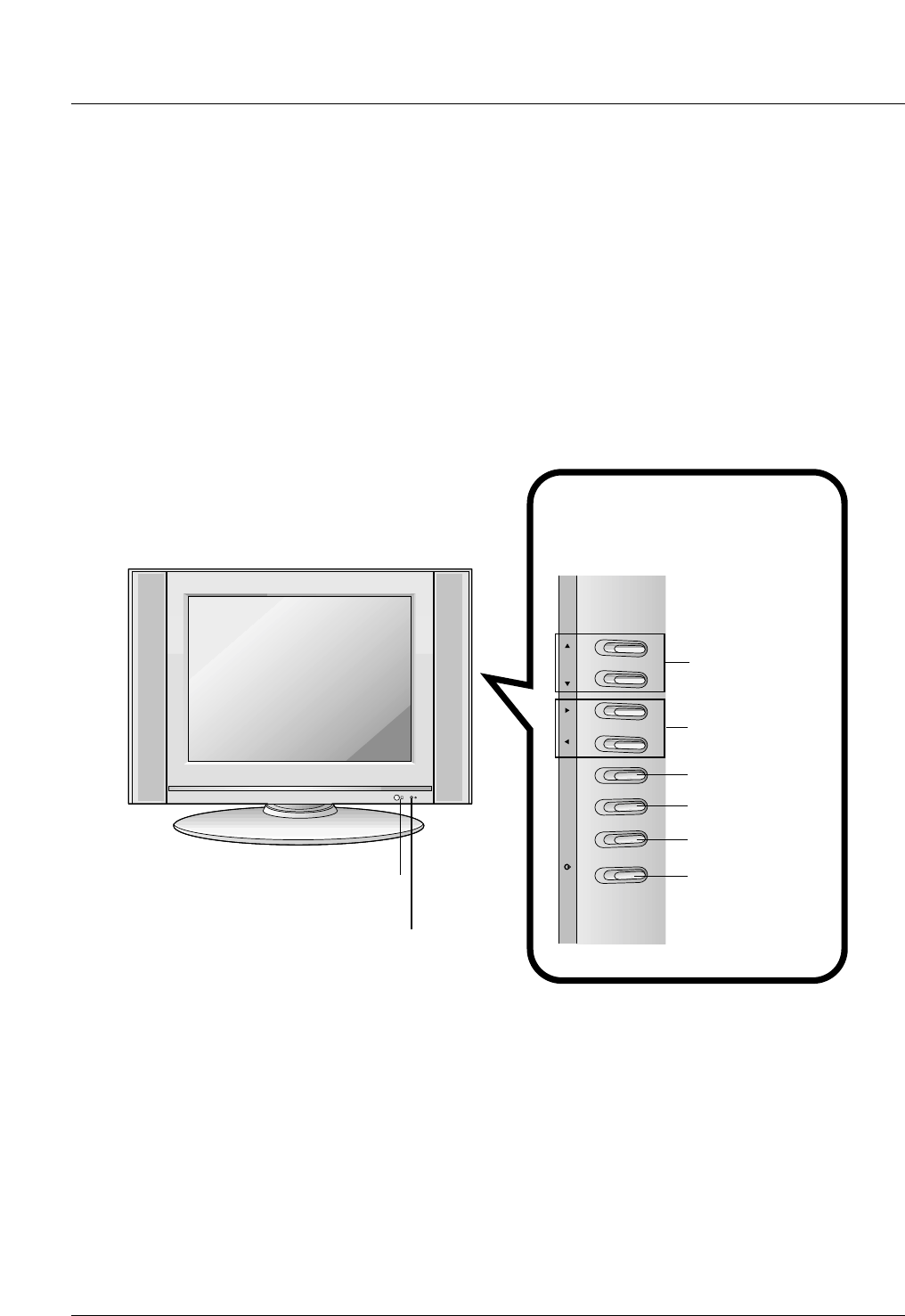

Controls
Controls
Introduction
Introduction
R
tv/videomenuentervolch /I
on/off
Remote Control Sensor
Power/Standby Indicator
Glows red in Standby mode,
Glows green when the TV is turned on.
Channel Buttons
Volume Buttons
Enter Button
Menu Button
TV/Video Button
On/Off Button
Side Control Panel
Side Control Panel
7
Introduction

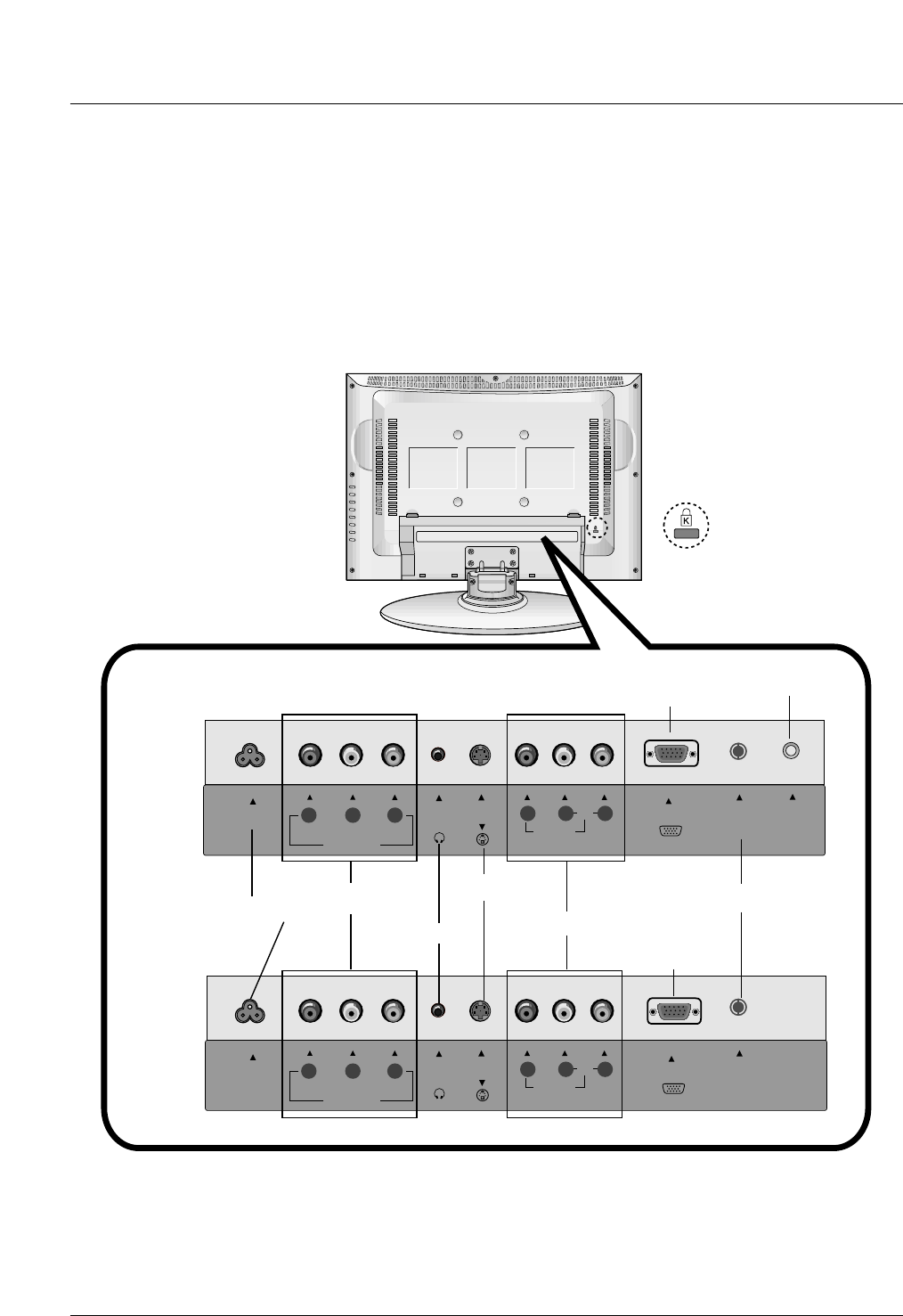

Connection Options
Connection Options
* Kensington Security
System Connector
(Refer to P.9)
COMPONENT(480i/480p/720p/1080i)
VIDEO IN
DVD/DTV IN
RLVIDEO
P
R
P
B
Y
AUDIO(MONO)
H/P
+75 Ω
ANT IN
S-VIDEO
AC INPUT
PC
SOUND
PC INPUT
COMPONENT(480i/480p)
VIDEO IN
DVD/DTV IN
RLVIDEO
P
R
P
B
Y
AUDIO(MONO)
H/P
+75 Ω
ANT IN
S-VIDEO
AC INPUT
FOR SERVICE
AC Input
S-Video Input
Headphone Jack
DVD/DTV Input
Audio / Video Input
Service
Jack
Antenna Input
PC Input
- This manual mainly explains the features for the RM-15LA70.
PC sound Input
RM-15LA70
RM-15LA70
RM-20LA70/71
RM-20LA70/71

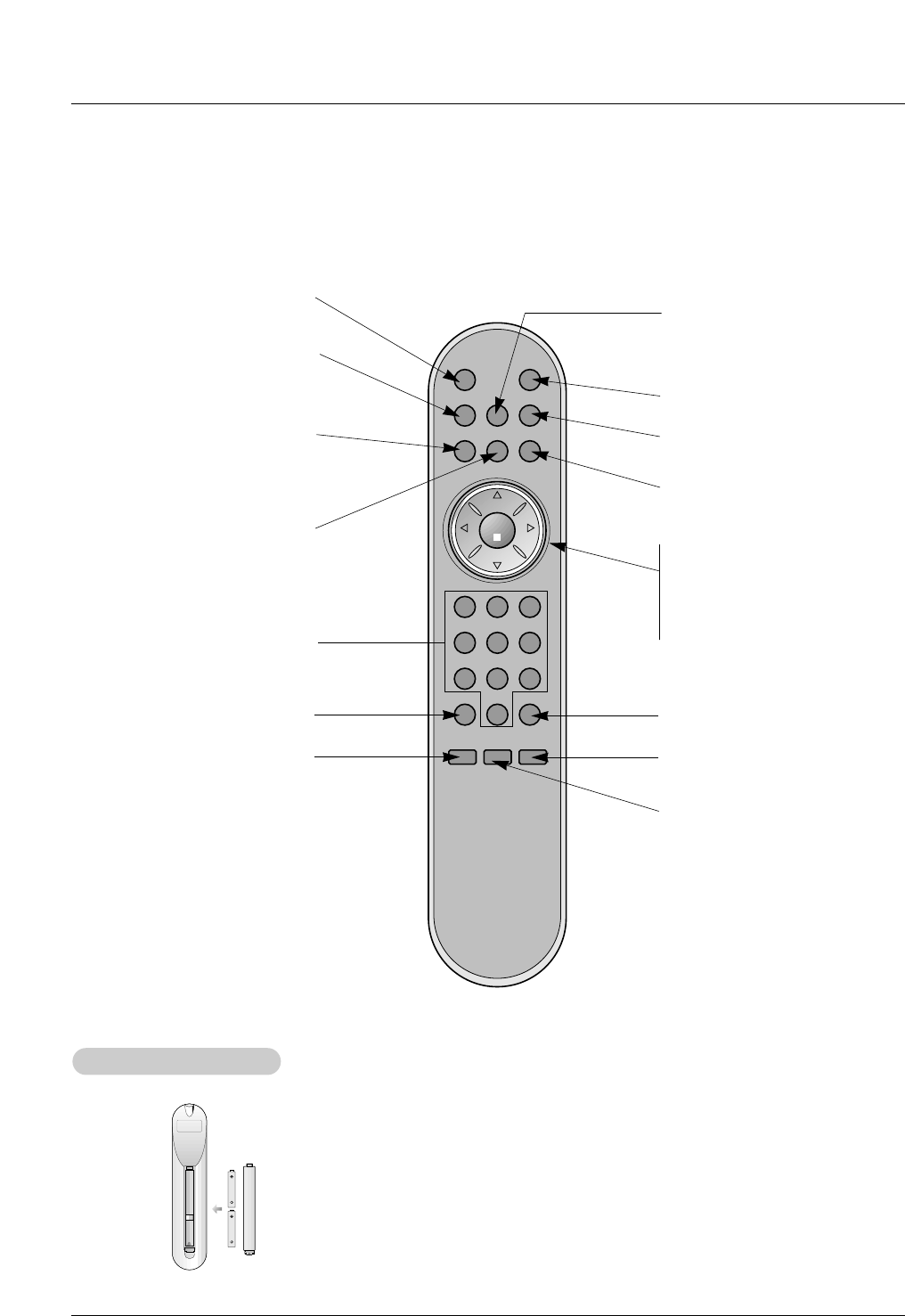

8
Introduction
- When using the remote control, aim it at the remote control sensor on the TV.
powermute
tv/video
multimedia
mts
fcr
ch
ch
vol
enter
123
456
789
0
vol
exit
menu
audio
flashbkcc sleep
video
MUTE
Switches the sound on or off.
ENTER
CH DD / EE (Channel button)
VOL FF / GG (Volume button)
POWER
MTS
(Refer to p.19)
EXIT
MENU
MULTIMEDIA
Selects: TV or Component
mode.
VIDEO
(Refer to p.18)
SLEEP
(Refer to p.21)
FLASHBK
Press the FLASHBK button to
return to the last channel you were
watching.
AUDIO
(Refer to p.19)
CC
(Refer to p.23)
TV/VIDEO
Selects: TV, Video, S-Video,
or Component mode.
FCR
(Refer to p.17)
NUMBER buttons
•Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
•Install two 1.5V batteries of AAA type. Don’t mix used batteries
with new batteries.
Installing Batteries
Installing Batteries
Remote Control Key Functions
Remote Control Key Functions
9
Installation
Installation
Installation
Owner’s Manual
1.5V
1.5V
AAA Batteries Power Cord Remote Control
powermute
tv/video
multimedia
mts
fcr
ch
ch
vol
enter
123
456
789
0
vol
exit
menu
audio
flashbkcc sleep
video
NOTES
a. If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on.
This is normal, there is nothing wrong with TV.
b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no
adverse effect on the monitor's performance.
c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary distortion effects on the screen.

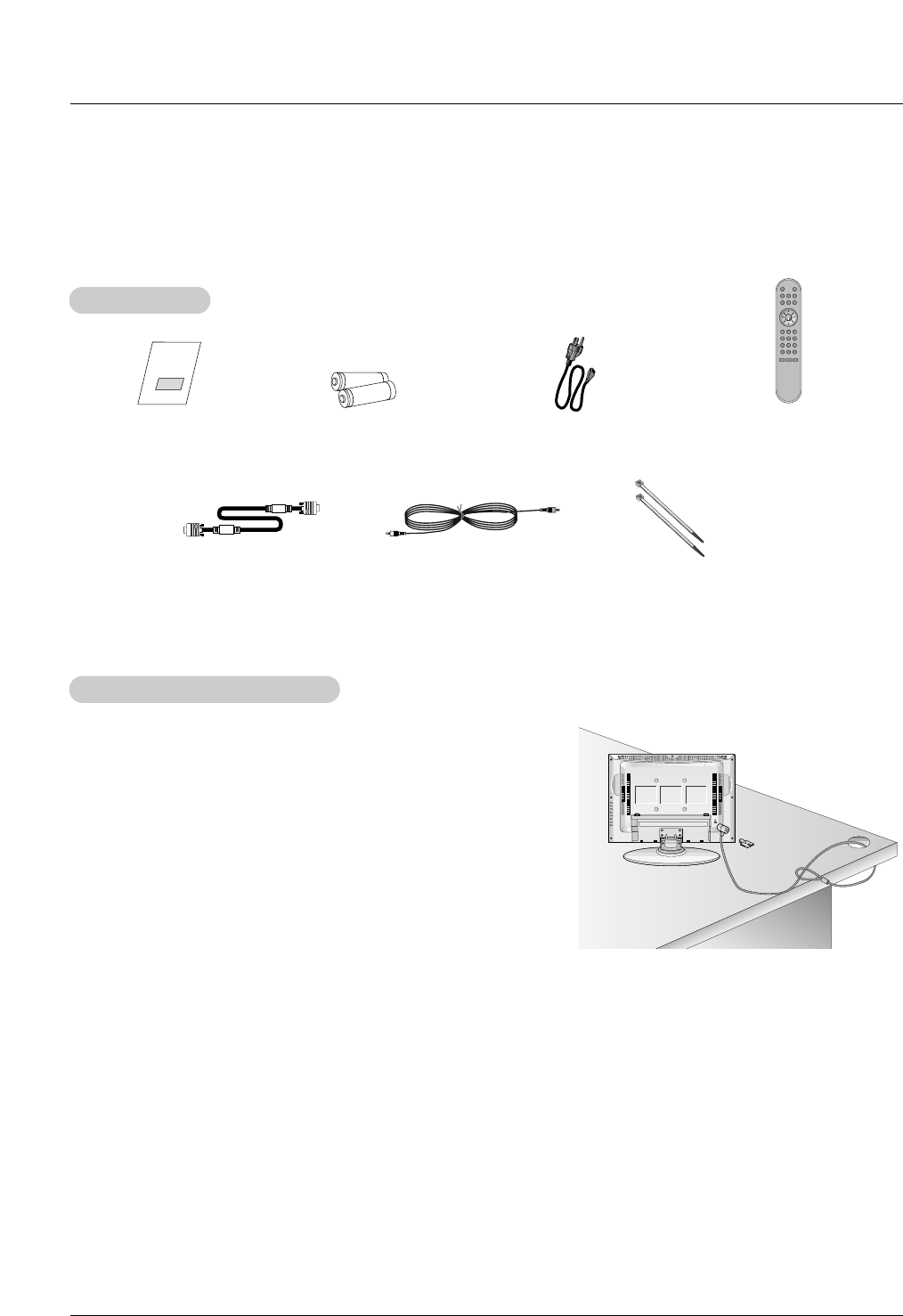

Kensington Security System
Kensington Security System
Accessories
Accessories
- The TV is equipped with a Kensington Security System connector
on the back panel. Connect the Kensington Security System
cable as shown below.
- For the detailed installation and use of the Kensington Security
System, refer to the user’s guide provided with the Kensington
Security System.
For further information, contact http://www.kensington.com, the
internet homepage of the Kensington company. Kensington sells
security systems for expensive electronic equipment such as note-
book PCs and LCD projectors.
- Note: The Kensington Security System is an optional accessory.
PC Signal Cable
(RM-15LA70 Only)
PC Sound Cable
(RM-15LA70 Only) Tie Bands
- Arrange the wires
with the tie bands.
10
Installation
W
Wire Holders
ire Holders

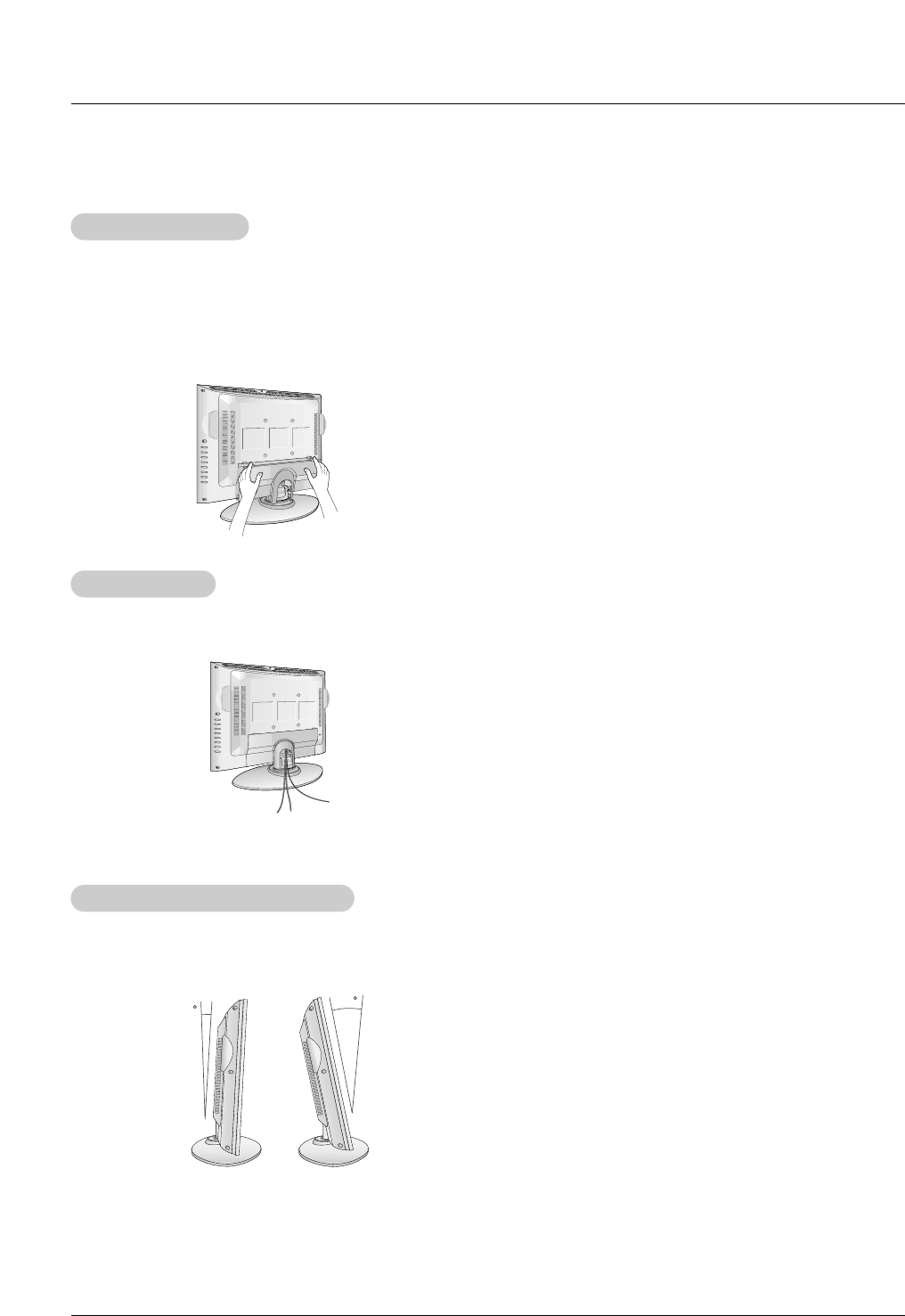

Adjusting the
Adjusting the TV V
TV Viewing
iewing Angle
Angle
Installation Instruction
Installation Instruction
- Thread, then pull the wires through the hole on the TV stand.
- You can adjust the vertical angle of the TV between 3°and 12°.
3
12
Rear
Rear A/V Cover
A/V Cover
* The connection panel is hidden behind the A/V cover.
a. Remove the cover.
b. Install wires as necessary.
c. Reinstall the cover. Align the holes on the TV back panel with the two tabs on the rear A/V
cover as shown.
e. Close cover.
11
Installation
External Equipment Connections
External Equipment Connections
- For optimum picture quality, adjust antenna direction.
- Typical wall antenna jack used in apartment buildings, connect the antenna cable as shown below.
(Use the correct type of antenna cable for the type of wall antenna jack.)
Wall Connection Jack
Apartment Buildings Antenna Jack
Bronze Wire
Turn clockwise to tighten.
Antenna
Converter
300ΩFlat Wire
75ΩRound Cable
- This type of antenna is commonly used in single family dwellings.
UHF
Antenna
VHF Antenna
- If you have a 75Ωround cable, insert the bronze wire and then tighten the connection nut. If you have a 300Ωflat wire, connect
the twisted wire to the antenna converter and then connect the converter to the antenna jack on the TV.
- If using 75Ωround cable, do not bend the bronze wire. It may cause poor picture quality.
- In poor signal areas, to get better picture quality, install a
signal amplifier to the antenna as shown to the right.
- If signal needs to be split for two TVs, use an antenna
signal splitter for connection.
Signal
Amplifier
UHF
VHF
Single Family Home
Connecting to an Inside Antenna Setup
Connecting to an Outdoor Antenna Setup
+75 Ω
ANT IN
PC INPUT
+75 Ω
ANT IN
PC INPUT
Antenna Jack
Bronze Wire
Turn clockwise to tighten.
Antenna
Converter
300ΩFlat Wire
75ΩRound Cable
+75 Ω
ANT IN
PC INPUT
Antenna Connection
Antenna Connection
- This manual mainly explains the features for the RM-15LA70.
12
Installation
Cable
Cable TV Setup
TV Setup
External
External A/V Source Setup
A/V Source Setup
VCR Setup
VCR Setup
- In Video mode, TV automatically reverts to TV mode if the
fcr button or flashbk buttons are pressed.
Connection 1
Set VCR switch to 3 or 4 and then tune TV to the same
channel number.
Connection 2
1. Connect the audio/video output jacks on VCR to the corre-
sponding input jacks on the TV. When connecting the TV
to a VCR, match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red).
2. Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
3. Use the tv/video button on the remote control to select
Video. (If connected to S-VIDEO on side panel, select the
S-Video external input source.)
Connection 1
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output channel
of cable box.
3. Select channels at the cable box or with the cable box
remote control.
Connection 2
1. Connect the audio/video output jacks on Cable Box to the
corresponding input jacks on the TV. When connecting
the TV to Cable Box, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right =
red).
2. Use the tv/video button on the remote control to select
Video.
3. Select channels with the cable box remote control.
Connections
Connect the audio/video output jacks on the external A/V
equipment to the corresponding input jacks on the TV.
When connecting the TV to external A/V equipment,
match the jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
Viewing Setup
1. Turn on the external A/V equipment.
2. Use the tv/video button on the remote control to
select Video.
3. Operate the corresponding external equipment. Refer
to external equipment operating guide.
VIDEO IN
DVD/DTV IN
RLVIDEO
PRPBYAUDIO(MONO)
H/P
+75 Ω
ANT IN
S-VIDEO
AC INPUT
PC
SOUND
PC INPUT
COMPONENT(480i/480p/720p/1080i)
OUT
IN
CH3 CH4
S-VIDEO
ANT IN
ANT OUT
(R) (L)
AUDIOVIDEO
1
Typical
Antennas
VCR
Direct
Connection
2
- After subscribing to a local cable TV service and installing a converter, you can watch cable TV programming.
- For further cable TV information, contact a local cable service provider.
COMPONENT(480i/480p/720p/1080i)
VIDEO IN
DVD/DTV IN
RLVIDEO
PRPBYAUDIO(MONO)
H/P
+75 Ω
ANT IN
S-VIDEO
AC INPUT
PC
SOUND
PC INPUT
TV
VCR RF Cable
(R) AUDIO (L) VIDEO
1
Cable Box
2
Camcorder
Video Game set
VIDEO IN
RLVIDEO AUDIO(MONO)
+75 Ω
ANT IN
S-VIDEO
PC
SOUND
PC INPUT
RAUDIO VIDEO
L
External
Equipment
External Equipment Connections Continued
External Equipment Connections Continued
13
Installation
DVD Setup
DVD Setup
DTV Setup
DTV Setup
Connections
1. Connect the DVD video outputs to the COMPONENT (Y, PB,
PR) jacks and connect the DVD audio outputs to the AUDIO
jacks.
2. If your DVD only has an S-Video output jack, connect this to
the S-VIDEO input on the TV and connect the DVD audio
outputs to the AUDIO INPUT jacks on the TV, as shown in
the figure.
NOTE: If your DVD player does not have component video
output, use S-Video.
Viewing Setup
1. Turn on the DVD player, insert a DVD.
2. Use the tv/video or multimedia button on the remote con-
trol to select Component (If connected to S-VIDEO, select
the S-Video input source.)
3. Refer to the DVD player's manual for operating instructions.
- To watch digitally broadcast programs, purchase and
connect a digital set-top box.
Connections
Connect the digital set-top box video outputs to the
COMPONENT (Y, PB, PR) jacks and connect the digital
set-top box audio outputs to the AUDIO jacks.
Viewing Setup
1. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
2. Use the tv/video or multimedia button on the remote
control to select Component.
DVD
VIDEO IN
DVD/DTV IN
RLVIDEO
P
R
P
B
Y
AUDIO(MONO)
H/P
+75 Ω
ANT IN
S-VIDEO
AC INPUT
PC
SOUND
PC INPUT
COMPONENT(480i/480p/720p/1080i)
AUDIOYPBPR(L)
(R) AUDIOS-VIDEO (L)
(R)
DTV Receiverr (Set-top Box)
VIDEO IN
DVD/DTV IN
RLVIDEO
P
R
P
B
Y
AUDIO(MONO)
H/P
+75 Ω
ANT IN
S-VIDEO
AC INPUT
PC
SOUND
PC INPUT
COMPONENT(480i/480p/720p/1080i)
AUDIOYPBPR(L)
(R)
Component ports
of the TV Y PBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Using Headphones
Using Headphones
- Plug headphones in to H/P jack as shown.
- Adjust sound level to a headphone using the volume (F, G)
buttons. While you are listening to sound through a head-
phone(s), TV speakers will not be heard.
•Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
COMPONENT(480i/480p/720p/1080i)
VIDEO IN
DVD/DTV IN
LVIDEO
PRPBY
(MONO)
H/P S-VIDEO
AC INPUT
14
Installation
VIDEO IN
RLVIDEO AUDIO(MONO)
+75 Ω
ANT IN
PC
SOUND
PC INPUT
- After setup, be sure to select RGB-PC source on TV.
only RM-20LA70/71
PC Setup
PC Setup
Connections
1. Set the monitor output resolution on the PC before
connecting to the TV.
2. Connect the TV to the PC with the PC cable.
3. Connect the PC audio output to the TV's PC SOUND
input.
Viewing Setup
1. Turn on the PC.
2. Use the tv/video or multimedia button on the remote
control to select RGB-PC.
NOTES
a. For optimum picture quality, use standard XGA (1024x768) computer output at a 60Hz refresh rate. Using other formats (VGA,
SVGA, etc.) or refresh rates may result in reduced picture quality. (To change the computer video output format, please refer to
the operating manual for the computer you are using).
b. If the message “Out of range” appears on the screen, adjust the PC output to a format listed in the ‘Displayable Monitor
Output Format Specifications' chart above.
c. The synchronization input form for Horizontal and Vertical frequencies is separate.
DPM (Display Power Management) mode
If the PC goes to power saving mode, the monitor automatically switches to DPM mode.
DPM mode may not work if you don’t use the PC cable provided.
Resolution
640x480
800x600
Horizontal
Frequency(kHz)
31.47
35.00
37.50
35.16
37.88
48.08
46.88
60
66.67
75
56.25
60
72.19
75
48.36
56.48
60.02
47.78
60
70
75
60
Vertical
Frequency(Hz)
1024x768
Monitor Display Specifications
15
Operation
1. Press the menu button and then use DD / EEbutton to select the PC menu.
2. Press the GGbutton and then use DD / EEbutton to select desired item.
3. Use the FF / GGbutton to make appropriate adjustments.
• H-position/V-position
Adjusts picture left/right and up/down.
The adjustment ranges of H-Position is -100~+100.
(Based on the input mode, the adjustment range may change.)
• Clock
Minimizes any vertical bars or stripes appearing on the screen background.
The adjustment range is 0~80. (Based on the input mode, the adjustment range may change.)
• Phase
Remove any horizontal noise and clear up or sharpen the character images.
The range adjustment is 0~31. (Based on the input mode, the adjustment range may change.)
• Auto-configure
Automatically adjusts the screen position, clock, and clock phase.
(The displayed image will disappear for a few seconds while Auto-configuration is in progress.)
• Reset
Returns to the default settings programmed at the factory; default settings
cannot be changed.
4. Press the enter button to save.
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
F
OK MENU
D
E
- After setup, be sure to select PC source to see the PC image on TV screen.
PC Menu Options (RM-15LA70 Only)
PC Menu Options (RM-15LA70 Only)
85
Operation
Operation
16
Operation
Menu Language Selection
Menu Language Selection
TV Operation Overview
TV Operation Overview
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the menu button and then use DD/ EEbutton to select the Special menu.
2. Press the GGbutton and then use DD/ EEbutton to select Language.
3. Press the GGbutton and then use DD/ EEbutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your
choice.
4. Press the exit button to save and return to TV viewing.
1. First, make all equipment connections. Plug the AC Adapter into the TV, then plug the AC Adapter into a power
outlet. At this time, the TV is switched to standby mode.
•In standby mode, press the power, ch (D,E), tv/video, multimedia or number button on the remote con-
trol or on/off, ch (D,E), tv/video located on the TV to turn the TV on.
2. Select the viewing source by pressing tv/video or multimedia repeatedly.
• Note: See page 17 if you have not auto programmed the TV to receive channels in your local broadcast area.
3. After viewing, press the power button on the remote control or on/off located on the TV. The TV reverts to
standby mode.
NOTE
• If you want to turn the TV off, press the on/off button located on the TV. If you intend to be away on vacation,
disconnect the power plug from the wall power outlet.
17
Operation
Channel Menu Options
Channel Menu Options
- You can manually include or erase individual channels.
1. Press the menu button and then use DD / EEbutton to select the Channel menu.
2. Press the GGbutton and then use DD / EEbutton to select Manual prog..
3. Press the GGbutton and then use FF / GGbutton to select a channel you want
to add to memory or erase.
4. Press the EE button and then use FF / GGbutton to select Memory (add) or
Erase (delete).
5. Press the enter button to save. The current channel is added to Memory or
Erased from the channel list.
Add/Delete Channels with Manual Program
Add/Delete Channels with Manual Program
1. Press the menu button and then use DD / EEbutton to select the Channel menu.
2. Press the GGbutton and then use DD / EEbutton to select EZ Scan.
3. Press the GGbutton to begin the channel search.
• Wait for auto program to complete the channel search cycle before
choosing a channel. The TV scans for over-the-air channels and then
channels provided by a cable service.
Memorizing the Channels with EZ Scan
Memorizing the Channels with EZ Scan
- For Auto program to work, the programming source must be connected to the TV and the TV must be receiving programming sig-
nals either over-the-air or from a cable-type service provider.
NOTES
• When the channel search is complete, use the DD / EEbuttons to review the memorized channels.
• If you press the enter button in auto programming, the function will stop and only channels programming up to that time will remain.
• Auto program function can memorize only the channels which are being received at that time.
Channel To start
EZ Scan
Manual prog.
Favorite ch.
FG
OK MENU
D
E
Channel
EZ Scan
Manual prog.
Favorite ch.
FG
OK MENU
Â
EXIT
D
E
TV TV 30
Memory
The current channel number is displayed.
- Favorite Channel lets you quickly tune in up to 8 channels of your choice without having to wait for the TV to scan through
all the in-between channels.
1. Press the menu button and then use DD / EEbutton to select the Channel menu.
2. Press the GGbutton and then use DD / EEbutton to select Favorite ch..
3. Press the GGbutton and then use DD / EEbutton to select the first favorite channel position.
4. Use the FF / GGbutton to set the desired channel number for first favorite channel.
5. Repeat steps 3 to 4 to memorize other channels.
6. Press the enter button to save.
• To tune to a favorite channel, press the fcr (Favorite Channel Review) button repeatedly. The 8 favorite channels appear on
the screen one-by-one.
Favorite Channels Setup
Favorite Channels Setup
Channel Favorite Ch.
EZ Scan
Manual prog.
Favorite ch.
FG
OK MENU
D
E
To set
- - - - - - -
- - - - - - -
- - - - - - -
- - - - - - -
- - - - - - -
- - - - - - -
- - - - - - -
- - - - - - -
D
EFG
OK MENU
Â
EXIT
18
Operation
Picture Menu Options
Picture Menu Options
- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.
1. Press the menu button and then use DD / EEbutton to select the Picture menu.
2. Press the GGbutton and then use DD / EEbutton to select the desired picture
option (Contrast,Brightness,Color,Sharpness,Tint).
3. Use the FF / GGbutton to make appropriate adjustments.
•
Contrast, Brightness, Color, and Sharpness are adjustable from 0 to 100.
• Tint is adjustable from Red 50 to Green 50.
4. Press the enter button to save.

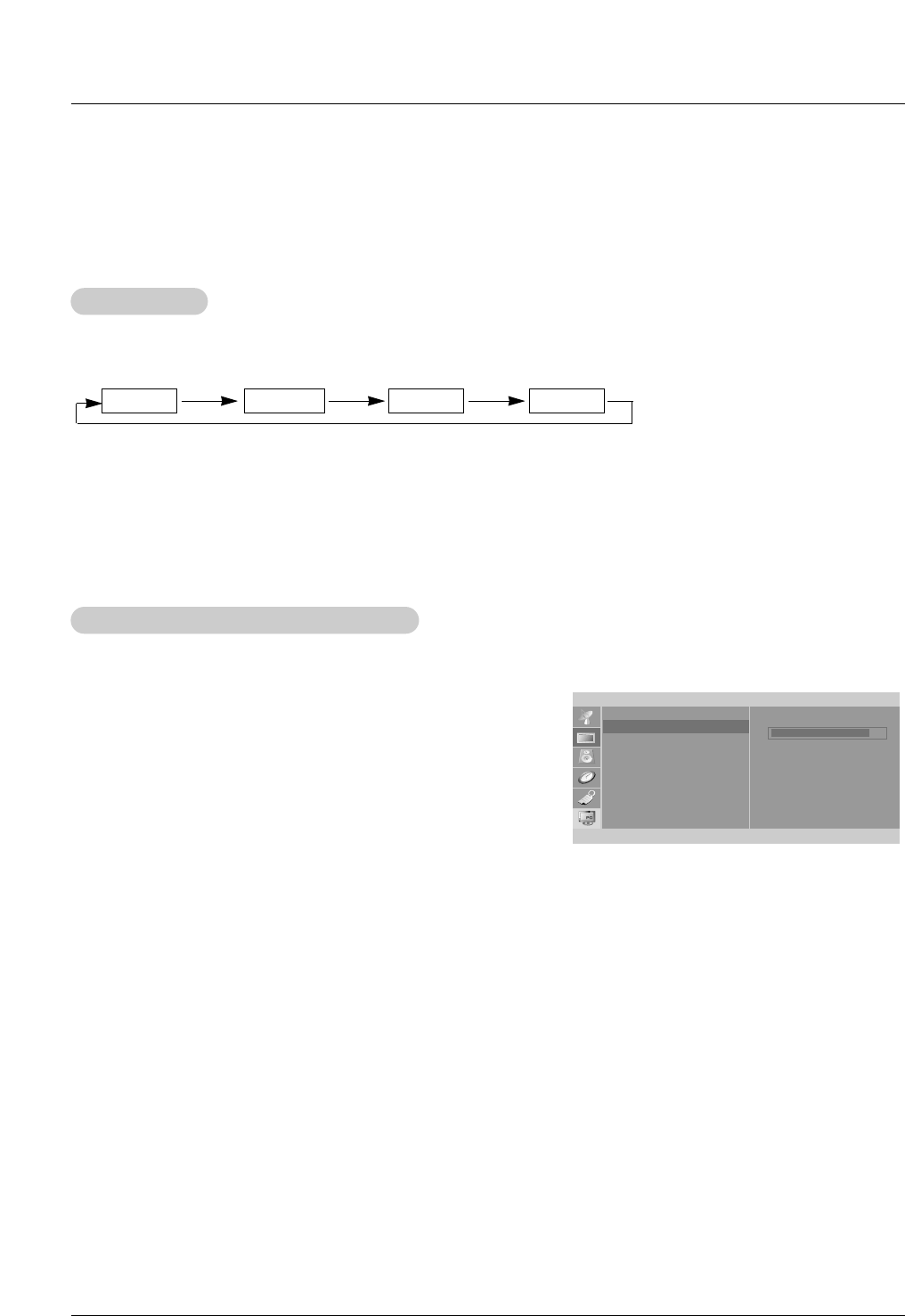

1. Press the video button repeatedly to select the picture appearance setup option as shown below.
EZ V
EZ Video
ideo
Manual Picture Control (
Manual Picture Control (User option)
option)
- This function adjusts the TV for the best picture appearance.
•You can also adjust EZ Video in the Picture menu.
•Clear, Optimum and Soft are preset for good picture quality at the factory and cannot be changed.
Clear Optimum Soft User
Contrast 85
EZ Video
Contrast
Brightness
Color
Sharpness
Tint
FG
OK MENU
D
E
19
Operation

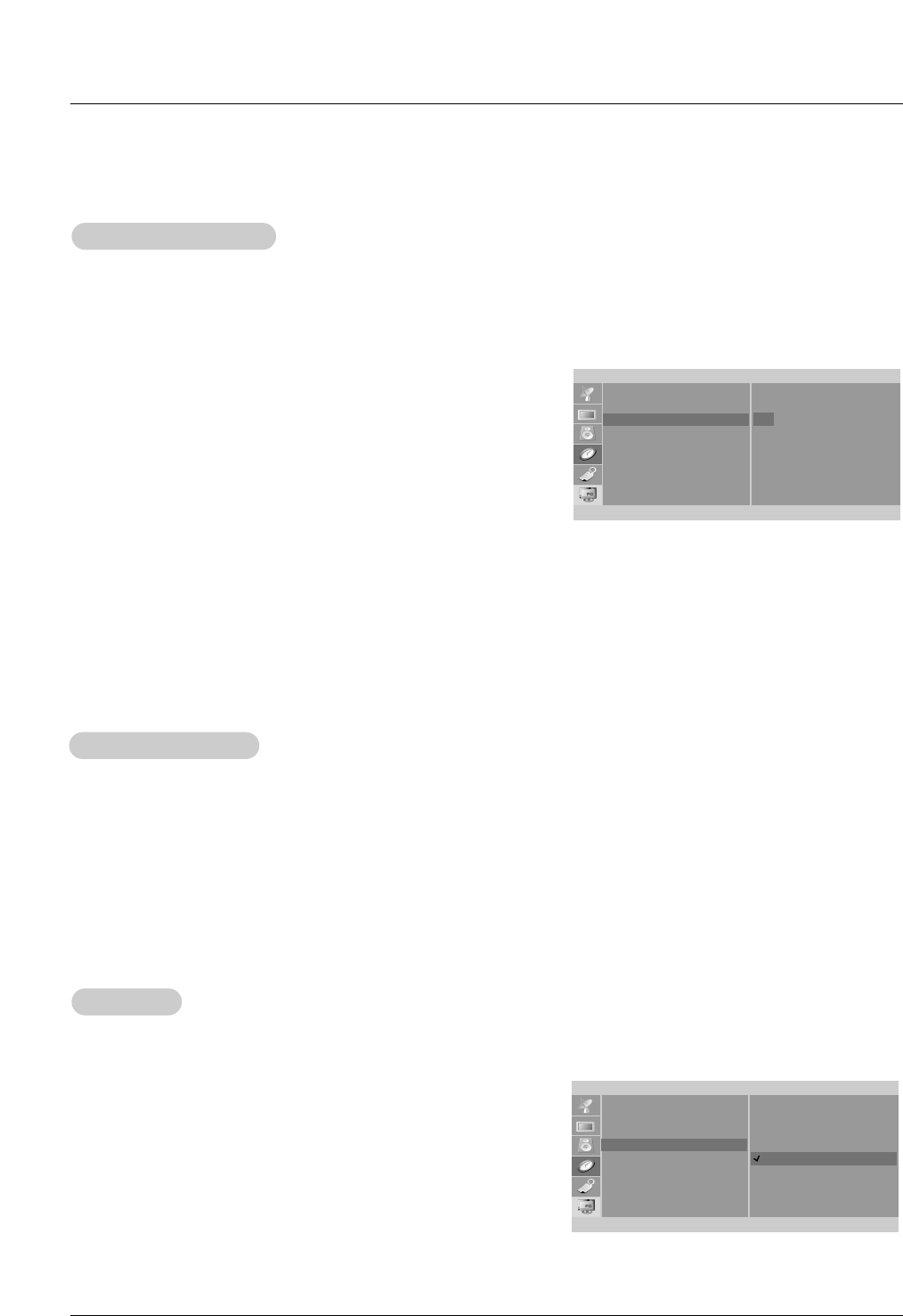

Sound Menu Options
Sound Menu Options
1. Use the audio button to select the appropriate sound setup as shown below.
EZ
EZ Audio
Audio
1. Press the menu button and then use DD / EEbutton to select the Sound menu.
2. Press the GGbutton and then use DD / EEbutton to select Balance.
3. Press the GGbutton and then use FF / GGbutton to adjust the sound balance.
• Balance is adjustable from Left 50 to Right 50.
4. Press the enter button to save.
Sound Balance
Sound Balance
1. Press the menu button and then use DD / EEbutton
to select the Sound menu.
2. Press the GGbutton and then use DD / EEbutton to
select EZ Audio.
3. Press the GGbutton and then use DD / EEbutton to
select User.
4. Press the GGbutton and then use FF / GGbutton to
select the band you want to adjust. Then, use DD /
EEbutton to adjust the band level.
5. Press the enter button to save.
Equalizer
Equalizer Adjustments
Adjustments
- This function lets you enjoy the best sound without any special adjustment because the TV selects the appropriate
sound option based on the program content.
• You can also adjust EZ Audio in the Sound menu.
Flat Music Movie Sports User
Equalizer
D
E
FG
Move Adjust
Â
Exit
0.1 0.5 1 5 10 KHz
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
Flat
Music
Movie
Sports
User G
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
0
- AVL maintains an equal volume level automatically even if the channel is
changed.
1. Press the menu button and then use DD / EEbutton to select the Sound menu.
2. Press the GGbutton and then use DD / EEbutton to select AV L .
3. Press the GGbutton and then use DD / EEbutton to to select On or Off.
4. Press the enter button to save.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
Sound
EZ Audio
AVL
Balance
F
OK MENU
D
E
On
Off
1. Press the mts button repeatedly.
Stereo/SAP
Stereo/SAP Broadcasts Setup
Broadcasts Setup
•Select mono sound mode if the signal is not clear or in poor signal reception areas.
•Stereo, SAP mode are available only if included on the broadcast signal.
Mono Stereo SAP
- The TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the
stereo program, if the broadcaster transmits an additional sound signal as well as the original one.
- Mono: The primary language is heard from left and right speakers. Signal mode is mono.
- Stereo: The primary language is heard from left and right speakers. Signal mode is stereo.
- SAP: The secondary language is heard from left and right speakers.
20
Operation
T

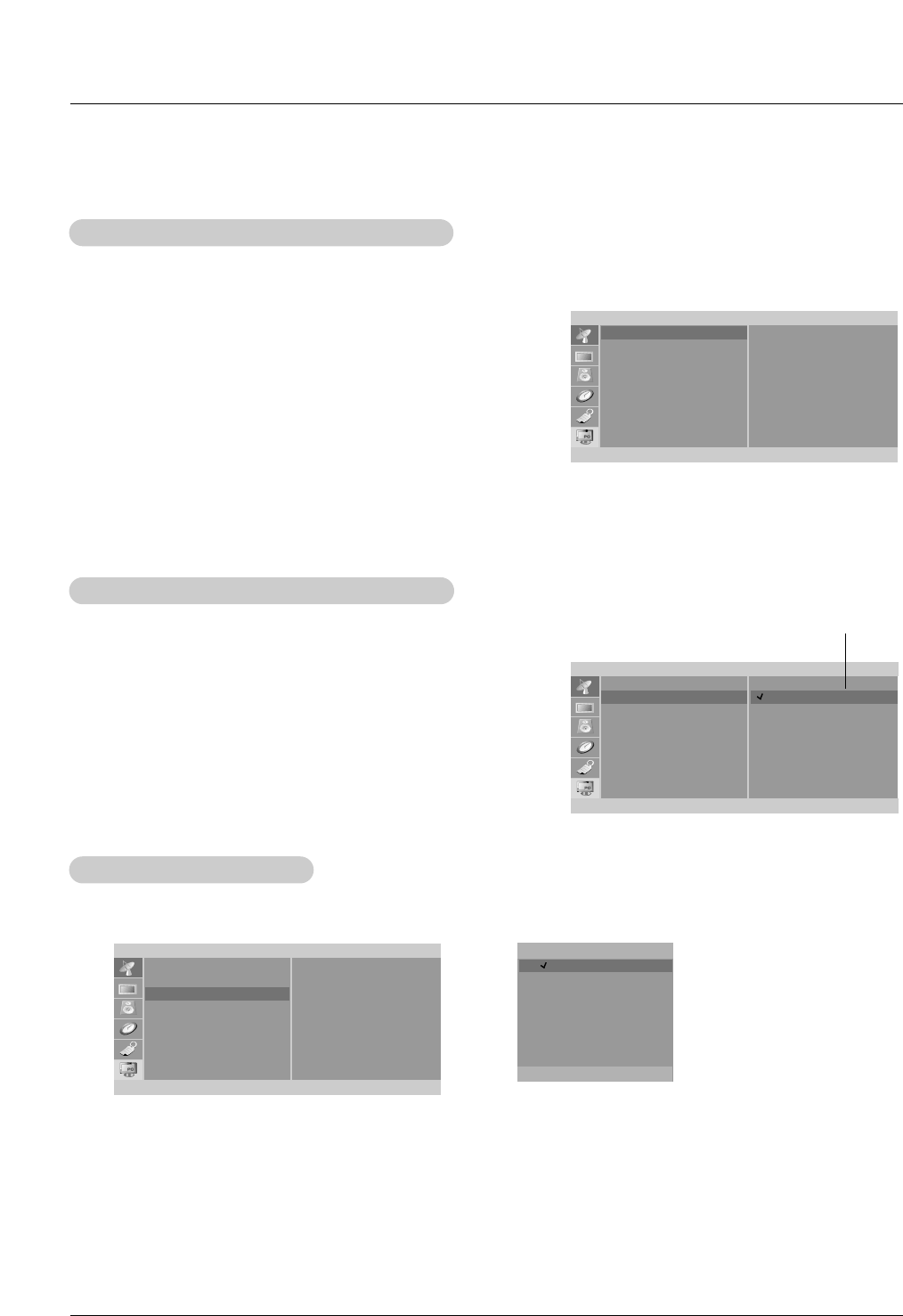

Time Menu Options
ime Menu Options
Auto Clock Setup
Auto Clock Setup
- If the time on the clock is incorrect, reset the clock manually.
1. Press the menu button and then use DD / EEbutton to select the Timer menu.
2. Press the GGbutton and then use DD / EEbutton to select Clock.
3. Press the GGbutton and then use DD / EEbutton to select Auto.
4. Press the GGbutton and then use DD / EEbutton to select the time zone for your viewing area. Your choices are:
Auto, E.S.T. (Eastern Standard Time), C.S.T. (Central Standard Time), M.S.T. (Mountain Standard Time), P.S.T.
(Pacific Standard Time), Alaska, and Hawaii.
5. Press the GGbutton and then use DD / EEbutton to set PBS channel.
6. Press the GGbutton and then use DD / EEbutton to set D.S.T. (Daylight Savings Time) Auto, Off or On, depending
on whether or not your viewing area observes Daylight Savings Time.
7. Press the enter button to save.
- The time is set automatically through from a PBS broadcast signal.
- The PBS channel signal includes information for the correct time and daylight saving time.
Manual Clock Setup
Manual Clock Setup
1. Press the menu button and then use DD / EEbutton to select the Timer
menu.
2. Press the GGbutton and then use DD / EEbutton to select Clock.
3. Press the GGbutton and then use DD / EEbutton to select Manual.
4. Press the GGbutton and then use DD / EEbutton to set the hour.
5. Press the GGbutton and then use DD / EEbutton to set the minutes.
6. Press the enter button to save.
Timer
Auto G
Manual
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
Timer
Auto
Manual G
- - : - - AM
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
Auto Clock
Time zone Auto
PBS Ch. TV 1
D.S.T. Auto
D
E
FG
Move Adjust
Â
Exit
21
Operation
- Timer function operates only if current time is set.
- Off-Timer function overrides On-Timer function if they are set to the same time.
- The TV must be in standby mode for the On-Timer to work.
- If you don’t press any button within 2 hours after turning on the TV with the On-Timer function, the TV will automatically
revert to standby mode.

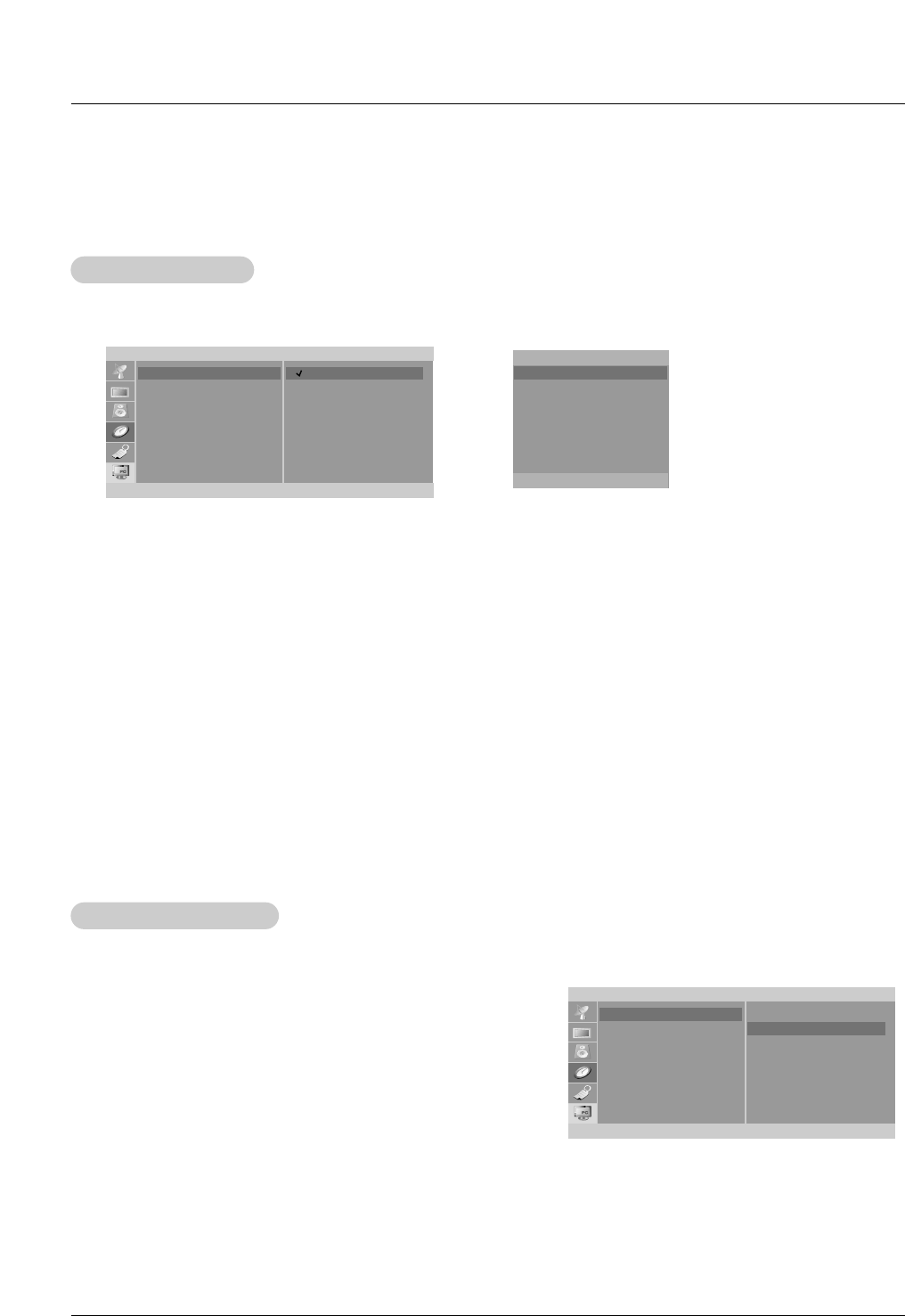

On/Of
On/Off
f T
Timer Setup
imer Setup
1. Press the menu button and then use DD / EEbutton to select the Time menu.
2. Press the GGbutton and then use DD / EEbutton to select Off timer or On
timer.
3. Press the GGbutton and then use DD / EEbutton to set the hour.
4. Press the GGbutton and then use DD / EEbutton to set the minutes.
5. For On timer function only:
Press the GGbutton and then use DD / EEbutton to set the channel at turn-on.
Then, press the GGbutton and then use DD / EEbutton to set the turn-on sound
level.
6. Press the GGbutton and then use DD / EEbutton to select Run or Hold.
• Hold: Off timer/On timer will not work.
Run: Off timer/On timer are active.
7. Press the enter button to save.
Timer
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
- - : - - AM
TV 2
Vol 30 Run
Sleep
Sleep T
Timer Setup
imer Setup
- The Sleep Timer turns the TV off at a preset time.
1. Press the sleep button repeatedly to select the number of minutes. First the Sleep --- option appears on the
screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the enter button. The timer begins to
count down from the number of minutes selected.
3. To check the remaining minutes before the TV turns off, press the sleep button once.
4. To cancel the Sleep Timer, press the sleep button repeatedly until Sleep --- appears.
Auto Of
Auto Off
f
- If Auto Off is active and there is no input signal, the TV switches to Standby mode automatically
after 10 minutes.
1. Press the menu button and then use DD / EEbutton to select the Time menu.
2. Press the GGbutton and then use DD / EEbutton to select Auto off.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press the enter button to save.
Time
Clock
Off timer
On timer
Auto off
F
OK MENU
D
E
On
Off
22
Operation
Special Menu Options
Special Menu Options
Closed Captions
Closed Captions
2. An old, bad, or illegally recorded tape is being played.
3. Strong, random signals from a car or airplane interfere with the TV signal.
4. The signal from the antenna is weak.
5. The program wasn’t captioned when it was produced, transmitted, or taped.
Closed captioning is a process which converts the audio portion of a television program into written words which then appear as sub-
titles on the television screen. Closed captions allow viewers to read the dialogue and narration of television programs.
Captions are the subtitles of the dialogue and narration of television programs. For prerecorded
programs, program dialogue can be arranged into captions in advance. Its possible to caption a
live program by using a process called real-time captioning, which creates captions instantly.
Real-time captioning is normally done by professional reporters using a machine shorthand sys-
tem and computer for translation into English.
Captioning is an effective system for the hearing-impaired, and it can also aid in teaching lan-
guage skills.
•The picture at left shows a typical caption.
•IGNITION:
Picture may flutter, drift, suffer from black spots, or horizontal streaking. Usually caused by inter-
ference from automobile ignition systems, neon lamps, electrical drills, and other electrical appli-
ances.
•GHOSTS:
Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the
other is reflected off tall buildings, hills or other objects. Changing the direction or position of the
antenna may improve reception.
•SNOW:
If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by
small dots. It may be necessary to install a special antenna to improve the picture.
Caption Tips
FOLLOW ME
Using Closed Captions
•Not all TV broadcasts include closed caption signals.
•Sometimes TV stations broadcast four different caption signals on the same channel. By selecting From CC 1 to CC 4, you can
choose which signal you view. CC 1 is usually the signal with the captions, while Another mode might show demonstration or
programming information.
•Your TV might not receive caption signals normally in the following situations.
1. Poor reception conditions are encountered:
23
Operation
Key Lock
Key Lock
- The TV can be set up so that it can only be used with the remote control.
- This feature can prevent unauthorized viewing.
1. Press the menu button and then use DD / EEbutton to select the Special menu.
2. Press the GGbutton and then use DD / EEbutton to select Key lock.
3. Use the FF / GGbutton to select On or Off.
4. Press the enter button to save.
Special
Language
Caption/Text
Captions
Key lock
Parental
F
OK MENU
D
E
On
Off
Special
Language
Caption/Text
Captions
Key lock
Parental
F
OK MENU
D
E
CC1
CC2
CC3
CC4
Text1
Text2
Text3
Text4
Caption/T
Caption/Text
ext
1. Press the menu button and then use DD / EEbutton to select the SPECIAL
menu.
2. Press the GGbutton and then use DD / EEbutton to select Caption / Text.
3. Press the GGbutton and then use DD / EEbutton to select caption: CC1, CC2,
CC3, CC4, Text1, Text2, Text3, or Text4.
• CAPTION
The term for the words that scroll across the bottom of the TV screen;
usually the audio portion of the program provided for the hearing
impaired.
• TEXT
The term for the words that appear in a large black frame and almost
cover the entire screen; usually messages provided by the broadcaster.
4. Press the enter button to save.
Captions
Captions
1. Use the cc button repeatedly to select Caption Off, EZ Mute, or On.
• EZ Mute shows the selected captions option (if available on program) when the TV sound is muted
2. Press the enter button to save.
24
Operation
Lock Options
Lock Options
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast station. The
default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories chosen
to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be set :
1. Ratings and categories to be blocked.
2. Set a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcast stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.
For Movies previously shown in theaters :
Movie Ratings :
• Unblocked
• G and Above (general audience)
• PG and Above (parental guidance suggested)
• PG-13 and Above (13 years and older)
• R and above (restricted)
• NC-17 and Above (18 years and older)
• X (adult)
If you set PG-13 and Above : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
For Television programs including made-for-TV movies:
General TV Ratings:
• Unblocked
• TV-G and Above (general audience) (individual categories do not apply)
• TV-PG and Above (parental guidance suggested)
• TV-14 and Above (14 years and older)
• TV-MA (mature audience)
Children TV Ratings:
• Unblocked
• TV-Y and Above (youth) (individual content categories do not apply)
• TV-Y7 (youth, 7 years and up)
Content Categories:
• Dialog - sexual dialogue (applies to TV-PG and Above, TV-14)
• Language - adult language (applies to TV-PG and Above, TV-14 and Above, TV-MA)
• Sex scenes - sexual situations (applies to TV-PG and Above, TV-14 and Above, TV-MA)
• Violence (applies to TV-PG and Above, TV-14 and Above, TV-MA)
• F Violence - fantasy violence (applies only to TV-Y7)
• No Rating (blocks all viewing)
For Canadian English/French language rating system:
Canadian English language rating system:
• C and Above (Children)
• C8+ and Above (8 years and older)
• G and Above (General programming. Suitable for all audiences.)
• PG and Above (Parental guidance suggested)
• 14+ and Above (Viewer 14 years and older)
• 18+ (Adult programming)
Canadian French language rating system:
• G and Above (General)
• 8 ans+ and Above (8 years and older)
• 13 ans+ and Above (13 years and older)
• 16 ans+ Above (16 years and older)
• 18 ans+ (Adults only)
25
Operation
Lock Menu Setup
Lock Menu Setup
1. Press the menu button and then use DD / EEbutton to select the Special menu.
2. Press the GGbutton and then use DD / EEbutton to select Parental.
Then, press the GGbutton.
• If Lock is already set, enter the password requested.
• The TV is set with the initial password “0-0-0-0”.
2. Setting Lock on/off:
Press the DD /EEbutton to select Lock on/off.
Press the GGbutton and then use DD / EEbutton to select on or off.
3. Set password:
Press the DD /EEbutton to select Set password.
Press the GGbutton and then enter a four digit password.
Enter it again when requested.
4. Press the DD /EEbutton to select type of blocking to be set .
5. Press the GGbutton and then use DD /EEbutton to select type of ratings to block .
• Age block, and Content block, and Canadian menus, also have sub menus. So, repeat steps 4 and 5 in the sub menu, to
set the types of blocking and ratings.
Special
Language
Caption / Text
Captions
Key lock
Parental
FG
OK MENU
D
E
To set
Parental
Lock
Set password
MPAA
Age block
Content block
Aux. block
Canadian
FG
OK MENU
D
E
On
Off
26
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power
cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
Maintenance
Maintenance
MODEL
Power Requirement
Power Consumption
Audio Output
Television System
Television Channel
Television Screen
External Antenna Impedance
RM-15LA70 RM-20LA70/71
AC100-240V~ 50/60Hz 0.9A AC100-240V~ 50/60Hz 1.2A
55W 65W
3 W + 3 W 5 W + 5 W
NTSC
VHF : 2 ~ 13, UHF : 14 ~ 69, Cable : 01 ~ 125
LCD Panel
75 Ω
Product Specifications
Product Specifications
Maintenance & Product Specification
27
Troubleshooting Checklist
T
Troubleshooting Checklist
roubleshooting Checklist
SYMPTOMS
No power
No picture or sound
Poor picture but good sound
Poor reception
Lines in picture
Ghosts (multiple images)
Remote control does not work.
Cannot tune desired channel.
CHECK THESE THINGS
Is power cord plugged in ?
Is television turned on ?
Check batteries in remote control.
Try another channel (station trouble).
Check antenna connectings.
Check for local interference.
Adjust the antenna.
Adjust the picture control.
Program channel using EZ Scan.
Your LG®LCD Television will be repaired or replaced, at LG’s option, if it proves to be defective in material or work-
manship under normal use, during the warranty period ("Warranty Period") listed below, effective from the date
("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original pur-
chaser of the product and effective only when used in the United States, excluding U.S. Territories.
LG Electronics, Inc.
LCD Television Limited Warranty - USA
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR
DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do
not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied
warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal
rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
WARRANTY PERIOD:
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
Replacement Units and Repair Parts may be new
or factory remanufactured.
Replacement Units and Repair Parts are warranted
for the remaining portion of the original unit’s war-
ranty period.
HOW SERVICE IS HANDLED:
Factory Service: Call 1-800-243-0000 (24
hours a day, 365 days per year) for instructions on
getting the defective unit repaired or replaced.
Please retain dated sales receipt and your
box to return the unit to LG®for replacement.
Visit our website at: http://www.lgservice.com
●damage caused in shipping or transit
●service required as a result of improper installation,
including incorrect or insufficient AC supply (please
consult the owner’s manual for power supply
requirements).
●installation or repair of antenna systems, cable con-
verters, cable company supplied equipment, or
other components in a video system
●set-up or adjustment on consumer controls, or
damage caused by improper adjustments
●damage caused by other system components
●any unit that has been modified or incorporated
into any other product
●replacement of batteries on the remote control.
●damage (including cosmetic damage), failure, loss
or personal injury due to misuse, abuse, negli-
gence, improper maintenance or storage, or to acts
of nature or other causes beyond our control.
(Causes beyond our control include but are not lim-
ited to lightning strike, power surges, power out-
ages and water damage.)
●repair or replacement of warranted parts by other
than an LG®authorized service centers.
●units purchased or serviced outside of the U.S.A.
●product where the original factory serial numbers
have been removed, defaced or changed in any
way.
●product sold and labeled as “as is, where is” or sim-
ilar disclaimer.
P/N : 3828TUL263A (0404-REV01)
TO CONTACT LG ELECTRONICS BY MAIL:
LG®Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
ATTN: CIC
LG®LCD Televisions are marketed and distributed in the United States by:
LG Electronics U.S.A., Inc., 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
CONCERNING PIXEL FUNCTIONALITY: An LCD Television contains hundreds of thousands of individual pixels.
LCD displays typically contain a small number of pixels that do not function normally. Your display has been inspect-
ed and is in compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the oper-
ation or use of your display.
BEFORE CALLING FOR SERVICE:
Please have your product model number, serial number, and the date of purchase available.
Under some circumstances you may be asked to provide a reserve deposit to the LG®Service Center, using a
credit card number as surety for advanced shipment. Your credit card will not be charged if you return the defec-
tive unit within 10 working days.
If a replacement unit is received, please use the carton and packaging from that unit in returning the defective
unit to the LG®Service Center.
Parts and service in accordance with the LG®warranty is our responsibility and will be provided without charge.
Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory war-
ranty service, write or call the LG®Customer Interactive Service.
To assure proper credit and avoid unnecessary charges, you must obtain a Return Authorization before returning
any product to the Factory Service Center. Contact the Customer Interactive Center for details.
Service for your LG®Television is provided through LG Electronics Alabama, Inc., the authorized LG®Service
Center for the United States.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product
Information, or Dealer or Authorized
Service Center location:
Call 1-800-243-0000 (24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: http://www.lgservice.com
LCD Television Limited Warranty – USA (continued)
