users manual 1
EUT Type: 15” LCD TV/Monitor
FCC ID: BEJ15LS1RG
Test Report No.: GETEC-E3-07-024
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
LCD TV
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.
P/NO : 38289U0559J (0703-REV00)
Printed in Korea
OWNER’S MANUAL
MODEL: 15LS1R
Internet Home Page : http://www.lgusa.com
http://www.lg.ca
ENERGYSATR is a set of power-saving
guidelines issued by the U.S.
Environmental Protection Agency(EPA).
As an ENERGY STAR
Partner LGE U. S. A.,Inc.
has determined that this
product meets the ENER-
GY STAR guidelines for
energy efficiency.
2
Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in par-
ticular, specifies that the cable ground shall be connected to the grounding system of the build-
ing, as close to the point of the cable entry as practical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics
Corporation. Unauthorized modification could void the user’s authority to operate this product.
U.S.A. only -----------------------------------------------
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: 1-800-243-0000
http://us.lge.com
---------------------------------------------------------------
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
W
Warning
arning
Safety Instructions
Safety Instructions
3
Safety Instructions
WARNING :
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation open-
ings. Install in accordance with the manu-
facturer’s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that pro-
duce heat.
9. Do not defeat the safety purpose of the
polarized or grounding type plug. A polar-
ized plug has two blades with one wider
than the other. A grounding type plug has
two blades and a third grounding prong. The
wide blade or the third prong is provided for
your safety. When the provided plug does
not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
11. Only use the attachments / accessories
specified by the manufacturer.
Owner's Manual
4

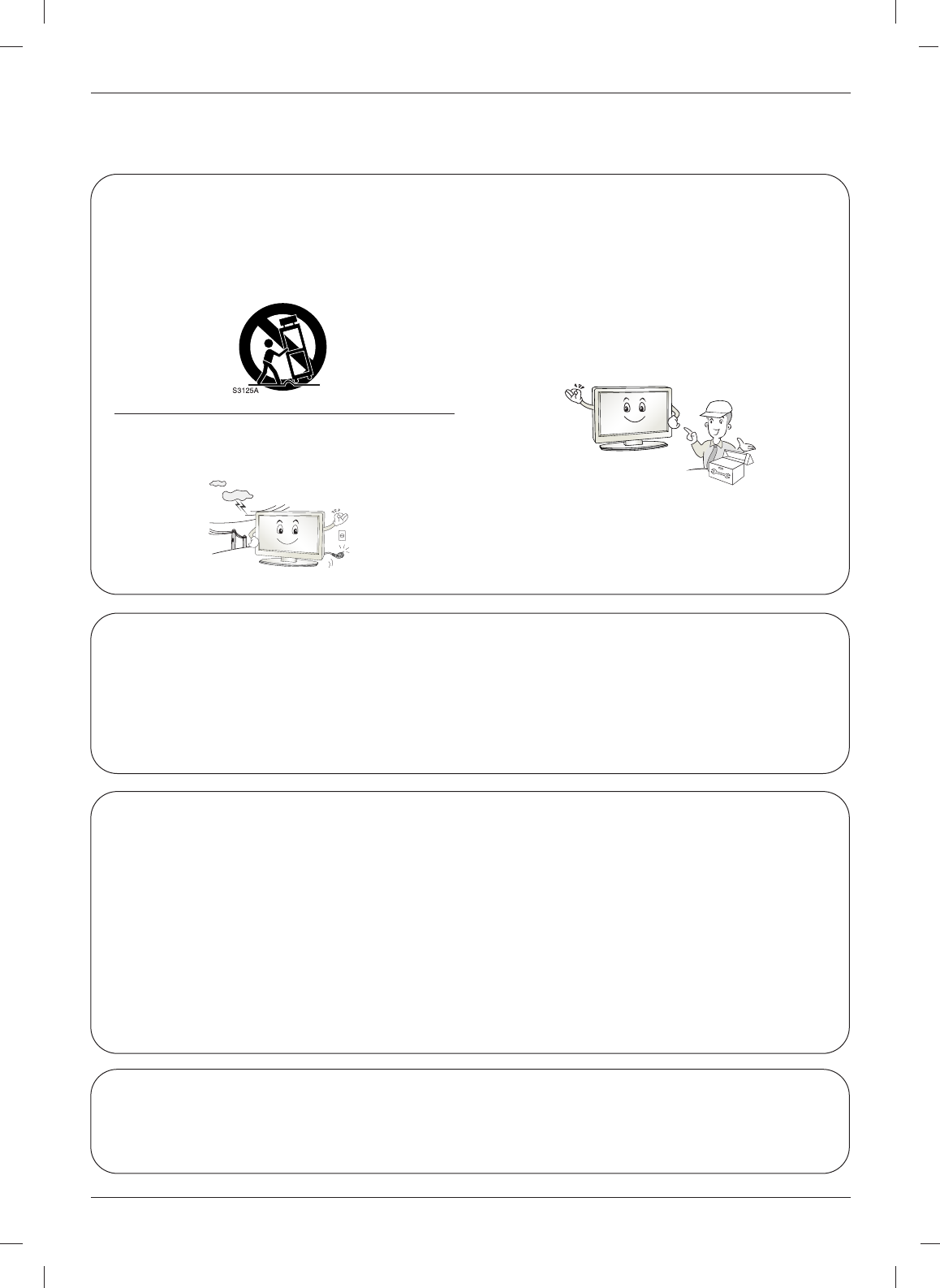

Safety Instructions
Safety Instructions continued
Safety Instructions continued
12. Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart / apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service per-
sonnel. Servicing is required when the
apparatus has been damaged in any way,
such as power supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
On Disposal
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
Note
- If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on. This
is normal, there is nothing wrong with TV.
- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue
spots. However, they have no adverse effect on the monitor's performance.
- Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary distortion effects on the screen.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits. Check the speci-
fication page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these con-
ditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if
its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where
the cord exits the appliance.
5
Contents
After reading this manual, keep it handy for future reference.
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . .3~4
Introduction
Controls . . . . . . . . . . . . . . . . . . . . . . .6
Connection Options . . . . . . . . . . . . . . .7
Remote Control Key Functions . . . . . .8
Installation

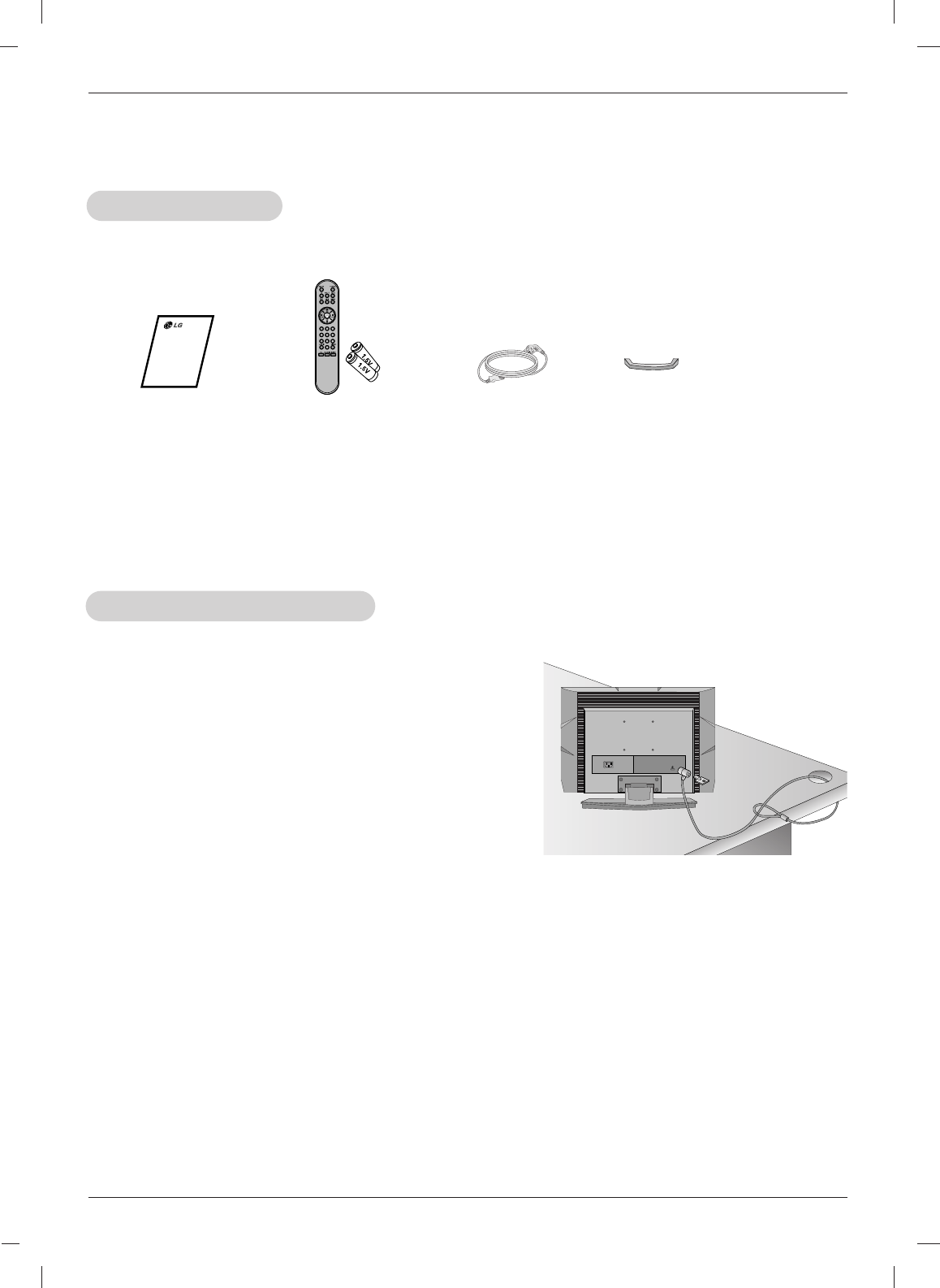

Accessories . . . . . . . . . . . . . . . . . . . .9
Kensington Security System(Options) .9
Installation Instruction . . . . . . . . . . . . . .10

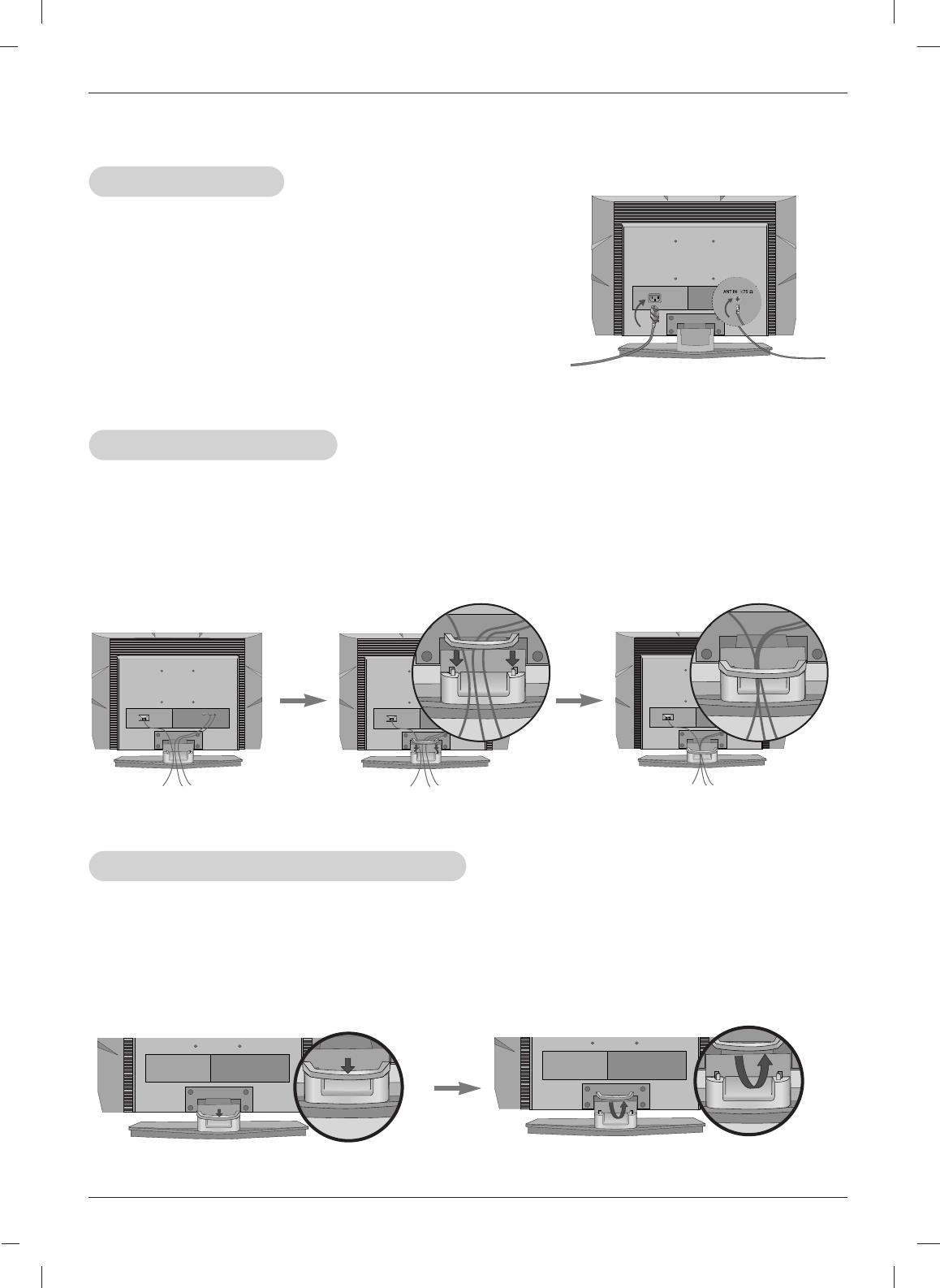

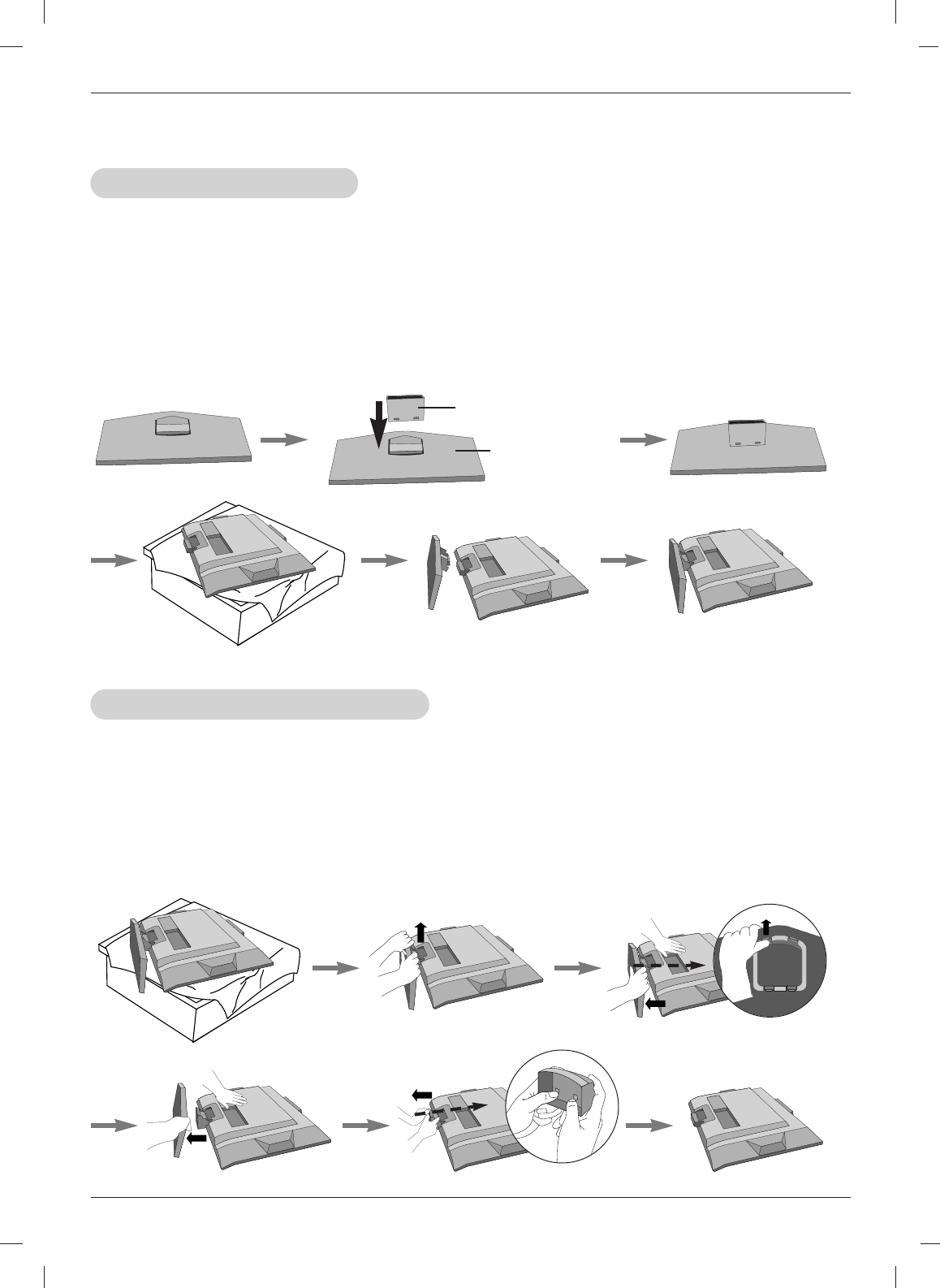

Stand Installation . . . . . . . . . . . . . . .10
Detaching Stand . . . . . . . . . . . . . . .10
Connection of TV . . . . . . . . . . . . . . .11
Basic Connection . . . . . . . . . . . . . . .11
How to remove the Cabel Management
11
Wall Mount: Horizontal Installation . . .12
Desktop Pedestal Installation . . . . . .12
Positioning your display . . . . . . . . . . .12
External Equipment Connections . .13~16

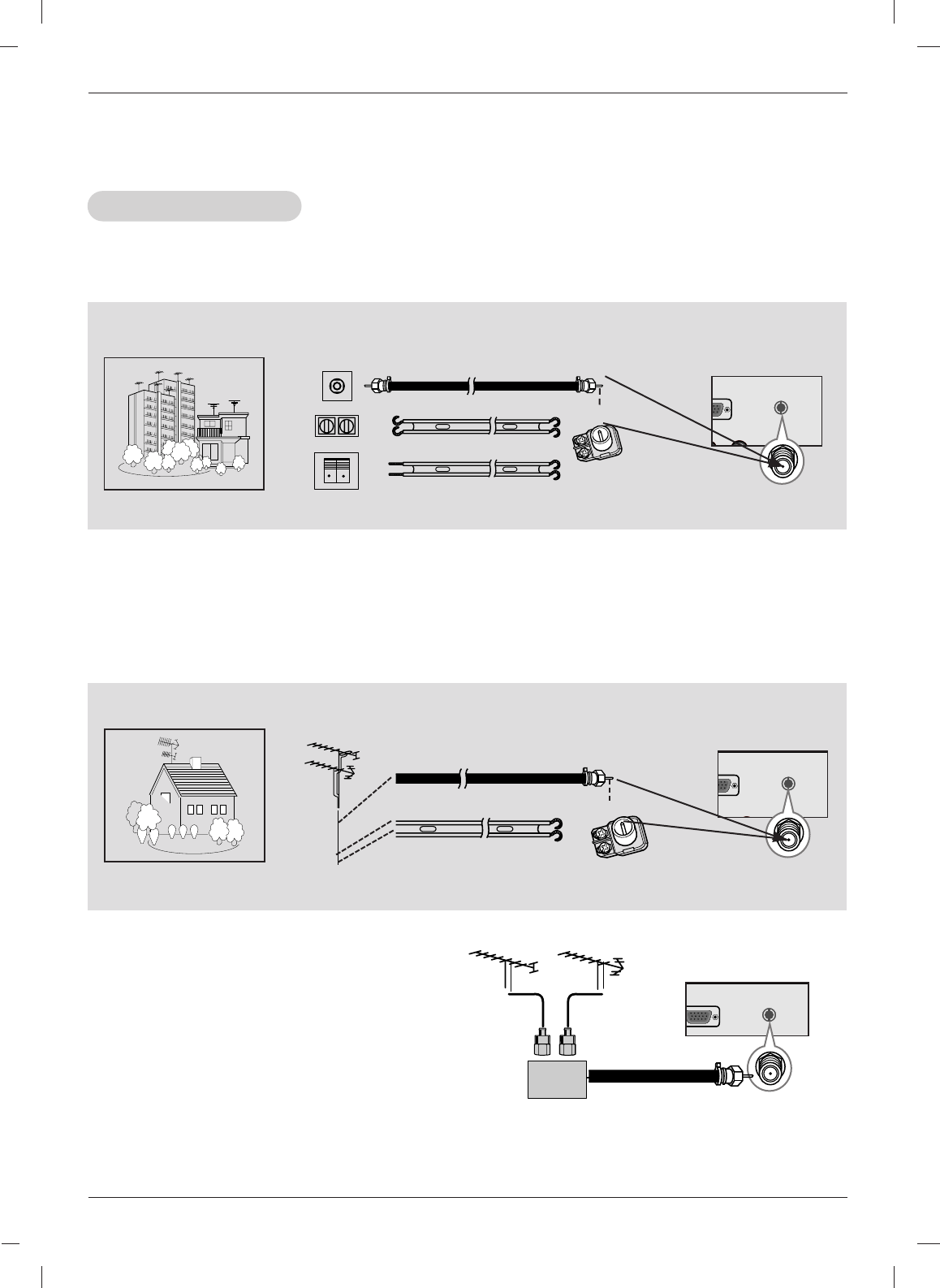

Antenna Connection . . . . . . . . . . . . .13
VCR Setup . . . . . . . . . . . . . . . . . . . .14
Cable TV Setup . . . . . . . . . . . . . . . . .14

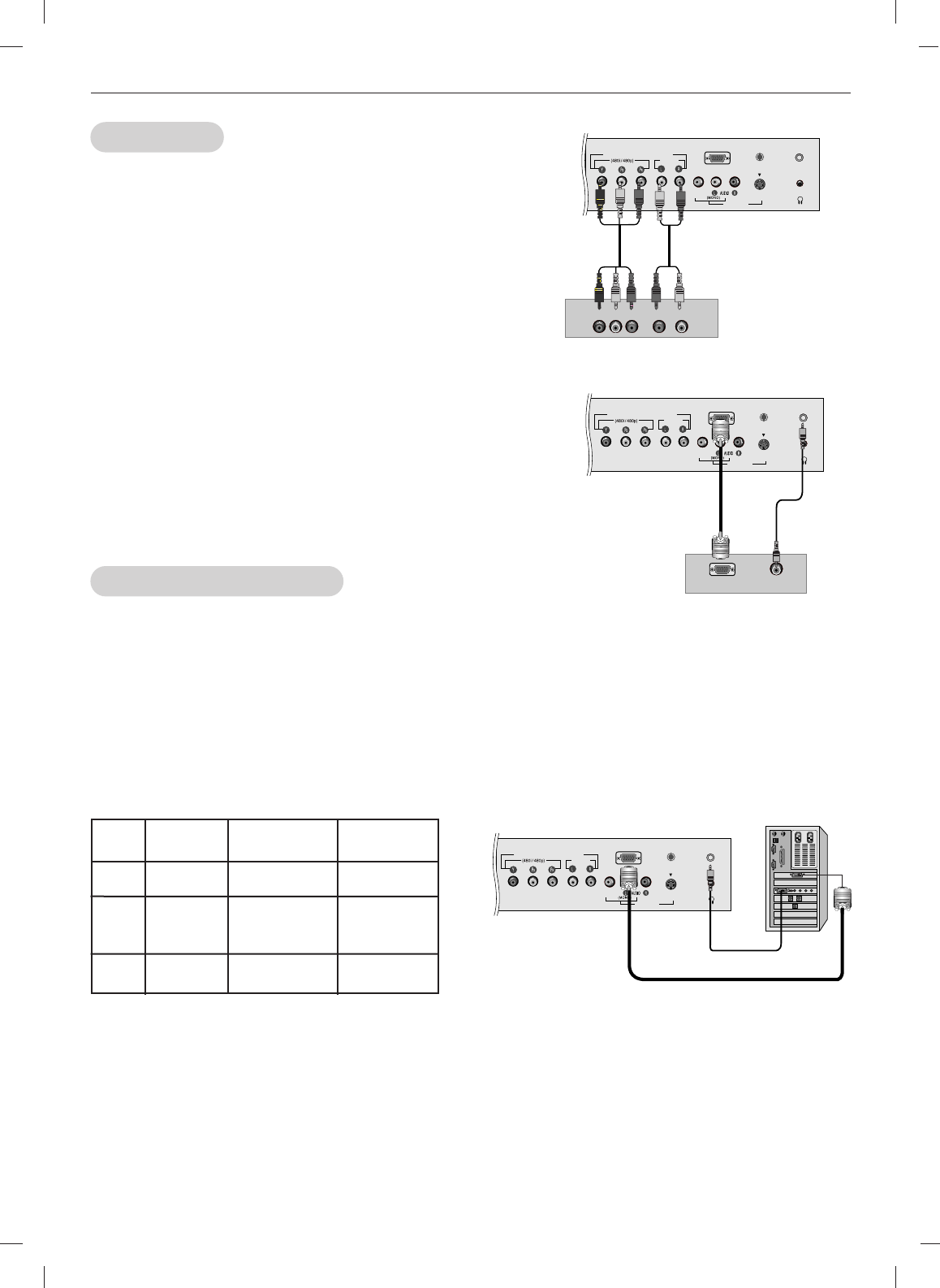

External A/V Source Setup . . . . . . . .15
DVD Setup . . . . . . . . . . . . . . . . . . . .15
DTV Setup . . . . . . . . . . . . . . . . . . . .16
PC Setup . . . . . . . . . . . . . . . . . . . . .16
Operation
TV Operation Overview . . . . . . . . . . . .17
Menu Language Selection . . . . . . . . . .17
Channel Menu Options
Memorizing the Channels with EZ Scan . .18
Add/Delete Channels with Manual
Program . . . . . . . . . . . . . . . . . . . . . .18
Adjust frquency with Manual Program 18
Favorite Channels Setup . . . . . . . . . .19
Picture Menu Options
EZ Video . . . . . . . . . . . . . . . . . . . . . .20
ACC (Auto Color Control) . . . . . . . . .20
Manual Picture Control . . . . . . . . . . .20
Sound Menu Options
EZ Audio . . . . . . . . . . . . . . . . . . . . . .21
Equalizer Adjustments . . . . . . . . . . . .21
AVL (Auto Volume Leveler) . . . . . . . .21
Sound Balance . . . . . . . . . . . . . . . . .22
Stereo/SAP Broadcasts Setup . . . . . .22
Time Menu Options
Auto Clock Setup . . . . . . . . . . . . . . .23
Manual Clock Setup . . . . . . . . . . . . .23
On/Off Timer Setup . . . . . . . . . . . . .24
Sleep Timer Setup . . . . . . . . . . . . . .24
Auto Off . . . . . . . . . . . . . . . . . . . . . .24
Special Menu Options
Closed Captions . . . . . . . . . . . . . . . .25
Select Mode . . . . . . . . . . . . . . . . . . .26
Key Lock . . . . . . . . . . . . . . . . . . . . . .26
Power indicator . . . . . . . . . . . . . . . . .27
Caption/Text . . . . . . . . . . . . . . . . . . .27
Captions . . . . . . . . . . . . . . . . . . . . . .27
Lock Menu Options
Lock Menu Setup . . . . . . . . . . . . . . .28
Screen Menu Options . . . . . . . . . . . . .30
Troubleshooting Checklist . . . . . . . . . . . . .31
Maintenance . . . . . . . . . . . . . . . . . . . . . . . .33
Product Specifications . . . . . . . . . . . . . . . .33
Contents
Contents
6
Introduction
Introduction
Introduction

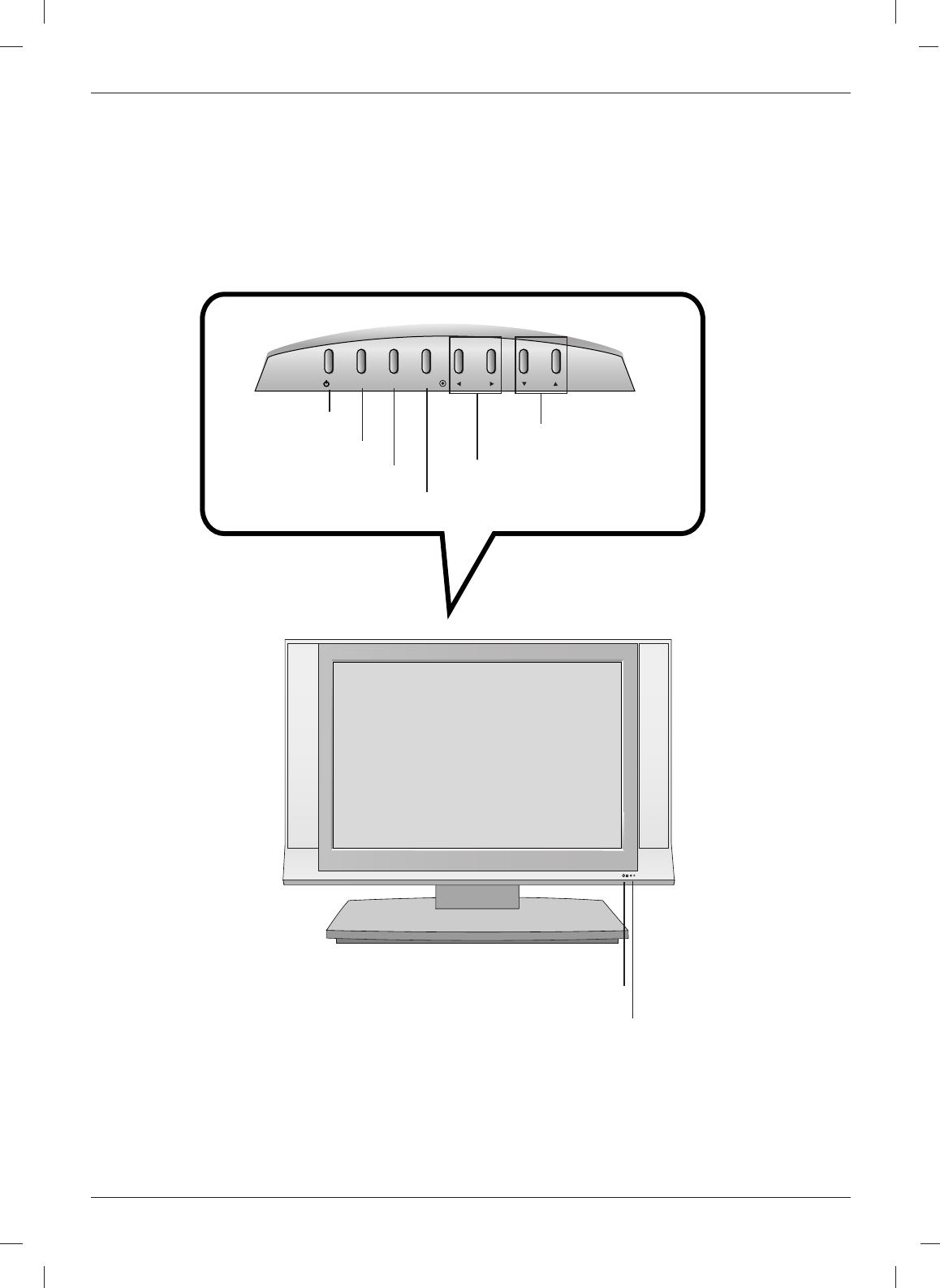

Controls
Controls
R
INPUT MENU VOL CH
/I ENTER
Power/Standby Indicator
Glows red in Standby mode,
Glows green when the TV is turned on.
Channel Buttons
Volume Buttons
Enter Button
Menu Button
On/Off Button
Input Button
Remote Control Sensor
7
Introduction

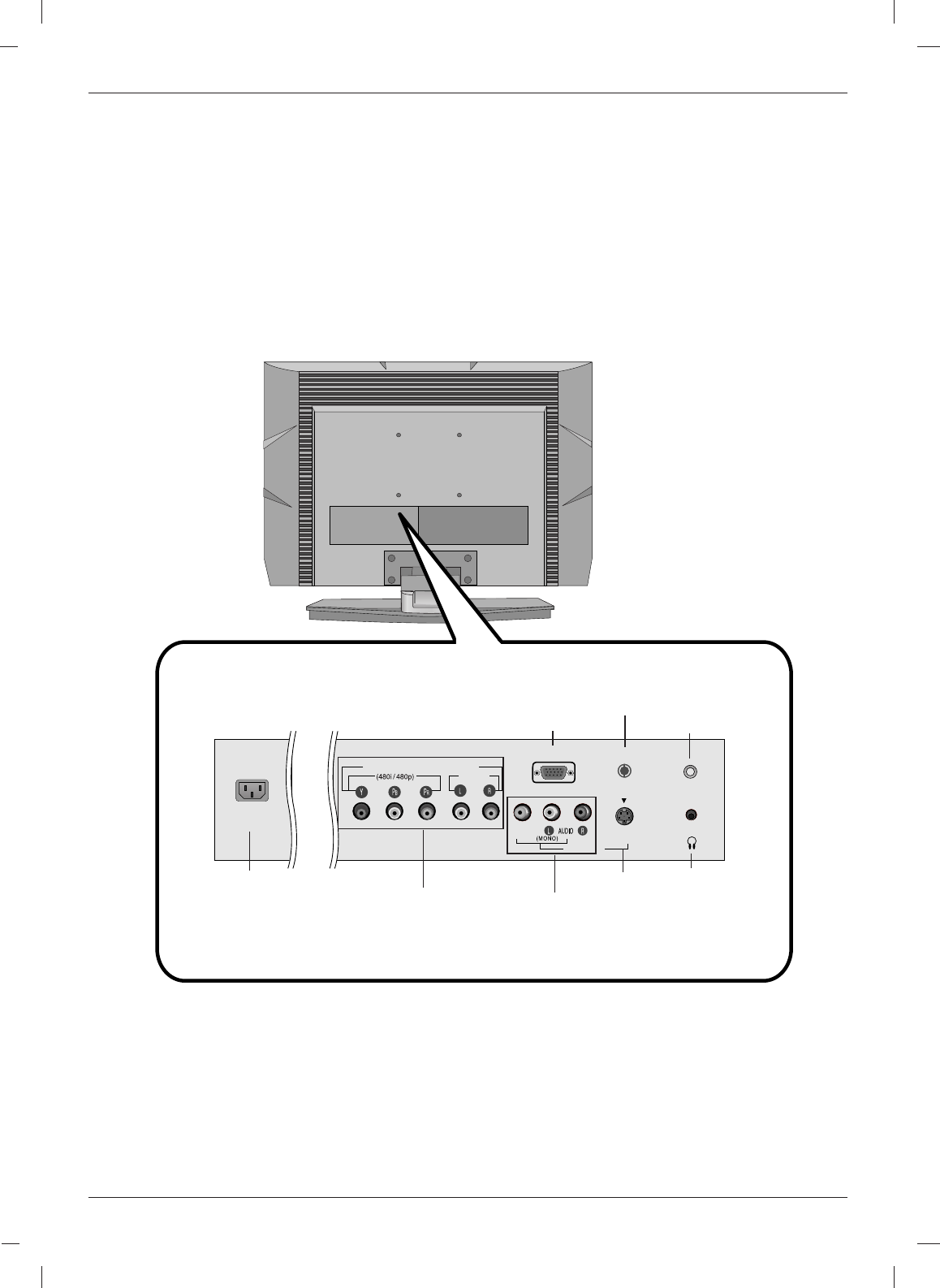

Connection Options
Connection Options
AC INPUT
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
COMPONENT (DTV/DVD IN)
((480i/480p), Audio)
AC INPUT
AUDIO/VIDEO
INPUT
ANTENNA
INPUT PC SOUND
INPUT
S-VIDEO
INPUT
HEADPHONE
JACK
PC INPUT JACK
8
Introduction
- When using the remote control, aim it at the remote control sensor on the TV.
•Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
•Use two 1.5V batteries of AAA type. Don’t mix used batter-
ies with new batteries.
Installing Batteries
Installing Batteries

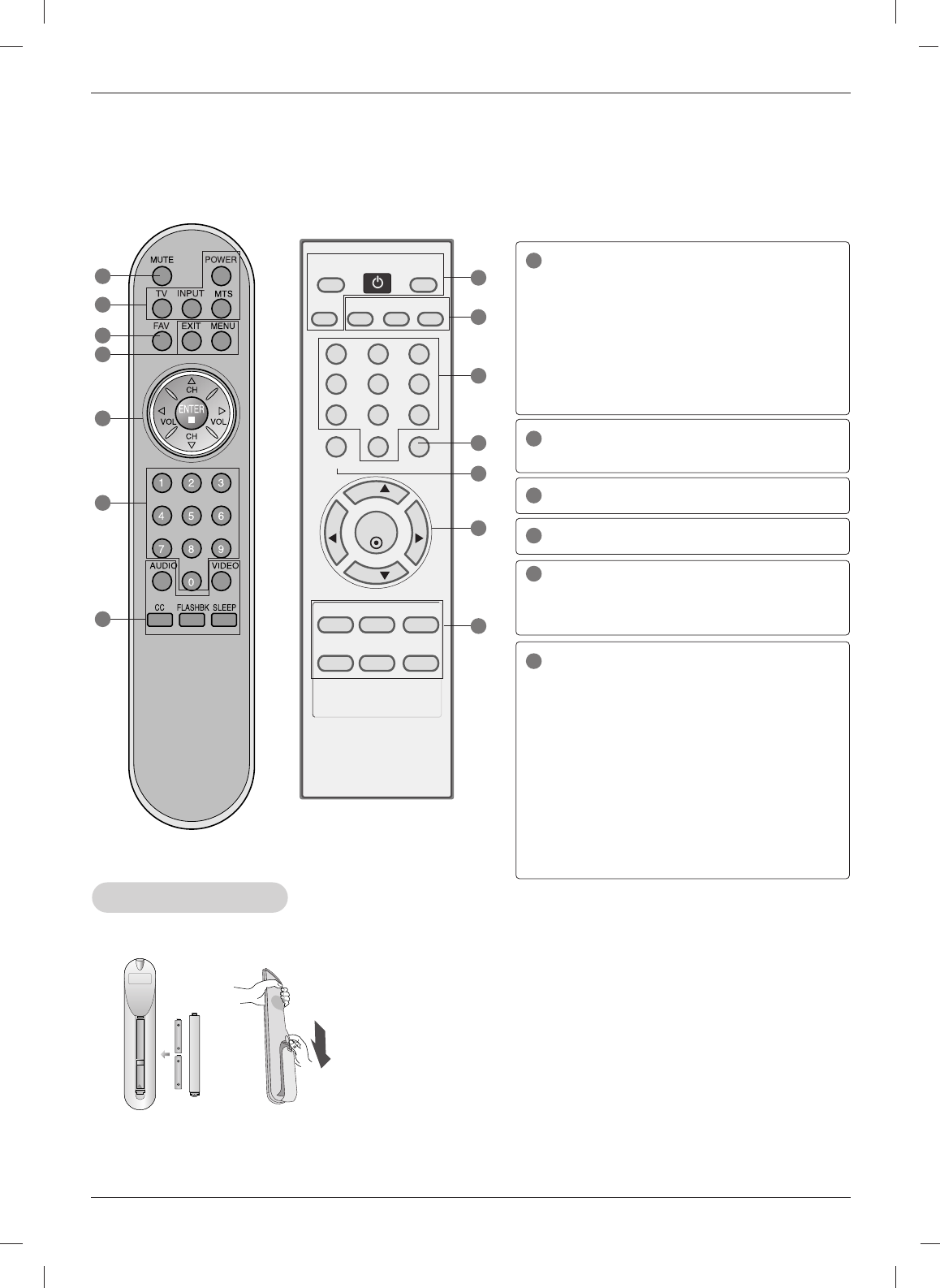

Remote Control Key Functions
Remote Control Key Functions
123
456
78
0
9
VOL VOL
CH
CH
ENTER
POWER
MENU
FLASHBK
SLEEP
VIDEO AUDIO EXIT
**
MTS
FCRMUTE
CAPTION
TV INPUT
2
3
1
4
6
6
5
3
5
2
6
4
1
6
POWER
TV
Returns to the TV mode.
INPUT
Selects the remote operating mode.
(Refer to p.26)
MTS (Refer to p.22)
MUTE
Switches the sound on or off.
FAV or FCR (Refer to p.19)
NUMBER buttons
ENTER
CH DD/ EE(Channel button)
VOL FF/ GG(Volume button)
MENU
CC or CAPTION (Refer to p.27)
EXIT
FLASHBK
Return to the last channel you were
watching.
SLEEP (Refer to p.24)
VIDEO (Refer to p.20)
AUDIO (Refer to p.21)
1
2
3
4
5
6
9
Installation
NOTES
a. If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on.
This is normal, there is nothing wrong with TV.
b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the monitor's performance.
c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary distortion effects on the screen.
Kensington Security System
Kensington Security System
- The TV is equipped with a Kensington Security System con-
nector on the back panel. Connect the Kensington Security
System cable as shown below.
- For the detailed installation and use of the Kensington
Security System, refer to the user’s guide provided with the
Kensington Security System.
For further information, contact http://www.kensington.com,
the internet homepage of the Kensington company.
Kensington sells security systems for expensive electronic
equipment such as notebook PCs and LCD projectors.
NOTE
- The Kensington Security System is an optional accessory.
Installation
Installation
Accessories
Accessories
Remote Control
AAA Batteries
Power Cord Cable management
Owner’s Manual
10
Installation
Installation Instruction
Installation Instruction
Stand Installation
Stand Installation
Detaching stand
Detaching stand
1. Assemble parts of stand body with cover base of the stand. Insert stand body into a cover base until
clicking sound.
2. Carefully place the product screen side down on a cushioned surface that will protect product and
screen from damage.
3. Place the product stand on the product as shown.
Note: Here shown may be somewhat different from your set.
stand body
cover base
1. Place the set with its front facing downward on a cushion or soft cloth.
2. Hold the stand with both hands and bend it upward.
3. Pull each side of cover base backward during pressing latch upward.
4. Hold cover base and pull with shake it backward to separate from stand body.
5. Pull stand body to separate from set during pressing 2 letches.
Note: Here shown may be somewhat different from your set.
11
Installation
Connection of
Connection of TV
TV
Basic connection
Basic connection
1. Connect the cables as necessary.
After connecting the cables neatly,arrange the cables to the Cable Holder. To connect an
additional equipment,see the Connection of external equipment section.
2. Install the Cable management as shown.
Note: Here shown may be somewhat different from your set.
First, press the cable management.
Hold the Cable management with both hands and pull it upward.
Note: Do not hold the CABLE MANAGEMENT when moving the product.
(If the product is dropped,you may be injured or the product may be broken.)
1. Connect the aerial cable to the socket marked ANTENNA IN
on the back. For the best reception an outdoor aerial should
be used.
2. To connect an additional equipment, see the Connection of
external equipment section.
3. Connect the power cord.
Note: Here shown may be somewhat different from your set.
( )
How to remove the Cable management
How to remove the Cable management
12
Installation
Installation Instruction Continued
Installation Instruction Continued
4 inches
4 inches
4 inches
4 inches
4 inches
R
R
For proper ventilation, allow a clearance of 4" on each side and from the wall. Detailed installation
instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
For proper ventilation, allow a clearance of 4" on each side and from
the wall.
4 inches
4 inches
4 inches
4 inches
R
R

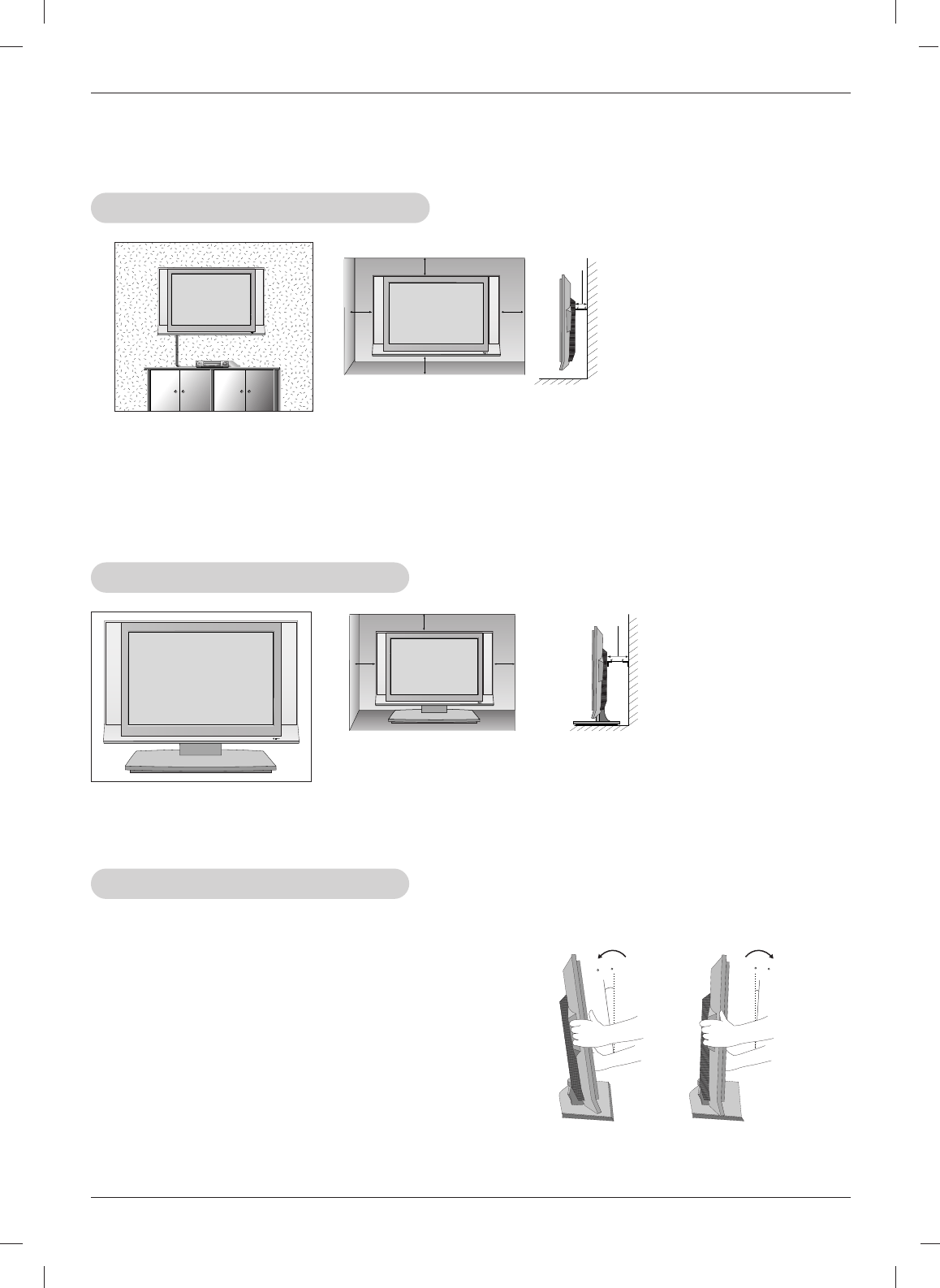

Adjust the position of the panel in various ways for
maximum comfort.
12~10
3
0
• Tilt range
W
Wall Mount: Horizontal installation
all Mount: Horizontal installation
Desktop Pedestal Installation
Desktop Pedestal Installation
Positioning your display
Positioning your display
13
External Equipment Connections
P
C/DTV) IN ANTENNA IN
External Equipment Connections
External Equipment Connections
- For optimum picture quality, adjust antenna direction.
- Typical wall antenna jack used in apartment buildings, connect the antenna cable as shown below.
(Use the correct type of antenna cable for the type of wall antenna jack.)
Wall Connection Jack
Apartment Buildings Antenna Jack
Copper Wire
Turn clockwise to tighten.
Antenna
Converter
300ΩFlat Wire
75ΩRound Cable
- This type of antenna is commonly used in single family dwellings.
UHF
Antenna
VHF Antenna
- If you have a 75Ωround cable, insert the bronze wire and then tighten the connection nut. If you have
a 300Ωflat wire, connect the twisted wire to the antenna converter and then connect the converter to
the antenna jack on the TV.
- If using 75Ωround cable, do not bend the bronze wire. It may cause poor picture quality.
- In poor signal areas, to get better picture qual-
ity, install a signal amplifier to the antenna as
shown to the right.
- If signal needs to be split for two TVs, use an
antenna signal splitter for connection.
Signal
Amplifier
UHF
VHF
Single Family Home
Connecting to an Inside Antenna Setup
Connecting to an Outdoor Antenna Setup
DTV) IN ANTENNA IN
Copper Wire
Turn clockwise to tighten.
Antenna
Converter
300ΩFlat Wire
75ΩRound Cable
Antenna Connection
Antenna Connection
Antenna Jack
DTV) IN ANTENNA IN
14
External Equipment Connections
Cable
Cable TV Setup
TV Setup
VCR Setup
VCR Setup
- In Video mode, TV automatically reverts to TV
mode if the TV buttons are pressed.
Connection 1
Set VCR switch to 3 or 4 and then tune TV to
the same channel number.
Connection 2
1. Connect the audio/video output jacks on VCR
to the corresponding input jacks on the TV.
When connecting the TV to a VCR, match the
jack colors (Video = yellow, Audio Left =
white, and Audio Right = red).
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)
3. Use the INPUT button on the remote control
to select Video. (If connected to S-VIDEO on
rear panel, select the Video external input
source.)
Connection 1
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output channel of
cable box.
3. Select channels at the cable box or with the cable box remote control.
Connection 2
1. Connect the audio/video output jacks on Cable Box to the corre-
sponding input jacks on the TV. When connecting the TV to Cable
Box, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. Use the INPUT button on the remote control to select Video.
3. Select channels with the cable box remote control.
- After subscribing to a local cable TV service and installing a converter, you can watch cable TV programming.
- For further cable TV information, contact a local cable service provider.
External Equipment Connections Continued
External Equipment Connections Continued
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
OUT
IN
CH3 CH4
S-VIDEO
ANT IN
ANT OUT
(R) (L)
AUDIOVIDEO
1
Typical
Antennas
VCR
Direct
Connection
2
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
OUT
IN
CH3 CH4
S-VIDEO
ANT IN
ANT OUT
(R) (L)
AUDIOVIDEO
1
Typical
Antennas
VCR
Direct
Connection
2
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
TV
VCR RF Cable
(R) AUDIO (L) VIDEO
1
Cable Box
2
15
External Equipment Connections
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
RAUDIO VIDEO
L
External
External A/V Source Setup
A/V Source Setup
Connections
Connect the audio/video output jacks on the
external A/V equipment to the corresponding
input jacks on the TV. When connecting the
TV to external A/V equipment, match the jack
colors (Video = yellow, Audio Left = white,
and Audio Right = red).
Viewing Setup
1. Turn on the external A/V equipment.
2. Use the INPUT button on the remote con-
trol to select Video.
3. Operate the corresponding external equip-
ment. Refer to external equipment operat-
ing guide.
Camcorder
Video Game
set
External
Equipment
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
AUDIOYPBPR(L)
(R)
DVD
DVD Setup
DVD Setup
Viewing Setup
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to select
Component.
3. Refer to the DVD player's manual for operating instruc-
tions. (If connected to S-VIDEO on rear panel, select the
Video external input source.)
Component ports
of the TV YPBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
•Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
Connections
1. Connect the DVD video outputs to the COMPONENT (Y, PB, PR) jacks and connect the DVD audio
outputs to the AUDIO jacks.
2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and con-
nect the DVD audio outputs to the AUDIO INPUT jacks on the TV.
NOTE: If your DVD player does not have component video output, use S-Video.
Signal Component RGB-DTV
480i/480p
480i/480p
Yes
Yes
Yes
No
16
External Equipment Connections
- After setup, be sure to select RGB-PC source on TV.
Connections
1. Set the monitor output resolution on the PC before connecting to the TV.
2. Connect the TV to the PC with the PC cable.
3. Connect the PC audio output to the TV's PC SOUND input.
Viewing Setup
1. Turn on the PC.
2. Use the INPUT button on the remote control to select RGB-PC.
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
- To watch digitally broadcast programs, purchase and con-
nect a digital set-top box.
Connections
Connect the digital set-top box video outputs to the COM-
PONENT (Y, PB, PR) jacks and connect the digital set-top
box audio outputs to the AUDIO jacks.
Or, Connect the set-top box with the D-sub output socket
to PC INPUT socket on the set and audio cable of the set-
top box to the PC SOUND.
Viewing Setup
1. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
2. Use the INPUT button on the remote control to select
Component or RGB-DTV.
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
AUDIOYPBPR(L)
(R)
NOTES
a. For optimum picture quality, use standard 1024x768@60Hz computer output at a 60Hz refresh rate . Using other
formats (VGA, SVGA, etc.) or refresh rates may result in reduced picture quality. (To change the computer video
output format, please refer to the operating manual for the computer you are using).
b. If the message “Out of range” appears on the screen, adjust the PC output to a format listed in the
‘Monitor Display Specifications' chart above.
c. The synchronization input form for Horizontal and Vertical frequencies is separate.
DPM (Display Power Management) mode
If the PC goes to power saving mode, the monitor automatically switches to DPM mode.
If you don’t use the PC cable provided, DPM mode may not work.
Monitor Display Specifications
MODE Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
VGA
SVGA
XGA
640x480
800x600
800x600
1024x768
31.4
35.1
37.8
48.3
60
56
60
60
DTV Receiver
(Set-top Box)
H/P
COMPONENT (DTV/DVD IN)
AUDIO
RGB(PC/DTV) IN ANTENNA IN
AUDIO
(RGB) IN
S-VIDEO
VIDEO IN
VIDEO
AUDIO
RGB-PV OUTPUT
PC Setup
PC Setup
DTV Receiver
(Set-top Box)
DTV Setup
DTV Setup
17
Operation
Operation
Operation
Menu Language Selection
Menu Language Selection
TV Operation Overview
TV Operation Overview
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use DD/ EEbutton to select the SPECIAL menu.
2. Press the GGbutton and then use DD/ EEbutton to select Language.
3. Press the GGbutton and then use DD/ EEbutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the ENTER button to save.
1. First, make all equipment connections. Plug the AC Adapter into the TV, then plug the AC Adapter into
a power outlet. At this time, the TV is switched to standby mode.
•In standby mode, press the POWER, TV, CH (D,E), INPUT or number button on the remote con-
trol or ON/OFF, CH (D,E), INPUT button located on the TV to turn the TV on.
2. Select the viewing source by pressing INPUT.
• Note: See page 18 if you have not auto programmed the TV to receive channels in your local broadcast
area.
3. After viewing, press the POWER button on the remote control or ON/OFF located on the TV. The TV
reverts to standby mode.
NOTE
• If you want to turn the TV off, press the on/off button located on the TV. If you intend to be away on
vacation, disconnect the power plug from the wall power outlet.
18
Operation
- You can manually include or erase individual channels.
1. Press the MENU button and then use DD / EEbutton to select the
CHANNEL menu.
2. Press the GGbutton and then use DD / EEbutton to select
Manual program.
3. Press the GGbutton and then use FF / GGbutton to select a
channel you want to add to memory or erase.
4. Press the EE button and then use FF / GGbutton to select
Memory (add) or Erase (delete).
5. Press the ENTER button to save. The current channel is
added to Memory or Erased from the channel list.
Add/Delete Channels with Manual Program
Add/Delete Channels with Manual Program
1. Press the MENU button and then use DD / EEbutton to select
the CHANNEL menu.
2. Press the GGbutton and then use DD / EEbutton to select
EZ Scan.
3. Press the GGbutton to begin the channel search.
• Wait for auto program to complete the channel search
cycle before choosing a channel. The TV scans for
over-the-air channels and then channels provided by a
cable service.
Memorizing the Channels with EZ scan
Memorizing the Channels with EZ scan
- For Auto program to work, the programming source must be connected to the TV and the TV must be
receiving programming signals either over-the-air or from a cable-type service provider.
Channel Menu Options
Channel Menu Options
NOTES
• When the channel search is complete, use the DD / EEbuttons to review the memorized channels.
• If you press the MENU or EXIT button in auto programming, the function will stop and only channels pro-
gramming up to that time will remain.
• Auto program function can memorize only the channels which are being received at that time.
CHANNEL
EZ Scan
Manual program
Favorite channel
FG Á
MENU
D
E
To start
CHANNEL
EZ Scan
Manual program
Favorite channel
FG Á
MENU
D
E
TV 30
Memory
Fine 10
The current channel number is displayed.
1. Press the MENU button and then use DD / EEbutton to select the
CHANNEL menu.
2. Press the GGbutton and then use DD / EEbutton to select
Manual program.
3. Press the EE button to select Fine and then use FF / GGbut-
ton to adjust frequency from -50 to 50.
4. Press the ENTER button to save.
Adjust frequency with Manual Program
Adjust frequency with Manual Program
CHANNEL
EZ Scan
Manual program
Favorite channel
FG Á
MENU
D
E
TV 30
Memory
Fine 10
The current frequency is displayed.
19
Operation
- Favorite Channel lets you quickly tune in up to 8 channels of your choice without having to wait for the
TV to scan through all the in-between channels.
1. Press the MENU button and then use DD / EEbutton to select the CHANNEL menu.
2. Press the GGbutton and then use DD / EEbutton to select Favorite channel.
3. Press the GGbutton and then use DD / EEbutton to select the first favorite channel position.
4. Use the FF / GGbutton to set the desired channel number for first favorite channel.
5. Repeat steps 3 to 4 to memorize other channels.
6. Press the ENTER button to save.
• To tune to a favorite channel, press the FAV or FCR button repeatedly. The 8 favorite channels
appear on the screen one-by-one.
Favorite Channels Setup
Favorite Channels Setup
CHANNEL
EZ Scan
Manual program
Favorite channel
FG Á
MENU
D
E
To set
-- -----
-- -----
-- -----
-- -----
-- -----
-- -----
-- -----
-- -----
-- -----
Favourite channel
FG Á
MENU
D
E
20
Operation
- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.
1. Press the MENU button and then use DD / EEbutton to select the
PICTURE menu.
2. Press the GGbutton and then use DD / EEbutton to select EZ
Video.
3. Press the GGbutton and then use DD / EEbutton to select User
and then press the FFbutton.
4. Use DD / EEbutton to select the desired picture option
(Contrast,Brightness,Color,Sharpness,Tint
)
.
5. Use the FF / GGbutton to make appropriate adjustments.
•
Contrast, Brightness, Color, and Sharpness are adjustable
from 0 to 100.
• Tint is adjustable from R 50 to G 50.
6. Press the ENTER button to save.
1. Press the VIDEO button repeatedly to select the picture appearance setup option as shown below.
EZ V
EZ Video
ideo
Manual Picture Control
Manual Picture Control
- This function adjusts the TV for the best picture appearance.
Picture Menu Options
Picture Menu Options
•You can also adjust EZ Video in the PICTURE menu.
•Clear, Optimum and Soft are preset for good picture quality at the factory and cannot be changed.
Clear Optimum Soft User
EZ Video
ACC
Contrast
Brightness
Color
Sharpness
Tint
Contrast 50
Contrast 85 FG
D
E
1. Press the MENU button and then use DD / EEbutton to select the
PICTURE menu.
2. Press the GGbutton and then use DD / EEbutton to select
ACC.
3. Press the GGbutton and then use DD / EEbutton to select
User.
4.
Press the GGbutton and then DD / EEbutton to select a color
setting on the
ACC
menu: Cool, Normal, Warm or User
(Red, Green, Blue).
5. Press the ENTER button to save.
ACC (Auto Color Control)
ACC (Auto Color Control)
-
Selecting a factory setting colour set.
EZ Video
ACC
Contrast
Brightness
Color
Sharpness
Tint
Cool
Normal
Warm
User
F Á
MENU
D
E
FG Á
MENU
D
E
21
Operation
Sound Menu Options
Sound Menu Options
1. Use the AUDIO button to select the appropriate sound setup as shown below.
EZ
EZ Audio
Audio
1.Press the MENU button and then use DD / EEbutton to select the SOUND menu.
2. Press the GGbutton and then use DD / EEbutton to select EZ Audio.
3. Press the GGbutton and then use DD / EEbutton to select User.
4. Press the GGbutton and then use FF / GGbutton to select the band you want to adjust. Then,
use DD / EEbutton to adjust the band level.
5. Press the ENTER button to save.
Equalizer
Equalizer Adjustments
Adjustments
- This function lets you enjoy the best sound without any special adjustment because the TV selects
the appropriate sound option based on the program content.
• You can also adjust EZ Audio in the SOUND menu.
Flat Music Movie Sports User
- AVL maintains an equal volume level automatically even if the channel is changed.
1.Press the MENU button and then use DD / EEbutton to select
the SOUND menu.
2. Press the GGbutton and then use DD / EEbutton to select AV L .
3. Press the GGbutton and then use DD / EEbutton to to select
On or Off.
4. Press the ENTER button to save.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
SOUND
EZ Audio
AVL
Balance
Flat
Music
Movie
Sports
User G
0.1 0.3 1 3 8
Khz
FG Á
MENU
D
E
SOUND
EZ Audio
AVL
Balance
On
Off
F Á
MENU
D
E
FG Á
MENU
D
E
