LG Electronics USA 19LCHI LCD TV/Monitor User Manual SAC30708007 Edit1 en
LG Electronics USA LCD TV/Monitor SAC30708007 Edit1 en
Manual
© Copyright 2007, LG Electronics USA, Inc.
Installation and Operating Guide | Warranty
Model Numbers |19LS4D, 22LS4D |LCD TV
1
WARNING / CAUTION
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC NOTICE
Class B digital device
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
CAUTION
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the litera-
ture accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system
of the building, as close to the point of the cable entry
as practical.
2
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate
booklet or sheet, or be located before any operating instructions in an instruction for installation for use and
supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to be used.
The important safety instructions shall be entitled “Important Safety Instructions”. The following safety
instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety
information may be included by adding statements after the end of the following safety instruction list. At the
manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be
placed immediately adjacent to that safety instruction:
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified by
the manufacturer.
Unplug this apparatus when unused for long
periods of time.
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner ManualOwner Manual
Owner Manual
1
2
3
4
5
6
7
8
Owner Manual
Owner Manual
3
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Never touch this apparatus or antenna during
a thunder or lighting storm.
Do not allow a impact shock or any objects to
fall into the product, and do not drop onto the
screen with something.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has exposed to rain or moisture,
does not operate normally, or has been
dropped.
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of
these conditions could result in electric shock
or fire. Periodically examine the cord of your
appliance, and if its appearance indicates dam-
age or deterioration, unplug it, discontinue use
of the appliance, and have the cord replaced
with an exact replacement part by an authorized
servicer. Protect the power cord from physical
or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the
appliance.
Outdoor use marking :
WARNING - To reduce the risk of fire or elec-
tric shock, do not expose this appliance to rain
or moisture.
Wet Location Marking : Apparatus shall not be
exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
GGRROOUUNNDDIINNGG
Ensure that you connect the earth ground wire
to prevent possible electric shock. If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas pipes.
DDIISSCCOONNNNEECCTTIINNGG DDEEVVIICCEE FFRROOMM MMAAIINNSS
Mains plug is the disconnecting device. The
plug must remain readily operable.
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
9
12
10
11
13
14
15
16
17
Power
Supply
Short-circuit
Breaker
4
CONTENTS
WARNING / CAUTION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY INSTRUCTIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . 2
INTRODUCTION
Feature of this TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PREPARATION
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front Panel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Back Panel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Detaching Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Back Cover for Wire Arrangement . . . . . . . . . . . . . . . . . . . . . 12

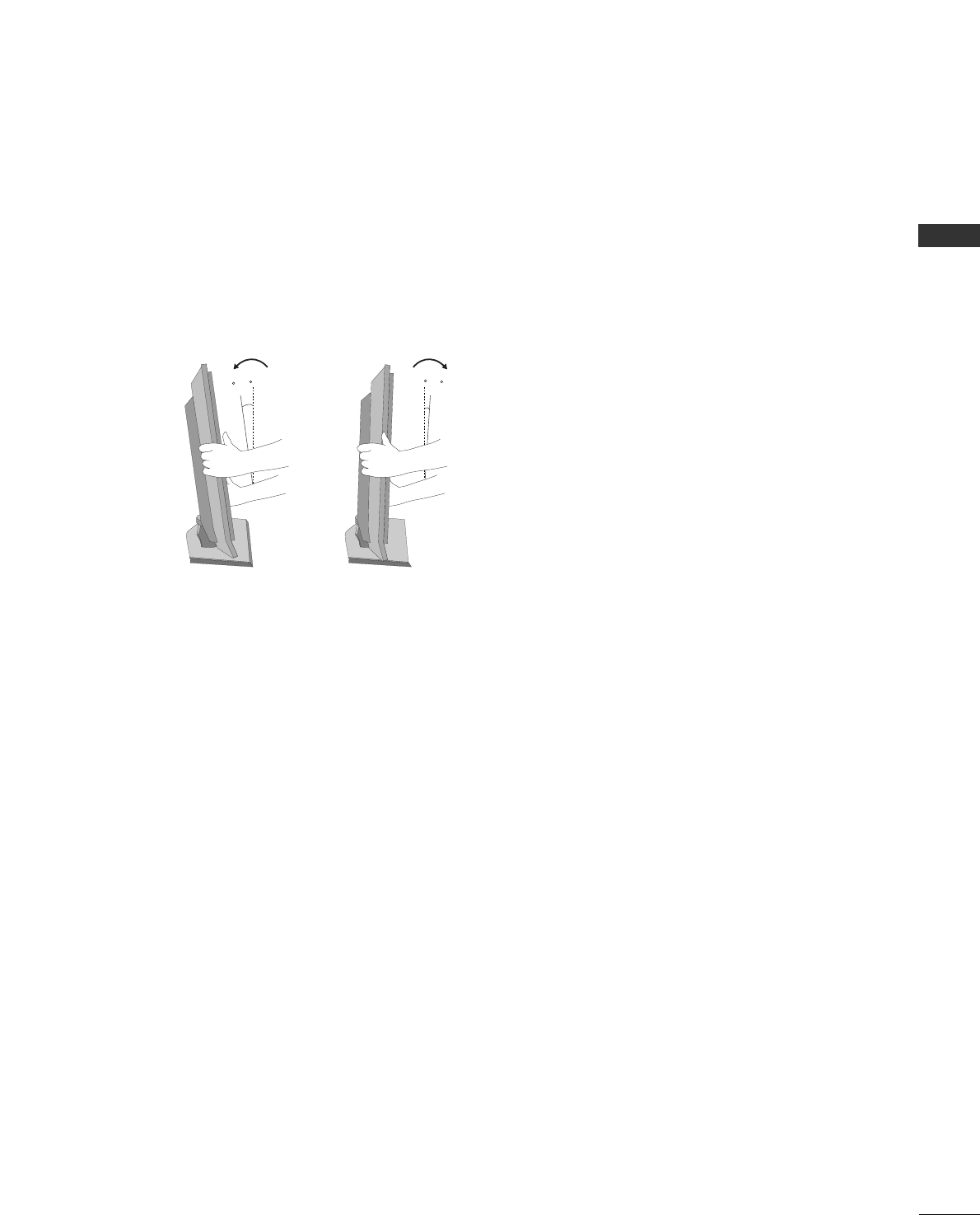

Positioning your display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
VESA Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Desktop Pedestal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Kensington Security System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Attaching the TV to a Desk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Antenna or Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 16
EXTERNAL EQUIPMENT SETUP
HD Receiver Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Headphone Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
WATCHING TV / CHANNEL CONTROL
Remote Control Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . 28
Turning On TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
On-Screen Menus Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Channel Search
- Auto Scan (Auto Tuning) . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
- Add / Delete Channel (Manual Tuning) . . . . . . 33
- Channel Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
PICTURE CONTROL
Picture Size (Aspect Ratio) Control . . . . . . . . . . . . . . . . . . 36
Preset Picture Settings
- Picture Mode - Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
- Color Tone - Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Manual Picture Adjustment
- Picture Mode - User Mode . . . . . . . . . . . . . . . . . . . . . . . . 40
- Color Tone - User Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
DB - Digital Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Advanced - Black (Darkness) Level . . . . . . . . . . . . . . . . . . . 43
Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
SOUND & LANGUAGE CONTROL
Preset Sound Setting (Sound Mode) . . . . . . . . . . . . . . . . 45
Sound Setting Adjustment - User Mode . . . . . . . . . . . 46
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
On-Screen Menus Language Selection . . . . . . . . . . . . . 50
Caption Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
- Analog Broadcasting System Captions . . . . . . . 52
- Digital Broadcasting System Captions . . . . . . . . 53
- Caption Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
5
TIME SETTING
Clock Setting
- Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
- Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Auto On/Off Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PARENTAL CONTROL / RATINGS
Set Password & Lock System
- Setting up Your Password . . . . . . . . . . . . . . . . . . . . . . . . . 60
- Set Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
- Lock System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Movie & TV Rating
- Movie Rating (MPAA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
- TV Rating Children & General . . . . . . . . . . . . . . . . . . . 63
APPENDIX
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
6
FEATURE OF THIS TV
INTRODUCTION
If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is noth-
ing wrong with TV.
Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they
have no adverse effect on the monitor's performance.
Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce
some temporary distortion effects on the screen.
On Disposal
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
c. Disposal of this product must be carried out in accordance to the regulations of your local authority.
LG's own special digital image generator, consisting
of a full digital image processor, six different main
picture quality factors.
High-definition television. High-resolution digital
television broadcast and playback system composed
of roughly a million or more pixels, 16:9 aspect-ratio
screens, and AC3 digital audio. A subset of digital
television, HDTV formats include 1080i and 720p
resolutions.
Manufactured under license from Dolby Laboratories.
“
Dolby
“and the double-D symbol are trademarks of
Dolby Laboratories.
HDMITM, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing."
.
PREPARATION
7
PREPARATION
ACCESSORIES
Ensure that the following accessories are included with your product. If an accessory is missing, please contact
the dealer where you purchased the product.
User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard
compliance for the product.
OOppttiioonn EExxttrraass
D-sub 15 pin Cable
Owner's Manual
1.5V 1.5V
Owner’s Manual CD Manual
123
456
78
0-
9
VOLCH
BACK
MUTE
ADJUST
EXIT
CC
FAV
SOUND
TIMER
NPUT
123
456
78
0-
9
VOLCH
ENTER
POWER
BACK
MUTE
MENU
ADJUST
EXIT
CC
SAP
FAV
PICTURESOUND
TIMER
TV
INPUT
Remote Control,
Batteries
Power Cord
LCD TV
Owner's Manual
http://www.zenith.com
P/NO.SAC30708007 (0706-REV00)
Copyright© 2007 LG Electronics USA, Inc.,
All Rights Reserved.
Cable Management
* Slightly wipe stained spot on the exterior only with the polishing
cloth for the product exterior if there is stain or fingerprint on
surface of the exterior.
* Do not wipe roughly when removing stain. Please be cautions of
that excessive pressure may cause scratch or discoloration.
Polishing Cloth
PREPARATION
8
FRONT PANEL INFORMATION
PREPARATION
■
Here shown may be somewhat different from your TV.
Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode.
When the TV is turned on, the indicator
blinks green and then illuminates green
before the picture is displayed.
INPUT MENU VOL CH
/I
ENTER
CHANNEL
(EE,DD)Buttons
VOLUME
(FF,GG)Buttons
MENU
Button
ENTER
Button
INPUT
Button
POWER
Button
GGIf your product has a protection tape attached, remove the tape.
And then wipe the product with a cloth (If a polishing cloth is included with your product, use it).
NOTE
!
PREPARATION
9
BACK PANEL INFORMATION
SERVICE ONLY
HDMI/DVI IN
Connect a HDMI signal to this jack.
Or DVI (Video) signal to this jack with a HDMI to
DVI cable.
AV IN (Audio/Video)
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
ANTENNA/CABLE IN
Connect over-the air signals to this jack.
Connect cable signals to this jack.
RGB (PC) IN
Connect the output from a PC.
AUDIO IN (RGB/DVI)
Connect the audio from a PC or DTV.
COMPONENT IN
Connect a component video/audio device to
these jacks.
HEADPHONE INPUT
Plug the headphone into the headphone socket.
RS-232C IN (CONTROL & SERVICE) PORT
For external control devices.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
6
5
7
8
9
2
3
4
VIDEO
AUDIO
(MONO)
S-VIDEO
ANTENNA/CABLE IN
RS-232C IN
(SERVICE ONLY)
RGB (PC) IN
AUDIO IN
(RGB/DVI)
SERVICE
ONLY
AV IN
H/P
HDMI/DVI IN
VIDEO
AUDIO
COMPONENT IN
8 7 6
1
23
5
4
9
■
Here shown may be somewhat different from your TV.
PREPARATION
10
STAND INSTALLATION
PREPARATION
■
Here shown may be somewhat different from your TV.
Insert the SSTTAANNDD BBOODDYYinto the product until clicking sound.
Carefully place the product screen side down on a cushioned surface that will protect product and screen
from damage.
Assemble the parts of the SSTTAANNDD BBOODDYYwith CCOOVVEERR BBAASSEEof the product.
SSTTAANNDD BBOODDYY
3
1
4
Hold the HHIINNGGEE BBOODDYYand bend it upward.
2
HHIINNGGEE BBOODDYY
CCOOVVEERR BBAASSEE
PREPARATION
11
DETACHING STAND
Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.
Pull cover base backward while pressing button
on stand body.
Shake the base while pulling, it will separate from
stand body.
Pull stand body to separate from set while press-
ing the 2 latches.
■
Here shown may be somewhat different from your TV.
1 2
4
3
5
Hold the HHIINNGGEE BBOODDYYand bend it upward.
HHIINNGGEE BBOODDYY
PREPARATION
12
BACK COVER FOR WIRE ARRANGEMENT
PREPARATION
Connect the cables as necessary.
To connect an additional equipment, see the EEXXTTEERRNNAALL EEQQUUIIPPMMEENNTTSSEETTUUPPsection.
Install the CCAABBLLEE MMAANNAAGGEEMMEENNTTas shown.
First, press the cable management. Hold the CCAABBLLEE MMAANNAAGGEEMMEENNTTwith both hands and pull it upward.
NOTE
!
GGDo not hold the CCAABBLLEE MMAANNAAGGEEMMEENNTT when moving the product.
- If the product is dropped, you may be injured or the product may be broken.
How to remove the CABLE MANAGEMENT
■
Here shown may be somewhat different from your TV.
1
2
PREPARATION
13
POSITIONING YOUR DISPLAY
■
Here shown may be somewhat different from your TV.
■
Adjust the position of the panel in various ways for maximum comfort.
• Tilt range
12~10
3
0
PREPARATION
14
VESA WALL MOUNTING
PREPARATION
For proper ventilation, allow a clearance of 4inches on all four sides from the wall.
GGEnsure adequate ventilation by following the clearance recommendations.
CAUTION
DESKTOP PEDESTAL INSTALLATION
This product accepts a VESA-compliant mounting interface pad. (optional)
There 4 threaded holes are available for attaching the bracket.
GGScrew length needed depends on the wall mount used. For further information, refer to the VESA
Wall Mounting Instruction Guide.
NOTE
!
100 mm
100 mm
4 inches
4 inches
4 inches 4 inches
PREPARATION
15
KENSINGTON SECURITY SYSTEM
ATTACHING THE TV TO A DESK (Only 23 inches)
- The TV is equipped with a Kensington Security System connector on the back panel. Connect the
Kensington Security System cable as shown below.
- For the detailed installation and use of the Kensington Security System, refer to the user’s guide provided
with the Kensington Security System.
For further information, contact hhttttpp::////wwwwww..kkeennssiinnggttoonn..ccoomm, the internet homepage of the
Kensington company. Kensington sells security systems for expensive electronic equipment such as note-
book PCs and LCD projectors.
NOTE
- The Kensington Security System is an optional accessory.
The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing
injury or damaging the product.
GGThis apparatus must be securely attached to the floor/wall per installation instructions. Tipping, shak-
ing, or rocking the machine may cause injury/death.
WARNING
Desk
Stand
2-Screws (M3x25)
(not provided as parts
of the product)
PREPARATION
16
ANTENNA OR CABLE CONNECTION
PREPARATION
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections.
For optimum picture quality, adjust antenna direction if needed.
2. Cable
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Cable TV
Wall Jack
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the bronze wire
when connecting the antenna.
Copper Wire
ANTENNA/CABLE IN
ANTENNA/CABLE IN
ANTENNA/CABLE IN
ANTENNA/CABLE IN
GGThe TV will let you know when the analog, cable, and digital channel scans are complete.
NOTE
!
■To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■If the antenna is not installed properly, contact your dealer for assistance.
Antenna
UHF
Signal
Amplifier
VHF
3. Using both cable and antenna
Cable TV
Wall Jack
Antenna
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
Diplexer
(Signal
Combiner)
EXTERNAL EQUIPMENT SETUP
17
HD RECEIVER SETUP
EXTERNAL EQUIPMENT SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown
below.
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
IDEO
AUDIO
(MONO)
S-VIDEO
RGB (PC) IN
AUDIO IN
(RGB/DVI)
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
Y L RPBPR
When connecting Component cable
12
1. How to connect
Connect the video outputs (Y, PB, PR)of the digital set
top box to the CCOOMMPPOONNEENNTT IINN VVIIDDEEOO jacks on
the set. Match the jack colors
(Y = green, PB= blue, and PR= red).
Connect the audio output of the digital set-top box to
the CCOOMMPPOONNEENNTT IINN AAUUDDIIOO jacks on the set.
2
1
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box. operation)
■Select CCoommppoonneenntt input source by using the IINNPPUUTT
button on the remote control.
EXTERNAL EQUIPMENT SETUP
18
EXTERNAL EQUIPMENT SETUP
When connecting HDMI cable
Connect the digital set-top box to HHDDMMII//DDVVII IINN
jack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■Select HHDDMMII//DDVVIIinput source by using the IINNPPUUTT
button on the remote control.
2
1
VIDEO
AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTENN
VIDEO
CO
HDMI-DTV OUTPUT
1
GGWhen connected, the TV will tell a connected device what
resolution it supports and the resolution it prefers. If the
device supports this Auto HDMI function, the player output
resolution will be automatically set to 720p.
GGIf the device does not support Auto HDMI, you need to set
the output resolution appropriately.
NOTE
!
EXTERNAL EQUIPMENT SETUP
19
When connecting HDMI to DVI cable
VIDEO
AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
RGB (PC) IN
AUDIO IN
(RGB/DVI)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
L R
DVI-DTV OUTPUT
Connect the DVI output of the digital set-top box to the HHDDMMII//DDVVII IINN jack on the set.
Connect the audio output of the digital set-top box to the AAUUDDIIOO IINN ((RRGGBB//DDVVII))jack on the set.
1. How to connect
■Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
■Select HHDDMMII//DDVVIIinput source by using the IINNPPUUTTbutton on the remote control.
2. How to use
2
1
1
2
EXTERNAL EQUIPMENT SETUP
20
DVD SETUP
EXTERNAL EQUIPMENT SETUP
When connecting Component cable
VIDEO
AUDIO
(MONO)
S-VIDEO
RGB (PC) IN
AUDIO IN
(RGB/DVI)
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
Y L RPBPR
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YP
BPR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video outputs (Y, PB, PR)of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO jacks on the set.
Match the jack colors
(Y = green, PB= blue, and PR= red).
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO jacks on the set.
1. How to connect
2. How to use
■Turn on the DVD player, insert a DVD.
■Select CCoommppoonneenntt input source by using the IINNPPUUTT
button on the remote control.
■Refer to the DVD player's manual for operating instructions.
2
1
12
EXTERNAL EQUIPMENT SETUP
21
When connecting with an S-Video cable
VIDEO
AUDIO
(MONO)
S-VIDEO
32C IN
CE ONLY)
RGB (PC) IN
AU
(RG
DVI IN
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
L R S-VIDEO
AUDIO
1
2
Connect the S-VIDEO output of the DVD to the
SS--VVIIDDEEOOinput on the set.
Connect the audio outputs of the DVD to the AAUUDDIIOO
input jacks on the set.
1. How to connect
2. How to use
■Turn on the DVD player, insert a DVD.
■Select AAVV input source by using the IINNPPUUTTbutton on the
remote control.
■Refer to the DVD player's manual for operating instructions.
2
1
VIDEO
AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTE
VIDE
C
HDMI-DVD OUTPUT
1
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINNjack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■Select HHDDMMII//DDVVIIinput source by using the IINNPPUUTT
button on the remote control.
■Refer to the DVD player's manual for operating instructions.
2
1
GGWhen connected, the TV will tell a connected device what
resolution it supports and the resolution it prefers. If the
device supports this Auto HDMI function, the player out-
put resolution will be automatically set to 720p.
GGIf the device does not support Auto HDMI, you need to
set the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the DVD to 720p.
NOTE
!
EXTERNAL EQUIPMENT SETUP
22
VCR SETUP
EXTERNAL EQUIPMENT SETUP
When connecting with an antenna
■To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the
screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty
does not cover the product bearing this phenomenon.
VIDEO
AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
RGB (PC) IN
AUDIO IN
(RGB/DVI)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
L R S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1
2
Connect the RF antenna out socket of the VCR to the AANNTTEENNNNAA//CCAABBLLEE IINNsocket on the set.
Connect the antenna cable to the RF antenna in socket of the VCR.
1. How to connect
■Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
■Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)
2. How to use
2
1
EXTERNAL EQUIPMENT SETUP
23
When connecting with a RCA cable
GGDo not connect to both Video
and S-Video at the same time. In
the event that you connect both
Video and the S-Video cables,
only the S-Video will work.
CAUTION
GGThe picture quality is improved: compared to normal
composite (RCA cable) input.
NOTE
!
VIDEO
AUDIO
(MONO)
S-VIDEO
RS-232C IN
(SERVICE ONLY)
R
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
ANTENN
VIDEO
COM
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
VIDEO
AUDIO
(MONO)
S-VIDEO
S-232C IN
VICE ONLY)
RGB (PC) IN
A
(
MI/DVI IN
AV IN
H/P
ANTENNA/CABLE IN
VIDEO
AUDIO
COMPONENT IN
L R S-VIDEO
AUDIO
Connect the AAUUDDIIOO/VVIIDDEEOOjacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
■Select AAVV input source by using the IINNPPUUTTbutton on the
remote control.
When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the
SS--VVIIDDEEOO input on the set.
Connect the audio outputs of the VCR to the AAUUDDIIOO
input jacks on the set.
1. How to connect
2. How to use
■Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)
■Select AAVV input source by using the IINNPPUUTTbutton on the
remote control.
1
2
1
GGIf you have a mono VCR, connect the audio cable from
the VCR to the AAUUDDIIOO LL//MMOONNOOjack of the set.
NOTE
!
1
1
2
EXTERNAL EQUIPMENT SETUP
24
HEADPHONE SETUP
EXTERNAL EQUIPMENT SETUP
You can listen to the sound through the headphone.
Plug the headphone into the headphone socket.
To adjust the headphone volume, press the VVOOLL + or
- button. If you press the MMUUTTEEbutton, the sound
from the headphone is switched off.
1. How to connect
2
1
VIDEO
A
(MON
RS-232C IN
(SERVICE ONLY)
SERVICE
ONLY
HDMI/DVI IN
H/P
EXTERNAL EQUIPMENT SETUP
25
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
When connecting D-sub 15pin cable
AUDIO
(MONO)
S-VIDEO
RGB (PC) IN
AUDIO IN
(RGB/DVI)
AV IN
H/P
VIDEO
AUDIO
COMPONENT IN
AUDIO
RGB OUTPUT
Connect the RGB output of the PC to the RRGGBB ((PPCC))
IINNjack on the set.
Connect the PC audio output to the AAUUDDIIOO IINN
((RRGGBB//DDVVII))jack on the set.
1. How to connect
2. How to use
■Turn on the PC and the TV.
■Select RRGGBB--PPCCinput source by using the IINNPPUUTTbutton
on the remote control.
2
1
12
When connecting HDMI to DVI cable
Connect the DVI output of the PC to the HHDDMMII//DDVVII
IINNjack on the set.
Connect the PC audio output to the AAUUDDIIOO IINN
((RRGGBB//DDVVII))jack on the set.
1. How to connect
2. How to use
■Turn on the PC and the TV.
■Select HHDDMMII//DDVVIIinput source by using the IINNPPUUTTbut-
ton on the remote control.
2
1
VIDEO
AUDIO
(MONO)
RS-232C IN
(SERVICE ONLY)
SERVICE
ONLY
HDMI/DVI IN
AV IN
H/P
DVI-PC OUTPUT AUDIO
AUDIO IN
(RGB/DVI)
DIO
1
2
EXTERNAL EQUIPMENT SETUP
26
EXTERNAL EQUIPMENT SETUP
GGTo get the the best picture quality, adjust the PC
graphics card to 1024x768, 60Hz.
GGDepending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
GGIf the video doesn’t fit the screen, try pressing the
ADJUST button to adjust the screen position of TV.
GGCheck the image on your TV. There may be noise
associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is
present, change the PC output to another resolu-
tion, change the refresh rate to another rate or
adjust the brightness and contrast on the VIDEO
menu until the picture is clear. If the refresh rate of
the PC graphic card can not be changed, change
the PC graphic card or consult the manufacturer of
the PC graphic card.
GGAvoid keeping a fixed image on the screen for a
long period of time. The fixed image may become
permanently imprinted on the screen.
GGThe synchronization input form for Horizontal and
Vertical frequencies is separate.
NOTES
!
Supported Display Specifications
* RGB-PC mode only
Horizontal Vertical
Frequency(KHz)Frequency(Hz)
31.469 70.08
31.469 70.08
31.469 59.94
37.879 60.31
48.363 60.00
47.776 59.87
47.712 60.01
60.023 60.00
31.469 59.94
31.500 60.00
44.96 59.94
45.000 60.00
33.72 59.94
33.75 60.00
Resolution
720x400
1360x768
640x350
640x480
800x600
1024x768
1280x768
1366x768
720x480
1280x720
1920x1080
* HDMI mode only
EXTERNAL EQUIPMENT SETUP
27
Screen Setup for PC mode
Overview
When the RGB input of the set is connected to a PC output, select
the RGB-PC as the main input mode.
When HDMI connect to PC output and select HDMI/DVI input, this
function is used.
After connecting RGB-PC or HDMI/DVI to PC output and checking
the screen quality.
When you change the resolution, select the proper resolution in pre-
sent input to see the best picture appearance.
Adjustment for screen Resolution, Position, Size,
and Phase
Press the AADDJJUUSSTTbutton and then use DD or EEbutton to
select RReessoolluuttiioonn, PPoossiittiioonn, SSiizzee, or PPhhaassee.
Press the EENNTTEERRbutton and then use DD EE FFGG button to
make appropriate adjustments.
■The PPhhaasseeadjustment range is 00 ~++6644.
In HDMI/DVI-PC mode, PPhhaassee is not available.
■The SSiizzeeadjustment range is --3300 ~++3300.
In HDMI/DVI-PC mode, SSiizzeeis not available.
Press the EENNTTEERRbutton.
Auto Configuration and Initializing (Reset to
original factory values)
Press the AADDJJUUSSTTbutton and then use DD or EEbutton to
select AAuuttooor RReesseett.
Press the EENNTTEERR button and then use FFor GG button to
select YYeess.
Press the EENNTTEERRbutton.
ENTER
BACK
CC
MENU EXIT
1
2
3
1
2
3
1 2 3
1 2 3
Resolution
Position
Size
Phase
Auto
Reset
Select
Prev Ok
DD
EE
ADJUST
1024 x 768
1280 x 768
1360 x 768
RReessoolluuttiioonn
This function allows you select
resolution of XGA/WXGA.
PPoossiittiioonnThis function is to adjust picture to
left/right and up/down as you prefer.
SSiizzeeThis function is to minimize any ver-
tical bars or stripes visible on the
screen background. And the hori-
zontal screen size will also change.
PPhhaasseeThis function allows you to
remove any horizontal noise and
clear or sharpen the image of char-
acters.
AAuuttooThis function is to adjust picture
position and minimizes image shaking
automatically.
RReesseettThis function is to initialize the
adjusted value.
Initialize Settings
Yes No
Select
Prev Ok
FFGG
ADJUST
Resolution
Position
Size
Phase
Auto
Reset
Start Auto configuration
Yes No
Select
Prev Ok
FFGG
ADJUST
Resolution
Position
Size
Phase
Auto
Reset
WATCHING TV / CHANNEL CONTROL
28
REMOTE CONTROL FUNCTIONS
WATCHING TV / CHANNEL CONTROL
When using the remote control, aim it at the remote control sensor on the TV.
123
456
78
0-
9
VOL CH
ENTER
POWER
BACK
MUTE
MENU
ADJUST
EXIT
CC
SAP
FAV
PICTURE SOUND
TIMER
TV
INPUT
SAP
SOUND
TIMER
VOLUME UP
/DOWN
ADJUST
MUTE
CC
CHANNEL
UP/DOWN
MENU
BACK
EXIT
THUMBSTICK
(Up/Down/Left
Right/ENTER)
Analog mode: Selects MTS sound (Mono, Stereo, or a
SAP) GGpp..4488
DTV mode: Changes the audio language.
Selects the factory preset picture depend on the viewing
environment. GGpp..3388
Selects the factory preset sound for type of program.
GGpp..4455
Select the amount of time before your TV turns off auto-
matically. GGpp..5588
Increase/decrease the sound level.
Adjust the screen resolution, position, size and phase. GGpp..2277
Switch the sound on or off. GGpp..3300
Select a closed caption. GGpp..5511
Select available channels.
Displays the main menu.
Tune to the last channel viewed.
Clear all on-screen displays and return to TV viewing from
any menu.
Navigate the on-screen menus and adjust the system set-
tings to your preference.
WATCHING TV / CHANNEL CONTROL
29
■Open the battery compartment cover on the back
side and install the batteries matching correct
polarity (+ with +, - with -).
■Install two 1.5V AAA batteries. Don’t mix old or
used batteries with new ones.
■Close cover.
■Use a remote control up to 7 meters distance
and 30 degree (left/right) within the receiving
unit scope.
■Dispose of used batteries in a recycle bin to
preserve environment.
123
456
78
0-
9
POWER
SAP
FAV
PICTURE SOUND
TIMER
TV
INPUT
Installing Batteries Remote control effective range
NUMBER button
Turns your TV or any other programmed equipment on or off, depending on the mode.
In AV, Component, RGB-PC, and HDMI/DVI input sources, screen returns to the last TV channel.
External input modes rotate in regular sequence: TV, AV, Component, RGB-PC, and HDMI/DVI.
(AV, Component, RGB-PC, and HDMI/DVI input sources are linked automatically, only if a
device is connected.)
Used to enter a program number for multiple program channels such as 2-1, 2-2, etc.
Scroll through the programmed Favorite channels. GGpp..3344
POWER
TV
INPUT
— (DASH)
FAV
WATCHING TV / CHANNEL CONTROL
30
TURNING ON TV
WATCHING TV / CHANNEL CONTROL
NOTE
!
GGIf you intend to be away on vacation, disconnect the power plug from the wall power outlet.
First, connect power cord correctly.
At this moment, the TV switches to standby mode.
■In standby mode to turn TV on, press the , IINNPPUUTT,CCHH ((DD or EE))
button on the TV or press the PPOOWWEERR, IINNPPUUTT, TTVV, CCHH ((+ or -)),
NNuummbbeerr ((00~99))button on the remote control.
Select the viewing source by using the IINNPPUUTTbutton on the remote con-
trol.
■This TV is programmed to remember which power state it was last set
to, even if the power cord is out.
When finished using the TV, press the PPOOWWEERRbutton on the remote
control. The TV reverts to standby mode.
123
456
78
0-
9
VOL CH
POWER
BACK
MUTE
ADJUST
CC
SAP
FAV
MENU EXIT
PICTURE SOUND
TIMER
TV INPUT
1
2
3
123
456
78
0-
9
VOL CH
MUTE
ADJUST
CC
FAV
Press the CCHH((+ or -))or NNUUMMBBEERRbuttons to select a channel number.
1
VOLUME ADJUSTMENT
CHANNEL SELECTION
Press the VVOOLL((+ or -))button to adjust the volume.
If you want to switch the sound off, press the MMUUTTEEbutton.
You can cancel the Mute function by pressing the MMUUTTEEor VVOOLL ((+ or -))
button.
0-
VOL CH
BACK
MUTE
ADJUST
CC
FAV
MENU EXIT
Adjust the volume to suit your personal preference.
1
2
3
WATCHING TV / CHANNEL CONTROL
31
ON-SCREEN MENUS SELECTION
Press the MMEENNUUbutton and then use DD or EE button to select the each menu.
Press the GG button and then use DD EE FF GG button to display the available menus.
Your TV's OSD (On Screen Display)may differ slightly from what is shown in this manual.
2
1
SETUP PICTURE
TIME
AUDIO
Sound Mode : Standard
Balance : 0
Clock : Oct 19, 2007, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Language : English
Key Lock : Off
Caption : Off
Lock System : Off
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
OPTION
LOCK
Auto Tuning
Manual Tuning
Channel Edit
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
WATCHING TV / CHANNEL CONTROL
32
CHANNEL SEARCH
WATCHING TV / CHANNEL CONTROL
Press the MMEENNUUbutton and then use DD or EE button
to select the SSEETTUUPPmenu.
Press the GG button and then use DD or EE button to
select AAuuttoo TTuunniinngg.
Press the EENNTTEERRbutton to begin the channel search.
Allow AAuuttoo TTuunniinnggto complete the channel search
cycle for AANNTTEENNNNAAand CCAABBLLEE.
Automatically finds all channels available through antenna
or cable inputs, and stores them in memory on the channel
list.
Run Auto Tuning again after any Antenna/Cable connection
changes.
A password is required to gain access to Auto Tuning menu
if the Lock System is turned on.
2
3
1
1
2
3
ENTER
BACK
CC
MENU EXIT
Auto Scan (Auto Tuning)
Auto Tuning
Manual Tuning
Channel Edit
Auto Tuning G
Manual Tuning
Channel Edit
Selection ( Gor )
leads you to the
Auto Tuning screen.
Auto Tuning G
Manual Tuning
Channel Edit
Selection ( Gor )
leads you to the
Auto Tuning screen.
Processing Auto Tuning...
TV CH 23
Found Channel(s): 16
Press to stop the
current scan and start
TV channel scan.
MENU Prev
Next
WATCHING TV / CHANNEL CONTROL
33
A password is required to gain access to Manual Tuning
menu if the Lock System is turned on.
If selecting DTV or CADTV input signal, you can view the
on-screen signal strength monitor to see the quality of the
signal being received.
Press the MMEENNUUbutton and then use DD or EE button
to select the SSEETTUUPPmenu.
Press the GG button and then use DD or EE button to
select MMaannuuaall TTuunniinngg.
Press the GG button and then use DD or EE button to
select TTVV, DDTTVV, CCAATTVV, and CCAADDTTVV.
Press the GG button and then use DD or EE button to
select channel you want to add or delete.
Press the EENNTTEERRbutton to add or delete the channel.
Press the EEXXIITT button to return to TV viewing or
press MMEENNUU button to return to the previous menu.
ENTER
BACK
CC
MENU EXIT
2
1
4
3
6
5
1
2
3 4 5
Add/Delete Channel (Manual Tuning)
Auto Tuning
Manual Tuning G
Channel Edit
Select channel type
and RF-channel number.
DTV 2
Auto Tuning
Manual Tuning
Channel Edit
Select channel type
and RF-channel number.
DTV GG12
delete the channel.
DTV 12-0
DD
EE
Bad Normal Good
Auto Tuning
Manual Tuning
Channel Edit
WATCHING TV / CHANNEL CONTROL
34
WATCHING TV / CHANNEL CONTROL
There are two different ways in order to add or delete
scanned channels. One is "Custom List" and the other is
"Favorite List" in the channel list. Both of them are available
after Auto Tuning on the SETUP menu.
A Custom List can be created by toggling each channel on
or off with ENTER button. The channels in the Custom List
are displayed in black, and the channels deleted from the
Custom List are displayed in gray. Once a channel is high-
lighted you can add or delete the channel by referring to the
small window at the top-left corner of the screen.
You can create your own Favorite List. Use the FFAAVVbutton
on the remote control when a channel is highlighted and
then add or delete the channel to/from your Favorite List.
Press the MMEENNUUbutton and then use DD or EE button
to select the SSEETTUUPPmenu.
Press the GG button and then use DD or EE button to
select CChhaannnneell EEddiitt.
Press the GG button and then use DD or EE button to
select channel and then use the EENNTTEERRbutton to add
or delete it.
Press FFAAVVbutton to add the channel to the Favorite List.
The surfing icon will appear in back of that channel
number.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
0-
VOL CH
ENTER
BACK
MUTE
ADJUST
CC
FAV
MENU EXIT
2
1
3
4
1
2
3 4
Channel Editing
Auto Tuning
Manual Tuning
Channel Edit
Auto Tuning
Manual Tuning
Channel Edit G
TV
DD
EE
2-0
4-0
6-0
9-0
11-0
13-0
14-0
Add/Delete
Favorite
FAV
Auto Tuning
Manual Tuning
Channel Edit G
DD
EEG
DD
EE
TV
Add/Delete
Favorite
2-0
4-0
6-0
9-0
11-0
13-0
14-0
FAV
WATCHING TV / CHANNEL CONTROL
35
KEY LOCK
ENTER
BACK
CC
MENU EXIT
The TV can be set up so that it can only be used with the
remote control.
This feature can be used to prevent unauthorized viewing
by locking out the front panel controls.
This TV is programmed to remember which option it was
last set to even if you turn the TV off.
Press the MMEENNUUbutton and then use DD or EE button
to select the OOPPTTIIOONNmenu.
Press the GG button and then use DD or EE button to
select KKeeyy lloocckk.
Press the GG button and then use DD or EE button to
select OOnnor OOffff.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
1
1
2 3
Language : English
Key Lock : Off
Caption : Off
Language
Key Lock G
Caption
Off
On
PICTURE CONTROL
36
PICTURE SIZE (ASPECT RATIO) CONTROL
PICTURE CONTROL
ENTER
BACK
CC
MENU EXIT
This feature allows an analog picture with a 4:3 aspect ratio is displayed on your TV.
When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you
need to specify how the picture is to be displayed.
■ RGB-PC input source use 4:3 or 16:9 aspect ratio.
NOTE
!
GGIf a fixed image is displayed on the screen for a long time, the image may
become imprinted on the screen and remain visible.
This phenomenon is common to all manufactures and in consequence the
manufactures warranty does not cover the product bearing this phenomenon.
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select AAssppeecctt RRaattiioo.
Press the GG button and then use DD or EE button to
select the desired picture option ((SSeett BByy PPrrooggrraamm,
44::33,1166::99,FFuullll,HHoorriizzoonn, or ZZoooomm)).
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
1
1
32
Picture Mode
Color Temperature
DB
Advanced
Aspect Ratio G
Picture Reset
Set By Program
4:3
16:9
Full
Horizon
Zoom
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
PICTURE CONTROL
37
Set by program
Selects the proper picture proportion to match
the source’s image.
4:3
Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.
16:9
Adjust the picture horizontally, in a linear pro-
portion to fill the entire screen.
Horizon
The screen size is, more enlarged at both sides,
to create a spectacular view.
Zoom
Choose Zoom when you want to view the pic-
ture without any alteration. However, the top
and bottom portions of the picture will be
cropped.
Zoom
Set By Program
Set By Program
(4:3 4:3)
(16:9 16:9)
4:3
16 : 9
Horizon
PICTURE CONTROL
38
PRESET PICTURE SETTINGS
PICTURE CONTROL
123
456
78
0-
9
VOL CH
POWER
MUTE
ADJUST
SAP
FAV
PICTURE SOUND
TIMER
TV INPUT
Picture Mode - Preset
Press the PPIICCTTUURREEbutton repeatedly to select the picture
appearance setup option as below :
DDyynnaammiicc, SSttaannddaarrdd, MMiilldd, and UUsseerr (your own settings).
Press the EEXXIITTbutton to save and return to TV viewing.
Picture Mode adjusts the TV for the best picture appearance.
Select the preset value in the Picture Mode menu based on the
program category.
DDyynnaammiicc,SSttaannddaarrdd,MMiillddSettings are preset for the optimum
picture quality at the factory and are not adjustable.
In the UUsseerr mode only, user can directly adjust the contrast,
brightness, color, sharpness, tint.
■You can also use the PPIICCTTUURREEmenu to adjust PPiiccttuurree MMooddee.
2
1
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
Picture Mode
Color Temperature G
DB
Advanced
Aspect Ratio
Picture Reset
Dynamic
Standard
Mild
User
PICTURE CONTROL
39
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Color Tone - Preset
Choose one of three automatic color adjustments. Set to
warm to enhance hotter colors such as red, or set to cool
to see less intense colors with more blue.
When selecting Picture Mode options (Dynamic, Standard
and Mild), CCoolloorr TTeemmppeerraattuurreeis automatically change.
When selecting Picture Mode options (User), you can
choose the CCoolloorr TTeemmppeerraattuurree.
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select CCoolloorr TTeemmppeerraattuurree.
Press the GG button and then use DD or EE button to
select either CCooooll,MMeeddiiuumm, WWaarrmm or UUsseerr.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
1
1
2 3
Picture Mode
Color Temperature G
DB
Advanced
Aspect Ratio
Picture Reset
Cool
Medium
Warm
User
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
PICTURE CONTROL
40
MANUAL PICTURE ADJUSTMENT
PICTURE CONTROL
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Picture Mode - User Mode
Adjust the picture appearance to suit your preference and
viewing situations.
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select PPiiccttuurree MMooddee.
Press the GG button and then use DD or EE button to
select UUsseerr.
Press the GG button and then use DD or EE button to
select the desired picture option ((BBaacckklliigghhtt,
CCoonnttrraasstt,BBrriigghhttnneessss,CCoolloorr,SShhaarrppnneessss, or TTiinntt)).
■BBaacckklliigghhtt
To control the brightness of screen, adjust the
brightness of LCD panel.
Press the GG button and then use FFor GGbutton to
make appropriate adjustments.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
5
6
1
Backlight 100
EE
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
EE
User
Backlight 100 G
Contrast 85
Brightness 50
Color 50
Sharpness 50
Tint 0 R G
Press to confirm.
MENU
Picture Mode
Color Temperature
DB
Advanced
Aspect Ratio
Picture Reset
Dynamic
Standard
Mild
User G
Selection ( Gor )
leads you to the
detailed setting screen.
2 3
1
4
5
PICTURE CONTROL
41
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
You can also adjust the detailed settings (Red, Green, Blue)
by selecting the CCoolloorr TTeemmppeerraattuurree--UUsseerrmenu.
This feature operate only if the picture mode set UUsseerr.
Color Tone - User Mode
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select CCoolloorr TTeemmppeerraattuurree.
Press the GG button and then use DD or EE button to
select UUsseerr.
Press the GG button and then use DD or EE button to
select RReedd, GGrreeeenn, or BBlluuee.
Press the GG button and then use FF or GG button to
make appropriate adjustments.
■The adjustment range of RReedd, GGrreeeenn, or BBlluueeis -
20~+20.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
5
6
1
2 3
1
4
5
Picture Mode
Color Temperature
DB
Advanced
Aspect Ratio
Picture Reset
Screen
Press to confirm.
MENU
Cool
Medium
Warm
User G
User
Red 0 G
Green 0
Blue 0
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
Red 0 FFG
EE
Selection ( Gor )
leads you to the
detailed setting screen.
EE
PICTURE CONTROL
42
DB - DIGITAL BOOSTER
PICTURE CONTROL
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select DDBB.
Press the GG button and then use FF or GG button to
select AAuuttoo or MMaannuuaall.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
DB is LG Electronic’s unique picture improving technology
to display a real HD source through an advanced dig-ital
signal processing algorithm.
When selecting Picture Mode options (Dynamic, Standard,
and Mild), DB is automatically changed to Auto.
When selecting Picture Mode option (User), you can
choose the Auto / Manual.
When selecting the Manual, you can adjust the DB Contrast,
DB color and DB Noise.
2
3
4
1
2 3
1
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
Picture Mode
Color Temperature
DB G
Advanced
Aspect Ratio
Picture Reset
Manual
DB Contrast On
DB Color On
DB Noise On
SSeelleeccttiinngg tthhee MMaannuuaall
1. Press the EE button and then use DD or EE but-
ton to select DDBB CCoonnttrraasstt, DDBB CCoolloorror
DDBB NNooiissee.
■DDBB CCoonnttrraasstt:: Optimizing the contrast
automatically according to the brightness of
the reflection.
■DDBB CCoolloorr::Adjusting the colors of the
reflection automatically to reproduce as
closely as possible to the natural colors.
■DDBB NNooiissee :: Removing the noise up to the
point where it does not damage the original
picture.
2. Use the DD or EE button to select OOnnor OOffff.
PICTURE CONTROL
43
ADVANCED - BLACK (DARKNESS) LEVEL
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select AAddvvaanncceedd.
Press the GG button and then use DD or EE button to
select BBllaacckk lleevveell LLoowwor HHiigghh.
■LLooww
The screen gets darker.
■HHiigghh
The screen gets brighter.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Adjusting the contrast and the brightness of the screen
using the black level of the screen.
This feature operates only in AV1, AV2, HDMI1/DVI, or
HDMI2 mode.
2
3
4
1
2 3
1
Picture Mode
Color Temperature
DB
Advanced G
Aspect Ratio
Picture Reset
Black Level Low
Picture Mode : User
Color Temperature
DB
Advanced : High
Aspect Ratio : 16:9
Picture Reset
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
PICTURE CONTROL
44
PICTURE RESET
PICTURE CONTROL
Press the MMEENNUUbutton and then use DD or EE button
to select the PPIICCTTUURREEmenu.
Press the GG button and then use DD or EE button to
select PPiiccttuurree RReesseett.
Press the GG button to reset the Picture menu options
to original values.
Use to quickly reset all the Picture menu options to their
original factory preset values.
2
3
1
2 3
1
Picture Mode
Color Temperature
DB
Advanced
Aspect Ratio
Picture Reset G
Picture Mode : User
Color Temperature : Cool
DB
Advanced
Aspect Ratio : 16:9
Picture Reset
Selection ( Gor )
resets to the factory
settings (default).
SOUND & LANGUAGE CONTROL
45
123
456
78
0-
9
VOL CH
POWER
MUTE
ADJUST
SAP
FAV
PICTURE SOUND
TIMER
TV INPUT
PRESET SOUND SETTINGS (SOUND MODE)
SOUND & LANGUAGE CONTROL
Sound Mode lets you enjoy the best sound without any special
adjustment because the TV sets the appropriate sound options
based on the program content.
Standard, Music, News, Movie, and Sports are preset for good
sound quality at the factory and are not adjustable.
Press the SSOOUUNNDDbutton repeatedly to select the appropri-
ate sound setup as below :
SSttaannddaarrdd, MMuussiicc, MMoovviiee, SSppoorrttss, and UUsseerr (your own
settings).
Press EEXXIITTbutton to return to TV viewing.
■ You can also adjust SSoouunndd MMooddeein the AAUUDDIIOOmenu.
2
1
Sound Mode G
Balance
Standard
Music
Movie
Sports
User
Sound Mode : Standard
Balance : 0
SOUND & LANGUAGE CONTROL
46
SOUND &LANGUAGE CONTROL
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
SOUND SETTING ADJUSTMENT - USER MODE
Press the MMEENNUUbutton and then use DD or EE button
to select the AAUUDDIIOOmenu.
Press the GG button and then use DD or EE button to
select SSoouunndd MMooddee.
Press the GG button and then use DD or EE button to
select UUsseerr.
Press the GG button and then use DD or EE button to
select the desired sound option (TTrreebblleeor BBaassss).
Press the GG button and then use FF or GG button to
make appropriate adjustments.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Adjust the sound to suit your taste and room situations.
2
3
4
5
6
1
Sound Mode
Balance
Standard
Music
Movie
Sports
User G
User
Treble 50 G
Bass 50
Press to confirm.
MENU
2 3
4
5
1
Sound Mode : Standard
Balance : 0
Treble 85 FF G
EE
Selection ( Gor )
leads you to the
detailed setting screen.
EE
SOUND & LANGUAGE CONTROL
47
BALANCE
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Press the MMEENNUUbutton and then use DD or EE button
to select the AAUUDDIIOOmenu.
Press the GG button and then use DD or EE button to
select BBaallaannccee.
Press the GG button and then use FF or GG button to
make appropriate adjustments.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Adjust the left/right sound of speaker to suit your taste and
room situations.
L R
Balance 0
2
3
4
1
1
2
3
Sound Mode
Balance 0 L R
Sound Mode : Standard
Balance : 0
SOUND & LANGUAGE CONTROL
48
STEREO/SAP BROADCASTS SETUP
SOUND &LANGUAGE CONTROL
123
456
78
0-
9
VOL CH
POWER
MUTE
ADJUST
SAP
FAV
PICTURE SOUND
TIMER
TV INPUT
This TV can receive MTS stereo programs and any SAP
(Secondary Audio Program)that accompanies the stereo program
if the station transmits an additional sound signal as well as the
original one and when you select Stereo or SAP on the remote
control.
Mono sound is automatically received if the broadcast is only in
Mono; even though Stereo or SAP has been selected.
Select Mono if you want to listen to the mono sound in remote
areas during stereo/SAP broadcasting.
Stereo or SAP can be received in Analog channel.
Use the SSAAPPbutton to select your desired MTS mode in
analog signal. Each time you press the SSAAPPbutton, MMoonnoo,
SStteerreeoo, or SSAAPPappear in turn.
■If other languages available on the digital signal, select
them with the SSAAPPbutton.
Press EEXXIITTbutton to save and return to TV viewing.
2
1
SOUND & LANGUAGE CONTROL
49
AUDIO LANGUAGE
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Other languages may be available if a digital signal is
provided by the broadcasting station.
This feature operates only in DTV/CADTV mode.
Press the MMEENNUUbutton and then use DD or EE button
to select the OOPPTTIIOONNmenu.
Press the GG button and then use DD or EE button to
select LLaanngguuaaggee.
Press the GG button and then use DD or EE button to
select AAuuddiioo.
Press the GG button and then use FF or GG button to
select EEnngglliisshh, SSppaanniisshh, or FFrreenncchh.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
5
1
2 3
1
4
Language : English
Key Lock : Off
Caption : Off
Language G
Key Lock
Caption
Language
Key Lock
Caption
Menu English
Audio FFEnglish GG
Menu English
Audio English
SOUND & LANGUAGE CONTROL
50
ON-SCREEN MENUS LANGUAGE SELECTION
SOUND &LANGUAGE CONTROL
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
The menus can be shown on the screen in the selected
language. First select your language.
Press the MMEENNUU button and then use DD or EE button
to select the OOPPTTIIOONN menu.
Press the GG button and then use DD or EEbutton to
select LLaanngguuaaggee..
Press the GG button and then use DD or EEbutton to
select MMeennuu..
Press the GG button and then use FF or GG button to
select your desired language.
From this point on, the on-screen menus will be shown
in the selected language.
Press the EEXXIITTbutton to return to TV viewing or
press MMEENNUU to return to the previous menu.
1
2
3
4
5
2 3
1
4
Language : English
Key Lock : Off
Caption : Off
Language G
Key Lock
Caption
Language
Key Lock
Caption
Menu FFEnglish GG
Audio English
Menu English
Audio English
SOUND & LANGUAGE CONTROL
51
CAPTION MODE
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Caption must be provided to help people with hearing loss
watch TV.
Language : English
Key Lock : Off
Caption : Off
Language
Key Lock
Caption
Mode FFOn GG
Analog Text1
Digital Service3
Digital Option
Use the CCCCbutton to select Caption OOnnor OOffff.
■ When selecting OOffff, Sub-menus for Analog, DTV, and
Digital Option become disabled.
Press EEXXIITTto save and return to TV viewing.
2
1
■ You can also adjust CCaappttiioonnin the OOPPTTIIOONNmenu.
SOUND & LANGUAGE CONTROL
52
SOUND &LANGUAGE CONTROL
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Analog Broadcasting System Captions
Select a caption mode for displaying captioning information if
provided on a program. Analog caption displays information at
any position on the screen and is usually the program's dialog.
Caption/Text, if provided by the broadcaster, would be available
for both digital and analog channels on the Antenna/Cable.
This TV is programmed to memori
rize the caption/text mode
which was last set when you turn the power off.
This function is only available when CCaappttiioonnMode is set OOnn.
Press the MMEENNUU button and then use DD or EE button
to select the OOPPTTIIOONN menu.
Press the GG button and then use DD or EEbutton to
select CCaappttiioonn..
Press the GG button and then use DD or EEbutton to
select AAnnaalloogg..
Press the GG button and then use FF or GG button to
select CCCC11, CCCC22, CCCC33, CCCC44, TTeexxtt11, TTeexxtt22,
TTeexxtt33or TTeexxtt44
■CCAAPPTTIIOONN
The term for the words that scroll across the bottom of
the TV screen; usually the audio portion of the program
provided for the hearing impaired.
■TTEEXXTT
The term for the words that appear in a large black
frame and almost cover the entire screen; usually mes-
sages provided by the broadcaster.
Press the EEXXIITTbutton to return to TV viewing or
press MMEENNUU to return to the previous menu.
1
2
3
4
5
1
3 42
Language : English
Key Lock : Off
Caption : Off
Language
Key Lock
Caption
Mode On
Analog FFText1 GG
Digital Service3
Digital Option
SOUND & LANGUAGE CONTROL
53
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Press the MMEENNUUbutton and then use DD or EE button
to select the OOPPTTIIOONNmenu.
Press the GG button and then use DD or EE button to
select CCaappttiioonn.
Press the GG button and then use DD or EE button to
select DDiiggiittaall.
Press the GG button and then use FF or GG button to
select SSeerrvviiccee11~SSeerrvviiccee66.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Choose the language you want the DTV/CADTV Captions
to appear in.
Other Languages can be chosen for digital sources only if
they are included on the program.
This function in only available when Caption Mode is set
On.
2
3
4
5
1
Digital Broadcasting System Captions
1
3 42
Language : English
Key Lock : Off
Caption : Off
Language
Key Lock
Caption
Mode On
Analog Text1
Digital FFService3 GG
Digital Option
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
SOUND & LANGUAGE CONTROL
54
SOUND &LANGUAGE CONTROL
Caption Option
Customize the DTV/CADTV captions that appear on your
screen.
This function in only available when Caption Mode is set
On.
Press the MMEENNUUbutton and then use DD or EE button
to select the OOPPTTIIOONNmenu.
Press the GG button and then use DD or EE button to
select CCaappttiioonn.
Press the GG button and then use DD or EE button to
select DDiiggiittaall OOppttiioonn.
Press the GG button and then use FF or GG button to
select CCuussttoomm.
Use DD or EE button to customize the SSttyyllee, FFoonntt,
etc., to your preference.
A preview icon is provided at the bottom of the
screen, use it to see the caption language.
■SSiizzee: Set the word size.
■FFoonntt: Select a typeface for the text.
■TTeexxtt CCoolloorr: Choose a color for the text.
■TTeexxtt OOppaacciittyy: Specify the opacity for the text color.
■BBgg ((BBaacckkggrroouunndd))CCoolloorr: Select a background color.
■BBgg ((BBaacckkggrroouunndd))OOppaacciittyy: Select the opacity for the
background color.
■EEddggee TTyyppee: Select an edge type.
■ddggee CCoolloorr: Select a color for the edges.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
5
6
1
1
2 3
4 5
Language : English
Key Lock : Off
Caption : Off
Language
Key Lock
Caption
Mode On
Analog Text1
Digital Service3
Digital Option G
Selection ( Gor ) leads you
to the Caption Option Screen.
Language
Key Lock
Caption
Mode On
Analog Text1
Digital Service3
Digital Option G
Selection ( Gor ) leads you
to the Caption Option Screen.
Style Custom
Size A Standard
Font Font 0
Text Color White
Text Opacity
Solid
Bg Color Black
Bg Opacity Solid
Edge Type None
Edge Color Black
TIME SETTING
55
CLOCK SETTING
TIME SETTING
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Auto Clock Setup
The time is set automatically from a digital channel signal.
The digital channel signal includes information for the
current time provided by the broadcasting station.
Set the clock manually if the current time is set incorrectly
by the auto clock function.
Press the MMEENNUUbutton and then use DD or EE button
to select the TTIIMMEEmenu.
Press the GG button and then use DD or EE button to
select CClloocckk.
Press the GG button and then use DD or EE button to
select AAuuttoo.
Press the GG button and then use DD or EE button to
select your viewing area time zone: EEaasstteerrnn, CCeennttrraall,
MMoouunnttaaiinn, PPaacciiffiicc, AAllaasskkaaor HHaawwaaiiii.
Press the GG button and then use DD or EE button to
select AAuuttoo, OOffff, OOnn, depending on whether or not
your viewing area observes Daylight Saving time.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
5
6
1
1
32
54
Clock G
Off Time
On Time
Sleep Time
Auto Sleep
Time Zone Eastern
Auto
Daylight
Saving
Clock : Oct 19, 2006, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Year - - - -
Date - - / - -
Time - - : - - - -
Auto
Clock G
Off Time
On Time
Sleep Time
Auto Sleep
Auto
Year - - - -
Date - - / - -
Time - - : - - - -
Auto
Time Zone Eastern
Daylight
Saving
DD
EEG
DD
EEG
TIME SETTING
56
TIME SETTING
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Manual Clock Setup
Press the MMEENNUUbutton and then use DD or EE button
to select the TTIIMMEEmenu.
Press the GG button and then use DD or EE button to
select CClloocckk.
Press the GG button and then use DD or EE button to
select MMaannuuaall.
Press the GG button and then use FF or GG button to
select either the year, date, or time option. Once
selected, use the DD or EE button to set the year, date,
and time options.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
If the current time setting is wrong, reset the clock manually.
2
3
4
5
1
1
32
Clock G
Off Time
On Time
Sleep Time
Auto Sleep
Clock : Oct 19, 2007, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
Year - - - -
Date - - / - -
Time - - : - - - -
Manual
DD
EEG
TIME SETTING
57
AUTO ON/OFF TIMER SETTING
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Press the MMEENNUUbutton and then use DD or EE button
to select the TTIIMMEEmenu.
Press the GG button and then use DD or EE button to
select OOffff TTiimmee or OOnn TTiimmee.
Press the GG button and then use DD or EE button to
select OOnn.
■To cancel the OOnn//OOffffttiimmee function, select OOffff.
Press the GG button and then use DD or EE button to set
the hour.
Press the GG button and then use DD or EE button to set
the minutes.
OOnnllyy OOnn ttiimmeerr
Press the GG button and then use DD or EE button to
select the channel at turn-on.
Press the GG button and then use DD or EE button to set
the sound level at turn-on.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
5
6
7
1
The timer function operates only if the current time has
been set.
The Off-Timer function overrides the On-Timer function if
they are both set to the same time.
The TV must be in standby mode for the On-Timer to work.
If you do not press any button within 2 hours after the TV
turns on with the On Timer function, the TV will automati-
cally revert to standby mode.
1
32 54 6
Clock
Off Time
On Time G
Sleep Time
Auto Sleep
Off
On
Time 6 : 30 AM
Ch. TV 2-0
Vol 17
Clock : Oct 19, 2007, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
TIME SETTING
58
TIME SETTING
SLEEP TIMER SETTING
123
456
78
0-
9
VOL CH
POWER
MUTE
ADJUST
SAP
FAV
PICTURE SOUND
TIMER
TV INPUT
Press the TTIIMMEERRbutton repeatedly to select the number of
minutes. First the OOffffoption appears on the screen, followed
by the following sleep timer options : 10, 20, 30, 60, 90,
120, 180, and 240 minutes.
When the number of minutes you want is displayed on the
screen, press the EENNTTEERRbutton. The timer begins to count
down from the number of minutes selected.
To check the remaining minutes before the TV turns off, press
the TTIIMMEERRbutton once.
To cancel the Sleep Timer, press the TTIIMMEERRbutton repeat-
edly to select OOffff.
The Sleep Timer turns the TV off at the preset time.
Note that this setting is cleared when the TV is turned off.
■ You can also set up the SSlleeeepp TTiimmeerrin the TTIIMMEEmenu.
2
3
4
1
Clock
Off Time
On Time
Sleep Time G
Auto Sleep
Off
10 min
20 min
30 min
60 min
90 min
120 min
180 min
240 min
Clock : Oct 19, 2006, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
TIME SETTING
59
AUTO SHUT-OFF SETTING
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
If set to on and there is no input signal, the TV turns off
automatically after 10 minutes.
Press the MMEENNUUbutton and then use DD or EE button
to select the TTIIMMEEmenu.
Press the GG button and then use DD or EE button to
select AAuuttoo SSlleeeepp.
Press the GG button and then use DD or EE button to
select OOnnor OOffff.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
2
3
4
1
1
32
Clock
Off Time
On Time
Sleep Time
Auto Sleep G
Off
On
TV will be automatically
turned off, in case of
No Signal for 10 minutes.
Clock : Oct 19, 2007, 03:44 AM
Off Time : Off
On Time : Off
Sleep Time : Off
Auto Sleep : Off
PARENTAL CONTROL / RATING
60
PARENTAL CONTROL / RATINGS
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings
sent by the broadcasting station. The default setting is to allow all programs to be viewed.
Viewing can be blocked by choosing the type of the program and the categories. It is also possi-
ble to block all program viewing for a time period. To use this function, the following must be
done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television
movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown
at the theaters or direct-to-video movies use the Movie Rating System (MPAA)only.
Ratings for Television programs including made-for-TV movies :
■TV-G (General audience)
■TV-PG (Parental guidance suggested)
■TV-14 (Parents strongly cautioned)
■TV-MA (Mature audience only)
■TV-Y (All children)
■TV-Y7 (Children 7 years older)
SET PASSWORD & LOCK SYSTEM
Set up blocking schemes to block specific channels, ratings, and
external viewing sources.
A password is required to gain access to this menu.
Press the MMEENNUUbutton and then use the DD or EE button
to select the LLOOCCKKmenu. Then, press the GG button.
■Enter the password as requested.
■The TV is set up with the initial
password “0-0-0-0”.
VOL CH
ENTER
BACK
MUTE
CC
MENU EXIT
Enter Password
1
Enter Password
****
Setting up Your Password
PARENTAL CONTROL / RATING
61
After inputting the password, use the DD or EE button
to choose SSeett ppaasssswwoorrdd.
Press the GG button and then choose any 4 digits for
your new password.
As soon as the 4 digits are entered, re-enter the same
4 digits on the CCoonnffiirrmm.
Then your changed password has been memorized.
Press EEXXIITTto return to TV viewing or press MMEENNUU
to return to the previous menu.
Change the password by inputting a new password twice.
Lock System
Set Password G
Movie Rating
TV Rating-Children
TV Rating-General
New
Confirm
2
3
1
****
****
1
2
NOTE
!
GGIf you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’
on the remote control.
After inputting the password, use the DD or EE button
to choose LLoocckk SSyysstteemm.
Press the GG button and then use the DD or EE button
to select OOnnor OOffff.
■When you select OOnn, the Lock System is enable.
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Enables or disables the blocking scheme you set up previously.
Lock System G
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
Off
On
2
3
1
1
2
Set Password
Lock System
Lock System : Off
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
Lock System : Off
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
PARENTAL CONTROL / RATING
62
PARENTAL CONTROL /RATINGS
ENTER
BACK
CC
MENU EXIT
MOVIE & TV RATING
Movie Rating (MPAA)
Blocks movies according to the movie ratings limits speci-
fied, so children cannot view certain movies. You can set
the ratings limit by blocking out all the movies with the
ratings above a specified level. Keep in mind that the
movie ratings limit only applies to movies shown on TV,
not TV programs, such as soap operas.
After inputting the password, use the DD or EE button
to choose MMoovviiee RRaattiinngg.
Press the GG button and then use the DD or EE button
to select GG, PPGG, PPGG--1133, RR, NNCC--1177or XX.
■G (General audience)
■PG (Parental guidance suggested)
■PG-13 (Parents strongly cautioned)
■R (Restricted)
■NC-17 (No one 17 and under admitted)
■X (Adult only)
■Blocking Off (Permits all programs)
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
GGIf you set PG-13 : G and PG movies will be available,
PG-13, R, NC-17 and X will be blocked.
Lock System
Set Password
Movie Rating G
TV Rating-Children
TV Rating-General
Blocking off : permits all
programs
G
PG
PG-13
R
NC-17
X
Blocking Off
2
3
1
1
2
Lock System : Off
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
PARENTAL CONTROL / RATING
63
TV Rating Children
After inputting the password, use the DD or EE button to
choose TTVV RRaattiinngg--CChhiillddrreenn.
Press the GG button and then use the DD or EE button to
select AAggee, or FFaannttaassyy VViioolleennccee.
Press the GG button and then use the DD or EE button to
select block options.
■Age(applies to TV-Y, TV-Y7)
■Fantasy Violence(applies to TV-Y7)
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Prevents children from watching certain children's TV pro-
grams, according to the ratings limit set. The children rating
does not apply to other TV programs. Unless you block cer-
tain TV programs intended for mature audiences in the TV
Rating - sub menu, your children can view those programs.
TV Rating General
After inputting the password, use the DD or EE button to
choose TTVV RRaattiinngg--GGeenneerraall.
Press the GG button and then use the DD or EE button to
select AAggee, DDiiaalloogguuee, LLaanngguuaaggee, SSeexxor VViioolleennccee.
Press the GG button and then use the DD or EE button to
select block options.
■Age(applies to TV-G,TV-PG,TV-14,TV-MA)
■Dialogue-sexual dialogue (applies to TV-PG,TV-14)
■Language-adult language (applies to TV-PG,TV-14,TV-MA)
■Sex-sexual situations (applies to TV-PG,TV-14,TV-MA)
■Violence (applies to TV-PG,TV-14,TV-MA)
Press EEXXIITTbutton to return to TV viewing or press
MMEENNUUbutton to return to the previous menu.
Based on the ratings, blocks certain TV programs that you
and your family do not want to view.
Lock System
Set Password
Movie Rating
TV Rating-Children G
TV Rating-General
Age
Fantasy Violence
Lock System
Set Password
Movie Rating
TV Rating-Children
TV Rating-General G
Age
Dialogue
Language
Sex
Violence
2
3
1
2
3
1
1
2
1
2
Lock System : Off
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
Lock System : Off
Set Password
Movie Rating
TV Rating-Children
TV Rating-General
PARENTAL CONTROL / RATING
64
APPENDIX
TROUBLESHOOTING
TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..
TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
No picture &No sound
No or poor color
or poor picture
Poor reception on
some channels
Lines or streaks
in pictures
Horizontal/vertical bars
or picture shaking
Picture appears slowly
after switching on
The remote control
doesn’t work
Power is suddenly
turned off
■Check to see if there is any object between the product and the remote control
causing obstruction. Ensure you are pointing the remote control directly at the TV.
■Ensure that the batteries are installed with correct polarity (+ to +, - to -).
■Ensure that the correct remote operating mode is set: TV, VCR etc.
■Install new batteries.
■Is the sleep timer set?
■Check the power control settings. Power interrupted.
■No broadcast on station tuned with Auto off activated.
■Check whether the product is turned on.
■Try another channel. The problem may be with the broadcast.
■Is the power cord inserted into wall power outlet?
■Check your antenna direction and/or location.
■Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
■This is normal, the image is muted during the product startup process. Please
contact your service center, if the picture has not appeared after five minutes.
■Adjust Color in menu option.
■Keep a sufficient distance between the product and the VCR.
■Try another channel. The problem may be with the broadcast.
■Are the video cables installed properly?
■Activate any function to restore the brightness of the picture.
■Check for local interference such as an electrical appliance or power tool.
■Station or cable product experiencing problems, tune to another station.
■Station signal is weak, reorient antenna to receive weaker station.
■Check for sources of possible interference.
■Check antenna (Change the direction of the antenna).
APPENDIX
65
TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))
■Adjust resolution, horizontal frequency, or vertical frequency.
■Check the input source.
■Work the Auto configure or adjust clock, phase, or H/V position. (Option)
■Check the signal cable.
■Reinstall the PC video card.
The signal is out of range
Screen color is unstable
or single color
Vertical bar or stripe on
background &
Horizontal Noise &
Incorrect position
■Press the VOL or VOLUME button.
■Sound muted? Press MUTE button.
■Try another channel. The problem may be with the broadcast.
■Are the audio cables installed properly?
■Adjust Balance in menu option.
■A change in ambient humidity or temperature may result in an unusual noise
when the product is turned on or off and does not indicate a fault with the
product.
Picture OK & No sound
Unusual sound from
inside
the product
No output from one
of the speakers
TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
APPENDIX
66
MAINTENANCE
APPENDIX
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can
enjoy your new TV.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
■To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■Please be sure not to use a wet cloth.
Extended Absence
GG If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
CAUTION
2
1
APPENDIX
67
PRODUCT SPECIFICATIONS
■The specifications shown above may be changed without prior notice for quality improvement.
19LS4D
(19LS4D-UA)
22LS4D
(22LS4D-UA)
MODELS
18.0 x 15.6 x 6.8 inches
456.8 x 396.6 x 172.0mm
18.0 x 14.5 x 2.8 inches
456.8 x 368.5 x 70.5 mm
11.5 pounds / 5.2 kg
10.1 pounds / 4.6 kg
20.7 x 17.4 x 7.4 inches
525.4 x 441.6 x 187.4 mm
20.7 x 16.3 x 2.7 inches
525.4 x 413.0 x 68.6 mm
12.8 pounds / 5.8 kg
11.5 pounds / 5.2 kg
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
75 ohm
32 ~ 104°F (0 ~40°C)
Less than 80%
-4 ~ 140°F (-20 ~60°C)
Less than 85%
Dimensions
(Width x Height x Depth)
Weight
Power requirement
Television System
Program Coverage
External Antenna Impedance
Environment condition
Including stand
Excluding stand
including stand
excluding stand
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
