USERS MANUAL

EUT Type: 23” LCD TV/Monitor
FCC ID: BEJ23LX1RVC
Test Report No.: GETEC-E3-05-024
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
LCD TV
Please read Information Manual included together
before reading this manual and operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer when you require service.
P/NO : 3828TUL000X(0502-REV00)
Printed in Korea
OWNER’S MANUAL
MODEL: 23LX1RV
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-
tical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.
Unauthorized modification could void the user’s authority to operate this product.
U.S.A. only -----------------------------------------------
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: 1-201-816-2000
http://www.lgusa.com
---------------------------------------------------------------
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
W
Warning
arning

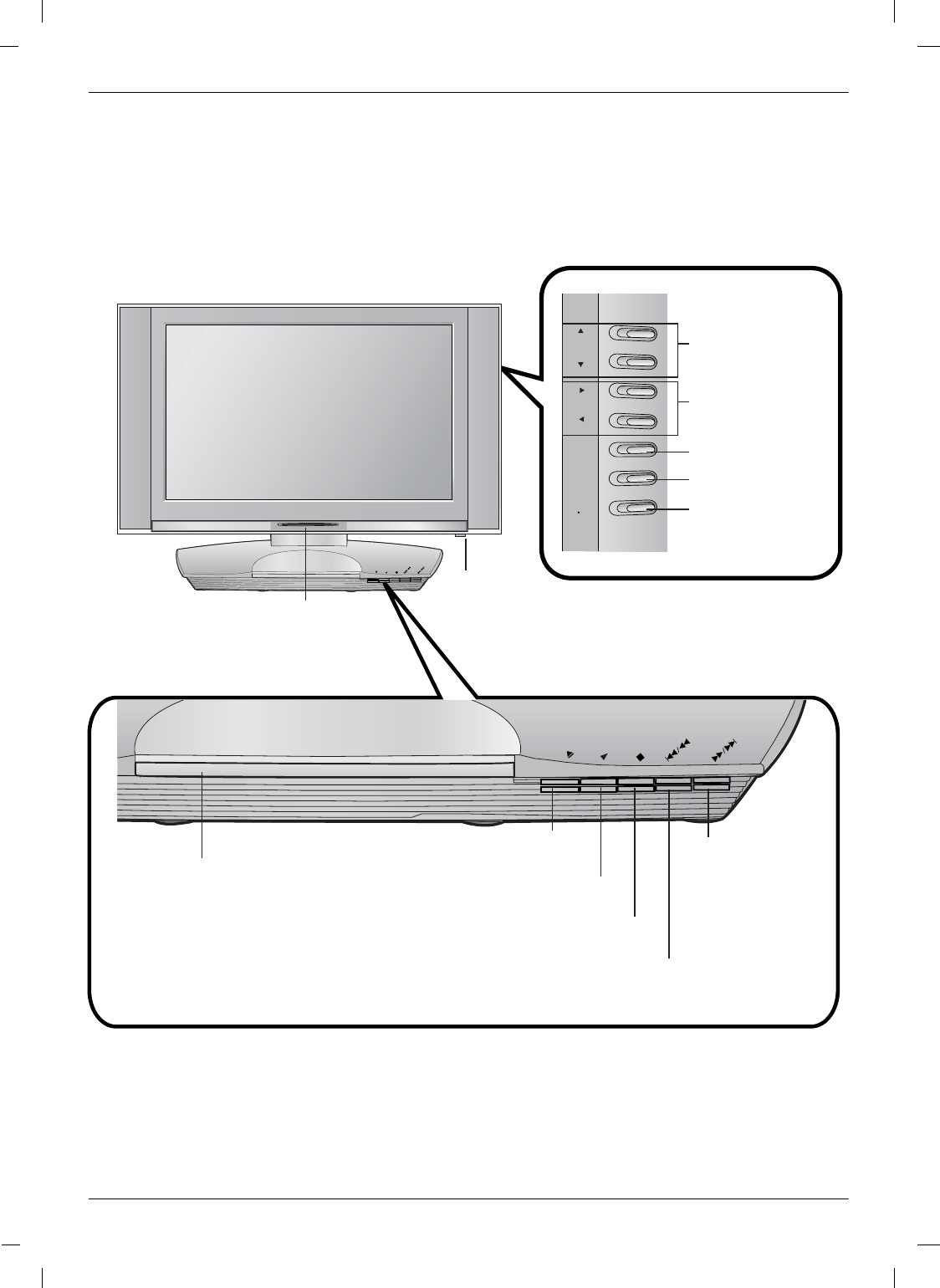

- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
DVD / CD PLAYER
CH
VOL
ENTER
MENU
TV
VIDEO
STOP
OPEN/
CLOSE
PLAY
SKIP/
SCAN
SKIP/
SCAN
DVD / CD PLAYER
STOP
OPEN/
CLOSE
PLAY
SKIP/
SCAN
SKIP/
SCAN
Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode, illuminates
green when the set is switched on.
Channel (
D/E
)
Buttons
ON/OFF Button
Reverse SKIP (IFF ) / SCAN (FF)Button
• Go to previous chapter/track or to the beginning.
• Press and hold for two seconds for fast reverse search.
Forward SKIP (GGI) /
SCAN ( GG)Button
• Go to the next chapter /
track.
• Press and hold for two
seconds for last forward
search.
STOP Button
Stops playback.
PLAY Button
Starts playback.
OPEN/CLOSE Button
Opens or closes the disc tray
Disc Tray
Insert a disc here.
Volume (F /G)
Buttons
ENTER Button
MENU Button
TVvVIDEO Button
Controls
Controls
Introduction
Introduction
VIDEO DIGITAL SOUND OUT
DVD Output
(Video)
DVD Output
(Audio)
OPTICAL
(Digital Sound Output)

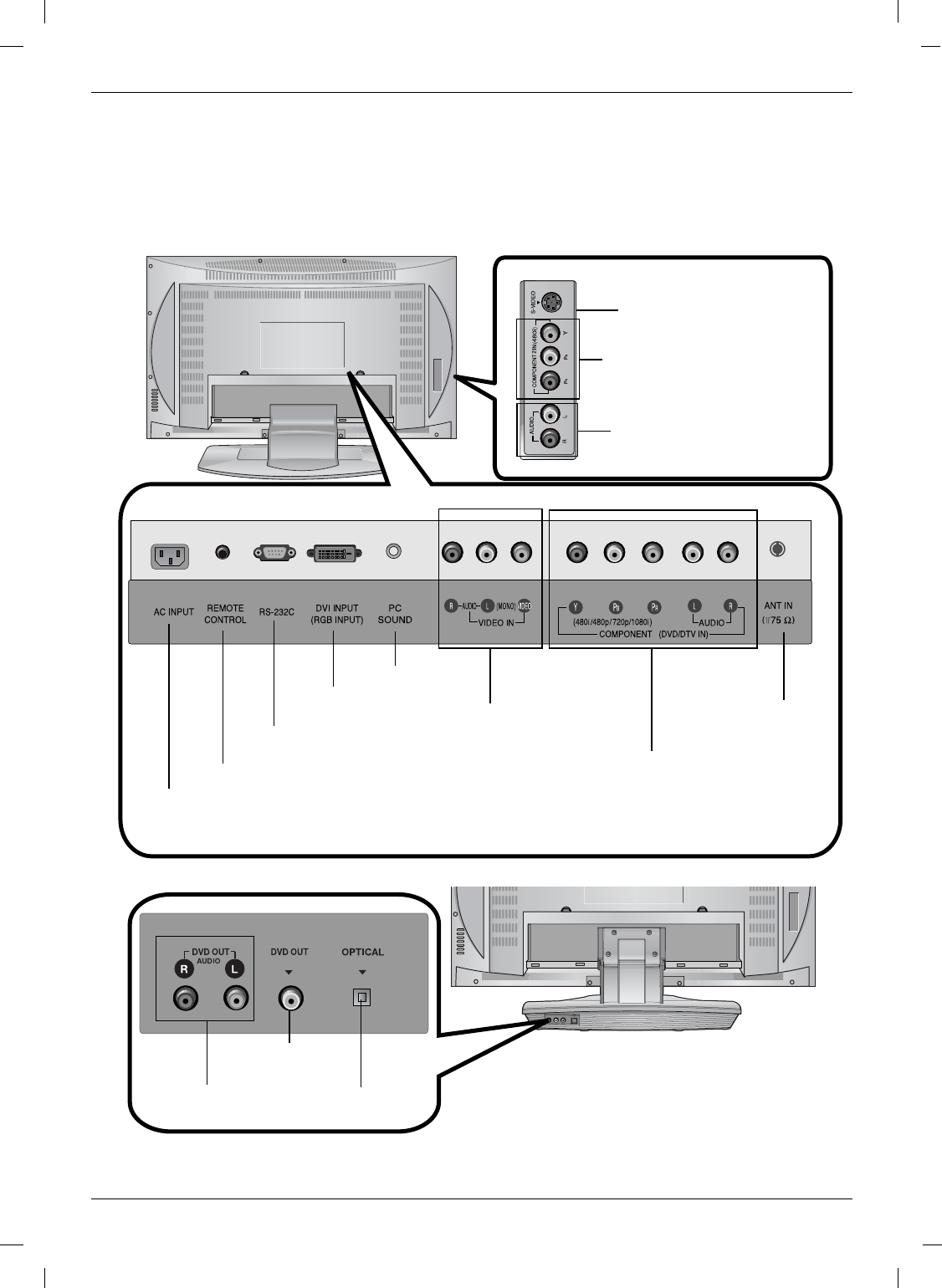

Connection Options
Connection Options
Introduction
Introduction
1
AC INPUT
REMOTE CONTROL
JACK
RS 232C JACK
DVI INPUT
(RGB INPUT)
COMPONENT1 (DVD/DTV IN)
((480i/480p/720p/1080i), Audio)
AUDIO/VIDEO
INPUT
PC SOUND INPUT
ANTENNA
INPUT
S-VIDEO INPUT
COMPONENT2 IN
(480i)
AUDIO INPUT
Desktop Pedestal Installation
4 inches
4 inches
4 inches
4 inches
OPEN/
C
L
OS
E
PLAY/
PAUSE
/
S
KIP
/
SKIP
/
STOP
DVD / CD PLAYER
OPEN/
CLOSE
PLAY/
PAUSE
/
SKIP
/
SKIP
/
STOP
DVD / CD PLAYER
For proper ventilation, allow a clearance of 4" on each side and from
the wall.
Basic Connection
Basic Connection
Installation
Installation

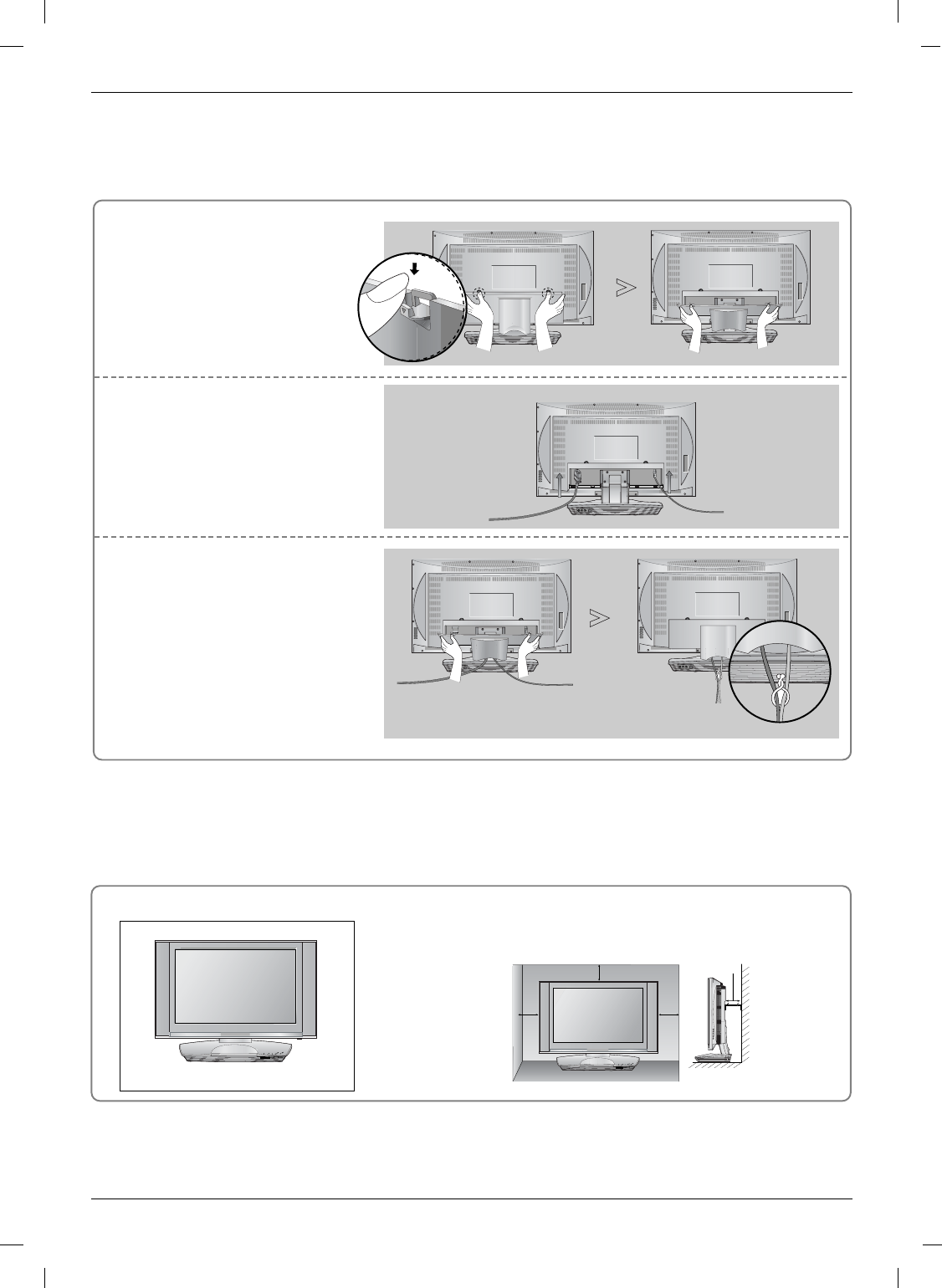

Pull the back cover backside
while pushing the two tabs and
then lift it up.
Connect the cables as necessary.
To connect an additional equipment,
see the External equipment
Connections section.
1
2
3Align the holes on the TV back
panel with the four protuberance
on the rear AV cover and insert.
-Cable Arranagement
Pull the cables through the hole on
the set and bundle the cables using
the supplied twister holder.
Antenna Connection
- For optimum picture quality, adjust antenna direction.
- An antenna cable and converter are not supplied.
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
•In poor signal areas, to get better picture quality, install a sig-
nal amplifier to the antenna as shown to the right.
•If signal needs to be split for two TVs, use an antenna sig-
nal splitter for connection.
Signal
Amplifier
UHF
VHF
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
External Equipment Connections
External Equipment Connections
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
- Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the
screen may remain visible on the screen.
VCR Setup
When connecting with an antenna cable
S-VIDEO
OUT
IN
(R) AUDIO (L) VIDEO
ANT OUT
ANT IN
When connecting with a RCA cable
S-VIDEO
OUT
IN
(R) AUDIO (L) VIDEO
ANT OUT
ANT IN
1
2
TV Back panel
VCR
VCR
TV Back panel
1
External Equipment Connections
External Equipment Connections
Installation
Installation
1
2
3
4
Connect the RF antenna out socket of the VCR to
the Antenna socket on the set.
Connect the antenna cable to the RF antenna in
socket of the VCR.
Set VCR output switch to 3 or 4 and then tune TV
to the same channel number.
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
1
2
3
Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
Select Video input source with using the TV/AV
button on the remote control.
• If you have a mono VCR, connect the audio cable
from the VCR to the AUDIO L/MONO jack of the set.
RL
AUDIO VIDEO
S-VIDEO
Camcorder
Video Game Set
1
1
2
3
Connect the S-VIDEO output of the external
equipment to the S-VIDEO input on the set.
Connect the AUDIO jacks between TV and exter-
nal equipment. Match the jack colors (Video = yel-
low, Audio Left = white, and Audio Right = red).
Select S-Video input source with using the TV/AV
button on the remote control.
Operate the corresponding external equipment.
Refer to external equipment operating guide.
External AV Source Setup
When connecting with an S-Video cable
S-VIDEO
OUT
IN
(R) AUDIO (L) VIDEO
ANT OUT
ANT IN
VCR
TV side panel
1
2
TV side panel
External Equipment
4
2
1
2
3
4
Connect the an S-VIDEO output of the VCR to the
S-VIDEO input on the set. The picture quality is
improved; compared to connecting a regular VCR
to the Video input.
Connect the audio outputs of the VCR to the
AUDIO input jacks on the set.
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
Select S-Video input source with using the TV/AV
button on the remote control.
Do not connect to both Video and S-Video at
the same time.

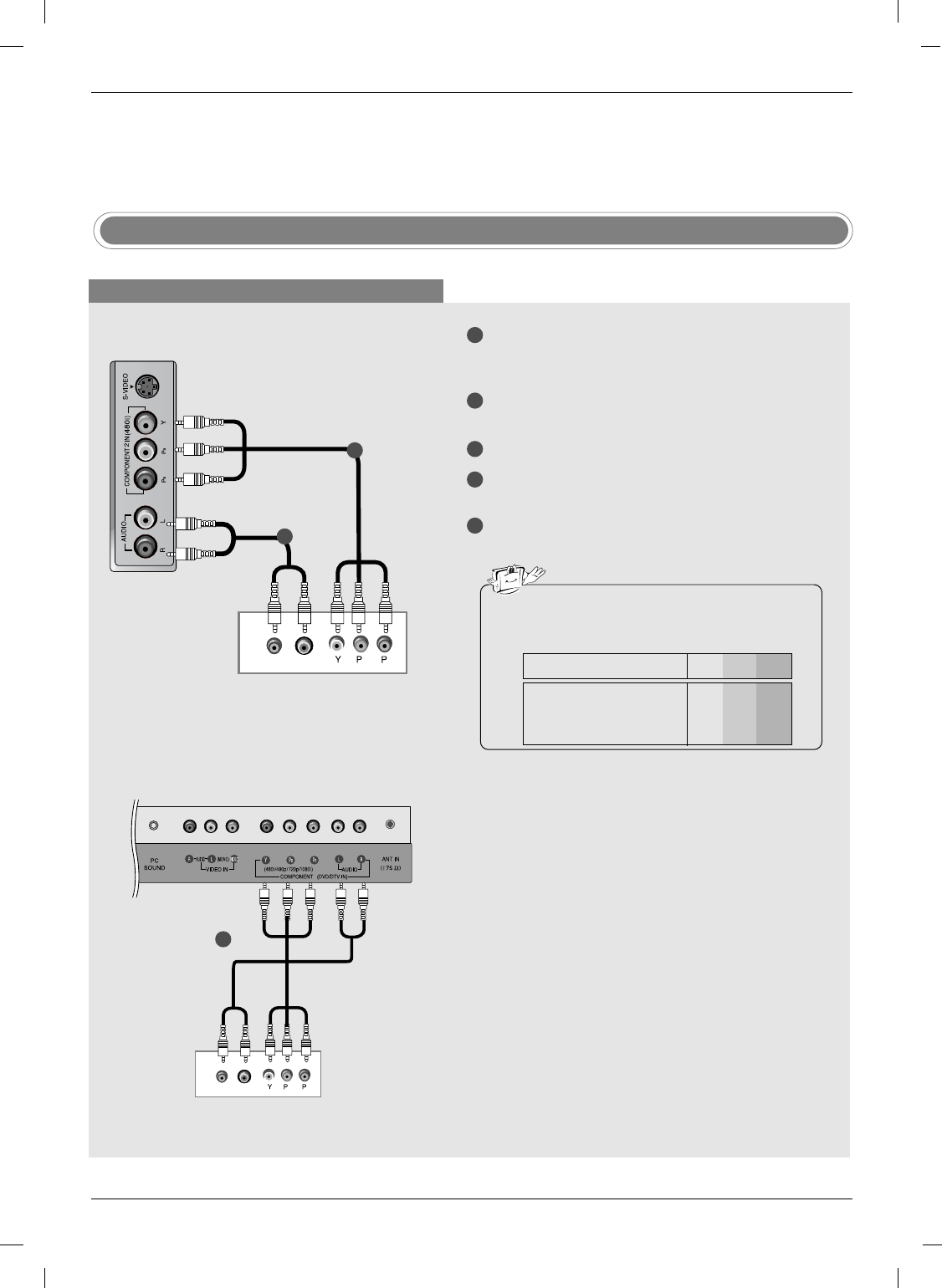

External DVD Setup
When connecting with a component cable
BR
(R) AUDIO (L)
DVD
TV side panel
1
1
2
2
3
4
5
Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT DVD IN (Y, PB, PR)jacks on
the set.
Connect the audio outputs of the DVD to the
AUDIO input jacks on the set.
Turn on the DVD player, insert a DVD.
Select COMPONENT input source with using the
TV/AV button on the remote control.
Refer to the DVD player's manual for operating
instructions.
•Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.
Y PBPR
Component ports on the TV
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Video output ports
on DVD player
BR
(R) AUDIO (L)
1
DVD
TV back panel
1
External Equipment Connections
External Equipment Connections
Installation
Installation
When connecting with a S-Video cable
(R) AUDIO (L)
S-VIDEO
DVD
1
1
2
2
3
4
5
Connect the S-VIDEO output of the DVD to the
S-VIDEO input on the set.
Connect the audio outputs of the DVD to the
AUDIO input jacks on the set.
Turn on the DVD player, insert a DVD.
Select S-VIDEO input source with using the
TV/AV button on the remote control.
Refer to the DVD player's manual for operating
instructions.
TV side panel

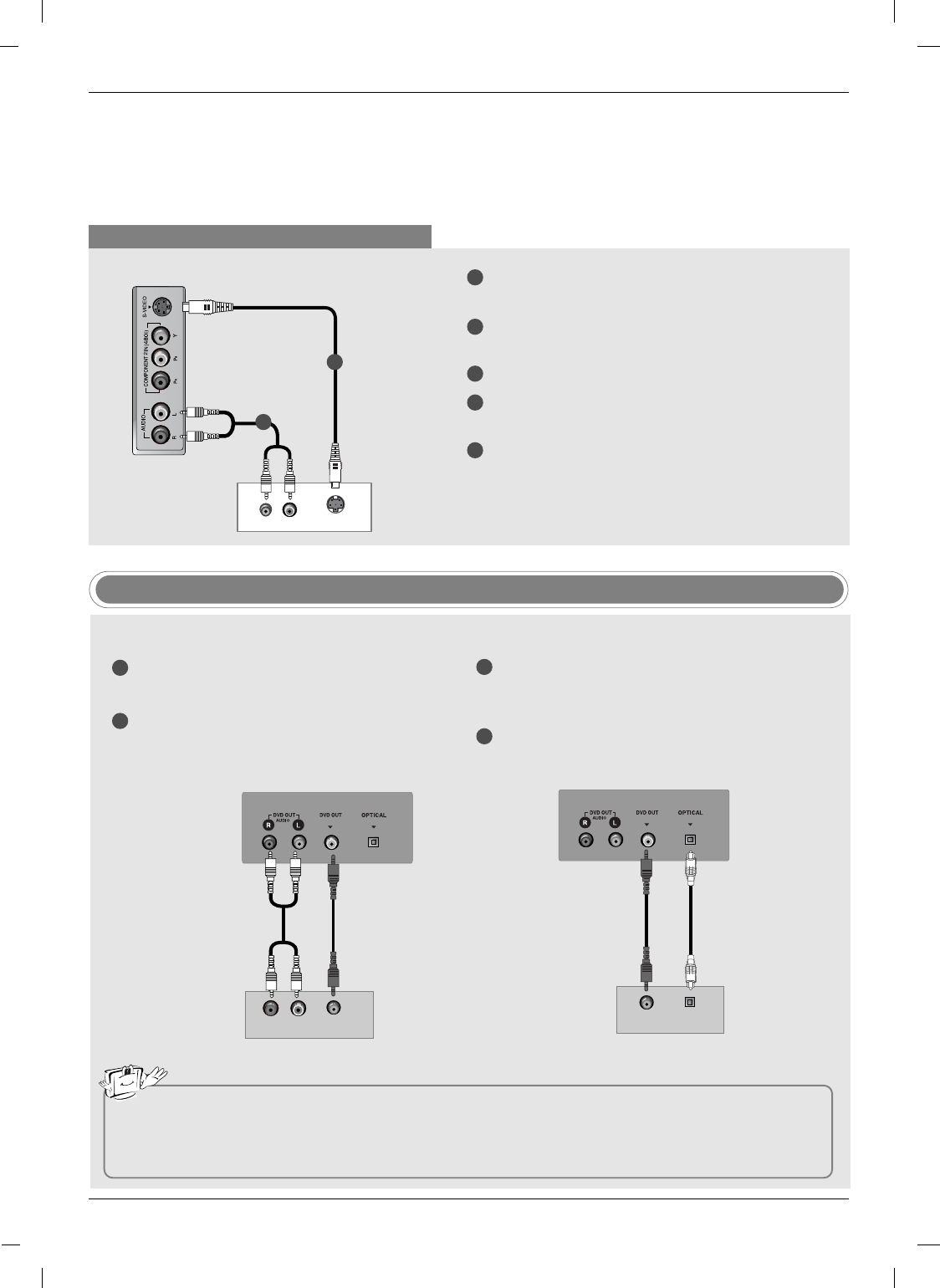

DVD Output Setup
The TV has a special signal output capability which allows you to hook up a second TV or monitor.
VIDEO DIGITAL SOUND OUT
VIDEO
AUDIO (L)
(R)
TV Back Panel
(Stand)
Second TV or Monitor
input terminals
VIDEO DIGITAL SOUND OUT
VIDEO
DIGITAL AUDIO
OPTICAL
TV Back Panel
(Stand)
Second TV or Monitor
input terminals
OR
1
2
Connect the second TV or monitor to the TV’s DVD
OUT (VIDEO) and DVD OUT (AUDIO) jacks.
See the Operating Manual of the second TV or
monitor for further details regarding that device’s
input settings.
1
2
Connect the second TV or monitor to the TV’s DVD
OUT (VIDEO) and OPTICAL DIGITAL SOUND
OUT jacks.
See the Operating Manual of the second TV or
monitor for further details regarding that device’s
input settings.
Notes
a.
If your second TV or monitor has no optical digital audio input jack, it’s impossible to use DVD digital sound
output.
b.
Do not look into the optical output port. Looking at the laser beam may damage your vision.
c.
If your external audio equipment has a digital audio input optical port, you can connect it to your TV.

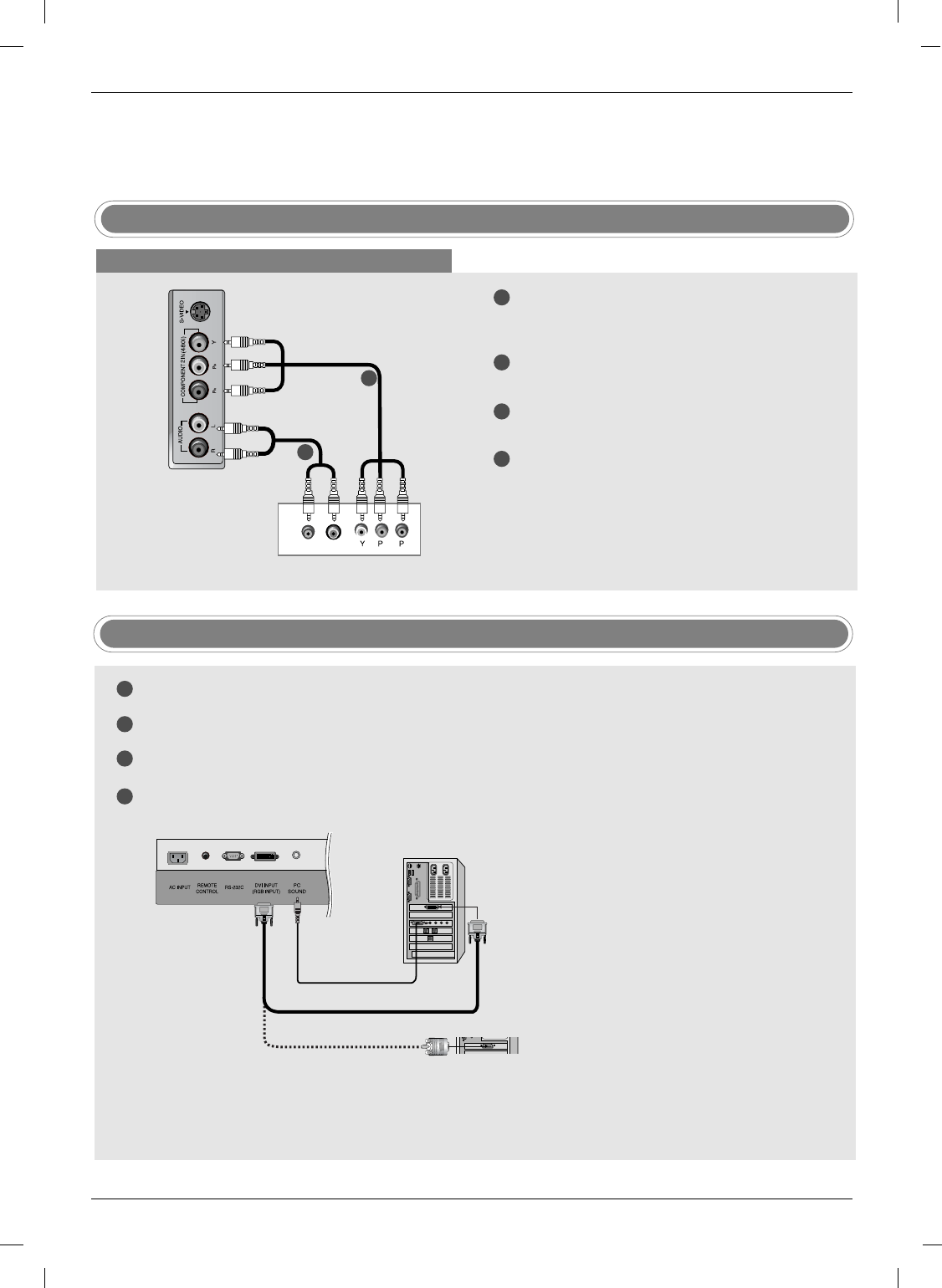

PC Setup
1
2
3
4
Connect the TV to the PC with the PC cable.
Connect the PC audio output to the TV's PC SOUND input.
Turn on the PC.
Use the TV/AV button on the remote control to select PC.
NOTE
Connect the signal cable (DVI-D cable, Not
DVI to D-Sub cable) from the DVI output sock-
et of the PC to the DVI input socket of the set
when using a PC with DVI output. In some
video cards, DVI-Analog output may not be
supported.
When connecting with a component cable
1
2
3
4
Connect the video outputs (Y, PB, PR) of the digi-
tal set-top box to the COMPONENT DVD IN (Y,
PB, PR)jacks on the set.
Connect the audio outputs of the digital set-top
box to the AUDIO input jacks on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select COMPONENT input source with using the
TV/AV button on the remote control.
BR
(R) AUDIO (L)
DTV Receiver (Set-top Box)
DTV Setup
TV side panel
External Equipment Connections
External Equipment Connections
Installation
Installation
1
2
DPM (Display Power Management) mode
If the PC goes to power saving mode, the monitor automatically switches to DPM mode.
If you don’t use the PC cable provided, DPM mode may not work.
Monitor Display Specifications
Notes
a. For optimum picture quality, use standard WXGA
1280x768 computer output at a 60Hz refresh rate.
Using other formats (VGA, SVGA, etc.) or refresh
rates may result in reduced picture quality. (To
change the computer video output format, please
refer to the operating manual for the computer you
are using).
b. If the message Out of range appears on the
screen, adjust the PC output to a format listed in
the Monitor Display Specifications table.
c. The synchronization input form for Horizontal and
Vertical frequencies is separate.
AC INPUT
- Connect the power cord correctly as shown.
Power Cord Connection
VGA
SVGA
XGA
WXGA
MODE Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640x480
800x600
1024x768
1280x768
1360x768
31.4
37.8
48.3
47.6
47.6
60
60
60
60
60
Setting up TV stations
Setting up TV stations
- For Auto program to work, the pro-
gramming source must be connected
to the TV and the TV must be receiv-
ing programming signals either over-
the-air or from a cable-type service
provider.
Press the MENU button and then use
D /E
button to select the
Channel menu.
Press the Gbutton and then use
D /E
button to select EZ Scan.
Press the Gbutton to begin the channel search.
• Wait for auto program to complete the channel search cycle before
choosing a channel. The TV scans for over-the-air channels and
then channels provided by a cable service.
Memorizing the Channels with EZ scan
1
2
3
Notes
a. When the channel search is complete, use the D /Ebuttons to review the memorized channels.
b. If you press the ENTER button in auto programming, the function will stop and only channels program-
ming up to that time will remain.
c. Auto program function can memorize only the channels which are being received at that time.
Channel
To start
EZ Scan
Manual prog.
Favorite ch.
FG
OK MENU
EZ Scan
Manual prog.
Favorite ch.
Channel
FG
OK MENU
D
E
D
E
-You can manually include or erase
individual channels.
Press the MENU button and then use
D /E
button to select the Channel
menu.
Press the Gbutton and then use
D /E
button to select Manual prog..
Press the Gbutton and then use
D /E
button to select a channel you
want to add to memory or erase.
Press the Ebutton and then use
D /E
button to select Memory (add)
or Erase (delete).
Press the ENTER button to save. The current channel is added to
Memory or Erased from the channel list.
Add/Delete Channels with Manual program
1
2
3
4
5
EZ Scan
Manual prog.
Favorite ch.
Channel
FG
OK MENU
Channel
EZ Scan
Manual prog.
Favorite ch.
FG
OK MENU
Â
EXIT
TV 30
Memory
The current channel number
is displayed.
Favourite Channels Setup
Press the MENU button and then use
D /E
button to select the Channel
menu.
Press the Gbutton and then use
D /E
button to select Favorite ch..
Press the Gbutton and then use
D /E
button to select the first favorite
channel position.
Use the F /Gbutton to set the desired channel number for first favorite
channel.
Repeat steps 3 to 4 to memorize other channels.
Press the ENTER button to save.
1
2
3
4
5
6
TV/AV
OPEN/CLOSE
POWER
VIDEO
STOP
SKIP
PLAY
SCAN
SCAN
AUDIO
MTS
CC
REPEAT
SKIP
AUDIO
MULTIMEDIA
FCR
PAUSE/STEP
FRC
- Favorite Channel lets you quickly
tune in up to 8 channels of your
choice without having to wait for the
TV to scan through all the in-
between channels.
Channel Favorite Ch.
EZ Scan
Manual prog.
Favorite ch.
FG
OK MENU
D
E
To set
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
D
EFG
OK MENU
Â
EXIT
D
E
D
E

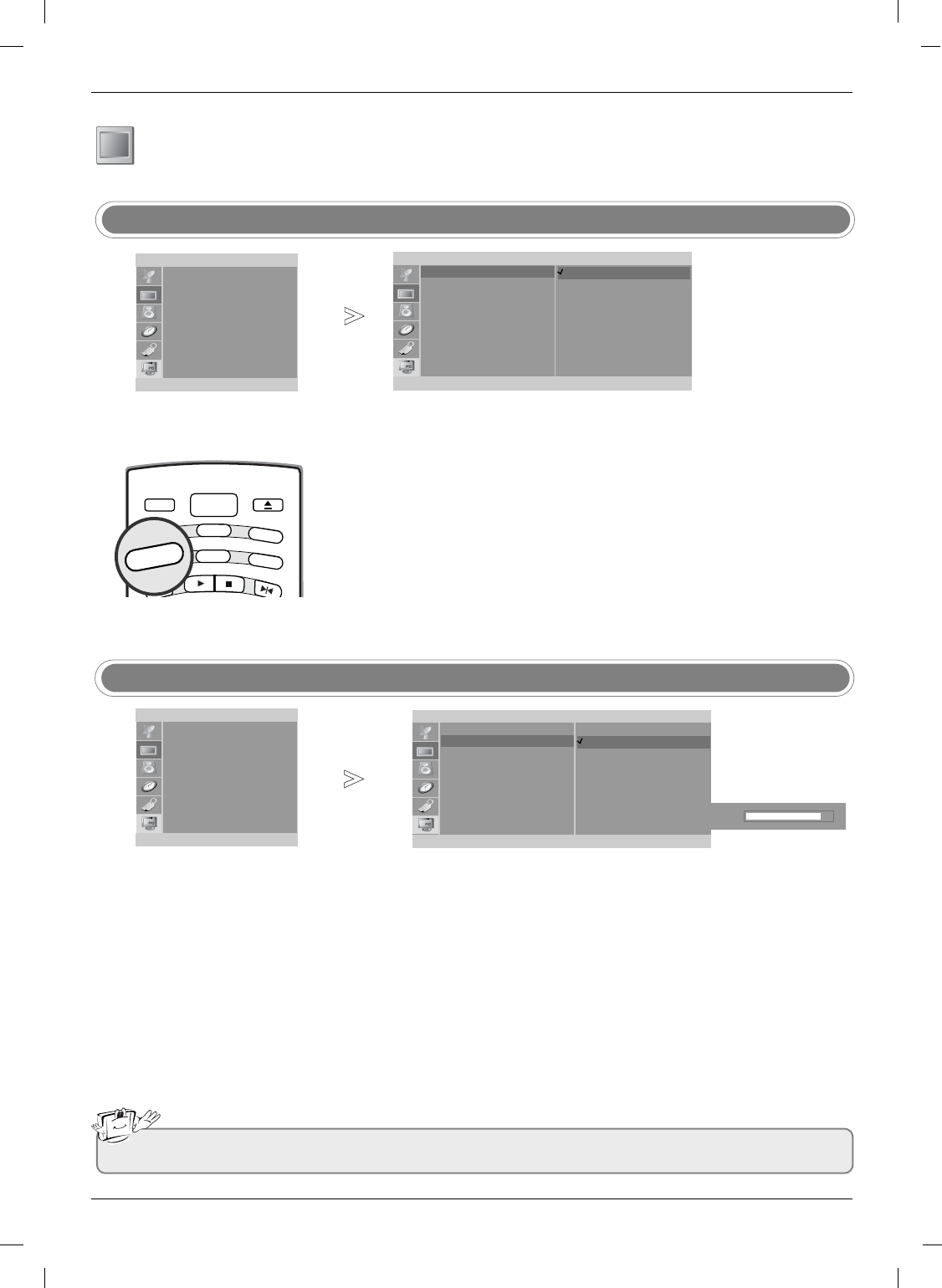

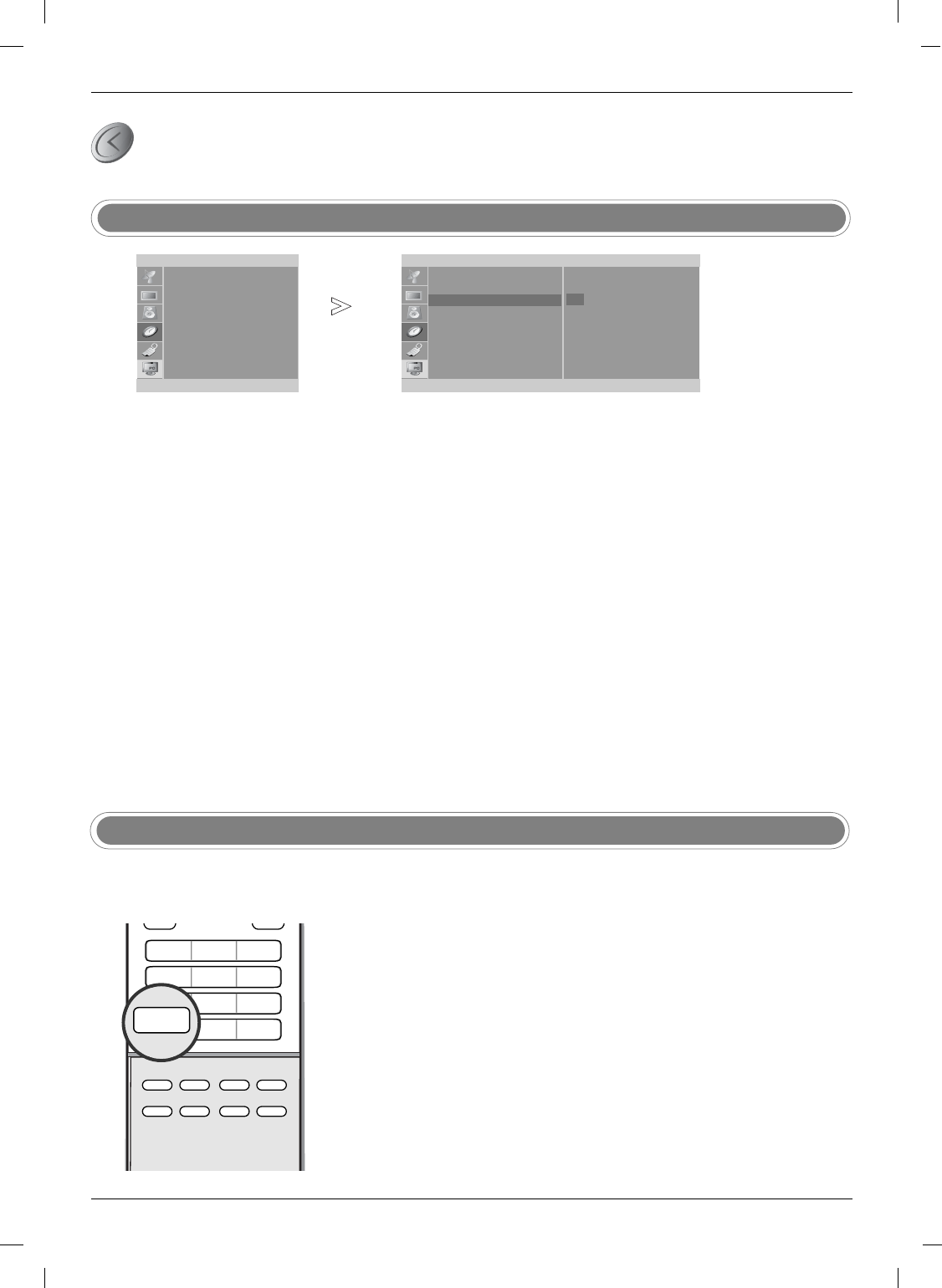

Picture Menu Options
Picture Menu Options
-This function adjusts the TV for the
best picture appearance.
EZ Video
Press the MENU button and then
D /E button to select the Picture menu.
Press the Gbutton and then D /E button to select EZ Video.
Press the Gbutton and then D /Ebutton to select a picture setting on the
EZ Video menu.
Press the ENTER button.
1
2
3
4
-You can adjust picture contrast,
brightness, color, sharpness and tint
to the levels you prefer.
Manual Picture Control (User option)
Press the MENU button and then
D /E button to select the Picture menu.
Press the Gbutton and then use
D /E
button to select User.
Press the Gbutton and then use
D /E
button to select the desired
picture option (Contrast, Brightness, Color, Sharpness, Tint).
Use the
D /E
button to make appropriate adjustments.
•
Contrast, Brightness, Color, and Sharpness are adjustable from 0 to 100.
• Tint is adjustable from - 50 to + 50.
Press the ENTER button to save.
1
2
3
4
5
Notes
a. Only Contrast and Brightness are displayed in PC mode.
TV/AV
OPEN/CLOSE
POWER
VIDEO
STOP
PLAY
AUDIO
MTS
CC
REPEAT
AUDIO
MULTIMEDIA
FCR
PAUSE/STEP
Video
EZ Video
User
Cinema
FG
OK MENU
D
E
Clear
Optimum
Soft
User
EZ Video
User
Cinema
FG
OK MENU
D
E
EZ Video
User
Cinema
FG
OK MENU
D
E
EZ Video
User
Cinema
FG
OK MENU
D
E
Contrast 85 FG
D
E
Contrast G
Brightness G
Color G
Sharpness G
Tint G
Picture Menu Options
Picture Menu Options
- Sets up the TV for the best picture
appearance for viewing movies.
Cinema Mode Setup
Press the MENU button and then use
D /E
button to select the
menu.
Press the Gbutton and then use
D /E
button to select Cimena.
Press the Gbutton and then use
D /E
button to to select On or Off.
Press the ENTER button to save.
1
2
3
4
Picture format (ARC-Aspect Ratio Correction)
TV/AV
OPEN/CLOSE
VOL
CH
POWER
VIDEO
STOP
SKIP
PLAY
SCAN
SCAN
AUDIO
MTS
MENU
ARC
MUTE
FLASHBK
EXIT
CC
REPEAT
SKIP
AUDIO
MULTIMEDIA
FCR
PAUSE/STEP
ENTER
DISC MENU
TITLE
DISPLAY
RETURN
EZ Video
User
Cinema
FG
OK MENU
D
E
On
Off
EZ Video
User
Cinema
FG
OK MENU
D
E
- You can watch TV in various picture formats; 16:9, Zoom, 4:3.
Repeatedly press the ARC button to select your desired picture format.
•16:9
Displays video in 16:9 Widescreen mode. A 4:3 signal will be stretched to fill
the screen.
•Zoom
A 4:3 signal is magnified to the upper / lower and left / right sides so that the
signal fills the16:9 screen. The bottom and top of the picture will be cut off.
•4:3
Standard TV format.
Notes
a.
Zoom is not available in PC mode.
ARC
EQualizer Adjustments
Press the MENU button and then D /E button to select the Sound menu.
Press the Gbutton and then D /E button to select EZ Audio.
Press the Gbutton and then use the D /Ebutton to select User.
Press the Gbutton and then use the F /Gbutton to select the band you
want to adjust. Then, use the D /Ebutton to adjust the band level.
Press the ENTER button to save.
1
2
3
4
5
-This function lets you enjoy the best
sound without any special adjust-
ment because the TV selects the
appropriate sound option based on
the program content.
Press the MENU button and then D /E button to select the Sound menu.
Press the Gbutton and then D /E button to select EZ Audio.
Press the Gbutton and then use the D /Ebutton to select the appropriate
sound option; Flat, Music, Movie, Sports.
Press the ENTER button to save.
1
2
3
4
TV/AV
OPEN/CLOSE
POWER
VIDEO
STOP
PLAY
AUDIO
MTS
CC
REPEAT
AUDIO
MULTIMEDIA
FCR
PAUSE/STEP
AUDIO
EZ Audio
Sound Menu Options
Sound Menu Options
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
Flat G
Music
Movie
Sports
User
D
E
FG
Move Adjust
Â
Exit
0.1 0.5 1 5 10 KHz
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
Flat
Music
Movie
Sports
User G
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
Sound Menu Options
Sound Menu Options
Sound
EZ Audio
AVL
Balance
F
OK MENU
D
E
On
Off
Sound
EZ Audio
AVL
Balance
F
OK MENU
D
E
Sound
EZ Audio
AVL
Balance
F
OK MENU
D
E
- AVL (Auto Volume Leveler) maintains
an equal volume level automatically
even if the programme is changed.
AVL (
Auto Volume Leveler)
Press the MENU button and then D /E button to select the Sound menu.
Press the Gbutton and then D /E button to select AVL.
Press the Gbutton and then use the D /Ebutton to select On or Off.
Press the ENTER button to save.
1
2
3
4
Sound Balance
Press the MENU button and then D /E button to select the Sound menu.
Press the Gbutton and then D /E button to select Balance.
Press the Gbutton and then use the F /Gbutton to adjust the sound
balance.
• Balance is adjustable from Left 50 to Right 50.
Press the ENTER button to save.
1
2
3
4
Sound
EZ Audio
AVL
Balance
FG
OK MENU
D
E
0

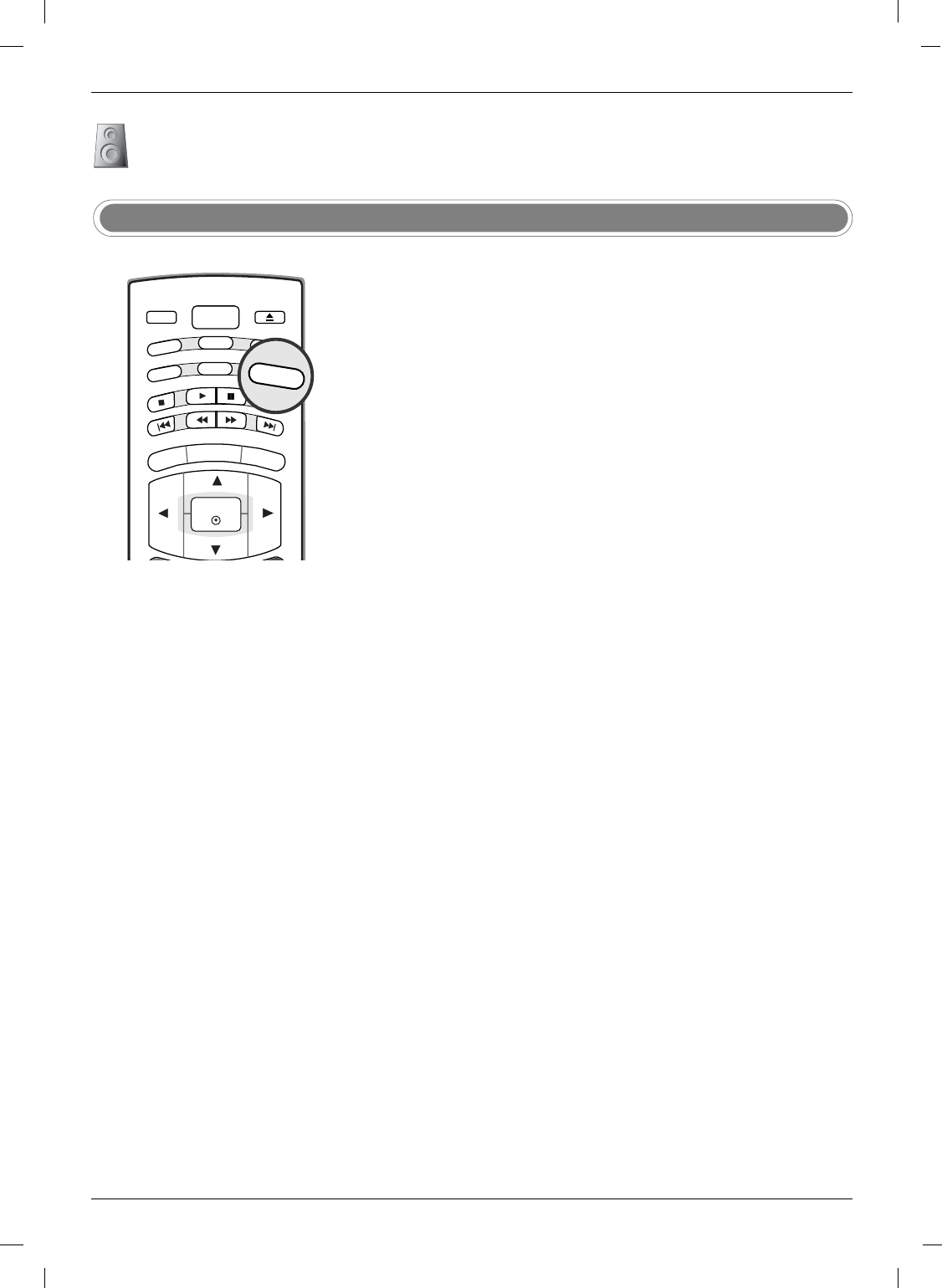

- The TV can receive MTS stereo programs and any SAP (Secondary
Audio Program) that accompanies the stereo program, if the broadcaster
transmits an additional sound signal as well as the original one.
- Mono: The primary language is heard from left and right speakers.
Signal mode is mono.
- Stereo: The primary language is heard from left and right speakers.
Signal mode is stereo.
- SAP: The secondary language is heard from left and right speakers.
1. Press the MTS button repeatedly.
• Select mono sound mode if the signal is not clear or in poor signal
reception areas.
•Stereo, SAP mode are available only if included on the broadcast signal.
TV/AV
OPEN/CLOSE
POWER
VIDEO
STOP
SKIP
PLAY
SCAN
SCAN
AUDIO
MTS
MENU
ARC
EXIT
CC
REPEAT
SKIP
AUDIO
MULTIMEDIA
FCR
PAUSE/STEP
ENTER
MTS
Stereo/SAP Broadcasts Setup
Sound Menu Options
Sound Menu Options
T
Timer menu Options
imer menu Options
- The time can be automatically set
using information from your local
PBS TV station. The PBS channel
signal includes information for the
correct time and daylight savings
time.
Auto Clock Setup
Press the MENU button and then use D /Ebutton to select the Timer
menu.
Press the Gbutton and then use D /Ebutton to select Clock.
Press the Gbutton and then use D /Ebutton to select Auto.
Press the Gbutton and then use D /Ebutton to select the time zone
for your viewing area. Your choices are: Auto, E.S.T. (Eastern
Standard Time), C.S.T.(Central Standard Time), M.S.T. (Mountain
Standard Time), P. S . T. (Pacific Standard Time), Alaska,and Hawaii.
Press the Gbutton and then use D /Ebutton to set PBS channel.
Press the Gbutton and then use D /Ebutton to set D.S.T. (Daylight
Savings Time) Auto,Off or On,depending on whether or not your
viewing area observes Daylight Savings Time.
Press the ENTER button to save.
1
2
3
4
5
6
7
Timer
Auto G
Manual
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
Timer
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
Auto Clock
Time zone Auto
PBS Ch. TV 1
D.S.T. Auto
D
E
FG
Move Adjust
Â
Exit
-If the time on the clock is incorrect,
reset the clock manually.
Auto Clock Setup
Press the MENU button and then
D/Ebutton to select the TIME menu.
Press the Gbutton and then D/Ebutton to select TIME.
Press the Gbutton and then D/Ebutton to adjust the hour.
Press the Gbutton and then D/Ebutton to adjust the minute.
Press the ENTER button to save.
1
2
3
4
5
Timer
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
Timer
Auto
Manual
- - : - - AM
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
T
Timer menu Options
imer menu Options
ZOOM
A-B
MARKER
RANDOM
SEARCH
ANGLE SUB_T
PROGRAM
SLEEP b
u
tt
on once.
To cancel the Sleep Timer, press the SLEEP button repeatedly until
Sleep --- appears.
4
- If you select On on the Auto off
menu, the set will automatically switch
itself to standby mode approximately
ten minutes after a TV station stops
broadcasting.
- In the Component, or PC mode,
Auto off is not available.
Auto off
Press the MENU button and then D/Ebutton to select the TIME menu.
Press the Gbutton and then D/Ebutton to select Auto off.
Press the Gbutton and then D/Ebutton to select On or Off.
Press the ENTER button to save.
1
2
3
4
Timer
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
Timer
Clock
Off timer
On timer
Auto off
FG
OK MENU
D
E
On
Off
Special Menu Options
Special Menu Options
Closed Captions
Closed Captions
2. An old, bad, or illegally recorded tape is being played.
3. Strong, random signals from a car or airplane interfere with the TV signal.
4. The signal from the antenna is weak.
5. The program wasn’t captioned when it was produced, transmitted, or taped.
Closed captioning is a process which converts the audio portion of a television program into written words which then appear as sub-
titles on the television screen. Closed captions allow viewers to read the dialogue and narration of television programs.
Captions are the subtitles of the dialogue and narration of television programs. For prerecorded
programs, program dialogue can be arranged into captions in advance. Its possible to caption a
live program by using a process called real-time captioning, which creates captions instantly.
Real-time captioning is normally done by professional reporters using a machine shorthand sys-
tem and computer for translation into English.
Captioning is an effective system for the hearing-impaired, and it can also aid in teaching lan-
guage skills.

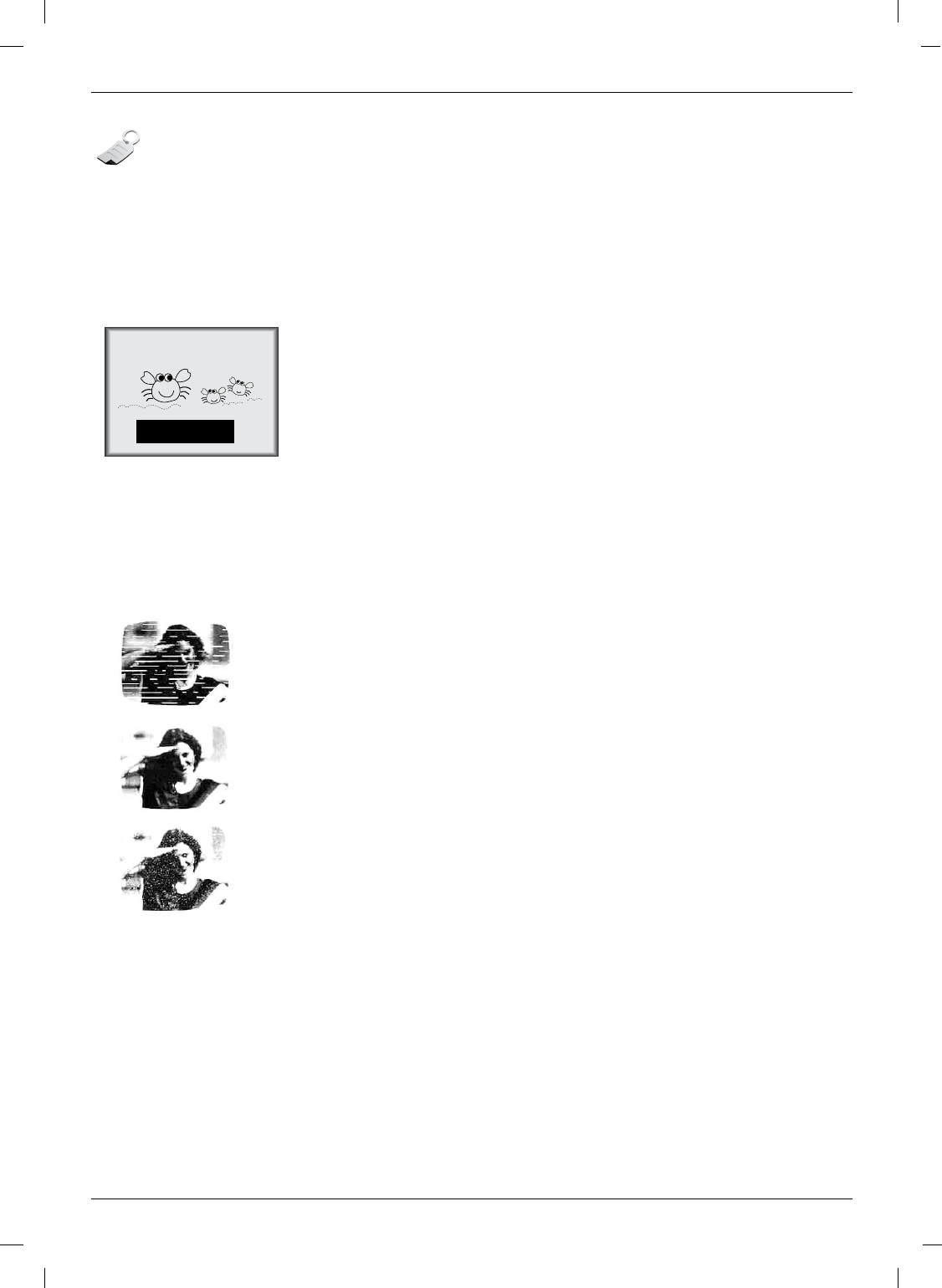

• The picture at left shows a typical caption.
•IGNITION:
Picture may flutter, drift, suffer from black spots, or horizontal streaking. Usually caused by inter-
ference from automobile ignition systems, neon lamps, electrical drills, and other electrical appli-
ances.
•GHOSTS:
Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the
other is reflected off tall buildings, hills or other objects. Changing the direction or position of the
antenna may improve reception.
•SNOW:
If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by
small dots. It may be necessary to install a special antenna to improve the picture.
Caption Tips
FOLLOW ME
Using Closed Captions
• Not all TV broadcasts include closed caption signals.
• Sometimes TV stations broadcast four different caption signals on the same channel. By selecting From CC 1 to CC 4, you can
choose which signal you view. CC 1 is usually the signal with the captions, while Another mode might show demonstration or
programming information.
• Your TV might not receive caption signals normally in the following situations.
1. Poor reception conditions are encountered:
Caption/Text

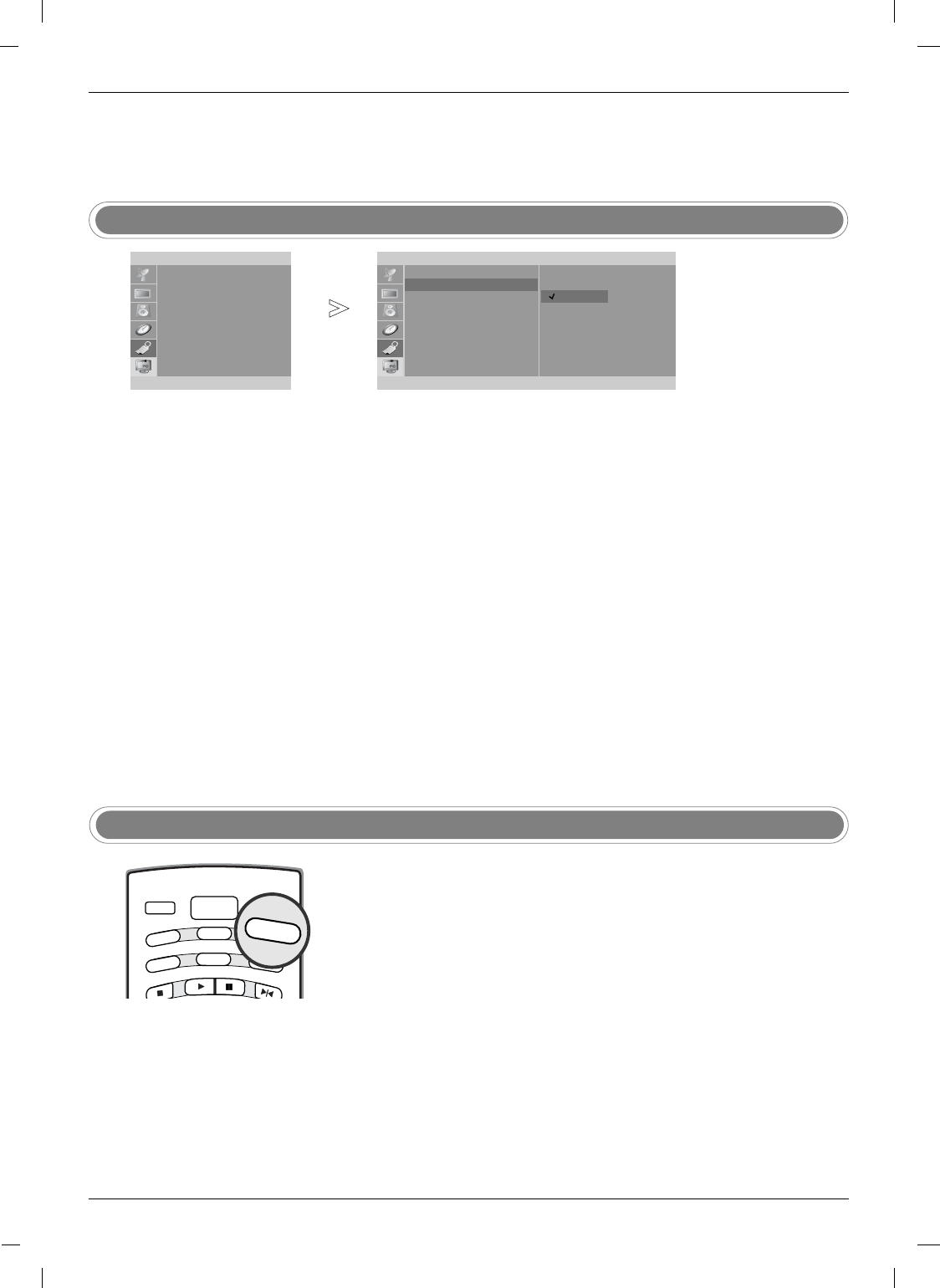

Press the MENU button and then use D /Ebutton to select the Special
menu.
Press the Gbutton and then use D /Ebutton to select Caption / Text.
Press the Gbutton and then use D /Ebutton to select caption: CC1,CC2,
CC3,CC4,Text1,Text2,Text3,or Text4.
•CAPTION
The term for the words that scroll across the bottom of the TV screen;
usually the audio portion of the program provided for the hearing
impaired.
•TEXT
The term for the words that appear in a large black frame and almost
cover the entire screen; usually messages provided by the broadcaster.
Press the ENTER button to save.
1
2
3
4
Special
Language
Caption/Text
Captions
Key lock
Parental
Logo
FG
OK MENU
D
E
CC1
CC2
CC3
CC4
Text1
Text2
Text3
Text4
Special
Language
Caption/Text
Captions
Key lock
Parental
Logo
FG
OK MENU
D
E
Captions
TV/AV
OPEN/CLOSE
POWER
VIDEO
STOP
PLAY
AUDIO
MTS
CC
REPEAT
AUDIO
MULTIMEDIA
FCR
PAUSE/STEP
Use the CC button repeatedly to select Caption Off,EZ Mute or On.
•EZ Mute shows the selected captions option (if available on program)
when the TV sound is muted
Press the ENTER button to save.
1
2
CC
- The TV can be set up so that it can
only be used with the remote control
to prevent unauthorized viewing.
Key Lock
Press the MENU button and then D /E button to select the Special menu.
Press the Gbutton and then D /E button to select Key lock.
Press the Gbutton and then D /Ebutton to select On or Off.
Press the ENTER button to save.
1
2
3
4
Special
Language
Caption/Text
Captions
Key lock
Parental
Logo
Special
Language
Caption/Text
Captions
Key lock
Parental
Logo
FG
OK MENU
D
E
On
Off
FG
OK MENU
D
E
Special
Language
Caption/Text
Captions
Key lock
Parental
Logo
Special
Language
Caption/Text
Captions
Key lock
Parental
Logo
FG
OK MENU
D
E
On
Off
FG
OK MENU
D
E
- If you select on, “Liquid Crystal
Display” of TV front panel turns
on.
Lightening Logo Display Lamp
Press the MENU button and then D /E button to select the Special menu.
Press the Gbutton and then use D /Ebutton to select Logo.
Press the Gbutton and then D /Ebutton to select On or Off.
Press the ENTER button to save.
1
2
3
4
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast station. The
default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories chosen
to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be set :
1. Ratings and categories to be blocked.
2. Set a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcast stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.
For Movies previously shown in theaters :
Movie Ratings :
• Unblocked
• G and Above (general audience)
• PG and Above (parental guidance suggested)
• PG-13 and Above (13 years and older)
• R and above (restricted)
• NC-17 and Above (18 years and older)
• X (adult)
If you set PG-13 and Above : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
For Television programs including made-for-TV movies:
General TV Ratings:
• Unblocked
• TV-G and Above (general audience) (individual categories do not apply)
• TV-PG and Above (parental guidance suggested)
• TV-14 and Above (14 years and older)
• TV-MA (mature audience)
Children TV Ratings:
• Unblocked
• TV-Y and Above (youth) (individual content categories do not apply)
• TV-Y7 (youth, 7 years and up)
Content Categories:
• Dialog - sexual dialogue (applies to TV-PG and Above, TV-14)
• Language - adult language (applies to TV-PG and Above, TV-14 and Above, TV-MA)
• Sex scenes - sexual situations (applies to TV-PG and Above, TV-14 and Above, TV-MA)
• Violence (applies to TV-PG and Above, TV-14 and Above, TV-MA)
• F Violence - fantasy violence (applies only to TV-Y7)
• No Rating (blocks all viewing)
For Canadian English/French language rating system:
Canadian English language rating system:
• C and Above (Children)
• C8+ (8 years and older)
• G and Above (General programming. Suitable for all audiences.)
• PG and Above (Parental guidance suggested)
• 14+ (Viewer 14 years and older)
• 18+ (Adult programming)
Canadian French language rating system:
• G and Above (General)
• 8 ans+ (8 years and older)
• 13 ans+ (13 years and older)
• 16 ans+ (16 years and older)
• 18 ans+ (Adults only)
Parental Menu Options
Parental Menu Options
PC Menu Options
PC Menu Options
- Automatically adjusts the screen posi-
tion, clock, and clock phase. (The dis-
played image will disappear for a few
seconds while Auto-configuration is in
progress.)
Auto Configure
Press the
MENU
button and then use the D /Ebutton to select the PC
menu.
Press the Gbutton and then use the D /Ebutton to select Auto
Configure.
Press the Gbutton to start Auto Configure.
1
2
3
After setup, be sure to select PC source to see the PC image the on TV screen.
•H position / V Position
This function is to adjust picture to
left/right and up/down as you prefer.
H-Position / V-Position
Press the
MENU
button and then use the D /Ebutton to select the PC menu.
Press the Gbutton and then use the D /Ebutton to select H-Position or
V-Position.
Use the F /Gbutton to make appropriate adjustments.
1
2
3
Notes
Depending on the specification of the PC you are playing the DVD VIDEO on, and the DVD's title, some
scenes may be skipped, or you may not be able to pause during multi-angle scenes.
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
85
To Set
•Clock
This function is to minimize any vertical
bars or stripes visible on the screen back-
ground. And the horizontal screen size
will also change.
•Phase
This function allows you to remove any
horizontal noise and clear or sharpen the
image of characters.

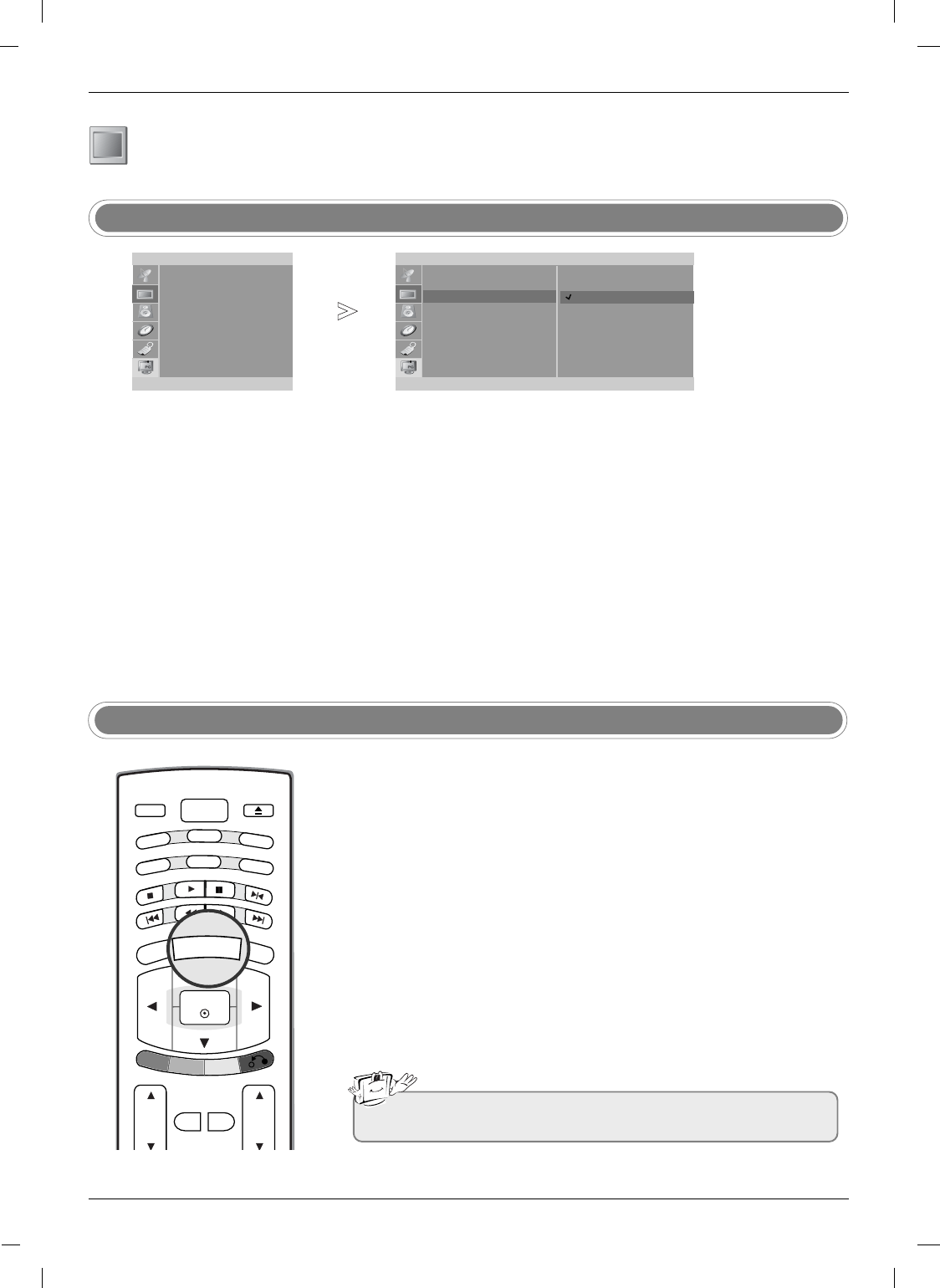

Clock / Phase
Press the
MENU
button and then use the D /Ebutton to select the PC menu.
Press the Gbutton and then use the D /Ebutton to select Clock or Phase.
Use the F /Gbutton to make appropriate adjustments.
Press the ENTER button to save.
1
2
3
4
- Returns to the default settings pro-
grammed at the factory; default set-
tings cannot be changed.
Reset
Press the MENU button and then use the D /Ebutton to select the PC menu.
Press the Gbutton and then use the D /Ebutton to select Reset.
Press the Gbutton to start Reset.
1
2
3
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
85
PC
H-Position
V-Position
Clock
Phase
Auto Configure
Reset
FG
OK MENU
D
E
To Set

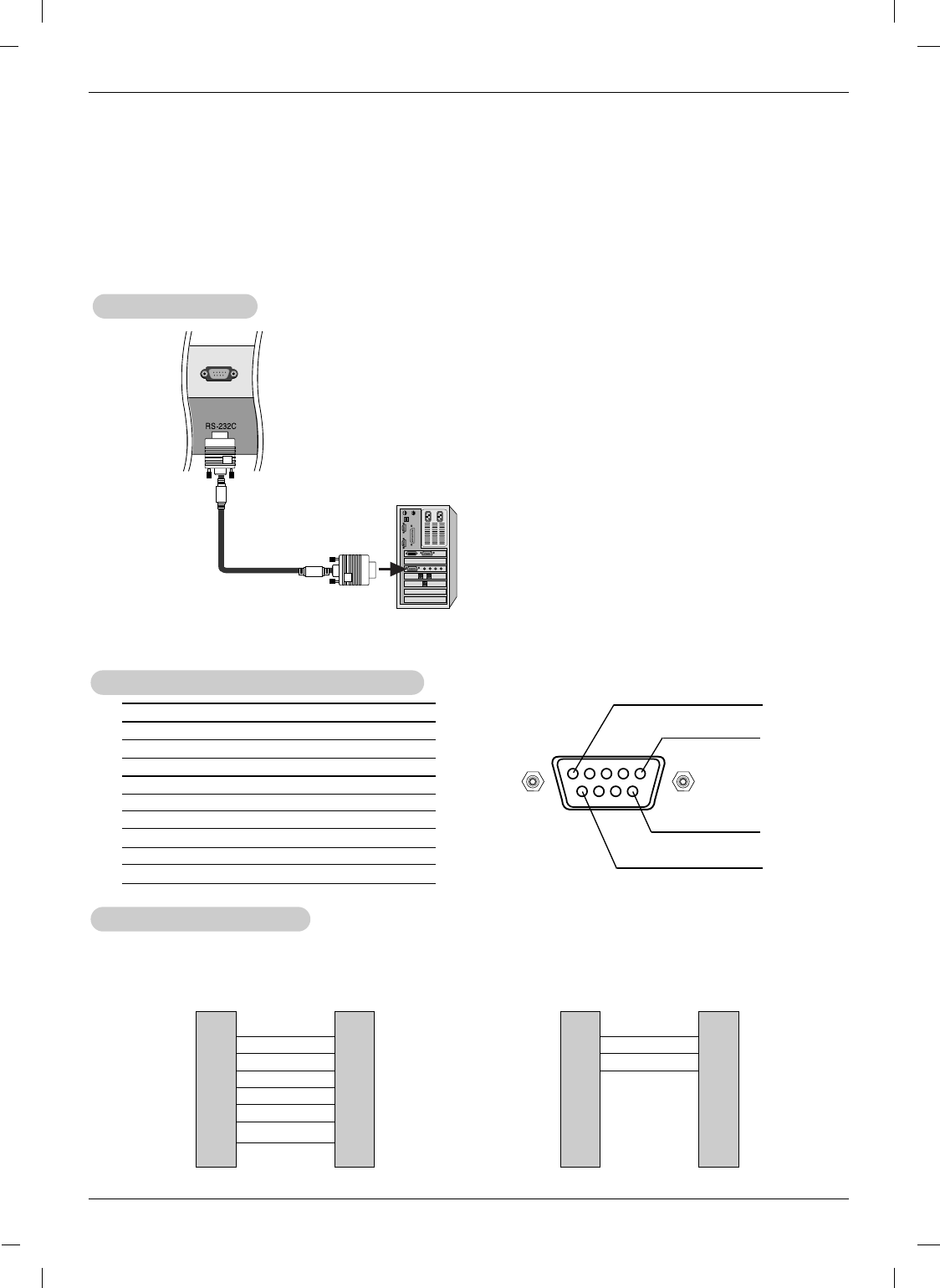

External Control Device Setup ; RS-232C
External Control Device Setup ; RS-232C
Reference
Reference
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V con-
trol system) and control the TV’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the TV back panel.
- RS-232C connection cable is not supplied with the TV.
RS-232C Setup
RS-232C Setup
PC
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configurations
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
TV
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-Wire Configurations
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
TV
D-Sub 9
T
Type of Connector; D-Sub 9-Pin Male
ype of Connector; D-Sub 9-Pin Male
RS-232C Configurations
RS-232C Configurations
Maintenance
Maintenance
Reference
Reference
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of luke-
warm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry,
and then use it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
AC 100-240V~ 50/60Hz 1.4A
120W
NTSC , PAL - M/N
VHF : 2 ~ 13, UHF : 14 ~ 69, Cable : 01 ~ 125
LCD Panel
75 Ω
7 W + 7 W
Product Specifications
Product Specifications
Power Requirement
Power Consumption
Television System
Television Channel
Television Screen
External Antenna Impedance
Audio Output

Navigation menu
