LG Electronics USA 32LDCB 32" LCD TV MONITOR User Manual EMISSION TEST REPORT

LG Electronics USA 32" LCD TV MONITOR EMISSION TEST REPORT

USERS MANUAL

Test Report No.: GETEC-E3-06-051
FCC Class B Certification
EUT Type: 32” LCD TV/Monitor
APPENDIX H
: USER’S MANUAL
FCC ID: BEJ32LDCB
LCD TV
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.
OWNER’S MANUAL
MODEL: 32LX4DC
Internet Home Page : http://www.lgcommercial.com
P/NO : 3828TUL309N (0606-REV00)
Printed in Korea
2

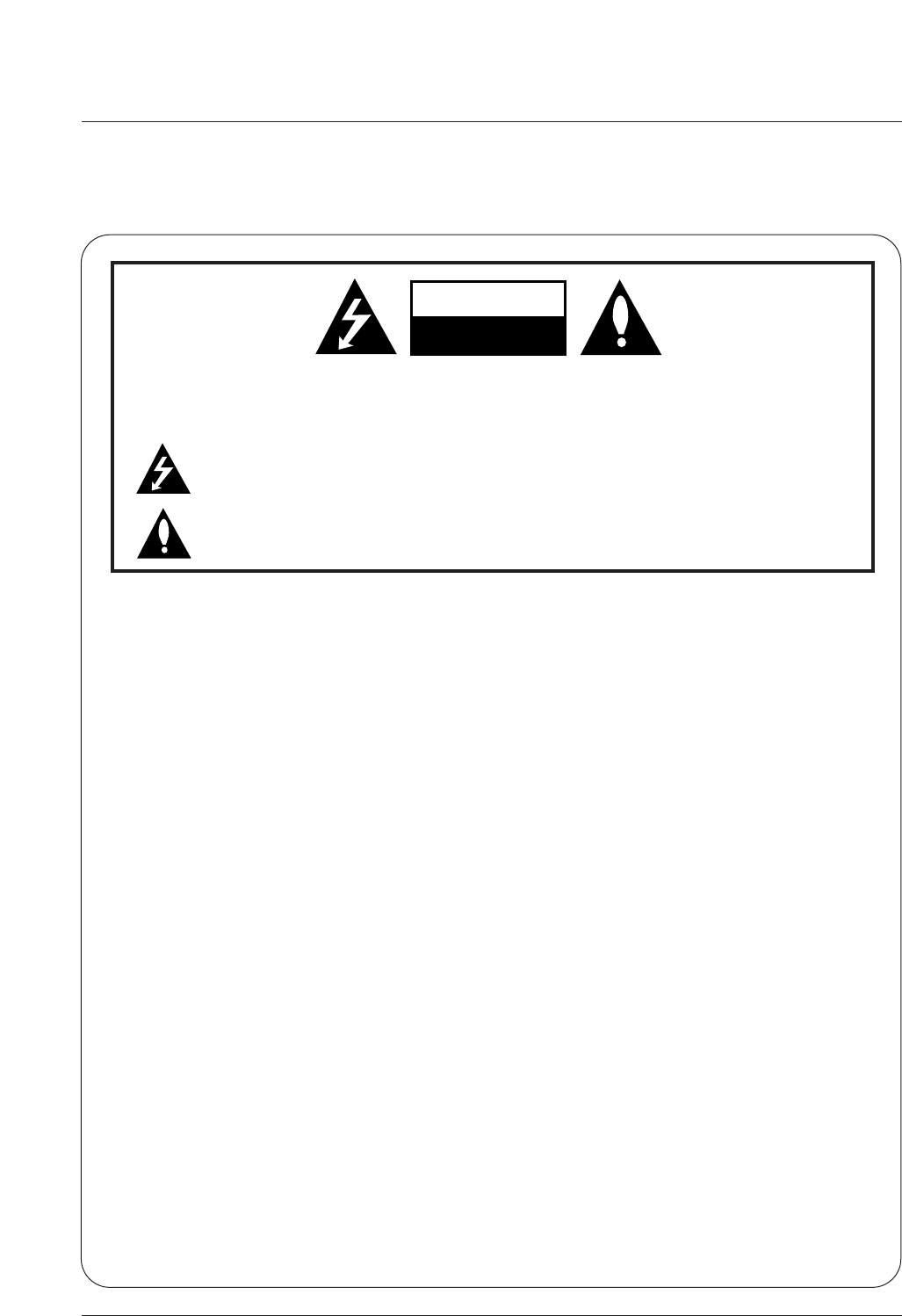

Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-
tical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.
Unauthorized modification could void the user’s authority to operate this product.
U.S.A. only -----------------------------------------------
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: 1-800-243-0000
http://www.lgusa.com
---------------------------------------------------------------
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
W
Warning
arning
3
Safety Instructions
WARNING :
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade
or the third prong is provided for your safety. When the
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the apparatus.
11. Only use the attachments / accessories specified by
the manufacturer.
Safety Instructions
Safety Instructions
Owner's Manual
4
Safety Instructions
Safety Instructions continued
Safety Instructions continued
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the appa-
ratus. When a cart is used, use caution when moving
the cart / apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normal-
ly, or has been dropped.
On Disposal
a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
Note
- If the TV feels cold to the touch, there may be a small “flicker” when when it is turned on. This is normal, there is noth-
ing wrong with TV.
- Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have
no adverse effect on the monitor's performance.
- Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some
temporary distortion effects on the screen.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
5
Contents
Contents
Contents
Introduction
Installation
Operation
23 Adjustments for screen Position, Clock, and Phase
23 Initializing (Reset to original factory values)
24 Turning on the TV
24 Volume Adjustment
24 Channel Selection
24 On-screen Menus Language Selection
25 Screen Menus Selection and Adjustment
26 EZ Scan (Channel Search)
26 Manual Scan
27 Channel Edit
28 DTV Signal Strength
28 Channel Label Setup
29 Main Picture Source Selection
30 EZ Picture
30 Manual Picture Control (EZ Picture-Custom Option)
31 Color Temperature Control
31 Video Preset
32 Audio Language
32 EZ SoundRite
33 EZ Sound
33 Manual Sound Control (EZ Sound-Custom Option)
34 Stereo/SAP Broadcasts Setup
34 Front Surround
35 TV Speakers On/Off Setup

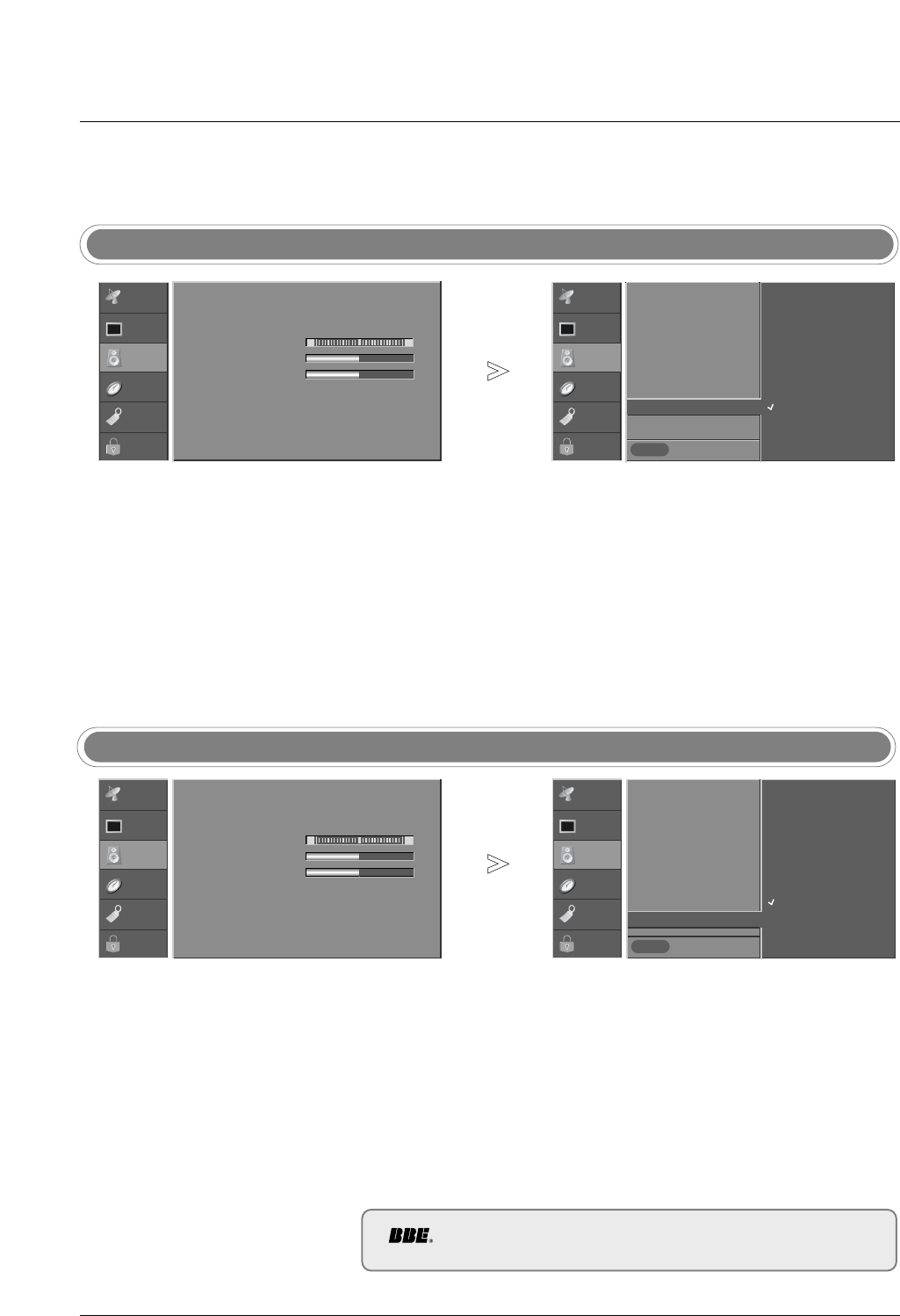

35 BBE
2 Warnings
3~4 Safety Instructions
7 Controls
8 Connection Options
9~12 Remote Control Key Functions
13 Various Installation
13 Swivel Stand
14 Attaching the TV to a wall
15 How to use back cover
16 Antenna Connection
17 External AV Source Setup
17 Digital Audio Output
18 VCR Setup
19 DVD Setup
20 HDSTB Setup
21~22 PC Setup
22 Power Cord Connection
Setup Menu
Options
Video Menu
Options
Audio Menu
Options
Screen Setup
for PC mode
Basic operation
External
Equipment
Connections
Installation
Instruction
6
Contents
Reference
36 Auto Clock Setup
36 Manual Clock Setup
37 On/Off Timer Setup
37 Sleep Timer
38 Auto Off
39 Aspect Ratio Control
40 Cinema 3:2 Mode Setup
40 Caption
41 Caption/Text
42 Caption Option
42 Front Display
43~44 Parental Lock Setup
45 Watching PIP/Double Window
45 Selecting an Input Signal Source for PIP/Double Window
45 TV Program Selection for PIP
46 Moving the PIP sub picture
46 Swapping PIP/Double Window
47~52 External Control Device Setup
53 Programming the Remote Control
54~55 Programming Codes
56~57 Troubleshooting Checklist
58 Maintenance
59 Product Specifications
Option Menu
Features
Lock Menu Options
PIP (Picture-in-
Picture)/
Double Window
Time Menu
Options
Operation
7
Introduction

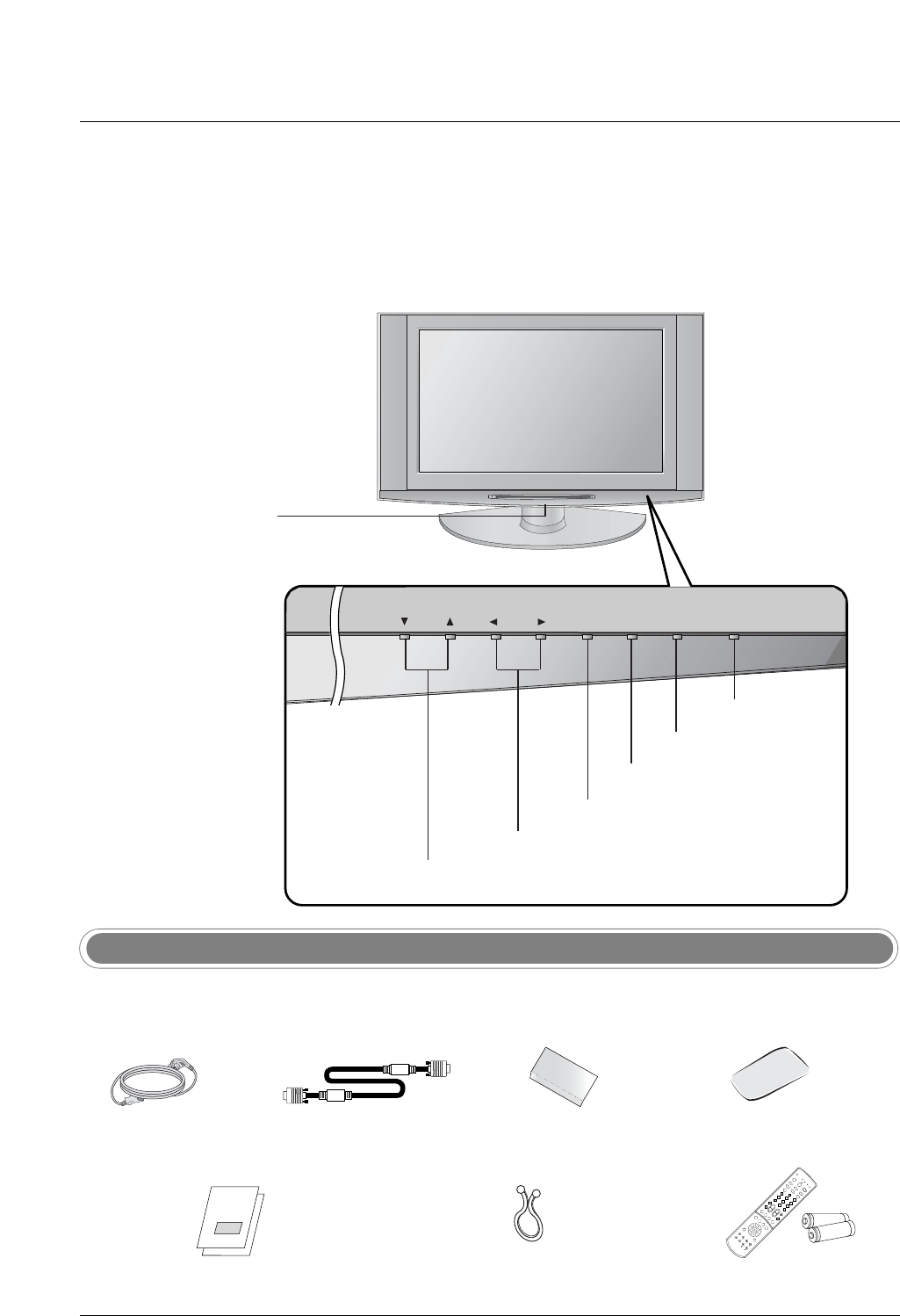

Controls
Controls
Introduction
Introduction
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
Owner’s Manual
/ Commercial Interface Control Box Manual
Power Cord D-sub 15 pin Cable 6 Shield Foams
Ensure that the following accessories are included with your TV. If any accessory is missing, please contact the
dealer from where you purchased the product.
Accessories
1.5V
1.5V
Remote Control /
AA Batteries
Twister Holder
Arrange the wires with the twister holder.
CH VOL ENTER TV/VIDEOMENUMENU ON/OFFON/OFF
VOLUME (F,G) Buttons
Remote Control Sensor
/Power Standby Indicator
Illuminates red when the
TV is in standby mode,
illuminates green when the
TV is switched on.
CHANNEL (E,D) Buttons
ENTER Button
ON/OFF Button
TV/VIDEO Button
MENU Button
Polishing Cloth
Polish the screen with the cloth.

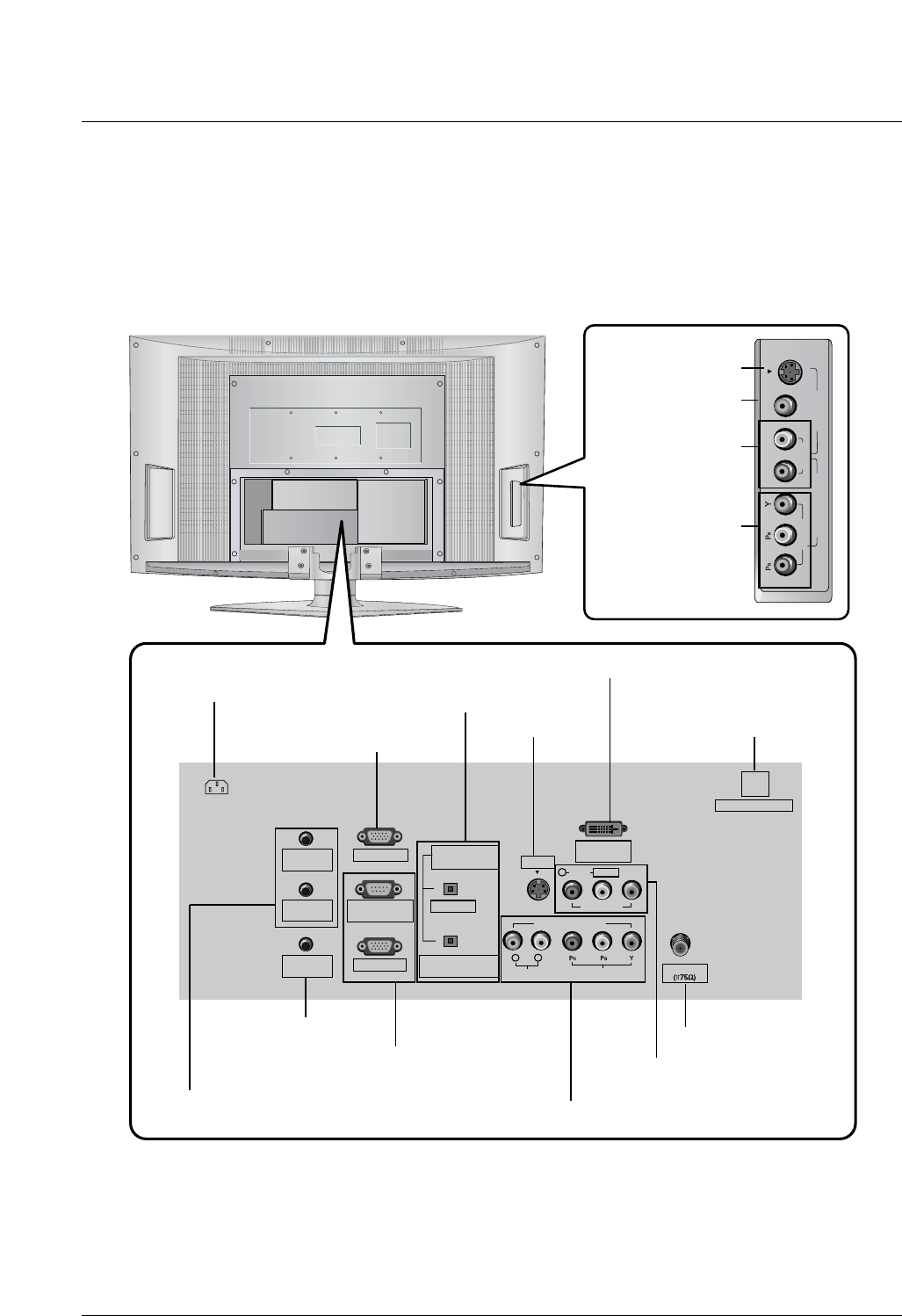

Connection Options
Connection Options
* For Service Jacks: PC INPUT2, PC AUDIO INPUT2, SPEAKER OUT, and RJP INTERFACE
Be careful not to use this jack. Just contact your dealer or service center.
8
Introduction
R
(MONO)
L VIDEO
S-VIDEO
VIDEO AUDIO
COMPONENT 2 VIDEO 2
Antenna
PC AUDIO
INPUT2
DIGITAL AUDIO
(OPTICAL)
PC INPUT2
DVI INPUT
(PC/DTV INPUT)
L/MONO
PC INPUT1
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
PC AUDIO
INPUT1
COMPONENT1/DVI
INPUT
SPEAKER
OUT
RS-232C INPUT
(CONTROL/SERVICE)
AC IN
S-VIDEO
RJP INTERFACE
OUTPUT
DIGITAL AUDIO OUTPUT
/ COMPONENT1/DVI INPUT
* PC INPUT2
(For service)
AUDIO/VIDEO INPUT1
COMPONENT1 (Y, PB, PR/ AUDIO INPUT)
S-VIDEO INPUT
DVI INPUT (PC/DTV INPUT)
ANTENNA INPUT
Power Cord Socket
PC AUDIO INPUT1
* PC AUDIO INPUT2 / SPEAKER OUT
(For service)
PC INPUT1
/ RS-232C INPUT (CONTROL/SERVICE)
* RJP INTERFACE
(For service)
COMPONENT2
(VIDEO Input)
AUDIO Input
VIDEO2
S-VIDEO
9
Introduction

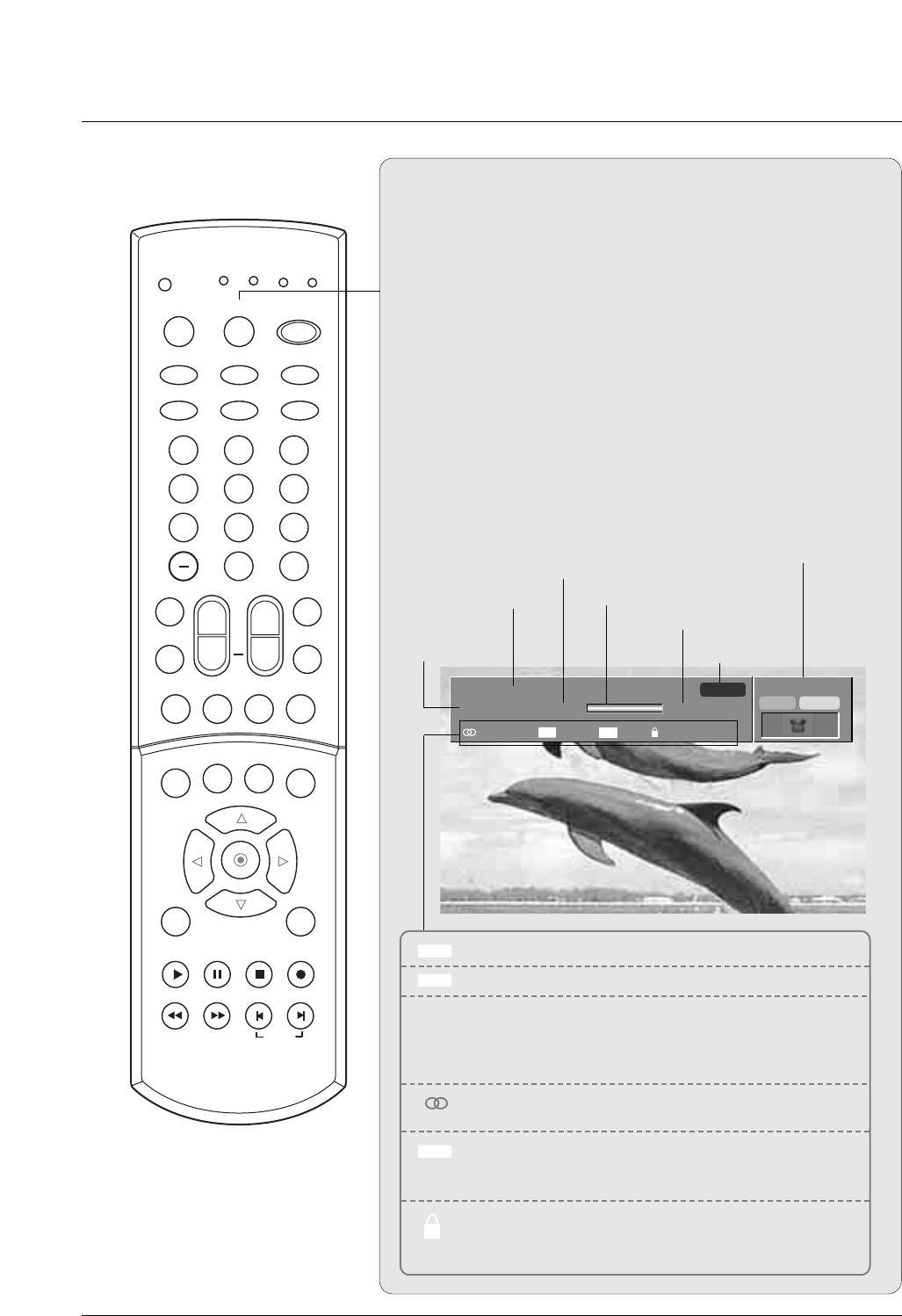

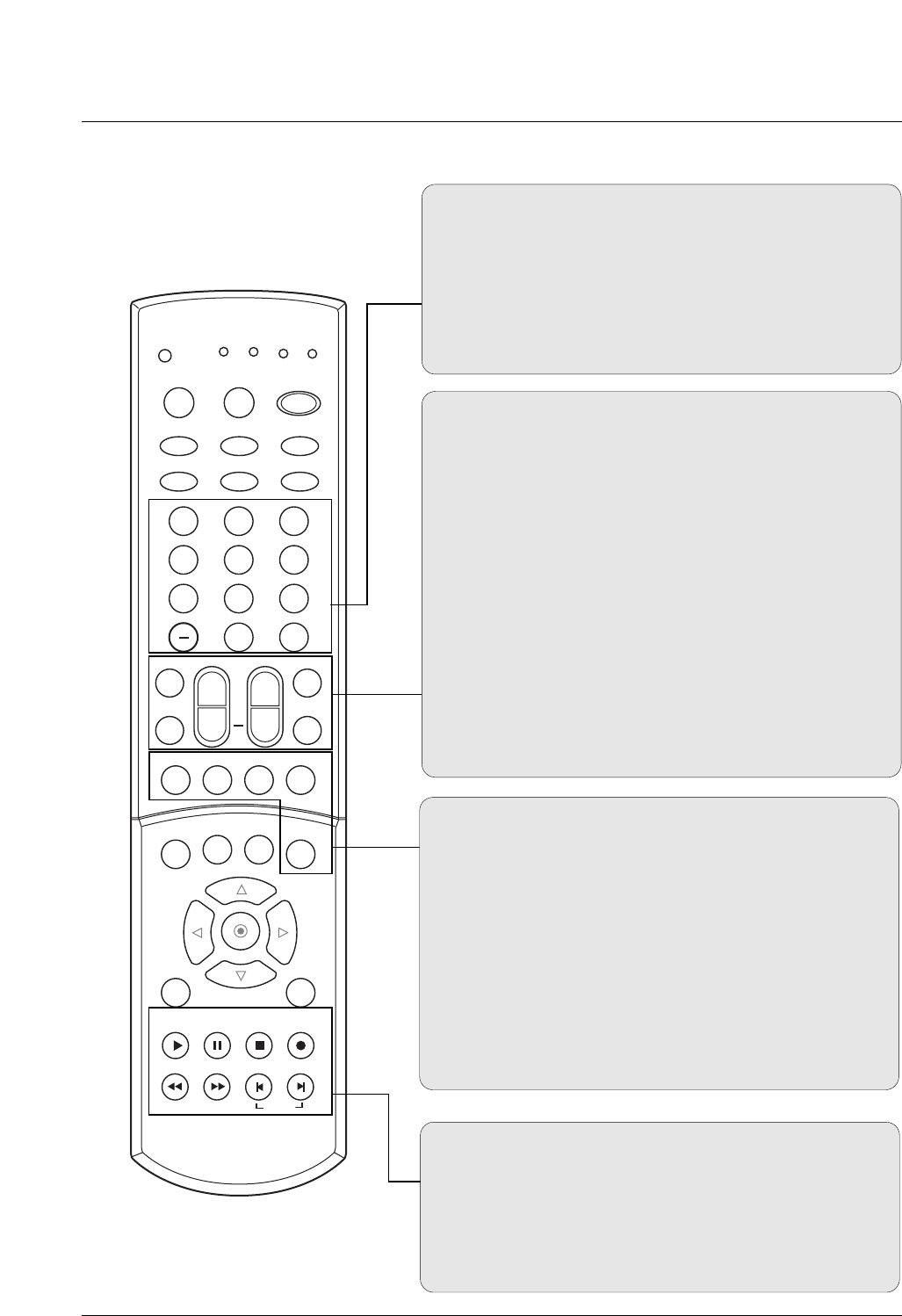

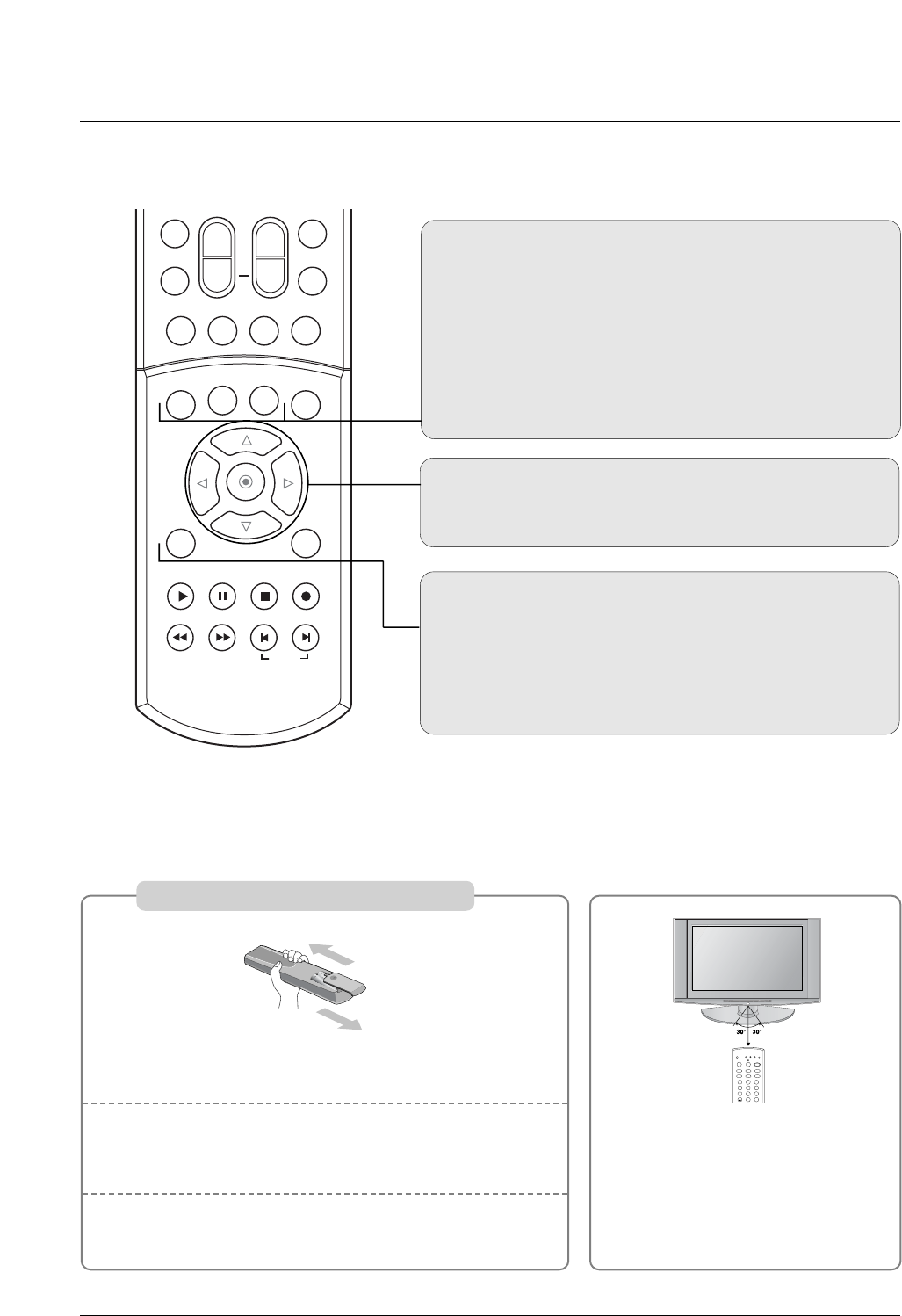

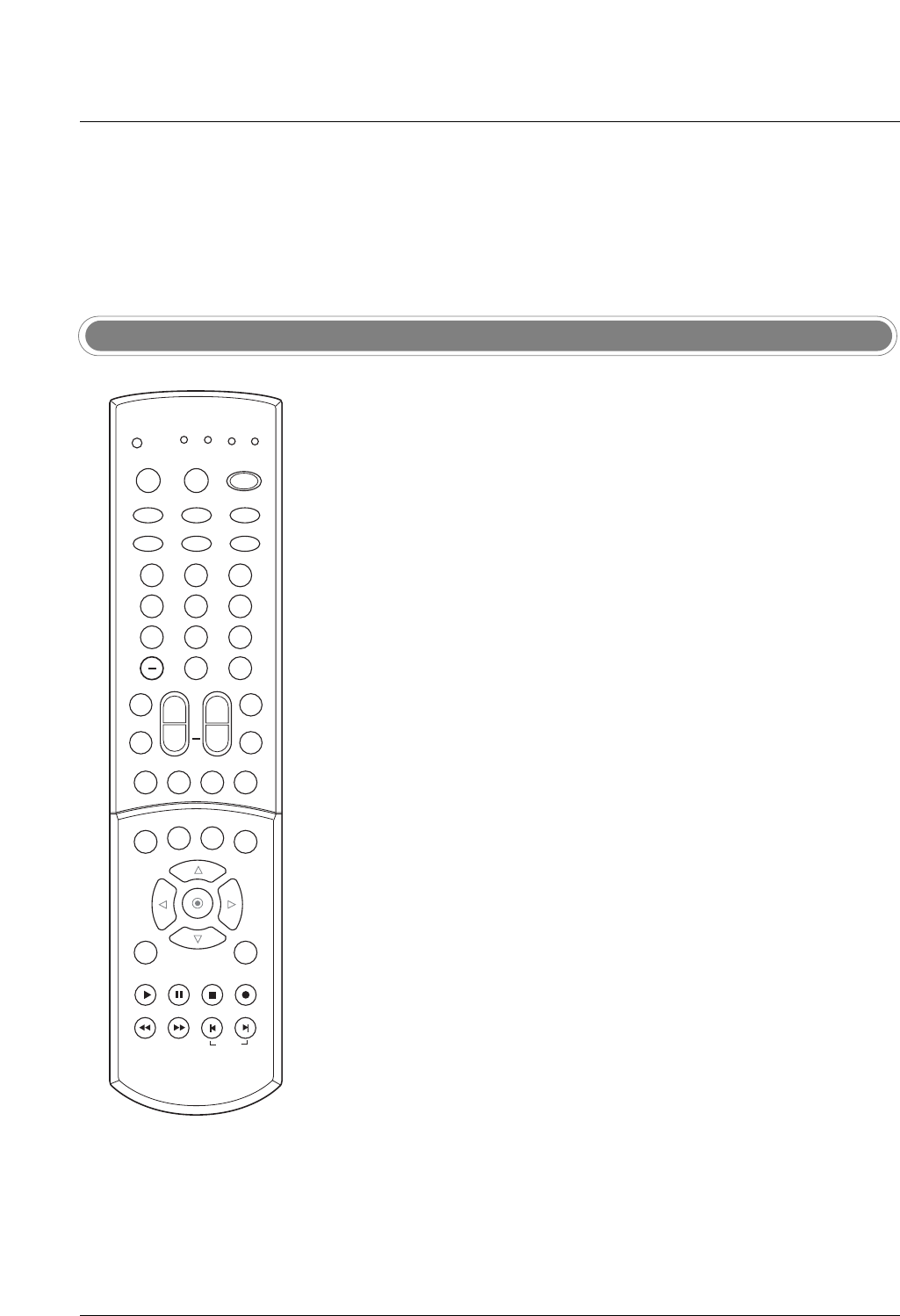

Remote Control Key Functions
Remote Control Key Functions

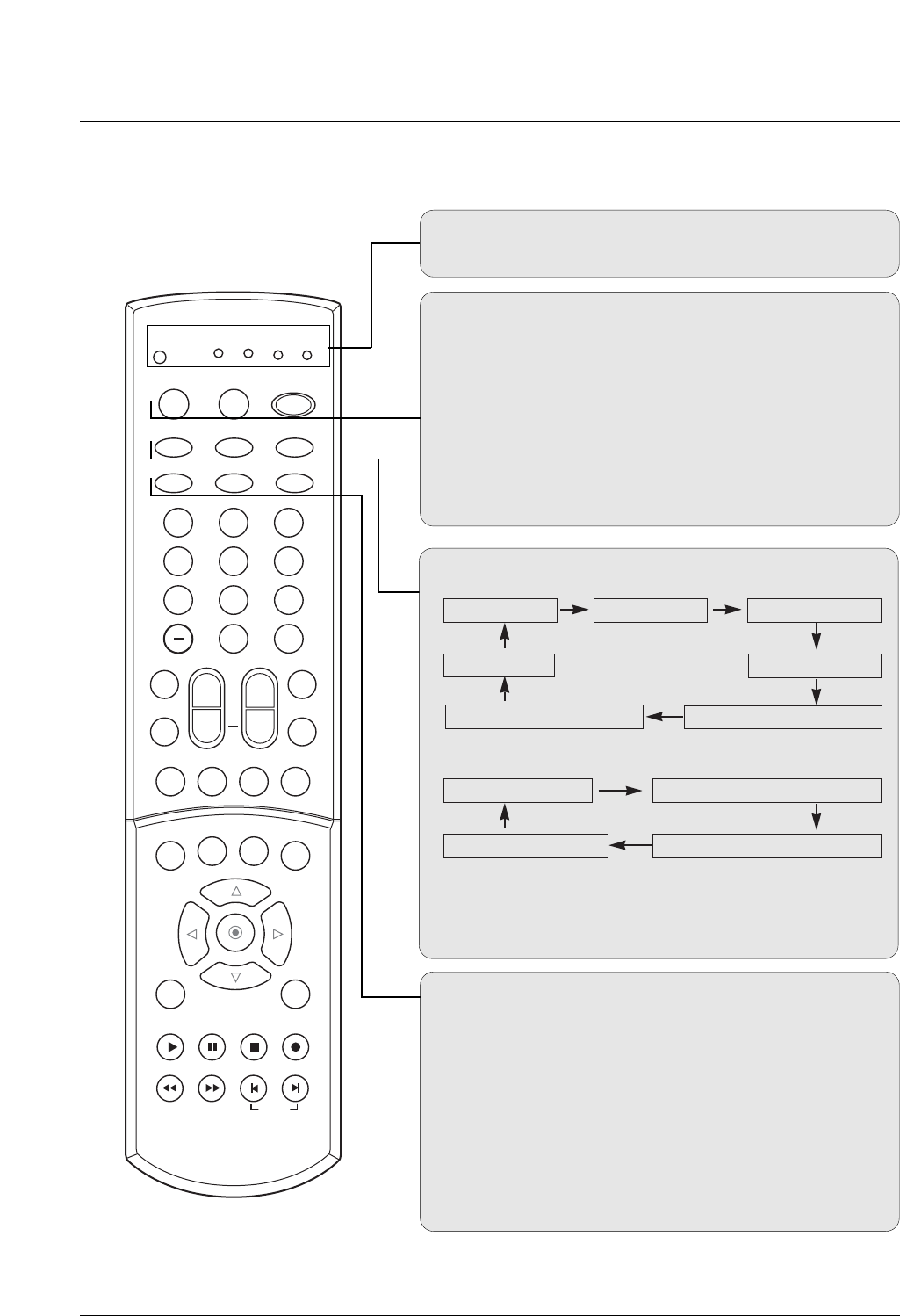

ADJUST
Adjusts screen position, size, and phase in PC mode.
(Refer to p.23)
MODE
Selects the remote operating mode: TV, VCR, CABLE, DVD,
HDSTB. Select other operating modes, for the remote to oper-
ate external devices.
Indicator Lights
Shows active remote mode every time any button is pressed.
INFO
When you watch the TV, displays information on top of the screen.
Not available in Component 1-2, RGB 1-2 and DVI mode.
SIGNAL
Displays the digital signal strength. (Refer to p.28)
EZ SOUND
Selects the sound appropriate for the program's character.
(Refer to p.33)
POWER
Turns your TV or any other programmed equipment on or
off, depending on mode.
1 2 3
4 5 6
7 8 9
0
TV
MODE INFO POWER
INPUT EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL CH
FAV
SAP TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
INPUT Selects:
MULTIMEDIA Selects:
Antenna Cable AV 1 - 2
Component 1-2
RGB1-DTV / RGB1-PC
RGB2-DTV / RGB2-PC
DVI
Component 1-2 RGB1-DTV / RGB1-PC
DVI-DTV / DVI-PC RGB2-DTV / RGB2-PC
EZ PIC
Adjusts the factory preset picture according to the room.
(Refer to p.30)
10
Introduction
123
456
789
0
TV
MODE INFO POWER
INPUT EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL CH
FAV
SAP TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
MUTE
Switches the sound on or off.
FAV
Use to scroll the Surf channel list.
SAP
Selects MTS sound: Mono, Stereo, and SAP. Change the
audio language in DTV mode. (Refer to p.34)
TIMER
Lets you select the amount of time before your TV turns
itself off automatically. (Refer to p.37)
CHANNEL UP/DOWN
Selects available channels found with EZ scan.
VOLUME UP/DOWN
Increases/decreases the sound level.
NUMBER buttons
— (DASH)
Used to enter a program number for multiple program chan-
nels such as 2-1, 2-2,etc.
FLASHBK
Return to the last channel viewed.
PIP
Switches between PIP and Double Window modes.
(Refer to p.45)
PIPCH-/PIPCH+
Changes to next higher/lower PIP channel.
(Refer to p.45)
SWAP
Exchanges the PIP/main images. (Refer to p.46)
PIP INPUT
Selects the input source for the sub picture.
(Refer to p.45)
VCR/DVD BUTTONS
Control some video cassette recorders or DVD player
("RECORD" button is not available for DVD player).
SKIP
Playing CDs: Selects songs.
Playing DVDs: Selects movie chapters.
11
Introduction
THUMBSTICK (Up/Down/Left/Right)
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
MENU
Brings up the main menu to the screen.
EXIT
Clears all on-screen displays and returns to TV viewing from
any menu.
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL CH
FAV
SAP TIMER
SKIP
+
CC
Select a closed caption mode: Off,CC1,CC2,CC3,CC4,
Text1,Text2,Text3, or Text4. (Refer to p.41)
FREEZE
Freezes the currently-viewed picture. Main picture is frozen
in PIP/Double Window mode.
RATIO
Changes the aspect ratio. (Refer to p.39)
Installing Batteries
Open the battery compartment cover on the back side.
Insert two 1.5V AA size batteries in correct polarity (+ with
+, - with -). Don’t mix old or used batteries with new ones.
Close the cover.
* Point the remote towards the remote
control sensor of the wireless TV and
use it within about 7 meters.
* Put the used batteries into the recy-
cling bin since it can negatively affect
the environment.
1
2
3
123
456
789
0
TV
MODE POWER
TV/AV ZOOM
INFO
VCR
CABLE
DVD SAT
MUTE SURF
SIGNALADJUST
MULTIMEDIA
FLASHBK
12
Introduction
Brief Info.
Brief Info.
What is Brief Info?
: Brief Info shows the present screen information.
: On Watching with the upper Input signal, press the INFO
button.
How to use?
1. Press the INFO button to show the Brief Info on the screen.
2. Press the INFO button or EXIT button to exit.
- The INFO button does not work in Component1,
Component2, RGB1, RGB2, DVI modes.
This function works in the following mode:
• Watching TV/DTV/CATV/CADTV
• Watching AV1, AV2
Brief Info Title Test Brief Info Title Test Brief Inf..
SAT, Jan 20, 2005 7:00PM
Multilingual
Caption 1080i TV-PG D L S V
6:55AM
ANALOG 2
CC 4:3
Program title
Program start time Banner information
Program progress bar
Program finish time
Present time
Day of week
Month, Year
The original aspect ratio of the video is 4:3
The original aspect ratio of the video is 16:9 (wide)
The video resolution is 720x480i
The video resolution is 720x480p
The video resolution is 1280x720p
The video resolution is 1920x1080i
Multilingual: The program contains two or more audio
services. Press the SAP button to select wanted Audio.
Caption: The program contains one or more caption ser-
vices. Press the CC button to select wanted Closed cap-
tion.
V-Chip: The program contains V-Chip information. Refer
to the LOCK menu: A (Age), D (Dialogue), L (Language), S
(Sex), V (Violence), FV (Fantasy Violence)
16 : 9
4 : 3
CC
480i
480p
720p
1080i
10:40AM
MONO STEREO
123
456
789
0
TV
MODE INFO POWER
INPUT EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL CH
FAV
SAP TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
13
Installation
Installation
Installation
Various Installation
4 inches
4 inches
4 inches4 inches
4 inches
For proper ventilation, allow a clearance of 4" on each side
and 2" from the wall. Detailed installation instructions are
available from your dealer, see the optional Tilt Wall
Mounting Bracket Installation and Setup Guide.

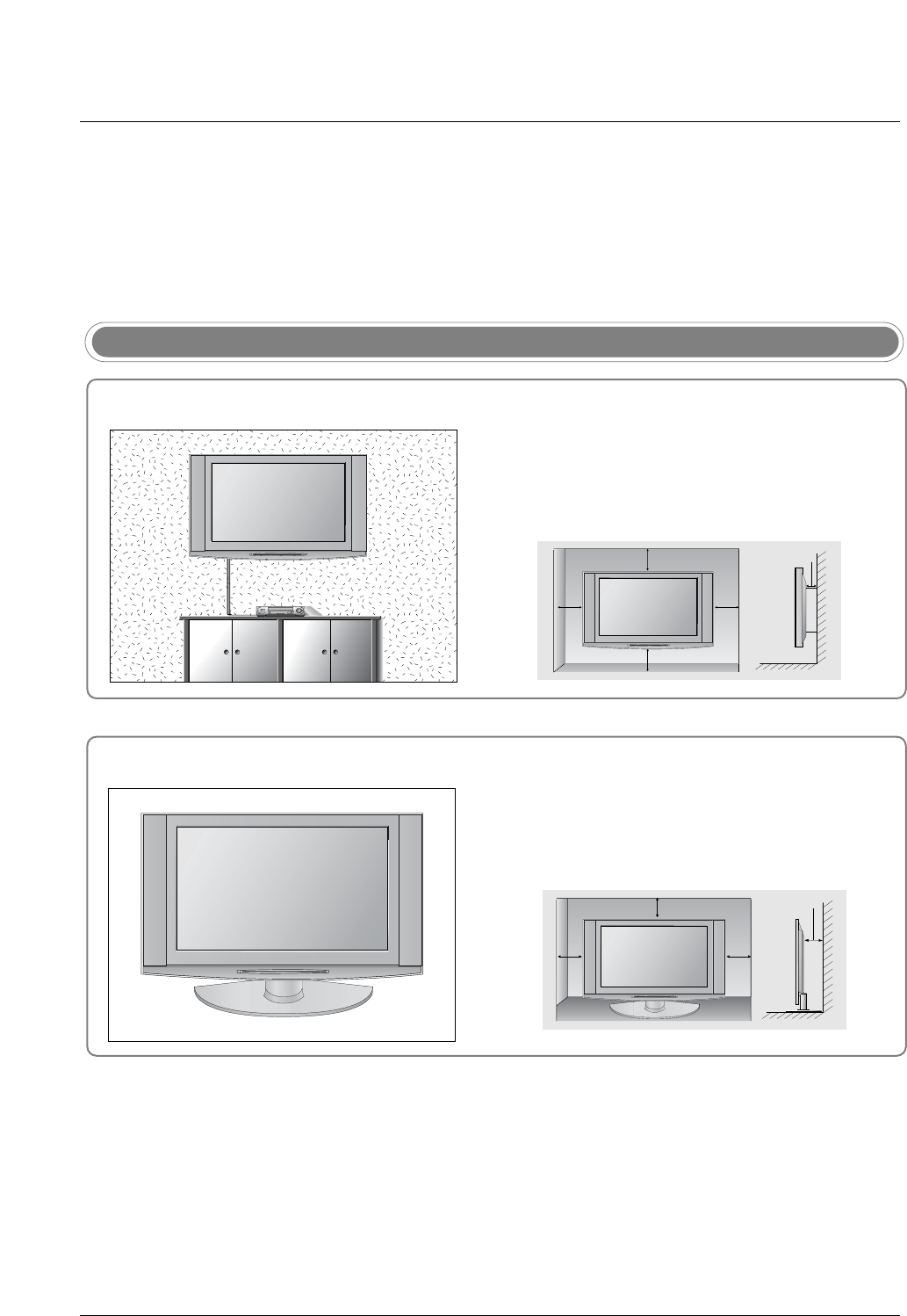

Wall Mount: Horizontal installation
Desktop Pedestal Installation
4 inches
4 inches4 inches
4 inches
For proper ventilation, allow a clearance of 4" on each side
and the top, and 2" from the wall.
14
Installation

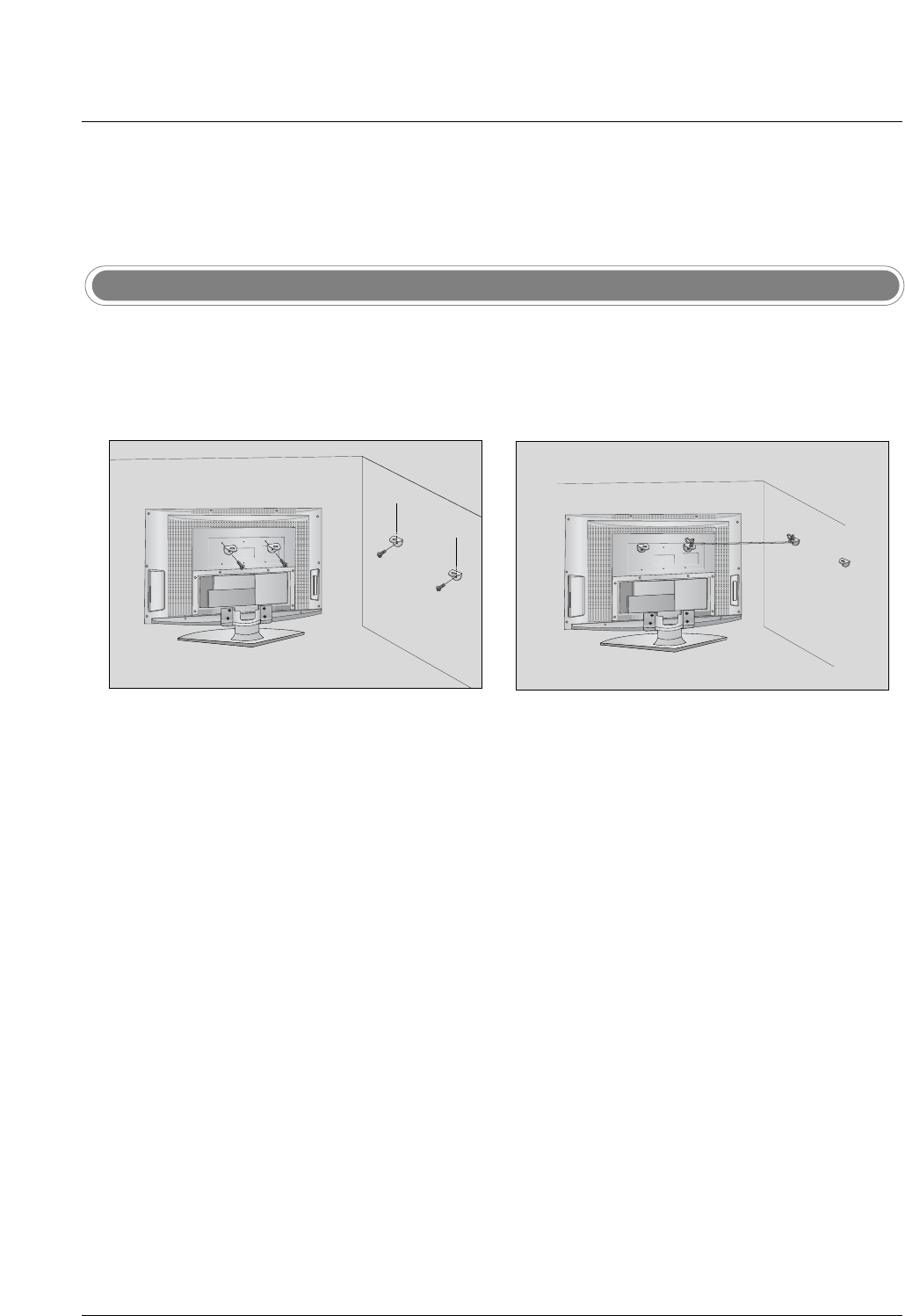

Attaching the TV to a wall
Notes
• When moving the product to another place undo the ropes first.
• Use a product holder or a cabinet that is big and strong enough for the size and weight of the product.
• To use the product safely make sure that the height of the bracket that is mounted on the wall is same
as that of the product.
Use the bracket and the bolt to fix the product to the wall as shown in the picture.
Secure the bracket with the bolt (not provided as parts of the product, must purchase separately) on
the wall.
Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product.
It is safer to tie the rope so it becomes horizontal between the wall and the product.
1
2
3
- Set it up close to the wall so the product doesn’t fall over when it is pushed backwards.
- The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product does-
n’t fall over when it is pulled in the forward direction. It will prevent the product from falling forward and hurting peo-
ple. It will also prevent the product from damage caused by fall. Please make sure that children don’t climb on or
hang from the product.
2
1
3
15
Installation

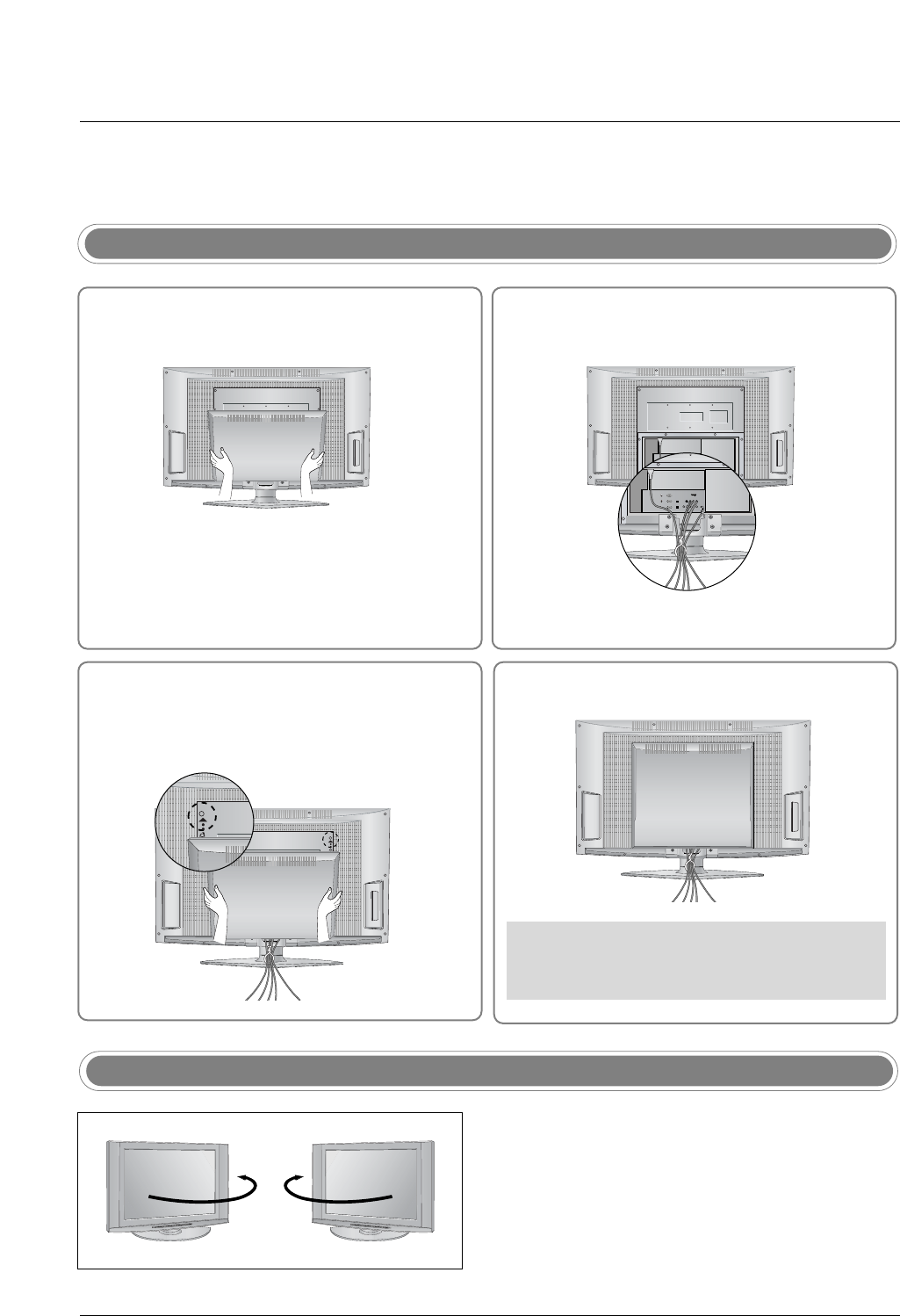

How to use back cover
- The TV can be conveniently swivelled on its stand 90°
to the left or right to provide the optimum viewing angle.
Swivel Stand
34
2Install wires as necessary.
(To install various wires, refer to p.14~21.)
Align the holes on the TV back panel with the
protuberance on the back cover and insert.
Reinstall the cover.
Wire Arrangement
- Pull the cables through the hole on the set.
Hold the back cover with both hands and
pull it backward.
1
* Arrange the signal input cable and the power
cord by holder, as shown.
16
Installation
NOTE: If you are not sure of the type of signal(s) you are receiving, let EZ Scan complete all the channel signal-
type searches. The TV will let you know when the analog, cable, and digital channel scans are complete.
External Equipment Connections
External Equipment Connections

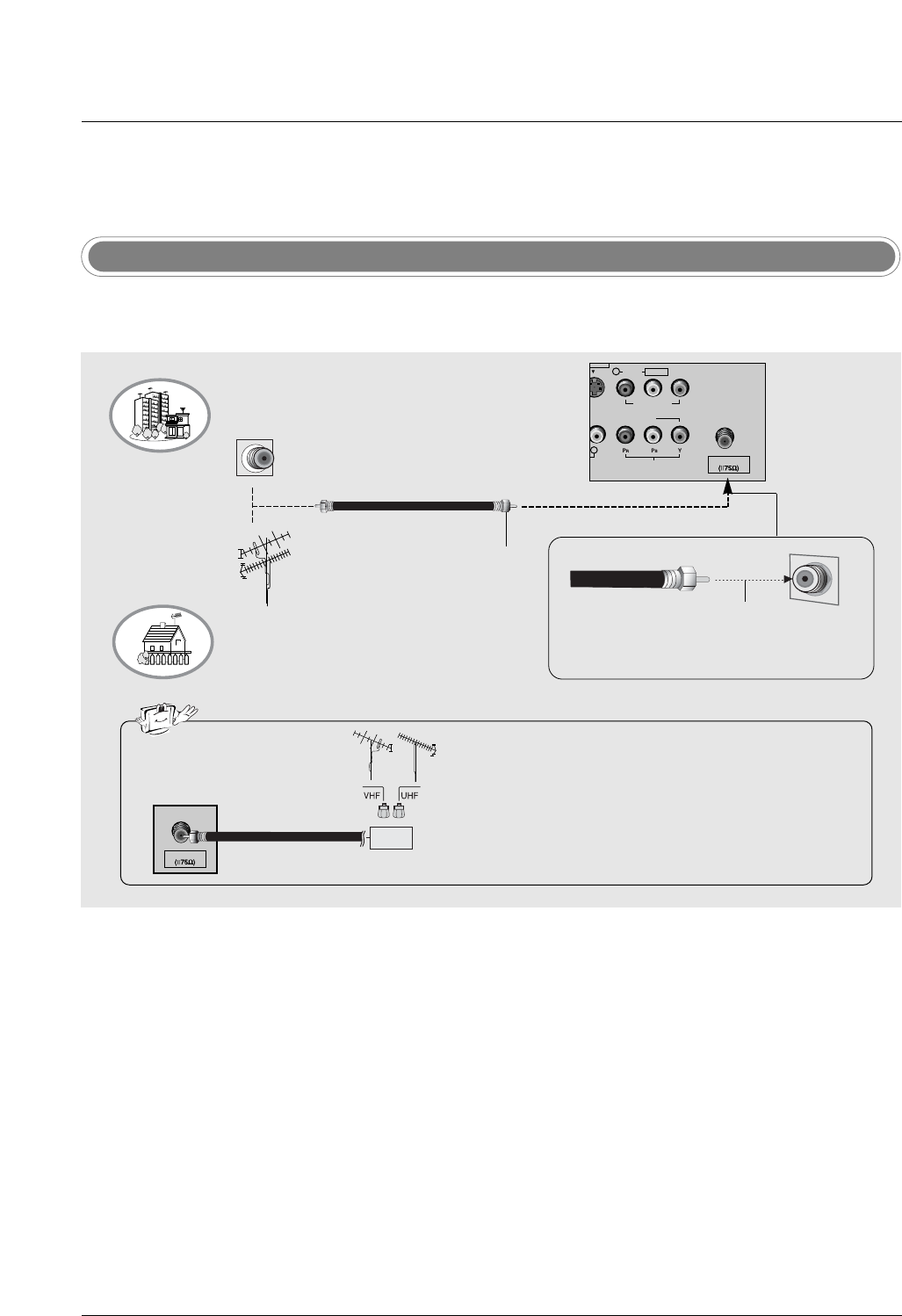

Antenna Connection
- Antenna or Cable Service without a Cable Box Connections.
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2-
Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your deal-
er for assistance.
Antenna
Antenna
L/MONO
INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
L
R
VIDEO
Bronze Wire
Be careful not to bend the bronze wire when
connecting the antenna.
Signal
Amplifier
17
Installation
Digital Audio Output
1
2
3
Connect the AUDIO/VIDEO jacks between TV
and external equipment. Match the jack colours
(Video = yellow, Audio Left = white, and Audio
Right = red).
Select AV 2 input source with using the INPUT
button on the remote control.
- If connected to VIDEO1 input (the back side),
select AV 1 input source.
Operate the corresponding external equipment.
Refer to external equipment operating guide.
1
2
3
Connect one end of an optical cable to the TV
Digital Audio Optical Output port.
Connect the other end of the optical cable to the
digital audio optical input on the audio equipment.
Set the “ TV Speaker option - Off” in the AUDIO
menu. Refer to page 35.
See the external audio equipment instruction
manual for operation.
DIGITAL AUDIO
(OPTICAL)
PC INPUT2
DVI INPUT
(PC/DTV INPUT)
L/MONO
PC INPUT1
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
RS-232C INPUT
(CONTROL/SERVICE)
S-VIDEO
OUTPUT
COMPONENT1/DVI
INPUT
- Send the TV’s audio to external audio equipment (stereo system) via the Digital Audio Output Optical port.
CAUTION
Do not look into the optical output port. Looking
at the laser beam may damage your vision.

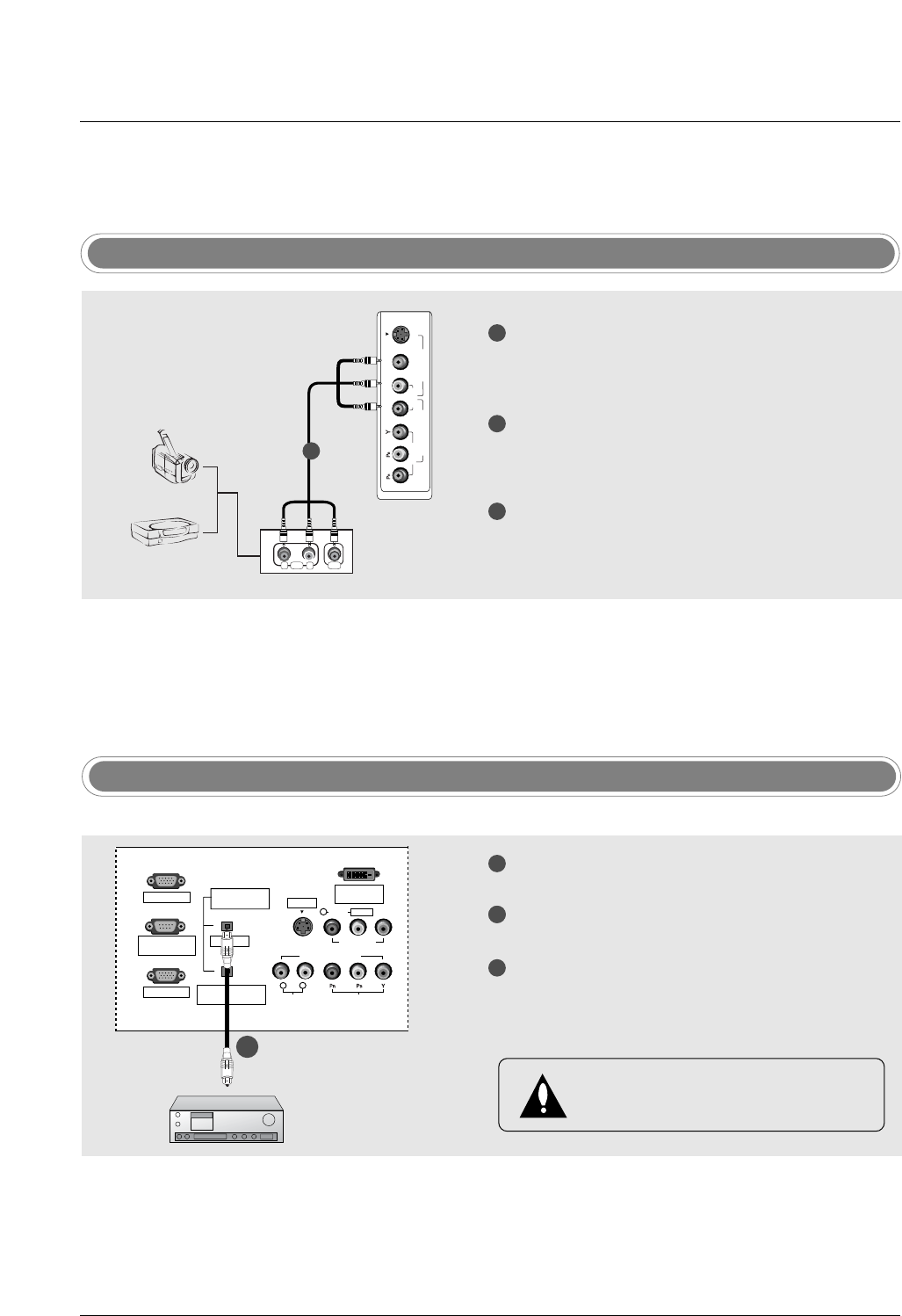

External AV Source Setup
1/2 TV Back
RL
AUDIO VIDEO
R
(MONO)
L VIDEO
S-VIDEO
VIDEO AUDIO
COMPONENT 2 VIDEO 2
Camcorder
Video Game Set
TV Side
1
18
Installation
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
- Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides
of the screen may remain visible on the screen.

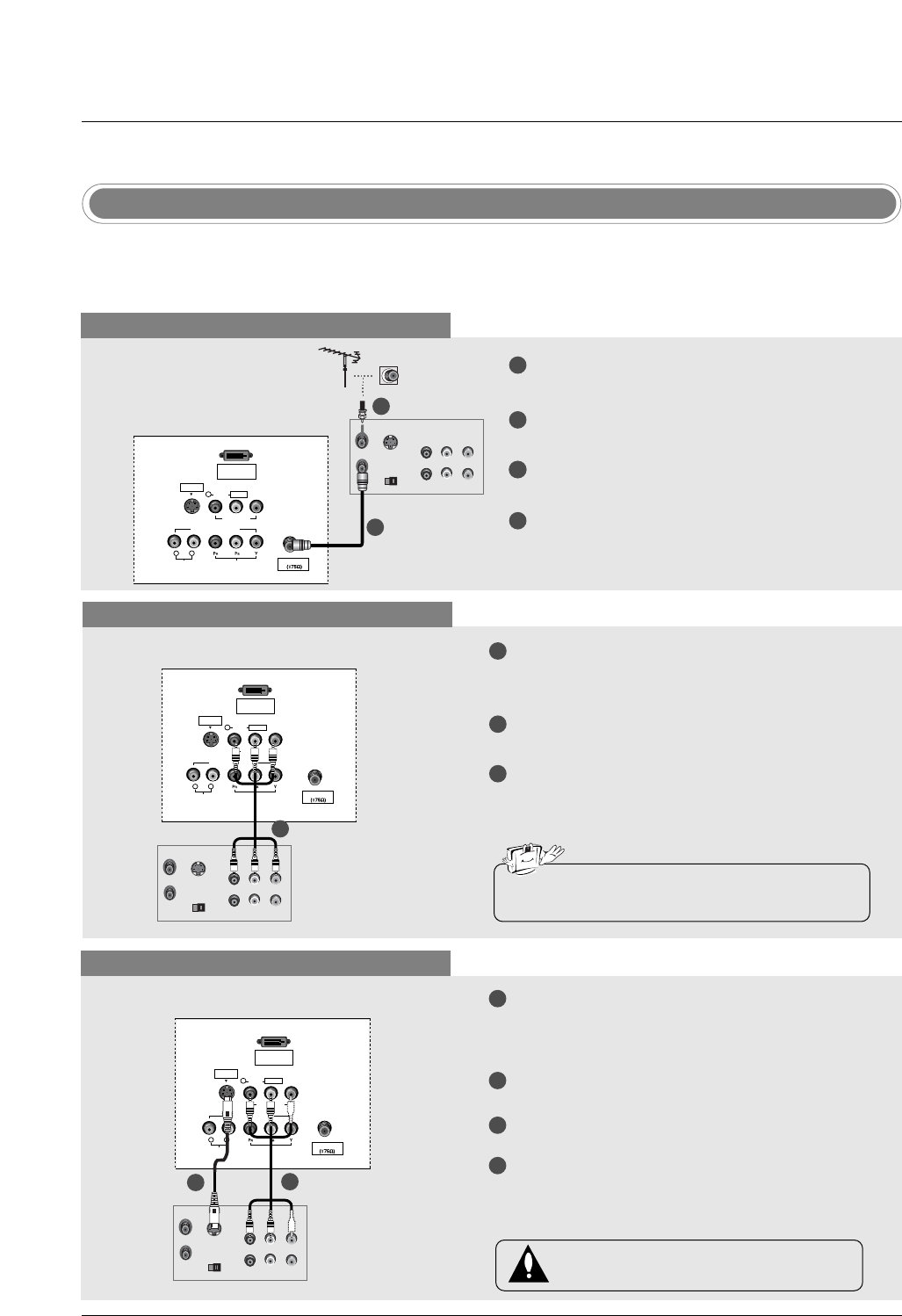

VCR Setup
NOTE: All cables shown are not included with the TV.
When connecting with an antenna
1
2
3
4
Antenna
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
DVI INPUT
(PC/DTV INPUT)
Connect the RF antenna out socket of the VCR to
the Antenna socket on the set.
Connect the antenna cable to the RF antenna in
socket of the VCR.
Set VCR output switch to 3 or 4 and then tune TV
to the same channel number.
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
TV Back
VCR
When connecting with a RCA cable
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
Antenna
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
VCR
TV Back 1
2
3
Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
Select AV 1 input source with using the INPUT
button on the remote control.
- If connected to IN 2 input (TV front), select AV 2
input source.
• If you have a mono VCR, connect the audio cable
from the VCR to the AUDIO L/MONO jack of the set.
When connecting with an S-Video cable
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
Antenna
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
VCR
TV Back 1
1
2
2
3
4
Connect the an S-VIDEO output of the VCR to the
S-VIDEO input on the set. The picture quality is
improved; compared to connecting a regular VCR
to the Video input.
Connect the audio outputs of the VCR to the
AUDIO input jacks on the set.
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
Select AV 1 input source with using the INPUT
button on the remote control.
- If connected to IN2 input (TV front), select AV 2
input source.
Do not connect to both Video and S-Video at
the same time.
1
2
1
19
Installation
DVD Setup
When connecting with a S-Video cable
S-VIDEO (R) AUDIO (L)
Antenna
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
DVD
TV Back 1
1
2
2
3
4
5
Connect the S-VIDEO output of the DVD to the
S-VIDEO input on the set.
Connect the audio outputs of the DVD to the
AUDIO input jacks on the set.
Turn on the DVD player, insert a DVD.
Select AV 1 input source with using the INPUT
button on the remote control.
- If connected to IN 2 input (TV front), select AV 2
input source.
Refer to the DVD player's manual for operating
instructions.
When connecting with a component cable
1
3
4
5
Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT1 VIDEO (Y, PB, PR)jacks
on the set.
Connect the audio outputs of the DVD to the
COMPONENT1 AUDIO jacks on the set.
Connect the optical audio output of the DVD to
the DIGITAL AUDIO COMPONENT1/DVI INPUT
jack on the set.
Turn on the DVD player, insert a DVD.
Select Component 1 input source with using the
INPUT or MULTIMEDIA button on the remote
control.
- If connected to COMPONENT2 (TV side), select
Component 2 input source.
Refer to the DVD player's manual for operating
instructions.
•Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.
• Digital Audio will not work for Component 2 input
source.
• Digital Audio operation has priority if Digital Audio
and AUDIO L/R are connected at the same time.
Y PBPR
Component ports on the TV
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Video output ports
on DVD player
BR
(R) AUDIO (L)
Antenna
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
DIGITAL AUDIO
OPTICAL
DIGITAL AUDIO
(OPTICAL)
OUTPUT
COMPONENT1/DVI
INPUT
DVD
TV Back
1
Select or , depending on your DVD
connector.
2-1
2-1
2-1 2-2
2-2
2-2
20
Installation

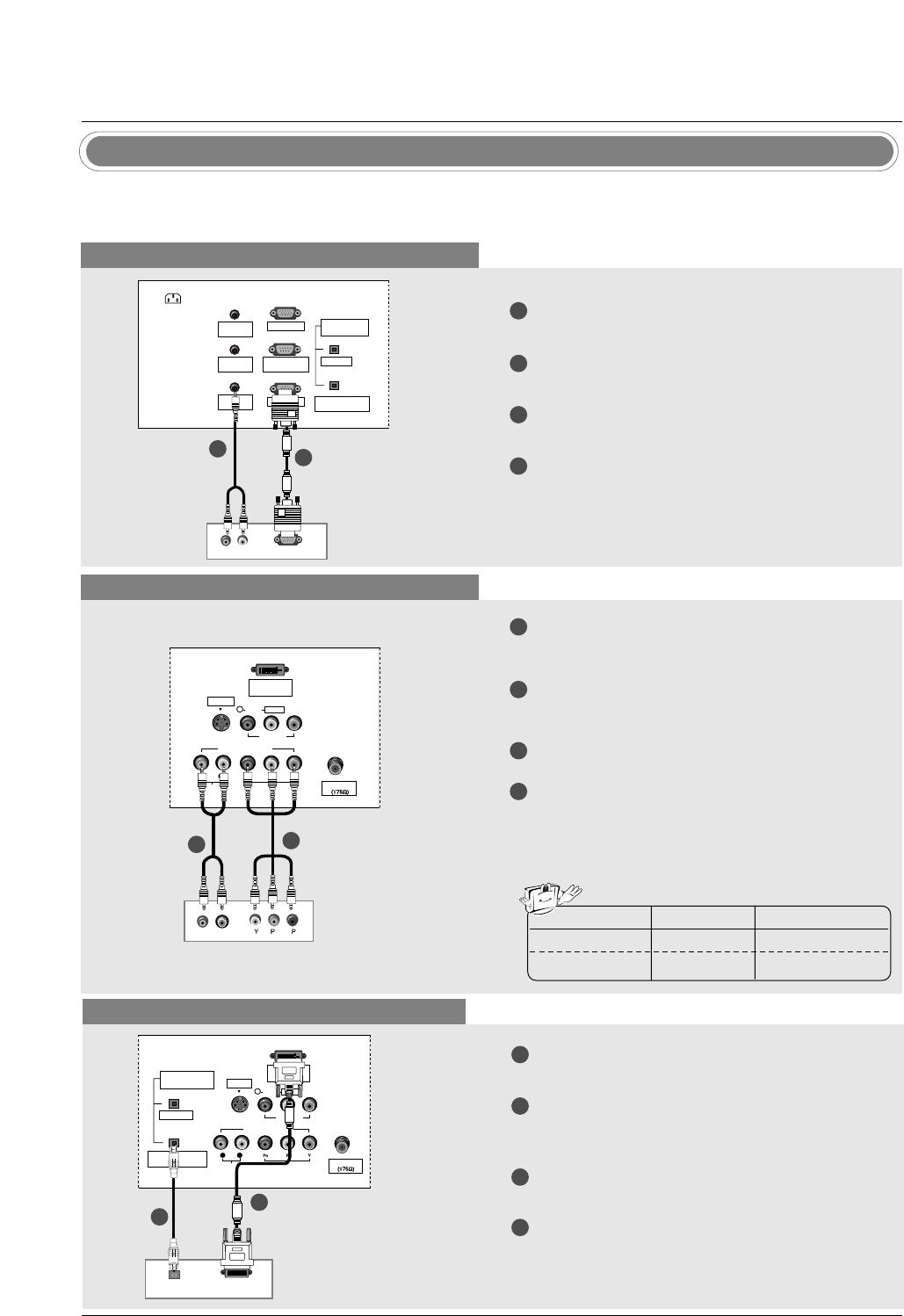

When connecting with a D-sub 15 pin cable
1
2
3
4
Connect the RGB output of the digital set-top box
to the PC INPUT1 jack on the set.
Connect the audio outputs of the set-top box to
the PC AUDIO INPUT1 jack on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select RGB1-DTV input source with using the
INPUT or MULTIMEDIA button on the remote
control.
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if
you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure
as shown below.
RGB-DTV OUTPUT
(R) AUDIO (L)
PC AUDIO
INPUT2
DIGITAL AUDIO
(OPTICAL)
PC INPUT2
PC INPUT1
PC AUDIO
INPUT1
SPEAKER
OUT
RS-232C INPUT
(CONTROL/SERVICE)
AC IN
OUTPUT
COMPONENT1/DVI
INPUT
Digital Set-top Box
HDSTB Setup
TV Back
When connecting with a Component cable
1
2
3
4
Connect the video outputs (Y, PB, PR) of the digi-
tal set-top box to the COMPONENT1 VIDEO
INPUT (Y, PB, PR)jacks on the set.
Connect the audio outputs of the digital set-top
box to the COMPONENT1 AUDIO INPUT jacks
on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select Component 1 input source with using the
INPUT or MULTIMEDIA button on the remote
control.
- If connected to COMPONENT2 input (TV side) ,
select Component 2 input source.
BR
(R) AUDIO (L)
Antenna
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
Signal
480i
480p/720p/1080i
Component1/2
Yes
Yes
RGB-DTV, DVI-DTV
No
Yes
When connecting with a DVI cable
1
2
3
4
Connect the DVI output of the digital set-top box to
the DVI INPUT (PC/DTV INPUT) jack on the set.
Connect the digital audio outputs of the set-top
box to the DIGITAL AUDIO COMPONENT1/DVI
INPUT jack on the set.
Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
Select DVI-DTV input source with using the
INPUT or MULTIMEDIA button on the remote
control.
Antenna
DVI-DTV OUTPUT
DIGITAL AUDIO
OPTICAL
DIGITAL AUDIO
(OPTICAL)
L/MONO
OUTPUT
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
DVI INPUT
(PC/DTV INPUT)
COMPONENT1/DVI
INPUT
Digital Set-top Box
TV Back
1
2
1
2
TV Back
Digital Set-top Box
1
2
21
Installation
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
The TV sends configuration information (EDID) to the PC using the Video Electronics Standard Association
(VESA) Display Data Channel (DDC) protocol.
PC Setup
When connecting with a D-sub 15 pin cable
When connecting with a DVI cable
1
2
3
4
Connect the RGB output of the PC to the PC
INPUT1 jack on the set.
Connect the PC audio outputs to the PC AUDIO
INPUT1 jack on the set.
Turn on the PC and the set.
Select RGB1-PC input source in main input
option of SETUP menu. (Refer to P.29)
1
2
3
4
Connect the DVI output of the PC to the DVI
INPUT (PC/DTV INPUT) jack on the set.
Connect the PC audio outputs to the DIGITAL
AUDIO COMPONENT1/DVI INPUT jack on the set.
Turn on the PC and the set.
Select DVI-PC input source in main input option
of SETUP menu. (Refer to P.29)
DIGITAL AUDIO
OPTICAL
Antenna
DIGITAL AUDIO
(OPTICAL)
DVI INPUT
(PC/DTV INPUT)
L/MONO
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
S-VIDEO
OUTPUT
COMPONENT1/DVI
INPUT
DVI-PC OUTPUT
RGB-PC OUTPUT
AUDIO
PC AUDIO
INPUT2
DIGITAL AUDIO
(OPTICAL)
PC INPUT2
PC INPUT1
PC AUDIO
INPUT1
SPEAKER
OUT
RS-232C INPUT
(CONTROL/SERVICE)
AC IN
OUTPUT
COMPONENT1/DVI
INPUT
1
2
1
2
TV Back
PC
TV Back
PC
22
Installation
1. To get the best picture quality, adjust the PC graph-
ics card to 1024x768, 60Hz.
2. If the graphic card on the PC does not output ana-
log and digital RGB simultaneously, connect only
one of either PC INPUT or DVI INPUT to display
the PC on the TV.
If the graphic card on the PC does output analog
and digital RGB simultaneously, set the TV to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the TV.)
3. If using a sound card, adjust the PC sound as
required.
4. Check the image on your TV. There may be noise
associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is pre-
sent, change the PC mode to another resolution,
change the refresh rate to another rate or adjust
the brightness and contrast on the menu until the
picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic
card or consult the manufacturer of the PC graphic
card.
5. Avoid keeping a fixed image on the TV's screen for
a long period of time. The fixed image may become
permanently imprinted on the screen.
6. The synchronization input form for Horizontal and
Vertical frequencies is separate.
Monitor Display Specifications (RGB1-PC / DVI-PC Mode)
Resolution
640x350
640x480
800x600
1024x768
Horizontal Frequency
(kHz)
31.468
31.469
37.861
37.500
35.156
37.879
48.077
46.875
48.363
56.476
60.023
70.09
59.94
72.80
75.00
56.25
60.31
72.18
75.00
60.00
70.06
75.02
Vertical Frequency
(Hz)

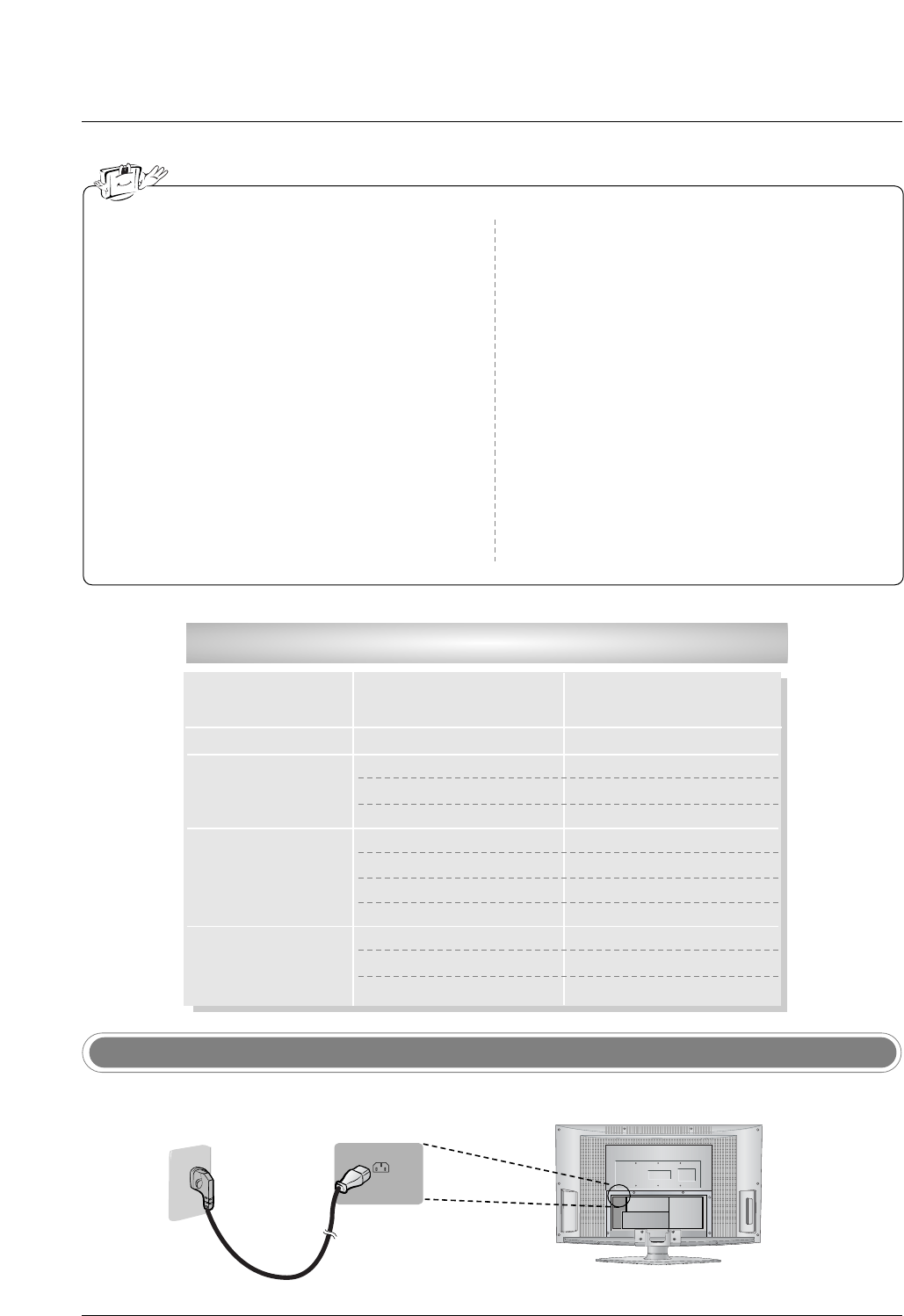

AC IN
- Connect the power cord as shown.
Power Cord Connection
23
Operation
Operation
Operation

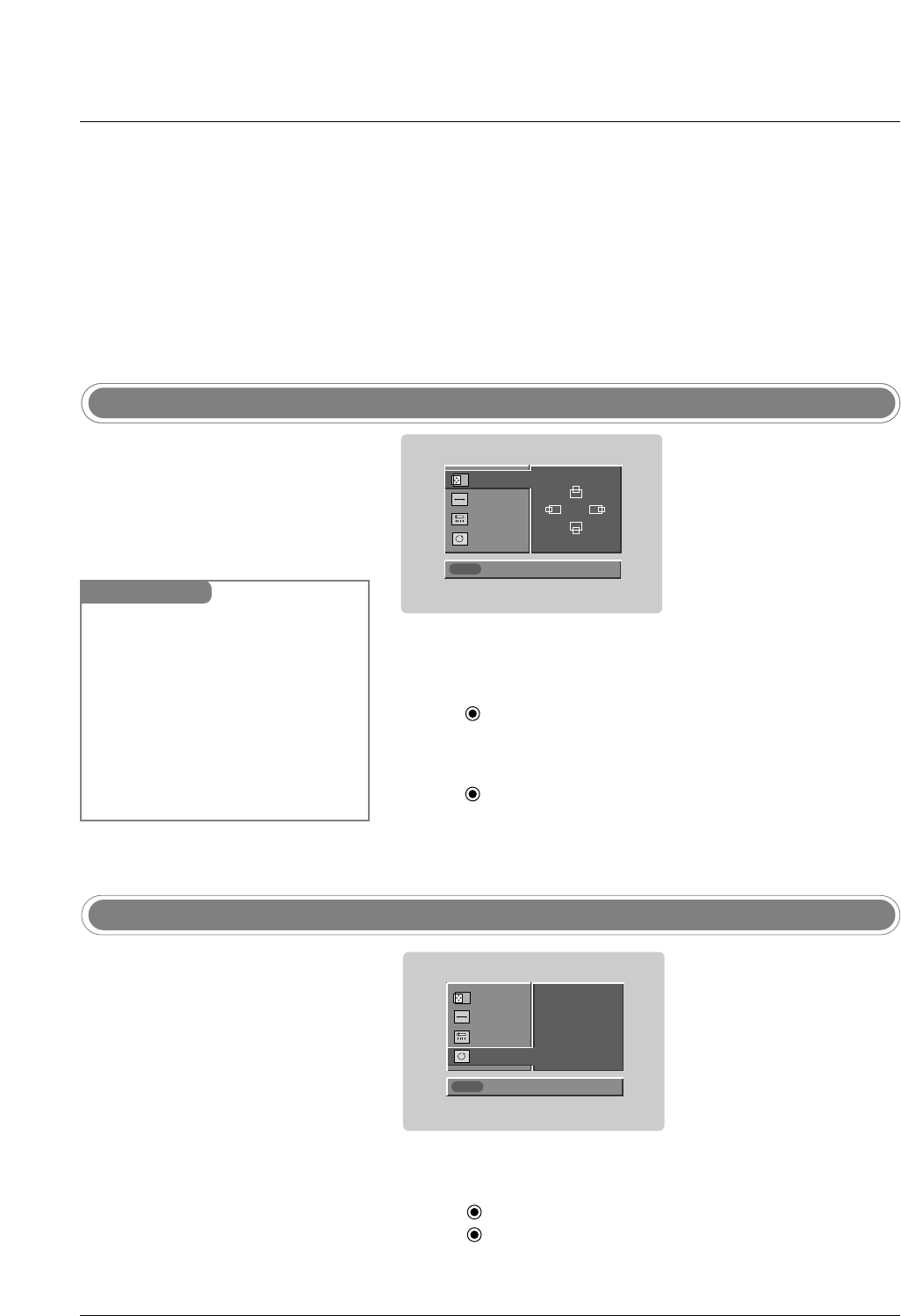

- When RGB connect to PC input and select the RGB-PC, this function is used.
- In RGB1/2-DTV mode, SIZE and PHASE is not available.
1. Press the ADJUST button and then use D /Ebutton to select POSI-
TION,SIZE, or PHASE.
2. Press button and then use D /E/F /G buttons to make appro-
priate adjustments.
• The PHASE adjustment range is -16 ~ +16.
• The SIZE adjustment range is -30 ~ +30.
3. Press button.
Screen Setup for PC mode
Screen Setup for PC mode
1. Press the ADJUST button and then use D /Ebutton to select the
RESET option.
2. Press button and then use F /G button to select Yes.
3. Press button.
- To initialize the adjusted values
Close
POSITION G
SIZE
PHASE
RESET
Adjust
D
FG
E
Close
POSITION
SIZE
PHASE
RESET G
Adjust
Initialize Settings
Adjustment for screen Position, Size, and Phase
Initializing (Reset to original factory values)
Position This function is to adjust picture
to left/right and up/down as you
prefer.
Size This function is to minimize any
vertical bars or stripes visible on
the screen background. And the
horizontal screen size will also
change.
Phase This function allows you to remove
any horizontal noise and clear or
sharpen the image of characters.
Mini Glossary

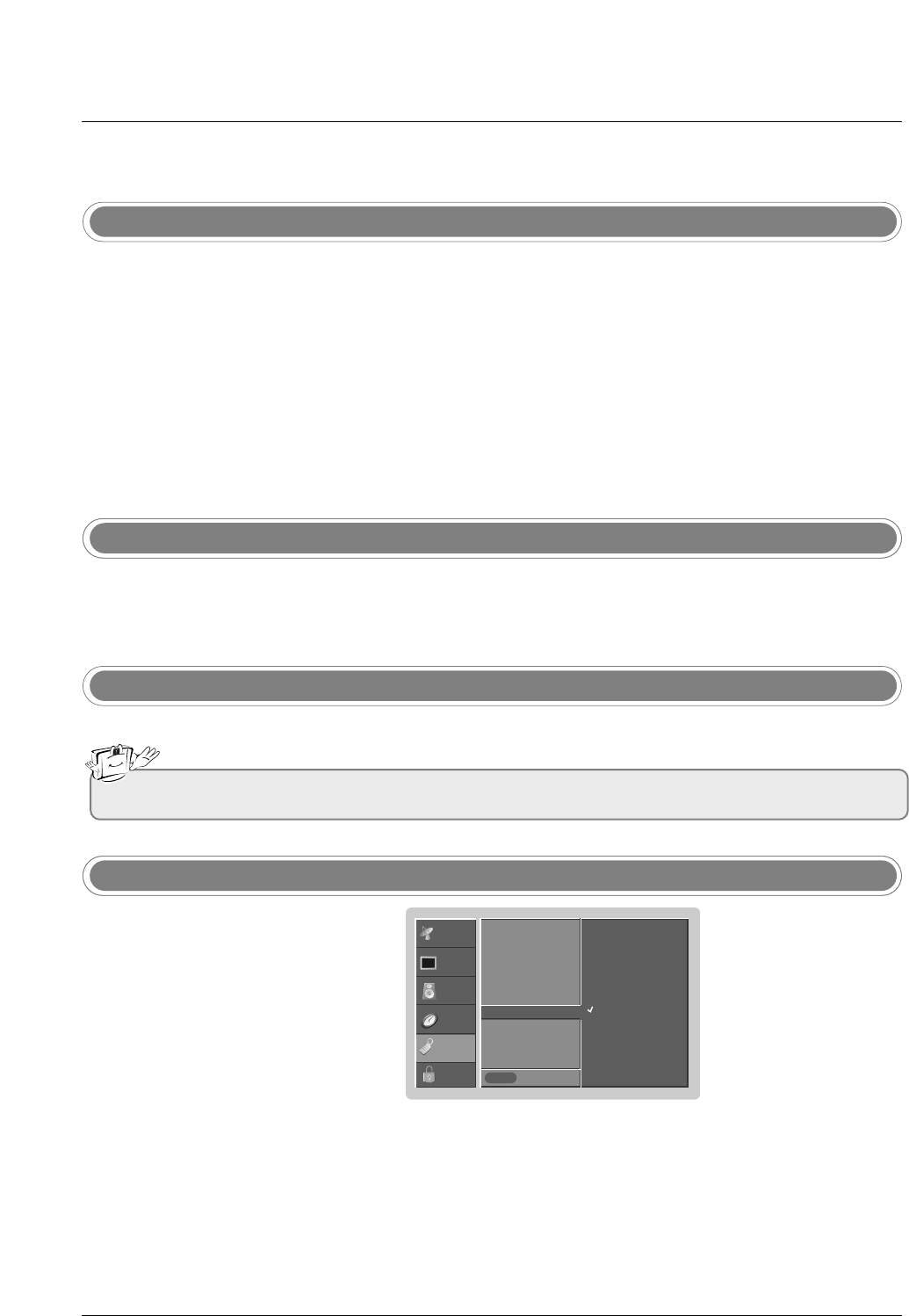

24
Operation
Basic operation
Basic operation
1. First, connect power cord correctly. At this moment, the TV switches to standby mode.
In standby mode to turn TV on, press the ON/OFF button on the TV or press the POWER button on the remote
control.
2. Select the viewing source by using INPUT button on the remote control.
3. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.
1. Press the VOL (+,-) button to adjust the volume.
2. If you want to switch the sound off, press the MUTE button.
3. You can cancel this function by pressing the MUTE or VOL (+,-) button.
Press the CH (+,-) or NUMBER buttons to select a channel number.
• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
- The menus can be shown on the screen
in the selected language. First select

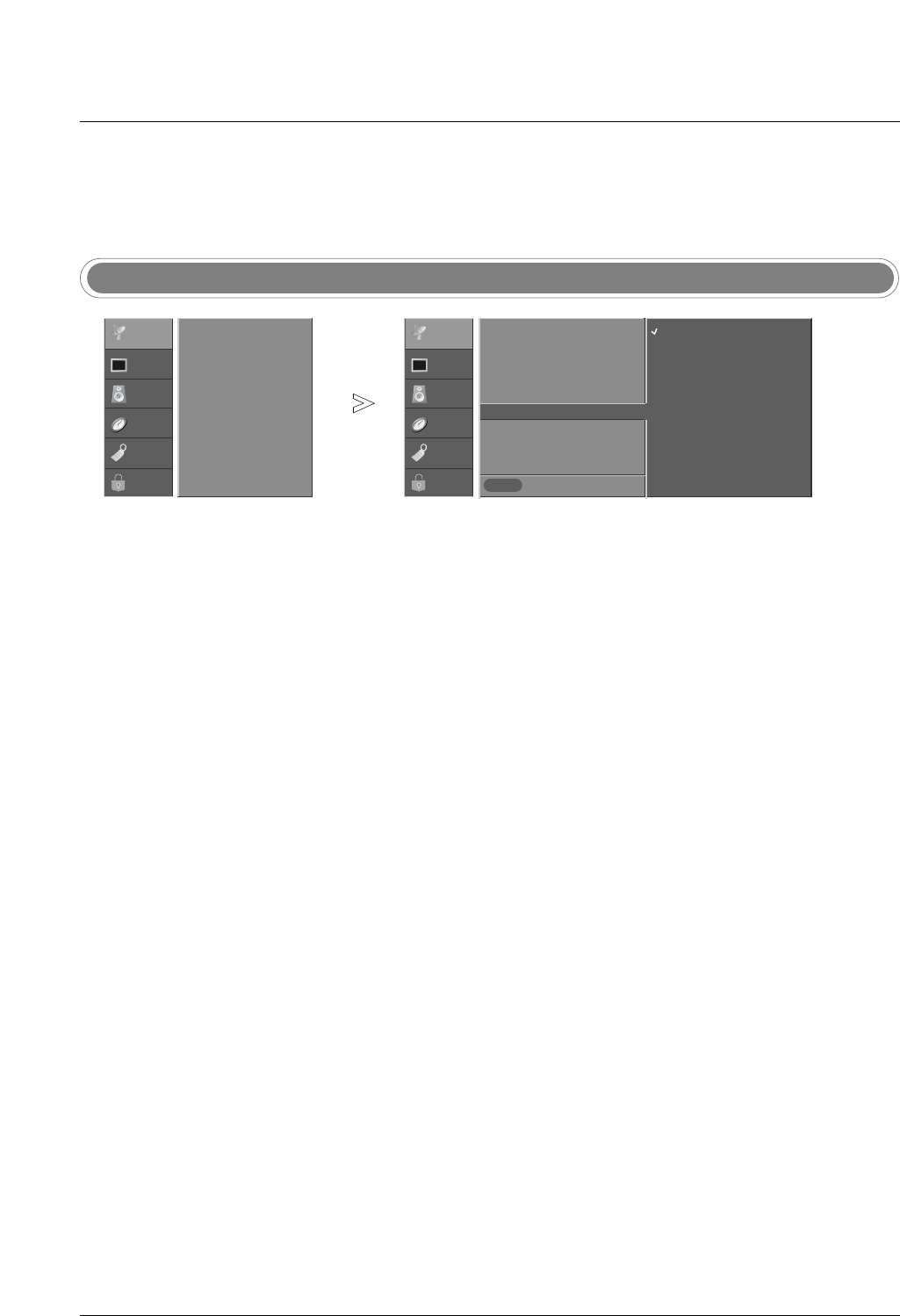

your language.
1. Press the MENU button and then use
D
/
E
button to select the OPTION
menu.
2. Press the Gbutton and then use D/Ebutton to select Language.
3. Press the Gbutton and then use D/Ebutton to select your desired
language. From this point on, the on-screen menus will be shown in
the selected language.
4. Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language GEnglish
Español(Spanish)
Français(French)
MENU
On-screen Menus Language Selection
Volume Adjustment
Turning on the TV
Channel Selection
25
Operation
On Screen Menus Selection and
On Screen Menus Selection and Adjustment
Adjustment

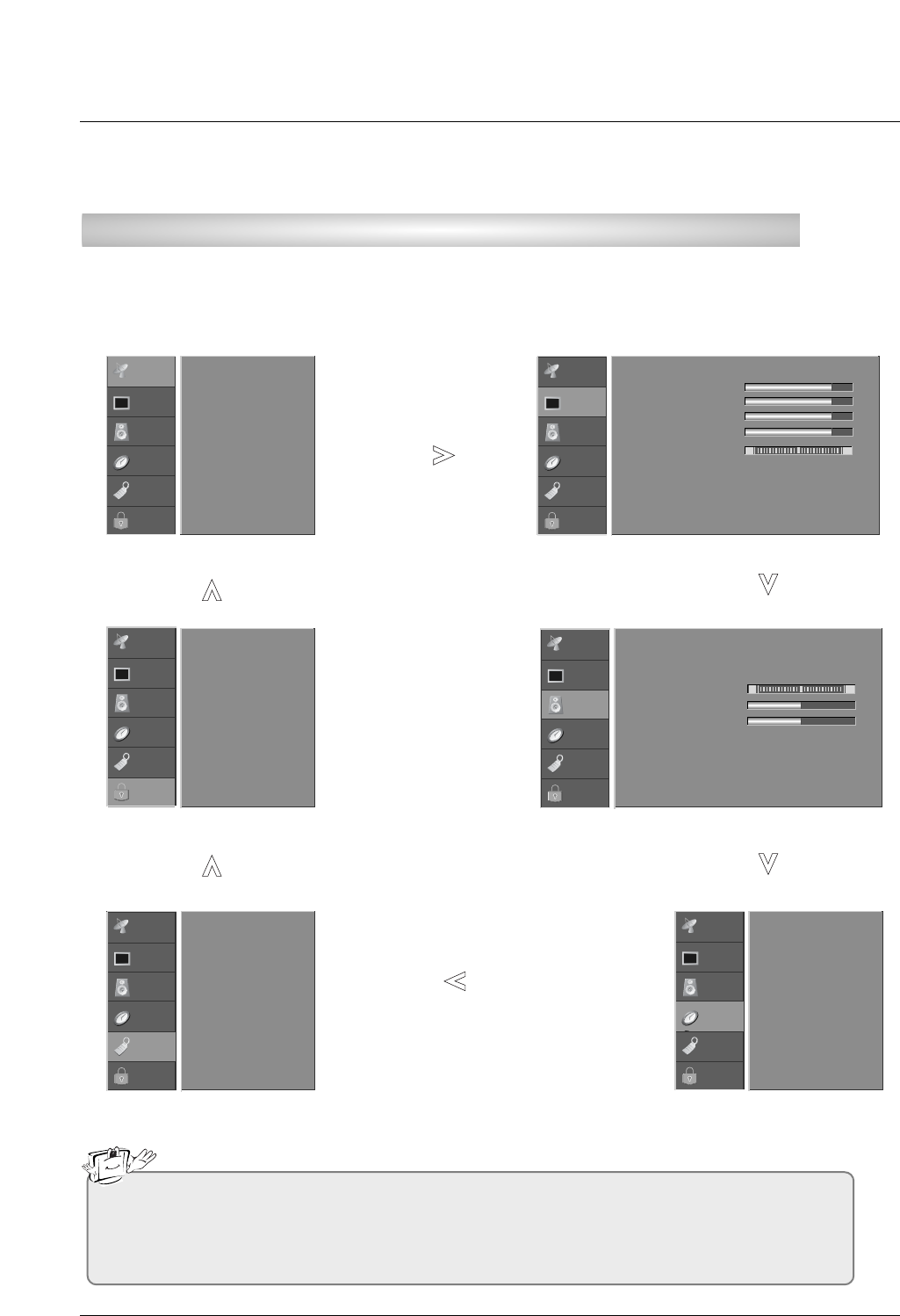

1. Press the MENU button and then D/Ebutton to select each menu.
2. Press the Gbutton and then use D /E/F /Gbutton to display the available menus.
• The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it
provides graphical presentation.
• In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just exam-
ple to help the TV operation.

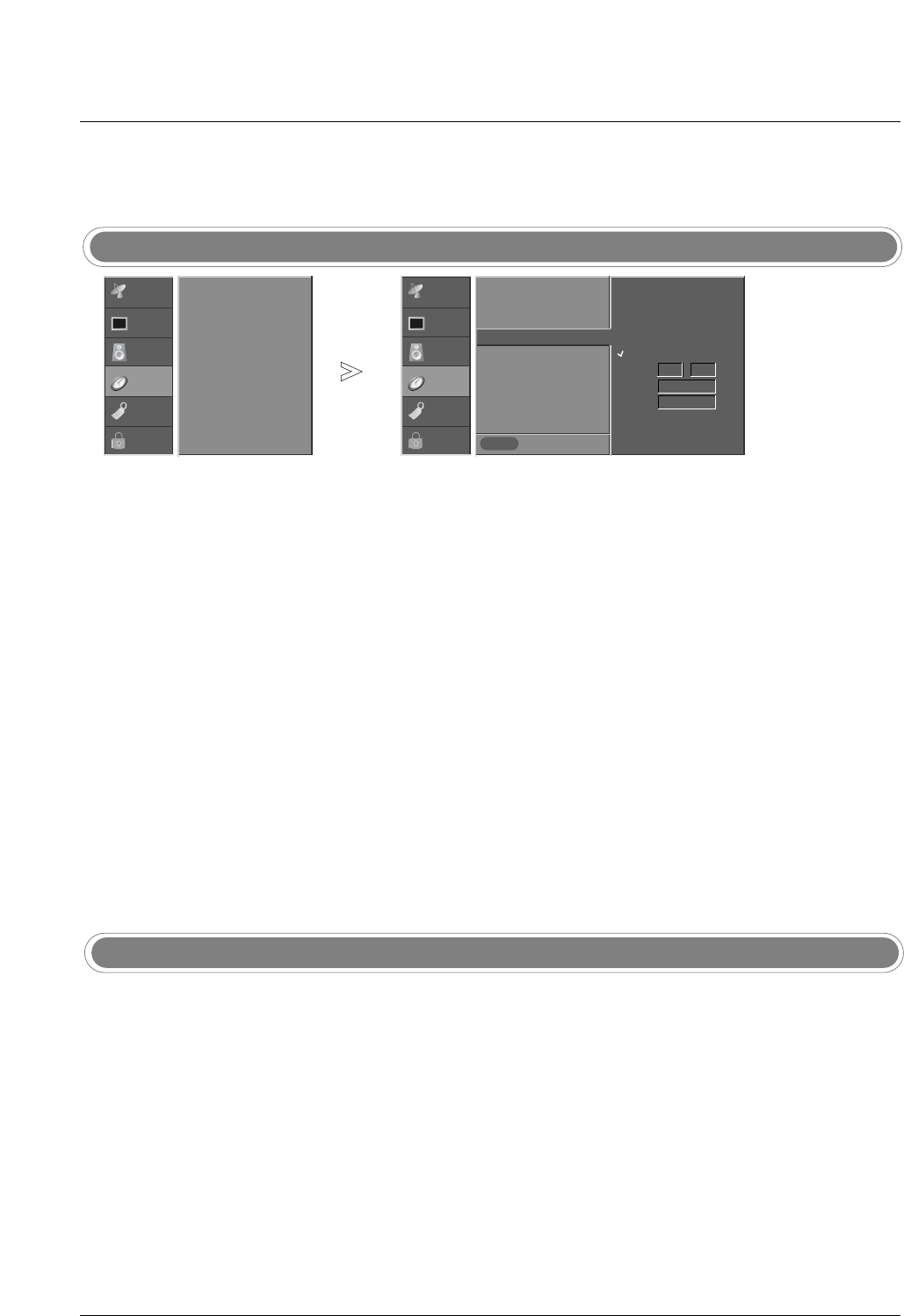

How to adjust the OSD screen
SETUP G
VIDEO
AUDIO
TIME
OPTION
LOCK
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
EZ Picture
Contrast 85
Brightness 50
Color 50
Sharpness 50
Tint 0
Color Temperature
Video Reset
R G
SETUP
VIDEO G
AUDIO
TIME
OPTION
LOCK
Audio Language
EZ SoundRite
EZ Sound
Balance 0
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
L R
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
SETUP
VIDEO
AUDIO
TIME G
OPTION
LOCK
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK G
26
Operation
Setup Menu Options
Setup Menu Options

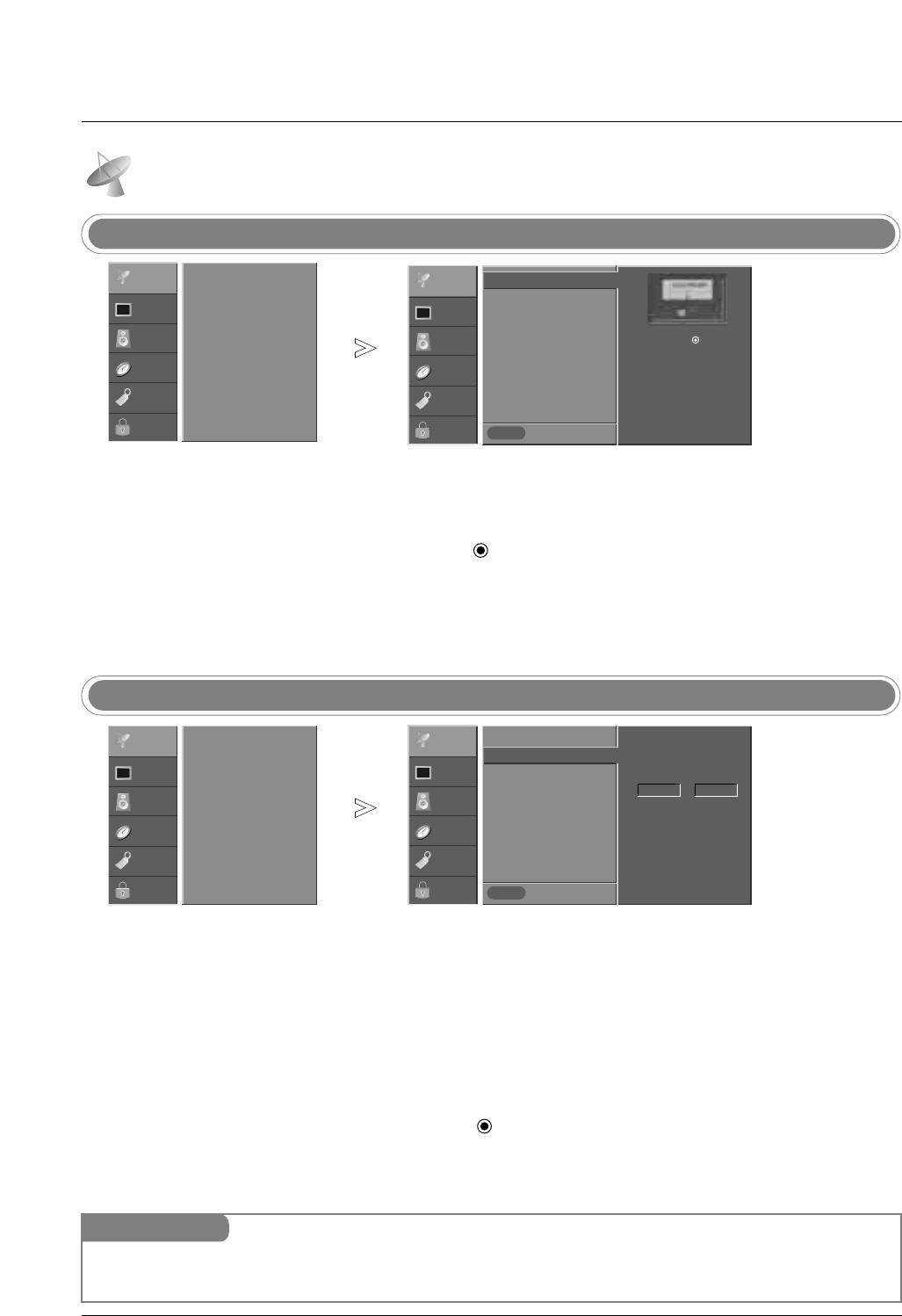

EZ Scan (Channel Search)
Press the MENU button and then use D /Ebutton to select the SETUP menu.
Press the Gbutton and then use D /Ebutton to select EZ Scan.
Press the button to begin the channel search.
Allow EZ Scan to complete the channel search cycle for ANTENNA, and
CABLE.
1
2
3

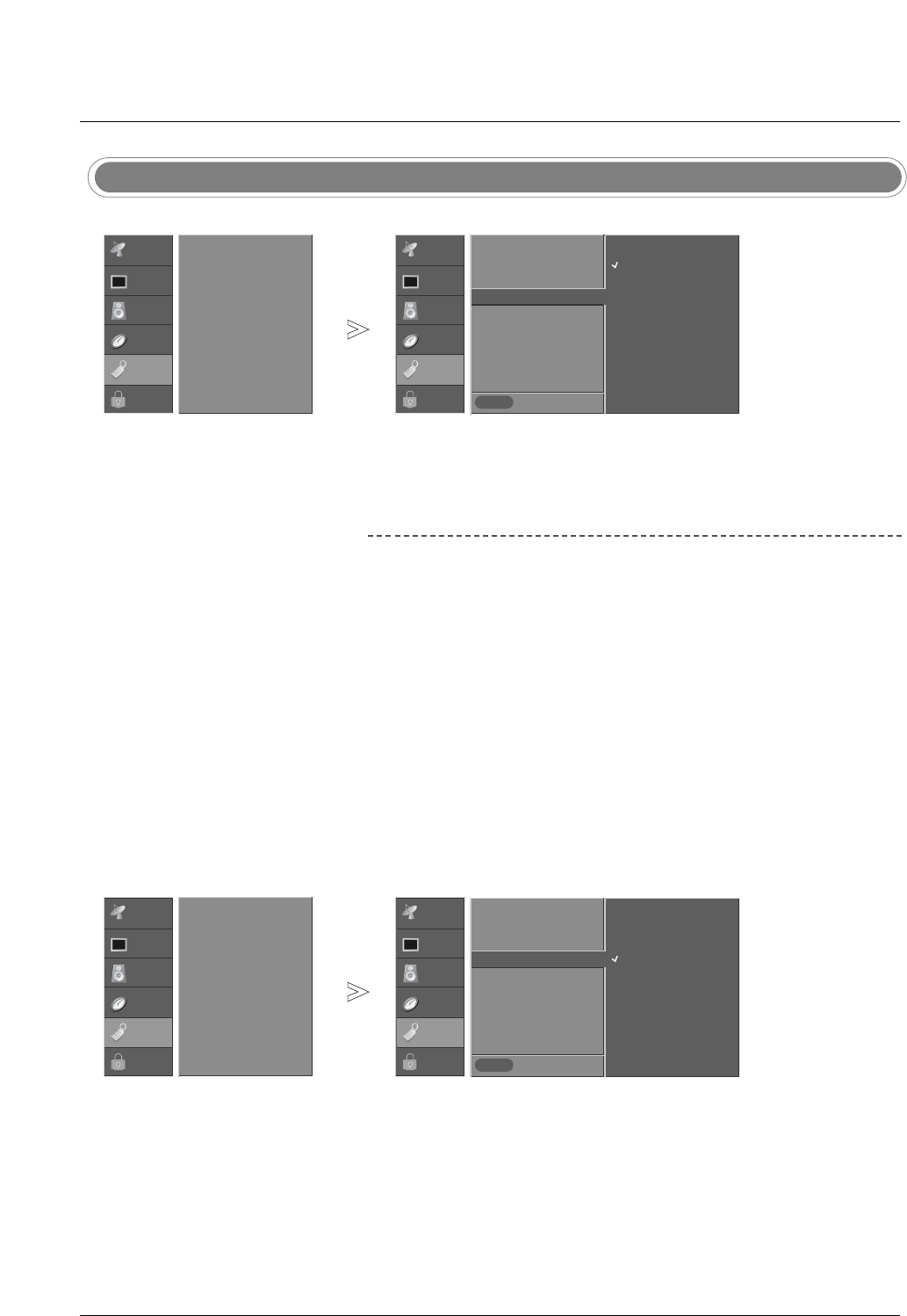

Manual Scan
- A password is required to gain
access to Manual Scan menu if
the Lock System is turned on.
- This channel number is a physi-
cal channel number, which is dif-
ferent from the normal channel
number shown in Channel Edit.
Press the MENU button and then use D /Ebutton to select the SETUP menu.
Press the Gbutton and then use D /Ebutton to select Manual Scan.
Press the Gbutton and then use D /Ebutton to select TV, DTV, CATV,
and CADTV.
Press the Gbutton and then use D /Ebutton to select channel num-
ber you want to add or delete.
Press the button to add or delete for the channel number.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
6
Previous
MENU
EZ Scan G
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
Selection ( Gor ) leads you
to the EZ scan screen.
Previous
MENU
EZ Scan
Manual Scan G
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
Select channel type and
RF-channel number.
TV 2
Mini Glossary
TV Analog antenna (over-the-air) TV signal
DTV Digital antenna (over-the-air) TV signal
CATV Analog cable TV signal
CADTV Digital cable TV signal
- Automatically finds all channels
available through antenna or
cable inputs, and stores them in
memory on the channel list.
- Run EZ Scan again after any
Antenna/Cable connection changes.
- A password is required to gain
access to EZ Scan menu if the
Lock System is turned on.
SETUP G
VIDEO
AUDIO
TIME
OPTION
LOCK
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
SETUP G
VIDEO
AUDIO
TIME
OPTION
LOCK
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
27
Operation

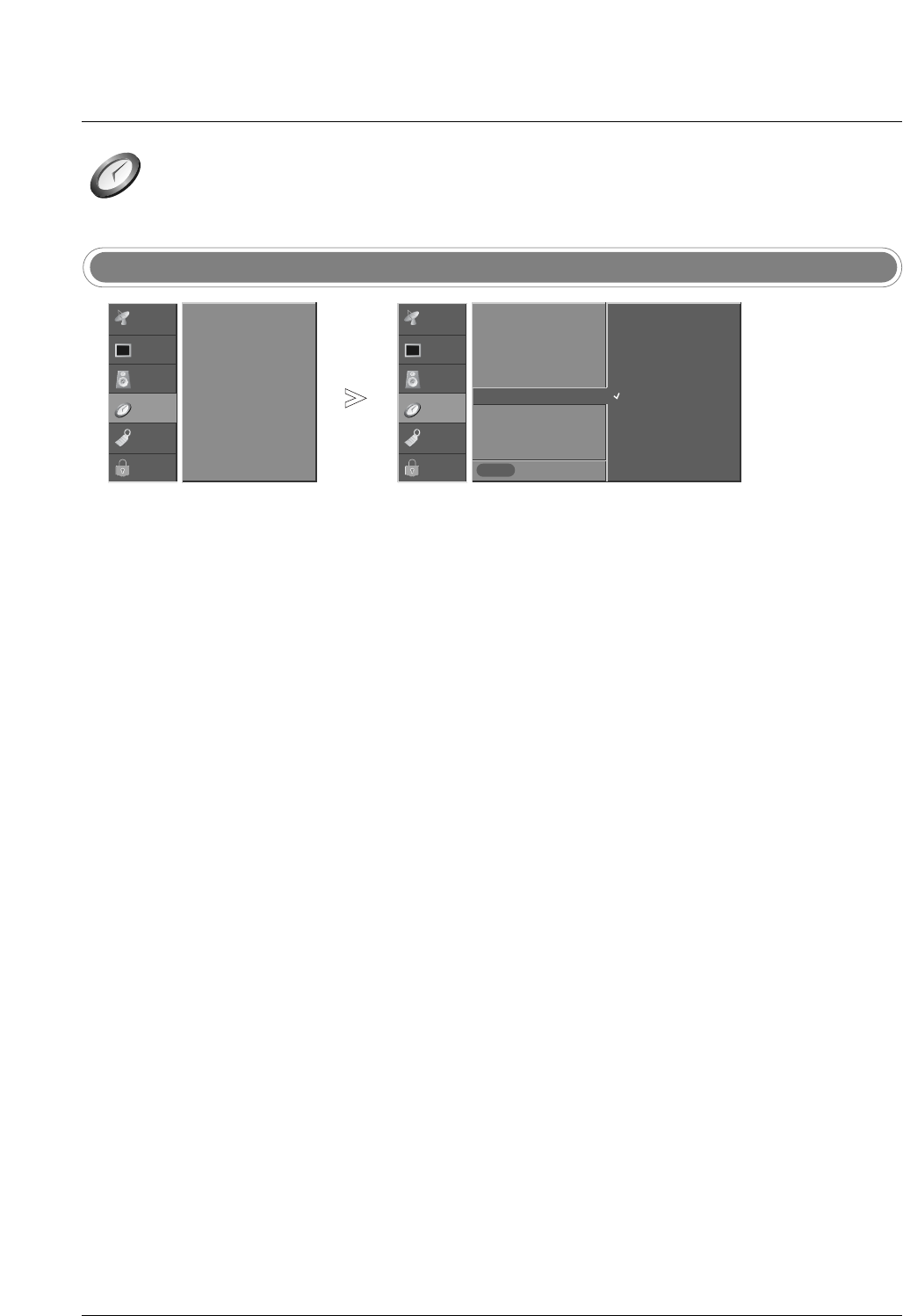

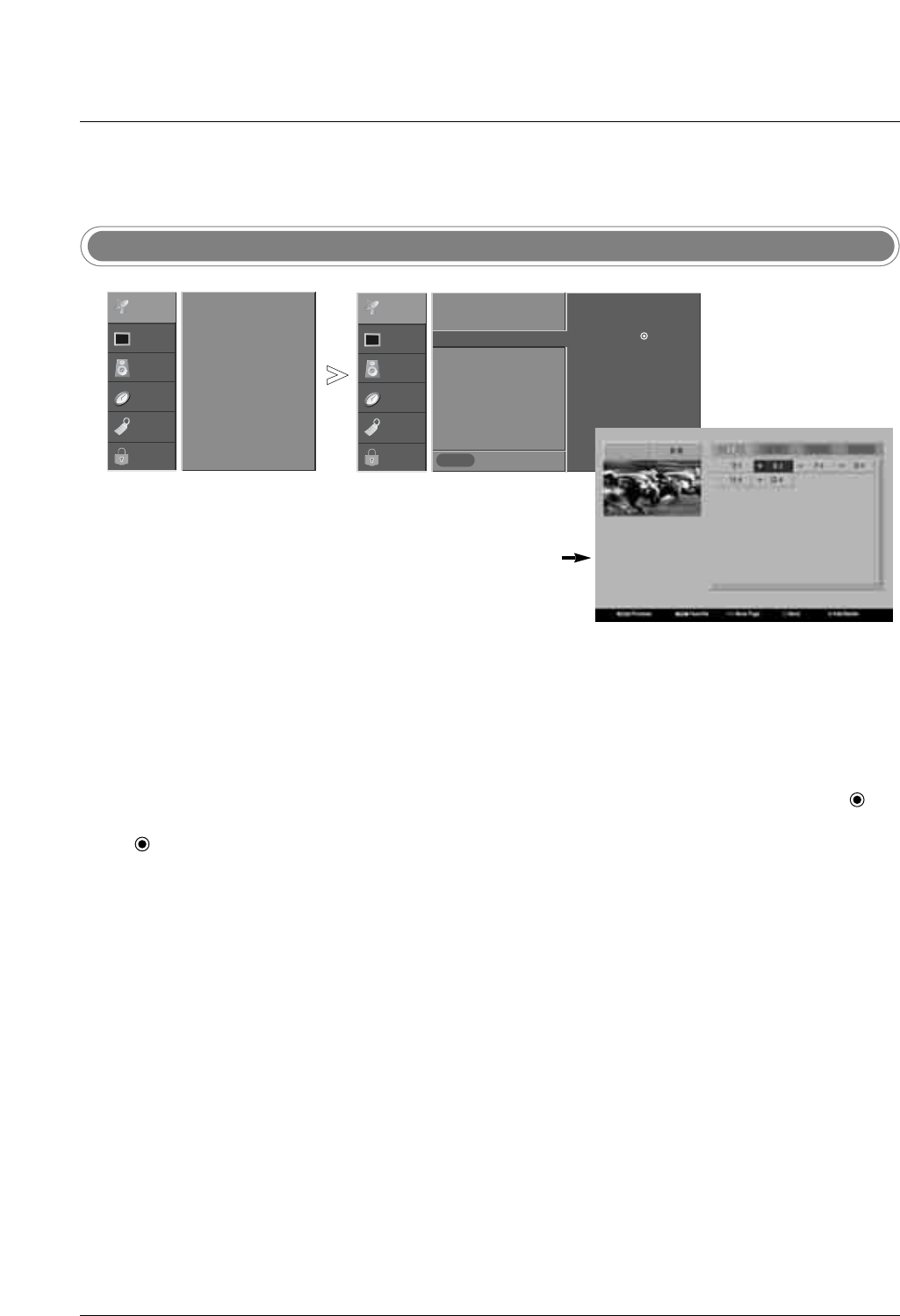

Channel Edit
- There are two different ways in
order to add or delete scanned
channels. One is "Custom List"
and the other is "Favorite List" in
the channel list. Both of them are
available after EZ Scan on the
SETUP menu.
- A Custom List can be created by
toggling each channel on or off
with button. The channels in
the Custom List are displayed in
black color, and the channels
deleted from the Custom List are
displayed in gray color. Once a
channel is highlighted you can
add or delete the channel by
referring to the small window at
the top-left corner of the
screen.You can create your own
Favorite List. Use the FAV button
on the remote control when a
channel is highlighted and then
you can add or delete the chan-
nel to/from the Favorite List.
Press the MENU button and then use D /Ebutton to select the SETUP menu.
Press the Gbutton and then use D /Ebutton to select Channel Edit.
Press the Gbutton. You will now see a screen filled with channel num-
bers and a preview picture.
Use D /E/F /G button to select a channel and then use the but-
ton to add or delete it. Press FAV button to add the channel. The heart-
mark will appear in front of that channel number.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
Previous
MENU
EZ Scan
Manual Scan
Channel Edit G
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
Selection ( Gor ) leads you
to the channel edit screen.
SETUP G
VIDEO
AUDIO
TIME
OPTION
LOCK
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
* Custom List
28
Operation

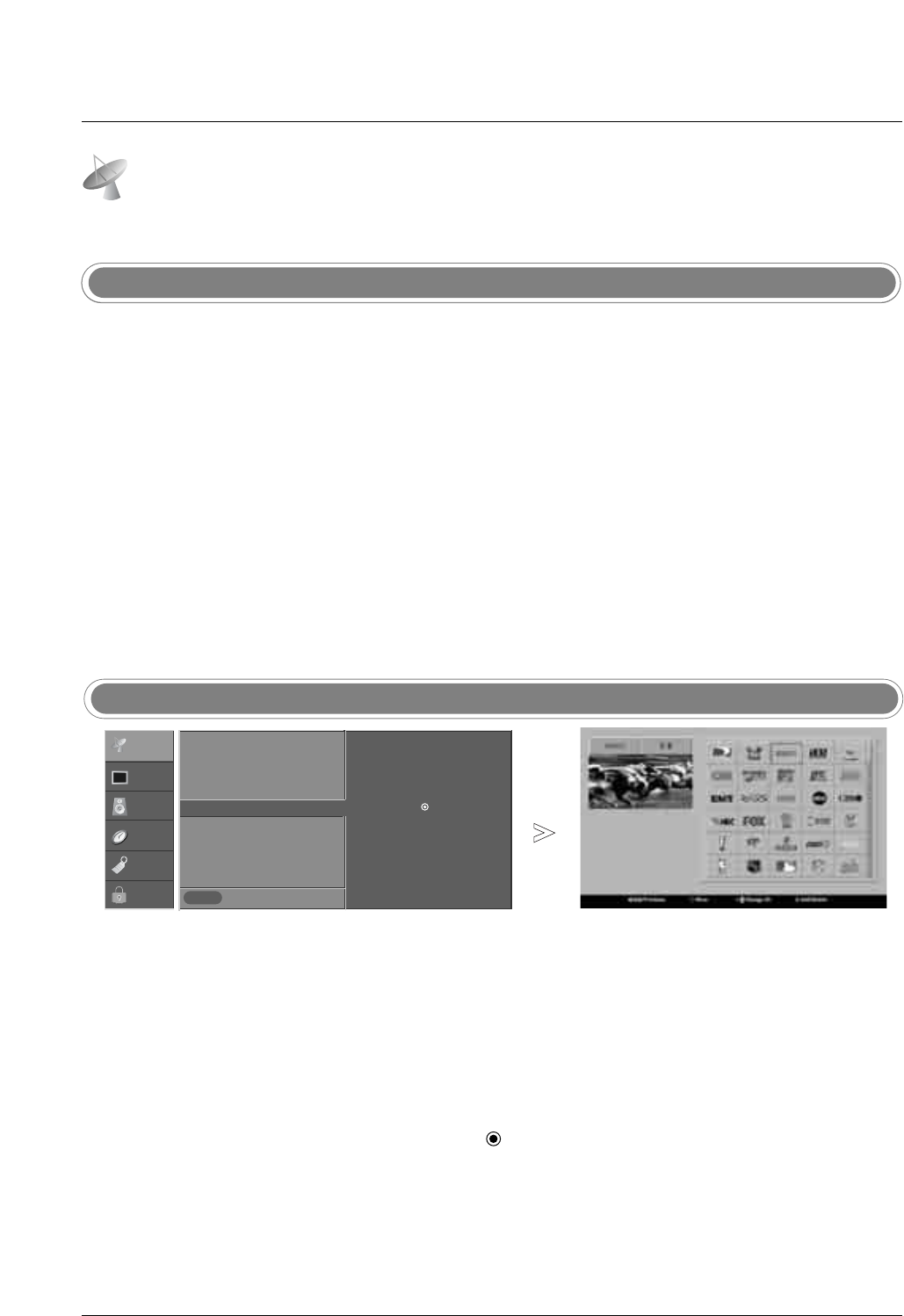

Setup Menu Options continued
Setup Menu Options continued
DTV Signal Strength
- Reveals how strong your DTV signal is
and whether you need to adjust your
antenna or digital cable input. The high-
er the signal strength, the less likely you
are to experience picture degradation.
- Digital DTV Signals: May not be avail-
able in all areas, nor are broadcast on
all programs.
1. Press the SIGNAL button.
2. View the on-screen signal strength monitor to see the quality of the
signal being received.
• You can also check the DTV Signal strength with the SETUP menu.
Channel Label Setup
- Choose preset labels for your
channels.
- If a channel label is provided on
the signal from the broadcasting
station, the TV displays a short
name for a channel: even if you
didn't preset a label for the chan-
nel.
Press the MENU button and then use D /Ebutton to select the SETUP menu.
Press the Gbutton and then use D /Ebutton to select Channel Label.
Press the Gbutton. You will now see a screen filled with Labels and a
preview screen.
Use the CH +/- button to select a channel to Label.
Use D /E/F /G button to select the appropriate label for the channel,
then press button to set the Label to the selected channel.
1
2
3
4
5
Previous
MENU
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label G
Main Input
Sub Input
Set ID
Selection ( Gor ) leads you
to the channel logo screen.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
29
Operation
Main Picture Source Selection
- Changes the picture source so
you can watch your TV, cable TV,
VCR, DVD, or any other devices
that are connected to your TV.
Press the MENU button and then use D /Ebutton to select the SETUP menu.
Press the Gbutton and then use D /Ebutton to select Main Input.
Press the Gbutton and then use D /Ebutton to select the source:
Antenna, Cable, AV1, AV2, Component1, Component2, RGB1-DTV (or
RGB1-PC), RGB2-DTV (or RGB2-PC), DVI.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input G
Sub Input
Set ID
Antenna
Cable
AV1
AV2
Component1
Component2
RGB1-DTV
RGB2-DTV
DVI
SETUP G
VIDEO
AUDIO
TIME
OPTION
LOCK
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
30
Operation

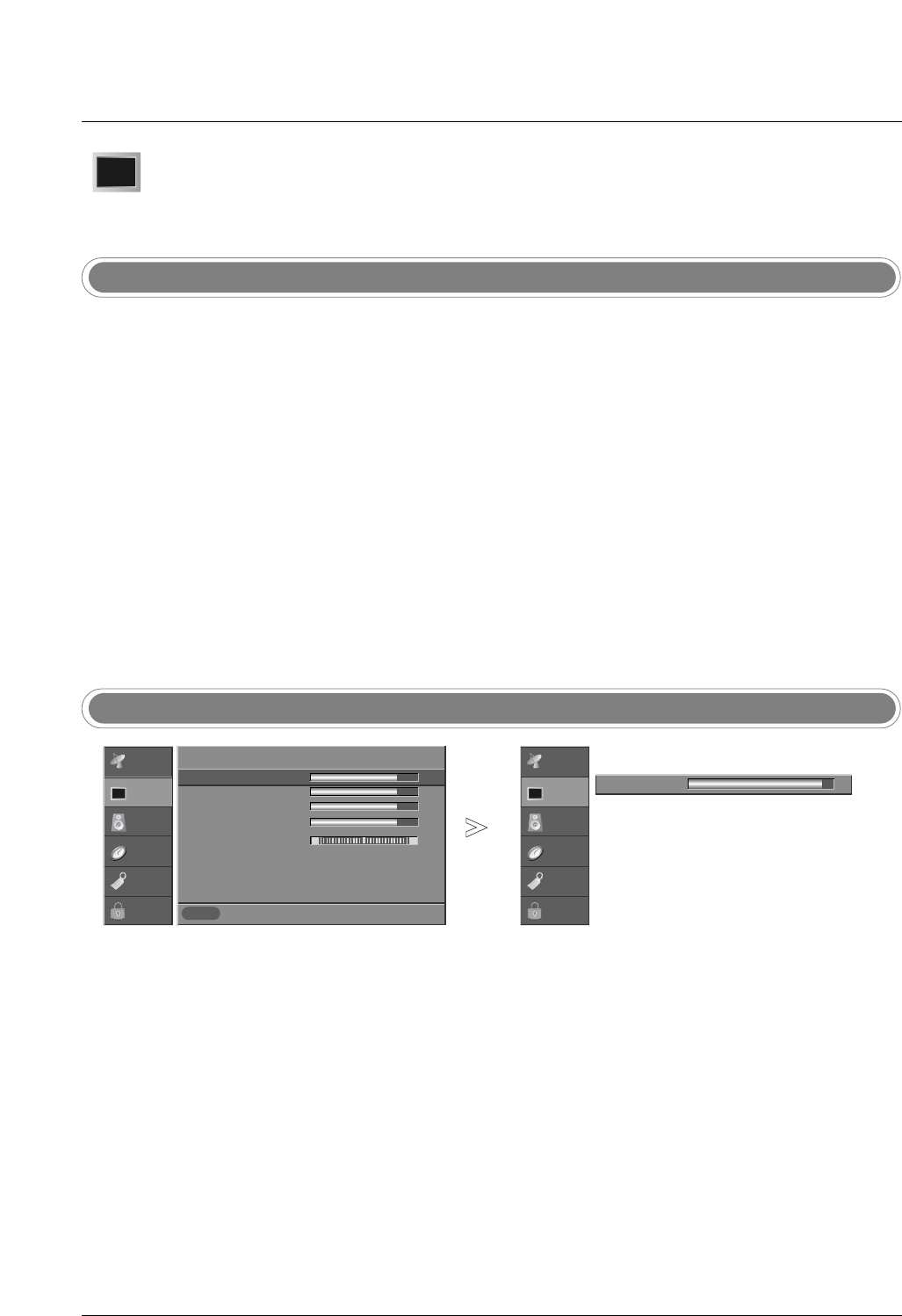

EZ Picture
Manual Picture Control (EZ Picture-Custom option)
1. Press the EZ PIC button repeatedly to select the picture appearance
setup option as shown below: Custom (your own settings),
Daylight,Normal,Night Time,Movie,Video Game, and
Sports.
• You can also use the VIDEO menu to adjust EZ Picture.
2. Press the EXIT button to save and return to TV viewing.
- EZ Picture adjusts the TV for the best
picture appearance. Select the preset
value in the EZ Picture menu based on
the program category.
- When adjusting Video menu options (con-
trast, brightness, color, sharpness, tint,
and color temperature) manually, EZ
Picture automatically changes to Custom.
-Daylight,Normal,Night Time,
Movie,Video Game, and Sports set-
tings are preset for optimum picture qual-
ity at the factory and are not adjustable.
V
Video Menu Options
ideo Menu Options
Press the MENU button and then use D /Ebutton to select the VIDEO menu.
Press the Gbutton and then use D /Ebutton to select the desired pic-
ture option (Contrast,Brightness,Color,Sharpness, or Tint).
Press the Gbutton and then use F
/Gbutton to make appropriate adjustments.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
- Adjust the picture appearance to
suit your preference and view-
ing situations.
Previous
MENU
EZ Picture
Contrast 85 G
Brightness 50
Color 50
Sharpness 50
Tint 0
Color Temperature
Video Reset
R G
Contrast 90 F G
E
SETUP
VIDEO G
AUDIO
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
31
Operation

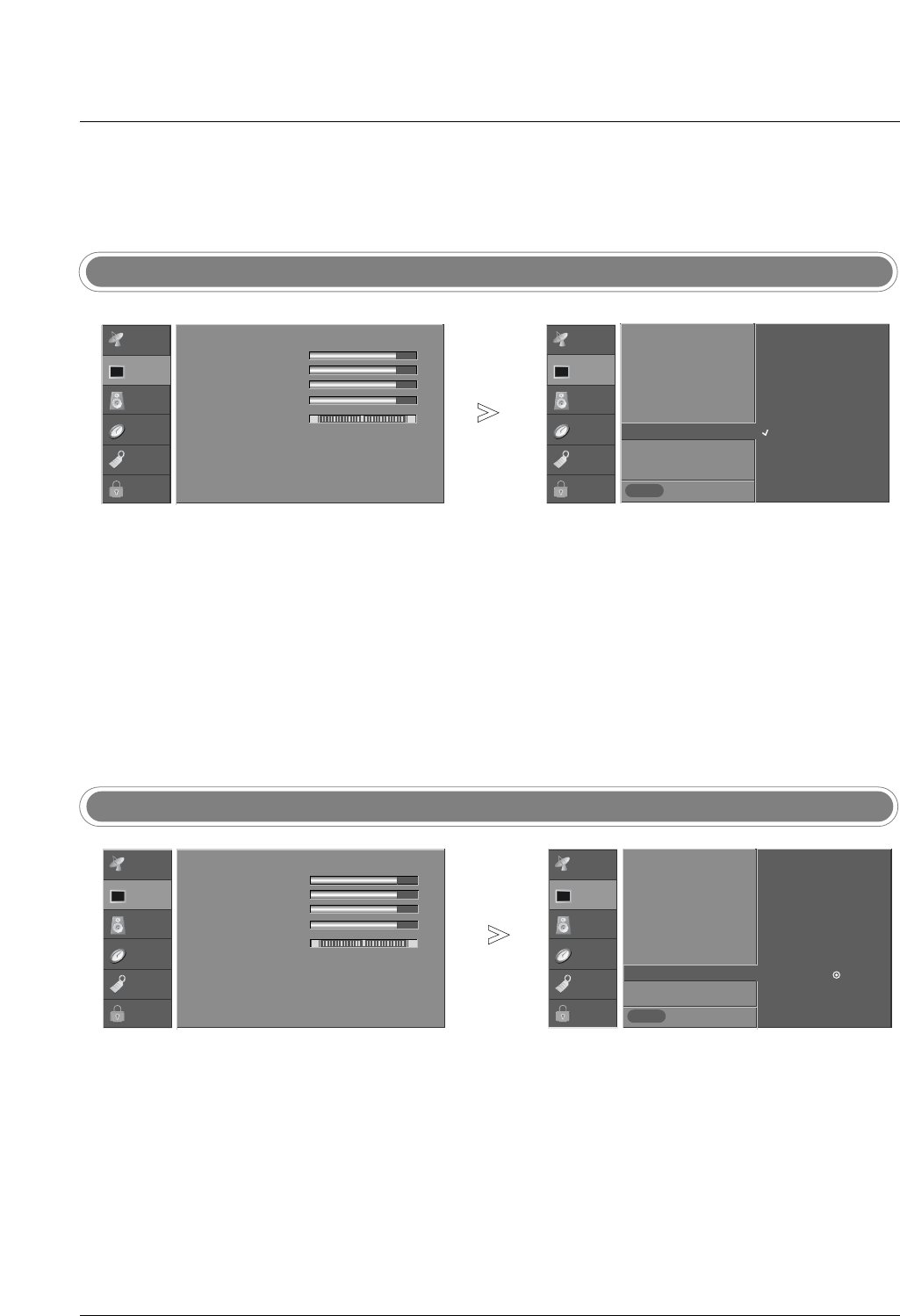

Color Temperature Control
Previous
MENU
EZ Picture
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature G
Video Reset
Cool
Medium
Warm
EZ Picture
Contrast 85
Brightness 50
Color 50
Sharpness 50
Tint 0
Color Temperature
Video Reset
R G
- Choose one of three automatic
color adjustments. Set to warm
to enhance hotter colors such as
red, or set to cool to see less
intense colors with more blue.
Press the MENU button and then use D
/Ebutton to select the VIDEO menu.
Press the Gbutton and then use D
/Ebutton to select Color Temperature.
Press the Gbutton and then use D /Ebutton to select either Cool,
Medium, or Warm.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
SETUP
VIDEO G
AUDIO
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
MENU
EZ Picture
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature
Video Reset GSelection ( Gor ) resets to
the factory settings (default).
- Use to quickly reset all the Video
menu options to their original
factory preset values.
Press the MENU button and then use D
/Ebutton to select the VIDEO menu.
Press the Gbutton and then use D /Ebutton to select Video Reset.
Press the Gbutton to reset the Video menu options to original values.
1
2
3
Video Reset
EZ Picture
Contrast 85
Brightness 50
Color 50
Sharpness 50
Tint 0
Color Temperature
Video Reset
R G
SETUP
VIDEO G
AUDIO
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
32
Operation

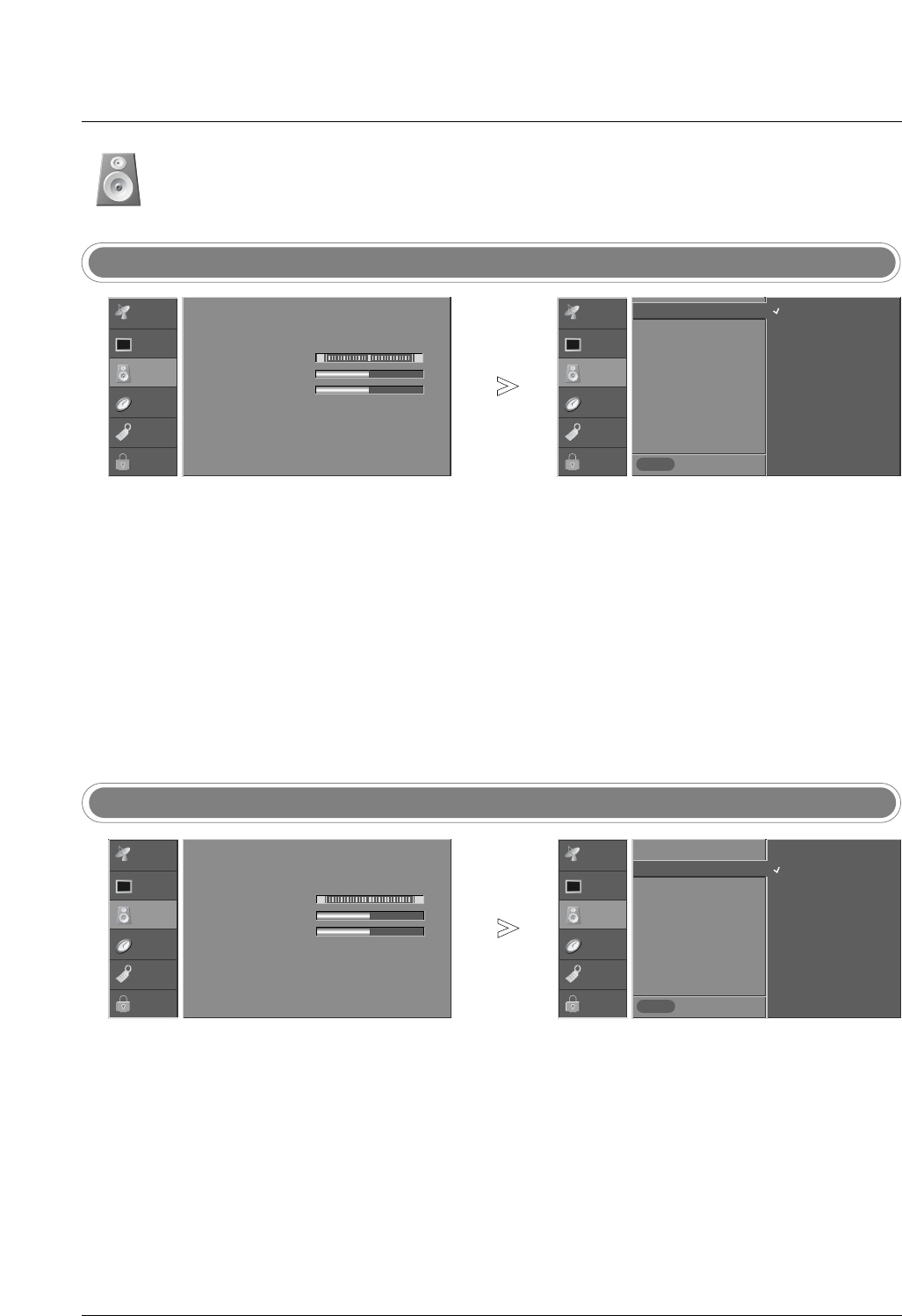

Audio Menu Options
Audio Menu Options
- Other languages may be available
if a digital signal is provided by the
broadcasting station.
Audio Language
Previous
MENU
Audio Language G
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker
BBE
English
Spanish
French
Press the MENU button and then use D /Ebutton to select the
AUDIO menu.
Press the Gbutton and then use D /Ebutton to select Audio Language.
Press the Gbutton and then use D /Ebutton to select: English,
Spanish, or French.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Audio Language
EZ SoundRite
EZ Sound
Balance 0
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
L R
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
- Scans for changes in sound
level during commercials, then
adjusts the sound to match the
specified audio level. EZ
SoundRite makes sure that the
volume level remains consistent
whether you are watching a
commercial or a regular TV pro-
gram.
EZ SoundRite
Previous
MENU
Audio Language
EZ SoundRite G
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker
BBE
Off
On
Press the MENU button and then use D /Ebutton to select the
AUDIO menu.
Press the Gbutton and then use D /Ebutton to select EZ SoundRite.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Audio Language
EZ SoundRite
EZ Sound
Balance 0
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
L R
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
33
Operation
Manual Sound Control (EZ Sound-Custom option)
- Adjust the sound to suit your
taste and room situations.
Press the MENU button and then use D /Ebutton to select the
AUDIO menu.
Press the Gbutton and then use D /Ebutton to select the desired
sound option (Balance,Treble, or Bass).
Press the Gbutton and then use F /Gbutton to make appropriate
adjustments.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Audio Language
EZ SoundRite
EZ Sound
Balance 0 G
Treble 80
Bass 80
Front Surround
TV Speaker
BBE
L R
E
Balance 0 F G
L R
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
EZ Sound
1. Press the EZ SOUND button repeatedly to select the sound setup as
shown below: Custom (your own settings), Normal,Stadium,
News,Music, and Theater.
• You can also use the AUDIO menu to adjust EZ Sound.
2. Press the EXIT button to save and return to TV viewing.
- EZ Sound lets you enjoy the best sound
without any special adjustment because
the TV sets the appropriate sound
options based on the program content.
- When adjusting sound options (treble,
bass, and front surround) manually, EZ
Sound automatically switches Custom
-Normal,Stadium,News,Music,
and Theater are preset for good sound
quality at the factory and are not
adjustable.
34
Operation

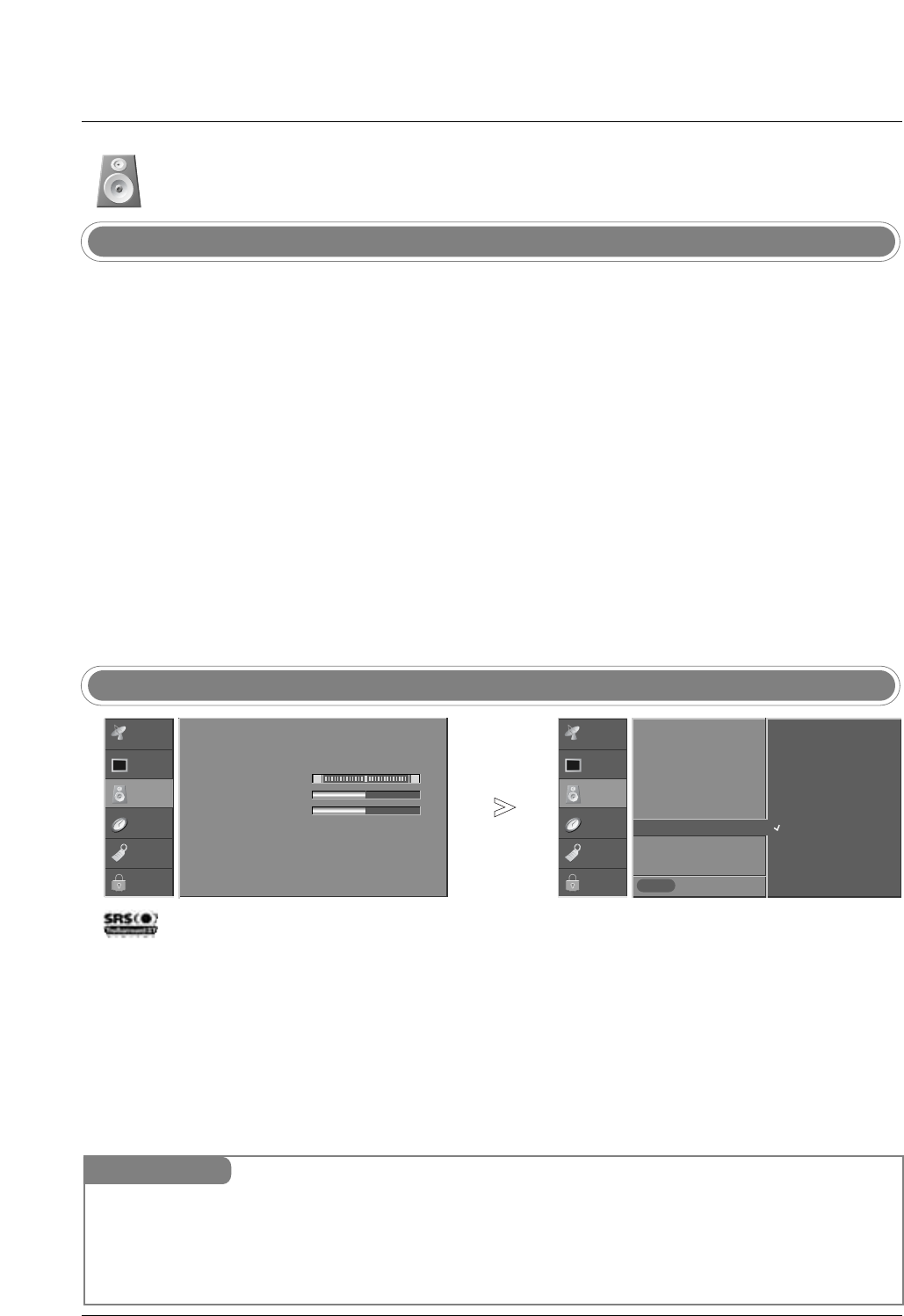

Audio Menu Options continued
Audio Menu Options continued
1. Use the SAP button to select your desired MTS mode in analog sig-
nal. Each time you press the SAP button, Mono,Stereo,or SAP
appear in turn.
• If other languages available on the digital signal, select them with
the SAP button.
2. Press EXIT button to save and return to TV viewing.
Stereo/SAP Broadcasts Setup
- is a trademark of SRS
Labs, Inc.
- TruSurround XT technology is
incorporated under license from
SRS Labs, Inc.
- Manufactured under license from
Dolby Laboratories. “Dolby” and
the double-D symbol are trade-
marks of Dolby Laboratories.
Front Surround
Press the MENU button and then use D /Ebutton to select the
AUDIO menu.
Press the Gbutton and then use D /Ebutton to select Front
Surround.
Press the Gbutton and then use D /Ebutton to select Off,3D
EchoSound System or SRS (Sound Retrieval System) TruSurround XT.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Audio Language
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround G
TV Speaker
BBE
Off
3D EchoSound System
SRS TruSurround XT
Audio Language
EZ SoundRite
EZ Sound
Balance 0
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
L R
Mini Glossary
SRS TruSurround XT
Takes advantage of any multi-channel format without needing to add extra speakers or equipment. Dialog clarity, bass enrichment,
and the addition of stereo audio enhancement that produces an immersive sound experience from standard stereo material.
3D EchoSound System
Creates a stunning simulated stereo effects from any mono sound and a realistic three-dimensional sound with a very wide and
deep sound stage from stereo sound.
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
- This TV can receive MTS stereo pro-
grams and any SAP (Secondary Audio
Program) that accompanies the stereo
program; if the station transmits an
additional sound signal as well as the
original one.
- When having selected Stereo or SAP
button on the remote control, this TV
can only receive the signal in case that
the TV station transmits the proper sig-
nals.
- Mono sound is automatically received
if the broadcast is only in Mono; even
though Stereo or SAP has been
selected.
- Select Mono if you want to listen to the
mono sound in remote fringe areas
during stereo/SAP broadcasting.
- Stereo or SAP can be received in
Analog channel.
35
Operation
- BBE High Definition Sound
restores clarity and presence for
better speech intelligibility and
music realism.
TV Speakers On/Off Setup
- Turn TV speakers off if using
external audio equipment.
Feature turns the TV Speakers
option On or Off.
BBE
Press the MENU button and then use D /Ebutton to select the
AUDIO menu.
Press the Gbutton and then use D /Ebutton to select BBE.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Audio Language
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker G
BBE
Off
On
Press the MENU button and then use D /Ebutton to select the
AUDIO menu.
Press the Gbutton and then use D /Ebutton to select TV Speaker.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Audio Language
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker
BBE G
Off
On
Audio Language
EZ SoundRite
EZ Sound
Balance 0
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
L R
Audio Language
EZ SoundRite
EZ Sound
Balance 0
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
L R
•Manufactured under license from BBE Sound, Inc.
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO G
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
36
Operation
T

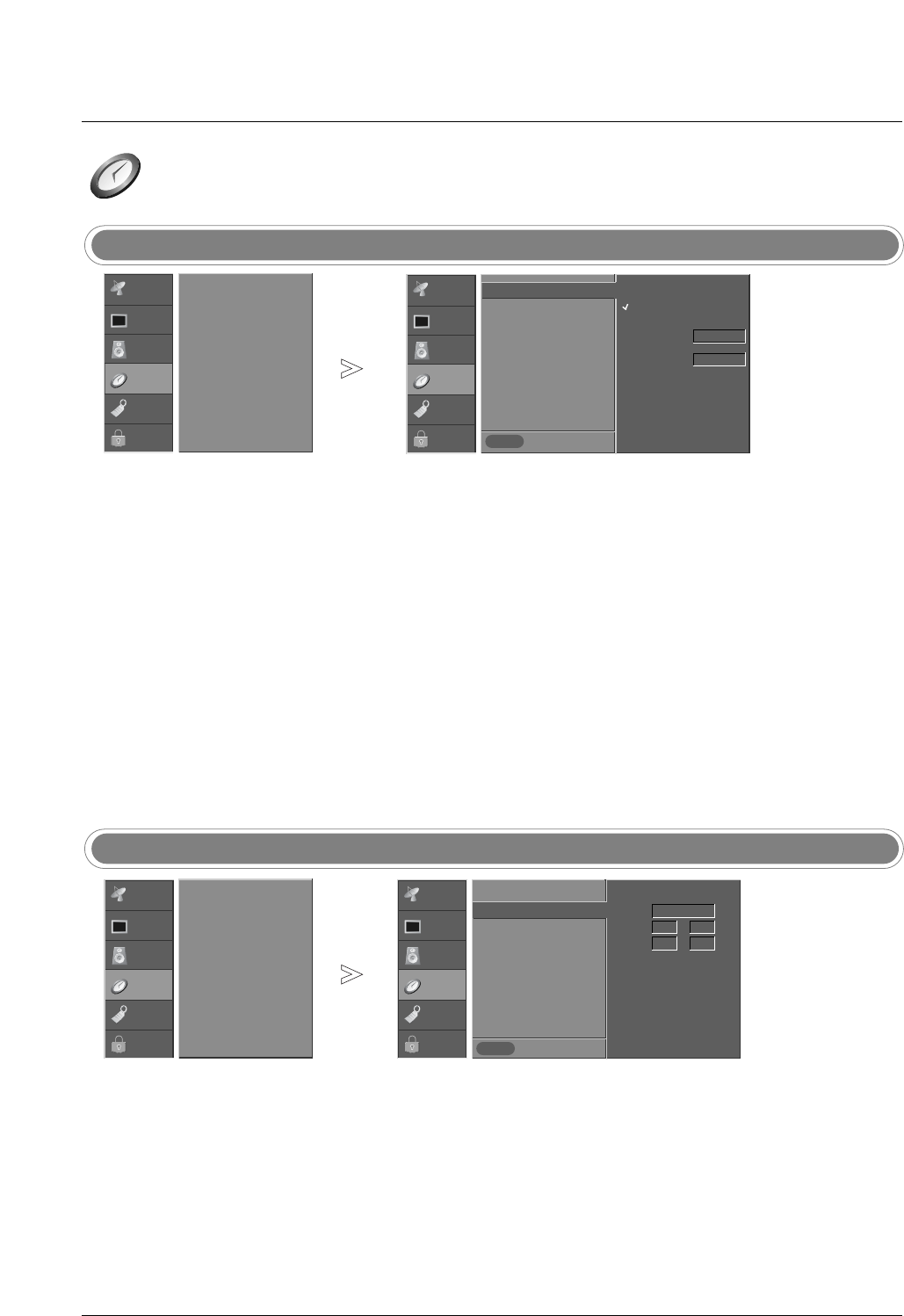

Time Menu Options
ime Menu Options
- If current time setting is wrong,
reset the clock manually.
Auto Clock Setup
Manual Clock Setup
Press the MENU button and then use D /Ebutton to select the TIME menu.
Press the Gbutton and then use D /Ebutton to select Auto Clock.
Press the Gbutton and then use D /Ebutton to select On.
Press the Gbutton and then use D /Ebutton to select your viewing
area time zone: Eastern,Central,Mountain,Pacific,Alaska, or
Hawaii.
Press the Gbutton and then use D /Ebutton to select Auto,Off,On,
depending on whether or not your viewing area observes Daylight
Saving time.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
6
Press the MENU button and then use D /Ebutton to select the TIME menu.
Press the Gbutton and then use D /Ebutton to select Manual
Clock.
Press the Gbutton and then use F /Gbutton to select either the year,
date, or time option. Once selected, use the D /Ebutton to set the year,
date, and time options.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Previous
MENU
Auto Clock
Manual Clock G
Off Timer
On Timer
Sleep Timer
Auto Off
Year - - - -
Date - - / - -
Time - - : - - - -
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
- The time is set automatically
from a digital channel signal.
- The digital channel signal
includes information for the cur-
rent time provided by the broad-
casting station.
- Set the clock manually, if the cur-
rent time is set incorrectly by the
auto clock function.
SETUP
VIDEO
AUDIO
TIME G
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME G
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
MENU
Auto Clock G
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
Time Zone Eastern
Auto
Daylight
Saving
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
37
Operation
On/Off Timer Setup
Sleep Timer
- Timer function operates only if
current time has been set.
- Off-Timer function overrides On-
Timer function if they are set
both set to the same time.
- The TV must be in standby mode
for the On-Timer to work.
- If you do not press any button
within 2 hours after the TV turns
on with the On Timer function,
the TV will automatically revert to
standby mode.
- The Sleep Timer turns the TV off
at the preset time. Note that this
setting is cleared when the TV is
turned off.
- You can also set up the Sleep
Timer in the TIME menu.
Press the MENU button and then use D /Ebutton to select the TIME menu.
Press the Gbutton and then use D /Ebutton to select Off Timer or
On Timer.
Press the Gbutton and then use D /Ebutton to select On.
• To cancel On/Off Timer function, select Off.
Press the Gbutton and then use D /Ebutton to set the hour.
Press the Gbutton and then use D /Ebutton to set the minutes.
For only On Timer function
Press the Gbutton and then use D /Ebutton to select the channel at
turn-on.
Press the Gbutton and then use D /Ebutton to set the sound level at
turn-on.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
6
7
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
SETUP
VIDEO
AUDIO
TIME G
OPTION
LOCK
Press the TIMER button repeatedly to select the number of minutes.
When the Off option appears on the screen, highlight one of the fol-
lowing sleep timer options by using the navigation : 10, 20, 30, 60, 90,
120, 180, and 240 minutes.
When the number of minutes you want is displayed on the screen,
press the ENTER button. The timer begins to count down from the
number of minutes selected.
To check the remaining minutes before the TV turns off, press the
TIMER button once.
To cancel the Sleep Timer, press the TIMER button repeatedly to
select Off.
1
2
3
4
Previous
MENU
Auto Clock
Manual Clock
Off Timer
On Timer G
Sleep Timer
Auto Off
Off
On
Time 6 : 30 AM
Ch. TV 2-0
Vol 17
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
38
Operation
T
Time Menu Options continued
ime Menu Options continued
Auto Off
- If set to on and there is no input
signal, the TV turns off automat-
ically after 10 minutes.
Press the MENU button and then use D /Ebutton to select the TIME menu.
Press the Gbutton and then use D /Ebutton to select Auto Off.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off G
Off
On
If set to On and there is no
input signal, the TV turns off
automatically after 10
minutes.
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
SETUP
VIDEO
AUDIO
TIME G
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
39
Operation
Aspect Ratio Control
Option Menu Features
Option Menu Features
- Lets you choose the way an ana-
log picture with a 4:3 aspect ratio
is displayed on your TV with a
16:9 ratio picture format. When
you receive an analog picture
with a 4:3 aspect ratio on your
16:9 TV, you need to specify how
the picture is to be displayed.
- If you are viewing a picture with a
16:9 aspect ratio, you can’t use
the Horizon aspect ratio option.
- Horizon aspect ratio is not avail-
able for Component 1-2
(480p/720p/1080i) / RGB-DTV
(480p/720p/1080i) / DVI-DTV
(720p/1080i) / DTV(720p/1080i)
input source.
- RGB1-PC/RGB2-PC/DVI-PC
input source use 4:3 or 16:9
aspect ratio.
-If a fixed image is displayed on the
screen for a long time, that fixed
image may become imprinted on
the screen and remain visible.
Press the RATIO button repeatedly to select the desired picture format.
• You can also adjust Aspect Ratio in the OPTION menu.
•Set By Program
Selects the proper picture proportion to match the source’s image.
(4:3 →
→4:3, 16:9 → 16:9)
•4:3
Choose 4:3 when you want to view a picture with an original 4:3
aspect ratio, with gray bars appearing at both the left and right sides.
•16:9
Choose 16:9 when you want to adjust the picture horizontally, in a lin-
ear proportion to fill the entire screen.
•Horizon
Choose Horizon when you want to adjust the picture in a non-linear
proportion, that is, more enlarged at both sides, to create a panorama
view.
•Zoom 1
Choose Zoom 1 when you want to view the picture without any alter-
ation. However, the top and bottom portions of the picture will be
cropped.
•Zoom 2
Choose Zoom 2 when you want the picture to be altered, both hori-
zontally extended and vertically cropped. The picture taking a halfway
trade off between alteration and screen coverage.
•Cinema Zoom
Choose Cinema Zoom when you want to enlarge the picture in cor-
rect proportion. Note: When enlarging or reducing the picture, the
image may become distorted.
You can adjust the enlarge proportion of Cinema Zoom using D /E
button. The adjustment range is 1~16.
1
40
Operation

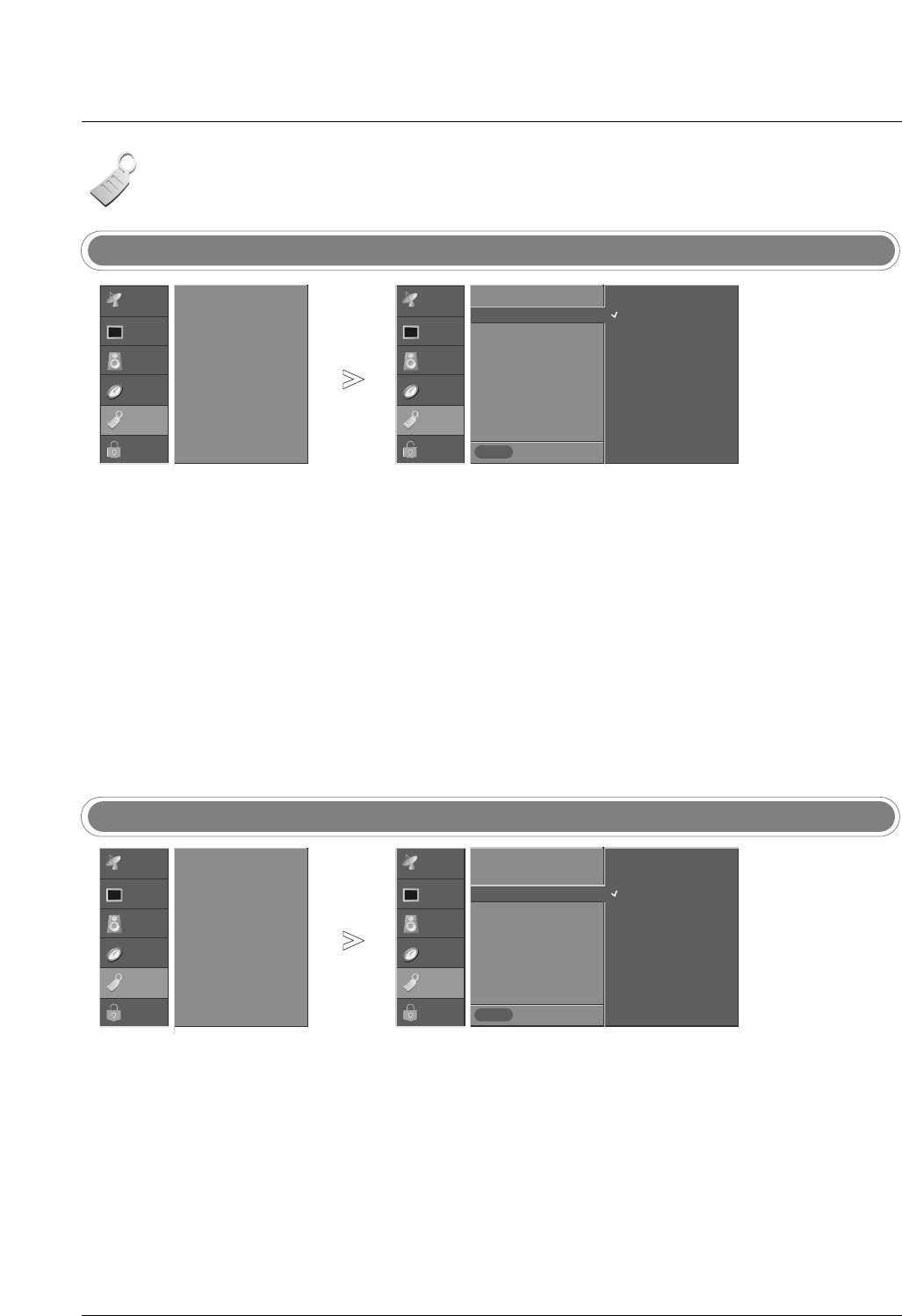

Option Menu Features continued
Option Menu Features continued
Caption
Press the MENU button and then use D /Ebutton to select the
OPTION menu.
Press the Gbutton and then use D /Ebutton to select Caption.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Aspect Ratio
Cinema 3:2 Mode
Caption G
Caption/Text
Caption Option
Language
Front Display
Off
On
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
Cinema 3:2 Mode Setup
- Most movies are 24 frames/sec,
but TV signal is 30 frames/sec.
- This option lets the TV do 3:2
pull-down operation for you to
watch movies at the best motion
appearance.
- This feature operates only in AV,
S-Video, Component 480i mode.
Press the MENU button and then use D /Ebutton to select the
OPTION menu.
Press the Gbutton and then use D /Ebutton to select Cinema 3:2 Mode.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Aspect Ratio
Cinema 3:2 Mode G
Caption
Caption/Text
Caption Option
Language
Front Display
Off
On
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
41
Operation
- Select a caption mode for dis-
playing captioning information if
provided on a program.
- Analog caption displays informa-
tion at any position on the screen.
- Text displays information, usual-
ly at the bottom position and is
used for a data service.
- Caption/Text, if provided by the
broadcaster, would be available
for both digital and analog chan-
nels on the Antenna/Cable.
- This TV is programmed to
remember the caption/text mode
it was last set to, when you turn
the power off.
Caption/Text
* Digital Broadcasting System Captions
* Analog Broadcasting System Captions
- Choose the language you want
the DTV/CADTV Captions to
appear in.
- Other languages can be chosen
for digital sources only if they are
included on the program.
Previous
MENU
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text G
Caption Option
Language
Front Display
CC 1
CC 2
CC 3
CC 4
Text 1
Text 2
Text 3
Text 4
Press the MENU button and then use D /Ebutton to select the
OPTION menu.
Press the Gbutton and then use D /Ebutton to select Caption/Text.
Press the Gbutton and then use D /Ebutton to select available cap-
tion languages: English,Spanish, or French.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text G
Caption Option
Language
Front Display
English
Spanish
French
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
Press the MENU button and then use D /Ebutton to select the
OPTION menu.
Press the Gbutton and then use D /Ebutton to select Caption/Text.
Press the Gbutton and then use D /Ebutton to select caption: CC1,
CC2,CC3,CC4,Text1,Text2,Text3, or Text4.
•CAPTION
The term for the words that scroll across the bottom of the TV screen;
usually the audio portion of the program provided for the hearing
impaired.
•TEXT
The term for the words that appear in a large black frame and almost
cover the entire screen; usually messages provided by the broadcaster.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Use the CC button repeatedly to select Caption Off,CC1,CC2,CC3,
CC4,Text1,Text2,Text3, or Text4.
Press EXIT button to save and return to TV viewing.
1
2
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
42
Operation

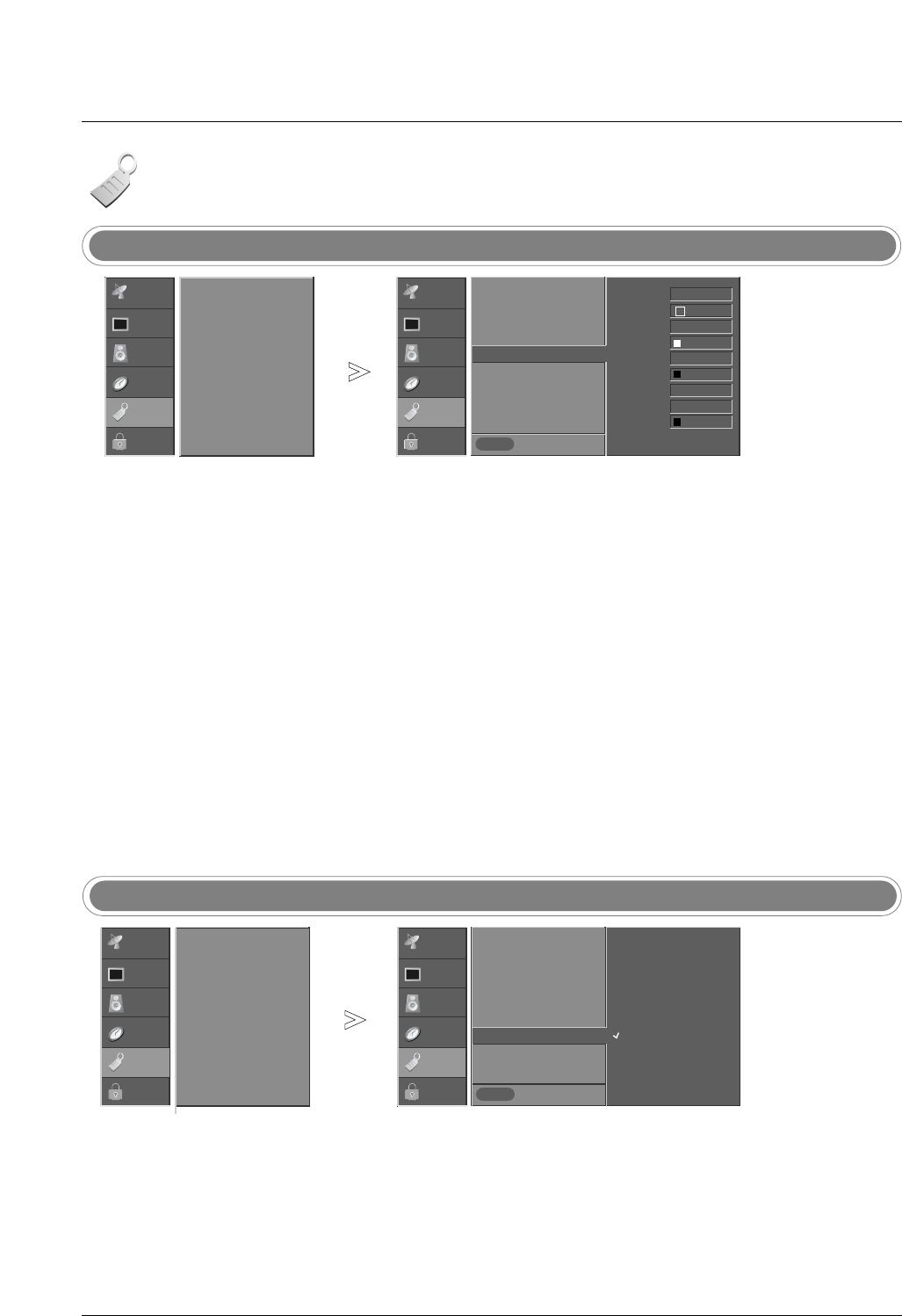

Option Menu Features continued
Option Menu Features continued
- Customize the DTV/CADTV cap-
tions that appear on your screen.
- If you select on, the “Liquid
Crystal Display” of TV front
panel turns on.
Caption Option
Press the MENU button and then use D /Ebutton to select the
OPTION menu.
Press the Gbutton and then use D /Ebutton to select Caption Option.
Press the Gbutton and then use F /Gbutton to select Custom.
Use D /Ebutton to customize the Style, Font, etc., to your preference.
A preview icon is provided at the bottom of the screen, use it to see the
caption language.
•Size: Set the size the words will appear in.
•Font: Select a typeface for the words.
•Text Color: Choose a color for the text.
•Text Opacity: Specify the opacity for the text color.
•Bg (Background) Color: Select a background color.
•Bg (Background) Opacity: Select the opacity for the background color.
•Edge Type: Select an edge type.
•Edge Color: Select a color for the edges.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
5
Previous
MENU
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option G
Language
Front Display
Style Custom
Size A Standard
Font Font 0
Text Color White
Text Opacity
Solid
Bg Color Black
Bg Opacity Solid
Edge Type None
Edge Color Black
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Front Display
Press the MENU button and then use D /Ebutton to select the
OPTION menu.
Press the Gbutton and then use D /Ebutton to select Front Display.
Press the Gbutton and then use D /Ebutton to select Off or On.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
4
Previous
MENU
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display G
Off
On
Aspect Ratio
Cinema 3:2 Mode
Caption
Caption/Text
Caption Option
Language
Front Display
SETUP
VIDEO
AUDIO
TIME
OPTION G
LOCK
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
43
Operation
Lock Menu Options
Lock Menu Options
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broad-
casting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of pro-
gram and by the categories chosen to be blocked. It is also possible to block all program viewing for a time period.
To use this function, the following must be done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be
blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video
movies use the Movie Rating System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
• Blocking Off (Permits all programs)
• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Parents strongly cautioned)
• R (Restricted)
• NC-17 (No one 17 and under admitted)
• X (Adult only)
If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
Ratings for Television programs including made-for-TV movies :
• TV-G (General audience)
• TV-PG (Parental guidance suggested)
• TV-14 (Parents strongly cautioned)
• TV-MA (Mature audience only)
• TV-Y (All children)
• TV-Y7 (Children 7 years older)
TV Rating Children:
• Age (applies to TV-Y, TV-Y7)
• Fantasy Violence (applies to TV-Y7)
TV Rating General:
• Age (applies to TV-G, TV-PG, TV-14, TV-MA)
• Dialogue - sexual dialogue (applies to TV-PG, TV-14)
• Language - adult language (applies to TV-PG, TV-14, TV-MA)
• Sex - sexual situations(applies to TV-PG, TV-14, TV-MA)
• Violence (applies to TV-PG, TV-14, TV-MA)
Aux. Block
• AV 1, 2 (On, Off)
• Component 1, 2 (On, Off)
• RGB 1, 2, and DVI (On, Off)
44
Operation
- Lets you set up blocking
schemes to block specific chan-
nels, ratings, and external view-
ing sources.
- A password is required to gain
access to this menu if the Lock
System is turned on.
Parental Lock Setup
Previous
MENU
Lock System G
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Off
On
Press the MENU button and then use D /Ebutton to select the LOCK
menu. Then, press the Gbutton
•If Lock is already set, enter the password as requested.
• The TV is set up with the initial password “0-0-0-0”.
Use the D /Ebutton to choose from the following Lock Menu options.
Once the option is selected, change the settings to your preference.
•Lock System: Activates or disables the blocking scheme you set up
previously.
•Set Password: Change the password by inputting a new password
twice.
•Block Channel.: Select a channel number that you wish to block.
•Input block: Enables you to select a source to block from the exter-
nal source devices you have hooked up.
•Movie Rating (MPPA): Blocks movies according to the movie rat-
ings limits specified, so children cannot view certain movies. You
can set the ratings limit by blocking out all the movies with the rat-
ings above a specified level. Keep in mind that the movie ratings
limit only applies to movies shown on TV, not TV programs, such as
soap operas.
•TV Rating-Children: Prevents children from watching certain chil-
dren's TV programs, according to the ratings limit set. The children
rating does not apply to other TV programs. Unless you block certain
TV programs intended for mature audiences in the TV Rating - sub
menu, your children can view those programs.
•TV Rating-General: Based on the ratings, blocks certain TV pro-
grams that you and your family do not want to view.
•Input Block: Enables you to select a source to block from the exter-
nal source devices you have hooked up.
Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
1
2
3
• If you ever forget your pass-
word, key in ‘7’, ‘7’, ‘7’, ‘7’ on
the remote control. Then, the
password reset to ‘7’, ‘7’, ‘7’,
‘7’.
Enter Password
***
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK G
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK G
45

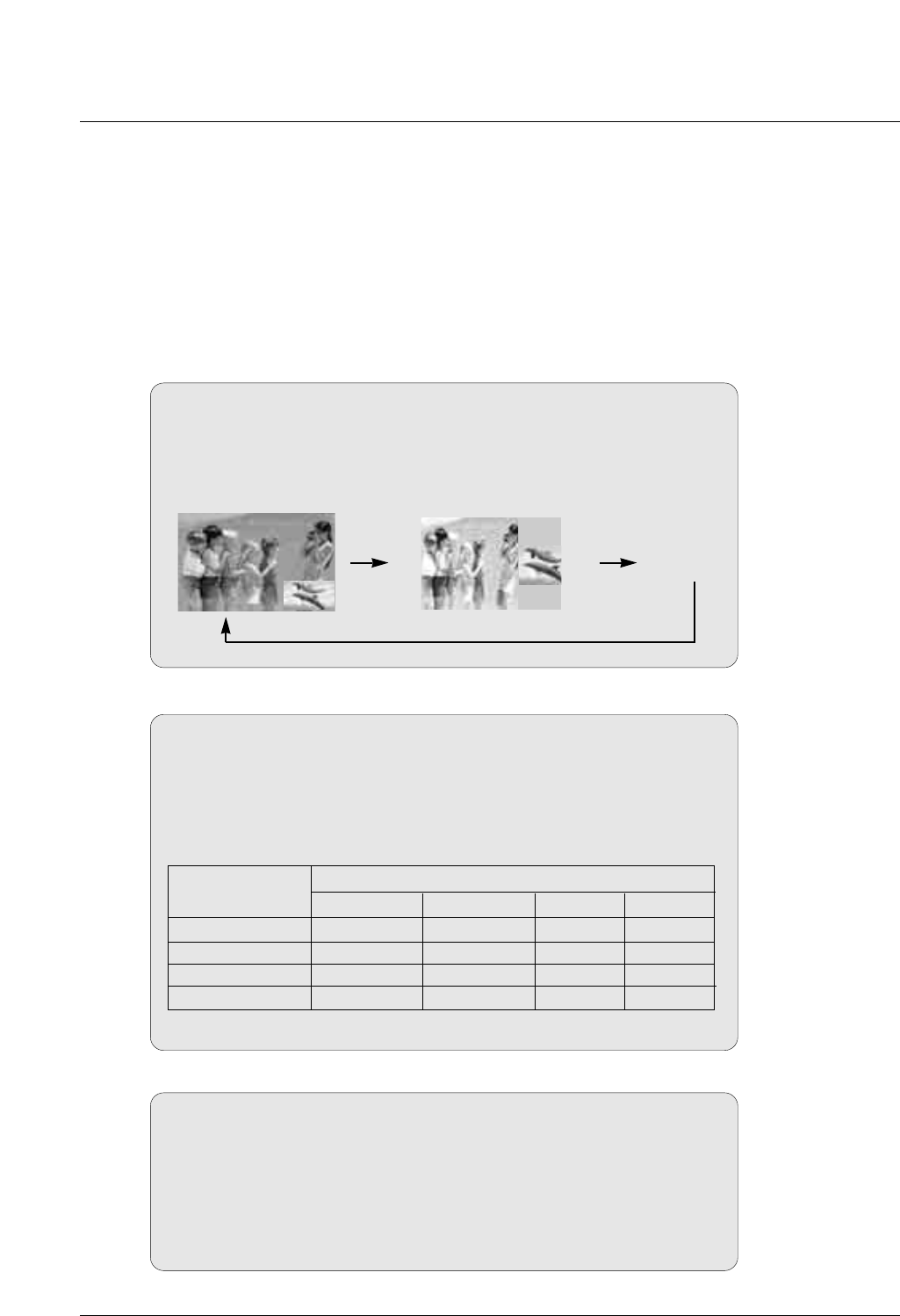

Operation
- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large,
and the other source will show a smaller inset image.
- Double Window mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at
the same time. Each source is given half the screen.
PIP
PIP (Picture-In-Picture) / Double W
(Picture-In-Picture) / Double Window
indow
Watching PIP/Double Window
Press the PIP button to access the sub picture. Each press of PIP changes the
PIP options as shown below.
PIP Mode Double Window Mode
PIP Off
Selecting an Input Signal Source for PIP/Double Window
Use the PIP INPUT button to select the input source for the sub picture. Each
press of PIP INPUT button changes the PIP source. You can also select sources
for the Sub Input in the SETUP menu.
Available Sub Picture Sources
DTV Signal Analog Signal Video 1 Video 2
DTV Signal
Analog Signal
Video 1
Video 2
XXO
O
O
O
O
O
O
O
XX
OO
OO
Main Picture
Source
TV Program selection for PIP
1. Press the PIP button.
2. Select the Analog or DTV option on the Sub input menu or with the PIP
INPUT button. Use the PIPCH+ /PIPCH- button to select a channel for the
sub picture.
46

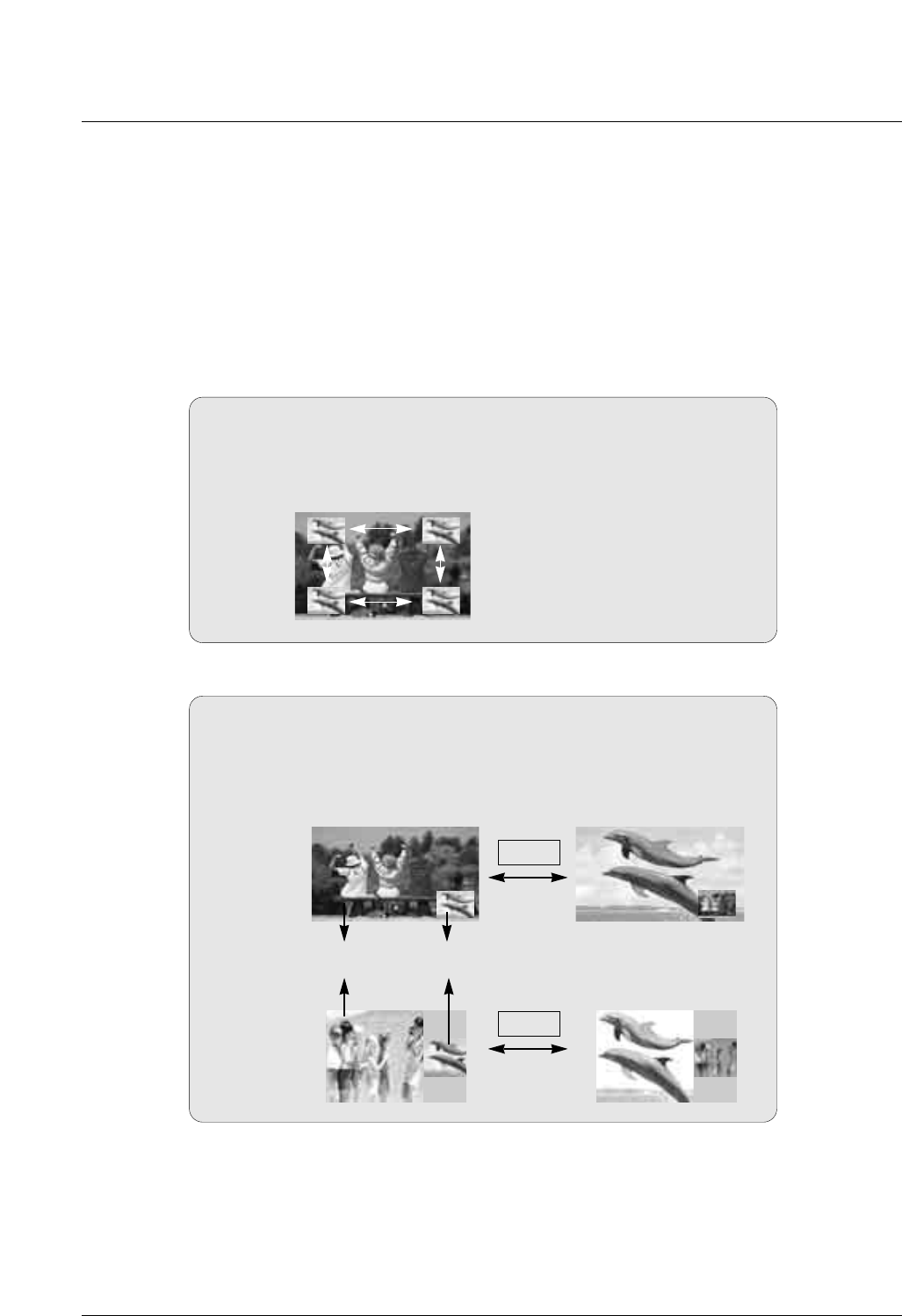

Operation
Moving the PIP sub picture
In PIP mode, press the D /E/F /Gbutton to move the sub picture to a differ-
ent location on the screen.
Swapping the PIP/Double Window
Use the SWAP button to switch the main and sub pictures.
Main Picture
PIP
Double
Window
Sub Picture
SWAP
SWAP
47

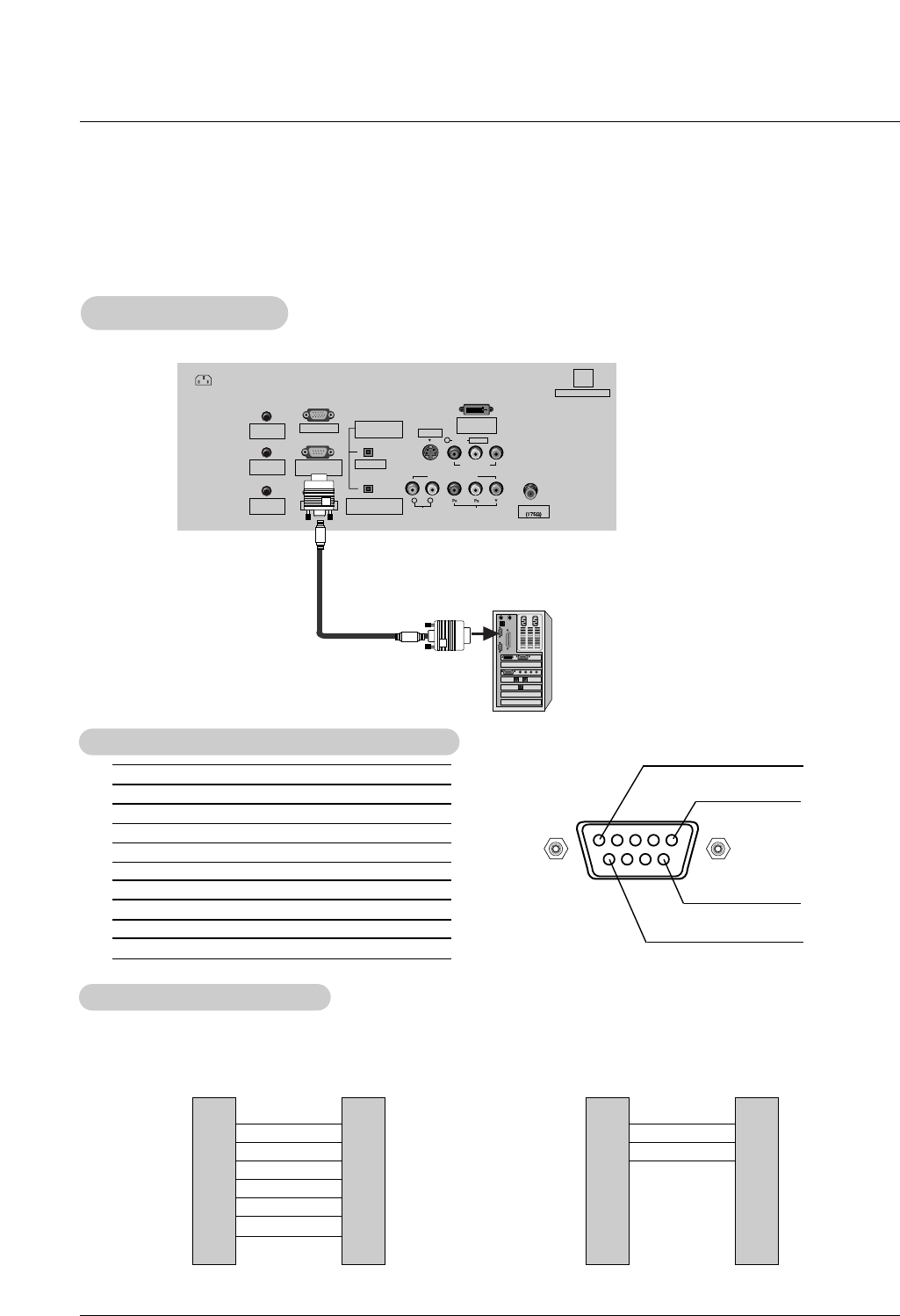

Reference
No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configurations
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
TV
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-Wire Configurations
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
TV
D-Sub 9
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control
system) and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the TV back panel.
- RS-232C connection cables are not supplied with the TV.
T
Type of Connector; D-Sub 9-Pin Male
ype of Connector; D-Sub 9-Pin Male
RS-232C Configurations
RS-232C Configurations
External Control Device Setup
External Control Device Setup
RS-232C Setup
RS-232C Setup
Antenna
PC AUDIO
INPUT2
DIGITAL AUDIO
(OPTICAL)
PC INPUT2
DVI INPUT
(PC/DTV INPUT)
L/MONO
PC INPUT1
AUDIO INPUT
AUDIO VIDEO
VIDEO INPUT
VIDEO1
COMPONENT1
RL
R
PC AUDIO
INPUT1
COMPONENT1/DVI
INPUT
SPEAKER
OUT
RS-232C INPUT
(CONTROL/SERVICE)
AC IN
S-VIDEO
RJP INTERFACE
OUTPUT
PC
48
Reference
Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping’. See page 49.
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
* Use a crossed (reverse) cable.
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
1. Press the MENU button and then use D /Ebutton to select the SETUP
menu.
2. Press the Gbutton and then use D /Ebutton to select SET ID.
3. Press the Gbutton and then use D /Ebutton to adjust SET ID to
choose the desired monitor ID number. The adjustment range of SET
ID is 1 ~ 99.
4. Press EXIT button to return to TV viewing or press MENU button to
return to the previous menu.
Transmission
*[Command 1]: First command to control the set. (j or k)
*[Command 2]: Second command to control the set.
*[Set ID]: You can adjust the set ID to choose desired monitor
ID number in Setup menu. Adjustment range is 1
~ 99. When selecting Set ID ‘0’, every connected
the TV is controlled. Set ID is indicated as decimal
(1~99) on menu and as Hexa decimal (0x0~0x63)
on transmission/receiving protocol.
*[DATA]: To transmit command data.
Transmit ‘FF’ data to read status of command.
*[Cr]: Carriage Return
ASCII code ‘0x0D’
*[ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from non-viable
functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
Data 1: Illegal Code
2: Not supported function
3: Wait more time
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 9
03. Aspect Ratio k c 1 ~ 1F
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13.
Remote Control Lock Mode
k m 0 ~ 1
14. PIP/Double Wondow k n 0 ~ 3
15. PIP Position k q 0 ~ 3
16. Treble k r 0 ~ 64
17. Bass k s 0 ~ 64
18. Balance k t 0 ~ 64
19. Color Temperature k u 0 ~ 2
20. PIP Input Source k y 0 ~ 3
24. Input Select x b 0 ~ 80
25. PIP Input Source x y 0 ~ 21
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
Command Reference List
Command Reference List
21. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ FE 00 ~ FE 00 ~ FE
22. Channel Add/Del m b 00 ~ 01
23. Key m c *
COM-
MAND 2
COM-
MAND 1
DATA 0
(Hexadecimal)
DATA 1
(Hexadecimal)
DATA 2
(Hexadecimal)
DATA 3
(Hexadecimal)
DATA 4
(Hexadecimal)
DATA 5
(Hexadecimal)
Previous
MENU
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Channel Label
Main Input
Sub Input
Set ID G1
SETUP G
VIDEO
AUDIO
TIME
OPTION
LOCK
49
Reference
02. Input Select (Command2:b) (Main Picture Input)
GTo select input source for the TV.
Transmission
Data 0: Antenna
1: Cable
2: AV 1
3: AV 2
4: Component 1
5: Component 2
6: RGB1-DTV
7: RGB1-PC
8: DVI-DTV
9: DVI-PC
Data 1: Normal screen (4:3)
2: Wide screen (16:9)
3: Horizon
4: Zoom 1
5: Zoom 2
6: Auto (Set by program)
10: Cinema Zoom (1)
1F: Cinema Zoom (16)
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command2:a)
GTo control Power On/Off of the TV.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
* In a like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feedback
presents status about each function.
*Real data mapping
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
05. Volume Mute (Command2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute off (Volume on)
1 : Volume mute on (Volume off)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’ as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command2:g)
GTo adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’ as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’ as shown below.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
50
Reference
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’. See page 49.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the Video menu.
Transmission
Data Red : 0 ~ Green : 64
•Refer to ‘Real data mapping’. See page 49.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
13. Remote Control Lock Mode (Command2:m)
GTo lock the remote control and the front panel controls on
the set.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Lock off 1: Lock on
[m][ ][Set ID][ ][OK][Data][x]
14. PIP/ Double Window (Command2:n)
GTo control the PIP (Picture-in-Picture)/Double Window.
You can also control the PIP/Double Window using the PIP
button on the remote control.
Transmission
Data 0: PIP off
1: PIP
2: Double Window
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 49.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
15. PIP Position (Command2:q)
GTo select sub picture position for PIP.
Transmission
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Right down on screen
1: Right up on screen
2: Left up on screen
3: Left down on screen
[q][ ][Set ID][ ][OK][Data][x]
16. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 49.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
18. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 49.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
17. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 49.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
51
Reference
19. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust color temperature in the Video
menu.
Transmission
Data 0: Normal (Medium) 1: Cool 2: Warm
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
21. Channel Tuning (Command: m a)
GTo tune channel to following physical/major/minor number
Transmission
Data 0:
Physical channel number (Transmit by Hexadecimal code)
* NTSC air: 02 ~ 45
NTSC cable: 01, 0E ~ 7D
ATSC air: 01 ~ 45
ATSC cable: 01 ~ 87
Data
1, 2: Major channel number(two part) or channel number(One part)
* Data1: High byte
Data2: Low byte
Two part channel number: Major number-Minor number
One part channel number: If the channel band is ATSC
digital cable, it can be used. In case of using one part
channel number, minor channel does not need.
Data 3, 4:
Minor Channel Number
* Data3: High byte
* Data4: Low byte
5: Attribute
*Two/One part Channel: 6th bit
This bit is used in a cable-ready system.
*Using physical channel: 5th bit
If the channel band is NTSC air or NTSC cable, channel tun-
ing can be done by only physical channel. In this case, using
physical channel bit must be low(0).
But if the channel band is ATSC air or ATSC cable, there are
two cases that physical channel enable or disable.
If the physical channel sending is meaningful, you should set
this bit low(0). If the physical channel sending is meaningless,
you should set this bit high(1).
Example)
1. Analog channel: NTSC cable, channel number(35), main
Command: ma 00 23 xx xx xx xx 01
attribute(0x01): main picture, two part(it’s not mandatory),
using physical channel, NTSC cable
‘xx’ data: don’t care major and minor channel number in
case analog channel tuning
2. Digital channel: ATSC air, channel number(don’t know
physical channel, major(30), minor(3)), sub picture
Command: ma 00 xx 00 1E 00 03 A2
attribute(0xA2): sub picture, two part, not using physical
channel, ATSC air
‘xx’ data: don’t care analog channel number in case digital
channel tuning.
3. Digital channel: ATSC air, channel number(physical(20),
major(30), minor(3)), sub picture
Command: ma 00 14 00 1E 00 03 82
attribute(0x82): sub picture, two part, using physical chan-
nel, ATSC air
[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][Data5][x]
[a][ ][Set ID][ ][NG][Data0][x]
[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ]
[Data4][ ][Data5][Cr]
Acknowledgement
22. Channel Add/Del (Command: m b)
GTo add and delete the channels
Transmission
Data 0: Channel Delete
1: Channel Add
[m][b][ ][Set ID][ ][Data][Cr]
[b][ ][Set ID][ ][OK][Data][x]
[b][ ][Set ID][ ][NG][Data][x]
Acknowledgement
23. Key (Command: m c)
GTo send IR remote key code
Transmission
Data Key code: Refer to page 52.
[m][c][ ][Set ID][ ][Data][ ][Cr]
[c][ ][Set ID][ ][OK][Data][x]
Acknowledgement
20. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP/Double
Window mode.
Transmission
Data 0: Antenna
1: Cable
2: AV 1
3: AV 2
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
Step
NTSC Air
NTSC Cable
ATSC Air
ATSC cable_std
ATSC cable_hrc
ATSC cable_irc
ATSC cable auto
Reserved
…
Reserved
0
0
1
0
1
0
1
0
1
x
1
1
0
0
1
1
0
0
1
1
x
1
2
0
0
0
0
1
1
1
1
x
1
3
0
0
0
0
0
0
0
0
x
1
4
Reser
ved
x
x
x
x
x
x
x
x
x
x
5
0
1
6
0
1
7
0
1
Using
Physical
Channel
Use
No Use
Two/One
Part
Channel
Two
One
Main/Sub
Main
Sub
52
Reference
24. Input Select (Command:x b)
(Main Picture Input)
G To select input source for sub picture in PIP/Double
Window mode.
Transmission
DTV 0x00
Analog 0x10
Video 1 0x20
Video 2 0x21
Component 1 0x40
Component 2 0x41
RGB1-DTV 0x50
RGB2-DTV 0x51
RGB1-PC 0x60
RGB2-PC 0x61
DVI-DTV 0x70
DVI-PC 0x80
* In case Video/S-video is selected automatically by TV,
use only single video input.
* In case Video/S-video is selected by user manually,
use separate Video/S-video input.
[x][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
25. PIP Input Select (Command:x y)
GTo adjust the input source for sub picture in PIP mode
Transmission
DTV 0x00
Analog 0x10
Video 1 0x20
Video 2 0x21
* In case Video/S-video is selected automatically by TV,
use only single video input.
* In case Video/S-video is selected by user manually, use
separate Video/S-video input.
[x][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
0B
08
C4
C5
98
79
10 ~ 19
4C
1A
09
02
03
00
01
1E
AA
39
40
41
07
06
44
43
4D
52
5B
60
72
71
61
0E
65
7B
0A
CB
D6
5A
D0
BF
D4
D5
D7
C6
76
77
AF
70
96
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (TV Input Selection)
Discrete IR Code (Video1 Input Selection)
Discrete IR Code (Video2 Input Selection)
Discrete IR Code (Component1 Input Selection)
Discrete IR Code (Component2 Input Selection)
Discrete IR Code (RGB-PC Input Selection)
Discrete IR Code (RGB-DTV Input Selection)
Discrete IR Code (DVI-DTV Input Selection)
Discrete IR Code (Only 4:3 Mode)
Discrete IR Code (Only 16:9 Mode)
Discrete IR Code (Only Zoom Mode)
Channel Search
R/C Button
Code (Hexa) Function Note
INPUT
POWER
POWER ON
POWER OFF
MULTIMEDIA
RATIO
Number Key 0~ 9
- (Dash)
FLASHBK
MUTE
VOL +
VOL -
CH +
CH -
FAV
INFO
CC
D
E
F
G
MENU
EZ PIC
EZ SOUND
EXIT
PIP
PIPCH -
PIPCH +
PIP INPUT
TIMER
FREEZE
ZOOM
SAP
ADJUST
TV
AV 1
AV 2
COMPONENT 1
COMPONENT 2
RGB-PC
RGB-DTV
DVI-DTV
Ratio 4:3
Ratio 16:9
Ratio Zoom
MULTI PIP
SIGNAL
IR Codes
53
Reference
G The remote control is a multi-brand or universal remote control. It can be programmed to operate most
remote-controllable devices of other manufacturers.
Note that the remote control may not control all models of other brands.
Programming the Remote
Programming the Remote
1 2 3
4 5 6
7 8 9
0
TV
MODE INFO POWER
INPUT EZ PIC
EZ SOUND
VCR
CABLE
DVD
HDSTB
MUTE
SWAPPIPCH- PIPCH+
PIP
RATIO
RECORD
STOP
PAUSE
REW
PLAY
FF
MENU EXIT
CC FREEZE
PIP INPUT
VOL CH
FAV
SAP TIMER
SIGNALADJUST
MULTIMEDIA
SKIP
FLASHBK
+
Programming a code into a remote mode
1. Test your remote control.
To find out whether your remote control can operate the component without
programming, turn on the component such as a VCR and press the corre-
sponding MODE button (VCR) on the remote control, while illuminating on
the selected component. Test the POWER button to see if the component
responds properly. If not, the remote requires programming to operate the
device.
2. Turn on the component to be programmed, then press the corresponding
MODE button on the remote control.
3. Press the MENU and MUTE buttons simultaneously for 2 seconds, the but-
ton selected component lights on the remote control. If you don't press any
button for 20 seconds, the button selected component will turn off on the
remote control. At a moment, you have to repeat from step 2.
4. Enter a code number using the number buttons on the remote. When press-
ing the button, the light is blinked at a time. Programming code numbers for
the corresponding component can be found on the following pages. Again,
if the code is correct, the device will turn off.
5. Press the MENU button to store the code. After blinking twice, this code is
stored.
6. Test the remote control functions to see if the component responds proper-
ly. If not, repeat from step 2.
54
Reference
Programming Codes
Programming Codes
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
107 109 144 147
GO VIDEO 132 136
HARMAN KARDON
012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
145 147
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
105 107 109 112
113 115 120 122
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
102 134
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK
016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
VCRs
VCRs
Cable box
Cable box
55
Reference
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
ALPHASTAR DSR
123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101
UNIDEN 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
Digital Cable/Satellite Box
Digital Cable/Satellite Box
DVD
DVD
56
Reference
T
Troubleshooting Checklist
roubleshooting Checklist
The video function does not work.
No picture &
No sound
No or poor color
or poor picture
• Adjust Color in menu option.
• Keep a sufficient distance between the product and the VCR.
• Try another channel. The problem may be with the broadcast.
• Are the video cables installed properly?
• Activate any function to restore the brightness of the picture.
Picture appears
slowly after
switching on
• This is normal, the image is muted during the product startup process.
Please contact your service center, if the picture has not appeared after five
minutes.
Horizontal/verti-
cal bars or pic-
ture shaking
• Check for local interference such as an electrical appliance or power tool.
Poor reception on
some channels
• Station or cable product experiencing problems, tune to another station.
• Station signal is weak, reorient antenna to receive weaker station.
• Check for sources of possible interference.
Lines or streaks
in pictures • Check antenna (Change the direction of the antenna).
• Check whether the product is turned on.
• Try another channel. The problem may be with the broadcast.
• Is the power cord inserted into wall power outlet?
• Check your antenna direction and/or location.
• Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
The remote control
doesn’t work
The operation does not work normally.
• Check to see if there is any object between the product and the remote
control causing obstruction.
• Are batteries installed with correct polarity (+ to +, - to -)?
• Correct remote operating mode set: TV, VCR etc.?
• Install new batteries.
Power is suddenly
turned off
• Is the sleep timer set?
• Check the power control settings. Power interrupted
• No broadcast on station tuned with Auto off activated.
57
Reference
The audio function does not work.
Picture OK &
No sound
• Press the VOL or VOLUME button.
• Sound muted? Press MUTE button.
• Try another channel. The problem may be with the broadcast.
• Are the audio cables installed properly?
Unusual sound
from inside the
product
• A change in ambient humidity or temperature may result in an unusual
noise when the product is turned on or off and does not indicate a fault with
the product.
No output from one
of the speakers
• Adjust Balance in menu option.
Screen color is
unstable or single
color
• Check the signal cable.
• Reinstall the PC video card.
The signal is out of
range.
There is a problem in PC mode.
(Only PC mode applied)
• Adjust resolution, horizontal frequency, or vertical frequency.
• Check it whether the signal cable is connected or loose.
• Check the input source.
Vertical bar or
stripe on back-
ground &
Horizontal Noise &
Incorrect position
• Work the Auto configure or adjust clock, phase, or H/V position.
58
Reference
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water
and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe
the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
Maintenance
Maintenance
59
Reference
• The specifications shown above may be changed without prior notice for quality improvement.
Product Specifications
Product Specifications
MODEL
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Television System
Program Coverage
External Antenna Impedance
36.3 / 922
24.1 / 613.4
11.3 / 287.5
55.8 / 25.3
AC 100-240V~ 50/60Hz
NTSC-M, ATSC
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125, CADTV 1 ~ 135. DTV 2 ~ 69
75 Ω
32LX4DC

Navigation menu
