LG Electronics USA 32LE5400UC LED LCD TV User Manual G User s manual
LG Electronics USA LED LCD TV G User s manual
Users Manual
Order Number : GETEC-C1-10-033 FCC Part 15 subpart B
Test Report Number : GETEC-E3-10-010 Page 1 / 1
EUT Type: LED LCD TV/Monitor
FCC ID.: BEJ32LE5400UC
APPENDIX G
: USER’S MANUAL
P/NO : SAC34134203 (1001-REV00) www.lge.com
OWNER’S MANUAL
LED LCD TV / LCD TV
PLASMA TV
Please read this manual carefully before operating
your set and retain it for future reference.
2
WARNING / CAUTION
The lightning flash with arrowhead
symbol, within an equilateral trian-
gle, is intended to alert the user to
the presence of uninsulated “dan-
gerous voltage” within the product’s enclo-
sure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equi-
lateral triangle is intended to alert
the user to the presence of important oper-
ating and maintenance (servicing) instruc-
tions in the literature accompanying the
appliance.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guide-
lines for proper grounding and, in particular, speci-
fies that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC Notice
Class B digital device
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a residen-
tial installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encour-
aged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equip-
ment and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two condi-
tions: (1) This device may not cause (harmful)
interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation (of the
device).
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
CAUTION
Do not attempt to modify this product in any
way without written authorization from LG
Electronics.
Unauthorized modification could void the user’s
authority to operate this product.
3

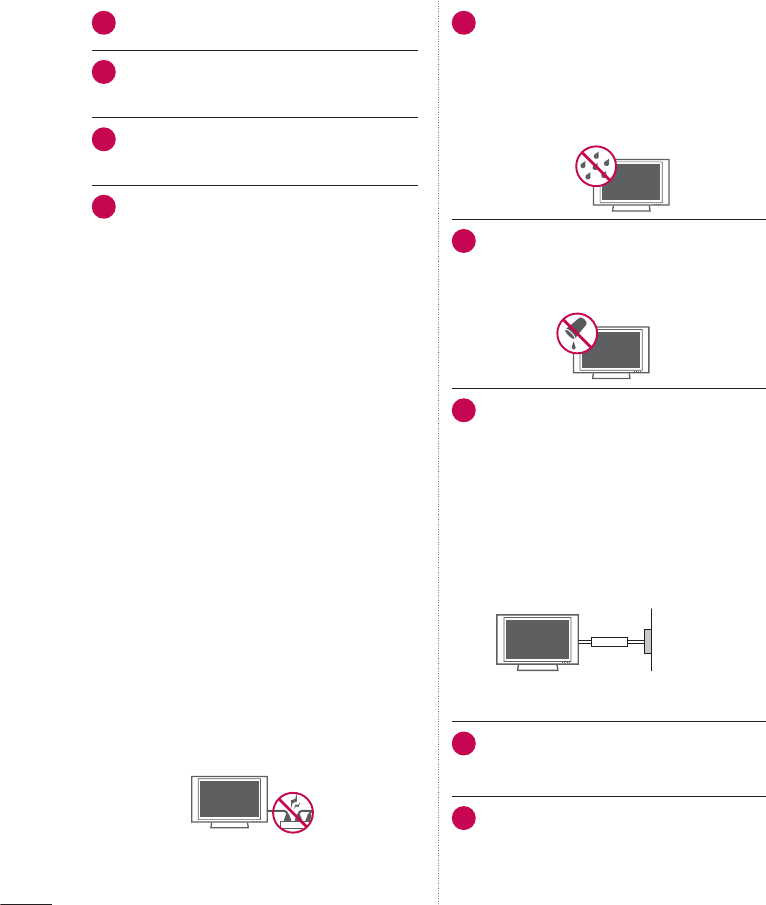

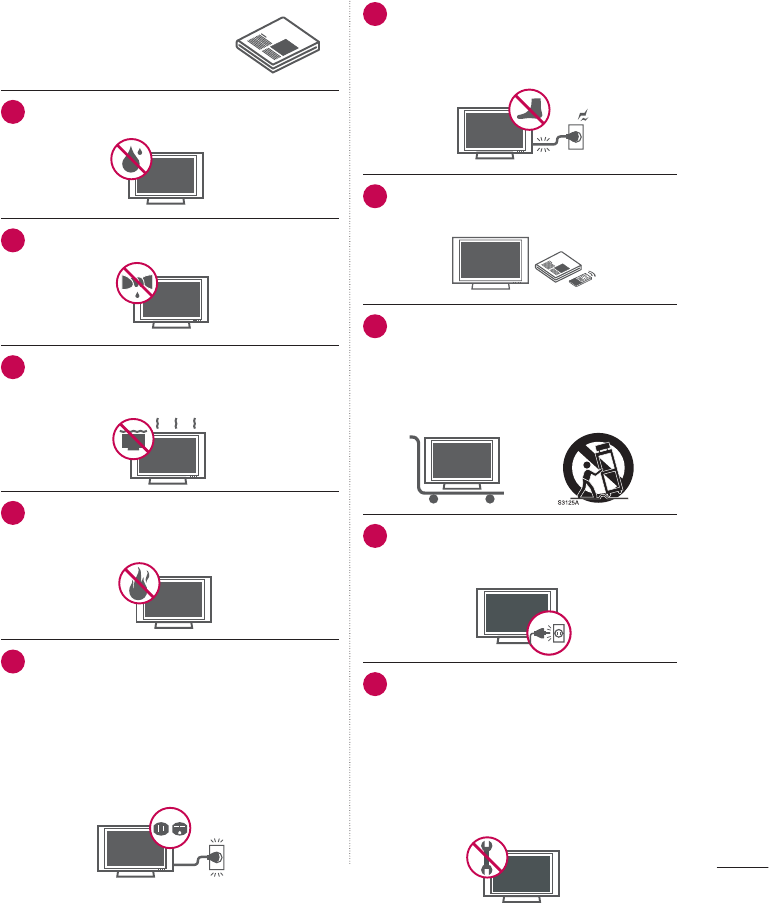

SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
1Do not use this apparatus near water.
2Clean only with dry cloth.
3
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
4
Do not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
5
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
6Protect the power cord from being walked
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
7Only use attachments/accessories speci-
fied by the manufacturer.
8Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
9Unplug this apparatus during lighting
storms or when unused for long periods
of time.
10
Refer all servicing to qualified service per-
sonnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
IMPORTANT SAFETY INSTRUCTIONS
4
SAFETY INSTRUCTIONS
11
Never touch this apparatus or antenna during
a thunder or lighting storm.
12
When mounting a TV on the wall, make sure
not to install the TV by the hanging power
and signal cables on the back of the TV.
13
Do not allow an impact shock or any objects
to fall into the product, and do not drop onto
the screen with something.
14
CAUTION concerning the Power Cord:
It is recommend that appliances be placed
upon a dedicated circuit; that is, a single
outlet circuit which powers only that appli-
ance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain.
Do not connect too many appliances to the
same AC power outlet as this could result in
fire or electric shock.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, exten-
sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous . Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not use a damaged or loose power cord.
Do not pull on the power cord to unplug the
TV. Grasp the plug when unplugging the
power cord.
15
WARNING - To reduce the risk of fire or elec-
trical shock, do not expose this product to
rain, moisture or other liquids. Do not touch
the TV with wet hands. Do not install this
product near flammable objects such as
gasoline or candles or expose the TV to
direct air conditioning.
16
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the appara-
tus (e.g. on shelves above the unit).
17
GROUNDING
Ensure that you connect the earth ground
wire to prevent possible electric shock (i.e. a
TV with a three-prong grounded AC plug
must be connected to a three-prong ground-
ed AC outlet). If grounding methods are not
possible, have a qualified electrician install a
separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas
pipes.
Power
Supply
Short-circuit
Breaker
18
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.
19
As long as this unit is connected to the AC
wall outlet, it is not disconnected from AC
power even if you turn off the power switch
on the unit.
5
20
ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna sys-
tem should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can come in contact
with such power lines or circuits as death or
serious injury can occur.
Be sure the antenna system is grounded so as
to provide some protection against voltage
surges and built-up static charges.
Section 810 of the National Electrical Code
(NEC) in the U.S.A. provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding elec-
trodes and requirements for the grounding
electrode.

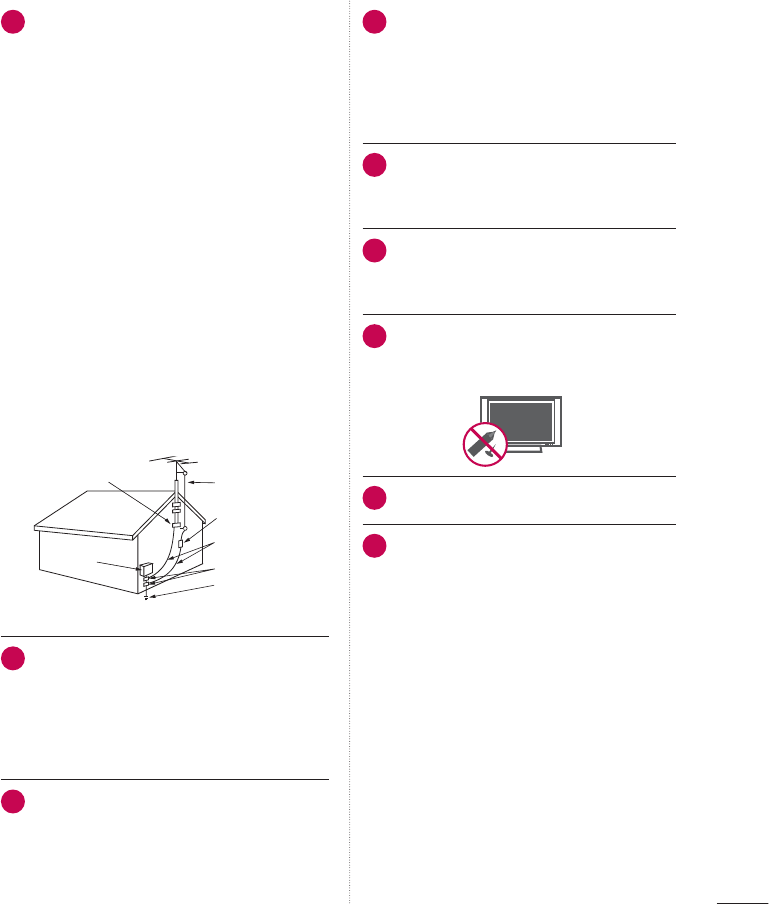

Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment
NEC: National Electrical Code
21
Cleaning
When cleaning, unplug the power cord and
rub gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do not clean with chemicals such as alcohol,
thinners or benzene.
22
Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take
2 or more people to carry larger TVs. Do not
press against or put stress on the front panel
of the TV.
23
Ventilation
Install your TV where there is proper ventila-
tion. Do not install in a confined space such
as a bookcase. Do not cover the product
with cloth or other materials (e.g.) plastic
while plugged in. Do not install in exces-
sively dusty places.
24
Take care not to touch the ventilation open-
ings. When watching the TV for a long
period, the ventilation openings may
become hot.
25
If you smell smoke or other odors coming
from the TV or hear strange sounds, unplug
the power cord contact an authorized service
center.
26
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
27
Keep the product away from direct sunlight.
28
For LED LCD TV/LCD TV
If the TV feels cold to the touch, there may be
a small “flicker” when it is turned on. This is
normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the monitor's performance.
Avoid touching the LCD screen or holding
your finger(s) against it for long periods of
time. Doing so may produce some tempo-
rary distortion effects on the screen.
6
WARNING / CAUTION
............................2
SAFETY INSTRUCTIONS
........................3
CONTENTS
......................................................6
FEATURE OF THIS TV
............................. 8
PREPARATION

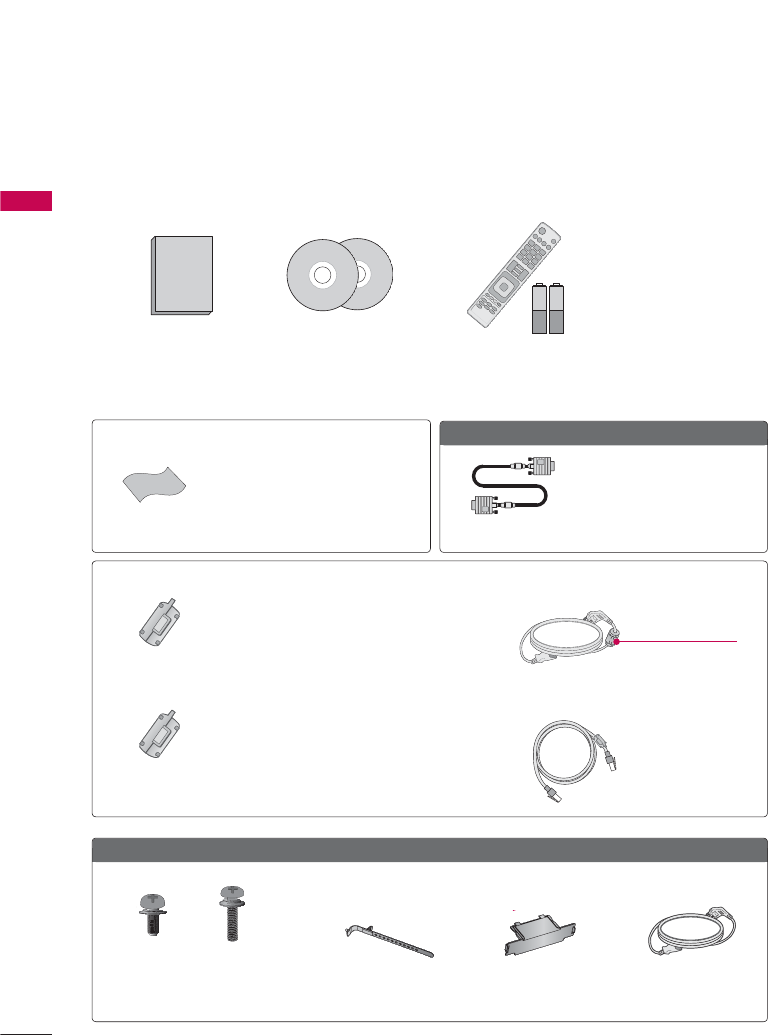

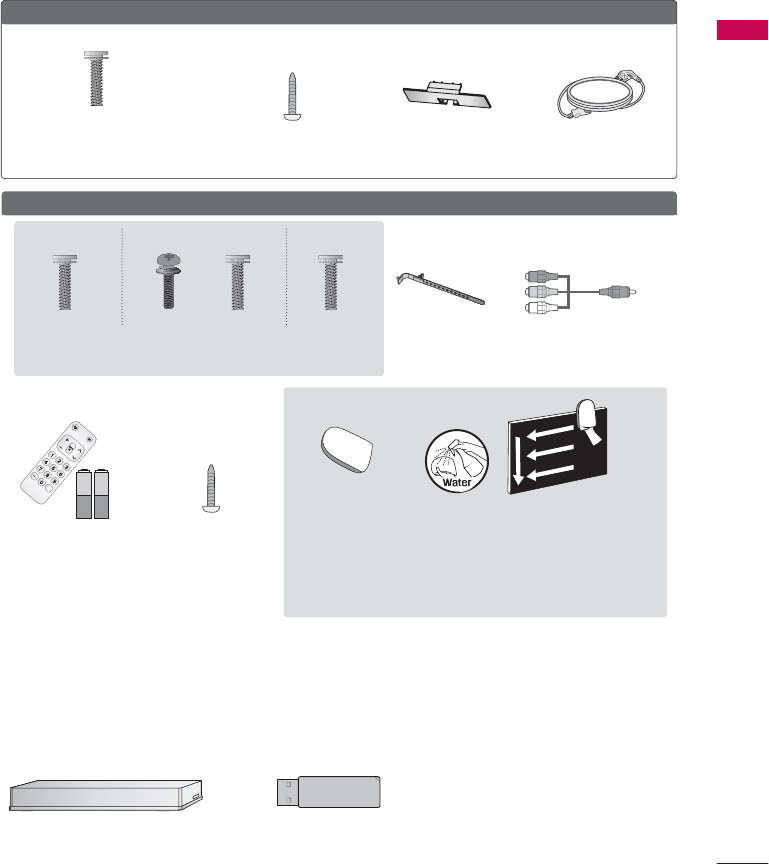

Accessories...........................................................10
Optional Extras ..................................................... 11

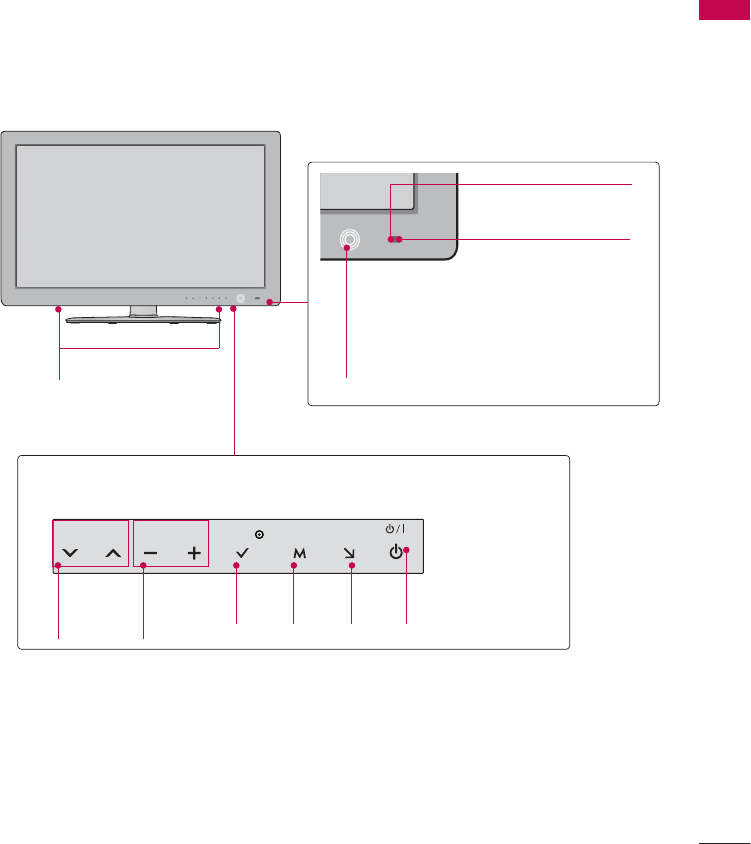

Front Panel Information .................................... 12

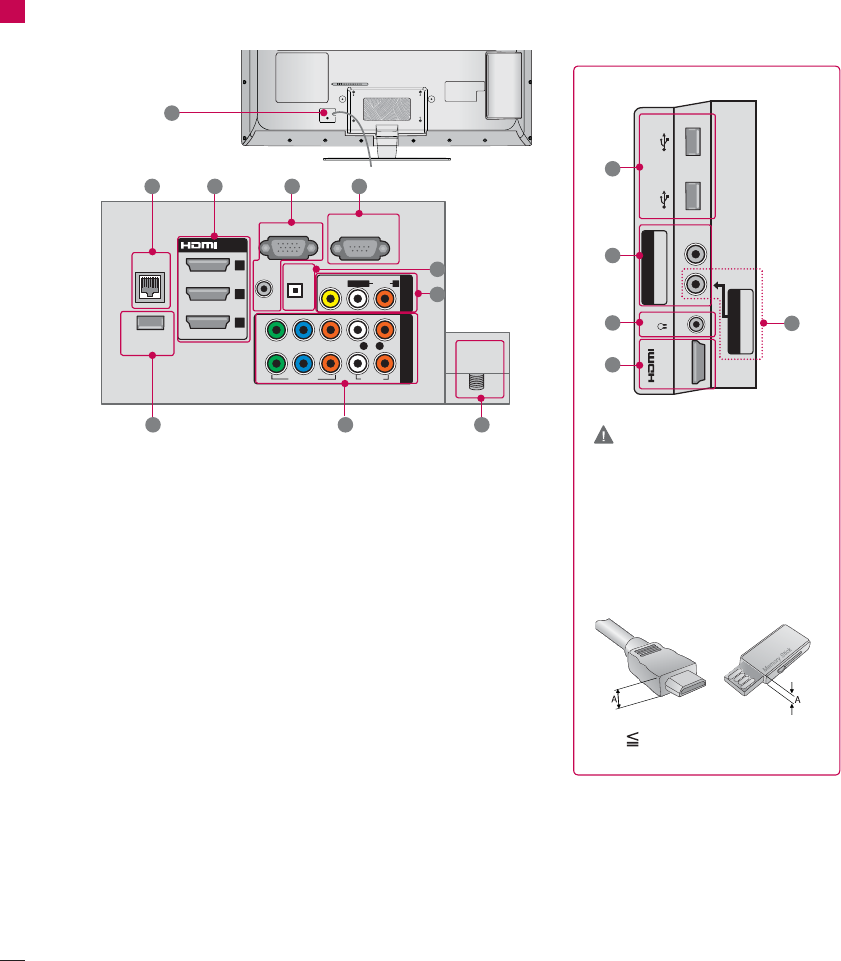

Back Panel Information..................................... 17

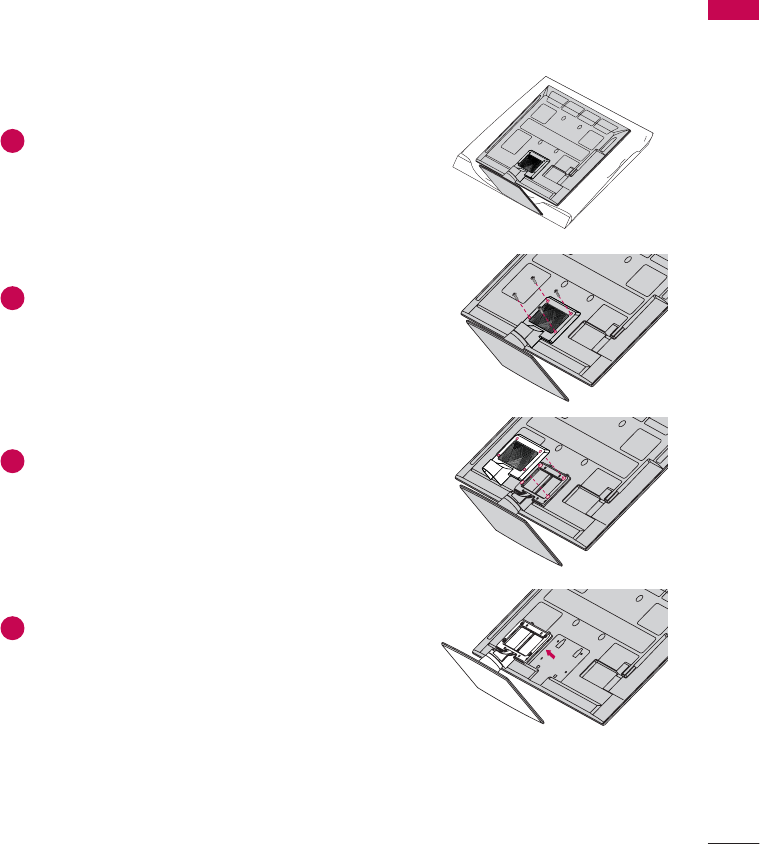

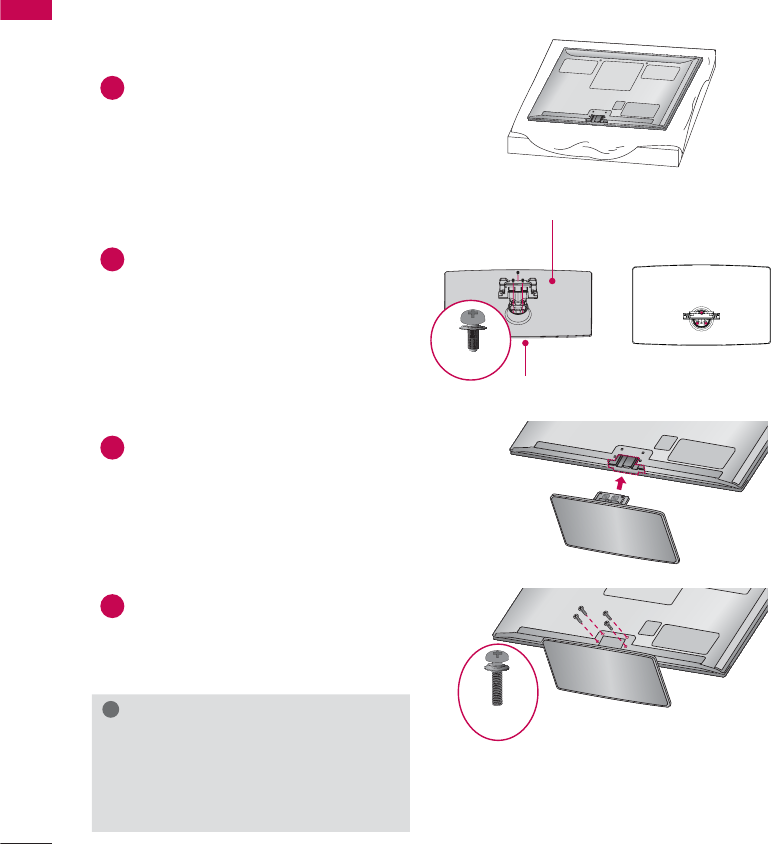

Stand Instructions
.....................................................20

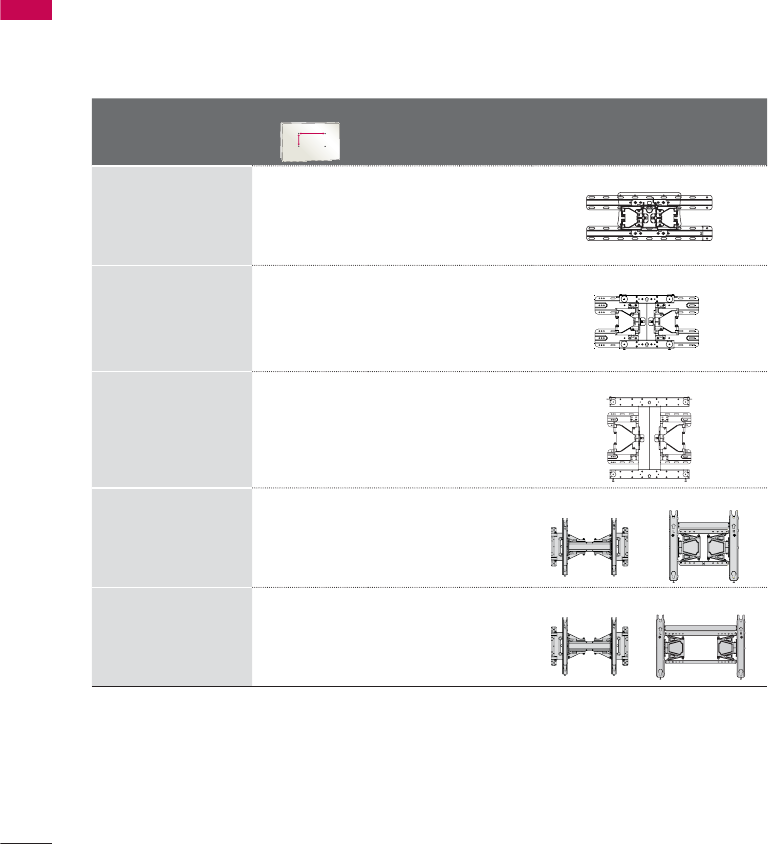

VESA Wall Mounting ........................................26

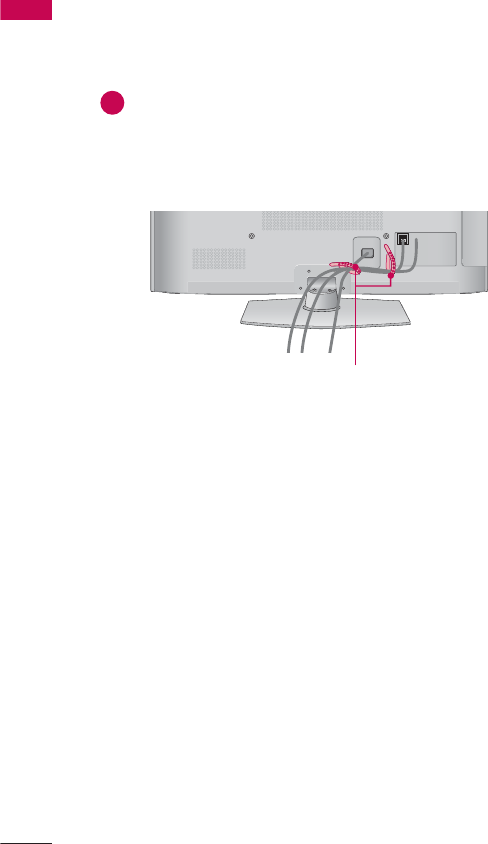

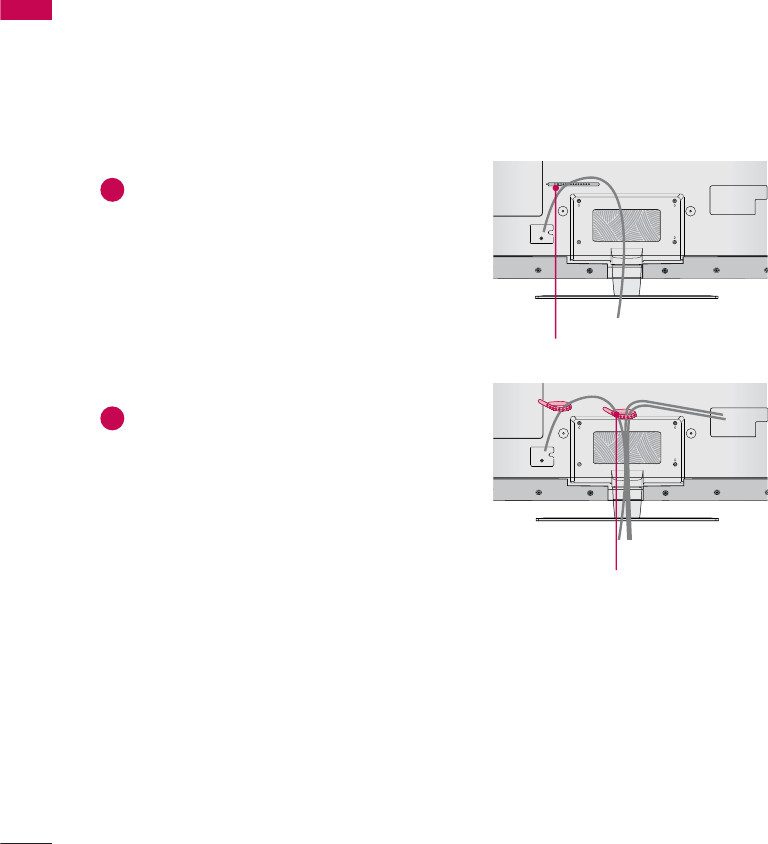

Cable Management ..........................................28
Desktop Pedestal Installation .......................... 31

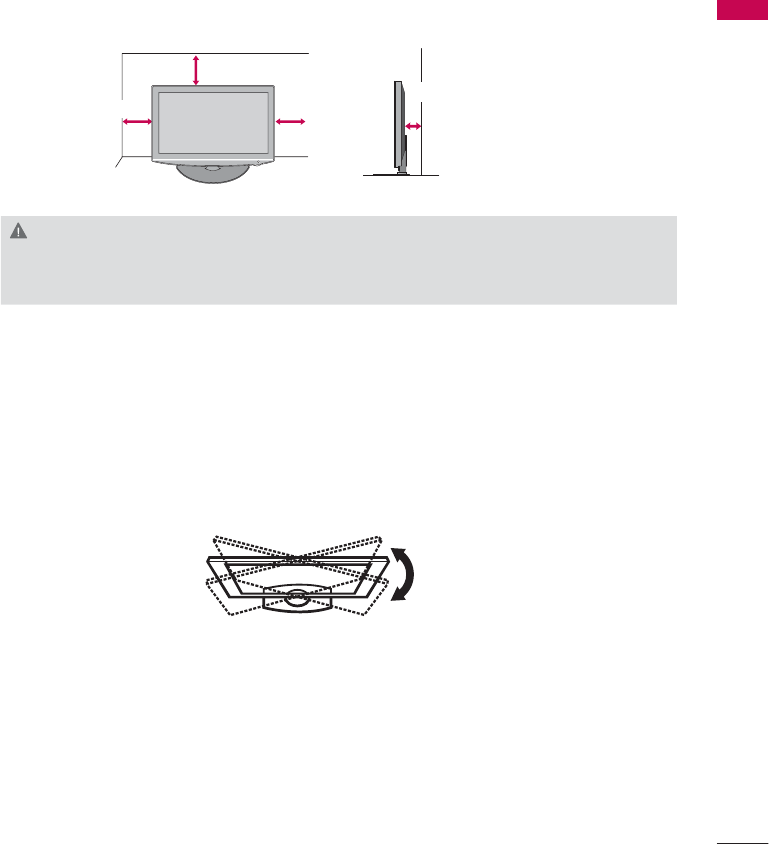

Swivel Stand ......................................................... 31
Attaching the TV to a Desk ............................32
Kensington Security System ..........................32

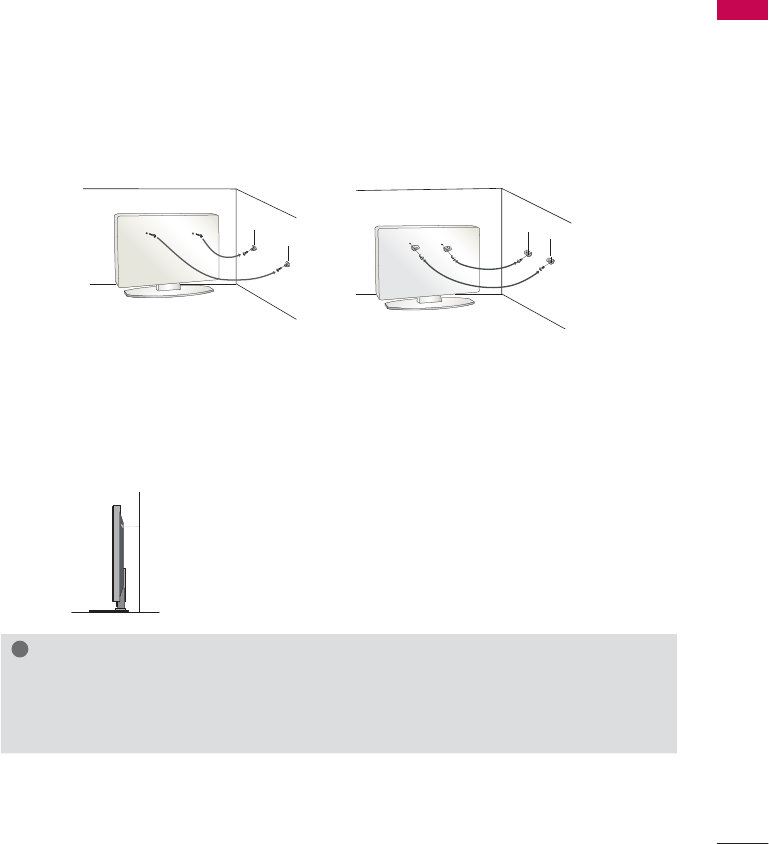

Securing the TV to the wall to prevent falling
when the tv is used on a stand .....................33

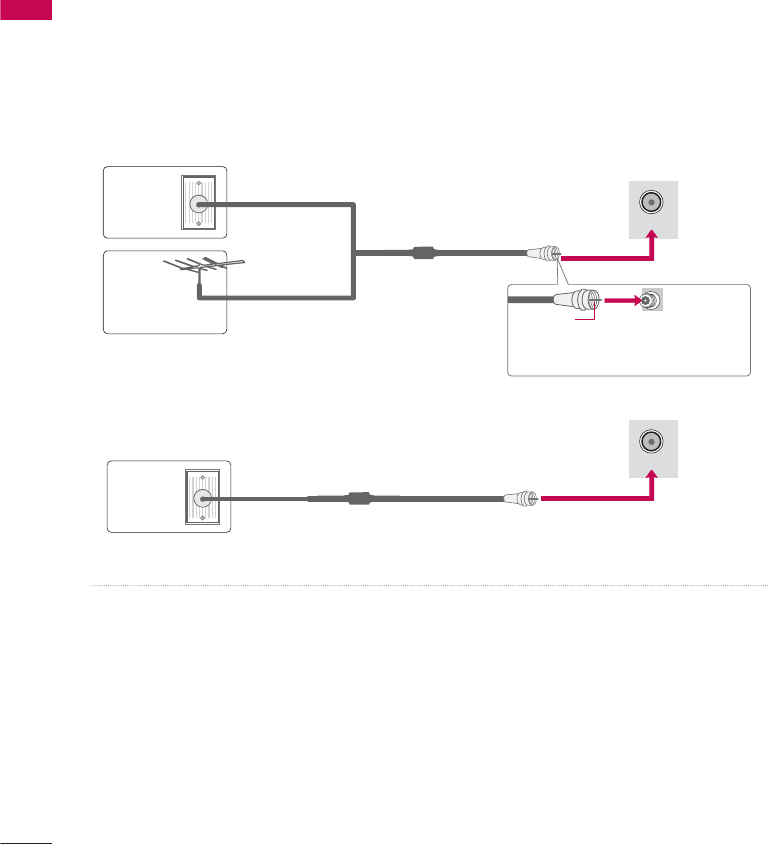

Antenna or Cable Connection.......................34
EXTERNAL EQUIPMENT SETUP

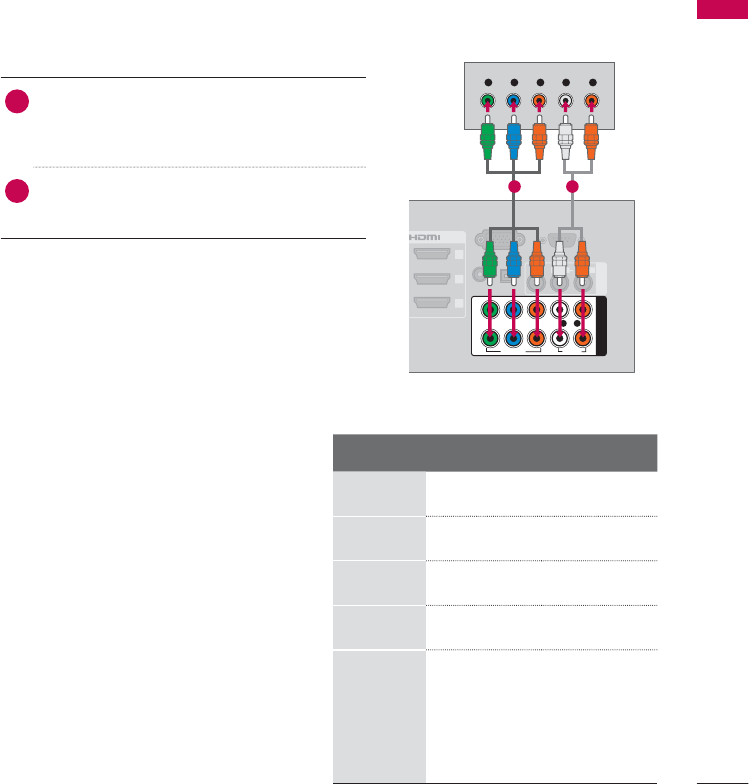

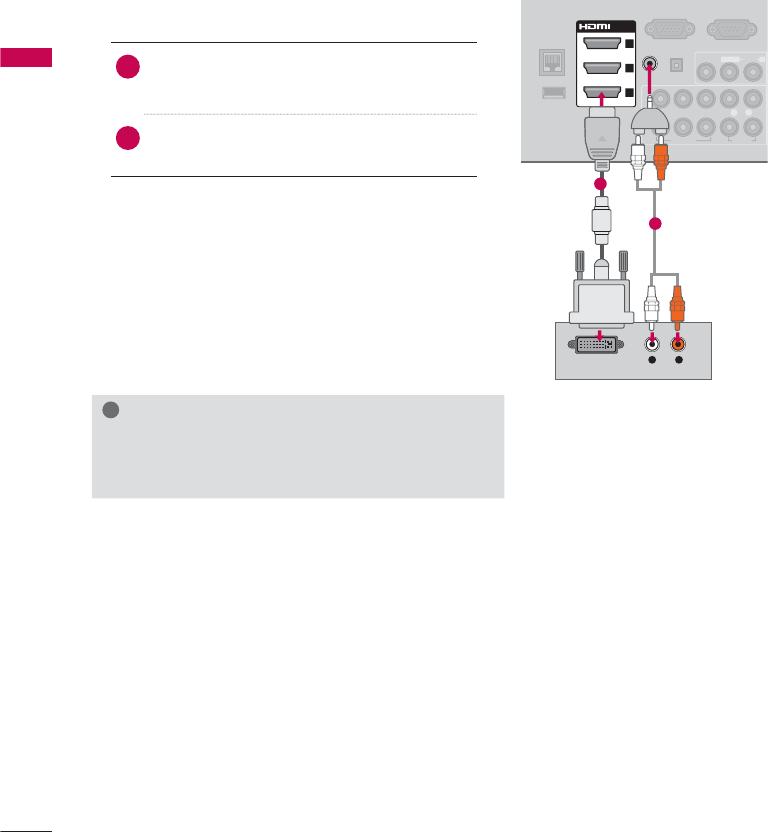

HD Receiver Setup............................................35
DVD SETUP.........................................................39
VCR SETUP.........................................................42

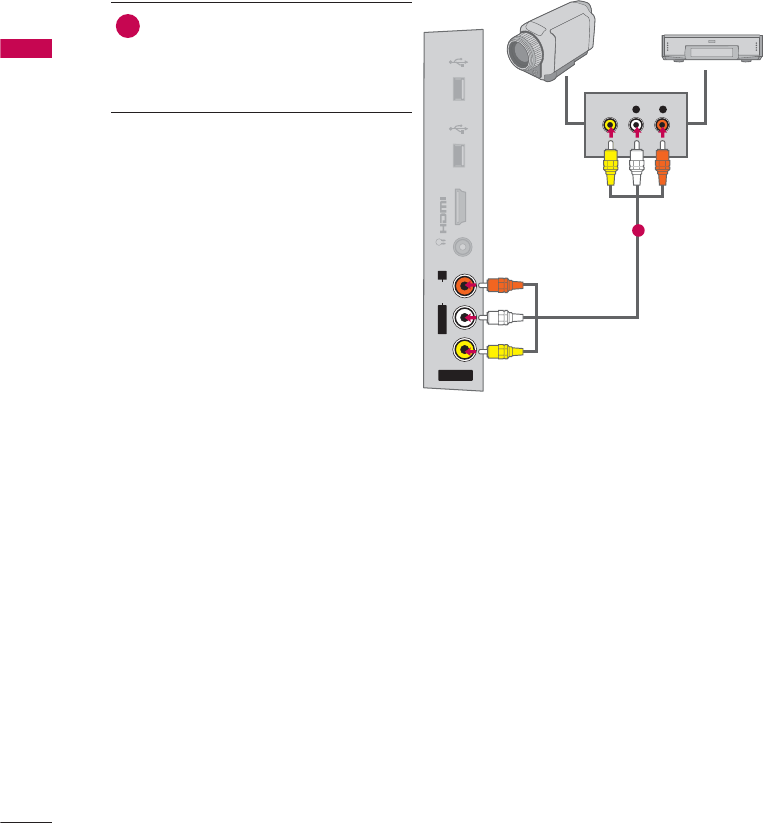

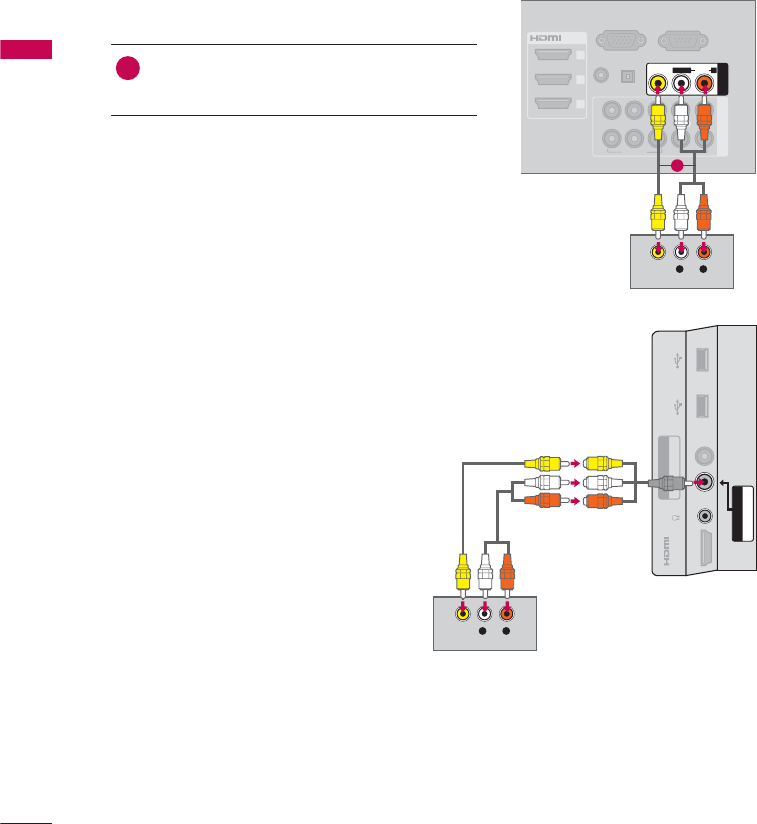

Other A/V Source Setup.................................44

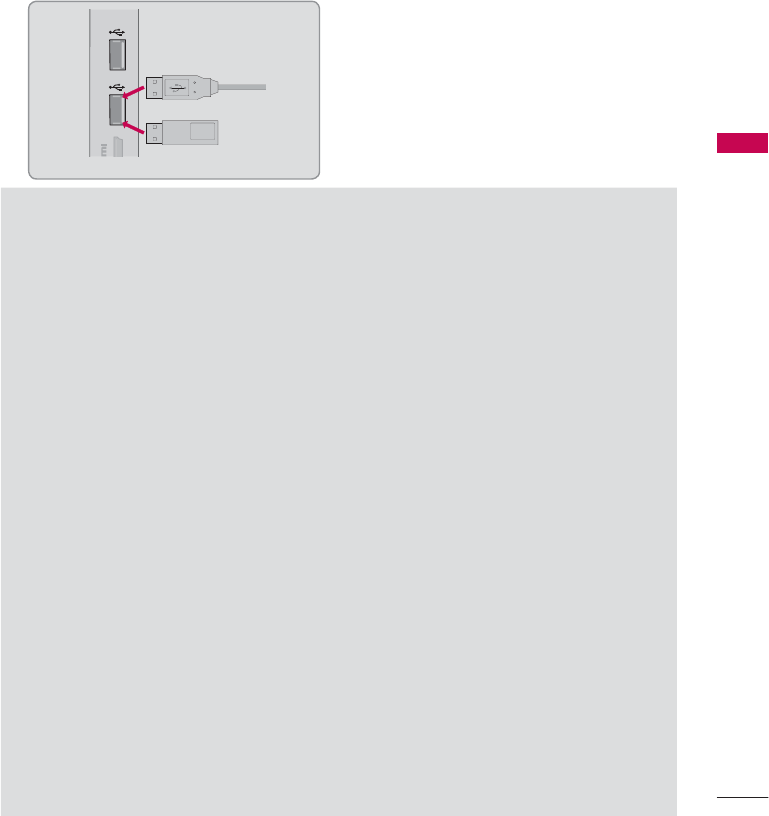

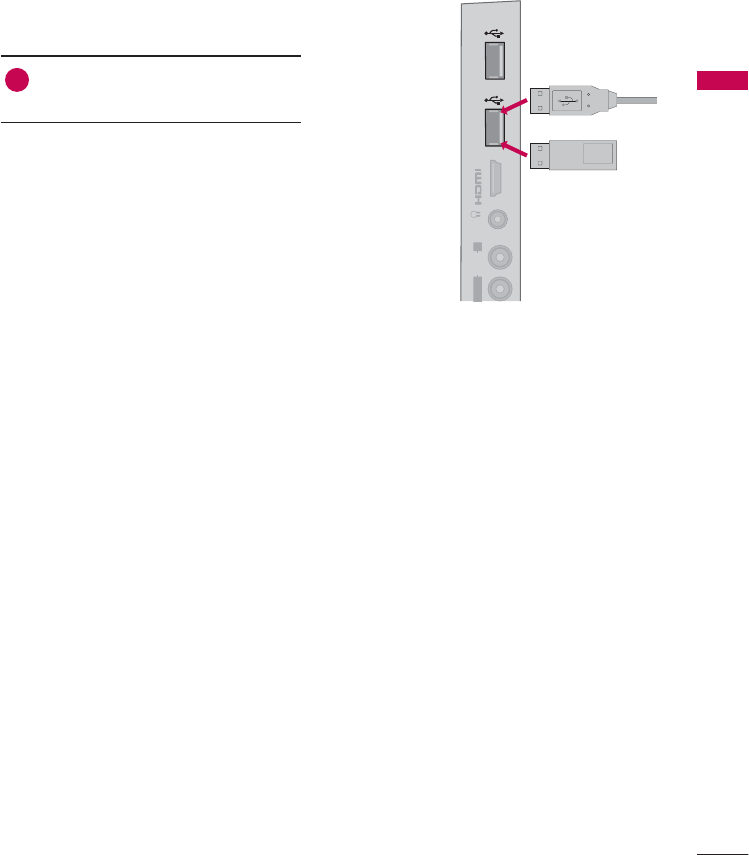

USB Connection ................................................45

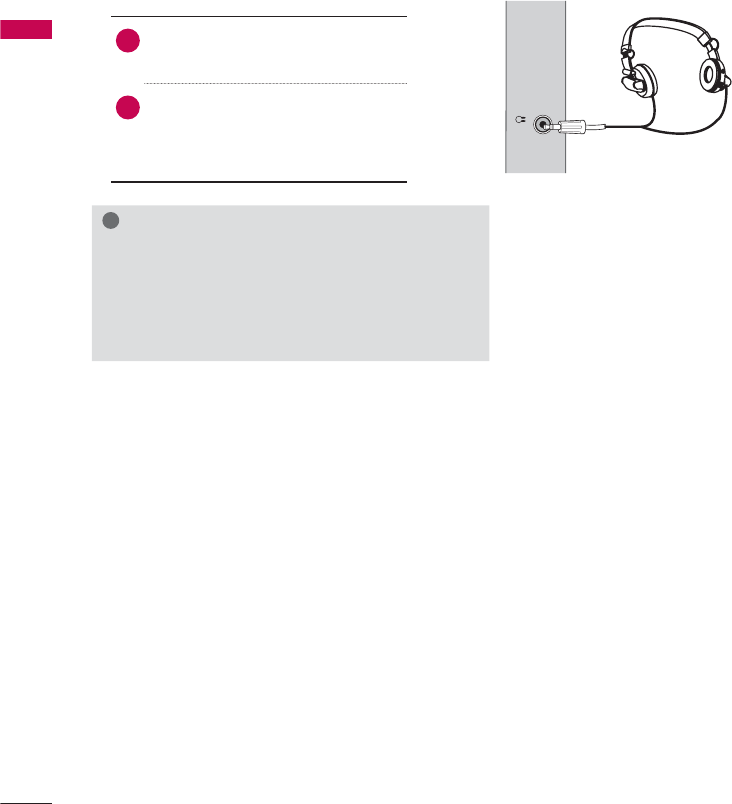

Headphone Setup
....................................................46

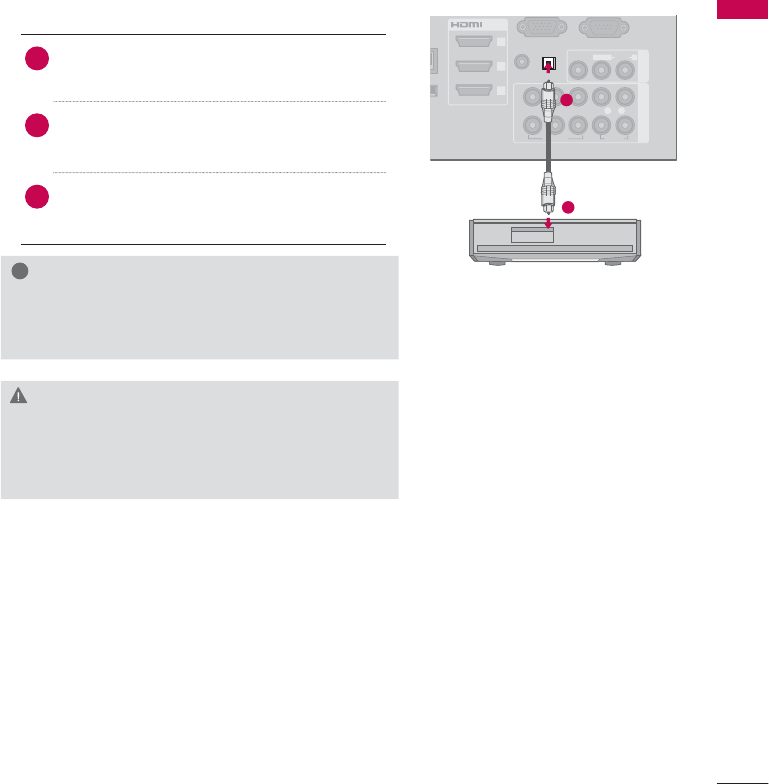

Audio Out Connection..................................... 47

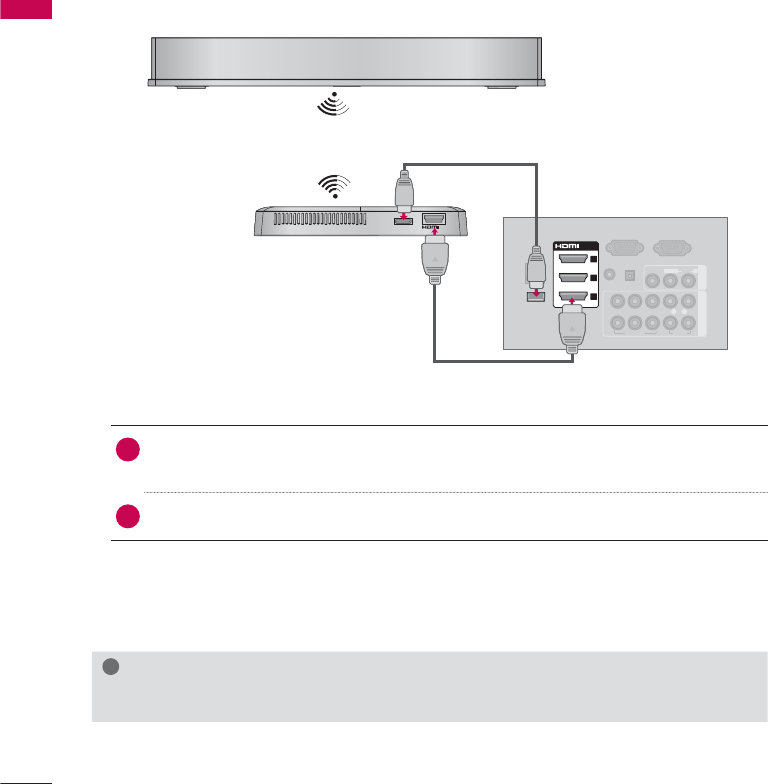

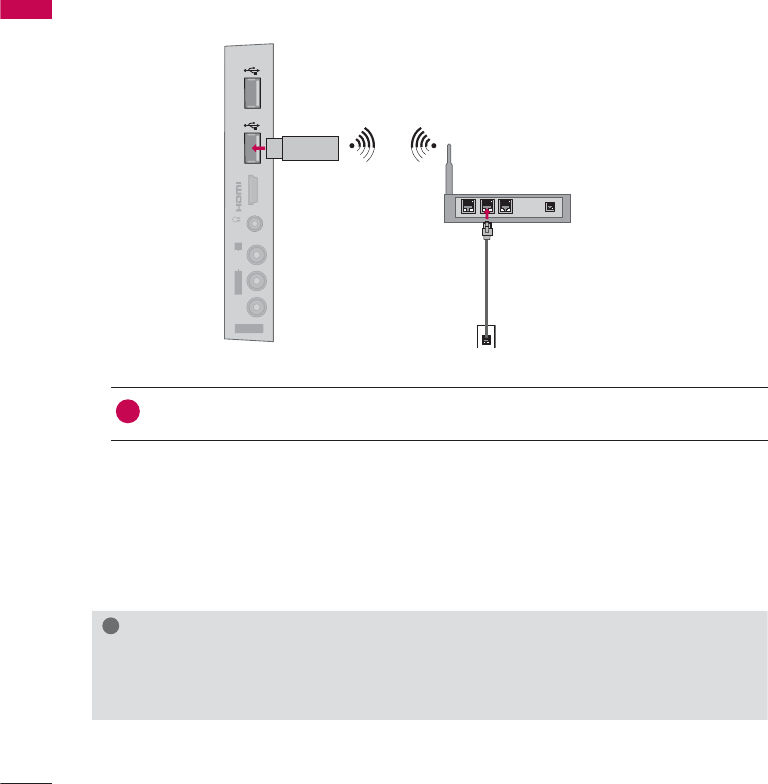

External Equipment WIreless Connection
(Optional Extras).................................................48

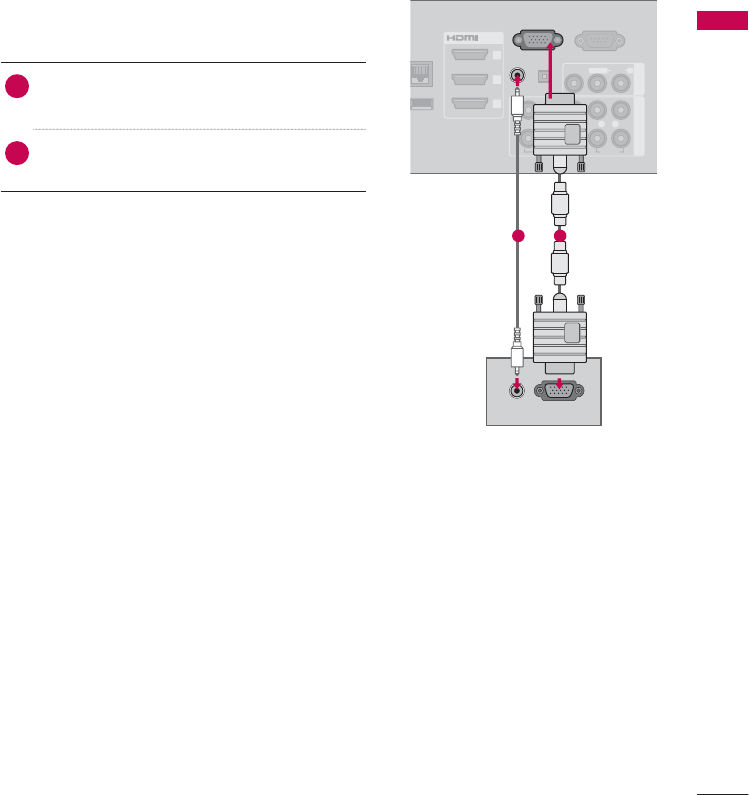

PC Setup..............................................................49

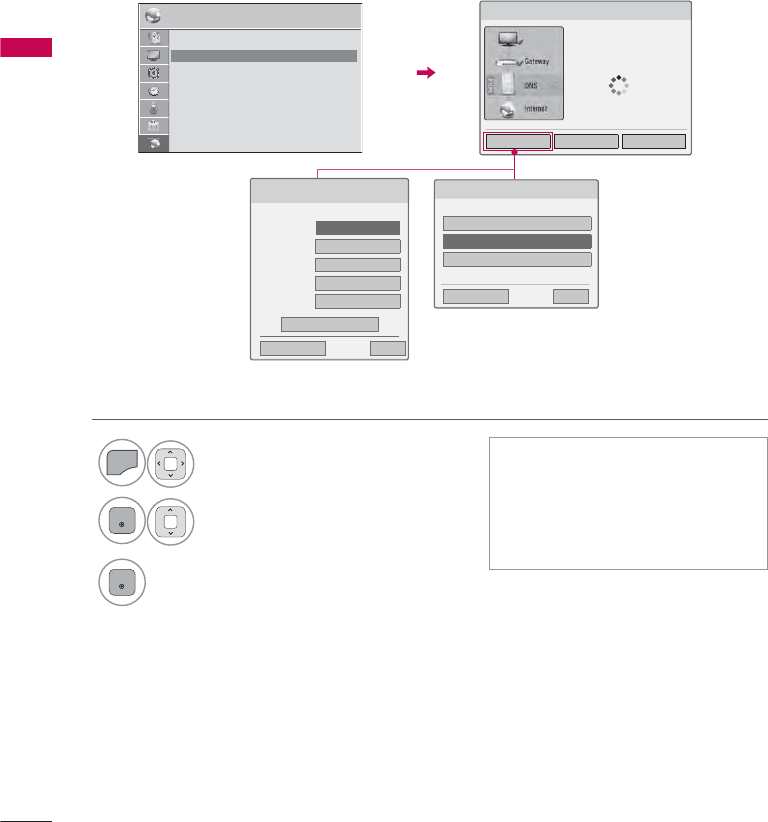

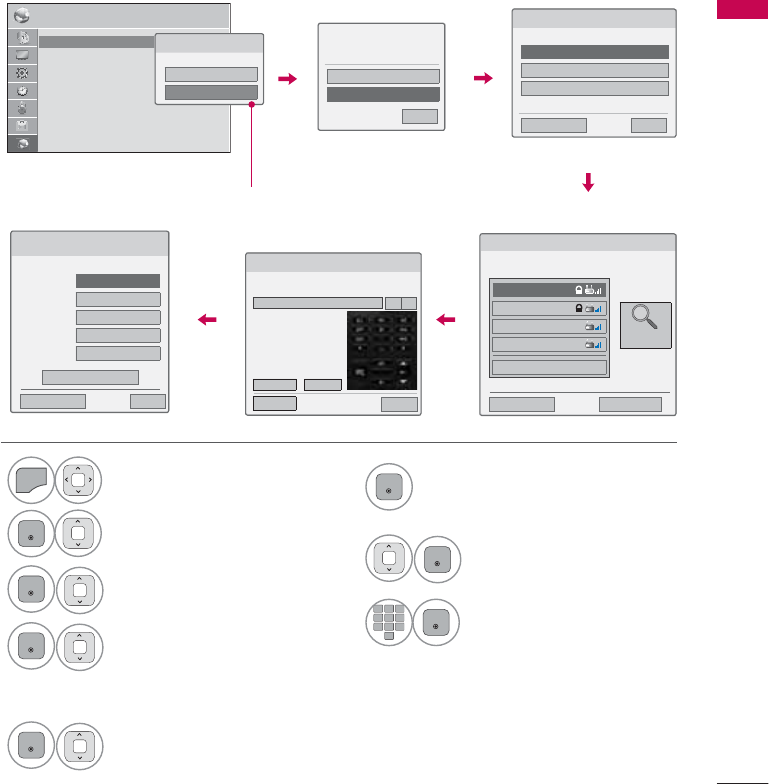

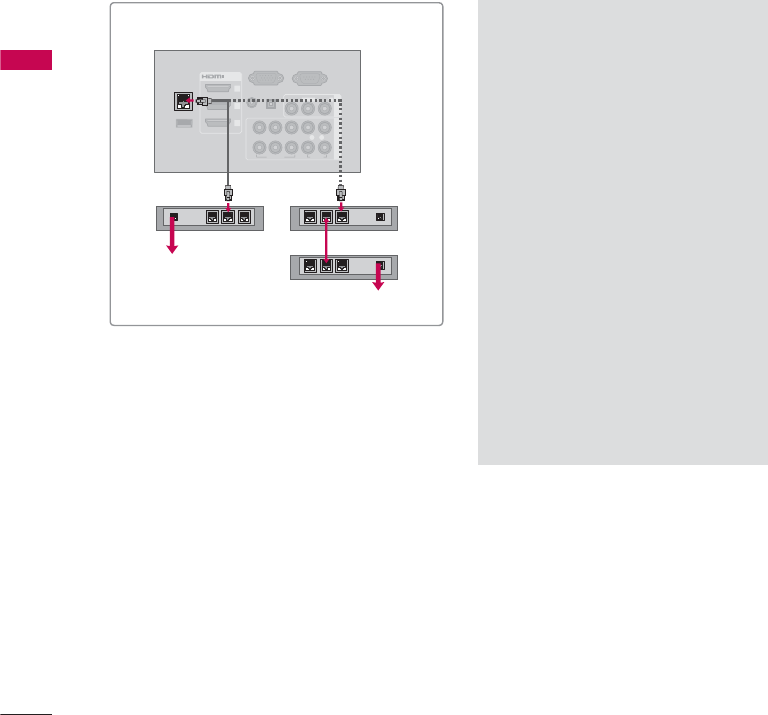

Network Setup ....................................................55
WATCHING TV / CHANNEL CONTROL

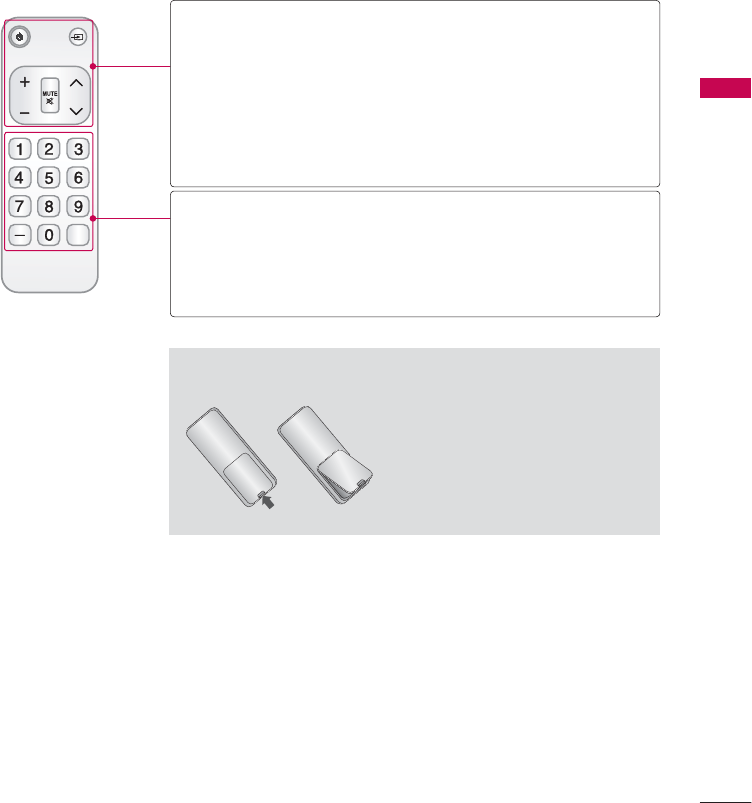

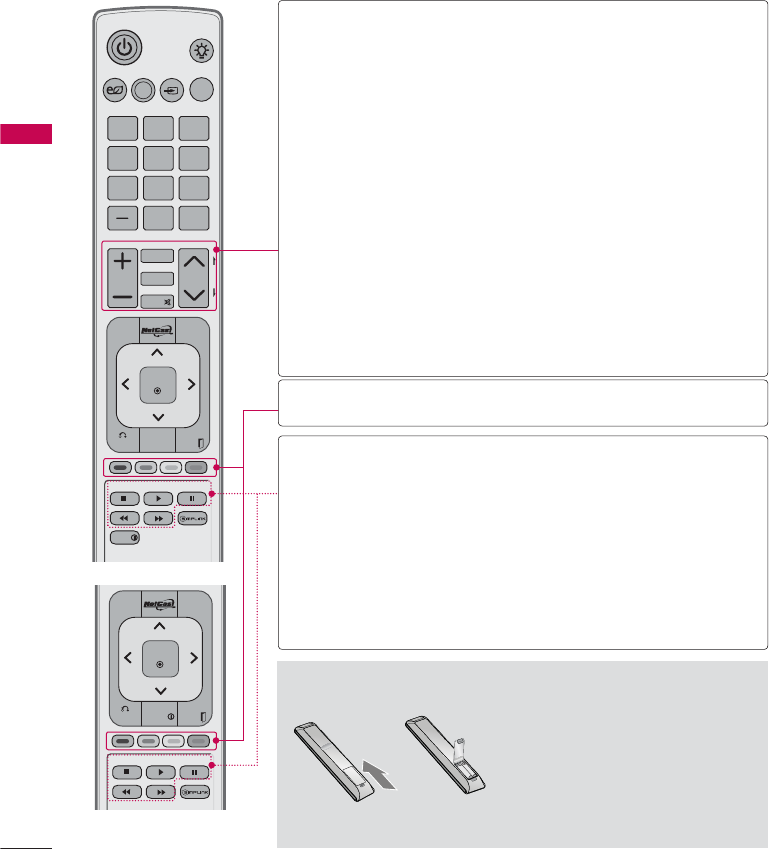

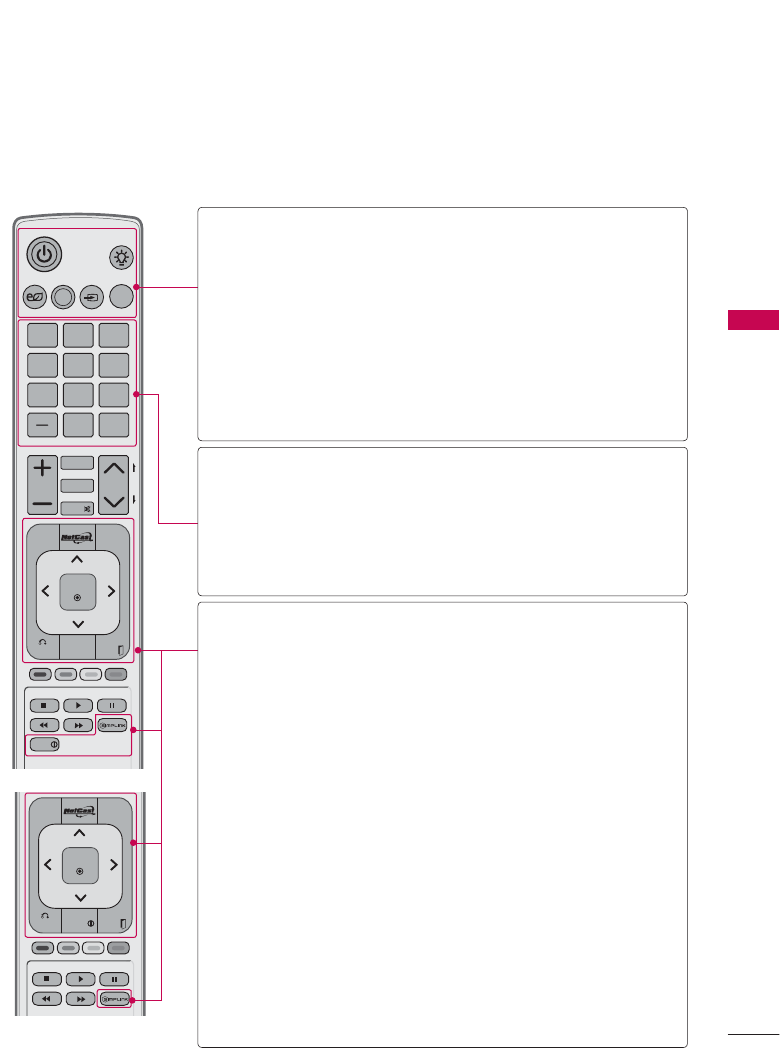

Remote Control Functions ..............................63
Turning on the TV..............................................66
Channel Selection..............................................66
Volume Adjustment ..........................................66
Initial Setting ....................................................... 67
On-Screen Menus Selection..........................69
Quick Menu .......................................................... 71
Customer Support
- Software Update............................................. 72
- Picture Test/Sound Test................................ 73
- Product/Service Info...................................... 74
- Network Test..................................................... 74
Simple Manual.................................................... 75
Channel Setup
- Auto Scan (Auto Tuning).............................. 76
- Add/Delete Channel (Manual Tuning) ..... 77
- Channel Editing............................................... 78
Favorite Channel Setup.................................... 79
Favorite Channel List ........................................ 79
Channel List ....................................................... 80
Channel Information ..........................................81
Channel Brief Information...............................82
Input List ..............................................................83
Input Label...........................................................84
Reset to Factory Default (Initial Setting) .....85
Mode Setting ......................................................86
Demo Mode ........................................................ 87
AV Mode...............................................................88
Game.....................................................................89
SIMPLINK.............................................................90
MY MEDIA
Entry Mode ..........................................................92
Connection Method .......................................... 93
Movie list............................................................. 102
Photo list............................................................. 109
Music list.............................................................. 115
DivX Registration Code.................................. 120
Deactivation ........................................................ 121
NETWORK
Legal Notice ...................................................... 122
CONTENTS
7
NETCAST

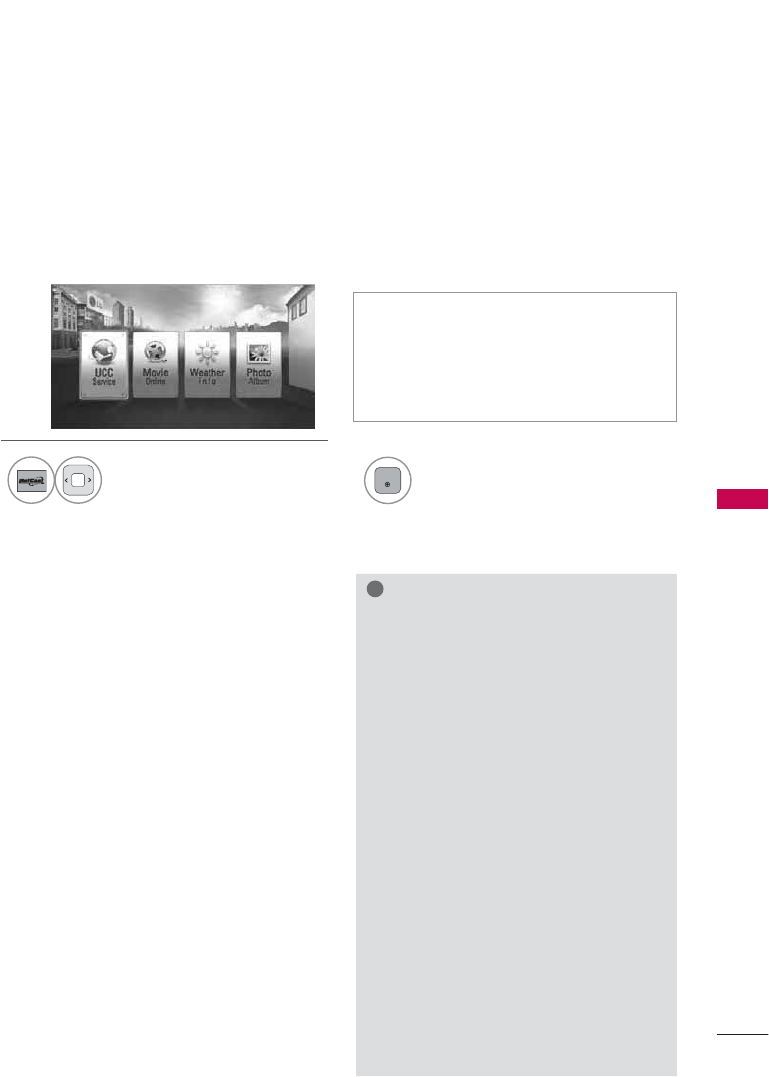

Netcast Menu.................................................... 123

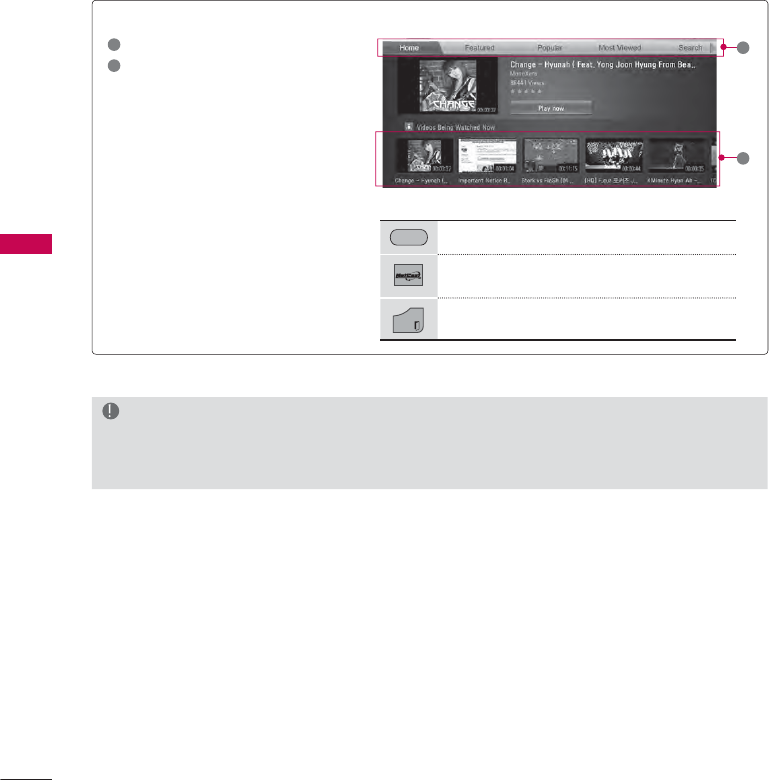

YOUTUBE........................................................... 124
PICASA............................................................... 126
PICTURE CONTROL
Picture Size (Aspect Ratio) Control............ 128
Picture Wizard................................................... 130
ᰚEnergy Saving ............................................ 132
Preset Picture Settings (Picture Mode)..... 133
Manual Picture Adjustment - User Mode 134
Picture Improvement Technology (Advanced
Control) ............................................................... 135
Expert Picture control..................................... 136
Picture Reset..................................................... 139
TruMotion ......................................................... 140
LED Local Dimming ........................................141
Power Indicator ................................................ 142
Image Sticking Minimization (ISM) Method
.143
SOUND & LANGUAGE CONTROL
Auto Volume...................................................... 144
Clear Voice II ..................................................... 145
Balance ............................................................... 146
Preset Sound Settings (Sound Mode) .......147
Sound Setting Adjustment - User Mode.148
Audio Reset....................................................... 149
TV Speakers On/Off Setup .......................... 150
Stereo/SAP Broadcast Setup ....................... 151
Audio Language ............................................. 152
On-screen Menus Language Selection.... 153
Caption Mode
- Analog Broadcasting System Captions. 154
- Digital Broadcasting System Captions... 155
- Caption Option.............................................. 156
TIME SETTING
Clock Setting
- Auto Clock Setup ..........................................157
- Manual Clock Setup ....................................158
Auto On/Off Time Setting............................ 159
Sleep Timer Setting ........................................ 160
PARENTAL CONTROL / RATINGS
Set Password & Lock System
- Setting up Your Password ............................161
- Set Password ................................................. 162
Lock System...................................................... 163
Channel Blocking............................................. 164
Movie & TV Rating .......................................... 165
Downloadable Rating.......................................170
External Input Blocking ....................................171
Key Lock ..............................................................172
APPENDIX
Troubleshooting.................................................173
Maintenance.......................................................176
Product Specifications ....................................177
IR Codes............................................................. 182
Open Source License..................................... 184
8
FEATURE OF THIS TV
ᯫ
Some of these features are not available on all models.
This TV contains the detailed cali-
brations necessary for professional
certification by the Imaging Science
Foundation. The resulting ISF “day”
and “night” modes will then be
accessible by the user to experi-
ence the best their LG HDTV has to
offer.
Sophisticated and detailed calibra-
tions can be made through the
ISFccc mode.
Detailed calibration requires a
licensed technician.
Please contact your local dealer to
inquire about an ISF certified tech-
nician.
THX (Thomlinson Holman’s
Experiment) is an audio and video
certification standard established
by George Lucas and Thomlinson.
A THX certified display guarantees
screen quality that exceeds the dis-
play standard specification in both
hardware and software.
A unique invisible speaker system
tuned by renowned audio expert,
Mr. Mark Levinson. Speakers are
embedded in strategic spots
behind the front cabinet and use
minute vibrations to turn the entire
front bezel into the speaker system.
The result s a clean, polished look,
and enhanced audio by increasing
the “sweet spot”, giving a wider and
richer sound field.
Unlike other sensors which can only
sense brightness of ambient light,
LG’s “Intelligent Sensor” uses
4,096 sensing steps to evaluate its
surroundings. Using a sophisticat-
ed algorithm, the LG processes
picture quality elements including
brightness, contrast, color, sharp-
ness and white balance. The result
is a picture optimized for it’s sur-
roundings, more pleasing to watch
and which can also save up to 50%
in power consumption.
High-definition television. High-
resolution digital television broad-
cast and playback system com-
posed of roughly a million or more
pixels, 16:9 aspect-ratio screens,
and AC3 digital audio. A subset of
digital television, HDTV formats
include 1080p, 1080i, and 720p
resolutions.
Manufactured under license from
Dolby Laboratories. “Dolby “and the
double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trade-
marks of HDMI Licensing LLC."
Displays HDTV programs in full
1920 x 1080p resolution for a more
detailed picture.
ABOUT DIVX VIDEO: DivX® is a
digital video format created by
DivX,Inc. This is an official DivX
Certified device that plays DivX
video. Visit www.divx.com for more
information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-
DEMAND: This DivX Certified®
device must be registered in order
to play DivX Video-on-Demand
(VOD) content. To generate the
registration code, locate the DivX
VOD section in the device setup
menu. Go to vod.divx.com with this
code to complete the registration
process and learn more about
DivX VOD.
“DivX Certified to play DivX video
up to HD 1080p, including premi-
um content”
“Pat. 7,295,673; 7,460,688;7,519,274”
9

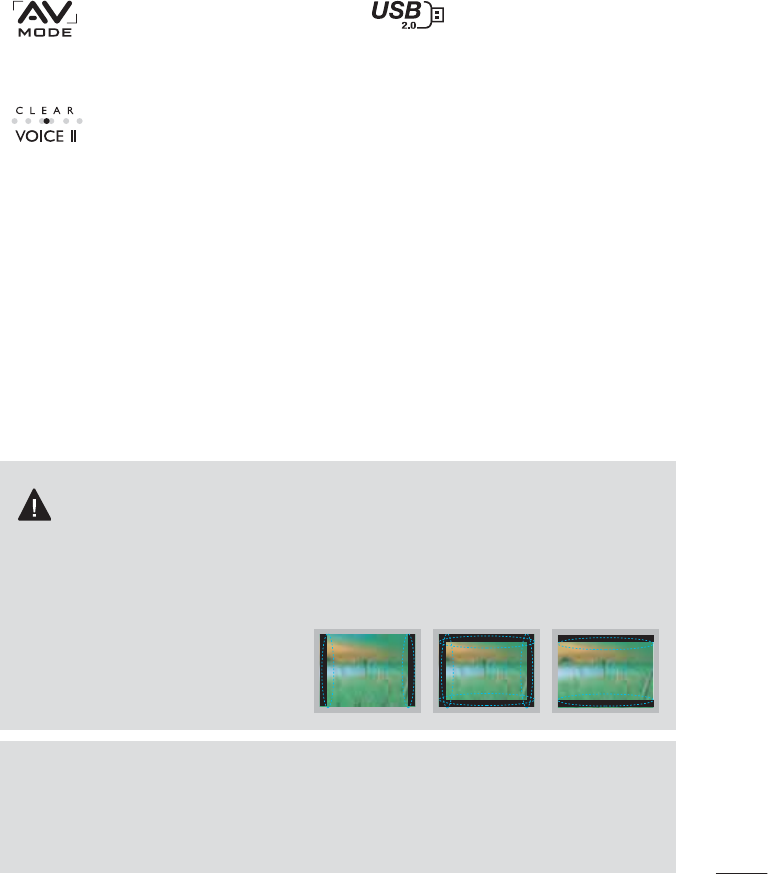

IMPORTANT INFORMATION TO PREVENT “IMAGE
BURN / BURN-IN” ON YOUR TV SCREEN
ᯫ
When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed
on the TV for an extended period, it can become permanently imprinted on the screen. This
phenomenon is known as “image burn” or “burn-in.” Image burn is not covered under the man-
ufacturer’s warranty.
ᯫ
In order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged
period (2 or more hours for LCD, 1 or more
hours for Plasma).
ᯫ
Image burn can also occur on the letter-
boxed areas of your TV if you use the 4:3
aspect ratio setting for an extended period.
ON DISPOSAL
(Only Hg lamp used LCD TV)
The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of this product must be carried out in accordance to
the regulations of your local authority.
View videos and photos and listen
to music on your TV through USB
2.0 (‘videos’ dependent on model).
AV Mode is three preset picture
and audio settings. It allows the
viewer to quickly switch between
common settings. It includes
Cinema, Sports, and Game Modes.
Automatically enhances and ampli-
fies the sound of human voice fre-
quency range to help keep dia-
logue audible when background
noise swells.
PREPARATION
PREPARATION
10
ACCESSORIES
PREPARATION
Ensure that the following accessories are included with your TV. If an accessory is missing, please con-
tact the dealer where you purchased the TV.
The accessories included may differ from the images below.
Option Extras
* Wipe spots on the exterior only with the
polishing cloth.
* Do not wipe roughly when removing
stains. Excessive pressure may cause
scratches or discoloration.
Polishing Cloth
Not included with all models
Not included with all models
D-sub 15 pin Cable
When using the VGA (D-sub 15
pin cable) PC connection, the user
must use shielded signal interface
cables with ferrite cores to main-
tain standards compliance.
Power Cord
1.5V 1.5V
Owner’s Manual CD Manual,
Nero MediaHome 4
Essentials CD
Remote Control,
Batteries (AAA)
50/60PK750
(For 50PK750)
Protection Cover
(Refer to p.21)
Cable Holder
(Refer to p.28)
x 2
x 3 x 4
Screws for stand assembly
(Refer to P.20)
(M5 x 14) (M4 x 28)
Ferrite Core
(Black)
Ferrite Core
(White)
Close to the wall plug.
Ferrite core can be used to reduce the electromagnetic
waves that may interfere with the TV. Install the Ferrite
core on the power cable close to the wall plug.
Ferrite core can be used to reduce the electromagnetic
wave when connecting the LAN cable. Place the ferrite
core far from TV and wind the LAN cable in the ferrite
core once.
11
PREPARATION
OPTIONAL EXTRAS
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
This device only works with compatible LG LED LCD TV, LCD TV, or Plasma TV.
32/42/46/52/60LD550, 47/55LD650
Protection Cover
(Refer to P.23)
Power Cord
Wireless Media Box
(AN-WL100W)
Wireless LAN for Broadband/
DLNA Adaptor
(AN-WF100)
(M4 x 20)
Screws for stand assembly
(Refer to P.22)
Screw for stand fixing
(Refer to P.32)
x 8
32/42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500
Cable Holder
(Refer to p.30)
Component gender cable,
AV gender cable
Screws for stand assembly
(Refer to P.24)
Simple Remote
Control,
Batteries (AAA)
x 8 x 8x 4x 4 x 2
(M4 x 20) (M4 x 16)(M4 x 16)(M4 x 24)
(47/55LE8500) (Other models)(55LE5500, 55LE7500)
(For 42/47/55LE7500,
47/55LE8500) (For 32/42/47/55LE7500)
(For 32/42LD550)
Screw for stand
fixing
(Refer to P.32)
(For 32LE5400)
* Wipe spots on the exterior only with the polishing cloth.
* Do not wipe roughly when removing stains. Excessive pressure may cause
scratches or discoloration.
* For cleaning front frame, please slowly wipe in one direction after spraying
water 1-2 times on cleansing cloths. Please remove excessive moisture after
cleaning. Excessive moisture may cause water stains on the frame.
1.5V 1.5V
CH
FLASHBK
VOL
POWER TV/INPUT
Cleansing
Cloths(mitt)
15
PREPARATION
32/42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500
SPEAKER
Power/Standby Indicator
(Can be adjusted using the Power Indicator in
the OPTION menu.Źp.142)
Remote Control Sensor
VOL ENTERCH MENU INPUT
CHANNEL
(ᰝ,ᰜ)
Buttons
VOLUME
(-, +)
Buttons
ENTER
Button
MENU
Button
INPUT
Button
POWER
Button
Touch Button
You can operate the button just by touching the button lightly with your finger.
Intelligent Sensor
Adjusts picture according to
the surrounding conditions
PREPARATION
PREPARATION
18
12
32/42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500
ANTENNA/
CABLE IN
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
OPTICAL DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
R
L R
AUDIO IN
AUDIO OUT
2
1
RS-232C IN
(
SERVICE ONLY)
ꔡ
1 2 3 4
5
6
8 79
COMPONENT IN3
AUDIO / Y P
B
P
R
IN 4
H/P USB IN 1 USB IN 2
AV IN2
VIDEO / AUDIO
10
8
11
2
6
CAUTION
For HDMI IN 4 and USB IN 1, 2
ŹFor an optimal connection,
HDMI cables and USB
devices should have bezels
less than 10 mm (0.39
inches) thick.
*A 10 mm (0.39 inches)
19
PREPARATION

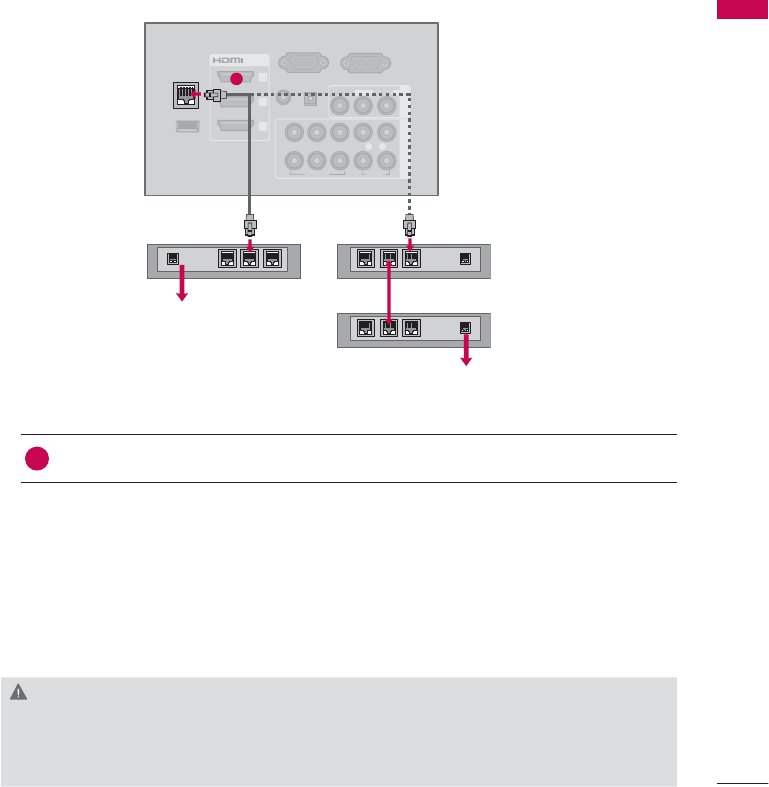

1LAN
Network connection for Netflix, Yahoo! TV
Widgets, etc (for USA).
Also used for video, photo and music files on
a local network.

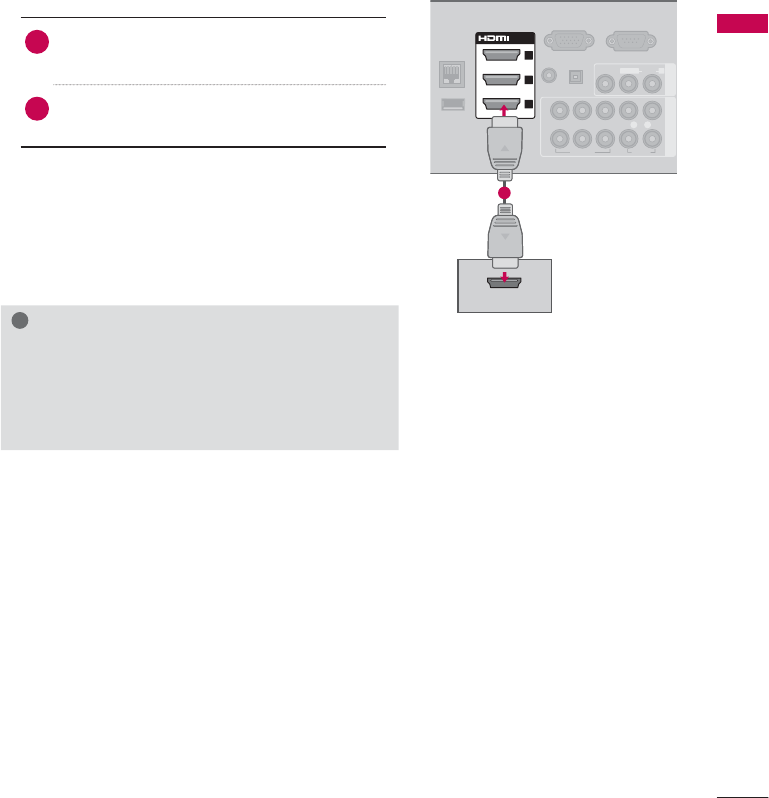

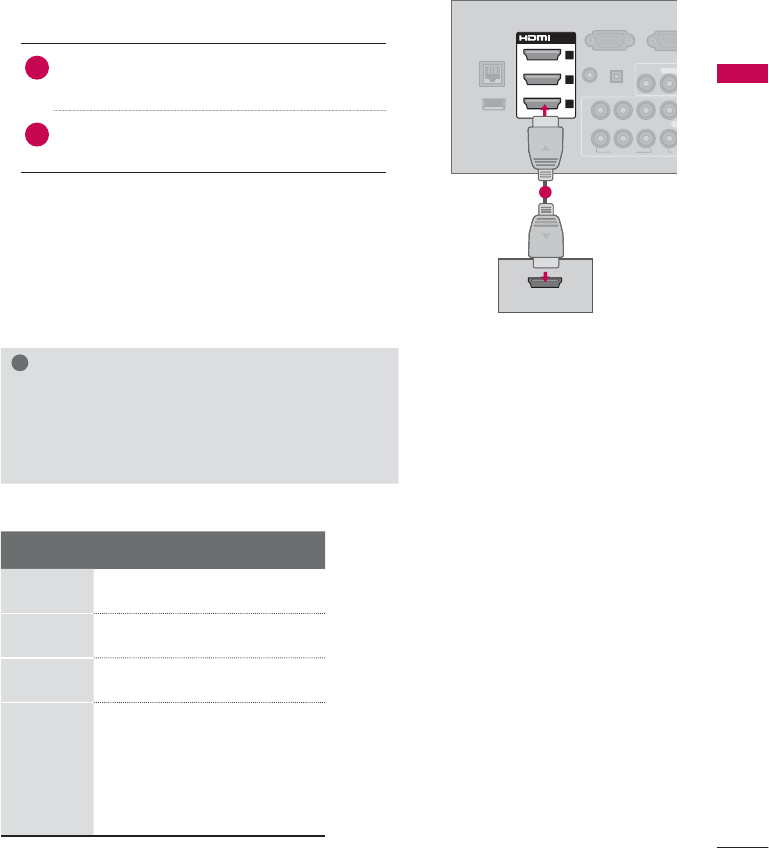

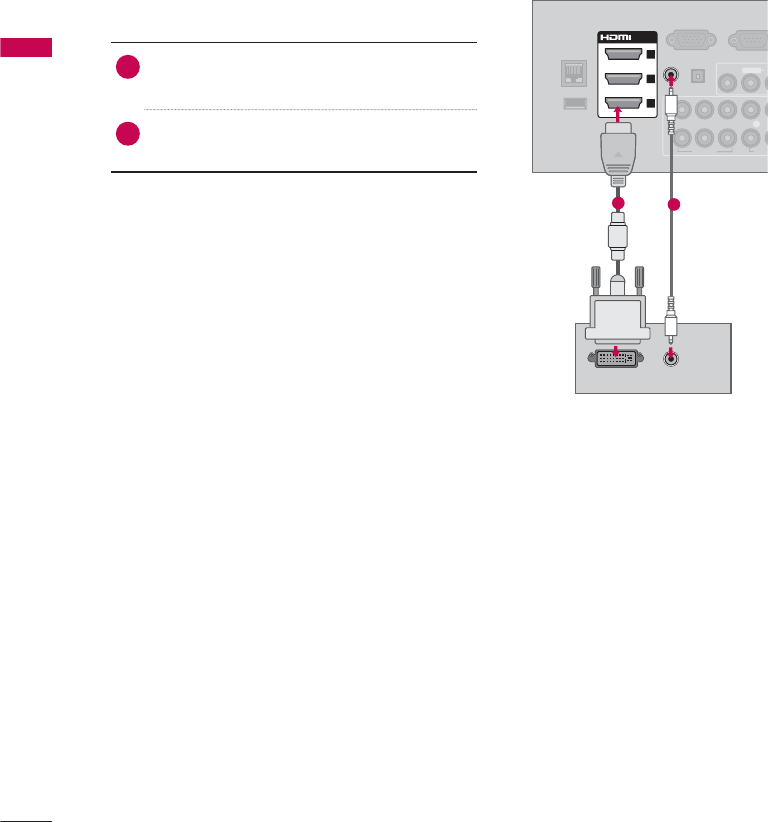

2HDMI/DVI IN, HDMI IN
Digital Connection.
Supports HD video and Digital audio. Doesn’t
support 480i.
Accepts DVI video using an adapter or HDMI
to DVI cable (not included).
3RGB IN (PC)
Analog PC Connection. Uses a D-sub 15 pin
cable (VGA cable).
AUDIO IN (RGB/DVI)
0.32 cm (1/8 inch) headphone jack for analog
PC audio input.
4
RS-232C IN (SERVICE ONLY),SERVICE ONLY
This port is used for service.
5OPTICAL DIGITAL AUDIO OUT
Digital optical audio output for use with amps
and home theater systems.
Note: In standby mode, this port doesn’t work.

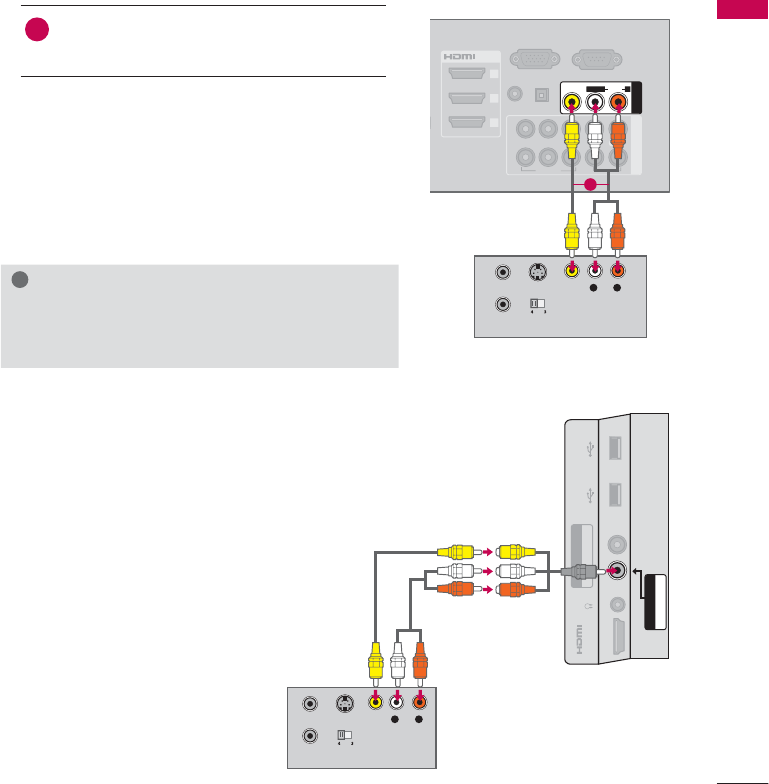

6AV (Audio/Video) IN
Analog composite connection. Supports
standard definition video only (480i).
7ANTENNA/CABLE IN
Connect over-the-air or cable signals to this
jack.

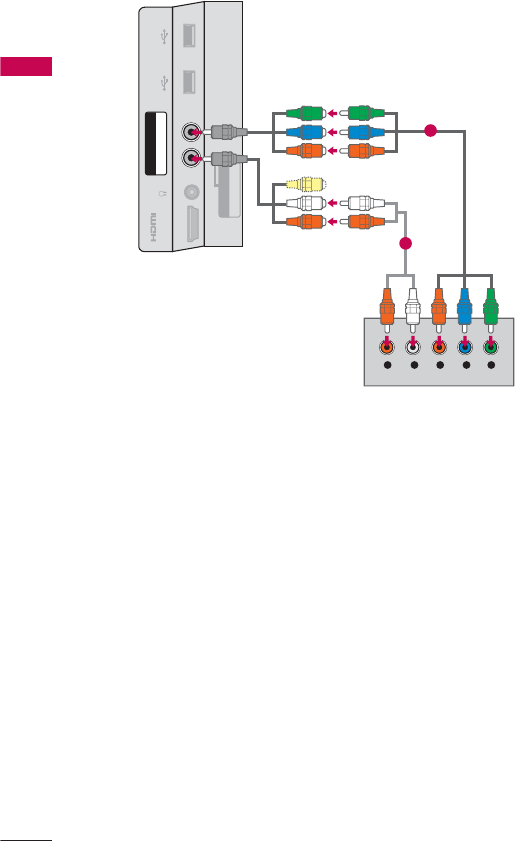

8COMPONENT IN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video &
red and white for audio.
9WIRELESS CONTROL
Connect the Wireless Ready Dongle to the TV
to control the external input devices con-
nected to Media Box wirelessly.
10 USB INPUT
Used for viewing photos, watching movies
and listening to MP3s.
11 HEADPHONE
0.32 cm (1/8 inch) headphone jack
Impedance 16 Ω , Maximum audio out 15 mW
12 Power Cord or Socket
For operation with AC power.
Caution: Never attempt to operate the TV on
DC power.
13 REMOTE CONTROL IN
For a wired remote control.
PREPARATION
PREPARATION
20
STAND INSTRUCTIONS
(For 50/60PK750)
ᯫ
Image shown may differ from your TV.
INSTALLATION
(For 50PK750)
!
NOTE
ŹWhen assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.
1Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
3Assemble the TV as shown.
4Install the 4 screws into the holes shown.
STAND BASE
STAND BODY
M5 x 14
M4 x 28
21
PREPARATION

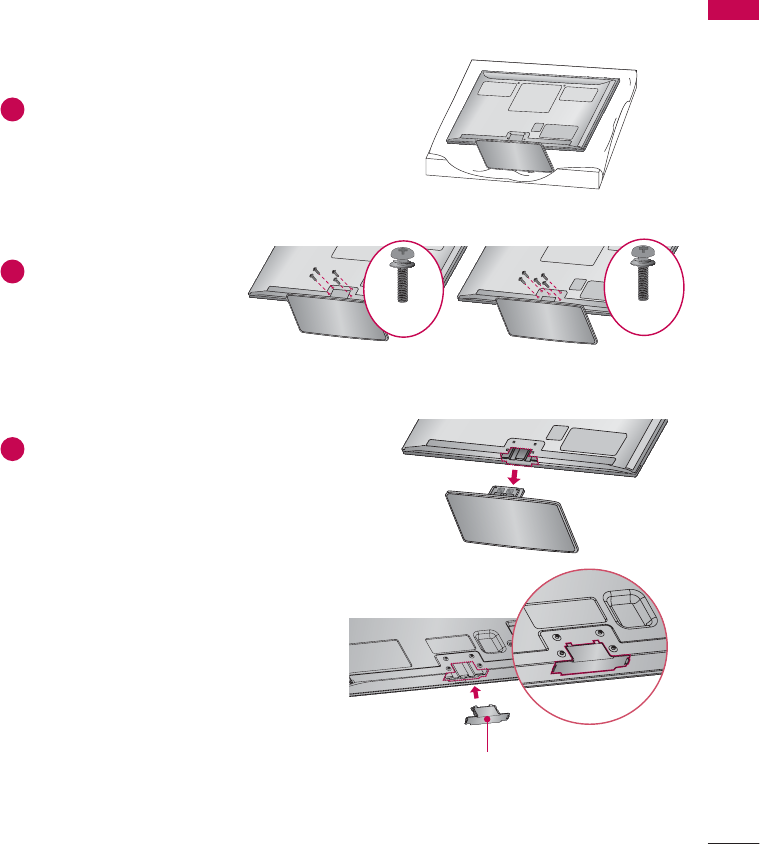

DETACHMENT
PROTECTION COVER
After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.
Press the PROTECTION COVER into the TV until
you hear it click.
When installing the wall mounting bracket, use
the PROTECTION COVER.
1Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2Remove the screws that
hold the stand on.
3Detach the stand from TV.
PROTECTION COVER
Fix a guide to the outside.
50PK750 60PK750
M4 x 30
M4 x 28
PREPARATION
PREPARATION
24

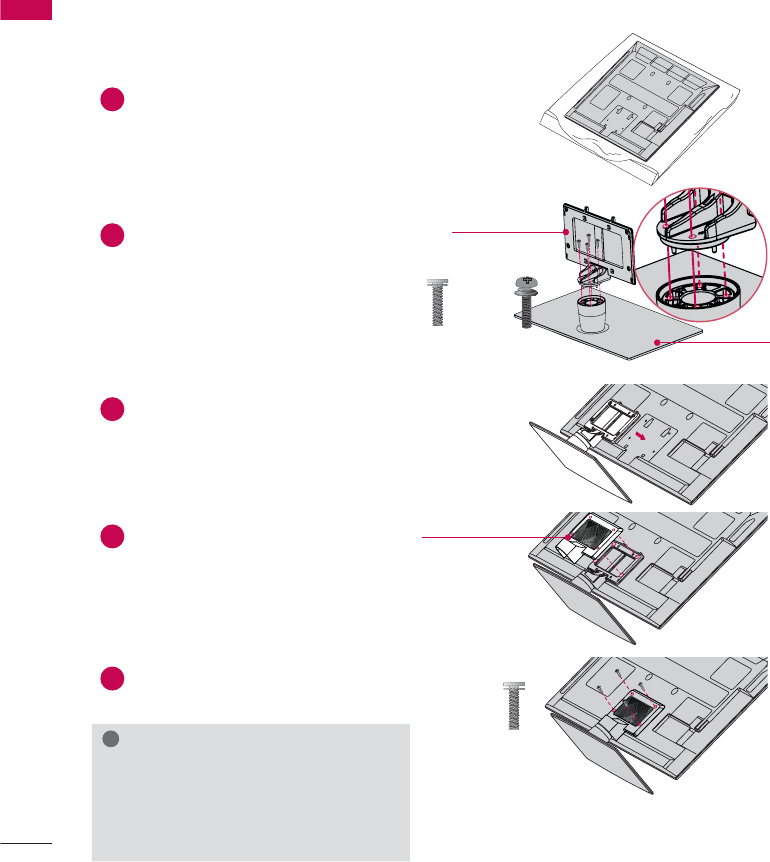

STAND INSTRUCTIONS
(For 32/
42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500,
47/55LE8500)
ᯫ
Image shown may differ from your TV.
INSTALLATION
!
NOTE
ŹWhen assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.
2Assemble the parts of the STAND
BODY with the STAND BASE of the
TV.
At this time, tighten the screws that
hold the STAND BODY on.
3Assemble the TV as shown.
1Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
4Assemble the part of the STAND
REAR COVER with the TV.
5Install the 4 screws into the holes shown.
STAND BASE
STAND BODY
STAND REAR
COVER
M4 x 20
(47/55LE8500)
M4 x 16
(Other models)
M4 x 24
(55LE5500,
55LE7500)
M4 x 20
(47/55LE8500)
M4 x 16
(Other models)
25
PREPARATION
DETACHMENT
1Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2Remove the screws that hold the stand on.
3Detach the STAND REAR COVER from TV.
4Detach the stand from TV.
PREPARATION
PREPARATION
26
VESA WALL MOUNTING
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building mate-
rials, please contact your nearest installer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
We recommend that you use an LG brand wall mount when mounting the TV to a wall.
LG recommends that wall mounting be performed by a qualified professional installer.
Model
VESA (A * B)
A
B
Standard
Screw Quantity Wall Mounting Bracket
(sold separately)
32LD550,
32LE5400 200 * 100 M4 4
LSW100B, LSW100BG
42/46LD550,
47LD650,
42/47LE5400,
42/47LE5500,
42/47LE7500,
47LE8500
200 * 200 M6 4
LSW200B, LSW200BG
52LD550, 55LD650,
55LE5400,
55LE5500,
55LE7500,
55LE8500,
60LD550
400 * 400 M6 4
LSW400B, LSW400BG
50PK750 400 * 400 M6 4
AW-50PG60M AW-50PG60MS
60PK750 600 * 400 M8 4
AW-60PG60M AW-60PG60MS
27
PREPARATION
CAUTION
ŹDo not install your wall mount kit while your TV is turned on. It may result in personal injury due to
electric shock.
!
NOTE
ŹScrew length needed depends on the wall
mount used. For further information, refer to
the instructions included with the mount.
ŹStandard dimensions for wall mount kits are
shown in the table.
ŹWhen purchasing our wall mount kit, a detailed
installation manual and all parts necessary for
assembly are provided.
ŹDo not use screws longer than the standard
dimension, as they may cause damage to the
inside to the TV.
ŹFor wall mounts that do not comply with the
VESA standard screw specifications, the length
of the screws may differ depending on their
specifications.
ŹDo not use screws that do not comply with the
VESA standard screw specifications.
Do not use fasten the screws too strongly, this
may damage the TV or cause the TV to a fall,
leading to personal injury. LG is not liable for
these kinds of accidents.
ŹLG is not liable for TV damage or personal
injury when a non-VESA or non specified wall
mount is used or the consumer fails to follow
the TV installation instructions.
PREPARATION
PREPARATION
28
CABLE MANAGEMENT
ᯫ
Image shown may differ from your TV.
Plasma TV
CABLE HOLDER
1
After connecting the cables as necessary,
install the CABLE HOLDER as shown
and bundle the cables.
In case of the LAN cable, install as
shown to reduce the electromagnetic
wave.
PREPARATION
PREPARATION
30
CABLE HOLDER
CABLE HOLDER
ᯫ
Image shown may differ from your TV.
2After connecting the cables as necessary,
install the CABLE HOLDER as shown
and bundle the cables.
1Secure the power cord with the CABLE
HOLDER on the TV back cover.
It will help prevent the power cable from
being removed by accident.
32/42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500
31
PREPARATION
DESKTOP PEDESTAL INSTALLATION
SWIVEL STAND
After installing the TV, you can adjust the TV set manually to the left or right direction by 20 º to suit
your viewing position.
ᯫ
Image shown may differ from your TV.
For proper ventilation, allow a clearance of 10.1 cm (4 inch) on all four sides from the wall.
10.1 cm (4 inch)
10.1 cm (4 inch)
10.1 cm (4 inch)
10.1 cm (4 inch)
CAUTION
ŹEnsure adequate ventilation by following the clearance recommendations.
ŹDo not mount near or above any type of heat source.
PREPARATION
PREPARATION
32

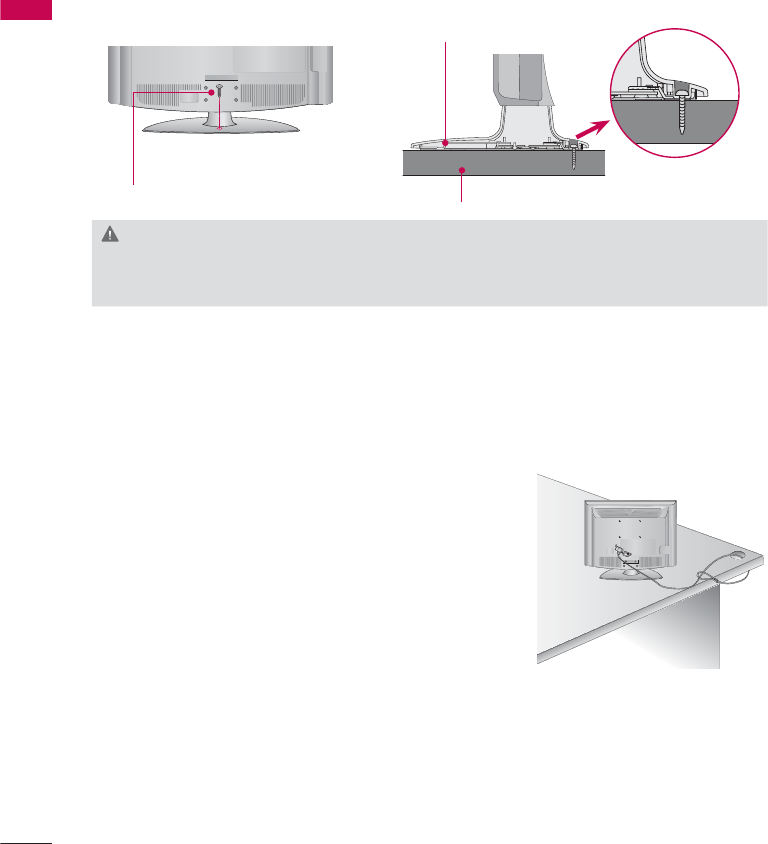

ATTACHING THE TV TO A DESK
(For
32/42LD550, 32LE5400
)
The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, poten-
tially causing injury or damaging the product.
1-Screw
(provided as parts of the product)
Desk
Stand
KENSINGTON SECURITY SYSTEM
ᯫ
This feature is not available for all models.
- The TV is equipped with a Kensington Security System con-
nector on the back panel. Connect the Kensington Security
System cable as shown below.
- For the detailed installation and use of the Kensington Security
System, refer to the user’s guide provided with the Kensington
Security System.
For further information, contact http://www.kensington.com,
the internet homepage of the Kensington company. Kensington
sells security systems for expensive electronic equipment such
as notebook PCs and LCD projectors.
NOTE: The Kensington Security System is an optional accessory.
WARNING
ŹTo prevent TV from falling over, the TV should be securely attached to the floor/wall per installa-
tion instructions. Tipping, shaking, or rocking the machine may cause injury.
ᯫ
Image shown may differ from your TV.
33
PREPARATION
SECURING THE TV TO THE WALL TO PREVENT FALLING
WHEN THE TV IS USED ON A STAND
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward
direction, potentially causing injury or damaging the product.
Caution: Please make sure that children don’t climb on or hang from the TV.
ᯫ
Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the
picture.
* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the
bolts.
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket
that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
ᯫ
Use a sturdy rope (sold separately) to tie the product. It is safer to tie the
rope so it becomes horizontal between the wall and the product.
ᯫ
You should purchase necessary components to prevent the TV from tipping over (when not using a
wall mount).
ᯫ
Image shown may differ from your TV.
!
NOTE
ŹUse a platform or cabinet strong enough and large enough to support the size and weight of
the TV.
ŹTo use the TV safely make sure that the height of the bracket on the wall and the one on the TV are
the same.
PREPARATION
PREPARATION
34
ANTENNA OR CABLE CONNECTION
ᯫ
To prevent damage do not connect to the power outlet until all connections are made between the
devices.
ᯫ
Image shown may differ from your TV.
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
For optimum picture quality, adjust antenna direction if needed.
2. Cable
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Cable TV
Wall Jack
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 Ω)
RF Coaxial Wire (75 Ω)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the copper wire
when connecting the antenna.
Copper Wire
ᯫ
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
ᯫ
For much more information about antennas visit our Knowledgebase at http://lgknowledgebase.
com. Search for antenna.
NTENN
CLEIN
NTENN
CLEIN
35
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
ᯫ
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
ᯫ
I
mage shown may differ from your TV.
1. How to connect
1Connect the video outputs (Y, P B, PR) of the
digital set-top box to the COMPONENT IN
VIDEO 1, 2,or3* jacks on the TV. Match the
jack colors (Y = green, PB = blue, and PR = red).
2Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO 1, 2,or3*
jacks on the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-
top box operation.)
ᯫ
Select the Component1,Component2, or
Component3 input source on the TV using the
INPUT button on the remote control.
Component Connection
This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.
However, if you do receive digital signals from a digital set-top box or other digital external device.
EXTERNAL EQUIPMENT SETUP
RINPC
RVI
RCIN
ERVICE ONL
OPTIC L
IITL
VI IN
VI EO
UIO
L MONO
R
VIN
UIOIN
U IO OUT
VI EO UIO
COMPONENT IN
PP
R
L R
L RP P
R
1 2
Y, C B/PB, CR/PR
Resolution Horizontal
Frequency(KHz)Vertical
Frequency(KHz)
720x480i 15.73 59.94
15.73 60.00
720x480p 31.47 59.94
31.50 60.00
1280x720p 44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
* Component3: For LED LCD TV
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
36
YLR P
B
P
R
AUDIO / Y PBPR
IN
HP UIN UIN
AV IN2
VIDEO / AUDIO
COMPONENT IN
For LED LCD TV
1
2
37
EXTERNAL EQUIPMENT SETUP
HDMI Connection
1. How to connect
1Connect the digital set-top box to HDMI/DVI IN
1,2,3, or 4jack on the TV.
2No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-
top box.)
ᯫ
Select the HDMI1,HDMI2,HDMI3, or HDMI4 input
source on the TV using the INPUT button on the
remote control.
!
NOTE
ŹIf an HDMI cable doesn’t support High Speed HDMI,
it can cause flickers or no screen display. In this case
use the latest cables that support High Speed HDMI.
ŹHDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
HDMI-DTV
Resolution Horizontal
Frequency(KHz)Vertical
Frequency(KHz)
720x480p 31.47 59.94
31.50 60.00
1280x720p 44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
H MI OUTPUT
RINPC
LN
IRELE
CONTROL
RVI
VI EO
L MONO
VI EO
UIOIN
U IO OUT
VI IN
PP
R
L
OPTIC L I IT L
R
ERVICE
ꔡ
1
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
38
DVI to HDMI Connection
1. How to connect
1Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1,2,3, or 4* jack on
the TV.
2Connect the digital set-top box audio output to
the AUDIO IN (RGB/DVI) jack on the TV.
2. How to use
ᯫ
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-
top box.)
ᯫ
Select the HDMI1,HDMI2,HDMI3, or HDMI4* input
source on the TV using the INPUT button on the
remote control.
!
NOTE
ŹA DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
L R
VI OUTPUT
UIO
RINPC
LN
IRELE
CONTROL
RCIN
ERVICE ONL
VI EO
UIO
L MONO
R
VI EO UIO
PP
R
L R
UIOOUT
VI IN
RVI
UIOIN
OPTIC L I IT L
ꔡ
1
2
* HDMI4: For Plasma TV
39
EXTERNAL EQUIPMENT SETUP
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.
1. How to connect
1Connect the video outputs (Y, P B, PR) of the
DVD to the COMPONENT IN VIDEO 1, 2,or3*
jacks on the TV.
Match the jack colors (Y = green, PB = blue, and
PR = red).
2Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1, 2,or3* jacks on the
TV.
2. How to use
ᯫ
Turn on the DVD player, insert a DVD.
ᯫ
Select the Component1, Component2, or
Component3 input source on the TV using the
INPUT button on the remote control.
ᯫ
Refer to the DVD player’s manual for operating
instructions.
Component Connection
RGB IN (PC)
SS
OL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
AUDIO IN
AUDIO OUT
VI EO UIO
COMPONENT IN
PP
R
L R
L RP P
R
OPTICAL DIGITAL
RS-232C IN
(
SERVICE ONLY)
12
* Component3: For LED LCD TV
Component ports on
the TV
YP
B
P
R
Video output ports
on DVD player
YP
B
P
R
YB-YR-Y
YCbCr
YPb Pr
YLR P
B
P
R
AUDIO / Y P
B
P
R
IN 4
H/P USB IN 1 USB IN 2
AV IN2
VIDEO / AUDIO
O PONEN IN
1
2
For LED LCD TV
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
40
Composite (RCA) Connection
1. How to connect
1Connect the AUDIO/VIDEO jacks between TV
and DVD. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ
Turn on the DVD player, insert a DVD.
ᯫ
Select the AV1 or AV2 input source on the TV
using the INPUT button on the remote control.
ᯫ
Refer to the DVD player's manual for operating
instructions.
RGB IN (PC)
SS
OL
(RGB DVI)
DVI IN
2
3
1
VIDEO AUDIO
COMPONENT IN
AUDIO IN
AUDIO OUT
2
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
YP
B
P
R
L R
OPTICAL DIGITAL
RS-232C IN
(
SERVICE ONLY)
L R
VIDEO AUDIO
1
L R
VIDEO AUDIO
AUDIO / Y PBPR
IN 4
H/P USB IN 1 USB IN 2
VIDEO / AUDIO
O PONEN IN
AV IN2
For LED LCD TV
41
EXTERNAL EQUIPMENT SETUP
HDMI OUTPUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
AUDIO IN
AUDIO OUT
2
1
/DVI IN
2
3
1
P
B
P
R
L R
OPTICAL DIGITAL
RS 232C IN
(
SERVICE ONL )
ꔡ
1
HDMI Connection
1. How to connect
1Connect the HDMI output of the DVD to the
HDMI/DVI IN 1,2,3or 4 jack on the TV.
2No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Select the HDMI1,HDMI2,HDMI3, or HDMI4 input
source on the TV using the INPUT button on the
remote control.
ᯫ
Refer to the DVD player's manual for operating
instructions.
!
NOTE
ŹIf an HDMI cable doesn’t support High Speed HDMI,
it can cause flickers or no screen display. In this case
use the latest cables that support High Speed HDMI.
ŹHDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
42
VCR SETUP
Antenna Connection
NTENN
CLEIN
L R
VI EO VI EO
UIO
OUTPUT
ITCH
NT IN
NT OUT
Wall Jack
Antenna
1. How to connect
1Connect the RF antenna out socket
of the VCR to the ANTENNA/CABLE
IN socket on the TV.
2Connect the antenna cable to the RF
antenna in socket of the VCR.
2. How to use
ᯫ
Set VCR output switch to 3 or 4 and
then tune TV to the same channel num-
ber.
ᯫ
Insert a video tape into the VCR and
press PLAY on the VCR (Refer to the
VCR owner’s manual).
1
2
43
EXTERNAL EQUIPMENT SETUP
Composite (RCA) Connection
VI EO
OUTPUT
ITCH
NT IN
NT OUT
RINPC
O
L
RVI
VI IN
VI EO UIO
COMPONENT IN
UIOIN
U IO OUT
VIDEO
UIO
L MONO
R
VIN
PP
R
L R
OPTIC L I IT L
RCIN
ERVICE ONL
L R
VI EO
UIO
1. How to connect
1Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
ᯫ
Select the AV1 or AV2 input source on the TV
using the INPUT button on the remote control.
!
NOTE
ŹIf you have a mono VCR, connect the audio cable
from the VCR to the AUDIO L/MONO jack of the TV.
1
S-VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L R
VIDEO AUDIO
AUDIO / Y PBPR
IN 4
H/P USB IN 1 USB IN 2
VIDEO / AUDIO
COMPONENT IN3
AV IN2
For LED LCD TV
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
44
OTHER A/V SOURCE SETUP
VIN
VI EO
UIO
L MONO
R
HP
IN
UIN UIN
L R
VI EO
Camcorder
Video Game Set
1. How to connect
1Connect the AUDIO/VIDEO jacks
between TV and external equipment.
Match the jack colors
.
(Video = yellow, Audio Left = white, and
Audio Right = red)
2. How to use
ᯫ
Select the AV1 or AV2 input source on
the TV using the INPUT button on the
remote control.
ᯫ
Operate the corresponding external
equipment.
1
45
EXTERNAL EQUIPMENT SETUP
USB CONNECTION
IN 4
AUDIO
L(
MONO)
R
H/P USB IN 1 USB IN 2
Memory Key
or
1. How to connect
1Connect the USB device to the USB
IN 1 or 2 jack on the side of TV.
2. How to use
ᯫ

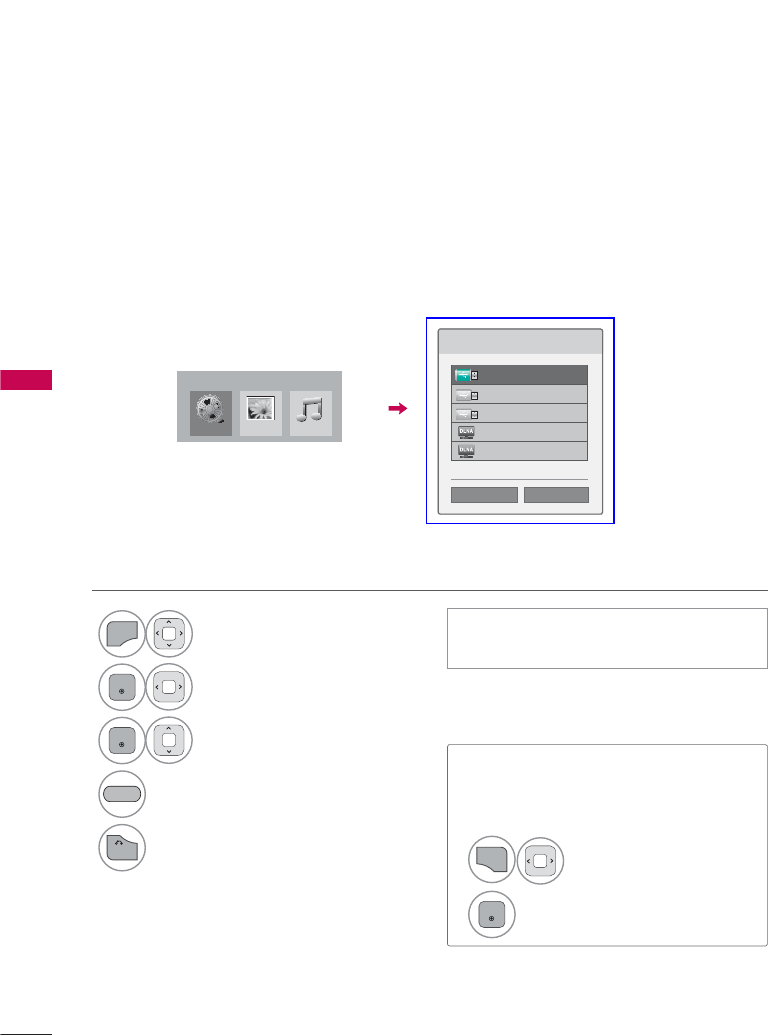

After connecting the USB IN jack, you
use the USB function. (Źp.93)
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
46
HEADPHONE SETUP (FOR LED LCD TV/LCD TV)
HP
You can listen to the sound through the headphone.
1. How to connect
1Plug the headphone into the head-
phone socket.
2To adjust the headphone volume,
press the VOL +/- button. If you
press the MUTE button, the sound
from the headphone is switched off.
!
NOTE
ŹAUDIO menu options are disabled when connecting a
headphone.
ŹWhen changing AV MODE with a headphone con-
nected, the change is applied to video but not to audio.
ŹOptical Digital Audio Out is not available when con-
necting a headphone.
47
EXTERNAL EQUIPMENT SETUP
RGB IN (PC)
N
EL
ESS
NTR
OL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
AUDIO IN
2
1
U IO OUT
PP
R
L R
OPTIC L I IT L
AUDIO OUT CONNECTION
Send the TV’s audio to external audio equipment via the Audio Output port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL
AUDIO OUT terminal on the back of TV to a Home Theater (or amp).
!
NOTE
ŹWhen connecting with external audio equipment, such
as amplifiers or speakers, you can turn the TV speakers
off in the menu. (Źp.150)
CAUTION
ŹDo not look into the optical output port. Looking at
the laser beam may damage your vision.
ŹAudio with ACP (Audio Copy Protection) function may
block digital audio output.
1. How to connect
1Connect one end of the optical cable to the
TV port of OPTICAL DIGITAL AUDIO OUT.
2Connect the other end of the optical cable to
the digital audio input on the audio equip-
ment.
3Set the “TV Speaker option - Off” in the
AUDIO menu. (Źp.150). See the external audio
equipment instruction manual for operation.
1
2
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
48
EXTERNAL EQUIPMENT WIRELESS CONNECTION
(OPTIONAL EXTRAS)
LG TVs with a Wireless Control port support the LG Wireless Media Box, which is sold separately.
When you connect the wireless ready dongle (included with the media box) to the TV, external devices
can be connected to the LG Wireless Media Box and video and audio will be sent to the TV wirelessly.
RGB IN (PC)
LAN
(RGB/DVI)
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
AUDIO IN
AUDIO OUT
2
1
IRELE
CONTROL
OUT
WIRELESS
CONTROL
VI IN
PP
R
L R
OPTIC L I IT L
RCIN
ERVICE ONL
ꔡ
1. How to connect
1Connect the WIRELESS CONTROL jack of the Wireless Ready Dongle to the WIRELESS
CONTROL jack on the TV.
2Connect HDMI OUT jack of the Wireless Ready Dongle to the HDMI IN jack on the TV.
2. How to use
ᯫ
Select the desired input source on the TV using the INPUT button on the remote control.
ᯫ
Refer to the Wireless Media Box manual for operating instructions.
!
NOTE
ŹWhen using the external device connected to the Wireless Media Box, some functions of the TV
49
EXTERNAL EQUIPMENT SETUP
LAN
WIR
ELESS
CO
NTROL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
AUDIO OUT
2
1
RGB IN (PC)
RGB OUTPUT
AUDIO
(RGB/DVI)
AUDIO IN
PP
R
L R
OPTIC L I IT L
RCIN
ERVICE ONL
ꔡ
PC SETUP
This TV provides Plug and Play capability, meaning that a PC adjusts automatically to the TV's set-
tings.
1. How to connect
1Connect the VGA output of the PC to the
RGB IN (PC)jack on the TV.
2Connect PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
ᯫ
Turn on the PC and the TV.
ᯫ
Select the RGB-PC input source on the TV using
the INPUT button on the remote control.
VGA (D-Sub 15 Pin) Connection
12
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
50
DVI to HDMI Connection
1. How to connect
1Connect the DVI output of the PC to the HDMI/
DVI IN 1,2,3, or 4* jack on the TV.
2Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
ᯫ
Turn on the PC and the TV.
ᯫ
Select the HDMI1,HDMI2,HDMI3, or HDMI4* input
source on the TV using the INPUT button on the
remote control.
VI OUTPUT UIO
RINPC
LN
IRELE
CONTROL
VI EO
U
L MONO
VI EO UI
U IO OUT
VI IN
RVI
UIOIN
PP
R
L
OPTIC L I IT L
RC
I
ERVICE ON
L
ꔡ
12
* HDMI4: For Plasma TV
51
EXTERNAL EQUIPMENT SETUP
Supported Display Specifications (RGB-PC, HDMI-PC)
!
NOTE
ŹTo get the the best picture quality, adjust the PC graphics card to 1920x1080.
ŹDepending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
ŹIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright-
ness. If noise is present, change the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
ŹAvoid keeping a fixed image on the screen for a long period of time. The fixed image may become
permanently imprinted on the screen.
ŹThe synchronization input form for Horizontal and Vertical frequencies is separate.
ŹDepending on the graphics card, some resolution settings may not allow the image to be posi-
tioned on the screen properly.
ŹIf you experience overscan issues when using HDMI-PC 1920x1080, change aspect ratio to Just
scan.
ŹWhen selecting HDMI-PC, set the “Input Label - PC” in the OPTION menu.
Resolution Horizontal
Frequency (KHz)Vertical
Frequency (KHz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1280x768 47.776 59.87
1360x768
47.712 60.015
1280x1024
63.981 60.02
1920x1080
RGB-PC
66.587 59.934
1920x1080
HDMI-PC
67.50 60.00
55
EXTERNAL EQUIPMENT SETUP
RGB IN (PC)
WIRELESS
CONTROL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
AUDIO IN
AUDIO OUT
2
1
LAN
PP
R
L R
OPTIC L I IT L
RCIN
ERVICE ONL
ꔡ
Broadband modem
Broadband modem
Router
Broadband Service
Broadband Service
NETWORK SETUP
This TV can be connected to a local area network (LAN) via the LAN port. After making the physical
connection, the TV needs to be set up for network communication.
CAUTION
ŹDo not connect a modular phone cable to the LAN port.
ŹSince there are various connection methods, please follow the specifications of your telecommu-
nication carrier or internet service provider.
1. How to connect
1Connect the LAN port of the Modem or Router to the LAN port on the TV.
2. How to use
ᯫ
Select “Network Setting” in the NETWORK menu.
ᯫ
After connecting the LAN port, use the NETCAST menu.
ᯫ
For more information about NETCAST setup and troubleshooting, visit http://lgknowledgebase.
com. Search for NETCAST.
Wired Network Connection
1
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
56
ᯫ
This feature requires an always-on
broadband internet connection.
ᯫ
You do not need to connect to a PC
to use this function.
ᯫ
If Network Setting is not working,
check your network conditions. Check
the LAN cable and make sure your
router has DHCP turned on if you
wish to use the Auto Setting.
ᯫ
If the Network Setting is not com-
pleted, network may not operate nor-
mally.
ᯫ
IP Auto Setting: Select it if there is a
DHCP server on the local area net-
work (LAN) via wired connection, the
TV will automatically be allocated an
IP address. If you’re using a broad-
band router or broadband modem
that has a DHCP (Dynamic Host
Configuration Protocol) server func-
tion. The IP address will automati-
cally be determined.
ᯫ
IP Manual Setting: Select it if there is
no DHCP server on the network and
you want to set the IP address manu-
ally.

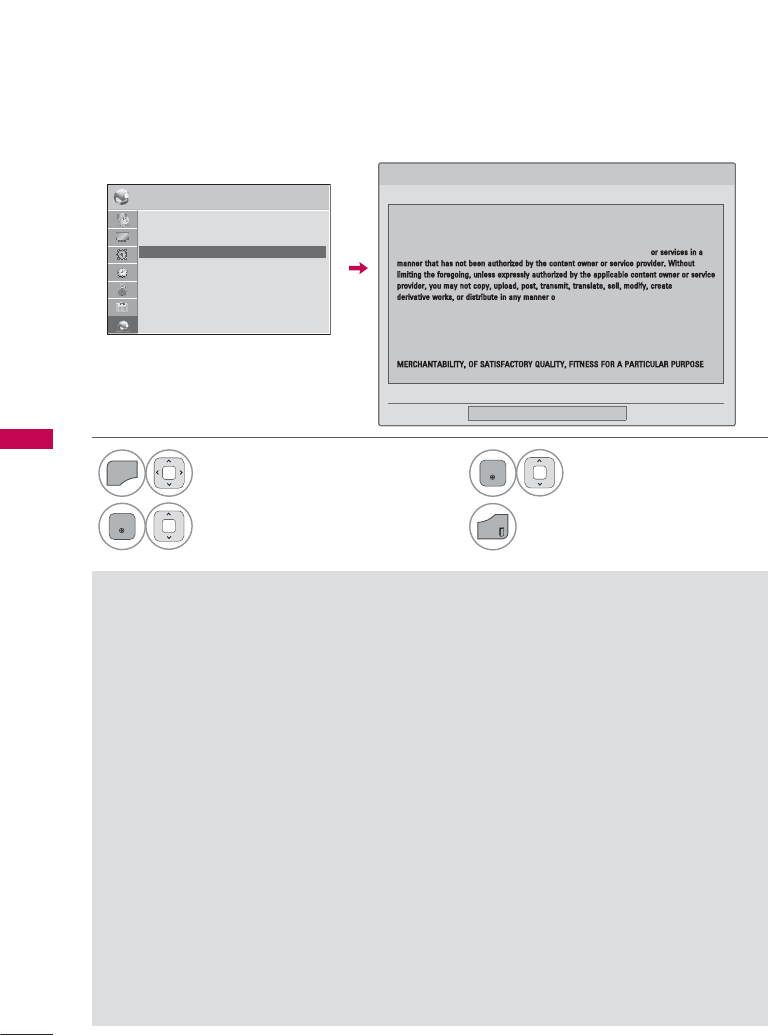

1(7:25. ᯒ0RYHᯙ(QWHU
ؒ1HWZRUN6HWWLQJ :LUHG
ؒ1HWZRUN6WDWXV ,QWHUQHWLVFRQQHFWHG
ؒ/HJDO1RWLFH
ؒ(61

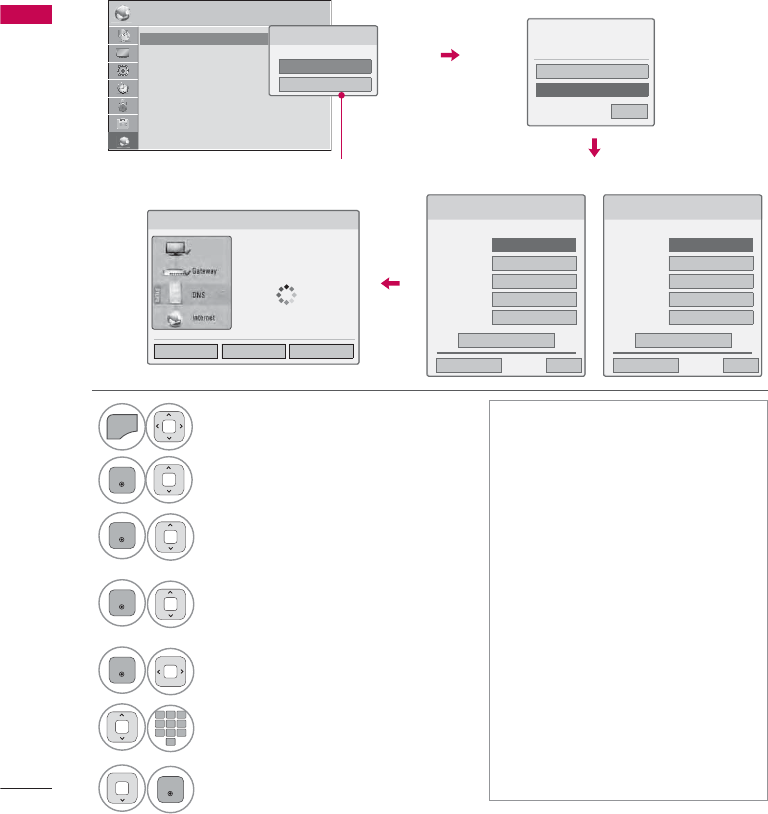

Wired Network Setup
1
MENU
Select NETWORK.
2
ENTER
Select Network Setting.
3
ENTER
Select Wired.
4
ENTER
If you already set Network Setting:
Select Resetting. The new connection
settings resets the current network
settings.
5
ENTER
Select IP Auto Setting or IP Manual
Setting.
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
When Selecting IP Manual Setting:
IP addresses will need to be input
manually.
6
ENTER
Select Enter.
IP Auto Setting
If you already set the
Network Setting
IP Manual Setting
If wired and wireless networks are both available, wired is the preferred method.
After making a physical connection, a small number of home networks may require the TV network
settings to be adjusted.
For detail information, contact your internet provider or router manual.
1HWZRUN7\SH
:LUHGQHWZRUNLVUHFRPPHQGHG
:LUHG
:LUHOHVV
1HWZRUN6HWWLQJ
6HOHFWWKH,3VHWWLQJPRGH
,30RGH ܁,3$XWR6HWWLQJ۽
ᯘ,3$GGUHVV
ᯘ6XEQHW0DVN
ᯘ*DWHZD\
ᯘ'166HUYHU
ᰙ3UHYLRXV
(QWHU
᰿([LW
1HWZRUN6HWWLQJ
,QVHUWWKH,3DGGUHVV
,30RGH ܁,30DQXDO6HWWLQJ۽
ᯘ,3$GGUHVV
ᯘ6XEQHW0DVN
ᯘ*DWHZD\
ᯘ'166HUYHU
ᰙ3UHYLRXV
(QWHU
᰿([LW
1HWZRUN6HWWLQJ
1HWZRUNFRQQHFWLQJ
6HWWLQJ 7HVW &ORVH
3UHYLRXVVHWWLQJYDOXHH[LVWV'R
\RXZDQWWRFRQQHFWZLWKWKH
SUHYLRXVVHWWLQJ"
(QWHU
5HVHWWLQJ
᰿([LW
ᯙ1H[W
79
Appeared when wired and
wireless are simultaneously
connected.
57
EXTERNAL EQUIPMENT SETUP
!
NOTE
ŹFor more information about NETCAST setup
and troubleshooting, visit http://lgknowledge-
base.com. Search for NETCAST.
ŹUse a standard LAN cable with this TV. Cat5
or better with a RJ45 connector.
ŹMany network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the player to the
home network, quickly power off and/or dis-
connect the power cable of the home network
router or cable modem. Then power on and/or
connect the power cable again.
ŹDepending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the appli-
cable terms of service. For details, contact
your ISP.
ŹLG is not responsible for any malfunction of
the TV and/or the internet connection feature
due to communication errors/malfunctions
associated with your broadband internet con-
nection, or other connected equipment.
ŹLG is not responsible for problems within your
internet connection.
ŹSome content available through the network
connection may not be compatible with the
TV. If you have questions about such content,
please contact the producer of the content.
ŹYou may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
ŹSome internet connection operations may not
be possible due to certain restrictions set by
the Internet service provider (ISP) supplying
your broadband Internet connection.
ŹAny fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
ŹA 10 Base-T or 100 Base-TX LAN port is
required for connection to this TV. If your inter-
net service does not allow for such a connec-
tion, you will not be able to connect the TV.
ŹA DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with
your ISP, you may not be able to use the inter-
net connection feature contained in this TV or
you may be limited to the number of devices
you can connect at the same time. (If your ISP
limits subscription to one device, this TV may
not be allowed to connect when a PC is
already connected.)
ŹThe use of a “Router” may not be allowed or
its usage may be limited depending on the
policies and restrictions of your ISP. For details,
contact your ISP directly.
ŹThe wireless network operates at 2.4 GHz
radio frequencies that are also used by other
household devices such as cordless tele-
phone, Bluetooth® devices, microwave oven,
and can be affected by interference from
them. It can be interrupted by the device
using 5Ghz radio frequencies. It is same
device with LG wireless media box, cordless
telephone, other Wi-Fi device.
ŹIt may decrease the service speed using
Wireless network by surrounding wireless con-
dition.
ŹTurn off all unused network equipment in your
local home network. Some devices may gen-
erate network traffic.
ŹIn some instances, placing the access point or
wireless router higher up away from the floor
may improve the reception.
ŹThe reception quality over wireless depends
on many factors such as type of the access
point, distance between the TV and access
point, and the location of the TV.
ŹWhen connecting internet through the wired/
wireless sharing machine, it may interrupt the
connection because of the use limitation and
confirmation of service company.
ŹTo connect wireless AP, an AP that supports
the wireless connection is necessary, and the
wireless connection function of the AP needs
to be activated. Please enquire to the AP sup-
plier for the possibility of AP wireless connec-
tions.
ŹPlease verify the security settings of AP SSID
for wireless AP connection, and enquire to the
AP supplier for the AP SSID security settings.
ŹThe TV can become slower or malfunction
with wrong settings of network equipments
(wired/wireless router, hub, etc). Please install
correctly by referring to the manual of the
equipment, and set the network.
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
58
IN 4
AV IN 2
VIDEO
AUDIO
L(MONO)
R
H/P USB IN 1 USB IN 2
The LG Wireless LAN for Broadband/DLNA Adaptor, which is sold separately, allows the TV to connect
to a wireless lan network.
The network configuration and connection method may vary depending on the equipment in use and
the network environment. Refer to the setup instructions supplied with your access point or wireless
router for detailed connection steps and network settings.
1. How to connect
1Connect the “LG Wireless LAN for Broadband/DLNA Adaptor (sold separately)” to the USB
IN 1 or 2port on the TV.
2. How to use
ᯫ
Select “Network Setting” in the NETWORK menu.
ᯫ
After connecting, you can use the NETCAST menu.
Wireless Network Connection
!
NOTE
ŹFor enjoying pictures, music, or video stored in the PC using the router, the use of wired port in
the router is recommended.
When the wireless port of the router is used, there may be restrictions for some functions.
59
EXTERNAL EQUIPMENT SETUP
Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the
network.

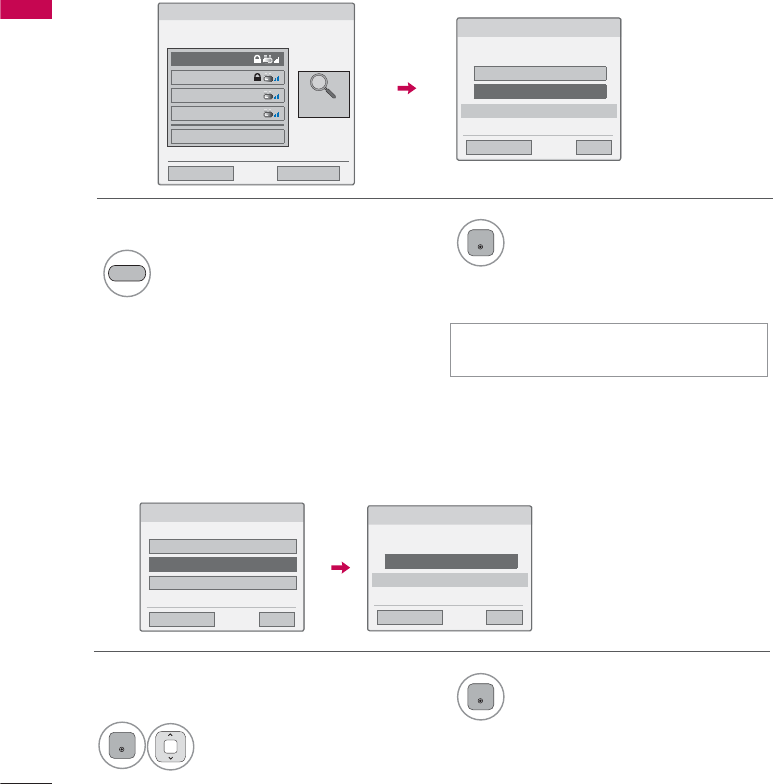

Wireless Network Setup
6
ENTER
Scan the all available AP (Access
Point) or wireless routers within range
and display them as a list.
7
ENTER
Select an AP (Access Point) or
wireless router on the list.
(If your AP is locked, insert the
security key of AP).
8
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
ENTER
Input the security key of AP.
1
MENU
Select NETWORK.
2
ENTER
Select Network Setting.
3
ENTER
Select Wireless.
4
ENTER
If you already set Network
Setting: Select Resetting.
The new connection settings
resets the current network set-
tings.
5
ENTER
Select Setting from the AP list.
1(7:25. ᯒ0RYHᯙ(QWHU
ؒ1HWZRUN6HWWLQJ :LUHG
ؒ1HWZRUN6WDWXV ,QWHUQHWLVFRQQHFWHG
ؒ/HJDO1RWLFH
ؒ(61
1HWZRUN7\SH
:LUHGQHWZRUNLVUHFRPPHQGHG
:LUHG
:LUHOHVV
6HOHFWLQJWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HOHFWWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HWWLQJIURPWKH$3OLVW
6LPSOHVHWWLQJ3%&0RGH
6HWWLQJ$GKRFQHWZRUN
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
6HOHFWLQJ$3
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
6HOHFW$3\RXZDQWWRFRQQHFW
PDJH1/1
,37,0(
LSWLPH
ASW
1HWZRUN
ᯕ&RQQHFWLQJZLWK3,1PRGH
$FFHVV3RLQW
6HDUFK
9Repeat step 4-5 on P.56.
If your AP is locked
If you already set the
Network Setting
3UHYLRXVVHWWLQJYDOXHH[LVWV'R
\RXZDQWWRFRQQHFWZLWKWKH
SUHYLRXVVHWWLQJ"
(QWHU
5HVHWWLQJ
᰿([LW
ᯙ1H[W
,QVHUWLQJWKHVHFXULW\NH\
,QVHUWWKHVHFXULW\NH\RI$3
,QVHUWKH[DGHFLPDOa$a)RUGLJLWV,QVHUWRU$6&,,FKDUDFWHUV
(QWHU &DQFHO
ᰙ3UHY ᰿([LW
܁۽
1HWZRUN6HWWLQJ
6HOHFWWKH,3VHWWLQJPRGH
,30RGH ܁,3$XWR6HWWLQJ۽
ᯘ,3$GGUHVV
ᯘ6XEQHW0DVN
ᯘ*DWHZD\
ᯘ'166HUYHU
ᰙ3UHYLRXV
(QWHU
᰿([LW
Appeared when wired and wireless
are simultaneously connected.
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
60
If you want to connect the AP (Access Point) or router with PIN, use this feature.
If your access point or wireless router that supports PIN or WPS, it’s available to use your access
point or wireless router within 120 counts. You do not need to know the access point name (SSID:
Service Set Identifier) and security code of your access point or wireless router.
When a security code is already set
PIN (Personal Identification Number)
Simple setting (WPS-button mode)
ᯫ
PIN number is the unique 8 digit number
of the dongle.
&RQQHFWLQJZLWK3,1PRGH
,QVHUW3,1QXPEHUDWWKH$3ZHESDJHDQG
SUHVV؋&RQQHFW،EXWWRQ
3,118%0(5
&RQQHFW
ᰙ3UHYLRXV
)RUPRUHLQIRUPDWLRQFKHFNWKH$3PDQXDO
᰿([LW
ᯙ1H[W
6LPSOHVHWWLQJ:36EXWWRQPRGH
3UHVV3%&0RGHEXWWRQRI$3DQGSUHVV؋&RQQHFW،EXWWRQ
&RQQHFW
ᰙ3UHYLRXV
&DXWLRQ&KHFNLI3%&PRGHEXWWRQLVDYDLODEOHIRU\RXU$3
᰿([LW
ᯙ1H[W
6HOHFWLQJ$3
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
6HOHFW$3\RXZDQWWRFRQQHFW
PDJH1/1
,37,0(
LSWLPH
ASW
1HWZRUN
ᯕ&RQQHFWLQJZLWK3,1PRGH
$FFHVV3RLQW
6HDUFK
2Connect the acccess point with PIN
mode.
4
ENTER
Select Connect.
RED
1Repeat step 1-6 on P.59.
3You can see the Network ID and Security Key
on your TV screen.
Enter the PIN number to your device.
6HOHFWWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HOHFWWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HWWLQJIURPWKH$3OLVW
6LPSOHVHWWLQJ:36EXWWRQPRGH
6HWWLQJ$GKRFQHWZRUN
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
1Repeat step 1-4 on P.59. 3
ENTER
Select Connect.
2
ENTER
Select Simple setting (WPS-
button mode).
5Repeat step 4-5 on P.56.
4Repeat step 4-5 on P.56.
61
EXTERNAL EQUIPMENT SETUP
This is the method of communicating directly with the machine to communicate without AP.
This is the same as connecting two PCs with a cross cable.
AD-hoc Mode
1Repeat step 1-3 on P.59.
6HOHFWLQJWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HOHFWWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HWWLQJIURPWKH$3OLVW
6LPSOHVHWWLQJ:36EXWWRQPRGH
6HWWLQJ$GKRFQHWZRUN
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
6HWWLQJ$GKRFQHWZRUN
)HDWXUHVXVLQJH[LWLQJQHWZRUNFDQEHXQDYDLODEOH'R\RX
ZDQWWRFKDQJHQHWZRUNFRQQHFWLRQ"
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
(QWHU &DQFHO
6HWWLQJ$GKRFQHWZRUN
,QVHUWWKHVHWWLQJLQIRUPDWLRQLQWRWKHGHYLFH
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
1HWZRUN,'66,'/*79
6HFXULW\.H\
ᯕ&KDQJLQJWKHVHWWLQJLQIRUPDWLRQ
&RQQHFW
2
ENTER
Select Setting AD-hoc network.
3
ENTER
ENTER
Select Enter.
4
ENTER
Select Connect to connect Ad-hoc network.
You can see the Network ID and Security Key
on your TV screen.
Enter this Network ID and Security Key to
your device.
If a network may not operate, change the
setting information using the RED button.
5
ENTER
Insert the IP address.
6
ENTER
Network setting is completed.
Select Close.
1HWZRUN6HWWLQJ
,QVHUWWKH,3DGGUHVV
,30RGH ,30DQXDO6HWWLQJ
ᯘ,3$GGUHVV
ᯘ6XEQHW0DVN
ᯘ*DWHZD\
ᯘ'166HUYHU
ᰙ3UHYLRXV
(QWHU
᰿([LW
1HWZRUN6HWWLQJ
:LUHOHVVQHWZRUNLVFRQQHFWHG
,QWHUQHW2DVLV
0DF$GGUHVV
,3$GGUHVV
6XEQHW0DVN
*DWHZD\
6HWWLQJ 7HVW &ORVH
6LJQDOSRZHU
79
*DWHZD\
ᯫ
PC Setting
Internet Protocol(TCP/IP) of PC needs
to be set manually.
IP address, Subnet Mask, and default
Gateway can be set with your own
discretion.
i.e) IP address: 192.168.0.1 / Subnet
Mask: 255.255.255.0 / default
Gateway: 192.168.0.10
ᯫ
TV Setting
Verify IP address and gateway of PC.
Input Gateway address of PC to IP
Address, and IP Address of PC to
Gateway, and select Enter.
i.e) IP address: 192.168.0.10 / Subnet
Mask: 255.255.255.0 / default
Gateway: 192.168.0.1
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
62
1
MENU
Select NETWORK.
2
ENTER
Select Network Status.
3
ENTER
Check the newtwork status.
Network Status
1HWZRUN6HWWLQJ
1HWZRUNFRQQHFWLQJ
6HWWLQJ 7HVW &ORVH
ᯫ
Setting: Return to the network set-
ting menu or wireless network setting
type menu.
ᯫ
Test: Test the current network status
after setting the network.
ᯫ
Close: Return to the previous menu.
1(7:25. ᯒ0RYHᯙ(QWHU
ؒ1HWZRUN6HWWLQJ :LUHG
ؒ1HWZRUN6WDWXV ,QWHUQHWLVFRQQHFWHG
ؒ/HJDO1RWLFH
ؒ(61
6HOHFWWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HOHFWWKHZLUHOHVVQHWZRUNVHWWLQJW\SH
6HWWLQJIURPWKH$3OLVW
6LPSOHVHWWLQJ:36EXWWRQPRGH
6HWWLQJ$GKRFQHWZRUN
ᰙ3UHYLRXV ᰿([LW
ᯙ1H[W
Wired Connection
Wireless Connection
1HWZRUN6HWWLQJ
6HOHFWWKH,3VHWWLQJPRGH
,30RGH ܁,3$XWR6HWWLQJ۽
ᯘ,3$GGUHVV
ᯘ6XEQHW0DVN
ᯘ*DWHZD\
ᯘ'166HUYHU
ᰙ3UHYLRXV
(QWHU
᰿([LW
79
63
WATCHING TV / CHANNEL CONTROL
ENERGY
CHVOL
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
SAVING
TV
AV MODE
INPUT
LIGHT
FAV
RATIO
MUTE
BACK
WIDGETS
EXIT
ENTER
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
MENU
FREEZE
Q.MENU
INFO
CEIT
ENTER
MENU
MENU
IN O
REE E
REMOTE CONTROL FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
The remote control may differ from the images below.
WATCHING TV / CHANNEL CONTROL
POWER Turns the TV on from standby or off to standby.
LIGHT Illuminates the remote control buttons.
(Except 32/42/46/52/60LD550, 47/55LD650)
ENERGY SAVING
Adjusts the Energy Saving setting. Źp.132
AV MODE Toggles through preset Video and Audio modes. Źp.88
INPUT Rotates through inputs.
Also switches the TV on from standby. Źp.83
TV Returns to the last TV channel.
NUMBER button
— (DASH) Used to enter a program number for multiple program
channels such as 2-1, 2-2, etc.
LIST Displays the channel table. Źp.80
FLASHBK Tunes to the last channel viewed.
MENU Displays the main menu or clears all on-screen displays
and return to TV viewing.
NETCAST
Select the desired NETCAST menu source.
Źp.123
Q.MENU Opens the list of Quick Menu options. Źp.71
THUMBSTICK
(Up/Down/Left
Right/ENTER)
Navigates the on-screen menus and adjusts the system
settings to your preference.
BACK Allows the user to move return one step in an interactive
application or other user interaction function.
WIDGETS WIDGETS for showing or hiding the Yahoo! Dock and
accessing the Yahoo! TV Widgets user experience.
INFO Displays channel information at the bottom of the
screen. Źp.81
EXIT Clears all on-screen displays and return to TV viewing.
SIMPLINK See a list of AV devices connected to TV.
When you toggle this button, the SIMPLINK menu
appears at the screen. Źp.90
WATCHING TV / CHANNEL CONTROL
WATCHING TV / CHANNEL CONTROL
64
ᯫ
Open the battery compartment cover
on the back side and install the batter-
ies matching correct polarity.
ᯫ
Install two 1.5V AAA batteries. Don’t
mix old or used batteries with new
ones.
ᯫ
Close cover.
Installing Batteries
ENERGY
CHVOL
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
SAVING
TV
AV MODE
INPUT
LIGHT
FAV
RATIO
MUTE
BACK
WIDGETS
EXIT
ENTER
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
MENU
FREEZE
Q.MENU
INFO
CEIT
ENTER
MENU
MENU
IN O
REE E
VOLUME
UP/DOWN Adjusts the volume.
FAV Set up desired favorite channels list. Źp.79
MARK Select the input to apply the Picture Wizard settings.
Źp.131
Use to mark or unmark a photo/music/movie. Źp.105,
110, 116
RATIO Changes the aspect ratio. Źp.128
CHAR/NUM Shifts the Character or Number for internet service.
MUTE Switches the sound on or off. Źp.66
DELETE Deleted the character or number on the screen.
CHANNEL
UP/DOWN
Changes the channel.
PAGE
UP/DOWN
Moves from one full set of screen information to the
next one.
COLOR
BUTTON
Access special functions in some menus.
USB,
SIMPLINK
Control buttons
ţControls MY MEDIA menu (Movie List, Photo List,
Music List)
ţ Controls the SIMPLINK compatible devices.
FREEZE
(For Plasma TV)
Pause the present picture at the screen. (It doesn’t work
at USB Mode and Simplink.)
The TV returns to normal viewing automatically if no
signal is received or no operation is performed for 5
minutes.
If you keep the screen in Freeze condition, the residu-
al image can exist.
65
WATCHING TV / CHANNEL CONTROL
ᯫ
Open the battery compartment cover
on the back side and install the batter-
ies matching correct polarity.
ᯫ
Install two 1.5V AAA batteries. Don’t
mix old or used batteries with new
ones.
ᯫ
Close cover.
Installing Batteries
Simple Remote Control (For 42/47/55LE7500, 47/55LE8500)
CH
FLASHBK
VOL
POWER TV/INPUT
POWER Turns the TV on from standby or off to standby.
TV/INPUT Rotates through inputs.
Also switches the TV on from standby. Źp.83
VOLUME UP/
DOWN Adjusts the volume.
MUTE Switches the sound on or off. Źp.66
CHANNEL
UP/DOWN
Changes the channel.
NUMBER button
— (DASH) Used to enter a program number for multiple program
channels such as 2-1, 2-2, etc.
FLASHBK Tunes to the last channel viewed.
WATCHING TV / CHANNEL CONTROL
WATCHING TV / CHANNEL CONTROL
66
TURNING ON THE TV
CHANNEL SELECTION
VOLUME ADJUSTMENT
Adjust the volume to suit your personal preference.
1First, connect power cord correctly.
At this moment, the TV switches to standby mode.
ᯫ
In standby mode to turn TV on, press the / I,INPUT,CH (ᰜor ᰝ) button on the TV or press
the , INPUT, CH (ᰜor ᰝ),Number (0-9) button on the remote control.
2Select the viewing source by using the INPUT button on the remote control.
3When finished using the TV, press the POWER button on the remote control. The TV reverts
to standby mode.
!
NOTE
Ź If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
Ź If you do not complete the Initial setting, it will appear whenever the TV is switched on until the
Initial setting procedure is completed.
1Press the CH (ᰜor ᰝ) or NUMBER buttons to select a channel number.
1 Press the VOL (+ or -) button to adjust the volume.
2If you want to switch the sound off, press the MUTE button.
3You can cancel the Mute function by pressing the MUTE or VOL (+ or -) button.
MY MEDIA
MY MEDIA
92
ENTRY MODE
The My Media menu will open automatically when you insert a USB drive. My Media can also be
accessed by choosing My Media in the user menu.
After choosing the desired type of media, choose a device to open files from. The options are: USB
device, CIFS (Windows Sharing), or DLNA.
When removing the USB device
Select the USB Device menu before
removing the USB device.
MY MEDIA
ᯫ
This TV can view JPG image files, HD DivX
files and play MP3 audio files.
1
Q.MENU
Select USB Device.
2
ENTER
Select Eject.
1
MENU
Select MY MEDIA.
2
ENTER
Select Movie List, Photo List
or Music List.
3
ENTER
Select the desired device.
Search other network device.
4
BACK
Return to the previous menu.
BLUE
Movie List
MY MEDIA
Photo List Music List
*CIFS: This feature is not available for all models.
Please select the device.
USB Label
USB Label
USB Label
DLNA
DLNA
ᯙ'HYLFH6HOHFWLRQ
ᯕ6HDUFK ᰙ3UHYLRXV
93
MY MEDIA
CONNECTION METHOD
USB Connection
Connect the USB device to the USB IN jack on the side of TV.
1
Precautions when using the USB device
ŹOnly a USB storage device is recognizable.
ŹConnecting a USB storage device through a USB hub is not supported.
ŹA USB storage device which uses its own driver may not be recognized.
ŹThe recognition speed of a USB storage device may depend on each device.
ŹPlease do not turn off the TV or unplug the USB device when the connected USB storage device
is working. When such device is suddenly separated or unplugged, the stored files or the USB
storage device may be damaged.
ŹOnly use a USB storage device which has normal music files, image files, or movie files.
ŹPlease use only a USB storage device which was formatted as a FAT 32 or NTFS file system pro-
vided with the Windows operating system. Others may not be recognized.
ŹSome USB storage devices require a power adapter. The power adapter must be connected in
order to be seen by the TV.
ŹIf a device is not recognized by the TV, try a different cable. Excessively long cables are not sup-
ported.
ŹSome USB storage devices may not be supported or operate properly.
ŹPlease backup important files because data on USB device could be damaged. Data management
is consumer's responsibility and as a result, the manufacturer does not cover data damage.
ŹIf your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can
use up to 4 partitions or USB memory devices.
ŹFile alignment method of USB storage device is similar to Window XP and file names can be up
to 100 English characters.
ŹThe recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB
memory.
ŹIf a USB external hard disk with a “Energy Saving” function doesn’t work, turn the hard disk off and
on again to make it work properly. Refer to the user manual of the USB external hard disk.
ŹUSB storage devices below USB 2.0 are supported as well. But they may not work properly in the
movie list.
ŹMaximum of 1,000 folders or files can be recognized under one folder.
ŹIf there are too many folders and files in one folder, it may not operate properly.
IN 4
USB IN 1 USB IN 2
Memory Key
MY MEDIA
MY MEDIA
96
Viewing Files on the Network
You can view the photos, movies or listen to music files from folders shared on the network.
RGB IN (PC)
WIRELESS
CONTROL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
AUDIO IN
AUDIO OUT
2
1
LAN
YP
B
P
R
L R
OPTICAL DIGITAL
RS-232C IN
(
SERVICE ONLY)
ꔡ
ŹConnect the PC and TV using a shar-
ing device so that you can see the PC’s
shared files on the TV.
ŹHow to set a share folder may differ
depending on the Windows version.
ŹThe speed may be slow or it may cause
an error if you try to access a folder
from two TVs at the same time.
ŹBecause files could be deleted from a
shared PC, set the user access level to
Read Only.
ŹDo not share any important personal
documents as it may be accessed by a
different PC.
ŹIf you rename or disable a shared
folder on the PC after mounting, you
cannot mount it again.
ŹIf the status of the network or a share
folder on the PC is changed, search is
run again when entering the highest
folder in the menu.
ŹMaximum of 32 computers can be
shared.
i.e) LED LCD TV/LCD TV
Broadband
modem
Broadband modem
Router
Broadband Service
Broadband Service
1Set a share folder (CIFS: Common Internet File System) on the PC (Refer to P.94-95).
2Connect the LAN port of the Modem or Router to the LAN port on the TV.
3Repeat step 1-4 on P.92.
97
MY MEDIA
DLNA
About DLNA
This TV is a DLNA Certified digital media product that can display and play movie, photo and music
content from your DLNA Certified network device and DLNA server. The Digital Living Network Alliance
(DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device
companies. Digital Living provides consumers with easy sharing of digital media through a wired or
wireless network in the home.
The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability
Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA
server software or other DLNA compatible device is connected to this TV, some setting changes of
software or other devices may be required. Please refer to the operating instructions for the software or
device for more information.
!
NOTE
ŹThe supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for
sharing files and folders to this TV.
ŹThe supplied Nero MediaHome 4 Essentials software does not support following functions:
Transcoding, Remote UI, TV control, Internet services and Apple iTunes
ŹThis manual explains operations with the English version of Nero MediaHome 4 Essentials as
examples. Follow the explanation referring to the actual operations of your language version.
103
MY MEDIA
Supported Video Formats
File
Extensions
Audio/
Video Codec Profile/Level Support Explanation
.asf
.wmv
.wma
Video
VC-1 Advanced Profile Advanced Profile@Level 3
(e.g. 720p60, 1080i60, 1080p30) Only streams compliant
to SMPTE 421M VC-1
standard are supported.
VC-1 Simple and Main Profiles Simple Profile@Medium Level (e.g. CIF, QVGA)
Main Profile@High Level (e.g. 1080p30)
Audio WMA Standard
WMA 9 Professional
.divx
.avi
Video
DivX3.11
Global motion compen-
sation or quarterpel
motion estimation does
not supported. Streams
using this syntax are not
supported.
DivX4
DivX5
DivX6
Advanced Simple Profile
(e.g. 720p/1080i)
XViD
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Audio
MPEG-1 Layer I, II
MPEG-1 Layer III (MP3)
Dolby Digital
.mp4
.m4a
.m4v
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Global motion compen-
sation or quarterpel
motion estimation does
not supported. Streams
using this syntax are not
supported.
MPEG-4 Part 2 Advanced Simple Profile (e.g. 720p/1080i)
Audio AAC AAC-LC and HE-AAC
.mkv
Video H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Most of the MKV con-
tent available is encod-
ed by the open source
x264 codec.
Audio AAC AAC-LC and HE-AAC
Dolby Digital
.ts
.trp
.tp
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
MPEG-2 Main Profile@High Level(e.g. 720p60, 1080i60)
VC-1
Simple Profile@Medium Level
(e.g. CIF, QVGA)
Main Profile@High Level
(e.g. 1080p30)
Advanced Profile@Level3
(e.g. 720p60, 1080i60, 1080p30)
Only streams compliant
to SMPTE 421M VC-1
standard are supported.
Audio
MPEG-1 Layer I, II
MPEG-1 Layer III (MP3)
Dolby Digital
AAC AAC-LC and HE-AAC
.vob
Video MPEG-1
MPEG-2 Main Profile@High Level (e.g. 720p60, 1080i60)
Audio
Dolby Digital
MPEG-1 Layer I, II
DVD-LPCM
.mpg Video MPEG-1
MPEG-2 Main Profile@High Level (e.g. 720p60, 1080i60) Only streams compliant
configured properly for
TS, PS or ES
Audio MPEG-1 Layer I, II
NETWORK
NETWORK
122
LEGAL NOTICE
NETWORK
1
MENU
Select NETWORK.
2
ENTER
Select Legal Notice.
3
ENTER
Check Legal notice.
4
EXIT
Return to TV viewing.
NETWORK ᯒ0RYHᯙ(QWHU
ؒ1HWZRUN6HWWLQJ :LUHG
ؒ1HWZRUN6WDWXV ,QWHUQHWLVFRQQHFWHG
ؒ/HJDO1RWLFH
ؒ(61
ᯐ
ᯙ
/HJDO1RWLFH
ᯝ
&ORVH
,03257$17127,&(5(/$7,1*721(7:25.6(59,&($OOFRQWHQWDQGVHUYLFHV
DFFHVVLEOHWKURXJKWKLVGHYLFHEHORQJWRWKLUGSDUWLHVDQGDUHSURWHFWHGE\FRS\ULJKWSDWHQW
WUDGHPDUNDQGRURWKHULQWHOOHFWXDOSURSHUW\ODZV6XFKFRQWHQWDQGVHUYLFHVDUHSURYLGHG
VROHO\IRU\RXUSHUVRQDOQRQFRPPHUFLDOXVH<RXPD\QRWXVHDQ\FRQWHQWRUVHUYLFHVLQD
PDQQHUWKDWKDVQRWEHHQDXWKRUL]HGE\WKHFRQWHQWRZQHURUVHU YLFHSURYLGHU:LWKRXW
OLPLWLQJWKHIRUHJRLQJXQOHVVH[SUHVVO\DXWKRUL]HGE\WKHDSSO LFDEOHFRQWHQWRZQHURUVHUYLFH
SURYLGHU\RXPD\QRWFRS\XSORDGSRVWWUDQVPLWWUDQVODWH VHOOPRGLI\FUHDWH
GHULYDWLYHZRUNVRUGLVWULEXWHLQDQ\PDQQHUR UPHGLXPDQ\FRQWHQWRUVHUYLFHVGLVSOD\HG
WKURXJKWKLVGHYLFH<28(;35(66/<$&.12:/('*($1'$*5((7+$77+('(9,&($1'
$//7+,5'3$57<&217(17$1'6(59,&(6$5(3529,'('$6,6:,7+287:$55$17<
2)$1<.,1'(,7+(5(;35(6625,03/,('/*(/(&7521,&6(;35(66/<',6&/$,06$//
:$55$17,(6$1'&21',7,216:,7+5(63(&772$1<&217(17$1'6(59,&(6(,7+(5
(;35(6625,03/,(',1&/8',1*%87127/,0,7('72:$55$17,(62)
0(5&+$17$%,/,7<2)6$7,6)$&725<48$/,7<),71(66)25$3$57,&8 /$5385326(
SDJH
IMPORTANT NOTICE RELATING TO NETWORK SERVICE
All content and services accessible through this device belong
to third parties and are protected by copyright, patent, trademark
and/or other intellectual property laws. Such content and ser-
vices are provided solely for your personal noncommercial use.
You may not use any content or services in a manner that has
not been authorized by the content owner or service provider.
Without limiting the foregoing, unless expressly authorized by
the applicable content owner or service provider, you may not
copy, upload, post, transmit, translate, sell, modify, create deriva-
tive works, or distribute in any manner or medium any content
or services displayed through this device.
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE
DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES
ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY
DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH
RESPECT TO ANY CONTENT AND SERVICES, EITHER
EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY RIGHTS. LG DOES
NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS,
LEGALITY, OR COMPLETENESS OF ANY CONTENT OR
SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND
DOES NOT WARRANT THAT THE DEVICE OR SERVICES WILL
MEET YOUR REQUIREMENTS, OR THAT OPERATION OF THE
DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-
FREE. UNDER NO CIRCUMSTANCES, INCLUDING
NEGLIGENCE, SHALL LG BE LIABLE, WHETHER IN CONTRACT
OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES, OR ANY OTHER DAMAGES
ARISING OUT OF, ANY INFORMATION CONTAINED IN, OR
ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY
THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Third party services may be changed, suspended, removed,
terminated or interrupted, or access may be disabled at any
time, without notice, and LG makes no representation or war-
ranty that any content or service will remain available for any
period of time. Content and services are transmitted by third
parties by means of networks and transmission facilities over
which LG has no control. LG may impose limits on the use of or
access to certain services or content, in any case and without
notice or liability. LG expressly disclaims any responsibility or
liability for any change, interruption, disabling, removal of or
suspension of any content or service made available through
this device.
LG is neither responsible nor liable for customer service related
to the content and services. Any question or request for service
relating to the content or services should be made directly to the
respective content and service providers.
123
NETCAST
NETCAST
NETCAST MENU
1Select NETCAST menu option. 2
ENTER
Enjoy Online Service.
These services are provided by separate Content Provider.
NETCAST menu source can differ by country.
What is a NETCAST?
Stream movies, TV shows and video, or get up to the minute news, stock information or weather updates
directly to your TV.
ᯫ
To view the owner’s manual that provided by
the Content Provider, visit our website at
http://www.lge.com.
ᯫ
To see the activation method of Yahoo!,
Netflix, or Vudu, click the Yahoo!, Netflix,
Vudu in the CD manual (For USA).
ᯫ
Yahoo! (For USA)
Yahoo! TV Widgets give you the best of the
Internet in perfect harmony with the simplicity
and reliability of your TV. TV Widgets deliver a
Cinematic internetTM experience by converting
your favorite web services for viewing on the TV.
ᯫ
Netflix (For USA)
You can instantly watch movies (quite a few new
releases) & TV episodes from Netflix streamed
over the internet to your TV.
To become a Netflix member visit: www.netflix.
com/LG
Note that this service is provided by the Content
Provider, Netflix. It is dependent on Netflix to pro-
vide the data.
ᯫ
Vudu (For USA)
In order to make rental/purchase transactions on
the Vudu service, a user must create an account
on vudu.com.
That account is linked to a specific device, via a
process called “activation”. It is possible to have
multiple devices associated with a single Vudu
account.
Note that this service is provided by the Content
Provider, Vudu. It is dependent on Vudu to pro-
vide the data.
ᯫ
YouTube
YouTube is a video sharing website where users
can upload, view, and share video clips.
ᯫ
Picasa
Picasa is a photo organizing or sharing website
where users can upload, view, and share photos.
!
NOTE
ŹThe videos list searched from the TV may
different with the list searched from a web
browser on PC.
ŹThe settings of this TV do not affect the
YouTube’s playback quality.
ŹThe playback of videos may be paused,
stopped or buffering occurring often
depending on your broadband speed.
We recommend a minimum connection
speed of 1.5 Mbps. For the best playback
condition, a connection speed of 4.0 Mbps
is required. Sometimes your broadband
speed varies based on your ISP’s network
conditions. Contact your ISP if you have
problems maintaining a fast connection
that is reliable, or if you want to increase
your connection speed. Many ISPs offer a
variety of broadband speed options.
Ź For service that requires log in, join the
applicable service on the website using the
PC and log in through the TV to enjoy
various additional functionalities.
ŹWhen you set the city you want with Setup
by pressing the red button, the background
of NetCast will be set to the weather of the
selected city.
ŹFor Plasma TV: If there is no user action 2
minutes following freezing image or video
on screen, the screensaver will activate
itself preventing fixed image remaining on
screen.
NETCAST
NETCAST
124
YOUTUBE
YouTube is a video sharing website where users can upload, view, and share video clips.
Screen Components
1YouTube menu
2Videos list
1
RED Set the option menu.
Return to Netcast menu.
EXIT
Return to TV viewing.
2
NOTE
ŹWhen you press the Q.menu button while the Youtube video is playing in full mode, you can set
the video options.
125
NETCAST
Home: You can watch the popular video in real time. this graphic.
Featured: The featured videos list will be displayed.
Popular: The best rated videos list from YouTube server will be displayed.
Most Viewed: The most viewed videos list will be displayed.
Search: The keypad/keyboard menu will be displayed.
History: The videos list that you previously played will be displayed. Maximum of 20 videos can be stored.
Favorites: In sign-in status, this menu will be displayed the videos list that is arranged in the YouTube
server with your account (Some videos may not appear on the Favorites list, even if the videos are
arranged in the server).
Sign in (Sign Out): Displays the keyboard menu to sign in or returns to the sign-out status.
YouTube menu

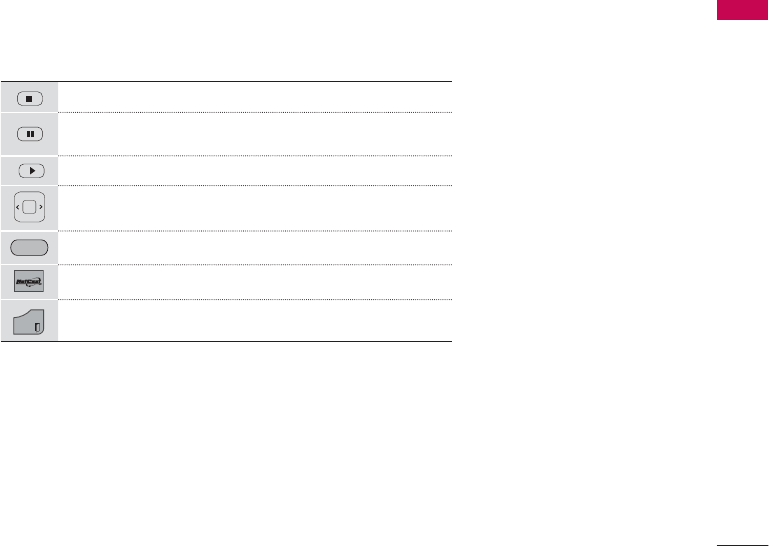

Stops the video and displays related videos list.
Pause the video while it is playing.
Play the selected video.
Skip the playback forward or backward.
RED Set the option menu.
Return to Netcast menu.
EXIT
Return to TV viewing.
Using the remote control
NETCAST
NETCAST
126
PICASA
Picasa is a photo organizing or sharing website where users can upload, view, and share photos.
Screen Components
1Picasa menu
2Photo list
1
2
Navigate the desired photos.
ENTER
The selected photo file is displayed.
Return to Netcast menu.
EXIT
Return to TV viewing.
127
NETCAST
Home: The featured photos list will be displayed.
Friends:
You can register users with the pictures you want as friends. You can add up to 10 friends.
Search: The keypad/keyboard menu will be displayed.
My Photos:
You can view the pictures uploaded to the Web. This function can only be used when you sign
in.
Sign in (Sign Out): Displays the keyboard menu to sign in or returns to the sign-out status.
Picasa menu
PICTURE CONTROL
137
Dynamic Contrast
ᯫ
Adjusts the contrast to keep it at the best level according to the brightness
of the screen. The picture is improved by making bright parts brighter and
dark parts darker.
Dynamic Color
ᯫ
Adjusts screen colors so that they look livelier, richer and clearer. This fea-
ture enhances hue, saturation and luminance so that red, blue, and green
look more vivid.
Skin Color
ᯫ
It detects the skin area of video and adjusts it to express a natural skin color.
Noise Reduction
ᯫ
Reduces screen noise without compromising video quality.
Digital Noise
Reduction
ᯫ
Removes noise caused by compressing video.
Gamma
ᯫ
You can adjust brightness of dark areas and middle gray level areas of the
picture.
Low : Make brighter and middle gray level areas of the picture brighter.
Medium : Express original picture levels.
High: Make dark and middle gray level areas of the picture darker.
Black Level
Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.
ᯫ
Set black level of the screen to proper level.
ᯫ
This function is available in the following modes: AV (NTSC-M), HDMI or
Component.
Clear White
ᯫ
Make the white area of screen brighter and more white.
Eye Care
ᯫ
Adjust the brightness of the screen to prevent the screen from being too
bright. Dims extremely bright pictures.
ᯫ
This feature is enabled in “Picture Mode-Standard,Sports,Game”.
Real Cinema
or
Film Mode
ᯫ
Makes video clips recorded in film look more natural by eliminating judder
effect.
ᯫ
DVD and Blu-ray movies are filmed at 24 frames per second (fps). With
LG Real Cinema, every frame is consistently processed 5 times in 1/24 of
a second producing 120 fps with TruMotion or 2 times in 1/24 of a second
producing 48 fps without TruMotion, thus totally eliminating the judder
effect.
ᯫ
This function can also work when TruMotion is off.
Color Gamut
LED LCD TV/LCD TV: Advanced Control
Plasma TV: Advanced Control, Expert Control
Standard: Displays standard set of colors.
Wide: Increase number of colors used.
ᯫ
Maximize the utilization of colors to increase color quality.
LED LCD TV/LCD TV: Expert Control
ᯫ
Displays color domain of the signal.
Standard: Displays standard set of colors.
Wide: Increase number of colors used.
EBU: Mode to display EBU standard color area.
SMPTE: Mode to display SMPTE standard color area.
BT709: Mode to display BT709 standard color area.
*This feature is not available for all models.
PICTURE CONTROL
PICTURE CONTROL
138
Edge Enhancer
ᯫ
Show clearer and distinctive yet natural edges in the video.
ᯫ
This function is enabled in "Picture mode - Expert".
xvYCC
ᯫ
This is produces richer colors.
ᯫ
This feature represents rich color as much as conventional video signal.
ᯫ
This function is enabled in "Picture mode - Cinema / Cinema /
Bright Room,Expert" when a xvYCC signal is inputted through HDMI.
Color Filter
ᯫ
This function filters specific colors in the video.
You can use the RGB filter to set color saturation and hue accurately.
Expert Pattern
ᯫ
This is a pattern used for expert adjustment.
ᯫ
This function is enabled in "Picture mode - Expert" when you watch DTV.
Color Temperature
ᯫ
Adjusts the overall color of the screen by changing the white baseline.
a. Gamma : Select 1.9, 2.2, 2.4
b. Method : 2 Points
- Pattern: Inner, Outer
- Red/Green/Blue Contrast, Red/Green/Blue Brightness:
The adjustment range is -50 - +50.
c-1. Method : 10 Point IRE (LED LCD TV,LCD TV)
- Pattern: Inner, Outer
- IRE (Institute of Radio Engineers) is the unit to display the size of the video
signal and can be set among 10, 20, 30 - 100. You can adjust Red, Green
or Blue according to each setting.
- Luminance: This function displays calculated luminance value for 2.2
gamma. You can input luminance value you want at 100 IRE, then the
target luminance value for 2.2 gamma is displayed at every 10 steps from
10 IRE to 90 IRE.
- Red/Green/Blue: The adjustment range is -50 - +50.
c-2. Method : 20 Point IRE (Plasma TV)
- IRE (Institute of Radio Engineers) is the unit to display the size of the video
signal and can be set among 5, 10, 15 - 100. You can adjust Red, Green
or Blue according to each setting.
- Red/Green/Blue: The adjustment range is -50 - +50.
d. Apply to all inputs
Color Management
System
ᯫ
A tool used by the experts to make adjustments by using the test patterns,
this does not affect other colors but can be used to selectively adjust the
6 color areas (Red/Green/Blue/Cyan/Mgt/Yellow).
Color difference may not be distinctive even when you make the adjust-
ments for the general video.
Adjusts Red/Green/Blue/Yellow/Cyan, Magenta.
- Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is
-30 - +30.
- Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30
- +30.
- This feature is disabled in RGB-PC and HDMI-PC mode.
173
APPENDIX
APPENDIX
Abnormal Operation
The remote control
doesn’t work
ᯫ
Check to see if there is any object between the product and the remote
control causing obstruction. Ensure you are pointing the remote control
directly at the TV.
ᯫ
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
ᯫ
Ensure that the correct remote operating mode is set: TV, VCR etc.
ᯫ
Install new batteries.
TV turns off suddenly
ᯫ
Is the sleep timer set?
ᯫ
Check the power control settings. Power interrupted.
ᯫ
If there is no signal, the TV turns off automatically in 15 minutes.
Video Problems
No picture &No sound
ᯫ
Check whether the product is turned on.
ᯫ
Try another channel. The problem may be with the broadcast.
ᯫ
Is the power cord inserted into wall power outlet?
ᯫ
Check your antenna direction and/or location.
ᯫ
Test the wall power outlet, plug another product’s power cord into the
outlet where the product’s power cord was plugged in.
Picture appears slowly
after switching on
ᯫ
This is normal, the image is muted during the product startup process.
Please contact your service center, if the picture has not appeared after
five minutes.
No or poor color or
poor picture
ᯫ
Adjust Color in menu option.
ᯫ
Keep a sufficient distance between the product and the VCR.
ᯫ
Try another channel. The problem may be with the broadcast.
ᯫ
Are the video cables installed properly?
ᯫ
Activate any function to restore the brightness of the picture.
Horizontal/vertical bars
or picture shaking
ᯫ
Check for local interference such as an electrical appliance or power
tool.
Poor reception on
some channels
ᯫ
Station or cable product experiencing problems, tune to another station.
ᯫ
Station signal is weak, reorient antenna to receive weaker station.
ᯫ
Check for sources of possible interference.
Lines or streaks in pic-
tures
ᯫ
Check antenna (Change the direction of the antenna).
No picture when con-
necting HDMI
ᯫ
Check HDMI cable over version 1.3.
The HDMI cables don’t support HDMI version 1.3, it cause flickers or no
screen display. In this case use the latest cables that support HDMI ver-
sion 1.3.
*This feature is not available for all models.
TROUBLESHOOTING
174
APPENDIX
APPENDIX
Audio Problems
No output from one
of the speakers
ᯫ
Adjust Balance in menu option.
Unusual sound from
inside the product
ᯫ
A change in ambient humidity or temperature may result in an unusual
noise when the product is turned on or off and does not indicate a fault
with the product.
No sound
when connecting
HDMI/USB
ᯫ
Check HDMI cable over version 1.3.
ᯫ
Check USB cable over version 2.0.
ᯫ
Use normal MP3 file.
PC Mode Problems
The signal is out of
range
ᯫ
Adjust resolution, horizontal frequency, or vertical frequency on the PC.
ᯫ
Check the input source.
Vertical bar or stripe
on
background &
Horizontal Noise &
Incorrect position
ᯫ
Activate the Auto configure feature or adjust size, phase, or H/V position.
(Option)
Screen color is unsta-
ble or single color
ᯫ
Check the signal cable.
ᯫ
Reinstall the PC video card.
When connecting the
HDMI cable to the PC,
there is no audio.
ᯫ
Check the manual for the video card in the PC to see if it supports
HDMI audio and how to set it up properly.
*This feature is not available for all models.
175
APPENDIX
Movie List Problems
The file does not
appear on the Movie
List.
ᯫ
Check whether the file extension is supported.
Message is displayed
saying “This file is
invalid” or the audio is
working normally but
the video is not work-
ing normally.
ᯫ
Check whether the file is playing normally on a PC. (Check whether the
file is damaged.)
ᯫ
Check whether the resolution is supported.
ᯫ
Check whether the video/audio codec is supported.
ᯫ
Check whether the frame rate is supported.
Message is displayed
saying “Unsupported
Audio” or the video is
working normally but
the audio is not work-
ing normally.
ᯫ
Check whether the file is playing normally on a PC. (Check whether the
file is damaged.)
ᯫ
Check whether the audio codec is supported.
ᯫ
Check whether the bit rate is supported.
ᯫ
Check whether the sample rate is supported.
Subtitle is not working.
ᯫ
Check whether the file is playing normally on a PC. (Check whether the
file is damaged.)
ᯫ
Check whether the video file and subtitle file name are the same.
ᯫ
Check whether the video file and subtitle file are located in the same
folder.
ᯫ
Check whether the subtitle file is supported.
ᯫ
Check whether the language is supported. (When you open the subtitle
file on a PC, you can check the language of the subtitle file.)
176
APPENDIX
APPENDIX
MAINTENANCE
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you
can enjoy your new TV.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of
lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s
almost dry, and then use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
ᯫ
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
ᯫ
Please be sure not to use a wet cloth.
Extended Absence
2
1
CAUTION
ŹIf you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.
180
APPENDIX
APPENDIX
MODELS
47LE5400
(47LE5400-UC)
55LE5400
(55LE5400-UC)
47LE5500
(47LE5500-UA)
55LE5500
(55LE5500-UA)
Dimensions
(Width x
Height
x Depth)
With stand
1126.6 mm x 757.9 mm x 284.4 mm
(44.3 inch x 29.8 inch x 11.1 inch)
1306.0 mm x 867.0 mm x 345.0 mm
(51.4 inch x 34.1 inch x 13.5 inch)
Without stand
1126.6 mm x 692.0 mm x 29.3 mm
(44.3 inch x 27.2 inch x 1.1 inch)
1306.0 mm x 797.0 mm x 30.7 mm
(51.4 inch x 31.3 inch x 1.2 inch)
Weight With stand
22.9 kg (50.4 lbs) 34.5 kg (76.0 lbs)
Without stand
19.6 kg (43.2 lbs) 28.8 kg (63.4 lbs)
MODELS 32LE5400
(32LE5400-UC)
42LE5400
(42LE5400-UC)
42LE5500
(42LE5500-UA)
Dimensions
(Width x
Height
x Depth)
With stand
784.6 mm x 558.1 mm x 221.0 mm
(30.8 inch x 21.9 inch x 8.7 inch)
1016.0 mm x 692.0 mm x 270.0 mm
(40.0 inch x 27.2 inch x 10.6 inch)
Without stand
784.6 mm x 499.5 mm x 39.9 mm
(30.8 inch x 19.6 inch x 1.5 inch)
1016.0 mm x 630.0 mm x 29.3 mm
(40.0 inch x 24.8 inch x 1.1 inch)
Weight With stand
12.65 kg (27.8 lbs) 19.5 kg (42.9 lbs)
Without stand
10.5 kg (23.1 lbs) 16.7 kg (36.8 lbs)
Power requirement AC 120 V ~ 50 / 60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment
condition
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity Less than 85 %
ᯫ
The specifications shown above may be changed without prior notice for quality improvement.
182
APPENDIX
APPENDIX

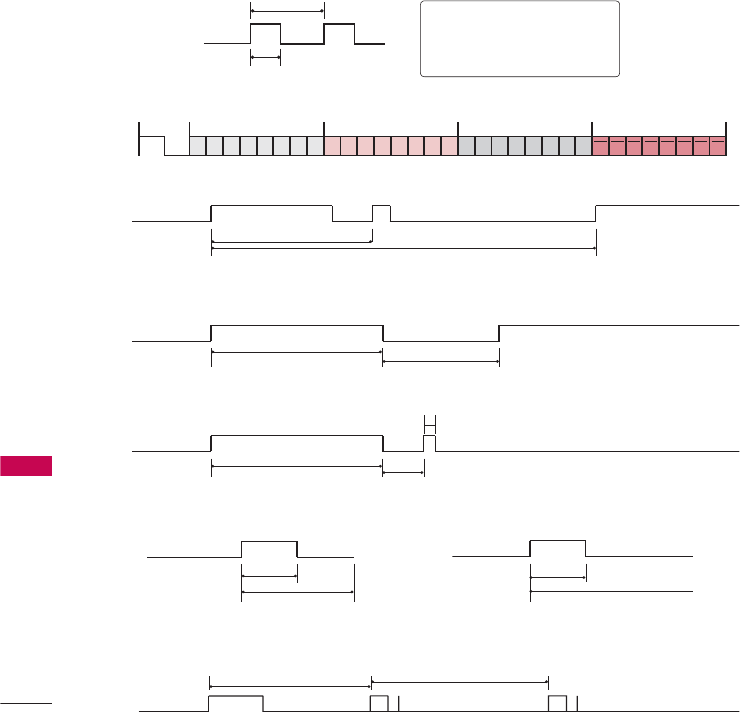

IR CODES
ᯫ
Configuration of frame
1st frame
Repeat frame
ᯫ
Lead code
ᯫ
Repeat code
ᯫ
Bit description: Tf
ᯫ
Frame interval: Tf
The waveform is transmitted as long as a key is depressed.
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
L
ea
d
co
d
e
L
ow cus
t
om co
d
e
Hi
g
h
cus
t
om co
d
e
D
a
t
a co
d
e
D
a
t
a co
d
e
Repeat code Tf
4.5 ms
9 ms
2.25 ms
9 ms
0.55 ms
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Tf Tf
Tf=108 ms @455 KHz
Bit ”0” Bit ”1”
1. How to Connect
ᯫ
Connect your wired remote control to the Remote Control port on the TV.
2. Remote Control IR Codes
ᯫ
Output waveform
Single pulse, modulated with 37.917 KHz signal at 455 KHz
T1
Tc
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
*This feature is not available for all models.
183
APPENDIX
Code
(Hexa) Function Note Code
(Hexa) Function Note
00 CH ᰜRemote Control Button B0 ᰦRemote Control Button
01 CH ᰝRemote Control Button B1 ᰧRemote Control Button
02 VOL + Remote Control Button BA ᰨ Remote Control Button
03 VOL - Remote Control Button D6 TV Discrete IR Code
06
>
Remote Control Button (TV Input Selection)
07
<
Remote Control Button C4 POWER ON Discrete IR Code
08 Remote Control Button (Only Power On)
(Power On/Off) C5 POWER OFF Discrete IR Code
09 MUTE/DELETE Remote Control Button (Only Power Off)
0B INPUT Remote Control Button 5A AV1 Discrete IR Code
0F TV Remote Control Button (AV1 Input Selection)
10-19 Number 0-9 Remote Control Button D0 AV2 Discrete IR Code
1A FLASHBK Remote Control Button (AV2 Input Selection)
1E FAV/MARK Remote Control Button BF COMPONENT1 Discrete IR Code
28 BACK Remote Control Button (Component1 Input Selection)
30 AV MODE Remote Control Button D4 COMPONENT2 Discrete IR Code
40 ᰜRemote Control Button (Component2 Input Selection)
41 ᰝRemote Control Button D5 RGB-PC Discrete IR Code
43 MENU Remote Control Button (RGB-PC Input Selection)
44 ENTER Remote Control Button CE HDMI1 Discrete IR Code
45 Q.MENU Remote Control Button (HDMI1 Input Selection)
4C - (Dash)/LIST Remote Control Button CC HDMI2 Discrete IR Code
5B EXIT Remote Control Button (HDMI2 Input Selection)
58 WIDGETS Remote Control Button E9 HDMI3 Discrete IR Code
59 NETCAST Remote Control Button (HDMI3 Input Selection)
61 BLUE Remote Control Button DA HDMI4 Discrete IR Code
63 YELLOW Remote Control Button (HDMI4 Input Selection)
71 GREEN Remote Control Button 76 Ratio 4:3 Discrete IR Code
72 RED Remote Control Button (Only 4:3 Mode)
79 RATIO Remote Control Button 77 Ratio 16:9 Discrete IR Code
7E SIMPLINK Remote Control Button (Only 16:9 Mode)
8E ᰩRemote Control Button AF Ratio Zoom Discrete IR Code
8F ᰪRemote Control Button (Only Zoom Mode)
95
ENERGY SAVING
Remote Control Button
AA INFO Remote Control Button
ᯫ
Use this feature depending on your models.
184
APPENDIX
APPENDIX
OPEN SOURCE LICENSE
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim cop-
ies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away
your freedom to share and change it. By contrast, the GNU
General Public License is intended to guarantee your free-
dom to share and change free software - to make sure the
software is free for all its users. This General Public License
applies to most of the Free Software Foundation's software
and to any other program whose authors commit to using
it. (Some other free software foundation software is cov-
ered by the GNU Lesser General Public License instead.)
You can apply it to your programs, too.
When we speak of free software, we are referring to free-
dom, not price. Our General Public Licenses are designed
to make sure that you have the freedom to distribute cop-
ies of free software (and charge for this service if you wish),
that you receive source code or can get it if you want it, that
you can change the software or use pieces of it in new free
programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that
forbid anyone to deny you these rights or to ask you to sur-
render the rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the soft-
ware, or if you modify it.
For example, if you distribute copies of such a program,
whether gratis or for a fee, you must give the recipients all
the rights that you have. You must make sure that they, too,
receive or can get the source code. And you must show
them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the
software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to
make certain that everyone understands that there is no
warranty for this free software. If the software is modified
by someone else and passed on, we want its recipients to
know that what they have is not the original, so that any
problems introduced by others will not reflect on the origi-
nal authors' reputations.
Finally, any free program is threatened constantly by soft-
ware patents. We wish to avoid the danger that redistribu-
tors of a free program will individually obtain patent licens-
es, in effect making the program proprietary. To prevent
this, we have made it clear that any patent must be
licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution
and modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION
0. This license applies to any program or other work which
contains a notice placed by the copyright holder saying
it may be distributed under the terms of this General
Public License. The "Program", below, refers to any such
program or work, and a "work based on the Program"
means either the Program or any derivative work under
copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modi-
fications and/or translated into another language.
(Hereinafter, translation is included without limitation in
the term "modification".) Each licensee is addressed as
"you".
Activities other than copying, distribution and modifica-
tion are not covered by this license; they are outside its
scope. The act of running the Program is not restricted,
and the output from the program is covered only if its
contents constitute a work based on the program (inde-
pendent of having been made by running the program).
Whether that is true depends on what the program
does.
1. You may copy and distribute verbatim copies of the
program's source code as you receive it, in any medium,
provided that you conspicuously and appropriately pub-
lish on each copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the notices that
refer to this license and to the absence of any warranty;
and give any other recipients of the program a copy of
this license along with the Program.
You may charge a fee for the physical act of transferring
a copy, and you may at your option offer warranty pro-
tection in exchange for a fee.
2. You may modify your copy or copies of the program or
any portion of it, thus forming a work based on the
Program, and copy and distribute such modifications or
work under the terms of section 1 above, provided that
you also meet all of these conditions:
a) You must cause the modified files to carry prominent
notices stating that you changed the files and the
date of any change.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
185
APPENDIX
b) You must cause any work that you distribute or pub-
lish, that in whole or in part contains or is derived
from the Program or any part there of, to be licensed
as a whole at no charge to all third parties under the
terms of this license.
c) If the modified program normally reads commands
interactively when run, you must cause it, when start-
ed running for such interactive use in the most ordi-
nary way, to print or display an announcement includ-
ing an appropriate copyright notice and a notice that
there is no warranty (or else, saying that you provide
a warranty) and that users may redistribute the pro-
gram under these conditions, and telling the user
how to view a copy of this license. (Exception: if the
Program itself is interactive but does not normally
print such an announcement, your work based on the
Program is not required to print an announcement.)
These requirements apply to the modified work as a
whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably con-
sidered independent and separate works in themselves,
then this license, and its terms, do not apply to those
sections when you distribute them as separate works.
But when you distribute the same sections as part of a
whole which is a work based on the Program, the distri-
bution of the whole must be on the terms of this license,
whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless
of who wrote it.
Thus, it is not the intent of this section to claim rights or
contest your rights to work written entirely by you; rather,
the intent is to exercise the right to control the distribu-
tion of derivative or collective works based on the pro-
gram.
In addition, mere aggregation of another work not
based on the program with the Program (or with a work
based on the program) on a volume of a storage or
distribution medium does not bring the other work
under the scope of this license.
3. You may copy and distribute the program (or a work
based on it, under section 2) in object code or execut-
able form under the terms of sections 1 and 2 above
provided that you also do one of the following:
a) Accompany it with the complete corresponding
machine-readable source code, which must be dis-
tributed under the terms of sections 1 and 2 above
on a medium customarily used for software inter-
change; or,
b) Accompany it with a written offer, valid for at least
three years, to give any third party, for a charge no
more than your cost of physically performing source
distribution, a complete machine-readable copy of
the corresponding source code, to be distributed
under the terms of sections 1 and 2 above on a
medium customarily used for software interchange;
or,
c) Accompany it with the information you received as to
the offer to distribute corresponding source code.
(This alternative is allowed only for noncommercial
distribution and only if you received the program in
object code or executable form with such an offer, in
accord with Subsection b above.)
The source code for a work means the preferred form of
the work for making modifications to it. For an execut-
able work, complete source code means all the source
code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control
compilation and installation of the executable. However,
as a special exception, the source code distributed need
not include anything that is normally distributed (in
either source or binary form) with the major compo-
nents (compiler, kernel, and so on) of the operating
system on which the executable runs, unless that com-
ponent itself accompanies the executable.
If distribution of executable or object code is made by
offering access to copy from a designated place, then
offering equivalent access to copy the source code from
the same place counts as distribution of the source
code, even though third parties are not compelled to
copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this license.
Any attempt otherwise to copy, modify, sublicense or
distribute the Program is void, and will automatically
terminate your rights under this license. However, par-
ties who have received copies, or rights, from you under
this license will not have their licenses terminated so
long as such parties remain in full compliance.
5. You are not required to accept this license, since you
have not signed it. However, nothing else grants you
permission to modify or distribute the Program or its
derivative works. These actions are prohibited by law if
you do not accept this license. Therefore, by modifying
or distributing the program (or any work based on the
program), you indicate your acceptance of this license
to do so, and all its terms and conditions for copying,
distributing or modifying the program or works based
on it.
6. Each time you redistribute the program (or any work
based on the Program), the recipient automatically
receives a license from the original licensor to copy,
distribute or modify the Program subject to these terms
and conditions. You may not impose any further restric-
tions on the recipients' exercise of the rights granted
herein. You are not responsible for enforcing compliance
by third parties to this license.
186
APPENDIX
APPENDIX
7. If, as a consequence of a court judgment or allegation
of patent infringement or for any other reason (not lim-
ited to patent issues), conditions are imposed on you
(whether by court order, agreement or otherwise) that
contradict the conditions of this license, they do not
excuse you from the conditions of this license. If you
cannot distribute so as to satisfy simultaneously your
obligations under this license and any other pertinent
obligations, then as a consequence you may not distrib-
ute the program at all. For example, if a patent license
would not permit royalty-free redistribution of the pro-
gram by all those who receive copies directly or indi-
rectly through you, then the only way you could satisfy
both it and this license would be to refrain entirely from
distribution of the program.
If any portion of this section is held invalid or unenforce-
able under any particular circumstance, the balance of
the section is intended to apply and the section as a
whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or to
contest validity of any such claims; this section has the
sole purpose of protecting the integrity of the free soft-
ware distribution system, which is implemented by pub-
lic license practices. Many people have made generous
contributions to the wide range of software distributed
through that system in reliance on consistent applica-
tion of that system; it is up to the author/donor to
decide if he or she is willing to distribute software
through any other system and a licensee cannot impose
that choice.
This section is intended to make thoroughly clear what
is believed to be a consequence of the rest of this
license.
8. If the distribution and/or use of the program is restrict-
ed in certain countries either by patents or by copy-
righted interfaces, the original copyright holder who
places the program under this license may add an
explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in
or among countries not thus excluded. In such case, this
license incorporates the limitation as if written in the
body of this license.
9. The Free Software Foundation may publish revised and/
or new versions of the General Public License from time
to time. Such new versions will be similar in spirit to the
present version, but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing version number. If
the program specifies a version number of this license
which applies to it and "any later version", you have the
option of following the terms and conditions either of
that version or of any later version published by the Free
