LG Electronics USA 42LM3400UC LED LCD TV monitor User Manual
LG Electronics USA LED LCD TV monitor
User Manual
www.lg.com
Please read this manual carefully before operating your set
and retain it for future reference.
P/NO : MFL67468165 (1203-REV00)
OWNER’S MANUAL
LED LCD TV
32LM3400
42LM3400
6
ENG
ENGLISH
TABLE OF CONTENTS
Additional Information
TABLE OF CONTENTS
2 LICENSES
2 OPEN SOURCE SOFTWARE NOTICE
3 IMPORTANT SAFETY INSTRUCTIONS
6 TABLE OF CONTENTS
6 Additional Information
7 INSTALLATION PROCEDURE
7 ASSEMBLING AND PREPARING
7 Unpacking
9 Parts and buttons
11 Setting up the TV
11 - Attaching the stand
12 - Mounting on a table
13 - Mounting on a wall
14 - Tidying cables
15 REMOTE CONTROL
17 GENERAL TROUBLESHOOTING
18 SPECIFICATIONS
ENGLISH

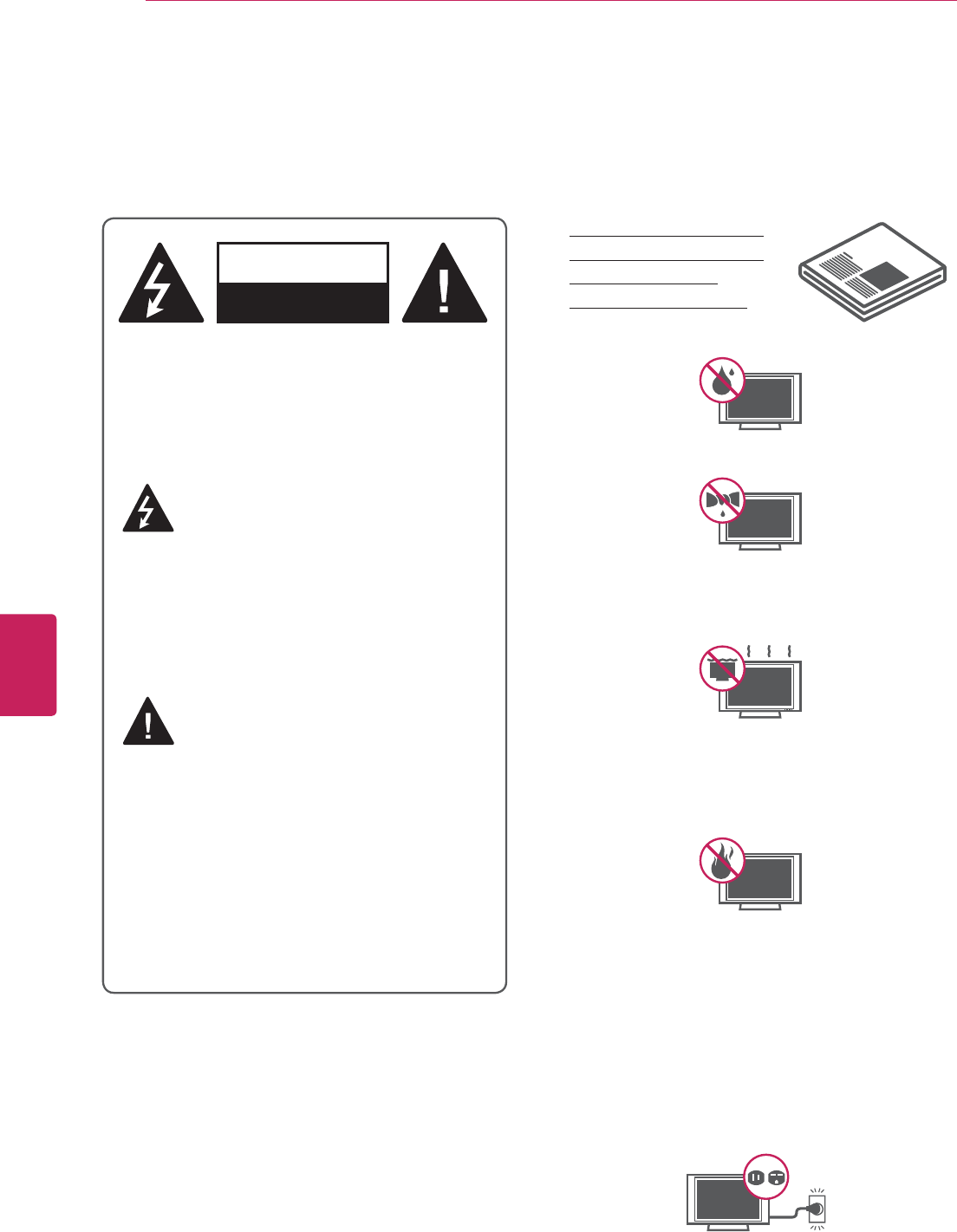

2IMPORTANT SAFETY INSTRUCTIONS
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
y Do not use this apparatus near water.
y Clean only with a dry cloth.
y Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
y Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
y Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet (Can differ by country).
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance
of your product.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
WARNING: This product contains chemicals
known to the State of California to cause cancer.
Wash hands after handling.
ENGLISH
3

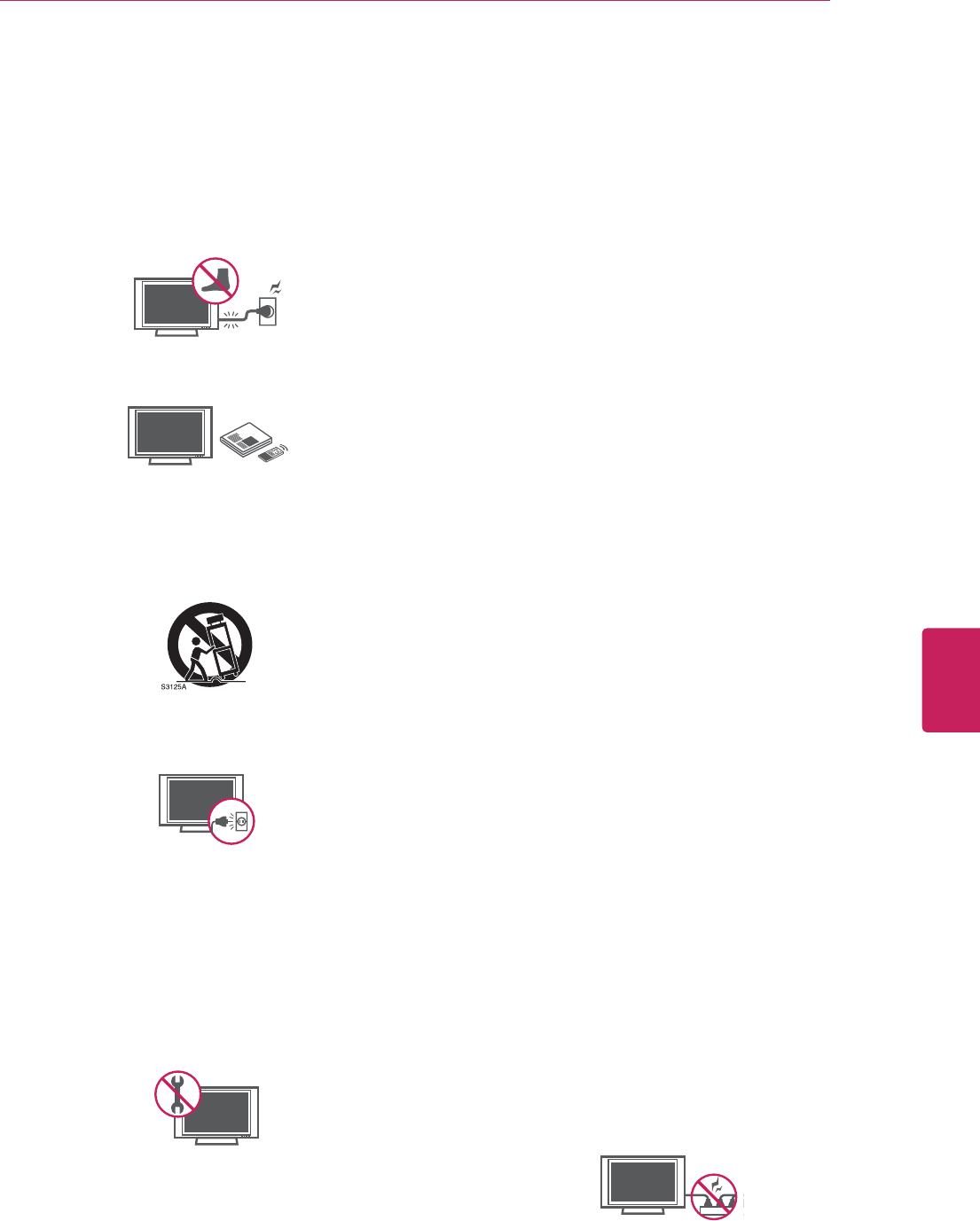

IMPORTANT SAFETY INSTRUCTIONS
y Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
y Only use attachments/accessories specified
by the manufacturer.
y Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
y Unplug this apparatus during lightning
storms or when unused for long periods of
time.
y Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
y Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
y Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
y CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner’s manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord
to unplug the TV.
ENGLISH
4IMPORTANT SAFETY INSTRUCTIONS
y Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
y Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
y Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power Supply
y DISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
y As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if the unit is turned
off.
y Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this
product.
y ANTENNAS Outdoor antenna grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
NEC: National Electrical Code

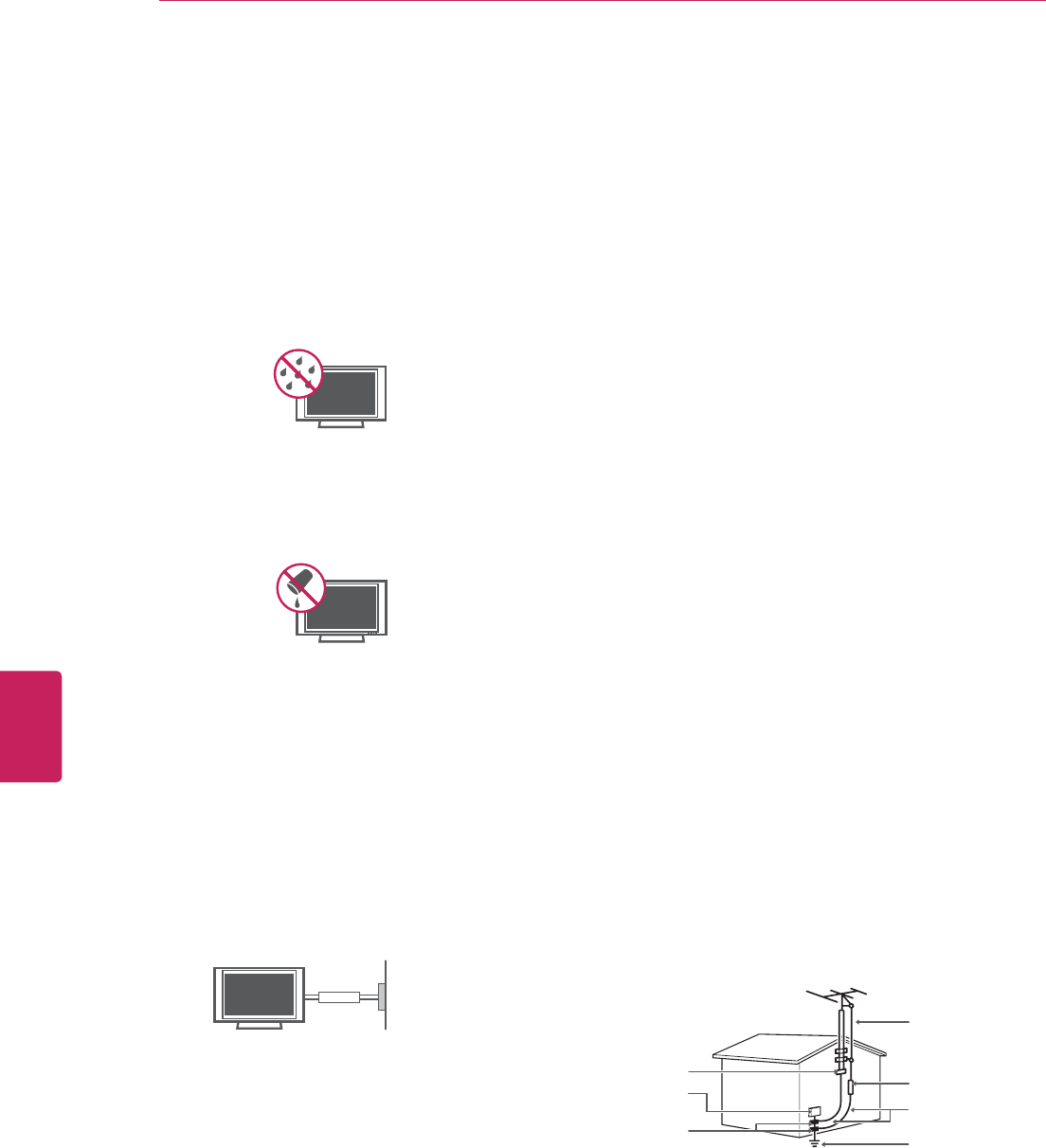

Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Electric Service
Equipment
Ground Clamp
ENGLISH
5
IMPORTANT SAFETY INSTRUCTIONS
y Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals
such as alcohol, thinners or benzine.
y Moving
Make sure the product is turned off,
unplugged and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
y Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined
space such as a bookcase. Do not cover the
product with cloth or other materials while
plugged. Do not install in excessively dusty
places.
y If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
y Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
y Keep the product away from direct sunlight.
y Never touch this apparatus or antenna during
a thunder or lightning storm.
y When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
y Do not allow an impact shock or any objects
to fall into the product, and do not drop
anything onto the screen.
y Dot Defect
The Plasma or LCD panel is a high
technology product with resolution of two
million to six million pixels. In a very few
cases, you could see fine dots on the screen
while you’re viewing the TV. Those dots
are deactivated pixels and do not affect the
performance and reliability of the TV.
y Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-
speed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending on the product.
This generated sound does not affect the
performance and reliability of the product.
y Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
y If the TV feels cold to the touch, there may
be a small “flicker” when it is turned on. This
is normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV’s performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
ENGLISH
6IMPORTANT SAFETY INSTRUCTIONS
DISPOSAL (Hg lamp only used in LCD TVs)
The fluorescent lamp used in this product contains
a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out in accordance to
the regulations of your local authority.
Preventing “Image burn” or “Burn-in” on your TV screen
y If a fixed image displays on the TV screen
for a long period of time, it will be imprinted
and become a permanent disfigurement on
the screen. This is “image burn” or “burn-in”
and not covered by the warranty.
y If the aspect ratio of the TV is set to 4:3 for
a long period of time, image burn may occur
on the letterboxed area of the screen.
y Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.
For USA and Canada
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
ENGLISH
7
IMPORTANT SAFETY INSTRUCTIONS
Viewing 3D Imaging
WARNING
Viewing Environment
y Viewing Time
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long
period of time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
y Some users may experience a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D contents.
y Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease, etc.
y 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be experienced.
y If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than
the average adult.
y If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D
contents.
Symptoms which require discontinuation or refraining from watching 3D contents
y Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
y When these symptoms are experienced, stop using/watching 3D contents and get enough rest until
the symptom subsides.
- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain,
dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
ENGLISH
8IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Viewing Environment
y Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you
feel discomfort in viewing 3D contents, move further away from the TV.
Viewing Age
y Infants / Children
- Usage/ Viewing 3D contents for children under the age of 5 are prohibited.
- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring and
extra attention is required for children watching 3D contents.
- Children have greater binocular disparity of 3D presentations than adults because the distance
between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth
compared to adults for the same 3D image.
y Teenagers
- Teenagers under the age of 19 may be stimulated to light coming from 3D videos. Advise them not to
watch 3D videos for a long time when they are tired.
y Elderly
- The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the
recommended distance.
Cautions when using the 3D glasses
y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
y Using modified 3D glasses may cause eye strain or image distortion.
y Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
y The 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them
with chemicals.
ENGLISH
9
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays
DivX video. Visit divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to
vod.divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the
product.
ENGLISH
10 TABLE OF CONTENTS
TABLE OF CONTENTS
2 IMPORTANT SAFETY INSTRUCTIONS
7 Viewing 3D Imaging
9 LICENSES
9 OPEN SOURCE SOFTWARE NOTICE
10 TABLE OF CONTENTS
11 INSTALLATION PROCEDURE
11 ASSEMBLING AND PREPARING
11 Unpacking
13 Parts and buttons
14 Lifting and moving the TV
15 Setting up the TV
15 - Attaching the stand
16 - Mounting on a table
17 - Tidying cables
18 - Mounting on a wall
19 MAKING CONNECTIONS
19 Connecting to an antenna or cable
20 Connecting to a HD receiver, DVD, or VCR
player
20 - HDMI Connection
21 - Component Connection
22 - Composite Connection
23 Connecting to a PC
23 - HDMI Connection
24 Connecting to an Audio System
24 - Digital Optical Audio Connection
25 Connecting to a USB
26 REMOTE CONTROL
28 WATCHING TV
28 Turning the TV on for the first time
29 USING THE USER GUIDE
30 SPECIFICATIONS
32 MAINTENANCE
32 Cleaning Your TV
32 - Screen, frame, cabinet and stand
32 - Power cord
32 TROUBLESHOOTING
y Image shown may differ from your TV.
y Your TV’s OSD (On Screen Display) may
differ slightly from that shown in this
manual.
y The available menus and options may differ
from the input source or product model that
you are using.
y New features may be added to this TV in
the future.
NOTE
ENGLISH
11
ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
y The items supplied with your product may vary depending on the model.
y Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

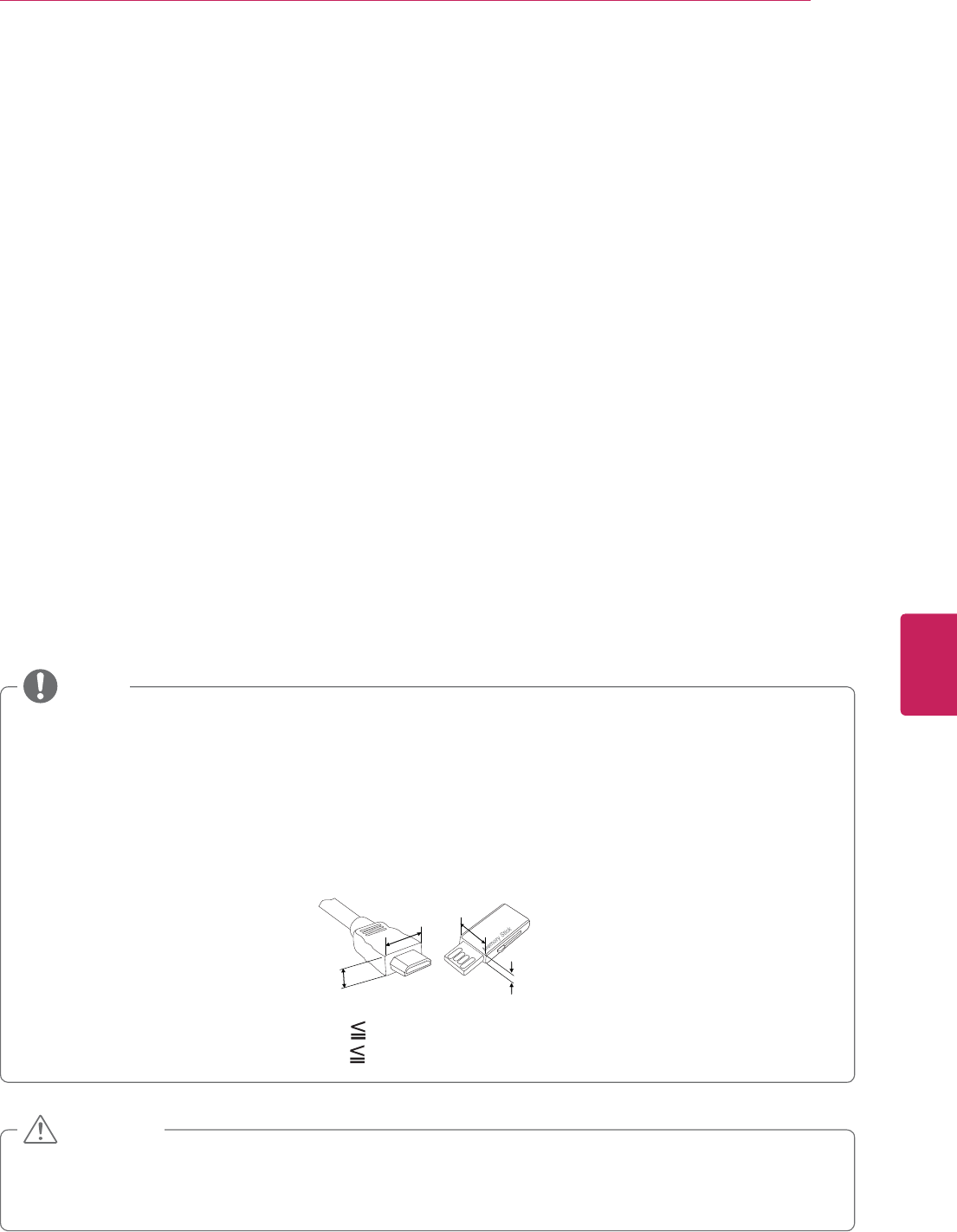

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
y Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV's USB port.
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
NOTE
y Do not use any unapproved items to ensure the safety and product life span.
y Any damages or injuries by using unapproved items are not covered by the warranty.
y In case of some model, the thin film on screen is a part of TV, So don’t take it off.
CAUTION
ENGLISH

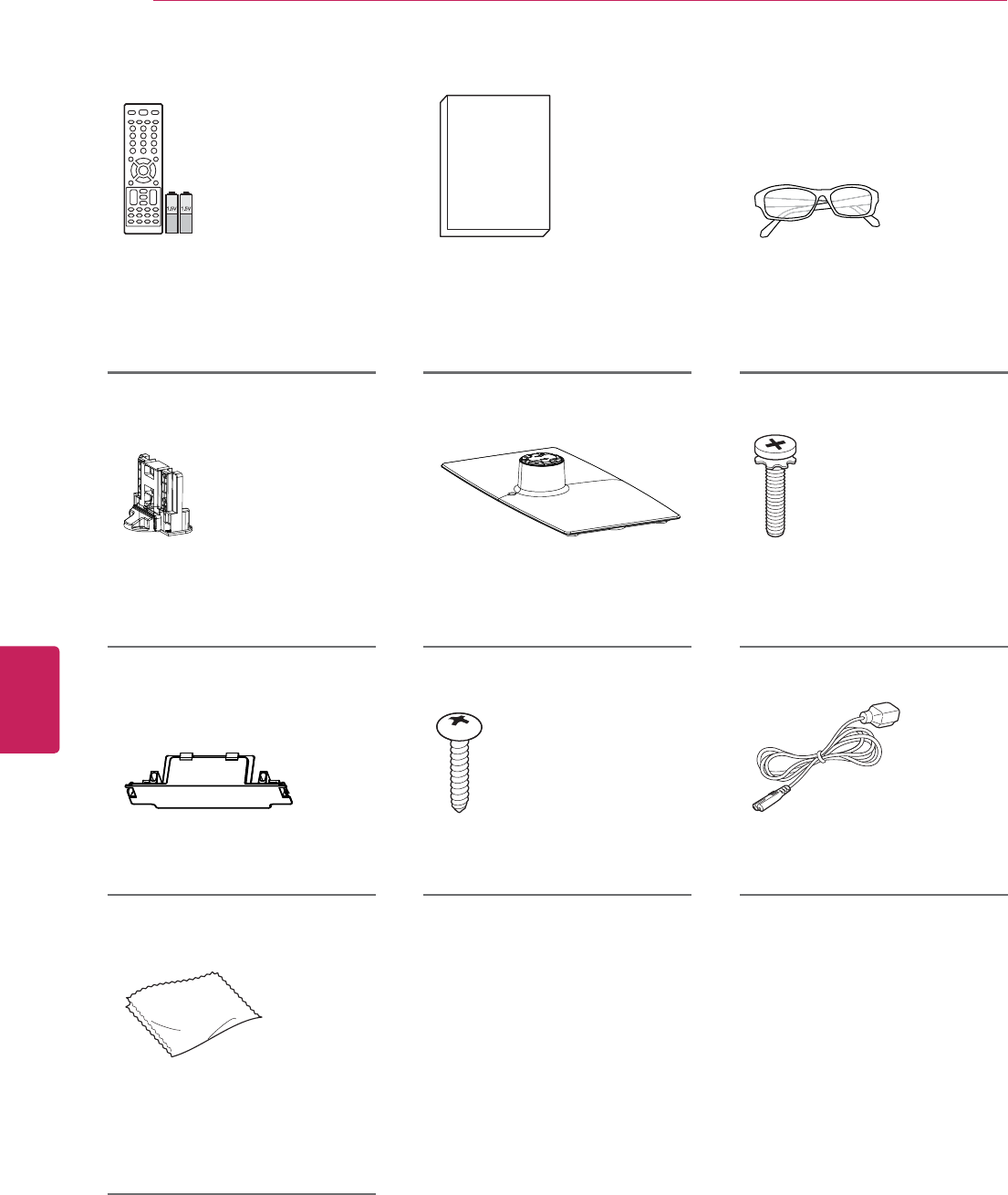

12 ASSEMBLING AND PREPARING
Remote control,
Batteries (AAA)
(See p.26)
Owner’s manual Cinema 3D Glasses
The number of 3D glasses
may differ depending on the
model or country.
Stand Body
(See p.15)
Stand Base
(See p.15)
Stand Screws
8 EA, M4 x 20
(See p.15)
Protection cover Desk-mount Screw
(See p.16)
Power Cord
Polishing cloth
(Depending on model)
Use this to remove dust
from the cabinet.
ENGLISH
13
ASSEMBLING AND PREPARING

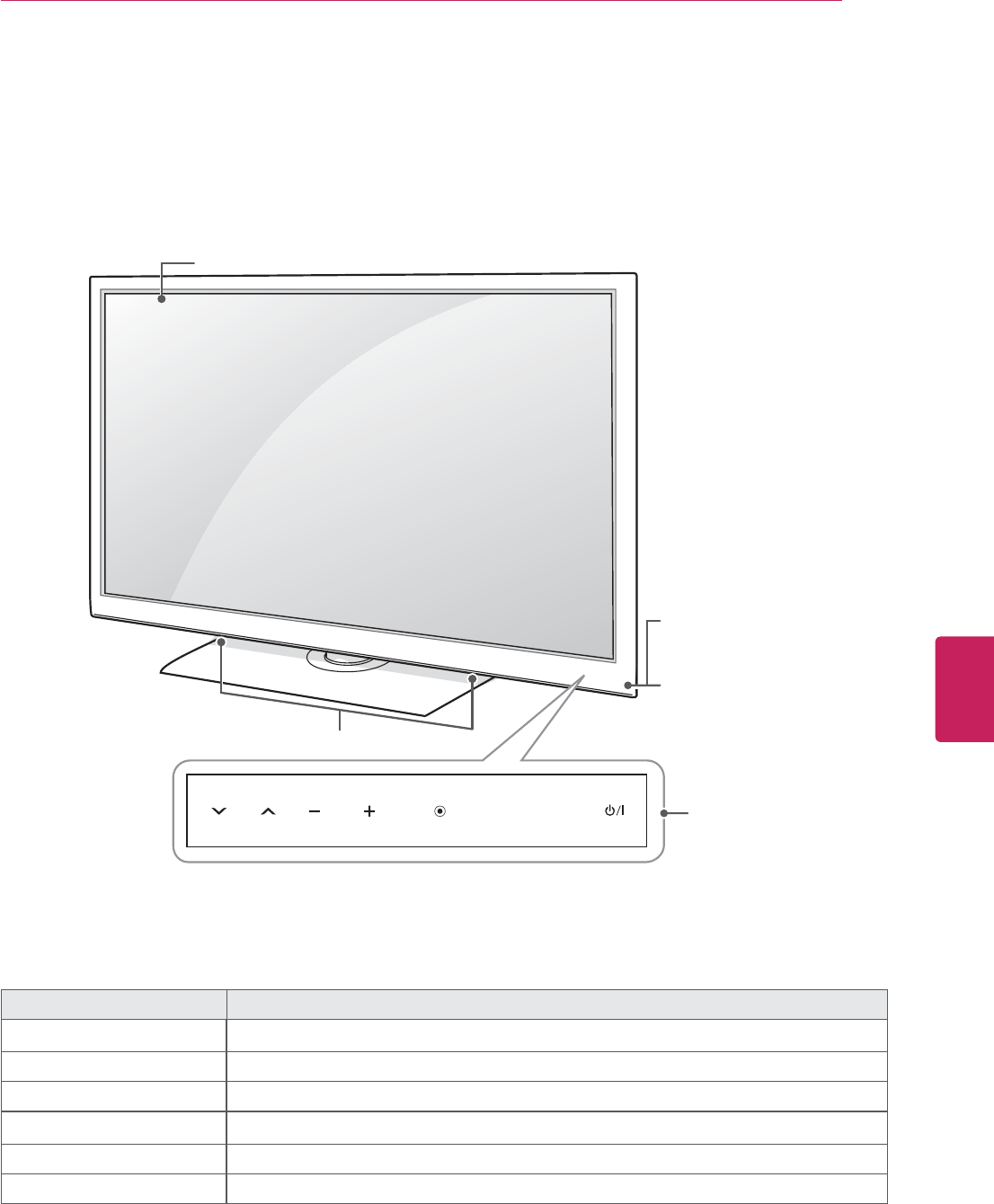

Parts and buttons
Touch button2Description
/ ITurns the power on or off.
INPUT Changes the input source.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
OK ٜSelects the highlighted menu option or confirms an input.
- + Adjusts the volume level.
v ^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
OK
SETTINGS
INPUT
Screen
Speakers
Touch buttons2
Power indicator
Remote control and
Intelligent sensors1
ENGLISH
14 ASSEMBLING AND PREPARING

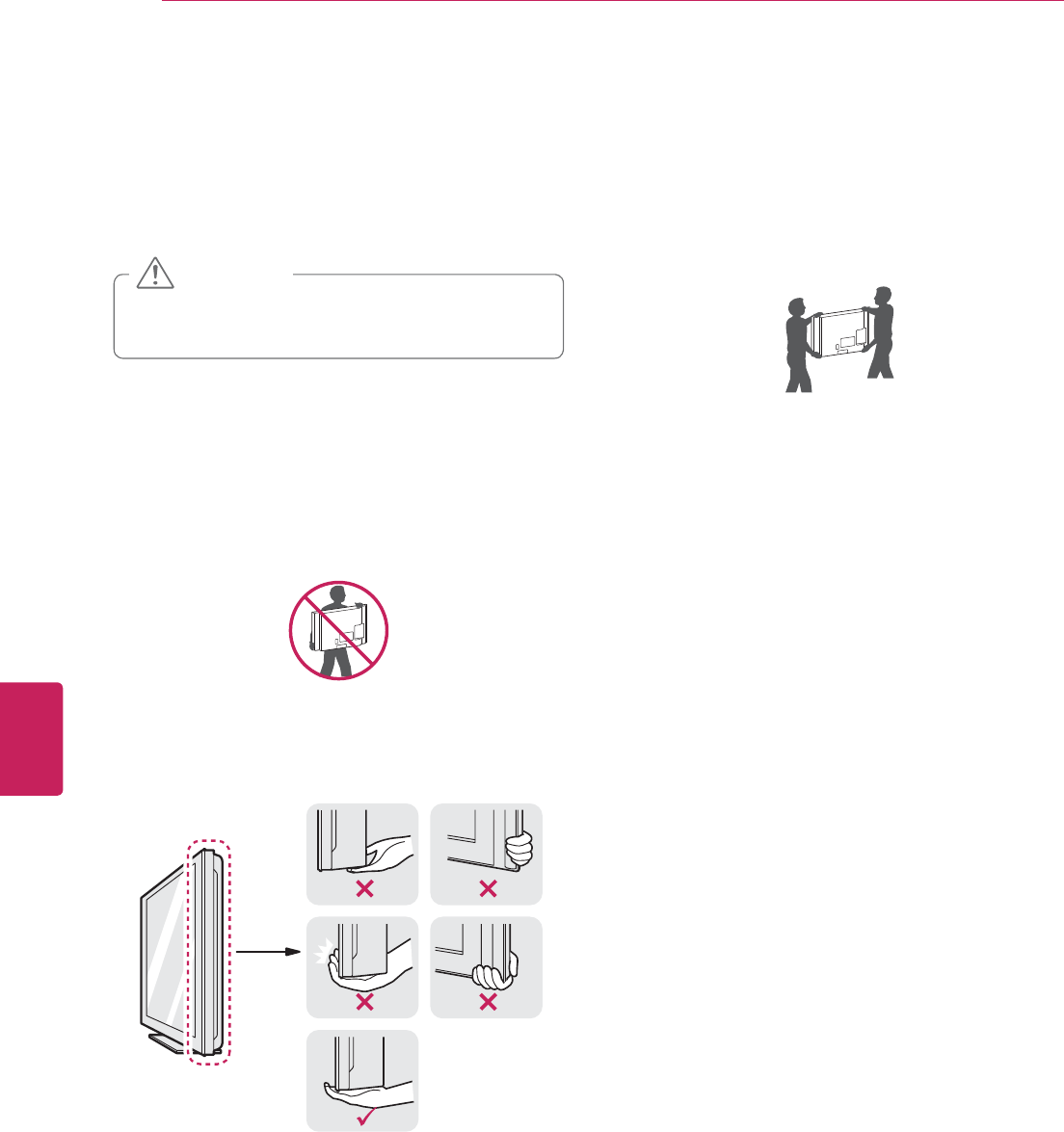

Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
y Avoid touching the screen at all times, as
this may result in damage to the screen.
CAUTION
y It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y Before moving or lifting the TV, disconnect
the power cord and all cables.
y When holding the TV, the screen should face
away from you to avoid damage.
y Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
y When transporting a large TV, there should
be at least 2 people.
y When transporting the TV by hand, hold the
TV as shown in the following illustration.
y When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
ENGLISH
15
ASSEMBLING AND PREPARING
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.

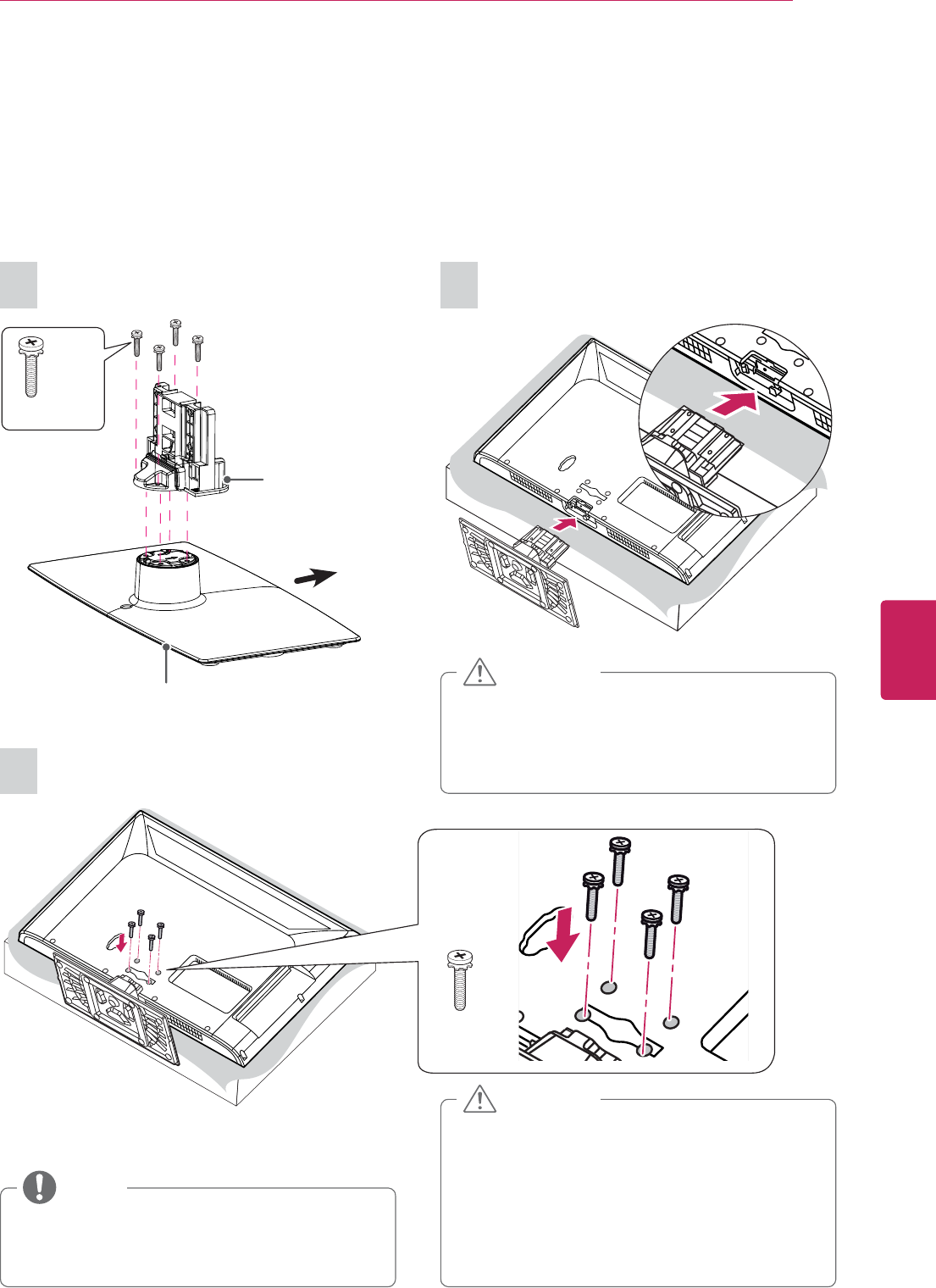

Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
1
4 EA
M4 x 20
Stand Body
Stand Base
Front
3
M4 x 20
4 EA
2
y When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
y Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
y Do not fasten the screws with too much
force; otherwise they may be worn out and
get loosened.
CAUTION
y Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
NOTE
ENGLISH
16 ASSEMBLING AND PREPARING

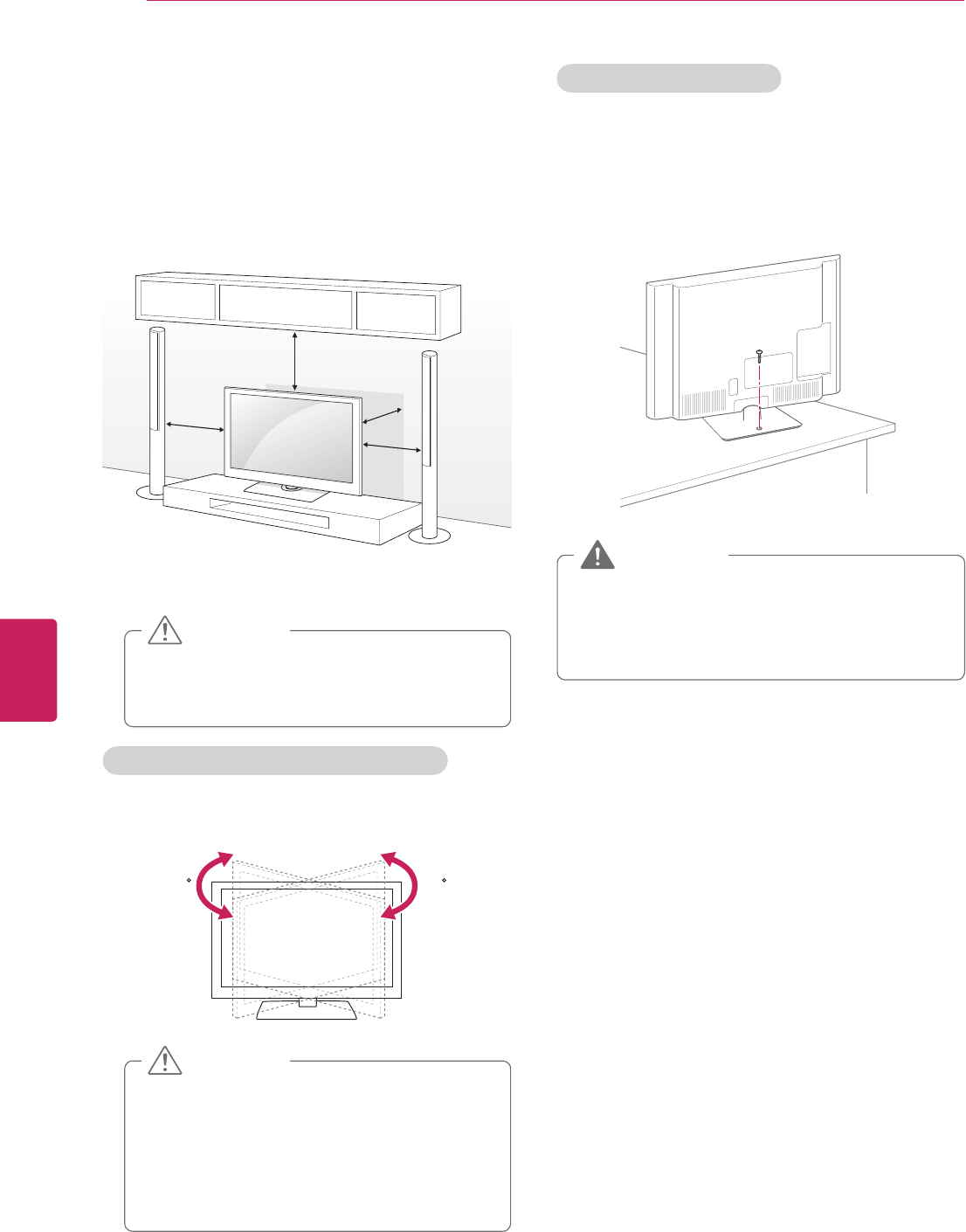

Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inch) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
(4 inches)
2 Connect the power cord to a wall outlet.
y Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
CAUTION
Adjusting the angle of the TV to suit view
Swivel 20 degrees to the left or right and adjust
the angle of the TV to suit your view.
2020
y When adjusting the angle of the TV,
watch out for your fingers.
- Personal injury may occur if hands or
fingers are pinched. If the product is
tilted too much, it may fall, causing
damage or injury.
CAUTION
Securing the TV to a table
Fix the TV to a table to prevent from tilting
forward, damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the
stand.
y To prevent TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause injury.
WARNING
ENGLISH
17
ASSEMBLING AND PREPARING

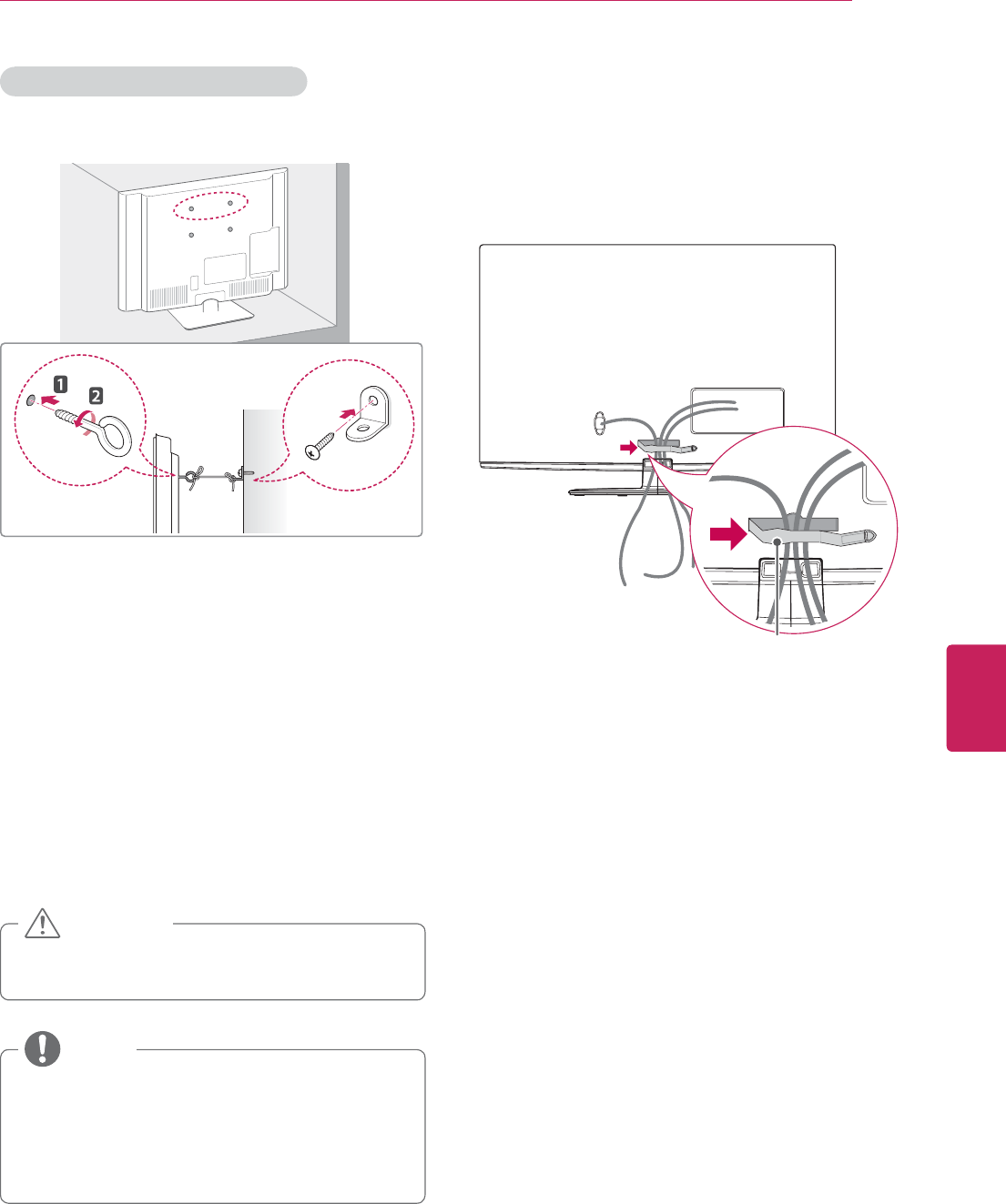

Securing the TV to a wall (optional)
(Depending on model)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
y Make sure that children do not climb on or
hang on the TV.
CAUTION
y Use a platform or cabinet that is strong and
large enough to support the TV securely.
y Brackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
NOTE
Tidying cables
1 Gather and bind the cables with the cable
management clip.
2 Fix the cable management clip firmly to the TV.
Cable management clip
ENGLISH
18 ASSEMBLING AND PREPARING

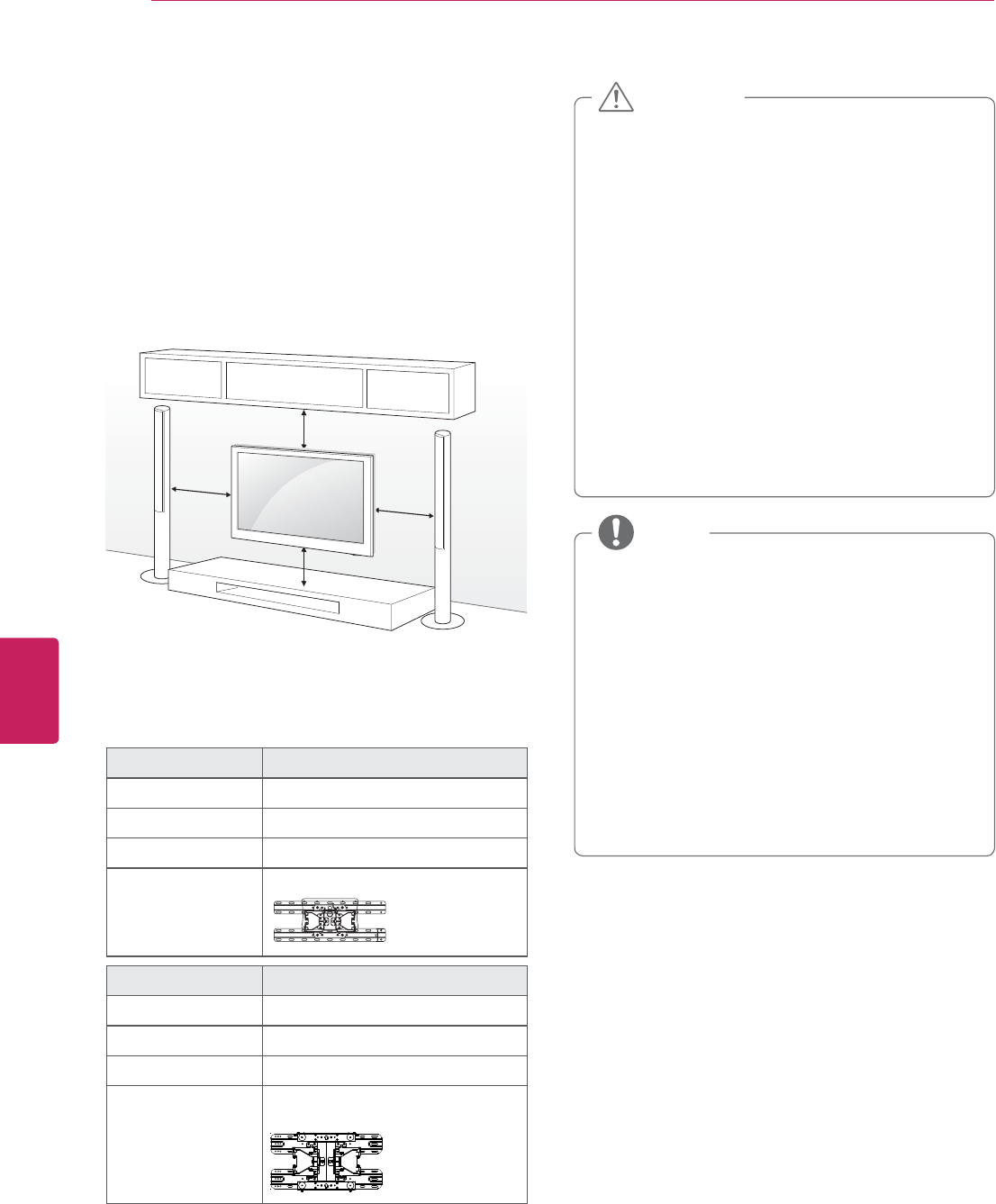

Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
We recommend that you use an LG brand wall
mount when mounting the TV to a wall.
10 cm
10 cm
10 cm
10 cm
(4 inches)
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model 32LM3400
VESA 200 x 100
Standard screw M4
Number of screws 4
Wall mount bracket
(optional)
LSW100B, LSW100BG
Model 42LM3400
VESA 200 x 200
Standard screw M6
Number of screws 4
Wall mount bracket
(optional)
LSW200B, LSW200BX
y Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
y If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
y Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
CAUTION
y Use the screws that are listed on the VESA
standard screw specifications.
y The wall mount kit includes an installation
manual and necessary parts.
y The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
y For more information, refer to the manual
supplied with the wall mount.
NOTE
ENGLISH
19
MAKING CONNECTIONS
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device.
For more information of external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
y If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
y The external device connection may differ from the model.
y Connect external devices to the TV regardless of the order of the TV port.
NOTE

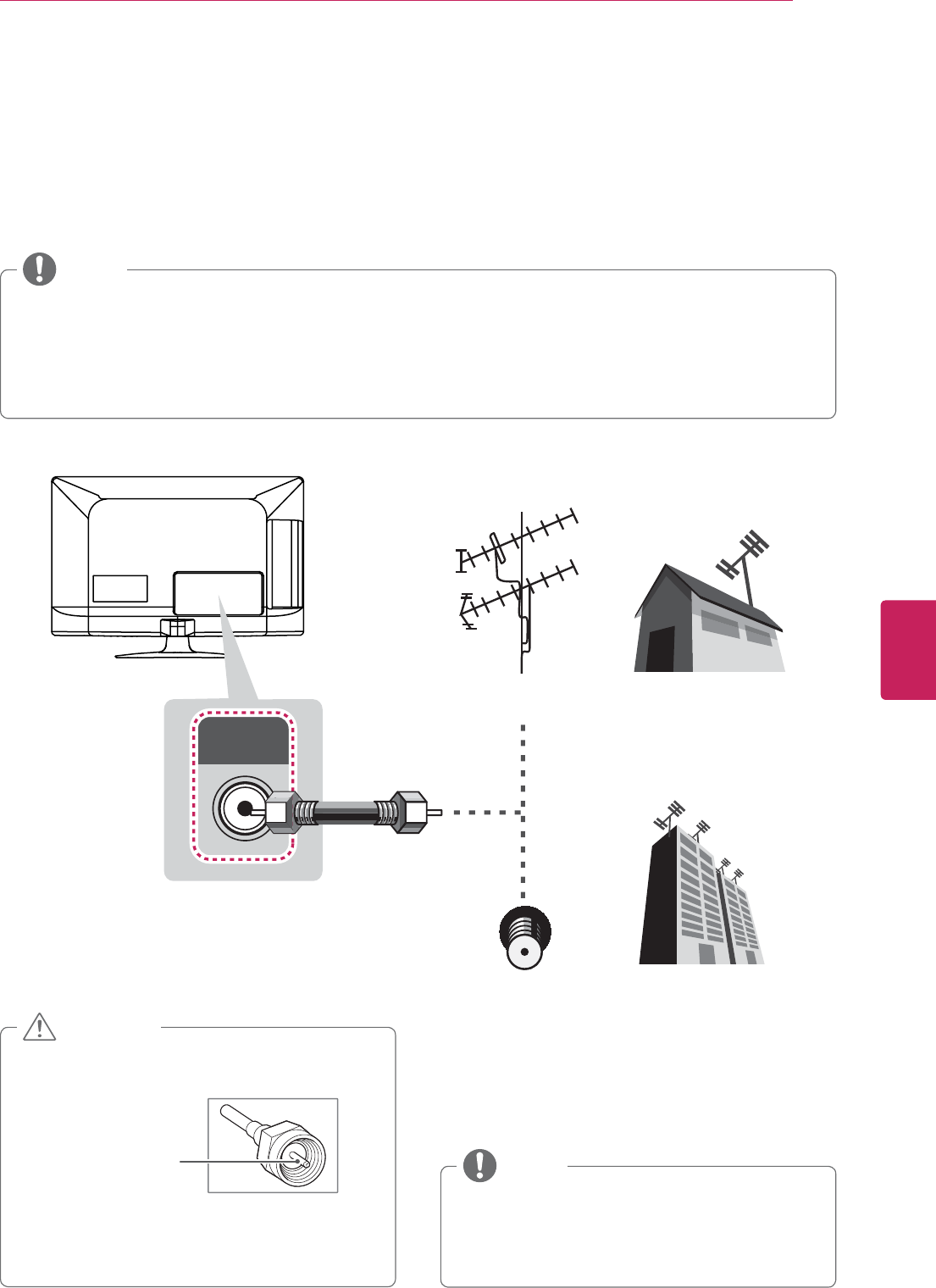

Connecting to an antenna or cable
ANTENNA/
CABLE IN
VHF Antenna
UHF Antenna
Antenna
Terminal
Coaxial (75Ω)
y Make sure not to bend the copper wire of
the RF cable.
Copper wire
y Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
CAUTION
y Use a signal splitter to use more than 2 TVs.
y Visit http://lgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
NOTE
ENGLISH
20 MAKING CONNECTIONS

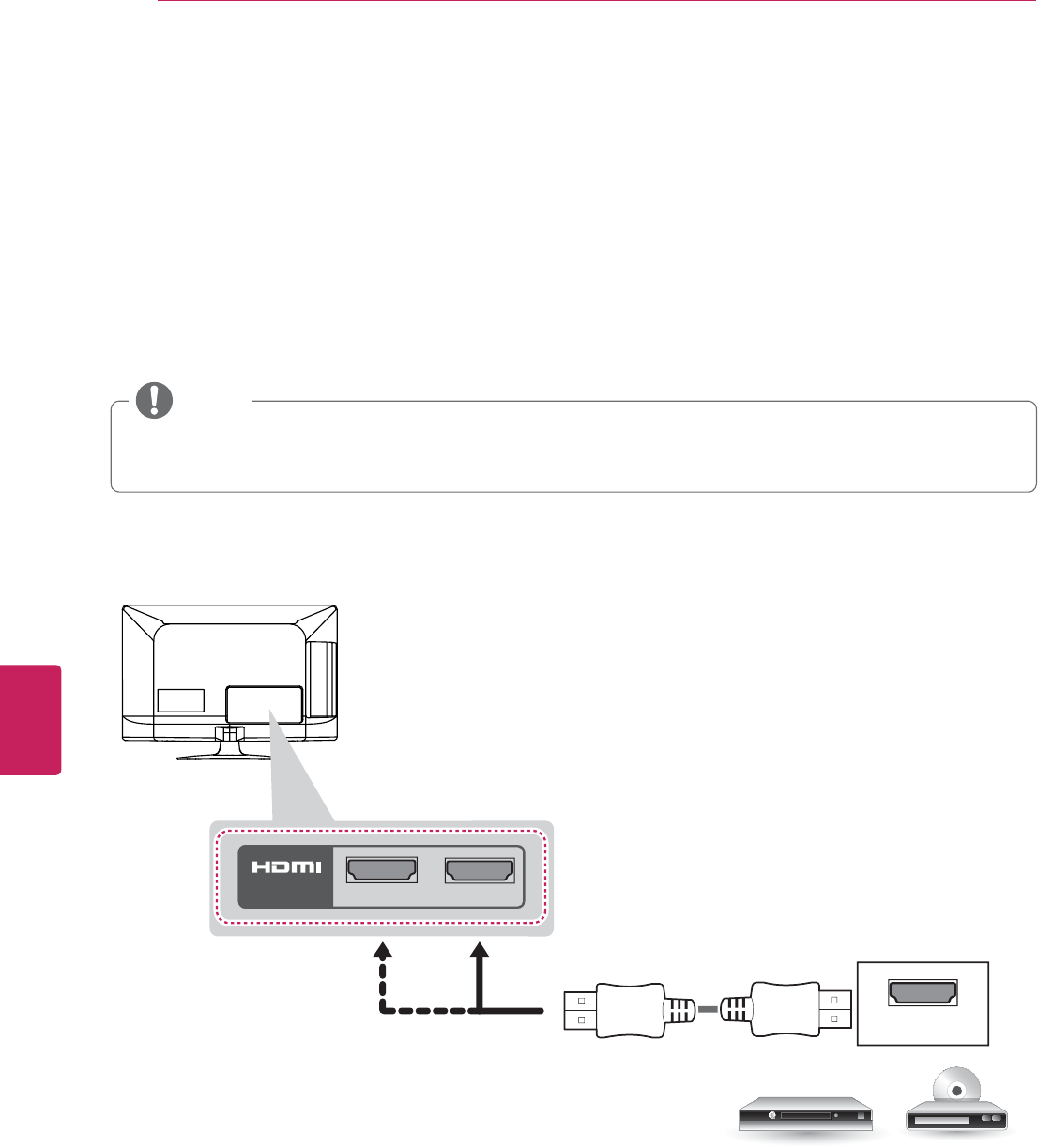

Connecting to a HD receiver, DVD, or VCR player
Connect a HD receiver, DVD, or VCR player to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown in the following illustration.
y Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
y High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
NOTE
DVD/ Blu-Ray / HD Cable Box / HD STB
2
1
IN
Choose any HDMI input port to connect.
It does not matter which port you use.
HDMI
(*Not Provided)
ENGLISH
21
MAKING CONNECTIONS
VIDEO
Y
PBP
RRL
VIDEO AUDIO
L/MONO AUDIO
COMPONENT IN
AV IN
R
AUDIO
VIDEO
LR
DVD/ Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
WHITE
WHITE
RED
RED
(*Not Provided)
(*Not Provided)

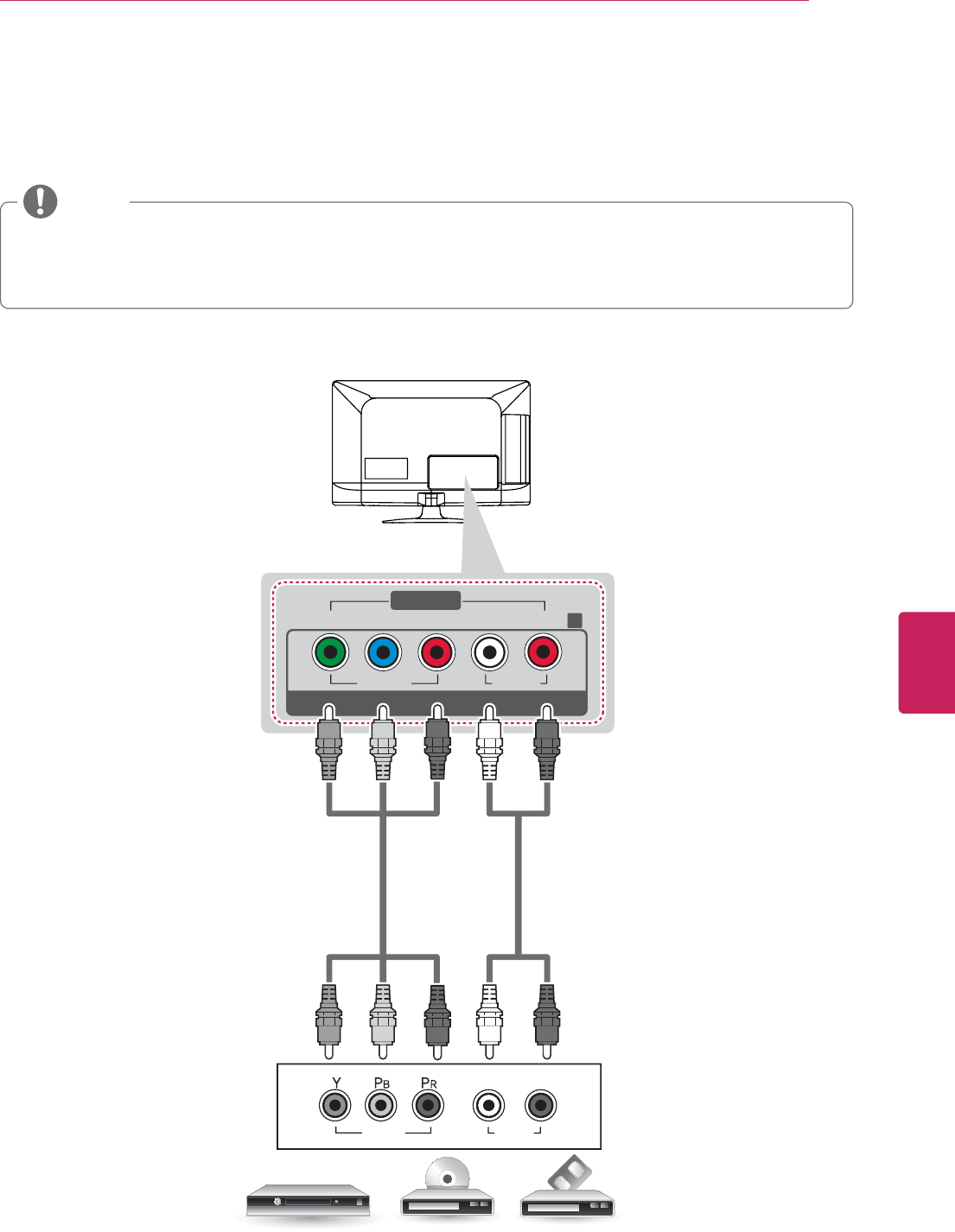

Component Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the component cable as shown in the following illustration.
y If cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.
y Check to ensure the cable are matched with the corresponding color connection.
NOTE
ENGLISH
22 MAKING CONNECTIONS

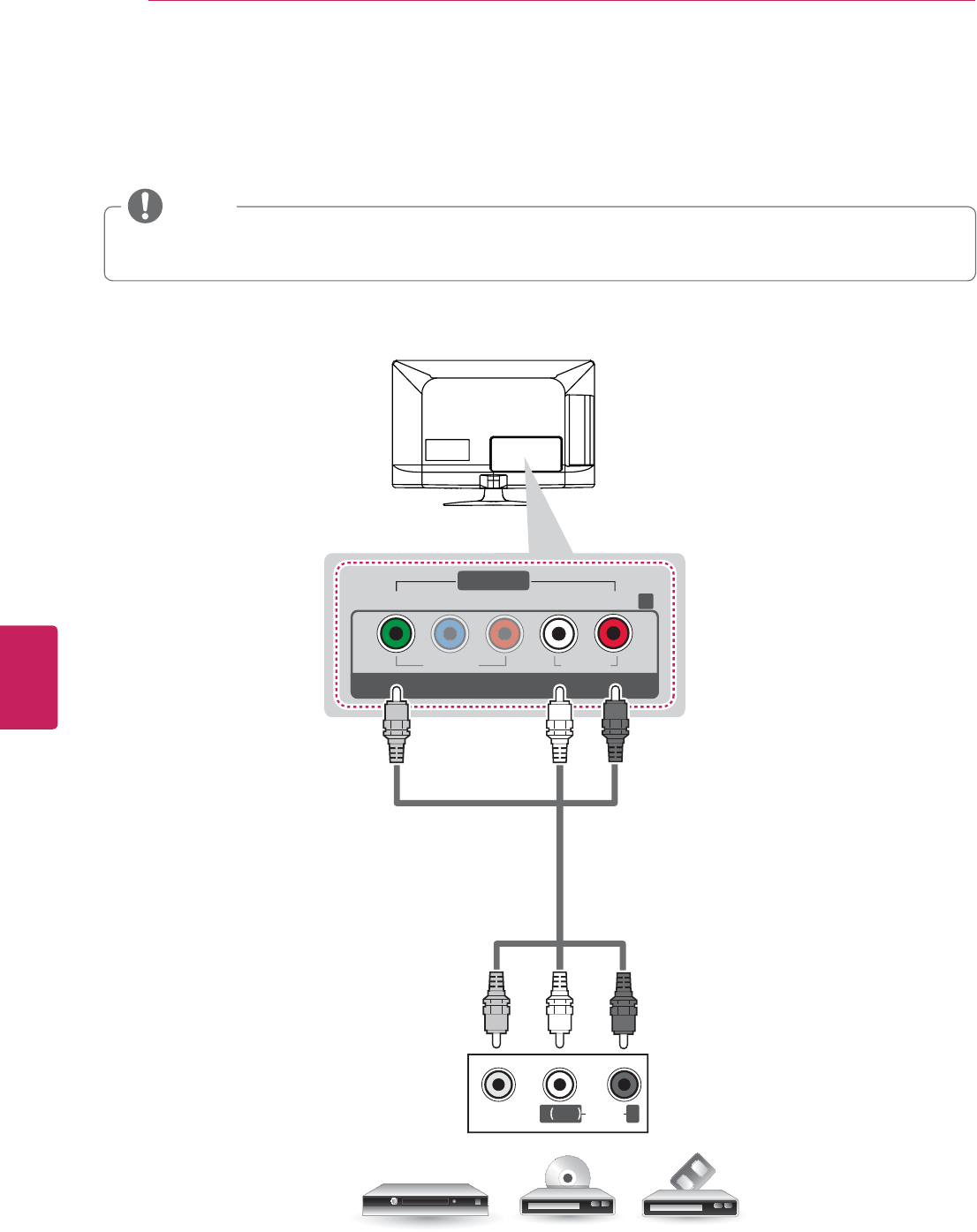

Composite Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown in the following illustration.
y If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the
TV.
NOTE
VIDEO
MONO
( )
AUDIOLR
VIDEO
Y
P
B
P
R
RL
V
IDE
O
AU
DI
O
L/MONO AUDIO
COMPONENT IN
AV IN
R
YELLOW
WHITE
WHITE
YELLOW
RED
RED
(*Not Provided)
VCR / DVD/ Blu-Ray / HD Cable Box
ENGLISH
23
MAKING CONNECTIONS

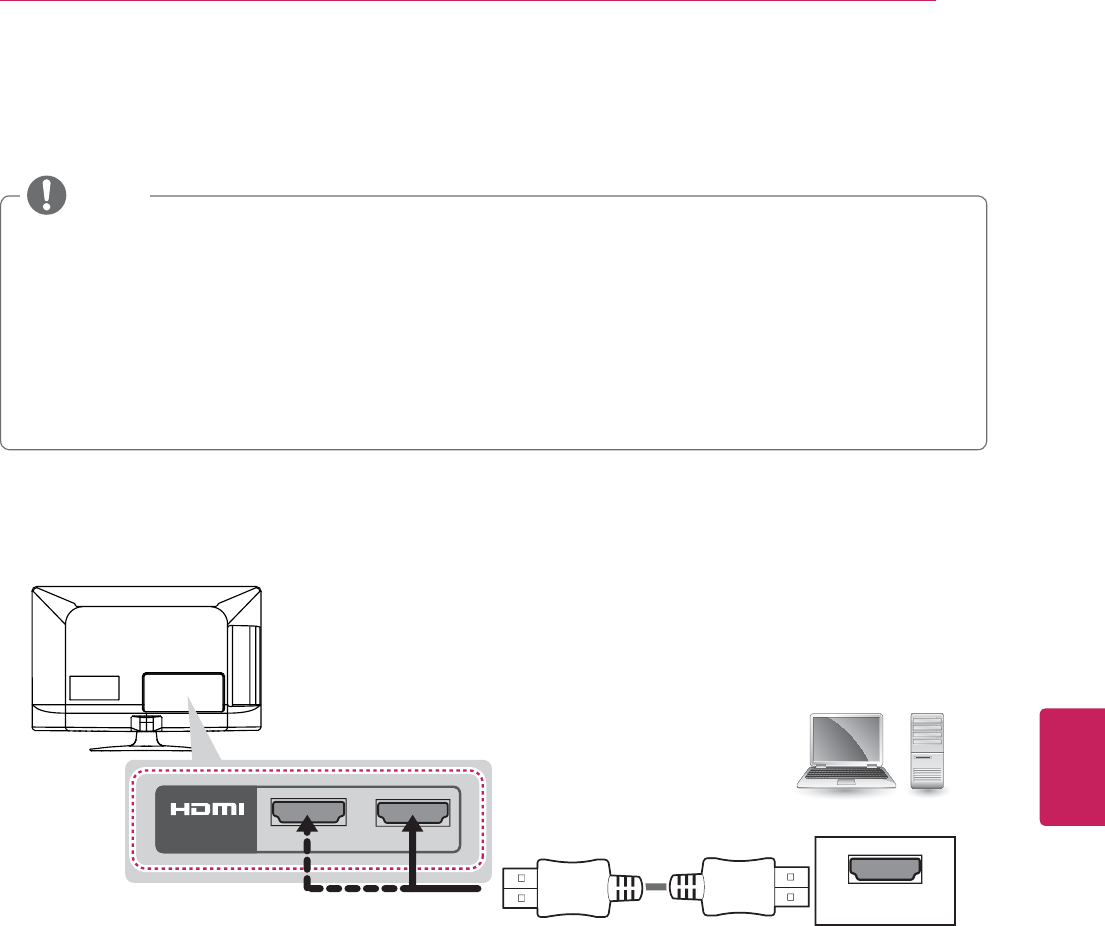

Connecting to a PC
y It is recommended to use the TV with the HDMI connection for the best image quality.
y Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
y In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC output to another resolution, change the refresh rate
to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
y The synchronization input form for Horizontal and Vertical frequencies is separate.
y Depending on the graphics card, some resolution settings may not allow the image to be positioned
on the screen properly.
NOTE
HDMI Connection
Choose any HDMI input port to connect. It does not matter which port you use.
2
1
IN
PC
HDMI
(*Not Provided)
ENGLISH
24 MAKING CONNECTIONS
Connecting to an Audio System
(For 42LM3400)
You may use an optional external audio system instead of the built-in speaker.
y If you use an optional external audio device instead of the built-in speaker, set the TV speaker
feature to off.
NOTE

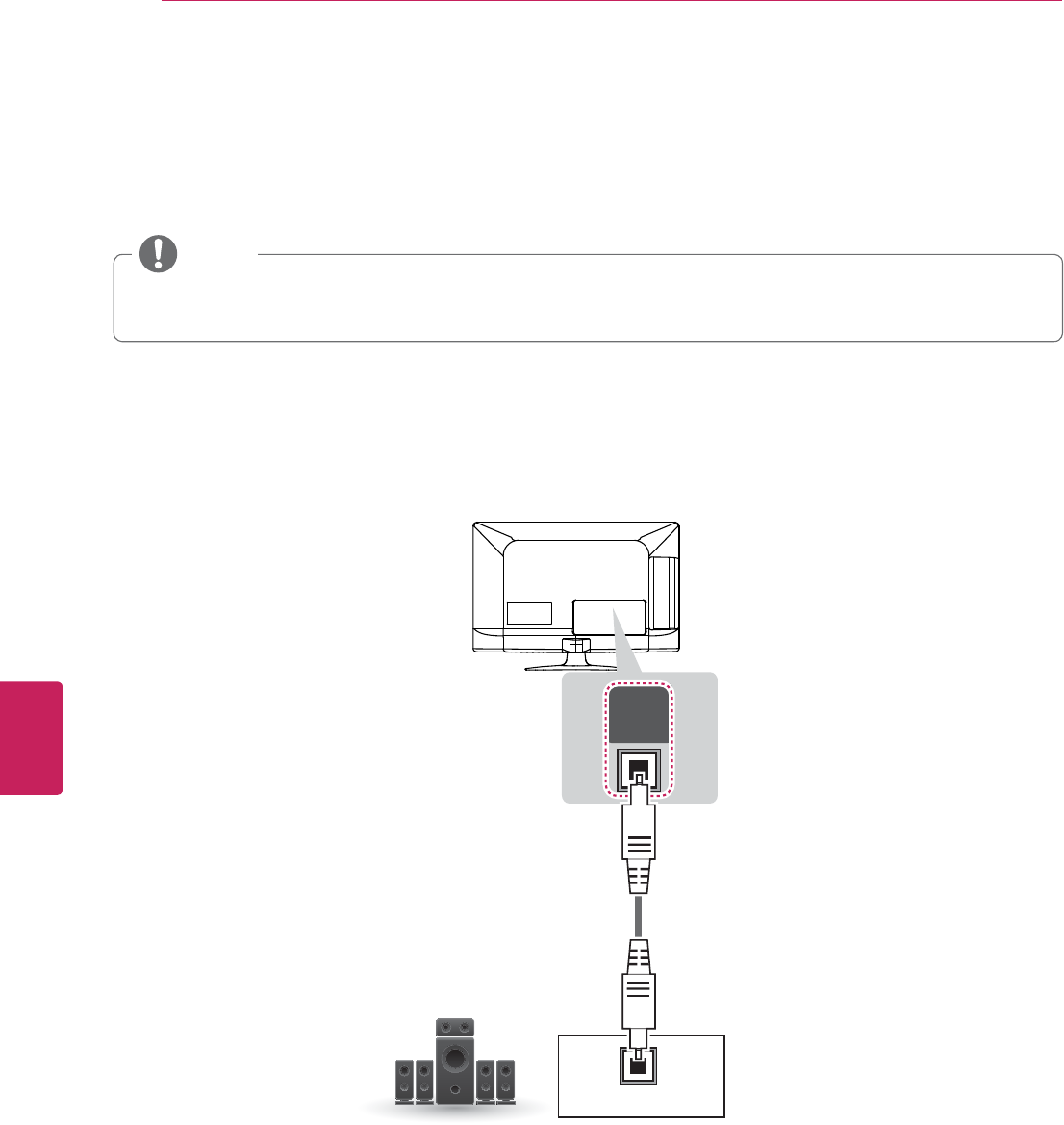

Digital Optical Audio Connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV
with the optical audio cable as shown in the following illustration.
OPTICAL
AUDIO IN
OPTICAL
DIGITAL
AUDIO OUT
(*Not Provided)
Digital Audio System
ENGLISH
25
MAKING CONNECTIONS

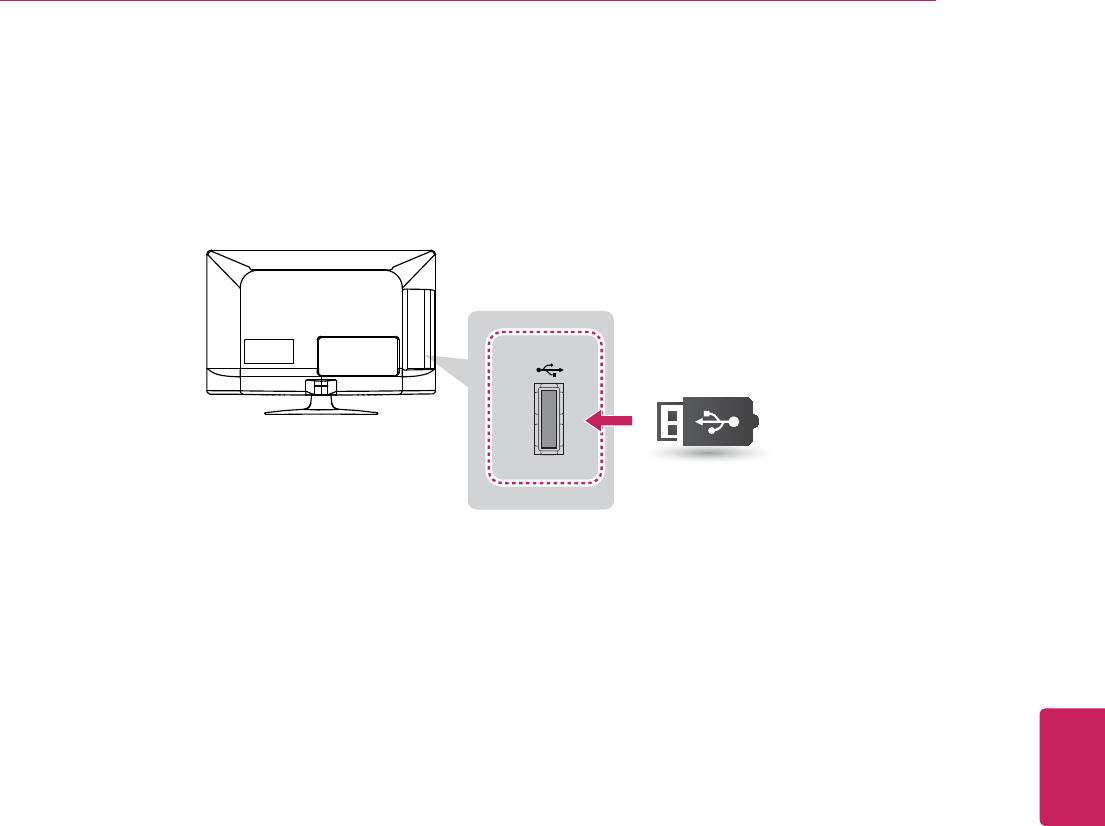

Connecting to a USB
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card
reader to the TV.
USB IN
ENGLISH

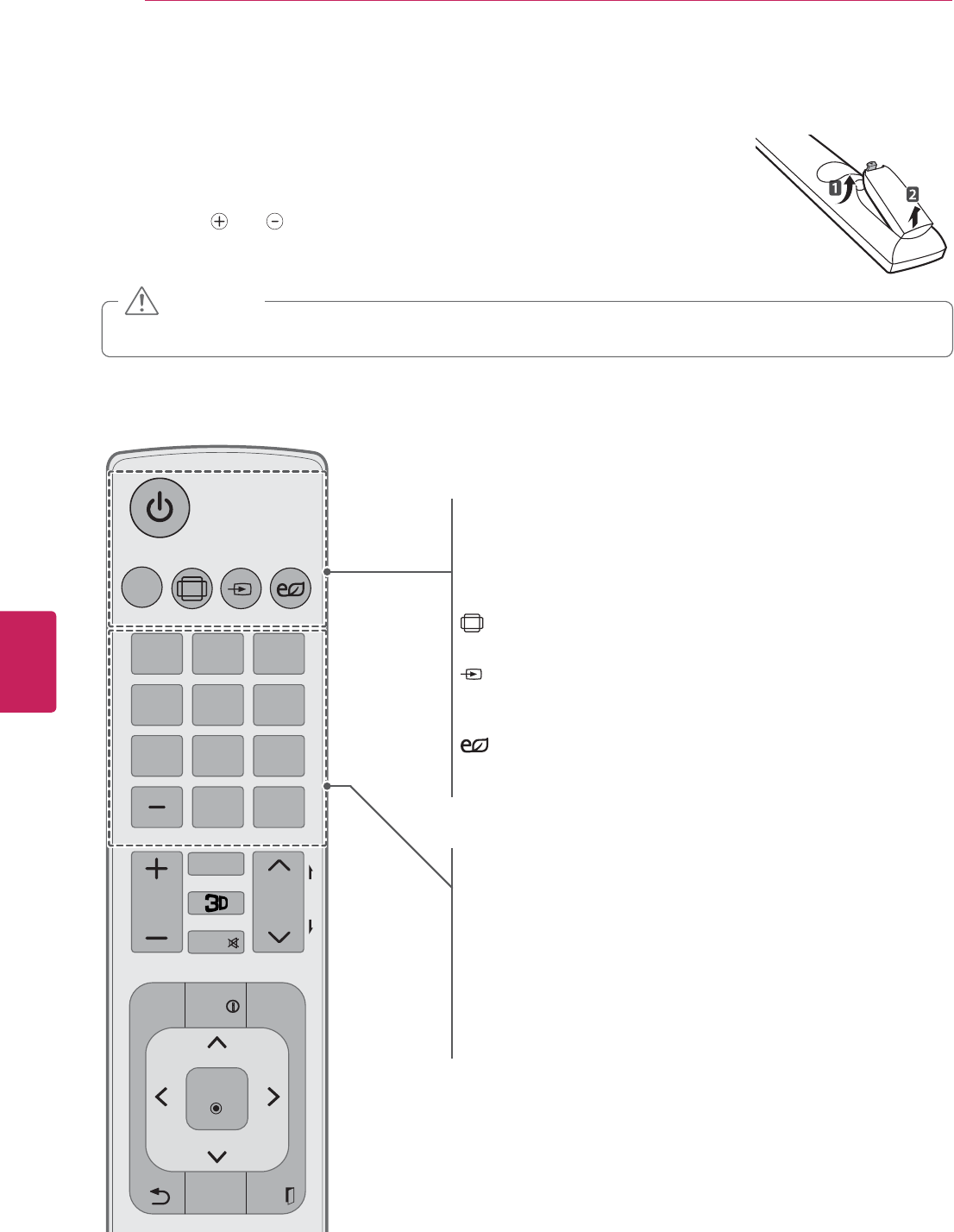

26 REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the and ends to the label inside the compartment, and close the
battery cover. To remove the batteries, perform the installation actions in reverse.
y Do not mix old and new batteries, as this may damage the remote control.
CAUTION
Make sure to point the remote control toward at the remote control sensor on the TV.
CHVOL
123
456
78
0
9
P
A
G
E
TV
RATIO INPUT
FAV
MUTE
LIST
ENERGY
SAVING
FLASHBK
EXIT
OK
3D OPTION
Q.MENU
SETTINGS
AV MODE
INFO
(POWER)
Turns the TV on or off.
TV
Returns to the last TV channel.
RATIO
Resizes an image.
INPUT
Rotates through inputs.
Also switches the TV on from standby.
ENERGY SAVING
Adjusts the brightness of the screen to reduce energy
consumption.
Number button
Enters numbers.
LIST
Accesses the saved channel list.
- (Dash)
Inserts a dash between numbers such as 2-1 and 2-2.
FLASHBK
Alternates between the two last channels selected (pressing
repeatedly).
ENGLISH
27
REMOTE CONTROL
CHVOL
123
456
78
0
9
P
A
G
E
TV
RATIO INPUT
FAV
MUTE
LIST
ENERGY
SAVING
FLASHBK
EXIT
OK
3D OPTION
Q.MENU
SETTINGS
AV MODE
INFO

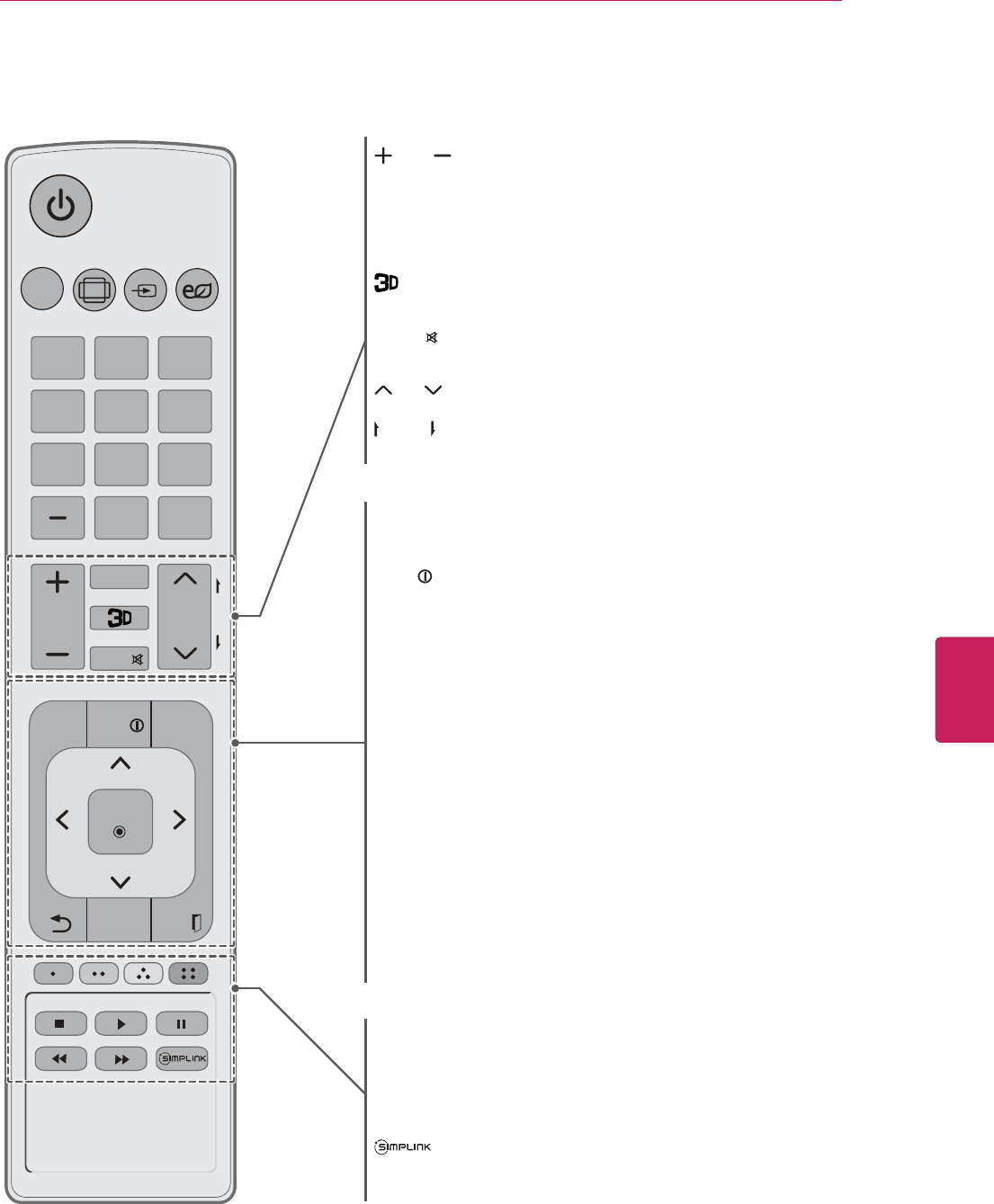

VOL
Adjusts the volume level.
FAV
Accesses your favorite channel list.;
Selects a menu or option.
Used for viewing 3D video.
MUTE
Mutes all sounds.
CH
Scrolls through the saved channels.
PAGE
Moves to the previous or next screen.
SETTINGS
Accesses the main menu.
INFO
Views the information of the current program and screen.
Q.MENU
Accesses the quick menu.
3D OPTION
Used for viewing 3D video.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
OK ᯙ
Selects menus or options and confirms your input.
ᰳ(BACK)
Returns to the previous level.
AV MODE
Selects an AV mode.
EXIT ᰿
Clears all on-screen displays and returns to TV viewing.
Color buttons
These access special functions in some menus.
Control buttons
Controls the SIMPLINK compatible devices (USB,SIMPLINK).
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
ENGLISH
28 WATCHING TV
WATCHING TV
Turning the TV on for the first
time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
1 Connect the power cord to a power outlet.
The Power indicator turns red and the TV
switches to Standby mode.
2 In Standby mode, press the power button on
the remote control to turn the TV on.
The Initial setting screen appears if you turn
the TV on for the first time.
y You can also access Initial Setting by
accessing OPTION in the main menu.
NOTE
3 Follow the on-screen instructions to customize
your TV settings according to your preferences.
Language Selects a language to
display.
Ø
Mode Setting Select Home Use for the
home environment.
Ø
Power Indicator Sets the Standby light.
Ø
Time Zone Selects the time zone
and daylight saving.
Ø
3D - On - Start Setting Selects 3D-On-Start
option.
Ø
Auto Tuning Scans and saves available
channels automatically.
y To display images in the best quality for
your home environment, select Home
Use.
y Store Demo is suitable for the retail
environment.
y If you select Store Demo, any customized
settings will switch back to the default
settings of Store Demo in 5 minutes.
y The Standby light feature is disabled in
Store Demo mode.
NOTE
4 When the basic settings are complete,
press OK.
y If you do not complete the Initial setting,
it will appear whenever the TV turns on.
y Disconnect the power cord from the
power outlet when you do not use the TV
for a long period of time.
NOTE
5 To turn the TV off, press the power button on
the remote control.
ENGLISH
29

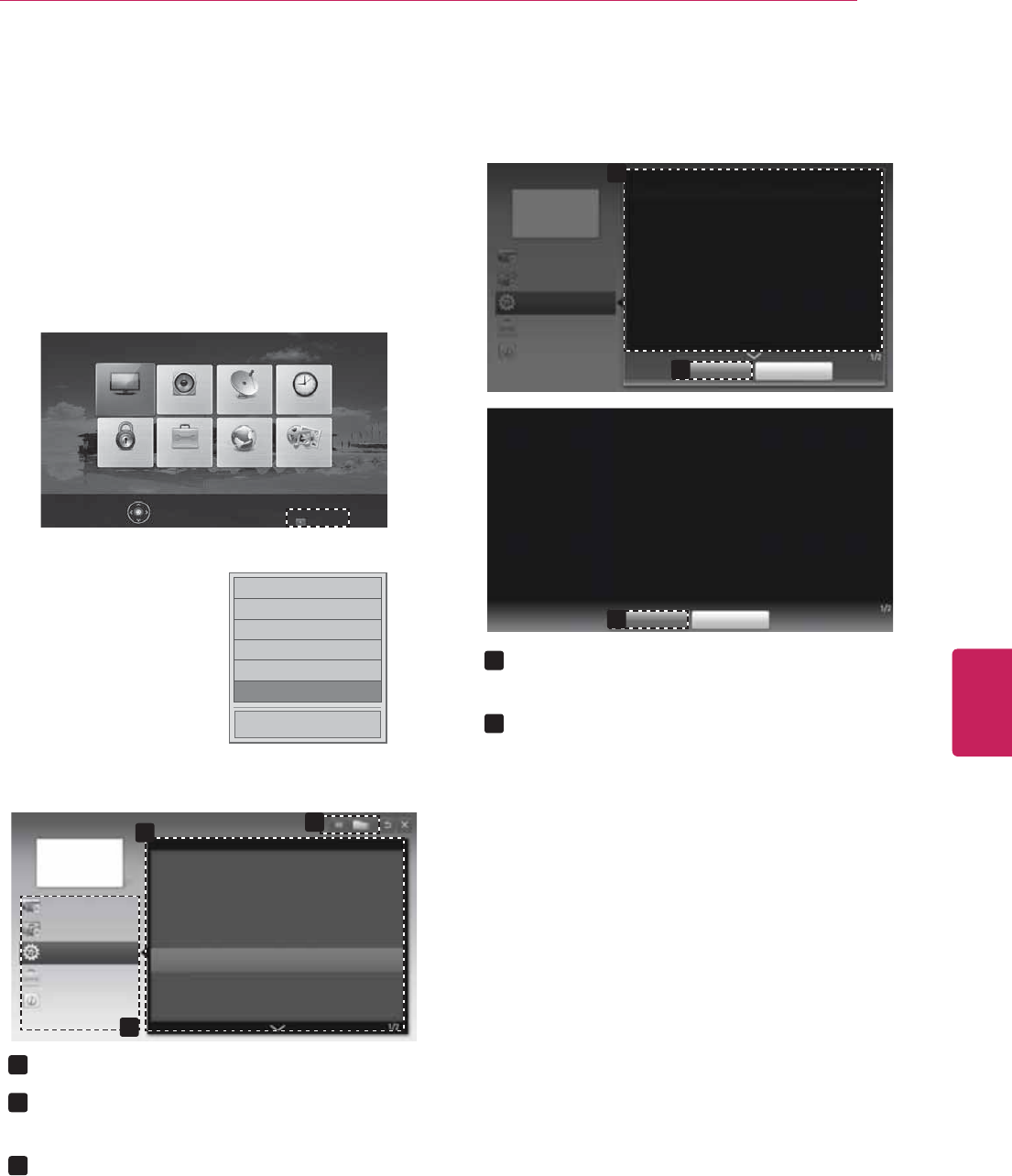

USING THE USER GUIDE
USING THE USER GUIDE
User Guide allows you to more easily access the
detailed TV information.
1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer
Support menus.
Ö
3,&785( $8',2 &+$11(/ 7,0(
0<0(',$1(7:25.237,21/2&.
3UHVV2.ᯙWRVHW\RXURSWLRQVHWWLQJV
&XVWRPHU6XSSRUW
ᰳ
([LW
۳6RIWZDUH8SGDWH
۳3LFWXUH7HVW
۳6RXQG7HVW
۳3URGXFW6HUYLFH,QIR
۳1HWZRUN7HVW
ᯡ8VHU*XLGH
&ORVH
3 Press the Navigation buttons to scroll to
User Guide and press OK.
2
8VHU*XLGH
237,21
&+$11(/6HWWLQJ
3,&785(6281'6HWWLQJ
$GYDQFHG)XQFWLRQ
7RXVHLQSXWGHYLFH
7RVHWWLPHRSWLRQV
7RVHWODQJXDJH
7RVHWFDSWLRQ
7RVHWRWKHURSWLRQV
7RVHW79ORFNRSWLRQV
7RXVH(QHUJ\6DYLQJIHDWXUH
3
,QIRUPDWLRQ
1
1Allows to select the category you want.
2Allows to select the item you want.
You can use ᰜᰝto move between pages.
3Allows to browse the description of the
function you want from the index.
1
2
8VHU*XLGH OPTION > To set language
SETTINGS Ö
OPTION
¨
Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
yMenu Language : Selects a language for the display text.
y
Audio Language [In Digital Mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
&ORVH
=RRP,Q
237,21
&+$11(/6HWWLQJ
3,&785(6281'6HWWLQJ
$GYDQFHG)XQFWLRQ
,QIRUPDWLRQ
2
&ORVH
=RRP2XW
SETTINGS Ö OPTION ¨ Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
yMenu Language : Selects a language for the display text.
y
Audio Language [In Digital Mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
1Shows the description of the selected menu.
You can use ᰜᰝto move between pages.
2Zooms in or out the screen.
ENGLISH
30 SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment
condition
Operating Temperature 0 - 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 - 60 °C
Storage Humidity Less than 85 %
MODELS 32LM3400
(32LM3400-UA)
42LM3400
(42LM3400-UA)
Dimensions
(W x H x D)
With stand 795.0 x 566.0 x 207.0 mm
(31.2 x 22.2 x 8.1 inch)
1017.0 x 695.0 x 261.0 mm
(40.0 x 27.3 x 10.2 inch)
Without stand 795.0 x 504.0 x 73.5 mm
(31.2 x 19.8 x 2.8 inch)
1017.0 x 629.0 x 76.5 mm
(40.0 x 24.7 x 3.0 inch)
Weight With stand 9.1 kg (20.0 lbs) 14.7 kg (32.4 lbs)
Without stand 8.1 kg (17.8 lbs) 13.1 kg (28.8 lbs)
Current Value / Power consumption 1.0 A / 70 W 1.2 A / 120 W
Power requirement AC100 - 240 V ~ 50/60 Hz AC100 - 240 V ~ 50/60 Hz
ENGLISH
31
SPECIFICATIONS
3D Supported Formats
Input Signal Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI
720p 1280 x 720 89.90 / 90.00 59.94 / 60.00 Frame Packing (720 60p)
45.00 60.00 Top & Bottom, Side by Side (half)
1080i
1920 x 1080
33.70 60 Top & Bottom, Side by Side (half)
1080p
53.95 / 54.00 23.98 / 24.00 Frame Packing (1080 24p)
67.50 60.00 Top & Bottom, Side by Side, Single Frame
Sequential
27.00 24.00 Top & Bottom, Side by Side (half)
33.70 30.00 Top & Bottom, Side by Side (half)
USB 1080p 1920 x 1080 33.75 30.00 Top & Bottom, Side by Side, MPO (Photo)
Signal Playable 3D video format
DTV 720p, 1080i Top & Bottom, Side by Side
HDMI (PC) supported mode
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
640 x 350 31.468 70.09
720 x 400 31.469 70.08
640 x 480 31.469 59.94
800 x 600 37.879 60.31
1024 x 768 48.363 60.00
1360 x 768 47.712 60.015
1152 x 864 54.348 60.053
1280 x 1024 63.981 60.02
1920 x 1080 67.50 60.00
For 42LM3400
HDMI (DTV) supported mode
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720 x 480p 31.47
31.50
59.94
60.00
1280 x 720p 44.96
45.00
59.94
60.00
1920 x 1080i 33.72
33.75
59.94
60.00
1920 x 1080p
26.97
27.00
33.71
33.75
67.432
67.50
23.976
24.00
29.97
30.00
59.94
60.00
Component port connecting information
Component ports on the TV Y PBPR
Video output ports
on DVD player
YP
BPR
Y B-Y R-Y
YCbCr
YPbPr
Component supported mode
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
720 x 480i 15.73
15.73
59.94
60.00
720 x 480p 31.47
31.50
59.94
60.00
1280 x 720p 44.96
45.00
59.94
60.00
1920 x 1080i 33.72
33.75
59.94
60.00
1920 x 1080p
26.97
27.00
33.71
33.75
67.432
67.50
23.976
24.00
29.97
30.00
59.94
60.00
ENGLISH
32 MAINTENANCE & TROUBLESHOOTING
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
y Make sure to turn the power off and disconnect the power cord and all other cables first.
y When the TV is left unattended or unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
y Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
y Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discoloration.
y Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
CAUTION
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the
remote control.
y Check the remote control sensor on the product and try again.
y Check if there is any obstacle between the product and the remote control.
y Check if the batteries are still working and properly installed ( to , to ).
No image display and no sound is
produced.
y Check if the product is turned on.
y Check if the power cord is connected to a wall outlet.
y Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly. y Check the power control settings. The power supply may be interrupted.
y Check if the Auto sleep feature is activated in the Time settings.
y If there is no signal while the TV is on, the TV will turn off automatically after 15
minutes of inactivity.
CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
yThe home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
yFlat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACURER CARES!
yThe consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
yOne size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your flat panel
display.
yCarefully read and understand all enclosed instructions for proper use
of this product.
yDon’t allow children to climb on or play with furniture and television
sets.
yDon’t allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
yRemember that children can become excited while watching
a program, especially on a “larger than life” flat panel display.
Care should be taken to place or install the display where it cannot be
pushed, pulled over, or knocked down.
yCare should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
yUse a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
yFollow all instructions supplied by the display and wall mount
manufacturers.
yIf you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
yMake sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
yA minimum of two people are required for installation.
Flat panel displays can be heavy
The model and serial number of the TV is
located on the back and/or one side of the TV.
Record it below should you ever need service.
MODEL
SERIAL
The extended owner’s manuals that contain
information on the advanced features of this LG
TV are located on the CD-ROM provided in an
electronic version.
To read these files, you will need to use the personal
computer (PC) equipped with a CD-ROM drive.
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
This product qualifies for ENERGY STAR in the
“factory default (Home Use)” setting.
Changing the factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to quality for
ENERGY STAR.
