User Manual

PLASMA TV

OWNER’S MANUAL

Please read this manual carefully and completely before

operating your TV.

Retain this manual for future reference.

Record model number and serial number of the TV in the

spaces provided below.

See the label attached on the back cover and relate this

information to your dealer if you require service.

Model Number :

Serial Number :

MODELS: 42PX4RV/50PX5R

42PX4RV-UC/ 42PX4RV-MC/ 50PX5R-UC

2 Plasma TV

Warning/Caution

WARNING/CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli-

ance.

WARNING/CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

• A Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

• Any changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod-

ification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is:

LG Electronics U.S.A., Inc

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

1-800-243-0000

http://www.lgusa.com

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

/CAUTION

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

Warning/Caution

arning/Caution

Owner’s Manual 3

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet

or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appa-

ratus.

This information shall be given in a language acceptable to the country where the apparatus is intended to be used.

The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be

included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by

adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that

illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers)that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the

third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

PORTABLE CART WARNING

Safety Instructions

4 Plasma TV

Safety Instructions

Contents

After reading this manual, keep it handy for future reference.

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2~3

Introduction

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connection Options . . . . . . . . . . . . . . . . . . . . . .7

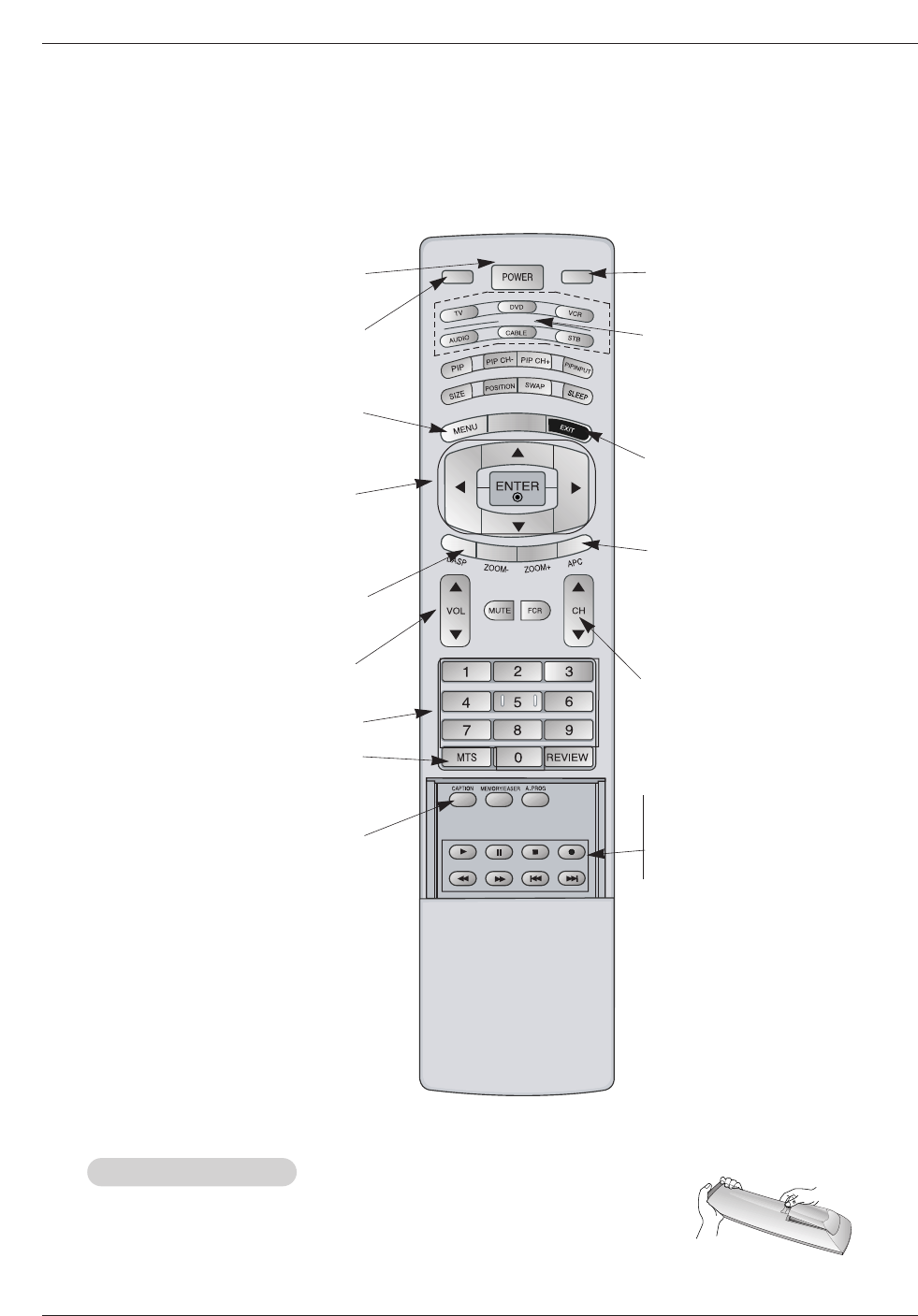

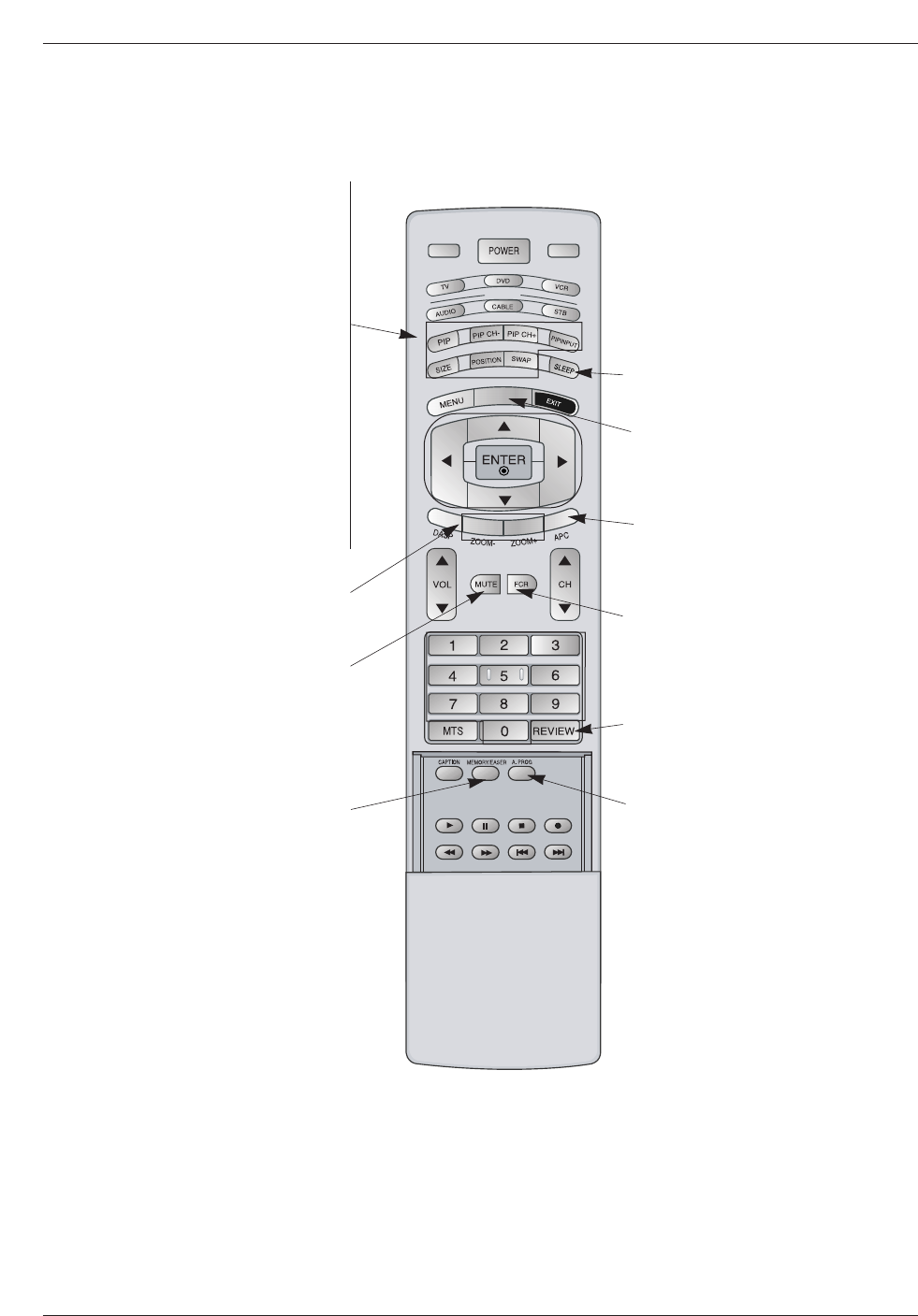

Remote Control Key Functions . . . . . . . . . . . .8~9

Installation

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10~11

Installation Instruction . . . . . . . . . . . . . . . . . . .12~13

Installation Options . . . . . . . . . . . . . . . . . . . . . . . .14

External Equipment Connections . . . . . . . . . .15~20

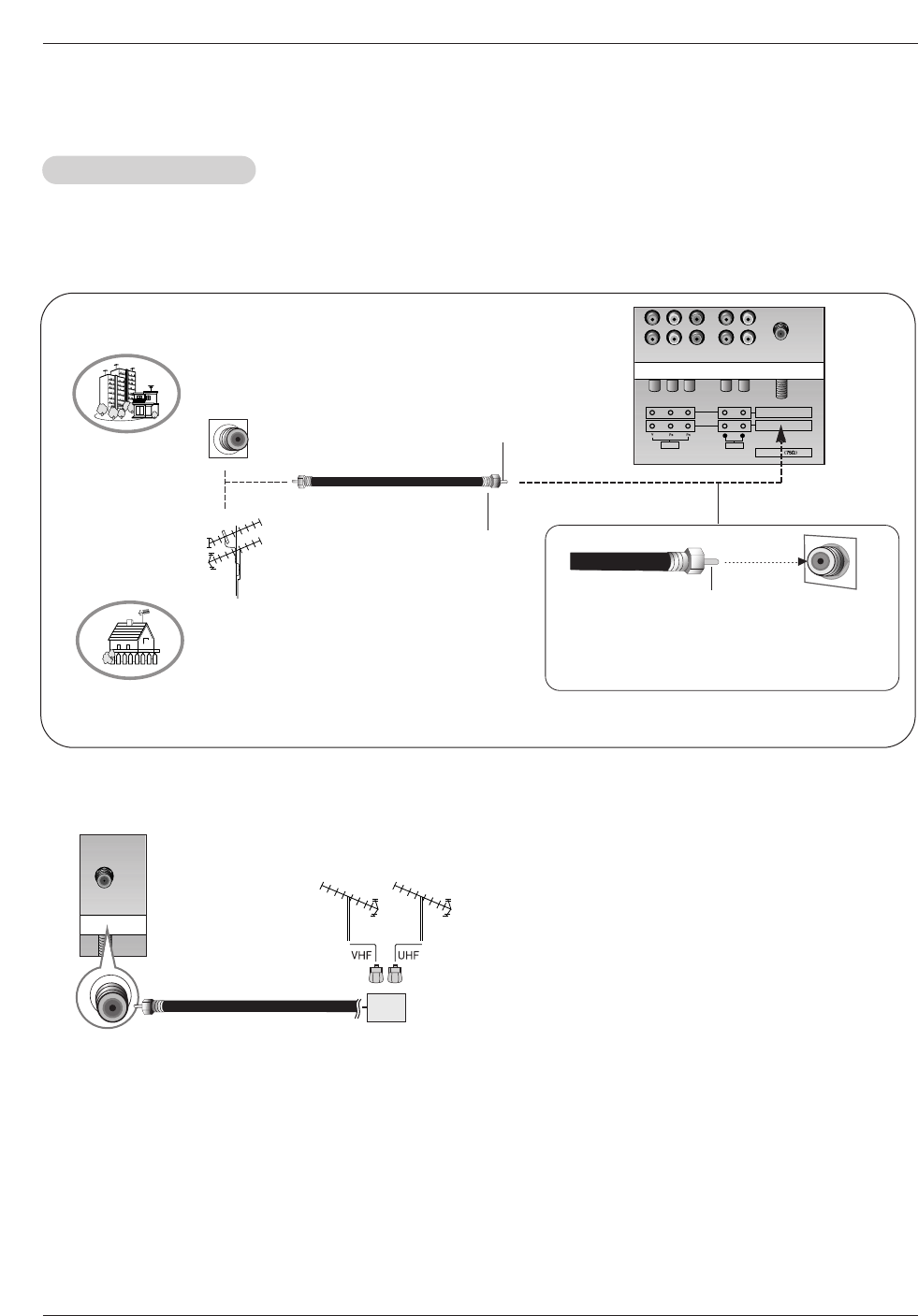

Antenna Connection . . . . . . . . . . . . . . . . . . . . .15

VCR Setup / Cable TV Setup . . . . . . . . . . . . . .16

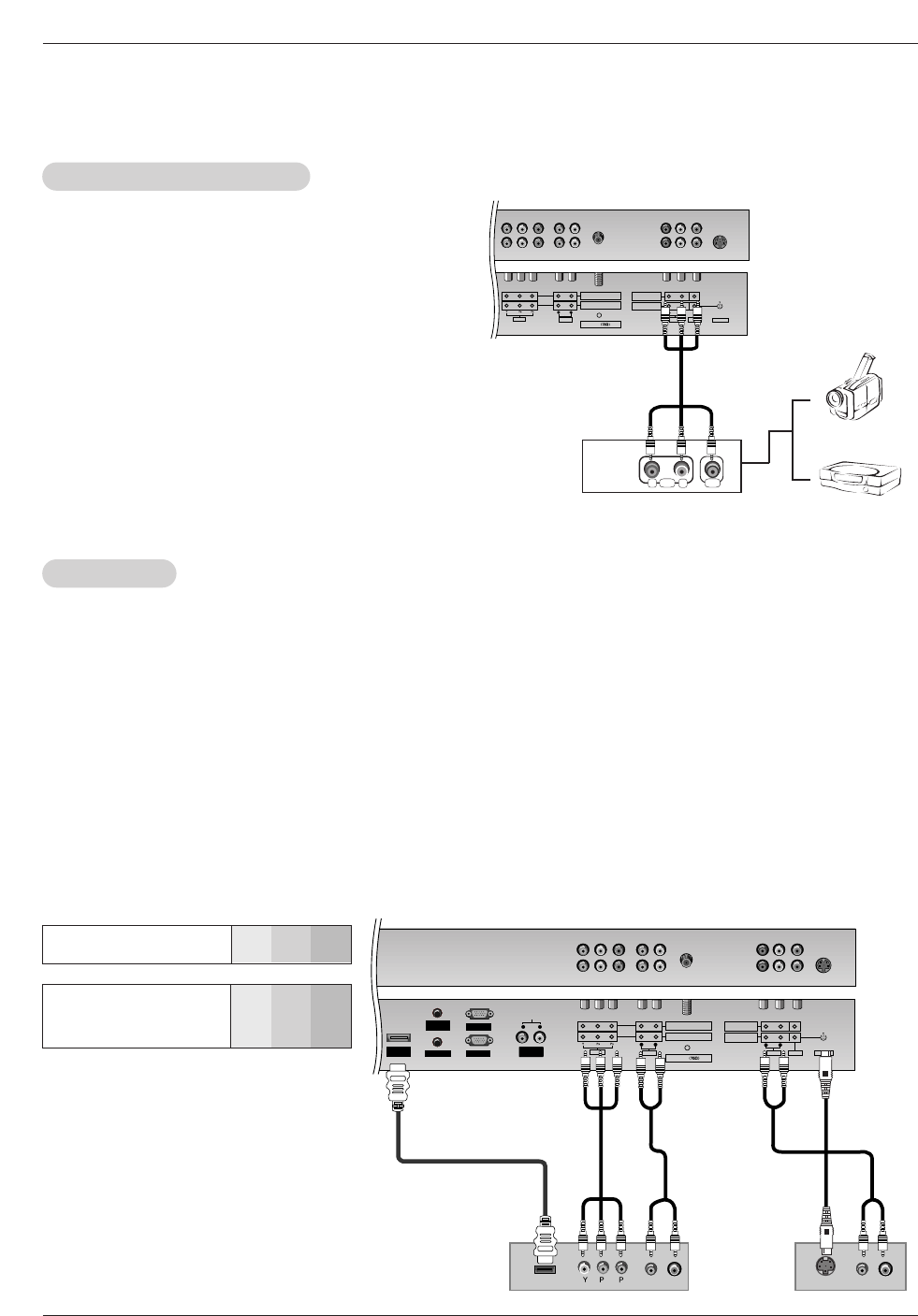

External A/V Source Setup . . . . . . . . . . . . . . . .17

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

DTV Setup / Monitor Out Setup . . . . . . . . . . . . .18

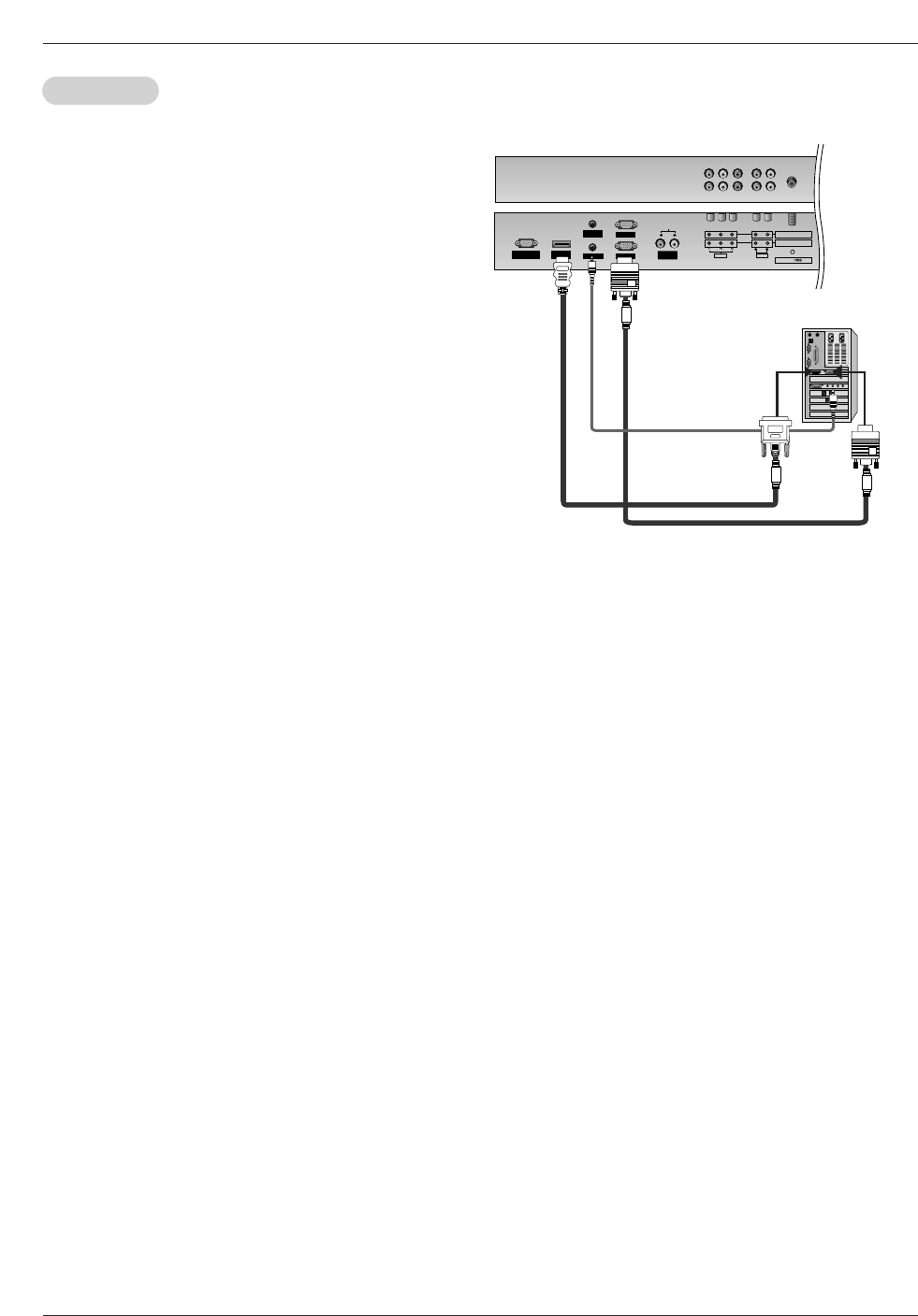

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .19~20

Operation

Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .21

Menu Language Selection . . . . . . . . . . . . . . . . . .21

Channel Menu Options

Auto Program: Channel Search . . . . . . . . . . . . .22

Manual Program: Adding/Deleting Channels . . .22

Fine Tuning Adjustment . . . . . . . . . . . . . . . . . .22

Signal Reception Booster . . . . . . . . . . . . . . . . .23

Favorite Channels Setup . . . . . . . . . . . . . . . . . .23

Picture Menu Options

APC (Auto Picture Control) . . . . . . . . . . . . . . . .24

Color Temperature Control . . . . . . . . . . . . . . . .24

XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

ACM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

sRGB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Manual Picture Control(User option) . . . . . . . . .25

Sound Menu Options

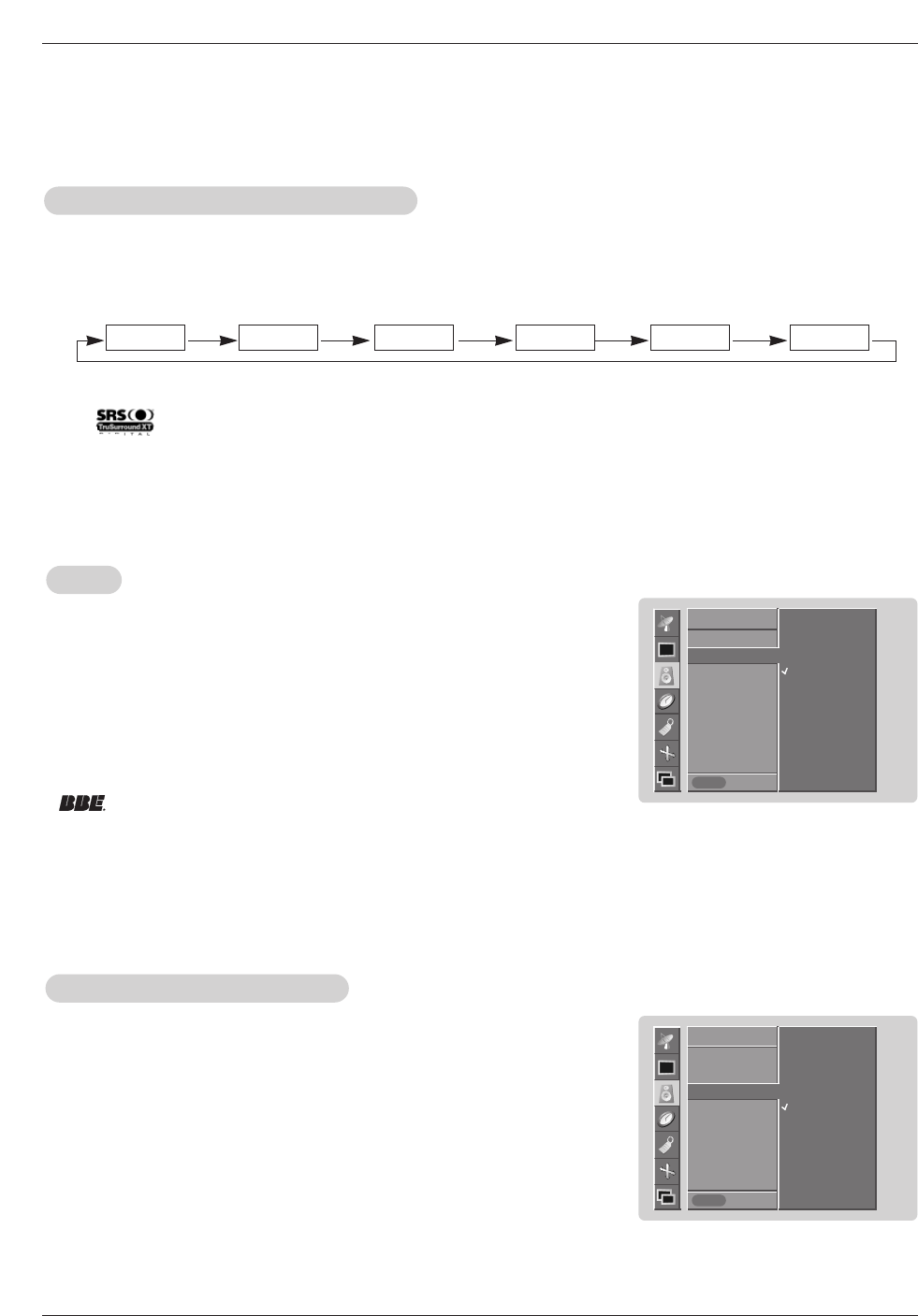

DASP (Digital Auto Sound Processing) . . . . . . .26

BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .26

Manual Sound Control (User option) . . . . . . . . .27

TV speaker Setup . . . . . . . . . . . . . . . . . . . . . . .27

Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .27

Timer Menu Options

Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .28

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .28

Auto Off / Sleep Timer . . . . . . . . . . . . . . . . . . .28

Special Menu Options

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ISM (Image Sticking Minimization) Method . . . .29

Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Closed Captions . . . . . . . . . . . . . . . . . . . . . . . .31

Caption/Text . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Screen Menu Options

Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . .32

Setting Picture Format . . . . . . . . . . . . . . . . . . .32

Manual Configure . . . . . . . . . . . . . . . . . . . . . .32

Selecting VGA Mode . . . . . . . . . . . . . . . . . . . . .32

Screen Position . . . . . . . . . . . . . . . . . . . . . . . .33

Cinema Mode Setup . . . . . . . . . . . . . . . . . . . . .33

NR(Noise Reduction) . . . . . . . . . . . . . . . . . . . .33

Initializing (Reset to original factory value) . . . . .33

PIP (Picture-In-Picture)/Double Window Feature

Watching PIP/Double Window . . . . . . . . . . . . ..34

Swapping the PIP/Double Window . . . . . . . . . .34

TV Program selection for PIP . . . . . . . . . . . . . .34

Selecting an Input Signal Source for PIP/Double Window .

Moving the PIP(PIP Mode only) . . . . . . . . . . . .34

PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

PIP Transparency (PIP Mode only) . . . . . . . . . .34

External Control Device Setup . . . . . . . . . . . . . . . .35~41

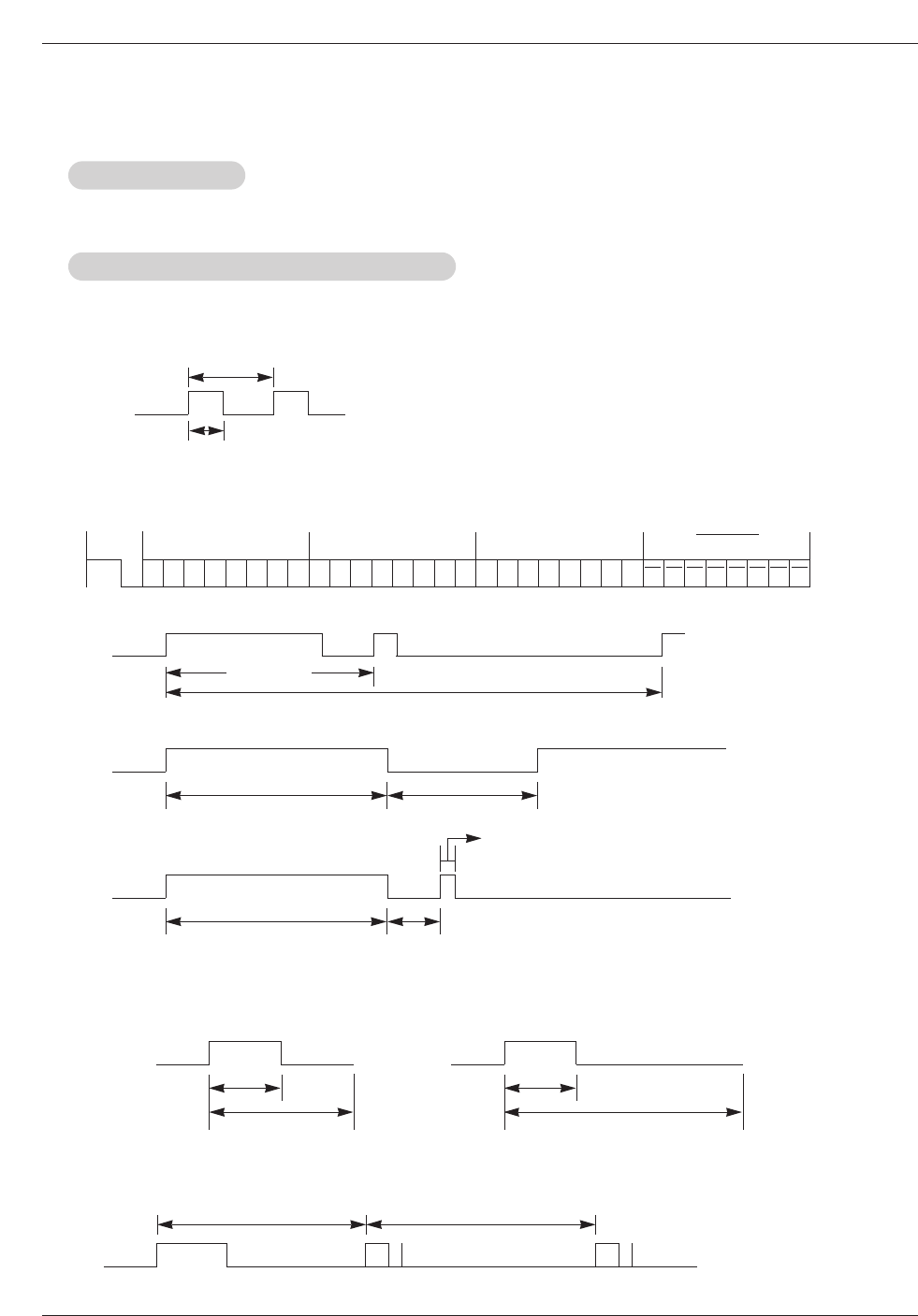

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42~43

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .44

Programming Codes . . . . . . . . . . . . . . . . . . . . . . .44~45

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .46

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .47

Owner’s Manual 5

Introduction

What is a Plasma Display Panel (PDP)?

A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality

and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also

be viewed as a series of fluorescent lamps.

How does it work?

PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.

Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-

phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over

16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5

inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is

clear and visible to viewers anywhere in the room who can see the screen.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture

feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not

fit.

The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel), which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell

defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be

acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec-

tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini-

mizes these cell defects during the manufacture and operation of this product.

Cooling Fan Noise (50PX5R only)

In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with

cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat-

ing and cooling the PDP.

The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the

operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi-

cient cause for the PDP to be exchanged or returned.

6 Plasma TV

Introduction

Controls

- This is a simplified representation of front panel.

Here shown may be somewhat different from your TV.

- This manual explains the features available on the 42PX4RV series TVs.

Front Panel Controls

VOL

MENUTV/AV

VOL

MENUTV/VIDEO ENTER

21 3 4 5 6

1. Power Button

Switches the set on from standby or off to standby.

2. Remote Control Sensor

3. TV/VIDEO Button

Selects the TV, VIDEO, Component, RGB or HDMI modes.

Switches the set on from standby.

4. MENU

Displays on screen menus one by one.

Exits the current menu.

Memorizes menu changes.

5. ENTER

Accepts your selection or displays the current mode.

6. DD/ EE(Programme Up/Down)

Selects a programme or a menu item.

Switches the set on from standby.

FF/ GG(Volume Up/Down)

Adjusts the volume.

Adjusts menu settings.

7. Power Indicator

Illuminates red in standby mode, Illuminates green when the

set is turned on.

8. Intelligent Eye

Adjusts picture according to the surrounding conditions.

Owner’s Manual 7

Introduction

Connection Options

S-VIDEO

VIDEOAUDIOR

L/MONO

A/V INPUT2A/V INPUT2

AC INPUT

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

REMOTE

CONTROL

AUDIO INPUT

RGB INPUT

VARIABLE ARIABLE

AUDIO OUTAUDIO OUT

HDMI/

DVI(VIDEO)

RGB OUTPUT

Antenna

S-VIDEO

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

AUDIO VIDEO

MONITOR OUT

A/V INPUT

LMONO

2 3 68

1. RS-232C INPUT(CONTROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

2. HDMI(DVI VIDEO)

Connect a HDMI signal to this jack. Or connect a DVI(Video)

signal.

3. REMOTE CONTROL / AUDIO INPUT (for RGB, DVI)

4. RGB INPUT / RGB OUTPUT

Connect to the RS-232C port on a PC.

5. VARIABLE AUDIO OUTPUT

6. COMPONENT INPUT

Connect DVD video outputs to Y, PB, PRof COMPONENT

INPUT and audio outputs to Audio sockets of AUDIO INPUT.

7. ANTENNA INPUT

8. VIDEO/AUDIO IN/OUT SOCKETS (AV1)

Connect the video/audio out sockets of external equipment

to these sockets.

S-VIDEO/AUDIO IN SOCKETS

Connect the S-VIDEO out socket of an VCR to the S-VIDEO

socket.

Connect the audio out sockets of the VCR to the audio sock-

ets as in AV1.

9. POWER CORD SOCKET

This the set operates on an AC power. The voltage is indicat-

ed on the Specifications page. Never attempt to operate the

set on DC power.

10. AUDIO/VIDEO INPUT (AV2)

S-VIDEO/AUDIO IN SOCKETS

8 Plasma TV

Introduction

- When using the remote control, aim it at the remote control sensor on the TV.

TV/VIDEO

Selects: TV, Video 1-2, Component

1-2, RGB, and HDMI input sources.

Remote Control Key Functions

• Open the battery compartment cover on the back side and install the batteries

matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.

Replace cover.

Installing Batteries

MODE

TV INPUT

TV/VIDEO

ARC

EXIT

Clears all on-screen displays and

returns to TV viewing from any menu.

NUMBER buttons

VCR/DVD BUTTONS

Control some video cassette recorders

or DVD player ("RECORD" button is

not available for DVD player).

CAPTION

Selects CAPTION mode.

POWER

Turns your TV or any other programmed

equipment on or off, depending on mode.

THUMBSTICK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus

and adjust the system settings to your pref-

erence.

CHANNEL UP/DOWN

Selects available channels found with

Auto program. Adjusts menu settings.

Switches the set on from standby.

Brings up the main menu to the screen.

VOLUME UP/DOWN

Increases/decreases the sound level.

DASP

Selects the sound appropriate for the pro-

gram's character.

TV INPUT

Rotates the input mode between Antenna

and Cable.

MODE

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB.

Select other operating modes, for the

remote to operate external devices.

APC

Adjusts the factory preset picture

according to the room.

MTS

Selects the MTS sound: Mono, Stereo,

or SAP.

Owner’s Manual 9

Introduction

ZOOM - / ZOOM +

Enlarges or reduces the main picture size.

PIP

Switches to PIP, POP (Picture-out-of-

Picture) and Twin picture modes in regular

sequence.

Switches the video window locking or

unlocking in the Listings Grid.

PIPCH-/PIPCH+

Changes to the next higher/lower PIP chan-

nel.

PIP INPUT

Selects the input source for the sub picture

in PIP/Twin picture mode.

SWAP

Exchanges the main/sub images in

PIP/Twin picture mode.

SIZE

Adjusts the sub picture size.

POSITION

Moves the sub picture in pip mode.

MODE

TV INPUT

TV/VIDEO

ARC

Changes the picture format.

FRC

Use to scroll the favorite channel list.

MEMORY/ERASE

Memorizes or erases selected channel.

SLEEP

Sets the sleep timer.

APC

Adjusts the factory preset picture

according to the room.

MUTE

Switches the sound on or off.

REVIEW

Tunes to the last channel viewed.

A.PROG (AUTO PROGRAM)

Searches for available channels.

10 Plasma TV

Introduction

- HDMITM, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

- This set can receive the High-Definition Multimedia Interface (HDMI) or Input of Digital Visual Interface(DVI).

- This set supports HDCP (High-bandwidth Digital Contents Protection) Protocol for the set (480p, 720p, 1080i) modes.

- When you Connect with HDMI/DVI Source Devices (DVD Player or Set Top Box or PC) supporting Auto HDMI/DVI function,

automatically, support Plug & Play and then set the HDMI/DVI Source Devices (640 x 480p) (or 50PX5R series: 1280 x 720p).

After reading in HDMI/DVI Source Devices using Display Data Channel(DDC) Protocol, EDID stored in the set is used. If

HDMI/DVI Source Devices not supported Auto HDMI/DVI is been, the Resolution is set, manually.

- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 640 x 480p (or 50PX5R series: 1280 x 720p).

- To get the best picture quality, adjust the PC graphics card to 640 x 480 (or 50PX5R series: 1024 x 768), 60Hz.

- When Source Devices have DVI Output Connector, you must connect audio with separated cable.(Refer to <How to connect>)

How to connect

1. When Source Devices (DVD Player or Set Top Box) support HDMI.

- If Source Devices have HDMI Output Connector, Source Devices connect to the set with HDMI Cable .(not supplied with the prod-

uct).

- If Source Devices support Auto HDMI, automatically, Source Devices divert output resolution in 640x480p (or 50PX5R series:

1280 x 720p). But if not, resolution divert Manually Setting for reference Manual of Source Devices.

- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 640x480p (or 50PX5R series: 1280 x

720p).

- Because HDMI sends Digital Video and Audio with one cable, need not especial Audio Cable for using HDMI Cable.

2. When Source Devices (DVD Player or Set Top Box) supports DVI.

- If Source Devices have DVI Output Connector, Source Devices connect to the set with HDMI to DVI Cable (not supplied with the

product).

- If Source Devices support Auto DVI, automatically, Source Devices divert output resolution in 640x480p (or 50PX5R series: 1280

x 720p). But if not, resolution divert Manually Setting for reference Manual of Source Devices.

- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 640x480p (or 50PX5R series: 1280 x

720p).

- In this case, Audio use other cable. When Source Devices have Analog Audio Output Connector, RGB/DVI Audio Input of the set

connect to Audio Cable (not supplied with the product). And then you can listen to normal Audio.

3. When PC supports DVI.

- If PC have DVI Output Connector, Source Devices connect to the set with HDMI to DVI Cable (not supplied with the product).

- To get the best picture quality, adjust the PC graphics card to 640x480 (or 50PX5R series: 1024 x 768), 60Hz.

- Use the the set’s HDMI/DVI (VIDEO) for video connections, depending on your PC connector.

- If the graphics card on the PC does not output analog RGB and DVI simultaneously, connect only one of either RGB Input or

HDMI/DVI Input to display the PC on the set.

- If he graphics card on the PC does output analog RGB and DVI simultaneously, the set to either RGB Input or HDMI/DVI Input;

(the other mode is set to Plug and Play automatically by the set.)

- Then, make the corresponding audio connections. If using a sound card, adjust the PC sound as required.

- In this case, Audio use other cable. When PC (or sound card of PC) have Analog Audio Output Connector, RGB/DVI Audio Input

of the set connect to Analog Audio Cable (not supplied with the product). And then you can listen to normal Audio.

Owner’s Manual 11

Introduction

How to use

1. Connect the HDMI/DVI Source Devices(DVD Player or Set Top Box or PC) and the set.

2. Turn on the display by pressing the POWER button on the set and HDMI/DVI Source Devices remote control.

3. Select HDMI/DVI Input source in Main Input option of PIP/DW menu.

4. Check the image on your set. There may be noise associated with the resolution, vertical pattern, contrast or brightness in

HDMI/DVI Source Devices. If noise is present, change the HDMI/DVI Source Devices to another resolution, change the refresh

rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphics card can not

changed, change the PC graphics card or consult the manufacturer of the PC graphics card.

Notes:

- Depending on the graphics card, DOS mode may not work if you use a HDMI to DVI Cable.

- Avoid keeping a fixed image on the set screen for a long period of time. The fixed image may become permanently imprinted on

the screen. Use the Orbiter screen saver when possible.

- When Source Devices connected HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position, Size may not fit to Screen.

As shown the lower picture, press the MENU button to adjust the screen Position of the set and contact an PC graphics card ser-

vice center.

- When Source Devices connected HDMI/DVI Input output the set Resolution(480p, 720p, 1080i), the set Display fit EIA/CEA-861-

B Specification to Screen. If not, refer to the Manual of HDMI/DVI Source Devices or contact your service center.

- In case HDMI/DVI Source Devices is not connected Cable or poor cable connection, "No Signal" OSD display in HDMI/DVI Input.

And In case of Video Resolution not supported the set output in HDMI/DVI Source Devices, "No Signal" OSD display. Refer to the

Manual of HDMI/DVI Source Devices or contact your service center.

Reference

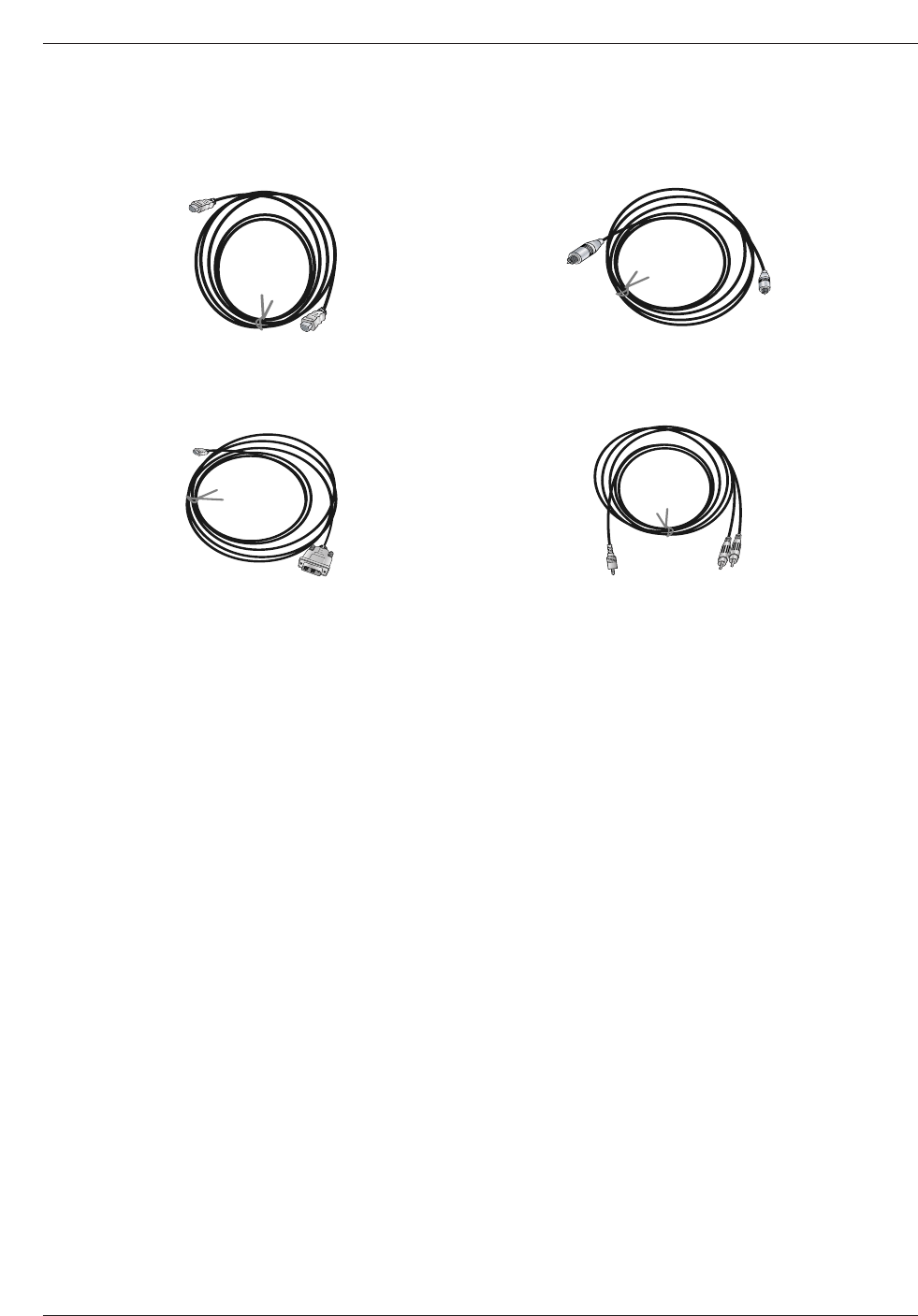

Cable sample

HDMI to DVI Cable

(not supplied with the product)

Analog Audio Cable (RCA type)

(not supplied with the product)

Analog Audio Cable (Stereo to RCA type)

(not supplied with the product)

HDMI Cable

(not supplied with the product)

12 Plasma TV

Installation

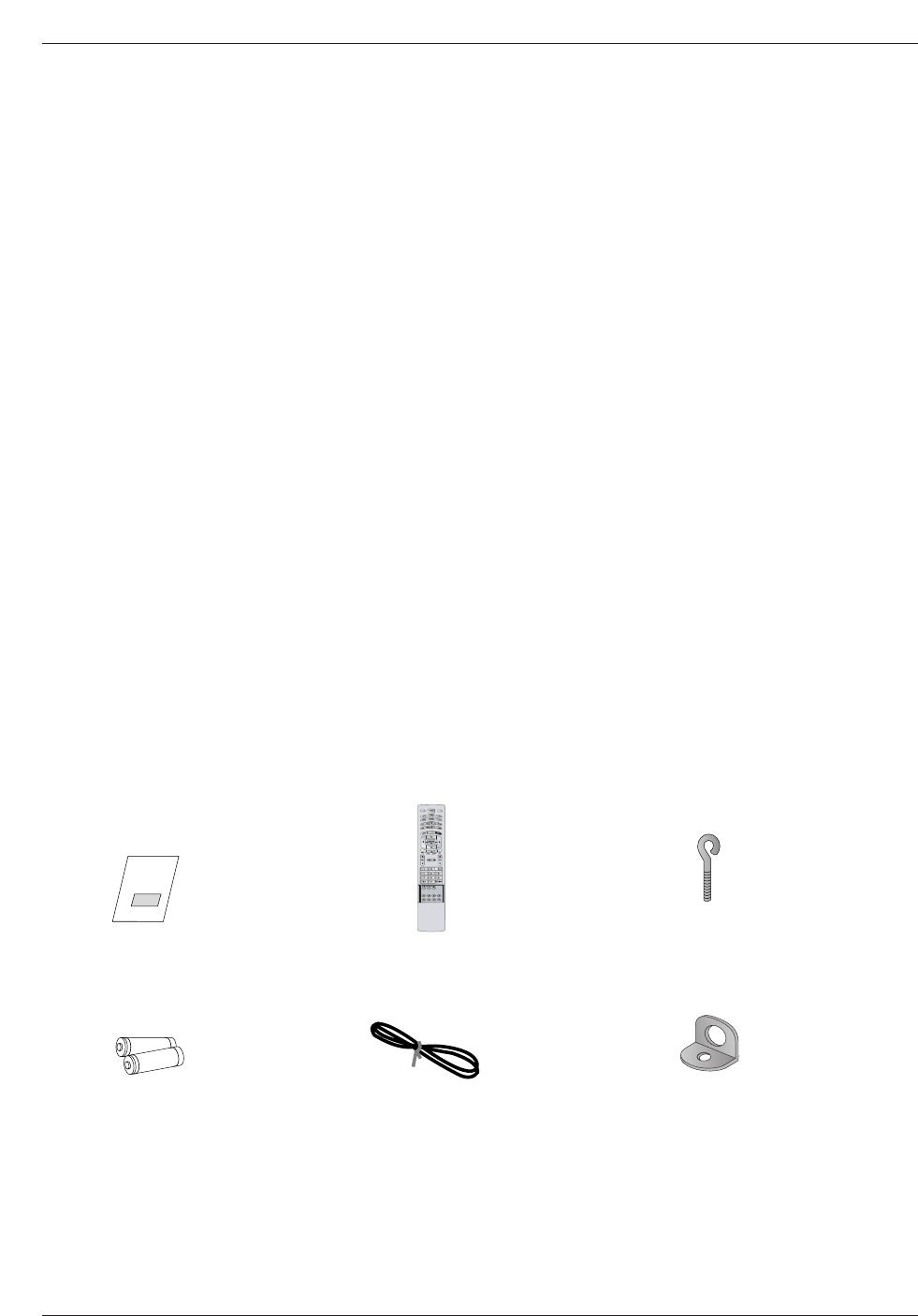

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer

where you purchased the product.

•The TV can be installed in various ways such as on a wall, or on a desktop etc.

•The TV is designed to be mounted horizontally. The speakers shown are optional.

•It is recommended that 42PX4RV / RP-42PX40/51X model only be used at an altitude of less than 3281 feet (1000m) to get the

best quality picture and sound.

•It is recommended that RP-42PX40H model only be used at an altitude of less than 6561 feet (2000m) to get the best quality pic-

ture and sound.

GROUNDING

Ensure that you connect the grounding / earth wire to prevent possible

electric shock. If grounding methods are not possible, have a qualified

electrician install a separate circuit breaker. Do not try to ground the

unit by connecting it to telephone wires, lightening rods, or gas pipes.

Installation Instructions

Owner’s Manual

1.5V

Alkaline batteries Power Cord

MODE

TV INPUT

TV/VIDEO

ARC

Remote Control handset

2-Wall brackets

2-Eye Bolts

Owner’s Manual 13

Installation

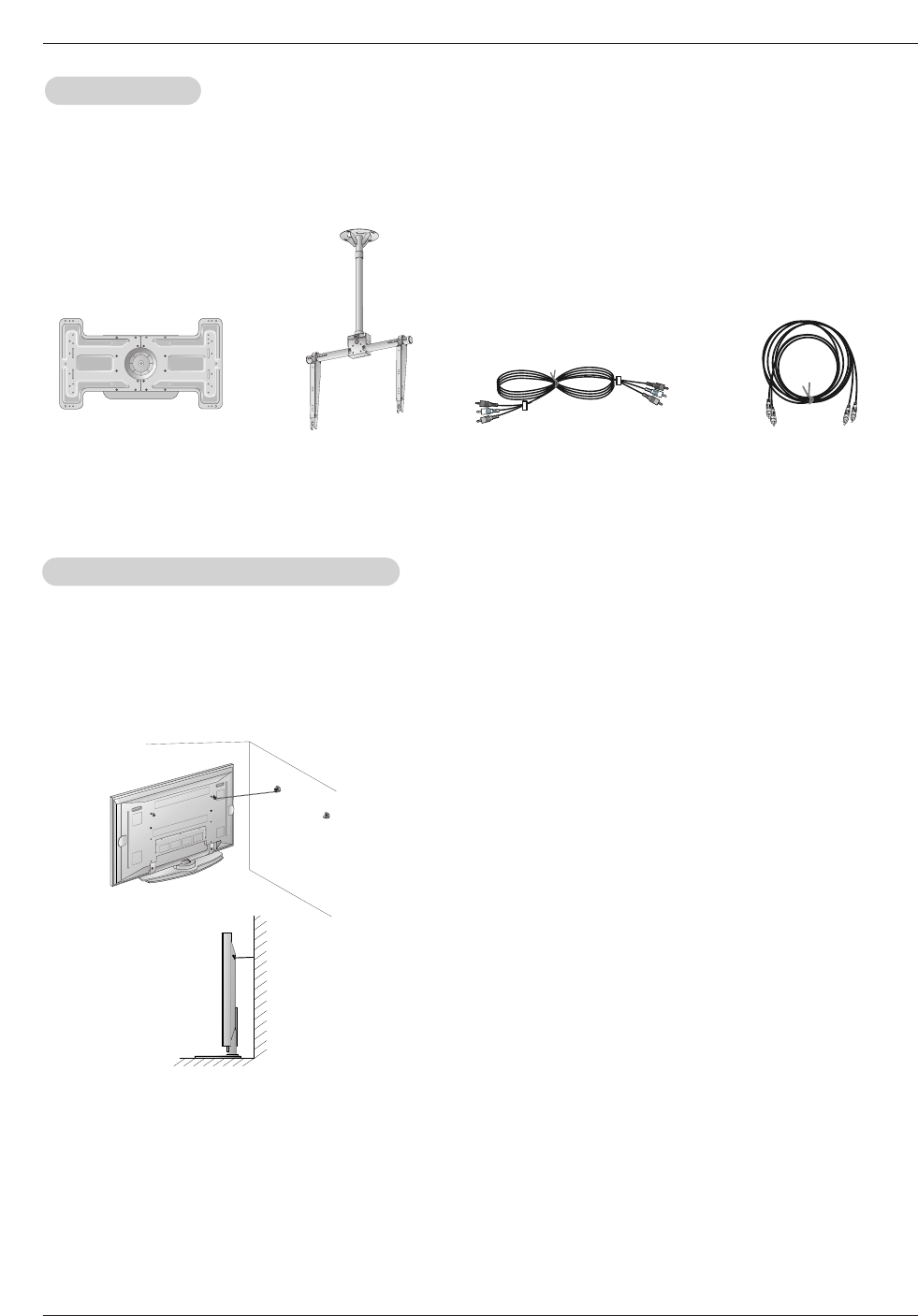

- Secure the TV assembly by joinning it to a wall by using the Eye Bolts/Wall brackets.

Attaching the

Attaching the TV assembly to the wall

TV assembly to the wall

•If the set will be mounted on a desk top, insert the 2 eye-

bolts and tighten them securely in the upper holes as

shown.

Install the wall brackets on the wall with 2 bolts*, (not

supplied with the product), as shown.

Match the height of the eye-bolts and the wall brackets.

Check to be sure the eye-bolts and the brackets are

tightened securely.

• Secure the TV assembly to the wall with strong strings

or wound wire cables, (not supplied with the product), as

shown.

Ceiling mounting bracket

- Optional extras can be changed or modified for quality improvement without any notification new optional extras can be added.

- Contract your dealer for buying these items.

Option Extras

Tilt wall mounting bracket Video cables Audio cables

14 Plasma TV

Installation

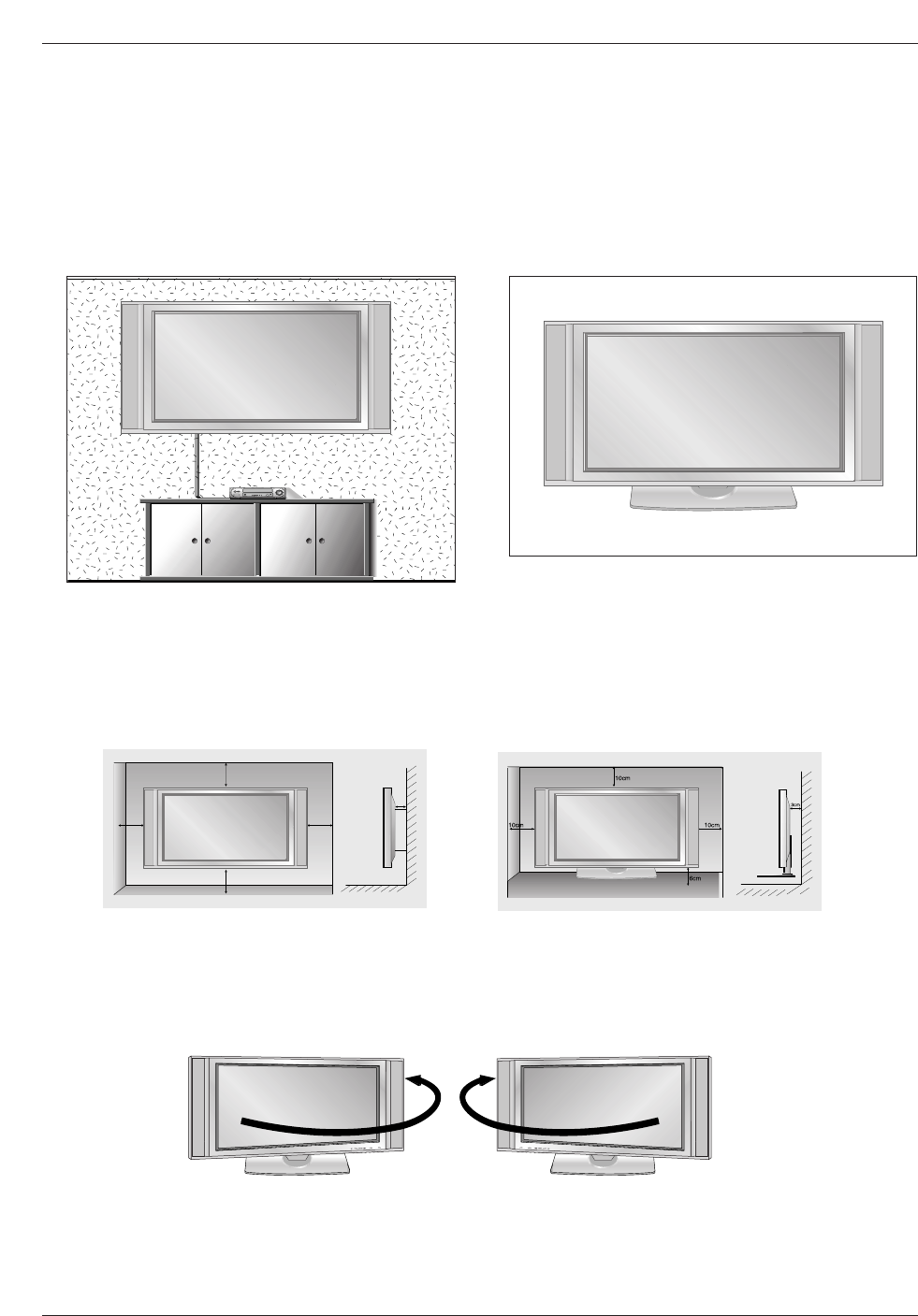

Installation Options

Desktop Pedestal Installation

•The set can be mounted on a desk as shown above.

(For further information, refer to the optional 'Desktop

Stand Installation and Setup Guide'.)

•The set can be installed in different ways such as on a wall, or on a desktop etc.

•Install this set only in a location where adequate ventilation is available.

Wall Mount: Horizontal Installation

•The set can be installed on a wall as shown above.

(For further information, refer to the optional ‘Wall

Mounting Bracket Installation and Setup Guide’.)

Swivel function (option)

• After installing the set, you can adjust the the set manually to the left or right direction by 20 degrees to suit your view-

ing position.

Note : Before adjusting the angle, you must loosen (to the left) the shaft bolt on the middle of stand’s back. And when

stand be level with set, you must close (to the right) the shaft bolt to set the hole.

3cm

10cm

To Mount on a Wall

Wall mount minimum allowable clearances for ade-

quate ventilation.

To Install on a Desktop

Pedestal mount minimum allowable clearances for

adequate ventilation.

Owner’s Manual 15

Installation

- Antenna or Cable Service without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

External Equipment Connections

Antenna Connection

•In a poor signal area to improve picture quality, purchase

and install a signal amplifier.

•If the antenna needs to be split for two TV’s, install a “2-Way

Signal Splitter” in the connections.

•If the antenna is not installed properly, contact your dealer

for assistance.

A/V INPUT2

AUDIO

VARIABLE

AUDIO OUT

Signal

Amplifier

A/V INPUT2

AUDIO

VARIABLE

AUDIO OUT

Antenna

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

outdoor

antenna

wall antenna

socket

VHF antenna

UHF antenna

RF coaxial wire (75 ohm)

Bronze Wire

Turn clockwise to tighten.

Bronze Wire

Be careful not to bend the bronze wire when

connecting the antenna.

16 Plasma TV

Installation

NOTE: All cables shown are not included with the TV

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.

Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may

remain visible on the screen.

Connection Option 1

Set VCR output switch to 3 or 4 and then tune

TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the

VCR's output jacks to the TV input jacks, as

shown in the figure.

When connecting the TV to VCR, match the

jack colors (Video = yellow, Audio Left = white,

and Audio Right = red).

If you connect an S-VIDEO output from VCR to

the S-VIDEO input, the picture quality is

improved; compared to connecting a regular

VCR to the Video input.

2. Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner’s

manual.)

3. Select the input source with using the

TV/VIDEO button on the remote control. (If

connected to A/V INPUT 1, select Video 1

input source)

Do not connect to both Video and S-

Video at the same time. In the event

that you connect both Video and the

S-Video cables, only the S-Video will

work.)

VCR Setup

AUDIO

VARIABLE

AUDIO OUT

Antenna

S-VIDEO

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

AUDIO VIDEO

MONITOR OUT

A/V INPUT

LMONO

S-VIDEO OUT

(R) AUDIO (L) VIDEO

OUTPUT

SWITCH

ANT OUT

ANT IN

- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.

The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV.

- For further information regarding cable TV service, contact your local cable TV service provider(s).

Connection Option 1

1. Select 3 or 4 with channel switch on cable box.

2. Tune the TV channel to the same selected output channel on

cable box.

3. Select channels at the cable box or with the cable box remote

control.

Connection Option 2

1. Connect the audio and video cables from the Cable Box's output

jacks to the TV input jacks, as shown in the figure.

When connecting the TV to a Cable Box, match the jack colors

(Video = yellow, Audio Left = white, and Audio Right = red).

2. Select the input source with using the TV/VIDEO button on the

remote control. (If connected to A/V INPUT 1, select Video 1

input source)

3. Select your desired channel with the remote control for cable

box.

Cable

Cable TV Setup

TV Setup

AUDIO

VARIABLE

AUDIO OUT

Antenna

S-VIDEO

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

AUDIO VIDEO

MONITOR OUT

A/V INPUT

LMONO

VCR RF Cable

(R) AUDIO (L) VIDEO

OUTPUT

SWITCH

VCR

Cable Box

Owner’s Manual 17

Installation

•Component Input ports

To get better picture quality, connect a DVD player to the compo-

nent input ports as shown below.

How to connect

Connect the audio and video cables from the external

equipment's output jacks to the TV input jacks, as shown in

the figure.

When connecting the TV to external equipment, match the

jack colors (Video = yellow, Audio Left = white, and Audio

Right = red).

How to use

1. Select the input source with using the TV/VIDEO button on

the remote control. (If connected to A/V INPUT 1, select

Video 1 input source).

2. Operate the corresponding external equipment. Refer to

external equipment operating guide.

Component ports

on the TV Y PBPR

Video output ports

on DVD player

B-Y

R-Y

How to connect

1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT or HDMI INPUT jacks on the TV and con-

nect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs

to the AUDIO INPUT jacks on the TV, as shown in the figure.

NOTE: If your DVD player does not have component video output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the TV/VIDEO button on the remote control to select Component 1 or Component 2. (If connected to S-VIDEO, select the

Video 1 or Video 2 external input source.)

3. Refer to the DVD player's manual for operating instructions.

External

External A/V Source Setup

A/V Source Setup

DVD Setup

AUDIO

VARIABLE

AUDIO OUT

Antenna

S-VIDEO

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

AUDIO VIDEO

MONITOR OUT

A/V INPUT

LMONO

AUDIO VIDEO

AUDIO

REMOTE

CONTROL

AUDIO INPUT

RGB INPUT

VARIABLE

ARIABLE

AUDIO OUT

HDMI/

DVI(VIDEO)

RGB OUTPUT

Antenna

S-VIDEO

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

AUDIO VIDEO

MONITOR OUT

A/V INPUT

LMONO

(R) AUDIO (L) (R) AUDIO (L)

S-VIDEO

HDMI OUTPUT

DVD

Camcorder

Video Game Set

18 Plasma TV

Installation

How to connect

Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB or HDMI jack for video

connections, depending on your set-top box connector. Then, make the corre-

sponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-

top box.)

2. Use TV/VIDEO on the remote control to select Component 1, Component 2,

RGB, or HDMI source.

- To watch digitally broadcast programs, purchase and connect a digital set-top box.

DTV Setup

RGB-DTV OUTPUT

(R) AUDIO (L)

DVI-DTV OUTPUT

HDMI OUTPUT

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO AUDIO

REMOTE

CONTROL

AUDIO INPUT

RGB INPUT

VARIABLE

AUDIO OUT

HDMI/

DVI(VIDEO)

RGB OUTPUT

Antenna

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

(R) AUDIO (L)

Digital Set-top Box

Signal

480i

480p

720p

1080i

Component 1/2

Yes

RGB, HDMI

Yes

The TV has a special signal output capability which allows you to

hook up a second TV or monitor.

Connect the second TV or monitor to the TV’s MONITOR OUTPUT.

See the Operating Manual of the second TV or monitor for further

details regarding that device’s input settings.

NOTE

• Component, RGB, HDMI input sources cannot be used for Monitor

out.

AUDIO

VARIABLE

AUDIO OUT

Antenna

S-VIDEO

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

AUDIO VIDEO

MONITOR OUT

A/V INPUT

LMONO

S-VIDEO IN

(R) AUDIO (L) VIDEO

Monitor Out Setup

Owner’s Manual 19

Installation

How to connect

1. To get the best picture quality, adjust the PC

graphics card to 640x 480, 60Hz.

2. Use the TV’s RGB INPUT or HDMI(DVI VIDEO)

INPUT port for video connections, depending on

your PC connector.

• If the graphic card on the PC does not output

analog and digital RGB simultaneously, connect

only one of either RGB INPUT or HDMI(DVI

VIDEO) to display the PC on the TV.

• If the graphic card on the PC does output analog

and digital RGB simultaneously, set the TV to

either RGB or HDMI(DVI VIDEO); (the other

mode is set to Plug and Play automatically by the

TV.)

3. Then, make the corresponding audio connection. If

using a sound card, adjust the PC sound as

required.

PC Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

REMOTE

CONTROL

AUDIO INPUT

RGB INPUT

VARIABLE

ARIABLE

AUDIO OUT

HDMI/

DVI(VIDEO)

RGB OUTPUT

Antenna

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

How to use

1. Turn on the PC and the TV.

2. Turn on the display by pressing the POWER button on the TV's remote control.

3. Use TV/VIDEO on the remote control to select RGB, or HDMI source.

4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another rate or adjust the

brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed,

change the PC graphic card or consult the manufacturer of the PC graphic card.

NOTES: • Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently

imprinted on the screen. Use the Orbiter screen saver when possible.

• The synchronization input form for Horizontal and Vertical frequencies is separate.

20 Plasma TV

Installation

Displayable Monitor Specifications

RGB / HDMI mode

Resolution

640x350

720x400

640x480

848x480

800x600

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

852x480

832x624

1024x768

1152x864

1152x870

1280x960

1280x1024

70.09

85.08

70.08

85.03

59.94

66.66

72.80

75.00

85.00

60.00

70.00

75.00

60.00

70.00

75.00

56.25

60.31

72.18

75.00

85.06

74.55

60.00

70.06

75.02

85.00

60.05

70.01

75.00

75.06

60.02

31.468

37.861

31.469

37.927

31.469

35.000

37.861

37.500

43.269

31.500

37.799

39.375

31.500

37.799

39.375

35.156

37.879

48.077

46.875

53.674

49.725

48.363

56.476

60.023

68.677

54.348

63.995

67.500

68.681

60.023

63.981

RGB / HDMI mode

50PX5R series

42PX4RV series

Resolution

640x350

720x400

640x480

848x480

800x600

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

852x480

832x624

1024x768

1360x768

1366x768

1152x864

1152x870

1280x960

1280x768

1280x1024

70.09

85.08

70.08

85.03

59.94

66.66

72.80

75.00

85.00

60.00

70.00

75.00

60.00

70.00

75.00

56.25 (RGB)

60.31

72.18

75.00

85.06

74.55

60.00

70.06

75.02

85.00

60.00

75.02

85.00

60.00

75.02

85.00

60.05

70.01

75.00

85.00

75.06

60.00

75.00

85.00

60.02

31.468

37.861

31.469

37.927

31.469

35.000

37.861

37.500

43.269

31.500

37.799

39.375

31.500

37.799

39.375

35.156

37.879

48.077

46.875

53.674

49.725

48.363

56.476

60.023

68.677

47.700

59.625

68.500

47.700

59.625

69.500

54.348

63.995

67.500

77.487

68.681

47.693

60.091

68.504

60.023

63.981

Owner’s Manual 21

Operation

-The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use D/ Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D/ Ebutton to select Language.

3. Press the Gbutton and then use D/ Ebutton to select your desired language.

From this point on, the on-screen menus will be shown in the language of your

choice.

4. Press the ENTER button to save.

Menu Language Selection

Turning the TV On

urning the TV On

NOTE

• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an

example to help you with the TV operation.

Operation

- When using the remote control, aim it at its sensor on the set.

Turning on the set just after installation

Turning on the set (power cord is still connected)

1. Connect power cord correctly, the set is switched to standby mode.

2. Press the rr/ I, TV/VIDEO or CH D/ Ebutton on the set or press the POWER, TV/VIDEO, TV INPUT, CH D/ E

or NUMBER buttons on the remote control and then the set will switch on.

If the set was turned off with the remote control power button and the rr/ I button on the set

•Press the rr/ I, TV/VIDEO or CH D/ Ebutton on the set or press the POWER, TV/VIDEO, TV INPUT, CH D/ E

or NUMBER button on the remote control to turn the set on.

22 Plasma TV

Operation

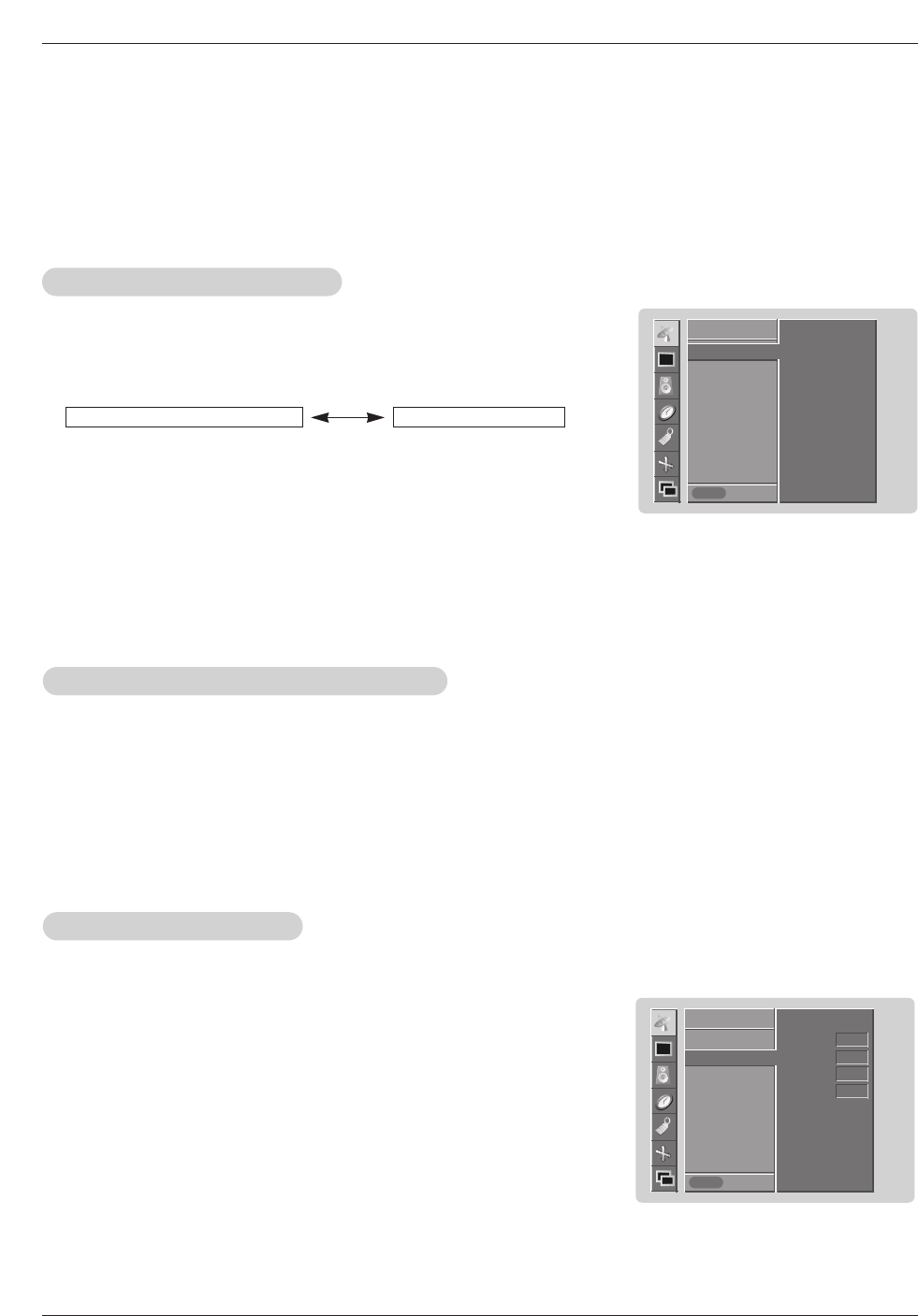

Channel Menu Options

- You can add or delete channels from the channel scan manually.

1. Use the F / Gor NUMBER buttons to select the channel number you want to add or delete.

2. Press the MEMORY/ERASE button.

3. Use the MEMORY/ERASE button to select Memory or Erase.

4. Press the ENTER button.

• You can also do Manual program with the CHANNEL menu.

Manual Program:

Manual Program: Adding/Deleting Channels

Adding/Deleting Channels

1. Press the A.PROG button and then press the Gbutton.

AUTO PROGRAM starts the channel search.

If you want to stop auto programming, press the ENTER button. Only the chan-

nels found up to at that time are memorized.

• You can also select the Auto program option and do a channel search in

the CHANNEL menu.

Auto Program: Channel Search

Auto Program should be used to memorize all the active channels in your area before you are able to use the TV.

There are two ways of storing channels in the TV's memory. You can use either.

One is called AUTO PROGRAM and the other is called MANUAL PROGRAM.

In AUTO PROGRAM mode, the TV will memorize the channels in ascending numerical order. If there are additional channels you

want to add or delete, you can manually add or delete those channels with Manual Program.

- Redo Auto Program if the Plasma Display is ever moved to another location.

- Auto Program will search for channels only through the ANT IN jack.

- If channels numbers for broadcast over-the air TV and cable TV are duplicated

where different channels have the same number, press the same number but-

tons again to toggle between:

(For example, press 17 to go to the channel, press 17 again to go to the dupli-

cated channel.)

Broadcast TV Channels Cable TV Channels

- Use this function to correct the picture's instability and condition if it is

poor.

Notes

• To remove fine tuning from a channel, reprogram the finely-tuned channel with

Auto program or Manual Program.

• If a finely-tuned channel is memorized, the color of the channel number changes

to yellow.

1. Press the MENU button and then use D / Ebutton to select the CHANNEL menu.

2. Press the Gbutton and then use D / Ebutton to select Manual program.

3. Press the Gbutton and then use D / Ebutton to select Fine.

4. Use the F / Gbutton to adjust the picture to your preference.

5. Press the ENTER button to save.

Fine

Fine T

Tuning

uning Adjustment

Adjustment

CHANNEL

Prev.

Auto program G

Manual program

Favorite channel

To Start

CHANNEL

Prev.

Auto program

Manual programG

Favorite channel

TV 2

Memory On

Fine 0

Booster Off

CHANNEL

Owner’s Manual 23

Operation

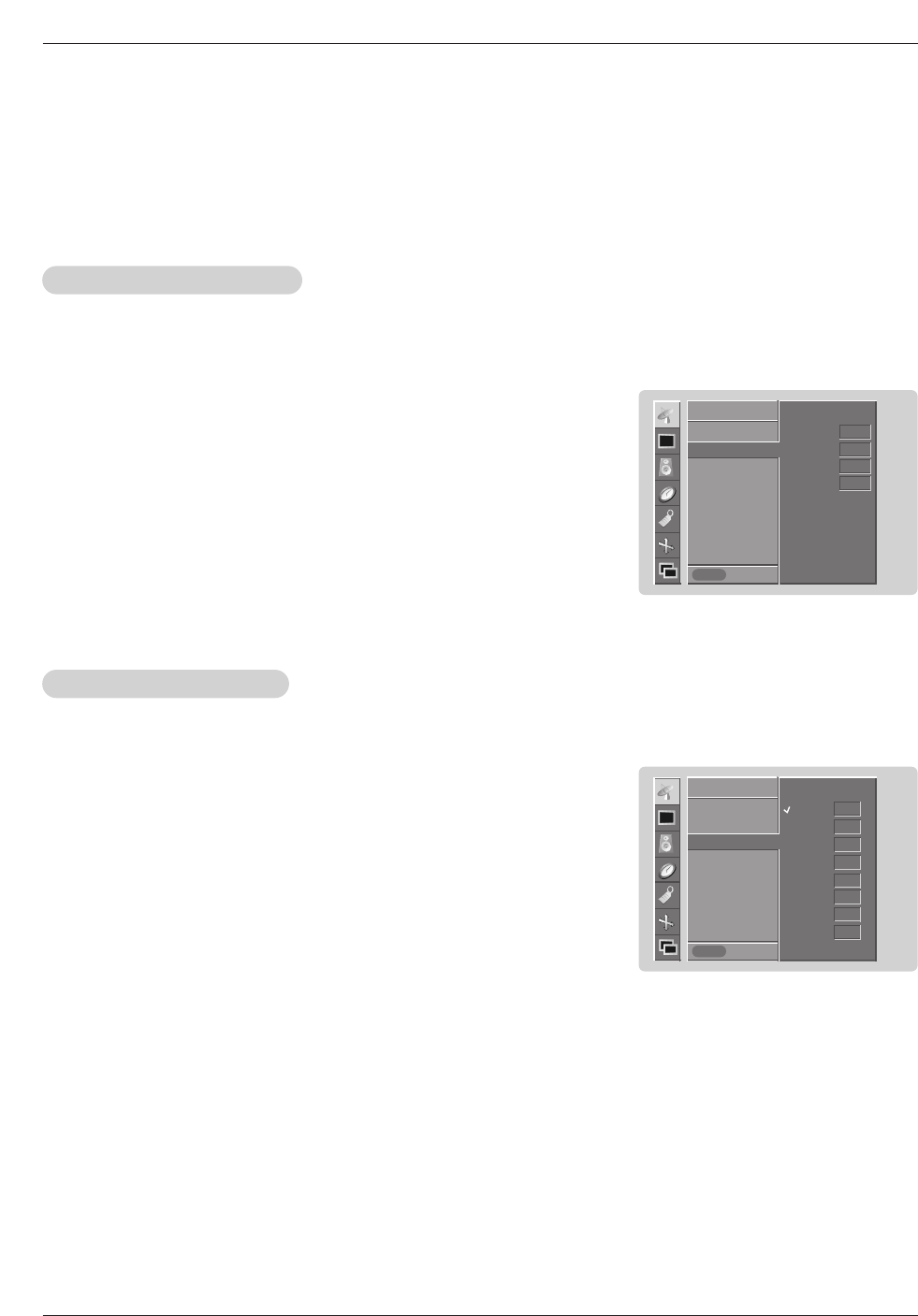

- Favorite Channels is a convenient feature that lets you quickly scan up to 8 channels of your choice without

having to wait for the TV to scan through all the in-between channels.

1. Press the MENU button and then use D / Ebutton to select the CHANNEL menu.

2. Press the Gbutton and then use D / Ebutton to select Favorite channel.

3. Press the Gbutton and then use D / Ebutton to select the first favorite channel

position.

4. Use the F / Gbutton to set the desired channel number for first favorite channel.

5. Press the ENTER button to save.

6. Repeat steps 3 to 5 to memorize other favorite channels.

• To tune to a favorite channel, press the FCR (Favorite Channel Review) but-

ton repeatedly. The eight favorite channels appear on the screen in numerical

order.

Favorite Channels Setup

- If TV signal reception is poor because you are in a fringe area, set Booster to On.

If the picture condition is good, set Booster to Off.

- Adjustments for one channel don’t affect the adjustment for other channels.

Set booster to on or off for each channel separately.

1. Press the MENU button and then use D / Ebutton to select the CHANNEL menu.

2. Press the Gbutton and then use D / Ebutton to select Manual program.

3. Press the Gbutton and then use D / Ebutton to select Booster.

4. Use F / Gbutton to select On or Off.

5. Press the ENTER button to save.

Signal Reception Booster

CHANNEL

Prev.

Auto program

Manual programG

Favorite channel

TV 2

Memory On

Fine 0

Booster Off

CHANNEL

Prev.

Auto program

Manual program

Favorite channelG

- - - - - - - -

CHANNEL

24 Plasma TV

Operation

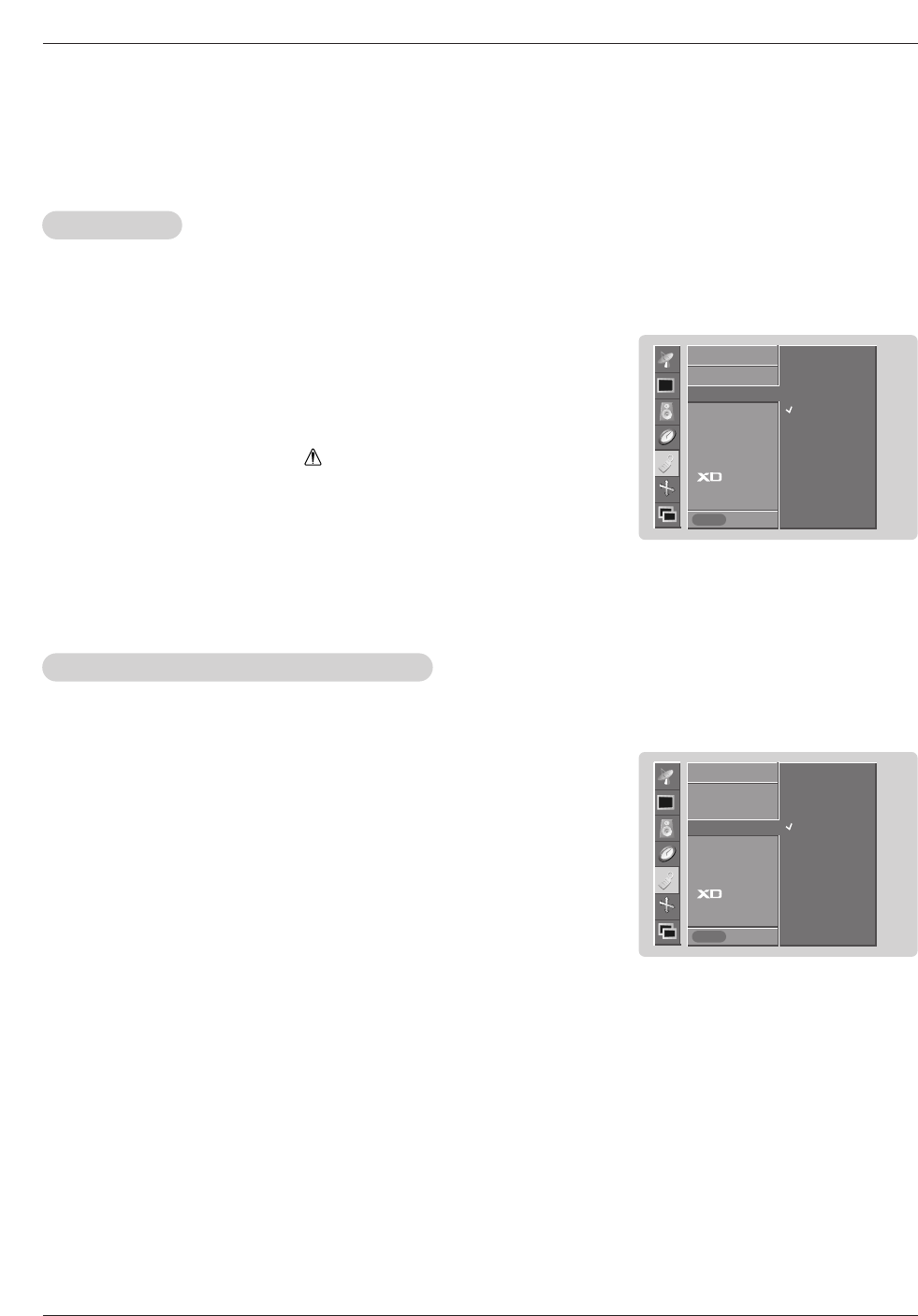

Picture Menu Options

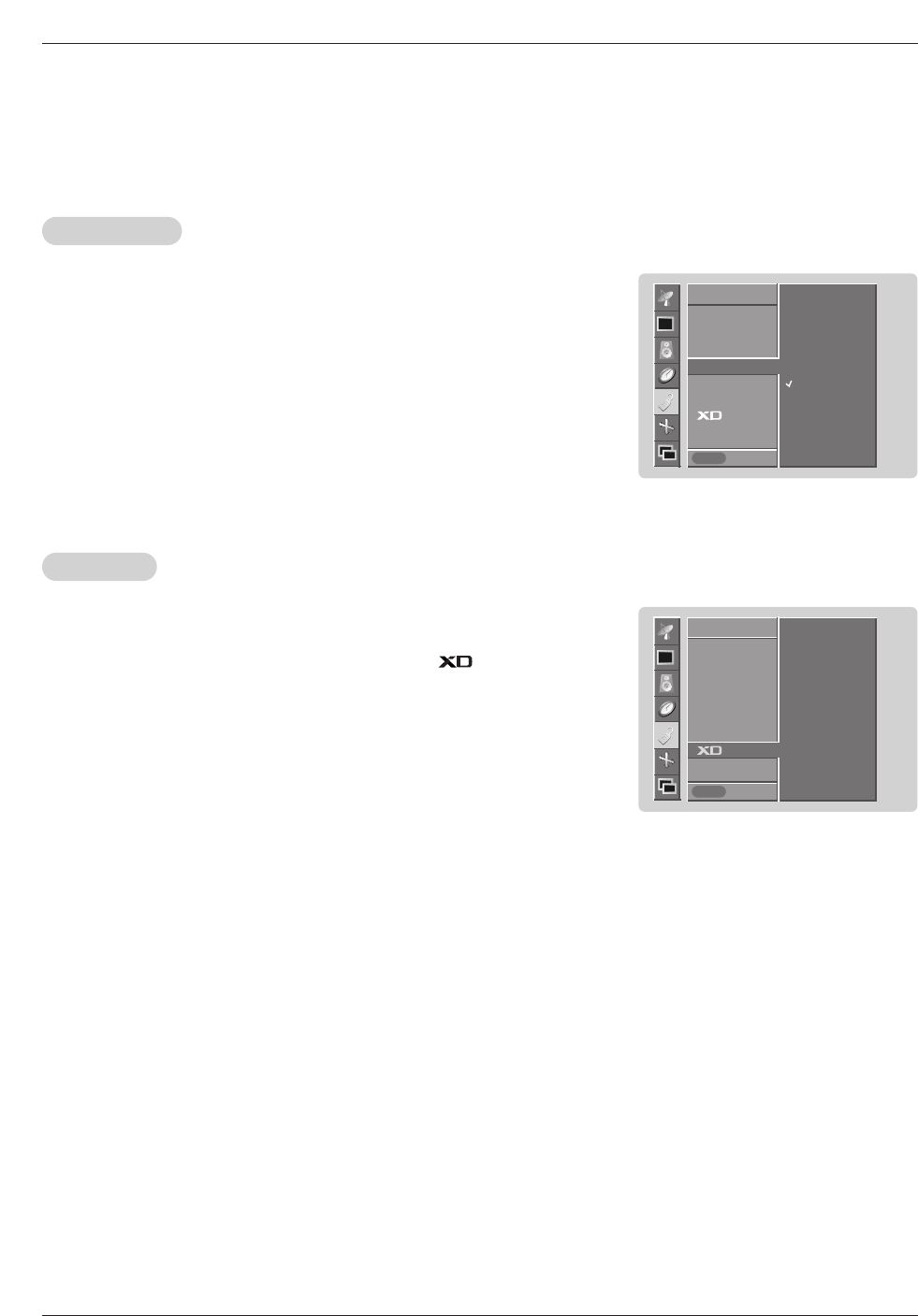

- XD is LG Electronic’s unique picture improving technology to display a real HD

source through an advanced digital signal processing algorithm.

- When selecting APC options (Clear, Optimum and Soft), XD is automatically

change to On.

1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D / Ebutton to select XD.

3. Press the Gbutton and then use D / Ebutton to set On or Off.

4. Press the ENTER button to save.

1. Press the APC button repeatedly to select the picture appearance setup option as shown below.

APC (Auto Picture Control)

•You can also adjust APC in the PICTURE menu.

•Intelligent Eye,Clear, Optimum, and Soft settings are preset for good picture quality at the factory and can-

not be changed.

- APC adjusts the TV to the best picture appearance.

- If adjusting picture options (contrast, brightness, color, sharpness, or tint) manually, APC automatically

changes to User.

Auto Color Temperature Control

- To initialize values (reset to default settings), select the Normal option.

1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D / Ebutton to select ACC .

3. Press the Gbutton and then use D / Ebutton to select either: Cool (Preset),

Normal (Default), or Warm (Preset).

4. Press the ENTER button to save.

Color

Color T

Temperature Control

emperature Control

Manual Color Temperature Control (ACC set to User option)

- You can adjust red, green, or blue to any color temperature you prefer.

1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D / Ebutton to select ACC .

3. Press the Gbutton and then use D / Ebutton to select User.

4. Press the Gbutton and then use D / Ebutton to select Red, Green or Blue.

5. Use the F / Gbutton to make appropriate adjustments.

• The adjustment range of Red, Green,and Blue is -30 ~ +30.

6. Press the ENTER button to save.


Prev.

APC

ACC

ACM

Contrast 80

Brightness 60

Color 50

Sharpness 50

Tint 0


Clear OptimumIntelligent Eye user

Soft

Off


Prev.

APC

ACC G

ACM

Contrast 80

Brightness 60

Color 50

Sharpness 50

Tint 0


Cool

Normal

Warm

User

Red 0

Green 0

Blue 0

Owner’s Manual 25

Operation

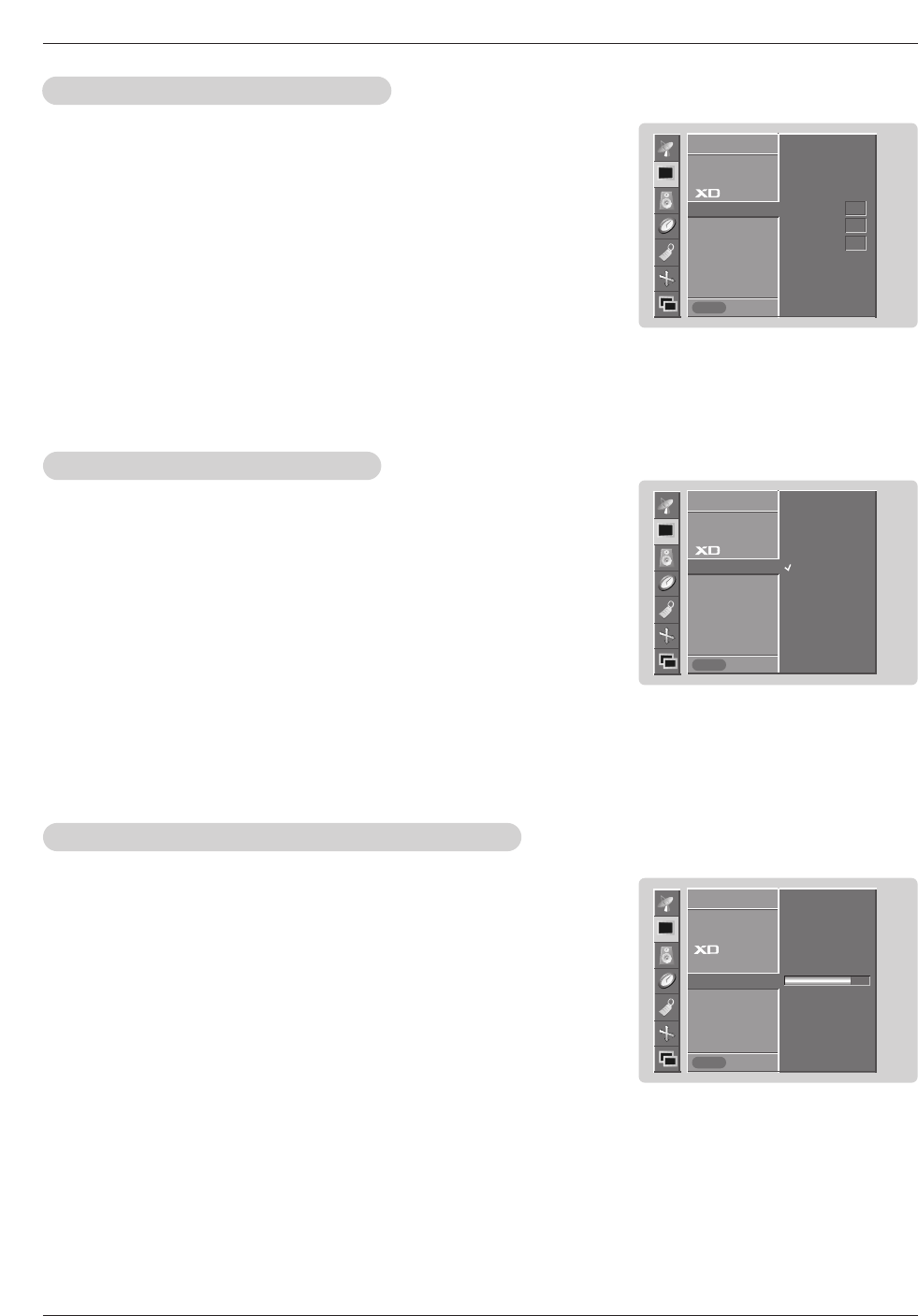

- You can adjust picture contrast, brightness, color, sharpness, and tint options

to the levels you prefer.

1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D / Ebutton to select the desired picture option

(Contrast,Brightness,Color,Sharpness,Tint).

3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.

4. Press the ENTER button to save.

Manual Picture Control (

Manual Picture Control (APC set to

set to User option)

option)

- If the TV is connected to external equipment using sRGB, set sRGB to On to

adjust for the color difference.

1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D / Ebutton to select sRGB.

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

sRGB (only RGB-PC, DVI-PC Modes)


Prev.

APC

ACC

ACM

Contrast 80 G

Brightness 60

Color 50

Sharpness 50

Tint 0


Prev.

APC

ACC

ACM G

Contrast 80

Brightness 60

Color 50

Sharpness 50

Tint 0


Freshtone 0

Greentone 0

Bluetone 0

- Adjust the ACM to select the desired skin colour option.

- This function works in the following mode:

TV, Video 1, Video 2, COMPONENT1/2, RGB, HDMI.

-It’s not available to use this function in

XD Off

mode.

1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.

2. Press the Gbutton and then use D / Ebutton to select ACM.

3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.

4. Press the ENTER button to save.

ACM (Active Colour Management)


Prev.

APC

ACC

sRGB G

Contrast 80

Brightness 60

Color 50


Off

26 Plasma TV

Operation

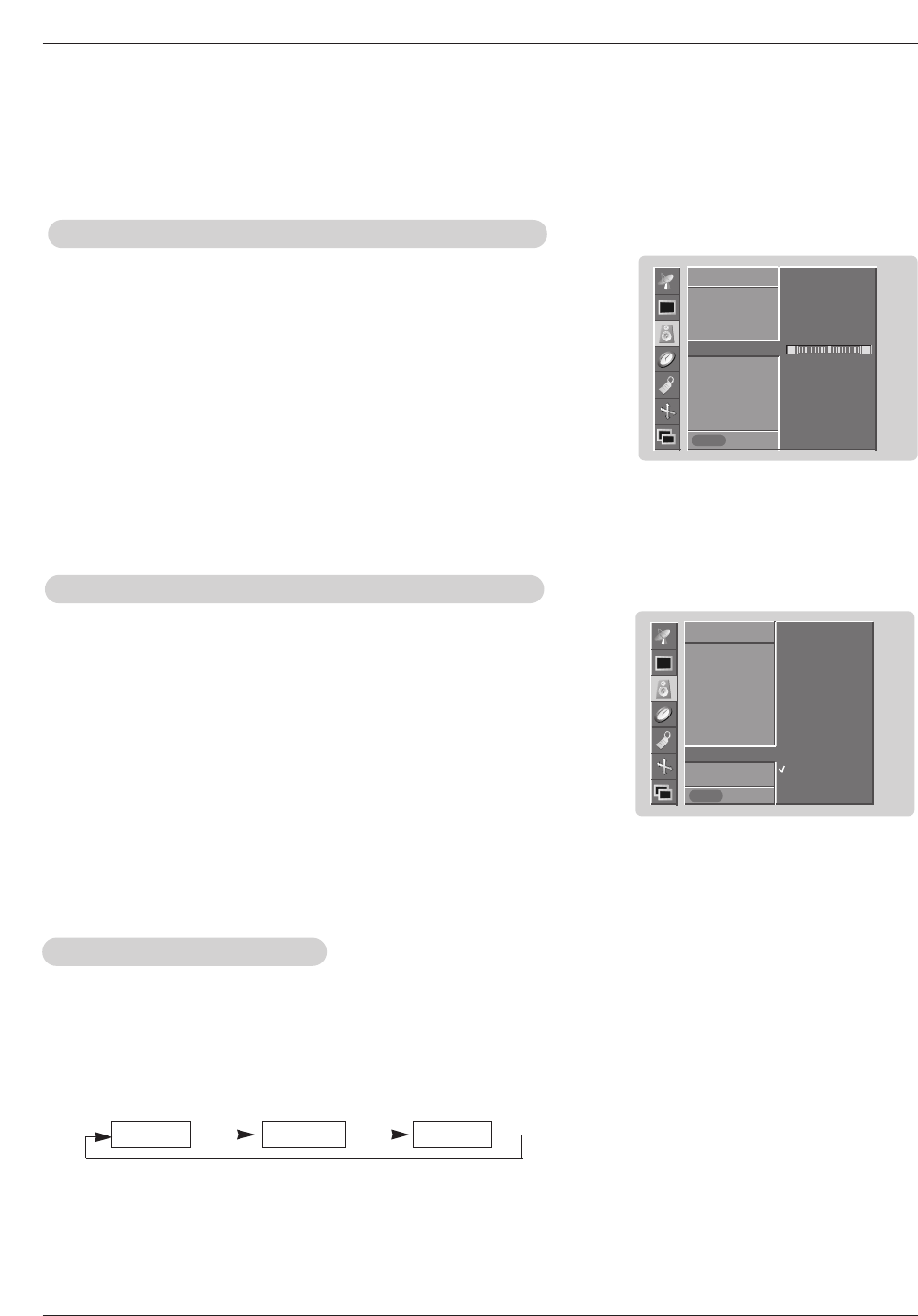

Sound Menu Options

1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.

DASP

DASP (Digital

(Digital Auto Sound Processing)

Auto Sound Processing)

•You can also adjust DASP in the SOUND menu.

•SRS TSXT, Flat, Music, Movie, and Sports are preset for good sound quality at the factory and cannot be changed.

•is a trademark of SRS Labs, Inc.

•TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Flat Music Movie Sports UserSRS TSXT

- This function lets you enjoy the best sound without any special adjustment because the TV has the appropriate

sound options based on the program content.

- If you adjust sound options (Treble and Bass) manually, DASP automatically changes to User.

- AVL maintains an equal sound level; even if you change channels.

1. Press the MENU button and then use D / Ebutton to select the SOUND menu.

2. Press the Gbutton and then use D / Ebutton to select AV L .

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

AVL

VL (Auto V

(Auto Volume Leveler)

olume Leveler)

1. Press the MENU button and then use D / Ebutton to select the SOUND menu.

2. Press the Gbutton and then use D / Ebutton to select BBE.

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

BBE

- BBE High Definition Sound restores clarity and presence for better speech

intelligibility and music realism.

•Manufactured under license from BBE Sound, Inc.

•Treble, Bass or BBE aren’t suitable for SRS TSXT mode.

SOUND

Prev.

DASP

BBE G

AVL

Balance 0

Treble 50

Bass 50

TV speaker

SOUND

Off

SOUND

Prev.

DASP

BBE

AVL G

Balance 0

Treble 50

Bass 50

TV speaker

SOUND

Off

Owner’s Manual 27

SOUND

Prev.

DASP

BBE

AVL

Balance 0 G

Treble 50

Bass 50

TV speaker

SOUND

Operation

L R

1. Press the MTS button repeatedly.

Stereo/SAP

Stereo/SAP Broadcasts Setup

Broadcasts Setup

•Select mono sound mode if the signal is not clear or in poor signal reception areas.

•Stereo, SAP modes are available only if included on the broadcast signal.

Mono Stereo SAP

- The TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the

stereo program; if the broadcaster transmits one additional sound signal in addition to the original one.

- Mono: The primary language is heard from left and right speakers. Signal mode is mono.

- Stereo: The primary language is heard from left and right speakers. Signal mode is stereo.

- SAP: The secondary language is heard from left and right speakers in mono sound.

1. Press the MENU button and then use D / Ebutton to select the SOUND menu.

2. Press the Gbutton and then use D / Ebutton to select the desired sound option

(Balance,Treble,Bass).

3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.

4. Press the ENTER button to save.

Manual Sound Control (

Manual Sound Control (DASP set to

set to user option)

option)

- You can adjust sound options Balance, Treble, and Bass to the levels you prefer.

SOUND

Prev.

DASP

BBE

AVL

Balance 0

Treble 50

Bass 50

TV speaker G

SOUND

1. Press the MENU button and then use D / Ebutton to select the SOUND menu.

2. Press the Gbutton and then use D / Ebutton to select TV speaker.

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

TV speaker Setup

- You can adjust internal speaker status.

- If you want to use your external hi-fi stereo system, turn off the internal speakers

of the set.

Off

28 Plasma TV

Operation

Timer Menu Options

imer Menu Options

- Timer function operates only if current time has been set.

- Off-Timer function overrides On-Timer function if they are set both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to

standby mode.

On/Of

On/Off

f T

Timer Setup

imer Setup

1. Press the MENU button and then use D / Ebutton to select the TIMER menu.

2. Press the Gbutton and then use D / Ebutton to select Off timer or On timer.

3. Press the Gbutton and then use D / Ebutton to select On.

• To cancel On/Off timer function, select Off.

4. Press the Gbutton and then use D / Ebutton to set the hour.

5. Press the Gbutton and then use D / Ebutton to set the minutes.

6. For only On timer function

Press the Gbutton and then use D / Ebutton to set the volume level at turn-on.

Press the Gbutton and then use D / Ebutton to select the channel at turn-on.

7. Press the ENTER button to save.

Clock Setup

- If current time setting is wrong, reset the clock manually.

1. Press the MENU button and then use D / Ebutton to select the TIMER menu.

2. Press the Gbutton and then use D / Ebutton to select Clock.

3. Press the Gbutton and then use D / Ebutton to set the hour.

4. Press the Gbutton and then use D / Ebutton to set the minutes.

5. Press the ENTER button to save.

Auto Of

Auto Off

- If set to on and there is no input signal, the TV turns off automatically after 10

minutes.

1. Press the MENU button and then use D / Ebutton to select the TIMER menu.

2. Press the Gbutton and then use D / Ebutton to select Auto off.

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

Sleep

Sleep T

Timer

imer

- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

TIMER

Prev.

Clock G

Off timer

On timer

Auto off

TIMER

- - : - -

TIMER

Prev.

Clock

Off timer

On timer

Auto off G

TIMER

Off

TIMER

Prev.

Clock

Off timer

On timer G

Auto off

TIMER

10 : 30

Vol. 30

Ch. TV 2

Off

1. Press the SLEEP button repeatedly to select the number of minutes. First the --- Min option appears on the

screen, followed by the following sleep timer options:

10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to

count down from the number of minutes selected.

3. To check the remaining minutes before the monitor turns off, press the SLEEP or ENTER button once.

4. To cancel the Sleep Timer, press the SLEEP button repeatedly until --- Min appears.

can adjust internal speaker status.

OMPONENT 1/2, RGB and HDMI mode, TV speaker/variable audio can be

ut even though there is no video signal.

u want to use your external hi-fi stereo system, turn off the internal speakers

he set.

Owner’s Manual 29

Operation

Key Lock

- The TV can be set up so that it can only be used with the remote control.

- This feature can be used to prevent unauthorized viewing by locking out the front panel controls.

- This TV is programmed to remember which option it was last set to even if you turn the TV off.

Special Menu Options

1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D / Ebutton to select Key lock.

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

• With the Key lock On, the display ‘ Key lock’appears on the screen if any

button on the front panel is pressed.

ISM (Image Sticking Minimization) Method

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image remaining

even when you change the image. Avoid allowing a fixed image to remain on the TV's screen for a long period of time.

1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D / Ebutton to select ISM Method.

3. Press the Gbutton and then use D / Ebutton to select either Normal, White

wash, Orbiter or Inversion.

• Normal

If image sticking is never a problem, ISM is not necessary - set to Normal.

• White wash

White Wash removes permanent images from the screen. Note: An excessive

permanent image may be impossible to clear entirely with White Wash. To

return to normal viewing, press any button.

• Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any

fixed image to remain on the screen. To avoid a permanent image on the

screen, the image will move every 2 minutes: Right →Right → Downside →

Downside →Left →Left →Upside →Upside.

• Inversion

Inversion will automatically invert the TV panel color every 30 minutes.

4. Press the ENTER button to save.

SPECIAL

Prev.

Language

Key lock G

ISM Method

Low power

Set ID

Caption / Text

Demo

Off

SPECIAL

Prev.

Language

Key lock

ISM Method G

Low power

Set ID

Caption / Text

Demo

Normal

White wash

Orbiter

Inversion

SPECIAL

30 Plasma TV

Operation

Special Menu Options continued

Low Power

- Low power reduces the plasma display power consumption.

1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D / Ebutton to select Low power.

3. Press the Gbutton and then use D / Ebutton to select On or Off.

• When you select On, the screen darkens.

4. Press the ENTER button to save.

XD Demo

1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D / Ebutton to select Demo.

3. Press the Gbutton to begin

XD Demo

4. Press the MENU button to stop

XD Demo

- Use it to see the difference between XD Demo on and XD Demo off.

SPECIAL

Prev.

Language

Key lock

ISM Method

Low power G

Set ID

Caption / Text

Demo

Off

SPECIAL

Prev.

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Demo GTo start

SPECIAL

Owner’s Manual 31

Operation

Caption/T

Caption/Text

ext

- Low power reduces the plasma display power consumption.

1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D / Ebutton to select Caption / Text.

3. Press the Gbutton and then use D / Ebutton to select caption: Mode1, Mode2,

Text1, or Text2.

• CAPTION

The term for the words that scroll across the bottom of the TV screen; usually

the audio portion of the program provided for the hearing impaired.

• TEXT

The term for the words that appear in a large black frame and almost cover

the entire screen; usually messages provided by the broadcaster.

4. Press the ENTER button to save.

Closed Captions

2. An old, bad, or illegally recorded tape is being played.

3. Strong, random signals from a car or airplane interfere with

the TV signal.

4. The signal from the antenna is weak.

5. The program wasn’t captioned when it was produced, trans-

mitted, or taped.

Closed captioning is a process which converts the audio portion

of a television program into written words which then appear as

subtitles on the television screen. Closed captions allow viewers

to read the dialogue and narration of television programs.

Using Closed Captions

Captions are the subtitles of the dialogue and narration of tele-

vision programs. For prerecorded programs, program dialogue

can be arranged into captions in advance. Its possible to caption

a live program by using a process called real-time captioning,

which creates captions instantly. Real-time captioning is nor-

mally done by professional reporters using a machine shorthand

system and computer for trans-

lation into English.

Captioning is an effective sys-

tem for the hearing-impaired,

and it can also aid in teaching

language skills.

• The picture at left shows a

typical caption.

Caption Tips

•Not all TV broadcasts include closed caption signals.

•Sometimes TV stations broadcast four different caption sig-

nals on the same channel. By selecting Mode1 to Mode2,

you can choose which signal you view. Mode1 is usually the

signal with the captions, while Another mode might show

demonstration or programming information.

•Your TV might not receive caption signals normally in the fol-

lowing situations.

• IGNITION:

Picture may flutter, drift, suffer from black

spots, or horizontal streaking. Usually

caused by interference from automobile

ignition systems, neon lamps, electrical

drills, and other electrical appliances.

• GHOSTS:

Ghosts are caused when the TV signal

splits and follows two paths. One is the

direct path and the other is reflected off

tall buildings, hills or other objects.

Changing the direction or position of the

antenna may improve reception.

• SNOW:

If your receiver is located at the weak,

fringe area of a TV signal, your picture

may be marred by small dots. It may be

necessary to install a special antenna to

improve the picture.

FOLLOW ME

1. Poor reception conditions are encountered:

SPECIAL

Prev.

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text G

Demo

SPECIAL

Mode1

Mode2

Text1

Text2

Off

32 Plasma TV

Manual Configure (RGB mode only)

- If the image still isn’t clear after auto adjustment and especially if characters are still

jittery, adjust the picture Phase manually.

- To correct the screen size, adjust Clock.

- This function works in the following mode : RGB, COMPONENT

(480p/576p/720p/1080i), HDMI (480p/576p/720p/1080i).

-It’s not available to use Phase, Clock function in RGB, COMPONENT

(480p/576p/720p/1080i), HDMI (480p/576p/720p/1080i) mode.

1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D / Ebutton to select Manual config..

3. Press the Gbutton and then use D / Ebutton to to select Phase,Clock,H-

Position or V-Position.

4. Use the F / Gbutton to make appropriate adjustments.

• The Phase adjustment range is 0 ~ 30.

• The Clock adjustment range is -127 ~ +128.

5. Press the ENTER button to save.

Selecting VGA

Selecting VGA Mode (RGB mode only)

Mode (RGB mode only)

To see a normal picture, match the resolution of RGB mode and selection of VGA mode.

1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D /Ebutton to select VGA Mode.

3. Press the Gbutton and then use D /Ebutton to select the desired VGA resolution.

4. Press the ENTER button to save.

Operation

Screen Menu Options

Auto

Auto Adjustment

Adjustment

- RGB (PC) mode only; This function doesn’t work for RGB (DTV) mode.

- Automatically adjusts picture position and minimizes image shaking.

- After adjustment, if the image is still not correct, your TV is functioning properly but needs further adjustment.

- The Auto config. and Manual config. are not active in HDMI mode.

1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D /Ebutton to select Auto config..

3. Press the Gbutton to run Auto configure.

• When Auto config. has finished, OK will be shown on screen.

• If the position of the image is still not correct, try Auto adjustment again.

4. In RGB (PC) mode, if the image needs to be adjusted more after using Auto

config., you can make further adjustments with the Manual config. option.

Setting Picture Format

- Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.

- Set every aspect ratio for TV, Video, Component 480i sources.

- Use 4:3, or 16:9 for other RGB sources.

- Horizon is not available for Component (480p,720p,1080i), DTV (480p,720p,1080i) sources.

1. Press the ARC button repeatedly to select the desired picture format. You can also adjust ARC in the SCREEN menu.

• 4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the left and right sides.

• 16:9

Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

• Horizon

Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both sides, to create

a spectacular view.

• Zoom

Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

SCREEN

Prev.

Auto config. G

Manual config.

VGA Mode

ARC

Zoom in/out

Position

Cinema

Reset

To set

SCREEN

Prev.

Auto config.

Manual config. G

VGA Mode

ARC

Zoom in/out

Position

Cinema

Reset

SCREEN

Phase 0

Clock 0

H-position 0

V-position 0

SCREEN

Prev.

Auto config.

Manual config.

VGA Mode G

ARC

Zoom in/out

Position

Cinema

Reset

SCREEN

640x480

848x480

852x480

Owner’s Manual 33

Operation

- You can select 3D NR or MPEG NR to reduce the picture noise which may

appear on the screen during watching the TV.

1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D / Ebutton to select NR..

3. Press the Gbutton and then use D / Ebutton to select 3D NR or MPEG NR.

4. Press the F/ Gbutton to make appropriate adjustments.

5. Press the ENTER button to save.

NR (Noise Reduction)

1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D / Ebutton to select Position.

3. Press the Gbutton and then use D / E / F / G button to adjust the position.

4. Press the ENTER button to save.

Screen Position

- This function works in the following modes:

RGB (480p,720p,1080i), HDMI (480p,720p,1080i), COMPONENT

(480p,720p,1080i).

SCREEN

Prev.

Auto config.

Manual config.

VGA Mode

ARC

Zoom in/out

Position G

Cinema

Reset

SCREEN

Prev.

Auto config.

Manual config.

VGA Mode

ARC

Zoom in/out

Position

Cinema

NR G

Reset

SCREEN

3D NR 0

MPGE NR 0

- Sets up the TV for the best picture appearance for viewing movies.

1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D / Ebutton to select Cinema..

3. Press the Gbutton and then use D / Ebutton to select On or Off.

4. Press the ENTER button to save.

Cinema Mode Setup (TV

Cinema Mode Setup (TV, V

, Video1-2 and Component 480i mode only)

ideo1-2 and Component 480i mode only)

SCREEN

Prev.

Auto config.

Manual config.

VGA Mode

ARC

Zoom in/out

Position

Cinema G

Reset

SCREEN

Off

1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.

2. Press the Gbutton and then use D / Ebutton to select Reset.

3. Press the Gbutton.

•You can initialize Position, Split zoom, PIP Transparency, PIP position, PIP size

and sub picture size for double window.

Initializing (Reset to original factory value)

- Reset is unique to each function: Manual config., Position, Split zoom, PIP posi-

tion and sub picture size for double window.

- Use the Reset option to initialize the adjusted settings.

SCREEN

Prev.

Auto config.

Manual config.

VGA Mode

ARC

Zoom in/out

Position

Cinema

Reset G

SCREEN

To set

34 Plasma TV

- PIP lets you view 2 different inputs pictures (sources) on your TV screen at the same time. One source will be large, and the

other source will show a smaller inset image.

- Double Window mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each

source is given half the screen.

PIP

PIP (Picture-In-Picture)/Double W

(Picture-In-Picture)/Double Window Feature

indow Feature

Watching PIP/Double W

atching PIP/Double Window

indow Moving the PIP

Moving the PIP (PIP

(PIP Mode only)

Mode only)

Press the POSITION button.

Press the D / E/ F / Gbutton repeatedly until desired posi-

tion is achieved. The sub picture moves up/down/left/right.

•You can also move the PIP position with Win.position in

the PIP/DW menu.

◀▶

▲

▼

Win.position

DW 1

DW 2

Press the PIP/DW button to access the sub picture. Each

press of PIP changes the PIP options as shown below.

PIP

Off

TV Program selection for PIP

Press the PIPCH+ / PIPCH- button to select a channel for

the sub picture in PIP mode.

Swapping the PIP

Swapping the PIP/

/Double W

Double Window

indow

Use the SWAP button to switch the main and sub pictures.

Selecting an Input Signal Source for PIP

Selecting an Input Signal Source for PIP/Double W

/Double Window

indow

Use the PIP INPUT button to select the input source for the

sub picture. Each press of PIP INPUT button changes the

PIP source.

Main Picture Sub Picture

PIP

PIP Size

Size

Press the SIZE button and then use F / Gbutton to change

the sub picture size.

•Using the Win.size function in Double Window mode,

main and sub picture sizes are changed simultaneously.

Using the Win.size function in PIP mode, sub picture size

is changed.

•You can also change the sub picture size with Win.size in

the PIP/DW menu.

Win.size

F G

PIP

PIP T

Transparency (PIP

ransparency (PIP Mode only)

Mode only)

- To make the PIP clear or opaque

1. Press the MENU button and then use D / Ebutton to

select the PIP/DW menu.

2. Press the Gbutton and then use D / Ebutton to select PIP

Transparency .

3. Press the Gbutton and then use F / Gbutton to adjust

PIP transparency.

4. Use the F / Gbutton to make appropriate adjustments.

• The adjustment range of PIP Transparency is 0 ~ 10.

5. Press the ENTER button to save.

Main Picture Source Available Sub Picture Sources

TV, Video 1-2, Component 480i

Component 480p/720p/1080i, RGB and HDMI

TV, Video 1-2, Component 480i/480p/720p/1080i, RGB and HDMI

TV, Video 1-2, Component 480i

Operation

Owner’s Manual 35

Operation

No. Pin name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DSR

DTR

CTS

RTS

7-wire configuration

(Standard RS-232C cable)

D-Sub 9

PDP

D-Sub 9

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DTR

DSR

RTS

CTS

3-wire configuration

(Not standard)

D-Sub 9

PDP

D-Sub 9

External Control Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the set’s functions externally.

How to connect external control equipment

•Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

•RS-232C connection cables are not supplied with the set.

•The set remote control and front panel controls (except main power) will not be functional if the Monitor is controlled by a PC

computer or other external device.

Type of connector; D-Sub 9-pin male

RS-232C configurations

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

REMOTE

CONTROL

AUDIO INPUT

RGB INPUT

VARIABLE

ARIABLE

AUDIO OUT

HDMI/

DVI(VIDEO)

RGB OUTPUT

Antenna

COMPONENT INPUT 2

COMPONENT INPUT 1

AUDIO

VIDEO

< Back panel of the set >

36 Plasma TV

Set ID

- Use this function to specify a monitor ID number.

- Refer to ‘Real Data Mapping 1’. See page 32.

1. Press the MENU button and then use D /Ebutton to select the SPECIAL menu.

2. Press the Gbutton and then use D /Ebutton to select Set ID.

3. Press the Gbutton and then use F / Gbutton to adjust Set ID to choose the

desired monitor ID number. The adjustment range of Set ID is 1 ~ 99.

4. Press the ENTER button to save.

External Control Device Setup

SPECIAL

Prev.

Language

Key lock

ISM Method

Low power

Set ID G

Caption / Text

Demo

SPECIAL

Transmission

* [Command 1] : First command to control PDP set.

(j or k)

* [Command 2] : Second command to control PDP set.

* [Set ID] : You can adjust the set ID to choose

desired monitor ID number in special

menu.

Adjustment range is 1 ~ 99.

When selecting Set ID ‘0’, every

connected PDP set is controlled.

Set ID is indicated as decimal (1~99) on

menu and as Hexa decimal (0x0~0x63)

on transmission/receiving protocol.

* [DATA] : To transmit command data.

Transmit ‘FF’data to read status of

command.

* [Cr] : Carriage Return

ASCII code ‘0x0D’

* [ ] : ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

OK Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the

data is data read mode, it indicates present status data. If

the data is data write mode, it returns the data of the PC

computer.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from

non-viable functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Transmission / Receiving Protocol

Command Reference List

*When setting the 23 ~ 32, a menu doesn’t display on screen.

Data 1: Illegal Code

2: not support function

3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 6

03. Aspect Ratio k c Refer to p. 37

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Colour k i 0 ~ 64

10. Tint (option) k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote control lock mode

k m 0 ~ 1

14. PIP/DW k n Refer to p. 38

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19.

Colour Temperature (CSM)

k u 0 ~ 3

20. Red Adjustment k v 0 ~ 3C

21. Green Adjustment k w 0 ~ 3C

22. Blue Adjustment k $ 0 ~ 3C

23. PIP input Source k y 0 ~ 6

24. Abnormal Status k z 0 ~ a

25. ISM Method j p 0 ~ 3

26. Low Power j q 0 ~ 1

27. Orbiter Time Setting j r 1 ~ FE

28. Orbiter Pixel Setting j s 1 ~ 3

29. Picture Size j t

0 ~ 20

30. Auto Configure j u 1

31. Tune command m a 01 ~ 7D

32. Channel Add/Del m b 00 ~ 01

33. Key m c Key Code

34. Input select (Main) x b Refer to p. 41

35. Input select (PIP) x y Refer to p. 41

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

Owner’s Manual 37

External Control Device Setup

05. Volume Mute (Command 2 : e)

GTo control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

[k][e][ ][Set ID][ ][Data][Cr]

Ack

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command 2 : c) (Main Picture Size)

GTo adjust the screen format. (Main picture format)

You can also adjust the screen format using the ARC

(Aspect Ratio Control) button on remote control or in the

SCREEN menu.

Transmission

Data 1 : Normal screen (4:3)

2 : Wide screen (16:9)

3 : Horizon

4 : Full screen (Zoom)

[k][c][ ][Set ID][ ][Data][Cr]

Ack

* Using the PC input, you select either 16:9 or 4:3 screen

aspect ratio.

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command 2 : d)

GTo select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Ack

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command 2 : f)

GTo adjust volume.

You can also adjust volume with the volume buttons

on remote control.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][f][ ][Set ID][ ][Data][Cr]

Ack

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command 2 : g)

GTo adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][g][ ][Set ID][ ][Data][Cr]

Ack

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command 2 : h)

GTo adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][h][ ][Set ID][ ][Data][Cr]

Ack

[h][ ][Set ID][ ][OK][Data][x]

02. Input Select (Command 2 : b)

GTo select input source for the TV.

You can also select an input source using the INPUT

SELECT button on the Monitor's remote control.

Transmission

Data 0 : RGB

1 : HDMI1

2 : Video1

3 : Video2

4 : Component1

5 : Component2

6: TV

[k][b][ ][Set ID][ ][Data][Cr]

Ack

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command 2 : a)

GTo control Power On/Off of the TV.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Ack

[a][ ][Set ID][ ][OK][Data][x]

GTo show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

* In like manner, if other functions transmit ‘0xFF’data

based on this format, Acknowledgement data feed back

presents status about each function.

[a][ ][Set ID][ ][OK][Data][x]

38 Plasma TV

External Control Device Setup

17. Bass (Command 2 : s)

GTo adjust bass.

You can also adjust bass in the SOUND menu.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][s][ ][Set ID][ ][Data][Cr]

Ack

[s][ ][Set ID][ ][OK][Data][x]

16. Treble (Command 2 :r)

GTo adjust treble.

You can also adjust treble in the SOUND menu.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][r][ ][Set ID][ ][Data][Cr]

Ack

[r][ ][Set ID][ ][OK][Data][x]

15. PIP Position (Command 2 : q)

GTo select sub picture position for PIP.

You can also adjust the sub picture position using POSI-

TION button on the remote control or in the PIP/DW menu.

Transmission

Data 0 : Right down on screen

1 : Left down on screen

2 : Left up on screen

3 : Right up on screen

[k][q][ ][Set ID][ ][Data][Cr]

Ack

[q][ ][Set ID][ ][OK][Data][x]

13. Remote control lock mode (Command 2 : m)

GTo lock the front panel controls on the monitor and remote

control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Ack

Data 0 : Lock off 1 : Lock on

* If you’re not using the remote control, use this mode.

When main power is on/off, external control lock is

released.

[m][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command 2 : l)

GTo select OSD (On Screen Display) on/off when con-

trolling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Ack

Data 0 : OSD off 1 : OSD on

[l][ ][Set ID][ ][OK][Data][x]

14. PIP / DW (Command 2 : n)

GTo control the PIP (Picture In picture)/DW.

You can also control the PIP/DW using the PIP button on

the remote control or in the PIP/DW menu.

Transmission

Data 0: PIP/DW off

1: PIP

2: DW1

3: DW2

5: POP

[k][n][ ][Set ID][ ][Data][Cr]

Ack

[n][ ][Set ID][ ][OK][Data][x]

09. Colour (Command 2 : i)

GTo adjust the screen colour.

You can also adjust colour in the PICTURE menu.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][i][ ][Set ID][ ][Data][Cr]

Ack

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command 2 : j) (option)

GTo adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission

Data Red : 0 ~ Green : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][j][ ][Set ID][ ][Data][Cr]

Ack

[j][ ][Set ID][ ][OK][Data][x]

GTo adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission

11. Sharpness (Command 2 : k)

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][k][ ][Set ID][ ][Data][Cr]

Ack

[k][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 39

External Control Device Setup

18. Balance (Command 2 : t)

GTo adjust balance.

You can also adjust balance in the SOUND menu.

Transmission

Data Min : 0 ~ Max : 64

* Refer to ‘Real data mapping 1’. See page 40.

[k][t][ ][Set ID][ ][Data][Cr]

Ack

[t][ ][Set ID][ ][OK][Data][x]

19. Colour Temperature (Command 2 : u)

GTo adjust colour temperature.

You can also adjust CSM in the PICTURE menu.

Transmission

Data 0: Cool 1: Normal 2: Warm 3: User

[k][u][ ][Set ID][ ][Data][Cr]

Ack

[u][ ][Set ID][ ][OK][Data][x]

20. Red Adjustment (Command 2 : v)

GTo adjust red in colour temperature.

Transmission

Data Min : 0 ~ Max : 3C

* Refer to ‘Real data mapping 2’. See page 40.

[k][v][ ][Set ID][ ][Data][Cr]

Ack

[v][ ][Set ID][ ][OK][Data][x]

21. Green Adjustment (Command 2 : w)

GTo adjust green in colour temperature.

Transmission

Data Min : 0 ~ Max : 3C

* Refer to ‘Real data mapping 2’. See page 40.

[k][w][ ][Set ID][ ][Data][Cr]

Ack

[w][ ][Set ID][ ][OK][Data][x]

22. Blue Adjustment (Command 2 : $)

GTo adjust blue in colour temperature.

Transmission

Data Min : 0 ~ Max : 3C

* Refer to ‘Real data mapping 2’. See page 40.

[k][$][ ][Set ID][ ][Data][Cr]

Ack

[$][ ][Set ID][ ][OK][Data][x]

23. PIP Input Select (Command 2 : y)

GTo select input source for sub picture in PIP/DW pic-

ture mode. You can also adjust input source for sub

picture using PIP INPUT button on remote control.

Transmission

Data 0 : RGB

1 : HDMI1

2 : Video1

3 : Video2

4 : Component1

5 : Component2

6: TV

[k][y][ ][Set ID][ ][Data][Cr]

Ack

[y][ ][Set ID][ ][OK][Data][x]

24. Abnormal State (Command 2 : z)

GTo recognize an abnormal state.

Transmission

Data FF : Read

Data 0: Normal (Power on and signal exist)

1: No signal (Power on)

2: Turn the TV off by remote control

3: Turn the TV off by sleep time function

4: Turn the TV off by RS-232C function

5: 5V down

6: AC down

7: Turn the TV off by Fan Alarm function (option)

8: Turn the TV off by Off time function

9: Turn the TV off by Auto sleep function

a: Turn the TV off by AV board detect

* This function is “read only”.

[k][z][ ][Set ID][ ][FF][ ][Cr]

Ack

[z][ ][Set ID][ ][OK][Data][x]

25. ISM Method

(Command 1 : j, Command 2 : p)

GTo control the ISM method. You can also adjust ISM

Method in SPECIAL menu.

Transmission

Data 0 : Normal Mode

1 : White Wash

2 : Orbiter

3 : Inversion

[j][p][ ][Set ID][ ][Data][Cr]

Ack

[p][ ][Set ID][ ][OK][Data][x]

40 Plasma TV

External Control Device Setup

26. Low Power

(Command 1 : j, Command 2 : q)

GTo reduce the power consumption of the TV. You can

also adjust Low Power in SPECIAL menu.

Transmission

Data 0 : Off

1 : On

[j][q][ ][Set ID][ ][Data][ ][Cr]

Ack

[q][ ][Set ID][ ][OK][Data][x]

27. Orbiter Time Setting

(Command 1 : j, Command 2 : r)

GTo adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE

* Refer to ‘Real data mapping 1’.

[j][r][ ][Set ID][ ][Data][ ][Cr]

Ack

[r][ ][Set ID][ ][OK][Data][x]

28. Orbiter Pixel Setting

(Command 1 : j, Command 2 : s)

GTo adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: 3

* Refer to ‘Real data mapping 1’.

[j][s][ ][Set ID][ ][Data][Cr]

Ack

[s][ ][Set ID][ ][OK][Data][x]

29. Picture Size Setting for DW Mode

(Command 1 : j, Command 2 : t)

GTo select the DW picture format.

You can also select the DW picture format using the

SIZE on the remote control.

Transmission

Data Min: 0 ~ Max: 20

* Refer to ‘Real data mapping 1’.

[j][t][ ][Set ID][ ][Data][Cr]

Ack

[t][ ][Set ID][ ][OK][Data][x]

30. Auto Configure

(Command 1 : j, Command 2 : u)

GTo adjust picture position and minimize image shaking

automatically. It works only in RGB (PC) mode.

Transmission

Data 1: To set

[j][u][ ][Set ID][ ][Data][Cr]

Ack

[u][ ][Set ID][ ][OK][Data][x]

* Real data mapping 1

0 : Step 0

A : Step 10 (Set ID 10)

F : Step 15 (Set ID 15)

10 : Step 16 (Set ID 16)

64 : Step 100

6E : Step 110

73 : Step 115

74 : Step 116

C7 : Step 199

* Real data mapping 2

0 : -30

1 : -29

2 : -28

1E : 0

3A : +28

3B : +29

3C : +30

31. Tune Command

(Command 1 : m, Command 2 : a)

GTune Channel to following Physical number.

Transmission

Data0 Min: 0 ~ Max: 7D

Data1~4 Don’t care

Data5 High -> Main channel: 0 Sub channel: 8

Low -> Air : 0, CATV : 1

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ]

[Data3][ ][Data4][ ][Data5][Cr]

Ack

[a][ ][Set ID][ ][OK][Data0][ ][Data1][ ][Data2][ ]

[Data3][ ][Data4][ ][Data5][x]

32. Channel Add/Del

(Command 1 : m, Command 2 : b)

GTo add and delete the channels.

Transmission

Data 0 : Channel Memory

1 : Channel Erase

[m][b][ ][Set ID][ ][Data][Cr]

Ack

[b][ ][OK][Set ID][ ][Data][x]

Owner’s Manual 41

External Control Device Setup

33. Key

(Command 1 : m, Command 2 : c)

GTo send IR remote key code.

Transmission

Data Key code - Refer to page 43.

[m][c][ ][Set ID][ ][Data][Cr]

Ack

[c][ ][Set ID][ ][OK][Data][x]

34. Input select (Command 1 : x, Command 2 : b)

(Main Picture Input)

GTo select input source for TV

Transmission

Data Structure

MSB LSB

[x][b][ ][Set ID][ ][Data][Cr]

Ack

[b][ ][Set ID][ ][OK][Data][x]

0 0 0 0 0 0 0

External Input Data

0 0 0 1 Analog

0010 AV

0 1 0 0 Component

0 1 0 1 RGB-DTV

0 1 1 0 RGB-PC

1 0 0 1 HDMI

External Input Input Number

Input Number Data

0 0 0 0 Input1

0 0 0 1 Input2

35. Input select (Command 1 : x, Command 2 : y)

GTo adjust input source for sub picture in PIP mode

Transmission

Data Structure

MSB LSB

[x][y][ ][Set ID][ ][Data][Cr]

Ack

[y][ ][Set ID][ ][OK][Data][x]

0 0 0 0 0 0 0

External Input Data

0 0 0 1 Analog

0010 AV

0 1 0 0 Component

0 1 0 1 RGB-DTV

0 1 1 0 RGB-PC

1 0 0 1 HDMI

External Input Input Number

Input Number Data

0 0 0 0 Input1

0 0 0 1 Input2

42 Plasma TV

IR Codes

G Connect your wired remote control to the Remote Control port on the Monitor.

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

• 1st frame

Low

custom code

Lead

code

High

custom code Data code Data code

Carrier frequency

FCAR = 1/TC= fOSC/12

Duty ratio = T1/TC= 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

How to Connect

Remote Control IR Code

IR Codes

Owner’s Manual 43

IR Codes

Code (Hexa) Function Note

R/C Button

R/C Button (Power On/Off)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R/C Button

Discrete IR Code (Input TV Selection)

Discrete IR Code (Input VIDEO1 Selection)

Discrete IR Code (Input VIDEO2 Selection)

Discrete IR Code (Input COMPONENT1 Selection)

Discrete IR Code (Input COMPONENT2 Selection)

Discrete IR Code (Input DVI Selection)

Discrete IR Code (Input RGB Selection)

R/C Button

Discrete IR Code (Only 4:3 mode)

Discrete IR Code (Only 16:9 mode)

Discrete IR Code (Only Zoom mode)

R/C Button

Discrete IR Code

CH (D)

CH (E)

VOL (G)

VOL (F)

POWER

POWER ON

POWER OFF

MUTE

EXIT

Number Key 0

Number Key 1

Number Key 2

Number Key 3

Number Key 4

Number Key 5

Number Key 6

Number Key 7

Number Key 8

Number Key 9

TV/VIDEO

TV INPUT

VIDEO1

VIDEO2

COMPONENT1

COMPONENT2

DVI

RGB

SLEEP

APC

DASP

PIP

PIP INPUT

SWAP

SIZE

POSITION

PIP CH+

PIP CH-

ZOOM -

ZOOM +

ARC

ARC (4:3)

ARC (16:9)

ARC (Zoom)

FCR

REVIEW

AUTO PROGRAM

MEMORY/ERASE

MTS

CAPTION

AUTO CONFIG

44 Plasma TV

Programming the Remote

Programming Codes

VCRs

AIWA 034

AKAI 016 043 046 124

125 146

AMPRO 072

ANAM 031 033 103

AUDIO DYNAMICS

012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON

012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

133 140 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

PORTLAND 108

PULSAR 072

QUARTZ 011 014

QUASAR 033 066 075 145

RCA 013 020 033 034

040 041 062 063

107 109 140 144

145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125

SANSUI 022 043 048 135

SANYO 003 007 010 014

102 134

SCOTT 017 037 112 129

131

SEARS 003 008 009 010

013 014 017 020

031 042 073 081

101

SHARP 031 054 149

SHINTOM 024

SONY 003 009 031 052

056 057 058 076

077 078 149

SOUNDESIGN 034

STS 013

SYLVANIA 031 033 034 059

067

SYMPHONIC 034

TANDY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH

012

VICTOR 048

VIDEO CONCEPTS

012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

G The remote control is a multi-brand or a universal remote control. It can be programmed to operate most remote-controllable

devices of other manufacturers.

Note that the remote control may not control all models of other brands.

Programming a code into a remote mode

Programming the Remote

1. Test your remote control.

To find out whether your remote control can operate the component without programming, turn on the component such as a VCR

and press the corresponding the desired component button on the remote control, while illuminating on the selected component.

Test the POWER buttons to see if the component responds properly. If not, the remote requires programming to operate the

device.

2. Turn on the component to be programmed, then press the corresponding the desired component button on the remote control.

3. Simultaneously, press the MENU and MUTE buttons for 2 seconds, the button selected component lights on the remote control.

If you don't press any button for 20 seconds, the button selected component will turn off on the remote control. At a moment,

you have to repeat from step 2.

4. There is a way to find the right code for the component.

Enter a code number using the number buttons on the remote. When pressing the button, the light is blinked at a time.

Programming code numbers for the corresponding component can be found on the following pages. Again, if the code is correct,

the device will turn off.

5. Press the MENU button to store the code. After brinking twice, this code is stored.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

Owner’s Manual 45

Programming code

Audio

APEX DIGITAL 022

DENON 020 014

GE 005 006

HARMAN KARDON 027

JVC 012

LG 001 010 016 025

MAGNAVOX 013

MARANTZ 024

MITSUBISHI 002

NAD 023

ONKYO 008 017

PANASONIC 003 009

PHILIPS 013

PIONEER 004 026

PROCEED 021

PROSCAN 005 006

RCA 005 006

SAMSUNG 011 015

SONY 007

THOMPSON 005 006

TOSHIBA 019 008

YAMAHA 009 018

ZENITH 010 016 025

DVD

ALPHASTAR DSR

123

AMPLICA 050

BIRDVIEW 051 126 129

CHANNEL MASTER

013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230

AKAI 163

ANAM 003 014 017 023

059 106 189 216

217 235 236

BURMECTER 252

CARVER 086

CLARION 199

DAEWOO 027 053 060 084

102 148 198 221

DENON 015 075 130 143

FANTASIA 071

FINEARTS 022

FISHER 089 099

LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239

HAITAI 034 035 188 222

HARMAN/KARDON 068

INKEL 037 058 062 069

078 079 095 121

122 149 150 151

INKEL 152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141

KEC 185 186 187

KENWOOD 038 050 067 089

170 171 197 206

215 222

KOHEL 030

NAD 045 046

LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

LXI 103

MAGNAVOX 111

MARANTZ 002 018 020 025

034 041 081 090

097 112

MCINTOSH 049

MCS 104

MEMOREX 107

NAD 046

ONKYO 013 040 041 047

048 056 057 132

133 140

OPTIMUS 158

PANASONIC 007 033 064 113

142 220 241 251

PENNEY 104

PHILIPS 026 112 143

PIONEER 039 042 043 063

065 091 093 094

115 123 127 250

QUASAR 113

RCA 080

RCX 092

REALISTIC 103 106

SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246

SANSUI 011 135 138 144

SANYO 019 083 234

SCOTT 106 186

SHARP 031 032 051 052

SHARP 072 082 117 119

156 184 199 200

206 209

SHERWOOD 005 006 158

SONY 044 045 109 114

118 126 248 249

TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

CATV

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053

AJIN 112

ANTRONIK 014

ARCHER 005 007 014 024

CABLE STAR 026

CENTURION 092

CENTURY 007

CITIZEN 007

COLOUR VOICE 065 090

COMBANO 080 081

COMTRONICS 019 030

DIAMOND 023

EAGLE 020 030 040

EASTERN 057 062 066

ELECTRICORD 032

GE 072

GEMINI 008 022 025 054

GI 052 074

GOLDEN CHANNEL

030

HAMLIN 049 050 055

HITACHI 052 055

HOSPITALITY 070 077

JERROLD 002 003 004 008

009 010 052 069

074

LG (GOLDSTAR) 001 106 101 005

M-NET 037

MACOM 033

MAGNAVOX 010 012 064 079

MEMOREX 100

MOVIE TIME 028 032

NSC 015 028 038 071

073

OAK 016 031 037 053

PANASONIC 044 047

PARAGON 100

PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016

PRUCER 059

PTS 011 048 071 072

073 074

PULSAR 100

RCA 047

REGAL 049 050

REGENCY 057

REMBRANT 025

SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046

SHERITECH 022

SIGNAL 030

SIGNATURE 052

SL MARX 030

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030

TADIRAN 030

TAEKWANG 110

TAIHAN 105

TANDY 017

TEXSCAN 029

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

46 Plasma TV

Troubleshooting Checklist

No output from one of

the speakers •Adjust Balance in the Sound menu. (Refer to p.27)

Unusual sound from

inside the TV

•A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with

the TV.

No picture &

No sound

•Check whether the TV is turned on.

•Is the power cord inserted into wall power outlet?

•Test the wall power outlet, plug another product’s power cord into the outlet

where the TV’s power cord was plugged in.

No or poor color

or poor picture

•Select Color in the Picture menu and press the VOLUME (G) button.

(Refer to p.18)

•Keep a sufficient distance between the TV and the VCR.

•Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

•Check to see if there is any object between the TV and the remote control

causing obstruction.

•Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p.8)

•Correct remote operating mode set: TV, VCR etc.?

•Install new batteries. (Refer to p.8)

Picture OK &

No sound

•Press the VOLUME (G) button.

•Sound muted? Press MUTE button.

Picture appears slowly

after switching on

•This is normal, the image is muted during the TV startup process. Please

contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking •Check for local interference such as an electrical appliance or power tool.

Troubleshooting Checklist

roubleshooting Checklist

Owner’s Manual 47

Specification

Product Specifications

•The specifications shown above may be changed without notice for quality improvement.

MODELS 42PX4RV-UC

48.4 / 1210

27.6 / 701

11.6 / 295

76 / 34.6

852 x 480 (Dot)

AC100-240V, 50/60Hz

NTSC, PAL-M/N

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

MODELS 50PX5R-UC

55.1 / 1400

32.3 / 821

3.9 / 99

115 / 52.15

1366 x 768 (Dot)

AC100-240V, 50/60Hz

NTSC, PAL-M/N

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

48 Plasma TV

Notes

Owner’s Manual 49

Notes

50 Plasma TV

Notes

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it

proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”)

listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This war-

ranty is good only to the original purchaser of the product and effective only when used in the United States, includ-

ing Alaska, Hawaii, and U.S. Territories.

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV

typically contain a small number of pixels that do not function normally. Your display has been inspected and is in

compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use

of your display.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights that vary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute

model or factory reconditioned unit, at LGE’s option. If

repaired, parts used in the repair may be new or remanufac-

tured.

Replacement Units and Repair Parts are warranted for the

remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period

begins on the date of sale to the original consumer/end user.

KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be

required to submit a legible copy of your bill of sale or proof

of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s

dated bill of sale or delivery ticket as evidence

of the Date of Purchase for proof of warranty,

and submit a copy of the bill of sale to the ser-

vice person at the time warranty service is pro-

vided.

Please call 1-800-243-0000 to locate your

nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your

product online. This information will allow us to reach you promptly should we discover a safety or reliability prob-

lem that could affect you.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

http://www.lgservice.com

FOR SERVICE:

Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not

be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to the LG®Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory

warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently

owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before

returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product

information or Dealer or Service locations

Call 1-800-243-0000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

●damage caused in shipping or transit

●service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner’s manual for power supply

requirements)

●installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or

LG Electronics USA 42PX4RVMC Plasma Display Panel User Manual 542Aen

LG Electronics USA Plasma Display Panel 542Aen

User Manual

Navigation menu

Namespaces

Views

Navigation
