User Manual Part 2

60 Plasma TV

Operation

Recorded TV

On playing the recorded program, edit a section

- You can save the desired screen in the recorded program list after editing the recorded program..

1. At the point of desired start , press the button.

• The progress bar which be editied will be showed the red color.

• It can be possible as search (FF or GG), pause while editing the section.

2. At the point of desired finish , press the button.

• Stop editing the section.

3. Repeatedly play the above 1,2 phase, it can be possible to edit some programs.

4. If you press the button to stop the recorded program playback, this message is displayed as shown below.

•Save: Save contents of editing the section and finish the playback

of recorded program.

•Undo: Don’t save contents of editing the section and finish the

playback of recorded program.

•Cancel: The screen is disappeared and the playback is continued.

Notes:

• It can be possible to play on the recording / reserved recording

• It can be possible to occur a noise by a hard-disk on playing the recorded program. The noise is irrelevant the profi-

ciency and creditability of product, the noise occurred more than adequate is the same as good product.

• In case saving the content of editing the section, delete the portion not to select.

• When power off on editing, It can be possible not to save the content of editing. You do press the STOP (

JJ

)button

after checking the recording list.

• Editing the section can be possible to the maxium of 10.

• You can not save editing of less than 10 seconds.

Owner’s Manual 61

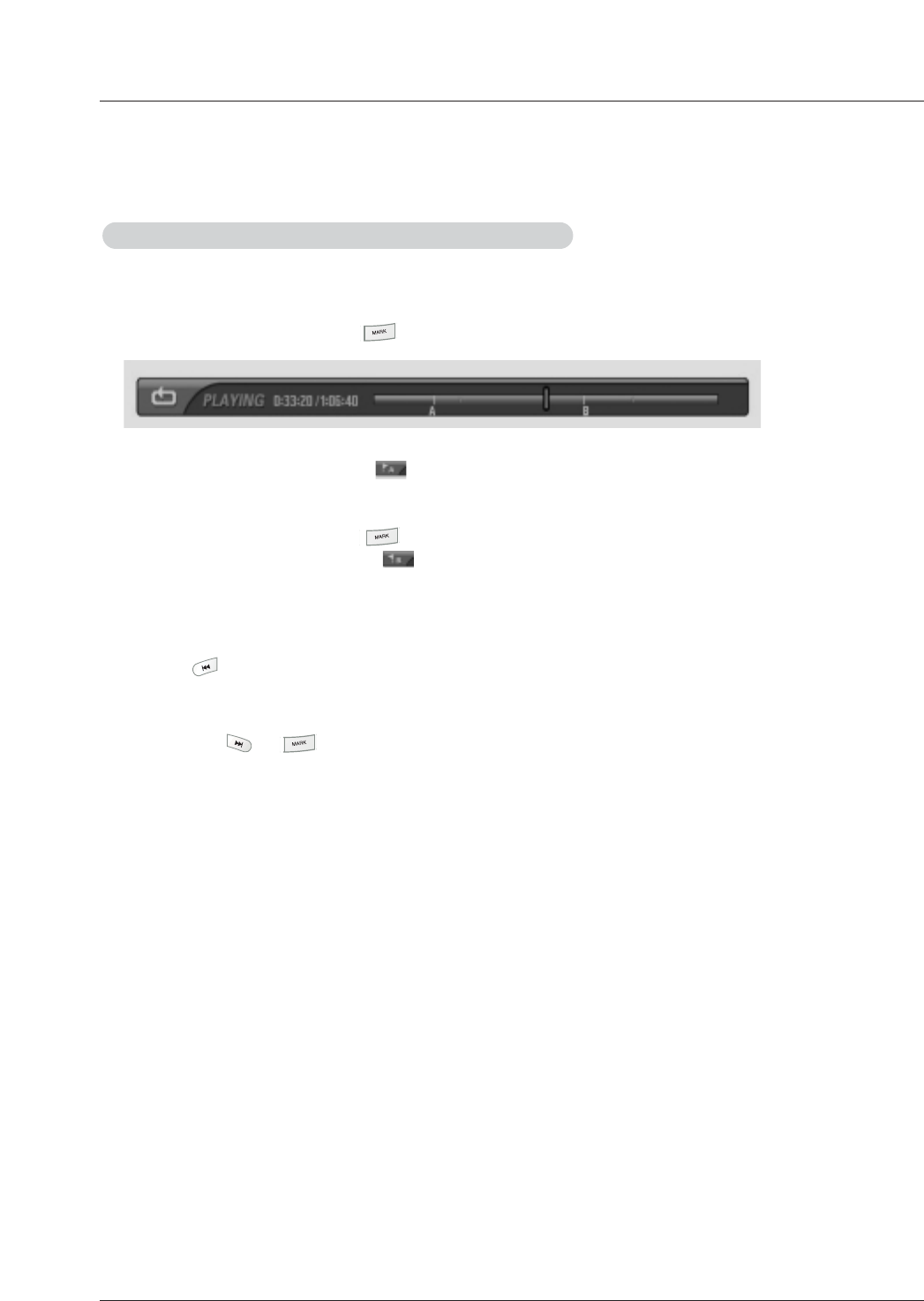

On playing the recorded program, repeat a section

- You can set the section and repeatedly view on playig the recorded program.

1. At the point of desired start, press the button.

• At start points, it is showed as marking .

2. At the point of desired finish, press the button.

• At finiah points, it is showed as marking .

• Repeatedly play the marked section.

• You can not make sections of less than 5 seconds.

• The progress bar which be repeated will be showed the blue color.

3. Press the button to move the position of the start point.

• Return to the start point of marked section and then start the playback.

4. If you press the or button to stop playing the repeat section.

Notes:

•It can be possible a function as search (Rew / FF), Pause, edit a section while repeating a section.

• When setting the section of start and finish, it can be possible both of Rew and FF.

62 Plasma TV

Operation

What is Memory Card

Precaution for Using the Memory Card

Notes on Memory Card

This is a device equipment to communicate the data between AV external equipment. It’s used to a digital cam-

era, camcorder, MP3 player, notebook or PDA.

- Insert the memory card correctly.

- Don’t insert the metal substances into the slots of the memory card.

- Do not bend, drop or apply strong shock to memory card.

- After pulling the memory card out from the TV, please keep the memory stick in a appropriate case to prevent

static shock.

- The stored data may be changed or lost as a result of misuse, static electricity.

- Do not turn the power off while using the memory card (loading or erasing).

- Don’t eject the memory card while using the it. Otherwise, it may cause a data loss or card damage.

- Only Insert one card to each slot.

- To prevent a change or loss for stored data, don’t misuse the TV or don’t let static electricity or electrical noise

for TV.

- This Company takes no responsibility for problems such as the damage or malfunction that occurs while using

the TV set, inappropriate TV settings, or any other reasons, except for defects or malfunctions intrinsic to the

product.

- Ensure to use a memory card that lists the manufacturers name and serial number.

- The manufacturer shall not be responsible for damaged data. Be careful to avoid data damage, and back up

your files.

- Make sure to comply with the following steps when ejecting a memory card.

- Each Memory Card is complied with standard.

Owner’s Manual 63

Operation

WInserting a Card

1. Insert the Memory Card to Memory card slots of TV side panel.

2. Two slots support defferent types of the Memory Cards.

3. If Memory Card is not inserted, each slot is disable.

WEjecting a card

1. Press the M/C EJECT button on the remote control.

2. Select the Slot 1 or Slot 2 based on the inserted card location.

If selecting Cancel, OSD is disappeared.

3. Eject the card with the hand.

Note: If you insert or eject a card in one slot while the card in another slot (slot 1 or slot 2) is in use, the product can

run abnormally.

1.Using the Memory Card

Entry Modes- 1.Using the Memory Card / 2. Enter the HOME Menu

Caution: Before you remove the memory card from the slot, do

not forget to press the M/C EJECT button on the

remote control and make it safe to eject the memory

card, or the memory card may be damaged.

How to insert and eject the Memory Card

label-side

upward

50/60PY2DR 50PX4DR

64 Plasma TV

Operation

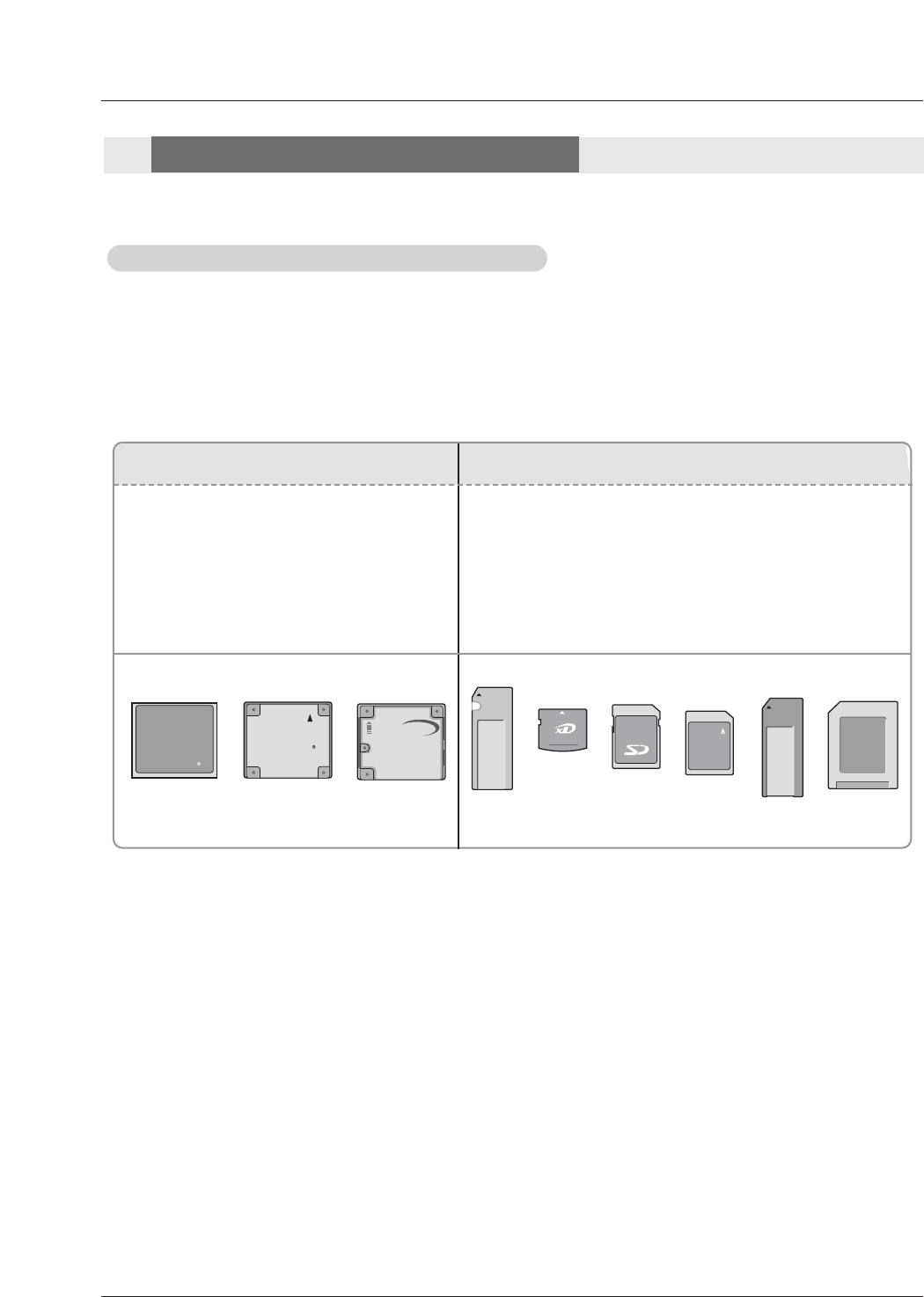

Memory Card type and Memory Card capacity

- 9 types of Memory Card can be used for this Plasma TV.

- Playback speed can vary dependent on the card type.

-Unsupported or damaged photo or music files can cause errors. Do not try to change the file extension of unsupported file --

-types to the file extension of supported file types.

Slot 1 Slot 2

•CF (CompactFlash) : 4GB

•MD (Microdrive) : 4GB

•CF+|| (MagicStor) :2.2GB

*MagicStor Plus card is not is complied

with the TV.

•SD (Secure Digital) : 1GB

•MMC (MultiMedia Card) : 1GB

•MS (Memory Stick) :128MB

•MS Pro (Memory Stick Pro) : 1GB

•SMC (Smart Media Card) : 128MB

•xD (xD-Picture Card) : 512MB

CompactFlash

Microdrive

magicstor

SmartMedía

EMORY

TICK

PRO

Secure Digtal

xD-Picture Card

MultiMediaCardTM

MEMORY STICK

Notes on Memory Card

Owner’s Manual 65

Operation

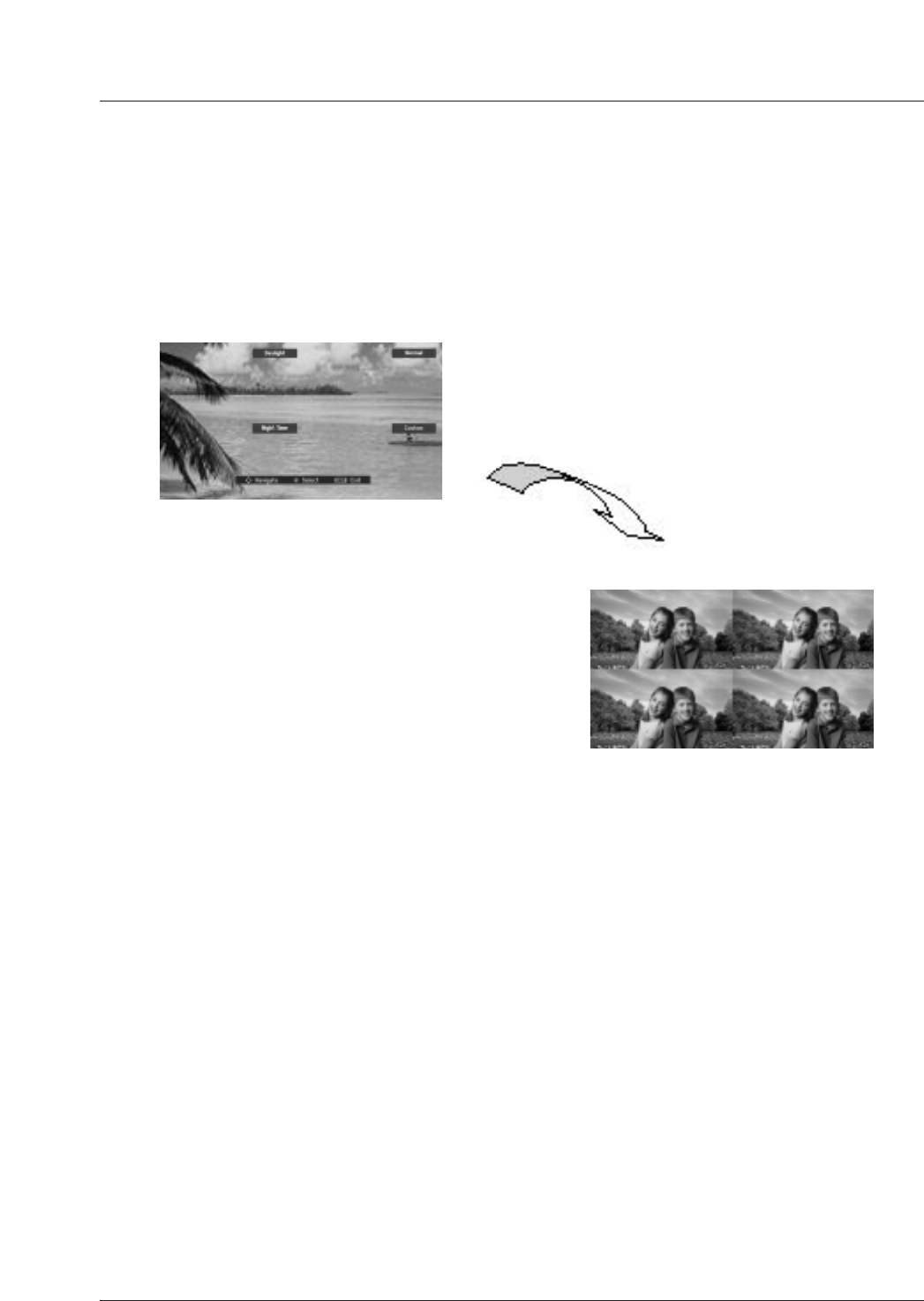

1. In HOME menu, use D/Ebutton and then use the ENTER or

Gbutton to select the Photo List .

2. Use D/Ebutton to select the HDD/Memory Card 1/

Memory Card 2 and then you will see a screen filled with

thumbnail photos (pic.C,D).

-2.

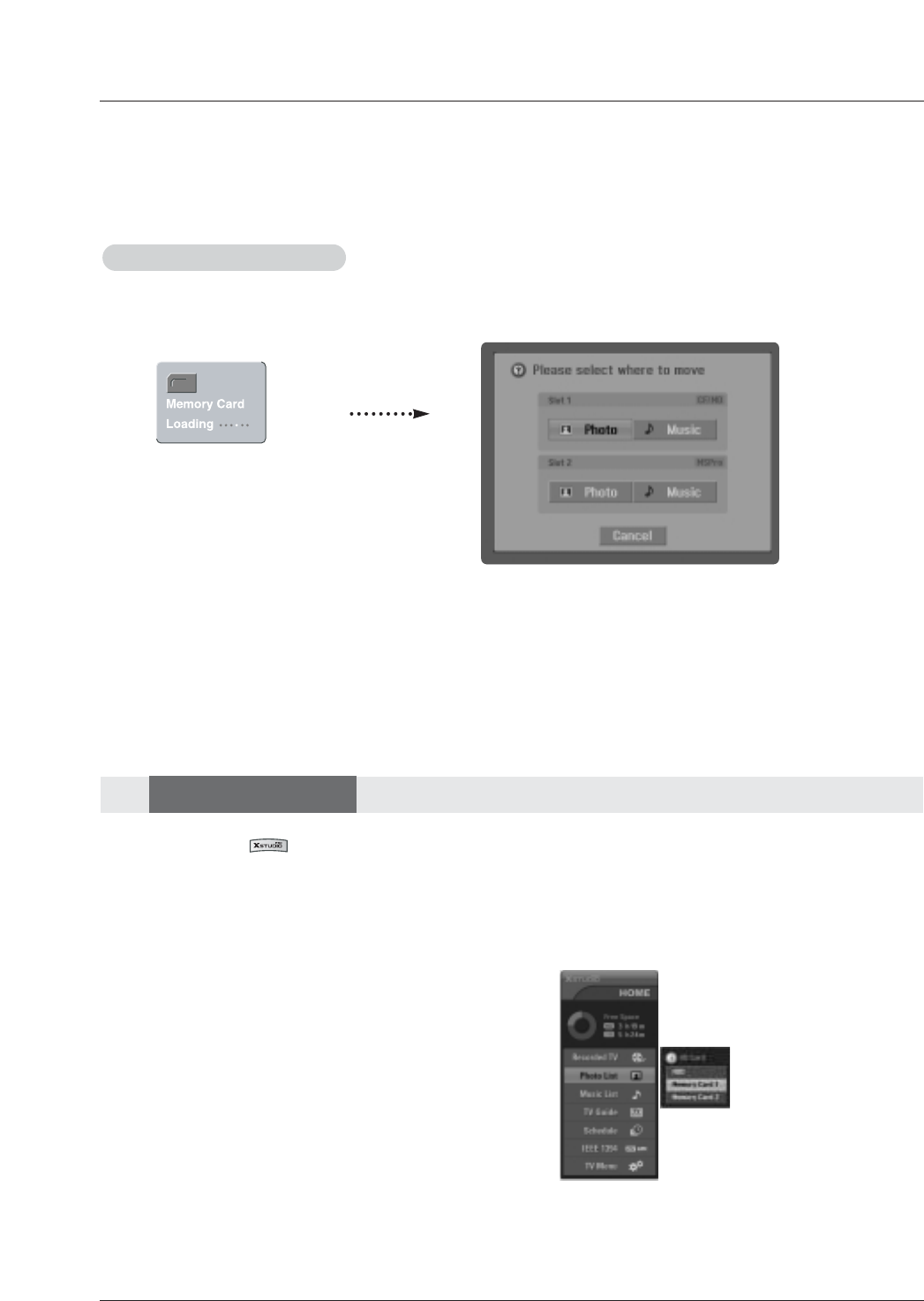

Enter the HOME Menu

- When you press the button, HOME menu is displayed.

It’s available to playback and copy the Photo file of Memory Card.or HDD.

The total storage space of photo file is 10GB.

- When you plug the Memory Card, this screen is displayed, automatically.

B. C.

1. Press the F/Gbutton to select Photo/Music.and use D/Ebutton to select Slot1 or Slot2.

2. Press ENTER button to move to Photo List/Music List of the each slot. (Directly move to p.59,(C))

Note: In 30 seconds later, 'Loading" message is disappeared.

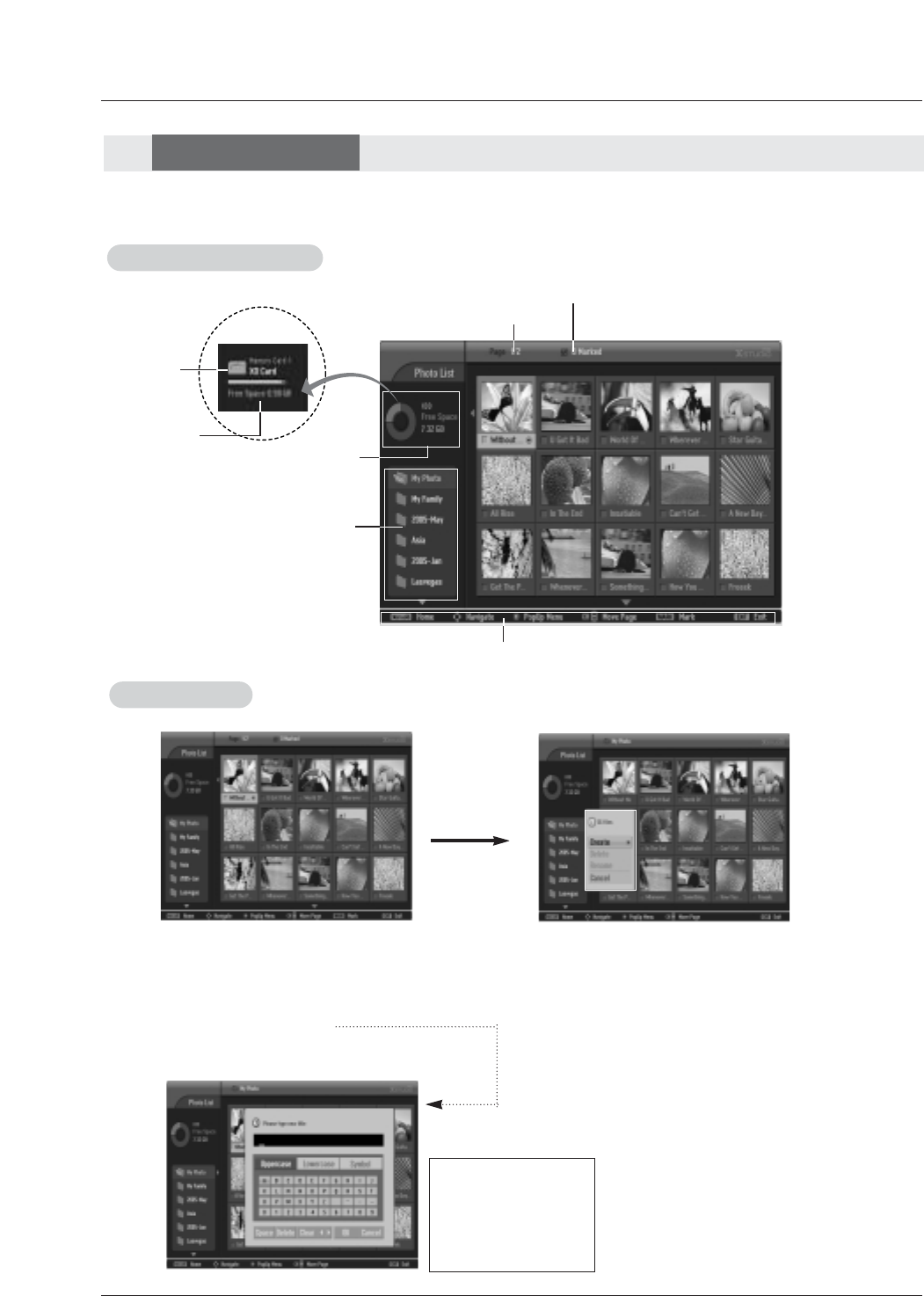

Photo List

Select the Photo or Music

66 Plasma TV

Photo List

Operation

3. Select the desired folder in the folder list and then press the ENTER button to view the detailed menu.

•Create:Create new folder.

•Delete:Delete folder (except ‘My Photo' )..

•Rename:Edit folder name.

•Cancel:Close the detailed menu.

-> Use the D/E/F/G

button to input the

wanted name.

-> And then select OK

and press the ENTER

button to save.

Screen Components

Usable HDD

Folder List

Current page/Total page

Marked thumbnail photo number

Direct Buttons

Usable Card

memory

Card type

Folder List

Owner’s Manual 67

Operation

- As shown, up to current thumbnail photos listed per page.

1. Use the CH D/Ebutton to navigate in the thumbnail photo page.

2. Use MARK button to mark or unmark a photo. When one or more photos are marked, you can view or slide show only

the marked ones. If no photo is marked, you can view or slide show all photos in the folder.

3. Use D/E/F/Gbutton to navigate the appropriate thumbnail photos, then press the ENTER button to show the PopUp

•View:Display the selected item.

Change from still image to slide show by pressing the PLAY (G)button.

•Slide Show:Start a slide show of all photos in the folder. The slide show state can be changed to the view state by

pressing the PAUSE (||) button. Before start a slide show, you can choose the slide show interval (3,6 or

9 seconds).

•Mark All:Mark all photos on the screen.

•Unmark All:Unmark all marked photos.

•Move:Only HDD mode, move the selected photo of this folder to another folder.

•Delete:Delete the selected thumbnail photo. This menu is only available in HDD mode.

•Copy to M/C:Copy the selected photo in the HDD to the Memory Card.

This menu is only appeared in HDD.

•Copy to HDD:Copy the selected photo in the Memory Card to the HDD. At this time, you can also make new folder.

This menu is only available in Memory Card mode.

•Cancel:Close the pop-up menu.

4. Repeatedly, press EXIT button to return to TV viewing or press button to return to the previous menu.

HDD mode Memory Card

1or 2

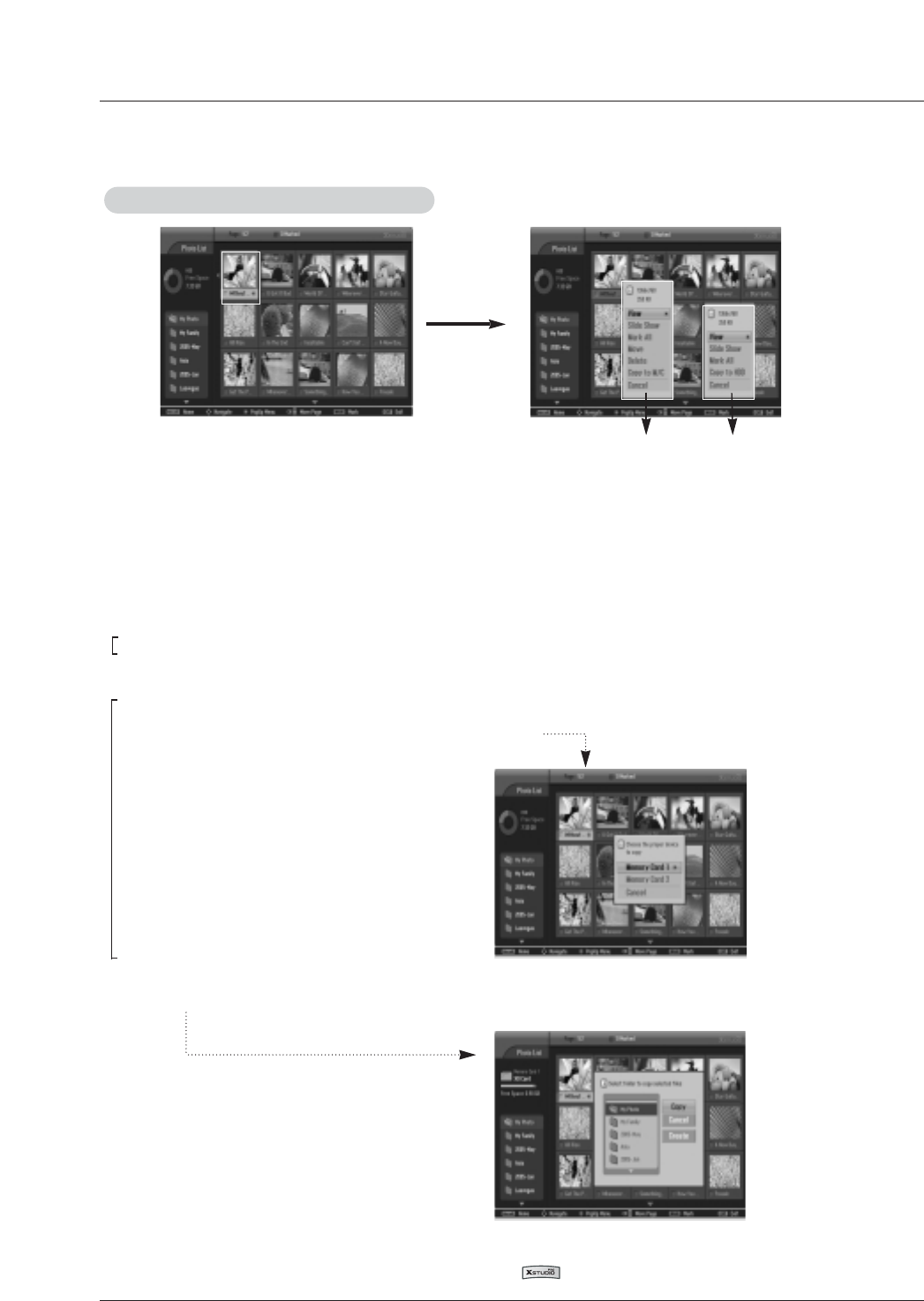

Photo Selection and PopUp Menu

68 Plasma TV

Operation

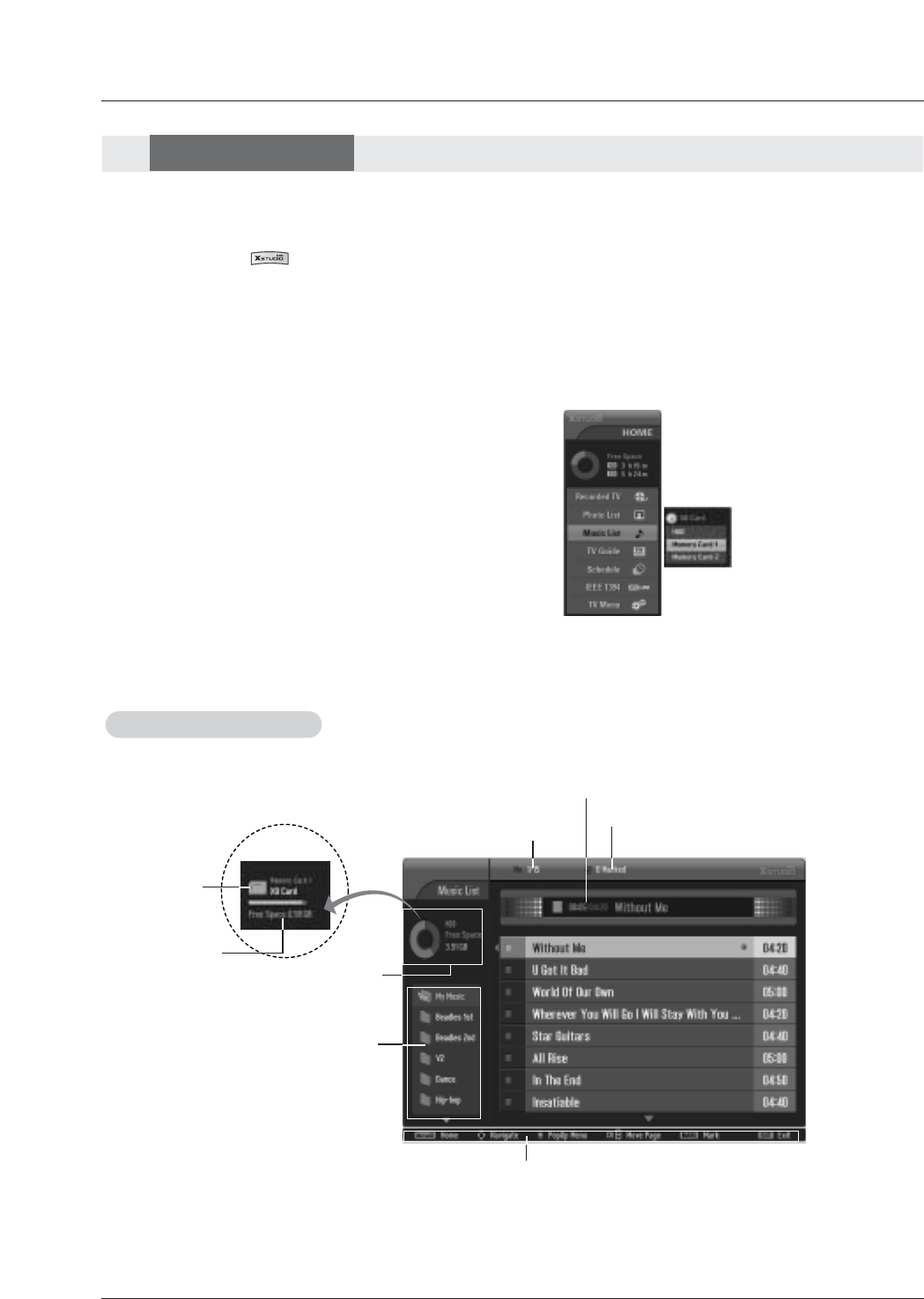

1. Use D/Ebutton and then use the ENTER button or Gbutton

to select the Music List .

2. Use D/Ebutton to select the HDD/Memory Card 1/

Memory Card 2 and then you will see a list of music titles

(pic.C,D).

- Purchased MP3/music files may contain copyright restrictions. Playback of these files may not be supported by this

model.

- When you press the button, HOME menu is displayed.

It’s available to play and copy the Music file of Memory Card or HDD.

The total storage space of music file is 10GB.

Music List

Screen Components

Usable HDD

Folder List

Current page/Total page

Marked music title number

Direct Buttons

Usable Card

memory

Card type

Current playing time/Total playing time

Owner’s Manual 69

Operation

3. Select the desired folder in the folder list and then press the ENTER button to view the detailed menu.

•Create:Create new folder.

•Delete:Delete folder (except ‘My Photo’).

•Rename:Edit folder name.

•Cancel:Close the detailed menu.

-> Use the D/E/F/G

button to input the

wanted name.

-> And then select OK

and press the ENTER

button to save.

HDD mode

Memory Card

1or 2

- As shown , up to 8 music titles are listed per page.

1. Use the CH D/Ebutton to navigate in the music titles page.

2. Use MARK button to mark or unmark a music title. When one or more music titles are marked, the marked music will

be played by turns. For example, if you want to hear only 1 music repeatedly, just mark the music only and play it. If

no music title is marked, all the music in the folder will be played by turns.

3. Use D/E/F/Gbutton to navigate the appropriate music titles, then press the ENTER button to show up the pop-up

menu.

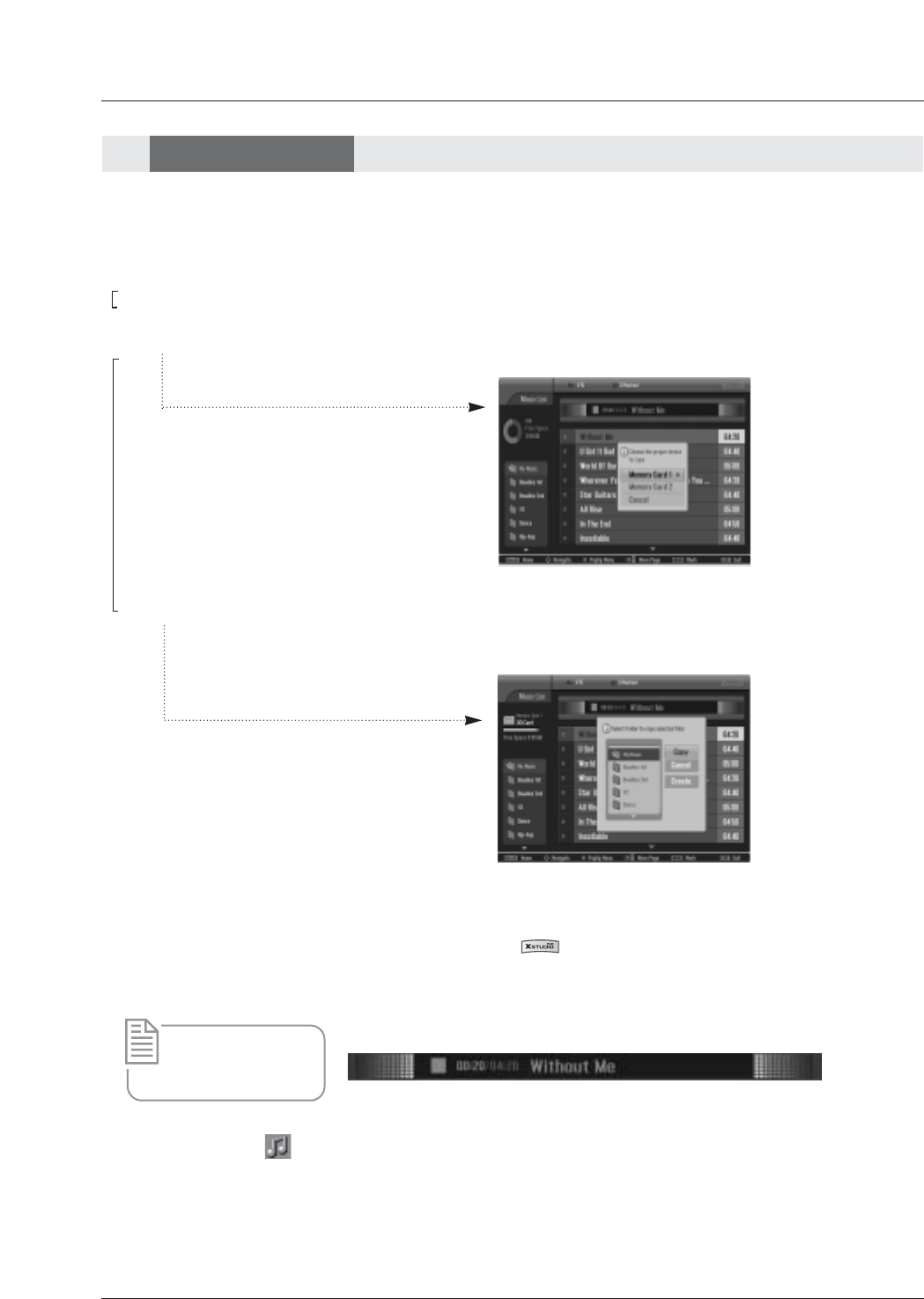

Music title Selection and PopUp Menu

Folder List

70 Plasma TV

Operation

•Play: Play the selected music.

•Stop Play: Stop playback.

•Play With Photo: Start playing the selected music and then move to the Photo List.

•Mark All: Mark all music titles in the folder.

•Unmark All: Change marked musics to unmarked music titles.

•Move: Move the selected music titles of this folder to another folder.

•Delete: Delete the selected music titles. This menu is only available in HDD mode.

•Copy to M/C: Copy the music titles in the HDD to Memory Card.

This menu is only available in HDD mode.

•Copy to HDD: Copy the selected music titles in the Memory Card to the HDD. At this time, you can also make new

folder. This menu is only available in Memory Card mode.

•Cancel: Close the pop-up menu.

4. Repeatedly, press EXIT button to return to TV viewing or press button to return to the previous menu.

- If you don't press any button for 40 seconds, the play information box (as shown in the below) will float

as a screen saver.

Notes:

• When music is playing, is displayed in front of the music title.

• If you press any button except VOL

,MUTE,

,II,

Ibuttons, screen saver is stopped.

• The

,II,

Ibuttons on the remote control are also available in this mode.

* The ‘Screen Saver’?

Screen saver operates

to prevent fixed image.

Music List

Owner’s Manual 71

Operation

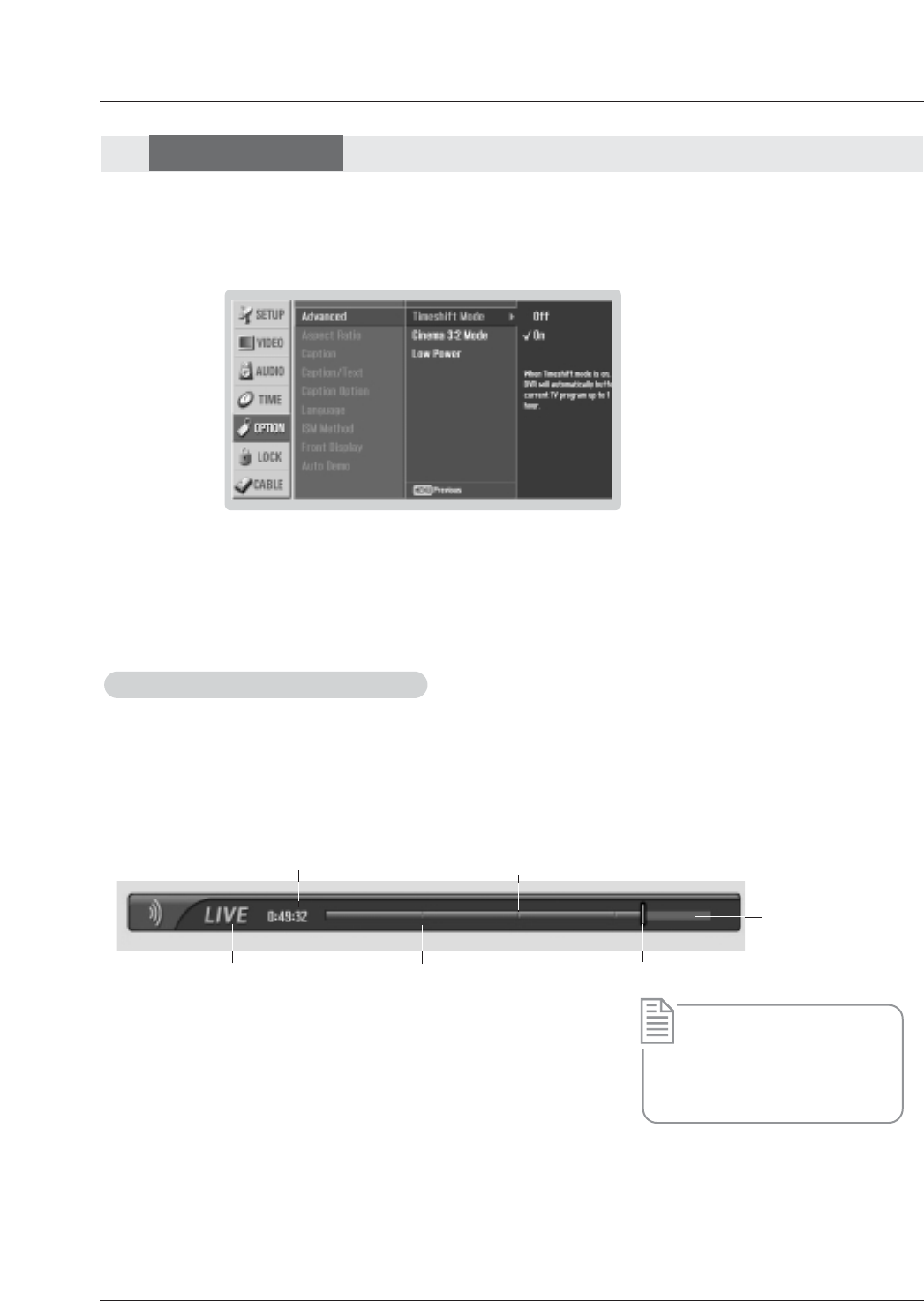

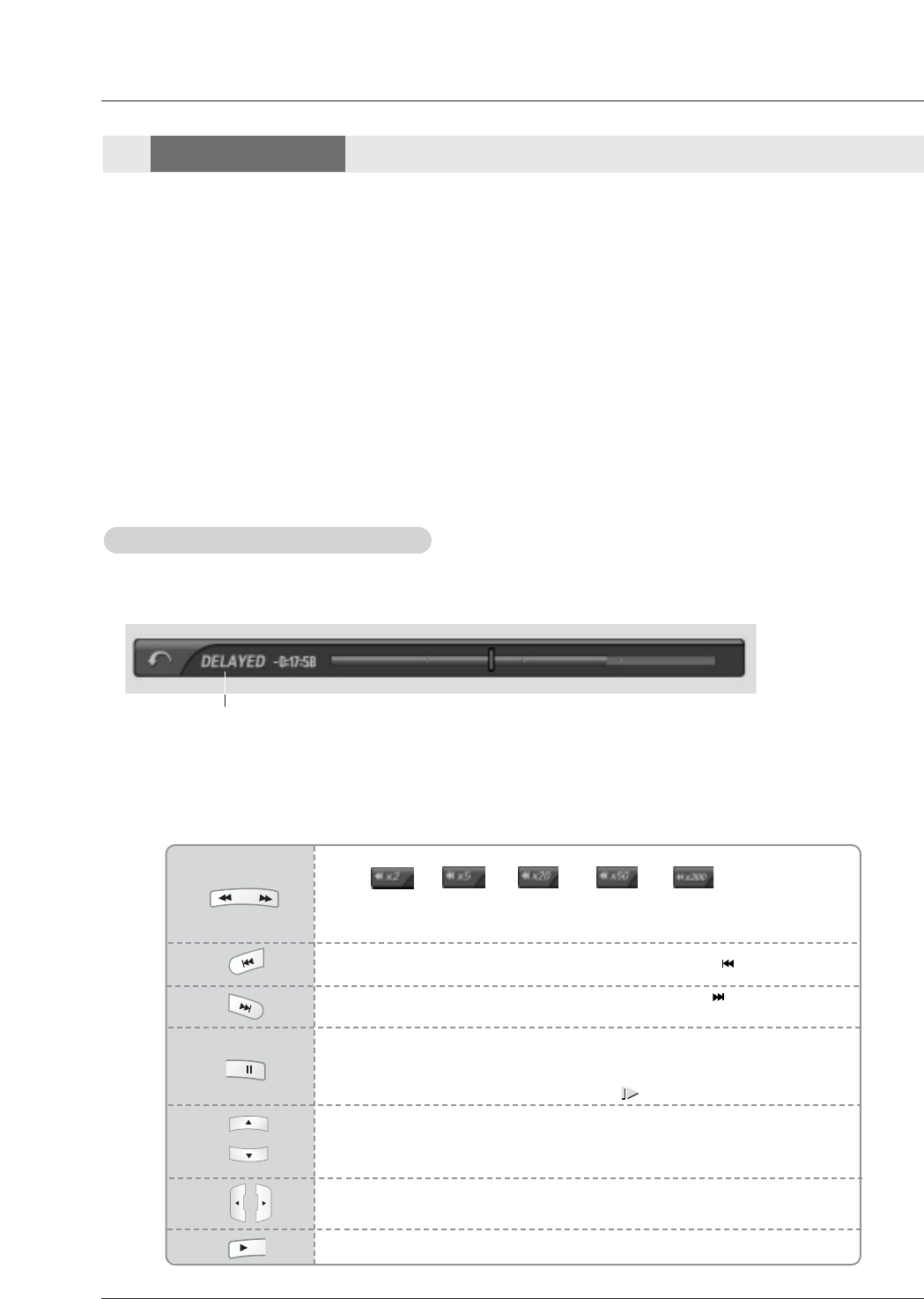

- This function allows the unit to automatically record live TV and make it available for reviewing at any time.

With Auto Buffering turned on, you may pause and rewind normal TV viewing at any time without missing

any of the live broadcast.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Advanced.

3. Press the Gbutton and then use D/Ebutton to select the TimeShift Mode.

4. Press the Gbutton and then use D/Ebutton to select On or Off.

1. After selecting the TimeShift Mode On, press the ENTER button. .

• As soon as Timeshift starts, a progress bar indicating current recording status is displayed in the bottom of

the screen. ( Timeshift ‘Progress Bar’ is shown below)

• Press the EXIT button to hide the ‘Progress Bar’. Pressing the ENTER button will display the 'Progress Bar'.

• Stay The TimeShift even change a channel on Timeshift.

* The ‘Progress Bar’?

This function indicates a possible

PVR reshowing section ,a current

on-screen and real on-broadcast-

ing position, a section of section-

recording.

1. Indicates status of current displayed video.

2. Indicates current save time.

3. Indicates 15 minute intervals from Timeshift start time. (Total - one hour).

4. Indicates Timeshift elasped time.

5. Indicates current Timeshift position.

TimeShift

imeShift

Progressing the

Progressing the T

Timeshift function

imeshift function

72 Plasma TV

Operation

- If you wish to return to a initial portion of Timeshift, press the button.

- On progressing Timeshift, It can do a diversified playing .

Notes:

•PVR (Personal Video Recorder) : A device which records and plays broadcast program contents

onto a hard disk in TV or SET TOP BOX.

•If available hard-disk space is low when TimeShift is initiated, It will disappear automatically from the oldest part.

•In order to save hard-disk space, no storage is done when there is no signal.

•The total storage space of hard-disk is 160GB, there are 10GB minimum reserved for TimeShift.

•When turning power on, it may take up to 3 minutes to initialize the HDD.

•The TimeShift function will not initiate for a copy-protected program.

•Because an analog broadcast is transfered to a digital signal, video that contains rapid movement may

show "cross stripes". This happen when the analog signal is compressed and then restored in the digital

signal. The unit will attempt to soften the video in order to reduce this effect of excessive picture noise.

•When using the PIP/POP mode, Component 1/2 TimeShift is stopped.

2. When finishing the Timeshift function, enter the Menu and then Timeshift Mode is to be Off.

Indicates that the current broadcast

and displayed video differ.

On progressing the

On progressing the T

Timeshift, play

imeshift, play

WUsing the remote control

- When playing, press the REW (FFF)or FF (GG)button.

• Like -> -> -> -> in a row.

2 times 5 times 20 times 50 times 300 times

• If the button is pressed continuously, it changes like above. If the button is taken

away, it changes a normal playback.

• If you wish to return to the current live broadcast, press the button.

(Indicator will change to LIVE)

- You can shift playback to any point within playing the recorded program

- During playback, press the Pause ( II ) button.

• Still screen is displayed.

• Repeatedly press the Pause ( II ) button to advance frame by frame.

• When pressing the Pause ( II ) button, longly, will be showed.

• If you press the D/Ebutton on piaying, the screen will be jumped back and forth

in the current screen.

• Pressing the Dbutton, the screen will be jumped 20 seconds in the front.

• Pressing the Ebutton, the screen will be jumped 8 seconds in the back.

• After moving the cursor using the F/Gbutton on playing, the point of the cursor is

directly viewed on the sereen.

- Press the PLAY (G)button to return to a normal playback.

TimeShift

imeShift

Owner’s Manual 73

Operation

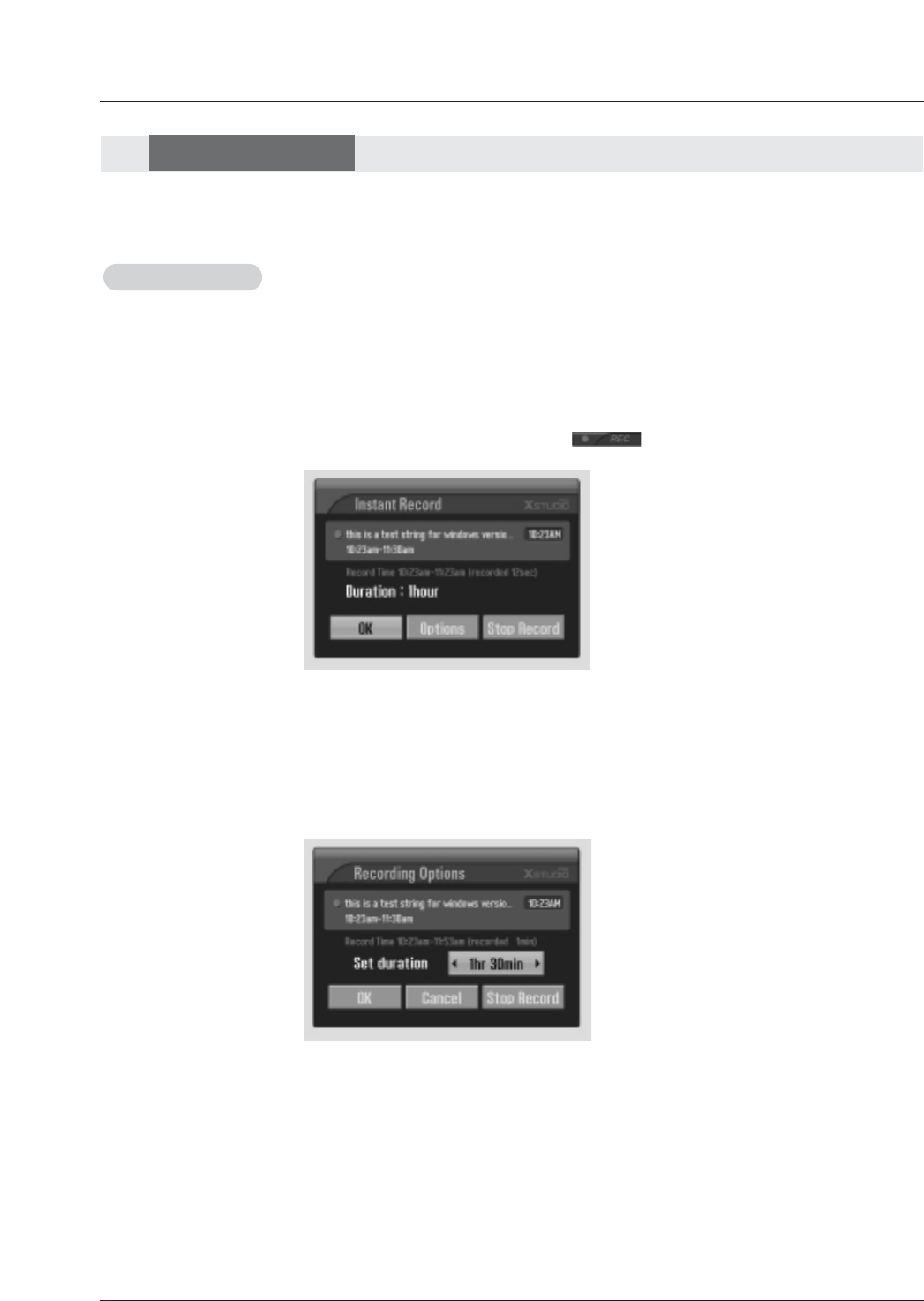

- This function is able to record channel watched on main screen of an Analog or Digital broadcasting.

- This function records the currently displayed channel.

1.Select the desired channel to record while watching program and then press the RECORD (Ó) button.

2. Use the F/Gbutton to select the OK ( as shown below A.) or Options or Stop Record. If you select the OK or press

the RECORD (Ó) button in the TV mode, recording will start as marking, and recording will begin with basic

settings.

3. You can select the Stop Record to stop the recording.

4. You can set the duration of the recording by selecting Options and then ENTER button, then the recording time is dis-

played. Press the F/Grepeatedly to adjust the recording length. Each press of F/Gbutton changes the recording

duration in the sequence shown below.

30min -> 1hour -> 1hr 30min -> 2hr -> 2hr 30min -> 3hr

Recording

Instant Record

74 Plasma TV

Operation

Recording

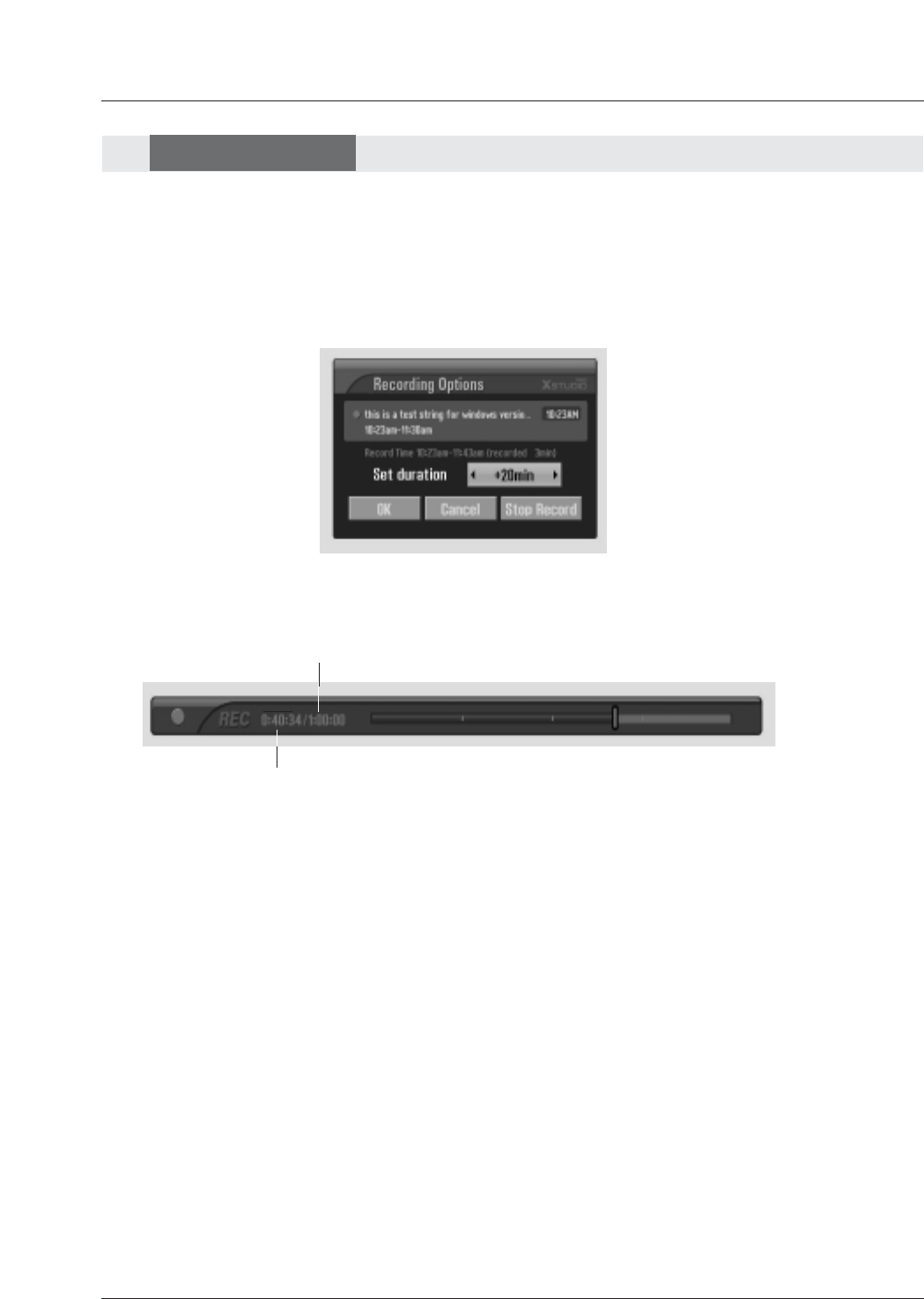

6. After adjusting the recording time, select OK and the progress bar will be displayed.

Total recording duration

Elapsed recording time

• Press the EXIT button to hide the Progress Bar. Press the ENTER button to display the progress bar.

7. Press the STOP (V) to stop recording, or, when the recording duration is reached, the HD DVR will stop recording.

Although recording has stopped, the Timeshift features remain active.

Notes:

•When recording, if the available storage space becomes low, the recording will be automatically end.

•If power is interrupted or turned off too soon after recording, the program may not be saved. Therefore, first press the

(

) button and confirm the recording list, before powering the unit off.

•If you press the POWER button while recording, the Screen Saver will initiate and recording will continue.

•Recordings of less than 10 seconds will not be saved.

•To save the disk space while recording analog or digital screen, no data is saved when no signal is present.

•The recording function will not initiate for a copy-protected program.

•After recording, marked times may be somewhat different from actual times.

•In no signal or film source, marked times may be different from actual times.

5. You can also add recording time by pressing the RECORD (Ó) button during the Instant Record. Press the FF/Grepeat-

edly to add to the recording time. Each press of F/Gbutton changes the recording duration in the sequence shown

below.

No Change -> +10min -> +20min -> +30min -> +40min ->+50min -> +1hr

The extra recording time added to existing setting value makes final recording time length.

Owner’s Manual 75

Operation

Record

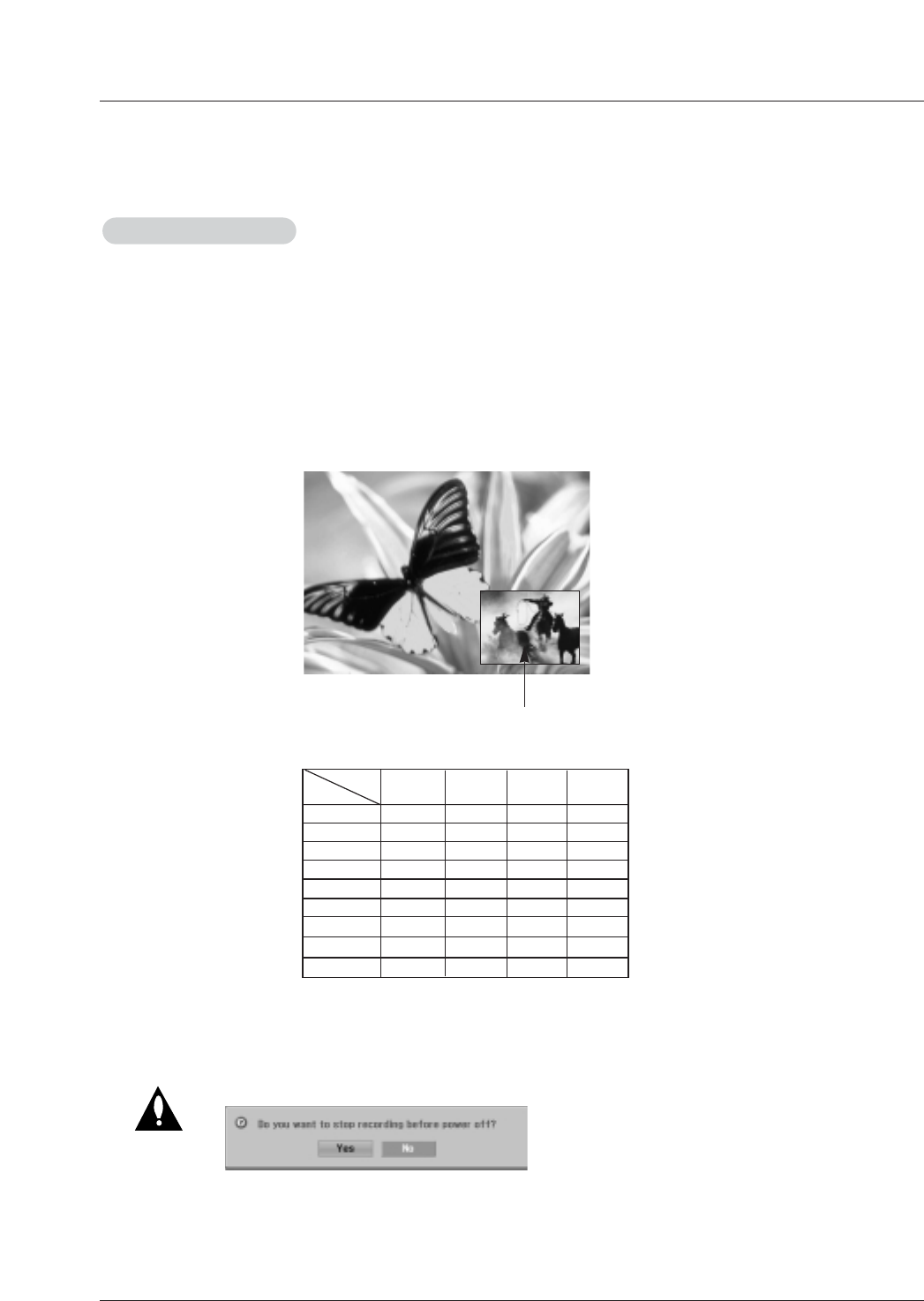

- While recording, you can change channels or inputs, without disturbing the recording. And the screen being

recorded will be shown in the lower-right corner of the main screen.

1. After starting an Instant Record or Reserved Record, change the channel or input.

•You can check the screen being recorded in the lower-right corner the main screen (as shown below).

•Press the PIP button to cancel or show the screen being recorded.

•Press the SWAP button to return the screen being recorded in Watch & Record.

•When changing to the channel being recorded in Watch & Record, screen is changed to Instant Record state or

Reserved Record state.

screen being recorded

•Watch & Record Input

X00

Digital

Analog

Video

Front Video

Component1

RGB-PC/DTV

HDMI1/DVI

Digital Analog Video Front Video

00 00

Watch

Note: When digital broadcast is being recorded, another digital broadcast can not be tuned.

Watching & Record

atching & Record

- if you turn the power off on recording, this message is displayed as shown below.

- If you selects Yes, recording stops and then power is off.

And if you selects No, recording stops and then power is off.

HDMI2 00 00

Component2

76 Plasma TV

Operation

Overview

-Your new TV contains the TV Guide On Screen Interactive Program Guide.

-The TV Guide On Screen system has features that help you get the most out of your viewing

experience.

TV Guide On Screen Overview

The TV Guide On Screen system has the following features:

•Eight days of show listings (today plus seven days).

•Icons that indicate show rating, stereo, HDTV, new episode, etc.

•Intuitive up/down/left/right navigation using your remote control.

•Set shows to Record.

•Schedule show Reminders.

•Search shows by category (e.g., Movies, Sports, Children, etc.).

•Search for shows based on keywords or alphabetically by title.

•Direct tuning to a channel.

•Show information while watching TV.

•Streamlined System Setup and default setting options.

•Channel lineup customization.

•Help screens while in the Guide.

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 77

Operation

Screen Components

-The screens displayed in the TV Guide On Screen system share many of the same compo-

nents, as shown in the following figure:

•Video Window - displays TV video while the Guide is displayed

•Service Bar - provides access to the 5 main Guide Services

•Current Service Label - indented to indicate current Service displayed

•Tile - displays show title

•Highlight - indicates an active tile

•Info Box - provides information for a highlighted item

•Info Button - cycles through the various Info Box sizes

•Channel Logo - identifies network

•Record/Remind Icons - indicates a show is set to Record or set as a Reminder

•Panel Ad - location where show- or product-specific information appears (and also where Panel Menu appears)

78 Plasma TV

Operation

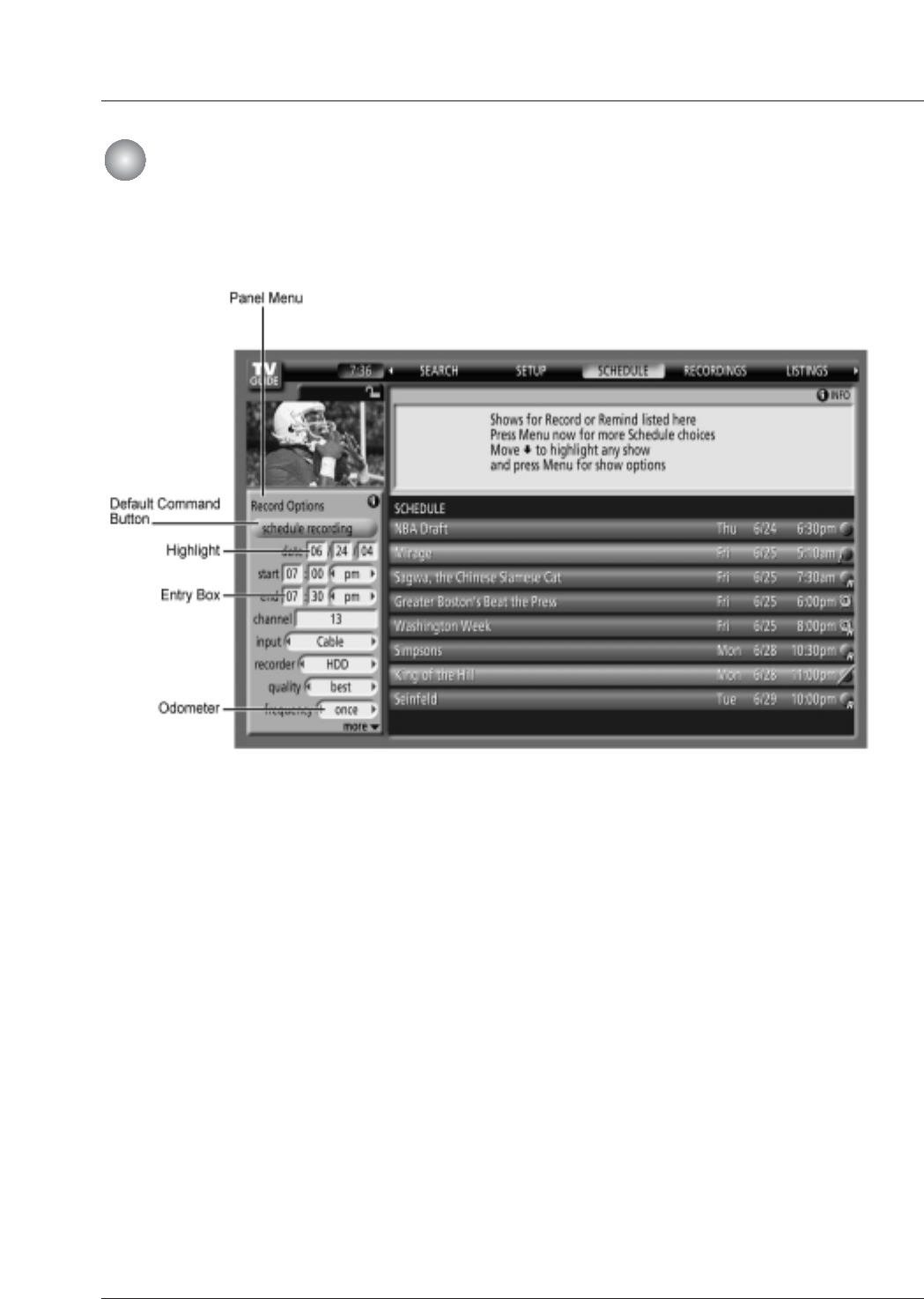

•A Panel Menu appears when the Menu key is pressed on a highlighted tile and additional options are available. It also

appears when you press ENTER on a show starting in the future.

•When a Panel Menu appears, the highlighted tile changes color to indicate the Panel Menu relates to this tile.

•The Panel Menu displays below the Video Window.

•Help is available for a displayed Panel Menu by pressing the INFO button.

•The D/Ebutton move between the options within the Panel Menu.

•The left and right arrows move to adjacent options unless the highlight is on an odometer, where these arrows change the

odometer choice.

•Pressing ENTER from an odometer or number entry box moves the highlight to the default command button of that Panel

Menu, for example, Schedule Reminder.

•Pressing ENTER from a highlighted command button executes the action and closes the Panel Menu (e.g., Schedule

Reminder, Cancel).

•Select Cancel to cancel any changes and press ENTER to close this menu.

•Pressing Menu is a shortcut to Cancel. Press Menu to cancel any changes and close the menu.

•If a Panel Menu contains more menu options than can be displayed on a single screen, D/Ebutton appear at the top or

bottom of a menu. Simply scroll down to access these options.

Panel Menu

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 79

Operation

- Access Listings by pressing the TV Guide button on your remote or on the front panel of your TV.

- Listings is always the first Service displayed in the Guide.

- With Listings highlighted, press the Info button to display a Help screen.

Press the Info button again to close the screen.

•View 8 days of show listings

•Read show descriptions

•Tune directly to a show currently airing

•Set a show to Remind

•Set a show to Record

•Lock and unlock the Video Window

•Access Panel and Channel Ads

Use the D/E/F/Gbuttons to move the highlight

within Listings to:

Main Services

Notes: There may be times when the TV Guide On

Screen system could display partial or no program list-

ings. The reasons for this include:

•Program schedule information was not provided to TV

Guide On Screen.

•The transmission of the program listings was inter-

rupted.

The phrase “No Listings” will be replaced with program

information during the next transmission, which should

occur within the next 24 hours.

Please remember to turn off your TV when not in use

in order to receive program listings.

Listings

80 Plasma TV

Operation

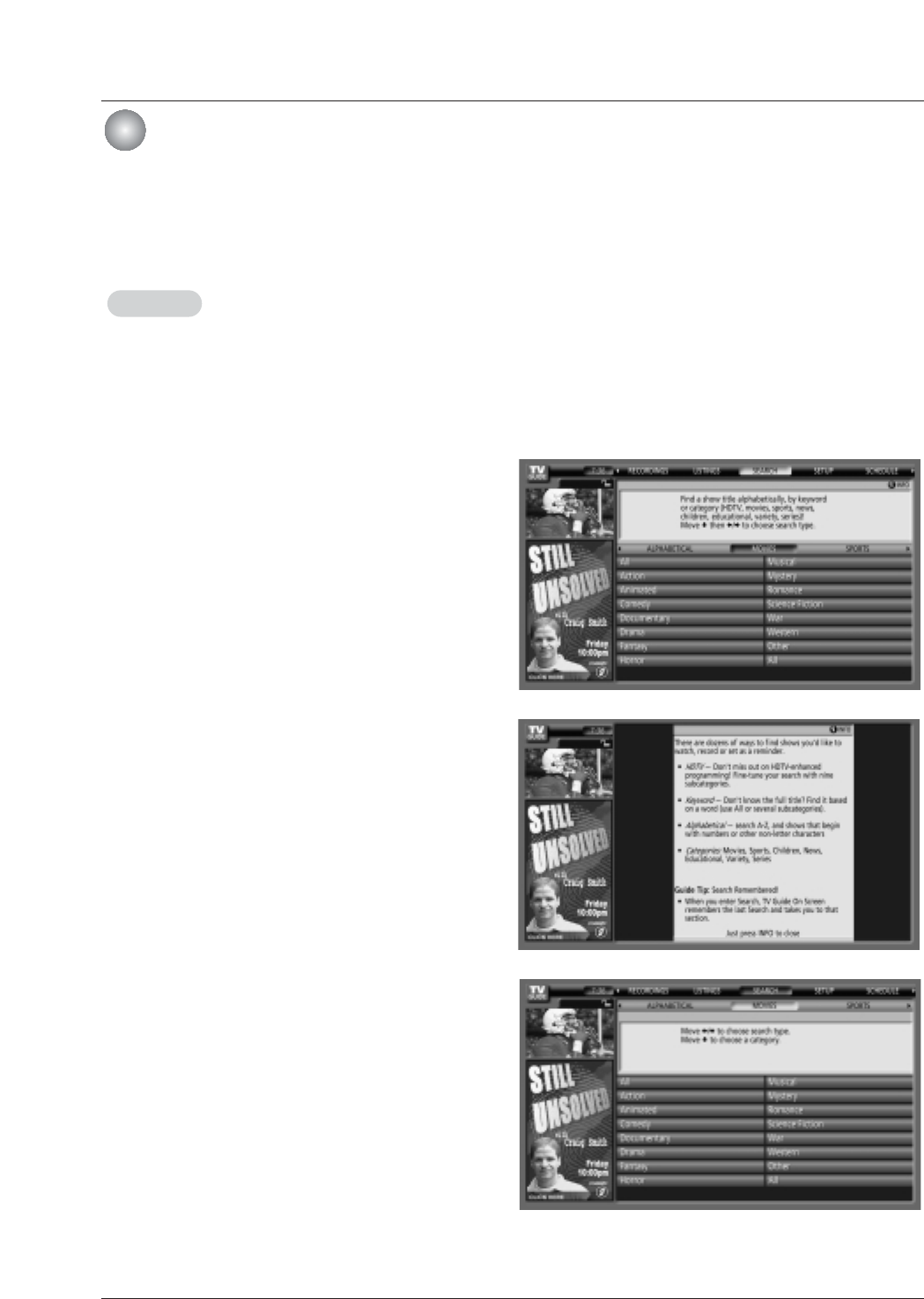

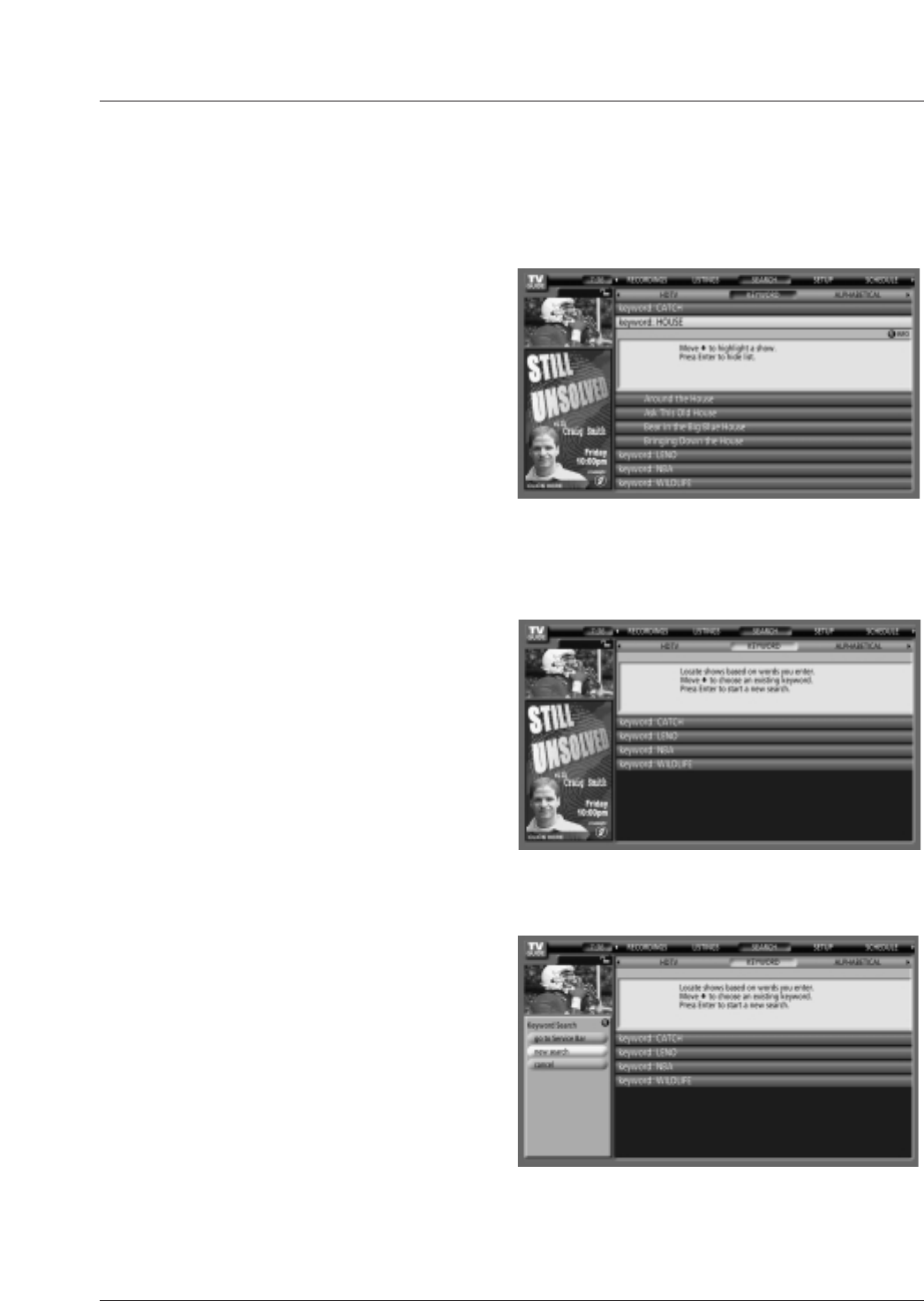

- Search lets you find shows by category (Alphabetical, Movies, Sports, Children, Educational, News, Variety, Series, HDTV) or by

Keyword.

- With Search highlighted, press the Info button to display a Help screen.

Press the Info button again to close the screen.

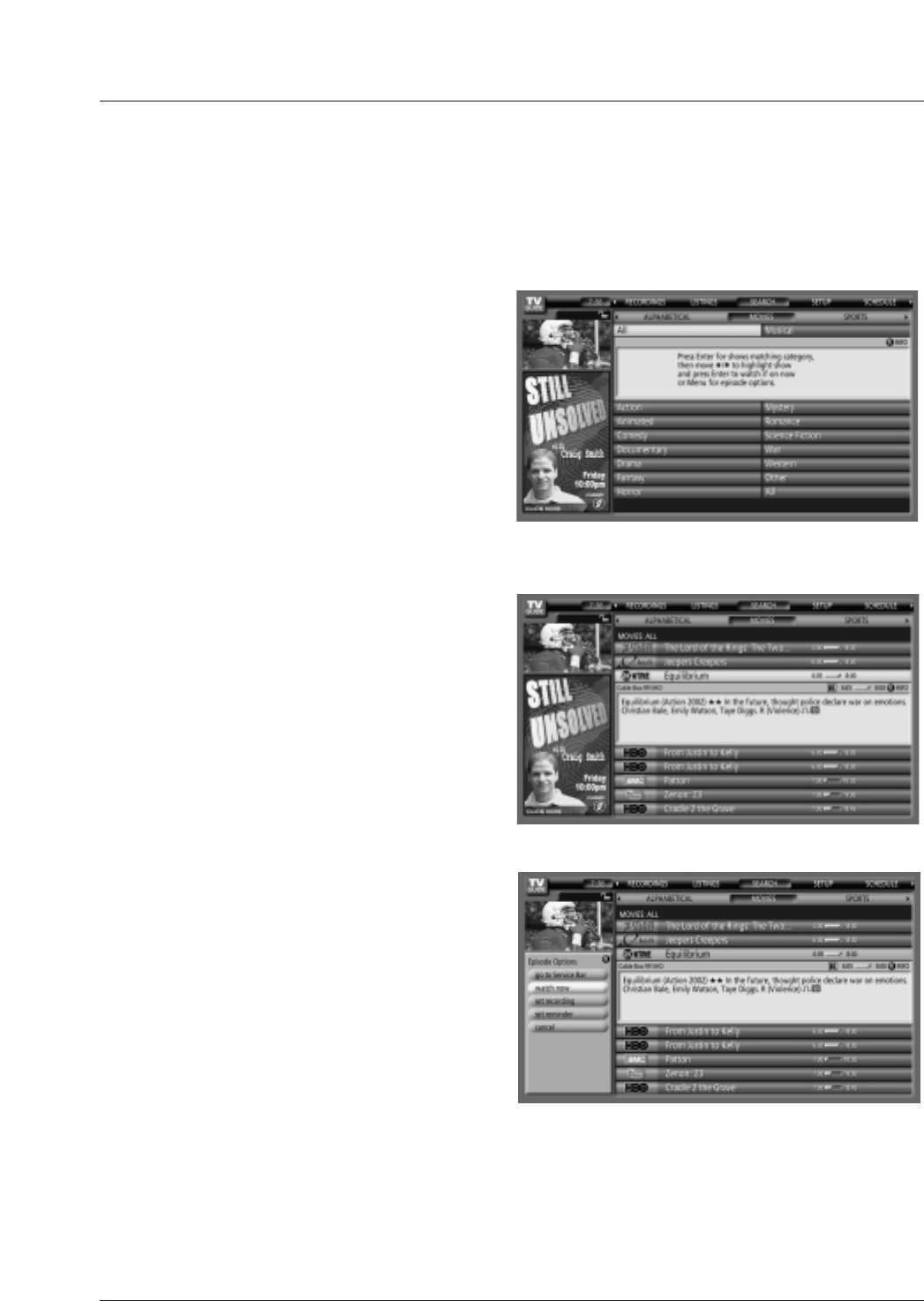

•Category Search Example: Movies

1. From Search, use the Ebutton to highlight Movies.

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 81

Operation

2. Use the Ebutton to highlight a subcategory (for example, All).

3. Press ENTER to display a list of all Movies, organized by date

and time.

You can choose to set a recording, a reminder, or tune to the

channel.

4. Highlight a show and press ENTER to watch (if on now) or

the Menu key to display the Episode Options menu.

Go to Service Bar - closes the menu, changes no infor-

mation, and returns to the Search Service Bar.

Tune to Channel - exits the Guide and tunes to the chan-

nel of the highlighted show (show airs in the future).

Note: This option reads Watch Now if the show is cur-

rently airing.

Set Recording - displays the Record Options menu, from

which you can set frequency, start and end time, etc.

Set Reminder - displays the Remind Options menu, from

which you can set frequency, when, automatically power

On, and auto-tune the TV.

Cancel - closes the menu, changes no information, and

returns to the highlighted show.

82 Plasma TV

Operation

-Keyword search lets you enter a word(s) to look for a particular show by category or for every show title that matches.

• Keyword Search

1. Highlight the Keyword navigation label, and press

ENTER button to display the Keyword Search menu.

2. Highlight New Search, and press ENTER button.

3. The Search Options menu is displayed.

4. Highlight Category, and use the F/Gbutton to select

a category to search (e.g. All, HDTV, Children, Sports,

etc.). When finished, use the Ebutton to highlight

Enter Keyword.

5. Highlight Enter Keyword, and press ENTER.

Then the keyboard is displayed.

6. Use the D/E/F/Gbutton to highlight a character,

and press ENTER to display it. When complete, high-

light Done and press ENTER.

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 83

Operation

The TV guide on screen system stores all the keywords

you create. To edit or delete a keyword, highlight the

keyword and press the Menu key. A Search Options

menu is displayed.

Go to Service Bar - closes the menu, changes no infor-

mation, and returns to the Search Service Bar.

Edit Search - displays the keyboard, where you can

change the keyword.

Delete Search - A Confirm menu is displayed.

•Yes - deletes the Search

•No - closes the panel menu

Cancel - closes the menu, changes no information, and

returns to the highlighted show.

7. A list of all matching shows for that keyword is dis-

played.

Like the Category Search Example, you can highlight

a show, and press ENTER to display all airings. You

can then highlight a specific listing and press ENTER

to watch (if On now) or the Menu key to display the

Episode Options menu.

From the Episode Options menu, choose to set a

recording, a reminder, or tune to the channel, as pre-

viously described.

84 Plasma TV

Operation

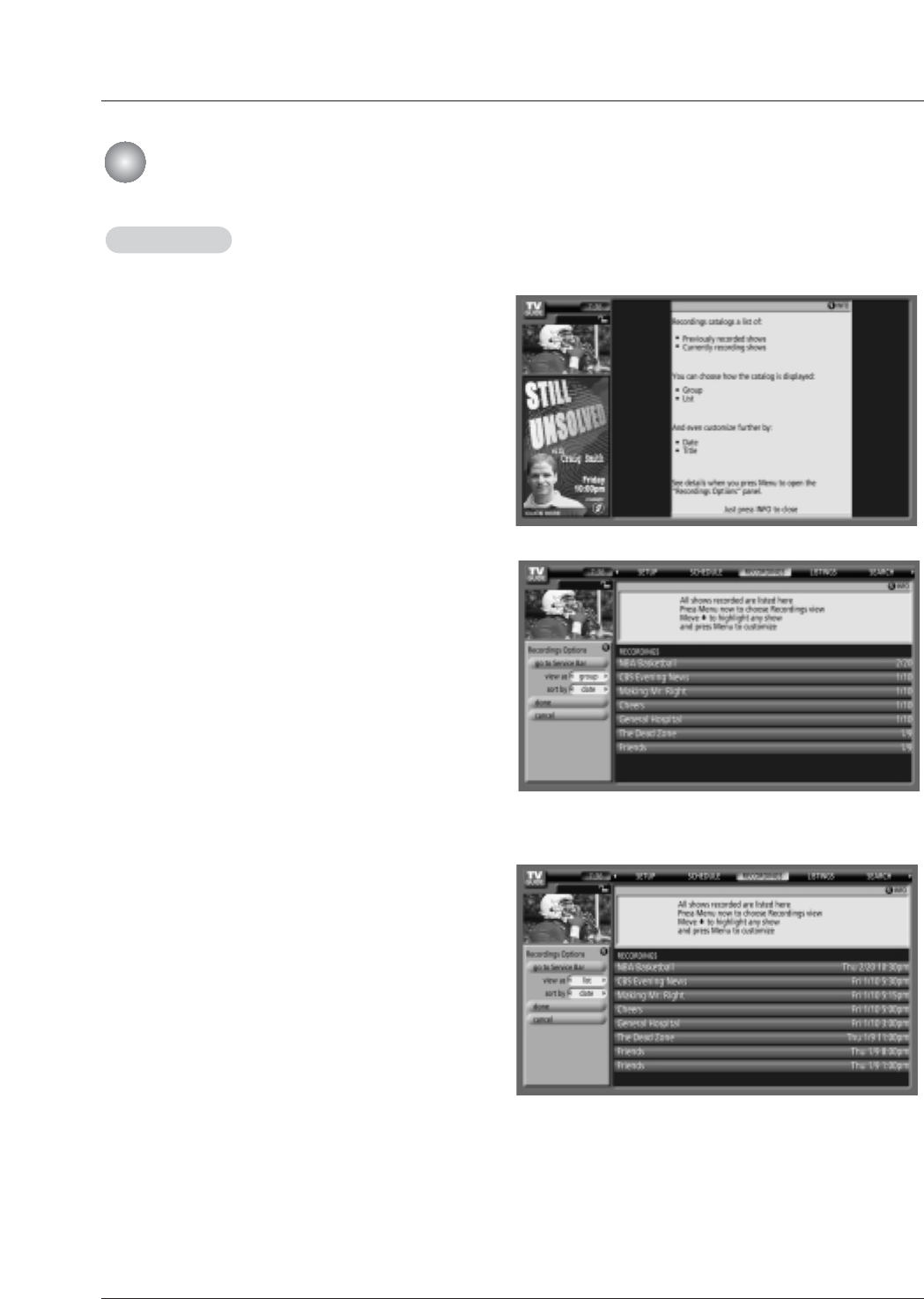

Recordings displays a list of previously recorded or currently

recording shows on a DVR or the currently inserted DVD in a

DVD recorder.

With Recordings highlighted, press the INFO button to display a

Help screen. Press the INFO button again to close the screen.

Choose the way Recordings are displayed by highlighting

Recordings on the Service Bar and then press the MENU button

to display the Recordings Options menu. Use the D/Ebuttons

to choose between the following:

•In View As, use the F/Gbuttons to choose between

W Group - recorded shows are listed without listing every

recorded episode (see example in Screen A)

W List - displays a complete list of every recorded

episode for a show(see example in Screen B)

•In Sort By, use the F/Gbuttons to choose between

W Title - shows are displayed in alphabetical order (see

example in Screen A)

W Date - shows are displayed by date and time, with

most recent date and time first (see example in Screen B)

When finished, press ENTER to hightlight Done. Press

ENTER again to close the menu and display the

Recordings with the selected options.

In List View, highlight an episode and ab Info box provides

show information. Press the MENU button to display the

Episode Options menu.

In Group View, highlight a show and press ENTER to view

a summary for the all the recorded shows along with the

episode list (pres ENTER again to collapse the episode

list).

Highlight a specific episode and press the MENU buttos to

display the Episode Options menu.

Screen A

Screen B

Recordings

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 85

Operation

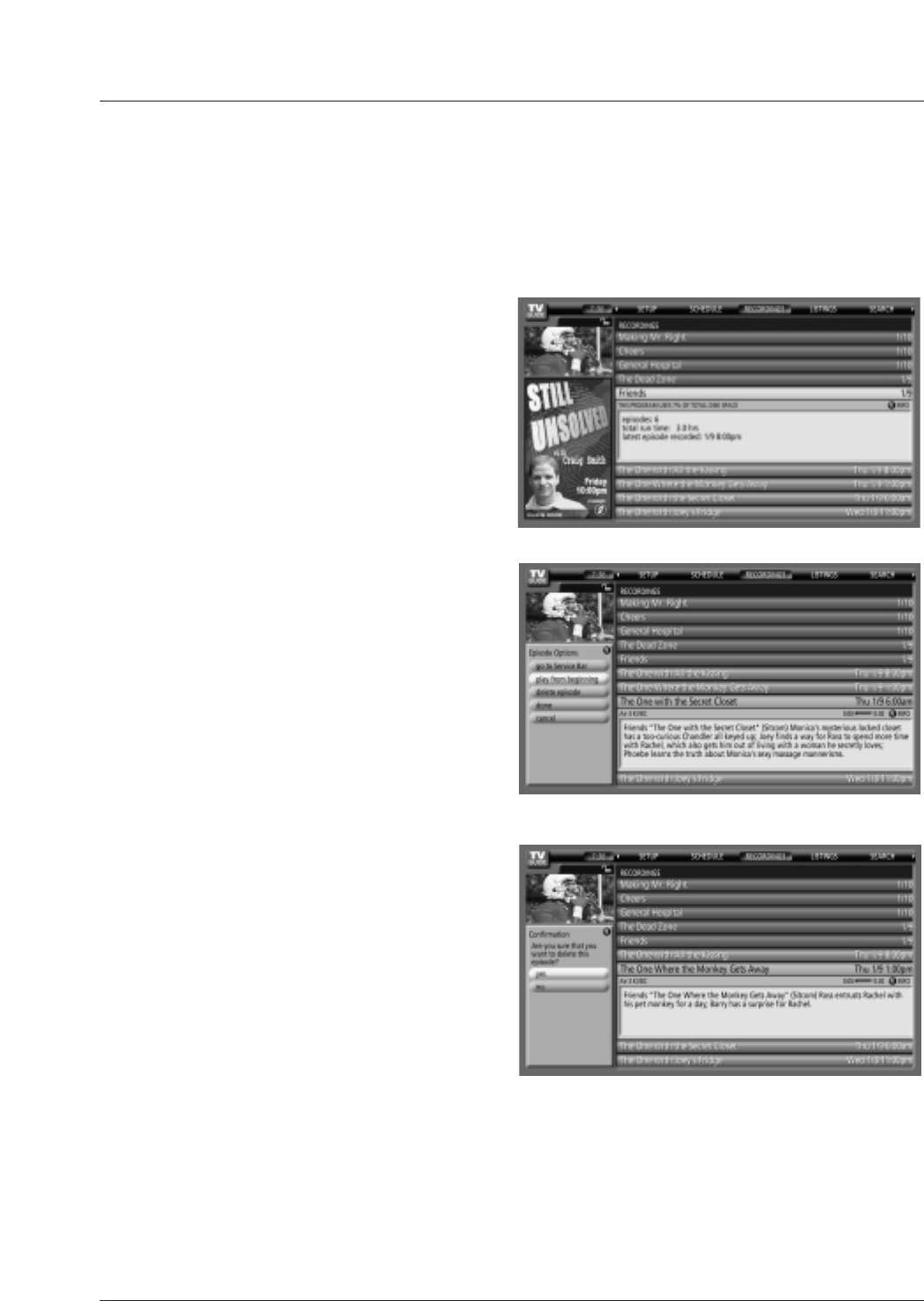

To view an episode, you can do one of the following:

•highlight an episode, and press ENTER to view it now. The

episode either starts from where it was last stopped (if

viewed previously) or from the brginning.

W Go to Service Bar - close the menu, changes no infor-

mation, and returns to th Schedule Service Bar.

W Play from Beginning - starts from the beginning, even

if stopped previously.

W Delete Episode - deletes the episode from the

Recordings, A Confirm menu is displayed.

WYes - deletes the episode.

WNo - closes the panel menu.

W Cancel - closes the menu, changes no information,

and returns to the highlighted show.

86 Plasma TV

Operation

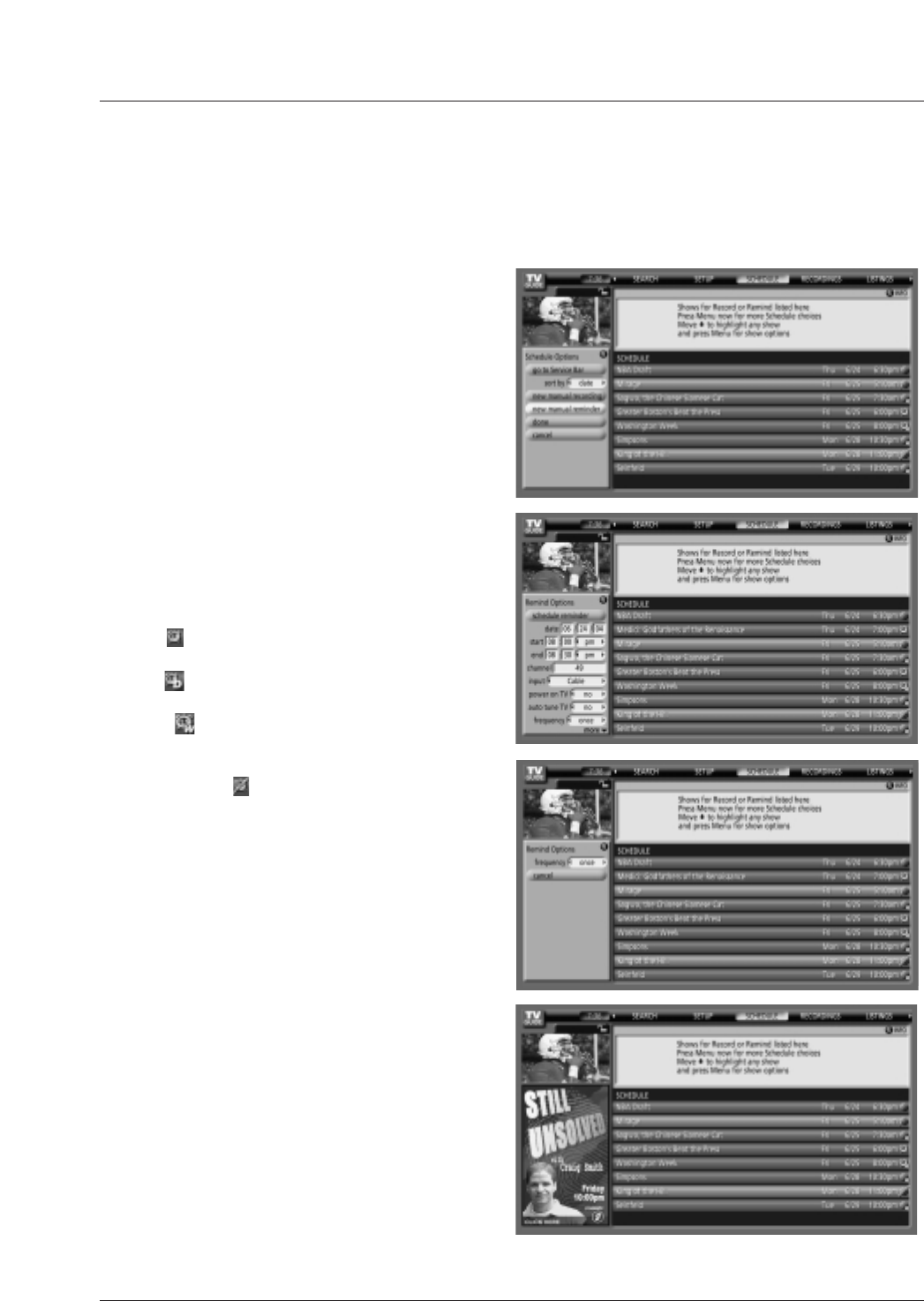

- Schedule lets you review, edit, or delete Record and Remind events that you set previously.

- With Schedule highlighted, press the Info button to display a Help screen. Press the Info button again to close the screen.

- An icon identifies the event type:

Record

WOnce —records the show one time

WRegularly , —records the show every time the

show airs on the same channel and starts at the same time

WWeekly —records the show each time the show airs on

the same day of the week, on the same channel and starts at

the same time

WOff —keeps the show in the list but will not record this

show until the frequency is changed.

Remind

WOnce —sets a show reminder one time

WRegularly , —sets a show reminder every

time the show airs on the same channel and starts at

the same time

WWeekly —sets a show reminder each time the

show airs on the same day of the week, on the same

channel and starts at the same time

WOff —keeps the show in the list but will not remind

until the frequency is changed

Highlight an event, and press the Menu key for options.

Go to Service Bar - closes the menu, changes no information,

and returns to the Schedule Service Bar.

Tune to channel - exits the Guide and tunes to the highlighted

show.

Delete Recording - removes the recording from the Schedule,

after a Confirm screen.

Edit Recording - opens a menu from which you can change

existing recording information.

Set Reminder - opens a menu from which you can set a

Reminder for the show (Record is not cancelled).

Cancel - closes the menu, changes no information, and returns

to the highlighted show.

Schedule

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 87

Operation

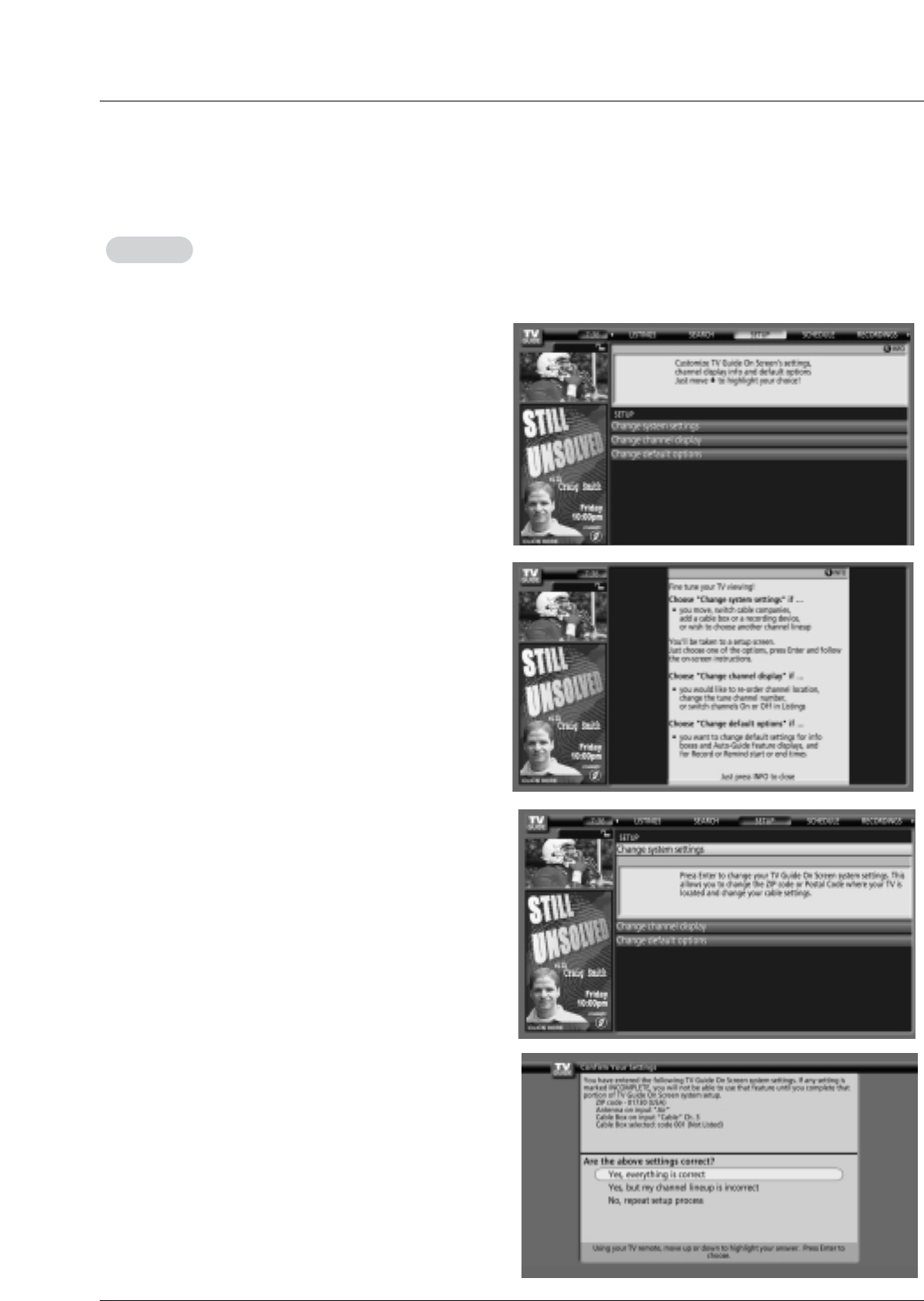

- After you initially complete Guide Setup, you can make changes to Guide settings in the following areas:

• Change System Settings

• Change Channel Display

• Change Default Options

Highlight a choice, press ENTER, and follow the on-screen

instructions.

• Change System Settings

This option appears after you have completed the initial Guide

Setup process.

Press ENTER to display the Confirming Your Settings screen. You

see your current settings.

With Setup highlighted, press the Info button to display a Help

screen. Press the Info button again to close the screen.

Choose one of the options, press ENTER, and follow the on-

screen instructions.

Setup

88 Plasma TV

Operation

Press ENTER to display the Channel Editor screen.

Then, highlight a channel and press Menu. A Grid Options

menu is displayed.

Highlight Go Back to Setup to close the menu, change no

information, and return to the Setup Service Bar.

Or make changes and when finished, press ENTER to high-

light Done. Press ENTER again to close the menu and accept

the changes.

Highlight Cancel to close the menu, change no information,

and return to the highlighted channel.

• Change Channel Display

Change Channel Display lets you edit channel information

that appears in Listings. With Change Channel Display

you can :

•Change the position number to indicate where in the

Listings the channel displays

•Change the tune channel number

•Switch a channel

WOn - the channel is always displayed

WOff - the channel is never displayed

WAuto-Hide - the channel is only displayed when

program information is available.

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 89

Operation

General Default Options lets you set defaults for the following:

•The initial Info Box size when the TV guide on screen system is

entered.

Choices are No, Small, Large, and Last Used

(Default = Last Used).

•The Info Box size rotation when the Info key is pressed while in

the TV guide on screen system.

Choices are No only, Small only, Large only, No & Small, No &

Large, Small & Large, All (Default = All)

•Automatic entry into the TV guide on screen system (Auto-Guide)

when the TV is powered On.

Choices are On and Off (Default = On).

Highlight General Default Options, and press the Menu key to dis-

play the General Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information, and

return to the highlighted option.

• Change Default Options

Change Default Options lets you change default settings in the

following categories:

•General Default Options

•Record Defaults

•Remind Defaults

Highlight Change Default Options, and press ENTER.

90 Plasma TV

Operation

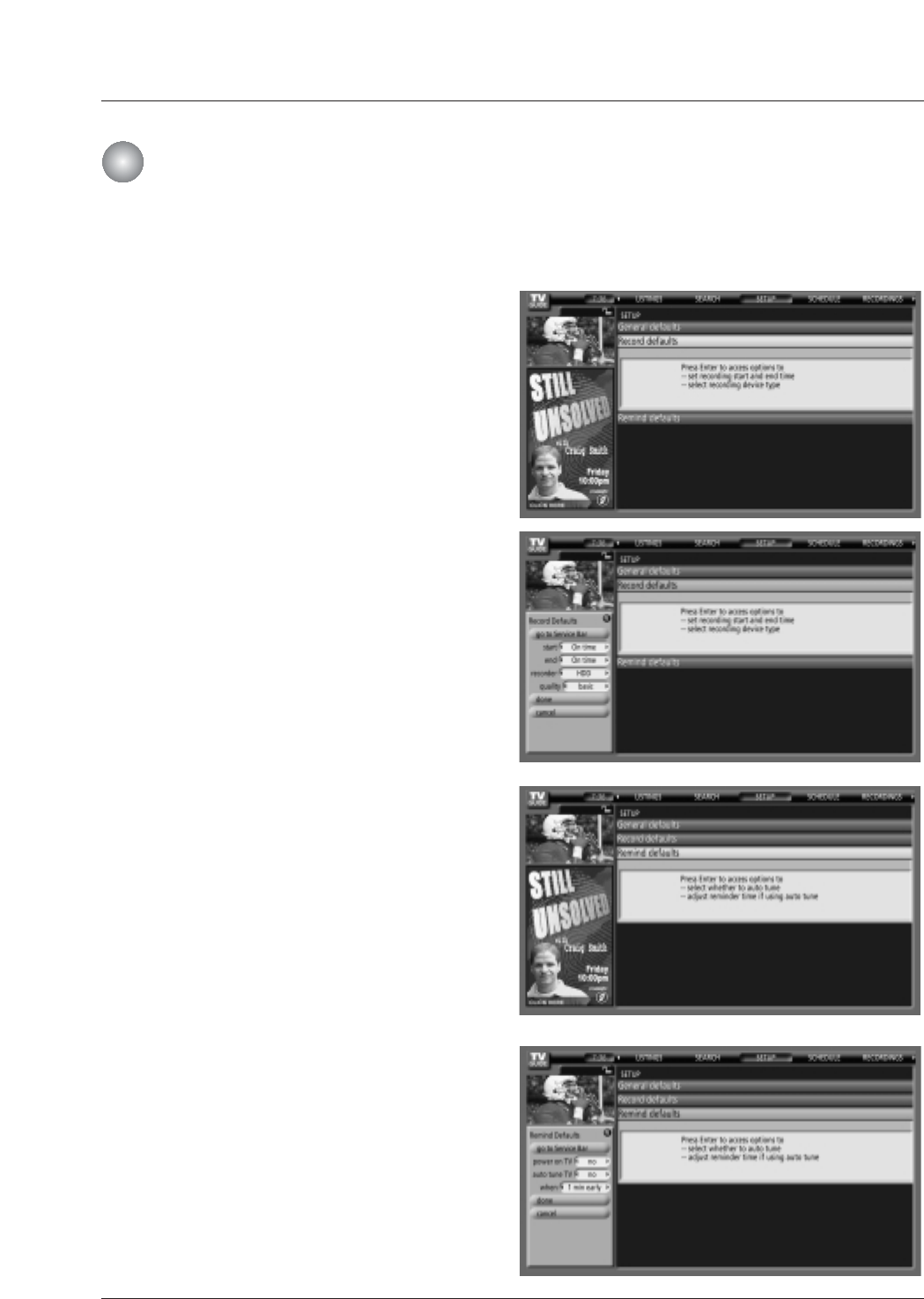

< Record Defaults>

• Record Default Options lets you set defaults for the following:

• When to start the record event. Choices are 120 minutes early

to 120 minutes late, to On time. (Default = On time)

• When to end the record event. Choices are 120 minutes early

to 120 minutes late, to On time. (Default = On time)

• Recorder choice: Please choose the VCR only. This TV does

not support other devices with a recording feature.

Highlight Record Defaults, and press the Menu key to display

the Record Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

< Remind Defaults>

Remind Default Options lets you set defaults for the following:

•Power On the TV, if Off, when a Reminder is scheduled.

Choices are Yes and No.

(Default = No)

•Automatically tune the TV to the channel (TV must be On),

when a Reminder is scheduled. Choices are Yes and No.

(Default = No)

•When to display the reminder screen. Choices are 30 seconds

to 15 minutes early, to 30 seconds to 15 minutes late, to On

time.

(Default = 1 min early)

Highlight Remind Defaults, and press the Menu key to display

the Remind Default Options menu.

Highlight Go to Service Bar to close the menu, change no

information, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information,

and return to the highlighted option.

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 91

Operation

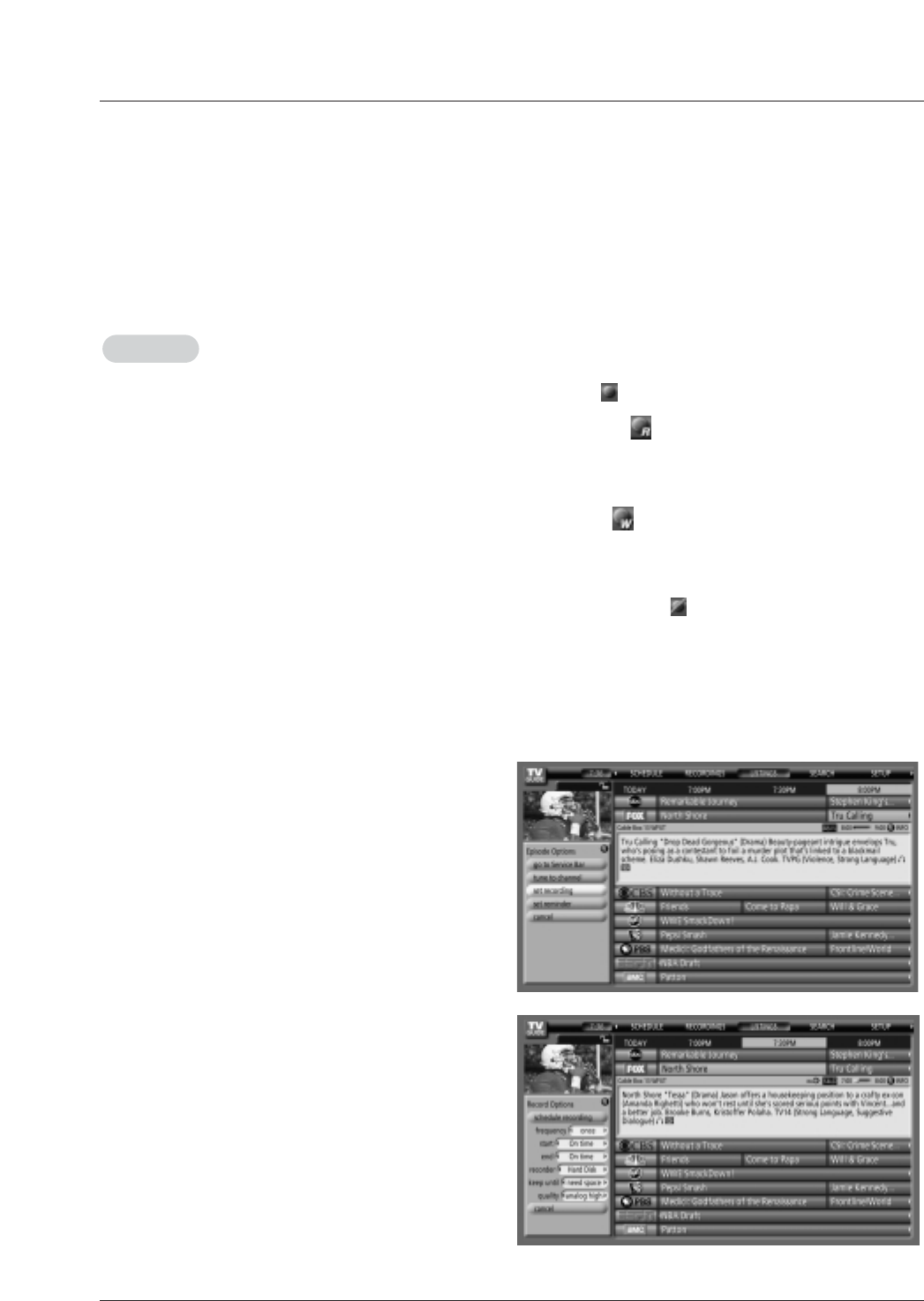

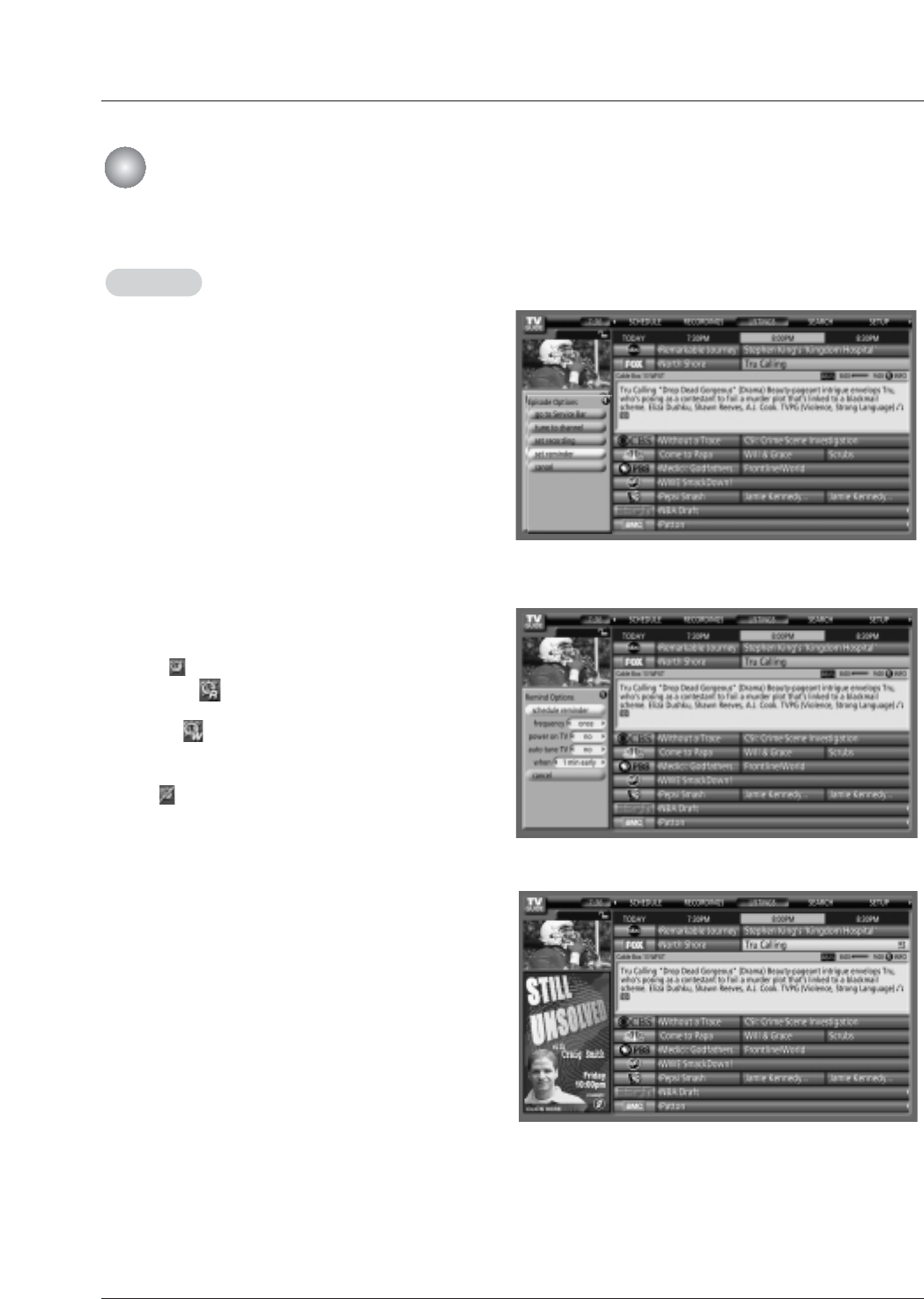

WOnce —records the show one time

WRegularly —records the show every time the

show airs on the same channel and starts at the same

time

WWeekly —records the show each time the show

airs on the same day of the week, on the same channel

and starts at the same time

WOff (not cancel) —keeps the show in the list but

will not record this show until the frequency is changed

WCancel (no icon displayed)—does not record

Record

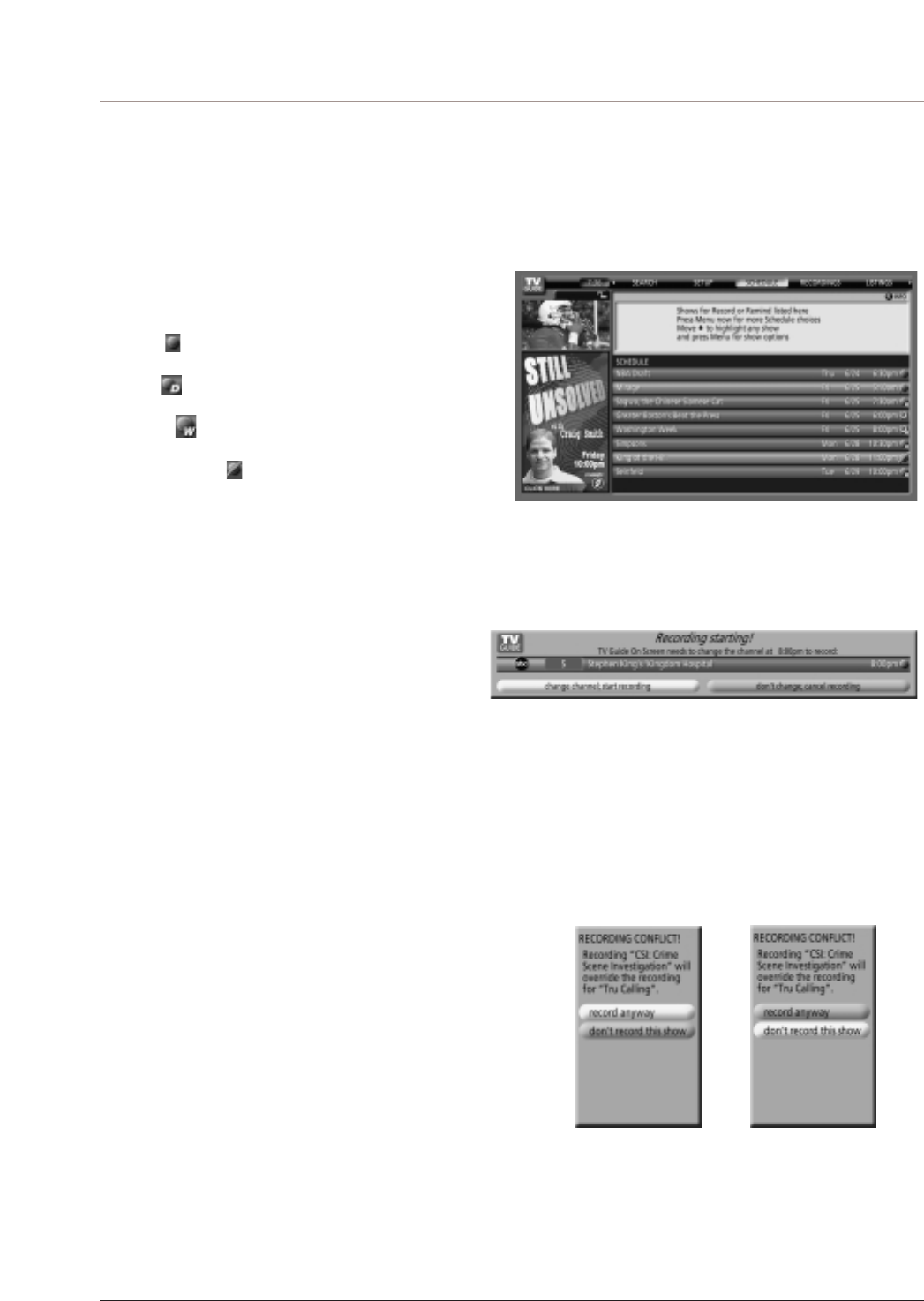

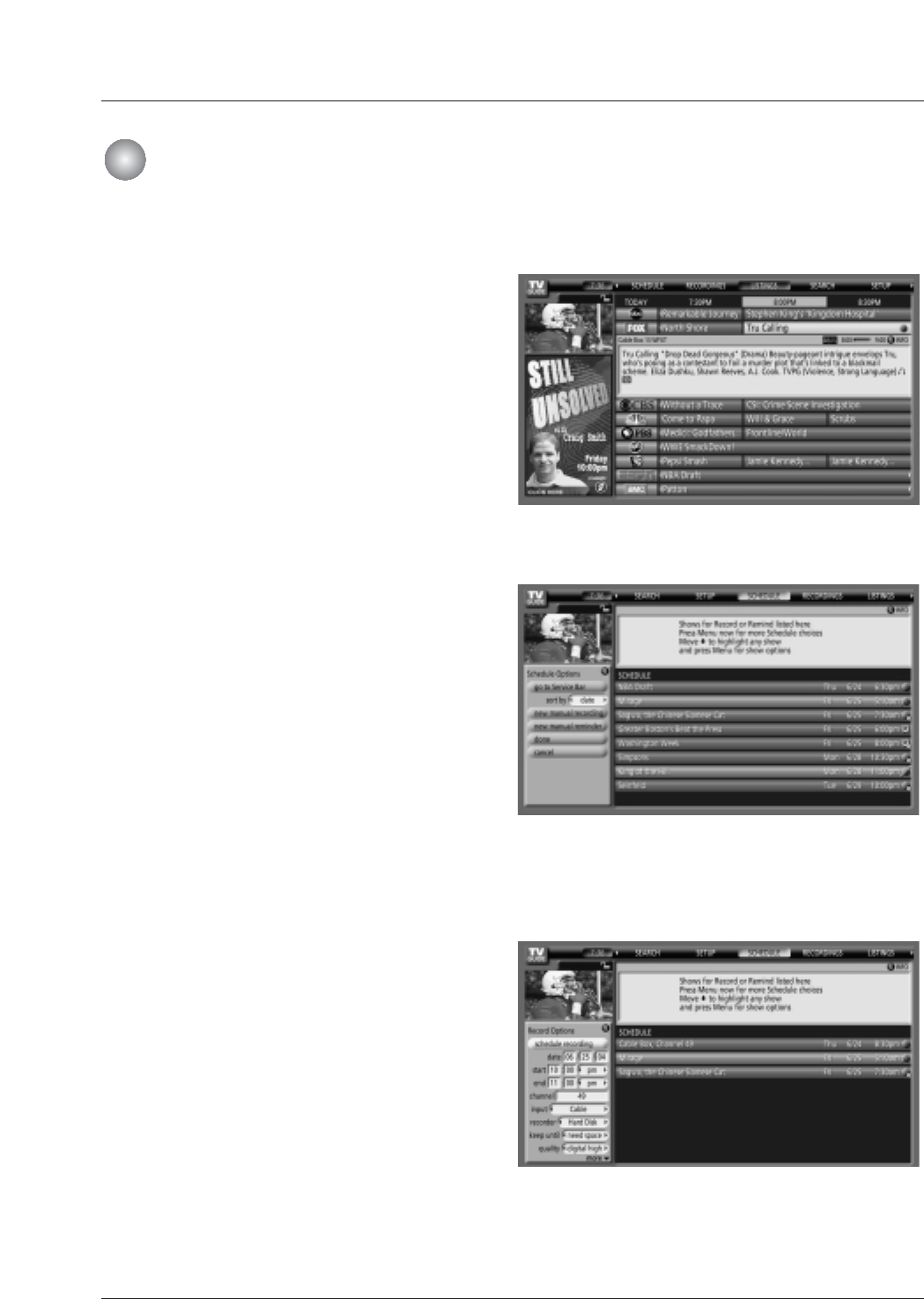

You can set a show to Record in Listings, Search, and

Schedule or change Record settings for a show in Schedule.

There are 3 ways to set a show to Record:

1) Using the Record Button on the Remote

• Press the Record button on the remote to record the show

Once with current default settings (Start and End recording

On Time). Each time you press the Record button, you

change the record frequency (but not the default settings)

among Once (default), Regularly, Weekly, Off, and then

Cancel.

Note: The proper Record icon appears on the show tile, as the

Record button is pressed.

2) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Recording, and press ENTER to display the

Record Options menu.

• Highlight the Frequency option, and use the left and right

arrows to choose among Once, Regularly, Weekly, and Off,

as previously described.

• Recorder choice: Please choose the VCR only. This TV does

not support other devices with a recording feature.

Note: Video Window Lock is switched to on or off using PIP

button in Listings mode.

Record And Remind Features

92 Plasma TV

Operation

When finished, press ENTER to highlight Schedule Recording.

Press ENTER again to close the menu. You see a Record icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

3) Manual Recording

•Highlight the Schedule Service label, and press Menu to display

the Schedule Options menu.

•Use the D/E/F/Gbuttons to move through the options. Use

the number or Use the D/E/F/Gbuttons to change the infor-

mation, as necessary.

•Highlight New Manual Recording and press ENTER to display the

Record Options menu.

•Current information (i.e., date, start and end times, channel,

input) is displayed.

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 93

Operation

•Use the left and right arrows to choose between Once, Daily,

Weekly, and Off, as follows.

WOnce —records the time, channel, input, recorder combi-

nation one time.

WDaily —records the time, channel, input, recorder combi-

nation Monday through Friday.

WWeekly —records the time, channel, input, recorder com-

bination once a week on this selected day of the week

WOff (not cancel) —keeps the time, channel, input, recorder

combination in the list without recording until the frequency is

changed.

Record Conflict

A conflict message appears for the following reasons:

• a show set to Record overlaps with any part of another show pre-

viously set to Record,

• a show set to Record overlaps with a show previously set to auto-

tune

Select one of these options:

Wrecord anyway - this show will override an existing show

set to Record or auto-tune

Wdon't record this show - cancel the Recording

Before a recording begins, a notification screen appears

if you are using a Cable box and your TV is On. At that

time, you can choose to start or cancel recording. If the

TV is not On, the recording occurs as scheduled. If there

is no activity for 3 minutes, the notification screen auto-

matically closes and completes the highlighted item.

When finished, press ENTER to highlight Schedule

Recording.

Press ENTER again to close the menu. You see a

Record icon for the selected frequency next to the show

title.

Note: Manual recording is listed by channel number.

Highlight Cancel to close the menu, change no informa-

tion, and return to the highlighted show.

94 Plasma TV

Operation

You can set a show Reminder in Listings, Search, and

Schedule or change Reminder settings for a show in Schedule.

There are 2 ways to set a show Reminder:

1) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Reminder, and press ENTER to display the

Remind Options menu.

•Highlight the Frequency option, and use the left and right arrows

to choose between:

WOnce —sets a show reminder one time

WRegularly —sets a show reminder every time the show

airs on the same channel and starts at the same time

WWeekly —sets a show reminder each time the show airs

on the same day of the week, on the same channel and starts

at the same time

WOff —keeps the show in the list but will not remind until

the frequency is changed

•Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No. (Default = No)

•Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No. (Default =

No)

•When to display the reminder screen. Choices are 30 seconds to

15 minutes early, to 30 seconds to 15 minutes late, to On time.

(Default = 1 min early)

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

Remind

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 95

Operation

2) Manual Reminder

•Highlight the Schedule Service label, and press the Menu key to

display the Schedule Options menu.

•Use the D/E/F/Gbuttons to move through the options. Use

the number or D/E/F/Gbuttons to change the information,

as necessary.

•Highlight New Manual Reminder and press the ENTER key to

display the Remind Options menu.

•Current information (i.e., date, start and end times, channel,

input, frequency, etc.) is displayed.

•Highlight the Frequency option, and use the F/Gbuttons to

choose among Once, Daily, Weekly, and Off, as follows.

WOnce —sets a show reminder for the time, channel, input,

recorder combination one time

WDaily —reminds for the time, channel, input, recorder

combination Monday through Friday

WWeekly —sets a show reminder for the time, channel,

input, recorder combination once a week on this selected day

of the week

WOff (not cancel) —keeps the time, channel, input, desti-

nation combination in the list without reminding until the fre-

quency is changed

•Power On the TV, if Off, when a Reminder is scheduled.

Choices are Yes and No (Default =No).

•Automatically tune the TV to the channel (TV must be On),

when a Reminder is scheduled. Choices are Yes and No

(Default = No).

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon

for the selected frequency next to the show title.

Note: Manual reminder is listed by channel number.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

96 Plasma TV

Operation

Based on your option settings, a notification screen will

appear, if your TV is On at the reminder time. You can

then choose to hide the reminder, or highlight the show,

and press ENTER to tune to the show. If there is no activ-

ity for 3 minutes, the notification screen automatically

closes and completes the highlighted item (hide

reminders).

If you choose Hide Reminders, the window closes for the

show or shows, but does not affect other Reminders you

set.

Note: If more than 2 reminders are set for the same time,

arrows appear on the Reminder screen. Use the

buttons to view the shows.

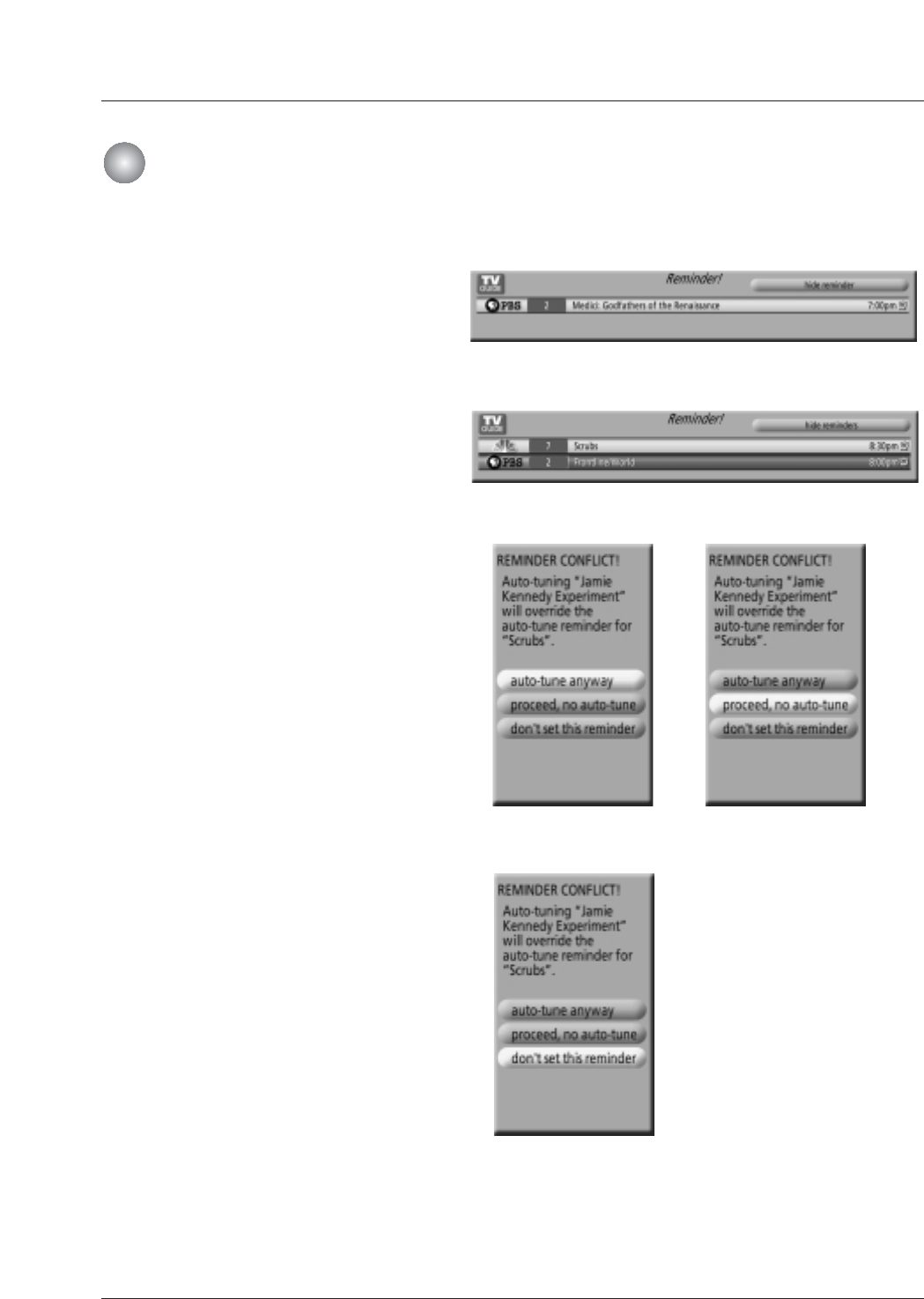

Remind Conflict

A conflict message appears for the following reasons:

• a show set with an Auto-Tune Reminder has the same

start time as an existing Auto-Tune Reminder.

• If you are using a cable box, a show set with an Auto-

Tune Reminder overlaps with a Recording already

scheduled.

Select one of these options:

Wauto-tune anyway - this show will override an exist-

ing show set to auto-tune

Wproceed, no auto-tune - set the show as a Reminder

but do not auto-tune

Wdon't set this reminder - cancel the Reminder

TV Guide On Screen

TV Guide On ScreenTM System

System

Owner’s Manual 97

Operation

- It's available to communicate to either direction and you can give and take a image, sound, or each control command

with one cable.

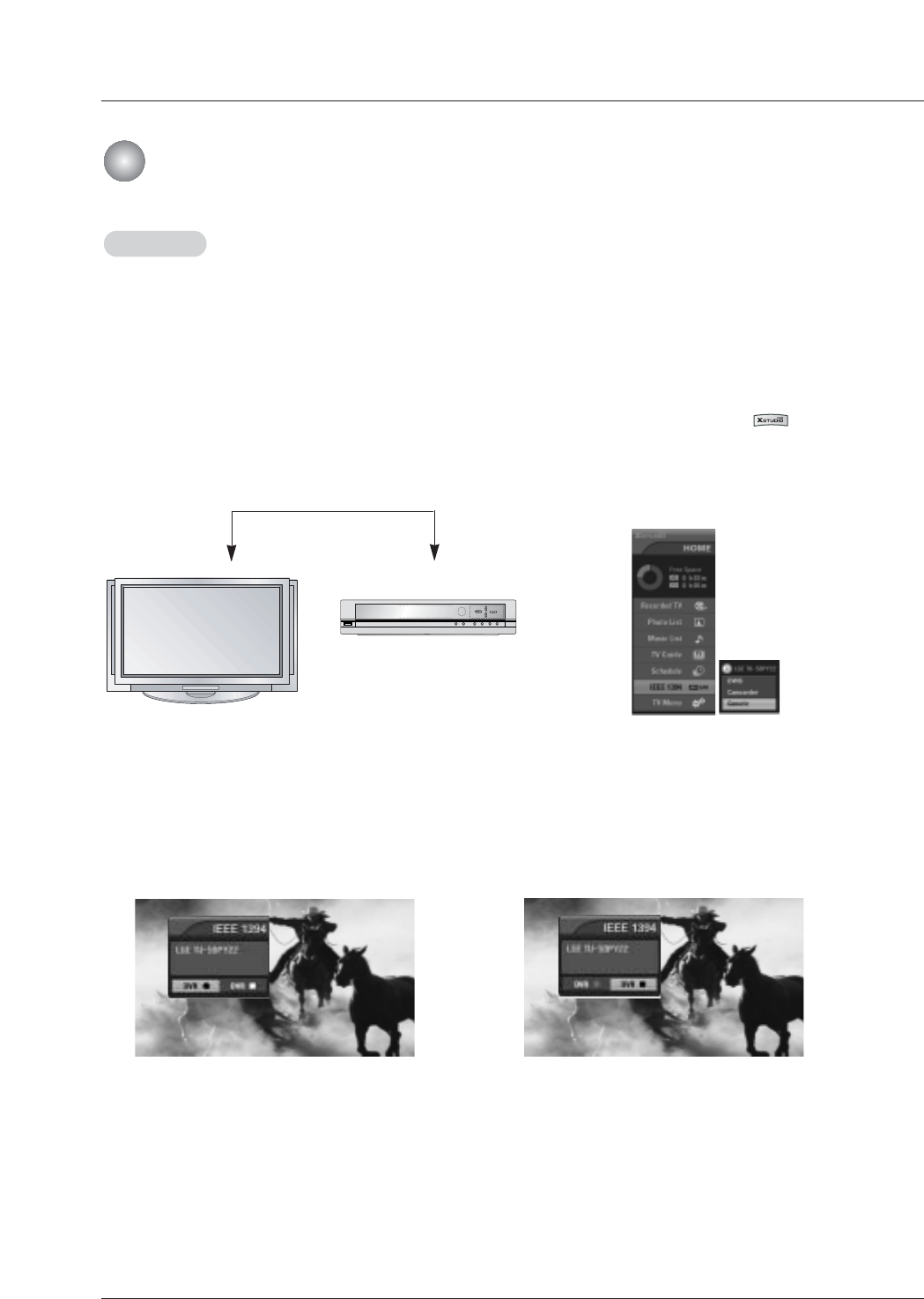

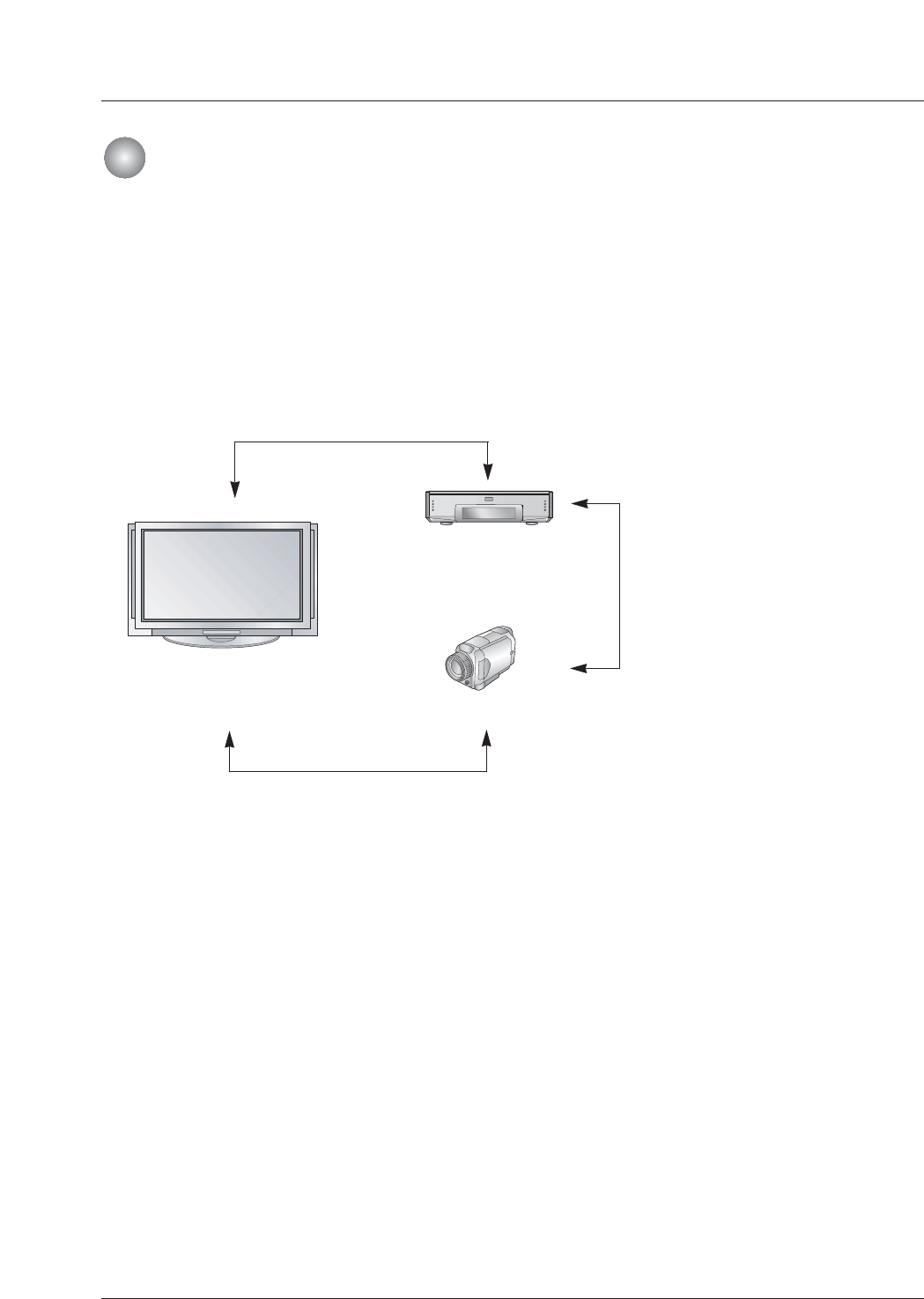

WHow to connect the 1394

•To work the 1394, this methods can used.

1. When connecting the DVHS or the MicroMV Camcorder, as shown in the (a) or (b) figure, press the button to move

the IEEE 1394 in HOME menu to show the control panel.

(a) TV DVHS

(b) TV MicroMV Camcorder

<TV>

<DVHS>

IEEE 1394 Functions

Note: When connecting the DVHS and the MicroMV Camcorder, in case of showing ‘input error’, it’s okay.

98 Plasma TV

Operation

IEEE 1394 Functions

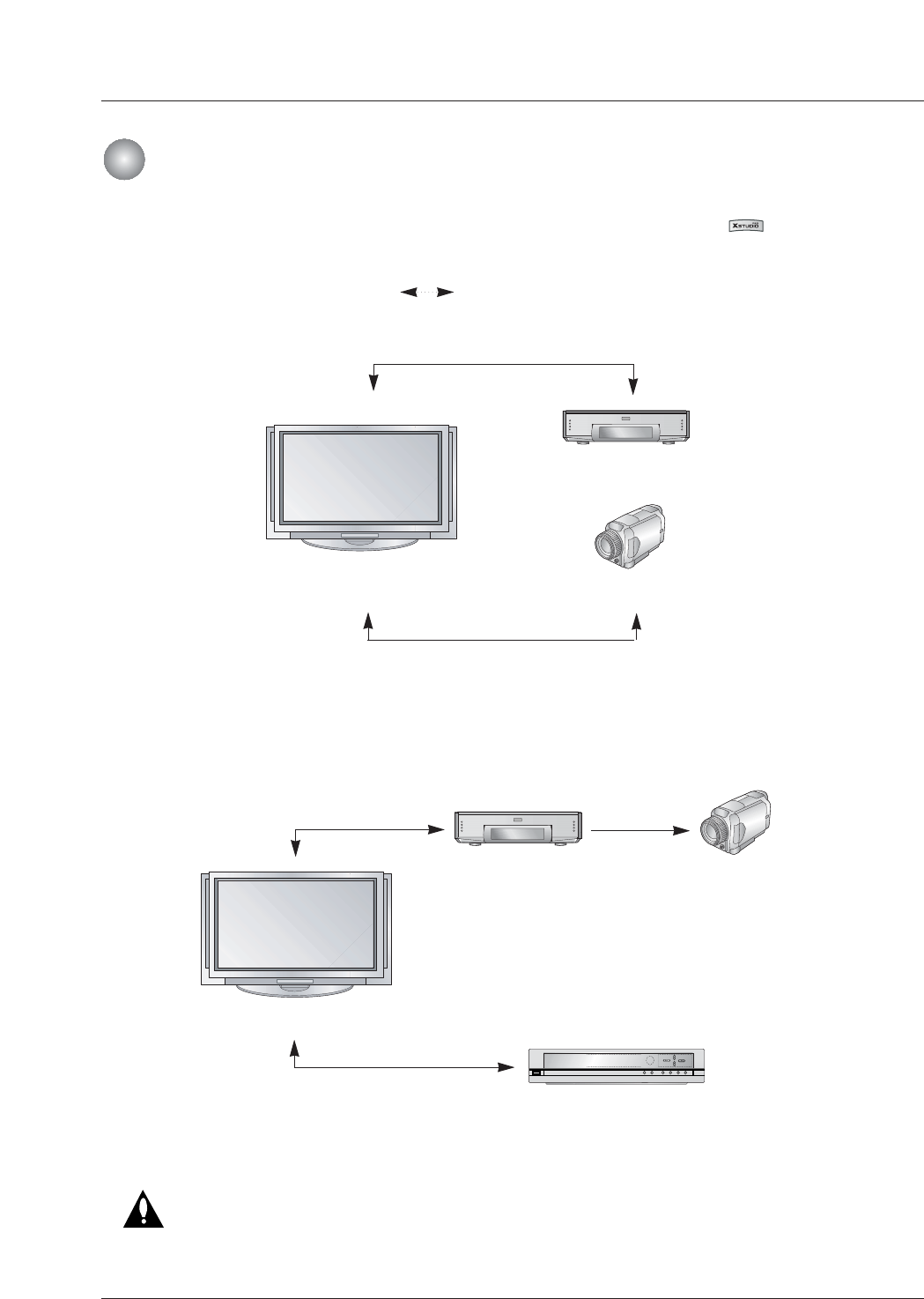

2. When connecting the DVHS and the MicroMV Camcorder, as shown in the (d) figure, press the button to move

the IEEE 1394 in HOME menu to show the control panel and then select the DVHS or the MicroMV Camcorder.

<TV>

<DVHS>

-When connecting the 1394 and then playing, you must use the original DVHS tape. If not, it may

be occurred the errors.

-If the operation normally doesn’t work on Daisy Chain connection, please change an arrangement

of connected device.

(d) Daisy Chain Connection

<TV>

<Connect the

IEEE1394 Cable>

<Connect the

IEEE1394

Cable>

Owner’s Manual 99

Operation

DVHS

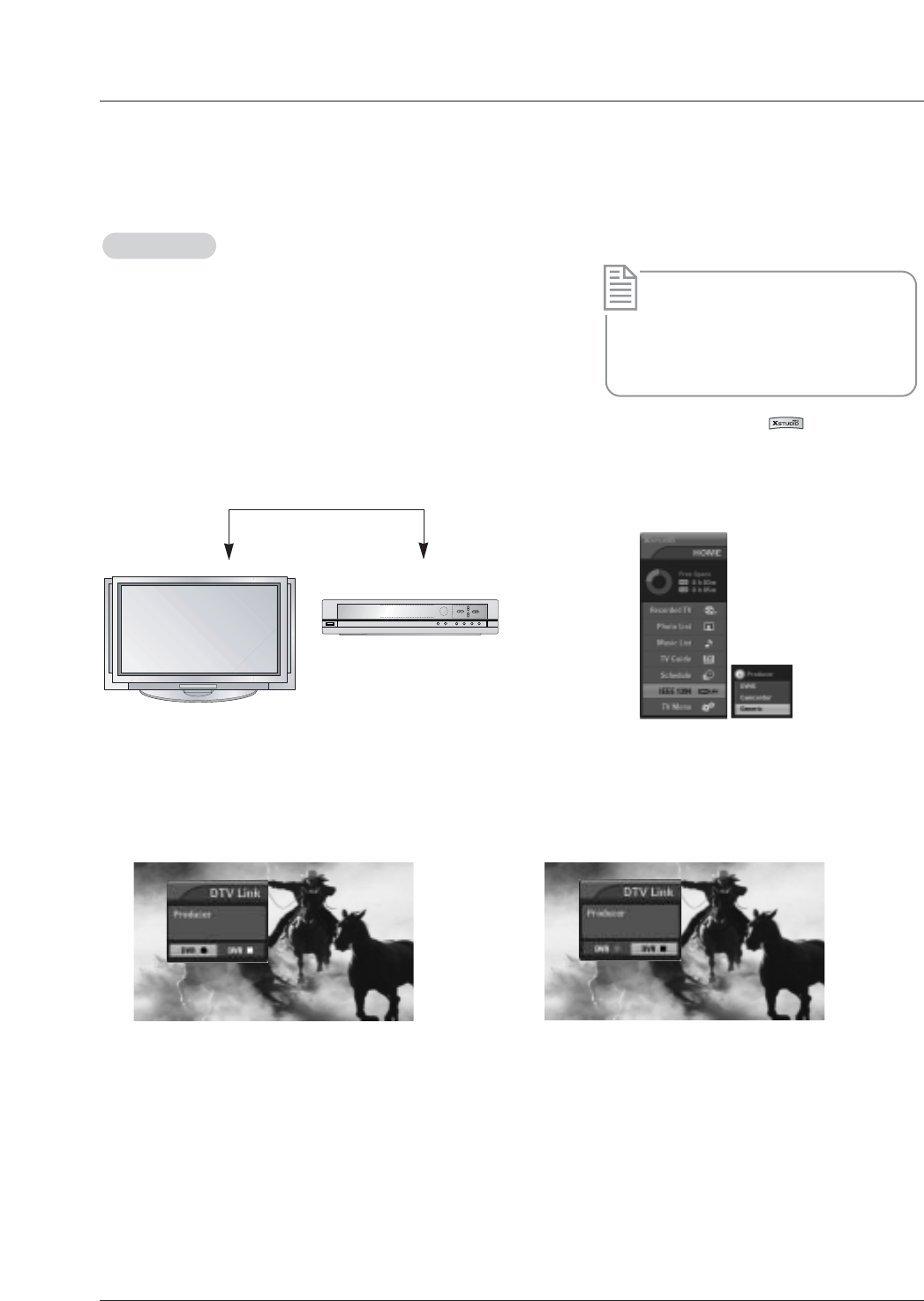

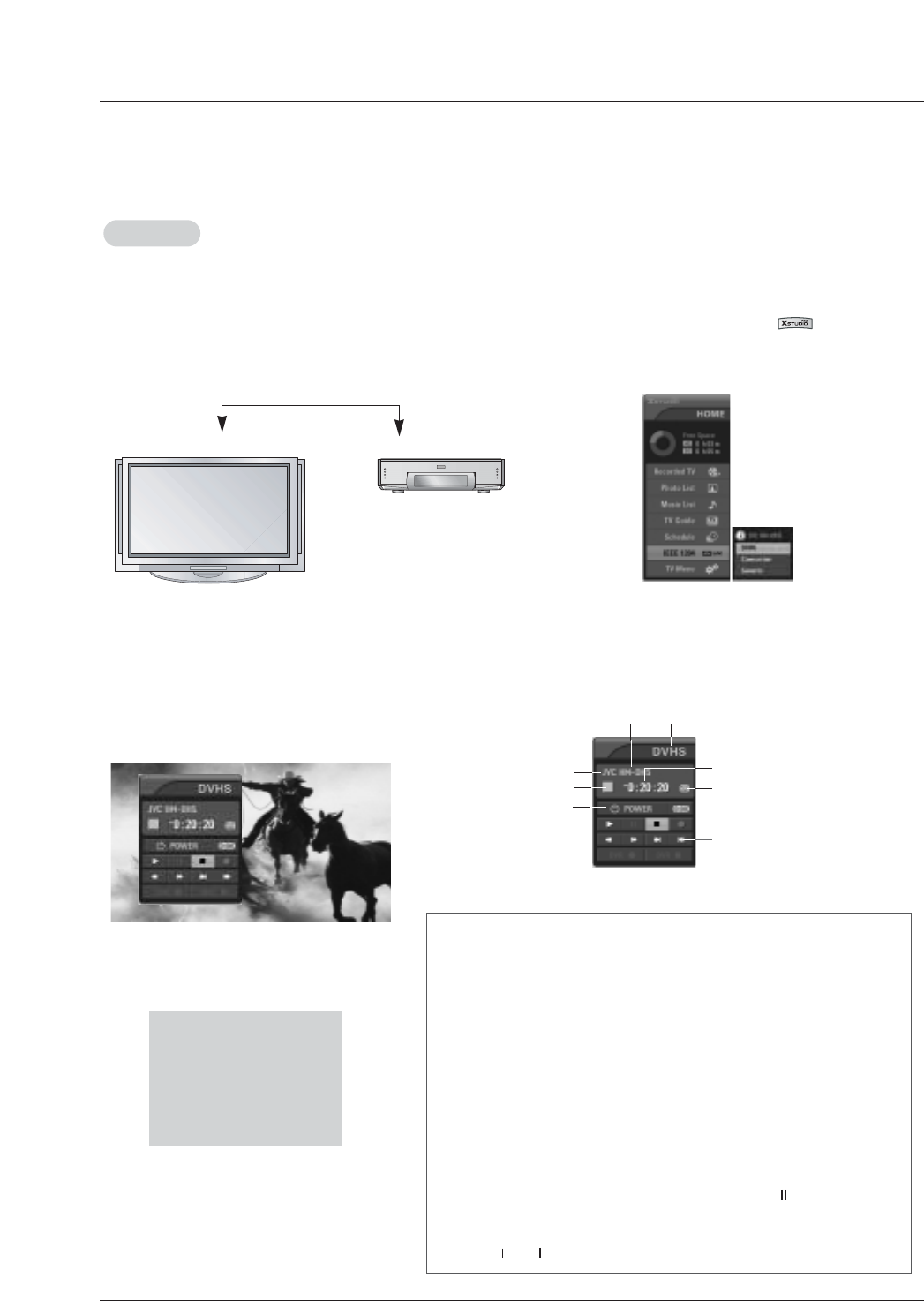

WHow to play the DVHS

<TV>

<DVHS>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394

jack of the DVHS with IEEE 1394 Cable.

2. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

* Supported DVHS List

JVC(HM-DH40000K)

JVC(HM-DH40000U)

JVC(HM-DH5U)

MITSUBISHI(HV-HD1000)

PANASONIC(NV-DH2)

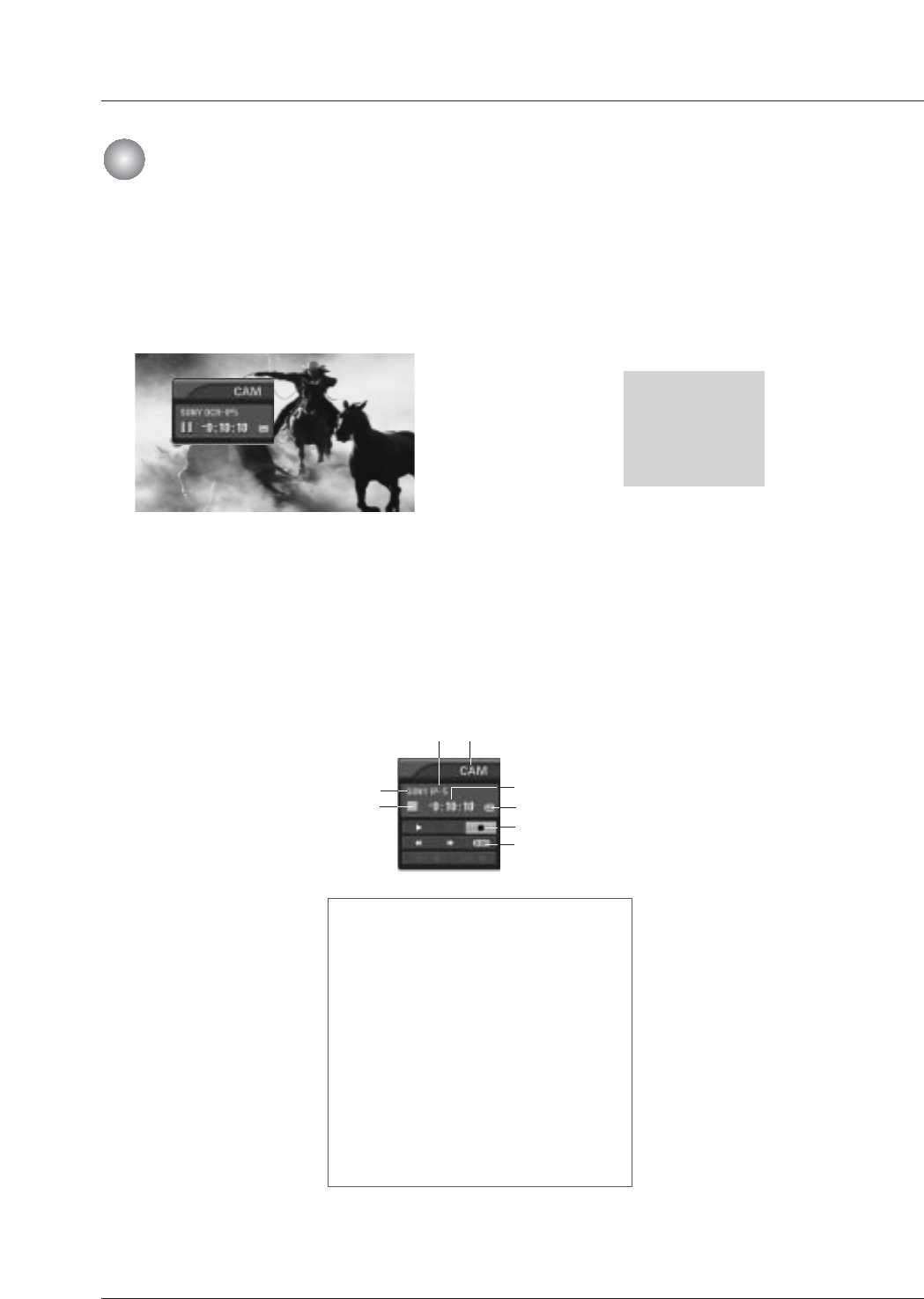

• The control panel of DVHS

-Depending on the connected equipment, marked control panel

may differ.

3. Press the D/Ebuttons to select the DVHS and

then use the ENTER button.

• Show the control panel of DVHS.

1. DVHS Model

2. Connected Equipment to the 1394

3. DVHS Company

4. DVHS Operating Status

5. Power On/Off

6. DVHS Play Time

7. Tape Status

• Tape shape Icon - Tape in or not

• Lock shape Icon - Writable or not

8. Initializing Play Time

9. DVHS Play, Pause, Stop, Search, Skip,Record,DVR Record orDVR Stop.

(Notes:

• Skip- This function is for a fast search.

It searches the program’s start point and then plays.

On skipping, Search (

), Rec(

) Pause ( ) and Play (

)

are displayed on the Control Panel.

In some models, it’s not available to operate the Skipping

(

) function.

Note: In case the DVHS have a incorrect recog-

nition to Generic, the power of DVHS is

completely pull out and then connect

again.

100 Plasma TV

IEEE 1394 Functions

Operation

WHow to play the instant reecord to the DVHS

2. Press the D/Ebuttons to select the DVHS and then use

the ENTER button.

• Show the control panel of DVHS.

The instant record function couldn’t use copy-protected programs.

1. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

3. Press the D/E/F/Gbuttons to move to

and then use the

ENTER button. You can record the current program to the DVHS.

4. Press the D/E/F/Gbuttons to move to J  and then

use the ENTER button.

Owner’s Manual 101

Operation

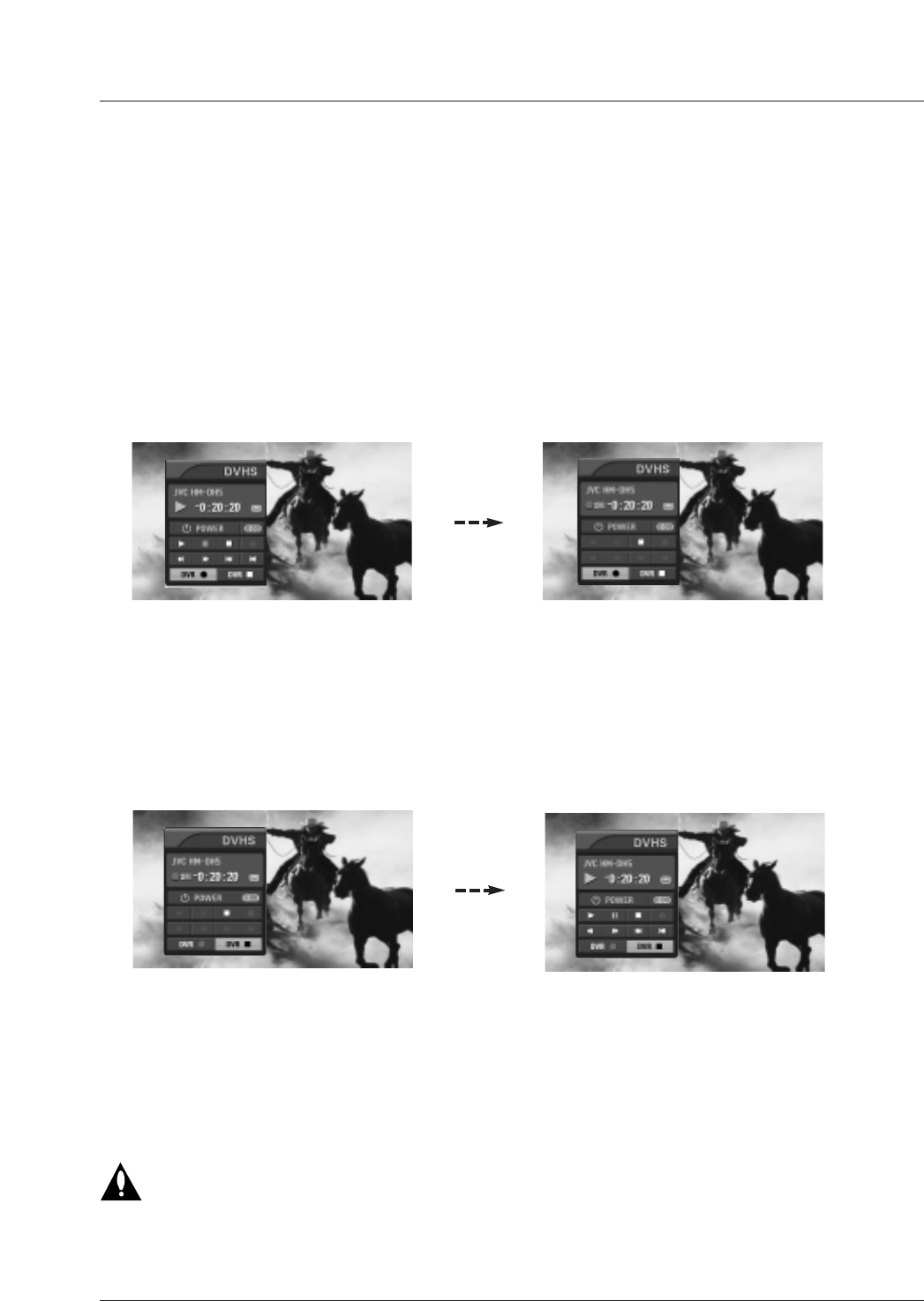

WHow to save the DVHS to the DVR

1. On playing the DVHS, press the D/E/F/Gbuttons to move to DVR Qand then press the

ENTER button.

• Save the current screen to the DVR.

2. Press the D/E/F/Gbuttons to move to DVR Jand then use the ENTER button to end a saving.

When you save the program which is copy - protected to the PVR, “This tape is copy-protected” is

display on the screen and don’t save to the PVR.

102 Plasma TV

Operation

How to save the DVR to the DVHS

1. When press the button, record list is displayed. You

can select the wanted program by pressing the D/E/F

/Gbuttons.

And then press the ENTER button.

The copy-protected contents couldn’t save to the DVHS.

2. Select the DVHS Out by pressing the D/E/F/Gbut-

tons and then press the ENTER button.

3. Press the D/E/F/Gbuttons to move to the START

and then press the ENTER button to save to DVHS.

4. Press the F/Gbuttons to move to the STOP and then

press the ENTER button to stop a saving.

• By pressing the RESUME button, you can con-

tiously save the recorded contents from a point

of stopping time.

- Press the D/Ebut-

tons to select the

wanted device and

move to the

Record

IEEE 1394 Functions

Owner’s Manual 103

Operation

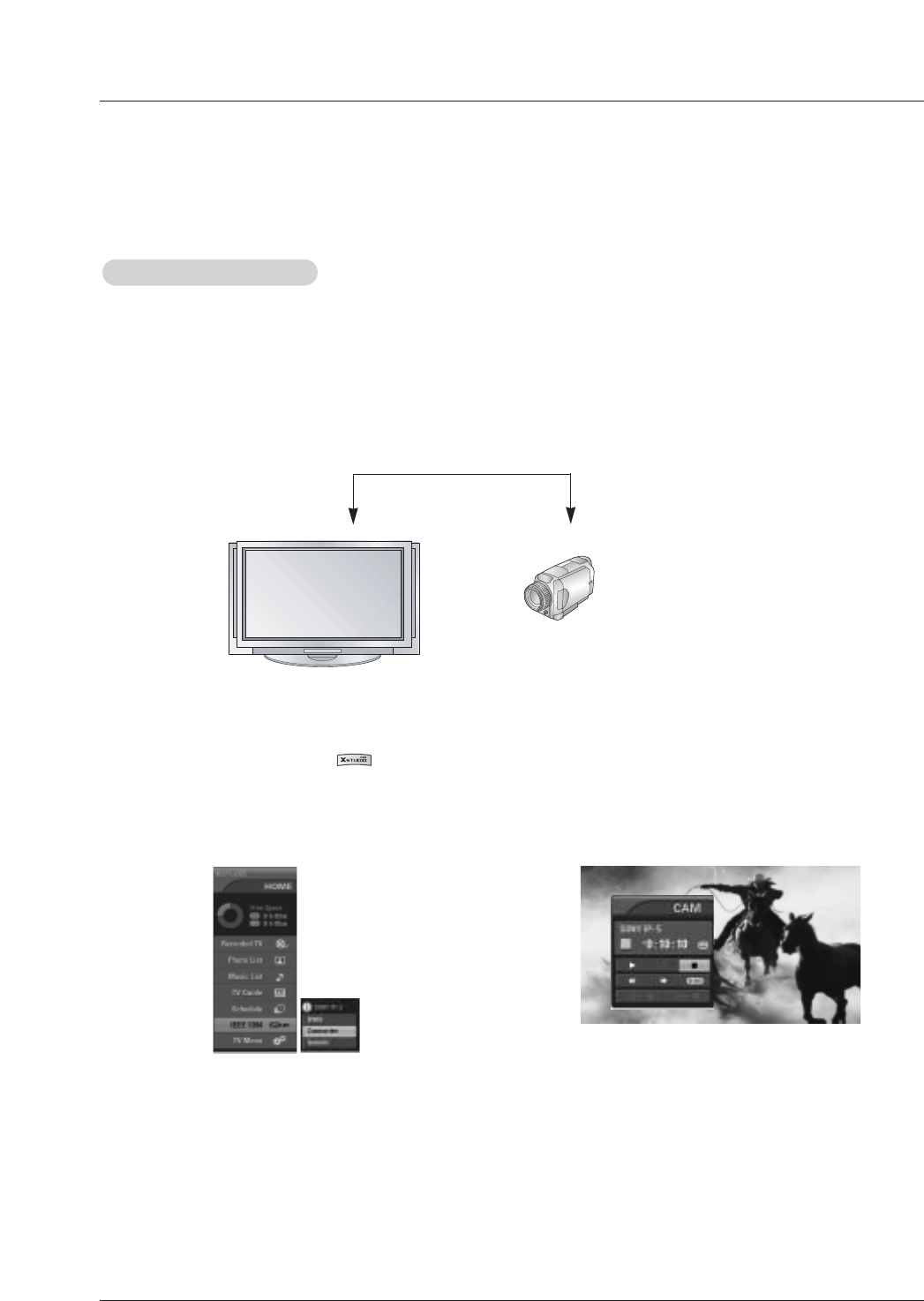

How to play the MicroMV Camcorder

MicroMV Camcorder

<TV>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394 jack of the MicroMV

Camcorder with IEEE 1394 Cable.

2. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

3. Press the D/Ebuttons to select the

Camcorder and then use the ENTER button.

• Show the control panel of CAM.

104 Plasma TV

Operation

IEEE 1394 Functions

• The control panel of MicroMV Camcorder

-Depending on the connected equipment, marked control panel may differ.

1. MicroMV Camcorder Model

2. Connected Equipment to the 1394

3. MicroMV Camcorder Company

4. MicroMV Camcorder Operating Status

5. MicroMV Camcorder Play Time

6. Tape Status

• Tape shape Icon - Tape in or not

• Lock shape Icon - Writable or not

7. MicroMV Camcorder Play, Search,Record,

7. or Stop

8. Initializing Play Time

* Supported MicroMV Camcorder List

SONY DCR IP-1

SONY DCR IP-5

SONY DCR IP-45

SONY DCR IP-210

• In camera mode of MicroMV Camcorder, this control

panel is showed.

• Show the control panel of CAM.

- Press the TV INPUT button to stop the IEEE1394

function.

Owner’s Manual 105

Operation

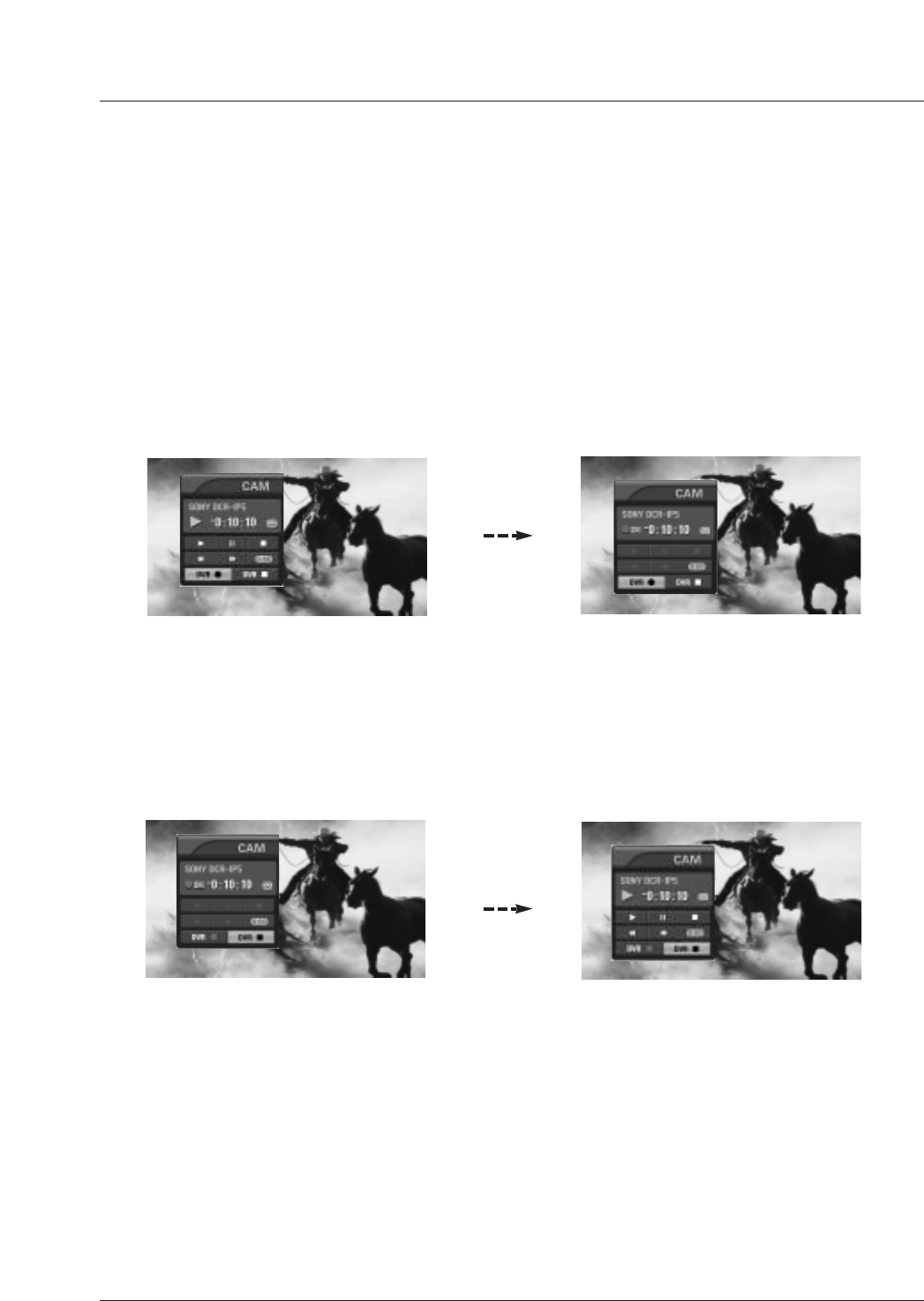

How to save the MicroMV Camcorder to the DVR

1. On playing the MicroMV Camcorder, press the D/E/F/Gbuttons to move to DVR Qand then use the

ENTER button.

• Save the current screen to the DVR.

2. Press the D/E/F/Gbuttons to move to DVR Jand then use the ENTER button to end a saving.

Notes:

• In memory mode of MicroMV Camcorder , it doesn’t apply to connect the IEEE1394.

• Regardless of a mode of MicroMV Camcorder, if the tape is ejected, it doesn’t apply to connect the IEEE1394.

106 Plasma TV

IEEE 1394 Functions

Operation

Generic

How to play the Generic

<TV>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394

jack of the Generic device with IEEE 1394 Cable.

3. On playing the Generic, press the D/E/F/Gbuttons

to move to DVR Qand then press the ENTER button.

4. Press the D/E/F/Gbuttons to move to DVR J

and then use the ENTER button to end a saving.

: If the stream which is satisfied with standard of IEC 61883(MPEG 2 TS Data) inputs, this

is a function which is able to show the stream on the TV screen and record in HDD.

Note: (Applicable devices) a device which output MPEG 2 TS Data stream through IEEE1394 port.

( ex: LST-3410, Digital Cable STB etc.)

2. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

• Save the current screen to the DVR.

5. Press the TV INPUT button to stop the IEEE1394

function.

Owner’s Manual 107

Operation

DTV Link

DTV Link : DTV Link applies to 1394 connection of device labeled DTV Link logo.

How to play the DTV Link

<TV-Consumer>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394

jack of the DTV Link supported device IEEE 1394 Cable.

3. On playing the DTV Link, press the D/E/F/Gbuttons

to move to DVR Qand then press the ENTER button.

• Save the current screen to the DVR.

4. Press the D/E/F/Gbuttons to move to DVR J

and then use the ENTER button to end a saving.

* What’s the DTV Link?

It is normal standard of CEA which

restricts by a remote and displays OSD

and plays to stream of a remote control

by using a connection of IEEE1394.

Note: On a condition of connecting the IEEE 1394, you can a distant control of opponent’s device while watching the OSD

through DTV and DTV remote control.

( ex: change of channel, play, record, a show of recording list etc.)

2. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

5. Press the TV INPUT button to stop the IEEE1394

function.

108 Plasma TV

Operation

Don’t connect !

•When connecting these 2 methods, the IEEE1394 will not work properly.

(a) LOOP Connection

<TV>

<DVHS>

<Connect the

IEEE1394

Cable>

(b) When connecting the 4 devices and over, the 1394 will not work properly.

Note: When the same devices connect with 2 devices and over, it’s undesirable.

IEEE 1394 Functions

Owner’s Manual 109

Operation

Cable menu options

- The Cable sub menu displays when inserting the CableCARDTM to the TV.

- The CableCARDTM type is Motorola, Scientific Atlanta (SA), or SCM etc. The

OSD (On screen display) is different from your TV according to your

CableCARDTM type.

Scrambled channel

- Insert the CableCARDTM. If you do it at first, it takes about 1 minute to exchange

the data between the TV and the CableCARDTM. Then, TV screen displays as

shown right.

- Let your cable TV service provider know CableCARDTM ID and Host ID.

- If your cable TV service provider is registered CableCARDTM ID and Host ID,

you can watch the premium or high value channel.

- If you ever registered to the cable TV service provider, you can watch the pre-

mium or high value channel without a message.

- If the certificate don’t match between the TV and the CableCARDTM,

the OSD (On screen display) displays as shown left.

In case of Scientific Atlanta CableCARD™

i.e) CableCARD™/ Host ID Screen

1. Press the MENU button and then use D/Ebutton to select the CABLE menu.

2. Press the Gbutton and then use D/Ebutton to select your desired item.

3. Press the Gbutton.

4. Press EXIT button to return to TV viewing.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

SA CableCARD™ Diag Screen G

SA CableCARD™/Host ID Screen

Exit

In order to start service for

this device, please contact

customer service at

Ph#: 1-866-303-0422

CableCARD™(tm): 0-010-405-698-001

HOST ID: 0-080-000-000-226

EXIT

CableCARD™ Message

Exit

In order to start cable service for this device,

please contact SuperVision Cable at

1-800-555-8888

POD ID: 7-561-034-449-009

Host ID: 0-100-331-784-018

EXIT

CableCARD™ Message

Please call your operator and report an invalid CableCARDTM.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

- As shown, the pairing

number means your TV

and CableCARDTM ID.

For further information

regarding cable TV ser-

vice, contact your local

cable TV service

provider(s).

CableCARD

CableCARD™

™Function

Function

110 Plasma TV

Operation

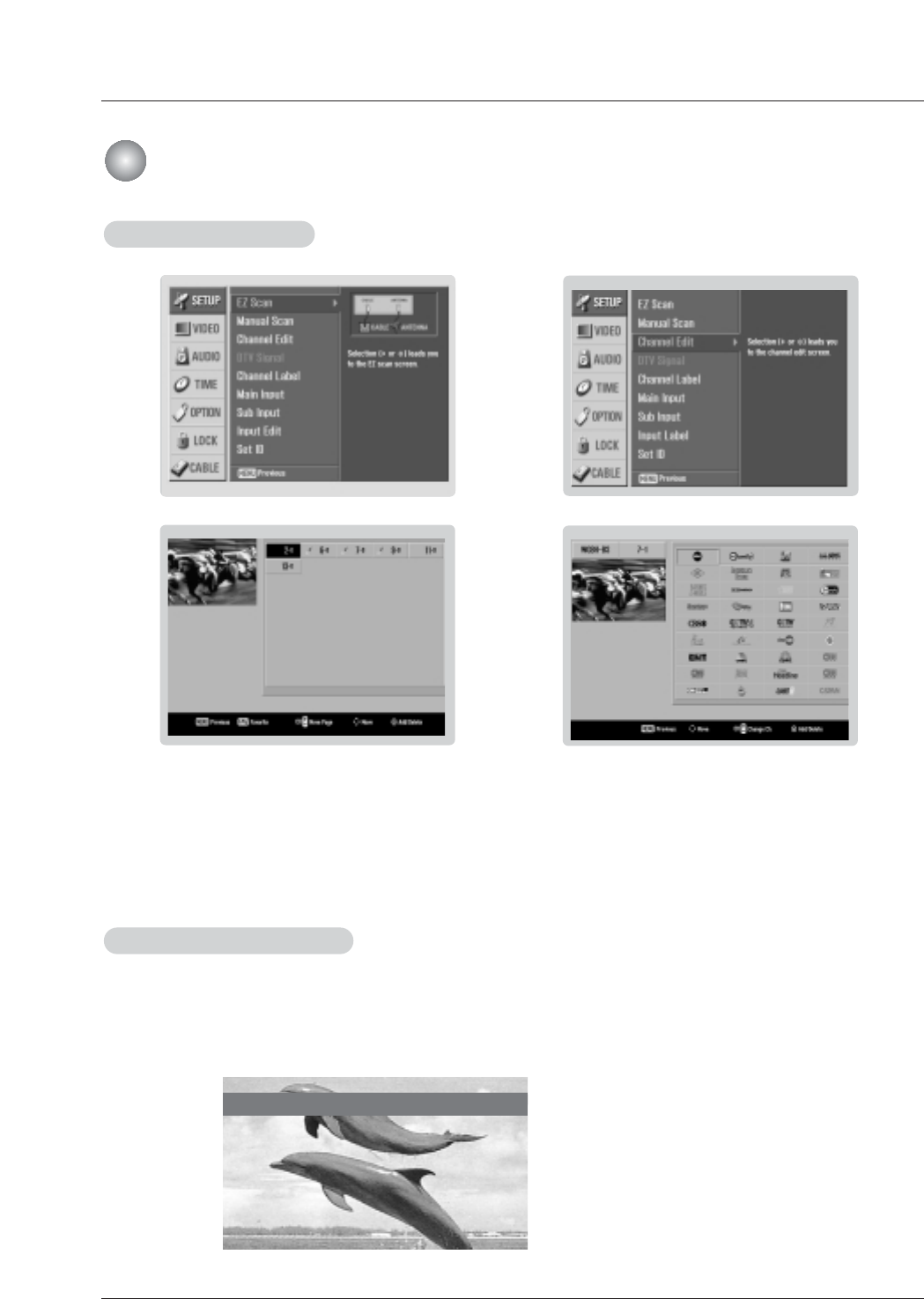

- If an emergency situation occur during watching the TV, you can receive a message from cable TV service

provider(s).

- When receiving an emergency message, the message is displayed on the screen as shown below or the channel

is changed automatically to a channel that maintains the emergency message. The message automatically disap-

peared.

Emergency Action Notification

Hurricane will be coming!!!

Cable Channel List

Emergency

Emergency Alert Message

Alert Message

1. If you enter the Channel Edit after running the EZ Scan, you can see the cable channel list.

2. Inserting the CableCARDTM. Then, the TV receive a new cable channel list. At this time, it takes about 2~3 minutes.

(Occasionally more than that time).

Note:

• As data gathering of CableCARDTM, it may make a noise by fan in standby mode.

1. 2.

3. 4.

CableCARD

CableCARD™

™Function

Function

Owner’s Manual 111

Operation

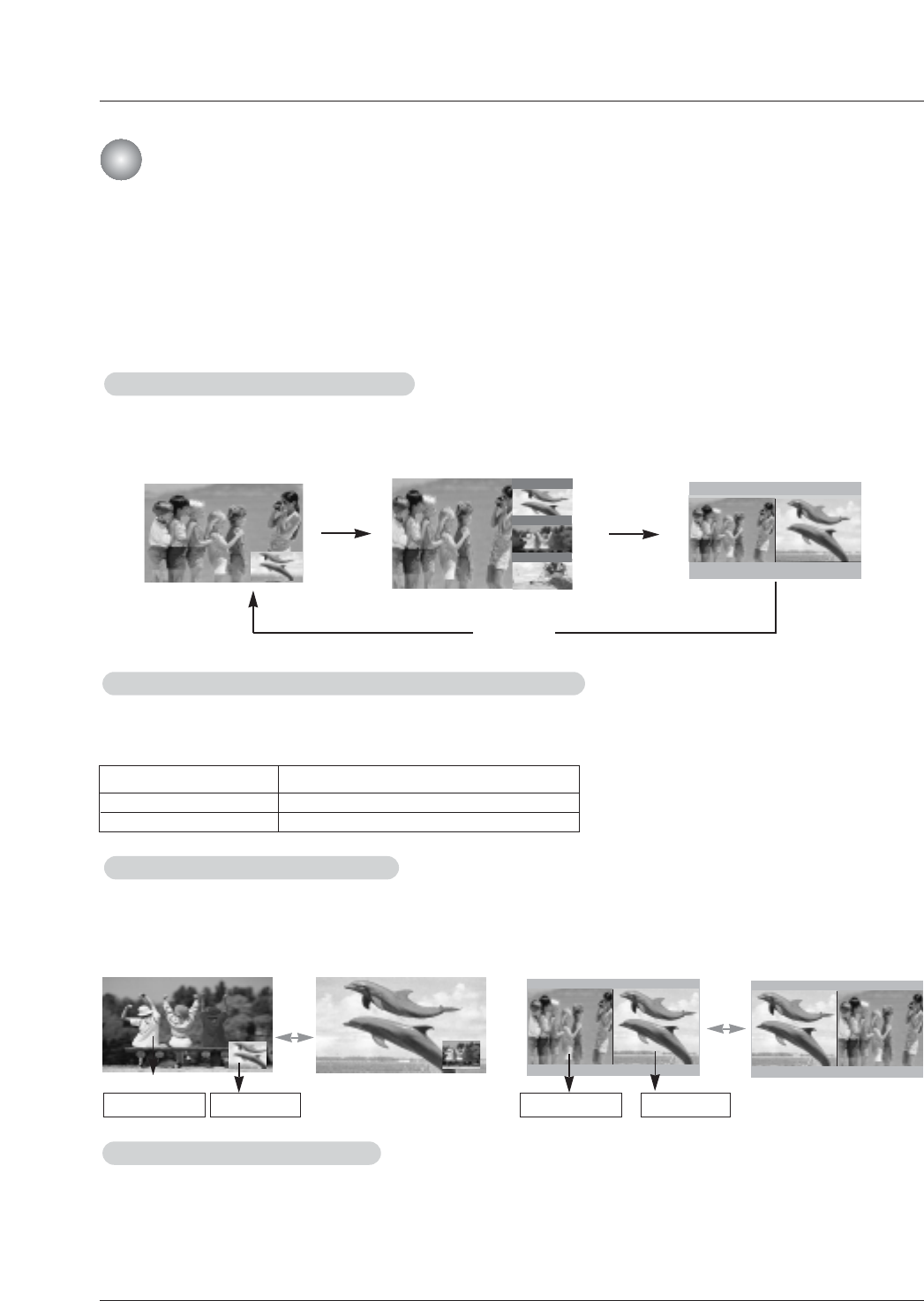

- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other

source will show a smaller inset image.

- Twin Picture mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each

source is given half the screen.

- If you set the block/rating for Lock menu options in PIP/Twin Picture mode, “Rating Blocked” doesn’t display on screen.

Press the PIP button to access the sub picture. Each press of PIP changes the PIP options as shown below.

PIP Off

PIP Mode POP Mode Twin Picture Mode

1. Press the PIP button.

2. Select the Antenna or Cable option on the Sub input menu or with the PIP INPUT button. Use the PIPCH+ /

PIPCH- button to select a channel for the sub picture.

(You can’t select DTV for main and sub picture simultaneously).

Repeatedly, use the SWAP button to switch the main and sub pictures.

• Component 1, Component 2, RGB-PC (or RGB-DTV), HDMI1/DVI,HDMI2 input sources for the main picture can’t

be used to swap the main and sub pictures.

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes

the PIP source. You can also select sources for the Sub Input in the SETUP menu.

Main Picture Source Available Sub Picture Sources

DTV

Analog

Analog, Video, and Front Video

DTV, Analog, Video, and Front Video

Main Picture Sub Picture Main Picture Sub Picture

FTV 2-0

TV 4-0

TV 6-0

PIP (Picture-In-Picture) / POP / Twin Picture

Remote Control

Watching PIP/POP/T

atching PIP/POP/Twin Picture

win Picture

Selecting an Input Signal Source for PIP/T

Selecting an Input Signal Source for PIP/Twin Picture

win Picture

Swapping the PIP

Swapping the PIP/T

/Twin Picture

win Picture

TV Program selection for PIP

112 Plasma TV

Operation

In PIP mode, press the D/E/F/Gbutton to move the sub picture to a different location on the

screen.

Use the D/E/F/Gbutton to change main and sub picture sizes in Twin Picture mode.

If screen is adjusted to the

maximal size, the large

screen is filled with entire

screen vertically as shown.

i.e)

1. Press the PIP button to activate the POP mode while in PIP mode.

•Channel selection: Use Fbutton to enlarge the selected channel being searched on the PIP

screen to shift it for viewing on the Main screen.

•PIP selection: Use D/Ebutton to select one of 3 PIP screen pictures in POP mode.

• When watching TV/CATV on Main picture, TV/CATV or DTV/CADTV on Sub pictures are in chan-

nel scanning. However, when watching DTV/CADTV on Main picture, only TV/CATV on Sub pic-

ture is in channel scanning.

2. Press the EXIT button to cancel POP mode.

Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen display,

(while the main picture source remains the current channel). The pictures of all the programmed channels

are searched with the 3 POP screen.

Notes:

•Run EZ Scan channel search before using POP mode.

•When Sub pictures are changed from the TV/DTV to CATV/CADTV in POP mode, it may make a noise

from the Tuner switch.

FTV 2-0

TV 4-0

TV 6-0

Moving the PIP

Moving the PIP sub picture

sub picture

Adjusting Main and Sub Picture Sizes for

Adjusting Main and Sub Picture Sizes for T

Twin Picture

win Picture

POP

POP (Picture-out-of-Picture: Channel

(Picture-out-of-Picture: Channel

Owner’s Manual 113

Operation

APM (Adaptive Picture Mode)

- Concurrently, compare with 4 EZ Pictures (Daylight,Normal,Night Time and Custom) on the screen.

1. Press the APM button at once. As shown below, the screen is

divided to 4-split.

Use the D/E/F/Gbutton to navigate 4 EZ Pictures. By press-

ing the ENTER button, you can select the desired mode.

2. Press the APM button, again. As shown below, the 4-same

screens are displayed.

You can easily compare with 4 modes.

Use the D/E/F/Gbutton to navigate 4 EZ Pictures. By press-

ing the ENTER button, you can select the desired mode.

4. Press EXIT button to return to TV viewing.

Note: While operating the 4-split, any button except APM, ENTER, EXIT, VOLUME

, MUTE button on the

remote control are not available.

114 Plasma TV

Operation

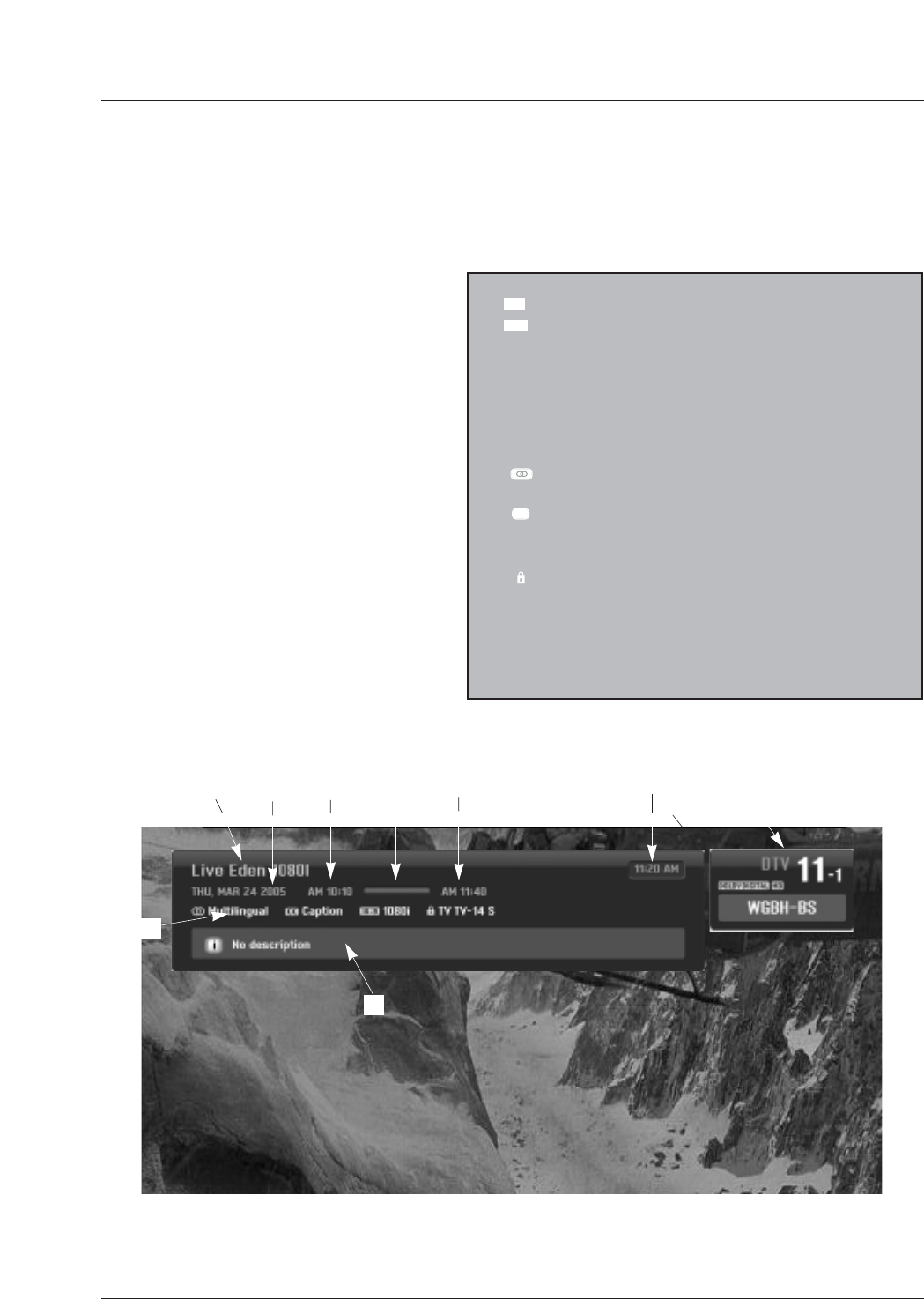

4 : 3

16 : 9

Screen Ratio of Input Signal 4:3

Screen Ratio of Input Signal 16:9

Resolution of Input Signal 720x480i

Resolution of Input Signal 720x480p

Resolution of Input Signal 1280x720p

Resolution of Input Signal 1920x1080i

Multilingual : Input Signal have over two Audio infor-

mation. Press the SAP button to select wanted Audio.

Caption: Input Signal have over one Close service.

Press the CC button to select wanted Closed caption.

Input Signal have rating information . Refer to the

<Lock Menu>.

D (Dialogue), L (Language), S (Sex), V (Violence), FV

(Fantasy Violence)

480i

480p

720p

1080i

Operation: • Watching TV/DTV/CATV/CADTV

• Watching Video, Front Video

• Watching IEEE 1394

• In Component1, Component2, RGB,

HDMI1/DVI,HDMI2 modes, INFO button

is not working.

Function: • Show the present screen information.

• On Watching with the upper Input signal,

press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information, Refer to the

<Channel Banner>.

B: Program title

C: Day, Month, Year

D: Program start time

E: Show the prosessing rate

F: Program finish time

G: Current time

H: Added information. Refer to the icon

explanation.

I: Program information

Brief Info.

BCDEA

Owner’s Manual 115

Operation

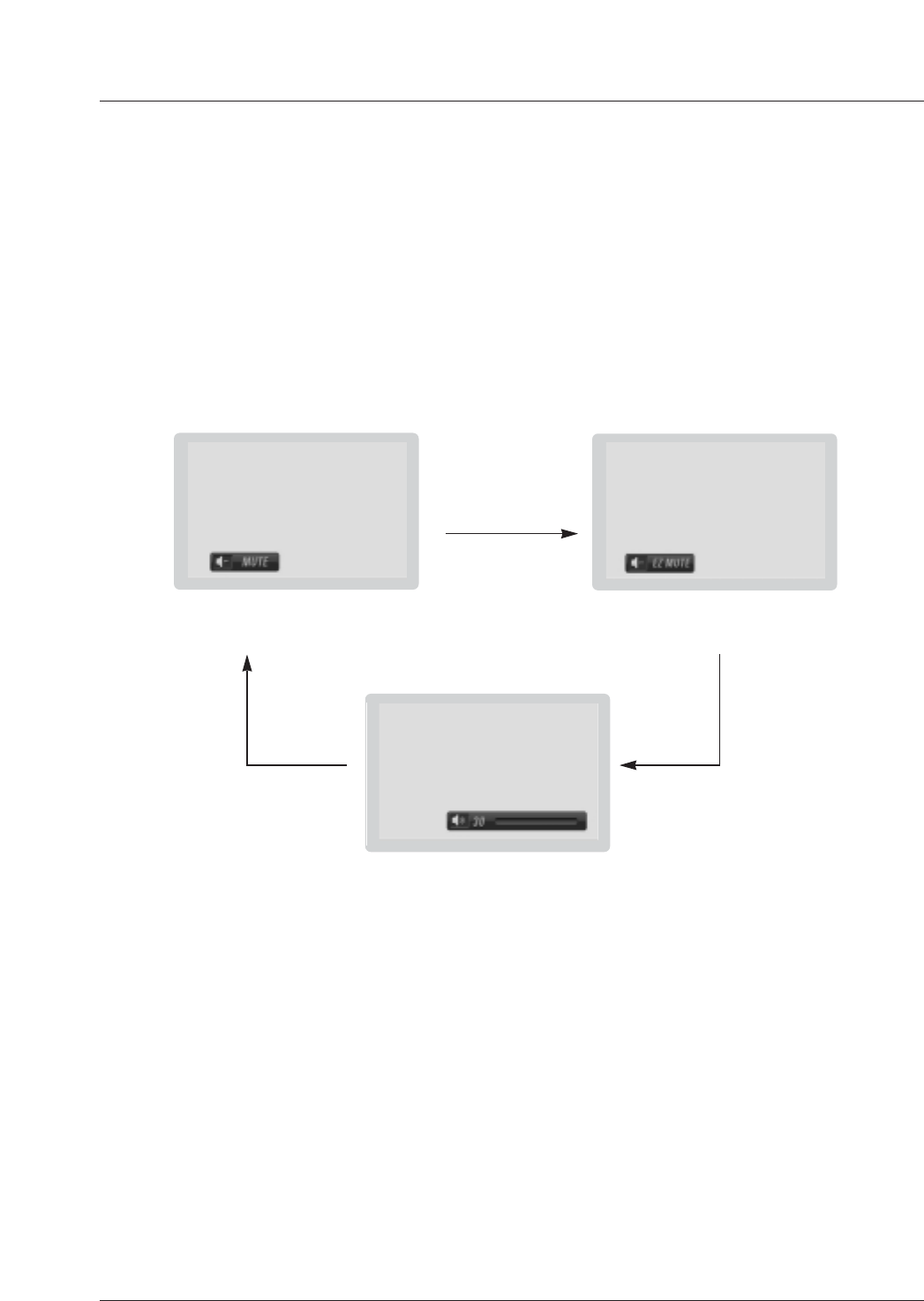

- Nothing to do with Caption on/Off using Mute button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the Mute button, the screen is displayed in turn. (Refer to the lower picture)

Note:

• EZ Mute only operates in DTV/Analog/Video/Front Video/IEEE1394.

EZ Mute

116 Plasma TV

Operation

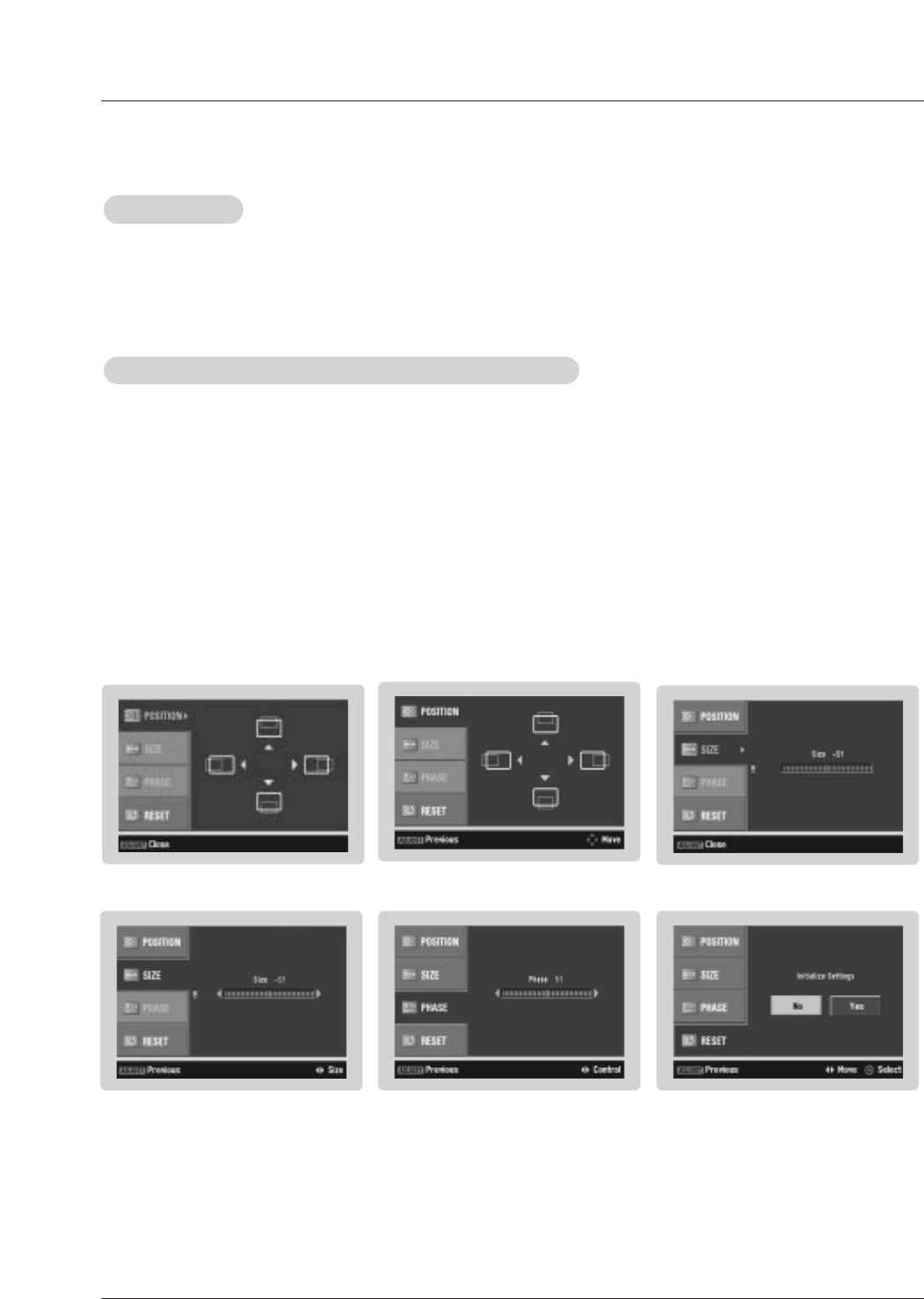

• When RGB connect to PC input and select the RGB-PC, this function is used.

• When HDMI1/DVI connect to PC input and select HDMI1/DVI input, this function is used.

• In RGB-DTV, HDMI-DTV modes, SIZE and PHASE is not worked.

•After connecting RGB-PC or HDMI/DVI to PC input and checking the screen quality.

- Display PC Adjust Menu using Adjust button.

- Position : Adjust the screen position. After displaying the Adjust, select the screen position.

- Size : Adjust the screen size.

- Phase : Adjust the phase of Pixel clock.

- Reset : Initializating Size, Position, Phase adjustment .

Operation

Adjustment for screen Position, Size, Phase, Reset

Screen Setup for PC mode

Owner’s Manual 117

External Control Device Setup

No. Pin Name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DSR

DTR

CTS

RTS

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

PDP

D-Sub 9

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DTR

DSR

RTS

CTS

3-Wire Configurations

(Not standard)

D-Sub 9

PDP

D-Sub 9

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

RS-232C Setup

RS-232C Configurations

External Control Device Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO

INPUT

RGB INPUT

VIDEO

HDMI 2

HDMI /DVI

COMPONENT INPUT 1

(MONO)

CABLE

ANTENNA

AC INPUT

DVD

/DTV

INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT 1

VIDEO

AUDIO

S-VIDEO

REMOTE

CONTROL

Type of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

118 Plasma TV

External Control Device Setup

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

Transmission

*[Command 1]: First command to control the set. (j,k,m or x)

*[Command 2]: Second command to control the set.

*[Set ID]: You can adjust the set ID to choose desired TV ID

number in Setup menu. Adjustment range is 1 ~

99. When selecting Set ID ‘0’, every connected the

TV is controlled. Set ID is indicated as decimal

(1~99) on menu and as Hexa decimal (0x0~0x63)

on transmission/receiving protocol.

*[DATA]: To transmit command data.

Transmit ‘FF’ data to read status of command.

*[Cr]: Carriage Return

ASCII code ‘0x0D’

*[ ]: ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission / Receiving Protocol

ransmission / Receiving Protocol

OK Acknowledgement

* The TV transmits ACK (acknowledgement) based on this

format when receiving normal data. At this time, if the data

is data read mode, it indicates present status data. If the

data is data write mode, it returns the data of the PC com-

puter.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The TV transmits ACK (acknowledgement) based on this

format when receiving abnormal data from non-viable

functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Data 1: Illegal Code

2: Not supported function

3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c *

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 2

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock/Key Lock

k m 0 ~ 1

14. PIP/Twin k n 0,1,2,5

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19. Color Temperature k u 0 ~ 2

20. PIP Input Source k y 0 ~ 3

21. ISM Method j p *

22. Low Power j q 0 ~ 1

23. Orbiter Time Setting j r 1 ~ FE

24. Orbiter Pixel Setting j s 1 ~3

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

Command Reference List

Set ID

Use this function to specify a TV ID number.

Refer to ‘Real Data Mapping’. See page 119.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select SET ID.

3. Press the Gbutton and then use D/Ebutton to adjust SET ID to choose the

desired TV ID number. The adjustment range of SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

25. Channel Tuning m a physical/program high major/program low major low minor high minor low attribute

26. Channel Add/Del m b 00 ~ 01

27. Key m c key code

28. Input Select x b *

29. PIP Input Select x y *

COM-

MAND 2

COM-

MAND 1

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

DATA 4

(Hexadecimal)

DATA 5

(Hexadecimal)

Owner’s Manual 119

External Control Device Setup

02. Input Select (Command2:b) (Main Picture Input)

GTo select input source for the TV.

Transmission

Data 0: DTV

1: Analog

2: Video

3: Front Video

4: Component 1

5: Component 2

6: RGB-DTV

7: RGB-PC

8: HDMI1/DVI

9: HDMI2

Date 1: 4:3

2: 16:9

3: Horizon

4: Zoom 1

5: Zoom 2

6: Set by program

10: Cinema Zoom (1)

1F: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK/NG][Data][x]

01. Power (Command2:a)

GTo control Power On/Off of the TV.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK/NG][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback

presents status about each function.

*Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

05. Volume Mute (Command2:e)

GTo control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

2 : EZ Mute

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK/NG][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

GTo adjust the screen format.

You can also adjust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK/NG][Data][x]

04. Screen Mute (Command2:d)

GTo select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK/NG][Data][x]

06. Volume Control (Command2:f)

GTo adjust volume.

You can also adjust volume with the volume buttons

on remote control.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK/NG][Data][x]

07. Contrast (Command2:g)

GTo adjust screen contrast.

You can also adjust contrast in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK/NG][Data][x]

08. Brightness (Command2:h)

GTo adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

Data Min : 0 ~ Max : 64(*transmit by Hexadecimal code)

•Refer to ‘Real data mapping’ as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK/NG][Data][x]

120 Plasma TV

External Control Device Setup

09. Color (Command2:i)

GTo adjust the screen color.

You can also adjust color in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’. See page 119.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK/NG][Data][x]

10. Tint (Command2:j)

GTo adjust the screen tint.

You can also adjust tint in the Video menu.

Transmission

Data Red : 0 ~ Green : 64

•Refer to ‘Real data mapping’. See page 119.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[ j ][ ][Set ID][ ][OK/NG][Data][x]

13. Remote Control Lock Mode (Command2:m)

GTo lock the remote control and the front panel controls on

the set.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK/NG][Data][x]

14. PIP / POP / Twin Picture (Command2:n)

GTo control the PIP (Picture-in-Picture)/POP/Twin picture.

You can also control the PIP/POP/Twin picture using the

PIP button on the remote control.

Transmission

Data 0:Off

1: PIP

2: DW1

5: POP4(POP Scan)

[k][n][ ][Set ID][ ][Data][Cr]

Acknowledgement

[n][ ][Set ID][ ][OK/NG][Data][x]

GTo adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

11. Sharpness (Command2:k)

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 119.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK/NG][Data][x]

12. OSD Select (Command2:l)

GTo select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK/NG][Data][x]

15. PIP Position (Command2:q)

GTo select sub picture position for PIP.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Right down on screen

1: Left down on screen

2: Left up on screen

3: Right up on screen

[q][ ][Set ID][ ][OK/NG][Data][x]

16. Treble (Command2:r)

GTo adjust treble.

You can also adjust treble in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)

•Refer to ‘Real data mapping’. See page 119.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK/NG][Data][x]

18. Balance (Command2:t)

GTo adjust balance.

You can also adjust balance in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)

•Refer to ‘Real data mapping’. See page 119.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK/NG][Data][x]

17. Bass (Command2:s)

GTo adjust bass.

You can also adjust bass in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)

•Refer to ‘Real data mapping’. See page 119.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data][x]

GIf you’re not using the remote control and front panel controls

on the TV, use this mode. When main power is on/off,

remote control lock is released.

Owner’s Manual 121

External Control Device Setup

19. Color Temperature (Command2:u)

GTo adjust color temperature.

You can also adjust color temperature in the Video

menu.

Transmission

Data 0: Medium 1: Cool 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK/NG][Data][x]

23. Orbiter Time Setting (Command2:r)

GTo adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE(*transmit by Hexadecimal code),

Unit: Second

[ j ][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK/NG][Data][x]

24. Orbiter Pixel Setting (Command2:s)

GTo adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: 3

[ j ][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK/NG][Data][x]

25. Tune Command (Command: m a)

GTo tune channel to following physical/major/minor number

Transmission

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

20. PIP Input Select (Command2:y)

GTo select input source for sub picture in PIP/Twin pic-

ture mode.

Transmission

Data 0: DTV

1: Analog

2: Video

3: Front Video

[k][y][ ][Set ID][ ][Data][Cr]

Acknowledgement

[y][ ][Set ID][ ][OK/NG][Data][x]

21. ISM Method/Orbiter (Command2:p)

GTo avoid having a fixed image remain on screen.

Transmission

Data 1: Inversion

2: Orbiter

4: White Wash

8: Normal

[ j ][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK/NG][Data][x]

22. Low Power (Command2:q)

GTo control the low power function on/off.

Transmission

Data 0: low power off

1: low power on

[ j ][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

[q][ ][Set ID][ ][OK/NG][Data][x]

7Main/Sub

Picture 6

Two/One

Part

Channel

Using

Physical

Channel

Reserv

ed 3210Step

Main

Sub

Two

One

Use

No Use

x0110

NTSC Air

ATSC

cable_auto

ATSC

Cable_irc

ATSC

Cable_hrc

ATSC

Cable_std

NTSC Cable

ATSC Air

Reserved

...

Reserved

Data 0:

Physical Channel Number(Transmit by Hexadecimal code)

NTSC air:02~45

NTSC cable: 01, 0E~7D

ATSC air:01~45

ATSC cable:01~87

Data1,Data2:

Major Channel Number (two part)/ Channel Number (One part)

Data1: High byte

Data2: Low byte

Two part channel number: Major number-Minor number

One part channel number: If the channel band is ATSC

digital cable, it can be used. In case of using one part chan

nel number, minor channel does not need.

Data3, Data 4:

Minor Channel Number Data3: High byte Data4: Low byte

Data 5:

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

*Using physical channel: 5th bit

If the channel band is NTSC air or NTSC cable, channel tun-

ing can be done by only physical channel. In this case, using

physical channel bit must be low(0).

But if the channel band is ATSC air or ATSC cable, there are

two cases that physical channel enable or disable.

If the physical channel sending is meaningful, you should set

this bit low(0). If the physical channel sending is meaningless,

you should set this bit high(1).

122 Plasma TV

External Control Device Setup

26. Channel Add/Del (Command: m b)

GTo add and delete the channels

Transmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK/NG][Data][x]

Acknowledgement

27. Key (Command: m c)

GTo send IR remote key code

Transmission

Data Key code: Refer to page 124.

[m][c][ ][Set ID][ ][Data][ ][Cr]

[c][ ][Set ID][ ][OK/NG][Data][x]

Acknowledgement

External Input Data

0000

0001

0010

DTV

Analog

Reserved

Component

RGB_DTV

RGB_PC

Reserved

HDMI1

Reserved

0011

0100

0101

0110

0111

1000

1001

1011

1100

1101

1110

1111

28. Input select(Command: x b)

(Main Picture Input)

GTo select input source for TV.

Transmission

Data Structure

[x][b][][Set ID][][Data][Cr]

[b][][Set ID][][OK/NG][Data][x]

Acknowledgement

000

00000

External Input Input Number

Input Number Data

0000

0001

0010

Input1

Input2

Input3

Input4

Input5

Input6

Input7

Input8

Input9

Input10

Input11

Input12

Input13

Input14

Input15

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111 Input16

Note:

• In case Video/S-Video is selected automatically by TV, use

only single Video input.

• In case Video/S-Video is selected by user manually, use sepa-

rate Video/S-Video inputs.

29. PIP Input Select(Command: x y)

GTo adjust input source for sub picture in PIP mode

Transmission

[x][y][][Set ID][][Data][Cr]

Data Structure

000

00000

External Input Input Number

External Input Data

0000

0001

0010

DTV

Analog

Reserved

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

Input Number Data

0000

0001

0010

Input1

Input2

Input3

Input4

Input5

Input6

Input7

Input8

Input9

Input10

Input11

Input12

Input13

Input14

Input15

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111 Input16

[y][][Set ID][][OK/NG][Data][x]

Acknowledgement

Reserved

1110

MSB LSB

Example)

1. Analog channel: NTSC cable, channel number(35), main

picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01):

main picture, two part(it’s not mandatory), using physical chan-

nel, NTSC cable ‘xx’ data: don’t care major and minor channel

number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don’t know phys-

ical channel, major(30), minor(3)), sub picture

Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub pic-

ture, two part, not using physical channel, ATSC air ‘xx’ data:

don’t care analog channel number in case digital channel tun-

ing.

3. Digital channel: ATSC air, channel

number(physical(20),major(20), minor(3)), sub picture

Command: ma 00 14 00 14 00 03 82

attribute(0x82): sub picture, two part, using physical channel,

ATSC air.

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][x]

[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

Owner’s Manual 123

IR Codes

GConnect your wired remote control to the Remote Control port on the TV.

GOutput waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

GConfiguration of frame

GRepeat code

GLead code

•1st frame

Low

custom code

Lead

code

High

custom code Data code Data code

Carrier frequency

FCAR = 1/TC= fOSC/12

Duty ratio = T1/TC= 1/3

•Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

GBit description

GFrame interval : Tf

The waveform is transmitted as long as a key is depressed.

•Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

•Bit “1”

2.24 ms

How to Connect

Remote Control IR Codes

IR Codes

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][x]

[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

124 Plasma TV

IR Codes

10 ~ 19

R/C Button

R/C Button (Power On/Off)

R/C Button

Discrete IR Code (TV Input Selection)

Discrete IR Code (Video Input Selection)

Discrete IR Code (Front Video Input Selection)

Discrete IR Code (Component1 Input Selection)

Discrete IR Code (Component2 Input Selection)

Discrete IR Code (RGB-PC Input Selection)

Discrete IR Code (RGB-DTV Input Selection)

Discrete IR Code (HDMI1/DVI Input Selection)

Discrete IR Code (HDMI2 Input Selection)

Discrete IR Code (Only 4:3 Mode)

Discrete IR Code (Only 16:9 Mode)

Discrete IR Code (Only Zoom1 Mode)

Discrete IR Code (Channel Search)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R/C Button

Code (Hexa) Function Note

TV INPUT

TV/VIDEO

POWER

RATIO

TIMER

Number Key 0~ 9

- (Dash)

FLASHBK

MUTE

VOL D

VOLE

CH D

CH E

FAV

INFO

ENTER

EZ SOUND

EZ PIC

EXIT

PIP

PIPCH -

PIPCH +

PIP INPUT

SWAP

SAP

ADJUST

VIDEO

Front Video

COMPONENT 1

COMPONENT 2

RGB-PC

RGB-DTV

HDMI1/DVI

HDMI2

Ratio 4:3

Ratio 16:9

Ratio Zoom

POP

POWER ON

POWER OFF

PLAY

PAUSE

STOP

REC

REW

GOTOPREV

GOTONEXT

TV GUIDE

APM

MC EJECT

AUTO DEMO

X STUDIO

MARK

REC LIST

Owner’s Manual 125

Programming Codes

GThe remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable

devices of other manufacturers.

Note that the remote control may not control all models of other brands.

Programming a code into a remote mode

Programming the Remote

1. Test your remote control.

To find out whether your remote control can operate the component without programming, turn on the component such as a VCR

and press the corresponding the desired component button on the remote control, while illuminating at the selected component.

Test the POWER buttons to see if the component responds properly. If not, the remote requires programming to operate the

device.

2. Turn on the component to be programmed, then press the corresponding the desired component button on the remote control.

3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.

4. There are two ways to find the right code for the component.

Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component can

be found on the following pages. Again, if the code is correct, the device will turn off.

5. Press the MENU button to store the code.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

126 Plasma TV

Programming the Remote

Programming Codes

VCRs

CATV

AIWA 034

AKAI 016 043 046 124

125 146

AMPRO 072

ANAM 031 033 103

AUDIO DYNAMICS

012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON

012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

133 140 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

PORTLAND 108

PULSAR 072

QUARTZ 011 014

QUASAR 033 066 075 145

RCA 013 020 033 034

040 041 062 063

107 109 140 144

145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125

SANSUI 022 043 048 135

SANYO 003 007 010 014

102 134

SCOTT 017 037 112 129

131

SEARS 003 008 009 010

013 014 017 020

031 042 073 081

101

SHARP 031 054 149

SHINTOM 024

SONY 003 009 031 052

056 057 058 076

077 078 149

SOUNDESIGN 034

STS 013

SYLVANIA 031 033 034 059

067

SYMPHONIC 034

TANDY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH

012

VICTOR 048

VIDEO CONCEPTS

012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053

AJIN 112

ANTRONIK 014

ARCHER 005 007 014 024

CABLE STAR 026

CENTURION 092

CENTURY 007

CITIZEN 007

COLOUR VOICE 065 090

COMBANO 080 081

COMTRONICS 019 030

DIAMOND 023

EAGLE 020 030 040

EASTERN 057 062 066

ELECTRICORD 032

GE 072

GEMINI 008 022 025 054

GI 052 074

GOLDEN CHANNEL

030

HAMLIN 049 050 055

HITACHI 052 055

HOSPITALITY 070 077

JERROLD 002 003 004 008

009 010 052 069

074

LG (GOLDSTAR) 001 106 101 005

M-NET 037

MACOM 033

MAGNAVOX 010 012 064 079

MEMOREX 100

MOVIE TIME 028 032

NSC 015 028 038 071

073

OAK 016 031 037 053

PANASONIC 044 047

PARAGON 100

PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016

PRUCER 059

PTS 011 048 071 072

073 074

PULSAR 100

RCA 047

REGAL 049 050

REGENCY 057

REMBRANT 025

RK 091

SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046

SHERITECH 022

SIGNAL 030

SIGNATURE 052

SL MARX 030

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030

SYLVANIA 067

TADIRAN 030

TAEKWANG 110

TAIHAN 105

TANDY 017

TEXSCAN 029 067

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

Owner’s Manual 127

Programming Codes

Audio

APEX DIGITAL 022

DENON 020 014

GE 005 006

HARMAN KARDON 027

JVC 012

LG 001 010 016 025

MAGNAVOX 013

MARANTZ 024

MITSUBISHI 002

NAD 023

ONKYO 008 017

PANASONIC 003 009

PHILIPS 013

PIONEER 004 026

PROCEED 021

PROSCAN 005 006

RCA 005 006

SAMSUNG 011 015

SONY 007

THOMPSON 005 006

TOSHIBA 019 008

YAMAHA 009 018

ZENITH 010 016 025

DVD

ALPHASTAR DSR

123

AMPLICA 050

BIRDVIEW 051 126 129

BSR 053

CAPETRONICS 053

CHANNEL MASTER

013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

HYTEK 053

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101

UNIDEN 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230

AKAI 163

ANAM 003 014 017 023

059 106 189 216

217 235 236

BURMECTER 252

CARVER 086

CLARION 199

DAEWOO 027 053 060 084

102 148 198 221

DENON 015 075 130 143

FANTASIA 071

FINEARTS 022

FISHER 089 099

LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239

HAITAI 034 035 188 222

HARMAN/KARDON 068

INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141

KEC 185 186 187

KENWOOD 038 050 067 089

170 171 197 206

215 222

KOHEL 030

NAD 045 046

LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

LXI 103

MAGNAVOX 111

MARANTZ 002 018 020 025

034 041 081 090

097 112

MCINTOSH 049

MCS 104

MEMOREX 107

NAD 046

ONKYO 013 040 041 047

048 056 057 132

133 140

OPTIMUS 158

PANASONIC 007 033 064 113

142 220 241 251

PENNEY 104

PHILIPS 026 112 143 253

PIONEER 039 042 043 063

065 091 093 094

115 123 127 250

QUASAR 113

RCA 080

RCX 092

REALISTIC 103 106

SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246

SANSUI 011 135 138 144

SANYO 019 083 234

SCOTT 106 186

SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209

SHERWOOD 005 006 158

SONY 044 045 109 114

118 126 248 249

TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

254

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

128 Plasma TV

Troubleshooting Checklist

No output from one of

the speakers • Adjust Balance in the AUDIO menu. (Refer to p.44)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with

the TV.

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet

where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Video menu and press the VOLUME (G) button.

(Refer to p.42)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control

causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p.13)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.13)

Picture OK &

No sound

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please

contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking • Check for local interference such as an electrical appliance or power tool.

Troubleshooting Checklist

roubleshooting Checklist

Owner’s Manual 129

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and

a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the

screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your

new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Cabinet

Extended

Extended Absence

Absence

Maintenance

130 Plasma TV

Specification

• The specifications shown above may be changed without prior notice for quality improvement.

Product Specifications

MODELS

AC100-240V ~ 60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, DTV 2 ~ 69, CADTV 1 ~ 135

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

55.9 / 1420

35 / 889

14 / 356.8

136 / 61.5

65.6 / 1666

40.2 / 1022

17 / 434

205 / 93

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

50PY2DR-UA 60PY2DR-UA

1366 x 768 (Dot)

55.2 / 1402

31.4 / 798.5

11.9 / 302.5

122 / 55.3

50PX4DR-UA

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it

proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”)

listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This war-

ranty is good only to the original purchaser of the product and effective only when used in the United States, includ-

ing Alaska, Hawaii, and U.S. Territories.

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV

typically contain a small number of pixels that do not function normally. Your display has been inspected and is in

compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use

of your display.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights that vary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute

model or factory reconditioned unit, at LGE’s option. If

repaired, parts used in the repair may be new or remanufac-

tured.

Replacement Units and Repair Parts are warranted for the

remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period

begins on the date of sale to the original consumer/end user.

KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be

required to submit a legible copy of your bill of sale or proof

of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s

dated bill of sale or delivery ticket as evidence

of the Date of Purchase for proof of warranty,

and submit a copy of the bill of sale to the ser-

vice person at the time warranty service is pro-

vided.

Please call 1-800-243-0000 to locate your

nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your

product online. This information will allow us to reach you promptly should we discover a safety or reliability prob-

lem that could affect you.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

http://www.lgservice.com

FOR SERVICE:

Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not

be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to the LG®Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory

warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently

owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before

returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product

information or Dealer or Service locations

Call 1-800-243-0000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

●damage caused in shipping or transit

●service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner’s manual for power supply

requirements)

●installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or

LG Electronics USA 50PX4DRUA Plasma Display Panel User Manual 528Aen TU 50PY22 1

LG Electronics USA Plasma Display Panel 528Aen TU 50PY22 1

Contents

User Manual Part 2

Navigation menu

Namespaces

Views

Navigation
