54 Plasma TV

TV Guide On Screen

TV Guide On ScreenTM

TM System

System

Operation

WOnce —records the show one time

WRegularly —records the show every time the show

airs on the same channel and starts at the same time

WWeekly —records the show each time the show

airs on the same day of the week, on the same channel

and starts at the same time

WOff (not cancel) —keeps the show in the list but

will not record this show until the frequency is changed.

WCancel (no icon displayed)—does not record

2) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Recording, and press ENTER to display the

Record Options menu.

• Highlight the Frequency option, and use the left and right

arrows to choose among Once, Regularly, Weekly, and Off,

as previously described.

• Recorder choice: Please choose the VCR only. This TV does

not support other devices with a recording feature.

Note: Video Window Lock is switched to on or off using PIP

button in Listings mode.

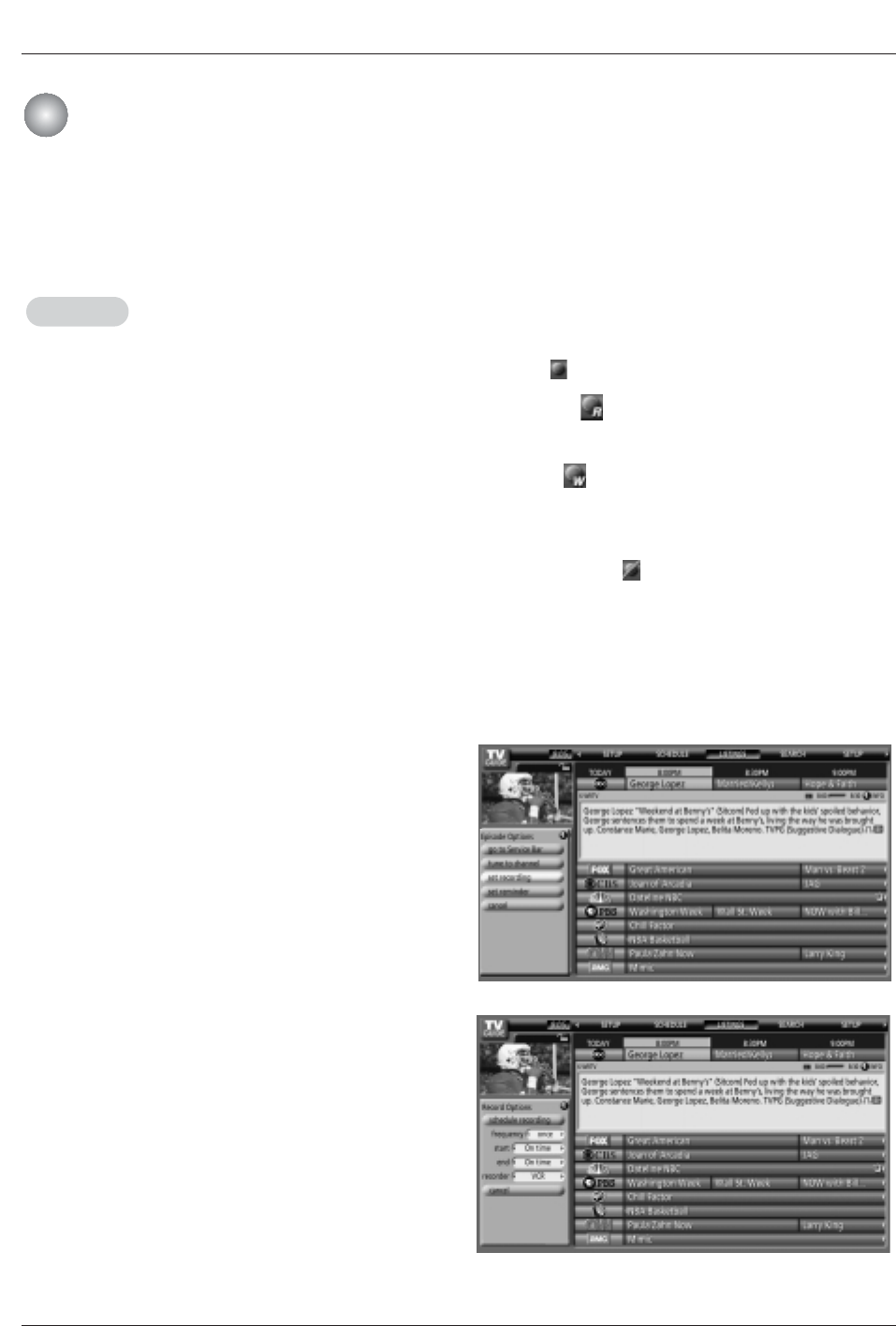

You can set a show to Record in Listings, Search, and

Schedule or change Record settings for a show in Schedule.

There are 3 ways to set a show to Record:

1) Using the Record Button on the Remote

• Press the Record button on the remote to record the show

Once with current default settings (Start and End recording

On Time). Each time you press the Record button, you

change the record frequency (but not the default settings)

among Once (default), Regularly, Weekly, Off, and then

Cancel.

Note: The proper Record icon appears on the show tile, as

the Record button is pressed.

Record

Record And Remind Features

Owner’s Manual 55

Operation

When finished, press ENTER to highlight Schedule Recording.

Press ENTER again to close the menu. You see a Record icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

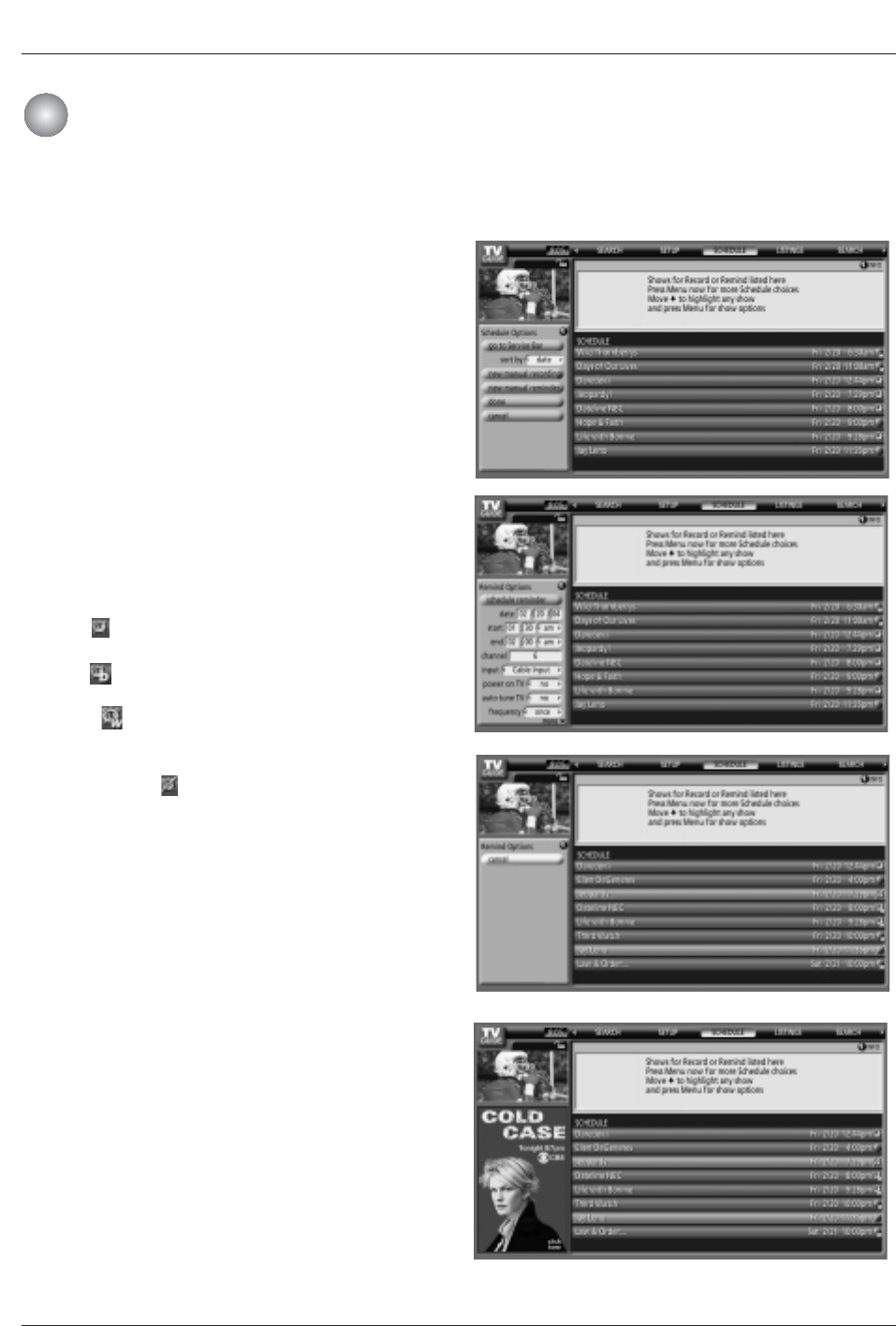

3) Manual Recording

• Highlight the Schedule Service label, and press Menu to display

the Schedule Options menu.

• Use the D/E/F/Gbuttons to move through the options. Use

the number or the D/E/F/Gbuttons to change the informa-

tion, as necessary.

• Highlight New Manual Recording and press ENTER to display

the Record Options menu.

• Current information (i.e., date, start and end times, channel,

input) is displayed.

• Recorder choice: Please choose the VCR only. This TV does

not provide other devices with a recording feature.

56 Plasma TV

Operation

TV Guide On Screen

TV Guide On ScreenTM

TM System

System

• Use the left and right arrows to choose between Once, Daily,

Weekly, and Off, as follows.

WOnce —records the time, channel, input, recorder combi

nation one time.

WDaily —records the time, channel, input,recorder combi

nation Monday through Friday.

WWeekly —records the time, channel, input, recorder

combination once a week on this selected day of the week

WOff (not cancel) —keeps the time, channel, input, recorder

combination in the list without recording until the frequency is

changed.

Record Conflict

A conflict message appears for the following reasons:

• a show set to Record overlaps with any part of another show pre-

viously set to Record,

• a show set to Record overlaps with a show previously set to auto-

tune

Select one of these options:

Wrecord anyway - this show will override an existing show set to

Record or auto-tune

Wdon't record this show - cancel the Recording

Before a recording begins, a notification screen appears

if your TV is On. At that time, you can choose to start or

cancel recording. If the TV is not On, the recording

occurs as scheduled. If there is no activity for 3 minutes,

the notification screen automatically closes and com-

pletes the highlighted item.

When finished, press ENTER to highlight Schedule

Recording.

Press ENTER again to close the menu. You see a

Record icon for the selected frequency next to the show

title.

Note: Manual recording is listed by channel number.

Highlight Cancel to close the menu, change no informa-

tion, and return to the highlighted show.

Owner’s Manual 57

Operation

You can set a show to Reminder in Listings, Search, and

Schedule or change Reminder settings for a show in Schedule.

There are 2 ways to set a show to Reminder:

1) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Reminder, and press ENTER to display the Remind

Options menu.

• Highlight the Frequency option, and use the left and right arrows

to choose between:

WOnce —sets a show reminder one time

WRegularly —sets a show reminder every time the show

airs on the same channel and starts at the same time

WWeekly —sets a show reminder each time the show airs

on the same day of the week, on the same channel and starts

at the same time

WOff —keeps the show in the list but will not remind until

the frequency is changed

• Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No. (Default = No)

• Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No. (Default =

No)

• When to display the reminder screen. Choices are 30 seconds

to 15 minutes early, to 30 seconds to 15 minutes late, to On time.

(Default = 1 min early)

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

Remind

58 Plasma TV

Operation

TV Guide On Screen

TV Guide On ScreenTM

TM System

System

2) Manual Reminder

• Highlight the Schedule Service label, and press the Menu key to

display the Schedule Options menu.

• Use the D/E/F/Gbuttons to move through the options. Use

the number or D/E/F/Gbuttons to change the information, as

necessary.

• Highlight New Manual Reminder and press the ENTER key to dis-

play the Remind Options menu.

• Current information (i.e., date, start and end times, channel, input,

frequency, etc.) is displayed.

• Highlight the Frequency option, and use the F/Gbuttons to

choose among Once, Daily, Weekly, and Off, as follows.

WOnce —sets a show reminder for the time, channel, input,

recorder combination one time

WDaily —reminds for the time, channel, input, recorder com-

bination Monday through Friday

WWeekly —sets a show reminder for the time, channel, input,

recorder combination once a week on this selected day of the

week

WOff (not cancel) —keeps the time, channel, input, destina-

tion combination in the list without reminding until the frequency

is changed

• Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No (Default =No).

• Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No (Default = No).

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Note: Manual reminder is listed by channel number.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

Owner’s Manual 59

Operation

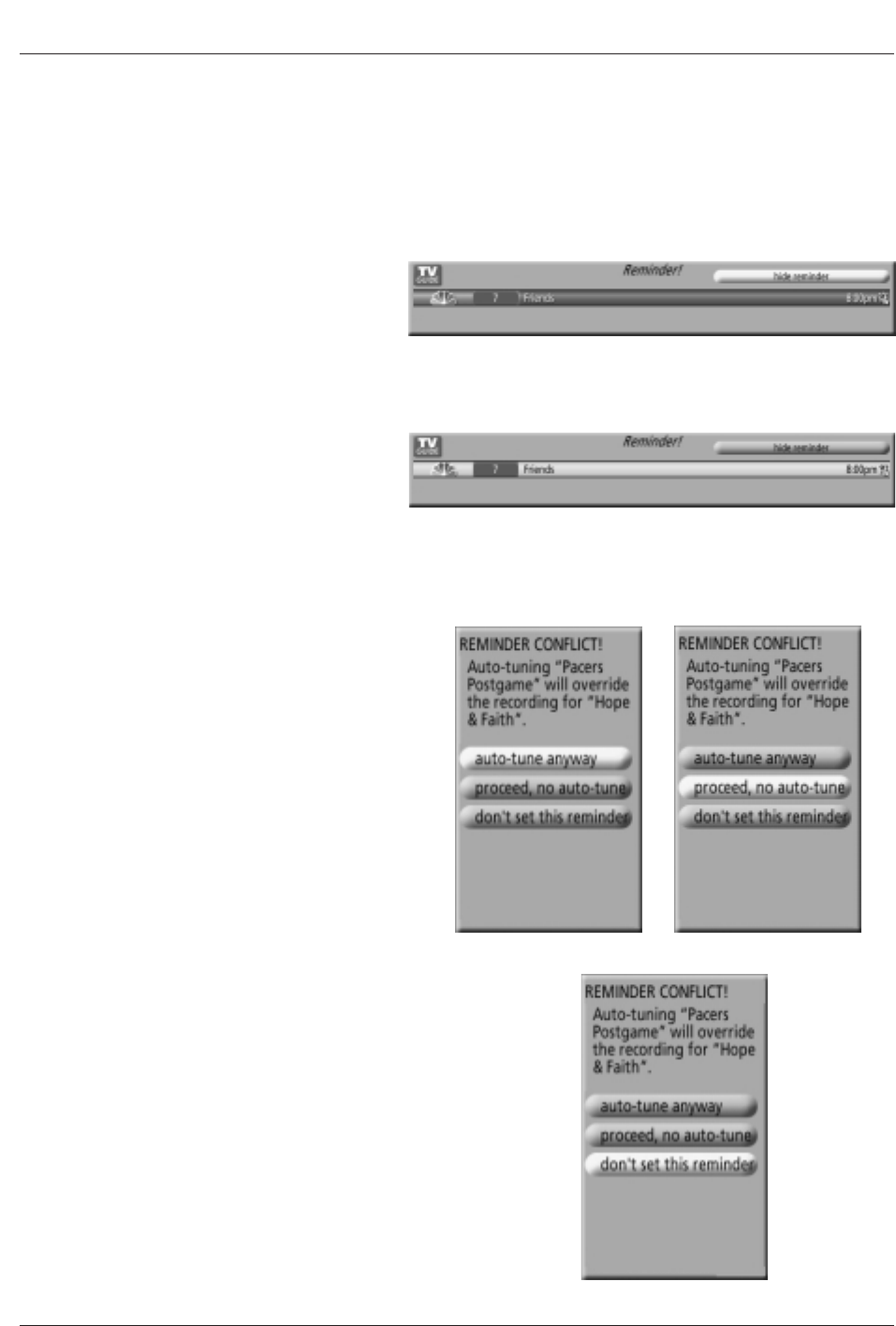

Based on your option settings, a notification screen will

appear, if your TV is On at the reminder time. You can

then choose to hide the reminder, or highlight the show,

and press ENTER to tune to the show. If there is no activ-

ity for 3 minutes, the notification screen automatically

closes and completes the highlighted item (hide

reminders).

If you choose Hide Reminders, the window closes for the

show or shows, but does not affect other Reminders you

set.

Note: If more than 2 reminders are set for the same time,

arrows appear on the Reminder screen. Use the

buttons to view the shows.

Remind Conflict

A conflict message appears for the following reasons:

• a show set with an Auto-Tune Reminder has the same

start time as an existing Auto-Tune Reminder.

• If you are using a cable box, a show set with an Auto-

Tune Reminder overlaps with a Recording already

scheduled.

Select one of these options:

Wauto-tune anyway - this show will override an existing

show set to auto-tune

Wproceed, no auto-tune - set the show as a Reminder

but do not auto-tune

Wdon't set this reminder - cancel the Reminder

60 Plasma TV

Operation

1. First, connect power cord correctly. At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the ,TV/VIDEO ,CH (D/E)button on the TV or press

the POWER,TV/VIDEO,TV INPUT,CH (D/E),Number (0 ~ 9) button on the remote control.

Notes:

• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

• After turning on the TV, it will take up to a week for the TV Guide On Screen system to receive full

•listings data.

• Illuminates orange in standby mode. When the TV is turned on, the indicator will blink green for 3-4

•seconds before the picture is seen.

• When the power turns on, the screen of TV Guide is automatically showed. In case the prior condi•

•tion turns on putting again after the power code puts out in conditon turning on power, the screen of

•TV Guide is showed a little bit late.

2. Select the viewing source by using TV/VIDEO,TV INPUT button on the remote control.

This TV is programmed to remember which mode it was last set to, even if you turn the TV off.

3. When finished using the TV, press the POWER button on the remote control. The TV reverts to

standby mode.

Operation

Turning the TV On

urning the TV On

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an

example to help you with the TV operation.

Owner’s Manual 61

Operation

-The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use D/Ebutton to select the OPTION

menu.

2. Press the GGbutton and then use D/Ebutton to select Language.

3. Press the Gbutton and then use D/Ebutton to select your desired

language.

From this point on, the on-screen menus will be shown in the selected

language.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

TV Setup

On-screen Menus Language Selection

62 Plasma TV

Operation

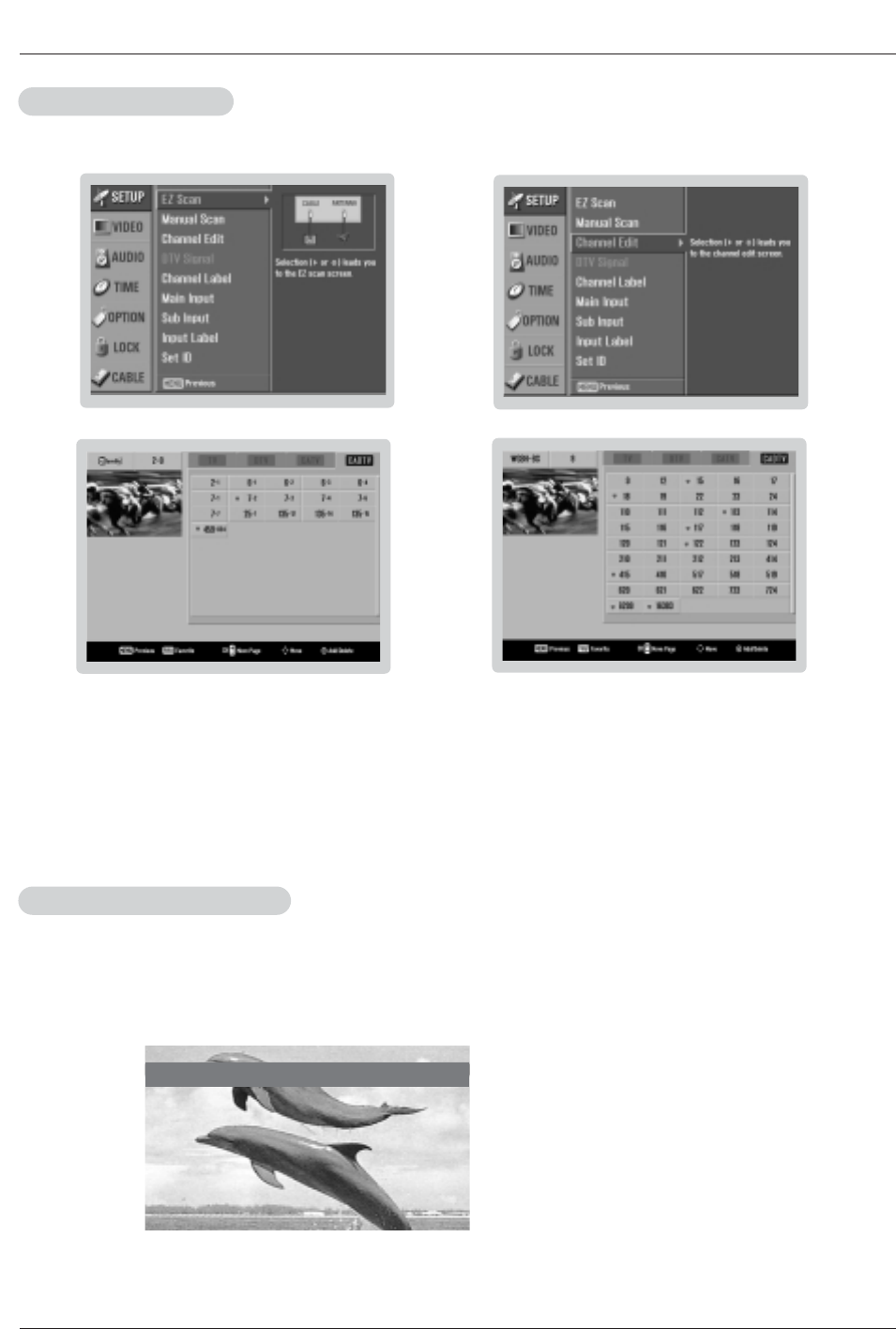

- Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

- Run EZ Scan again after any Antenna/Cable connection changes.

- A password is required to gain access to EZ Scan menu if the Lock System is turned on.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select EZ Scan.

3. Press the ENTER button to begin the channel search.

Allow EZ Scan to complete the channel search cycle for ANTENNA, and CABLE.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Manual Scan.

3. Press the Gbutton and then use D/Ebutton to select TV, DTV, CATV, and

CADTV.

4. Press the Gbutton and then use D/Ebutton to select channel number you

want to add or delete.

5. Press the ENTER button to add or delete for the channel number.

6. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Notes:

• This channel number is a physical channel number, which is different from the normal channel number shown in Channel

Edit.

• When a cable box connects to the physical channel 2,3 or 4 in the TV Guide On Screen system Setup, cable chan-

nels(CATV or CADTV) will not be scanned by EZ Scan or Manual Scan.

• When inserting the CableCARDTM, CATV, CADTV is not working in Manual Scan.

• TV: analog antenna(over-the-air) TV signal

DTV: digital antenna(over-the-air) TV signal

CATV: analog cable TV signal

CADTV: digital cable TV signal

EZ Scan (Channel Search)

Setup Menu Options

Manual Scan

- A password is required to gain access to Manual Scan menu if the Lock System is turned on.

Owner’s Manual 63

Note:

• When a cable box connects to the physical channel 2, 3, or 4 in TV Guide On Screen Setup, cable channels(CATV or

CADTV) will not be editable by Channel Edit. Instead, use the cable box's Channel Edit if available.

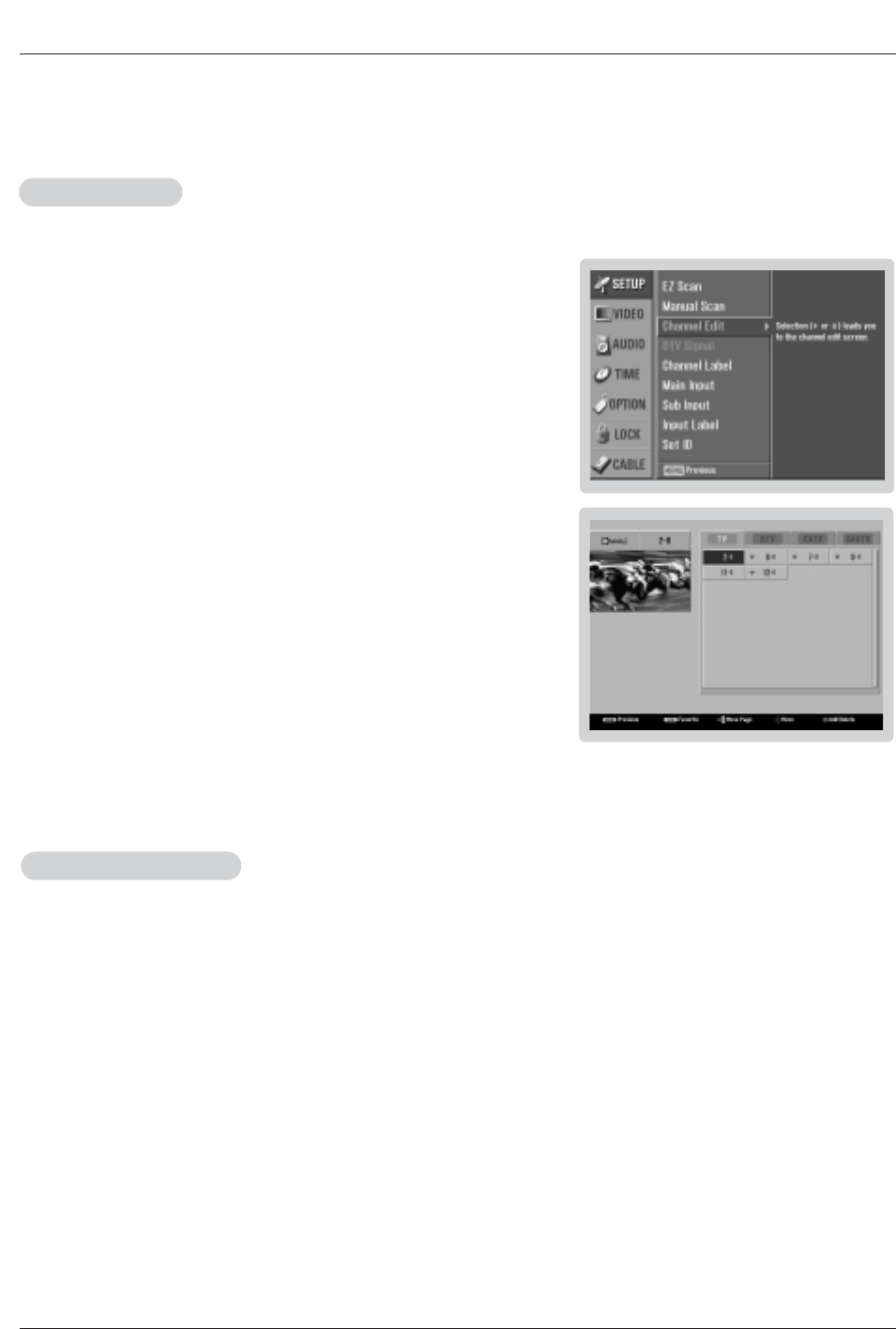

Operation

- Create two different types of channel lists in memory: “Custom List” and

“Favorite List” from the default channel list created from the EZ Scan channel

search.

- A Custom List can be created by toggling each channel on or off with ENTER

button. The channels in the Custom List are displayed in black color, and the

channels deleted from the Custom List are displayed in gray color. Once a

channel is highlighted you can add or delete the channel by referring to the

small window at the top-left corner of the screen.You can create your own

Favorite List. Use the FAV button on the remote control when a channel is

highlighted and then you can add or delete the channel to/from the Favorite

List.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Channel Edit.

3. Press the Gbutton. You will now see a screen filled with channel numbers and

a preview picture.

4. Use D/E/F/Gbutton to select a channel and then use the ENTER button to

add or delete it. Press FAV button to add the channel to the Favorite List.

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Channel Edit

- Shows DTV signal levels which are received to your TV whether you need to adjust your antenna or digital

cable input. The higher the signal strength, the less likely you are to experience picture degradation.

- DTV Signal: Only when the input signal is DTV or CADTV, this function is available.

DTV Signal Strength

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select DTV Signal.

3. View the on-screen signal strength monitor to see the quality of the signal being

received.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

64 Plasma TV

Operation

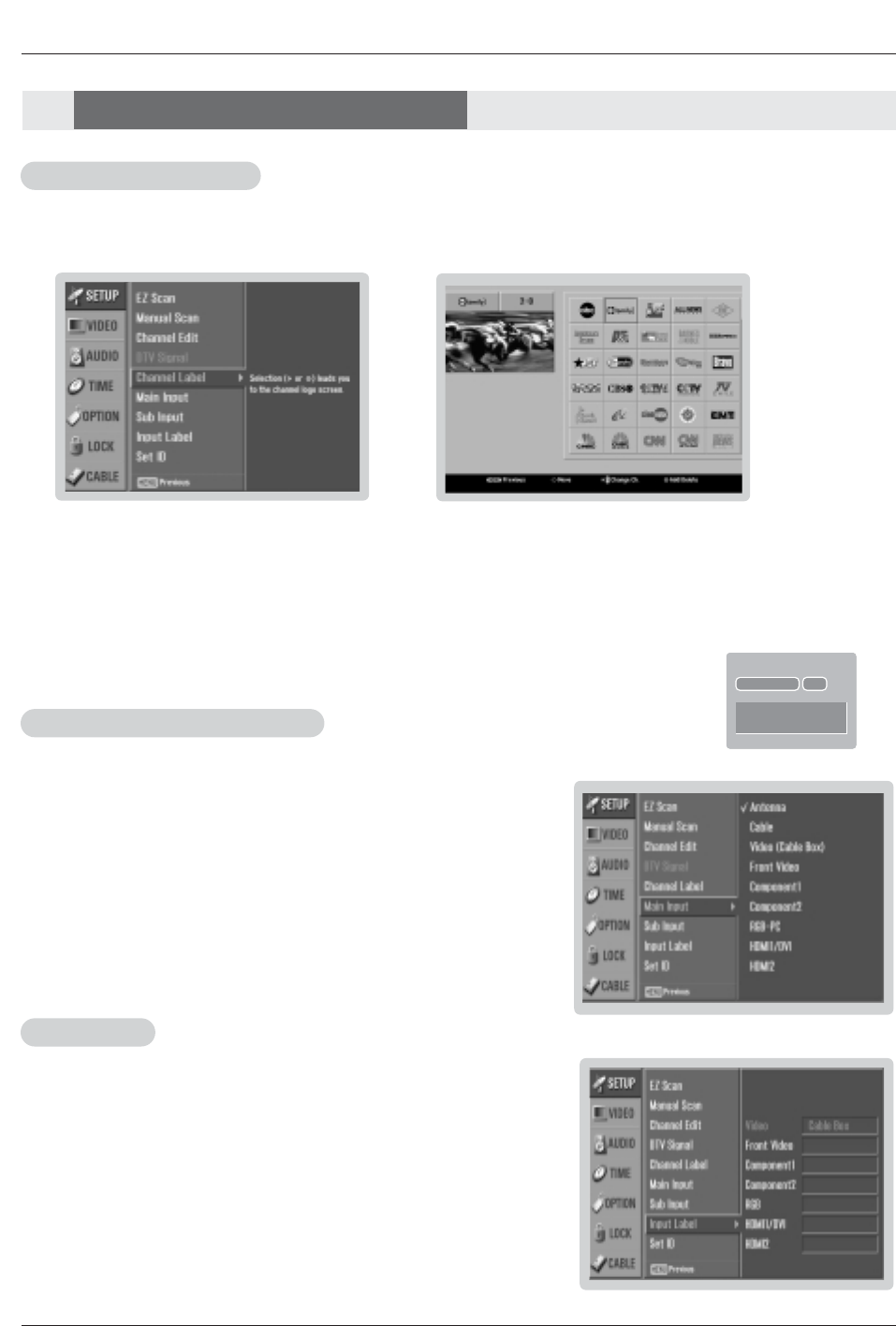

- Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Main Input.

3. Press the Gbutton and then use D/Ebutton to select the source: Antenna,

Cable, Video, Front Video, Component1, Component2, RGB-DTV (or RGB-PC),

HDMI1/DVI or HDMI2.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Note:

• To toggle RGB-DTV and RGB-PC, select RGB-DTV(or RGB-PC) and press

button.

Main Picture Source Selection

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Input Label.

3. Press the Gbutton and then use D/Ebutton to select the source: Video, Front

Video, Component1, Component2, RGB, HDMI1/DVI or HDMI2.

4. Press the F/Gbutton to select the label.

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Input Label

- Choose preset labels for your channels.

- If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel -

even if you didn't preset a label for the channel.

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select Channel Label.

3. Press the Gbutton. You will now see a screen filled with Labels and a preview screen.

4. Use the CH D/Ebutton to select a channel to Label.

5. Use D/E/F/Gbutton to select the appropriate label for the channel, then press ENTER button to set the Label to

the selected channel.

- If you press ENTER button in TV viewing mode, you will see the channel banner. • For example:

Channel Label Setup

DTV 2-0

CNN

DOLBY DIGITAL HD

- Sets a label to each input source or lets you skip the input source which is not

in use when you press TV/VIDEO button.

Setup Menu Options

Owner’s Manual 65

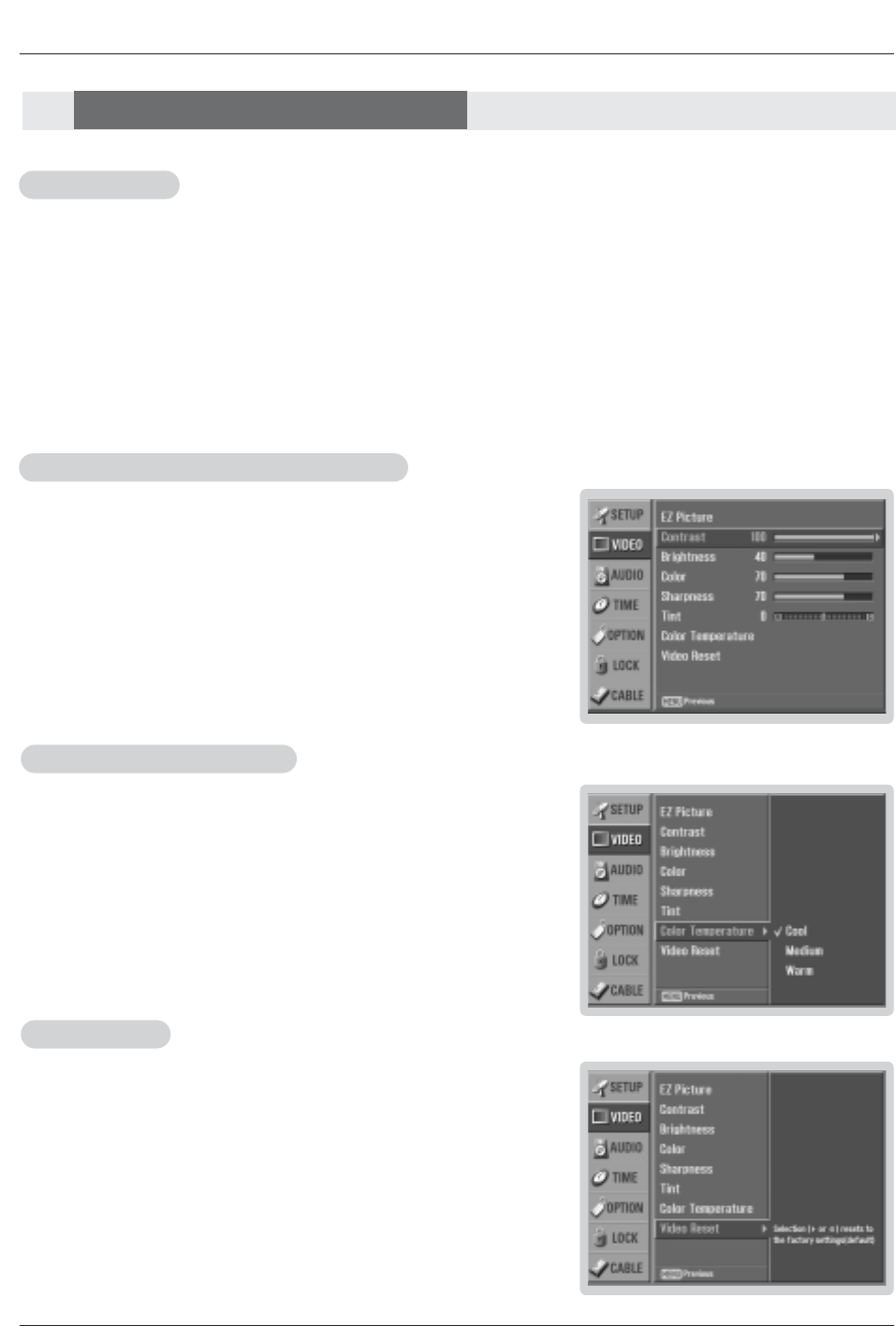

- Use to quickly reset all the Video menu options to their original factory preset

values.

1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.

2. Press the Gbutton and then use D/Ebutton to select Video Reset .

3. Press the Gbutton to reset the Video menu options to original values.

Video Reset

ideo Reset

Operation

- Adjust the picture appearance to suit your preference and viewing situations.

1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.

2. Press the Gbutton and then use D/Ebutton to select the desired picture option

(Contrast,Brightness,Color,Sharpness, or Tint ).

3. Press the Gbutton and then use F/Gbutton to make appropriate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

1. Press the EZ PIC button repeatedly to select the picture appearance setup option as shown below:

Custom (your own settings), Daylight,Normal,Night Time,Movie,Video Game, and Sports.

• You can also use the VIDEO menu to adjust EZ Picture.

2. Press the EXIT button to save and return to TV viewing or press MENU button to return to the previous menu.

EZ Picture

Manual Picture Control (

Manual Picture Control (Custom option)

option)

- Choose one of three automatic color adjustments. Set to warm to enhance hotter

colors such as red, or set to cool to see less intense colors with more blue.

1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.

2. Press the Gbutton and then use D/Ebutton to select Color Temperature .

3. Press the Gbutton and then use D/Ebutton to select either Cool,Medium or

Warm.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Color

Color T

Temperature Control

emperature Control

- EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the

program category.

- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ

Picture automatically changes to Custom.

-Daylight,Normal,Night Time,Movie,Video Game, and Sports settings are preset for optimum picture quality at

the factory and are not adjustable.

Video Menu Options

ideo Menu Options

66 Plasma TV

Operation

- Other languages may be available if a digital signal is provided by the broad-

casting station.

1. Press the EZ SOUND button repeatedly to select the appropriate sound setup as shown below:

Custom (your own settings), Normal,Stadium,News,Music, and Theater.

• You can also adjust EZ Sound in the AUDIO menu.

2. Press EXIT button to save and return to TV viewing or press MENU button to return to the previous

menu.

EZ Sound

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select the desired sound option

(Balance,Treble, or Bass).

3. Press the Gbutton and then use F/Gbutton to make appropriate adjustments.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Manual Sound Control (

Manual Sound Control (Custom option)

option)

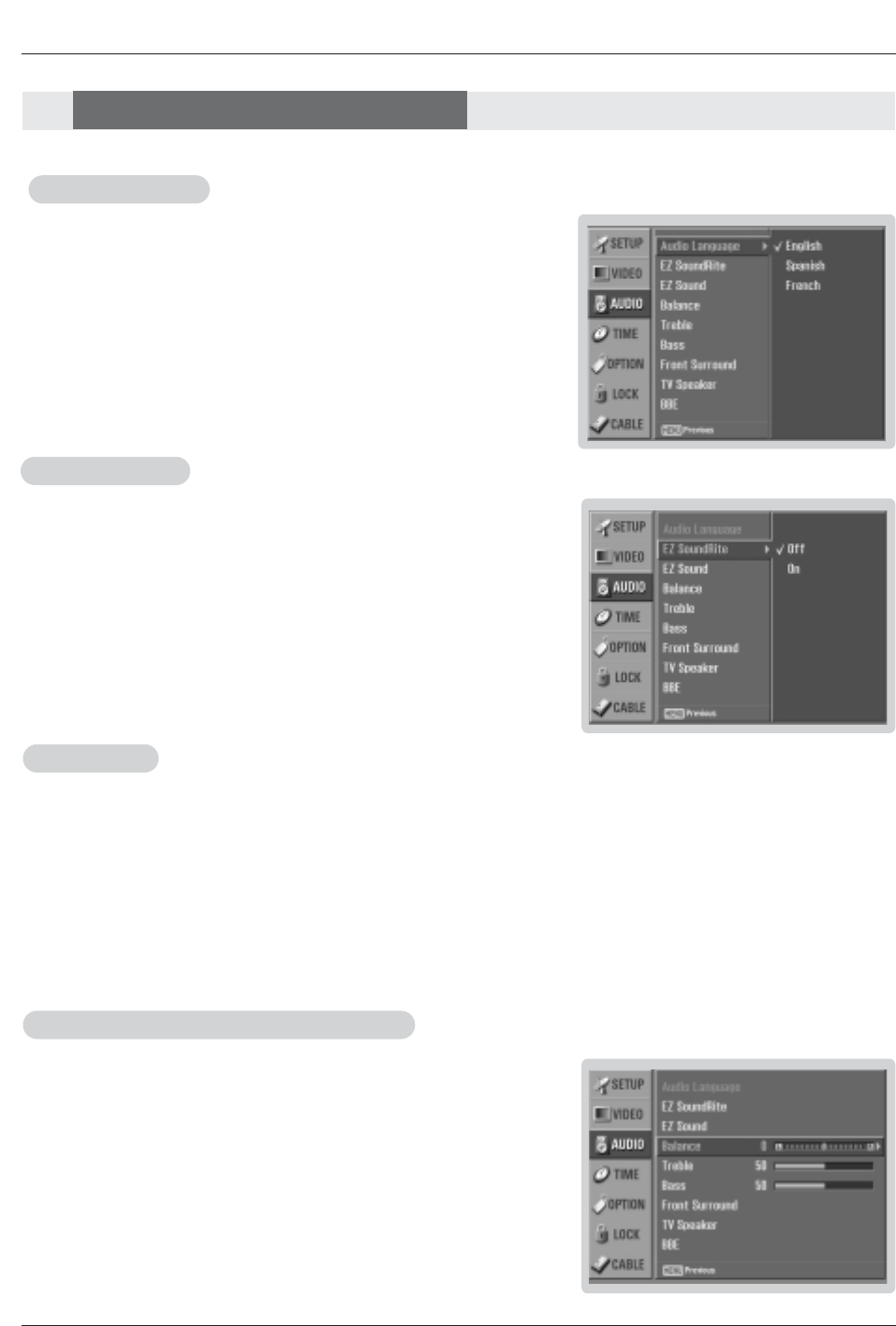

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select Audio Language.

3. Press the Gbutton and then use D/Ebutton to select: English, Spanish, or

French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

- EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound

options based on the program content.

- When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches to Custom.

-Normal,Stadium,News,Music, and Theater are preset for good sound quality at the factory and are not adjustable.

- Scans for changes in sound level during commercials, then adjusts the sound

to match the specified audio level. EZ SoundRite makes sure that the volume

level remains consistent whether you are watching a commercial or a regular

TV program.

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select EZ SoundRite.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

EZ SoundRite

- Adjust the sound to suit your taste and room situations.

Audio Language

Audio Menu Options

Owner’s Manual 67

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select TV Speaker.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

TV Speakers On/Of

TV Speakers On/Off Setup

f Setup

- Turn TV speakers off if using external audio equipment. Feature turns the TV

Speakers option On or Off.

Operation

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select Front Surround.

3. Press the Gbutton and then use D/Ebutton to select Off,3D EchoSound

System or SRS (Sound Retrieval System) TruSurround XT..

•3D EchoSound System

Creates a stunning simulated stereo effects from any mono sound and a real-

istic three-dimensional sound with a very wide and deep sound stage into

stereo sound.

•SRS TruSurround XT

Takes advantage of any multi-channel format without needing to add extra

speakers or equipment. Dialog clarity, bass enrichment, and the addition of

stereo audio enhancement that produces an immersive sound experience from

standard stereo material.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Front Surround

- is a trademark of SRS Labs, Inc.

- TruSurround XT technology is incorporated under license from SRS Labs, Inc.

- Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

68 Plasma TV

Operation

1. Use the SAP button to select your desired MTS mode in a analog signal. Each time you press the SAP button, Mono,

Stereo, or SAP appear in turn.

• If other languages are available on the digital signal, select them with the SAP button.

2. Press EXIT button to save and return to TV viewing.

Stereo/SAP

Stereo/SAP Broadcasts Setup

Broadcasts Setup

- This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program; if

the station transmits an additional sound signal as well as the original one.

- When having selected Stereo or SAP button on the remote control, this TV can only receive the signal when the TV station

transmits the proper signals.

- Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

- Select Mono if you want to listen to mono sound during stereo/SAP broadcasting.

- Stereo or SAP can be received in a Analog channel.

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.

2. Press the Gbutton and then use D/Ebutton to select BBE.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

BBE

- BBE High Definition Sound restores clarity and presence for better speech

intelligibility and music realism.

• Manufactured under license from BBE Sound, Inc.

• Treble, Bass or BBE aren’t suitable for SRS TSXT mode.

Audio Menu Options

Owner’s Manual 69

Operation

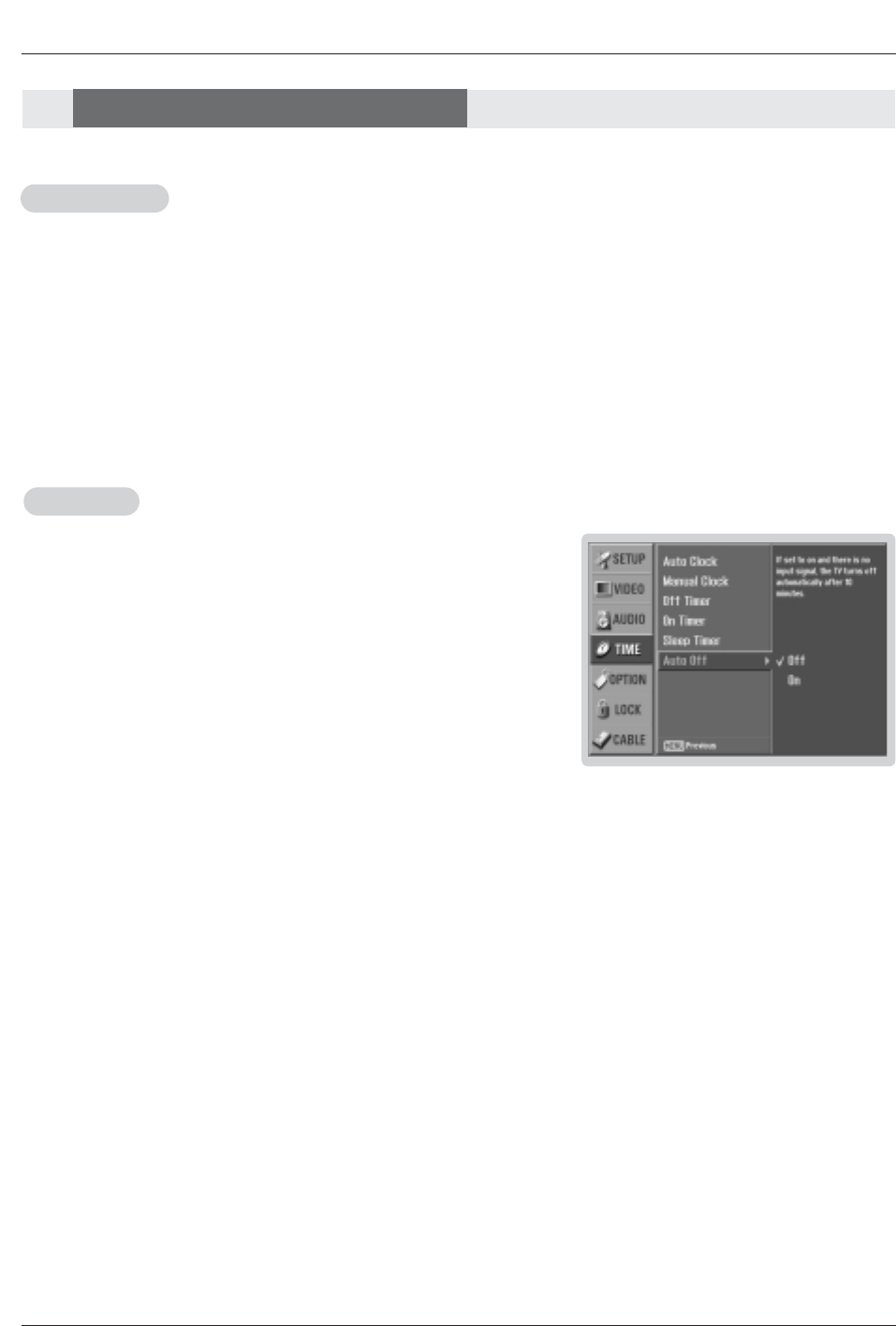

- Timer function operates only if the current time has been set.

- Off-Timer function overrides On-Timer function if they are both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to

standby mode.

On/Of

On/Off

Timer Setup

imer Setup

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Off Timer or On Timer.

3. Press the Gbutton and then use D/Ebutton to select On.

• To cancel On/Off timer function, select Off.

4. Press the Gbutton and then use D/Ebutton to set the hour.

5. Press the Gbutton and then use D/Ebutton to set the minutes.

6. For only On timer function

Press the Gbutton and then use D/Ebutton to select the channel at turn-on.

Press the Gbutton and then use D/Ebutton to set the sound level at turn-on.

7. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

- The time is set automatically from a digital channel signal.

- The digital channel signal includes information for the current time provided by the broadcasting station.

- Set the clock manually, if the current time is set incorrectly by the auto clock function.

- When you set up TV Guide On Screen System, Auto Clock menu is not selected.

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Auto Clock.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press the Gbutton and then use D/Ebutton to select your viewing area time

zone: Eastern,Central,Mountain,Pacific,Alaska, or Hawaii.

5. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

- If current time setting is wrong, reset the clock manually.

- When you set up TV guide on screen system, Manual Clock menu is not

selected.

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Manual Clock.

3. Press the Gbutton and then use F/Gbutton to select either the year, date, or

time option. Once selected, use the D/Ebutton to set the year, date, and time

options.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Auto Clock Setup

Manual Clock Setup

Time Menu Options

ime Menu Options

70 Plasma TV

Operation

Auto Of

Auto Off

- If set to on and there is no input signal, the TV turns off automatically after 10

minutes.

1. Press the MENU button and then use D/Ebutton to select the TIME menu.

2. Press the Gbutton and then use D/Ebutton to select Auto Off.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Sleep

Sleep T

Timer

imer

- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

- You can also set up the Sleep Timer in the TIME menu.

1. Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen,

followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to

count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the TIMER button once.

4. To cancel the Sleep Timer, press the TIMER button repeatedly to select Off.

Time Menu Options

ime Menu Options

Owner’s Manual 71

Operation

- Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.

When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be dis-

played.

- If you are viewing a picture with a 16:9 aspect ratio, you can’t use the Horizon aspect ratio option.

- Horizon aspect ratio is not available for Component 1-2 (480p/720p/1080i)/RGB-DTV (480p/720p/1080i)/HDMI1/DVI-DTV

(720p/1080i)/DTV(720p/1080i), HDMI2-DTV(720p/1080i) input source.

- In RGB-PC/DVI-PC input source, only use 4:3 or 16:9 aspect ratio are available.

-Note: If a fixed image is displayed on the screen for a long time, it image may become imprinted on the screen and remain visi-

ble.

•Set By Program

Select the proper picture proportion to match the source’s image. (4:3 →4:3, 16:9 → 16:9)

•4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both

the left and right sides.

•16:9

Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

•Horizon

Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both

sides, to create a spectacular view.

•Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions

of the picture will be cropped.

•Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture tak-

ing a halfway trade off between alteration and screen coverage.

•Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or

reducing the picture size, the image may become distorted.

You can adjust the enlarge proportion of Cinema Zoom using D/Ebutton. The adjustment range is 1~16.

1. Press the RATIO button repeatedly to select the desired picture format.

You can also adjust Aspect Ratio in the OPTION menu.

Cinema 3:2 Mode Setup

- Most movies are 24 frames/sec, but TV signal is 30 frames/sec.

This option lets the TV do 3:2 pull-down operation for you to watch

movies at the best motion appearance.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Cinema 3:2 Mode.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Option Menu Features

Aspect Ratio Control

Note: This feature operates only in 480i mode.

72 Plasma TV

Option Menu Features

Operation

Caption/T

Caption/Text

ext

Analog Broadcasting System Captions

- Select a caption mode for displaying captioning information if provided on a program.

- Analog caption displays information at any position on the screen.

- Text displays information, usually at the bottom position and is used for a data service.

- Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.

- This TV is programmed to memorize the caption/text mode which was last set to, when you turn the power off.

Digital Broadcasting System Captions

- Choose the language you want the DTV/CADTV Captions to appear in.

- Languages can be chosen for digital sources only if they are included on the program.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Caption/Text.

3. Press the Gbutton and then use D/Ebutton to select caption: CC1,CC2,CC3,

CC4,Text1,Text2,Text3, or Text4.

•CAPTION

The term for the words that scroll across the bottom of the TV screen; usually

the audio portion of the program provided for the hearing impaired.

•TEXT

The term for the words that appear in a large black frame and almost cover

the entire screen; usually messages provided by the broadcaster.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Caption/Text.

3. Press the Gbutton and then use D/Ebutton to select available caption lan-

guages: English,Spanish, or French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

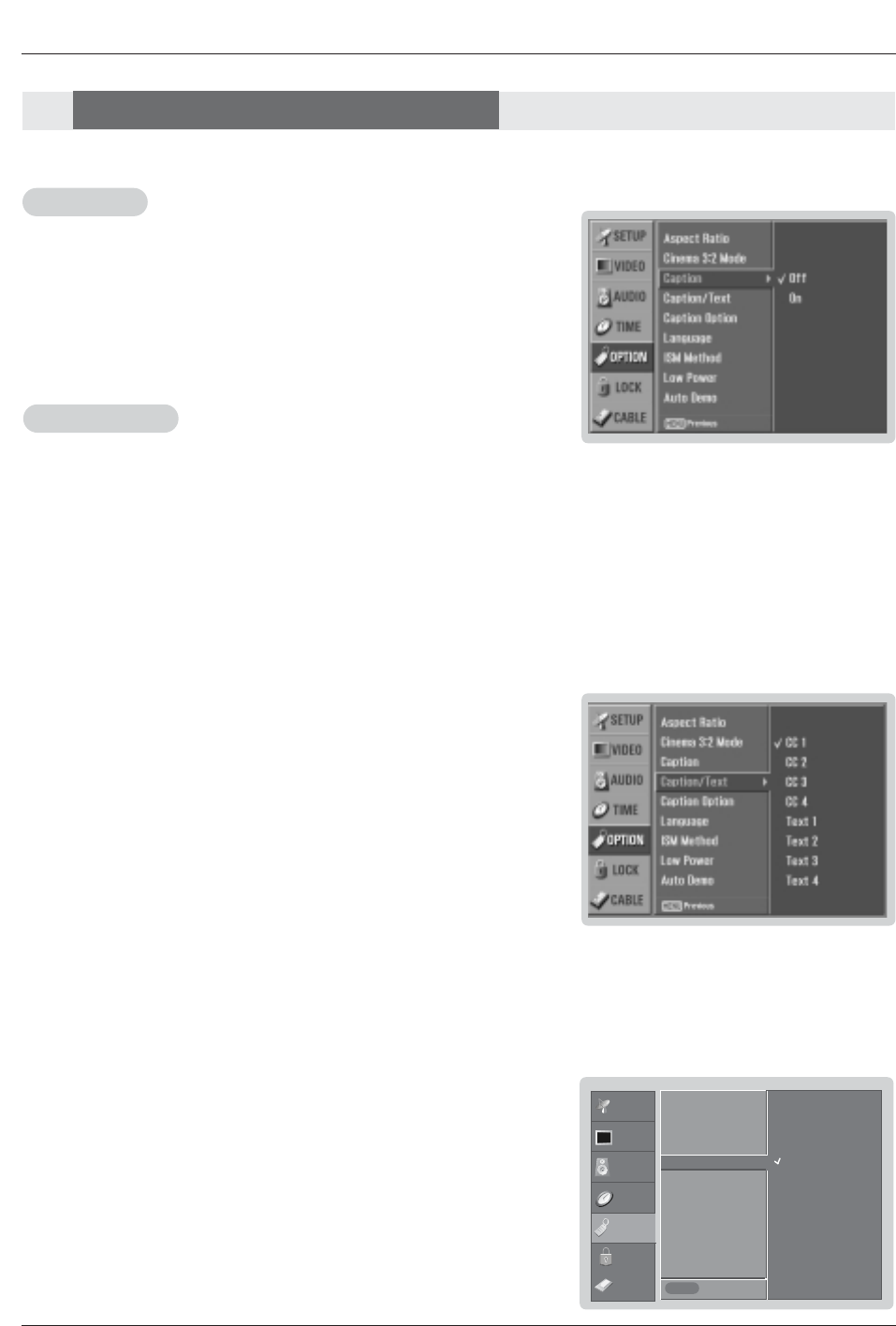

Caption

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Caption.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

1. Use the CC button repeatedly to select Caption CC1,CC2,CC3,CC4,Text1,Text2,Text3, or Text4.

•EZ Mute shows the selected captions option (if available on program) when the TV sound is muted

.2. Press EXIT button to save and return to TV viewing.

• You can also use the OPTION menu to select Caption/Text.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

Aspect Ratio

Cinema 3:2 Mode

Caption

Caption / Text G

Caption Option

Language

ISM Method

Low Power

Auto Demo

English

Spanish

French

CABLE

Owner’s Manual 73

Operation

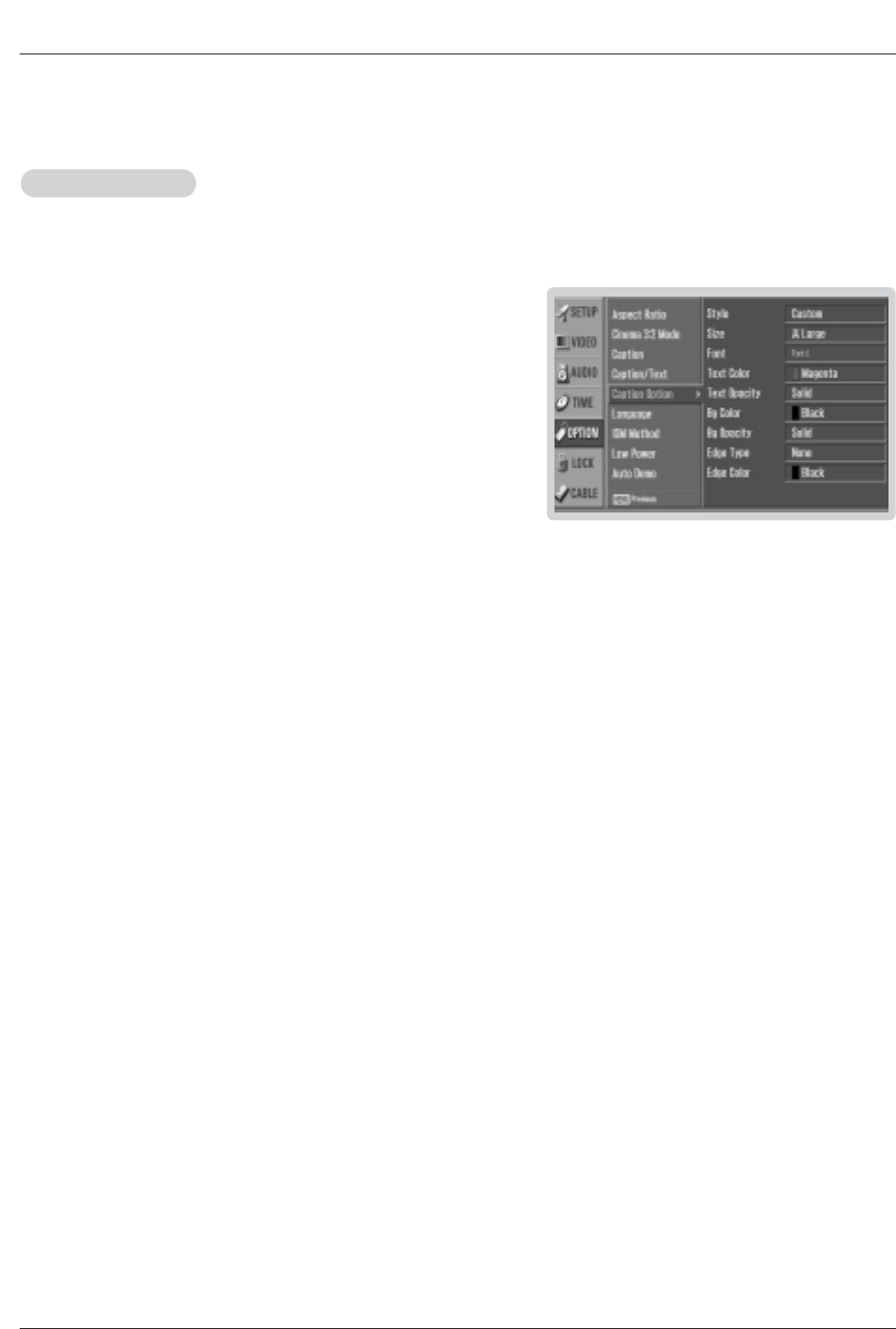

Caption Option

- Customize the DTV/CADTV captions that appear on your screen.

1. Press the MENU button and then use D/Ebutton to select the OPTION

menu.

2. Press the Gbutton and then use D/Ebutton to select Caption Option.

3. Press the Gbutton and then use F/Gbutton to select Custom.

4. Use D/Ebutton to customize the Style, Font, etc., to your preference. A pre-

view icon is provided at the bottom of the screen, use it to see the caption lan-

guage.

•Size: Set the size of the words.

•Font: Select a typeface for the words.

•Text Color: Choose a color for the text.

•Text Opacity: Specify the opacity for the text color.

•Bg (Background) Color: Select a background color.

•Bg (Background) Opacity: Select the opacity for the background color.

•Edge Type: Select an edge type.

•Edge Color: Select a color for the edges.

5. Press EXIT button to return to TV viewing or press MENU button to return

to the previous menu.

74 Plasma TV

Operation

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost

image ; even though the image is changed. Use our unique method to minimize any fixed image on the screen.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select ISM Method.

3. Press the Gbutton and then use D/Ebutton to select either Normal,White

Wash,Orbiter or Inversion.

•Normal

If image sticking is never a problem, ISM is not necessary - set to Normal.

•White Wash

White Wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with

White Wash. To return to normal viewing, press the any button.

•Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any

fixed image to remain on the screen. To avoid a permanent image on the

screen, the image will move once per 2 minutes: Left →Right → Upside →

Downside →Right →Left →Downside →Upside.

•Inversion

Inversion will automatically invert the plasma display panel color every 30 min-

utes.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

ISM (Image Sticking Minimization) Method

Option Menu Features

Owner’s Manual 75

Operation

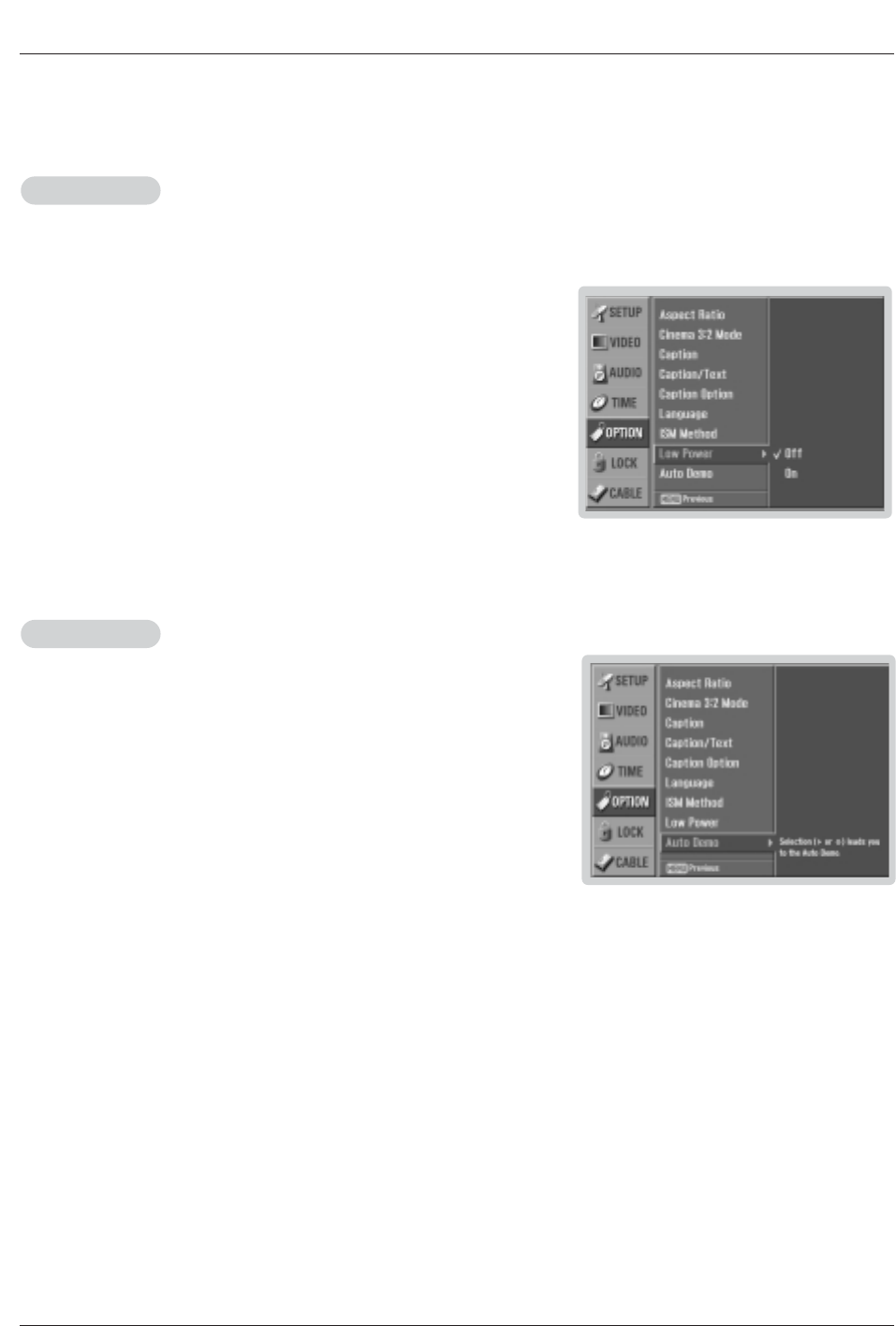

Low Power

- Low power reduces the plasma display power consumption.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Low Power.

3. Press the Gbutton and then use D/Ebutton to select On or Off.

• When you select On, the screen darkens.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

- Displays the slide show to explain the main features of this TV.

1. Press the MENU button and then use D/Ebutton to select the OPTION menu.

2. Press the Gbutton and then use D/Ebutton to select Auto Demo.

3. Press EXIT button to stop Auto Demo.

Note : The images on the Auto Demo may differ from the actual products.

Auto Demo

76 Plasma TV

Operation

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.

The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the cat-

egories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV

Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating

System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

• Blocking Off (Permits all programs)

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Parents strongly cautioned)

• R (Restricted)

• NC-17 (No one 17 and under admitted)

• X (Adult only)

If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

• TV-G (General audience)

• TV-PG (Parental guidance suggested)

• TV-14 (Parents strongly cautioned)

• TV-MA (Mature audience only)

• TV-Y (All children)

• TV-Y7 (Children 7 years older)

TV Rating Children:

• Age (applies to TV-Y, TV-Y7)

• Fantasy Violence (applies to TV-Y7)

TV Rating General:

• Age (applies to TV-G, TV-PG, TV-14, TV-MA)

• Dialogue - sexual dialogue (applies to TV-PG, TV-14)

• Language - adult language (applies to TV-PG, TV-14, TV-MA)

• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

Input Block

• Video, Front Video (On, Off)

• Component 1, 2 (On, Off)

• RGB, HDMI1/DVI, HDMI2 (On, Off)

Lock Menu Options

Owner’s Manual 77

Operation

Parental Lock Setup

1. Press the MENU button and then use D/Ebutton to select the LOCK menu.

Then, press the Gbutton

• The TV is set up with the initial password “0-0-0-0”.

2. Use the D/Ebutton to choose from the following Lock Menu options. Once the

option is selected, change the settings to your preference.

•Lock System: Enables or disables the blocking scheme you set up previ-

ously.

•Set Password: Change the password by inputting a new password twice.

•Block Channel: Blocks any channels that you do not want to watch or

that you do not want your children to watch.

•Movie Rating (MPAA): Blocks movies according to the movie ratings lim-

its specified, so children cannot view certain movies. You can set the rat-

ings limit by blocking out all the movies with the ratings above a specified

level. Keep in mind that the movie ratings limit only applies to movies

shown on TV, not TV programs, such as soap operas.

•TV Rating-Children: Prevents children from watching certain children's TV

programs, according to the ratings limit set. The children rating does not

apply to other TV programs. Unless you block certain TV programs intend-

ed for mature audiences in the TV Rating - sub menu, your children can

view those programs.

•TV Rating-General: Based on the ratings, blocks certain TV programs that

you and your family do not want to view.

•Input Block: Enables you to select a source to block from the external

source devices you have hooked up.

3. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

Note:

• If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

- Set up blocking schemes to block specific channels, ratings, and external viewing sources.

- A password is required to gain access to this menu.

78 Plasma TV

Operation

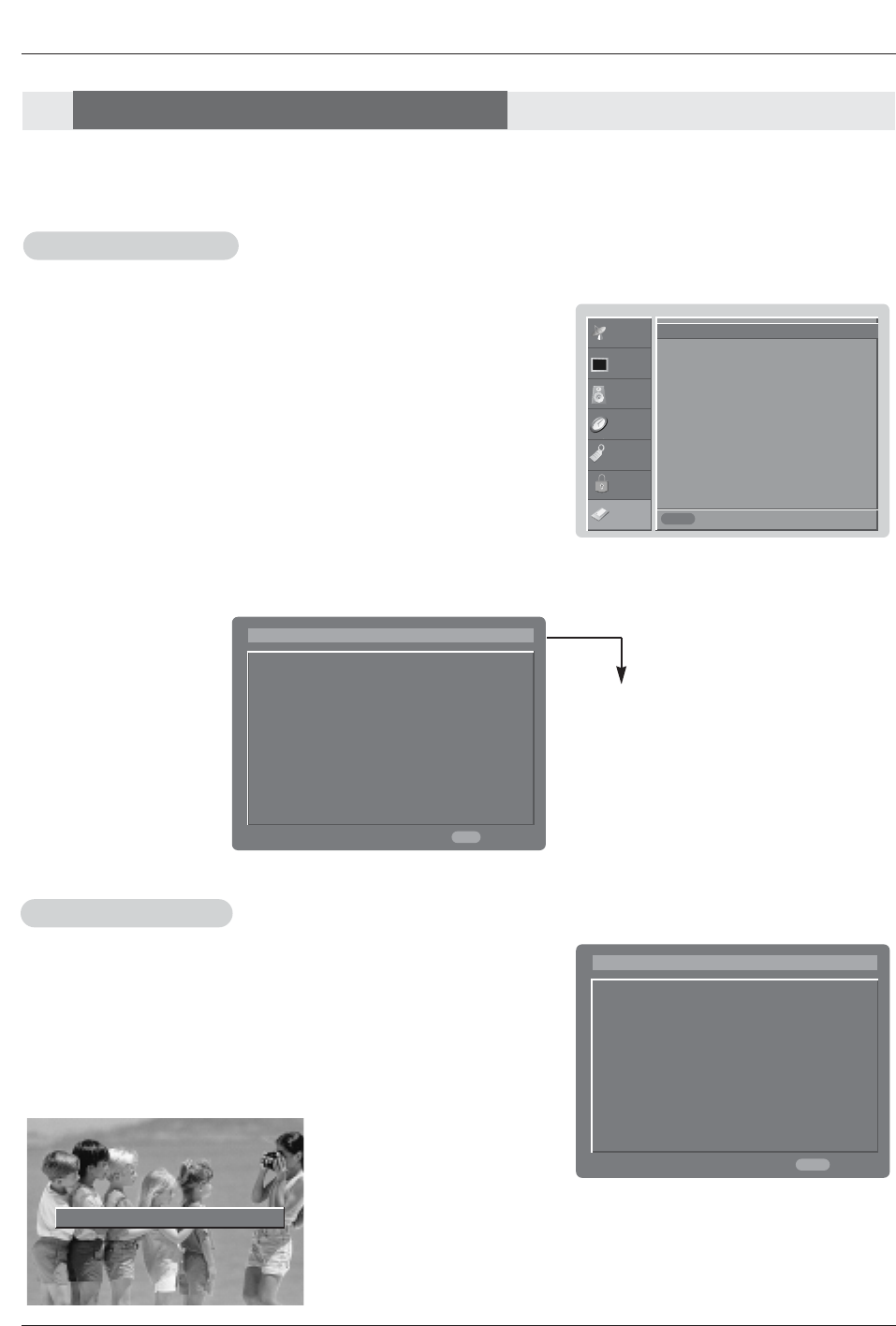

Cable menu options

- The Cable sub menu displays when inserting the CableCARDTM to the TV.

- The CableCARDTM type is Motorola, Scientific Atlanta (SA), or SCM etc. The

OSD (On screen display) is different from your TV according to your

CableCARDTM type.

Scrambled channel

- Insert the CableCARDTM. If you do it at first, it takes about 1 minute to

exchange the data between the TV and the CableCARDTM. Then, TV screen

displays as shown right.

- Let your cable TV service provider know CableCARDTM ID and Host ID.

- If your cable TV service provider is registered CableCARDTM ID and Host ID,

you can watch the premium or high value channel.

- If you ever registered to the cable TV service provider, you can watch the pre-

mium or high value channel without a message.

- If the certificate doesn’t match between the TV and the CableCARDTM,

the OSD (On screen display) displays as shown left.

In case of Scientific Atlanta CableCARD™

i.e) CableCARD™/ Host ID Screen

1. Press the MENU button and then use D/Ebutton to select the CABLE menu.

2. Press the Gbutton and then use D/Ebutton to select your desired item.

3. Press the Gbutton.

4. Press EXIT button to return to TV viewing.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

SA CableCARD™ Diag Screen G

SA CableCARD™/Host ID Screen

Exit

In order to start service for

this device, please contact

customer service at

Ph#: 1-866-303-0422

CableCARD(tm): 0-010-405-698-001

HOST ID: 0-080-000-000-226

EXIT

CableCARD(tm) Message

Exit

In order to start cable service for this device,

please contact SuperVision Cable at

1-800-555-8888

POD ID: 7-561-034-449-009

Host ID: 0-100-331-784-018

EXIT

CableCARD™ Message

Please call your operator and report an invalid CableCARDTM.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

As shown, the pairing num-

ber means your TV and

CableCARDTM ID. For fur-

ther information regarding

cable TV service, contact

your local cable TV service

provider(s).

CableCARD

CableCARD™

™Function

Function

Owner’s Manual 79

Operation

- If an emergency situation occurs during watching the TV/DTV/CATV/CADTV, you can receive a message from

cable TV service provider(s).

- When receiving an emergency message, the message is displayed on the screen as shown below or the channel

is changed automatically to a channel that maintains the emergency message. The message will automatically dis-

appear after some time and return to the last channel.

Emergency Action Notification

Hurricane will be coming!!!

Cable Channel List

Emergency

Emergency Alert Message

Alert Message

1. If you enter the Channel Edit after running the EZ Scan without CableCARDTM, you can see the cable channel list

as the picture 3 above.

2. Insert the CableCARDTM. Then, the TV receive a new cable channel list which is usually one part channel. It takes

about 2~3 minutes to gather the cable channel list after inserting the CableCARDTM as the picture 4 above.

(Occasionally more than that time)

1. 2.

3. 4.

80 Plasma TV

Operation

What is Memory Card

Precaution for Using the Memory Card

Notes on Memory Card

This is a device equipment to communicate the data between AV external equipment. It’s used to a digital cam-

era, camcorder, MP3 player, notebook or PDA.

- Please be sure to insert the correct memory card type in the right direction.

(Confirm between the two memory slots before insertion.)

- Don’t insert the metal substances into the slots of the memory card.

- Do not bend, drop or apply strong shock to memory card.

- After pulling the memory card out from the TV, please keep the memory stick in a appropriate case to prevent

it from static shock.

- The stored data may be changed or lost as a result of misuse, static electricity.

- Do not turn the power off while the memory card is in operation.

- Don’t eject the memory card while in use. Otherwise, it may cause a data loss or card damage.

- Insert only one card to each slot.

- To prevent a change or loss for stored data, don’t misuse the TV or don’t let static electricity or electrical noise

for TV.

- This Company takes no responsibility for problems such as the damage or malfunction that occurs while using

the TV set, inappropriate TV settings, or any other reasons, except for defects or malfunctions intrinsic to the

product.

- Ensure to use a memory card that lists the manufacturers name and serial number.

- The manufacturer will not be responsible for any data damage. Making back up data is strongly recommend-

ed.

- Make sure to comply with the following steps when ejecting a memory card.

- Each Memory Card is complied with standard.

- It’s available to play the Photo / Music file on Memory Card.

Owner’s Manual 81

Operation

A. W

WInserting a Card

1. Insert the Memory Card to Memory card slots of TV side panel.

2. Two slots support defferent types of the Memory Cards.

3. If a Memory Card is not inserted, each slot is disabled.

WEjecting a card

1. Press the M/C EJECT button on the remote control.

2. Select the Slot 1 or Slot 2 based on the inserted card location.

If you select Cancel, OSD will disappear.

3. Eject the card by the hand.

Caution: Press the M/C EJECT button of remote control

before removing the memory card. Failure to do so

may damage the card.

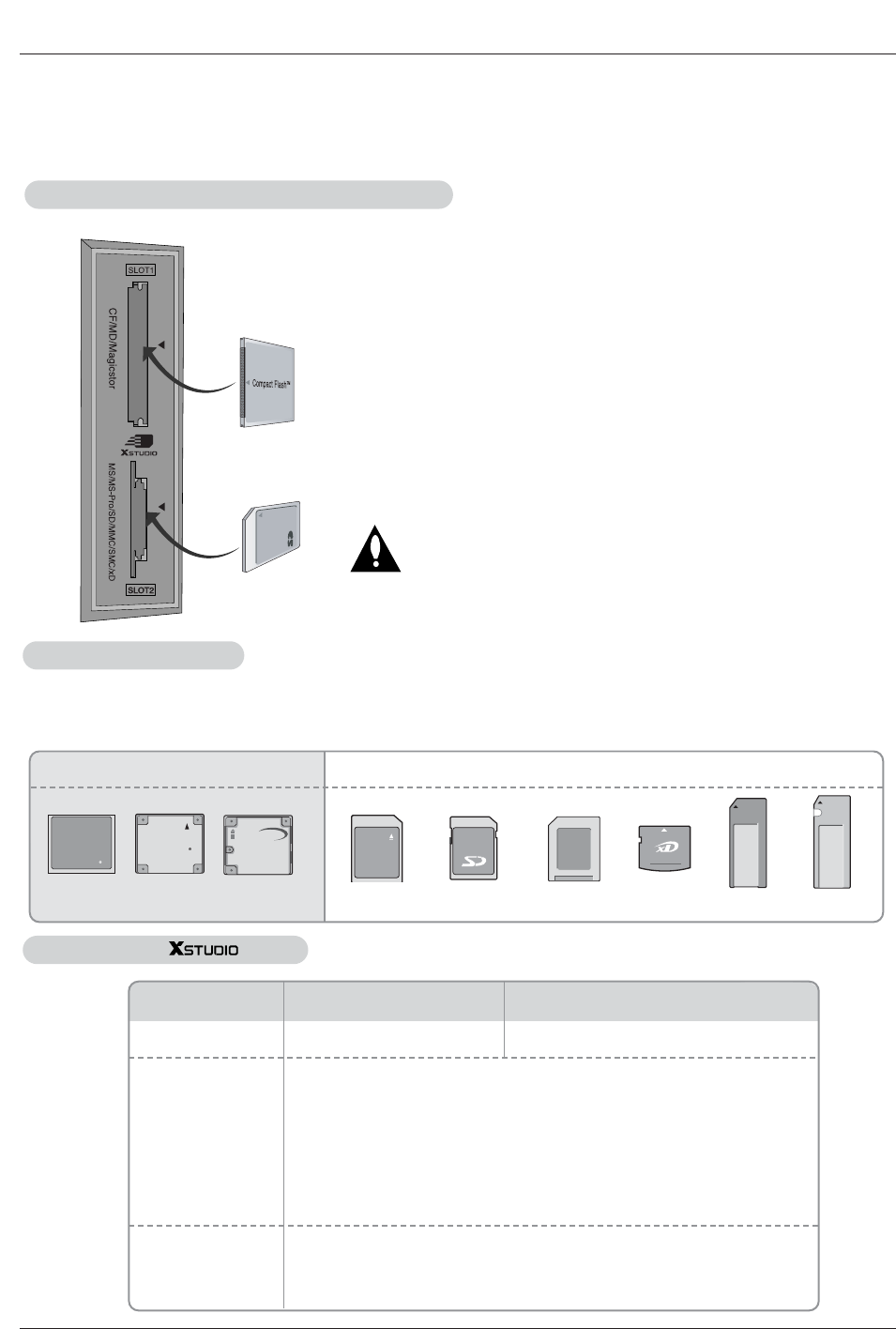

How to insert and eject the Memory Card

A sort of file

Compatilbility

Photo Image (JPEG)


An error may occur if you use a memory card with greater than the

specified capacity.

Unsupported or damaged JPEG or MP3 files can cause

errors. Do not try to change the file extension of unsupported

file types to the file extension of supported file types.

*.mp3

Memory card

capacity

Unsupported or

damaged file

CF (CompactFlash) : 4GB

MD (Microdrive) : 4GB

CF+|| (MagicStor) :2.2GB

SD (Secure Digital) : 1GB

MMC (MultiMedia Card) : 1GB

MS (Memory Stick) :128MB

MS Pro (Memory Stick Pro) : 1GB

SMC (Smart Media Card) : 128MB

xD (Extream Digital Picture Card) :

512MB

Music File (MP3)

Slot 1

MMC SD SMC

Slot 2

MultiMediaCardTM

Secure Digtal

SmartMedía

xD-Picture Card

MEMORY STICK

CompactFlash

Microdrive

magicstor

xD MS

CF MD MagicStor

Memory Card type

- Use the specified card based on the slot location.

- 9 types of Memory Card can be used for this Plasma TV.

- Some MagicStor Plus card is not complied with the TV.

Available file in mode

EMORY

TICK

PRO

MS Pro

82 Plasma TV

Operation

- When you plug a memory card or press the button, the above screens will be displayed.

1. Press D/E/F/Gbutton to select either Photo or Music on Memory Card 1 or Memory Card 2.

2. Press ENTER button to view Photo List or Music List of each slot.

3. Press EXIT button or button to return to TV viewing.

Note: In 30 seconds later, 'Loading" message is disappeared.

B. C.

- When you plug the Memory Card, this screen is displayed, automatically.

Select the Photo or Music

Notes on Memory Card

Owner’s Manual 83

Operation

1. Use the CH D/Ebutton to navigate thumbnail photos in pages.

2. Use MARK button to mark or unmark a photo. When one or more photos are marked, you can view or slideshow only

the marked ones.If no photo is marked, you can view or slideshow all photos in the folder.

3. Use D/E/F/Gbutton to navigate the appropriate thumbnail photos, then press the ENTER button to show the PopUp

menu.

•View:See the selected item to the full screen.

View state change to slide show state by pressing the PLAY (G)button.

•Slide Show:Start a slide show with all photos in the folder. The slide show state can be changed to the view state by

pressing the Pause (||) button. Before starting a slide show, you can choose the slide show interval

(3,6 or 9 seconds). Note: 4 hours later, Slide Show is ended, automatically.

•Mark All:Mark all photos on the screen.

•Unmark All:Unmark all marked photos.

•Cancel:Hide the pop-up menu.

4. Repeatedly, press EXIT button to return to TV viewing or press button to return to the entry menu.

- When you select Photo in entry menu, you will now see a screen filled with thumbnail photos.

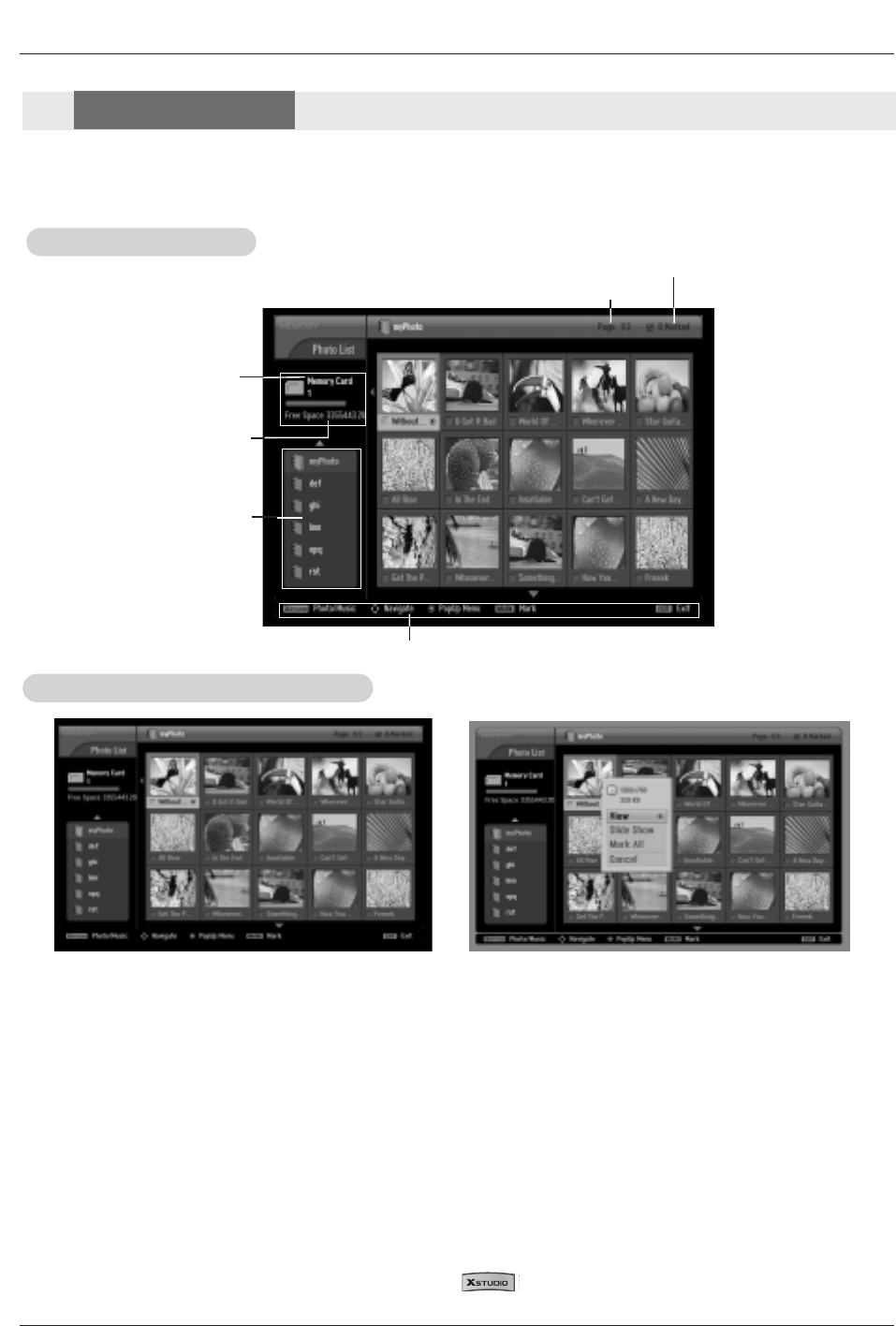

Photo List

Screen Components

Usable Card

memory

Folder List

Current page/Total page

Marked thumbnail photo number

Direct Buttons

Card type

Photo Selection and PopUp Menu

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an

example to help you with the TV operation.

84 Plasma TV

Operation

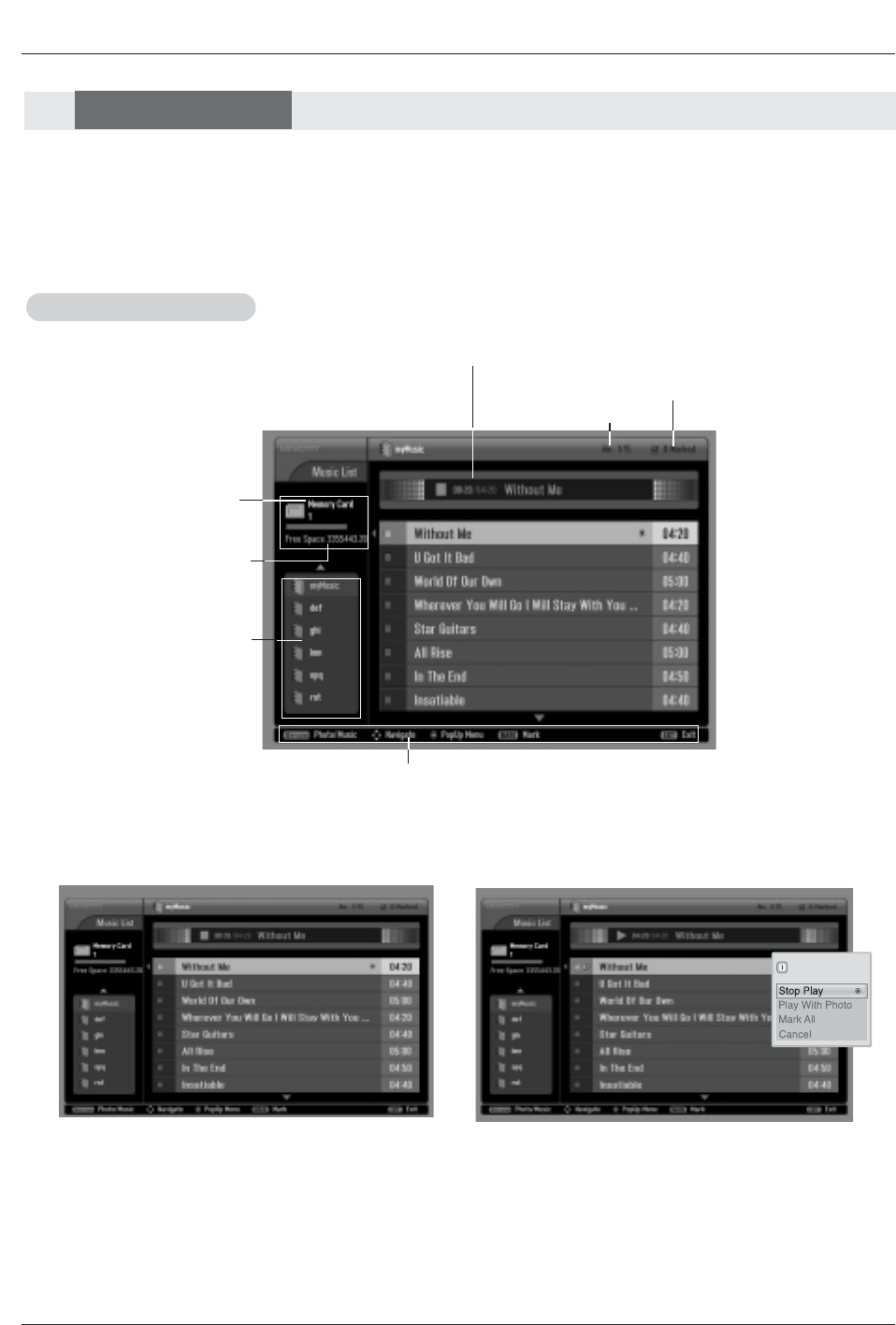

- When you select Music in the entry menu, you will now see a screen filled with music titles.

- Purchased MP3/music files may contain copyright restrictions. Playback of these files may not be sup-

ported by this model.

Music List

Screen Components

Usable Card

memory

Folder List

Current page/Total page

Marked music title number

Direct Buttons

Card type

Current playing time/Total playing time

4394 KB

1 Kbps

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an

example to help you with the TV operation.

Owner’s Manual 85

Operation

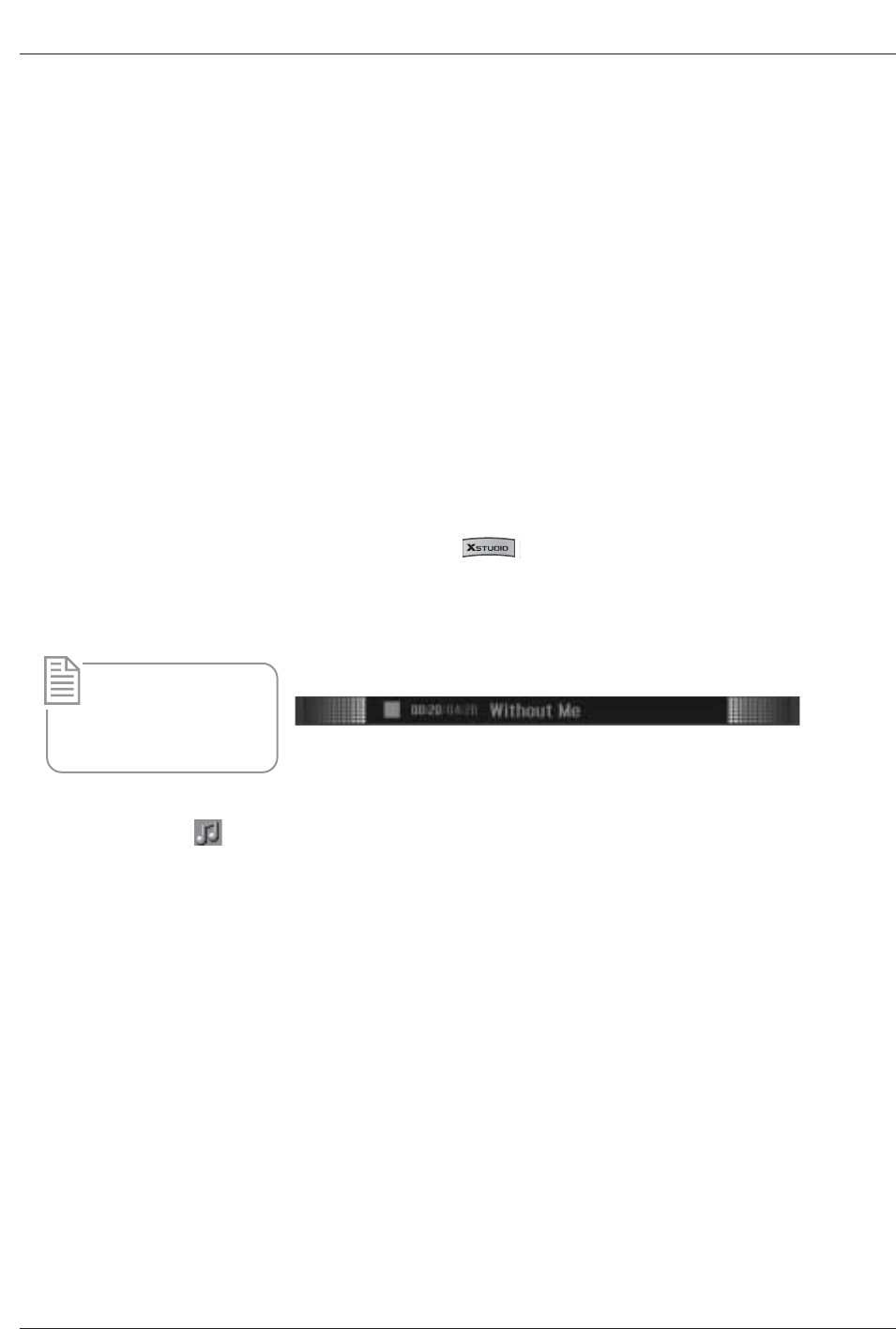

1. Use the CH D/Ebutton to navigate music titles in pages.

2. Use MARK button to mark or unmark a music title. When one or more music titles are marked, the marked music will

be played by turns. For example, if you want to listen to only one music repeatedly, just mark the music only and play

it. If no music title is marked, all the music in the folder will be played in sequence.

3. Use D/E/F/Gbutton to navigate the appropriate music titles, then press the ENTER button to set the pop-up menu.

•Play: Play the selected music.

•Stop Play: Stop the play.

•Play With Photo: Start playing the selected music by turns and then move to the Photo List.

•Mark All: Mark all music titles in the folder.

•Unmark All: Unmark all marked music.

•Cancel: Hide the pop-up menu.

4. Repeatedly, press EXIT button to return to TV viewing or press button to return to the entry menu.

- If you don't press any button for 40 seconds, the play information box (as shown in the below) will float

as a screen saver.

Notes:

• When music is playing, is displayed in front of the music title.

• If you press any button except VOL

,MUTE,

,II,

Ibuttons, screen saver is stopped.

• The

,II,

Ibuttons on the remote control are also available in this mode.

* The ‘Screen Saver’?

Screen saver is to prevent

screen pixel burning

caused by long time still

picture.

86 Plasma TV

Operation

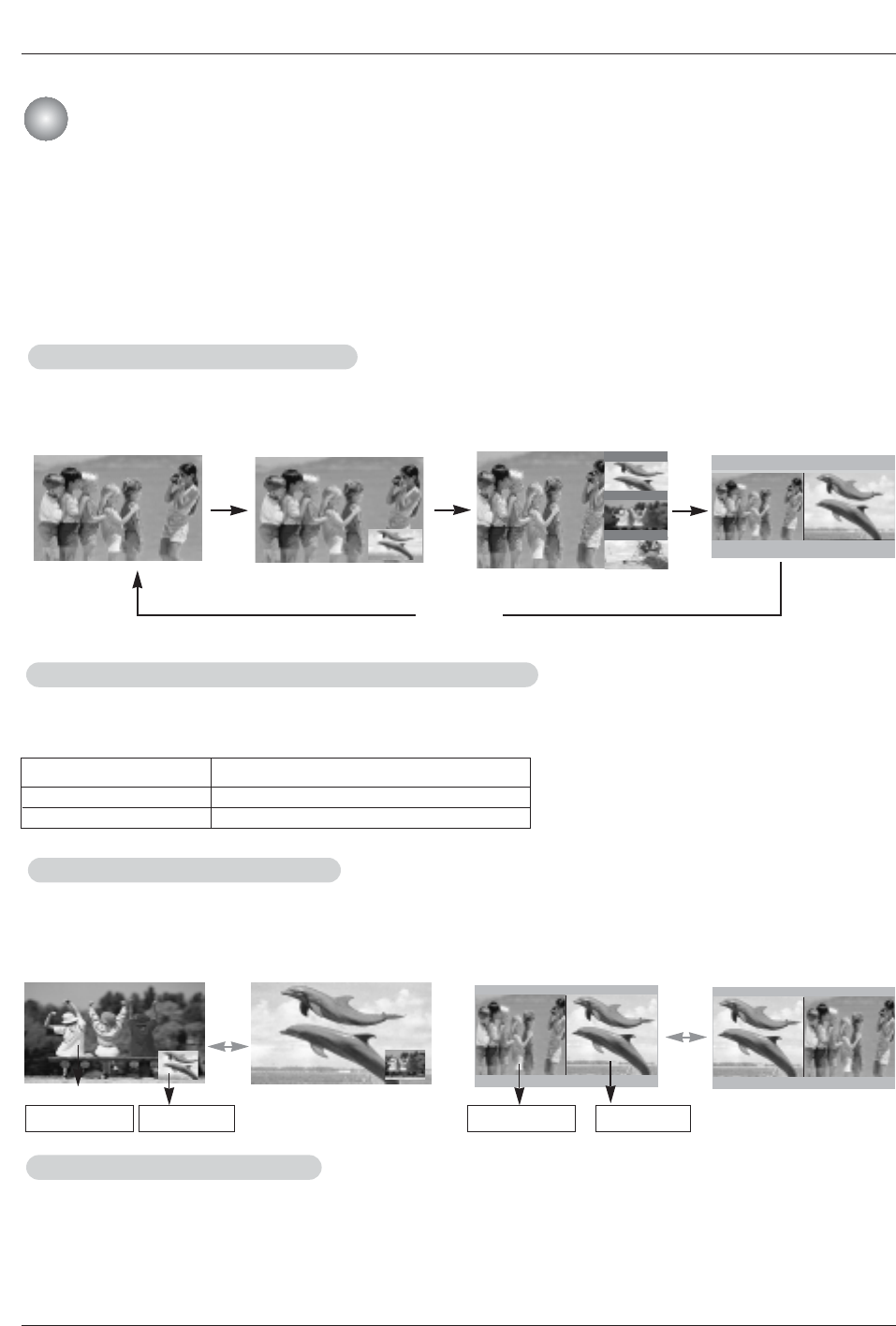

- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other

source will show a smaller inset image.

- Twin Picture mode splits the screen into two images, allowing two picture sources to be shown on the TV screen at the same

time. Each source is given half the screen.

- In PIP/POP/Twin Picture mode, the screen savers such as "No Signal", "Rating Blocked" , "Channel Blocked", or "Aux

Blocked" may not be displayed on screen.

Press the PIP button to access the sub picture. Each press of PIP changes the PIP options as shown below.

PIP Off

PIP Mode POP Mode Twin Picture Mode

1. Press the PIP button.

2. Select the Antenna or Cable option on the Sub input menu or with the PIP INPUT button. Use the PIPCH+ /

PIPCH- button to select a channel for the sub picture.

(You can’t select DTV for main and sub picture simultaneously).

Repeatedly, press the SWAP button to switch the main and sub pictures.

• Component 1, Component 2, RGB-PC (or RGB-DTV), HDMI/DVI input sources for the main picture can’t be used to

swap the main and sub pictures.

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes

the PIP source. You can also select sources for the Sub Input in the SETUP menu.

Main Picture Source Available Sub Picture Sources

DTV

Analog

Analog, Video, and Front Video

DTV, Analog, Video, and Front Video

Main Picture Sub Picture Main Picture Sub Picture

FTV 2-0

TV 4-0

TV 6-0

Normal Mode

PIP (Picture-In-Picture) / POP / Twin Picture

Remote Control

Watching PIP/POP/T

atching PIP/POP/Twin Picture

win Picture

Selecting an Input Signal Source for PIP/T

Selecting an Input Signal Source for PIP/Twin Picture

win Picture

Swapping the PIP

Swapping the PIP/T

/Twin Picture

win Picture

TV Program selection for PIP

Owner’s Manual 87

Operation

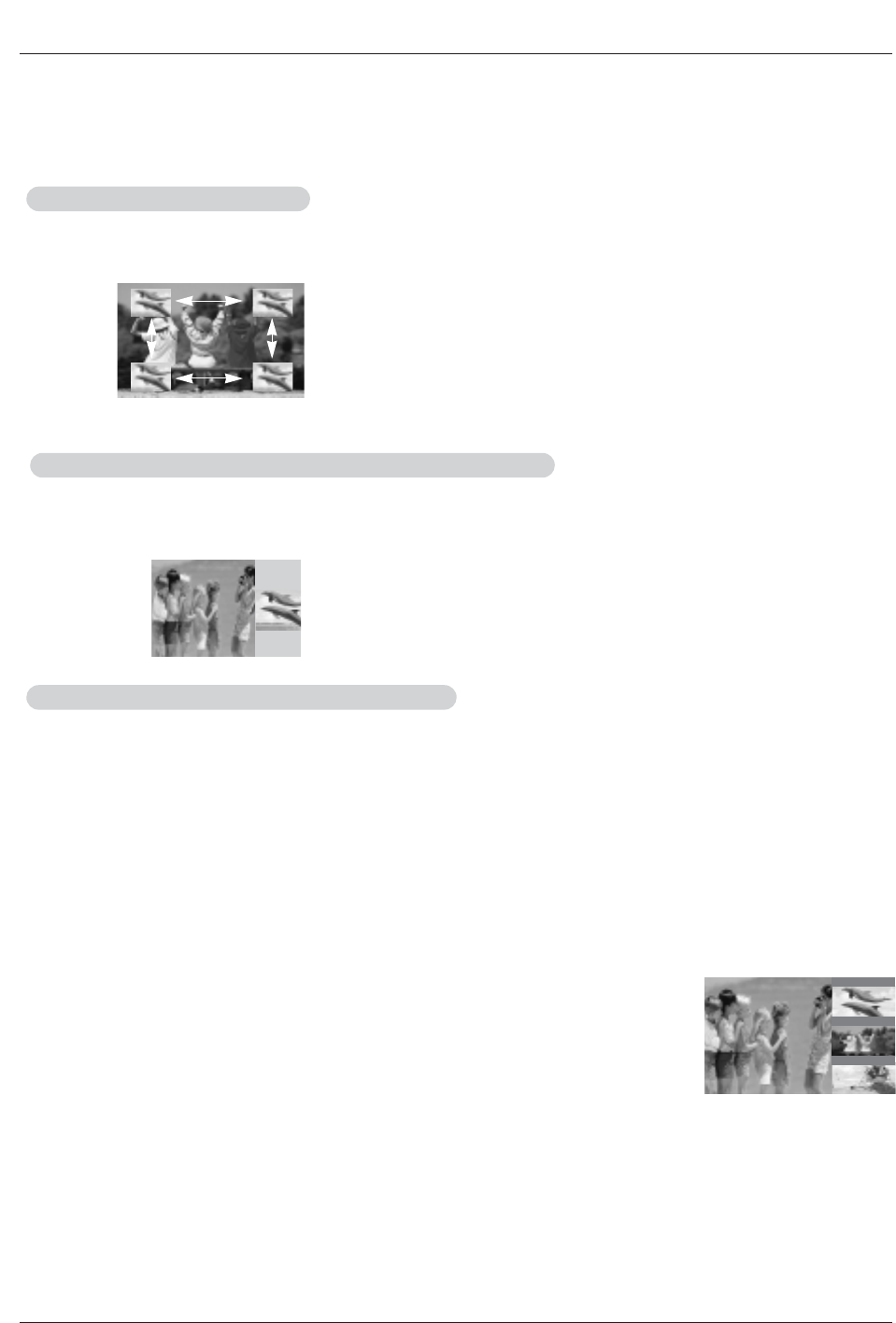

In PIP mode, press the D/E/F/Gbutton to move the sub picture to a different location on the

screen.

Use the D/E/F/Gbutton to change main and sub picture sizes in Twin Picture mode.

If screen is adjusted to the

maximal size, the large

screen is filled with entire

screen vertically as shown.

i.e)

1. Press the PIP button to activate the POP mode while in PIP mode.

•Channel selection: Use Fbutton to enlarge the selected channel being searched on the PIP

screen to shift it for viewing on the Main screen.

•PIP selection: Use D/Ebutton to select one of 3 PIP screen pictures in POP mode.

• When watching TV on Main picture, TV or DTV on Sub pictures are in channel scanning. However,

when watching DTV on Main picture, only TV on Sub picture is in channel scanning.

2. Press the EXIT button to cancel POP mode.

- Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen displays,

(while the main picture source remains the current channel). The pictures of all the programmed channels

are searched with the 3 POP screens.

-Notes:

• Run EZ Scan channel search before using POP mode.

• When Sub pictures are changed from the TV/DTV to CATV/CADTV in POP mode, it may make a noise

•from the Tuner switch.

FTV 2-0

TV 4-0

TV 6-0

Moving the PIP

Moving the PIP sub picture

sub picture

Adjusting Main and Sub Picture Sizes for

Adjusting Main and Sub Picture Sizes for T

Twin Picture

win Picture

POP

POP (Picture-out-of-Picture: Channel Scan)

(Picture-out-of-Picture: Channel Scan)

88 Plasma TV

Operation

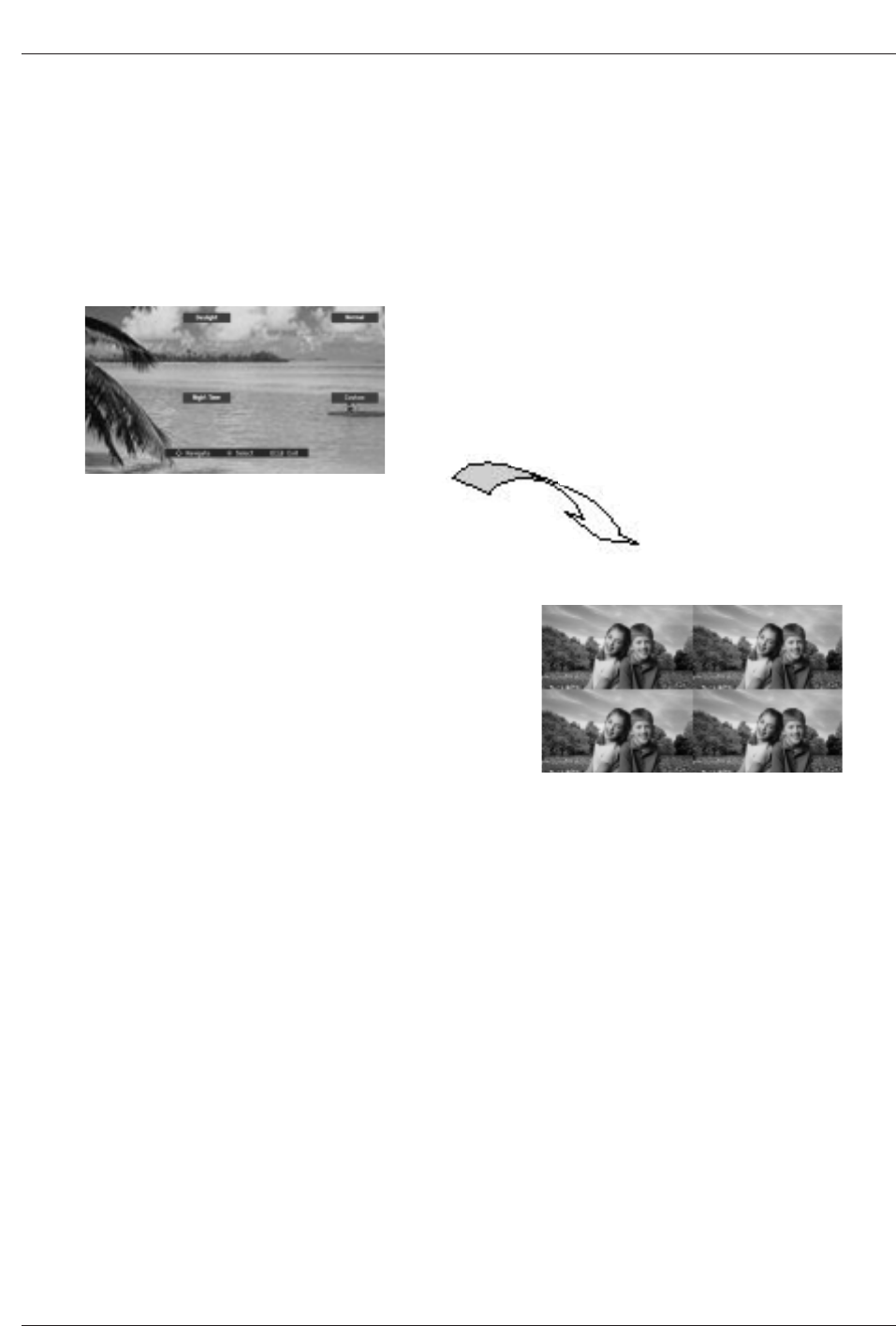

APM (Adaptive Picture Mode)

- Allows a viewer to select their preferred picture mode after compairing the four different picture (Daylight,Normal,Night Time

and Custom) settings.

1. Press the APM button at once. As shown below, the screen is

divided to 4-split.

Use the D/E/F/Gbutton to navigate 4 EZ Pictures. By press-

ing the ENTER button, you can select the desired mode.

2. Press the APM button, again. As shown below, the 4-same

screens are displayed.

You can easily compare with 4 modes.

3. Use the D/E/F/Gbutton to navigate 4 EZ Pictures. By press-

ing the ENTER button, you can select the desired mode.

4. Press EXIT button to return to TV viewing.

Note: While operating the 4-split, any button except APM, ENTER, EXIT, VOLUME

, MUTE button on the

remote control are not available.

Owner’s Manual 89

Operation

4 : 3

16 : 9

The original aspect ratio of the video is 4:3

The original aspect ratio of the video is 16:9(wide)

The video resolution is 720x480i

The video resolution is 720x480p

The video resolution is 1280x720p

The video resolution is 1920x1080i

Multilingual : The program contains two or more audio

services. Press the SAP button to select wanted

Audio.

Caption: => The program contains one or more cap-

tion services. Press the CC button to select wanted

Closed caption.

The program contains V-Chip information. Refer to the

<LOCK Menu>.

D (Dialogue), L (Language), S (Sex), V (Violence), FV

(Fantasy Violence)

480i

480p

720p

1080i

Operation: • Watching TV/DTV/CATV/CADTV

• Watching Video, Front Video

• Watching IEEE 1394

• In Component1, Component2, RGB,

HDMI/DVI modes, INFO button is not

working.

Function: • Show the present screen information.

• On Watching with the upper Input signal,

press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information

B: Program title

C: Day of week, Month, Year

D: Program start time

E: Program progress bar

F: Program finish time

G: Present time

H: Additional information. Refer to the icon

explanation on the right.

- Brief Info shows the present screen information.

- Press the INFO button to show the Brief Info on the screen.

-INFO button does not work in Component1, Component2, RGB, and HDMI/DVI modes.

- Press the INFO button or EXIT button to exit.

Brief Info.

BCDEA

90 Plasma TV

Operation

- Nothing to do with Caption on/Off using Mute button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the Mute button, the sound mode is changed in turn. (Refer to the picture below)

Note:

• EZ Mute does not operate in Component/RGB/HDMI/DVI modes.

Mute EZ Mute

Mute : Sound is muted. EZ Mute : a special mute mode to

activate the closed caption, auto-

matically.

EZ Mute

Mute Off : Sound is enabled.

1. Press the FREEZE button in 720p or 1080i mode.

2. Use the D/E/F/Gbuttons to select the screen section to be magnified.

3. To return to normal viewing, press the FREEZE button again.

Note : The Magnify feature is available only in 720p or 1080i mode, but the

FREEZE button works in all video formats.

- Enlarges the picture with correct proportions.

- When enlarging the picture, the image may become distorted.

Freeze & Magnify (DTV/CADTV 720p, or 1080i mode only)

Owner’s Manual 91

Operation

• When RGB connect to PC input and select the RGB-PC in Main Input, this function is used.

• When HDMI/DVI connect to PC input and select HDMI/DVI input, this function is used.

• In RGB-DTV mode, SIZE and PHASE is not available.

• After connecting RGB-PC or HDMI/DVI to PC input and checking the screen quality.

- Display PC Adjust Menu using Adjust button.

- Position : Adjust the screen position. After displaying the Adjust, select the screen position.

- Size : Adjust the screen size.

- Phase : Adjust the phase of Pixel clock.

In HDMI/DVI-PC mode, PHASE is not available.

- Reset : Initializating Size, Position, Phase adjustment.

Operation

Adjustment for screen Position, Size, Phase, Reset

Screen Setup for PC mode

92 Plasma TV

External Control Device Setup

No. Pin Name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DSR

DTR

CTS

RTS

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

PDP

D-Sub 9

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DTR

DSR

RTS

CTS

3-Wire Configurations

(Not standard)

D-Sub 9

PDP

D-Sub 9

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the TV’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the TV back panel.

- RS-232C connection cables are not supplied with the TV.

Type of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

RS-232C Configurations

External Control Device Setup

RS-232C Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO

INPUT

RGB INPUT

VIDEO

HDMI 2

HDMI1 /DVI

COMPONENT INPUT 1

(MONO)

CABLE

ANTEN

DVD

/DTV

INPUT

IEEE-1394

COMPONENT INPUT 2

MONITOR OUTPUT

A/V INPUT

VIDEO

AUDIO

Cable

S-VIDEO

REMOTE

CONTROL

Owner’s Manual 93

External Control Device Setup

Set ID

Use this function to specify a TV ID number.

Refer to ‘Real Data Mapping’. See page 94.

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

1. Press the MENU button and then use D/Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D/Ebutton to select SET ID.

3. Press the Gbutton and then use D/Ebutton to adjust SET ID to choose the

desired TV ID number. The adjustment range of SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Transmission

*[Command 1]: First command to control the set. (j or k)

*[Command 2]: Second command to control the set.

*[Set ID]: You can adjust the set ID to choose desired TV ID

number in Setup menu. Adjustment range is 1 ~

99. When selecting Set ID ‘0’, every connected the

TV is controlled. Set ID is indicated as decimal

(1~99) on menu and as Hexa decimal (0x0~0x63)

on transmission/receiving protocol.

*[DATA]: To transmit command data.

Transmit ‘FF’ data to read status of command.

*[Cr]: Carriage Return

ASCII code ‘0x0D’

*[ ]: ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission / Receiving Protocol

ransmission / Receiving Protocol

OK Acknowledgement

* The TVr transmits ACK (acknowledgement) based on this

format when receiving normal data. At this time, if the data

is data read mode, it indicates present status data. If the

data is data write mode, it returns the data of the PC com-

puter.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The TV transmits ACK (acknowledgement) based on this

format when receiving abnormal data from non-viable

functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Data 1: Illegal Code

2: Not supported function

3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c *

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 2

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock Mode

k m 0 ~ 1

14. PIP/POP/Twin k n 0,1,2,5

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19. Color Temperature k u 0 ~ 2

20. PIP Input Source k y 0 ~ 3

21. ISM Method j p 1,2,4,8

22. Low Power j q *

23. Orbiter Time Setting j r 1 ~ FE

24. Orbiter Pixel Setting j s 1 ~3

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

25. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ FF 00 ~ FF 00 ~ FF

26. Channel Add/Del m b 00 ~ 01

27. Key m c *

28. Input Select x b *

29. PIP Input Select x y *

COM-

MAND 2

COM-

MAND 1

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

Command Reference List

DATA 4

(Hexadecimal)

DATA 5

(Hexadecimal)

94 Plasma TV

External Control Device Setup

02. Input Select (Command2:b) (Main Picture Input)

GTo select input source for the TV.

Transmission

Data 0: DTV

1: Analog

2: Video

3: Front Video

4: Component 1

5: Component 2

6: RGB-DTV

7: RGB-PC

8: HDMI1/DVI

9: HDMI2

Date 1: 4:3

2: 16:9

3: Horizon

4: Zoom 1

5: Zoom 2

6: Set by program

10: Cinema Zoom (1)

1F: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command2:a)

GTo control Power On/Off of the TV.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’ data

based on this format, Acknowledgement data feedback

presents status about each function.

*Real data mapping

0 : Step 0 (SET ID ALL)

1 : Step 1 (SET ID 1)

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

05. Volume Mute (Command2:e)

GTo control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

2 : Volume mute on, Caption on

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

GTo adjust the screen format.

You can also adjust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command2:d)

GTo select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

GTo adjust volume.

You can also adjust volume with the volume buttons

on remote control.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

GTo adjust screen contrast.

You can also adjust contrast in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

GTo adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’ as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 95

External Control Device Setup

09. Color (Command2:i)

GTo adjust the screen color.

You can also adjust color in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’. See page 94.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

GTo adjust the screen tint.

You can also adjust tint in the Video menu.

Transmission

Data Red : 0 ~ Green : 64

•Refer to ‘Real data mapping’. See page 94.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[ j ][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

GTo lock the remote control and the front panel controls on

the set.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

14. PIP / POP / Twin Picture (Command2:n)

GTo control the PIP (Picture-in-Picture)/POP/Twin picture.

You can also control the PIP/POP/Twin picture using the

PIP button on the remote control.

Transmission

Data 0: PIP off

1: PIP

2: Twin Picture

5: POP

[k][n][ ][Set ID][ ][Data][Cr]

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

GTo adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

11. Sharpness (Command2:k)

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 94.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

GTo select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK][Data][x]

15. PIP Position (Command2:q)

GTo select sub picture position for PIP.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Right down on screen

1: Left down on screen

2: Left up on screen

3: Right up on screen

[q][ ][Set ID][ ][OK][Data][x]

16. Treble (Command2:r)

GTo adjust treble.

You can also adjust treble in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 94.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

18. Balance (Command2:t)

GTo adjust balance.

You can also adjust balance in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 94.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

17. Bass (Command2:s)

GTo adjust bass.

You can also adjust bass in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 94.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

96 Plasma TV

External Control Device Setup

19. Color Temperature (Command2:u)

GTo adjust color temperature.

You can also adjust color temperature in the Video

menu.

Transmission

Data 0: Medium 1: Cool 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

23. Orbiter Time Setting (Command2:r)

GTo adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE

[ j ][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

24. Orbiter Pixel Setting (Command2:s)

GTo adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: 3

[ j ][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

25. Tune Command (Command: m a)

GTo tune channel to following physical/major/minor number

Transmission

Data 0:

Physical Channel Number(Transmit by Hexadecimal code)

NTSC air:02~45

NTSC cable: 01, 0E~7D

ATSC air:01~45

ATSC cable:01~87

Data1,Data2:

Major Channel Number (two part)/ Channel Number (One part)

Data1: High byte

Data2: Low byte

Two part channel number: Major number-Minor number

One part channel number: If the channel band is ATSC

digital cable, it can be used. In case of using one part chan

nel number, minor channel does not need.

Data3, Data 4:

Minor Channel Number Data3: High byte Data4: Low byte

Data 5:

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

20. PIP Input Select (Command2:y)

GTo select input source for sub picture in PIP/Twin pic-

ture mode.

Transmission

Data 0: DTV

1: Analog

2: Video

3: Front Video

[k][y][ ][Set ID][ ][Data][Cr]

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

21. ISM Method (Command2:p)

GTo avoid having a fixed image remain on screen.

Transmission

Data 1: Inversion

2: Orbiter

4: White Wash

8: Normal

[ j ][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

22. Low Power (Command2:q)

GTo control the Low Power function on/off.

You can also adjust Low Power in Option menu.

Transmission

Data 0: Low Power off

1: Low Power on

[ j ][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

7Main/Sub

Picture 6

Two/One

Part

Channel

Using

Physical

Channel

Reserv

ed 3210Step

Main

Sub

Two

One

Use

No Use

x0110

NTSC Air

ATSC

cable_auto

ATSC

Cable_irc

ATSC

Cable_hrc

ATSC

Cable_std

NTSC Cable

ATSC Air

Reserved

...

Reserved

Owner’s Manual 97

External Control Device Setup

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][Data5][x]

[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

28. Input select(Command: x b) (Main Picture Input)

GTo select input source for TV.

Transmission

[x][b][][Set ID][][Data][Cr]

[b][ ][Set ID][ ][OK/NG][Data][x]

Acknowledgement

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

*Using physical channel: 5th bit

If the channel band is NTSC air or NTSC cable, channel tun-

ing can be done by only physical channel. In this case, using

physical channel bit must be low(0).

But if the channel band is ATSC air or ATSC cable, there are

two cases that physical channel enable or disable.

If the physical channel sending is meaningful, you should set

this bit low(0). If the physical channel sending is meaningless,

you should set this bit high(1).

Example)

1. Analog channel: NTSC cable, channel number(35), main

picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01):

main picture, two part(it’s not mandatory), using physical chan-

nel, NTSC cable ‘xx’ data: don’t care major and minor channel

number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don’t know phys-

ical channel, major(30), minor(3)), sub picture

Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub pic-

ture, two part, not using physical channel, ATSC air ‘xx’ data:

don’t care analog channel number in case digital channel tun-

ing.

3. Digital channel: ATSC air, channel

number(physical(20),major(20), minor(3)), sub picture

Command: ma 00 14 00 14 00 03 82 attribute(0x82): sub pic-

ture, two part, using physical channel, ATSC air.

Data Structure

DATA(Hex) INPUT

00 DTV (Antenna)

DTV (Cable)

Analog (Antenna)

Analog (Cable)

Video

Front Video

Component 1

Component 2

RGB DTV

RGB PC

HDMI1/DVI

HDMI2

29. PIP Input Select(Command: x y)

GTo adjust input source for sub picture in PIP mode

Transmission

[x][y][][Set ID][][Data][Cr]

26. Channel Add/Del (Command: m b)

GTo add and delete the channels

Transmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK][Data][x]

[b][ ][Set ID][ ][NG][Data][x]

Acknowledgement

27. Key (Command: m c)

GTo send IR remote key code

Transmission

Data Key code: Refer to page 99.

[m][c][ ][Set ID][ ][Data][ ][Cr]

[c][ ][Set ID][ ][OK][Data][x]

Acknowledgement

Data Structure

DATA(Hex) INPUT

00 DTV (Antenna)

DTV (Cable)

Analog (Antenna)

Analog (Cable)

Video

Front Video

[y][][Set ID][][OK/NG][Data][x]

Acknowledgement

98 Plasma TV

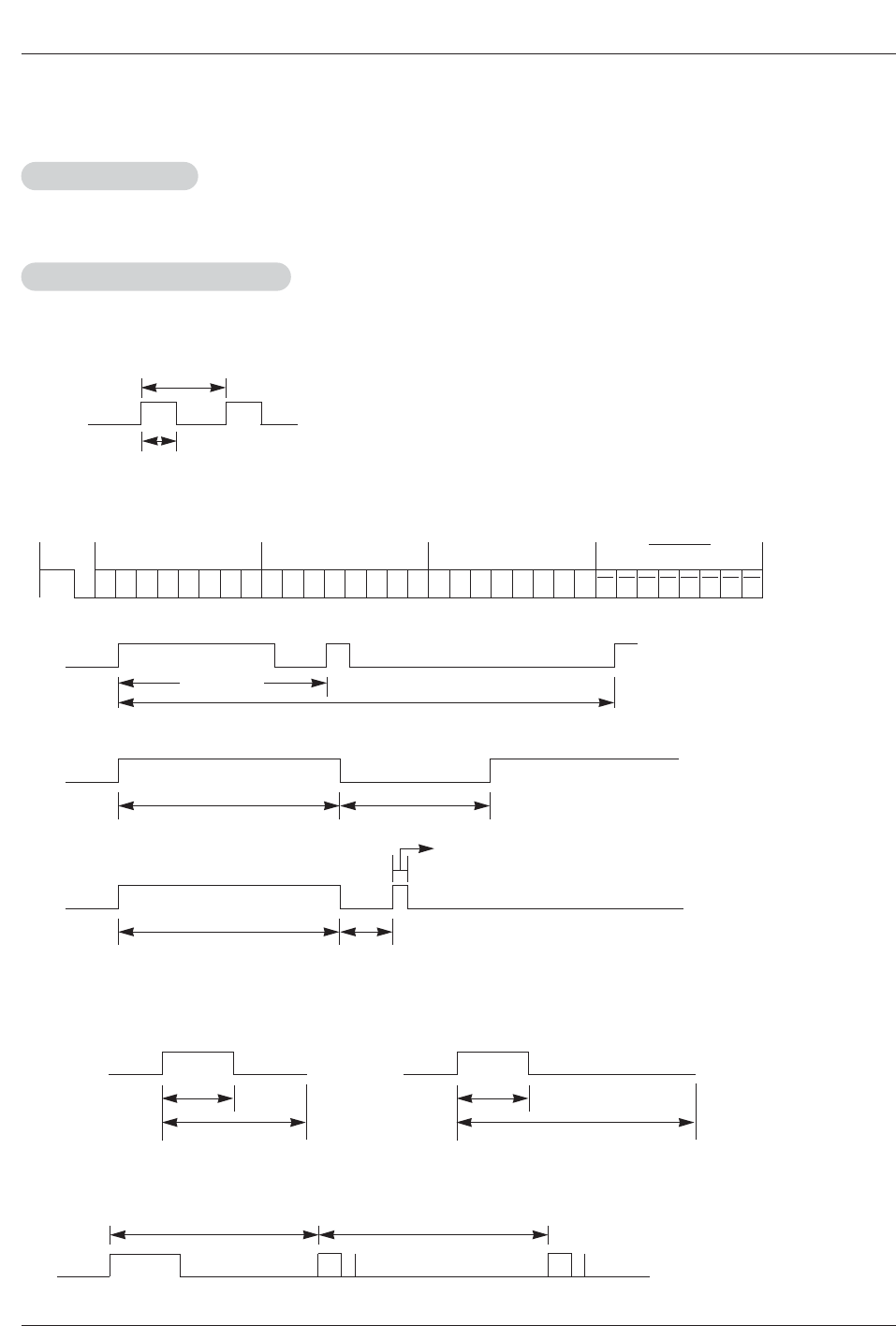

IR Codes

GConnect your wired remote control to the Remote Control port on the TV.

GOutput waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

GConfiguration of frame

GRepeat code

GLead code

•1st frame

Low

custom code

Lead

code

High

custom code Data code Data code

Carrier frequency

FCAR = 1/TC= fOSC/12

Duty ratio = T1/TC= 1/3

•Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

GBit description

GFrame interval : Tf

The waveform is transmitted as long as a key is depressed.

•Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

•Bit “1”

2.24 ms

How to Connect

Remote Control IR Codes

IR Codes

Owner’s Manual 99

IR Codes

10 ~ 19

R/C Button

R/C Button (Power On/Off)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R/C Button

Discrete IR Code (TV Input Selection)

Discrete IR Code (Video Input Selection)

Discrete IR Code (Front Video Input Selection)

Discrete IR Code (Component1 Input Selection)

Discrete IR Code (Component2 Input Selection)

Discrete IR Code (RGB-PC Input Selection)

Discrete IR Code (RGB-DTV Input Selection)

Discrete IR Code (HDMI/DVI Input Selection)

Discrete IR Code (HDMI2 Input Selection)

Discrete IR Code(Only 4:3 Mode)

Discrete IR Code (Only 16:9 Mode)

Discrete IR Code (Only Zoom1 Mode)

Discrete IR Code (Channel Search)

R/C Button

Code (Hexa) Function Note

TV INPUT

TV/VIDEO

POWER

POWER ON

POWER OFF

RATIO

TIMER

Number Key 0~ 9

- (Dash)

FLASHBK

MUTE

VOL D

VOLE

CH D

CH E

FAV

INFO

ENTER

EZ SOUND

EZ PIC

EXIT

PIP

PIPCH -

PIPCH +

PIP INPUT

SWAP

FREEZE

SAP

ADJUST

VIDEO

Front Video

COMPONENT 1

COMPONENT 2

RGB-PC

RGB-DTV

HDMI1/DVI

HDMI2

Ratio 4:3

Ratio 16:9

Ratio Zoom

POP

1394

PLAY

PAUSE

STOP

REC

REW

GOTOPREV

GOTONEXT

TV GUIDE

APM

MC EJECT

AUTO DEMO

X STUDIO

MARK

100 Plasma TV

Programming the Remote

GThe remote is a multi-brand or a universal remote. It can be programmed to operate most remote-controllable devices of

other manufacturers.

Note that the remote may not control all models of other brands.

Programming a code into a remote mode

Programming the Remote

1. To find out whether your remote can operate the device without programming, turn on the device such as a VCR and press the

corresponding mode button on the remote.

After that, press the POWER button. If the device is turned off then it responds properly and the remote need not to be pro-

grammed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.

2. Press the MENU and MUTE button continuously at the same time for 2 seconds, the current selected device button will be illu-

minated.

If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from

step 2.

3. Enter code numbers using the number button on the remote by refering the code table on the following pages. When pressing

the button, the light blinks at a time. If the device turned off, the programming is successful.

4. Press the MENU button to store the code. After blinking twice, this code is stored.

5. Test the remote functions to see if the device responds properly. If not, repeat from step 2.

Owner’s Manual 101

Programming Codes

VCRs

CATV

AIWA 034

AKAI 016 043 046 124

125 146

AMPRO 072

ANAM 031 033 103

AUDIO DYNAMICS

012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112116117119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON

012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

133 140 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

PORTLAND 108

PULSAR 072

QUARTZ 011 014

QUASAR 033 066 075 145

RCA 013 020 033 034

040 041 062 063

107 109 140 144

145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125

SANSUI 022 043 048 135

SANYO 003 007 010 014

102 134

SCOTT 017 037 112 129

131

SEARS 003 008 009 010

013 014 017 020

031 042 073 081

101

SHARP 031 054 149

SHINTOM 024

SONY 003 009 031 052

056 057 058 076

077 078 149

SOUNDESIGN 034

STS 013

SYLVANIA 031 033 034 059

067

SYMPHONIC 034

TANDY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH

012

VICTOR 048

VIDEO CONCEPTS

012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053

AJIN 112

ANTRONIK 014

ARCHER 005 007 014 024

CABLE STAR 026

CENTURION 092

CENTURY 007

CITIZEN 007

COLOUR VOICE 065 090

COMBANO 080 081

COMTRONICS 019 030

DIAMOND 023

EAGLE 020 030 040

EASTERN 057 062 066

ELECTRICORD 032

GE 072

GEMINI 008 022 025 054

GI 052 074

GOLDEN CHANNEL

030

HAMLIN 049 050 055

HITACHI 052 055

HOSPITALITY 070 077

JERROLD 002 003 004 008

009 010 052 069

074

LG (GOLDSTAR) 001 106 101 005

M-NET 037

MACOM 033

MAGNAVOX 010 012 064 079

MEMOREX 100

MOVIE TIME 028 032

NSC 015 028 038 071

073

OAK 016 031 037 053

PANASONIC 044 047

PARAGON 100

PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016

PRUCER 059

PTS 011 048 071 072

073 074

PULSAR 100

RCA 047

REGAL 049 050

REGENCY 057

REMBRANT 025

SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046

SHERITECH 022

SIGNAL 030

SIGNATURE 052

SL MARX 030

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030

TADIRAN 030

TAEKWANG 110

TAIHAN 105

TANDY 017

TEXSCAN 029

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

102 Plasma TV

Programming Codes

Audio

APEX DIGITAL 022

DENON 020 014

GE 005 006

HARMAN KARDON 027

JVC 012

LG 001 010 016 025

MAGNAVOX 013

MARANTZ 024

MITSUBISHI 002

NAD 023

ONKYO 008 017

PANASONIC 003 009

PHILIPS 013

PIONEER 004 026

PROCEED 021

PROSCAN 005 006

RCA 005 006

SAMSUNG 011 015

SONY 007

THOMPSON 005 006

TOSHIBA 019 008

YAMAHA 009 018

ZENITH 010 016 025

DVD

ALPHASTAR DSR

123

AMPLICA 050

BIRDVIEW 051 126 129

CHANNEL MASTER

013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230

AKAI 163

ANAM 003 014 017 023

059 106 189 216

217 235 236

BURMECTER 252

CARVER 086

CLARION 199

DAEWOO 027 053 060 084

102 148 198 221

DENON 015 075 130 143

FANTASIA 071

FINEARTS 022

FISHER 089 099

LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239

HAITAI 034 035 188 222

HARMAN/KARDON 068

INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141

KEC 185 186 187

KENWOOD 038 050 067 089

170 171 197 206

215 222

KOHEL 030

NAD 045 046

LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

LXI 103

MAGNAVOX 111

MARANTZ 002 018 020 025

034 041 081 090

097 112

MCINTOSH 049

MCS 104

MEMOREX 107

NAD 046

ONKYO 013 040 041 047

048 056 057 132

133 140

OPTIMUS 158

PANASONIC 007 033 064 113

142 220 241 251

PENNEY 104

PHILIPS 026 112 143

PIONEER 039 042 043 063

065 091 093 094

115 123 127 250

QUASAR 113

RCA 080

RCX 092

REALISTIC 103 106

SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246

SANSUI 011 135 138 144

SANYO 019 083 234

SCOTT 106 186

SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209

SHERWOOD 005 006 158

SONY 044 045 109 114

118 126 248 249

TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

Owner’s Manual 103

Troubleshooting Checklist

No output from one of

the speakers • Adjust Balance in the AUDIO menu. (Refer to p.66)

Unusual sound from

inside the TV

• A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with

the TV.

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet

where the TV’s power cord was plugged in.

No or poor color

or poor picture

• Select Color in the Video menu and press the VOLUME (G) button.

(Refer to p.65)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

• Check to see if there is any object between the TV and the remote control

causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p.11)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.11)

Picture OK &

No sound

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

Picture appears slowly

after switching on

• This is normal, the image is muted during the TV startup process. Please

contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking

Troubleshooting Checklist

roubleshooting Checklist

• Check for local interference such as an electrical appliance or power tool.

104 Plasma TV

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and

a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the

screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your

new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Cabinet

Extended

Extended Absence

Absence

Maintenance

Owner’s Manual 105

Specification

Product Specifications

• The specifications shown above may be changed without prior notice for quality improvement.

MODELS

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 ~ 13, UHF 14 ~ 69, DTV 2 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135.

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

57.5 / 1461

32.9 / 835

13 / 331.3

120.6 / 54.7

1366 x 768 (Dot)

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

50PX4D-UB / 50PX5D-UB

106 Plasma TV

Notes

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it

proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”)

listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This war-

ranty is good only to the original purchaser of the product and effective only when used in the United States, includ-

ing Alaska, Hawaii, and U.S. Territories.

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV

typically contain a small number of pixels that do not function normally. Your display has been inspected and is in

compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use

of your display.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights that vary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute

model or factory reconditioned unit, at LGE’s option. If

repaired, parts used in the repair may be new or remanufac-

tured.

Replacement Units and Repair Parts are warranted for the

remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period

begins on the date of sale to the original consumer/end user.

KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be

required to submit a legible copy of your bill of sale or proof

of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s

dated bill of sale or delivery ticket as evidence

of the Date of Purchase for proof of warranty,

and submit a copy of the bill of sale to the ser-

vice person at the time warranty service is pro-

vided.

Please call 1-800-243-0000 to locate your

nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your

product online. This information will allow us to reach you promptly should we discover a safety or reliability prob-

lem that could affect you.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

http://www.lgservice.com

FOR SERVICE:

Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not

be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to the LG®Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory

warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently

owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before

returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product

information or Dealer or Service locations

Call 1-800-243-0000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

●damage caused in shipping or transit

●service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner’s manual for power supply

requirements)

●installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or

LG Electronics USA 50PX5DUB Plasma Display Panel User Manual 528Een new

LG Electronics USA Plasma Display Panel 528Een new

Contents

User Manual Part 2

Navigation menu

Namespaces

Views

Navigation
