OWNER’S MANUAL

LED LCD TV / LCD TV

PLASMA TV

Please read this manual carefully before operating

your set and retain it for future reference.

WARNING / CAUTION

The lightning flash with arrowhead

symbol, within an equilateral trian-

gle, is intended to alert the user to

the presence of uninsulated “dan-

gerous voltage” within the product’s enclo-

sure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equi-

lateral triangle is intended to alert

the user to the presence of important oper-

ating and maintenance (servicing) instruc-

tions in the literature accompanying the

appliance.

TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR

BACK). NO USER SERVICEABLE PARTS

INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND

ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the National

Electric Code (U.S.A.). The code provides guide-

lines for proper grounding and, in particular, speci-

fies that the cable ground shall be connected to the

grounding system of the building, as close to the

point of the cable entry as practical.

WARNING / CAUTION

To prevent fire or shock hazards, do not expose

this product to rain or moisture.

FCC Notice

Class B digital device

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable pro-

tection against harmful interference in a residen-

tial installation. This equipment generates, uses

and can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encour-

aged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equip-

ment and receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is con-

nected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC

Rules.

Operation is subject to the following two condi-

tions: (1) This device may not cause (harmful)

interference, and (2) this device must accept

any interference received, including interference

that may cause undesired operation (of the

device).

Any changes or modifications in construction of

this device which are not expressly approved by

the party responsible for compliance could void

the user’s authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any

way without written authorization from LG

Electronics. Unauthorized modification could

void the user’s authority to operate this product.

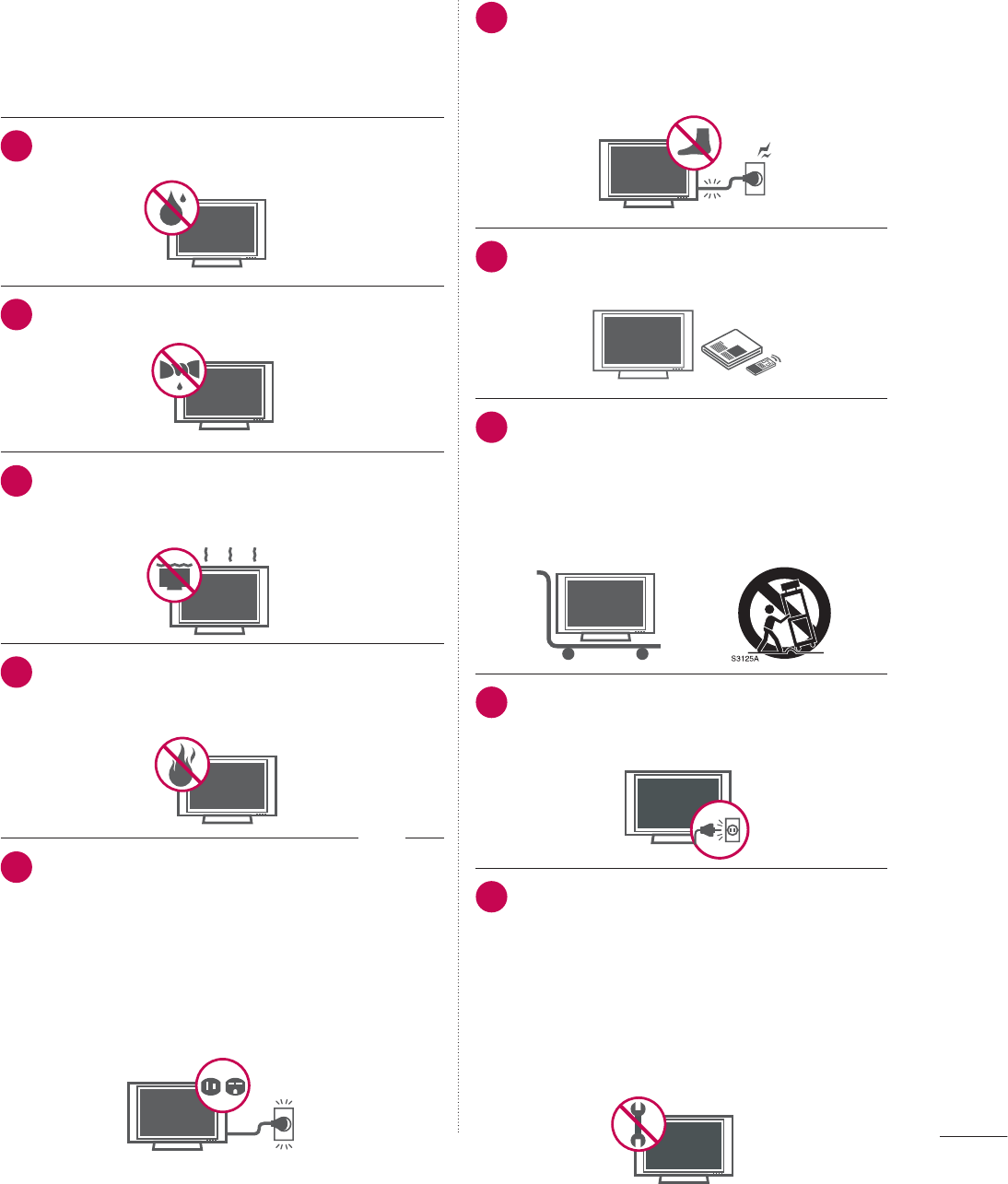

SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

1Do not use this apparatus near water.

2Clean only with dry cloth.

3Do not block any ventilation openings. Install in

accordance with the ma nufacturer’s instruc-

tions.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other appa-

ratus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has

two blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong, The wide blade or the third

prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an elec-

trician for replacement of the obsolete outlet.

6Protect the power cord from being walked

on or pinched particularly at plugs, conve-

nience receptacles, and the point where

they exit from the apparatus.

7Only use attachments/accessories speci-

fied by the manufacturer.

8Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or

sold with the apparatus. When a cart is

used, use caution when moving the cart/

apparatus combination to avoid injury from

tip-over.

9Unplug this apparatus during lighting

storms or when unused for long periods

of time.

Refer all servicing to qualified service per-

sonnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is dam-

aged, liquid has been spilled or objects

have fallen into the apparatus, the appara-

tus has been exposed to rain or moisture,

does not operate normally, or has been

dropped.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

Never touch this apparatus or antenna during

a thunder or lighting storm.

When mounting a TV on the wall, make sure

not to install the TV by the hanging power

and signal cables on the back of the TV.

Do not allow an impact shock or any objects

to fall into the product, and do not drop onto

the screen with something.

CAUTION concerning the Power Cord:

It is recommend that appliances be placed

upon a dedicated circuit; that is, a single

outlet circuit which powers only that appli-

ance and has no additional outlets or

branch circuits. Check the specification page

of this owner's manual to be certain.

Do not connect too many appliances to the

same AC power outlet as this could result in

fire or electric shock.

Do not overload wall outlets. Overloaded wall

outlets, loose or damaged wall outlets, exten-

sion cords, frayed power cords, or damaged

or cracked wire insulation are dangerous . Any

of these conditions could result in electric

shock or fire. Periodically examine the cord of

your appliance, and if its appearance indicates

damage or deterioration, unplug it, discon-

tinue use of the appliance, and have the cord

replaced with an exact replacement part by

an authorized servicer. Protect the power cord

from physical or mechanical abuse, such as

being twisted, kinked, pinched, closed in a

door, or walked upon. Pay particular attention

to plugs, wall outlets, and the point where the

cord exits the appliance.

Do not use a damaged or loose power cord.

Do not pull on the power cord to unplug the

TV. Grasp the plug when unplugging the

power cord.

WARNING - To reduce the risk of fire or elec-

trical shock, do not expose this product to

rain, moisture or other liquids. Do not touch

the TV with wet hands. Do not install this

product near flammable objects such as

gasoline or candles or expose the TV to

direct air conditioning.

Do not expose to dripping or splashing and

do not place objects filled with liquids, such

as vases, cups, etc. on or over the appara-

tus (e.g. on shelves above the unit).

GROUNDING

Ensure that you connect the earth ground

wire to prevent possible electric shock (i.e. a

TV with a three-prong grounded AC plug

must be connected to a three-prong ground-

ed AC outlet). If grounding methods are not

possible, have a qualified electrician install a

separate circuit breaker.

Do not try to ground the unit by connecting it

to telephone wires, lightening rods, or gas

pipes.

Power

Supply

Short-circuit

Breaker

DISCONNECTING DEVICE FROM MAINS

Mains plug is the disconnecting device. The

plug must remain readily operable.

As long as this unit is connected to the AC

wall outlet, it is not disconnected from AC

power even if you turn off the power switch

on the unit.

ANTENNAS

Outdoor antenna grounding

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna sys-

tem should not be located in the vicinity of

overhead power lines or other electric light or

power circuits, or where it can come in contact

with such power lines or circuits as death or

serious injury can occur.

Be sure the antenna system is grounded so as

to provide some protection against voltage

surges and built-up static charges.

Section 810 of the National Electrical Code

(NEC) in the U.S.A. provides information with

respect to proper grounding of the mast and

supporting structure, grounding of the lead-in

wire to an antenna discharge unit, size of

grounding conductors, location of antenna

discharge unit, connection to grounding elec-

trodes and requirements for the grounding

electrode.

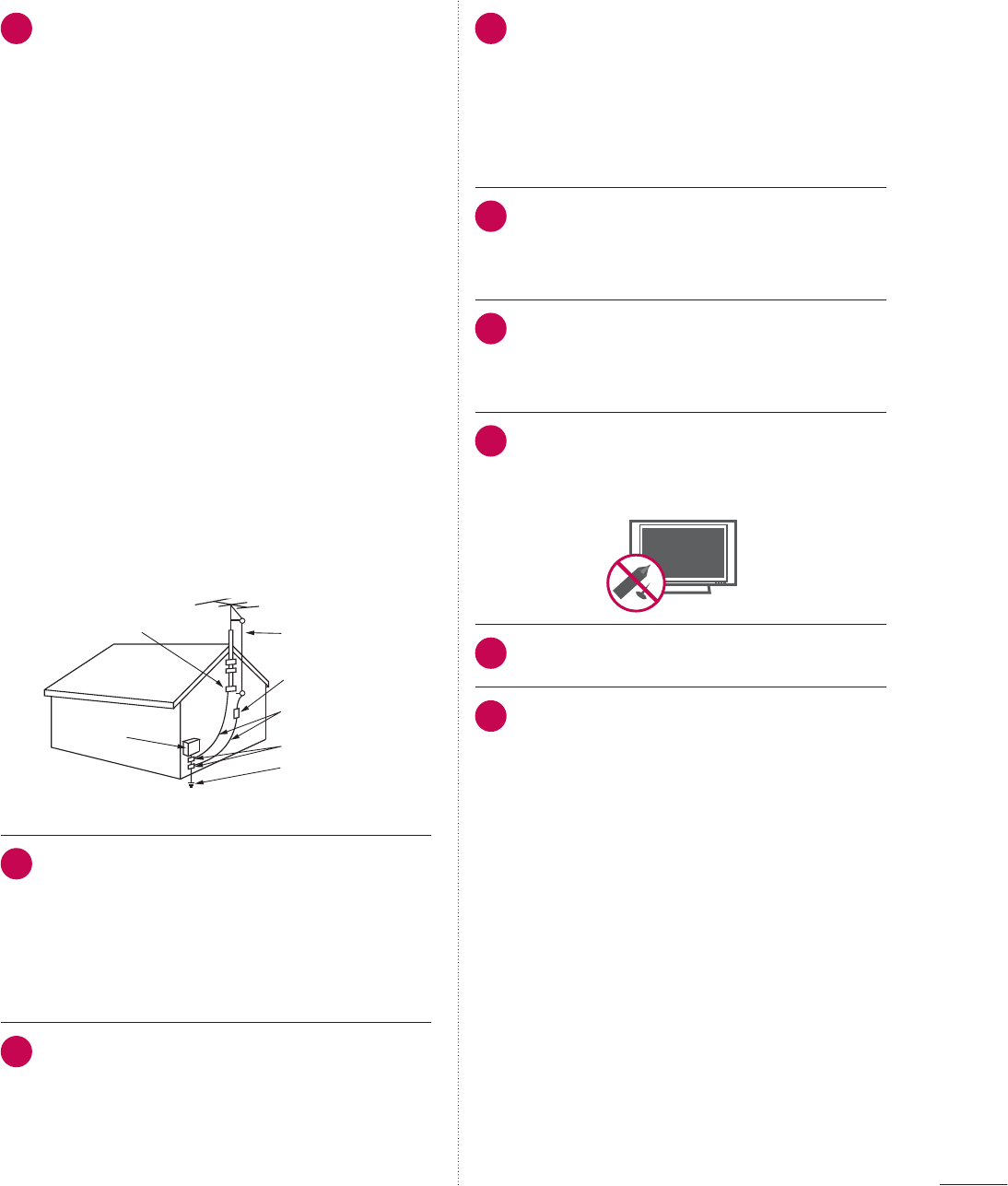

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

Ground Clamp

Electric Service

Equipment

NEC: National Electrical Code

Cleaning

When cleaning, unplug the power cord and

rub gently with a soft cloth to prevent

scratching. Do not spray water or other liquids

directly on the TV as electric shock may occur.

Do not clean with chemicals such as alcohol,

thinners or benzene.

Moving

Make sure the product is turned off, unplugged

and all cables have been removed. It may take

2 or more people to carry larger TVs. Do not

press against or put stress on the front panel

of the TV.

Ventilation

Install your TV where there is proper ventila-

tion. Do not install in a confined space such

as a bookcase. Do not cover the product

with cloth or other materials (e.g.) plastic

while plugged in. Do not install in exces-

sively dusty places.

Take care not to touch the ventilation open-

ings. When watching the TV for a long

period, the ventilation openings may

become hot.

If you smell smoke or other odors coming

from the TV or hear strange sounds, unplug

the power cord contact an authorized service

center.

Do not press strongly upon the panel with

hand or sharp object such as nail, pencil or

pen, or make a scratch on it.

Keep the product away from direct sunlight.

For LED LCD TV/LCD TV

If the TV feels cold to the touch, there may be

a small “flicker” when it is turned on. This is

normal, there is nothing wrong with TV.

Some minute dot defects may be visible on

the screen, appearing as tiny red, green, or

blue spots. However, they have no adverse

effect on the monitor's performance.

Avoid touching the LCD screen or holding

your finger(s) against it for long periods of

time. Doing so may produce some tempo-

rary distortion effects on the screen.

SAFETY INSTRUCTIONS

Important Safety Instructions............................3

FEATURE OF THIS TV

................................ 7

PREPARATION

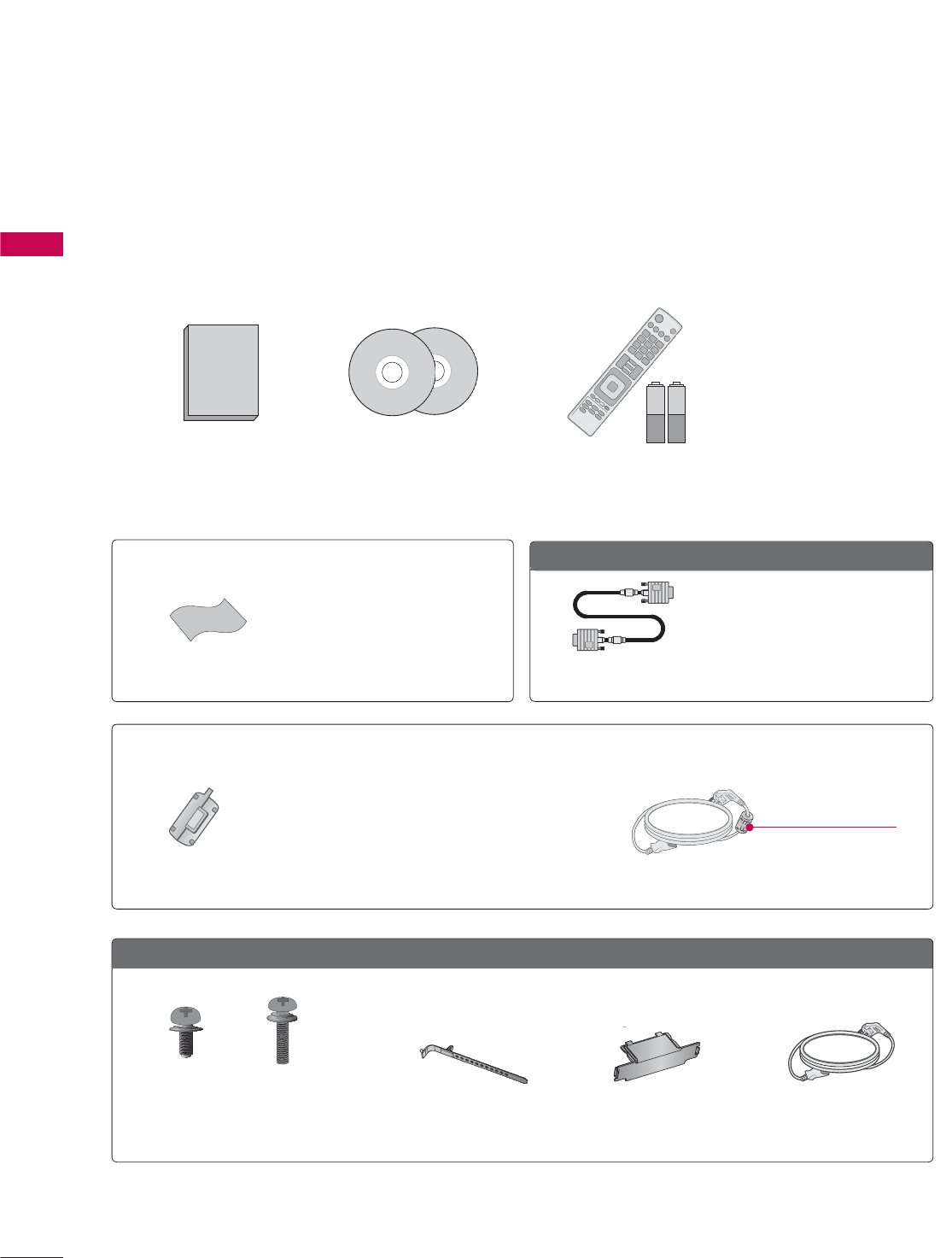

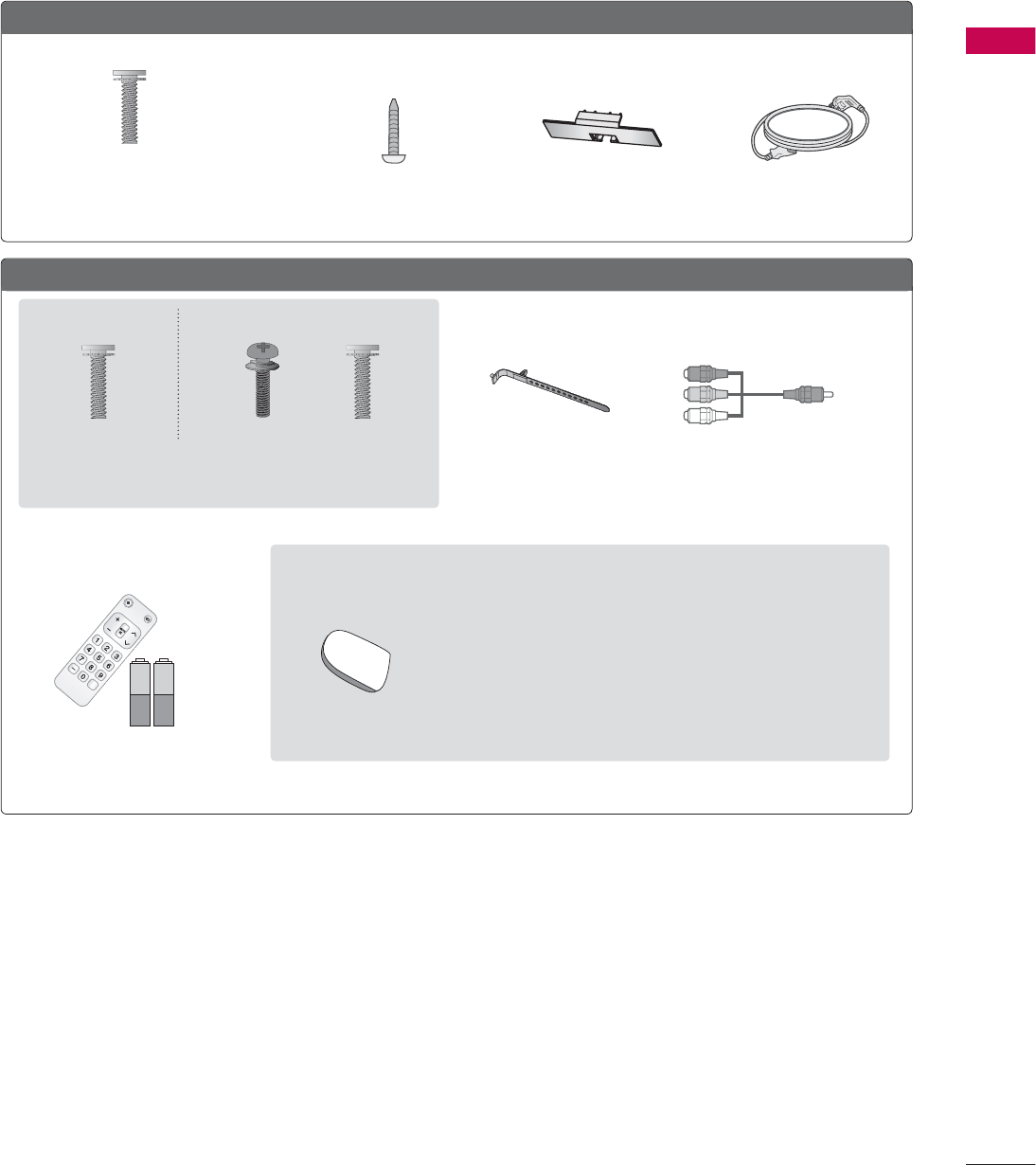

Accessories...........................................................10

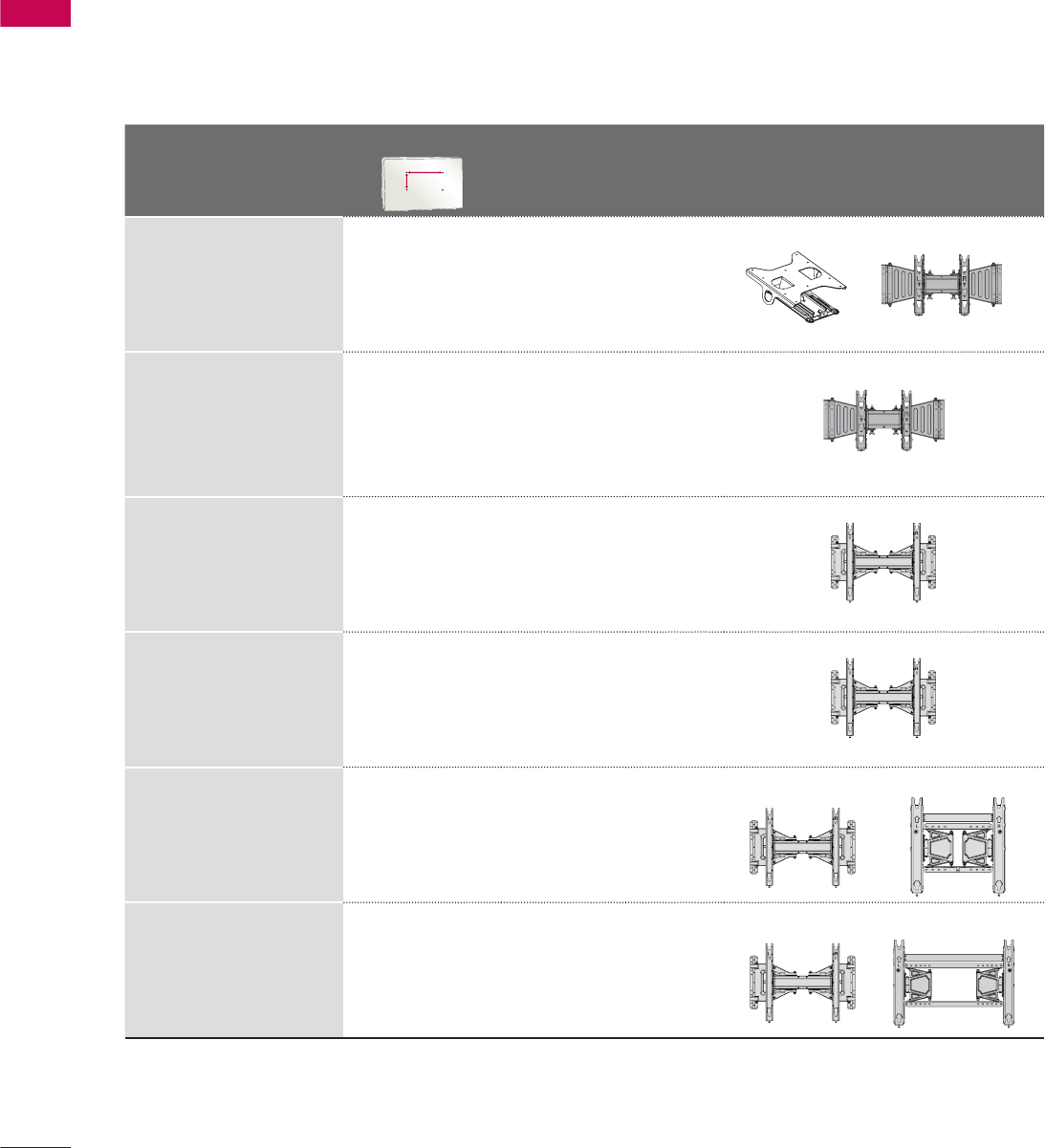

Optional Extras ..................................................... 11

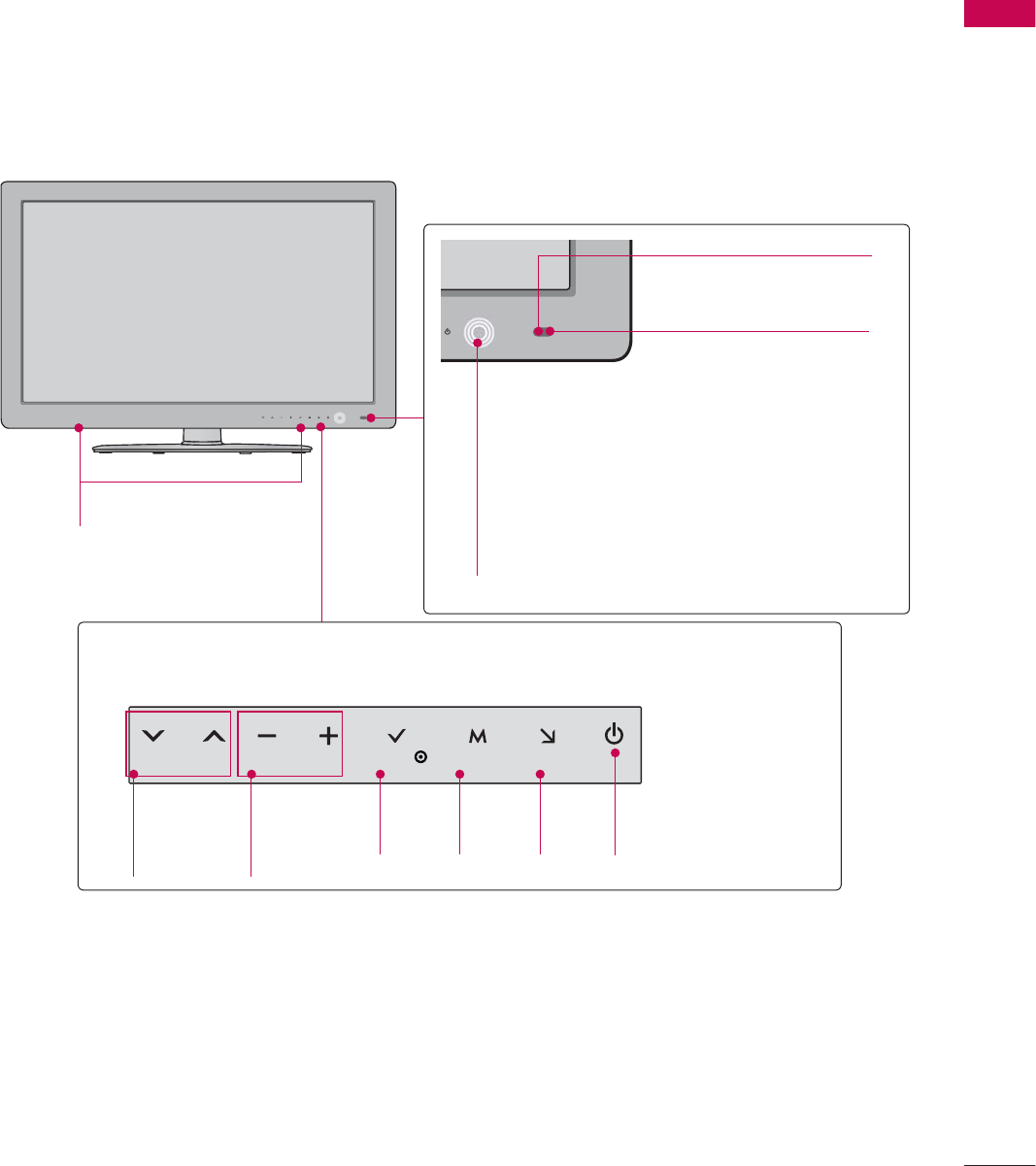

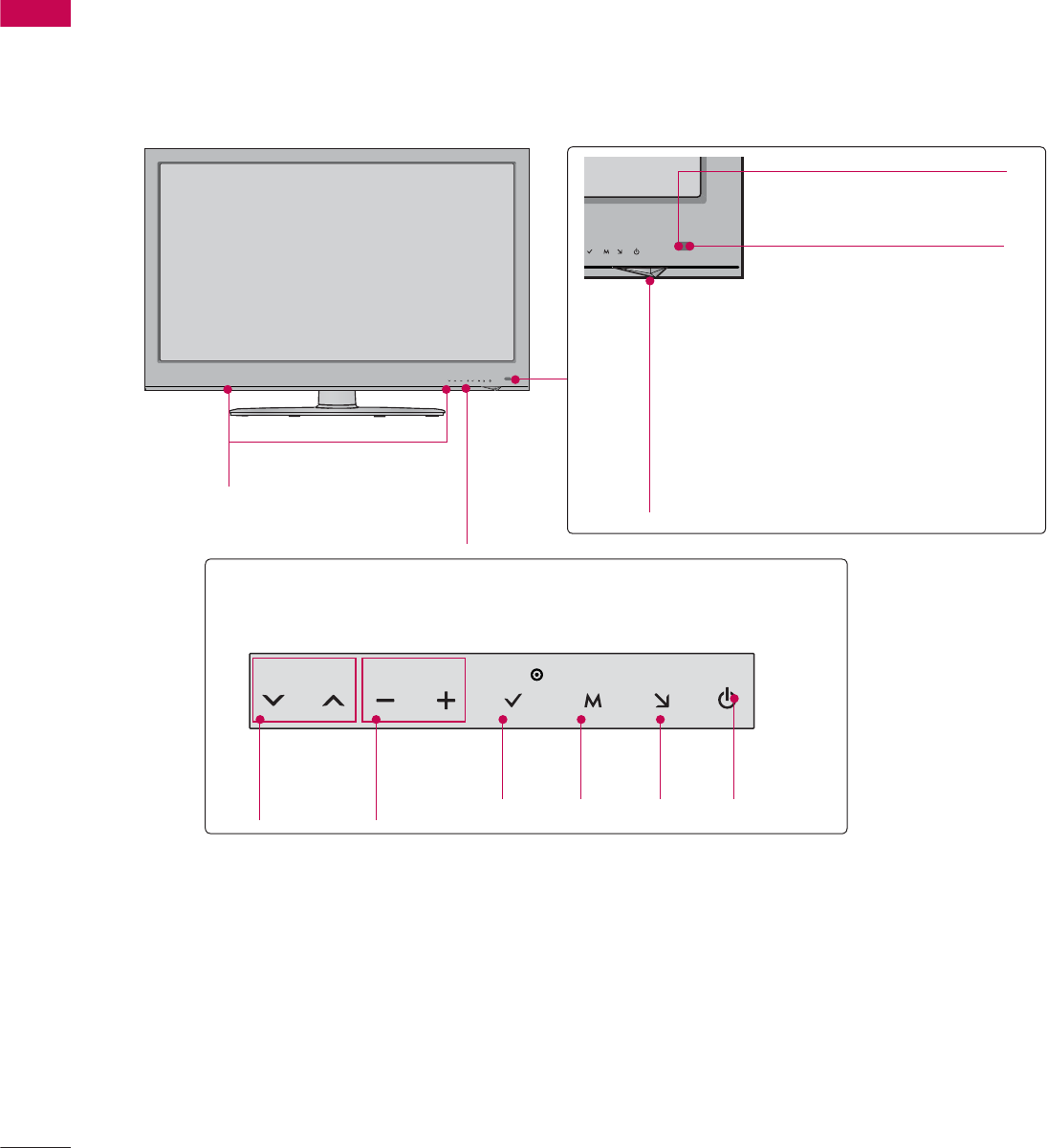

Front Panel Information ....................................12

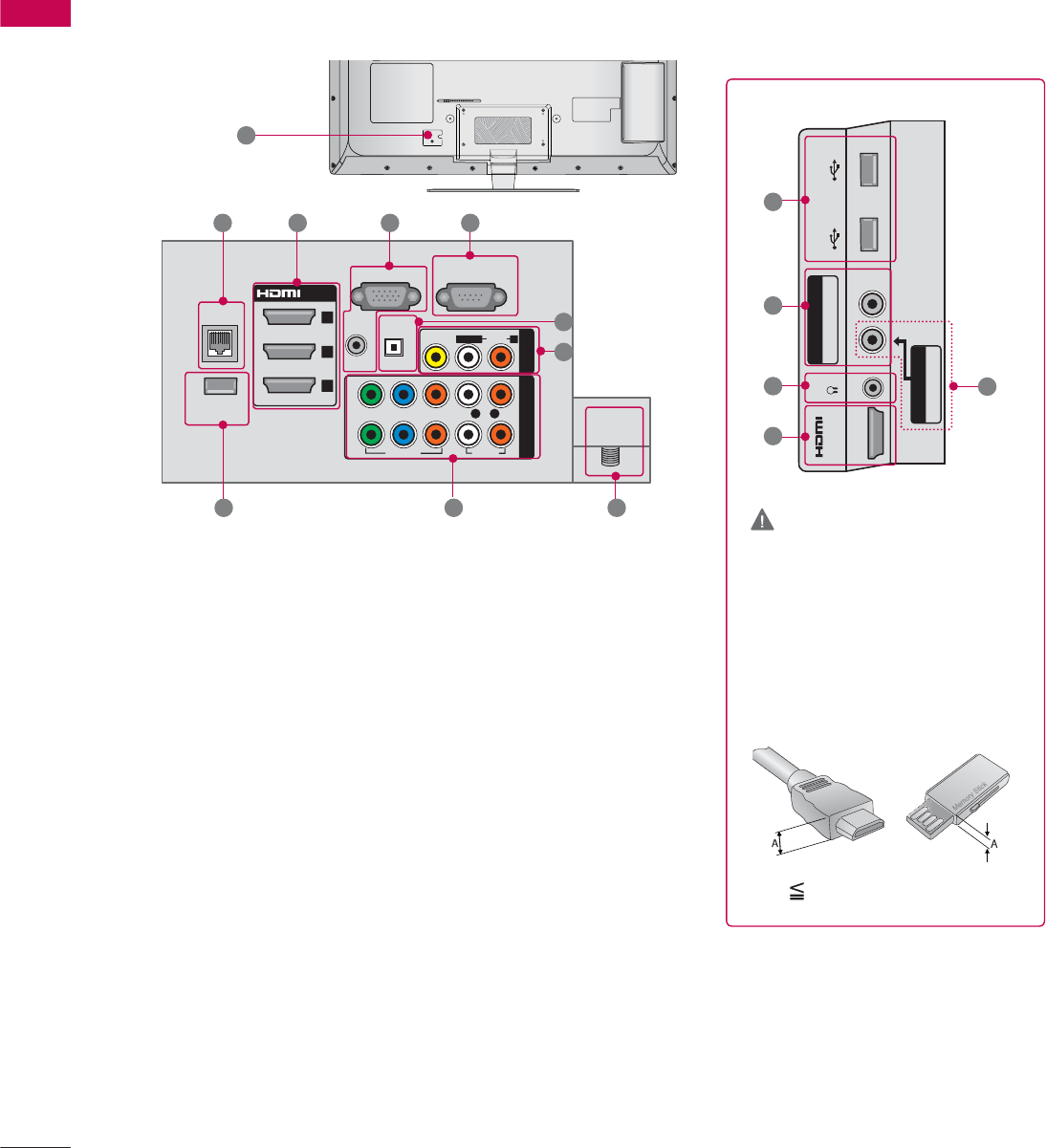

Back Panel Information..................................... 17

Stand instructions ............................................20

VESA Wall Mounting ........................................26

Cable Management ..........................................28

Desktop Pedestal Installation .......................... 31

Swivel Stand .........................................................31

Attaching the TV to a Desk ............................32

Kensington Security System ..........................32

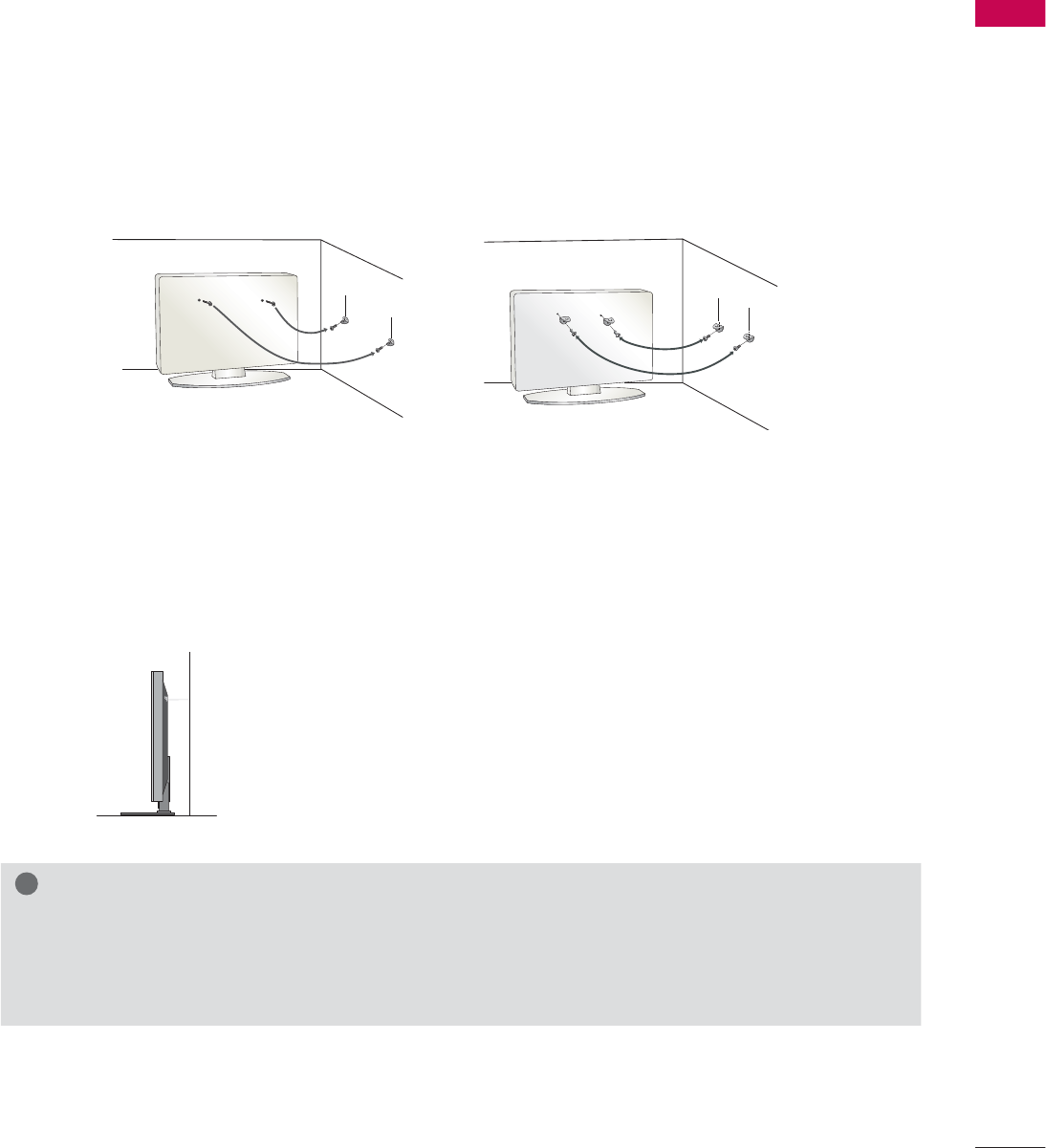

Securing the TV to the wall to prevent falling

when the tv is used on a stand.....................33

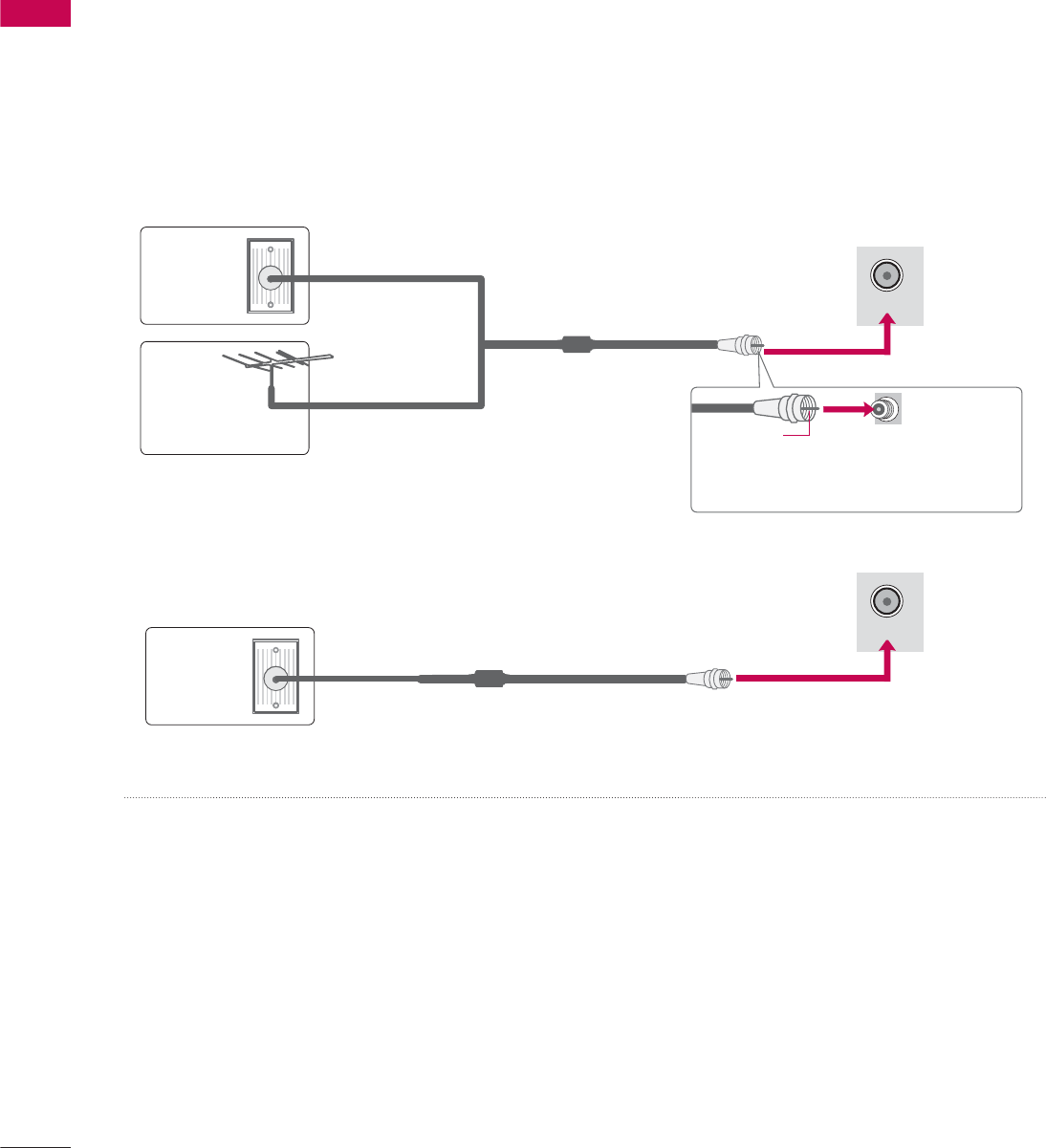

Antenna or Cable Connection.......................34

EXTERNAL EQUIPMENT SETUP

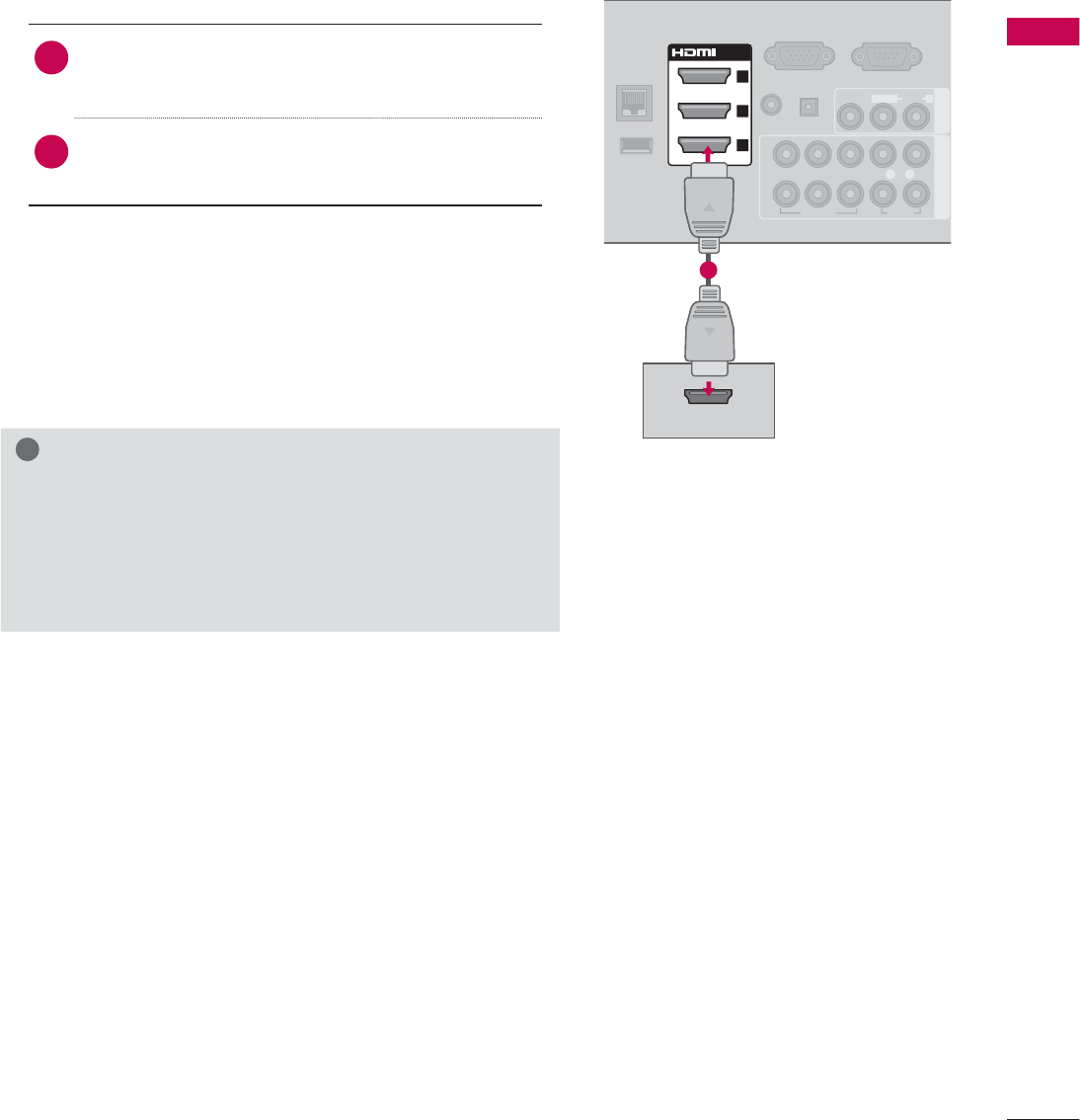

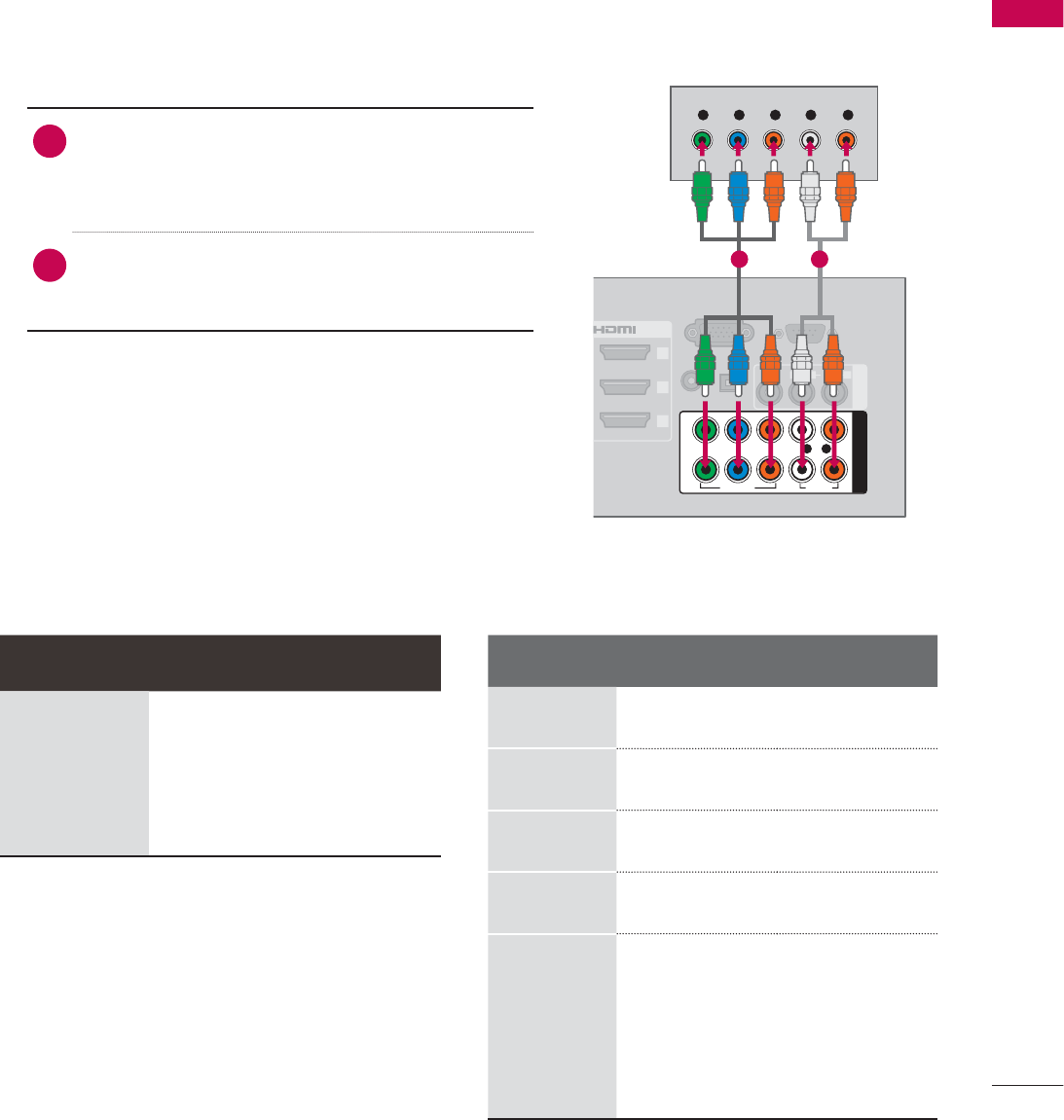

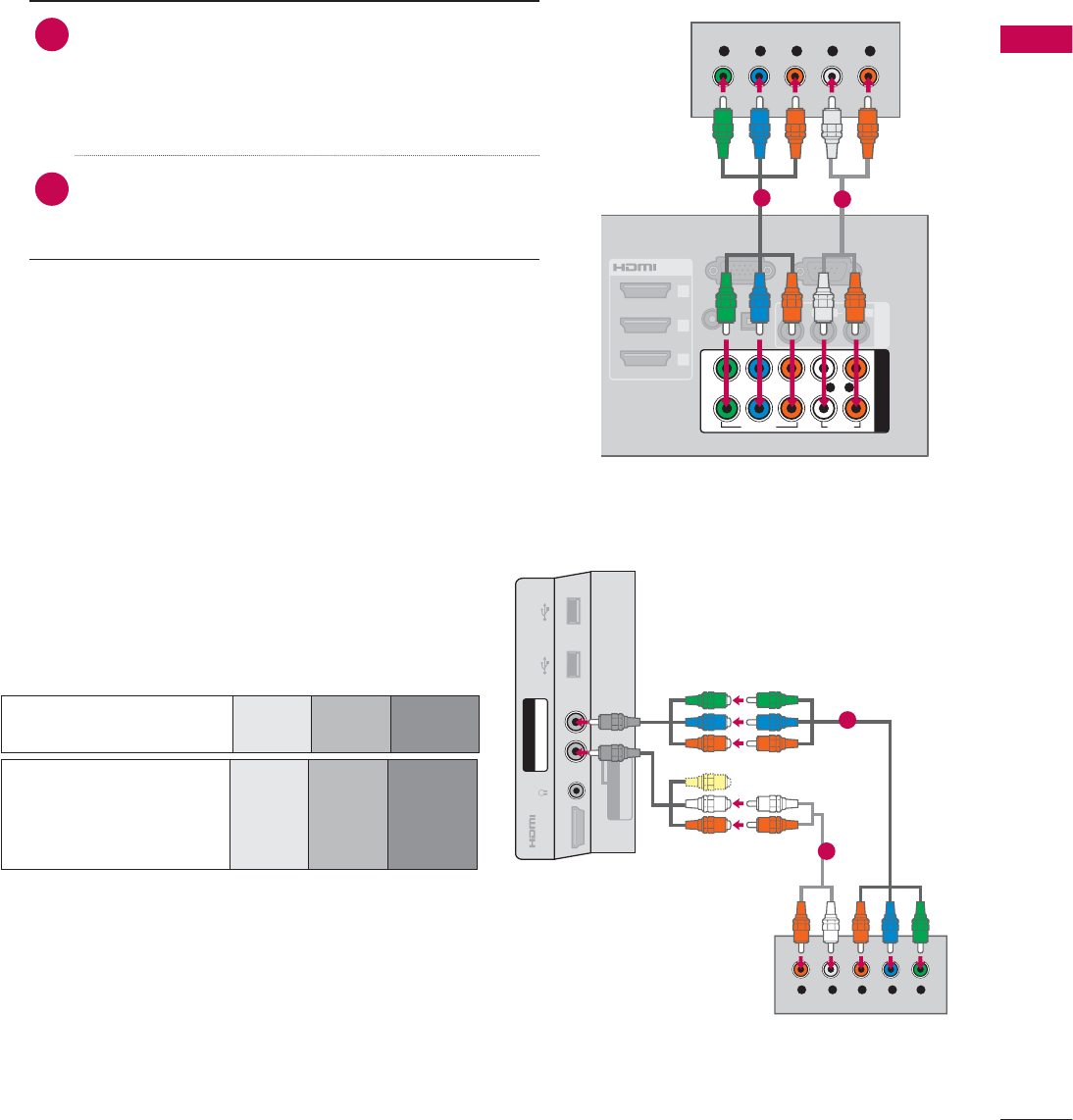

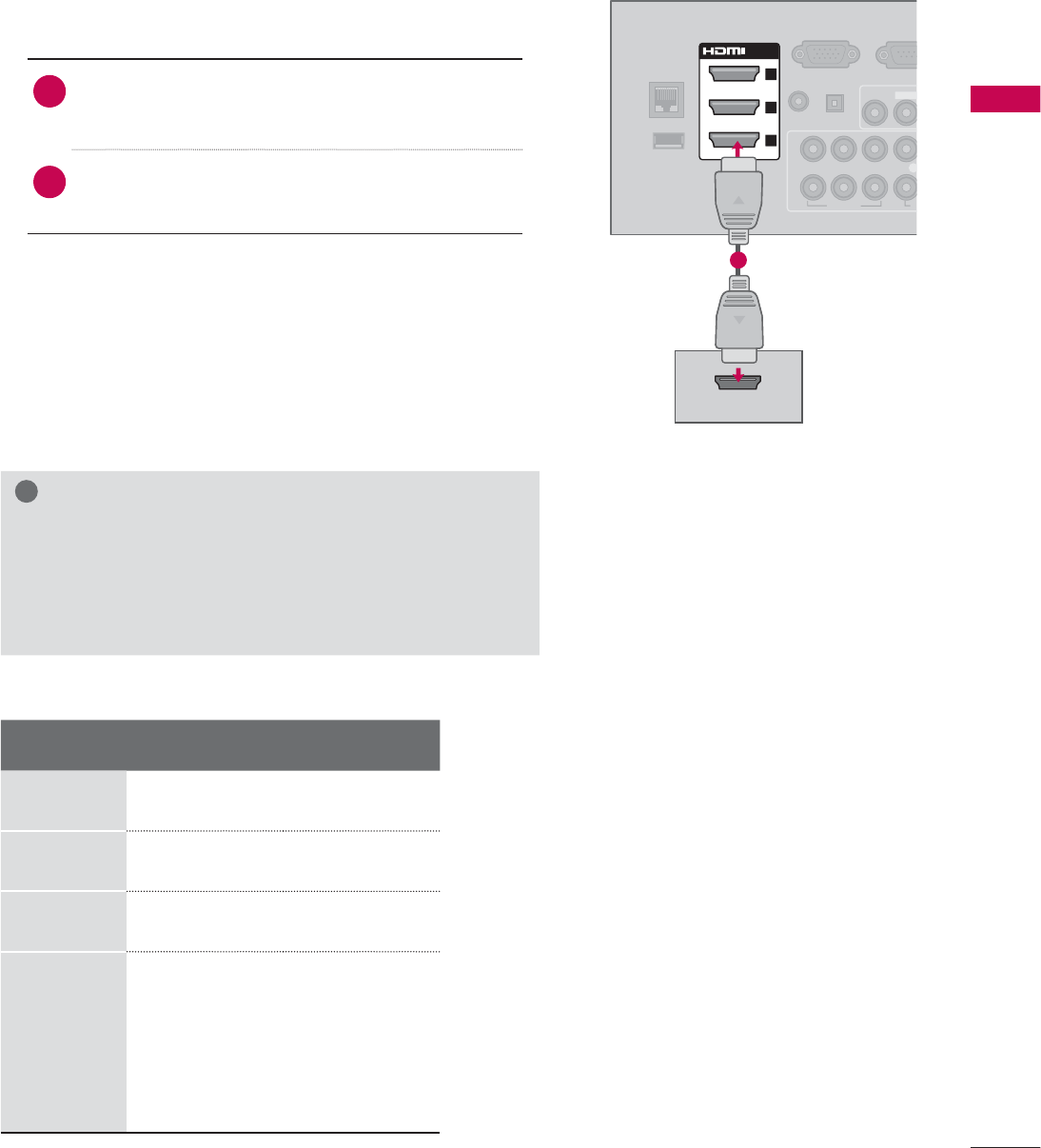

HD Receiver Setup............................................35

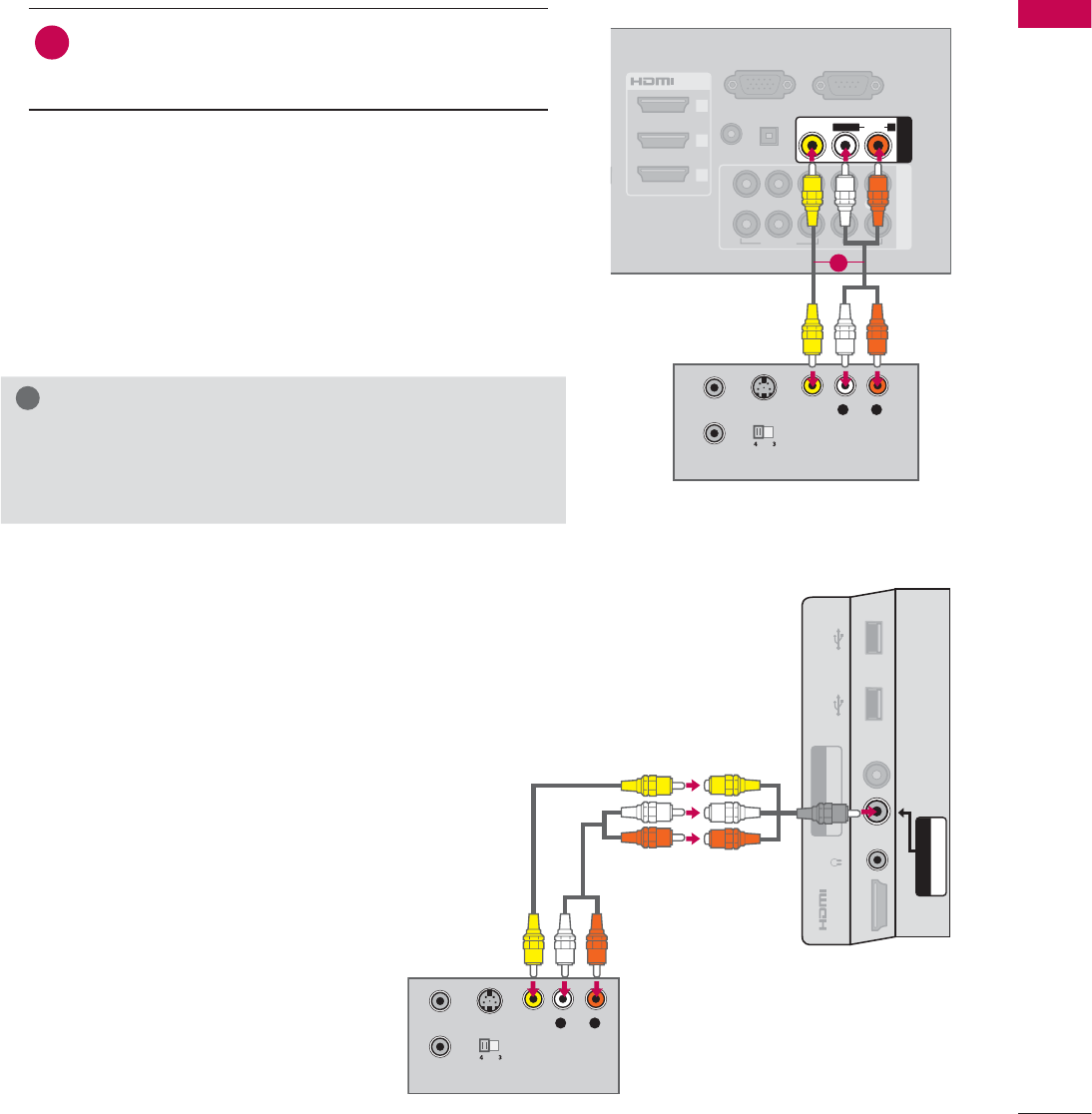

DVD Setup ...........................................................39

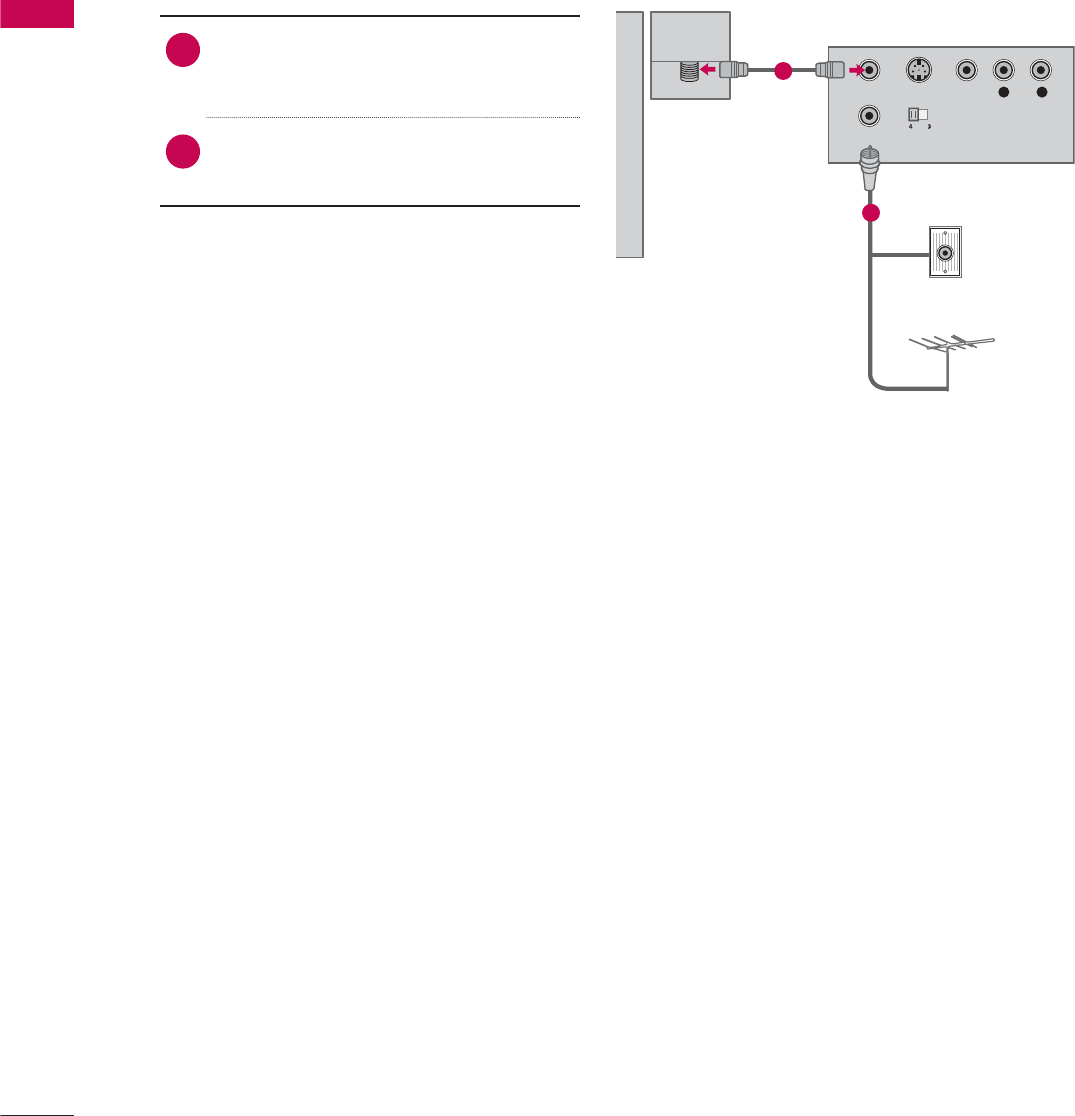

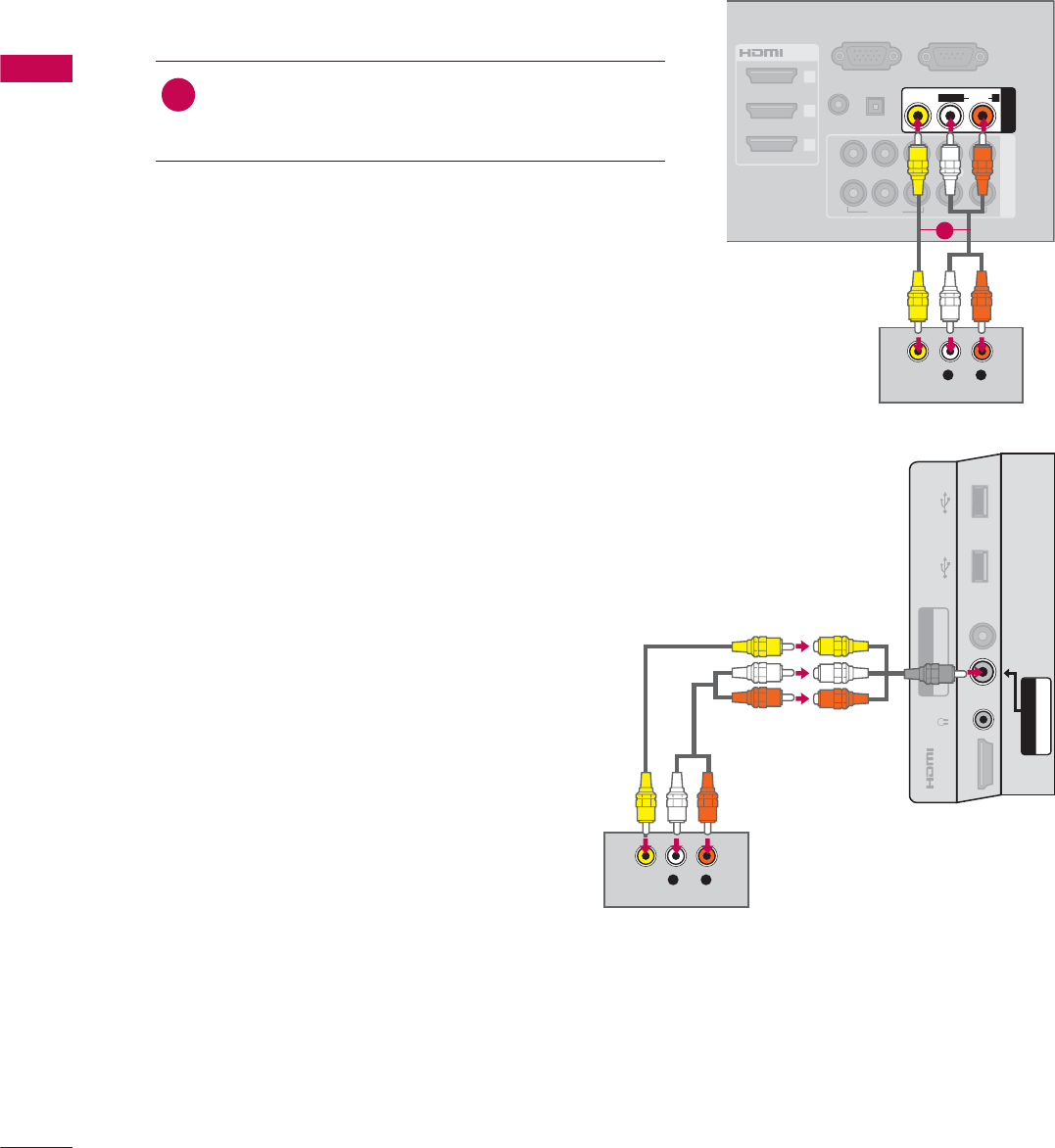

VCR SETUP.........................................................42

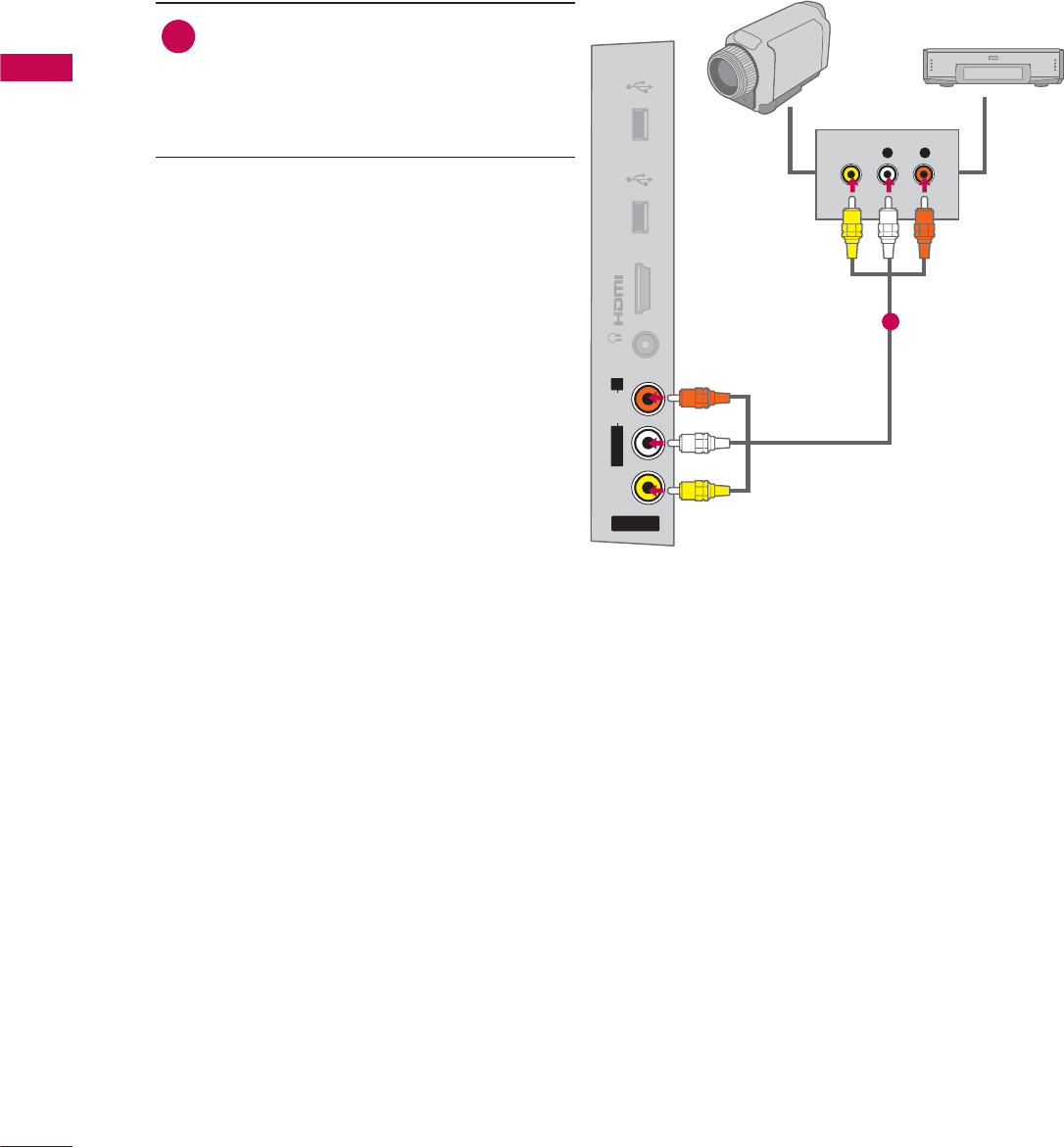

Other A/V Source Setup.................................44

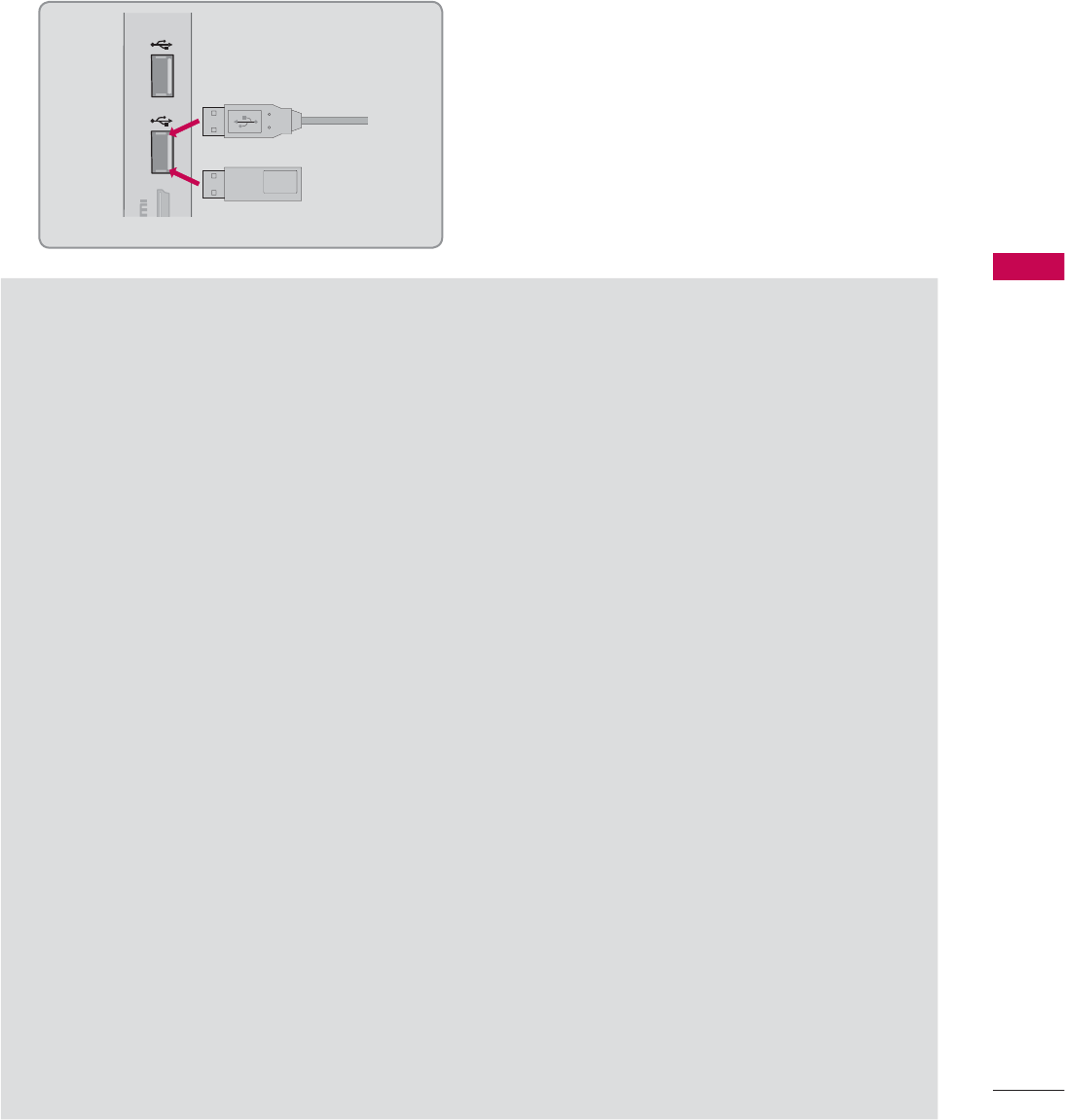

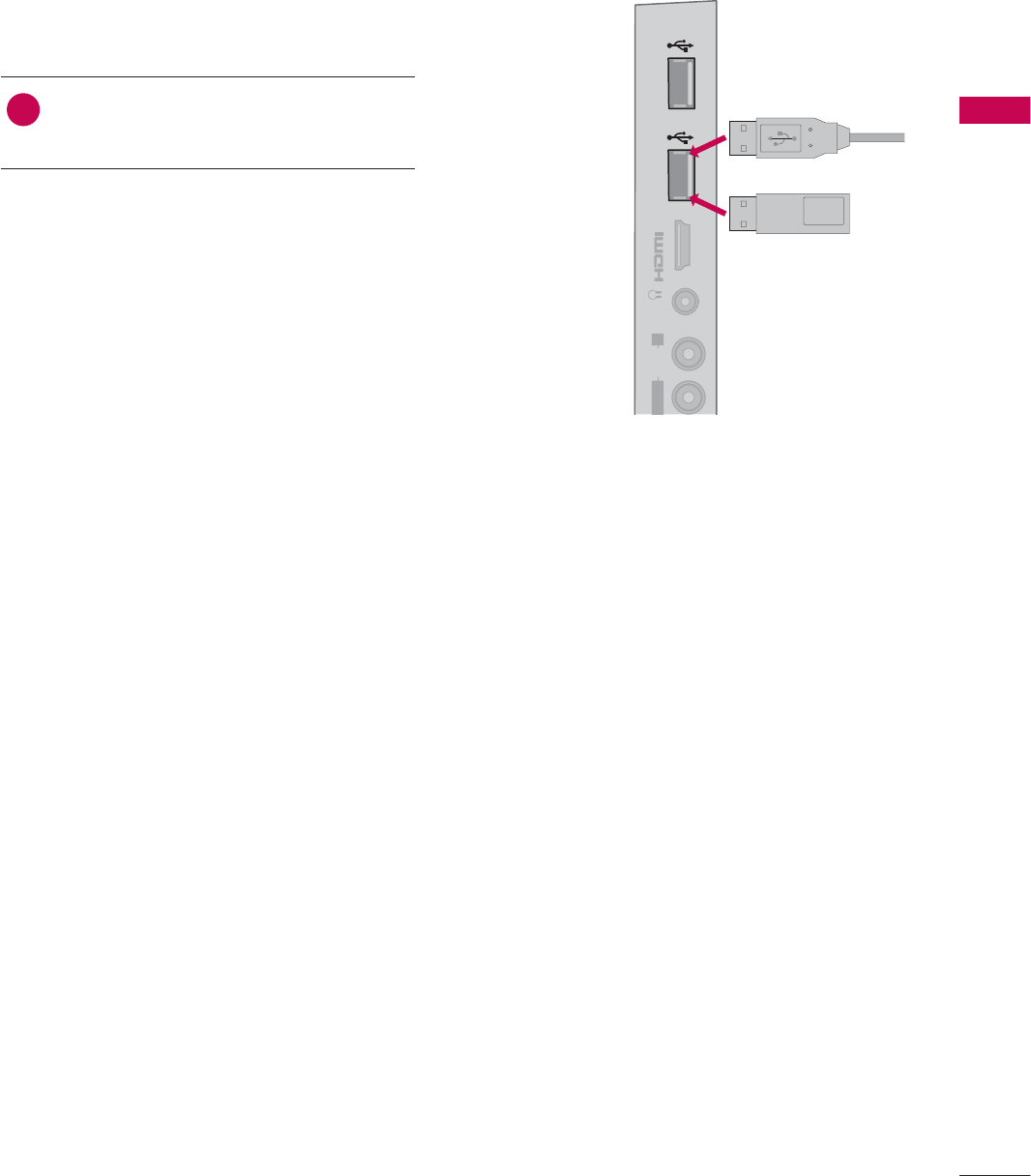

USB Connection ................................................45

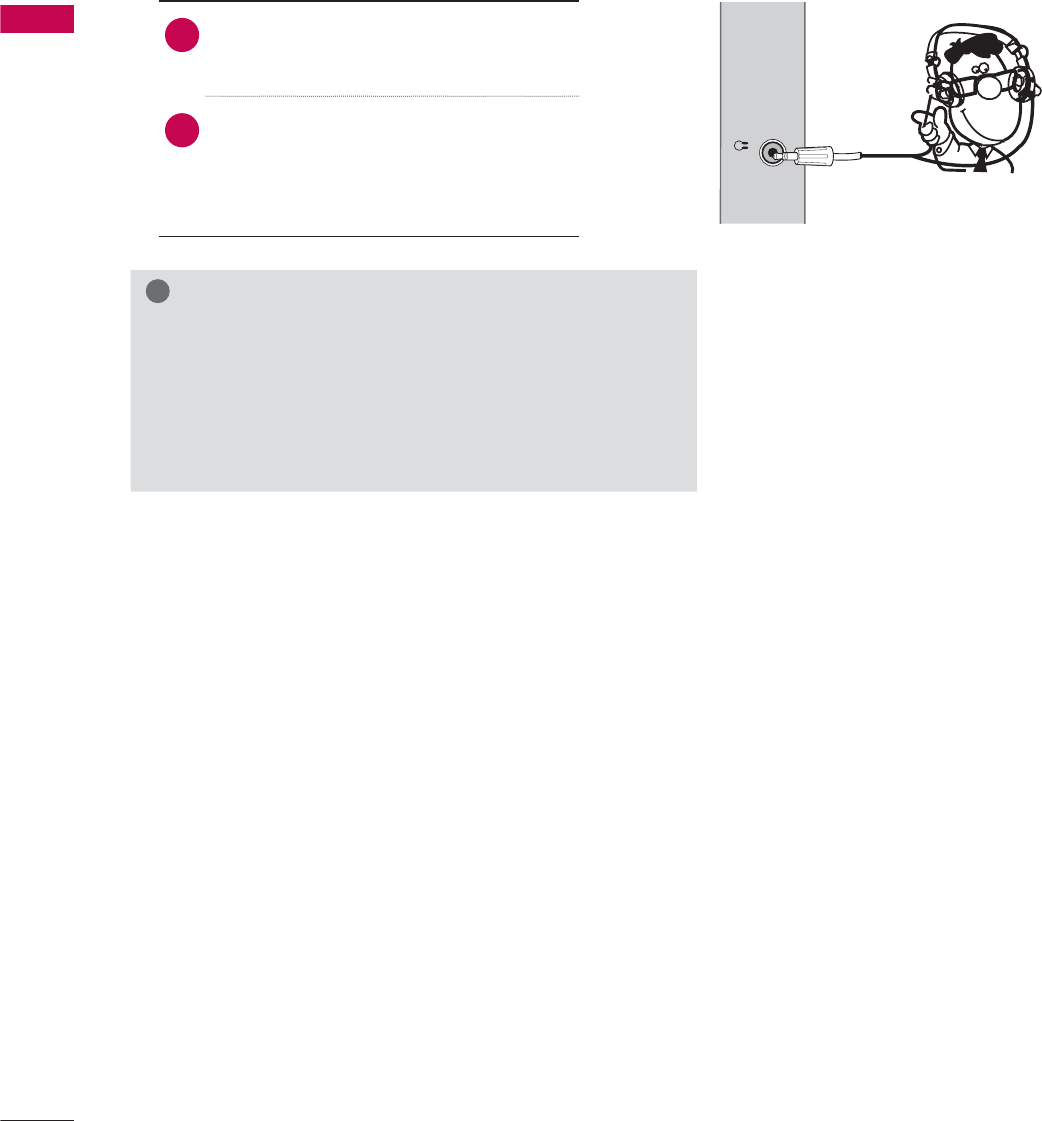

Headphone Setup

....................................................46

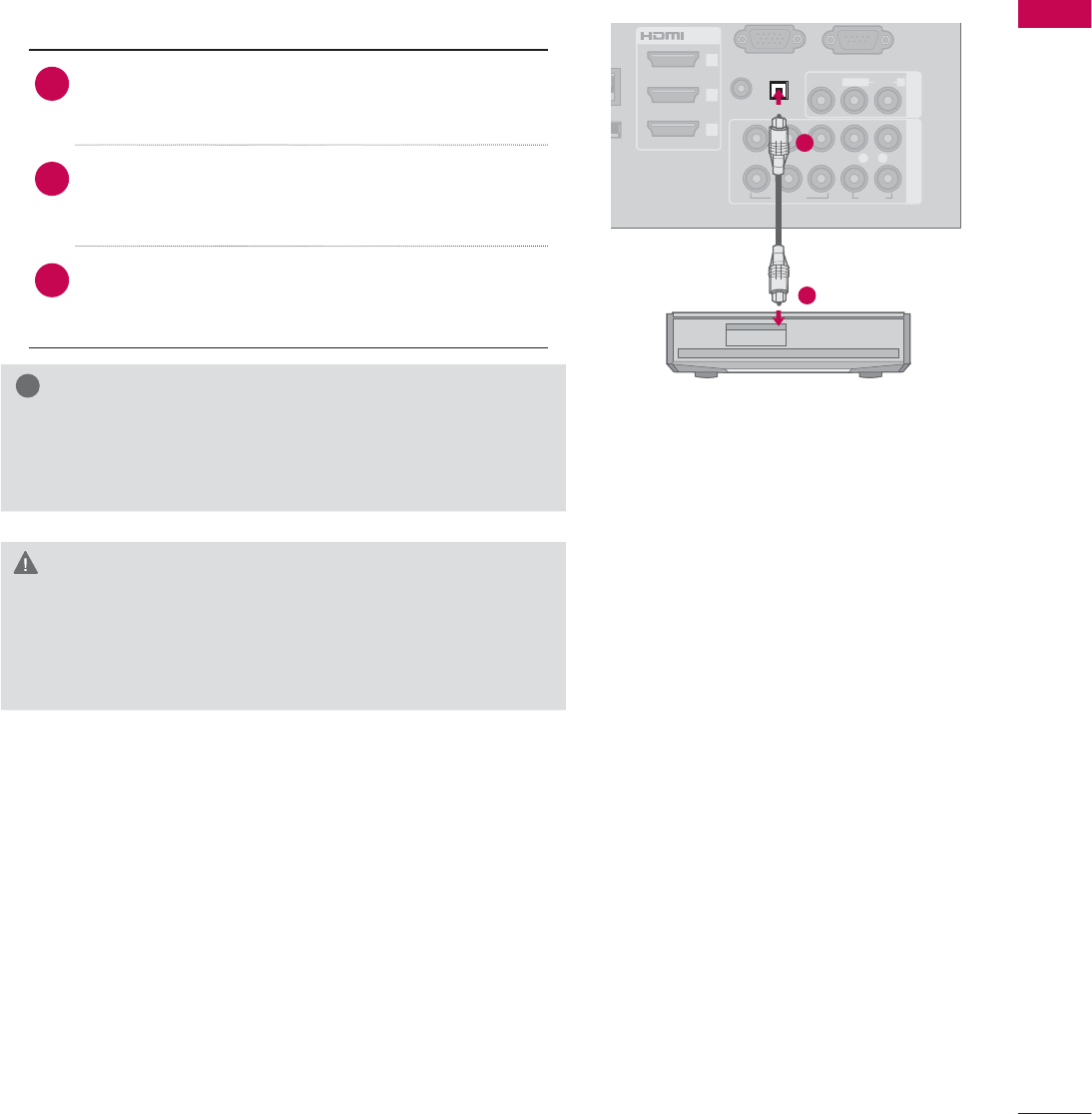

Audio Out Connection..................................... 47

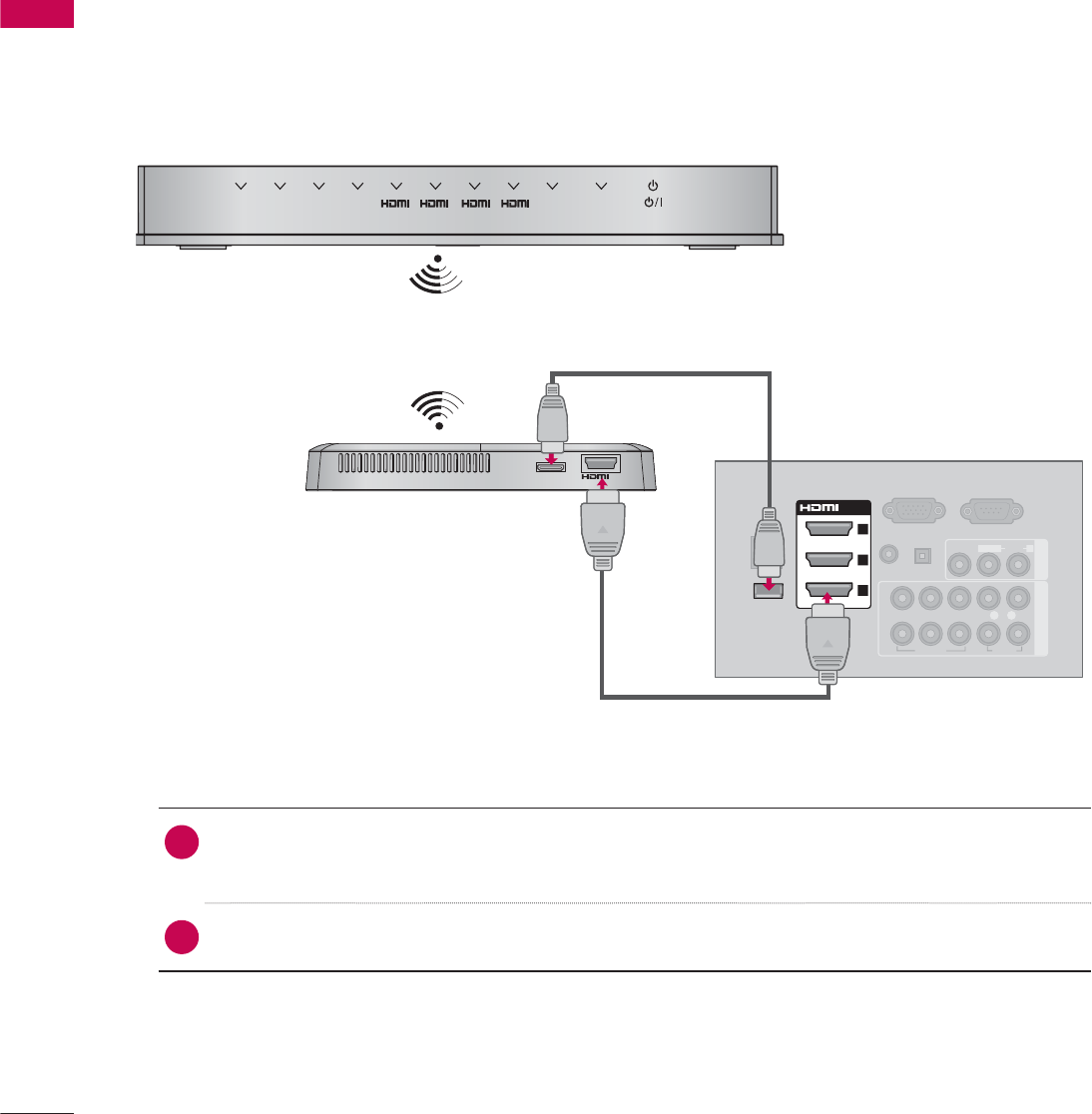

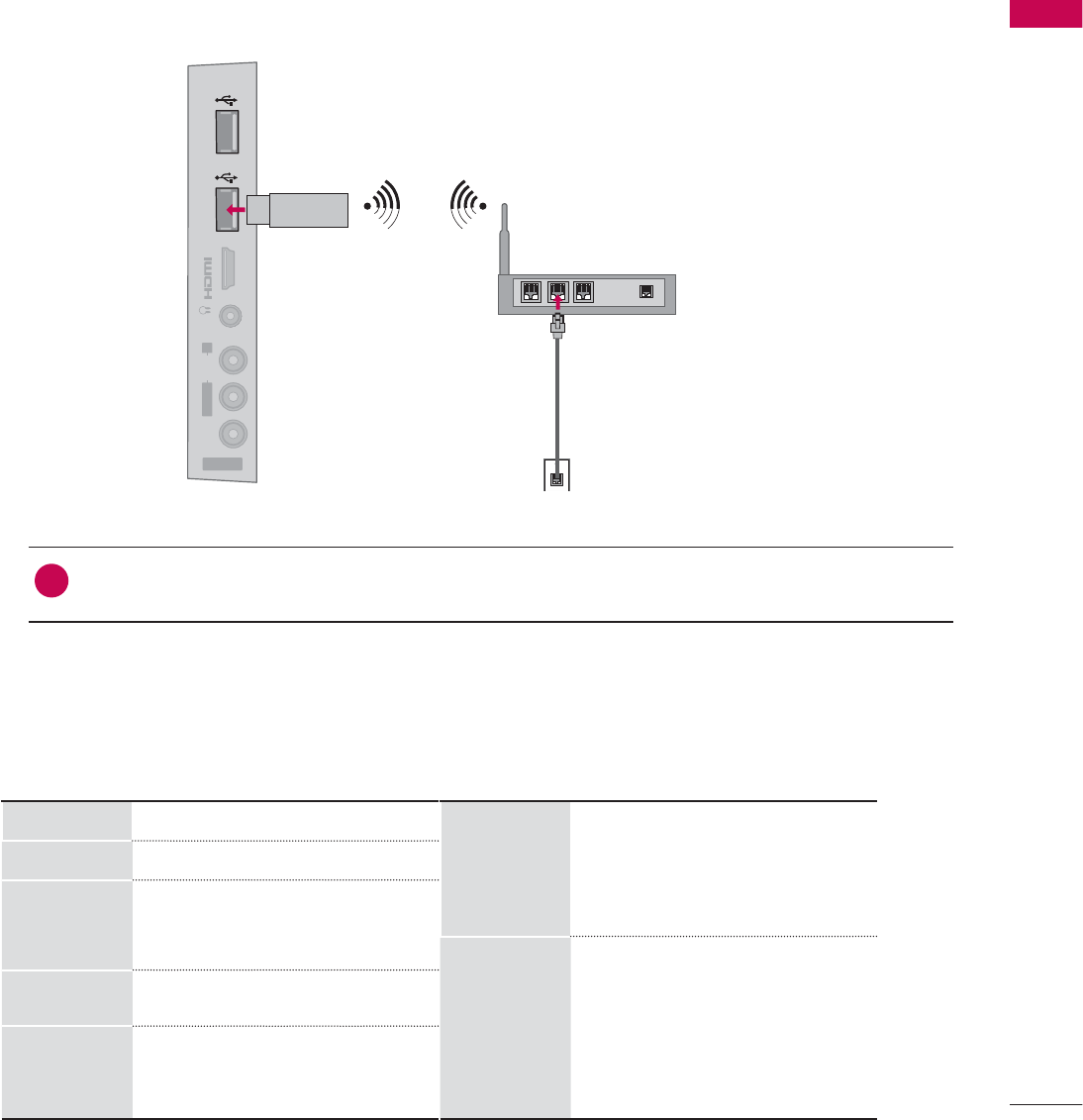

External Equipment WIreless Connection

(Optional Extras).................................................48

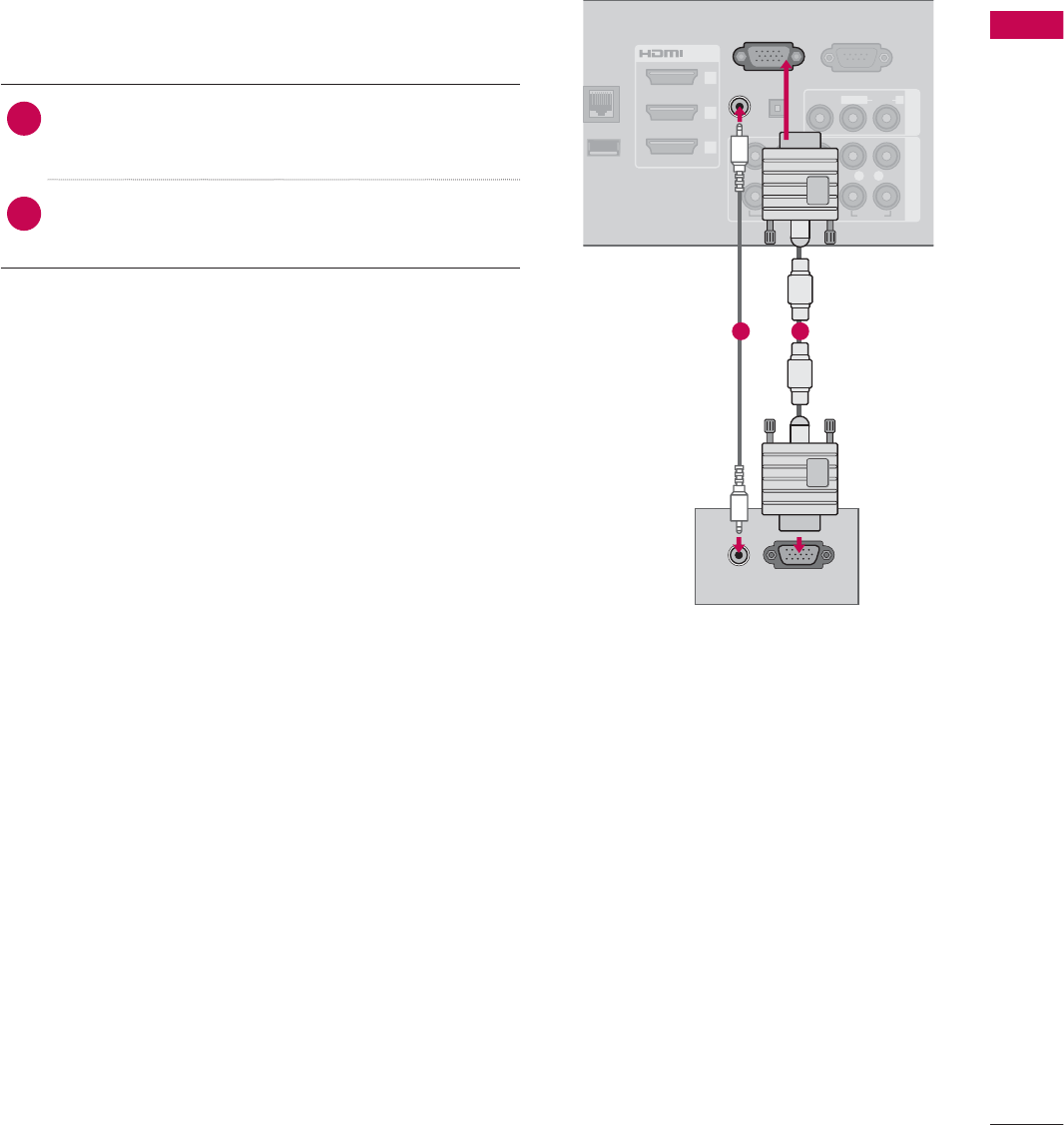

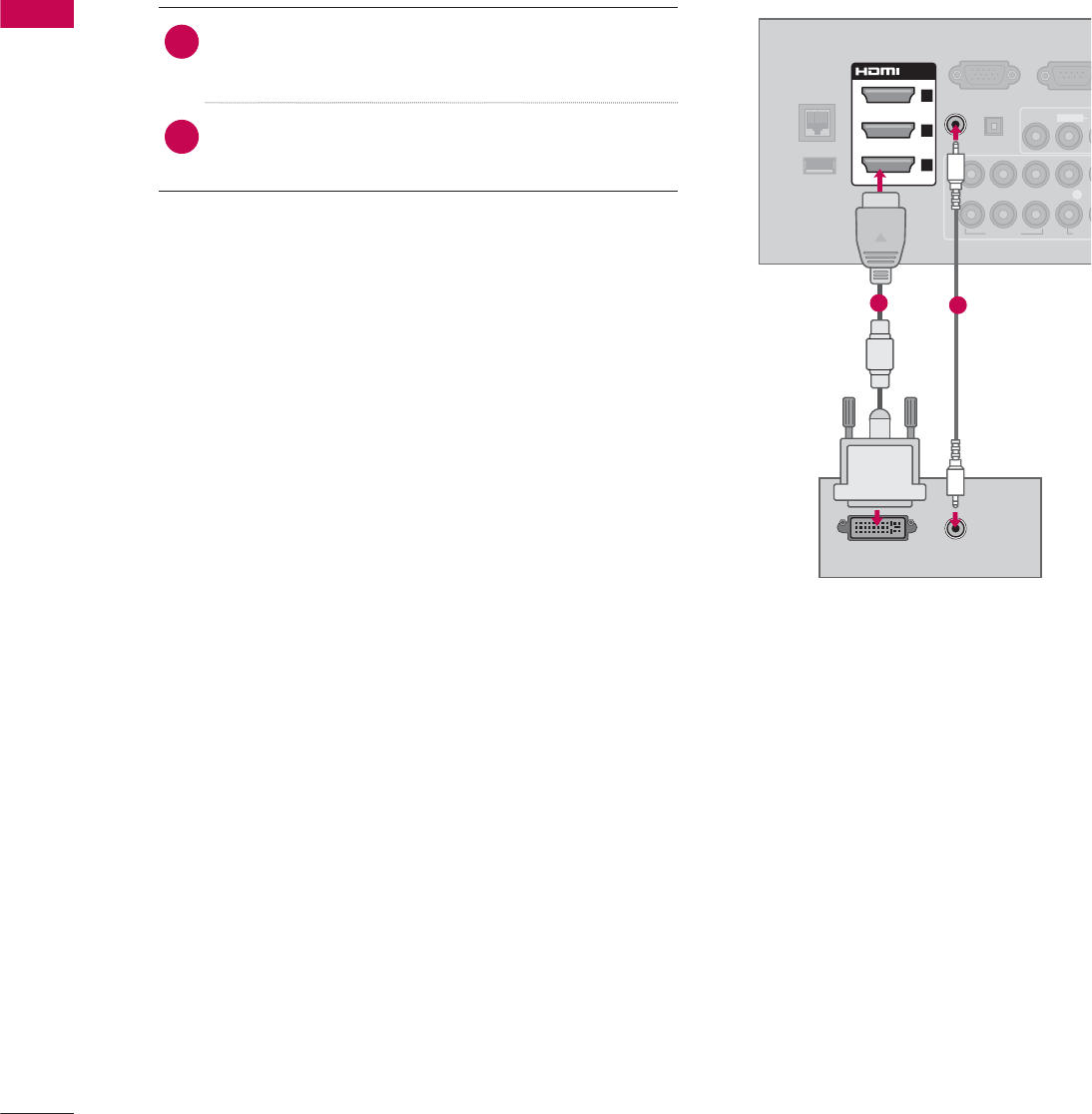

PC Setup..............................................................49

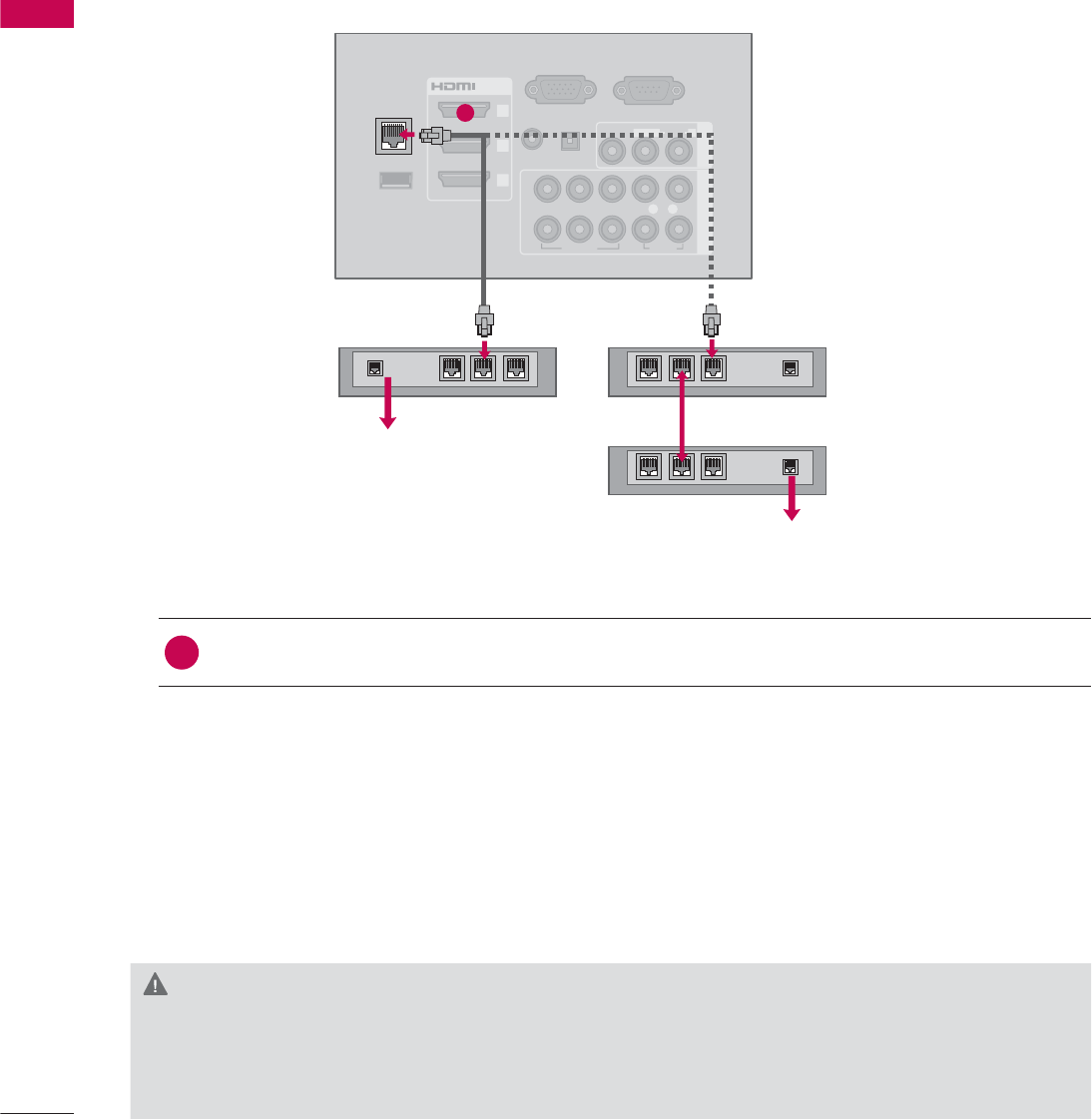

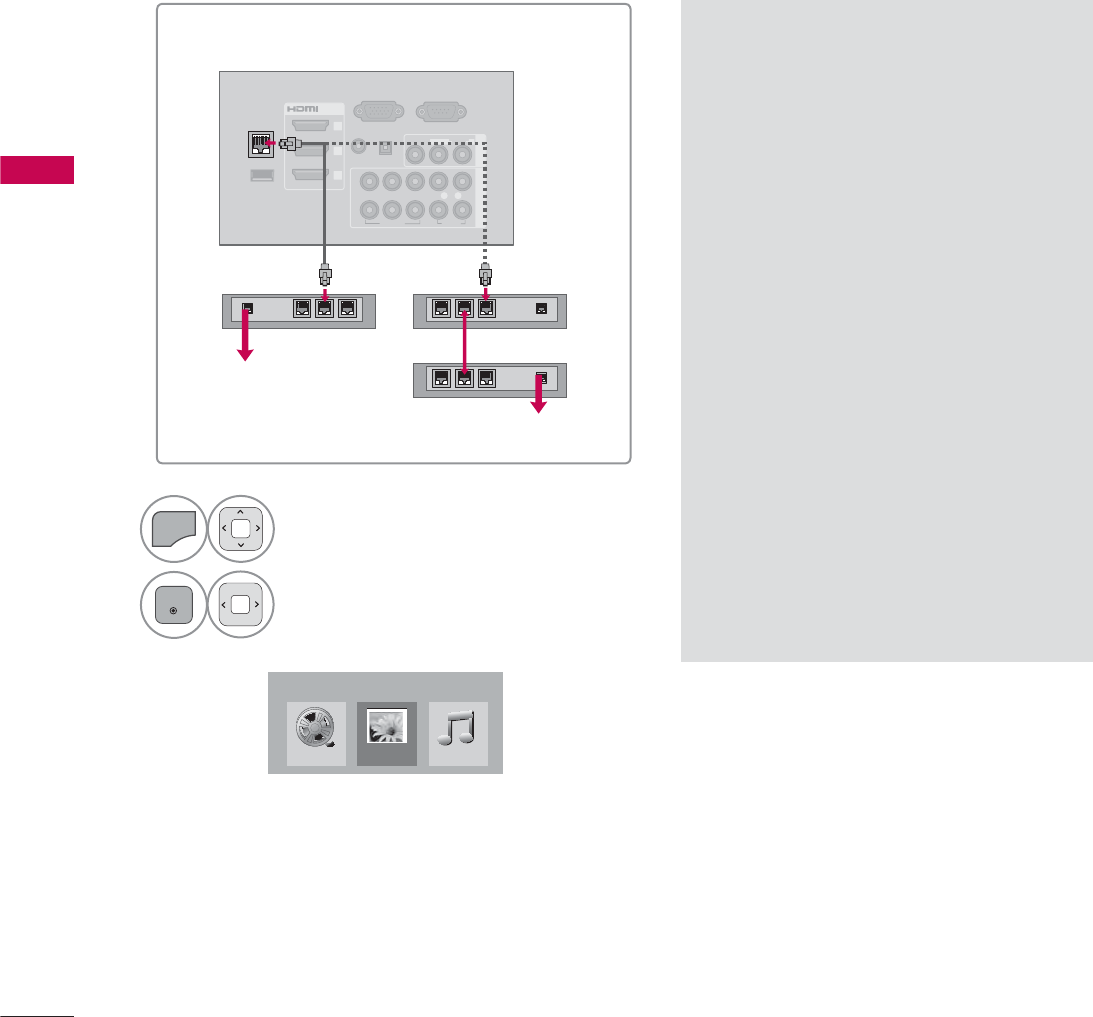

Network Setup ....................................................56

WATCHING TV / CHANNEL CONTROL

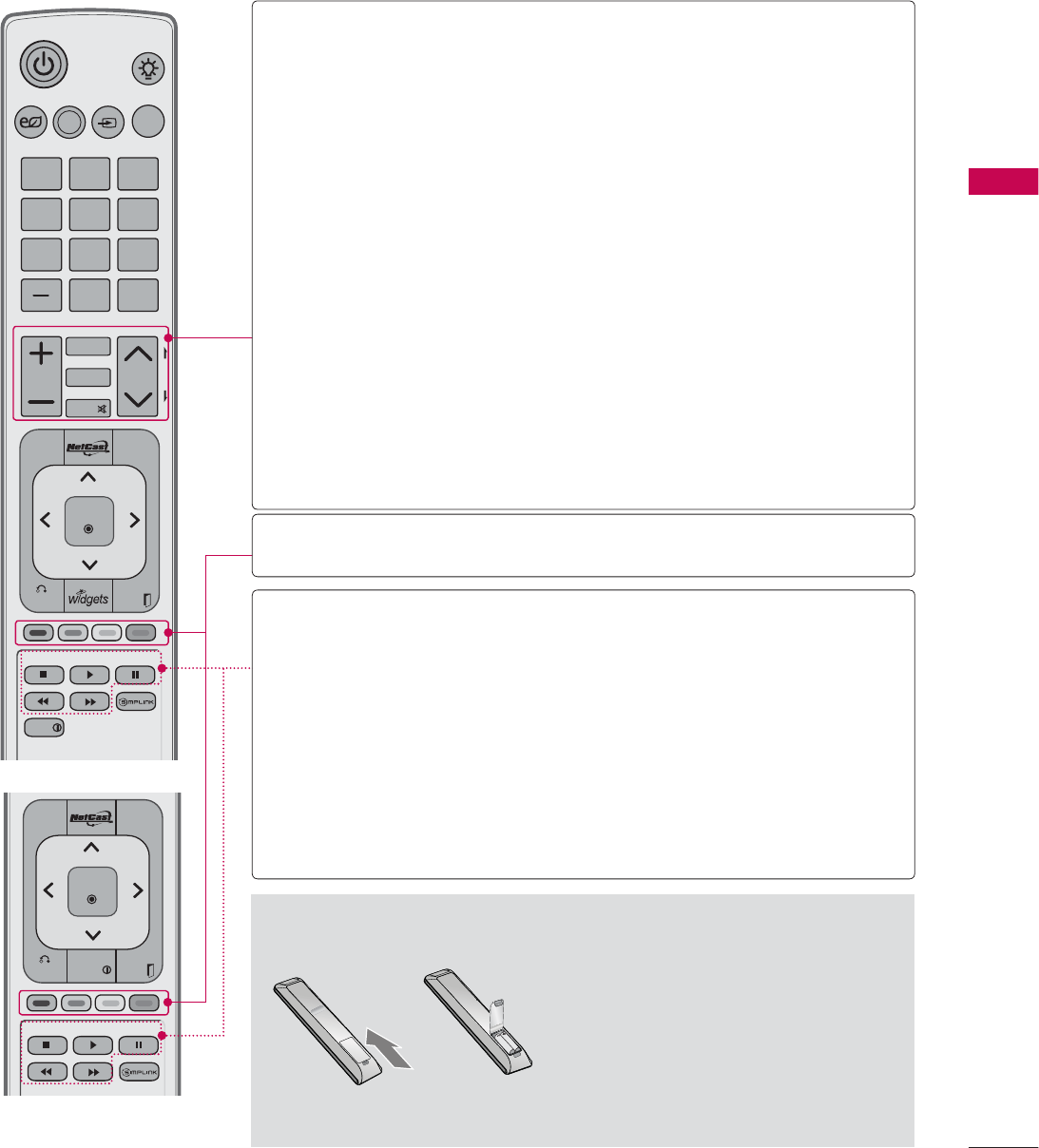

Remote Control Functions ..............................64

Turning on the TV..............................................66

Channel Selection..............................................66

Volume Adjustment ..........................................66

Initial Setting ....................................................... 67

On-Screen Menus Selection ..........................69

Quick Menu .......................................................... 71

Customer Support

- Software Update............................................. 72

- Picture Test/Sound Test................................ 73

- Product/Service Info...................................... 74

Simple Manual.................................................... 75

Channel Setup

- Auto Scan (Auto Tuning).............................. 76

- Add/Delete Channel (Manual Tuning) ..... 77

- Channel Editing............................................... 78

Favorite Channel Setup.................................... 79

Favorite Channel List ........................................ 79

Channel List ....................................................... 80

Channel Information .......................................... 81

Channel Brief Information ...............................82

Input List ..............................................................83

Input Label...........................................................84

Reset to Factory Default (Initial Setting) .....85

Mode Setting ......................................................86

Demo Mode ........................................................ 87

AV Mode...............................................................88

Game.....................................................................89

SIMPLINK.............................................................90

MY MEDIA

Entry Mode ..........................................................92

Connection Method ..........................................93

Movie list............................................................. 102

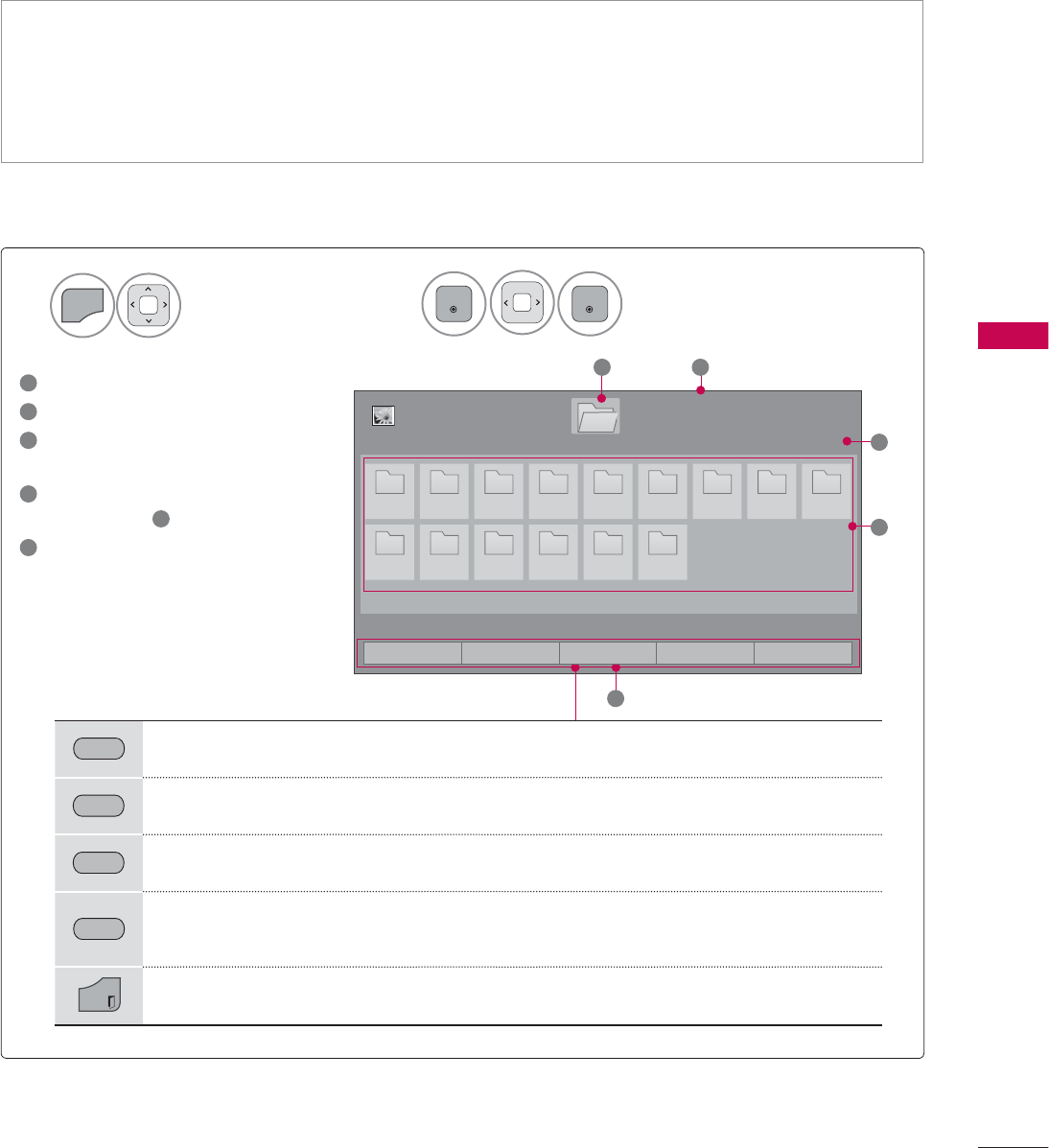

Photo list............................................................. 109

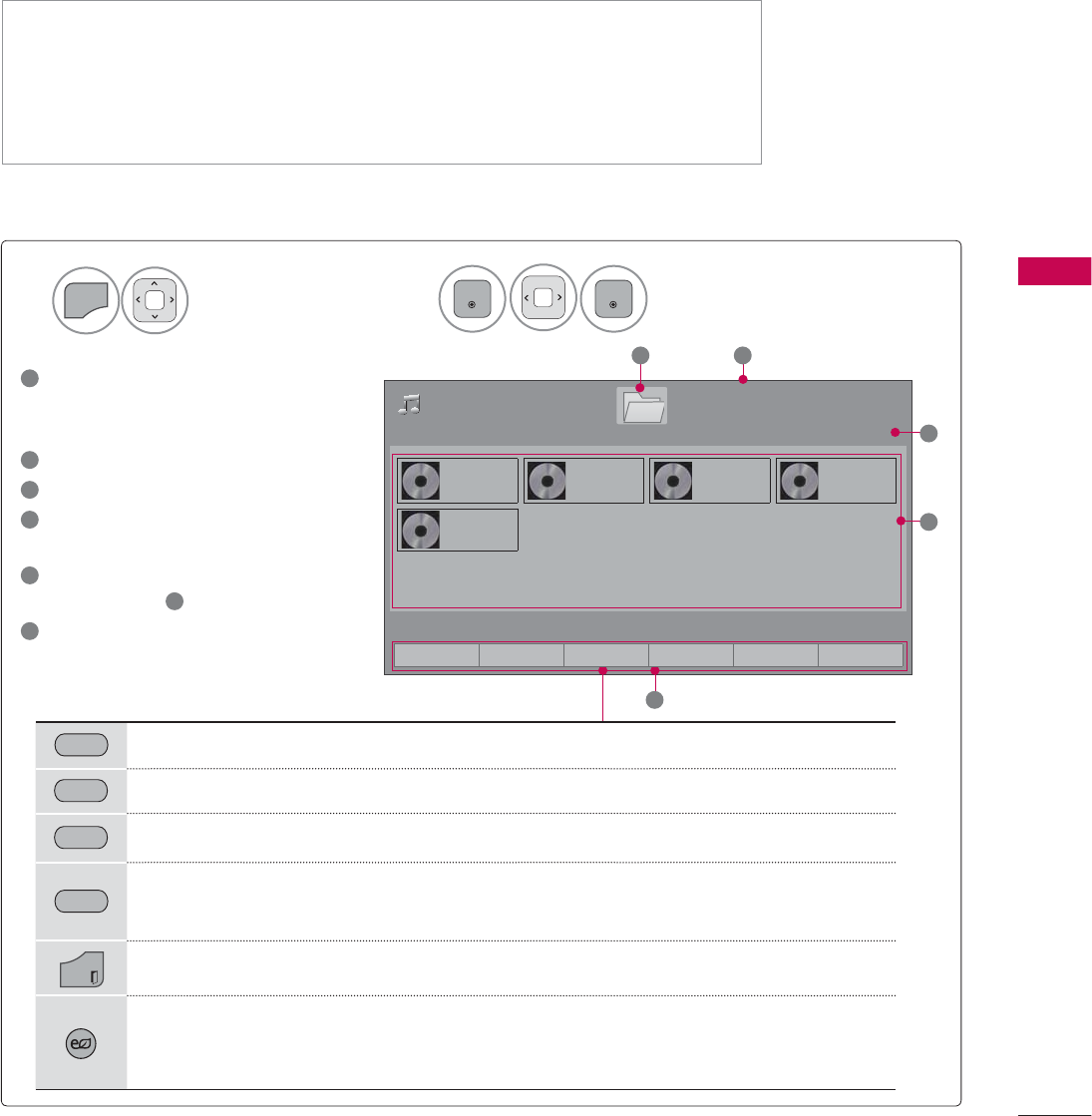

Music list.............................................................. 115

DivX Registration Code.................................. 120

Deactivation ........................................................ 121

NETWORK

Legal Notice ...................................................... 122

Netflix ESN (Electronic Serial Number)..... 124

CONTENTS

NETCAST

Netcast Menu.................................................... 125

Yahoo! TV widgets ........................................... 126

PICTURE CONTROL

Picture Size (Aspect Ratio) Control............ 134

Picture Wizard................................................... 136

ᰚEnergy Saving ............................................ 138

Preset Picture Settings (Picture Mode)..... 139

Manual Picture Adjustment - User Mode 140

Picture Improvement Technology ............... 141

(Advanced Control) .......................................... 141

Expert Picture control..................................... 142

Picture Reset..................................................... 145

TruMotion .......................................................... 146

LED Local Dimming .......................................147

Power Indicator ................................................ 148

Image Sticking Minimization (ISM) Method...

149

SOUND & LANGUAGE CONTROL

Auto Volume......................................................150

Clear Voice II ...................................................... 151

Balance ............................................................... 152

Preset Sound Settings (Sound mode)...... 153

Sound Setting Adjustment - User Mode. 154

Audio Reset....................................................... 155

TV Speakers On/Off Setup .......................... 156

Stereo/SAP Broadcast Setup .......................157

Audio Language ............................................. 158

On-screen Menus Language Selection.... 159

Caption Mode

- Analog Broadcasting System Captions . 160

- Digital Broadcasting System Captions.....161

- Caption Option.............................................. 162

TIME SETTING

Clock Setting

- Auto Clock Setup ......................................... 163

- Manual Clock Setup .................................... 164

Auto On/Off Time Setting............................ 165

Sleep Timer Setting ........................................ 166

PARENTAL CONTROL / RATINGS

Set Password & Lock System

- Setting up Your Password ...........................167

- Set Password ................................................. 168

Lock System...................................................... 169

Channel Blocking..............................................170

Movie & TV Rating ............................................171

Downloadable Rating.......................................176

External Input Blocking ...................................177

Key Lock ..............................................................178

APPENDIX

Troubleshooting.................................................179

Maintenance...................................................... 184

Product Specifications ................................... 185

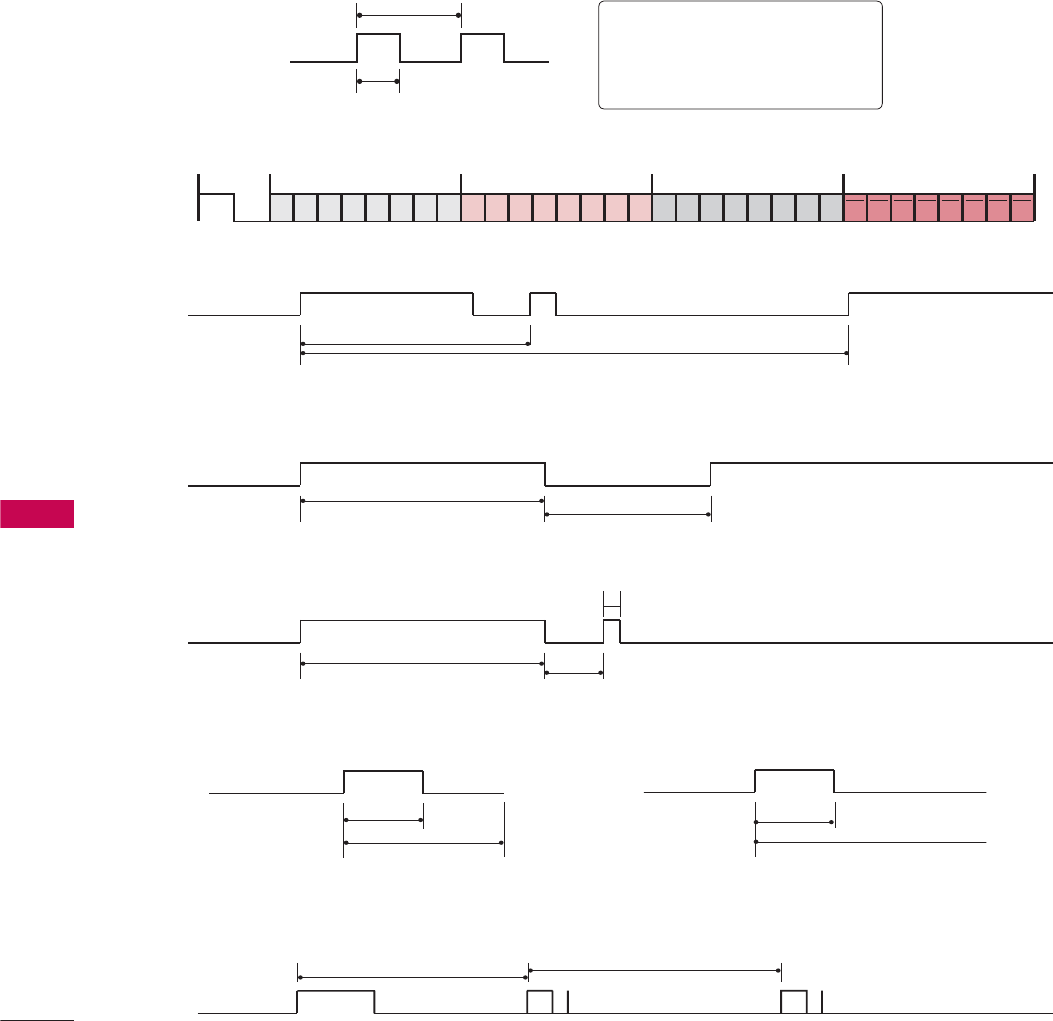

IR Codes............................................................. 190

Open Source License..................................... 192

FEATURE OF THIS TV

ᯫ

Some of these features are not available on all models.

Displays HDTV programs in full

1920 x 1080p resolution for a more

detailed picture.

This TV contains the detailed cali-

brations necessary for professional

certification by the Imaging Science

Foundation. The resulting ISF “day”

and “night” modes will then be

accessible by the user to experi-

ence the best their LG HDTV has to

offer.

Sophisticated and detailed calibra-

tions can be made through the

ISFccc mode.

Detailed calibration requires a

licensed technician.

Please contact your local dealer to

inquire about an ISF certified tech-

nician.

THX (Thomlinson Holman’s

Experiment) is an audio and video

certification standard established

by George Lucas and Thomlinson.

A THX certified display guarantees

screen quality that exceeds the dis-

play standard specification in both

hardware and software.

A unique invisible speaker system

tuned by renowned audio expert,

Mr. Mark Levinson. Speakers are

embedded in strategic spots

behind the front cabinet and use

minute vibrations to turn the entire

front bezel into the speaker system.

The result s a clean, polished look,

and enhanced audio by increasing

the “sweet spot”, giving a wider and

richer sound field.

Unlike other sensors which can only

sense brightness of ambient light,

LG’s “Intelligent Sensor” uses

4,096 sensing steps to evaluate its

surroundings. Using a sophisticat-

ed algorithm, the LG processes

picture quality elements including

brightness, contrast, color, sharp-

ness and white balance. The result

is a picture optimized for it’s sur-

roundings, more pleasing to watch

and which can also save up to 50%

in power consumption.

High-definition television. High-

resolution digital television broad-

cast and playback system com-

posed of roughly a million or more

pixels, 16:9 aspect-ratio screens,

and AC3 digital audio. A subset of

digital television, HDTV formats

include 1080p, 1080i, and 720p

resolutions.

Manufactured under license from

Dolby Laboratories. “Dolby “and the

double-D symbol are trademarks of

Dolby Laboratories.

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trade-

marks of HDMI Licensing LLC."

ABOUT DIVX VIDEO: DivX® is a

digital video format created by

DivX,Inc. This is an official DivX

Certified device that plays DivX

video. Visit www.divx.com for more

information and software tools to

convert your files into DivX video.

ABOUT DIVX VIDEO-ON-

DEMAND: This DivX Certified®

device must be registered in order

to play DivX Video-on-Demand

(VOD) content. To generate the

registration code, locate the DivX

VOD section in the device setup

menu. Go to vod.divx.com with this

code to complete the registration

process and learn more about

DivX VOD.

“DivX Certified to play DivX video

up to HD 1080p, including premi-

um content”

“Pat. 7,295,673;

7,460,688;7,519,274”

IMPORTANT INFORMATION TO PREVENT “IMAGE

BURN / BURN-IN” ON YOUR TV SCREEN

ᯫ

When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed

on the TV for an extended period, it can become permanently imprinted on the screen. This

phenomenon is known as “image burn” or “burn-in.” Image burn is not covered under the man-

ufacturer’s warranty.

ᯫ

In order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged

period (2 or more hours for LCD, 1 or more

hours for Plasma).

ᯫ

Image burn can also occur on the letter-

boxed areas of your TV if you use the 4:3

aspect ratio setting for an extended period.

ON DISPOSAL

(Only Hg lamp used LED LCD TV/LCD TV)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this

product with general household waste. Disposal of this product must be carried out in accordance to

the regulations of your local authority.

View videos and photos and listen

to music on your TV through USB

2.0 (‘videos’ dependent on model).

AV Mode is three preset picture

and audio settings. It allows the

viewer to quickly switch between

common settings. It includes

Cinema, Sports, and Game Modes.

Automatically enhances and ampli-

fies the sound of human voice fre-

quency range to help keep dia-

logue audible when background

noise swells.

Stream movies, TV shows and

video, and get up to the minute

news, stock information and weath-

er updates directly to your TV using

Yahoo!, Netflix, YouTube and Vudu.

PREPARATION

ACCESSORIES

PREPARATION

Ensure that the following accessories are included with your TV. If an accessory is missing, please con-

tact the dealer where you purchased the TV.

The accessories included may differ from the images below.

Option Extras

* Wipe spots on the exterior only

with the polishing cloth.

* Do not wipe roughly when remov-

ing stains. Excessive pressure may

cause scratches or discoloration.

Polishing Cloth

Not included with all models

D-sub 15 pin Cable

When using the VGA (D-sub 15

pin cable) PC connection, the

user must use shielded signal

interface cables with ferrite cores

to maintain standards compli-

ance.

Power Cord

1.5V 1.5V

Owner’s Manual CD Manual,

Program CD

Remote Control,

Batteries (AAA)

50/60PK750

(For 50PK750)

Protection Cover

(Refer to p.21)

Cable Holder

(Refer to p.28)

x 2

x 3 x 4

Screws for stand assembly

(Refer to P.20)

(M5 x 14) (M4 x 28)

Ferrite Core

Close to the wall plug.

Ferrite core can be used to reduce the electromag-

netic waves that may interfere with the TV. Install the

Ferrite core on the power cable close to the wall plug.

PREPARATION

OPTIONAL EXTRAS

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

This device only works with compatible LG LED LCD TV, LCD TV, or Plasma TV.

32/42/46/52/60LD550, 47/55LD650

Protection Cover

(Refer to P.23)

Power Cord

Wireless Media Box

(AN-WL100W)

Wireless LAN for Broadband/

DLNA Adaptor

(AN-WF100)

(M4 x 20)

Screws for stand assembly

(Refer to P.22)

Screw for stand fixing

(Refer to P.32)

x 8

42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500

Cable Holder

(Refer to p.30)

Component gender cable,

AV gender cable

Screws for stand assembly

(Refer to P.24)

Remote Control,

Batteries (AAA)

x 8 x 4x 4 x 2

(M4 x 16) (M4 x 16)(M4 x 22)

(Other models) (For 55LE5500, 55LE7500,)

(For42/47/55LE7500,

47/55LE8500)

(For 42/47/55LE7500)

(For 32/42LD550)

* Wipe spots on the exterior only with the polishing cloth.

* Do not wipe roughly when removing stains. Excessive pressure may

cause scratches or discoloration.

* For cleaning front frame, please slowly wipe in one direction after

spraying water 1-2 times on cleansing cloths. Please remove exces-

sive moisture after cleaning. Excessive moisture may cause water

stains on the frame.

1.5V 1.5V

FLASHBK

VOL

POWER TV/INPUT

PREPARATION

42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500

SPEAKER

Power/Standby Indicator

Illuminates red in standby mode.

Illuminates white when the TV is switched on.

(Can be adjusted using the Power Indicator in

the OPTION menu.Źp.148)

Remote Control Sensor

VOL ENTERCH MENU INPUT

CHANNEL

(ᰝ,ᰜ)

Buttons

VOLUME

(-, +)

Buttons

ENTER

Button

INPUT

Button

POWER

Button

Touch Button

Light the button by touching first. At this time, you can use the desired button.

Intelligent Sensor

Adjusts picture according to

the surrounding conditions

PREPARATION

ᯫ

Image shown may differ from your TV.

47/55LE8500

SPEAKER

Power/Standby Indicator

Illuminates red in standby mode.

Turn off red smoothly when the TV is

switchced on. (Can be adjusted using

the Power Indicator in the OPTION

menu.Źp.148)

VOL ENTERCH MENU INPUT

CHANNEL

(ᰝ,ᰜ)

Buttons

VOLUME

(-, +)

Buttons

ENTER

Button

INPUT

Button

POWER

Button

Touch Button

You can use the desired button function by touching.

Remote Control Sensor

Intelligent Sensor

Adjusts picture according to

the surrounding conditions

PREPARATION

42/47/55LE5400, 42/47/55LE5500, 42/47/55LE7500, 47/55LE8500

ANTENNA/

CABLE IN

RGB IN (PC)

LAN

WIRELESS

CONTROL

(RGB/DVI)

OPTICAL DIGITAL

/DVI IN

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

L R

AUDIO IN

AUDIO OUT

RS-232C IN

(

SERVICE ONLY)

ꔡ

1 2 3 4

8 79

COMPONENT IN3

AUDIO / Y P

IN 4

H/P USB IN 1 USB IN 2

AV IN2

VIDEO / AUDIO

CAUTION

For HDMI IN 4 and USB IN 1, 2

ŹFor an optimal connection,

HDMI cables and USB

devices should have bezels

less than 0.39 inches (10

mm) thick.

*A 0.39 inches (10 mm)

PREPARATION

1LAN

Network connection for Netflix, Yahoo! TV

Widgets, etc.

Also used for video, photo and music files on

a local network.

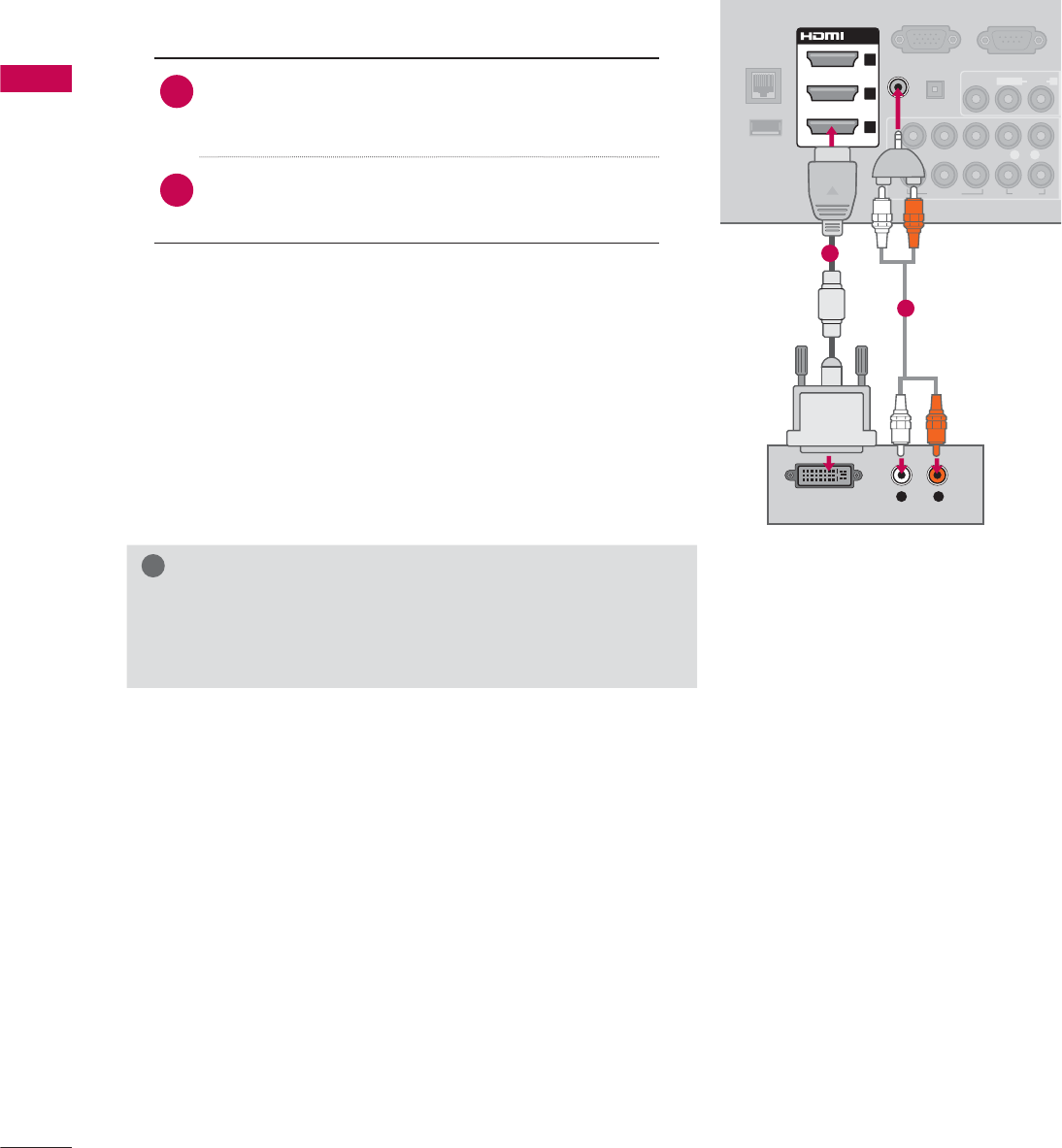

2HDMI/DVI IN, HDMI IN

Digital Connection.

Supports HD video and Digital audio. Doesn’t

support 480i.

Accepts DVI video using an adapter or HDMI

to DVI cable (not included).

3RGB IN (PC)

Analog PC Connection. Uses a D-sub 15 pin

cable (VGA cable).

AUDIO IN (RGB/DVI)

1/8” (0.32 cm) headphone jack for analog PC

audio input.

4RS-232C IN (SERVICE ONLY),SERVICE

ONLY

This port is used for service.

5OPTICAL DIGITAL AUDIO OUT

Digital optical audio output for use with amps

and home theater systems.

Note: In standby mode, this port doesn’t work.

6AV (Audio/Video) IN

Analog composite connection. Supports

standard definition video only (480i).

7ANTENNA/CABLE IN

Connect over-the-air or cable signals to this

jack.

8COMPONENT IN

Analog Connection.

Supports HD.

Uses a red, green, and blue cable for video &

red and white for audio.

9WIRELESS CONTROL

Connect the Wireless Ready Dongle to the TV

to control the external input devices con-

nected to Media Box wirelessly.

10 USB INPUT

Used for viewing videos, photos and listening

to MP3s.

11 HEADPHONE INPUT

Plug the headphone into the headphone

socket.

12 Power Cord Socket

For operation with AC power.

Caution: Never attempt to operate the TV on

DC power.

13 REMOTE CONTROL IN

For a wired remote control.

PREPARATION

VESA WALL MOUNTING

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building mate-

rials, please contact your nearest installer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

LG recommends that wall mounting be performed by a qualified professional installer.

Model

VESA (A * B)

Standard

Screw Quantity Wall Mounting Bracket

(sold separately)

32LD550 200 * 100 M4 4

RW230 AW-47LG30M

42/46LD550,

47LD650,

42/47LE5400,

42/47LE5500,

42/47LE7500,

47LE8500

200 * 200 M6 4

AW-47LG30M

52LD550, 55LD650,

55LE5400,

55LE5500,

55LE7500,

55LE8500

400 * 400 M6 4

AW-55LH40M

60LD550 600 * 400 M6 4

AW-55LH40M

50PK750 400 * 400 M6 4

AW-50PG60M AW-50PG60MS

60PK750 600 * 400 M8 4

AW-60PG60M AW-60PG60MS

PREPARATION

CAUTION

ŹDo not install your wall mount kit while your TV is turned on. It may result in personal injury due to

electric shock.

NOTE

ŹScrew length needed depends on the wall

mount used. For further information, refer to

the instructions included with the mount.

ŹStandard dimensions for wall mount kits are

shown in the table.

ŹWhen purchasing our wall mount kit, a detailed

installation manual and all parts necessary for

assembly are provided.

ŹDo not use screws longer then the standard

dimension, as they may cause damage to the

inside to the TV.

ŹFor wall mounts that do not comply with the

VESA standard screw specifications, the length

of the screws may differ depending on their

specifications.

ŹDo not use screws that do not comply with the

VESA standard screw specifications.

Do not use fasten the screws too strongly, this

may damage the TV or cause the TV to a fall,

leading to personal injury. LG is not liable for

these kinds of accidents.

ŹLG is not liable for TV damage or personal

injury when a non-VESA or non specified wall

mount is used or the consumer fails to follow

the TV installation instructions.

PREPARATION

DESKTOP PEDESTAL INSTALLATION

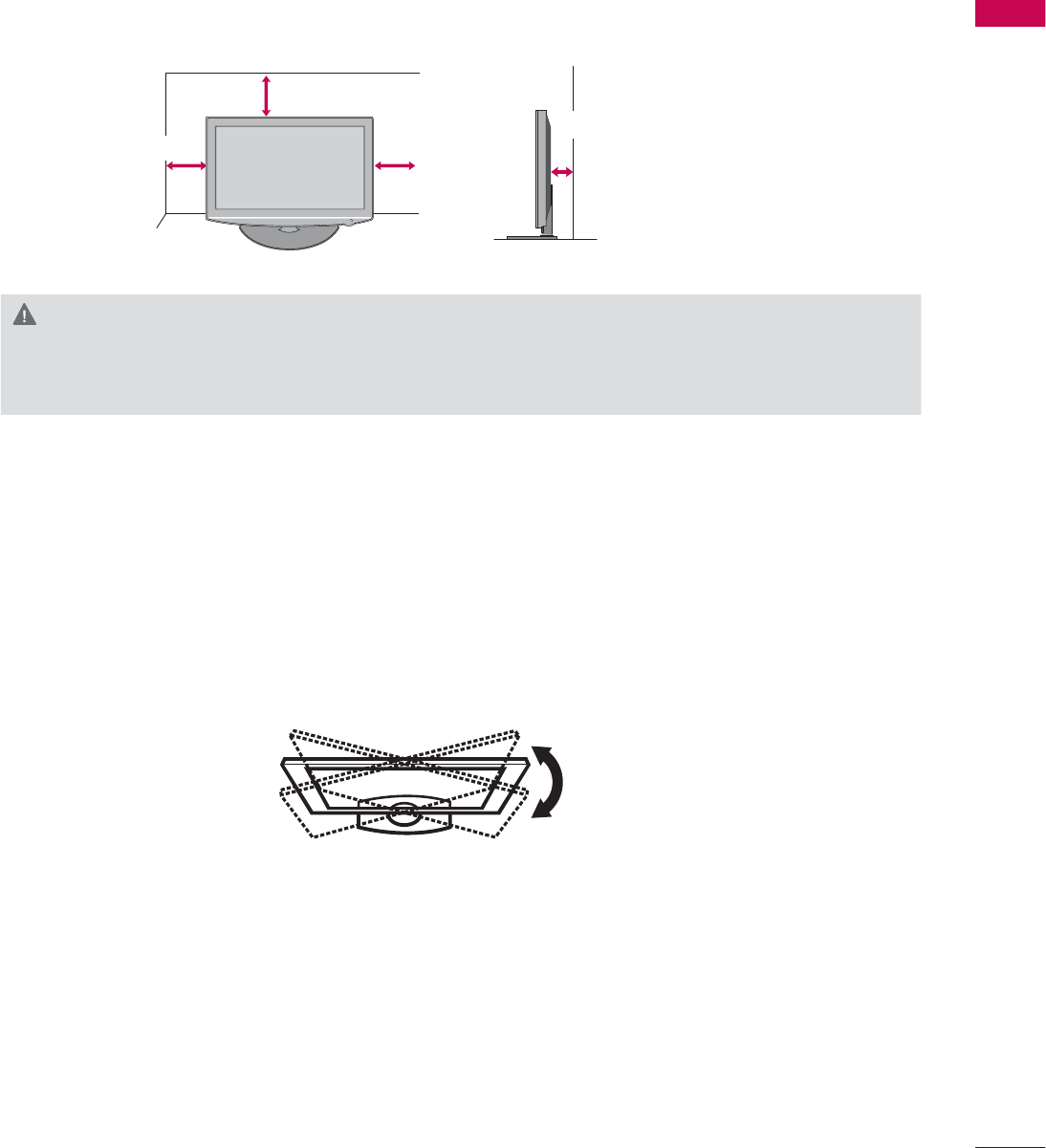

SWIVEL STAND

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees

to suit your viewing position.

ᯫ

Image shown may differ from your TV.

For proper ventilation, allow a clearance of 10.1 cm (4 inch) on all four sides from the wall.

10.1 cm (4 inch)

CAUTION

ŹEnsure adequate ventilation by following the clearance recommendations.

ŹDo not mount near or above any type of heat source.

PREPARATION

SECURING THE TV TO THE WALL TO PREVENT FALLING

WHEN THE TV IS USED ON A STAND

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward

direction, potentially causing injury or damaging the product.

Caution: Please make sure that children don’t climb on or hang from the TV.

ᯫ

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the

picture.

* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the

bolts.

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket

that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

ᯫ

Use a sturdy rope (sold separately) to tie the product. It is safer to tie the

rope so it becomes horizontal between the wall and the product.

ᯫ

You should purchase necessary components to prevent the TV from tipping over (when not using a

wall mount).

ᯫ

Image shown may differ from your TV.

NOTE

ŹUse a platform or cabinet strong enough and large enough to support the size and weight of

the TV.

ŹTo use the TV safely make sure that the height of the bracket on the wall and the one on the TV are

the same.

PREPARATION

ANTENNA OR CABLE CONNECTION

ᯫ

To prevent damage do not connect to the power outlet until all connections are made between the

devices.

ᯫ

Image shown may differ from your TV.

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.

For optimum picture quality, adjust antenna direction if needed.

2. Cable

Wall

Antenna

Socket

Outdoor

Antenna

(VHF, UHF)

Cable TV

Wall Jack

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

RF Coaxial Wire (75 Ω)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Be careful not to bend the copper wire

when connecting the antenna.

Copper Wire

ᯫ

If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.

ᯫ

For much more information about antennas visit our Knowledgebase at LGknowledgebase.com.

Search for antenna.

ANTENNA/

CABLE IN

ANTENNA/

CABLE IN

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

ᯫ

To prevent the equipment damage, never plug in any power cords until you have finished connecting all

equipment.

ᯫ

mage shown may differ from your TV.

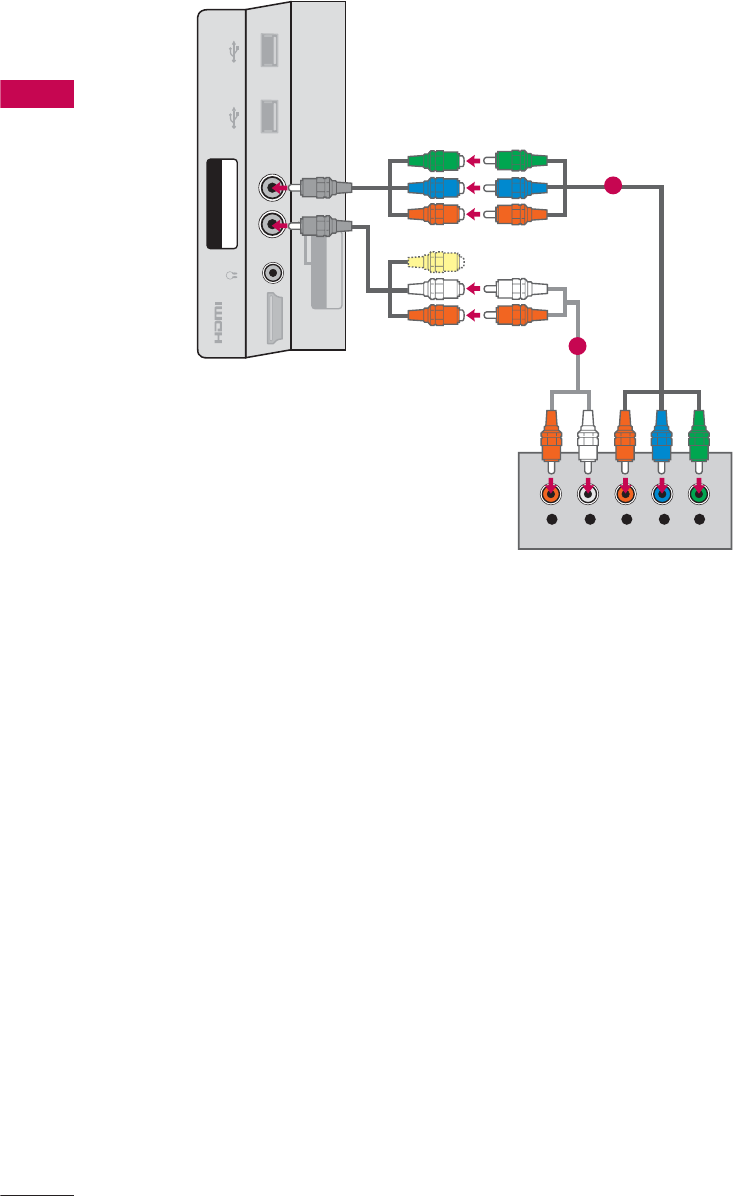

1. How to connect

1Connect the video outputs (Y, P B, PR) of the

digital set-top box to the COMPONENT IN

VIDEO 1, 2,or3* jacks on the TV. Match the

jack colors (Y = green, PB = blue, and PR = red).

2Connect the audio output of the digital set-top

box to the COMPONENT IN AUDIO 1, 2,or3*

jacks on the TV.

2. How to use

ᯫ

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top

box operation.)

ᯫ

Select the Component1,Component2, or

Component3 input source on the TV using the

INPUT button on the remote control.

Component Connection

This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.

However, if you do receive digital signals from a digital set-top box or other digital external device.

EXTERNAL EQUIPMENT SETUP

RGB IN (PC)

(RGB/DVI)

RS-232C IN

(

SERVICE ONLY)

OPTICAL

DIGITAL

/DVI IN

VIDEO

AUDIO

L(MONO)

AV IN 1

AUDIO IN

AUDIO OUT

VIDEO AUDIO

COMPONENT IN

RL R

Y L RP

1 2

Supported Resolutions Y, CB/PB, CR/PR

Signal Component HDMI

480i Yes No

480p Yes Yes

720p Yes Yes

1080i Yes Yes

1080p Yes Yes

Resolution Horizontal

Frequency(KHz)Vertical

Frequency(KHz)

720x480i 15.73 59.94

15.73 60.00

720x480p 31.47 59.94

31.50 60.00

1280x720p 44.96 59.94

45.00 60.00

1920x1080i

33.72 59.94

33.75 60.00

1920x1080p

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.94

67.50 60.00

* Component3: For LED LCD TV

EXTERNAL EQUIPMENT SETUP

YLR P

AUDIO / Y P

IN 4

H/P USB IN 1 USB IN 2

AV IN2

VIDEO / AUDIO

COMPONENT IN3

For LED LCD TV

EXTERNAL EQUIPMENT SETUP

HDMI Connection

1. How to connect

1Connect the digital set-top box to HDMI/DVI IN

1,2,3, or 4jack on the TV.

2No separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

ᯫ

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-

top box.)

ᯫ

Select the HDMI1,HDMI2,HDMI3, or HDMI4 input

source on the TV using the INPUT button on the

remote control.

NOTE

ŹIf an HDMI cable doesn’t support HDMI version 1.3, it

can cause flickers or no screen display. In this case

use the latest cables that support HDMI version 1.3.

ŹHDMI Audio Supported Format: AC3 (32KHz,

44.1KHz,48KHz), Linear PCM (32KHz, 44.1KHz,48KHz)

HDMI-DTV

Resolution Horizontal

Frequency(KHz)Vertical

Frequency(KHz)

720x480p 31.47 59.94

31.50 60.00

1280x720p 44.96 59.94

45.00 60.00

1920x1080i

33.72 59.94

33.75 60.00

1920x1080p

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.94

67.50 60.00

HDMI OUTPUT

RGB IN (PC)

LAN

WIRELESS

CONTROL

(RGB/DVI)

VIDEO

L(MONO

VIDEO A

AUDIO IN

AUDIO OUT

/DVI IN

OPTICAL DIGITAL

RS-23

(

SERVICE

ꔡ

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1Connect the DVI output of the digital set-top

box to the HDMI/DVI IN 1,2,3, or 4* jack on

the TV.

2Connect the digital set-top box audio output to

the AUDIO IN (RGB/DVI) jack on the TV.

2. How to use

ᯫ

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-

top box.)

ᯫ

Select the HDMI1,HDMI2,HDMI3, or HDMI4* input

source on the TV using the INPUT button on the

remote control.

NOTE

ŹA DVI to HDMI cable or adapter is required for this con-

nection. DVI doesn't support audio, so a separate audio

connection is necessary.

L R

DVI OUTPUT

AUDIO

RGB IN (PC)

LAN

WIRELESS

CONTROL

RS-232C IN

(

SERVICE ONLY)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

AUDIO OUT

/DVI IN

(RGB/DVI)

AUDIO IN

OPTICAL DIGITAL

ꔡ

* HDMI 4: For Plasma TV

EXTERNAL EQUIPMENT SETUP

DVD SETUP

Component Input ports

To get better picture quality, connect a DVD player

to the component input ports as shown below.

1. How to connect

1Connect the video outputs (Y, P B, PR) of the

DVD to the COMPONENT IN VIDEO 1, 2,or3*

jacks on the TV.

Match the jack colors (Y = green, PB = blue, and

PR = red).

2Connect the audio outputs of the DVD to the

COMPONENT IN AUDIO 1, 2,or3* jacks on the

TV.

2. How to use

ᯫ

Turn on the DVD player, insert a DVD.

ᯫ

Select the Component1, Component2, or

Component3 input source on the TV using the

INPUT button on the remote control.

ᯫ

Refer to the DVD player’s manual for operating

instructions.

Component Connection

RGB IN (PC)

(RGB/DVI)

/DVI IN

VIDEO

AUDIO

L(MONO)

AV IN 1

AUDIO IN

AUDIO OUT

VIDEO AUDIO

COMPONENT IN

RL R

Y L RP

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

* Component3: For LED LCD TV

Component ports on

the TV

YPBPR

Video output ports

on DVD player

YPBPR

YB-YR-Y

YCbCr

YPb Pr

YLR P

AUDIO / Y P

IN 4

H/P USB IN 1 USB IN 2

AV IN2

VIDEO / AUDIO

COMPONENT IN3

For LED LCD TV

EXTERNAL EQUIPMENT SETUP

Composite (RCA) Connection

1. How to connect

1Connect the AUDIO/VIDEO jacks between TV

and DVD. Match the jack colors (Video = yellow,

Audio Left = white, and Audio Right = red)

2. How to use

ᯫ

Turn on the DVD player, insert a DVD.

ᯫ

Select the AV1 or AV2 input source on the TV

using the INPUT button on the remote control.

ᯫ

Refer to the DVD player's manual for operating

instructions.

RGB IN (PC)

(RGB/DVI)

/DVI IN

VIDEO AUDIO

COMPONENT IN

AUDIO IN

AUDIO OUT

VIDEO

AUDIO

L(MONO)

AV IN 1

RL R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

L R

VIDEO

AUDIO

L R

VIDEO

AUDIO

AUDIO / Y P

IN 4

H/P USB IN 1 USB IN 2

VIDEO / AUDIO

COMPONENT IN3

AV IN2

For LED LCD TV

EXTERNAL EQUIPMENT SETUP

HDMI OUTPUT

RGB IN (PC)

LAN

WIRELESS

CONTROL

(RGB/DVI)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

AUDIO IN

AUDIO OUT

/DVI IN

RL R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

ꔡ

HDMI Connection

1. How to connect

1Connect the HDMI output of the DVD to the

HDMI/DVI IN 1,2,3or 4 jack on the TV.

2No separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

ᯫ

Select the HDMI1,HDMI2,HDMI3, or HDMI4 input

source on the TV using the INPUT button on the

remote control.

ᯫ

Refer to the DVD player's manual for operating

instructions.

NOTE

ŹIf an HDMI cable doesn’t support HDMI version 1.3, it

can cause flickers or no screen display. In this case

use the latest cables that support HDMI version 1.3.

ŹHDMI Audio Supported Format: AC3 (32KHz,

44.1KHz,48KHz), Linear PCM (32KHz, 44.1KHz,48KHz)

EXTERNAL EQUIPMENT SETUP

VCR SETUP

Antenna Connection

ANTENNA/

CABLE IN

L R

S-VIDEO VIDEO

AUDIO

OUTPUT

SWITCH

ANT IN

ANT OUT

Wall Jack

Antenna

1. How to connect

1Connect the RF antenna out socket

of the VCR to the ANTENNA/CABLE

IN socket on the TV.

2Connect the antenna cable to the RF

antenna in socket of the VCR.

2. How to use

ᯫ

Set VCR output switch to 3 or 4 and

then tune TV to the same channel num-

ber.

ᯫ

Insert a video tape into the VCR and

press PLAY on the VCR (Refer to the

VCR owner’s manual).

EXTERNAL EQUIPMENT SETUP

Composite (RCA) Connection

S-VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

RGB IN (PC)

(RGB/DVI)

/DVI IN

VIDEO AUDIO

COMPONENT IN

AUDIO IN

AUDIO OUT

VIDEO

AUDIO

L(MONO)

AV IN 1

RL R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

L R

VIDEO

AUDIO

1. How to connect

1Connect the AUDIO/VIDEO jacks between TV

and VCR. Match the jack colors (Video = yellow,

Audio Left = white, and Audio Right = red)

2. How to use

ᯫ

Insert a video tape into the VCR and press PLAY

on the VCR. (Refer to the VCR owner’s manual.)

ᯫ

Select the AV1 or AV2 input source on the TV

using the INPUT button on the remote control.

NOTE

ŹIf you have a mono VCR, connect the audio cable

from the VCR to the AUDIO L/MONO jack of the TV.

S-VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

L R

VIDEO

AUDIO

AUDIO / Y P

IN 4

H/P USB IN 1 USB IN 2

VIDEO / AUDIO

COMPONENT IN3

AV IN2

For LED LCD TV

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

AV IN 2

VIDEO

AUDIO

L(MONO)

H/P

IN 4

USB IN 1 USB IN 2

L R

VIDEO

Camcorder

Video Game Set

1. How to connect

1Connect the AUDIO/VIDEO jacks

between TV and external equipment.

Match the jack colors

(Video = yellow, Audio Left = white, and

Audio Right = red)

2. How to use

ᯫ

Select the AV1 or AV2 input source on

the TV using the INPUT button on the

remote control.

ᯫ

Operate the corresponding external

equipment.

EXTERNAL EQUIPMENT SETUP

USB CONNECTION

IN 4

AUDIO

(MONO)

H/P USB IN 1 USB IN 2

Memory Key

1. How to connect

1Connect the USB device to the USB

IN 1 or 2 jack on the side of TV.

2. How to use

ᯫ

After connecting the USB IN jack, you

use the USB function. (Źp.93)

EXTERNAL EQUIPMENT SETUP

HEADPHONE SETUP

(FOR LED LCD TV/LCD TV)

H/P

You can listen to the sound through the headphone.

1. How to connect

1Plug the headphone into the head-

phone socket.

2To adjust the headphone volume,

press the VOL +/- button. If you

press the MUTE button, the sound

from the headphone is switched off.

NOTE

ŹAUDIO menu options are disabled when connecting a

headphone.

ŹWhen changing AV MODE with a headphone con-

nected, the change is applied to video but not to audio.

ŹOptical Digital Audio Out is not available when con-

necting a headphone.

EXTERNAL EQUIPMENT SETUP

()

ESS

ROL

(RGB/DVI)

/DVI IN

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

AUDIO IN

AUDIO OUT

RL R

OPTICAL DIGITAL

(

)

AUDIO OUT CONNECTION

Send the TV’s audio to external audio equipment via the Audio Output port.

If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL

AUDIO OUT terminal on the back of TV to a Home Theater (or amp).

NOTE

ŹWhen connecting with external audio equipment, such

as amplifiers or speakers, you can turn the TV speakers

off in the menu. (Źp.156)

CAUTION

ŹDo not look into the optical output port. Looking at

the laser beam may damage your vision.

ŹAudio with ACP (Audio Copy Protection) function may

block digital audio output.

1. How to connect

1Connect one end of the optical cable to the

TV port of OPTICAL DIGITAL AUDIO OUT.

2Connect the other end of the optical cable to

the digital audio input on the audio equip-

ment.

3Set the “TV Speaker option - Off” in the

AUDIO menu. (Źp.156). See the external audio

equipment instruction manual for operation.

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT WIRELESS CONNECTION

(OPTIONAL EXTRAS)

LG TVs with a Wireless Control port support the LG Wireless Media Box (AN-WL100), which is sold

separately. When you connect the wireless ready dongle (included with the media box) to the TV,

external devices can be connected to the LG Wireless Media Box and video and audio will be sent to

the TV wirelessly.

RGB IN (PC)

LAN

(RGB/DVI)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

AUDIO IN

AUDIO OUT

WIRELESS

CONTROL

OUT

WIRELESS

CONTROL

AV1 AV2

COM1 COM2 1RGB WIRELESS

2 3 4

/DVI IN

L R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

ꔡ

1. How to connect

1Connect the WIRELESS CONTROL jack of the Wireless Ready Dongle to the WIRELESS

CONTROL jack on the TV.

2Connect HDMI OUT jack of the Wireless Ready Dongle to the HDMI IN jack on the TV.

2. How to use

ᯫ

Select the desired input source on the TV using the INPUT button on the remote control.

ᯫ

Refer to the Wireless Media Box manual for operating instructions.

EXTERNAL EQUIPMENT SETUP

LAN

IRELESS

ONTROL

/DVI IN

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

AUDIO OUT

RGB IN (PC)

RGB OUTPUT

AUDIO

(RGB/DVI)

AUDIO IN

RL R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

ꔡ

PC SETUP

This TV provides Plug and Play capability, meaning that a PC adjusts automatically to the TV's set-

tings.

1. How to connect

1Connect the VGA output of the PC to the

RGB IN (PC)jack on the TV.

2Connect PC audio output to the AUDIO IN

(RGB/DVI) jack on the TV.

2. How to use

ᯫ

Turn on the PC and the TV.

ᯫ

Select the RGB-PC input source on the TV using

the INPUT button on the remote control.

VGA (D-Sub 15 Pin) Connection

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1Connect the DVI output of the PC to the HDMI/

DVI IN 1,2,3, or 4* jack on the TV.

2Connect the PC audio output to the AUDIO IN

(RGB/DVI) jack on the TV.

2. How to use

ᯫ

Turn on the PC and the TV.

ᯫ

Select the HDMI1,HDMI2,HDMI3, or HDMI4* input

source on the TV using the INPUT button on the

remote control.

DVI OUTPUT AUDIO

RGB IN (PC)

LAN

WIRELESS

CONTROL

VIDEO

L(MONO)

VIDEO

AUD

AUDIO OUT

/DVI IN

(RGB/DVI)

AUDIO IN

OPTICAL DIGITAL

RS-232C

(

SERVICE ON

ꔡ

* HDMI 4: For Plasma TV

EXTERNAL EQUIPMENT SETUP

Supported Display Specifications (RGB-PC, HDMI-PC)

NOTE

ŹTo get the the best picture quality, adjust the PC graphics card to 1920x1080.

ŹDepending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

ŹIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright-

ness. If noise is present, change the PC output to another resolution, change the refresh rate to

another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

ŹAvoid keeping a fixed image on the screen for a long period of time. The fixed image may become

permanently imprinted on the screen.

ŹThe synchronization input form for Horizontal and Vertical frequencies is separate.

ŹDepending on the graphics card, some resolution settings may not allow the image to be posi-

tioned on the screen properly.

ŹIf you experience overscan issues when using HDMI-PC 1920x1080, change aspect ratio to Just

scan.

ŹWhen selecting HDMI-PC, set the “Input Label - PC” in the OPTION menu.

Resolution Horizontal

Frequency(KHz)Vertical

Frequency(KHz)

640x350 31.468 70.09

720x400 31.469 70.08

640x480 31.469 59.94

800x600 37.879 60.31

1024x768 48.363 60.00

1280x768 47.776 59.87

1360x768

47.712 60.015

1280x1024

63.981 60.02

1600x1200

75.00 60.00

1920x1080

RGB-PC

66.587 59.934

1920x1080

HDMI-PC

67.50 60.00

EXTERNAL EQUIPMENT SETUP

RGB IN (PC)

WIRELESS

CONTROL

(RGB/DVI)

/DVI IN

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

AUDIO IN

AUDIO OUT

LAN

RL R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

ꔡ

Broadband modem

Router

Broadband Service

NETWORK SETUP

This TV can be connected to a local area network (LAN) via the LAN port. After making the physical

connection, the TV needs to be set up for network communication.

CAUTION

ŹDo not connect a modular phone cable to the LAN port.

ŹSince there are various connection methods, please follow the specifications of your telecommu-

nication carrier or internet service provider.

1. How to connect

1Connect the LAN port of the Modem or Router to the LAN port on the TV.

2. How to use

ᯫ

Select “Network Setting” in the NETWORK menu (Źp.59).

ᯫ

After connecting the LAN port, use the NETCAST menu (Źp.125).

ᯫ

For more information about NETCAST setup and troubleshooting, visit our Knowledgebase at

LGknowledgebase.com. Search for NetCast.

Wired Network Connection

EXTERNAL EQUIPMENT SETUP

IN 4

AV IN 2

VIDEO

AUDIO

L(MONO)

H/P USB IN 1 USB IN 2

The LG Wireless LAN for Broadband/DLNA Adaptor (AN-WF100), which is sold separately, allows the

TV to connect to a wireless lan network.

The network configuration and connection method may vary depending on the equipment in use and

the network environment. Refer to the setup instructions supplied with your access point or wireless

router for detailed connection steps and network settings.

1. How to connect

1Connect the “LG Wireless LAN for Broadband/DLNA Adaptor (AN-WF100) (sold sepa-

rately)” to the USB IN 1 or 2port on the TV.

2. How to use

ᯫ

Select “Network Setting” in the NETWORK menu (Źp.59).

ᯫ

After connecting, you can use the NETCAST menu (Źp.125).

Wireless Network Connection

Standard IEEE 802.11a/b/g/n

Host interface USB 2.0

Frequency

Range

2.400~2.483 GHz

5.150~5.250 GHz

5.725~5.850 GHz

Security 64/128 bit WEP, WPA,

TKIP, AES, WPS (PIN, PBC)

Data rate

802.11 a/g: 54 Mbps

802.11 b: 11 Mbps

802.11 n: 300 Mbps (40 MHz)

Sensitivity

802.11a : -72dBm (54Mbps)

802.11b: -84dBm (11, 5.5, 2, 1Mbps)

802.11g: -72dBm (54Mbps)

802.11n: -64dBm (20MHz)/

-61dBm (40MHz)

Output power

802.11a: 14dBm (54Mbps)

802.11b: 16.5dBm (11, 5.5, 2, 1Mbps)

802.11g: 14dBm (54Mbps)

802.11n: (2.4Ghz) 13.5dBm

(20MHz)/ 13.5dBm (40MHz)

Wi-Fi USB dongle (AN-WF100) SPEC

EXTERNAL EQUIPMENT SETUP

NOTE

ŹFor more information about NETCAST setup

and troubleshooting, visit our Knowledgebase

at LGknowledgebase.com. Search for NETCAST.

ŹUse a standard LAN cable with this TV. Cat5

or better with a RJ45 connector.

ŹMany network connection problems during set

up can often be fixed by re-setting the router

or modem. After connecting the player to the

home network, quickly power off and/or dis-

connect the power cable of the home network

router or cable modem. Then power on and/or

connect the power cable again.

ŹDepending on the internet service provider

(ISP), the number of devices that can receive

internet service may be limited by the appli-

cable terms of service. For details, contact

your ISP.

ŹLG is not responsible for any malfunction of

the TV and/or the internet connection feature

due to communication errors/malfunctions

associated with your broadband internet con-

nection, or other connected equipment.

ŹLG is not responsible for problems within your

internet connection.

ŹSome content available through the network

connection may not be compatible with the

TV. If you have questions about such content,

please contact the producer of the content.

ŹYou may experience undesired results if the

network connection speed does not meet the

requirements of the content being accessed.

ŹSome internet connection operations may not

be possible due to certain restrictions set by

the Internet service provider (ISP) supplying

your broadband Internet connection.

ŹAny fees charged by an ISP including, without

limitation, connection charges are your respon-

sibility.

ŹA 10 Base-T or 100 Base-TX LAN port is

required for connection to this TV. If your inter-

net service does not allow for such a connec-

tion, you will not be able to connect the TV.

ŹA DSL modem is required to use DSL service

and a cable modem is required to use cable

modem service. Depending on the access

method of and subscriber agreement with

your ISP, you may not be able to use the inter-

net connection feature contained in this TV or

you may be limited to the number of devices

you can connect at the same time. (If your ISP

limits sub-scription to one device, this TV may

not be allowed to connect when a PC is

already connected.)

ŹThe use of a “Router” may not be allowed or

its usage may be limited depending on the

policies and restrictions of your ISP. For details,

contact your ISP directly.

ŹThe wireless network operates at 2.4 GHz

radio frequencies that are also used by other

household devices such as cordless tele-

phone, Bluetooth® devices, microwave oven,

and can be affected by interference from

them.

ŹTurn off all unused network equipment in your

local home network. Some devices may gen-

erate network traffic.

ŹIn some instances, placing the access point or

wireless router higher up away from the floor

may improve the reception.

ŹThe reception quality over wireless depends

on many factors such as type of the access

point, distance between the TV and access

point, and the location of the TV.

WATCHING TV / CHANNEL CONTROL

ENERGY

CHVOL

12 ABC 3 DEF

4 GHI 5 JKL 6

MNO

PQRS

8 TUV

WXYZ

SAVING

AV MODE

INPUT

LIGHT

FAV

RATIO

MUTE

BACK EXIT

ENTER

MARK

DELETE

CHAR/NUM

LIST

FLASHBK

FREEZE

Q.MENU

INFO

BACK EXIT

ENTER

Q.MENU

INFO

FREEZE

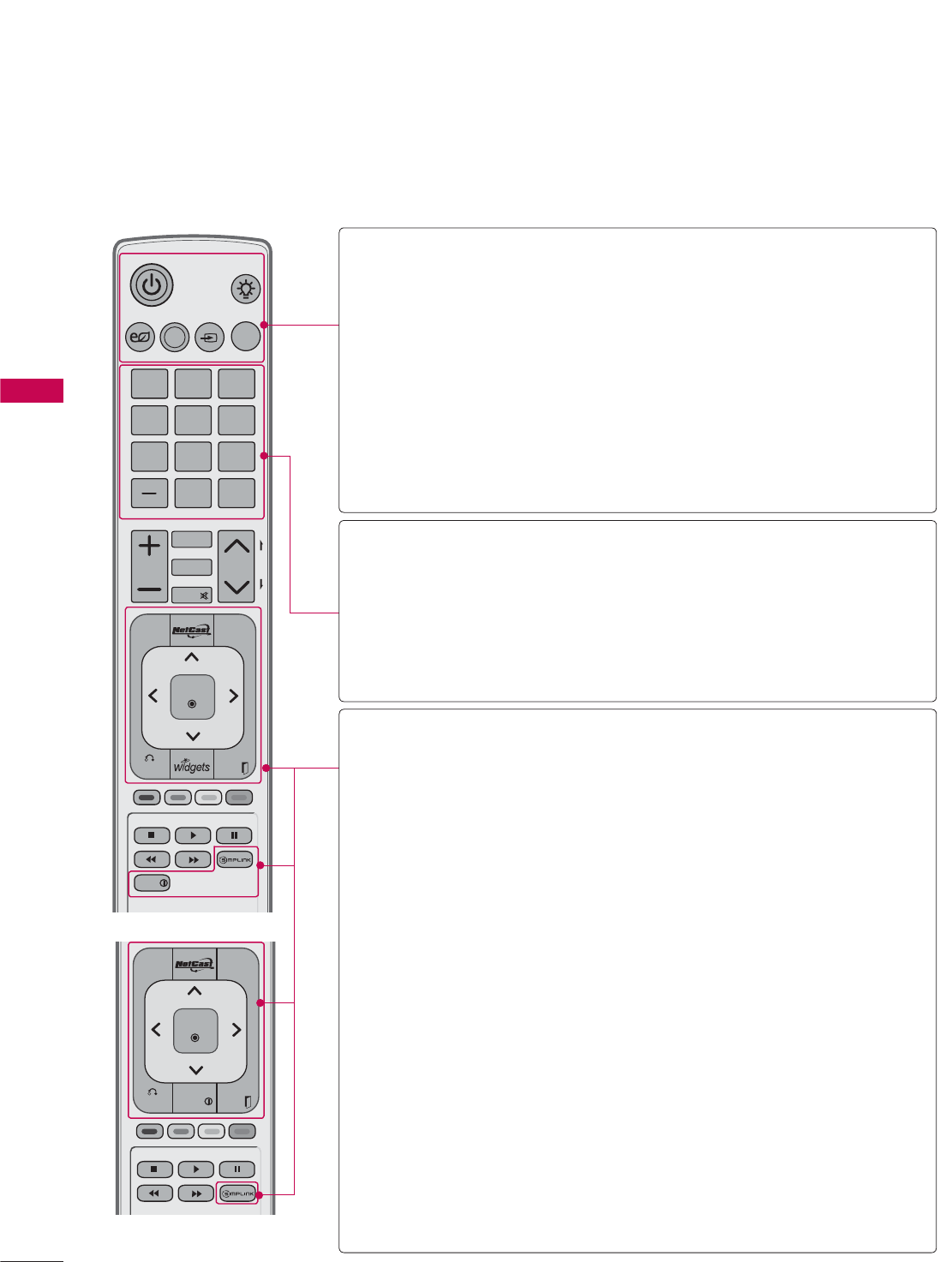

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

WATCHING TV / CHANNEL CONTROL

POWER Turns the TV on from standby or off to standby.

LIGHT Illuminates the remote control buttons.

(Except 32/42/46/52/60LD550, 47/55LD650)

ENERGY SAVING

Adjusts the Energy Saving setting. Źp.138

AV MODE Toggles through preset Video and Audio modes. Źp.88

INPUT Rotates through inputs.

Also switches the TV on from standby. Źp.83

TV Returns to the last TV channel.

NUMBER button

— (DASH) Used to enter a program number for multiple program

channels such as 2-1, 2-2, etc.

LIST Displays the channel table. Źp.80

FLASHBK Tunes to the last channel viewed.

MENU Displays the main menu or clears all on-screen displays

and return to TV viewing.

NETCAST

Select the desired NETCAST menu source.

Źp.125

Q.MENU Opens the list of Quick Menu options. Źp.71

THUMBSTICK

(Up/Down/Left

Right/ENTER)

Navigates the on-screen menus and adjusts the system

settings to your preference.

BACK Allows the user to move return one step in an interactive

application or other user interaction function.

WIDGETS WIDGETS for showing or hiding the Yahoo! Dock and

accessing the Yahoo! TV Widgets user experience.

Źp.127-133

INFO Displays channel information at the top of the screen.

Źp.81

EXIT Clears all on-screen displays and return to TV viewing.

SIMPLINK See a list of AV devices connected to TV.

When you toggle this button, the SIMPLINK menu

appears at the screen. Źp.90-91

WATCHING TV / CHANNEL CONTROL

ᯫ

Open the battery compartment cover

on the back side and install the batter-

ies matching correct polarity.

ᯫ

Install two 1.5V AAA batteries. Don’t

mix old or used batteries with new

ones.

ᯫ

Close cover.

Installing Batteries

ENERGY

CHVOL

12 ABC 3 DEF

4 GHI 5 JKL 6

MNO

PQRS

8 TUV

WXYZ

SAVING

AV MODE

INPUT

LIGHT

FAV

RATIO

MUTE

BACK EXIT

ENTER

MARK

DELETE

CHAR/NUM

LIST

FLASHBK

FREEZE

Q.MENU

INFO

BACK EXIT

ENTER

Q.MENU

INFO

FREEZE

VOLUME

UP/DOWN Adjusts the volume.

FAV Set up desired favorite channels list. Źp.79

MARK Select the input to apply the Picture Wizard settings.

Źp.137

Use to mark or unmark a photo/music/movie. Źp.105,

110, 116

RATIO Changes the aspect ratio. Źp.134

CHAR/NUM Shifts the Character or Number for YouTube.

MUTE Switches the sound on or off. Źp.66

DELETE Deleted the character or number on the screen.

CHANNEL

UP/DOWN

Changes the channel.

PAGE

UP/DOWN

Moves from one full set of screen information to the

next one.

COLOR

BUTTON

Access special functions in some menus.

USB,

SIMPLINK

Control buttons

ţControls MY MEDIA menu (Movie List, Photo List,

Music List)

ţ Controls the SIMPLINK compatible devices.

FREEZE

(For Plasma TV)

Pause the present picture at the screen. (It doesn’t work

at USB Mode and Simplink.)

The TV returns to normal viewing automatically if no

signal is received or no operation is performed for 5

minutes.

If you keep the screen in Freeze condition, the residu-

al image can exist.

WATCHING TV / CHANNEL CONTROL

TURNING ON THE TV

CHANNEL SELECTION

VOLUME ADJUSTMENT

Adjust the volume to suit your personal preference.

1First, connect power cord correctly.

At this moment, the TV switches to standby mode.

ᯫ

In standby mode to turn TV on, press the / I, INPUT,CH (ᰜor ᰝ) button on the TV or press

the POWER, INPUT, CH (ᰜor ᰝ),Number (0~9) button on the remote control.

2Select the viewing source by using the INPUT button on the remote control.

3When finished using the TV, press the POWER button on the remote control. The TV reverts

to standby mode.

NOTE

Ź If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

Ź If you do not complete the Initial setting, it will appear whenever the TV is switched on until the

Initial setting procedure is completed.

1Press the CH (ᰜor ᰝ) or NUMBER buttons to select a channel number.

1 Press the VOL (+ or -) button to adjust the volume.

2If you want to switch the sound off, press the MUTE button.

3You can cancel the Mute function by pressing the MUTE or VOL (+ or -) button.

MY MEDIA

CONNECTION METHOD

USB Connection

Connect the USB device to the USB IN jack on the TV.

Precautions when using the USB device

ŹOnly a USB storage device is recognizable.

ŹConnecting a USB storage device through a USB hub is not supported.

ŹA USB storage device which uses its own driver may not be recognized.

ŹThe recognition speed of a USB storage device may depend on each device.

ŹPlease do not turn off the TV or unplug the USB device when the connected USB storage device

is working. When such device is suddenly separated or unplugged, the stored files or the USB

storage device may be damaged.

ŹOnly use a USB storage device which has normal music files or image files.

ŹPlease use only a USB storage device which was formatted as a FAT 32 or NTFS file system pro-

vided with the Windows operating system. Others may not be recognized.

ŹSome USB storage devices require a power adapter. The power adapter must be connected in

order to be seen by the TV.

ŹIf a device is not recognized by the TV, try a different cable. Excessively long cables are not sup-

ported.

ŹSome USB storage devices may not be supported or operate properly.

ŹPlease backup important files because data on USB device could be damaged. Data management

is consumer's responsibility and as a result, the manufacturer does not cover data damage.

ŹIf your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can

use up to 4 partitions or USB memory devices.

ŹIn case of USB storage devices formatted as NTFS, deletion is not supported.

ŹFile alignment method of USB storage device is similar to Window XP and file names can be up

to 100 English characters.

ŹThe recommended capacity is 1TB or less for a USB external hard disk and 32 GB or less for USB

memory.

ŹIf a USB external hard disk with a “Energy Saving” function doesn’t work, turn the hard disk off and

on again to make it work properly. Refer to the user manual of the USB external hard disk.

ŹUSB storage devices below USB 2.0 are supported as well. But they may not work properly in the

movie list.

IN 4

USB IN 1 USB IN 2

Memory Key

MY MEDIA

Viewing Files on the Network

You can view the photos or listen to music files from folders shared on the network.

RGB IN (PC)

WIRELESS

CONTROL

(RGB/DVI)

/DVI IN

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

COMPONENT INAV IN 1

AUDIO IN

AUDIO OUT

LAN

L R

OPTICAL DIGITAL

RS-232C IN

(

SERVICE ONLY)

ꔡ

ŹConnect the PC and TV using a shar-

ing device so that you can see the PC’s

shared files on the TV.

ŹHow to set a share folder may differ

depending on the Windows version.

ŹThe speed may be slow or it may cause

an error if you try to access a folder

from two TVs at the same time.

ŹBecause files could be deleted from a

shared PC, set the user access level to

Read Only.

ŹDo not share any important personal

documents as it may be accessed by a

different PC.

ŹIf you rename or disable a shared

folder on the PC after mounting, you

cannot mount it again.

ŹIf the status of the network or a share

folder on the PC is changed, search is

run again when entering the highest

folder in the menu.

ŹMaximum of 32 computers can be

shared.

i.e) LED LCD TV/LCD TV

Broadband

modem

Broadband modem

Router

Broadband Service

0RYLH/LVW

MY MEDIA

3KRWR List 0XVLF/LVW

Select MY MEDIA.

ENTER

Select Movie List, Photo List

or Music List.

1Set a share folder (CIFS: Common Internet File System) on the PC (Refer to P.95).

2Connect the LAN port of the Modem or Router to the LAN port on the TV.

MY MEDIA

DLNA

About DLNA

This TV is a DLNA Certified digital media product that can display and play movie, photo and music

content from your DLNA Certified network device and DLNA server. The Digital Living Network Alliance

(DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device

companies. Digital Living provides consumers with easy sharing of digital media through a wired or

wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability

Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA

server software or other DLNA compatible device is connected to this TV, some setting changes of

software or other devices may be required. Please refer to the operating instructions for the software or

device for more information.

NOTE

ŹThe supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for

sharing files and folders to this TV.

ŹThe supplied Nero MediaHome 4 Essentials software does not support following functions:

Transcoding, Remote UI, TV control, Internet services and Apple iTunes

ŹThis manual explains operations with the English version of Nero MediaHome 4 Essentials as

examples. Follow the explanation referring to the actual operations of your language version.

MY MEDIA

Installing Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is easy to use DLNA server software for Windows. If you are already

using DLNA server software on your PC, Nero MediaHome is not required. Nero MediaHome is not

required for Windows 7 since it has a built-in DLNA server.

Requirement PC system before you install Nero MediaHome 4 Essentials

ᯫ

Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required), Windows® XP

Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003

ᯫ

Windows Vista® 64-bit edition (application runs in 32-bit mode)

ᯫ

Hard drive space: 200 MB hard drive space for a typical installation of Nero MediaHome stand-

alone

ᯫ

1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors

ᯫ

Memory: 256 MB RAM

ᯫ

Graphics card with at least 32 MB video memory, minimum resolution of 800 x 600 pixels, and

16-bit color settings

ᯫ

Windows® Internet Explorer® 6.0 or higher

ᯫ

DirectX® 9.0c revision 30 (August 2006) or higher

ᯫ

Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11b/g/n)

MY MEDIA

1Start up your computer, and insert the Nero MediaHome 4 Essentials CD-ROM into your compu-

ter’s CD-ROM drive.

An installation wizard will walk you through the quick and uncomplicated installation process.

2Close all Microsoft Windows programs and exit any anti-virus software that may be running.

3Insert the Nero MediaHome 4 Essentials CD-ROM into your computer’s CD-ROM drive.

4Click Nero MediaHome 4 Essentials. The installation is prepared and the installation wizard appears.

5Click the Next button to display the serial number input screen.

Click Next to go to the next step.

6If you accept all conditions, click I accept the License Conditions check box and click Next.

Installation is not possible without this agreement.

7Click Typical and click Next. The installation process is started.

8If you want to take part in the anonymous collection of data, select the check box and click the

Next button.

9Click the Exit button to complete the installation.

MY MEDIA

100

Sharing files and folders

After installing Nero MediaHome, you must add folders you wish to share.

1Double-click the Nero MediaHome 4 Essentials icon on the desktop.

2Click Network icon on the left and define your network name in the Network name field. The

Network name you enter will be recognized by your TV.

3Click Shares icon on the left.

4Click Local Folders tab on the Shared screen.

5Click Add icon to open the Browse Folder window.

6Select the folder containing the files you want to share. The selected folder is added to the list of

shared folders.

7Click Start Server icon to start the server.

NOTE

ŹIf the shared folders or files are not displayed on the TV, click the folder on the Local Folders

tab and click Rescan Folder at the More button.

ŹVisit www.nero.com for more information and software tools.

101

MY MEDIA

Playing back shared contents

You can display and play movie, photo and music content stored on your computer or other DLNA

media servers.

1Start the server on your computer or other device that connected on your home network.

NOTE

ŹTo play the file on the media server, the TV and the media server must be connected to the

same access point.

ŹBecause the compatibility and available playback functions on the MY MEDIA menu are tested

on the bundle DLNA server (Nero MediaHome 4 Essentials) environment, file requirements and

playback functions on the MY MEDIA may differ depending on media servers.

ŹThe file requirements on this page are not always compatible. There may have some restrictions

by file features and media server’s ability.

ŹMovie thumbnail is not supported in DLNA Movie.

ŹIf there is an unplayable music file in the MY MEDIA menu, the TV will skip the file and play next

file.

ŹThe file information indicated on the screen may not always correct for music and movie files in

MY MEDIA menu

ŹThis TV only supports movie subtitle files supplied by Nero MediaHome 4.

ŹThe subtitle file name and movie file name have to be the same and located at the same folder.

ŹIf subtitle files have been added after a directory has been indexed already, the user has to

remove and re-add the folder to the list of shares.

ŹThe playback and operating quality of the MY MEDIA function may be affected by your home

network condition.

ŹThe files from removable media such as USB drive, DVD-drive etc. on your media server may

not share properly.

Select MY MEDIA.

ENTER

Select Movie List, Photo List or Music List.

ENTER

Select the DLNA.

Depending on the media server, this TV may need to get the permission from

the server.

If you want to re-scan available media server, press blue color button.

MY MEDIA

102

MOVIE LIST

It displays all of the video files it recognizes.

The On-Screen Display on your model may be slightly different.

Precautions when playing the video files

ŹSome user-created subtitles may not work properly.

ŹSome special characters are not supported in subtitles.

ŹHTML tags are not supported in subtitles.

ŹTime information in an external subtitle file should be arranged in ascending order to be played.

ŹThe screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the

audio language is changed.

ŹA damaged video file may not be played correctly, or some functions may not be usable.

ŹVideo files produced with some encoders may not be played correctly.

ŹIf the video and audio structure of recorded file is not interleaved, the file not playback properly.

ŹVideo with resolution higher than maximum resolution supported for each frame, cannot be guar-

anteed for smooth playback.

ŹMovie files other than the specified types and formats may not work properly.

ŹThe movie file encoded by the GMC (Global Motion Compensation) is not supported.

ŹOnly the files saved in ASCII Code is supported in subtitles.

ŹOnly 250 Korean characters, 500 letters and 500 numbers are supported for each line of the

subtitle.

ŹOnly 10,000 sync blocks are supported within the subtitle file.

ŹWe do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264.

ŹDTS Audio codec is not supported.

ŹA video file more than 30GB in file size is not supported for playback.

ŹPlaying a video via a USB connection that doesn’t support high speed may not work properly.

ŹUSB storage devices below USB 2.0 are supported as well. But they may not work properly in the

movie list.

ŹThe video file and its subtitle file must be located in the same folder.

At this time, a video file name and its subtitle file name must be identical for it to be displayed.

ŹWhen you are watching a movie via the Movie List function, you can adjust the picture with the

ENERGY SAVING and AV MODE button on the remote control. User setup for each picture mode

is not supported.

Supported movie file

ᯫ

Resolution: under 1920 pixel (width) x 1080 pixel (height)

ᯫ

Frame Rate: under 30 frame/sec (1920x1080), under 60 frame/sec (1280x720)

103

MY MEDIA

Supported Video Formats

File

Extensions

Audio/

Video Codec Profile/Level Support Explanation

.asf

.wmv

.wma

Video

VC-1 Advanced Profile Advanced Profile@Level 3

(e.g. 720p60, 1080i60, 1080p30) Only streams compliant

to SMPTE 421M VC-1

standard are supported.

VC-1 Simple and Main Profiles Simple Profile@Medium Level (e.g. CIF, QVGA)

Main Profile@High Level (e.g. 1080p30)

Audio WMA Standard

WMA 9 Professional

.divx

.avi

Video

DivX3.11

Global motion compen-

sation or quarterpel

motion estimation does

not supported. Streams

using this syntax are not

supported.

DivX4

DivX5

DivX6

Advanced Simple Profile

(e.g. 720p/1080i)

XViD

H.264 / AVC

Main Profile@ Level 4.1

High Profile@ Level 4.1

(e.g. 720p60, 1080i60, 1080p30)

Audio

MPEG-1 Layer I, II

MPEG-1 Layer III (MP3)

AC-3

.mp4

.m4a

.m4v

Video

H.264 / AVC

Main Profile@ Level 4.1

High Profile@ Level 4.1

(e.g. 720p60, 1080i60, 1080p30)

Global motion compen-

sation or quarterpel

motion estimation does

not supported. Streams

using this syntax are not

supported.

MPEG-4 Part 2 Advanced Simple Profile (e.g. 720p/1080i)

Audio AAC AAC-LC and AAC-HE

.mkv

Video H.264 / AVC

Main Profile@ Level 4.1

High Profile@ Level 4.1

(e.g. 720p60, 1080i60, 1080p30)

Most of the MKV con-

tent available is encod-

ed by the open source

x264 codec.

Audio AAC AAC-LC and AAC-HE

AC-3

.ts

.trp

.tp

Video

H.264 / AVC

Main Profile@ Level 4.1

High Profile@ Level 4.1

(e.g. 720p60, 1080i60, 1080p30)

MPEG-2 Main Profile@High Level(e.g. 720p60, 1080i60)

VC-1

Simple Profile@Medium Level

(e.g. CIF, QVGA)

Main Profile@High Level

(e.g. 1080p30)

Advanced Profile@Level3

(e.g. 720p60, 1080i60, 1080p30)

Only streams compliant

to SMPTE 421M VC-1

standard are supported.

Audio

MPEG-1Layer I, II

MPEG-1 Layer III (MP3)

AC-3

AAC AAC-LC and AAC-HE

.vob

Video MPEG-1

MPEG-2 Main Profile@High Level (e.g. 720p60, 1080i60)

Audio

AC-3

MPEG-1Layer I, II

DVD-LPCM

.mpg Video MPEG-1

MPEG-2 Main Profile@High Level (e.g. 720p60, 1080i60) Only streams compliant

configured properly for

TS, PS or ES

Audio MPEG-1Layer I, II

109

MY MEDIA

The On-Screen Display on your model may be slightly different.

PHOTO LIST

Screen Components

Select MY MEDIA.Select Photo List.

ENTER

1Moves to upper level folder

2Current page/Total pages

3Corresponding buttons on the

remote control

4Contents under the folder

focused on 1

5Current page/total pages of

contents

Page 1/1

3KRWR/LVW

Page 1/1

'ULYH

1.EMF

BB7RS

BBB723

20090711 20090810

B7RS

20091010

'9'5LS$&

Basic Test Kit

(QWDO FHD HD MV 3KRWR TS

USB 1 XTICK

ᯒ0RYHᯙ9LHZ᱇3DJH&KDQJH᱅0DUN

ᯕ&KDQJH'HYLFH ᯕ7R0XVLF/LVW ᯕ&KDQJH1XPEHUV ᯕ0DUN0RGH ᰿ Exit

RED Change to a different input.

GREEN Move to Music List or Movie List.

YELLOW

Change Numbers: Changes the number or thumbnails displayed at a time.

BLUE Allows you to mark certain files.

EXIT

Return to TV viewing.

Supported photo file: *.JPG

ᯫ

Baseline: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)

ᯫ

Progressive: 64 pixel (width) x 64 pixel (height) to 1920 pixel (width) x 1440 pixel (height)

ᯫ

You can play JPEG files only.

ᯫ

Non-supported files are displayed in the form of predefined icon.

115

MY MEDIA

MUSIC LIST

Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be

supported by this TV.

The On Screen Display below may be different from your TV. Images are an example to assist with

the TV operation.

Supported Music File: *.MP3

Bit rate range: 32 Kbps ~ 320 Kbps

ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[

ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[

ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[

Screen Components

Select MY MEDIA.Select Music List.

ENTER

1Preview: If any album jacket for

the file (Album Art Image)

exists, this picture is displayed.

2Moves to upper level folder

3Current page/Total pages

4Corresponding buttons on the

remote control

5Contents under the folder

focused on 1

6Current page/total pages of

contents

Page 1/1

0XVLF/LVW

Page 1/1

'LHWIHDWPS
