User manual 3 of 4

PREPARATION21DESKTOP PEDESTAL INSTALLATIONKENSINGTON SECURITY SYSTEM■This feature is not available for all models.- The TV is equipped with a Kensington Security System connector onthe back panel. Connect the Kensington Security System cable asshown below.- For the detailed installation and use of the Kensington SecuritySystem, refer to the user’s guide provided with the KensingtonSecurity System.For further information, contact http://www.kensington.com,the internet homepage of the Kensington company. Kensington sellssecurity systems for expensive electronic equipment such as note-book PCs and LCD projectors.NOTE: The Kensington Security System is an optional accessory.SWIVEL STANDAfter installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suityour viewing position.For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.■Image shown may differ from your TV.4 inchesGEnsure adequate ventilation by following the clearance recommendations.GDo not mount near or above any type of heat source.CAUTION4 inches4 inches4 inches
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards. Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,potentially causing injury or damaging the product. Caution: Please make sure that children don’t climb on or hang from the TV. ■Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture. *If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts. * Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket that ismounted on the wall to the holes in the product. Ensure the eye-bolts or brackets are tightened securely.■Use a sturdy rope (sold separately) to tie the product. It is safer to tiethe rope so it becomes horizontal between the wall and the product.■You should purchase necessary components to prevent the TV from tipping over (when not using a wall mount).■Image shown may differ from your TV.GUse a platform or cabinet strong enough and large enough to support the size and weight of the TV.GTo use the TV safely make sure that the height of the bracket on the wall and the one on the TV are the same.NOTE!PREPARATION22SECURING THE TV TO THE WALL TO PREVENT FALLINGWHEN THE TV IS USED ON A STANDPREPARATION
PREPARATION23ANTENNA OR CABLE CONNECTION■To prevent damage do not connect to the power outlet until all connections are made between the devices.■Image shown may differ from your product.1. Antenna (Analog or Digital)Wall Antenna Socket or Outdoor Antenna without a Cable BoxConnections.For optimum picture quality, adjust antenna direction if needed.2. CableWallAntennaSocketOutdoorAntenna(VHF, UHF)Cable TVWall JackMulti-family Dwellings/Apartments(Connect to wall antenna socket)RF Coaxial Wire (75 ohm)RF Coaxial Wire (75 ohm)Single-family Dwellings /Houses(Connect to wall jack for outdoor antenna)Be careful not to bend the copper wirewhen connecting the antenna.Copper Wire■To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly. ■If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.■If the antenna is not installed properly, contact your dealer for assistance.■Refer to http://AntennaWeb.org for more information about antennas and Digital TV.ANTENNA/CABLE INANTENNA/CABLE IN1212COMPONENT INAV INLYPBPRRVIDEOAUDIOL(MONO)R213/DVI INRGB IN (PC)AUDIO IN(RGB/DVI)SERVICE ONLYOPTICALDIGITALAUDIO OUT ANTENNA/CABLE INRS-232C IN(SERVICE ONLY)OFFONAC IN VIDEOAUDIO
EXTERNAL EQUIPMENT SETUP24EXTERNAL EQUIPMENT SETUPHD RECEIVER SETUPThis Media Box can receive digital over-the-air/digital cable signals without an external digital set-top box.However, if you do receive digital signals from a digital set-top box or other digital external device.Component Connection1. How to connectConnect the video outputs (Y, PB, PR)of the digital set-top box to the COMPONENT IN VIDEO 1 or 2jacks on the Media Box. Match the jack colors (Y =green, PB= blue, and PR= red).Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO 1 or 2jacks on theMedia Box.212. How to use■Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box operation.)■Select the Component1 or Component2 input sourceusing the INPUT button on the remote control.■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.■Image shown may differ from your product.Y, CB/PB, CR/PRSupported ResolutionsHorizontal Vertical Frequency(KHz)Frequency(Hz)15.73 59.9415.73 60.0031.47 59.9431.50 60.0044.96 59.9445.00 60.0033.72 59.9433.75 60.0026.97 23.9727.00 24.0033.71 29.9733.75 30.0067.43 59.9467.50 60.00Resolution 720x480i720x480p1280x720p1920x1080i1920x1080pSignal480i480p720p1080 i1080 pComponentYesYesYesYesYesHDMINoYesYesYesYes213/DVI INRGB IN (PC)12COMPONENT INLYPBPRRVIDEOAUDIOY L RPBPRVIDEOL(MONO)12
EXTERNAL EQUIPMENT SETUP25HDMI ConnectionConnect the digital set-top box to HDMI/DVI IN1, 2, 3, or HDMI IN 4 jack on the Media Box orHDMI IN 5 on the TV.No separate audio connection is necessary.HDMI supports both audio and video.1. How to connect2. How to use■Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)■Select the HDMI1, HDMI2, HDMI3, HDMI4, or HDMI5input source using the INPUT button on the remote control.21HDMI-DTVHorizontal Vertical Frequency(KHz)Frequency(Hz)31.47 59.9431.50 60.0044.96 59.9445.00 60.0033.72 59.9433.75 60.0026.97 23.9727.00 24.0033.71 29.9733.75 30.0067.43 59.9467.50 60.00Resolution 720x480p1280x720p1920x1080i1920x1080p12COMPONENT INLYPBPRRVIDEORGB IN (PVIDEOAUDIOL(M213/DVI INHDMI OUTPUT1GCheck HDMI cable over version 1.3.If the HDMI cables don’t support HDMI version 1.3, it cancause flickers or no screen display. In this case use the lat-est cables that support HDMI version 1.3.GHDMI Audio Format: PCM, Dolby DigitalNOTE!
EXTERNAL EQUIPMENT SETUP26EXTERNAL EQUIPMENT SETUPDVI to HDMI Connection1Connect the DVI output of the digital set-top box tothe HDMI/DVI IN 1, 2, or 3jack on the MediaBox.Connect the digital set-top box audio output to theAUDIO IN (RGB/DVI)jack on the Media Box.1. How to connect2. How to use■Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-topbox.)■Select the HDMI1, HDMI2, or HDMI3 input sourceusing the INPUT button on the remote control.211212COMPONENT INAV INLYPBPRRVIDEOAUDIORGB IN (PC)VIDEOAUDIOL(MONO)R213/DVI INAUDIO IN(RGB/DVI)L RDVI OUTPUTAUDIOSE21

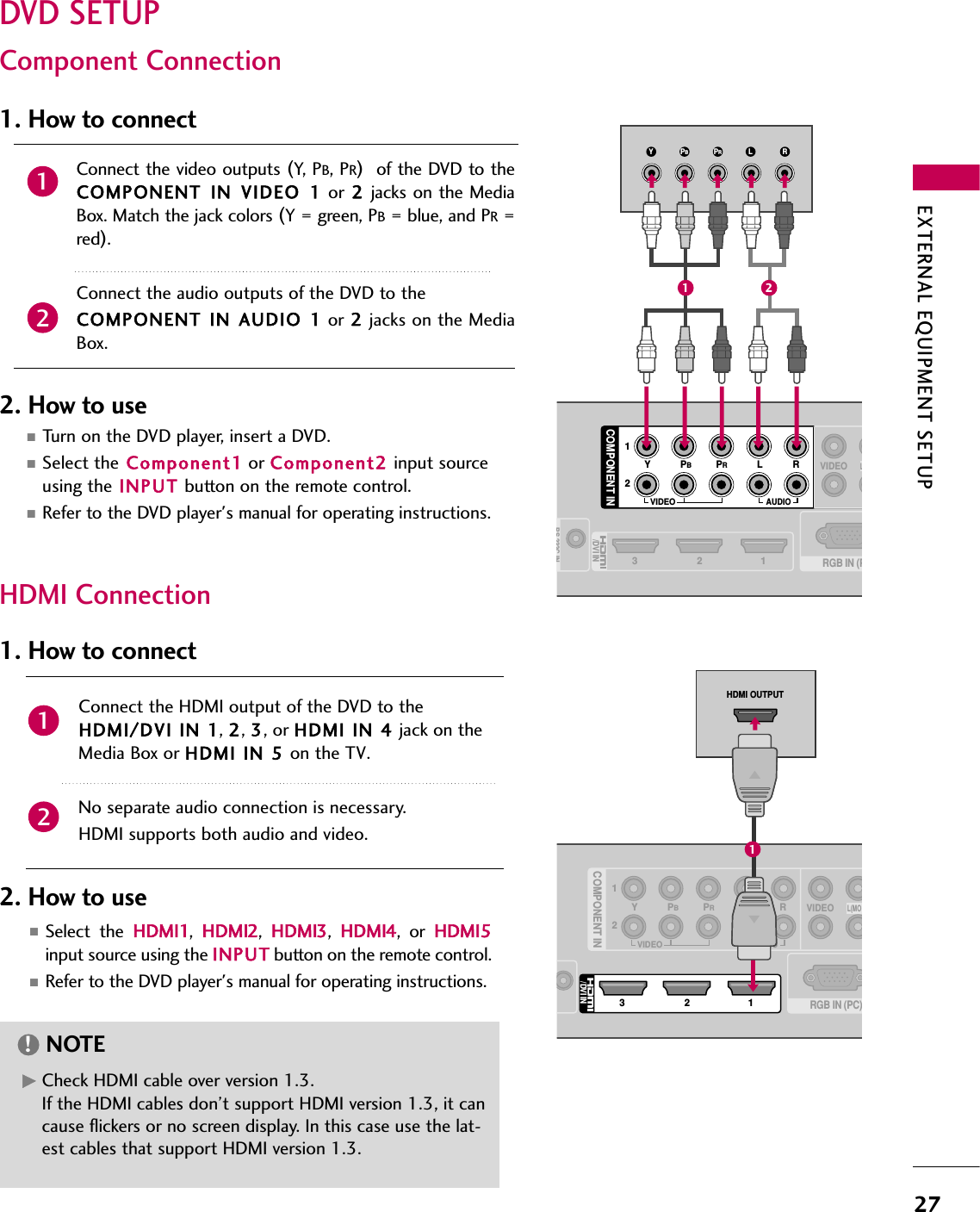

EXTERNAL EQUIPMENT SETUP27DVD SETUPComponent ConnectionConnect the video outputs (Y, PB, PR)of the DVD to theCOMPONENT IN VIDEO 1 or 2jacks on the MediaBox. Match the jack colors (Y = green, PB= blue, and PR=red).Connect the audio outputs of the DVD to the COMPONENT IN AUDIO 1 or 2jacks on the MediaBox.1. How to connect2. How to use■Turn on the DVD player, insert a DVD.■Select the Component1 or Component2 input sourceusing the INPUT button on the remote control.■Refer to the DVD player's manual for operating instructions.21213/DVI INRGB IN (PRS 232C IN12COMPONENT INLYPBPRRVIDEOAUDIOVIDEOLY L RPBPR1 2HDMI Connection12COMPONENT INLYPBPRRVIDEORGB IN (PC)VIDEOAUDIOL(MO213/DVI INHDMI OUTPUT1Connect the HDMI output of the DVD to theHDMI/DVI IN 1, 2, 3, or HDMI IN 4 jack on theMedia Box or HDMI IN 5 on the TV.No separate audio connection is necessary.HDMI supports both audio and video.1. How to connect2. How to use■Select the HDMI1, HDMI2, HDMI3, HDMI4, or HDMI5input source using the INPUT button on the remote control.■Refer to the DVD player's manual for operating instructions.21GCheck HDMI cable over version 1.3.If the HDMI cables don’t support HDMI version 1.3, it cancause flickers or no screen display. In this case use the lat-est cables that support HDMI version 1.3.NOTE!
EXTERNAL EQUIPMENT SETUP28VCR SETUPEXTERNAL EQUIPMENT SETUPAntenna ConnectionConnect the RF antenna out socket of theVCR to the ANTENNA/CABLE IN sock-et on the Media Box.Connect the antenna cable to the RFantenna in socket of the VCR.1. How to connect2. How to use■Set VCR output switch to 3 or 4 and thentune Media Box to the same channel number.■Insert a video tape into the VCR and pressPLAY on the VCR. (Refer to the VCR owner’smanual.)21TICALGITALIO OUT ANTENNA/CABLE INL RS-VIDEO VIDEOOUTPUTSWITCHANT INANT OUTAUDIOWall JackAntenna12Composite (RCA) Connection213/DVI INRGB IN (PC)AUDIO IN(RGB/DVI)AV INVIDEOAUDIOL(MONO)RL RS-VIDEO VIDEOAUDIOOUTPUTSWITCHANT INANT OUT1212COMPONENT INLYPBPRRVIDEOAUDIOSE1Connect the AUDIO/VIDEO jacks between MediaBox and VCR. Match the jack colors (Video = yellow,Audio Left = white, and Audio Right = red)1. How to connect2. How to use■Insert a video tape into the VCR and press PLAYon the VCR. (Refer to the VCR owner’s manual.)■Select the AV1 or AV2 input source using theINPUT button on the remote control.1
EXTERNAL EQUIPMENT SETUP29OTHER A/V SOURCE SETUP213/DVI INRGB IN (PC)AUDIO IN(RGB/DVI)AV INVIDEOAUDIOL(MONO)RL RVIDEO1212COMPONENT INLYPBPRRVIDEOAUDIOSERVICE ONLYCamcorderVideo Game SetConnect the AUDIO/VIDEO jacksbetween Media Box and external equip-ment. Match the jack colors.(Video = yellow, Audio Left = white, andAudio Right = red)1. How to connect2. How to use■Select the AV1 or A V2 input source using theINPUT button on the remote control.■Operate the corresponding external equipment.11
EXTERNAL EQUIPMENT SETUP30USB CONNECTIONEXTERNAL EQUIPMENT SETUPUSB IN IN 4V COM1 COM2 AV1 AV2 12 3Memory KeyConnect the USB device to the USB I N jack on theMedia Box. 1. How to connect12. How to use■After connecting the USB I N jack, you use the USB function.(Gp.60)1orGCheck USB cable over version 2.0.NOTE!
EXTERNAL EQUIPMENT SETUP31AUDIO OUT CONNECTION12AV INAUDIOAUDIO IN(RGB/DVI)ANTECABO)ROPTICALDIGITALAUDIO OUT SERVICE ONLY12NOTE!GDo not look into the optical output port. Looking at thelaser beam may damage your vision.GGAudio with ACP (Audio Copy Protection) function mayblock digital audio output.CAUTIONConnect one end of the optical cable to the Media Boxport of OPTICAL DIGITAL AUDIO OUT.Connect the other end of the optical cable to the digitalaudio input on the audio equipment.Set the “TV Speaker - Off” in the AUDIO menu. (Gp.94).See the external audio equipment instruction manual foroperation.1. How to connect231Send the TV’s audio to external audio equipment via the Audio Output port.If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITALAUDIO OUT terminal on the back of Media Box to a Home Theater (or amp). GWhen connecting with external audio equipment, such asamplifiers or speakers, you can turn the TV speakers off inthe menu. (G p.94)GHDMI5 input source cannot be used for AUDIO OUT.
EXTERNAL EQUIPMENT SETUP32PC SETUPEXTERNAL EQUIPMENT SETUPThis TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. VGA (D-Sub 15 pin) Connection12AV INLRRVIDEOAUDIO1AUDIOL/MONORRGB IN (PC)AUDIO IN(RGB/DVI)RGB OUTPUT AUDIOSERVICE ONLY21Connect the VGA output of the PC to the RGB IN(P C)jack on the Media Box.Connect the PC audio output to the AUDIO IN(RGB/DVI)jack on the Media Box.1. How to connect2. How to use■Turn on the PC and the Media Box.■Select the RGB-PC input source using the INPUT buttonon the remote control.21DVI to HDMI Connection1212COMPONENT INAV INLYPBPRRVIDEOAUDIORGB IN (PC)VIDEOAUDIOL(MONO)R213/DVI INAUDIO IN(RGB/DVI)AUDIODVI OUTPUT12Connect the DVI output of the PC to the HDMI/DVIIN 1, 2, or 3jack on the Media Box.Connect the PC audio output to the AUDIO IN(RGB/DVI) jack on the Media Box.1. How to connect2. How to use■Turn on the PC and the Media Box.■Select the HDMI1, HDMI2, or HDMI3 input sourceusing the INPUT button on the remote control.21GCheck HDMI cable over version 1.3.If the HDMI cables don’t support HDMI version 1.3,it can cause flickers or no screen display. In this caseuse the latest cables that support HDMI version 1.3.NOTE!
EXTERNAL EQUIPMENT SETUP33NOTES!Supported Display Specifications (RGB-PC, HDMI-PC)Resolution 720x400640x350Horizontal Vertical Frequency(KHz)Frequency(Hz)31.468 70.0931.469 70.0831.469 59.9437.879 60.3148.363 60.0047.776 59.8747.712 60.01563.981 60.0275.00 60.0066.587 59.93467.5 60.00640x480800x6001024x7681280x7681280x10241360x7681600x12001920x1080RGB-PC1920x1080HDMI-PCGTo get the the best picture quality, adjust the PCgraphics card to 1920x1080.GDepending on the graphics card, DOS mode maynot work if a HDMI to DVI Cable is in use.GIn PC mode, there may be noise associated withthe resolution, vertical pattern, contrast or bright-ness. If noise is present, change the PC output toanother resolution, change the refresh rate toanother rate or adjust the brightness and contraston the PICTURE menu until the picture is clear.GAvoid keeping a fixed image on the screen for along period of time. The fixed image may becomepermanently imprinted on the screen.GThe synchronization input form for Horizontal andVertical frequencies is separate.GDepending on the graphics card, some resolutionsettings may not allow the image to be positionedon the screen properly.GIf there are overscan in HDMI-PC 1920x1080,change aspect ratio to Just scan.GWhen selecting HDMI-PC, set the “Input Label -PC” in the OPTION menu. GA driver for the TV is not needed. The TV sendsthe required info to the graphics card.
EXTERNAL EQUIPMENT SETUP34EXTERNAL EQUIPMENT SETUPScreen Setup for PC modeSelecting ResolutionYou can choose the resolution in RGB-PC mode. The Position, Phase, and Size can also be adjusted.You can choose this option only when the PC resolution is set to 1024X768, 1280X768 or 1360X768.Select PICTURE.Select Screen (RGB-PC).Select Resolution.Select the desired resolution.Auto Config.ResolutionPositionSizePhaseResetSCREENMovePrev.1MENU342ENTERENTERENTER5ENTEREnterMovePICTUREERG• Brightness 50• Sharpness 50• Color 50• Tint 0• Advanced Control• Picture ResetScreen (RGB-PC)LED Local Dimming: On1024 x 7681280 x 7681360 x 768
EXTERNAL EQUIPMENT SETUP35Auto ConfigureAutomatically adjusts picture position and minimizes image instability. After adjustment, if the image is stillnot correct, try using the manual settings or a different resolution or refresh rate on the PC.Select Screen (RGB-PC).Select Auto Config..Auto Config.ResolutionPositionSizePhaseResetSCREENMovePrev.To Set32ENTERENTERSelect Yes.4ENTERStart Auto Configuration.5ENTERSelect PICTURE.1MENU■If the position of the image is still notcorrect, try Auto adjustment again.■If picture needs to be adjusted againafter Auto adjustment in RGB-PC, youcan adjust the Position, Size orPhase.Yes NoEnterMovePICTUREERG• Brightness 50• Sharpness 50• Color 50• Tint 0• Advanced Control• Picture ResetScreen (RGB-PC)LED Local Dimming: On
EXTERNAL EQUIPMENT SETUP36EXTERNAL EQUIPMENT SETUPAdjustment for screen Position, Size, and PhaseIf the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picturephase manually.This feature operates only in RGB-PC mode.Select Position, Size, or Phase.Make appropriate adjustments.Auto Config.ResolutionPositionSizePhaseResetGFDESCREENMovePrev.3ENTER4ENTER■Position: This function is to adjust pic-ture to left/right and up/down as youprefer. ■Size: This function is to minimize anyvertical bars or stripes visible on thescreen background. And the horizontalscreen size will also change.■Phase: This function allows you toremove any horizontal noise and clear orsharpen the image of characters.Select PICTURE.Select Screen (RGB-PC).1MENU2ENTER5ENTEREnterMovePICTUREERG• Brightness 50• Sharpness 50• Color 50• Tint 0• Advanced Control• Picture ResetScreen (RGB-PC)LED Local Dimming: On
EXTERNAL EQUIPMENT SETUP37Screen Reset (Reset to original factory values)Returns Position, Size, and Phase to the default factory settings.This feature operates only in RGB-PC mode.Auto config.PositionResolutionSizePhaseResetSCREENMovePrev.To SetSelect Reset.3ENTERSelect PICTURE.Select Screen (RGB-PC).1MENU2ENTERSelect Yes.4ENTER5ENTERYes NoEnterMovePICTUREERG• Brightness 50• Sharpness 50• Color 50• Tint 0• Advanced Control• Picture ResetScreen (RGB-PC)LED Local Dimming: On
WATCHING TV / CHANNEL CONTROL38REMOTE CONTROL FUNCTIONSWATCHING TV / CHANNEL CONTROLWhen using the remote control, aim it at the remote control sensor on the TV.POWER1234567809FLASHBKLISTINPUTON/OFFAV MODEENERGY SAVINGTVFAVMUTEMARKVOL CHPAGEQ. MENUMENUENTERRETURNINFOPOWERON/OFF TVENERGY SAVINGAV MODEINPUTTHUMBSTICK(Up/Down/LeftRight/ENTER)INFORETURNCOLOR buttonsSIMPLINKWhen the TV and Media Box are connected, the powerof both the TV and Media Box will be turned on/off. When the TV will Media Box are not connected, onlythe power of the TV will be turned on/off. Illuminates the remote control buttons.Returns to the last TV channel.Adjusts the Energy Saving setting. Gp.84Toggles through preset Video and Audio modes. Gp.56Rotates through inputs. Also switches the TV on from standby. Gp.54Navigates the on-screen menus and adjusts the systemsettings to your preference.Displays channel information and wireless signal strengthat the top of the screen. Gp.53Allows the user to move return one step in an interactiveapplication or other user interaction function.Uses for Optional functions. Controls USB menu (Photo List, Music List, Movie List.)Controls the SIMPLINK compatible devices.See a list of AV devices connected to the Media Box.When you toggle this button, the SIMPLINK menuappears at the screen. Gp.58-59USB, SIMPLINK Control buttons47/55LH85
WATCHING TV / CHANNEL CONTROL39■Open the battery compartment cover on the back side andinstall the batteries matching correct polarity.■Install two 1.5V AAA batteries. Don’t mix old or used bat-teries with new ones.■Close cover.Installing BatteriesNUMBER button— (DASH)LISTFLASHBKVOLUME UP/DOWNFAVMARKMUTECHANNELUP/DOWNPAGEUP/DOWNMENUQ.MENUUsed to enter a program number for multiple program channels such as 2-1, 2-2, etc.Displays the channel table. Gp.51Tunes to the last channel viewed.Adjusts the volume.Scroll through the programmed Favorite channels. Gp.52Select the input to apply the Picture Wizard settings. Gp.76Use to mark or unmark a photo/music/movie. Gp.62, 66, 69Switches the sound on or off. Gp.44Changes the channel.Moves from one full set of screen information to the next one.Displays the main menu or clears all on-screen displays and return to TV viewing.Opens the list of Quick Menu options. Gp.47
WATCHING TV / CHANNEL CONTROL40WATCHING TV / CHANNEL CONTROLWhen using the remote control, aim it at the remote control sensor on the TV.POWERTVAVMODEENERGY SAVINGPAGEVOL CHFAVMARK/MUTEON/OFF1234506789LISTFLASHBKINPUTMENU RATIOQ.MENUINFORETURNENTER■Open the battery compartment cover onthe back side and install the batteriesmatching correct polarity.■Install two 1.5V AAA batteries. Don’t mixold or used batteries with new ones.■Close cover.Installing BatteriesPOWERON/OFF TVENERGY SAVINGAV MODEINPUTTHUMBSTICK(Up/Down/LeftRight/ENTER)INFOSIMPLINKRETURNCOLOR buttonsWhen the TV and Media Box are connected, the powerof both the TV and Media Box will be turned on/off. When the TV will Media Box are not connected, onlythe power of the TV will be turned on/off. Illuminates the remote control buttons.Returns to the last TV channel.Adjusts the Energy Saving setting. Gp.84Toggles through preset Video and Audio modes. Gp.56Rotates through inputs. Also switches the TV on from standby. Gp.54Navigates the on-screen menus and adjusts the systemsettings to your preference.Displays channel information and wireless signal strengthat the top of the screen. Gp.53See a list of AV devices connected to the Media Box.When you toggle this button, the SIMPLINK menuappears at the screen. Gp.58-59Allows the user to move return one step in an interactiveapplication or other user interaction function.Uses for Optional functions. Controls USB menu (Photo List, Music List, Movie List.)Controls the SIMPLINK compatible devices.USB, SIMPLINK Control buttons55LHX
WATCHING TV / CHANNEL CONTROL41NUMBER button— (DASH)LISTFLASHBKVOLUME UP/DOWNFAVMARKMUTECHANNELUP/DOWNPAGEUP/DOWNMENUQ.MENURATIOUsed to enter a program number for multiple program channels such as 2-1, 2-2, etc.Displays the channel table. Gp.51Tunes to the last channel viewed.Adjusts the volume.Scroll through the programmed Favorite channels. Gp.52Select the input to apply the Picture Wizard settings. Gp.76Use to mark or unmark a photo/music/movie. Gp.62, 66, 69Switches the sound on or off. Gp.44Changes the channel.Moves from one full set of screen information to the next one.Displays the main menu or clears all on-screen displays and return to TV viewing.Opens the list of Quick Menu options. Gp.47Changes the aspect ratio. Gp.74POWERMUTEVOLUME UP/DOWNCHANNELUP/DOWNTurns the TV on from standby or off.Switches the sound on or off. Gp.44Adjusts the volume.Changes the channel.POWERVOL CHMUTESimple Remote Control■Open the battery compartment coveron the back side and install the batterymatching correct polarity.■Install 3V CR2450 battery.■Close cover.Installing Batteries
WATCHING TV / CHANNEL CONTROL42TURNING ON THE TVWATCHING TV / CHANNEL CONTROLFirst, connect power cord correctly and switch the main power switch to the on position (ON) on the TVand Media Box.At this moment, the TV and Media Box switch to standby mode.■In standby mode to turn TV on, press the , INPUT,CH ( or )button on the TV or press thePOWER, INPUT, CH ( or ), Number (0~9) button on the remote control.Turning on or off the TV will turn on or off the Media Box also. If the Media Box doesn’t turn on automati-cally, adjust the Media box location. ( Gp.15-16)When the power of the TV is turned on, the picture will be displayed as follows by stage according to thewireless connecting procedure.12Connecting TV to the Media-Box.Please wait.Wireless TV connecting...Connecting TV to the Media-Box.Please wait.Wireless TV connecting...Connecting TV to the Media-Box.Please wait.Wireless TV connecting...TV is searching for the media box using the wireless connection. If it does not move to the next stage within 40 seconds, adjust theMedia Box location (Refer to P.15-16).TV is trying to establish the wireless connection after locating theMedia Box. If it does not move to the next stage in about 5 seconds, adjust theMedia Box location (Refer to P.15-16).Wireless connection is completed. ■This screen appears whenever you turn the TV.■Connecting the TV and Media Box will take about 30-40 seconds.■The screen becomes dark briefly right before the connection process is complete.
WATCHING TV / CHANNEL CONTROL43NOTE!Select the viewing source by using the INPUT button on the remote control.■This TV is programmed to remember which power state it was last set to, even if the power cord is out.When finished using the TV, press the POWER button on the remote control. The TV reverts to standbymode.34GIf you intend to be away on vacation, disconnect the power plug from the wall power outlet.GIf you do not complete the Initial setting, it will appear whenever the TV is switched on until the Initialsetting procedure is completed.GIf you remove power from the TV/Media Box or turn off the main power switch on the TV/Media Box, theClock will be reset.
WATCHING TV / CHANNEL CONTROL44CHANNEL SELECTIONWATCHING TV / CHANNEL CONTROLPress the CH ( or )or NUMBER buttons to select a channel number.1VOLUME ADJUSTMENTPress the VOL (+ or -) button to adjust the volume.If you want to switch the sound off, press the MUTE button. You can cancel the Mute function by pressing the MUTE or VOL (+ or -)button.Adjust the volume to suit your personal preference.123
WATCHING TV / CHANNEL CONTROL45INITIAL SETTINGThis Function guides the user to easily set the essential items for viewing the TV for the first time whenpurchasing the TV. It will be displayed on the screen when turning the TV on for the first time. It can also beactivated from the user menus.■Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the best pic-ture in your home environment.■“Store Demo” Mode is only intended for use in retail environments. Customers can adjust the “Picturemenu - Picture mode” manually while inspecting the TV, but the TV will automatically return to preset in-store mode after 5 minutes.■“Store Demo” Mode is an optimal setting for displaying at stores. “Store Demo” mode initializes the TVto set the image quality.■You can also adjust Initial Setting in the OPTION menu.Check your antenna connection and startAuto Tuning.1ENTERStep3. Time settingStep4. Auto TuningLanguageStep1. Selecting LanguageEnglishEspañolFrançaisSelecting the environment.Choose the setting mode you want.Select [Home Use] to use this TV at home. To use this TV at Store, select [Store Demo].Store DemoHome UseMode SettingStep2. Mode settingNextPreviousNextPreviousSelect Auto or Manual.Select desired timeoption.12ENTERMonthCurrent Time Setting02Date 21Year 2009Hour 10 AMMinute 10Time Zone EasternDaylight SavingAutoF Auto GTime SettingNextPreviousBefore starting,be sure that theTV antenna is connected.Auto TuningNextSimple ManualPreviousINFOiSelect Menu Language.1ENTERSelect Home Use.1ENTER
WATCHING TV / CHANNEL CONTROL46ON-SCREEN MENUS SELECTIONWATCHING TV / CHANNEL CONTROLYour TV's OSD (On Screen Display) may differ slightly from that shown in this manual.Display each menu.Select a menu item.Accept the current selection.1MENU32ENTERENTERReturn to TV viewing.4MENUEnterMoveAuto TuningManual TuningChannel EditCHANNELCHANNELOPTIONPICTURELOCKAUDIOINPUTTIMEUSBEnterMoveAspect Ratio : 16:9Picture WizardEnergy Saving: OffPicture Mode : Standard• Backlight 70 • Contrast 90• Brightness 50• Sharpness 70PICTUREEEnterMoveAuto Volume : OnClear Voice II : On• Level 3Balance 0Sound Mode : Standard•SRS TruSurround XT:Off• Treble 50• Bass 50AUDIOEEnterMoveClockOff Time : OffOn Time : OffSleep Timer : OffTIMEEnterMovePhoto ListMusic ListMovie ListDivX Reg.CodeDeactivationUSBEnterMoveTVAV1AV2Component1Component2RGB-PCHDMI1HDMI2INPUTEEnterMoveLock System : OffSet PasswordBlock ChannelMovie RatingTV Rating-ChildrenTV Rating-GeneralDownloadable RatingInput BlockLOCKLock System : OffSet PasswordBlock ChannelTV Rating-EnglishTV Rating-FrenchDownloadable RatingInput BlockEnterMoveMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorOPTIONFor USA For CanadaELR-+
WATCHING TV / CHANNEL CONTROL47QUICK MENUDisplay each menu.Make appropriate adjustments.Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.Q.Menu (Quick Menu) is a menu of features which users might use frequently.1Q. MENU23Q. MENUReturn to TV viewing.A16:9F Aspect Ratio GAspect Ratio: Selects the desired picture format. Picture Mode: Selects the desired preset picture setting.Sound Mode: Selects the desired preset sound setting.Multi Audio: Changes the audio language (Digital signal).SAP: Selects MTS sound (Analog signal).Sleep Timer: Select the amount of time before your TVturns off automatically.Del/Add/Fav: Select channel you want to add/delete oradd the channel to the Favorite List.Caption: Select on or off.USB Device: Select “Eject” in order to eject a USBdevice.A
WATCHING TV / CHANNEL CONTROL48CHANNEL SETUPWATCHING TV / CHANNEL CONTROLAuto Scan (Auto Tuning)Automatically finds all channels available through antenna or cable inputs, and stores them in memory on thechannel list. Run this function if you change your residence or move the TV. Also, make sure to run this function with theantenna connected during TV broadcasting hours.Auto Tuning memorizes only the channels available at the time.Select CHANNEL.Select Auto Tuning.Select Yes.Run Auto tuning.EnterMoveCHANNELEnterMoveCHANNEL1MENU32ENTERENTER4ENTERAuto TuningManual TuningChannel EditAuto TuningManual TuningChannel Edit■The TV will ask for a password if parentalcontrol has been activated (LOCKMenu). Use the password you set up inthe LOCK Menu to allow a channelsearch.■When setting the Auto tuning or Manualtuning, the number of maximum channelsyou can store is 1000.It is subject to change depending on thebroadcasting signal environment.■Memorizes all the available channels inthe order of DTV, TV, CADTV and CATV.5RETURNReturn to the previous menu.MENUReturn to TV viewing.Check your antenna connection.The previous channel informationwill be updated during Auto Tuning.YesNo
WATCHING TV / CHANNEL CONTROL49Select CHANNEL.1MENU2ENTERWhen selecting DTV or CADTV input signal in the Manual Tuning menu, you can view the on-screen signalstrength monitor to see the quality of the signal being received.Add/Delete Channel (Manual Tuning)EnterMoveCHANNELEnterMoveCHANNELChannelSelect channel type and RF-channel number.F DTVG2CloseDeleteAuto TuningManual TuningChannel EditDTV 2-1Bad Normal GoodSelect Manual Tuning.Select DTV, T V, CADTV, or CATV.Select channel you want to addor delete.3ENTER4Select Add or Delete.5ENTERAuto TuningManual TuningChannel Edit■The TV will ask for a password if parentalcontrol has been activated (LOCKMenu). Use the password you set up inthe LOCK Menu to allow a channelsearch.■When setting the Auto tuning or Manualtuning, the number of maximum channelsyou can store is 1000.It is subject to change depending on thebroadcasting signal environment.6RETURNReturn to the previous menu.MENUReturn to TV viewing.
WATCHING TV / CHANNEL CONTROL50WATCHING TV / CHANNEL CONTROLSelect a channel.Add or delete a channel.3ENTER4The channels in the Channel Edit List are displayed in black and the channels deleted from the Channel EditList are displayed in blue. When a channel number is deleted, it means that you will be unable to select it using CH button during TVviewing. If you wish to select the deleted channel, directly enter the channel number with the NUMBER buttons or selectit in the Channel Edit menu.Channel EditingEnterMoveCHANNELAuto TuningManual TuningChannel EditSelect CHANNEL.1MENU2ENTERSelect Channel Edit.Return to the previous menu.5RETURNReturn to TV viewing.MENUCh. Change Page ChangeCHNavigation PreviousAdd/Delete■Keep pressing the button and use theor buttons to move between DTV,TV, CADTV and CATV.■If the channel list is too long, use theCH or button to move betweenpages.BLUE
WATCHING TV / CHANNEL CONTROL51CHANNEL LISTExit2-13-14-1DTVDTVDTVChannel ListYou can check which channels are stored in the memory by displaying the channel list.Display the Channel List.1LISTDisplaying Channel ListSelect a channel.1Switch to the chosen channel number.2ENTERSelecting a channel in the channel listTurn the pages.1CHPAGEReturn to TV viewing.2RETURNPaging through a channel listThis padlock is displayedwhen the channel is lockedwith parental control.
WATCHING TV / CHANNEL CONTROL52FAVORITE CHANNEL SETUPWATCHING TV / CHANNEL CONTROLFAVORITE CHANNEL LISTFavorite Channels are a convenient feature that lets you quickly select channels of your choice without waitingfor the TV to select all the in-between channels.To tune to a favorite channel, press the FAV (Favorite) button repeatedly.Return to TV viewing.4Q. MENUSelect Favorite.3Select your desired channel.1CHPAGE14567809232Q. MENUSelect Del/Add/Fav.orAFavoriteF Del/Add/Fav GExit2-13-14-1DTVDTVDTVFavorite ListSelect a channel.1Switch to the chosen channel number.2ENTERSelecting a channel in the favorite channel listTurn the pages.1CHPAGEReturn to TV viewing.2RETURNPaging through a favorite channel listDisplay the Favorite channel list.1MARKFAVDisplaying the favorite channel list
WATCHING TV / CHANNEL CONTROL53BRIEF INFORMATION1INFO iBrief Info shows the present screen information.Show the Brief Info on the screen.2RETURNReturn to TV viewing. 4567Program titleDay, Month, YearProgram start timeProgram progress barProgram finish timePresent timeBanner information1234567Brief Info Title Test..Sat, Feb 21, 2009 10:10 AM 11:40 AMCNNDOLBY DIGITAL10:40 AMMultilingual CaptionD 1080i TV-PG D L S V CC1 2 3 4 5 67WirelessSignal8Multilingual : The program contains two or moreaudio services. Use the Q.MENU menu to selectwanted Audio.Caption : The program contains one or more captionservices. Use the Q.MENU menu to select wantedClosed caption.Dolby Digital: The program contains a Dolby Digitalaudio signal in TV, HDMI input source, or DivX.The original aspect ratio of the video is 4:3The original aspect ratio of the video is 16:9 (wide)The video resolution is 720x480iThe video resolution is 720x480pThe video resolution is 1280x720pThe video resolution is 1920x1080iThe video resolution is 1920x1080pV-Chip: The program contains V-Chip information.Refer to the LOCK menu: A (Age), D (Dialogue), L(Language), S (Sex), V (Violence), FV (Fantasy Violence)480i480p720p1080 i1080 p4:316:9CCReceived wireless signal strengthindicator.The signal strength meter changes con-tinuously due to external influences.The performance of wireless signal maydiffer depending on where the TV andMedia Box are located. Make sure toinstall the Media Box where the sensi-tivity of radio-signal reception is“Strong signal".8Strong signal Good signal Weak signalD
WATCHING TV / CHANNEL CONTROL54INPUT LISTWATCHING TV / CHANNEL CONTROLTV AV1 AV2HDMI4HDMI5HDMI3 HDMI2 HDMI1Component1 Component2RGB-PCSelect the desired input source.■You can also select the desired input source in the INPUT menu.1INPUTENTERTV AV1 AV2 Component1 Component2TV AV1 AV2 Component1 Component2Input Label ExitSelect a desired input source (except T V).Then, you can select your desired InputLabel with using Blue button. Gp.55ie)ie) In case of changing the input label using Blue buttonOnly these input signals which are connected to a TV/Media Box can be activated and selected.■T V: Select it to watch over-the-air, cable and digi-tal cable broadcasts.■A V: Select them to watch a VCR or other externalequipment.■Component: Select them to watch DVD or aDigital set-top box.■RGB-PC: Select it to view PC input.■HDMI: Select them to watch high definitiondevices.VCR Game DVD Set Top Box■When a new external device is connected, this popup menu isdisplayed automatically. If selecting Yes, you can select input source that you want toappreciate.■But, when selecting “SIMPLINK - O n”, popup menu for HDMIinput will not be displayed.NoYes!New external input is connected.Do you want to use this?AV2Disconnected inputs are inactive (grayed out)■Some menus are not available when using HDMI 5.■HDMI 5 doesn't support SIMPLINK (HDMI-CEC).
WATCHING TV / CHANNEL CONTROL55INPUT LABELThis indicates which device is connected to which input port. EnterMoveOPTIONMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorSelect OPTION.Select Input Label.Select the label.1MENU2ENTERSelect the source.3ENTER45RETURNReturn to the previous menu.MENUReturn to TV viewing.With using OPTION menuSelect the source.Select the label.1INPUT23RETURNReturn to the previous menu.MENUReturn to TV viewing.With using INPUT buttonAV1AV2Component1Component2RGB-PCHDMI1HDMI2HDMI3HDMI4HDMI5F GCloseEEnterMoveOPTIONMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorEBLUE
WATCHING TV / CHANNEL CONTROL56AV MODEWATCHING TV / CHANNEL CONTROLAV Mode toggles through preset Video and Audio settings.1AV MODE2Off CinemaGame SportPress the AV MODE button repeatedly toselect the desired source.ENTER■If you select “Cinema” in AV mode,Cinema will be selected both for “PIC-TURE menu - Picture Mode” and “AUDIOmenu - Sound Mode” respectively.■If you select “O f f” in AV mode, the“Picture Mode” and “Sound Mode”return to previous selected value. ■Off: Disables the AV MODE.■Cinema: Optimizes video and audio forwatching movies.■Sport: Optimizes video and audio forwatching sports events.■Game: Optimizes video and audio forplaying games.SIMPLE MANUALEnterMoveOPTIONMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorEYou can easily and effectively access the TV information by viewing a simple manual on the TV.During the Simple Manual operation, audio will be muted.Select OPTION.Select Simple Manual.1MENU2ENTERSelect the part of the manualyou want to see.3ENTER4RETURNReturn to TV viewing.
WATCHING TV / CHANNEL CONTROL57KEY LOCKThis feature can be used to prevent unauthorized viewing by locking out the front panel controls, so that it canonly be used with the remote control.This TV is programmed to remember which option it was last set to even if you turn the TV off.Select OPTION.Select Key Lock.1MENU2ENTERSelect O n or Off.3ENTER■In Key Lock ‘O n’, if the TV is turned off,press the rr/ I, INPUT, CH ( ) buttonon the TV or POWER, INPUT, CH () or NUMBER buttons on the remotecontrol.■With the Key Lock On, the display ‘ Key Lock’ appears on the screen ifany button on the front panel is pressedwhile viewing the TV.4RETURNReturn to the previous menu.MENUReturn to TV viewing.!EnterMoveOPTIONMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OnSimple ManualCaption : OffPower IndicatorEEnterMoveOPTIONMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorEOffOn
WATCHING TV / CHANNEL CONTROL58WATCHING TV / CHANNEL CONTROLSIMPLINK allows you to control and play other AV devices connected with HDMI cable without additionalcables and settings. This TV may work with devices with HDMI-CEC support, but only devices with thelogo are fully supported.SIMPLINK can be turned on and off in the user menus.SIMPLINK is not supported by the HDMI IN 5 input.EnterMoveOPTIONSelect OPTION.Select SIMPLINK.Select On or Off.EnterMoveOPTIONE1MENU32ENTERENTERMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorMenu Language : EnglishAudio Language : EnglishInput LabelSIMPLINK : OnKey Lock : OffSimple ManualCaption : OffPower IndicatorOffOnNOTE!GConnect the HDMI/DVI IN or HDMI IN terminal of the Media Box to the rear terminal (HDMI terminal) ofthe SIMPLINK device with an HDMI cable. GWhen you switch the Input source with the INPUT button on the remote control, the SIMPLINK devicewill stop.GWhen you select a device with home theater functionality, the sound output automatically switches tothe home theater speakers and the TV speakers are turned off.GIf a connected SIMPLINK home theater system doesn't play the audio from the TV, connect the DIGITALAUDIO OUT terminal on the back of the Media Box to the DIGITAL AUDIO IN terminal on the back ofthe SIMPLINK device with an OPTICAL cable.E4RETURNReturn to the previous menu.MENUReturn to TV viewing.
WATCHING TV / CHANNEL CONTROL59SIMPLINK Menu TV viewing: Switch to the previous TVchannel regardless of the current mode.DISC playback: Select and play discs.When multiple discs are available, the titlesof discs are conveniently displayed at thebottom of the screen.VCR playback: Control the connectedVCR.HDD Recordings playback: Controlrecordings stored in HDD.Audio Out to Home Theater speak-er/Audio Out to TV: Select HomeTheater speaker or TV speaker for AudioOut.SIMPLINK Functions12345GWhen no device is connected(displayed in gray)GSelected DeviceGWhen a device is connected(displayed in bright color)12345Display SIMPLINK menu.Select the desired device.Control connected AV devices.132ENTERENTER■Direct Play: After connecting AV devices to the Media Box, you can directly control the devices and play mediawithout additional settings.■Select AV device: Enables you to select one of the AV devices connected to the Media Box.■Disc playback: Control connected AV devices by pressing the , ENTER, G, A, l l, FF and GG buttons. ■Power off all devices: When you power off the TV, all connected devices are turned off.■Switch audio-out: Offers an easy way to switch audio-out.Note: To operate SIMPLINK, an HDMI cable over Version 1.3 with *CEC function should be used (*CEC: ConsumerElectronics Control).(A device, which is connected to the Media Box through a HDMI cable but does not support SIMPLINK, does notprovide this function)
ENTRY MODESUSB60USBPrecautions when using the USB deviceGOnly a USB storage device is recognizable. GConnecting a USB storage device through a USBhub is not supportedGA USB storage device which uses its own drivermay not be recognized.GThe recognition speed of a USB storage devicemay depend on each device.GIn case of several paritions or a card reader, up tofour memory cards are concurrently recognizable.GIf your USB memory device has multiple parti-tions, or if you use a USB multi-card reader, youcan use up to 4 partitions or USB memorydevices.GPlease do not turn off the TV or unplug the USBdevice when the connected USB storage device isworking. When such device is suddenly separat-ed or unplugged, the stored files or the USB stor-age device may be damaged. GOnly use a USB storage device which has normalmusic files, image files, or movie files.GPlease use only a USB storage device which wasformatted as a FAT 32 or NTFS file system provid-ed with the Windows operating system. Othersmay not be recognized.GData in a USB storage device cannot be deleted inthe NTFS file system.GSome USB storage devices require a poweradapter. The power adapter must be connected inorder to be seen by the TV.GIf a device is not recognized by the TV, try a dif-ferent cable. Excessively long cables are not sup-ported.GSome USB storage devices may not be supportedor operate properly.GPlease backup important files because data onthe USB device could be damaged. Data manage-ment is the consumer's responsibility and as aresult, the manufacturer does not cover datadamage.GA USB storage device with several partitions maynot work properly.GIf the USB memory device does not work proper-ly, disconnect and reconnect it.GConnect an external power source to a USB stor-age device if required.GWhen using a USB extension cable, a USB harddisk without an external power source is not sup-ported.GFile alignment method of USB storage device issimilar to Window XP and file names can be up to100 English characters.GThe recommended capacity is 1TB or less for aUSB external hard disk and 32 GB or less for USBmemory.GIf a USB external hard disk with a “Energy Saving”function doesn’t work, turn the hard disk off andon again to make it work properly. Refer to theuser manual of the application USB external harddisk.When removing the USB deviceConnect the USB device to the USB INjacks on the Media Box. 3Select PHOTO LIST, MUSIC LIST orMOVIE LIST. 1USB IN IN 4TV COM1 COM2 AV1 AV2 1RGB WIRELESS2 3 4Memory KeySelect USB Device.Select Eject.Select the USB Device menu before removing theUSB device.2ENTER1Q. MENU2ENTER■This TV supports JPG, MP3 files, and HD DivX.When you connect a USB device, this pop up menu is displayed automatically.When the Pop Up menu does not appear, you can select Photo List, Music List or Movie List in the USB menu.On a USB device, you can not add a new folder or delete an existing folder.PHOTO LIST MUSIC LIST MOVIE LIST
PHOTO LISTUSB61You can view .JPG files from USB storage devices.The On-Screen Display on your model may be slightly different.Screen ComponentsMoves to upper level folderPreview: Display thethumbnail/folder name ofthe photo in the selectedfolderCurrent page/Total pagesTotal number of marked photosCorresponding buttons onthe remote controlSelect USB.Select Photo List.21MENUENTERENTER12345Navigation Popup Menu Page Change Mark ExitCH MARK5Page 2/3 No MarkedPhoto ListUp Folder1366x768, 125KBKY101 06/10/2008KY102 04/03/2008JMJ001 01/01/2000JMJ002 06/15/2008JMJ003 04/03/2008JMJ004 02/18/2008KY103 03/30/2008KY104 06/19/2008KY105 01/31/2008JMJ005 05/13/2008JMJ006 05/26/2008JMJ007 02/18/2008JMJ008 02/18/2008Up FolderDrive1JMJ0013 421Supported photo file: *.JPG■You can play JPG files only.■Only baseline scan is supported among JPG (not progressive).■Available JPG size: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)
USB62USBPhoto Selection and Popup MenuSelect the target folder or drive.Select the desired photos.2Show the Popup menu.31■Use the CH button to navigation in thephoto page.■Use the MARK button to mark or unmark aphoto. When one or more photos are marked,you can view individual photos or a slide showof the marked photos. If no photos are marked,you can view all photos individually or all pho-tos in the folder in a slide show.4Select the desired option in thePopup menu.ENTERENTERENTERPage 2/3No MarkedPhoto ListUp Folder1366x768, 125KBKY101 06/10/2008KY102 04/03/2008JMJ001 01/01/2000JMJ002 06/15/2008JMJ003 04/03/2008JMJ004 02/18/2008KY103 03/30/2008KY104 06/19/2008KY105 01/31/2008JMJ005 05/13/2008JMJ006 05/26/2008JMJ007 02/18/2008JMJ008 02/18/2008Up FolderPage 2/3No MarkedPhoto ListUp Folder1366x768, 125KBKY101 06/10/2008KY102 04/03/2008JMJ001 01/01/2000JMJ002 06/15/2008JMJ003 04/03/2008JMJ004 02/18/2008KY103 03/30/2008KY104 06/19/2008KY105 01/31/2008JMJ005 05/13/2008JMJ006 05/26/2008JMJ007 02/18/2008JMJ008 02/18/2008Up FolderDrive1Drive1JMJ001JMJ001 1366x768, 125KBView Mark AllDeleteCloseNavigation Page Change Mark ExitCH MARKPopup MenuNavigation Page Change Mark ExitCH MARKPopup MenuWhen you select a file (not folder), this PopUpmenu is displayed.GView: Display the selected item. GMark All: Mark all photos on the screen.GUnmark All: Deselect all marked photos.GDelete: Delete the selected photo item.GClose: Close the pop-up menu.
USB63Full Screen MenuYou can change the Photo List view so that it fills the screen. More operations are available in fullscreen mode.■Use the CH button to navigation in thephoto page.Select the target folder or drive.Select the desired photos.Show the Popup menu.5Select View.The selected photo is displayed infull size.2314ENTERENTERENTERPage 2/3No MarkedPhoto ListUp Folder1366x768, 125KBKY101 06/10/2008KY102 04/03/2008JMJ001 01/01/2000JMJ002 06/15/2008JMJ003 04/03/2008JMJ004 02/18/2008KY103 03/30/2008KY104 06/19/2008KY105 01/31/2008JMJ005 05/13/2008JMJ006 05/26/2008JMJ007 02/18/2008JMJ008 02/18/2008Up FolderPage 2/3No MarkedPhoto ListUp Folder1366x768, 125KBKY101 06/10/2008KY102 04/03/2008JMJ001 01/01/2000JMJ002 06/15/2008JMJ003 04/03/2008JMJ004 02/18/2008KY103 03/30/2008KY104 06/19/2008KY105 01/31/2008JMJ005 05/13/2008JMJ006 05/26/2008JMJ007 02/18/2008JMJ008 02/18/2008Up FolderDrive1Drive1JMJ001JMJ001 1366x768, 125KBView Mark AllDeleteCloseNavigation Page Change Mark ExitCH MARKPopup MenuNavigation Page Change Mark ExitCH MARKPopup MenuThe aspect ratio of a photo may change the size ofthe photo displayed on the screen in full size.1/17Slideshow BGM Delete Option Hide
USB64USBSelect the Slideshow, BGM, (Rotate),Delete,Option, or Hide.■Use button to select the previous ornext photo. ■Use button to select and controlthe menu on the full-sized screen.ENTER6NOTE!GThis TV will not be able to decodemost JPG images saved using theProgressive option.1/17Slideshow BGM Delete Option HidePress F G to set the time interval between slides.Slide Speed FastCancel...Music AlbumEnterGSlideshow: Selected photos are displayed during theslide show. If no photo is selected, all photos in the cur-rent folder are displayed during slide show.■Set the time interval of the slide show in Option.GBGM: Listen to music while viewing photos in full size. ■Set the BGM device and album in Option.G(Rotate): Rotate photos.■Rotates the photo 90°, 18 0 °, 270°, 360°clockwise.■Photo cannot be rotated if its width is greater thanthe available supported resolution height. GDelete: Delete photos.GOption: Set values for Slide Speed and MusicAlbum. ■Use button and ENTER button to setvalues. Then go to and press ENTER to savethe settings.■You cannot change Music Album while BGM isplaying.GHide : Hide the menu on the full-sized screen.■To see the menu again on the full-sized screen, pressENTER button to display.
MUSIC LISTUSB65You can use the Music List menu to play MP3 files form a USB storage device. This TV cannot play back copy-protected files. The On-Screen Display on your model may be slightly different.Screen ComponentsSupported music file: *.MP3Bit rate range 32 Kbps - 320 Kbps• Sampling rate (Sampling Frequency)MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHzMPEG2 layer 3: 16 kHz, 22.05 kHz, 24 kHzMPEG2.5 layer 3: 8 kHz, 11.025 kHz, 12 kHzMoves to upper level folderPreview: If any album jacketfor the file exists, this jack-et is displayed.Current page/Total pagesTotal number of markedmusicsCorresponding buttons onthe remote control13452Select USB.Select Music List.12MENUENTERENTERMusic ListUp FolderTitle Duration3 421Page 2/3 No MarkedDrive1Navigation Popup Menu Page Change Mark ExitCH MARK5A 00:00 / 04:16Up Folder
USB66USBMusic Selection and Popup Menu■The play information box (as shown below)will automatically move across the screenwhen there is no user input to prevent a fixedimage remaining on the screen for a extendedperiod of time.NOTE!GWhen music is playing, is displayed in front of the music play time.GA damaged or corrupted music file that does not play displays 00:00 as the play time.GMusic files with copy-protection will not play.GPress ENTER, A, or RETURN button to stop the screen saver.■Use the CH button to navigation inthe music page.■Use MARK button to mark or unmark a musicfile. If no music is marked, all the music in thefolder will be played in sequence. When one ormore music files are marked, the marked musicfiles will be played in sequence. If you want tolisten to only one song repeatedly, just markthat one file and play.Select the target folder or drive.Select the desired musics.Show the Popup menu.Select the desired Popup menu.2314ENTERENTERENTERNavigation Page Change Mark ExitCH MARKPopup MenuNavigation Page Change Mark ExitCH MARKPopup MenuPage 2/3No MarkedMusic ListUp FolderA 00:00 / 04:16Up FolderDrive1 TitleDurationPage 2/3No MarkedMusic ListUp FolderA 00:00 / 04:16Up FolderDrive1 TitleDuration3945 KB128 KbpsPlayPlay with PhotoMark AllDeleteCloseGPlay (During stop): Play the selected song.Once a song finishes playing, the next selectedone will be played. When there are no selectedsongs to play, the next one in the current fold-er will be played. If you go to a different folderand press the ENTER button, the currentsongs in playback will stop.GPlay Marked: Play the selected songs. Oncea song finishes playing, the next selected onewill be played automatically.GStop Play (During playback): Stop the play-ing the song.GPlay with Photo: Start playing the selectedsongs and then move to the Photo List. GMark All: Mark all songs in the folder.GUnmark All: Deselect all marked song.GDelete (USB file only): Delete the selected song.GClose: Close the pop-up menu.
MOVIE LISTUSB67The movie list is activated once a USB drive is detected. It is used when playing movie files on the TV.It displays all of the video files it recognizes.The On-Screen Display on your model may be slightly different.Screen ComponentsMoves to upper level folderCurrent page/Total pagesTotal number of marked movie Corresponding buttons onthe remote control1342Select USB.Select Movie List.12MENUENTERENTERMovie ListUp FolderTitle Duration2 31Page 1/2 No MarkedDrive1Navigation Popup Menu Page Change Mark ExitCH MARK4640x480, 707MBUp FolderKR1KR2SJS001SJS002SJS00300:00:0000:00:0000:00:00SJS001Non-supportedfiles are displayedusing this graphic.■Max bitrate of playable movie file: 20Mbps (Mega bit per second)■Bit rate of audio format: within 32 ~320kbps (MP3)■Supported subtitle format : *.smi, *.srt, *.sub (MicroDVD, SubViewer1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb(PowerDivx)
USB68USBMPEG1, MPEG2MPEG1MPEG2, H.264/AVCMPEG4 SP, MPEG4 ASP, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01, Xvid1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-beta 2, H.264/AVCMPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-beta 2, H.264/AVCH.264/AVC, MPEG 1, MPEG 2, MPEG 4 SP, MPEG4 ASPMPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, DivX 4, DivX 5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta 1, Xvid 1.10-beta 2, H.264/AVCDolby Digital, MPEG, MP3, LPCMDolby Digital, MPEG, MP3, LPCMDolby Digital, AAC, MPEGDolby Digital, HEAAC, AAC,MPEG, MP3, LPCMDolby Digital, HEAAC, AAC,MPEG, MP3, LPCMDolby Digital, HEAAC, AAC,MPEG, MP3, LPCMDolby Digital, HEAAC, AAC,MPEG, MP3, LPCM1920x1080P@25/30P1280x720P@50/60PFile Extension Video Decoder Audio Codec ResolutionSupported DivX file(*.avi/*.dat/*.divx/*.mkv/*.mp4/*.mpeg/*.mpg/*.tp/*.trp/*.ts/*.vob)mpg, mpeg, vobdattp, trp, tsmp4avimkvdivxPrecautions when playing the video filesGSome user-created subtitles may not work properly.GSome special characters are not supported in sub-titles.GHTML tags are not supported in subtitles.GSubtitles in languages other than the supportedlanguages are not available.GTime information in an external subtitle file shouldbe arranged in ascending order to be played.GThe screen may suffer temporary interruptions(image stoppage, faster playback, etc.) when theaudio language is changed.GA damaged video file may not be played correctly,or some player functions may not be usable.GVideo files produced with some encoders may notbe played correctly.GIf the video and audio structure of recorded file isnot interleaved, either video or audio is outputted.GVideo with resolution higher than maximum reso-lution supported for each frame, cannot be guar-anteed for smooth playback. GMovie files other than the specified types and for-mats may not work properly.GThe movie file encoded by the GMC (GlobalMotion Compensation) is not supported.GOnly the files saved in ASCII Code is supported insubtitles.GOnly 250 Korean characters, 500 alphabets and500 numbers are supported for each line of thesubtitle.GOnly 10,000 of sync blocks can be supportedwithin the subtitle file.GWe do not guarantee smooth playback of profilesencoded level 4.1 or higher in H.264.GDTS Audio codec is not supported.GA video file more than 30GB in file size is not sup-ported for playback.GPlaying a video via a USB connection that doesn’tsupport high speed may not work properly.GUSB storage devices below USB 2.0 are support-ed as well. But they may not work properly in themovie list.GThe video file and its subtitle file must be locatedin the same folder.At this time, a video file name and its subtitle filename must be identical for it to be displayed.
USB69Movie Selection and Popup MenuPage 1/2 No MarkedMovie ListUp Folder640x480, 707MBUp FolderTitle DurationKR1KR2SJS001SJS002SJS003SJS001Drive1■Use the CH button to navigation inthe movie page.■Use the MARK button to mark or unmark amovie file. When one or more movie files aremarked, the marked movie files will be playedin sequence.Select the target folder or drive.Select the desired movies.Show the Popup menu.Select the desired Popup menu.2314ENTERENTERENTERPage 1/2 No MarkedMovie ListUp Folder640x480, 707MBUp FolderTitle DurationKR1KR2SJS001SJS002SJS00300:00:0000:00:0000:00:00SJS001Drive1624x352, 699MBPlayMark AllDeleteClose00:00:00Navigation Page Change Mark ExitCH MARKPopup MenuNavigation Page Change Mark ExitCH MARKPopup MenuGPlay: Play the selected file. Divx Play is executed while the screen changes.GPlay Marked: Play the selected file. Once amovie finishes playing, the next selected onewill be played automatically.GMark All: Mark all files in the folder.GUnmark All: Deselect all marked movies.GDelete or Delete marked (FAT32 file sys-tem only): Delete the selected file.GClose: Close the pop-up menu.
USB70USBPlaying the MovieSelect the target folder or drive.Select the desired movies.Show the Popup menu.Select Play.2314ENTERDisplay the current movie status progressbar in the bottom of the screen. 5ENTERENTEROptionYou can adjust various method during the movie play.Display the DivX Banner in thetop of the screen. INFO iUsing the remote controlPress it to rewind.Press it to forward fast.Displayed the still screen.Stopped the screen.Move to a specific frame forward or back-ward while playing a movie. A cursor indi-cating the position can be viewed on thescreen. It may not work properly for somefiles while playing a movie.)Displays a slow motion.Page 1/2 No MarkedMovie ListUp Folder640x480, 707MBUp FolderTitle DurationKR1KR2SJS001SJS002SJS003SJS001Drive1Page 1/2 No MarkedMovie ListUp Folder640x480, 707MBUp FolderTitle DurationKR1KR2SJS001SJS002SJS00300:00:0000:00:0000:00:00SJS001Drive1624x352, 699MBPlayMark AllDeleteClose00:00:00Navigation Page Change Mark ExitCH MARKPopup MenuNavigation Page Change Mark ExitCH MARKPopup Menu
