LG Electronics USA 60LA8600UC LED TV MONITOR User Manual
LG Electronics USA LED TV MONITOR
User Manual
www.lg.comP/NO : MFL67652601 (1301-REV00)
55LA8600
60LA8600
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
LED TV
* LG LED TV applies LCD screen with LED backlights.
47LA7900
55LA7900
ENGLISH
2IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your
product.
y Do not use this apparatus near water.
y Clean only with a dry cloth.
y Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
y Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
y Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ by
country).
y Do not press strongly upon the panel with a hand or
a sharp object such as a nail, pencil or pen, or make
a scratch on it.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.

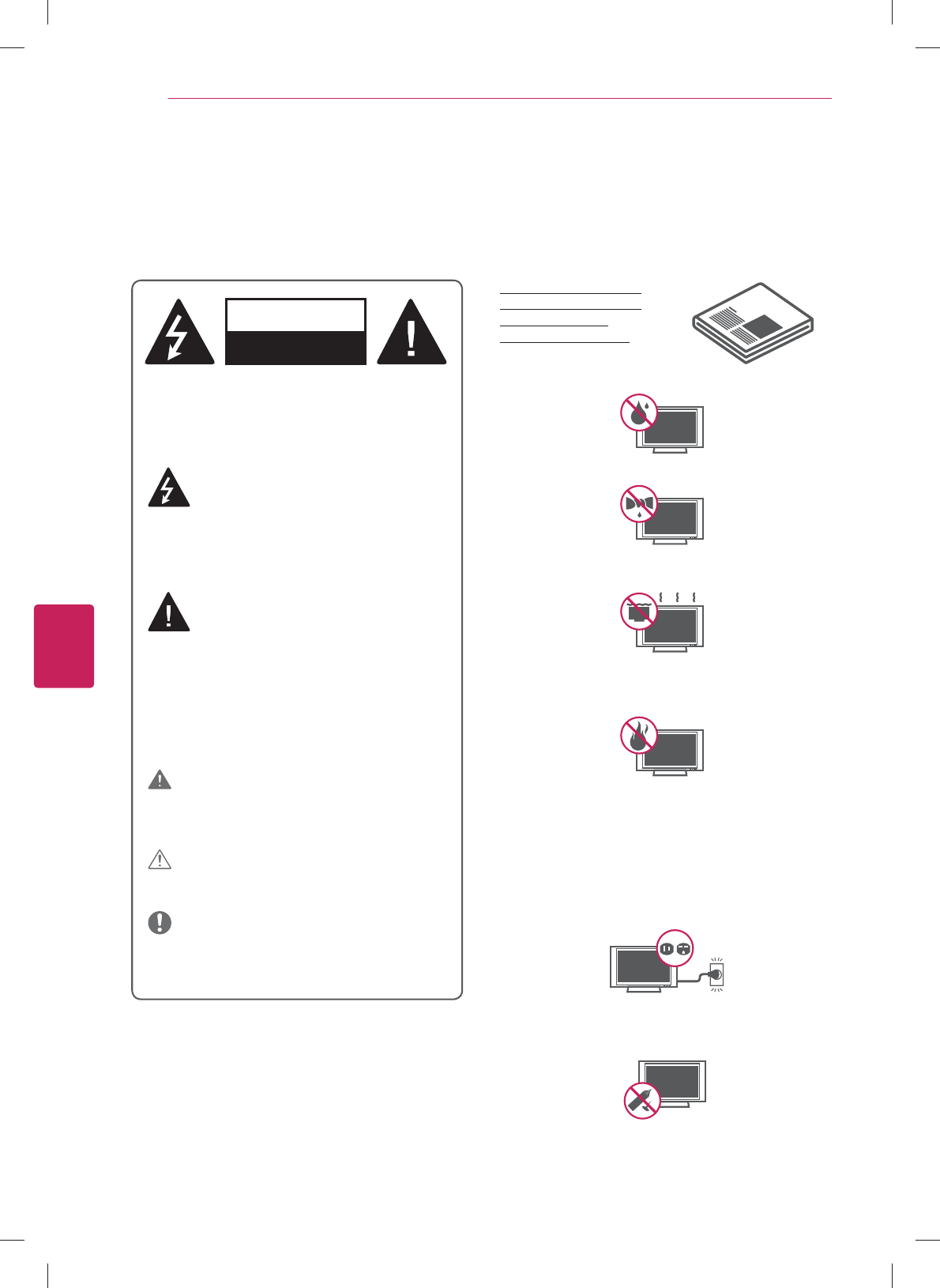

WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
If you ignore the warning message, you may be
seriously injured or there is a possibility of accident
or death.
CAUTION
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
The note helps you understand and use the product
safely. Please read the note carefully before using
the product.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
:DVKKDQGVDIWHUKDQGOLQJ
ENGLISH
3

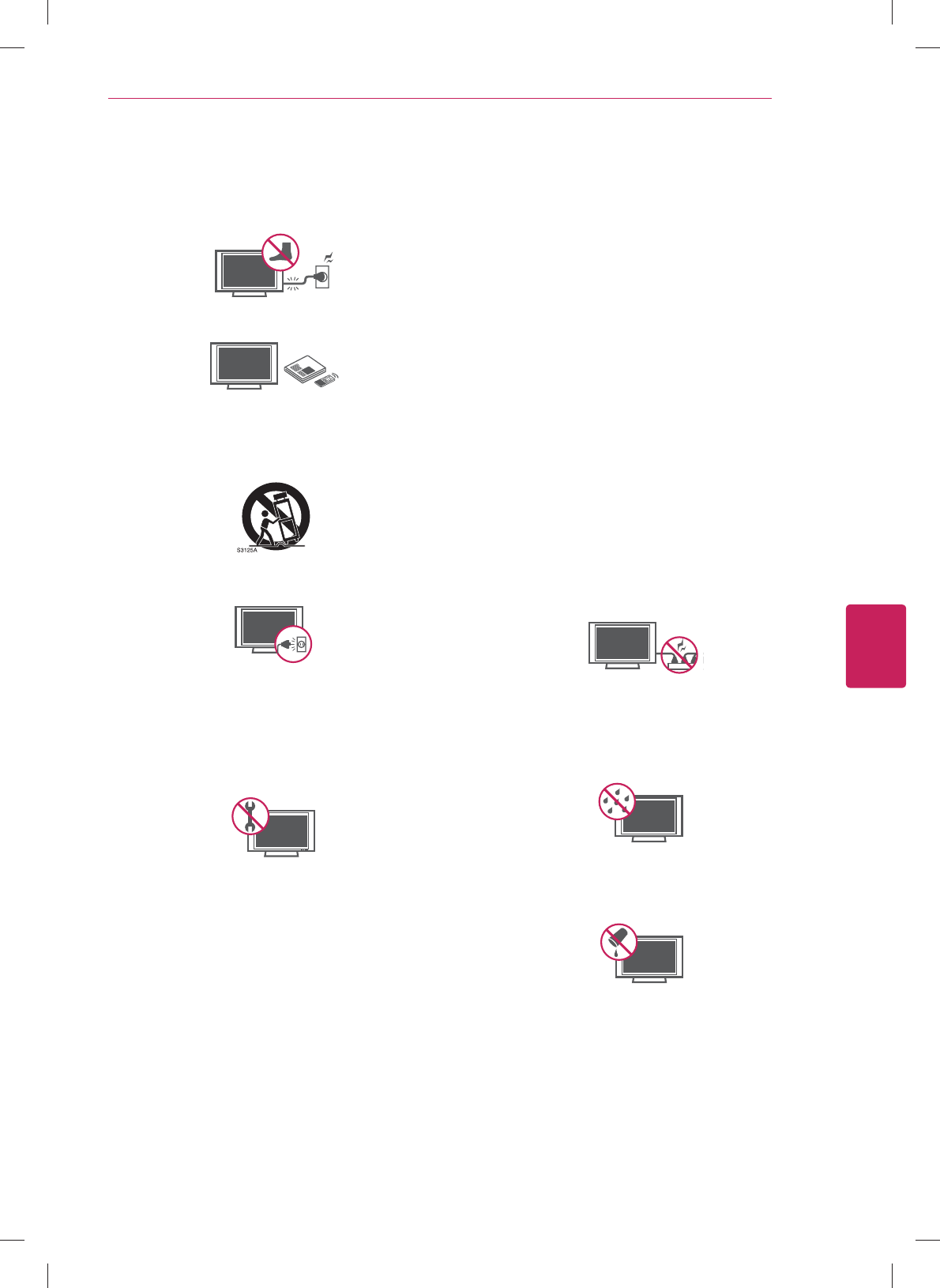

IMPORTANT SAFETY INSTRUCTIONS
y Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
y Only use attachments/accessories specified by the
manufacturer.
y Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
y Unplug this apparatus during lightning storms or
when unused for long periods of time.
y Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
y Do not stick metal objects or any other conductive
material into the power cord. Do not touch the end
of the power cord while it is plugged in.
y Keep the packing anti-moisture material or vinyl
packing out of the reach of children. Anti-moisture
material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit
the nearest hospital. Additionally, vinyl packing
can cause suffocation. Keep it out of the reach of
children.
y CAUTION concerning the Power Cord
(Can differ by country):
It is recommended that appliances be placed upon a
dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional
outlets or branch circuits. Check the specification
page of this owner’s manual to be certain. Do
not connect too many appliances to the same AC
power outlet as this could result in fire or electric
shock. Do not overload wall outlets. Overloaded
wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part
by an authorized service. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance. Do
not move the TV with the power cord plugged in.
Do not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power cord.
Do not pull on the power cord to unplug the TV.
y Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain, moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles, or expose the
TV to direct air conditioning.
y Do not expose to dripping or splashing and do not
place objects filled with liquids, such as vases, cups,
etc. on or over the apparatus (e.g. on shelves above
the unit).
ENGLISH
4IMPORTANT SAFETY INSTRUCTIONS

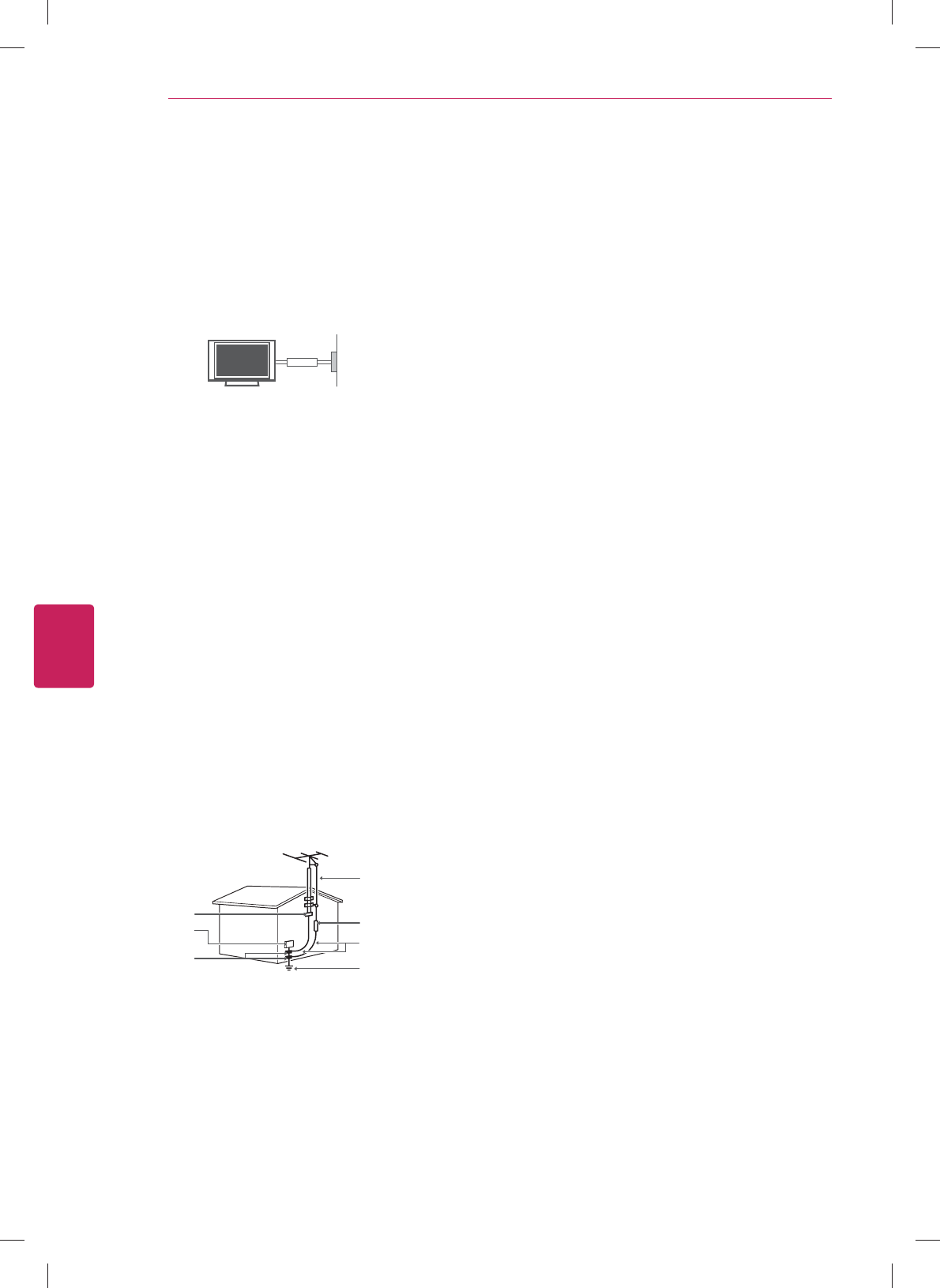

y Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not
try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power Supply
y As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
y Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product.
y Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power circuits,
or where it can come in contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Section 810 of the
National Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Ground Clamp
Grounding Conductor
(NEC Section 810-21)
Antenna Lead in Wire
Electric Service
Equipment
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC: National Electrical Code
y Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the TV
as electric shock may occur. Do not clean with
chemicals such as alcohol, thinners or benzine.

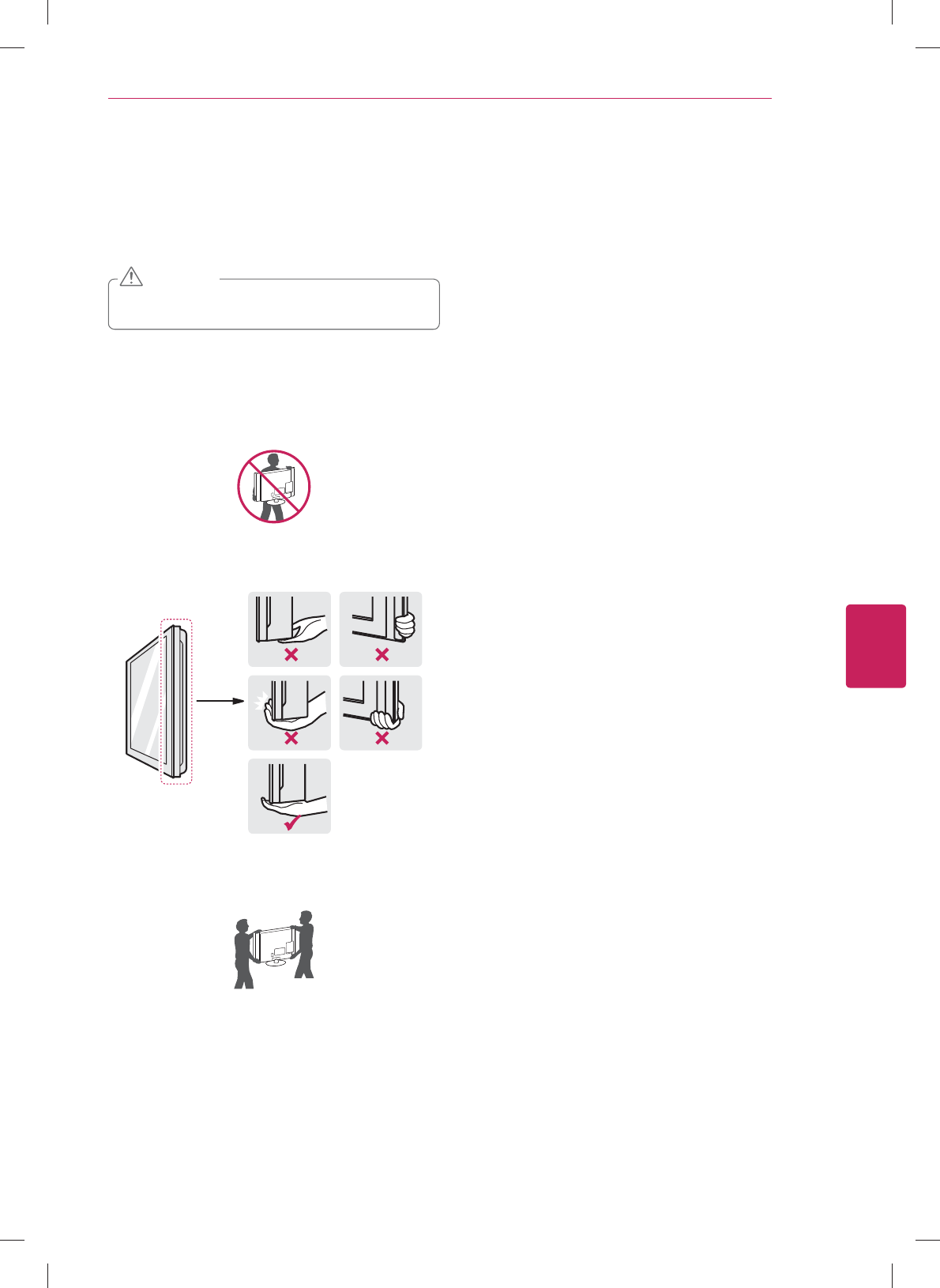

y Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2 or
more people to carry larger TVs. Do not press or put
stress on the front panel of the TV.
y Ventilation
Install your TV where there is proper ventilation. Do
not install in a confined space such as a bookcase.
Do not cover the product with cloth or other
materials while plugged. Do not install in excessively
dusty places.
y If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
y Keep the product away from direct sunlight.
y Never touch this apparatus or antenna during a
thunder or lightning storm.
y When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
y Do not allow an impact shock or any objects to fall
into the product, and do not drop anything onto the
screen.
y Disconnecting the Main Power
The power outlet used with this device must remain
easily accessible.
y Store the accessories (battery, etc.) in a safe
location out of the reach of children.
y This apparatus use batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact your
local authorities for disposal or recycling information.
y Do not dispose of batteries in a fire.
y Do not short circuit, disassemble or allow the
batteries to overheat.
ENGLISH
5
IMPORTANT SAFETY INSTRUCTIONS
y Dot Defect
The Plasma or LCD panel is a high technology
product with resolution of two million to six million
pixels. In a very few cases, you could see fine dots
on the screen while you’re viewing the TV. Those
dots are deactivated pixels and do not affect the
performance and reliability of the TV.
y Generated Sound
“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated by
plastic thermal contraction due to temperature and
humidity. This noise is common for products where
thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level
noise is generated from a high-speed switching
circuit, which supplies a large amount of current
to operate a product. It varies depending on the
product.
This generated sound does not affect the
performance and reliability of the product.
y Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or cause
defects in the product.
y If the TV feels cold to the touch, there may be a
small “flicker” when it is turned on. This is normal,
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing as
tiny red, green, or blue spots. However, they have
no adverse effect on the TV’s performance. Avoid
touching the LCD screen or holding your finger(s)
against it for long periods of time. Doing so may
produce some temporary distortion effects on the
screen.

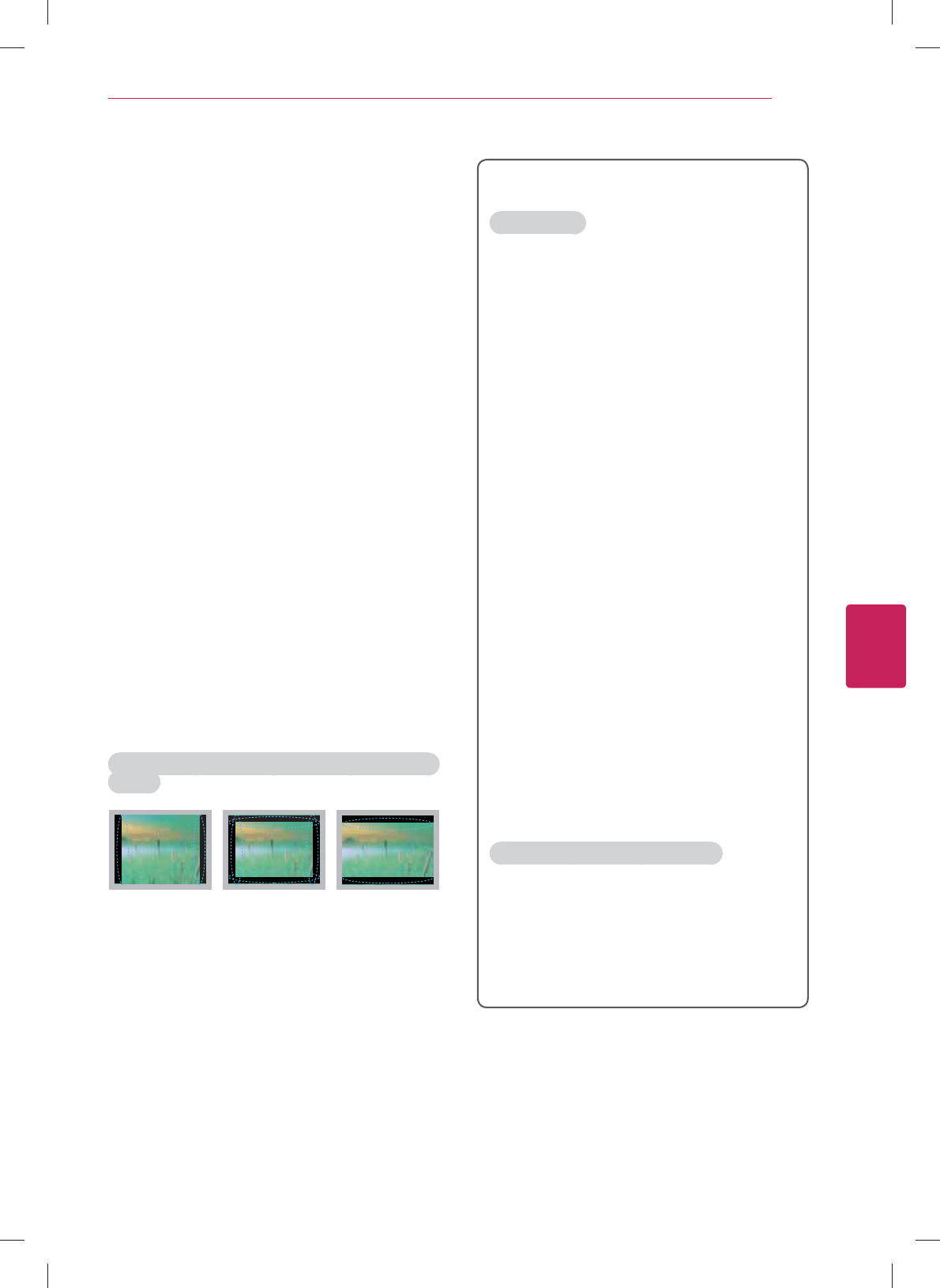

Preventing “Image burn” or “Burn-in” on your TV
screen
y If a fixed image displays on the TV screen for a long
period of time, it will be imprinted and become a
permanent disfigurement on the screen. This is
“image burn” or “burn-in” and not covered by the
warranty.
y If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on the
letterboxed area of the screen.
y Avoid displaying a fixed image on the TV screen for
a long period of time (2 or more hours for LCD, 1
or more hours for the Plasma TV) to prevent image
burn.
For USA and Canada
FCC NOTICE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation of the device.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
ENGLISH
6IMPORTANT SAFETY INSTRUCTIONS
Viewing 3D Imaging
WARNING
Viewing Environment
y Viewing Time
- When watching 3D content, take 5 - 15 minute
breaks every hour. Viewing 3D content for a long
period of time may cause headache, dizziness,
fatigue or eye strain.
Those that have a photosensitive seizure or
chronic illness
y Some users may experience a seizure or other
abnormal symptoms when they are exposed to a
flashing light or particular pattern from 3D content.
y Do not watch 3D videos if you feel nauseous,
are pregnant and/ or have a chronic illness such
as epilepsy, cardiac disorder, or blood pressure
disease, etc.
y 3D Content are not recommended for those who
suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be
experienced.
y If you have strabismus (cross-eyed), amblyopia
(weak eyesight) or astigmatism, you may have
trouble sensing depth and easily feel fatigue due to
double images. It is advised to take frequent breaks
than the average adult.
y If your eyesight varies between your right and left
eye, revise your eyesight prior to watching 3D
content.
Symptoms which require discontinuation or
refraining from watching 3D content
y Do not watch 3D content when you feel fatigue
from lack of sleep, overwork or intoxication .
y When these symptoms are experienced, stop using/
watching 3D content and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist.
Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness,
discomfort, double image, visual inconvenience or
fatigue.
CAUTION
Viewing Environment
y Viewing Distance
- Maintain a distance of at least twice the screen
diagonal length when watching 3D content. If
you feel discomfort in viewing 3D content, move
further away from the TV.
Viewing Age
y Infants / Children
- Usage/ Viewing 3D content for children under the
age of 5 are prohibited.
- Children under the age of 10 may overreact and
become overly excited because their vision is in
development (for example: trying to touch the
screen or trying to jump into it. Special monitoring
and extra attention is required for children watching
3D content.
- Children have greater binocular disparity of 3D
presentations than adults because the distance
between the eyes is shorter than one of adults.
Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D image.
y Teenagers
- Teenagers under the age of 19 may be stimulated
to light coming from 3D videos. Advise them not
to watch 3D videos for a long time when they are
tired.
y Elderly
- The elderly may perceive less of a 3D effect than
the youth. Do not sit closer to the TV than the
recommended distance.
Cautions when using the 3D glasses
y Make sure to use LG 3D glasses. Otherwise, you
may not be able to view 3D videos properly.
y Only use 3D glasses instead of your normal glasses,
sunglasses or protective goggles.
y Using modified 3D glasses may cause eye strain or
image distortion.
y Do not keep your 3D glasses in extremely high or
low temperatures. It will cause deformation.
y The 3D glasses are fragile and are easy to
scratched. Use a soft, clean piece of cloth when
wiping the lenses. Do not scratch the lenses of the
3D glasses with sharp objects or clean/wipe them
with chemicals.
ENGLISH
7
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit ‘www.lg.com’.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to
play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit ‘http://opensource.lge.com’.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon email request to ‘opensource@lge.com’. This offer
is valid for three (3) years from the date on which you purchased the product.
ENGLISH
8TABLE OF CONTENTS
TABLE OF CONTENTS
y Image shown may differ from your TV.
y Your TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
y The available menus and options may differ from
the input source or product model that you are
using.
y New features may be added to this TV in the
future.
NOTE
2 IMPORTANT SAFETY INSTRUCTIONS
6 Viewing 3D Imaging
7 LICENSES
7 OPEN SOURCE SOFTWARE NOTICE
8 TABLE OF CONTENTS
9 INSTALLATION PROCEDURE
9 ASSEMBLING AND PREPARING
9 Unpacking

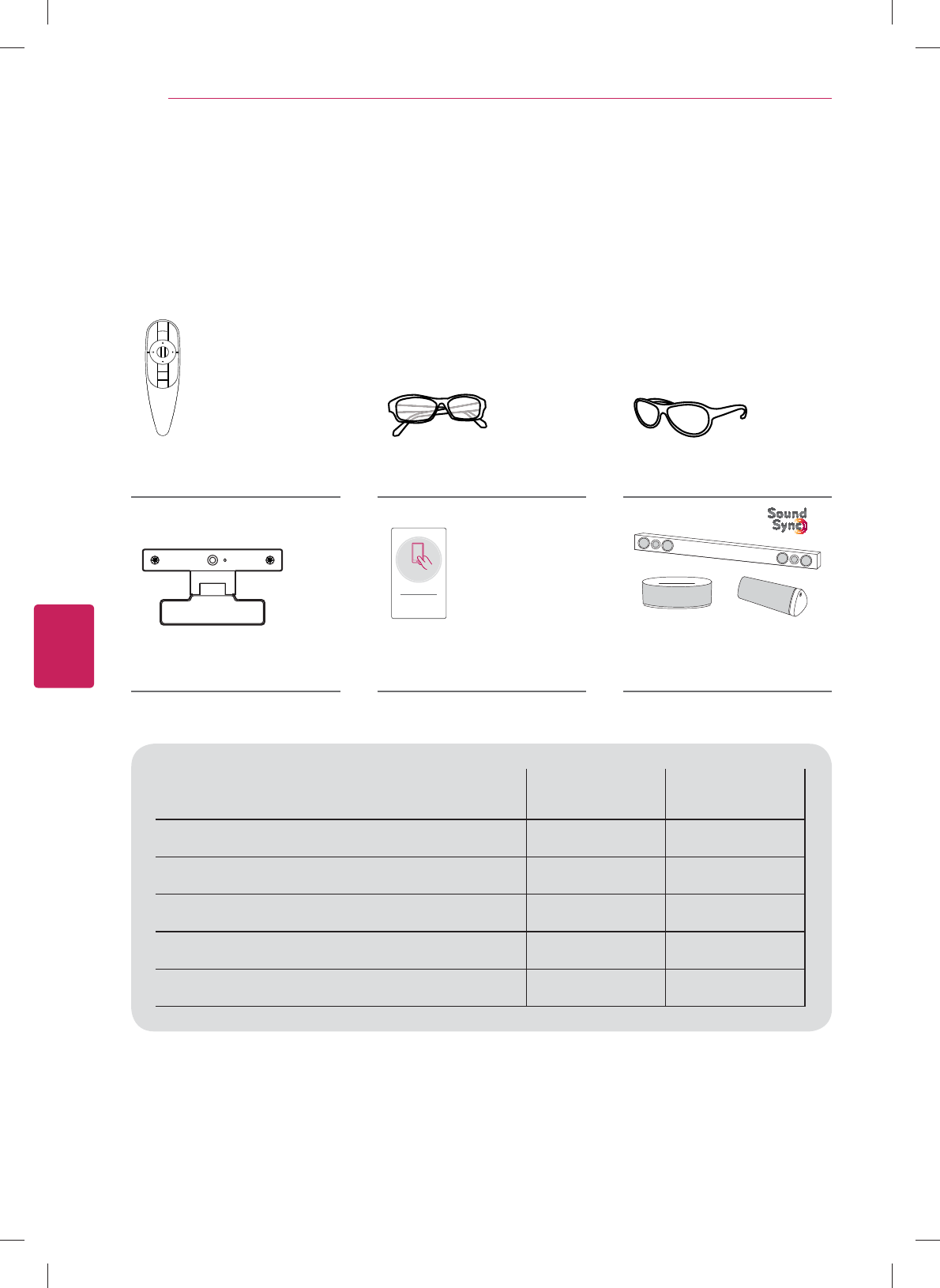

12 Optional Extras

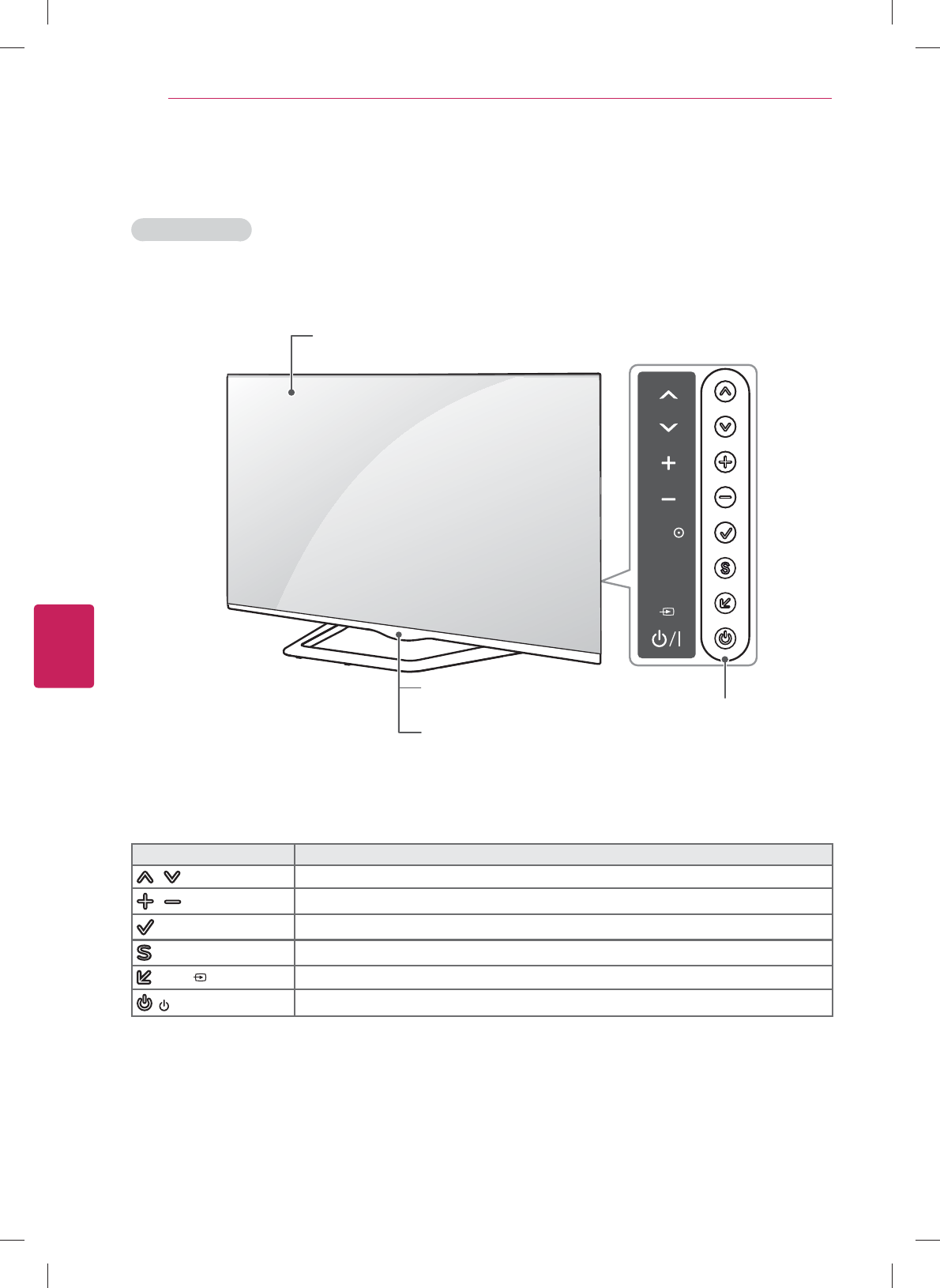

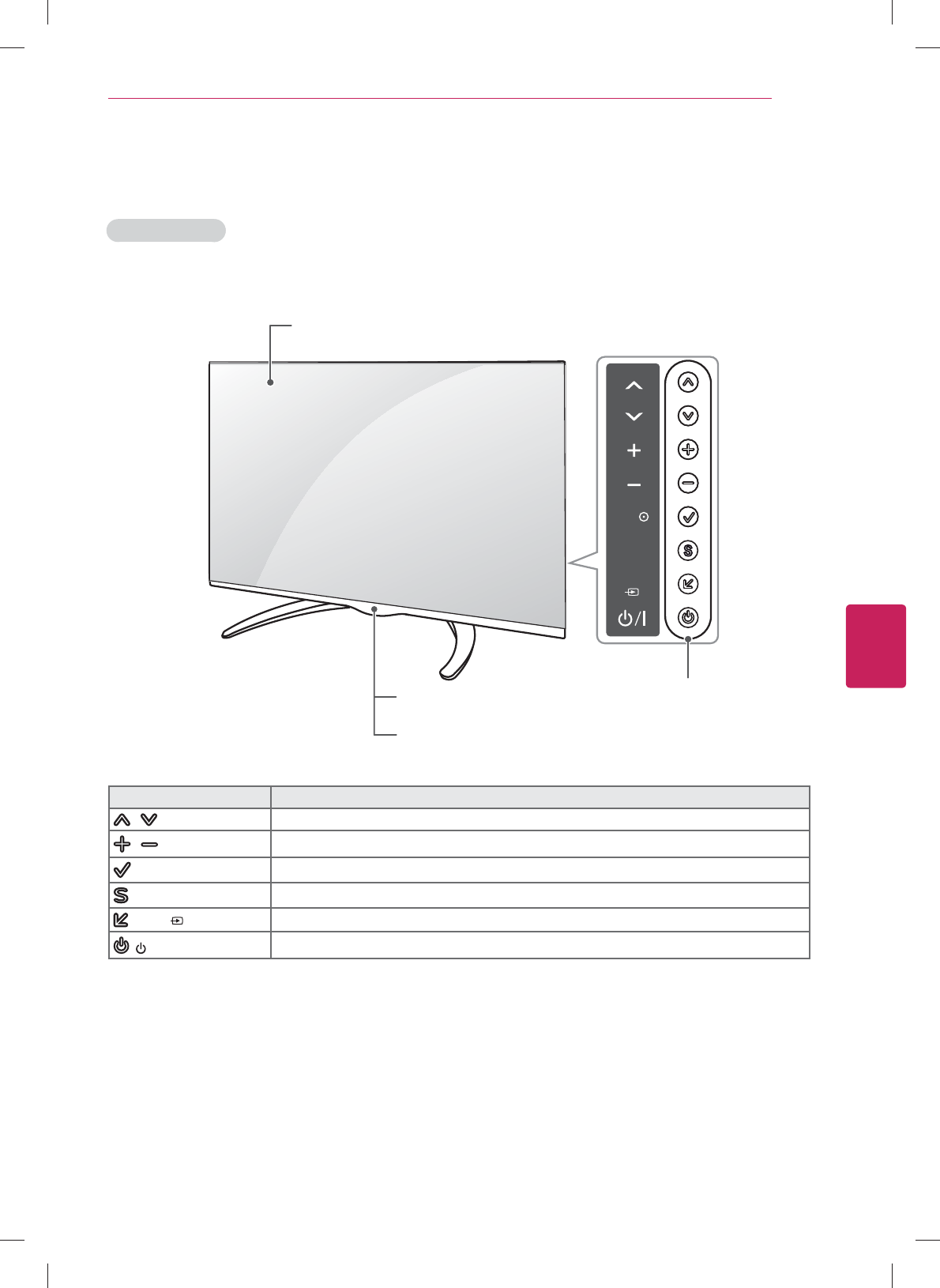

13 Parts and Buttons
15 Lifting and moving the TV
16 Setting up the TV

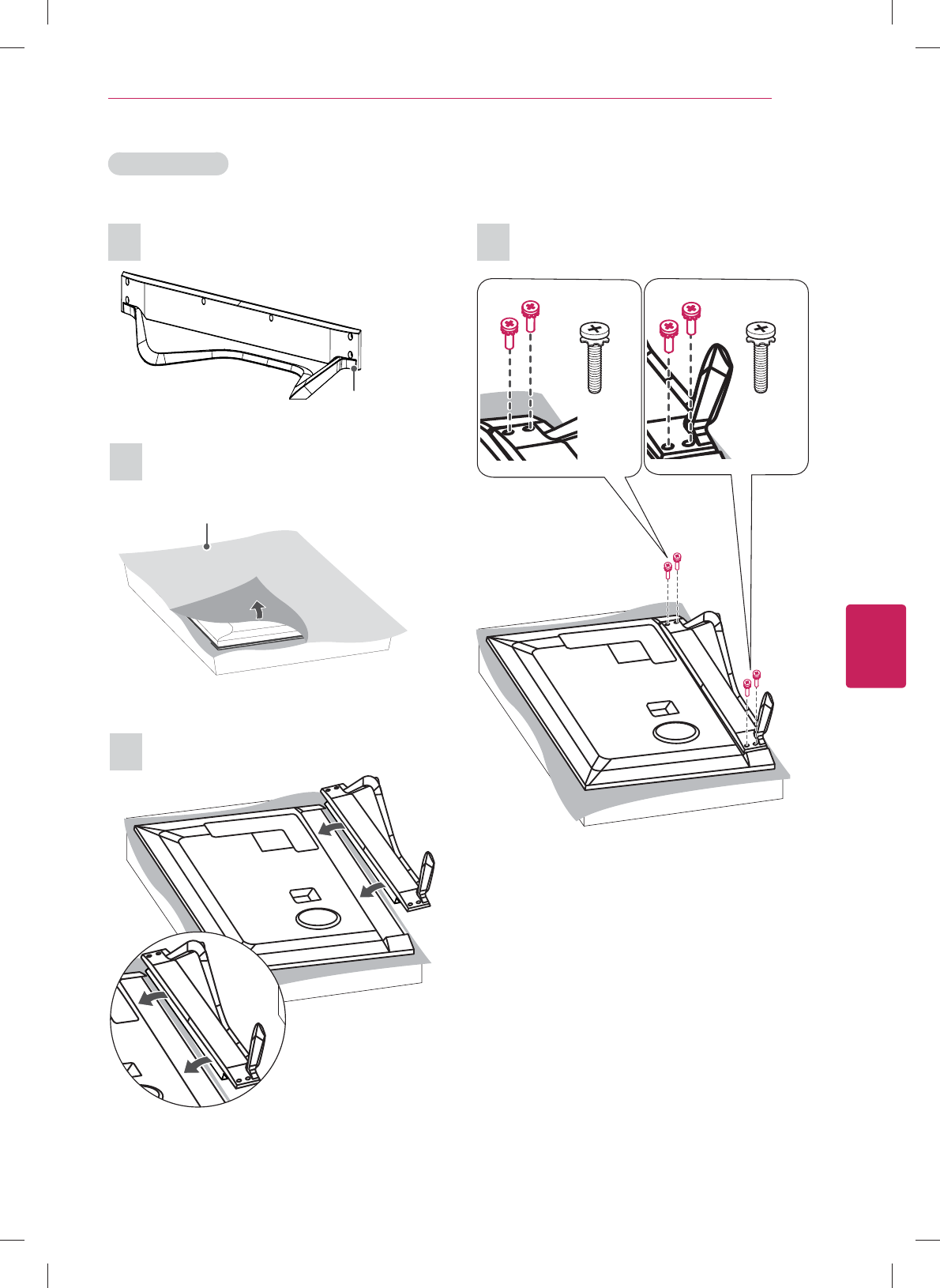

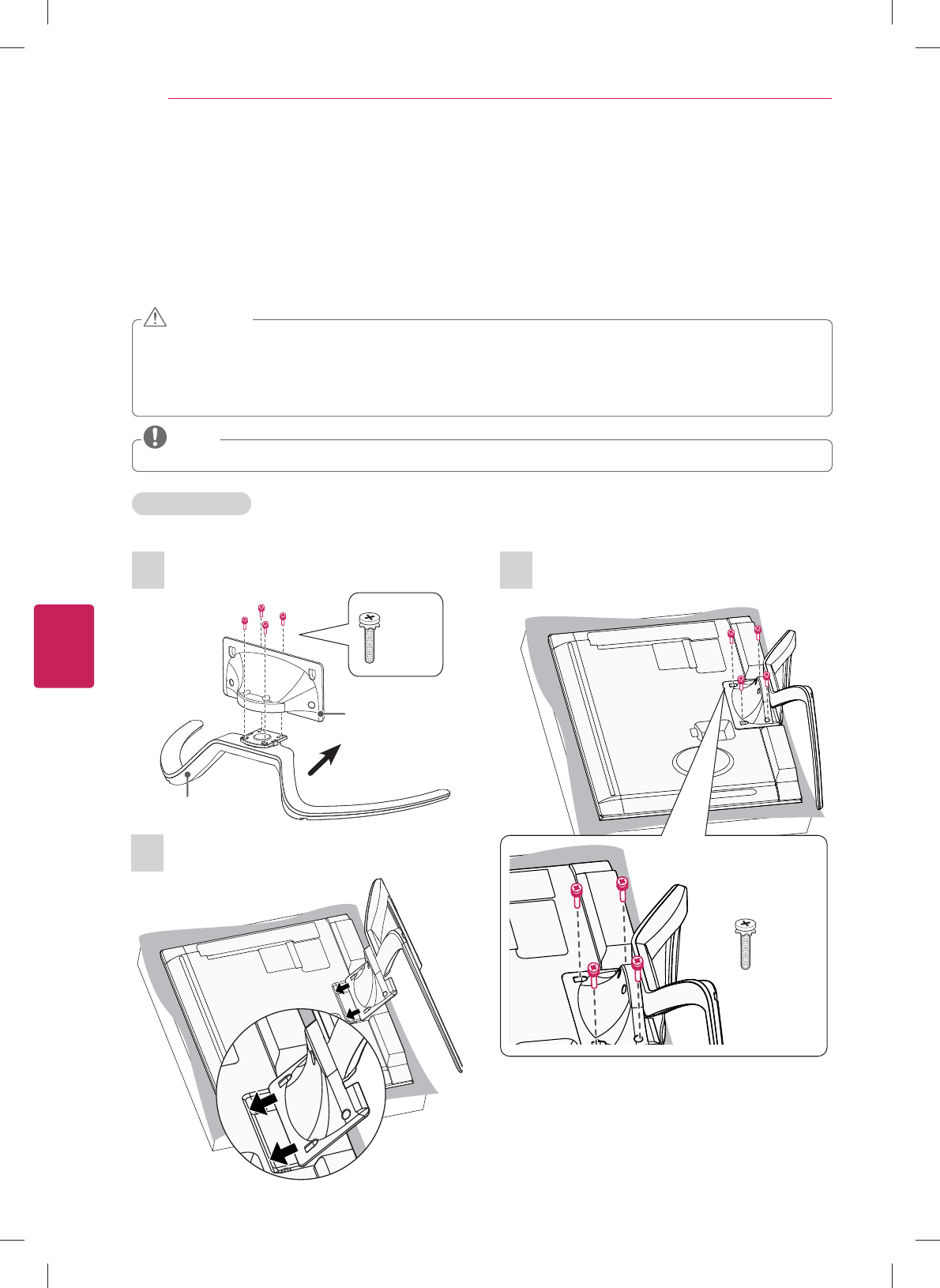

16 - Attaching the stand
18 - Mounting on a table

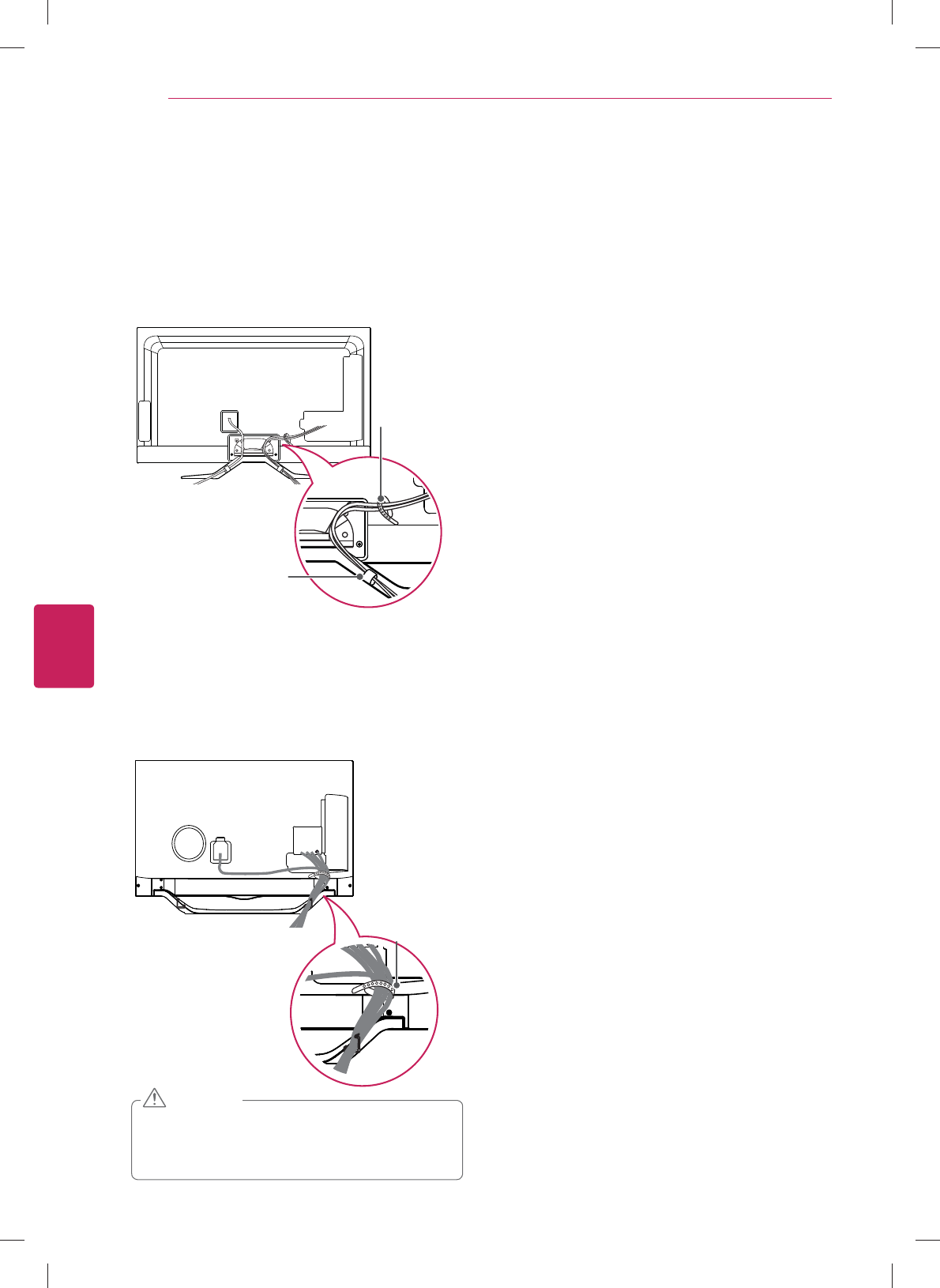

20 - Tidying cables

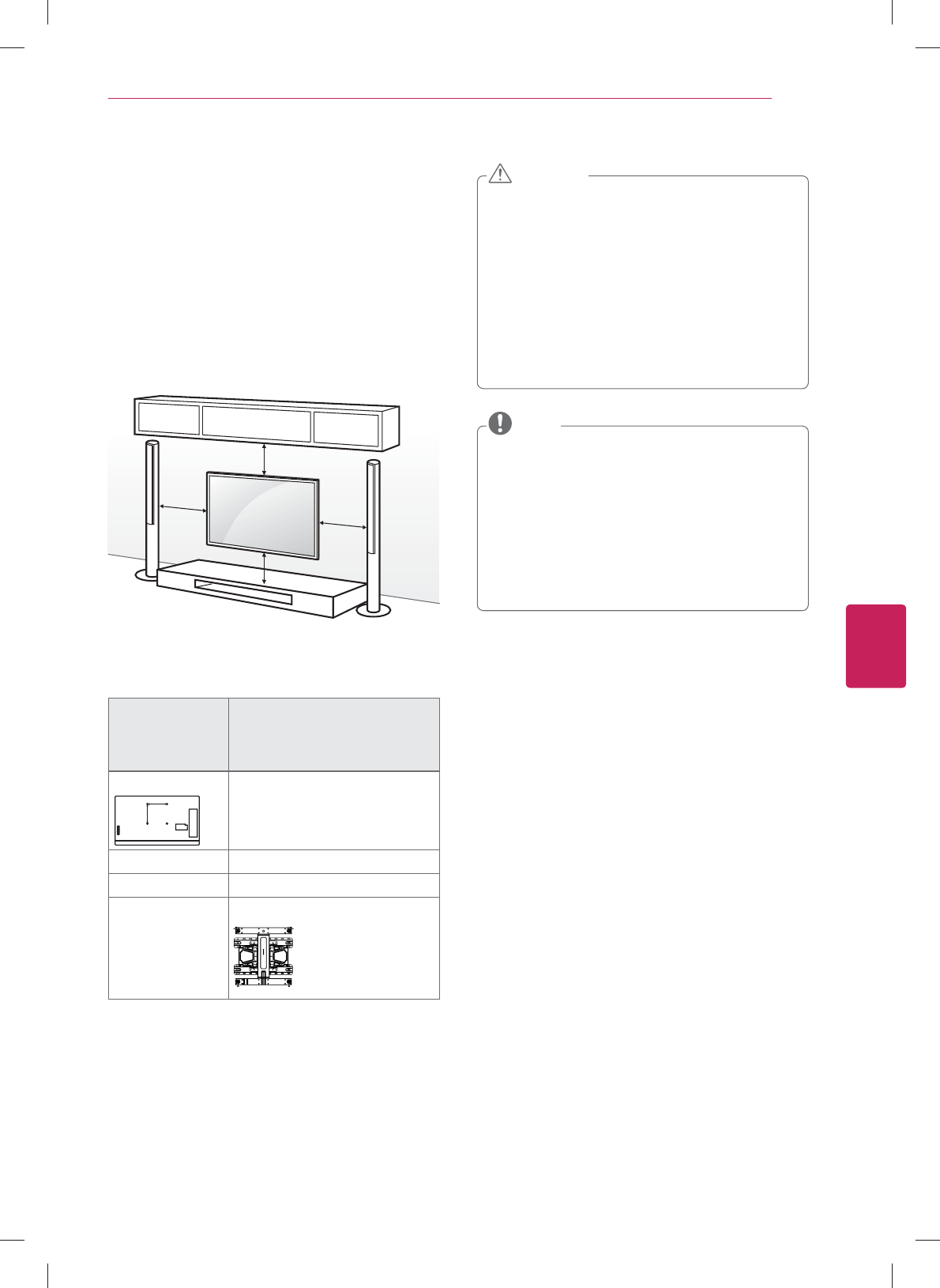

21 - Mounting on a wall
22 MAKING CONNECTIONS

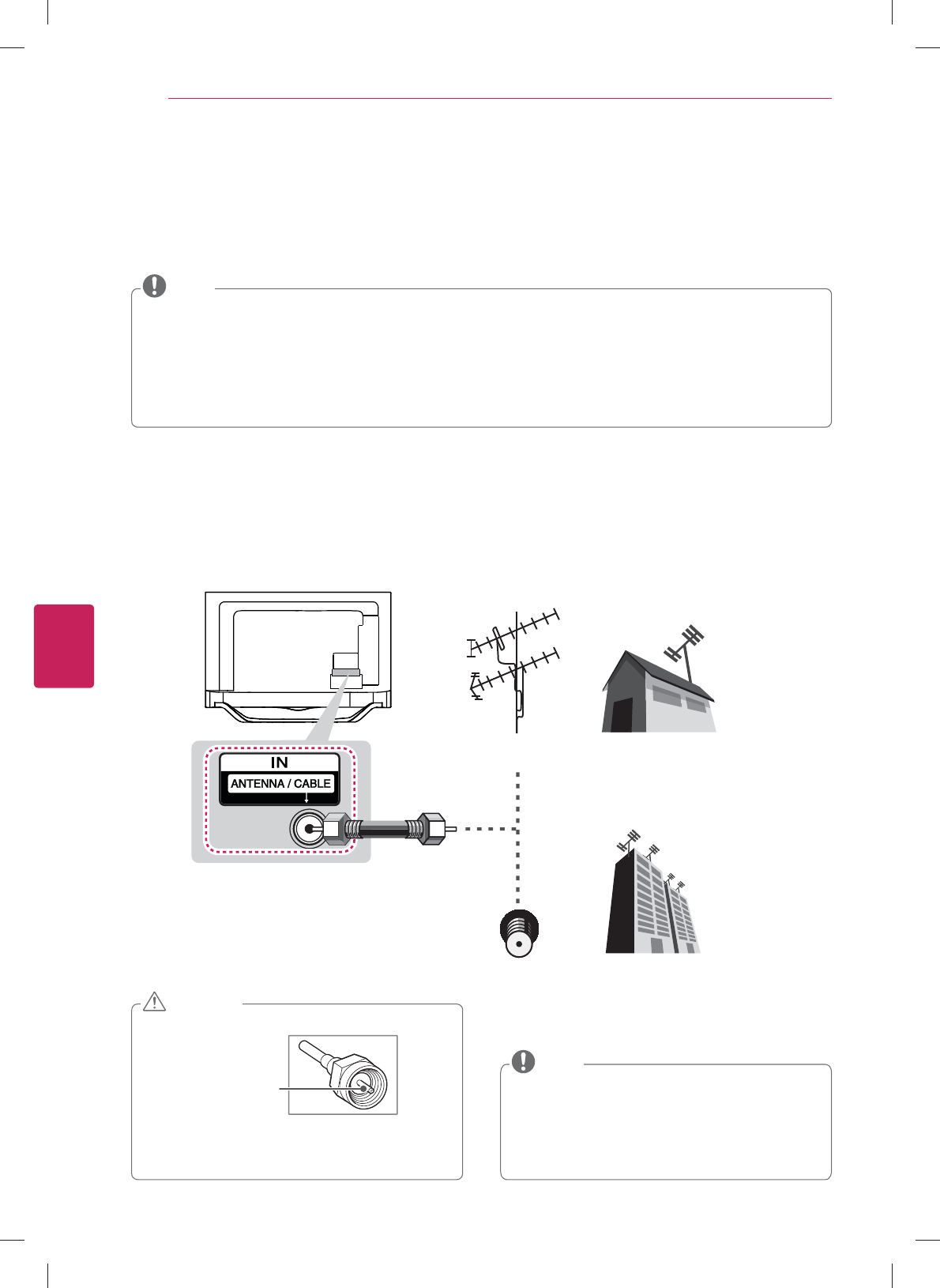

22 Connecting to an antenna or cable
23 Connecting to a HD receiver, DVD Player or
VCR

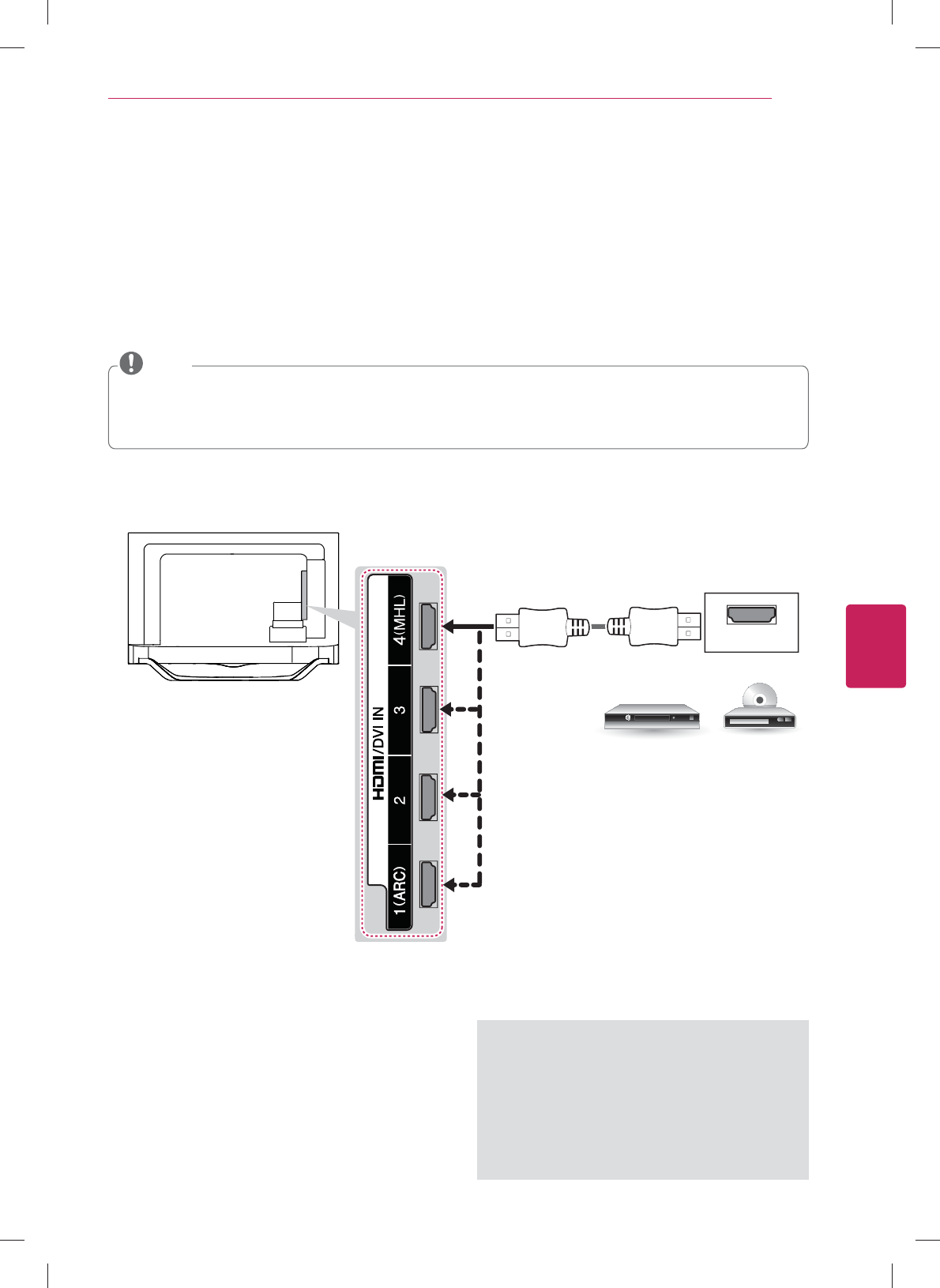

23 - HDMI Connection

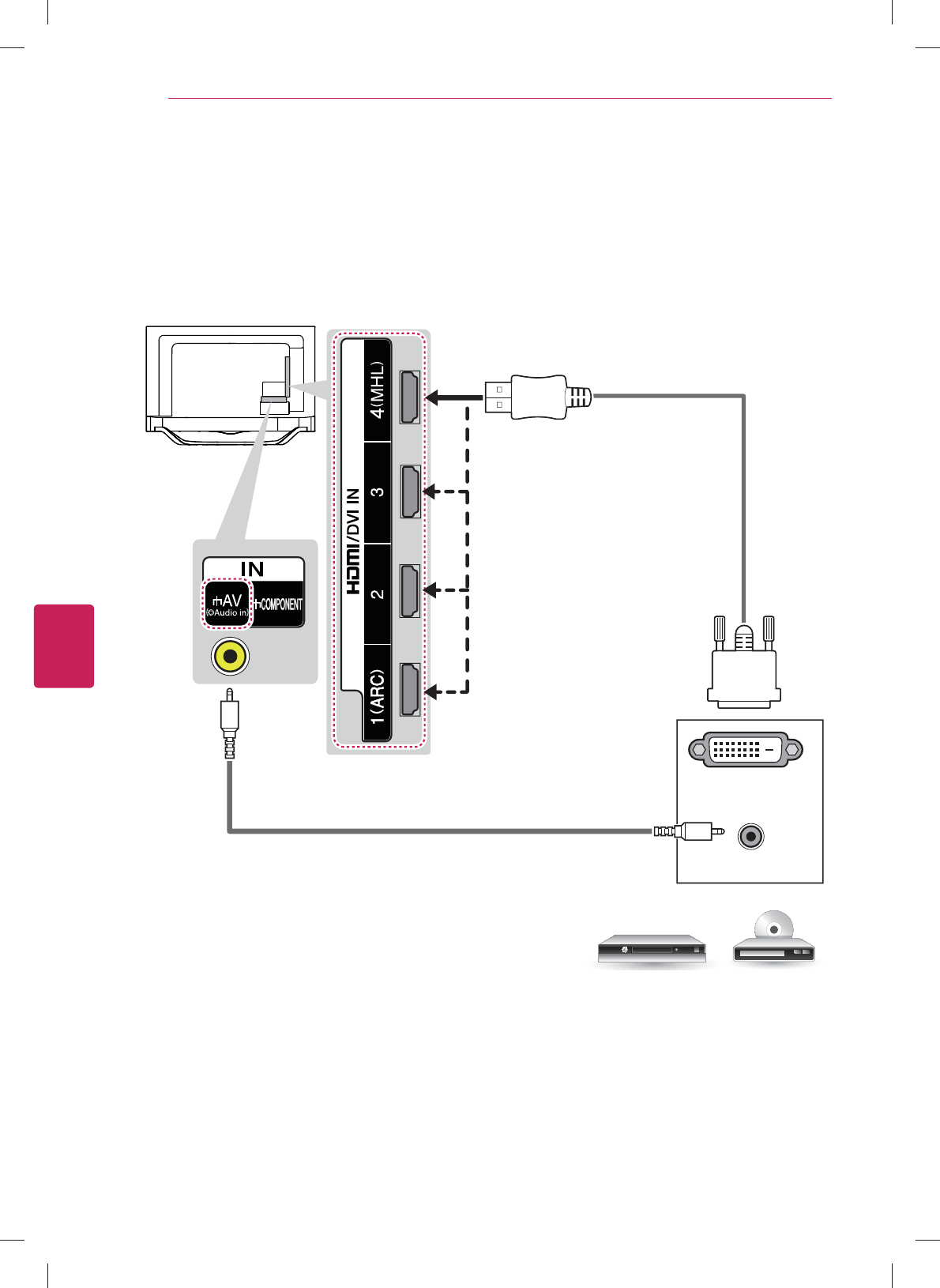

24 - DVI to HDMI Connection

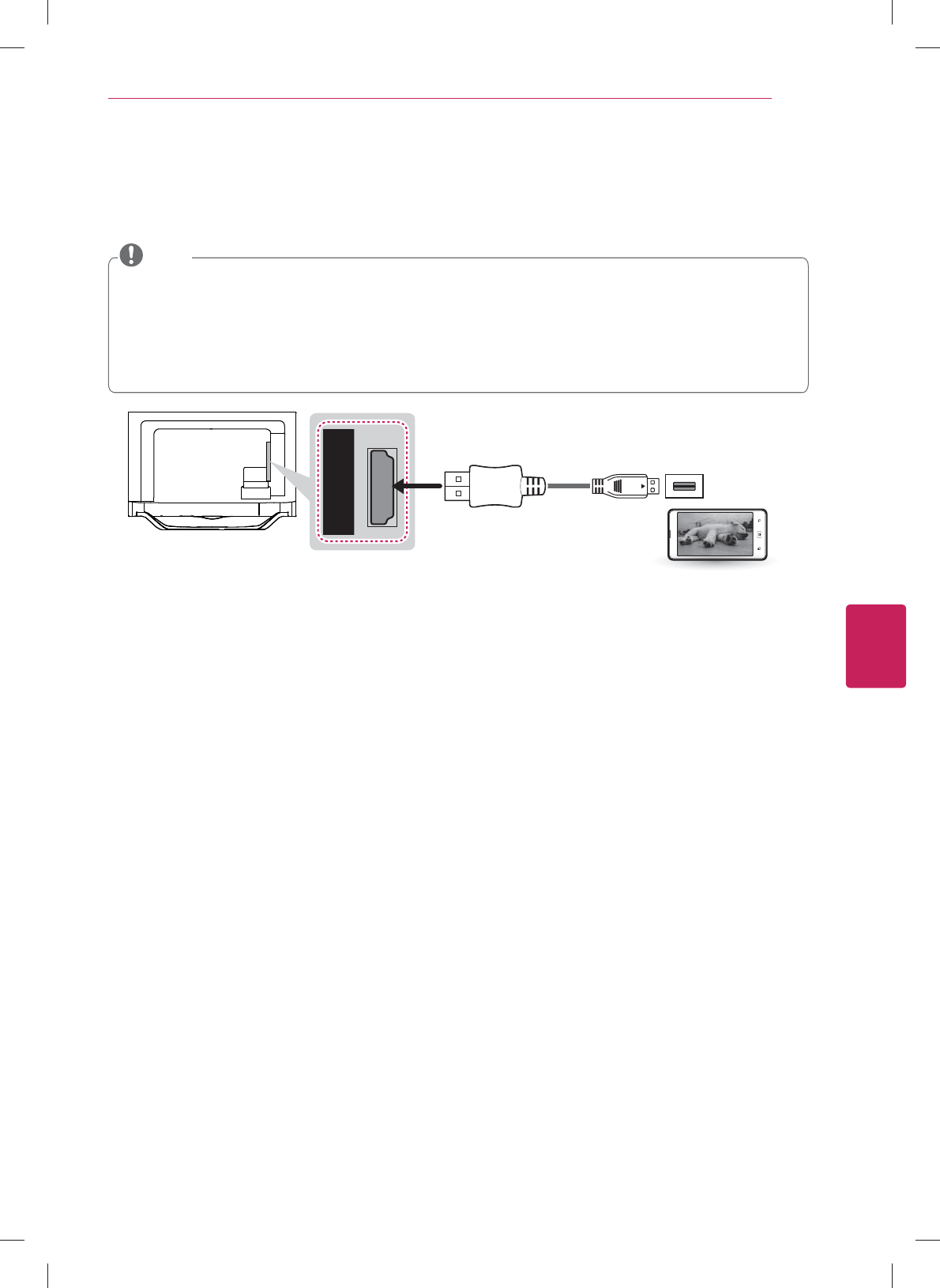

25 - Connecting to a mobile phone

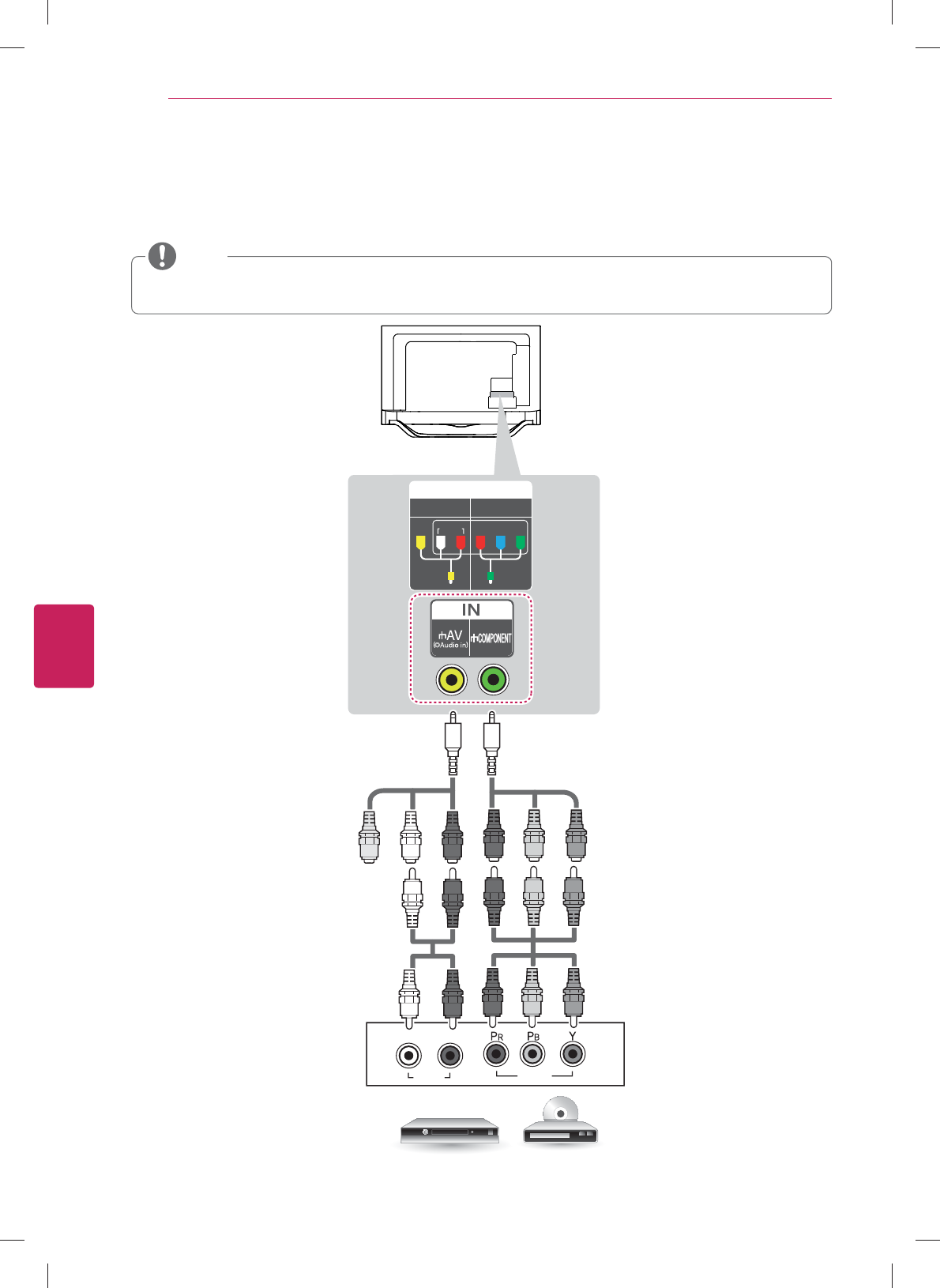

26 - Component Connection
27 - Composite Connection
28 Connecting a PC

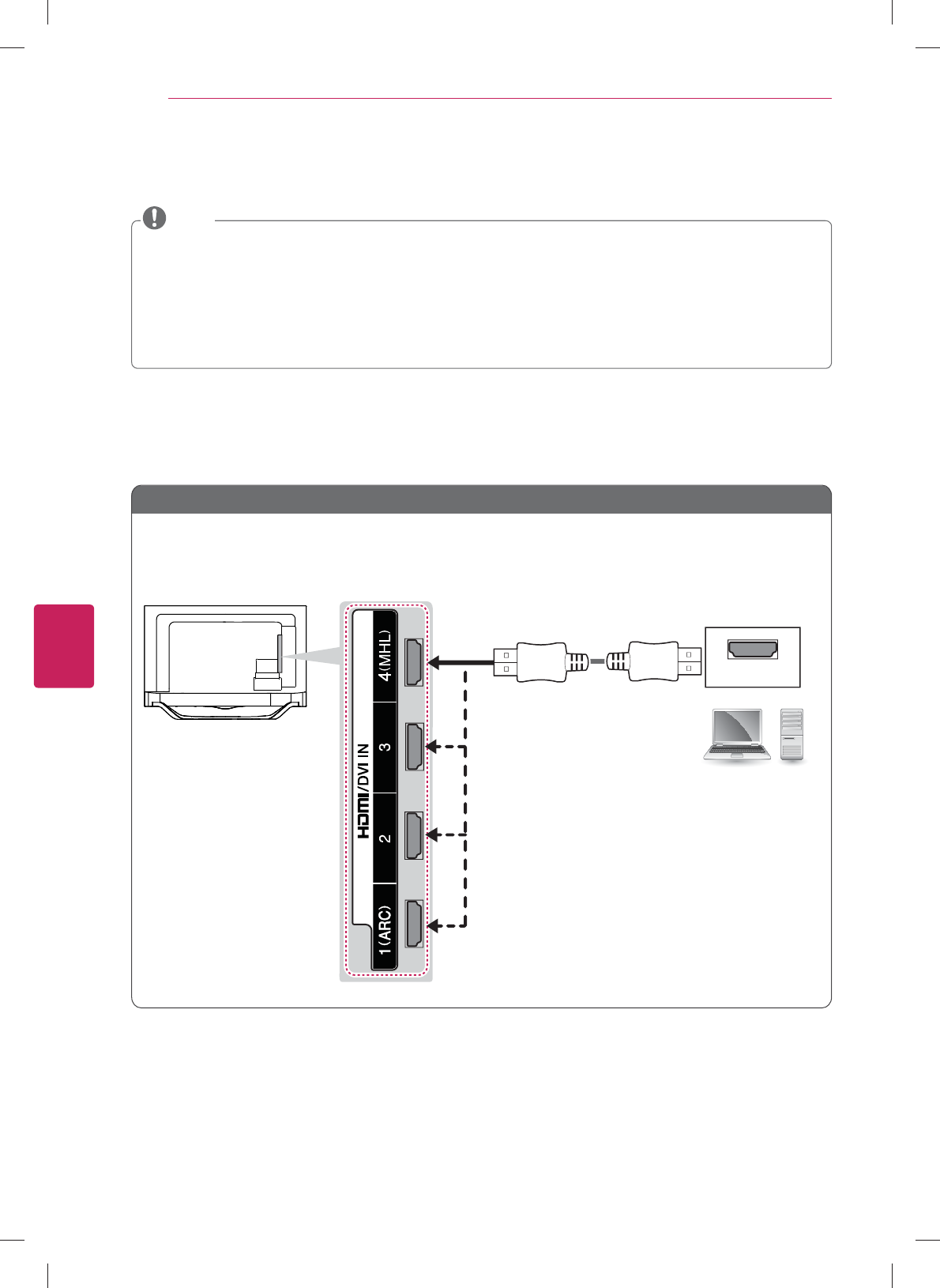

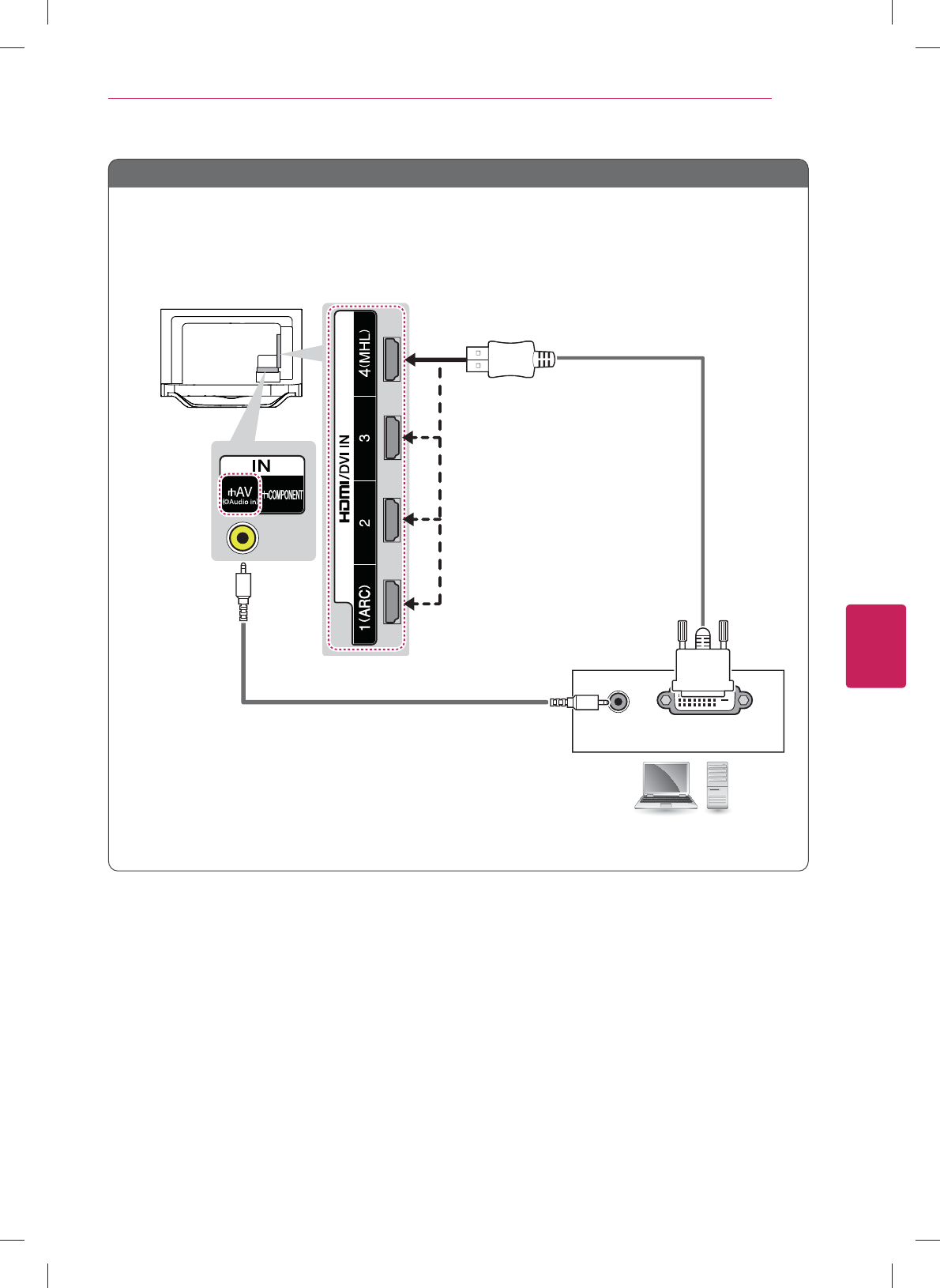

28 - HDMI Connection or DVI to HDMI
Connection
30 Connecting to an Audio System

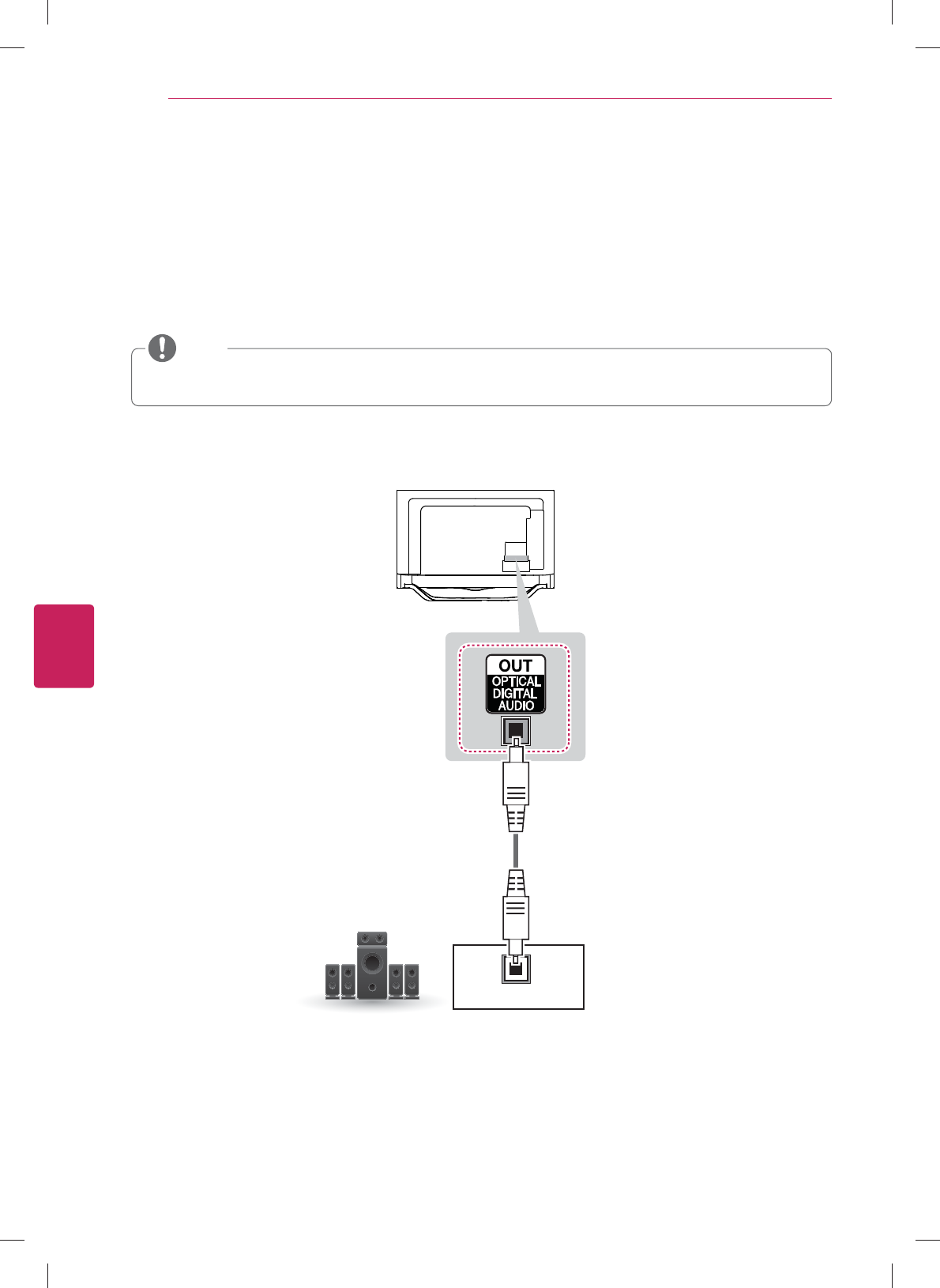

30 - Digital Optical Audio Connection

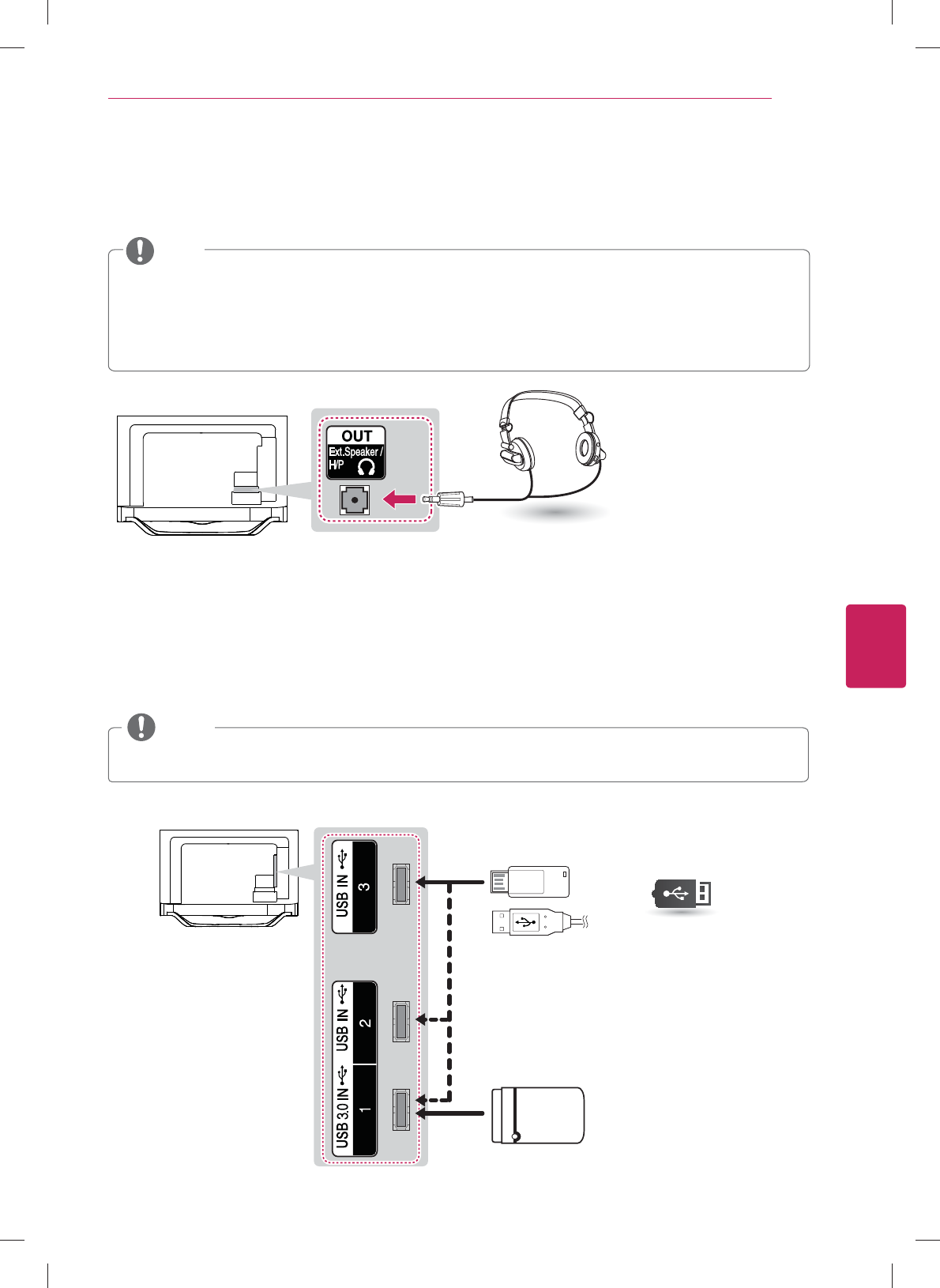

31 Connecting to a Headphone
31 Connecting a USB Device

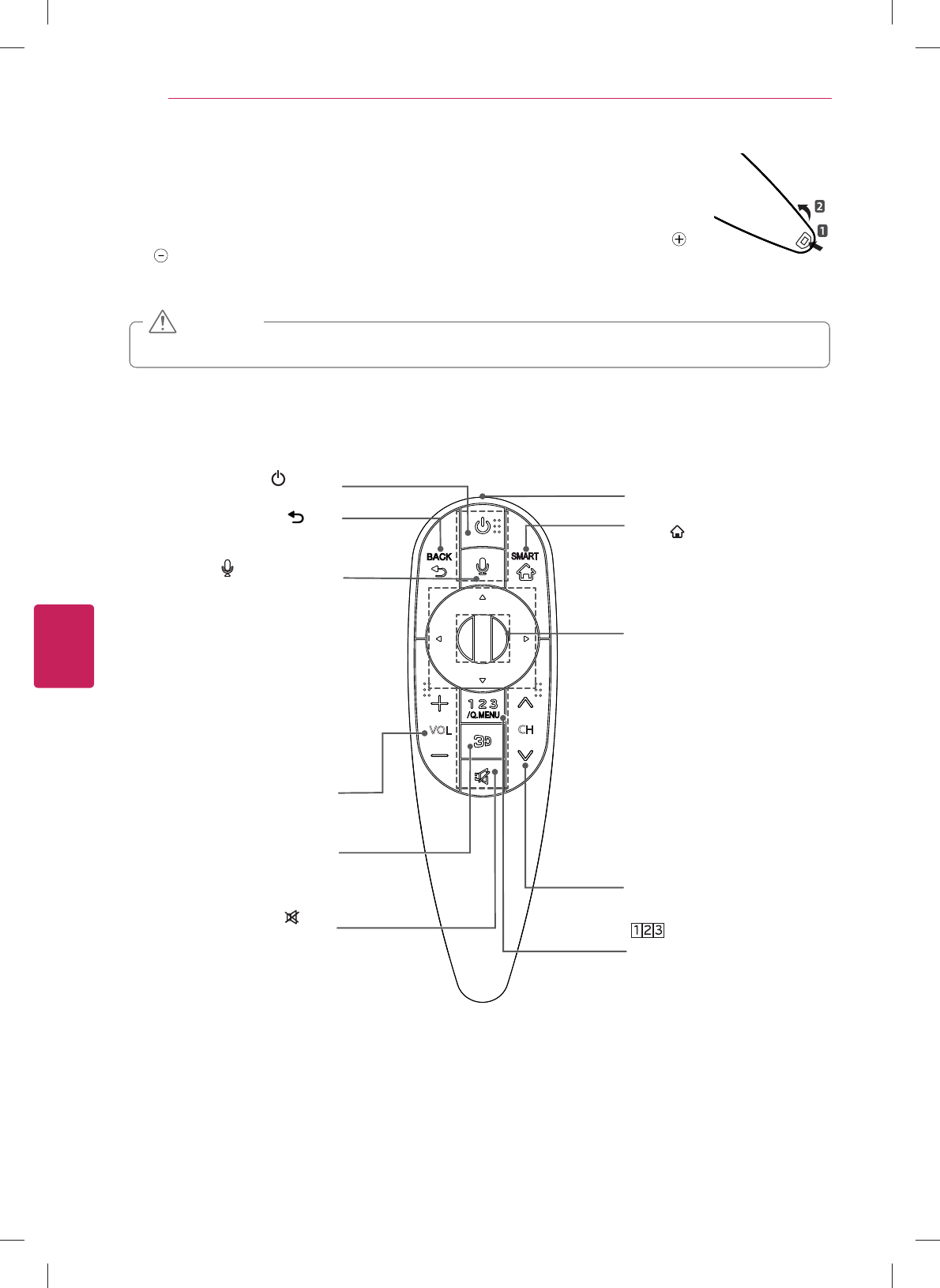

32 MAGIC REMOTE CONTROL
FUNCTIONS
33 Registering Magic Remote Control
33 How to use Magic Remote Control
33 Precautions to Take when Using the Magic
Remote Control
34 WATCHING TV
34 Turning the TV on for the first time

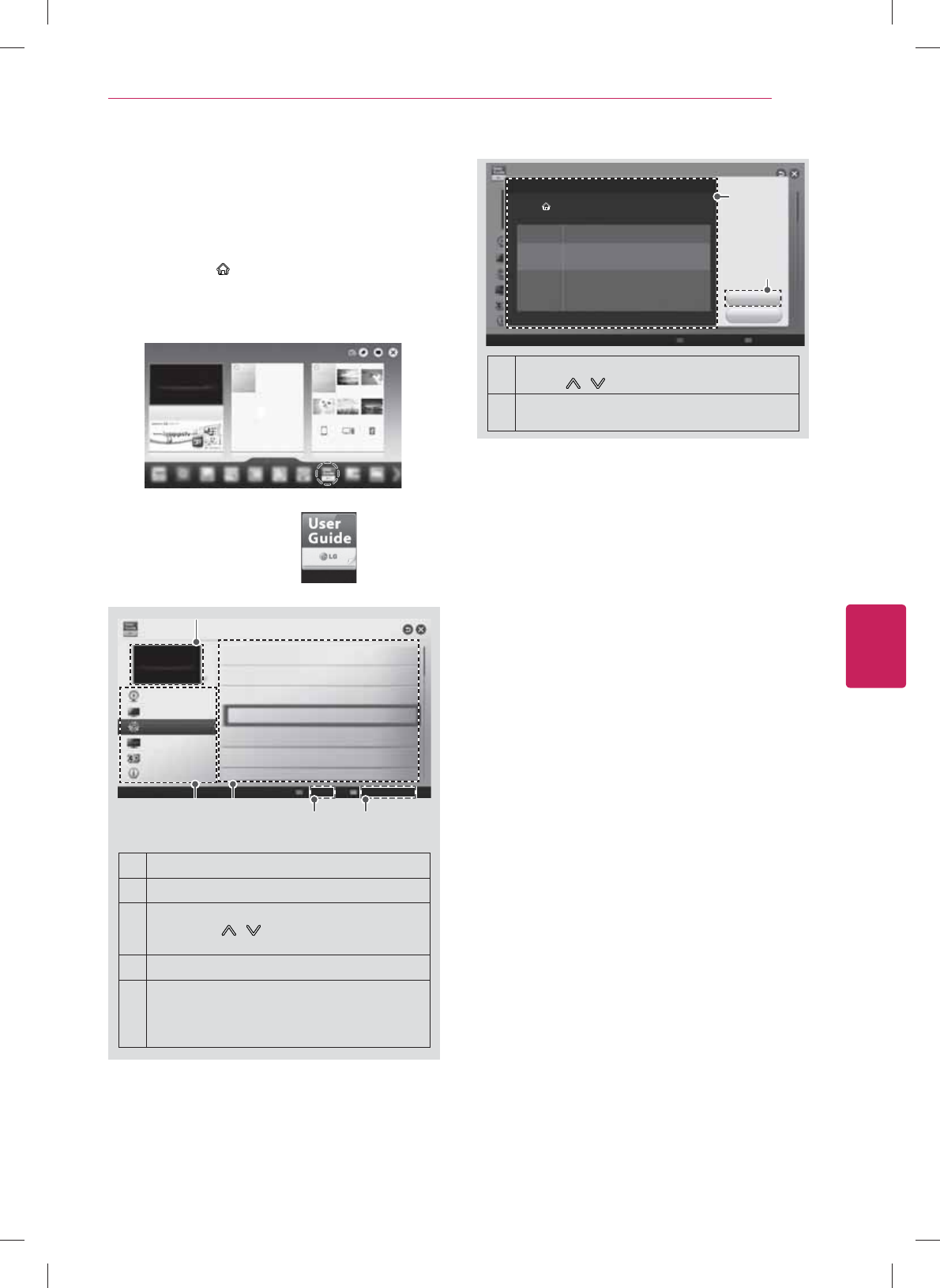

35 USING THE USER GUIDE
36 SPECIFICATIONS
40 EXTERNAL CONTROL DEVICE SETUP
41 MAINTENANCE
41 Cleaning Your TV
41 - Screen, frame, cabinet and stand
41 - Power cord
41 TROUBLESHOOTING
ENGLISH
9
ASSEMBLING AND PREPARING
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
y Do not use any unapproved items to ensure the safety and product life span.
y Any damages or injuries by using unapproved items are not covered by the warranty.
y Some models appear to have a thin film on the screen. It is actually part of the screen, do not remove it.
CAUTION
y The items supplied with your product may vary depending on the model.
y Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

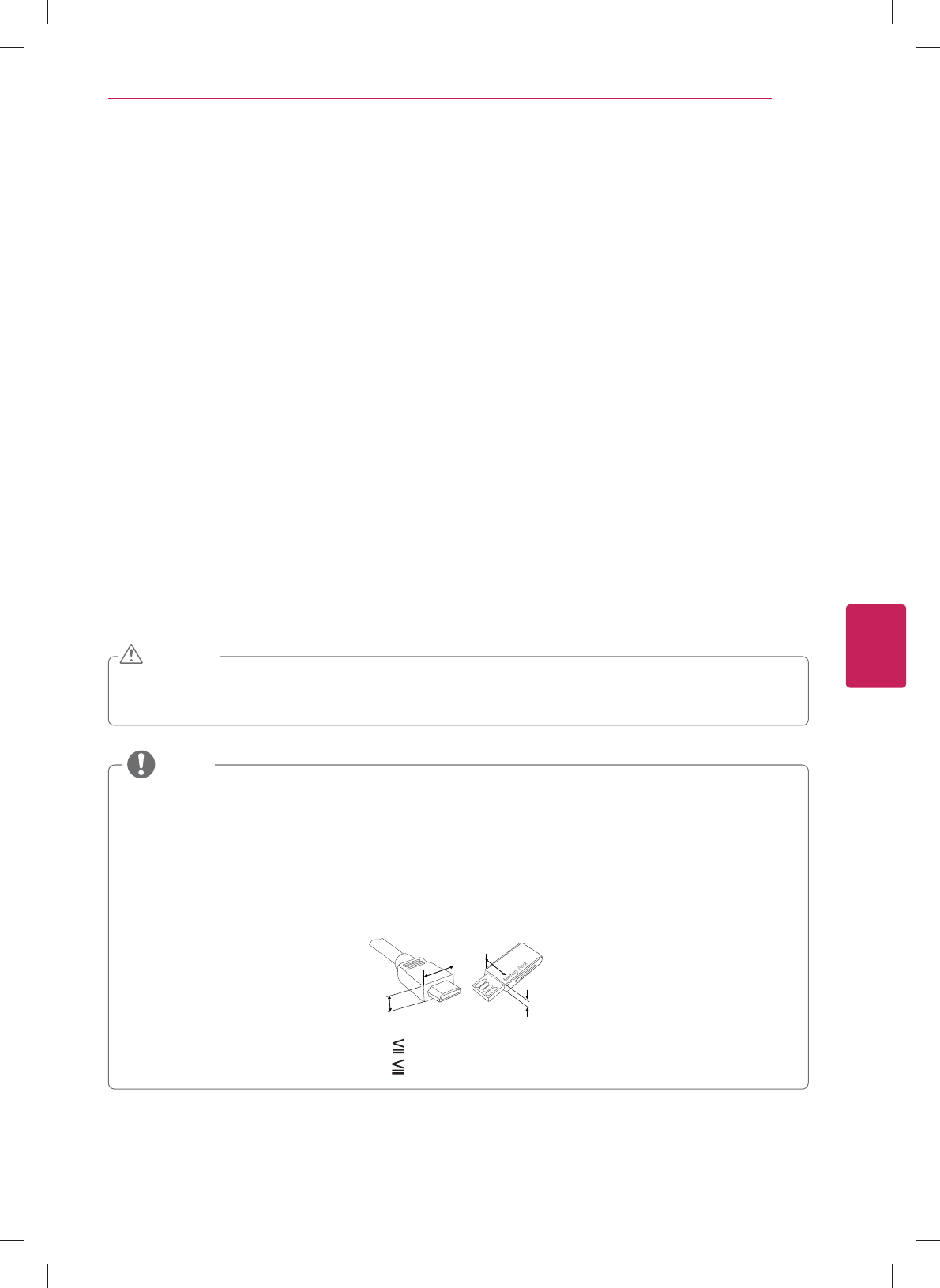

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
y Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV's USB port.
B
AA
B
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
NOTE
INSTALLATION PROCEDURE /
ENGLISH

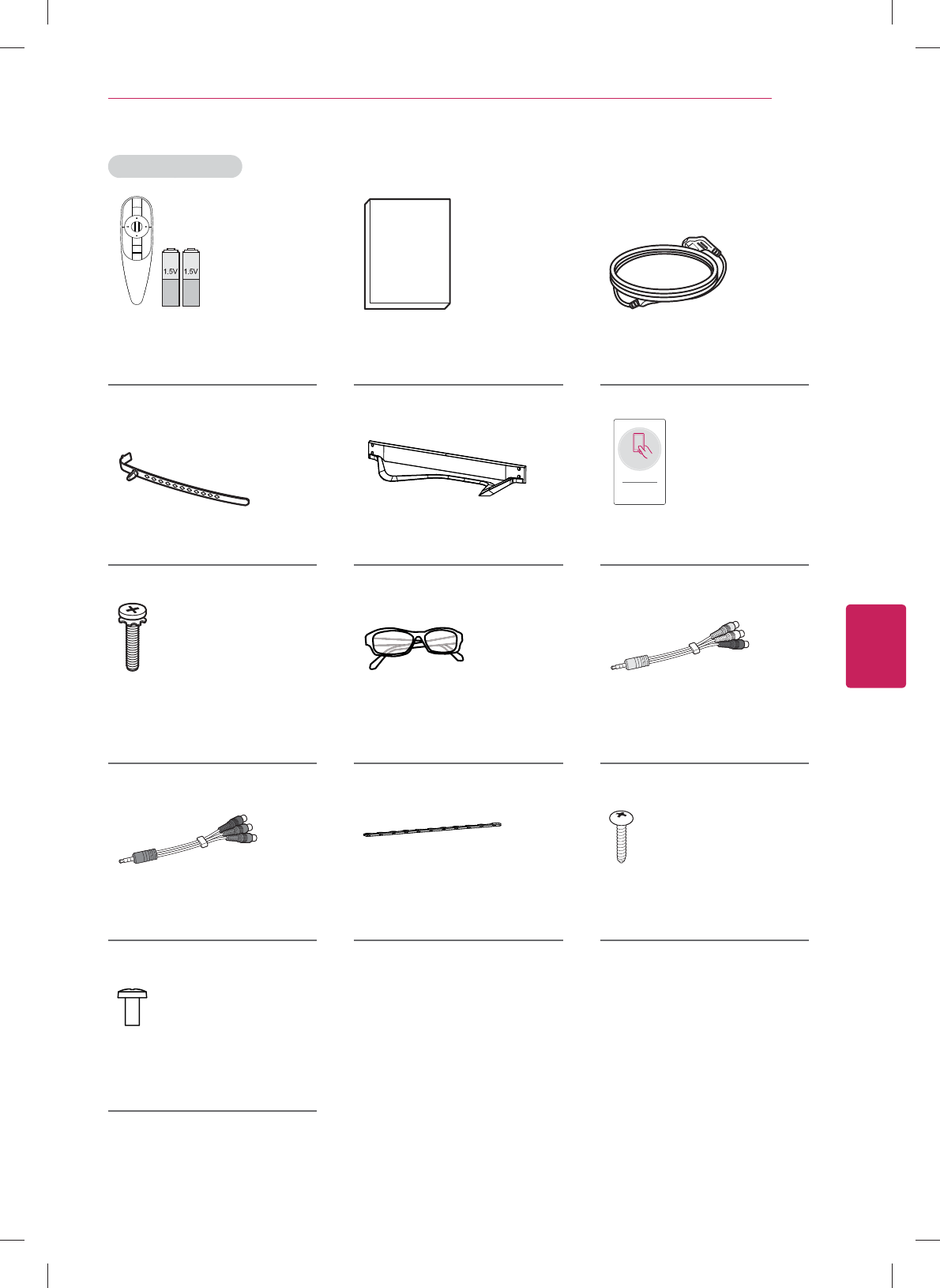

10 ASSEMBLING AND PREPARING

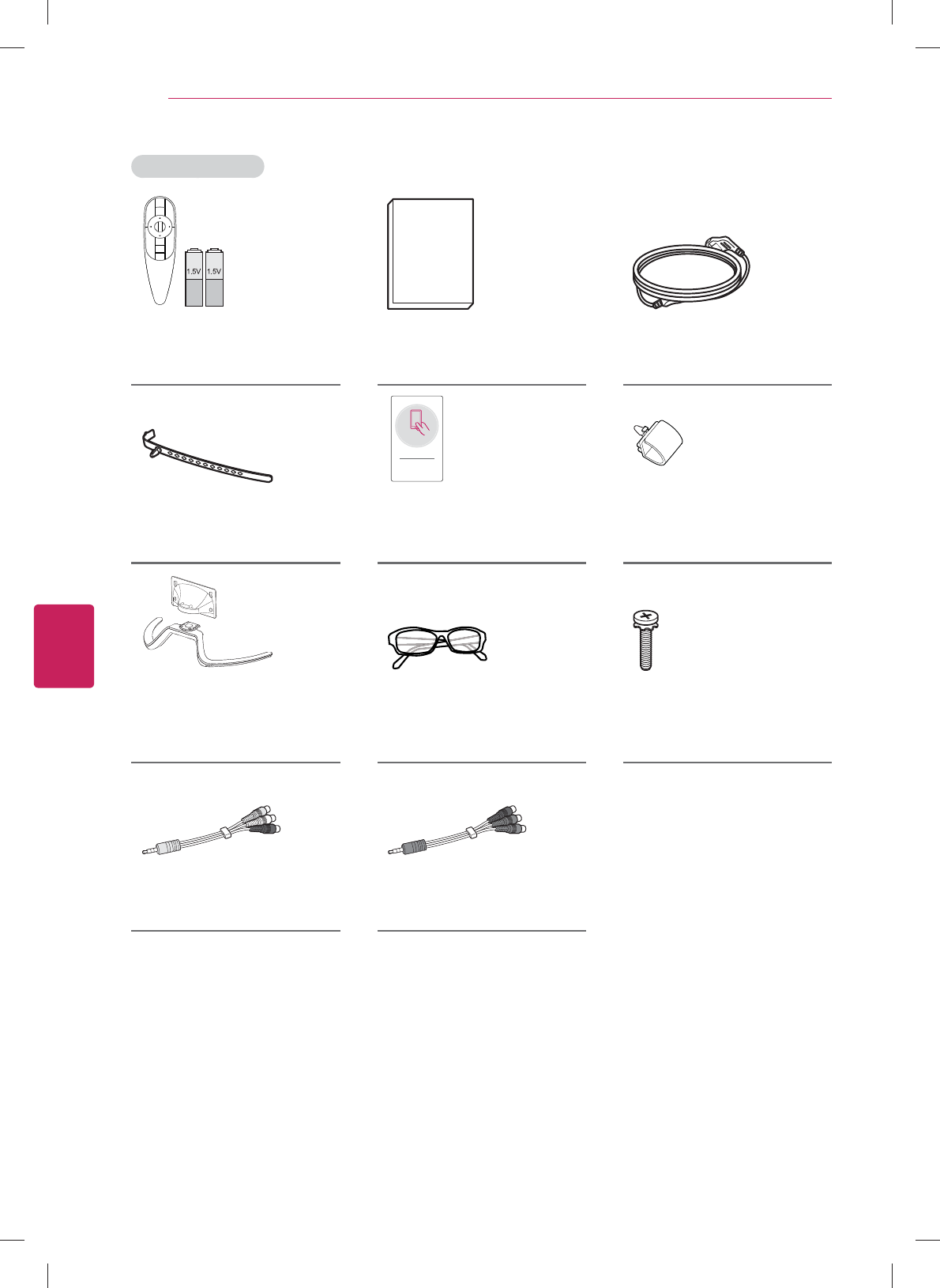

Magic Remote Control,
Batteries (AA)
(See p. 32)
Owner’s Manual Power Cord
Tag On
Cable Holder
(See p. 20)
Tag On Cable Management
2 EA
(See p 20)
Stand Base, Stand Body
(See p. 16)
Cinema 3D Glasses
The number of 3D glasses may
differ depending on the model
or country.
Stand Screws
8 EA, M4 x 14
(See p. 16)
Component video cable
(See p. 26)
Composite video cable
(See p. 26,27)
For LA7900 series
ENGLISH
11
ASSEMBLING AND PREPARING
For LA8600 series
Magic Remote Control,
Batteries (AA)
(See p. 32)
Owner’s Manual Power Cord
Tag On
Cable Holder
(See p. 20)
Stand Base
(See p. 17)
Tag On
Stand Screws
4EA, M4 x 16
(See p. 17)
Cinema 3D Glasses
The number of 3D glasses may
differ depending on the model
or country.
Component video cable
(See p.26)
(For 60LA8600) (For 60LA8600)
Composite video cable
(See p. 26,27)
Desk-mount Cable
1 EA
(See p.19)
Desk-mount Screw
1 EA
(See p.19)
(For 60LA8600)
Bracket Screw
1 EA
(See p.19)
ENGLISH
12 ASSEMBLING AND PREPARING
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with certain models.
The model name or design may be changed due to the manufacturer’s circumstances or policies.
AN-MR400P
Magic Remote Control
AG-F***
Cinema 3D Glasses
AG-F**DP
Dual Play Glasses
Tag On
AN-VC***
Video Call Camera
Tag On LG Audio device
&RPSDWLELOLW\ /$ /$
AN-MR400 Magic remote control
AG-F*** Cinema 3D glasses
AG-F**DP Dual Play Glasses
AN-VC*** Video Call Camera (Built-in)
LG Audio device
ENGLISH
13
ASSEMBLING AND PREPARING
Parts and Buttons
Button Description
/ (^ / v) Scrolls through the saved channels.
/ (+ / -) Adjusts the volume level.
(OK )Selects the highlighted menu option or confirms an input.
(SETTINGS) Accesses the main menus, or saves your input and exits the menus.
(INPUT ) Changes the input source.
( / I) Turns the power on or off.
1.Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
For LA7900 series
SETTINGS
INPUT
OK
Logo light
Buttons
Screen
Remote control and
Intellgent sensors.1
ENGLISH
14 ASSEMBLING AND PREPARING
For LA8600 series
SETTINGS
INPUT
OK
Logo light
Buttons
Screen
Button Description
/ (^ / v) Scrolls through the saved channels.
/ (+ / -) Adjusts the volume level.
(OK )Selects the highlighted menu option or confirms an input.
(SETTINGS) Accesses the main menus, or saves your input and exits the menus.
(INPUT ) Changes the input source.
( / I) Turns the power on or off.
1.Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
Remote control and
Intellgent sensors.1
ENGLISH
15
ASSEMBLING AND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and for
safe transportation regardless of its type and size.
y Avoid touching the screen at all times, as this may
result in damage to the screen.
CAUTION
y It is recommended to move the TV in the box or
packing material that the TV originally came in.
y Before moving or lifting the TV, disconnect the
power cord and all cables.
y When holding the TV, the screen should face away
from you to avoid damage.
y Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grill area.
y When transporting a large TV, there should be at
least 2 people.
y When transporting the TV by hand, hold the TV as
shown in the following illustration.
y When transporting the TV, do not expose the TV to
jolts or excessive vibration.
y When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.
ENGLISH
16 ASSEMBLING AND PREPARING
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
y When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to
protect the screen from scratches.
y Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward
after being installed.)
y Do not tighten the screws with too much force; otherwise they may be damaged and come loose later.
CAUTION
y Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
NOTE
For LA7900 series
31
2
Stand base
Stand body
Front
M4 x 14
4 EA
M4 x 14
4 EA
ENGLISH
17
ASSEMBLING AND PREPARING
41
2
For LA8600 series
M4 x 16
2 EA
M4 x 16
2 EA
Stand Base
Wrapping bag
(Depending on model)
3
ENGLISH
18 ASSEMBLING AND PREPARING

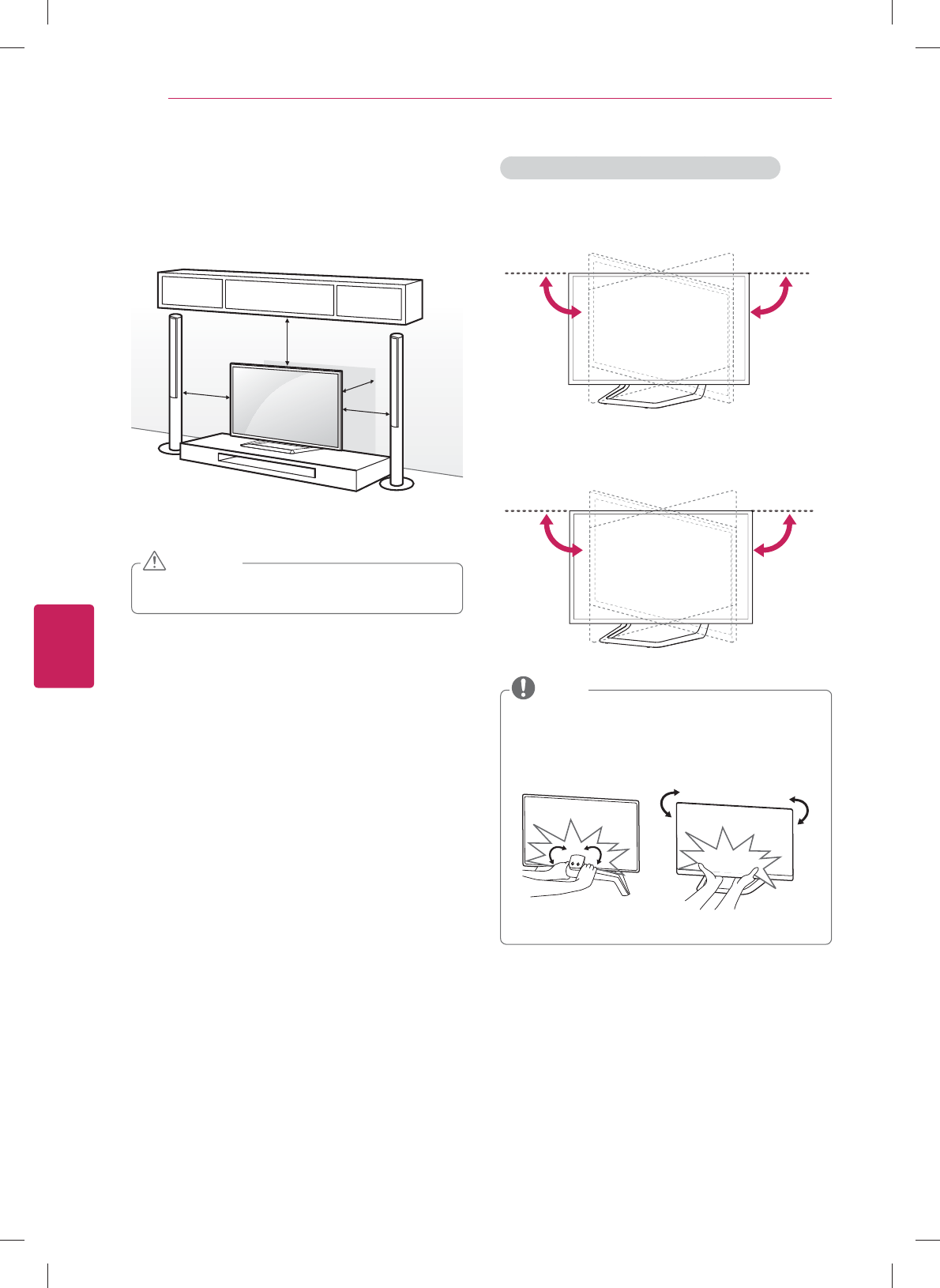

Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (4 inch) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
y Do not place the TV near or on sources of heat, as
this may result in fire or other damage.
CAUTION
(4 inches)
Adjusting the angle of the TV to suit view
Swivel 15 degrees to the left or right and adjust the
angle of the TV to suit your view.
(For 47/55LA7900)
15˚15˚
Swivel 8 degrees to the left or right and adjust the angle
of the TV to suit your view.
(For 55/60LA8600)
8˚8˚
y When adjusting the angle of the TV, watch out for
your fingers.
»Personal injury may occur if hands or fingers are
pinched. If the product is tilted too much, it may fall,
causing damage or injury.
Rear Front
NOTE
ENGLISH
19
ASSEMBLING AND PREPARING

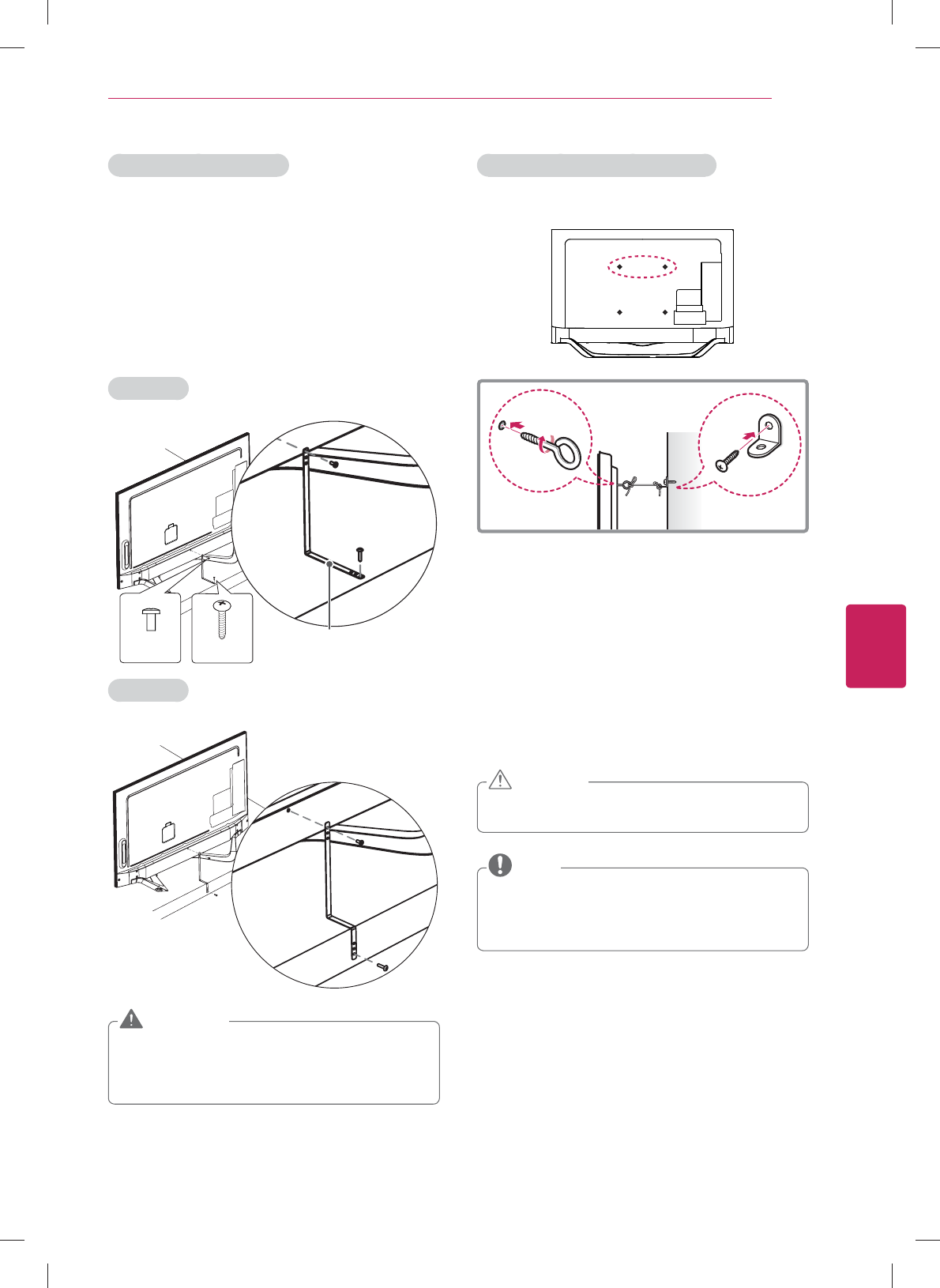

Securing the TV to a table
(For 60LA8600)
1 Connect the Desk-mount Cables to the Stand Base
using the Bracket Screws.
2 Fix the Desk-mount Cables to a table using the Desk-
mount Screws.
3 Once the TV is fixed, move the table close to the
wall. Children may go in, causing injuries.
Method A
Desk-mount Cable
P4 x 10 P4 x 20
Method B
y To prevent TV from falling over, the TV should be
securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the TV
may cause injury.
WARNING
Securing the TV to a wall (optional)
(Depending on model)
1 Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position,
remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with
a sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
y Make sure that children do not climb on or hang on
the TV.
CAUTION
y Use a platform or cabinet that is strong and large
enough to support the TV securely.
y Brackets, bolts and ropes are optional. You can
obtain additional accessories from your local dealer.
NOTE
ENGLISH
20 ASSEMBLING AND PREPARING
Tidying cables
(For LA7900)
1 Gather and bind the cables with the cable
management.
2 Gather and bind the cables with the cable holder on
the back of the TV.
y Do not move the TV by holding the cable holder
and cable management, as the cable holders may
break, and injuries and damage to the TV may
occur.
CAUTION
(For LA8600)
1 Gather and bind the cables with the cable
management.
2 Gather and bind the cables with the cable holder on
the back of the TV.
Cable Management
Cable Holder
Cable Holder
ENGLISH
21
ASSEMBLING AND PREPARING
Mounting on a wall
An optional wall mount can be used with your LG
Television. Consult with your local dealer for a wall
mount that supports the VESA standard used by your
TV model. Carefully attach the wall mount bracket at the
rear of the TV. Install the wall mount bracket on a solid
wall perpendicular to the floor. If you are attaching the
TV to other building materials, please contact qualified
personnel to install the wall mount. Detailed instructions
will be included with the wall mount. We recommend
that you use an LG brand wall mount.
10 cm
10 cm
10 cm
10 cm
(4 inches)
Make sure to use screws and wall mounts that meet the
VESA standard. Standard dimensions for the wall mount
kits are described in the following table.
Model 47LA7900
55LA7900
55LA8600
60LA8600
VESA (A x B)
A
B
400 x 400
Standard screw M6
Number of screws 4
Wall mount
bracket (optional)
LSW430B
y Disconnect the power before moving or installing
the TV. Otherwise electric shock may occur.
y If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury.
Use an authorized LG wall mount and contact the
local dealer or qualified personnel.
y Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
y Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by misuse
or using an improper accessory are not covered by
the warranty.
CAUTION
y Use the screws that are listed in the VESA
standard screw specifications.
y The wall mount kit includes an installation manual
and necessary parts.
y The wall mount bracket is optional. You can obtain
additional accessories from your local dealer.
y The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
y For more information, refer to the manual supplied
with the wall mount.
NOTE
ENGLISH
22 MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs,
audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external
device’s connection, refer to the manual provided with each device.
y If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the
TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the
connected device.
y The external device connections shown may differ slightly from illustrations in this manual.
y Connect external devices to the TV regardless of the order of the TV port.
y If you connect a gaming device to the TV, use the cable supplied with the gaming device.
y Refer to the external equipment’s manual for operating instructions.
NOTE
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from
the actual items and a RF cable is optional.
y Make sure not to bend the copper wire of the RF
cable.
Copper wire
y Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
CAUTION
UHF Antenna
Antenna
VHF Antenna
Coaxial (75Ω)
Terminal
y Use a signal splitter to use more than 2 TVs.
y Visit ‘http://lgknowledgebase.com’ for more
information about the antenna and cable
connection. Search for antenna.
y DTV Audio Supported Codec: MPEG, Dolby Digital,
DTS
NOTE
(*Not Provided)
y This section uses illustrations of the LA8600 series.
ENGLISH
23
MAKING CONNECTIONS
Connecting to a HD receiver, DVD Player or VCR
Connect a HD receiver, DVD Player or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV
with the HDMI cable as shown in the following illustration.
y Use the latest High Speed HDMI™ Cable that supports CEC (Customer Electronics Control) function.
y High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
y HDMI Audio Supported Format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k),
DTS supported.
NOTE
HDMI
DVD / Blu-Ray / HD Cable Box / HD STB
Choose any HDMI input port to connect.
It does not matter which port you use.
ARC (Audio Return Channel)
y When connected with a high-speed HDMI cable,
digital audio can be sent to a compactible device
without an additional optical audio cable.
y ARC is only supported on the HDMI input 1 (ARC)
port. An external audio device that supports ARC
should be connected to HDMI 1 if you wish to use
ARC
(*Not Provided)
ENGLISH
24 MAKING CONNECTIONS
DVI to HDMI Connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the
DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.
AUDIO OUT
DVI OUT
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
YELLOW
Choose any HDMI/DVI input port to connect.
It does not matter which port you use.
ENGLISH
25
MAKING CONNECTIONS
Connecting to a mobile phone
Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to
television sets.
y Connect the mobile phone to the HDMI IN 3 (MHL) port to view the phone screen on the TV.
y This only works for the MHL-enabled phone.
y With some MHL supporting mobile phones, you can use the TV remote to control the phone.
y An MHL passive cable is needed to connect the TV and a mobile phone.
y Remove the MHL cable from the TV when
- the MHL function is disabled
- your mobile device is fully charged in standby mode
NOTE
4
(MHL)
(*Not Provided)
MHL Cable
Mobile phone
ENGLISH
26 MAKING CONNECTIONS
Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
a component cable as shown in the following illustration.
y If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
y Check to ensure the cables are matched with the corresponding color connection.
NOTE
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
VIDEO
AUDIO
LR
DVD / Blu-Ray / HD Cable Box
GREEN
BLUE
RED
RED
WHITE
GREEN
YELLOW
YELLOW
WHITE
RED
GREEN
BLUE
RED
WHITE
RED
GREEN
BLUE
RED
(Use the composite video cable provided.) (Use the component video cable provided.)
ENGLISH
27
MAKING CONNECTIONS
Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
the composite cable as shown in the following illustration.
y Check to ensure the cables are matched with the corresponding color connection.
NOTE
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
VIDEO
MONO
( )
AUDIOLR
VCR / DVD / Blu-Ray / HD Cable Box
RED
WHITE
YELLOW
WHITE
RED
WHITE
RED
YELLOW YELLOW
YELLOW
(Use the composite video cable provided.)
ENGLISH
28 MAKING CONNECTIONS
Connecting a PC
y It is recommended to use an HDMI connection for the best image quality.
y Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use.
y In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise
is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE menu until the picture is clear.
y The synchronization input form for Horizontal and Vertical frequencies is separate.
y Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen
properly.
NOTE
HDMI Connection or DVI to HDMI Connection
Choose method A or B to make connection.
Method A: HDMI Connection
HDMI
(*Not Provided)
PC
Choose any HDMI input port to connect.
It does not matter which port you use.
ENGLISH
29
MAKING CONNECTIONS
Method B: DVI to HDMI Connection
AUDIO OUT DVI OUT
PC
(*Not Provided)
(*Not Provided)
YELLOW
Choose any HDMI/DVI input port to connect.
It does not matter which port you use.
ENGLISH
30 MAKING CONNECTIONS
Connecting to an Audio System
You may use an optional external audio system instead of the built-in speaker.
Digital Optical Audio Connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the
optical audio cable as shown in the following illustration.
y Do not look into the optical output port. Looking at the laser beam may damage your vision.
y Audio with ACP (Audio Copy Protection) function may block digital audio output.
NOTE
OPTICAL AUDIO IN
Digital Audio System
(*Not Provided)
ENGLISH
31
MAKING CONNECTIONS
Connecting to a Headphone
Listen to the sound through a headphone.
y AUDIO menu options are disabled when connecting a headphone.
y When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
y Optical Digital Audio Out is not available when connecting a headphone.
y Headphone impedance: 16 :
y Max audio output: 10 mW to 15 mW
y Headphone jack size: 0.35 cm (0.13 inches)
NOTE
Connecting a USB Device
Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV
and access the Smart Share menu to use various multimedia files.
y Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the
USB port on the TV directly.
NOTE
USB
USB HUB
1
(1.2A)
3
(1A)
(*Not Provided)
Choose any USB input port to connect.
It does not matter which port you use.
(*Not Provided)
HDD
ENGLISH
32 MAGIC REMOTE CONTROL FUNCTIONS
MAGIC REMOTE CONTROL FUNCTIONS
When the message “Magic remote control battery is low. Change the battery.” is displayed, replace
the battery. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching
and ends to the label inside the compartment, and close the battery cover. Be sure to point
the remote control at the remote control sensor on the TV. To remove the batteries, perform the
installation actions in reverse.
y Do not mix old and new batteries, as this may damage the remote control.
CAUTION
This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.
VOL CH
/Q.MENU
Accesses the quick menus.
Accesses the Universal Control
Wheel(OK)
Selects menus or options and confirms
your input.
Scrolls through the saved programmes.
If you press the navigation button while
moving the pointer on the screen,
the pointer disappears, and the Magic
Remote Control works as a regular
remote control.
To display the pointer again, shake the
Magic Remote Control from side to
side.
(POWER)
Turns the TV on or off.
3D
Used for viewing 3D video.
BACK
Returns to the previous level.
ᰜ
CH
ᰝ
Scrolls through the saved programmes
or channels.
Navigation buttons
(up/down/left/right)
Scrolls through menus or options.
MUTE
Mutes all sounds.
+ VOL -
Adjusts the volume level.
Voice recognition
-This is a beta version and only available
in selected functions for supported
models.
-Network connection is required to use
the voice recognition function.
1. Press the Voice recognition button.
2. Speak slowly and precisely.
When a voice is recognized, the
processing message appears on the
screen.
further than 10 cm from your face.
SMART
Accesses the Smart Home.
Pointer (RF transmitter)
ENGLISH
33
MAGIC REMOTE CONTROL FUNCTIONS

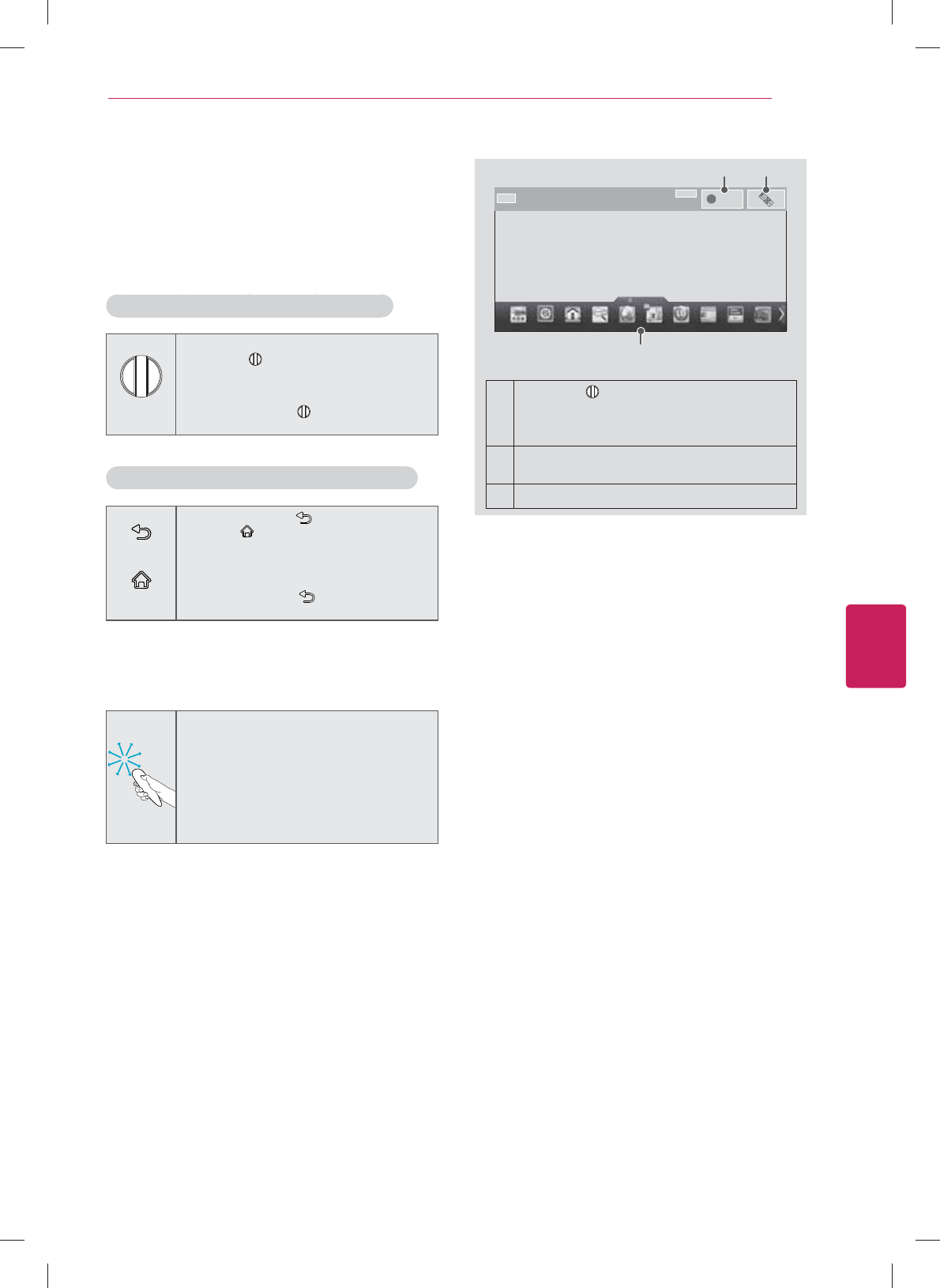

Registering Magic Remote Control
The Magic Remote Control operates by pairing with your
TV.
Once you purchased the TV, please register the Magic
remote control as follows;
How to register the Magic Remote Control
(Wheel)
To register automatically, turn the TV on and
press the Wheel (OK). When registration
is completed, the completion message
appears on the screen.
If registration fails, turn the TV off and back
on, then press the Wheel (OK) to
complete registration.
How to Re-register the Magic Remote Control
BACK
SMART
1 Press and hold the BACK and
SMART buttons together for 5 seconds
to reset, then register it by following “How
to register the Magic remote control”
above.
2 To re-register the Magic remote control,
press and hold the BACK button for 5
seconds toward the TV.
How to use Magic Remote Control
1 You can move the pointer by moving the
remote up and down or left and right.
»If the pointer does not work properly,
wait 10 seconds and then try again.
2 If the pointer disappears, move the remote
control slightly to left or right. It will then
automatically appear on the screen.
»If the pointer has not been used for a
certain period of time, it will disappear.
L
1
3
2
1
If you press Wheel (OK) on the Magic remote
control, the screen above opens.
It shows information about the current program
and screen.
2Pressing this button will display number
keypad which you can select channel number.
3You can select My Apps Menu.
Precautions to Take when Using
the Magic Remote Control
y Use the Magic remote control within the maximum
communication distance (10 m, 32.8ft). Using the remote
control beyond this distance, or with an object obstructing
it, may cause a communication failure.
y A communication failure may occur due to nearby devices.
Electrical devices such as a microwave oven or wireless
LAN product may cause interference, as these use the
same bandwidth (2.4 GHz) as the Magic remote control.
y The Magic remote control may be damaged or may
malfunction if it is dropped or receives a heavy impact.
y Take care not to bump into nearby furniture or other
people when using the Magic remote control.
y Manufacturer and installer cannot provide service related
to human safety as the applicable wireless device has
possibility of electric wave interference.
y It is recommended that an Access Point (AP) be located
more than 1 m (3.28 ft) away from the TV. If the AP is
installed closer than 1 m (3.28 ft), the Magic remote
control may not perform as expected due to frequency
interference.
ENGLISH
34 WATCHING TV
WATCHING TV
Turning the TV on for the first time
When you turn the TV on for the first time, the Initial
setting screen appears. Select a language and customize
the basic settings.
1 Connect the power cord to a power outlet.
2 In Standby mode, press the power button on the
remote control to turn the TV on.
The Initial setting screen appears if you turn the TV
on for the first time.
y You can also access Initial Setting by accessing
OPTION in the main menu.
NOTE
3 Follow the on-screen instructions to customize your
TV settings according to your preferences.
Language Selection* Selects a language to
display.
Ø
Enviroment Selection Select Home* for the
home environment.
Ø
Time Zone Setting Selects the time zone and
daylight saving.
(Depending on country)
Ø
Network Connection Sets your network to
enable network-related
features on the TV.
Ø
Select TV watching Type Set the TV and set-top box
for each watching type.
Ø
Auto Tuning Scans and saves available
channels automatically.
Ø
Using camera and
microphone
Ø
Setting is completed. Confirms the setting
options.
Ø
Experience Magic
Remote Control
Simple guide of Magic
Remote Control
(Depending on model)
y Select Home* when prompted. Store* mode
puts the TV in demo mode.
y If you select Store*, the any customized
settings will switch back to the default settings
of Store* in 5 minutes.
y The Standby light feature is disabled in Store
Demo mode.
NOTE
4 When the basic settings are complete,
press the OK button.
y If you do not complete the Initial setting, it will
appear whenever the TV turns on.
y Disconnect the power cord from the power outlet
when you do not use the TV for a long period of
time.
NOTE
5 To turn the TV off, press the power button on the
remote control.
ENGLISH
35
USING THE USER GUIDE
USING THE USER GUIDE
User Guide allows you to easily access detailed TV
information.
1 Press
SMART button to access the Smart Home
menus.
2 Select
User Guid and press the Wheel (OK) button.
User Guide
Ö
To use input device
To set time options
To set language
To set caption
To set other options
To set TV lock options
User Guide
Index
ONLINE USER GUIDE
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
LG SMART Function
Advanced Function
Information
1
2 3 4 5
1Shows the video you were watching.
2Guide categories.
3List of topics in the current category.
You can use / button to move between
pages.
4An index of key words present in the User Guide.
5
Provides the detailed information on the functions
of LG Smart TV when the Internet is connected.
(It may not be available depending on the country/
language.)
OPTION > To set language
SMART Ö Settings ¨ OPTION ¨ Language
Selects Menu Language and Audio Language displayed on the screen.
Menu
Language
Audio
Language
Selects a screen menu language.
[In Digital Mode Only]
When watching a digital broadcast containing several audio
languages, you can select the language you want.
Subtitle
Language
[In Digital mode Only]
Use the Subtitle function when two or more subtitle
languages are broadcast.
ܩ
If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Try Now
Close
1
2
1Shows the description of the selected menu. You
can use / to move between pages.
2Moves to the selected menu directly from the
User Guide.
(Depending on country)
ENGLISH
36 SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power requirement AC100 - 240 V ~ 50/60 Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 Ω
Environment
condition
Operating Temperature 0 - 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 - 60 °C
Storage Humidity Less than 85 %
MODELS 47LA7900
(47LA7900-UA)
Dimensions (Width
x Height x Depth)
With stand 1077 x 690 x 285 (mm)
42.4 x 27.2 x 11.2 (inch)
Without stand 1077 x 612.0 x 34.1 (mm)
42.4 x 24.0 x 1.3 (inch)
Weight With stand 18.5 Kg (40.7 Ibs)
Without stand 16.8 Kg (37.0 Ibs)
Current Value / Power consumption 1.3 A / 130 W
MODELS 55LA7900
(55LA7900-UA)
Dimensions (Width
x Height x Depth)
With stand 1247 x 788 x 326 (mm)
49.0 x 31.0 x 12.8 (inch)
Without stand 1247 x 709 x 34.1 (mm)
49.0 x 27.9 x 1.3 (inch)
Weight With stand 25.3 Kg (55.7 Ibs)
Without stand 23 Kg (50.7 Ibs)
Current Value / Power consumption 1.5 A / 150 W
ENGLISH
37
SPECIFICATIONS
MODELS 55LA8600
(55LA8600-UC)
Dimensions (Width
x Height x Depth)
With stand 1229 x 790 x 316 (mm)
48.3 x 31.1 x 12.4 (inch)
Without stand 1229 x 721 x 36.0 (mm)
48.3 x 28.3 x 1.4 (inch)
Weight With stand 26.2 Kg (57.7 Ibs)
Without stand 23.4 Kg (51.5 Ibs)
Current Value / Power consumption 1.5 A / 150 W
MODELS 60LA8600
(60LA8600-UC)
Dimensions (Width
x Height x Depth)
With stand 1337 x 850 x 316 (mm)
52.6 x 33.4 x 12.4 (inch)
Without stand 1337 x 769 x 34.1 (mm)
52.6 x 30.2 x 1.3 (inch)
Weight With stand 30.5 Kg (67.2 Ibs)
Without stand 27.7 Kg (61.0 Ibs)
Current Value / Power consumption 1.7 A / 170 W
ENGLISH
38 SPECIFICATIONS
HDMI (DTV) supported mode
Resolution Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720x480p 31.47 59.94
31.5 60.00
1280x720p 44.96 59.94
45.00 60.00
1920x1080i 33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.000 24.000
33.71 29.97
33.75 30.000
67.432 59.939
67.500 60
HDMI/DVI-PC supported mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
640 x 350 31.468 70.09
720 x 400 31.469 70.08
640 x 480 31.469 59.94
800 x 600 37.879 60.31
1024 x 768 48.363 60.00
1152 x 864 54.348 60.053
1280 x 1024 63.981 60.020
1360 x 768 47.712 60.015
1920 x 1080 67.5 60
Component port connecting information
Component ports on the
TV YP
BPR
Video output ports
on DVD player
YP
BPR
Y B-Y R-Y
YCbCr
YPbPr
Wireless LAN module (WN8122E1) specification
6WDQGDUG IEEE802.11a/b/g/n
)UHTXHQF\5DQJH
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz
2XWSXW3RZHU
7\SLFDO
802.11a: 16.5 dBm
802.11b: 16 dBm
802.11g: 15.5 dBm
802.11n - 2.4GHz: 15.5 dBm
802.11n - 5GHz: 16.5 dBm
y Because band channel used by the country could
be different, the user can not change or adjust the
operating frequency and this product is set for the
regional frequency table.
y Contains FCC ID: BEJWN8122E1 / Contains IC:
2703H-WN8122E1
Bluetooth module (BM-LDS401) specification
6WDQGDUG Bluetooth Version 3.0
)UHTXHQF\5DQJH 2400 ~ 2483.5 MHz
2XWSXW3RZHU0D[ 10 dBm or lower
y Contains FCC ID: BEJLDS401 / Contains IC:
2703H-LDS401
ENGLISH
39
SPECIFICATIONS
3D supported formats
y Video, which is input as below media contents is switched into the 3D screen automatically.
3D supported formats automatically
Input Signal
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI
640 x 480
31.469 59.94 Top & Bottom, Side by Side (Half), Side by Side (Full)
31.50 60.00
62.938 59.94 Frame Packing, Line Alternative
63.00 60.00
480p
31.469 59.94 Top & Bottom, Side by Side (Half), Side by Side (Full)
31.50 60.00
62.938 59.94 Frame Packing, Line Alternative
63.00 60.00
720p
44.96 59.94 Top & Bottom, Side by Side (Half), Side by Side (Full)
45.00 60.00
89.91 59.94 Frame Packing, Line Alternative
90.00 60.00
1080i
33.72 59.94 Top & Bottom, Side by Side (Half), Side by Side (Full)
33.75 60.00
67.432 59.94 Frame Packing, Field Alternative
67.50 60.00
1080p
26.97 23.97
Top & Bottom, Side by Side (Half), Side by Side (Full)
27.00 24.000
33.716 29.976
33.75 30.00
43.94 23.97
Frame Packing, Line Alternative
54.00 24.000
67.432 29.976
67.50 30.00
67.43 59.94 Top & Bottom, Side by Side (Half)
67.50 60.00
USB 1080p 33.75 30.000 Side by Side (Half), Top & Bottom, Checker Board,
MPO (Photo)
DLNA 1080p 33.75 30.000
ENGLISH
40 SPECIFICATIONS / EXTERNAL CONTROL DEVICE SETUP
3D supported formats manually
Input Signal
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI - DTV
720p 45.00 60.00 2D to 3D, Side by Side (Half), Top & Bottom,
Single Frame Sequential
1080i 33.75 60.00 2D to 3D, Side by Side (Half), Top & Bottom
1080p
27.00 24.000 2D to 3D, Side by Side (Half), Top & Bottom,
Checker Board
33.75 30.000
67.50 60.00
2D to 3D, Side by Side (Half), Top & Bottom,
Checker Board, Single Frame Sequential,
Row Interleaving, Column Interleaving
Others - - 2D to 3D
HDMI - PC
1024*768 48.363 60.004 Side by Side , Top & Bottom
1360*768 47.712 60.015 Side by Side , Top & Bottom
1920*1080 67.50 60.00
Side by Side , Top & Bottom
Checkerboard, Single Frame Sequential
Row Interleaving, Column Interleaving
Others - - 2D to 3D
Component
720p 44.96 59.94
2D to 3D, Side by Side (Half), Top & Bottom
1080i 33.75 / 33.72 60 / 59.94
1080p
67.500 60
67.432 59.94
27.000 24.000
26.97 23.976
33.75 30.000
33.71 29.97
Others - - 2D to 3D
USB 1080p 33.75 30.000 2D to 3D, Side by Side (Half), Top & Bottom,
Checker Board, Row Interleaving,
Column Interleaving, Single Frame Sequential
(Photo: Side by Side (Half), Top & Bottom)
DLNA 1080p 33.75 30.000
Input Signal Playable 3D video format
DTV HD 2D to 3D, Side by Side (Half), Top & Bottom
SD 2D to 3D
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit ‘www.lg.com’.
ENGLISH
41
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep it at peak performance and to extend the product lifespan.
y Before Cleaning, turn the power off and disconnect the power cord and all other cables.
y When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to
prevent possible damage from lightning or power surges.
CAUTION
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe
immediately with a dry cloth.
y Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the
screen and image distortions.
y Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as
these may damage the screen’s finish and cause discoloration.
y Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
CAUTION
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the TV with the
remote control.
y Check the remote control sensor on the product and try again.
y Check if there is any obstacle between the product and the remote control.
y Check if the batteries are still working and properly installed ( to , to ).
No image display and no sound is
produced.
y Check if the product is turned on.
y Check if the power cord is connected to a wall outlet.
y Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.
y Check the power control settings. The power supply may be interrupted.
y Check if the Auto sleep feature is activated in the Time settings.
y If there is no signal while the TV is on, the TV will turn off automatically after 15
minutes of inactivity.
ederal Communications Commission(FCC) Statement) Federal Communications Commission(FCC) Statement
You are cautioned that changes or modifications not expressly approved by You are cautioned that changes or modifications not expressly approved by
the part responsiblethe part responsible
for compliance could void the user
’
s authority to operate the equipmentfor compliance could void the user
’
s authority to operate the equipment
for
compliance
could
void
the
user s
authority
to
operate
the
equipment
.
for
compliance
could
void
the
user s
authority
to
operate
the
equipment
.
This equipment has been tested and found to comply with the limits for a This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful These limits are designed to provide reasonable protection against harmful
it f i id tili tlltiit f i id tili tllti
i
n
t
er
f
erence
i
n a res
id
en
ti
a
l
i
ns
t
a
ll
a
ti
on.
i
n
t
er
f
erence
i
n a res
id
en
ti
a
l
i
ns
t
a
ll
a
ti
on.
This equipment generates, uses and can radiate radio frequency energy This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a However, there is no guarantee that interference will not occur in a
particular installationparticular installation
particular
installation
.
particular
installation
.
If this equipment does cause harmful interference to radio or television If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the the user is encouraged to try to correct the
interference by one or more of the following measures:interference by one or more of the following measures:
--. Reorient or relocate the receiving antenna.. Reorient or relocate the receiving antenna.
--. Increase the separation between the equipment and receiver.. Increase the separation between the equipment and receiver.
--. Connect the equipment into an outlet on a circuit different from that to . Connect the equipment into an outlet on a circuit different from that to
which the receiver is connectedwhich the receiver is connected
which
the
receiver
is
connectedwhich
the
receiver
is
connected
--. Consult the dealer or an experienced radio/TV technician for help.. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference 2) this device must accept any interference received, including interference
that may cause undesired operation of the device.that may cause undesired operation of the device.
Id lId l
I
n
d
oor use on
lyI
n
d
oor use on
ly
FCC Caution: Any changes or modifications not expressly approved by the FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate party responsible for compliance could void the user's authority to operate
this equipment.this equipment.

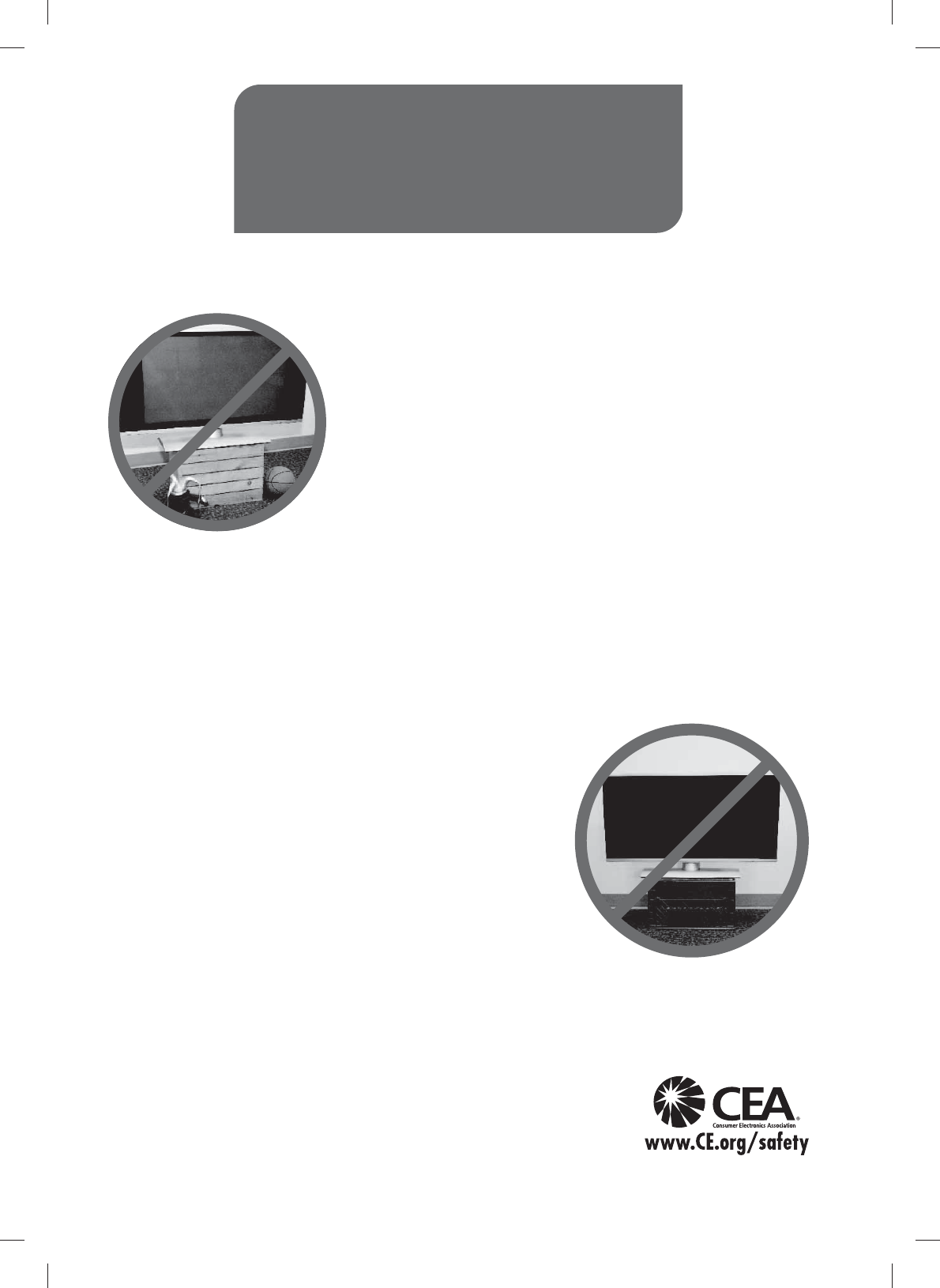

CHILD SAFETY:
It Makes A Difference How and Where
You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product,
please keep these safety tips in mind:
THE ISSUE
yThe home theater entertainment experience is a growing trend and
larger flat panel displays are popular purchases. However, flat panel
displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
yFlat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall over and
cause injury.
THIS MANUFACURER CARES!
yThe consumer electronics industry is committed to making home
entertainment enjoyable and safe.
TUNE INTO SAFETY
yOne size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your flat panel
display.
yCarefully read and understand all enclosed instructions for proper use
of this product.
yDon’t allow children to climb on or play with furniture and television
sets.
yDon’t allow place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
yRemember that children can become excited while watching
a program, especially on a “larger than life” flat panel display.
Care should be taken to place or install the display where it cannot be
pushed, pulled over, or knocked down.
yCare should be taken to route all cords and cables connected to the
flat panel display so that they cannot be pulled or grabbed by curious
children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
yUse a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
yFollow all instructions supplied by the display and wall mount
manufacturers.
yIf you have any doubts about your ability to safely install your flat
panel display, contact your retailer about professional installation.
yMake sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction.
If you are unsure, contact a professional installer.
yA minimum of two people are required for installation.
Flat panel displays can be heavy
The model and serial number of the TV is located
on the back and one side of the TV.
Record it below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
This product qualifies for ENERGY STAR in the
“factory default (Home Use)” setting.
Changing the factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to quality for
ENERGY STAR.
