LG Electronics USA 60LD550UB LCD TV MONITOR User Manual G User s manual
LG Electronics USA LCD TV MONITOR G User s manual
Users Manual
Order Number : GETEC-C1-10-010 FCC Part 15 subpart B
Test Report Number : GETEC-E3-10-001 Page 1 / 1
EUT Type: LCD TV/Monitor
FCC ID.: BEJ60LD550UB
APPENDIX G
: USER’S MANUAL
Please read this manual carefully before operating
your set and retain it for future reference.
The model and serial number of the TV is located
on the back and one side of the TV.
Record it below should you ever need service.
P/NO : SAC34134201 (0911-REV00)
www.lge.com
This product qualifies for ENERGY STAR in
the “factory default (Home Use)” setting.
Changing the factory default settings or
enabling other features may increase power
consumption that could exceed the limits
necessary to quality for ENERGY STAR.
Model:
Serial:
1-800-243-0000
USA, Consumer User
1-888-865-3026
USA, Commercial User
1-888-542-2623
CANADA
LG Customer Information Center
Yahoo Support
http://connectedtv.yahoo.com/help
Netflix Support
http://www.netflix.com/tvhelp
YouTube Support
http://www.youtube.com/t/contact_us
Vudu Support
http://www.vudu.com/support
LCD TV
LED LCD TV
PLASMA TV
OWNER’S MANUAL
OWNER’S MANUAL
LCD TV MODELS
32LD550
42LD550
46LD550
52LD550
60LD550
LED LCD TV MODELS
42LE5400
47LE5400
55LE5400
42LE5500
47LE5500
55LE5500
60LE5500
47LD650
55LD650
47LE8500
55LE8500
PLASMA TV MODELS
50PK750
60PK750
42LE7500
47LE7500
55LE7500
Plasma TV is not qualified for ENERGY STAR.
2
WARNING / CAUTION
The lightning flash with arrowhead
symbol, within an equilateral trian-
gle, is intended to alert the user to
the presence of uninsulated “dan-
gerous voltage” within the product’s enclo-
sure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equi-
lateral triangle is intended to alert
the user to the presence of important oper-
ating and maintenance (servicing) instruc-
tions in the literature accompanying the
appliance.
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guide-
lines for proper grounding and, in particular, speci-
fies that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC Notice
Class B digital device
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a residen-
tial installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encour-
aged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equip-
ment and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two condi-
tions: (1) This device may not cause (harmful)
interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation (of the
device).
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
CAUTION
Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this product.
3

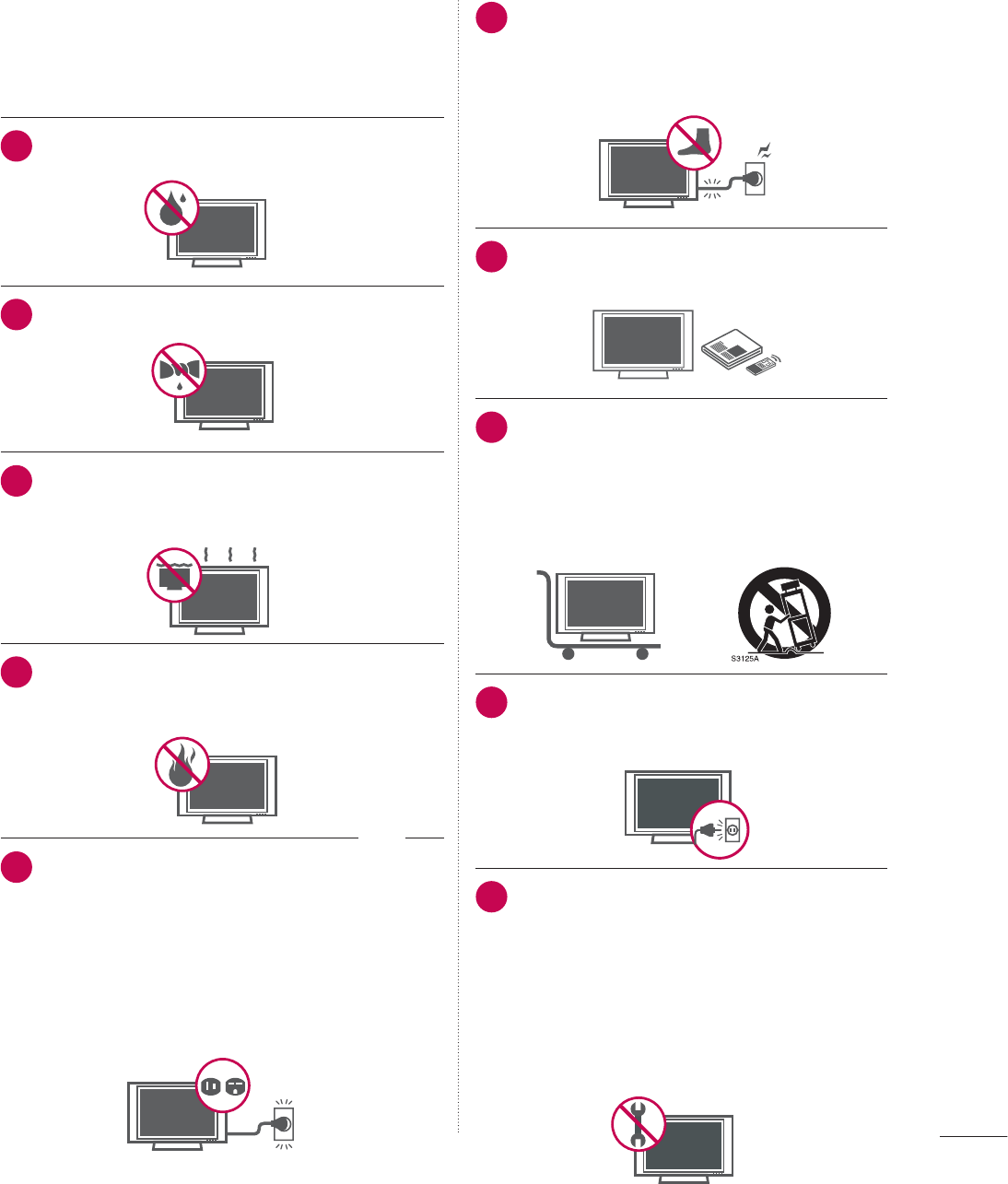

IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
1Do not use this apparatus near water.
2Clean only with dry cloth.
3Do not block any ventilation openings. Install in
accordance with the ma nufacturer’s instruc-
tions.
4
Do not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
5
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
6Protect the power cord from being walked
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
7Only use attachments/accessories speci-
fied by the manufacturer.
8Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
9Unplug this apparatus during lighting
storms or when unused for long periods
of time.
10
Refer all servicing to qualified service per-
sonnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
4
SAFETY INSTRUCTIONS
11
Never touch this apparatus or antenna during
a thunder or lighting storm.
12
When mounting a TV on the wall, make sure
not to install the TV by the hanging power
and signal cables on the back of the TV.
13
Do not allow an impact shock or any objects
to fall into the product, and do not drop onto
the screen with something.
14
CAUTION concerning the Power Cord:
It is recommend that appliances be placed
upon a dedicated circuit; that is, a single
outlet circuit which powers only that appli-
ance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain.
Do not connect too many appliances to the
same AC power outlet as this could result in
fire or electric shock.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, exten-
sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous . Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not make the TV with the power cord
plugged in. Do not use a damaged or loose
power cord. Be sure do grasp the plug when
unplugging the power cord. Do not pull on
the power cord to unplug the TV.
15
WARNING - To reduce the risk of fire or elec-
trical shock, do not expose this product to
rain, moisture or other liquids. Do not touch
the TV with wet hands. Do not install this
product near flammable objects such as
gasoline or candles or expose the TV to
direct air conditioning.
16
Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the appara-
tus (e.g. on shelves above the unit).
17
GROUNDING
Ensure that you connect the earth ground
wire to prevent possible electric shock (i.e. a
TV with a three-prong grounded AC plug
must be connected to a three-prong ground-
ed AC outlet). If grounding methods are not
possible, have a qualified electrician install a
separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas
pipes.
Power
Supply
Short-circuit
Breaker
18
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.
19
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if you turn off this
unit by SWITCH.
5
20

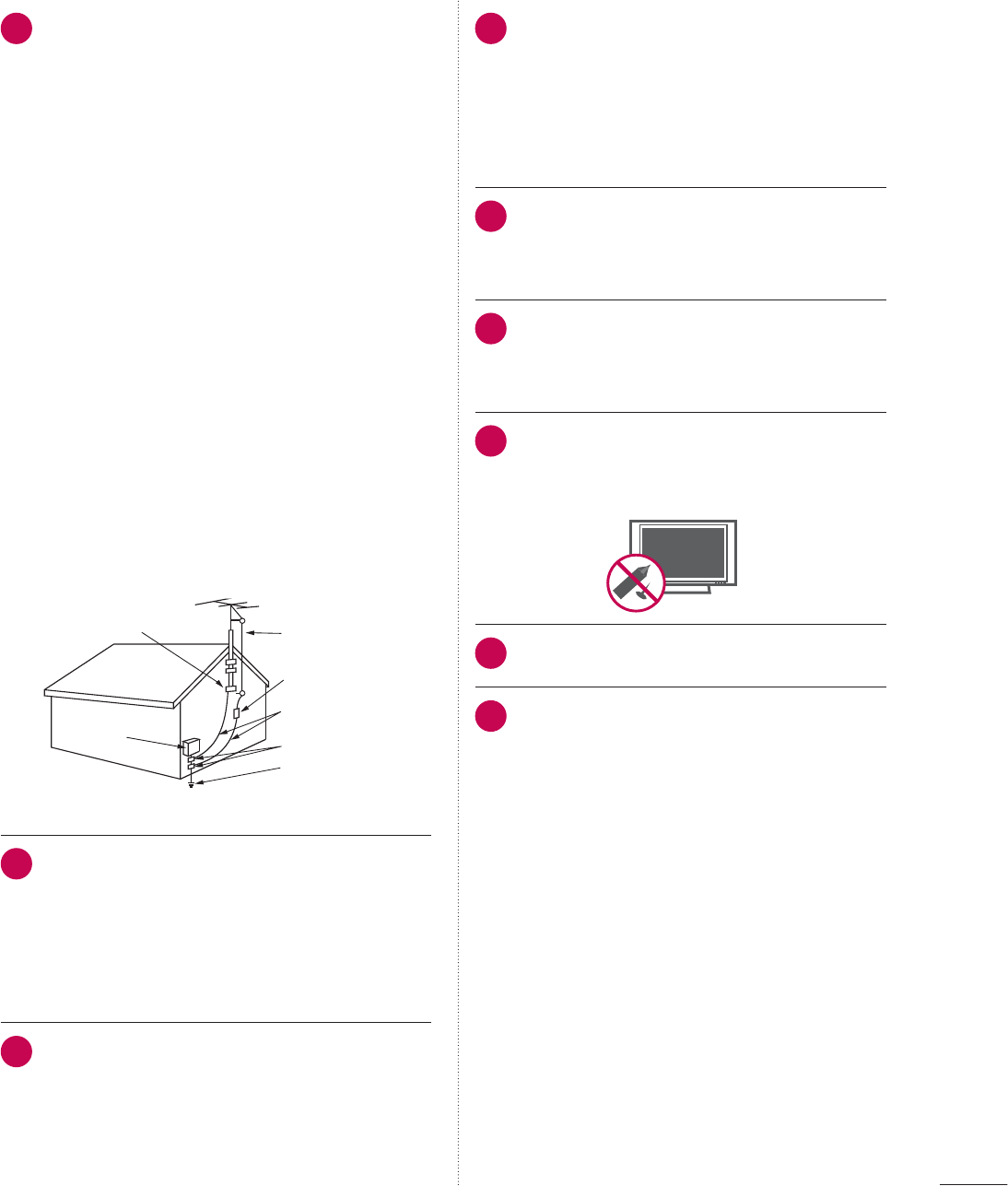

ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna sys-
tem should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can come in contact
with such power lines or circuits as death or
serious injury can occur.
Be sure the antenna system is grounded so as
to provide some protection against voltage
surges and built-up static charges.
Section 810 of the National Electrical Code
(NEC) in the U.S.A. provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding elec-
trodes and requirements for the grounding
electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment
NEC: National Electrical Code
21
Cleaning
When cleaning, unplug the power cord and
scrub gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do not clean with chemicals such as alcohol,
thinners or benzene.
22
Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take
2 or more people to carry larger TVs. Do not
press against or put stress on the front panel
of the TV.
23
Ventilation
Install your TV where there is proper ventila-
tion. Do not install in a confined space such

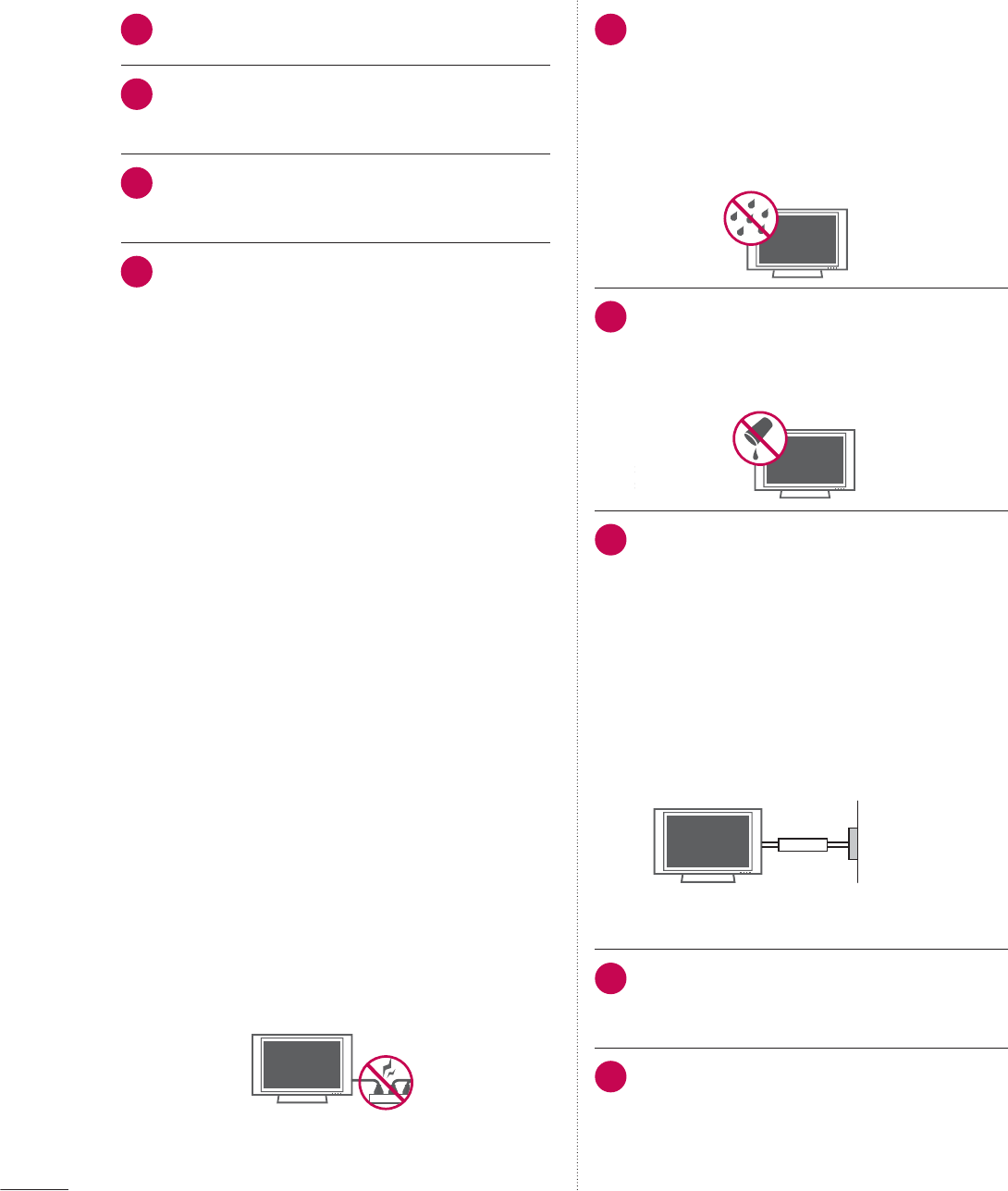

as a bookcase. Do not cover the product
with cloth or other materials (e.g.) plastic
while plugged in. Do not install in exces-
sively dusty places.
24
Take care not to touch the ventilation open-
ings. When watching the TV for a long
period, the ventilation openings may
become hot.
25
If you smell smoke or other odors coming
from the TV or hear strange sounds, unplug
the power cord contact an authorized service
center.
26
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
27
Keep the product away from direct sunlight.
28
For LCD TV
If the TV feels cold to the touch, there may be
a small “flicker” when it is turned on. This is
normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the monitor's performance.
Avoid touching the LCD screen or holding
your finger(s) against it for long periods of
time. Doing so may produce some tempo-
rary distortion effects on the screen.
6
CONTENTS
WARNING / CAUTION
............................. 2
SAFETY INSTRUCTIONS
.......................... 3
FEATURE OF THIS TV
................................ 8
PREPARATION

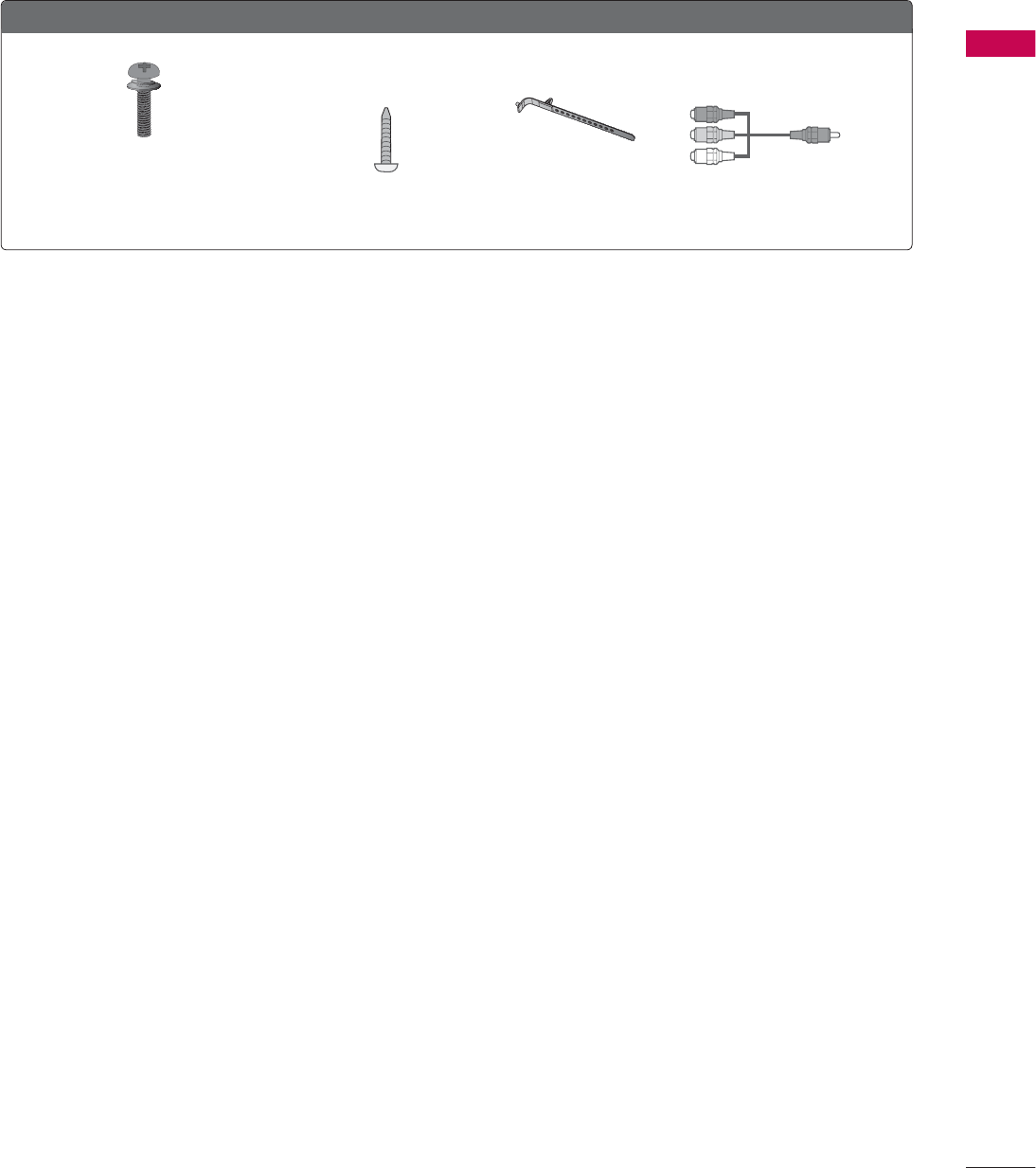

Accessories......................................................... 9

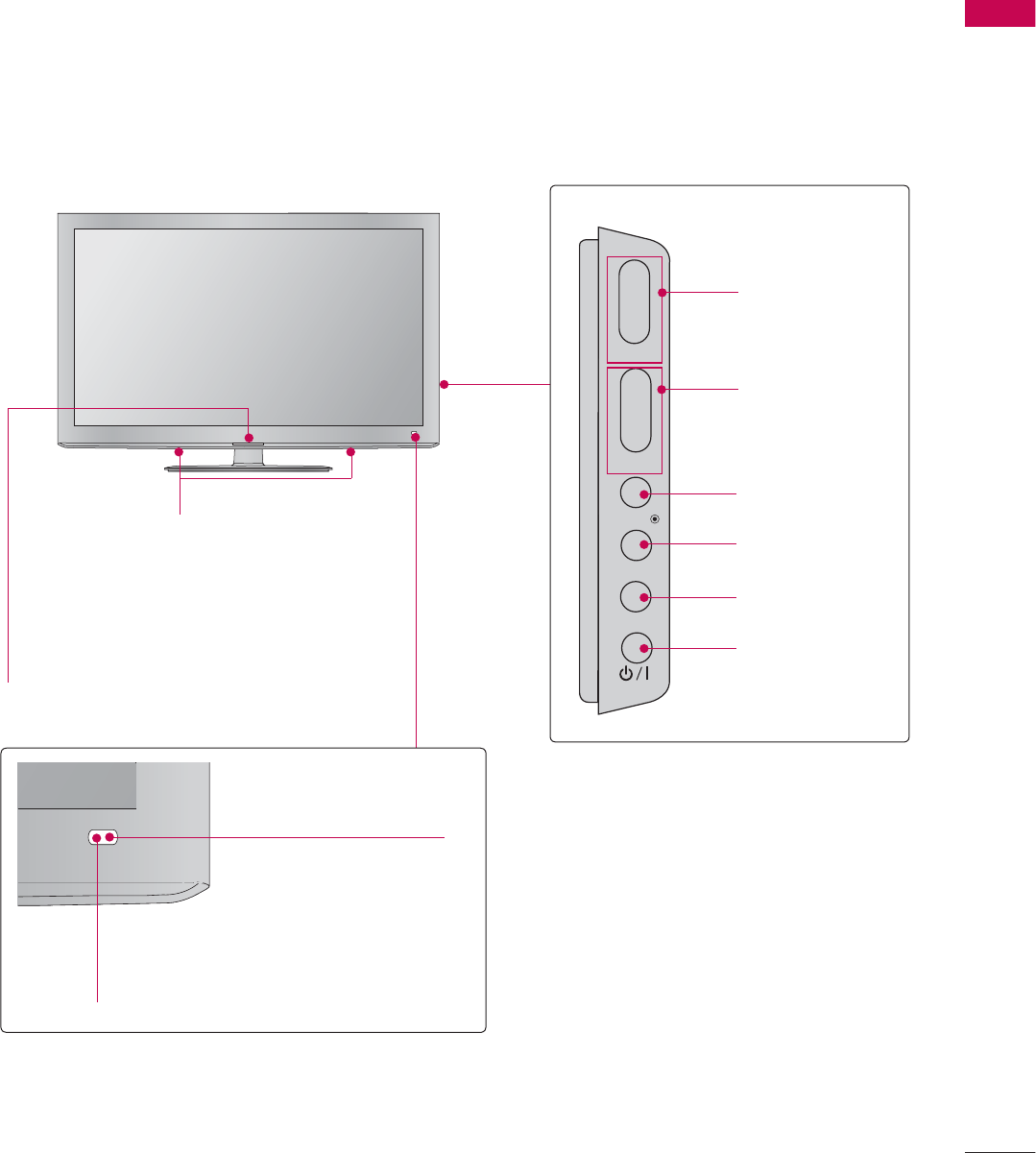

Front Panel Information .................................... 10

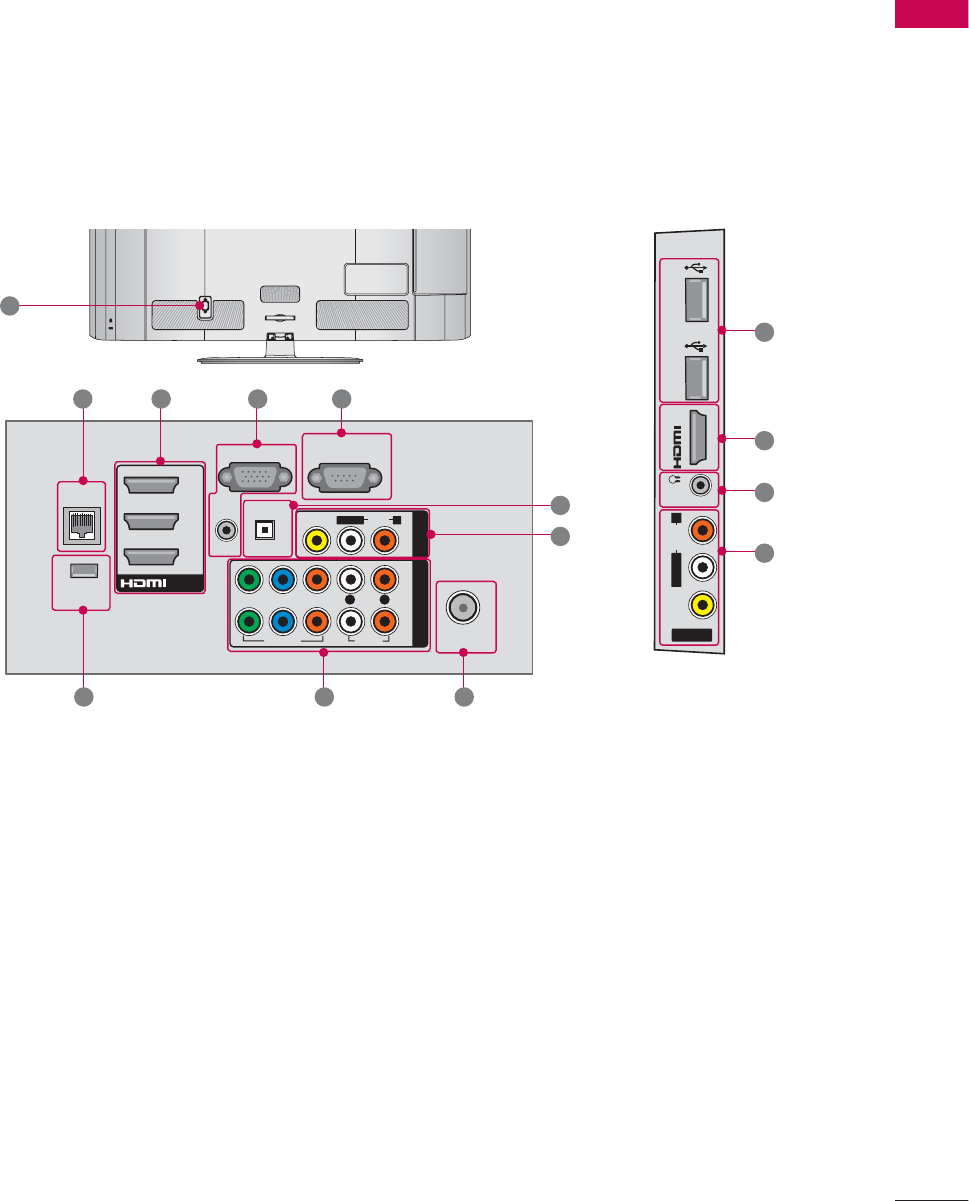

Back Panel Information ..................................... 12

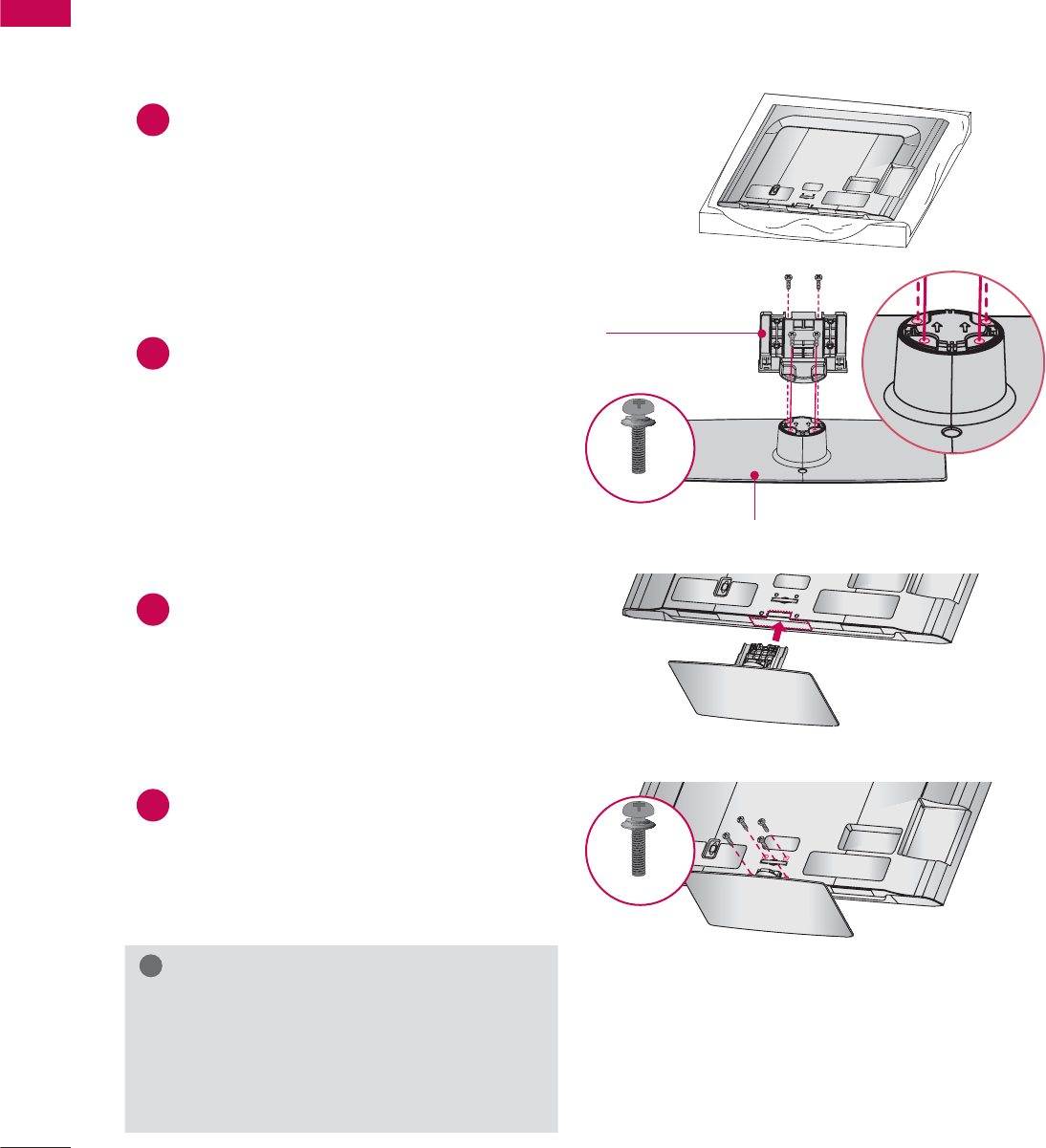

Stand Instructions ............................................ 14

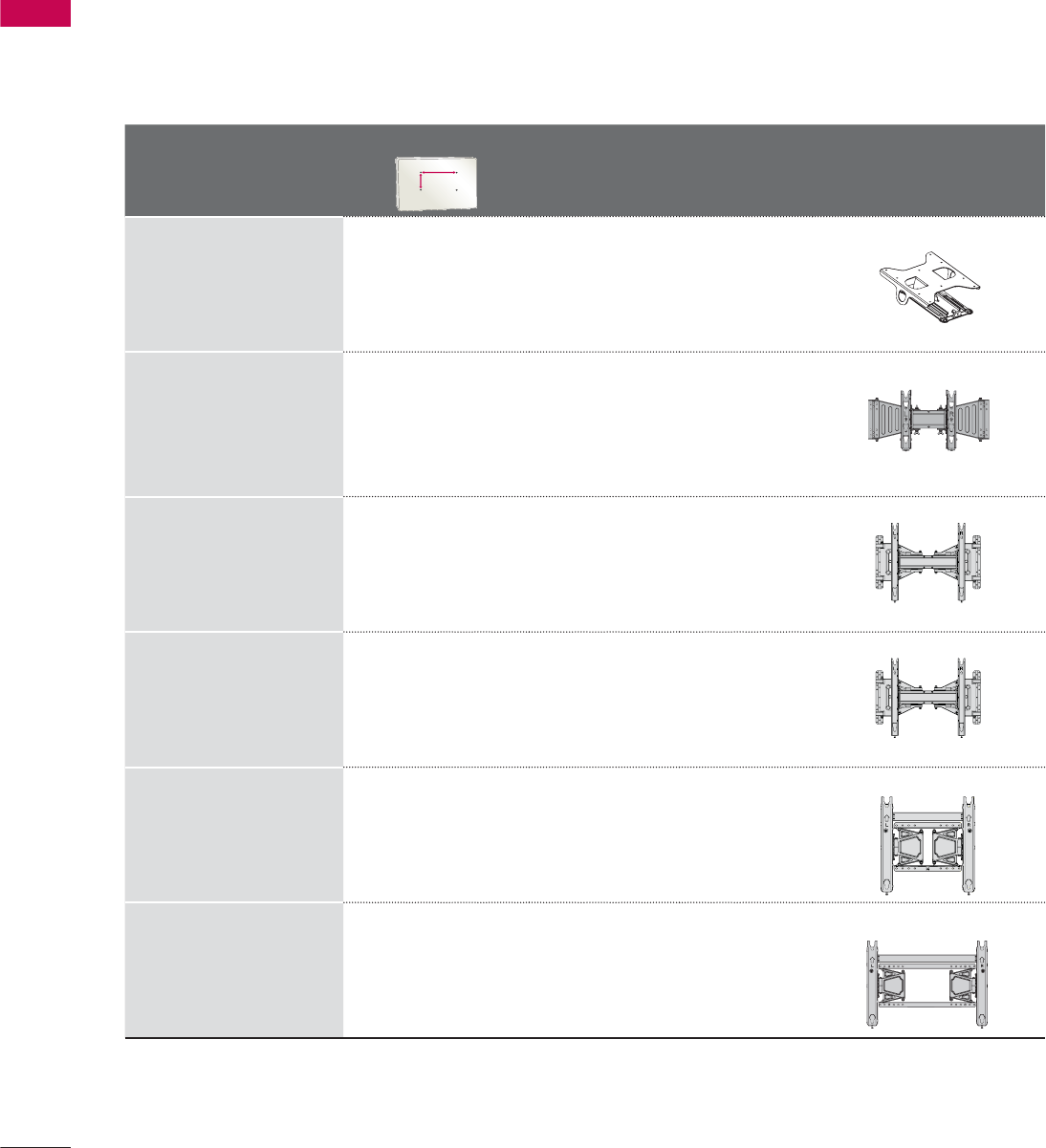

VESA Wall Mounting......................................... 18

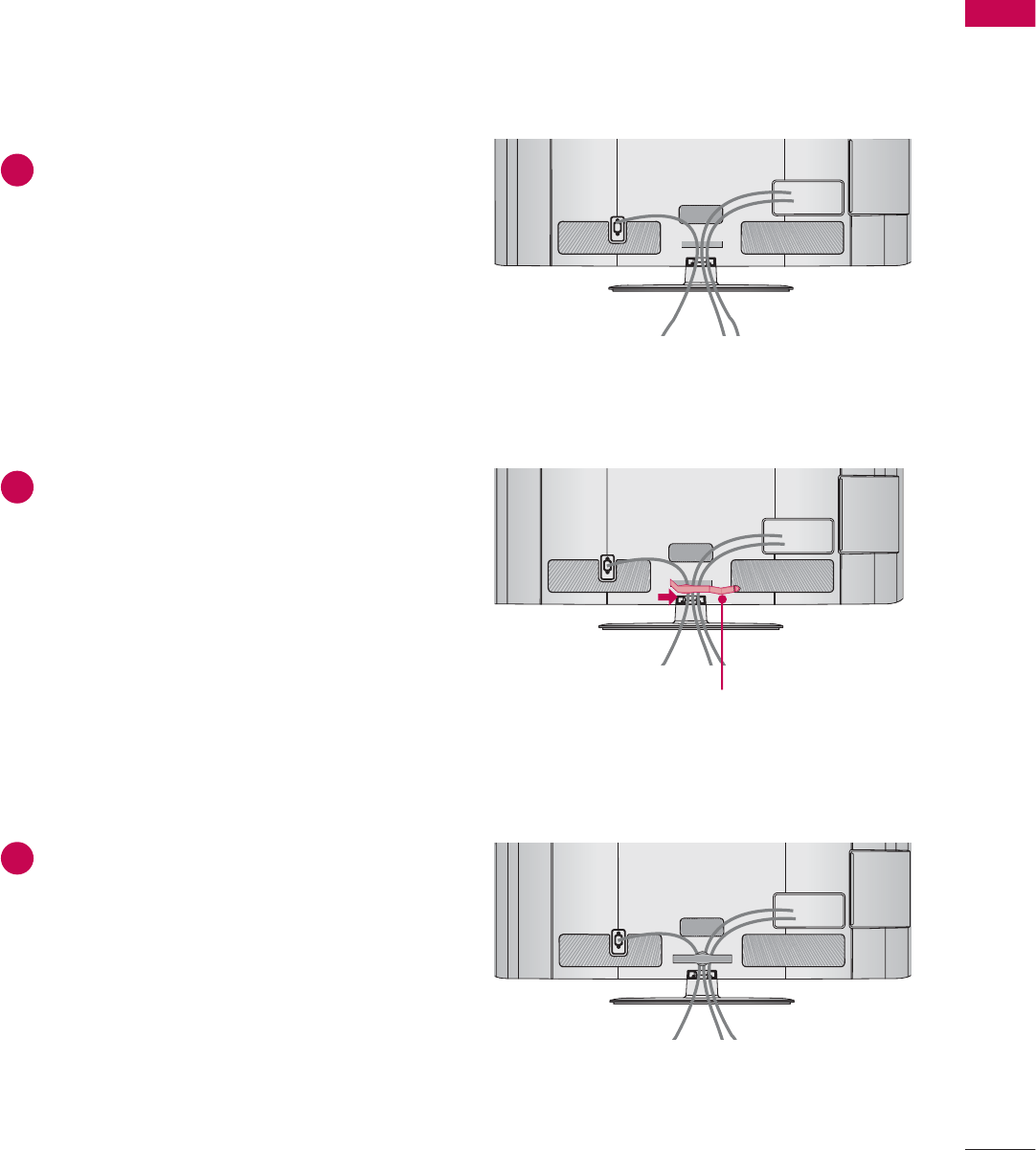

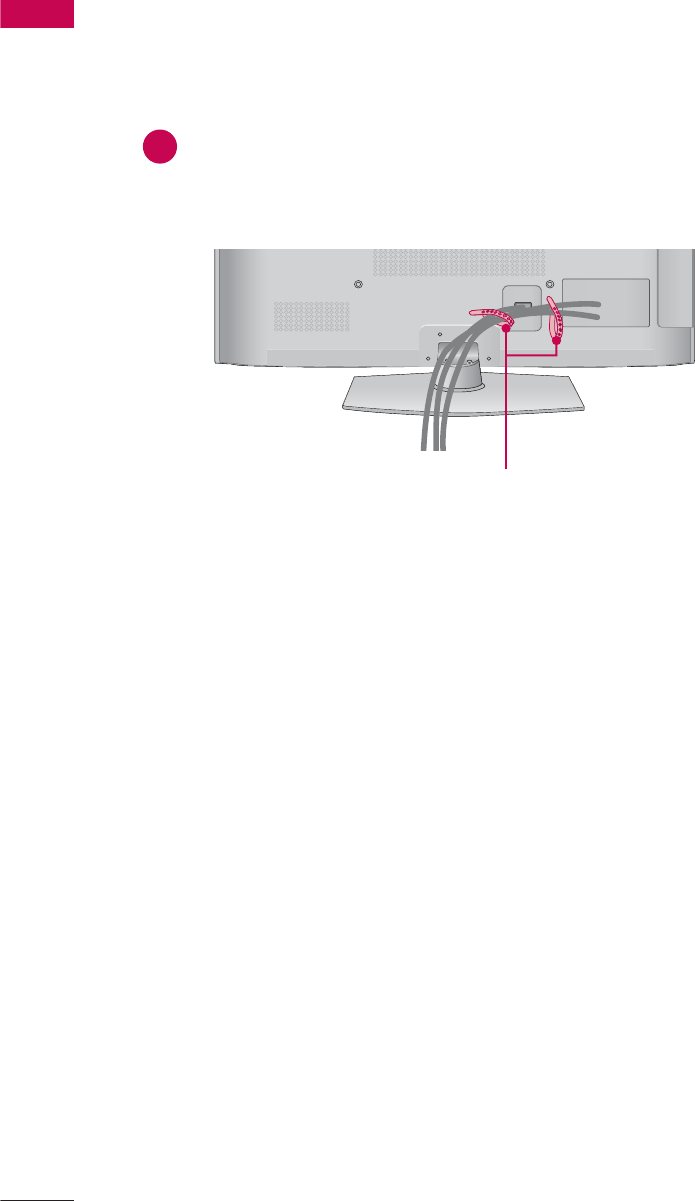

Cable Management........................................... 19
Desktop Pedestal Installation ........................... 21

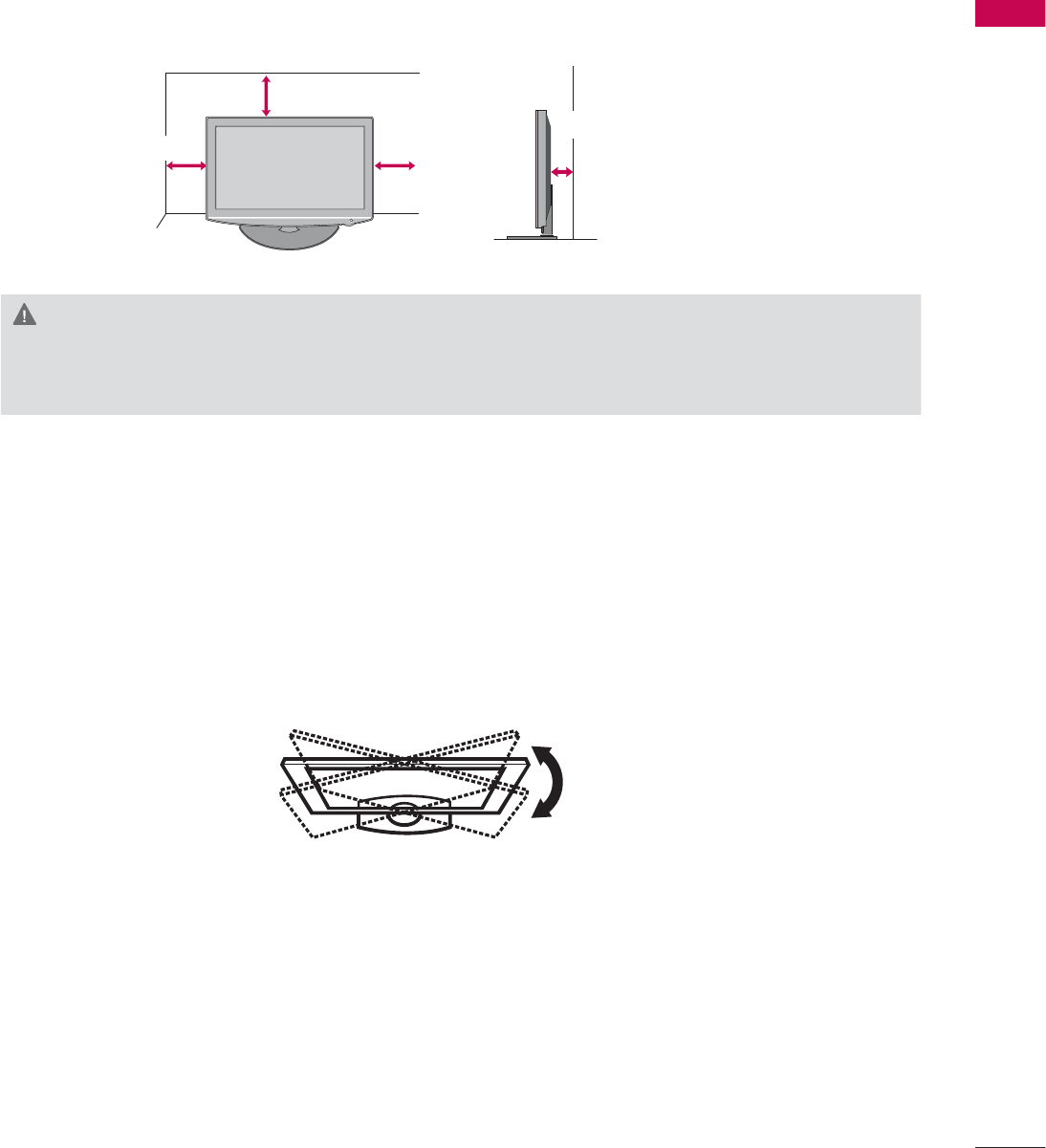

Swivel Stand ..................................................... 21

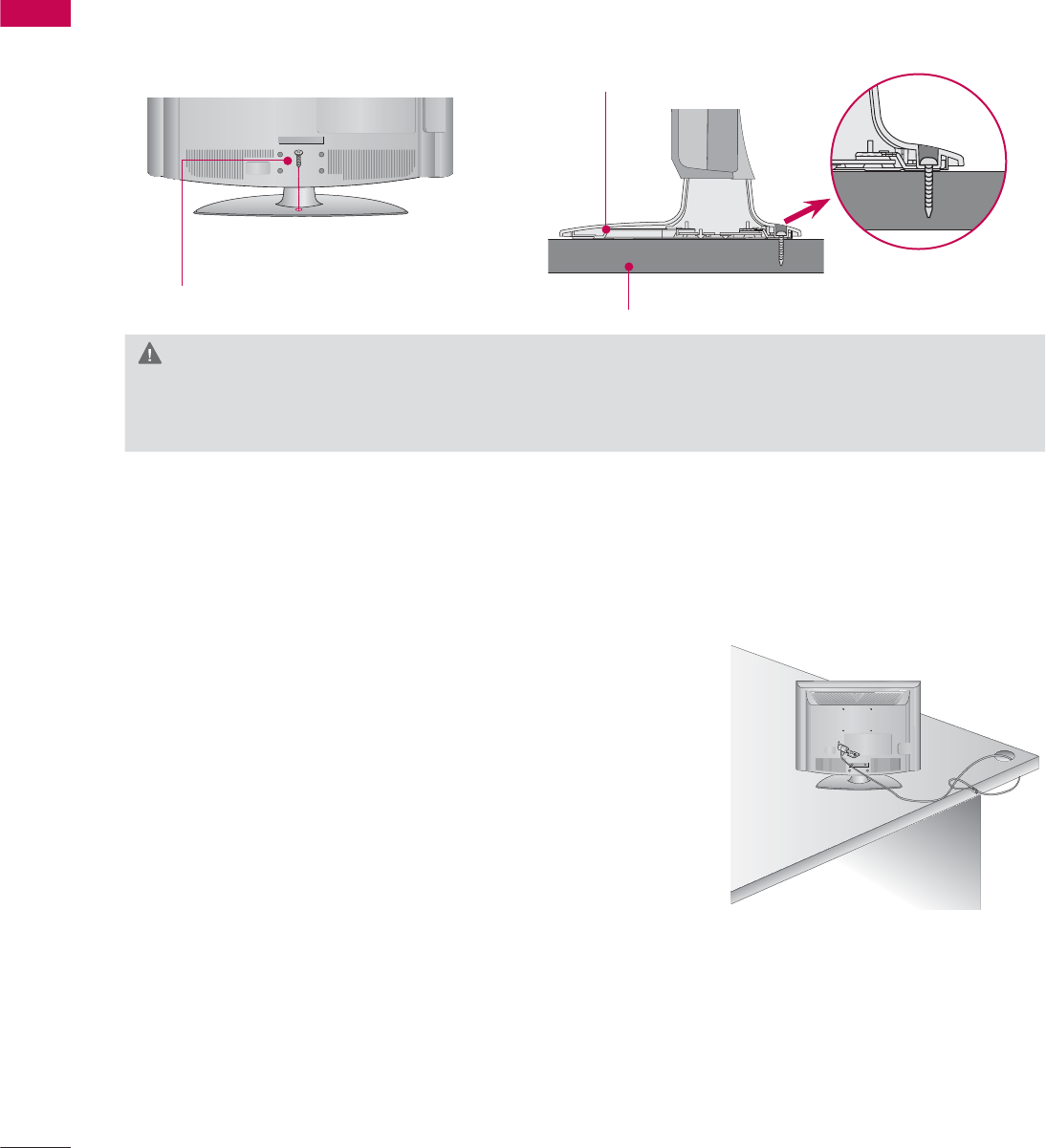

Attaching the TV to a Desk .............................. 22
Kensington Security System ............................. 22

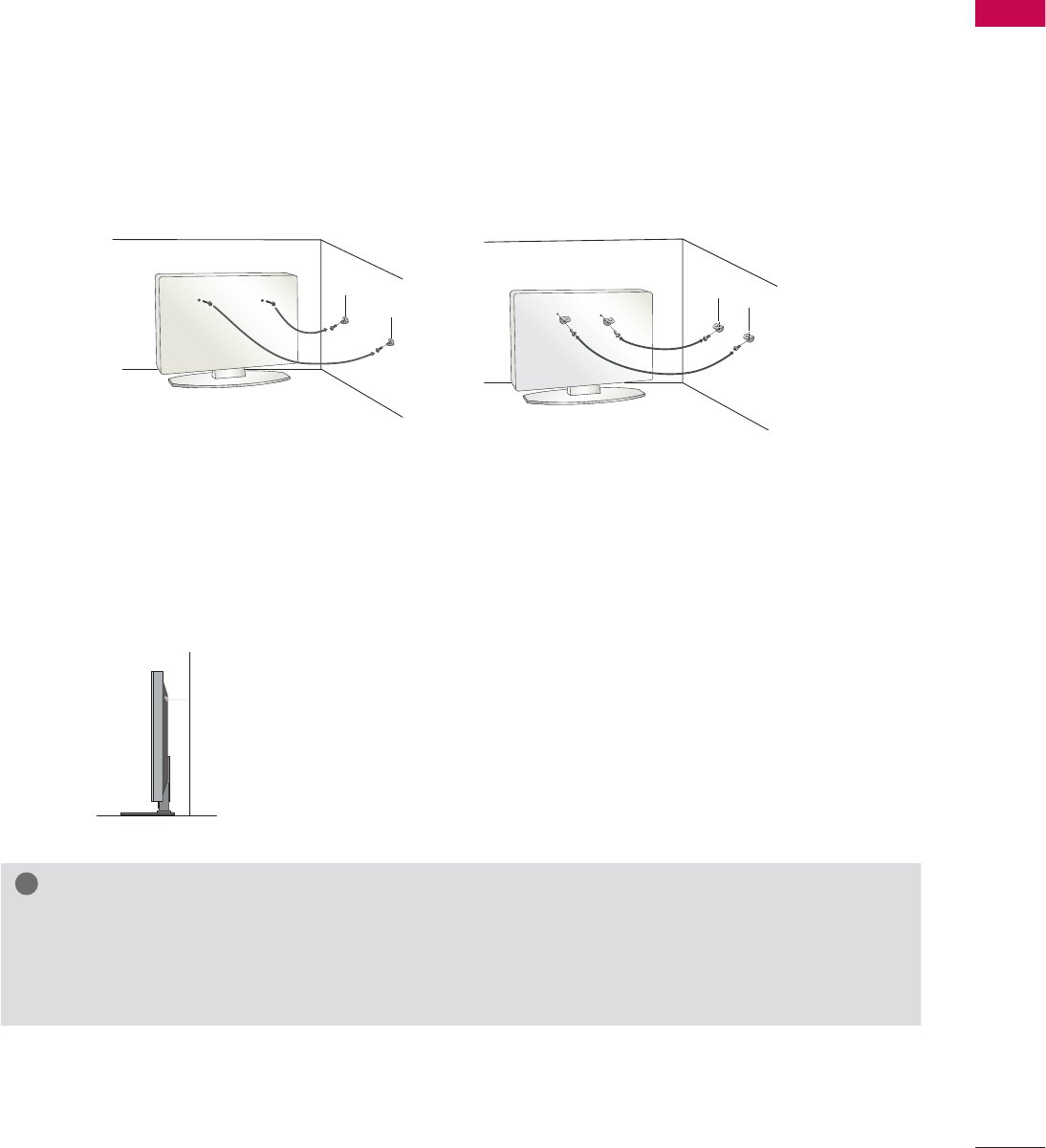

Securing the TV to the wall to prevent falling when
the TV is used on a stand................................. 23

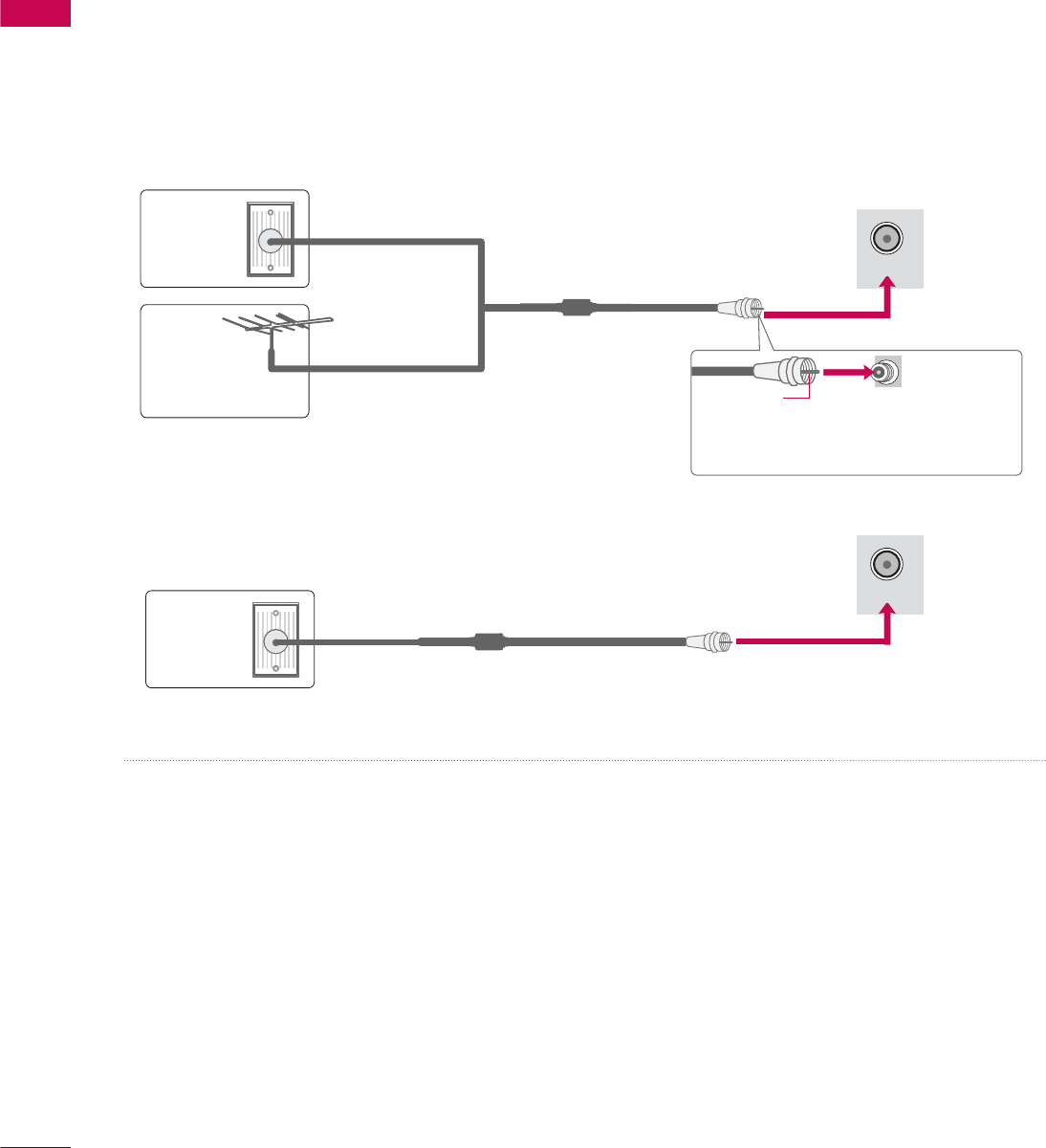

Antenna or Cable Connection .......................... 24
EXTERNAL EQUIPMENT SETUP

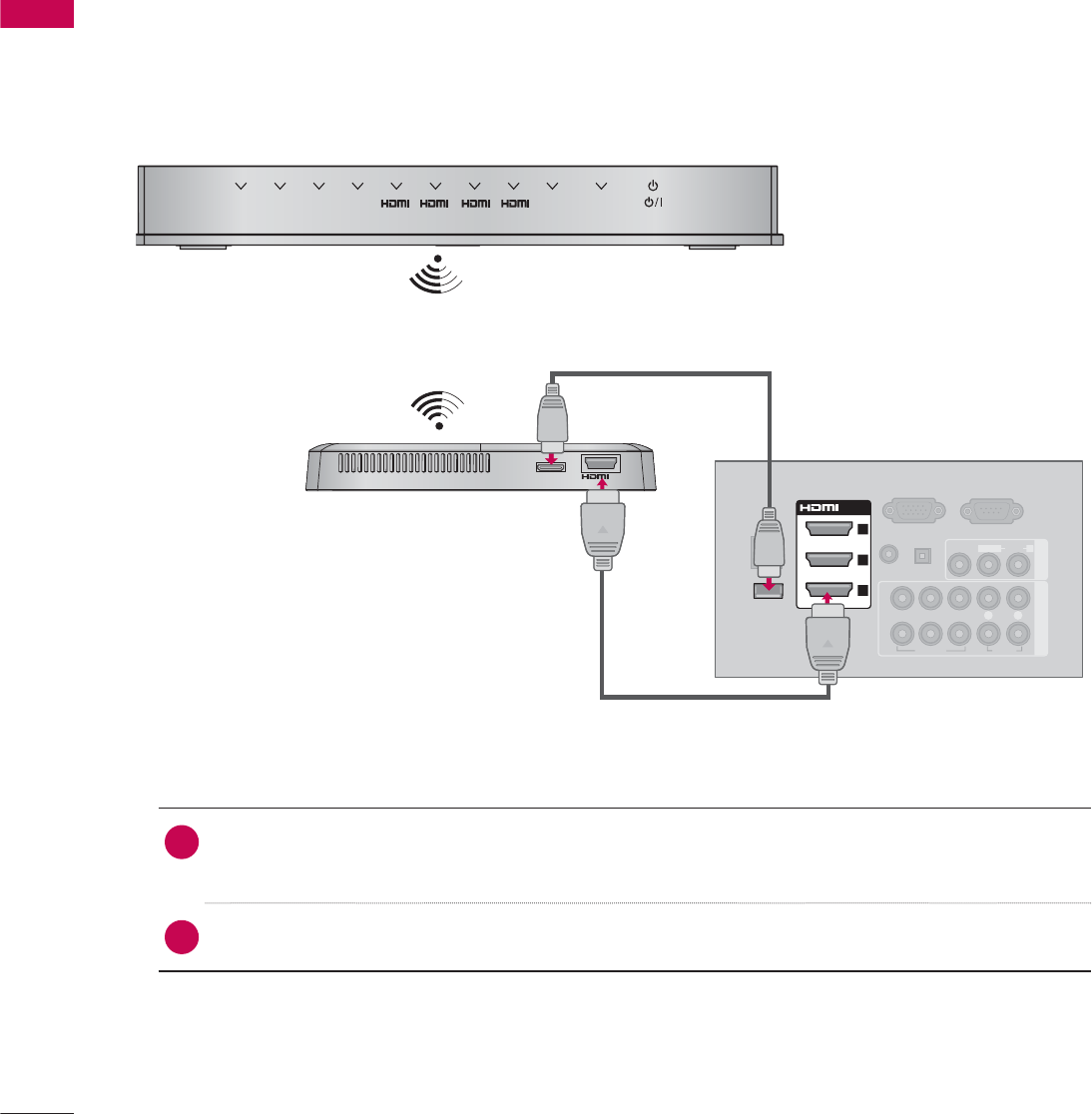

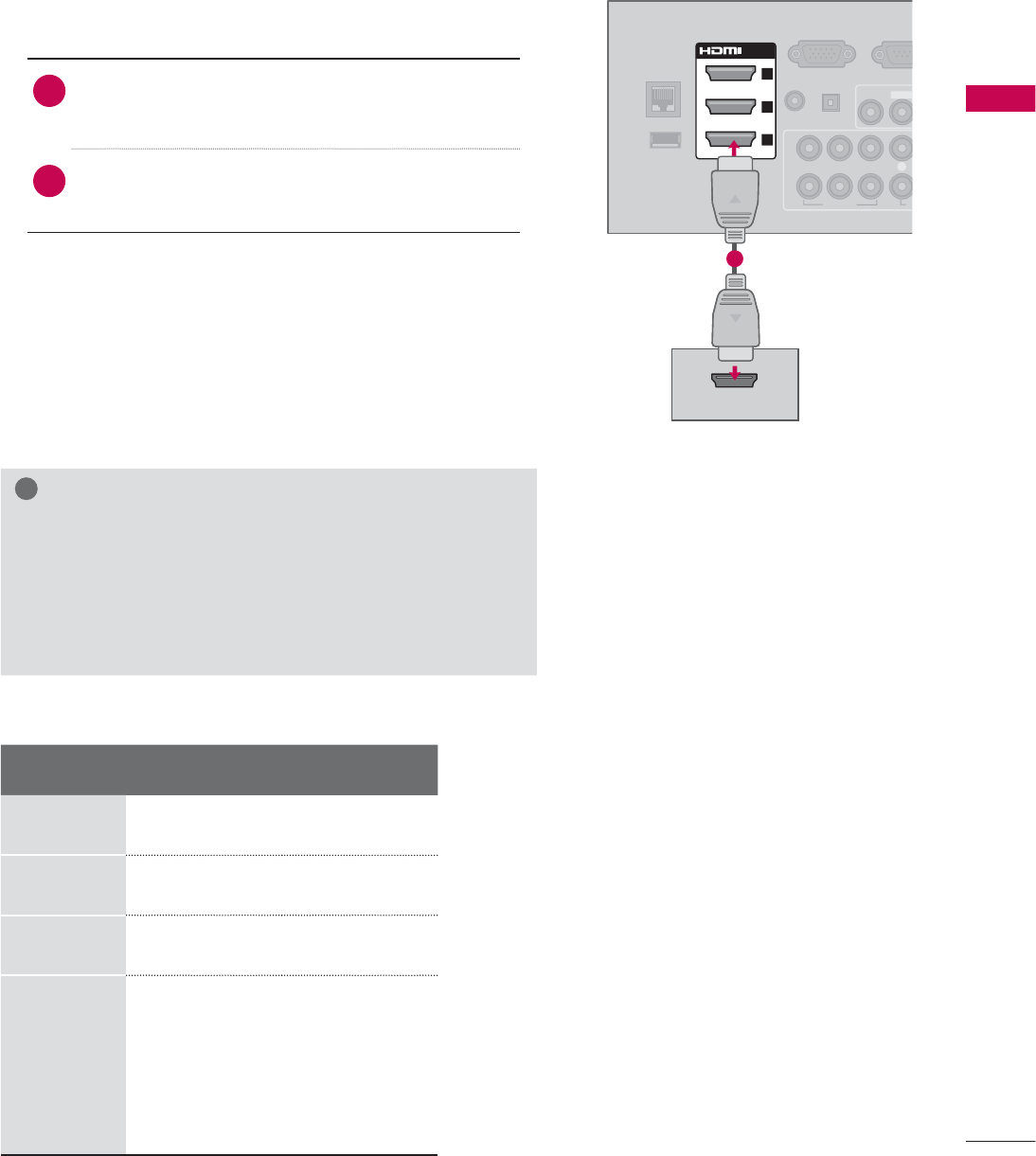

HD Receiver Setup .......................................... 25

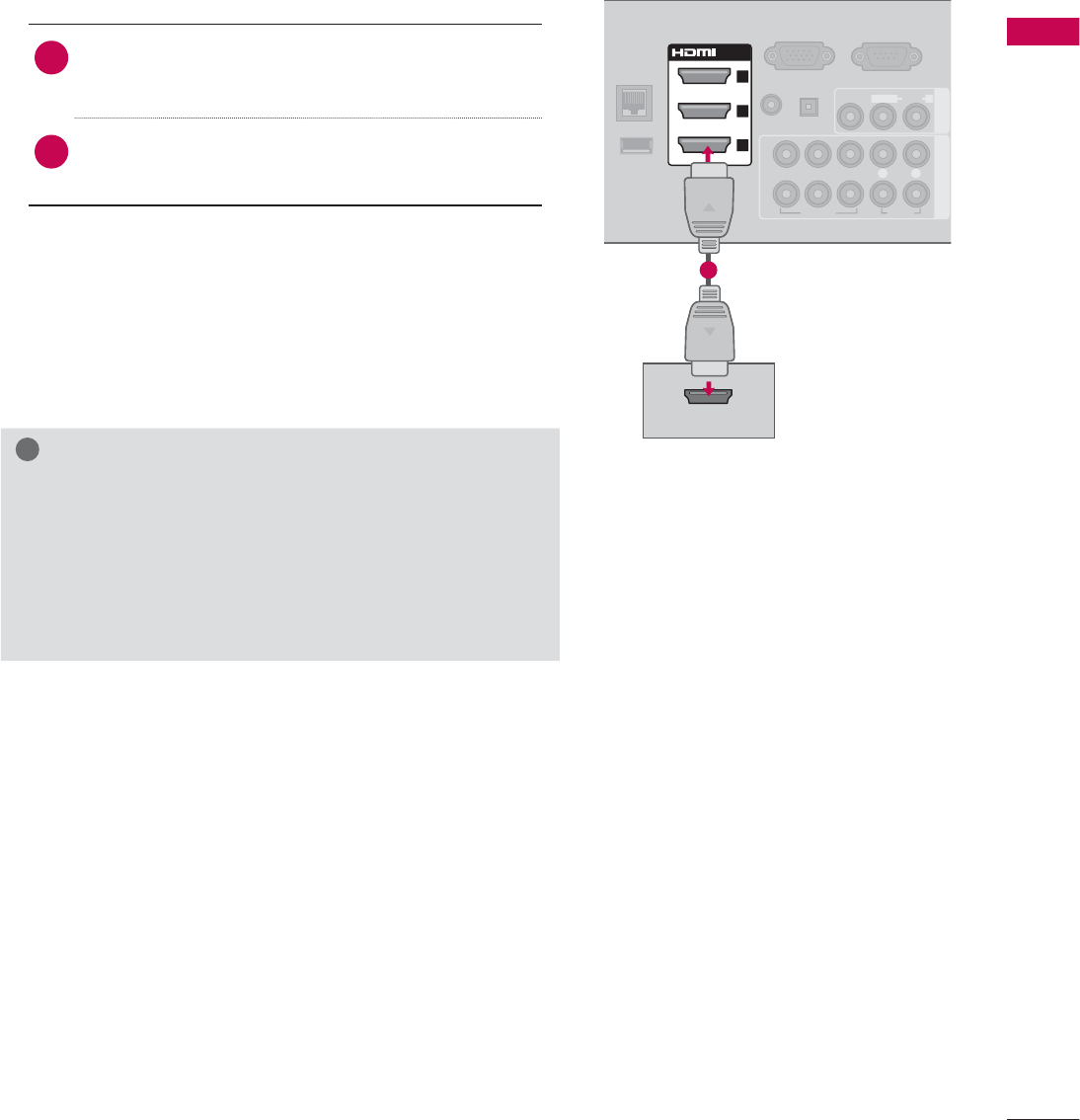

DVD Setup ....................................................... 29

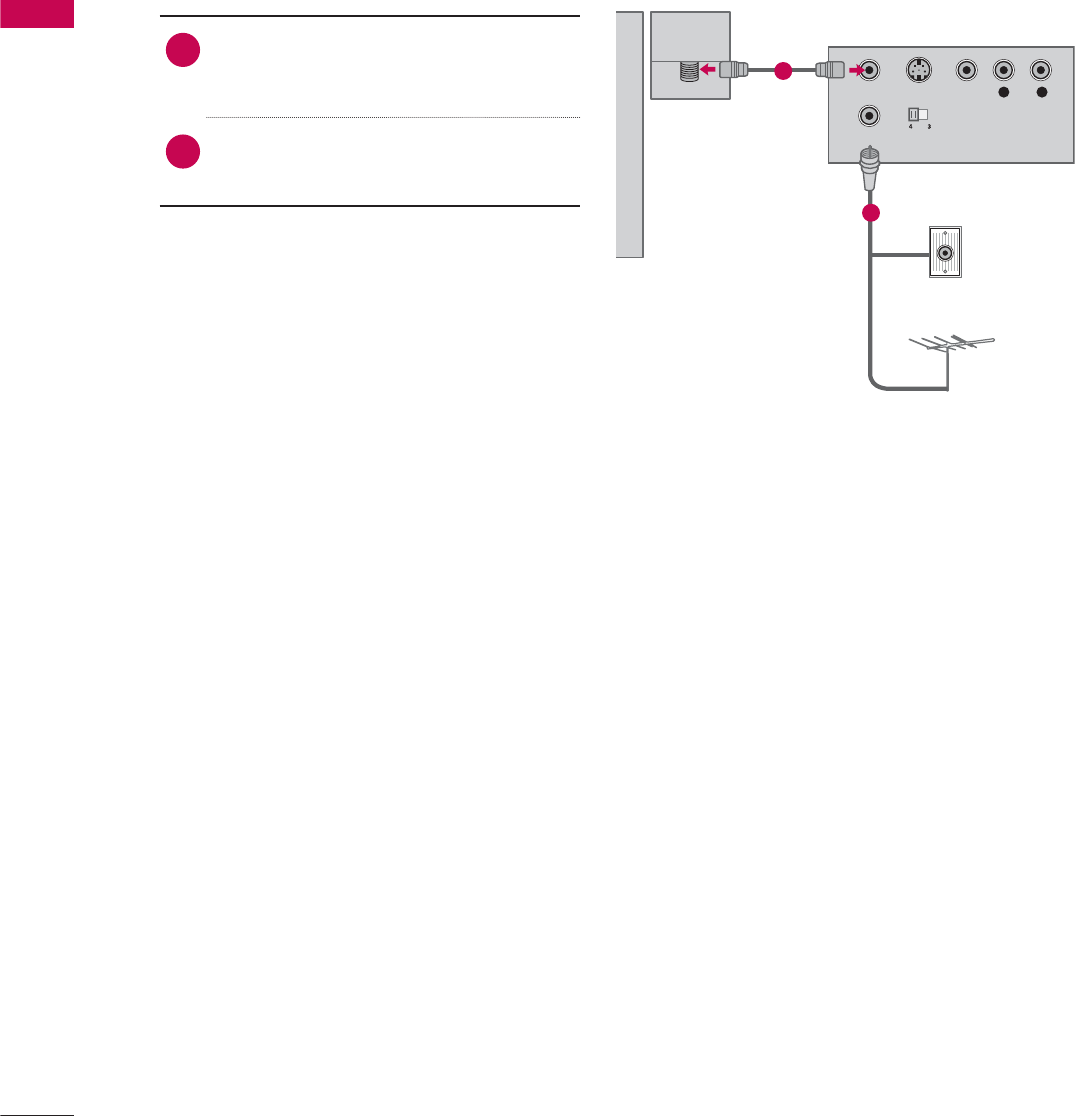

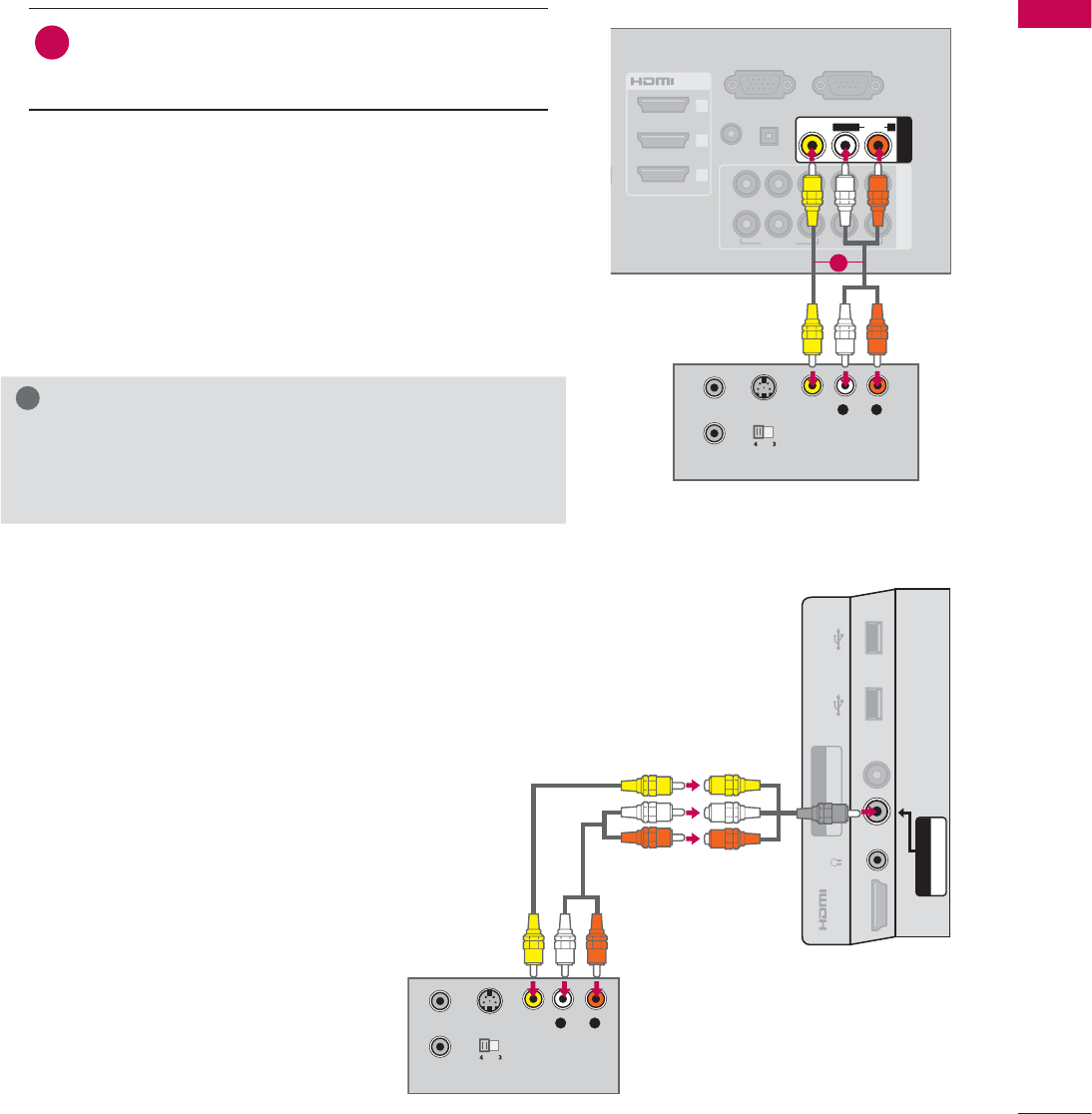

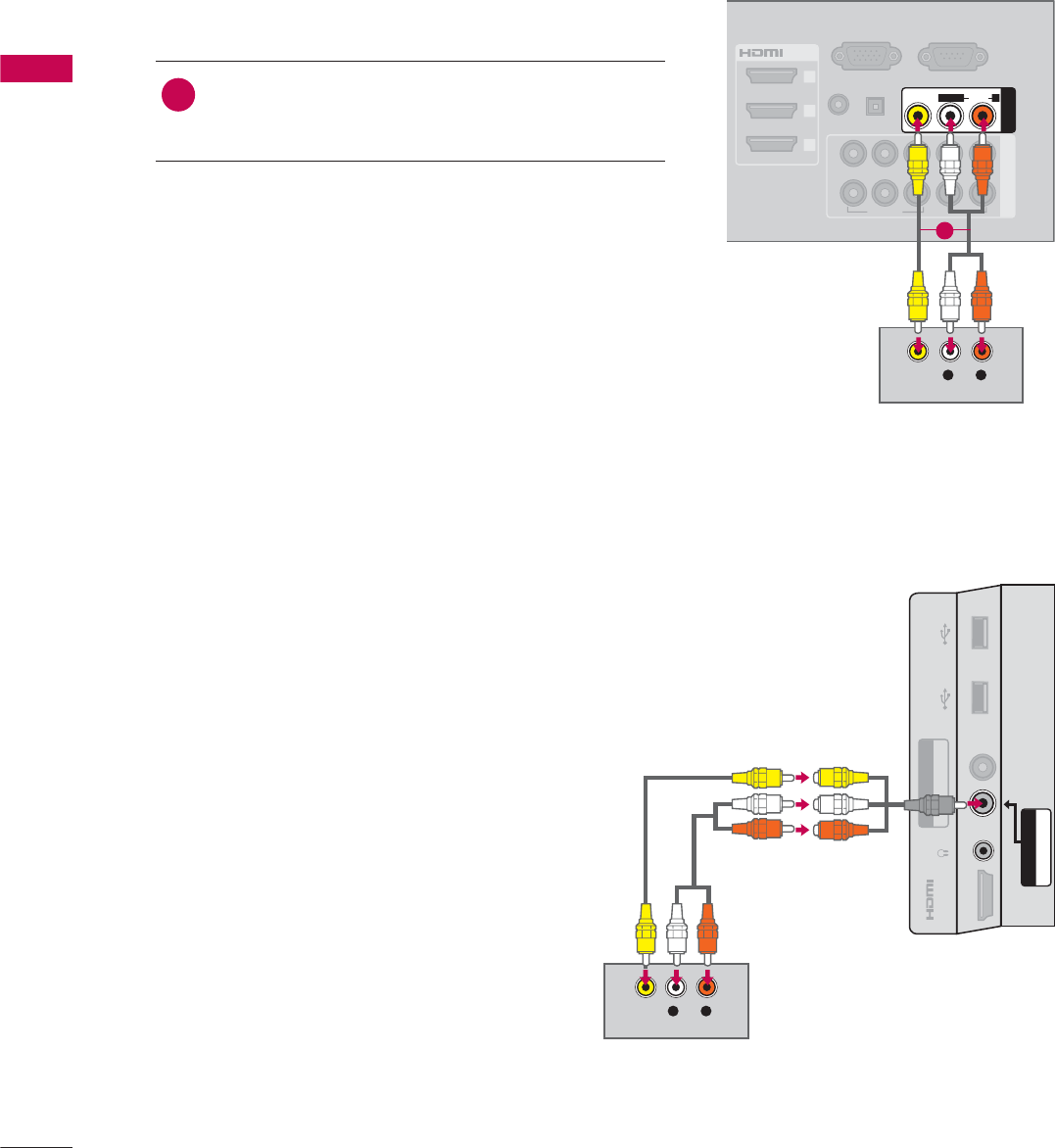

VCR Setup ....................................................... 33

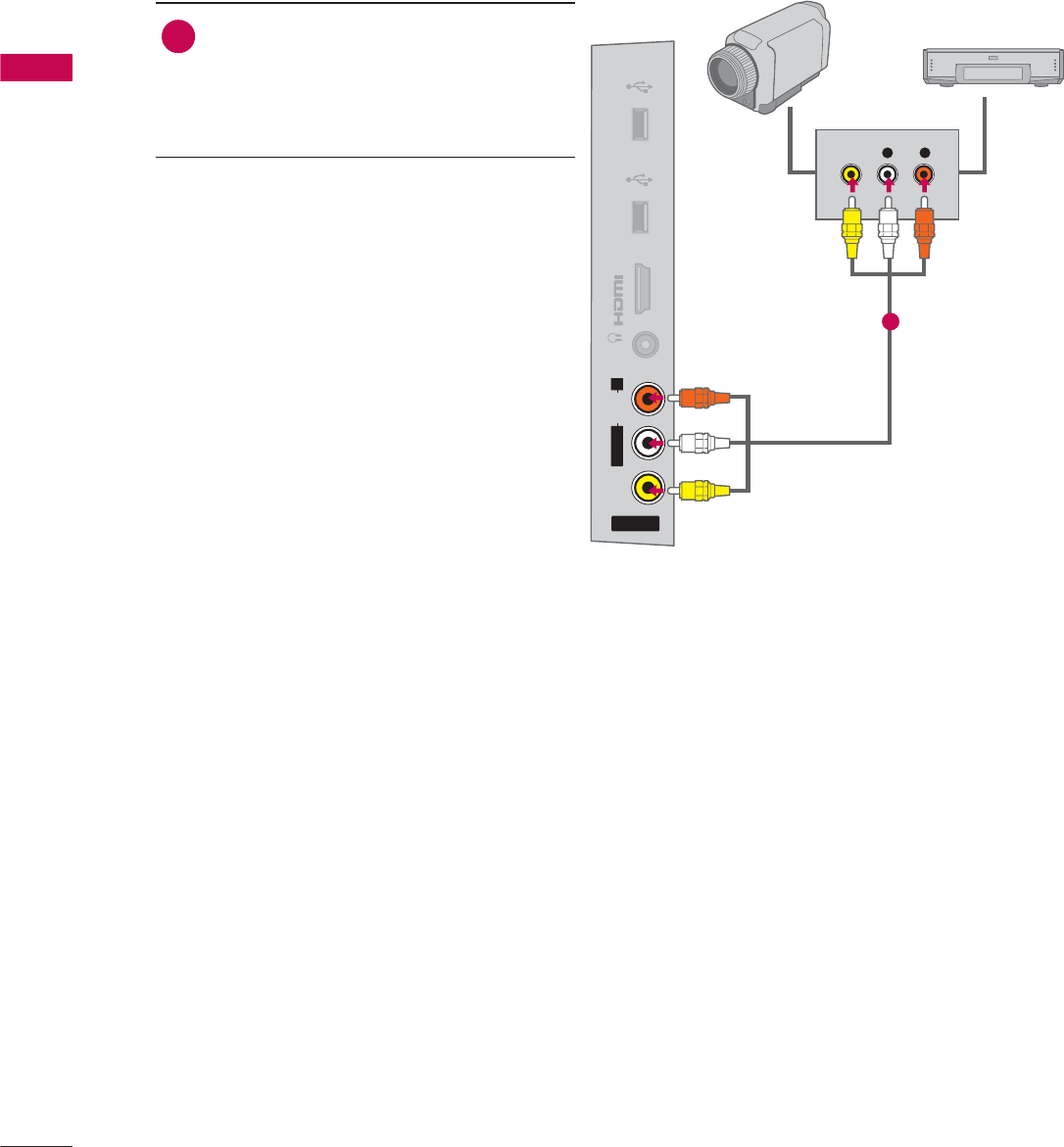

Other A/V Source Setup .................................. 36

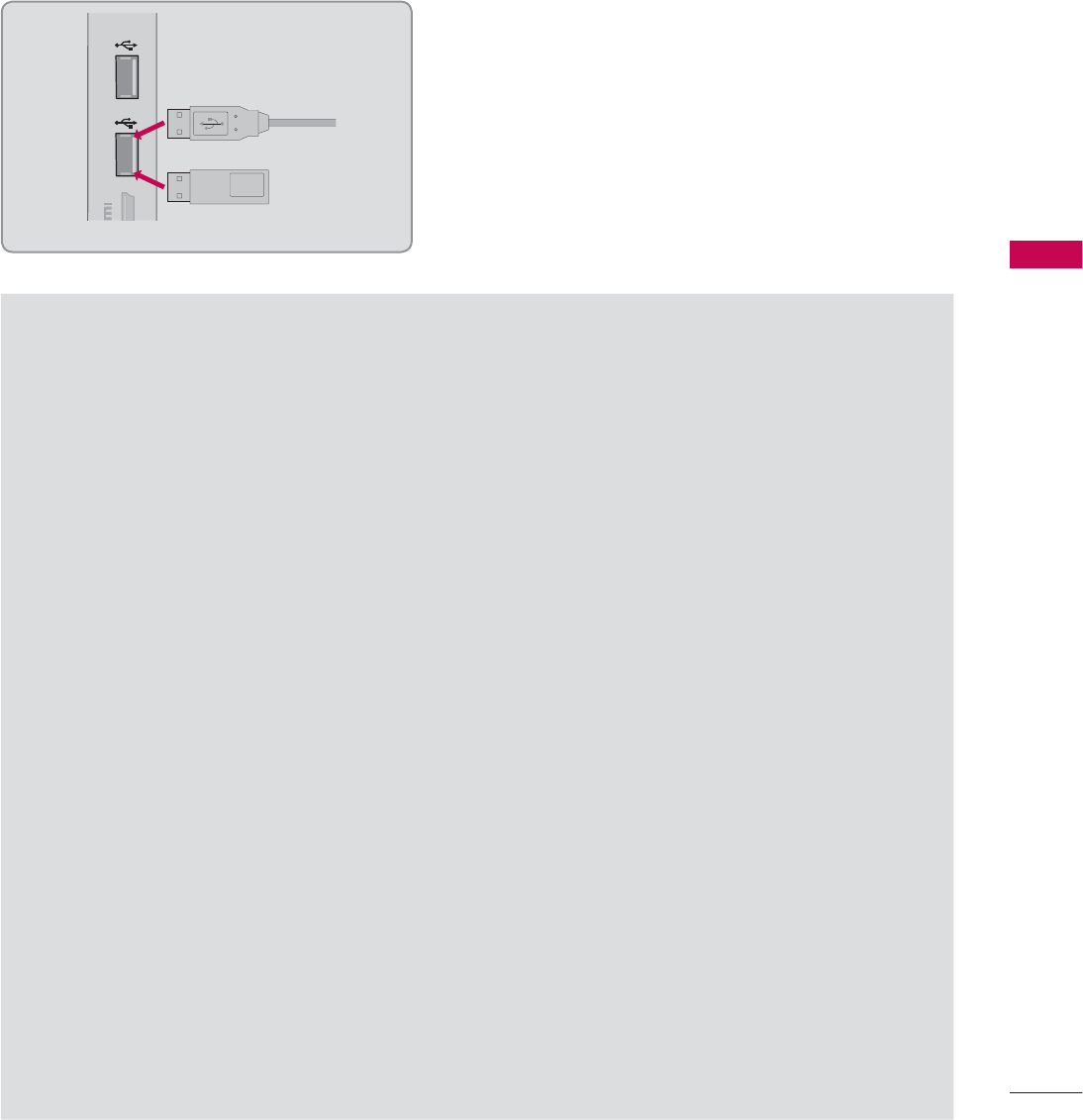

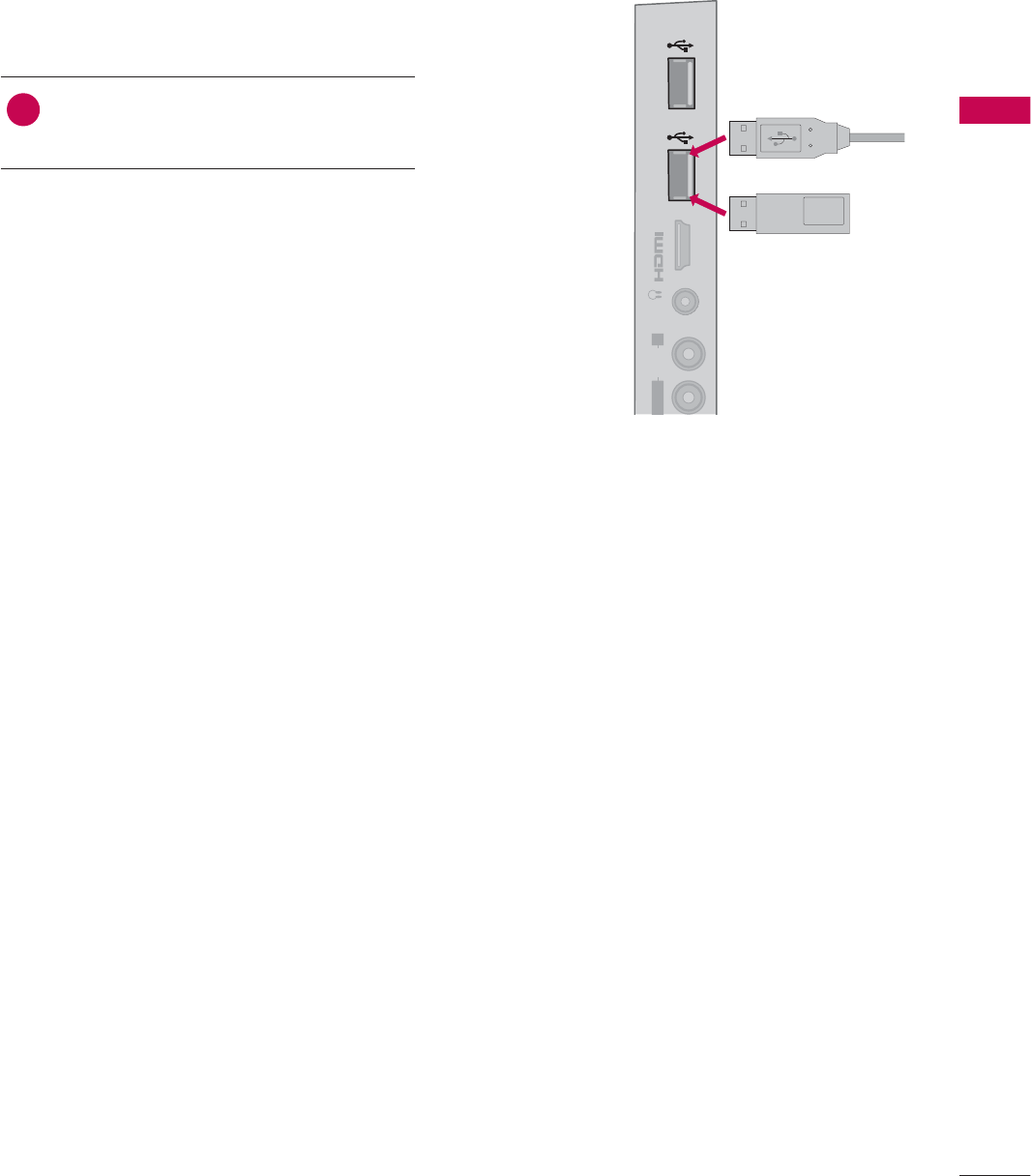

USB Connection ............................................... 36

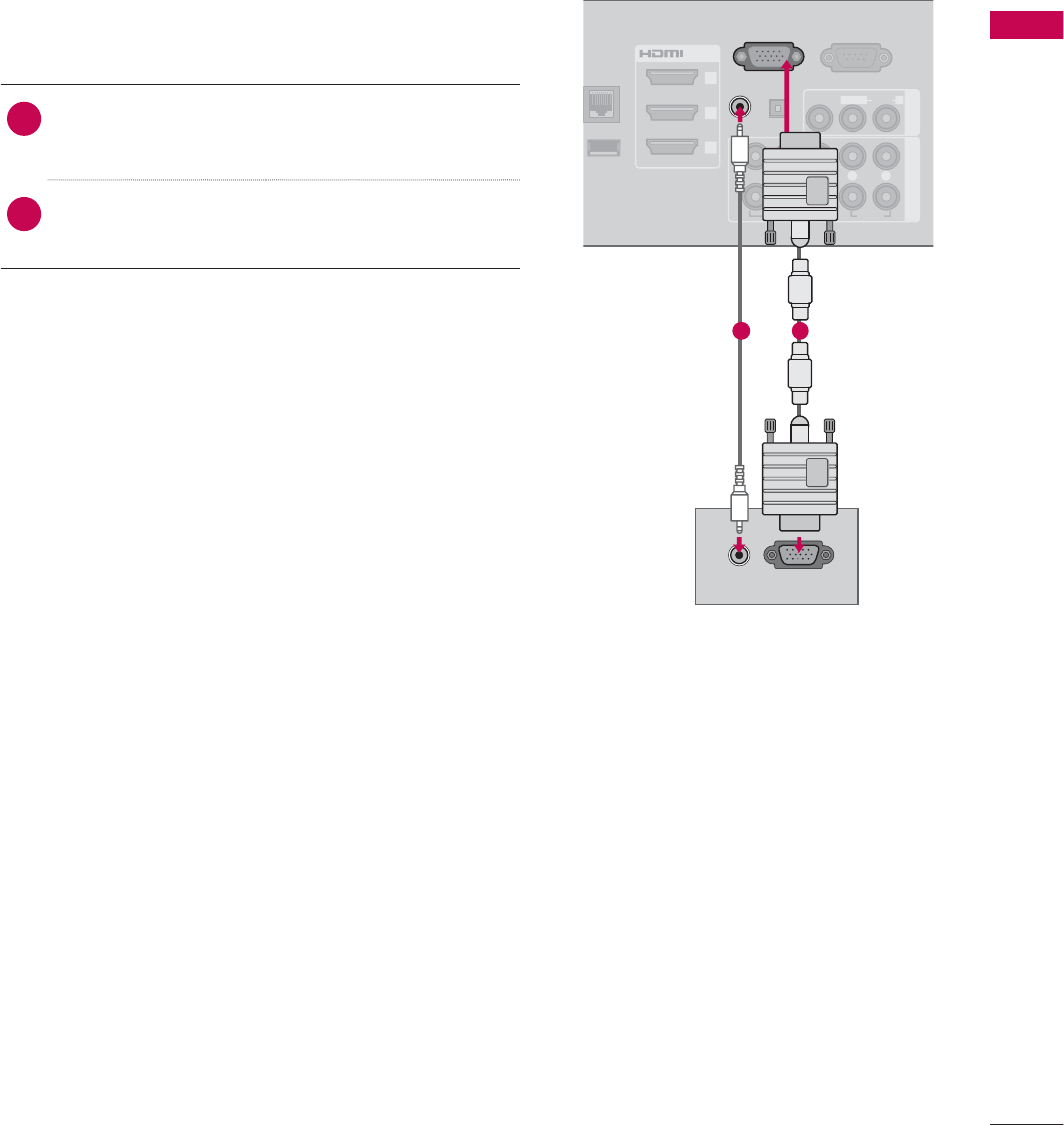

PC Setup .......................................................... 37

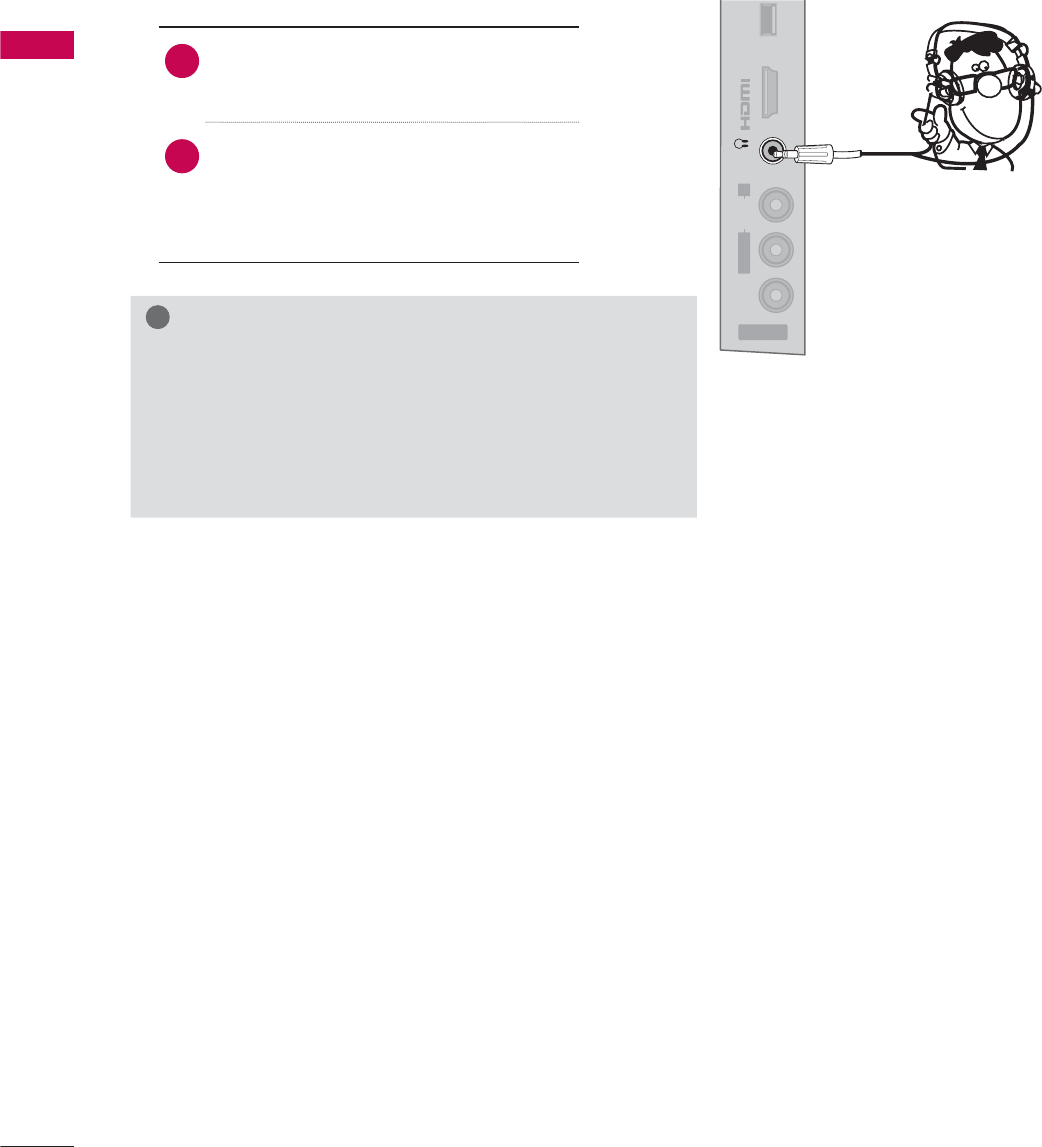

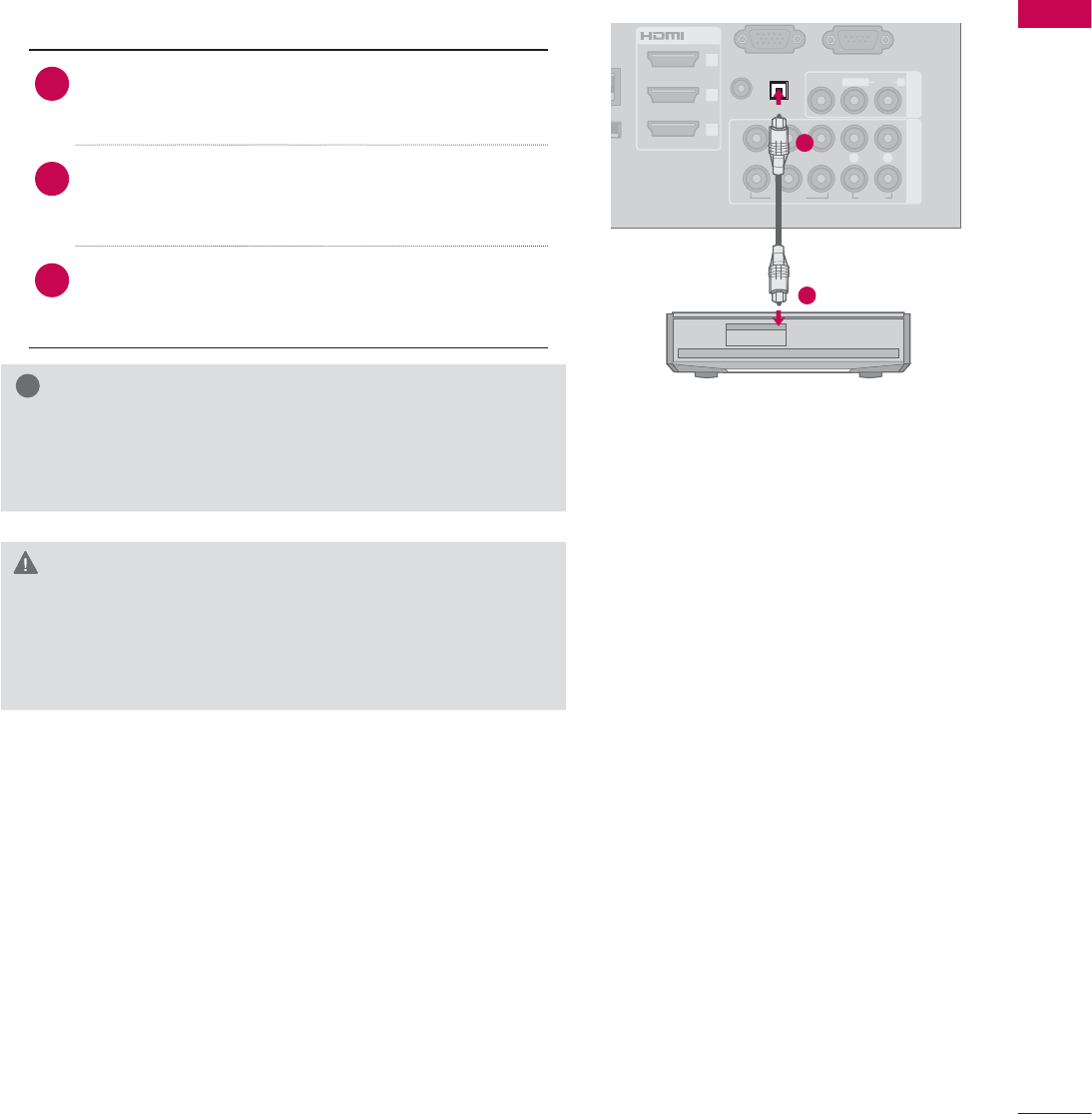

Audio out Connection ...................................... 44

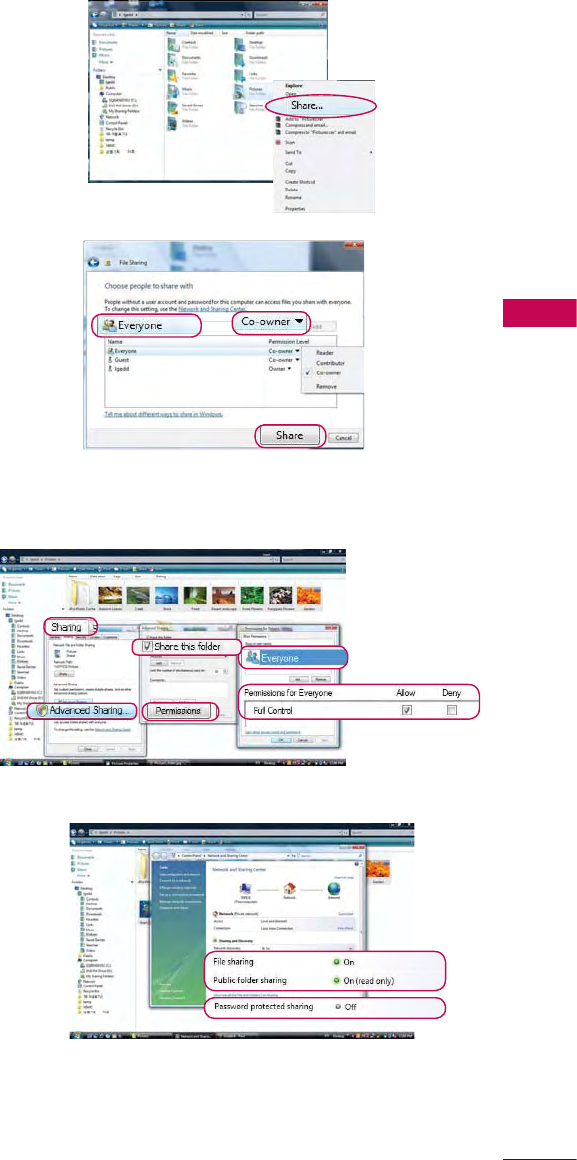

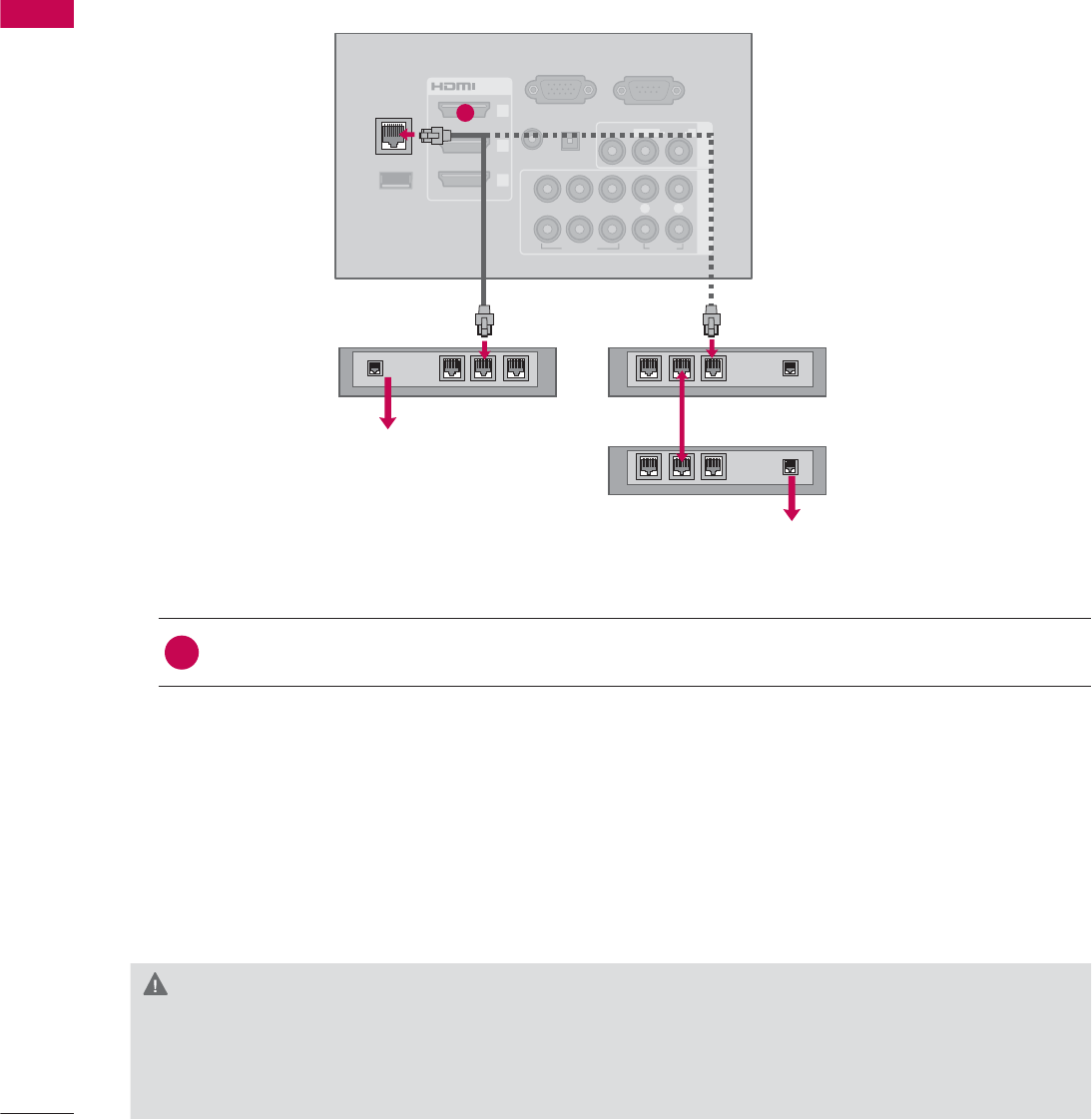

Network Setup.................................................. 45
WATCHING TV / CHANNEL CONTROL

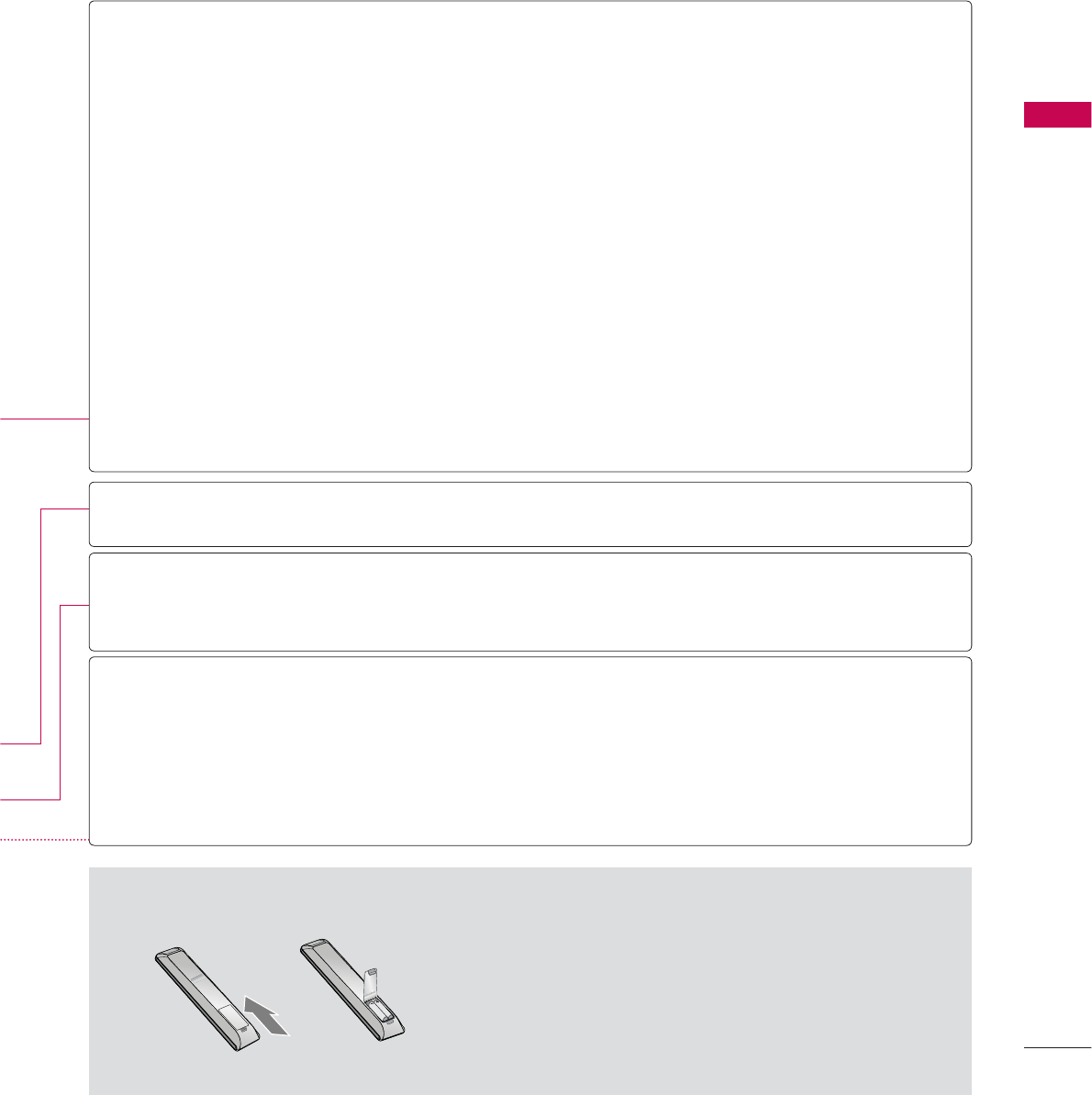

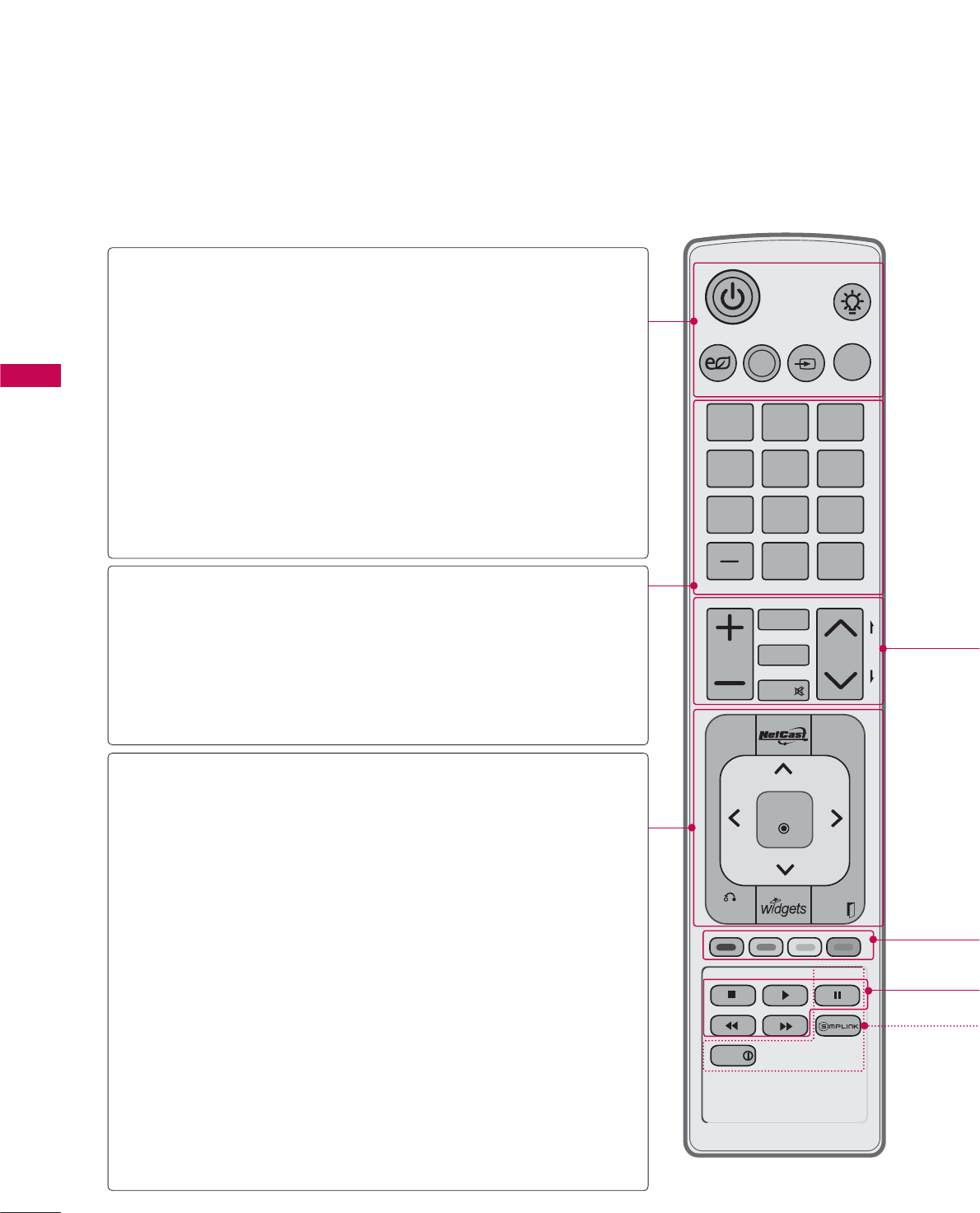

Remote Control Functions................................ 48
Turning On the TV ........................................... 50
Channel Selection............................................. 50
Volume Adjustment .......................................... 50
Initial Setting .................................................... 51
On-Screen Menus Selection ............................. 53
Quick Menu ...................................................... 54
Channel Setup
- Auto Scan (Auto Tuning)........................... 55
- Add / Delete Channel (Manual Tuning) ..... 56
- Channel Editing.......................................... 57
Channel List...................................................... 58
Favorite Channel Setup / Favorite Channel List 59
Brief Information............................................... 60
Simple Manual .................................................. 61
Input List .......................................................... 62
Input Label........................................................ 63
AV Mode........................................................... 64
Key Lock........................................................... 65
SIMPLINK.......................................................... 66
NETWORK

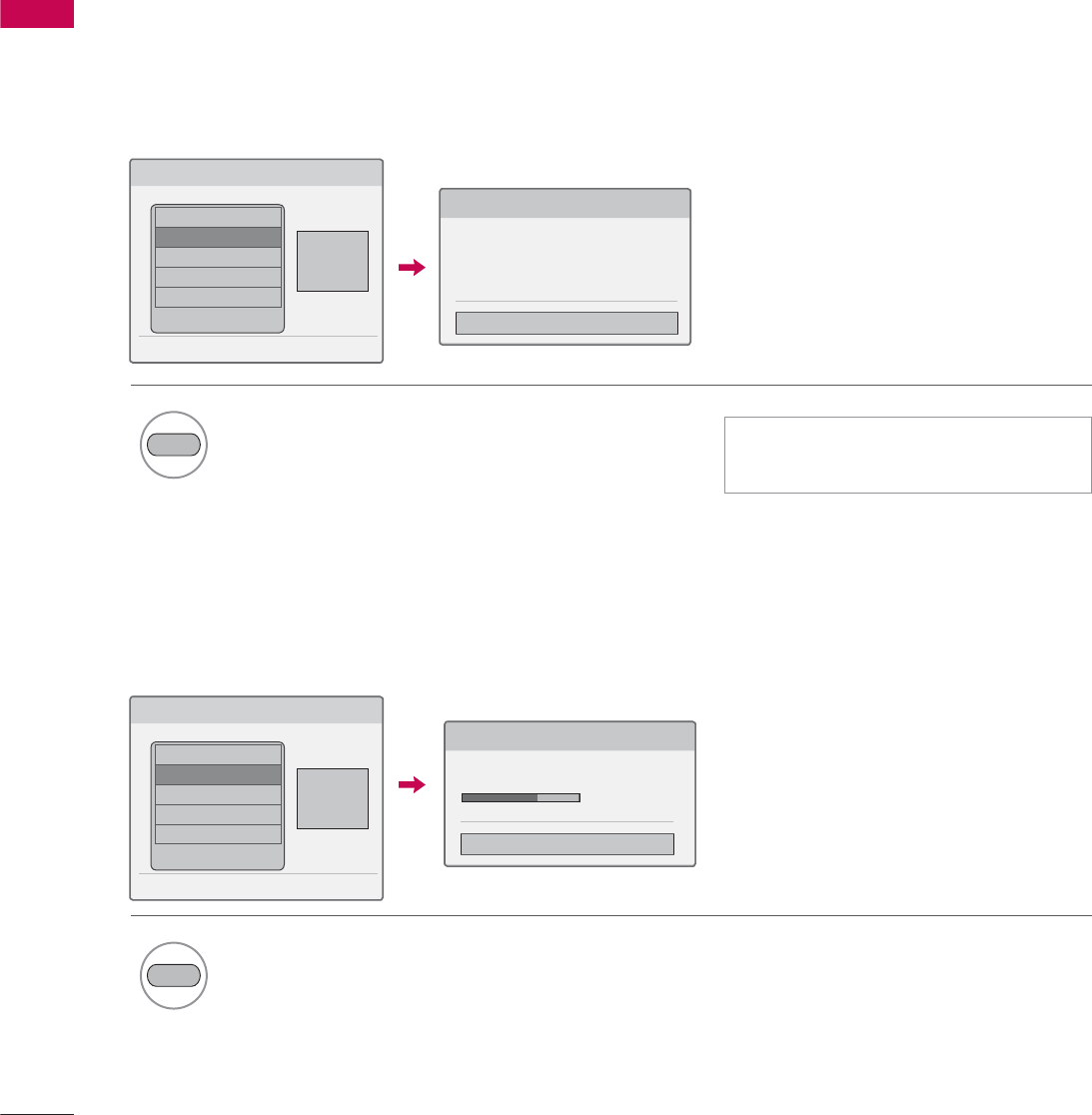

Software Update............................................... 68
Netflix ESN (Electronic Serial Number) ........... 69
NETCAST

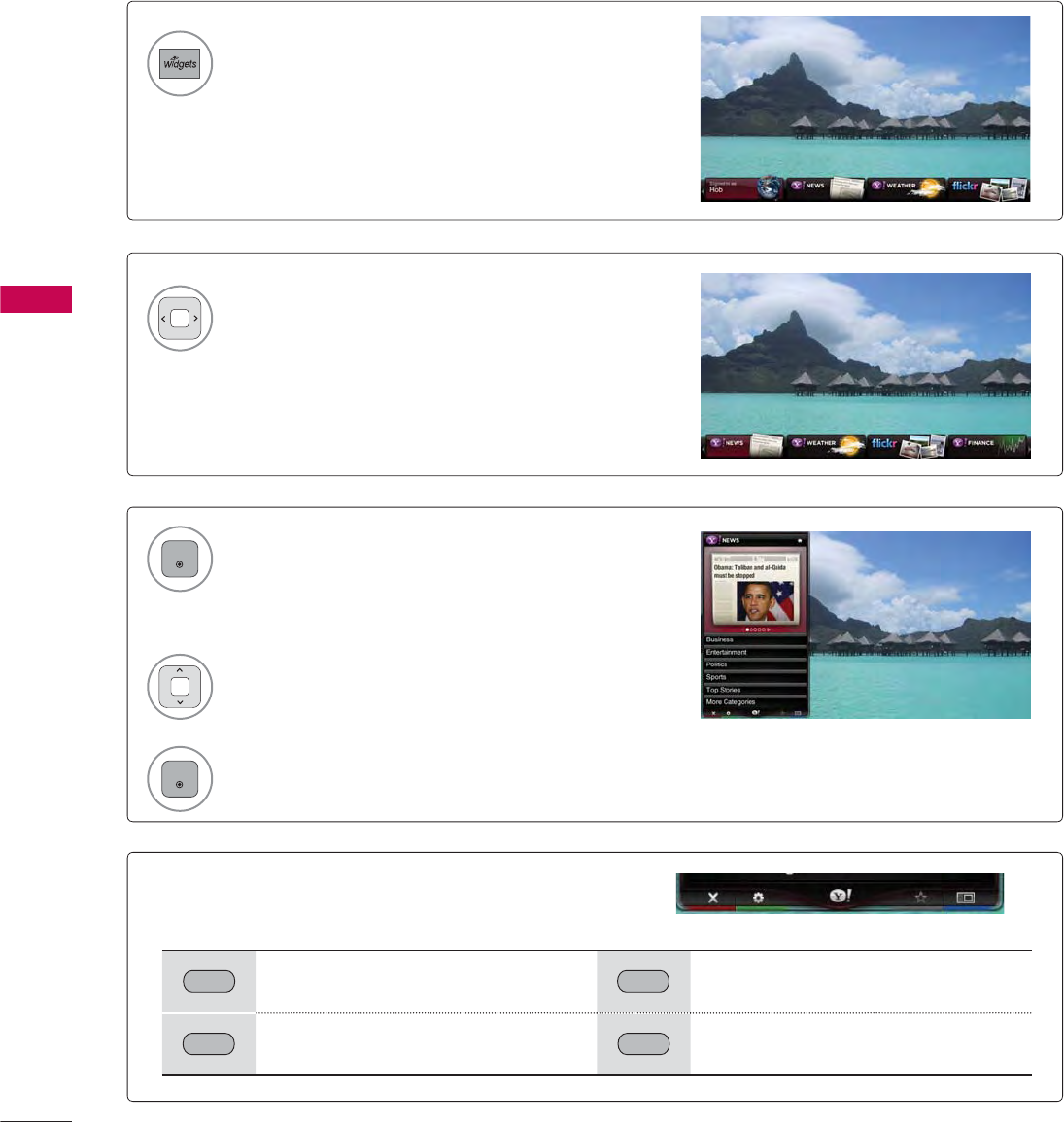

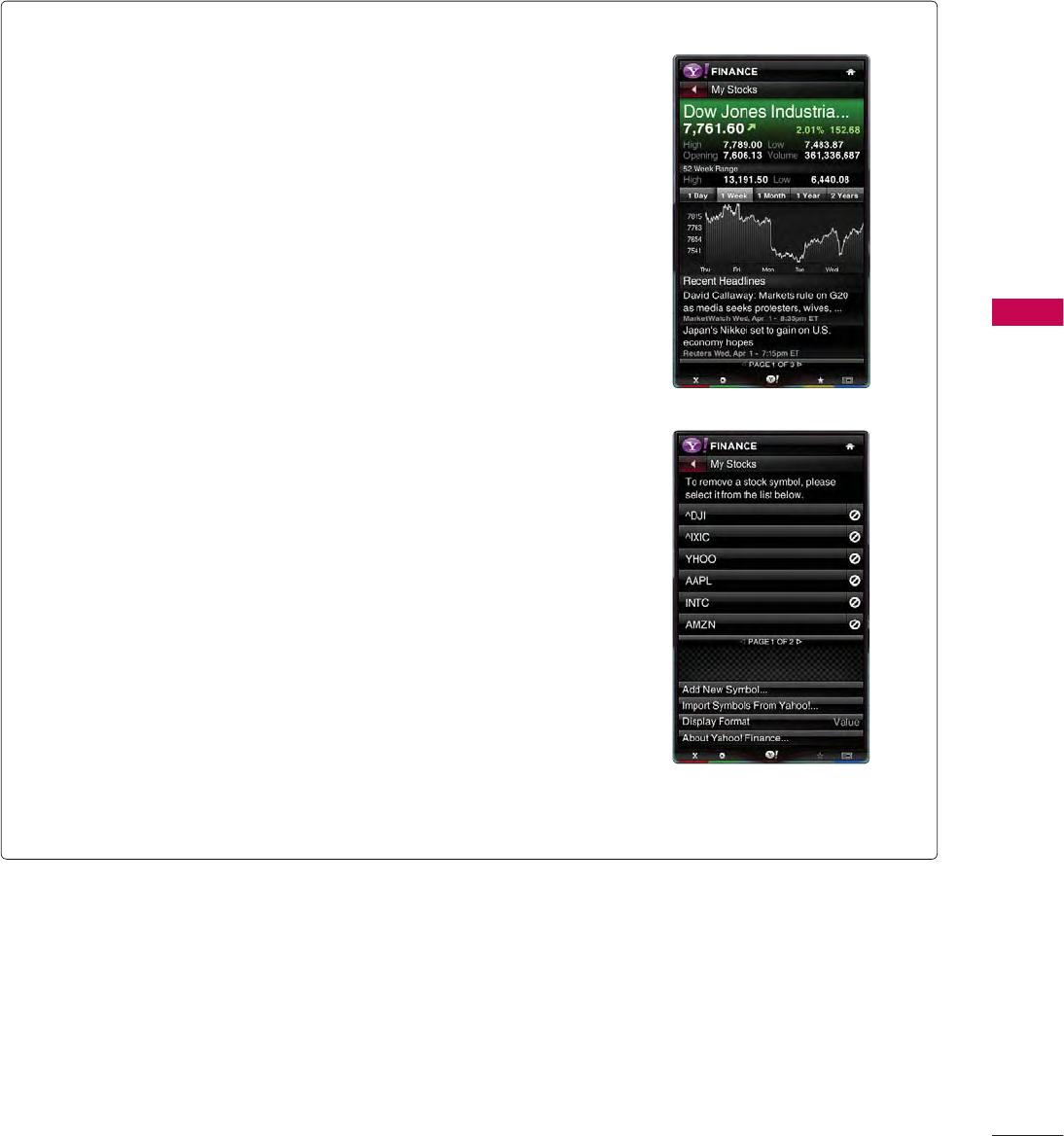

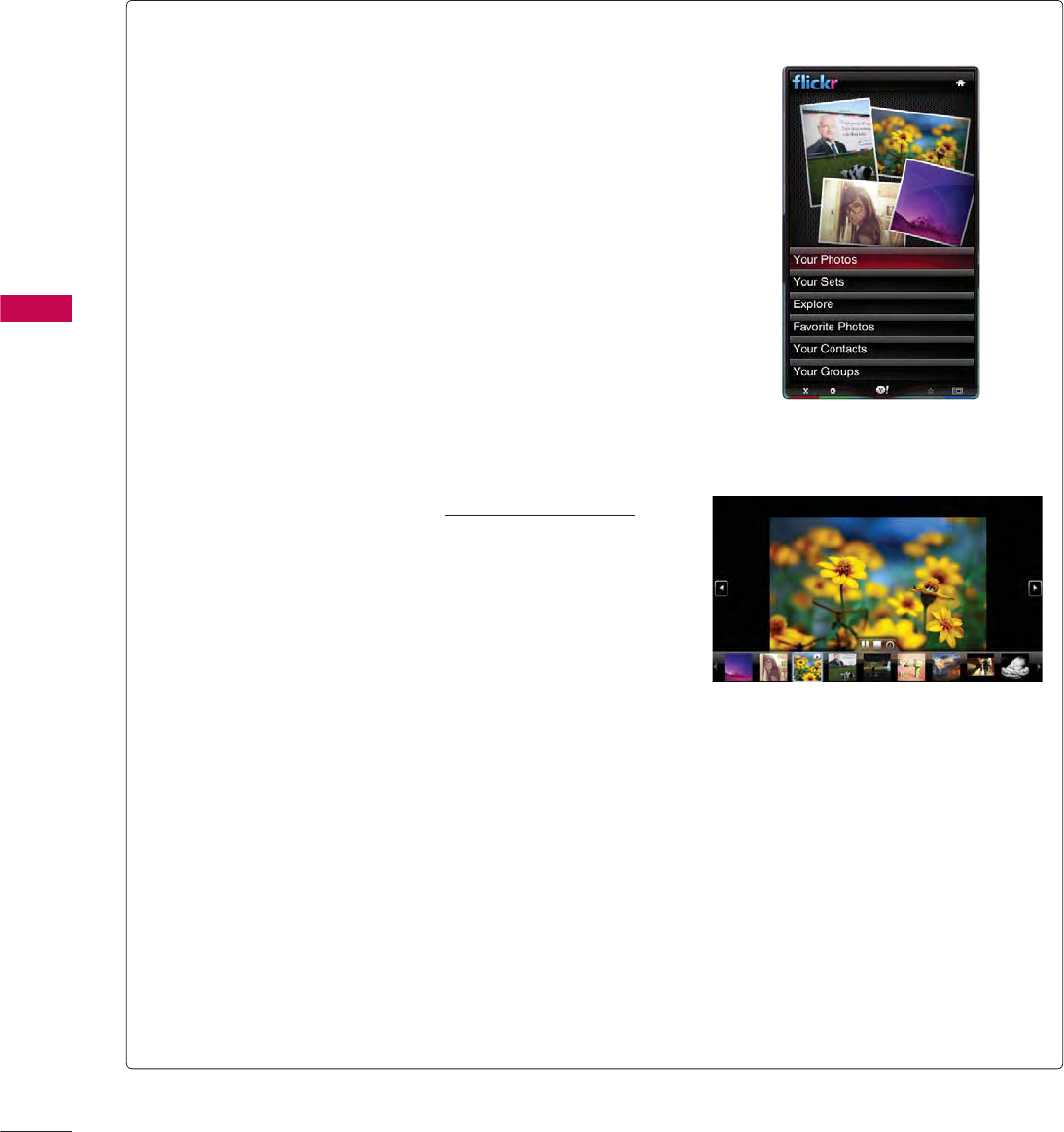

Yahoo! TV Widgets.......................................... 70
Netflix............................................................... 78

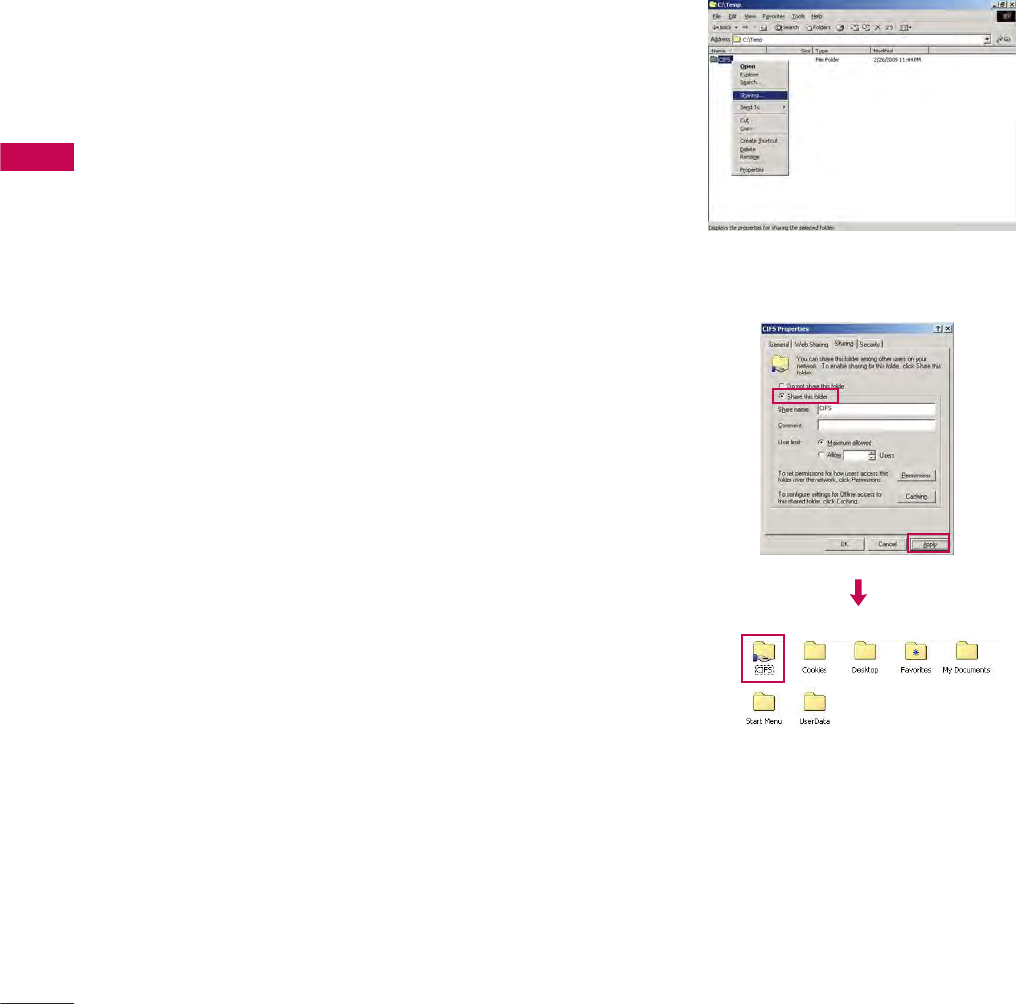

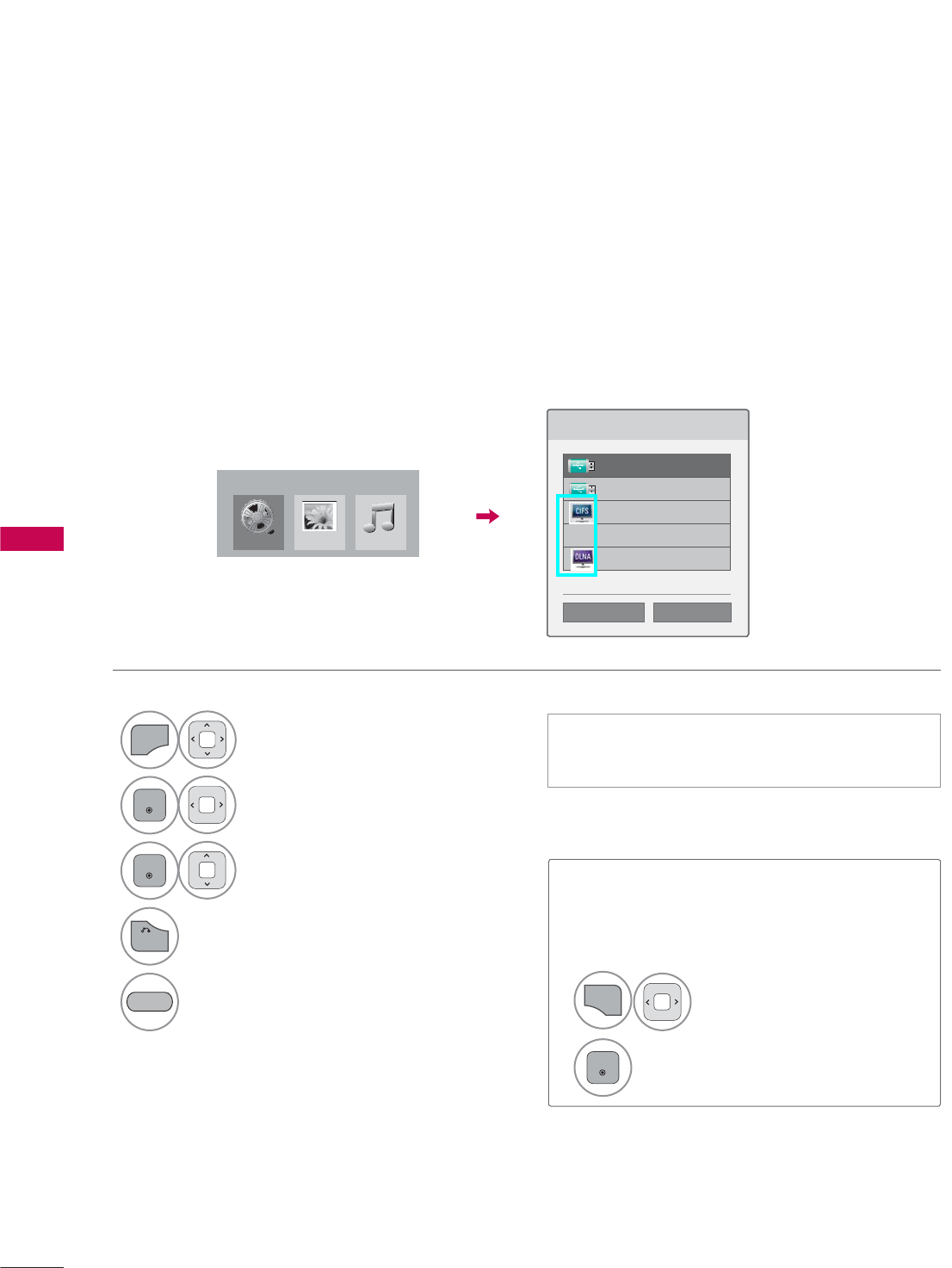

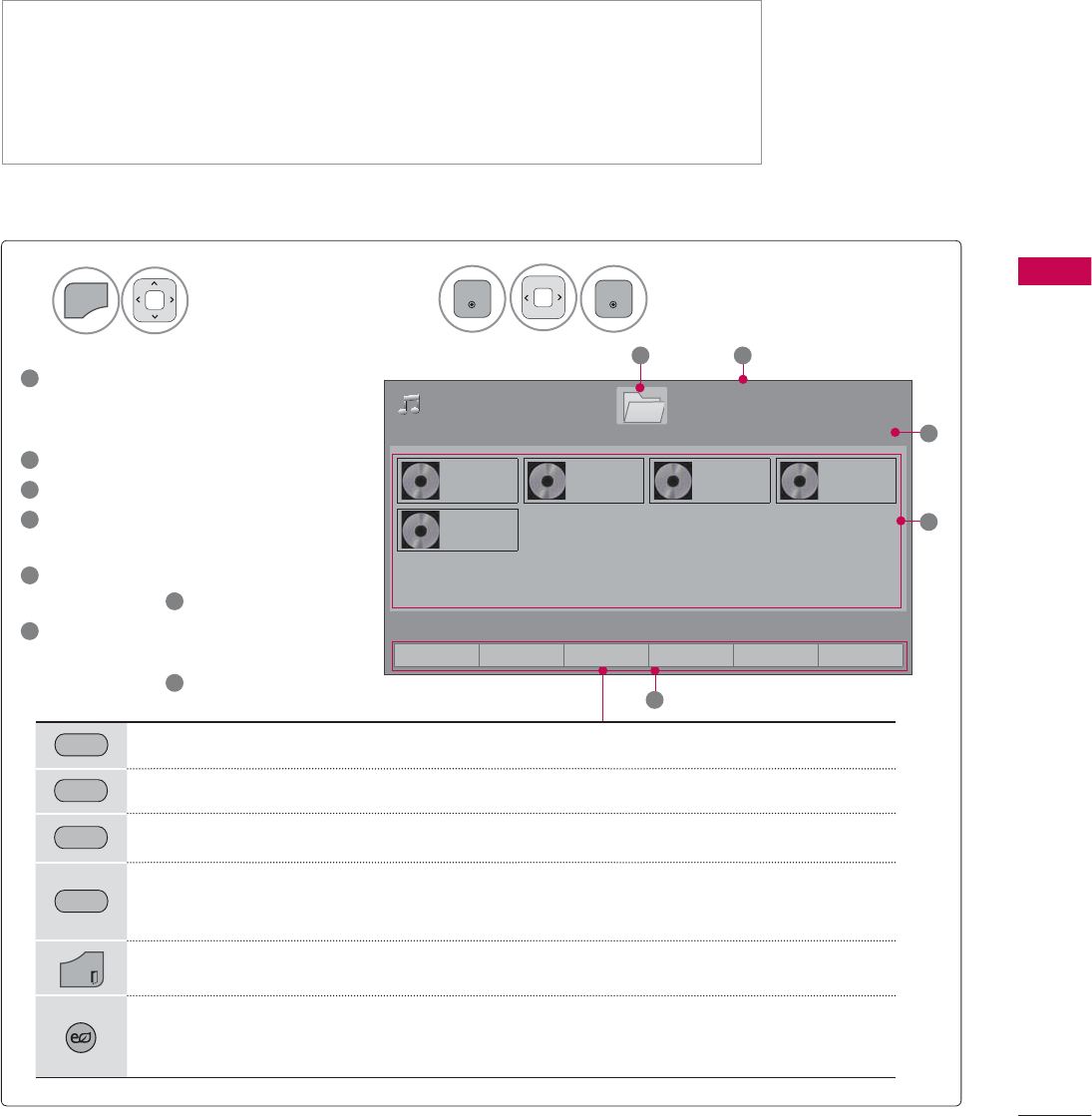

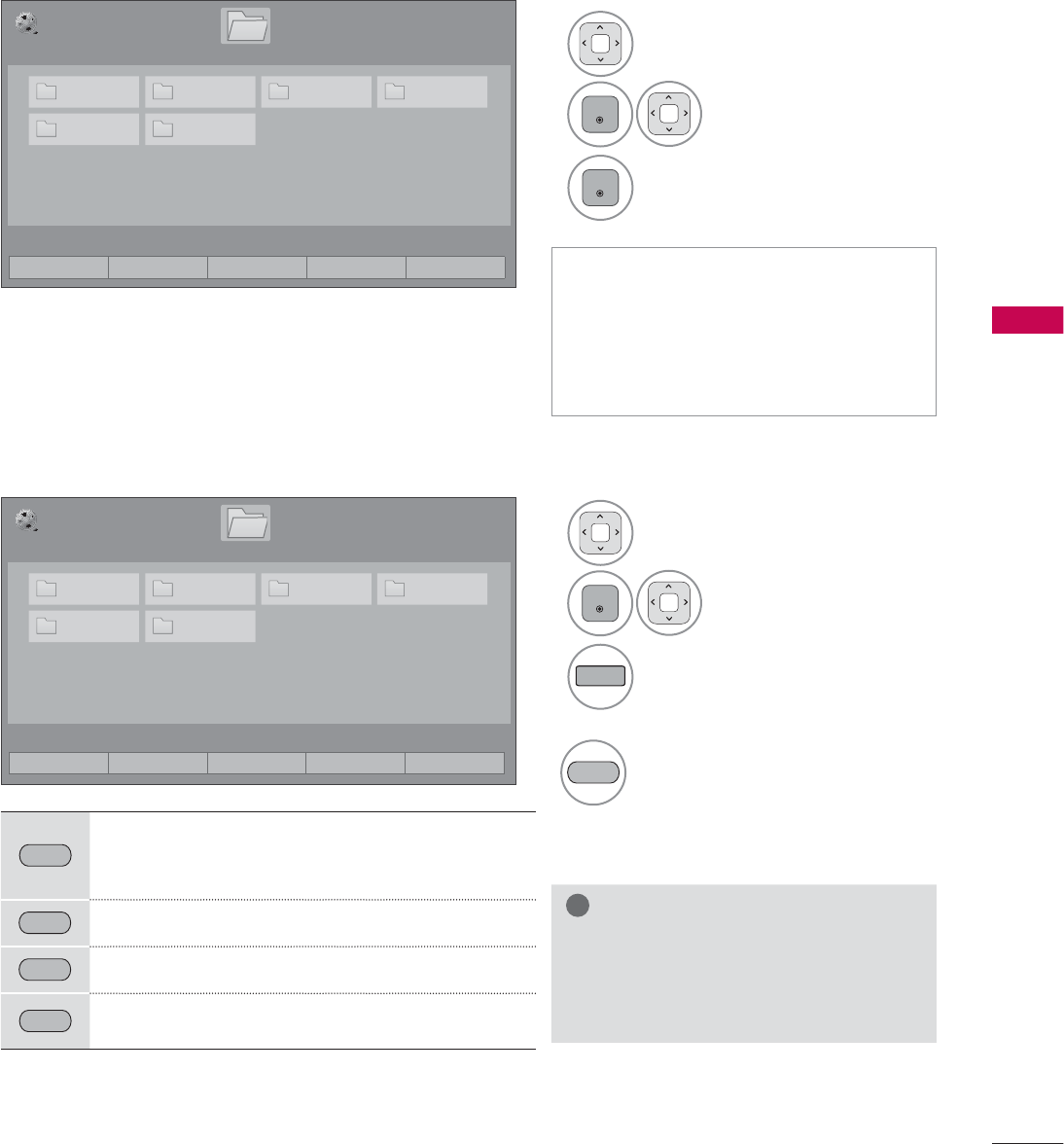

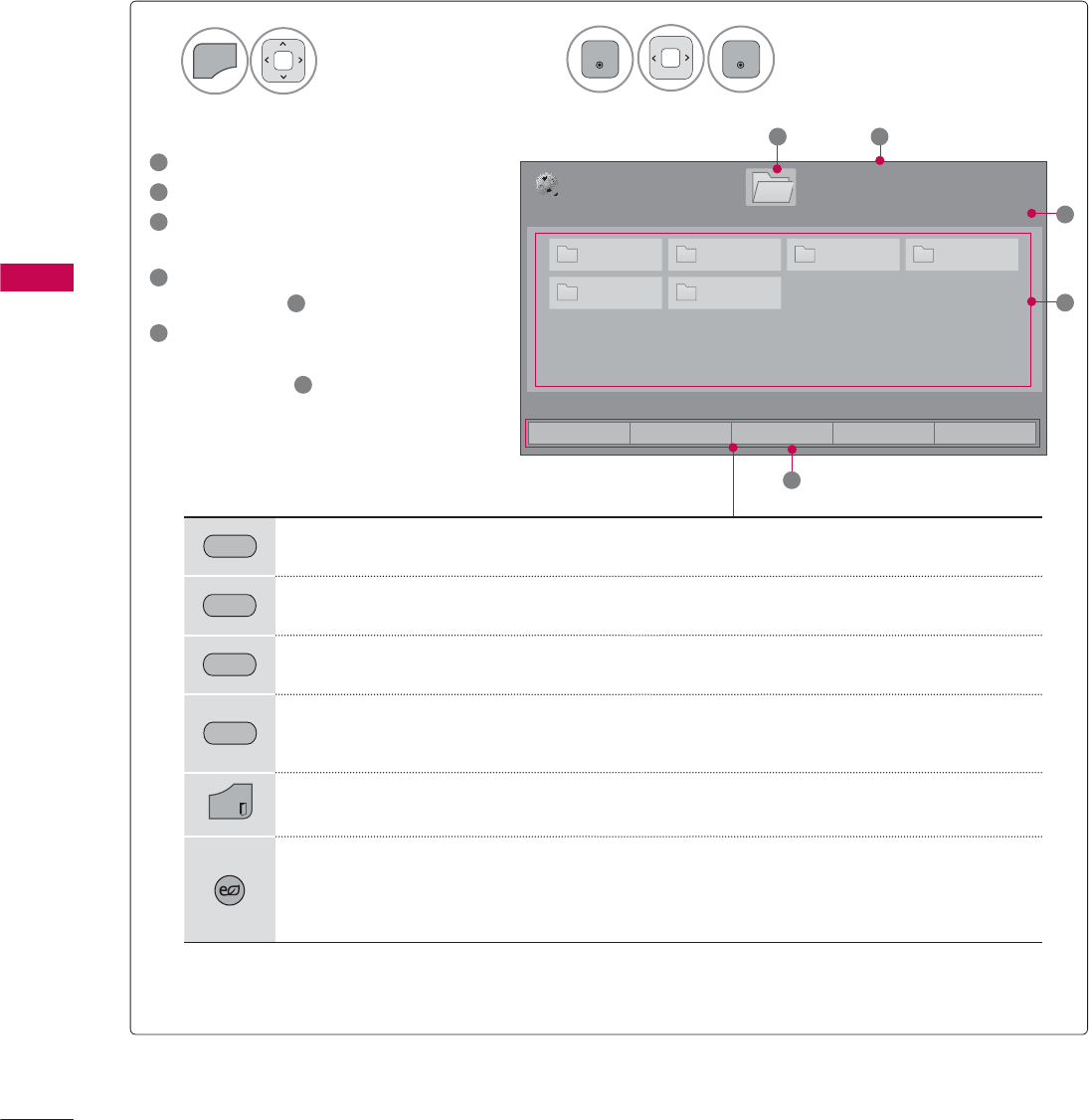

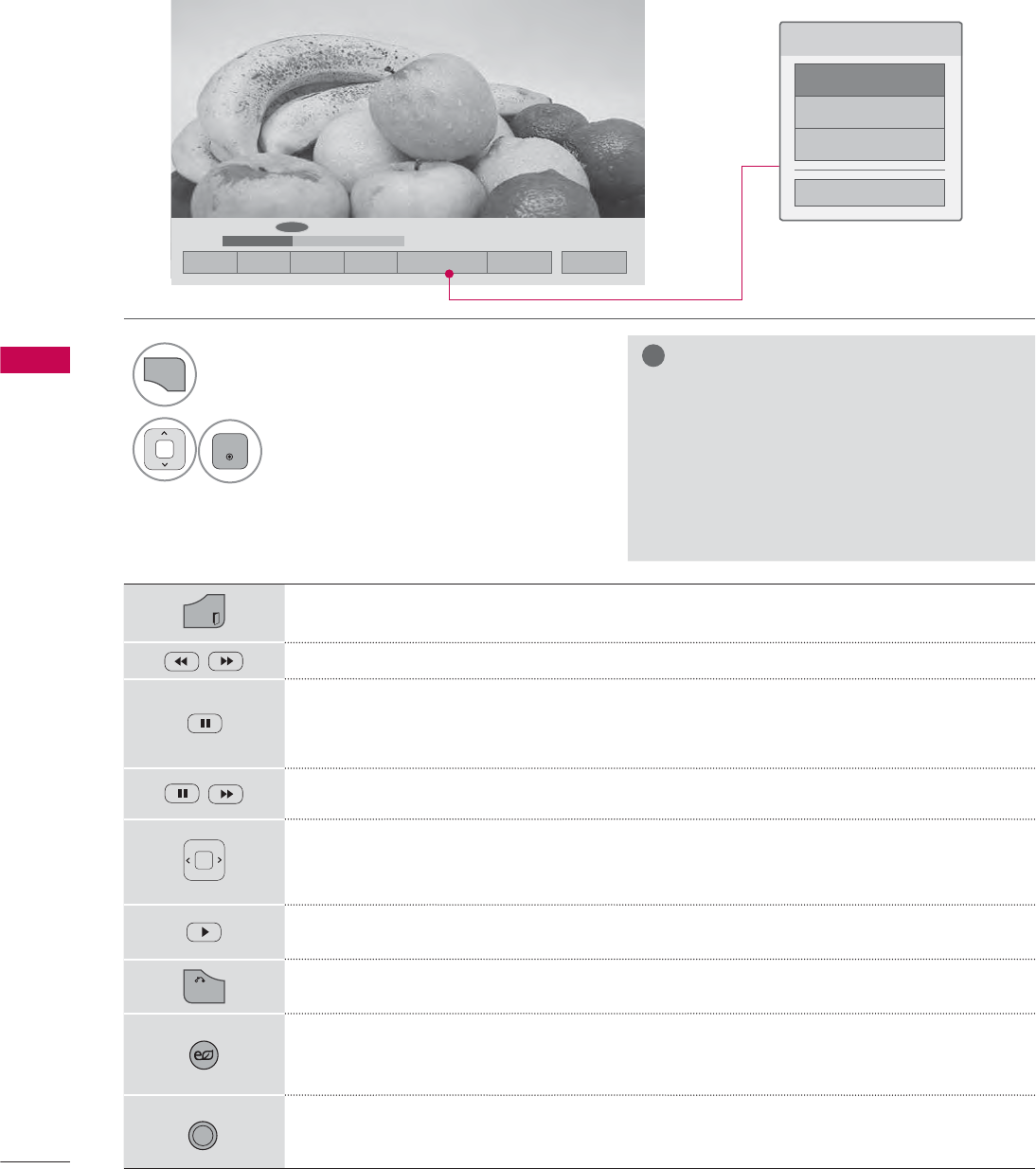

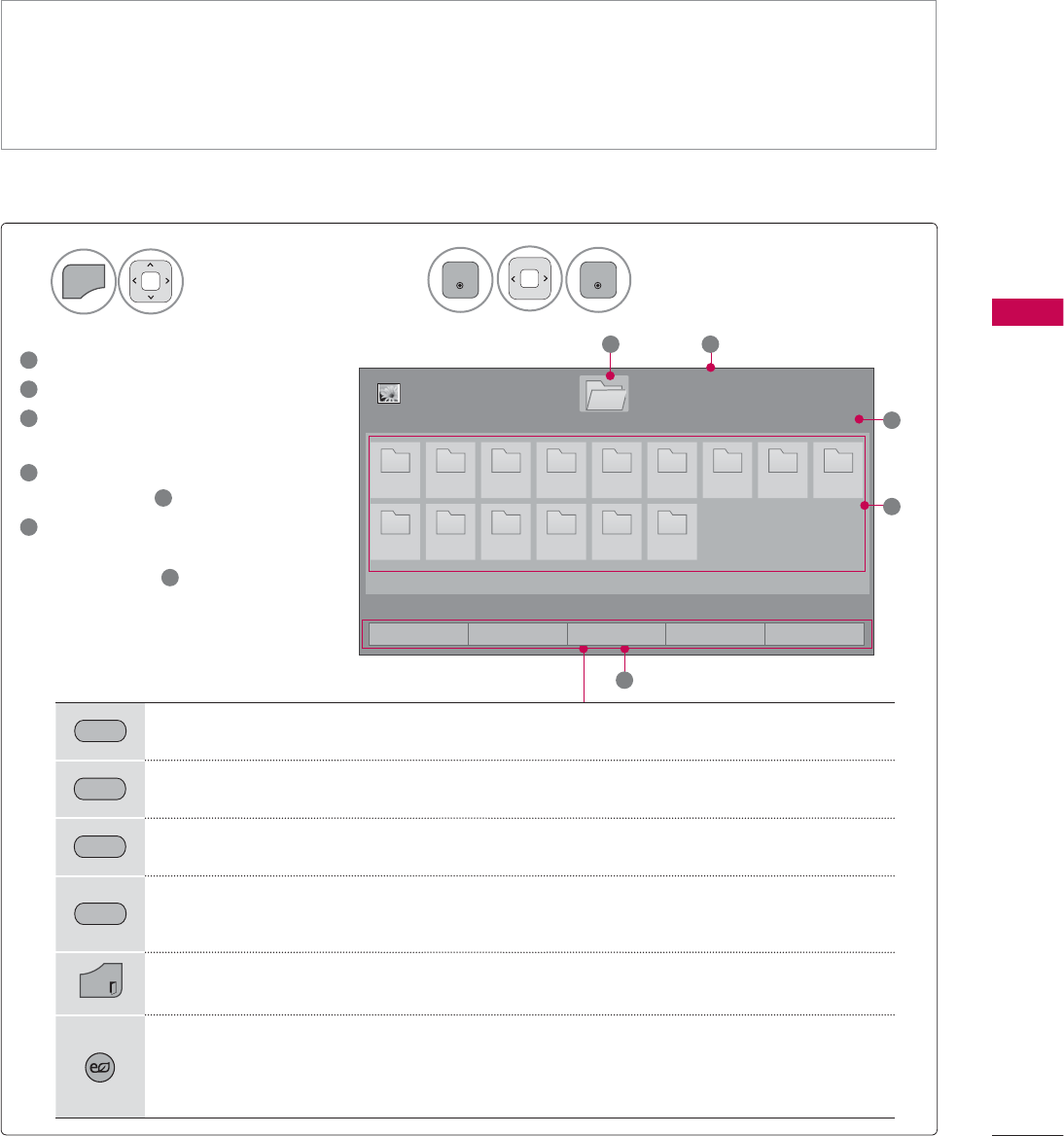

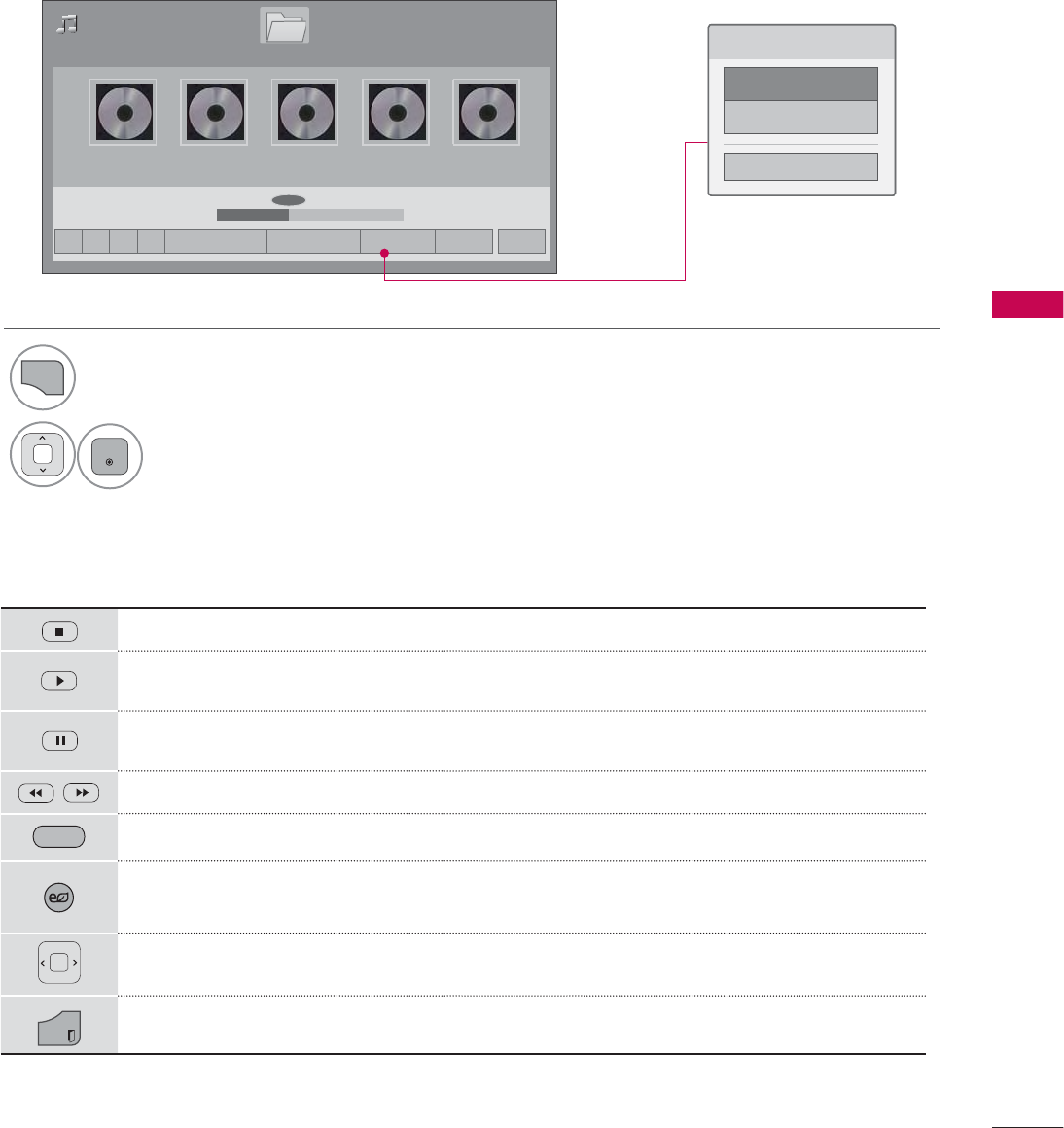

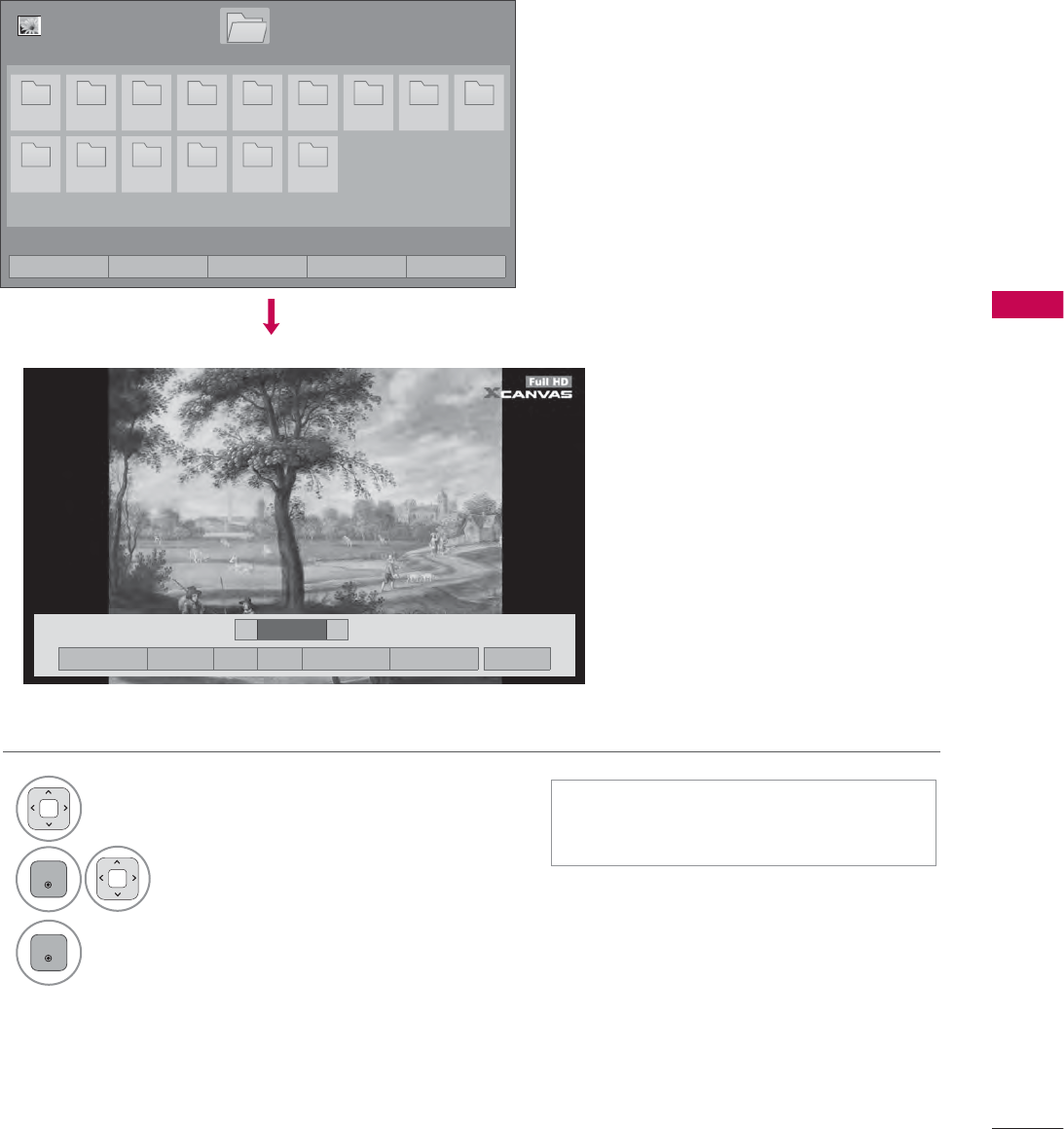

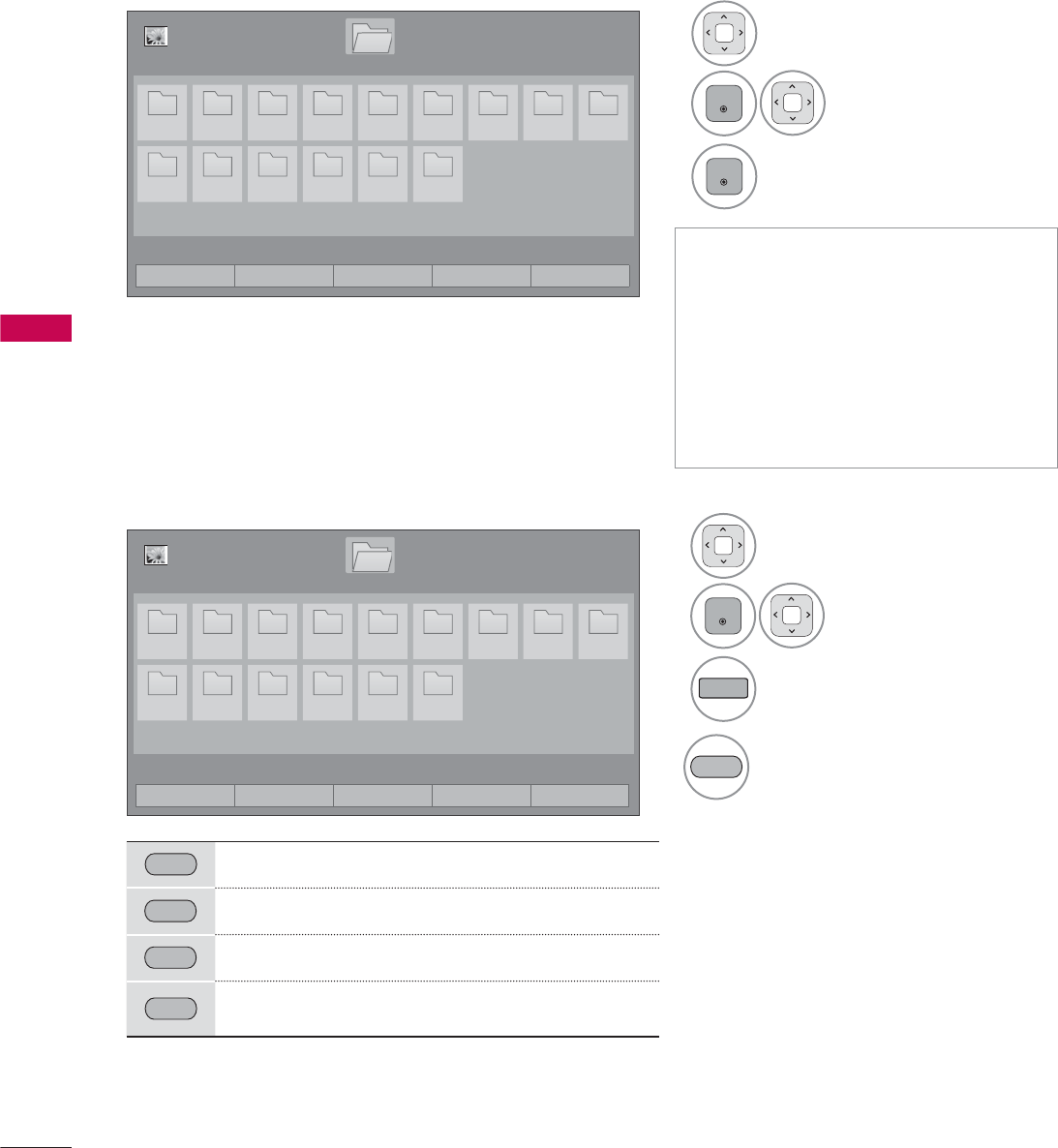

My Media ......................................................... 90

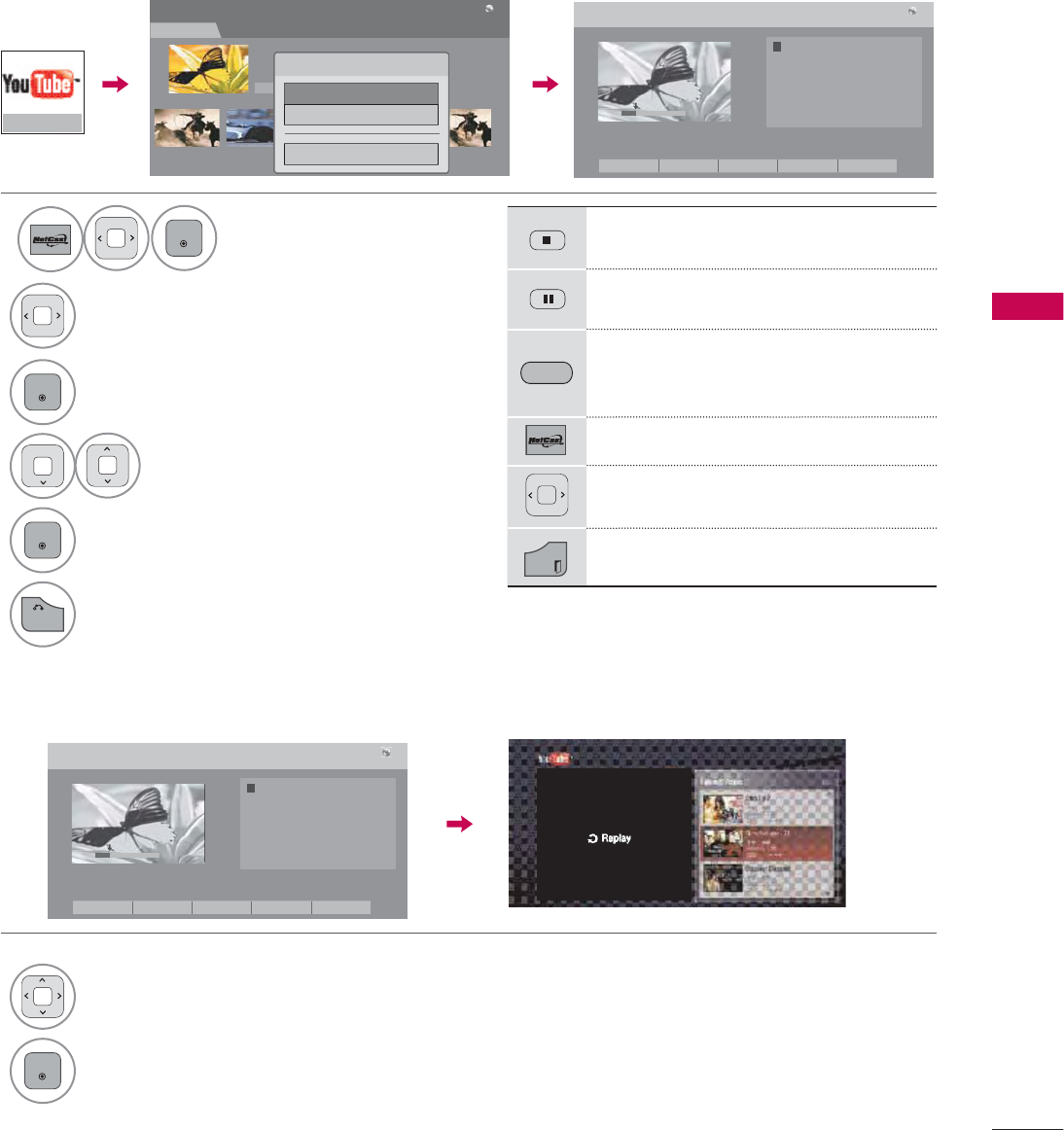

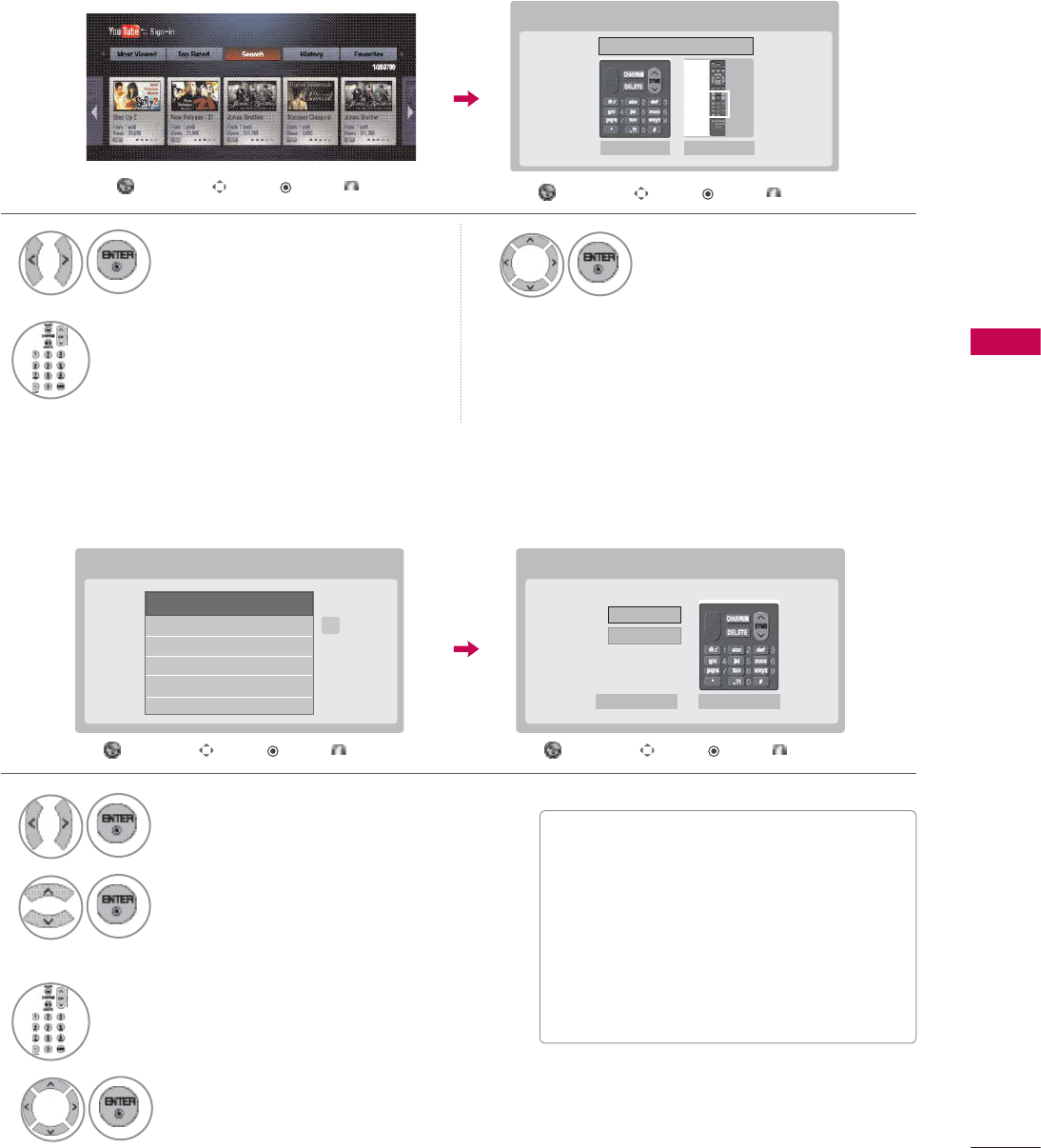

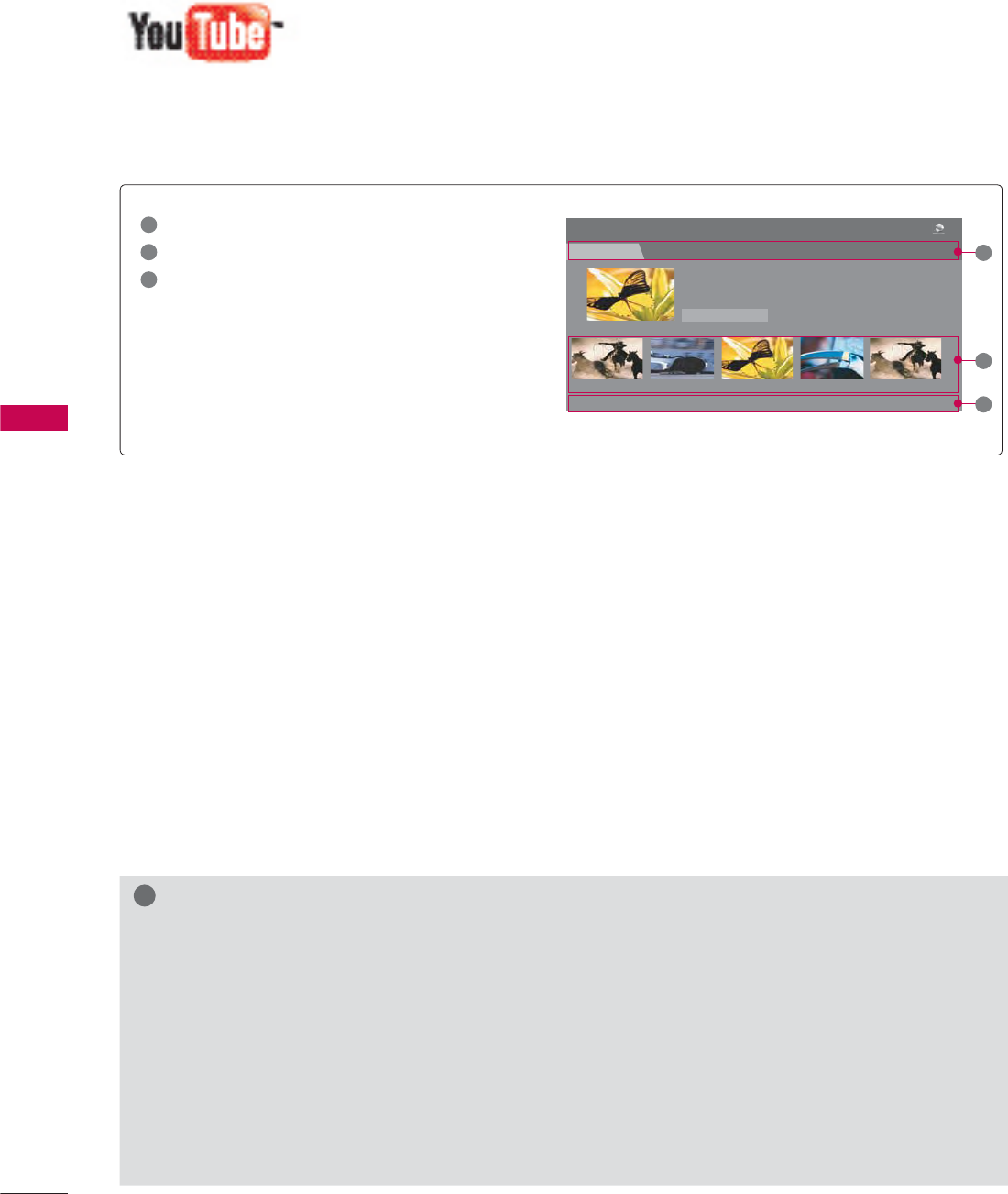

YouTube........................................................ 108
NETCAST Time-Out Setting......................... 111
Vudu.............................................................. 112
PICTURE CONTROL
Picture Size (Aspect Ratio) Control............... 128
Picture Wizard ............................................... 130
Preset Picture Settings (Picture Mode) ......... 132
Manual Picture Adjustment - User Mode....... 133
Picture Improvement Technology .................. 134

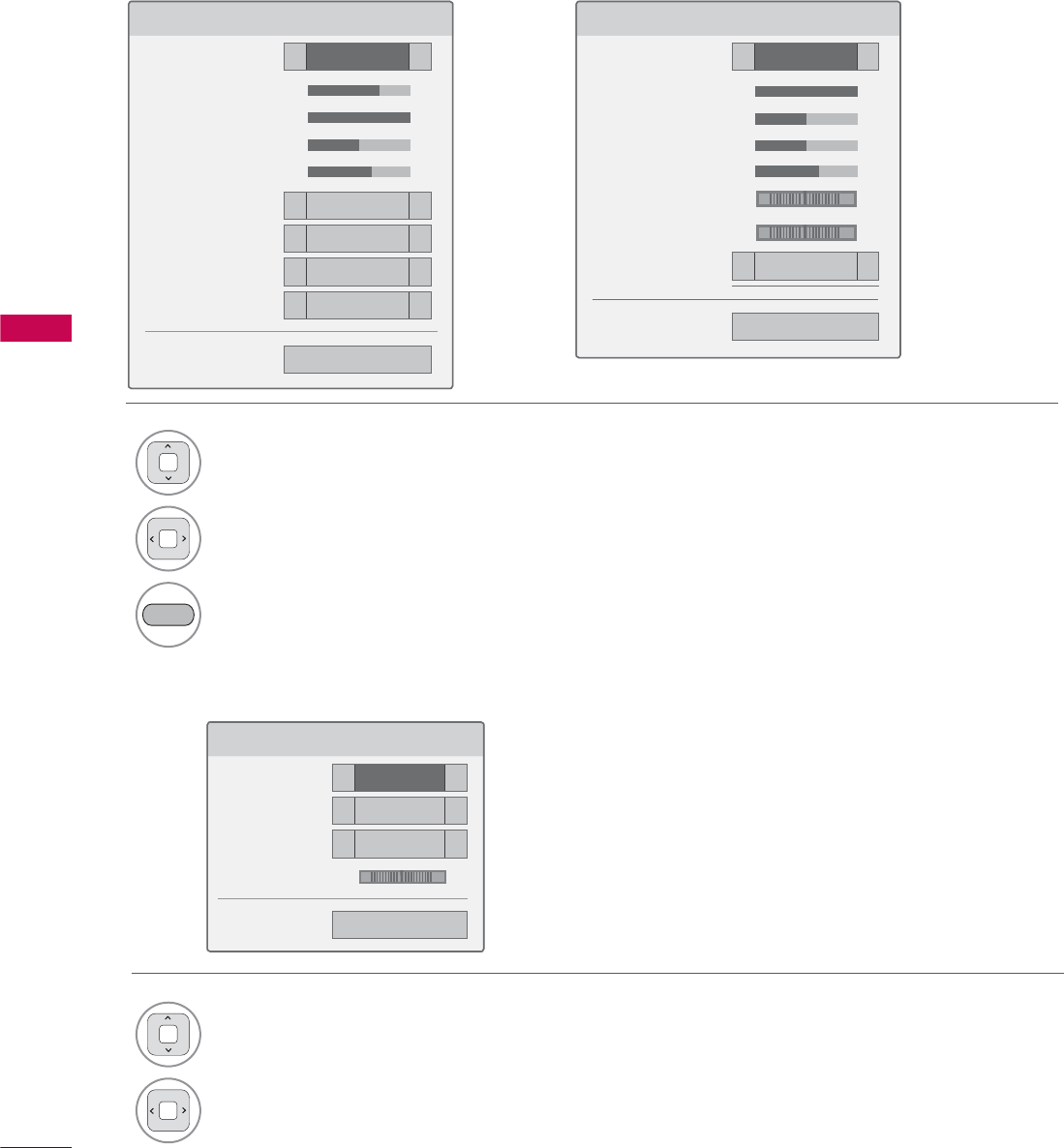

Expert Picture Control................................... 135
Energy Saving ................................................ 138
Picture Reset ................................................ 139
Image Sticking Minimization (ISM) Method.. 140
Power Indicator ............................................ 141
Demo Mode................................................... 142
7
SOUND & LANGUAGE CONTROL
Auto Volume Leveler (Auto Volume)........ 143
Clear Voice II .......................................... 144
Preset Sound Setting (Sound Mode)....... 145
Sound Setting Adjustment - User Mode .146
SRS Trusurround XT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Balance .................................................. 148
TV Speakers On/Off Setup .................... 149
Audio Reset .......................................... 150
Stereo/SAP Broadcasts Setup ................. 151
Audio Language..................................... 152
On-Screen Menus Language Selection ... 153
Caption Mode
- Analog Broadcasting System Captions 154
- Digital Broadcasting System Captions 155
- Caption Option ............................... 156
TIME SETTING
Clock Setting
- Auto Clock Setup ................................... 157
- Manual Clock Setup ............................... 158
Auto On/Off Time Setting ............................ 159
Sleep Timer Setting ....................................... 160
PARENTAL CONTROL / RATINGS
Set Password & Lock System......................... 161
Channel Blocking ........................................... 164
Movie & TV Rating ........................................ 165
Downloadable Rating..................................... 168
External Input Blocking .................................. 169
APPENDIX
Troubleshooting ............................................ 170
Maintenance .................................................. 174
Product Specifications ................................... 175

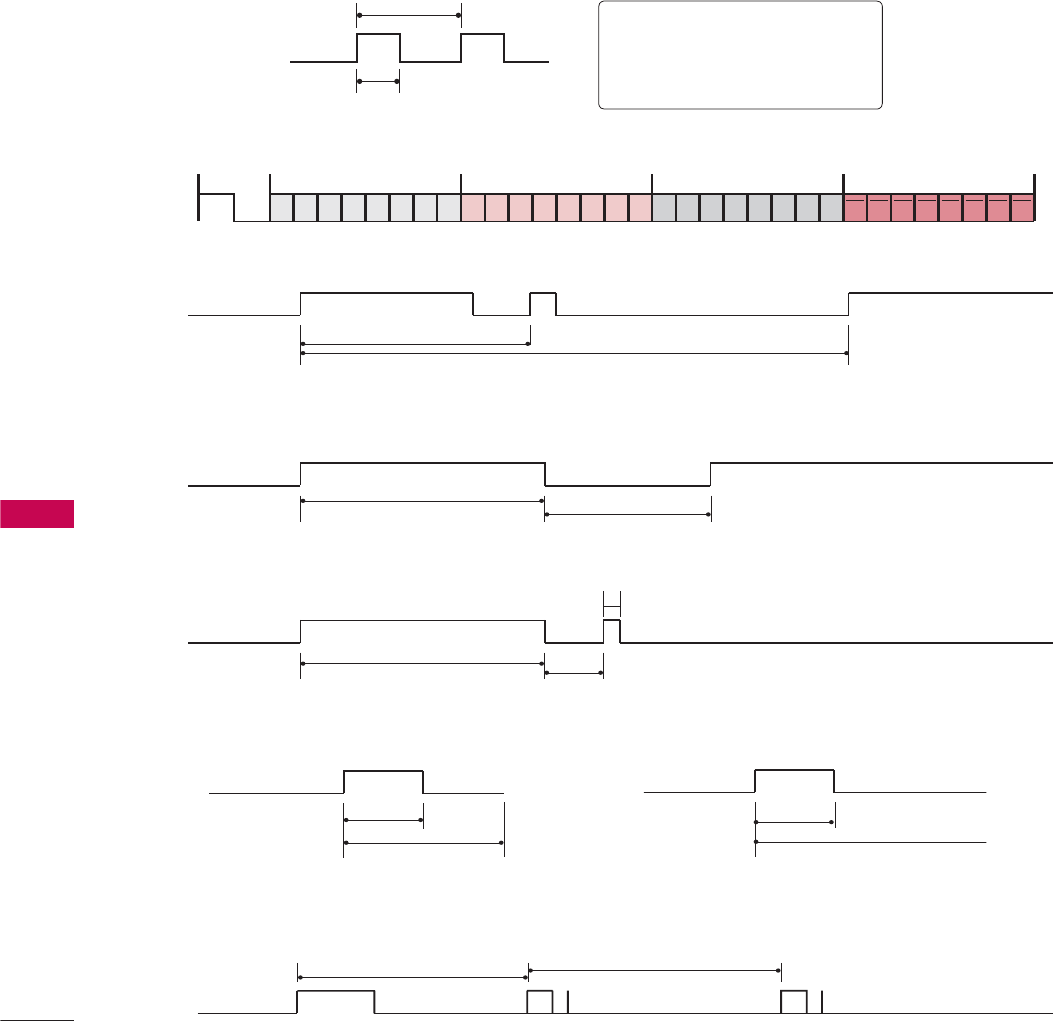

IR Codes........................................................ 176
Open Source License ......................................178
Legal Notice....................................................192
8
FEATURE OF THIS TV
Some of these features are not available on all models.
Manufactured under license from
Dolby Laboratories. “Dolby “and the
double-D symbol are trademarks of
Dolby Laboratories.
Dolby Digital is supported by the
TV main features.
Dolby Digital Plus is only supported
by VUDU & MY MEDIA.
Automatically enhances and ampli-
fies the sound of human voice fre-
quency range to help keep dia-
logue audible when background
noise swells.
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trade-
marks of HDMI Licensing LLC."
Displays HDTV programs in full
1920 x 1080p resolution for a more
detailed picture.
Advance 120Hz panel provides
clearer, smoother images, even
during fast action scenes creating a
more stable structure for a crisper
picture.
In addition to adhering to the new
Energy Star 3.0 specification, LG
HDTVs have energy-saving options
like the ability to choose a content-
specific setting, "video mute" or
engaging exclusive Intelligent
Sensor technology.
View videos and photos and listen
to music on your TV through USB
2.0 (‘videos’ dependent on model).
High-definition television. High-
resolution digital television broad-
cast and playback system com-
posed of roughly a million or more
pixels, 16:9 aspect-ratio screens,
and AC3 digital audio. A subset of
digital television, HDTV formats
include 1080i and 720p resolu-
tions.
AV Mode is three preset picture
and audio settings. It allows the
viewer to quickly switch between
common settings. It includes
Cinema, Sports, and Game Modes.
A unique invisible speaker system
tuned by renowned audio expert,
Mr. Mark Levinson. Speakers are
embedded in strategic spots
behind the front cabinet and use
minute vibrations to turn the entire
front bezel into the speaker system.
The result s a clean, polished look,
and enhanced audio by increasing
the “sweet spot”, giving a wider and
richer sound field.
Unlike other sensors which can only
sense brightness of ambient light,
LG’s “Intelligent Sensor” uses
4,096 sensing steps to evaluate its
surroundings. Using a sophisticat-
ed algorithm, the LG processes
picture quality elements including
brightness, contrast, color, sharp-
ness and white balance. The result
is a picture optimized for it’s sur-
roundings, more pleasing to watch
and which can also save up to 50%
in power consumption.
9
IMPORTANT INFORMATION TO PREVENT “IMAGE
BURN / BURN-IN” ON YOUR TV SCREEN
ABOUT DIVX VIDEO: DivX® is a
digital video format created by
DivX,Inc. This is an official DivX
Certified device that plays DivX
video. Visit www.divx.com for more
information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-
DEMAND: This DivX Certified®
device must be registered in order
to play DivX Video-on-Demand
(VOD) content. To generate the
registration code, locate the DivX
VOD section in the device setup
menu. Go to vod.divx.com with this
code to complete the registration
process and learn more about
DivX VOD.
“DivX Certified to play DivX video
up to HD 1080p, including premi-
um content”
“Pat. 7,295,673;
7,460,688;7,519,274”
When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed
on the TV for an extended period, it can become permanently imprinted on the screen. This
phenomenon is known as “image burn” or “burn-in.” Image burn is not covered under the man-
ufacturer’s warranty.
In order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged
period (2 or more hours for LCD, 1 or more
hours for Plasma).
Image burn can also occur on the letter-
boxed areas of your TV if you use the 4:3
aspect ratio setting for an extended period.
Unlimited instant access to movies
and TV shows with Netflix subscrip-
tion.

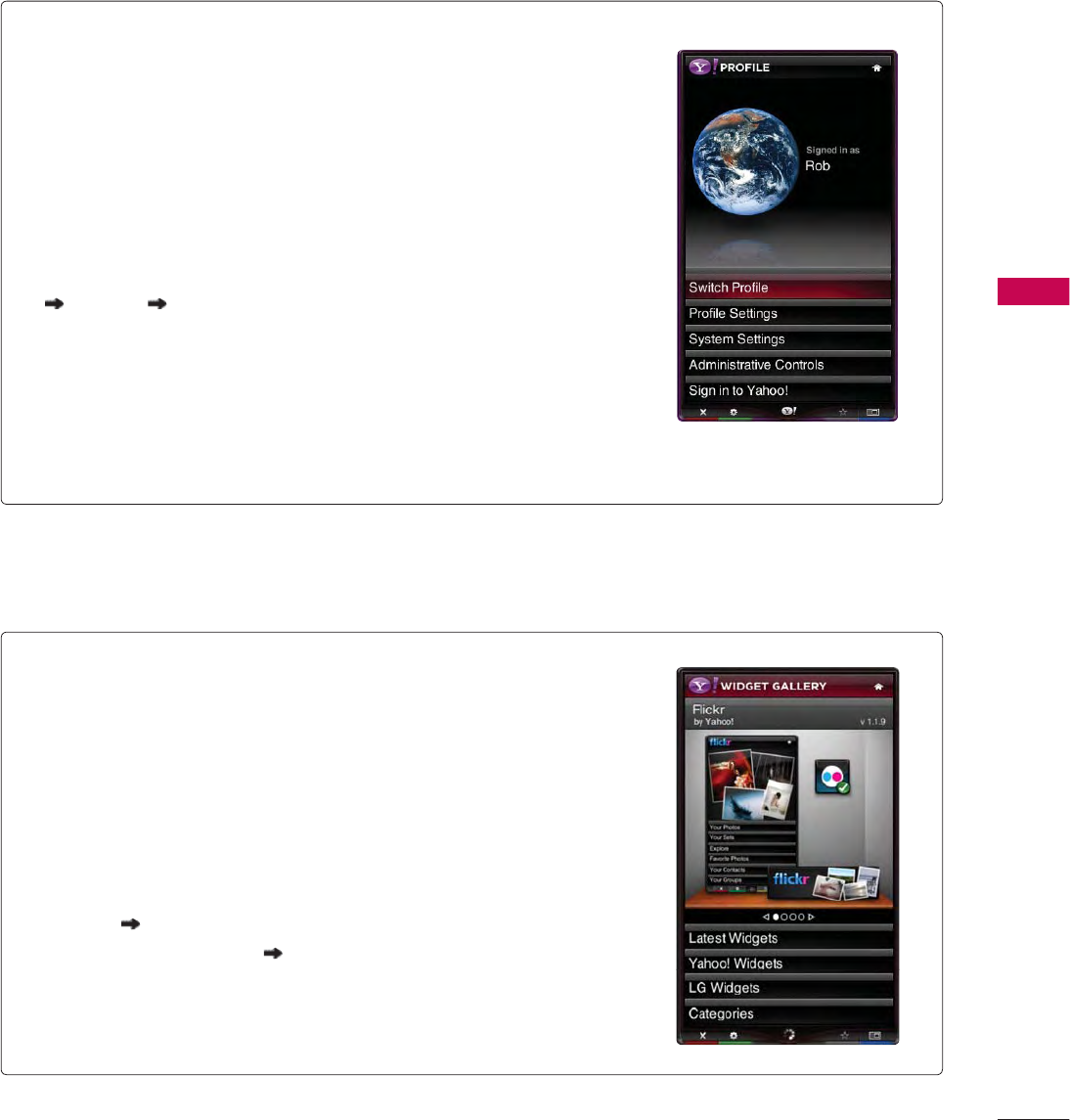

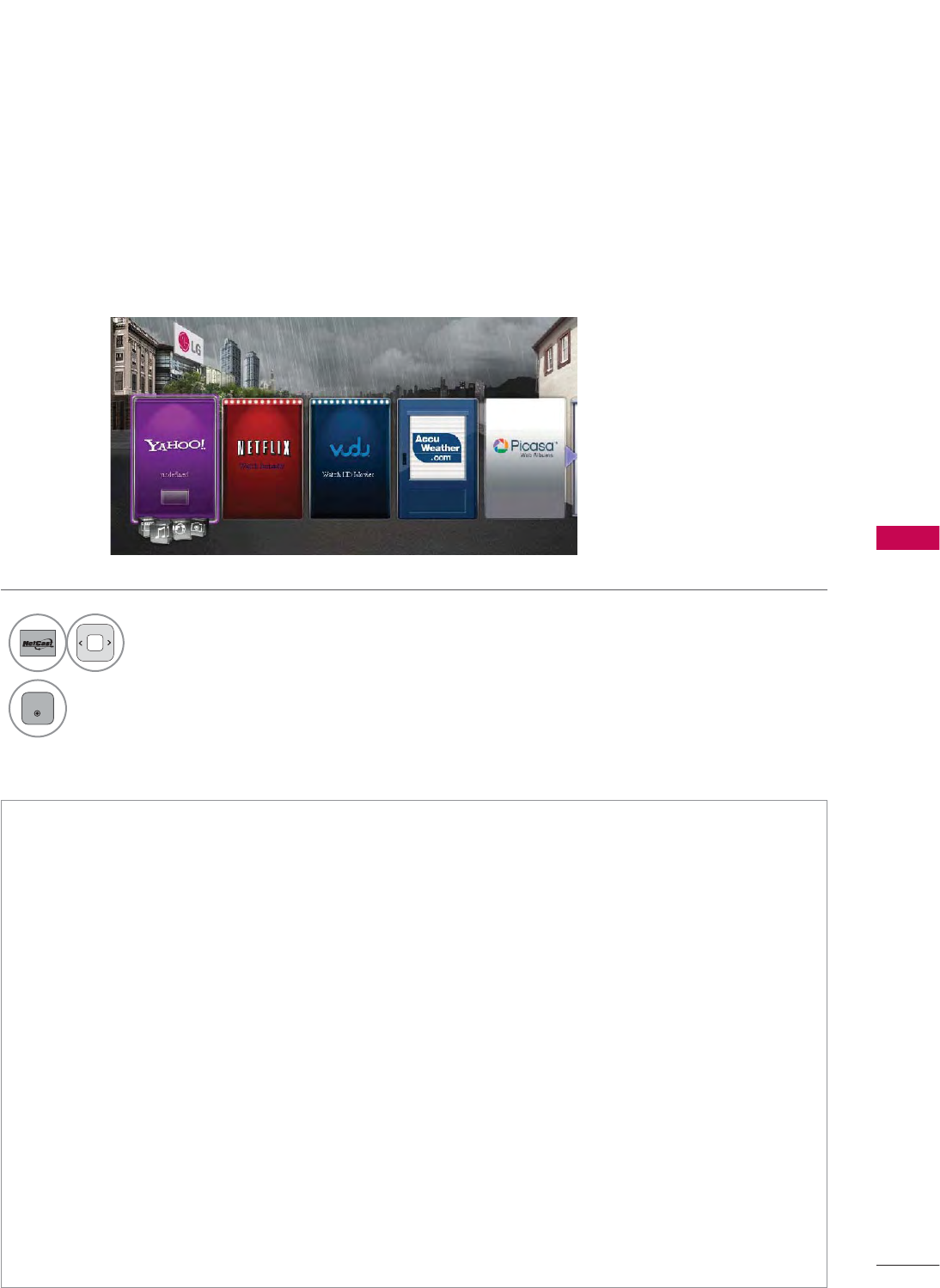

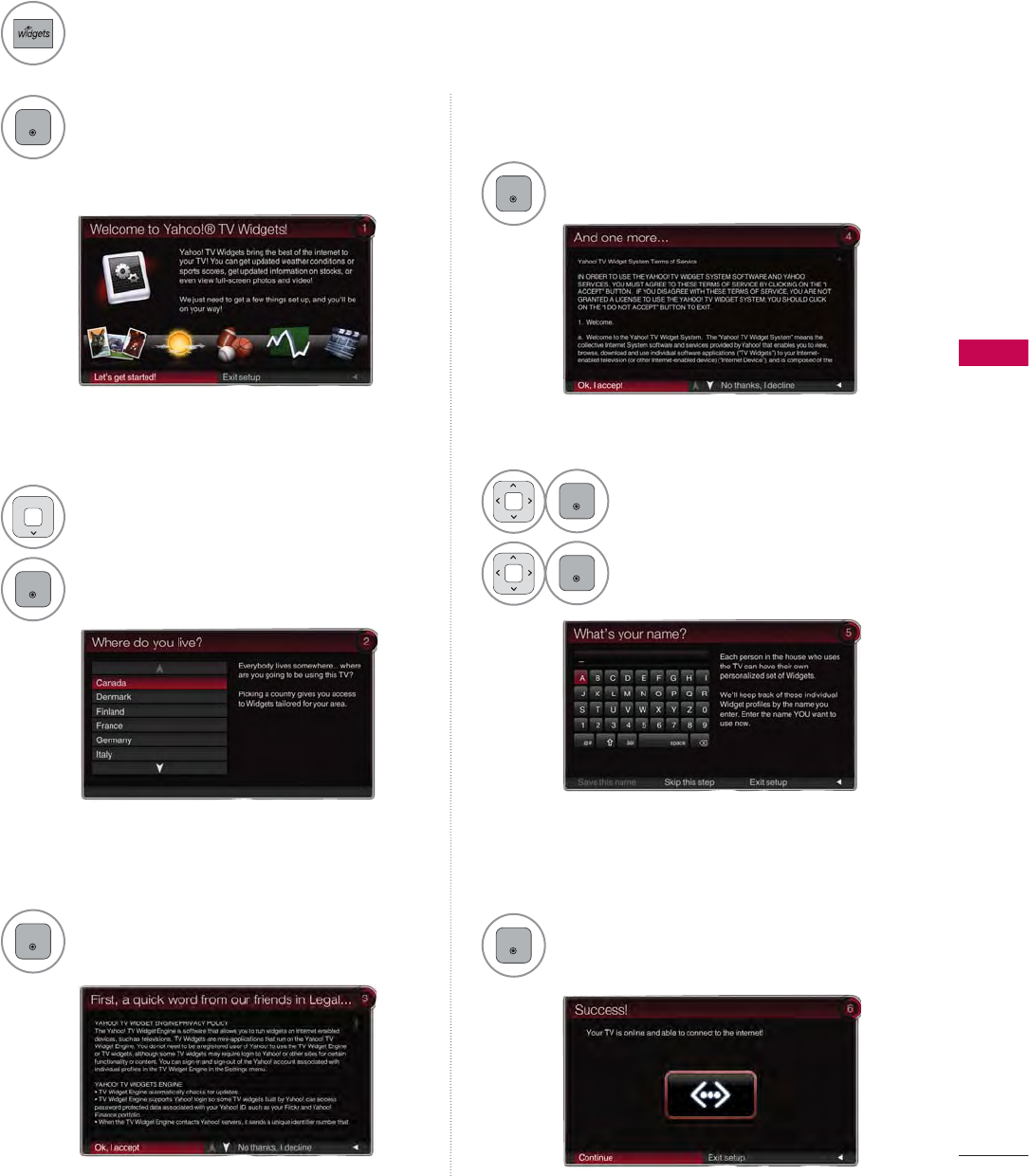

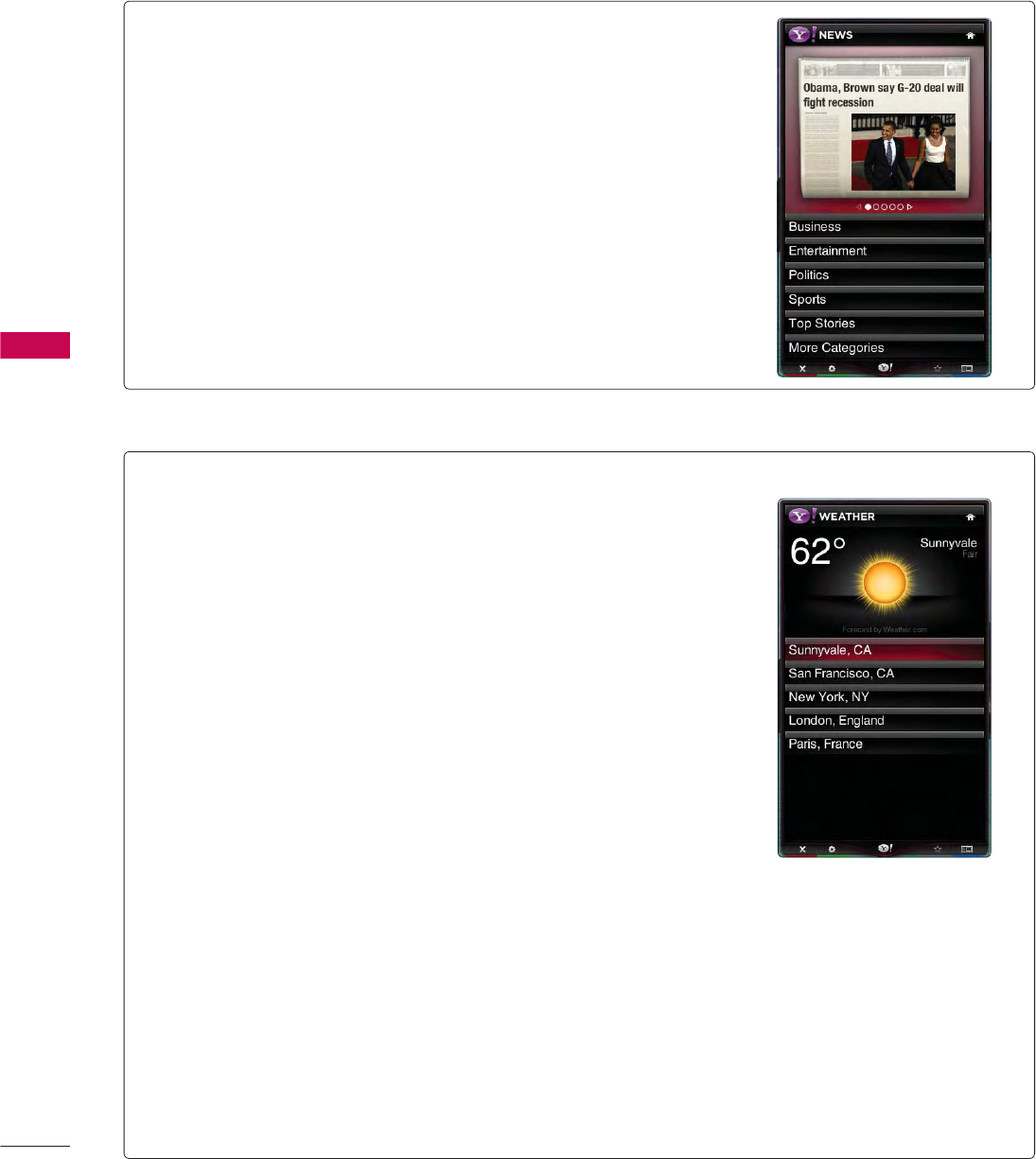

Yahoo! TV Widgets give you the
best of the Internet in perfect har-
mony with the simplicity and reli-
ability of your TV. TV Widgets deliv-
er a Cinematic InternetTM experi-
ence by converting your favorite
web services for viewing on the TV.
Stream movies, TV shows and
video, and get up to the minute
news, stock information and weath-
er updates directly to your TV using
Yahoo!, Netflix, YouTube and Vudu.
ON DISPOSAL
(Only Hg lamp used LCD TV)
The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of this product must be carried out in accordance to
the regulations of your local authority.
PREPARATION
PREPARATION
10

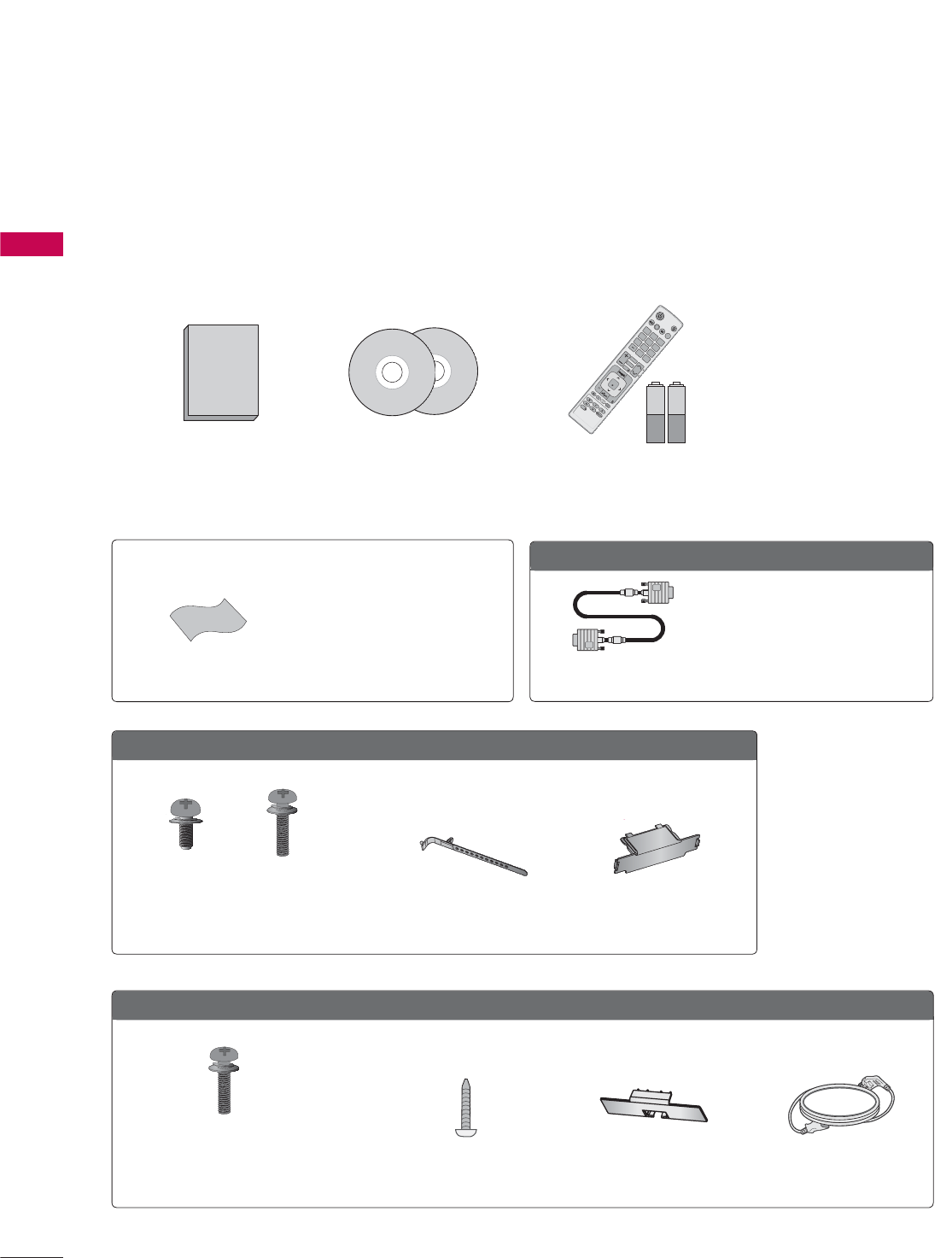

ACCESSORIES
PREPARATION
Ensure that the following accessories are included with your TV. If an accessory is missing, please con-
tact the dealer where you purchased the TV.
The accessories included may differ from the images below.
Option Extras
* Wipe spots on the exterior only
with the polishing cloth.
* Do not wipe roughly when remov-
ing stain. Excessive pressure may
cause scratch or discoloration.
Polishing Cloth
Not included with all models
D-sub 15 pin Cable
When using the VGA (D-sub 15
pin cable) PC connection, the
user must use shielded signal
interface cables with ferrite cores
to maintain standards compli-
ance.
LCD TV (32/42/46/52/60LD550, 47/55LD650)
Protection Cover
(Refer to P.17)
Power Cord
1.5V 1.5V
ENERGY
CH
VOL
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
SAVING
TV
AV MODE
INPUT
LIGHT
FAV
RATIO
MUTE
BACK EXIT
ENTER
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
MENU
FREEZE
Q.MENU
INFO
Owner’s Manual CD Manual,
Program CD
Remote Control,
Batteries (AAA)
Plasma TV
(M4 x 20)
Screws for stand assembly
(Refer to P.16)
Screw for stand fixing
(Refer to P.22)
x 8
(For 50PK750)
(For 32/42LD550)
Protection Cover
(Refer to p.15)
Cable Holder
(Refer to p.19)
x 2
x 3 x 4
Screws for stand assembly
(Refer to P.14)
(M5 x 14) (M4 x 28)
11
PREPARATION
OPTIONAL EXTRAS
Optional extras can be changed or modified for quality improvement without any notification new
optioal extras can be added.
Contact your dealer for buying these items.
LCD TV (42/47/55LE5400, 42/47/55/60LE5500, 42/47/55LE7500, 47/55LE8500)
Cable Holder
(Refer to p.19)
Component/Audio Cable
(Refer to p.19)
Wireless Media Box
(AN-WL100W)
Wi-Fi Dongle
(AN-WF100)
Video Call Cam
(AN-VC100)
Screws for stand assembly
(Refer to P.16)
x 8
x 2
(M4 x 20)
Screw for stand fixing
(Refer to P.22)
(For 42/47LE5400, 42/47LE5500,
42/47LE7500)
(For 42/47LE5400, 42/47LE5500,
47/55LE8500)
13
PREPARATION

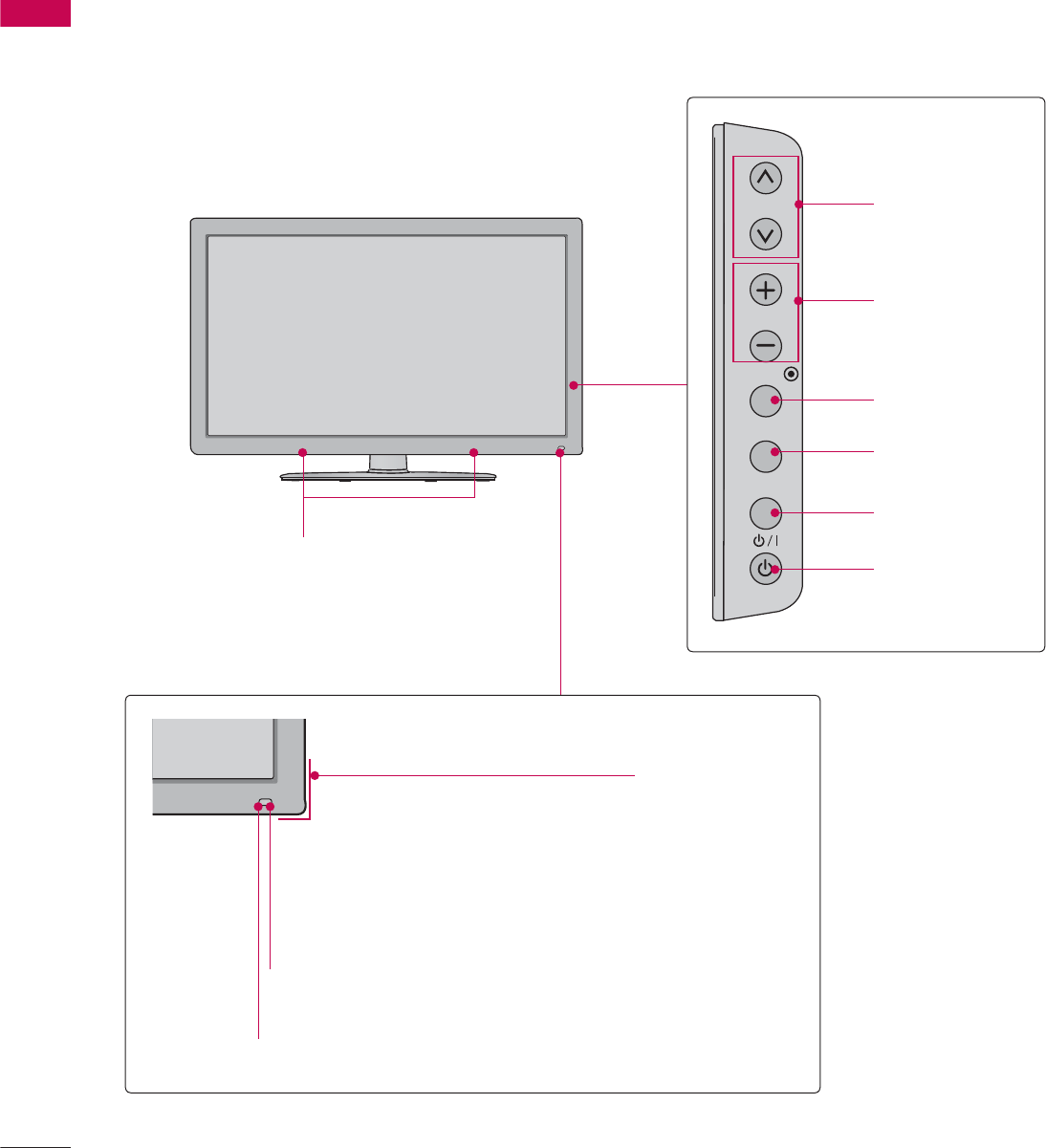

LCD TV
32/42/46/52/60LD550
ENTER
CH
VOL
MENU
INPUT
CHANNEL
(ᬧ,ᬨ) Buttons
VOLUME (+, -)
Buttons
ENTER Button
MENU Button
INPUT Button
POWER Button
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates blue when the TV is switched on.
(Can be adjusted using the Power Indicator
in the OPTION menu.Źp.141)
SPEAKER
Remote Control Sensor
Intelligent Sensor
Adjusts picture according to the
surrounding conditions
PREPARATION
PREPARATION
14
Image shown may differ from your TV.
47/55LD650
SPEAKER
CH
VOL
ENTER
INPUT
MENU
CHANNEL
(ᬧ,ᬨ) Buttons
VOLUME (+, -)
Buttons
ENTER Button
MENU Button
INPUT Button
POWER Button
Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates blue when the TV is switched on.
(Can be adjusted using the Power Indicator in the
OPTION menu.Źp.141)
Intelligent Sensor
Adjusts picture according to
the surrounding conditions
17
PREPARATION
CABLE MANAGEMENT
AC IN
ANTENNA/
CABLE IN
RGB IN (PC)
LAN
WIRELESS
CONTROL
AUDIO IN
AUDIO OUT
RGB/DVI
RS-232C IN
(
SERVICE ONLY)
OPTICAL DIGITAL
/DVI IN
2
3
1
2
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
R
L R
IN 4
H/P USB IN 1 USB IN 2
AV IN 2
VIDEO
AUDIO
L(MONO)
R
1
12
2 3 4
5
6
789
LCD TV
32/42/46/52/60LD550, 47/55LD650
10
2
11
6
19
PREPARATION

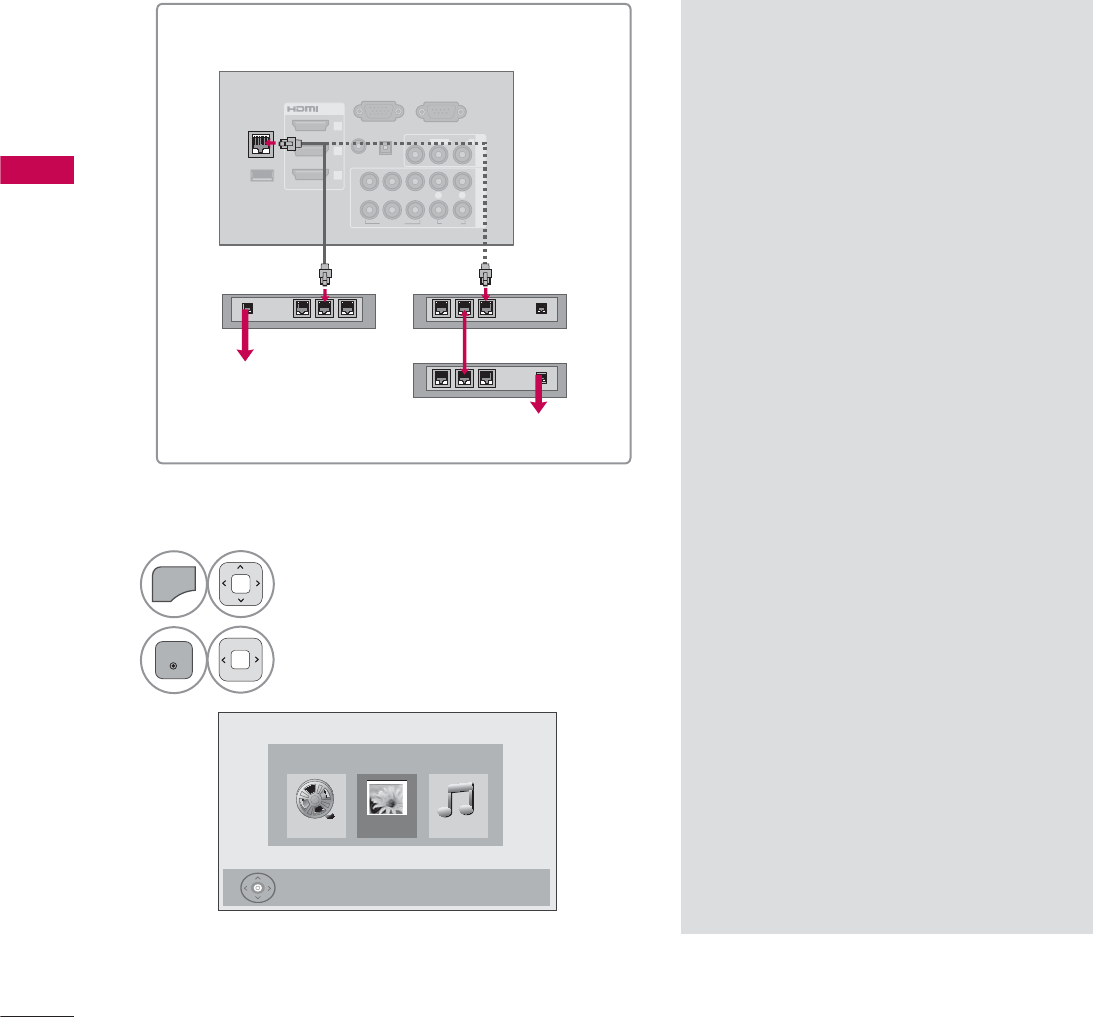

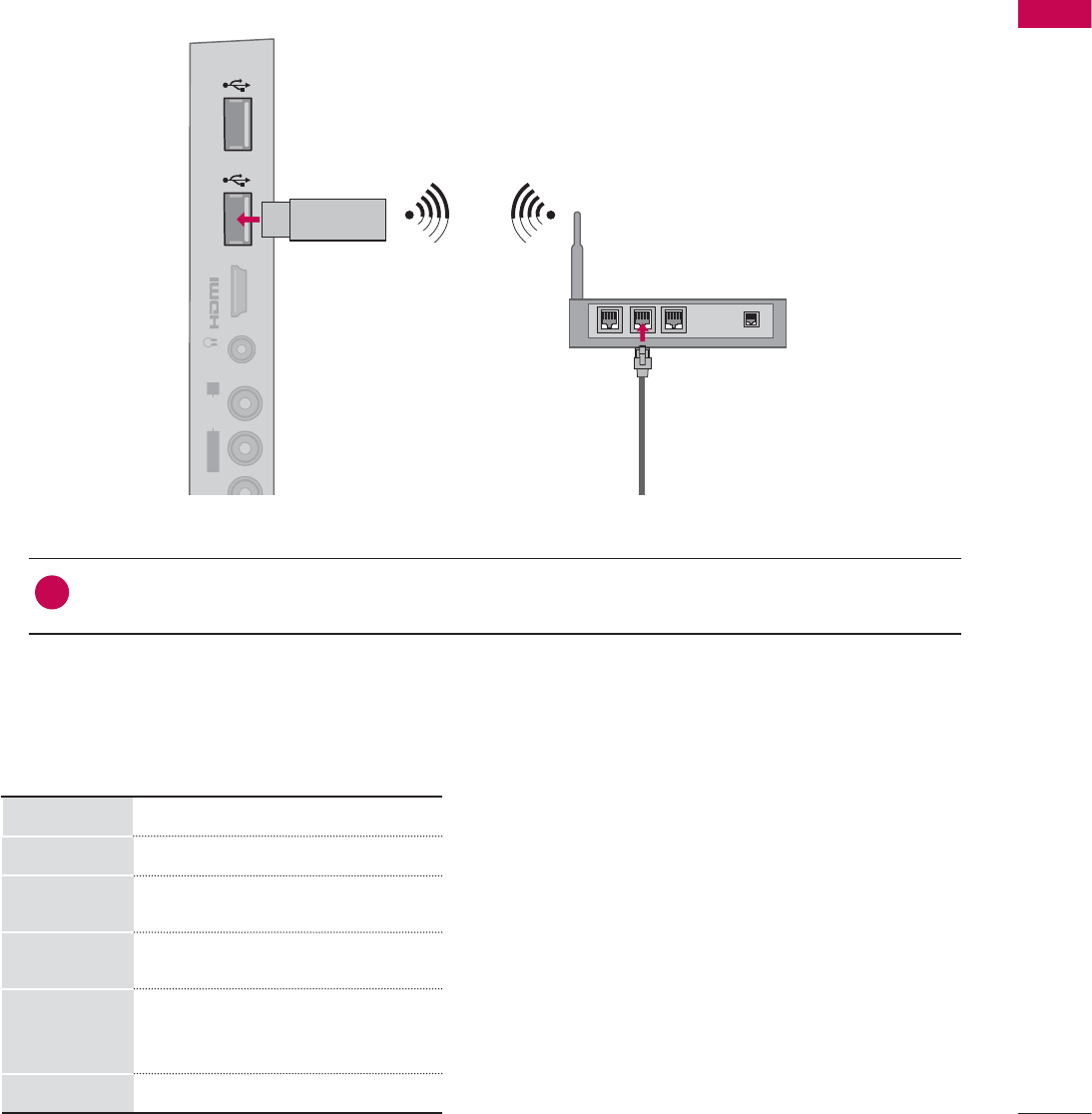

1LAN
Network connection for Netflix, Yahoo! TV Widgets,
etc.
Also used for photo and music files on local
network.

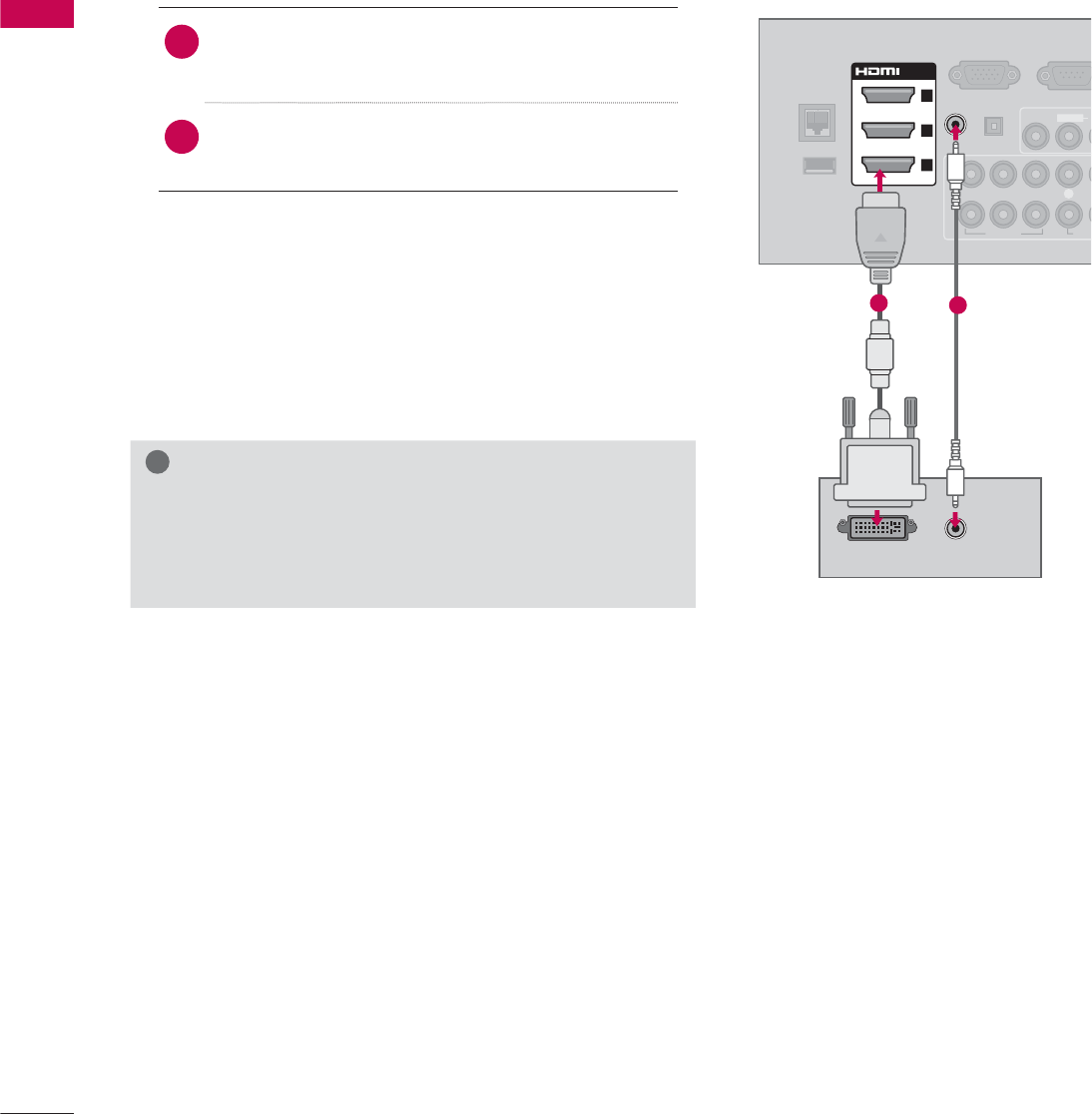

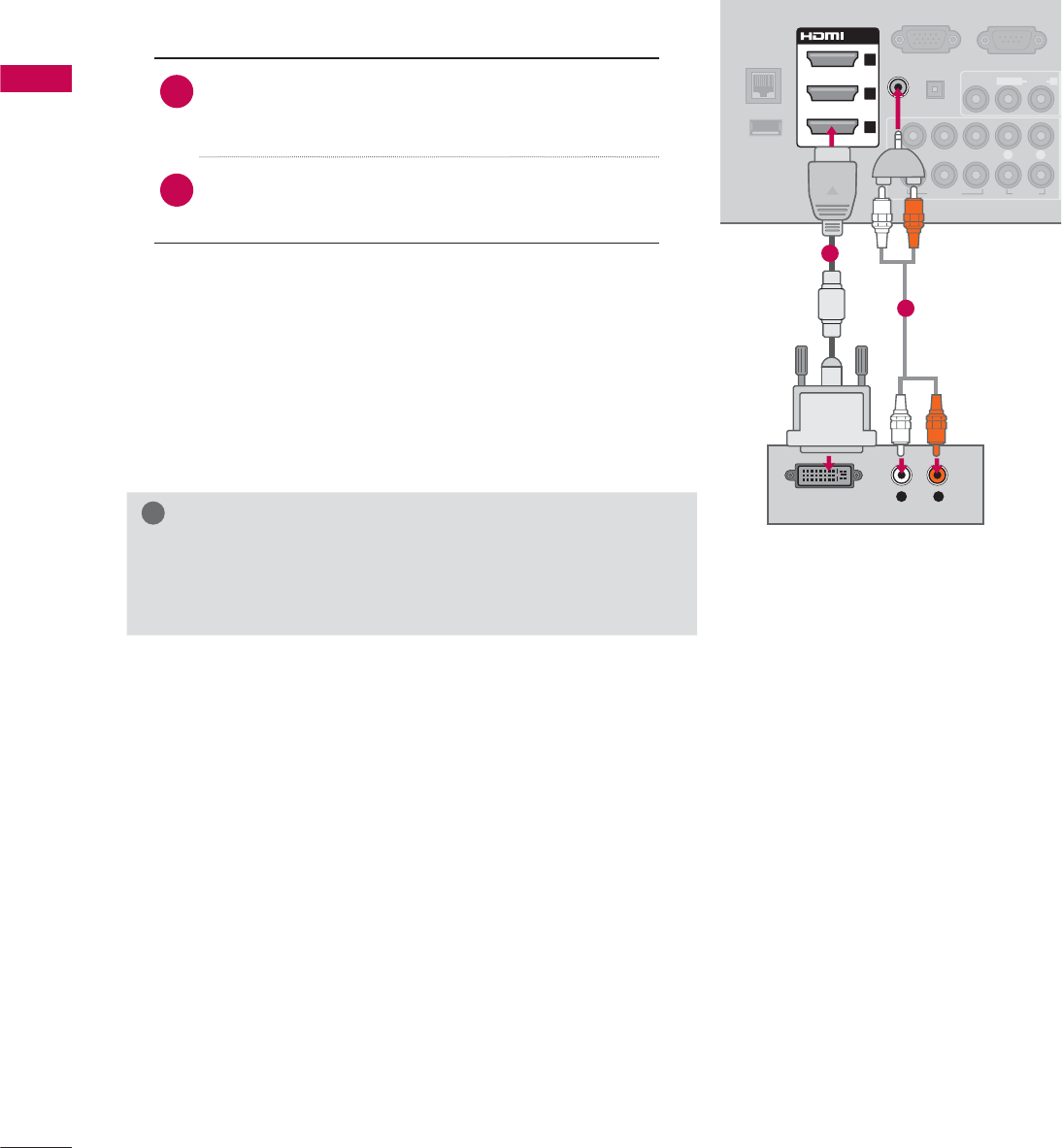

2HDMI/DVI IN, HDMI IN
Digital Connection.
Supports HD video and Digital audio. Doesn’t
support 480i.
Accepts DVI video using an adapter or HDMI
to DVI cable (not included).
3RGB IN (PC)
Analog PC Connection. Uses a D-sub 15 pin
cable (VGA cable).
AUDIO IN (RGB/DVI)
1/8” (0.32 cm) headphone jack for analog PC
audio input.
4RS-232C IN (CONTROL & SERVICE) PORT
Used by third party devices.
This port is used for service or Hotel mode.
5OPTICAL DIGITAL AUDIO OUT
Digital optical audio output for use with amps
and home theater systems.
Note: In standby mode, this port doesn’t work.
6AV (Audio/Video) IN
Analog composite connection. Supports stan-
dard definition video only (480i).
7ANTENNA/CABLE IN
Connect over-the air signals to this jack.
Connect cable signals to this jack.

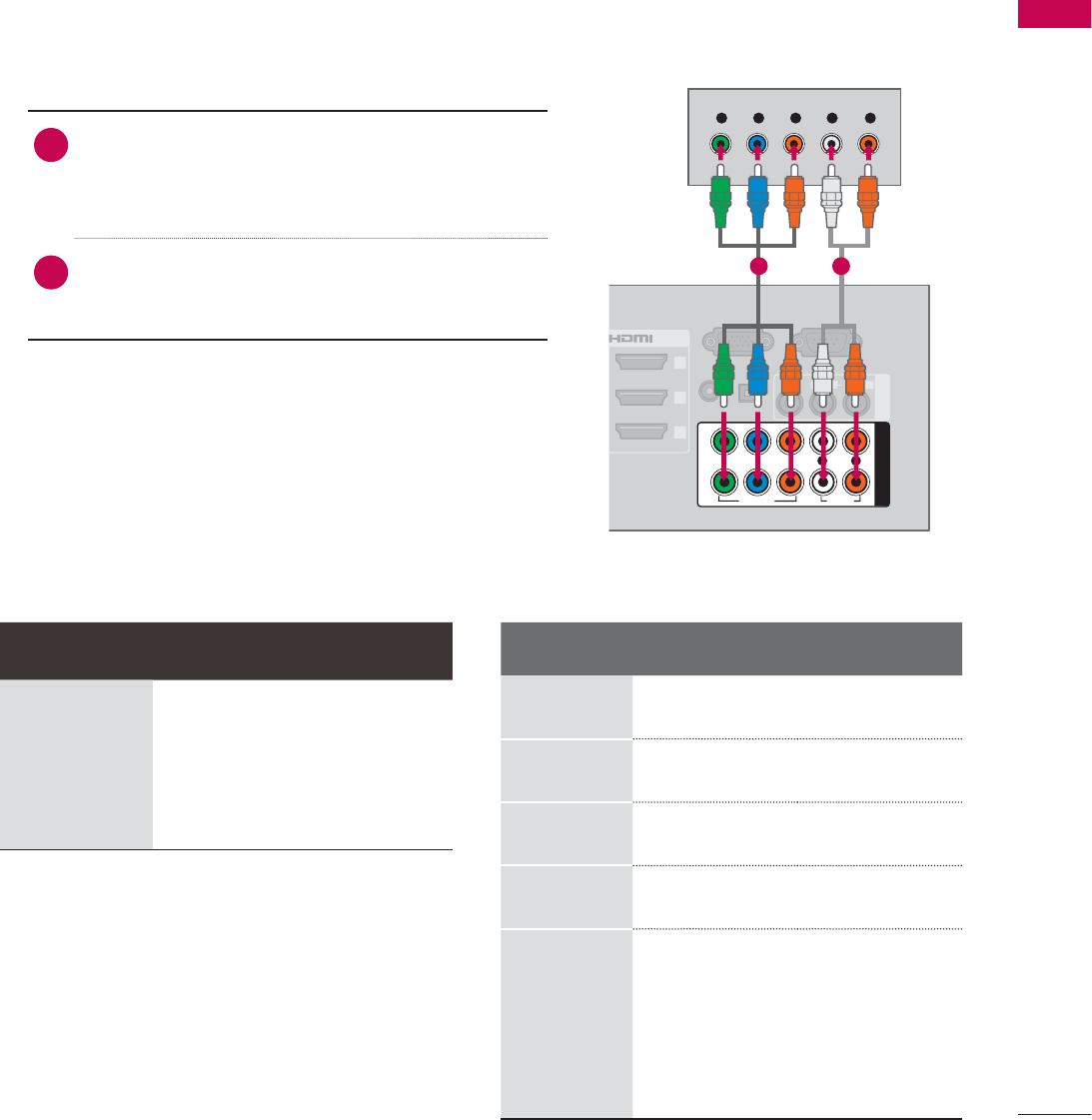

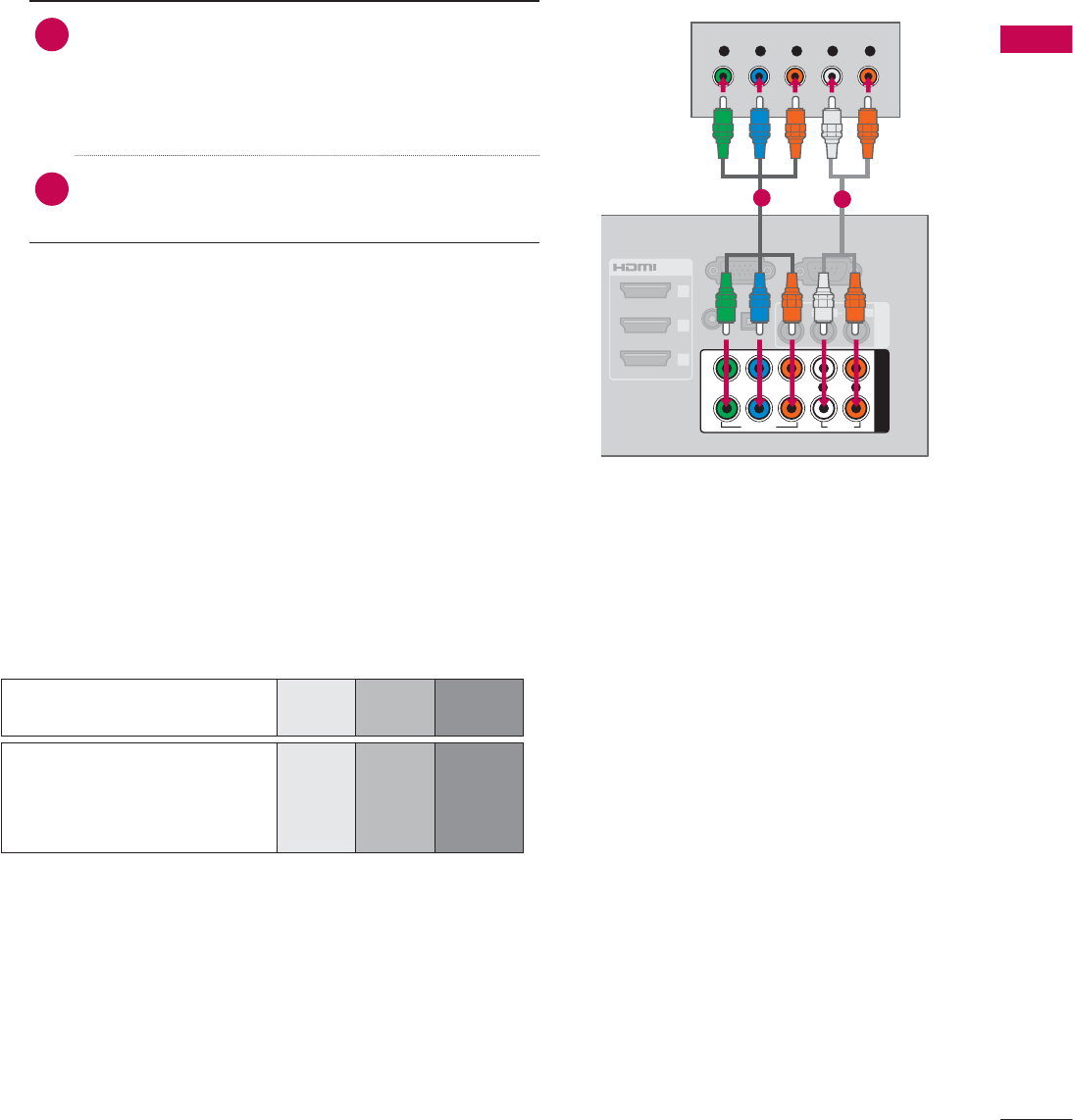

8COMPONENT IN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video &
red and white for audio.
9WIRELESS CONTROL
Connect the Wireless Dongle to the TV to
control the external input devices connected
to Media Box wirelessly.

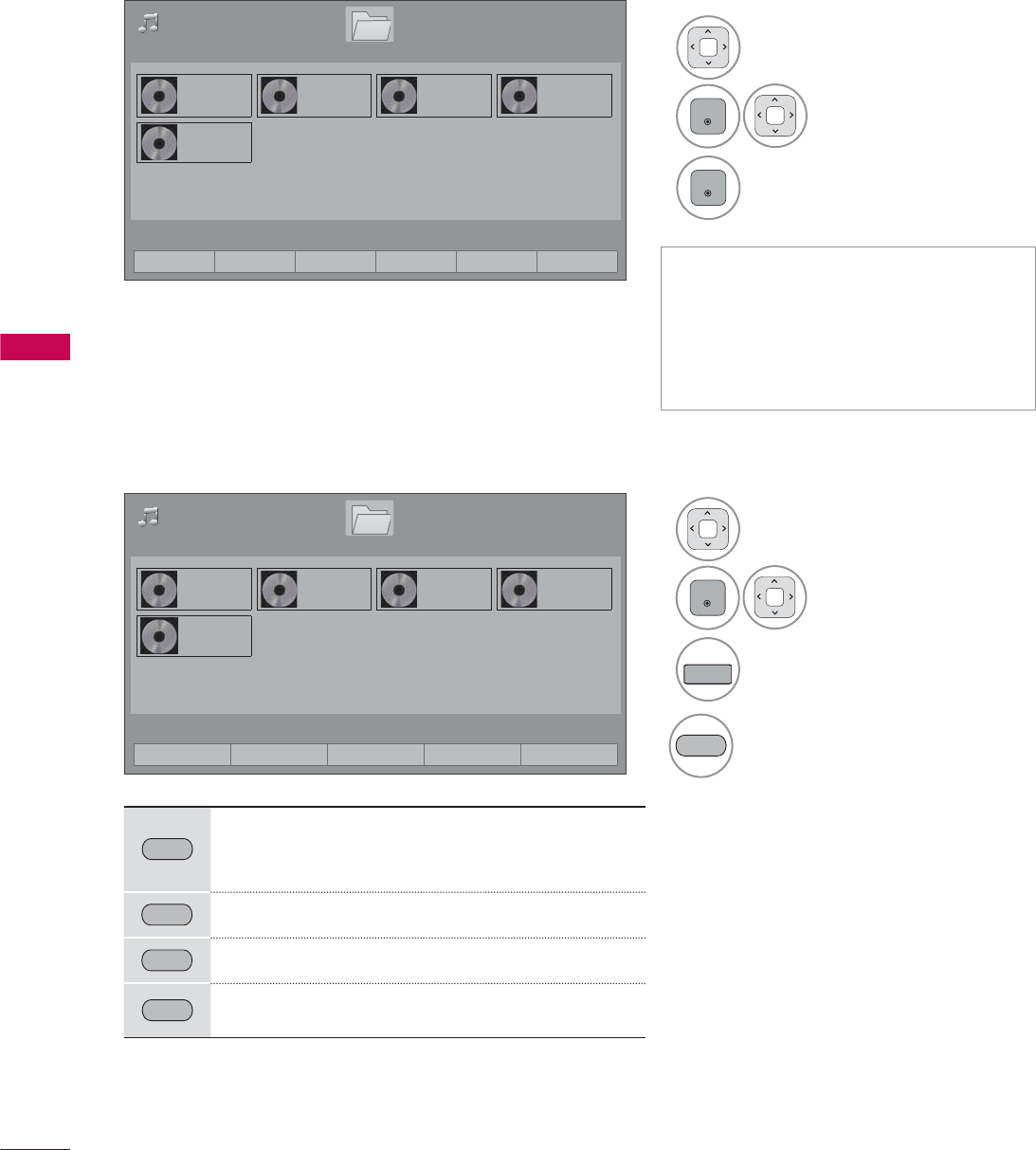

10 USB INPUT
Used for viewing photos and listening to
MP3s.
11 HEADPHONE INPUT
Plug the headphone into the headphone
socket.
12 Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on
DC power.
13 REMOTE CONTROL IN PORT
For a wired remote control.
PREPARATION
PREPARATION
22
STAND INSTRUCTIONS
(For 32/42/46/52/60LD550, 47/55LD650)
Image shown may differ from your TV.
!
NOTE
ŹWhen assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.
1Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
3Assemble the TV as shown.
4Fix the 4 screws securely using the holes in
the back of the TV.
ACIN
CABLE MANAGEMENT
AC IN
CABLE MANAGEMENT
AC IN
CABLE MANAGEMENT
STAND BASE
STAND BODY
INSTALLATION
M4 x 20
M4 x 20
23
PREPARATION
AC IN
CABLE MANAGEMENT
AC IN
CABLE MANAGEMENT
DETACHMENT
ACIN
CABLE MANAGEMENT
PROTECTION COVER
After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.
Press the PROTECTION COVER into the TV until
you hear it click.
1Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
2Remove the screws from the TV.
3Detach the stand from TV.
PREPARATION
PREPARATION
26
VESA WALL MOUNTING
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building mate-
rials, please contact your nearest installer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
We recommend that you use an LG brand wall mount when mounting the TV to a wall.
LG recommends that wall mounting be performed by a qualified professional installer.
Model
VESA (A * B)
A
B
Standar Screw Quantity Wall Mounting Bracket
(sold separately)
32LD550
32LE5500 200 * 100 M4 4
RW230
42/46LD550,
47LD650,
42/47LE5400,
37/42/47LE5500,
42/47LE7500,
47LE8500
200 * 200 M6 4
AW-47LG30M
52LD550, 55LD550,
55LE5400,
55LE5500,
55LE7500,
55LE8500
400 * 400 M6 4
AW-55LH40M
60LD550 600 * 400 M6 4
AW-55LH40M
50PK750 400 * 400 M6 4
AW-50PG60MS
60PK750 600 * 400 M8 4
AW-60PG60MS
27
PREPARATION
CAUTION
ŹDo not install your wall mount kit while your TV is turned on. It may result in personal injury due to
electric shock.
!
NOTE
ŹScrew length needed depends on the wall
mount used. For further information, refer to
the instructions included with the mount.
ŹStandard dimensions for wall mount kits are
shown in the table.
ŹWhen purchasing our wall mount kit, a detailed
installation manual and all parts necessary for
assembly are provided.
ŹDo not use screws longer then the standard
dimension, as they may cause damage to the
inside to the TV.
ŹFor wall mounts that do not comply with the
VESA standard screw specifications, the length
of the screws may differ depending on their
specifications.
ŹDo not use screws that do not comply with the
VESA standard screw specifications.
Do not use fasten the screws too strongly, this
may damage the TV or cause the TV to a fall,
leading to personal injury. LG is not liable for
these kinds of accidents.
ŹLG is not liable for TV damage or personal
injury when a non-VESA or non specified wall
mount is used or the consumer fails to follow
the TV installation instructions.
PREPARATION
PREPARATION
28
CABLE MANAGEMENT
Image shown may differ from your TV.
Plasma TV
CABLE HOLDER
1After connecting the cables as necessary,
install the CABLE HOLDER as shown
and bundle the cables.
29
PREPARATION
32/42/46/52/60LD550, 47/55LD650
CABLE MANAGEMENT
LCD TV
Image shown may differ from your TV.
1Connect the cables as necessary.
To connect additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
2Open the CABLE MANAGEMENT CLIP as
shown.
3Put the cables inside the CABLE
MANAGEMENT CLIP and snap it closed.
AC IN
AC IN
AC IN
CABLE MANAGEMENT CLIP
31
PREPARATION
DESKTOP PEDESTAL INSTALLATION
SWIVEL STAND
After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees
to suit your viewing position.
Image shown may differ from your TV.
For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.
4 inches
4 inches
4 inches
4 inches
CAUTION
ŹEnsure adequate ventilation by following the clearance recommendations.
ŹDo not mount near or above any type of heat source.
PREPARATION
PREPARATION
32
ATTACHING THE TV TO A DESK
(For
32/42LD550, 42/47LE5400, 42/47LE5500, 42/47LE7500
)
The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, poten-
tially causing injury or damaging the product.
1-Screw
(provided as parts of the product)
Desk
Stand
KENSINGTON SECURITY SYSTEM
This feature is not available for all models.
- The TV is equipped with a Kensington Security System con-
nector on the back panel. Connect the Kensington Security
System cable as shown below.
- For the detailed installation and use of the Kensington Security
System, refer to the user’s guide provided with the Kensington
Security System.
For further information, contact http://www.kensington.com,
the internet homepage of the Kensington company. Kensington
sells security systems for expensive electronic equipment such
as notebook PCs and LCD projectors.
NOTE: The Kensington Security System is an optional accessory.
WARNING
ŹTo prevent TV from falling over, the TV should be securely attached to the floor/wall per installa-
tion instructions. Tipping, shaking, or rocking the machine may cause injury.
Image shown may differ from your TV.
33
PREPARATION
SECURING THE TV TO THE WALL TO PREVENT FALLING
WHEN THE TV IS USED ON A STAND
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward
direction, potentially causing injury or damaging the product.
Caution: Please make sure that children don’t climb on or hang from the TV.
Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the
picture.
* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the
bolts.
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket
that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
Use a sturdy rope (sold separately) to tie the product. It is safer to tie the
rope so it becomes horizontal between the wall and the product.
You should purchase necessary components to prevent the TV from tipping over (when not using a
wall mount).
Image shown may differ from your TV.
!
NOTE
ŹUse a platform or cabinet strong enough and large enough to support the size and weight of
the TV.
ŹTo use the TV safely make sure that the height of the bracket on the wall and the one on the TV are
the same.
PREPARATION
PREPARATION
34
ANTENNA OR CABLE CONNECTION
To prevent damage do not connect to the power outlet until all connections are made between the
devices.
Image shown may differ from your TV.
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections.
For optimum picture quality, adjust antenna direction if needed.
2. Cable
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Cable TV
Wall Jack
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the copper wire
when connecting the antenna.
Copper Wire
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install
properly.
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
If the antenna is not installed properly, contact your dealer for assistance.
Refer to http://AntennaWeb.org for more information about antennas and Digital TV.
ANTENNA/
CABLE IN
ANTENNA/
CABLE IN
35
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
To prevent the equipment damage, never plug in any power cords until you have finished connecting all
equipment.
I
mage shown may differ from your TV.
1. How to connect
1Connect the video outputs (Y, P B, PR) of the
digital set-top box to the COMPONENT IN
VIDEO 1 or 2 jacks on the TV. Match the jack
colors (Y = green, PB = blue, and PR = red).
2Connect the audio output of the digital set-top
box to the COMPONENT IN AUDIO 1 or 2 jacks
on the TV.
2. How to use
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top
box operation.)
Select the Component1 or Component2 input
source on the TV using the INPUT button on the
remote control.
Component Connection
This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.
However, if you do receive digital signals from a digital set-top box or other digital external device.
EXTERNAL EQUIPMENT SETUP
RGB IN (PC)
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
AUDIO IN
AUDIO OUT
VIDEO AUDIO
COMPONENT IN
YP
B
P
RL R
2
1
Y L RP
B
P
R
1 2
Supported Resolutions Y, CB/PB, CR/PR
Signal Component HDMI
480i Yes No
480p Yes Yes
720p Yes Yes
1080i Yes Yes
1080p Yes Yes
Resolution Horizontal
Frequency(KHz)Vertical
Frequency(KHz)
720x480i 15.73 59.94
15.73 60.00
720x480p 31.47 59.94
31.50 60.00
1280x720p 44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
37
EXTERNAL EQUIPMENT SETUP
HDMI Connection
1. How to connect
1Connect the digital set-top box to HDMI/DVI IN
1,2,3, or 4jack on the TV.
2No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-
top box.)
Select the HDMI1,HDMI2,HDMI3, or HDMI4 input
source on the TV using the INPUT button on the
remote control.
!
NOTE
ŹCheck HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3, it
can cause flickers or no screen display. In this case use
the latest cables that support HDMI version 1.3.
ŹHDMI Audio Supported Format: AC3 (32KHz,
44.1KHz,48KHz), Linear PCM (32KHz, 44.1KHz,48KHz)
HDMI-DTV
Resolution Horizontal
Frequency(KHz)Vertical
Frequency(KHz)
720x480p 31.47 59.94
31.50 60.00
1280x720p 44.96 59.94
45.00 60.00
1920x1080i
33.72 59.94
33.75 60.00
1920x1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.50 60.00
HDMI OUTPUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
RS-232
(
CONTROL&
S
OPTICAL
DIGITAL
VIDEO
L(MONO
VIDEO A
YP
B
P
RL
AUDIO IN
AUDIO OUT
2
1
/DVI IN
2
3
1
1
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
38
DVI to HDMI Connection
1. How to connect
1Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1,2, or 3 jack on the
TV.
2Connect the digital set-top box audio output to
the AUDIO IN (RGB/DVI) jack on the TV.
2. How to use
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-
top box.)
Select the HDMI1,HDMI2, or HDMI3 input source
on the TV using the INPUT button on the remote
control.
!
NOTE
ŹA DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
L R
DVI OUTPUT
AUDIO
RGB IN (PC)
LAN
WIRELESS
CONTROL
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
YP
B
P
RL R
AUDIO OUT
2
1
/DVI IN
2
3
1
(RGB/DVI)
AUDIO IN
1
2
39
EXTERNAL EQUIPMENT SETUP
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to
the component input ports as shown below.
1. How to connect
1Connect the video outputs (Y, P B, PR) of the
DVD to the COMPONENT IN VIDEO 1 or 2jacks
on the TV.
Match the jack colors (Y = green, PB = blue, and
PR = red).
2Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO 1 or 2 jacks on the TV.
2. How to use
Turn on the DVD player, insert a DVD.
Select the Component1 or Component2 input
source on the TV using the INPUT button on the
remote control.
Refer to the DVD player’s manual for operating
instructions.
Component Connection
Component ports on the
TV
YPBPR
Video output ports
on DVD player
YPBPR
YB-YR-Y
YCbCr
YPb Pr
RGB IN (PC)
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
AUDIO IN
AUDIO OUT
VIDEO AUDIO
COMPONENT IN
YP
B
P
RL R
2
1
Y L RP
B
P
R
12
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
40
Composite (RCA) Connection
1. How to connect
1Connect the AUDIO/VIDEO jacks between TV
and DVD. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
Turn on the DVD player, insert a DVD.
Select the AV1 or AV2 input source on the TV
using the INPUT button on the remote control.
Refer to the DVD player's manual for operating
instructions.
RGB IN (PC)
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO AUDIO
COMPONENT IN
YP
B
P
RL R
AUDIO IN
AUDIO OUT
2
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
L R
VIDEO
AUDIO
1
L R
VIDEO
AUDIO
AUDIO / Y P
B
P
R
IN 4
H/P USB IN 1 USB IN 2
VIDEO / AUDIO
COMPONENT IN3
AV IN2
For 42/47LE5400, 42/47LE5500, 47/55LE8500
41
EXTERNAL EQUIPMENT SETUP
HDMI OUTPUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
RL R
AUDIO IN
AUDIO OUT
2
1
/DVI IN
2
3
1
1
HDMI Connection
1. How to connect
1Connect the HDMI output of the DVD to the
HDMI/DVI IN 1,2,3or 4 jack on the TV.
2No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
Select the HDMI1,HDMI2,HDMI3, or HDMI4 input
source on the TV using the INPUT button on the
remote control.
Refer to the DVD player's manual for operating
instructions.
!
NOTE
ŹCheck HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3, it
can cause flickers or no screen display. In this case use
the latest cables that support HDMI version 1.3.
ŹHDMI Audio Supported Format: AC3 (32KHz,
44.1KHz,48KHz), Linear PCM (32KHz, 44.1KHz,48KHz)
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
42
VCR SETUP
Antenna Connection
ANTENNA/
CABLE IN
L R
S-VIDEO VIDEO
AUDIO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1. How to connect
1Connect the RF antenna out socket
of the VCR to the ANTENNA/CABLE
IN socket on the TV.
2Connect the antenna cable to the RF
antenna in socket of the VCR.
2. How to use
Select the HDMI1,HDMI2,HDMI3, or
HDMI4 input source on the TV using the
INPUT button on the remote control.
Refer to the DVD player's manual for
operating instructions.
1
2
43
EXTERNAL EQUIPMENT SETUP
Composite (RCA) Connection
S-VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
RGB IN (PC)
S
L
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO AUDIO
COMPONENT IN
YP
B
P
RL R
AUDIO IN
AUDIO OUT
2
1
VIDEO
AUDIO
L(MONO)
R
AV IN 1
L R
VIDEO
AUDIO
1. How to connect
1Connect the AUDIO/VIDEO jacks between TV
and VCR. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
Insert a video tape into the VCR and press PLAY
on the VCR. (Refer to the VCR owner’s manual.)
Select the AV1 input source on the TV using the
INPUT button on the remote control.
If connected to AV IN 2, select AV2 input source on
the TV.
!
NOTE
ŹIf you have a mono VCR, connect the audio cable
from the VCR to the AUDIO L/MONO jack of the TV.
1
S-VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L R
VIDEO
AUDIO
AUDIO / Y P
B
P
R
IN 4
H/P USB IN 1 USB IN 2
VIDEO / AUDIO
COMPONENT IN3
AV IN2
For 42/47LE5400, 42/47LE5500,
47/55LE8500
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
44
OTHER A/V SOURCE SETUP
AV IN 2
VIDEO
AUDIO
L(MONO)
R
H/P
IN 4
USB IN 1 USB IN 2
L R
VIDEO
Camcorder
Video Game Set
1. How to connect
1Connect the AUDIO/VIDEO jacks
between TV and external equipment.
Match the jack colors
.
(Video = yellow, Audio Left = white, and
Audio Right = red)
2. How to use
Select the AV2 input source on the TV
using the INPUT button on the remote
control.
If connected to AV IN 1 input, select the
AV1 input source on the TV.
Operate the corresponding external
equipment.
1
45
EXTERNAL EQUIPMENT SETUP
USB CONNECTION
IN 4
AUDIO
L
(MONO)
R
H/P USB IN 1 USB IN 2
Memory Key
or
1. How to connect
1Connect the USB device to the USB
IN 1 or 2 jack on the side of TV.
2. How to use
After connecting the USB IN jack, you
use the USB function. (Źp.90)
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
46
HEADPHONE SETUP
IN 4
USB IN
AV IN 2
VIDEO
AUDIO
L(MONO)
R
H/P
You can listen to the sound through the headphone.
1. How to connect
1Plug the headphone into the head-
phone socket.
2To adjust the headphone volume,
press the VOL +/- button. If you
press the MUTE button, the sound
from the headphone is switched off.
!
NOTE
Ź
AUDIO menu options are disabled when connecting a head-
phone.
Ź
When changing AV MODE with a headphone connected, the
change is applied to video but not to audio.
Ź
Optical Digital Audio Out is not available when connecting a
headphone.
47
EXTERNAL EQUIPMENT SETUP
()
E
SS
R
OL
(RGB/DVI)
(
)
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
RL R
AUDIO IN
2
1
OPTICAL
DIGITAL
AUDIO OUT
AUDIO OUT CONNECTION
Send the TV’s audio to external audio equipment via the Audio Output port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL
AUDIO OUT terminal on the back of TV to a Home Theater (or amp).
!
NOTE
ŹWhen connecting with external audio equipment, such
as amplifiers or speakers, you can turn the TV speakers
off in the menu. (Źp.149)
CAUTION
ŹDo not look into the optical output port. Looking at
the laser beam may damage your vision.
ŹAudio with ACP (Audio Copy Protection) function may
block digital audio output.
1. How to connect
1Connect one end of the optical cable to the
TV port of OPTICAL DIGITAL AUDIO OUT.
2Connect the other end of the optical cable to
the digital audio input on the audio equip-
ment.
3Set the “TV Speaker option - Off” in the
AUDIO menu. (Źp.149). See the external audio
equipment instruction manual for operation.
1
2
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
48
EXTERNAL EQUIPMENT WIRELESS CONNECTION
(OPTIONAL)
You can connect between TV and external equipment wirelessly.
You can connect the Wireless Dongle to the TV to control the external input devices connected to
Media Box wirelessly.
You can control the remote control of external device (VCR, DVD player etc.) connected to the Media
box from the TV using the infrared controller called IR-Blaster.
For further information, refer to the optional “LG Wireless Media Box (AN-WL100) (Sold separately)”
manual for operating instructions.
RGB IN (PC)
LAN
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
R
L R
AUDIO IN
AUDIO OUT
2
1
WIRELESS
CONTROL
OUT
WIRELESS
CONTROL
AV1 AV2
COM1 COM2 1RGB WIRELESS
2 3 4
/DVI IN
2
3
1
1. How to connect
1Connect the WIRELESS CONTROL jack of the Wireless Dongle to the WIRELESS
CONTROL jack on the TV.
2Connect HDMI OUT jack of the Wireless Dongle to the HDMI IN jack on the TV.
2. How to use
Select the desired input source on the TV using the INPUT button on the remote control.
Refer to the Wireless Media Box manual for operating instructions.
49
EXTERNAL EQUIPMENT SETUP
LAN
W
IRELESS
C
ONTROL
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
RL R
AUDIO OUT
2
1
RGB IN (PC)
RGB OUTPUT
AUDIO
(RGB/DVI)
AUDIO IN
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's set-
tings.
1. How to connect
1Connect the VGA output of the PC to the
RGB IN (PC)jack on the TV.
2Connect PC audio output to the AUDIO IN
(RGB/DVI)jack on the TV.
2. How to use
Turn on the PC and the TV.
Select the RGB-PC input source on the TV using
the INPUT button on the remote control.
VGA (D-Sub 15 Pin) Connection
12
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
50
DVI to HDMI Connection
1. How to connect
1Connect the DVI output of the PC to the HDMI/
DVI IN 1,2, or 3jack on the TV.
2Connect the PC audio output to the AUDIO IN
(RGB/DVI) jack on the TV.
2. How to use
Turn on the PC and the TV.
Select the HDMI1,HDMI2, or HDMI3 input source
on the TV using the INPUT button on the remote
control.
!
NOTE
ŹCheck HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3, it
can cause flickers or no screen display. In this case
use the latest cables that support HDMI version 1.3.
DVI OUTPUT AUDIO
RGB IN (PC)
LAN
WIRELESS
CONTROL
RS-232C I
(
CONTROL&SER
V
OPTICAL
DIGITAL
VIDEO
A
L(MONO)
VIDEO
AUD
YP
B
P
RL
AUDIO OUT
2
1
/DVI IN
2
3
1
(RGB/DVI)
AUDIO IN
12
51
EXTERNAL EQUIPMENT SETUP
Supported Display Specifications (RGB-PC, HDMI-PC)
!
NOTE
ŹTo get the the best picture quality, adjust the PC graphics card to 1920x1080.
ŹDepending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
ŹIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright-
ness. If noise is present, change the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
ŹAvoid keeping a fixed image on the screen for a long period of time. The fixed image may become
permanently imprinted on the screen.
ŹThe synchronization input form for Horizontal and Vertical frequencies is separate.
ŹDepending on the graphics card, some resolution settings may not allow the image to be posi-
tioned on the screen properly.
ŹIf there are overscan in HDMI-PC 1920x1080, change aspect ratio to Just scan.
ŹWhen selecting HDMI-PC, set the “Input Label - PC” in the OPTION menu.
Resolution Horizontal
Frequency(KHz)Vertical
Frequency(KHz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1280x768 47.776 59.87
1360x768
47.712 60.015
1280x1024
63.981 60.02
1600x1200
75.00 60.00
1920x1080
RGB-PC
66.587 59.934
1920x1080
HDMI-PC
67.50 60.00
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
56
RGB IN (PC)
WIRELESS
CONTROL
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
RL R
AUDIO IN
AUDIO OUT
2
1
LAN
Broadband modem
Broadband modem
Router
Broadband Service
Broadband Service
NETWORK SETUP
This TV can be connected to a local area network (LAN) via the LAN port. After making the physical
connection, the TV needs to be set up for network communication.
CAUTION
ŹDo not connect a modular phone cable to the LAN port.
ŹSince there are various connection methods, please follow the specifications of your telecommu-
nication carrier or internet service provider.
1. How to connect
1Connect the LAN port of the Modem or Router to the LAN port on the TV.
2. How to use

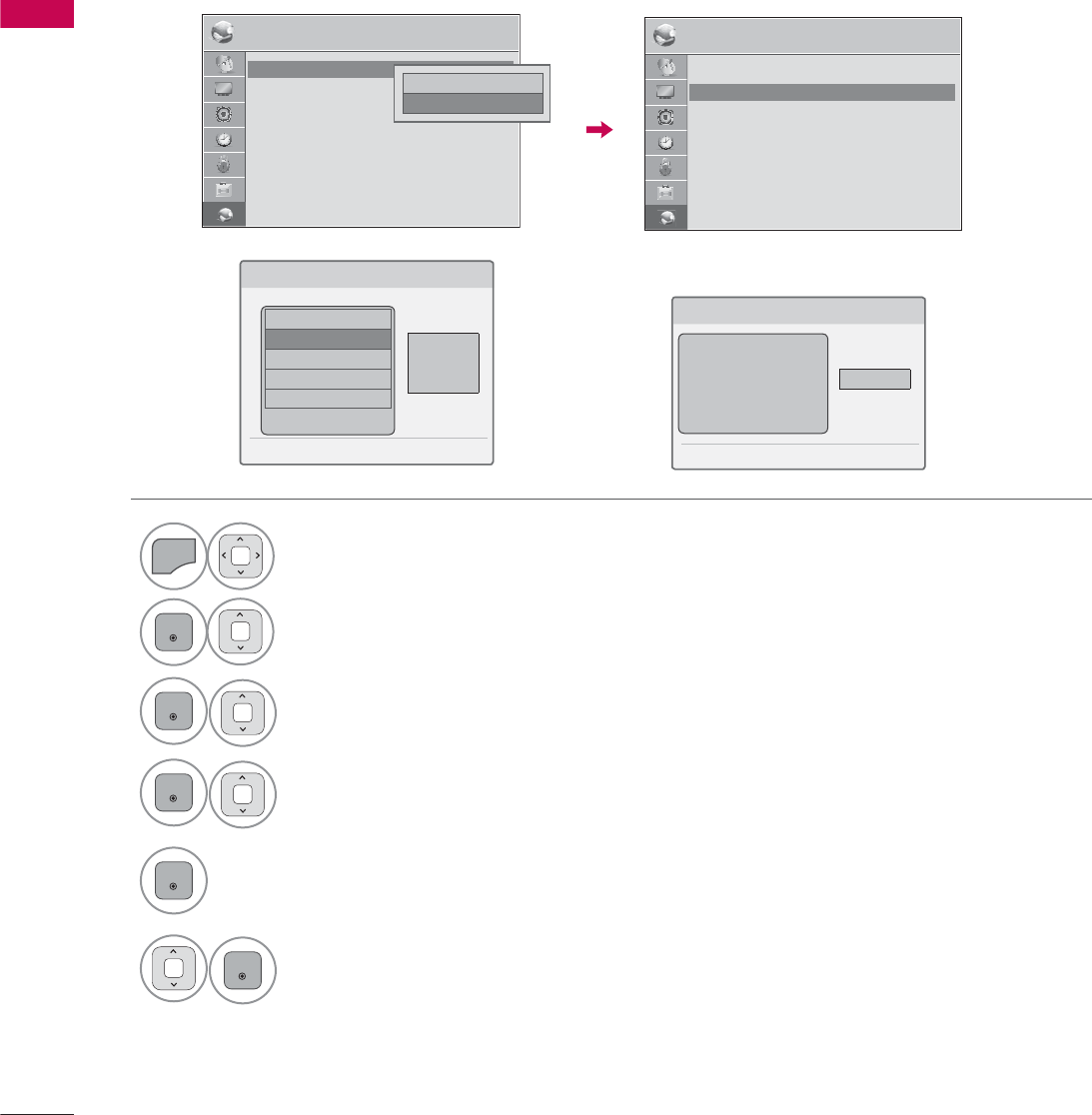

Select “Network Setting - IP Auto Setting” in the NETWORK menu (Źp.?).
After connecting the LAN port, use the NetCast menu (Yahoo! TV Widgets, Netflix, Vudu,
YouTube, My Media etc.) (Źp.70-127).
Wired Network Connection
1
57
EXTERNAL EQUIPMENT SETUP
IN 4
D
EO
AUDIO
L(MONO)
R
H/P USB IN 1 USB IN 2
This connection is to use an Access Point or an wireless router.
The network configuration and connection method may vary depending on the equipment in use and
the network environment. Refer to the setup instructions supplied with your access point or wireless
router for detailed connection steps and network settings.
1. How to connect
1Connect the “LG Wi-Fi Dongle (AN-WF100) (sold separately)” to the USB IN 1 or 2port on
the TV.
2. How to use

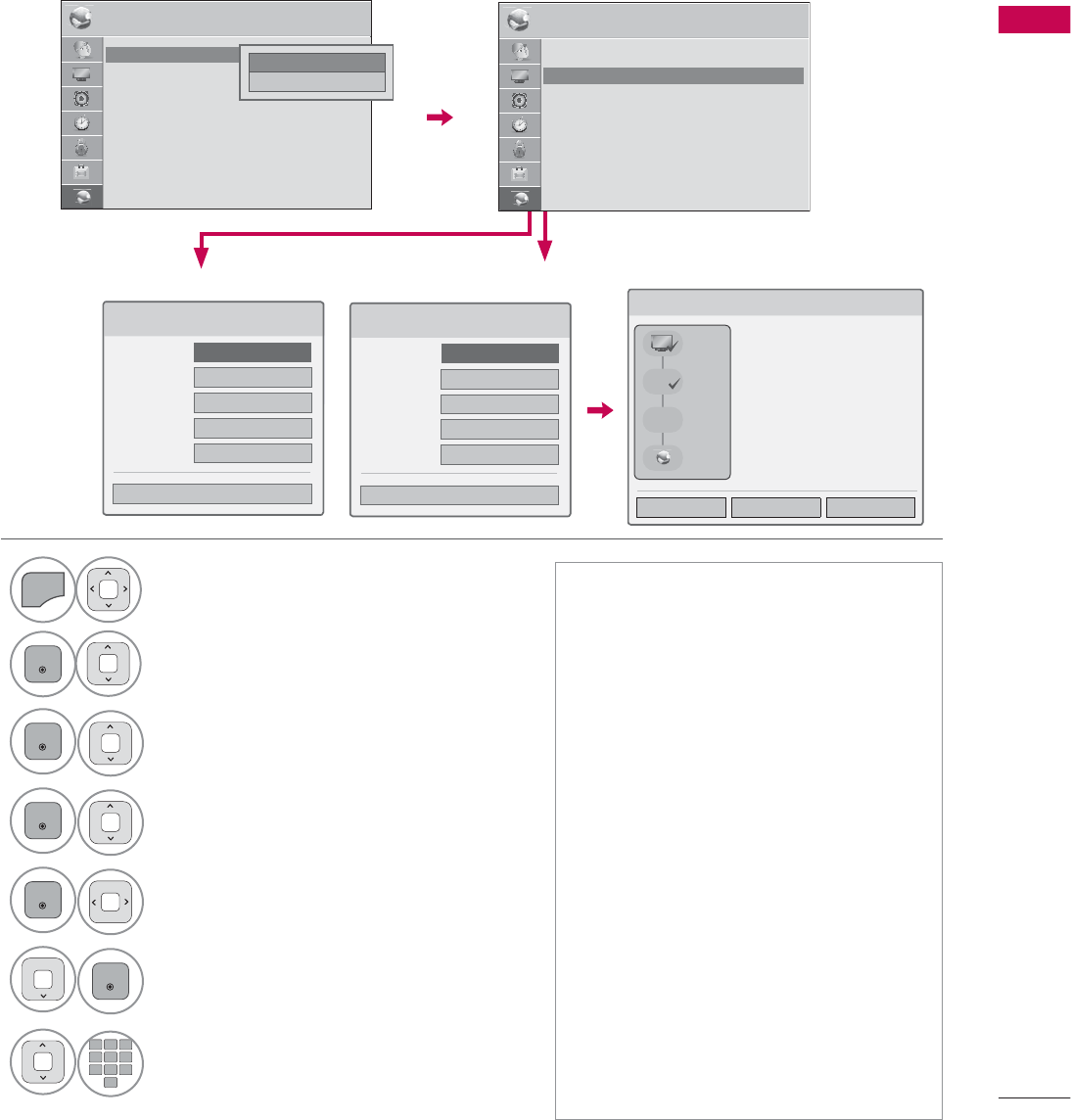

Select “Network Setting - IP Auto Setting” in the NETWORK menu (Źp.?).
Wireless Network Connection
Standard IEEE 802.11a/b/g/n
Host interface USB 2.0
Frequency
Range
2.412GHz ~ 2.4835GHz
5.15 GHz ~ 5.850 GHz
Security 64/128bit WEP, WPA,
TKIP, AES, WPS (PIN, PBC)
Data rate
802.11a/g: 54Mbps
802.11b: 11Mbps
802.11n: 300Mbps(40MHz)
Throughput 110Mbps @ 300Mbps
Wi-Fi Dongle (AN-WF100) SPEC
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
58
!
NOTE
ŹUse a standard LAN cable with this TV. Cat5
or better with a RJ45 connector.
ŹMany network connection problems during
set up can often be fixed by re-setting the
router or modem. After connecting the player
to the home network, quickly power off and/
or disconnect the power cable of the home
network router or cable modem. Then power
on and/or connect the power cable again.
ŹDepending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the appli-
cable terms of service. For details, contact
your ISP.
ŹLG is not responsible for any malfunction of
the TV and/or the internet connection feature
due to communication errors/malfunctions
associated with your broadband internet con-
nection, or other connected equipment.
ŹLG is not responsible for problems with in your
internet connection.
ŹSome content available through the network
connection may not be compatible with the
TV. If you have questions about such content,
please contact the producer of the content.
ŹYou may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
ŹSome internet connection operations may not
be possible due to certain restrictions set by
the Internet service provider (ISP) supplying
your broadband Internet connection.
ŹAny fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
ŹA 10 Base-T or 100 Base-TX LAN port is
required for connection to this TV. If your inter-
net service does not allow for such a connec-
tion, you will not be able to connect the TV.
ŹA DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with
your ISP, you may not be able to use the inter-
net connection feature contained in this TV or
you may be limited to the number of devices
you can connect at the same time. (If your ISP
limits sub-scription to one device, this TV may
not be allowed to connect when a PC is
already connected.)
ŹThe use of a “Router” may not be allowed or
its usage may be limited depending on the
policies and restrictions of your ISP. For details,
contact your ISP directly.
ŹThe wireless network operate at 2.4GHz radio
frequencies that are also used by other house-
hold devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can
be affected by interference from them.
ŹTurn off all unused network equipment in your
local home network. Some devices may gen-
erate network traffic
ŹFor the purpose of the better transmission,
placing the player from the access point as
close as possible.
ŹIn some instances, placing the access point or
wireless router at least 1.5 ft (0.45m) above
the floor may improve the reception.
ŹMove closer to the access point if possible or
re-orient the player so there is nothing between
it and the access point.
ŹThe reception quality over wireless depends
on many factors such as type of the access
point, distance between the player and access
point, and the location of the player.
59

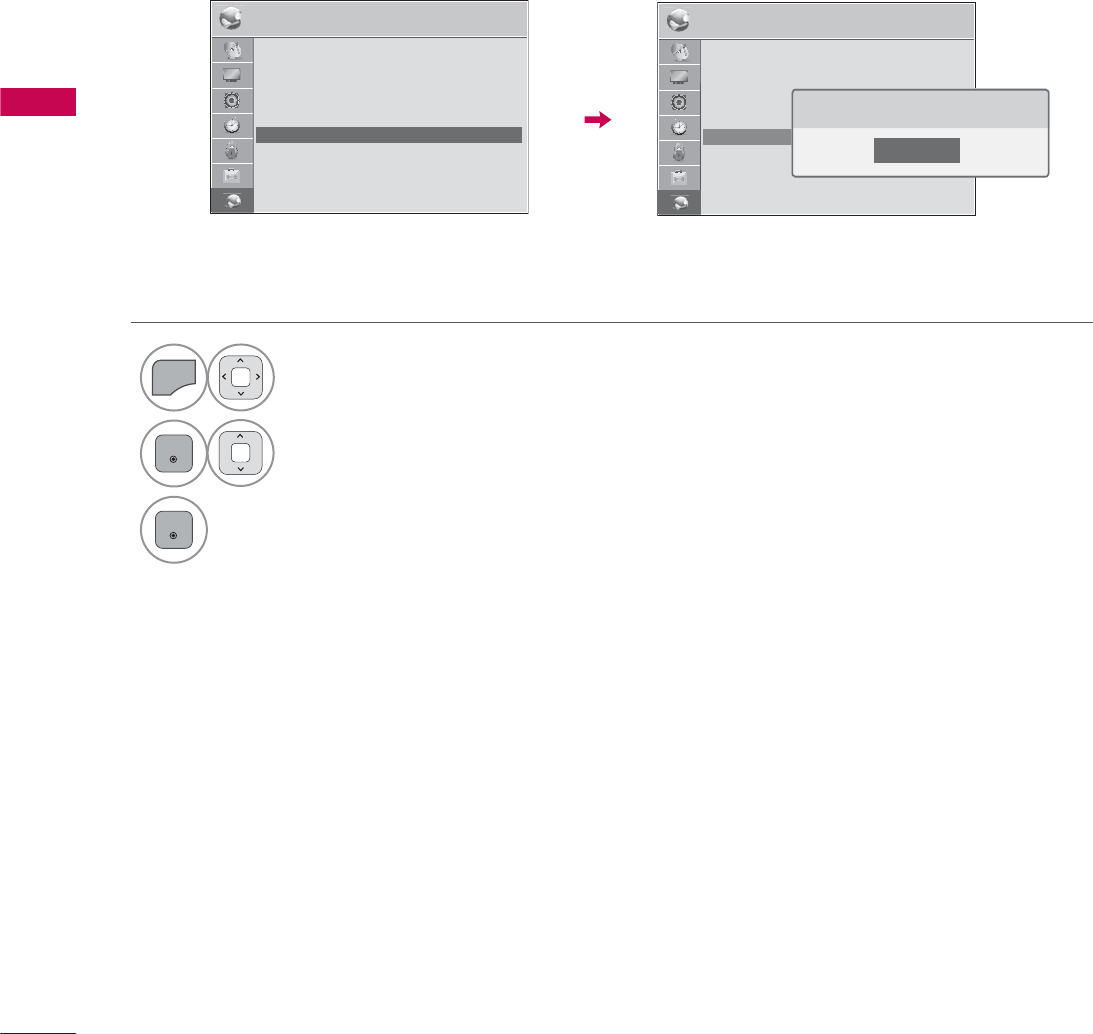

EXTERNAL EQUIPMENT SETUP
1HWZRUN6HWWLQJ
6HWWLQJ1HWZRUNDXWRPDWLFDOO\
:LUHOHVV1HWZRUN
,3$GGUHVV ;;;;;;;;;;;;
0DF$GGUHVV ;;;;;;;;;;;;
6XEQHW0DVN ;;;;;;;;;;;;
*DWHZD\ ;;;;;;;;;;;;
'166HUYHU ;;;;;;;;;;;;
6HWWLQJ 7HVW &ORVH
Gateway
DTV
Gateway
DNS
Internet
DNS
This feature requires an always-on
broadband internet connection.
You do not need to connect to a PC
to use this function.
If the Network Setting is not working,
check your network conditions. Check
the LAN cable and make sure your
router has DHCP turned on if you
wish to use the Auto Setting.
If the Network Setting is not com-
pleted, network may not operate nor-
mally.
IP Auto Setting: Select it if there is a
DHCP server on the local area net-
work (LAN) via wired connection, the
TV will automatically be allocated an
IP address. If you’re using a broad-
band router or broadband modem
that has a DHCP (Dynamic Host
Configuration Protocol) server func-
tion. The IP address will automati-
cally be determined.
IP Manual Setting: Select it if there is
no DHCP server on the network and
you want to set the IP address manu-
ally.
1(7:25. 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
:LUHG
٠:LUHOHVV

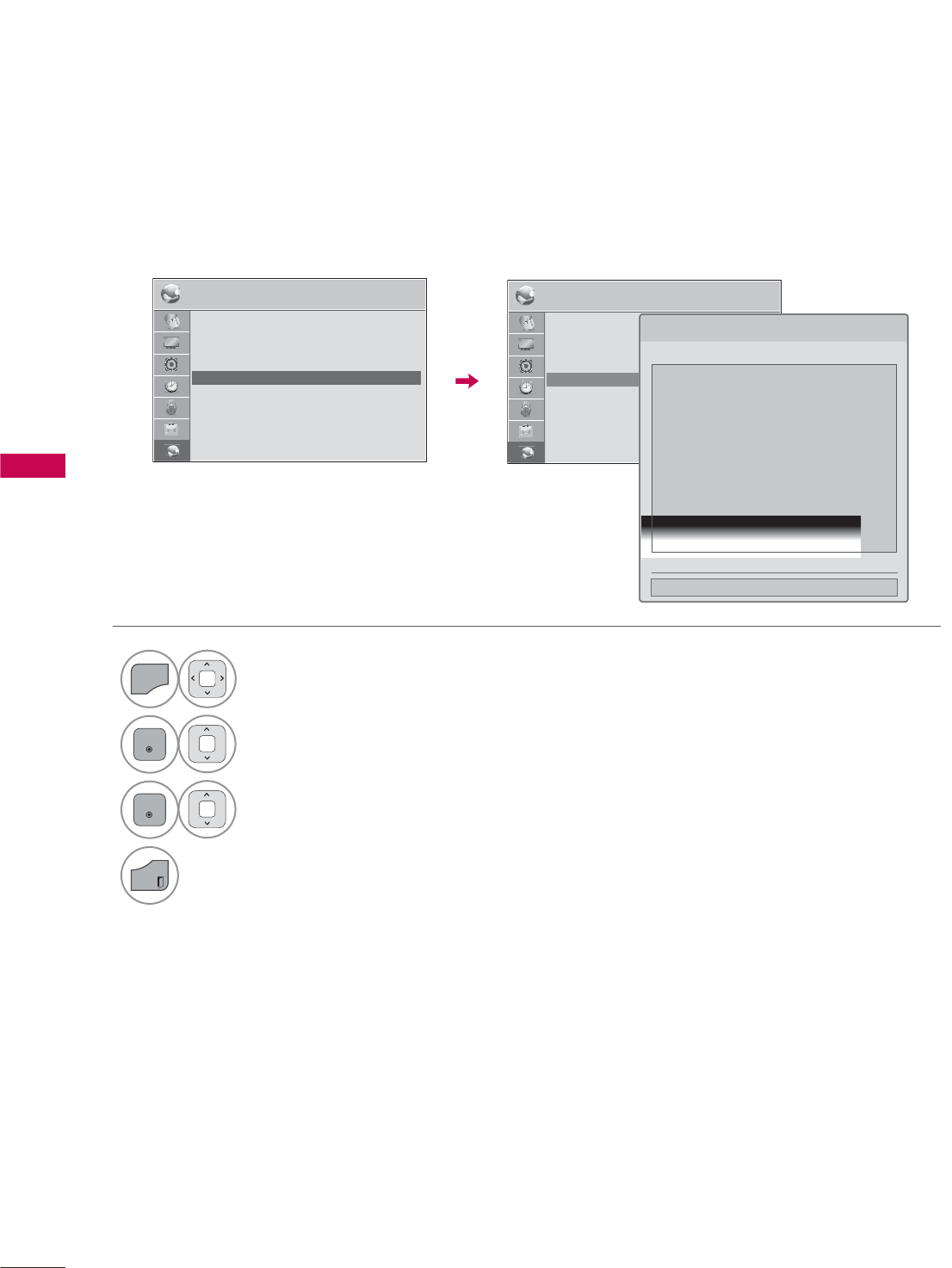

Wired Network Setup
1
MENU
Select NETWORK.
2
ENTER
Select Network Type.
3
ENTER
Select Wired.
4
ENTER
Select Network Setting.
5
ENTER
Select IP Auto Setting or IP
Manual Setting.
6
ENTER
Select Enter.
7
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ

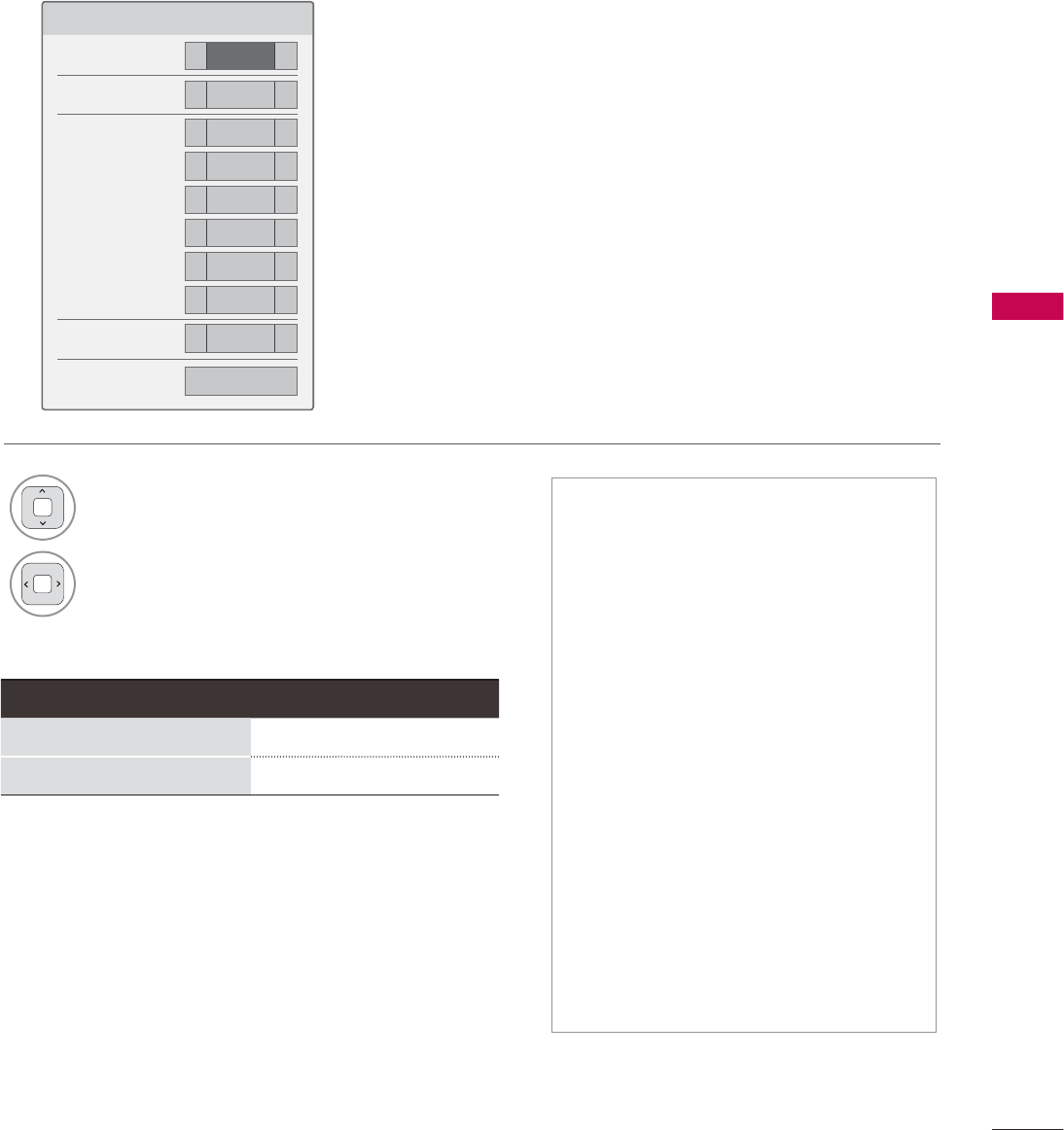

When Selecting IP Manual
Setting:
Input the internet protocol.
1HWZRUN6HWWLQJ
,30RGH ٮ,3$XWR6HWWLQJ٪
,3$GGUHVV
6XEQHW0DVN
*DWHZD\
'166HUYHU
(QWHU
1HWZRUN6HWWLQJ
,30RGH ٮ,30DQXDO6HWWLQJ٪
,3$GGUHVV
6XEQHW0DVN
*DWHZD\
'166HUYHU
(QWHU
IP Auto Setting
IP Manual Setting
If wired and wireless networks are both available, use Wired. Because the connected devices connect
directly to the network and are not subject to radio frequency interference.
After making the physical connection, a small number of home networks may require the TV network
setting to be adjusted.
For detail information, contact your internet provider or router manual.
1(7:25. 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
60
Setting up the AP (Access Point) or the wireless router is required before connecting the TV to the
network.
1(7:25. 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHOHVV
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
٠:LUHG
:LUHOHVV
1HWZRUN6HWWLQJ
&DQFHO
$FFHVV3RLQW6HDUFKLQJ
ٟٟٟٟٟٟ
$GKRF 3%&
3,1
1HWZRUN6HWWLQJ
ᬁ
$FFHVV3RLQW
6HDUFK
$GKRF 3%&
3,1

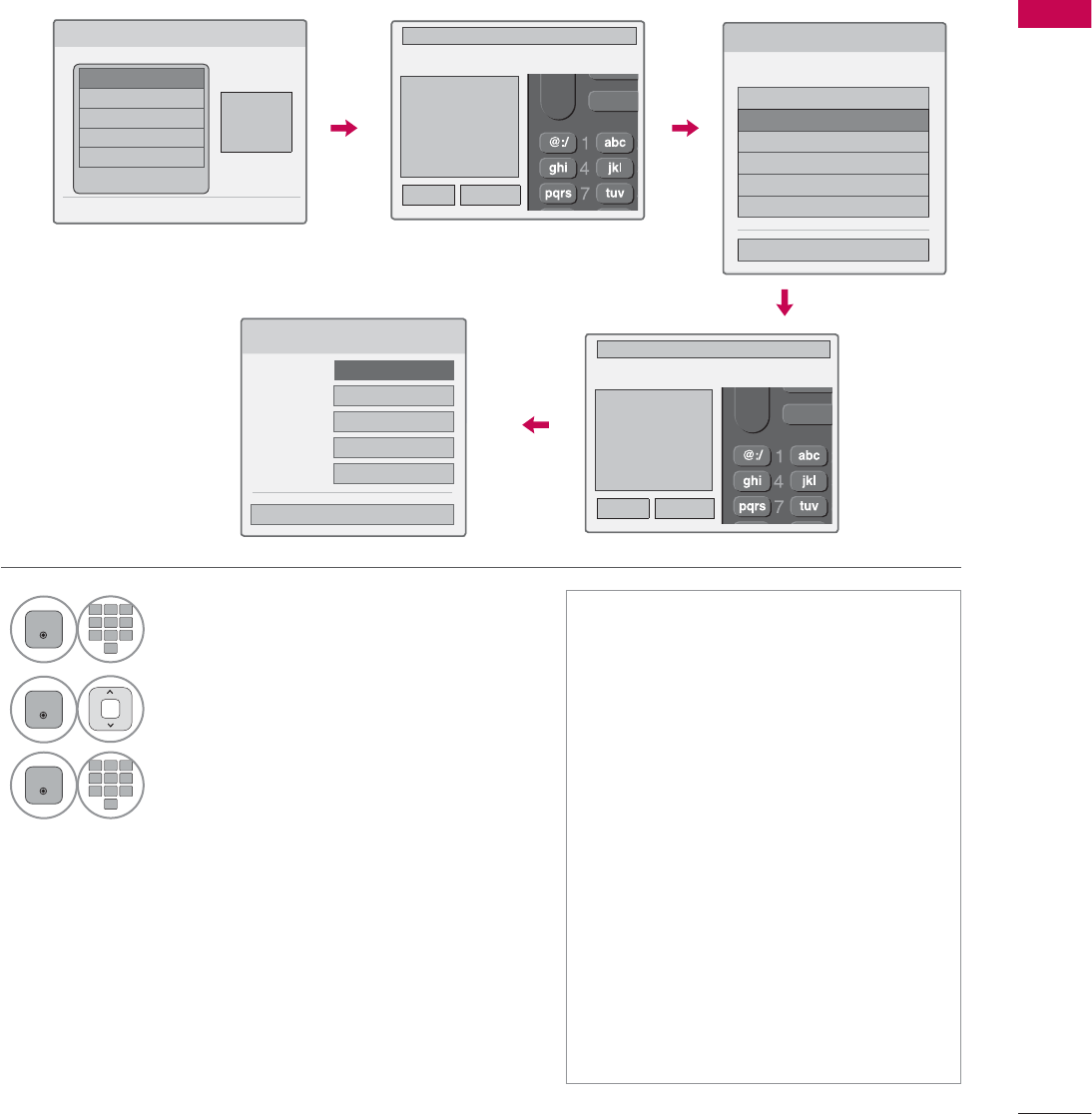

Wireless Network Setup
1(7:25. 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
1
MENU
Select NETWORK.
2
ENTER
Select Network Type.
3
ENTER
Select Wireless.
4
ENTER
Select Network Setting.
5
ENTER
Scan the all available AP (Access
Point) or wireless routers within
range and display them as a list.
6
ENTER
Select an AP (Access Point)
or wireless router on the list.
0RYH(QWHUᬤ([LW
0RYH(QWHUᬤ([LW
,QSXWWKHQHZ66,'
'/LQN
DXGLR
75(1'QHW
1HWZRUN
PDJH01/01
61
EXTERNAL EQUIPMENT SETUP
(QWHUWKHDFFHVVSRLQWQDPH66,'
(QWHUWKHDFFHVVSRLQWQDPH66,'
DELETE
CHAR/NUM
DELET
E
CHAR/NUM
(QWHU &DQFHO
(QWHU &DQFHO
1HWZRUN6HWWLQJ
٠1RQH
:(3
٠:3$36.$(6
٠:3$36.7.,3
٠WPA1
٠WPA2
&DQFHO
6HOHFWWKHZLUHOHVVQHWZRUNVHFXULW\
7
ENTER
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
When selecting Direct Input,
Input the SSID (Service Set
Identifier).
8
ENTER
Select the wireless network
security.
9
ENTER
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
Input the password.
Reteat step 5-7 on P.?
If you have security on your AP
(Access Point) or wireless router, ver-
ify that the WEP (Wired Equivalent
Privacy) or WPA (Wi-Fi Protected
Access) key that was entered into the
TV matches the router’s information
exactly. You need to input the secu-
rity code as necessary.
WEP security mode generally have 4
keys available on an access point or
wireless router’s setting. If your
access point or wireless router use
WEP security, enter the security code
of the key “No.1” to connect on your
home network.
An Access Point is a device that
allows you to connect to your home
network wirelessly.
Direct Input Connection: When a security code is not set
1HWZRUN6HWWLQJ
,30RGH ٮ,3$XWR6HWWLQJ٪
,3$GGUHVV
6XEQHW0DVN
*DWHZD\
'166HUYHU
(QWHU
1HWZRUN6HWWLQJ
ᬁ
$FFHVV3RLQW
6HDUFK
$GKRF 3%&
3,1
0RYH(QWHUᬤ([LW
PDJH01/01
,QSXWWKHQHZ66,'
'/LQN
DXGLR
75(1'QHW
1HWZRUN
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
62
If your access point or wireless router that supports WPS, it’s available to use your access point or
wireless router within 120 counts. You do not need to know the access point name (SSID: Service Set
Identifier) and security code of your access point or wireless router.
WPS (Wi-Fi Protected Setup) Connection: When a security code is
already set)
PIN (Personal Identification Number)
PBC (Push Button Configuration)
7Connect the acccess point
as PIN.
Reteat step 5-7 on P.?
7Connect the acccess point
as PBC.
GREEN
BLUE
PIN Number ⏈GkG㢨Gᴴ㫴ḔG
㢼⏈GḔ㡔㢌G_㣄⫠G㍟㣄㢸
1HWZRUN6HWWLQJ
(QWHU\RX3,1QXPEHUWRZLUHOHVVURXWHUVHWWLQJ
SDJH
3,11XPEHU
&DQFHO
1HWZRUN6HWWLQJ
3XVKWKHEXWWRQRQWKHDFFHVVSRLQWXQWLOLWLV
GHWHFWHGZLWKLQFRXQWV
5HPDLQFRXQWV
&DQFHO
1HWZRUN6HWWLQJ
ᬁ
$FFHVV3RLQW
6HDUFK
$GKRF 3%&
3,1
0RYH(QWHUᬤ([LW
,QSXWWKHQHZ66,'
'/LQN
DXGLR
75(1'QHW
1HWZRUN
PDJH01/01
1HWZRUN6HWWLQJ
ᬁ
$FFHVV3RLQW
6HDUFK
$GKRF 3%&
3,1
0RYH(QWHUᬤ([LW
,QSXWWKHQHZ66,'
'/LQN
DXGLR
75(1'QHW
1HWZRUN
PDJH01/01
63
EXTERNAL EQUIPMENT SETUP
hwG㛺㢨SG䋩㐔䚌Ḕ㣄G䚌⏈Gὤ᷸㝴G㫵㥅OPG㜤ᷤ䚌㜠G䋩㐔䚌⏈Gⵝⷉ
⫼㾌G䆠⦐㏘䀴㢨⽈⦐GYG㢌GwjG⪰G㜤ᷤ䚌⏈GᶷḰG┍㢰䚜

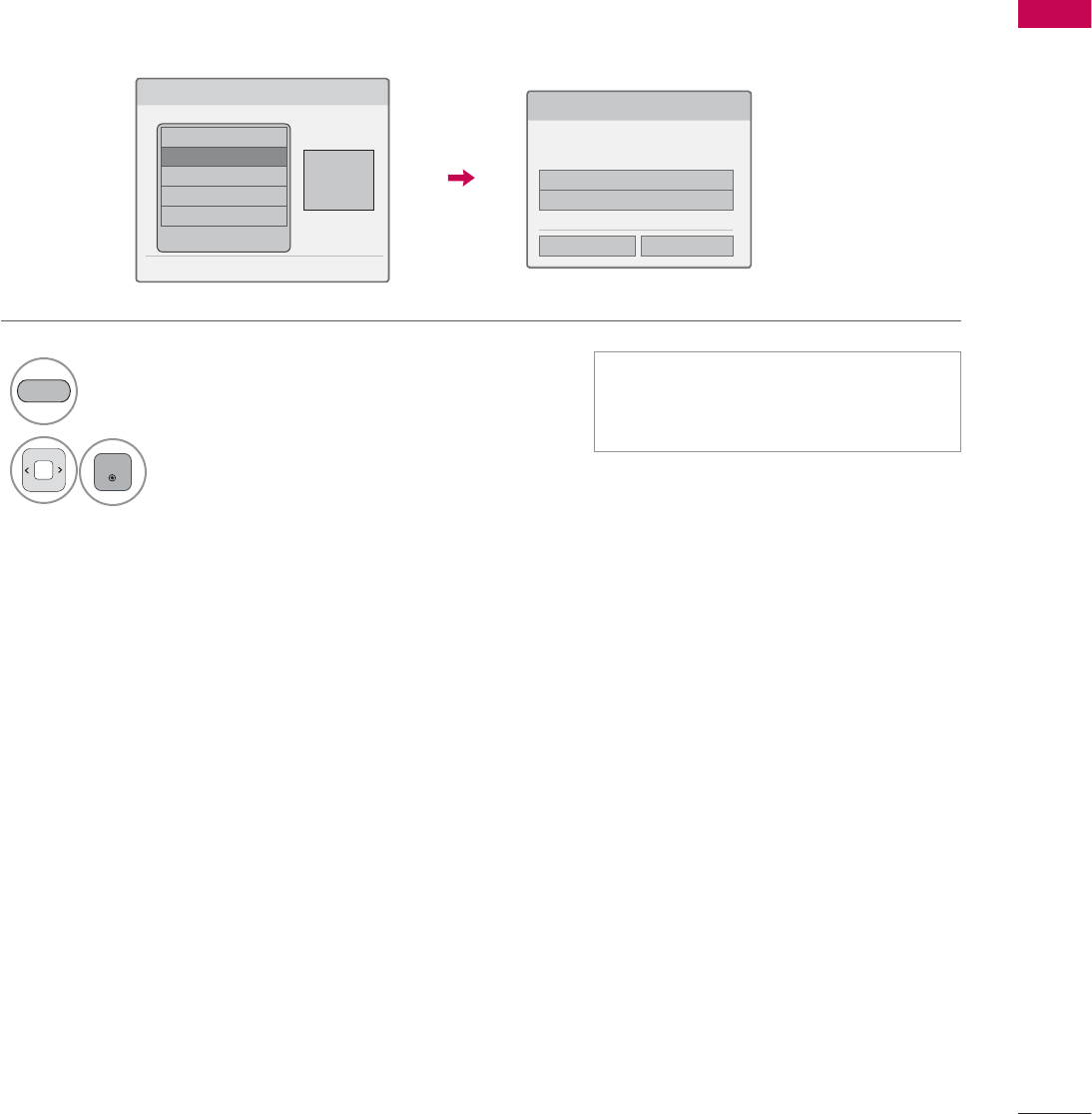

AD-hoc Mode
1HWZRUN6HWWLQJ
$GKRFQHWZRUNWRFRQQHFWWR
6HUYHU,QIRUPDWLRQ
1HWZRUN,'66,'DGKRF
6HFXULW\.H\
&UHDWHDQHZVHUYHU
(QWHU &DQFHO
If a network may not operate, cre-
ate a new server, using the
YELLOW button.
7Enter the ad-hoc mode.
8
ENTER
Select ENTER.
YELLOW
1HWZRUN6HWWLQJ
ᬁ
$FFHVV3RLQW
6HDUFK
$GKRF 3%&
3,1
0RYH(QWHUᬤ([LW
,QSXWWKHQHZ66,'
'/LQN
DXGLR
75(1'QHW
1HWZRUN
PDJH01/01
WATCHING TV / CHANNEL CONTROL
WATCHING TV / CHANNEL CONTROL
64
ENERGY
CHVOL
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
SAVING
TV
AV MODE
INPUT
LIGHT
FAV
RATIO
MUTE
BACK EXIT
ENTER
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
MENU
FREEZE
Q.MENU
INFO
REMOTE CONTROL FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
WATCHING TV / CHANNEL CONTROL
POWER Turns the TV on from standby or off to standby.
LIGHT Illuminates the remote control buttons.
ENERGY SAVING
Adjusts the Energy Saving setting. Źp.138
AV MODE Toggles through preset Video and Audio modes.
Źp.64
INPUT Rotates through inputs.
Also switches the TV on from standby. Źp.62
TV Returns to the last TV channel.
NUMBER button
— (DASH) Used to enter a program number for multiple
program channels such as 2-1, 2-2, etc.
LIST Displays the channel table. Źp.
FLASHBK Tunes to the last channel viewed.
MENU Displays the main menu or clears all on-screen
displays and return to TV viewing.
NETCAST
Select the desired NETCAST menu source. (Yahoo!
TV Widgets, Netflix, Vudu, YouTube, My Media etc.)
Q.MENU Opens the list of Quick Menu options. Źp.
THUMBSTICK
(Up/Down/Left
Right/ENTER)
Navigates the on-screen menus and adjusts the
system settings to your preference.
BACK Allows the user to move return one step in an
interactive application or other user interaction
function.
WIDGETS WIDGETS for showing or hiding the Yahoo! Dock
and accessing the Yahoo! TV Widgets user expe-
rience. Źp.70-77
EXIT Clears all on-screen displays and return to TV
viewing.
65
WATCHING TV / CHANNEL CONTROL
Open the battery compartment cover on the back
side and install the batteries matching correct polar-
ity.
Install two 1.5V AAA batteries. Don’t mix old or used
batteries with new ones.
Close cover.
Installing Batteries
VOLUME
UP/DOWN Adjusts the volume.
FAV Set up desired favorite channels list.Źp.59
MARK Select the input to apply the Picture Wizard settings. Źp.131
Use to mark or unmark a photo/music/movie. Źp.94, 99, 103
RATIO Changes the aspect ratio. Źp.59
CHAR/NUM Shifts the Character or Number for YouTube.
MUTE Switches the sound on or off. Źp.50

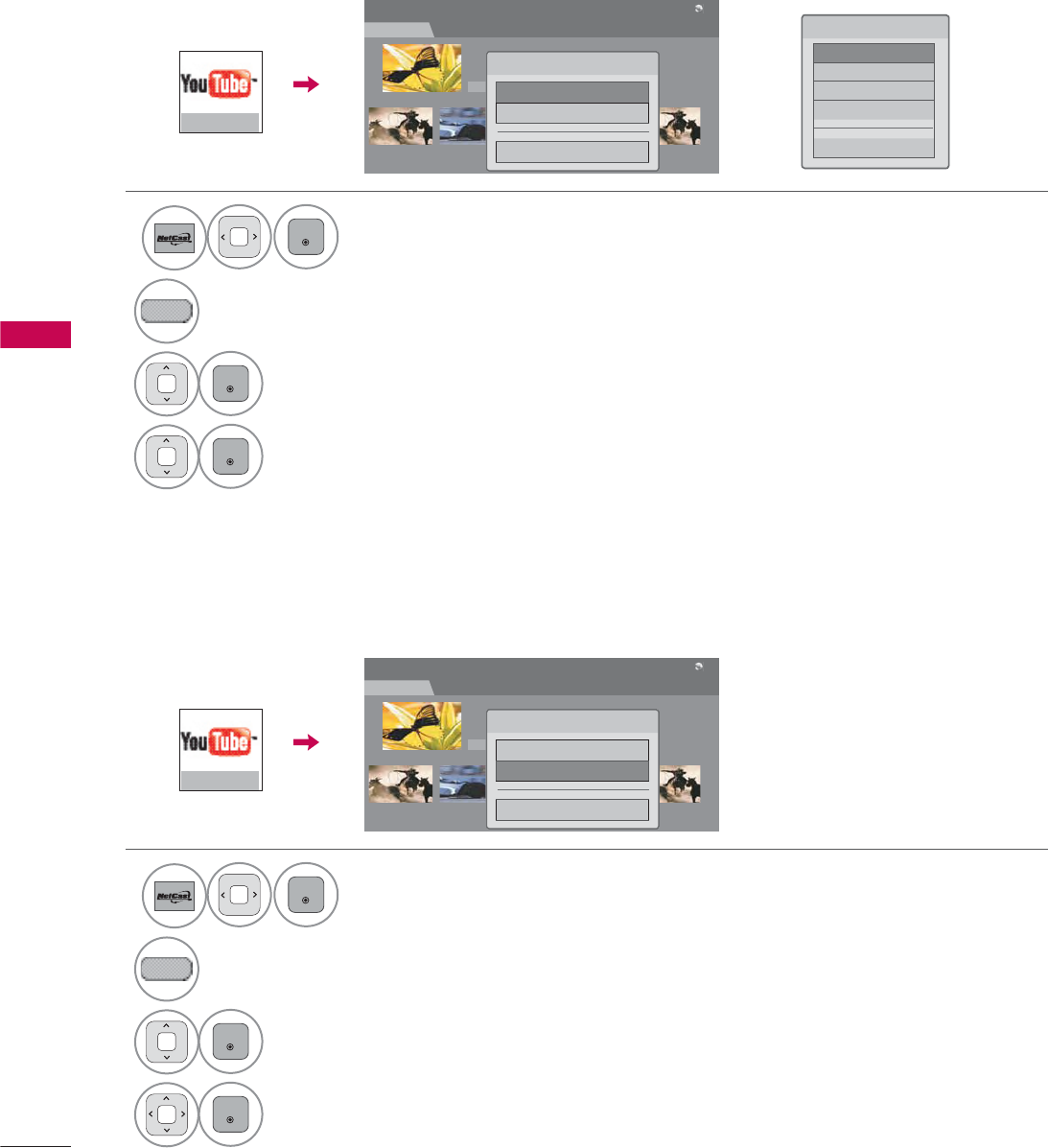

DELETE Deleted the character or number on the screen for YouTube. Źp.50
CHANNEL
UP/DOWN
Changes the channel.
PAGE
UP/DOWN
Moves from one full set of screen information to the next one.
COLOR
BUTTON
Access special functions in some menus.
USB,
SIMPLINK
Control
buttons
ţ Controls MY MEDIA menu (Photo List, Music List, Movie List)
ţ Controls the SIMPLINK compatible devices.
FREEZE
(For Plasma TV)
Freezes the current frame while viewing the TV, AV, Component, RGB-PC, or
HDMI input source.
SIMPLINK See a list of AV devices connected to TV.
When you toggle this button, the SIMPLINK menu appears at the screen. Źp.66-67
INFO Displays channel information at the top of the screen.
WATCHING TV / CHANNEL CONTROL
WATCHING TV / CHANNEL CONTROL
66
TURNING ON THE TV
CHANNEL SELECTION
VOLUME ADJUSTMENT
Adjust the volume to suit your personal preference.
1First, connect power cord correctly.
At this moment, the TV switches to standby mode.
In standby mode to turn TV on, press the / I, INPUT,CH CH (ᬧor ᬨ) button on the TV or
press the POWER, INPUT, CH (ᬧor ᬨ),Number (0~9) button on the remote control.
2Select the viewing source by using the INPUT button on the remote control.
3When finished using the TV, press the POWER button on the remote control. The TV reverts
to standby mode.
!
NOTE
Ź If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
Ź If you do not complete the Initial setting, it will appear whenever the TV is switched on until the
Initial setting procedure is completed.
1Press the CH (ᬧor ᬨ) or NUMBER buttons to select a channel number.
1 Press the VOL (+ or -) button to adjust the volume.
2If you want to switch the sound off, press the MUTE button.
3You can cancel the Mute function by pressing the MUTE or VOL (+ or -) button.
91
WATCHING TV / CHANNEL CONTROL
SIMPLINK Functions
Direct Play: After connecting AV devices to the TV, you can directly control the devices and play media
without additional settings.
Select AV device: Enables you to select one of the AV devices connected to the TV.
Disc playback: Control connected AV devices by pressing the ᬧᬨ
!
, ENTER, ᬱ, ᬲ, ᬳ, ᬵand ᬴ but-
tons.
Power off all devices: When you power off the TV, all connected devices are turned off.
Switch audio-out: Offers an easy way to switch audio-out.
Sync Power on: When the equipment with Simplink function connected HDMI terminal starts to play,
The TV will automatically turn on.
Note: To operate SIMPLINK, an HDMI cable over Version 1.3 with *CEC function should be used. (*CEC:
Consumer Electronics Control).
(A device, which is connected to the TV through a HDMI cable but does not support SIMPLINK, does
not provide this function)
!
NOTE
ŹConnect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of
the SIMPLINK device with the HDMI cable
ŹWhen you switch the Input source with the INPUT button on the remote control, the SIMPLINK
device will stop.
ŹWhen you select a device with home theater functionality, the sound output automatically switches
to the home theater speakers and the TV speakers are turned off.
ŹIf a connected SIMPLINK home theater system doesn’t play the audio from the TV, connect the
DIGITAL AUDIO OUT terminal on the back of the TV to the DIGITAL AUDIO IN terminal on the
back of the SIMPLINK device with an OPTICAL cable.
MY MEDIA
MY MEDIA
92
ENTRY MODE
When the Pop Up menu does not appear, you can select Movie List, Photo List or Music List in the
USB menu.
Setup a USB device, CIFS, or DLNA with the TV to use MY MEDIA

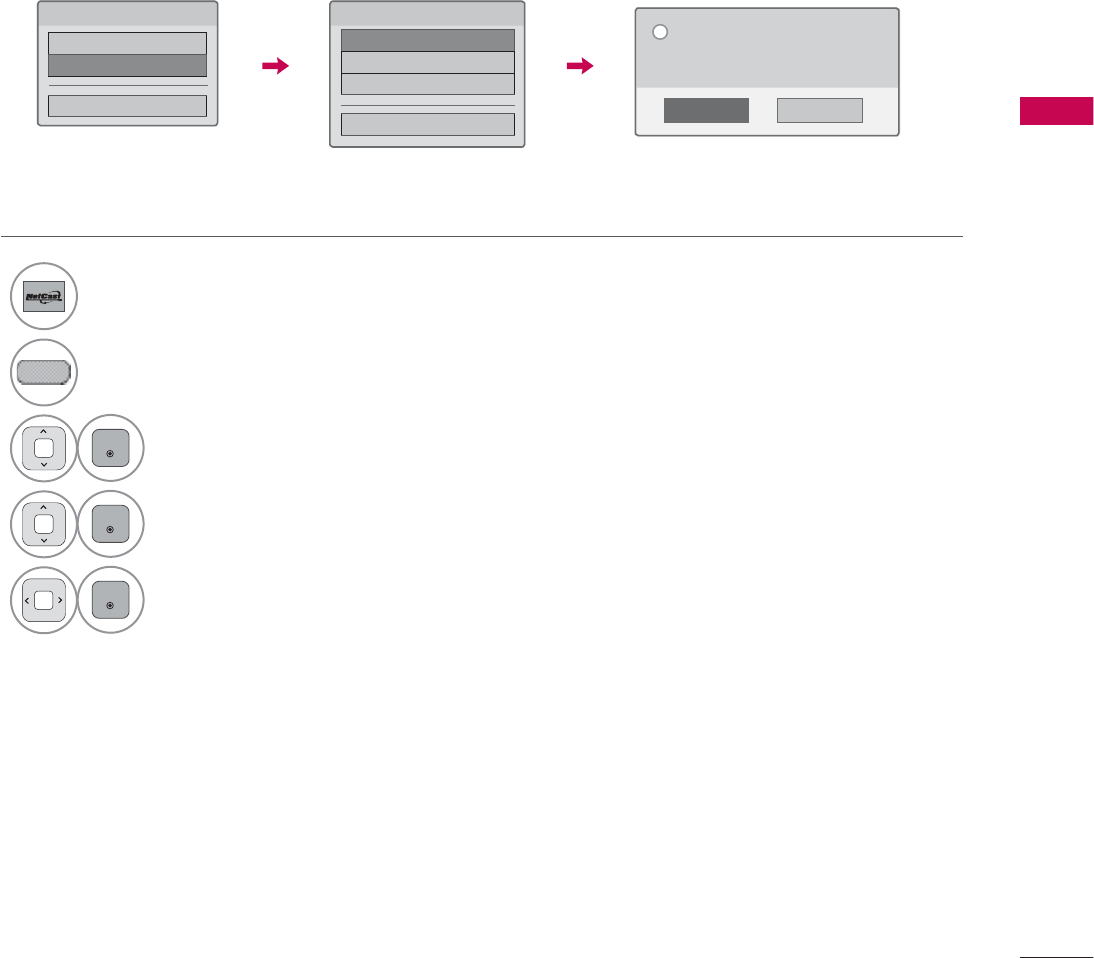

When removing the USB device
Select the USB Device menu before
removing the USB device.
MY MEDIA
This TV can view JPG image files and HD
DivX files and play MP3 audio files.
1
Q.MENU
Select USB Device.
2
ENTER
Select Eject.
Please select the device.
USB Label
USB Label
CIFS
CIFS
DLNA
'HYLFH6HOHFWLRQ
6HDUFK ᬤ3UHYLRXV
1
MENU
Select MY MEDIA.
2
ENTER
Select Movie List, Photo List
or Music List.
3
ENTER
Select the desired device.
3
BACK
Return to the previous menu.
Search other network device.
BLUE
0RYLH/LVW
MY MEDIA
3KRWR/LVW 0XVLF/LVW
93
MY MEDIA
CONNECTION METHOD
USB Connection
Connect the USB device to the USB IN
jack on the TV.
1
USB memory stick
Precautions when using the USB device
ŹOnly a USB storage device is recognizable.
ŹConnecting a USB storage device through a USB hub is not supported.
ŹA USB storage device which uses its own driver may not be recognized.
ŹThe recognition speed of a USB storage device may depend on each device.
ŹPlease do not turn off the TV or unplug the USB device when the connected USB storage device
is working. When such device is suddenly separated or unplugged, the stored files or the USB
storage device may be damaged.
ŹOnly use a USB storage device which has normal music files or image files.
ŹPlease use only a USB storage device which was formatted as a FAT 32 or NTFS file system pro-
vided with the Windows operating system. Others may not be recognized.
ŹSome USB storage devices require a power adapter. The power adapter must be connected in
order to be seen by the TV.
ŹIf a device is not recognized by the TV, try a different cable. Excessively long cables are not sup-
ported.
ŹSome USB storage devices may not be supported or operate properly.
ŹPlease backup important files because data on USB device could be damaged. Data management
is consumer's responsibility and as a result, the manufacturer does not cover data damage.
ŹIf your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can
use up to 4 partitions or USB memory devices.
ŹIn case of USB storage devices formatted as NTFS, deletion is not supported.
ŹFile alignment method of USB storage device is similar to Window XP and file names can be up
to 100 English characters.
ŹThe recommended capacity is 1TB or less for a USB external hard disk and 32 GB or less for USB
memory.
ŹIf a USB external hard disk with a “Energy Saving” function doesn’t work, turn the hard disk off and
on again to make it work properly. Refer to the user manual of the USB external hard disk.
IN 4
USB IN 1 USB IN 2
Memory Key
MY MEDIA
MY MEDIA
94
CIFS (Common Internet File System)
Share folder (CIFS: Common Internet File System) Setup
Case 1
The method of setting the shared folder may be different by the OS environment.
1Click Sharing on the CIFS folder under
the C Drive.
2Check Share this folder and click Apply.
95
MY MEDIA
Case 2 (For Window Vista)
1Choose the folder that you want to share.
Then, right-click and click Share.
Add the Everyone and click Share.
2Choose the folder that you want to share.
Right-click and click Properties.
Click Advanced Sharing on Sharing tab.
Check Share this folder and click Permission.
Add Everyone and check Full Control - Allow.
3Check File sharing-On, Public folder sharing-
On, and Password protected sharing-Off.
MY MEDIA
MY MEDIA
96
Viewing Files on the Network
You can view the photos or listen to music files from folders shared on the network.
RGB IN (PC)
WIRELESS
CONTROL
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
YP
B
P
R
L R
AUDIO IN
AUDIO OUT
2
1
LAN
ŹConnect the PC and TV using a shar-
ing device so that you can see the PC’s
shared files on the TV.
ŹHow to set a share folder may differ
depending on the Windows version.
ŹThe speed may be slow or it may cause
an error if you try to access a folder
from two TVs at the same time.
ŹBecause files could be deleted from a
shared PC, set the user access level to
Read Only.
ŹDo not share any important personal
documents as it may be accessed by a
different PC.
ŹIf you rename or disable a shared
folder on the PC after mounting, you
cannot mount it again.
ŹIf the status of the network or a share
folder on the PC is changed, search is
run again when entering the highest
folder in the menu.
ŹA maximum of 20 of shared folders on
4 computers are supported.
ŹWhen using file sharing from a com-
puter, it is recommended you use a
wired port of the hub.
ŹWhen using the wireless port of the
hub to share the file on the PC, some
functions can be limited.
ŹBecause the TV does not support the
wireless function using the USB don-
gle, My Media function only supports
the wired environment.
i.e) LCD TV
Broadband
modem
Broadband modem
Router
Broadband Service
Broadband Service
0RYLH/LVW
MY MEDIA
3UHVV(17(5WRVHHSKRWRVIURPWKH86%
'LY;2SWLRQ ᬤExit
3KRWR/LVW 0XVLF/LVW
3
MENU
Select MY MEDIA.
4
ENTER
Select Movie List, Photo List
or Music List.
1Set a share folder (CIFS: Common Internet File System) on the PC (Refer to P.?).
2Connect the LAN port of the Modem or Router to the LAN port on the TV.
97
MY MEDIA
DLNA
About DLNA
This TV is a DLNA Certified digital media product that can display and play movie, photo and music
content from your DLNA Certified network device and DLNA server.
The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics,
computing industry and mobile device companies.
Digital Living provides consumers with easy sharing of digital media through a wired or wireless net-
work in the home.
The DLNA certification logo makes it easy to find products that comply with the DLNA
Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC
running DLNA server software or other DLNA compatible device is connected to this player, some
setting changes of software or other devices may be required. Please refer to the operating instruc-
tions for the software or device for more information.
!
NOTE
ŹThe supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for
sharing files and folders to this player.
ŹThe supplied Nero MediaHome 4 Essentials software does not support following functions:
Transcoding, Remote UI, TV control, Internet services and Apple iTunes
ŹThis manual explains operations with the English version of Nero MediaHome 4 Essentials as
examples. Follow the explanation referring to the actual operations of your language version.
MY MEDIA
MY MEDIA
98
Installing Nero MediaHome 4 Essentials
Nero MediaHome 4 Essentials is a software for sharing movie, music and photo files stored on your
computer to this TV.
Requirement PC system before you install Nero MediaHome 4 Essentials
Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required), Windows® XP
Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003
Windows Vista® 64-bit edition (application runs in 32-bit mode)
Hard drive space: 200 MB hard drive space for a typical installation of Nero MediaHome stand-
alone
1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors
Memory: 256 MB RAM
Graphics card with at least 32 MB video memory, minimum resolution of 800 x 600 pixels, and
16-bit color settings
Windows® Internet Explorer® 6.0 or higher
DirectX® 9.0c revision 30 (August 2006) or higher
Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11b/g/n)
1Start up your computer, and insert the Nero MediaHome 4 Essentials CD-ROM into your compu-
ter’s CD-ROM drive.
An installation wizard will walk you through the quick and uncomplicated installation process.
2Close all Microsoft Windows programs and exit any anti-virus software that may be running.
3Insert the Nero MediaHome 4 Essentials CD-ROM into your computer’s CD-ROM drive.
4Click Nero MediaHome 4 Essentials. The installation is prepared and the installation wizard appears.
5Click the Next button to display the serial number input screen.
Click Next to go to the next step.
6If you accept all conditions, click I accept the License Conditions check box and click Next.
Installation is not possible without this agreement.
7Click Typical and click Next. The installation process is started.
8If you want to take part in the anonymous collection of data, select the check box and click the
Next button.
9Click the Exit button to complete the installation.
99
MY MEDIA
Sharing files and folders
You must share the folder contained movie, music and/or photo content to play them using MY
MEDIA features.
This parts explains the procedure for selecting the shared folders on your computer.
1Double-click the Nero MediaHome 4 Essentials icon on the desktop.
2Click Network icon on the left and define your network name in the Network name field. The
Network name you enter will be recognized by your player.
3Click Shares icon on the left.
4Click Local Folders tab on the Shared screen.
5Click Add icon to open the Browse Folder window.
6Select the folder containing the files you want to share. The selected folder is added to the list of
shared folders.
7Click Start Server icon to start the server.
!
NOTE
ŹIf the shared folders or files are not displayed on the TV, click the folder on the Local Folders
tab and click Rescan Folder at the More button.
ŹVisit www.nero.com for more information and software tools.
MY MEDIA
MY MEDIA
100
Playing back shared contents
You can display and play movie, photo and music content stored on your computer or other DLNA
media server.
1Start the server on your computer or other device that connected on your home network.
!
NOTE
ŹTo play the file on the media server, the TV and the media server must be connected to the
same access point..
ŹBecause the compatibility and available playback functions on the MY MEDIA menu are tested
on the bundle DLNA server (Nero MediaHome 4 Essentials) environment, file requirements and
playback functions on the [My Media] menu may differ depending on media servers.
ŹThe file requirements on this page are not always compatible. There may have some restrictions
by file features and media server’s ability.
ŹThe thumbnail of the unplayable files can be displayed in the [My Media] menu, but those can-
not be played on this player.
ŹIf there is an unplayable music file in the [My Media] menu, the player skip the file and play next
file.
ŹThe file information indicated on the screen may not correct for music and movie files in [My
Media] menu
ŹPlaying a movie subtitle files are only available on media server created by supplied Nero
MediaHome 4 Essentials software on this player’s package.
ŹThe subtitle file name and movie file name have to be the same and located at the same folder.
ŹIf subtitle files have been added after a directory has been indexed already, the user has to
remove and re-add the folder to the list of shares.
ŹThe playback and operating quality of the [My Media] function may affected by your home net-
work condition.
ŹThe files from removable media such as USB drive, DVD-drive etc. on your media server may
not be shared properly.
2
MENU
Select MY MEDIA.
3
ENTER
Select Movie List, Photo List or Music List.
4
ENTER
Select the DLNA.
Depending on the media server, this TV may need to get the permission from
the server.
If you want to re-scan available media server, press blue color button.
101
MY MEDIA
File requirements
(
“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”, “.mp3”, “.wma”, “.pcm” (LPCM))
Available file extensions differ depending on the serves.
Music Files
Sampling frequency within 8 - 48 kHz (WMA), within 11 - 48 kHz (MP3), 44.1 and 48 kHz
(LPCM)
Bit rate Bit rate: within 8 - 320 kbps (WMA, MP3), 768Kbps and 1.536Mbps
(LPCM)
Movie files
Available resolution
size 1920 x1080 (W x H) pixels
Playable subtitle
SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.
sub/.txt), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt),
DVD Subtitle System (.txt)
Playable Codec format DIVX3.xx”, “DIVX4.xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard playback
only), DIVX-HD, MPEG1 SS, MPEG2 PS, MPEG2 TS
Audio format Dolby Digital”, “DTS”, “MP3”, “WMA”, “AAC”, “AC3
Sampling frequency within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)
Bit rate within 20 - 320 kbps (WMA), within 32 - 320 kbps (MP3)
Photo files
Recommended photo
size
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
!
NOTE
ŹMaximum Files/Folder: Less than 2000 (total number of files and folders)
ŹThe subtitle files are not displayed on the [My Media] menu.
ŹIf there are more than 1 subtitle files at a folder, displaying priority is as follow:
ŹThe movie file and subtitle names are limited to 128 characters.
ŹNot all the WMA and AAC Audio format is compatible with this unit.
ŹThe movie file encoded by the GMC (Global Motion Compensation) and Qpel (Quarter pixel) is not
supported. Those are video encoding techniques in MPEG4 standard, like DivX or XVID have.
MY MEDIA
MY MEDIA
102
MOVIE LIST
It displays all of the video files it recognizes.
The On-Screen Display on your model may be slightly different.
Precautions when playing the video files
ŹSome user-created subtitles may not work properly.
ŹSome special characters are not supported in subtitles.
ŹHTML tags are not supported in subtitles.
ŹSubtitles in languages other than the supported languages are not available.
ŹTime information in an external subtitle file should be arranged in ascending order to be played.
ŹThe screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the
audio language is changed.
ŹA damaged video file may not be played correctly, or some player functions may not be usable.
ŹVideo files produced with some encoders may not be played correctly.
ŹIf the video and audio structure of recorded file is not interleaved, either video or audio is output-
ted.
ŹVideo with resolution higher than maximum resolution supported for each frame, cannot be guar-
anteed for smooth playback.
ŹMovie files other than the specified types and formats may not work properly.
ŹThe movie file encoded by the GMC (Global Motion Compensation) is not supported.
ŹOnly the files saved in ASCII Code is supported in subtitles.
ŹOnly 250 Korean characters, 500 alphabets and 500 numbers are supported for each line of the
subtitle.
ŹOnly 10,000 of sync blocks can be supported within the subtitle file.
ŹWe do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264.
ŹDTS Audio codec is not supported.
ŹA video file more than 30GB in file size is not supported for playback.
ŹPlaying a video via a USB connection that doesn’t support high speed may not work properly.
ŹUSB storage devices below USB 2.0 are supported as well. But they may not work properly in the
movie list.
ŹThe video file and its subtitle file must be located in the same folder.
At this time, a video file name and its subtitle file name must be identical for it to be displayed.
ŹWhen you are watching the movie by Movie List function, you can adjust the picture by ENERGY
SAVING and AV MODE button on the remote control. User setup for each picture mode does not
operate.
103
MY MEDIA
Supported DivX file
File
Extensions
Audio/
Video Codec Profile/Level Support Explanation
.asf
.wmv
.wma
Video
VC-1 Advanced Profile Advanced Profile@Level 3
(e.g. 720p60, 1080i60, 1080p30) Only streams compliant
to SMPTE 421M VC-1
standard are supported.
VC-1 Simple and Main Profiles Simple Profile@Medium Level (e.g. CIF, QVGA)
Main Profile@High Level (e.g. 1080p30)
Audio WMA Standard
WMA 9 Professional
.divx
.avi
Video
DivX3.11
Global motion compen-
sation or quarterpel
motion estimation does
not supported. Streams
using this syntax are not
supported.
DivX4
DivX5
DivX6
Advanced Simple Profile
(e.g. 720p/1080i)
XViD
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Audio
MPEG-1 Layer I, II
MPEG-1 Layer III (MP3)
AC-3
.mp4
.m4a
.m4v
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Global motion compen-
sation or quarterpel
motion estimation does
not supported. Streams
using this syntax are not
supported.
MPEG-4 Part 2 Advanced Simple Profile (e.g. 720p/1080i)
Audio AAC AAC-LC and AAC-HE
.mkv
Video H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Most of the MKV con-
tent available is encod-
ed by the open source
x264 codec.
Audio AAC AAC-LC and AAC-HE
AC-3
.ts
.trp
.tp
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
MPEG-2 Main Profile@High Level(e.g. 720p60, 1080i60)
VC-1
Simple Profile@Medium Level
(e.g. CIF, QVGA)
Main Profile@High Level
(e.g. 1080p30)
Advanced Profile@Level3
(e.g. 720p60, 1080i60, 1080p30)
Only streams compliant
to SMPTE 421M VC-1
standard are supported.
Audio
MPEG-1Layer I, II
MPEG-1 Layer III (MP3)
AC-3
AAC AAC-LC and AAC-HE
.vob
Video MPEG-1
MPEG-2 Main Profile@High Level (e.g. 720p60, 1080i60)
Audio
AC-3
MPEG-1Layer I, II
DVD-LPCM
.mpg Video MPEG-1
MPEG-2 Main Profile@High Level (e.g. 720p60, 1080i60) Only streams compliant
configured properly for
TS, PS or ES
Audio MPEG-1Layer I, II
MY MEDIA
MY MEDIA
104
You can also adjust USB in the INPUT menu.
Select MY MEDIA.Select Movie List.
2
1
MENU
ENTER
ENTER
1Moves to upper level folder
2Current page/Total pages
3Corresponding buttons on the
remote control
4Contents under the folder
focused on 11
5Current page/ total pages of
contents under the folder
focused on 1
Screen Components
Page 1/1
0RYLH/LVW
Page 1/186%;7,&.
0RYH3OD\3DJH&KDQJHᭋ0DUN
'ULYH
1.EMF BB7RS 20090711 FHD
MV 76
1
5
4
2
3
&KDQJH'HYLFH 7R3KRWR/LVW &KDQJH1XPEHUV 0DUN0RGH ᭴([LW
RED Changed device.
GREEN Converted to Photo List.
YELLOW
Change Numbers: A method to view in 5 large photos or simple list.
BLUE Enter to Mark Mode.
EXIT
Return to TV viewing.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to increase the brightness of your
screen (Refer to p. ?).
105
MY MEDIA
!
NOTE
ŹIn case of files not supported, a
message regarding non-supported
file is displayed.
Use the CH (ᬧᬨ) button to naviga-
tion in the movie page.
When one or more movie files are
marked, the marked movies will be
played in sequence.
1Select the target folder or
drive.
2
ENTER
Select the desired
movie title.
3
FAV
MARK
CHAR/NUM
Mark your desired movie file.
4
RED
Play the marked movie file.
It displays the current movie
status progress bar in the bot-
tom of the screen.
Movie Selection
Mark Mode
RED
Play Marked: Play the selected file. Once a
movie finishes playing, the next selected one
will be played automatically.
GREEN Mark All: Mark all files in the folder.
YELLOW
Unmark All: Deselect all marked movies.
BLUE Enter or exit the Mark Mode.
Page 1/1
0RYLH/LVW
Page 1/186%;7,&.
0RYH3OD\3DJH&KDQJHᭋ0DUN
'ULYH
1.EMF BB7RS 20090711 FHD
MV 76
Page 1/1
0RYLH/LVW
Page 1/1
86%;7,&.
0RYH0DUN3DJH&KDQJHᭋ0DUN
'ULYH
1.EMF BB7RS 20090711 FHD
MV 76
1Select the target folder or drive.
2
ENTER
Select the desired
movie title.
3
ENTER
Play the movie file.
0DUN0RGH
&KDQJH'HYLFH 7R3KRWR/LVW &KDQJH1XPEHUV 0DUN0RGH ᭴([LW
3OD\0DUNHG 0DUN$OO 8QPDUN$OO ([LW0DUN0RGH ᭴([LW
MY MEDIA
MY MEDIA
106
!
NOTE
ŹOption values changed in Movie List
does not affect Photo List and Music
List.
ŹOption value changed in Photo List and
Music List are changed likewise in Photo
List and Music List excluding Movie List.
ᬱ01:02:30 / 02:30:25
ᬲᬳᬵ᬴᭳2SWLRQ ᬤ+LGH Exit
&KRRVHRSWLRQV
6HW9LGHR3OD\
6HW9LGHR
6HW$XGLR
&ORVH
EXIT
Move to the previous menu screen.
Select the required speed: x2, x4, x8, x16, x32 (backward/forward).
Displayed the still screen.
If no buttons are pressed on the remote control for 10 minutes after pausing, the
TV returns to the playback state.
Displays a slow motion.
Move to a specific frame forward or backward while playing a video. A cursor indi-
cating the position can be viewed on the screen. It may not work properly for
some files while playing a movie.
Return to normal playback.
BACK
Hide the menu on screen. To see the menu again, press ENTER button to display.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to increase the brightness of your
screen (Refer to p. ?).
AV MODE
Press the AV MODE button repeatedly to select the desired source (Refer to p. ?).
Using the remote control
Using the Movie List Function
1
Q.MENU
Show the Option menu.
2
ENTER
Select Set Video Play., Set Video,or
Set Audio.
107
MY MEDIA
Subtitle Language Group Supported Language
Latin1 English, Spanish, French
Korean English, Korean
Set Video Play menu option
6HW9LGHR3OD\
3LFWXUH6L]H ٮ)XOO ٪
$XGLR/DQJXDJH ٮ1٪
6XEWLWOH/DQJXDJH ٮ(QJOLVK ٪
ؐ/DQJXDJH ٮ8QNQRZ ٪
ؐ&RGH3DJH ٮ'HIDXOW ٪
ؐ6\QF ٮ0٪
ؐ3RVLWLRQ ٮ0٪
ؐ6L]H ٮ1RUPDO ٪
5HSHDW ٮ2II ٪
ᬤ3UHYLRXV
Picture Size: Selects your desired
picture format during movie play.
Audio Language: Changes the
Language Group of the audio during
movie play.
Subtitle Language: The subtitles can
be turned on or off. If there are two
or more subtitles, you can select one
of them.
Language:?
Sync: When the video is not synchro-
nized with the captions, it can be
adjusted by 0.5 second.
Position: Move the location of the
subtitle.
Size:?
Repeat: Turn on/off repeat function
of movie playback. When turned on,
the file within the folder will be played
back repeatedly.
1Select Picture Size, Audio Language,
Subtitle Language,orRepeat.
2Make appropriate adjustments.
Code Page
MY MEDIA
MY MEDIA
108

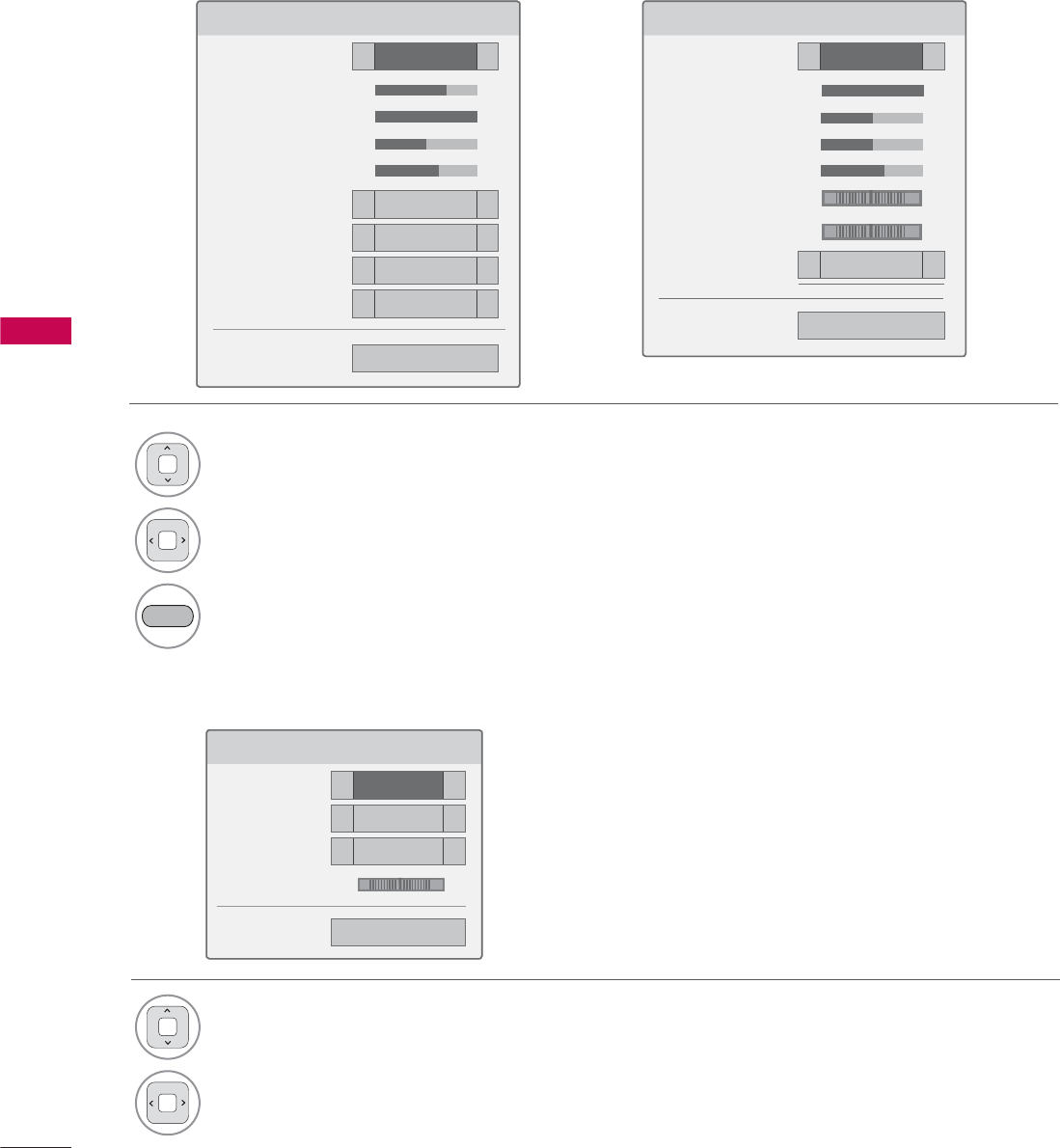

Set Video menu option
Set Audio menu option
6HW9LGHR
3LFWXUH0RGH ٮ6WDQGDUG ٪
ؐ%DFNOLJKW ٮ٪
ؐ&RQWUDVW ٮ٪
ؐ%ULJKWQHVV ٮ٪
ؐ&RORU ٮ٪
ؐ'\QDPLF&RQWUDVW ٮ0HGLXP ٪
ؐ(GJH(QKDQFHU ٮHigh ٪
ؐ1RLVH5HGXFWLRQ ٮ0HGLXP ٪
7UX0RWLRQ ٮ/RZ ٪
3LFWXUH5HVHW ᬤ3UHYLRXV
6HW9LGHR
3LFWXUH0RGH ٮ6WDQGDUG ٪
ؐ&RQWUDVW ٮ٪
ؐ%ULJKWQHVV ٮ٪
ؐ6KDUSQHVV ٮ٪
ؐ&RORU ٮ٪
ؐ7LQW ٮ٪
ؐ&RORU7HPS ٮ٪
ؐ1RLVH5HGXFWLRQ ٮ/RZ ٪
3LFWXUH5HVHW ᬤ3UHYLRXV
6HW$XGLR
6RXQG0RGH ٮ6WDQGDUG ٪
$XWR9ROXPH ٮ2II ٪
&OHDU9RLFH,, ٮ2II ٪
%DODQFH ٮ٪
ᬤ3UHYLRXV
L5
1Select Picture Mode or TruMotion.
2Make appropriate adjustments.
(Refer to p. ?)
BLUE Initialize the adjusted picture value.
1Select Sound Mode, Auto Volume, Clear
Voice II or Balance.
2Make appropriate adjustments.
(Refer to p. ?)
For LCD TV For Plasma TV
5G
WC
109
MY MEDIA
The On-Screen Display on your model may be slightly different.
PHOTO LIST
Screen Components
Supported photo file: *.JPG
You can play JPG files only.
Only baseline scan is supported among JPG (not progressive).
Available JPG size: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)
Select MY MEDIA.Select Photo List.
2
1
MENU
ENTER
ENTER
1Moves to upper level folder
2Current page/Total pages
3Corresponding buttons on the
remote control
4Contents under the folder
focused on 11
5Current page/total pages of
contents under the folder
focused on 1
Page 1/1
3KRWR/LVW
Page 1/1
'ULYH
1
5
2
3
1.EMF
BB7RS
BBB723
20090711 20090810
B7RS
20091010
'9'5LS$&
%DVLF7HVW.LW
(QWDO FHD HD MV 3KRWR 76
4
86%;7,&.
0RYH9LHZ3DJH&KDQJHᭋ0DUN
&KDQJH'HYLFH 7R0XVLF/LVW &KDQJH1XPEHUV 0DUN0RGH ᭴([LW
RED Changed device.
GREEN Converted to Music List.
YELLOW
Change Numbers: A method to view in 5 large photos or simple list.
BLUE Enter to Mark Mode.
EXIT
Return to TV viewing.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to increase the brightness of your
screen (Refer to p. ?).
MY MEDIA
MY MEDIA
110
Photo Selection
Use the CH (ᬧᬨ)button to naviga-
tion in the photo page.
When one or more photos are
marked, you can view individual pho-
tos or a slide show of the marked
photos. If no photos are marked, you
can view all photos individually or all
photos in the folder in a slide show.
1Select the target folder or drive.
2
ENTER
Select the desired
photo files.
3
FAV
MARK
CHAR/NUM
Mark your desired photo file.
4
RED View the marked photo file.
Mark Mode
RED View Marked: Display the selected photo.
GREEN Mark All: Mark all photos on the screen.
YELLOW
Unmark All: Deselect all marked photos.
BLUE Enter or exit the Mark Mode.
1Select the target folder or drive.
2
ENTER
Select the desired pho-
tos.
3
ENTER
Photo files are displayed.
Page 1/1
3KRWR/LVW
Page 1/1
'ULYH
1.EMF
BB7RS
BBB723
20090711 20090810
B7RS
20091010
'9'5LS$&
%DVLF7HVW.LW
(QWDO FHD HD MV 3KRWR 76
86%;7,&.
0RYH9LHZ3DJH&KDQJHᭋ0DUN
&KDQJH'HYLFH 7R0XVLF/LVW &KDQJH1XPEHUV 0DUN0RGH ᭴([LW
Page 1/1
3KRWR/LVW
Page 1/1
'ULYH
1.EMF
BB7RS
BBB723
20090711 20090810
B7RS
20091010
'9'5LS$&
%DVLF7HVW.LW
(QWDO FHD HD MV 3KRWR 76
86%;7,&.
0RYH0DUN3DJH&KDQJHᭋ0DUN
0DUN0RGH
3OD\0DUNHG 0DUN$OO 8QPDUN$OO ([LW0DUN0RGH ᭴([LW
111
MY MEDIA

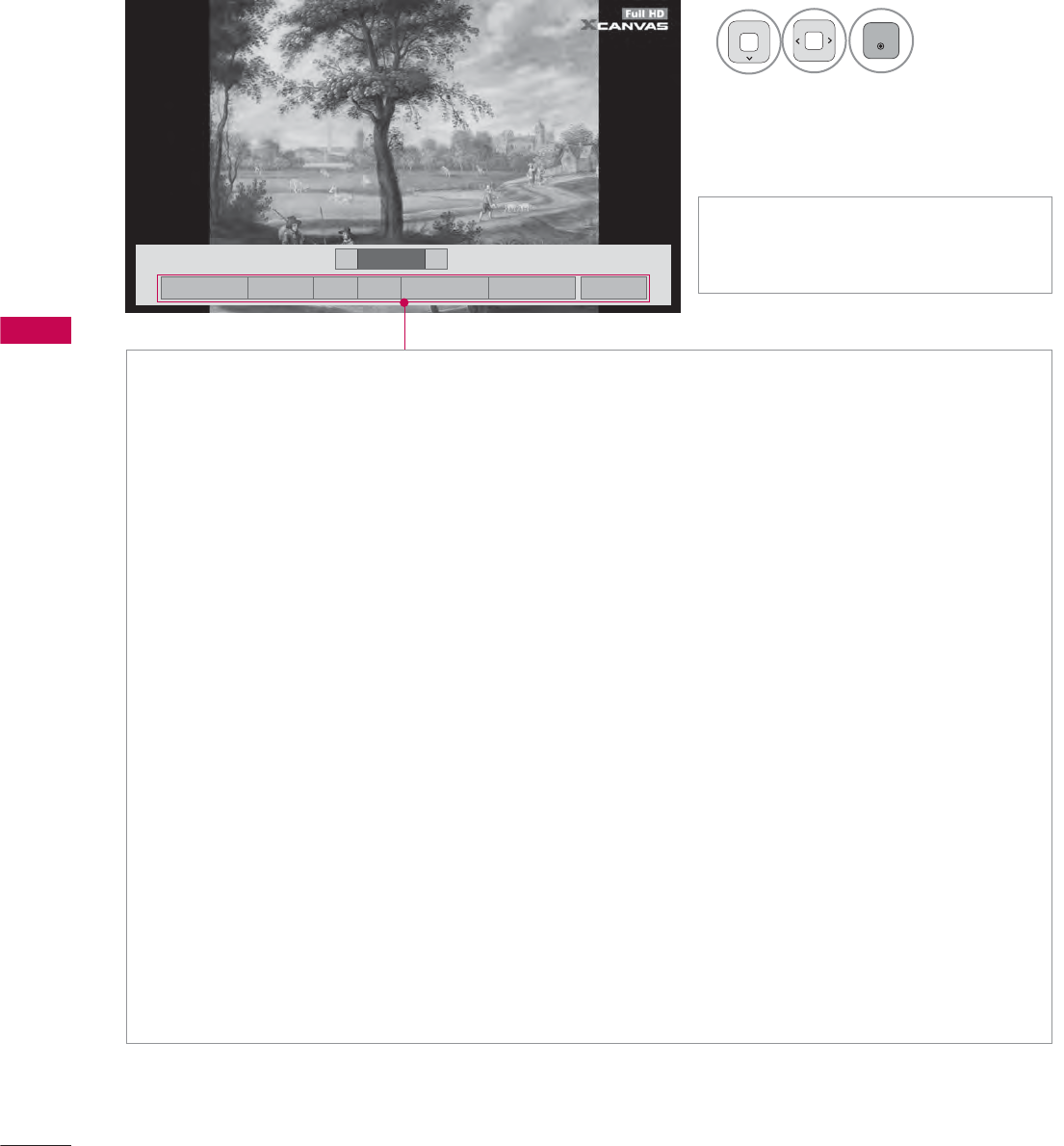

How to view photo
Detailed operations are available on full-sized photo view screen.
The aspect ratio of a photo may change the size
of the photo displayed on the screen in full size.
1Select the target folder or drive.
2
ENTER
Select the desired photos.
3
ENTER
The selected photo is displayed in full
size.
Use the CH (ᬧᬨ)button to naviga-
tion in the photo page.
ٮ٪
BDMSJ
2008/12/10
1920 x 1080
.%
6OLGHVKRZ᭫ %*0᭫ ᭮ ᬁ ᭳2SWLRQ ᬤ+LGH Exit
ٮ2/13 ٪
Page 1/1
3KRWR/LVW
Page 1/1
'ULYH
1.EMF
BB7RS
BBB723
20090711 20090810
B7RS
20091010
'9'5LS$&
%DVLF7HVW.LW
(QWDO FHD HD MV 3KRWR 76
86%;7,&.
0RYH9LHZ3DJH&KDQJHᭋ0DUN
&KDQJH'HYLFH 7R0XVLF/LVW &KDQJH1XPEHUV 0DUN0RGH ᭴([LW
MY MEDIA
MY MEDIA
112
ٮ٪
BDMSJ
2008/12/10
1920 x 1080
.%
6OLGHVKRZ᭫ %*0᭫ ᭮ ᬁ ᭳2SWLRQ ᬤ+LGH Exit
ٮ2/13 ٪
ŹSlideshow: Selected photos are displayed during the slide show. If no photo is selected, all photos
in the current folder are displayed during slide show.
Set the time interval of the slide show in Option-Set Photo View. menu.
You can adjust Option by using the Q.MENU button on the remote control.
ŹBGM (Background Music): Listen to music while viewing photos in full size.
Set the BGM device and album in in Option-Set Photo View. menu.
You can adjust Option by using the Q.MENU button on the remote control.
Ź᭮(Rotate) : Rotate photos.
Rotates the photo 90°, 180°, 270°, 360° clockwise.
Photo cannot be rotated if its width is greater than the available supported resolution height.
Źᬁ(Zoom In): View the photo by zoom in 2, 4 times by using Blue button.
ŹOption : Set values for Slide Speed and BGM.
You cannot change BGM while BGM is playing.
ŹHide : Hide the menu on the full-sized screen.
To see the menu again on the full-sized screen, press ENTER button to display.
ŹExit : Move to the previous menu screen.
Use
< >
button to select the previ-
ous or next photo.
4
ENTER
Select the Slideshow,
BGM,᭮(Rotate),
ᬁ(Zoom In),Option, or Hide.
113
MY MEDIA

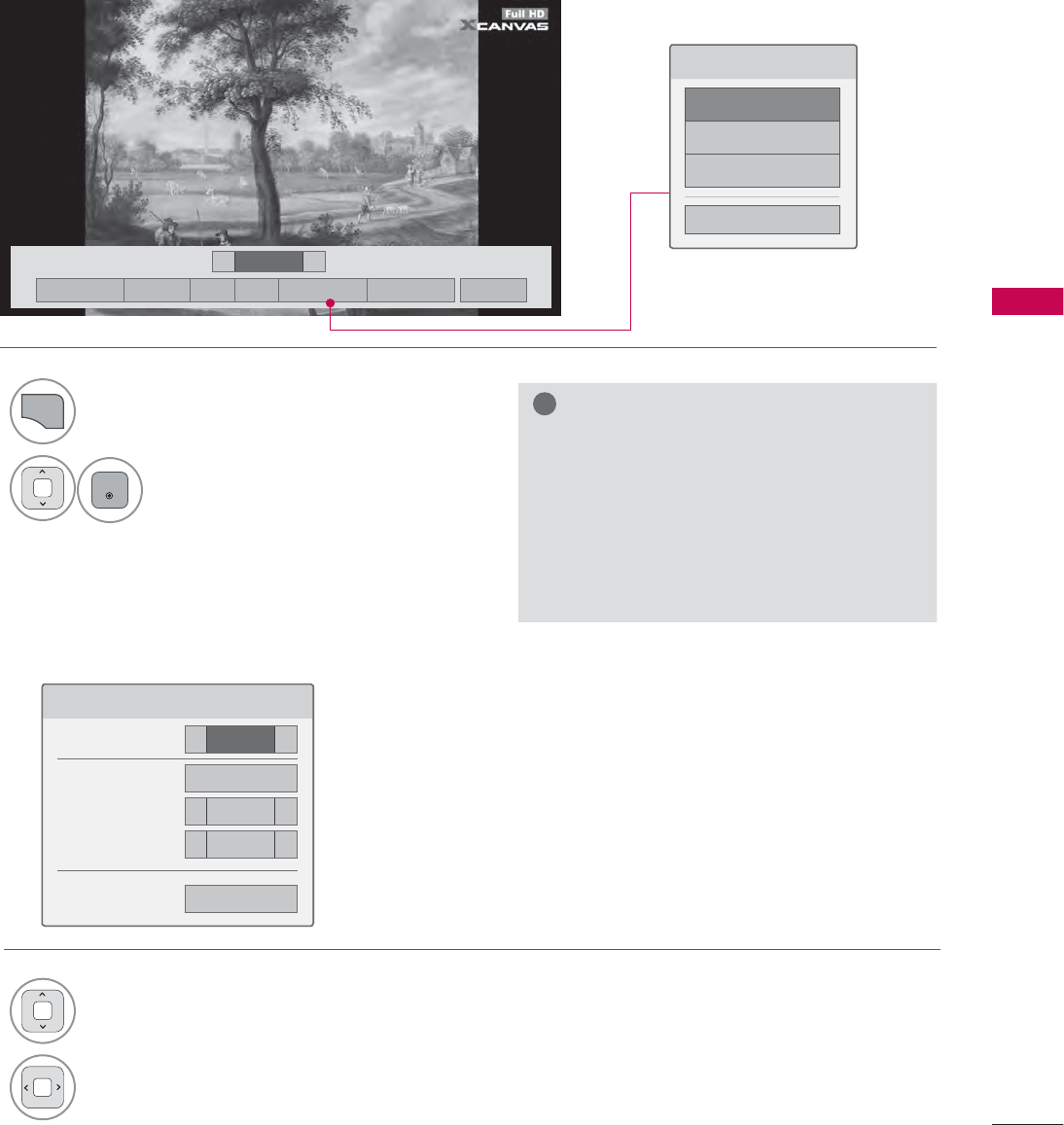

Using the Photo List Function
ٮ٪
BDMSJ
2008/12/10
1920 x 1080
.%
6OLGHVKRZ᭫ %*0᭫ ᭮ ᬁ ᭳2SWLRQ ᬤ+LGH Exit
ٮ2/13 ٪
&KRRVHRSWLRQV
6HW3KRWR9LHZ
6HW9LGHR
6HW$XGLR
&ORVH
!
NOTE
ŹOption values changed in Photo List
does not affect Movie List and Music
List.
ŹOption value changed in Photo List and
Music List are changed likewise in Photo
List and Music List excluding Movie List.
Set Photo View menu option
6HW3KRWR9LHZ
6OLGH6SHHG ٮFast ٪
BGM 'ULYH
ؐ5HSHDW ٮ2Q ٪
ؐ5DQGRP ٮ2II ٪
ᬤ3UHYLRXV
1
Q.MENU
Show the Option menu.
2
ENTER
Select Set Photo View., Set Video or
Set Audio.
1Select Slide Speed or BGM.
2Make appropriate adjustments.
(Refer to p. ?)
MY MEDIA
MY MEDIA
114
Set Video menu option
Set Audio menu option
6HW$XGLR
6RXQG0RGH ٮ6WDQGDUG ٪
$XWR9ROXPH ٮ2II ٪
&OHDU9RLFH,, ٮ2II ٪
%DODQFH ٮ٪
ᬤ3UHYLRXV
L5
1Select Picture Mode or TruMotion.
2Make appropriate adjustments.
(Refer to p. ?)
BLUE Initialize the adjusted picture value.
1Select Sound Mode, Auto Volume, Clear
Voice II or Balance.
2Make appropriate adjustments.
(Refer to p. ?)
6HW9LGHR
3LFWXUH0RGH ٮ6WDQGDUG ٪
ؐ%DFNOLJKW ٮ٪
ؐ&RQWUDVW ٮ٪
ؐ%ULJKWQHVV ٮ٪
ؐ&RORU ٮ٪
ؐ'\QDPLF&RQWUDVW ٮ0HGLXP ٪
ؐ(GJH(QKDQFHU ٮHigh ٪
ؐ1RLVH5HGXFWLRQ ٮ0HGLXP ٪
7UX0RWLRQ ٮ/RZ ٪
3LFWXUH5HVHW ᬤ3UHYLRXV
6HW9LGHR
3LFWXUH0RGH ٮ6WDQGDUG ٪
ؐ&RQWUDVW ٮ٪
ؐ%ULJKWQHVV ٮ٪
ؐ6KDUSQHVV ٮ٪
ؐ&RORU ٮ٪
ؐ7LQW ٮ٪
ؐ&RORU7HPS ٮ٪
ؐ1RLVH5HGXFWLRQ ٮ/RZ ٪
3LFWXUH5HVHW ᬤ3UHYLRXV
For LCD TV For Plasma TV
5G
WC
115
MY MEDIA
MUSIC LIST
Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be
supported by this model.
The On Screen Display may be different from your TV. Images are an example to assist with the TV
operation.
MUSIC (*.MP3) supporting file
Bit rate 32 ~ 320
ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[
ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[
ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[
Screen Components
Select MY MEDIA.Select Music List.
2
1
MENU
ENTER
ENTER
1Preview: If any album jacket for
the file (Album Art Image)
exists, this jacket is displayed.
2Moves to upper level folder
3Current page/Total pages
4Corresponding buttons on the
remote control
5Contents under the folder
focused on 1
6Current page/total pages of
contents under the folder
focused on 1
Page 1/1
0XVLF/LVW
Page 1/1
'LHWIHDWPS
00:00
0DGIHDWPS
00:00
)LUHPS
00:00
0HORG\PS
00:00
*LIWPS
00:00
5
2
4
'ULYH
86%;7,&.
3
1
0RYH3OD\3DJH&KDQJHᭋ0DUN
&KDQJH'HYLFH
7R0RYLH/LVW
&KDQJH1XPEHUV
0DUN0RGH ᭳2SWLRQ ᭴([LW
RED Changed device.
GREEN Converted to Movie List.
YELLOW
Change Numbers: A method to view in 5 large photos or simple list.
BLUE Enter to Mark Mode.
EXIT
Return to TV viewing.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to increase the brightness of your
screen (Refer to p. ?).
MY MEDIA
MY MEDIA
116
Music Selection
Use the CH (ᬧᬨ) button to naviga-
tion in the movie page.
When one or more movie files are
marked, the marked movies will be
played in sequence.
Mark Mode
1Select the target folder or drive.
2
ENTER
Select the desired
music title.
3
ENTER
Music files are played.
Page 1/1
0XVLF/LVW
Page 1/1
'LHWIHDWPS
00:00
0DGIHDWPS
00:00
)LUHPS
00:00
0HORG\PS
00:00
*LIWPS
00:00
'ULYH
86%;7,&.
0RYH3OD\3DJH&KDQJHᭋ0DUN
&KDQJH'HYLFH
7R0RYHL/LVW
&KDQJH1XPEHUV
0DUN0RGH ᭳2SWLRQ ᭴([LW
Page 1/1
0XVLF/LVW
Page 1/1
'LHWIHDWPS
00:00
0DGIHDWPS
00:00
)LUHPS
00:00
0HORG\PS
00:00
*LIWPS
00:00
'ULYH
86%;7,&.
0RYH0DUN3DJH&KDQJHᭋ0DUN
0DUN0RGH
1Select the target folder or
drive.
2
ENTER
Select the desired
movie title.
3
FAV
MARK
CHAR/NUM
Mark your desired music file.
4
RED Play the marked music file.
RED
Play Marked: Play the selected songs. Once a
song finishes playing, the next selected one
will be played automatically.
GREEN Mark All: Mark all songs in the folder.
YELLOW
Unmark All: Deselect all marked song.
BLUE Enter or exit the Mark Mode.
3OD\0DUNHG 0DUN$OO 8QPDUN$OO ([LW0DUN0RGH ᭴([LW
117
MY MEDIA
Using the Music List Function
Page 1/1
0XVLF/LVW
Page 1/1
ᬱ02:30 / 03:250DG)HDWPS
ᬲᬳᬵ᬴3OD\ZLWK3KRWR ᬥ(QHUJ\6DYLQJ ᭳2SWLRQ ᬤ+LGH ᭴([LW
ILOHV0DUNHG
'LHWIHDWPS
00:00
002. -
0DGIHDWPS
00:00
)LUHPS
00:00
0HORG\PS
00:00
*LIWPS
00:00
ᬱ
&KRRVHRSWLRQV
6HW$XGLR3OD\
6HW$XGLR
&ORVH
Stop the song.
Return to normal playback.
Paused the song.
Select the previous or next song.
GREEN Play with Photo: Start playing the selected songs and then move to the Photo List.
ENERGY
SAVING
Press the ENERGY SAVING button repeatedly to increase the brightness of your screen
(Refer to p. ?).
A cursor indicating the position can be played on the screen.
EXIT
Move to the previous menu screen.
Using the remote control
1
Q.MENU
Show the Option menu.
2
ENTER
Select Set Audio Play or Set Audio.
'ULYH
MY MEDIA
MY MEDIA
118
6HW$XGLR3OD\
5HSHDW ٮ2Q ٪
5DQGRP ٮ2II ٪
ᬤ3UHYLRXV

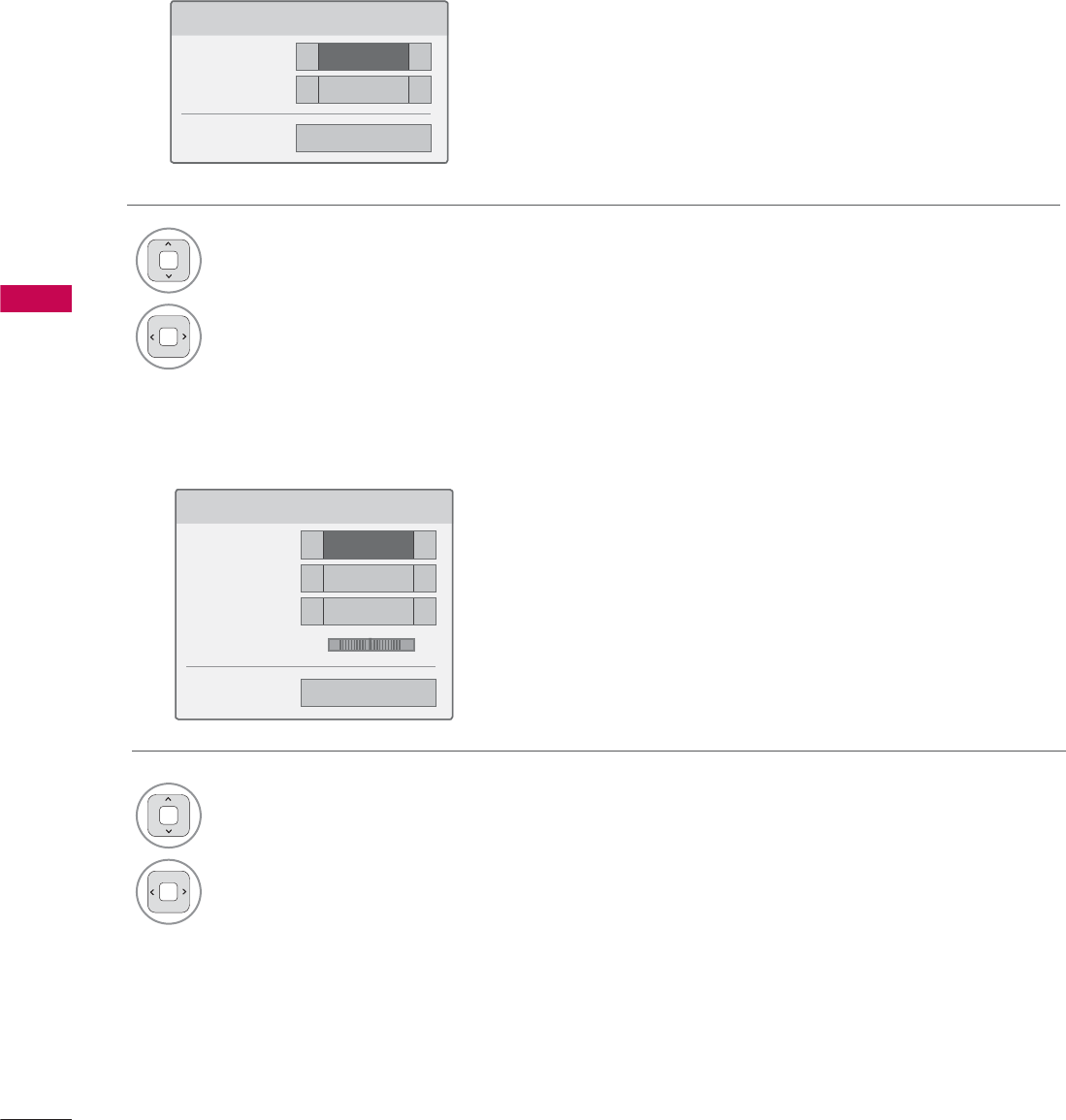

Set Audio Play menu option
Set Audio menu option
6HW$XGLR
6RXQG0RGH ٮ6WDQGDUG ٪
$XWR9ROXPH ٮ2II ٪
&OHDU9RLFH,, ٮ2II ٪
%DODQFH ٮ٪
ᬤ3UHYLRXV
L5
1Select Repeat or Random.
2Make appropriate adjustments.
(Refer to p. ?)
1Select Sound Mode, Auto Volume, Clear
Voice II or Balance.
2Make appropriate adjustments.
(Refer to p. ?)
119
MY MEDIA
!
NOTE
ŹWhen a music file is played, ڈis displayed in front of the music play time.
ŹA damaged or corrupted music file that does not play displays 00:00 as the play time.
ŹMusic files with copy-protection will not play.
ŹPress ENTER, ᬲ or BACK button to stop the screen saver.
If you don't press any button for a while during the playing, the play
information box (as shown in the below) will float as a screen saver.
The ‘Screen Saver’?
Screen saver is to prevent screen pixel damage due to an fixed
mage remaining on the screen for a extended period of time
9HOYHWH*ROGPLQHPS
ᬱ00:31 / 04:04
NETWORK
NETWORK
122
LEGAL NOTICE
NETWORK
1
MENU
Select NETWORK.
2
ENTER
Select Legal Notice.
3
ENTER
Check Legal notice.
4
EXIT
Return to TV viewing.
NETWORK 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
NETWORK 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
/HJDO1RWLFH
&ORVH
,03257$17127,&(5(/$7,1*721(7:25.
6(59,&(
$OOFRQWHQWDQGVHUYLFHVDFFHVVLEOHWKURXJKWKLV
GHYLFHEHORQJWRWKLUGSDUWLHVDQGDUHSURWHFWHGE\
FRS\ULJKWSDWHQWWUDGHPDUNDQGRURWKHU
LQWHOOHFWXDOSURSHUW\ODZV6XFKFRQWHQWDQG
VHUYLFHVDUHSURYLGHGVROHO\IRU\RXUSHUVRQDO
QRQFRPPHUFLDOXVH<RXPD\QRWXVHDQ\FRQWHQW
RUVHUYLFHVLQDPDQQHUWKDWKDVQRWEHHQ
SDJH
123
NETWORK
IMPORTANT NOTICE RELATING TO NETWORK SERVICE
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may
not copy, upload, post, transmit, translate, sell, modify, create derivative works, or distribute in any
manner or medium any content or services displayed through this device.
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE DEVICE AND ALL THIRD PARTY
CONTENT AND SERVICES ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY DISCLAIMS ALL WARRANTIES AND
CONDITIONS WITH RESPECT TO ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY
RIGHTS. LG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR
COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE
AND DOES NOT WARRANT THAT THE DEVICE OR SERVICES WILL MEET YOUR REQUIREMENTS,
OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-
FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL LG BE LIABLE, WHETHER
IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR ANY OTHER DAMAGES ARISING OUT OF, ANY INFORMATION CONTAINED IN, OR
ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Third party services may be changed, suspended, removed, terminated or interrupted, or access may
be disabled at any time, without notice, and LG makes no representation or warranty that any content
or service will remain available for any period of time. Content and services are transmitted by third
parties by means of networks and transmission facilities over which LG has no control. LG may
impose limits on the use of or access to certain services or content, in any case and without notice
or liability. LG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FOR ANY CHANGE,
INTERRUPTION, DISABLING, REMOVAL OF OR SUSPENSION OF ANY CONTENT OR SERVICE
MADE AVAILABLE THROUGH THIS DEVICE.
LG is neither responsible nor liable for customer service related to the content and services. Any
question or request for service relating to the content or services should be made directly to the
respective content and service providers.
NETWORK
NETWORK
124
NETFLIX ESN (ELECTRONIC SERIAL NUMBER)
We provide you the Netflix ESN (Electronic Serial Number) that allows you to watch videos using the
Netflix website.
For more information, please visit: www.netflix.com
NETWORK 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
NETWORK 0RYH(QWHU
ؐ 1HWZRUN7\SH :LUHG
ؐ 1HWZRUN6HWWLQJ
ؐ 1HWZRUN6WDWXV
ؐ /HJDO1RWLFH
ؐ (61
&ORVH
(611XPEHU/*([[[[[[[[[[[[[[[[[[[[
1
MENU
Select NETWORK.
2
ENTER
Select ESN.
3
ENTER
See the ESN serial number.
125
NETCAST
NETCAST
NETCAST MENU
1Select NETCAST menu option.
2
ENTER
Enjoy the Yahoo!,NETFLIX,Vudu,Picasa, or
YouTube.
These services are provided by the Content Provider.
All the services are dependent on appropriate Content Provider.
Please contact web site for detail information (But, some content manual maybe not provide depending
on Content Provider).
Yahoo!
Yahoo! TV Widgets give you the best of the Internet in perfect harmony with the simplicity and reli-
ability of your TV. TV Widgets deliver a Cinematic internetTM experience by converting your favorite
web services for viewing on the TV.
Netflix
You can instantly watch movies (quite a few new releases) & TV episodes from Netflix streamed over
the internet to your TV.
To become a Netflix member visit: www.netflix.com/LG
Note that this service is provided by the Content Provider, Netflix. It is dependent on Netflix to
provide the data.
Vudu
In order to make rental/purchase transactions on the Vudu service, a user must create an account
on vudu.com.
That account is linked to a specific device, via a process called “activation”. It is possible to have
multiple devices associated with a single Vudu account.
Note that this service is provided by the Content Provider, Vudu. It is dependent on Vudu to provide
the data.
Picasa?
YouTube?
NETCAST
NETCAST
126
YAHOO! TV WIDGETS
You can enjoy the best of the Internet in perfect harmony with the simplicity and reliability of your TV.
Yahoo! TV Widgets provide an integrated Internet TV experience powered by the Yahoo!® Connected
TV platform. You can monitor financial stocks, share photos with friends and family, track news and
weather and much more, all through the Yahoo! TV Widgets service on your TV.
Note that these services are provided by the Content Provider, using Yahoo! Widget Platform provided
by Yahoo!. All the services are dependent on appropriate Content Provider. Please check about page
of each widgets for Terms of service.
Note If you have any question or need any help for the widgets which is not covered in this manual,
please contact web site for further help which shall be listed in about page of each widget, or Yahoo!
help site http://conntectedtv.yahoo.com/help.

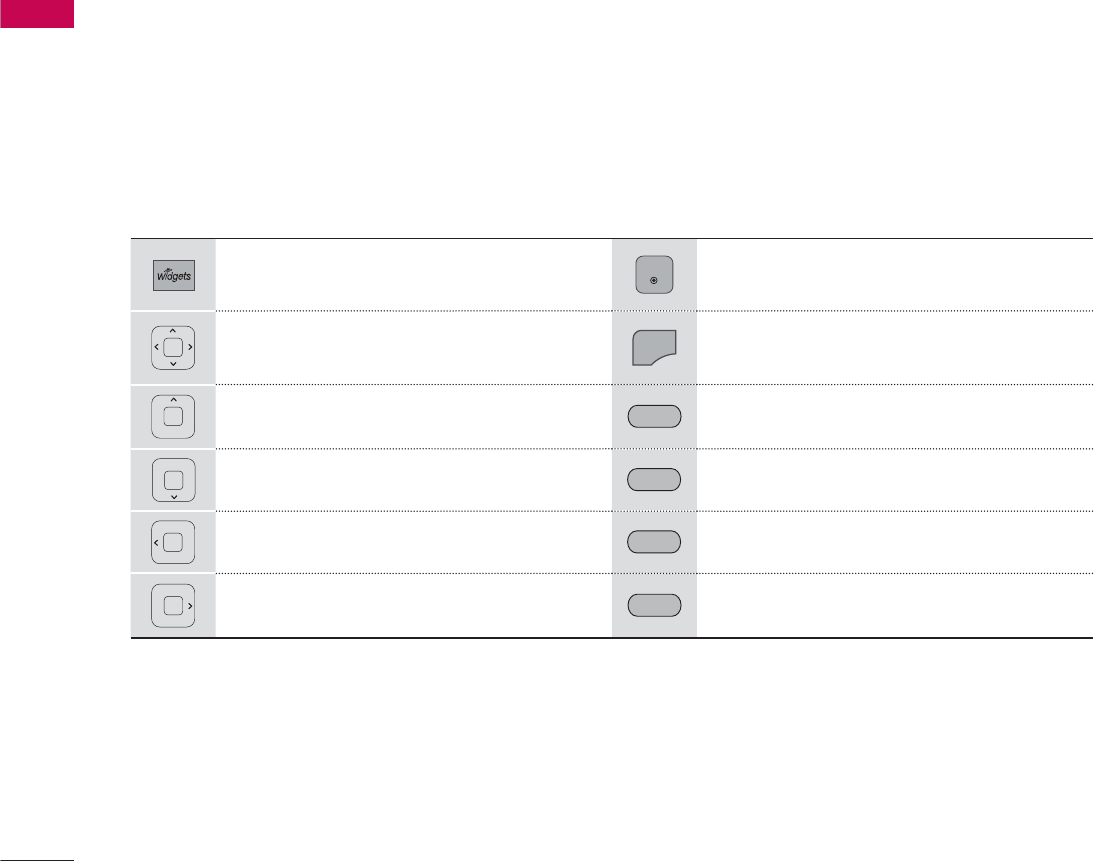

Using the Remote Control
When Yahoo! TV Widgets are displayed, you can use the following remote control buttons.
Getting Started Out of the Box
Once your television is powered up and your network is operational, the Yahoo! TV Widgets software
guides you through its step-by-step on-screen wizard the first time you startup. These setup steps are
designed to provide you with the information and settings you’ll need to start using the Yahoo! TV
Widgets user interface.
Begin using Yahoo! TV Widgets. Press
it again to go back to just watching TV.
ENTER
Select the focused item.
Highlight and focus on buttons in the
Yahoo! TV Widgets user interface.
MENU
Go to the TV Menu.
Move the focus selection up. RED Close the open widget and return to
watching TV.
Move the focus selection down. GREEN Change the open widget’s settings.
Move the focus selection to the left.
YELLOW
Add, move, or delete your snippets.
Move the focus selection to the right. BLUE Resize the video to fit onscreen, or to
make it fullscreen.
What is a TV Widget?
A TV Widget is an Internet application designed to run on your TV.
What is a Snippet?
A Snippet is a shortcut used to open a TV Widget, as a dynamic bookmark to TV Widget content.
127
NETCAST
Guided Setup
Activate Yahoo! TV Widgets. The first time you use Yahoo! TV Widgets the step-by-step
wizard begins with the Welcome Screen.
1
ENTER
Select Let’s get started!. If you select
Exit Setup now, this step will be
resumed the next time you press
WIDGETS.
Navigate to your location.
ENTER
Select your country.
ENTER
Select Ok, I accept.
ENTER
Select Ok, I accept.
ENTER
Select Continue and review the tutorial.
Select Exit setup to start using Yahoo!
Widgets now.
2Choosing your country allows the use of
localized content.
3Accepting the Yahoo! Privacy Policy is required
to use Yahoo! Widgets.
4Accepting Yahoo! Terms of Service is also
required to use Yahoo! TV Widgets.
6Test your network connection. After setup is
completed, a tutorial on how to use Yahoo! TV
Widgets will come up next.
5Enter your name to setup your profile.
ENTER
Select letters and spell your
name.
ENTER
Select Save this name and
create your profile.
NETCAST
NETCAST
128
Using Yahoo! TV Widgets
The sidebar’s bottom toolbar includes four color-
coded buttons.
RED Close the sidebar and return to
watching TV.
YELLOW
Add or delete a snippet.
GREEN Change the widget’s settings. BLUE Resize video to fit onscreen, or to
make it fullscreen.
Activate Yahoo! TV Widgets.
The horizontal list at the bottom of your TV
screen is called “the dock”.
The items in this list are called “snippets”.
A snippet is a shortcut which opens a TV
Widget.
Move between snippets.
Focus is located in the leftmost region (high-
lighted in dark red).
The dock scrolls snippets under this focal
point.
ENTER
Open the Sidebar when the TV Widget snippet
is in focus.
The Home button including the main logo is
at the top of the sidebar.
Navigate a menu item.
The currently focused button is the one high-
lighted in dark red.
ENTER
Select the focused button.
129
NETCAST
Using the Profile Widget
The Profile Widget configures your user profile.
You can set up multiple profiles for multiple users.
Each profile maintains its own list of TV Widgets.
The Switch Profile menu allows you to switch to a different user profile.
The Profile Settings menu allows you to customize your profile, create
a profile PIN, or limit the installation of widgets.
The System Settings menu allows you to change your Location,
Repeat the Tutorial, and Restore Factory Settings.
Restore Factory Settings will erase all profiles and widgets installed
by users, and restore the original configuration. (See also NetCast
Options Reset Yahoo! Factory Settings)
The Administrative Controls menu allows you to set the Screen
Saver timeout, create the Owner PIN, and to Create a Profile.
The Sign in to Yahoo! menu allows you to personalize your experience
using your Yahoo! ID.
If you don’t have a Yahoo! ID yet, please visit http://www.yahoo.com
to create one.
Using the Widget Gallery
The Widget Gallery allows you to browse and discover new TV
Widgets.
The featured TV Widgets are highlighted in the display case at the
top of the sidebar.
You can also browse available TV Widgets by category.
To install a widget, select Add Widget to My Profile and press the
ENTER button.
The Owner PIN is needed to install widgets for profiles that have
been protected through the Limit Profile indicator under Profile
Widget Profile Settings.
Go to the Profile Widget Administrative Controls menu to set or
change the Owner PIN.
NETCAST
NETCAST
130
Using the Yahoo! News Widget
The Yahoo! News Widget provides the latest headline news for
business, entertainment, politics, sports, top stories, and many
other categories.
Select a category, press ENTER.
Select a headline within the category, press ENTER.
View the dynamically updated news summary for the selected
headline.
Using the Yahoo! Weather Widget
The Yahoo! Weather Widget provides updates on your local and
favorite weather locations with content that dynamically changes
with weather conditions.
Press the GREEN button to display the Settings menu.
From the Settings menu you can add or remove a city for which
you want to view weather information.
-Add a New City by entering the name of the city.
Once the search results are displayed, select the city you want
and press ENTER button.
-Delete a City by selecting the city you want to delete from the
city list. Press ENTER button and confirm the deletion.
- Select the Display Units As button to change the temperature
indication mode to Imperial or Metric.Imperial will show tem-
peratures in Fahrenheit and Metric will use Celsius.
To create a snippet for a favorite city:
- Select the city from the home page and view the detailed
weather information.
- Press the YELLOW button.
- Select the Add Snippet button and press ENTER to add the
city as a snippet.
To delete a snippet for a city:
- Navigate to the snippet and press ENTER button to start the
widget. The detailed page for the snippet’s city will be dis-
played.
- Press the YELLOW button.
- Select the Delete Snippet button and press ENTER button to
remove the snippet.
131
NETCAST
Using the Yahoo! Finance Widget
View stock information and the latest stock news with the Yahoo!
Finance Widget.
Press the GREEN button to set up your stocks.
- Use the Add New Symbol menu to enter the name of a new
stock.
- Select the stock you want to add from the search results and
select the Add Symbol button and press ENTER button.
- The selected stock is added to the My Stocks list.
- The Import Symbols From Yahoo! menu retrieves the stocks
from your Yahoo! Finance portfolio.
- The Merge Symbols button merges the symbols in the Yahoo!
Finance Widget with the symbols from your portfolio.
- The Replace Symbols button deletes the symbols in the Yahoo!
Finance Widget and replaces them with the symbols from your
portfolio.
- The Display Format button changes the stock-price fluctua-
tion transition to Value or Percentage.
To create a snippet for a favorite stock:
- Select the stock symbol from the home page and view the
detailed finance information.
- Press the YELLOW button.
- Select the Add Snippet button and press ENTER button to add
the stock as a snippet.
To delete a snippet:
- Navigate to the snippet and press ENTER button to start wid-
get. The detailed page for the snippet’s stock will be displayed.
- Press the YELLOW button.
- Select the Delete Snippet button and press ENTER button to
remove the snippet.
NETCAST
NETCAST
132
Using the flickr Widget
The flickr Widget provides a television-viewing experience
while watching slideshows of family and friends’ photos.
Personalize the flickr Widget by logging in with your
Yahoo! ID. Refer to Using the Profile Widget for instruc-
tions.
The Your Photos menu shows photos you have registered
with the flickr website.
The Your Sets menu allows you to view photos you have
classified in flickr.
The Explore menu allows you to explore photos featured
by the flickr website.
The Mark as Favorite moves photos to your Favorite
Photos set.
The Favorite Photos menu allows you to see the photos
you have classified as favorites.
The Your Contacts menu allows you to see updates from
family and friends.
The Your Groups menu allows you to select your favorite
groups from the flickr website http://www.flickr.com to
share and enjoy photos with the flickr community of
users.
To view photos in a slideshow:
- Select a thumbnail of a photo and press ENTER button
to view the photo’s details.
- Select Start Slideshow and press ENTER button.
To control the slideshow display:
- Press ENTER button during a slideshow.
- The thumbnails of photos are displayed on the bottom
of the screen.
- When the slideshow control is displayed, you can Pause,
Play, and Stop the slideshow.
- If you select the INFO button and press ENTER button,
you can view details for the selected photo.
To configure the Settings, press the GREEN button.
- The Time Per Slide button controls the speed of the
slideshow.
- The Repeat button will restart the slideshow at the
beginning after the last photo is shown.
133
NETCAST
Restoring Yahoo! Factory Settings will delete all of your profiles and installed widgets.
Restore Yahoo! Factory Settings
1Display NetCast menu.
2
RED Select Setup option.
3
ENTER
Select Service Maintenance.
4
ENTER
Select Restore Yahoo! Factory Settings.
5
ENTER
Select Yes to restore Yahoo! factory settings.
This TV will restore Yahoo! factory settings.
6HWXS
:HDWKHU(IIHFW
6HUYLFH0DLQWHQDQFH
&ORVH
1HWFDVW2SWLRQ
5HVWRUH<DKRR)DFWRU\6HWWLQJV
1HWIOL['HDFWLYDWLRQ
9XGX'HDFWLYDWLRQ
&ORVH
&DQFHO
OK
'R\RXZDQWWRUHVWRUH<DKRRIDFWRU\
VHWWLQJ"
7KLVZLOOGHOHWHGDOOWKHSURILOHVDQGZLGJHWV
\RXKDYHLQVWDOOHG
"
NETCAST
NETCAST
134
YouTube is a video sharing website where users can upload, view, and share video clips.
Featured: The featured videos list will be displayed.
Popular: The best rated videos list from YouTube server will be displayed.
Most Viewed: The most viewed videos list will be displayed.
Search: The keyboard menu will be displayed.
History: The videos list that you previously played will be displayed. Maximum of 20 videos can be stored.
Favorites: In sign-in status, this menu will be displayed the videos list that is arranged in the YouTube
server with your account (Some videos may not appear on the Favorites list, even if the videos are
arranged in the server). In sign-out status, you can add the video to Favorites using RED button on the
remote control.
Sign in (Sign Out): Displays the keyboard menu to sign in or returns to the sign-out status.
YouTube Screen Components
YouTube menu
Home
Videos Being Watched Now
ꔅ Option ꕒ Netcast ꘪ Exit
ꔃ
Featured
Broadcast Yourself TM
Butterfly (11/2509-266)
PSS
93541 Views
ꕓꕓꕓꕓꕓ
Popular Most Viewed Search
Sign In
Play now
West WestRacing news Butterfly Big Bird
1YouTube menu
2Videos list
3Period options: If you select the
Most Viewed or To p R a t e d in
the YouTube menu, the period
options appear at the bottom of
the screen
1
2
3
!
NOTE
ŹThe videos list searched from the TV may different with the list searched from a web browser on
PC.
ŹThe settings of this TV do not affect the YouTube’s playback quality.
ŹThe playback of YouTube videos may be paused, stopped or buffering occurring often depending
on your broadband speed.
We recommend a minimum connection speed of 1.5 Mbps. For the best playback condition, a
connection speed of 4.0 Mbps is required. Sometimes your broadband speed varies based on your
ISP’s network conditions. Contact your ISP if you have problems maintaining a fast connection that
is reliable, or if you want to increase your connection speed. Many ISPs offer a variety of broadband
speed options.
135
NETCAST
YouTube
YouTube playback
When the palyback ends or stops
While watching a video from YouTube via TV, you can control the YouTube video playback. You can use
the buttons on the remote to pause and resume viewing.
1
ENTER
Select YouTube.
2Select the desired YouTube menu.
3
ENTER
Update the video list for the selected
YouTube menu.
4Select the desired video.
5
ENTER
Starts playback the video with content
detail.
BACK
Return to previous menu.
1Select the current video or a video from the
related videos list.
2
ENTER
Play the selected video.
Home
Videos Being Watched Now
ꔅ Option ꕒ Netcast ꘪ Exit
ꔃ
Featured
Broadcast Yourself TM
Butterfly (11/2509-266)
PSS
93541 Views
ꕓꕓꕓꕓꕓ
Popular Most Viewed Search
Sign In
Play now
West WestRacing news Butterfly Big Bird
Broadcast Yourself TM
Butterfly
Sign In
PSS
93541 Views
ꕓꕓꕓꕓꕓ
0:00:03/0:04:03
Descriptoions
Butterfly
ꔅ Full Screen ꕒ Netcast ꕉ Return
ꕗ ꕘ
i
Broadcast Yourself TM
Butterfly
Sign In
PSS
93541 Views
ꕓꕓꕓꕓꕓ
0:00:03/0:04:03
Descriptoions
Butterfly
ꔅ Full Screen ꕒ Netcast ꕉ Return
ꕗ ꕘ
i
2SWLRQ
6HWWLQJ3HULRG
/RFDO6HWWLQJ
&ORVH
Stops the video and displays relat-
ed videos list.
Pause the video while it is playing.
GREEN
Toggle between playback in full
screen and playback screen with
content detail.
Return to Netcast menu.
Skip the playback forward or back-
ward.
EXIT
Return to TV viewing.
NETCAST
NETCAST
136
Choose which country’s videos you would like to view. The countries listed on the Local Setting menu
may different with those listed on the YouTube web site.
In Popular and Most View menu, you can this menu.
Local Setting
Setting Period
YouTube
YouTube
Home
Videos Being Watched Now
ꔅ Option ꕒ Netcast ꘪ Exit
ꔃ
Featured
Broadcast Yourself TM
Butterfly (11/2509-266)
PSS
93541 Views
ꕓꕓꕓꕓꕓ
Popular Most Viewed Search
Sign In
Play now
West WestRacing news Butterfly Big Bird
Home
Videos Being Watched Now
ꔅ Option ꕒ Netcast ꘪ Exit
ꔃ
Featured
Broadcast Yourself TM
Butterfly (11/2509-266)
PSS
93541 Views
ꕓꕓꕓꕓꕓ
Popular Most Viewed Search
Sign In
Play now
West WestRacing news Butterfly Big Bird
2SWLRQ
6HWWLQJ3HULRG
/RFDO6HWWLQJ
&ORVH
2SWLRQ
6HWWLQJ3HULRG
/RFDO6HWWLQJ
&ORVH
1
ENTER
Select YouTube.
2
RED Select Option menu.
3
ENTER
Select Local Setting.
4
ENTER
Select the desired country.
1
ENTER
Select YouTube.
2
RED Select Option menu.
3
ENTER
Select Setting Period.
4
ENTER
Select the desired period option.
6HWWLQJ3HULRG
7RGD\
٠7KLV:HHN
٠7KLV0RQWK
٠$OO7LPH
&ORVH
137
NETCAST
Searching videos
You can search for videos by entering search words of up to 128 characters.
Select Search. It displays the
keyboard menu.
1
Select Sign In.
1
Select New User Name.
It displays the keyboard menu
for entering a new ID and
password.
X: Delete the stored ID as
2
Select ENTER to display the
related videos list when you
finish entering the search
3
Select a character.
When you entering a character, maxi-
mum of 5 suggestion words will be
displayed.
2
Select a character.
3
To watch videos from your Favorites video list on the YouTube server with your account, you need to sign
in with your YouTube account.
Sign in with your YouTube account
Select ENTER to confirm your selection on
the keyboard menu.
If you want to sign out, select the Sign Out
from the YouTube menu and press ENTER.
4
Search
Enter
l
Cancel
Move Select ReturnNETCAST
Sign In
Move Select ReturnNETCAST
nThis TV can automatically store up to
5 IDs which were previously signed-
in. The IDs list appears when you
select the Sign In. Select a stored ID
on the list and press ENTER to dis-
play the keyboard menu with the
selected ID is entered. You will only
need to enter the password to sign in.
New User Name
Mi
X
Sign In
ID
Move Select ReturnNETCAST
Enter Cancel
l
PW
Move Select ReturnNETCAST
PICTURE CONTROL
151
Dynamic Contrast
Adjusts the contrast to keep it at the best level according to the brightness
of the screen. The picture is improved by making bright parts brighter and
dark parts darker.
Dynamic Color
Adjusts screen colors so that they look livelier, richer and clearer. This fea-
ture enhances hue, saturation and luminance so that red, blue, green and
white look more vivid.
Skin Color
(For LCD TV)
Expresses natural skin by detecting skin area of the video.
Noise Reduction
Reduces screen noise without compromising video quality.
Digital Noise
Reduction
Removes noise regarding MPEG compressed video.
Gamma
You can adjust brightness of dark area and middle gray level area of the
picture.
Low or 1.9 : Make dark and middle gray level area of the picture brighter.
Medium or 2.2 : Express original picture levels.
High or 2.4: Make dark and middle gray level area of the picture darker.
Black Level
Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.
Set black level of the screen to proper level.
This function is available in the following modes: AV (NTSC-M), HDMI or
Component.
Clear White
Preserve and maintain original values of Skin color.
Eye Care
(For LCD TV)
Adjust the brightness of the screen to prevent the screen from being too
bright. Dims extremely bright pictures.
This feature is disabled in “Picture Mode-Vivid,Cinema,Intelligent Sensor
(For LCD TV)”.
Real Cinema
or
Film Mode
Makes video clips recorded in film look more natural by eliminating judder
effect.
DVD and Blu-ray movies are filmed at 24 frames per second (fps). With
LG Real Cinema, every frame is consistently processed 5 times in 1/24 of
a second producing 120 fps with TruMotion or 2 times in 1/24 of a second
producing 48 fps without TruMotion, thus totally eliminating the judder
effect.
Color Gamut
Advanced Control
Standard: Displays standard set of colors.
Wide: Increase number of colors used.
Maximize the utilization of color to increase color quality.
Expert Control
Displays color domain of signal in Expert Control.
PICTURE CONTROL
PICTURE CONTROL
152
Edge Enhancer
Show clearer and distinctive yet natural edges in of the video.
xvYCC
*This feature is not available for all models.
This is the function to express richer color.
This feature represents rich color as much as conventional video signal.
This function is enabled in "Picture mode - Cinema,Expert" when xvYCC
signal is inputted through HDMI.
Color Filter
This is the function to filter the specific colors of the video.
You can use the RGB filter to set color saturation and hue accurately.
Expert Pattern
This is the pattern necessary for expert adjustment.
This function is enabled in "Picture mode - Expert" when you watch DTV.
Color Temperature
Adjusts the overall color of the screen by changing the color of white.
a. Method : 2 Points
- Pattern: Inner, Outer
- Red/Green/Blue Contrast, Red/Green/Blue Brightness:
The adjustment range is -50 - +50.
LCD TV
b. Method : 10 Point IRE
- Pattern: Inner, Outer
- IRE (Institute of Radio Engineers) is the unit to display the size of the video
signal and can be set among 10, 20, 30 - 100. You can adjust Red, Green
or Blue according to each setting.
- Luminance: This function displays calculated luminance value for 2.2
gamma. You can input luminance value you want at 100 IRE, than the
target luminance value for 2.2 gamma is displayed at every 10 steps from
10 IRE to 90 IRE.
- Red/Green/Blue: The adjustment range is -50 - +50.
Plasma TV
b. Method : 20 Point IRE
- IRE (Institute of Radio Engineers) is the unit to display the size of the video
signal and can be set among 5, 10, 15 - 100 Plasma TV. You can adjust
Red, Green or Blue according to each setting.
- Red/Green/Blue: The adjustment range is -50 - +50.
Color Management
System
As the tool used by the experts to make adjustments by using the test
patterns, this does not affect other colors but can be used to selectively
adjust the 6 color areas (Red/Green/Blue/Cyan/Mgt/Yellow).
Color difference may not be distinctive even when you make the adjust-
ments for the general video.
Adjusts Red/Green/Blue/Yellow/Cyan, Magenta.
- Red/Green/Blue/Yellow/Cyan, Magenta Color: The adjustment range is
-30 - +30.
- Red/Green/Blue/Yellow/Cyan, Magenta Tint: The adjustment range is -30
- +30.
- This feature is disable in RGB-PC and HDMI-PC mode.
OPC
*This feature is not available for all models.
As the technology to reduce the power consumption while keeping the
same brightness, this has the effect of reducing power consumption,
improvement in contrast.
187
PARENTAL CONTROL / RATING
APPENDIX
Abnormal Operation
The remote control
doesn’t work
Check to see if there is any object between the product and the remote
control causing obstruction. Ensure you are pointing the remote control
directly at the TV.
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
Ensure that the correct remote operating mode is set: TV, VCR etc.
Install new batteries.
Power is suddenly
turned off
Is the sleep timer set?
Check the power control settings. Power interrupted.
If there is no signal, the TV turns off automatically in 15 minutes.
Video Problems
No picture &No sound
Check whether the product is turned on.
Try another channel. The problem may be with the broadcast.
Is the power cord inserted into wall power outlet?
Check your antenna direction and/or location.
Test the wall power outlet, plug another product’s power cord into the
outlet where the product’s power cord was plugged in.
Picture appears slowly
after switching on
This is normal, the image is muted during the product startup process.
Please contact your service center, if the picture has not appeared after
five minutes.
No or poor color or
poor picture
Adjust Color in menu option.
Keep a sufficient distance between the product and the VCR.
Try another channel. The problem may be with the broadcast.
Are the video cables installed properly?
Activate any function to restore the brightness of the picture.
Horizontal/vertical bars
or picture shaking
Check for local interference such as an electrical appliance or power
tool.
Poor reception on
some channels
Station or cable product experiencing problems, tune to another station.
Station signal is weak, reorient antenna to receive weaker station.
Check for sources of possible interference.
Lines or streaks in pic-
tures
Check antenna (Change the direction of the antenna).
No picture when con-
necting HDMI
Check HDMI cable over version 1.3.
The HDMI cables don’t support HDMI version 1.3, it cause flickers or no
screen display. In this case use the latest cables that support HDMI ver-
sion 1.3.
*This feature is not available for all models.
TROUBLESHOOTING
188
APPENDIX
APPENDIX
Audio Problems
Picture OK & No
sound
Check to see if there is any object between the product and the remote
control causing obstruction. Ensure you are pointing the remote control
directly at the TV.
Ensure that the batteries are installed with correct polarity (+ to +, - to
-).
Ensure that the correct remote operating mode is set: TV, VCR etc.
Install new batteries.
No output from one
of the speakers
Adjust Balance in menu option.
Unusual sound from
inside the product
A change in ambient humidity or temperature may result in an unusual
noise when the product is turned on or off and does not indicate a fault
with the product.
No sound
when connecting
HDMI/USB
Check HDMI cable over version 1.3.
Check USB cable over version 2.0.
Use normal MP3 file.
PC Mode Problems
The signal is out of
range
Adjust resolution, horizontal frequency, or vertical frequency on the PC.
Check the input source.
Vertical bar or stripe
on
background &
Horizontal Noise &
Incorrect position
Activate the Auto configure feature or adjust size, phase, or H/V position.
(Option)
Screen color is unsta-
ble or single color
Check the signal cable.
Reinstall the PC video card.
When connecting the
HDMI cable to the PC,
there is no audio.
Check the manual for the video card in the PC to see if it supports
HDMI audio and how to set it up properly.
*This feature is not available for all models.
189
APPENDIX
Movie List Problems
The file does not
appear on the Movie
List.
Check whether the extension is supported.
Message is displayed
saying “This file is
invalid” or the audio is
working normally but
the video is not work-
ing normally.
Check whether the file is playing normally on a PC. (Check whether the
file is damaged.)
Check whether the resolution is supported.
Check whether the video/audio codec is supported.
Check whether the frame rate is supported.
Message is displayed
saying “Unsupported
Audio” or the video is
working normally but
the audio is not work-
ing normally.
Check whether the file is playing normally on a PC. (Check whether the
file is damaged.)
Check whether the audio codec is supported.
Check whether the bit rate is supported.
Check whether the sample rate is supported.
Subtitle is not working.
Check whether the file is playing normally on a PC. (Check whether the
file is damaged.)
Check whether the video file and subtitle file name are the same.
Check whether the video file and subtitle file are located in the same
folder.
Check whether the subtitle file is supported.
Check whether the language is supported. (When you open the subtitle
file in Memo Pad, you can check the language of the subtitle file.)
Yahoo! TV Widgets Problems
Misc.-Caption,
Language displayed
within Widget
Did the customer
change Menu lan-
guage but Widget
did not change its
language.
Some Widget does not fully support as much as TV Menu.
The help site for individual widget can be found settings panel of
each widget by pressing GREEN button on your remote after open
that widget from the Dock.
190
APPENDIX
APPENDIX
Yahoo! TV Widgets Problems
Failed to launch Yahoo! TV Widgets
Was the customer
watching HDMI
input?
If customer uses HDMI with Simplink is ON, then WIDGETS but-
ton blocked.
To use Yahoo! TV Widget watching HDMI input, turn off
“Simplink-on” in the OPTION menu. Or change other Input and
press the WIDGETS button.
Was the customer
watching My Media?
If customer uses MY MEDIA, then WIDGETS button blocked.
Exit MY MEDIA by pressing the NETCAST button and select
Yahoo!
Did the customer see
“Starting Yahoo! TV
Widgets” remain and
TV Widget not dis-
played?
Press the NETCAST button and then select NETFLIX, press the
WIDGETS button to enter Yahoo! TV Widget. This re-starts
Yahoo! TV Widgets.
Nothing happens
when pressing
WIDGETS button
Press WIDGETS button and wait a minute, then nothing hap-
pens.
Contact Yahoo! help site: http://connectedtv.yahoo.com/help
Turn off TV and Turn on TV, press NETCAST button and then
BLUE button, select “Restore Yahoo! Factory Settings” to restore
Yahoo! Factory Settings.
Failed to open some widgets
Is “Loading” mes-
sage displayed?
If yes, try after “Loading” message disappeared.
If “Loading” message does not disappeared, then delete that wid-
get and re-install it.
Check IP Address
setting is OK?
If not, connect Network Cable properly and set IP address from
menu and try again.
Is Connection
Unavailable icon (yel-
low triangle) dis-
played on snippet?
If connection unavailable icon displayed, try later because some
server which widget uses may are under maintenance. If this
happens again, contact proper help site displayed on setting
panel for each widget or contact Yahoo! help site. http://con-
nectedtv.yahoo.com/help
The customer cannot
open a widget but all
other widget working
properly – for exam-
ple, weather forecast
on Weather widget or
stock price/fluctuation
for finance widget and
so on.
Try again later or If the problem still happens,
Delete that widget with following instruction. Press Yellow button
from Dock, and then press RED button twice to delete that wid-
get. After deleted, open Widget Gallery and browse to find that
widget and select “Add Widget to My Profile” to install that wid-
get and then try again.
If problem still happens, restore Yahoo! Factory Setting by press-
ing NETCAST button and BLUE button on your remote control.
191
APPENDIX
Yahoo! TV Widgets Problems
Widget is stuck if the remote control button is pressed.
Press RETURN but-
ton and try again
later.
Normal operation for return previous status of Yahoo! TV Widgets.
Some server response is not fast as you expect.
Check IP Address
setting is OK?
If not, connect Network Cable properly and set IP address from
Network menu and try again or contact Internet service provider.
Press RED or
WIDGETS button on
remote control.
Exits Yahoo! TV Widgets by pressing RED button on your remote
and re-enter by WIDGETS button.
Press NETCAST but-
ton.
Exits Yahoo! TV Widgets by pressing NETCAST button and enter
NETFLIX temporarily, and re-enter Yahoo! Widgets by pressing
NETCAST button and select Yahoo!
If problem still happens for one widget.
Delete that widget with following instruction. Press Yellow button
from Dock, and then press RED button twice to delete that widget.
After deleted, open Widget Gallery and browse to find that widget
and select “Add Widget to My Profile” to install that widget and
then try again.
If problem still happens for all widgets, restore Yahoo! Factory
Setting by pressing NETCAST button and BLUE button on your
remote control, and select “Restore Yahoo! Factory Settings” item
on your TV Screen.
Gallery - Unable to install
widget from gallery
Check IP Address
setting is OK?
If not, connect Network Cable properly and set IP address from
menu-Option and try again or contact Internet service provider.
Is Lock Icon on right
side of “Add Widget
to My Profile”?
Need Owner PIN to install. If you forgot Owner PIN, contact Yahoo!
for further help. http://connectedtv.yahoo.com/help
“Install completed”
but it never work.
Try to re-start Yahoo! TV Widgets after enter MY MEDIA and exit
from MY MEDIA.
Or Delete it and re-install it.
Flickr - “We could not find
anything to display” mes-
sage displayed
Is connection
unavailable icon
(yellow triangle)
displayed?
If yes, check network settings or contact internet service provider,
or try later.
Did you sign-in
Yahoo! account?
If yes, you need to upload your photos to Flickr site to display
when sign-in Yahoo.
If not, try again later. The Flickr server may be under mainte-
nance, or contact service provider.
192
APPENDIX
APPENDIX
MAINTENANCE
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you
can enjoy your new TV.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of
lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s
almost dry, and then use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
Extended Absence
2
1
CAUTION
ŹIf you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to
unplug the power cord to protect against possible damage from lightning or power surges.
193
APPENDIX
PRODUCT SPECIFICATIONS
MODELS 52LD550
(52LD550-UB)
60LD550
(60LD550-UB)
Dimensions
(Width x
Height
x Depth)
With stand
49.8 x 33.5 x 13.0 inches
1266.0 x 851.0 x 330.0 mm
56.7 x 37.9 x 13.6 inches
1441.0 x 963.0 x 345.0 mm
Without stand
49.8 x 29.3 x 3.8 inches
1266.0 x 745.0 x 96.4 mm
56.7 x 34.5 x 4.3 inches
1441.0 x 877.0 x 109.0 mm
Weight With stand
59.3 lbs / 26.9 kg 86.6 lbs / 39.3 kg
Without stand
52.0 lbs / 23.6 kg 78.2 lbs / 35.5 kg
MODELS 32LD550
(32LD550-UB)
42LD550
(42LD550-UB)
46LD550
(46LD550-UB)
Dimensions
(Width x
Height
x Depth)
With stand
31.5 x 22.2 x 8.1 inches
800.0 x 563.0 x 207.0 mm
40.3 x 27.4 x 10.3 inches
1024.0 x 695.0 x 261.0 mm
43.9 x 29.6 x 10.6 inches
1115.0 x 752.0 x 270.0 mm
Without
stand
31.5 x 19.8 x 2.9 inches
800.0 x 503.0 x 74.7 mm
40.3 x 24.9 x 3.1 inches
1024.0 x 632.0 x 78.7 mm
43.9 x 26.8 x 3.0 inches
1115.0 x 680.0 x 77.0 mm
Weight With stand
22.4 lbs / 10.2 kg 33.9 lbs / 15.4 kg 41.0 lbs / 18.6 kg
Without
stand
20.2 lbs / 9.2 kg 30.4 lbs / 13.8 kg 36.5 lbs / 16.6 kg
Power requirement AC100-240V ~ 50/60Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 ohm
Environment
condition
Operating Temperature 32 ~ 104°F (0 ~ 40°C)
Operating Humidity Less than 80%
Storage Temperature -4 ~ 140°F (-20 ~ 60°C)
Storage Humidity Less than 85%
The specifications shown above may be changed without prior notice for quality improvement.
194
APPENDIX
APPENDIX
MODELS 47LD650
(47LD650-UA)
55LD650
(55LD650-UA)
Dimensions
(Width x
Height
x Depth)
With stand
44.7 x 29.8 x 10.6 inches
1137.0 x 758.0 x 270.0 mm
52.3 x 34.3 x 12.9 inches
1329.0 x 872.0 x 330.0 mm
Without stand
44.7 x 26.9 x 3.0 inches
1137.0 x 685.0 x 76.8 mm
52.3 x 31.3 x 3.7 inches
1329.0 x 796.0 x 96.5 mm
Weight With stand
44.7 lbs / 20.3 kg 70.7 lbs / 32.1 kg
Without stand
40.3 lbs / 18.3 kg 63.7 lbs / 28.9 kg
Power requirement AC100-240V ~ 50/60Hz
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance 75 ohm
Environment
condition
Operating Temperature 32 ~ 104°F (0 ~ 40°C)
Operating Humidity Less than 80%
Storage Temperature -4 ~ 140°F (-20 ~ 60°C)
Storage Humidity Less than 85%
The specifications shown above may be changed without prior notice for quality improvement.
198
APPENDIX
APPENDIX
IR CODES
Configuration of frame
1st frame
Repeat frame
Lead code
Repeat code
Bit description
Frame interval: Tf
The waveform is transmitted as long as a key is depressed.
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
L
ea
d
co
d
e
L
ow cus
t
om co
d
e
Hi
g
h
cus
t
om co
d
e
D
a
t
a co
d
e
D
a
t
a co
d
e
Repeat code Tf
4.5 ms
9 ms
2.25 ms
9 ms
0.55 ms
0.56ms
1.12 ms
0.56ms
2.24ms
Tf Tf
Tf=108ms @455KHz
Bit ”0” Bit ”1”
1. How to Connect
Connect your wired remote control to the Remote Control port on the TV.
2. Remote Control IR Codes
Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
T1
Tc
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
199
APPENDIX
Code
(Hexa) Function Note Code
(Hexa) Function Note
00 CH ᬧRemote control Button B0 ᬱRemote control Button
01 CH ᬨRemote control Button B1 ᬲRemote control Button
02 VOL + Remote control Button BA ᬳ(FREEZE) Remote control Button
03 VOL - Remote control Button D6 TV Discrete IR Code
06
>
Remote control Button (TV Input Selection)
07
<
Remote control Button C4 POWER ON Discrete IR Code
08 Remote control Button (Only Power On)
(Power On/Off) C5 POWER OFF Discrete IR Code
09 MUTE/DELETE Remote control Button (Only Power Off)
0B INPUT Remote control Button 5A AV1 Discrete IR Code
0F TV Remote control Button (AV1 Input Selection)
10-19 Number Key
0-9
Remote control Button D0 AV2 Discrete IR Code
1A FLASHBK Remote control Button (AV2 Input Selection)
1E FAV/MARK Remote control Button BF COMPONENT1 Discrete IR Code
28 BACK Remote control Button (Component1 Input Selection)
30 AV MODE Remote control Button D4 COMPONENT2 Discrete IR Code
40 ᬧRemote control Button (Component2 Input Selection)
41 ᬨRemote control Button D5 RGB-PC Discrete IR Code
43 MENU Remote control Button (RGB-PC Input Selection)
44 ENTER Remote c ontrol Button CE HDMI1 Discrete IR Code
45 Q.MENU Remote control Button (HDMI1 Input Selection)
4C - (Dash)/LIST Remote control Button CC HDMI2 Discrete IR Code
5B EXIT Remote control Button (HDMI2 Input Selection)
58 WIDGETS Remote control Button E9 HDMI3 Discrete IR Code
59 NETCAST Remote control Button (HDMI3 Input Selection)
61 BLUE Remote control Button DA HDMI4 Discrete IR Code
63 YELLOW Remote control Button (HDMI4 Input Selection)
71 GREEN Remote control Button 76 Ratio 4:3 Discrete IR Code
72 RED Remote control Button (Only 4:3 Mode)
79 RATIO/ CHAR/
NUM
Remote control Button 77 Ratio 16:9 Discrete IR Code
7E SIMPLINK Remote control Button (Only 16:9 Mode)
8E ᬴Remote control Button AF Ratio Zoom Discrete IR Code
8F ᬵRemote control Button (Only Zoom Mode)
95
ENERGY SAVING
Remote control Button
AA INFO Remote control Button
200
APPENDIX
APPENDIX
OPEN SOURCE LICENSE
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim cop-
ies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away
your freedom to share and change it. By contrast, the GNU
General Public License is intended to guarantee your free-
dom to share and change free software - to make sure the
software is free for all its users. This General Public License
applies to most of the Free Software Foundation's software
and to any other program whose authors commit to using
it. (Some other free software foundation software is cov-
ered by the GNU Lesser General Public License instead.)
You can apply it to your programs, too.
When we speak of free software, we are referring to free-
dom, not price. Our General Public Licenses are designed
to make sure that you have the freedom to distribute cop-
ies of free software (and charge for this service if you wish),
that you receive source code or can get it if you want it, that
you can change the software or use pieces of it in new free
programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that
forbid anyone to deny you these rights or to ask you to sur-
render the rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the soft-
ware, or if you modify it.
For example, if you distribute copies of such a program,
whether gratis or for a fee, you must give the recipients all
the rights that you have. You must make sure that they, too,
receive or can get the source code. And you must show
them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the
software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to
make certain that everyone understands that there is no
warranty for this free software. If the software is modified
by someone else and passed on, we want its recipients to
know that what they have is not the original, so that any
problems introduced by others will not reflect on the origi-
nal authors' reputations.
Finally, any free program is threatened constantly by soft-
ware patents. We wish to avoid the danger that redistribu-
tors of a free program will individually obtain patent licens-
es, in effect making the program proprietary. To prevent
this, we have made it clear that any patent must be
licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution
and modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION
0. This license applies to any program or other work which
contains a notice placed by the copyright holder saying
it may be distributed under the terms of this General
Public License. The "Program", below, refers to any such
program or work, and a "work based on the Program"
means either the Program or any derivative work under
copyright law: that is to say, a work containing the
Program or a portion of it, either verbatim or with modi-
fications and/or translated into another language.
(Hereinafter, translation is included without limitation in
the term "modification".) Each licensee is addressed as
"you".
Activities other than copying, distribution and modifica-
tion are not covered by this license; they are outside its
scope. The act of running the Program is not restricted,
and the output from the program is covered only if its
contents constitute a work based on the program (inde-
pendent of having been made by running the program).
Whether that is true depends on what the program
does.
1. You may copy and distribute verbatim copies of the
program's source code as you receive it, in any medium,
provided that you conspicuously and appropriately pub-
lish on each copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the notices that
refer to this license and to the absence of any warranty;
and give any other recipients of the program a copy of
this license along with the Program.
You may charge a fee for the physical act of transferring
a copy, and you may at your option offer warranty pro-
tection in exchange for a fee.
2. You may modify your copy or copies of the program or
any portion of it, thus forming a work based on the
Program, and copy and distribute such modifications or
work under the terms of section 1 above, provided that
you also meet all of these conditions:
a) You must cause the modified files to carry prominent
notices stating that you changed the files and the
date of any change.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
201
APPENDIX
b) You must cause any work that you distribute or pub-
lish, that in whole or in part contains or is derived
from the Program or any part there of, to be licensed
as a whole at no charge to all third parties under the
terms of this license.
c) If the modified program normally reads commands
interactively when run, you must cause it, when start-
ed running for such interactive use in the most ordi-
nary way, to print or display an announcement includ-
ing an appropriate copyright notice and a notice that
there is no warranty (or else, saying that you provide
a warranty) and that users may redistribute the pro-
gram under these conditions, and telling the user
how to view a copy of this license. (Exception: if the
Program itself is interactive but does not normally
print such an announcement, your work based on the
Program is not required to print an announcement.)
These requirements apply to the modified work as a
whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably con-
sidered independent and separate works in themselves,
then this license, and its terms, do not apply to those
sections when you distribute them as separate works.
But when you distribute the same sections as part of a
whole which is a work based on the Program, the distri-
bution of the whole must be on the terms of this license,
whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless
of who wrote it.
Thus, it is not the intent of this section to claim rights or
contest your rights to work written entirely by you; rather,
the intent is to exercise the right to control the distribu-
tion of derivative or collective works based on the pro-
gram.
In addition, mere aggregation of another work not
based on the program with the Program (or with a work
based on the program) on a volume of a storage or
distribution medium does not bring the other work
under the scope of this license.
3. You may copy and distribute the program (or a work
based on it, under section 2) in object code or execut-
able form under the terms of sections 1 and 2 above
provided that you also do one of the following:
a) Accompany it with the complete corresponding
machine-readable source code, which must be dis-
tributed under the terms of sections 1 and 2 above
on a medium customarily used for software inter-
change; or,
b) Accompany it with a written offer, valid for at least
three years, to give any third party, for a charge no
more than your cost of physically performing source
distribution, a complete machine-readable copy of
the corresponding source code, to be distributed
under the terms of sections 1 and 2 above on a
medium customarily used for software interchange;
or,
c) Accompany it with the information you received as to
the offer to distribute corresponding source code.
(This alternative is allowed only for noncommercial
distribution and only if you received the program in
object code or executable form with such an offer, in
accord with Subsection b above.)
The source code for a work means the preferred form of
the work for making modifications to it. For an execut-
able work, complete source code means all the source
code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control
compilation and installation of the executable. However,
as a special exception, the source code distributed need
not include anything that is normally distributed (in
either source or binary form) with the major compo-
nents (compiler, kernel, and so on) of the operating
system on which the executable runs, unless that com-
ponent itself accompanies the executable.
If distribution of executable or object code is made by
offering access to copy from a designated place, then
offering equivalent access to copy the source code from
the same place counts as distribution of the source
code, even though third parties are not compelled to
copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this license.
Any attempt otherwise to copy, modify, sublicense or
distribute the Program is void, and will automatically
terminate your rights under this license. However, par-
ties who have received copies, or rights, from you under
this license will not have their licenses terminated so
long as such parties remain in full compliance.
5. You are not required to accept this license, since you
have not signed it. However, nothing else grants you
permission to modify or distribute the Program or its
derivative works. These actions are prohibited by law if
you do not accept this license. Therefore, by modifying
or distributing the program (or any work based on the
program), you indicate your acceptance of this license
to do so, and all its terms and conditions for copying,
distributing or modifying the program or works based
on it.
6. Each time you redistribute the program (or any work
based on the Program), the recipient automatically
receives a license from the original licensor to copy,
distribute or modify the Program subject to these terms
and conditions. You may not impose any further restric-
tions on the recipients' exercise of the rights granted
herein. You are not responsible for enforcing compliance
by third parties to this license.
202
APPENDIX
APPENDIX
7. If, as a consequence of a court judgment or allegation
of patent infringement or for any other reason (not lim-
ited to patent issues), conditions are imposed on you
(whether by court order, agreement or otherwise) that
contradict the conditions of this license, they do not
excuse you from the conditions of this license. If you
cannot distribute so as to satisfy simultaneously your
obligations under this license and any other pertinent
obligations, then as a consequence you may not distrib-
ute the program at all. For example, if a patent license
would not permit royalty-free redistribution of the pro-
gram by all those who receive copies directly or indi-
rectly through you, then the only way you could satisfy
both it and this license would be to refrain entirely from
distribution of the program.
If any portion of this section is held invalid or unenforce-
able under any particular circumstance, the balance of
the section is intended to apply and the section as a
whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or to
contest validity of any such claims; this section has the
sole purpose of protecting the integrity of the free soft-
ware distribution system, which is implemented by pub-
lic license practices. Many people have made generous
contributions to the wide range of software distributed
through that system in reliance on consistent applica-
tion of that system; it is up to the author/donor to
decide if he or she is willing to distribute software
through any other system and a licensee cannot impose
that choice.
This section is intended to make thoroughly clear what
is believed to be a consequence of the rest of this
license.
8. If the distribution and/or use of the program is restrict-
ed in certain countries either by patents or by copy-
righted interfaces, the original copyright holder who
places the program under this license may add an
explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in
or among countries not thus excluded. In such case, this
license incorporates the limitation as if written in the
body of this license.
9. The Free Software Foundation may publish revised and/
or new versions of the General Public License from time
to time. Such new versions will be similar in spirit to the
present version, but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing version number. If
the program specifies a version number of this license
which applies to it and "any later version", you have the
option of following the terms and conditions either of
that version or of any later version published by the Free
Software Foundation. If the program does not specify a
version number of this license, you may choose any ver-
sion ever published by the Free Software Foundation.
10.If you wish to incorporate parts of the program into
other free programs whose distribution conditions are
different, write to the author to ask for permission. For
software which is copyrighted by the Free Software
Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will
be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting
the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF
CHARGE, THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE PROGRAM
"AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS TO
THE QUALITY AND PERFORMANCE OF THE
PROGRAM IS WITH YOU. SHOULD THE PROGRAM
PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR OR CORRECTION.
12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE
LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE
THE PROGRAM (INCLUDING BUT NOT LIMITED TO
LOSS OF DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF THE PROGRAM TO
OPERATE WITH ANY OTHER PROGRAMS), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
203
APPENDIX
END OF TERMS AND CONDITIONS
How to apply these terms to your new programs
If you develop a new program, and you want it to be of the
greatest possible use to the public, the best way to achieve
this is to make it free software which everyone can redis-
tribute and change under these terms.
To do so, attach the following notices to the program. It is
safest to attach them to the start of each source file to
most effectively convey the exclusion of warranty; and each
file should have at least the "copyright" line and a pointer
to where the full notice is found.
one line to give the program's name and a brief idea of
what it does.
Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/
or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation;
either version 2 of the license, or (at your option) any later
version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. See the GNU General Public
License for more details.
You should have received a copy of the GNU General
Public License along with this program; if not, write to the
Free Software Foundation, Inc., 51 Franklin Street, Fifth
Floor, Boston, MA 02110-1301 USA.
Also add information on how to contact you by electronic
and paper mail.
If the program is interactive, make it output a short notice
like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY;
for details type ‘show w’. This is free software, and you are
welcome to redistribute it under certain conditions; type
‘show c’ for details.
The hypothetical commands ‘show w’ and ‘show c’ should
show the appropriate parts of the General Public License.
Of course, the commands you use may be called some-
thing other than ‘show w’ and ‘show c’; they could even be
mouse-clicks or menu items-whatever suits your program.
You should also get your employer (if you work as a pro-
grammer) or your school, if any, to sign a “copyright dis-
claimer” for the program, if necessary. Here is a sample;
alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the
program ‘Gnomovision’ (which makes passes at compilers)
written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating
your program into proprietary programs. If your program is
a subroutine library, you may consider it more useful to
permit linking proprietary applications with the library. If
this is what you want to do, use the GNU Lesser General
Public License instead of this license.
204
APPENDIX
APPENDIX
Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51
Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim cop-
ies of this license document, but changing it is not
allowed.
[This is the first released version of the Lesser GPL. It also
counts as the successor of the GNU Library Public
License, version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away
your freedom to share and change it. By contrast, the GNU
General Public Licenses are intended to guarantee your
freedom to share and change free software - to make sure
the software is free for all its users.
This license, the Lesser General Public License, applies to
some specially designated software packages - typically
libraries - of the Free Software Foundation and other
authors who decide to use it. You can use it too, but we
suggest you first think carefully about whether this license
or the ordinary General Public License is the better strat-
egy to use in any particular case, based on the explana-
tions below.
When we speak of free software, we are referring to free-
dom of use, not price. Our General Public Licenses are
designed to make sure that you have the freedom to dis-
tribute copies of free software (and charge for this service
if you wish); that you receive source code or can get it if you
want it; that you can change the software and use pieces
of it in new free programs; and that you are informed that
you can do these things.
To protect your rights, we need to make restrictions that
forbid distributors to deny you these rights or to ask you to
surrender these rights. These restrictions translate to certain
responsibilities for you if you distribute copies of the library
or if you modify it.
For example, if you distribute copies of the library, whether
gratis or for a fee, you must give the recipients all the rights
that we gave you. You must make sure that they, too,
receive or can get the source code. If you link other code
with the library, you must provide complete object files to
the recipients, so that they can relink them with the library
after making changes to the library and recompiling it. And
you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copy-
right the library, and (2) we offer you this license, which
