Owner’s Manual 81

TV Guide On Screen System

General Default Options lets you set defaults for the following:

•The initial Info Box size when the TV guide on screen system is

entered.

Choices are No, Small, Large, and Last Used

(Default = Last Used).

•The Info Box size rotation when the Info key is pressed while in

the TV guide on screen system.

Choices are No only, Small only, Large only, No & Small, No &

Large, Small & Large, All (Default = All)

•Automatic entry into the TV guide on screen system (Auto-Guide)

when the TV is powered On.

Choices are On and Off (Default = On).

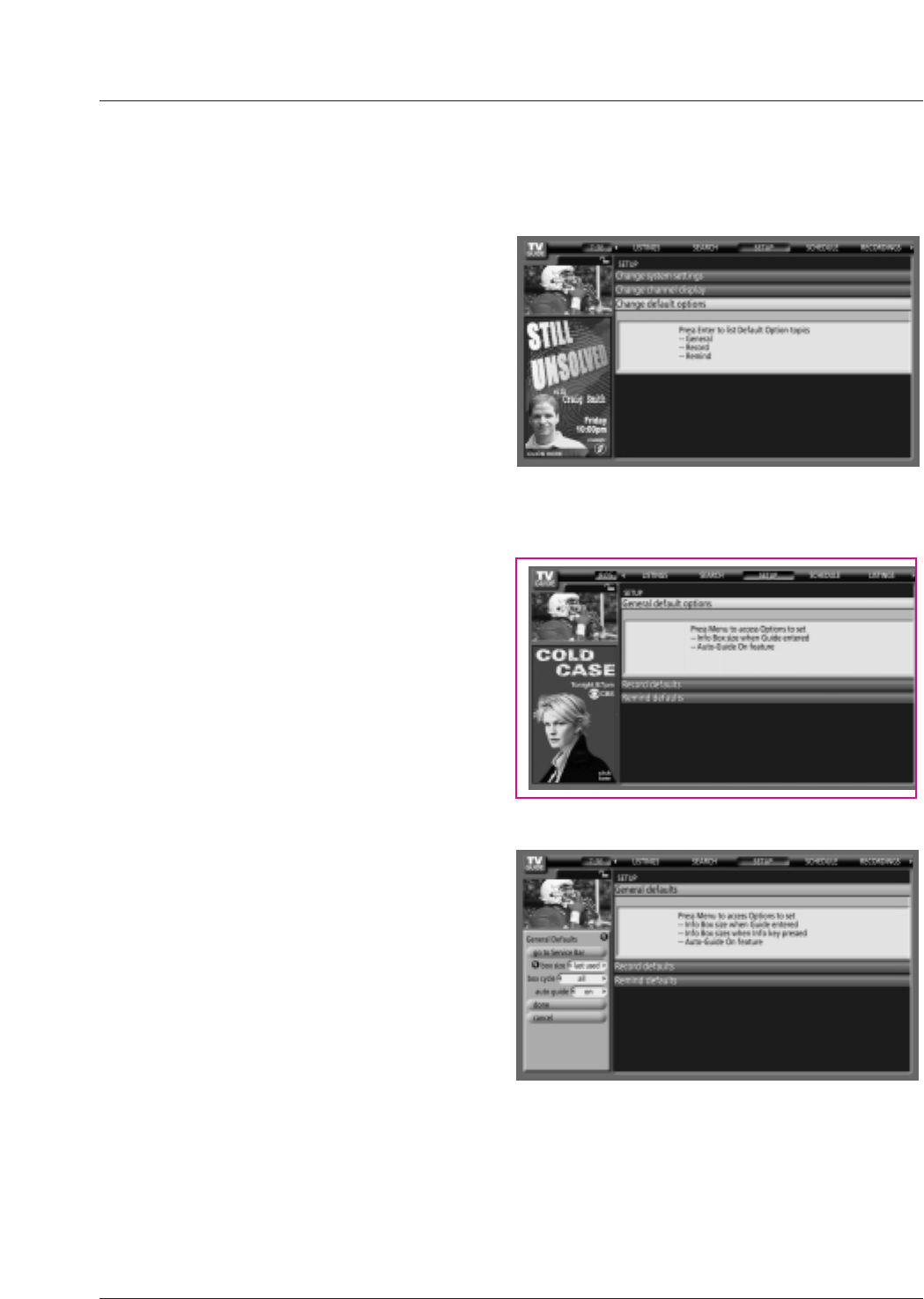

Highlight General Default Options, and press the Menu key to dis-

play the General Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information, and

return to the highlighted option.

• Change Default Options

Change Default Options lets you change default settings in the

following categories:

•General Default Options

•Record Defaults

•Remind Defaults

Highlight Change Default Options, and press ENTER.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

82 Plasma TV

TV Guide On Screen System

< Record Defaults>

Record Default Options lets you set defaults for the following:

• When to start the record event. Choices are 120 minutes early

to 120 minutes late, to On time. (Default = On time)

• When to end the record event. Choices are 120 minutes early

to 120 minutes late, to On time. (Default = On time)

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

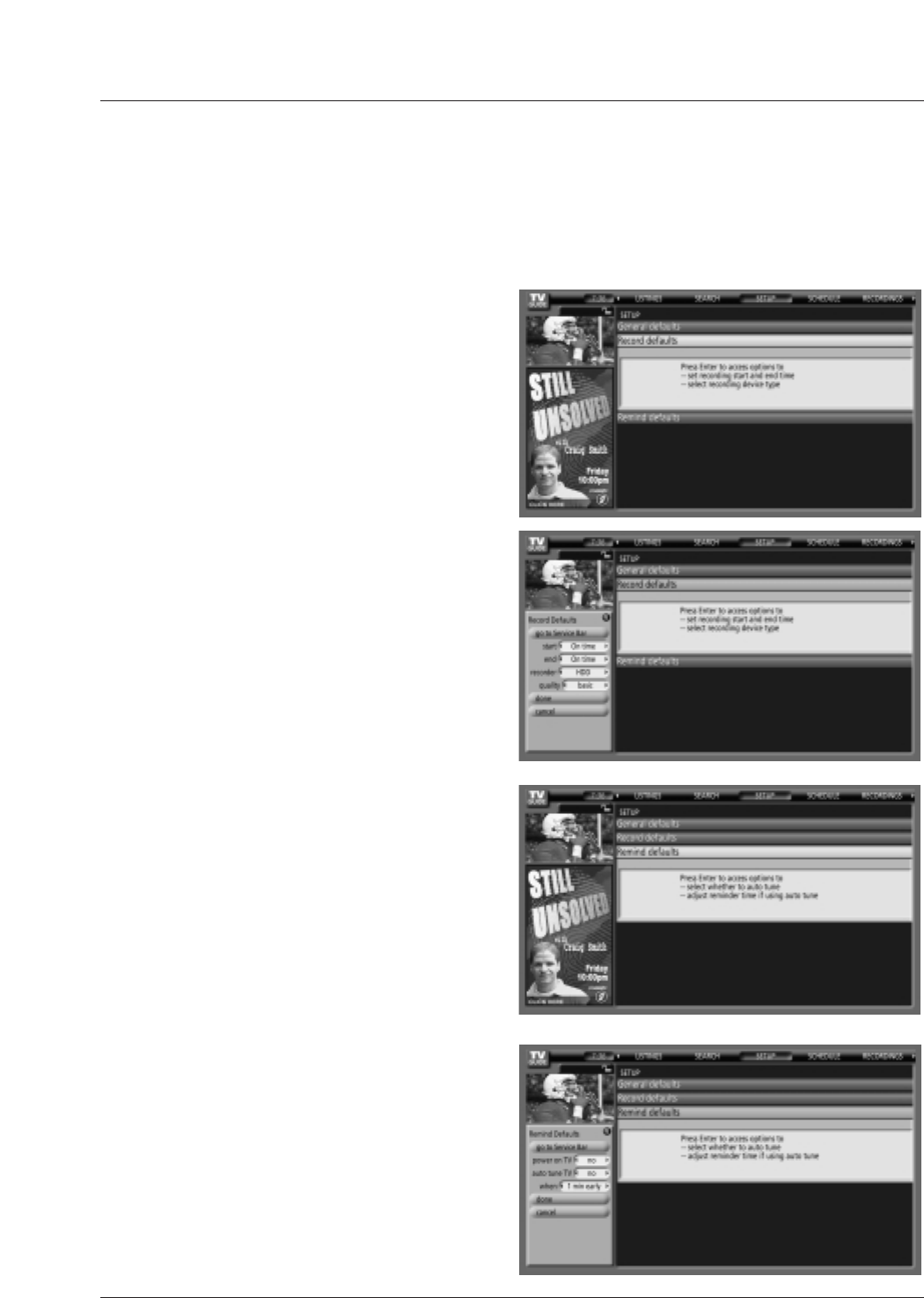

Highlight Record Defaults, and press the Menu key to display

the Record Default Options menu.

Highlight Go to Service Bar to close the menu, change no infor-

mation, and return to the Setup Service Bar.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

< Remind Defaults>

Remind Default Options lets you set defaults for the following:

•Power On the TV, if Off, when a Reminder is scheduled.

Choices are Yes and No.

(Default = No)

•Automatically tune the TV to the channel (TV must be On),

when a Reminder is scheduled. Choices are Yes and No.

(Default = No)

•When to display the reminder screen. Choices are 30 seconds

to 15 minutes early, to 30 seconds to 15 minutes late, to On

time.

(Default = 1 min early)

Highlight Remind Defaults, and press the Menu key to display

the Remind Default Options menu.

Highlight Go to Service Bar to close the menu, change no

information, and return to the Setup Service Bar.

When finished, press ENTER to highlight Done. Press ENTER

again to close the menu and accept the changes.

Highlight Cancel to close the menu, change no information,

and return to the highlighted option.

Owner’s Manual 83

W Once —records the show one time

W Regularly —records the show every time the

show airs on the same channel and starts at the same

time

W Weekly —records the show each time the show

airs on the same day of the week, on the same channel

and starts at the same time

W Off (not cancel) —keeps the show in the list but

will not record this show until the frequency is changed

W Cancel (no icon displayed)—does not record

TV Guide On Screen System

TV Guide On Screen

TV Guide On Screen®System continued

System continued

Record

Record And Remind Features

And Remind Features

V < Record >

You can set a show to Record in Listings, Search, and

Schedule or change Record settings for a show in Schedule.

There are 3 ways to set a show to Record:

1) Using the Record Button on the Remote

• Press the Record button on the remote to record the show

Once with current default settings (Start and End recording

On Time). Each time you press the Record button, you

change the record frequency (but not the default settings)

among Once (default), Regularly, Daily, Weekly and then

Cancel.

Note: The proper Record icon appears on the show tile, as the

Record button is pressed.

2) From a Panel Menu

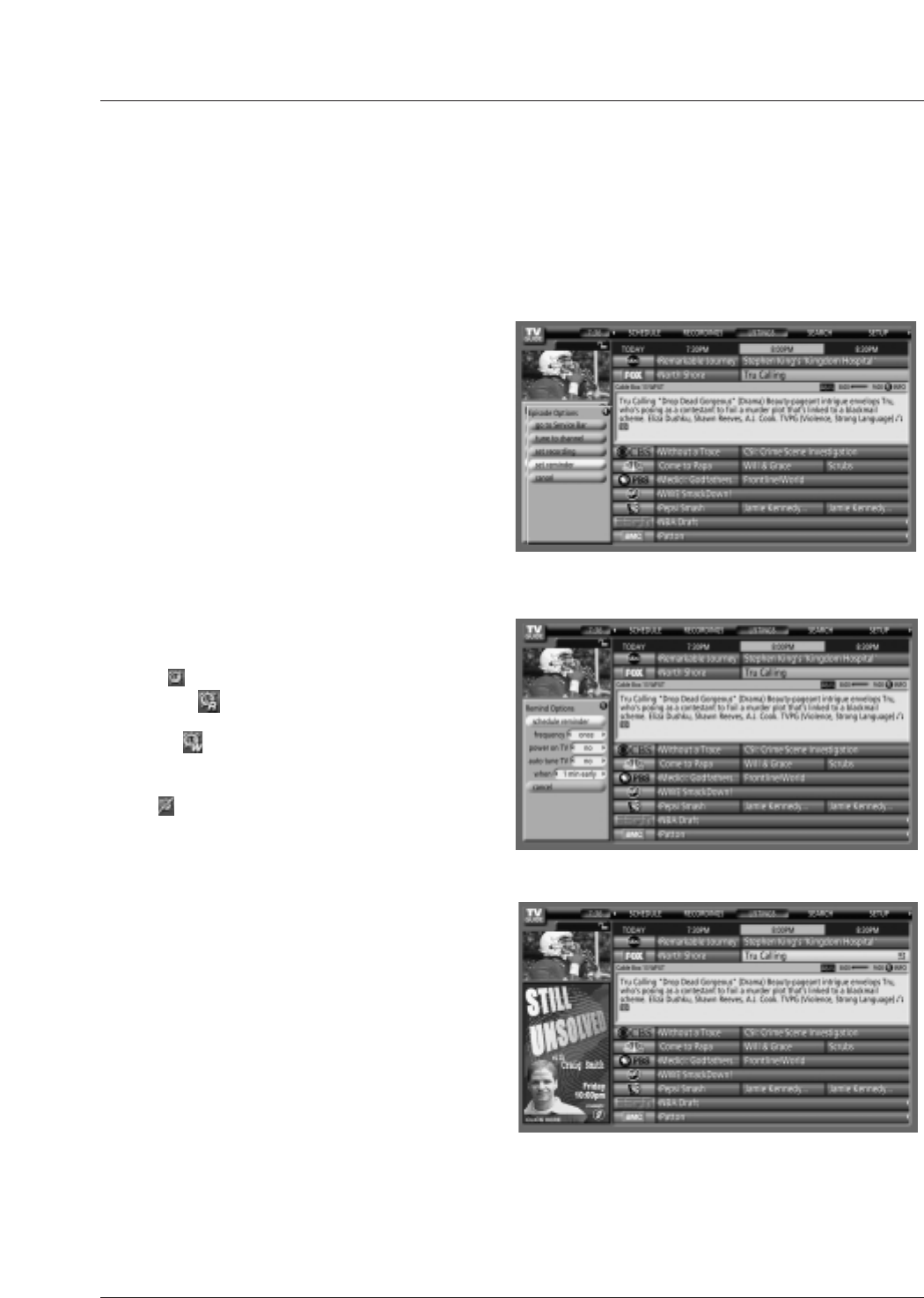

•Highlight a show, and press Menu to display the Episode

Options menu.

•Highlight Set Recording, and press ENTER to display the

Record Options menu.

•Highlight the Frequency option, and use the left and right

arrows to choose among Once, Regularly, Weekly, and Off,

as previously described.

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

•Note: Video Window Lock is operated to on or off using PIP

button in Listings mode.

84 Plasma TV

TV Guide On Screen System

When finished, press ENTER to highlight Schedule Recording.

Press ENTER again to close the menu. You see a Record icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

TV Guide On Screen

TV Guide On Screen®System continued

System continued

3) Manual Recording

•Highlight the Schedule Service label, and press Menu to display

the Schedule Options menu.

•Use the D / E/ F / G buttons to move through the options. Use

the number or Use the D / E/ F / G buttons to change the infor-

mation, as necessary.

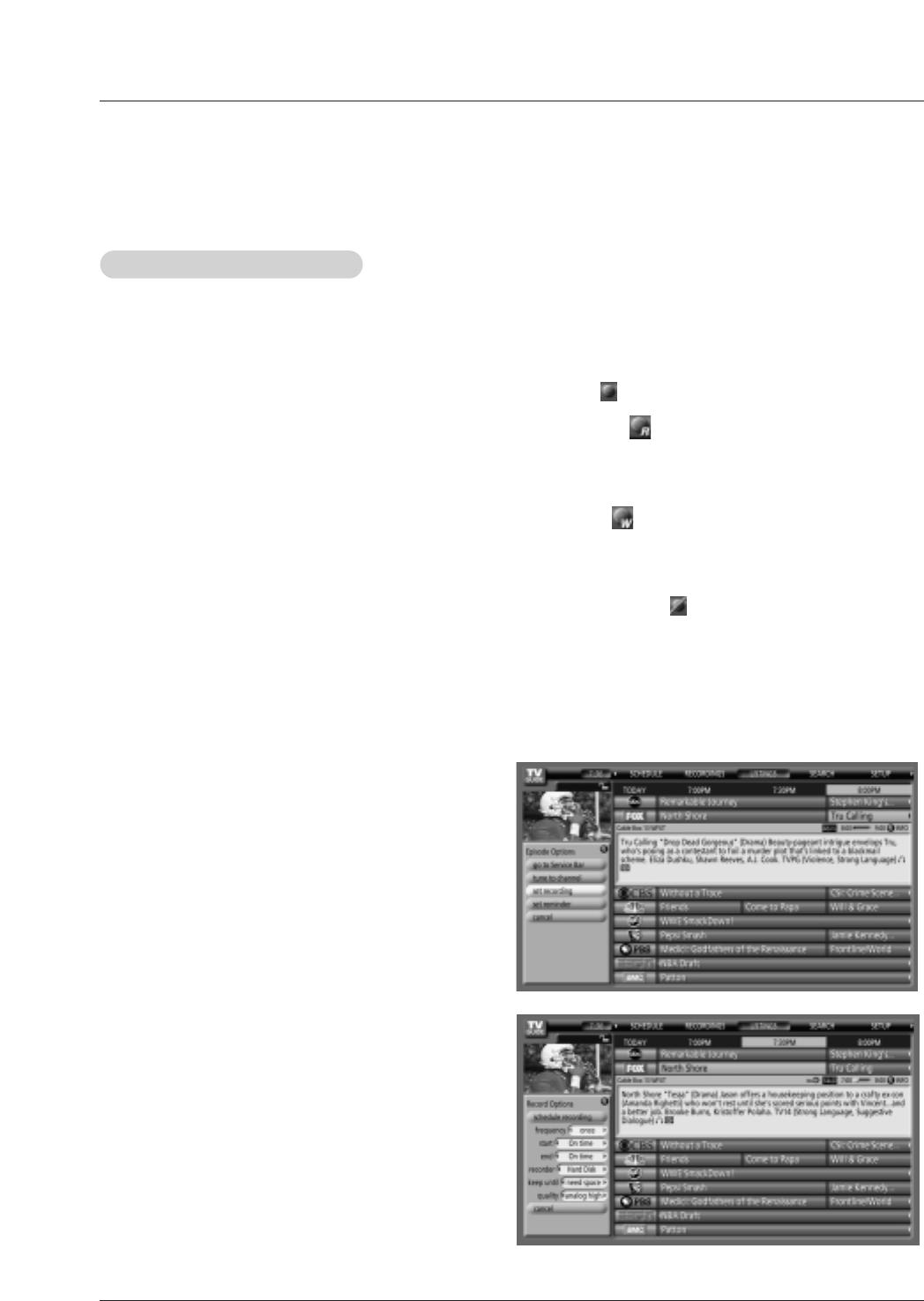

•Highlight New Manual Recording and press ENTER to display the

Record Options menu.

•Current information (i.e., date, start and end times, channel,

input) is displayed.

• Recorder choice: Please choose the HDD only. This TV does

not provide other devices with a recording feature.

Owner’s Manual 85

•Use the left and right arrows to choose between Once, Daily,

Weekly, and Off, as follows.

W Once —records the time, channel, input, recorder combi-

nation one time.

W Daily —records the time, channel, input, recorder combi-

nation Monday through Friday.

W Weekly —records the time, channel, input, recorder com-

bination once a week on this selected day of the week

W Off (not cancel) —keeps the time, channel, input, recorder

combination in the list without recording until the frequency is

changed.

TV Guide On Screen System

TV Guide On Screen

TV Guide On Screen®System continued

System continued

Record Conflict

A conflict message appears for the following reasons:

• a show set to Record overlaps with any part of another show pre-

viously set to Record,

• a show set to Record overlaps with a show previously set to auto-

tune

Select one of these options:

Wrecord anyway - this show will override an existing show

set to Record or auto-tune

W don't record this show - cancel the Recording

Before a recording begins, a notification screen appears

if you are using a Cable box and your TV is On. At that

time, you can choose to start or cancel recording. If the

TV is not On, the recording occurs as scheduled. If there

is no activity for 3 minutes, the notification screen auto-

matically closes and completes the highlighted item.

When finished, press ENTER to highlight Schedule

Recording.

Press ENTER again to close the menu. You see a

Record icon for the selected frequency next to the show

title.

Note: Manual recording is listed by channel number.

Highlight Cancel to close the menu, change no informa-

tion, and return to the highlighted show.

86 Plasma TV

TV Guide On Screen System

TV Guide On Screen

TV Guide On Screen®System continued

System continued

V < Remind >

You can set a show Reminder in Listings, Search, and

Schedule or change Reminder settings for a show in Schedule.

There are 2 ways to set a show Reminder:

1) From a Panel Menu

• Highlight a show, and press Menu to display the Episode

Options menu.

• Highlight Set Reminder, and press ENTER to display the

Remind Options menu.

•Highlight the Frequency option, and use the left and right arrows

to choose between:

W Once —sets a show reminder one time

W Regularly —sets a show reminder every time the show

airs on the same channel and starts at the same time

W Weekly —sets a show reminder each time the show airs

on the same day of the week, on the same channel and starts

at the same time

W Off —keeps the show in the list but will not remind until

the frequency is changed

•Power On the TV, if Off, when a Reminder is scheduled. Choices

are Yes and No. (Default = No)

•Automatically tune the TV to the channel (TV must be On), when

a Reminder is scheduled. Choices are Yes and No. (Default =

No)

•When to display the reminder screen. Choices are 30 seconds to

15 minutes early, to 30 seconds to 15 minutes late, to On time.

(Default = 1 min early)

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon for

the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

Owner’s Manual 87

TV Guide On Screen System

TV Guide On Screen

TV Guide On Screen®System continued

System continued

2) Manual Reminder

•Highlight the Schedule Service label, and press the Menu key to

display the Schedule Options menu.

•Use the D / E/ F / G buttons to move through the options. Use

the number or D / E/ F / G buttons to change the information,

as necessary.

•Highlight New Manual Reminder and press the ENTER key to

display the Remind Options menu.

•Current information (i.e., date, start and end times, channel,

input, frequency, etc.) is displayed.

•Highlight the Frequency option, and use the F / Gbuttons to

choose among Once, Daily, Weekly, and Off, as follows.

W Once —sets a show reminder for the time, channel, input,

recorder combination one time

W Daily —reminds for the time, channel, input, recorder

combination Monday through Friday

W Weekly —sets a show reminder for the time, channel,

input, recorder combination once a week on this selected day

of the week

W Off (not cancel) —keeps the time, channel, input, desti-

nation combination in the list without reminding until the fre-

quency is changed

•Power On the TV, if Off, when a Reminder is scheduled.

Choices are Yes and No (Default =No).

•Automatically tune the TV to the channel (TV must be On),

when a Reminder is scheduled. Choices are Yes and No

(Default = No).

When finished, press ENTER to highlight Schedule Reminder.

Press ENTER again to close the menu. You see a Remind icon

for the selected frequency next to the show title.

Note: Manual reminder is listed by channel number.

Highlight Cancel to close the menu, change no information, and

return to the highlighted show.

88 Plasma TV

TV Guide On Screen System

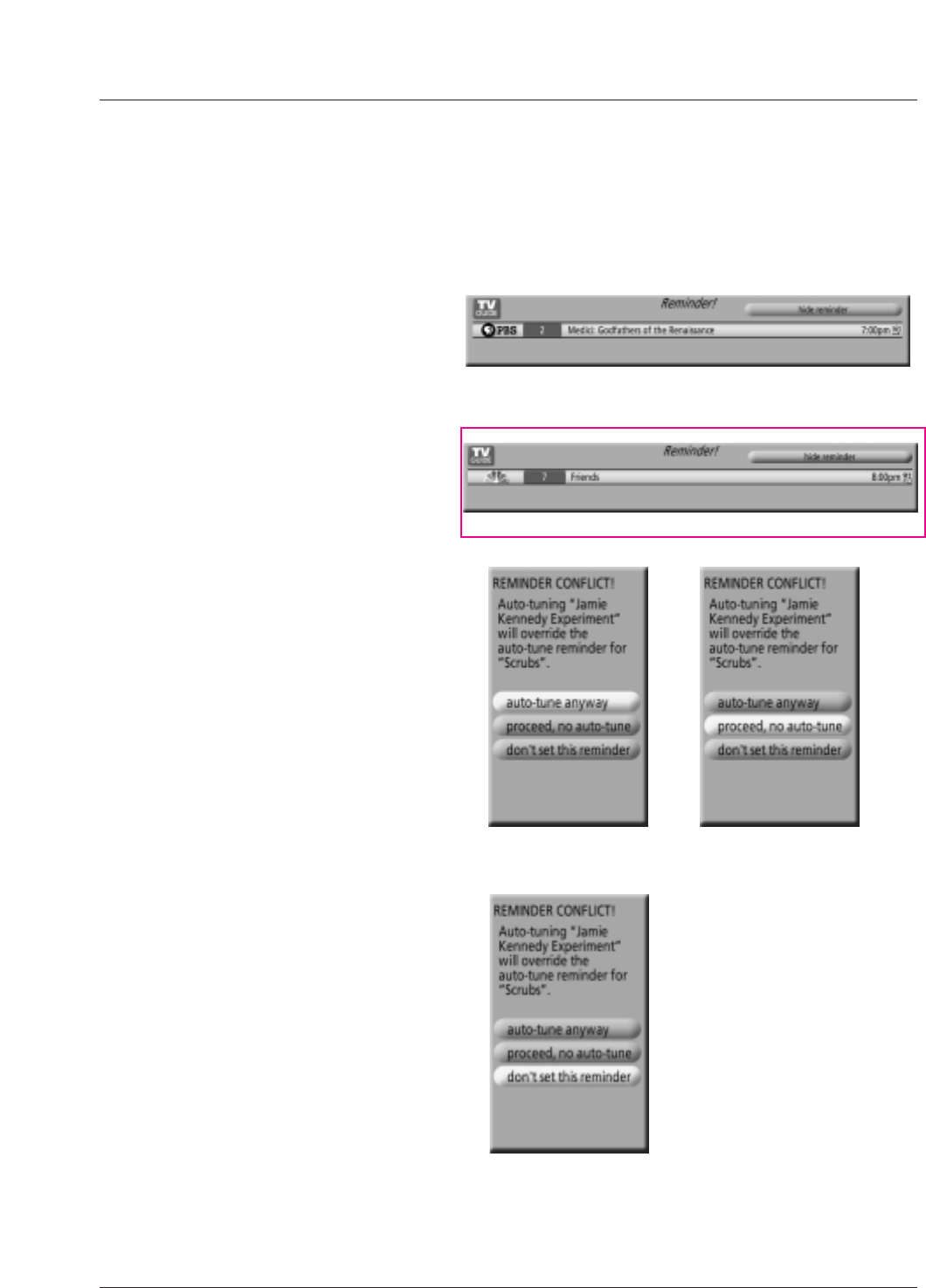

Based on your option settings, a notification screen will

appear, if your TV is On at the reminder time. You can

then choose to hide the reminder, or highlight the show,

and press ENTER to tune to the show. If there is no activ-

ity for 3 minutes, the notification screen automatically

closes and completes the highlighted item (hide

reminders).

If you choose Hide Reminders, the window closes for the

show or shows, but does not affect other Reminders you

set.

Note: If more than 2 reminders are set for the same time,

arrows appear on the Reminder screen. Use the

buttons to view the shows.

Remind Conflict

A conflict message appears for the following reasons:

• a show set with an Auto-Tune Reminder has the same

start time as an existing Auto-Tune Reminder.

• If you are using a cable box, a show set with an Auto-

Tune Reminder overlaps with a Recording already

scheduled.

Select one of these options:

W auto-tune anyway - this show will override an exist-

ing show set to auto-tune

W proceed, no auto-tune - set the show as a Reminder

but do not auto-tune

W don't set this reminder - cancel the Reminder

TV Guide On Screen

TV Guide On Screen®System continued

System continued

Owner’s Manual 89

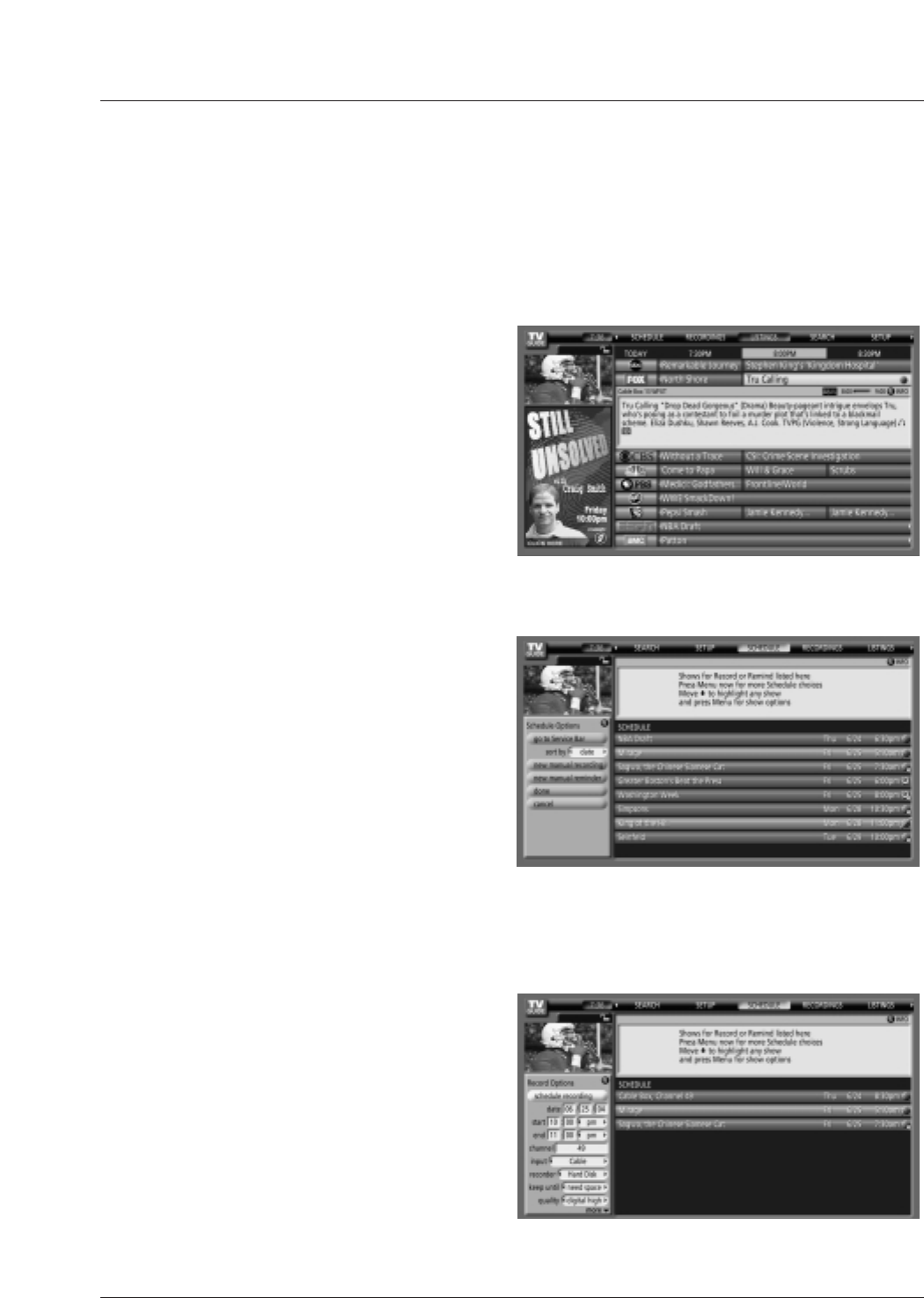

- Schedule lets you review, edit, or delete Record and Remind events that you set previously.

- With Schedule highlighted, press the Info button to display a Help screen. Press the Info button again to close the screen.

- An icon identifies the event type:

Record

W Once —records the show one time

W Regularly , Daily —records the show every time

the show airs on the same channel and starts at the same

time

W Weekly —records the show each time the show airs on

the same day of the week, on the same channel and starts at

the same time

W Off —keeps the show in the list but will not record this

show until the frequency is changed.

Remind

W Once —sets a show reminder one time

W Regularly , Daily —sets a show reminder

every time the show airs on the same channel and

starts at the same time

W Weekly —sets a show reminder each time the

show airs on the same day of the week, on the same

channel and starts at the same time

W Off —keeps the show in the list but will not remind

until the frequency is changed

Highlight an event, and press the Menu key for options.

Go to Service Bar - closes the menu, changes no information,

and returns to the Schedule Service Bar.

Tune to channel - exits the tv guide on screen system and

tunes to the highlighted show.

Delete Recording - removes the recording from the Schedule,

after a Confirm screen.

Edit Recording - opens a menu from which you can change

existing recording information.

Set Reminder - opens a menu from which you can set a

Reminder for the show (Record is not cancelled).

Cancel - closes the menu, changes no information, and returns

to the highlighted show.

Schedule Functions

Schedule

90 Plasma TV

IEEE 1394

- It's available to communicate to either direction and you can give and take a image, sound, or each control command

with one cable.

- Only use the DVHS and MicroMV Camcorder to work the 1394.

How to connect the 1394

•To work the 1394, this 3 methods can used.

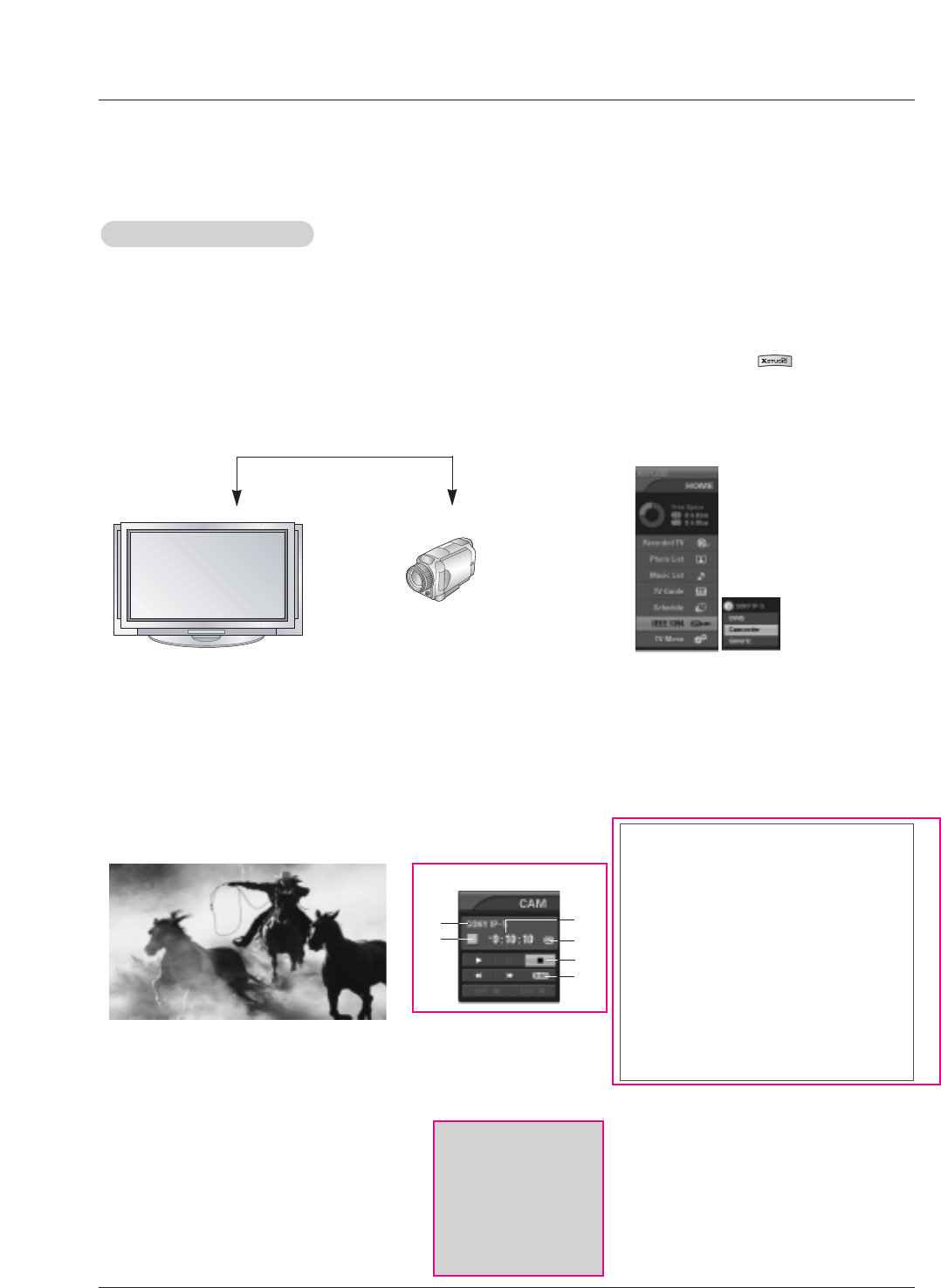

1. When connecting the DVHS or the MicroMV Camcorder, as shown in the (a) or (b) figure, select the IEEE 1394 in HOME menu

to show the control panel.

(a) TV DVHS

(b) TV MicroMV Camcorder

<DVHS>

2. When connecting the DVHS and the MicroMV Camcorder, as shown in the (c) figure, select the IEEE 1394 in HOME menu to

show the contents panel and then select the DVHS or the MicroMV Camcorder to show the control panel.

<TV>

<DVHS>

When connecting the 1394 and then playing, you must use the original DVHS tape. If not, it may be

occurred the errors.

IEEE 1394 Functions

Owner’s Manual 91

IEEE 1394

IEEE 1394 functions continued

DVHS

VHow to play the DVHS

<TV>

<DVHS>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394

jack of the DVHS with IEEE 1394 Cable.

2. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

* Supported DVHS List

VICTOR(HM-DH35000U)

JVC(HM-DH30000U)

JVC(HM-DH40000U)

MITSUBISHI(HS-HD1100U)

MITSUBISHI(HS-HD2000U)

Hitachi(DT-DR20000)

Hitachi(DT-DRX100)

PANASONIC(NV-DH1)

PANASONIC(NV-DH2)

PANASONIC(NV-DHE20)

TOSHIBA(A-HD2000)

• The control panel of DVHS

-Depending on the connected equipment, marked control panel may differ.

1. DVHS Company

2. DVHS Model

3. Connected Equipment to the 1394

4. DVHS Operating Status

5. Power On/Off

6. DVHS Play Time

7. Tape Status

• Tape shape Icon - Tape in or not

• Lock shape Icon - Use or not use

8. Initializing Play Time

9. DVHS Play, Pause, Stop, Search or Skip

(Notes:

• Skip- This function is for a fast search.

It searches the program’s start

point and then plays.

On skipping, Search (

Rec(") Pause ( ) and Play (

)

are displayed on the Control

Panel.

In some models, it’s not available

to operate the Skipping (

)

function.

2. Press the D / Ebuttons to select the DVHS and

then use the ENTER button.

• Show the control panel of DVHS.

92 Plasma TV

IEEE 1394 functions continued

VHow to play the instant reecord to the DVHS

2. Press the D / Ebuttons to select the DVHS and then use

the ENTER button.

• Show the control panel of DVHS.

The instant record function couldn’t use copy-protected programs.

1. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

3. Press the D / E/ F / G buttons to move to "and then use the

ENTER button. You can record the current program to the DVHS.

4. Press the D / E/ F / G buttons to move to # and then

use the ENTER button.

Owner’s Manual 93

IEEE 1394 functions continued

VHow to save the DVHS to the DVR

1. On playing the DVHS, press the D / E/ F / G buttons to move to DVR $and then use the ENTER button.

• Save the current screen to the DVR.

2. Press the D / E/ F / G buttons to move to DVR #and then use the ENTER button to end a saving.

When you save the program which is copy - protected to the PVR, “This tape is copy-protected” is

display on the screen and don’t save to the PVR.

94 Plasma TV

IEEE 1394 functions continued

VHow to save the DVR to the DVHS

1. When press the button, record list is dis-

played. You can select the wanted program by

pressing the D / E/ F / G buttons.

And then press the ENTER button.

The copy-protected contents couldn’t save to the DVHS.

2. Select the DVHS Out by pressing the

D / E/ F / G buttons and then press the

ENTER button.

4. Press the D / E/ F / G buttons to move to the START and

then press the ENTER button to save to DVHS.

5. Press the F / G buttons to move to the STOP and then

press the ENTER button to stop a saving.

• By pressing the RESUME button, you can con-

tiously save the recorded contents from a point

of stopping time.

3. Press the D / Ebuttons to

select the wanted device

and move to the Record

Owner’s Manual 95

IEEE 1394

IEEE 1394 functions continued

How to play the MicroMV Camcorder

MicroMV Camcorder

<TV>

1. Connect the IEEE 1394 jack of the TV to the IEEE 1394

jack of the MicroMV Camcorder with IEEE 1394 Cable.

• The control panel of MicroMV Camcorder

-Depending on the connected equipment, marked control panel may dif-

fer.

1. MicroMV Camcorder Company

2. MicroMV Camcorder Model

3. Connected Equipment to the 1394

4. MicroMV Camcorder Operating Status

5. MicroMV Camcorder Play Time

6. Tape Status

• Tape shape Icon - Tape in or not

• Lock shape Icon - Use or not use

7. MicroMV Camcorder Play, Search or Stop

8. Initializing Play Time

* Supported MicroMV Camcorder List

SONY MICORMV IP-5

SONY MICORMV IP-45

SONY MICORMV IP-210

SONY MICORMV IP-7

SONY MICORMV IP-55

SONY MICORMV IP-220

2. When watching the TV, press the button to move

the IEEE 1394 in HOME menu and then ENTER button.

2. Press the D / Ebuttons to select the

Camcorder and then use the ENTER button.

• Show the control panel of DVHS.

96 Plasma TV

IEEE 1394

IEEE 1394 functions continued

how to save the MicroMV Camcorder to the DVR

1. On playing the MicroMV Camcorder, press the D / E/ F / G buttons to move to DVR $and then use the

ENTER button.

• Save the current screen to the DVR.

2. Press the D / E/ F / G buttons to move to DVR #and then use the ENTER button to end a saving.

Owner’s Manual 97

IEEE 1394

IEEE 1394 functions continued

How to connect the 1394

• When connecting these 3 methods, the 1394 will not work properly.

(a) LOOP Connection

<TV>

(b) Daisy Chain

<TV>

<DVHS>

<Connect

the

IEEE139

4 Cable>

<TV>

<DVHS>

<Connect

the

IEEE1394

Cable>

VHow to save the DVHS to the DVR

1. On playing the DVHS, press the D / E/ F / G buttons to move to "and then use the ENTER button.

98 Plasma TV

Owner’s Manual 99

Operation

CableCARD

CableCARD™Function

Function

Cable menu options

- The Cable sub menu displays when inserting the CableCARDTM to the TV.

- The CableCARDTM type is Motorola, Scientific Atlanta (SA), or SCM etc. The

OSD (On screen display) is different from your TV according to your

CableCARDTM type.

Scrambled channel

- Insert the CableCARDTM. If you do it at first, it takes about 1 minute to exchange

the data between the TV and the CableCARDTM. Then, TV screen displays as

shown right.

- Let your cable TV service provider know CableCARDTM ID and Host ID.

- If your cable TV service provider is registered CableCARDTM ID and Host ID,

you can watch the premium or high value channel.

- If you ever registered to the cable TV service provider, you can watch the pre-

mium or high value channel without a message.

- If the certificate don’t match between the TV and the CableCARDTM,

the OSD (On screen display) displays as shown left.

In case of Scientific Atlanta CableCARD™

i.e) CableCARD™/ Host ID Screen

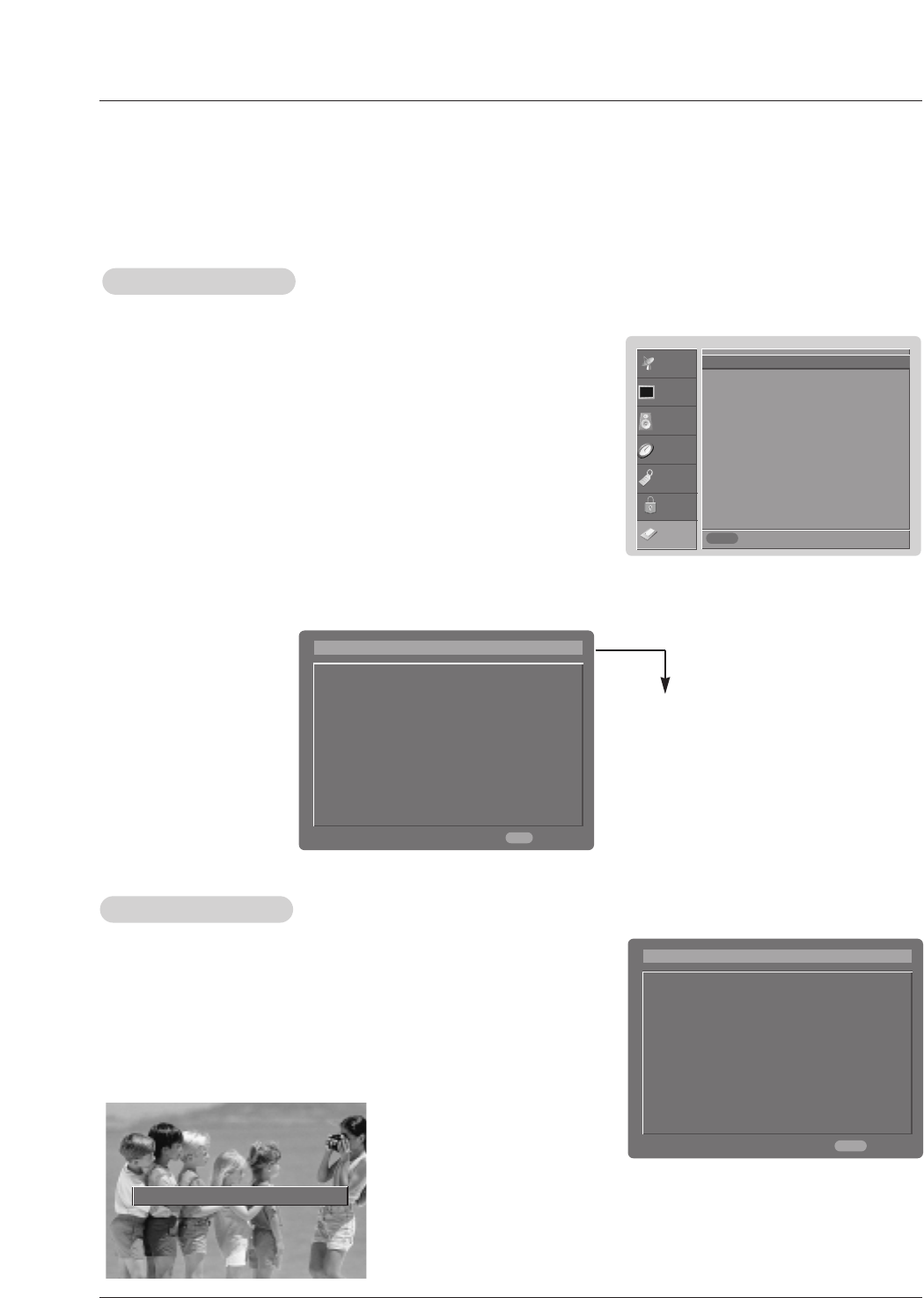

1. Press the MENU button and then use D / Ebutton to select the CABLE menu.

2. Press the Gbutton and then use D / Ebutton to select your desired item.

3. Press the Gbutton.

4. Press EXIT button to return to TV viewing.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE

SA CableCARD™ Diag Screen G

SA CableCARD™/Host ID Screen

Exit

In order to start service for

this device, please contact

customer service at

Ph#: 1-866-303-0422

CableCARD™(tm): 0-010-405-698-001

HOST ID: 0-080-000-000-226

EXIT

CableCARD™ Message

Exit

In order to start cable service for this device,

please contact SuperVision Cable at

1-800-555-8888

POD ID: 7-561-034-449-009

Host ID: 0-100-331-784-018

EXIT

CableCARD™ Message

Please call your operator and report an invalid CableCARDTM.

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example to help

the TV operation.

- As shown, the pairing

number means your TV

and CableCARDTM ID.

For further information

regarding cable TV ser-

vice, contact your local

cable TV service

provider(s).

100 Plasma TV

Operation

- If an emergency situation occur during watching the TV, you can receive a message from cable TV service

provider(s).

- When receiving an emergency message, the message is displayed on the screen as shown below or the channel

is changed automatically to a channel that maintains the emergency message. The message automatically disap-

peared.

Emergency Action Notification

Hurricane will be coming!!!

Cable Channel List

Emergency

Emergency Alert Message

Alert Message

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE Previous

EZ Scan

Manual Scan

Channel Edit G

DTV Signal

Channel Label

Main Input

Sub Input

Input Label

Set ID

Selection (

or ) leads

you to the channel edit

screen.

1. If you enter the Channel Edit after running the EZ Scan, you can see the cable channel list.

2. Inserting the CableCARDTM. Then, the TV receive a new cable channel list. At this time, it takes about 2~3 minutes.

(Occasionally more than that time).

Note:

• As data gathering of CableCARDTM, it may make a noise by fan in standby mode.

1. 2.

3. 4.

Owner’s Manual 101

Operation

W W

Watching PIP/POP/T

atching PIP/POP/Twin Picture

win Picture

- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other

source will show a smaller inset image.

- Twin Picture mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each

source is given half the screen.

- If you set the block/rating for Lock menu options in PIP/Twin Picture mode, “Rating Blocked” doesn’t display on screen.

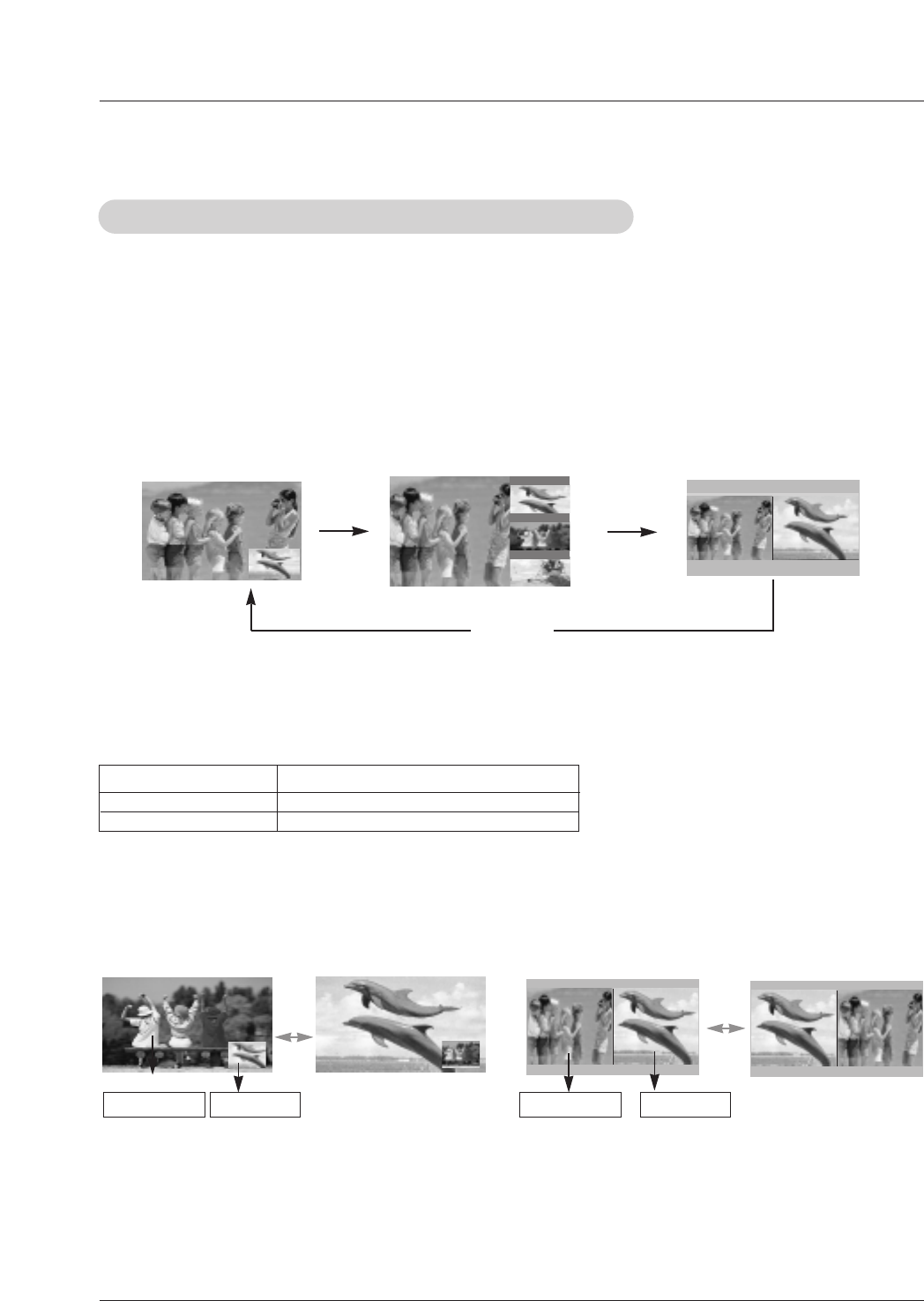

Press the PIP button to access the sub picture. Each press of PIP changes the PIP options as shown below.

PIP Off

PIP Mode POP Mode Twin Picture Mode

W TV Program selection for PIP

TV Program selection for PIP

1. Press the PIP button.

2. Select the Antenna or Cable option on the Sub input menu or with the PIP INPUT button. Use the PIPCH+ /

PIPCH- button to select a channel for the sub picture.

(You can’t select DTV for main and sub picture simultaneously).

W Swapping the PIP

Swapping the PIP/T

/Twin Picture

win Picture

Repeatedly, use the SWAP button to switch the main and sub pictures.

• Component 1, Component 2, RGB-PC (or RGB-DTV), HDMI1/DVI,HDMI2 input sources for the main picture can’t

be used to swap the main and sub pictures.

W Selecting an Input Signal Source for PIP/T

Selecting an Input Signal Source for PIP/Twin Picture

win Picture

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes

the PIP source. You can also select sources for the Sub Input in the SETUP menu.

Main Picture Source Available Sub Picture Sources

DTV

Analog

Analog, Video, and Front Video

DTV, Analog, Video, and Front Video

Main Picture Sub Picture Main Picture Sub Picture

F TV 2-0

TV 4-0

TV 6-0

Remote Control

PIP

PIP (Picture-In-Picture) / POP

(Picture-In-Picture) / POP / T

/ Twin Picture

win Picture

102 Plasma TV

Operation

W Moving the PIP

Moving the PIP sub picture

sub picture

In PIP mode, press the D / E/ F / Gbutton to move the sub picture to a different location on the

screen.

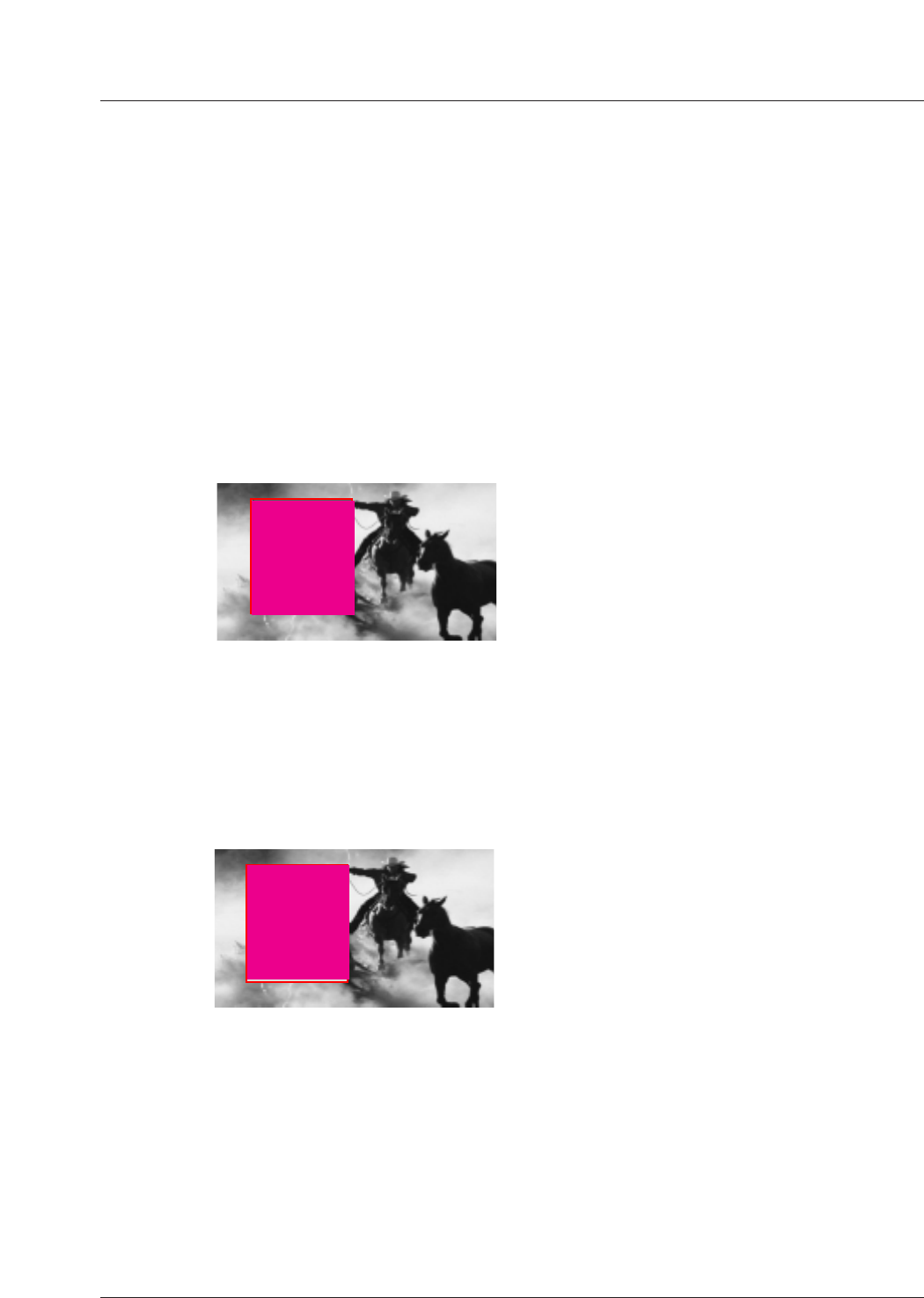

W Adjusting Main and Sub Picture Sizes for

Adjusting Main and Sub Picture Sizes for T

Twin Picture

win Picture

Use the D / E/ F / Gbutton to change main and sub picture sizes in Twin Picture mode.

If screen is adjusted to the

maximal size, the large

screen is filled with entire

screen vertically as shown.

i.e)

1. Press the PIP button to activate the POP mode while in PIP mode.

•Channel selection: Use Fbutton to enlarge the selected channel being searched on the PIP

screen to shift it for viewing on the Main screen.

•PIP selection: Use D / Ebutton to select one of 3 PIP screen pictures in POP mode.

• When watching TV/CATV on Main picture, TV/CATV or DTV/CADTV on Sub pictures are in chan-

nel scanning. However, when watching DTV/CADTV on Main picture, only TV/CATV on Sub pic-

ture is in channel scanning.

2. Press the EXIT button to cancel POP mode.

W POP

POP (Picture-out-of-Picture: Channel Scan)

(Picture-out-of-Picture: Channel Scan)

- Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen display,

(while the main picture source remains the current channel). The pictures of all the programmed channels

are searched with the 3 POP screen.

-Notes:

•Run EZ Scan channel search before using POP mode.

•When Sub pictures are changed from the TV/DTV to CATV/CADTV in POP mode, it may make a noise

from the Tuner switch.

F TV 2-0

TV 4-0

TV 6-0

Owner’s Manual 103

Operation

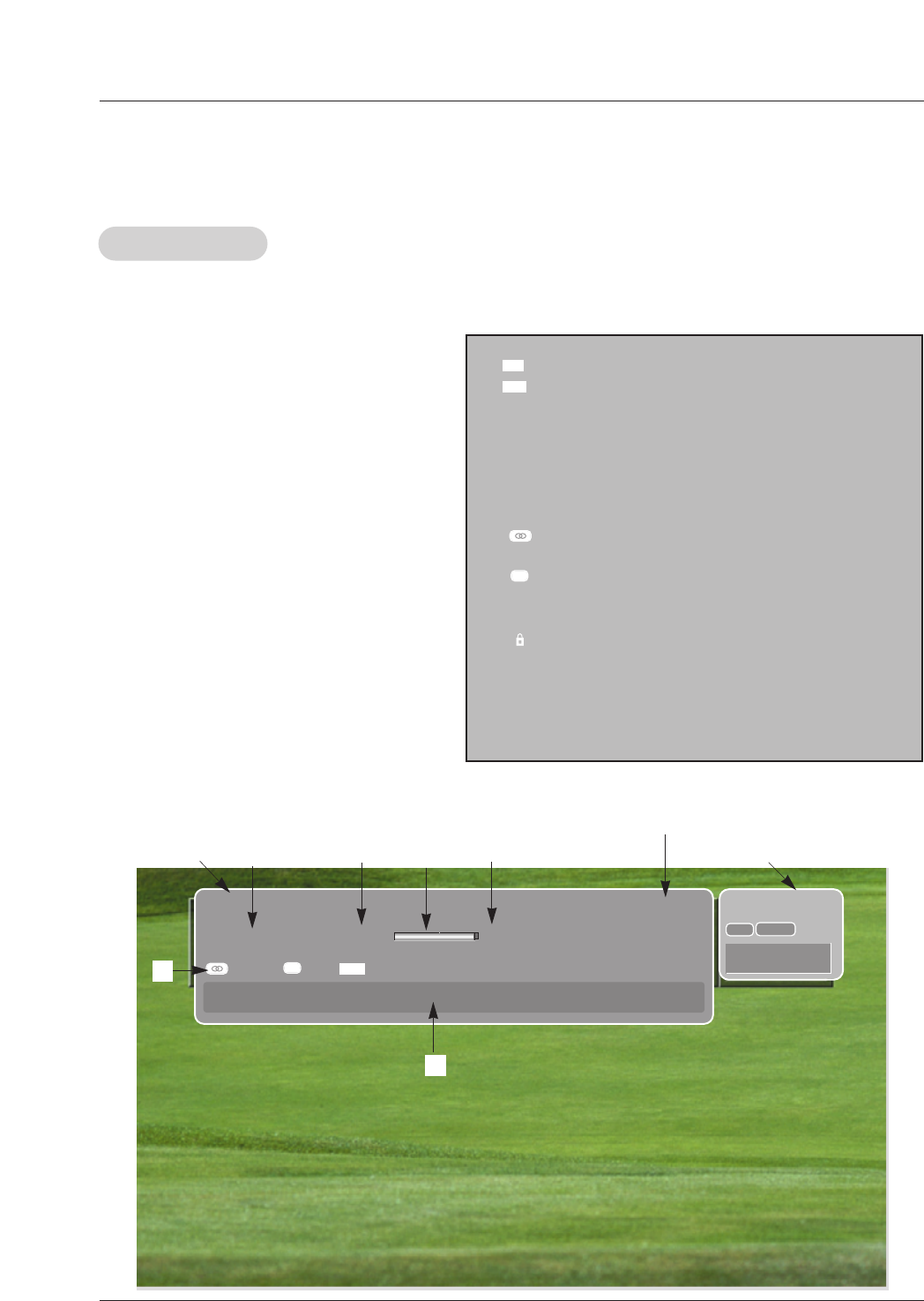

4 : 3

16 : 9

Screen Ratio of Input Signal 4:3

Screen Ratio of Input Signal 16:9

Resolution of Input Signal 720x480i

Resolution of Input Signal 720x480p

Resolution of Input Signal 1280x720p

Resolution of Input Signal 1920x1080i

Multilingual : Input Signal have over two Audio infor-

mation. Press the SAP button to select wanted Audio.

Caption: Input Signal have over one Close service.

Press the CC button to select wanted Closed caption.

Input Signal have rating information . Refer to the

<Lock Menu>.

D (Dialogue), L (Language), S (Sex), V (Violence), FV

(Fantasy Violence)

480i

480p

720p

1080i

Operation: • Watching TV/DTV/CATV/CADTV

• Watching Video, Front Video

• Watching IEEE 1394

• In Component1, Component2, RGB,

HDMI1/DVI,HDMI2 modes, INFO button

is not working.

Function: • Show the present screen information.

• On Watching with the upper Input signal,

press the INFO button.

• Press the INFO button or EXIT button to

exit.

A: Banner information, Refer to the

<Channel Banner>.

B: Program title

C: Day, Month, Year

D: Program start time

E: Program finish time

F: Show the prosessing rate

G: Present time

H: Added information. Refer to the icon

explanation.

I: Gemster information

Information

Live Eden 1080I

Sat, Dec 20, 2003 7:00PM 9:00PM

Caption

CC 16 : 9 Wide

Multilingual

CNBC

MONO STEREO

TV 6-0

BCDFA

104 Plasma TV

Operation

- Nothing to do with Caption on/Off using Mute button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the Mute button, the screen is displayed in turn. (Refer to the lower picture)

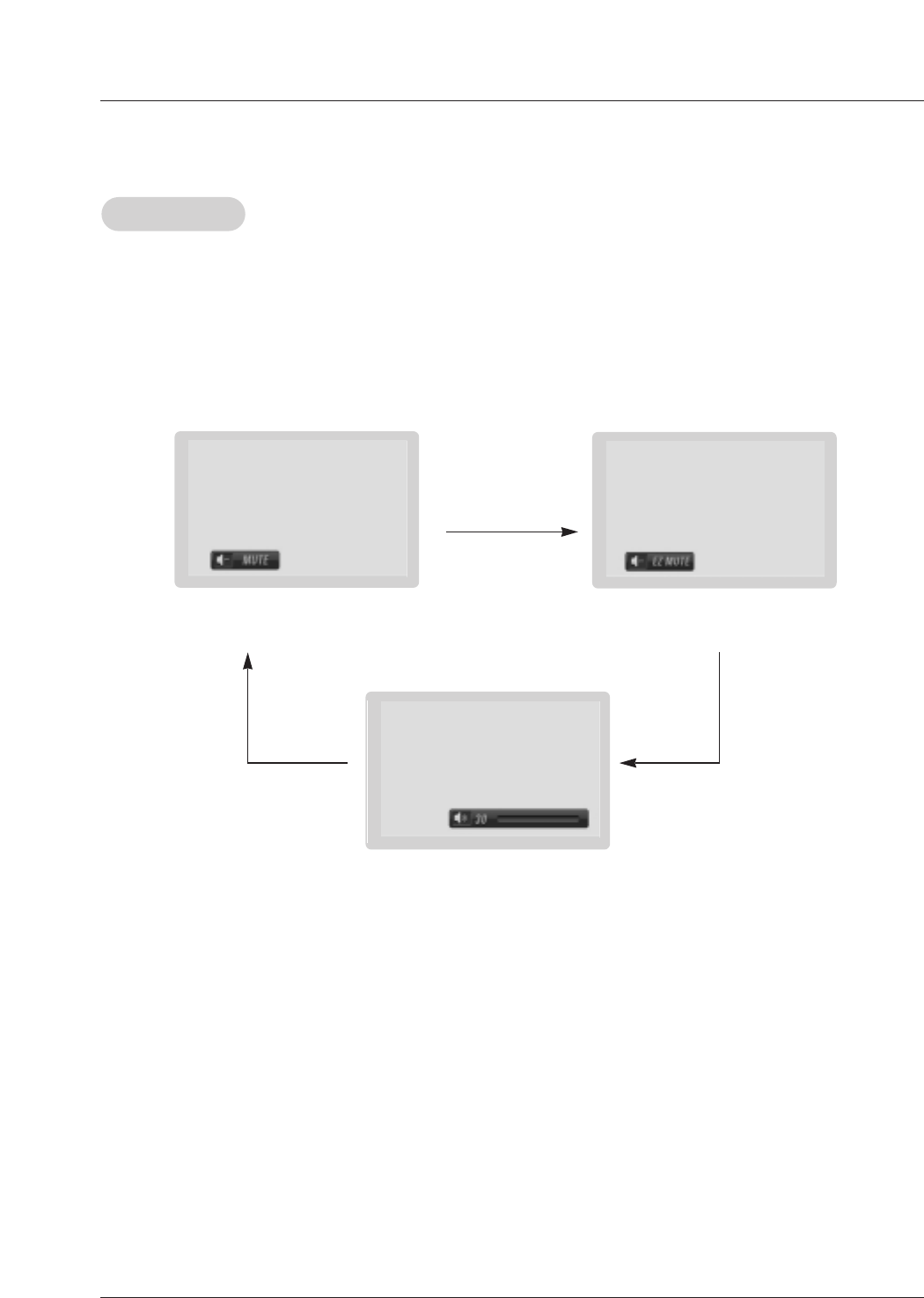

EZ Mute

Note:

• EZ Mute only operates in DTV/Analog/Video/Front Video/IEEE1394.

Owner’s Manual 105

External Control Device Setup

No. Pin Name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DSR

DTR

CTS

RTS

7-Wire Configurations

(Standard RS-232C cable)

D-Sub 9

PDP

D-Sub 9

RXD

TXD

GND

DTR

DSR

RTS

CTS

TXD

RXD

GND

DTR

DSR

RTS

CTS

3-Wire Configurations

(Not standard)

D-Sub 9

PDP

D-Sub 9

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

Type of Connector; D-Sub 9-Pin Male

ype of Connector; D-Sub 9-Pin Male

RS-232C Configurations

External Control Device Setup

RS-232C Setup

RS-232C INPUT

(CONTROL/SERVICE)

AUDIO INPUT

COMPONENT

DIGITAL AUDIO

(OPTICAL)

DVI

INPUT

COMPONENT2

INPUT

OUTPUT

AUDIO INPUT

RGB INPUT

VIDEO INPUT

HDMI 2

HDMI /DVI

COMPONENT

MONITOR

OUTPUT

A/V

INPUT1

VIDEO

AUDIO

(MONO)

DVD

/DTV

INPUT

106 Plasma TV

External Control Device Setup

• Baud rate : 9600 bps (UART)

• Data length : 8 bits

• Parity : None

* Use a crossed (reverse) cable.

• Stop bit : 1 bit

• Communication code : ASCII code

Communication Parameters

Transmission

* [Command 1]: First command to control the set. (j or k)

* [Command 2]: Second command to control the set.

* [Set ID]: You can adjust the set ID to choose desired monitor

ID number in Setup menu. Adjustment range is 1

~ 99. When selecting Set ID ‘0’, every connected

the TV is controlled. Set ID is indicated as decimal

(1~99) on menu and as Hexa decimal (0x0~0x63)

on transmission/receiving protocol.

* [DATA]: To transmit command data.

Transmit ‘FF’data to read status of command.

* [Cr]: Carriage Return

ASCII code ‘0x0D’

* [ ]: ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

Transmission / Receiving Protocol

ransmission / Receiving Protocol

OK Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the

data is data read mode, it indicates present status data. If

the data is data write mode, it returns the data of the PC

computer.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from non-viable

functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Data 1: Illegal Code

2: Not supported function

3: Wait more time

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 9

03. Aspect Ratio k c *

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 2

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD Select k l 0 ~ 1

13.

Remote Control Lock Mode

k m 0 ~ 1

14. PIP/Twin k n 0,1,2,5

15. PIP Position k q 0 ~ 3

16. Treble k r 0 ~ 64

17. Bass k s 0 ~ 64

18. Balance k t 0 ~ 64

19. Color Temperature k u 0 ~ 2

20. PIP Input Source k y 0 ~ 3

21. ISM Method j p *

22. Low Power j q 0 ~ 1

23. Orbiter Time Setting j r 1 ~ FE

24. Orbiter Pixel Setting j s 1 ~3

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

Command Reference List

Set ID

Use this function to specify a monitor ID number.

Refer to ‘Real Data Mapping’. See page 82.

1. Press the MENU button and then use D /Ebutton to select the SETUP menu.

2. Press the Gbutton and then use D /Ebutton to select SET ID.

3. Press the Gbutton and then use D /Ebutton to adjust SET ID to choose the

desired monitor ID number. The adjustment range of SET ID is 1 ~ 99.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

SETUP

VIDEO

AUDIO

TIME

OPTION

LOCK

CABLE Previous

EZ Scan

Manual Scan

Channel Edit

DTV Signal

Channel Label

Main Input

Sub Input

Input Label

Set ID G

25. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ FF 00 ~ FF 00 ~ FF

26. Channel Add/Del m b 00 ~ 01

27. Key m c *

28. Input Select x b *

29. PIP Input Select x y *

COM-

MAND 2

COM-

MAND 1

DATA 0

(Hexadecimal)

DATA 1

(Hexadecimal)

DATA 2

(Hexadecimal)

DATA 3

(Hexadecimal)

DATA 4

(Hexadecimal)

DATA 5

(Hexadecimal)

Owner’s Manual 107

External Control Device Setup

02. Input Select (Command2:b) (Main Picture Input)

GTo select input source for the Monitor.

Transmission

Data 0: DTV

1: Analog

2: Video1

3: Video2

4: Component 1

5: Component 2

6: RGB-DTV

7: RGB-PC

8: HDMI1/DVI

9: HDMI2

Date 1: 4:3

2: 16:9

3: Horizon

4: Zoom 1

5: Zoom 2

6: Set by program

10: Cinema Zoom (1)

1F: Cinema Zoom (16)

[k][b][ ][Set ID][ ][Data][Cr]

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

01. Power (Command2:a)

GTo control Power On/Off of the Monitor.

Transmission

Data 0 : Power Off 1 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In a like manner, if other functions transmit ‘FF’data

based on this format, Acknowledgement data feedback

presents status about each function.

* Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

05. Volume Mute (Command2:e)

GTo control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

[k][e][ ][Set ID][ ][Data][Cr]

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

GTo adjust the screen format.

You can also adjust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command2:d)

GTo select screen mute on/off.

Transmission

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

GTo adjust volume.

You can also adjust volume with the volume buttons

on remote control.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’as shown below.

[k][f][ ][Set ID][ ][Data][Cr]

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

GTo adjust screen contrast.

You can also adjust contrast in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’as shown below.

[k][g][ ][Set ID][ ][Data][Cr]

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

GTo adjust screen brightness.

You can also adjust brightness in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’as shown below.

[k][h][ ][Set ID][ ][Data][Cr]

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

108 Plasma TV

External Control Device Setup

09. Color (Command2:i)

GTo adjust the screen color.

You can also adjust color in the Video menu.

Transmission

Data Min : 0 ~ Max : 64

•Refer to ‘Real data mapping’. See page 82.

[k][i][ ][Set ID][ ][Data][Cr]

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

GTo adjust the screen tint.

You can also adjust tint in the Video menu.

Transmission

Data Red : 0 ~ Green : 64

•Refer to ‘Real data mapping’. See page 82.

[k][j][ ][Set ID][ ][Data][Cr]

Acknowledgement

[ j ][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

GTo lock the remote control and the front panel controls on

the set.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Lock off 1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

14. PIP / POP / Twin Picture (Command2:n)

GTo control the PIP (Picture-in-Picture)/POP/Twin picture.

You can also control the PIP/POP/Twin picture using the

PIP button on the remote control.

Transmission

Data 0: PIP off

1: PIP

2: POP

3: Twin Picture

[k][n][ ][Set ID][ ][Data][Cr]

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

GTo adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

Transmission

11. Sharpness (Command2:k)

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][k][ ][Set ID][ ][Data][Cr]

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

GTo select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: OSD off 1: OSD on

[l][ ][Set ID][ ][OK][Data][x]

15. PIP Position (Command2:q)

GTo select sub picture position for PIP.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

Data 0: Right down on screen

1: Left down on screen

2: Left up on screen

3: Right up on screen

[q][ ][Set ID][ ][OK][Data][x]

16. Treble (Command2:r)

GTo adjust treble.

You can also adjust treble in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

18. Balance (Command2:t)

GTo adjust balance.

You can also adjust balance in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][t][ ][Set ID][ ][Data][Cr]

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

17. Bass (Command2:s)

GTo adjust bass.

You can also adjust bass in the Audio menu.

Transmission

Data Min: 0 ~ Max: 64

•Refer to ‘Real data mapping’. See page 82.

[k][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 109

External Control Device Setup

19. Color Temperature (Command2:u)

GTo adjust color temperature.

You can also adjust color temperature in the Video

menu.

Transmission

Data 0: Cool 1: Medium 2: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

23. Orbiter Time Setting (Command2:r)

GTo adjust orbiter operation time term.

Transmission

Data Min: 1 ~ Max: FE

[ j ][r][ ][Set ID][ ][Data][Cr]

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

24. Orbiter Pixel Setting (Command2:s)

GTo adjust pixel number in orbiter function.

Transmission

Data Min: 1 ~ Max: 3

[ j ][s][ ][Set ID][ ][Data][Cr]

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

25. Tune Command (Command: m a)

GTo tune channel to following physical/major/minor number

Transmission

Data 0:

Physical channel number Min: 1~ Max: 0x87

Data 1, Data 2:

Major Channel Number (two part)/ Channel

Number (One part) (Data 1: High, Data 2: Low)

Data 3, Data 4:

Minor Channel Number (Data3: High, Data4: Low)

Data 5:

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

*Using physical channel: 5th bit

If the channel band is NTSC air or NTSC cable, channel tun-

ing can be done by only physical channel. In this case, using

physical channel bit must be low(0).

But if the channel band is ATSC air or ATSC cable, there are

two cases that physical channel enable or disable.

If the physical channel sending is meaningful, you should set

this bit low(0). If the physical channel sending is meaningless,

you should set this bit high(1).

Example)

1. Analog channel: NTSC cable, channel number(35), main

picture Command: ma 00 23 xx xx xx xx 01 attribute(0x01):

main picture, two part(it’s not mandatory), using physical chan-

nel, NTSC cable ‘xx’data: don’t care major and minor channel

number in case analog channel tuning.

2. Digital channel: ATSC air, channel number(don’t know phys-

ical channel, major(30), minor(3)), sub picture

Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub pic-

ture, two part, not using physical channel, ATSC air ‘xx’data:

don’t care analog channel number in case digital channel tun-

ing.

3. Digital channel: ATSC air, channel

number(physical(20),major(20), minor(3)), sub picture

Command: ma 00 14 00 14 00 03 82 attribute(0x82): sub pic-

ture, two part, using physical channel, ATSC air.

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]

[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][Data4][x]

[a][ ][Set ID][ ][NG][Data0][x]

Acknowledgement

20. PIP Input Select (Command2:y)

G To select input source for sub picture in PIP/Twin pic-

ture mode.

Transmission

Data 0: DTV

1: Analog

2: Video1

3: Video2

[k][y][ ][Set ID][ ][Data][Cr]

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

21. ISM Method (Command2:p)

GTo avoid having a fixed image remain on screen.

Transmission

Data 1: Inversion

2: Orbiter

4: White Wash

8: Normal

[ j ][p][ ][Set ID][ ][Data][Cr]

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

22. Low Power (Command2:q)

GTo control the low power function on/off.

Transmission

Data 0: low power off

1: low power on

[ j ][q][ ][Set ID][ ][Data][Cr]

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

7Main/Sub

Picture 6

Two/One

Part

Channel

Using

Physical

Channel

Reserv

ed 3210Step

Main

Sub

Two

One

Use

No Use

x0110

NTSC Air

ATSC

cable_auto

ATSC

Cable_irc

ATSC

Cable_hrc

ATSC

Cable_std

NTSC Cable

ATSC Air

Reserved

...

Reserved

110 Plasma TV

26. Channel Add/Del (Command: m b)

GTo add and delete the channels

Transmission

Data 0: Channel Delete

1: Channel Add

[m][b][ ][Set ID][ ][Data][Cr]

[b][ ][Set ID][ ][OK][Data][x]

[b][ ][Set ID][ ][NG][Data][x]

Acknowledgement

27. Key (Command: m c)

GTo send IR remote key code

Transmission

Data Key code: Refer to page 86.

[m][c][ ][Set ID][ ][Data][ ][Cr]

[c][ ][Set ID][ ][OK][Data][x]

Acknowledgement

External Input Data

0000

0001

0010

DTV

Analog

Reserved

Component

RGB_DTV

RGB_PC

Reserved

HDMI1

Reserved

0011

0100

0101

0110

0111

1000

1001

1011

1100

1101

1110

1111

28. Input select(Command: x b) (Main Picture Input)

GTo select input source for TV.

Transmission

Data Structure

[x][b][][Set ID][][Data][Cr]

[b][][Set ID][][OK/NG][Data][x]

Acknowledgement

000

00000

External Input Input Number

Input Number Data

0000

0001

0010

Input1

Input2

Input3

Input4

Input5

Input6

Input7

Input8

Input9

Input10

Input11

Input12

Input13

Input14

Input15

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111 Input16

Note:

• In case Video/S-Video is selected automatically by TV, use only

single Video input.

• In case Video/S-Video is selected by user manually, use sepa-

rate Video/S-Video inputs.

29. PIP Input Select(Command: x y)

GTo adjust input source for sub picture in PIP mode

Transmission

[x][y][][Set ID][][Data][Cr]

Data Structure

000

00000

External Input Input Number

External Input Data

0000

0001

0010

DTV

Analog

Reserved

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

Input Number Data

0000

0001

0010

Input1

Input2

Input3

Input4

Input5

Input6

Input7

Input8

Input9

Input10

Input11

Input12

Input13

Input14

Input15

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111 Input16

[y][][Set ID][][OK/NG][Data][x]

Acknowledgement

Reserved

1110

MSB LSB

Owner’s Manual 111

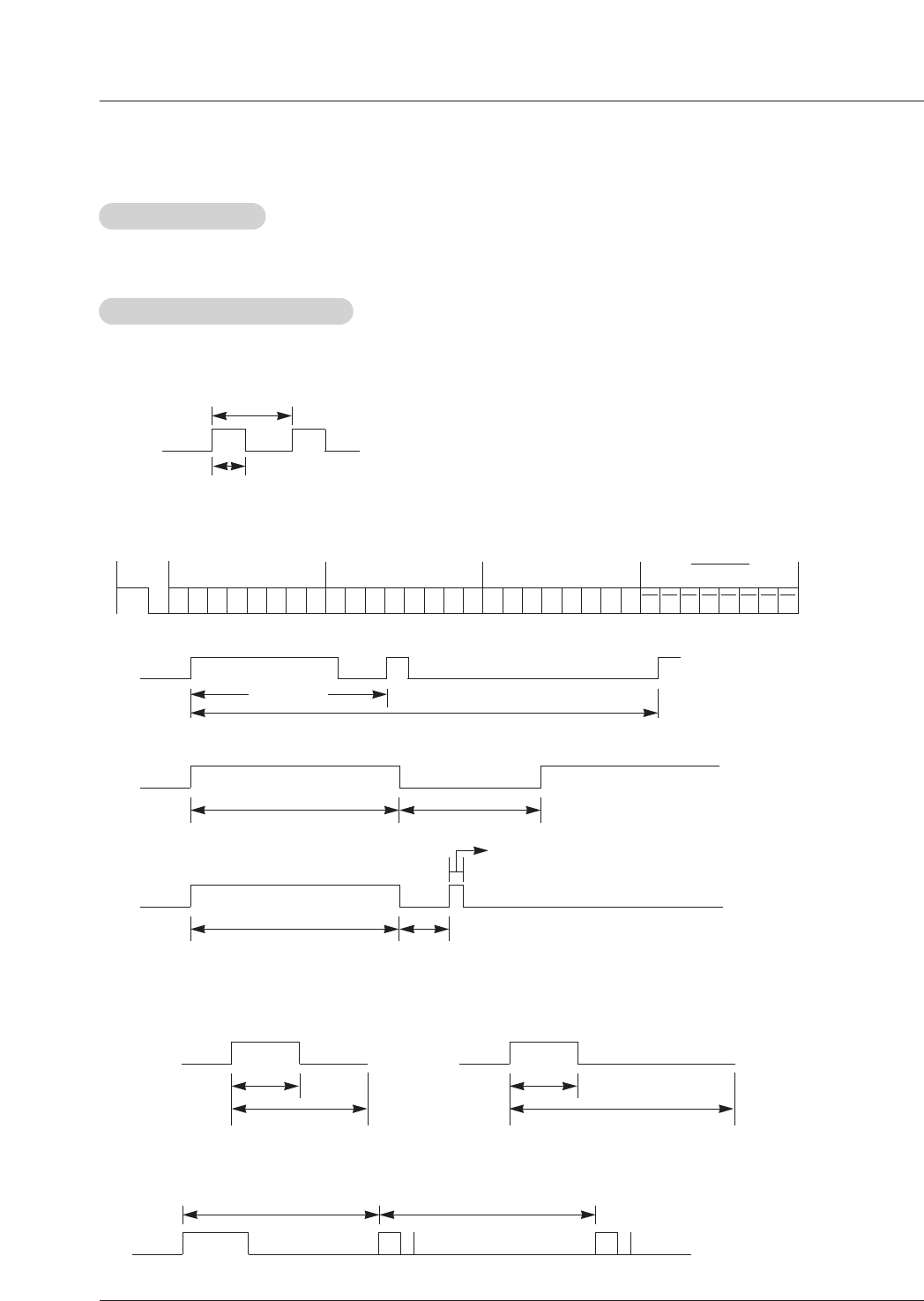

IR Codes

G Connect your wired remote control to the Remote Control port on the TV.

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

• 1st frame

Low

custom code

Lead

code

High

custom code Data code Data code

Carrier frequency

FCAR = 1/TC= fOSC/12

Duty ratio = T1/TC= 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

How to Connect

Remote Control IR Codes

IR Codes

112 Plasma TV

IR Codes

10 ~ 19

R/C Button

R/C Button (Power On/Off)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R/C Button

Discrete IR Code (TV Input Selection)

Discrete IR Code (Video Input Selection)

Discrete IR Code (Front Video Input Selection)

Discrete IR Code (Component1 Input Selection)

Discrete IR Code (Component2 Input Selection)

Discrete IR Code (RGB-PC Input Selection)

Discrete IR Code (RGB-DTV Input Selection)

Discrete IR Code (HDMI1/DVI Input Selection)

Discrete IR Code (Only 4:3 Mode)

Discrete IR Code (Only 16:9 Mode)

Discrete IR Code (Only Zoom1 Mode)

Discrete IR Code (Channel Search)

R/C Button

Code (Hexa) Function Note

TV/VIDEO

POWER

POWER ON

POWER OFF

RATIO

TIMER

Number Key 0~ 9

- (Dash)

FLASHBK

MUTE

VOL D

VOLE

CH D

CH E

FAV

INFO

ENTER

EZ SOUND

EZ PIC

EXIT

PIP

PIPCH -

PIPCH +

PIP INPUT

SWAP

FREEZE

SAP

ADJUST

VIDEO

Front Video

COMPONENT 1

COMPONENT 2

RGB-PC

RGB-DTV

HDMI1/DVI

HDMI2

Ratio 4:3

Ratio 16:9

Ratio Zoom

POP

1394

PLAY

PAUSE

STOP

REC

REW

GOTOPREV

GOTONEXT

TV GUIDE

APM

MC EJECT

AUTO DEMO

X STUDIO

MARK

Owner’s Manual 113

Programming Codes

G The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable

devices of other manufacturers.

Note that the remote control may not control all models of other brands.

Programming a code into a remote mode

Programming the Remote

1. Test your remote control.

To find out whether your remote control can operate the component without programming, turn on the component such as a VCR

and press the corresponding the desired component button on the remote control, while illuminating at the selected component.

Test the POWER and CH D/Ebuttons to see if the component responds properly. If not, the remote requires programming to oper-

ate the device.

2. Turn on the component to be programmed, then press the corresponding the desired component button on the remote control.

3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.

4. There are two ways to find the right code for the component.

A. If you press the CH D/Ebuttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code

change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component

can be found on the following pages. Again, if the code is correct, the device will turn off.

5. Press the MENU button to store the code.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

114 Plasma TV

Programming the Remote

Programming Codes

VCRs

CATV

AIWA 034

AKAI 016 043 046 124

125 146

AMPRO 072

ANAM 031 033 103

AUDIO DYNAMICS

012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 138 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON

012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

133 140 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

PORTLAND 108

PULSAR 072

QUARTZ 011 014

QUASAR 033 066 075 145

RCA 013 020 033 034

040 041 062 063

107 109 140 144

145 147

REALISTIC 003 008 010 014

031 033 034 040

053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 032 040 102 104

105 107 109 112

113 115 120 122

125

SANSUI 022 043 048 135

SANYO 003 007 010 014

102 134

SCOTT 017 037 112 129

131

SEARS 003 00 009

010 013 014 017 020

031 042 073 081

101

SHARP 031 054 149

SHINTOM 024

SONY 003 009 031 052

056 057 058 076

077 078 149

SOUNDESIGN 034

STS 013

SYLVANIA 031 033 034 059

067

SYMPHONIC 034

TANDY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH

012

VICTOR 048

VIDEO CONCEPTS

012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

Brand Codes Brand Codes Brand Codes Brand Codes

ABC 003 004 039 042

046 052 053

AJIN 112

ANTRONIK 014

ARCHER 005 007 014 024

CABLE STAR 026

CENTURION 092

CENTURY 007

CITIZEN 007

COLOUR VOICE 065 090

COMBANO 080 081

COMTRONICS 019 030

DIAMOND 023

EAGLE 020 030 040

EASTERN 057 062 066

ELECTRICORD 032

GE 072

GEMINI 008 022 025 054

GI 052 074

GOLDEN CHANNEL

030

HAMLIN 049 050 055

HITACHI 052 055

HOSPITALITY 070 077

JERROLD 002 003 004 008

009 010 052 069

074

LG (GOLDSTAR) 001 106 101 005

M-NET 037

MACOM 033

MAGNAVOX 010 012 064 079

MEMOREX 100

MOVIE TIME 028 032

NSC 015 028 038 071

073

OAK 016 031 037 053

PANASONIC 044 047

PARAGON 100

PHILIPS 006 012 013 020

065 085 090

PIONEER 034 051 052 063

076

POST NEWS WEEK

016

PRUCER 059

PTS 011 048 071 072

073 074

PULSAR 100

RCA 047

REGAL 049 050

REGENCY 057

REMBRANT 025

RK 091

SAMSUNG 102 107 030 068

SCIENTIFIC ATLANTA

003 011 041 042

043 045 046

SHERITECH 022

SIGNAL 030

SIGNATURE 052

SL MARX 030

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030

SYLVANIA 067

TADIRAN 030

TAEKWANG 110

TAIHAN 105

TANDY 017

TEXSCAN 029 067

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

Owner’s Manual 115

Programming Codes

Audio

APEX DIGITAL 022

DENON 020 014

GE 005 006

HARMAN KARDON 027

JVC 012

LG 001 010 016 025

MAGNAVOX 013

MARANTZ 024

MITSUBISHI 002

NAD 023

ONKYO 008 017

PANASONIC 003 009

PHILIPS 013

PIONEER 004 026

PROCEED 021

PROSCAN 005 006

RCA 005 006

SAMSUNG 011 015

SONY 007

THOMPSON 005 006

TOSHIBA 019 008

YAMAHA 009 018

ZENITH 010 016 025

DVD

ALPHASTAR DSR

123

AMPLICA 050

BIRDVIEW 051 126 129

BSR 053

CAPETRONICS 053

CHANNEL MASTER

013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

HYTEK 053

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101

UNIDEN 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

HDSTB

Brand Codes Brand Codes Brand Codes Brand Codes

AIWA 014 028 070 096

125 129 139 229

230

AKAI 163

ANAM 003 014 017 023

059 106 189 216

217 235 236

BURMECTER 252

CARVER 086

CLARION 199

DAEWOO 027 053 060 084

102 148 198 221

DENON 015 075 130 143

FANTASIA 071

FINEARTS 022

FISHER 089 099

LG(GOLDSTAR) 001 021 024 029

087 107 108 110

190 191 192 210

211 212 239

HAITAI 034 035 188 222

HARMAN/KARDON 068

INKEL 037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

JVC 004 013 141

KEC 185 186 187

KENWOOD 038 050 067 089

170 171 197 206

215 222

KOHEL 030

NAD 045 046

LOTTE 014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

LXI 103

MAGNAVOX 111

MARANTZ 002 018 020 025

034 041 081 090

097 112

MCINTOSH 049

MCS 104

MEMOREX 107

NAD 046

ONKYO 013 040 041 047

048 056 057 132

133 140

OPTIMUS 158

PANASONIC 007 033 064 113

142 220 241 251

PENNEY 104

PHILIPS 026 112 143 253

PIONEER 039 042 043 063

065 091 093 094

115 123 127 250

QUASAR 113

RCA 080

RCX 092

REALISTIC 103 106

SAMSUNG 124 145 146 182

193 194 195 203

204 244 245 246

SANSUI 011 135 138 144

SANYO 019 083 234

SCOTT 106 186

SHARP 031 032 051 052

072 082 117 119

156 184 199 200

206 209

SHERWOOD 005 006 158

SONY 044 045 109 114

118 126 248 249

TAEKWANG 012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

254

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

YAMAHA 054 055 066 092

199

Brand Codes Brand Codes Brand Codes Brand Codes

116 Plasma TV

Troubleshooting Checklist

No output from one of

the speakers •Adjust Balance in the AUDIO menu. (Refer to p.63)

Unusual sound from

inside the TV

•A change in ambient humidity or temperature may result in an unusual noise

when the plasma display is turned on or off and does not indicate a fault with

the TV.

No picture &

No sound

•Check whether the TV is turned on.

•Is the power cord inserted into wall power outlet?

•Test the wall power outlet, plug another product’s power cord into the outlet

where the TV’s power cord was plugged in.

No or poor color

or poor picture

•Select Color in the Video menu and press the VOLUME (G) button.

(Refer to p.61)

•Keep a sufficient distance between the TV and the VCR.

•Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

The remote control

doesn’t work

•Check to see if there is any object between the TV and the remote control

causing obstruction.

•Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p.10)

•Correct remote operating mode set: TV, VCR etc.?

•Install new batteries. (Refer to p.10)

Picture OK &

No sound

•Press the VOLUME (G) button.

•Sound muted? Press MUTE button.

Picture appears slowly

after switching on

•This is normal, the image is muted during the TV startup process. Please

contact your service center, if the picture has not appeared after five minutes.

Horizontal/vertical bars

or picture shaking •Check for local interference such as an electrical appliance or power tool.

Troubleshooting Checklist

roubleshooting Checklist

Owner’s Manual 117

Maintenance

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and

a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the

screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your

new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Cabinet

Extended

Extended Absence

Absence

Maintenance

118 Plasma TV

Specification

•The specifications shown above may be changed without prior notice for quality improvement.

Product Specifications

MODELS

AC100-240V ~ 60Hz

NTSC-M, ATSC

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135. DTV 2 ~ 69

75 Ω

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

55.2 / 1402

31.4 / 798.5

11.9 / 302.5

122 / 55.3

67.24 / 1708

36.6 / 931

12.6 / 320.7

189.2 / 85.8

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

TU-50PY22/

TU-50PY2DR-UA

TU-60PY22/

TU-60PY2DR-UA

1366 x 768 (Dot)

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it

proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”)

listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This war-

ranty is good only to the original purchaser of the product and effective only when used in the United States, includ-

ing Alaska, Hawaii, and U.S. Territories.

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV

typically contain a small number of pixels that do not function normally. Your display has been inspected and is in

compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use

of your display.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights that vary from state to state.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute

model or factory reconditioned unit, at LGE’s option. If

repaired, parts used in the repair may be new or remanufac-

tured.

Replacement Units and Repair Parts are warranted for the

remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period

begins on the date of sale to the original consumer/end user.

KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be

required to submit a legible copy of your bill of sale or proof

of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s

dated bill of sale or delivery ticket as evidence

of the Date of Purchase for proof of warranty,

and submit a copy of the bill of sale to the ser-

vice person at the time warranty service is pro-

vided.

Please call 1-201-816-2000 to locate your

nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your

product online. This information will allow us to reach you promptly should we discover a safety or reliability prob-

lem that could affect you.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824

http://www.lgservice.com

FOR SERVICE:

Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to

the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not

be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective

unit to the LG®Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without

charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory

warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently

owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before

returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product

information or Dealer or Service locations

Call 1-201-816-2000

24 hours a day, 365 days per year

THIS LIMITED WARRANTY DOES NOT APPLY TO:

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

●damage caused in shipping or transit

●service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner’s manual for power supply

requirements)

●installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or

LG Electronics USA 60PY2DRUA PDP Display User Manual 528Aen TU 50PY22 1

LG Electronics USA PDP Display 528Aen TU 50PY22 1

Contents

Users Manual Part 3

Navigation menu

Namespaces

Views

Navigation
