LG Electronics USA 65VS10 LCD MONITOR User Manual EMISSION TEST REPORT
LG Electronics USA LCD MONITOR EMISSION TEST REPORT
Users Manual
Order Number
: GETEC-C1-11-081
FCC Part 15 subpart B
Test Report Number
: GETEC-E3-11-026
Page 1 / 1
EUT Type: LCD Monitor
FCC ID.: BEJ65VS10
APPENDIX G
: USER’S MANUAL
www.lg.com
OWNER’S MANUAL
MONITOR SIGNAGE
65VS10
Please read this manual carefully before operating the
your set and retain it for future reference.
MONITOR SIGNAGE MODELS
ENG
ENGLISH
2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3 ASSEMBLING AND PREPAR-
ING
3 Unpacking
4 Optional Accessories
5 Parts and buttons
6 Connecting the Speakers
6 To install Portrait
7 Installing on a wall
8 REMOTE CONTROL
10 USING THE MONITOR SET

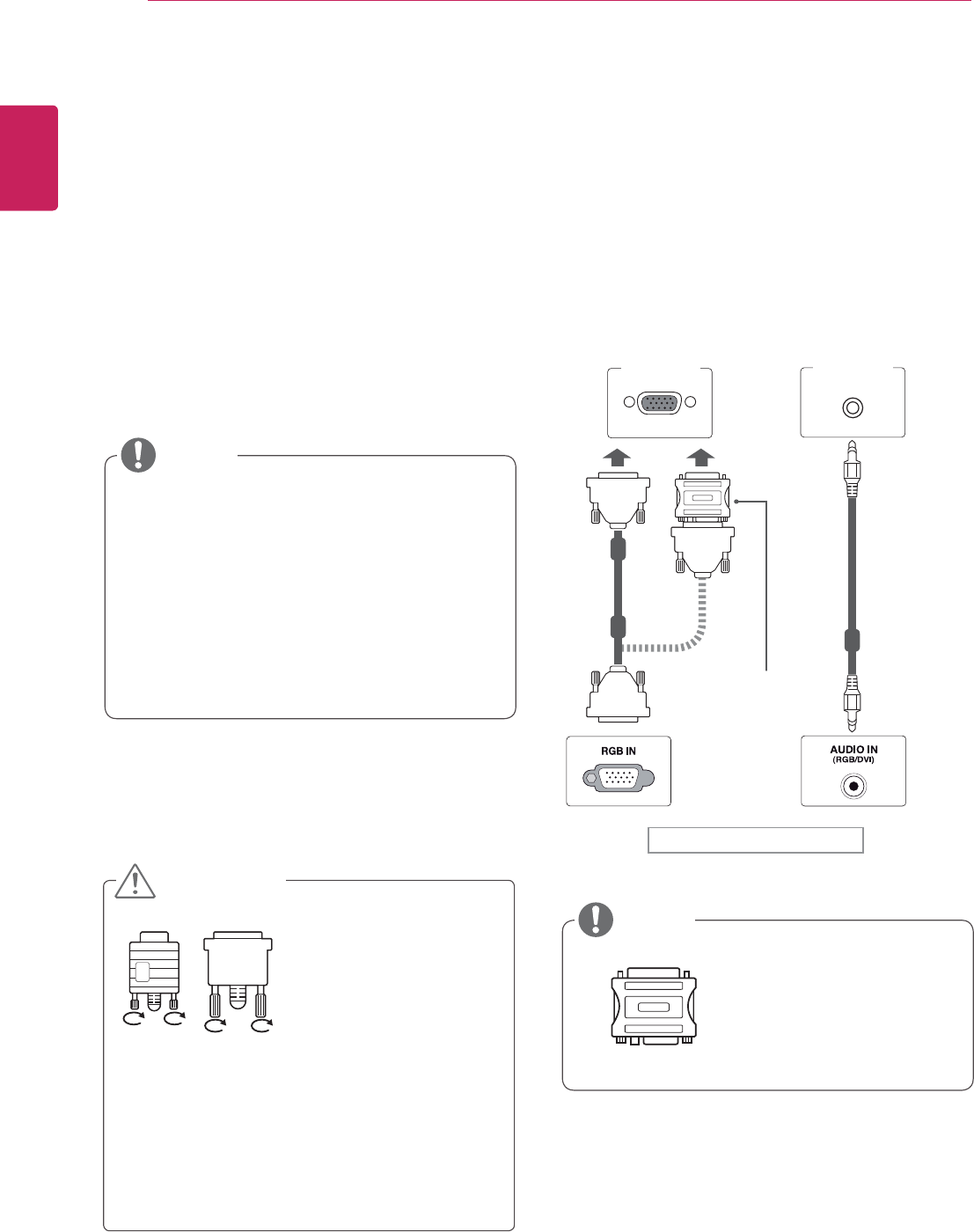

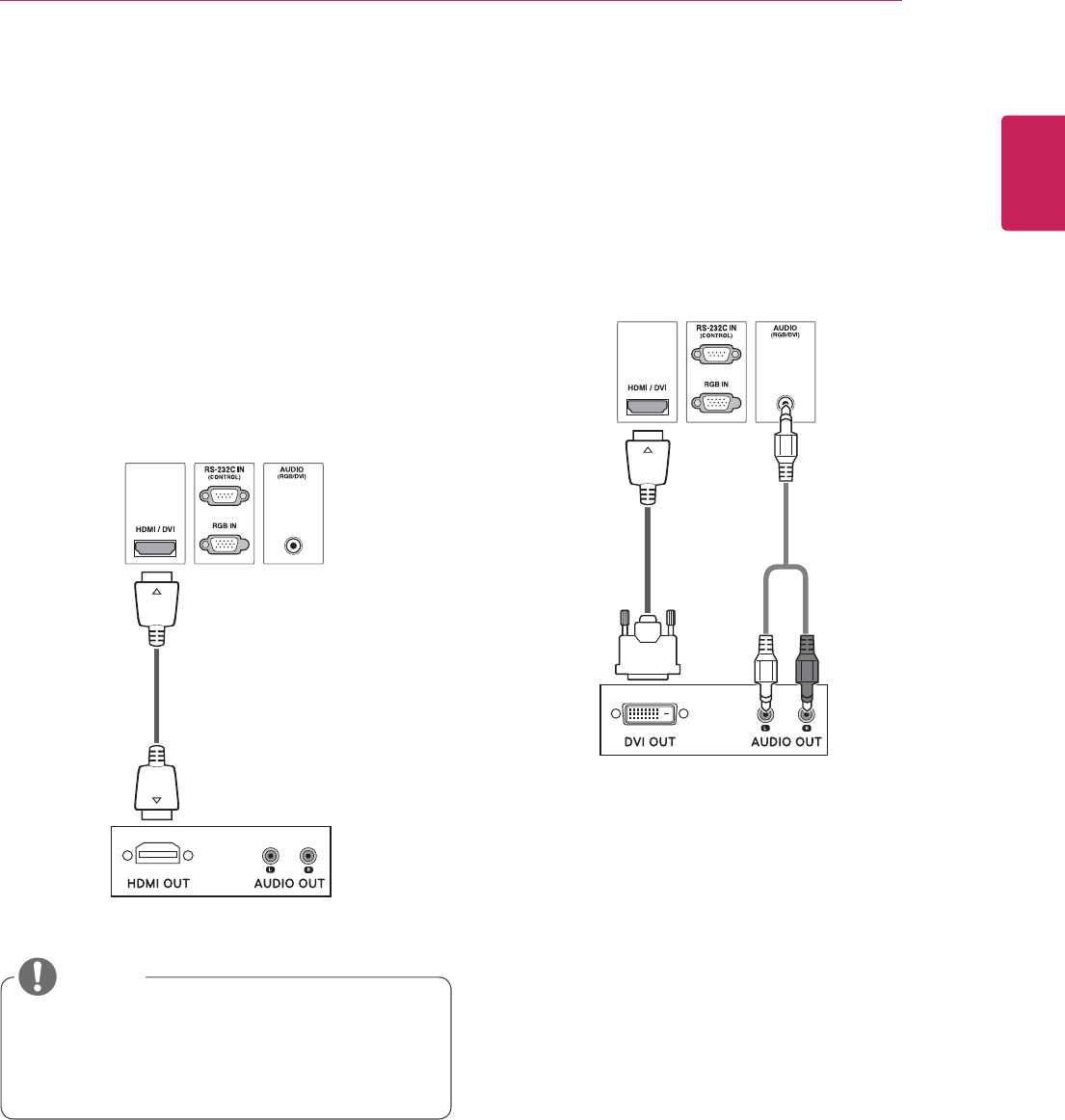

10 Connecting to a PC
10 - RGB connection

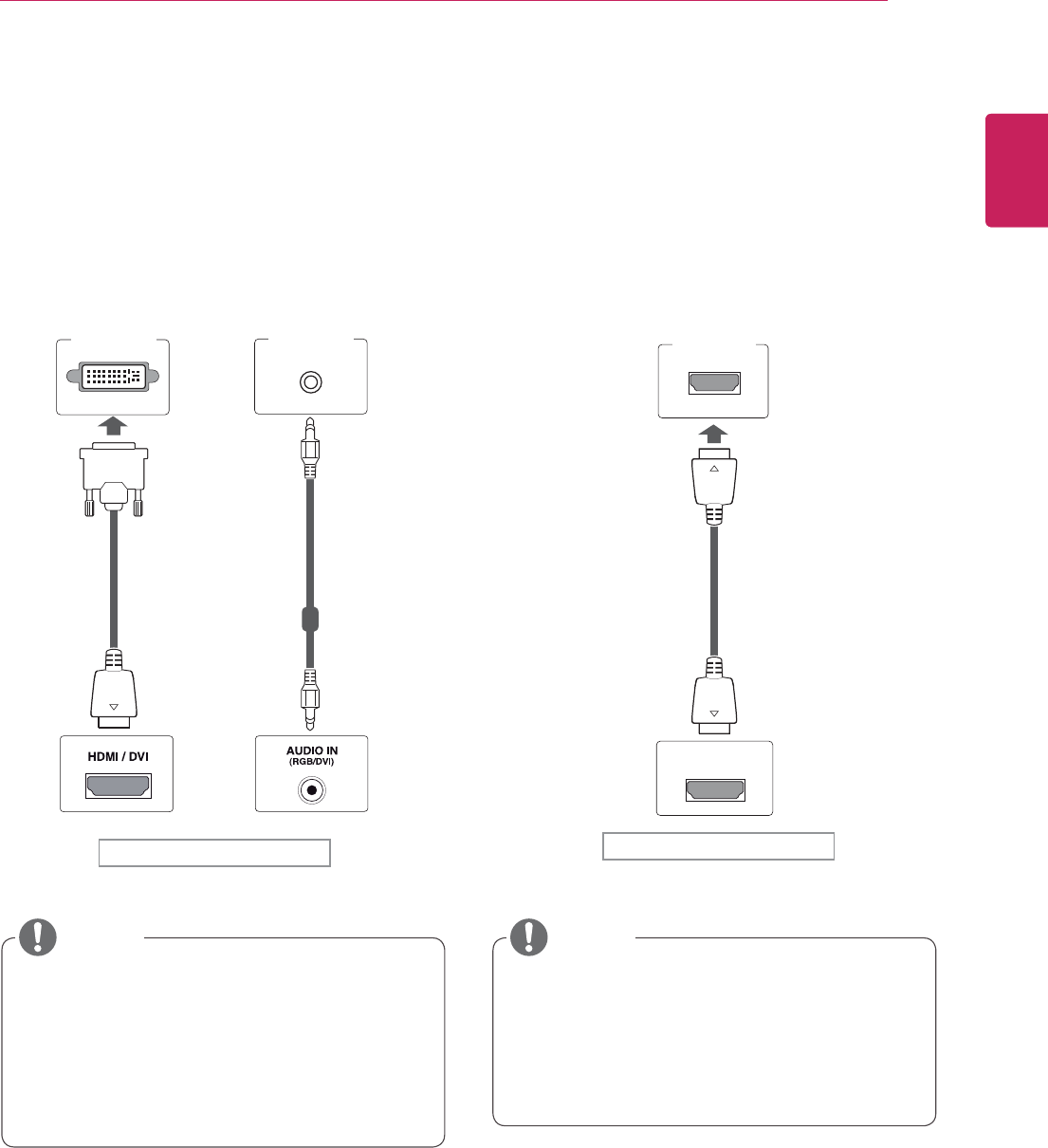

11 - HDMI to DVI connection
11 - HDMI connection
12 CUSTOMIZING SETTINGS

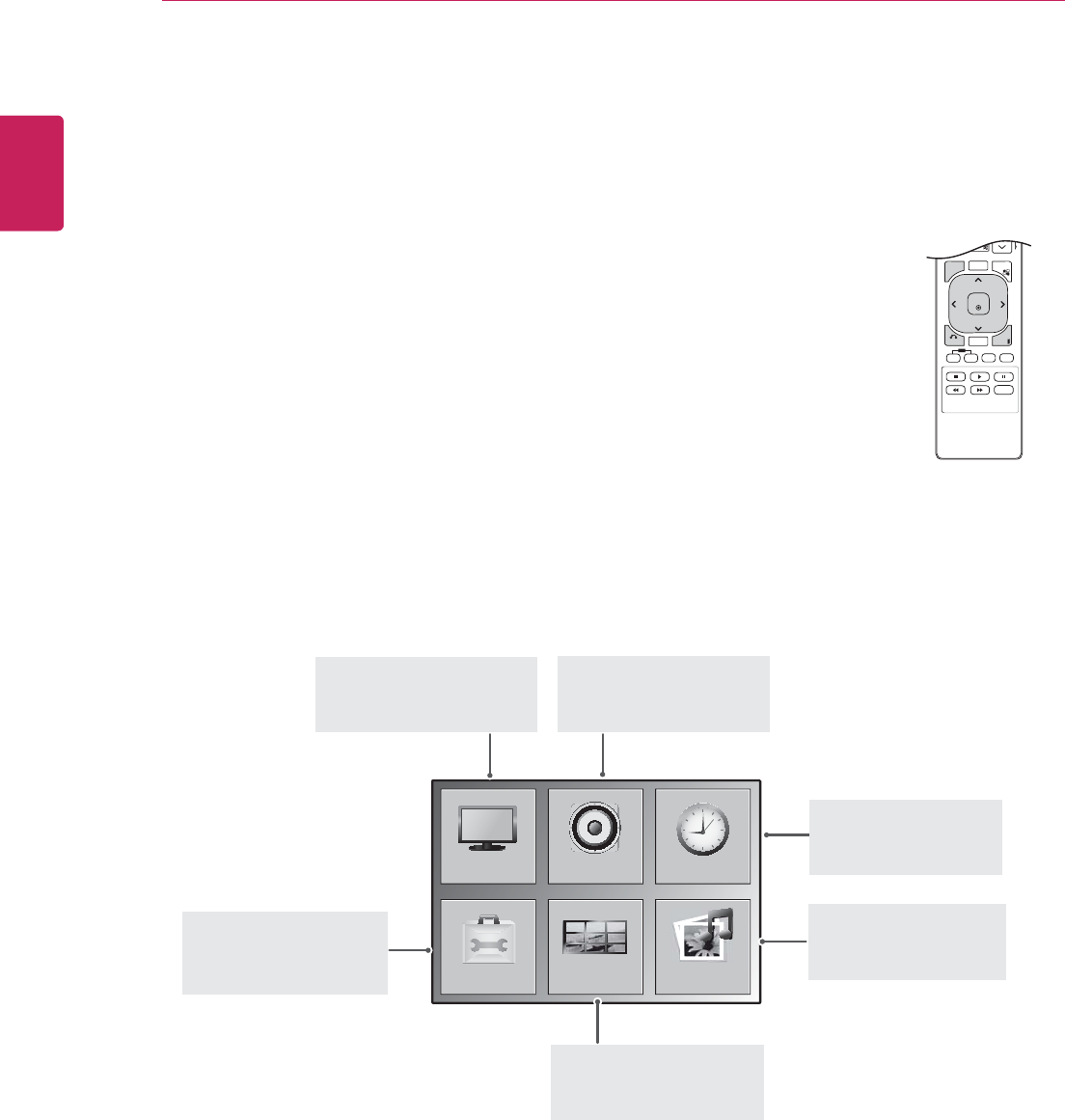

12 Accessing main menus

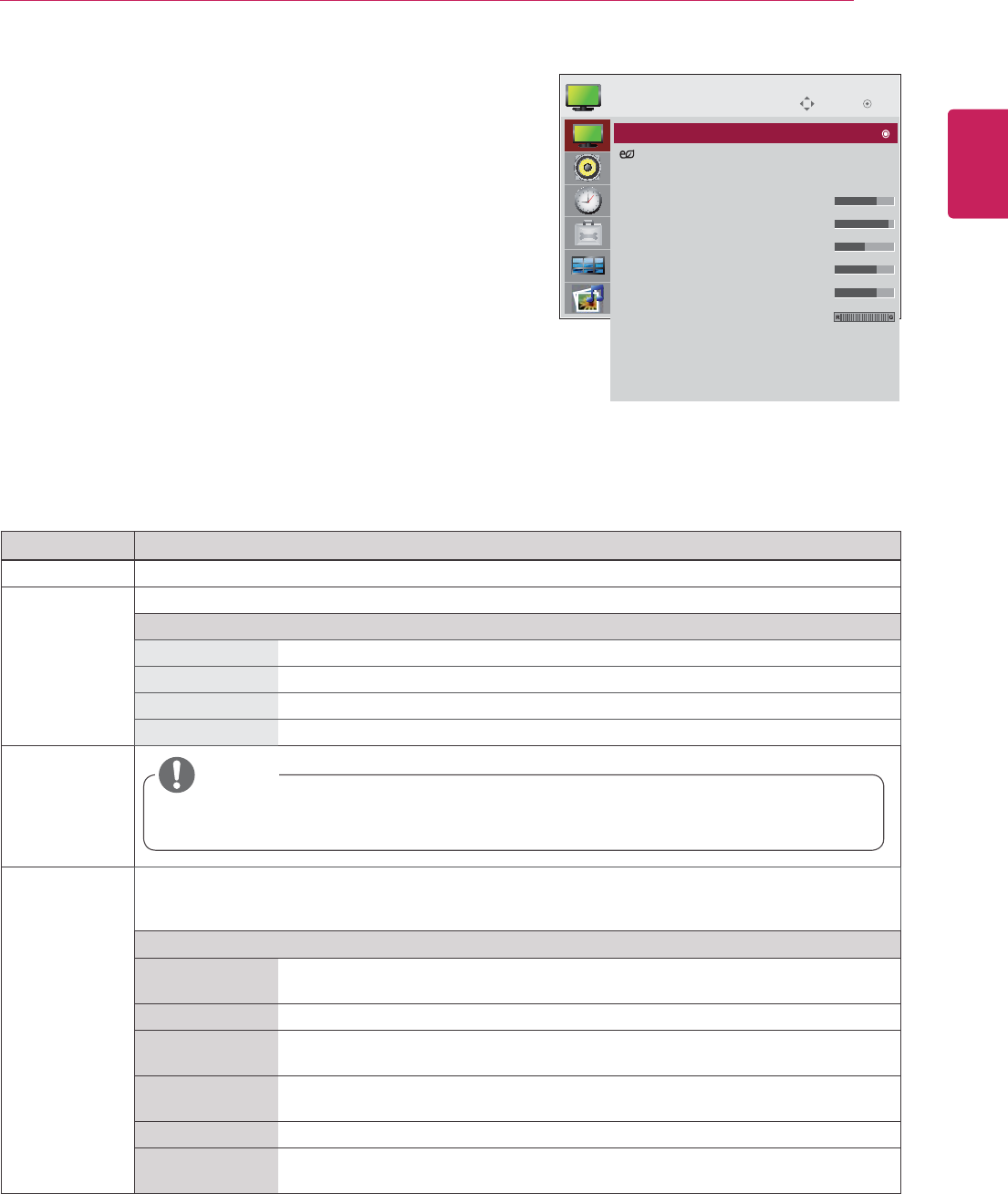

13 - PICTURE settings

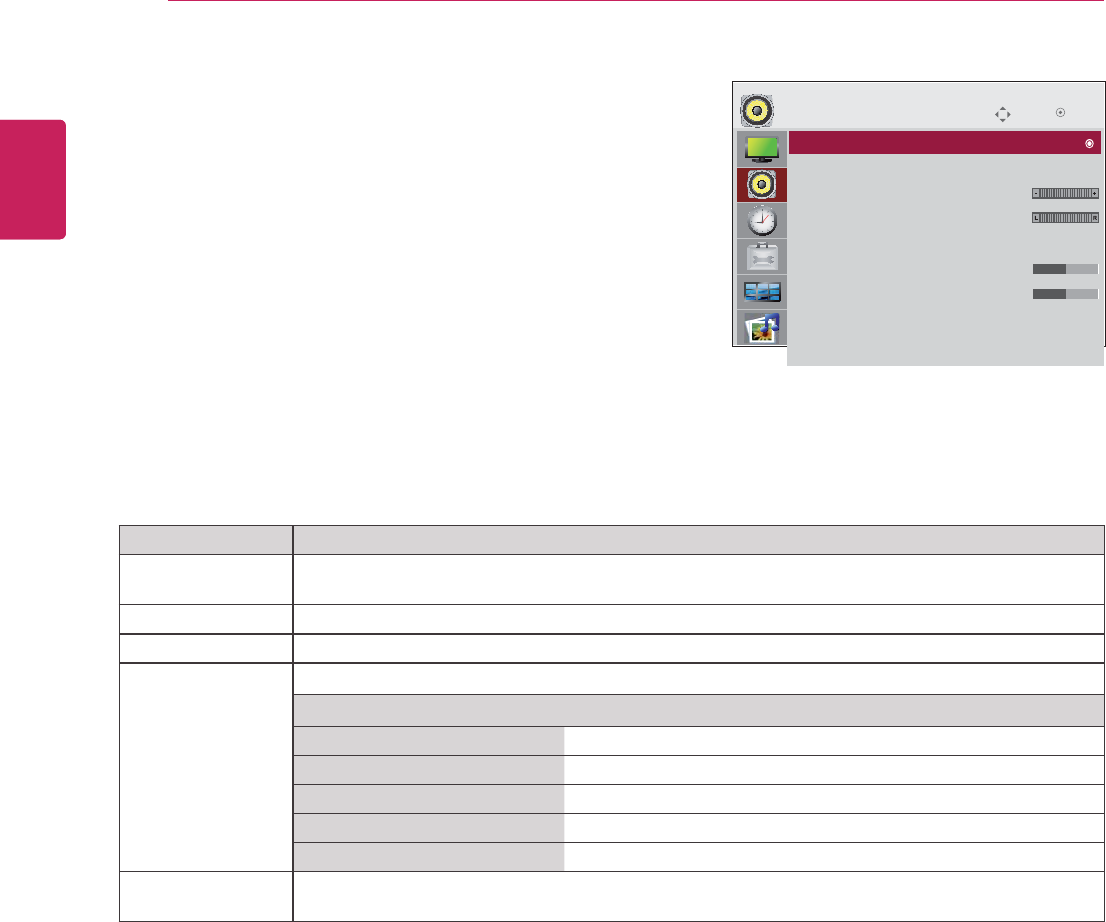

17 - AUDIO settings
18 - TIME settings

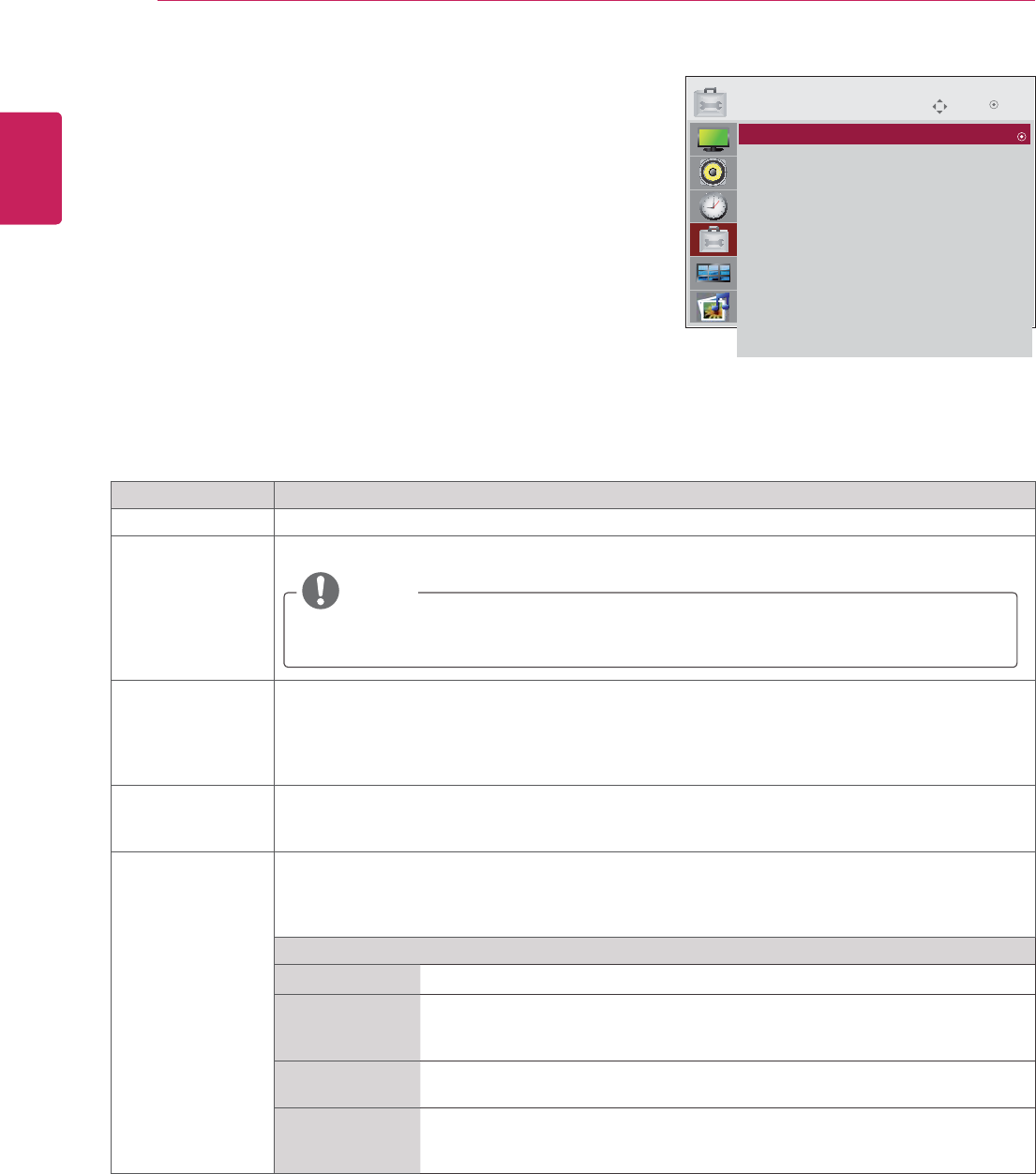

19 - OPTION settings

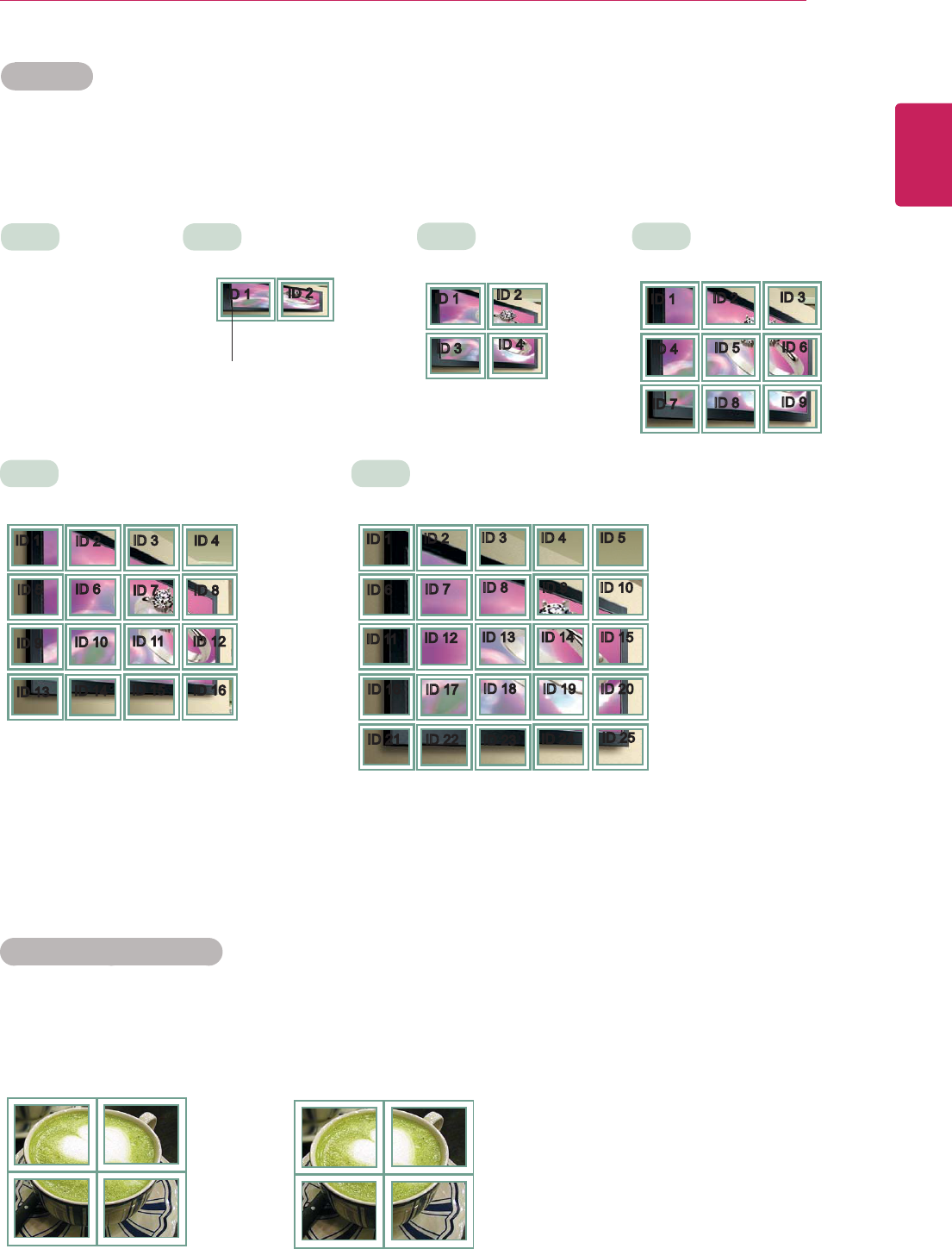

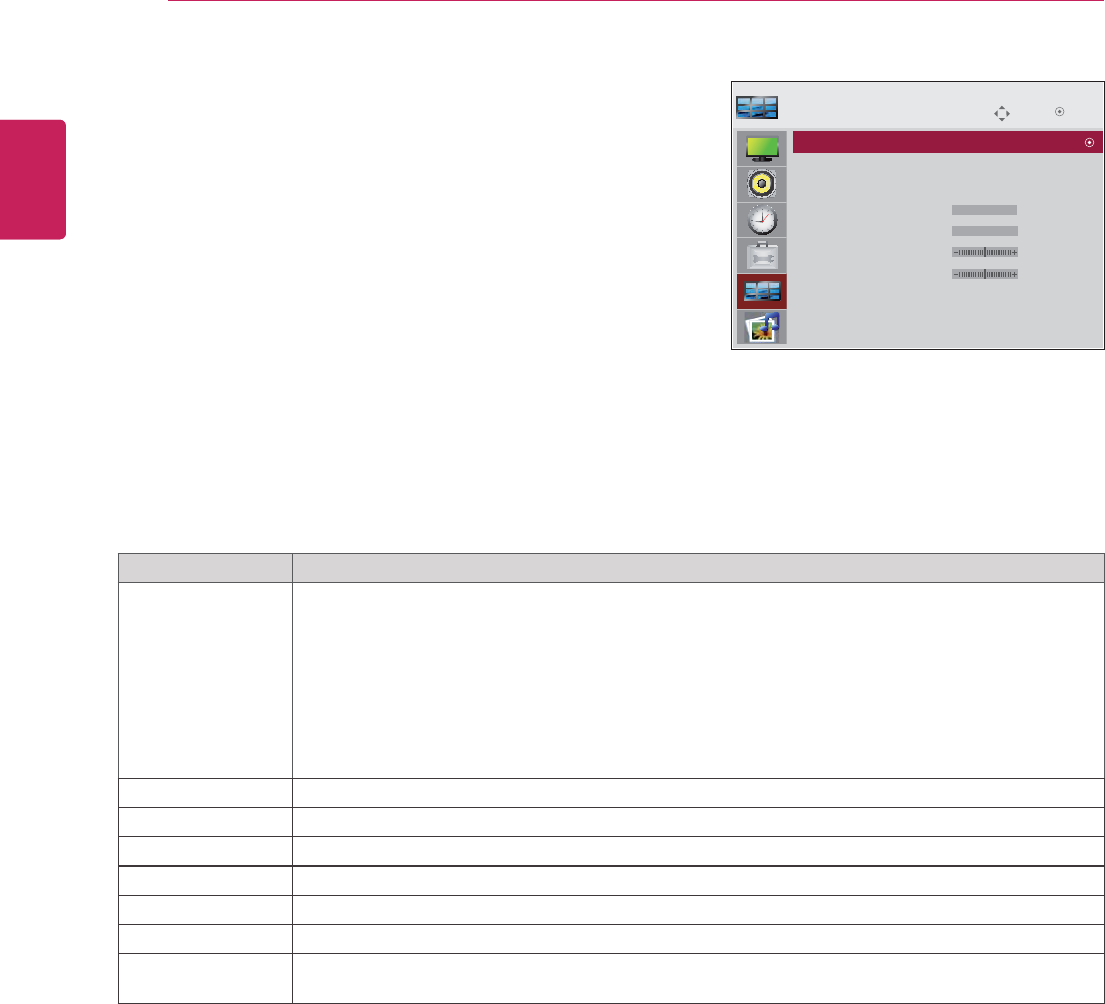

21 - TILE settings

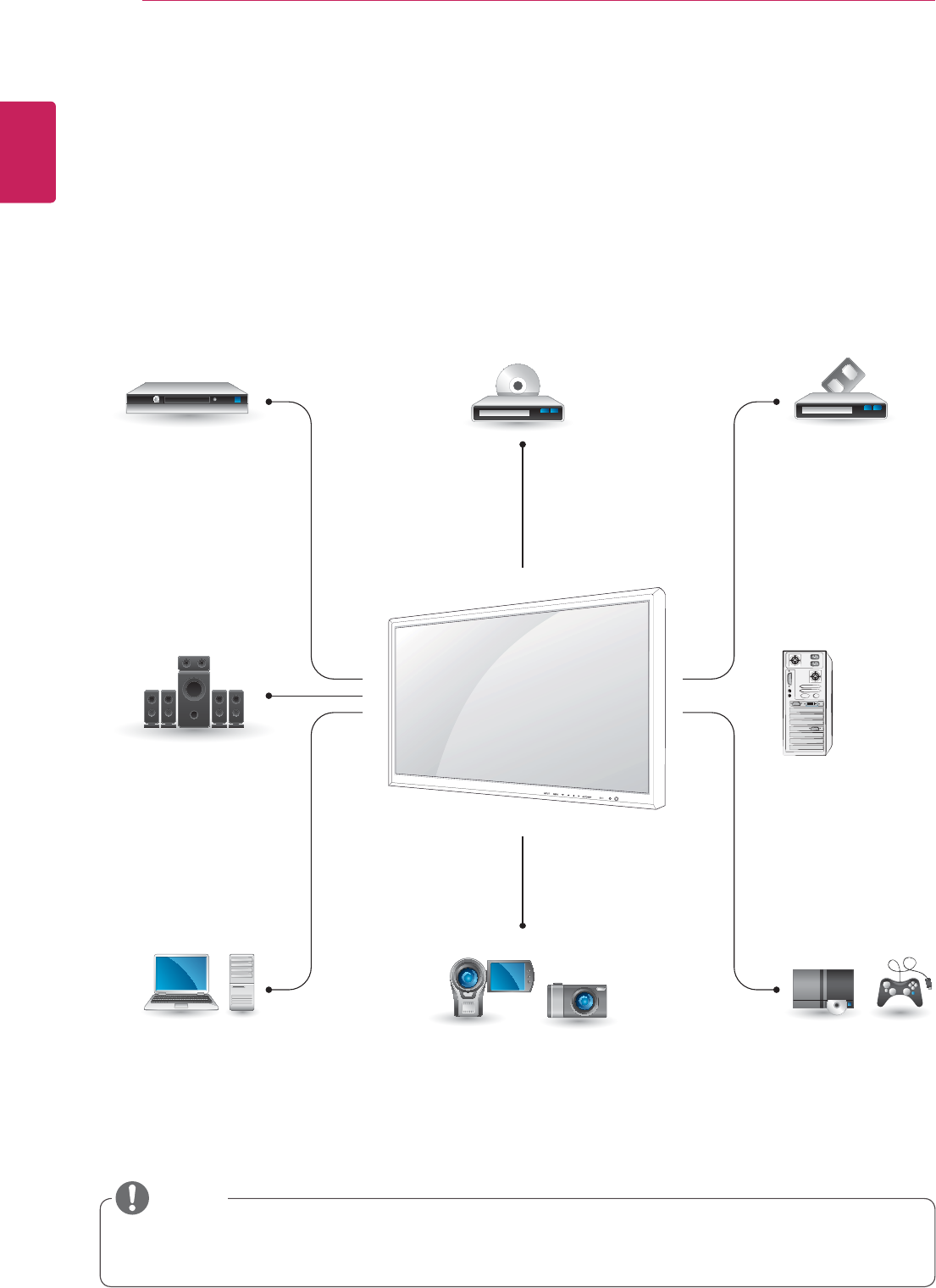

23 MAKING CONNECTIONS
24 Connecting to a HD receiver, DVD or
VCR player
24 - HDMI connection
24 - DVI - HDMI connection

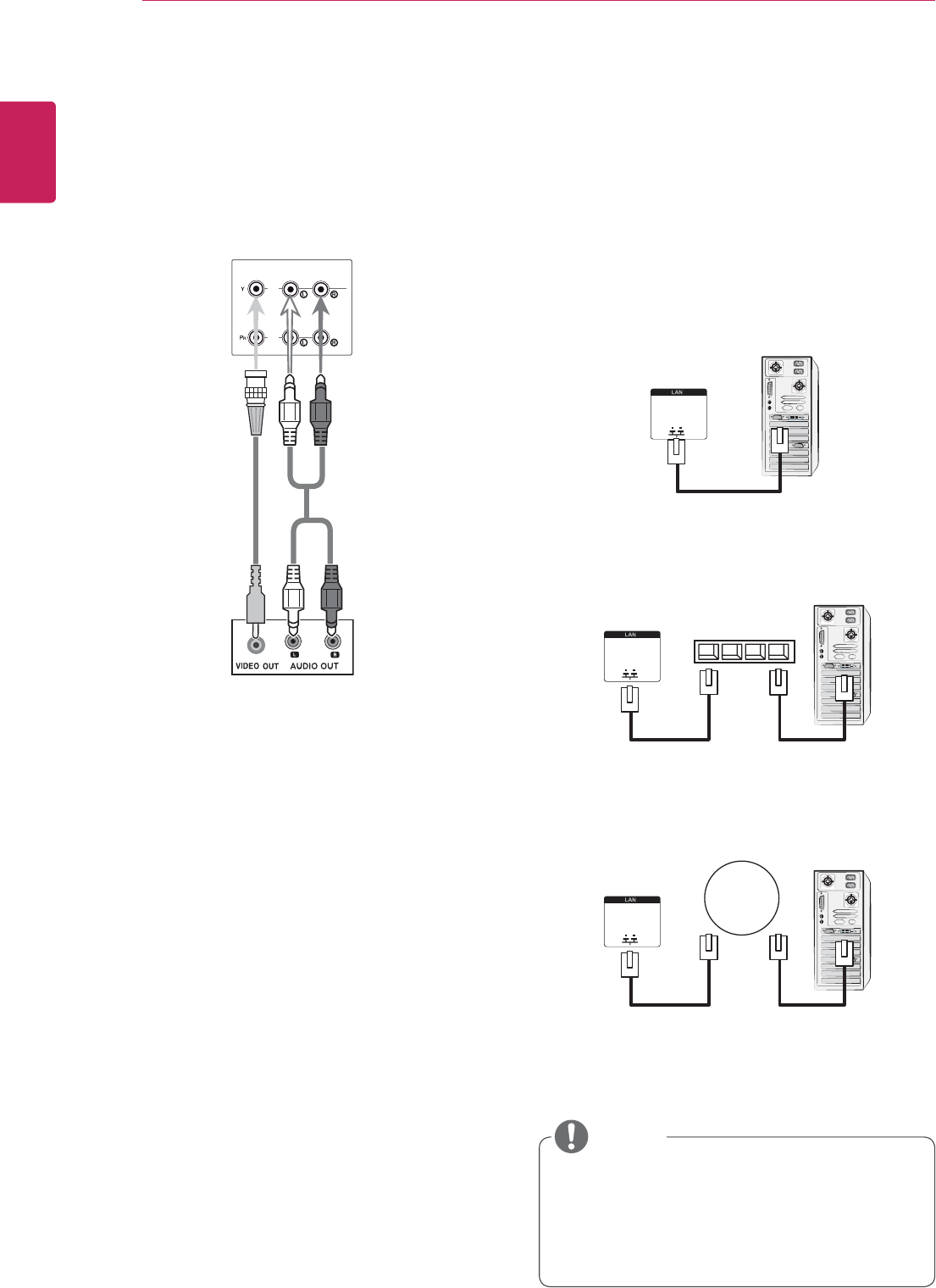

25 - AV connection
25 Connecting to the LAN
25 - LAN connection

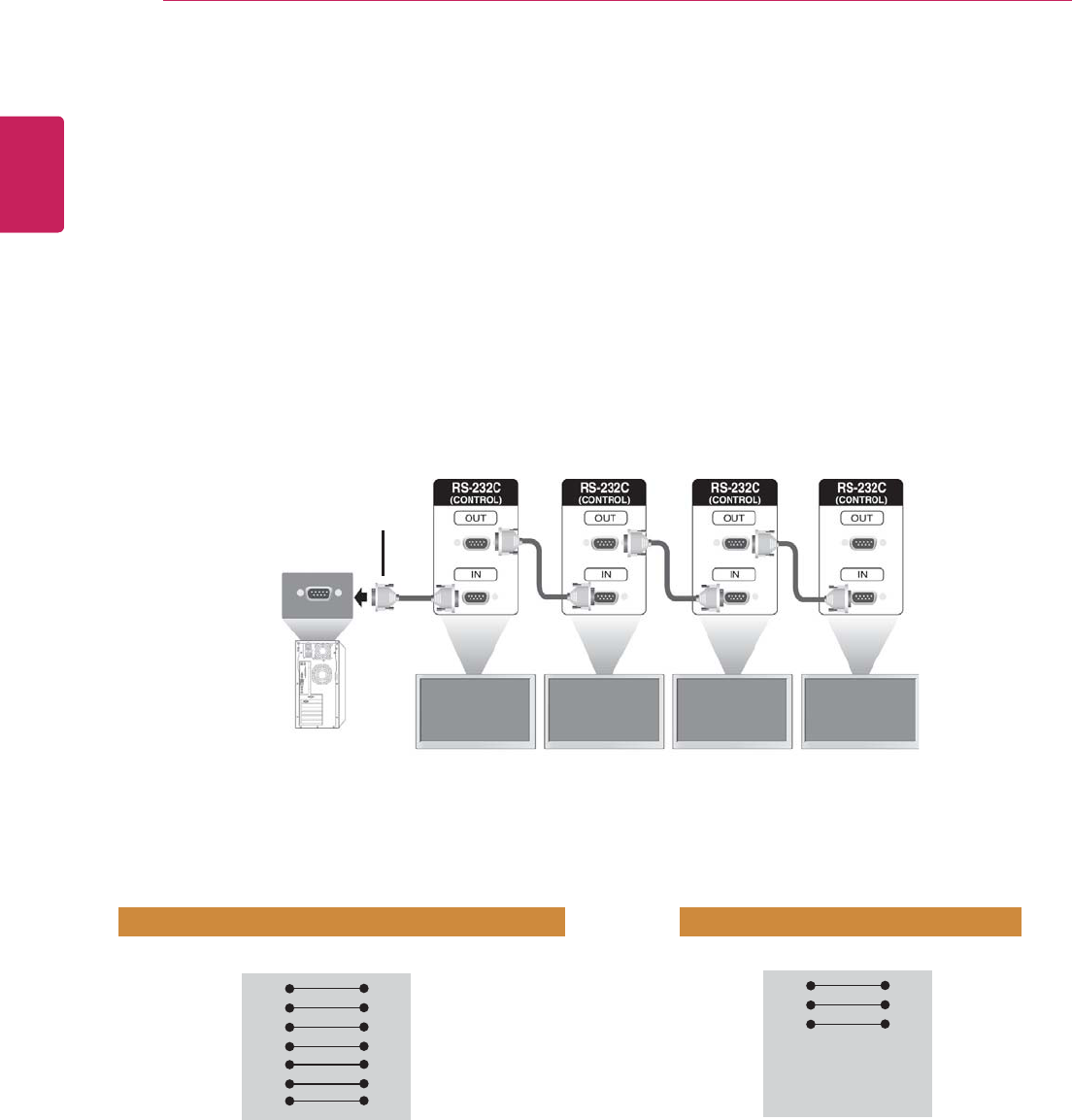

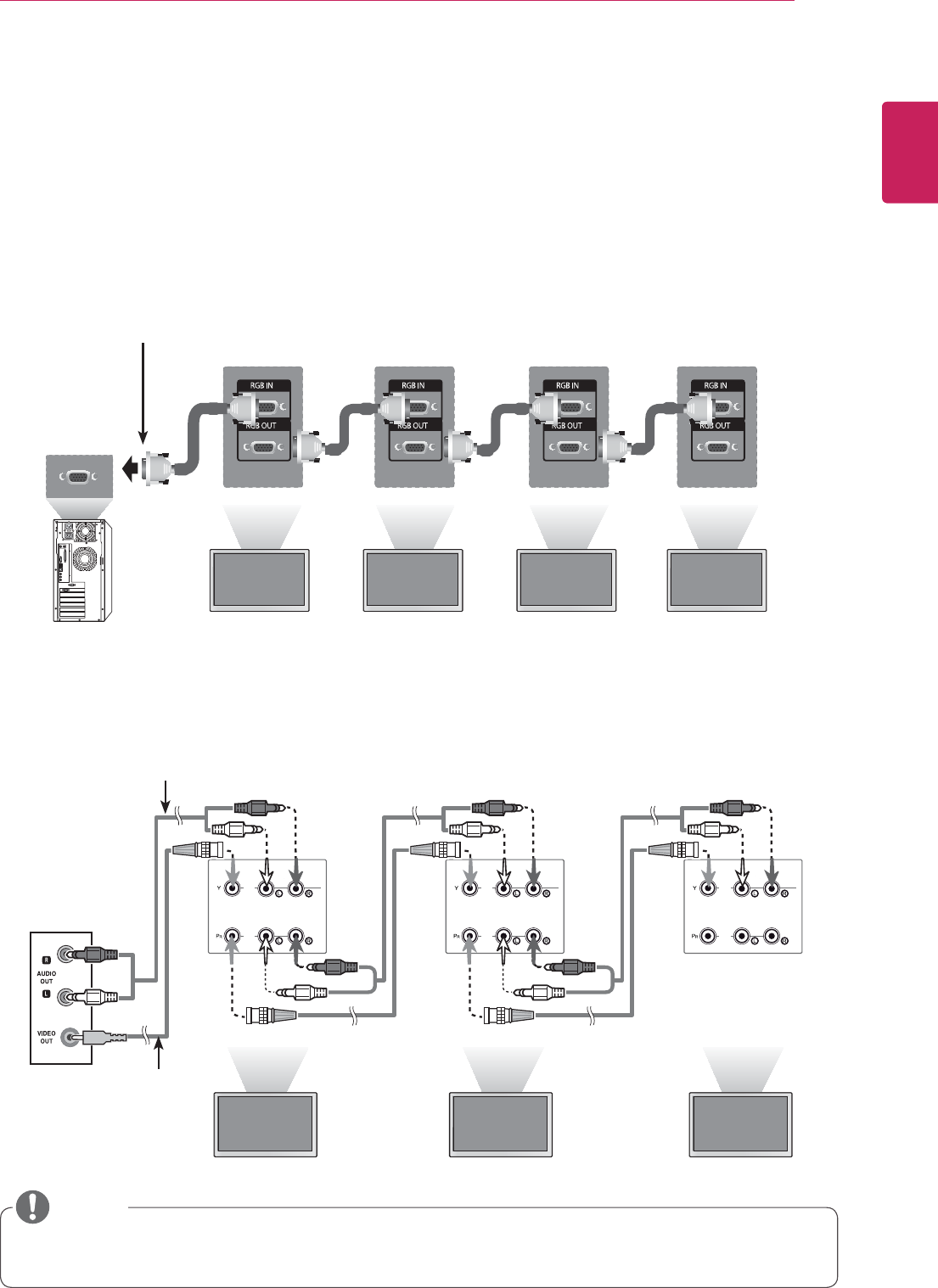

26 Daisy Chain Monitors
26 - RGB Mode
26 - AV Mode
27 ENTERTAINMENT
27 Using integrated media features

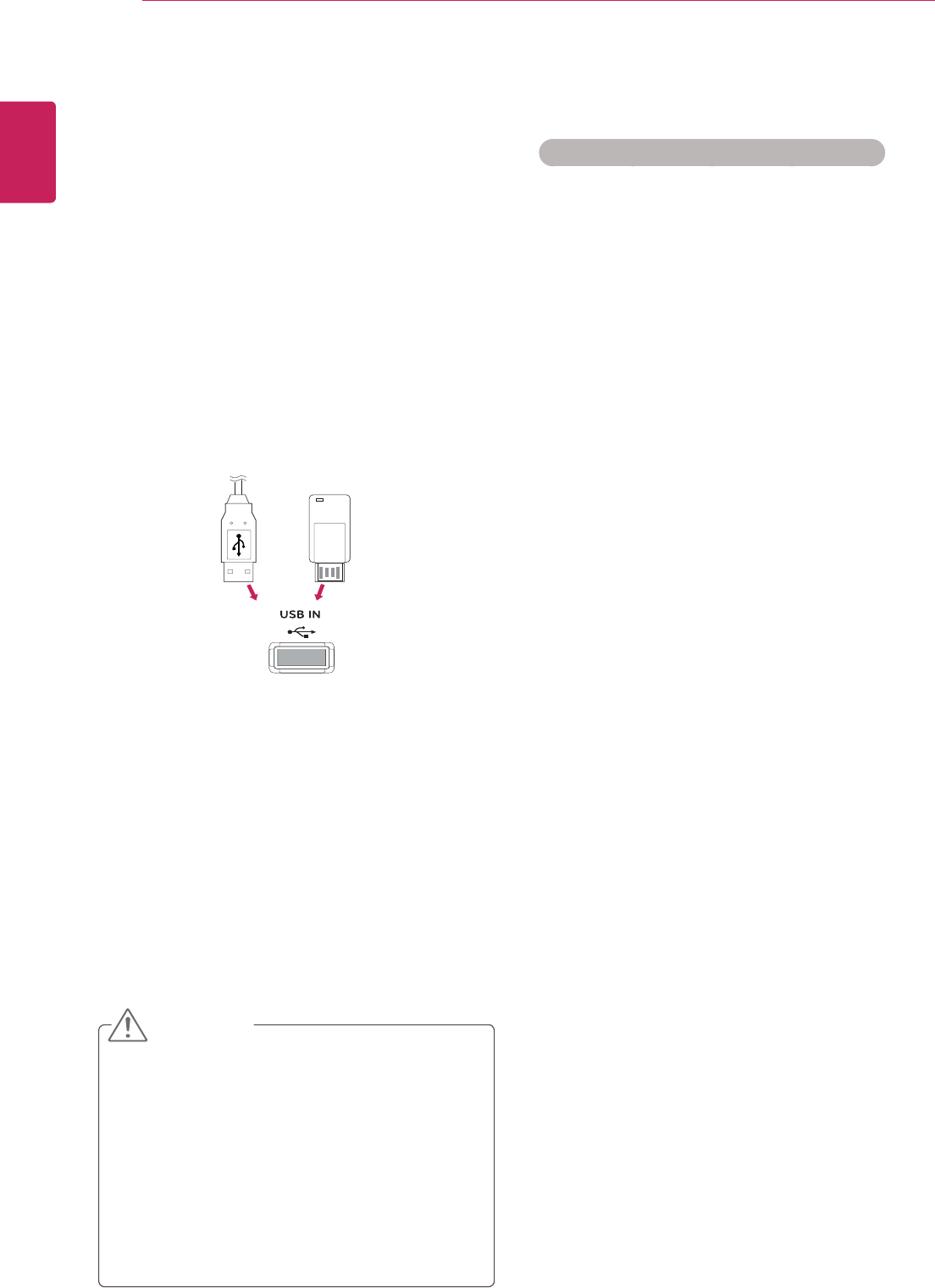

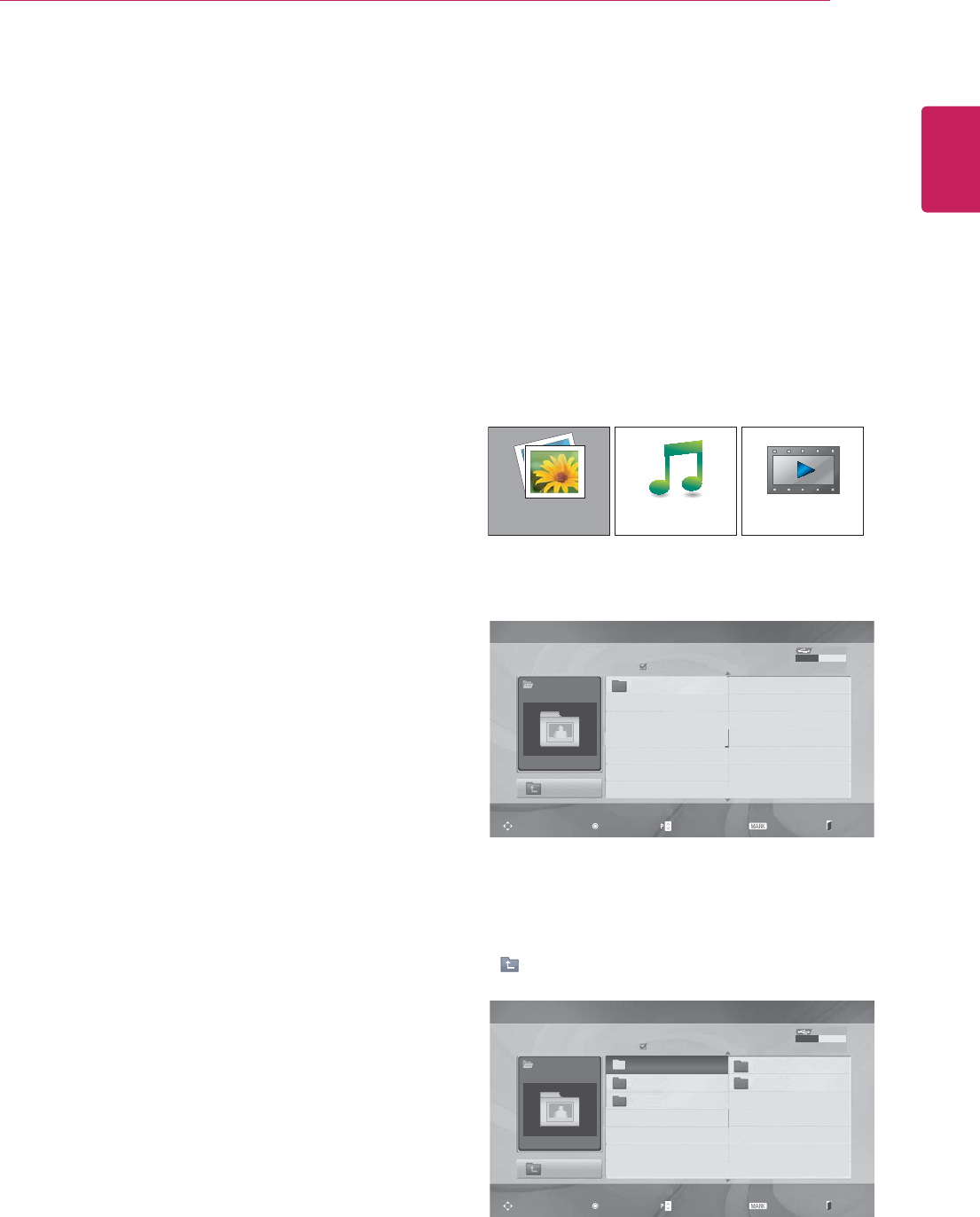

27 - Connecting USB storage devices

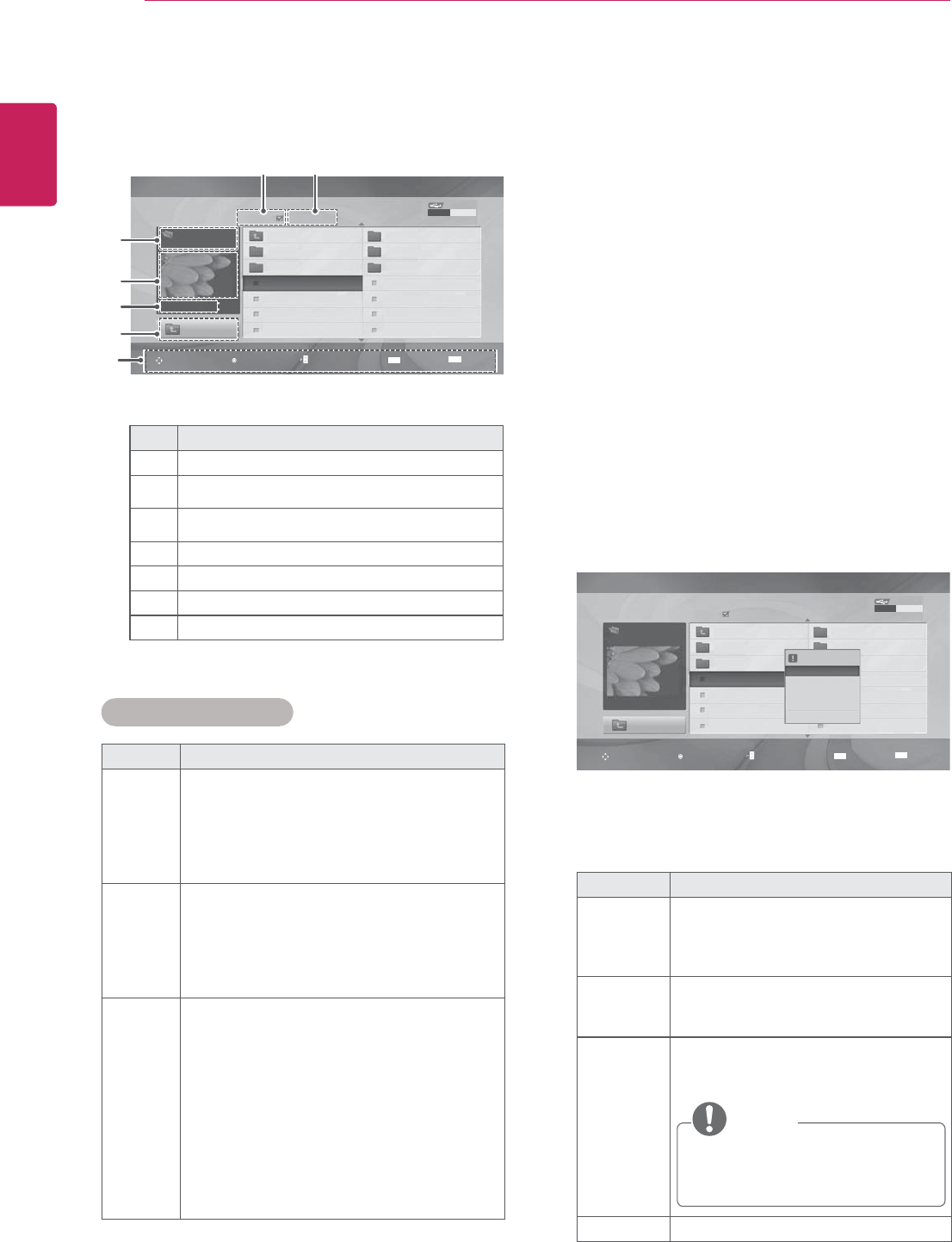

28 - Browsing files

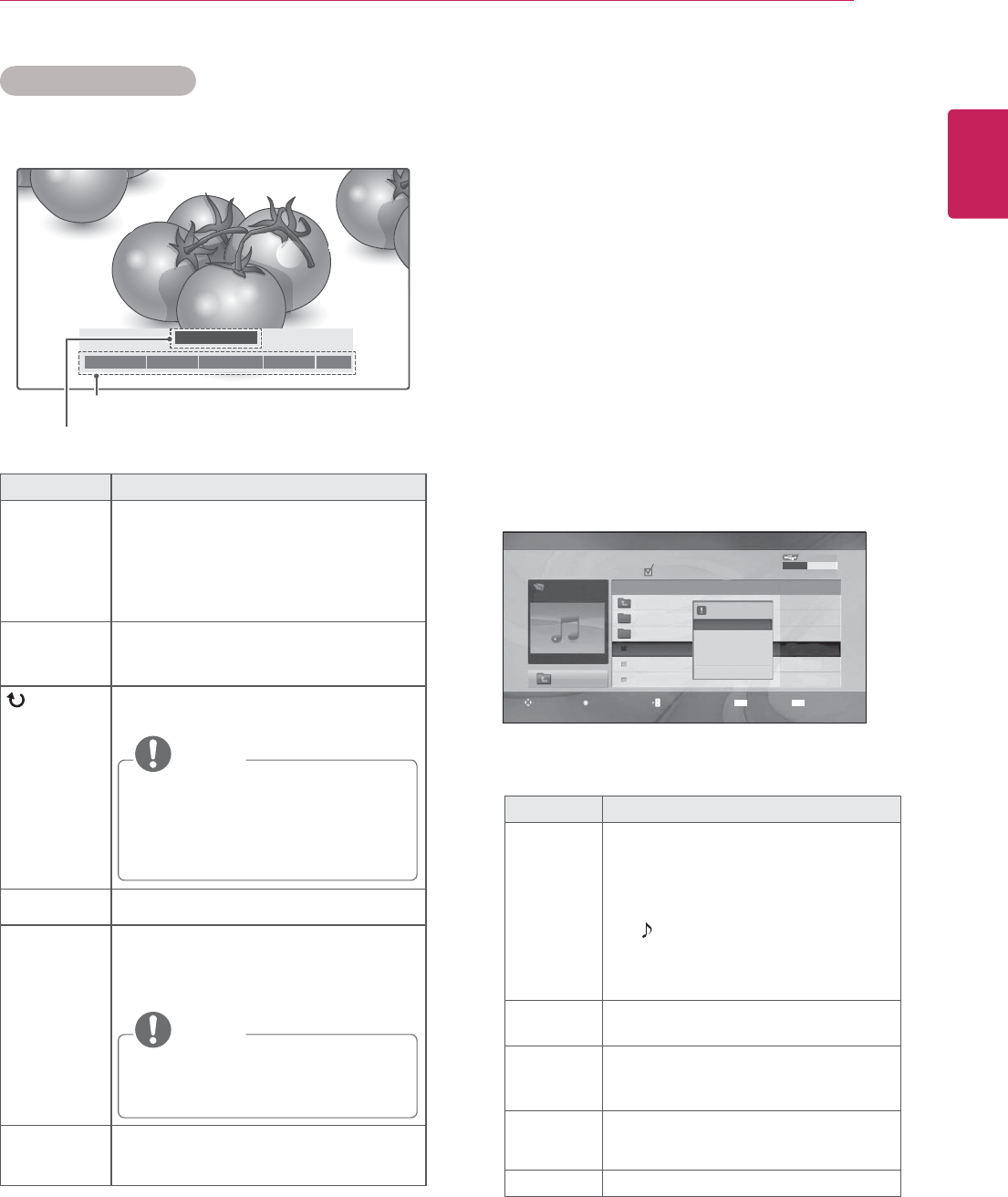

29 - Viewing Photos
30 - Listening to Music

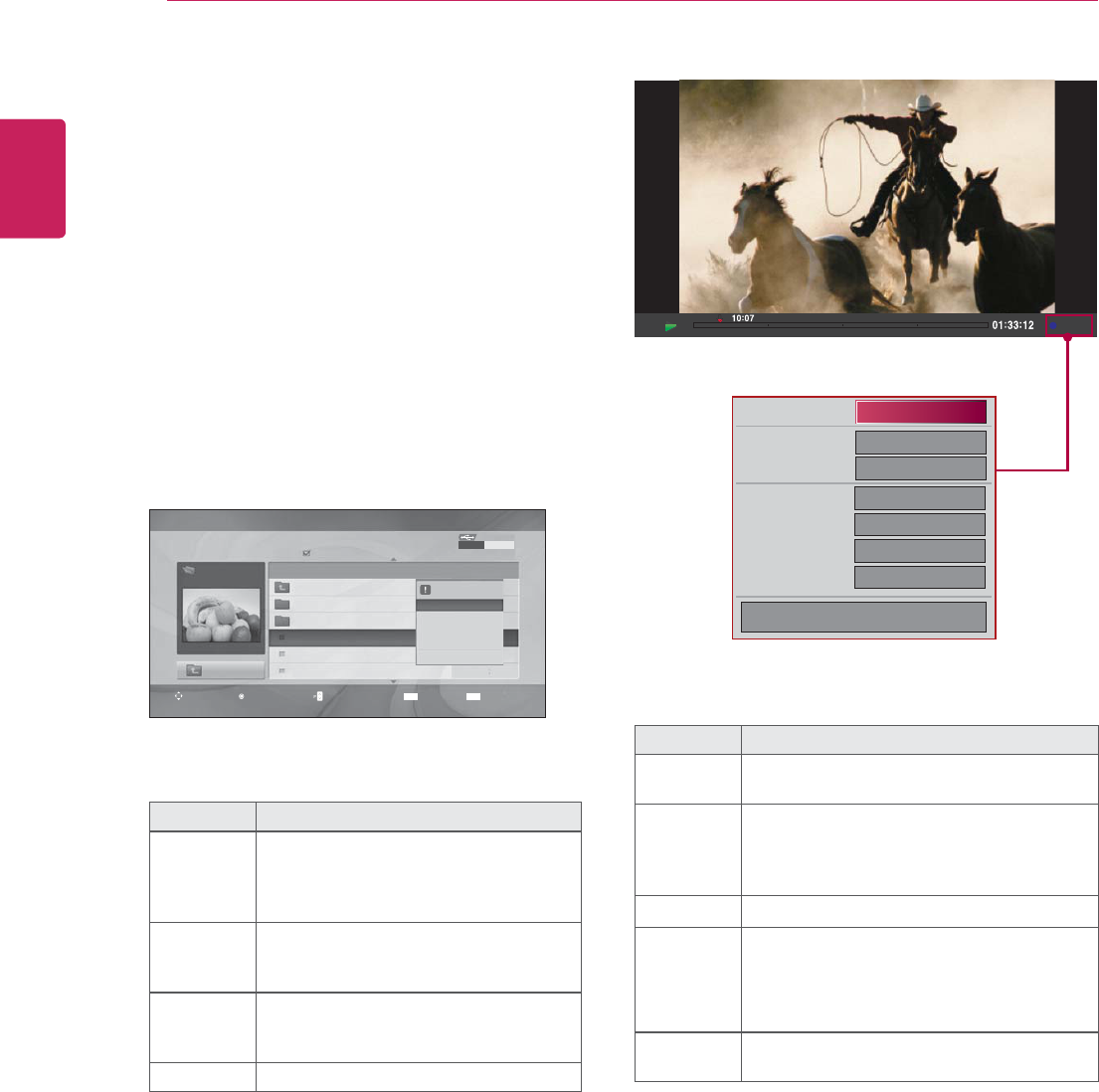

32 - Viewing Movies
35 - DivX registration code
35 - Deactivating the DivX feature
36 TROUBLESHOOTING
36 General

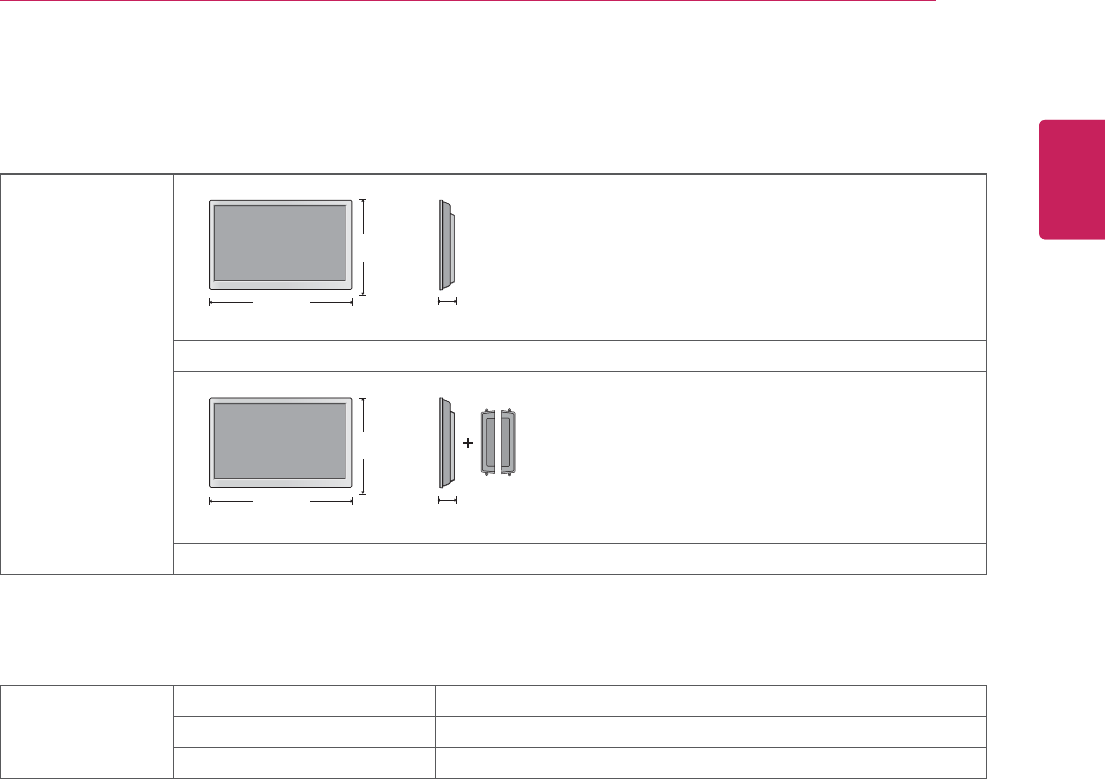

39 SPECIFICATIONS
42 IR CODES
43 EXTERNAL CONTROL DEVICE
SETUP
43 RS-232C Setup
43 Type of connector; D-Sub 9-Pin Male
44 RS-232C configurations
45 Communication Parameter
45 Command reference list
46 Transmission / Receiving protocol
3
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

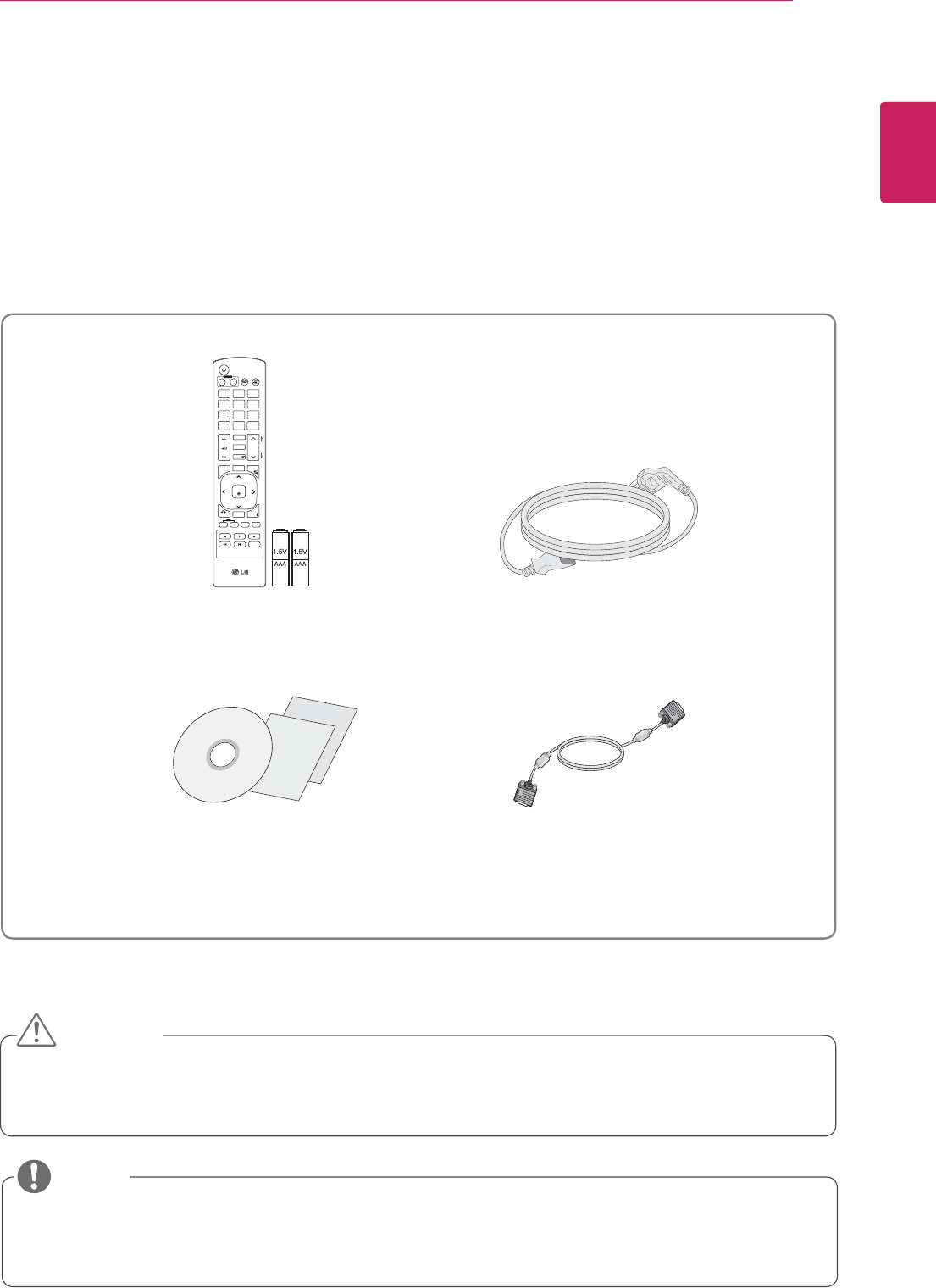

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y Do not use any pirated items to ensure the safety and product life span.
y Any damages or injuries by using pirated items are not covered by the warranty.
y The accessories supplied with your product may vary depending on the model.
y Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
Remote control and Batteries Power Cord
CD (Owner's Manual) / Card D-Sub Signal Cable
CAUTION
NOTE
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
OK
S.MENU
ID
BACK TILE
ON OFF
EXIT
4
ENG
ENGLISH
ASSEMBLING AND PREPARING

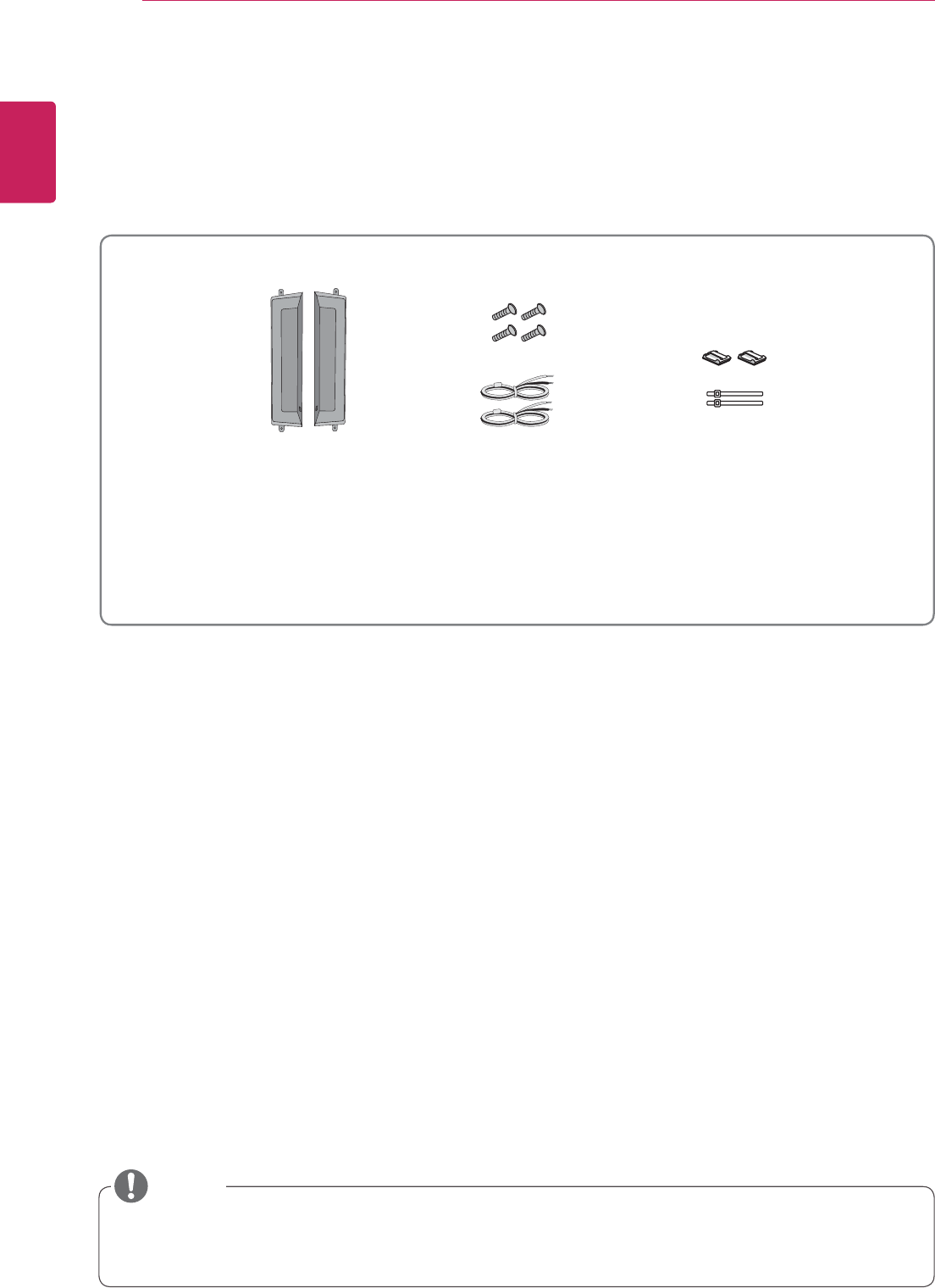

Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product,
and new accessories may be added. The illustrations in this manual may differ from the actual product and
accessories.
y Cable holder/Cable tie may not be available in some areas or for some models.
y Optional accessories are not included for all models.
NOTE
Speaker kit
Cable holder/
Cable Tie
Screws/Cable
Speaker
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
y You can set the Power indicator to on or off by selecting OPTION in the main menus.

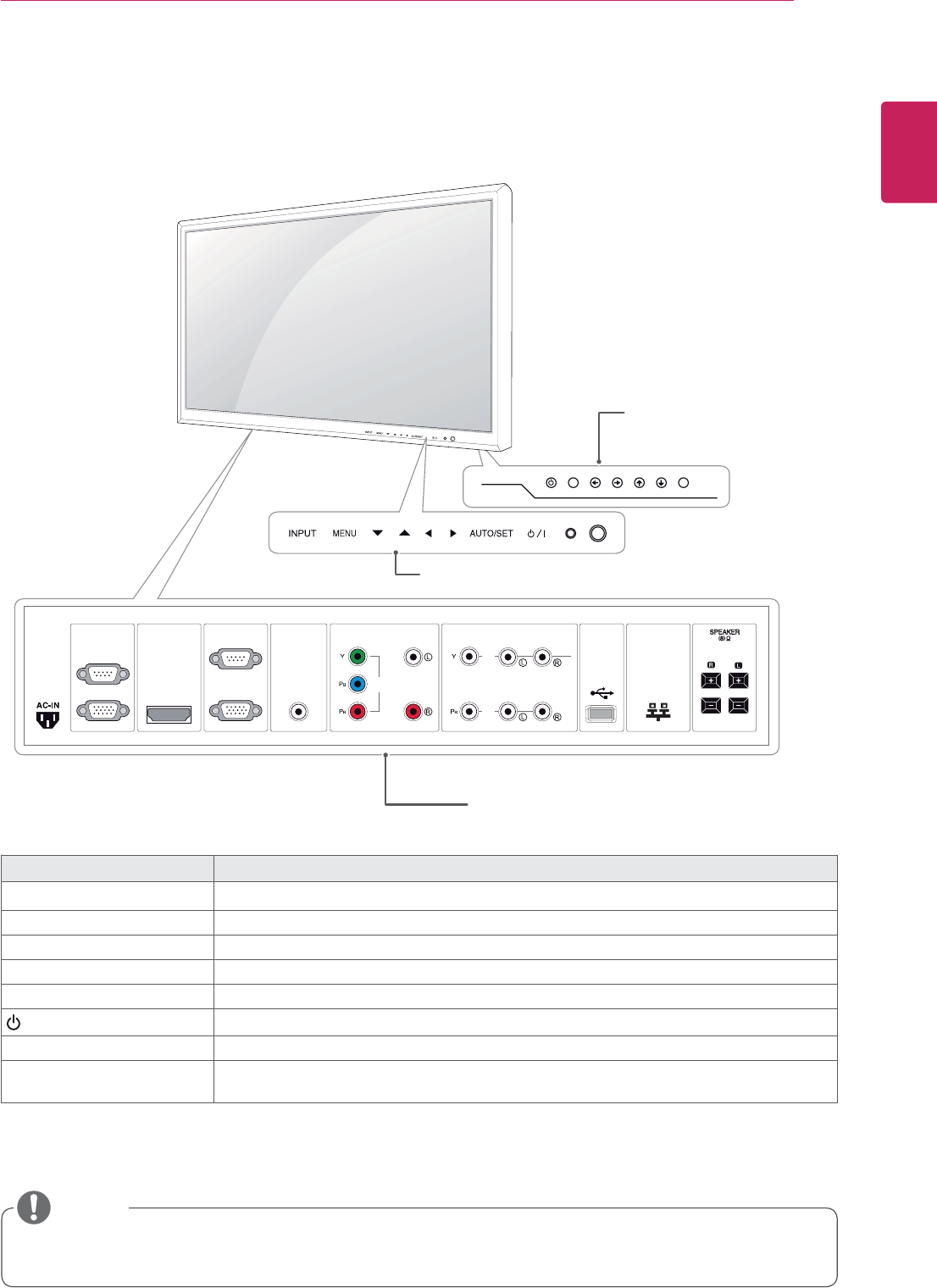

Parts and buttons
Screen Marks Description
INPUT Changes the input source.
MENU Accesses the main menus, or saves your input and exits the menus.
Adjust the up and down.
Adjusts the volume level.
AUTO/SET Auto in progress for optimal display change change resolution.
/ ITurns the power on or off.
IR Receiver This is where the unit receives signals from the remote control.
Power Indicator This Indicator lights up green when the display operates normally(on mode). If the
display is in sleep (Energy Saving) mode, this indicator color changes to amber.
NOTE
RS-232C
(CONTROL)
IN
OUT
HDMI / DVI RGB IN
RGB OUT
AUDIO IN
(RGB/DVI)
USB LAN
COMPONENT IN
VIDEO AUDIO
AV IN / OUT
VIDEO
IN
OUT
AUDIO
Connection panel ( See p.25 to p.26 )
Screen Buttons
Screen Marks
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Connecting the Speakers
- Only on some models.
1 Mount the product onto the speaker by using
a screw as shown in the following connect the
speaker cable.
2 After installing your speakers, use holders and
cable ties to organize the speaker cables. (This
feature is not available in all model.)
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
y The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
To install Portrait
- Only on some models.
When installing Portrait, rotate it clockwise based
on its front.
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
y Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y The wall mount kit includes an installation
manual and necessary parts.
y The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y For more information, refer to the
instructions supplied with the wall mount.
CAUTION
If you want to mount the monitor on the wall (op-
tional), attach the wall mounting bracket to the rear
of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
Use the wall mount plate and screws that comply
with the VESA standard as specified below.
y 785mm(31 inch) or greater
* Fastening screw: Diameter 6.0 mm x Pitch 1.0
mm x Length 10 mm
(32 inch is Diameter 4.0 mm x Pitch 0.7 mm x
Length 10 mm)

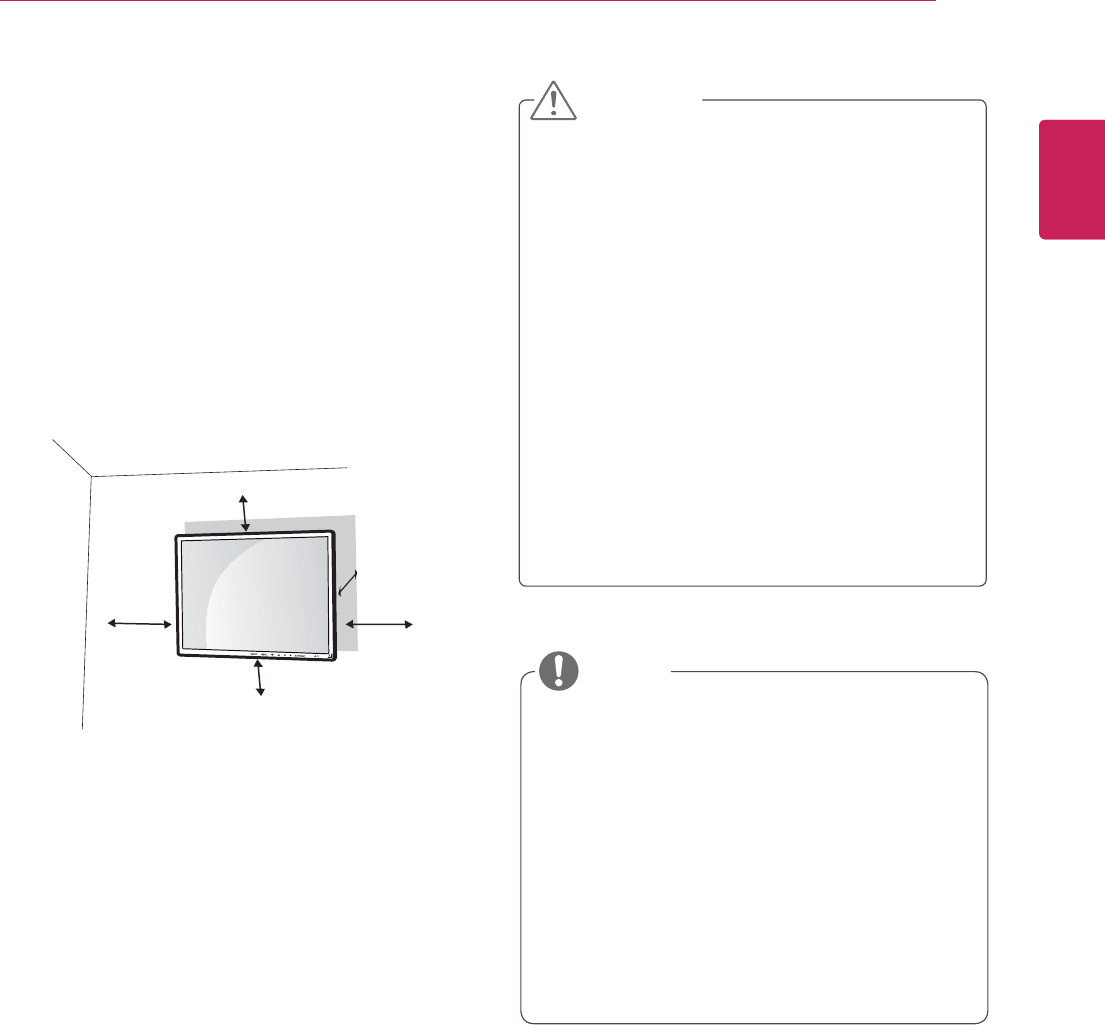

Installing on a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
10 cm
10 cm
10 cm
10 cm 10 cm
NOTE
8
ENG
ENGLISH

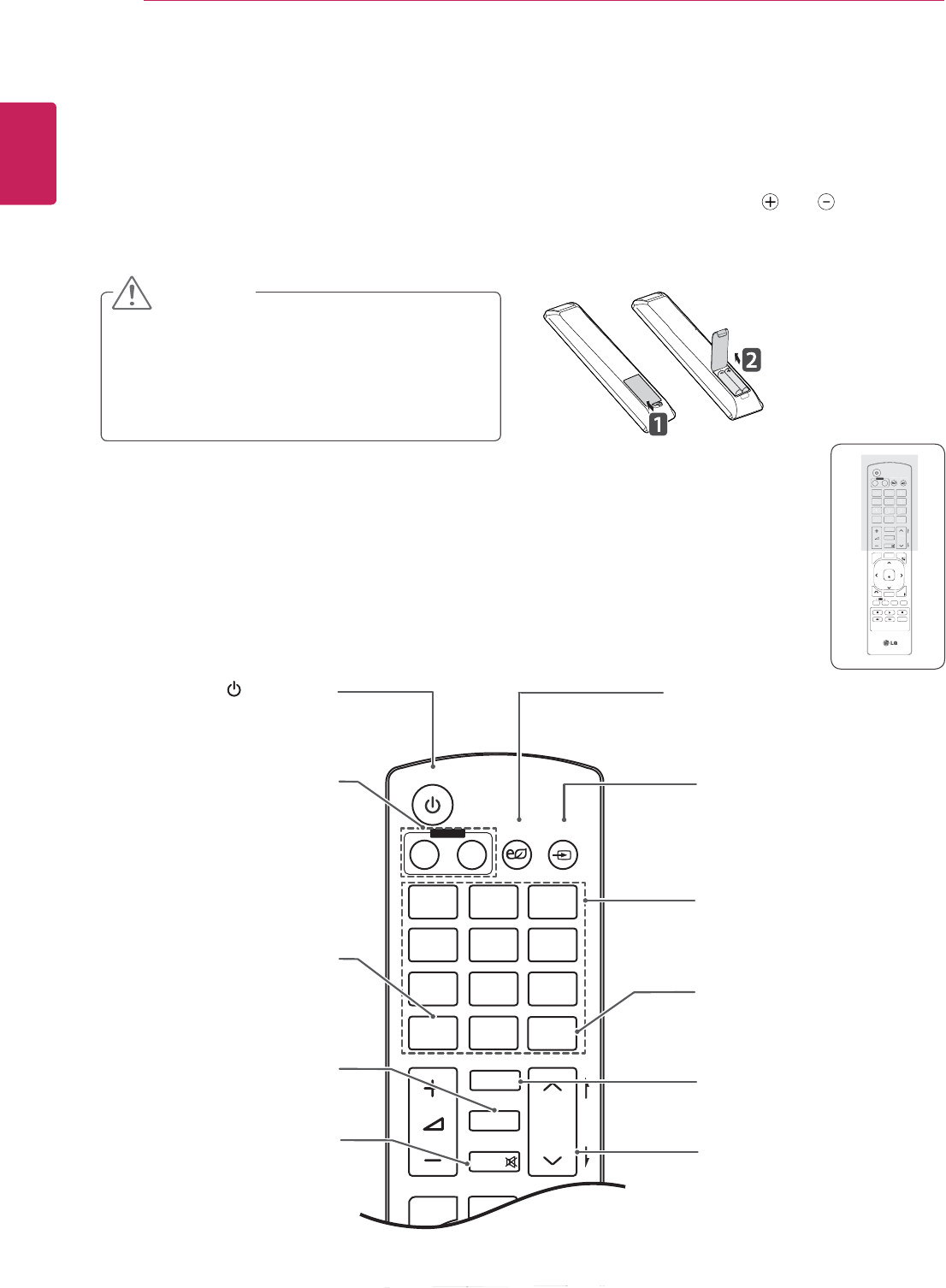

REMOTE CONTROL
REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
/ I (POWER)
Turns the Monitor set on or off.
Monitor On / Off Button
Turn off the monitor and then
turn it back on.
1/a/A Button
This button selection is not
applicable.
ENERGY SAVING
Adjusts the brightness of
the screen to reduce energy
consumption.
INPUT
If you press the button once, the
following Input Signal Window
will appear. Select the signal
type you want using the button.
Number and Alphabet buttons
Enters numbers.
The alphabet selection is not
applicable.
Clear button
This button selection is not
applicable.
PSM Button
Selects the Picture
Status Mode.
MUTE
Mutes all sounds.

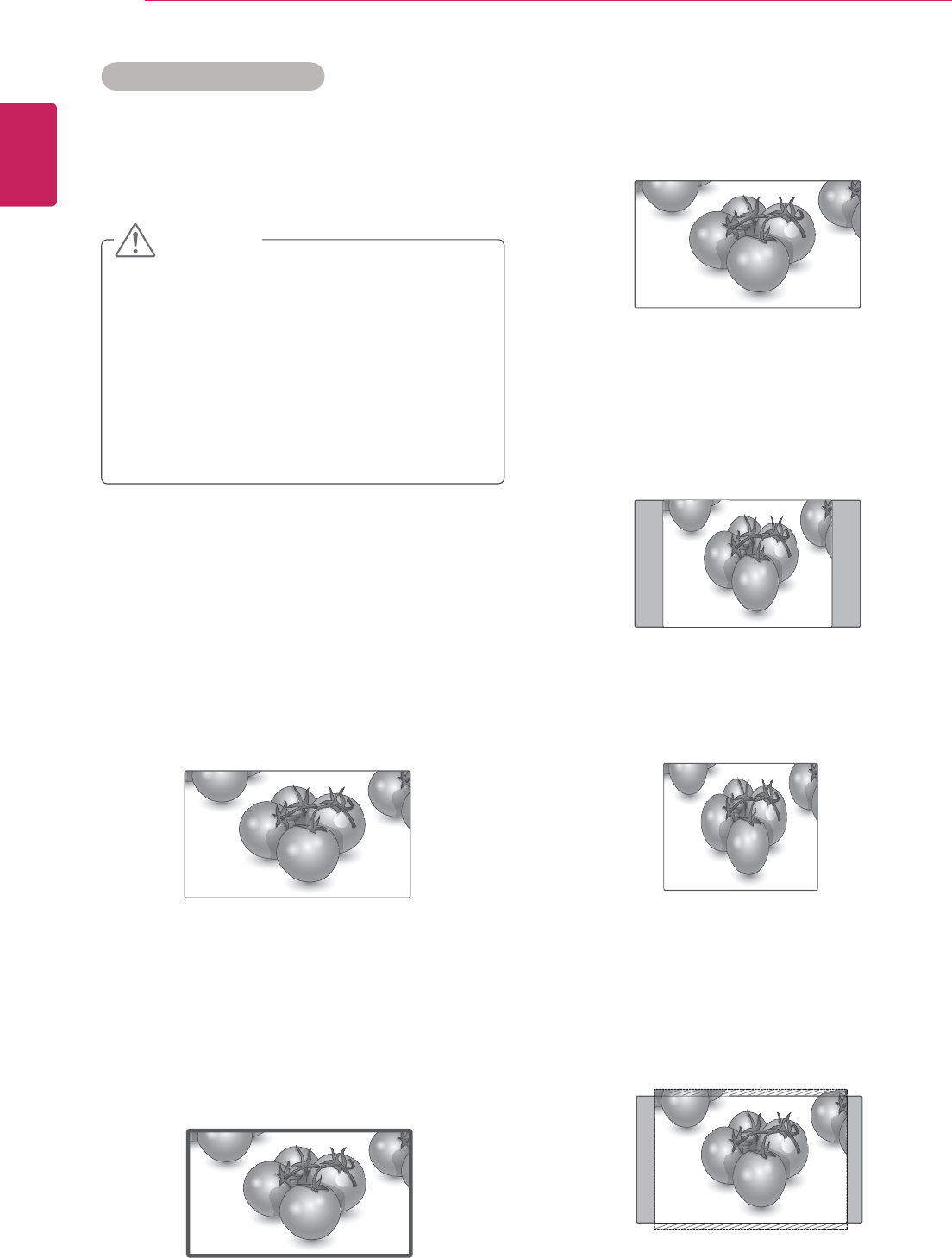

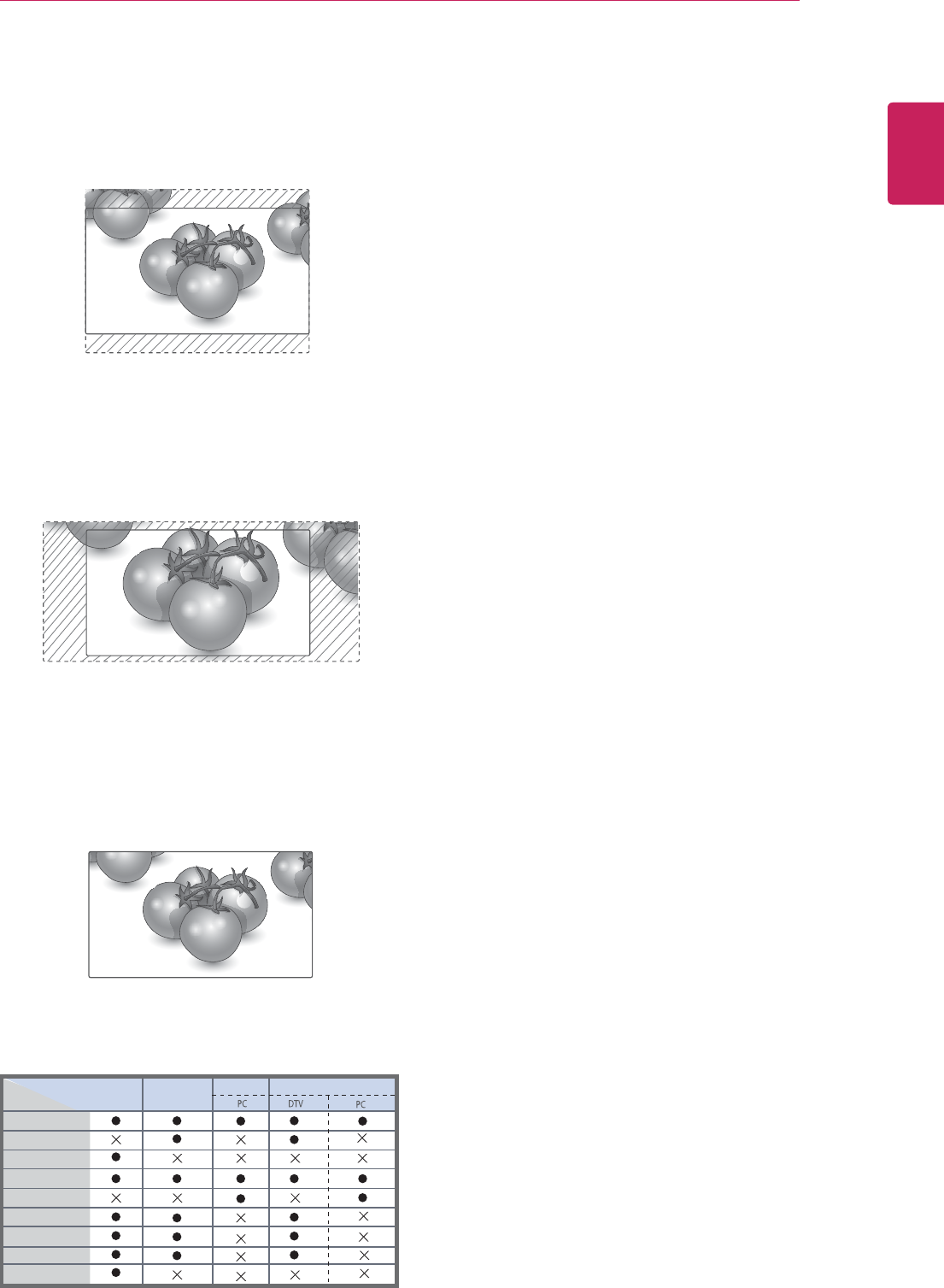

ARC Button
Selects the Aspect Ratio Mode.
Brightness Key
Adjust the brightness by
pressing the Up and Down
buttons on the remote control.
In USB mode, the OSD menu
has the Page function to
move to the next file list.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
P
A
G
E
I
NP
U
T
ENER
GY
S
AVIN
G
MARK
ARC
.
,
!
AB
C
D
E
F
G
HI
J
KL
M
N
O
PQ
R
S
T
UV
1/a/A
- * #
WXY
Z
C
LEAR
O
N
O
F
F
MONITOR
MONITOR
PS
M
MU
TE
BRI
G
HT
NESS
PO
WE
R
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the Monitor set correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
Make sure to point the remote control to the remote control sensor on the Monitor set.
CAUTION
y Do not mix old and new batteries, as this
may damage the remote control.
y Make sure to point the remote control to the
remote control sensor on the Monitor set.
9
ENG
ENGLISH

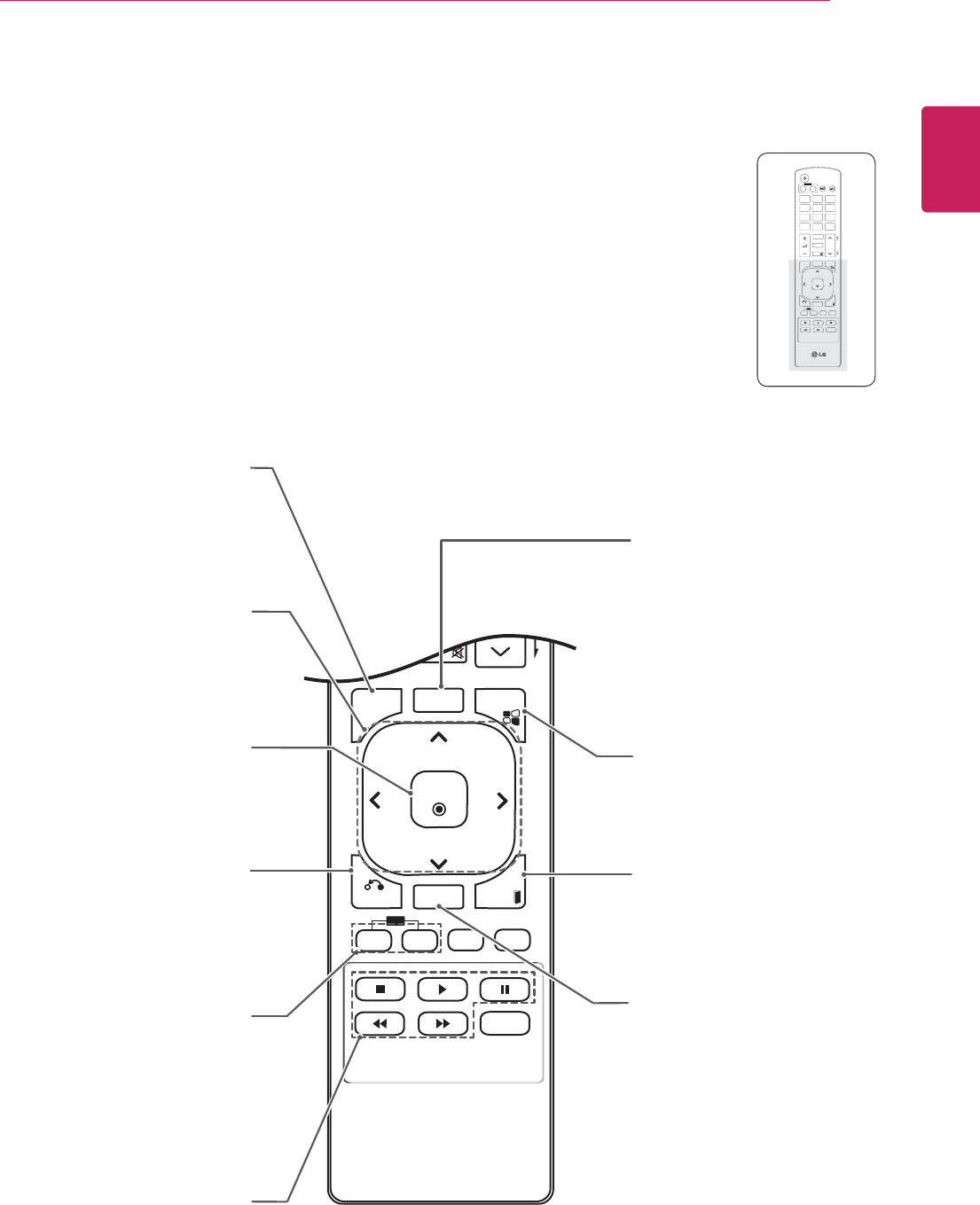

USING THE MONITOR SET
E
OK
S.MENU
AUTO
MUTE
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
S.MENU
(SuperSign Menu Key)
This button selection is not
applicable.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing from any menu.
TILE
Selects the TILE Mode.
MENU (See p.12)
Accesses the main menus
or saves your input and exit
menus.
Navigation buttons
Scrolls through menus or
options.
OK
Selects menus or options and
confirms your input.
BACK
Allows the user to move return
one step in an interactive
application, EPG or other user
interaction function.
USB Menu control buttons
USB menu(Photo List and
Music List or Movie List).
ID ON/OFF button
When the number of input ID
is equal to the number of ID
Mode, you can control the
monitor which you want in the
multi display condition.
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
OK
S
.MENU
A
U
T
O
MEN
U
ID
BA
C
KTIL
E
ON
OF
F
EXIT
10
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
Your Monitor set supports the Plug & Play* feature.
* Plug & Play: The function when a PC recognizes
a connected device that users connect to a PC
and turn on, without device configuration or user
intervention.
y It is recommended to use the Monitor set
with the HDMI connection for the best image
quality.
y If you turn the Monitor set on when the set
becomes cold, the screen may flicker. This
is normal.
y Some red, green, or blue spots may appear
on the screen. This is normal.
RGB connection
Transmits the analog video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the D-sub 15 pin cable as shown the
following illustrations.
y Use the standard
Macintosh adapter
since an incompatible
adapter is available in
the market. (Different
signaling system)
Macintosh Adapter
(not included)
NOTE
NOTE
y Connect the signal
input cable and tighten
it by turning the screws
clockwise.
y Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
y Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
Back of the product.
(not included)
CAUTION
1$."$ PC
11
ENG
ENGLISH
USING THE MONITOR SET
y If you want to use HDMI-PC mode, you must
set the input label to PC mode.
y Use a shielded signal interface cable, such
as D-sub 15 pin signal cable and DVI to
HDMI cable, with a ferrite core to maintain
standard compliance for the product.
NOTE
HDMI to DVI connection
Transmits the digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the HDMI/DVI cable as shown the
following illustrations.
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations. You should set PC as
an input label to connect the PC to the Monitor set
with an HDMI connection.
Back of the product. Back of the product.
(not included)
y Use a High Speed HDMI™ Cable.
y Please check the PC environment if you
cannot hear the sound in HDMI mode.
y If you want to use HDMI-PC mode, you must
set the input label to PC mode.
NOTE
1$ 1$
HDMI/DVI
1$
12
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing main menus
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and
press OK.
3 Press the Navigation buttons to scroll to the setting or option you want
and press OK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
P
A
G
E
ARC
OK
S.MENU
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
237,21
3,&785(
7,/(
$8',2 7,0(
86%
AUDIO (See p.18)
Adjusts the sound quality,
effect, or volume level.
PICTURE (See p.13)
Adjusts the image size,
quality, or effect.
TIME (See p.19)
Sets the time, date, or
Timer feature.
USB (See p.28)
Using integrated media
features.
TILE (See p.22)
Adjusts the tile options.
OPTION (See p.20)
Customizes the general
settings.
13
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and
press OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available picture settings are described in the following:
Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.16).
Energy Saving Sets to automatically adjust the screen brightness corresponding to the surroundings.
Level
Off 100% light
Level 1 80% light
Level 2 60% light
Level 3 40% light
y If the 'Picture Mode' is set to 'Cinema', the 'Energy saving' mode is disabled.
Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the Monitor set .
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, Colour, and sharpness.
Standard Adjusts the image for the normal environment.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colours such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Expert1,2 Adjusts the detailed video image settings for video experts as well as general
viewers.
Move OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
Screen
NOTE
Aspect Ratio : 16:9
14
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Picture Mode Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you
decrease the brightness level, the screen becomes darker and the power
consumption will be reduced without any video signal loss.
Contrast Increases or decreases the gradient of the video signal. You may use Contrast
when the bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when
the dark part of the picture is saturated.
Sharpness Adjusts the level of clearness of the picture. The lower the level, the softer the
image.
Color Adjusts intensity of all Colors.
Tint Adjusts the balance between red and green levels.
y If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema,
Sport or Game the subsequent menus will be automatically set.
y You cannot adjust colour and tint in the RGB-PC / HDMI-PC mode.
y When the Expert 1,2 is selected, you can select Backlight, Contrast, Brightness,
H Sharpness, V Sharpness, Colour or Tint .
NOTE
Setting Description
Colour
Temperature Option
Cool Sets the screen color to a bluish tone.
Medium Sets the screen to the standard color.
Warm Sets the screen color to a reddish tone.
Dynamic
Contrast Adjusts the contrast to keep it at the best level according to the brightness of the screen. The
picture is improved by making bright parts brighter and dark parts darker. (This function can be used
only under AV and Component.)
Dynamic
Colour Adjusts screen colours so that they look livelier, richer and clearer. This feature enhances
hue, saturation and luminance so that red, blue, green and white look more vivid. (This function can
be used only under AV and Component.)
Noise
Reduction Reduces screen noise without compromising video quality. (This function can be used only under AV
and Component.)
Gamma Set your own gamma value. On the monitor, high gamma values display whitish images and low
gamma values display high contrast images.
Black Level » Low: The picture of the screen gets darker.
» High: The picture of the screen gets brighter.
Set black level of the screen to proper level.
(Function works in the following mode - AV, Component, HDMI-DTV)
Film Mode You can watch a cinema-like video by eliminating judder effect.
Use this function when you watch movies.
White Balance This is the function to adjust the overall colour of the image to the feeling you want.
(Function works in the following mode - Expert 1, Expert 2 Picture mode)
Colour
Management
System
As the tool used by the experts to make adjustments by using the test patterns, this does not
affect other colours but can be used to selectively adjust the 6 colour areas (Red/Green/Blue/
Cyan/ Magenta/Yellow). Colour difference may not be distinctive even when you make the
adjustments for the general video.
Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.
» Red/Green/Blue/Yellow/Cyan/Magenta Colour: The adjustment range is -30 to +30.
» Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 to +30.
(Function works in the following mode - Expert 1, Expert 2 Picture mode)
Advanced Control
15
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Picture Mode Picture Reset Restores the options to the default setting.
Screen
(In RGB-PC)
Adjust the screen video.
Option
Resolution To view a normal picture, match the resolution of RGB mode
and selection of PC mode. This function works in the following
mode: RGB[PC] mode.
Auto Config.
(RGB PC input only)
This button is for the automatic adjustment of the screen
position, clock and phase. This function is available for analog
signals only.
Position Moving the screen position.
Size Adjust the size of the screen.
Phase To adjust the focus of the display. This item allows you to
remove any horizontal noise and clear or sharpen the image
of characters. This function is available for analog signals
only.
Reset Return Manual config. to the default factory settings.
16
ENG
ENGLISH
CUSTOMIZING SETTINGS
- Original : The aspect ratio is not adjusted from
the original. It is set by the program being
watched.
- 4:3 : The following selection will allow you to
view a picture with an original 4:3 aspect ratio,
gray bars will appear on both the left and right of
the screen.
- 1:1 : The aspect ratio is not adjusted from the
original. (Only HDMI/DVI PC, RGB PC)
- 14:9 : You can view a picture format of 14:9 or a
general Monitor set programme in the 14:9 mode.
The 14:9 screen is viewed in the same way as in
4:3, but is magnified to the left and right.
Advanced image options
Resize the image to view the image at its optimal
size by pressing ARC button while you are
watching Monitor set.
y If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
y If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on
the letterboxed area of the screen.
- 16:9 : The following selection will allow you
to adjust the picture horizontally, in linear
proportion, to fill the entire screen(useful for
viewing 4:3 formatted DVDs).
- Just Scan : Following Selection will lead to you
view the picture of best quality without loss of
original picture in high resolution image. Note: If
there is noise in original Picture, You can see the
noise at the edge.
CAUTION
Just Scan
Original
17
ENG
ENGLISH
CUSTOMIZING SETTINGS
AV HDMI / DVI
RGB
Component
ARC
MODE
16 : 9
Just Scan
Original
4 : 3
1 : 1
14 : 9
Zoom
Cinema Zoom 1
Full Wide
- Zoom : The following selection will allow you
to view the picture without any alteration, while
filling the entire screen. However, the top and
bottom of the picture will be cropped.
- Cinema Zoom 1 : Choose Cinema Zoom
when you want to enlarge the picture in correct
proportion. Note: When enlarging or reducing
the picture, the image may become distorted.
- Full Wide : When Monitor set receives the wide
screen signal,it will lead you to adjust the picture
horizontally or vertically, in a linear proportion,to
fill the entire screen fully.
Full Wide
18
ENG
ENGLISH
CUSTOMIZING SETTINGS
AUDIO settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press
OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available audio options are described in the following:
Setting Description
Auto Volume To adjust uneven sound volumes across all channels or signals automatically to the most
appropriate level. To use this feature, select On.
Clear Voice ll By differentiating the human sound range from others,it helps users listen to human voices better.
Balance Adjusts balance between the left and right speakers according to your room environment.
Sound Mode Selects one of the preset sound modes or customize each option in each mode.
Mode
Standard Select when you want standard-quality sound.
Music Select when you listen to music.
Cinema Select when you watch movies.
Sport Select when you watch sports events.
Game Select when you watch sports events.
Speaker You can adjust internal speaker status.
If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.
Move
AUDIO
Auto Volume : Off
Clear Voice II : Off
Balance 0
Sound Mode : Standard
Speaker : On
OK
Auto Volume : Off
19
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to TIME and press
OK.
3 Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available time settings are described in the following:
Setting Description
Clock Sets the time feature.
On/Off Time Sets the time to turn on or off the Monitor set.
Sleep Timer Sets the length of time until the Monitor set to turns off. When you turn the Monitor set off and turn
it on again, the Sleep Timer will be set to off.
Auto off If Auto off is active and there is no input signal, the set switches to off mode automatically after 10
minutes.
Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on individually
to prevent overload.
Move
TIME OK
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
Power On Delay : Off
Clock
NOTE
y Once the on or off time is set, these functions operate daily at the preset time.
y The scheduled power-off function works properly only when the device time is set correctly. When the scheduled power-
on and power-off times are the same, the power-off time has priority over the power-on time if the set is turned on, and
vice versa if the set is turned off.
20
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Language Selects a language for the display.
Input Label Selects a label for an input source to identify a device connected to each input source.
y If you want to use HDMI-PC mode, you must set the input label to PC mode.
Key Lock Use the buttons to select On or Off. The monitor can be set up so that it can only be used with the
remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the Key Lock tab to the 'On' position.
In order to unlock it, do the following :
Push the MENU button on the remote control and set Key Lock to the 'Off' position.
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 99) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
ISM Method Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when the product is not used, turn off
the power. Burn-in and related problems are not covered by the warranty on this product.
Setting
Normal Leave on normal if you don't foresee image burn in being a problem.
Orbiter May help prevent ghost images. However, it is best not to allow any fixed
image to remain on the screen. To avoid a permanent image on the screen,
the screen will move every 2 minutes.
Inversion This function inverts the panel color of the screen. The panel color is
automatically inverted every 30 minutes.
White wash White wash fills the screen with solid white. This helps removes permanent
images burned into the screen. A permanent image may be impossible to clear
entirely with white wash.
OPTION settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press
OK.
3 Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move
OPTION OK
Language : English
Input Label
Key Lock : Off
Set ID : Off
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Interface Select : RS232C
Network Setup
Information
Factory Reset
Language : English
NOTE
21
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
DPM Select A user can choose to turn the power saving mode on / off.
Power Indicator Use this function to set the power indicator on the front side of the product to On or Off.
Interface Select Sets up network connections.
Option
Network LAN - Enables communication via Ethernet.
RS-232C Enables communication via Serial.
Network Setup Option
DHCP Allocates and sets up IP automatically.
Manual Sets up IP address, Gateway, Subnet Mask, Primary DNS and Secondary
DNS.
The setup process is complete when you select Execute, and "IP Setup
Completed" is displayed at the bottom of the screen. While "Wait for IP Setup"
is displayed, you cannot use the local keys and remote control. "Wait for IP
Setup" is displayed for up to 40 seconds.
* If Network select is set to RS232C.DHCP and Manual are disabled.
Information You can find informations about Serial No, F/W version, IP Address and MAC Address.
Factory Reset Select this option to return to the default factory settings.
22
ENG
ENGLISH
CUSTOMIZING SETTINGS
TILE settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to TILE and press
OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available lock settings are described in the following:
Move
TILE OK
Tile Mode : Off
Tile ID : 0
Natural Mode : Off
H Size : 0
V Size : 0
H Position : 0
V Position : 0
Reset
Tile Mode : 2x2
Setting Description
Tile Mode To use this function
- Must be displayed with various other products.
- Must be in a function that can be connected to RGB Cable by distributor and RS-232C.
Tile mode and choose Tile alignment and set the ID of the current product to set location.
* Only after pressing the SET button the adjustments made to the settings will be saved.
- Tile mode : column x row ( c = 1, 2, 3, 4, 5 r = 1, 2, 3, 4, 5)
- 5 x 5 available.
- Configuration of an integration screen is also available as well as configuration of One by one
Display.
Tile ID Select the location of the Tile by setting an ID.
Natural The image is omitted by the distance between the screens to be naturally shown.
H-Size Adjust the horizontal size of the screen taking into account the size of the bezel.
V-Size Adjust the vertical size of the screen taking into account the size of the bezel.
H-Position Moving the screen position horizontally.
V-Position Moving the screen position vertically.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to Full screen.
23
ENG
ENGLISH
CUSTOMIZING SETTINGS
Tile Mode
Configuration of an integration screen is available as well as configuration of One by one Display.
5JMF.PEF/BUVSBMNPEF
Wr#glvsod|#wkh#lpdjh#qdwxudoo|/#wkh#sduw#ri#wkh#lpdjh#wkdw#zrxog#qrupdoo|#eh#glvsod|hg#lq#wkh#jds#ehwzhhq#wkh#
prqlwruv#lv#rplwwhg1
ID 1 ID 2
ID 3 ID 4
ID 1 ID 2
ID 4 ID 5
ID 3
ID 6
ID 7 ID 8 ID 9
3X3:
When using 9 monitors
ID 1 ID 1
ID 2 ID 2
ID 5 ID 6
ID 6 ID 7
ID 3 ID 3
ID 7 ID 8
ID 9 ID 11
ID 10 ID 12
ID 11 ID 13
ID 4 ID 4 ID 5
ID 8 ID 9 ID 10
ID 12 ID 14 ID 15
ID 13 ID 16
ID 21
ID 14 ID 17
ID 22
ID 15 ID 18
ID 23
ID 16 ID 19
ID 24
ID 20
ID 25
When the Tile Mode
option is disabled ID 1 ID 2
2X1:
When using 2 monitors
When using 4 monitors
#8[8=
Zkhq#xvlqj#58#prqlwruv
#7[7=
Zkhq#xvlqj#49#prqlwruv
Tile ID
Before After
24
ENG
ENGLISH
MAKING CONNECTIONS
HDMI
DVI
Composite
Component
HDMI
DVI
RGB
HDMI
DVI
Composite
Component
HDMI
DVI
Composite
Component
Composite
Component
HDMI
Composite
Component
MAKING CONNECTIONS
Connect various external devices to the ports on the Monitor set’s back panel.
1 Find an external device you want to connect to your Monitor set shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.
y If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.
NOTE
-"/
HD Receiver
Speaker
PC Gaming device
Camcorder/Camera
DVD VCR
PC
25
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to a HD receiver,
DVD or VCR player
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.
HDMI connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
DVI - HDMI connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI-HDMI
cable as shown in the following illustration. To
transmit an audio signal, connect an optional audio
cable.
y Use a High Speed HDMI™ Cable.
y High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
RCA-PC
Audio Cable
(not included)
HDMI-DVI
Signal Cable
(not included)
HDMI Signal
Cable
(not included)
NOTE
26
ENG
ENGLISH
MAKING CONNECTIONS
AV IN / OUT
VIDEO
IN
OUT
AUDIO
AV connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the BNC
cable as shown on the following illustration.
Connecting to the LAN
y Using LAN establishes communication
between your PC and the monitor and
enables to use the OSD menus on the PC as
well as on the monitor.
LAN connection
Connect the LAN cable and install the eZ-Net
Manager program on the CD-ROM.
For more information about the program, please
refer to eZ-Net Guide in the enclosed CD-ROM.
BNC Cable
(not included)
A Connect PC to Monitor directly.
B Using a router(Switch)
PC
Monitor Set
Monitor Set
Monitor Set
LAN
Network
PC
LAN
PC
LAN Switch
C Using the Internet.
RCA-PC
Audio Cable
(not included)
NOTE
27
ENG
ENGLISH
MAKING CONNECTIONS
AV IN / OUT
VIDEO
IN
OUT
AUDIO
AV IN / OUT
VIDEO
IN
OUT
AUDIO
AV IN / OUT
VIDEO
IN
OUT
AUDIO
Daisy Chain Monitors
Use this function when displaying ANALOG RGB inputs of a PC to the other product.
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products
AV Mode
RGB Mode
15-pin D-Sub Signal Cable
(Max 3m)
Audio Cable
(Not included)
Product 1
Product 1
Product 2
Product 2
Product 3
Product 3
Product 4
BNC Cable
(Not included)
y When multi-connecting in/out cascade format, no loss cables are recommended.
y We recommend that you should use cable distributor.
NOTE
28
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Using integrated media
features
Connecting USB storage devices
Connect USB storage devices such as a USB
flash memory, external hard drive, or MP3 player
to the Monitor set and use multimedia features
(“Browsing files” See p.27).
Connect a USB flash memory or USB memory
card reader to the Monitor set as shown on the
following illustration. The USB screen appears.
To disconnect a USB storage device,
make sure to end the connection properly to
prevent damages to the Monitor set or files.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB
Device and press OK.
3 Disconnect the USB storage device only when
the message says that it is safe to remove.
y Do not turn the Monitor set off or remove a
USB storage device while the USB storage
device is connected to the Monitor set, as
this could result in loss of files or damage to
the USB storage device.
y Back up your files saved on a USB storage
device frequently, as you may lose or
damage the files and this may be not
covered by the warranty.
CAUTION
Precautions when using the USB device
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not
recognizable.
y A USB storage device using an automatic
recognition programme may not be
recognized.
y A USB storage device which uses its own
driver may not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the Set or unplug
the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the
stored files or the USB storage device may
be damaged.
y Please do not connect the USB storage
device which was artificially maneuvered on
the PC. The device may cause the product to
malfunction or fail to be played. Never forget
to use only a USB storage device which has
normal music files or image files.
y Please use only a USB storage device which
was formatted as a FAT16, FAT32, NTFS file
system provided with the Windows operating
system. In case of a storage device formatted
as a different utility programme which is
not supported by Windows, it may not be
recognized. Data in a USB storage device
cannot be deleted in the NTFS file system.
y Please connect power to a USB storage
device which requires an external power
supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
cable is offered by USB maker. If connected
with cable is not offered by USB maker or an
excessively long cable, the device may not
be recognized.
y Some USB storage devices may not be
supported or operated smoothly.
y Maximum of 999 files and folders can be
recognized.
y Data in a USB storage device cannot be
or
29
ENG
ENGLISH
ENTERTAINMENT
aligned. Up to 128 English characters can be
recognized as a file name.
y Please back up the important file because a
data of USB device may be damaged. Data
management is consumer's responsibility
and in consequence the manufactures does
not cover the product bearing data damage.
y If the USB is connected in Standby Mode,
specific hard disk will automatically be loaded
when the Set is turned on.
y The recommended capacity is 1TB or less
for a USB external hard disk and 32GB or
less for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a “Power
Saving” function does not work, turn the
hard disk off and on again to make it work
properly.
y Names and subtitles of some language files
may not display properly.(Korean, Chinese,
Japanese)
y When using Korean or Chinese subtitles
or file names, it is recommended to set the
language to the corresponding one.
Browsing files
Access the Photo, Music or Movie lists and
browse files.
1 Connect a USB storage device.
2 Press MENU to access the main menus.
3 Press the Navigation buttons to scroll to USB
and press OK.
4 Press the Navigation buttons to scroll to
PHOTO LIST, MUSIC LIST or MOVIE LIST
and press OK.
5 Select Drive1 to access the connected USB
storage device
6 Select a folder you want.
- To return to the previous level, select
Up Folder.
PHOTO LIST
3KRWR/LVW
3KRWR/LVW
86%
86%
8S)ROGHU
8S)ROGHU
'ULYH
'ULYH
'ULYH
.<
.<
.<
.<
.<
3DJH
3DJH
1R0DUNHG
1R0DUNHG
1DYLJDWLRQ
1DYLJDWLRQ
3RSXS0HQX
3RSXS0HQX
3DJH&KDQJH
3DJH&KDQJH
0DUN
0DUN
([LW
([LW
IROGHUVILOHV
IROGHUVILOHV
MOVIE LISTMUSIC LIST
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
30
ENG
ENGLISH
ENTERTAINMENT
7 Press the Navigation buttons to browse files.
The highlighted file will display in the preview
window.
No. Description
1Current page number/total number of pages
2The number of selected files
3File and Folder name
4Preview window
5File size, information.
6Return to the previous level
7Available buttons on the remote control
Supported file format
Type Supported file format
yJPG
yAvailable size
Baseline: 64 pixel (W) x 64 pixel (H) -
15360 pixel (W) x 8640 pixel (H)
Progressive: 64 pixel (W) x 64 pixel (H) -
1024 pixel (W) x 768 pixel (H)
Music
yMP3
yBit rate range 32 Kbps to 320 Kbps
ySampling rate (Sampling Frequency)
MPEG1 layer 3: 32 kHz, 44.1 kHz,
48 kHz
* A copy-protected file will not play.
Video
yMPEG1, MPEG2, MPEG4(Doesn't
support Microsoft MPEG 4-V2, V3),
DivX 3.xx, DivX 4.xx, DivX 5.xx, DivX
VOD(DRM), XviD, DivX 6.xx(Playback)
yAudio format: Mpeg, Mp3, PCM, Dolby
Digital
ySampling frequency: within 32k to 48khz
yBit rate of audio format: within 32k to
320kbps
ySupported subtitle format: *.smi, *.srt,
*.sub (MicroDVD, SubViewer 2.0), *.ass,
*.ssa, *.txt (DVD Subtitle System)
Viewing Photos
View image files saved in a USB storage device.
The displays on the screen may differ from the
model.
1 Press the Navigation buttons to scroll to USB
and press OK.
2 Press the Navigation buttons to scroll to Photo
List and press OK.
3 Press the Navigation buttons to select Drive1
to access the connected USB storage device.
4 Press the Navigation buttons to scroll to a
folder you want and press OK.
5 Press the Navigation buttons to scroll to a file
you want and press OK.
A pop-up window will appears.
6 View photos by using the following menus.
Menu Description
View Displays the selected photo in a full-
screen view.
yDrive: Views photos saved in a
USB storage drive.
Mark All
or Unmark
All
Selects all files or clears all of your
selections
Delete Deletes a file saved in a USB storage
device.
NOTE
You cannot delete the files saved
in a shared folder of a PC.
Close Closes the pop-up menu.
'ULYH
8S)ROGHU
-0- 8S)ROGHU
1DYLJDWLRQ 2SWLRQ 3DJH&KDQJH 0DUN ([LW
[.%
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
USB Device
Free Space 150 MB
MARK EXIT
3KRWR/LVW 3DJH 1R0DUNHG
'ULYH
8S)ROGHU
-0- 8S)ROGHU
1DYLJDWLRQ 2SWLRQ 3DJH&KDQJH 0DUN ([LW
[.%
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
USB Device
Free Space 150 MB
MARK EXIT
3KRWR/LVW 3DJH 1R0DUNHG
3
4
5
6
7
12
1366x768, 125KB
View
Mark All
Delete
Close
31
ENG
ENGLISH
ENTERTAINMENT
Using photo options
Use the following options while viewing photos.
Number of selected photos
Options
Option Description
Slideshow Starts or stops a slideshow with selected
photos.
If there are no selected photos, all
photos saved in the current folder
display during a slideshow.
To set a slideshow speed, select Option.
BGM Turns the background music on or off.
To set the background music folder,
select Option.
(Rotate) Rotates photos clockwise (90°, 180°,
270°, 360°).
NOTE
The supported photo size is limited.
You cannot rotate a photo if the
resolution of the rotated width is
larger than the supported resolution
size.
Delete Deletes a photo.
Option
ySlide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
yMusic Album: Selects a music folder
for the background music.
NOTE
You cannot change the music folder
while the background music is
playing.
Hide Hides the option window.
To display the options, press OK.
Listening to Music
1 Press the Navigation buttons to scroll to USB
and press OK.
2 Press the Navigation buttons to scroll to Music
List and press OK.
3 Select Drive1 to access the connected USB
storage device.
4 Press the Navigation buttons to scroll to a
folder you want and press OK.
5 Press the Navigation buttons to scroll to a file
you want and press OK.
A pop-up window will appears.
6 Play music by using the following menus.
Menu Description
Play, Stop
Play, or
Play
Marked
Plays music, stops playback, or plays
the selected music file. If you play
music without selecting music files, all
of the music files saved in the current
folder will play.
The icon will appear in front of the
duration on the currently playing file.
yDrive: Listen to music files saved in
a USB storage drive.
Play with
Photo Displays photos during playback.
Mark All
or Unmark
All
Selects all files or clears all of your
selections
Delete Deletes a file saved in a USB storage
device.
Close Closes the pop-up menu.
Delete Option Hide
Music List Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
4395KB 1Kbps
Play
Play with Photo
Mark All
Delete
Close
USB Device
Free Space 150 MB
Option Mark
Navigation Page Change Exit
MARK EXIT
32
ENG
ENGLISH
ENTERTAINMENT
0XVLF
6
2SWLRQ
y A damaged or corrupted file will not play and
the duration of the file display as 00:00.
y A copy-protected file will not play.
y If the Monitor set is not in use for some time
during playback, the information box as a
screensaver will appear to prevent image
burn.
To return to the Music list screen, press OK
or BACK.
NOTE
7 Control playback by using the following
buttons.
Button Description
Stops playback
Plays a music file
Pauses or resumes playback
Skips to the next file
Skips to the previous file
Time elapsed /Duration
Folder name/file name
40(18
33
ENG
ENGLISH
ENTERTAINMENT
Viewing Movies
Play video files on the Monitor set. Your Monitor
set displays all of the video files saved in a USB
storage device.
y Movie (*.dat / *.mpg / *.mpeg / *.ts / *.trp / *.tp /
*.vob/ *.mp4 / *.mkv / *.avi / *.divx) supporting
file.
y Video format: MPEG1, MPEG2,
MPEG4(Doesn’t support Microsoft MPEG
4-V2, V3), DivX 3.xx, DivX 4.xx, DivX 5.xx,
DivX VOD(DRM), XviD, DivX 6.xx(Playback)
y Audio format: Mpeg, Mp3, PCM, Dolby Digital
y Bit rate: within 32 kbps to 320 kbps (MP3)
y Subtitle format: *.smi / *.srt / *.sub (Micro DVD,
SubViewer 2.0) / *.ass / *.ssa / *.txt (DVD
Subtitle System).
y Some user-created subtitles may not work
properly.
y Some special characters are not supported in
subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the supported
languages are not available.
y Time information in an external subtitle file
should be arranged in ascending order to be
played.
y The screen may suffer temporary interruptions
(image stoppage, faster playback, etc.) when
the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not be
usable.
y Movie files produced with some encoders may
not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y HD videos with a maximum of 1920 x 1080 @
25/30P or 1280 x 720 @ 50/60P are supported,
depending on the frame.
y Videos with resolutions higher than 1920 x
1080 @ 25/30P or 1280 x 720 @ 50/60P may
not work properly depending on the frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bit rate of playable movie file is 20
Mbps.
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264 /
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30GB in file size is not
supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name must
be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC (Global Motion
Compensation) may not be played.
y When you are watching the movie by Movie
List function, you can adjust an image by
Energy Saving key on the remote control.
User setup for each image mode does not
operate.
Video Decoder
y mpeg, vob: MPEG1, MPEG2
y dat: MPEG1,MPEG2
y ts,trp,tp: MPEG2, H.264 / AVC
y mp4: MPEG4 SP, MPEG4 ASP, Divx 3.11,
Dvix 4.12, Dvix 5.x, Dvix 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid
1.10-beta 2, H.264/AVC
y avi: MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx
3.11, Divx 4, Divx 5, Divx 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid
1.10–beta 2, H.264/AVC
y mkv: H.264 / AVC, MPEG 1, MPEG 2, MPEG
4 SP , MPEG4 ASP
y divx: MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx
3.11, Divx 4, Divx 5, Divx 6, Xvid 1.00, Xvid 1.01,
Xvid 1.02, Xvid 1.03, Xvid 1.10–beta 1, Xvid
1.10–beta 2, H.264 / AVC
Audio Codec
y mpg, mpeg, vob, dat, avi, divx, m4v: AC3,
MPEG, MP3, PCM
Max Resolution
y 720 x 576 @ 25p
y 720 x 480 @ 30p
34
ENG
ENGLISH
ENTERTAINMENT
1 Press the Navigation buttons to scroll to USB
and press OK.
2 Press the Navigation buttons to scroll to Movie
List and press OK.
3 Select Drive1 to access the connected USB
storage device.
4 Press the Navigation buttons to scroll to a
folder you want and press OK.
5 Press the Navigation buttons to scroll to a file
you want and press OK.
A pop-up window will appears.
6 Play video by using the following menus.
Menu Description
Play or
Play
Marked
Plays a movie or plays the selected
movie.
yDrive: Views videos saved in a USB
storage drive.
Mark All
or Unmark
All
Selects all files or clears all of your
selections.
Delete or
Delete
marked
Deletes a file formatted on the FAT32
file system and saved in a USB
storage device.
Close Closes the pop-up menu.
Option
1/6
1/6
Off
+0.5
Latin 1
15
ⶾFull Screen ⶺ
Picture Size
Subtitle Language
Audio Language
Subtitle File
OK
When you select the Set Video Play.
Menu Description
Size Selects your desired picture format during
movie play
Subtitle
Language
or Audio
Language
Changes the Language Group of the
subtitle/audio during movie play.
Language Selects your desired Language.
Sync Adjusts the time synchronisation of the
subtitle from -10 secs to +10 secs by
steps of 0.5 secs during
movie play.
Position Changes the position of the subtitle either
up or down during movie play.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
1366x768, 125KB
Play
Mark All
Delete
Close
Movie List USB Device
Free Space 150 MB
Option Mark
Navigation Page Change Exit
MARK EXIT
35
ENG
ENGLISH
ENTERTAINMENT
y Only the files saved in ASCII CODE is
supported for the external subtitles of the
movie.
y Only 500 alphabets and 500 numbers are
supported for each line of the subtitle.
y Only 10,000 of sync blocks can be
supported within the subtitle file.
NOTE
When you select the Set Video.
1 Press the Navigation button to make
appropriate adjustments. (See p.33)
When you select the Set Audio,
1 Press the Navigation button to show the
Sound Mode, Auto Volume, Clear Voice II,
Balance.
2 Press the Navigation button to make
appropriate adjustments.(See p.17)
Using the remote control.
Button Description
ᰪᰩ When playing,
repeatedly, press the REW(ᯚᯚ) button
to speed up ᯚᯚ(x2) ᯚᯚᯚ (x4)
ᯚᯚᯚᯚ(x8) ᯚᯚᯚᯚᯚ(x16) ᯚᯚᯚᯚᯚᯚ(x32) .
repeatedly, press the FF(ᯛᯛ) button
to speed up ᯛᯛ(x2) ᯛᯛᯛ (x4) ᯛᯛᯛᯛ (x8)
ᯛᯛᯛᯛᯛ(x16) ᯛᯛᯛᯛᯛᯛ(x32).
yPressing these buttons repeatedly
increases the fast forward/reverse
speed.
Pause (ᰨ) During playback, press the Pause (ᰨ)
button.
yStill screen is displayed.
yIf no buttons are pressed on the
remote control for 10 minutes after
pausing, the Monitor set returns to
the playback state.
yPress the Pause (ᰨ) button and
then use the FF (ᯛᯛ) button for slow
motion.
During playback, stops the screen.
Playᰦ Press the Playᰦ button to return to
normal playback.
1 Press the Navigation button to show the
Picture Size, Audio Language or Subtitle
Language.
2 Press the Navigation button to make
appropriate adjustments.
Subtitle
Language Support Language
Latin1 English, Spanish, French, German,
Italian, Swedish, Finnish, Dutch,
Portuguese, Danish, Romanian,
Norwegian, Albanian, Gaelic, Welsh,
Irish, Catalan, Valencian
Latin2 Bosnian, Polish, Croatian, Czech,
Slovak, Slovenian, Serbian, Hungarian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian,
Ukrainian, Kazakh
Greek Greek
Hebrew Hebrew
Chinese Chinese
Korean Korean
36
ENG
ENGLISH
ENTERTAINMENT
DivX registration code
Check and register the DivX registration code of
your Monitor set so that you can rent or purchase
the latest movies at
www.divx.com/vod
. To play a
rented or purchased DivX file, the file’s registration
code should be same with your Monitor set’s DivX
registration code.
1 Press MENU to access the USB menus.
2 Press the Navigation button to scroll to DivX
Reg. Code and press OK.
3 View the registration code of your Monitor set.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an official
DivX Certified device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your files into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to
play DivX Video-on-Demand (VOD) content. To
generate the registration code, locate the DivX
VOD section in the device setup menu. Go to
vod.divx.com with this code to complete the
registration process and learn more about DivX
VOD.
“DivX Certified® to play DivX® video up to HD
1080p, including premium content.”
“DivX®, DivX Certified® and associated logos
are trademarks of DivX, Inc. and are used
under license.”
“Pat. 7,295,673; 7,460,668; 7,515,710;
7,519,274”
y While you are checking the registration code,
some buttons may not work.
y If you use the DivX registration code of
another device, you cannot play the rented
or purchased DivX file. Make sure to use
the DivX registration code assigned to your
Monitor set.
y The video or audio files that are not
converted by the standard DivX codec may
be corrupted or not be played.
y The DivX VOD code allows you to activate
up to 6 devices under one account.
NOTE
Deactivating the DivX feature
Deactivate all of the devices through the web
server and block devices from activating.
Delete the existing authentication information to
receive a new DivX user authentication for the
Monitor set. Once this function is executed, a DivX
user authentication is required again to see DivX
DRM files.
1 Press MENU to access the USB menus.
2 Press the Navigation button to scroll to
Deactivation and press OK.
3 Select Yes to confirm.
4 Select Close.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
DivX(R) Video On Demand
Do you want to deactivate your device?
Yes No
DivX(R) Video On Demand
This device is deactivated.
Your deactivation code is: xxxxxxxx
To learn more visit www.divx.com/vod.
Close
DivX(R) Video On Demand
Your registration Code is: xxxxxxxxxx
To learn more visit www.divx.com/vod.
Close
Close
37
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
No image is displayed
Problem Resolution
Is the product power cord
connected?
y See if the power cord is properly connected to the outlet.
Is the power indicator light on?
ySee if the power switch is turned on.
yMay need service.
Power is on, power indicator is blue
but the screen appears extremely
dark.
y Adjust brightness and contrast again.
y Backlight may need repair.
The power indicator amber?
y If the product is in power saving mode, move the mouse or press any
key.
yTurn both devices off and then back on.
Does the 'Out of range' message
appear?
y The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
Does the 'Check signal cable'
message appear?
y The signal cable between PC and product is not connected. Check
the signal cable.
y Press the 'INPUT' menu in the remote Control to check the input
signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
y Install the product driver, which is provided with the product, or
download it from the web site. (http://www.lg.com)
y See if the plug&play function is supported by referring to the video
card user manual.
y Vertical frequency: To enable the user to watch the product display, screen image should be changed
tens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the times
of image display per second. The unit is Hz.
y Horizontal frequency: The horizontal interval is the time to display one vertical line. When 1 is divided
by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as
the horizontal frequency. The unit is kHz.
NOTE
38
ENG
ENGLISH
TROUBLESHOOTING
'Key Lock On' message appears.
Problem Resolution
The 'Key Lock On' message
appears when pressing the Menu
button.
yThe control locking function prevents unintentional OSD setting
change due to careless usage. To unlock the controls, simultaneously
cannot set this function using the remote control buttons. You can set
this function in the product only.)
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Position OSD
menu.
ySee if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Clock OSD
menu.
Horizontal noise appears or the
characters look blurred.
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Phase OSD
menu.
The screen is displayed abnormally.
y The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
yIf you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
The audio function does not work.
Problem Resolution
No sound?
ySee if the audio cable is connected properly.
yAdjust the volume.
y See if the sound is set properly.
Sound is too dull.
ySelect the appropriate equalize sound.
Sound is too low.
y Adjust the volume.
39
ENG
ENGLISH
TROUBLESHOOTING
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or mono-
colored.
yCheck the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
yIs the sleep timer set?
y Check the power control settings. Power interrupted.
y"CAUTION! FAN STOP!"
If the power is turned off after this message appears, it means that
the fan is out of order.In this case, contact your local service center.
40
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel Screen Type 1638.3 mm Wide (64.5 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1638.3 mm
Pixel Pitch 0.744 mm (H) x 0.744 mm (V)
Video Signal Max. Resolution RGB : 1920 X 1080 @60Hz
HDMI/DVI : 1920 X 1080 @60Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution RGB : 1920 X 1080 @60Hz
HDMI/DVI : 1920 X 1080 @60Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 - 83 kHz
HDMI/DVI : 30 - 83 kHz
Vertical Frequency RGB : 56 - 75 Hz
HDMI/DVI : 56 - 60 Hz
Synchronization Type Separate Sync, Composite Sync, Digital
Input Connector 15-pin D-Sub type, HDMI (digital), Composite Video,
RS-232C, LAN
Power Rated Voltage AC 100-240 V~ 50/60 Hz 4.6 A
Power Consumption On Mode : 480 W Typ.
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
SPECIFICATIONS 41
ENG
ENGLISH
/ Dimensions
(Width x Height x
Depth) / Weight
1535.4 mm (60.44 inch) x 136.7 mm (6.44 inch) x 907.6 mm (35.73 inch) / 51.1 kg (112.65 lb)
1535.4 mm (60.44 inch) x 136.7 mm (6.44 inch) x 907.6 mm (35.73 inch) / 51.85 kg (114.30 lb)
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
H
WD
H
WD
SPECIFICATIONS
42
ENG
ENGLISH
RGB (PC) supported mode
Resolution Horizontal
Frequency(kHz) Vertical
Frequency(Hz)
640 x 350 31.469 70.8
720 x 400 31.468 70.8
640 x 480 31.469 59.94
640 x 480 37.5 75
800 x 600 37.879 60.317
800 x 600 46.875 75
832 x 624 49.725 74.55
1024 x 768 48.363 60
1024 x 768 60.123 75.029
1280 x 720 44.772 59.855
1280 x 768 47.7 60
1360 x 768 47.72 59.799
1366 x 768 47.7 60
1280 x 1024 63.981 60.02
1280 x 1024 79.98 75.02
1680 x 1050 65.290 59.954
1920 x 1080 67.5 60
HDMI/DVI(PC) supported mode
Resolution Horizontal
Frequency(kHz) Vertical
Frequency(Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1280 x 768 47.7 60
1360 x 768 47.72 59.799
1366 x 768 47.7 60
1280 x 1024 63.981 60.02
1680 x 1050 65.290 59.954
1920 x 1080 67.5 60
y DTV/PC selection on RGB and HDMI/DVI
inputs is available for PC resolutions : 640
x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x
1080 / 60 Hz and DTV resolutions : 480p,
720p, 1080p.
DTV Mode
Resolution Component HDMI/DVI
(DTV)
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p o o
Power Indicator
Mode Product
On Mode Green
Sleep Mode Amber
Off Mode -
NOTE
43
ENG
ENGLISH
IR CODES
IR CODES
y This feature is not available for all models.
Code (Hexa) Function Note
95 Energy Saving (ᰚ) R/C BUTTON
08 (POWER) R/C BUTTON (POWER ON/OFF)
0B INPUT R/C BUTTON
08 Monitor On R/C BUTTON
C4 Monitor Off R/C BUTTON
79 ARC (MARK) R/C BUTTON
43 MENU R/C BUTTON
40 Up (ᰜ) R/C BUTTON
41 Down (ᰝ) R/C BUTTON
07 Left (<) R/C BUTTON
06 Right (>) R/C BUTTON
44 OK(ᯙ) R/C BUTTON
28 BACK(ᰙ) R/C BUTTON
5B EXIT R/C BUTTON
4D PSM R/C BUTTON
02 ( + ) R/C BUTTON
03 ( - ) R/C BUTTON
09 MUTE R/C BUTTON
E0 Bright ᰜ (Page UP) R/C BUTTON
E1 Bright ᰝ (Page Down) R/C BUTTON
10 to 19 Number Key 0 to 9 R/C BUTTON
72 Red Key R/C BUTTON
71 Green Key R/C BUTTON
63 Yellow Key R/C BUTTON
61 Blue Key R/C BUTTON
7B TILE R/C BUTTON
5A AV R/C BUTTON
BF Component R/C BUTTON
D5 RGB PC R/C BUTTON
C6 HDMI/DVI R/C BUTTON
76 ARC (4:3) R/C BUTTON
77 ARC (16:9) R/C BUTTON
AF ARC (ZOOM) R/C BUTTON
99 Auto Config. R/C BUTTON
B1 ᰧR/C BUTTON
B0 ᰦR/C BUTTON
BA ᰨR/C BUTTON
8F ᰪR/C BUTTON
8E ᰩR/C BUTTON
44
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
CONTROLLING THE MULTIPLE PRODUCT
y Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
y In the Option menu, Set ID must be between 1 and 225 without being duplicated.
Connecting the cable
Connect the RS-232C cable as shown in the picture.
y The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC.
Communication Parameter
Set 1 Set 2 Set 3 Set 4
PC
RS-232C Cable
(not included)
RS-232C Configurations
7-Wire Configurations (Standard RS-232C cable)
RXD
TXD
GND
DTR
DSR
RTS
CTS
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC Set PC Set
2
3
5
4
6
7
8
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
D-Sub 9 D-Sub 9
(Female) (Female)
3-Wire Configurations (Not Standard)
2
3
5
4
6
7
8
3
2
5
6
4
7
8
y Baud Rate : 9600 buad Rate (UART)
y Data Length : 8 bit
y Parity Bit : None
y Stop Bit : 1bit
y Flow Control : None
y Communication Code : ASCII code
y Use a crossed (reverse) cable
45
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Command reference list
COMMAND 1 COMMAND 2 DATA 1 DATA 2 DATA 3
01. Power k a 00H to 01H
02. Input Select k b 02H to 09H
03. Aspect Ratio k c 01H to 1FH
04. Screen Mute k d 00H to 01H
05. Volume Mute k e 00H to 01H
06. Volume Control k f 00H to 64H
07. Contrast k g 00H to 64H
08. Brightness k h 00H to 64H
09. Color k i 00H to 64H
10. Tint k j 00H to 64H
11. Sharpness k k 00H to 64H
12. OSD Select k l 00H to 01H
13. Remote Lock/ key Lock k m 00H to 01H
14. Balance k t 00H to 64H
15. Color Temperature k u 00H to 02H
16. Abnomal state k z FFH
17. ISM mode j p 01H to 08H
18. Auto configuration j u 01H
19. Key m c Key Code
20. Tile Mode d d 00H to 55H
21. Tile H Position d e 00H to 14H
22. Tile V Position d f 00H to 14H
23. Tile H Size d g 00H to 64H
24. Tile V Size d h 00H to 64H
25. Tile ID Set d i 00H to 19H
26. Natural Mode (In Tile mode) d j 00H to 01H
27. Picture mode (PSM) d x 00H to 06H
28. Sound mode d y 00H to 05H
29. Fan Fault check d w FFH
30. Elapsed time return d l FFH
31. Temperature value d n FFH
32. Lamp fault check d p FFH
33. Auto Volume d u 00H to 01H
34. Speaker d v 00H to 01H
35. Time f a 00H to 06H 00H to 17H 00H to 3BH
36. On Timer (On/Off Timer) Time fd
F1H to F4H
E0H to E4H
01H to 80H
00H to 17H 00H to 3BH
37. Off Timer (On/Off Timer) Time fe
F1H to F4H
E0H to E4H
01H to 80H
00H to 17H 00H to 3BH
38. Scheduling input select f u F1H to F4H 02H to 09H
39. Sleep Time f f 00H to 08H
46
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
COMMAND 1 COMMAND 2 DATA 1 DATA 2 DATA 3
40. Auto Sleep f g 00H to 01H
41. Power On Delay f h 00H to 64H
42. Language f i 00H to 09H
43. DPM Select f j 00H to 01H
44. Reset f k 00H to 02H
45. Power Saving f l 00H to 03H
46. Power Indicator f o 00H to 01H
47. Serial no. f y FFH
48. S / W Version f z FFH
49. Input Select x b 20H to A0H
y Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc) are
not executed and treated as NG.
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* [Command 1]: First command. (k, j, m, d, f, x)
* [Command 2]: Second command.(a to u)
* [Set ID]: Set up the Set ID number of product.
range : 01H to 63H. by setting '0', server can control all products.
* In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked the ack
message. Because all sets will send the ack message, so it's impossible the check the whole ack messages.
* [DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
* [Cr]: Carriage Return (ASCII code '0 x 0 D')
* [ ]: ASCII code Space (0 x 20)
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of
the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* If there is error, it returns NG
Transmission / Receiving protocol
47
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
01. Power (Command: k a)
To control Power On/Off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off Data 01 : Power On
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
To show the status of Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
Data 00 : Power Off Data 01 : Power On
02. Input Select (Command: k b) (Main Picture Input)
To select input source for the Set.
You can also select an input source using the INPUT
button on the remote control.
Transmission
[k][b][ ][Set ID][ ][Data][Cr]
Data 02 : AV
04 : Component
07 : RGB (PC)
08 : HDMI (DTV)
09 : HDMI (PC)
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
Data 02 : AV
04 : Component
07 : RGB (PC)
08 : HDMI (DTV)
09 : HDMI (PC)
03. Aspect Ratio (Command: k c)
To adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in
the Screen menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal Screen (4 : 3)
02 : Wide Scran (16 : 9)
04 : Zoom (AV)
06 : Original (AV)
07 : 14 : 9 (AV)
09 : Just Scan (HD DTV)
* When the RGB, HDMI / DVI PC mode(1:1)
10 to 1F : Cinema Zoom 1 to 16
B : Full Wide
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command: k d)
To select screen mute on / off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
01 : Screen mute on (Picture off)
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command: k e)
To control On/Off of the Volume Mute.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume Mute On (Volume Off)
01 : Volume Mute Off (Volume On)
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
Data 00 : Volume Mute On (Volume Off)
01 : Volume Mute Off (Volume On)
06. Volume Control (Command: k f)
To adjust Volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
(Hexadecimal code)
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
Data Min : 00H to Max : 64H
* Real data mapping
0 : STEP 0
:
A : STEP 10
:
F : STEP 15
10 : STEP 16
:
64 : STEP 100
07. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust the contrast in the Picture menu.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
Data Min : 00H to Max : 64H
* Refer to 'Real data mapping ’. See p.47
48
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
08. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust the brightness in the Picture
menu.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
(Hexadecimal code)
* Refer to 'Real data mapping ’. See p.47
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
* Refer to 'Real data mapping ’. See p.46
09. Color (Command: k i) (Video Timing only)
To adjust the screen color.
You can also adjust the color in the Picture menu.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
(Hexadecimal code)
* Refer to 'Real data mapping ’. See p.47
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
Data Min : 00H to Max : 64H
10. Tint (Command: k j)
To adjust the screen tint.
You can also adjust the tint in the Picture menu.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
(Hexadecimal code)
00H : Step R50
64H : Step G50
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
Data Min : 00H to Max : 64H
* Tint Real data mapping
0 : Step 0 to Red
:
64 : Step 100 to Green
11. Sharpness (Command: k h)
To adjust the screen Sharpness.
You can also adjust the sharpness in the Picture
menu.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
(Hexadecimal code)
* Refer to 'Real data mapping’. See p.47
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
Data Min : 00H to Max : 64H
12. OSD Select (Command: k l)
To control OSD on/off to the set.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD Off Data 01: OSD On
Acknowledgement
[l][ ][Set ID][ ][OK][Data][x]
Data 00: OSD Off Data 01: OSD On
13. Remote Lock /Key Lock (Command: k m)
To control Remote Lock on/off to the set.
This function, when controlling RS-232C, locks the
remote control and the local keys.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Data 00: Off Data 01: On
Acknowledgement
[m][ ][Set ID][ ][OK][Data][x]
Data 00: Off Data 01: On
14. Balance (Command: k t)
To adjust the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 64H
(Hexadecimal code)
00H : Step L50
64H : Step R50
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
Data Min : 00H to Max : 64H
(Hexadecimal code)
00H : Step 0 to L50
64H : Step 100 to R50
* Balance : L50 to R50
15. Color Temperature (Command: k u)
To adjust the screen color temperature.
Transmission
[k][u][ ][Set ID][ ][Data][Cr]
Data 00 : Medium
01 : Cool
02 : Warm
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
Data 00 : Medium
01 : Cool
02 : Warm
49
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
16. Abnormal state (Command: k z)
Used to Read the power off status when Stand-by
mode.
Transmission
[k][z][ ][Set ID][ ][Data][Cr]
Data FF : Read
Acknowledgement
[z][ ][Set ID][ ][OK][Data][x]
Data 00 : Normal (Power on and signal exist)
01 : No signal (Power on)
02 : Turn the monitor off by remote control
03 : Turn the monitor off by sleep time function
04 : Turn the monitor off by RS-232C function
08 : Turn the monitor off by off time function
09 : Turn the monitor off by auto off function
17. ISM mode (Command: j p)
Used to select the afterimage preventing function.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 01 : Inversion
02 : Orbiter
04 : White Wash
08 : Normal
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
18. Auto Configure (Command: j u)
To adjust picture position and minimize image
shaking.
Automatically. NB : Only applies to RGB(PC) mode.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
19. Key (Command: m c)
To send IR remote key code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data Key code : Refer to ‘IR CODES’. See p.43
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
20. Tile Mode (Command: d d)
Change a Tile Mode.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data Description
00 or 11 Tile mode is off.
12 1 x 2 mode (column x row)
13 1 x 3 mode
14 1 x 4 mode
... ...
55 1 x 2 mode
* The data can not be set to 0X or X0 except 00.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
21. Tile H Position (Command: d e)
To set the Horizontal position.
Transmission
[d][e][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 14H
00H : Step -10(Left)
14H : Step 10(Right)
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
22. Tile V Position (Command: d f)
To set the Vertical position.
Transmission
[d][f][ ][Set ID][ ][Data][Cr]
Data Min : 00H to Max : 14H
00H : Step -10(Down)
14H : Step 10(Up)
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
23. Tile H Size (Command: d g)
To set the Horizontal size.
Transmission
[d][g][ ][Set ID][ ][Data][x]
Data Min : 00H to Max : 64H
* Refer to 'Real data mapping ’. See p.47
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
24. Tile V Size (Command: d h)
To set the Vertical size.
Transmission
[d][h][ ][Set ID][ ][Data][x]
Data Min : 00H to Max : 64H
* Refer to 'Real data mapping ’. See p.47
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
50
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
29. Fan Fault check (Command: d w)
To check the Fan fault of the Set.
Transmission
[d][w][ ][Set ID][ ][Data][x]
* The data is always FF (in Hex).
Data ff : Read Status
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
* Data is the status value of the Fan fault.
Data 00 : Fan fault
01 : Fan Ok
02 : N/A (Not Avaliable)
30. Elapsed time return (Command: d l)
To read the elapsed time.
Transmission
[d][l][ ][Set ID][ ][Data][x]
* The data is always FF(in Hex).
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* The data is always FF(in Hex).
(Hexadecimal code)
31. Temperature value (Command: d n)
To read the inside temperature value.
Transmission
[d][n][ ][Set ID][ ][Data][x]
* The data is always FF(in Hex).
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
* The data is 1 byte long in Hexadecimal.
32. Lamp fault Check (Command: d p)
To check lamp fault.
Transmission
[d][p][ ][Set ID][ ][Data][x]
* The data is always FF(in Hex).
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
* The data is 1 byte long in Hexadecimal.
Data 00 : Lamp Fault
01 : Lamp Ok
02 : N/A (DPM/Power Off)
33. Auto volume (Command: d u)
Automatically adjust the volume level.
Transmission
[d][u][ ][Set ID][ ][Data][x]
Data 00: Off Data 01: On
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
25. Tile ID Set (Command: d i)
To assign the Tile ID for Tiling function.
Transmission
[d][i][ ][Set ID][ ][Data][x]
Data Min : 00H to Max : 19H
(Hexadecimal code)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
26. Natural Mode (Command: d j)
To assign the Tile Natural mode for Tiling function.
Transmission
[d][j][ ][Set ID][ ][Data][x]
Data 00 : Natural Off
01 : Natural On
ff : Read Status
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
27. Picture Mode (Command: d x)
To adjust the picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][x]
Data Structure
Data(Hex) Mode
00 Vivid
01 Standard
02 Cinema
03 Sport
04 Game
05 Export 1
06 Export 2
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
28. Sound Mode (Command: d y)
To adjust the Sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][x]
Data Structure
Data(Hex) Mode
01 Standard
02 Music
03 Cinema
04 Sport
05 Game
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
51
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
34. Speaker (Command: d v)
Turn the speaker on or off.
Transmission
[d][v][ ][Set ID][ ][Data][x]
Data 00: Off Data 01: On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
35. Time (Command: f a)
Set the current time.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
[Data1]
00 : Monday
01 : Tuesday
02 : Wednesday
03 : Thursday
04 : Friday
05 : Saturday
06 : Sunday
[Data2]
0H to 17H (Hours)
[Data3]
00H to 3BH (Minutes)
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
*When reading data, FFH is inputted for [Data1],
[Data2] and [Data3]. In other cases, all are treated as
NG.
36. On Timer (On/Off Timer) Time (Command: f d)
Set On Timer.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
[Data1]
1. f1h to f4h(read one index)
f1: read 1st index of On Time List
f2: read 2nd index of On Time List
f3: read 3rd index of On Time List
f4: read 4th index of On Time List
2. e1h~e4h(delete one index), e0h(delete all indexes)
e0: delete all indexes of On Time List
e1: delete 1st index of On Time List
e2: delete 2nd index of On Time List
e3: delete 3rd index of On Time List
e4: delete 4th index of On Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of
[Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of On
Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of On
Time List
ex3: fd 01 3f 02 03 - when you write one On Time
Data, "Monday to Saturday, 02:03"
Acknowledgement
[d][ ][Set ID][ ][OK][Data1][Data2][Data3][x]
37. Off Timer (On/Off Timer) Time (Command: f e)
Set Off Timer.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
[Data 1]
1. f1h to f4h(read one index)
f1: read 1st index of Off Time List,
f2: read 2nd index of Off Time List
f3: read 3rd index of Off Time List
f4: read 4th index of Off Time List
2. e1h to e4h(delete one index), e0h(delete all
indexes)
e0: delete all indexes of Off Time List
e1: delete 1st index of Off Time List
e2: delete 2nd index of Off Time List
e3: delete 3rd index of Off Time List
e4: delete 4th index of Off Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
52
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
*When you read/delete the current on time list, all of
[Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of Off
Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of Off
Time List
ex3: fd 01 3f 02 03 - when you write one Off Time
Data, "Monday to Saturday, 02:03")
Acknowledgement
[e][ ][Set ID][ ][OK][Data1][Data2][Data3][x]
38. Scheduling Input select (Command: f u) (Main
Picture Input)
To select input source for Set depending on day.
Transmission
[f][u][ ][Set ID][ ][Data1][ ][Data2][Cr]
[Data 1]
1. f1h to f4h(write/read one index)
f1: read 1st index of On Time Input
f2: read 2nd index of On Time Input
f3: read 3rd index of On Time Input
f4: read 4th index of On Time Input
[Data 2]
Input
Data(Hex) Input
02 AV
04 Component
07 RGB - PC
08 HDMI/DVI - HD - DVD
09 HDMI/DVI - PC
*When you read/delete the current On Time Input,
[Data2] needs to be FFH.
(ex1: fu 01 f1 ff - when you read 1st index of On Time
Input.
ex2: fu 01 f3 02 - when you write one On Time Input
Data in to 3rd index, "AV")
Acknowledgement
[u][ ][Set ID][ ][OK][Data1][Data2][x]
39. Sleep Time (Command: f f)
Set Sleep Time.
Transmission
[f][f][ ][Set ID][ ][Data][Cr]
Data 00 : Off
01 : 10
02 : 20
03 : 30
04 : 60
05 : 90
06 : 120
07 : 180
08 : 240
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
40. Auto Sleep (Command: f g)
Set Auto Sleep.
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data 00 : Off
01 : On
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
41. Power On Delay (Command: f h)
Set the schedule delay when the power is turned on
(Unit: second).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data : 00H to 64H (Data value)
* Refer to 'Real data mapping ’. See p.46
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
42. Language (Command: f i)
Set the OSD language.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data 00 : English
01 : French
02 : German
03 : Spanish
04 : Italian
05 : Portuguese
06 : Chinese
07 : Japanese
08 : Korean
09 : Russian
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
43. DPM Select (Command: f j)
Set the DPM (Display Power Management) function.
Transmission
[f][j][ ][Set ID][ ][Data][Cr]
Data 00 : Off
01 : On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
44. Reset (Command: f k)
Set the DPM (Display Power Management) function.
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data 00 : Picture Reset
01 : Screen Reset
02 : Factory Reset
53
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
45. Power saving (Command: f l)
To set the Power saving mode.
Transmission
[f][l][ ][Set ID][ ][Data][Cr]
Data 00 : Off
01 : static level 1
02 : static level 2
03 : static level 3
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
46. Power Indicator (Command: f o)
To set the LED for Power Indicator
Transmission
[f][o][ ][Set ID][ ][Data][Cr]
Data 00 : Off
01 : On
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
47. Serial no.Check (Command: f y)
Check the Serial no.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data FF (to read the serial numbers)
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data1] to [Data13][x]
* The data format is ASCII Code.
48. S/W Version (Command: f z)
Check the software version.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data FFH : Read
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
49. Input Select (Command: x b)
To select input source for the Set.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
54
ENG
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
Regulatory Information cont.
FCC Compliance Statement
This equipment has been tested and found to comply
within the limits of a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by
turning the equipment on and off), the user is encouraged
to try to correct the interference by using one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception. Only shielded signal cables may be used with
this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CE Conformity Notice
(for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022 ; Radio Frequency Interference
• EN 55024 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950-1 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
01
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
TCO'99 (TCO'99 applied model only)
Congratulations!
You have just purchased a TCO’99 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
also to the further development of environmentally
adapted electronics products.
Regulatory Information cont.
02
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. With the growing
manufacture and usage of electronic equipment
throughout the world, there is a recognized concern for the
materials and substances used by electronic products
with regards to their eventual recycling and disposal. By
proper selection of these materials and substances, the
impact on the environment can be minimized.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from the
viewpoints of both the work (internal) and natural (external)
environments. Electronic equipment in offices is often left
running continuously, resulting in unnecessary
consumption of large amounts of energy and additional
power generation. From the standpoint of carbon dioxide
emissions alone, it is vital to save energy.
What does labelling involve?
The product meets the requirements for the TCO’99
scheme which provides for international and environmental
labelling of personal computers and/or displays.
The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation) and
Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues:
ecology, ergonomics, emission of electrical and magnetical
fields, energy consumption and electrical safety.
Ecological criteria impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame
retardants, and other substances. The product must be
prepared for recycling and the manufacturing site(s) shall
be certified according to ISO14001 or EMAS registered.
Energy requirements include a demand that the system
unit and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level in one
or more stages. The length of time to reactivate the system
unit shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electrical and magnetical fields as well as work load and
visual ergonomics.
Below you will find a brief summary of the ecological
requirements met by this product. The complete
ecological criteria document can be found at TCO
Development’s website http://www.tcodevelopment.com
or may be ordered from:
TCO Development
SE-114 94 STOCKHOLM, Sweden
Fax: +46 8 782 92 07
Email : development@tco.se
Information regarding TCO’99 approved and labelled
products may also be obtained at
http://www.tcodevelopment.com
Ecological requirements
Flame retardants
Flame retardants may be present in printed wiring board
laminates, cables, and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30%
by weight of the plastic in a computer casing can consist of
flame retardant substances. Many flame retardants
contain bromine or chlorine, and these flame retardants
are chemically related to PCBs (polychlorinated
biphenyls). Both the flame retardants containing bromine
or chlorine and the PCBs are suspected of giving rise to
health effects, including reproductive damage in fish-
eating birds and mammals, due to the bio-accumulative*
processes when not disposed of in accordance with strict
standards for disposal.
TCO’99 requires that plastic components weighing more
than 25 grams shall not contain flame retardants with
organically bound bromine or chlorine. Flame retardants
are allowed in the printed wiring board laminates due to
the lack of commercially available alternatives.
Cadmium**
Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
TCO’99 requires that batteries, the colour-generating
layers of display screens, and the electrical or electronics
components shall not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and
switches. TCO’99 requires that batteries shall not contain
any mercury. It also demands that mercury is not present
in any of the electrical or electronics components
associated with the labelled unit. There is however one
Regulatory Information cont.
03
exception. Mercury is, for the time being, permitted in the
back light system of flat panel monitors as there today is
no commercially available alternative. TCO aims on
removing this exception when a mercury free alternative is
available.
Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. TCO’99 permits the use of lead
due to the lack of commercially available alternatives, but
in future requirements TCO Development aims at
restricting the use of lead.
_____________________________________________
* Bio-accumulative is defined as substances which
accumulate in living organisms.
**Lead, Cadmium and Mercury are heavy metals
which are bio-accumulative.
TCO’03
(TCO’03 applied model only)
Congratulations!
The display you have just purchased carries the TCO’03
Displays label.
This means that your display is designed,manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a
high performance product, designed with the user in focus
that also minimizes the impact on our natural environment.
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to
improve the working environment for the user and to
reduce sight and strain problems. Important
parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial
both for the user and the environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the
manufacturer must have a certified environmental
management system such as EMAS or ISO 14 001
• Restrictions on
chlorinated and brominated flame retardants and
polymers
heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been
developed by TCO Development in co-operation with
scientists, experts, users as well as manufacturers all over
the world. Since the end of the 1980s TCO has been
involved in influencing the development of IT equipment in
a more user-friendly direction. Our labelling system started
with displays in 1992 and is now requested by users and
IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
Information for Environmental Preservation
LGE. announced the 'LG Declaration for a Cleaner
Environment' in 1994, and this ideal has served as a
guiding managerial principle ever since. The Declaration is
a foundation that has allowed us to undertake
environmentally friendly activities in careful consideration
of economic, environmental, and social aspects.
We promote activities for environmental preservation, and
we specifically develop our products to embrace the
concept of environment-friendly.
We minimize the hazardous materials contained in our
products. For example, there is no cadmium to be found in
our monitors.
Information for recycling
This monitor may contain parts which could be hazardous
to the environment. It is important that this monitor be
recycled after use.
LGE. handles all waste monitors through an
environmentally acceptable recycling method. There are
several take-back and recycling systems currently in
English
Regulatory Information cont.
04
operation worldwide. Many parts will be reused and
recycled, while harmful substances and heavy metals are
treated by an environmentally friendly method.
If you want to find out more information about our
recycling program, please contact your local LG vendor or
a corporate representative of LG.
We set our vision and policies on a cleaner world by
selecting the issue of the global environment as a task for
corporate improvement. Please visit our website for more
information about our ‘green’ policies.
http://www.lge.com/about/environment/html/Recycling.jsp
Informationen zur Erhaltung der Umwelt
Im Jahr 1994 verkündete LGE die 'LG Declaration for a
Cleaner Environment' (LG Erklärung für eine sauberere
Umwelt). Seitdem dient dieses Ideal als führendes Prinzip
des Unternehmens. Diese Erklärung war die Basis für die
Durchführung von
umweltfreundlichen Aktivitäten, wobei wirtschaftliche,
umweltbezogene und soziale Aspekte in die
Überlegungen mit einbezogen wurden.
Wir fördern Aktivitäten zum Schutz der Umwelt und die
Entwicklung unserer Produkte ist darauf ausgerichtet,
unserem Konzept bezüglich Umweltfreundlichkeit gerecht
zu werden.
Wir sind darauf bedacht, den Anteil der in unseren
Produkten enthaltenen schädlichen Materialien zu
minimieren. So ist in unseren Monitoren beispielsweise
kein Kadmium zu finden.
Informationen zum Thema Recycling
Dieser Monitor enthält Teile, die umweltschädlich sein
können. Es ist unbedingt erforderlich, dass der Monitor
recycelt wird, nachdem er außer Dienst gestellt wurde.
Bei LGE. werden alle ausrangierten Monitore in einem
unter umweltbezogenen Aspekten geeigneten Verfahren
recycelt. Augenblicklich sind weltweit mehrere
Rücknahme- und Recyclingsysteme im Einsatz. Viele
Teile werden wieder verwendet und recycelt. Schädliche
Substanzen und Schwermetalle werden durch
umweltverträgliche Verfahren behandelt.
Falls Sie mehr über unser Recyclingprogramm erfahren
möchten, wenden Sie sich bitte an Ihren lokalen LG-
Händler oder einen Unternehmensvertreter von LG.
Wir richten unsere Firmenpolitik auf eine sauberere
Umwelt hin aus, indem wir umweltspezifische Aspekte als
wichtigen Punkt in die Weiterentwicklung unseres
Unternehmens einfließen lassen. Zusätzliche
Informationen über unsere ‘grüne’ Firmenpolitik erhalten
Sie auf unserer Website.
http://www.lge.com/about/environment/html/Recycling.jsp
Information sur la protection del’environnement
LGE. a publié sa 'Déclaration en faveur d’un
environnement plus propre' en 1994 et celle-ci est restée,
depuis lors, un principe directeur de notre entreprise.
Cette déclaration a servi de base à notre réflexion et nous
a permis de prendre en compte à la fois les aspects
économiques et sociaux de nos activités, tout en
respectant l’environnement.
Nous encourageons les activités en faveur de la
préservation de l’environnement et c’est dans cet esprit
que nous développons nos produits : nous réduisons au
minimum les matières dangereuses qui entrent dans leur
composition et l’on ne trouve pas de cadmium, par
exemple, dans nos moniteurs.
Information sur le recyclage
Ce moniteur peut contenir des composants qui présentent
un risque pour l’environnement. Il est donc important que
celui-ci soit recyclé après usage.
LGE. traite les moniteurs en fin de cycle conformément à
une méthode de recyclage respectueuse de
l’environnement. Nous reprenons nos produits et les
recyclons dans plusieurs sites répartis dans le monde
entier. De nombreux composants sont réutilisés et
recyclés, et les matières dangereuses, ainsi que les
métaux lourds, sont traités selon un procédé écologique.
Si vous souhaitez plus de renseignements sur notre
programme de recyclage, veuillez contacter votre
revendeur LG ou un l’un de nos représentants.
Nous voulons agir pour un monde plus propre et croyons
au rôle de notre entreprise dans l’amélioration de
l’environnement. Pour plus de renseignements sur notre
politique “verte”, rendez visite à notre site :
http://www.lge.com/about/environment/html/Recycling.jsp
Deutsch
Français
05
Regulatory Information cont.
Informazioni per la tutela dell’ambiente
La LGE. ha annunciato nel 1994 la cosiddetta 'LG
Declaration for a Cleaner Environment' (Dichiarazione di
LG a favore di un ambiente più pulito), un ideale che da
allora funge da principio ispiratore della gestione
aziendale. La dichiarazione rappresenta il fondamento che
consente di intraprendere attività a favore dell'ambiente
tenendo conto degli aspetti economici, ambientali e
sociali.Noi della LG, promuoviamo attività a favore della
tutela dell'ambiente sviluppando appositamente i nostri
prodotti per cogliere il concetto del rispetto dell’ambiente
riducendo i materiali dannosi presenti nei nostri prodotti.
Ad esempio nei nostri monitor non è presente il cadmio.
Informazioni per il riciclaggio
Il monitor può presentare componenti che potrebbero
risultare eventualmente dannosi per l'ambiente. È
importante che il monitor sia riciclato al termine del suo
utilizzo.
La LGE. gestisce tutti i monitor di rifiuto con un metodo di
riciclaggio soddisfacente dal punto di vista ambientale. In
tutto il mondo sono attualmente in funzione numerosi
sistemi di riciclaggio e recupero. I diversi componenti sono
riutilizzati e riciclati, mentre le sostanze dannose e i metalli
pesanti vengono trattati con un metodo rispettoso
dell’ambiente.
Se si desiderano maggiori informazioni in merito al
programma di riciclaggio, è consigliabile rivolgersi al
proprio rivenditore LG o ad un rappresentante aziendale
della LG.
Noi della LG impostiamo la nostra visione e le nostre
politiche a favore di un mondo più pulito ponendo la
questione dell'ambiente dal punto di vista globale come
una mansione rivolta al miglioramento della nostra
azienda. Vi invitiamo a visitare il nostro sito internet per
ulteriori informazioni sulla nostra politica “verde”.
http://www.lge.com/about/environment/html/Recycling.jsp
Información para la conservación
medioambiental
LGE. presentó la 'Declaración para un entorno más limpio
de LG' en 1994 y este ideal ha servido para guiar nuestros
principios empresariales desde entonces. La Declaración
es la base que nos ha permitido llevar a cabo tareas que
respetan el medio ambiente siempre teniendo en cuenta
aspectos sociales,
económicos y medioambientales.
Promocionamos actividades orientadas a la conservación
del medio ambiente y desarrollamos nuestros productos
específicamente para que se ajusten a la filosofía que
protege el entorno.
Reducimos al máximo el uso de materiales de riesgo en
nuestros productos. Un ejemplo de ello es la ausencia
total de cadmio en nuestros monitores.
Información para el reciclaje
Este monitor puede contener piezas que entrañen riesgos
medioambientales. Es importante reciclar este monitor
después de su utilización.
LGE. trata todos los monitores usados siguiendo un
método de reciclaje que no daña al entorno. Contamos
con diversos sistemas de recuperación y reciclaje que
funcionan a nivel mundial en la actualidad. Es posible
reciclar y reutilizar muchas de las piezas, mientras que las
sustancias dañinas y los metales pesados se tratan
siguiendo un método que no perjudique al medio
ambiente. Si desea obtener más información acerca del
programa de reciclaje, póngase en contacto con su
proveedor local de LG o con un representante empresarial
de nuestra marca.
Basamos nuestra visión y nuestras políticas en un mundo
más limpio y para ellos optamos por un entorno global
como tarea principal de nuestra evolución como empresa.
Visite nuestra página Web para obtener más información
sobre nuestras políticas ecológicas.
http://www.lge.com/about/environment/html/Recycling.jsp
Informações relacionadas à preservação
ambiental
A LGE. anunciou a 'LG Declaration for a Cleaner
Environment' (Declaração da LG para um ambiente mais
limpo) em 1994 e esse ideal tem servido desde então
como um princípio administrativo de orientação. A
Declaração é a base que nos tem permitido realizar
atividades favoráveis ao ambiente com consideração
atenta aos aspectos econômicos, ambientais e sociais.
Promovemos atividades de preservação ambiental e
desenvolvemos nossos produtos para englobar
Italiano
Espanõl
Português
06
Regulatory Information cont.
especificamente o conceito de favorável ao ambiente.
Reduzimos os materiais perigosos contidos em nossos
produtos. Por exemplo, não há cádmio em nossos
monitores.
Informações relacionadas à reciclagem
Este monitor pode conter peças que podem representar
riscos ao ambiente. É importante que ele seja reciclado
após o uso.
A LGE. cuida de todos os monitores descartados através
de um método de reciclagem agradável ao ambiente. Há
vários sistemas de devolução e reciclagem atualmente
em operação no mundo. Muitas peças serão reutilizadas
e recicladas e as substâncias nocivas e os metais
pesados passarão por tratamento através de um método
favorável ao ambiente.
Para obter mais informações sobre nosso programa de
reciclagem, entre em contato com seu fornecedor LG
local ou com um representante corporativo da LG.
Definimos nossa visão e nossas políticas relacionadas a
um mundo mais limpo selecionando a questão do
ambiente global como uma tarefa de aprimoramento
corporativo. Visite nosso site para obter mais informações
sobre nossas políticas de meio ambiente.
http://www.lge.com/about/environment/html/Recycling.jsp
Informatie met betrekking tot het behoud van
het milieu
LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner
Environment' (de LG-verklaring met betrekking tot een
schoner milieu). Deze verklaring en het ideaal van een
schoner milieu fungeren sindsdien als een bestuurlijke
leidraad voor onze onderneming. Op basis van deze
verklaring ontplooien wij milieuvriendelijke activiteiten,
waarbij er zowel met sociale en economische aspecten,
als met milieuaspecten zorgvuldig rekening wordt
gehouden.
Wij ondersteunen activiteiten die zijn gericht op het
behoud van het milieu en wij houden bij het ontwikkelen
onze producten specifiek rekening met de
milieuvriendelijkheid van onze producten.
Wij minimaliseren het gebruik van schadelijke stoffen in
onze producten. Er wordt bijvoorbeeld geen cadmium
verwerkt in onze monitors.
Nederlands
Informatie met betrekking tot recycling
Deze monitor bevat materialen die schadelijk zouden
kunnen zijn voor het milieu. Het is belangrijk dat deze
monitor aan het einde van zijn levensduur wordt
gerecycled.
LGE. verwerkt alle afvalmonitors via een milieuvriendelijke
recyclingmethode. Hiervoor worden er momenteel
wereldwijd verscheidene inname- en recyclingsystemen
gehanteerd. Een groot aantal onderdelen wordt opnieuw
gebruikt en gerecycled, waarbij schadelijke stoffen en
zware metalen volgens een milieuvriendelijke methode
worden verwerkt.
Voor meer informatie over ons recyclingprogramma kunt u
contact opnemen met uw plaatselijke LG-
vertegenwoordiger of een LG-vestiging.
Onze visie en ons beleid met betrekking tot een schonere
wereld vloeien voort uit het feit dat wij het milieu hebben
aangemerkt als een onderwerp dat speciale aandacht
verdient binnen onze onderneming. Bezoek onze website
voor meer informatie over ons 'groene' beleid.
http://www.lge.com/about/environment/html/Recycling.jsp
»ÌÙÓχˆËˇ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚
¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡
'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚',
ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ
ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË
Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ
·ÂÁÓÔ‡ÒÌÓÒÚ¸ ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÔË ˝ÚÓÏ
‰ÓÎÊÌÓ ‚ÌËχÌË ˝ÍÓÌÓÏ˘ÂÒÍËÏ, ˝ÍÓÎӄ˘ÂÒÍËÏ Ë
ÒӈˇθÌ˚Ï ‡ÒÔÂÍÚ‡Ï.
Ã˚ ÒÚËÏÛÎËÛÂÏ ‰ÂˇÚÂθÌÓÒÚ¸ ÔÓ Óı‡ÌÂ
ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÓÒÓ·Ó ‚ÌËχÌËÂ
‡Á‡·ÓÚÍ ̇¯ÂÈ ÔÓ‰Û͈ËË ‚ ÒÓÓÚ‚ÂÚÒÚ‚ËË Ò
ÍÓ̈ÂÔˆËÂÈ ˝ÍÓÎӄ˘ÂÒÍÓÈ ·ÂÁÓÔ‡ÒÌÓÒÚË.
Ã˚ Ò‚Ó‰ËÏ Í ÏËÌËÏÛÏÛ ÒÓ‰ÂʇÌË ÓÔ‡ÒÌ˚ı
‚¢ÂÒÚ‚ ‚ ̇¯ÂÈ ÔÓ‰Û͈ËË. Õ‡ÔËÏÂ, ‚ ̇¯Ëı
ÏÓÌËÚÓ‡ı ‚˚ Ì ̇ȉÂÚ ͇‰Ïˡ.
»ÌÙÓχˆËˇ ÔÓ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚
›ÚÓÚ ÏÓÌËÚÓ ÏÓÊÂÚ ÒÓ‰Âʇڸ ÍÓÏÔÓÌÂÌÚ˚,
ÍÓÚÓ˚ ÏÓ„ÛÚ Ì‡ÌÂÒÚË Û˘Â· ÓÍÛʇ˛˘ÂÈ Ò‰Â.
Russian
07
Regulatory Information cont.
EPA
(EPA applied model only)
ENERGY STAR
is a set of power-saving guidelines
issued by the U.S. Environmental Protection
Agency(EPA).
NOM MARK (Mexico only)
ÕÂÓ·ıÓ‰ËÏÓ ÛÚËÎËÁËÓ‚‡Ú¸ ÏÓÌËÚÓ ÔÓÒÎÂ
ËÒÔÓθÁÓ‚‡Ìˡ.
KÓÔÓ‡ˆËˇ LGE Ô‡·‡Ú˚‚‡ÂÚ ‚Ò ·‡ÍÓ‚‡ÌÌ˚Â
ÏÓÌËÚÓ˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË ÔËÂÏÎÂÏÓ„Ó
ÏÂÚÓ‰‡ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚. œÓ ‚ÒÂÏÛ ÏËÛ
‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡
ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚
·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ
‚ÂÏˇ Í‡Í ‚‰Ì˚ ‚¢ÂÒÚ‚‡ Ë ÚˇÊÂÎ˚ ÏÂÚ‡ÎÎ˚
·Û‰ÛÚ Ó·‡·ÓÚ‡Ì˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË
ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡.
«‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ
ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í
ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ
ÍÓÔÓ‡ˆËË LG.
Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ
·ÂÁÓÔ‡ÒÌÓÒÚË, ÒÚ‡‚ˇ Ò· ˆÂθ˛ „ÎÓ·‡Î¸ÌÛ˛ Á‡˘ËÚÛ
ÓÍÛʇ˛˘ÂÈ Ò‰˚. ƒÓÔÓÎÌËÚÂθÌÛ˛ ËÌÙÓχˆË˛
Ó Ì‡¯ÂÈ ÔÓÎËÚËÍ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚ ‚˚
ÏÓÊÂÚ ̇ÈÚË Ì‡ ̇¯ÂÏ Ò‡ÈÚÂ:
http://www.lge.com/about/environment/html/Recycling.jsp
As an ENERGY STAR Partner LGE U. S.
A.,Inc. has determined that this product
meets the ENERGY STAR guidelines for
energy efficiency.
08
Regulatory Information cont.
1.When this crossed-out wheeled bin symbol is attached
to a product it means the product is covered by the
European Directive 2002/96/EC.
2.All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed by
the government or the local authorities.
3.The correct disposal of your old appliance will help
prevent potential negative consequences for the
environment and human health.
4.For more detailed information about disposal of your
old appliance, please contact your city office, waste
disposal service or the shop where you purchased the
product.
Disposal of your old appliance
1.Quando su un prodotto è riportato il simbolo di
1.När den här symbolen med en överkryssad
soptunna på hjul sitter på en produkt innebär det
att den regleras av European Directive
2002/96/EC.
2.Alla elektriska och elektroniska produkter bör
kasseras via andra vägar än de som finns för
hushållsavfall, helst via för ändamålet avsedda
uppsamlingsanläggningar som myndigheterna
utser.
3.Om du kasserar din gamla apparat på rätt sätt
så bidrar du till att förhindra negativa
konsekvenser för miljön och människors hälsa.
4.Mer detaljerad information om kassering av din
gamla apparat kan får av kommunen,
renhållningsverket eller den butik där du köpte
produkten.
1.Als het symbool met de doorgekruiste verrijdbare
afvalbak op een product staat, betekent dit dat
het product valt onder de Europese Richtlijn
2002/96/EC.
2.Elektrische en elektronische producten mogen
niet worden meegegeven met het huishoudelijk
afval, maar moeten worden ingeleverd bij
speciale inzamelingspunten die door de lokale of
landelijke overheid zijn aangewezen.
3.De correcte verwijdering van uw oude toestel
helpt negatieve gevolgen voor het milieu en de
menselijke gezondheid voorkomen.
Smaltimento delle apparecchiature obsolete
Kassering av din gamla apparat
Uw oude toestel wegdoen
1.Ce symbole, représentant une poubelle sur
roulettes barrée d'une croix, signifie que le
produit est couvert par la directive européenne
2002/96/EC.
2.Les éléments électriques et électroniques
doivent être jetés séparément, dans les vide-
ordures prévus à cet effet par votre municipalité.
3.Une élimination conforme aux instructions aidera
à réduire les conséquences négatives et risques
éventuels pour l'environnement et la santé
humaine.
4.Pour plus d'information concernant l'élimination
de votre ancien appareil, veuillez contacter votre
mairie, le service des ordures ménagères ou
encore la magasin où vous avez acheté ce
produit.
Élimination de votre ancien appareil
un bidone della spazzatura barrato da una croce
significa che il prodotto è coperto dalla direttiva
europea 2002/96/EC.
2.Tutti i prodotti elettrici ed elettronici dovrebbero
essere smaltiti separatamente rispetto alla
raccolta differenziata municipale, mediante
impianti di raccolta specifici designati dal
governo o dalle autorità locali.
3.Il corretto smaltimento delle apparecchiature
obsolete contribuisce a prevenire possibili
conseguenze negative sulla salute umana e
sull'ambiente.
4.Per informazioni più dettagliate sullo smaltimento
delle apparecchiature obsolete, contattare il
comune, il servizio di smaltimento rifiuti o il
negozio in cui è stato acquistato il prodotto.
English
French
Italian
Swedish
Dutch
WEEE (for Europe )
Regulatory Information cont.
09
1.Wenn dieses Symbol eines durchgestrichenen
Abfalleimers auf einem Produkt angebracht ist,
unterliegt dieses Produkt der europäischen
Richtlinie 2002/96/EC.
2.Alle Elektro- und Elektronik-Altgeräte müssen
getrennt vom Hausmüll über dafür staatlich
vorgesehenen Stellen entsorgt werden.
3.Mit der ordnungsgemäßen Entsorgung des alten
Geräts vermeiden Sie Umweltschäden und eine
Gefährdung der persönlichen Gesundheit.
4.Weitere Informationen zur Entsorgung des alten
Geräts erhalten Sie bei der Stadtverwaltung,
beim Entsorgungsamt oder in dem Geschäft, wo
Sie das Produkt erworben haben.
1.ŸÙ·Ó ¤Ó· ÚÔ˚fiÓ ‰È·ı¤ÙÂÈ ÙÔ ‰‡Ì‚ÔÏÔ ÂÓfi˜
‰È·ÁÚ·Ì̤ÓÔ˘ οϷıÔ˘ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÙfiÙ ÙÔ ÚÔ˚fiÓ
ηχÙÂÙ·È ·fi ÙËÓ E˘Úˆ·˚΋ O‰ËÁ›· 2002/96/EOK.
2.H ·fiÚÚÈ„Ë fiÏˆÓ ÙˆÓ ËÏÂÎÙÚÈÎÒÓ Î·È ËÏÂÎÙÚÔÓÈÎÒÓ
ÚÔ˚fiÓÙˆÓ Ú¤ÂÈ Ó· Á›ÓÂÙ·È ¯ˆÚÈÛÙ¿ ·fi Ù· ÁÂÓÈο
ÔÈÎȷο ·ÔÚÚ›ÌÌ·Ù· ̤ۈ ηıÔÚÈṲ̂ӈÓ
ÂÁηٷÛÙ¿ÛÂˆÓ Û˘ÏÏÔÁ‹˜ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÔÈ Ôԛ˜
¤¯Ô˘Ó ‰ËÌÈÔ˘ÚÁËı› ›Ù ·fi ÙËÓ Î˘‚¤ÚÓËÛË ‹ ·fi ÙȘ
ÙÔÈΤ˜ ·Ú¯¤˜.
3.H ÛˆÛÙ‹ ·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜ ı·
‚ÔËı‹ÛÂÈ ÛÙËÓ ·ÔÙÚÔ‹ Èı·ÓÒÓ ·ÚÓËÙÈÎÒÓ Û˘ÓÂÈÒÓ
ˆ˜ ÚÔ˜ ÙÔ ÂÚÈ‚¿ÏÏÔÓ Î·È ÙËÓ ˘Á›· ÙÔ˘ ·ÓıÚÒÔ˘.
4.°È· ÈÔ ÏÂÙÔÌÂÚ›˜ ÏËÚÔÊÔڛ˜ Û¯ÂÙÈο Ì ÙËÓ
·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜, ÂÈÎÔÈÓˆÓ‹ÛÙ ÌÂ
ÙÔ ·ÚÌfi‰›Ô ÙÔÈÎfi ÁÚ·Ê›Ô, ˘ËÚÂÛ›· ‰È¿ıÂÛ˘ ÔÈÎÈ·ÎÒÓ
·ÔÚÚÈÌÌ¿ÙˆÓ ‹ ÙÔ Ì·Á·Í› ·fi ÙÔ ÔÔ›Ô ·ÁÔÚ¿Û·ÙÂ ÙÔ
ÚÔ˚fiÓ.
1.Tämä merkki tuotteessa tarkoittaa, että tuote
kuuluu sähkö- ja elektroniikkalaiteromusta
annetun EU-direktiivin 2002/96/EY
soveltamisalaan.
2.Kaikki elektroniset laitteet ovat ongelmajätettä,
joten ne on toimitettava paikalliseen
keräyspisteeseen.
3.Vanhan laitteen asianmukainen hävittäminen
ehkäisee mahdollisia ympäristöön ja
terveyteen kohdistuvia haittavaikutuksia.
4.Lisätietoa vanhan laitteen hävittämisestä saat
ottamalla yhteyden paikallisiin viranomaisiin,
kierrätyskeskukseen tai myymälään, josta ostit
laitteen.
1.Når der er et tegn med et kryds over en
skraldespand, betyder det, at produktet er
omfattet af EU-direktiv 2002/96/EC.
2.Alle elektriske og elektroniske produkter skal
smides ud et andet sted end gennem den
kommunale affaldsordning ved hjælp af specielle
indsamlingsfaciliteter, der er organiseret af staten
1.Si en un producto aparece el símbolo de un contenedor
de basura tachado, significa que éste se acoge a la
Directiva 2002/96/CE.
2.Todos los aparatos eléctricos o electrónicos se deben
desechar de forma distinta del servicio municipal de
recogida de basura, a través de puntos de recogida
designados por el gobierno o las autoridades locales.
3.La correcta recogida y tratamiento de los dispositivos
inservibles contribuye a evitar riesgos potenciales para el
medio ambiente y la salud pública.
4.Para obtener más información sobre cómo deshacerse de
sus aparatos eléctricos y electrónicos viejos, póngase en
contacto con su ayuntamiento, el servicio de recogida de
basuras o el establecimiento donde adquirió el producto.
Vanhojen laitteiden hävittäminen
Entsorgung von Altgeräten
Sådan smider du dit gamle apparat ud
∞fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜
Cómo deshacerse de aparatos eléctricos y
electrónicos viejos
eller de lokale myndigheder.
3.Korrekt bortskaffelse af dit gamle apparat er med
til at forhindre mulige skadevirkninger på miljøet
og menneskelig sundhed.
4.Mere detaljerede oplysninger om bortskaffelse af
dit gamle apparat kan fås ved at kontakte dit
lokale kommunekontor, renovationsselskab eller
den butik, hvor du købte produktet.
Finnish
German
Danish
Greek
Spanish
4.Wilt u meer informatie over de verwijdering van
uw oude toestel? Neem dan contact op met uw
gemeente, de afvalophaaldienst of de winkel
waar u het product hebt gekocht.
Regulatory Information cont.
10
Portuguese
Slovak
Czech
Croatian
Hungarian
Polish
Regulatory Information cont.
11
Estonian
Latvian
Lithuanian
