MB8811C0
Bluetooth Adapter Card
User Guide
Version 1.1
July, 2013
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
Revision History
Release Date Revision Initials
1.1 2013-07-11 First release.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
STATEMENT and Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
French:
Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est
autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
NCC
「依據低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均
不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干
擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機
設備之干擾。」
任一平台若裝置本模組，其平台標籤須標示 “內建藍芽模組 NCC:XXXXXXXXXXX”
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product
must be labeled in a visible area with the following: “Contains FCC ID: BEJ9QK-DMMB8811C0”,
“contains IC: 2703H-DMMB8811C0”. The grantee's FCC ID can be used only when all FCC/ IC
compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
CE
Hereby declares that this WiFi module is in compliance with the essential requirements and
other relevant provisions of R&TTE Directive 1999/5/EC. The standards for complying are as
following:
ETSI EN 301 489-1 V1.9.2: 2011-09
ETSI EN 301 489-17 V2.2.1: 2012-09
ETSI EN 300 328 V1.8.1:2012-06
EN 62311: 2008
EN 60950-1: 2006 +A11:2009
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
This device is intended for home and office use in all EU countries
CONTENTS
Package Contents .................................................................................................... 7
Chapter 1Introduction ............................................................................................. 8
1.1Overview of the Product ............................................................................................ 8
1.2Features ..................................................................................................................... 8
Chapter 2Installation Guide (For Consumer Electronics) ................................... 9
2.1Hardware Installation ................................................................................................. 9
2.2Software Installation .................................................................................................. 9
Appendix A: Specifications ................................................................................... 12
MB8811C0 Bluetooth Adapter Card
7
Package Contents
The following items should be found in your package:
MB8811C0 Bluetooth Adapter Card
Conventions:
The ‘Module’ mentioned in this user guide stands for MB8811C0 Bluetooth Adapter Card
without any explanation.
MB8811C0 Bluetooth Adapter Card
8
Chapter 1 Introduction
Thank you for choosing the MB8811C0 Bluetooth Adapter Card!
1.1 Overview of the Product
MB8811C0 is a fully integrated Bluetooth module. It is based on CSR’s Bluecore 8811
chip with specific interface design to meet LG Electronics’s needs. MB8811C0 is
compatible with Bluetooth specification version 4.0. It integrates RF, Baseband
controller, etc., a completed Bluetooth subsystem.
1.2 Features
Operation Range (Class II) : 10 meters
Fully Compatible with Bluetooth Specification 4.0
Dual-mode Bluetooth / Bluetooth low energy
Operating Temperature Range : -10℃ ~ 70℃
Operating VDD Range : 3.0 V- 3.6 V Normal: 3.3 V
Interface : UART
Internal Antenna
RoHS Compliant
MB8811C0 Bluetooth Adapter Card
9
Chapter 2 Linux Installation Guide (For Consumer Electronics)
2.1 Hardware Installation
For the Consumer Electronics products which use MB8811C0, it must provide a
corresponding connector for the module. After connecting the module to the device, the
hardware installation is finished.
2.2 Software Installation
For the Consumer Electronics products, the Linux Driver of MB8811C0 is embedded in
default. So the module is a plug and play device. After connecting the module to the
device, MB8811C0 will work well.
MB8811C0 Bluetooth Adapter Card
10

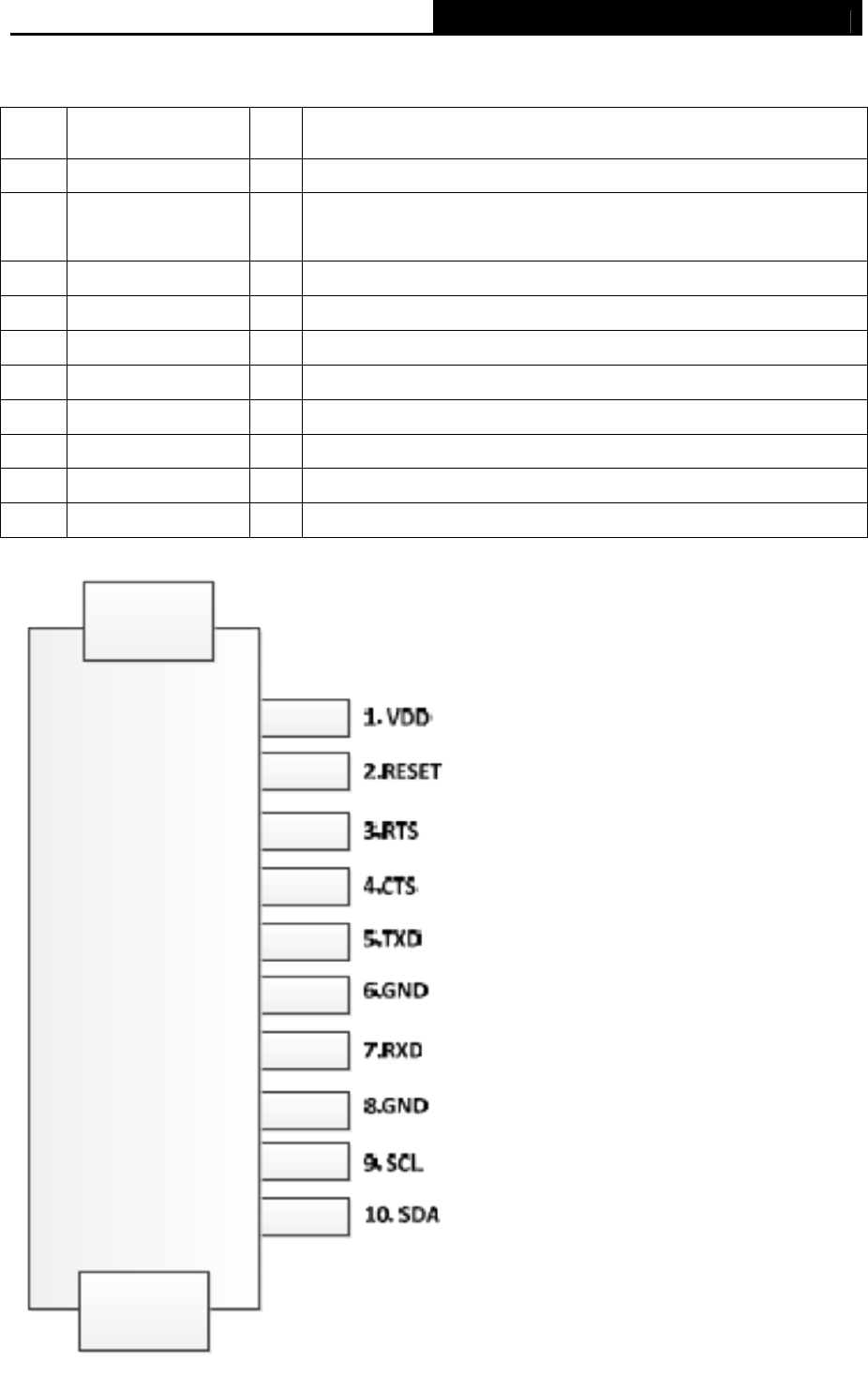

2.3 Pin Definitions
NO. Pin Name I/O Description
1 VDD I Positive Input for the internal regulator (3.0 ~ 3.6V)
2 RESET I
Reset if low. Input debounced so must be low for >5ms to
cause a reset
3 RTS O Bluetooth UART Request to Send. Active-low request.
4 CTS I Bluetooth UART Clear to Send.Active-low clear.
5 TXD O Bluetooth UART Serial Output.
6 GND - Ground.
7 RXD I Bluetooth UART Serial Input.
8 GND - Ground
9 SXL O I2C interface Clock
10 SDA I/O I2C interface DATA
MB8811C0 Bluetooth Adapter Card
11

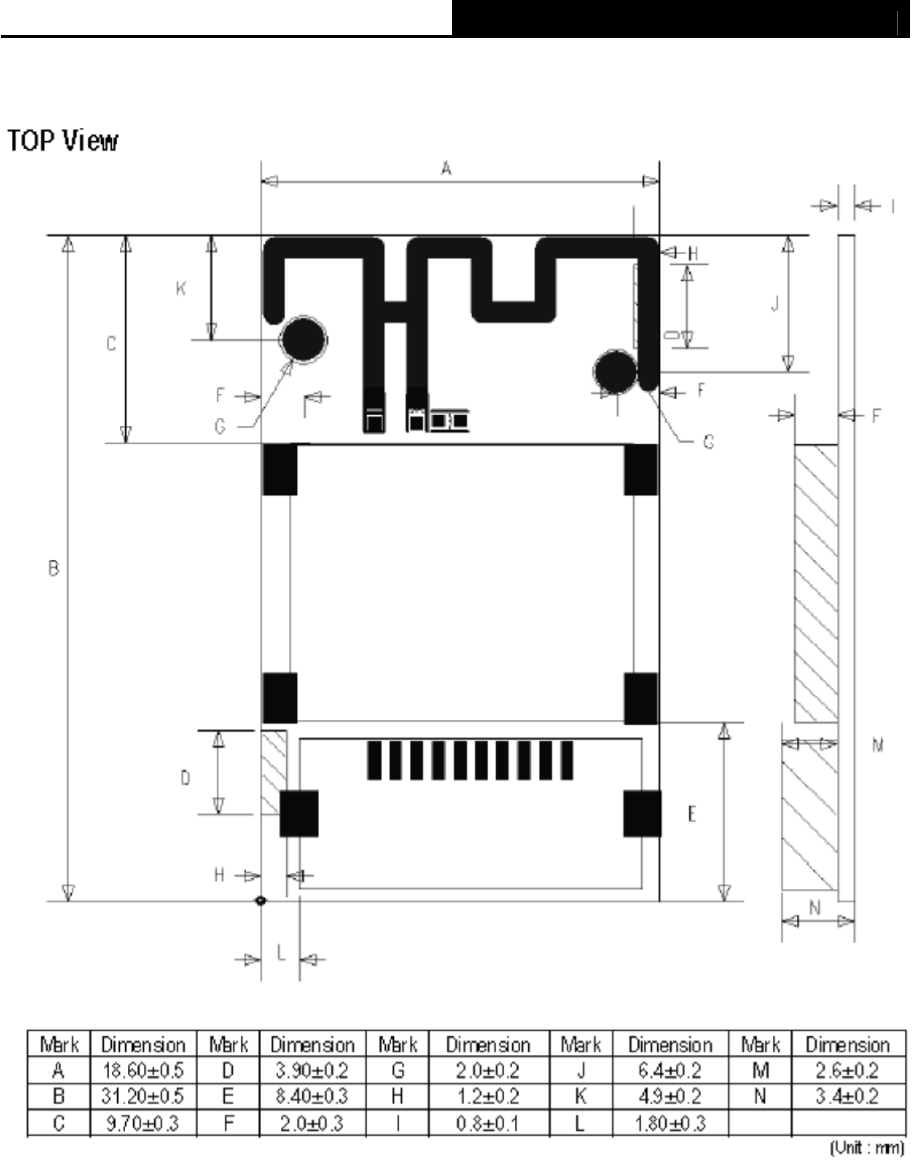

2.4 Mechanical Dimension
MB8811C0 Bluetooth Adapter Card
12
Appendix A: Specifications
Normal
Interface UART
Operating System Windows XP, Vista, 7, Linux
Radio Data Rate Up to 3Mpbs
Modulation GFSK, π/4 DQPSK, 8DPSK
Frequency 2.402 ~ 2.480GHz
Channel Number 11 for BLE, 79 for BT4.0
Spread Spectrum FHSS/ DSSS for BLE
Antenna Integrated, PIFA
Safety & Emissions FCC/ IC/ NCC, CE, Japan
Environmental and Physical
Operating Temp. -40℃~ 85℃
Storage Temp. -10℃~ 70℃
Humidity 10% ~ 90% RH, Non-condensing
MB8811C0 Bluetooth Adapter Card
13
