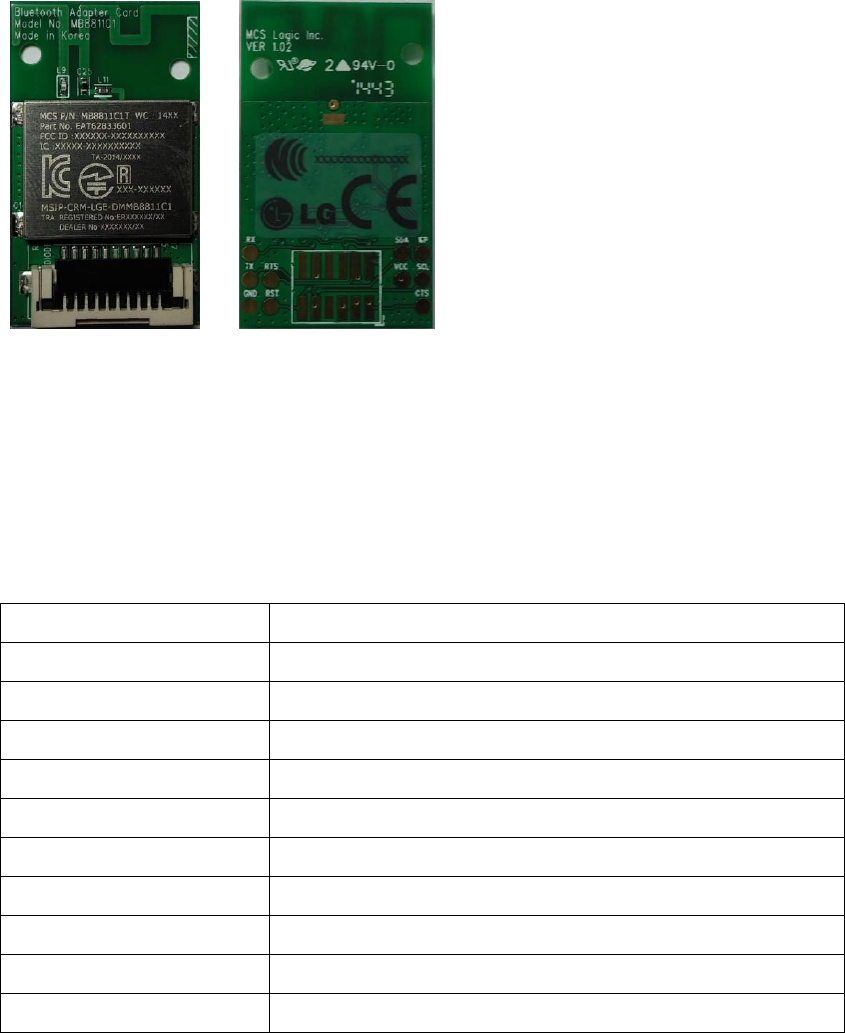

This MB8811C1 Module is compatible with Bluetooth specification version 4.0. MB8811C1 is a fully integrated RF,
baseband controller etc.
SPECIFICATION
Main Chips
CSR8811
Standards
Bluetooth 4.0+BLE
Frequency Band
2402 ~ 2480 MHz
Tx Power
7mW
Rx Sensitivity
< -70dBm (BER 0.1%)
Distance
< 10m (open space)
Power Voltage
3.3V
Dimension
18.6ⅹ31.2 ⅹ3.4 mm
Environmental Range
Operation temperature : -10 ~ +70℃
Modulation mode
GFSK, 8DPSK, ≤κ/4 DQPSK
Communication method
FHSS

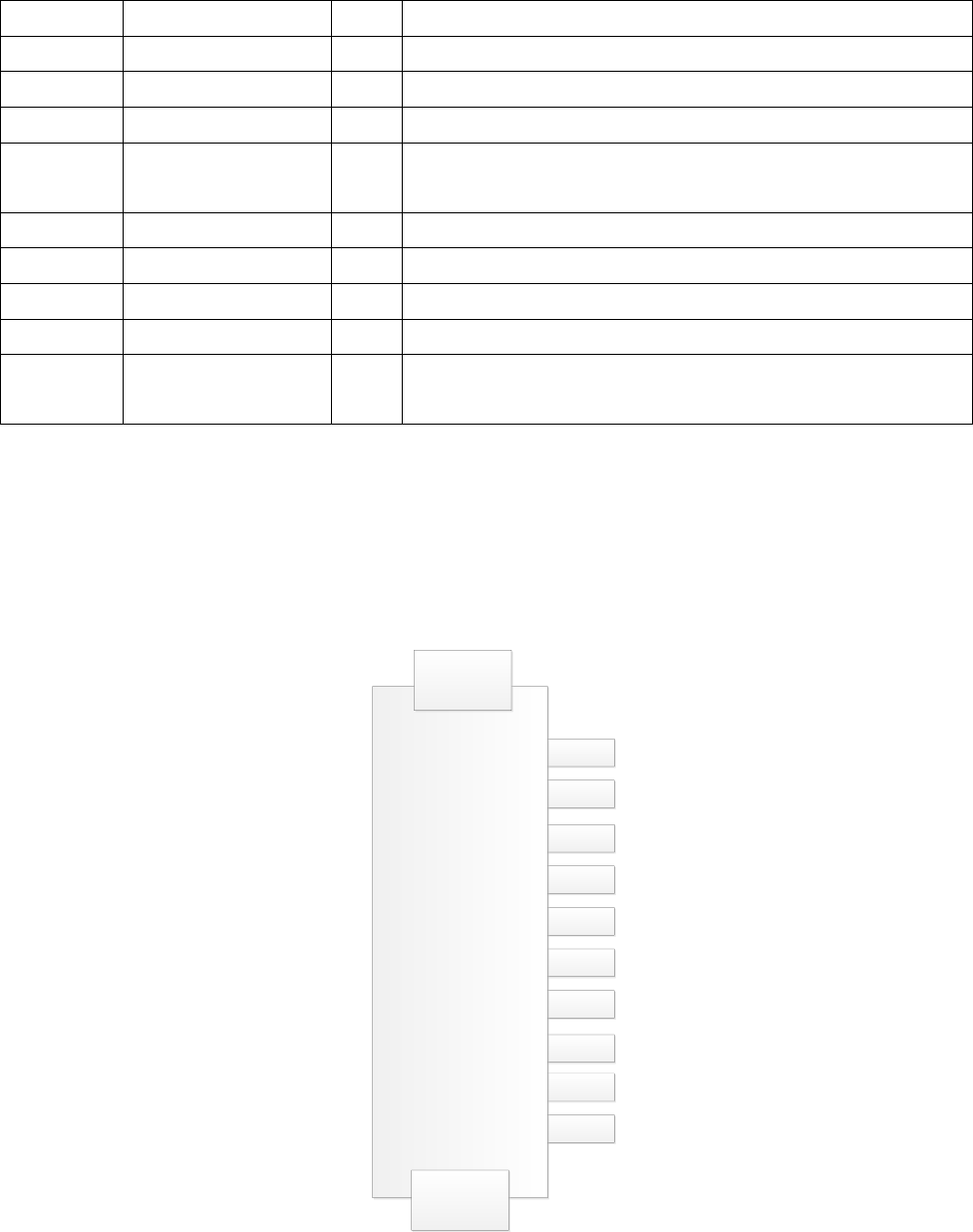

Pin define(TOP PIN MAP)
No
Pin Name
I/O
Description
1
CTS
I
Bluetooth UART Clear to Send.Active-low clear.
2
VDD
I
Positive Input for the internal regulator (3.0 ~ 3.6V)
3
TXD
O
Bluetooth UART Serial Output.
4
RTS
O
Bluetooth UART Request to Send.
Active-low request.
5
RXD
I
Bluetooth UART Serial Input.
6,7,8,12
GND
-
Ground.
9
SDA
I/O
I2C interface DATA
10
SCL
O
I2C interface Clock
11
RESET
I
Reset if low. Input debounced so must be low for >5ms to
cause a reset
1. VDD
2.RESET
3.RTS
4.CTS
5.TXD
6.GND
7.RXD
8.GND
9. SCL
10. SDA

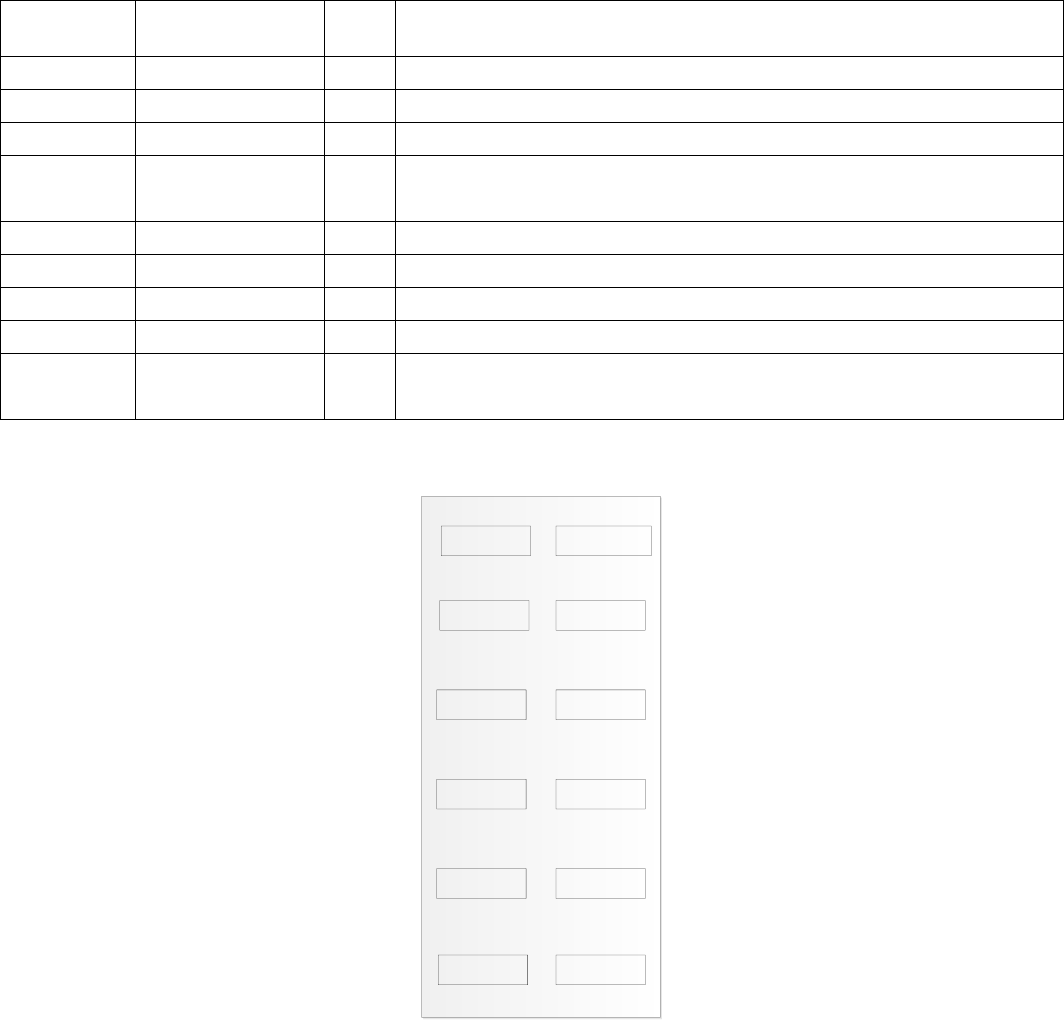

Pin define(BOTTOM PIN MAP)
No
Pin Name
I/O
Description
1
CTS
I
Bluetooth UART Clear to Send.Active-low clear.
2
VDD
I
Positive Input for the internal regulator (3.0 ~ 3.6V)
3
TXD
O
Bluetooth UART Serial Output.
4
RTS
O
Bluetooth UART Request to Send.
Active-low request.
5
RXD
I
Bluetooth UART Serial Input.
6,7,8,12
GND
-
Ground.
9
SDA
I/O
I2C interface DATA
10
SCL
O
I2C interface Clock
11
RESET
I
Reset if low. Input debounced so must be low for >5ms to
cause a reset
2. VDD
11.RESET
4. RTS
1. CTS
3. TXD
5. RXD6. GND
10. SCL 9. SDA
8. GND 7. GND
12. GND

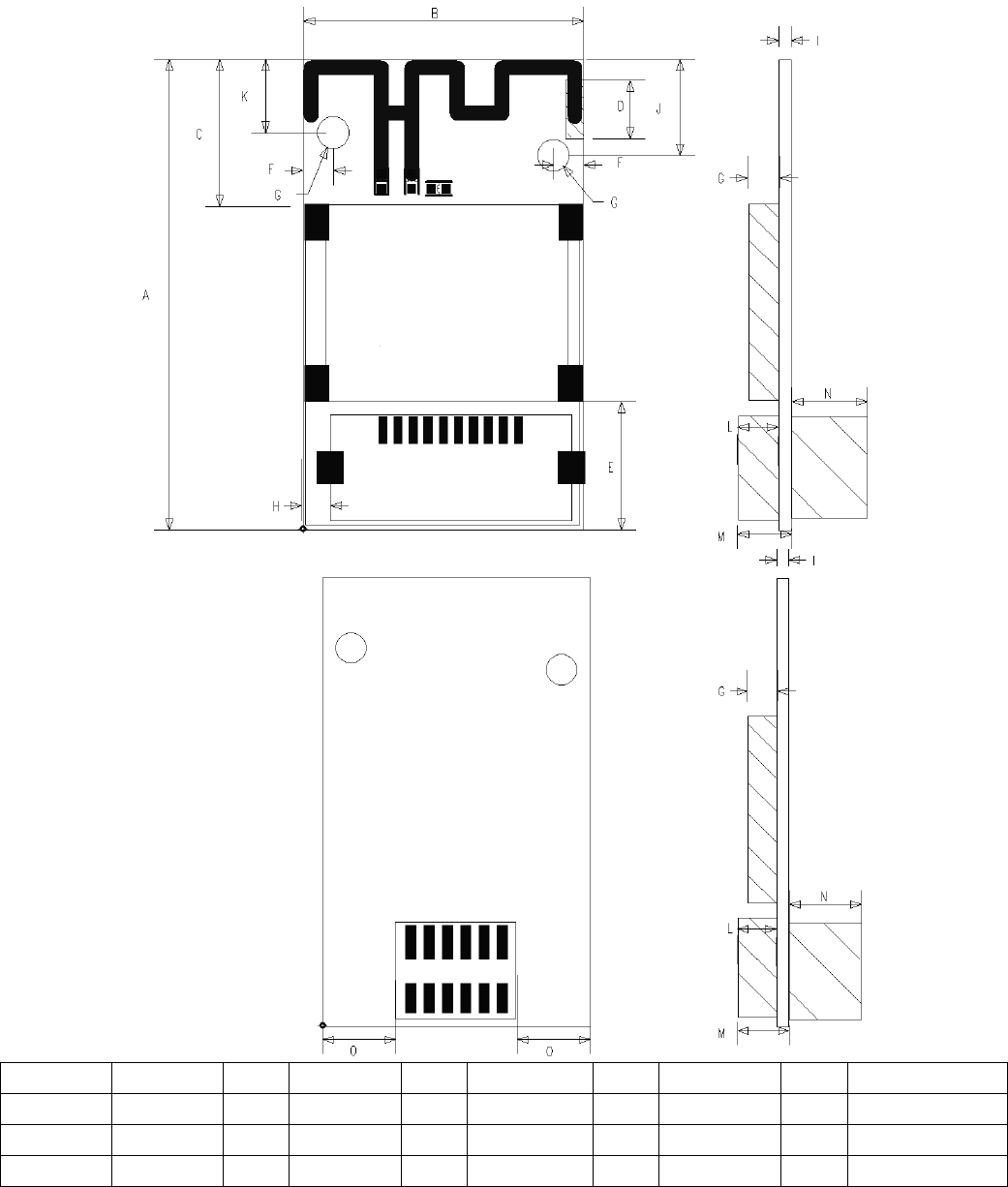

Dimension
Mark
Dimension
Mark
Dimension
Mark
Dimension
Mark
Dimension
Mark
Dimension
A
18.60±0.3
D
3.90±0.2
G
2.0±0.2
J
6.4±0.2
M
3.4±0.2
B
31.20±0.3
E
8.40±0.2
H
1.9±0.2
K
4.9±0.2
N
5.0±0.2
C
9.70±0.3
F
2.0±0.3
I
0.8±0.1
L
2.6±0.2
O
5.1±0.2
(Unit : mm)
Electrical Characteristics
Conditions : VDD = 3.3V, Ta = 25 ℃, unless otherwise noted.
Absolute Maximum Ratings
Parameter
Min
Max
Unit
Power Supply Voltage : VDD
-0.4V
3.6V
DCV
Storage Temperature
-40
85
℃
Recommended Operating Conditions
Parameter
Min
Max
Unit
Power Supply Voltage
3.0V
3.6V
DCV
Operation Temperature
-10
70
℃
Current consumption
Parameter
Connection Type
Avg
Peak
Unit
Page scan, Time interval = 1.28s
-
2
mA
Inquiry and Page scan, Time interval = 1.28s
-
2
3
mA
ACL No data transfer
Master
10
mA
ACL data transfer
Master
32
mA
Input/Output Characteristics
Parameter
Min
Max
Unit
VIL Input Voltage Low
-0.4
0.8
V
VIH Input Voltage High
0.7*VDD
VDD+0.4
V
VOL Output Voltage Low
-
0.2
V
VOH Output Voltage High
VDD-0.2
-
V
General Performance
Parameter
Condition
Min
Typ
Max
Unit
Frequency Range
Normal
2402
-
2480
MHz
Transmitter Performance
Parameter
Condition
Min
Typ
Max
Unit
Transmit Power
Normal
-6
0
8
dBm
Power density
Normal
-
-
20
dBm
20dB bandwidth
Normal
1000
KHz
Adjacent channel power
(F0 = 2441MHz)
F=F0 ±2MHz
-
-
-20
dBm
F=F0 ±3MHz
-
-
-40
dBm
F=F0 ±4MHz
-
-
-40
dBm
Out-band Spurious Emission
30MHz ~ 1GHz
-
-
-36
dBm
1GHz ~ 12.75GHz
-
-
-30
dBm
1.8GHz ~ 1.9GHz
-
-
-47
dBm
5.1GHz ~ 5.3GHz
-
-
-47
dBm
Modulation Characteristic
∆F1avg
140
-
175
KHz
∆F2max
115
-
-
KHz
∆F2avg / ∆F1avg
80
-
-
%
Initial Carrier Frequency
Tolerance
DH1 packet
-75
-
75
KHz
Carrier Frequency Drift
DH5 packet
-25
25
KHz
Receiver Performance
Parameter
Condition
Min
Type
Max
Unit
Sensitivity at 0.1% BER
Single slot (DH1 packet)
-70
-
-
dBm
Sensitivity at 0.1% BER
Multi slot (DH5 packet)
-70
-
-
dBm
Maximum received signal at 0.1% BER
-20
-
-
dBm
Maximum level of intermodulation
interferers
f1-f2 = 5 MHz, Pwanted= -64
dBm
-39
-
-
dBm
MB8811C1 Test Manual
1) RF Test Utility
2) First time, CSR Bluesuite program must be installed. you can use BTCli.exe and enter
DUT(Device Under Test) mode. So RF equipment can inquiry and test. (reference
document.)
* reference document : MB8811C1_JIG_Bluetest3 setting manual.pdf
3) RF Test method
RF Test tool is BlueTest.exe at CSR bluesuite program. You can see detail explanation
from reference document.
* reference document : BlueTest Instruction Manual.pdf
Conformity Assessment Display
Company name: MCSLogic
Model : MCS Bluetooth Smart Device Module (MB8811C1)
Manufacture Year : 2014. .
Manufacturer / Manufacture Country : MCSLogic / Korea
“Operation of the radio equipment may cause propagation interference, and so the life-saving
services could not be”
STATEMENT and Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
French:
Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est
autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
NCC
「依據低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均
不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干
擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機
設備之干擾。」
任一平台若裝置本模組，其平台標籤須標示 “內建藍芽模組 NCC:XXXXXXXXXXX”
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product
must be labeled in a visible area with the following: “Contains FCC ID: BEJ9QK-DMMB8811C1”,
“contains IC: 2703H-DMMB8811C1”. The grantee's FCC ID can be used only when all FCC/ IC
compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
CE
Hereby declares that this WiFi module is in compliance with the essential requirements and
other relevant provisions of R&TTE Directive 1999/5/EC. The standards for complying are as
following:
ETSI EN 301 489-1 V1.9.2: 2011-09
ETSI EN 301 489-17 V2.2.1: 2012-09
ETSI EN 300 328 V1.8.1:2012-06
EN 62311: 2008
EN 60950-1: 2006 +A11:2009+A1:2010+A12:2011+A2:2013
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
This device is intended for home and office use in all EU countries
