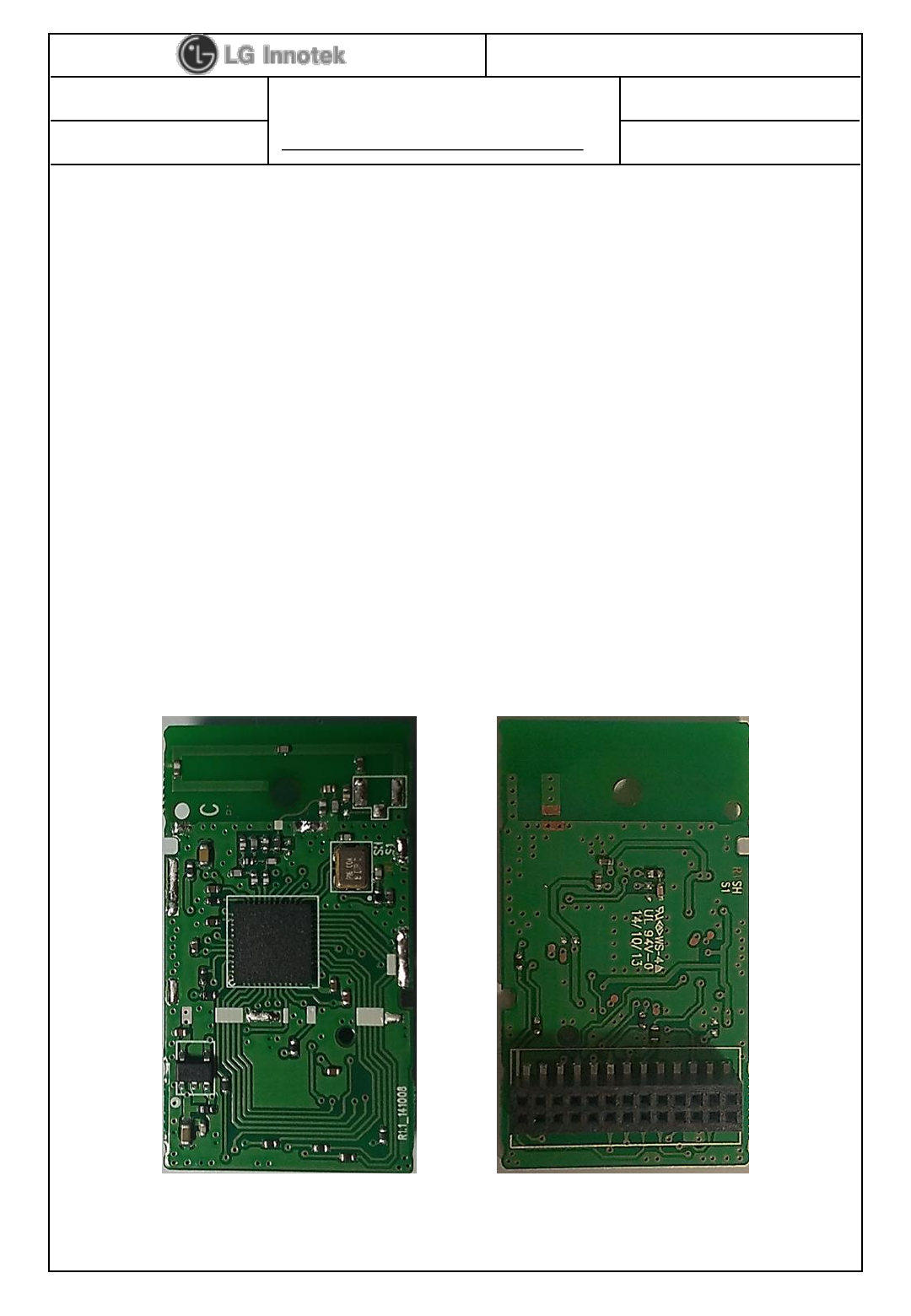

2. Module Photo
1. Features
< TOP View > < Bottom View >
TWBI-H001D is the small size and low power module for Wireless Audio.
TWBI-H001D is based on Syncomm IA3S4.
2.4GHz GFSK Modulation
Size : 34mm x 19mm x 8.1 mm
Internal PCB Printed Antenna
I2S digital audio interface
I2C control with external device
Low audio delay time < 20ms
Application : Wireless Speaker, Woofer, TV Theater
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
3 / 9

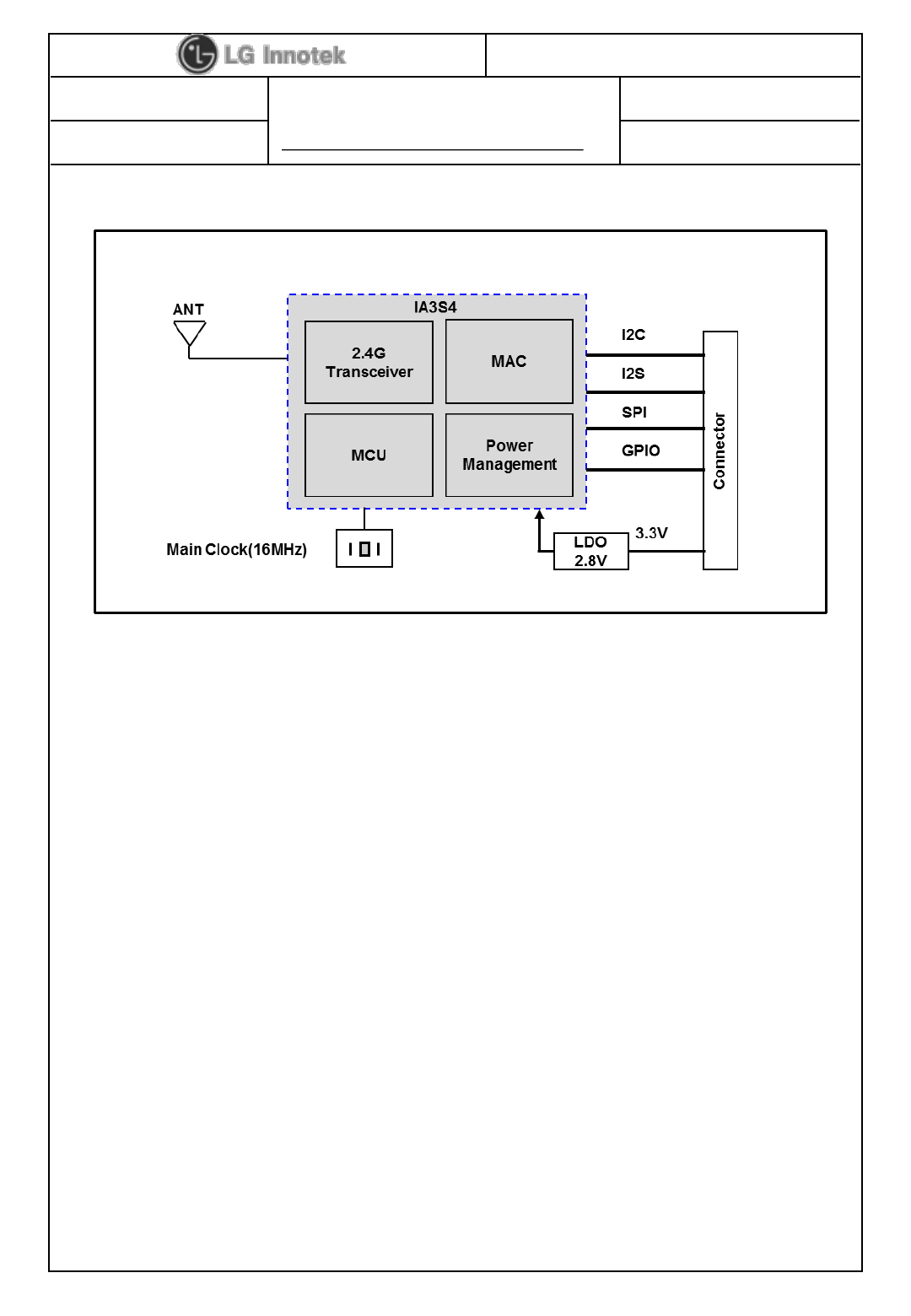

3. Block Diagram
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
4 / 9
4. Storage Conditions
5. Operating Conditions
Parameter Min Max Unit
Storage Temperature -10 +80 ℃
Storage Humidity (@ 40℃) - 90 %
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
• Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃ and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
Parameter Min Typ Max Unit
Ambient Temperature 0 - +60 ℃
Operating Humidity (40℃) - - 85 %
Supply Voltage 3.15 3.3 3.45 Vdc
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
5 / 9
6. Interface Specification

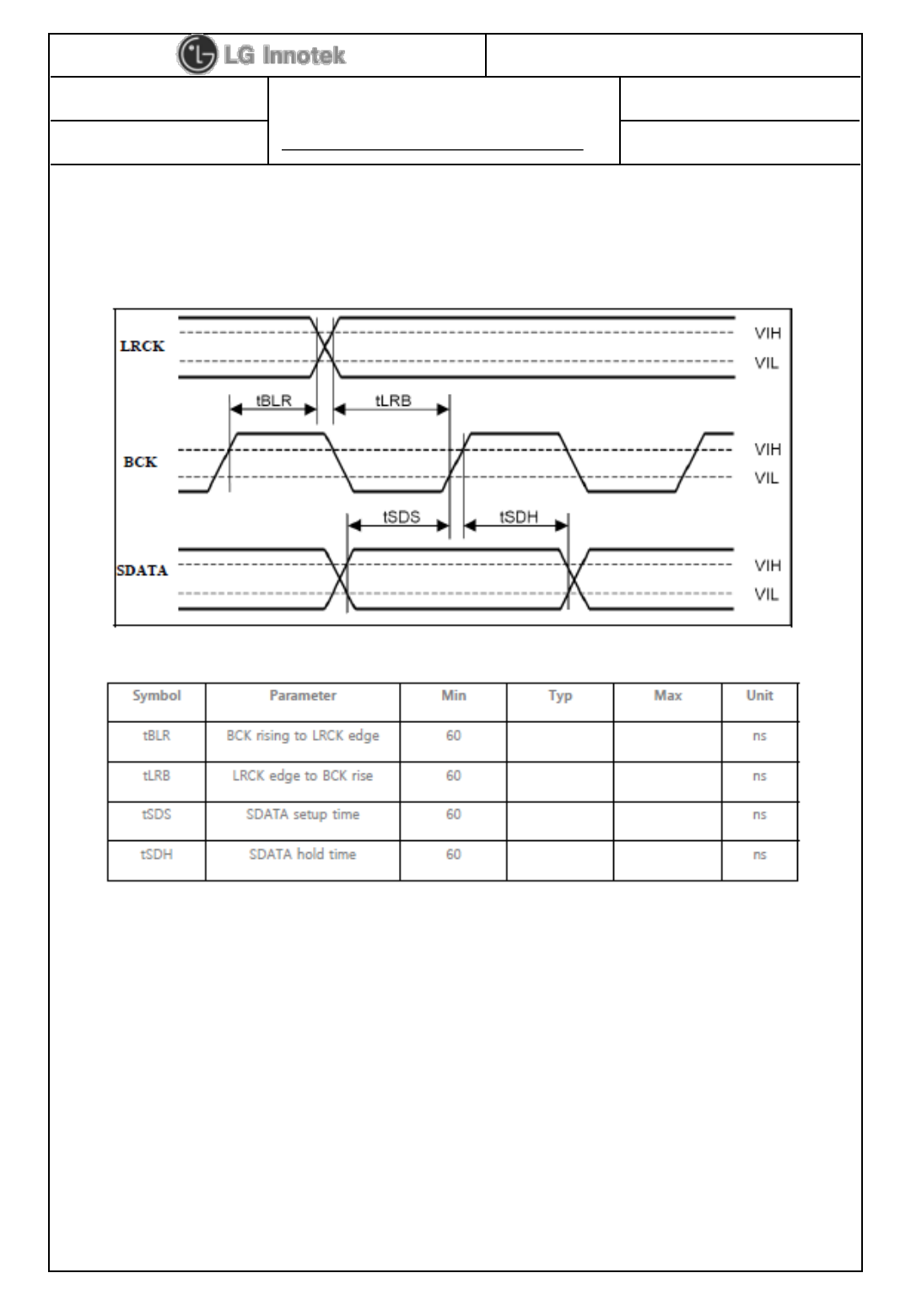

1) I2S Timing
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
6 / 9

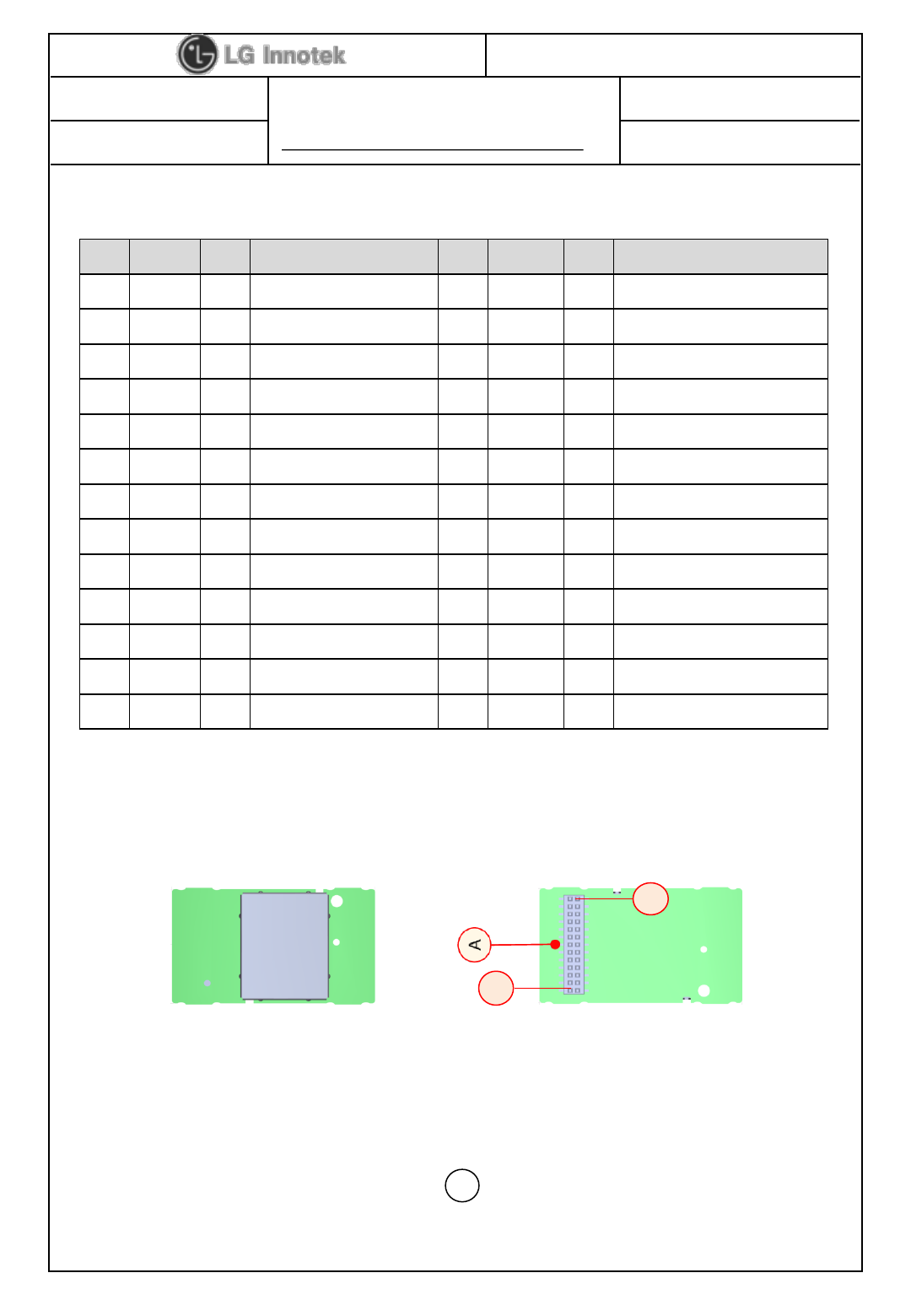

7. Pin Description
< TOP View > < Bottom View >
Note.
1) Recommend a Module install sequence for prevent operation failure
- Supply 3.3V power
2) Connector: 26Pin SMD Connector
A
1
26
Pin No. Pin Name I/O Pin Description Pin No. Pin Name I/O Pin Description
1 GND GND Ground 14 SPI_DO I/O Data out pin of SPI interface
2 VCCIO PWR VCC supply 15 SPI_WP I/O Write protect pin of SPI interface, low active
3 BLUE_LED I/O GPIO 16 SPI_CS I/O Chip select pin of SPI interface
4NC I/O Not connect 17 P_SENSE I/O GPIO
5 GND GND Ground 18 RESET I Reset pin of LDO, low active
6 RED_LED I/O GPIO 19 PWM_RST I/O GPIO
7 I2S_DATA I/O Data pin of I2S signal 20 P_CTL I/O GPIO
8 GND GND Ground 21 AMP_SD I/O GPIO
9 I2C_CLK I/O Clock pin of I2C control signal 22 AMP_PDN I/O GPIO
10 NC I/O Not connect 23 I2S_BCK I/O BCK pin of I2S signal
11 SPI_DI I/O Data input pin of SPI interface 24 PARING_SW I/O GPIO
12 I2C_DATA I/O Data pin of I2C control signal 25 I2S_LRCK I/O LRCK pin of I2S
13 SPI_CLK I/O Clock pin of SPI interface 26 GND GND Ground
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
7 / 9

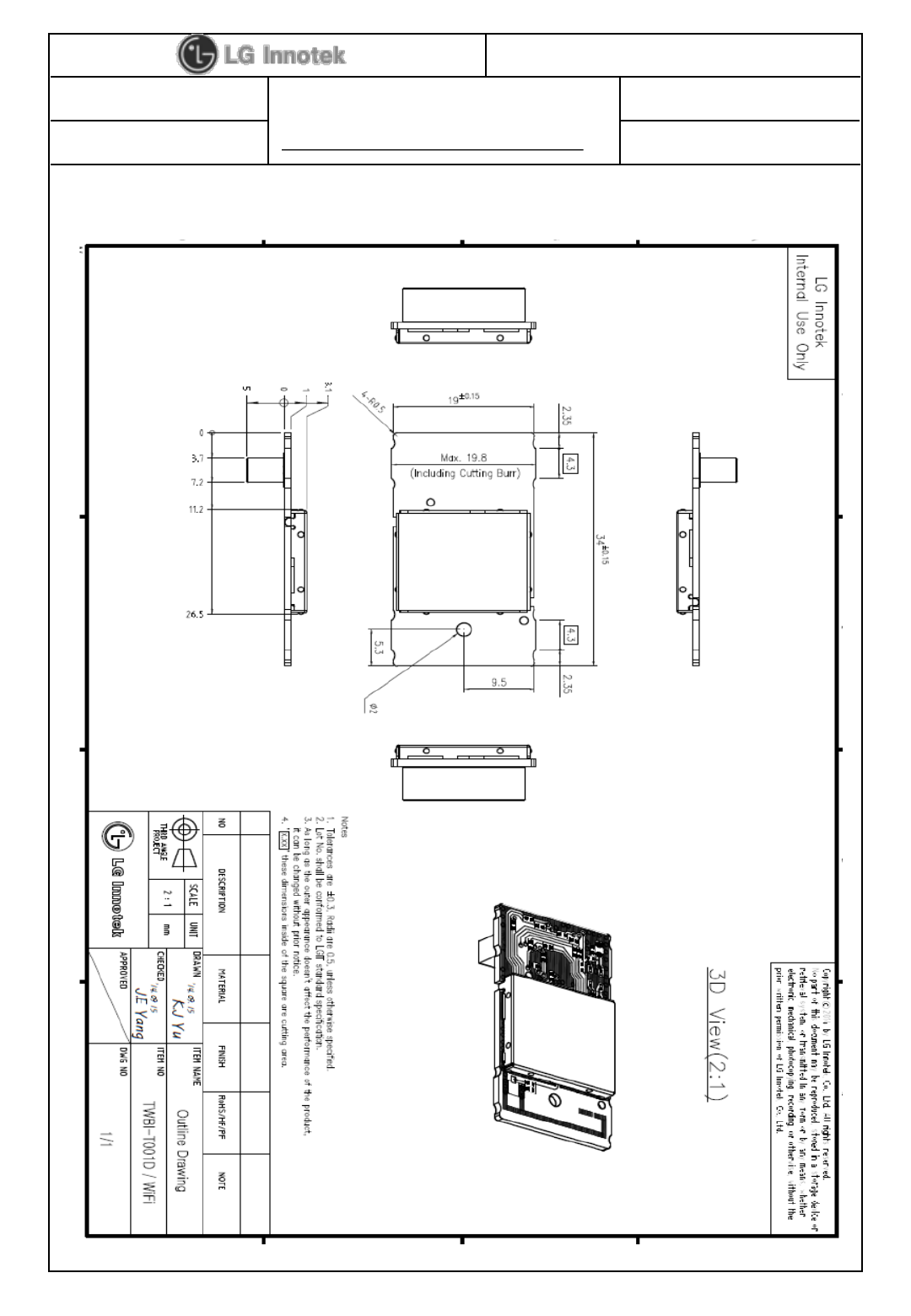

8. Outline Drawing
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
8 / 9

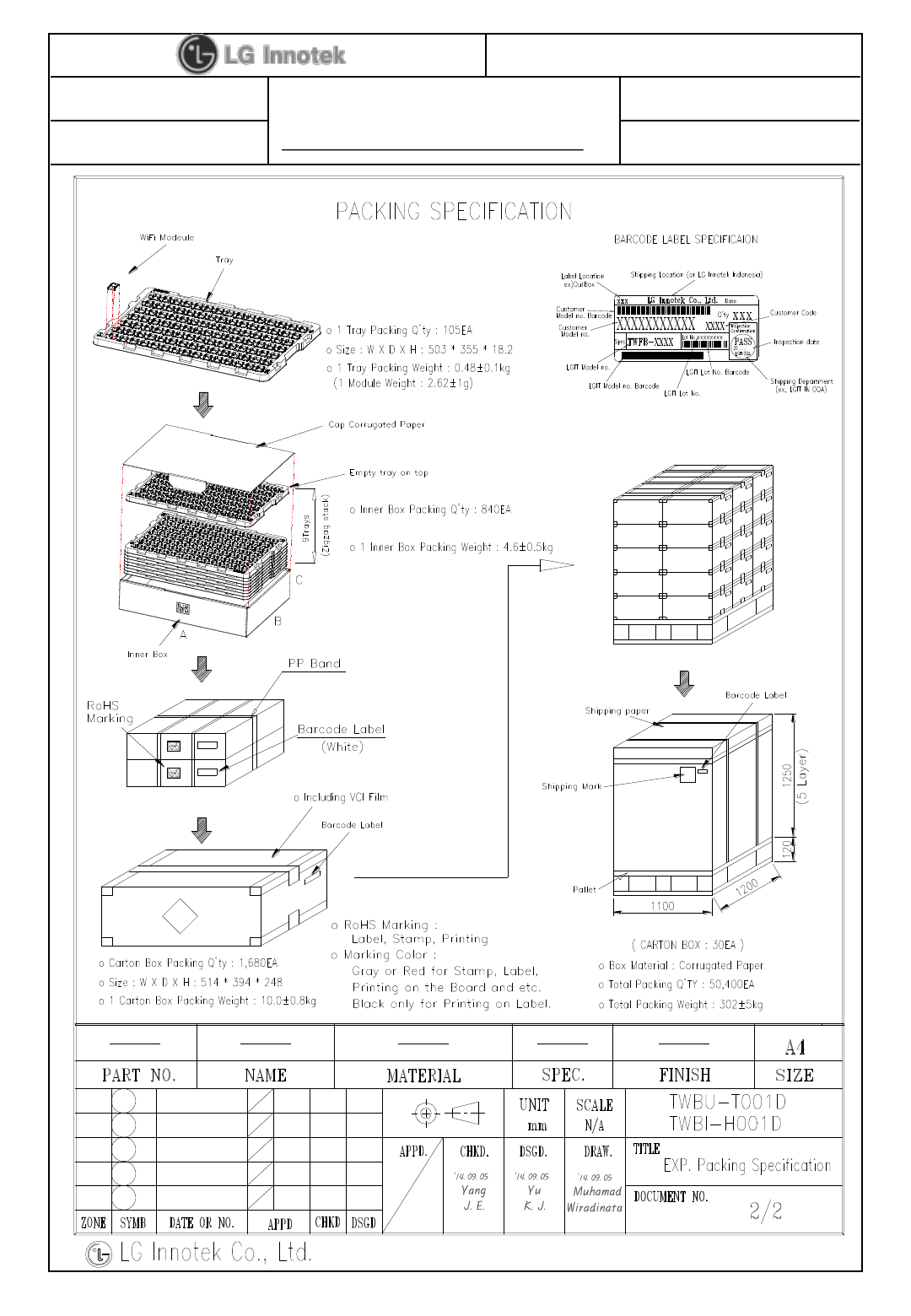

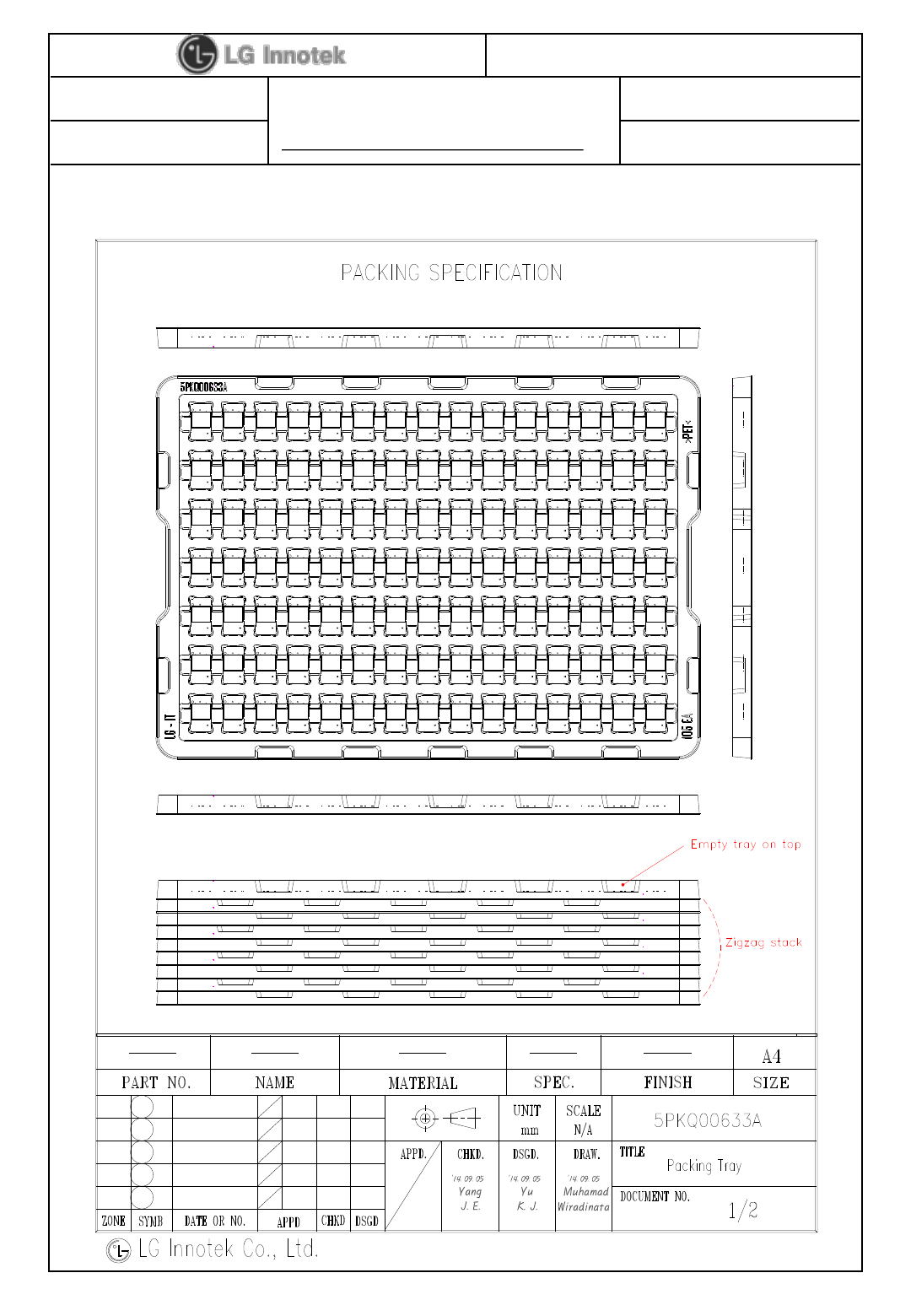

9. Packing Information
User Manual
PAGE :
REG. DATE : 2014.11.05
MODEL: WL1NB5(TWBI-H001D)
REV. DATE : 2014.11.05
REV.NO : 1.0
© 2014 LGIT. All rights reserved.
9 / 9
