Users Manual
MCSLOGIC
Product Approval Datasheet V1.00 1/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
PRODUCT APPROVAL DATASHEET
PRODUCT MCSLogic Class 2 Bluetooth Module
MODEL NAME MB0402C0
CUSTOMER LG Electronics
Checked By Approved By Company Seal
MCSLOGIC
MCSLOGIC
Product Approval Datasheet V1.00 2/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
Revision History
Version Date Revision Description
0.1
1.0
10/08/20
10/11/04
First release
Changed Tray
Changed Bill of Materials
Changed De-rating
Changed PCB Patterns
MCSLOGIC
Product Approval Datasheet V1.00 3/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
Table of Contents
1.1 GENERAL DESCRIPTION .......................................................................................................................................... 4
1.2 QUALITY ........................................................................................................................................................................ 4
1.3 TEST ................................................................................................................................................................................ 4
1.4 BLOCK DIAGRAM ....................................................................................................................................................... 5
1.5 PIN DESCRIPTIONS ..................................................................................................................................................... 6
1.6 ELECTRICAL CHARACTERISTICS ......................................................................................................................... 7
1.7 RELIABILITY TEST CONDITIONS ........................................................................................................................ 10
1.8 MODULE’S LABEL INFORMATION ...................................................................................................................... 11
1.9 MECHANICAL DIMENSION .................................................................................................................................... 12
1.10 BILL OF MATERIALS ............................................................................................................................................... 15
1.11 PACKING INFORMATION ....................................................................................................................................... 16

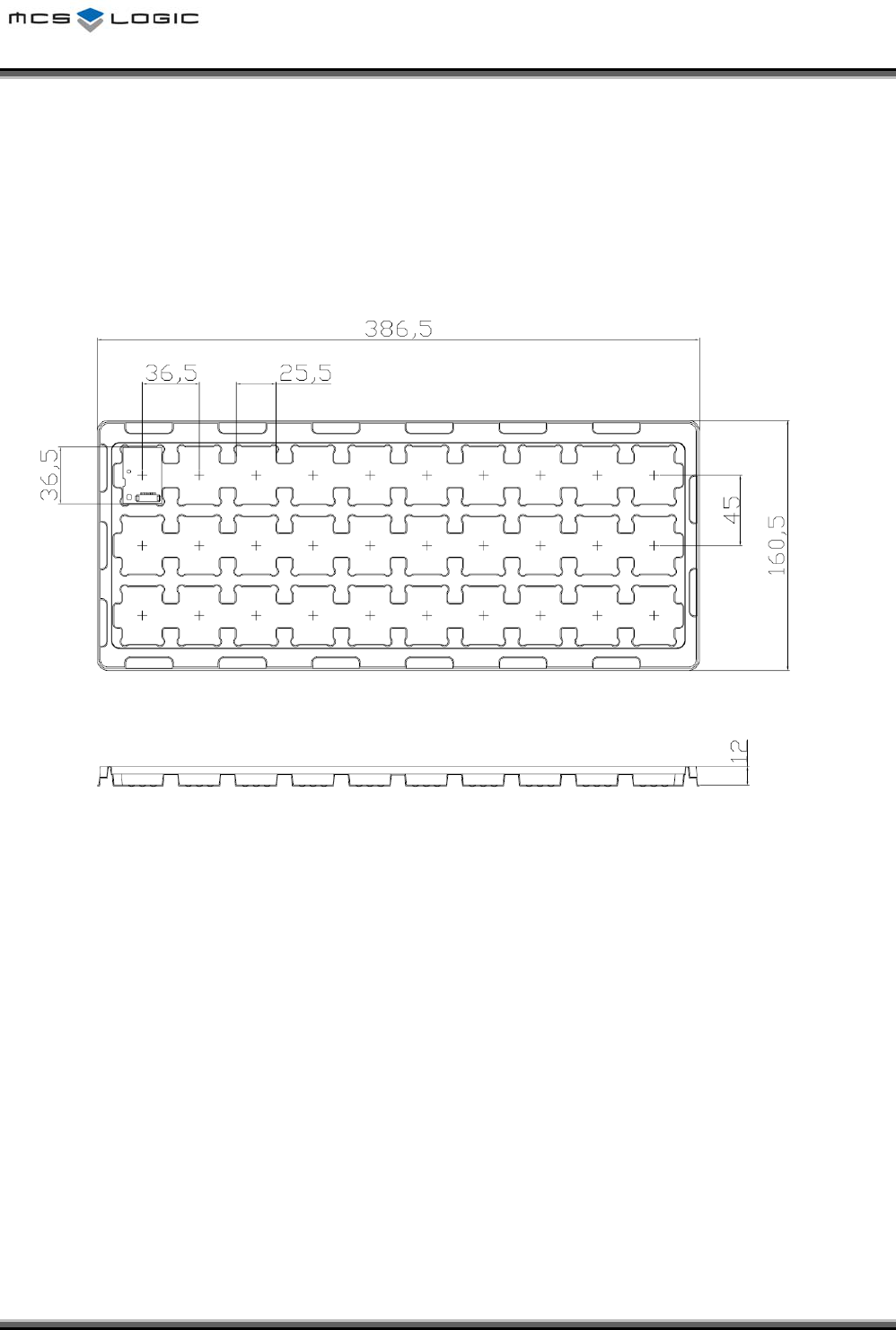

1.12 TRAY ............................................................................................................................................................................. 16
1.13 INNER BOX .................................................................................................................................................................. 17

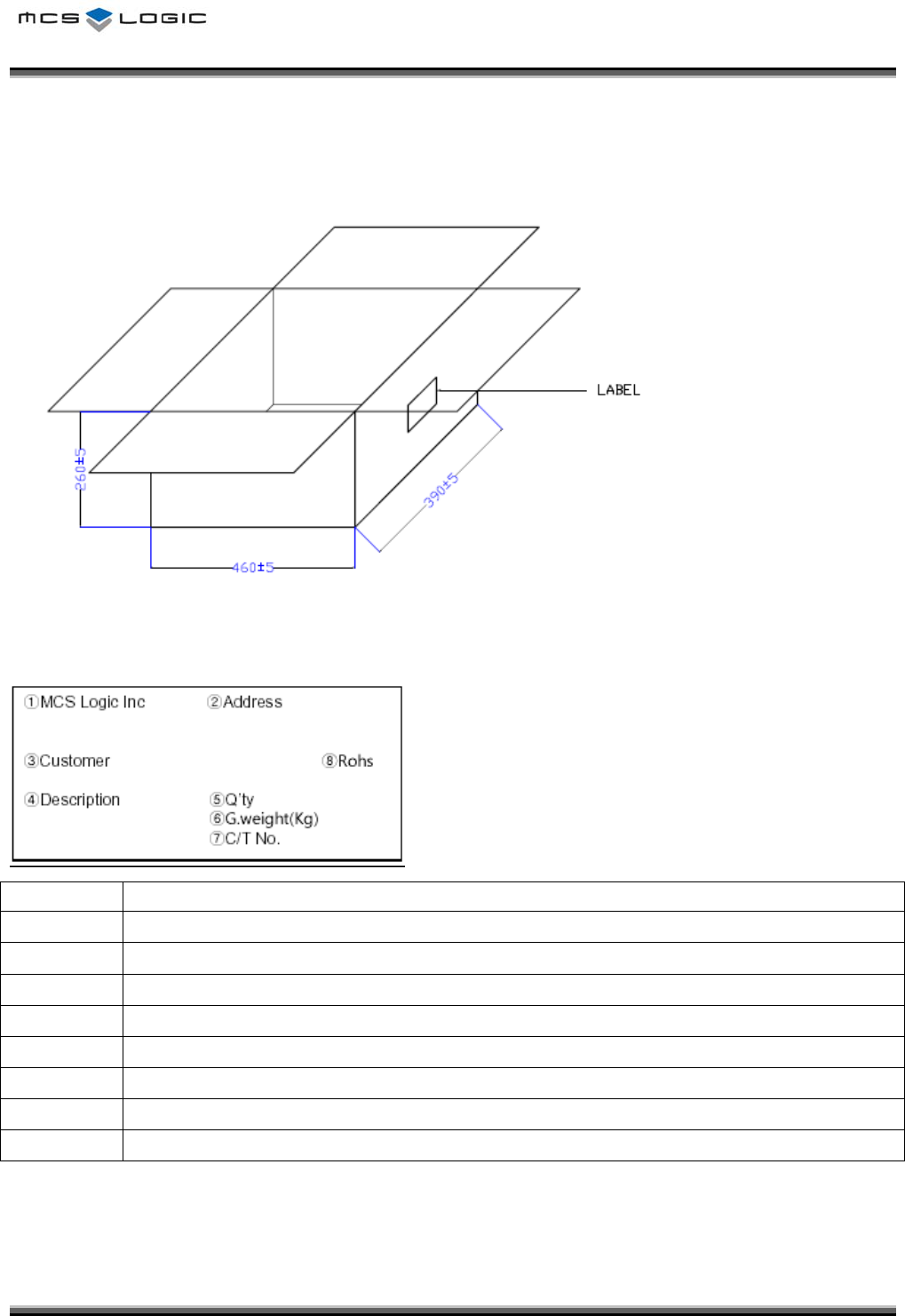

1.14 OUTTER BOX .............................................................................................................................................................. 18
1.15 PACKAGE RELIABILITY TEST CONDITIONS ................................................................................................... 19

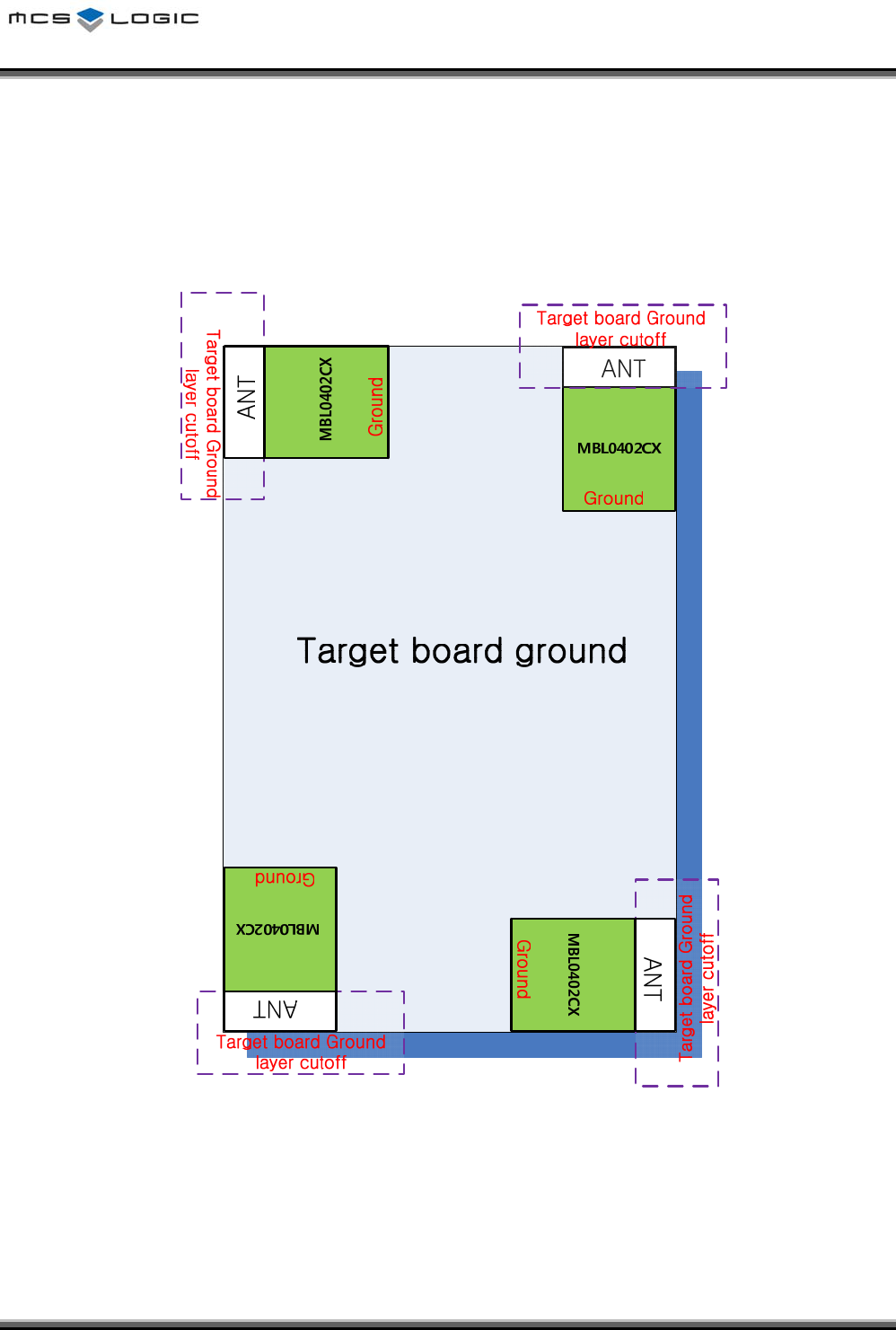

1.16 MODULE POSITION GUIDE .................................................................................................................................... 20
MCSLOGIC
Product Approval Datasheet V1.00 4/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.1 General Description
MB0402C0 is a fully integrated Bluetooth module. It is based on CSR’s Bluecore4-ROM with
specific interface design to meet LG Electronics’s needs.
MB0402C0 is compatible with Bluetooth specification version 2.1. It integrates RF, Baseband
controller, etc., a completed Bluetooth subsystem.
Features :
- Operation Range (Class II) : 10 meters
- Operating Temperature Range : -10℃ ~ 80℃
- Operating VDD Range : 3.0 V ~ 3.6V
- Interface : UART
- Internal Antenna
- Fully Compatible with Bluetooth Specification 2.1
- RoHS Compliant
Applications :
- Consumer Products
1.2 Quality
Qaulity should meet each condition which mentioned on this specification. However, the items
which are not mentioned on this specification follow the inspection agreements and standards
which are agree with both companies.
1.3 Test
Electrical characteristics are tested for every products. However, if there are any objection in
judgement, it should be treated with agreements of companies.
MCSLOGIC
Product Approval Datasheet V1.00 5/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential

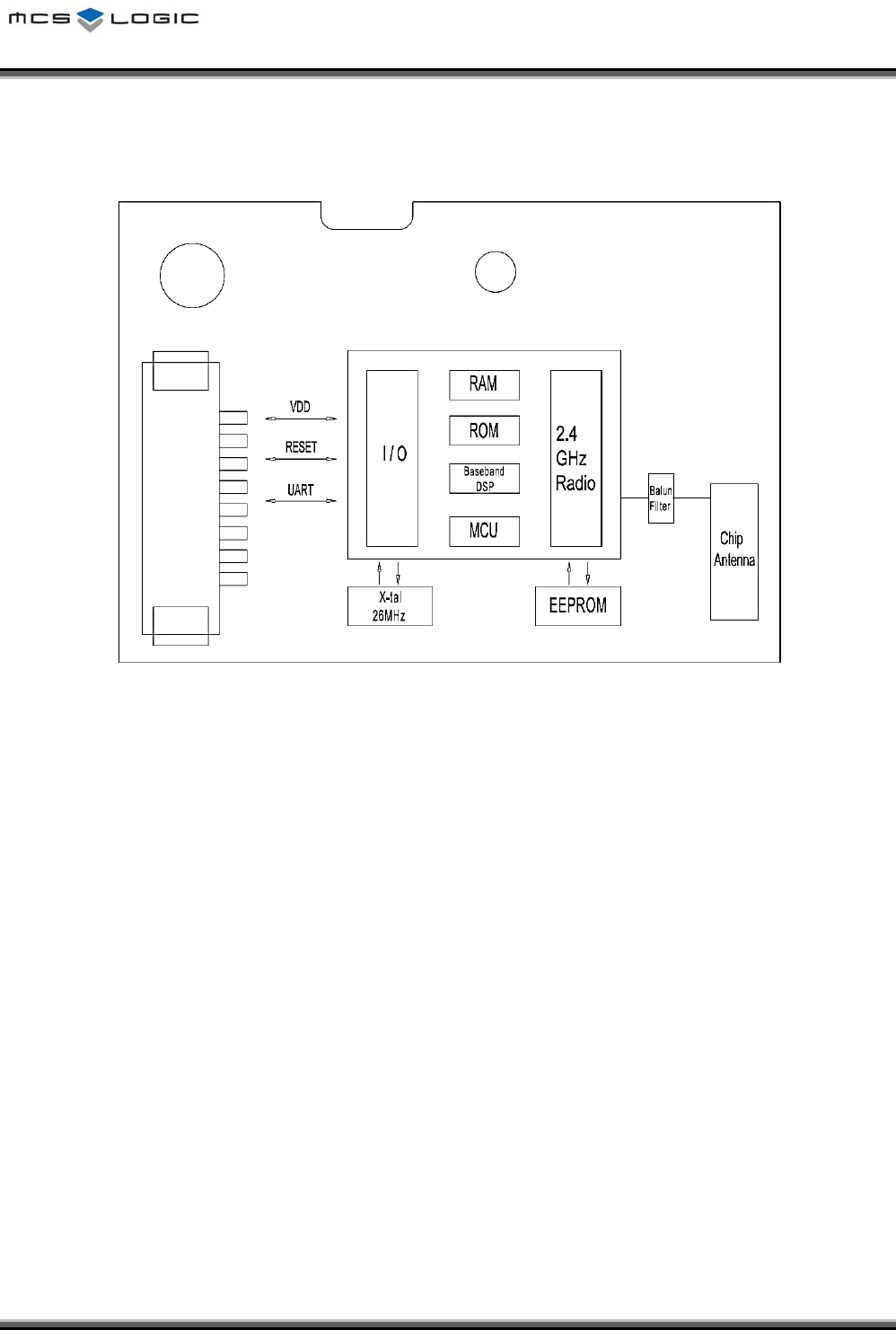

1.4 Block Diagram
MCSLOGIC
Product Approval Datasheet V1.00 6/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential

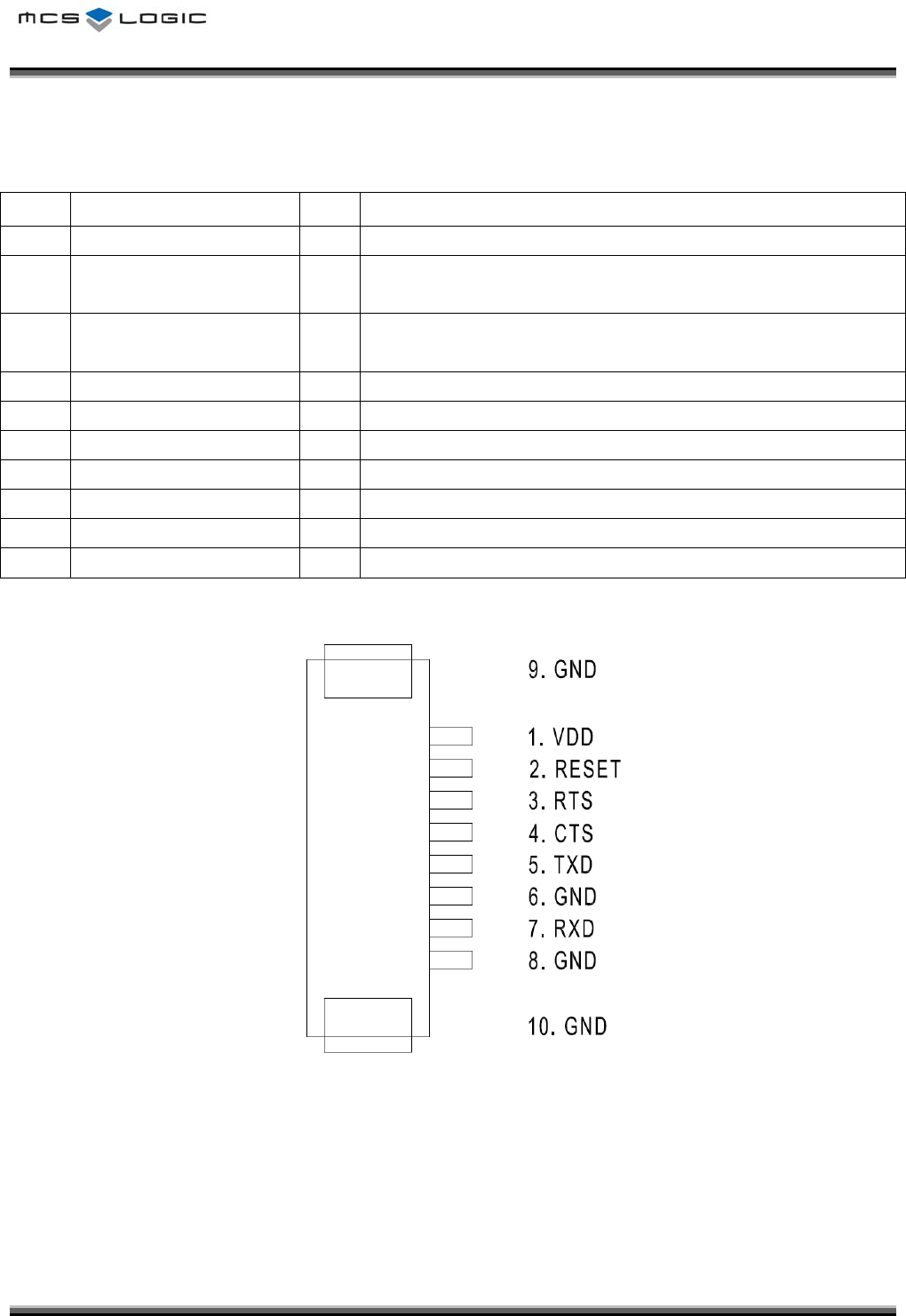

1.5 Pin Descriptions
No Pin Name I/O Description
1 VDD I Positive Input for the internal regulator (3.0 ~ 3.6V)
2 RESET I Reset if low. Input debounced so must be low for >5ms to
cause a reset
3 RTS O Bluetooth UART Request to Send.
Active-low request.
4 CTS I Bluetooth UART Clear to Send.Active-low clear.
5 TXD O Bluetooth UART Serial Output.
6 GND - Ground.
7 RXD I Bluetooth UART Serial Input.
8 GND - Ground
9 GND - Ground.
10 GND - Ground
MCSLOGIC
Product Approval Datasheet V1.00 7/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.6 Electrical Characteristics
Conditions : VDD = 3.3V, Ta = 25 ℃, unless otherwise noted.
Absolute Maximum Ratings
Parameter Min Max Unit
Power Supply Voltage : VDD -0.4V 3.6V DCV
Storage Temperature -40 85 ℃
Recommended Operating Conditions
Parameter Min Max Unit
Power Supply Voltage 3.0V 3.6V DCV
Operation Temperature -10 80 ℃
Current consumption
Parameter Avg Peak Unit
Standby 0.3 - mA
TX-CW 57.6 63 mA
TX-Modulation 36 63 mA
RX 37.9 - mA
Input/Output Characteristics
Parameter Min Max Unit
VIL Input Voltage Low -0.4 0.8 V
VIH Input Voltage High 0.7*VDD VDD+0.4 V
VOL Output Voltage Low - 0.2 V
VOH Output Voltage High VDD-0.2 - V
MCSLOGIC
Product Approval Datasheet V1.00 8/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
General Performance
Parameter Condition Min Type Max Unit
Frequency Range 2402 2480 MHz
Transmitter Performance
Parameter Condition Min Type Max Unit
Transmit Power dBm
Power density - - 20 dBm
20dB bandwidth 1000 KHz
Adjacent channel power
±2% - - -20 dBm
±3% - - -40 dBm
±4% - - -40 dBm
Out-band Spurious Emission
30MHz ~ 1GHz - - -36 dBm
1GHz ~ 12.75GHz - - -30 dBm
1.8GHz ~ 1.9GHz - - -47 dBm
5.1GHz ~ 5.3GHz - - -47 dBm
Modulation Characteristic
∆F1avg 140 - 175 KHz
∆F2max 115 - - KHz
∆F2avg / ∆F1avg 80 - - %
Initial Carrier Frequency
Tolerance DH1 packet -75 - 75 KHz
Carrier Frequency Drift DH5 packet -25 25 KHz
MCSLOGIC
Product Approval Datasheet V1.00 9/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
Receiver Performance
Parameter Condition Min Type Max Unit
Sensitivity at 0.1% BER Single slot (DH1 packet)
-70 - - dBm
Sensitivity at 0.1% BER Multi slot (DH5 packet) -70 - - dBm
Maximum received signal at 0.1% BER
-20 - - dBm
Maximum level of intermodulation
interferers
f1-f2 = 5 MHz,
Pwanted= -64 dBm -39 - - dBm
Derating
NO ITEM SIZE VALUE
RATED
V/C/W INPUT
VOLTAGE INPUT
CURRENT USAGE
RATIO
1 CL05C3R9CB5NNNC 1.0 x 0.5 3.9pF 50V 3.3 V - 6.60 %
2 CL05C120JB5NNNC 1.0 x 0.5 12pF 50V 3.3 V - 6.60 %
3 CL05C150JB5NNNC 1.0 x 0.5 15pF 50V 3.3 V - 6.60 %
4 CL05B103KB5NNNC 1.0 x 0.5 10nF 50V 3.3 V - 6.60 %
5 CL05B104KO5NNNC 1.0 x 0.5 100nF 16V 3.3 V - 20.63%
6 CL05A105KQ5NNNC 1.0 x 0.5 1uF 6.3V 3.3 V - 52.38 %
7 CI-B1005-39NSJT 1.0 x 0.5 3.9nH 300mA - <0.01 uA <0.033 %
8 CIH 05T 3N9S
9 CI-B1005-56NSJT 1.0 x 0.5 5.6nH 300mA - <0.01 uA <0.033 %
10 CIH 05T 5N6S
11 CI-B1005-150JJT 1.0 x 0.5 15nH 200mA - < 60 mA < 30 %
MCSLOGIC
Product Approval Datasheet V1.00 10/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.7 Reliability Test Conditions
NO ITEM Condition Characteristics
1
Constant
Humidity
Load Test
Initial value measured at standard test condition
Test Conditions : 35℃, 90% RH, 100hr
25℃, 50% RH, 2hr
Supply Voltage Condition : standard ±5%
No electrical problem
2
High
Temperature
Load Test
Initial value measured at standard test condition.
Test Conditions : 85℃, 100hr (Within 1hr)
Supply Voltage Condition : standard ±5%
No electrical problem
3
Low
Temperature
Load Test
Initial value measured at standard test condition.
Test Conditions : -40℃, 100hr (Within 1hr)
Supply Voltage Condition : standard ±5%
No electrical problem
4 High Temp
Storage Test
Initial value measured at standard test condition.
Test Conditions : 85℃, 100hr
No electrical problem
5 Low Temp
Storage Test
Initial value measured at standard test condition.
Test Conditions : -40℃, 100hr
No electrical problem
6 Temperature
Cycle
Initial value measured at standard test condition.
Test Conditions : -40℃ ~ 85℃, 1h, 50cycle
No electrical problem
7 Vibration
Initial value measured at standard test condition.
Test Conditions :
- Freq : 10~55Hz, acceleration: 5G (Sine wave vibration)
- Test time : X, Y, Z axis for 2hr
No electrical problem
No mechanical damage
8 Drop
Initial value measured at standard test condition.
Test Conditions :
- Test height : 100cm
- Test times : 10 times
Drop the product onto a 10mm thickness plywood
No electrical problem
No mechanical damage
9 Shock Test
Initial value measured at standard test condition.
Test Conditions :
- Impact acceleration : 300m/sec2
- Impact times : 25 msec
- Impact times and direction : 10 times each in 6 directions
No electrical problem
No mechanical damage
10 ESD HBM Initial value measured at standard test condition.
Test Conditions : 2000V
No electrical problem
No mechanical damage
11 ESD MM Initial value measured at standard test condition.
Test Conditions : 200V
No electrical problem
No mechanical damage
12 Temperature
Risin
g
Test
Initial value measured at standard test condition.
Test Conditions : 40℃, 2hr
Module Condition : A2DP Stream
BT IC : 44℃
EEPROM : 40℃
Crystal : 41℃
Filter : 41℃
Antenna : 40℃
Connector : 40℃
PCB : 41℃
MCSLOGIC
Product Approval Datasheet V1.00 11/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential

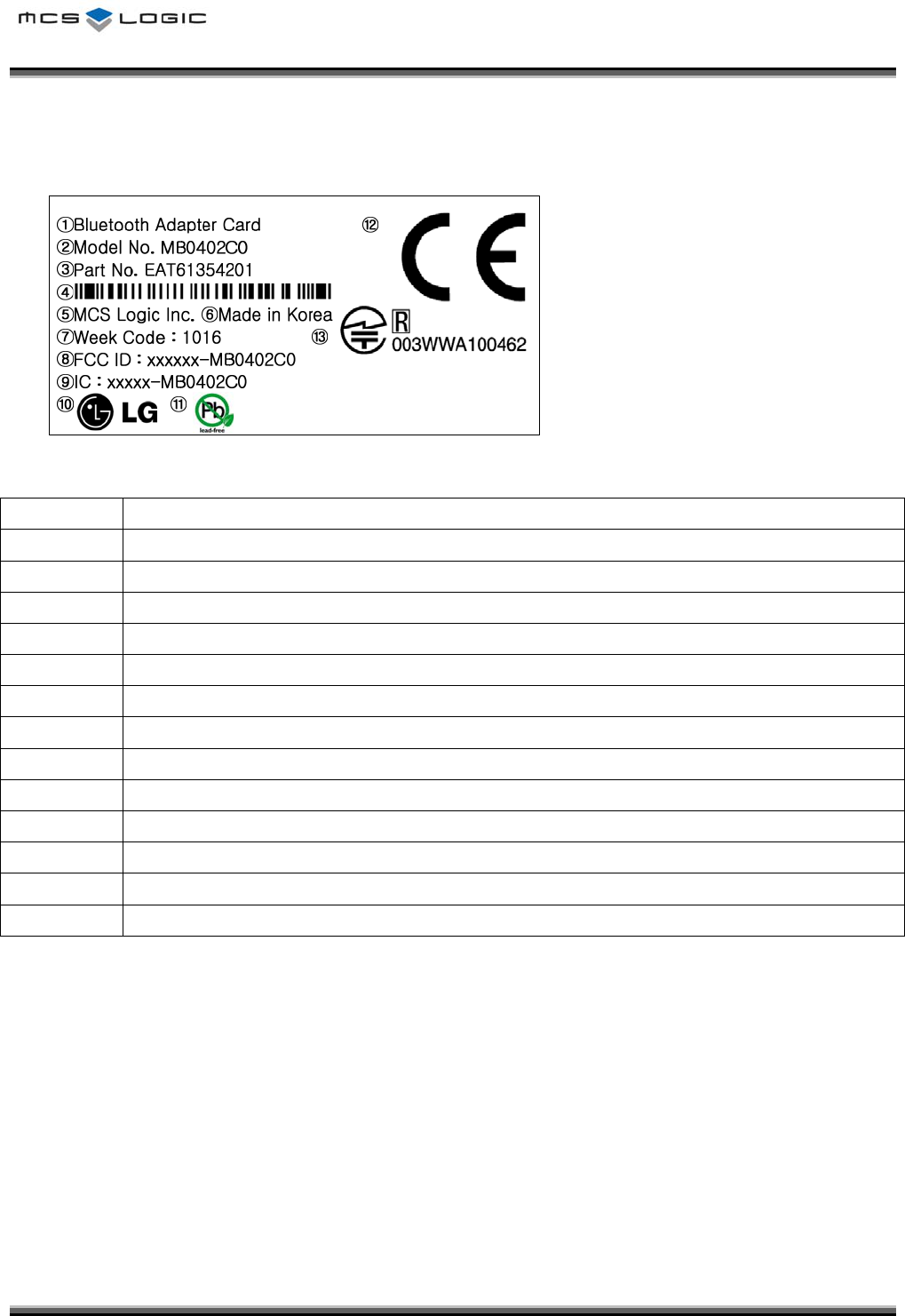

1.8 Module’s Label Information
No. Description
① Module Name
② Model No. of MCSLogic
③ Part No. of LGE
④ Model Name Bar-Code
⑤ Manufacturer
⑥ Manufacture Country
⑦ Week Code (YY : Year, WC : Week Code)
⑧ Contains Transmitter FCC ID
⑨ Contains Transmitter IC
⑩ LG Logo
⑪ RoHS Logo
⑫ CE Certification Logo
⑬ Japan’s MIC Certification Logo
MCSLOGIC
Product Approval Datasheet V1.00 12/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential

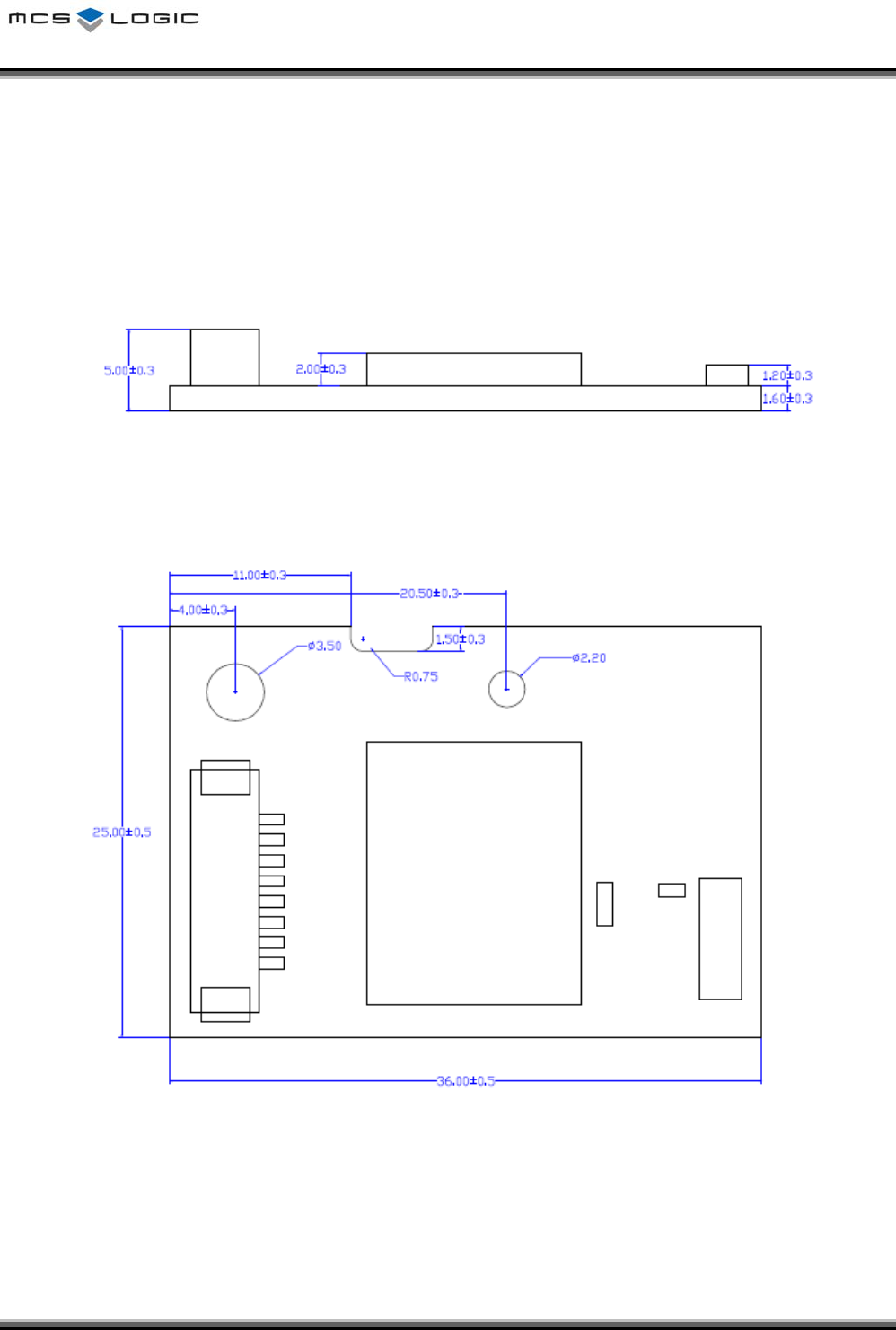

1.9 Mechanical Dimension
TOP View
(Unit : mm)
MCSLOGIC
Product Approval Datasheet V1.00 13/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential

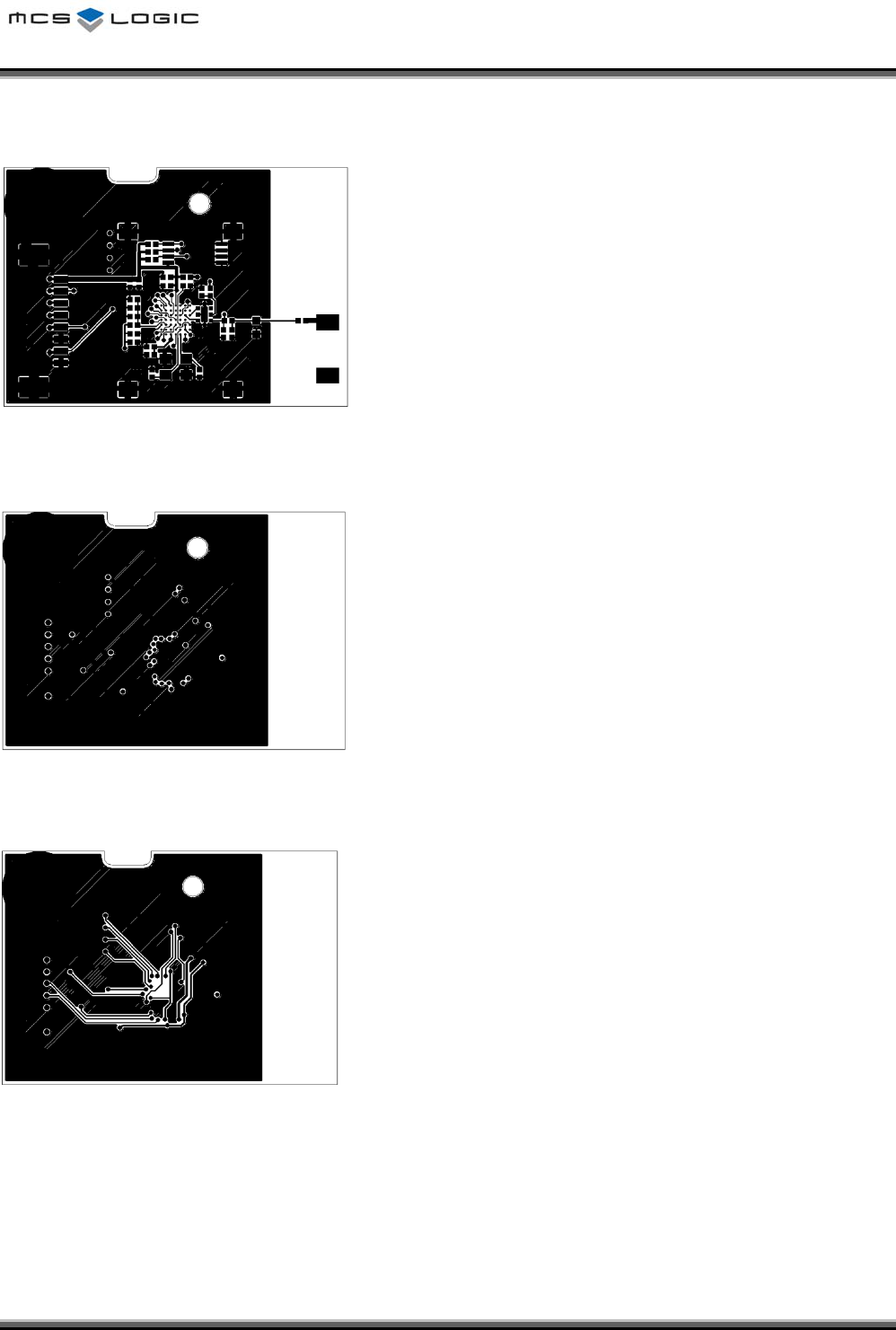

PCB LAYOUT LAYER 1
PCB LAYOUT LAYER 2
PCB LAYOUT LAYER 3
MCSLOGIC
Product Approval Datasheet V1.00 14/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential

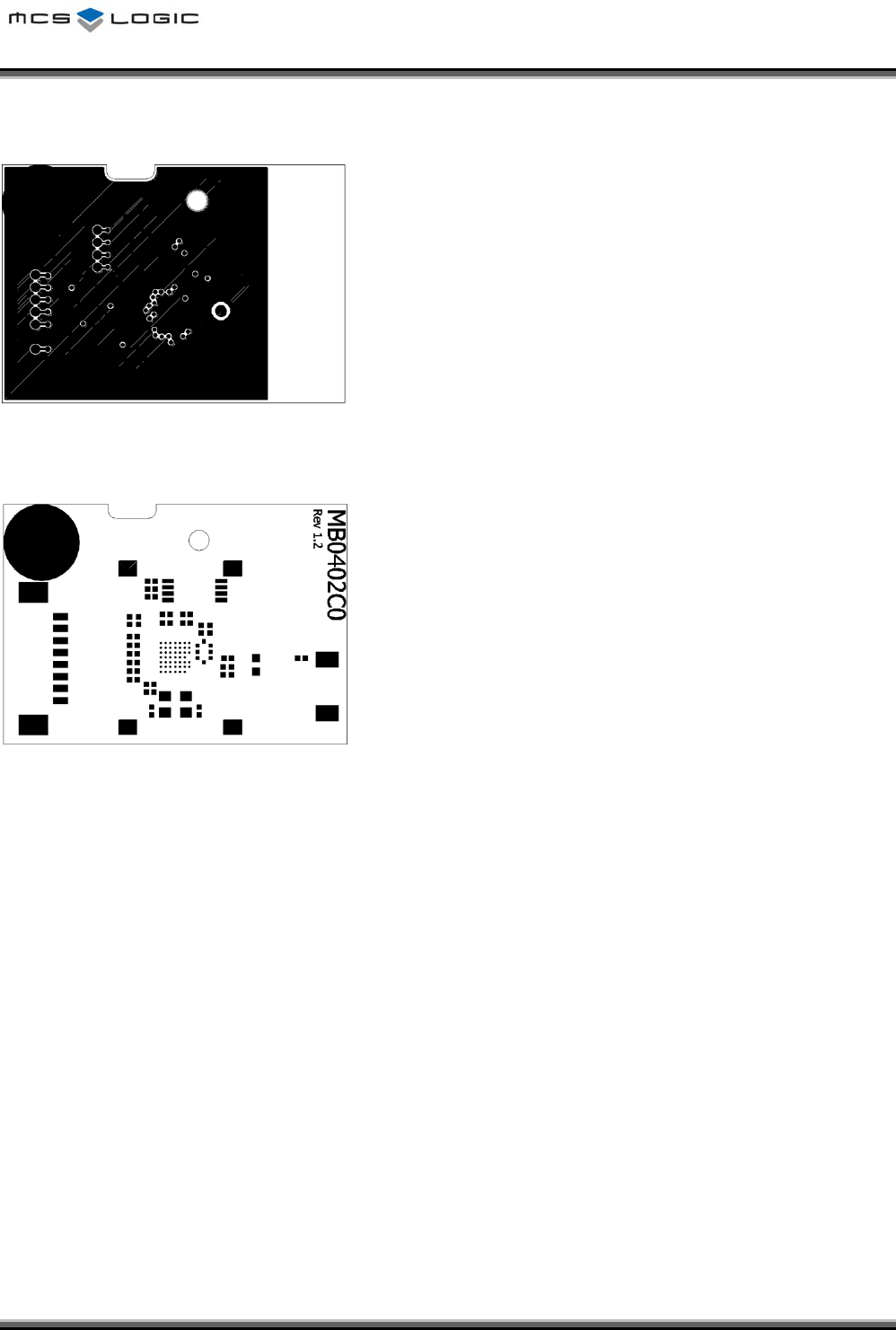

PCB LAYOUT LAYER 4
PCB Solder Mask
MCSLOGIC
Product Approval Datasheet V1.00 15/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.10 Bill of Materials
No Q’TY Circuit Ref Description Value Package Vendor Part Name
1 1 R5 Resistor 2.2R 1005 S.S.E.M RC1005J2R2CS
2 3 R1,R2,R3 Resistor 2.2kR 1005 S.S.E.M RC1005J222CS
3 1 C1 MLCC 3.9pF 1005 S.S.E.M CL05C3R9CB5NNNC
4 1 C2 MLCC 12pF 1005 S.S.E.M CL05C120JB5NNNC
5 2 C6,C8 MLCC 15pF 1005 S.S.E.M CL05C150JB5NNNC
6 4 C3,C4,C7,C12 MLCC 10nF 1005 S.S.E.M CL05B103KB5NNNC
7 3 C9,C10,C17 MLCC 100nF 1005 S.S.E.M CL05B104KO5NNNC
8 3 C11,C13,C15 MLCC 1uF 1005 S.S.E.M CL05A105KQ5NNNC
9 1 L6 Chip
Inductor 3.9nH 1005 CERATECH CI-B1005-39NSJT
S.S.E.M CIH 05T 3N9S
10 2 L2,L4 Chip
Inductor 5.6nH 1005 CERATECH CI-B1005-56NSJT
S.S.E.M CIH 05T 5N6S
11 2 L1,L5 Chip
Inductor 15nH 1005 CERATECH CI-B1005-150JJT
S.S.E.M CIH 05T 15NJ
12 1 U1 BT CHIP 3.8x4.0 CSR BC41B143A07
13 1 U4 X-TAL 26MHz 3225 PARTRON CXC6X260000EHVRR70
14 1 U2 Balance
Filter 2.0x1.25 SOSHIN DBF81F104-CSR-T
15 1 U9 EEPROM 6.4x3.0 SEIKO S-24C16CI-T8T1U3
16 1 U5 Antenna 7.0x2.0x1.2
PARTRON ODBTPTR7020
17 1 R4 Varistor 1005 JOINSET
ECVAL 1005 05E20 100NBT
18 1 U12 Connector 12505WR YEONHO 12505WR-08
19 1 Shield Can 16x13 HUMANTEC
20 1 PCB 36x25x1.6 DAEDUCK MB0402C0
Note) S.S.E.M : Samsung Electro-Mechanics
MCSLOGIC
Product Approval Datasheet V1.00 16/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.11 Packing Information
1.12 Tray
(Unit : mm)
MCSLOGIC
Product Approval Datasheet V1.00 17/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.13 Inner Box
(Unit : mm)
No. Description
① Module Name
② Model No. of MCSLogic
③ Part No. of LGE
④ Model Name Bar-Code
⑤ Manufacturer
⑥ Week Code (YY : Year, WC : Week Code)
⑦ Manufacture Country
⑧ LG Logo
⑨ CE Certification Logo
⑩ Japan’s MIC Certification Logo
⑪ RoHS Logo
⑫ Contains Transmitter FCC ID
⑬ Contains Transmitter IC
⑭ Manufacture Country
MCSLOGIC
Product Approval Datasheet V1.00 18/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.14 Outter Box
(Unit : mm)
No. Description
① Company
② Company Address
③ Customer
④ Model No & LGE Part No.
⑤ Quantity
⑥ Gross Weight(Kg)
⑦ Carton No.
⑧ Rohs
MCSLOGIC
Product Approval Datasheet V1.00 19/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.15 Package Reliability Test Conditions
NO ITEM Condition Characteristics
1 Drop
Test
Initial value measured at standard test condition.
Test Conditions :
- Test height : 100cm
- Test times and Directions : 10 times each in 14 directions
Drop the product onto a 10mm thickness plywood
No electrical problem
No mechanical damage
MCSLOGIC
Product Approval Datasheet V1.00 20/20
Copyright © 2010 MCS LOGIC Limited. All rights reserved
Confidential
1.16 Module Position Guide
Ground & Shield CAN must not exist around Antenna area.
This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference received.
2. This device must accept any interference received. Including interference that may
cause undesired operation.
FCC WARNING
This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or modification
is made.
To satisfy FCC exterior labeling requirements, the following text must be placed on the
exterior of the end product.
Contains Transmitter Module FCC ID: BEJ9QK-MB0402C0
CAUTION: This device and its antenna(s) must not be co-located or operated in
conjunction with any other antenna or transmitter. End users cannot modify this
transmitter device. Any Unauthorized modification could void the user’s authority to
operate this device.
