1. Introduction
MB0502C0 is a fully integrated Bluetooth module. It is based on
CSR’s Bluecore5-Multimedia External with specific interface design
to meet LG Electronics’s needs.
MB0502C0 is compatible with Bluetooth specification version 2.0. It
integrates RF, Baseband, controller, etc., a completed Bluetooth
subsystem. MB0502C0 supports A2DP Sink/Source,
AVRCP Target profiles. It provides a UART interface, analog audio
line input, SPDIF audio output and 2 functional I/O.
MB0502C0 can control by UART. Please refer to MB0502C0
software user guide for the interfacing protocol.
2. General Features
2.1 Module Features
- Operation Range (Class II) : 10 meters
- Operating Temperature Range : -10 ℃~ 80℃
- Operating VDD Range : 2.7V ~ 3.6V
- Output Power : 0dBm
- Interfaces : UART, Analog Audio Line-in, SPDIF Audio Out,
Functional I/O
- Internal Antenna
- Compatible with Bluetooth Specification 2.0
- 64MIPS Kalimba DSP Co-Processor
- 16-bit Internal Stereo CODEC
- RoHS Compliant
2.2 Firmware Features
- Bluetooth Stack : UnifiedStack 2.0
- Host Interface : UART
MCSLOGIC
Product Approval Datasheet V1.20 5/23
Copyright © 2009 MCS LOGIC Limited. All rights reserved
Confidential
- Support Profile : A2DP (Sink/Source), AVRCP Target
- Profile version : A2DP V1.0, AVRCP V1.0
- DUT(Device Under Test) Mode Support
- DFU(Device Firmware Upgrade) Support
3.Packing Information

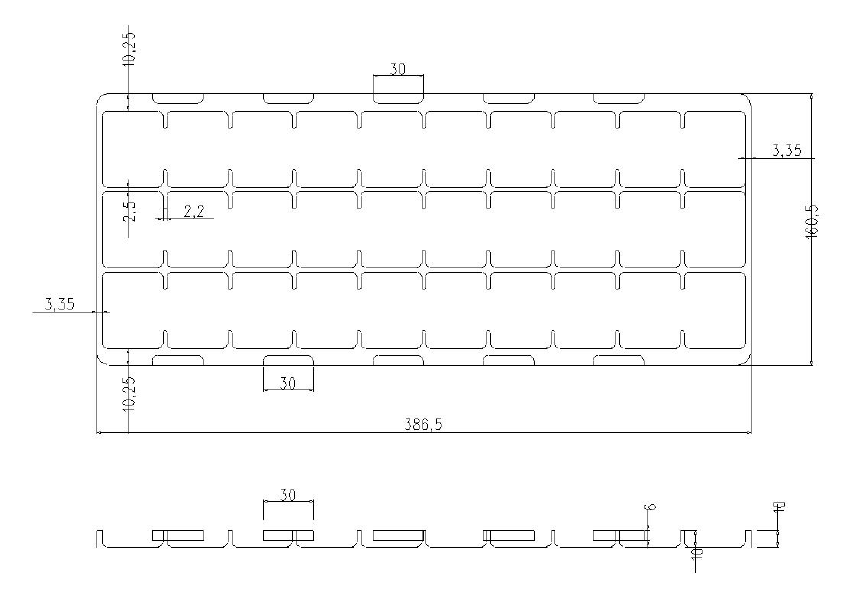

3.1 Tray
Each tray has 30 units of products.
7 trays per AL bag.
Attach a MSL level label on the AL bag

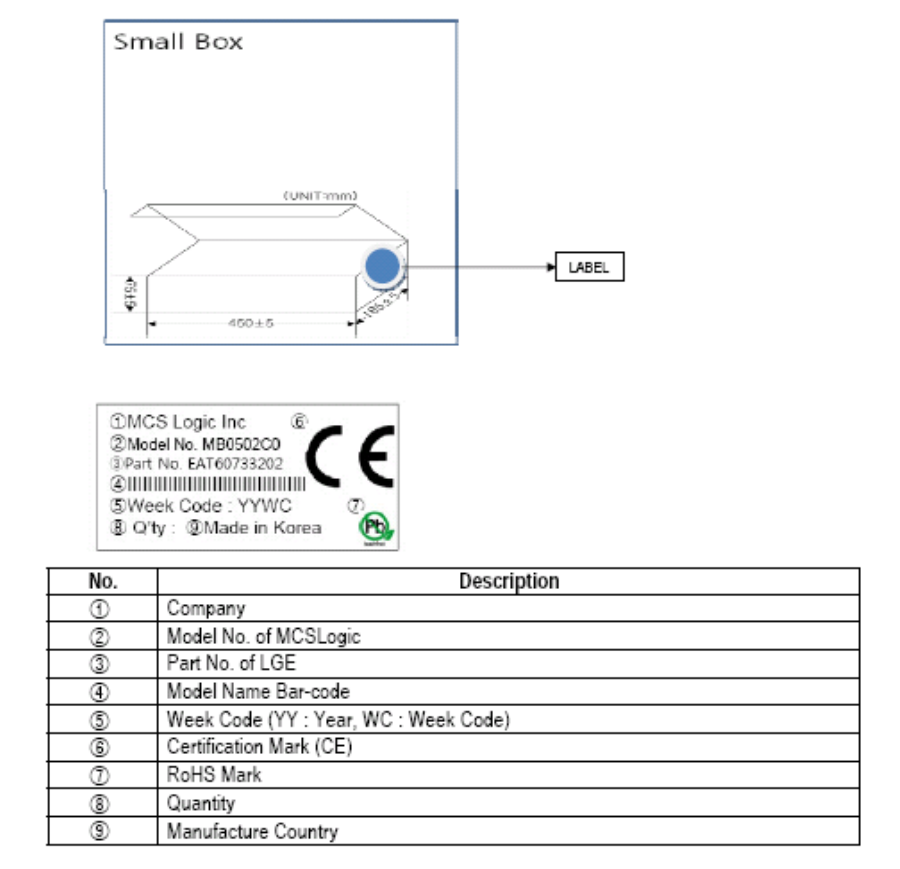

Small Box

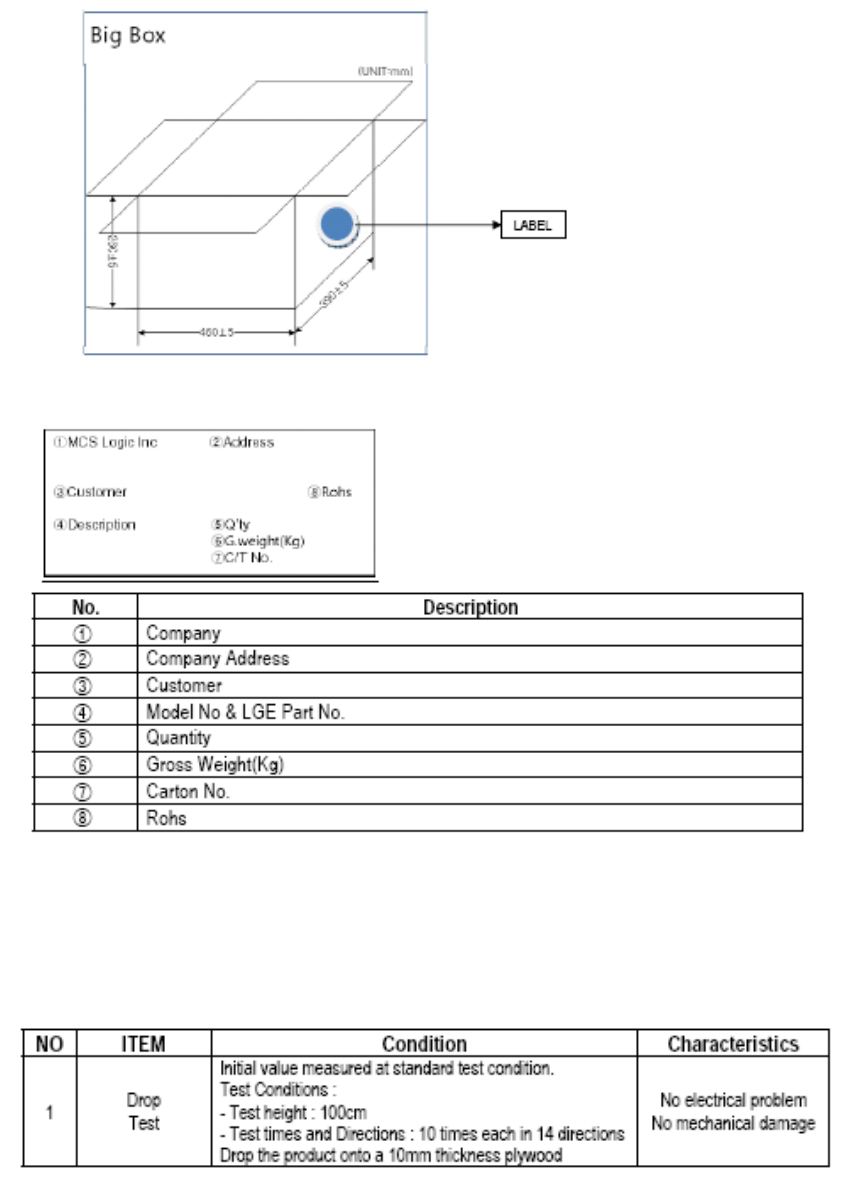

Big Box
Package Reliability Test Conditions
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. End users must
follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
* Information for OEM integrator
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user manual of the end
product.
The user manual which is provided by OEM integrators for end users must
include the following information in a prominent location.
“To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
Label for end product must include “Contains FCC ID: BEJ9QK-MB0502C0 or “A RF
transmitter inside, FCC ID: BEJ9QK-MB0502C0”.
