Product Specification
WN7522C 2 1
User Manual
&
Product Specification
WN7522C 2-LF-19
IEEE Single Band 802.11b/g/n USB2.0 Module
V1.0
Product Specification
WN7522C 2 2
Table of Contents
Chapter 1 Introduction________________________________________________________ 4
1. Introduction ________________________________________________________ 4
1.1 Product Features____________________________________________________ 4
1.2 Applications _______________________________________________________ 4
Chapter 2 Hardware_______________________________________________________ 5
2.1 General Overview __________________________________________________ 5
2.2 Hardware Architecture _______________________________________________ 5
2.3 Main Chipset Information ____________________________________________ 5
Chapter 3 Software _______________________________________________________ 5
3.1 Operating System Supported __________________________________________ 6
3.2 Wireless Mode Supported ____________________________________________ 6
3.3 Security___________________________________________________________ 6
3.4 Configuration ______________________________________________________ 6
Chapter 4 Specifications ___________________________________________________7
Chapter 5 Statement_______________________________________________________ 9
Product Specification
WN7522C 2 3
Revision History
Edition # Reason for revision Issue date Written by
V 01 ♦ Initial Document July 27, 2009 Troy Chen
V02 Revise the Frequency band in France/
Regulation/Security
Nov 4th 2009 Troy Chen
Product Specification
WN7522C 2 4
Chapter 1 Introduction
1. Introduction
WN7522C 2 is a single band wireless 802.11 b/g/n USB module for LG Blu-ray players and
home theater corresponding devices. It enables multi-media devices to connect onto 802.11
b/g/n WLAN network and attain data communication speeds up to 300 megabits-per-second
(Mbps). It is also backward compatible to the existing installed base 802.11b/g network.
1.1 Product Features
♦ High speed for wireless LAN connection, RX up at 300 Mbps data rate.
♦ Backward compatible to the existing IEEE 802.11b/g/n WLAN infrastructure.
♦ 2 28*5*5mm MIFAs
♦ Support USB v2.0
1.2 Applications
♦ Home networking for device sharing.
♦ Wireless multimedia.
Product Specification
WN7522C 2 5
Chapter 2 Hardware
2.1 General Overview
♦ USB 2.0 Interface and 802.11 b/g/n chipset-on-board design.
2.2 Hardware Architecture
Broadcom 43231 single chip USB2.0
2.3 Main Chipset Information
♦ BCM43231: MIMO MAC + Baseband processor and RF with integrated 2.4GHz PA

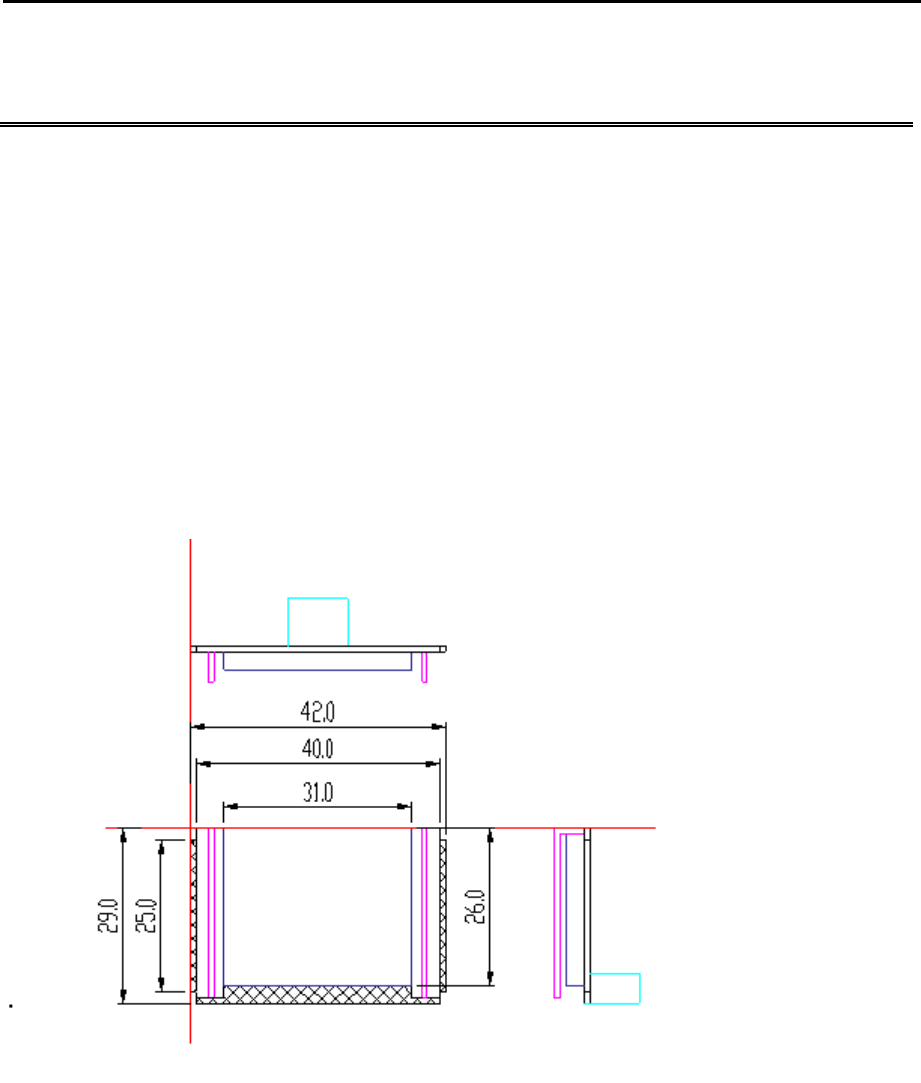

2.4 PCB dimension:
42mm*29mm
Product Specification
WN7522C 2 6
Chapter 3 Software
3.1 Operating System Supported
♦ Windows 2000, XP, Vista
♦ Linux Driver
3.2 Wireless Mode Supported
♦ AP (Infrastructure) Client mode
3.3 Security
♦ AP (Infrastructure) mode supports
♦ Static WEP that support both 64 and 128 bit keys.
♦ WPA/WPA2(TKIP/AES) with PSK
♦ Ad-hoc mode supports
♦ None (plaintext)
♦ Static WEP that supports both 64 and 128 bit keys.
Product Specification
WN7522C 2 7
Chapter 4 Specifications
♦ Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC 2412~2462MHz (Ch1~Ch11)
Canada – IC 2412~2462MHz (Ch1~Ch11)
Europe – ETSI 2412~2472MHz (Ch1~Ch13)
Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)
♦ Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
13 channels (ETSI)
14 channels (Japan)
♦ Transmit Power and Sensitivity:
TX Output Power:(Typical)
11b 16.5 +/- 2 dBm
11g 16.0 +/- 2 dBm@54Mbps
11n 16.0 +/- 2 dBm
Rx Sensitivity:(Typical)
-82 dBm @11 Mbps
-68 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-61 dBm @64-QAM, 40MHz channel spacing
♦ Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above
Product Specification
WN7522C 2 8
♦ Current consumption(5V DC):
TX: 380mA Max, @MCS7, 40MHz
RX: 350mA Max, @MCS15, 40MHz
Power Saving: < 50mA
Radio OFF mode: < 100mA
♦ Operating Temperature: 0 ~ 60 oC ambient
♦ Storage Temperature: -10 ~ 70 oC ambient
♦ Humidity: 5 ~ 90% and must be non-condensing
♦ Regulation and certification compliance available:
♦ ETSI/CE
♦ ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.
Product Specification
WN7522C 2 9
References
♦ IEEE 802.11b Standard Specification
♦ IEEE 802.11g Standard Specification
♦ IEEE 802.11n draft Standard Specification
The drawings, specifications and the data contain herein are the exclusive property of Arcadyan
Technology Corp. issued in strict confidence and shall not, without the prior written permission of
Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose
whatsoever, except the manufacture of articles for Arcadyan Technology Corp.
Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this
specification. The information in this document is subject to change without notice. Arcadyan
reserves the right to make revisions to this document and the product described herein without
obligation to notify any person or entity of any such changes.
WARNING
This document is intended for internal use only. A Non-Disclosure Agreement (NDA)
is required to release this document under any circumstances
Product Specification
WN7522C 2 10
Chapter 5 Statement
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause
undesired operation of the device.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. End users must follow the specific operating instructions
Product Specification
WN7522C 2 11
for satisfying RF exposure compliance. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired
operation of the device
This class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
Note: This equipment contains module, FCC ID: BEJ9QK-WN7522C2 and IC: 2703H-WN7522C2,
which qualifies as an UNLICENSED MODULAR TRANSMITTER per FCC Public Notice DA
00-1407 and RSS-Gen Section: 7.1.1. It has been tested and found to comply with Part 15.247 of the
FCC Rules and RSS-210 issue 7:2007, Annex 8.
Required labeling.
Any device incorporating this module must include an external, visible, permanent marking or label
which states:
“Contains FCC ID: BEJ-9QKWN7522C2”
“Contains IC: 2703H-WN7522C2.”
Failure to comply with this requirement will void the user’s authority to operate any device that
incorporates this module.
Product Specification
WN7522C 2 12
This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment
and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF
energy that it is deemed to comply without testing of specific absorption ratio(SAR).
CE Notified Body statement:
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Hereby, the device manufacturer declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Explosive device proximity warning – Do not operate a portable transmitter (such as a
wireless network device) near unshielded blasting caps or in an explosive environment unless
the device has been modified to be qualified for such use.
This device can be operated in the EU without restrictions indoor.
This CE marking is valid for EU non-harmonized telecommunications
products R&TTE Directive (1999/5/EC) issued by the Commission of the
European Community.
