9QKW61RX User Manual HTML Version

users manual

DVD HOME CINEMA

WIRELESS SPEAKER

SYSTEM

OWNER’S MANUAL

MODEL : DA-SW6100

DA-W6100A, FE-6100TE, FE-6100CVE, FE-6100WE,

ACC-W6100, FA-W6100SL, FA-W6100SR

CD-R/RW

CASA_DA-SW6100(Eng)-D029M

Before connecting, operating or adjusting this product,

please read this instruction booklet carefully and completely.

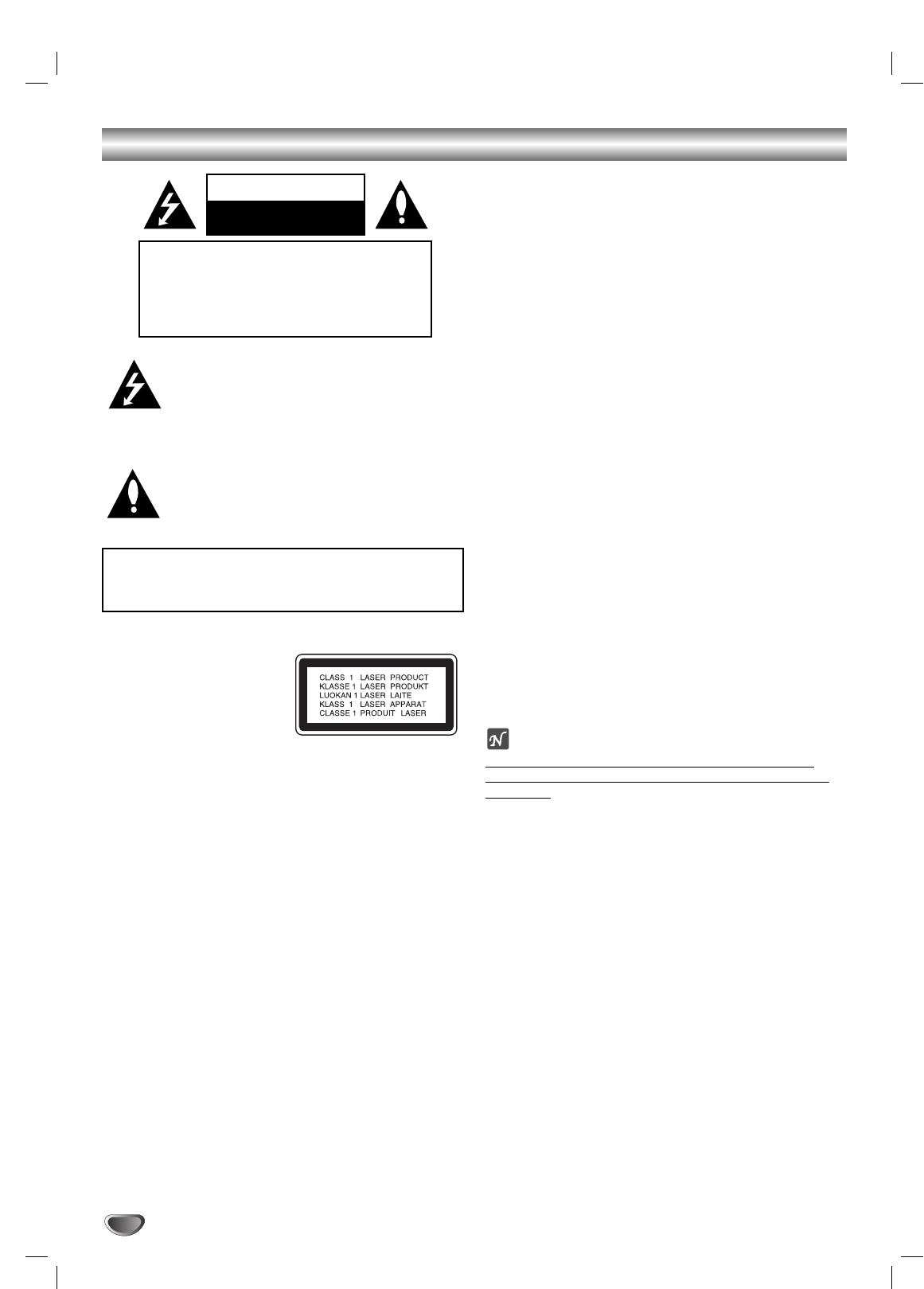

Safety Precautions

This lightning flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to

the presence of uninsulated dangerous voltage

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation mark within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the instructions accompanying the

product.

WARNING: Do not install this equipment in a confined space

such as a book case or similar unit.

CAUTION:

This DVD/CD receiver employs a Laser System.

To ensure proper use of this product, please read this owner’s

manual carefully and retain it for future reference. Should the

unit require maintenance, contact an authorized service loca-

tion (see service procedure).

Performing controls, adjustments, or carrying out procedures

other than those specified herein may result in hazardous radi-

ation exposure.

To prevent direct exposure to laser beam, do not try to open

the enclosure. Visible laser radiation when open. DO NOT

STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids, such

as vases, should be placed on the apparatus.

REGULATORY INFORMATION:

FCC Part 15

This product has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the product is

operated in a residential installation. This product generates,

uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this product does cause harmful

interference to radio or television reception, which can be

determined by turning the product off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the product and receiv-

er.

• Connect the product into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

FCC WARNING: This equipment may generate or use radio

frequency energy. Changes or modifications to this equipment

may cause harmful interference unless the modifications are

expressly approved in the instruction manual. The user could

lose the authority to operate this equipment if an unauthorized

change or modification is made.

OTES ON COPYRIGHTS:

It is forbidden by law to copy, broadcast, show, broadcast

via cable, play in public, or rent copyrighted material without

permission.

This product features the copy protection function developed

by Macrovision. Copy protection signals are recorded on some

discs. When recording and playing the pictures of these discs

on a VCR, picture noise will appear.

This product incorporates copyright protection technology that

is protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation

and other rights owners. Use of this copyright protection tech-

nology must be authorized by Macrovision Corporation, and is

intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is located on the back

of this unit. This number is unique to this unit and not available

to others. You should record requested information here and

retain this guide as a permanent record of your purchase.

Model No. ___________________________________

Serial No. ___________________________________

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR

MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

INTRODUCTION

1. Read these instructions. - All these safety and

operating instructions should be read before the

product is operated.

2. Keep these instructions. - The safety, operating

and use instructions should be retained for future

reference.

3. Heed all warnings. - All warnings on the product

and in the operating instructions should be adhered

to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this apparatus near water. – For

example: near a bath tub, wash bowl, kitchen sink,

laundry tub, in a wet basement; or near a swimming

pool; and like.

6. Clean only with dry cloth. – Unplug this product

from the wall outlet before cleaning. Do not use

liquid cleaners.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions. -

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over- heating.

The openings should never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product should not be placed in a

built-in installation such as a bookcase or rack

unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A ground-

ing

type plug has two blades and a third ground-

ing prong. The wide blade or the third prong are

provided for your safety. If the provided plug

does not fit into your outlet, consult an electri-

cian for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specified by

the manufacturer.

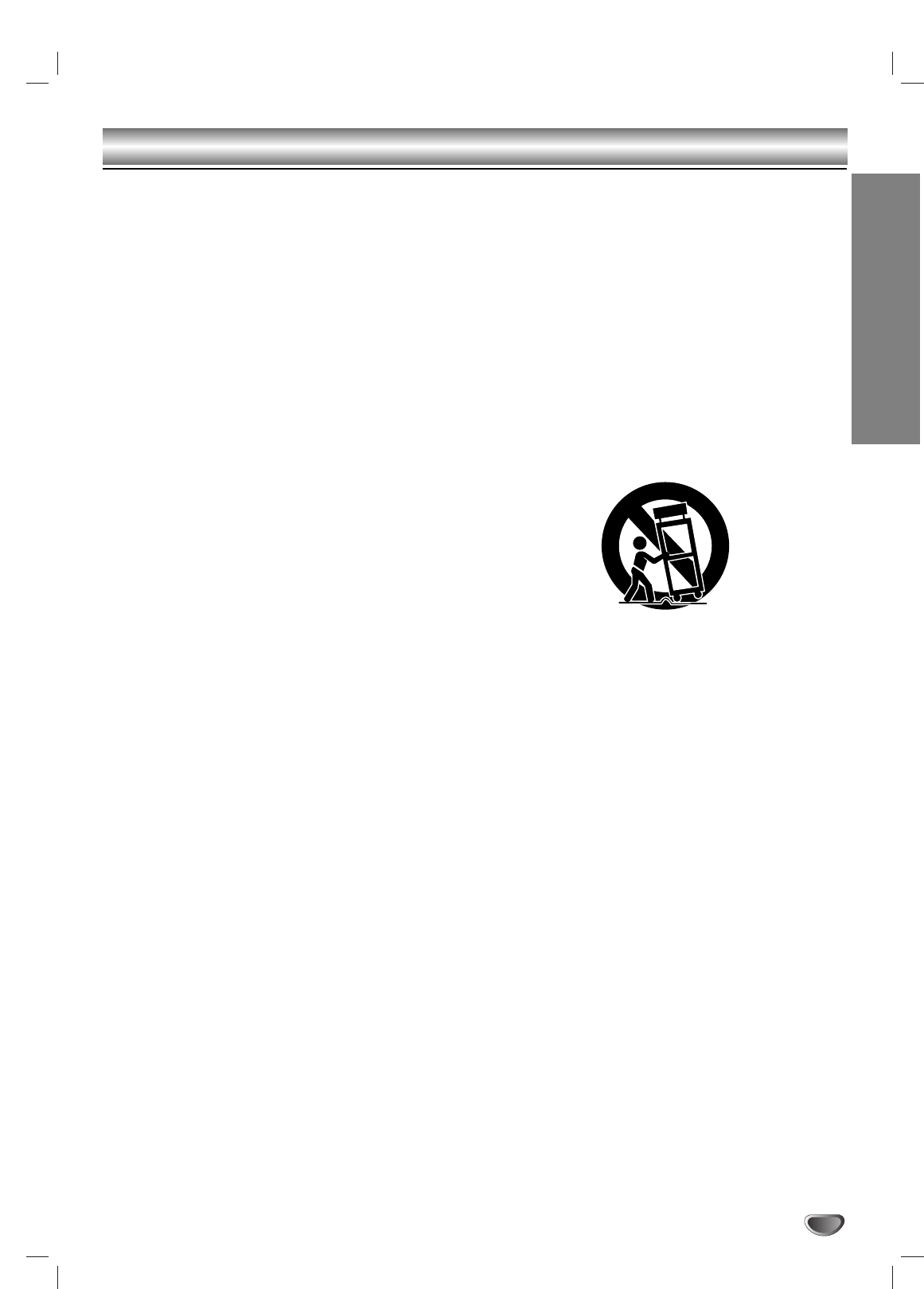

12. Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-

supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANU-

AL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock

or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for

installation, use, and servicing.

This unit does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

IMPORTANT SAFETY INSTRUCTIONS

INTRODUCTION

Table of Contents

Introduction

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

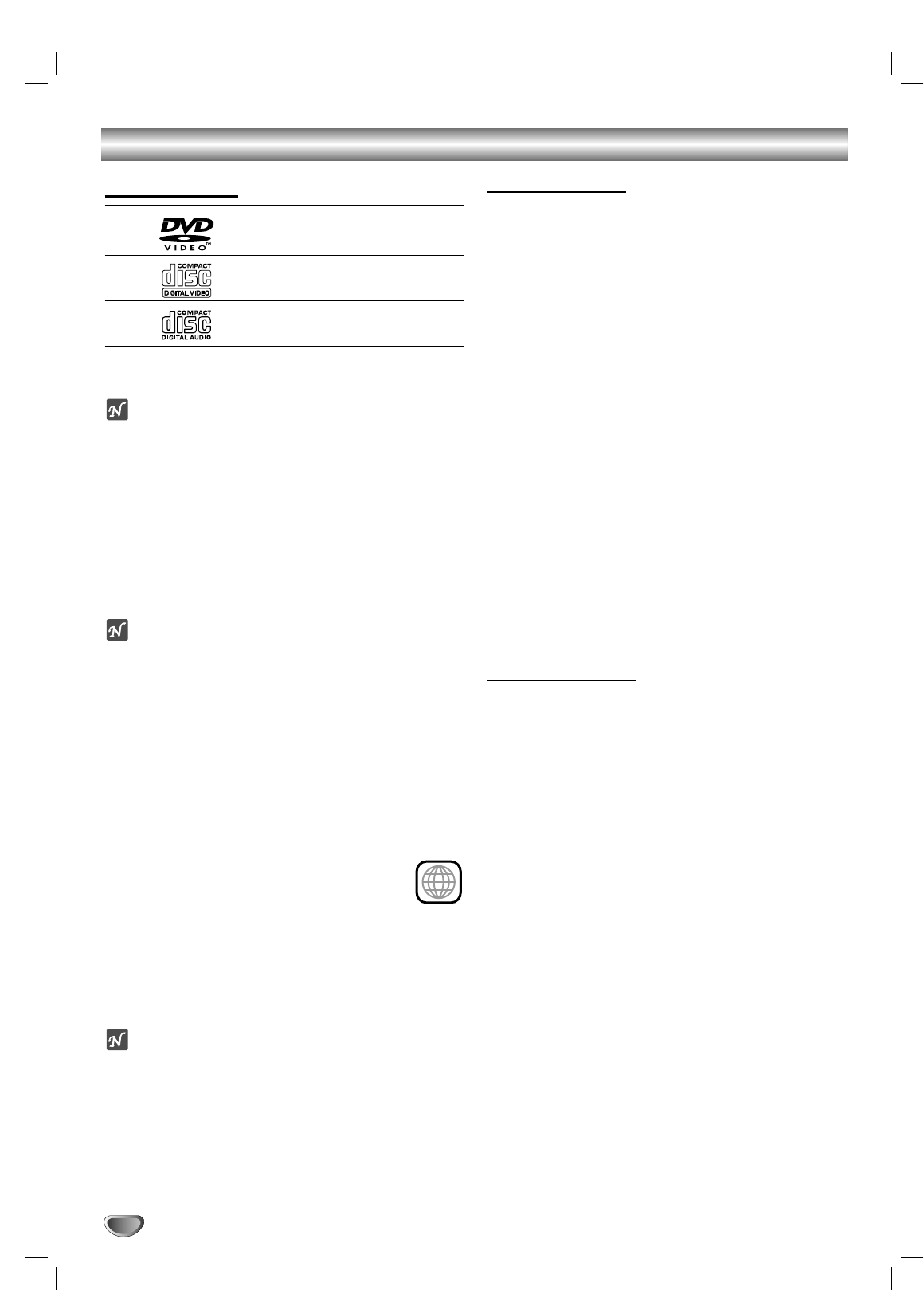

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 5

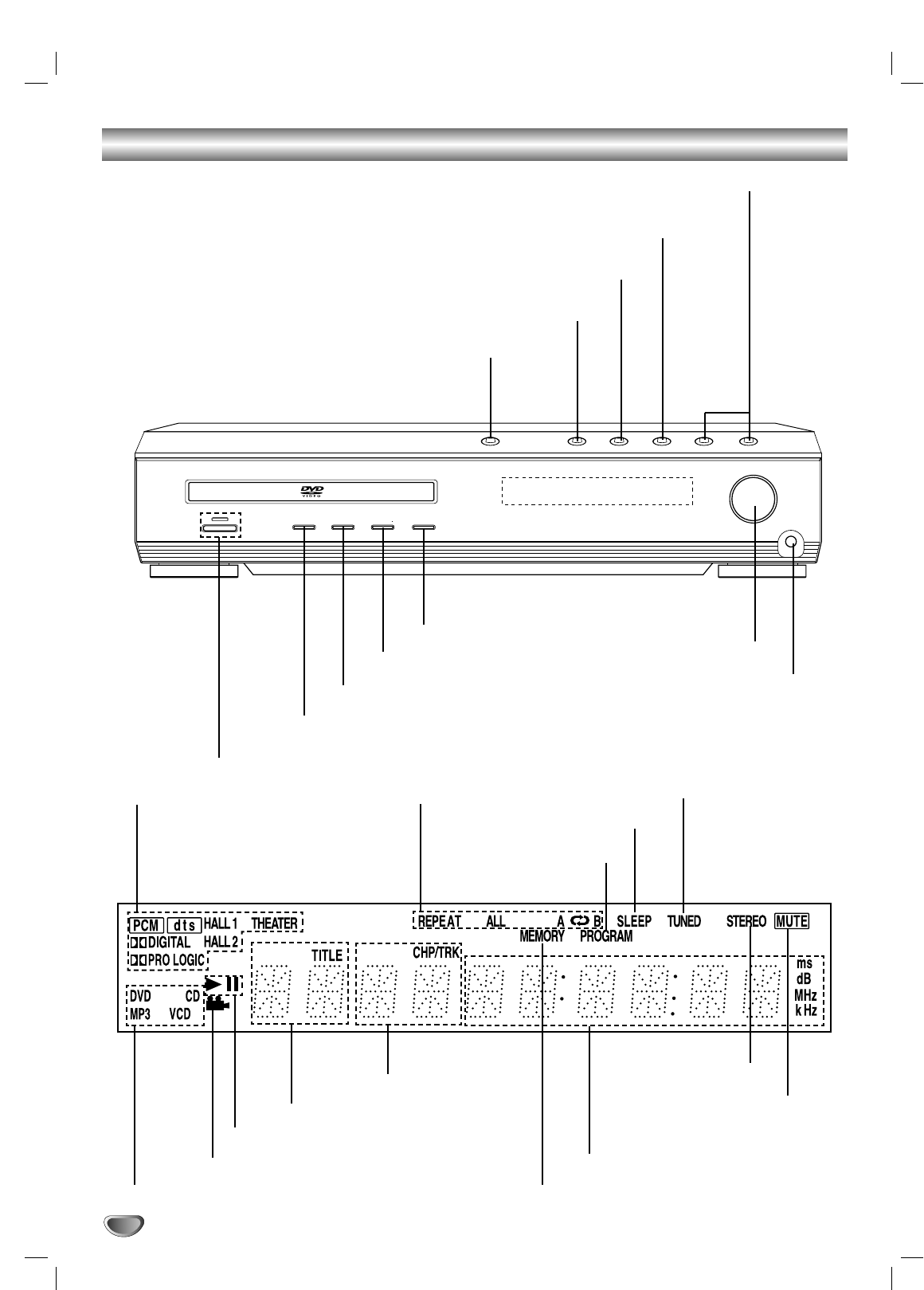

Front Panel and Display Window . . . . . . . . . . . . . . 6

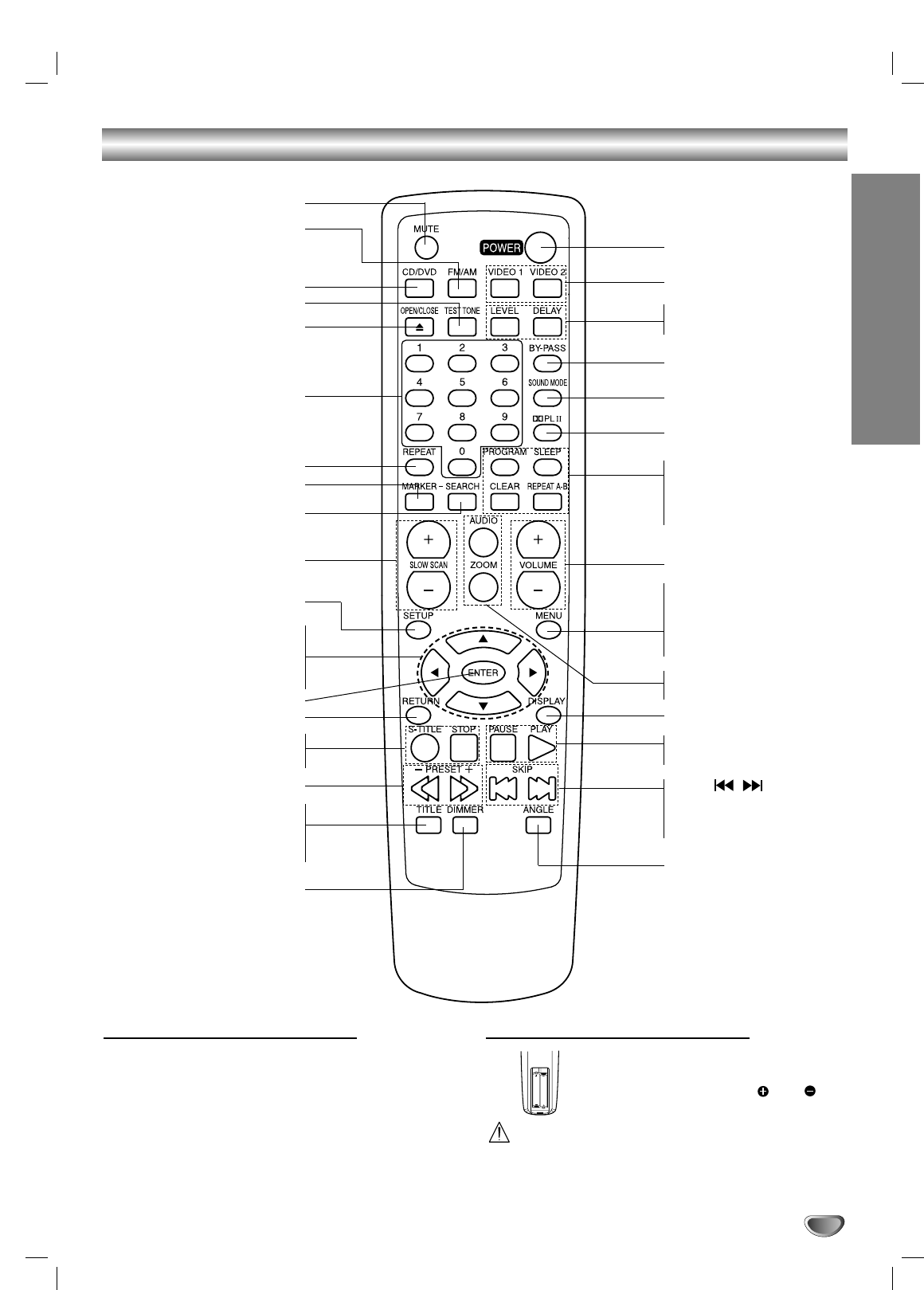

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

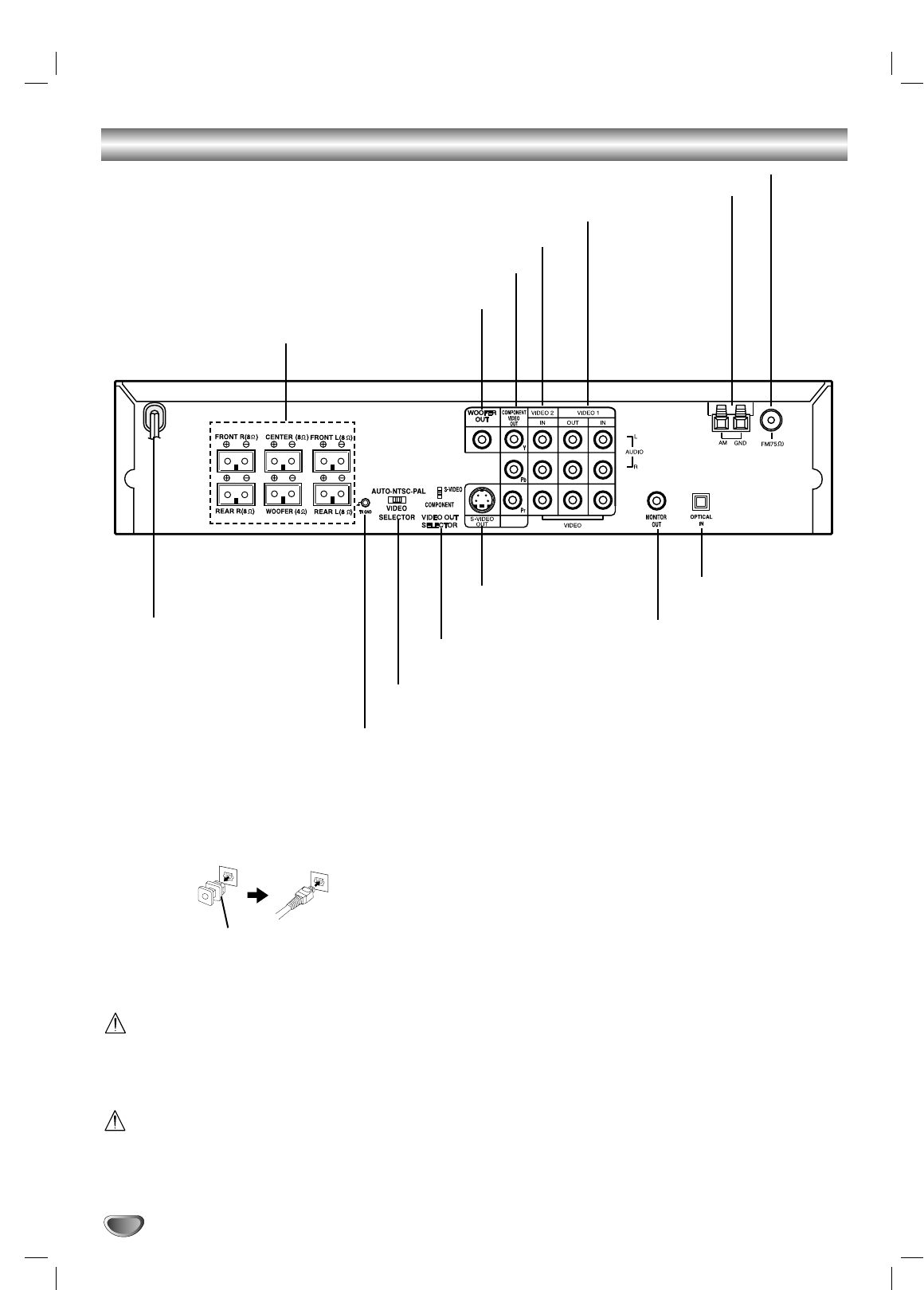

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Preparation

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13

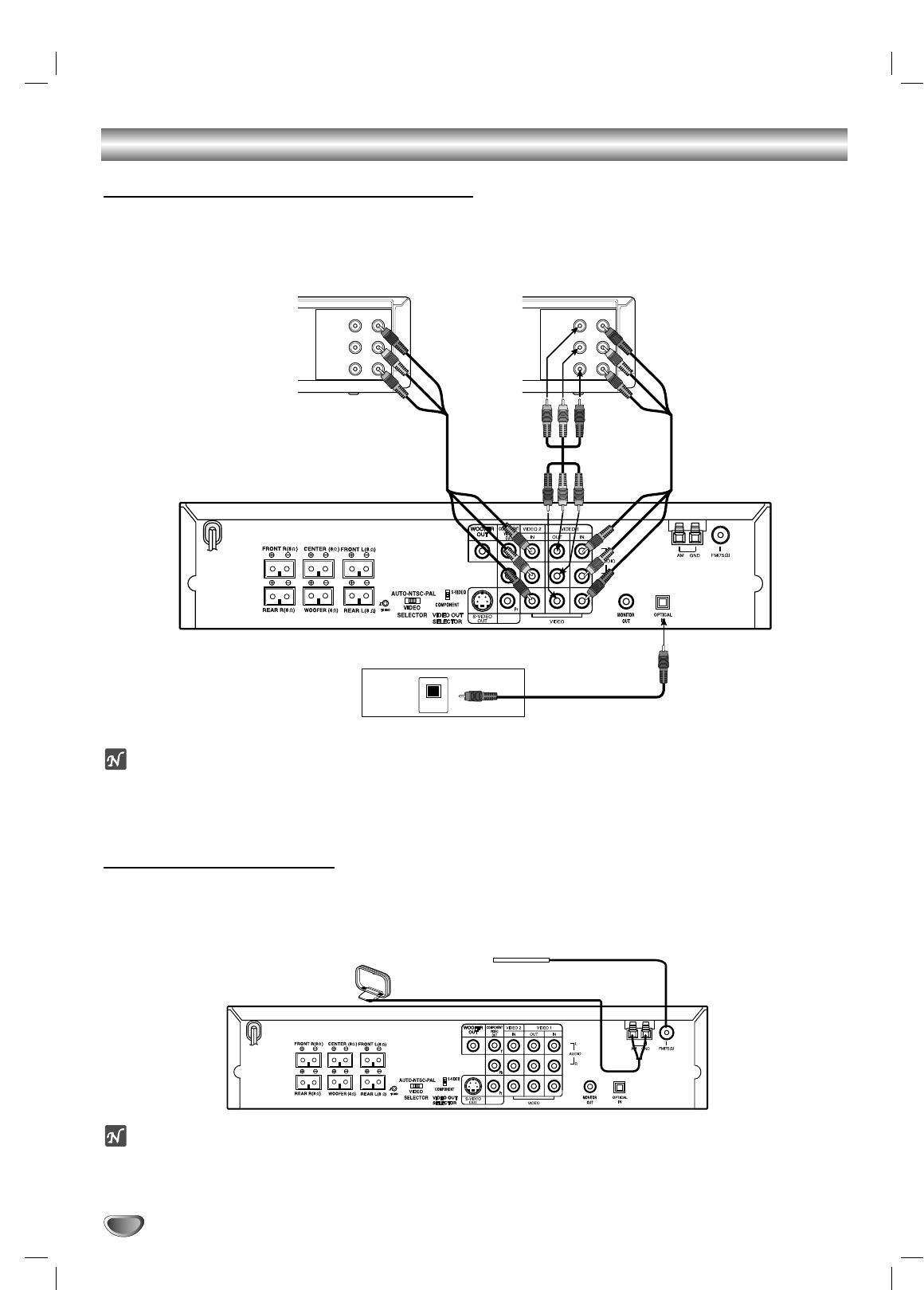

Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting to Optional Equipment . . . . . . . . . . . 10

Antenna Connections. . . . . . . . . . . . . . . . . . . . . 10

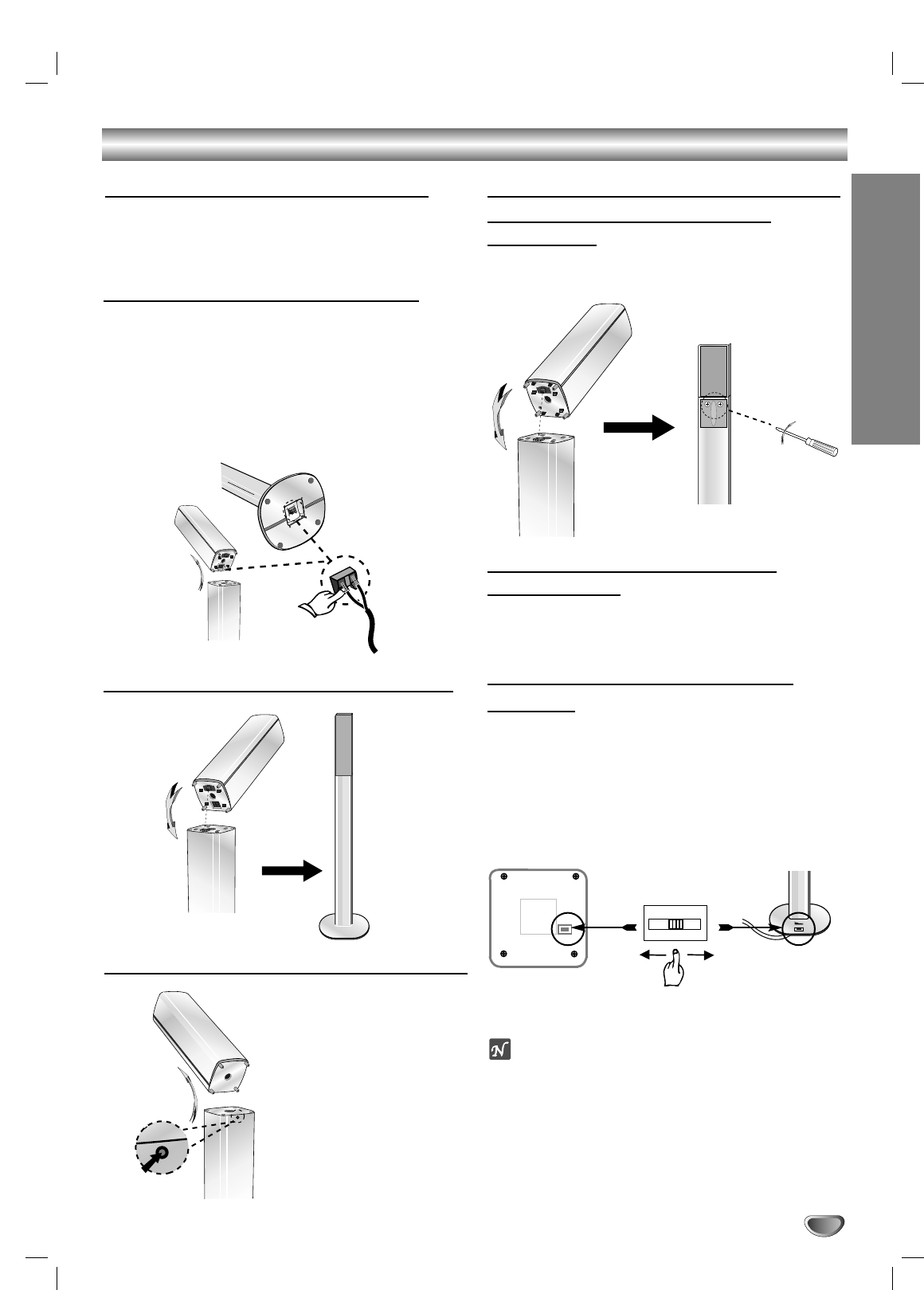

Assembling the Front Speaker . . . . . . . . . . . . . . 11

Assembling the Wireless Speaker . . . . . . . . . . . 11

Setting the Wireless Speaker Channel . . . . . . . . 11

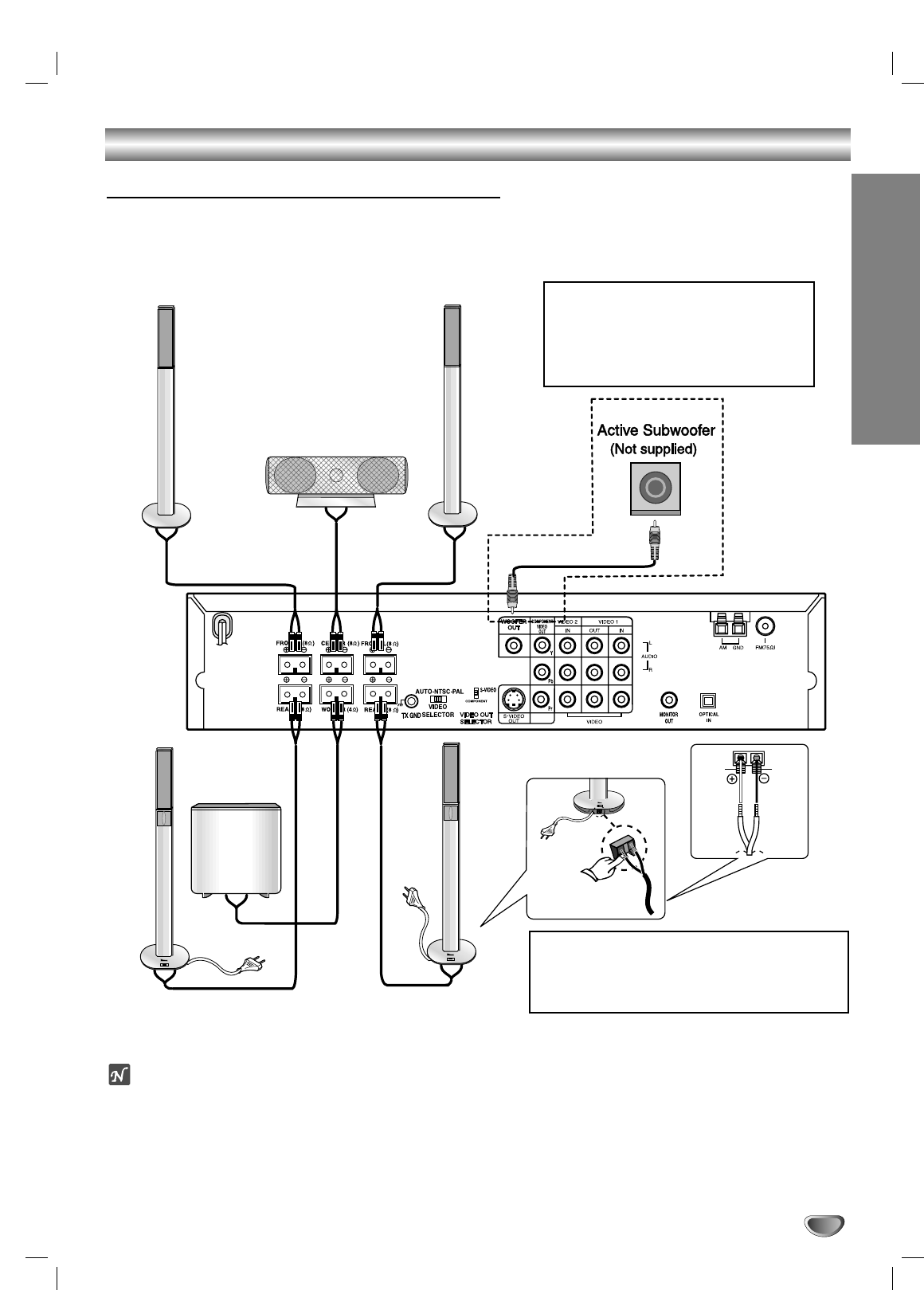

Speaker System Connection . . . . . . . . . . . . . 12-13

Before Operation . . . . . . . . . . . . . . . . . . . . . . . 14-19

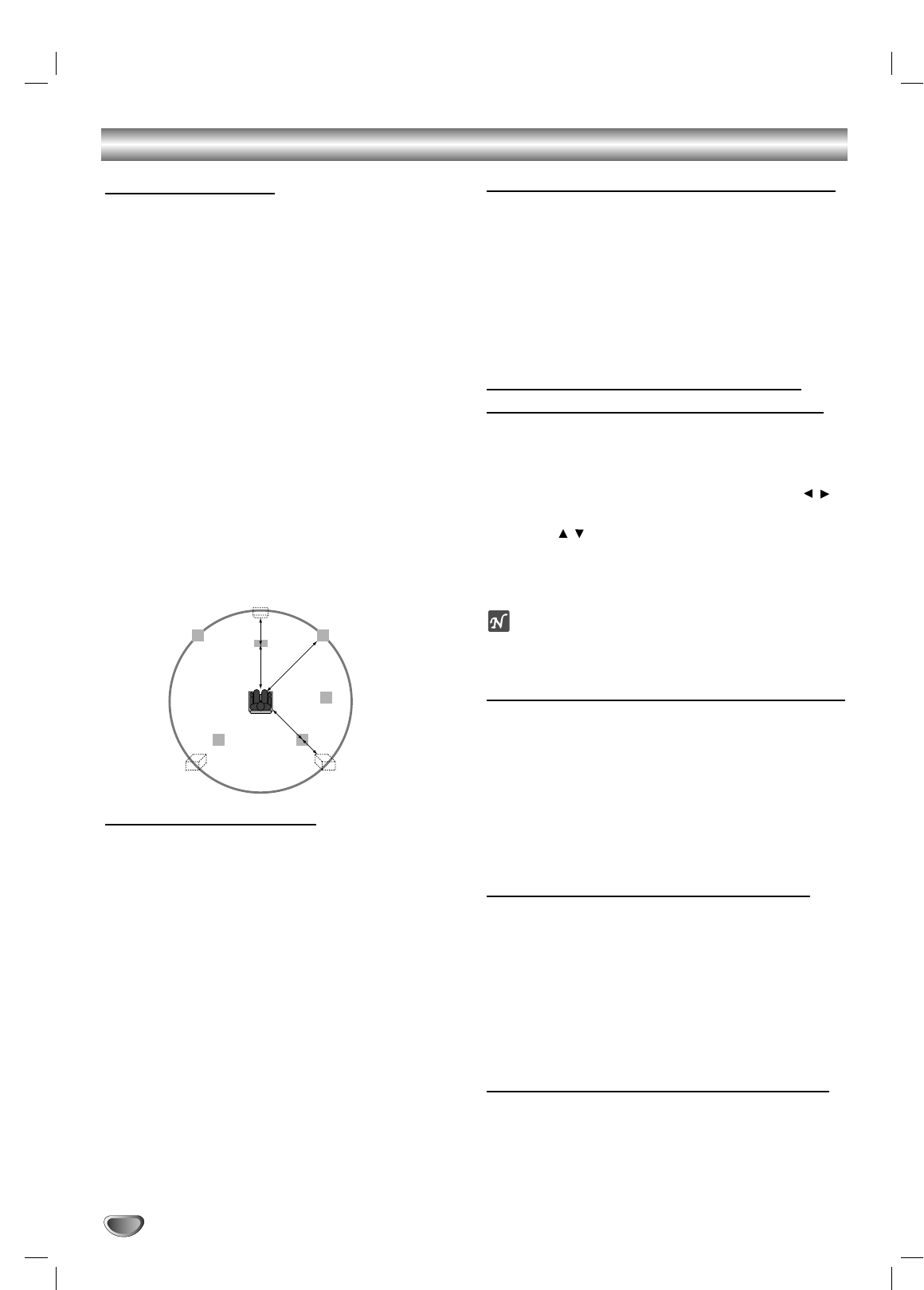

Speaker Positioning . . . . . . . . . . . . . . . . . . . . . . 14

Mini Glossary for Sound Mode . . . . . . . . . . . . . . 14

Sound Mode (Except AM) . . . . . . . . . . . . . . . . . 15

Sound Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Test Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Delay Time Setting. . . . . . . . . . . . . . . . . . . . . . . 16

Setting the delay time in the Dolby Digital

and Dolby Pro Logic (II) mode . . . . . . . . . . . . . . 16

General Explanation. . . . . . . . . . . . . . . . . . . . . . 17

On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . 17

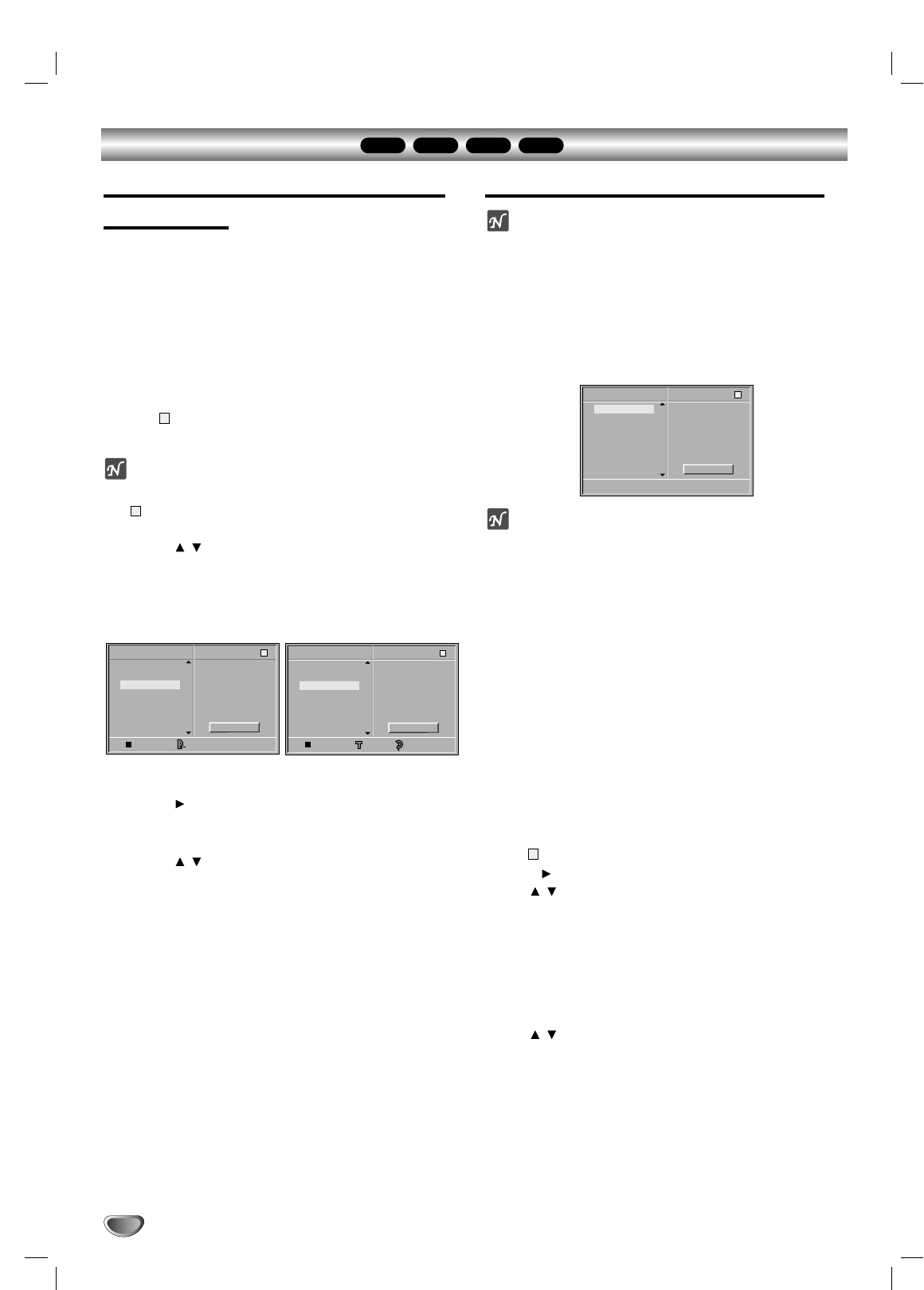

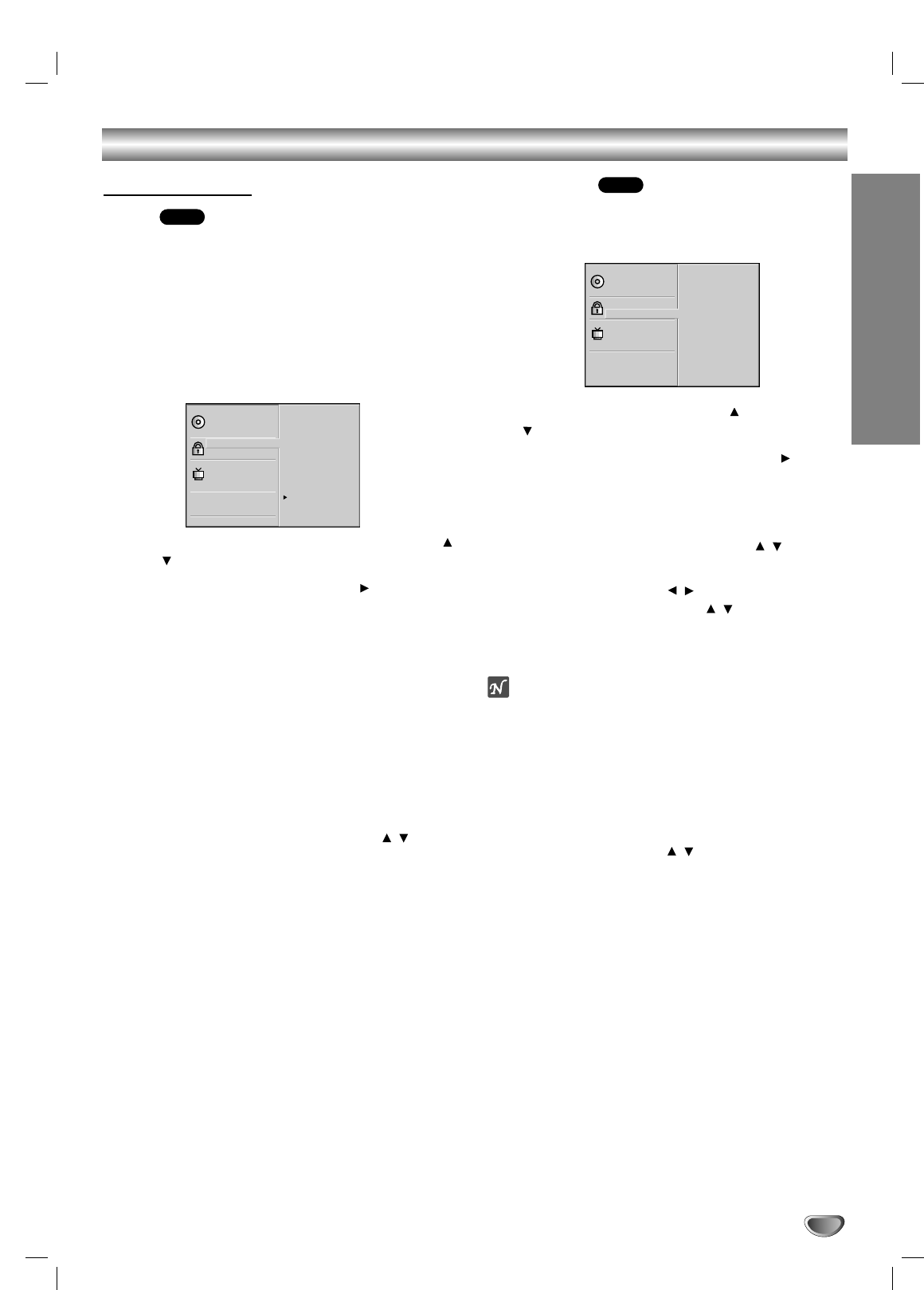

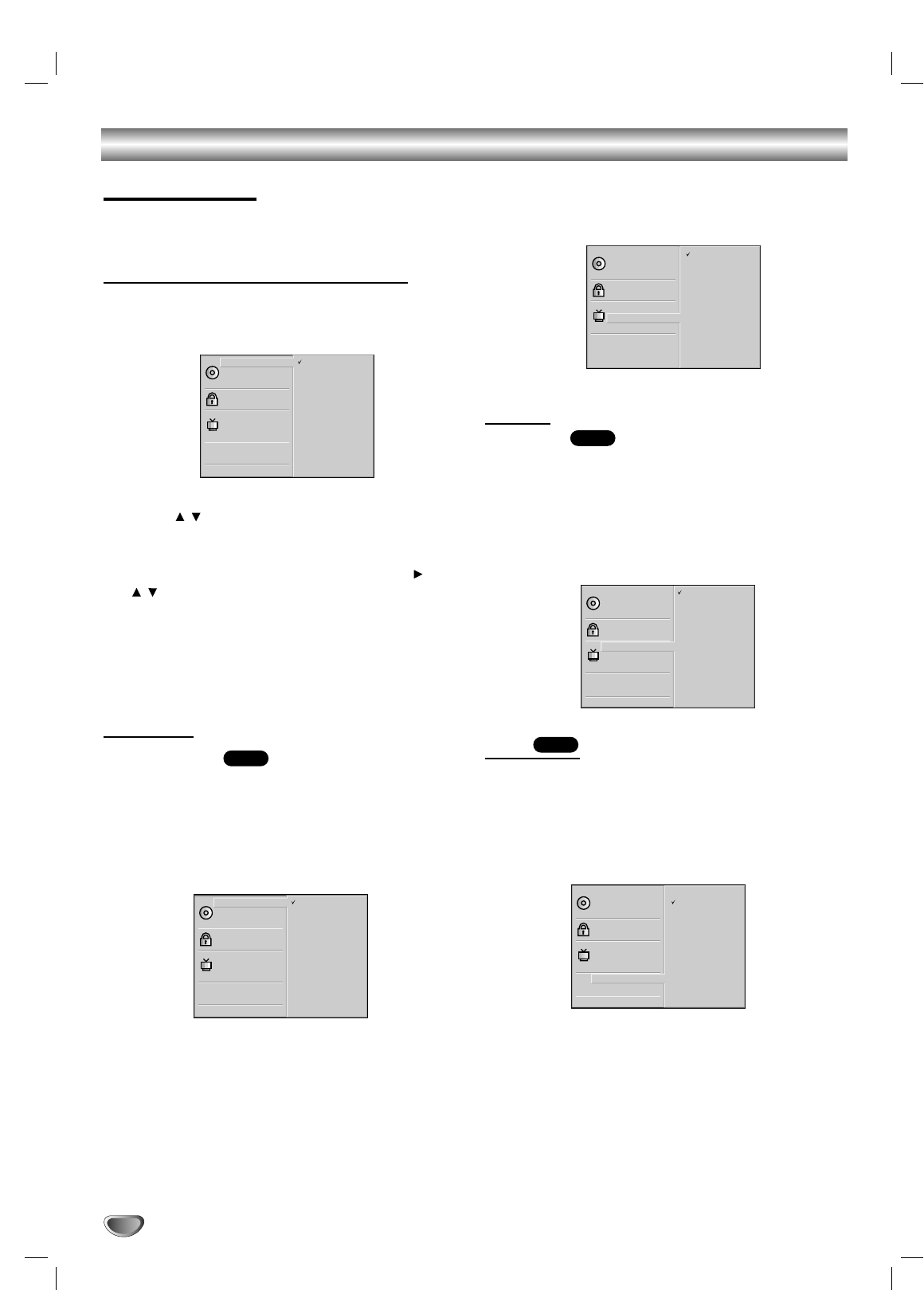

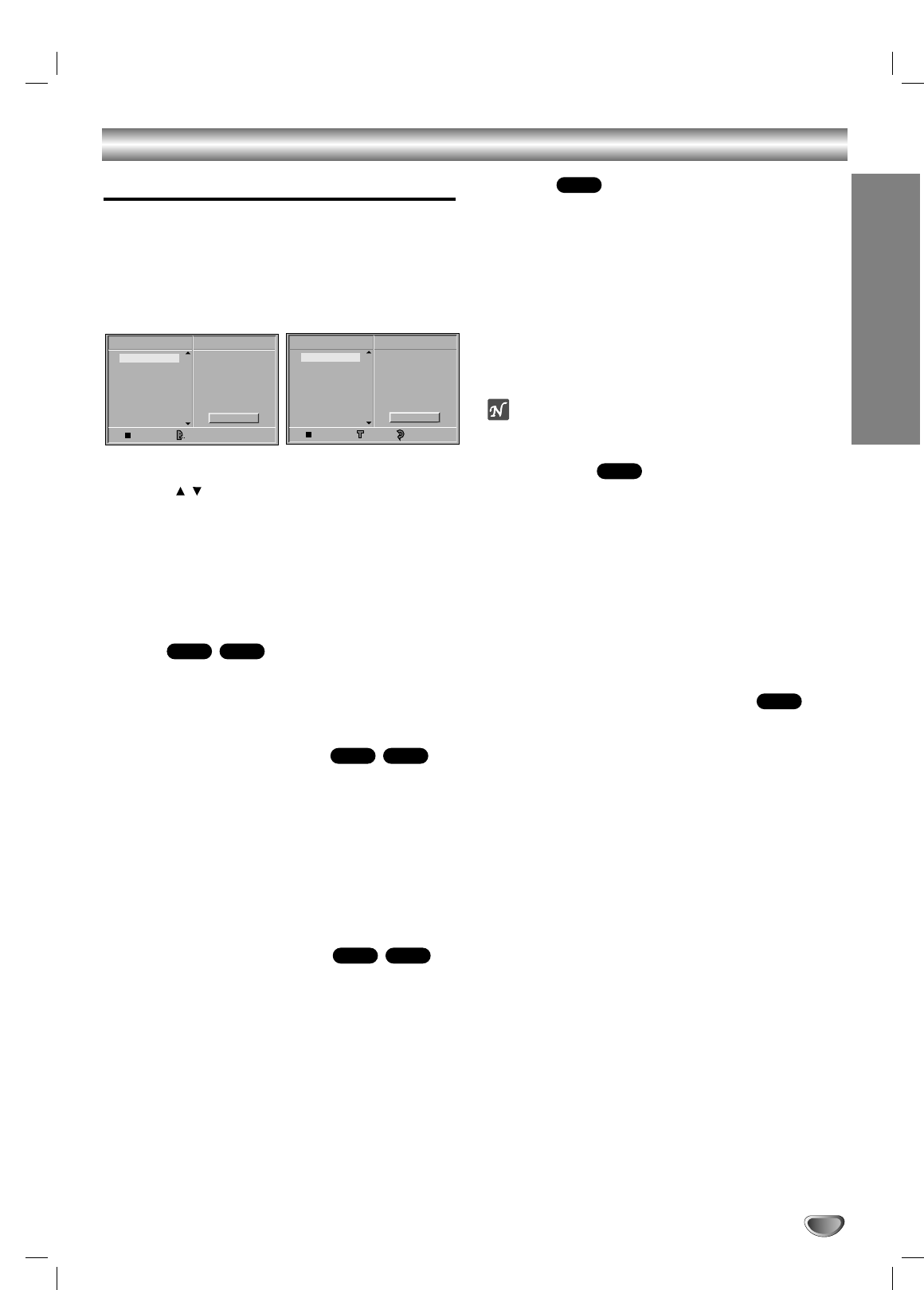

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Initial Settings General Operation. . . . . . . . . 18

Language . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Parental Control. . . . . . . . . . . . . . . . . . . . . . 19

Operation

Operation with Radio . . . . . . . . . . . . . . . . . . . . 20-21

Presetting the radio stations . . . . . . . . . . . . . . . . 20

Listening to the radio . . . . . . . . . . . . . . . . . . . . . 20

Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . 21

Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using Headphone Jack . . . . . . . . . . . . . . . . . . . 21

Selecting input source . . . . . . . . . . . . . . . . . . . . 21

Operation with DVD and Video CD. . . . . . . . . . 22-24

Playing a DVD and Video CD . . . . . . . . . . . . . . . 22

General Features . . . . . . . . . . . . . . . . . . . . . . . . 22

Moving to another TITLE . . . . . . . . . . . . . . . 22

Moving to another CHAPTER/TRACK . . . . . 22

Slow Motion. . . . . . . . . . . . . . . . . . . . . . . . . 22

Still Picture and Frame-by-Frame Playback . 23

Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 23

Time Search . . . . . . . . . . . . . . . . . . . . . . . . 23

Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Marker Search. . . . . . . . . . . . . . . . . . . . . . . 24

Special DVD Features . . . . . . . . . . . . . . . . . . . . 24

Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 24

Changing the Audio Language . . . . . . . . . . . 24

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Operation with Audio CD and MP3 Disc. . . . . . . . 25

Playing an Audio CD and MP3 Disc . . . . . . . . . . 25

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Moving to another Track. . . . . . . . . . . . . . . . 25

Repeat Track/All/Off . . . . . . . . . . . . . . . . . . . 25

Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the Audio Channel . . . . . . . . . . . . 25

Programmed Playback . . . . . . . . . . . . . . . . . . . . . 26

Programmed Playback with Audio CD

and MP3 Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Programmed Playback with Video CD . . . . . . . . 26

Additional Information. . . . . . . . . . . . . . . . . . . . . . 27

Last Condition Memory . . . . . . . . . . . . . . . . . . . 27

Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Video Mode Setting . . . . . . . . . . . . . . . . . . . . . . 27

Notes on MP3 Discs . . . . . . . . . . . . . . . . . . . . . 27

Reference

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 28-29

Language Code List . . . . . . . . . . . . . . . . . . . . . . . 30

Country Code List . . . . . . . . . . . . . . . . . . . . . . . . . 31

Specification

About the symbols for instructions

Indicates hazards likely to cause harm to the unit

itself or other material damage.

Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trade-

marks of Dolby Laboratories. Confidential Unpublished

reserved.

Manufactured under license from Digital Theater Systems,

Inc. US Pat. No. 5,451,942 and other worldwide patents

issued and pending. “DTS”and “DTS Digital Surround”are

Before Use

Playable Discs

DVD

(8 cm / 12 cm disc)

Video CD (VCD)

(8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit can play a CD-R or CD-RW that

contains audio titles or MP3 files.

Notes

–Depending on the conditions of the recording equip-

ment or the CD-R/RW disc itself, some CD-R/RW

discs cannot be played on the unit.

–The unit cannot play the CD-R/RW discs that contain

no data, or contain different kinds of formatted data

other than MP3 and CD-DA data.

–Do not attach any seal or label to either side (the

labeled side or the recorded side) of a disc.

–Do not use irregular shaped CDs (e.g., heart-shaped

or octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may

be intentionally fixed by software manufacturers. As this

unit plays DVDs and Video CDs according to disc con-

tent designed by the software manufacturer, some play-

back features of the unit may not be available, or other

functions may be added.

Refer also to the instructions supplied with the DVDs

and Video CDs. Some DVDs made for business purpos-

es may not be played on the unit.

Regional code of the DVD receiver and DVDs

This DVD receiver is designed and manufactured for

playback of region “3”encoded DVD software.

The region code on the labels of some DVD

discs indicates which type of receiver can play

those discs. This unit can play only DVD discs

labeled “3”or “ALL”. If you try to play any other discs, the

message “Check Regional Code”will appear on the TV

screen. Some DVD discs may not have a region code

label even though their playback is prohibited by area

limits.

Note on DTS-encoded CDs

When playing DTS-encoded CD’s, an excessive audio

level may be heard from the analog stereo output. To

avoid possible damage to the audio system, turn down

the volume before playing back such discs, adjust the

volume gradually, and keep the volume level low. To

enjoy DTS Digital SurroundTM playback, an external 5.1

channel DTS Digital SurroundTM decoder system must

be connected to the digital output of the unit.

Disc-related terms

Title (DVD only)

The main film content or accompanying feature content

or additional feature content, or music album.

Each title is assigned a title reference number enabling

you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller

than titles.

A title is composed of one or several chapters. Each

chapter is assigned a chapter number, enable you to

locate the chapter you want. Depending on the disc, no

chapters may be recorded.

Track (Video CD and Audio CD only)

Sections of a picture or a musical piece on a Video CD

or an Audio CD. Each track is assigned a track number,

enabling you to locate the track you want.

Scene

On a Video CD with PBC (Playback control) functions,

moving pictures and still pictures are divided into sec-

tions called “Scenes”. Each scene is displayed in the

menu screen and assigned a scene number, enabling

you to locate the scene you want.

A scene is composed of one or several tracks.

Types of Video CDs

There are two types of Video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact

with the system via menus, search functions, or other

typical computer-like operations. Moreover, still pictures

of high resolution can be played if they are included in

the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as Audio CDs, these discs

allow playback of video pictures as well as sound, but

they are not equipped with PBC.

INTRODUCTION

Before Use (Cont’d)

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials

come in handy. For maximum protection, re-pack the

unit as it was originally packed at the factory.

When setting the unit

The picture and sound of a nearby TV, VCR, or radio

may be distorted during playback. In this case, position

the unit away from the TV, VCR, or radio, or turn off the

unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray,

near the unit. Do not leave rubber of plastic products in

contact with the unit for a long period of time. They will

leave marks on the surface.

Installing

Do not install the unit in a confined space, such as a

bookcase or built-in cabinet.

Allow adequate air circulation to prevent internal heat

buildup.

Do not place the unit on surfaces (rugs, blankets,

etc.) or near materials (curtains, draperies) that may

block the ventilation slots.

Do not install the unit near heat sources such as radi-

ators or air ducts, or in a place subject to direct sun-

light, excessive dust, mechanical vibration or shock.

Do not place heavy objects on the unit.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty,

use a soft cloth lightly moistened with a mild detergent

solution. Do not use strong solvents, such as alcohol,

benzine, or thinner, as these might damage the surface

of the unit.

To obtain a clear picture

The DVD receiver is a high-tech, precision device. If the

optical pick-up lens and disc drive parts are dirty or

worn down, the picture quality will be poor.

Regular inspection and maintenance are recommended

after every 1,000 hours of use. (This depends on the

operating environment.)

For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not

get on the surface.

Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or sources of

heat, or leave it in a parked car exposed to direct sun-

light, as there may be a considerable temperature

increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor pic-

ture quality and sound distortion. Before playing, clean

the disc with a clean cloth. Wipe the disc from the cen-

ter out.

Do not use strong solvents such as alcohol, benzine,

thinner, commercially available cleaners, or anti-static

spray intended for older vinyl records.

About Symbols

About the symbol display

“ ”may appear on the TV screen during operation.

This icon means the function explained in this owner’s

manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbols is

applicable only to the disc represented by the symbol.

DVD

Video CDs with the PBC (playback control)

function

Video CDs without the PBC (playback control)

function

Audio CDs

MP3 disc

MP3

VCD1.1

VCD2.0

DVD

Front Panel and Display Window

STOP (MEMORY/CLEAR) button

POWER button and indicator

FM/AM button

MONO/STEREO button

ENTER button

OPEN/CLOSE button

FUNCTION button

SKIP/SEARCH (TUNING/SKIP) buttons

PLAY button

SLEEP indicator

TUNED indicator

STEREO indicator

MUTE indicator

MEMORY indicator

PROGRAM indicator

Repeat playback

mode indicators

Sound mode

indicator

Chapter/Track

number indicator

Title number indicator

PLAY/PAUSE indicator

Angle icon indicator

Disc indicator

Total playing time/Elapsed time/

Frequency/Delay time/Volume etc.

indicators

PAUSE button

PHONES connector

VOLUME controller

INTRODUCTION

Remote Control

Remote Control Operation Range

Point the remote control at the remote sensor and press

the buttons.

Distance: About 23 ft (7 m) from the front of the

remote sensor

Angle: About 30°in each direction of the front of the

remote sensor

Remote control battery installation

Detach the battery cover on the rear of

the remote control, and insert two R03

(size AAA) batteries with and

aligned correctly.

Caution

Do not mix old and new batteries. Never mix different

types of batteries (standard, alkaline, etc.).

AAA

MUTE button

FM/AM button

ARROW buttons

For use in highlighting a selection

on a GUI menu screen, TITLE and

MENU screen.

SETUP button

SLOW SCAN(+/-) buttons

SEARCH button

REPEAT button

NUMERICAL buttons

MARKER button

OPEN/CLOSE button

TEST TONE button

CD/DVD button

ENTER button

DIMMER button

PRESET -/+ (

) buttons

SUBTITLE(S-TITLE) button •

STOP button •

RETURN button

TITLE button

Use the TITLE button to

display the title screen includ-

ed on DVD video discs.

POWER button

• PROGRAM button

• SLEEP button

• CLEAR button

• REPEAT A-B button

DOLBY PROLOGIC II button

SOUND MODE button

BY-PASS button

• LEVEL button

• DELAY button

VIDEO 1/2 buttons

PAUSE button

PLAY button

DISPLAY button

AUDIO button

ZOOM button

MENU button

Use the MENU button to

display the menu screen

included on DVD video

discs.

VOLUME (+/-) buttons

SKIP ( /) buttons

Press and hold button for

about two seconds for

search function.

ANGLE button

Rear Panel

Caution

Do not touch the inner pins of the jacks on the rear

panel. Electrostatic discharge may cause permanent

damage to the unit.

Caution

When you select the function mode to VIDEO1 using the

VIDEO1 button on the remote control, the signal is output

from the front L/R speakers, but not from the VIDEO1

VIDEO OUT and AUDIO OUT L/R connectors.

* VIDEO SELECTOR switch

You can enjoy NTSC or PAL discs by setting the

VIDEO SELECTOR switch to choose the appropriate

system.

PAL: Select when DVD receiver is connected with

PAL-TV.

NTSC: Select when DVD receiver is connected with

NTSC-TV.

AUTO: Select when DVD receiver is connected with

Multi system TV.

•When the selected System Select switch does not

coincide with the system of your TV, normal color

picture may not be displayed.

•Set System Select switch when the power is turned

off.

Dust protection cap

Remove the dust protection cap from the OPTICAL

DIGITAL OUT jack and connect the optical digital cable

(not supplied) securely so that the configurations of

both the cable and the connector match. Keep the dust

protection cap and always reattach the cap when not

using the connector to protect against dust intrusion.

Dust protection cap

** VIDEO OUT SELECTOR Switch

Select either S-VIDEO OUT or COMPONENT VIDEO

OUT, depending on how you connected the DVD

Receiver to the TV.

S-VIDEO OUT

Connector

FM 75ΩCoaxial Antenna Connector

AM Antenna Connectors

WOOFER OUT Connector

VIDEO 2 (Input) Connectors

VIDEO 1 (Input/Output) Connectors

SPEAKER Connectors

POWER CORD

Connect to an AC 100-240V,

50/60Hz outlet only.

VIDEO SELECTOR Switch

Refer to explanation below*.

COMPONENT VIDEO OUT (Y Pb Pr) Connectors

VIDEO OUT SELECTOR

Switch

Refer to explanation below**.

MONITOR OUT

Connector

OPTICAL IN

Connector

GROUND CABLE

Connector

PREPARATION

Connections

S-VIDEO

INPUT

COMPONENT VIDEO INPUT AUDIO INPUT

VIDEO

INPUT

Rear of TV

SCAV

Make one of the following connections, depending on

the capabilities of your existing equipment.

When using the COMPONENT VIDEO OUT jacks,

set the VIDEO OUT SELECTOR switch to COMPO-

NENT. When using the S-VIDEO OUT jack, set the

VIDEO OUT SELECTOR switch to S-VIDEO.

Tips

Depending on your TV and other equipment you wish

to connect, there are various ways you could connect

the player. Use one of the connections described

below.

Please refer to the manuals of your TV, VCR, Stereo

System or other devices as necessary to make the

best connections.

Caution

–

Make sure the DVD Receiver is connected directly to

the TV. Select the correct AV input on your TV.

–Do not connect your DVD Receiver to TV via your

VCR. The DVD image could be distorted by the copy

protection system.

Video connection

Connect the MONITOR OUT jack on the DVD

Receiver to the video in jack on the TV using the

video cable supplied (V).

Connect the Left and Right AUDIO OUT jacks of

the DVD Receiver to the audio left/right in jacks on

the TV (A) using the supplied audio cables.

S-Video connection

Connect the S-VIDEO OUT jack on the DVD

Receiver to the S-Video in jack on the TV using the

optional S-Video cable (S).

Connect the Left and Right AUDIO OUT jacks of

the DVD Receiver to the audio left/right in jacks on

the TV (A) using the supplied audio cables.

Component Video (Color Stream®) connection

Connect the COMPONENT VIDEO OUT jacks on

the DVD Receiver to the corresponding in jacks on

the TV using an optional Y Pb Pr cable (C).

Connect the Left and Right AUDIO OUT jacks of

the DVD Receiver to the audio left/right in jacks on

the TV (A) using the supplied audio cables.

Notes

The signal of S-VIDEO OUT jack will output only

when the function mode is selected to CD/DVD.

When you connect the DVD receiver to your TV, be

sure to turn off the power and unplug both units from

the wall outlet before making any connections.

Connecting to a TV

Connections (Cont’d)

Connecting to Optional Equipment

Connect a TV(Monitor) to the MONITOR OUT or S-VIDEO OUT connector.

Connect a VCR to the VIDEO 1 connectors.

Connect a additional VCR to the VIDEO 2 connectors.

Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector.

VIDEO

OUTIN

AUDIO (L)

AUDIO (R)

VIDEO

OUTIN

AUDIO (L)

AUDIO (R)

VCRAdditional VCR

To AUDIO/VIDEO IN

(VIDEO 2)

To AUDIO/

VIDEO IN

(VIDEO 1)

To AUDIO/

VIDEO OUT

To AUDIO/

VIDEO IN

To AUDIO/

VIDEO OUT

(VIDEO 1)

To AUDIO/VIDEO OUT

DVD Player (or Digital Device, etc)

OPTICAL

Notes

When you select the function mode to VIDEO 1, a video signal is not output at the jack.

If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce

a strong, distorted sound or no sound at all.

FM wire antenna (supplied)

AM loop antenna (supplied)

Antenna Connections

Connect the supplied FM/AM antennas for listening to the radio.

Connect the AM loop antenna to the AM antenna connector.

Connector the FM wire antenna to the FM 75Ωcoaxial connector.

Notes

To prevent noise pickup, keep the AM loop antenna away from the DVD Receiver and other component.

Be sure to fully extend the FM wire antenna.

After connecting the FM wire antenna, keep it as horizontal as possible.

Connections (Cont’d)

PREPARATION

Assembling the Front Speaker

The front speakers are detached from the speaker

stands.

Connect the speaker cords and assemble the front

speakers to the speaker stands as illustrated.

To attach the front speaker to the stand

How to connect the front speakers

When you do not use the stand

Connect the speaker cords to the appropriate terminals

on the bottom face of each front and rear speaker.

When you use the stand

After connecting the speaker cords to the appropriate

terminals on the bottom face of each front and rear

speaker, attach the front and rear speakers to the upper

speaker stands.

To detach the front speaker from the stand

Push a pointed object

such as ball point pen

through the hole and tilt

the speaker as illustrated.

CHANNEL

Assembling the Wireless Speaker

To attach the wireless speaker

to the stand

Connect the speaker to the stand using the screwdriver

and screw, as illustrated.

To detach the wireless speaker

from the stand

Reverse the operations described in “To attach the wire-

less speaker to the stand”.

Setting the Wireless Speaker

Channel

If there is a similar wireless speaker product nearby,

interference may occur. In this case, change the

channel switch to other channel, and turn off the power,

then turn on again.

By using the Channel Switch, set to the same

channel.

Rear of Transmitter

Channel Switch

Left/Right

Wireless Speaker

Notes

In order to operate the unit properly, both Left and Right

Wireless Speakers must be turned on.

Sound may be interrupted due to the effect of external

radio waves.

Connections (Cont’d)

Speaker System Connection

Connect the speakers to the front (right, left) or center speaker connectors.

Connect the subwoofer to the woofer connector.

Connect the power cord of the wireless speaker to the outlet, then press the power button on the wireless

speaker.

Connect the adaptor (DC 7V) to the outlet and transmitter.

Connect the ground cable to the transmitter and rear (right, left) speaker connectors.

Set the distance between this unit and wireless speaker (right, left) within 10m.

Front Speaker (Right)

FE-6100TE

Front Speaker (Left)

FE-6100TE

Center Speaker

FE-6100CVE

Wireless Speaker (Right)

FA-W6100SR

Wireless Speaker (Left)

FA-W6100SL

Subwoofer

FE-6100WE

Transmitter

ACC-W6100

Adaptor (DC 7V)

Notes



It takes about five seconds (and may take longer) for the transmitter and wireless speaker (left, right) to communicate with each other.

When the unit is turned off, the transmitter is also turned off automatically after about twenty seconds.

If either wireless speaker (left. right) is turned off, the wireless speaker will not function.

Be sure to connect the ground

cable to the ground cable con-

nector of this unit by using the

supplied hand screw. If this is

not connected, the transmitter

will not function.

PREPARATION

Connections (Cont’d)

If you feel lack of bass frequency

Connect an active subwoofer to the WOOFER

OUT connector using a monaural audio cord

(not supplied). When you connect an active

subwoofer, disconnect the woofer from the

WOOFER speaker connector.

Red Black

Connect the speakers using the supplied speaker cords.

To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.).

Note

If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

If you connect the wireless speakers using speaker

cords, be sure to match the speaker cord to the

appropriate terminal on the components: + to + and –

to –. If the cords are reversed, the sound will be dis-

torted and lack bass.

Speaker System Connection (Cont’d)

Front Speaker (Right)

FE-6100TE

Front Speaker (Left)

FE-6100TE

Center Speaker

FE-6100CVE

Wireless Speaker (Right)

FA-W6100SR

Wireless Speaker (Left)

FA-W6100SL

Subwoofer

FE-6100WE

Before Operation

Speaker Positioning

In the case of normal position use the 6 speakers (2 front

speakers, center speaker, 2 rear speakers and subwoofer).

If you want to play the excellent bass sound, DTS digital

surround or Dolby Digital surround, you should connect a

subwoofer.

• Front speakers

According to your listening position set up the speakers for

equal distance. And by hearing position set up the interval

between speakers to 45 degree.

• Center speaker

It is ideal that the center speakers and front speakers are

same height. But normally place it above or below the televi-

sion.

• Rear speakers

Place left and right behind the listening area. These speakers

recreate sound motion and atmosphere required for surround

playback. For best results, do not install the rear speakers

too far behind the listening position and install them at or

above the level of the listener’s ears. It is also effective to

direct the rear speakers towards a wall or ceiling to further

disperse the sound.

In the case of a smaller room size, if the audience is near to

the rear wall set the rear speakers opposite each other, and

set the rear speakers above 60 - 90 cm than the listener’s

ears.

• Subwoofer

This can be placed in any front position.

Mini Glossary for Sound Mode

Allows you to enjoy 5.1(or 6) discrete channels of high quality digital

audio from DTS program sources bearing the trademark such as

discs, DVD and compact discs, etc. DTS Digital Surround delivers

up to 6 channels of transparent audio(which means identical to the

original masters) and results in exceptional clarity throughout a true

360 degree sound field. The term DTS is a trademark of DTS

Technology, LLC. Manufactured under license from DTS

Technology, LLC.

The Dolby Digital surround format lets you enjoy up to 5.1 channels

of digital surround sound from a Dolby Digital program source. If

you play DVDs with “”mark, you can enjoy even better sound

quality, greater spatial accuracy, and improved dynamic range.

When playing recordings of live music and classic, this mode pro-

vides a feeling similar to actually being in a small concert hall.

When playing recordings of live music and classic, this mode provides

a feeling similar to actually being in a large concert hall.

This mode provides a three dimensional effect similar to that of

movie theater.

(II)

Dolby Pro Logic II creates five full-bandwidth output channels from

two-channel sources. This is done using an advanced, high-purity

matrix surround decoder that extracts the spatial properties of the

original recording without adding any new sounds or tonal col-

orations.

EMULATION mode:

The Pro Logic Emulation mode offers users the same robust sur-

round processing as original Pro Logic, in case the source con-

tent is not of optimum quality, or if there is a desire to hear the

program more “as it used to be.”When this mode is used, it is

called Pro Logic, as before. There is no “Pro Logic I”mode. The

Pro Logic emulation mode is optional. Dolby does not require

PLII products to use the original Pro Logic decoding algorithm.

However, if the DSP contains the original Pro Logic code, and if

the product maker would like to use it, this is quite acceptable

and even encouraged. A product must not offer both original Pro

Logic and the Pro Logic emulation mode.

MOVIE mode:

The Movie mode is for use with stereo television shows and all

programs encoded in Dolby Surround. The result is enhanced

soundfield directionality that approaches the quality of discrete

5.1-channel sound.

MUSIC mode:

The Music mode is for use with any stereo music recordings, and

provides a wide and deep sound space. The Music mode

includes controls that allow the sound to be tailored to individual

listening tastes.

VIRTUAL mode:

The Virtual mode is usually used when Pro Logic II is connected

to a virtual process for speaker use. However, there might be

some virtualizers for which this mode does not produce the

intended result. For those virtualizers, Movie mode may give the

best surround effect. Virtual mode is designed to be used with

the virtual process developed by Dolby Laboratories. The Pro

Logic II mode should be called only “Pro Logic II”so the Virtual

name can be reserved to describe the speaker virtualization

process itself.

MATRIX mode:

The Matrix mode is the same as the Music mode except that the

directional enhancement logic is turned off. It may be used to

enhance mono signals by making them seem “larger.”The Matrix

mode may also find use in auto systems, where the fluctuations

from poor FM stereo reception can otherwise cause disturbing

surround signals from a logic decoder. The ultimate “cure”for

poor FM stereo reception may be simply to force the audio to

mono.

SURROUND OFF (2CH STEREO)

Outputs the sound from the front left and right speakers and sub-

woofer. Standard two channel (stereo) sources completely bypass

the sound field processing. This allows you to play any source using

only the front left and right speakers and subwoofer. You can

select SURROUND OFF by pressing BY-PASS on the remote

control.

Center Speaker

Front

Speaker

(Left)

Speaker Positioning Example

Rear

Speaker

(Left)

Rear

Speaker

(Right)

Front

Speaker

(Right)

Subwoofer

PREPARATION

Before Operation (Cont’d)

Sound Mode (Except AM)

You can enjoy surround sound simply by selecting one

of the pre-programmed sound fields according to the

program you want to listen to.

When PCM indicator is only displayed in the

display window:

Each time you press SOUND MODE button, the sound

mode is changed as the following order;

PRO LOGIC →HALL1 →HALL2 →THEATER

Each time you press button, the sound mode of Pro

Logic II is changed as the following order;

PRO LOGIC →

MOVIE →MUSIC →VIRTUAL → MATRIX

Tip

You can select SURROUND OFF (2CH STEREO) mode by

pressing BY-PASS button.

When DVD is inserted.

You can change the sound mode of DVD (Dolby Digital, DTS,

PRO LOGIC, etc) by pressing the AUDIO button on the remote

during playback.

Although the DVD contents differ from disc to disc, the follow-

ing explains the basic operation when this feature is used.

Each time you press AUDIO button, the sound mode of DVD is

changed as the following order;

→→ and

When DVD is inserted and PRO LOGIC

indicator lights.

Each time you press button, the sound mode of Pro

Logic is changed as the following order;

PRO LOGIC →PLIIMOVIE →PLIIMUSIC →PLIIVIRTUAL → PLIIMATRIX

Tip

You can set PRO LOGIC mode to Off (2CH STEREO) by

pressing BY-PASS button and the PRO LOGIC indicator disap-

pears.

For your reference

•

The DVD Receiver memorizes the last mode set-

tings for each source individually.

•

You can identify the encoding format of program

software by looking at its packaging.

- Dolby Digital discs are labeled with the logo.

- Dolby Surround encoded programs are labeled with

the logo.

- DTS Digital Surround discs are marked with DTS.

Note

When you play sound tracks with 96kHz sampling frequency,

the output signals will be converted to 48kHz (sampling fre-

quency).

Sound Level

You can

set the sound level of the desired channel.

Press LEVEL.

The level indicator will appear in the display window.

Press

to select a desired speaker to set.

Each time you press the

button, it is changed as the

following order;

FL (Front Left) →C (Center) →FR (Front Right) →

SR (Surround Right) →SL (Surround Left) →

SW (Subwoofer) →FL (Front Left)

•On the 2 channel stereo mode, you can only select

the SW (Subwoofer).

Press

to adjust the sound level of the

selected channel. (-6dB ~ +6dB)

Repeat step 2-3 and adjust the sound level of

the other channels.

If setting is complete, press LEVEL.

Test Tone

This function allows you can easily adjust the sound

balance of the speakers from the listener's position.

Select the test tone mode by pressing TEST

TONE.

•A hiss noise comes out for 2 seconds from each speak-

ers in the following order;

FL (Front Left) →C (Center) →FR (Front Right) →

SR (Surround Right) →SL (Surround Left) →

SW (Subwoofer) →FL (Front Left)

You can adjust the sound level during operating

the test tone, first press LEVEL then press

buttons, so that all speaker’s sound level is

same from the listener’s position.

•During operating the test tone, if you adjust the sound

level, it will be paused in the current speaker channel.

If setting is complete, press TEST TONE.

Before Operation (Cont’d)

Delay Time Setting

In Dolby Digital or Dolby Pro Logic mode it is assumed

that the distance from the listener to each of the speak-

ers is equal. If not then setting the delay times of the

center or rear speakers the sound will be heard simulta-

neously by the listener.

The interval from the speakers to the listener. If the dis-

tance from the listener to each speakers is same, in the

Dolby Digital and Dolby Pro Logic mode the delay time

of each speakers is as following.

In Dolby Digital mode

Center delay time : 0 ~ 5ms

Rear delay time: 0 ~ 15ms

In Dolby Pro Logic mode

Center delay time : cannot setting

Rear delay time : 15-30ms

If the rear delay time is set in Dolby Digital mode, in the

Dolby Pro Logic mode the delay time will be automatical-

ly set.

The delay time is 1 msec per 30 cm.

If the center and rear speakers are further than the front

speakers from the listener, the delay time will be at min-

imum.

Surround delay time setting

If the distance of DSis equal to or longer than the DFin

the left figure, set the Surround Delay Time as 0ms.

Otherwise, change the setting according to the below.

Ex) If the distance from front speakers to the listener is

3 m and from rear speakers from the listener is 1.5 m,

in the Dolby Digital mode the rear delay time is 5 msec.

3m (DF) - 1.5m (DS) = 1.5m (B)

1.5m (B) = 150cm / 30cm = 5msec

In Dolby Pro Logic II (Surround delay time):

Emulation: 10 ~ 25msec

Movie: 10 ~ 25msec

Music: 0 ~ 15msec

Virtual: cannot setting

Matrix: 0 ~ 15msec

Center delay time setting (Dolby Digital mode only)

If the distance of DF is equal to the distance of DC in

the left figure, set the Center Delay Time as 0ms.

Otherwise, change the setting according to the table

below.

Ex) If the distance from the front speakers to the listen-

er is 3m and from the center speaker to the listener is

2.4m, the center delay time is 2msec.

3m (DF) - 2.4m (DC) = 60cm (A)

60cm (A) / 30cm = 2msec

Setting the delay time in the Dolby

Digital and Dolby Pro Logic (II) mode

Press DELAY.

The current surround delay time appears in the dis-

play window.

You can select center delay time by pressing

in the Dolby Digital mode only.

Press

to change the delay time.

If setting is complete, press DELAY.

Note

You can adjust the center delay time only in the Dolby Digital

mode and its delay time appears.

Center Width (MUSIC mode of Dolby Pro Logic II only)

This control allows center-channel sounds to be posi-

tioned between the center speaker and the left/right

speakers over a range of eight steps. Step “3”uses a

combination of all three front speakers to give the best

vocal imaging and most seamless soundstage presen-

tation, and is recommended for most recordings. Step

“0”places all center sound in the center speaker. Step

“7”places all center sound equally in the left/right

speakers, just as in conventional stereo.

DIMENSE (MUSIC mode of Dolby Pro Logic II only)

This control allows the user to gradually adjust the

soundfield either towards the front or the rear. This can

be useful to help achieve the desired balance from all

the speakers with certain recordings that may contain

either too much or too little spatial effect. Step “0”is the

recommended setting, which has no effect on the

sound. Steps 1, 2, and 3 gradually move the sound for-

ward, and steps –1, –2, and –3 move the sound

towards the surrounds.

PANORAMA (MUSIC mode of Dolby Pro Logic II only)

This control extends the front stereo image to include

the surround speakers for an exciting “wraparound”

effect with side-wall imaging. It is particularly effective

for recordings which have strong left- or right-channel

elements in the mix, as these are detected and accen-

tuated by the Panorama process.

SL SR

DCDF

(A)

(B)

PREPARATION

Before Operation (Cont’d)

Caution:

Before using the remote control, press the DVD or TV

button to select the device to be operated.

General Explanation

This manual gives the basic instructions for operating

the DVD Receiver. Some DVDs require specific opera-

tion or allow only limited operation during playback.

When this occurs, the symbol appears on the TV

screen, indicating that the operation is not permitted by

the DVD Receiver or is not available on the disc.

On-Screen Display

The general playback status can be displayed on the TV

screen. Some items can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Press or to select an item.

The selected item will be highlighted.

Press or to change the setting of an item.

The number buttons can be also be used for setting

numbers (e.g., title number). For some functions,

press ENTER to execute the setting.

Temporary Feedback Field Icons

Repeat Title

Repeat Chapter

Repeat Track (non-PBC Video CDs only)

Repeat All Tracks (non-PBC Video CDs only)

Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

Notes

Some discs may not provide all of the features on the

on-screen display example shown below.

If no button is pressed for 10 seconds, the on-screen

display disappears.

OFF

A B

ALL

TRACK

CHAPT

TITLE

Items

Title Number

Chapter Number

Time search

Audio language

and Digital Audio

Output mode

Subtitle language

Angle

Function (Press

to select desired item)

Shows the current title number and total number of

titles, and skip to the desired title number.

Shows the current chapter number and total number of

chapters, and skips to the desired chapter number.

Shows the elapsed playing time, and

search the point by the elapsed time directly.

Shows the current audio soundtrack language,

encoding method and channel number, and

changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current angle number and total number of

angles, and changes the angle number.

Selection Method

/ , or

Numeric, ENTER

/ , or

Numeric, ENTER, SKIP

Numeric, ENTER

AUDIO

1/3

1/12

0:16:57

1 ENG

5.1 CH

OFF

1/1

Items

Track Number

Time

Audio Channel

Function (Press

to select desired item)

Shows the current track number, total number of tracks

and PBC On mode, and to the desired track number.

Shows the elapsed playing time (Display only)

Shows the audio channel, and

changes the audio channel.

Selection Method

/ , or

Numeric, ENTER, SKIP

–

PBC

0:16:57

STER.

VCD2.0 VCD1.1

DVD

S-TITLE

ANGLE

AUDIO

Initial Settings

You can set your own Personal Preferences on the

receiver.

Initial Settings General Operation

Press SETUP.

The setup menu appears.

Press

to select the desired item.

The screen will show the current setting for the

selected item, as well as alternate setting(s).

While the desired item is selected, press , then

to select the desired setting.

Press ENTER to confirm your

selection.

Some items require additional steps.

Press SETUP, RETURN or PLAY to exit the setup

menu.

Language

Disc Language

Select a language for the disc’s Menu, Audio and

Subtitle.

Original : The original language set for the disc is selected.

Other : To select another language, press number buttons to

enter the corresponding 4-digit number according to the lan-

guage code list on page 30. If you enter the wrong language

code, press CLEAR.

Menu Language

Select a language for the setup menu. This is the menu

you see when you press SETUP.


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is con-

nected. Displays theatrical images with masking bars

above and below the picture.

4:3 Panscan: Select when a standard 4:3 TV is con-

nected. Displays pictures cropped to fill your TV screen.

Either sides of the picture are cut off.

16:9 Wide: Select when a 16:9 wide TV is connected.

PBC

PBC On/Off

Set Playback Control (PBC) to On or Off

On: Video CDs with PBC are played back according to

the PBC.

Off: Video CDs with PBC are played back in the same

way Audio CDs.

VCD2.0

DVD

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Disc Audio Original

Spanish

English

Chinese

Polish

Hungarian

Russian

French

German

Italian

Other – – – –

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Disc Audio English

Chinese

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Disc Audio 4:3 Letterbox

4:3 Panscan

16:9 Wide

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Disc Audio Original

Spanish

English

Chinese

Polish

Hungarian

Russian

French

German

Italian

Other – – – –

Before Operation (Cont’d)

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Disc Audio Off

PREPARATION

Before Operation (Cont’d)

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for

children. Therefore, discs may contain Parental Control

information that applies to the complete disc or to

certain scenes on the disc. These scenes are rated from

1 to 8, and alternatively, more suitable scenes are avail-

able for selection on some discs. Ratings are

country dependent. The Parental Control feature allows

you to prevent discs from being played by your children

or to have certain discs played with alternative scenes.

Select “Rating” on the Setup menu using the

and buttons.

While “Rating” is selected, press .

When you have not entered a password yet;

Enter a 4-digit password using the numerical buttons

to create a personal 4-digit security password, then

press ENTER. And enter the 4-digit password again

and press ENTER to verify.

When you have already entered a password;

Enter a 4-digit password using the numerical but-

tons to confirm the personal 4-digit security pass-

word, then press ENTER.

If you make a mistake before pressing ENTER, press

CLEAR and enter 4-digit security password again.

Select a rating from 1 to 8 using the / but-

tons. One (1) has the least playback restrictions.

Eight (8) has the most playback restrictions.

Unlock: If you select Unlock, Parental Control is not

active. The disc will play in full.

Ratings 1 to 8: Some discs contain scenes not

suitable for children. If you set a rating for the play-

er, all disc scenes with the same rating or lower will

be played. Higher rated scenes will not be played

unless an alternative scene is available on the disc.

The alternative must have the same rating or a

lower one. If no suitable alternative is found, play-

back will stop. You must enter the 4-digit password

or change the rating level in order to play the disc.

Press ENTER to confirm your rating selection,

then press SETUP to exit the menu.

Country Code

Enter the code of a country/area whose standards were

used to rate the DVD video disc, referring to the list

(See “Country Code List”, page 31.).

Select Country Code using the

/ buttons on the setup menu.

While Country Code is selected, press .

Follow step 3 of “Rating” on left.

Select the first character using the / buttons.

Shift the cursor using / buttons and select

the second character using / buttons.

Press ENTER to confirm your country code

selection, then press SETUP to exit the menu.

Note

Confirmation of the 4-digit password is necessary when

the code is changed (see “Changing the 4-digit code”

below ).

Changing the 4-digit code

1Follow steps 1-2

as shown above to the left (Rating)

2Enter the old code, then press ENTER.

3Select Change using the /buttons then press

ENTER.

4Enter the new 4-digit code, then press ENTER.

5Enter exactly the same code a second time and veri-

fy by pressing ENTER.

6Press SETUP to exit the menu.

If you forget your 4-digit code

If you forget your password, to clear the current pass-

word, follow the procedure below.

1Press SETUP to display the setup menu.

2Use the Number buttons to enter the 6-digit number

“210499.”

The 4-digit password is cleared.

Enter a new code as shown above to the left (Rating).

DVD

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

Disc Audio Code Set

S G

PBC

Disc Subtitle

Disc Menu

Rating

Country Code

TV Aspect

Menu Language

PBC

Disc Audio 8

Unlock

Change

Operation with Radio

Presetting the radio stations

You can preset 30 stations for FM and AM. Before tun-

ing, make sure that you have tuned down the volume to

the minimum.

Press FUNCTION on the front panel repeatedly

or FM/AM on the remote control until the FM or

AM appears in the display window.

And then every time you press FM/AM, FM and

AM changes alternately.

Press and hold TUNING/SKIP or

on the front panel for about two seconds until

the frequency indication starts to change, then

release.

Scanning stops when the DVD Receiver tunes in a

station. “TUNED”and “STEREO”(for stereo program)

appear in the display window.

Note

“Tuned”only appears when the signal is FM and stereo.

Press MEMORY.

A preset number will flash in the display window.

Press TUNING/SKIP or on the

front panel to select the preset number you

want.

Press MEMORY again.

The station is stored.

Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUNING/SKIP or repeatedly in

step 3 to tune in the station manually.

To clear all the memorized stations

Press and hold MEMORY for about three seconds and

“CLEAR ALL”appears in the display window and then

press MEMORY again, the stations are cleared.

Note

If all stations have already been entered, FULL mes-

sage will appear in the display window for a moment

and then a preset number will flash. To change the pre-

set number, follow the steps 5-6 as above.

Listening to the radio

Preset radio stations in the DVD receiver’s memory first

(see “Presetting radio stations”on the left side).

Press FM/AM until AM or FM appears in the dis-

play window.

The last received station is tuned in.

Press PRESET /repeatedly to select the

preset station you want.

Each time you press the button, the DVD receiver tunes in

one preset station at a time.

Adjust the volume by rotating VOLUME on the

front panel or by pressing VOLUME + or - on the

remote control repeatedly.

To turn off the radio

Press POWER to turn the DVD receiver off or select

another function mode (DVD/CD, VIDEO 1 or VIDEO 2).

To listen to non-preset radio stations

Use manual or automatic tuning in step 2.

For manual tuning, press TUNING/SKIP or

on the front panel repeatedly.

For automatic tuning, press and hold TUNING/SKIP

or for about two seconds on the front

panel.

For your reference

If an FM program is noisy

Press MONO/ST. on the front panel so that

“STEREO”disappears in the display window. There

will be no stereo effect, but the reception will

improve. Press the button again to restore the stereo

effect.

To improve reception

Realign the antenna.

OPERATION

Operation with Radio (Cont’d)

Sleep Timer Setting

You can set the DVD receiver to turn off automatically at

a specified time.

Press SLEEP to set the desired sleep time.

The SLEEP indicator and sleep time appears in the dis-

play window.

Each time you press SLEEP the setting changes

in the following order.

SLEEP 120 →90 →60 →50 →40 →30 →20 →10 →OFF

Note

You can check the time remaining before the DVD

receiver turns off.

Press SLEEP. The remaining time appears in the

display window.

Dimmer

This function will appear in the display window and vol-

ume LED in power-on status.

Press the DIMMER repeatedly.

Mute

Press MUTE to mute your unit.

You can mute your unit in order, for example, to answer

the telephone, “MUTE”indicator flashes in the display

window.

Using Headphone Jack

Connect a stereo headphone plug ( 3.5mm) into the

PHONES connector.

The speakers are automatically disconnected when you

plug in the headphones (not supplied).

Selecting input source

You can use VCRs or other units connected to the

VIDEO1, VIDEO2 connectors or Optical connector.

Refer to the owner’s manual supplied with the unit for

further information on the operation.

Press VIDEO1 or VIDEO2 repeatedly on the remote

control to select the desired input source.

Each time you press this button, the mode of the func-

tion changes in the following sequence:

VIDEO1 ANA: for selecting the analog signal from VIDEO1

AUDIO IN (L/R) & VIDEO IN Connectors.

VIDEO1 DIG: for selecting the digital signal from OPTICAL

IN Connector.

VIDEO2 ANA: for selecting the analog signal from VIDEO2

AUDIO IN (L/R) & VIDEO IN Connectors.

VIDEO2 DIG: for selecting the digital signal from OPTICAL

IN Connector.

Note

The Optical input function is available only when the

other unit’s Sampling Frequency is 32 ~ 48kHz.

Operation with DVD and Video CD

Playing a DVD and Video CD

Getting to play

Switch on the TV and select the AV input source con-

nected to the DVD receiver.

When you want to enjoy the sound of discs or from

the audio system, turn on the audio system and

select the input source connected to the DVD receiver.

Press OPEN/CLOSE to open the disc tray.

Load your chosen disc in the tray, with the label

facing up.

When a double-sided DVD is inserted, make sure

the side you want to play is facing up.

Press OPEN/CLOSE to close the tray.

READING appears on the TV screen, and playback

starts automatically. If playback does not start,

press PLAY.

In some cases, the disc menu might appear

instead.

When the menu screen is displayed

The menu screen may be displayed first after loading a

DVD or Video CD which contains a menu.

Use the buttons to select the title/chapter you

want to view, then press ENTER to start playback.

Press TITLE or MENU to return to the menu screen.

Use the number buttons to select the track you want

to view.

Press RETURN to return to the menu screen.

Menu setting and the exact operating procedures for

using the menu may differ depending on the disc.

Follow the instructions on the each menu screen.

You also may set PBC to Off under setup. See page

18.

Notes

–If Parental Control is set and the disc is not within the

Rating settings (not authorized), the 4-digit code must

be entered and/or the disc must be authorized (see

“Parental Control”, on page 19).

–DVDs may have a region code.

–Your receiver will not play discs that have a region

code different from your receiver. The region code for

this receiver is 3 (three).

General Features

Note

Unless stated, all operations described are based on

remote control use. Some operations can be carried out

using the setup menu.

Moving to another TITLE

When a disc has more than one title, you can move to

another title as follows:

Press DISPLAY when playback is stopped, then

press the appropriate numerical button (0-9) to select

a title number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a

disc has more than one track, you can move to another

chapter/track as follows:

Press SKIP .or >briefly during

playback to select the next chapter/track or to return

to the beginning of the current chapter/track.

Press .twice briefly to step back to the previous

chapter/track.

To go directly to any chapter during DVD playback,

press DISPLAY. Then, press / to select C

(chapter) (or for a Video CD, select T for track). Then,

enter the chapter/track number using the numerical

buttons (0-9).

Note

For two-digit numbers, press the buttons in rapid

succession.

Slow Motion

1Press SLOW SCAN + or - during playback.

The player will enter SLOW mode.

2Use the SLOW SCAN + or - to select the required

speed: t 1/16, t 1/8, t 1/4 or t 1/2 (backward),

or T1/16, T1/8, T1/4 or T1/2 (forward).

3To exit slow motion mode, press PLAY.

Note

Slow motion playback in reverse is not applicable for

Video CD.

VCD1.1VCD2.0

DVD

1/3

1/12

VCD1.1

DVD

1/3

DVD

VCD2.0

DVD

VCD1.1VCD2.0

DVD

OPERATION

Operation with DVD and Video CD (Cont’d)

General Features (cont’d)

Still Picture and Frame-by-frame playback

1Press PAUSE during playback.

The player will now go into PAUSE mode.

2You can advance the picture frame by frame by press-

ing PAUSE repeatedly on the remote control.

1Press and hold SKIP .or >for about two sec-

onds during playback.

The player will now go into SEARCH mode.

2Press and hold SKIP .or >repeatedly to select

the required speed: mX2, mX4, mX16, mX100

(backward) or MX2, MX4, MX16, MX100 (for-

ward).

With a Video CD, the Search speed changes: mX2,

mX4, mX8 (backward) or MX2, MX4, MX8

(forward).

3To exit SEARCH mode, press PLAY.

Repeat

DVD Video Discs - Repeat Chapter/Title/Off

1To repeat the currently playing chapter, press

REPEAT.

The Repeat Chapter icon appears on the TV screen.

2To repeat the title currently playing, press REPEAT a

second time.

The Repeat Title icon appears on the TV screen.

3To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Video CDs - Repeat Track/All/Off

1To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the TV screen.

2To repeat the disc currently playing, press REPEAT a

second time.

The Repeat All icon appears on the TV screen.

3To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the

setup menu to use the Repeat function. See page

Repeat A-B

To repeat a sequence in a title:

1Press REPEAT A-B at your chosen starting point.

A- appears briefly on the TV screen.

2Press REPEAT A-B again at your chosen end point.

A-B appears briefly on the TV screen, and the repeat sequence

begins (a-b repeat appears on the receiver’s display).

3To cancel the sequence, press REPEAT A-B.

Time Search

The Time Search function allows you to start playing at

any chosen time on the disc.

1Press DISPLAY during playback. The on-screen dis-

play appears on the screen.

The Time Search box shows the elapsed playing time of the

current disc.

2Within 10 seconds, press / to select the Time

Search icon in the on-screen display.

The “-:--:--”appears in the Time Search box.

3Within 10 seconds, use the numerical buttons to enter

the required start time. Enter hours, minutes and sec-

onds from left to right in the box.

If you enter the wrong numbers, press CLEAR to remove the

numbers you entered. Then enter the correct numbers.

4Within 10 seconds, press ENTER to confirm the start

time.

Playback starts from the selected time on the disc. If you enter

an invalid time, playback will continue from the current point.

-:--:--

0:16:57

DVD

OFF

A B

A *

VCD1.1VCD2.0

DVD

OFF

ALL

TRACK

TITLE

CHAPT

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

Operation with DVD and Video CD (Cont’d)

General Features (cont’d)

Zoom

The Zoom function allows you to enlarge the video

image and to move through the enlarged image.

1Press ZOOM during playback or still playback to acti-

vate the Zoom function.

If you press ZOOM repeatedly, the magnification level

increases up to six times.

2Use the buttons to move through the

zoomed picture.

3Press CLEAR to resume normal playback or return to

the paused image.

Notes

The zoom function may not work for some DVDs.

The zoom function may not work on multi-angle

scenes.

Marker Search

You can start playback from a memorized point. Up to

nine points can be memorized.

To enter a mark, follow these steps.

1During disc playback, press MARKER when

playback reaches the spot that you want to

memorize.

The Marker icon will appear on the TV screen briefly.

2Repeat step 1 to enter up to nine Marker points on a

disc.

To Recall a Marked Scene

1During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2Within 10 seconds, press / to select a Marker

number that you want to recall.

3Press ENTER.

Playback will start from the Marked scene.

4To remove the MARKER SEARCH menu, press

SEARCH.

To clear a Marked Scene

1During disc playback, press SEARCH.

The MARKER SEARCH menu will appear on the screen.

2Press / to select the Marker number that you

want to erase.

3Press CLEAR.

The Marker number will be erased from the list.

4Repeat steps 2 and 3 to erase additional Marker

numbers.

5To remove the MARKER SEARCH menu, press

SEARCH.

Special DVD Features

Checking the contents of DVD Video

discs: Menus

DVDs may contain menus that allow you to access spe-

cial features. To use the disc menu, press MENU. Then,

press the appropriate numerical button to select an

item. Or, use the buttons to highlight your

selection, then press ENTER.

Title Menu

1Press TITLE.

If the current title has a menu, the menu will appear on the

screen. Otherwise, the disc menu may appear.

2The menu can list camera angles, spoken language

and subtitle options, and chapters for the title.

3To remove the title menu, press TITLE again.

Disc Menu

1Press MENU.

The disc menu is displayed.

2To remove the disc menu, press MENU again.

Camera Angle

If the disc contains sequences recorded from different

camera angles, the angle icon blinks on the display. You

can then change the camera angle if you wish.

Press ANGLE repeatedly during playback to select a

desired angle.

The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a dif-

ferent audio language or audio track.

Subtitles

Press S-TITLE repeatedly during playback to see the

different subtitle languages.

Note

If appears, the feature is not available on the disc.

1 ENG

DVD

1 ENG

6 CH

DVD

1/1

DVD

MARKER SEARCH

1/9

VCD1.1VCD2.0

DVD

VCD1.1VCD2.0

DVD

OPERATION

Operation with Audio CD and MP3 Disc

Playing an Audio CD and MP3 disc

The DVD Receiver can play MP3 format recordings on

CD-ROM, CD-R or CD-RW discs.

Before playing MP3 recordings, read the notes of MP3

Recordings on page 27.

Insert a disc and close the tray.

The menu appears on the TV screen.

Audio CD menu MP3 menu

Press /to select a track then press PLAY.

Playback starts.

During playback, the current track’s elapsed playing

time will appear on the display.

Playback will stop at the end of the disc.

To stop playback at any other time, press STOP.

Pause

1Press PAUSE during playback.

2To return to playback, press PLAY or press PAUSE

again.

Moving to another Track

Press SKIP .or >briefly during

playback to go to the next track or to return to the

beginning of the current track.

Press SKIP .twice briefly to step back to the pre-

vious track.

In case of audio CD, to go directly to any track, enter

the track number using the numerical buttons (0-9)

during playback.

Repeat TRACK/ALL/OFF

1To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the menu screen.

2To repeat all tracks of disc in the unit, press REPEAT

a second time.

The Repeat All icon appears on the menu screen.

3To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the menu screen.

1Press and hold SKIP .or >for about two sec-

onds during playback.

The player will now go into SEARCH mode.

2Press and hold SKIP .or >repeatedly to select

the required speed: mX2, mX4, mX8 (backward)

or MX2, MX4, MX8 (forward).

3Search speed and direction are indicated on the

menu screen.

4To exit SEARCH mode, press PLAY.

Note

The sound is muted during SEARCH mode.

Repeat A-B

To repeat a sequence.

1During disc playback, press REPEAT A-B at your

chosen starting point.

The Repeat icon and “A -”appears on the menu screen.

2Press REPEAT A-B again at your chosen end point.

The Repeat icon and “A B”appears on the menu screen,

and the sequence begins to play repeatedly.

3To exit the sequence and return to normal play, press

REPEAT A-B again.

The Repeat icon and “OFF”appears on the menu screen.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a dif-

ferent audio channel (STEREO, LEFT or RIGHT).

MP3CD

ProgramCD

Clear All

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

TRACK 8

0:56:35 STER.

ProgramMP3

Clear All

TRACK 1.MP3

TRACK 2.MP3

TRACK 3.MP3

TRACK 4.MP3

TRACK 5.MP3

TRACK 6.MP3

TRACK 7.MP3

TRACK 8.MP3

00:00 1 OFF

Programmed Playback

VCD1.1VCD2.0

MP3CD

Programmed Playback with Audio CD

and MP3 Disc

Program allows you to store your favorite tracks for a

particular disc in the receiver memory.

Program can contain 32 tracks (Audio CD) or 60 tracks

(MP3 disc).

Insert the disc and close the tray.

The menu is displayed on the TV screen.

Press PROGRAM during playback or in the stop

mode to enter the Program Edit mode.

The mark will appear to the right of the word Program

on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode;

the mark will disappear.

Press / to select a track then press ENTER

to place the selected track on the Program list.

Repeat step 3 to place additional tracks on the

Program list.

Audio CD menu MP3 menu

Press .

The programmed track you selected last is highlighted on

the program list.

Press / to select the track you want to start

playing.

Press TITLE to move to the next page.

Press MENU to move to the previous page.

Press PLAY to start.

Playback begins in the order in which you programmed

the tracks and “PROGRAM”appears on the menu screen.

Playback stops after all of the tracks on the Program list

have played once.

Programmed Playback with Video CD

Note

On a Video CD with PBC, you must set PBC to Off on the

setup menu to use the Program function. See page

Insert Video CD and close the tray.

Press PROGRAM while playback is stopped.

The VCD Program menu will appear.

Note

Press RETURN or PROGRAM to exit the Program menu.

Follow steps 3-7 of “Programmed Playback with

Audio CD and MP3 Disc” on left.

Repeat Programmed Tracks

To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the menu screen.

To repeat all tracks of program list, press REPEAT a

second time.

The Repeat All icon appears on the menu screen.

To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the menu screen.

Erasing a Track from Program List

1Press PROGRAM during playback or in the stop

mode to enter the Program Edit mode.

The mark will appear.

2Press to move to the Program list.

3Use /to select the track that you wish to erase

from the Program list.

4Press CLEAR.

The track will be erased from the Program list.

Erasing the Complete Program List

1Follow steps 1-2 of “Erasing a Track from Program

List”as above.

2Use /to select “Clear All”, then press ENTER.

The complete Program for the disc will be erased.

The programs are also cleared when the disc is removed.

To resume normal playback from programmed

playback

Press and hold PROGRAM for 3 seconds until

“PROGRAM”indicator disappears in the display window.

ProgramCD

Clear All

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 12

TRACK 8

TRACK 10

TRACK 3

TRACK 5

TRACK 6

TRACK 7

TRACK 8

STER.

0:56:35

ProgramMP3

Clear All

TRACK 1.MP3

TRACK 2.MP3

TRACK 3.MP3

TRACK 4.MP3

TRACK 8.MP3

TRACK 2.MP3

TRACK 4.MP3

TRACK 3.MP3

TRACK 5.MP3

TRACK 6.MP3

TRACK 7.MP3

TRACK 8.MP3

00:00 1 OFF

VCD

Clear All

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

TRACK 8

Program

OPERATION

Last Condition Memory

This DVD receiver memorizes the last condition for the

last disc you have watched. Settings remain in memory

even if you remove the disc from the DVD-receiver or

switch off the player. If you load a disc that has its set-

tings memorized, the latest stop position is automatical-

ly recalled.

Notes

–Settings are stored in memory for use any time.

–This player does not memorize settings of a disc if

you switch off the player before commencing to play

it.

Screen Saver

The screen saver picture appears when you leave the

DVD Receiver in stop mode for about five minutes.

Video Mode Setting

With certain discs, the playback picture may be flick-

ering or Dot Crawl is shown on straight lines. That

means Vertical interpolation or De-interlace is not

perfectly matched with the disc. In that case, the

picture quality can be improved with changing video

mode.

To change the video mode, press and hold DISPLAY

for 3 seconds during playback of a disc. Changed

video mode number is displayed on the TV screen.

Check whether video quality is improved. You can

repeat above procedure until desired picture quality

appears.

Procedure of video mode is changed;

MODE1 → MODE2 →MODE3 →MODE4 →

MODE5 → MODE1

If you turn off the the power, the video mode will be

back to initial state (MODE1).

Notes on MP3 Discs

About MP3



An MP3 file is audio data compressed by using MPEG1,

the audio layer-3 file-coding scheme. We call files that

have the “.mp3”file extension “MP3 files”.

The DVD receiver can not read an MP3 file that has

a file extension other than “.mp3”.

The DVD receiver player can not read a fake MP3 file

that has a file extension “.mp3”.

MP3 disc compatible with this player is limited

as follows:

1. Sampling Frequency / only at 44.1kHz

2. Bit rate / within 96 - 192kbps

3. CD-R physical format should be “ISO 9660”

4. If you record MP3 files using the software which

cannot create a FILE SYSTEM, for example “Direct-

CD”etc., it is impossible to playback MP3 files. We

therefore recommend that you use “Easy-CD

Creator”, which creates an ISO9660 file system.

5. A single session disc requires MP3 files in the first

track. If there is no MP3 file in the 1st track, it cannot

playback MP3 files. If you wish to playback MP3

files, format all the data in the disc or use a new

one.

6. We do not recommend using CD-RW discs. Please

use finished CD-R discs only.

7. File names should be named using 8 letters or less

and must incorporate “.mp3”extension

e.g. “********.MP3”.

8. Do not use special letters such as “_?!><+*}{`[@

]:;\/.,”etc.

9. Total number of files on the disc should be less than

200.

10. Use 74 minute CD-R discs (650M), Do not use 80

minute CD-R (700M) software

This DVD receiver requires discs/recordings to meet

certain technical standards in order to achieve optimal

playback quality. Pre-recorded DVDs are automatically

set to these standards. There are many different types

of recordable disc formats (including CD-R containing

MP3 files).

Customers should also note that permission is required

in order to download MP3 files and music from the

Internet. Our company has no right to grant such per-

mission. Permission should always be sought from the

VCD1.1VCD2.0

DVD

VCD1.1

CDDVD

Additional Information

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but

the DVD receiver does

not work.

No picture.

There is no sound or

only a very low-level

sound is heard.

The playback picture is poor.

The DVD receiver does

not start playback.

Severe hum or noise is

heard.

Cause

•The power cord is disconnected.

•No disc is inserted.

•The TV is not set to receive DVD signal

output.

•The video cable is not connected

securely.

•The connected TV power is turned off.

•The equipment connected with the

audio cable is not set to receive DVD

signal output.

•The audio cables are not connected

securely.

•The power of the equipment connected

with the audio cable is turned off.

•The audio connecting cord is damaged.

•The disc is dirty.

•No disc is inserted.

•An unplayable disc is inserted.

•The disc is placed upside down.

•The disc is not placed within the guide.

•The disc is dirty.

•A menu is on the TV screen.

•The Rating level is set.

•The plugs and jacks are dirty.

•The disc is dirty.

•The speakers and components are

connected poorly.

•The DVD receiver is located too close to

the TV.

Correction

•Plug the power cord into the wall outlet

securely.

•Insert a disc. (Check that the DVD or,

audio CD indicator in the DVD display is

lit.)

•Select the appropriate video input mode

on the TV so the picture from the DVD

receiver appears on the TV screen.

•Connect the video cable into the jacks

securely.

•Turn on the TV.

•Select the correct input mode of the

audio receiver so you can listen to the

sound from the DVD receiver.

•Connect the audio cable into the jacks

securely.

•Turn on the equipment connected with

the audio cable.

•Replace it with new one.

•Clean the disc.

•Insert a disc. (Check that the DVD, or

audio CD indicator in the DVD display is

lit.)

•Insert a playable disc. (Check the disc

type, color system and Regional code.)

•Place the disc with the playback side

down.

•Place the disc on the disc tray correctly

inside the guide.

•Clean the disc.

•Press the SET-UP button to turn off the

menu screen.

•Cancel the Rating function or change

the rating level.

•Wipe them with a cloth slightly mois-

tened with alcohol.

•Clean the disc.

•Connect the speakers and components

securely.

•Move your TV away from the audio com-

ponents.

REFERENCE

Troubleshooting (Cont’d)

Symptom

Recording is not possi-

ble

Radio stations cannot

be tuned in.

The remote control

does not work properly.

Cause

•The components are connected

incorrectly.

•The source is selected in correctly.

•The antenna is positioned or connected

poorly.

•The signal strength of the stations is too

weak (when tuning in with automatic

tuning).

•No stations have been preset or preset

stations have been cleared (when

tuning by scanning preset stations).

•The remote control is not pointed at the

remote sensor of the DVD receiver.

•The remote control is too far from the

DVD receiver.

•There is an obstacle in the path of the

remote control and the DVD receiver.

•The batteries in the remote control are

exhausted.

Correction

•Connect the components correctly.

•Select the source with FUNCTION but-

ton (CD/DVD, VIDEO 1, VIDEO 2 or

Tuner).

•Connect the antenna securely.

•Adjust the antennas and connect an

external antenna if necessary.

•Tune in the station manually.

•Preset the stations (page 20).

•Point the remote control at the remote

sensor of the DVD receiver.

•Operate the remote control within about

23 ft (7 m).

•Remove the obstacle.

•Replace the batteries with new ones.

Language Code List

Code Language

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fijian

Code Language

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

Code Language

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

8277 Rhaeto-Romance

8279 Rumanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

Code Language

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sudanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle”and/or “Disc Menu”

(See page 18).

REFERENCE

Code Country

AD Andorra

AE United Arab Emirates

AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles

AO Angola

AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia

AW Aruba

AZ Azerbaidjan

BA Bosnia-Herzegovina

BB Barbados

BD Bangladesh

BE Belgium

BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize

CA Canada

CC Cocos (Keeling) Islands

CF Central African Republic

CG Congo

CH Switzerland

CI Ivory Coast

CK Cook Islands

CL Chile

CM Cameroon

CN China

CO Colombia

CR Costa Rica

CS Former Czechoslovakia

CU Cuba

CV Cape Verde

CX Christmas Island

CY Cyprus

CZ Czech Republic

DE Germany

DJ Djibouti

DK Denmark

DM Dominica

DO Dominican Republic

DZ Algeria

EC Ecuador

EE Estonia

EG Egypt

EH Western Sahara

Code Country

ER Eritrea

ES Spain

ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

FM Micronesia

FO Faroe Islands

FR France

FX France (European

Territory)

GA Gabon

GB Great Britain

GD Grenada

GE Georgia

GF French Guyana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia

GN Guinea

GP Guadeloupe (French)

GQ Equatorial Guinea

GR Greece

GS S. Georgia & S. Sandwich

Isls.

GT Guatemala

GU Guam (USA)

GW Guinea Bissau

GY Guyana

HK Hong Kong

HM Heard and McDonald

Islands

HN Honduras

HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel

IN India

IO British Indian Ocean

Territory

IQ Iraq

IR Iran

IS Iceland

IT Italy

JM Jamaica

JO Jordan

JP Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia6

KI Kiribati

KM Comoros

Saint Kitts & Nevis Anguilla

KP North Korea

KR South Korea

KW Kuwait

KY Cayman Islands

KZ Kazakhstan

LA Laos

LB Lebanon

Code Country

LC Saint Lucia

LI Liechtenstein

LK Sri Lanka

LR Liberia

LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia

LY Libya

MA Morocco

MC Monaco

MD Moldavia

MG Madagascar

MH Marshall Islands

MK Macedonia

ML Mali

MM Myanmar

MN Mongolia

MO Macau

MP Northern Mariana Islands

MQ Martinique (French)

MR Mauritania

MS Montserrat

MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia (French)

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands

NO Norway

NP Nepal

NR Nauru

NU Niue

NZ New Zealand

OM Oman

PA Panama

PE Peru

PF Polynesia (French)

PG Papua New Guinea

PH Philippines

PK Pakistan

PL Poland

PM Saint Pierre and Miquelon

PN Pitcairn Island

PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Reunion (French)

RO Romania

RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands

Code Country

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia

SJ Svalbard and Jan Mayen

Islands

SK Slovak Republic

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Saint Tome and Principe

SU Former USSR

SV El Salvador

SY Syria

SZ Swaziland

TC Turks and Caicos Islands

TD Chad

TF French Southern

Territories

TG Togo

TH Thailand

TJ Tadjikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW Taiwan

TZ Tanzania

UA Ukraine

UG Uganda

UK United Kingdom

UM USA Minor Outlying

Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City State

VC Saint Vincent &

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (USA)

VN Vietnam

VU Vanuatu

WF Wallis and Futuna Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

Enter the appropriate code number for the initial setting “Country Code”(See page 19).

Country Code List

Specification

[General][CD/DVD][Video]

[Tuner]

AM FM

(MW)

[Amplifier][Speakers]

Power supply AC 100-240V, 50/60Hz

Power consumption 80 W

Mass 4.6 kg

External dimensions (W x H x D)

360 x 72 x 350 mm

Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal

Operating humidity 5% to 85%

Laser Semiconductor laser, wavelength 650 nm

Signal system PAL 625/50, NTSC 525/60

Frequency response (audio) 4 Hz to 20 kHz

Signal-to-noise ratio (audio) More than 75 dB (1 kHz, NOP, 20 kHz LPF/A-Filter)

Dynamic range (audio) More than 70 dB

Harmonic distortion (audio) 0.5 % (1 kHz, at 12W position) (20 kHz LPF/A-Filter)

Video input 1.0 V (p-p), 75 Ω, negative sync., RCA jack

Video output 1.0 V (p-p), 75 Ω, negative sync., RCA jack

S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1

Component video output (Y) 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω

Tuning Range 87.5 - 108 MHz

Intermediate Frequency 10.7 MHz

Signal-to Noise Ratio 60 dB

Frequency Response 150 - 10,000 Hz

Tuning Range 522 - 1611 kHz or 530 - 1610 kHz

Intermediate Frequency 450 kHz

Stereo mode 50W + 50W (8 Ωat 1 kHz, THD 10 %)

Surround mode Front: 50W + 50W (THD 10 %)

Center*: 50W

Surround*: 50W + 50W (8Ωat 1 kHz, THD 10 %)

Subwoofer*: 80W (4Ωat 30 Hz, THD 10 %)

Inputs VIDEO 1, VIDEO 2, OPTICAL AUDIO

Outputs VIDEO 1 (AUDIO OUT) : 2 V

WOOFER: 2 V

PHONES: (32 Ω, 0.9W)

Transmission Output : 2.4GHz, Power Supply : DC 7V

Reception Output : 2.4GHz

Type

Frequency Response

Sound Pressure Level

Rated Input Power

Max. Input Power

Net Dimensions (W x H x D)

Net Weight

❋ Designs and specifications are subject to change without notice.

Depending on the sound mode

settings and the source, there

may be no sound output.)

P/N : 3828R-D029U

Transmitter (ACC-W6100) TX

Front Speaker

FE-6100TE

2 Way 3 Speaker

110 - 40000 Hz

83 dB/W (1m)

50W

100W

270x1150x270 mm

4.78 kg

Center Speaker

FE-6100CVE

2 Way 3 Speaker

110 - 40000 Hz

83 dB/W (1m)

50W

100W

329x117x90 mm

0.92 kg

Subwoofer

FE-6100WE

1 Way 1 Speaker

40 - 15000 Hz

82 dB/W (1m)

100W

200W

350x326x350 mm

7.2 kg

Wireless Speaker

FA-W6100SR/SL

2 Way 3 Speaker

110 - 40000 Hz

83 dB/W (1m)

50W

100W

270x1150x270 mm

5.1 kg
