Users Manual
A7110
User Guide

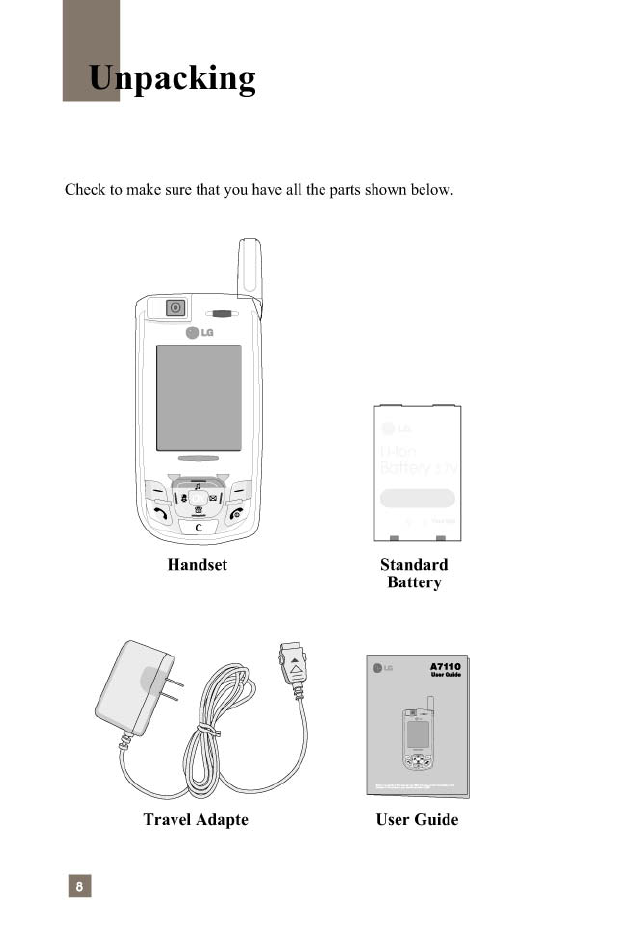

Unpacking 8
For Your Safety 9
Your Phone 14
Phone Components 14
Your Phone’s Features 15
Display Information 17
Getting Started 19
Installing the SIM Card 19
Charging the Battery 22
Turning Your
Phone On and Off 24
Access Codes 25
Barring Password 25
General Functions 26
Making a Call 26
Making a Call by Send Key 26
Making International Calls 26
Ending a Call 26
Making a Call
From the Contact List 27
Adjusting the Volume 27
Answering a Call 27
Vibrate Mode (Quick) 28
Signal Strength 28
Entering Text 28
Selecting Functions
and Options 33
Address Book 34
In-Call Menu 35
During a Call 35
Making a Second Call 35
Swapping
Between Two Calls 35
Answering an Incoming Call 35
Rejecting an Incoming Call 36
Muting the Microphone 36
Multiparty or
Conference Calls 37
Making a Second Call 37
Setting Up a
Conference Call 37
Activate the Conference
Call on Hold 37
Adding Calls to the
Conference Call 37
Private Call in a
Conference Call 38
Ending a Conference Call 38
Menu Tree 39
Recent Calls 42
Missed Calls 42
Dialed Calls 42
4
Table of Contents
5
Received Calls 43
Delete Recent Calls 43
Missed Calls 43
Received Calls 43
Dialed Calls 43
All Calls 43
Call Durations 43
Last Call 43
Received Calls 43
Dialed Calls 43
All Calls 44
Reset All 44
Data information 44
Data Call Duration 44
Data Volumes 44
Messaging 45
Write Text Message 45
Write Multimedia Message 47
Instant Messages 48
Inbox 57
Drafts 58
Outbox 58
Voicemail 59
Listen to Voice Mail 59
Voice Mailbox Bmber 59
Templates 60
Text 60
Multimedia 60
Business Card 60
Setting 60
Text Message 60
Multimedia Messages 60
Download Messages 60
Memory Status 61
Games & Apps 62
Shop Games 62
Games & Apps 62
Favorites 63
View Information 64
Memory Status 64
Java Version 64
Media Mall 65
Shop Ringtones 65
Shop Games 65
Shop Graphics 65
Shop MMS 65
Shop Applications 65
Media Home 65
MEdia Net 66
MEdia Home 67
Favorites 67
Go To URL 68
Access Point 68
Cache Settings 69
6
Cookie Settings 69
Security Certificates 70
Information 70
My Account 71
Pay My Bill 71
Check Bill Balance 71
View My Minute 71
Reset Voicemail 71
My MEdia 72
Favorites 72
Games & Apps 72
Ringtone / Audio 72
Graphics 73
Photo Gallary 73
Movie Gallary 73
Tool 75
Camera/Video 75
Alarm Clock 78
Calendar 79
Voice Recording 80
Calculator 80
Memo 81
World time 81
Unit Converter 81
IrDA 82
Address Book 83
Contact List 83
New Contact 84
Speed Dials 84
Caller Groups 85
Copy All 86
Delete All 86
Settings 86
Information 87
Settings 88
Sounds 88
Shop Ringtones 88
Ringtones 88
Volume 88
Ring Alert Type 88
Message Alert Tones 88
Key Tones 88
Slide Tones 89
Voice Recording 89
Display 89
My Wallpaper 89
Backlight 89
Languages 89
Menu Style 89
Greeting Note 89
7
Color Scheme 89
Information Window 90
Date & Time 90
Set Date 90
Date Format 90
Set Time 90
Time Format 90
Auto Update 90
Call Settings 91
Call Forwarding 91
Answer Mode 92
Send My Number 92
Call Waiting 92
Minute Minder 93
Automatic Redial 93
Select Line 93
Send DTMF 93
Security 94
PIN Code Request 94
Phone Lock 94
Auto Key Lock 94
Call Barring Service 95
Fixed Dial Number 95
Connection 96
Network Selection 96
World Phone 97
GPRS Attach 97
Reset Setting 98
Q & A 99
Accessories 102
Safety Guidelines 104
Glossary 118
Index 121
9
Important Information
This user guide contains important information on the use and operation of
this phone. Please read all the information carefully for optimal
performance and to prevent any damage to, or misuse of, the phone. Any
changes or modifications not expressly approved in this user guide could
void your warranty for this equipment.
Before You Start
Safety Instructions
WARNING! To reduce the possibility of electric shock, do not expose
your phone to high humidity areas, such as the bathroom, swimming pool,
etc.
Always store your phone away from heat. Never store your phone in
settings that may expose it to temperatures less than 32°F or greater than
104°F, such as outside during a snowstorm or in your car on a hot day.
Exposure to excessive cold or heat will result in malfunction, damage
and/or catastrophic failure.
Be careful when using your phone near other electronic devices. RF
emissions from your mobile phone may affect nearby inadequately
shielded electronic equipment. You should consult with manufacturers of
any personal medical devices such as pacemakers and hearing aides to
determine if they are susceptible to interference from your mobile phone.
Turn off your phone in a medical facility or at a gas station.
Never place your phone in a microwave oven as this will cause the battery
to explode.
IMPORTANT! Please read the TIA SAFETY INFORMATION on page
113 before using your phone.
For Your Safety
10
Safety Information
Please read and observe the following information for the safe and proper
use of your phone and to prevent any unanticipated damage. Also, keep the
user’s manual in an accessible place at all times after reading it.
]Unplug the power cord and charger during a lightning storm to avoid
electric shock or fire.
]Do not use your phone in high explosive areas as the phone may
generate sparks.
]Do not put your phone in a place subject to excessive dust, and keep the
minimum required distance between the power cord and heat sources.
]Do not damage the power cord by bending, twisting, pulling, or
subjecting it to heat. Do not use the plug if it is loose as it may cause fire
or electric shock.
]Hold the power cord plug firmly to plug and unplug the power cord.
Ensure the plug is firmly connected. If it is not firmly connected, it may
cause excessive heat or fire.
]Do not place a heavy item on the power cord. Do not allow the power
cord to be crimped as it may cause fire or electric shock.
]Be careful not to let the battery contact metal conductors such as a
necklace or coins. When shorted, it may cause an explosion.
]Do not disassemble or impact the battery as it may cause electric shock,
short-circuit, and fire. Store the battery in a place out of reach of
children.
]Using a damaged battery or placing a battery in your mouth may cause
serious injury.
For Your Safety
11
]Do not place items containing magnetic components such as a credit
card, phone card, bank book or a subway ticket, near your phone. The
magnetic strip can be damaged by the phone.
]Do not hold or let the antenna come in contact with your body during a
call.
]Talking on your phone for a long period of time may reduce the call
quality due to heat generated during the use of the phone.
]Do not allow excessive vibration or impact to the phone.
]When you do not plan to use the phone for a long period of time, store it
in a safe area with the power cord unplugged.
FCC RF Exposure Information
WARNING! Read this information before operating the phone.
In August 1996, the Federal Communications (FCC) of the United States,
with its action in Report and Order FCC 96-326, adopted an updated safety
standard for human exposure to radio frequency (RF) electromagnetic
energy emitted by FCC regulated transmitters. Those guidelines are
consistent with the safety standard previously set by both U.S. and
international standards bodies.
The design of this phone complies with the FCC guidelines and these
international standards.
For Your Safety
12
CAUTION
Use only the supplied and approved antenna. Use of unauthorized antennas
or modifications could impair call quality, damage the phone, void your
warranty and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna
comes into contact with skin, a minor burn may result. Contact your local
dealer for a replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations with the back of
the phone kept 1.5cm between the use's body and the back of the phone.
To comply with FCC RF exposure requirements, a minimum separation
distance of 1.5cm must be maintained between the user’s body and the
back of the phone. Third-party belt-clips, holsters, and similar accessories
containing metallic components should not be used. Body-worn
accessories that cannot maintain a 0.6 inch (1.5cm) separation distance
between the user’s body and the back of the phone, and have not been
tested for typical body-worn operations may not comply with FCC RF
exposure limits and should be avoided.
Vehicle Mounted External Antenna (optional,
if available)
A minimum separation distance of 8 inches (20 cm) must be maintained
between the user/bystander and the vehicle mounted external antenna to
satisfy FCC RF exposure requirements.
For more information about RF exposure, visit the FCC website at
www.fcc.gov
For Your Safety
13
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules.
Operation is subject to the following two conditions: (1) This device and
its accessories may not cause harmful interference, and (2) this device and
its accessories must accept any interference received, including
interference that may cause undesired operation.
Cautions for Battery
]Do not disassemble.
]Do not short-circuit.
]Do not expose to high temperature: 60°C (140°F).
]Do not incinerate.
Battery Disposal
]Please dispose of your battery properly or bring to your local wireless
carrier for recycling.
]Do not dispose in fire or with hazardous or flammable materials.
Adapter (Charger) Cautions
]Using the wrong battery charger could damage your phone and void
your warranty.
]The adapter or battery charger is intended for indoor use only.
Do not expose the adapter or battery charger to direct sunlight or use it in
places with high humidity, such as the bathroom.
For Your Safety
8. Display screen
2. Navigation key
1. Earpiece
4. Left soft key
5. Side keys
3. Send key
6. Alpha numeric keys
7. Microphone
9. Confirmation key
12. Right soft key
10. Message key
13. Camera key
11. End /Power key
14. Clear key
15. Infrared port
14
Phone Components
Your Phone
15
Your Phone’s Features
1. Earpiece
2. Navigation key: Use for quick access to phone functions.
3. Send key: You can dial a phone number and answer incoming calls.
Press this key in standby mode to quickly access the most recent
incoming, outgoing and missed calls.
4,12. Left soft key/Right soft key: Each of these keys
perform the functions indicated by the text on the display immediately
above them.
5. Side keys: These keys are used to control the volume of ringtone in
standby mode and speaker volume during a call.
6. Alphanumeric keys: These keys are used to dial a number in standby
mode and to enter number or characters in edit mode.
7. Microphone: Can be muted during a call for privacy.
8. Display screen: Displays phone status icons, menu items, Web
information, pictures and more in full color.
9. Confirmation key: Long press will launch the WAP browser. Allows
you to select and confirm menu options.
10. Message key: Use to retrieve or send text messages.
11. End/Power key: Allows you to power the phone on or off, end calls, or
return to Standby Mode.
13. Camera key: Press this key to use the camera feature. Directly goes to
the camera mode.
14. Clear key: Allows you to delete the characters entered or return you to
the previous screen.
15. Infrared port: Indicates that you have activated the infrared features to
communicate with an IrDA-compliant device and to send or receive
data.
Your Phone
16
Ear-microphone
jack
Antenna
External
display Camera key
Infrared port
Backlight
A backlight illuminates the display and the keypad. When you press any
key or open the folder, the backlight turns on. It turns off if no key is
pressed within a given period of time, depending on the Backlight menu
option. After one minute, the display turns off to conserve your battery
power. To specify the length of time the backlight is active, set the
Backlight menu option (Menu 9.2.2). See page 96 for further details.
External Display
Your phone has an external display on the cover. It indicates when you
have an incoming call or a message. It also alerts you at the specified time
when you set an alarm by turning on its backlight and showing
corresponding icon on it.
Your Phone
Camera
17
Icon area
Text and
graphic area
Soft key
indications
Display Information
Your Phone
Area Description
First line Displays various icons. See page 18
Middle lines Dispaly messages, instructions and Any information that
you enter, such As number to be dialed.
Last line Shows the functions currently Assigned to the two soft
keys.
18
Your Phone
On-Screen Icons
The table below describes various display indicators or icons that appear
on the phone’s display screen.
Icon Description
Indicates the strength of the network signal.
Indicates a call is in progress.
Indicates that you are roaming off the network.
Indicates that GPRS service is available.
Indicates the alarm has been set and is on.
Indicates the status of the battery charge.
Indicates the receipt of a text message.
Indicates the receipt of a MMS message.
Indicates the receipt of a voice mail.
Indicates that the vibration ringer has been set.
Indicates the Quiet menu in Profiles.
Indicates the Headset menu in Profiles.
Indicates the Car menu in Profiles.
Indicates the General menu in Profiles.
Indicates that you can use the download message service.
Indicates the Schedule function.
19
Installing the SIM Card
When you subscribe to a cellular network, you are provided with a plug-in
SIM card loaded with your subscription details, such as your PIN, any
optional services available and many others.
!!Important! The plug-in SIM card and its contacts can be easily damaged
by scratches or bending, so be careful when handling, inserting
or removing the card. Keep all SIM cards out of the reach of
small children.
1. If necessary, switch off the phone by holding down the Ekey until the
power-off image displays.

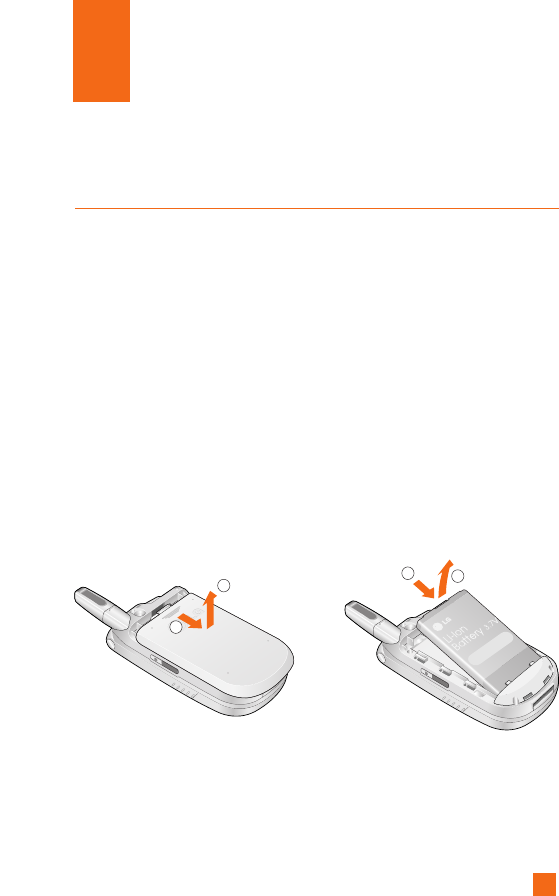

2. Remove the battery. To do so:
1Pull and hold the battery lock above the battery toward the top of the
phone.
2Lift the battery away, as shown.
Getting Started
24
1
3
3. Slide the SIM card into the SIM card socket so that it locks the card into
place. Make sure that the notched corner is bottom left and the gold
contacts of the card face into the phone.
!!Note When you need to remove the SIM card, slide it, as shown, and take it
out of the socket.
20
Getting Started
21
Getting Started

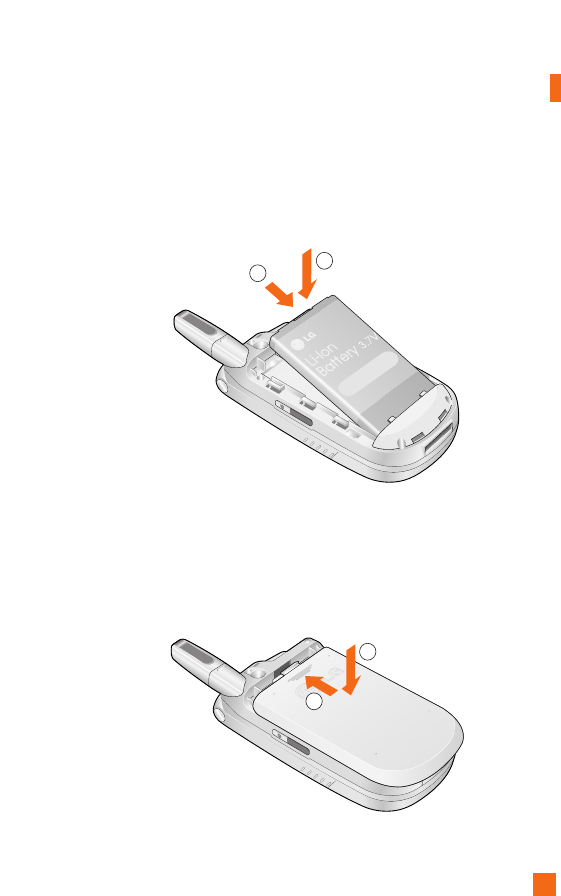

4. Place the battery so that the tabs on the end align with the slots at the
bottom of the phone.
5. Press the battery until it clicks into place. Make sure that the battery is
properly installed before switching the phone on.
2
1
4
3
Charging the Battery
Use of unauthorized accessories could damage your phone and invalidate
your warranty.
To use the travel adapter provided with your phone:
1. With the battery in position on the phone, connect the lead from the
travel adapter to the bottom of the phone. Check that the arrow on the
lead connector is facing towards the front of the phone.
2. Connect the adapter to a standard AC wall outlet. Only use the travel
adapter that comes included with the package.
!!Warning You must unplug the adapter before we remove the battery from
the phone during charging; otherwise, the phone could be
damaged.
3. When charging is finished, disconnect the adapter from the power outlet
and from the phone by pressing on the gray tabs on both sides of the
connector while pulling the connector out.
22
Getting Started
2
1
1
23
Getting Started
!!Notice
]
If your phone is powered on while charging, you’ll see the bars in the
battery indicator icon cycle.
When the battery is fully charged, the bars in the battery indicator icon will
flash on and off
]

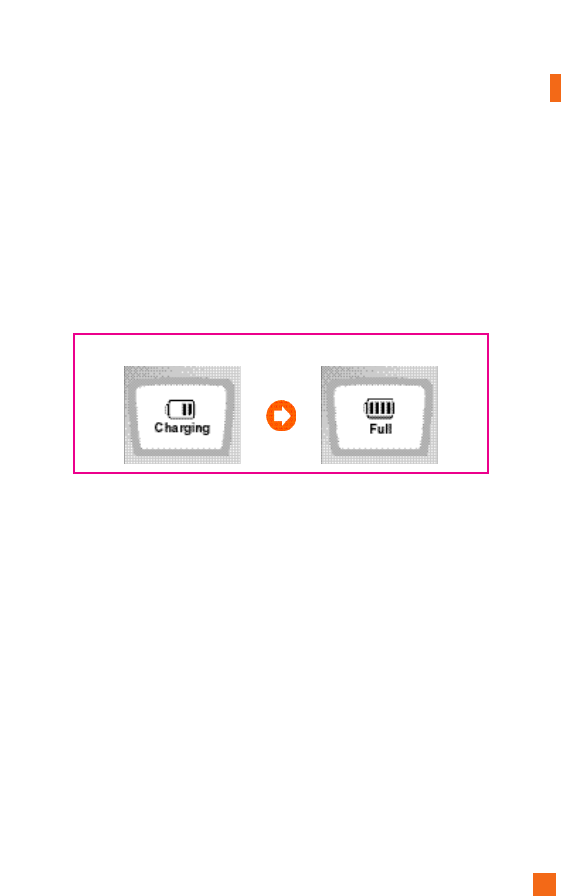

If your phone is powered off, the display will show the charging status.
‘Charging’ or ‘Full’ will be displayed.
If the battery fails to charge completely:
]
After turning the phone on and off, please attempt to recharge the battery.
]
After detaching and reattaching the battery, please attempt to recharge the
battery.
External Display (Sub LCD)
24
Turning Your Phone On and Off
1. Slide the keypad down.
2. Hold down the Ekey until the phone switches on.
3. If the phone asks for a PIN, enter the PIN and press the left soft key
[OK]. For further details, see page 104.
The phone searches for your network and after finding it, the idle screen,
illustrated below, appears on both displays. Now, you can make or
receive a call.
!!Note The display language is preset to English at the factory. To change the
language, use the Languages menu option (Menu 9.2.3).
For further details, see page 97.
4. When you wish to switch the phone off, hold down the Ekey until the
power-off image displays.
Getting Started
25
Access Codes
You can use the access codes described in this section to avoid
unauthorized use of your phone. The access codes can be changed by using
the Change Codes feature (Menu 9.5.4).
Security code (4 to 8 digits)
The security code protects the unauthorized use of your phone. The default
security code is set to ‘0000’ and the security code is required to delete all
phone entries and to activate the Restore Factory Settings menu. The
security code default setting can be modified from the Security Settings
menu.
Barring Password
The barring password is required when you use the Call Barring function.
The password is obtained from the service provider when you subscribe to
this function. See page 104 for further details.
Getting Started
26
General Functions
Making a Call
1. Make sure your phone is powered on.
2. Enter a phone number including the area code. To edit a number on the
display screen, simply press the Ckey to erase one digit at a time.
]
Press and hold the Ckey to erase the entire number.
3. Press the Skey to call the number.
4. When finished, press the Ekey.
Making a Call by Send Key
1. Press the Skey, and the most recent incoming, outgoing and missed
phone numbers will be displayed.
2. Select the desired number by using the navigation key.
3. Press the Skey.
Making International Calls
1. Press and hold the 0key for the international prefix.
The ‘+’ character can be replaced with the international access code.
2. Enter the country code, area code, and the phone number.
3. Press the Skey.
Ending a Call
When you have finished a call, press the Ekey.
27
Making a Call From the Contact List
You can store names and phone numbers dialed frequently in the SIM card
as well as the phone memory known as the Contact List.
You can dial a number by simply looking up a name in the contact list. For
more details on the Contact List feature, please refer to page 89.
Adjusting the Volume
During a call, if you want to adjust the earpiece volume, use the side keys
of the phone.
In idle mode, you can adjust the ring volume using the side keys.
Answering a Call
When you receive a call, the phone rings and the flashing phone icon
appears on the screen. If the caller can be identified, the caller’s phone
number (or name if stored in your Address Book) is displayed.
1. Open the Slide and press the Skey or the left soft key to answer an
incoming call. If the Any Key menu option (Menu 9.4.2) has been set to
O, any key press will answer a call except for the Ekey or the
right soft key.
!!Notice
]
To reject an incoming call, press and hold the side keys on the left side of
the phone.
]
If the Slide Open menu option (Menu 9.4.2) is set to O, you do not need
to press any key. You can answer the call simply by opening the slide.
2. End the call by closing the phone or pressing the Skey.
!!Notice You can answer a call while using the Address Book or other menu
features.
General Functions
Vibrate Mode (Quick)
Vibrate Mode can be activated by pressing and holding down *key.
Signal Strength
If you are inside a building, being near a window may give you better
reception. You can see the strength of your signal by the signal indicator
( ) on your phone’s display screen.
Entering Text
You can enter alphanumeric characters by using the phone’s keypad. For
example, storing names in the Address Book, writing a message, creating
scheduling events in the calendar all require entering text.
The following text input methods are available in the phone.
T9 Mode
This mode allows you to enter words with only one keystroke per letter.
Each key on the keypad has more than one letter. The T9 mode
automatically compares your keystrokes with an internal linguistic
dictionary to determine the correct word, thus requiring far fewer
keystrokes than the traditional ABC mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with the
required letter once, twice, three or four times until the letter is displayed.
123 Mode (Numbers Mode)
Type numbers using one keystroke per number. To change to 123 mode in
a text entry field, press *key until 123 mode is displayed.
28
General Functions
29
Symbolic Mode
This mode allows you to enter special characters.
!!Notice You can select a different T9 language from the menu option. The
default setting on the phone is T9 disabled mode.
Changing the Text Input Mode
1. When you are in a field that allows characters to be entered, you will
notice the text input mode indicator in the upper right corner of the
display.
2. If you want to change modes, press and hold down the *key. The
available modes are displayed.
Using the T9 Mode
The T9 predictive text input mode allows you to enter words easily with a
minimum number of key presses. As you press each key, the phone begins
to display the characters that it thinks you are typing based on a built-in
dictionary. As new letters are added, the word changes to reflect the most
likely candidate from the dictionary.
1. When you are in the T9 predictive text input mode, start entering a word
by pressing keys 2to 9Press one key per letter.
]
The word changes as letters are typed - ignore what’s on the screen
until the word is typed completely.
]
If the word is still incorrect after typing completely, press the down
navigation key once or more to cycle through the other word options.
Example: Press 4663to type Good
Press 4663[down navigation key] to type Home
]
If the desired word is missing from the word choices list, add it by
using the ABC mode.
General Functions
30
2. Enter the whole word before editing or deleting any keystrokes.
3. Complete each word with a space by pressing the 0key or Rkey.
To delete letters, press C. Press and hold down Cto erase the
letters continuously.
!!Notice To exit the text input mode without saving your input,
press S. The phone returns to the previous menu level.
Using the ABC Mode
Use the 2to 9keys to enter your text.
1. Press the key labeled with the required letter:
]
Once for the first letter
]
Twice for the second letter
]
And so on
2. To insert a space, press the 0key once. To delete letters, press the
Ckey. Press and hold down the C key to erase the letters
continuously.
General Functions
31
Characters in the Order Display
Upper Case Lower Case
. , / ? ! - : ' " 1 . , / ? ! - : ' " 1
A B C 2 Ä À Á Â Ã Å Æ Ç a b c 2 ä à á â ã å æ ç
D E F 3 Ë È É Ê d e f 3 ë è é ê
G H I 4 ï ì í î ˝g h i 4 ï ì í î ©
J K L 5 j k l 5
M N O 6 Ñ Ö Ø Ò Ó Ô Õ Œ m n o 6 ñ ö ø ò ó ô œ
P Q R S 7 ß Íp q r s 7 ß ß
T U V 8 Ü Ù Ú Û t u v 8 ü ù ú û
W X Y Z 9 w x y z 9
Space 0 Space 0
!!Notice Refer to the table below for more information on the characters
available using the keys.
Using the 123 (Numbers) Mode
The 123 Mode enables you to enter numbers in a text message
(a telephone number, for example).
Press the keys corresponding to the required digits before manually
switching back to the appropriate text entry mode.
1
2
3
4
5
6
7
8
9
0
Key
General Functions
32
General Functions
Using the Symbol Mode
The Symbol Mode enables you to enter various symbols or special
characters.
To enter a symbol, press the *key. Use the navigation keys to select the
desired symbol and press the [OK] key.
33
Your phone offers a set of functions that allow you to customize the phone.
These functions are arranged in menus and sub-menus, accessed via the
two soft keys marked <and >. Each menu and sub-menu allows you to
view and alter the settings of a particular function.
The roles of the soft keys vary according to the current context; the label
on the bottom line of the display just above each key indicates its current
role.
Press the left soft key to
access the available
Menu.
Press the right soft key
to access the available
Go To.
Selecting Functions and Options
34
You can store phone numbers and their corresponding names in the
memory of your SIM card.
In addition, you can store up to 250 numbers and names in the phone
memory.
The SIM card and phone memory, although physically separate, are
utilized like a single entity known as the Contact List. (See page 89) for
details)
Address Book
35
Your phone provides a number of control functions that you can use during
a call. To access these functions during a call, press the left soft key
[Options].
During a Call
The menu displayed on the handset screen during a call is different than
the default main menu displayed when in idle screen, and the options are
described below.
Making a Second Call
You can get a number you wish to dial from the Address Book to make a
second call. Press the left soft key then select Contact List.
Swapping Between Two Calls
To switch between two calls, press the left soft key or Skey, and then
select Swap.
Answering an Incoming Call
To answer an incoming call when the handset is ringing, simply press the
Skey. The handset is also able to warn you of an incoming call while
you are already on a call. A tone sounds in the earpiece, and the display
will show that a second call is waiting. This feature, known as Call
Waiting, is only available if your network supports it. For details of how
to activate and deactivate it see Call Waiting (Menu 9.4.4).
If Call Waiting is on, you can put the first call on hold and answer the
second, by pressing S.
In-Call Menu
36
In-Call Menu
Rejecting an Incoming Call
You can reject an incoming call without answering by simply pressing the
Ekey.
During a call, you can reject an incoming call by pressing the left soft key
by pressing the Ekey.
Muting the Microphone
You can mute the microphone during a call by pressing the [Options] key
then selecting Mute or right soft key [Mute]. The handset can be unmuted
by pressing the Unmute menu or right soft key [Unmute]. When the
handset is muted, the caller cannot hear you, but you can still hear them.
37
In-Call Menu
Multiparty or Conference Calls
The multiparty or conference service provides you with the ability to have
a simultaneous conversation with more than one caller, if your network
service provider supports this feature. A multiparty call can only be set up
when you have one active call and one call on hold, both calls having been
answered. Once a multiparty call is set up, calls may be added,
disconnected or separated (that is, removed from the multiparty call but
still connected to you) by the person who set up the multiparty call. These
options are all available from the In-Call menu. The maximum callers in a
multiparty call are five. Once started, you are in control of the multiparty
call, and only you can add calls to the multiparty call.
Making a Second Call
You can make a second call while currently on a call. Enter the second
number and press the S. When the second call is connected, the first call
is automatically placed on hold. You can swap between calls, by pressing
the Skey.
Setting Up a Conference Call
To set up a conference call, place one call on hold and while the active call
is on, press the left soft key and then select the Join menu of Conference
call.
Activate the Conference Call on Hold
To activate a conference call on hold, press the left soft key, and then press
the Skey.
Adding Calls to the Conference Call
To add a call to an existing conference call, press the left soft key, and then
select the Join menu of Conference call.
38
In-Call Menu
Private Call in a Conference Call
To have a private call with one caller from a conference call, display the
number of the caller you wish to talk to on the screen, then press the left
soft key. Select the Private menu of Conference call to put all the other
callers on hold.
Ending a Conference Call
Currently displayed caller from a conference call can be disconnected by
pressing the Ekey.
39
*:
Shown only if supported by CPHS (Common PCS Handset Specification)
The following illustration shows the available menu structure and indicates
the:
]
Number assigned to each menu option.
]
Page where you can find the feature description.
1. Recent Calls (see page 42)
1.1 Missed Calls
1.2 Dialed Calls
1.3 Received Calls
1.4 Delete Recent Calls
1.4.1 Missed Calls
1.4.2 Received Calls
1.4.3 Dialed Calls
1.4.4 All Calls
1.5 Call Durations
1.5.1 Last Call
1.5.2 Received Calls
1.5.3 Dialed Calls
1.5.4 All Calls
1.5.5 Reset All
1.6 Data information
1.6.1 Data Call Duration
1.6.2 Data Volumes
2. Messaging (see page 45)
2.1 Write Text Message
2.2 Write Multimedia Message
2.3 Instant Messages
2.4 Inbox
2.5 Drafts
2.6 Outbox
2.7 Voicemail
2.7.1 Listen to Voice Mail
2.7.2 Voice Mailbox Bmber
2.8 Templates
2.8.1 Text
2.8.2 Multimedia
2.8.3 Business Card
2.9 Setting
2.9.1 Text Message
2.9.2 Multimedia Messages
2.9.3 Download Messages
2.0 Memory Status
Menu Tree
40
*:
Shown only if supported by CPHS (Common PCS Handset Specification)
3. Games & Apps (see page 62)
3.1 Shop Games
3.2 Games & Apps
3.3 Favorites
3.4 View Information
3.4.1 Memory Status
3.4.2 Java Version
4. Media Mall (see page 65)
4.1 Shop Ringtones
4.2 Shop Games
4.3 Shop Graphics
4.4 Shop MMS
4.5 Shop Applications
4.6 Media Home
5. MEdia Net (see page 66)
5.1 MEdia Home
5.2 Favorites
5.3 Go To URL
5.4 Access Point
5.5 Cache Settings
5.6 Cookie Settings
5.7 Security Certificates
5.8 Information
6. My Account (see page 71)
6.1 Pay My Bill
6.2 Check Bill Balance
6.3 View My Minute
6.4 Reset Voicemail
7. My MEdia (see page 72)
7.1 Favorites
7.2 Games & Apps
7.3 Ringtone / Audio
7.4 Graphics
7.5 Photo Gallary
7.6 Movie Gallary
7.7 Tool
7.7.1 Camera/Video
7.7.1 Alarm Clock
7.7.1 Calendar
7.7.1 Voice Recording
7.7.1 Calculator
7.7.1 Memo
7.7.1 World time
7.7.1 Unit Converter
7.7.1 IrDA
Menu Tree
41
*:
Shown only if supported by CPHS (Common PCS Handset Specification)
8. Address Book (see page 83)
8.1 Contact List
8.2 New Contact
8.3 Speed Dials
8.4 Caller Groups
8.5 Copy All
8.6 Delete All
8.7 Settings
8.8 Information
9. Settings (see page 88)
9.1 Sounds
9.1.1 Shop Ringtones
9.1.2 Ringtones
9.1.3 Volume
9.1.4 Ring Alert Type
9.1.5 Message Alert Tones
9.1.6 Key Tones
9.1.7 Slide Tones
9.1.8 Voice Recording
9.2 Display
9.2.1 My Wallpaper
9.2.2 Backlight
9.2.3 Languages
9.2.4 Menu Style
9.2.5 Greeting Note
9.2.6 Color Scheme
9.2.7 Information Window
9.3 Date & Time
9.3.1 Set Date
9.3.2 Date Format
9.3.3 Set Time
9.3.4 Time Format
9.3.5 Auto Update
9.4 Call Settings
9.4.1 Call Forwarding
9.4.2 Answer Mode
9.4.3 Send My Number
9.4.4 Call Waiting
9.4.5 Minute Minder
9.4.6 Automatic Redial
9.4.7 Select Line
9.4.8 Send DTMF
9.5 Security
9.5.1 PIN Code Request
9.5.2 Phone Lock
9.5.3 Auto Key Lock
9.5.4 Call Barring Service
9.5.5 Fixed Dial Number
9.6 Connection
9.6.1 Network Selection6
9.6.2 World Phone
9.6.3 GPRS Attach
9.7 Reset Setting
Menu Tree
42
Recent Calls
You can check the record of missed, received, and dialed calls only if the
network supports the Calling Line Identification (CLI) within the service
area.
The number and name (if available) are displayed together with the date
and time at which the call was made. You can also view call times.
Missed Calls Menu 1.1
This option lets you view the last 10 unanswered calls. You can also:
• View the number if available and call it, or save it in the Address Book
• Enter a new name for the number and save both in the Address Book
• Send a message by this number
• Delete the call from the list
• Delete all missed calls from the list
Dialed Calls Menu 1.2
This option lets you view the last 20 outgoing calls (called or attempted).
You can also:
• View the number if available and call it or save it in the Address Book
• Enter new name for the number and save both in the Address Book
• Send a message by this number
• Delete the call from the list
• Delete all incoming calls from the list
43
Received Calls Menu 1.3
This option lets you view the last 10 incoming calls. You can also:
• View the number if available and call it, or save it in the Address Book
• Enter a new name for the number and save both in the Address Book
• Send a message by this number
• Delete the call from the list
• Delete all incoming calls from the list
Delete Recent Calls Menu 1.4
Allows you to delete Missed Calls and Received Calls lists. You can
delete Dialed Calls and All Calls lists at one time.
Call Durations Menu 1.5
Allows you to view the duration of your incoming and outgoing calls. You
can also reset the call times. The following timers are available:
Last Call (Menu 1.5.1)
Length of the last call.
Received Calls (Menu 1.5.2)
Length of the incoming calls.
Dialed Calls (Menu 1.5.3)
Length of the outgoing calls.
Recent Calls
44
Recent Calls
All Calls (Menu 1.5.4)
Total length of all calls made and incoming calls since the timer was last
reset.
Reset All (Menu 1.5.5)
Data information Menu 1.6
You can check the amount of data transferred over the network through the
GPRS information option. In addition, you can also view how much time
you are online.
!!Notice GPRS General Packet Radio Service
Data Call Duration (Menu 1.6.1)
You can check the duration of Last call and All calls. You can also reset
the call timers.
Data Volumes (Menu 1.6.2)
You can check The Sent, Recevied or All data volumes and Reset all.
45
Messaging
This menu includes functions related to SMS (Short Message Service),
MMS (Multimedia Message Service), voice mail, as well as the network’s
service messages.
Write Text Message Menu 2.1
You can write and edit text message, checking the number of message
pages.
1. Enter the Messaging menu by pressing the left soft key [Select].
2. If you want to write a new message, select Write text message.
3. To make text input easier, use T9.
4. Press [Insert] to attach the followings.
5. If you want to set option for your text, or to finish your writing, press the
left soft key [Options].
!!Note The phone which supports EMS release 5 is available to send colour
pictures, sounds, text styles, etc.. The other party may not receive
pictures, sounds or text styles you sent properly if the phone does not
support such options.
Insert
]Symbol: You can add special characters.
]Graphic: You can insert the Default graphics or graphics in My pictures
that are available for short messages.
]Sound: You can insert sounds that are available for short messages.
]Text templates: You can use Text templates already set in the phone.
]Phonebook: You can add phone numbers or e-mail addresses in
Phonebook.
]Business card: You can add your Business card to the message.
46
Options
]Send To: Sends text messages.
1. Enter numbers of recipient.
2. Press
D
key to add more recipients.
3. You can add phone numbers in the phone book.
4. Press the left soft key after entering numbers.
All messages will be automatically saved in the outbox folder, even after
a sending failure.
]Save To Drafts: Stores messages in Drafts.
]Font: You can select Size and Style of fonts.
]Color: You can select Color of foreground and background.
]Alignment: You can make the message contents aligned Left, Center
or Right.
]Add T9 dictionary: You can add your own word. This menu can be
shown only when edit mode is Predictive (T9Abc/T9abc/T9ABC).
]T9 Language: Select a T9 input mode.
]Exit: If you press Exit while writing a message, you can end the writing
message and back to the Message menu. The message you have written
is not saved.
Messaging
47
Write Multimedia Message Menu 2.2
You can write and edit multimedia messages, checking message size.
1. Enter the Messaging menu by pressing the left soft key [Select].
2. If you want to write a new message, select Write multimedia message.
3. You can create a new message or choose one of the multimedia message
templates already made.
4. Press Insert to add Symbol, Graphic, Photo, Sound, Video, New Slide,
Text templates, Phonebook or Business card.
Options
]Send To: You can send multimedia messages to multiple recipients,
prioritise your message, and make it sent later as well.
!!Note All messages will be automatically saved in the outbox folder, even
after a sending failure.
Check with your service provider if the Priority service is available.
]Preview: You can preview multimedia messages you wrote.
]Save: You can save multimedia messages To Drafts or As template.
]Edit subject: You can edit subject.
]Move to slide: You can move to previous or next slide.
]Delete slide: You can delete current slides.
]Remove media: You can remove picture, sound or video in the slide.
This option can be shown only when any media exists.
]Set slide format
* Set timer: You can set timer for slide, text, picture and sound.
* Swap text and picture: You can switch the position of picture and
text of the message.
Messaging
48
]T9 Language: Select a T9 input mode.
]Exit: You can back to the Message menu.
!!Note If you select the picture (15K) on writing multimedia message, loading
duration will take around 15 seconds at least. Furthermore, you can’t
activate any key during loading time. After 15 seconds, it is available
to write multimedia message.
Instant Messages Menu 2.3
Instant Message feature can only be used with the support of the network
operator or the community. For Instant Message users a valid †User ID
(Screen Name/ ICQ#/ Yahoo ID [/E-mail Address]) will be required in
order to Login (Sign On/Connect/Sign In) and exchange messages as well
as check the online status.
There are three ways to use the Instant Message feature.
1. Through the Main Menu.
2. Through the Message box Menu (Pressing and holding the right
navigation key).
3. Through the IM hotkey (the left navigation key). Short pressing the
hotkey will bring up the Login screen and long pressing the hotkey will
automatically begin the login process for the IM community selected
previously. The menu items below might not appear since not all IM
communities support the various options. Also the menu strings may
appear differently based on the selected IM communities.
†User ID is general term used in IM menu however a specific term is dependent on
the community such as AIM/ICQ/Yahoo [/MSN]
Messaging
49
Offline Menu
Login (Sign On/Connect/Sign In) (Menu 2.3.1)
This allows users to Login by filling in the User ID (Screen
Name/ICQ#/Yahoo ID [/E-mail Address]) and Password.
Saved Conversations (Menu 2.3.2)
This is where a user can view saved conversation.
Settings (Preferences) (Menu 2.3.3)
]Screen Name: You may select the Screen Name to be used while in the
Group chat service.
]Availability (My Status): You may select your availability status
(Available) to Not Available (Away / Do Not Disturb / Busy).
]Mood: You may select your current mood as in Happy, Sad, Angry,
Jealous, In Love, Sleep, etc.
]Status Text: You may set your current status in free text format.
!!Note Items are showed up only where a specific IM provider is selected.
IM Provider (Menu 2.3.4)
This menu option offers the ability to select a defualt Community out of
several providers like AIM/ICQ/Yahoo [/MSN] and store your login
information such as the User ID (Screen Name/ ICQ#/ Yahoo ID [/E-mail
Address]) and Password.
]Activate: You may select the default Community.
Messaging
50
Messaging
]Settings (Preferences)
• Change User ID (Screen Name/ ICQ#/ Yahoo ID [/E-mail Address])
and Password: You can store the User ID (Screen name/ ICQ#/ Yahoo ID
[/E-mail Address]) and the Password.
!!Note When changing or adding a new Community, please check with your
Network provider.
• Binding Protocol: You can select the Bearer type such as SMS or HTTP.
!!Note When changing or adding a new Community, please check with your
Network provider.
When SMS is selected
• Sms Gateway Number: You can change the SMS gateway number.
When HTTP is selected
• IM Server: You can change the IP address and port number of IM server.
!!Note When changing or adding a new Community, please check with your
Network provider.
• DNS Address: You can change the DNS address.
!!Note When changing or adding a new Community, please check with your
Network provider.
• Internet Profiles: You can change the values of Internet profiles.
- Bearer: You can change the type of bearer such GPRS or Data.
- GPRS (Data) Settings: You can change the detail setting values of
GPRS (Data).
!!Note When changing or adding a new Community, please check with your
Network provider.
51
Messaging
]Rename: You can change the Community name.
]Delete: You can delete the Community information
]Delete All: You can delete all information related to the Community, but
Default Community settings are preserved.
!!Note When changing or adding a new Community, please check with your
Network provider.
]Add New Provider: You can add a new Community.
Online Menu / 1 to 1 conversation
After successful Login (Sign On/Connect/Sign In), a contactlist with
contacts (buddies/friends) will appear on screen.
Depending on the cursor location in the contactlist (buddylist/friendslist),
following menu options will be available.
When cursor is located on the Conversations List
Conversations List contains not only contact which conversation is already
opened but also unknown Contact (Stranger)
View/Hide Contacts (View/Hide Buddies, Collapse/Open List): This
provides the option to view or hide contacts (buddies/friends) from the
selected list.
Chat (Send IM / Send Message): This offers the ability send a message to
unknown contact. When selected, User ID (Screen Name/ ICQ#/ Yahoo ID
[/E-mail Address]) must be typed in prior to starting an IM session or
conversation.
52
Messaging
]
Settings (Preferences)
• Screen Name: You may select the Screen Name to be used while in the
Group chat service.
• Availability (My Status): You may select your availability status
(Available) to Not Available (Away / Do Not Disturb / Busy).
• Mood: You may select your current mood as in Happy, Sad, Angry,
Jealous, In Love, Sleep, etc.
• Status Text: You may set your current status in free text format.
• Watcher List: You may view contacts who can access your presence
information.
• View Options (Show): You may allow only contacts (buddies/friends)
online you’re your contactlist (buddylist/friendslist) or everyone to
view.
]Saved Conversations: You may view or delete the stored conversation
session.
]Logout (Sign Off / Disconnect / Sign Out): This begins the Logout
(Sign Off / Disconnect /Sign Out) process.
When cursor is located on the Conversations List
]Chat (Send IM/Send Message)/View (Open): Chat (Send IM/Send
Message) will allow you to converse with the selected Unknown Contact
(Stranger) and View (Open) shows conversation of the contact which
conversation is already started.
]Block/Unblock Contact (Block/Unblock Buddy): This allows or
blocks conversation with the selected Unknown Contact (Stranger).
]Add To List (Friend List): This allows you to add the Unknown
Contact to the Contact (Buddy/Friends) list. After the selecting the
contactlist (buddylist/friendslist), you may add the Unknown Contact
and once completed it is automatically deleted from the Unknown List.
53
Messaging
]End Conversation: Selected Unknown Contact is deleted and the
conversation is ended.
]Settings (Preferences): Please refer to the Settings Menu on page ??
(Menu 2.3.3).
]Saved Conversations: You may view or delete the stored conversation
session.
]Logout (Sign Off/Disconnect/Sign Out): This begins the Logout (Sign
Off/Disconnect/Sign Out) process.
When cursor is located on the Contactlist
(Buddylist/Friendlist)
]View/Hide Contacts (View/Hide Buddies, Collapse/Open List): This
allows the selected contacts (buddies/friends) in the list to be viewed or
hidden.
]Refresh List (Refresh Friend List): This refreshes the presence
information of the contacts (buddies/friends) within the contactlist
(Buddylist/friendslist).
]Rename List: This renames the selected contactlist.
]Add List: This adds a new contactlist.
]Add Contact (Buddy/a Friend): This adds the selected contact
(buddy/friend) to the contactlist (buddylist/friendslist), or searches in the
Community.
]Delete List: This deletes the selected contactlist.
]Settings (Preferences): Please refer to the Settings Menu on page ??
(Menu 2.3.3).
]Saved Conversations: You may view or delete the stored conversation
session.
]Logout (Sign Off/Disconnect/Sign Out): This begins the Logout (Sign
Off/Disconnect/Sign Out) process.
54
Messaging
When cursor is located on the Contact (Buddy/Friend)
]Chat (Send IM/Send Message)/View (Open): This will display a
screen where conversation with selected Contact (Buddy/Friend) can
take place. and View (Open) shows conversation of the contact which
conversation is already started.
]Rename Contact: Selected Contact name can be changed or renamed.
]Block / Unblock Contact (Block / Unblock Buddy): This allows or
blocks conversation with the selected Contact (Buddy).
]Subscribe To: This sets the automatic update of presence information
for a selected Contact.
]Unsubscribe To: This cancels the automatic update presence setting for
a selected Contact.
]Delete Contact (Delete Buddy): This deletes the selected Contact
(Buddy).
]View Information: This allows for viewing of the selected Contact
(Friend) information.
]Settings (Preferences): Please refer to the Settings Menu on page ??
(Menu 2.3.3).
]Saved Conversations: You may view or delete the stored conversation
session.
]Logout (Sign Off/Disconnect/Sign Out): This begins the Logout (Sign
Off /Disconnect/Sign Out) process.
Menu options available in the Conversation screen
]Send: Typed message can be sent.
]Back To List (See Friend List): This brings the screen back to the
contact (buddy/friend) list.
55
Messaging
]End Conversation: This ends the active conversation and clears the
conversation buffer.
]Block / Unblock Contact (Block / Unblock Buddy): This allows or
blocks conversation with the selected Contact (Buddy/Friend).
]Save Conversation: Stores currently active conversation.
]View Information: Selected Contact (Buddy/Friend) information can be
viewed.
]T9 Languages: This selects the T9 predictive mode Language.
• Within the conversation screen, you can insert a template using the
right soft key.
• In the conversation window, you can use a side key for scrolling
conversation history and a menu navigation key for moving cursor in
the saying editor just like in the text message.
Online Menu / Group Chat
When cursor is located on the Group List
]View/Hide Groups: You can choose to view or hide the Group Chat
List.
]Join New Group: This allows you to join a new Group Chat. In order to
join, Group ID is required.
]Search Group: You can join after searching the Group chat.
]Make Group: A new group chat can be created after typing in the group
ID and the welcome note.
]Settings: Please refer to the Settings Menu on page ?? (Menu 2.3.3).
]Saved Conversations: You may view or delete the stored conversation
session.
]Logout (Sign Off/Disconnect): This begins the Logout (Sign Off /
Disconnect) process.
56
Messaging
Menu options available in the group chat screen
(Only if it’s been created by yourself.)
]Send: This sends the typed message to all active members within the
Group Chat.
]Invite Others: This allows you to invite another contact (buddy/friend)
to the group chat. You can use the contact (buddy/friend) list within the
menu or by inviting based on the search results.
]Back To List: This brings the screen back to the contact (buddy/friend)
list.
]Leave Group: When leaving the active group chat session, the buffer is
cleared.
]Save Conversation: Stored conversation can be viewed or deleted.
]Delete Group: This deletes the entire active group chat, only if it °Øs
been created by yourself.
]Show Members (People here/Now chatting): This displays current
members who have joined the active group chat session.
]T9 Languages: This selects the T9 predictive mode Language.
!!Note Maximum number of characters supported by an IM is 500 characters
for receiving and 160 characters for sending.
The presence information might not update in real time so the “Refresh
list” option can be used for most up to date status.
According to the IM Community, it can become different menu string
or terminology and it can’t see menu among menu items.
57
Messaging
Inbox Menu 2.4
You will be alerted when you have received messages. They will be stored
in Inbox.
In Inbox, you can identify each message by icons. For detail, see the icon
directive.
If the phone shows ‘No space for SIM message’, you have to delete only
SIM messages from Inbox. If the phone displays ‘No space for message’,
you can make space of each repository as deleting messages, media and
applications.
❇SIM message
SIM message means the message exceptionally stored in SIM card. You
can move this message to the phone.
For notified multimedia message, you have to wait for downloading and
processing of the message. For notification setting, see (Menu 2.9.2) for
detail.
To read a message, select one of the messages by pressing the left soft key.
Icon Icon directive
Multimedia message
Short message
SIM message
Read multimedia message
Read text message
Push message
Notified multimedia message
58
Messaging
]Reply: You can reply to the sender.
]Delete: You can delete the current message.
]Forward: You can forward the selected message to another party.
]Extract: You can extract picture, sound and text. They will be saved in
My folder or Phonebook.
]Return call: You can call back to the sender.
]View information: You can view information about received messages;
Sender’s address, Subject (only for Multimedia message), Message date
& time, Message type, Message size.
]Delete all: You can delete all messages.
Drafts Menu 2.5
You can view the messages saved as a draft. The draft messages are listed
with the date and time when they were saved.
The following options are available.
]Edit: Modifies the massage you choose.
]Delete: Deletes the message you choose.
]View information: To view the information of the message.
]Delete all: Deletes all of the messages in the folder.
Outbox Menu 2.6
You can see sent and unsent messages here. For sent message, you can see
the delivery status.
The browsing is same as that for the inbox message.
59
Messaging
❇When you already sent the message:
]Forward: You can forward the current message to other recipients.
]Delete: You can delete the current message.
]View information: You can view information about outbox messages;
Recipient’s address, Subject (only for Multimedia message), Message
date & time, Message type, Message size.
❇When you didn’t send the message:
]Send: You can send the message.
]Delete: You can delete the current message.
]View information: You can view information about outbox messages.
]Send all: You can send all messages didn’t send.
]Delete all: You can delete all messages didn’t send.
Voice mail Menu 2.7
You can listen to voice mail.
Listen to Voice Mail (Menu 2.7.1)
Voice Mailbox Bmber (Menu 2.7.2)
Icon Icon directive
MMS Sent
MMS Unsent
MMS delivery confirmed
SMS sent
SMS unsent
SMS Delivery confirmed
60
Messaging
Templates Menu 2.8
Text (Menu 2.8.1)
You have 6 text templates.
Multimedia (Menu 2.8.2)
You can use the following options.
]Edit: You can edit multimedia templates.
]Send via multimedia message: You can write and send multimedia
messages.
]Add new: Allows you to add new multimedia templates.
]Delete: You can delete multimedia templates.
Business Card (Menu 2.8.3)
You can make your Business Card.
Setting Menu 2.9
Text Message (Menu 2.9.1)
]Message Center Number: If you want to send the text message, you
can receive the address of SMS center through this menu.
]Email Gateway: You can send the text message to Email Address via
this gateway.
]Subject: You can enter SMS Subject when this menu is on.
]Message types:
Text, Voice, Fax, Natl. paging, X.400, E-mail, ERMES
Usually, the type of message is set to Text. You can convert your text
into alternative formats. Contact your service provider for the
availability of this function.
61
Messaging
]Validity period: This network service allows you to set how long your
text messages will be stored at the message centre.
]Delivery report: If you set to Yes, you can check whether your message
is sent successfully.
]Reply via same service centre: When a message is sent, it allows the
recipients to reply and charge the cost of the reply to your telephone bill.
Multimedia Messages (Menu 2.9.2)
]Priority: You can set the priority of the message you choose.
]Validity period: This network service allows you to set how long your
text messages will be stored at the message centre.
]Delivery report: If it is set to Yes in this menu, you can check whether
your message is sent successfully.
]Auto download: If you select On, you receive multimedia messages
automatically. If you select Off, you receive only notification message in
the inbox and then you can check this notification.
]Access Point: If you select multimedia message server, you can set URL
for multimedia message server.
]Permitted types
Personal: Persornal message.
Advertisements
: Commercial message.
Information: Necessary information.
Download Messages (Menu 2.9.3)
You can set the option whether you will receive the message or not.
Memory Status Menu 2.0
You can check free space and memory usage of each repository, SIM
memory. You can go to each repository menu.
62
Java is a technology developed by Sun Microsystems. Similar to the way
you would download the Java Applet using the standard Netscape or MS
Internet Explorer browsers, Java MIDIet can be downloaded using the
WAP enabled phone. Depending on the service provider, all Java based
programs such as Java games can be downloaded and run on a phone.
Once downloaded, the Java program can be viewed within the Games &
Apps menu where you can select, execute or delete. The Java program files
saved in the phone are in .JAD and .JAR formats.
!!Note The JAR file is a compressed format of the Java program and the JAD
file is a description file that includes all detailed information. From the
network, prior to download, you can view all detailed file descriptions
from the JAD file.
!!Warning Only J2ME (Java 2 Micro Edition) based programs will run in a
phone environment.
The J2SE (Java 2 Standard Edition) based programs will only run
in a PC environment.
Shop Games Menu 3.1
This menu option connects to Cingular’s game download site.
Games & Apps Menu 3.2
Main Screen, Java’ main menu, has a Preinstalled folder already created,
and adds it to the list when a new folder is created or downloaded games
are stored.
After selecting a folder, and then press Menu, sub menus available to
several options (Open, Remove, Information, Send Information, Update,
Rename, Permissions, New folder and Move) are displayed.
]
Open: Launch the game.
]
Remove: Delete the game.
]
Information: Show all the information on the game.
Games & Apps
63
]
Send Information: Selected Java MIDlet information such as MIDlet
name, size, version, vendor and jad URL can be sent via SMS.
]
Update: Connect to the server and download the new version of the
stored game.
]
Rename: Rename the game.
]
Permissions: Use airtime may cost you money, may require a special
cable to function and may cause any running midlet to be interrupted.
]
New folder: Create a new folder.
]
Move: Move the stored game to other folder.
If you choose a Preinstalled game, several sub menus (Open, Information
and Permissions) are displayed, and choosing Info will show you the
information for the games provided by default.
Favorites Menu 3.3
When a new Java program is downloaded using the WAP, the address
from which a download takes place is known as a bookmark. The Java
menu includes a bookmark list for downloading Java programs and this
bookmark list can be viewed from the Favorites menu.
]
Connect: Selected address in the bookmark is used for data connection.
After successful connection, desired Java program can be downloaded
from the list.
]
View: Detailed information on a bookmark can be viewed such as name
of bookmark and address of bookmark.
]
Delete: Selected bookmark is deleted. Deleted bookmark cannot be
restored so caution is required when deleting bookmarks.
]
Edit: Selected bookmark can be edited. Editing a bookmark is done in
the order of URL → Title → Profile (Access Point) → User ID →
Password. When creating a new bookmark, same order is followed. The
service provider can require user ID and password information, but if
none is provided, no input is necessary.
Games & Apps
64
]
Add New: New bookmark is added. If there is no Bookmark, you get a
display indicating that there is no Bookmark. Bookmarks can be added
by pressing the left soft key [Add].
]
Send URL: Selected bookmark URL can be sent via SMS.
]
Delete All: This deletes all of the selected bookmark as well as the
bookmarks directory within the Games & Apps menu.
!!Note After selecting the Connect function to access the Java MIDlet
Provider’s server, you may choose one of many Java programs to
download and install into your phone. Once connected to the server,
the Go button can be pressed to view the JAD information on a desired
program. The Get button will begin the download and install process.
The download and install process will take place simultaneously and
once download is complete you can immediately run the Java program.
The installed Java program can be selected to run at a later time from
the Games & Apps menu.
View Information Menu 3.4
The downloaded programs using the WAP are stored in the phone
memory. There is a maximum memory capacity in a phone and once you
exceed this memory, you will not be able to store any more programs. The
View Information menu allows you to check the available memory
capacity in a phone.
Memory Status (Menu 3.4.1)
Displays maximum memory capacity and total available memory
information.
Java Version (Menu 3.4.2)
Displays current Java version.
Games & Apps
65
Shop Ringtones Menu 4.1
This menu option connects to Cingular’s ringtone download site.
Shop Games Menu 4.2
This menu option connects to Cingular’s game download site.
Shop Graphics Menu 4.3
This menu option connects to Cingular’s graphic download site
Shop MMS Menu 4.4
This allows you to connect to http://mmsstore.cingular.com URL and
download multimedia contents
Shop Applications Menu 4.5
This menu option connects to Cingular’s application download site
Media Home Menu 4.6
Connect to a homepage. The homepage may be the site which is defined in
the activated profile. It will be defined by the Service Provider if you have
not defined it in the activated profile. For further details, see page 70~71.
Media Mall
66
You can access various WAP (Wireless Application Protocol) services
such as banking, news, weather reports, and flight information. These
services are specially designed for mobile phones and they are maintained
by the WAP service providers.
Check the availability of WAP services, pricing and tariffs with your
network operator and/or the service provider whose service you wish to
use. Service providers will also give you instructions on how to use their
services.
Please contact your service provider to open an Internet account. To use
the Web Browser, you must indicate your phone number via the Own
number menu option (See page 94 for further details.)
To launch the browser in standby mode, press and hold down the Okey.
Once connected, the homepage is displayed. The content depends on the
service provider.
You can open any WWW page by entering its URL address.
To exit the browser at any time, press the Ekey. The idle screen is
displayed.
Navigating with the WAP Browser
You can surf the Internet using either the phone keys or the WAP Browser
menu.
Using the Phone Keys
When surfing the Internet, the phone keys function differently from the
phone mode.
Key Description
up/down navigation key Scroll each line of the content area
MEdia Net
67
Using the WAP Browser Menu
There are various menu options available when surfing the Wireless Web.
!!Note The WAP Browser menus may vary, depending on your version of the
browser.
MEdia Home Menu 5.1
Connect to a homepage. The homepage may be the site which is defined in
the activated profile. It will be defined by the Service Provider if you have
not defined it in the activated profile.
Favorites Menu 5.2
Your phone may have some pre-installed bookmarks for sites not affiliated
with LG. LG does not warrant or endorse these sites. If you choose to
access them, you should take the same precautions, for security or content,
as you would with any site.
Options in the Favorites view
Options available in the Bookmarks are: Connect, View, Edit, Move,
Delete, New Bookmark, New Folder and Send URL
]
Connect: Connect to the URL address.
]
View: View the URL address of the Favorites.
]
Delete: Revise the name of selected folder.
]
Edit: Modify the Favorites.
]
New Favorite: Add a new favorite manually.
]
Send URL: Allows the stored URL under Favorites to be sent via SMS
to another person.
]
Delete All: Allows you to erase all favorites.
MEdia Net
68
Go To URL Menu 5.3
You can directly connect to the site you want. You need to enter a specific
URL.
Access Point Menu 5.4
A Profile is the network information used to connect to the internet.
Cingular supports three kinds of profiles: Express, Home and Roam.
Express is used to connect to the internet using GPRS,
Home uses CSD (Circuit Switched Data) with Cingular gateways, and
Roam uses CSD without the Cingular network.
Because Cingular also selects a bearer automatically according to the
current network status, the user doesn’t need to select any of them.
Each profile has submenus as follows:
]
Activate: Set a current profile as a default.
]
View: Edit the various items of the current profile.
]
Rename: Revise the name of profile.
]
Add New: Create new profile.
]
Delete: Delete the profile.
]
Reset All: Allows all WAP settings of the selected profile to be resett.
!!Note The changes using these options may affect the other application
function.
MEdia Net
69
Cache Settings Menu 5.5
The information or services you have accessed are stored in the cache
memory of the phone.
Clear Cache (Menu 5.5.1)
Remove all contexts saved in cache.
Allow Cache (Menu 5.5.2)
Set a value whether a connection attempt is made through cache or not.
!!Note A cache is a buffer memory, which is used to store data temporarily.
Cookie Settings Menu 5.6
The information or services you have accessed are stored in the cookie.
]
Delete Cookies: Remove all cookies.
]Allow cookies: Set a value whether a connection attempt is made
through cookie or not.
Express
1. Activate
2. Settings
3. Rename
4. Add New
5. Delete
6. Delete All
Home
1. Activate
2. Settings
3. Rename
4. Add New
5. Delete
6. Delete All
Roam
1. Activate
2. Settings
3. Rename
4. Add New
5. Delete
6. Delete All
MEdia Net
70
Security Certificates Menu 5.7
A list of the available certificates is shown.
]
View:
]
Delete:
]
All:
Information Menu 5.8
The WAP Browser version is displayed.
MEdia Net
71
My Account
You can access My Account to pay a bill, check your bill balance, view
your total minutes and minutes used, and reset your voicemail passcode.
Pay My Bill Menu 6.1
This menu allows you to connect to
“http://www.cingular.com/wap/paybill_deck” URL and pay your
Cingular bill.
Check Bill Balance Menu 6.2
This menu allows you to connect to
“http://www.cingular.com/wap/balance_deck” URL and check your
Cingular bill balance.
View My Minute Menu 6.3
This menu allows you to connect to
“http://www.cingular.com/wap/view_deck” URL and view minutes used
from your last bill cycle.
Reset Voicemail Menu 6.4
This menu allows you to connect to
“http://www.cingular.com/wap/reset_deck” URL and reset your voicemail
passcode.
72
Favorites Menu 7.1
Your phone may have some pre-installed bookmarks for sites not affiliated
with LG. LG does not warrant or endorse these sites. If you choose to
access them, you should take the same precautions, for security or content,
as you would with any site. For further details, see page 71~72.
Games & Apps Menu 7.2
For further details, see page 67 (Menu 3.2).
Ringtone / Audio Menu 7.3
The left soft key [Options] will bring up the following options.
]Send Via Text Message: Melody Sound can be sent via SMS.
]Send Via Multimedia Message: Downloaded Sound can be sent via
MMS.
]Set As Ring Tone: This sets the Ring Tone with currently selected
Sound.
]Delete: This deletes currently selected Sound.
]Edit Title: This deletes the Title of currently selected Sound.
]Delete All: This deletes all sounds.
!!Note Sounds supplied as default can only be used under the Set As Ring
Tone mode.
My MEdia
73
Graphics Menu 7.4
The left soft key [Options] will bring up the following options.
]Send Via Text Message: EMS Picture can be sent via SMS.
]Send Via Multimedia Message: Downloaded Picture can be sent via
MMS.
]Set As Wallpaper: Currently selected Picture can be set as a Wallpaper.
]Delete: Currently selected Picture can be deleted.
]Edit Title: Title of currently selected Picture can be edited.
]Delete All: All Pictures can be deleted.
!!Note Pictures supplied as default can only be used under the Set As
Wallpaper mode.
Photo Gallary Menu 7.5
All the still images taken in the Take Photo menu are stored in this menu.
You can view, organise and send the pictures saved in your phone.
Select the picture you want press the left soft key [Options] to access the
following submenus.
]Open: You can view one image at a time.
]Edit: (Shown in the normal view) After selecting the normal view of an
image, you can edit it as follows. After editing, the changed image can
be saved by pressing the left soft key [Save]. And the original image is
retained.
• Effect filters: You can give various effects to the image. After
selecting the desired effect from 12 effect filters using the left/right
navigation key, press the left soft key [Save]. The changed image is
stored.
• Rotate: You can rotate the image 90, 180, or 270 degrees.
My MEdia
74
]Send via multimedia message: You can send the selected image via a
multimedia message.
]Set as wallpaper: You can set the selected image as the LCD wallpaper.
]Set As Photo ID: You can add the selected image to a phonebook
contact to use the Photo Caller ID feature.
]Delete: Deletes the selected image.
]Rename: You can change the name of the selected image.
]Delete All: Deletes all the images in your phone.
]Information: You can check the title, resolution, size, and date and time
of the selected image.
Movie Gallary Menu 7.6
Select the desired video clip using left/right/up/down navigation keys, you
can access the following submenu using the left soft key [Options].
]Open: Plays the selected video clip.
]Delete: Deletes the selected video clip.
]Rename: You can change the title of the selected video clip.
]Playback: You can play video clip with below option
• Once: play the selected video clip only one time
• Repeat: play the selected video clip repeatedly
• Continuous: play the all the video clip in your phone continuously
]Delete All: Deletes all the video clips in your phone.
]Information: You can check the title, size, playing time and date and
time of the selected image.
My MEdia
75
Tool Menu 7.7
Camera/Video (Menu 7.7.1)
Take Photo (Menu 7.7.1.1)
Press the Menu key and select Camera. Take photo. Or, press the camera
hot key in standby mode. You can see the viewfinder. Before taking a shot,
press the right soft key [option] to set the following values. Select the
desired value and press the OK key to confirm it.
]Capture Mode: Photo, Video
]Resolution: Hi (640*480), Med (320*240), Low (128*160)
]Quality: High, Normal, Economy
]White Balance: 5 settings are available: Auto, Daylight, Incandescent,
Cloudy, and Flourescent.
]Self Timer: off, 3 Seconds, 10 Seconds
]Flash: Off, On
]Color Effect: 3 settings are available: Color, Mono, Sepia.
]Multishot: 1, 3, 6 Photos
]Shutter Tones: Sound1, Sound2, Sound3, Off
]Defer Settings: Set to default setting.
Taking a single still shot ( )
After finishing camera option setting (if needed), focus on the subject to
capture and press the Camera key or OK key. With a click, the image is
captured and then automatically saved in the Photo gallery.
My MEdia
76
Taking multiple shots in succession ( )
Select the Multiple Shot mode. After finishing camera option setting,
focus on the subject to capture and press the Camera key. With a click, the
image is captured and then automatically saved in the Photo gallery.
Video Record (Menu 7.7.1.2)
You can record the video up to 30 minutes. But it depends on the
resolution, the available memory capacity, and the quantity of data to be
compressed. Press Video Record. You can record a video clip in this menu
by pressing the Camera key. Before taking a shot, press the right soft key
[option] to set the following values. Select the desired value and press the
OK key to confirm it.
]Capture Mode: Photo, Video
]Recording Mode: General, MMS video
]Resolution: Low (128*96), Hi (176*144)
]Quality: High, Normal, Economy
]White Balance: 5 settings are available: Auto, Daylight, Incandescent,
Cloudy, and Flourescent.
]Flash: Off, On
]Color Effect: 3 settings are available: Color, Mono, Sepia.
]Defer Settings: Set to default setting.
Press the Camera key to start recording a video clip. REC time is updated
on the LCD screen.
To stop recording, press the Camera key again. It is automatically saved in
Movie gallery. And you can keep recording another video clip by pressing
the Camera key.
My MEdia
77
Photo gallery (Menu 7.7.1.3)
All the still images taken in the Take Photo menu are stored in this menu.
You can view, organise and send the pictures saved in your phone.
Select the picture you want press the left soft key [Options] to access the
following submenus.
]Open: You can view one image at a time.
]Edit: (Shown in the normal view) After selecting the normal view of an
image, you can edit it as follows. After editing, the changed image can
be saved by pressing the left soft key [Save]. And the original image is
retained.
• Effect filters: You can give various effects to the image. After
selecting the desired effect from 12 effect filters using the left/right
navigation key, press the left soft key [Save]. The changed image is
stored.
• Rotate: You can rotate the image 90, 180, or 270 degrees.
]Send via multimedia message: You can send the selected image via a
multimedia message.
]Set as wallpaper: You can set the selected image as the LCD wallpaper.
]Set As Photo ID: You can add the selected image to a phonebook
contact to use the Photo Caller ID feature.
]Delete: Deletes the selected image.
]Rename: You can change the name of the selected image.
]Delete All: Deletes all the images in your phone.
]Information: You can check the title, resolution, size, and date and time
of the selected image.
My MEdia
78
Video gallery (Menu 7.7.1.4)
Select the desired video clip using left/right/up/down navigation keys, you
can access the following submenu using the left soft key [Options].
]Open: Plays the selected video clip.
]Delete: Deletes the selected video clip.
]Rename: You can change the title of the selected video clip.
]Playback: You can play video clip with below option
• Once: play the selected video clip only one time
• Repeat: play the selected video clip repeatedly
• Continuous: play the all the video clip in your phone continuously
]Delete All: Deletes all the video clips in your phone.
]Information: You can check the title, size, playing time and date and
time of the selected image.
Memory status (Menu 7.7.1.5)
Press the Menu key and select Camera. Memory status. You can check
the current memory status on the phone. Images and Movie share the
memory.
Alarm Clock (Menu 7.7.2)
You can set up to 5 alarm clocks to go off at a specified time.
1. Select On and enter the alarm time you want.
2. Select the repeat period : Once, Mon~Fri, Mon~Sat, Everyday.
3. Select the alarm tone you want and press the left soft key [OK].
4. Edit the alarm name and press the left soft key [OK].
My MEdia
79
Calendar (Menu 7.7.3)
You can make up to maximum 20 notes.
Visible menus on Scheduler
]Day View: Shows the note for the chosen day. Use the up/down
navigation keys to browse through the note lists. If you set alarm for the
note, Alarm watch is displayed. At that time, if you press the left soft
key [Select], you can see the note in detail. Press the left soft key
[Options] to delete, edit the note you selected. With your Left or Right
Navigation keys, you go to previous or next day.
]Add New: Input the subject, the schedule time, the repeat, the alarm by
pressing allowed keys.
]View All Schedules: Shows the notes that are set for all days. Use
up/down navigation keys to browse through the note lists. You can use
the same menu as “Day View” by select key pressing the right soft key
[Options].
]Month View: Shows a Calendar which includes a seleted day.
]Edit: Select to edit a scheduler subject. This supports T9 editor as well
as explicit editor.
]Delete: Deletes a schedule note selected.
]Delete past: You can delete the past schedule that has been already
notified you.
]Delete all: You can delete for the all note(s).
]Go To Date: Typing a date, you can go to the date directly.
]Alarm Tone Setting: You choose a scheduler alarm tone on the list
showing.
My MEdia
80
Voice Recording (Menu 7.7.4)
The voice memo feature you to record up to 10 voice messages and each
memo is up to 20 Seconds.
Record (Menu 7.7.4.1)
1. You can record voice memo in Voice recorder menu and also holding
down Cin the standby mode.
2. Once recording is started, the message Recording and the remaining
time is displayed.
3. If you want to finish recording, press the left soft key [Save].
4. Key in Voice memo title, press the left soft key [OK].
View list (Menu 7.7.4.2)
The phone shows voice memo list. You can Playback and Delete the
recorded voice memo.
Memory status (Menu 7.7.4.3)
You can check free space and memory usage of each repository, SIM
memory. You can go to each repository menu.
Calculator (Menu 7.7.5)
This contains the standard functions such as +, –, x, ÷ : Addition,
Subtraction, Multiplication, and Division.
1. Input the numbers by pressing numeric keys.
2. Use a navigation key to select a sign for calculation.
3. Then input the numbers.
4. Press the left soft key [Result] to view the result.
5. Press the left soft key [Reset] or enter numbers to repeat the procedure
above.
My MEdia
81
6. Use C key to erase any numbers or signs.
7. If you press * key, you can input a minus number. In addition, If you
press # key, you can input a decimal number.
8. To end Calculator, press the right soft key [Back].
Memo (Menu 7.7.6)
You can make up to maximum 10 memos.
1. Select a memo pad you would edit.
2. If being a (Empty), Add new by pressing the left soft key [Select].
3. Input the memo and then press the left soft key [OK].
World time (Menu 7.7.7)
You can view clocks of the world’s major cities.
1. Select the city belonged to the time zone by pressing the left/right
navigation key.
2. You can set the current time to the city time you select by pressing the
left soft key [Set].
Unit Converter (Menu 7.7.8)
This converts any measurement into a unit you want. There are 4 types that
can be converted into units: Length, Area, Weight, and Volume.
1. You can select one of four unit types by pressing left soft key [Unit].
2. Select the standard value by using left/right navigation key.
3. Select the unit you want to convert by pressing up and down navigation.
4. You can check the converted value for the unit you want. Also, you can
input a decimal number by pressing #.
My MEdia
82
My MEdia
IrDA (Menu 7.7.9)
This feature allows you to send or receive data/fax through the infrared
port. To use an infrared connection:
• Install the modem driver for receiving or sending the data/fax.
• Install the network dial-up software supplied by your service provider or
fax application program for a fax call on your PC.
• Configure and activate an IrDA-compliant infrared port on your PC.
• Activate the infrared feature on the phone; the symbol appears on the
right side at the bottom of the display.
• Dial the network service number given to you by the service provider.
If there is no communication between your phone and the IrDA-compliant
device within 30 seconds after activation of the feature, it is automatically
deactivated.
For further details, contact your service provider.
!!PC Sync PC Sync is a program for data exchange between PC and the
phone by a data cable. Therefore, if you want to use this function,
you have to buy the accessory kit.
IrDA port
IrDA port
83
You can store phone numbers and their corresponding names in the
memory of your SIM card. In addition, you can store up to 255 numbers
and names in the phone memory. The SIM card and phone memories,
although physically separate, are used as if they were a single entity, called
the Address Book.
Contact List Menu 8.1
1. In menu mode, select Address Book ➞Contact List. Or, in standby
mode, press the right soft key [Names], then select Contact List.
2. Press the left soft key [Select].
!!Note You can also scroll through the Address Book from the beginning, in
idle mode with slide open, by pressing the down navigation key
directly.
3. If you want to edit, delete, copy an entry, or to add the voice to one,
select [Options].
4. Once you have found the required entry, press the E to dial the
number.
• View Detail: To view in detail the selected name.
• Delete: You can delete an entry.
• Write Text Message: You can write a text message. For further details,
see page 46.
• Write Multimedia Message: You can write a multimedia message. For
further details, see page 57.
• Edit: You can edit the name, mobile number, home number, office
number, E-mail, group, piture by press the left soft key [Select].
• Copy To Phone: You can copy an entry from SIM to phone.
• Copy To SIM: You can copy an entry from Phone to SIM.
• Main Number: You can select the main number out of your mobile,
home or office numbers. Choose the one that is most often used. The
main number will be displayed first, if you set this.
Address Book
84
New Contact Menu 8.2
You can add a address book entry by using this function. Phone memory
capacity is 250 entries. SIM card memory capacity depends on the cellular
service provider. You can also save 40 characters of name in the phone
memory, and save characters in the SIM card. The number of characters is
dependent on the SIM.
1. In menu mode, select Address Book ➞New Contact. Or, in standby
mode, press the right soft key [Names], then select New Contact.
2. Scroll to highlight New Contact, and press the left soft key [Select].
3. You can add new address book entries to SIM memory or the address
book memory. To select the memory, go to Set memory (Menu 8.8.1).
(Refer to page 93.)
• Adding new entries into SIM memory
You can enter a name and number, and select the required group.
(Depends on the SIM)
• Adding new entries into phone memory
You can enter a name, numbers, E-mail address and memo, and select the
required group.
Speed Dials Menu 8.3
You can assign any of the keys, 2to 9with a name list entry. You
can call directly by pressing this key for 2-3 seconds.
1. In menu mode, select Address Book ➞Speed Dial. Or, in standby
mode, press the right soft key [Names], then select Speed Dials.
2. Scroll to Speed Dials, then press the left soft key [Select].
3. If you want to add a number to speed dial, select <Empty>. Then, you
can search the name from the Address Book.
Address Book
85
4. Select the name from the speed dial. You can change and delete the
name. In addition, you can call by this number, write text message, and
multimedia message.
Caller Groups Menu 8.4
There are 7 predefined groups as well as one additional group labeled
Others where you can create your own lists.
1. You can set the phone to ring in a specific way and display a preselected
graphic icon when a particular person calls you.
2. Scroll to Caller Groups then press the left soft key [Select] to enter this
menu.
3. Every Group list will be displayed: Family, VIP, Friends, Colleague,
Group 1, Group 2, Others.
4. Select the Group name that you want to manage by pressing
the left soft key [Options].
5. You will see the following submenus under the predefined groups
except for the Others group.
• Member List: Allows you to see the member list in the group.
• Group Ring Tone: Allows you to select the ring tone to be used when
you receive a voice phone call from a person in the group.
• Group Icon: Allows you to select the graphic icon to be displayed
when you receive a call from a person in the group.
• Add Member: Allows you to add the member to the group.
• Remove Member: Allows you to delete the member in the group.
• Rename: Allows you to assign a name to the group.
Address Book
86
Copy All Menu 8.5
You can copy or move entries from the SIM card memory to the phone
memory and vice versa.
SIM To Phone (Menu 8.5.1)
You can copy the entry from the SIM card to phone memory.
Phone To SIM (Menu 8.5.2)
You can copy the entry from the phone memory to the SIM card.
The following options are available:
]
Keep Original: When copying, Original Dial Number is kept.
]
Delete Original: When copying, Original Dial Number will
be erased.
Delete All Menu 8.6
You can delete all entries in the SIM and Phone. This function requires the
security code except for Voice.
Press the Ekey to return to the standby mode.
Settings Menu 8.7
Set Memory (Menu 8.7.1)
Scroll to highlight the Set Memory option, then press the left soft key
[Select].
]
If you select Variable when adding entry, the phone will ask where to
store.
]
If you select SIM or Phone, the phone will store an entry to the SIM or
the phone.
Address Book
87
View Options (Menu 8.7.2)
Names Only: the phone will search an entry by Name, display up to 6
picture list.
With Picture: the phone will search an entry by Name or Number, display
up to 4 picture list, with showing picture.
Name & Number: the phone will search an entry by the Name and
Number, display up to 4 picture list Name and Number, without showing
picture.
Information Menu 8.8
Service Dial Number (Menu 8.8.1)
You can view the list of Service Dialing Numbers (SDN) assigned by your
network provider (If supported by the SIM card). Such numbers include
the emergency, directory assistance and voice mail numbers.
1. Select the Service dial number option.
2. The names of the available services will be shown.
3. Use the up/down navigation keys to select a service. Press the S key.
Memory Status (Menu 8.8.2)
You can check how many names and numbers are stored in the Address
Book (SIM card and phone memories).
Own Number (Menu 8.8.3)
Allows you to display your phone number in the SIM card.
*
*
*:Shown only if supported by SIM card
Address Book
88
Sounds Menu 9.1
There can be 5 sound modes. Normal, Manner, Silent, Ear Mic and Car
Kit. Normal, Manner, Silent modes can be changed on Volume menu. In
addition, long last *key on idle mode can swap Normal and Manner
mode. Ear Mic and Car Kit is available when instruments are attached.
Shop Ringtones (Menu 9.1.1)
Connects to Cingular Ringtone Shops
Ringtones (Menu 9.1.2)
Shows and plays ringtones. A7110 supplies 10 default ringtones. There can
be downloaded ringtones from Ringtone shops.
Volume (Menu 9.1.3)
Can control Ringtone, Key Tone, In call Volume, Ear Mic and Car Kit
attached volume. The others (slide tone volume, message tone volume,
etc...) depend on Ringtone volume.
Ring Alert Type (Menu 9.1.4)
Supports 3 ring alert type. Ring, Ring & Vibration and Ring After
Vibration. It is available on Ringtone volume level 1~5.
Message Alert Tones (Menu 9.1.5)
You can select 4 message alert tones.
Key Tones (Menu 9.1.6)
You can select 5 key tones including Voice Keytone.
Settings
89
Slide Tones (Menu 9.1.7)
You can select 3 slide tones. It will be played on slide on and off.
Voice Recording (Menu 9.1.8)
Display Menu 9.2
My Wallpaper (Menu 9.2.1)
You can select the background pictures in standby mode. There are 2
folders that include graphics and pictures originated from built-in camera
or web sites. No Wallpaper make the background be white.
Backlight (Menu 9.2.2)
You can set the light-up duration of the internal display. There are 3 light-
up durations, 10, 20, 30 seconds.
Languages (Menu 9.2.3)
You can change the language for the display texts in your phone. This
change will also affect the Language Input mode. A7110 supports English,
French, Spanish.
Menu Style (Menu 9.2.4)
You can change the top menu styles, iconic grid and list style.
Greeting Note (Menu 9.2.5)
If you select On, you can edit the text which is displayed in standby mode.
Color Scheme (Menu 9.2.6)
You can choose 4 kinds of color schemes, Default, Pictograph, Metal and
Midnight.
Settings
90
Information Window (Menu 9.2.7)
You can preview the current state of the selected menu before
open the menu. The state is shown at bottom of the display.
Date & Time Menu 9.3
You can set functions relating to the date and time.
Set Date (Menu 9.3.1)
You can enter the current date.
Date Format (Menu 9.3.2)
You can set the Date format such as YYYY/MM/DD, DD/MM/YYYY,
MM/DD/YYYY. (D: Day / M: Month / Y: Year)
Set Time (Menu 9.3.3)
You can enter the current time.
Time Format (Menu 9.3.4)
Your can set the time format between 24-hour and 12-hour.
]
The Wake up alarm is active even if the phone is off.
]
The Wake up alarm lasts 1 minute.
Auto Update (Menu 9.3.5)
Set on, Date and time are set up automatically.
Settings
91
Call Settings Menu 9.4
To change the settings for call diverting:
Call Forwarding (Menu 9.4.1)
When this network service is activated, you can direct your incoming calls
to another number, for example, to your voice mailbox number. For
details, contact your service provider. Select one of the divert options, for
example, select If busy to divert voice calls when your number is busy or
when you reject incoming calls.
The following options are available:
]
All Voice Calls: Diverts voice calls unconditionally.
]
If Busy: Diverts voice calls when the phone is in use.
]
If No Reply: Diverts voice calls which you do not answer.
]
If Out Of Reach: Diverts voice calls when the phone is switched off or
out of coverage.
]
All Data Calls: Diverts to a number with a PC connection
unconditionally.
]
All Fax Calls: Diverts to a number with a fax connection
unconditionally.
• Activate: Activates the corresponding service.
- To Voice Mail: Forwards to voice mail center. This function does not
include All Data Calls and All Fax Calls menus.
- To Other Number: Inputs the number for diverting.
- Favorite Number: You can check recent five diverted numbers.
• Cancel: Cancels the corresponding service.
• View Status: Checks the status of the service.
]
Cancel All: Cancels all call divert service.
*
*:Shown only if supported by SIM card
Settings
92
Answer Mode (Menu 9.4.2)
Allows you to determine when to answer the phone.
]
Slide down: When the phone rings, you can answer a call simply by
sliding down the keypad.
]
Any Key: You can answer an incoming call by pressing any key, except
the E key.
]
Send Key Only: You can answer an incoming call by only pressing the
S key.
Send My Number (Menu 9.4.3)
This network service allows you to set your phone number to be displayed
(On) or hidden (Off) from the person to whom you are calling. Select Set
By Network to reset the phone to the setting that you have agreed upon
with your service provider.
Call Waiting (Menu 9.4.4)
The network will notify you of a new incoming call while you have a call
in progress. Select Activate to request the network to activate call waiting,
Cancel to request the network to deactivate call waiting, or View Status,
to check if the function is active or not.
*
*
*:Shown only if supported by SIM card
Settings
93
Minute Minder (Menu 9.4.5)
This option allows you to specify whether the phone must beep every
minute during an outgoing call to keep you informed of the length of the
call.
Automatic Redial (Menu 9.4.6)
Select On, and your phone will make a maximum of three attempts to
connect the call after an unsuccessful call attempt.
Select Line (Menu 9.4.7)
This function is only used if Alternate line service supported by the Service
Provider. Two independent phone numbers are registered for the phone.
This function provides you with the selection the currently used phone
number. If this function is supported by your service provider, the
following menu will be displayed.
]
Line 1: Select Line 1 as the current phone number.
]
Line 2: Select Line 2 as the current phone number.
Send DTMF (Menu 9.4.8)
You can send the DTMF (dual tone multi-frequency) tones of the number
on the display during a call.
This option is helpful for entering a password or account number when you
call an automated system, like a banking service.
Settings
94
Security Menu 9.5
Various codes and passwords are used to protect the features of your
phone. They are described in the following sections (see pages 25)
PIN Code Request (Menu 9.5.1)
When the PIN code request feature is enabled, you must enter your PIN
each time you switch the phone on. Consequently, any person who does
not have your PIN cannot use your phone without your approval.
!!Note Before disabling the PIN code request feature, you must enter your
PIN
The following options are available:
]
Enable: You must enter the PIN each time the phone is switched on.
]
Disable: The phone connects directly to the network when you switch it
on.
Phone Lock (Menu 9.5.2)
You can use security code to avoid unauthorized use of the phone.
Whenever you switch on the phone, the phone will request security code if
you set phone lock to Always On. If you set phone lock to When SIM
Changed, your phone will request security code only when you change
your SIM card. If you want to lock your phone after power on, set Phone
Lock to Immediatley.
Auto Key Lock (Menu 9.5.3)
When you enable Automatic key lock, keypad will be lock automatically
on an idle screen after seleted seconds without any key requesting. if you
set to Off, keypad will not be locked automatically.
Settings
95
!!Note If you want to lock your phone keypad manually, enter Top menu and
press soft2 key.
If you want to unlock your phone keypad, press the left soft key
[unlock] key and then press soft2 key. But if you enabled Automatic
key lock before, your phone keypad will be unlock and then after after
seleted seconds the keypad will be lock up again automatically.
Call Barring Service (Menu 9.5.4)
Call barring allows you to restrict from making and receiving calls with
your phone. For this function, you need the barring password, which you
can obtain from your service provider.
The following options are available:
]
All Outgoing: Calls cannot be made.
]
Outgoing International: International calls cannot be made.
]
O/G (Outgoing) International Except Home Country: When abroad,
calls can be made only to numbers within the current country and to your
home country, which is where your home network provider is located.
]
All Incoming: Calls cannot be received.
]
Incoming When Abroad: Calls cannot be received when you are using
your phone outside your home service area.
]
Cancel All Barrings: All call barring settings are deactivated; calls can
be made and received normally.
]
Change Password: You can set and change the call barring password
obtained from your service provider using this option. You must enter
the current password before you can specify a new one.Once you have
entered a new password, you are asked to confirm it by entering it again.
!!Note To use Call Barring service, you must input the network password.
When calls are barred, calls may be possible to certain emergency
numbers in some networks.
*
*:Shown only if supported by SIM card
Settings
96
Fixed Dial Number (Menu 9.5.5)
Allows you to restrict your outgoing calls to selected phone numbers, if
this function is supported by your SIM card. The PIN2 code is required.
The following options are available:
]
Enable: You can only call phone numbers stored in the Address Book.
You must enter your PIN2.
]
Disable: You can call any number.
]
Number List: You can view the number list saved as fixed dial number.
!!Note Not all SIM cards have a PIN2. If your SIM card does not, this menu
option is not displayed.
Connection Menu 9.6
Depending on ENS (Enhanced Network Selection) function and “PLMN
Mode” in SIM, Network Selection menu appears or disappears. (For details
about this, contact your dealer.)
Network Selection (Menu 9.6.1)
The Network Selection feature enables you to indicate whether the network
used when roaming (outside your home area) is selected Automatic,
Manual, and Preferred.
!!Note You can select a network other than your home network only if it has a
valid roaming agreement with your home network.
]
Automatic: Allows you to set the phone to automatically search for and
select one of the cellular networks available in your area.
The phone will be set to Automatic even though the power is off and
on.
*
*:Shown only if supported by SIM card
Settings
97
]
Manual: Allows you to select the desired network manually from a list
of networks. If the connection to the manually selected network is lost,
the phone will sound an error tone and ask you to select a network again.
The selected network must have a roaming agreement with your home
network, that is, the operator whose SIM card is in your phone. The
phone lets you select another network if the phone fails to access the
selected network. If you switch off the phone, the phone will be reset to
Automatic.
]
Preferred: You can set a list of preferred networks the handset should
attempt to register with first, before attempting to register to any other
networks. This list is created from the handset’s predefined list of
known networks.
World Phone (Menu 9.6.2)
When the America (850/1900) option is selected the device can be used in
the US, and when the Europe (1800) option is chosen the device can be
used in European countries.
GPRS Attach (Menu 9.6.3)
If you select Power On and you are in a network that supports packet data,
the phone registers to the GPRS network and sending short messages will
be done via GPRS. Also, starting an active packet data connection, for
example, to send and receive e-mail, is quicker. If you select When
Needed, the phone will use a packet data connection only if you start an
application or action that needs it. The GPRS connection is closed after it
is not used by any application.
!!Note If there is no GPRS coverage and you have chosen Power on, the
phone will periodically try to establish a packet data connection.
Settings
98
Reset Setting Menu 9.7
You can easily reset your phone to its default configuration. To do so,
proceed, as follows.
1. Select the Reset Settings menu option.
2. Enter the 4-digit phone password.
!!Note The password is preset to 0000.
Settings
99
Please check to see if any problems you have encountered with the phone
are described in this section before taking the phone in for a service or
calling a service engineer.
QHow do I view the list of outgoing calls, incoming calls and missed
calls?
APress the S key.
QHow do I clear all call history?
APress the left soft key [Menu] and then the 1 4 4 key.
QHow do I view all numbers stored in memory?
APress right soft key [Names] and then 1.
QWhy is the connection inconsistent or not audible in certain areas?
AWhen frequency environment is unstable in a certain area, connection
may be inconsistent and not audible. Relocate to another area and try
again.
QWhy is the connection not consistent abruptly disconnects even when
established?
A When frequency is unstable or weak or if there are too many users,
connection may be cut off even after it was established. Please try again
later or attempt after relocating to other areas.
Q&A
100
QWhy does the LCD not turn on?
A Remove the battery and turn on the power after placing it back on. If
there is no change, fully charge the battery and try again.
Q Why is there an echo when a connection is made with certain
telephones in a certain area?
AThis is called the ‘Echo Phenomenon’, where it occurs if connection
volume is too high or caused by special properties (semi electronic
telephone exchange) of the equipment on the other end.
QWhy does the phone heat up?
AThe phone may get hot when there is a very long call duration or when
games are played or even when surfing the Internet for a long time. This
has no effect upon the life of the product or performance.
QWhy is there no ring tone, but only a blinking LCD screen?
APhone may be set to ‘Vibration All’ or in ‘Silent All’ mode. In the
Sound menu, please select Volume →Ringtone →Volume 1 ~ Volume
5, or Vol5&Vib.
Q Why does the battery life get shorter in standby mode?
A The battery is worn out. As time passes, the battery life gradually
becomes shorter. If the battery lasts about half the amount of time as
when first purchased, it’s time to purchase a new battery.
Q&A
101
QWhy does the battery run out so quickly during normal use?
AIt is due to the user environment or a large number of calls or weak
signal.
QWhy is no number dialed when you recall a Address Book entry?
A Check that the number has been stored correctly by using the Address
book Search feature. Re-store them, if necessary.
QWhy can’t my correspondent reach me?
A Is you phone switched on (S pressed for more than three seconds)?
Are you accessing the right cellular network? Or, you may have set an
incoming call barring option.
QI cannot find the lock, PIN, or PUK code. What is my password?
A The default lock code is ‘0000’. If you forget or lose the lock code,
contact your phone dealer. If you forget or lose a PIN or PUK code, or
if you have not received such a code, contact your network service
provider
Q&A
102
There are a variety of accessories available for your mobile phone. You
can select these options according to your personal communication
requirements. Consult your local dealer for availability.
Travel Adapter
This adapter allows you to charge the battery.
It supports standard U.S. 120 Volt 60Hz
outlets.
It takes 5 hours to charge a completely
discharged battery.
Battery
Standard battery is available.
Vehicle Power Adapter
You can operate the phone and trickle charge
the phone battery from your vehicle by using
the vehicle power adapter.
It takes 5 hours to charge a completely
discharged battery.
Accessories
103
Headset
Connects to your phone, allowing hands-free
operation. Includes earpiece, microphone,
and integrated call answer/termination
button.
Data Cable Kit
Connects your phone to a PC.
Accessories
104
TIA Safety Information
Provided herein is the complete TIA Safety Information for Wireless
Handheld phones. Inclusion of the text covering Pacemakers, Hearing
Aids, and Other Medical Devices is required in the owner’s manual for
CTIA Certification. Use of the remaining TIA language is encouraged
when appropriate.
Exposure to Radio Frequency Signal
Your wireless handheld portable telephone is a low-power radio
transmitter and receiver. When it is ON, it receives and also sends out
radio frequency (RF) signals.
In August, 1996, the Federal Communications Commissions (FCC)
adopted RF exposure guidelines with safety levels for handheld wireless
phones. Those guidelines are consistent with the safety standards
previously set by both U.S. and international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986)
ICNIRP (1996)
Those standards were based on comprehensive and periodic evaluations of
the relevant scientific literature. For example, over 120 scientists,
engineers, and physicians from universities, government health agencies,
and industry reviewed the available body of research to develop the ANSI
Standard (C95.1).
*American National Standards Institute; National Council on Radiation
Protection and Measurements; International Commission on Non-Ionizing
Radiation Protection
The design of your phone complies with the FCC guidelines (and those
standards).
Safety Guidelines
105
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the phone and may
violate FCC regulations.
Phone Operation
NORMAL POSITION: Hold the phone as you would any other telephone
with the antenna pointed up and over your shoulder.
Tips on Efficient Operation
For your phone to operate most efficiently:
]
Do not touch the antenna unnecessarily when the phone is in use.
Contact with the antenna affects call quality and may cause the phone to
operate at a higher power level than otherwise needed.
Driving
Check the laws and regulations on the use of wireless phones in the areas
where you drive. Always obey them. Also, if using your phone while
driving, please:
]
Give full attention to driving — driving safely is your first
responsibility;
]
Use hands-free operation, if available;
]
Pull off the road and park before making or answering a call if driving
conditions so require.
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However,
certain electronic equipment may not be shielded against the RF signals
from your wireless phone.
Safety Guidelines
106
Pacemakers
The Health Industry Manufacturers Association recommends that a
minimum separation of six (6’) inches be maintained between a handheld
wireless phone and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent
research by and recommendations of Wireless Technology Research.
Persons with pacemakers:
]
Should ALWAYS keep the phone more than six inches from their
pacemaker when the phone is turned ON;
]
Should not carry the phone in a breast pocket.
]
Should use the ear opposite the pacemaker to minimize the potential for
interference.
]
If you have any reason to suspect that interference is taking place, turn
your phone OFF immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your service provider.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of
your device to determine if they are adequately shielded from external RF
energy. Your physician may be able to assist you in obtaining this
information.
Turn your phone OFF in health care facilities when any regulations posted
in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or its
representative regarding your vehicle.
Safety Guidelines
107
You should also consult the manufacturer of any equipment that has been
added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
Aircraft
FCC regulations prohibit using your phone while in the air. Turn your
phone OFF before boarding an aircraft.
Blasting Areas
To avoid interfering with blasting operations, turn your phone OFF when
in a ‘blasting area’ or in areas posted: ‘Turn off two-way radio’. Obey all
signs and instructions.
Potentially Explosive Atmosphere
Turn your phone OFF when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always,
marked clearly. Potential areas may include: fueling areas (such as
gasoline stations); below deck on boats; fuel or chemical transfer or
storage facilities; vehicles using liquefied petroleum gas (such as propane
or butane); areas where the air contains chemicals or particles (such as
grain, dust, or metal powders); and any other area where you would
normally be advised to turn off your vehicle engine.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. DO NOT place objects, including
either installed or portable wireless equipment, in the area over the air bag
or in the air bag deployment area. If in-vehicle wireless equipment is
improperly installed and the air bag inflates, serious injury could result.
Safety Guidelines
108
FDA Consumer Update
The U.S. Food and Drug Administration’s Center for Devices and
Radiological Health Consumer Update on Mobile Phones.
1.Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems
are associated with using wireless phones. There is no proof, however,
that wireless phones are absolutely safe. Wireless phones emit low levels
of radiofrequency energy (RF) in the microwave range while being used.
They also emit very low levels of RF when in the standby mode.
Whereas high levels of RF can produce health effects (by heating tissue),
exposure to low level RF that does not produce heating effects causes no
known adverse health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies have suggested that
some biological effects may occur, but such findings have not been
confirmed by additional research. In some cases, other researchers have
had difficulty in reproducing those studies, or in determining the reasons
for inconsistent results.
2.What is the FDA’s role concerning the safety of wireless
phones?
Under the law, the FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold, as it
does with new drugs or medical devices. However, the agency has
authority to take action if wireless phones are shown to emit
radiofrequency energy (RF) at a level that is hazardous to the user. In
such a case, the FDA could require the manufacturers of wireless phones
to notify users of the health hazard and to repair, replace, or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
actions, the FDA has urged the wireless phone industry to take a number
of steps, including the following:
Safety Guidelines
109
]
Support needed research into possible biological effects of RF of the
type emitted by wireless phones;
]
Design wireless phones in a way that minimizes any RF exposure to the
user that is not necessary for device function; and
]
Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health.
The FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong to
this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working
group activities, as well.
The FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold in
the United States must comply with FCC safety guidelines that limit RF
exposure. The FCC relies on the FDA and other health agencies for safety
questions about wireless phones.
The FCC also regulates the base stations that the wireless phone networks
rely upon. While these base stations operate at higher power than do the
wireless phones themselves, the RF exposures that people get from these
base stations are typically thousands of times lower than those they can get
from wireless phones. Base stations are thus not the subject of the safety
questions discussed in this document.
Safety Guidelines
110
3.What kinds of phones are the subject of this update?
The term ‘wireless phone’ refers here to handheld wireless phones with
built-in antennas, often called ‘cell’, ‘mobile’, or ‘PCS’ phones. These
types of wireless phones can expose the user to measurable
radiofrequency energy (RF) because of the short distance between the
phone and the user’s head.
These RF exposures are limited by FCC safety guidelines that were
developed with the advice of the FDA and other federal health and safety
agencies. When the phone is located at greater distances from the user,
the exposure to RF is drastically lower because a person's RF exposure
decreases rapidly with increasing distance from the source. The so-called
‘cordless phones,’ which have a base unit connected to the telephone
wiring in a house, typically operate at far lower power levels, and thus
produce RF exposures far below the FCC safety limits.
4.What are the results of the research done already?
The research done thus far has produced conflicting results, and many
studies have suffered from flaws in their research methods. Animal
experiments investigating the effects of radiofrequency energy (RF)
exposures characteristic of wireless phones have yielded conflicting
results that often cannot be repeated in other laboratories. A few animal
studies, however, have suggested that low levels of RF could accelerate
the development of cancer in laboratory animals. However, many of the
studies that showed increased tumor development used animals that had
been genetically engineered or treated with cancer-causing chemicals so
as to be pre-disposed to develop cancer in the absence of RF exposure.
Other studies exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions under which people use
wireless phones, so we don’t know with certainty what the results of such
studies mean for human health.
Safety Guidelines
111
Three large epidemiology studies have been published since December
2000. Between them, the studies investigated any possible association
between the use of wireless phones and primary brain cancer, glioma,
meningioma, or acoustic neuroma, tumors of the brain or salivary gland,
leukemia, or other cancers. None of the studies demonstrated the
existence of any harmful health effects from wireless phone RF
exposures. However, none of the studies can answer questions about
long-term exposures, since the average period of phone use in these
studies was around three years.
5.What research is needed to decide whether RF exposure
from wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of
people actually using wireless phones would provide some of the data
that are needed. Lifetime animal exposure studies could be completed in
a few years. However, very large numbers of animals would be needed to
provide reliable proof of a cancer promoting effect if one exists.
Epidemiological studies can provide data that is directly applicable to
human populations, but 10 or more years follow-up may be needed to
provide answers about some health effects, such as cancer. This is
because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop — if they do — may be many, many
years. The interpretation of epidemiological studies is hampered by
difficulties in measuring actual RF exposure during day-to-day use of
wireless phones. Many factors affect this measurement, such as the angle
at which the phone is held, or which model of phone is used.
6.What is the FDA doing to find out more about the possible
health effects of wireless phone RF?
The FDA is working with the U.S. National Toxicology Program and
with groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about the
effects of exposure to radiofrequency energy (RF).
Safety Guidelines
112
The FDA has been a leading participant in the World Health
Organization International Electromagnetic Fields (EMF) Project since
its inception in 1996. An influential result of this work has been the
development of a detailed agenda of research needs that has driven the
establishment of new research programs around the world. The project
has also helped develop a series of public information documents on
EMF issues.
The FDA and the Cellular Telecommunications & Internet Association
(CTIA) have a formal Cooperative Research and Development
Agreement (CRADA) to do research on wireless phone safety. The FDA
provides the scientific oversight, obtaining input from experts in
government, industry, and academic organizations. CTIA-funded
research is conducted through contracts with independent investigators.
The initial research will include both laboratory studies and studies of
wireless phone users. The CRADA will also include a broad assessment
of additional research needs in the context of the latest research
developments around the world.
7.How can I find out how much radio frequency energy
exposure I can get by using my wireless phone?
All phones sold in the United States must comply with Federal
Communications Commission (FCC) guidelines that limit radio
frequency energy (RF) exposures. The FCC established these guidelines
in consultation with the FDA and the other federal health and safety
agencies. The FCC limit for RF exposure from wireless telephones is set
at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6
W/kg). The FCC limit is consistent with the safety standards developed
by the Institute of Electrical and Electronic Engineering (IEEE) and the
National Council on Radiation Protection and Measurement. The
exposure limit takes into consideration the body’s ability to remove heat
from the tissues that absorb energy from the wireless phone and is set
well below levels known to have effects. Manufacturers of wireless
phones must report the RF exposure level for each model of phone to the
FCC. The FCC website (http://www.fcc.gov/oet/ rfsafety) gives
Safety Guidelines
113
directions for locating the FCC identification number on your phone so
you can find your phone’s RF exposure level in the online listing.
8.What has the FDA done to measure the radio frequency
energy coming from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing
a technical standard for measuring the radio frequency energy (RF)
exposure from wireless phones and other wireless handsets with the
participation and leadership of FDA scientists and engineers. The
standard, ‘Recommended Practice for Determining the Spatial-Peak
Specific Absorption Rate (SAR) in the Human Body Due to Wireless
Communications Devices: Experimental Techniques,’ sets forth the first
consistent test methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The test method uses a
tissue-simulating model of the human head. Standardized SAR test
methodology is expected to greatly improve the consistency of
measurements made at different laboratories on the same phone. SAR is
the measurement of the amount of energy absorbed in tissue, either by
the whole body or a small part of the body. It is measured in watts/kg (or
milliwatts/g) of matter. This measurement is used to determine whether a
wireless phone complies with safety guidelines.
9.What steps can I take to reduce my exposure to
radiofrequency energy from my wireless phone?
If there is a risk from these products — and at this point we do not know
that there is — it is probably very small. But if you are concerned about
avoiding even potential risks, you can take a few simple steps to
minimize your exposure to radiofrequency energy (RF). Since time is a
key factor in how much exposure a person receives, reducing the amount
of time spent using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every
day, you could place more distance between your body and the source of
the RF, since the exposure level drops off dramatically with distance.
Safety Guidelines
114
For example, you could use a headset and carry the wireless phone
away from your body or use a wireless phone connected to a remote
antenna.Again, the scientific data do not demonstrate that wireless
phones are harmful. But if you are concerned about the RF exposure
from these products, you can use measures like those described above
to reduce your RF exposure from wireless phone use.
10.What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps to
lower exposure to radiofrequency energy (RF), the measures described
above would apply to children and teenagers using wireless phones.
Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised
that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets
containing such a recommendation in December 2000. They noted that
no evidence exists that using a wireless phone causes brain tumors or
other ill effects. Their recommendation to limit wireless phone use by
children was strictly precautionary; it was not based on scientific
evidence that any health hazard exists.
11.What about wireless phone interference with medical
equipment?
Radio frequency energy (RF) from wireless phones can interact with
some electronic devices. For this reason, the FDA helped develop a
detailed test method to measure electromagnetic interference (EMI) of
implanted cardiac pacemakers and defibrillators from wireless
telephones. This test method is now part of a standard sponsored by the
Association for the Advancement of Medical instrumentation (AAMI).
The final draft, a joint effort by the FDA, medical device
manufacturers, and many other groups, was completed in late 2000.
Safety Guidelines
115
This standard will allow manufacturers to ensure that cardiac
pacemakers and defibrillators are safe from wireless phone EMI.
The FDA has tested hearing aids for interference from handheld
wireless phones and helped develop a voluntary standard sponsored by
the Institute of Electrical and Electronic Engineers (IEEE). This
standard specifies test methods and performance requirements for
hearing aids and wireless phones so that no interference occurs when a
person uses a ‘compatible’ phone and a ‘compatible’ hearing aid at the
same time. This standard was approved by the IEEE in 2000.
The FDA continues to monitor the use of wireless phones for possible
interactions with other medical devices. Should harmful interference be
found to occur, the FDA will conduct testing to assess the interference
and work to resolve the problem.
12.Where can I find additional information?
For additional information, please refer to the following resources:
FDA web page on wireless phones
(http://www.fda.gov/cdrh/phones/index.html)
Federal Communications Commission (FCC) RF Safety Program
(http://www.fcc.gov/oet/rfsafety)
International Commission on Non-lonizing Radiation Protection
(http://www.icnirp.de)
World Health Organization (WHO) International EMF Project
(http://www.who.int/emf)
National Radiological Protection Board (UK)
(http://www.nrpb.org.uk/)
Safety Guidelines
116
Consumer Information on SAR
(Specific Absorption Rate)
This Model Phone Meets the Government’s Requirements for
Exposure to Radio Waves.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission
(FCC) of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and
health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg. * Tests for SAR are conducted using
standard operating positions specified by the FCC with the phone
transmitting at its highest certified power level in all tested frequency
bands. Although SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can be well below the
maximum value. Because the phone is designed to operate at multiple
power levels to use only the power required to reach the network, in
general, the closer you are to a wireless base station antenna, the lower the
power output.
Before a phone model is available for sale to the public, it must be tested
and certified to the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC for each model.
Safety Guidelines
117
The highest SAR value for this model phone when tested for use at the ear
is 0.45 W/kg and when worn on the body, as described in this user’s
manual, is 1.40 W/kg. (Body-worn measurements differ among phone
models, depending upon available accessories and FCC requirements.)
While there may be differences between SAR levels of various phones and
at various positions, they all meet the government requirement for safe
exposure.
The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC RF
emission guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID BEJA7110.
Additional information on Specific Absorption Rates (SAR) can be found
on the Cellular Telecommunications Industry Association (CTIA) website
at http://www.wow-com.com
*In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in
measurements.
Safety Guidelines
118
To help you understand the main technical terms and abbreviations used in
this booklet and take full advantage of the feature on your mobile phone,
here are a few definitions.
Call Barring
Ability to restrict outgoing and incoming calls.
Call Divert
Ability to reroute calls to another number.
Call waiting
Ability to inform users that they have an incoming call when engaged on
another call.
GPRS (General Packet Radio Service)
GPRS guaranties continuous connection to the Internet for mobile phone
and computer users. It is based on the Global System for Mobile
Communication (GSM) circuit-switched cellular phone connections and
the Short Message Service (SMS).
GSM (Global System for Mobile Communication)
International standard for cellular communication, guaranteeing
compatibility between the various network operators. GSM covers most
European countries and many other parts of the world.
Glossary
119
Java
Programming language generating applications that can run on all
hardware platforms, whether small, medium or large, without modification.
It has been promoted for and geared heavily to the Web, both for public
Web sites and Intranets. When a Java program runs from a Web page, it is
called a Java applet. When it is run on a mobile phone or pager, it is called
a MIDlet.
Line Identification Services (Caller ID)
Service allowing subscribers to view or block the telephone numbers of
callers.
Multiparty Calls
Ability to establish a conference call involving up to five additional parties.
Phone Password
Security code used to unlock the phone when you have selected the option
to lock it automatically each time it switches on.
Roaming
Use of your phone when you are outside your home area (when traveling
for example).
SDN (Service Dial Number)
Telephone numbers supplied by your network provider and giving access
to special services, such as voice mail, directory inquiries, customer
support and emergency services.
Glossary
120
SIM (Subscriber Identification Module)
Card containing a chip with all the information required to operate the
phone (network and memory information, as well as the subscriber's
personal data). The SIM card fits into a small slot on the back of the phone
and is protected by the battery.
SMS (Short Message Service)
Network service sending and receiving messages to and from another
subscriber without having to speak to the correspondent. The message
created or received (up to 160 characters long) can be displayed, received,
edited or sent.
Patent Information
This product was manufactured under one or more of the following U.S.
patents: 5276765 5749067 6061647
DATE: 2004.07.30 (FC)
Glossary
121
A
Access codes 25
Accessories 111
Active flip 14,15
Add new 68,82,86
Add member 92
Address book 34
Adjusting the volume 27
Alarm clock 81
All calls’ cost 44
All pictures 77
Answering a call 27
Answer mode 100
Auto display 45,64
Auto redial 102
B
Backlight 16,96
Barring password 25
Battery 8,13,18,22,111
Bearer setting 49
Bookmarks 68,71,79
Brightness 76
Business card
47,
66
C
Cache check 74
Calculator 85
Calendar 82
Caller groups 92
Call barring service 104
Call costs 44
Call cost’s limit 44
Call divert 127
Call durations 43
Call waiting 35,100
Camera 76
Cancel all barrings 105
Change password 105
Clear cache 74
Clear key
14,
15
Closed user group 102
Conference calls 37
Copy all 93
CPHS
39,40,41
D
Default settings 77
Delete recent calls 43
Delivery reports 49
Dialed calls 42,43
Display screen
14,
15
Display information 17
Index
122
E
End key
14,
15
Ending a call 26
Enlarge 78
Entering text 28
F
FDN 105
Fixed dial number 105
Flip open 100
G
Gallery 77
Games 67
General pictures 77
Go to URL 72
GPRS 127
Group icon 92
Group ring tone 92
H
Headset 18,112
I
Image effect 76
Image size 76
Inbox 47,58,63,64
In-call menu 35
Infrared 14,87
Infrared port
14,
15,16
L
Languages 65,97
Last call 43
Last call’s cost 44
Lower case 31
M
Making a Call 26
Making international calls 26
Menu tree 39
Memo 85
Member list 92
Memory status
66,69,78
Message center URL 61
Message key
14,
15
Message types 48
Microphone
14,
15
Minute minder 101
Missed calls 42
Muting the microphone 36
Multimedia messages 57
Multishot 76
N
Navigation Key 14,15
Index
123
O
Outbox 48,59
Own number 94
P
Phonebook pictures 77
Phone to SIM 93
Power key
14,
15
Private call 38
R
Received Calls 43
S
Security code 25
Send
14,15,26
Send my number 100
Set memory 93
Service dial number 94,128
Scheduler tone 82
Shutter sound 77
Side keys
14,
15
Signal strength 28
SIM to phone 93
Speed dials 90
Sub LCD 23
T
Templates 65
Text messages 46
Thumbnail 78
Time format 98
Travel adapter 111
U
Unit converter 87
Upper case 31
V
Valid period 48,61
Vibrate mode 28
Voice dial 101
Voice mailbox number 62
Voice recording 84
W
Wallpaper 78
WAP browser 70
WAP information 45,74
White balance 76
World phone 106
World time 86
Write message(s) 46,57
Z
Zoom 76
Index
124
125
126
Memo
127
Memo
128
Memo
