LG Electronics USA AD600 Cellular/PCS WCDMA/GSM/EDGE 700/1700 MHz LTE USB Modem User Manual AD600
LG Electronics USA Cellular/PCS WCDMA/GSM/EDGE 700/1700 MHz LTE USB Modem AD600
Users Manual
AD600
Quickstart
Please use this Quickstart to get a brief overview of the
major features and services available with your new
USBConnect AD600 and your DataConnect service.
Or take advantage of our interactive web tutorial
available at:
for the most complete and up-to-date information
available for setting up and using your new
device and services. These online tutorials include step-
by-step instructions and screen shots to assist as well as
providing an easy search function.
What’s in the Box?
The following items are included in the box:
USBConnect AD600
Quickstart
USB Extension Cable
(Use is optional)
Connectivity Software CD
Getting Started
Insert the SIM Card
1. Press thumbs firmly on cover with LG logo and slide forward to remove cover.
2. Insert the SIM card into SIM slot in the direction indicated on the slot (notched corner
to the top right). Push the SIM card completely into slot until it’s fully inserted.
3. Replace the cover and slide up until it clicks into place.
Insert the device into your laptop
1. Open the USB connection part of the device.
2. Insert the device into an available USB port.
1. After you insert the AD600 into the laptop for the first time, the
Communication Manager (ACM) software automatically starts and guides
you through the installation process.
2. Once installation is complete, restart your laptop when prompted.
1. Double-click the ACM shortcut icon installed
on your desktop.
2. Wait while the connection to the
network initiates.
Install the software
Connect to the Mobile Network and access
the Internet
Windows 7, Vista, and XP
Note: The following steps will establish the initial connection in about 3 minutes.
Future connections will occur more quickly.
AT&T Communication Manager
Off On
List Networks Find a Hotspot
Mobile
Wi-Fi
Ready: ‘Closed’
Monthly Usage
Days Remaining 22
Session Usage 25.980 MB
Off On
Connected
File
Mobile No. (012) 345-6789 VPN
Connections Tools Help
AT&T Communication Manager
Off On
List Networks Find a Hotspot
Mobile
Wi-Fi
Ready: ‘Closed’
Monthly Usage
Days Remaining 22
Session Usage 25.980 MB
Off On
Connected
File
Mobile No. (012) 345-6789 VPN
Connections Tools Help

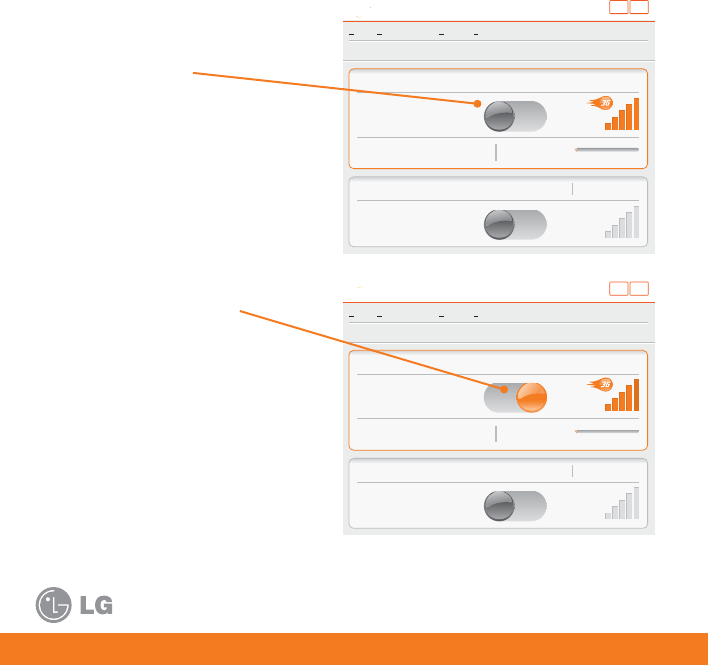

3. Click the gray
button once.
Once connected, the
button turns orange
and moves to the right.
4. Open your browser and
access the Internet. Click
the button (from step 3)
once to end your session.
To make the best use of your DataConnect service, please take some time to
familiarize yourself with the following features of the ACM application.
AT&T Communication Manager
Off On
List Networks Find a Hotspot
Mobile
Wi-Fi
Ready: ‘Closed’
Monthly Usage
Days Remaining 22
Session Usage 25.980 MB
Off On
Connected
File
Mobile No. (012) 345-6789 VPN
Connections Tools Help
Mobile
network
interface
Wi-Fi
network
interface
Mobile number
3G
indicator
Connection
status
Real time
session meter
Carrier
Monthly
usage
meter
Signal
strength
87
9
6
1
5
4
3
2

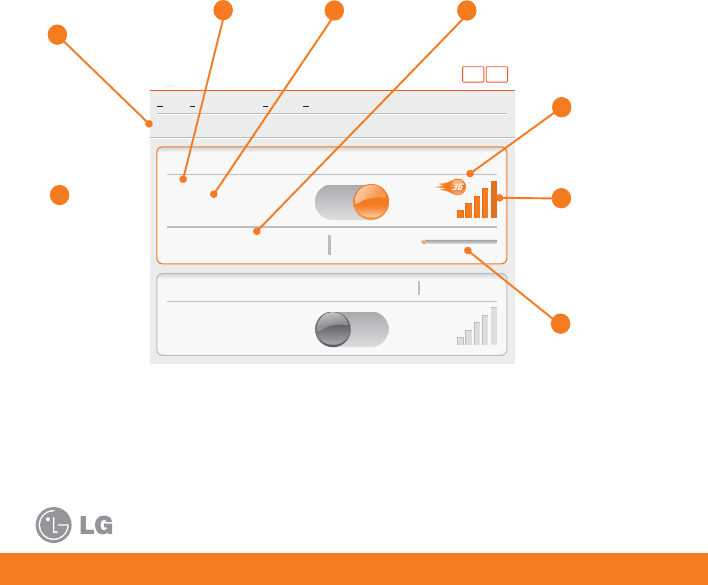

Using Communication Manager
Mobile number
This number is the mobile number associated with your device and
account. You will need this number to access your myWireless account
and to get support from.
Mobile network interface
The Mobile network portion of the main window allows you to control
your connection to mobile networks worldwide.
Wi-Fi network interface
The Wi-Fi network section of the main window allows you to control
your connections with Wi-Fi networks, including home, office, and public
hotspot networks. See page 14 for more information on using Wi-Fi with
ACM.
Usage Meter
The Usage meter shows your monthly estimated usage including the
current session. Your monthly usage is shown in comparison to your total
allowed usage for your billing cycle. The number of days left in the billing
cycle is shown as well.
Signal strength
This indicator shows the strength of the wireless signal that you are
receiving.
1
2
3
4
5
6
7
8
9
3G Indicator
This indicator appears when the 3G network is available. The
3G network is available in almost all major metropolitan areas and
provides the highest data transfer rates. When 3G networks are not
available, ACM will automatically connect to EDGE (also known as 2G)
networks.
Real time session meter
When connected to a mobile network, the session meter will show how
much data you are using for this connection session. This data usage is
added in real time to your total estimated monthly usage shown on the
Usage Meter.
Connection status
This indicator provides the connection status such as “Initializing,” “Ready
to Connect,” “Connecting,” etc.
Carrier
This indicator shows which wireless network your device is associated
with. For example, if you are connected to Mobile Network, the
wireless carrier indicator readsͨ
Mac OS X

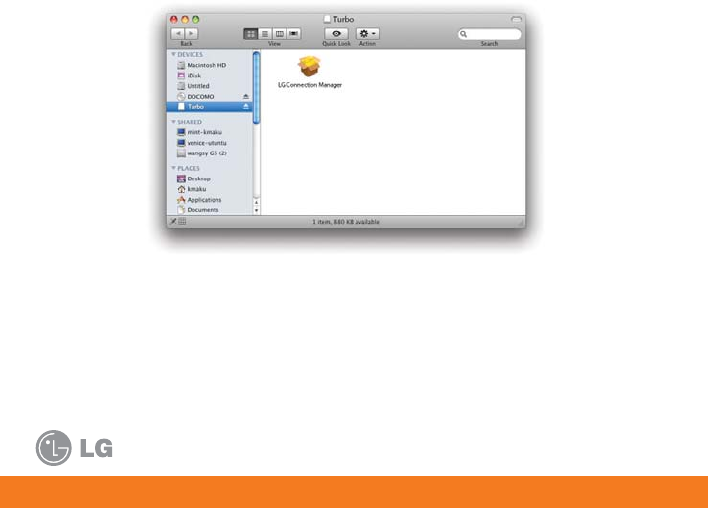

Install LG Connection Manager
1.
Insert the CD into CD-ROM drive.
2.
Double click the icon.
3.
Follow the on-screen instructions.
4.
The installation window will show ‘Install succeeded’. Click the Close button to finsh
installation.
Note: LG Connection Manager requires Mac OS X 10.4 or later
Start the LG Connection Manager and access the Internet
1. Insert the AD600 into the USB port of your Mac.
2.
Double click the application icon.
3.

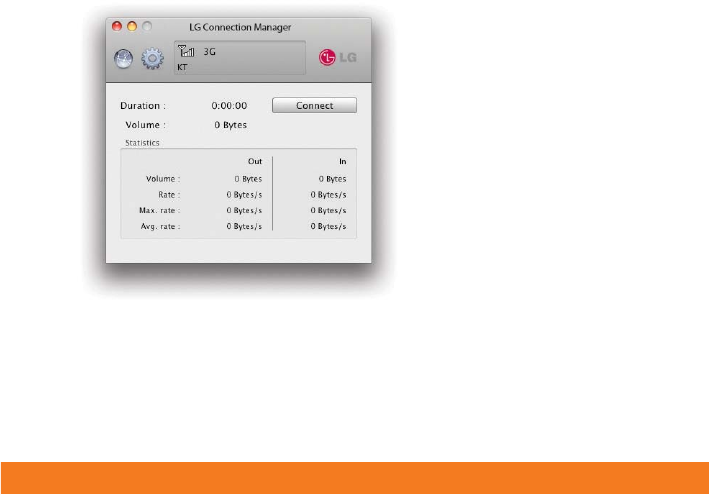

The application will appear as below.
4.
Click the Connect (On/Off) button to connect to the mobile network.
Troubleshooting
ACM says “No SIM”?
Remove the AD600 from the laptop and insert your SIM card. See page 5 for
details. If you do not have a SIM card, contact.
If Communication Manager does not
automatically start to install the first time you insert
the USBConnect AD600 into your laptop:
If your AD600 came with a CD:
1. Insert the CD into your CD-ROM drive.
2. Click Start > My Computer (Windows XP) or Computer (Windows 7 or Vista).
3. Under the CD-ROM drive, go to Winand doubleclick the Setup.exe file.
If your AD600 didn’t come with a CD:
1. Go to www./acm and download ACM.
2. Follow the instructions on the web site to install ACM.
ACM says “Mobile Disabled”?
1. Enable the AD600:
a. In the ACM window, click the Connections tab.
b. Highlight Adapters and click Turn On Mobile. Wait for
the ACM to detect the AD600.
2. If the ACM still reports “Mobile Disabled”, contact Customer Support for
assistance.
Why does ACM disconnect when I close my laptop?
If you close your laptop or put it into “sleep” or “hibernation” mode, any ACM
connection will be dropped and will need to be re-established when you wake
your device. Follow the normal ACM connection process to establish a new
network connection.
Microsoft and Windows are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
LG and the LG logo are registered trademarks of LG Electronics. Inc.
On the Web
Interactive web tutorials are available at Tutorials. Select Manufacturer: LG and
Model: AD600 from the drop down menus.
Detailed support information including device specifications, troubleshooting, user forums
and knowledge base articles are available at DeviceSupport.
From a Phone
Call Customer Care at 800-ΡΡΡ-0500 for assistance with your device or service.
Please enter the 10-digit wireless phone number associated with your
USBConnect AD600 when prompted. This will ensure you get direct access to a
specialized Care team.
The wireless phone number associated with your USBConnect AD600 can be found:
ƪƓ
ƪƓ
ƪƕ
Note: You must have the USBConnect AD600 inserted
into your laptop to find your wireless number.
Find More Information
Body-worn Operation
This Mobile Broadband USB Modem, model AD600, is approved for use in normal
size laptop computers only (typically with 12” or larger display screens).
To comply with FCC RF exposure requirements, this modem should not be used in
configurations that cannot maintain at least 5mm (approximately 0.2 inches) from
your body.
Also, when using the USB extension cable, place the USB modem away from your
body or any other transmitter of the laptop or PC.
This USB modem has been tested for compliance with FCC/IC RF exposure limits
in the laptop computers configurations with horizontal and vertical USB slots and
can be used in laptop computers with substantially similar physical dimensions,
construction and electrical and RF characteristics.
When using this USB modem in your computer, it must not be co-located or
simultaneously transmit with any other radio (for example, Bluetooth or WiFi radios)
in the computer.
Part 15.21 statement
Change or Modifications that are not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
Safety Guidelines
RF Exposure
Part 15.19 statement
This device and its accessories comply with part15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device & its accessories may not cause harmful interference.
(2) This device & its accessories must accept any interference received, including
interference that may cause undesired operation.
Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
