700B/700S
User’s Guide
Announcement
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules.
These
limits are designed to provide reasonable protection against harmful
interference in a
residential installation.
This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee tha
t interference will not
occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the inter ference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
-
- Increase the separation between the equipment and receiver.
-
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS
COULD VOID THE USER'S AUTHORITY TO OPER
ATE THE EQUIPMENT.
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential eletrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this monitor, observe the following basic rules for its
installation, use, and servicing. Keep it in an accessible place for future
reference.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnect device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the monitor only from a power source indicated in the specifications of
this manual or listed on the monitor. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Hands must be dry when holding the power plug to avoid an electric shock.
Do not damage the power cord by disassembling, bending, pulling or heating up.
It can cause fire or electric shock.
Make sure to completely insert the power plug. Insecure connections can cause
fire.
Do not Open the Monitor.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the monitor is not operating properly.
To Avoid Personal Injury :
Do not place the monitor on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not try to roll a stand with small casters across thresholds or deep pile
carpets.
Important Precautions
A2
Important Precautions
To Prevent Fire or Hazards:
Always turn the monitor OFF if you leave the room for more than a short period
of time. Never leave the monitor ON when leaving the house.
Keep children from dropping or pushing objects into the monitor's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this monitor.
During a lightning storm or when the monitor is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Do not bring magnetic devices such as magnets or motors near the picture
tube.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the monitor where the power cord is subject to damage.
Do not use this monitor near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Monitors are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the monitor on a bed, sofa, rug,
etc.
Place the monitor in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the monitor near or over a radiator or heat source.
Do not install the monitor in a dusty area. It can cause fire.
On Cleaning
Unplug the monitor before cleaning the face of the monitor screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the
monitor screen because overspray may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
A3A3
Connecting the Monitor
Latch
Before setting up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices.
Carefully set the monitor face-down with the underside facing you.

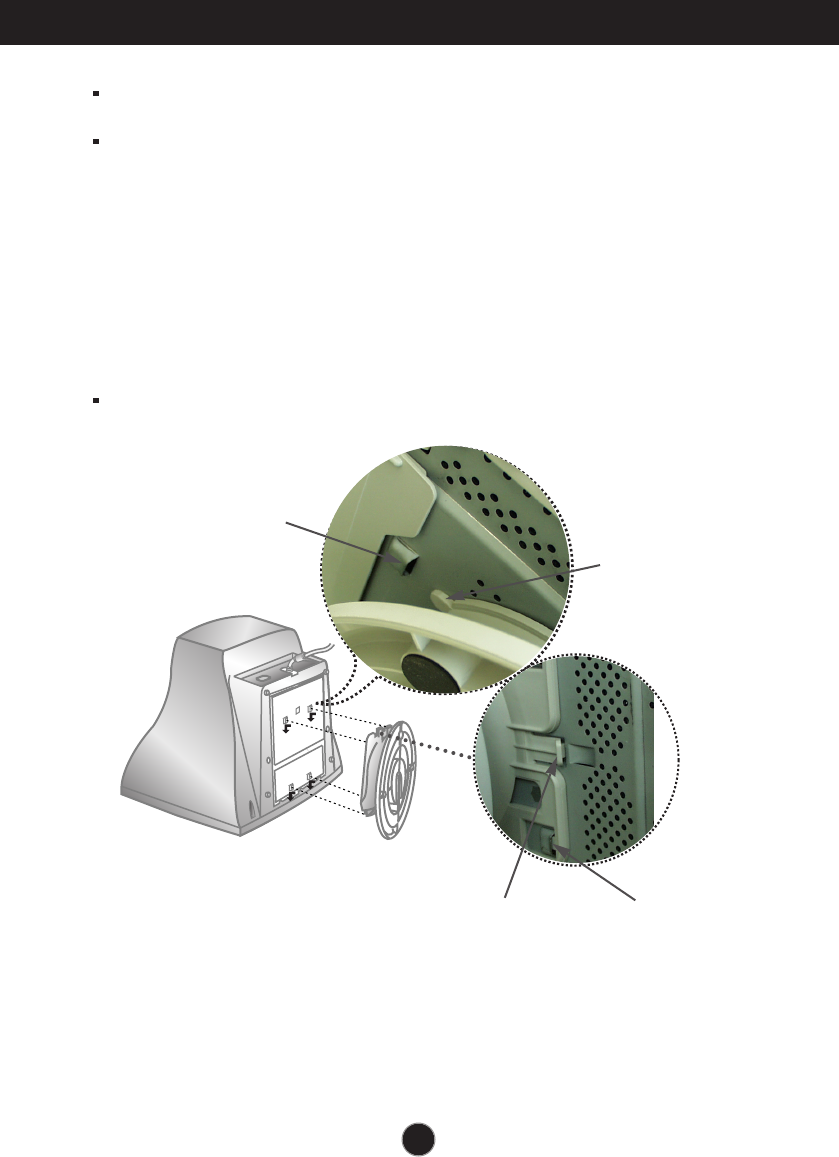

Connecting the Tilt/Swivel stand
1. Align the hooks on the tilt/swivel stand with the matching slots in the base of
the monitor.
2. Insert the hooks into slots.
3. Slide the tilt/swivel stand toward the front of the monitor until the latches click
into the locked position.
NOTE
This illustration depicts the general model of connection. Your monitor may differ from the
items shown in the picture.
Hook
Slot
Hook
A4

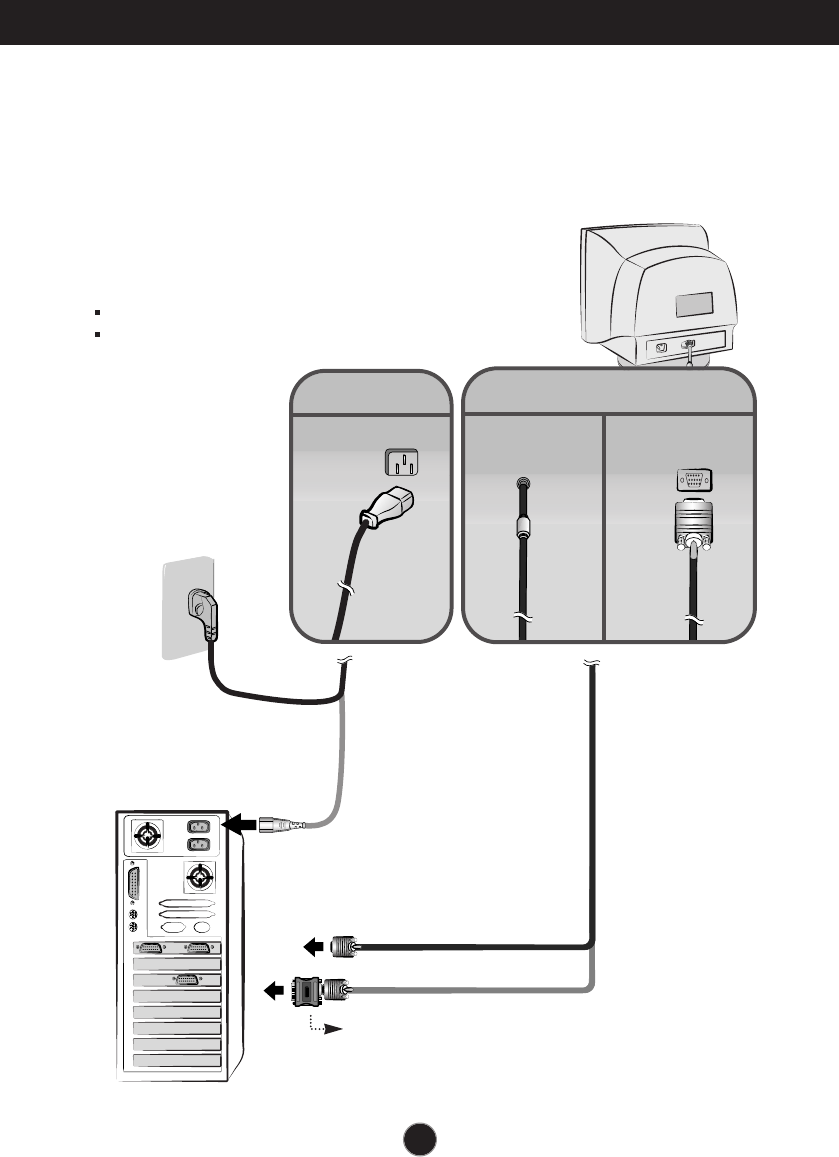

Connecting the Monitor
Using the Computer
1. Connect the signal cable. When mated, tighten the thumbscrews to secure the
connection.
2. Connect the power cord into a properly power outlet that is easily accessible and
close to the monitor.
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector
on the supplied cable to a 15 pin 2 row connector.
Wall-outlet type*
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your monitor
may differ from the view as shown.
PC-outlet type*
PC
MAC
Power Cord Signal Cable
Attached Type*Detached Type*
*
Varies according to model.
A5

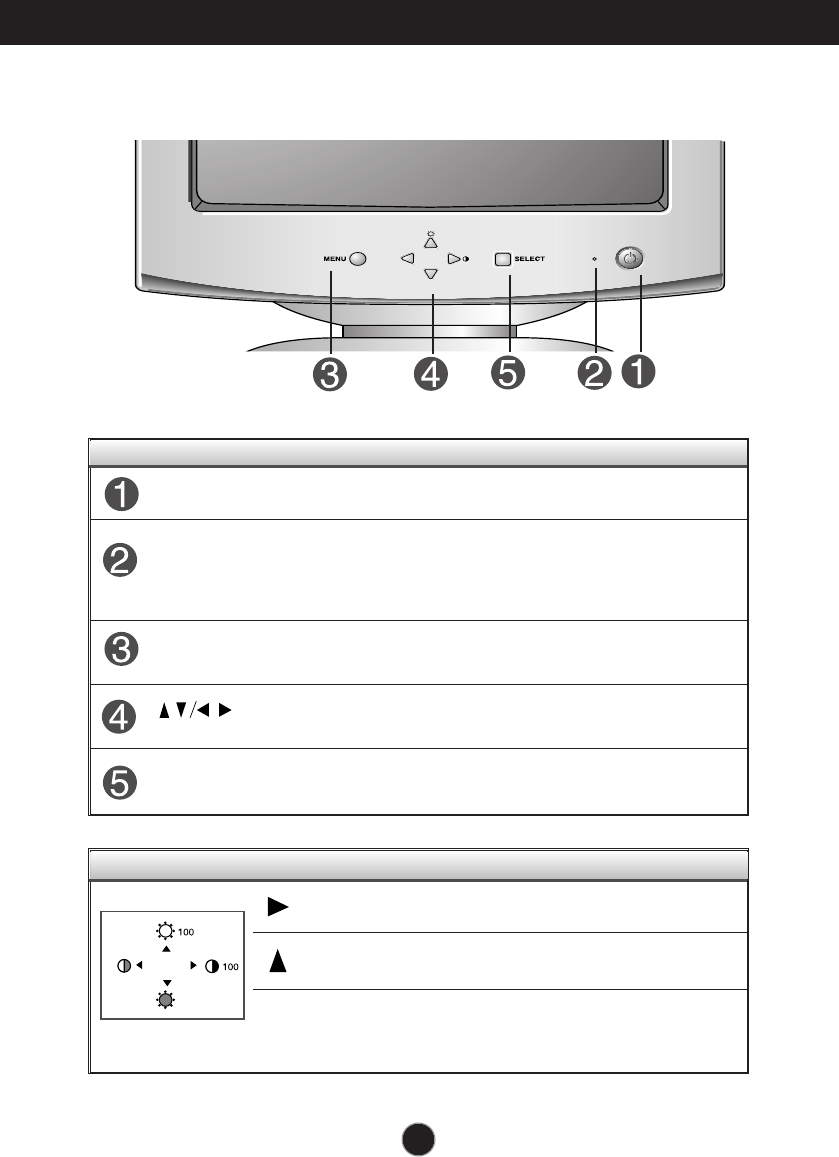

Control Panel Functions
Front Panel Controls
Buttons Use these buttons to choose or adjust items in
the on screen display.
MENU (or OSD)
Button
Use this button to enter or exit the on screen
display.
This Indicator lights up green when the monitor
operates normally. If the monitor is in DPM
(Energy Saving) mode, this indicator color changes
to amber.
Power (DPMS)
Indicator
Use this button to turn the monitor on or off.
Power Button
Use this button to enter a selection in the on
screen display.
SELECT (or SET)
Button
The Contrast and Brightness functions are also available in the
On Screen Display (OSD) menu.
Control Direct Access Function
Control Function
Button
Button
Bring up Contrast adjustment
Bring up Brightness adjustment
A6
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the monitor is quick and easy with the On Screen Display Control system. A
short example is quick and easy given below to familiarize you with the use of
the controls. The following section is an outline of the available adjustments
and selections you can make using the OSD.

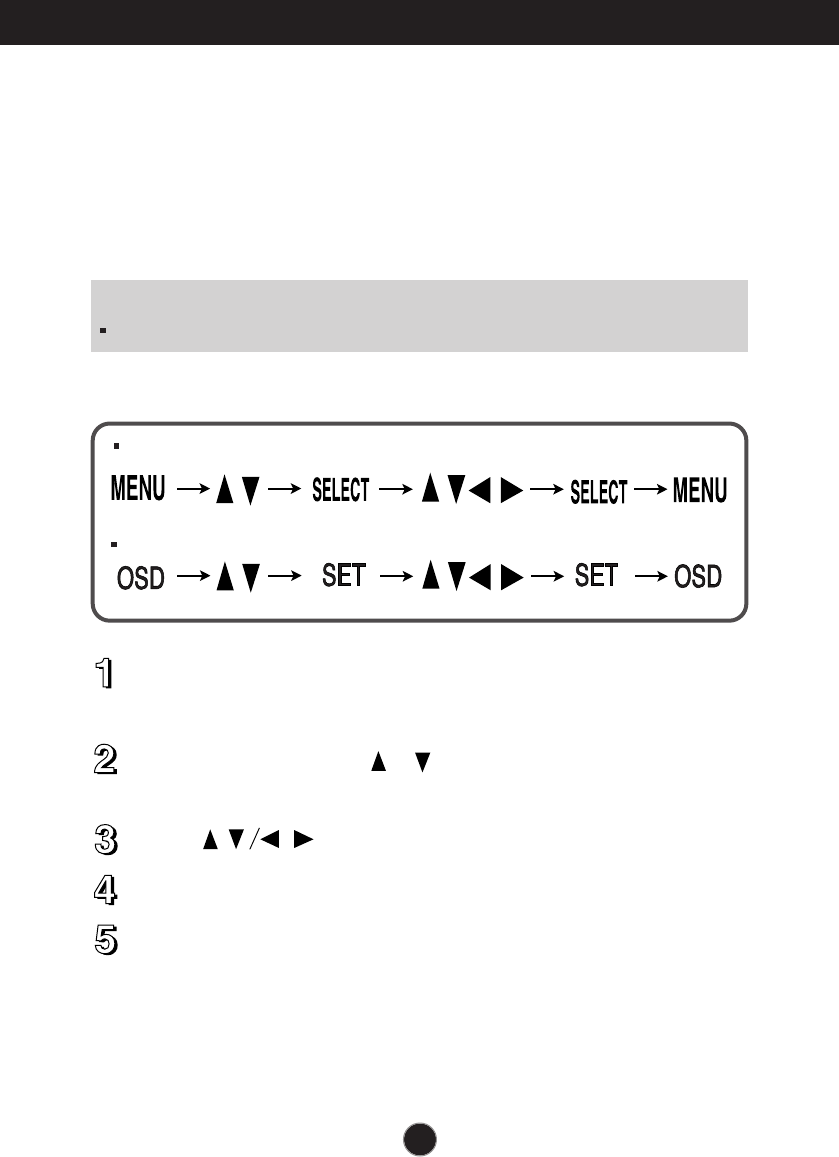

To make adjustments in the On Screen Display, follow these steps:
Press the MENU (or OSD) Button, then the main menu of the OSD
appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the SELECT (or SET) Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the SELECT (or SET) Button.
Exit the OSD by Pressing the MENU (or OSD) Button.
NOTE
Allow the monitor to stabilize for at least 30 minutes before making image adjustments.
Case 1
Case 2
A7
On Screen Display(OSD) Selection and Adjustment

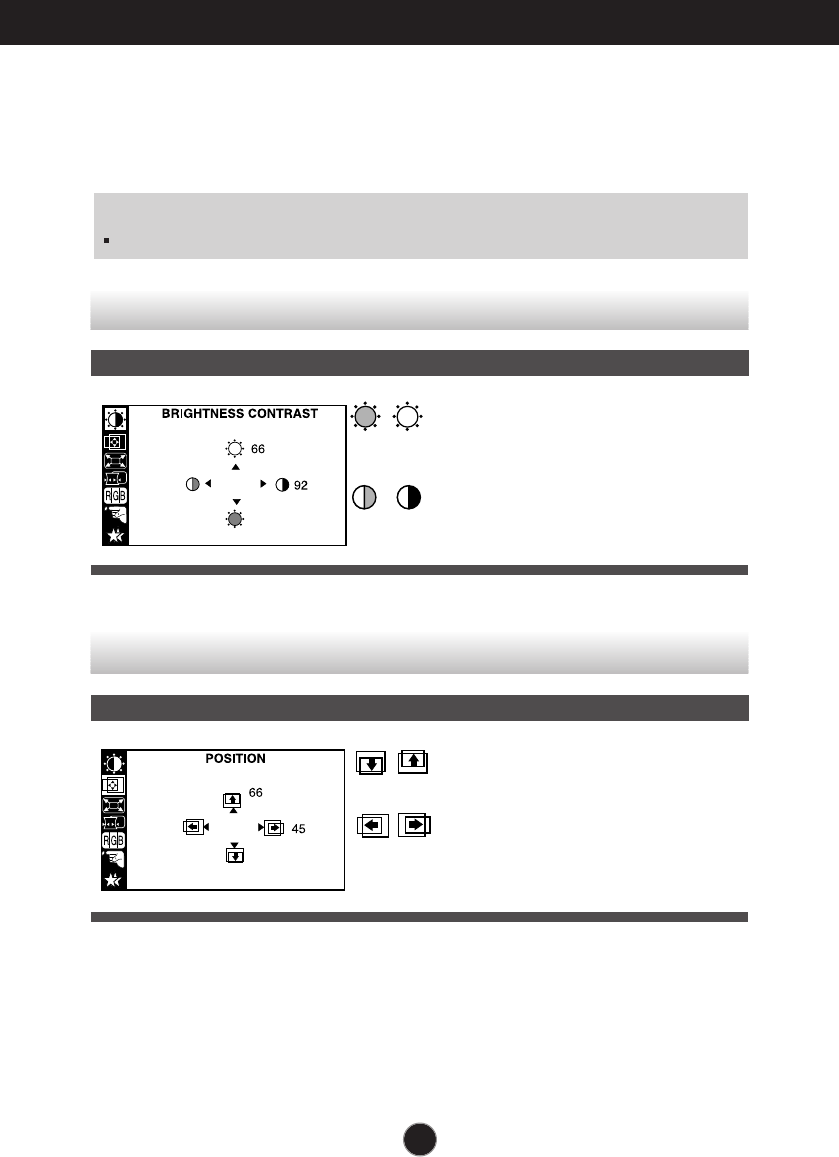

To adjust the brightness and
contrast of the screen
Brightness
Contrast
Main menu Sub menu Reference
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
BRIGHTNESS/
CONTRAST
POSITION
V Position
H Position

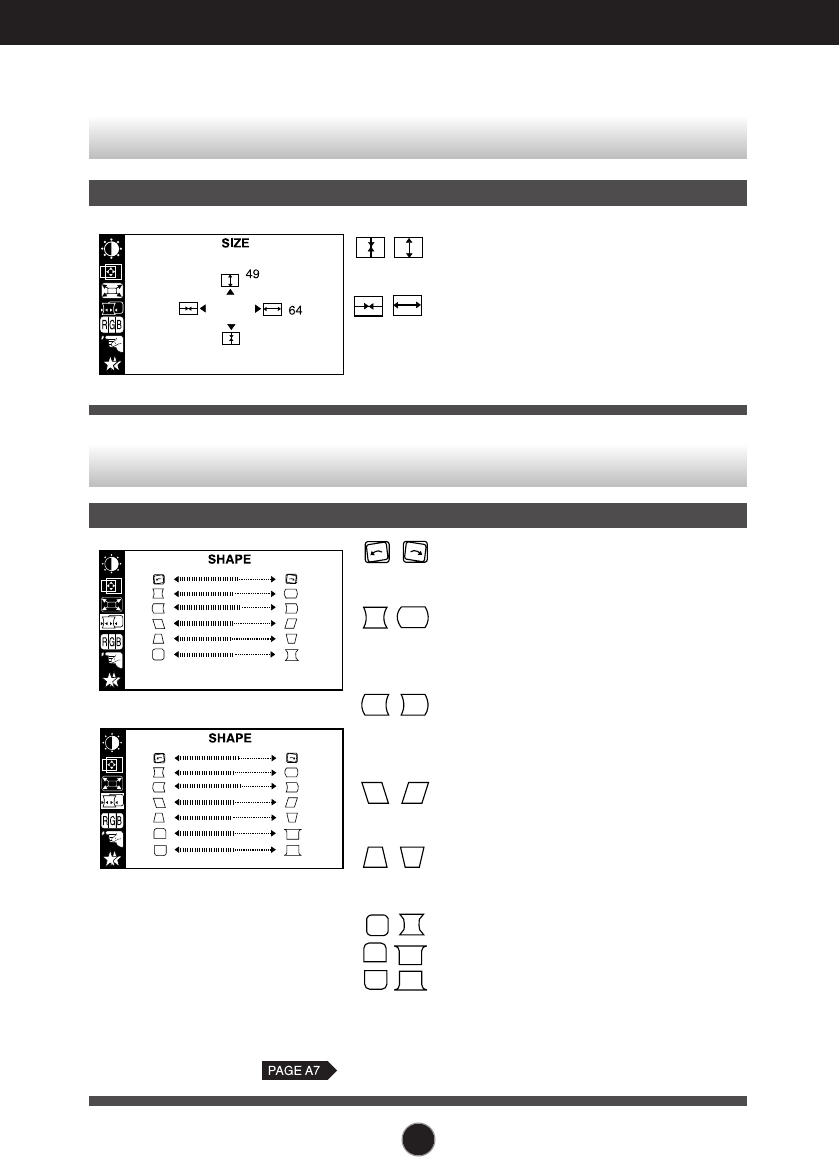

SIZE
V Size
H Size
SHAPE
Tilt
Side Pincushion
S Pincushion Balance
Parallelogram
Trapezoid
H Corner
Top Corner
Bottom Corner

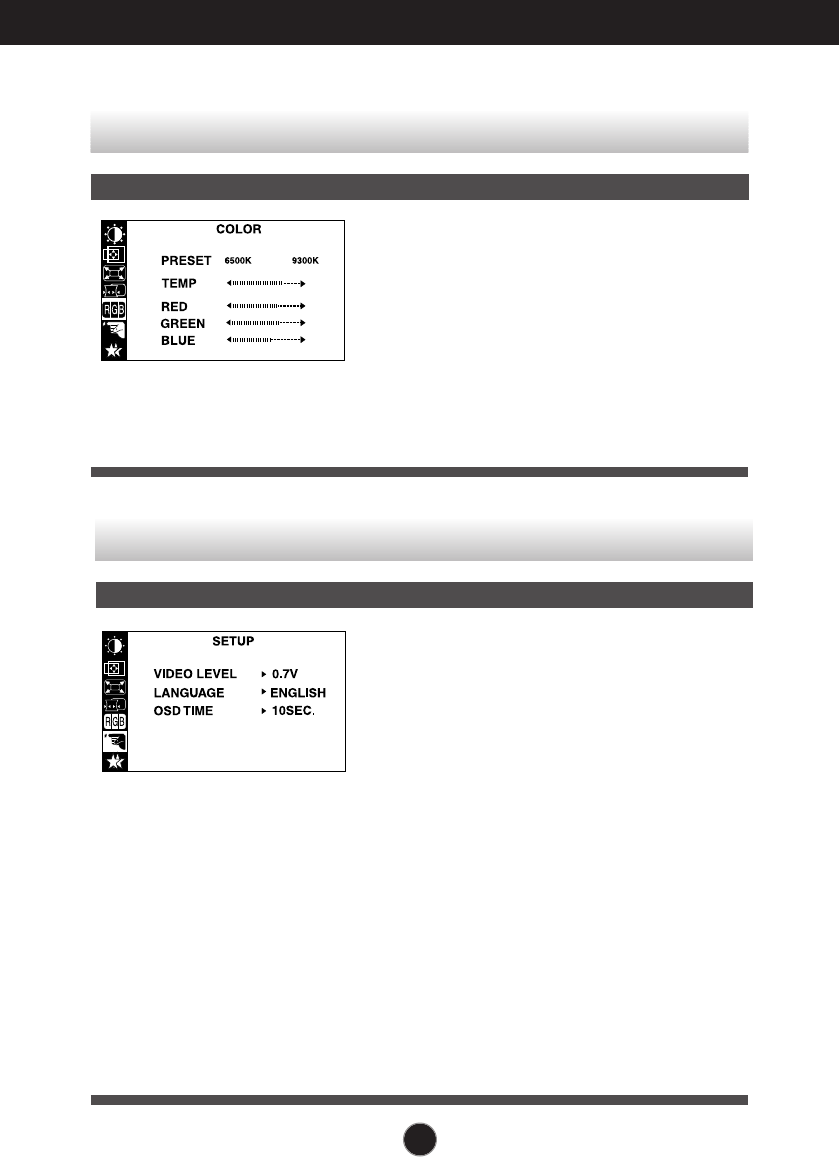

COLOR
PRESET
6500K
9300K
Temp
R/G/B(User Color)
SETUP
Video Level
Language
OSD Time

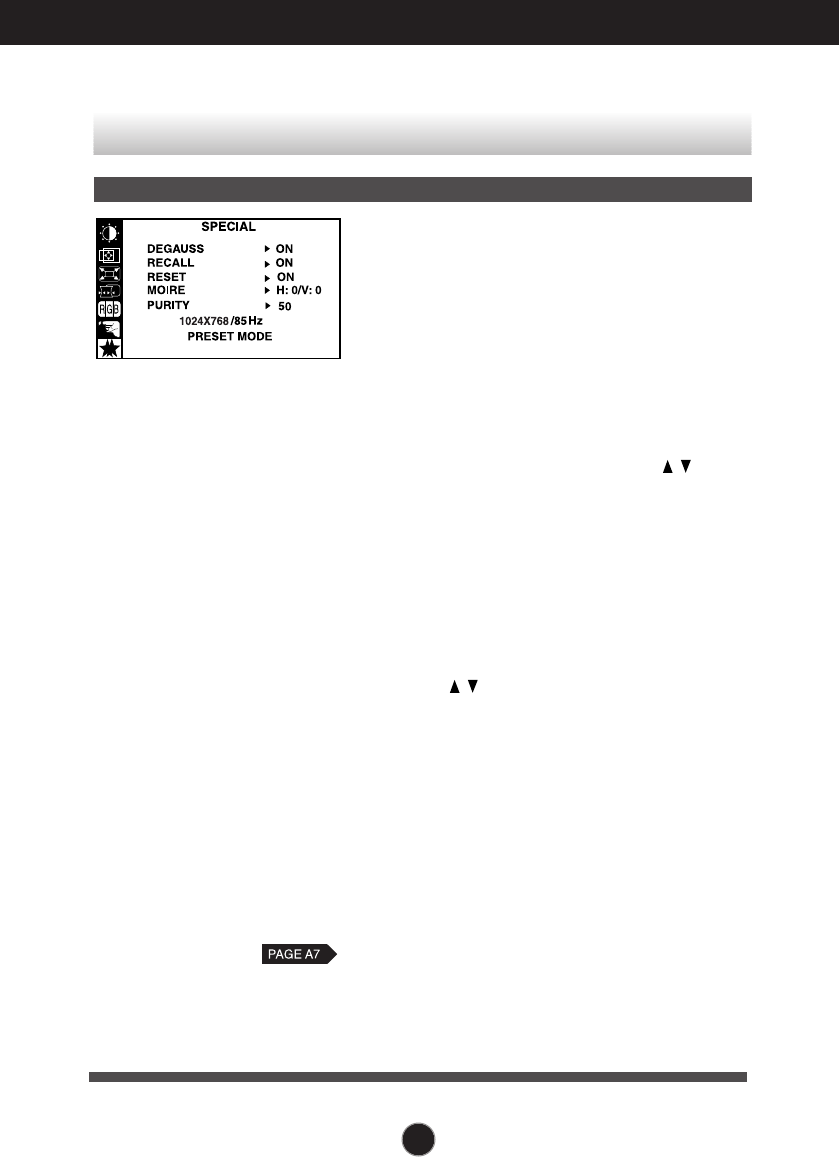

SPECIAL
Degauss
Recall
Reset
Moire H Moire
V Moire
Purity
To adjust the position of the
screen
To adjust the size of the screen
To adjust the shape of the screen
To customize the color of the
screen
To customize the screen status
for a user's operating environment
To improve the clarity and
stability of the screen
: Adjustable
A8
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
OSD Adjust Description
Brightness
To adjust the brightness of the screen.
Contrast
To adjust the contrast of the screen.
Vertical Position
To move image up and down.
Horizontal Position
To move image left and right.
To adjust the brightness and contrast of the screen
To adjust the position of the screen
OSD Adjust Description
NOTE
The order of icons may differ depending on the model (A8~A11).
A9
On Screen Display(OSD) Selection and Adjustment
Vertical Size
To adjust image height.
Horizontal Size
To adjust image width.
To adjust the size of the screen
OSD Adjust Description
To adjust the shape of the screen
OSD Adjust Description
Tilt
To correct image rotation.
Side Pincushion
To correct a concave or convex bowing of
the image.
Side Pincushion Balance
To correct the balance of both sides
bowing.
Parallelogram
To correctly adjust the skew of the image.
Trapezoid
To correct geometric distortion.
H Corner
*
Top Corner
*
Bottom Corner
*
To correct an irregular distortion of the
displayed image.
* This function is available for
designated models only.
A10
This item is used to select the monitor's
input signal level. The normal level used for
most PCs is 0.7V.
If the screen becomes suddenly washed-
out or blurred, please select 1.0V and try
again.
To choose the language in which the
control names are displayed.
OSD Menus are available in 12 languages:
English, German, French, Spanish, Italian,
Swedish, Finnish, Portuguese, Korean,
Chinese , Russian and Polish.
Set the OSD time, i.e. the length of time a
menu will remain on-screen before it shuts
off automatically. Adjust the time to 5, 10,
20, 30 or 60 seconds.
VIDEO LEVEL
LANGUAGE
OSD TIME
On Screen Display(OSD) Selection and Adjustment
PRESET
TEMP
RED
GREEN
BLUE
6500K/ 9300K
Select the screen color.
• 6500K: Slightly reddish white.
• 9300K: Slightly bluish white.
Select the screen temperature which you
prefer among reddish or bluish or any color
in between.
Set your own color levels.
To customize the color of the screen
OSD Adjust Description
To customize the screen status for a user's operating environment
OSD Adjust Description
A11
DEGAUSS
RECALL
RESET
MOIRE
PURITY*
On Screen Display(OSD) Selection and Adjustment
To manually demagnetize the screen to
avoid showing incorrect images or colors.
You can use this function to reload the
modified parameters for screen display
operation, as specified by the user after
purchase: Position, Size, Side Pincushion,
Side Pincushion Balance, Parallelogram,
Trapezoid (These recalled options may differ
depending on the mode selected: Preset,
User, or New).
If you don’t want to recall the monitor to
these modified settings, use the button
to select CANCEL and then press the
SELECT (or SET) button.
Return to all factory default settings except
"LANGUAGE": Brightness, Contrast, Tilt,
Color 9300K, Video Level, OSD Time, Moire
(These reset options may differ depending
on the mode selected: Preset, User, or
New).
If you don’t want to reset the monitor, use the
button to select CANCEL and then
press the SELECT (or SET) button.
This item allows you to reduce the degree of
moire. (Moire is caused by interference
Horizontal Scan Line with the periodical dot
screen). It is normally OFF(H:0/V:0).
The moire adjustments may affect the focus
of the screen.
Moire adjustments may shake slightly while
the moire reduction function is on.
Use to adjust the purity on the screen
if the color appears uneven.
To improve the clarity and stability of the screen
OSD Adjust Description
* This function is available for
designated models only.
A12
Troubleshooting
Check the following before calling for service.
No image appears
Is the power cord of the
monitor connected?
Is the power indicator light
on?
Is the power on and the
power indicator green?
Is the power indicator
amber?
Do you see an "OUT OF
FREQUENCY" message
on the screen?
Do you see a "SELF
DIAGNOSITICS" message
on the screen?
Check and see if the power cord is connected properly to
the power outlet.
Press the Power button.
Adjust the brightness and the contrast.
If the monitor is in power saving mode, try moving the
mouse or pressing any key on the keyboard to bring up
the screen.
This message appears when the signal from the PC
(video card) is out of horizontal or vertical frequency
range of the monitor. See the 'Specifications' section of
this manual and configure your monitor again.
This message appears when the signal cable between
your PC and your monitor is not connected. Check the
signal cable and try again.
Is the vertical frequency
less than 70Hz or is your
monitor set to the
interlaced mode?
Do you have any
magnetic material such
as adapter, or high-
voltage line near to your
monitor?
Do you hear a "~ding"
sound while the monitor
is flickering?
Set the vertical frequency to 72Hz or higher, and
consult the video card user manual for instructions on
converting to a non-interlaced mode.
(You can set this option under the Display icon of the
Control Panel.)
Remove magnetic sources, such as power
adapters, speakers, or high-voltage lines, away from
the monitor.
Use the normal degaussing function. This function
clears the screen and reduces any screen blur that
may occur due to the surrounding magnetic field. The
screen may flicker for about 5 seconds, accompanied
by a "~ding" sound.
The screen is flickering.
A13
Troubleshooting
Do you see basic
discoloration (16 colors)?
Is the screen color unstable
or monochrome?
Do you see black dots on
the screen?
Do you see a partial
blurring on the screen?
Set the color depth to 256 colors or higher: use 'Control
Panel' 'Display' 'Settings' 'Color Palette'
Check the connection of the signal cable. Or pull out the
video card of the PC and insert it again.
This is due to a small amount of foreign or abnormally
florescent material that became fastened on the mask
during manufacturing. It will not affect product
performance.
This happens due to interference from surrounding
magnetic fields, as created when speakers, steel
structures, or high-voltage lines are placed near the
monitor. Remove any such materials from the
immediate vicinity and use the DEGAUSS icon on the
screen adjustment menu to fix the screen.
Do you see the after-image
even when you turn off
the monitor?
A premature aging of the monitor pixels may cause the
prolonged display of a single image on the screen. Be
sure to use a screen saver to maximize the service life of
the monitor.
The screen color is not normal.
I see an after-image on the screen.
Do you see the wave
directly on the screen? This occurs in inverse proportion to the screen focus,
which can be caused by a particular frequency or video
card. Brighten the screen and use the 'MOIRE' icon on
the screen adjustment menu to adjust the screen.
I see waves on the screen.
Have you installed the
monitor driver? Be sure to install the monitor driver from the monitor
driver CD (or diskette) that comes with your monitor. Or,
you can also download the driver from our web site:
http://www.lge.com.
Have you installed the monitor driver?
A14
Specifications
NOTE
Information in this document is subject to change without notice.
17 inches (16.0 inches viewable)
90 degree deflection
0.27mm dot pitch
AGARAS(Anti-Glare Anti-Reflective Anti-Static) coating
Horizontal Freq. 30 - 71kHz (Automatic)
Vertical Freq. 50 - 160Hz (Automatic)
Input Form Separate TTL, Positive/Negative
Signal Input 15 pin D-Sub Connector
Input Form
Separate, RGB Analog, 0.7Vp-p/75 ohm, Positive
Max VESA 1280 x 1024@60Hz
Recommend VESA 1024 x 768 @85Hz
DDC 2B
Normal
73W
Stand-by/Suspend
≤15W
DPMS Off ≤ 5W
Width 40.0 cm / 15.7 inches
Height 39.5 cm / 15.6 inches
Depth 42.0 cm / 16.5 inches
Net 14.1 kg (31.08 lbs)
AC 100-240V~ 50/60Hz 2.0A
Operating Conditions
Temperature 0˚C to 40 ˚C
Humidity 10 % to 90 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached( ), Detached ( O )
Attached( O ), Detached ( )
Wall-out type or PC-outlet type
Picture Tube
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
&Weight
(with tilt/ swivel
stand)
Power Input
Environmental
Conditions
Tilt/Swivel Stand
Signal cable
Power cord
A15
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
640 x 480
800 x 600
800 x 600
1024 x 768
37.50
46.88
53.68
68.677
75
75
85
85
VESA
VESA
VESA
VESA
Digitally yours
